PROTOCOL: Evidence and Gap Map Protocol: Interventions promoting safe water,sanitation,and hygiene for households,communities,schools,and health facilities in low- and middle-income countries

Abstract

Background

The problem

According to the Joint Monitoring Programme (JMP), an estimated 844 million people do not use improved water sources and 2.3 billion lack access to even a basic sanitation service (WHO/UNICEF JMP, 2017). Worldwide, 892 million people still practice open defecation. Rural, poor and, vulnerable households have particularly limited access to adequate facilities and inequities are often regionally focused. Populations in sub-Saharan Africa and Oceania are lagging behind in access to improved drinking water sources, whilst South Asia and sub-Saharan Africa have the highest concentrations of open defecation.

Limited, or no, access to safe facilities for eliminating human waste, gathering clean drinking water, or practicing hygienic washing and food preparation practices exposes individuals to higher-levels of contagious pathogens. There is evidence to suggest that poor water, sanitation, and hygiene (WASH) conditions are associated with high levels of diarrhoeal disease (Clasen et al., 2015; De Buck et al., 2017), respiratory infections (Aiello et al., 2008), parasitic worm (e.g. helminth and schistosome) infections (Ziegelbauer et al., 2012), trachoma (Rabiu et al. 2012), and possibly even tropical enteropathy (Cumming and Cairncross, 2016). Chronic high infection rates are among the leading causes of undernutrition and death in children (Cairncross et al. 2014). Diarrhoeal diseases, in particular, are the second most common cause of death for children under the age of five; diarrhoeal diseases, in particular, are estimated to kill 480,000 children a year (UNICEF, 2018). Beyond the health consequences, poor quality WASH conditions may also lead to long-term adverse social and economic outcomes including diminished educational attainment (Hennegan et al., 2016), due to both children's school enrolment and attendance as well as teacher attendance, and implications for employment, life-time wage earnings and income (Hutton et al., 2007; Turley et al. 2013).

Inadequate access affects disadvantaged groups disproportionately, but women and girls are particularly badly affected by the costs of having limited access to WASH facilities. They often carry the majority of the burden associated with collecting water (including time, calories spent, musculoskeletal injuries, risks of assault and attack by humans and wild animals, and road casualties), and can be placed in high-risk situations when using unsafe places to defecate (Cairncross and Valdmanis, 2006; Cairncross et al., 2010; Sorenson et al., 2011; Sahoo et al., 2015). Women and adolescent girls also experience particular hardships where inadequate WASH facilities constrain menstrual hygiene management (Hennegan et al., 2016; Sumpter and Torondel 2013). There may also be adverse maternal and child health implications due to inadequate WASH services in health facilities and other places of newborn delivery (Benova et al., 2014).

In 2015, more than 150 world leaders adopted the new 2030 Agenda for Sustainable Development, which sets new goals for 2030 that build upon, and go even further, than the Millennium Development Goals (MDGs). Sustainable Development Goal (SDG) 6 aims to ‘ensure the availability and sustainable management of water and sanitation for all’ by 2030 (UN Water, 2018). In order to help achieve these universal targets, which includes reaching the most disadvantaged populations, decision makers need access to high quality evidence on what works in WASH promotion in different contexts, and for different groups of people. Both impact evaluations and evidence syntheses can be useful to decision makers. Single impact studies are useful for providing information on how a programme functions in a specific context; for example, the recent WASH-Benefits trials were unable to detect effects of combined or single water, sanitation, or hygiene interventions on child linear growth in Bangladesh and Kenya (Luby et al., 2018; Null et al., 2018). However, there has been criticism of the generalisability of the studies and the interventions provided (Cumming and Curtis, 2018; Coffey and Spears, 2018). On the other hand, high quality systematic reviews critically appraise and corroborate the findings from individual studies, as well as providing a steer to decision makers about which findings are generalisable and which are more context-specific (Waddington et al., 2012).

For policymakers, practitioners and commissioners of research to make informed decisions, they need to be able to identify where high quality evidence exists in usable formats, and where more evidence is needed. There are also concerns about approaches used to measure outcomes in WASH sector primary research, such as self- and carer-reporting of diarrhoeal disease (e.g. Schmidt and Cairncross, 2009). These concerns necessitate, firstly, examining the critically appraised evidence (from systematic reviews) and, secondly, evidence on a wide range of behavioural, health and socio-economic outcomes.

What remains an issue, therefore, is the extent of evidence on the effectiveness of interventions to improve access to WASH services for households, communities, schools and health facilities on outcomes in the round, and an assessment of what primary and synthesised evidence is still needed across different low- and middle-income countries and regions.

Scope of the evidence and gap map

Water, sanitation and hygiene (WASH) interventions have two important components to them – the ‘what’ and the ‘how’. The ‘what’ describes the technology that the participants end up with (for example, a latrine) and the ‘how’ describes the mechanism of the intervention (for example, whether toilets are provided on a subsidised basis or at full cost with some form of social marketing). Prior to the early-2000s, the focus of the conversation was principally on ‘what’ works; research was centred on understanding and demonstrating the short and long term consequences of providing a technology. However, over the last 15 years the conversation has increasingly switched from not just what technology to provide but what is the best way to both get it into the community and have it be regularly used. This has seen the rise of behaviour change and systems-based approaches. Due to this changing focus, the principal interventions will be defined by the mechanisms (the ‘how’); this means that the evidence gap map will present intervention mechanisms against outcomes. There will then be a filter for the technology provided by the intervention; this will allow for easy comparison of the evidence for different mechanisms of providing, for example, latrines.

Mechanisms for providing WASH technologies can be classified into four main groups; direct provision, health messaging, psychosocial ‘triggering’, and systems-based interventions. The below definitions have been adapted from relevant literature in the field (De Buck et al., 2017 and Poulos et al., 2006):

Direct provision mechanisms cover all interventions where hardware (such as a latrine or water purifier) is provided for free and has been chosen by an external authority (such as a non-governmental organization).

Health messaging, most often focused on sanitation or hygiene, is typically a directive educational approach designed to help individuals, or communities, improve their health through increasing their knowledge and/or skills.

Psychosocial ‘triggering’ falls into two subcategories of directive and participative approaches. Both subcategories use behavioural factors which have been derived from psychosocial theories (such as emotions, like disgust and the desire to be a good parent, or social pressure) to motivate behaviour change, rather than reason. An example of this approach is community-led total sanitation (CLTS) where the community is encouraged to discuss how they would like sanitation practices to change, identify problem areas (e.g. ‘walks of shame’), and use social cohesion and pressure to motivate people to construct latrines and stop practicing open defecation (Kar and Chambers, 2008).

Systems-based mechanisms try to change people's behaviour by changing the wider system around them. These approaches include pricing reform, improving operator performance, private sector (PS) and small-scale independent provider (SSIP) participation, and community driven development (CDD).

The behavioural change communication (BCC) approaches – health messaging and psychosocial ‘triggering’ – are often combined with both direct provision and systems-based approaches in an attempt to simultaneously overcome the social and financial barriers to accessing appropriate WASH services.

WASH technologies for household and personal consumption can be classified into four main, related, groups: water quantity, water quality, sanitation hardware and sanitation software (hygiene) (Esrey et al., 1991):

Water quantity technologies provide a water supply or distribution system. Water may be supplied to communities at source, such as through a public standpipe, or at point-of-use (POU), such as being piped directly to households.

Water quality technologies provide the means to protect water from, or treat water to remove, microbial contaminants. Examples of water treatment technologies include filtration, chlorination, flocculation, solar disinfection, boiling, and pasteurising. Water quality improvements are most commonly undertaken in the household, rather than at the source, though this class of interventions also includes treatment at source and provision of containers for safe transportation and storage of water.

Sanitation technologies provide means to dispose of excreta (such as faeces), through new or improved latrines or connection of existing latrines to the public sewer.

Hygiene technologies consist of hygienic practices, and facilitators of these such as soap, hand sanitisers, and washing stations. Hygiene practices are most often focused on handwashing but can also include food hygiene, such as proper food storage and washing dishes appropriately, as well as wearing appropriate footwear, or menstrual hygiene management.

A third important dimension to any intervention is how, or where, participants interact with it in terms of both their social and physical environments. Interventions that seem similar can be very different in nature, and their outcomes not necessarily comparable, due to the space they inhabit. An ecological model can be integrated into the types of technology to reflect where a technology is used. The place of use is important in the WASH sector as it affects the convenience to users, and therefore adoption rates, as well as how the intervention disrupts the causal chain of disease transmission. The four main spaces in which WASH technologies are provided are in the home (for use by an individual household only), in the community (to be shared), at a school, and at a health facility.

Multiple mechanisms can be used in one programme; for example, soap could be directly provided with a social marketing campaign on handwashing. Multiple WASH technologies are also often be provided together in programmes where they are combined. A common example is combined water supply and sanitation (WSS) programmes.

The quality of water supply, sanitation and hygiene facilities – that is, the extent to which they are likely to provide potable drinking water or safe removal of excrement from the human environment, or enable hygienic hand-washing – is dependent on the type of water or sanitation facility. Table 1 lists types of improved and unimproved water, sanitation and hygiene facilities according to WHO/UNICEF JMP (2017).

Table 1

JMP classification of water, sanitation and hygiene facilities

	Drinking water	Sanitation	Hygiene
Improved facilities	Piped supplies: Tap water in the dwelling, yard, or plot Public standposts/pipes Non-piped supplies: Boreholes / tubewells Protected wells and springs Rainwater Packaged water, including bottled water and sachet water Delivered water, including trucks and small carts Improved sources that require less than 30 minutes round-trip to collect are defined as ‘basic water’. Improved sources requiring more than 30 minutes are defined ‘limited water’.	Networked sanitation: Flush and pour flush toilets connected to sewers On-site sanitation: Flush or pour flush toilets connected to septic tanks or pits Pit latrines with slabs Composting toilets, including twin pit latrines and container-based systems Shared facilities of the above types are defined as ‘limited sanitation’.	Fixed or mobile handwashing facilities with soap and water (defined as ‘basic hygiene’): Handwashing facility defined as a sink with tap water, buckets with taps, tippy-taps, and jugs or basins designated for handwashing. Soap includes bar soap, liquid soap, powder detergent, and soapy water. Handwashing facilities without soap and water (e.g. ash, soil, sand or other handwashing agent) are defined as ‘limited hygiene’
Unimproved facilities	Non-piped supplies: Unprotected wells and springs.	On-site sanitation or shared facilities of the following types: Pit latrines without slabs Hanging latrines Bucket latrines
No facilities	Surface water (e.g. drinking water directly from a river, pond, canal or stream)	Open defecation (disposal of human faeces in open spaces or with solid waste)	No handwashing facility on premises

Drinking water

Sanitation

Hygiene

Improved facilities

Piped supplies:

Tap water in the dwelling, yard, or plot

Public standposts/pipes

Non-piped supplies:

Boreholes / tubewells

Protected wells and springs

Rainwater

Packaged water, including bottled water and sachet water

Delivered water, including trucks and small carts

Improved sources that require less than 30 minutes round-trip to collect are defined as ‘basic water’. Improved sources requiring more than 30 minutes are defined ‘limited water’.

Networked sanitation:

Flush and pour flush toilets connected to sewers

On-site sanitation:

Flush or pour flush toilets connected to septic tanks or pits

Pit latrines with slabs

Composting toilets, including twin pit latrines and container-based systems

Shared facilities of the above types are defined as ‘limited sanitation’.

Fixed or mobile handwashing facilities with soap and water (defined as ‘basic hygiene’):

Handwashing facility defined as a sink with tap water, buckets with taps, tippy-taps, and jugs or basins designated for handwashing.

Soap includes bar soap, liquid soap, powder detergent, and soapy water.

Handwashing facilities without soap and water (e.g. ash, soil, sand or other handwashing agent) are defined as ‘limited hygiene’

Unimproved facilities

Non-piped supplies:

Unprotected wells and springs.

On-site sanitation or shared facilities of the following types:

Pit latrines without slabs

Hanging latrines

Bucket latrines

No facilities

Surface water (e.g. drinking water directly from a river, pond, canal or stream)

Open defecation (disposal of human faeces in open spaces or with solid waste)

No handwashing facility on premises

Source: Based on WHO/UNICEF (2017).

Conceptual framework of the EGM

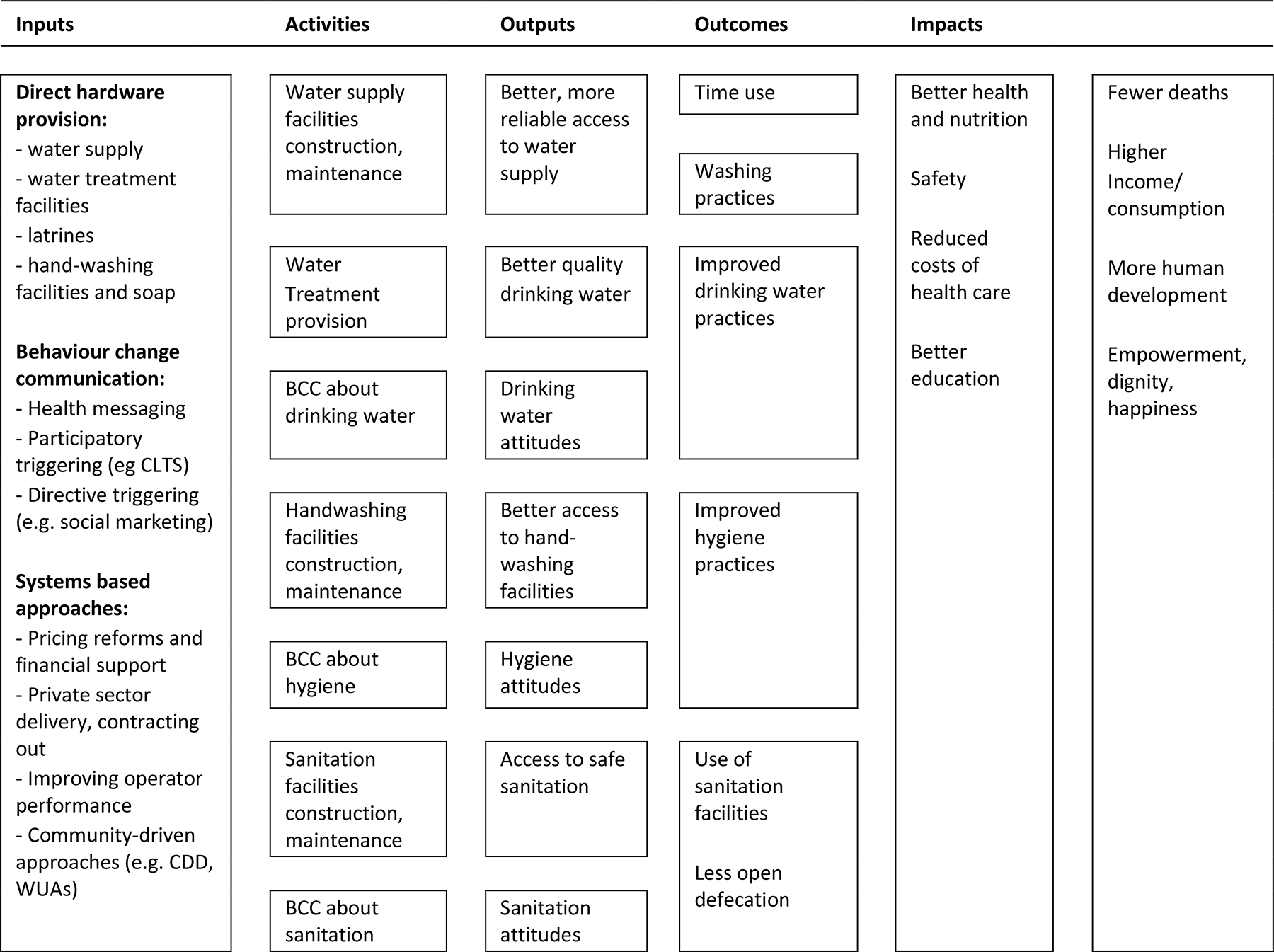

The conceptual framework links WASH interventions with impacts along the causal chain (Figure 1). Sector interventions – water and sanitation hardware and software provision and interventions in sector governance (e.g. contracting out and subsidies) – are presented to the left of the figure. Impacts on wellbeing – health, education, income and empowerment – are presented on the right. The conceptual framework shows the causal chain through which inputs are turned into final wellbeing impacts, through activities (construction of new facilities or behaviour change campaigns), outputs (better access to and quality of services) and outcomes (behaviour change, better use of those services).

WASH interventions conceptual framework

The links in the chain are not automatic. For example, in the particular case of water quality, faecal contamination of drinking water between source and point-of-use (POU) means that hygienic approaches may be needed to store clean water collected at source, or treat water for contaminants in the household (POU). Better access to water supply (quantity) may improve health by reducing contamination in the environment by enabling better personal hygiene (e.g. handwashing) and environmental hygiene (e.g. safe disposal of faeces). Factors such as environmental faecal contamination may prevent impacts from clean drinking water provision being realised. Sustainability of impacts requires continued (permanent) adoption and acceptance by beneficiaries as well as appropriate solutions to reduce ‘slippage’ in improved behaviour and financial barriers to uptake and technical solutions to ensure service delivery reliability. Scalability requires that impacts which are demonstrated under ‘ideal settings’ of trials are achievable in the context of ‘real world’ programme implementation, where beneficiaries may not constantly be reminded to use technologies appropriately.

Why it is important to develop the EGM?

Progress towards the Millennium Development Goals (MDGs) was uneven in the sector. The MDG drinking water target to “halve the number without access to safe drinking water (defined as access to water from an improved source within one kilometre of the household)” was declared met in 2012, but of those who did gain improved access to drinking water since 1990, supplies are mainly provided at the community level and are often unreliable (WHO/UNICEF, 2013). The MDG sanitation target to “halve the number without access to sanitation by 2015” was missed (UN, 2015).

The Sustainable Development Goals (SDGs) are aspirational, aiming for universal coverage by 2030, and adding targets for hygiene.¹ The SDG targets are as follows (WHO/UNICEF JMP, 2017):

To provide safe and affordable drinking water for all, measured by population using safely managed drinking water that is an improved drinking water source, located on premises, available when needed and free from contamination (SDG 6.1).

To end open defaecation and provide adequate and equitable sanitation for all, measured by population using safely managed sanitation services and a basic handwashing facility with soap and water (SDG 6.2). Safely managed sanitation is defined as an improved facility where excreta is treated and disposed of in situ or off-site.

To ensure all men and women have access to basic services, including basic drinking water, sanitation and hygiene (SDG 1.4).

In order to move towards these ambitious targets, it is likely that substantial improvements in resource allocation will be needed to promote interventions which are effective in improving behaviours and outcomes in particular contexts. The purpose of this evidence gap map is to assist policy-makers and practitioners in gaining access to evidence on the effectiveness of WASH interventions.

In 2014, 3ie produced an evidence gap map (EGM) on the effectiveness of WASH interventions in improving quality of life outcomes. That map includes evidence until February 2014 and only considered quality of life outcomes (health and non-health) as primary outcomes. Behaviour change outcomes were included as secondary outcomes, provided the study also included primary outcomes. In addition, the map excluded interventions in health facilities. This update aims to capture studies conducted since, as well as broadening the included interventions and outcomes to better reflect the state of evidence on WASH in 2018.

Existing evidence maps and relevant systematic reviews

In 2014, 3ie produced an evidence gap map for household and community interventions for promoting water, sanitation, and hygiene consumption in LMICs.² The present study is an update of that map. We are updating the searches and the scope of that map to incorporate: 1) behaviour change as a primary outcome; and 2) water, sanitation and hygiene interventions based in health facilities to improve maternal and child health. A large number of impact evaluations and systematic reviews of WASH interventions will be incorporated in the map. For example, Table 2 lists some reviews of interventions for water, sanitation and hygiene promotion in households and communities, many published prior to 2014.

Table 2

Systematic reviews of WASH interventions

Outcomes	Systematic reviews
Diarrhea	Curtis & Cairncross 2003 Gundry et al. 2004 Fewtrell & Colford 2004 (also published as Fewtrell et al. 2005) Arnold and Colford 2007 Clasen et al. 2007 Ejemot et al. 2008 Waddington et al. 2009 Hunter 2009 Clasen et al. 2010 Cairncross et al. 2010 Norman et al. 2010
Respiratory infections	Aiello et al. 2008 Rabie and Curtis 2006
Helminth infections	Ziegelbauer et al. 2012
Trachoma	Ejere et al. 2012
Arsenic contamination	Jones-Hughes et al. 2013
Nutrition	Dangour et al. 2013
Education	Jasper et al. 2012 Birdthistle et al. 2011
Income	Turley et al. 2013
Attitudes and behaviour	Null et al. 2012 De Buck et al. 2017

Objectives

The overarching aim of the evidence map is to gather and present the rigorous empirical research on the effectiveness of interventions to improve consumption of water, sanitation and hygiene in the household, communities, schools and health facilities. This protocol provides the project plan for an update to the 2014 WASH evidence gap map (EGM) to take stock of the existing evidence, and capture newly published work, on the effects of interventions in these areas.

The aim of the EGM is to identify, map, and describe existing evidence on the effects of interventions to improve access to, and quality of, WASH infrastructure, services, and practices in low- and middle-income countries. This update of the original map aims to capture additional studies conducted in the last three years and extend the scope of the EGM, in particular to cover behavioural outcomes and WASH interventions at healthcare facilities. The primary outcomes for this gap map include morbidities (e.g. diarrhoea), mortality, psychosocial health, nutritional status, education, income, and time use. In addition, behavioural outcomes will also be included as primary outcomes, such as water treatment practices, hygiene behaviour, and latrine construction in CLTS.

The update of the EGM addresses three objectives:

(1)

To identify existing evidence from high quality impact evaluations and systematic reviews (SRs), particularly those published since 2014, which can be used to inform policy.

(2)

To expand the scope of the EGM to better capture WASH behaviour change and programmes implemented at healthcare facilities, with the aim of improving the map's policy relevance.

(3)

To identify existing gaps in evidence where new primary studies and systematic reviews could add value.

The results from this EGM aim to inform the direction of future research surrounding WASH, and discussions based on systematic evidence about which approaches and interventions are most effective in the WASH sector, whether they are used in small scale projects or large scaled-up programmes.

Methodology

Defining evidence and gap maps

Evidence gap maps aim to establish what we know, and do not know, about the effectiveness of interventions in a thematic area (Snilstveit et al., 2016).³ The evidence gap map presented here includes evidence from primary studies and systematic reviews. It provides a graphical display of interventions and outcomes, indicating the density and paucity of available evidence, and gives confidence ratings for systematic reviews. Evidence gap maps articulate absolute gaps, which are filled with new primary studies, and synthesis gaps, which are filled with new systematic reviews and meta-analyses. They are global public goods which attempt to democratise high quality research evidence for policy makers, practitioners, the public and research commissioners.

Table 3

Intervention mechanism classifications

Mechanism of delivery	Sub-categories	Interventions
Direct provision	None	The provision of any WASH hardware for free and which has been chosen by an external authority. This includes interventions where soap is handed out, water purifiers given away, or latrines built by external actors.
Health messaging	None	Directive hygiene, and sometimes sanitation, education where participants are provided with new knowledge or skills to improve their health. These information campaigns may be provided by television, radio, or printed media; provided directly to specific households or through sessions at community meetings / schools / etc.; or provided directly to community leaders or health workers.
Psychosocial ‘triggering’	Directive	Psychosocial ‘triggering’ covers campaigns that use emotional and social cues, pressure, or motivation to encourage community members to change behaviours. Directive mechanisms are typically social marketing campaigns, which use commercial marketing techniques to promote the adoption of beneficial behaviours.
Psychosocial ‘triggering’	Participatory	Participatory mechanisms are typically a community-based approach and promote behaviour change through consultation with the community, a two-way dialogue, and joint-decision making. Community-led total sanitation (CLTS) is the most common intervention with this mechanism.
Systems-based approaches	Pricing reform	This covers all interventions that aim to change behaviour, such as the use of a technology, through changing the price of the requisite hardware. This includes subsidies and vouchers aimed at consumers.
	Improving operator performance	These interventions improve access to WASH facilities and services by improving the functioning of the current service provider. This includes improving accountability, increasing oversight/regulation, and changing the financing structure.
	Private sector (PS) and small-scale independent providers (SSIPs) involvement	These interventions encourage the private sector, including not for profits, to become the providers of WASH facilities and services on a commercial basis.
	Community driven development (CDD)	CDD is a form of decentralised delivery that focuses on putting the community at the centre of the planning, design, implementation, and operations of their service provider. It typically uses a participatory approach, cost sharing, and often a component of local institutional strengthening. It includes social funds.
Multiple mechanisms	Direct provision with health messaging	These interventions combine the direct provision of hardware with an intensive health messaging campaign. If only a single session is provided to explain the new hardware, this would simply appear under “direct hardware provision”.
	Direct provision with psychosocial ‘triggering’	These interventions combine the direct provision of hardware with behavioural change communication that uses psychosocial triggers; these can be either participatory or more often directive (e.g. a social a marketing campaign).
	Systems-based approaches with health messaging	These interventions combine systems-based approaches (e.g. subsidies) with health messaging.
	Systems-based approaches with psychosocial ‘triggering’	These interventions combine systems-based approaches with behavioural change communication that uses psychosocial triggers.

The framework

The framework for this evidence map (Appendix A) is based on the previous WASH evidence map framework developed by the authors (see footnote 2). However, the framework was updated based on a review of the academic and policy literature, and in consultation with relevant decision makers and other key stakeholders (see stakeholder engagement below). The included systematic reviews and impact evaluations will be identified through a comprehensive search of published and unpublished literature. It will include both completed and on-going studies to help identify research in development that might help fill existing evidence gaps.

The finalised updated evidence map will be structured around a framework of policy relevant WASH mechanisms and outcomes, with a filter for technologies, and will be available online at 3ie's evidence gap map portal.⁴ Key features include:

Table 4

Intervention technology classifications

WASH technologies	Sub-categories	Interventions
Water Supply	Source	New or improved water supply or distribution methods that do not provide the water directly to households. This includes boreholes or standpipes that require travel for water collection.
Water Supply	Point of use (POU)	New or improved water supply or distribution methods that provide water directly to the household or at a communal point that requires no travel (i.e. in a garden shared by 20 houses). This includes water directly piped to houses or standpipes within the near vicinity.
Water Quality	Source	Supplies for, and information on, wither water treatments to remove microbial contaminants or safe water storage practices at a communal water access point.
Water Quality	POU	Supplies for, and information on, water treatments to either remove microbial contaminants or safe water storage practices within the household or commune.
Sanitation hardware	Latrines	New or improved hardware for latrines or other means of excreta disposal.
Sanitation hardware	Sewer connection / drainage system	Connecting existing means of excreta disposal to a sewer or other drainage system.
Hygiene	Soap or hand sanitiser	Soap or similar products (e.g. hand sanitiser) with information on how to properly use them.
	Other hygiene supplies	Toilet paper, sanitary towels, or other hygiene products with information on how to correctly use them.
	Improved handwashing practices	Knowledge on the best practices for handwashing.
	Other improved hygiene practices	Knowledge on the best practices for other hygiene techniques or procedures (including face washing, menstrual hygiene, and latrine cleaning). This category also includes personal food hygiene practices beyond handwashing at appropriate times. This includes covering and storing food properly and washing dishes effectively.
Multiple WASH	Combined water supply and sanitation (WSS) programmes	Programmes that provide water supply and sanitation technologies.
Multiple WASH	Other combinations	All other programmes that provide multiple technologies.

The evidence map will highlight the best available evidence from systematic reviews and provide access to user-friendly summaries and appraisals of those studies.

The evidence map will also show where completed and, through the inclusion of trial registries, on-going primary studies (impact evaluations) have been conducted.

The evidence map will highlight absolute gaps in evidence (lack of studies for particular interventions and/or outcomes).

The evidence map will highlight synthesis gaps where there are sufficient studies for a new systematic review or an update of an existing systematic review.

The evidence map will have filters to highlight the evidence in particular countries and regions, targeted at particular populations, using specific methodologies, and specific intervention approaches.

Population

We will include any study populations regardless of age, sex or socio-economic status. However, populations are restricted to those in low- and middle-income countries (LMICs), as defined by the World Bank, at the time the research was carried out.

Intervention

Water, sanitation, and hygiene can be categorised into groups and sub-groups of related intervention mechanisms as shown in Table 3 (De Buck et al., 2017 and Poulos et al., 2006). We have aimed to define our mechanism categories so that all common WASH programmes would be eligible based on mechanism.

We then propose that the interventions should be further classified into groups and sub-groups of related WASH technologies as shown in Table 4 (Esrey, 1991; Fewtrell et al., 2005; Waddington et al., 2009). We have aimed to define our technologies so that all common personal and household WASH interventions would be eligible based on technology.

As mentioned before, we will also be integrating an ecological model focused on where a technology is physically used. Ecological models stress the importance of the dynamic relationships between the personal and environmental factors that shape an individual's behaviours and lifelong human development. They, and their socio-ecological counterparts, are often applied in crime prevention (for an example see Wortley, 2014) to explain why changes in city planning and the physical space of a neighbourhood can affect crime rates. Here we will separate out the hardware by place of use to emphasise the differential effect, and potentially different theories of change, of providing the same technology in different locations. The place of use affects both the convenience of the technology, and therefore why and how much it is adopted, as well as how it is expected to disrupt the transmission of disease. For example, providing a latrine to a household is a very different intervention to providing one at a school or a shared one to a community. The four main spaces in which WASH technologies for personal consumption are provided are within a home (for the use of a single household), within a shared community space (for example, a public water source such as a communal tubewell), at a school, and at a health facility,

There are different combinations and ways of presenting evidence from both multiple mechanisms and technologies, which we will consider further during the data extraction phase.

We will exclude all studies without a clearly defined WASH intervention. Programmes that combined a WASH intervention with a non-WASH one will be included if the WASH component is defined as a primary, not secondary, element.

Outcomes

We will include studies that report the following types of quality of life outcomes:

(1)

Health impacts including, but not necessarily limited to: a.

diarrhoeal disease

acute respiratory infections (ARIs)

other water related infections such as helminths

pain and musculoskeletal disorders

psychosocial health and safety

reproductive health outcomes

mortality.

(2)

Nutritional impacts including, but may not be limited to: a.

measures of stunting (e.g. height-for-age Z-scores, HAZ)

wasting (e.g. weight-for-height Z-scores, WHZ, and body mass index, BMI)

underweight (e.g. weight-for-age Z-scores, WAZ).

(3)

Social and economic impacts, for example: a.

educational outcomes (e.g. absenteeism)

time use

labour market outcomes (e.g. employment and wage)

measures of income, consumption, and income poverty.

We expect most studies will focus on outcomes among children but would not exclude studies that only report outcomes for adults.

(4)

We will also include studies even if they only report on the following types of behavioural and attitudinal outcomes: a.

water quantity used/consumed

water treatment practices

latrine use or defaecation practices (including construction of facilities for ‘triggering’ interventions)

hygienic behaviour (e.g. observed hand washing practices, measurement of hand contamination, microbial food contamination)

willingness to pay.

We will exclude studies that only report measures of knowledge and attitudes; for example, a hygiene education programme that reports the proportion that know that bacteria can cause infections would be excluded.

Any adverse or unintended outcomes found to be reported, but not captured in the above list, will be included.

Criteria for including and excluding studies

Types of study designs

This evidence gap map will include impact evaluations and systematic reviews of the effectiveness of technologies and intervention mechanisms. Impact evaluations are defined as programme evaluations or field experiments that use quantitative approaches applied to experimental or observational data to measure the effect of a programme relative to a counterfactual representing what would have happened to the same group in absence of the programme. Impact evaluations may also test different programme designs. We will include both completed and on-going impact evaluations and systematic reviews; to capture the latter, we will include prospective study records in trial registries or protocols when available. We will include a broad range of intervention study designs in order for the map to provide a comprehensive look at the evidence provided by researchers working in the sector in different disciplines (e.g. epidemiology, econometrics). We include randomised and non-randomised controlled studies. We also include methods such as natural experiments which may provide ‘as-if randomised’ evidence when well conducted (Waddington et al., 2017). We allow broader inclusion criteria for particular outcomes, such as case-control studies in the case of mortality, which may not be ethically collected in trials, and uncontrolled before versus after for time-use outcomes, which are crucially important for water collectors and which arguably do not require controls (White and Gunnarson, 2008).

Study design criteria for includable intervention studies are as follows:

Prospective studies allocating the participants to the intervention using randomised or quasi-randomised mechanisms at individual or cluster levels. a.

Randomised control trial (RCT) with assignment at individual or cluster level (e.g. clustering at village, school, health facility)

Quasi-RCT using a quasi-random method of prospective assignment (e.g. alternation of clusters)

Non-randomised designs with selection on unobservables: a.

Natural experiments using methods such as regression discontinuity (RD)

Panel data or pseudo-panels with analysis to account for time-invariant unobservables (e.g. difference-in-difference, DID, or fixed- or random-effects models)

Cross-sectional studies using multi-stage or multivariate approaches to account for unobservables (e.g. instrumental variable, IV, or Heckman two-step estimation approaches)

Non-randomised designs with selection on observables: a.

Cross-sectional or panel (controlled before and after) studies with an intervention and comparison group using methods to match individuals and groups statistically (e.g. PSM) or control for observable confounding in adjusted regression.

The following impact evaluation study designs will only be included in the specific circumstances described. a.

Reflexive controls (pre-test/post-test with no control/comparison group) will be included for studies reporting time use outcomes.

Case-control and cross-sectional exposure designs will be included for studies conducted at healthcare facilities measuring mortality.

Studies explicitly described as systematic reviews and that describe methods used for search, data collection, and synthesis.

We will include impact evaluations where the comparison/control group receive no intervention (standard WASH access), a different WASH intervention, a placebo (e.g. school books) or the study employs a pipeline (wait-list) approach.

Treatment of qualitative research

We do not plan to include qualitative research.

Types of settings

All included impact evaluations must have been conducted in low- and middle-income countries (LMICs) as defined by the World Bank at the time of the intervention. We will also exclude systematic reviews only containing evidence from high-income countries. We will include studies in challenging circumstances such as refugee camps, but exclude studies which are conducted under outbreak conditions, such as epidemics of cholera (‘extremely watery diarrhoea’) as this map aims to describe the evidence on what works under normal conditions.

As we are focusing on personal and household WASH interventions, we will exclude studies that look at WASH interventions in agriculture, commercial food preparation, and ones that focus on animal excreta. We will, however, include WASH interventions at medical facilities if they meet the above intervention definitions. Studies on medicalised hygiene (such as sterilising wounds) will be excluded.

Status of studies

We will search for and include completed and on-going studies. We will not exclude any studies based on language or publication status or publication date.

Search strategy and status of studies

We will automatically include all studies that were included in the 2014 evidence gap map for which thorough searches were conducted for both published and ‘grey’ literature. Therefore, the search strategy will cover two main components: updating the searches already conducted from February 2014 onwards, and conducting new electronic searches for the expanded scope from 2000 onwards. We will use the following strategies to identify completed and on-going new potential studies:

Database and trial registry searches: We will search MEDLINE(R) (Ovid), Embase (Ovid), CAB Global Health (Ovid), CAB Abstracts (Ovid), Cochrane Library, ERIC (Proquest), Social Sciences Citation Index (Web of Science), Social Sciences Premium Collection (Proquest), Popline, WHO Global Health Library, Econlit (Ovid), Ebsco Discovery, and Campbell Library.

Organisation searches: We will search for literature using 3ie's impact evaluation database and through the online repositories of organisations who are known to produce impact evaluations and systematic reviews of WASH interventions. These include the Asian Development Bank, African Development Bank, Inter-American Development Bank, Department for International Development, IMPROVE International, International Water and Sanitation Centre (IRC), Oxfam, UNICEF, US Agency for International Development, WaterAid, the World Bank (DIME, Impact Evaluations, IEG) (Table 5).

Bibliographic searches: Several recent systematic reviews (e.g. De Buck et al., 2017; Benova, et al., 2014) are relevant to topics in our expanded scope and we will screen these systematic reviews to locate additional primary studies.

We will also conduct bibliographic back-referencing of reference lists of all included systematic reviews to identify additional primary studies and systematic reviews.

Table 5

Organisation hand-searches

Organizations	Website
3ie	3ie water and sanitation sector
Abdul Latif Jameel Poverty Action Lab (J-PAL)	J-PAL evaluations
African Development Bank	African Development Bank evaluation reports
Asian development Bank	ADB Impact evaluation studies
CEGA (University of California Center for Effective Global Action)	CEGA water and sanitation research projects
Department for International Development Research for Development	Research for Development outputs in water and sanitation
IMPROVE International	WASH organisations with independent evaluations
International Water and Sanitation Centre (IRC)	http://www.washdoc.info/docsearch/results?lmt=20&txt=water+sanitation+impact+evaluation&combine=all&field=&language=&mediatype=&dateset=since&date=0
Innovations for Poverty Action (IPA)	IPA WASH projects
Inter-American Development Bank	Office of Evaluation and Oversight: project and impact evaluations in water & sanitation
Oxfam	Water sanitation and hygiene evaluation and research reports
USAID	USAID development experience clearinghouse
UNICEF	UNICEF evaldatabase
World Bank Development Impact Evaluation (DIME)	DIME)
World Bank Independent Evaluation Group (IEG)	IEG Systematic reviews and impact evaluations

Appendix B presents an example of the search strings used for publication databases and search engines; it includes terms for the suitable interventions, regions, and methodologies.

Screening and selection of studies

We will use EPPI reviewer to assess studies for inclusion at both the title / abstract and full-text screening stages. Due to time and resource constraints, at the title / abstract stage, we will use EPPI reviewer's machine learning capabilities to prioritise studies in order of likelihood of inclusion. We will screen until we are no longer finding any studies to include (at least 50 studies with 0 includes). Two researchers will screen each title / abstract and each full-text. Any disagreements on inclusion will be resolved through discussion.

Data extraction, coding and management

For impact evaluations, we will use a standardised data extraction form to extract descriptive data from all studies meeting our inclusion criteria. Data extracted from each study will include bibliographic details, intervention types and descriptions, outcome types and descriptions, study design, context / geographical information, details on the comparison group, and on the quality of the implementation. We will also extract data on the sex disaggregation of outcomes.

A full list of data to be extracted is described in the coding tool in Appendix C; this tool will be piloted to ensure consistency in coding and resolve any issues or ambiguities. A single researcher will conduct the data extraction for each study; however, all coders will be trained on the tool before starting and a sample will be double coded to check for consistency.

For systematic reviews, a modified version of the tool will be developed for the data extraction. All systematic reviews for inclusion will undergo a critical appraisal following the 3ie systematic review database protocol for appraisal of systematic reviews (3ie, n.d.). Critical appraisals will be completed by one experienced researcher.

Quality Appraisal

We will critically appraise included systematic reviews according to the 3ie tool (3ie, n.d.) which draws on Lewin et al. (2009). The tool appraises systematic review conduct, analysis and reporting, guiding appraisers towards an overall judgement of low, medium and high confidence in the review findings. We will assess primary studies on design only (randomised versus non-randomised assignment and method of analysis).

We will not be critically appraising the quality of the included impact evaluations, but will collect data on study design. For the purpose of the present map it is not necessary to critically appraise the impact evaluations, beyond indicating whether the evidence is from randomised, natural experiment, or non-randomised studies, as the systematic reviews provide overviews of the body of evidence, including their quality, where they exist. A major purpose the map is to provide access to the body of work on particular outcomes and interventions to encourage further syntheses of those studies by WASH sector researchers.

Analysis and Presentation

Unit of Analyses

Where multiple papers exist on the same study (e.g. a working paper and a published version), the most recent open access version will be included in the evidence map. If the versions report on different outcomes, an older version will be included for the outcomes not covered in later versions.

Planned analyses

The matrix and filters are described above and in Appendix A. In brief, the matrix will display interventions mechanisms (direct provision, health messaging, psycho-social triggering and systems-based approaches) against outcomes along the causal chain (behaviour change and attitudes, health outcomes, nutrition outcomes, socio-economic outcomes). It will be searchable by several filters including WASH technology (water quantity, water quality, sanitation, hygiene, multiple interventions), location (households, communities, schools and health facilities), study design (randomised and non-randomised assignment), country and global region, and location (rural, urban, slum, refugee camp). The report will include descriptions of the evidence base according to these categories and present a global map, tables and figures presenting descriptive information about these characteristics. The report will present separately evidence from primary research (impact evaluations) and synthesis (systematic reviews).

Presentation

Stakeholder engagement

We have engaged stakeholders on the evidence matrix at various organisations who provide WaSH sector policy and programmes. These include Aga Khan Foundation, the Independent Evaluation Group of the World Bank, Japan International Cooperation Agency, Sanitation and Hygiene Applied Research for Equity (SHARE) consortium, the Water Supply and Sanitation Collaborative Council, and WaterAid.

Footnotes

EGM authors

Name:	Hugh Waddington
Title:	Senior Evaluation Specialist
Affiliation:	International Initiative for Impact Evaluation (3ie)
Address:	London International Development Centre 36 Gordon Square
City, State, Province or County:	London
Post code:	WC1H 0PD
Country:	UK
Phone:	+44 207 958 8350
Email:	hwaddington@3ieimpact.org
Co-authors:
Name:	Hannah Chirgwin
Title:	Research Associate
Affiliation:	3ie
Address:	London International Development Centre 36 Gordon Square
City, State, Province or County:	London
Post code:	WC1H 0PD
Country:	UK
Phone:	+44 207 958 8352
Email:	hchirgwin@3ieimpact.org

Name:	John Eyers
Title:	Information Retrieval Specialist
Affiliation:	3ie
Name:	Yashaswini PrasannaKumar
Title:	Public Policy Research Consultant
Affiliation:	3ie
Name:	Duae Zehra
Title:	Research Assistant
Affiliation:	University College London
Name:	Sandy Cairncross
Title:	Professor
Affiliation:	London School of Hygiene and Tropical Medicine

Roles and responsibilities

Content: Sandy Cairncross has substantial expertise in water, sanitation and hygiene interventions for the control of disease. Hugh Waddington led a previous review of WASH impacts.

Systematic review methods: Sandy Cairncross has led several major systematic reviews of WASH interventions. Hugh Waddington led a previous systematic review and has supported a large number of systematic reviews and meta-analyses for 3ie and Campbell.

Information retrieval: John Eyers has substantial expertise in devising and running systematic searches for published and unpublished literature, including for reviews of WASH interventions.

Sources of support

We thank JICA and the Water Supply and Sanitation Collaborative Council (WSSCC) for financial support. Ritsuko Yamagata, Jeff Tanner, Midori Makino, Ryotaro Hayashi and Marie Gaarder provided helpful comments.

Declarations of interest

Sandy Cairncross has been involved in the development of sanitation and hygiene interventions and he and Hugh Waddington have authored primary studies and systematic reviews that may be eligible for inclusion in the evidence map. Inclusion decisions and critical appraisal of any studies these two authors have been involved in will be undertaken by other members of the team. We are not aware of any other conflicts that might affect decisions taken in the review and results presented.

Preliminary timeframe

Approximate date for submission of the EGM: July 2018.

Plans for updating the EGM

This map is itself an update of a EGM published online in 2014. We plan to update the map (or support others in doing so) when sufficient further studies and resources become available.

Appendix A: Evidence matrix

Appendix B: Search terms

Appendix C: Data extraction template

1

2

This is available at:

3

For more information, see:

4

References

3ie . (n.d.). Checklist for making judgements about how much confidence to place in a systematic review of effect (adapted version of SURE checklist). London: International Initiative for Impact Evaluation (3ie).

3ie . (2014). Water, sanitation and hygiene evidence gap map. [online] Available at: http://gapmaps.3ieimpact.org/evidence-maps/water-sanitation-and-hygiene-evidence-gap-map [Accessed 01 May 2018].

Aiello

A.E.

Coulborn

R.M.

Perez

and Larson

E.L.

(2008). Effect of hand hygiene on infectious disease risk in the community setting: a meta-analysis. American Journal of Public Health, 98 (8), pp. 1372–1381.

Arnold

B.F.

and Colford

J.M.

(2007). Treating water with chlorine at point-of-use to improve water quality and reduce child diarrhoea in developing countries: a systematic review and meta-analysis.

Benova

Cumming

and Campbell

O.M.

(2014). Systematic review and meta-analysis: association between water and sanitation environment and maternal mortality. Tropical Medicine and International Health, 19 (4), pp. 368–87.

Birdthistle

Dickson

Freeman

and Javidi

(2011). What impact does the provision of separate toilets for girls at schools have on their primary and secondary school enrolment, attendance and completion?: A systematic review of the evidence. London: EPPI-Centre, Social Science Research Unit, Institute of Education, University of London.

Cairncross

and Valdmanis

(2006). Water supply, sanitation and hygiene promotion. In: Jamison

Breman

Measham

Alleyne

Claeson

Evans

Jha

Mills

and Musgrove

, eds. Disease control priorities in developing countries. 2nd ed. Oxford University Press, New York.

Cairncross

Hunt

Boisson

Bostoen

Curtis

Fung

and Schmidt

W.-P.

(2010). Water, Sanitation and Hygiene for the Prevention of Diarrhoea. International Journal of Epidemiology 2010, 39, pp. i193–i205. doi:10.1093/ije/dyq035

Cairncross

Cumming

Schechtman

Velleman

and Waddington

(2014). Health impacts of sanitation and hygiene. In: Cross

Piers

; Coombes

Yolande

, (eds.) Sanitation and hygiene in Africa: where do we stand?: analysis from the AfricaSan Conference, Kigali, Rwanda. IWA Publishing, London. ISBN 9781780405414 (paperback) 9781780405421 (ebook)

10.

Clasen

T F

Alexander

K T

Sinclair

Boisson

Peletz

Chang

H H

Majorin

, and Cairncross

(2015). Interventions to improve water quality for preventing diarrhoea. Cochrane Database of Systematic Reviews, 2015 (10).

11.

Clasen

T. F.

Bostoen

Schmidt

W. P.

Boisson

Fung

I. C. H.

Jenkins

M. W.

Scott

Sugden

and Cairncross

(2010). Interventions to improve the disposal of human excreta for preventing diarrhoea (Review). Cochrane Database of Systematic Reviews.

12.

Clasen

Schmidt

W.-P.

Rabie

Roberts

and Cairncross

(2007). Interventions to improve water quality for preventing diarrhoea: systematic review and meta-analysis. Cochrane Database of Systematic Reviews.

13.

Cumming

, and Cairncross

(2016). Can water, sanitation and hygiene help eliminate stunting? Current evidence and policy implications. Maternal & Child Nutrition, 12(Suppl 1), pp.91–105.

14.

Curtis

and Cairncross

(2003). Effect of washing hands with soap on diarrhoea risk in the community: a systematic review.

15.

Dangour

A.D.

Watson

Cumming

Boisson

Che

Velleman

Cavill

Allen

and Uauy

(2013). Interventions to improve water quality and supply, sanitation and hygiene practices, and their effects on the nutritional status of children (Review). Cochrane Database of Systematic Reviews.

16.

De Buck

Van Remoortel

Hannes

Govender

Naidoo

Avau

Vandeveegaete

Musekiwa

Vittoria

Cargo

Mosler

H.-J.

Vandekerckhove

and Young

(2017). Approaches to promote handwashing and sanitation behaviour change in low- and middle-income countries: a mixed method systematic review. Campbell Systematic Reviews 2017:7 DOI: 10.4073/csr.2017.7

17.

Ejemot

R.I.

Ehiri

J.E.

Meremikwu

M.M.

and Critchley

J.A.

(2008). Hand washing for preventing diarrhoea (Review). Cochrane Database of Systematic Reviews.

18.

Ejere

H. O. D.

Alhassan

M. B.

and Rabiu

(2012). Face washing promotion for preventing active trachoma (Review). Cochrane Database of Systematic Reviews.

19.

Esrey

S.A.

Potash

J.B.

Roberts

and Schiff

(1991). Effects of Improved Water Supply and Sanitation on Ascariasis, Diarrhoea, Dracunculiasis, Hookworm Infection, Schistosomiasis and Trachoma. Bull World Health Organ, 69, pp. 609–621.

20.

Fewtrell

and Colford

J.M.

(2004). Water, Sanitation and Hygiene: Interventions and Diarrhoea: A Systematic Review and Meta-analysis. World Bank, Washington, D.C.

21.

Fewtrell

Kaufmann

R.B.

Kay

Enanoria

Haller

(2005). Water, sanitation, and hygiene interventions to reduce diarrhoea in less developed countries: a systematic review and metaanalysis. Lancet Infectious Diseases, 5, pp. 42–52.

22.

Gundry

Wright

and Conroy

(2004). A systematic review of the health outcomes related to household water quality in developing countries. Journal of Water and Health, 2 (1), pp. 1–13.

23.

Hennegan

, and Montgomery

(2016). Do menstrual hygiene management interventions improve education and psychosocial outcomes for women and girls in low and middle income countries? A systematic review. PLoS ONE, 11 (2), pp. e0146985.

24.

Hunter

P.R.

(2009). Household Water Treatment in Developing Countries: Comparing Different Intervention Types Using Meta-Regression.

25.

Hutton

Haller

and Bartram

(2007). Global Cost-Benefit Analysis of Water Supply and Sanitation Interventions. Journal of Water Health, 5, pp. 481–502.

26.

Jasper

T.-T.

and Bartram

(2012). Water and Sanitation in Schools: A Systematic Review of the Health and Educational Outcomes.

27.

Jones-Hughes

Peters

Whear

Cooper

Evans

Depledge

and Pearson

(2013). Are interventions to reduce the impact of arsenic contamination of groundwater on human health in developing countries effective? A systematic review. Environmental Evidence, 2 (11).

28.

Kar

and Chambers

(2008). Handbook on community-led total sanitation. London: Plan UK.

29.

Lewin

Oxman

A.D.

Lavis

J.N.

and Fretheim

(2009). Support Tools For Evidence-informed Health Policymaking (Stp) 8: Deciding How Much Confidence To Place In A Systematic Review. Health Research Policy And Systems 7 (Suppl 1), S8.

30.

Luby

S P

Rahman

Arnold

B F

Unicomb

Ashraf

Winch

P J

Stewart

C P

Begum

Hussain

Benjamin-Chung

Leontsini

Naser

A M

Parvez

S M

Hubbard

A E

Lin

Nizame

F A

Jannat

Ercumen

Ram

P K

Das

K K

Abedin

Clasen

T F

Dewey

K G

Fernald

L C

Null

Ahmed

, and Colford

J M

Jr. (2018). Effects of water quality, sanitation, handwashing, and nutritional interventions on diarrhoea and child growth in rural Bangladesh: a cluster randomised controlled trial. The Lancet Global Health, 6, pp.e302–e315.

31.

Norman

Pedley

and Takkouche

(2010). Effects of sewerage on diarrhoea and enteric infections: a systematic review and meta-analysis.

32.

Null

Kremer

Miguel

Hombrados

J.G.

Meeks

and Zwane

A.R.

(2012). Willingness to pay for cleaner water in less developed countries: systematic review of experimental evidence. London: International Initiative for Impact Evaluation (3ie).

33.

Null

Stewart

C P

Pickering

A J

Dentz

H N

Arnold

B F

Arnold

C D

Benjamin-Chung

Clasen

Dewey

K G

Fernald

L C. H

Hubbard

A E

Kariger

Lin

Luby

S P

Mertens

Njenga

S M

Nyambane

Ram

P K

, and Colford

J M

Jr. (2018). Effects of water quality, sanitation, handwashing, and nutritional interventions on diarrhoea and child growth in rural Kenya: a cluster-randomised controlled trial. The Lancet Global Health, 6, pp.e316–e329.

34.

Poulos

Pattanayak

S. K.

and Jones

(2006). A guide to water and sanitation sector impact evaluations (English). Doing impact evaluations series no. 4, Washington, DC: World Bank.

35.

Rabie

and Curtis

(2006). Handwashing and risk of respiratory infections: a quantitative systematic review. Tropical Medicine and International Health, 11(3), pp. 258–67.

36.

Rabiu

Alhassan

M.B.

Ejere

H.O.D.

and Evans

J.R.

(2012). Environmental sanitary interventions for preventing active trachoma. Cochrane Database of Systematic Reviews 2012, Issue 2. Art. No.: CD004003. DOI: 10.1002/14651858.CD004003.pub4.

37.

Sahoo

K C

Hulland

K R S

Caruso

B A

Swain

Freeman

M C

Panigrahi

and Dreibelbis

(2015). Sanitation-related psycho-social stress: a grounded theory study of women across the life-course in Odisha, India. Social Science & Medicine, 139, 80–89.

38.

Snilsveit

Vojtkova

Bhavsar

Stevenson

, and Gaarder

(2016). Evidence and gap maps: A tool for promoting evidence informed policy and strategic research agendas. Journal of clinical epidemiology, 79, pp. 120–129.

39.

Sorenson

S. B.

Morssink

and Campos

P. A.

(2011). Safe access to safe water in low income countries: Water fetching in current times. Social Science and Medicine, 72, 1522–1526.

40.

Sumpter

and Torondel

(2013). A systematic review of the health and social effects of menstrual hygiene management. PLoS ONE, 8 (4).

41.

Turley

Saith

Bhan

Rehfuess

and Carter

(2013). Slum upgrading strategies involving physical environment and infrastructure interventions and their effects on health and socio-economic outcomes (Review). Cochrane Database of Systematic Reviews

42.

UN Water , (2018). SDG 6 synthesis report 2018 on water and sanitation. [Online] Available at: http://www.unwater.org/publication_categories/sdg-6-synthesis-report-2018-on-water-and-sanitation/ [Accessed 9 July 2018].

43.

UNICEF. (2018). Diarrhoeal disease - current status and progress. [Online] Available at: https://data.unicef.org/topic/child-health/diarrhoeal-disease/ [Accessed 9 July 2018].

44.

United Nations . (2015). The Millennium Development Goals Report 2015. New York, USA: United Nations.

45.

Waddington

Snilstveit

White

and Fewtrell

(2009). Water, sanitation and hygiene interventions to combat childhood diarrhoea in developing countries. London: International Initiative for Impact Evaluation (3ie).

46.

White

and Gunnarson

(2008). What Works in Water Supply and Sanitation: Lessons from Impact Evaluations. Manuscript, Independent Evaluation Group. Washington, DC: World Bank.

47.

World Health Organization (WHO) / United Nations Children's Fund (UNICEF) Joint Monitoring Programme . (2013). Progress on sanitation and drinking-water : 2013 update. Geneva, Switzerland: WHO / UNICEF JMP.

48.

World Health Organization (WHO) / United Nations Children's Fund (UNICEF) Joint Monitoring Programme . (2017). Progress on drinking water, sanitation, and hygiene: 2017 update and SDG baselines. Geneva, Switzerland: WHO / UNICEF JMP.

49.

Wortley

and Tilley

(2014) Theories for Situational and Environmental Crime Prevention. In: Bruinsma

Weisburd

(eds) Encyclopedia of Criminology and Criminal Justice. Springer, New York, NY.

50.

Ziegelbauer

Speich

Mäusezahl

Bos

Keiser

, et al. (2012) Effect of Sanitation on Soil-Transmitted Helminth Infection: Systematic Review and Meta-Analysis. PLoS Med, 9 (1), e1001162. doi:10.1371/journal.pmed.1001162
