Fully Automated Anti-Varicella Zoster Enzyme-Linked Immunosorbent Assays Supporting Manufacture of a Novel Intravenous Therapeutic for Treatment of Ailments Caused by the Varicella Zoster Virus

Abstract

Two non-competitive, antibody-capture enzyme-linked immunosorbent assays, a commercial Kit VZIG ELISA and an in-house developed, amplified VZIG ELISA were automated by using the liquid handling and plate processing abilities of the Microlab AT plus 2 and Microlab F.A.M.E. instruments, respectively. The evaluation of the experimental data has also been automated by using the F.A.M.E.-specific data import converter and PLA software program for data capture / uploading and analysis. The automation increased the economy of analytical operations and traceability of the experimental data thus better supporting the production and clinical studies on a therapeutic Varicella Zoster Immune Globulin manufactured at Cangene.

Keywords

Automatic Liquid Handler Enzyme-Linked Immunosorbent Assay (ELISA)Fully Automated Microplate ELISA Analyser (F.A.M.E.)Parallel Line Assay (PLA)Varicella Zoster Immunoglobulin (VZIG)

INTRODUCTION

Varicella Zoster Virus (VZV) causes chickenpox (primary varicella) usually a benign childhood disease and the recurrent infections, shingles (herpes zoster) that may be associated with painful acute lesions, postherpetic neuralgia or congenital malformations¹. Recently it has, however, been shown that VZV infections in children may result in serious life-threatening brain damage.^2,3,4 Varicella Zoster Immune Globulins (VZIGs) have an important role in the management of susceptible high-risk patients.⁵ To support the manufacture of a novel VZIG therapeutic at Cangene Corporation (VariZIG™), a commercial Kit VZIG ELISA, and an in-house developed, amplified ELISA, were validated for the quantitation of the VZV-specific antibodies in the finished product^6,7 and patient sera,⁸ respectively.

Both these ELISA methods involve assaying the test samples over a range of serial dilutions and the liquid handling steps are therefore, repetitive, lengthy and mundane. It has recently been shown for the amplified VZIG ELISA that the use of the automated Microlab AT plus 2 liquid handler streamlined all liquid handling steps and increased their accuracy and precision. It has also been shown that the use of the BioSwift data capture and evaluation software program decreased the time required for data documentation and analysis and increased the reliability and security of the ELISA data.⁹

In the current study, the manual commercial Kit VZIG ELISA was automated for liquid handling steps by using the Microlab ATplus 2 liquid handler. Moreover, the Microlab F.A.M.E. instrument and PLA software program were used to automate microtitre plate processing and data analysis of both VZIG ELISA methods.

It has been shown that the implemented automation elements improved the performance of the assays and traceability of the experimental data while, at the same time, increasing the economy of analytical operations.

EXPERIMENTAL

MATERIALS AND EQUIPMENT

Analytical labware including analytical balance, barcodes, beakers, floppy diskettes, magnetic stirrers, magnetic stirring bars and pH meter.

ELISA Amplification System (Life Technologies™, Gaithersburg, MD, U.S.A.).

Immulon 2 and Immulon 4 Microtiter® 96 Wells Plates (Dynex Technologies Inc., Chantilly, VA, U.S.A.).

Microlab ATplus 2® Liquid Handler with SUNRISE plus® (V 3.3.1) Software Program (Hamilton Company, Reno, NV, U.S.A).

Microlab F.A.M.E.® Fully Automated Microplate ELISA Analyser with F.A.M.E.® (V 1.3) Software Program (Hamilton Company, Reno, NV, U.S.A).

Microsoft Excel® Spreadsheet Program (Microsoft Corporation, Redmond, WA, U.S.A.)

PLA^© (V 1.2.03) Software Program and F.A.M.E.-specific data import converter^© (Stegmann Systemberatung, Rodgau, GE).

Statistica® High Performance Statistical Software (Stat Soft Inc., Tulsa, OK, U.S.A.).

Varicella Zoster Virus IgG ELISA Kit (Wampole Laboratories™, Dist., Division of Carter Wallace, Inc., Cranbury, NJ, U.S.A).

Other materials, reagents and buffers required for the commercial Kit and Amplified VZIG ELISAs as described in the respective STM documents.^10,11

TEST SAMPLES

WHO International Reference Preparation of anti-varicella Zoster immunoglobulin, WHO Standard, stock solution at 50 IU/mL, (Central Laboratory of the Netherlands Red Cross Blood Transfusion Service, Amsterdam, ND).

Human VZIG positive plasma, NIBS ICS, stock solution at 2 IU/mL, (National Institute for Biological Standards and Control, Hertfordshire, U.K).

Human VZIG negative serum (A component of the VZV IgG ELISA kit, Wampole Laboratories™, Dist., Division of Carter Wallace, Inc., Cranbury, NJ, U.S.A).

METHODS

Automated preparation of two-fold dilutions performed with the help of the Microlab ATplus 2 liquid handler according to the designed, assay-specific plate-pipetting protocols.

Automated processing of the ELISA plates performed with the help of the Microlab F.A.M.E. instrument according to the designed, assay-specific plate-processing methods.

Manual data analysis performed with the help of the Excel and Statistica software programs as detailed in the STM documents for Kit¹⁰ and Amplified¹¹ VZIG ELISA methods.

Automated data capture and analysis performed with the help of the F.A.M.E.- specific data import converter and PLA soft ware program according to the designed, assay-specific data-evaluation templates.

TESTING

The Kit VZIG ELISA was preformed either manually by following the described procedure ^6,7,10 or automatically, by modifying it for use with the Microlab ATplus 2 and F.A.M.E. instruments as detailed in the Experimental Protocol 1:

Experimental Protocol 1: The VZIG reference and control standards as well as five test samples were pre-diluted by mixing them with a negative human serum to attain in all samples a concentration of the anti-VZV antibodies equal to ca. 0.6 IU/mL. The pre-diluted samples were applied to an empty Immulon 2 microtitre plate and were serially two-fold diluted. They were then transferred onto an antigen pre-coated, kit-component microtitre plate. The microtitre plate with the diluted samples was then automatically processed with the help of the Microlab F.A.M.E. instrument. The Microlab ATplus 2 and F.A.M.E. instruments and the method-specific plate-pipetting and plate-processing steps selected from the method-protocol (Figure 1) were used to automatically perform all analytical steps. On the conclusion of the ELISA, the experimental results were uploaded from the F.A.M.E. onto a floppy diskette and imported, via the F.A.M.E.-specific converter, into the PLA program. The results were graphed and calculated with the help of Excel and Statistica as described in the STM.¹⁰ The results were also calculated with the help of a newly introduced PLA program according to method-specific criteria selected from the data evaluation template (Figure 2). The computing capabilities of the PLA program were evaluated by comparing the results obtained with the help of this program to the results obtained with the help of the validated method utilizing the Excel and Statistica software programs. The performance of the automated Kit VZIG ELISA was evaluated by taking into account the performance and acceptance criteria established for the previously validated assay.^6,7,10

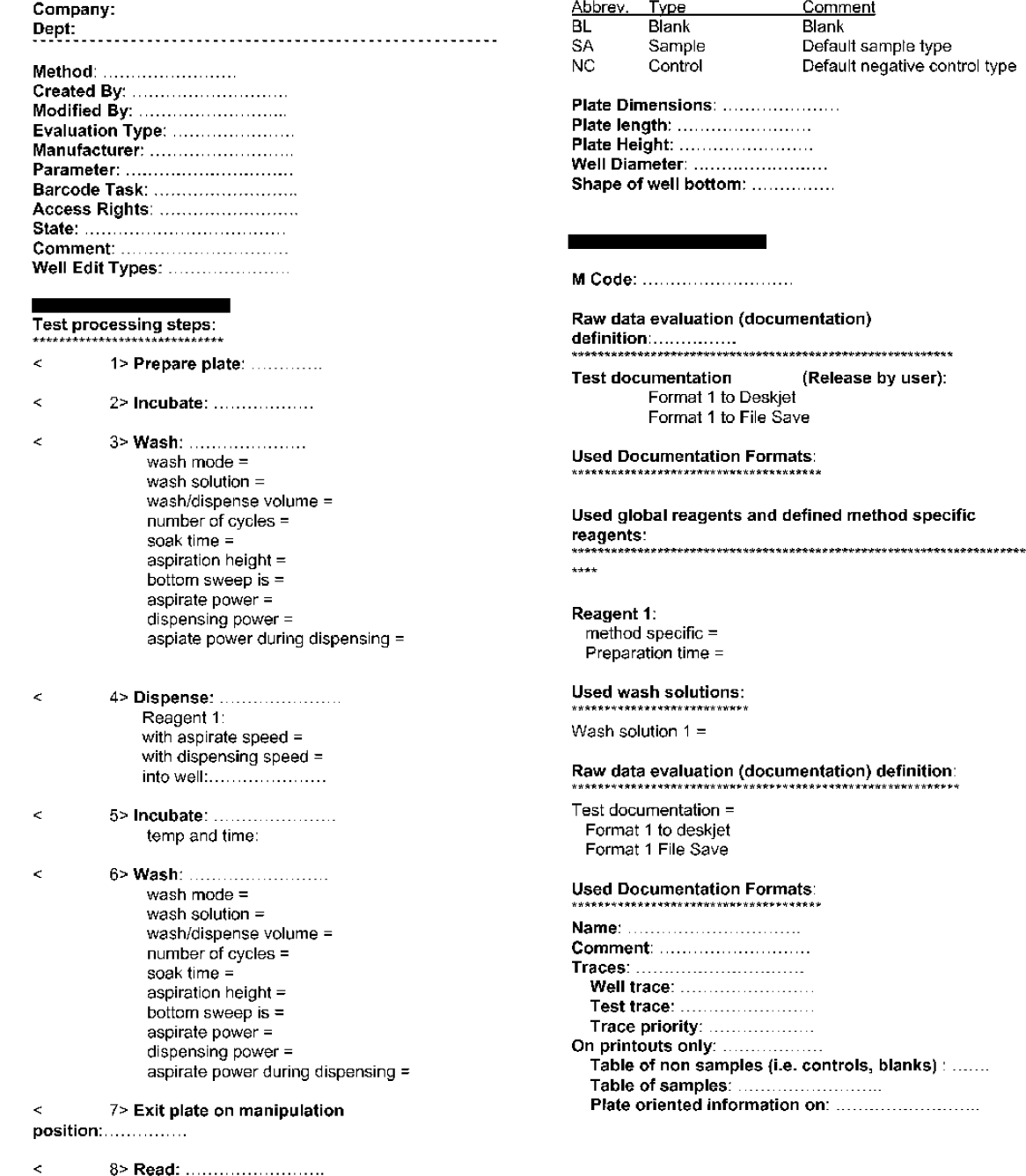

Figure 1.

Processing steps available for selection in the FAME method editor.

The Amplified VZIG ELISA was performed either in a semi-automated manner by following the described procedure¹¹ or by modifying it for use with the Microlab F.A.M.E. instrument as detailed in the Experimental Protocol 2:

Experimental Protocol 2: The VZIG reference and control standards as well as three test samples were pre-diluted by mixing them with a concentrated diluting buffer and water to attain in all samples an equal proportion of the diluting buffer and a concentration of the anti-VZV antibodies equal to ca. 20 mIU/mL. The pre-diluted samples were applied to an antigen pre-coated Immulon 4 microtitre plate and two-fold diluted with the help of the Microlab ATplus 2 by using the method-specific plate-pipetting protocol. The microtitre plates with the diluted samples were then automatically processed with the help of the Microlab F.A.M.E. instrument according to the method-specific plate-processing steps selected from the method-protocol (Figure 1). The plates were automatically processed up to the stage calling for the application of the substrate solution. At this stage the automated processing was interrupted and the substrate followed by the amplifier and then by the stopping solution were manually added to the plate. Following these intermittent manually executed steps, the stopped plate was further processed with the help of the F.A.M.E. instrument by using another method-specific protocol. Similarly, as described in Experimental Protocol 1, on the conclusion of the ELISA the experimental results were uploaded from the F.A.M.E. and analyzed, graphed and calculated with the help of Excel and Statistica as described in the STM.¹¹ The results were also calculated with the help of the PLA program according to method-specific criteria selected from the data evaluation template (Figure 2). The computing capabilities of the PLA program were evaluated by comparing the results obtained with the help of this program to the results obtained with the help of the validated method utilizing the Excel and Statistica software programs. The performance of the automated Amplified VZIG ELISA was evaluated by taking into account the performance and acceptance criteria established for the previously validated assay,^8,11

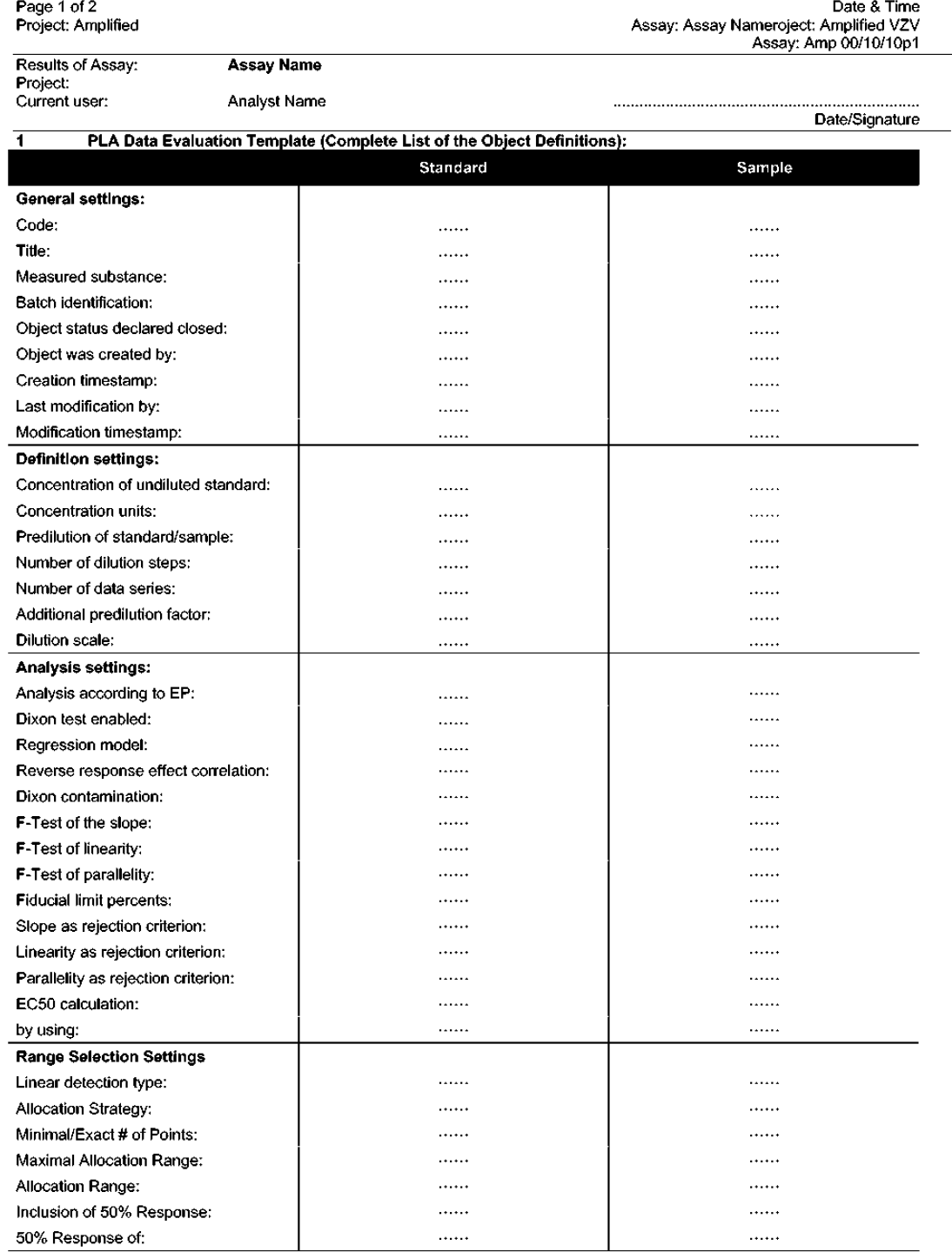

Figure 2.

Data analysis steps available for selection in the PLA data evaluation template

RESULTS

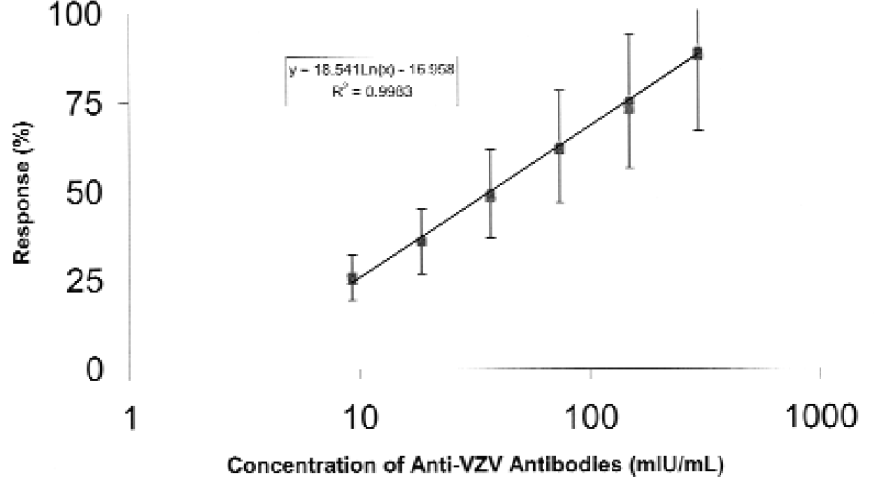

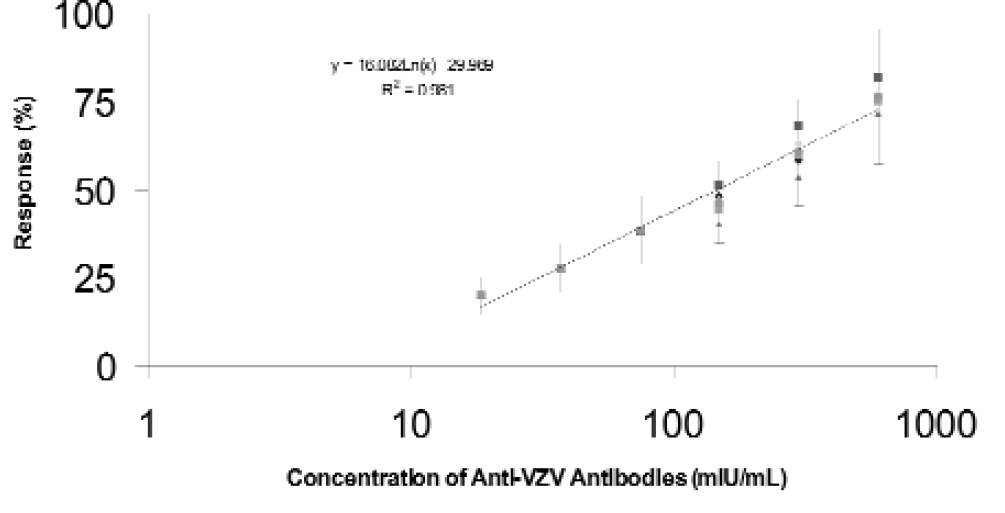

The automation of the Kit VZIG ELISA has been achieved by modifying the sample preparation, plate processing and data analysis steps of the manual assay as described in Experimental Protocol 1. Four automated ELISA experiments were performed, each assaying the reference and internal control standards as well as four quality control samples. The performance of the automated Kit VZIG ELISA has comparatively been evaluated on the basis of the cumulative standard curves generated in four currently performed ELISA experiments or in five ELISA experiments performed during validation studies.^6,7 The results obtained show that the analytical range of the automated ELISA (Figure 3) is similar to that of the manual assay (Figure 4) extending from ca. 9 to 595 mIU/mL. The results also show that the slopes and R² values of the cumulative standard curves generated in the automated ELISA are higher than those of the curves generated in the manual assays and that there is substantially less variability in the concentration of the VZIG standard determined at each of the tested dilutions by the automated than by the manual ELISA (Figures 3 and 4). These results show that the automated Kit VZIG ELISA has the same analytical range as the manual assay and that its sensitivity, linearity and variability improved with automation.

Further automation has been achieved for the partially automated Amplified VZIG ELISA⁹ by modifying, as described in Experimental Protocol 2, some of the plate processing and data analysis steps. Sixteen ELISA experiments modified in this manner were performed, each assaying the reference and internal control standards as well as three test samples representing independently prepared aliquots of two patient sera. Similarly, as in case of the Kit VZIG ELISA, the performance of the automated Amplified VZIG ELISA has comparatively been evaluated on the basis of the cumulative standard curves generated in 16 currently performed ELISA experiments or in 27 ELISA experiments performed during validation studies.⁸ The results obtained show that the analytical range of the current ELISA (Figure 5) is similar to that of the previous assay (Figure 6) extending from ca. 0.6 to 5 mIU/mL. The results also show that the slopes and R² values of the cumulative standard curves of both assay types are high and similar. There is somewhat less variability in the concentration of the VZIG standard determined at each of the tested dilutions by the current further automated ELISA then by the previous, less modified assay (Figures 5 and 6). These results show that both the previous partially automated and the current further automated Amplified VZIG ELISA have very similar performance characteristics with the further automated ELISA being less variable.

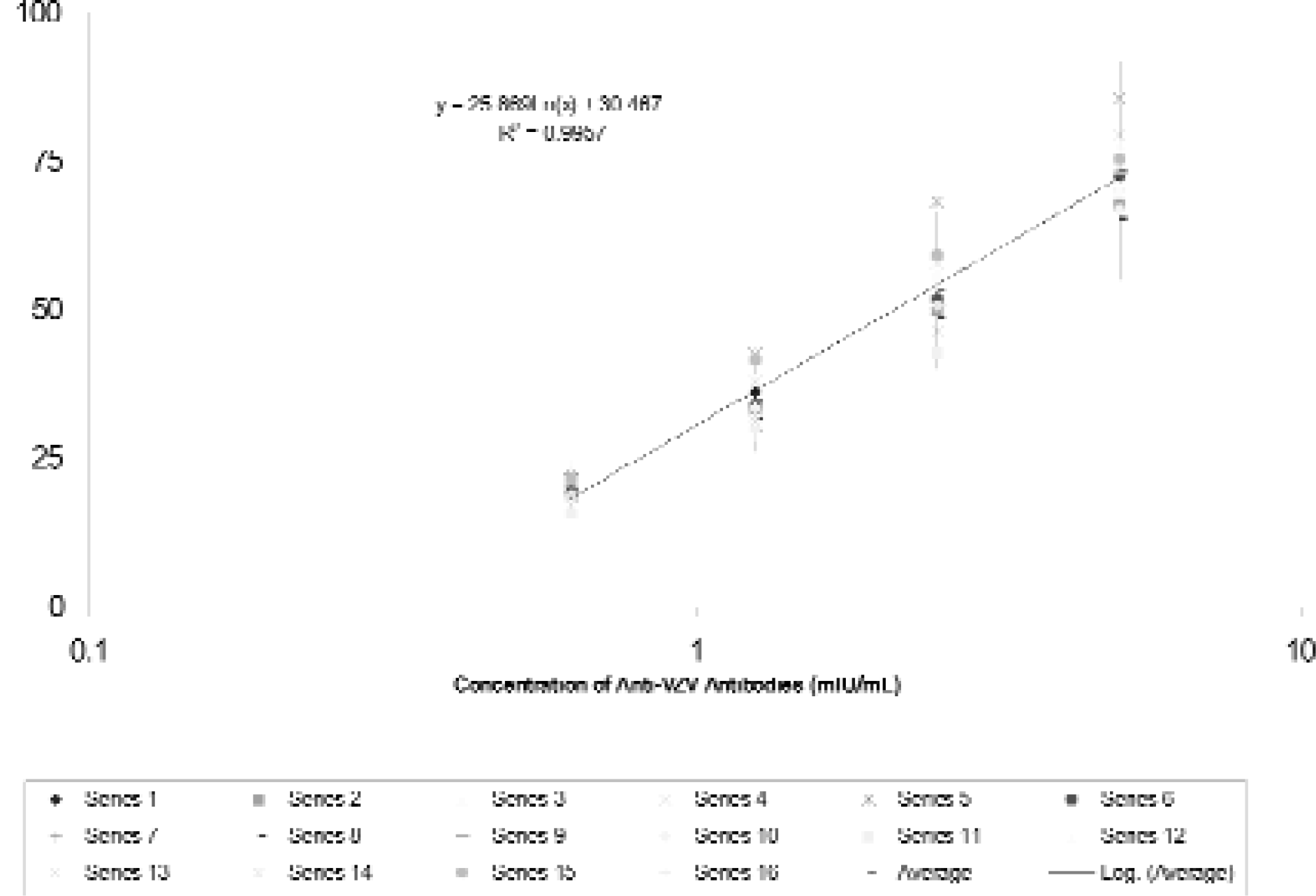

Figure 5.

Cumulative standard curve obtained for WHO VZIG assayed by the automated amplified VZIG ELISA.

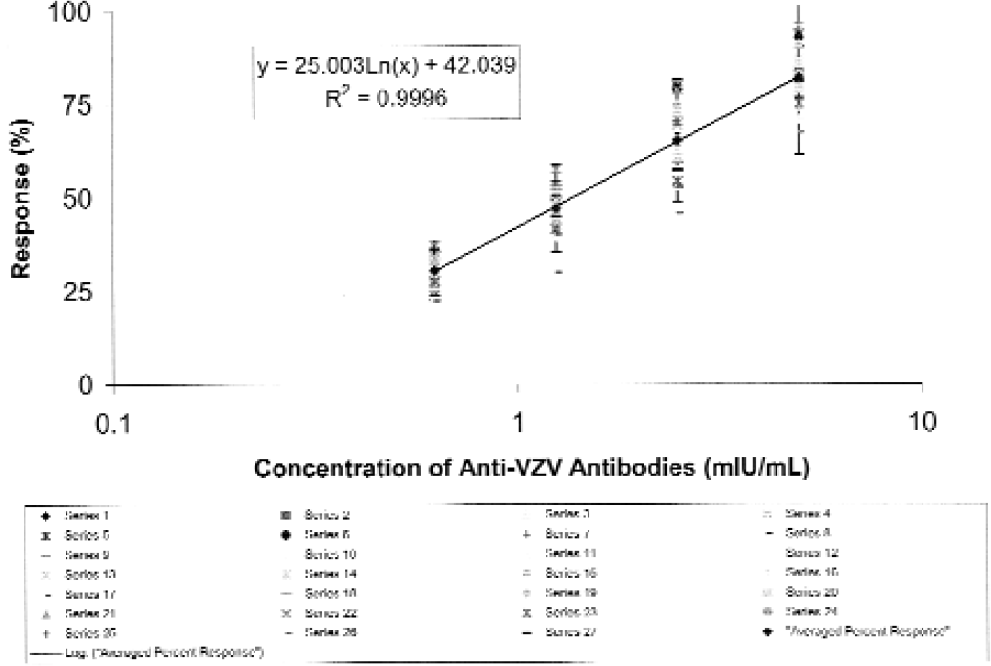

Figure 6.

Cumulative standard curve obtained for WHO VZIG assayed by the manual amplified VZIG ELISA.

The experimental data obtained in the four Kit VZIG and 16 Amplified VZIG ELISA experiments performed during the current studies were analysed with the help of Excel and Statistica by following the standard validated procedures of data plotting and analysis.^10,11 A comparative data analysis was also done with the help of the PLA software program. As shown in Tables 1 and 2, both methods of analysis lead to similar results. This shows that the PLA program may be useful to perform, in a fully automated manner, the evaluation of the experimental data obtained by both VZIG ELISAs.

Overall the results obtained in the current studies show that the automation facilitated by a tandem of the Microlab ATplus 2 and F.A.M.E. instruments streamlined the sample preparation and plate processing of both studied ELISAs whereas the PLA program rapidly analysed and evaluated the experimental data obtained by these assays.

DISCUSSION

The ELISA methods are multi-step procedures that involve sample preparation, plate processing and data analysis. The sample preparation for the ELISA, and in particular for multiple-plate assays, may become very laborious as these methods commonly involve the testing of the analytes over a range of serial dilutions. The processing of the ELISA plates is also very laborious as it encompasses sequential application of different reagents into the plate and ultimately their thorough removal by repetitive washing. Much like other biological / immunological binding assays, the analysis of the data generated from the ELISA adds to the complexity of the method as the experimental data is often abundant and several statistical tests may be required. The automation of the ELISA may, therefore, be expected to increase its throughput and efficiency. We recently validated the performance of the Microlab ATplus 2 automated liquid handler and showed that the accuracy and precision of the automated pipetting were higher than those of the manual pipetting⁹. We also validated the BioSwift software program for an automated data capture and analysis. We showed that when both of these automation elements were implemented with a newly developed amplified VZIG ELISA¹², they increased the analytical throughput of the assay and traceability of the experimental data as well as reduced human errors.⁹

In the current studies, we advanced in our automation efforts and used the Microlab ATplus 2 automated liquid handler to similarly automate the sample preparation for the manually performed commercial Kit VZIG ELISA^6,7, Furthermore, we automated the plate processing steps of both VZIG ELISA methods by using the Microlab F.A.M.E microtitre plate analyser. This instrument offers a rare possibility of processing the pipetted ELISA plates, according to the designed processing steps in a fully automated way, by transferring them inside the instrument into its different compartments (modules). The individual modules are dedicated for either plate incubation, reagent application / removal, or plate mixing and reading. The Kit VZIG ELISA plates were entirely processed within the F.A.M.E. whereas the unstable character of the amplified substrate and the economics of its use* called for the manual addition of the substrate, amplifier and stopping solutions. The results shown in Figures 3 to 6 document the impact of automation on the assay performance as the variability of both automated methods is smaller than that of their manual counterparts. In comparison to the automated Amplified VZIG ELISA the percent response variability of the automated Kit VZIG ELISA decreased to a much greater extent. These results are consistent with the observation that the precision of dispensing of the reagents most recently added to the plate, impacts the overall assay precision to the greatest extent. The smaller variability of the Kit VZIG ELISA may also be due to the fact that the quality of commercial Kit-based ELISAs is better controlled and assured. The amplified VZIG ELISA has been developed during Cangene's R&D studies and its performance entirely depends on the quality of the many materials and biologics. Some of them, like the Substrate Amplification System, have a long expiration period (six to 12 months) and its quality is not apparent as neither the manufacture nor the expiration date is indicated on the package of the purchased chemical. However, when comparing slopes between automated and manual assays, the amplified ELISA did not exhibit as great a variability as the kit VZIG ELISA therefore demonstrating that the performance of the amplified assay is more consistent.

In the current studies we also used the PLA software program to further streamline the data analysis of both VZIG ELISAs. The recently validated BioSwift program⁹ prompted us to quest for further automation in the area of data analysis as this program was designed to automatically capture the data from the plate reader and not the F.A.M.E. instrument. Moreover, its current version allows merely for data calculation⁹ but not further evaluation. The United States Pharmacopoeia¹³ and European Pharmacopoeia¹⁴ both emphasize, however, the importance of the evaluation of the parallelism between the dose response curves obtained for the reference standard and test samples when binding assays are used for measuring the biological potency of the tested substances. It is our standard approach, therefore, to use Statistica and Excel when testing the VZIG ELISA data for normality, homogeneity and parallelism^10,11. The PLA program newly introduced at Cangene uses data automatically imported via a F.A.M.E.-specific import converter, calculates and graphs the data by using the parallel line model and statistically evaluates the linearity, slope and parallelism. In the current studies the experimental data were calculated with the help of PLA or Excel / Statistica and the results obtained were compared. We showed that the PLA program provides a powerful method to rapidly evaluate ELISA data and that the calculations obtained with the help of this program were by and large similar to the calculations obtained with the help of Excel and Statistica ( Tables 1 and 2).

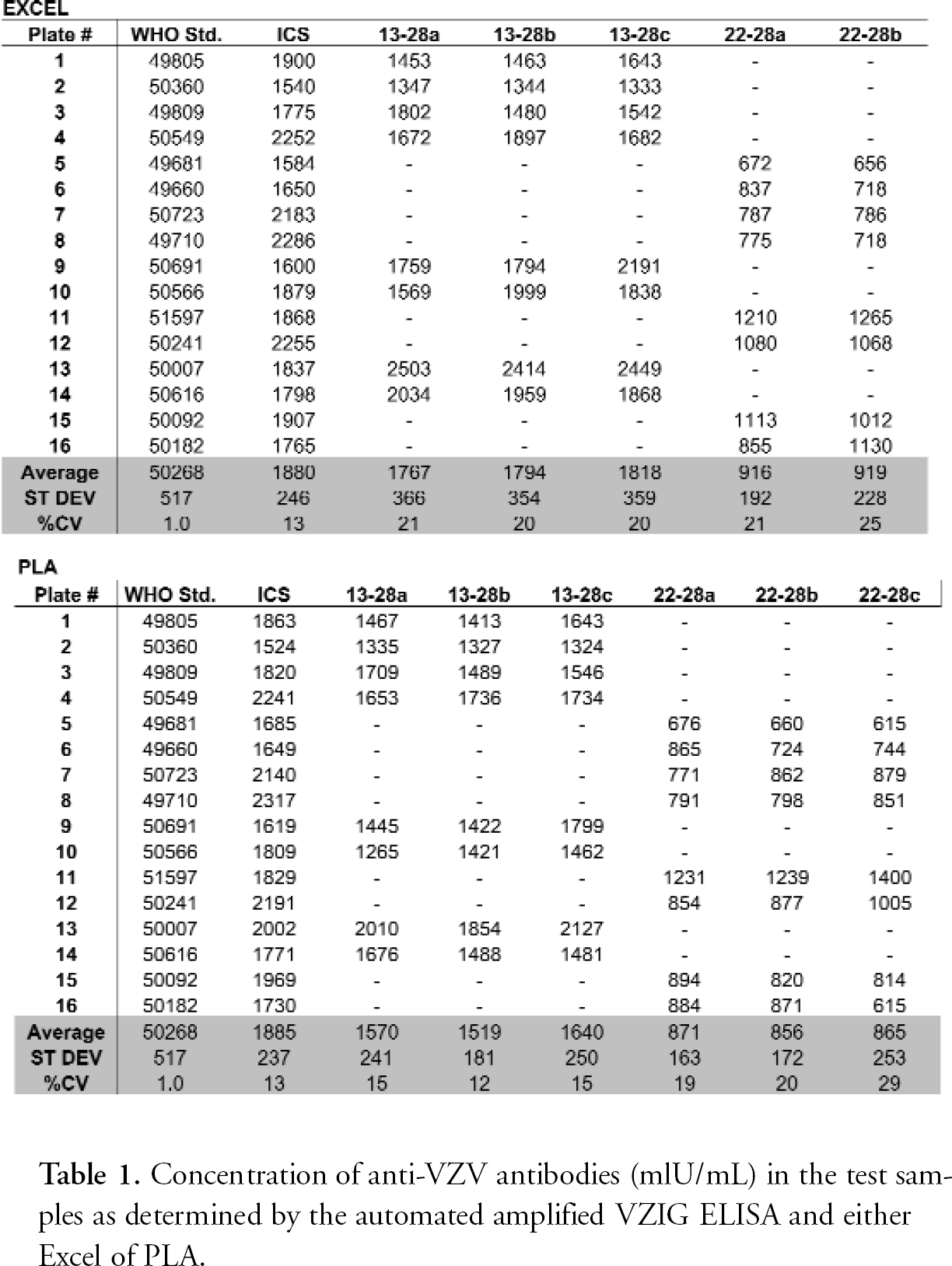

Table 1.

Concentration of anti-VZV antibodies (mlU/mL) in the test samples as determined by the automated amplified VZIG ELISA and either Excel of PLA.

Plate #	WHO Sth.	ICS	13–28a	13–28b	-	13–28c	22–28a	22–23b
EXCEL	-		-		-		-
1	19005	1300	1153	1463	-	1613	-	-
2	50360	1540	1347	1344	-	1333	-	-
3	49809	1775	1802	1480	-	1542	-	-
4	50549	2252	1672	1897	-	1682	-	-
5	49681	1584	-	-		-	672	656
6	49660	1650	-	-	-	-	837	718
7	50723	2183	-	-	-	-	787	786
8	49710	2286	-	-		-	775	718
9	50691	1600	1759	1794	-	2191	-	-
10	50566	1879	1569	1999	-	1838	-	-
11	51597	1868	-		-	-	1210	-1265
12	50241	2255	-		-	-	1080	1068
13	50007	1837	2503	2414	-	2449	-	-
14	50616	1798	2034-	1959	-	1868	-	-
15	50092	1907	-	-		-	1113	1012
16	50182	1765	-		-		865	1130
Average	50268	1880	1767	1794	-	1818	916	919
ST DEV	517	246	366	354	-	359	192	228
%CV	1.0	13	21	20	20	21	25
PLA	-		-		-		-
Plate #	WHO SW.	ICS	13–28a	13–28b	13–28c	22–28a	22–28b	22–28c
1	49805	1863	1467	1413	1643	-	-	-
2	50360	1524	1335	1327	1324	-	-	-
3	49809	1820	1709	1489	1546	-	-	-
4	50549	2241	1653	1736	1734	-	-	-
5	49681	1685	-	-	-	676	660	615
6	49660	1649	-	-	-	865	724	744
7	50723	2140	-	-	-	771	862	879
8	49710	2317	-	-	-	791	798	851
9	50691	1619	1445	1422	1799	-	-	-
10	50566	1809	1265	1421	1462	-	-	-
11	51597	1823	-	-	-	1231	1239	1400
12	50241	2191	-	-	-	854	877	1005
13	50007	2002	2010	1854	2127	-	-	-
14	50616	1771	1676	1488	1481	-	-	-
15	50092	1969	-	-	-	894	820	814
16	50182	1730	-	-	-	884	871	615
Average	50268	1885	1570	1519	1640	871	856	865
ST DEV	517	237	241	181	250	163	172	253
%CV	1.0	13	15	12	15	19	20	29

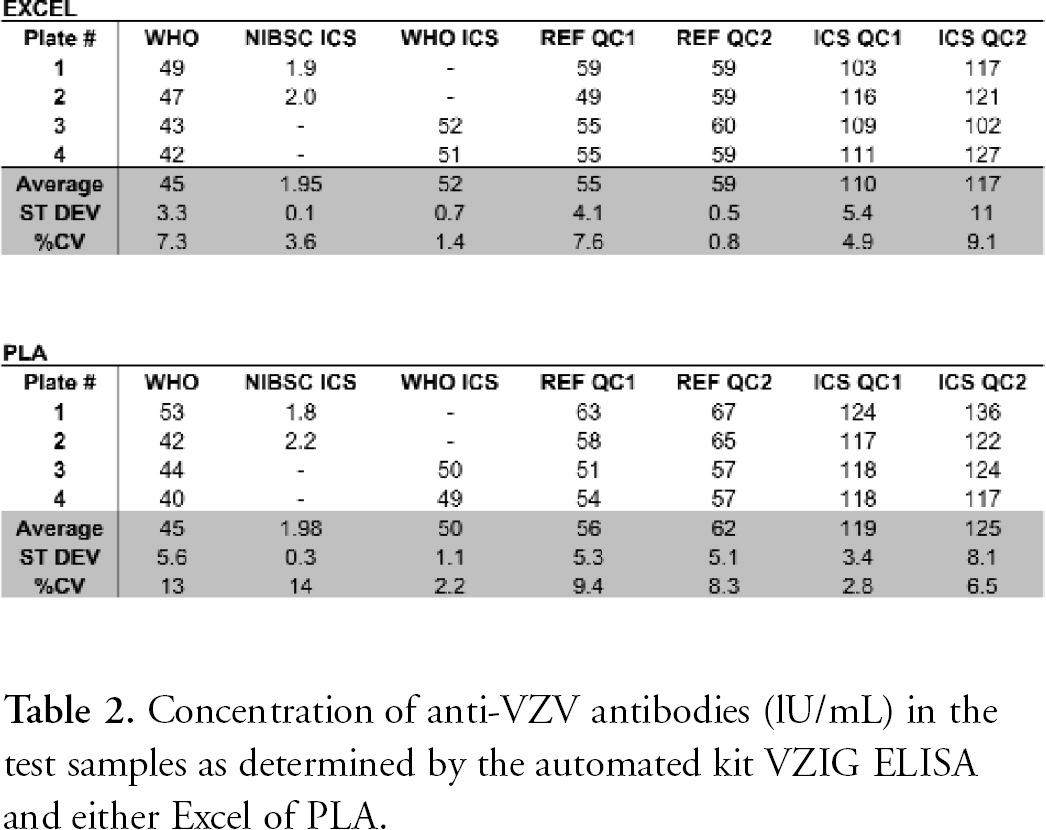

Table 2.

Concentration of anti-VZV antibodies (lU/mL) in the test samples as determined by the automated kit VZIG ELISA and either Excel of PLA.

EXCEL	-		-		-
Plate #	WHO	NIBSC ICS	WHO ICS	REF QC1	REF QC2	ICS QC1	ICS QC2
1	49	1.9	-	59	59	103	117
2	47	2.0	-	49	59	116	121
3	43	-	52	55	60	109	102
4	42	-	51	55	59	111	127
Average	45	1.95	52	55	59	110	117
ST DEV	3.3	0.1	0.7	4.1	0.5	5.4	11
%CV	7.3	3.6	1.4	7.6	0.8	4.9	9.1
PLA	-		-		-
Plate #	WHO	NIBSC ICS	WHO ICS	REF QC1	REF QC2	ICS QC1	ICS QC2
1	53	1.8	-	63	67	124	136
2	42	2.2	-	58	65	117	122
3	44	-	50	51	57	118	124
4	40	-	49	54	57	118	117
Average	45	1.98	50	56	62	119	125
ST DEV	5.6	0.3	1.1	5.3	5.1	3.4	8.1
%CV	13	14	2.2	9.4	8.3	2.8	6.5

CONCLUSIONS

A tandem of the Microlab instruments, by offering a fully flexible and computerized platform, allowed a customized automation of both VZIG ELISA methods while facilitating their fully cGMP-compliant performance and documentation.

The use of the Microlab F.A.M.E. instrument allowed for processing of eight plates / day / analyst thus facilitating a throughput necessary for the clinical studies.

Once validated, the PLA program shall provide a powerful means to rapidly analyse, in a cGMP-compliant manner, the data obtained by both VZIG ELISA methods.

The automation elements implemented in the current studies for use with the Kit and Amplified VZIG ELISA improved assay and data management, reduced human errors and increased data traceability thus improving the performance and efficiency of both these methods.
