Utilization of micro-fines in sinter making and its implications on bed permeability and sinter quality

Abstract

Exploiting low-grade resources and raw material fines is a challenge for metallurgists developing new technologies. Iron-bearing and carbonaceous by-products are generated by ironmaking and steelmaking units and fed into the sinter plant. These by-products, which have varying proportions of ultra-fines, balling properties, moisture retention capacities, and so on, have a significant impact on sinter quality when used in sinter green mixtures. This study investigates the use of micro-fines and how it affects sinter quality while keeping operational factors such as moisture addition, balling index, and bed permeability in mind. In addition, the ideal moisture addition is investigated using higher micro-fines bearing dusts/sludges of various iron-bearing materials. The presence of columnar SFCA (Silico-ferrite of Calcium and Aluminium) is revealed by microscopic examination of the sinter produced with higher micro fines and good permeability, which improves the Reduction Degradation Index. It was also demonstrated that using more micro-fines in the blend and maintaining consistent moisture addition reduced the amount of return sinter produced.

Introduction

An effective solid waste management system is essential for the sustainability of an integrated steel plant [1]. Fine-sized materials have a considerable impact on the environment, and they are considered solid waste generated in the steel plants. Their effective utilization helps in value addition and increases the efficiency of the manufacturing process. The sintering of waste fines from integrated steel plants is the most widely used method of recycling wastes such as iron ore, coke, limestone, and dolomite. Sinter raw material mixing, and granulation is an important process to control uniform distribution for better microstructure throughout the green mix [2]. Proper green ball formation would enhance the sinter bed permeability to improve sinter quality. One of the most important parameters affecting the sintering process is the bed permeability of the sinter mix [3–5]. Sinter beds’ permeability is significantly affected by the amount of moisture that is added during granulation in the mixing drum. The relationship between moisture percentage and bed permeability is parabolic in nature [5–7], and thus during any variation of input feed material size and characteristics, determining the optimum level of moisture addition can be difficult for the operator. Based on various experiments it was evaluated that, a 1% deviation from the optimum moisture leads to a nearly 10% drop in permeability and in turn about a 10% drop in sinter machine productivity [5,6]. Mixing drum plays an important role in achieving proper agglomeration of green mix to form uniform-sized green balls. Drum speed, retention time, particle size and moisture addition are the four major parameters that control the balling index. Based on trials conducted in a pot-grate sintering machine, relationship between particle size and moisture addition has been worked out. Drum speed and feed rate decide the total retention time length travelled inside the mixing drum. Longer the retention time, better the balling index. Proper balling of green mix would also lead to lower amount of return sinter both internal and from the blast furnace [5,8].

Ayan Goswami et al. [5] developed a mathematical model based on an automated permeability measurement system that calculated the amount of water to be added in the mixing drum to achieve the maximum permeability based on the input material. B. G. Ellis et al. [7] examined the influence of bed permeability, strength, voidage, and granule size distribution on the granulation behaviour of a sample during sintering by using independent measurements. A. Cores et al. [8] conducted a study on the relationship between sinter properties and iron ore granulation index (GI). Increasing the granulation index improved granulation. Granulation improvement increases the permeability of sinter beds, resulting in higher productivity. J Litster and A Waters et al. [9] developed an approach to mechanistically model the granulation process in which the granulation efficiency is related to the strength of the adhering layer of fines. This model can explain well the observed relationships between granulation effectiveness and feed properties. D. Fernandez-Gonzalez et al. [10] considered how granulation may serve as a source of pre-agglomerated materials for the subsequent sintering process and evaluated the granulation process. Shinji Kawachi and Shunji Kasama et al. [11] in their study, concluded that particles smaller than 10μm play an important role in granulation. By using the Andresen Pipette method and a single ore, a granulation test was conducted to investigate the effect of micro-particles on granulation. L. Lu and O. Ishiyama et al. [12] described in their study, to counteract changing raw material characteristics and mitigate emissions from sintering operations, undertook a comprehensive review of technology management systems. Takayuki Maeda et al. [13] examined the effects of porosity, moisture, and speed of revolution of a pelletizer on the strength and size of iron ore granules, especially those made of limonite iron ore, using haematite ore in order to clarify the factors influencing the strength of granules. A compression tester was used to measure the quality of sinter strength before and after drying. T. Umadevi et al. [14] have demonstrated that utilising a pot grate sintering apparatus, studies were carried out to ascertain the effect of air flowrate (flame front speed) on sinter production and quality. These suction pressures ranged from 900 to 1700mm water column over the sinter bed. The sinter productivity increased from 34.37 to 48.90 t/m²/day with 900 to 1700mm water column increases in suction pressure along the sinter grate.

The current study's goal is to comprehend how ultrafine particles (< – 0.5 mm) affect the sinter's microscopic phase development and bed permeability. The investigation was split into two phases:

Effects of ultra-fines and moisture requirement in the green mix by the laboratory trial of bed permeability of sinter bed.

Effect of ultra-fines on sinter microstructure and Reduction Degradation Index (RDI).

Materials and methodology

Materials used

The raw materials for a sinter plant can be classified into three categories; these are iron-bearing raw materials (pellet fines, sludge pond fines, blast furnace return fines, mill scale), fluxes (limestone, quick lime and dolomite) and fuels/carbonaceous materials (blast furnace dust catcher fines and coke breeze). All these raw materials were taken in different ratios based on the target sinter chemistry suitable for blast furnace, and no external iron ore fines were used to make the sinter. Iron ore sinter quality and sinter plant performance are heavily influenced by the properties of these raw materials.

Equipment parameters and process flow of sintering experiment

Equipment parameters of the sintering experiment are given in Table 1.

Table 1.

Equipment parameters of sintering experiment.

Equipment details	Details of process parameter
Pelletizer dimension	Diameter 1000 mm with Water spraying facility
Pot sinter Machine	35 cm, Width: 35 cm, Height: 700 mm
Vacuum Pump capable of	1200 mm hg of Water column
Grate	3 mm Gap made with chromium steel
Burner dimension	Sit on the pot machine, LPG fired, Mixed with compressed air

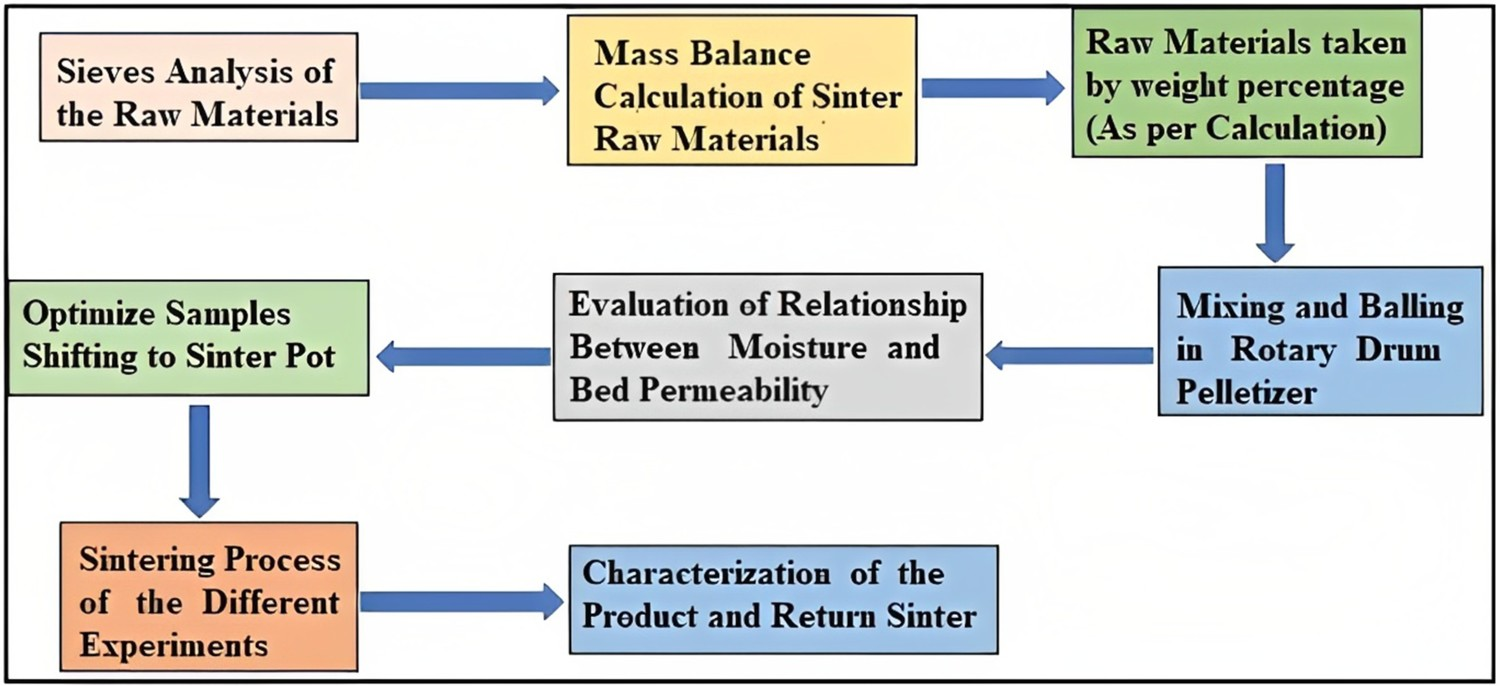

Detailed process of the sintering experiment is given in Figure 1.

Figure 1.

Process details of sintering experiment.

Experimental description

Size analysis of different raw materials was conducted to find out the over size and ultra-fines fraction present in the material. Different sets of experiments were designed for pot grate trials by mixing all the raw materials based on size fraction and blast furnace required chemistry. To build up a relationship between moisture percentages and bed permeability of the green mix, different sets of experiments were conducted. Bed permeability was measured in Japanese permeability Units (JPU) and is given by the following equation [15,16]. where F = Air flow rate (m³/min), A = Cross sectional area of the bed (m²), L = height of the bed (mm), dP = pressure drop across the bed (mm Hg).

Photograph of mixing drum and sinter pot machine are given in Figures 2 and 3.

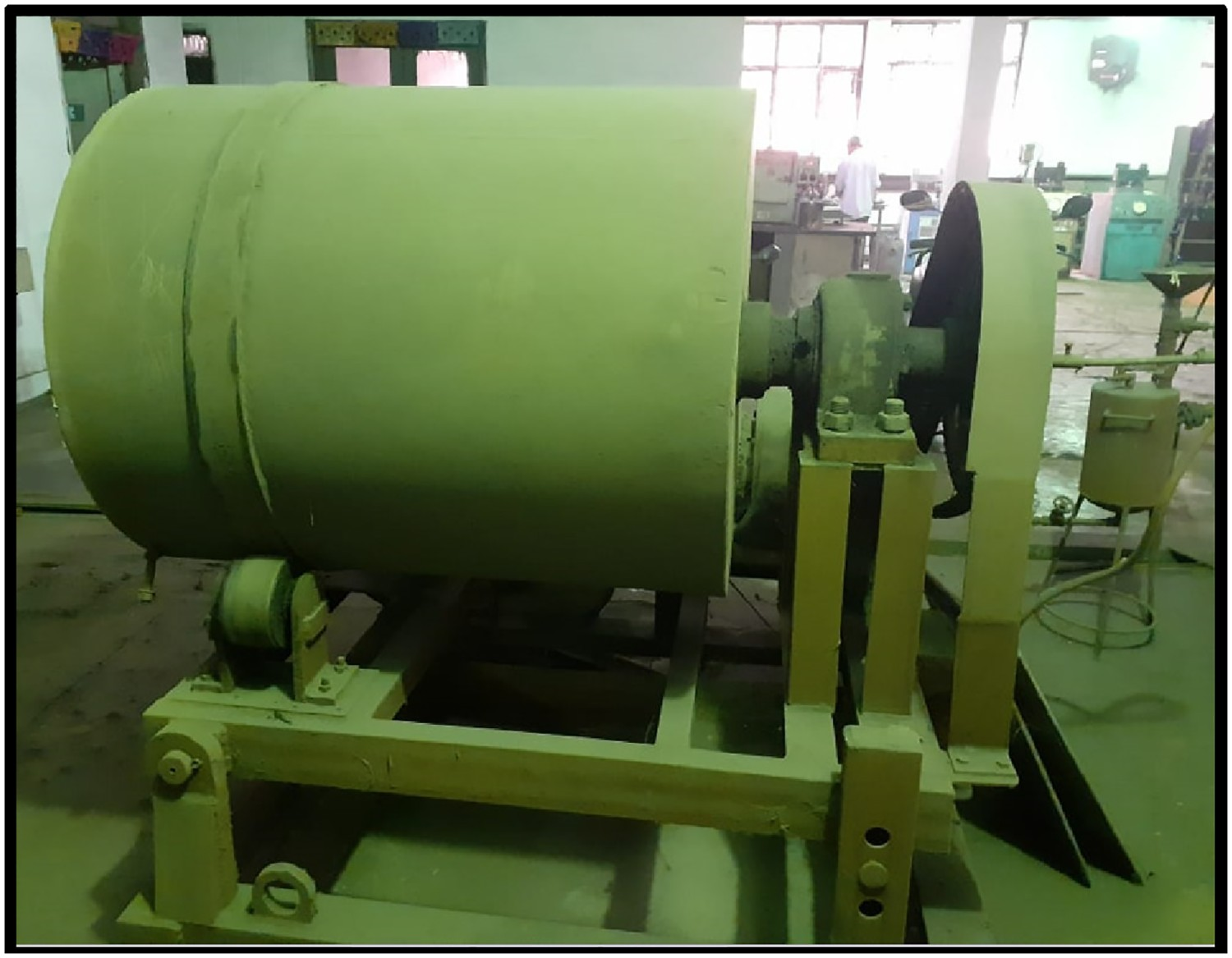

Figure 2.

Photograph of pelletizer drum.

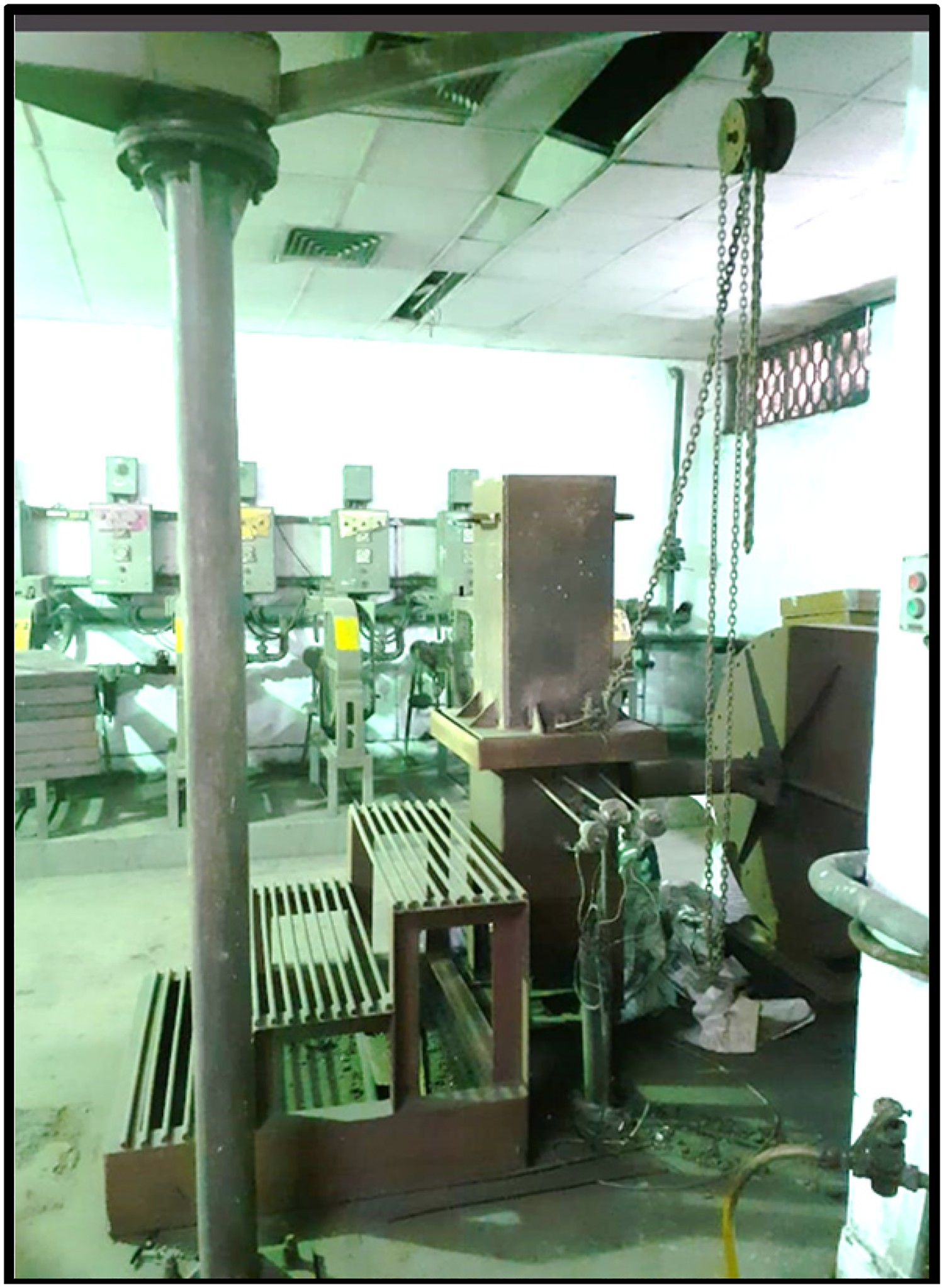

Figure 3.

Photograph of pot sinter machine.

The parameters like sintering time, suction pressure, exist gas temperatures, generation of return fines, etc were measured. Samples of sinter product were characterized for Reduction Degradation Index (RDI), XRD, optical microscopy and scanning electron microscopic analysis.

Characterization of sinter

For chemical quantification of raw materials like plant byproducts, flux materials, and sinter products, wavelength dispersive X-ray fluorescence (WDXRF, MagiX2424, PANalytical Super Q) was used. The coke was analysed by proximate analysis. The samples were analysed with an X-ray diffractometer (XRD) (Rigaku Ultima-III, Cu Kα, 40 kV, 30 mV) at a scan rate of 3° min−1 from 20 to 80°. RDI is calculated in accordance with IS 10823: 1994 (REAFFIRMED 2001) Standard. An optical microscope (model Leica DM 6000 M RL) was utilized for the microstructure analysis. The Bureau of Indian Standards conducted the chemical analysis of the sintered samples (BIS 10812:1992). To obtain topographic information, SEM was used to visualize the topography, and EDX was used to analyse the spots (model JSM-6380 Jeol) of sintered samples.

Results and discussion

Chemical analysis of the raw materials

Total Fe & major and minor oxides of sinter input raw materials are presented in Table 2 which shows the detailed results of the chemical analysis (weight %).

Table 2.

Chemical analysis of the sinter input raw materials.

Material	Fe	FeO	CaO	SiO₂	MgO	Al₂O₃	P₂O₅	MnO	TiO₂	Ash	LOI
Plant Fines	62.94	6.74	1.88	3.59	0.48	2.23	0.017	0.05	0.1	0	2.04
EAF Slag	2.57	35.3	28.1	18.09	8.45	6.07	o.51	0.12	0.4	0	0
BF Return	56.84	4.83	6.86	5.55	1.69	2.11	0.026	0.12	0.13	0	2.34
Mill Scale	64.12	45.48	0	0	0	0	0.000	0	0	0	0
Sludge Pond Fines	67.08	0	1.36	3.78	0.39	1.56	0.013	0.1	0.09	0	1.56
Return sinter	53.78	7.51	11.24	5.49	2.65	1.89	0.031	0.13	0.13	0	1.89
Limestone	1.55	0	45.75	2.51	5.58	0.47	0.000	0	0	0	42.6
Lime	0.1	0	94.4	0.76	0	1.37	0.000	0	0	0	2.33
Dolomite	1.49	0	32.24	1.31	17.15	0.46	0.000	0	0	0	44.12
Coke breeze	0.28	0	0.62	4.03	0.53	2.78	0.013	0	0.1	16.08	80.84

Particle size analysis of the input raw materials

Particle size distributions and mean particle size (MPS) of the sinter raw materials are given in Table 3 which indicates that plant fines and sludge pond fines are associated with higher fraction of ultra-fine particles.

Table 3.

Particle size analysis of the sinter raw materials.

Samples	−10.0 to +6.3 mm (%)	−6.3 to +1 mm	−1 to +0.5 mm	−0.5 to +0.15 mm	−0.15 mm (%)	Mean particle size (MPS)
Plant Fines	4.54	29.78	13.59	10.4	41.69	1.62
EAF Slag	20.04	40.23	30.55	6.09	3.09	3.35
BF Return	16.65	47.23	18.2	6.88	11.04	3.25
Mill Scale	10.82	21.23	26.24	27.39	14.32	1.95
Sludge pond Fines	5.33	12.01	22.21	18.29	42.16	1.13
Return Sinter	4.48	29.13	15.21	25.02	26.16	1.64
Limestone	11.48	27.6	32.69	11.65	16.58	2.24
Lime	1.24	10.1	30.35	9.89	48.42	0.77
Dolomite	10.73	18.95	44.34	13.55	12.43	1.95
Coke Breeze	1.59	19.89	36.05	15.11	27.36	1.20

Effects of moisture on sinter bed permeability in different feed mix

Sieve analysis was conducted on iron-bearing raw materials (IBRM) when developing the relationship between moisture content and the sinter bed permeability. Input raw material of the different sets of experiments is given in Table 4. Input raw materials were taken at different size ranges based on different sets of experiments. Then, moisture was added at different proportions to evaluate the relationship between moisture percentage and bed permeability. One set of experiment was carried out of five different sets of experiments to find out the optimum bed permeability of the experiment. Sinter bed permeability and moisture content follow a parabolic relationship.

Table 4.

Input raw materials of the different sets of experiments.

Sinter feed	Exp. 1	Exp. 2	Exp. 3	Exp. 4
Input materials	%	%	%	%
Plant Fines	39.87	39.87	30.86	30.86
EAF Slag	6.53	6.53	5.98	5.98
BF Return	20.89	20.89	20.00	20.00
Mill Scale	3.62	3.62	5.93	5.93
Sludge Pond Fines	4.7	4.7	12.78	12.78
Return Sinter	13.56	13.56	13.57	13.57
Limestone	1.81	1.81	1.81	1.81
Lime	1.81	1.81	1.81	1.81
Dolomite	2.71	2.71	2.71	2.71
Coke breeze	4.52	4.52	4.52	4.52

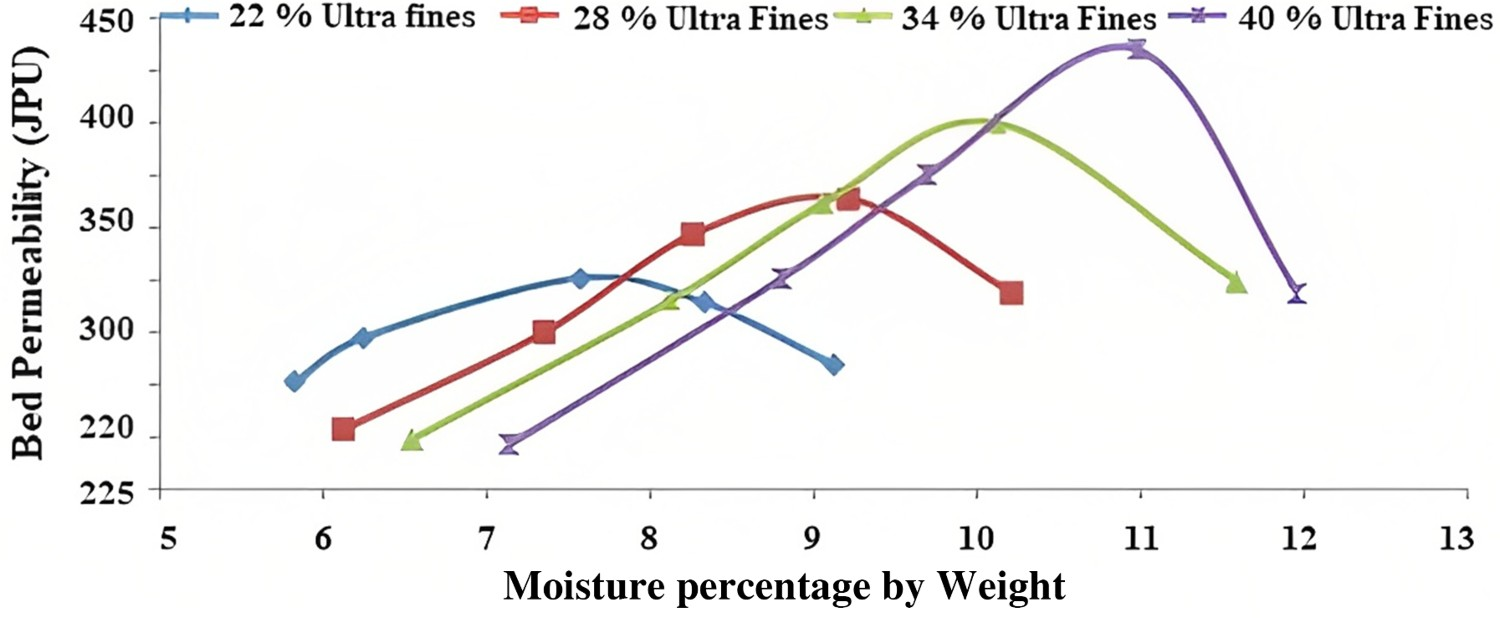

The permeability of sinter beds is affected by moisture in Figure 4. With increasing moisture content, the bed permeability increases before it passes through a maximum permeability (Pmax) and then decreases with higher levels of moisture. Furthermore, it is obvious that moisture content at Pmax depends on the composition of the sample used in different experimental sets. Optimum moisture percentage for raw material composition (22% Ultra Fines), (28% Ultra Fines), (34% Ultra Fines) and (40% Ultra Fines) are 8.32%, 9.21%, 10.11% and 10.97%, respectively. This is because, as the % fines increase in the input raw material, total surface area increases which lead to high moisture requirement for optimum balling and eventually higher bed permeability.

Figure 4.

Effects of moisture content in different feed mix of sinter raw materials on sinter bed permeability.

Relationship between input, output materials and mean balling index

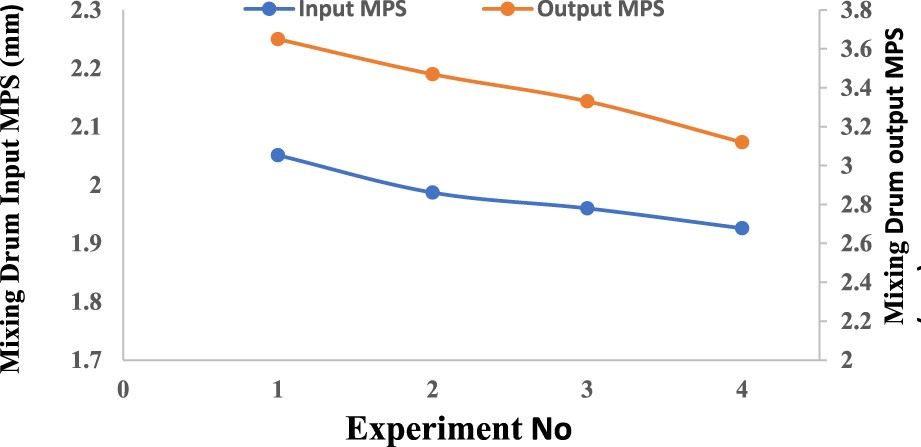

Relation between the mean particle size of input and output materials of different sets of experiments is given in Figure 5.

Figure 5.

Input and output mean particle size of different sets of experiments.

From Figure 5, it can be concluded that the mean particle size is increase with increasing the higher ultrafine experiment.

Balling index calculated for different sets of experiments is given in Figure 6 and its value found to be within the industrial practiced range.

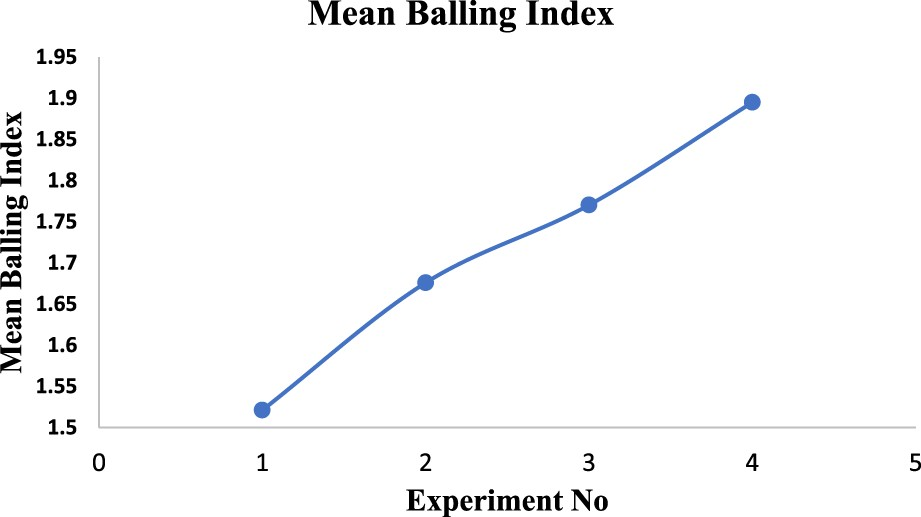

Figure 6.

Mean balling index of different sets of experiments.

Effects on ultra-fines fraction percentage on sinter RDI

Experimental details of ultra-fine fraction percentage in the laboratory trials

Table 5 provides experimental details of the composition of raw materials for sintering with different amounts of ultra-fines. The purpose of this study was to see the behaviour of the fine particles during the sintering process.

Table 5.

Different ultra-fines fraction of feed mixes of the sinter input raw materials.

Experiment No	% Fraction of raw materials below −150 microns in IBRM
1	22%
2	28%
3	34%
4	40%

Input raw materials for different sets of experiments

Selection of the sinter-making raw materials in different sets of experiments based on total iron content (56%), basicity index (2.2) and magnesium oxide (1.8–2.2%) of the sinter chemistry is listed in Table 4 and mean particle size of different experiments is given in Table 6.

Table 6.

Mean particle size for input materials for each set of the experiments.

Sinter feed	Exp. 1	Exp. 2	Exp. 3	Exp. 4
MPS (Input at Mixing Pelletizer)	2.051	1.987	1.960	1.926

Depending on the quantity of ultra-fine particles, the retention time in the granulation process took between 8 and 10 min. Since the ultra-fines particle percentage was larger in this study than in plants, retention duration was set higher. Here larger particles act as nuclei and fine particles are coated onto its surface. This improves the granulation index of the mixing process. In situ Plant fines and sludge pond fines were collected and segregated through sieve analysis in different fines sizes. The fraction below −150 microns were used in the experiment with different percentages.

Effects of mean particle size on moisture content in different sets of experiments

The weight loss method is used to calculate the granulation sample's moisture percentage. Based on the above results of moisture analysis of the granulated green mix after the granulation of different samples, it is evident that moisture percentage increases as ultra-fine particle fraction increases. Since the total exposed surface area is increased with the predominance of fine particles, the moisture content needs to be higher. Each group was experimented thrice and the average value was put into the graph. So, a total of twelve experiments were conducted. For each percentage of ultra-fines and for different percentage of moisture, bed permeability was measured (Figure 4). It was found that the after a certain level, the bed permeability is decreasing. Optimum moisture percentage for raw material composition (22% Ultra Fines), (28% Ultra Fines), (34% Ultra Fines) and (40% Ultra Fines) are 8.32, 9.21, 10.11 and 10.97 respectively.

Sintering time and suction pressure for different sets of experiments

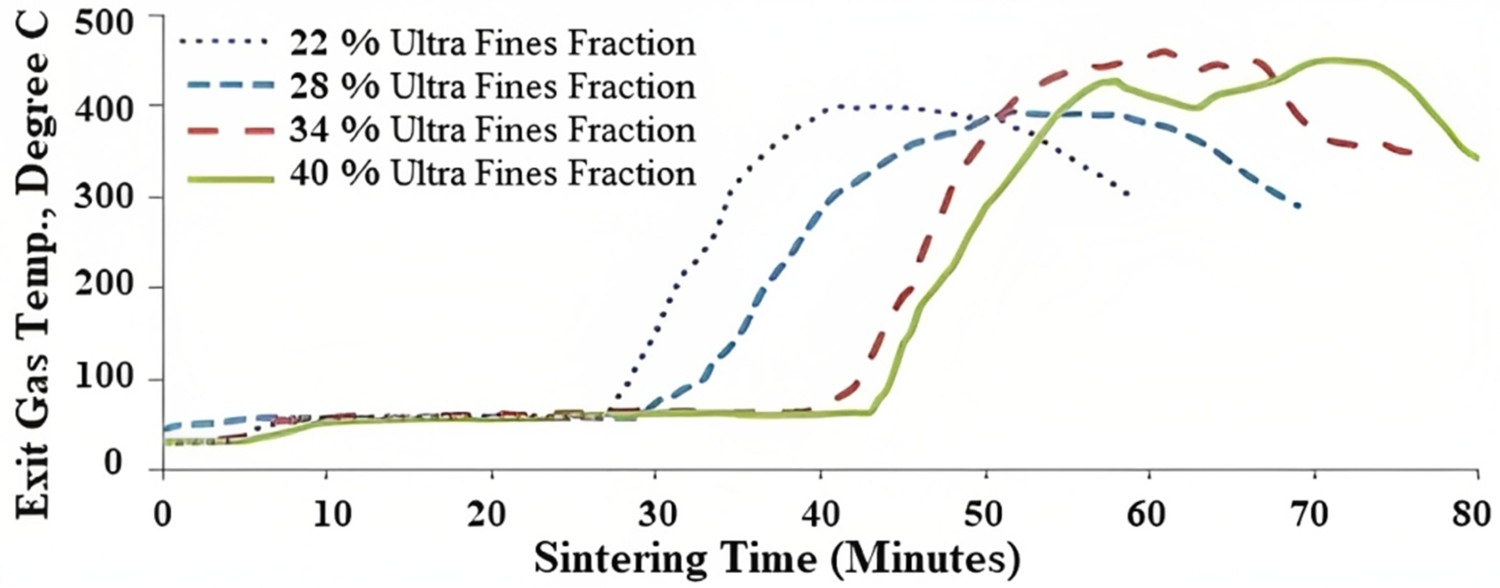

Effects of quality of sinter based on sintering time and exit gas temperatures in different sets of experiments of pot sinter trials are given in Figure 7.

Figure 7.

Effects of sintering time and exit gas temperatures in different sets of experiments.

From Figure 7, it can be concluded that sintering time, corresponding to a particular exit gas temperature, increases with increasing ultra-fines particle fraction. The reason behind this is that as ultra-fines particle fraction increases, % of moisture in the green-mix also increases. Because a high percentage of ultrafine particles results in low bed permeability, the temperature of the exit gas is raised. Effect of suction pressure on sintering time in different set of experiments in pot sinter trials is given in Figure 8.

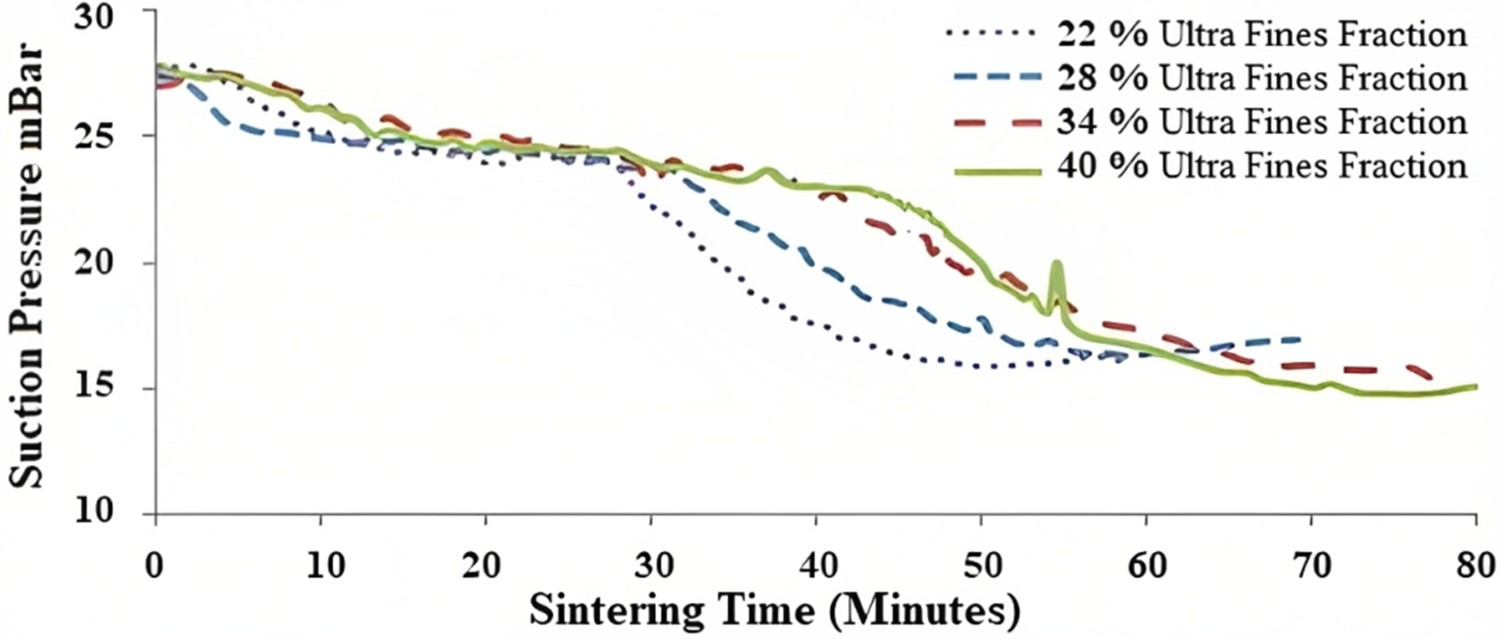

Figure 8.

Relationship between sintering times and suction pressure in different sets of experiments.

From Figure 8, it can be concluded that suction pressure corresponding to a particular sintering time increases with increasing ultra-fines particle fraction. This is happening because high percentage of ultra-fine particles reduces the sinter bed permeability. Sintering time is maximum as in the case of highest fraction (40% fraction) as can be clearly seen in Figure 8. This confirms the fact that with an increase in ultra-fines, the process of sintering slows down.

RDI and return fines of different sets of experiments

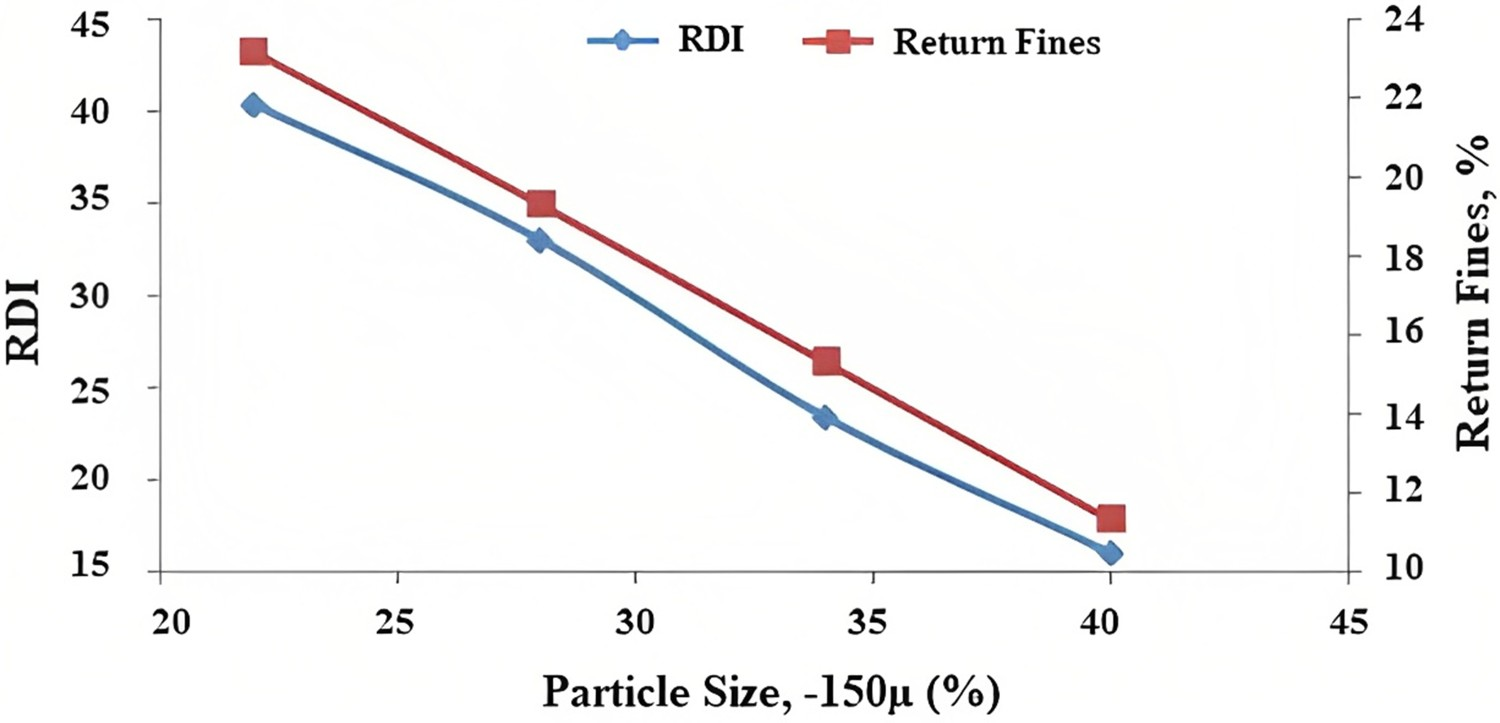

Reduction Degradation Index (RDI) and generation of return fines in different sets of experiments for pot sinter trials are shown in Figure 9 which indicates that RDI decreases with increasing ultra-fines particles.

Figure 9.

RDI and generation of return fines in different sets of experiments.

The uniform distribution of iron-bearing raw materials and flux materials causes the reduction in RDI. Because of the lower bed permeability and longer sintering time during the pot sinter trials, finer fraction particles with columnar SFCA structures were formed at high temperature. Formation of columnar SFCA was above 1300°C [17] and the size ranges between 10 and 40 µm. These columnar SFCA particles lead to uniform distribution in sinter resulting to low RDI. Also, at higher temperature some magnetite structures were formed which were also responsible for lower RDI [18]. During trials with lower amount of ultra-fines, few dendritic SFCA and silicate melt were formed due to high bed permeability and lower sintering time [19,20]. Formation of dendritic SFCA was observed above 1200°C and size range between 1 and 4 µm. These dendritic SFCA and silicate melt particles lead to high RDI. It can also be demonstrated that as ultra-fine particles increase in size, sinter return fines decrease due to the formation of different slag phases and magnesio-ferrite phases. Table 7 shows the mechanical stability of various set experiments.

Table 7.

Mechanical properties of the product sinter of different experiments.

Samples	Shatter strength	Abrasion strength	Tumbler strength
Exp. 1	76.56	11.06	64.67
Exp. 2	80.24	8.86	69.78
Exp. 3	84.67	5.84	77.53
Exp. 4	87.34	4.32	79.27

Microscopic analysis of low and high RDI samples

Microscopic analysis of the low and high RDI samples was conducted and the typical microstructures are shown in Figure 10.

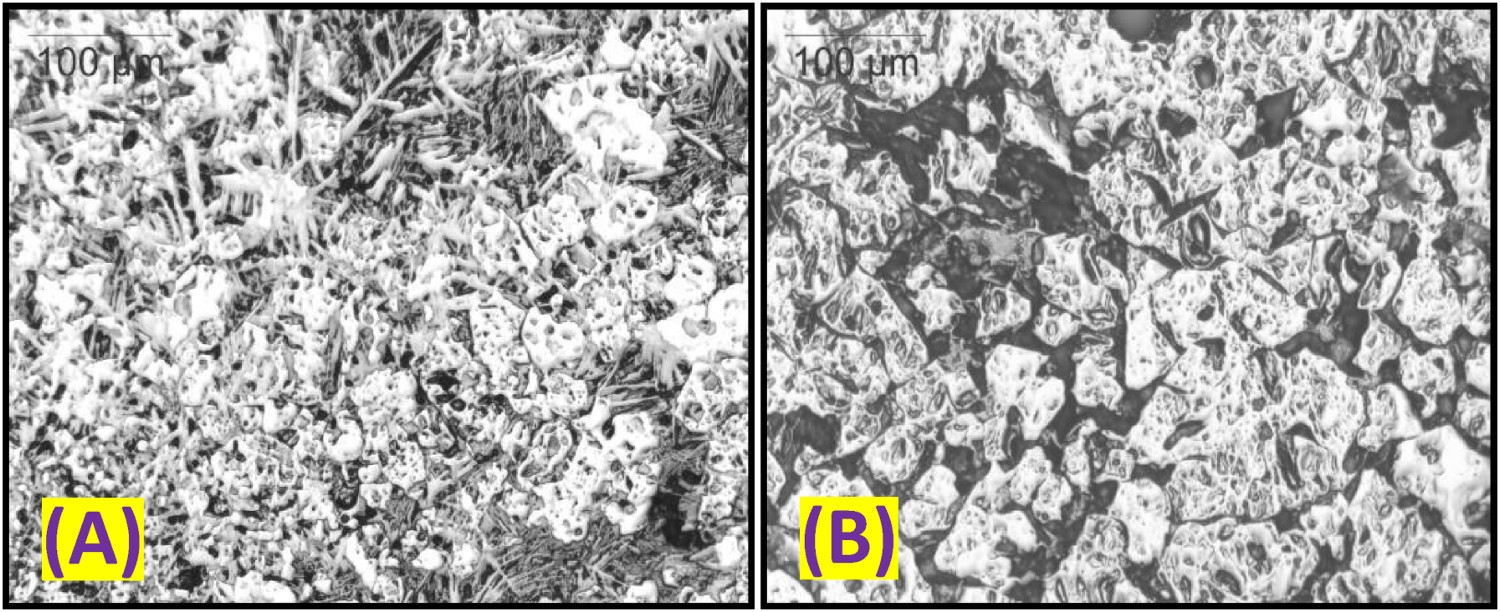

Figure 10.

Microscopic analysis of the sinter samples (A) Low RDI and (B) High RDI.

From Figure 10(A), it can be observed that columnar SFCA is present in large proportions throughout the samples resulting in low RDI in the sinter. Figure 10(B) shows unfavourable microstructure which was due to a lack of favourable reaction conditions between the iron-bearing raw materials and flux materials during the sintering process. As a result, high RDI in the sinter was found.

SEM and EDX analysis of low and high RDI samples

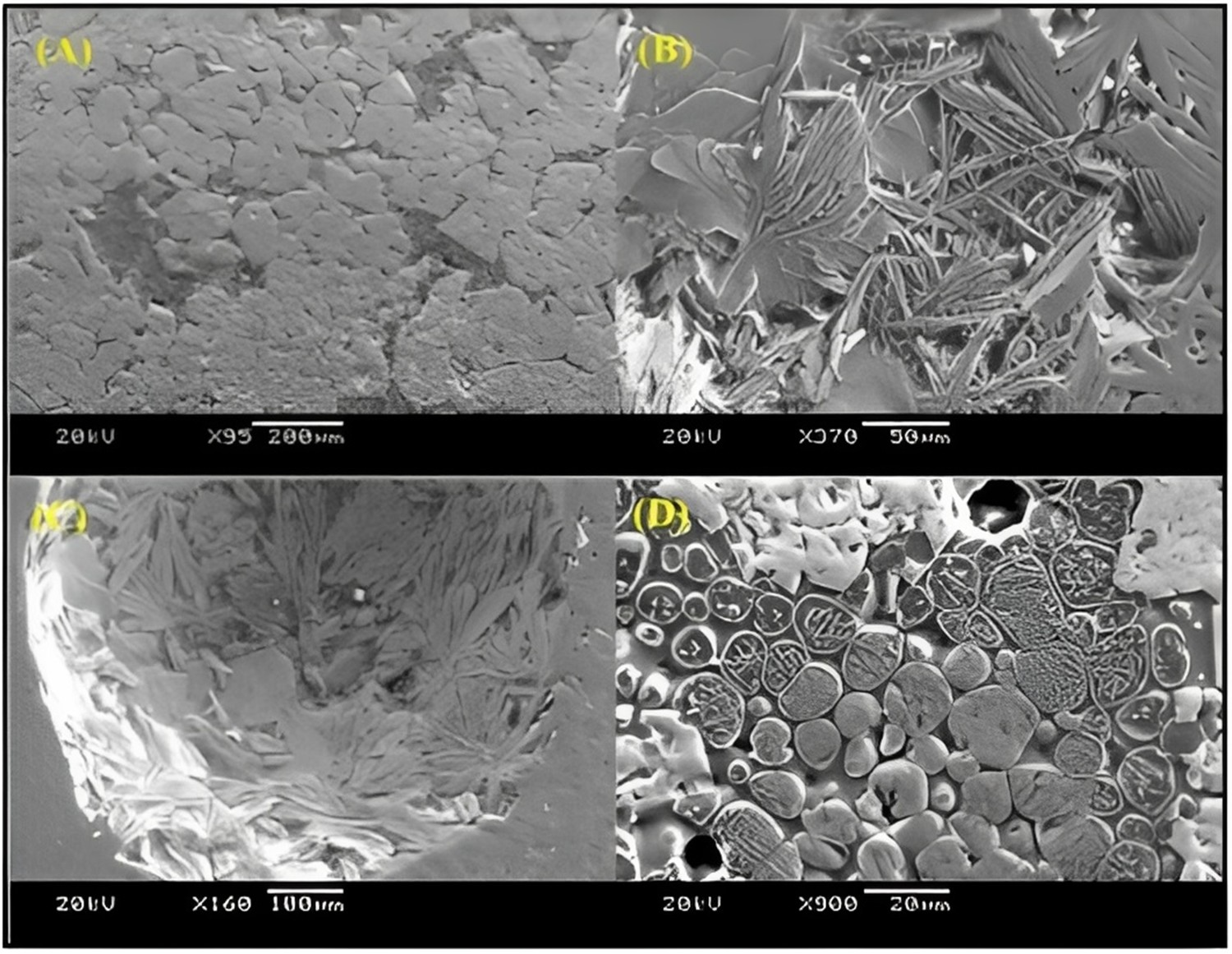

Figure 11(A–D) shows microphotographs of low RDI samples. Figure 11(A) shows that Silico-ferrites of calcium and alumina (SFCA) slag phases are uniformly distributed in the matrix throughout the sinter. It occurs as a result of the uniform mixing of fine particles and the formation of the melting phase, in which calcium, silica, alumina, and iron form a complex structure. Figure 11(B) shows the acicular nature of the SFCA phase that is present in the pores created by coke/flux during sintering to form a strong and porous sinter and from Figure 11(C) similar growth of acicular SFCA can be observed distributed in the sinter. Figure 11(D) represents a typical formation of a globular phase containing primarily magnesium and iron.

Figure 11.

(A), (B), (C) and (D): SEM analysis of the low RDI samples.

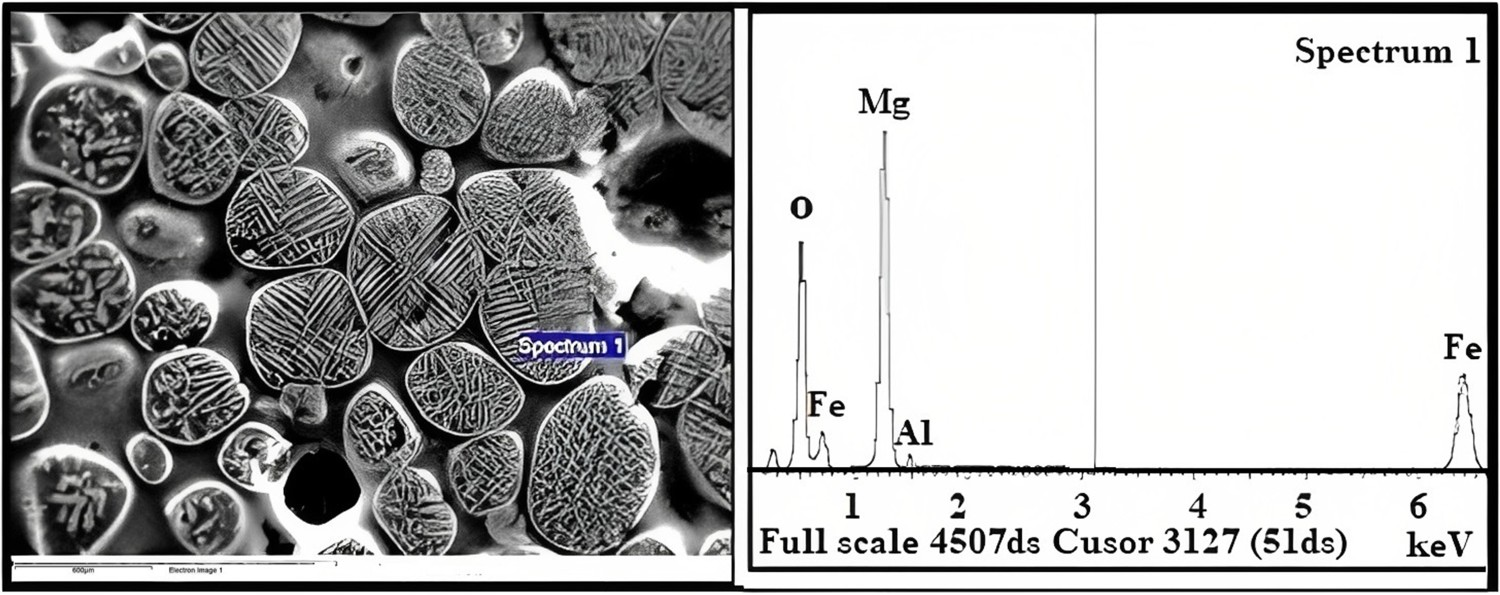

The corresponding EDS analysis of the samples is shown in Figure 12 and Table 8 which indicate the presence of elemental Fe, Mg, O, and Al. As per the ternary phase diagram, there is a melt phase formed at a very high temperature containing CaO, MgO, and SiO₂ at about 1350⁰ C from where these globular phases have precipitated during cooling.

Figure 12.

EDS analysis of the low RDI samples.

Table 8.

EDS results of low RDI sample.

Formula	Precipitate	Melt phase	SFCA
MgO	58.74	28.97	2.01
Al₂O₃	1.11	0.34	9.53
FeO	40.15	4.63	53.09
SiO₂		38.01	17.29
CaO		28.39	18.08

Table 8 represents the weight percentage of the EDS spots in the low RDI sample. Microstructure analysis using SEM for the high RDI sinter is shown in Figure 13(A–D). From Figure 13(A), it can be observed that silicate melt, haematite, magnetite and minor dendritic SFCA phase is present. It is caused due to the improper mixing of iron-bearing raw materials, fluxes, and coke dust. Figure 13(B) showed that the bonding is present between particle-to-particle slag phase. Figure 13(C) showed the formation of high silica columnar SFCA phase present at discrete locations.

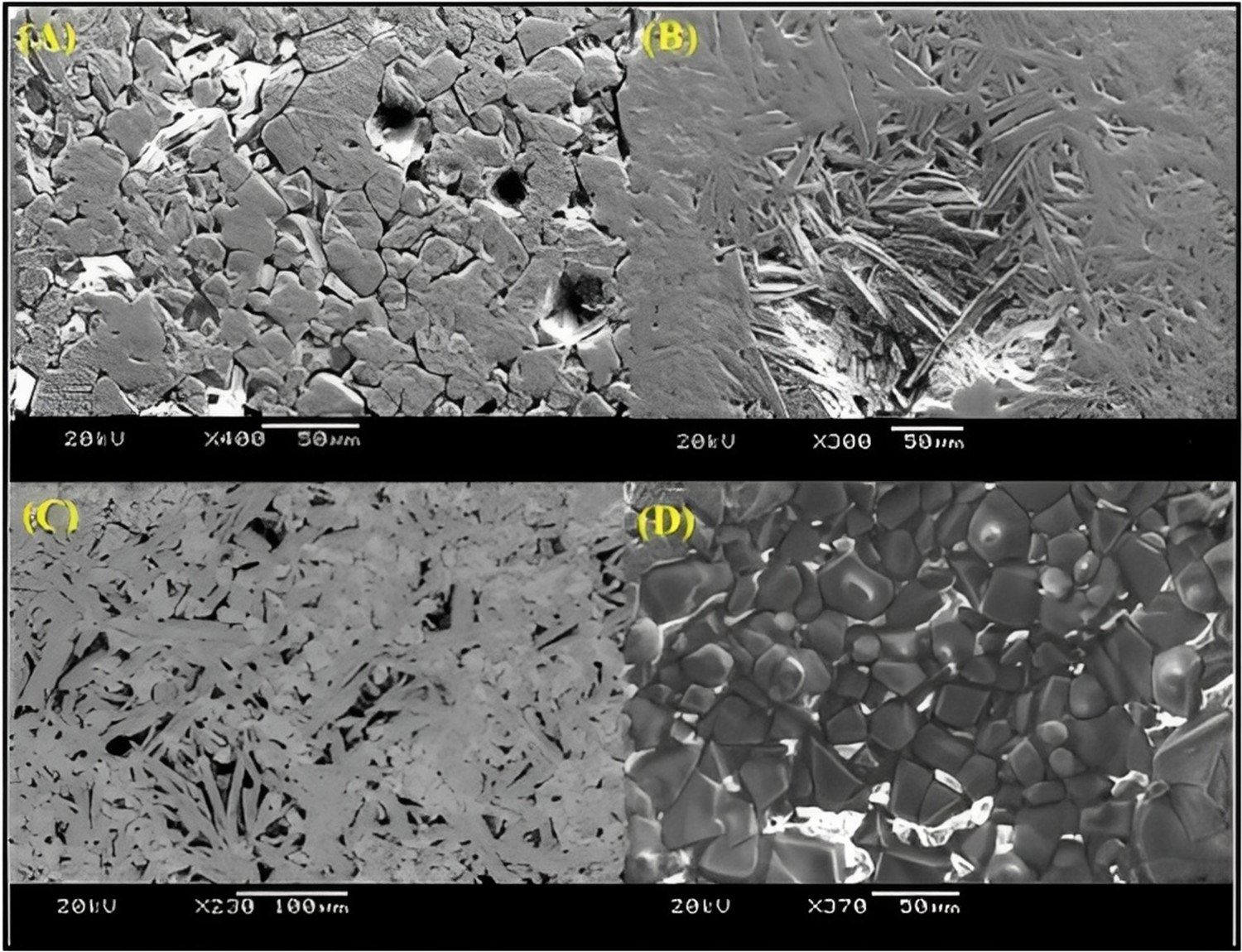

Figure 13.

(A), (B), (C) and (D): SEM analysis of the high RDI samples.

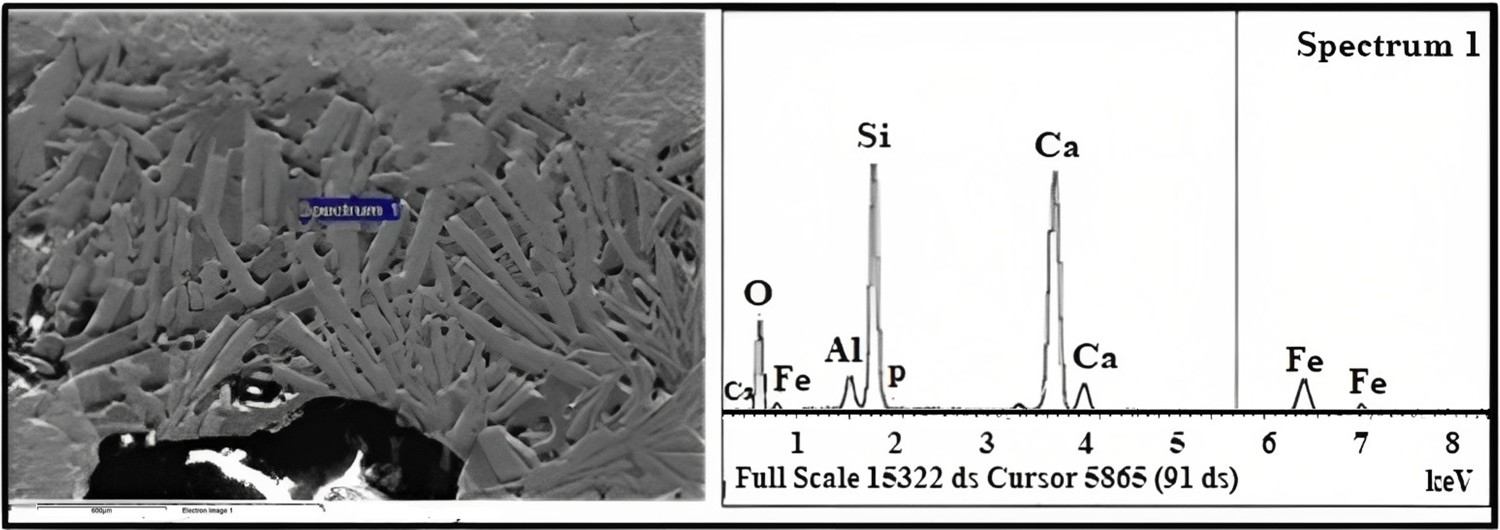

The corresponding EDS analysis for these samples can be seen in Figure 14 which shows that a high RDI sample contains Fe, Al, Si, Ca, and P elements.

Figure 14.

EDS analysis of the high RDI samples.

The elements in Table 9 are represented by their weight percentage, atomic percentage, and compound percentage. The cluster of coarse particles in Figure 13(D) is surrounded by silicate melt, but there is no SFCA present in the area.

Table 9.

EDS results of high RDI sample.

Formula	Melt phase	Dendritic SFCA	Columnar SFCA
Al₂O₃	4.27	8.41	5.79
SiO₂	40.50	8.51	30.59
P₂O₅	0.65	0	0
CaO	39.59	14.31	32
FeO	14.99	68.77	31.62

From the above SEM-EDS analysis, it can be concluded that lower RDI depends on uniform distribution of SFCA structure and formation of magnesio-ferrite phase in sinter. Also, EDS analysis for medium RDI samples is shown in Figure 15 and the corresponding oxides contain are given in Table 10. From Tables 8–10, it is evident that there is steady drop in MgO content for Low, Medium and High RDI samples respectively. The drop in MgO has its effect on the RDI of the Sinter due to the presence of Magnesioferrite phase which is confirmed from the XRD analysis (Figure 16).

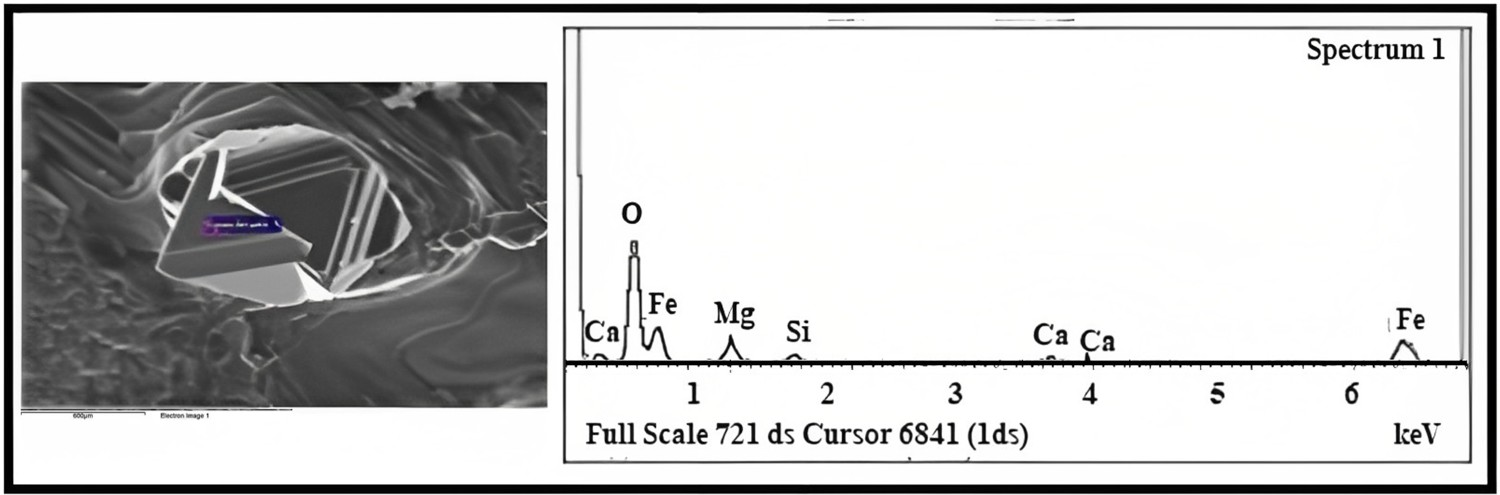

Figure 15.

EDX analysis of the medium RDI samples.

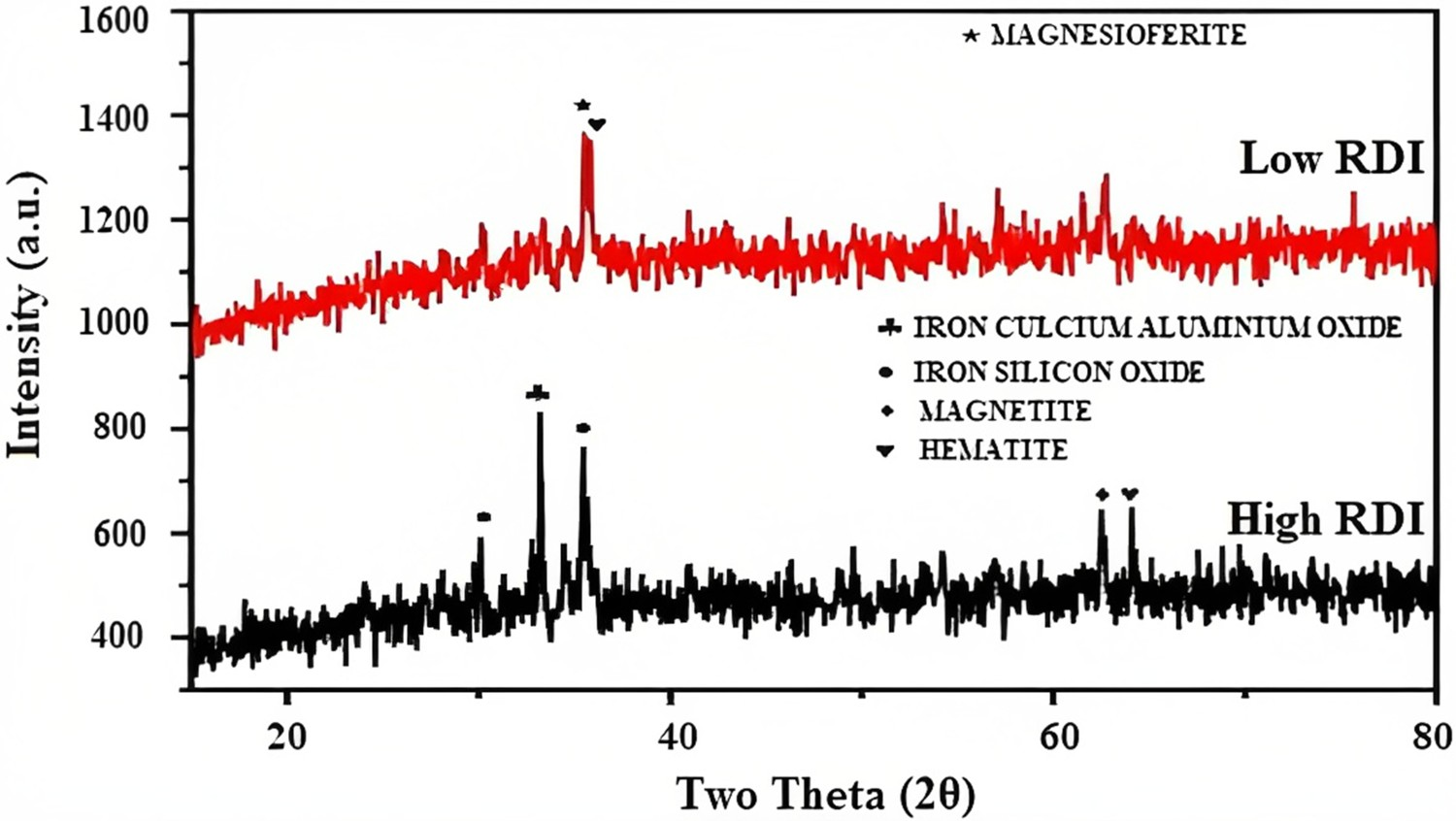

Figure 16.

XRD analysis of the low and high RDI samples.

Table 10.

EDS results of medium RDI sample.

Formula	Melt phase	Dendritic SFCA	Columnar SFCA
MgO	23.22	12.54	5.01
SiO₂	6.63	14.09	21.02
CaO	6.93	13.41	22.45
FeO	63.31	59.96	54.52

Sinter return fines of low and high RDI samples are given in Table 11. From Table 11, it can be concluded that the participation of MgO is higher with Low RDI samples as the MgO content in return sinter shows a lower value. As the sinter is a heterogeneous material, in some places the SEM image has shown the presence of MgO and in some places there were no traces of MgO. This substantiates the heterogeneity of the sinter composite.

Table 11.

Chemical analysis of return fines of low and high RDI samples.

Samples	Chemical analysis of return fines (%)
Composition	T (Fe)	FeO	SiO₂	Al₂O₃	CaO	MgO	MnO	TiO₂	P	S	Na₂O	K₂O	ZnO
Low RDI Samples	55.01	6.21	5.88	1.96	10.88	2.02	0.19	0.1	0.05	0.032	0.09	0.14	0.033
High RDI Samples	54.36	6.67	6.05	2.08	11.34	2.64	0.17	0.08	0.06	0.03	0.07	0.15	0.031

XRD analysis of low and high RDI samples

The XRD patterns of the high and low RDI sinter samples are shown in Figure 16 which indicated the presence of magnesio-ferrite phase that improves the sinter reduction properties in the blast furnace during its transition from haematite to magnetite.

Formation of magnesio-ferrite phase at lower RDI samples was due to more uniform distribution of fluxes, carbon and iron-bearing raw materials during the balling. Magnesio-ferrite phase has a spinel structure which gives rise to the improved mechanical strength of the sinter.

Conclusions

Optimum quantity of moisture in green mix is a very important factor for achieving sufficient bed permeability. Optimization of the moisture percentage with bed permeability of sinter green mix was reached by increasing the amount of micro fine particles.

Sintering time, exit gas temperature, suction pressure and moisture percentage of green mix were improved by increasing the micro fines particle fraction up to 40%.

Sinter RDI and return fines decreased as the micro fine particle size increased, owing to the formation of very fine dendritic acicular SFCA in large proportions throughout the samples. XRD, SEM, and EDS analyses confirmed the presence of the Magnesioferrite phase, which is also responsible for the lower RDI.

As the percentage of micro fines increases, so does the Shatter Index, Tumbler Index, and Abrasion Index. This could be due to an increase in intra- and inter-granular bond strength, as well as an increase in sintering time.

Footnotes

Disclosure statement

No potential conflict of interest was reported by the author(s).
