The Development of a New Orthosis (Neuro-Orthosis) for Patients with Carpal Tunnel Syndrome: Its Effect on the Function and Strength of the Hand

Abstract

Static wrist orthoses (SWOs) are used in the treatment of carpal tunnel syndrome (CTS) with some drawbacks. As an alternate approach to SWOs, an active closed-loop wrist control strategy based on the principles of functional electrical stimulation was proposed to limit wrist movements. The purpose of the study was to determine whether the proposed ‘neuro-orthosis’ (NeO) system resulted in less restriction in the hand compared to clinically accepted custom-made SWOs while limiting the wrist movements. A case-control study was designed to determine the specific effects of the system on patients with CTS. A total of 24 right-handed female volunteers (12: CTS, 12: healthy) participated in the study. Function, dexterity, and strengths were measured under three different testing conditions: without orthosis, with SWO, and with the NeO system. Maximum angles in one subtest while the NeO system was on and off and general discomfort levels in SWO and NeO test conditions were recorded. The NeO system resulted in less restriction with respect to SWO and provided considerable angular limitation compared to placebo. It was concluded that the proposed prototype control system can be a good candidate to limit the wrist movements in place of SWOs with a better degree of freedom in patients with CTS.

Keywords

Carpal tunnel syndrome orthotic treatment function strength functional electrical stimulation

Introduction

Carpal tunnel syndrome (CTS) is a common, painful condition of the wrist. 1, , 2 It is the most widely seen entrapment neuropathy and is more common in women. CTS is generally idiopathic. Sometimes an underlying disease such as a rheumatic condition can be present. The most common form of involvement is bilateral and the severity of the symptoms is generally more prominent in the dominant hand. 3, , 4 The initial symptoms of CTS are paresthesias, hypoesthesia, and hypalgesia in the median nerve sensory dermatome. At later stages, numbness and pain can develop and may radiate up to the elbow and shoulder. Weakness of the hand, thenar muscle atrophy and trophic changes at the skin can accompany to these symptoms. Pain is more prominent at night and can cause the patient to awaken. All these symptoms may result in functional limitations. 1, , 2

Different prevalence and incidence ratios have been reported for CTS. The prevalence varies from 3–5.8% for women, and 0.6–2.19% for men respectively. 5, , 6 In a study conducted in England 7 , the incidence of CTS in women and men was found to be 0.19% and 0.088% respectively. In another study, 8 the incidence rate was reported as 0.099, with a female to male ratio of 3:1.

The diagnosis of CTS is made based on the electrophysiological and/or clinical findings. Clinical findings comprise positive Phalen and Tinel tests, sensory disturbances and the other symptoms of CTS. During electrophysiological studies, the distal median nerve sensory latency (MSL) of greater than 3.5 ms and a motor latency (MML) of greater than 4.5 ms are considered abnormal findings. Positive electromyography findings include sharp waves and fibrillation potentials. In mild CTS, there is intermittent numbness and pain with minimal to no functional limitation. MSL is between 3.5 and 4.0 ms and MML is between 4.5 and 5.0 ms. Muscle weakness and atrophy are not apparent in this stage. Patients with moderate CTS suffer from frequent night time wakening due to pain and paresthesias. These symptoms make the usual daily activities difficult. MSL and MML are between 4.1 and 5.0 ms and 5.1 and 6.5 ms, respectively. In severe CTS, sensory and motor latencies are above 5 ms and 6.5 ms respectively. There is almost complete loss of sensation, muscle weakness and prominent atrophy of the abductor pollicis brevis muscle. Patients can drop an object held in their hands without realizing it. These symptoms can be accompanied by trophic disturbances of the skin. Severe pain and paresthesias continue throughout most of the day. Fibrillation potentials and spontaneous motor unit potentials in abductor pollicis brevis can be observed.

Increased carpal tunnel pressure (CTP) is the causative factor in the development of CTS.9-11 Changes in wrist position lead to alterations in carpal tunnel shape, 12 thereby influencing the CTP. It has been shown that when the wrist is in neutral, the CTP is minimum.13-16 The rationale for using neutral-position wrist orthoses (WOs) in CTS lies in this relationship. 17 Orthotic treatment is advocated in mild and moderate CTS.2,18-21 Custom-made static wrist orthoses (SWOs) have an advantage over prefabricated, flexible WOs in that they can intimately fit to an individual patient and thereby provide better stability. 1 However, volar SWOs may interfere with the accomplishment of activities of daily living. This can be traced to disruption of the tenodesis effect, loss of some part of the sensation from the palm, and presence of some rigid materials in the volar aspect of the hand. Rigid SWOs are also used in various rheumatic conditions using suggested immobilization positions. However their rigid structures do not accommodate to personal and activity-related variations. In addition, long term and/or improper use of SWOs may result in muscle atrophy. Various WOs have been investigated in terms of functional limitations they imposed on the hand and upper extremity for some rheumatic conditions.22-25 Although there were controversial results on their effects on the hand strengths, they led to reduction in functional capabilities and dexterity in general. 25 These studies did not solely include patients with CTS. Moreover, prefabricated flexible WOs supporting the wrist in some extension were used predominantly. Therefore the results of these studies cannot be generalized to patients with CTS using SWOs.

A prototype active wrist control strategy called ‘neuro-orthosis’ (NeO) is proposed. It uses the principles of functional electrical stimulation and is based on surface electrical stimulation of antagonist wrist muscles to restrict movements of agonist muscles. However there are some practical issues. Wrist muscles contribute to more than one movement and they are closely located in the forearm. Therefore, stimulation pulses delivered with surface electrodes may spread to neighbouring muscles resulting in undesirable movements and surface stimulation may cause pain due to skin irritation. 26

The aims of the study were to investigate the effectiveness of the NeO control system on limiting the wrist movements and whether this system has an advantage over a SWO with respect to limitations imposed on the functions and strength of the hand.

Method

Subjects

A case-control study was designed. The experiments of the study were conducted under the approval of The Ethics Committee of Cerrahpaşa Medical Faculty at İstanbul University. A total of 24 right-handed female volunteers between the ages of 36 and 52 participated in the study; 12 of them were patients with CTS with the mean age of 44.8 ± 6.1. The healthy subjects had a mean age of 44.2 ± 10 years. Nine of the 12 patients had idiopathic CTS and the others had accompanying rheumatic conditions. These were Sjögren syndrome, Behçet disease, and rheumatoid arthritis. Subject characteristics are shown in Table I. All patients with CTS were recruited from the outpatient clinic of the Rheumatology Department at Cerrahpaşa School of Medicine. Healthy subjects were recruited from the hospital staff of the faculty considering the age similarity between the two groups. Subjects were informed about the experimental procedures and gave written informed consent to participate in the experiments. Diagnoses of CTS were made by rheumatologists based on both electrophysiological and/or clinical findings. All participants except one in each group completed the study. Patients with CTS and healthy subjects having at least one of the following diseases or conditions were excluded from the study: Severe CTS, diabetes mellitus, any implantation, open wound, skin disease and fracture history of the right forearm and hand, cardiac pacemaker and cardiac arrhythmias, restricted range of motion, any subluxation or deformity disrupting normal alignment of the wrist, CTS symptoms persisting longer than 12 months, pain in the hand and forearm due to accompanying rheumatic diseases or conditions, and any other polyneuropathies and entrapment neuropathies of the right arm.

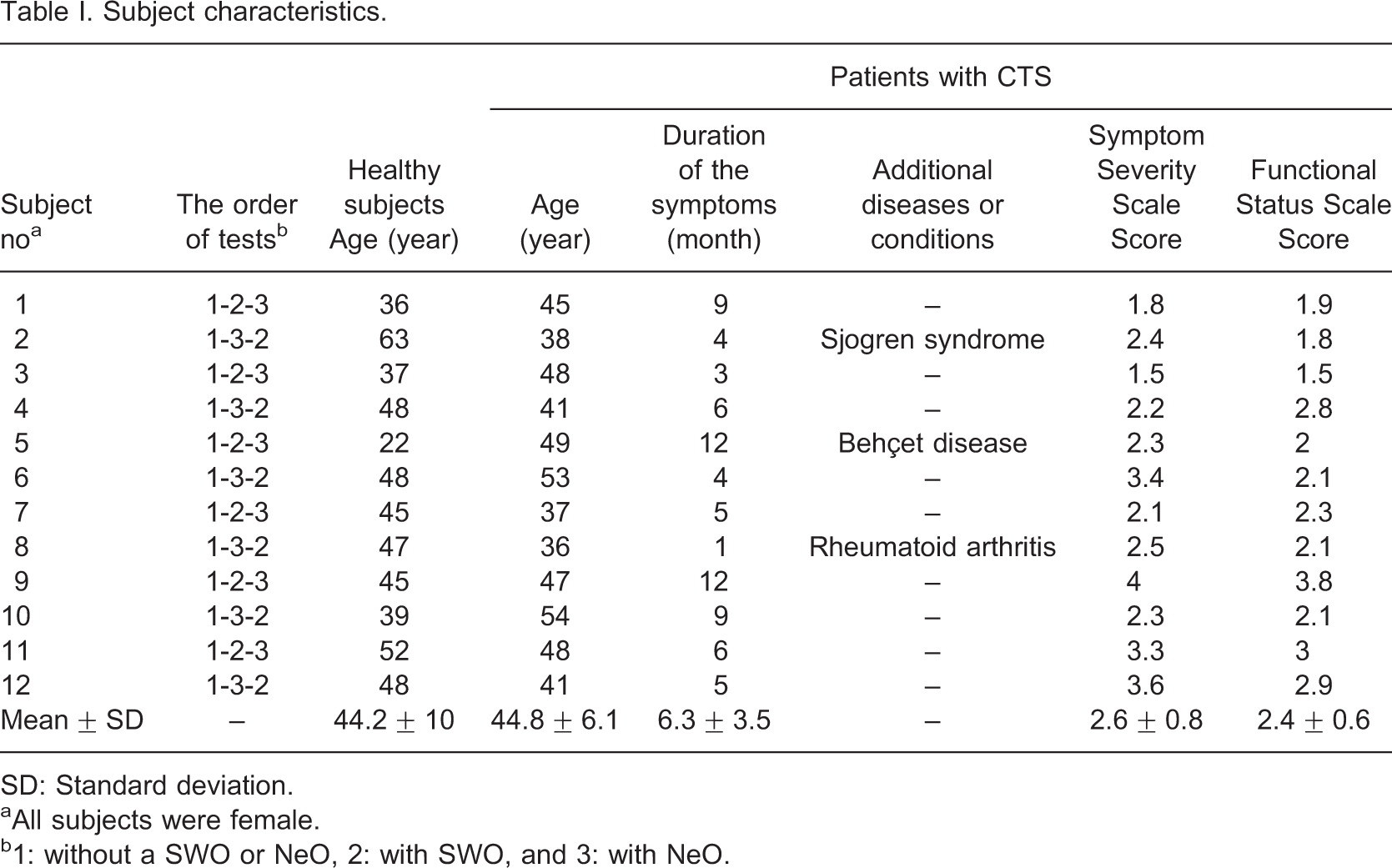

Table I.

Subject characteristics

Subject no^a	The order of tests^b	Healthy subjects Age (year)	Patients with CTS
Subject no^a	The order of tests^b	Healthy subjects Age (year)	Age (year)	Duration of the symptoms (month)	Additional diseases or conditions	Symptom Severity Scale Score	Functional Status Scale Score

1	1-2-3	36	45	9	–	1.8	1.9
2	1-3-2	63	38	4	Sjogren syndrome	2.4	1.8
3	1-2-3	37	48	3	–	1.5	1.5
4	1-3-2	48	41	6	–	2.2	2.8
5	1-2-3	22	49	12	Behçet disease	2.3	2
6	1-3-2	48	53	4	–	3.4	2.1
7	1-2-3	45	37	5	–	2.1	2.3
8	1-3-2	47	36	1	Rheumatoid arthritis	2.5	2.1
9	1-2-3	45	47	12	–	4	3.8
10	1-3-2	39	54	9	–	2.3	2.1
11	1-2-3	52	48	6	–	3.3	3
12	1-3-2	48	41	5	–	3.6	2.9
Mean ± SD	–	44.2 ± 10	44.8 ± 6.1	6.3 ± 3.5	–	2.6 ± 0.8	2.4 ± 0.6

SD: Standard deviation.

^aAll subjects were female.

^b1: without a SWO or NeO, 2: with SWO, and 3: with NeO.

Test instruments and batteries

Hand function was evaluated with the Jebson Hand Function Test (JHFT). 27 It consists of seven subtests: Writing a sentence (J1), turning over 3 × 5 inch cards (J2), picking up small common objects (J3), stacking checkers (J4), simulated eating (J5), moving empty cans (J6), and moving heavy cans (J7). The components of the JHFT test are shown in Figure 1a.

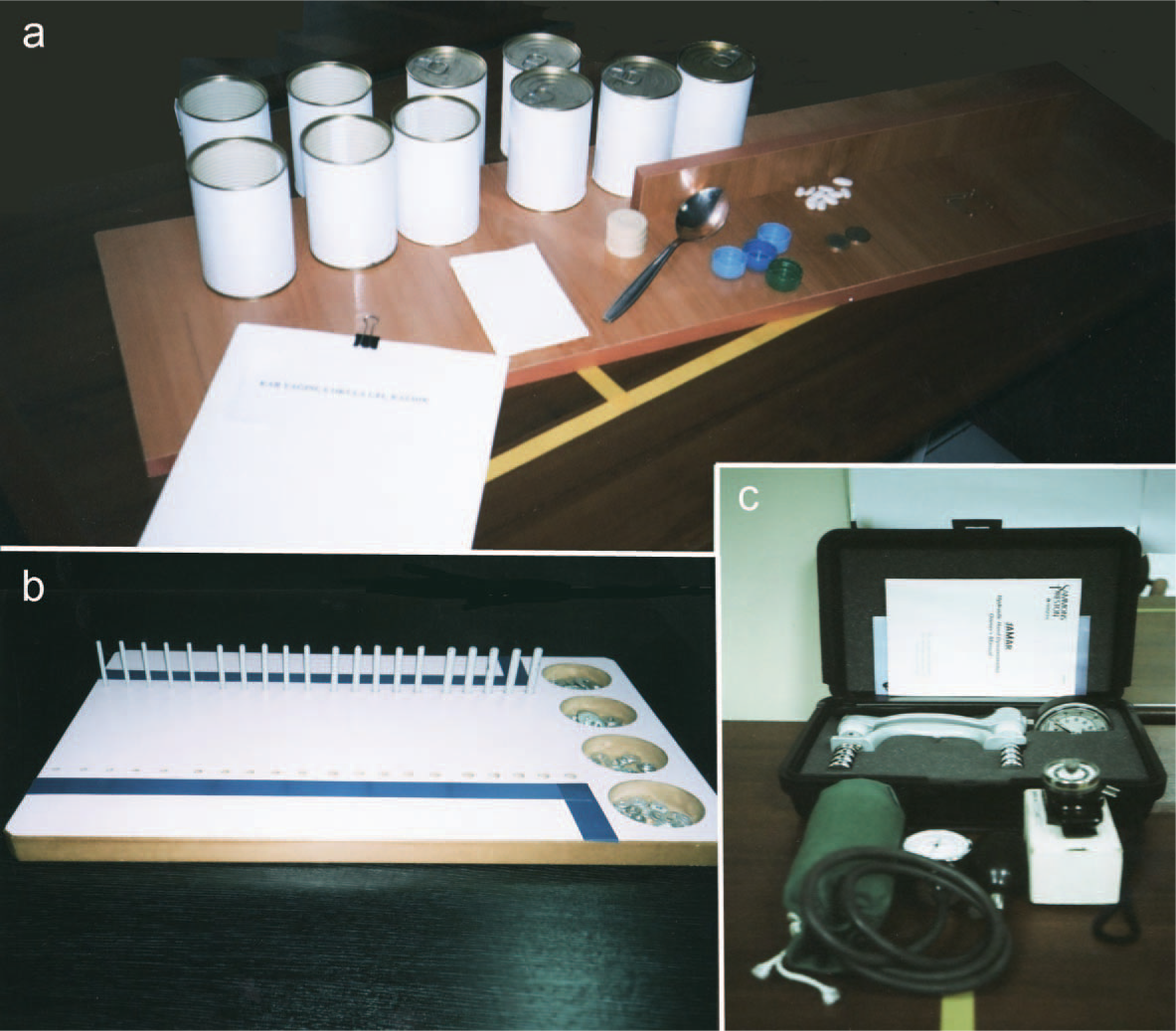

Figure 1.

Test instruments and batteries used in the experiments: (a) Jebson Hand Function Test; (b) modified Purdue Pegboard Test; and (c) the instruments for strength measurements.

A modified version of the original Purdue Pegboard Test (mPPT) 28 with 20 holes was used to measure hand dexterity. The mPPT test board with pins on it is demonstrated in Figure 1b.

Grip strength was measured with a new calibrated Standard Jamar Dynamometer (JD) (Asimov Engineering, Los Angeles CA, USA). In the study, the second handle position was used.

A modified, calibrated sphygmomanometer (MS) was used to measure grip pressure.29-31 The method described by Melvin 29 was used to construct the MS. To be able to measure pressure values up to 510 mmHg, adaptation and calibration procedures were applied. The reason for using a MS in the study was to differentiate the effects of squeezing a soft object accommodating to the shape of the hand vs. the rigid handle of the JD.

For measuring pinch strengths, B&L PG-30 (B&L Engineering, Tustin, CA, USA) model pinch gauge pinch gauge was used. Figure 1c shows the test instruments for strength measurements.

Architecture of the NeO control system

The NeO control system is a closed-loop control strategy using positional feedback of the wrist joint. It consisted of three main modules: (i) sensor, (ii) controller containing signal processing and waveform generation, and (iii) amplification of the generated waveforms. The block diagram of the closed-loop controller is shown in Figure 2.

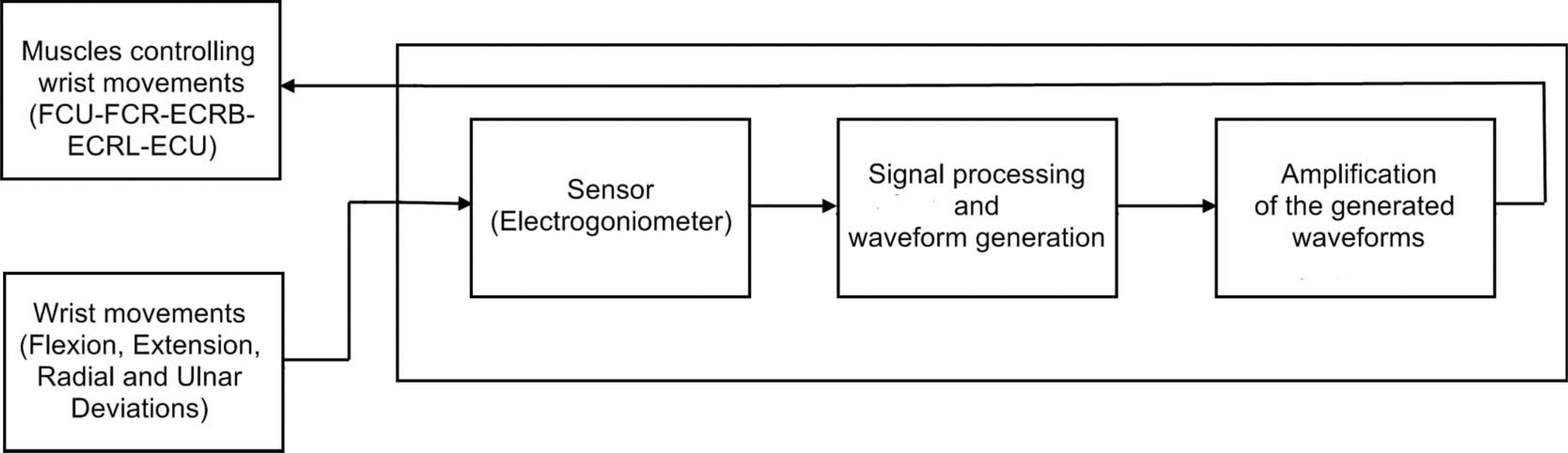

Figure 2.

Block diagram of the neuro-orthosis (NeO) control system.

The sensor

Positional feedback was provided with a custom-made electrogoniometer. Biometrics SG65 (Biometrics Ltd., Gwent, UK) or Infrotronic XM65 (Infotronic. Tubbergen, The Netherlands) are widely used strain-gauged electrogoniometers for wrist joint.32-36 The length of the distal block is 55 mm and 60 mm at these models, respectively. When the distal block is placed on the third metacarpal bone over the dorsum of the hand, sometimes it covers not only the whole metacarpal bone in length but also carpal bones and the midcarpal joint. When this happens, the strain sensitive part of the electrogoniometer measures only the angulations of the radiocarpal joint. This is a common situation especially in medium- or small-sized hands. However, the wrist is not a single joint. Instead, it is a complex set of articulated links. 60% of total flexion and 33.5% of total extension at this joint complex occur at the midcarpal joint. 37 Similarly, radial and ulnar deviation movements are a combination of movements at more than one joint. Any sensor to measure wrist movements should consider this complex joint structure.

In this study, a bi-axial potentiometric electrogoniometer measuring the total movement at this joint complex was developed. The components of this sensor are demonstrated in Figure 3. It was calibrated and tested for reliability. The non-repeatabilities for sagittal and frontal planes were 0.53% and 0.7%, respectively, and non-linearities were 0.66% and 1.04%, respectively. The mean error for extension/flexion was 1.07° and for radial/ulnar deviation it was 1.08°.

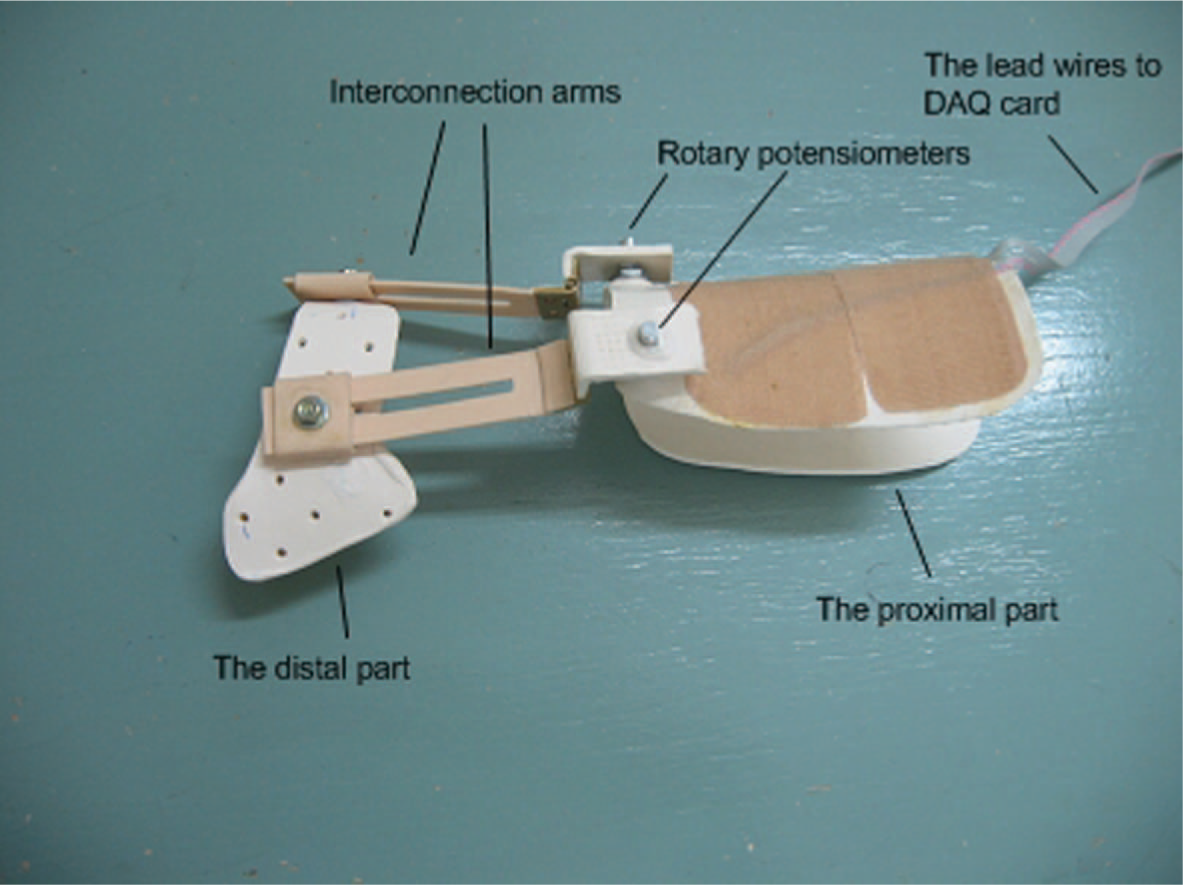

Figure 3.

The bi-axial potentiometric electrogoniometer.

The controller

The controller was developed with LabVIEW 6.0 (National Instruments Corporation, Austin, TX, USA). The panel window of the controller is shown in Figure 4. Two data acquisition cards (Iotech, ADAC 5503-HRV) (Cleveland, Ohio, USA) were used. Doublet waveforms (two closely-packed rectangular waves) were used in the experiments due to their less fatiguing and more forceful contraction characteristics. 38, , 39

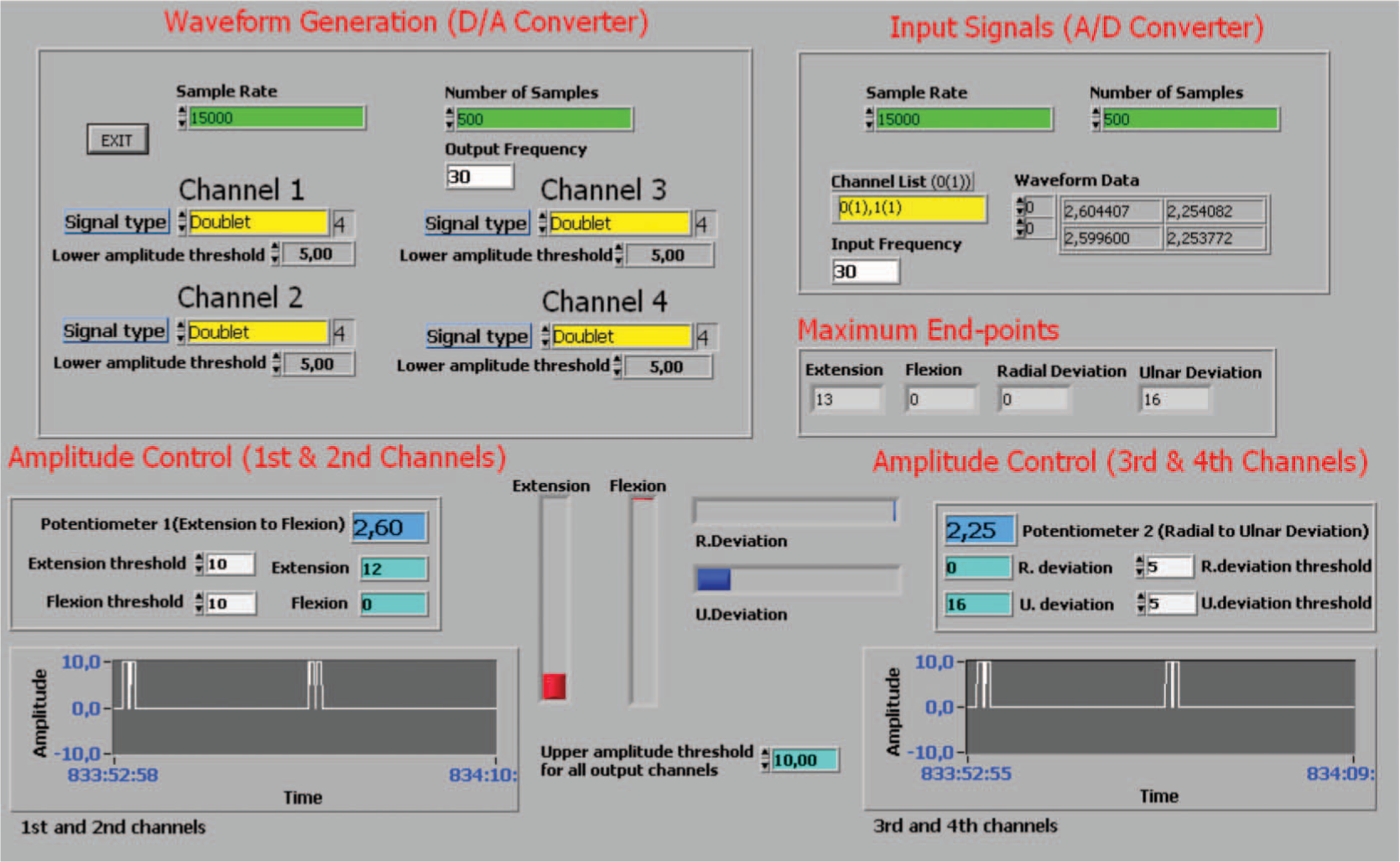

Figure 4.

Panel window of the controller.

Figure 5 demonstrates the rule employed by the controller. The strength of the contractions was voltage-modulated. Lower (5 V) and upper voltage (10 V) thresholds were set on the controller. The rate of increase of the stimulation amplitude was proportional to the integral of the angular error e (S = e × K_i and e = θ_d−θ, where K_i is a constant θ_d and θ are desired angle and real angle respectively). In this way the larger the error between θ_d and θ, the faster the amplitude reaches its maximum. The integral controller results in a gradual increase of stimulation amplitude which reduces irritation due to sudden stimulation of the muscles.

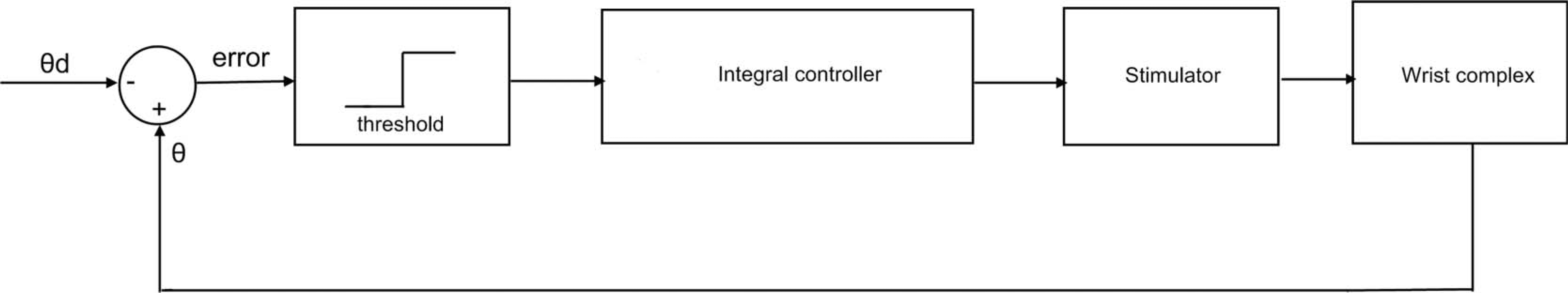

Figure 5.

Block diagram of the closed-loop controller.

Amplification circuit

Generated waveforms were amplified to elicit muscle contractions. The circuit was able to deliver 36 mA peak-to-peak (p-p) constant current at 290 Volts (p-p). The patient circuit is isolated from the rest of the circuit for safety. Resulting stimulation pulses are delivered to the motor points of the muscles via small-diameter self-adhesive surface electrodes.

Construction of orthoses

Neutral-position, volar thumbhole SWOs were designed for each subject. Thermoplastic materials (Orfit Classic or Orfit Eco) with a thickness of 3.2 mm were used. Orthoses were strictly controlled to ensure that they did not cause any limitation on the movements of the thumb and MCP joint flexion. Orthoses were fixed to the forearm via Velcro straps. An example of the SWOs used in the experiments is shown in Figure 6.

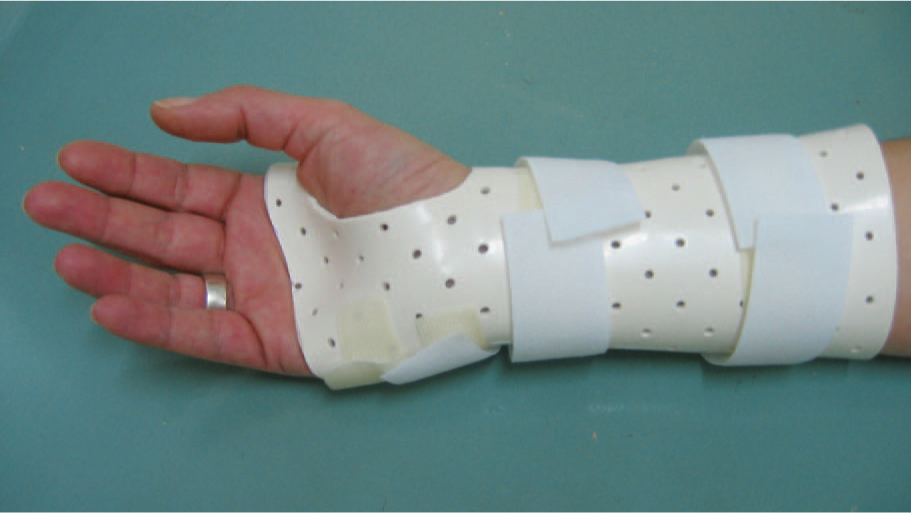

Figure 6.

Static thumbhole wrist orthosis used in the experiments.

Test procedures

A training period was allowed and the subjects were familiarized with the test instruments and NeO control system. The tests and measurements were conducted on the right hands of the participants in three different test conditions:(i) With no- orthosis (NO), (ii) with SWO, and (iii) with NeO. The experiments were started with the first test condition to form the baseline measurements and the order of the second and third test conditions were alternated in accordance with the subject number. At the end of the second and third test conditions, the level of discomfort was questioned by means of a 10-cm visual analog scale. There were at least 15-min intervals in between the test conditions. Before starting the experiments, SWOs were constructed and adjustments for the NeO were done respectively. All the experiments, constructions, and set-up lasted about 2½ to 3 h for each volunteer.

Adjustment and adaptation of the NeO control system

During this 30 to 45-min period, motor points and the effective amount of currents (EACs) were determined for each related muscle at the right forearm. EAC was accepted as the amount of current eliciting the desired movement of the stimulated muscle without spreading or minimally spreading to the neighbouring muscles. The forearm was supported on the table while forearm and wrist were in the neutral position. To precisely locate the motor points of the muscles, an isolated probe with a small-diameter tip and an on-off switch was used. Before determining EAC for each movement direction, subjects were informed about the desired movement. The probe was connected to the cathode of the stimulator output. The software control on the computer was adjusted to give constant amplitude doublet waveforms at 30 Hz to the output channel being used. The pulse width was 300 μs. The pulse interval was 5 ms and the period of the doublet stimulation pulses was 40 ms. The aim was to elicit at least two-thirds of the normal range of the dominant movement of the stimulated muscle(s). The intensity of the current was gradually increased until EAC was reached while considering the subject's tolerance of pain due to skin irritation and undesired movements of the neighbouring muscles. Visual and verbal feedbacks were used to decide on the intensity of EAC. The reason for being restricted to some part of the full range of motion was to minimize the effects of the spreading of the current. The higher experimental current intensities strong enough to elicit the full range of the intended motion often resulted in undesired movements at the wrist and/or fingers and disturbing skin irritation. Occasionally, some degree of undesired current spreading was observed even at the intended EAC intensities. However, these were not strong enough to produce sensible joint motion during the adjustment period. The current spreading was more frequently observed in the adjustment of EAC for the extensor carpi radialis longus muscle. When EAC was established, it was kept constant at this point for each output channel and the motor points were marked on the skin. This procedure was repeated for each output channel for 4 movement directions. The following muscles were stimulated: flexor carpi radialis and flexor carpi ulnaris for flexion, extensor carpi radialis brevis for extension, extensor carpi ulnaris for ulnar deviation, and extensor carpi radialis longus for radial deviation. During experiments with NeO system, electrodes were placed on previously localized motor points. An elastic bandage was wrapped around the forearm. This was done to prevent the loosening and/or movement of the electrodes during the experiments as shown in Figure 7. The electrogoniometer was placed on the bandage and fastened to the forearm via Velcro straps while considering the alignment of the movable arms of the sensor. Limits of motion were separately set to 10° in flexion and extension and 5° in radial and ulnar deviation movements. All electrode cables were positioned in a way not to cause any limitation to the limb during the experiments.

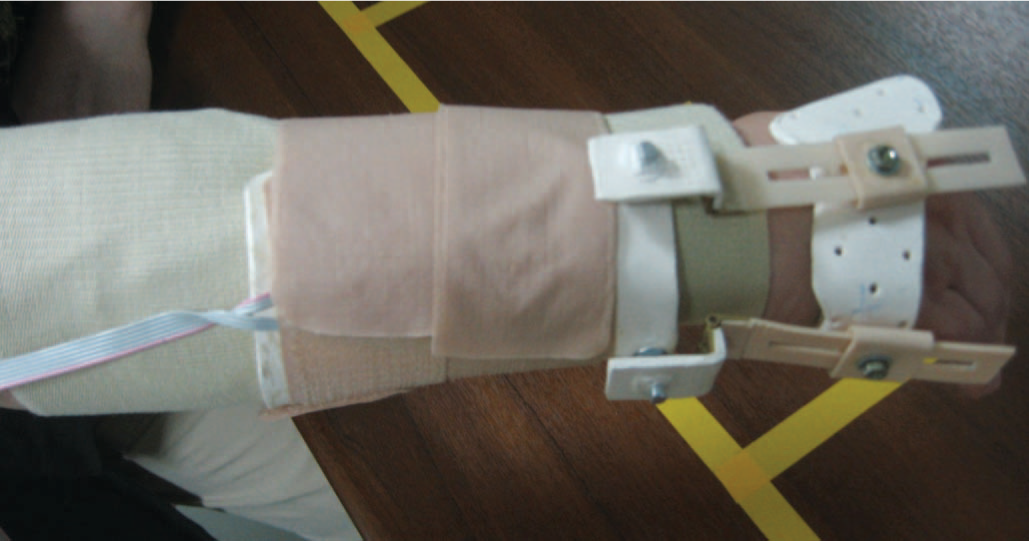

Figure 7.

The potentiometric electrogoniometer and the elastic bandage placed over the electrodes.

Application of the test instruments and batteries

Tests were applied in the following order: mPPT, JHFT, grip pressure, grip strength, and pinch strengths measurements. During the first subtest of mPPT, subjects were asked to take a pin and insert it into the holes at the right side of the board. The time required to complete all 20 pins was the score of this subtest. However during the experiments with NeO, this subtest was conducted in two stages. For the first (OFF) stage, the stimulator appeared to be functioning with the lights indicating the presence of the current at each output channel. But the connections from the output terminals of the data acquisition cards to the amplification circuit were disconnected. So there was actually no current flow to the electrodes. At the second (ON) stage, all electrode output channels were re-connected and the subjects were exposed to stimulation pulses. The maximum end points in four movement directions during OFF and ON stages were recorded. In the second subtest, after a pin was placed in the same way as the unilateral test, a washer in the same cup was placed over this pin. The total number of pieces assembled in 30 sec was the score of this subtest.

JHFT was done according to the standard test procedure described by Jebson et al. 27 All subtests were timed. Subjects were instructed to do the function and dexterity tests as fast as possible. In Figure 8, a subject doing the ‘writing a sentence’ subtest with the NeO is seen. Figure 9 shows the implementation of the ‘moving empty cans’ subtest with a SWO. During strength measurements standard protocol described by Mathiowetz et al. 40 was used and the mean of three trials was accepted as the test result. The strength measurements were done by alternating the hands and allowing at least 15 sec between each experiment to alleviate the effect of the fatigue. Lateral, palmar, and tip-to-tip pinch strengths were measured. Figure 10 demonstrates a subject doing the grip strength test with the NeO.

Figure 8.

‘Writing a sentence’ subtest of JHFT with the NeO.

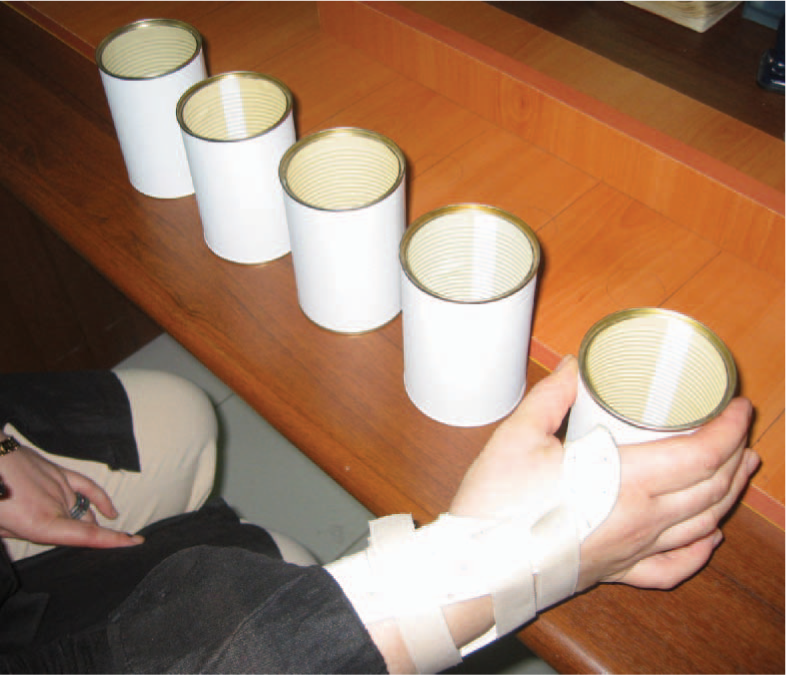

Figure 9.

‘Moving empty cans’ subtest of JHFT with SWO.

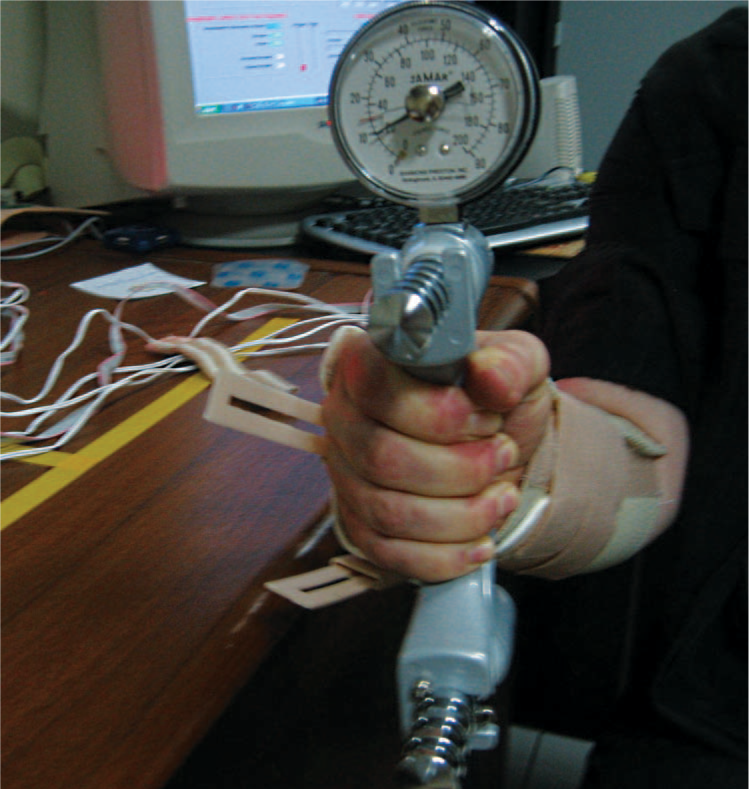

Figure 10.

Grip strength measurement with the NeO.

Data analysis

Means and standard deviations for each test condition were calculated. To make comparisons among the three test conditions (NO, NeO, SWO) within the same subject group, relative changes were used instead of absolute values for normalization purposes. The normalization was needed to introduce a relatively patient-independent measurement method since there were significant individual differences in the test results through all the test conditions. The relative change is represented in terms of percentage taking the NO test condition as the basis for each test. Therefore, 2% changes, one for the SWO and one for the NeO test conditions were computed to reflect the relative changes. These relative changes were directly used in t-tests by accepting the baseline measurements (NO test condition) as 0. Parametric tests were used since most of the converted data conformed to normal distribution. Secondly, another comparison of the test means was made between the same test conditions of the two subject groups. It was done to determine whether there were any disease specific effects of each control strategy. This time direct measurement values were used. The levels of discomfort with the SWO and the NeO were also compared within and between the subject groups. The maximum angles at ON and OFF stages during the implementation of the first subtest of the mPPT were also analysed. SPSS-15 (SPSS Inc., Chicago, IL, USA) statistical analysis software was used for the calculations.

Results

The mean values of the function, dexterity, and strength measurements for the patients with CTS and healthy subjects are shown in Table II and Table III, respectively. When the test means were compared between the groups, it was observed that healthy subjects performed better than patients with CTS in most of the measures. Table IV demonstrates the results of the comparison of the test means between the groups. At the NO test condition there were significant differences in 11 of the 14 tests. At the other test conditions, nine tests demonstrated significant differences between the subject groups.

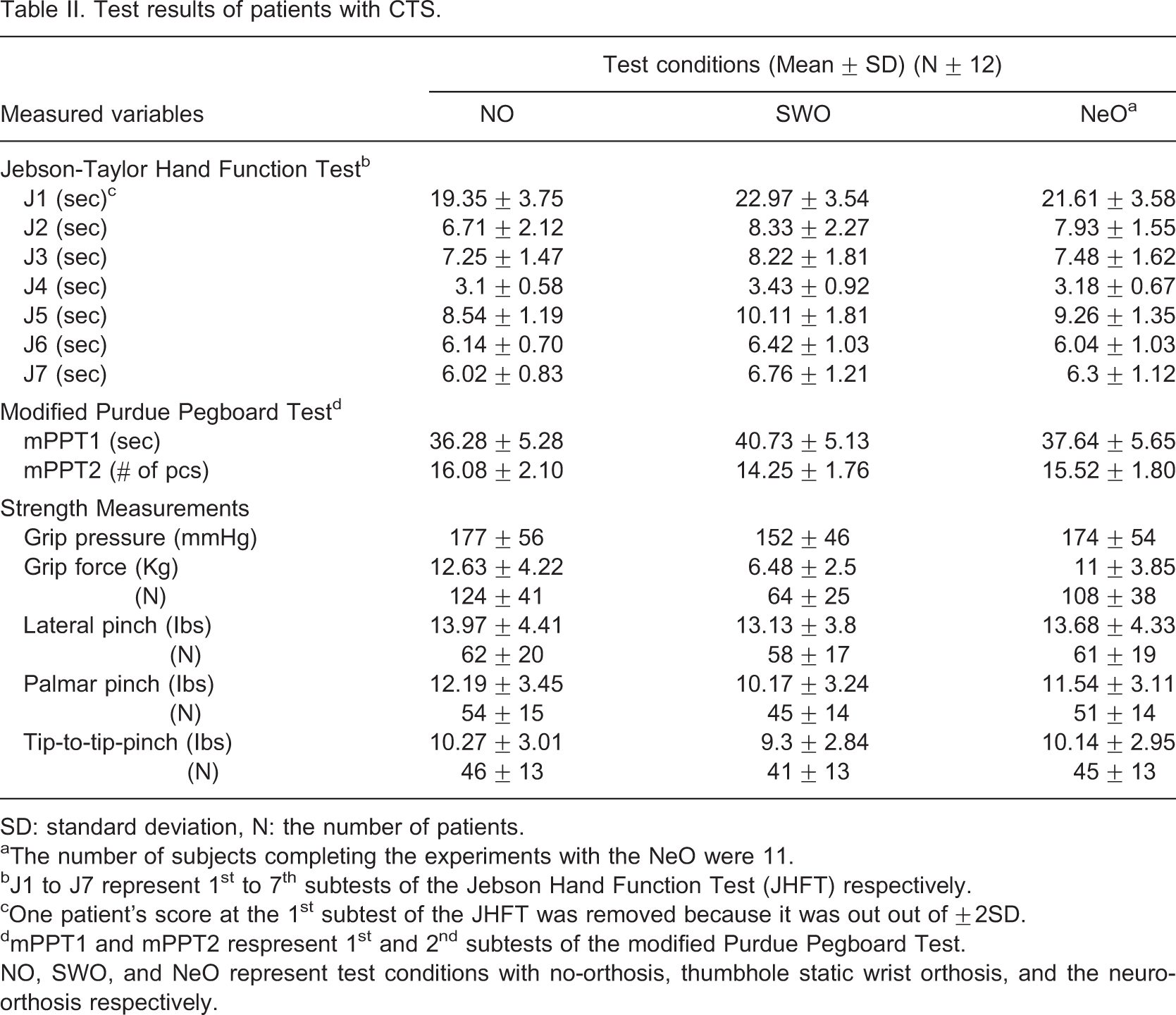

Table II.

Test results of patients with CTS

Measured variables	Test conditions (Mean ± SD) (N ± 12)
Measured variables	NO	SWO	NeO^a

Jebson-Taylor Hand Function Test^b
J1 (sec)^c	19.35 ± 3.75	22.97 ± 3.54	21.61 ± 3.58
J2 (sec)	6.71 ± 2.12	8.33 ± 2.27	7.93 ± 1.55
J3 (sec)	7.25 ± 1.47	8.22 ± 1.81	7.48 ± 1.62
J4 (sec)	3.1 ± 0.58	3.43 ± 0.92	3.18 ± 0.67
J5 (sec)	8.54 ± 1.19	10.11 ± 1.81	9.26 ± 1.35
J6 (sec)	6.14 ± 0.70	6.42 ± 1.03	6.04 ± 1.03
J7 (sec)	6.02 ± 0.83	6.76 ± 1.21	6.3 ± 1.12
Modified Purdue Pegboard Test^d
mPPT1 (sec)	36.28 ± 5.28	40.73 ± 5.13	37.64 ± 5.65
mPPT2 (# of pcs)	16.08 ± 2.10	14.25 ± 1.76	15.52 ± 1.80
Strength Measurements
Grip pressure (mmHg)	177 ± 56	152 ± 46	174 ± 54
Grip force (Kg)	12.63 ± 4.22	6.48 ± 2.5	11 ± 3.85
(N)	124 ± 41	64 ± 25	108 ± 38
Lateral pinch (Ibs)	13.97 ± 4.41	13.13 ± 3.8	13.68 ± 4.33
(N)	62 ± 20	58 ± 17	61 ± 19
Palmar pinch (Ibs)	12.19 ± 3.45	10.17 ± 3.24	11.54 ± 3.11
(N)	54 ± 15	45 ± 14	51 ± 14
Tip-to-tip-pinch (Ibs)	10.27 ± 3.01	9.3 ± 2.84	10.14 ± 2.95
(N)	46 ± 13	41 ± 13	45 ± 13

SD: standard deviation, N: the number of patients.

^aThe number of subjects completing the experiments with the NeO were 11.

^bJ1 to J7 represent 1^st to 7^th subtests of the Jebson Hand Function Test (JHFT) respectively.

^cOne patient's score at the 1^st subtest of the JHFT was removed because it was out out of ±2SD.

^dmPPT1 and mPPT2 respresent 1^st and 2^nd subtests of the modified Purdue Pegboard Test.

NO, SWO, and NeO represent test conditions with no-orthosis, thumbhole static wrist orthosis, and the neuro-orthosis respectively.

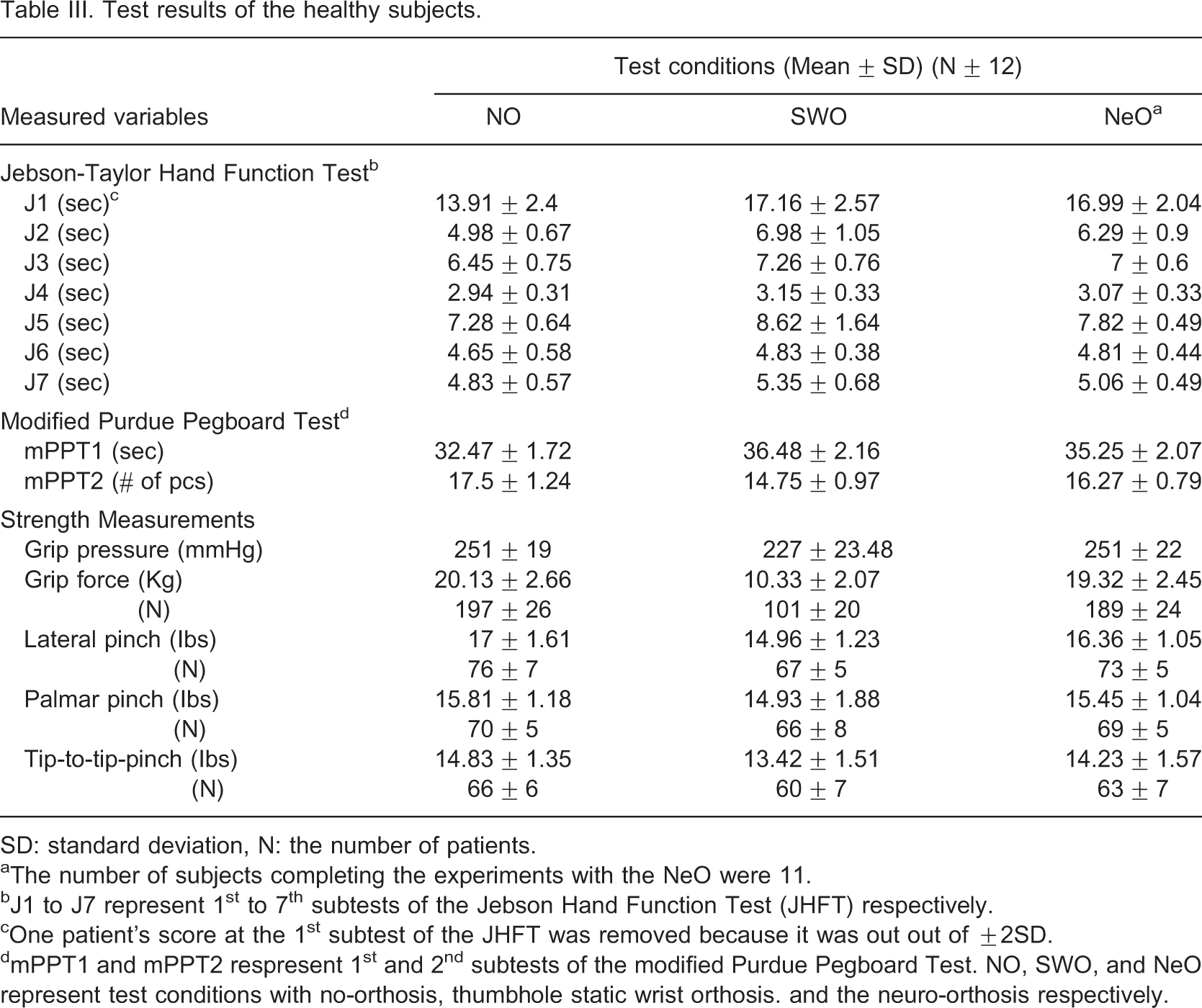

Table III.

Test results of the healthy subjects

	Test conditions (Mean ± SD) (N ± 12)
Measured variables	NO	SWO	NeO^a

Jebson-Taylor Hand Function Test^b
J1 (sec)^c	13.91 ± 2.4	17.16 ± 2.57	16.99 ± 2.04
J2 (sec)	4.98 ± 0.67	6.98 ± 1.05	6.29 ± 0.9
J3 (sec)	6.45 ± 0.75	7.26 ± 0.76	7 ± 0.6
J4 (sec)	2.94 ± 0.31	3.15 ± 0.33	3.07 ± 0.33
J5 (sec)	7.28 ± 0.64	8.62 ± 1.64	7.82 ± 0.49
J6 (sec)	4.65 ± 0.58	4.83 ± 0.38	4.81 ± 0.44
J7 (sec)	4.83 ± 0.57	5.35 ± 0.68	5.06 ± 0.49
Modified Purdue Pegboard Test^d
mPPT1 (sec)	32.47 ± 1.72	36.48 ± 2.16	35.25 ± 2.07
mPPT2 (# of pcs)	17.5 ± 1.24	14.75 ± 0.97	16.27 ± 0.79
Strength Measurements
Grip pressure (mmHg)	251 ± 19	227 ± 23.48	251 ± 22
Grip force (Kg)	20.13 ± 2.66	10.33 ± 2.07	19.32 ± 2.45
(N)	197 ± 26	101 ± 20	189 ± 24
Lateral pinch (Ibs)	17 ± 1.61	14.96 ± 1.23	16.36 ± 1.05
(N)	76 ± 7	67 ± 5	73 ± 5
Palmar pinch (Ibs)	15.81 ± 1.18	14.93 ± 1.88	15.45 ± 1.04
(N)	70 ± 5	66 ± 8	69 ± 5
Tip-to-tip-pinch (Ibs)	14.83 ± 1.35	13.42 ± 1.51	14.23 ± 1.57
(N)	66 ± 6	60 ± 7	63 ± 7

SD: standard deviation, N: the number of patients.

^aThe number of subjects completing the experiments with the NeO were 11.

^bJ1 to J7 represent 1^st to 7^th subtests of the Jebson Hand Function Test (JHFT) respectively.

^cOne patient's score at the 1^st subtest of the JHFT was removed because it was out out of ±2SD.

^dmPPT1 and mPPT2 respresent 1^st and 2^nd subtests of the modified Purdue Pegboard Test. NO, SWO, and NeO represent test conditions with no-orthosis, thumbhole static wrist orthosis. and the neuro-orthosis respectively.

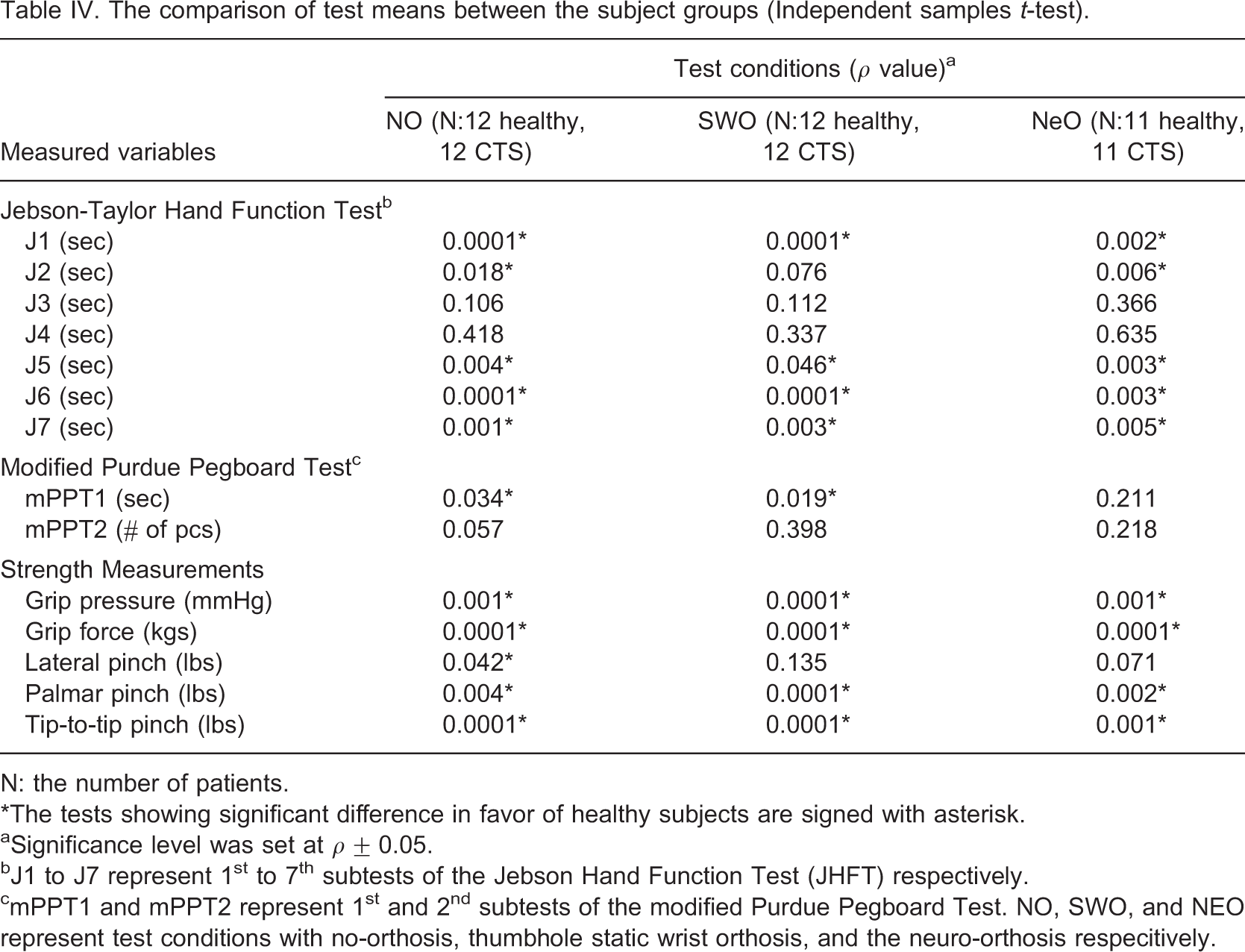

Table IV.

The comparison of test means between the subject groups (Independent samples t-test)

Measured variables	Test conditions (ρ value)^a
Measured variables	NO (N:12 healthy, 12 CTS)	SWO (N:12 healthy, 12 CTS)	NeO (N:11 healthy, 11 CTS)

Jebson-Taylor Hand Function Test^b
J1 (sec)	0.0001∗	0.0001∗	0.002∗
J2 (sec)	0.018∗	0.076	0.006∗
J3 (sec)	0.106	0.112	0.366
J4 (sec)	0.418	0.337	0.635
J5 (sec)	0.004∗	0.046∗	0.003∗
J6 (sec)	0.0001∗	0.0001∗	0.003∗
J7 (sec)	0.001∗	0.003∗	0.005∗
Modified Purdue Pegboard Test^c
mPPT1 (sec)	0.034∗	0.019∗	0.211
mPPT2 (# of pcs)	0.057	0.398	0.218
Strength Measurements
Grip pressure (mmHg)	0.001∗	0.0001∗	0.001∗
Grip force (kgs)	0.0001∗	0.0001∗	0.0001∗
Lateral pinch (lbs)	0.042∗	0.135	0.071
Palmar pinch (lbs)	0.004∗	0.0001∗	0.002∗
Tip-to-tip pinch (lbs)	0.0001∗	0.0001∗	0.001∗

N: the number of patients.

∗The tests showing significant difference in favor of healthy subjects are signed with asterisk.

^aSignificance level was set at ρ ± 0.05.

^bJ1 to J7 represent 1^st to 7^th subtests of the Jebson Hand Function Test (JHFT) respectively.

^cmPPT1 and mPPT2 represent 1^st and 2^nd subtests of the modified Purdue Pegboard Test. NO, SWO, and NEO represent test conditions with no-orthosis, thumbhole static wrist orthosis, and the neuro-orthosis respecitively.

When compared to baseline (NO), the SWO and NeO led to deteriorations in almost all test results in CTS and healthy groups as seen in Tables V and VI, respectively. However, the overall deterioration was less with the NeO than SWO in both of the groups. The number of tests having significant difference from the baseline (NO) measurements was 11 for SWO and eight for NeO test conditions in the CTS group. These were 12 and seven in the healthy subjects group. When SWO and NeO test results were compared, about half of the tests (six in CTS and eight in healthy) was significantly different.

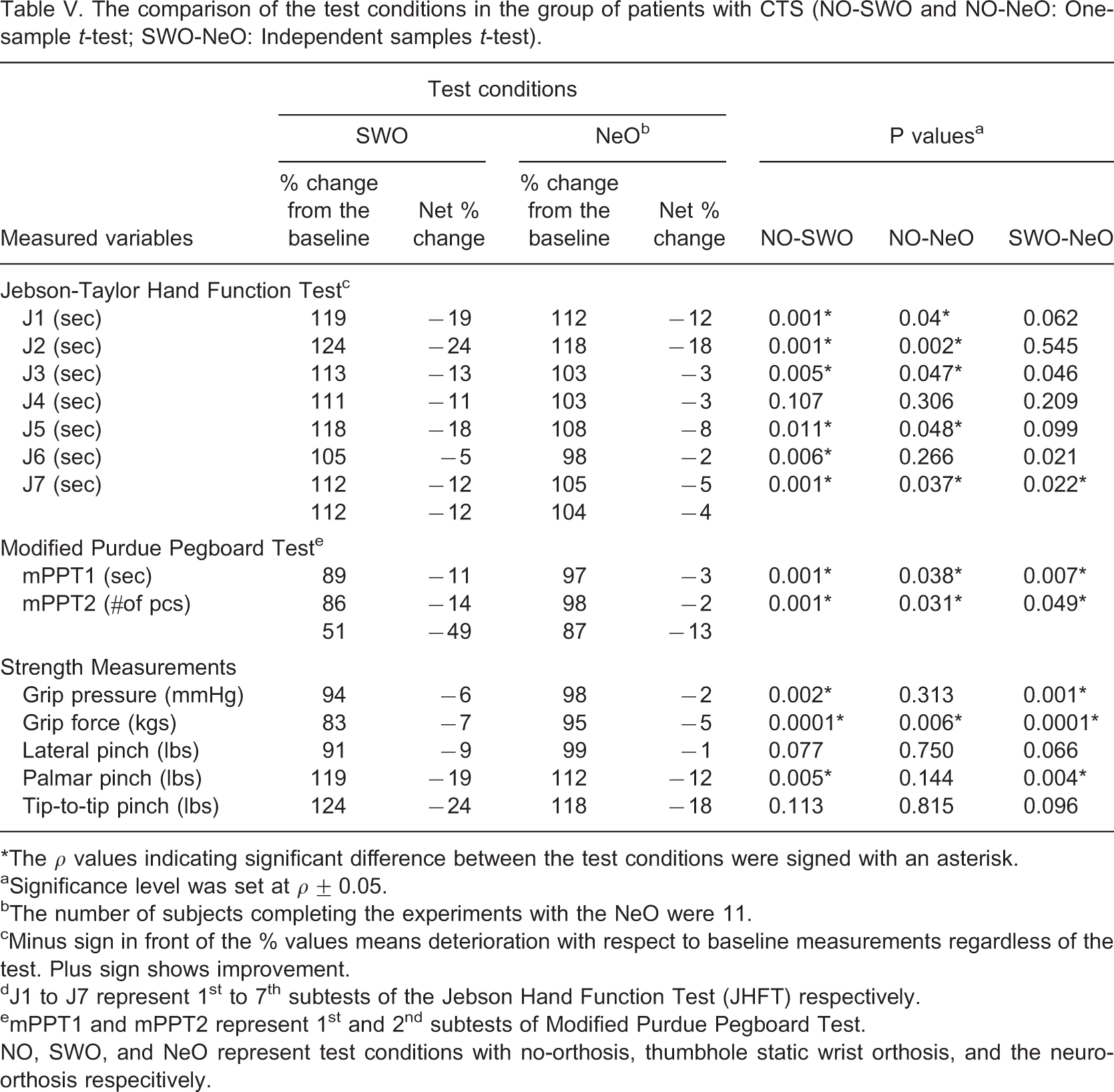

Table V.

The comparison of the test conditions in the group of patients with CTS (NO-SWO and NO-NeO: One-sample t-test; SWO-NeO: Independent samples t-test)

	Test conditions
	SWO		NeO^b		P values^a
Measured variables	% change from the baseline	Net % change	% change from the baseline	Net % change	NO-SWO	NO-NeO	SWO-NeO

Jebson-Taylor Hand Function Test^c
J1 (sec)	119	−19	112	−12	0.001∗	0.04∗	0.062
J2 (sec)	124	−24	118	−18	0.001∗	0.002∗	0.545
J3 (sec)	113	−13	103	−3	0.005∗	0.047∗	0.046
J4 (sec)	111	−11	103	−3	0.107	0.306	0.209
J5 (sec)	118	−18	108	−8	0.011∗	0.048∗	0.099
J6 (sec)	105	−5	98	−2	0.006∗	0.266	0.021
J7 (sec)	112	−12	105	−5	0.001∗	0.037∗	0.022∗
	112	−12	104	−4
Modified Purdue Pegboard Test^e
mPPT1 (sec)	89	−11	97	−3	0.001∗	0.038∗	0.007∗
mPPT2 (#of pcs)	86	−14	98	−2	0.001∗	0.031∗	0.049∗
	51	−49	87	−13
Strength Measurements
Grip pressure (mmHg)	94	−6	98	−2	0.002∗	0.313	0.001∗
Grip force (kgs)	83	−7	95	−5	0.0001∗	0.006∗	0.0001∗
Lateral pinch (lbs)	91	−9	99	−1	0.077	0.750	0.066
Palmar pinch (lbs)	119	−19	112	−12	0.005∗	0.144	0.004∗
Tip-to-tip pinch (lbs)	124	−24	118	−18	0.113	0.815	0.096

∗The ρ values indicating significant difference between the test conditions were signed with an asterisk.

^aSignificance level was set at ρ ± 0.05.

^bThe number of subjects completing the experiments with the NeO were 11.

^cMinus sign in front of the % values means deterioration with respect to baseline measurements regardless of the test. Plus sign shows improvement.

^dJ1 to J7 represent 1^st to 7^th subtests of the Jebson Hand Function Test (JHFT) respectively.

^emPPT1 and mPPT2 represent 1^st and 2^nd subtests of Modified Purdue Pegboard Test.

NO, SWO, and NeO represent test conditions with no-orthosis, thumbhole static wrist orthosis, and the neuro-orthosis respecitively.

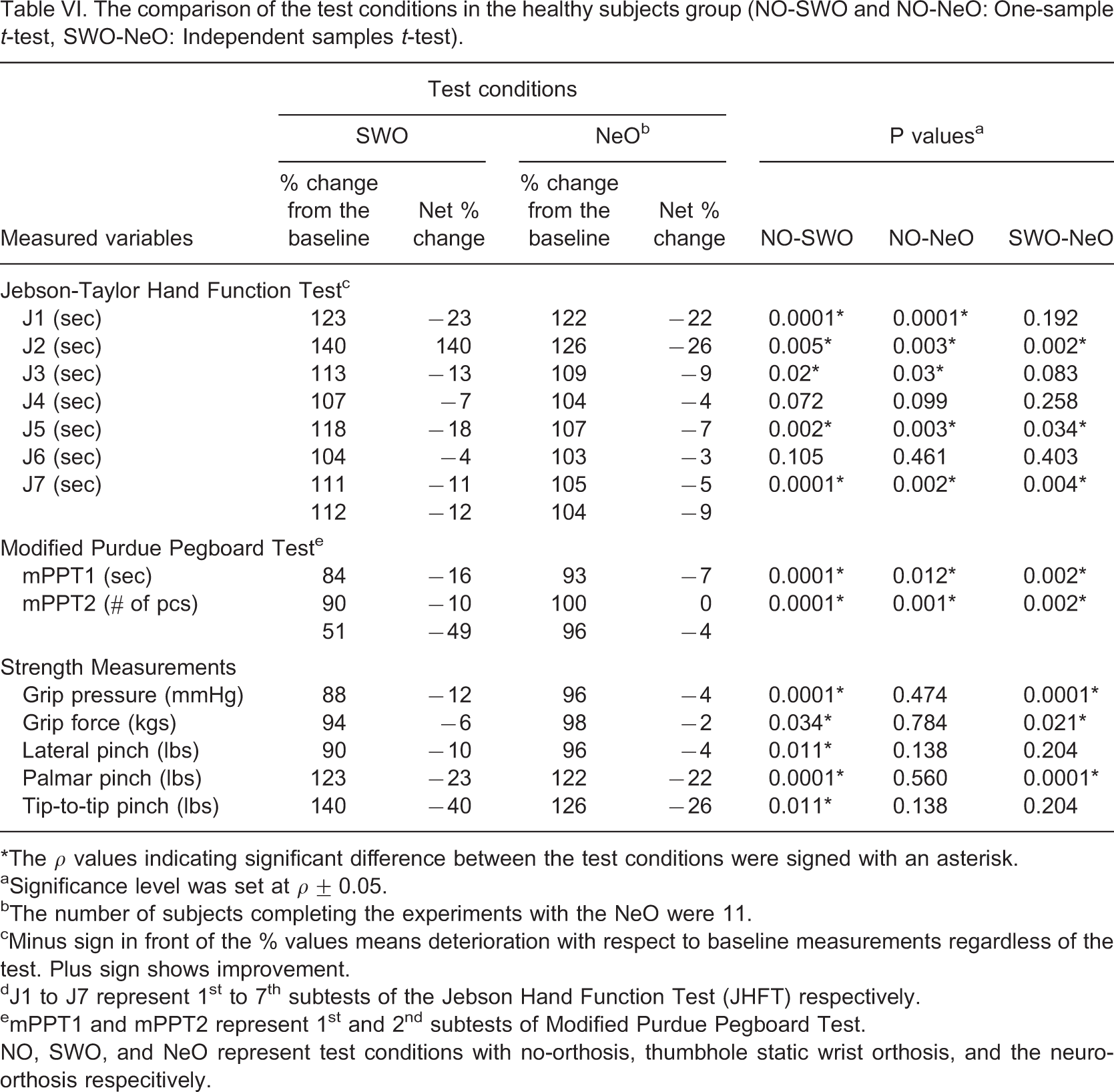

Table VI.

The comparison of the test conditions in the healthy subjects group (NO-SWO and NO-NeO: One-sample t-test, SWO-NeO: Independent samples t-test)

	Test conditions
	SWO		NeO^b		P values^a
Measured variables	% change from the baseline	Net % change	% change from the baseline	Net % change	NO-SWO	NO-NeO	SWO-NeO

Jebson-Taylor Hand Function Test^c
J1 (sec)	123	−23	122	−22	0.0001∗	0.0001∗	0.192
J2 (sec)	140	140	126	−26	0.005∗	0.003∗	0.002∗
J3 (sec)	113	−13	109	−9	0.02∗	0.03∗	0.083
J4 (sec)	107	−7	104	−4	0.072	0.099	0.258
J5 (sec)	118	−18	107	−7	0.002∗	0.003∗	0.034∗
J6 (sec)	104	−4	103	−3	0.105	0.461	0.403
J7 (sec)	111	−11	105	−5	0.0001∗	0.002∗	0.004∗
	112	−12	104	−9
Modified Purdue Pegboard Test^e
mPPT1 (sec)	84	−16	93	−7	0.0001∗	0.012∗	0.002∗
mPPT2 (# of pcs)	90	−10	100	0	0.0001∗	0.001∗	0.002∗
	51	−49	96	−4
Strength Measurements
Grip pressure (mmHg)	88	−12	96	−4	0.0001∗	0.474	0.0001∗
Grip force (kgs)	94	−6	98	−2	0.034∗	0.784	0.021∗
Lateral pinch (lbs)	90	−10	96	−4	0.011∗	0.138	0.204
Palmar pinch (lbs)	123	−23	122	−22	0.0001∗	0.560	0.0001∗
Tip-to-tip pinch (lbs)	140	−40	126	−26	0.011∗	0.138	0.204

∗The ρ values indicating significant difference between the test conditions were signed with an asterisk.

^aSignificance level was set at ρ ± 0.05.

^bThe number of subjects completing the experiments with the NeO were 11.

^cMinus sign in front of the % values means deterioration with respect to baseline measurements regardless of the test. Plus sign shows improvement.

^dJ1 to J7 represent 1^st to 7^th subtests of the Jebson Hand Function Test (JHFT) respectively.

^emPPT1 and mPPT2 represent 1^st and 2^nd subtests of Modified Purdue Pegboard Test.

NO, SWO, and NeO represent test conditions with no-orthosis, thumbhole static wrist orthosis, and the neuro-orthosis respecitively.

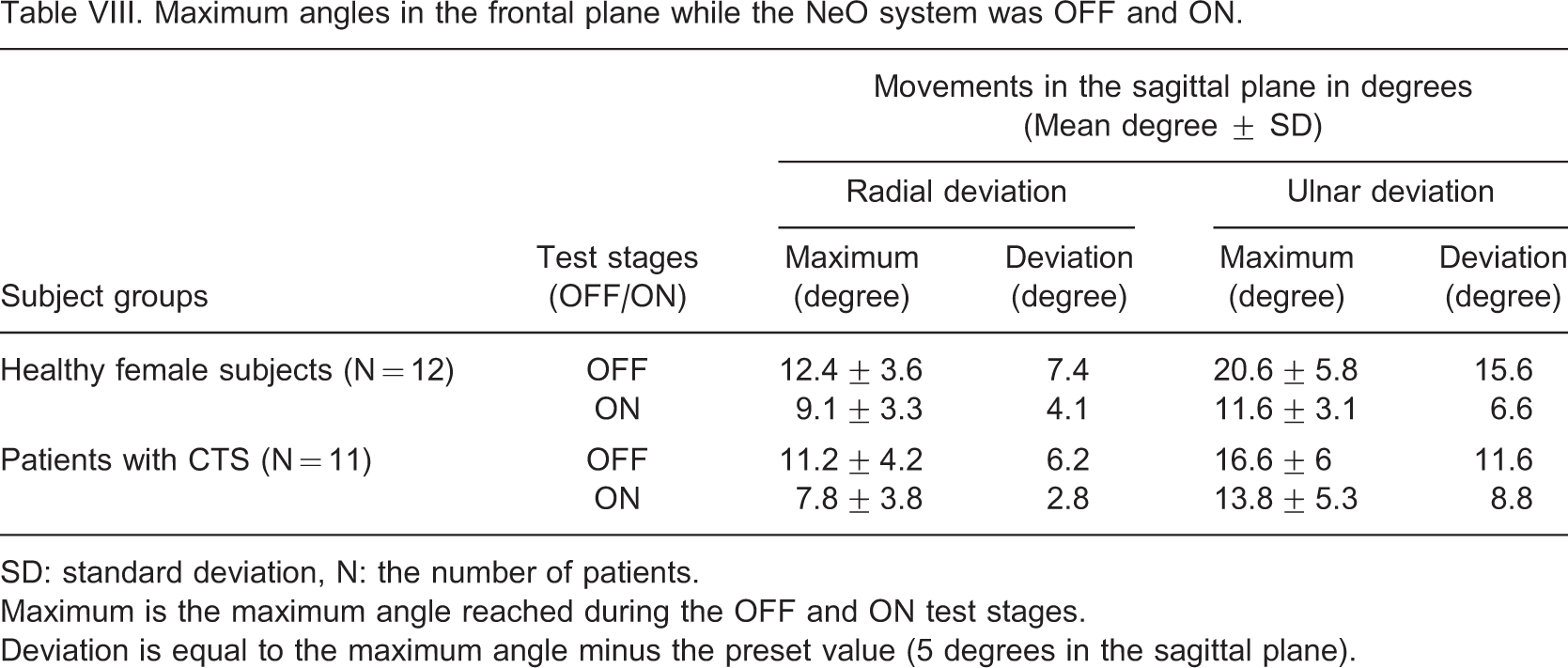

Tables VII and VIII demonstrate the maximum angles for the sagittal and frontal planes respectively while the NeO system was ON and OFF. The total movement arc in the sagittal plane was 33 and 58° for the healthy subjects and 27 and 46° for patients with CTS in ON and OFF conditions, respectively. These were 13 vs. 33°, and 22 vs. 28°, respectively in the frontal plane. The maximum angles reached at both conditions were generally higher in healthy subjects. Movements were not strictly limited to preset values and the ulnar deviation was the less limited movement direction with the NeO.

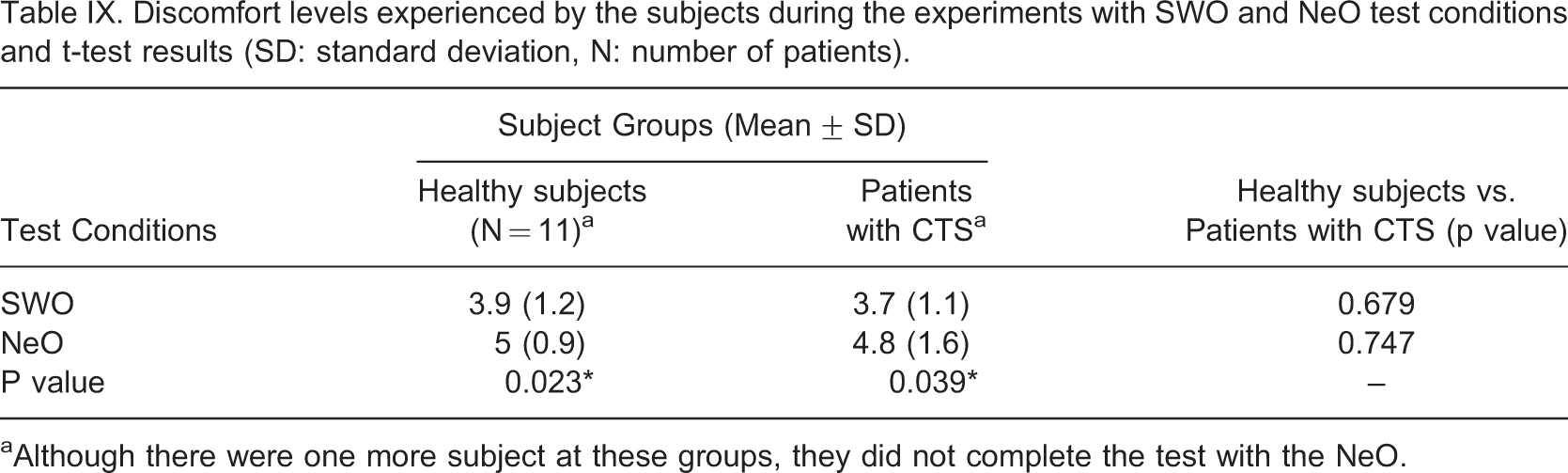

Table IX demonstrates the discomfort levels related to the SWO and NeO test conditions. Subjects in both groups experienced more discomfort with the NeO system mainly due to pain from skin irritation. The comparison of the discomfort levels between the same test conditions of the subject groups did not show significant difference.

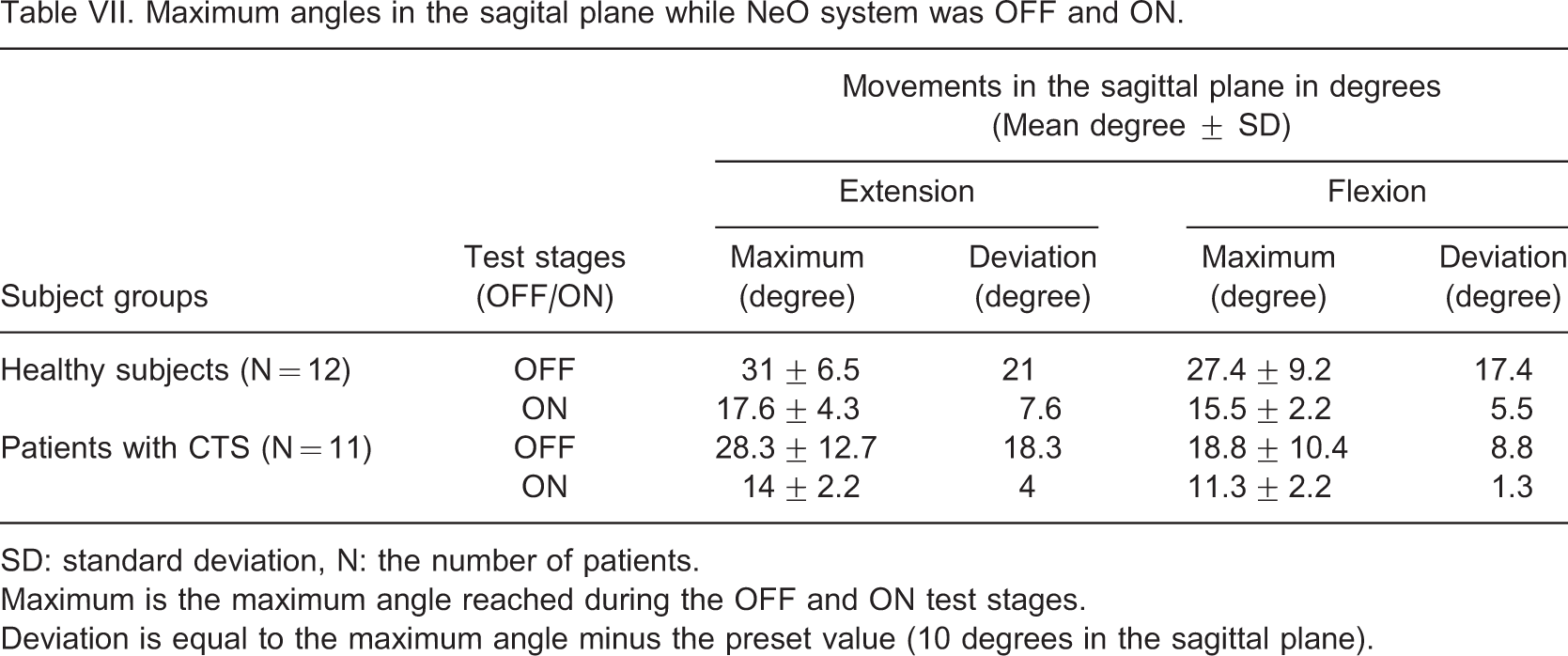

Table VII.

Maximum angles in the sagital plane while NeO system was OFF and ON

		Movements in the sagittal plane in degrees (Mean degree ± SD)
		Extension		Flexion
Subject groups	Test stages (OFF/ON)	Maximum (degree)	Deviation (degree)	Maximum (degree)	Deviation (degree)

Healthy subjects (N = 12)	OFF	31 ± 6.5	21	27.4 ± 9.2	17.4
Healthy subjects (N = 12)	ON	17.6 ± 4.3	7.6	15.5 ± 2.2	5.5
Patients with CTS (N = 11)	OFF	28.3 ± 12.7	18.3	18.8 ± 10.4	8.8
Patients with CTS (N = 11)	ON	14 ± 2.2	4	11.3 ± 2.2	1.3

SD: standard deviation, N: the number of patients.

Maximum is the maximum angle reached during the OFF and ON test stages.

Deviation is equal to the maximum angle minus the preset value (10 degrees in the sagittal plane).

Table VIII.

Maximum angles in the frontal plane while the NeO system was OFF and ON

		Movements in the sagittal plane in degrees (Mean degree ± SD)
		Radial deviation		Ulnar deviation
Subject groups	Test stages (OFF/ON)	Maximum (degree)	Deviation (degree)	Maximum (degree)	Deviation (degree)

Healthy female subjects (N = 12)	OFF	12.4 ± 3.6	7.4	20.6 ± 5.8	15.6
ON	9.1 ± 3.3	4.1	11.6 ± 3.1	6.6
Patients with CTS (N = 11)	OFF	11.2 ± 4.2	6.2	16.6 ± 6	11.6
ON	7.8 ± 3.8	2.8	13.8 ± 5.3	8.8

SD: standard deviation, N: the number of patients.

Maximum is the maximum angle reached during the OFF and ON test stages.

Deviation is equal to the maximum angle minus the preset value (5 degrees in the sagittal plane).

Table IX.

Discomfort levels experienced by the subjects during the experiments with SWO and NeO test conditions and t-test results (SD: standard deviation, N: number of patients)

Test Conditions	Subject Groups (Mean ± SD)		Healthy subjects vs. Patients with CTS (p value)
Test Conditions	Healthy subjects (N = 11)^a	Patients with CTS^a	Healthy subjects vs. Patients with CTS (p value)

SWO	3.9 (1.2)	3.7 (1.1)	0.679
NeO	5 (0.9)	4.8 (1.6)	0.747
P value	0.023∗	0.039∗	–

^aAlthough there were one more subject at these groups, they did not complete the test with the NeO.

Discussion

We proposed a method aiming to control wrist movements in four movement directions. The basics of functional electrical stimulation were used to limit wrist movements. Although there are complex control systems combining several feedback signals to obtain more precise control over muscles41-44, we preferred to use only position feedback due to its simplicity.

When compared to strain-gauged ones, the custom-made potentiometric electrogoniometer had superior repeatability and reliability characteristics.45-47 However, this sensor should be miniaturized for daily use while preserving its measurement characteristics.

The better performance of the healthy subjects was an anticipated result. The symptoms of CTS result in functional limitations in time. In the study, the mean duration of the symptoms was about 6 months and patients generally reported moderate involvement (about 2.5 on a scale of 1–5) in symptom severity and functional status scales. Although almost all strength measurements were significantly better in the healthy group, this was not true for all function and dexterity tests. Since function and dexterity are not solely dependent on the strength, they can be compensated to some degree.

Both control strategies resulted in limitations on many of the measurements. These limitations were expected since any additional material on the hand and/or any limitation at a joint can hinder the performance of the hand. Although, previous studies generally support the idea that WOs limit hand function and dexterity, there are conflicting results about their effects on hand strength. 20 In most of these studies, subjects used their orthoses for pain relief. It is believed that if WOs provide pain relief, they can immediately improve hand function and strength. However, the main reason for using WOs in CTS differs. 2, , 18, , 19 Pain relief can be provided, but it cannot be an immediate result. SWO resulted in an average of 16% decrease in strength tests in both groups compared to 8% with the NeO. This can be traced to the absence of the rigid part of SWO on the volar aspect of the hand and the allowed movement interval in the wrist with the NeO. While subjects wear SWOs, MS may be a more suitable instrument than a standard JD to obtain an idea about the grip strength. Considering the percent changes from the baseline, the total deviations for SWO and NeO test conditions were lower in the group of patients with CTS. NeO resulted in less limitation compared to SWO in terms of number of significantly different tests in both groups. The comparison of SWO and NeO test conditions produced significant differences in only six tests in the CTS group and eight in the healthy group in favour of the NeO. It can be concluded that both control strategies have less limiting effect on previously diminished functions. Patients probably have a lower performance limit at a specific degree of involvement and any additional limiting factor can cause less disruption.

NeO system was not able to strictly limit the wrist movements to preset values. This can be traced to the following factors: the nature of the test (timed test); the inadequate stimulation intensity and; the time delay between the initiation of the positional change and the contraction of the muscle. The resulting range of motion was still in the safe region in terms of CTP. 10, , 12-14, 16 NeO was more effective in limiting the movements in the sagittal plane. During the adjustment period, the isolation of extensor carpi radialis longus muscle was generally difficult with surface stimulation. When isolated, it required high current intensities and the resulting radial deviation movement was accompanied by some extension. Healthy subjects used a larger range of angular motion compared to the patients with CTS in the first subtest of the mPPT. Patients with CTS probably try to protect their wrists by limiting the movements.

Another problem was the spreading of the stimulation pulses to the neighbouring muscles during the implementation of the tests. This is probably related to the positional alterations between the skin and the motor points of the stimulated muscles. It was reported by two patients with CTS and one healthy subject in tests requiring forearm rotation such as the ‘turning over cards’ subtest of JHFT.

Discomfort due to stimulation pulses was common with NeO. At the beginning doublet stimulation pulses were chosen due to their ability to produce more force with less fatigue. However this waveform shape has constant pulse characteristics and the only way to regulate the muscle force is to use voltage modulation. Therefore, the amplification circuit was adapted to produce high voltages. But this time patients felt discomfort due to skin irritation when the amplitude of the stimulation pulses reached their preset peak values. Hence one subject in each group did not finish the experiments. In such applications, pulse width modulation with regular waveforms can be a less disturbing choice.

Conclusion

According to Tables V and VI, the NeO is found to be superior in terms of dexterity, function, and strength both for healthy and patient groups. SWO is a rigid system by its definition. NeO, on the other hand, has no solid limitation on the joints. This may raise the question about its ability to limit the joint movements at the desired levels required for the treatment. Tables VII and VIII illustrate the fact that when NeO system is turned on, a noticeable limitation affect is introduced. This limitation on motion is not as rigid as that provided with a SWO. It is this feature of the NeO that makes dexterity, function, and strength performances be superior while staying within the treatment range of joint angles. Discomfort due to skin irritation and spreading of muscle contraction were the most prominent problems. To alleviate the irritation, current modulated stimulation, instead of voltage modulation, should be investigated. As an alternate method to achieve the same stimulation levels, one can increase the individual stimulation pulse durations instead of the stimulation amplitude. To increase the muscle selectivity, different stimulation techniques can be investigated. Similar movement limitations could be achieved for the treatment of neuromuscular disorders with some modifications of the system. The components of the system should also be miniaturized in order to use it in daily life.

Declaration of interest: The authors report no conflicts of interest. The authors alone are responsible for the content and writing of the paper.

References

Greenspan

. Carpal tunnel syndrome: A common but treatable cause of wrist pain. Postgrad Med 1988; 84(7)34–39

Baxter-Petralia

P L

. Therapist's management of carpal tunnel syndrome. Rehabilitation of the hand: surgery and therapy, Hunter

L M

Schneider

L H

Mackin

E J

Callahan

A D

. Mosby, St Louis 1990; 1–26

Werner

R A

Gell

Franzblau

Armstrong

T J

. Prolonged median sensory latency as a predictor of future carpal tunnel syndrome. Muscle Nerve 2001; 24: 1462–1467

Dolhanty

. Effectiveness of splinting for carpal tunnel syndrome. Can J Occup Ther 1986; 53(5)275–280

de Krom

M C

Knipschild

P G

Kester

A D

Carpal tunnel syndrome: Prevalence in the general population. J Clin Epidemiol 1992; 45: 373–376

Atroshi

Gummesson

Johnsson

Prevalance of carpal tunnel syndrome in a general population. JAMA 1999; 281(2)153–158

Latinovic

Gulliford

M C

Hughes

R AC

. Incidence of common compressive neuropathies in primary care. J Neurol Neurosurg Psychiatry 2006; 77: 263–265

Stevens

J C

Sun

Beard

C M

Carpal tunnel syndrome in Rochester, Minnesota, 1961 to 1980. Neurology 1988; 38: 134–138

Gelberman

R H

Rydovik

B L

Fess

G M

Szabo

R M

Lundborg

. Carpal tunnel syndrome: A scientific basis for clinical care. Orthop Clin North Am 1988; 19(1)115–124

10.

Hamanaka

Okutsu

Shimizu

Takatori

Ninomiya

. Evaluation of carpal canal pressure in carpal tunnel syndrome. J Hand Surg (A) 1995; 20(5)848–854

11.

Bauman

T D

Gelberman

R H

Mubarek

S J

Garfin

S R

. The acute carpal tunnel syndrome. Clin Orthop 1981; 156: 151–156

12.

Yoshioka

Okuda

Tamai

Hirasawa

Koda

. Changes in carpal tunnel shape during wrist motion. J Hand Surg (B) 1993; 18: 620–623

13.

Gelberman

R H

Hergenroeder

P T

Hargens

A R

Lundborg

G N

Akeson

W H

. The carpal tunnel syndrome: A study of carpal canal pressures. J Bone Joint Surg Am 1981; 63(3)380–383

14.

Rojviroj

Sirichativapee

Kowskwon

Wongwiwattananon

Tamnanthong

. Pressure in the carpal tunnel: A comparison between patients with carpal tunnel syndrome and normal subjects. J Bone Joint Surg Br 1990; 72(3)516–518

15.

Sud

Freeland

A E

. Biochemistry of carpal tunnel syndrome. Microsurgery 2005; 25(1)44–46

16.

Kuo

M-H

Leong

C-P

Cheng

Y-F

Chang

H-W

. Static wrist position associated with least median nerve compression: sonographic evaluation. Am J Phys Med Rehabil 2001; 80(4)250–256

17.

Premoselli

Sioli

Grossi

Cerri

. Neutral wrist splinting in carpal tunnel syndrome: A 3- and 6- month clinical and neurophysiological follow-up evaluation of night-only splint therapy. Euro Medicophys 2006; 42(2)121–126

18.

Gelberman

R H

Aronson

Weisman

M H

. Carpal tunnel syndrome: Results of a prospective trial of steroid injection and splinting. J Bone Joint Surg Am 1980; 62(7)1181–1184

19.

Kruger

V L

Kraft

G H

Deitz

J C

Ameis

. Carpal tunnel syndrome: Objective measures and splint use. Arch Phys Med Rehabil 1991; 72(6)517–520

20.

Walker

W C

Metzler

Cifu

D X

Swartz

. Neutral wrist splinting in carpal tunnel syndrome: A comparison of night-only versus full-time wear instructions. Arch Phys Med Rehabil 2000; 81: 424–429

21.

Banta

C A

. A prospective, nonrandomized study of iontophoresis, wrist splinting, and antiinflammatory medication in the treatment of early-mild carpal tunnel syndrome. J Med 1994; 36(2)166–168

22.

Anderson

Maas

. Immediate effect of working splints on grip strength of arthritic patients. Aust Occup Ther J 1980; 34(1)26–31

23.

Stern

E B

. Grip strength and finger dexterity across five styles of commercial wrist orthoses. Am J Occup Ther 1996; 50(1)32–38

24.

Tijhuis

G J

Vlieland

T PMV

Zwinderman

A H

Hazes

J MW

. A comparison of the Futuro wrist orthosis with a synthetic ThermoLyn orthosis: Utility and clinical effectiveness. Arthritis Care Res 1998; 11(3)217–222

25.

Haskett

Backman

Porter

A crossover trial of custom-made and commercially available wrist splints in adults with inflammatory arthritis. Arthritis Care Res 2004; 51(5)792–799

26.

Vodovnik

Crochetiere

Reswick

J B

. Control of a skeletal joint by electrical stimulation of antagonists. Med Biol Eng 1967; 5: 97–109

27.

Jebson

Taylor

Trieschman

. An objective and standardized test of hand function. Arch Phys Med Rehabil 1969; 50: 311–319

28.

Mathiowetz

Rogers

Dowe-Kewal

The Purdue Pegboard: Norms for 14- to 19-year-olds. Am J Occup Ther 1986; 40: 174–179

29.

Melvin

. Evaluation of muscle strength. Rheumatic disease in the adult and child: Occupational therapy and rehabilitation, Melvin

. F.A. Davis Company, Philadelphia 1989; 350–356

30.

Agnew

P J

Maas

. Jamar dynamometer and adapted sphygmomanometer for measuring grip strength in patients with rheumatoid arthritis. Occup Ther J Res 1991; 11(5)259–270

31.

Helewa

Goldsmith

Smythe

H A

. The modified sphygmomanometer – an instrument to measure muscle strength: A validation study. J Chronic Dis 1981; 34: 353–361

32.

Arvidsson

Ingrid

Hansson

G A

. Wrist movements among females in a repetitive, non-forceful work. Appl Ergon 2003; 34: 309–316

33.

Collier

S E

Thomas

J J

. Range of motion at the wrist: A comparison study of 4 wrist extensor orthoses and the free hand. Am J Occup Ther 2002; 56(2)180–184

34.

Rawes

M L

Richardson

J B

Dias

J J

. A new technique for the assessment of wrist movement using a biaxial flexible electrogoniometer. J Hand Surg (B) 1996; 21(5)600–603

35.

Chang

J H

Hsu

H Y

F C

. Biomechanical measurement of painful wrist by flexible electro-goniometry. J Med Biol Eng 2005; 25(1)33–37

36.

Shiratsu

Coury

H JCG

. Reliability and accuracy of different sensors of a flexible electrogoniometer. Clin Biomech 2003; 18: 682–684

37.

Sarrafian

S K

Melamed

J L

Goshgarian

G M

. Study of wrist motion in flexion and extension. Clin Orthop 1977; 126: 153–159

38.

Karu

Z Z

Durfee

W K

Barzilai

A M

. Reducing muscle fatigue in FES applications by stimulating with N-Let pulse trains. IEEE Trans Biomed Eng 1995; 42: 809–817

39.

Routh

G R

Durfee

W K

. Doublet stimulation to reduce fatigue in electrically stimulated muscle during controlled leg lifts. Proceedings of the 25th Annual Conference of the IEEE EMBS. IEEE, Mexico

40.

Mathiowetz

Weber

Volland

Kashman

. Reliability and validity of grip pinch and strength evaluations. J Hand Surg (A) 1984; 9: 222–226

41.

Hart

R L

Kilgore

K L

Peckham

P H

. A comparison between control methods for implanted FES hand-grasp systems. IEEE Trans Rehabil Eng 1998; 6(2)208–217

42.

Popovic

M B

. Control of neural prostheses for grasping and reaching. Med Eng Phys 2003; 25: 41–50

43.

Winslow

Jacobs

P L

Tepavac

. Fatigue compensation during FES using surface EMG. J Electromyogr Kinesiol 2003; 13: 555–568

44.

Crago

P E

Lan

Veltink

P H

Abbas

J J

Kantor

. New control strategies for neuroprosthetic systems. J Rehabil Res Dev 1996; 33(2)158–172

45.

Jang

. The effects of dynamic wrist work loads on risks of carpal tunnel syndrome. The Pennsylvania State University, PennsylvaniaUSA 2002, Phd. Thesis

46.

Buchholz

Wellman

. Practical operation of a biaxial goniometer at the wrist joint. Hum Factors 1997; 39: 119–129

47.

Marshall

M M

Mozrall

J R

Shealy

J E

. The effects of complex wrist and forearm posture on wrist range of motion. Hum Factors 1999; 41: 205–213
