Cryomilling as environmentally friendly synthesis route to prepare nanomaterials

Mechanical milling at room temperature vs. cryogenic temperature in nanostructure formation

The mechanical milling at RT has widely been utilised for the synthesis of various nanostructured materials. Extensive literature is available on the formation of nanostructure or amorphous material; metals, alloys, ceramics, etc. [13,91–94]. The main differences in nanostructures formation associated with the cryomilling are the suppression of cold welding phenomena, predominant fracturing as compared to plastic deformation, and suppression of recovery and recrystallisation process, extremely low or no oxidation. Since the invention of mechanical alloying by J. S. Benjamin, in 1968 [91,92], the mechanical alloying (MA) or mechanical milling (MM) at RT have been discussed in details and reader can refer to special reviews on this aspect [13,79,95,96]. It is evident the friction/collision of balls with milling materials and walls of the vials increases the temperature of the system as well as materials, which has been considered an obstacle in the refinement of materials [97]. This is because various properties of materials, especially mechanical properties, are strongly dependent on the temperature. Takacs et al. have measured the temperature rise of SPEX 8000 and Fritsch P5 Planetary mills during milling; shown in Figure 1(a,b). In the former, the temperature can reach more than 60°C within 20 min of the milling. Similarly, temperature could increase even >200°C in Fritsch P5 planetary ball mill rotating at 280 rev min^–1 [97]. The temperature rise is sufficient for dynamic recovery, recrystallisation, and sintering for some materials during milling. Therefore, the grain refinement can only be achieved to a certain size (d_min ) during ball milling, and it is not possible to reduce further due to recovery and sintering dominant phenomena, dependent on temperature and grain size. Fecht et al. [19] have suggested that achieving minimum grain size during mechanical milling is the result of a balance between dislocation structure generated by the severe deformation of mechanical milling and the dynamic recovery by thermal processes. It is worth adding that mechanical milling, in general, has been reported to produce nanocrystalline materials via five stages; particles flattening, cold welding, fracture, equiaxed particles formation, and steady-state particles formation to achieve nanocrystalline materials as shown in Figure 2 [19,91,98].OPEN IN VIEWER

OPEN IN VIEWER

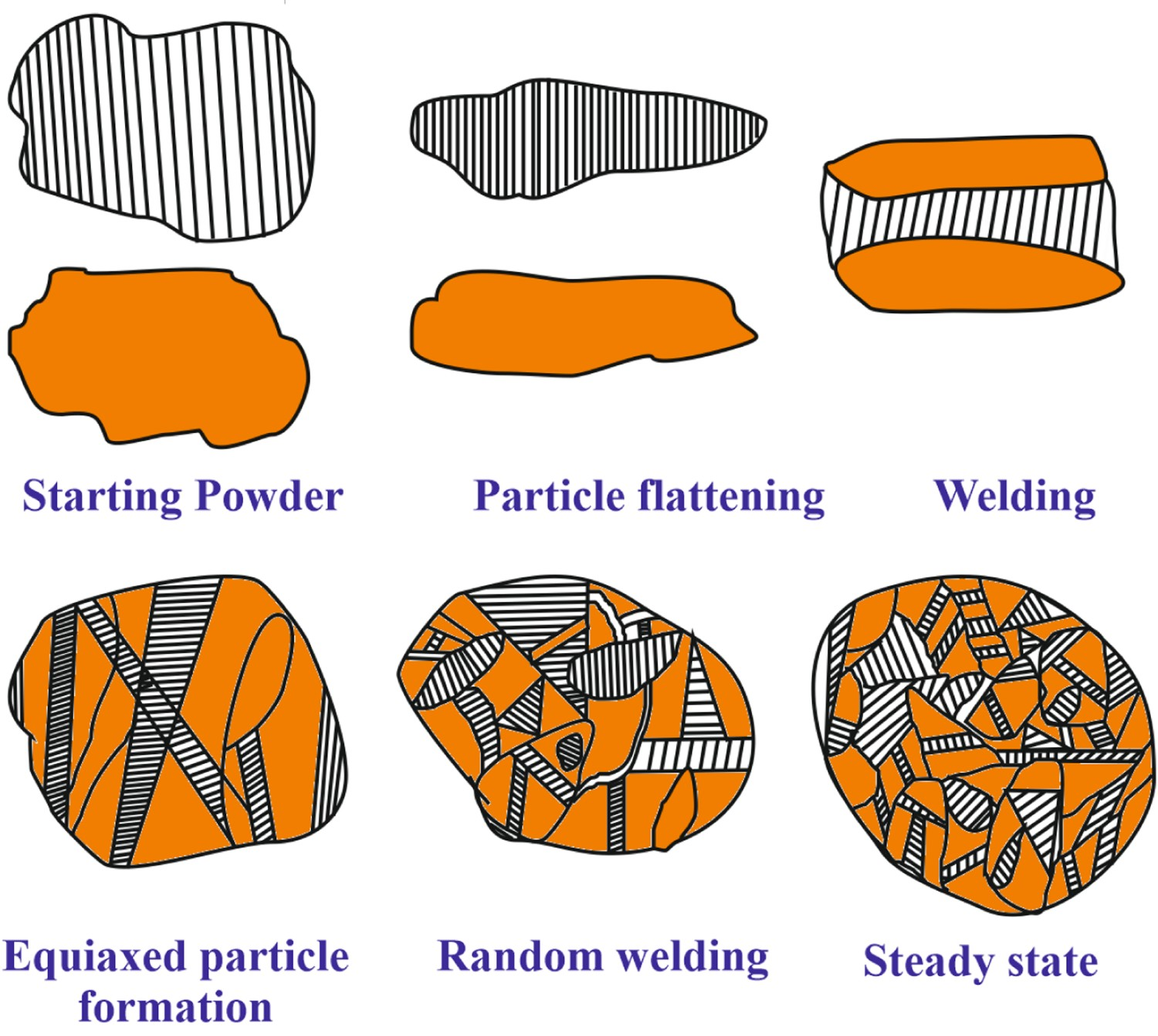

Figure 2.

Five stages of mechanical milling process at RT [99].

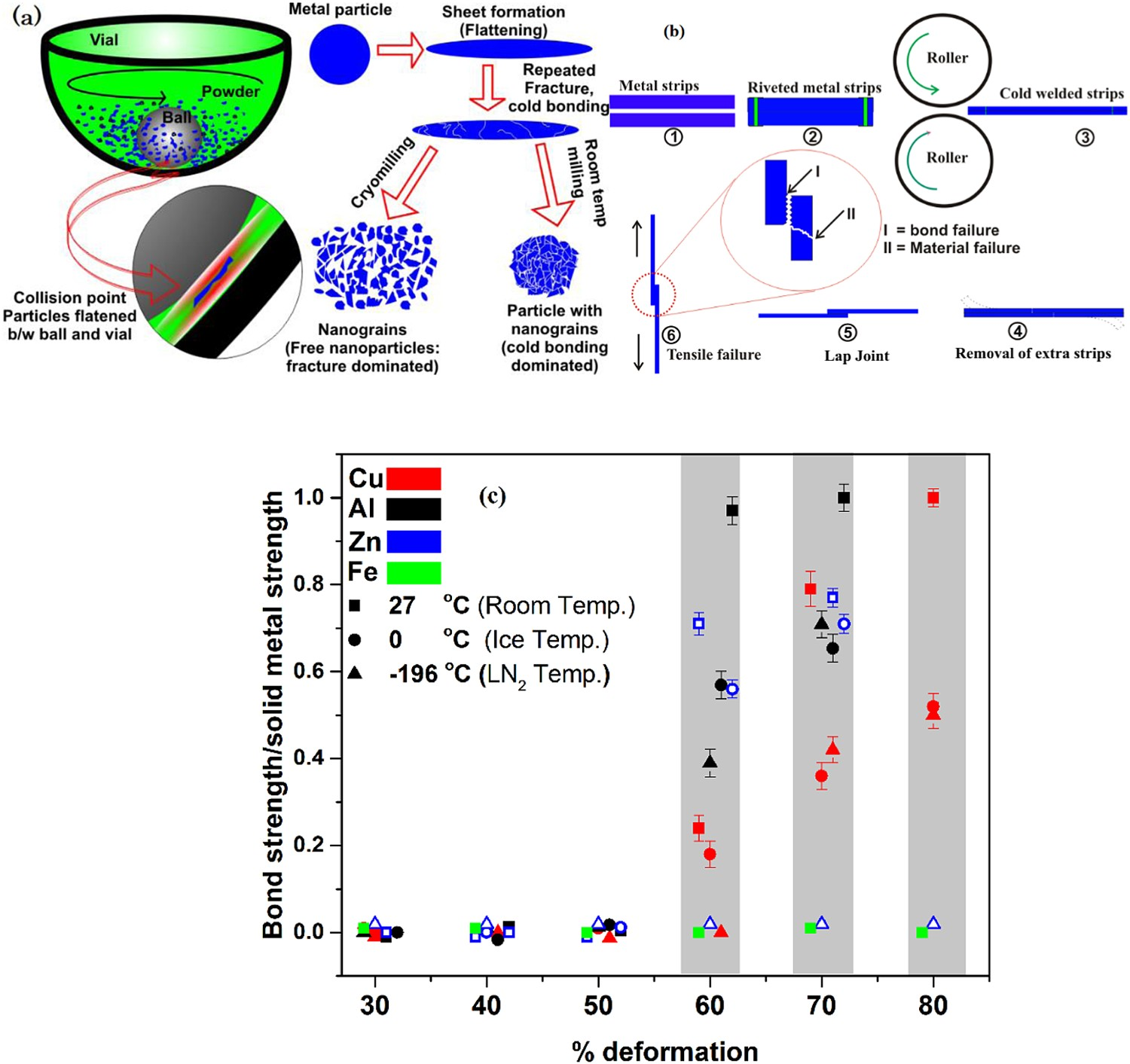

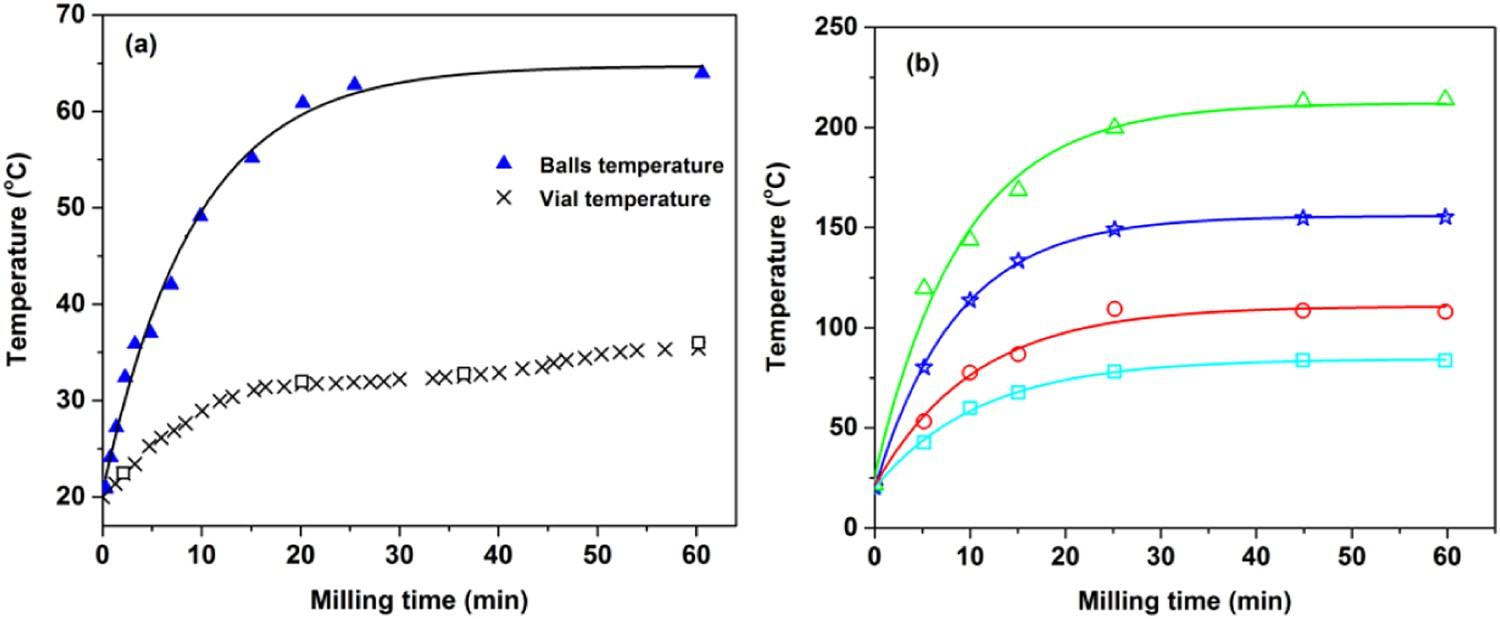

During the flattening stage, the temperature at the point of collisions of the material with balls or vial is likely to increase, depending on the type of material and ball mill. The rise in the temperature promotes both cold welding formation as well as the sintering of particles, leading to the formation of agglomeration having nanocrystallites with increasing particle size. Hence, cold welding phenomena are prevalent in the mechanical milling at RT and the agglomeration of the as-synthesised powder. Therefore, the synthesis of fine nanoparticles and rapid refinement is unlikely via ball milling at RT. In contrast, the cryomilling suppresses the cold welding and agglomeration [19]. Modelling on the formation of nanocrystalline materials and the sintering phenomenon can shed new light on the efficacy of cryomilling on the formation of nanostructured materials. In this direction, Mohamed et al. [100] have provided a model to predict the minimum grain size (d_min ) achievable via mechanical milling. Similarly, Alymov et al. [101] have developed a model on the sintering temperature of nanoparticles due to the reduction of particles. These models show reasonably good agreement of the experimental findings for the reduction of the size of powder particles. However, the theoretical calculation of d_{mi n} and T_SS require material properties, especially defect generation and annihilation. They are indeed, temperature dependent. In the following, this aspect is discussed to elucidate the importance of the temperature of mechanical milling.

Over the past decades, the characteristics of refinement of particle size and nanostructures formation during ball milling have extensively been studied and guided to many important findings, leading to several models for grain refinement. However, some of the important models require discussion. Let first discuss the conclusions on the experimental findings of the mechanical milling of various materials (concluded by Mohamed et al. [100])

grain size decreases and reaches to d_min (minimum grain size) as milling time increases, and d_min is different for different materials.

Using these experimental findings, Mohamed has derived an equation for d_min , as a function of material parameters. In general, grain refinement has been categorised into three steps:

the localisation of high dislocation density in the shear bands;

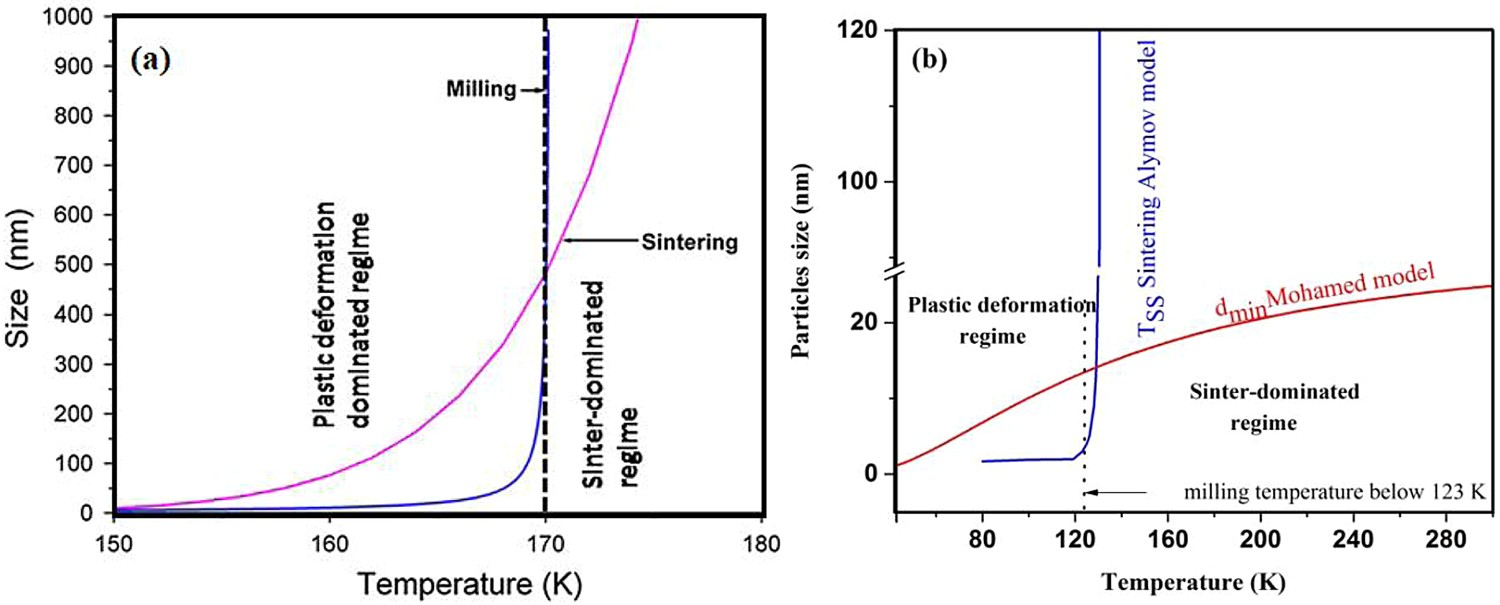

According to Fecht et al. [19], d_min during mechanical milling is the result of a balance between the generation of dislocation structure by the severe deformation during milling and their recovery and recombination by thermal processes. However, Mohamed et al. have added the recovery can also take place via creep, stating that ‘steady-state creep represents a balance between competing factors of rate of strain hardening and rate of thermal recovery.’

Accordingly, Mohamed et al. has provided an equation as follows: (1) where A is dimensionless constant, b is the Burgers vector of dislocation, Q is the self-diffusion activation energy, β is a constant (0.04), D_po is the pipe diffusion coefficient, G is the shear modulus, ν_o is the Poisson's ratio, H is the hardness, γ is the stacking fault energy, R is the universal gas constant, k is the Boltzmann constant and T is the absolute temperature. According to the equation, d_min is strongly dependent on the milling temperature because Q, D_P0, G, H are dependent on T. The term is related to the dislocation generation via the thermal process.

The pipe diffusion (D_p ) plays a critical role, especially at low homologous temperatures and high stresses. This can be expressed as (2) where D_eff is the effective diffusion coefficient, a_c is the area of the dislocation core associated with rapid diffusion, D_v is the self-diffusion (bulk or volume) coefficient, and ρ is the dislocation density.

By taking a_c = 5b ² and ρ = 10 (σ/Gb)², Equation (2) becomes (3) Here, D_p is given by (4) where Q is the self-diffusion activation energy, Q_p is the activation energy for pipe diffusion, T is the absolute temperature, R is the gas constant, and α is less than unity (about 0.58 for most FCC metals). D_P is expected to assume significant value under the conditions associated with milling at low temperatures and severe plastic deformation, which can produce a high dislocation density. This aspect will be important for mechanical milling at cryogenic temperatures.

Effect of temperature of milling on nanostructured materials

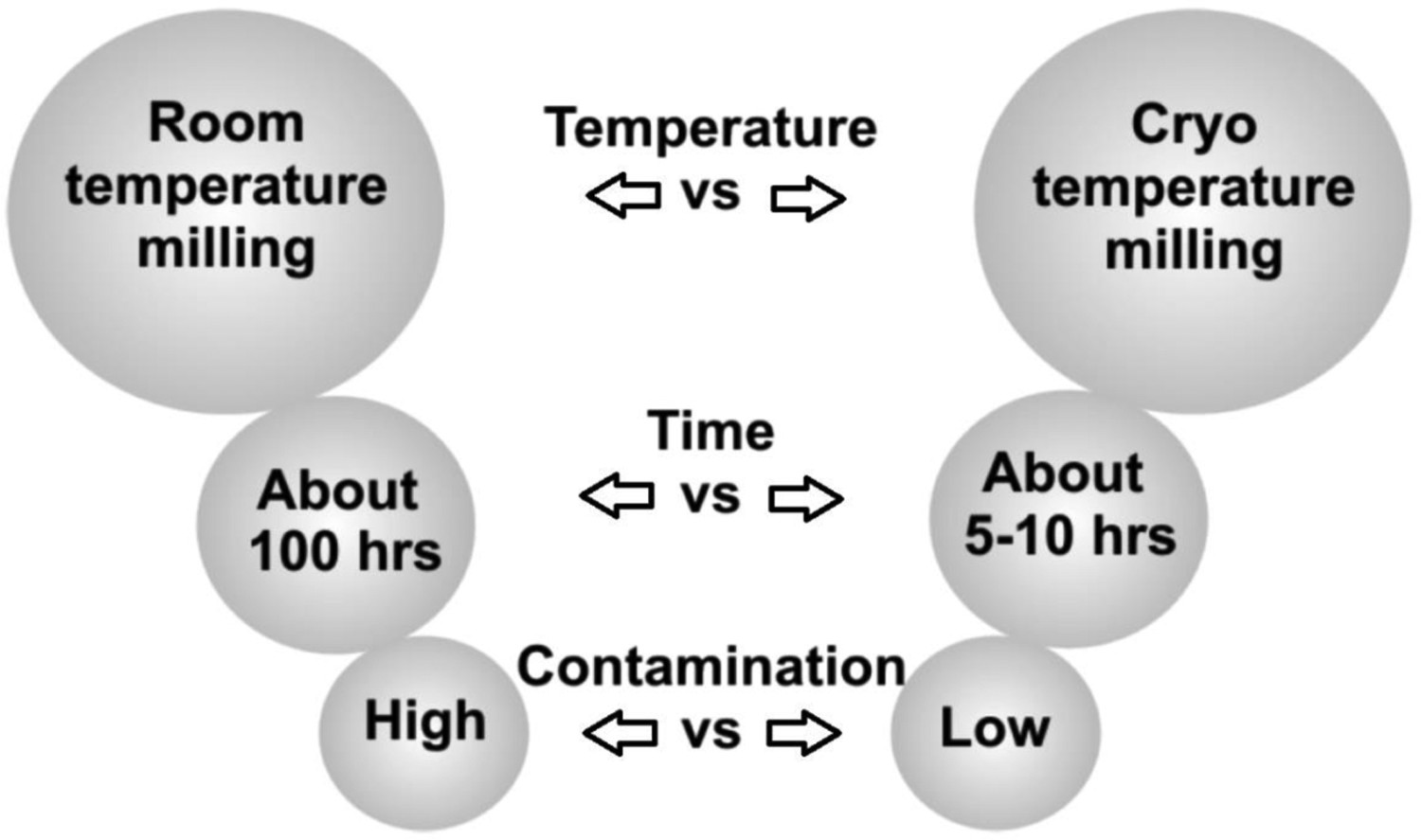

In the previous section, it has been shown that there are many advantages associated with the cryomilling process in comparison with conventional or RT mechanical milling. One of them is related to the suppression of recovery during the milling process. During milling, the crystalline lattice of the material is plastically deformed, leading to the accumulation of dislocations and other defects. Extensive plastic deformation or cold working leads to the accumulation of these defects, lowering the plasticity of the materials. Hence, further generation of the defects is no longer possible. Dynamic recovery is the basic mechanism that leads to the annihilation of dislocations during deformation [18], and hence, ductility of the deformed materials can be recovered. It has been reported that the cross slip of screw dislocations helps to achieve dynamic recovery at cryo-temperature. At the higher temperature, vacancy climb dominates [104,105]. Hallen et al. have investigated the dynamic recovery of FCC metals at different temperatures and compared with theoretically calculated values [105]. Recrystallised specimens of pure nickel, aluminium, and copper as well as austenitic stainless steels were investigated via tensile test carried out at the various temperatures and strain rates (Al = 0.5×10², Cu = 1.3×10², Ni = 0.5×10²s^–1).

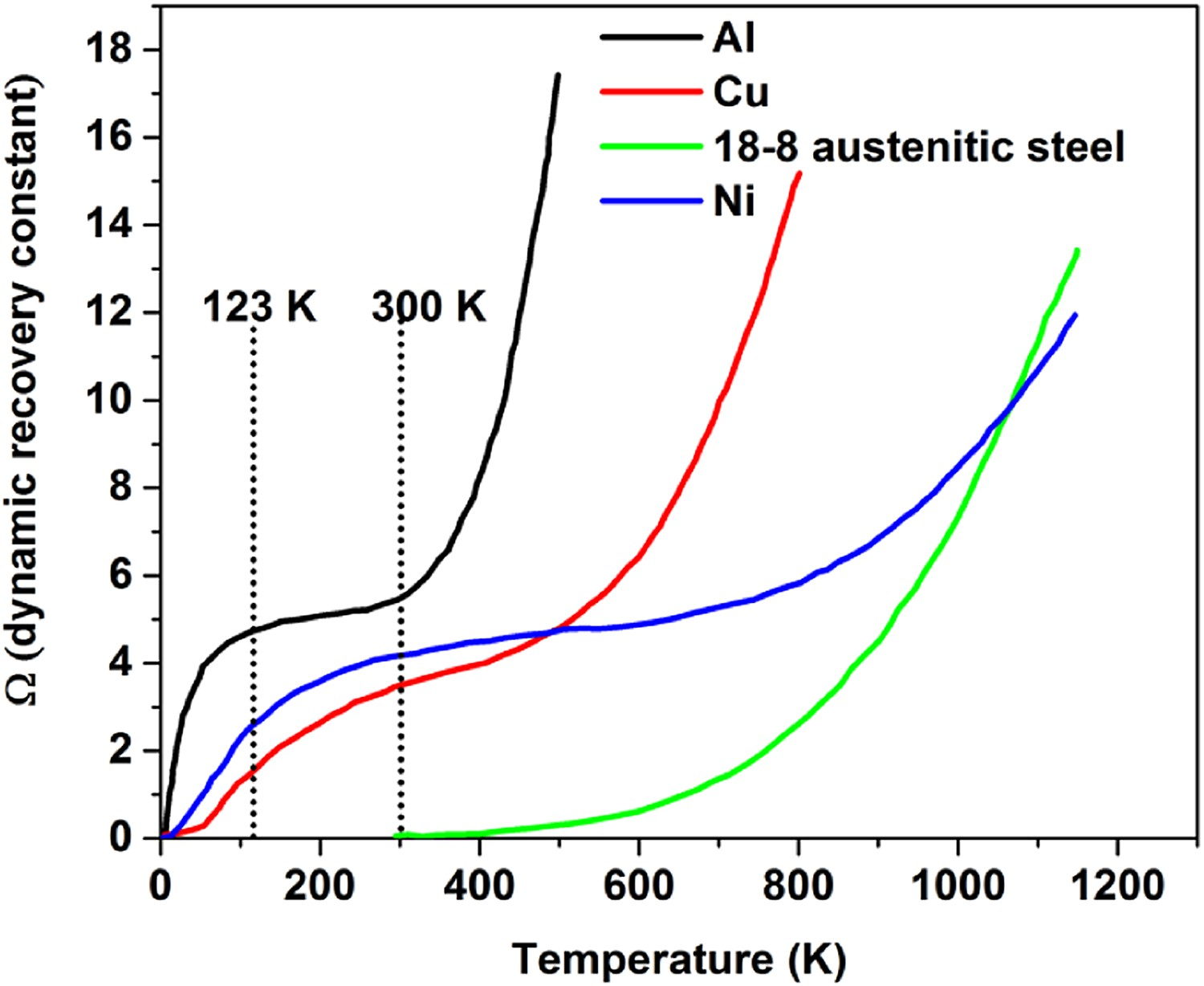

According to the authors, the dynamic recovery is coupled with both processes of cross slip and vacancy climb and thus [105]; (8) where Ω _cs (CS = cross slip) is the dynamic recovery constant at low temperatures, where vacancy diffusion is negligible and Ω _vc (VC = vacancy climb) is the rate of recovery constant at high temperature, (9) where Ω is a factor describing the rate of dynamic recovery. The rate of recovery is also directly proportional to the instantaneous level of dislocation density ρ. Nevertheless, the dynamic recovery significantly decreases at low temperature (especially at or below <123 K), as shown in Figure 5, compared to RT (300 K) for the most of FCC metals and alloys [105]. Therefore, milling at low temperature (cryogenic-temperature) will lead to extensive storage of dislocations during repeated mechanical milling of materials, causing a substantial increase in the strain hardening. This leads to a reduction of ductility, toughness, and increases the probability of fracture at a relatively low level of strain.OPEN IN VIEWER

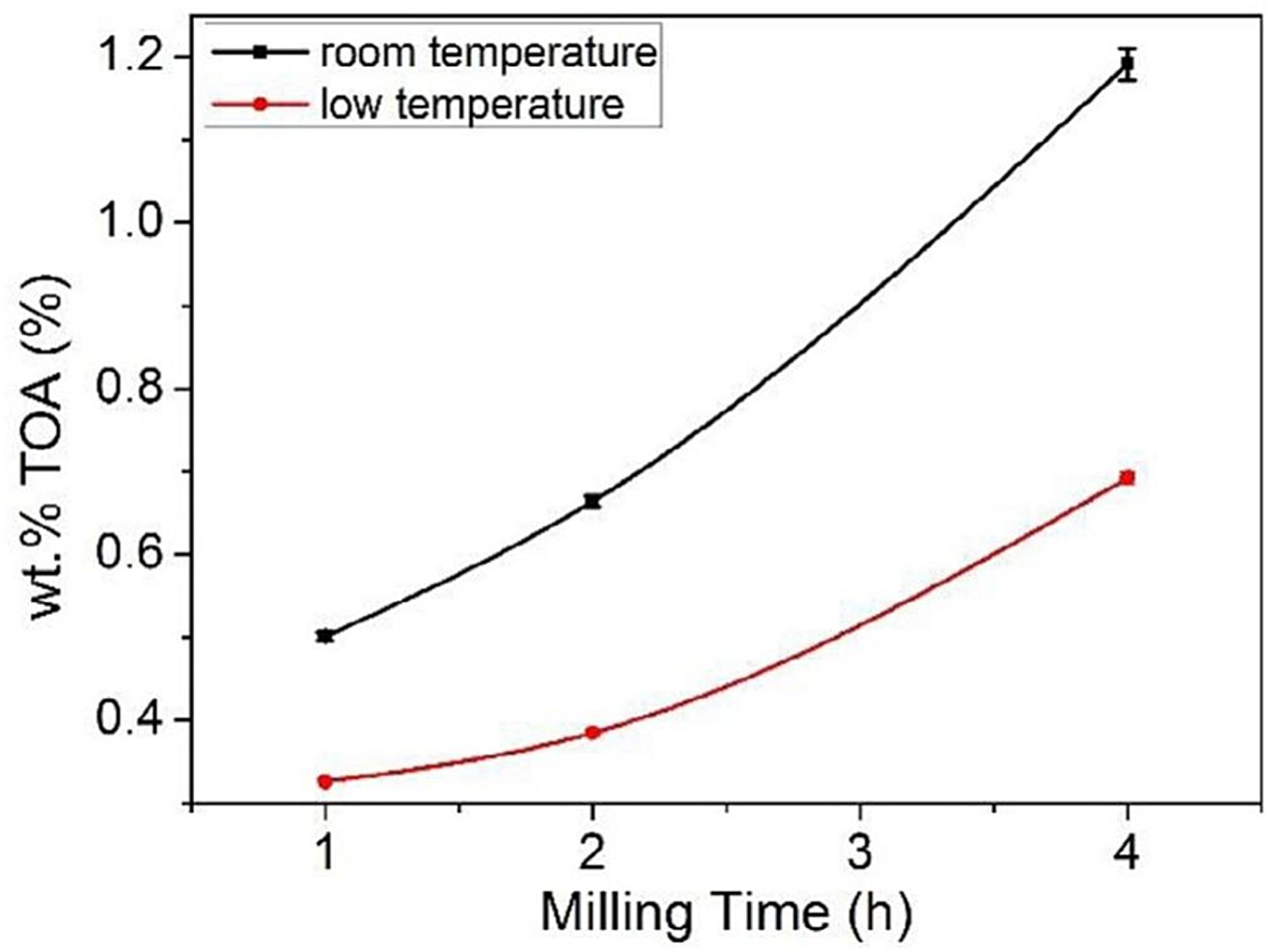

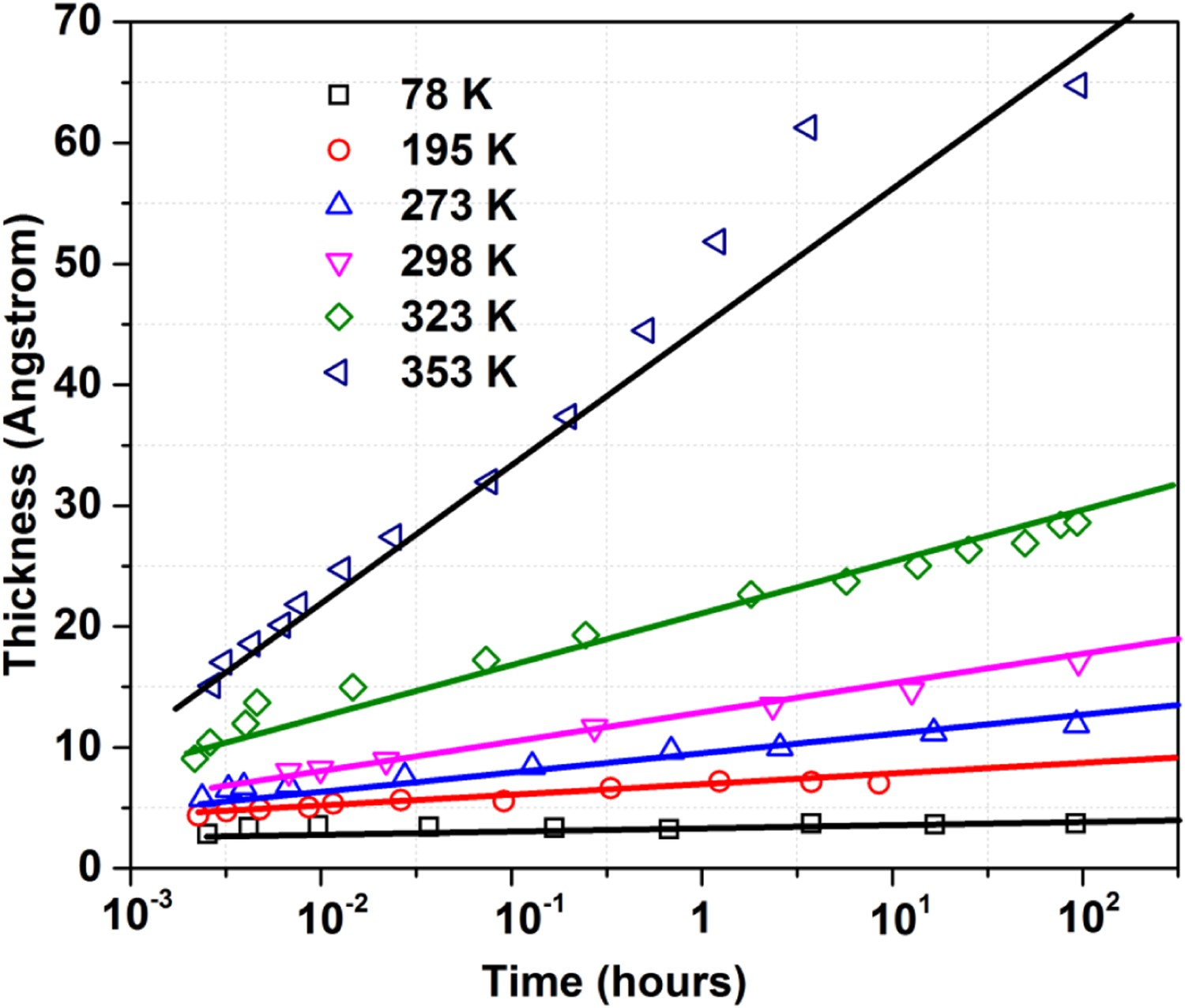

Another important factor is the suppression in the oxidation rate of metallic nanoparticles at low temperature. Oxidation is predominately observed in the nanocrystalline metals and alloys during synthesis via mechanical milling at RT. Hence, many metallic nanoparticles exhibit oxidised surface layers, impeding their applications. The oxidation of pure metals takes place over the surface, and hence the nanoparticles of pure metals are highly prone to oxidation due to high surface area to volume ratio [106]. Therefore, lower milling temperature helps to reduce the rate of oxidation during milling. Rhodin et al. [21] have reported the formation of oxide layer over the metallic surface of Cu with time at different temperatures. The growth of the oxide layer at 78 K in a controlled experiment is negligible even after 100 h. However, at the higher temperature (>273 K), the thickness of the oxide layer increases extensively with the time, as shown in Figure 6 [21]. Therefore, it is evident that the rate of oxidation during milling at low-temperature expected to be low, and the possibility of synthesis of pure metallic NPs, almost free of contamination or oxide layer, called native particles or particles with virgin surfaces can be achieved.OPEN IN VIEWER

However, there are other sources of contamination in the milled powder. The interaction of the balls, and vials with powder can also cause the production of debris, which is the main source of contamination in many milling operations. This debris from milling tools is directly affected by milling parameters, especially ball to powder ratio, time, and speed. It is also dependent on the milling materials and shape of the vials. Thus, one can compare the level of contamination between milling at RT and cryogenic temperature ball, provided other milling parameters are kept the same. If the conventional ball milling is compared with cryo-milling for the same material and the shape of vials, it is evident that the milling time will decide the level of unavoidable contamination contributed from the milling tools. Therefore, the cryomilling has this distinct advantage to reduce the contamination imparting from milling tools because the refinement is faster during cryomilling. As seen in Figure 7, 100 h of milling time required to obtain the NPs, when conventional ball milling is utilised. On the other hand, it requires 5–10 h utilising the cryomilling for the same.OPEN IN VIEWER

Evolution of cryomilling over time

The main objective of cryomilling is the reduction of particle size and the prevention of decomposition of temperature-sensitive materials during reduction. It is a part of conventional mechanical milling, shown as a schematic in Figure 8. In fact, the milling/grinding at low temperature was reported in the literature as early as 1937 with articles title ‘An apparatus for grinding bacteria at low temperature,’ where the bacterias have been disrupted using a cryo-ball mill containing five hundred 0.25 inch stainless steel balls. The mill was cooled to −75°C using a mixture of methyl cellosolve and CO₂. The stout pyrex flask of 1 L containing bacteria and balls were rotated at 230 rev min^–1 using an electric motor [109]. Similarly, the design of the cryomill was published from West Germany in 1973, having the title ‘Cryogen-Low temperature grinding of brittle materials.’ This description was on the cryomilling of plastic granules and flocks [110]. It is evident cryomilling was developed much earlier than conventional RT ball mills. However, the utilisation of cryomill was limited. The invention of the scanning tunneling microscope (STM) by IBM in the 1980s fuelled the research in nanostructure/nanomaterials synthesis, and many research groups started using cryomilling to synthesise nanomaterials. Some research groups even used the conventional ball mills as cryomill, just dipping the vial in LN₂ prior to milling. There exist many mechanical mills in the research, academia, and industries; drum ball mill, jet ball mill, bead mill, horizontal rotatory ball mill, vibrations/shaker ball mill, attritor ball mill, etc. The selection of ball mill depends according to the purpose, such as mixing, pulverisation, mechanical alloying, etc. Nonetheless, ball mills can be classified based on energy, medium, and temperature. On the basis of energy, milling can be divided into low energy and high energy milling. According to the medium, it is categorised as wet milling and dry milling. Similarly, it is classified in high-temperature milling, RT cryomilling based on temperature, as shown in a schematic Figure 8. Some of the available cryomills for laboratory scale in the niche market has been discussed in Table 1.OPEN IN VIEWER

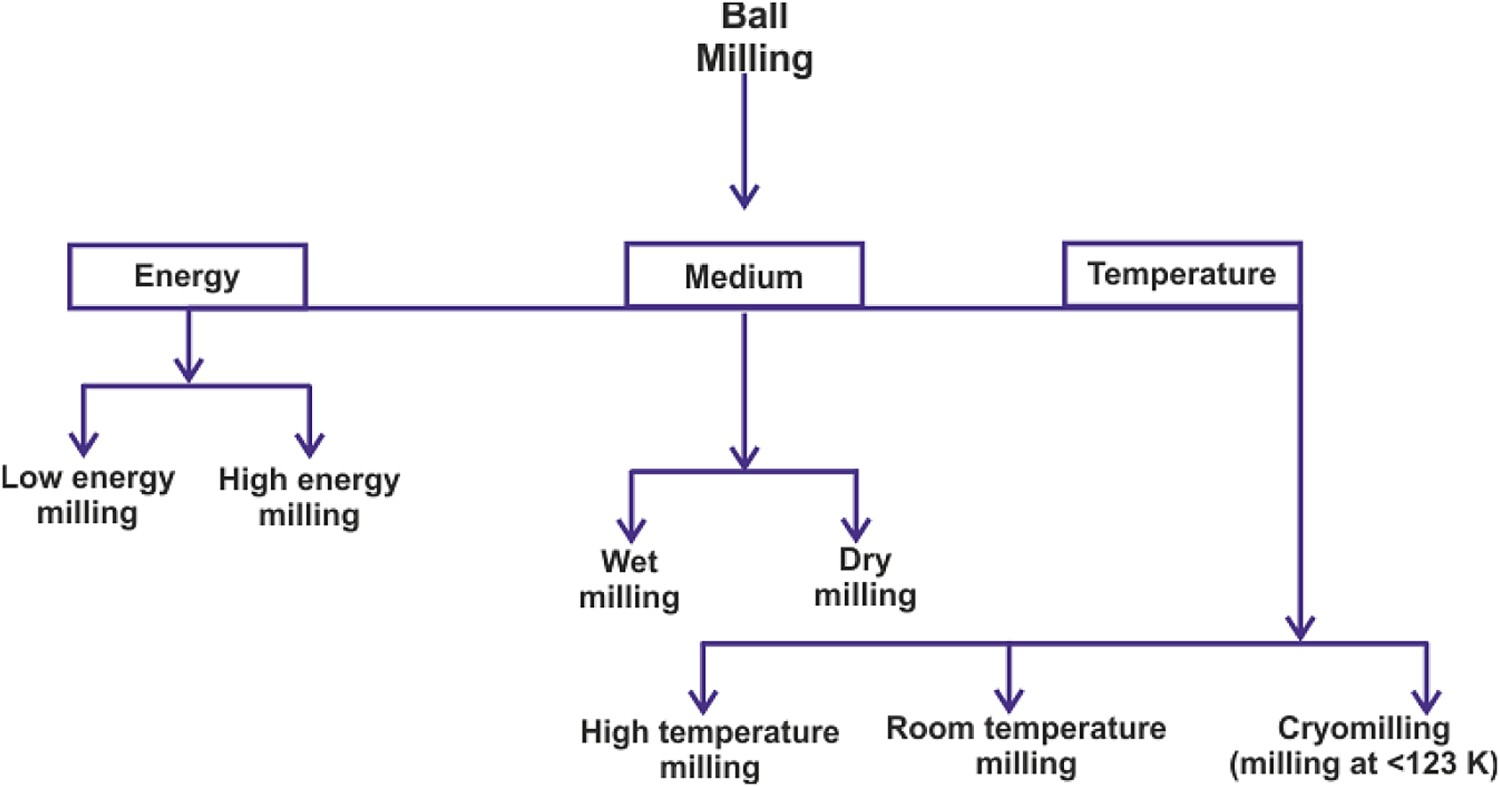

The categorisation based on high and low energy is primarily dependent on energy transfer through milling tools to the underlying materials [111]. Several factors, including the hardness difference of milling tools, milling materials, speed of the mill, ball to powder ratio, etc. determine the energy transfer. Moreover, in some designed mills, the magnet is placed close to the vial to apply a strong pulling force on the magnetic balls, and thereby the impact energy imparted can be made higher than the normal mill [112]. Cryomills utilised for the synthesis of nanoparticles; other aspects need to be considered, including homogeneity and the protection of nanomaterials from oxidation and nitridation. Recently, the free-standing nanocrystalline materials are considered an active and promising area of research in materials science, biomedical imaging, physics, chemistry, etc. [113]. The use of cryomills and their importance will be discussed in subsequent sections in detail.

How to achieve cryogenic temperature with different cryo-liquids

Achieving proper cooling to obtain temperature below 123 K is considered the primary objective of the cryomilling. Hence, cryomills are designed to be compatible with different coolants. During the milling process, the milling media, along with powder, are being cooled using cryogenic liquids having an extremely low boiling temperature such as liquid oxygen (90 K); liquid argon (87 K); liquid neon (27 K) and liquid nitrogen (77 K), etc. Although liquid argon and nitrogen have primarily been utilised as a coolant in the cryomills, liquid nitrogen is widely used. The liquid nitrogen (LN₂) is considered a cost-effective cryogenic liquid and non-toxic for the environment. It is released in the form of N₂ gas, which is omnipresent (∼78 vol.-%) in our environment, and we breathe it along with oxygen. The LN₂ is the safest coolant in the cryomilling compared to another coolant such as liquid Ar. Argon is dangerous if inhaled in large amounts as it can get trapped in the lungs and can displace the oxygen.

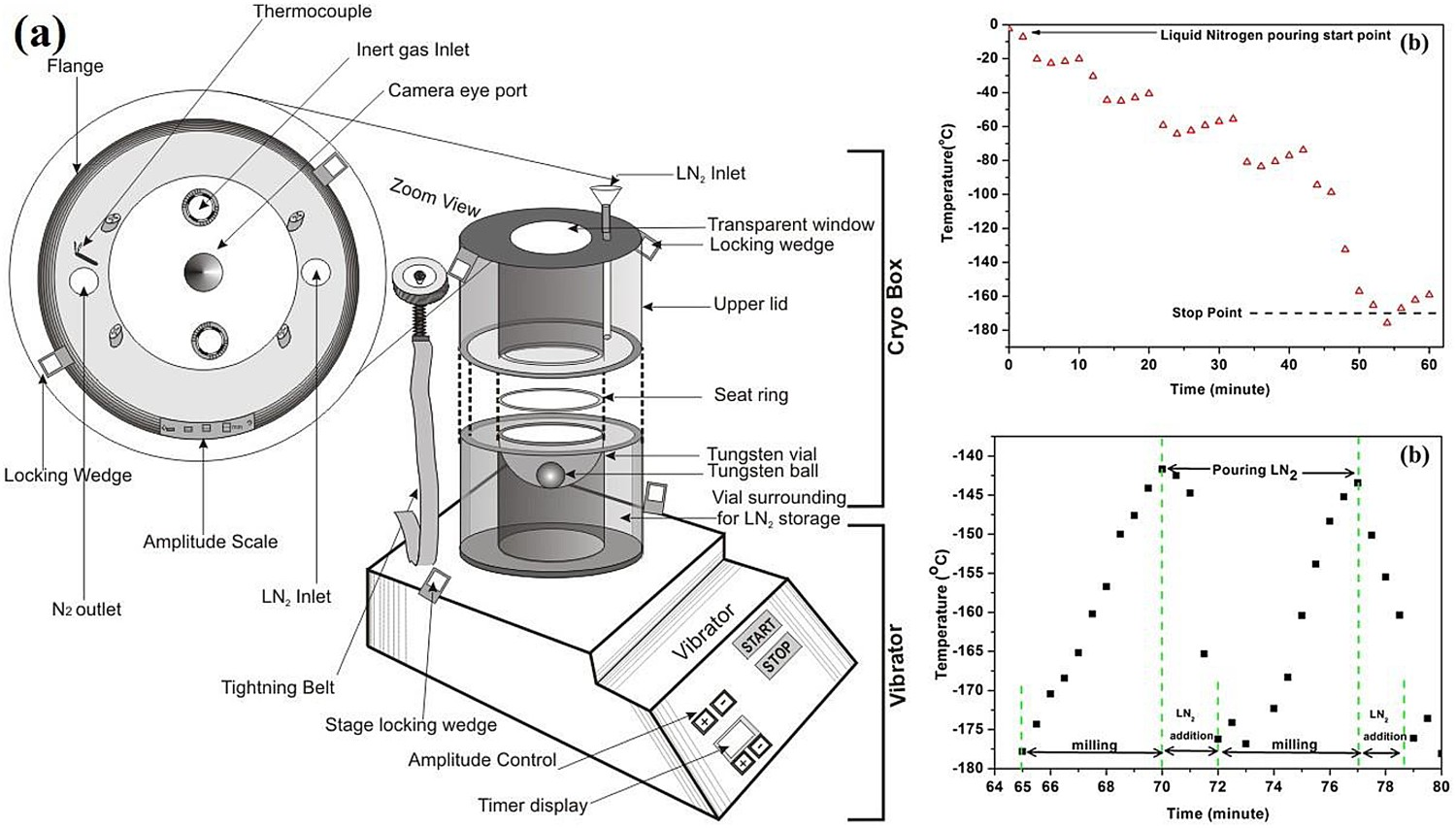

Kumar et al. [9] have described the cooling profile of custom-built cryomill, utilising LN₂ and compared the temperature variation and running positions. The temperature of the milling chamber was monitored online by a K-type thermocouple. LN₂ was poured in the cryomilling via LN₂ inlet (schematically shown in Figure 9(a)) in five minutes interval. Subsequently, the temperature was reduced and reached steady state −170°C after 60 min (Figure 9(b)). The cooling (Figure 9(c)) profile reveals that the temperature varies from −140 to −180°C next 5 min during the operation of the cryomill.OPEN IN VIEWER

Issues in fabrication of cryomill

It is also important to handle several basic issues while designing a mill working at an extremely low temperature. The balls and vial materials, along with their accessories, must withstand the cryogenic temperature. The tungsten carbide and stainless steels have been reported to have the capability to sustain low temperatures and bear the shock load with minimum wear and tear. Similarly, UHMWPE is reported to withstand shock load at liquid nitrogen for a longer duration. It is a good insulator [114], which can be used for fabricating coolant reservoir and other accessories to reduce heat loss. In addition, the stainless steel (SS316 type) can be used for fabricating the outer body of the mill. The available cryomills in the market are shaker, vibratory, and attritor types [111], primarily due to the easy handling of the liquid coolant. The planetary type cryomill is difficult to fabricate due to the need for additional accessories for supplying cryogenic liquid. In fact, there is no planetary [13] type cryomill in the niche market because of the fact that planetary rotation does not allow the handling of liquid coolant.

Additionally, there are other challenging issues to be considered for the design of the cryo-chamber. This includes maintenance of the proper temperature in case of dry milling and the inert gas environment over the milling materials to avoid oxidation of the milled materials. In the case of wet milling (milling materials along with coolant liquid), the flow of LN₂ is not continuous instead of the dosing of LN₂ at certain intervals. There are high chances of the formation of ice flakes, which can enter into the milling chamber with the dosing of LN₂. Moisture present in the chamber can freeze and form ice flakes. Hence, it is essential to stop these ice flakes entering in the cryo-chamber. The each type of cryomill has a different energy transfer rate, and it critically depends on its working principle as well as hardness difference between under milling powder and ball-vial.

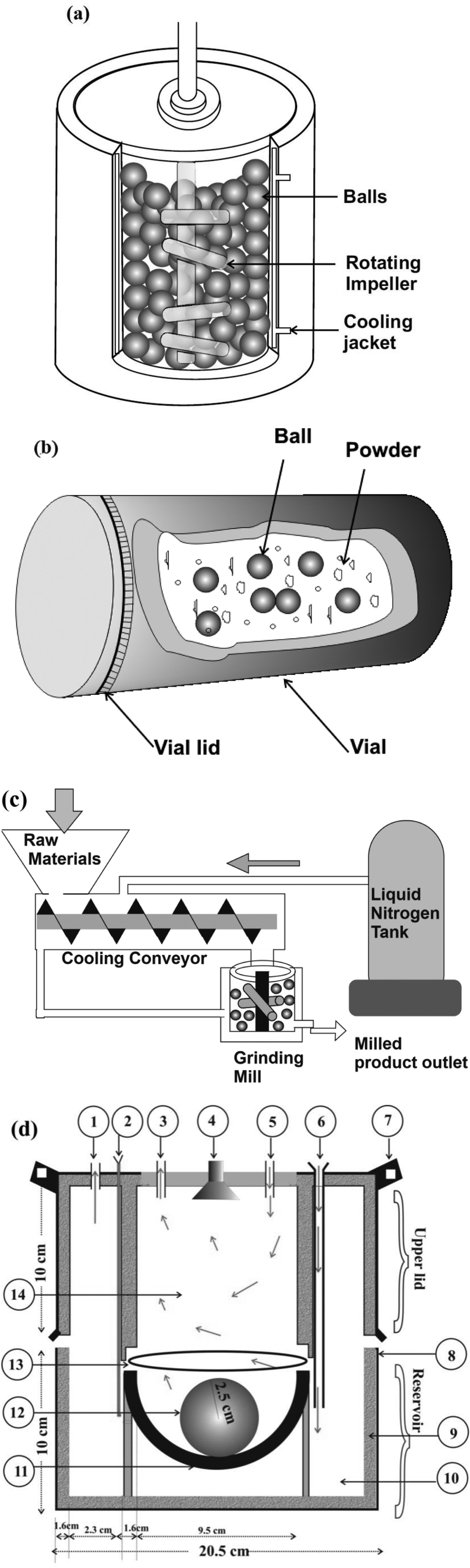

The UNION ACRON, UK-based company, has designed an attritor-based cryomill. The schematic diagram of the cryo-chamber is shown in Figure 10(a), in which the powder and balls are charged into the chamber, and the surrounding body is cooled with cryogenic liquid. In the attritor, the balls are rotated via impeller in the cryo-chamber [111,115]. Similarly, Germany-based company RETSCH has designed a shaker cryomill [116], in which the materials and liquid coolant are mixed and subsequently milled in the cryo-chamber (ball and vial), shown in Figure 10(b). The milling action is achieved by mechanical shaking of the cryo-chamber, and LN₂ can be filled inside or outer body of the cryo chamber. The cryomill is used for the spices and food industries. In this type of mill, the materials are first cooled by cooling of the conveyor, and milling is done in a separate chamber, as shown in Figure 10(c) [117].OPEN IN VIEWER

There are some other custom-built cryo-mills, as shown in Figure 10(d). Kumar et al. [9] has reported the design and development of a vibratory custom cryo-chamber, as shown in Figure 10(d). This mill is endowed with features including separate liquid coolant reservoir, in situ monitoring of temperature, in situ monitoring of ball motion, and inert gas environment to protect materials from oxidation. Similarly, KC0 cryomill, designed and developed by Tau Instrument, India, has several built-in facilities; a separate chamber for liquid coolant and well-protected hood to reduce noise generated during milling.

Pristine metallic nanoparticles

The metallic nanoparticles having zero/negligible foreign contamination are known as pristine metallic nanoparticles. The preparation technique may impart/induce foreign substances during synthesis, leading to contamination of the NPs. Pristine NPs, with reactive surface due to high surface to volume ratio, are prone to bind with airborne contaminations. Consequently, the preparation of high purity metallic nanoparticles is challenging. The existing techniques to prepare nanoparticles have been summarised in Figure 11. In general, the preparation of nanoparticles has been classified into two types; ‘top-down’ and ‘bottom-up’ approaches. Both approaches have many drawbacks, i.e. low yield of the nanomaterials, the requirement of hazardous chemicals (processing agents) to prevent coarsening of NPs, stabilisation, etc. On the other hand, the mechanical milling process is capable of producing a large quantity of NPs. However, it requires a long time of milling, inducing the debris as contamination or foreign species during preparation. The metallic materials are also prone to oxidisation during the extended hours of milling. However, the formation of the robust oxide layer over nanoparticles or the utilisation of capping agents on the surface of the nanoparticles to protect theme can even lead to the loss of their native properties. This review focused on the cryomilling, which belongs to the top-down approach.OPEN IN VIEWER

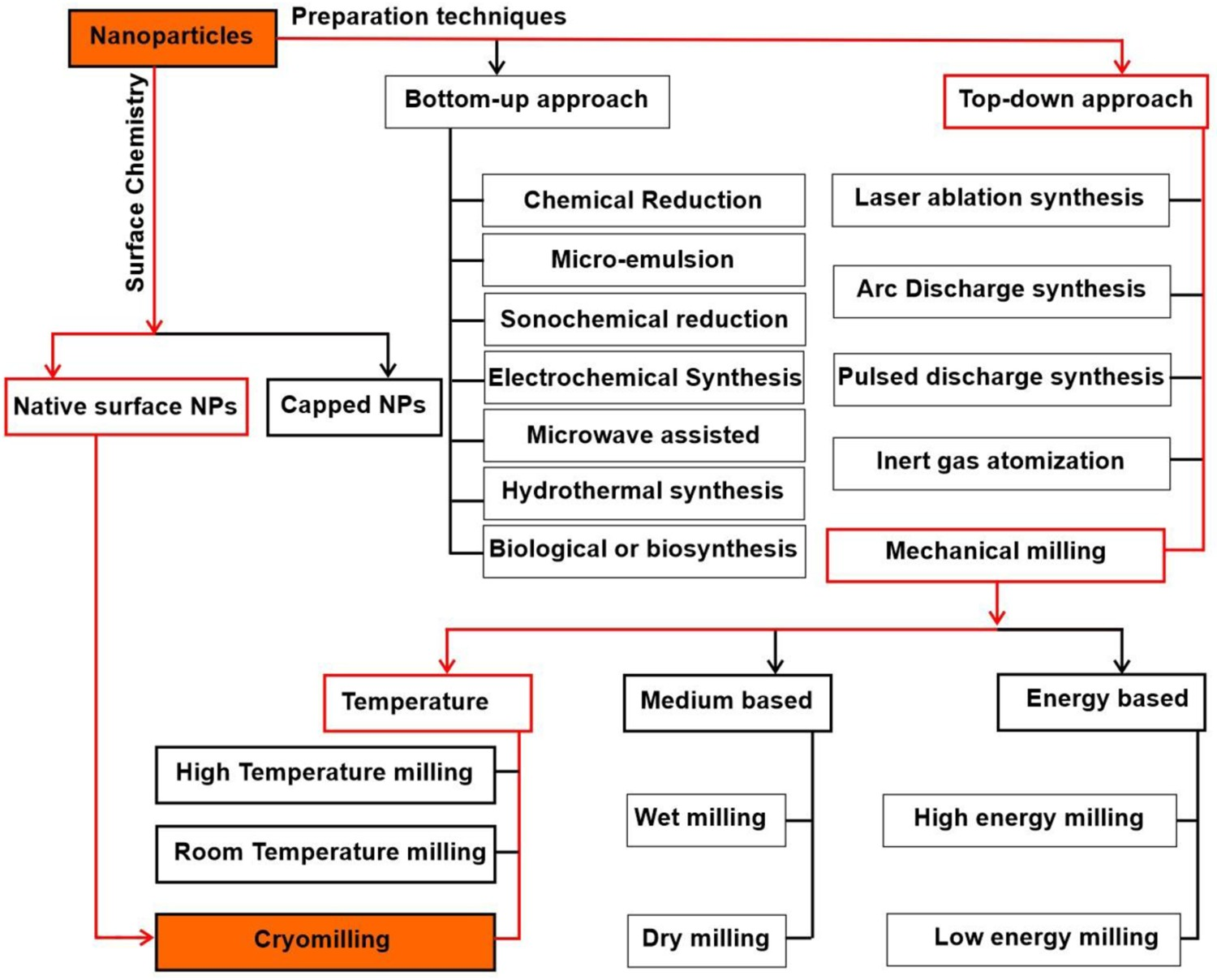

In comparison to other techniques, cryomilling is found to be a useful technique to prepare high pure metallic NPs in large quantities. It takes advantage of low temperatures, to induce fracture very easily at low-temperature and also reduce the oxidation/nitridation rate. Therefore, foreign and induced contamination can be reduced up to a negligible level. In the following, the synthesis of the nanoparticles/nanocrystals reported. The consolidation of the nanoparticles has been discussed in section ‘Nanostructured alloys and their consolidation.’

First, the synthesis of pristine metallic NPs via cryomilling will be discussed. Several pristine metallic NPs have been synthesised via cryomilling such as Cu, Ag, Fe, Zn, etc. The important characteristics of these metallic NPs are rapid grain refinement, narrow size distribution, contamination-free. In fact, some of these metallic NPs are found to be free-standing in liquids; methanol, ethanol, benzene, etc. Barai et al. [30] have reported the successful synthesis of free-standing Cu nanoparticles using cryomilling. Similarly, Zn free-standing nanoparticles were synthesised using combined cryomilling and RT milling [102]. However, Zhang et al. [118,119] have reported that the average grain of Zn can be reduced to only 17 nm in 12 h of cryomilling. Interestingly, a large number of grains with size varying from 2 to 6 nm form in the early-stage of cryomilling. Hence, cryomilling is effective in achieving finer scale NPs with less duration of cryomilling.

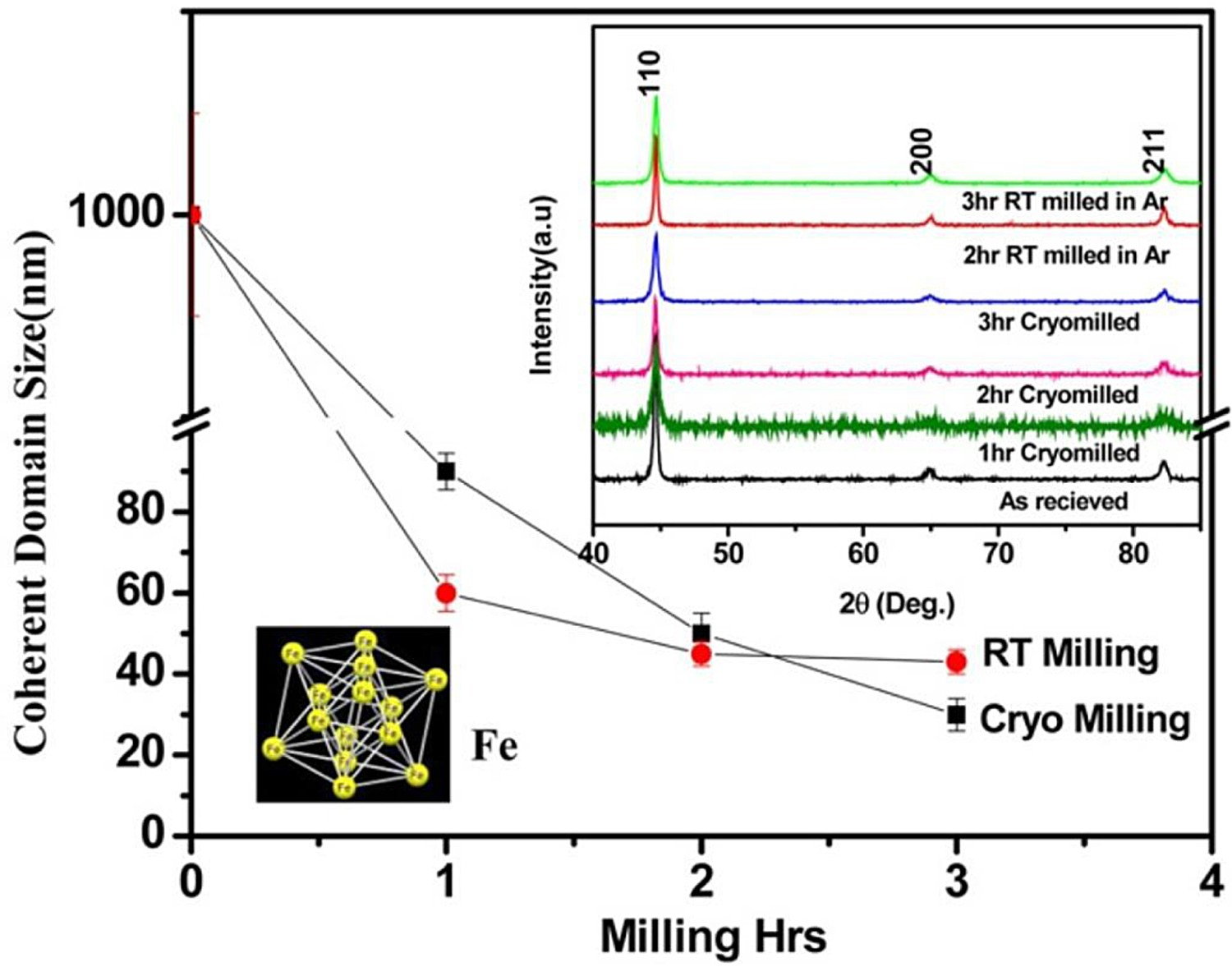

In comparison to RT milling, the cryomilling reduces the particle size rapidly with finer particle size. The variation of size with milling at RT and cryo-temperature is shown in Figure 12. After three hours of RT milling, the size of the average nanoparticles was 50 ± 4 nm. Similarly, the average size of the nanoparticles is 32 ± 4 nm by cryomilling. Although the main purpose of cryomilling is to obtain pristine nanoparticles, it also leads to finer refinement of the NPs [120].OPEN IN VIEWER

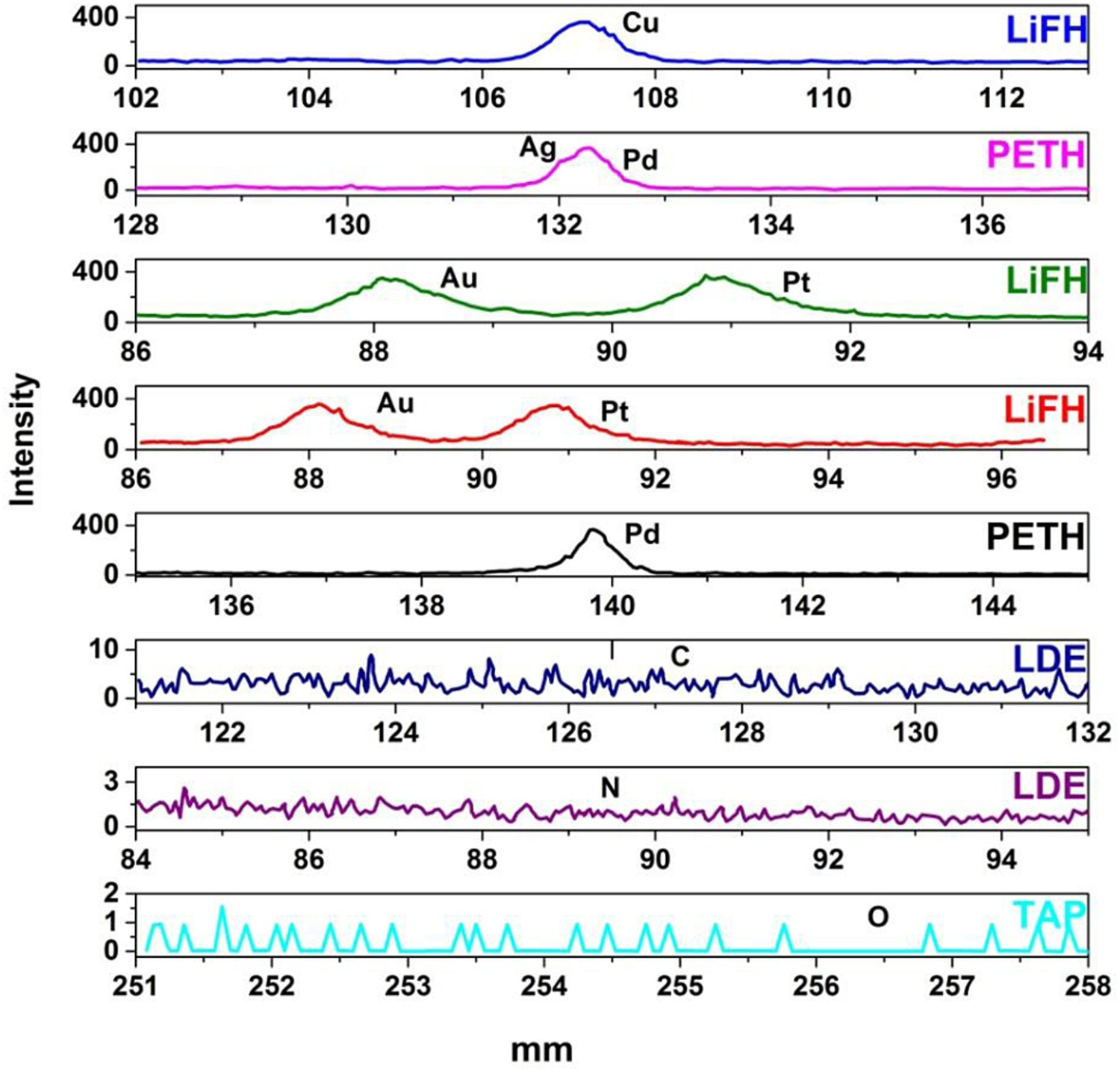

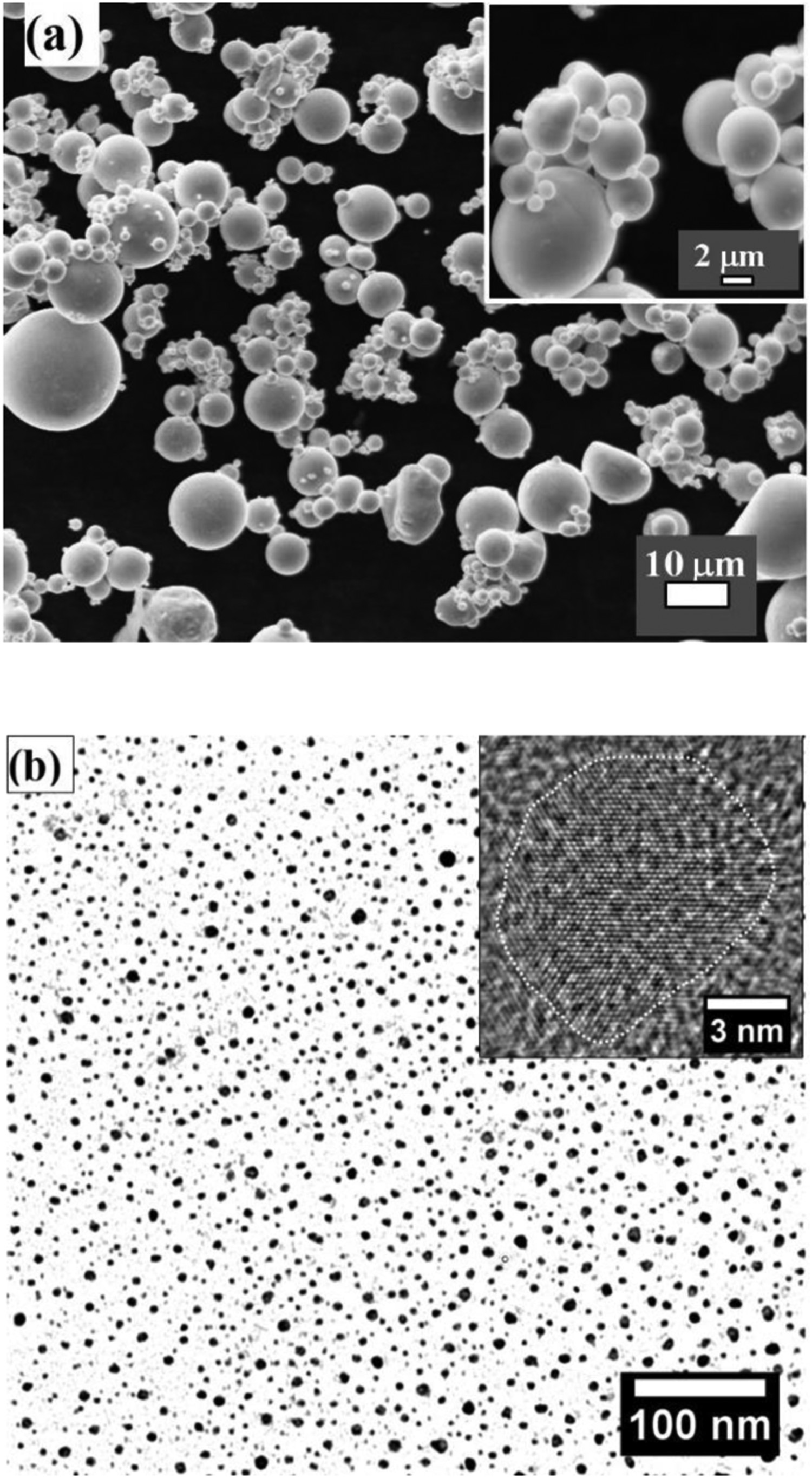

Kumar et al. [10,11,31] have reported the synthesis of pristine metallic nanoparticles with the same technique. The surfactant-free (pristine surface NPs) Ag and Al NPs exhibit narrow size distribution, as shown in Figure 13(b). Interestingly, Ag and Al NPs don’t exhibit any surface contamination probed using X-ray photoelectron spectroscopy (XPS). The compositions of NPs are summarised in Tables 2 and 3. [11]. Similarly, there is no increase of oxide content in the Al NPs as compared to as-received powder, indicated by the XPS investigation [11]. The total contribution of oxygen can be related to sources such as surface adsorbed oxygen (533.5 eV) [121], hydroxide/oxyhydroxide (532.4 eV) [122,123], and aluminium oxide (531.33 eV) [124].OPEN IN VIEWER

Pristine alloys nanoparticles

The foreign contaminations, which are generally induced during processing, include oxide/nitride of metals formed during synthesis or handling due to a high surface to volume ratio of NPs. During the chemical synthesis of NPs, the surfaces of particles are normally protected by using capping agents. The synthesis of pristine alloy NPs is a challenging task in the scientific community because of the difference in the chemical potential of the materials in the pristine form vis-à-vis compound. The different reactivity of the components either promotes the formation of intermetallic compounds or separates them out from the matrix. A long time of milling is required to achieve nanosized particles during the mechanical milling at RT, and this can slowly introduce impurities from the milling tool or the environment, which is unavoidable during synthesis. However, the cryomilling process accelerates the fracturing process and form nanoparticles within 6–8 h, reducing the milling debris at the negligible level and capable of synthesising even pristine alloy nanoparticles, which is discussed next.

Nanostructured alloys and their consolidation

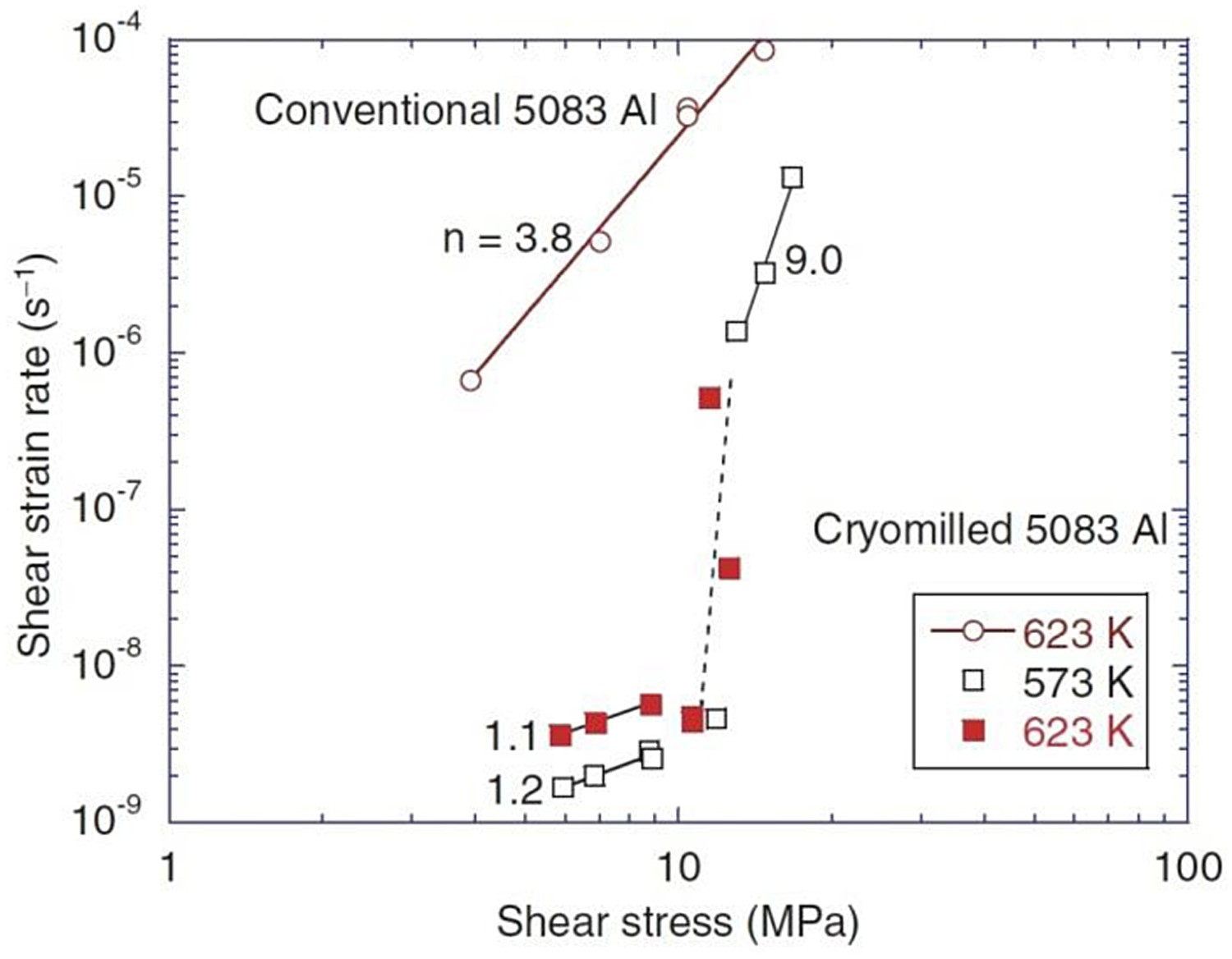

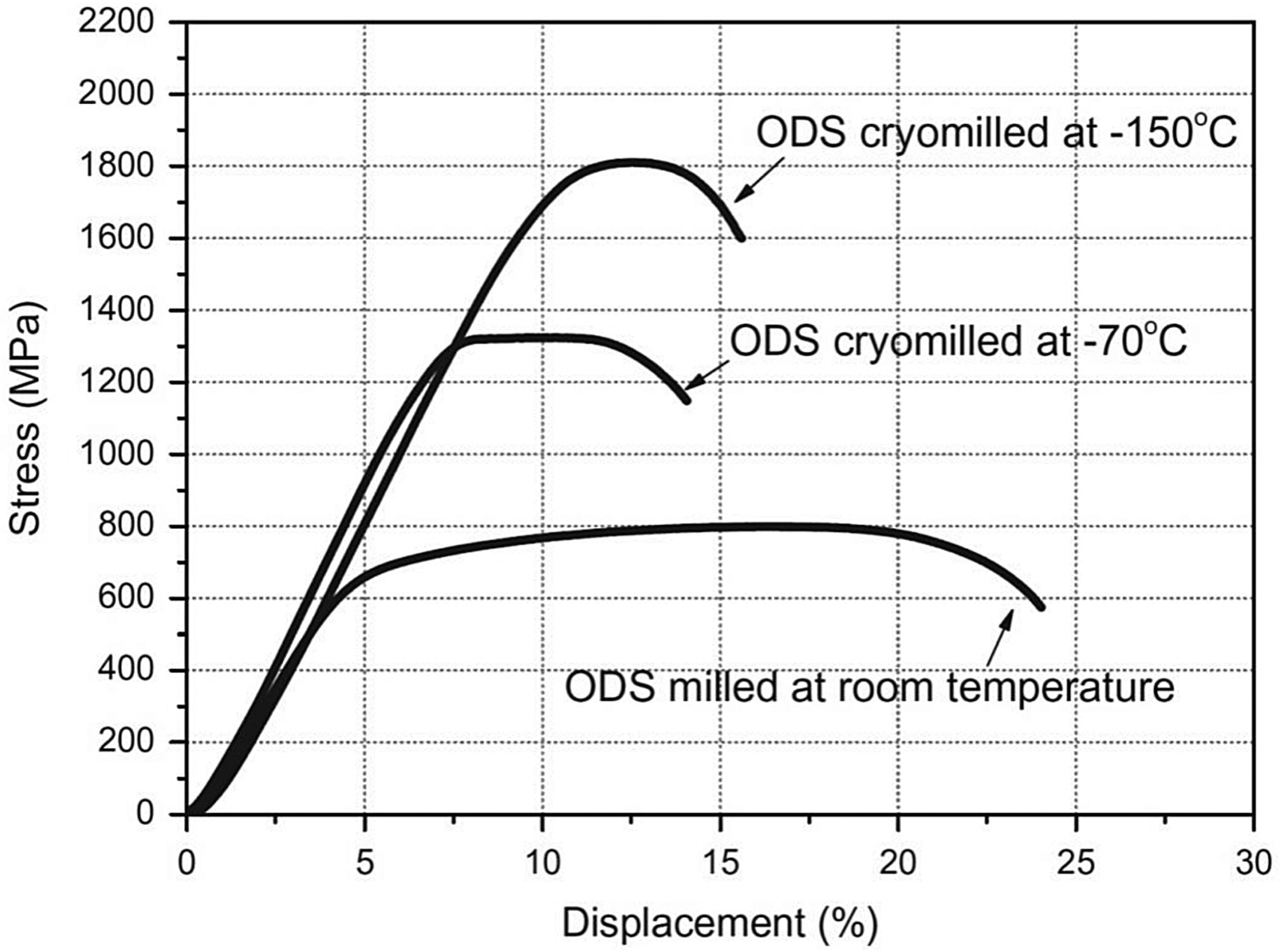

The process of cryomilling also allows synthesising nanocrystalline or ultra-fine grained bulk specimens from the powder. This can be done using a two-step process. First, milling is carried out to obtain the nanocrystalline powder, and this is subsequently followed by consolidation of the powder to obtain the bulk specimen. This even allows us to measure the properties of the bulk nanostructured materials. The nanostructured materials, synthesised by cryomilling, followed by consolidation, exhibit distinctly different properties as compared to the conventional ones. The final property will depend on the microstructural features (primarily grain size) of the consolidated specimens. It is important to note that the materials have grain size varying from 10 to 100 nm in a consolidated powder are known as nanostructured materials. In contrast, materials with grain size varying from 100 to 500 nm, are known as ultra-fine grain (UFG) materials [22]. The consolidation route is found to dictate the final grain size. A large number of nanocrystalline material systems, prepared via cryomilling, followed by consolidation, are reported in the literature. They exhibit exceptional properties. This includes NiAl [125] NiCrAlY [126–128], CoNiCrAlY [129], Zn–22% Al [27,130], Ti–6Al–4V [131] Fe–14Cr–3W–0.1Ti with Y₂O₃ [132], commercially pure Ti [133], Cu–Zn–Al [134], Al–Si alloy [25], etc. Although, during consolidation, the final grain size is expected to remain in the range of ultrafine range due to temperature rise, and the fact that the tendency of coarsening of the existing nanoparticles during consolidation. Interestingly, the surface of the nanoparticles can react with the liquid nitrogen, or atmospheric oxygen in the wet milling and tend to form layers of oxide and nitrides. This can lead to stabilisation of the particle size during consolidation [135]. Therefore, the coarsening phenomenon can be controlled by adding some oxide and nitride NPs during cryomilling. For example; TiN nanoparticles were added during cryomilling of commercially pure titanium [136], 1 wt-% diamantane nanoparticles in cryomilling of Al powder [137], 6.5 vol.-% SiC nanoparticles in Al5083 alloy [138]; Al5083 with B₄C [139] to retain the size of the particles in the nanometric regime. 2 wt-% AlN nanoparticles added to Ni powder can even reduce Ni grain size up to 37 nm during cryomilling. In contrast, nanoparticles can only be reduced up to 100 nm without AlN [140]. The presence of PCAs in the cryomilled powder can also affect the quality of the consolidating powder. In an experiment, Al (99.9%) powder was wet-milled in a cryomill with initial average particles size 50 μm. Subsequently, 0.25 wt-% stearic acid (as PCA) was added to reduce adhesion of the particles with ball and vial during milling. The consolidated Al powders, prepared by 4 and 8 h of cryomilling, show an average grain size of 43 and 28 nm, respectively. In addition, Al powder cryomilled for 4 h was found to be less homogeneous as compared to that milled for 8 h [29]. The cryoliquid is also found to play a significant role in the quality and grain size of the consolidated powder. The cryomilled Ni shows higher lattice parameter when cryomilled in LN₂ as compared to LAr. It has been concluded that the N atoms take part to form Ni–N solid solution, leading to change of the lattice parameter [141]. Some investigations have also been reported on the improvement of mechanical properties of the consolidated alloy powder, synthesised by cryomilling. Levernia et al. [22,99,142,143] have reported the variation of microstrain and average grain size after cryomilling and consolidation of Al 7.5% Mg alloy. The alloys showed increased ductility and toughness after cryomilling. The fracture toughness has been found to improve from 8.3 to 17.5 MPa.m^1/2 and ductility from 4.4 to 14% [144]. Han et al. [145] have cryomilled the 5083 Al alloy for 8 h in nitrogen slurry and consolidated the milled powder using hot isostatic pressing (HIP). The consolidated sample showed higher creep resistance compared to the conventional 5083 Al at same level of stress, exhibiting three distinct creep regions shown in Figure 15. This includes the low-stress region I with stress exponent 1.1, high stress region II with stress exponent 9, and the transition region. The microstructure of the cryomilled 5083 Al alloy is reported to be stable even after annealing at 573 and 623 K with only slight grain growth, possibly due to the presence of aluminium oxide nano-precipitates [145] in the powder. In addition, the cryomilled 5083 Al alloy exhibits higher ductility at a lower strain rate [146]. The reason for the high strength of the cryomilled materials is related to many factors, mainly grain size and solid solution strengthening [22,147–150].OPEN IN VIEWER

The cryomilled reduced the size of particles and homogenised the alloy mixture with the addition of other additives metals/alloys [151].

In addition, the efforts have been made to prepare other materials in the bulk form using cryomilled powder. Kim et al. [132,152] have reported the investigation on the effect of milling temperature to synthesise oxide dispersion strengthened (ODS) steels [152–154] at three different temperatures; RT, −70 and −150°C. The powder mixture of Fe-14Cr–3W-0.4Ti was cryomilled along with Y₂O₃ for 40 h at three different temperatures. The results reveal that as temperature decreases, particle size also undergoes reduction (summarised in Table 4). It is also reported that the ODS steels prepared via cryomilling at −150°C exhibits high tensile strength (1800 MPa) and good ductility due to the multimodal grain size distribution that can hold higher dislocation density inside the grains (Figure 16).OPEN IN VIEWER

Cryomilling with in-situ solid-state reactions

Mechanochemical synthesis; simultaneous mechanical milling and the chemical reaction were even widely utilised to prepare novel nanostructured materials. It is important to note that the mechanochemical process is mechanical milling with a chemical reaction, which can induce the chemical transformation in the materials by utilising mechanical energy [189]. The temperature-sensitive materials can be milled at low-temperature due to the instability of the materials at room and high temperatures. It includes the alkaline earth- Al metal complex (Ti(AlH₄)₄, Fe(AlH₄)₂), which becomes unstable at 0°C and requires to be synthesised at low temperature. Pommerin et al. [190] have probed the stability of the AlH₃ using ball milling and cryomilling and found that the RT milling for 1 h leads to the decomposition of the AlH₃ into Al. On the other hand, cryomilling prevented the decomposition, and the final product was AlH₃. Although the cryomilling of AlH₃ along with MeH (M: Li, Na, K) (Equation (10)) does not lead to the synthesis of MeAlH₄ as a byproduct, neither a reactant nor Al metal was found to form. (10) The cryomilling can also be used for the in-situ reactions of two solids or solid with gas. Therefore, cryomill can also be considered as a chemical reactor. In this regard, Cai et al. [191] have reported the synthesis of Mg–MgO nanocomposite using reactive cryomilling because milling at RT is found to be unable to refine the size of Mg due to extensive dynamic recovery. These authors have utilised a unique approach consisting of RT milling, followed by cryomilling to obtain the composites. Mg powder having particle size 80 μm was milled at RT for 5 h under inert gas (Argon environment). Subsequently, the chamber was evacuated and refilled with 50% Ar and 50% O₂ (internal gas pressure 1 bar) and cryomilled for 30 min (assumed that reaction completed in each cycle and achieved 5 vol.-% MgO). The mechanical properties of Mg–MgO improved exceptionally compared to nanocrystalline Mg. The key for the exceptional property was found to be reduction in the grain size and fine distribution of MgO nanoparticles located at grain boundaries [191]. The nanosized lithium particles (highly reactive) having a size less than 500 nm were prepared using cryomilling with an ionic liquid to protect the powder particles at nano size. It shows exceptional electrochemical properties for lithium-ion batteries [192].

Cryomilling for waste beneficiation

The increasing demands of plastics, electronics, non-renewable materials, etc. and their use in our daily life at an alarming rate have been causing unexpected and unprecedented damage to our ecosystem [208,209]. The waste can cause severe environmental degradation with the rise in the air and water pollution as well as pollution of the food chain, leading to long term damage to the ecosystem [209,210]. Hence, proper disposal of these wastes as well as retrieve, reuse, and utilisation of materials from the waste have been sought after for a long time. Recovery of the precious metals, ceramics, and polymers from the waste will add value to society and make the usage of these materials sustainable. Although there are many techniques available for beneficiation of the materials from these wastes, waste recycling utilising cryomilling is relatively new, providing an excellent alternative with a high recovery rate, environmentally benign, and relatively cheap. It is expected that mechanical milling at extremely low temperatures will cause breaking of the wastes into ultrafine or nanocrystalline form as well as segregation into different types, allowing separating them. In the following, some specific examples from the literature are provided to highlight the uniqueness of cryomilling in this regard.

It is worth mentioning that a new strategy of recycling tyres by cryomilling has first been reported by Smith et al. [211], in which the highly dispersed blended composites were synthesised. The used or waste tyres and thermoplastics were cryomilled together to synthesise chemically active surfaces as no chemical interaction is expected between the thermoplastic and tyres. This allowed the synthesis of the good composite without any reaction product. Gente et al. [212] has studied the recycling of plastic waste from spent lead batteries and medical packaging blisters using cryo-comminution. Extremely low temperature is useful because of the embrittlement of the plastics. While RT is not useful because the comminution process generates heat, including partial melting of plastic [212]. This allows the usage of plastic and spent batteries to obtain useful materials. Jonna et al. [213] have reported recycling the mixed waste flaks (polypropylene and polyethylene) using the cryomilling process. The milled powder after consolidation was found to exhibit 45% increment in the apparent modulus as no specific chemistry or specific polymer is being used for food packaging (milk, beverage, etc.), making it difficult for recycling the wastage (junk of many polymers).

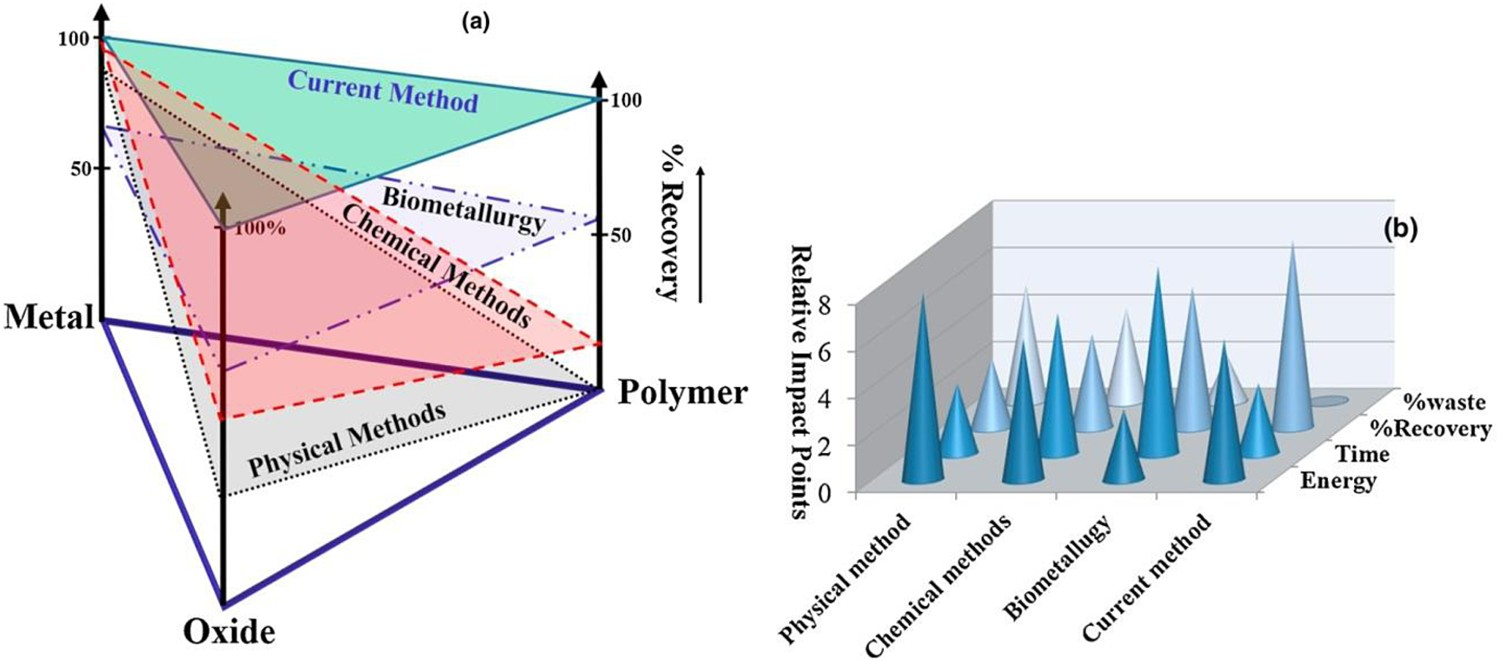

However, waste beneficiation of electronic chips and circuits (computer electronic circuit boards) is even more challenging as they contain different types of materials; including oxides, pure metals, alloys, and polymers. Some of them are highly toxic and harmful for humankind when exposed to the open environment. Tiwary et al. [57] have reported a successful approach to recover materials from the printed electronics board using cryomilling. The Cu–Zn–Sn–Fe–Ni nanostructured alloy was synthesised by combined cryomilling and RT ball milling of waste PCBs [214]. The low-temperature milling enhanced separation and recovery of ceramics, metallic, and polymeric materials from the PCBs. The waste beneficiation of PCBs via cryomilling has been reported to provide more benefits as compared to the existing techniques. The cryomilling provides the highest recovery in less time and energy, as seen in Figure 19(a,b).OPEN IN VIEWER

Cryomilling of halides

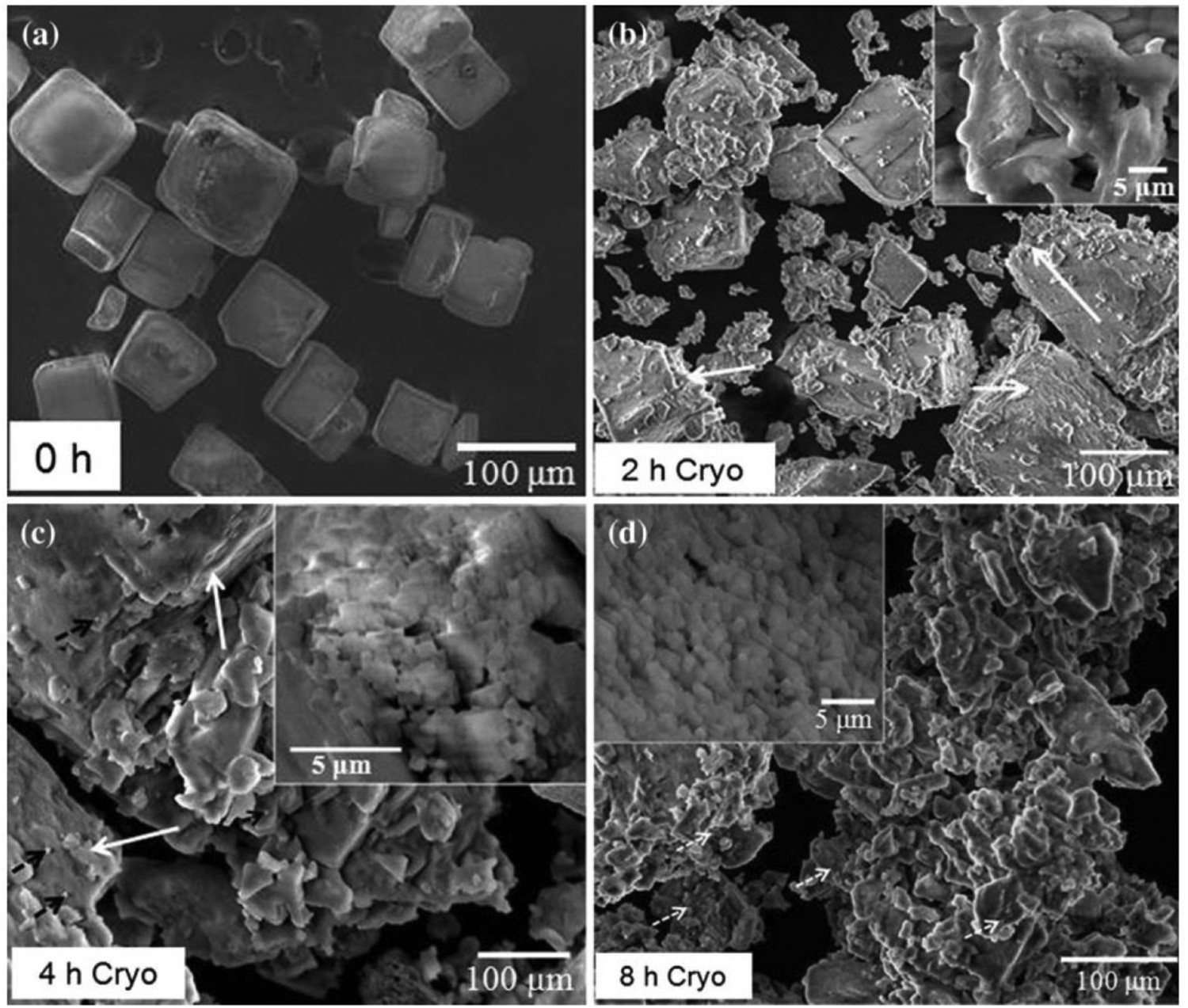

The alkali metals bonded with halogen (F, Cl, Br, I) are called halides, in which the electronegative halogen ions are bonded with an electropositive metallic ion via ionic bond. Basically, the alkali halides, such as NaCl, KCl, CsCl, etc. are considered as perfect crystal in the mother nature. The halides crystals are very reactive in nature at the nanocrystalline size and poses challenges to prepare by the bottom-up approach. Although, mechanical milling process (top-down approach) at RT is capable of preparing ultrafine halide particles, crystallite size reduction is severely limited but due to sintering at the higher temperature. In fact, it is difficult to reduce them from ultrafine to nanocrystalline sizes. However, cryomilling can sustain more defects in the crystal due to suppression of dynamic recovery as well as sintering, and hence, the particle size can further be reduced. In contrast, higher accumulation of defects in the crystals also can reduce the grain size by polygonisation, in which the high angle grain boundaries disintegrate into low angle boundary sub-grains (rearrangements of the dislocations). Since the re-arrangement of dislocations is limited at cryogenic temperature, the combined cryo- followed by RT milling can be used to store more defects and, subsequently, polygonisation would lead to rapid grain refinement. Therefore, combined cryomilling and RT milling can be used to take advantage of both. In the literature, there are several reports on the successful synthesis of halide NPs at cryogenic temperature [63–65]. Verma et al. [64] have reported the preparation of nanocrystalline NaCl using combined cryo- and RT milling. The as-received particles have cuboidal shape, and after cryomilling, they are massively fractured as morphology is shown in Figure 20(a–d). It has been found that the combined milling (cryomilling and RT) can reduce the average particle size to 13 ± 7 nm after 4 h cryo and 10 h RT milling [64]. The longer RT milling introduced the effect of deformation-induced sintering. Therefore, mechanical deformation during milling also needs to be optimised to obtain a minimum grain size. Tiwary et al. [65] have reported the nanocrystalline CsCl and KCl formation using combined cryo and RT milling.OPEN IN VIEWER

Cryomilling of oxides

The nanocrystalline oxides are important in science and technology, including semiconductor materials for optoelectronic devices. As these oxides play a significant role in technological development, it is important to find proper processing routes to prepare them in the nanocrystalline form. In the following, we shall deliberate on the efficacy of cryomilling on the synthesis of some of the nanocrystalline oxides. Fabián et al. [215] have reported the synthesis of nanocrystalline ZnO using reactive cryomilling. Pure Zn was cryomilled in the presence of oxygen (air) until the coarse Zn was transformed into nanocrystalline ZnO. The formation of ZnO was analysed using X-ray diffraction in some time interval. The Zn was found to be completely transformed to nanocrystalline ZnO after 48 h of cryomilling, with size ranging from 10 to 30 nm. Hence, reactive cryomilling works well for the synthesis of nanocrystalline oxides.

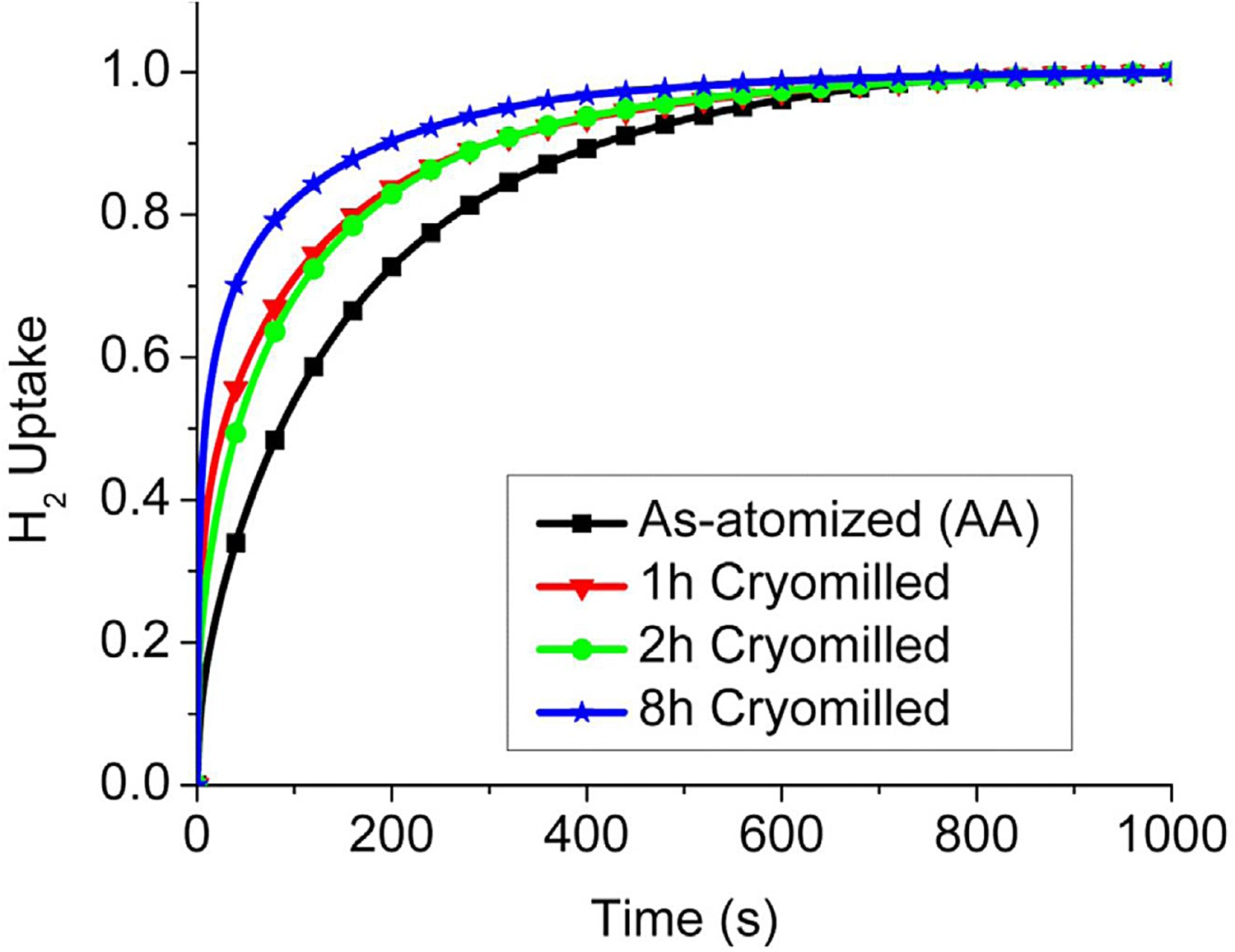

Floriano et al. [216] have reported cryomilling of magnesium hydride (MgH₂) in the presence of iron and niobium oxide/fluoride as additives for enhanced hydrogen storage. The presence of fluoride during cryomilling increases the reduction of the crystallite size compared to the oxides because the fluorides act as lubricating/dispersing agent; helping to reduce the crystallite size of MgH₂. The cryomilling also has also been used to incorporate ZnO in Co₂O₃ oxide for photocatalyst applications [217].

Polymer

In principle, the process of cryomilling can be utilised to prepare fine powder of polymeric substances [223], blending of the immiscible polymer [196,227–229] and biopolymer nanocomposite [230,231]. For medical applications, cryomilling has widely been used for the high loading of drugs in polymeric substances, which can reduce the burden of multi-tablets medication. There are a large number of reports available in the literature on the effective use of cryomilling for the synthesis and delivery of drugs at higher dispersion. For example, the polyvinylpyrrolidone (PVP) was cryomilled along with a naproxen drug for high loading [232]. Similarly, the PVP has been cryomilled with anti-inflammatory drugs, mefenamic acid (MFA) for good dispersion. The cryomilled drugs become amorphous because of the fact the extremely low temperature inhibits the restoration process of the polymeric materials [47]. Cryo-grinding is being used now-a-days for plastic-rich automotive shredder [58], reducing 98% particles below 250 μm and having 95.8–99.7% elemental recovery [58]. Cryogrinding is considered as a milestone to mix two immiscible polymers for preparing new materials or combined properties. Stranz et al. [233] have investigated the mixing of immiscible polymers. Figure 21(a,b) revealed that the morphology of the immiscible syndiotactic polystyrene (sPS) and isotactic polypropylene (iPP) by cryogenic mechanical milling [233]. However, the cryomilling based blending process of sPS and iPP shows the dispersion of the spherical iPP domain in sPS, as shown in Figure 21. Smith et al. [227,234,235] has observed anomalous phase inversion in cryomilling of poly(ethylene-alt-propylene) and poly(methylmethacrylate) (PMMA). In another study, change in the impact strength due to incorporation of polyisoprene (PI) in poly(ethylene-alt-propylene) and PMMA using cryo-mechanical alloying is shown in Figure 22.OPEN IN VIEWER

OPEN IN VIEWER

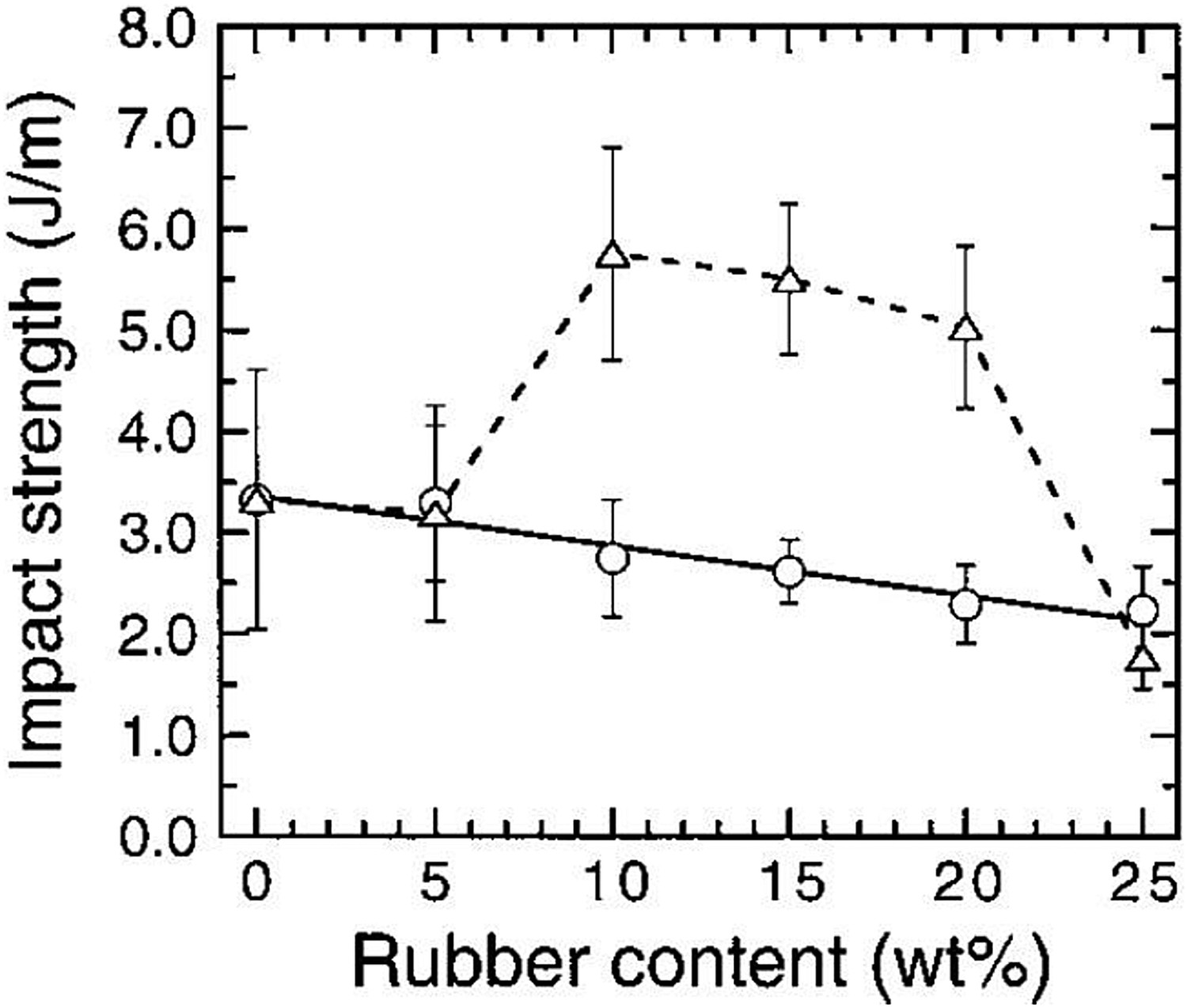

Figure 22.

Variation of impact strength with rubber concentration (wt-%) for PEP/PMMA and PI/PMMA blends cryomilled for 5 h for 25/75 PEP/PMMA blends (O), 25/75 PI/PMMA blends (Δ). The solid line denotes a linear regression of the PEP/PMMA data, while the dashed line connects the PI/PMMA data points [236].

The highly porous and water-absorbing scaffolds of biodegradable poly(e-caprolactone) (PCL) and poly(glycolic acid) (PGL) polymers have also been synthesised by cryomilling for articular cartilage tissues engineering applications [237]. Figure 23 shows the morphology of the scaffold after 12 and 180 min of cryomilling, respectively. The porosity of the scaffolds is about 99% and does not depend on the particle size due to cryomilling [237]. The morphology and mechanical properties of PGL/PCL scaffolds primarily depend on the time of cryomilling. Zhu et al. [238] has found that the thermal behaviour of cryomilled poly(ethylene terephthalate) polymer is different in comparison to original and quenched PET. The heating curve of the cryomilled PET doesn’t show the evidence of recrystallisation, whereas the quenched and cryomilled PET are amorphous in nature, and the original PET is non-amorphous [238]. Hence, cryomilling can expand the processing of polymers by using ingenuity of the process and process variables.OPEN IN VIEWER

Cryomilling of composites

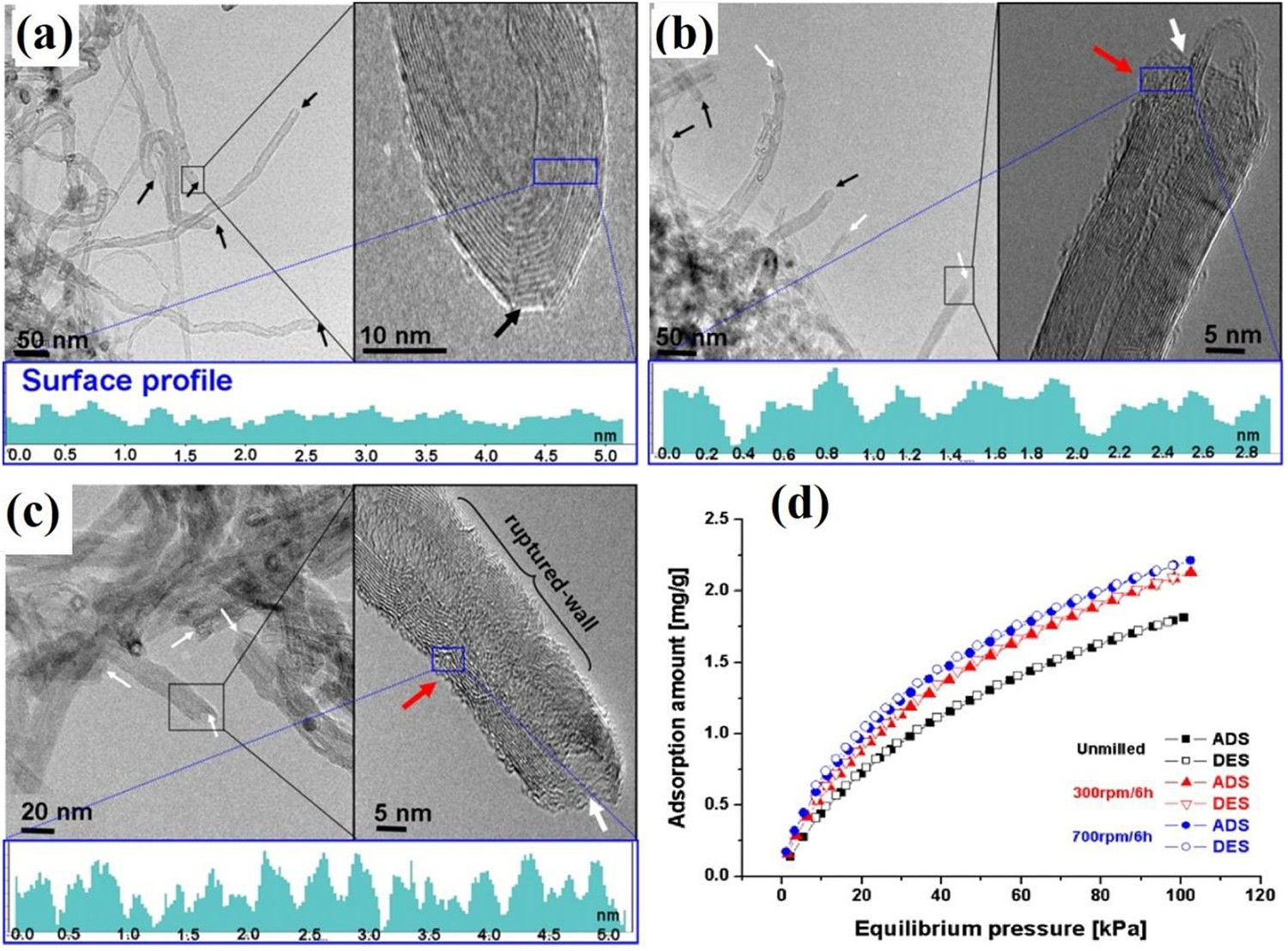

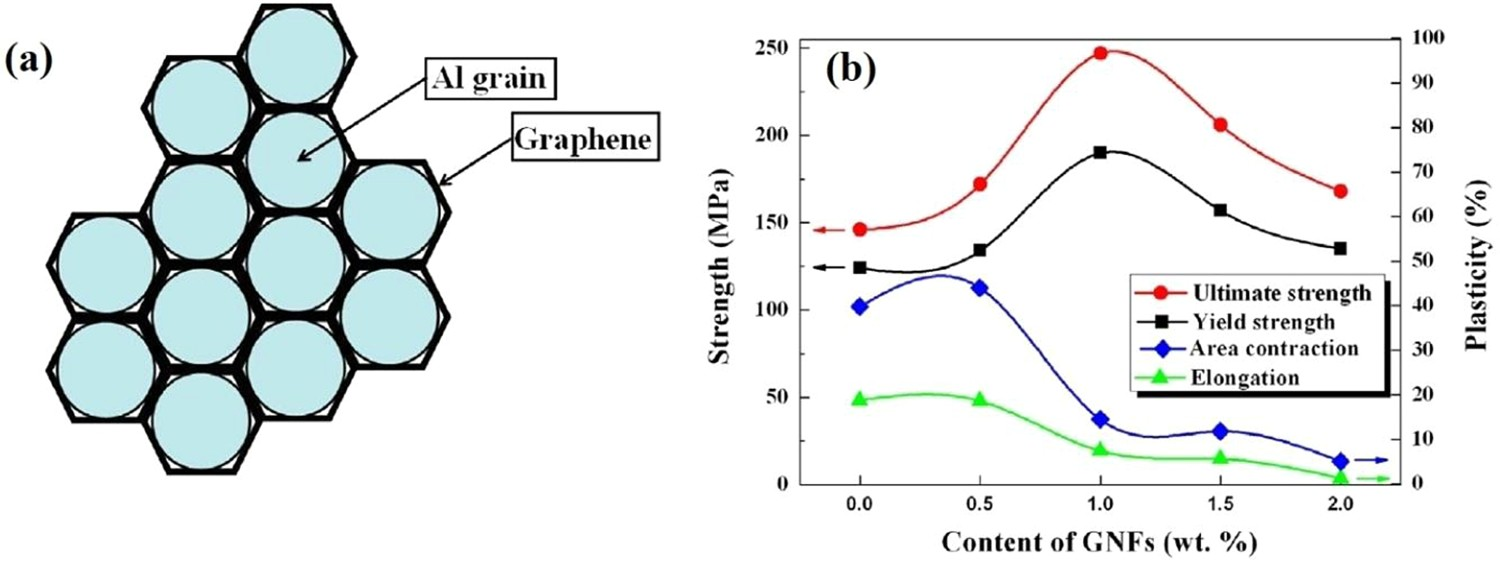

Cryomilling can also be utilised for the preparation of composites. We have already provided a few examples of polymer composites in the last section. The versatile nature of the cryomilling process allows synthesising the nanocomposites, i.e. rapid nanocrystallisation, homogeneous mixing, and distribution. It is worth mentioning here that the nanocomposites are the materials having two or more components with at least one of the components has any one of the dimensions in the nanoscaled size. Zhu et al. [239] has reported the preparation of polymer–metal nanocomposites using cryomilling techniques and revealed that it is a promising technique for such systems because of homogeneous dispersion of the nanostructured phase in the matrix. All the advantages of cryomilling can be made to achieve good nanocomposites. In the preparation of ABS resin powder-based nanocomposites with atomised iron particles (ABS_1–x Fe _x ; x is volume fraction), the composite having grains size less than 100 nm with atomised Fe powder (20 nm) were obtained after 20 h milling at a cryogenic temperature [239]. Similarly, PET/SiO₂ was cryomilled for 10 h and found that the SiO₂ nanoparticles are in size <30 nm. The three-step model for the formation of the nanocomposites has been suggested; the massive reduction of powder, good dispersion of SiO₂ in the matrix, and size reduction of secondary composites particles [240,241]. Pietrzykowska et al. [242] have even reported the preparation of orthopaedic implant nanocomposite (hydroxyapatite and polylactide in the proportion of 1:1) using mechanical milling at extremely low temperatures (−195°C). After warm isotactic pressing, the materials exhibit compressive strength, equivalent to natural bone. Cryomilling also provides enhanced dispersion of luminescent materials in a polymer matrix, which is the cause of improved afterglow characteristics [243]. Similarly, there are many other nanocomposites reported in the literature, such as Al–TiB₂ [52], Al-CNT [244], Al5083/SiC, etc. [245] exhibiting different functional properties.

The few interesting applications of cryomilling were also reported for the synthesis of even advanced materials, indicating the versatile nature of the process. The aluminium foam was prepared and reinforced by graphene nanoflakes using cryomilling [246]. Cryomilling can be used to apply the strong shear load, which can then convert graphene into nanoflakes and cover surfaces of aluminium powder particles to form reinforced aluminium foam [246]. The addition of graphene nanoflakes (GNFs) up to 1 wt-% GNFs in an aluminium can lead to exceptional enhancement of the ductility of the composites [247]. However, the addition of a higher amount of GNFs starts degrading the strength and ductility, as shown in Figure 24(a,b).OPEN IN VIEWER

Hybrid magnet materials

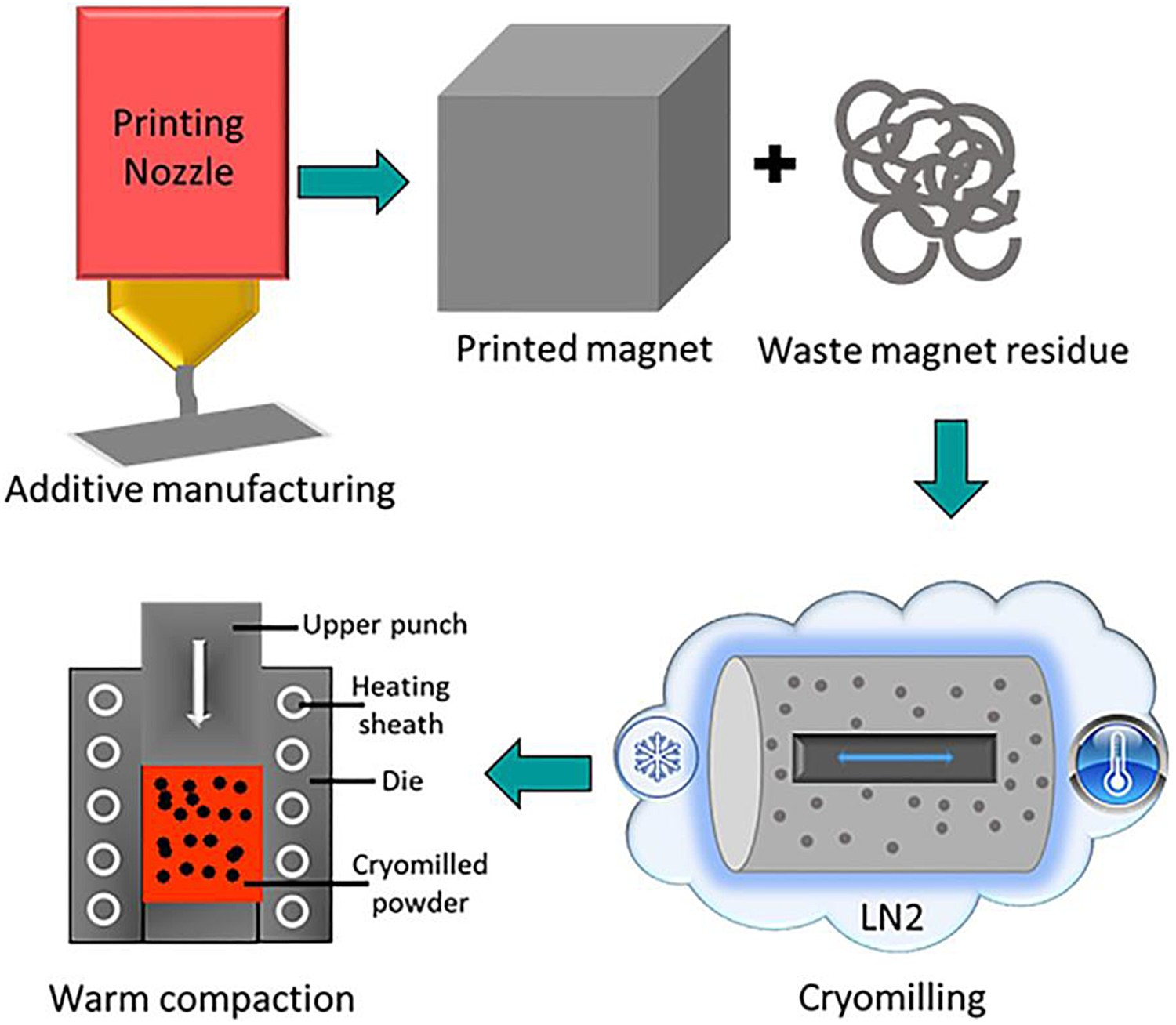

Cryomilling can also be used to synthesise novel hybrids consisting of inorganic/organic or vice versa from waste products, making a unique route for the synthesis of the hybrid materials. The recycling of waste magnets from the additive manufacturing is considered environmentally benign method. These can be recycled using the cryomilling (experimental process shown in Figure 25) and simultaneously used to make the hybrids. The synthesis of the recycled bonded magnet, as shown in Figure 26(c), is a fully green synthesis process. Importantly, the recycled additive magnets exhibit improved remnant and saturation magnetisation by 4% and 6.5%, respectively [248]. The hybrid materials (inorganic/organic); Fe-NPs/PANI (polyaniline), and Fe micrometer particles/ PANI have been prepared by cryomilling for 10 h, provide improved coercivity because the nanoparticles have a high surface area to volume ratio and can homogenously be dispersed as shown in Figure 27 [249].OPEN IN VIEWER

OPEN IN VIEWER

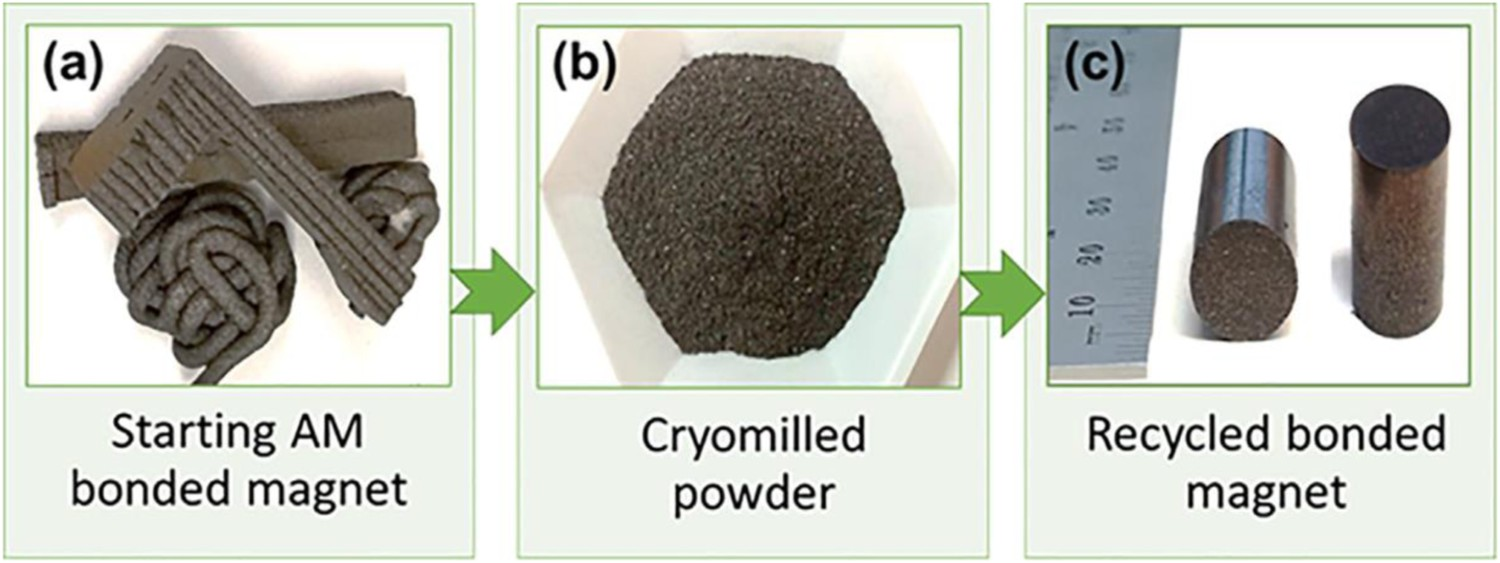

Figure 26.

(a) Additive manufacture (AM) bonded magnet (beginning), (b) cryomilled powder and (c) recycled bonded magnet [248].

OPEN IN VIEWER

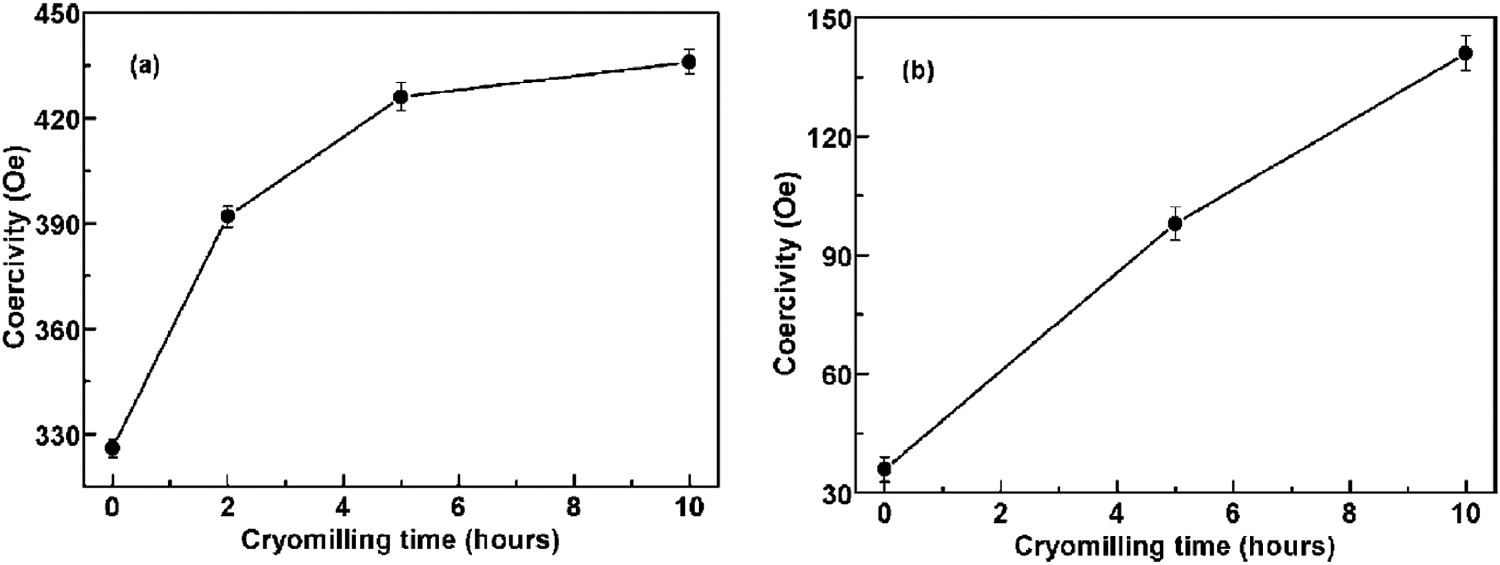

Figure 27.

Coercivity vs. cryomilling time plots: (a) composite PANI/Fe NPs (b) Composites PANI/ Fe micro-meter particles [249].

In contrast, the Nd–Fe–B magnet has been prepared using cryomilling up to 12 h after hydrogenation disproportionation (HD) of (Nd_13.5Fe₇₃Co_7.5B₆) and found that coercivity of the powder decreases from 8.32–5.93 kOe after desorption recombination (DR) of the cryomilled powder as the time of cryomilling increased. The decrease in the coercivity is due to the production of ultra-fine grains using cryomilling as the finer grains are providing strong exchange coupling [250]. The milling with surfactant can increase the amount of surfactant adsorption over grain surface in both cases of RT as well low-temperature milling. However milling at cryotemperature can cause less adsorption of the surfactant due to weak interaction of surfactant and Nd–Fe–B grains as shown in Figure 28 [251].OPEN IN VIEWER

Therefore, it is evident that cryomilling can effectively be utilised to obtain high-quality magnets by incorporation of the nanosize magnetic phase homogeneously in a matrix, even from wastes, making this process unique. This approach was further extended to the synthesis of other magnetic as well as catalytic materials. There are reports in the literature on magnetic materials being prepared by cryomilling in the nanocrystalline form, such as NiCrAlY [252], NiCoCrAlYSi [163,253] MnBi [254], τ-MnAlC [255,256], MnAlC/α-Fe [257], Carbon doped MnAl [258], Cobalt ferrite [259],γ-Fe₄N [260], BiFeO₃ [261]. The change in magnetic properties is mainly due to altering in crystallinity of the materials by cryomilling [262]. Similarly, Ni–Nb–Y was cryomilled for catalytic activity and showed higher activity for hydrogen evolution [263].

Life cycle assessment

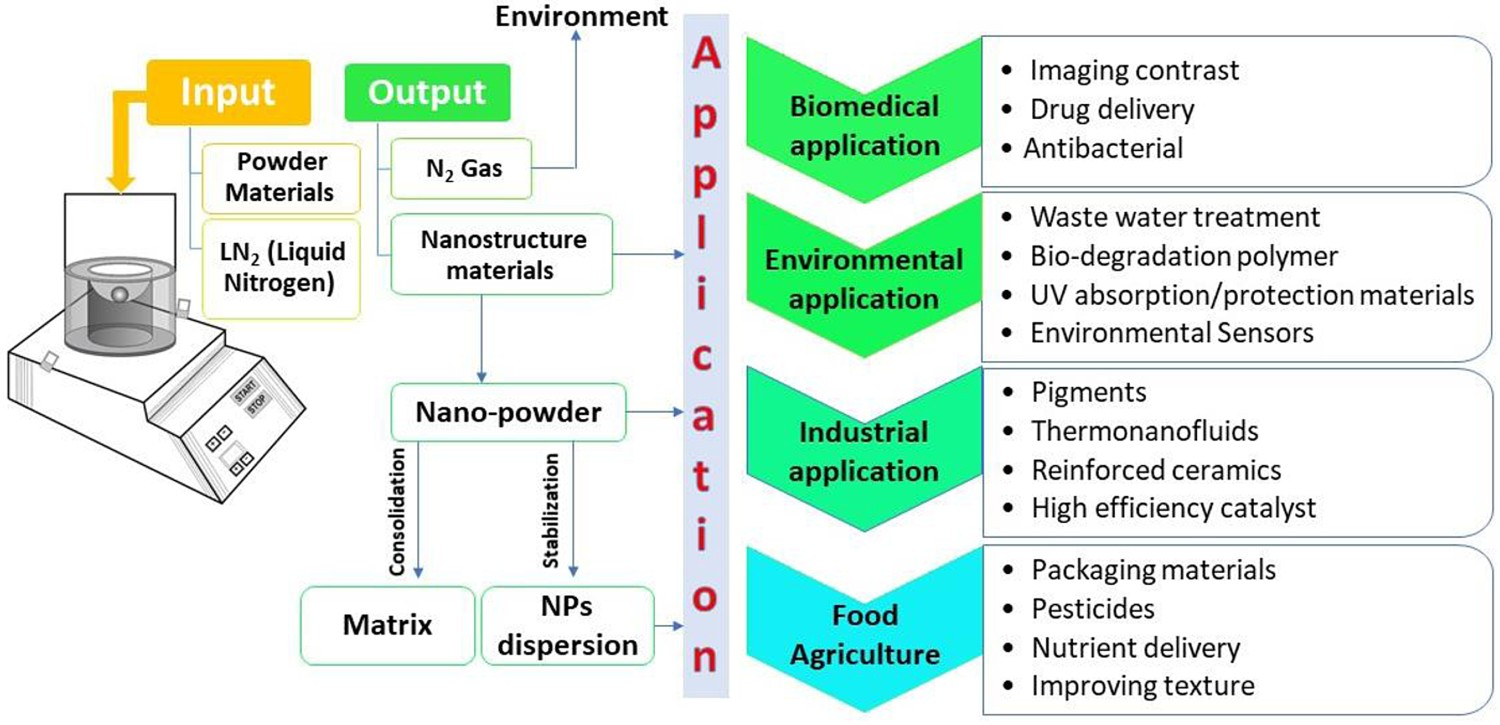

The life cycle assessment of the nanomaterials is primarily related to their applications in the nanotechnology, and it is meant to provide broad scope about the pros and cons of utilising nanomaterials in different sectors [288,289], encompassing almost every sector of human life. This review article is limited to the production of nanomaterials utilising cryomilling/cryogrinding and their environmental impact. The assessment of the potential environment and human health risk due to applications of nanomaterials as end products in different sectors is beyond the scope of the present article. Nonetheless, the large-scale synthesis of nanostructured/nanomaterials via cryomilling can be utilised in different sectors, as shown in Figure 29. The coolant LN₂ (liquid nitrogen) is the most economical and efficient one to be used because of its eco-friendly nature as it turns into N₂ gas, which is the most abundant gas in our environment (78%) and non-toxic for humankind. Therefore, the major input raw materials in cryomilling are coolants, and milling materials and output materials are pristine and nanostructure powders of metals, ceramic, polymers, or their combination. It is worth to note that cryomills require sustained power (electricity) for operation. Like any other processing route, electricity is a necessity; hence, we shall not discuss the effect of energy usage to make any conclusion on the eco-friendly nature of cryomilling. It would be suffice to point out that there are many green and sustainable means for the generation of powder (wind, solar, bio, etc.) that are available in the world today. The byproduct is N₂ gas, which is freed directly to the environment and doesn’t have any worse impact on the environment. In addition, the cryomilling does not leave any other by products, and the prepared nanomaterials can be used in various applications (Figure 29). Hence, one also needs to analyse the effect of these nanostructured materials on the environment, human life.OPEN IN VIEWER

Conditions for eco-friendly process

Any synthesis process is required to fulfil some conditions to be called an eco-friendly process. Wasserscheid et al. [77] have described 12 principles in his classic book ‘Handbook of green Chemistry’ for deciding any process to be called as a green or eco-friendly process, and detailed principles can be found elsewhere [77]. The cryomilling/cryo- grinding process, is an eco-friendly or green synthesis process to prepare nanomaterials because

cryogrinding does not leave any toxic waste in the environment

Cryomilling: wastage vs. use of eco-friendly materials

An important aspect of any eco-friendly process is wastage during the manufacture of any product. In this process, the yield of nanomaterials is reported to be 97% for metallic materials (Ag, Al, Cu), which is much higher as compared to other processes [7,10,11]. The remaining ∼ 3% is mainly consumed as a coating of the metals over balls and vials of the milling apparatus. The coated remnants can even be detached from the balls and vials by milling with other materials such as table salt, glass, or sand and disposed of them according to the protocol. In fact, the materials coated on the surface of the ball are helpful to reduce the contamination (milling debris due to friction) in the nanomaterials and provide a high-quality product. In some other cases, such as halide (NaCl, CsCl) and polymers, the coating is almost not observed, and one can recover almost 100% as a product. In some cases, the researcher may use extra precaution and continuously purge inert gas in the milling chamber to protect the oxidation/nitridation of milling materials. It is to be noted that the lightweight materials in nanophase can slowly exit with the release of inert gas. Consequently, they mix with the environment, and hence, can cause adverse effects. However, such a study is not reported regarding cryomilling so far. Nonetheless, it is evident that cryomilling, as compared to another manufacturing process, can be used to minimise wastage, causing the least health-hazards with high recovery.

Issues on sustainability and environmental benignness

In modern days, many developing and some developed countries have been plagued by environmental pollution, such as air, soil, and water pollution due to improper waste disposal, generation of polluting agents in large quantity left to the environment without treatment [290]. The main concern is to reduce the waste from industries, laboratories, and properly dispose of them to reduce the effect of such pollutants, which can directly impact life on Earth. In the research community, the persistent efforts are being taken across the globe to develop eco-friendly processes for the synthesis of nanomaterials/nanostructure, which can reduce the wastage and even utilisation of the wastage for sustenance. There are many green synthesis routes for metallic nanoparticles, utilising plant leaf or naturally available materials. However, these processes suffer from low yield and not economically viable [71,72,291]. In this regard, cryomilling can fulfil the burgeoning requirements of nanomaterials in the market. It is considered a green synthesis route and relatively safe for our ecosystem and sustainable in a sense as the supply of liquid N₂ as consumable is required.

Health risk assessment

We shall now discuss the health risk assessment of the product during usage. It is essential because the nature and type of nanomaterials prepared via cryomilling vary substantially depending on the requirement. The nanomaterials, after usages, are let into nature, and drainage of these can cause a serious health hazard. Like any other process utilised to synthesise nanomaterials, this is a common problem with cryomilling. The drainage of nanoparticles, synthesised by cryomilling, can directly contaminate the groundwater, and it is even challenging to separate from the water. Various nanoparticles in different size ranges behave distinctly differently during drainage. Therefore, it is too early to generalise assessment regarding human health risk from nanomaterials synthesised via cryomilling. Nonetheless, the foreign contamination in the human body always creates health risks, when it enters into our body by daily chores of life such as breathing, drinking water, and eating food. There are many lightweight materials such as carbon in nanometric size, and certain other metallic nanoparticles exist in the environment. They can get mixed with air or water on slight disturbance, if not handled properly. Several nanomaterials are even utilised for human health, such as silver nanoparticles. They are well known anti-bacterial materials, but it shows negative consequences in human macrophages [292]. As compared to other processes, the cryomilling is well protected and safe for users if handled carefully. In wet chemical synthesis, the nanoparticles, in general, are capped by capping agents to protect them from the environment or stop coarsening in the solution [7]. These capping agents or chemical process agent can also be harmful to the human. On the other hand, the waste of synthesis is directly drained into the drainage, which can eventually are mixed with river and ocean water. Nanomaterials contaminated water can be highly dangerous for our marine system as well as human because of the consumption of infected food.

The study of nanotechnology has a high impact on human life, such as medicines, drug delivery, smaller electronic devices, solar cells, and cosmetics, etc., and it is envisaged to create more impact on our life in the near future. However, it might be turned into a nightmare if not handled in a controlled way. Many developing countries have a huge population and do not have any protocol to dispose of nanomaterials properly with no specific norms for their utilisation. For example, the utilisation of nanoparticles in cosmetics is extremely large in quantity. The cosmetics/creams are directly washout during bathing from our body, and they contain NPs, which are subsequently mixed into the drainage. If a huge population utilises such products, it can spread massively in the drainage system. Therefore, by utilisation of nanomaterials in an uncontrolled way means we are placing human health at stake. Hence, like any other manufacturing process, the health hazard of the nanoparticles, synthesised by cryomilling, will remain a burning issue, if not handled with proper care.

Method to prepare nanomaterials in large quantity

Like conventional mechanical mills, cryomills can be scaled up to industrial-level production of nanomaterials. The burgeoning need of nanotechnology can only be satisfied by the supply of a large quantity of high-quality nanomaterials, i.e. size, distribution, chemistry, contamination; determining the quality. Most of the available techniques in the niche market are not capable of preparing good quality nanomaterials encompassing metals, ceramics, polymer, composites, medicines, and spices. To the best of the authors’ knowledge, there is no processing route available, other than cryomilling, which is capable of preparing such gamut of nanoparticles in large quantities. In the following, we shall provide the production capability of metallic materials of an existing cryomills and the possibility of scaling up to obtain nanomaterials in large quantity. In the case of metals and alloys, a custom-built cryomill having 250 cc of the vial and 150 cc ball can mill 24 g powder at a time, and milling of 7 h is required to produce nanoparticles [9,11]. Therefore, in a day or 24 h (approximates three batches of production) of the desired quality, one can produce around 70 g nanoparticles. This process has a yield of around 97% with little (3%) lost due to the coating on ball and vial during milling [10,11]. In addition, the cryomill also can be scaled to have a large volume with a large number of balls to prepare nanomaterials. It is evident that it is a flexible processing route in order to scale up, and fulfil the requirement of the market needing a large amount of various nanomaterials for a gamut of applications, thermo-nanofluids, cosmetics, antifouling nanoparticles, semiconductor, thermoelectric, applications, etc. [188,294,295].

Cost-effectiveness of this route vis-a-vis other SPD processes

The cryomilling process can produce the nanopowder in large quantity, and the requirement of these nanopowders are felt in many active sectors such as structural materials (nano-composites), antifouling coating (ship hull, etc.), catalytic nanomaterials, biosensors, solar voltaic cell, etc.

It is indeed a tedious effort to estimate the cost of any nanomaterials in the world today. It depends on the availability of raw materials, synthesis route, yield, social structure, and even environmental friendliness. Some of these are extremely difficult to estimate. Nonetheless, the cost of nanoparticles primarily depends on the cost of raw materials. For example, there is a huge difference in their basic prices of micron-sized powder of gold and copper as raw materials. However, the copper is highly prone to oxidise and required extra precaution to store them in the nanosized form in comparison to the gold. Therefore, storing of the nanoparticles, maintaining their purity, and transporting them in less quantity might have exceeded the cost compared to bulk gold. The cost also depends on the processing parameters required to achieve specific size range, surface functionalisation, treatment, their property specification (crystallinity, amorphous, shape, surface plasmon resonance, stable dispersion solvent, etc.) as characterisation of nanomaterials is quite costly.

The cost even depends on their production volume (lab-scale, small scale, and large scale) and their largely unknown requirement. At present, this field of synthesis of nanomaterials is growing, and hence their research and development cost itself is high. In the future, the cost of nanomaterials will also depend on the social or government restriction on different materials or their end-user policy, which will depend on their evolution to human friendliness, toxicity, etc. As nanotechnology is a rapidly growing field, the products are rapidly miniaturised with lower costs. Hence, the exact estimation of the cost of nanomaterials is not easy at present. Ashby et al. [293] has described the comparison of the cost of nanomaterials in the USA and found that the price of nanoclays is approximately the same as the gold. With functionalisation, the cost of the nanomaterials will definitely increase manifold. Therefore, it is difficult to estimate the cost of any particular nanomaterial. Nonetheless, the preparation of the nanomaterials utilising cryomilling will reduce the processing cost as this technique requires electricity and liquid coolant (preferably LN₂), which is also quite cheaper. However, other costs, such as storing, functionalisation, will still remain high.
