A comprehensive review of various non-cyanide electroplating baths for the production of silver and gold coatings

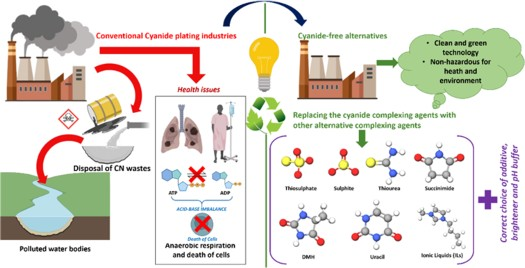

Abstract

Cyanide-based baths are generally used industrially to produce silver and gold coatings via electroplating. Baths containing ([Au(CN)₂]⁻) and ([Ag(CN)₂]⁻) are used for the deposition of gold and silver coatings, respectively. However, due to the severe toxicity, the technical personnel involved in work are at risk. Additionally, the disposal of cyanide-containing wastes poses a significant threat to the environment as they pollute various natural resources. The coatings produced from alkaline cyanide-based baths cause embrittlement of electronic circuit patterns. Due to these reasons, many cyanide-free baths have started to replace the existing cyanide-based baths. In the cyanide-free baths, the primary cyanide complexing agent is replaced with eco-friendly alternative compounds like sulphite, thiosulphate, thiourea, DMH, EDTA, and ionic liquids (ILs). This review article provides an overview of the various cyanide-free electroplating baths available for electroplating silver and gold that are either used for commercial practice or are developed for laboratory-scale use.

Introduction

For ages, gold and silver are considered valuable metals primarily because of their inherent properties such as ductility, excellent corrosion resistance, softness, and, most importantly, their scarcity. The name gold reportedly is derived from an Anglo-Saxon phrase geolo, which means yellow. Deriving from the Latin word aurum, gold is symbolized as Au in the periodic table. Aurum means glowing dawn. Silver is named from the Anglo-Saxon phrase siolfur, meaning white or shiny. Silver is represented in the periodic table by the symbol Ag, derived from the Latin word Argentum. Electroplating silver and gold date back to the early nineteenth century when various artefacts were plated with silver and gold. At that time, they were considered a symbol of aristocracy. Back then, most of the electroplating was carried out using solutions containing cyanide. Towards the beginning of the nineteenth century, silver was plated in connection with the production of mirrors. One of the earliest plating solutions for silver electroplating was established by the Elkington brothers in 1840 [1]. The commercialization of this electroplating bath marked the beginning of the silver electroplating industry. This bath was reported to contain a double-silver cyanide complex [KAg(CN)₂] with free cyanide ions in excess amount. On an industrial scale, this electroplating bath is the most widely used one even at present times. In 1805, Brugnatelli first published his works on the electroplating of gold. In those days, gold electroplating was also carried out using cyanide-based electroplating baths [2]. Over the years, many electroplating baths have been developed and are being used on a commercial scale.

The demand for silver- and gold-coated artefacts paved the way for various scientific developments in the field of silver and gold electroplating. Initially, the requirement was to develop very thin and bright coatings. The colour of these coatings was also given importance. This process of developing thin colourful coatings was more of an art than science in those days. The composition of the deposit was of secondary consideration, compared to the physical appearance of the coatings. The electroplating baths used to produce these coatings were mainly proprietary and were covered by patents. Numerous scientific investigations were carried out to study the effect of the electroplating solution's composition and plating variables on the quality and appearance of the coatings. Many electroplating baths were developed during the early and mid-1990s for silver and gold electroplating. Electroplating solutions developed by Smith [3], Volk [4], and Edwin and Duva [5] were used for gold electroplating. Silver electroplating baths developed by Kohl [6] and Nobel and Brasch [7] were also industrially used during the mid-1990s. Seegmiller and Gore [8] established the technique for producing thicker gold deposits. As per their claims, gold coatings with thicknesses ranging from 0.2 to 1.0 mm were produced. It was an outstanding achievement in those days.

Electroplated gold and silver have numerous uses, and this is the primary reason behind their commercial exploitation. Silver plating is used for mirrors and tableware because of its aesthetic look and non-reactivity with food items. Electroplated silver items also have a variety of industrial usage. They are used for electronic component applications, bearings, hot-gas seals, etc. Apart from that, silver is widely used in the jewellery and electrical industry. Commercially there are two ways to plate silver, either electrodeposition or electroless plating [9]. Lately, astronomical observatories have started using mirrors sputtered with silver deposits in telescopes’ inner linings. The silver coatings tend to reduce the telescope's thermal infrared emission by a factor of 2–3 compared to regularly used aluminium coatings. In 2019, around 578.6 million ounces of silver were consumed in the electronics sector. Figure 1(a) shows the demand for silver in each sector [10]. Electrodeposited gold is widely used in the electronics industries, such as in hardware and circuits for computer applications, telecommunications, and, most importantly, aerospace applications [11–15]. Apart from that, they are also used in automotive sectors, biomedical applications, etc. The jewellery industry alone consumed about 2200 tonnes of gold in 2019, accounting for almost 80% of the total industrial consumption [10]. The demand for gold in each sector is shown in Figure 1.

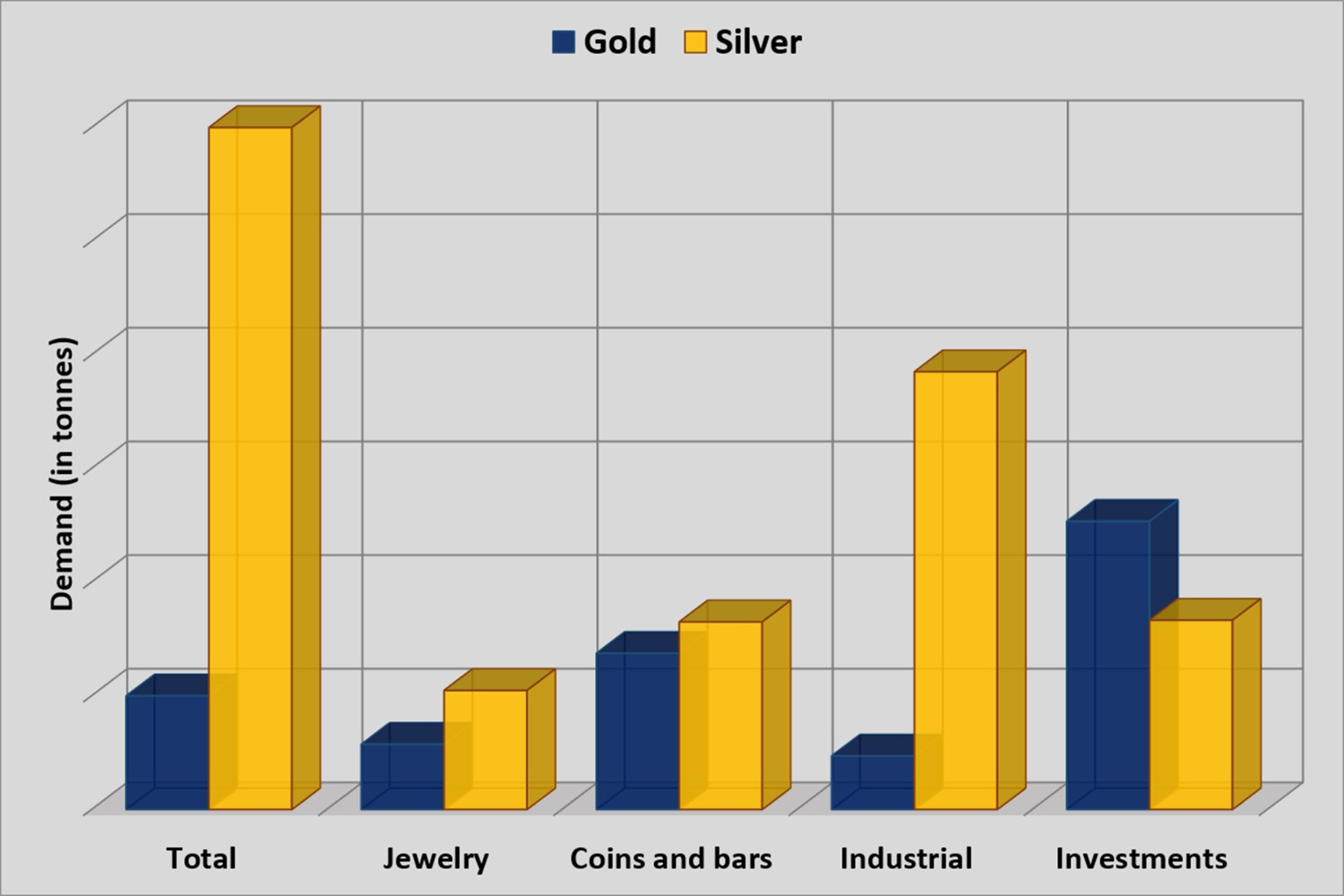

Figure 1.

The demand for silver and gold consumption in various sectors [10].

Considering the bath stability and the economic factors, cyanide complexes of gold and silver are the most widely used ligands for industrial plating. However, they have certain disadvantages, such as (i) the presence of cyanide in the solution causes a problem for after-use disposal [16], (ii) disposal of after-use products into the wastewater and atmosphere raises environmental and safety concerns [17], (iii) formulation of electroless baths becomes difficult due to the negative redox potential [18], and (iv) the cyanide complexes have a low exchange current density which limits the rate of deposition [19]. Most conventional gold electroplating baths are highly alkaline, which limits circuit pattern miniaturization. Because of high alkaline conditions, fine-resist pattern delamination is accelerated; thus, the packaging density is sacrificed, resulting in undesirable electrical noise. Many silver and gold electroplating solutions have been proposed to counter such issues and mainly the toxicity problem. The toxic cyanide ligands are replaced with various environmentally compatible complexes. Some of these complexes include thiosulphate, sulphite, a mixture of thiosulphate and sulphite, thiourea (TU), iodide, sulphamate, nitrate, hydantoin, and ionic liquids (ILs). The use of these complexing agents that have the potential to replace the cyanide complexing agents has been discussed in detail in later parts of this review article.

Synopsis of the review

Cyanide-based baths are generally used industrially for the production of silver and gold coatings via electroplating. Dicyanoaurate or dicyanoargentate ([Au(CN)₂]⁻ or [Ag(CN)₂]⁻) are the most commonly used complexing agents in traditional baths to produce both soft and hard gold and silver coatings. However, due to the severe toxicity of these cyanide compounds, the technical personnel involved in its formulation and working are at risk. Additionally, the disposal of these cyanide-containing electroplating wastes poses a significant threat to the environment as they pollute various natural resources like water bodies, soil, and groundwater. The coatings produced from alkaline cyanide-based baths also cause embrittlement of electronic circuit patterns. Due to these reasons, many novel cyanide-free baths have started to replace the existing cyanide-based baths. The primary cyanide complexing agent is replaced with an eco-friendly alternative compound in cyanide-free baths. Apart from that, they contain some other additives, depending upon the field of usage. Emerging reports on the various cyanide-free electroplating baths performing at par with the conventional cyanide-containing baths have accelerated further exploration of this domain. Additionally, these cyanide-free alternatives pose very little or no threat to the environment and the associated workforce. This has resulted in a surge in research activities over the last decade producing intriguing results. There have been several good research article publications in the domain of cyanide-free electrodeposition of Ag and Au coatings, their electrochemical studies, the study of their mechanical and microstructural properties, electrical properties, etc. Few standard books and book chapters have also been published in this domain. LB Hunt published one of the earliest reviews regarding the early history and advancements in gold plating [20]. This article by Hunt has only mentioned the developments in the domain, which happened in very primitive days, and at that time, only cyanide-based electroplating baths were used. Kohl provided a brief report on the electrodeposition of gold in one of the book chapters [21]. Mostly the article focuses on various types of cyanide-based electroplating baths and their electrochemical studies. Another book chapter by Schlesinger elaborates on the electroplating of silver [9]. However, a comprehensive and holistic review on the various types of electroplating baths available for the development of Au and Ag coatings covers the different categories of complexing agents that are being used for electroplating of Au and Ag coatings is still missing.

The growth in the number of articles published and the number of patents granted in the field of development of cyanide-free electroplating baths for Ag and Au over the past decade has been shown in Figure 2. The cumulative share of different types of articles published (i.e. articles, conference papers, and review papers) for cyanide-free electrodeposition of Ag and Au is shown in Figure 3.

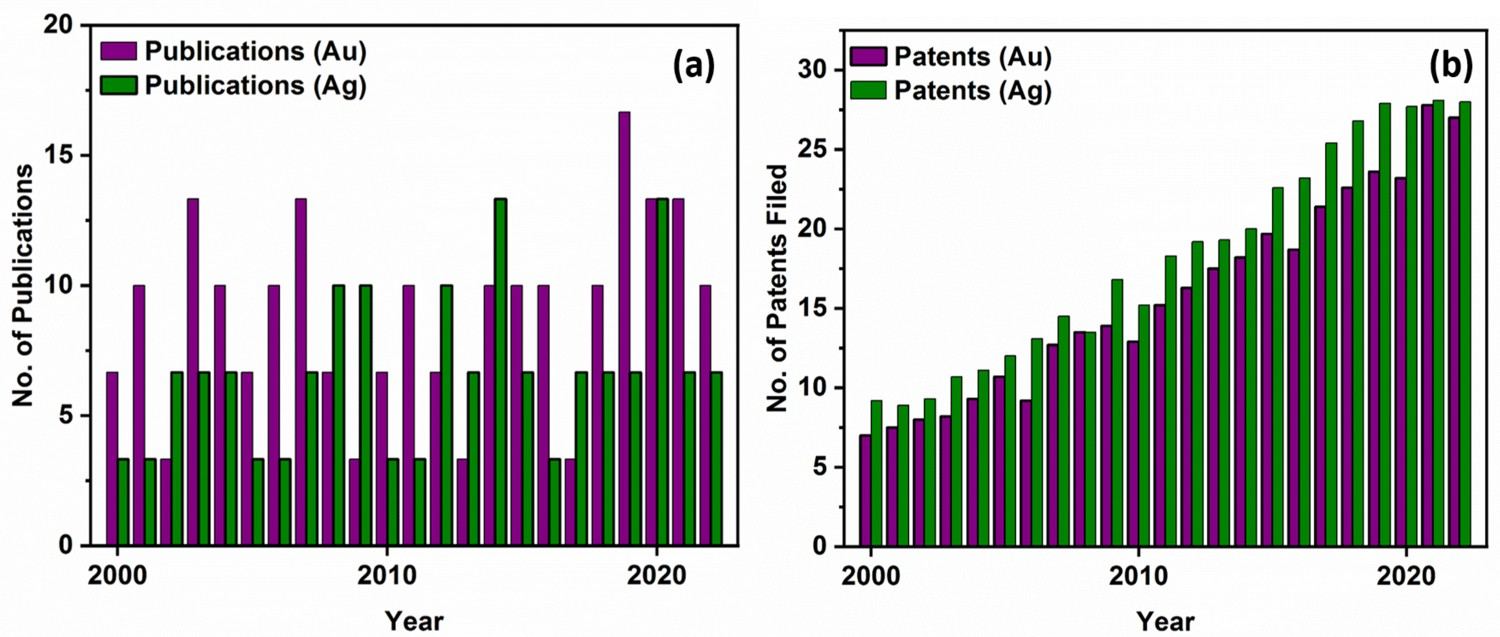

Figure 2.

The number of reported (a) publications and (b) patents over the calendar years from 2000 to 2022 related to cyanide-free electroplating of Au and Ag.

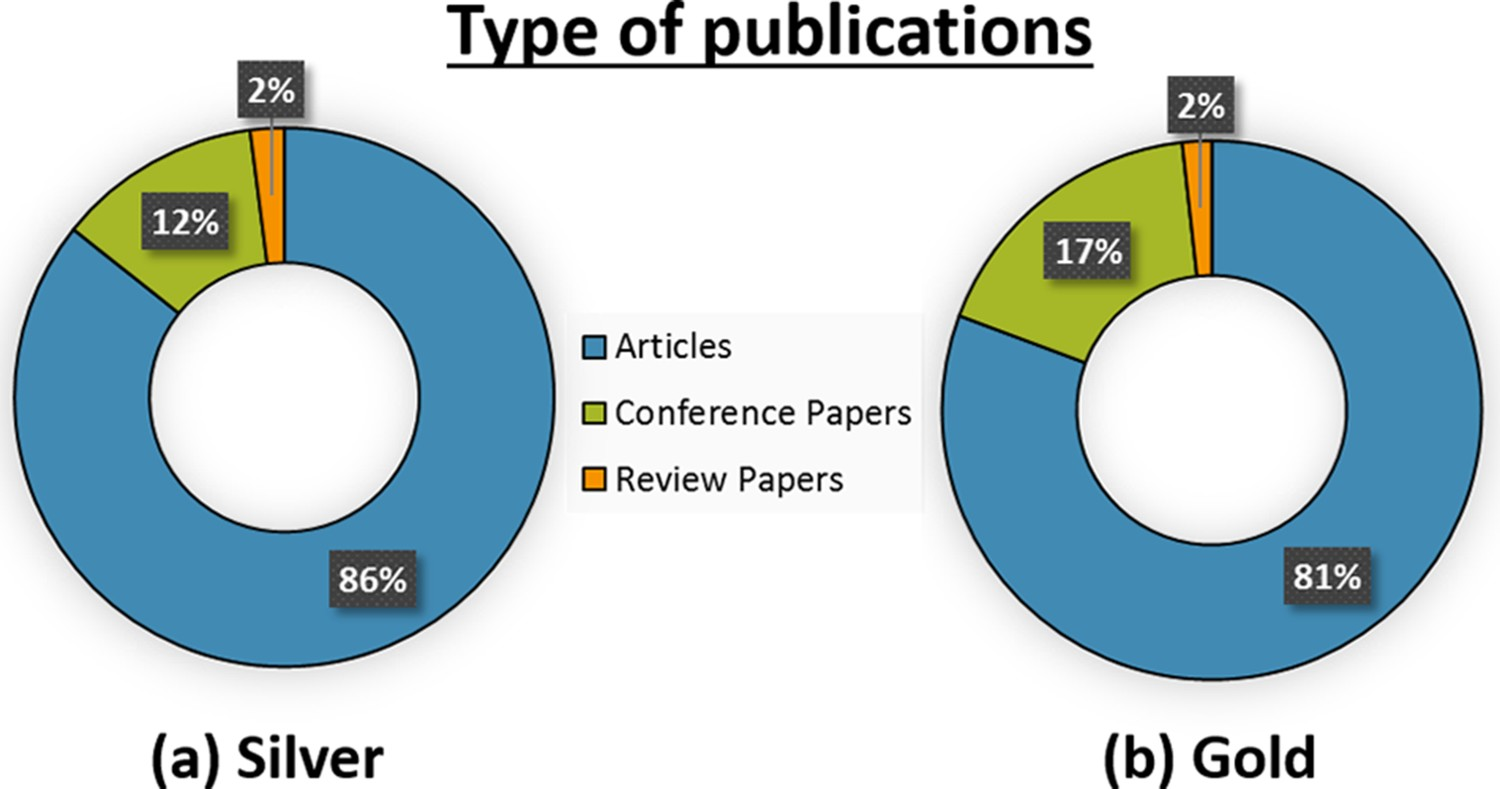

Figure 3.

Different types of publications related to cyanide-free electroplating of (a) silver and (b) gold over the calendar years from 2000 to 2022.

It can be observed that the number of published articles has increased remarkably in the last couple of years, suggesting that many researchers are actively working on the development of cyanide-free environmental-friendly alternatives to toxic cyanide-containing baths. However, Figure 3 suggests that very few review articles have been published in the past in this particular domain. Thus, it is high time to put together a holistic and systematic review article by consolidating all the information and knowledge gained so far in this rapidly advancing research domain of ‘cyanide-free electroplating baths for silver and gold coatings.’ Considering the need for environmental-friendly alternative baths, significant research emphasis, and the breadth of this domain, a comprehensive review is needed to provide a detailed critical analysis of various types of cyanide-free electroplating baths available for deposition of silver and gold.

Therefore, this review article makes an in-depth assessment of all the relevant salient work carried out till date in the field of developing cyanide-free baths for electrodeposition of Au and Ag coatings. An overall outlook of different aspects of this proposed review article has been illustrated in Figure 4. It also includes the properties of the various electroplating baths that contain different complexing agents apart from cyanogen complexes. This review article aims to strengthen the intellectual knowledge base for understanding the various types of cyanide-free baths developed so far, types of complexing agents that have replaced the cyanide compounds, various potential complexing agents that can be developed for the formulation of various cyanide-free baths for widespread commercial production of gold and silver coatings. The use of different alternative complexing agents like sulphite, thiosulphate, thiourea, DMH, EDTA, and ionic liquids (ILs), have also been discussed here.

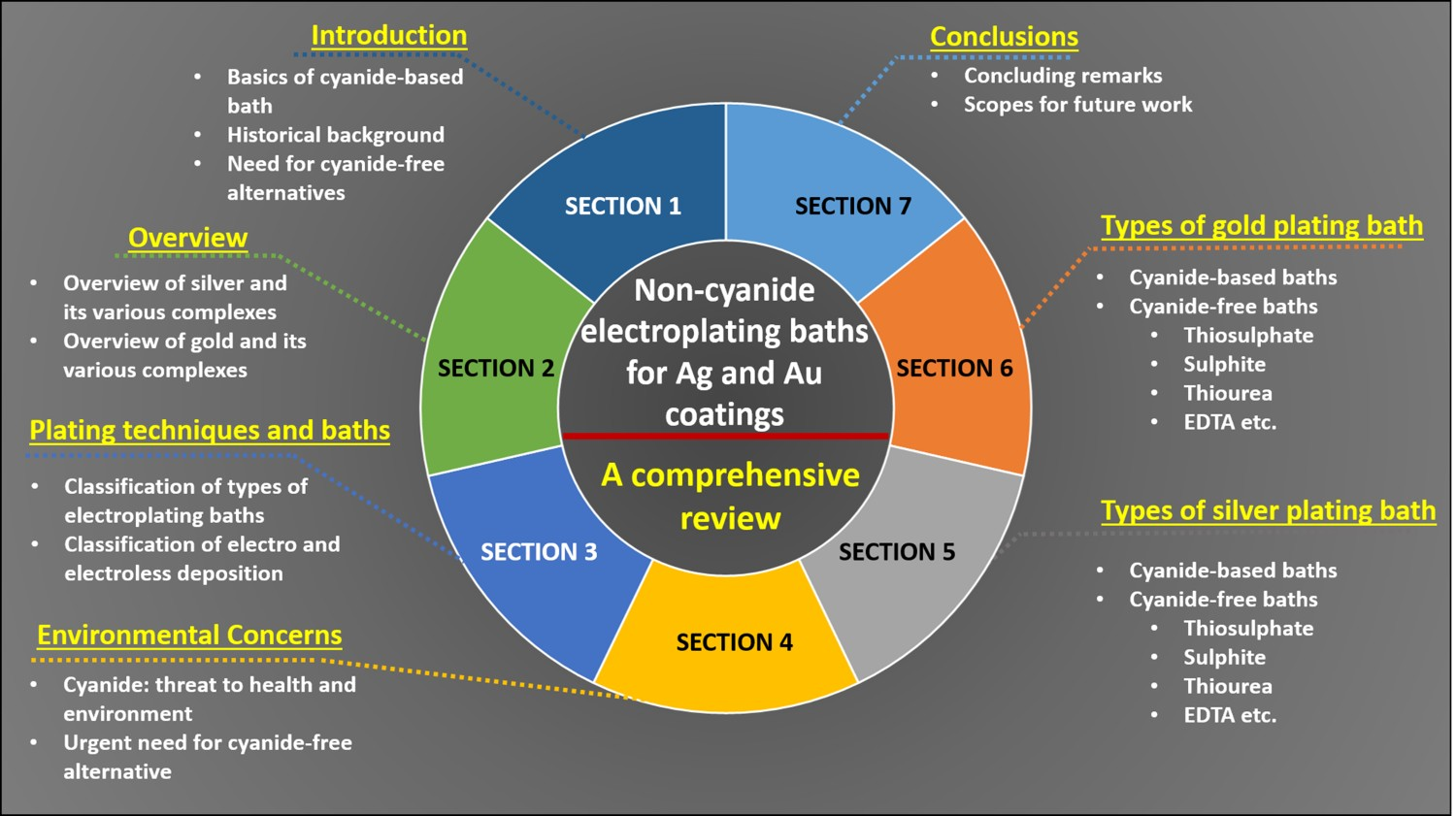

Figure 4.

Schematic of various topics along with corresponding salient features covered in this review article.

Overview of chemical properties

Chemical properties of gold and gold complexes

Electrodeposition of gold is carried out either using aqueous solutions or from ionic liquids, both having advantages and limitations of their own. Both of these methods involve the participation of gold complexes in the reaction. Hence, fundamental knowledge regarding the chemical properties of these complexes and their stabilities is essential. With atomic number 79 and atomic mass of 196.96 u, Gold belongs to group 11 of the modern periodic table. The electronic configuration of gold is [Xe]⁵⁴ 4f¹⁴ 5d¹⁰ 6s¹. Both gold and silver have similar electron configurations, single s electron outside a completely filled d shell, but their redox chemistry has many differences. Gold is very stable in normal atmospheric conditions because it does not react easily with air, sulphur, and most aqueous solutions. Gold does not react with strong acids but dissolves in aqua regia [22,23]. Gold, as a cyanide complex, has the highest stability among all the complexes. Stability deteriorates with the presence of other ligands like thiosulphate, sulphite, thiourea, halides, hydantoins, etc. Stability constants and standard electrode potentials of various Au⁺ and Au³⁺ are shown in Figure 5 and Table 1, respectively.

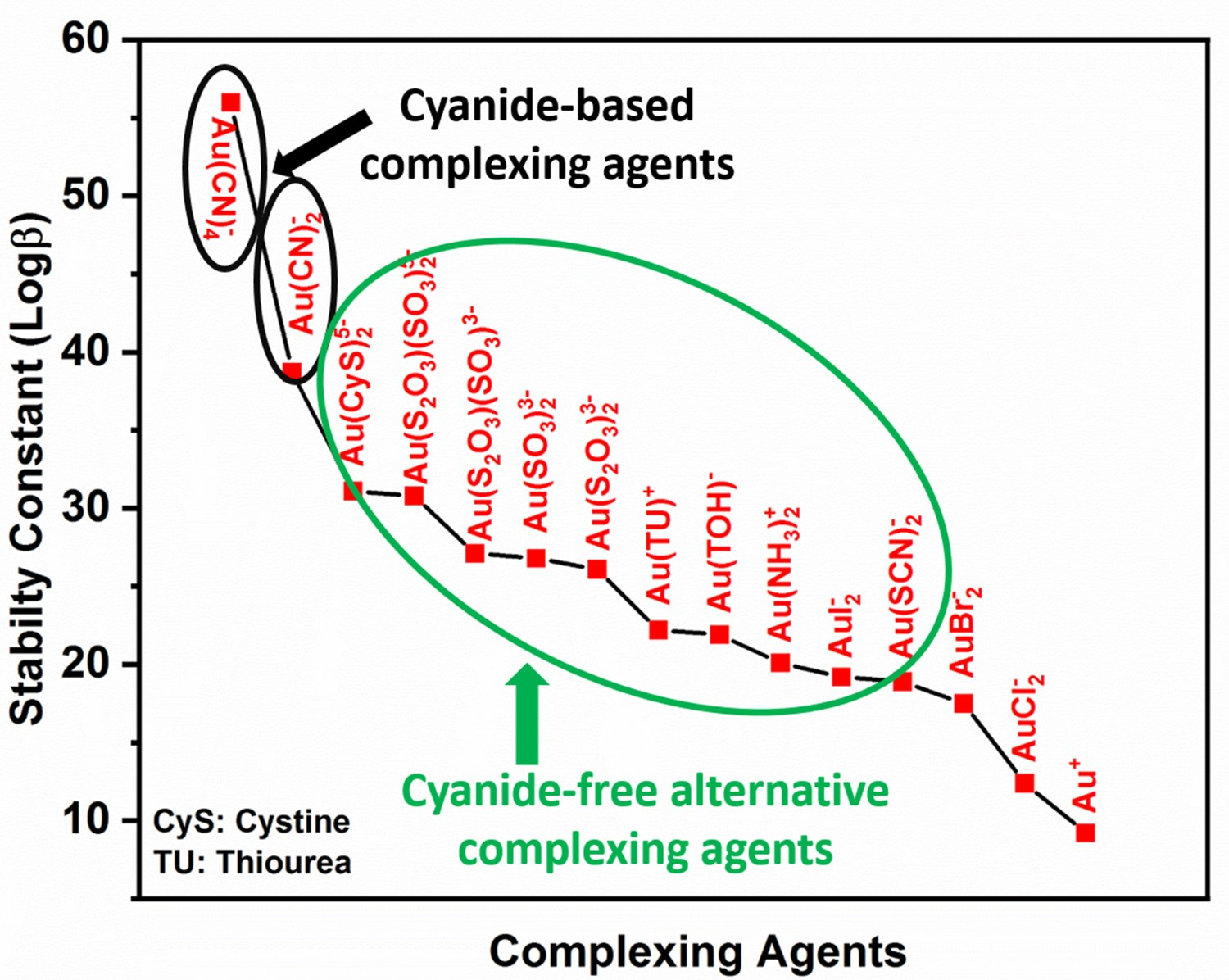

Figure 5.

Stability constant (Log β) of various gold complexing agents.

Table 1.

The standard reduction potential of various Au complexing agents.

Au species	E° (V) vs. NHE	Reference
${\rm Au}\lpar {{\rm CN}} \rpar _4^-$ $A u (C N)_{4}^{-}$	−1.810	[24]
${\rm Au}\lpar {{\rm CN}} \rpar _2^-$ $A u (C N)_{2}^{-}$	−0.595	[25]
${\rm Au}\lpar {{\rm Cy}{\rm S}^{\rm \ast }} \rpar _2^{5-}$ $A u (C y S^{*})_{2}^{5 -}$	−0.144	[26]
${\rm Au}\lpar {{\rm S}_2{\rm O}_3} \rpar \lpar {{\rm S}{\rm O}_3} \rpar _2^{5-}$ $A u (S_{2} O_{3}) (S O_{3})_{2}^{5 -}$	0.056	[27]
${\rm Au}\lpar {{\rm S}_2{\rm O}_3} \rpar \lpar {{\rm S}{\rm O}_3} \rpar ^{3-}$ $A u (S_{2} O_{3}) (S O_{3})^{3 -}$	0.098	[27]
${\rm Au}\lpar {{\rm S}{\rm O}_3} \rpar _2^{3-}$ $A u (S O_{3})_{2}^{3 -}$	0.111	[28]
${\rm Au}\lpar {{\rm S}_2{\rm O}_3} \rpar _2^{3-}$ $A u (S_{2} O_{3})_{2}^{3 -}$	0.153	[25]
${\rm Au}\lpar {\rm T}{\rm U}^{{\rm \ast \ast }}\rpar ^ +$ $A u (T U^{* *})^{+}$	0.380	[25]
${\rm Au}\lpar {\rm OH}\rpar ^-$ $A u (O H)^{-}$	0.400	[26]
${\rm Au}\lpar {{\rm OH}} \rpar$ $A u (O H)$	0.506	[26]
${\rm Au}\lpar {\rm N}{\rm H}_3\rpar _2^ +$ $A u (N H_{3})_{2}^{+}$	0.563	[25]
${\rm AuI}_2^-$ ${A u I}_{2}^{-}$	0.578	[25]
${\rm Au}\lpar {{\rm SCN}} \rpar _2^-$ $A u (S C N)_{2}^{-}$	0.662	[25]
${\rm AuBr}_2^-$ ${A u B r}_{2}^{-}$	0.960	[25]
${\rm AuCl}_2^-$ ${A u C l}_{2}^{-}$	1.154	[25]
${\rm A}{\rm u}^ +$ $A u^{+}$	1.695	[25]

For carrying out electrodeposition, the stability constant of various complexes of gold is a crucial parameter. The distribution of the various forms of gold ions is determined by the stability constant (β) of the complex. The reduction of gold ions from their complex form during electrodeposition depends upon (i) the stability constants of the complexes and (ii) the concentration of the ligands in the electroplating solution [29]. Gold is deposited from cyanide-based electroplating solutions where gold and cyanide are present as AuCN. As indicated in Table 1, such cyanide-based electroplating baths are exceptionally stable. The stability constant of AuCN is 10³⁸ [30]. However, from an environmental point of view, using these cyanide-based electroplating solutions is a concern. Due to its toxicity, the after-use disposal of the waste becomes a problem. Additionally, it acts as a severe threat to the working staff in those industries where electroplating is carried out using cyanide-based solutions [31]. Electroplating baths prepared from Au²⁺ are rare. Baths designed from Au⁺ and Au³⁺ are abundantly available for gold electroplating [32–34]. Gold in Au⁺ form is not stable in aqueous solutions and quickly disproportionates to form metallic gold [13,35,36]. Therefore, the baths that are formulated using Au⁺ complexes are subjected to direct electro-reduction of the complexed species.

Consider a reaction between Au⁺ ion and a ligand L:

$${\rm A}{\rm u}^ + + x{\rm L}^{n-}\leftrightarrow {\rm AuL}_x^{x{\lpar {n-1} \rpar }^-}$$

A u^{+} + x L^{n -} \leftrightarrow {A u L}_{x}^{x {(n - 1)}^{-}}

From the above chemical reaction, the overall stability constant, β, is given by:

$${\rm \beta } = \displaystyle{{{\rm AuL}_x^{x{\lpar {n-1} \rpar }^-} } \over {\lsqb {\rm A}{\rm u}^ + \rsqb \lsqb {x{\rm L}^{n-}} \rsqb }}$$

β = \frac{{A u L}_{x}^{x {(n - 1)}^{-}}}{[A u^{+}] [x L^{n -}]}

The magnitude of the stability constant provides an idea regarding the stability of the metal complex in a system. As a result, it affects the electrochemical characteristics of the process. For example, as the value of the stability constant decreases, the standard electrode potential of the complex tends to shift towards more positive potentials (see Table 1). Significantly less information is available regarding the redox chemistry of Au³⁺ complexes. These complexes have higher stability with carbon, nitrogen, phosphorous, sulphur, and oxygen-donating ligands. Organo-metallic chemistry of Au³⁺ complexes is essential because most of them have been prepared from organometallic precursors of Au ³⁺ [23].

Chemical properties of silver and silver complexes

Like gold, silver also belongs to group 1B of the periodic table. With atomic number 47 and atomic mass 107.86, silver has an electronic configuration [Kr]³⁶ 4d¹⁰ 5s¹. Just like gold, silver also has a single s electron outside a completely filled d shell. However, its electrochemical property is different from gold. Silver possesses the highest electrical as well as thermal conductivity among all metals. It also has the lowest electrical contact resistance (Table 2). Considering other mechanical properties like malleability and ductility, silver is next to gold among all the metals in the periodic table. Similar to gold, silver is also an inert metal and has the weakest chemical interaction with oxygen and moisture. Stability constants and standard electrode potentials of various complexes of silver are listed in Table 3.

Table 2.

Physical and chemical properties of silver [37].

Properties	Value
Density (kgm⁻³)	10490
Atomic volume	10.3
Melting point (K)	1234.9
Electrical conductance (µΩ⁻¹)	0.616
Thermal conductance (Wm⁻¹ K⁻¹)	410.31

Table 3.

Stability constants (β) and standard reduction potential of various Ag species.

Ag Species	Log β	E° (V) vs. NHE	Reference
${\rm Ag}\lpar {\rm CN}\rpar _2^-$ $A g (C N)_{2}^{-}$	20	−0.315	[38]
${\rm AgI}_4^{3-}$ ${A g I}_{4}^{3 -}$	13.5	−0.1522	[39]
${\rm Ag}\lpar {{\rm S}_2{\rm O}_3} \rpar _2^{3-}$ $A g (S_{2} O_{3})_{2}^{3 -}$	12.5	−0.0172	[40]
${\rm Ag}\lpar {{\rm SCN}} \rpar _2^-$ $A g (S C N)_{2}^{-}$	11.2	0.214	[41]
${\rm Ag}\lpar {{\rm S}{\rm O}_3} \rpar _2^{3-}$ $A g (S O_{3})_{2}^{3 -}$	8.4	0.42	[38]

Classification of plating techniques and electroplating baths

Silver and gold are plated using two techniques, (i) electrodeposition and (ii) electroless deposition. Usually, advanced methods like chemical vapour deposition or ion sputtering are used to coat insulators such as glass or ceramics with silver and gold. The classification of the silver plating process based on the plating technique and type of bath is shown in the illustration in Figure 6.

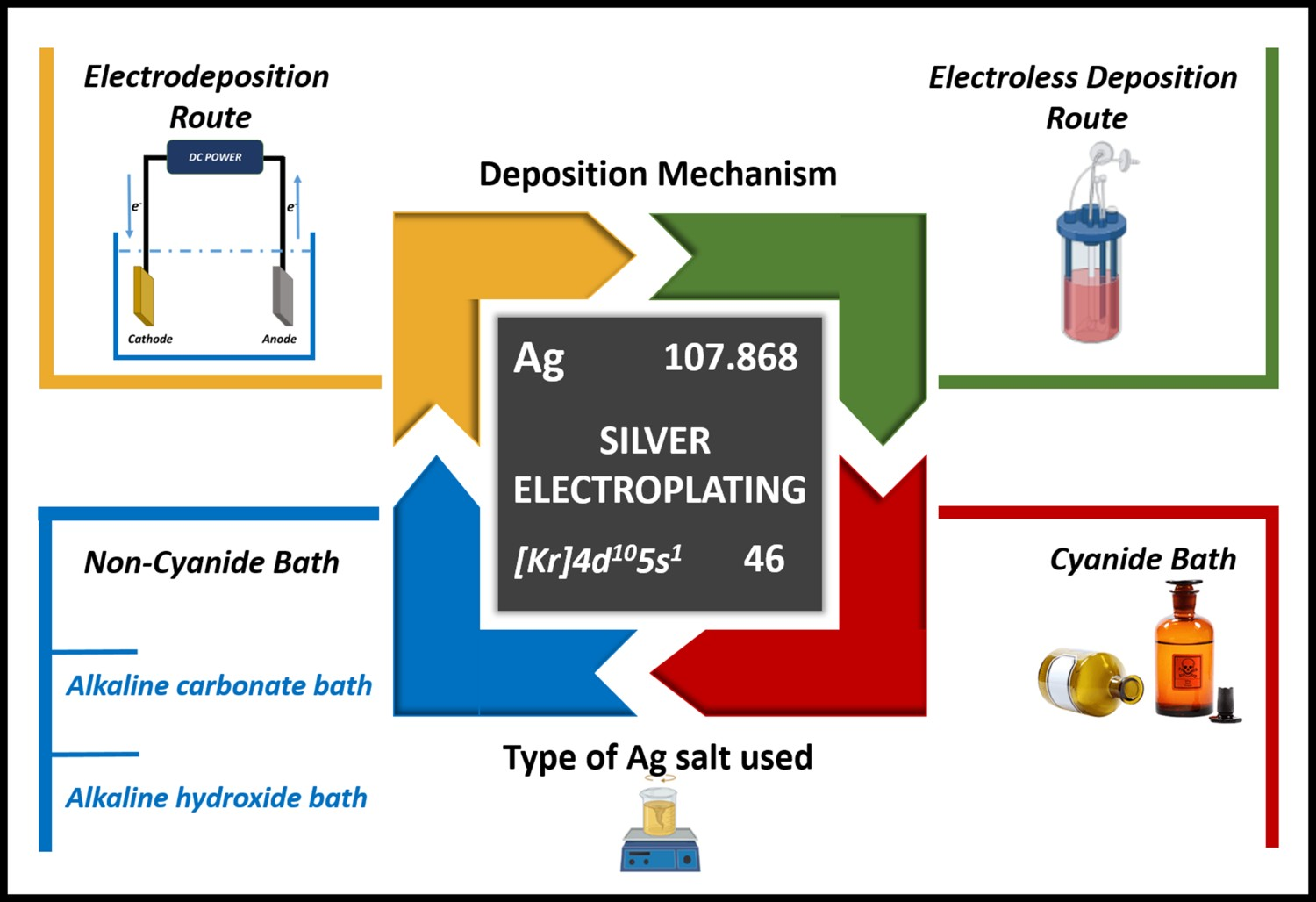

Figure 6.

Illustration showing the classification of silver deposition technique based on deposition mechanism and type of Ag salt used in the plating bath.

For industrial applications, considerable numbers of gold electroplating baths are developed, which are proprietary in nature. For a sound understanding, the classification of gold electroplating can be done based on four factors: (i) type of gold salt used, (ii) deposition mechanism, (iii) bath pH, and (iv) nature of deposit produced. The schematic of the classification is shown in Figure 7. Non-cyanide gold electroplating baths can only be operated at neutral or alkaline pH. At present, only a cyanide-based electroplating bath can be employed to deposit hard gold commercially.

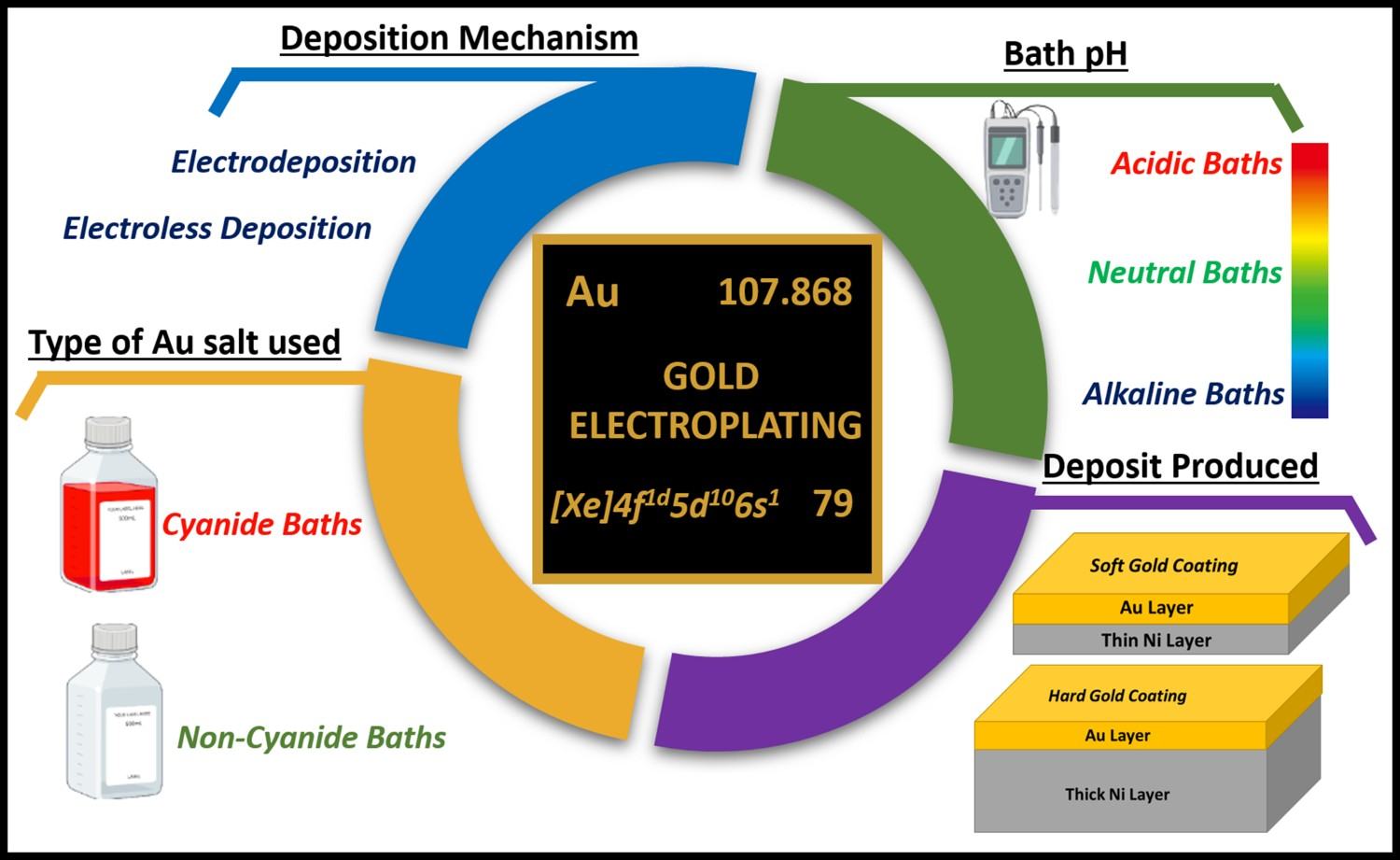

Figure 7.

Illustration of the classification of gold deposition process based on the type of deposit produced, deposition mechanism, type of Au salt used, and pH of the plating bath.

Fundamentals of electroplating and electroless plating of gold and silver

Electroplating and electroless plating are the most widely used techniques for plating metals. Precious metals like gold and silver are also plated using these techniques. Both these methods have their own identity in electrochemistry, having both advantages as well as limitations. Some fundamental aspects of each technique are discussed in this section.

Electrodeposition technique

Electroplating is one of the most widely used techniques for surface finishing and improving surface quality. Electroplating is also known as electrodeposition. As the name suggests, an electric current is used for depositing material over a conductive surface. When an electric current is passed through the electroplating bath, a thin layer of metal is deposited on the surface of the cathode, also known as the substrate. Electroplating is primarily used to change the physical appearance as well as the properties of an object. The electroplating process enhances the wear resistance, corrosion resistance, and aesthetic appeal of the coated objects. Electroplating is an almost a century-old process with many advancements and developments taking place over the period of time.

The first electroplating work was carried out in the early eighteenth century by Italian inventor Luigi Brugnatelli. He used a voltaic cell and a pair of metallic wires to deposit a fine layer of gold over a metallic vessel [42]. After Brugnatelli’s experiments, the process became popular across Europe as the demand for electroplated artefacts increased among the people [43]. The electroplating process uses an electric current to dissolve metal and deposit it onto a surface. The method of electroplating is based primarily upon four essential components, which are shown in the schematic in Figure 8.

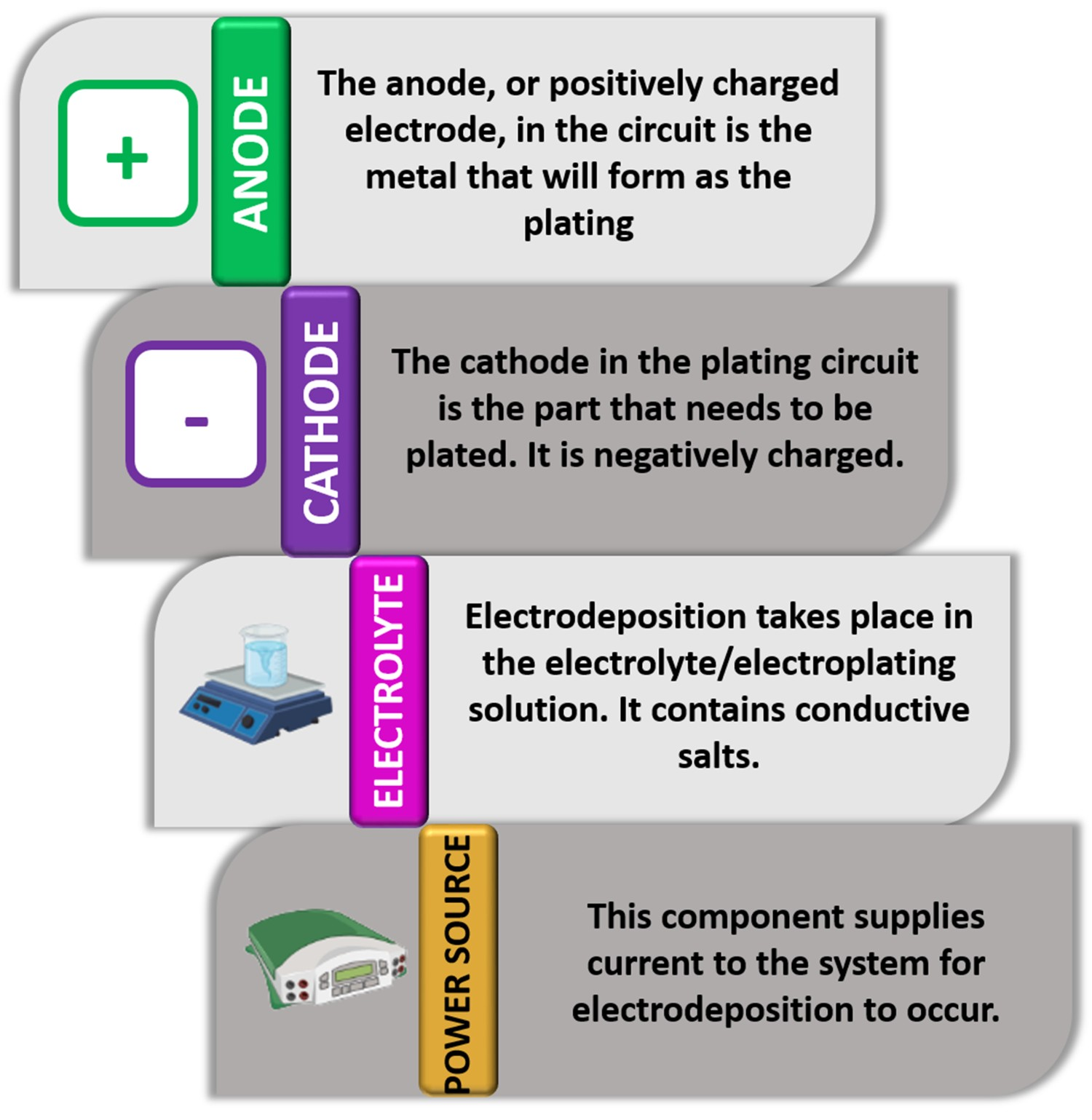

Figure 8.

Primary components of electroplating setup: cathode, anode, electroplating solution, and power source.

The amount of current to be applied during the process of electroplating can be calculated from Faraday’s law:

$$Q = It = nFZ$$

Q = I t = n F Z

where Q is the amount of charge passing, I correspond to the total current flowing in the circuit, and t is the time of electroplating. n = mM⁻¹ (where m is the mass of the oxidized/reduced species, and M is the equivalent molar mass), Z is the charge of the ion, and F is Faraday’s constant.

When an electrically conductive material is immersed in an electroplating bath, a potential difference is developed between the positive and the negative terminals. The basic schematic setup for the electroplating process, along with all the parts, is shown in Figure 9.

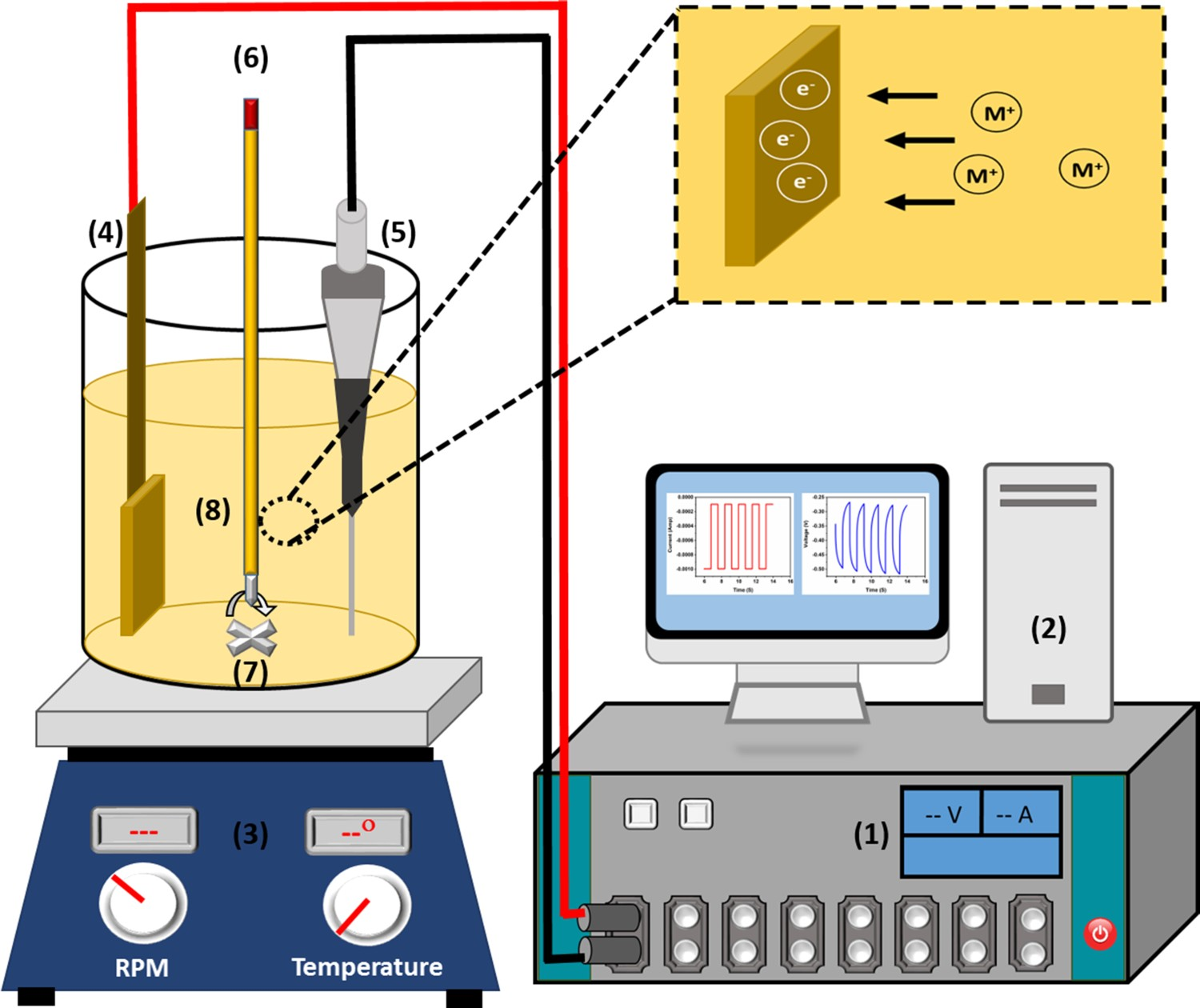

Figure 9.

Schematic of the basic setup used for the electroplating process. The setup consists of (1) power source/potentio-galvanostat unit, (2) controlling unit/PC, (3) magnetic stirring unit with/without temperature controller, (4) cathode, (5) anode, (6) thermometer, (7) magnetic stirring bead, (8) electroplating bath.

The potential difference between the cathode and the anode is changed when an external current is supplied from a power source. The negative and positive electrodes now become polarized. At the surface of the cathode, the concentration of the metallic ions starts to reduce. Eventually, a diffusion layer begins to form near the surface of the electrode. The thickness of the diffusion layer formed in the solution depends on (i) the rate of agitation of the electroplating solution, (ii) the rate of metal ion deposition of the cathode/substrate, and (iii) the temperature of the electroplating solution. The deposition rate depends on the amount of current flowing in the circuit. All the steps occurring during the process of electroplating are schematically shown in Figure 10.

(b) Electroless deposition technique

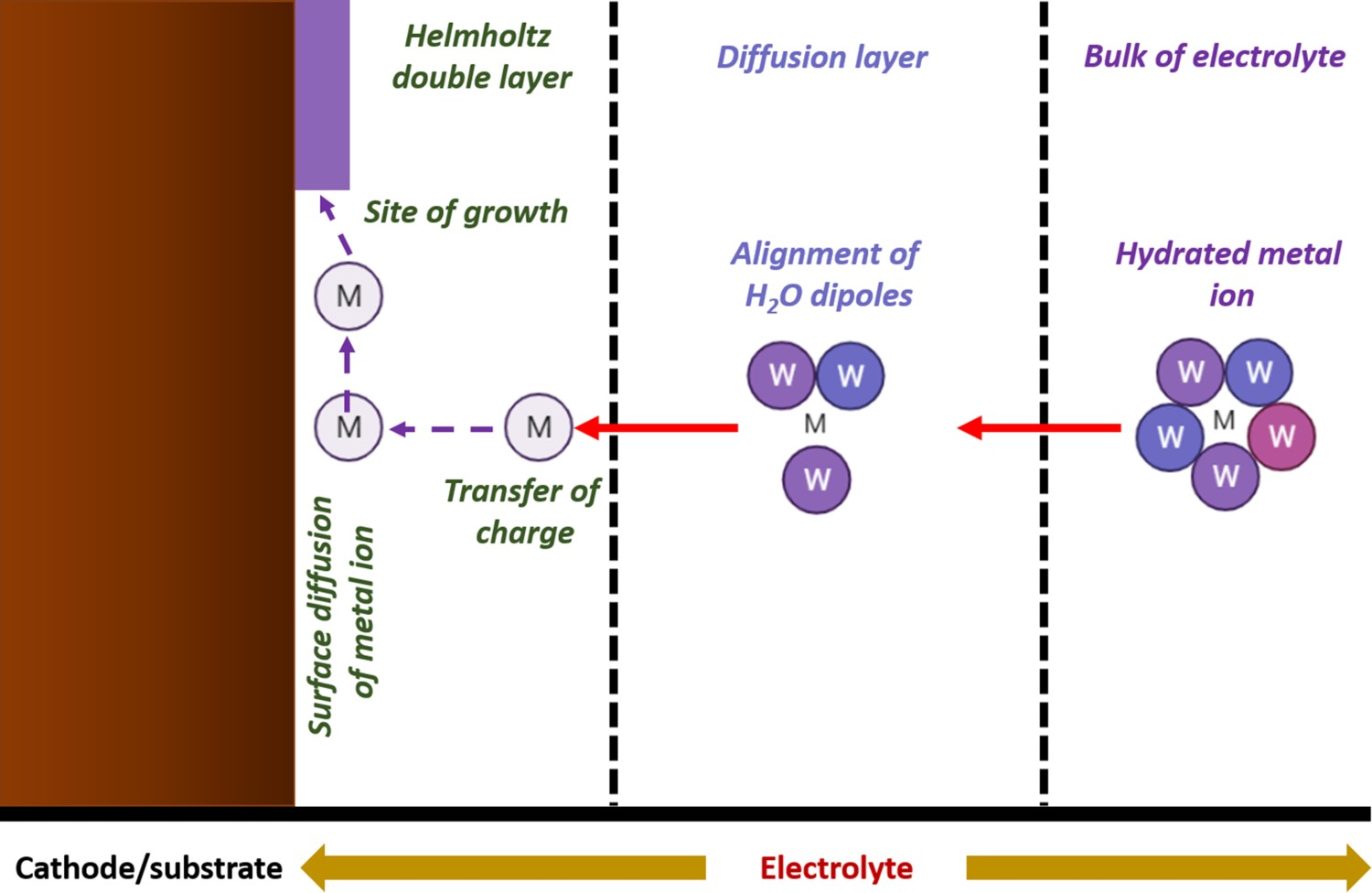

Figure 10.

Steps occurring during electroplating: (1) Formation of hydrated metal ions from the bulk solution. (2) Movement of ions towards the surface of the cathode through the diffusion layer. (3) Transfer of charge occurring in the double layer. (4) Surface diffusion of metal atom. (5) Crystallization into the coating surface.

Electroless deposition is an autocatalytic process where a potential difference is developed across the electrodes immersed in the electroplating solution. The process is further catalysed by various metallic ions, reducing agents, complexing agents, and stabilizers. No external power is supplied to the circuit. The electroplating baths are usually heated for a faster initiation of the reaction. Metallic coatings of copper, nickel, cobalt, gold, silver, and palladium are usually prepared using this technique. The process is widely used for both commercial and well as non-commercial usage due to the following advantages, (i) the thickness of the coating is uniform even on intricate shapes, (ii) since no contact is required, non-conductors like plastics and polymers can also be coated, (iii) the developed coatings have low porosity and, (iv) the cost is minimal as this method needs no power sources [44]. A schematic representation of the electroless deposition is shown in Figure 11.

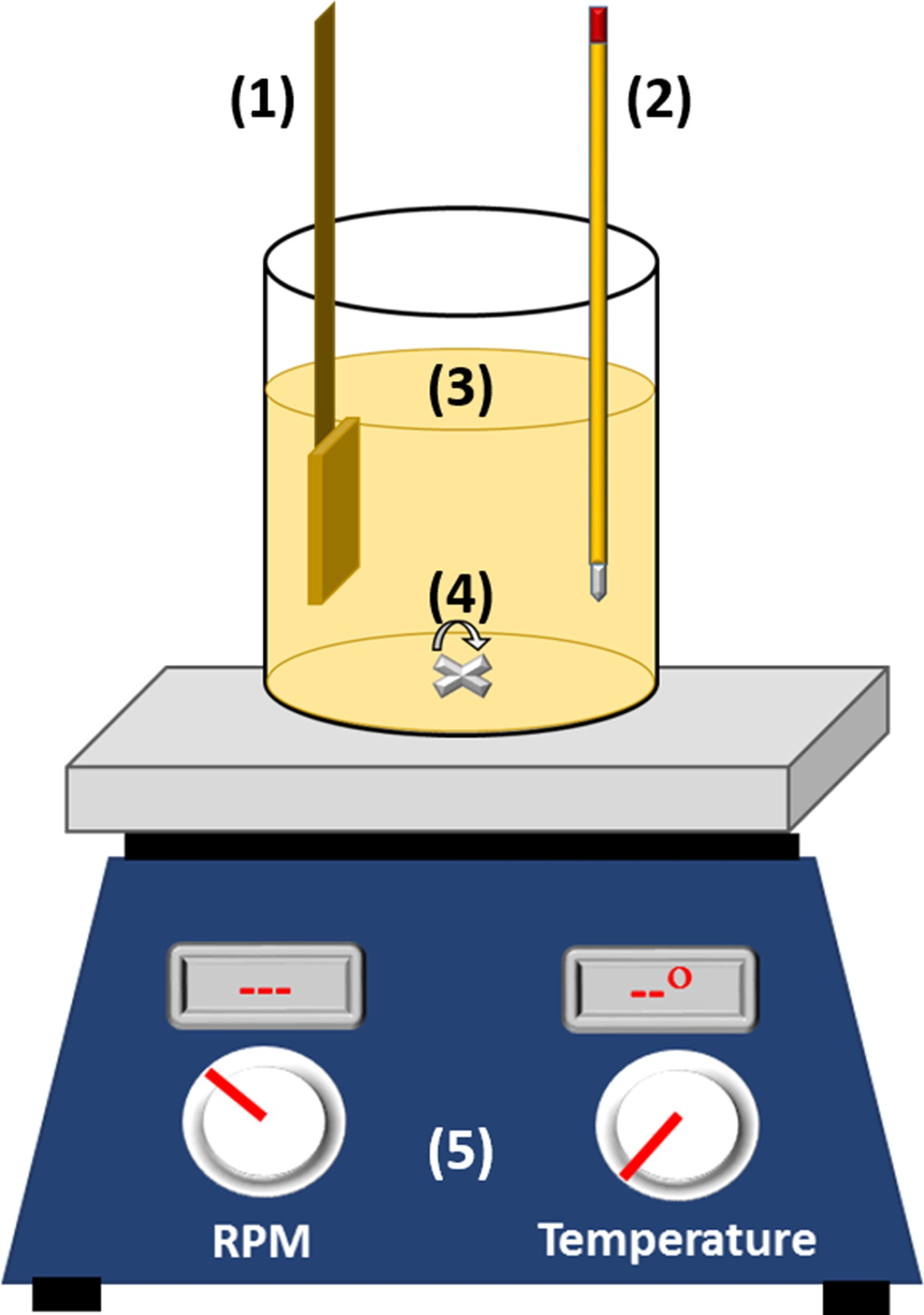

Figure 11.

Schematic of a basic setup for electroless plating unit. The marked parts include (1) cathode/substrate, (2) thermometer, (3) electroplating solution, (4) magnetic stirring beads, and (5) magnetic stirring unit with/without temperature controller.

Health and environmental concerns due to the use of cyanide baths

A precise technical definition of cyanide is a triple-bonded molecule of carbon and nitrogen which has a single charge. It consists of single carbon and nitrogen atoms which are in +2 and −3 oxidation states, respectively. Mostly the cyanide compounds are present in the environment either in free form (HCN or CN^-) or as metallic salts (Ca, Cd, Zn, Au, and Ag salts of cyanide). Hydrogen cyanides are the major byproducts produced in various industries, including the electroplating of silver and gold. Furthermore, they are also emitted from various other industries like dye and chemical units [45]. The cyanide ions get into the environment mainly from the wastewater that is disposed off directly into the natural water sources. According to the World Health Organization, the standard maximum permissible concentration of cyanide in drinking water is set to 0.05 mg L⁻¹ [46]. Values exceeding this limit can cause serious environmental as well as health hazards. The effect of a higher concentration of cyanide on human health and the environment is mentioned in Table 4.

Table 4.

Effect of cyanide on human health and environment [47].

Effect on human health	Effect on environment
Short-term exposure to cyanide causes rapid breathing, body tremors, and other neurological disorders	Direct disposal of the cyanide wastes into natural sources of water causes contamination of water bodies
Long-term exposure causes weight loss, thyroid effects, nerve damage, and finally, leads to fatality	Waste material disposed in open fields is the main reason for toxic soil. This, in the long term, affects the groundwater
Contact with fluids containing cyanide causes nail poisoning, skin irritation, and body sores	Cyanide fumes from the industries cause severe air toxicity
Cyanide concentrations higher than 0.3 mg L⁻¹ in the blood lead to death	Contamination of natural resources like air, water, and soil affects the entire ecosystem as they depend on each other

Individuals working in various electroplating units are vulnerable to cyanide poisoning. The lack of proper safety measures causes various health hazards like respiration issues, skin irritation, and body poisoning. Compounds containing cyanide ions rapidly act like poison, disrupting the cellular respiration occurring in the body. Once cyanide enters the body, it quickly reacts with cytochrome oxidase. This is the main enzyme that is responsible for cellular respiration. It inhibits oxidative phosphorylation, a process where oxygen is utilized for the production of essential cellular energy sources in the form of ATP. Cellular hypoxia and the depletion of ATP occur, which leads to metabolic acidosis. The reaction of cyanide with cytochrome oxidase causes the blocking of intracellular respiration. This leads to the excessive synthesis of lactic acid in the body. The utilization of oxygen by the tissue occurs, and no fresh oxygen is provided to the cell. This is followed by the impairment of vital functions and may cause fatality [48]. The effect of cyanide on the human body is shown in Figure 12. Hence, cyanide concentration in the environment needs to be kept as low as possible [49].

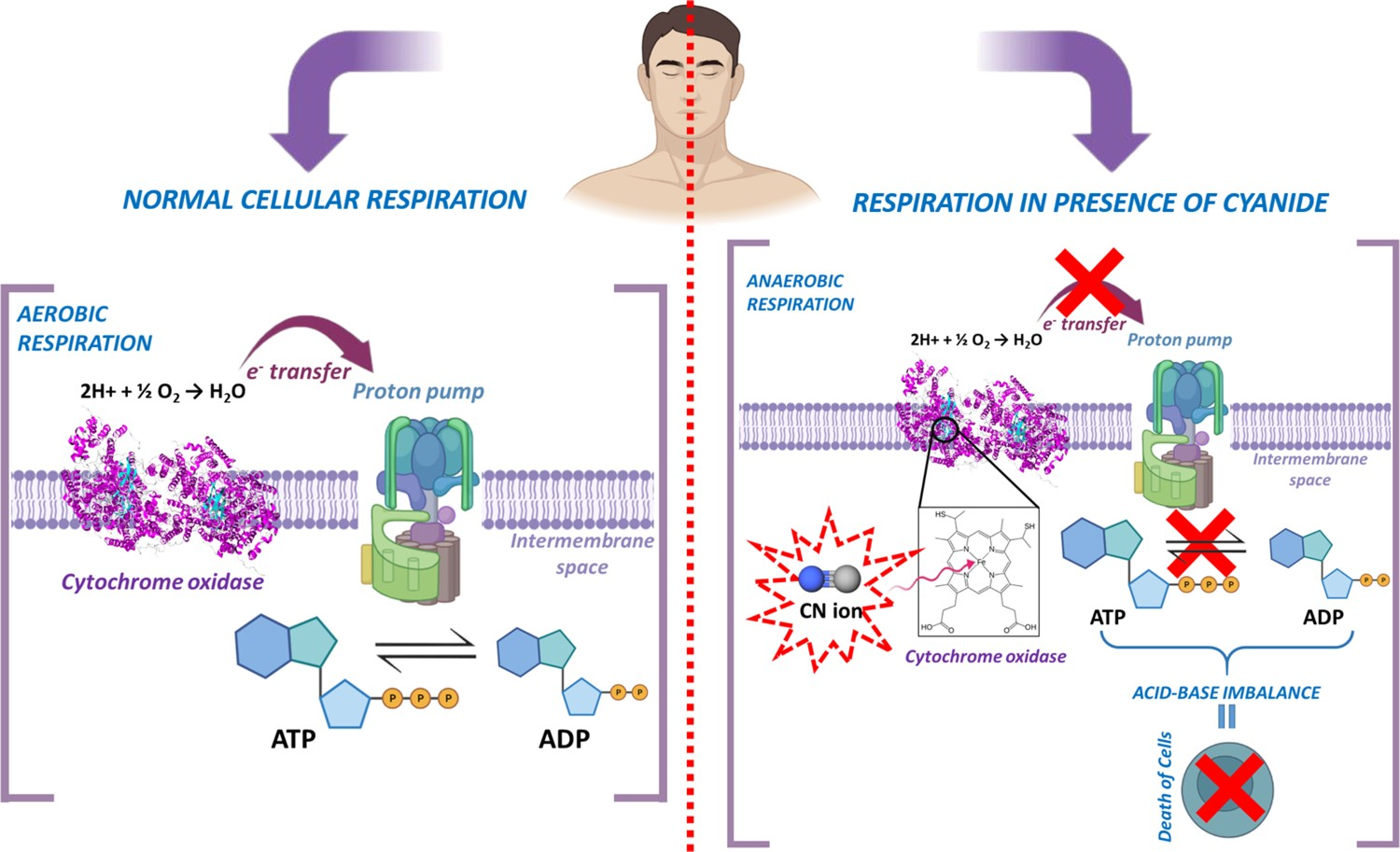

Figure 12.

Schematic showing normal aerobic respiration and anaerobic respiration in the human body. The cyanide addition to the body causes a halt in ATP production during cellular respiration, causing cell death.

There can be two alternatives that form the basis for cyanide reduction and control, (1) destruction of toxic cyanide added to the environment by humans and (2) minimizing cyanide emission by replacing its usage with other environmentally compatible alternatives. However, the various processes that are used for the destruction of toxic cyanide from the environment have several limitations like (i) higher maintenance cost, (ii) limited to only lab or pilot scale usage, (iii) carbon fouling, and (iv) incomplete removal of cyanide. As the saying goes, prevention is better than cure, so replacing the cyanide compounds with various non-toxic alternatives is the most suitable method for minimizing the release of cyanide into the environment.

Different types of silver electroplating baths

The usage of mirror-bright, compact, smooth, and adhesive silver deposits has a history of more than a century. Usually, these coatings are deposited from cyanide-based baths, as they offer consistent deposits at a minimal cost [50]. Unfortunately, cyanide is one of the most toxic chemicals, which brings exceptionally high risks to human health and the environment, primarily when these cyanide-based baths are operated at high temperatures. There are two types of silver electroplating baths (i) cyanide and (ii) non-cyanide-based baths. In this article, various types of non-cyanide silver electroplating baths will be discussed in detail.

Cyanide-based silver electroplating baths

Commercial silver coating is exclusively prepared using alkaline cyanide-based baths. The metal is introduced as potassium silver cyanide, KAg(CN)₂, which is formed when the silver anodes dissolve in the potassium cyanide solution. Organic compounds, frequently containing sulphur and antimony, are often used as brighteners. The addition of sulphur does not affect the hardness or the electrical properties of the deposited silver. However, antimony addition leads to an increase in both the hardness and electrical resistance of the deposit. The composition of the cyanide-based silver electroplating bath depends upon the quality of the silver deposit required to be plated. Silver deposits for decorative purposes are generally electroplated from baths having a low silver concentration. However, deposits for various engineering applications need a thicker coating; hence the silver concentration is kept high. Higher silver concentrations in the bath allow a higher current density, resulting in an economic plating rate. Potassium nitrate has been recommended for high-speed plating baths. Potassium nitrate and hydroxides are generally used to promote anodic corrosion in high-speed plating and stabilize the bath against cyanide decomposition. The presence of chlorides, formates, acetates, phosphates, and borates increases the hardness of the deposited layer. Numerous silver electroplating baths have already been investigated using cyanide-based complexing agents [9]. The typical composition of a silver electroplating bath is shown in Table 5.

Table 5.

Composition and operating parameters for typical cyanide-based silver electroplating baths [51].

	Conventional or bright silver (g L⁻¹)	High-speed silver for thicker deposits (g L⁻¹)
Silver (as metal)	20–45	35–115
Silver cyanide	31–56	44–153
Potassium cyanide	50–78	68–235
Free potassium cyanide	35–50	45–160
Potassium carbonate	15–90	15–90
Potassium nitrate	–	40–60
Potassium hydroxide	–	4–30
Current density (A dm⁻²)	0.5–1.5	0.5–10
Agitation	Mechanical	Mechanical
Temperature	28–30°C	38–50°C
Brightener	As required	As required

In the discussed work, two kinds of WE were used. The first one was a Cu-based rotating disk electrode (RDE), to be used for the microbalance sensor, and the other was a thin Au-coated single-crystal quartz. The electrode surface was polished and cleaned thoroughly. In order to avoid any inter-diffusion between the top silver coating and the underlying copper substrate, a nickel layer was deposited using a standard Watts bath [52] (0.17 M NiCl₂·6H₂O, 0.85 M NiSO₄·6H₂O, 0.48 M H₃BO₃). The pH of the Watts bath was maintained at around 5. The electrodeposition of Ni was carried out at a current density of 7.96 mA cm⁻² and a temperature of 50°C. For the quartz WE, the Au surface was coated with a Ni diffusion barrier layer deposited from the Watts bath at 50°C and an applied potential of 850 mV.

Non-cyanide silver electroplating baths

Many cyanide-free silver electroplating baths have been developed with a need for an environment-friendly alternative to toxic baths. A summary of some of these electroplating baths is given in Table 6.

Table 6.

Composition and properties of various reported cyanide-free silver electroplating baths.

Silver salt used	Bath composition	pH	Properties	Ref
Silver nitrate	Ammonium phosphate; Sodium phosphate; Silver nitrate	>8.5	Silver coatings deposited from this bath are mirror-bright, ductile, and have excellent adhesion with the substrate	[53]
Silver sulphate; Silver carbonate; Sodium silver thiosulphate (AgNa₃O₆S₄)	Sodium thiosulphate; An organic compound with at least two N atoms and a molecular weight of over 300; A heterocyclic compound like polyvinyl-2-pyridine	5.7–7.3	Silver coatings deposited from this bath have excellent ductility combined with a good lustre The coatings have substantially good hardness and electrical resistance	[54]
Water-soluble silver salts like silver chloride, silver bromide, silver iodide or silver nitrate	Thiosulphate salt; A bisulphite buffer; A sulphate salt	4.5–5.0	A coherent and continuous matte deposit of silver is obtained on the substrate	[55]
Silver as succinimide complex	A complexing agent like succinimide or maleimide; Primary amine as a brightener; Secondary inorganic salt as a metallic brighteners; or combinations of both	>6	The appearance of the silver deposits ranges from semi-bright to bright depending upon the current density The coatings are stress-free	[56]
Silver as silver sulphamate	Ammonium sulphamate; Potassium sulphamate; Nicotinic acid; 8-hydroxydiazonaphthyl)1-phenylaminonaphthol; Ammonia hydroxide	≤9.5	The deposits are bright, ductile, and have a hardness of 128–145 kg mm⁻²	[57]
A water-soluble salt of silver	An aliphatic sulphide compound (not comprising of any alkaline nitrogen atom)	–	Bath is highly stable (stable for up to 6 months) The rate of silver co-deposition rate is relatively low No irregularities like burning of coatings or formation of dendrites are observed	[58]
Silver nitrate	Benzimidazoles as a tarnish inhibitor; Phosphate esters such as EKCOL PS-413 and some optionally substituted triazole derivatives	≤5	Deposits with more than 80 at.-% silver are obtained The deposits are reported to be tarnish-resistant and have good solderability	[59]
Silver methanesulphonate; silver isethionate	An azole or thiophene compound as a surfactant; A displacement prevention compound like amide	<3	A layer of silver is coated as a strike layer using a commercially available cyanide-free silver electroplating bath, followed by the silver coating from the developed bath The coatings have excellent adhesion with the underlying layer	[60]
Silver as silver methanesulphonic acid	Methanesulphonic acid; Potassium iodide as a complexing agent capable of stabilizing silver; Iodine tyrosine as a stabilizer	≈1	A nickel layer is deposited over the base metal to improve the adhesion between the top silver and base metals Silver coatings are deposited using a current density ranging from 0.1 to 15 A dm⁻² and a voltage of 1 to 20 V The silver deposits lack an aesthetic appearance at higher current densities There is hydrogen evolution during the electroplating, which generates precipitates in the bath The thickness of the silver electroplating layer ranges between 2 and 20 µm	[61]
Soluble inorganic silver salts like silver nitrate, silver oxide	1-methylhydantoin or 1,3-dimethylhydantoin or 5,5-dimethylhydantoin as the complexing agent; Potassium chloride or potassium formate as the conductive salt	8–13	The bath stability, throwing power, limiting current density and physical appearance of the deposits are as good as the coatings obtained from conventional cyanide-based baths	[62]
Silver nitrate	Dimethylhydantoin	9	Semi-bright silver deposits were obtained with a dimethyl hydantoin strike layer.	[63]
Silver methanesulphonate and tin methanesulphonate	Aliphatic amino acid as complexing agent; A nitrogen-containing aromatic carboxylic acid as a bath stabilizer; An aliphatic sulphide as a silver ion stabilizer	–	Tin-silver bimetallic coatings with a thickness of 10 μm are obtained at a current density of 5–15 A dm⁻² The deposited coatings have a semi-bright appearance	[64]
Any monovalent silver salt	An acid radical and/or a silver complexing agent for stabilizing the silver ion in a bath, i.e. an aliphatic dicarboxylic acid having an alkyl group having 0–3 carbon atoms	–	The deposited coating has good solderability There is no mention of the appearance of the coatings	[65]
Any soluble silver compound like silver nitrate or silver methanosulphate, or silver 2-hydroxyethanesulphonate	Pyridines as active ingredients and, if necessary, are selected from a soluble metal compound, a non-ionic surfactant, a polyamine compound, a cyclic nitrogen-containing compound, a sulphur compound, and an amino acid derivative	–	A silver deposit with good adhesive strength is obtained Stable plating performance is achieved over a long period of time	[66]
Silver nitrate	Propenyl thiocarbamide or polyoxyethylene glycol or dodecyl diphenyl oxide disulphonate as brightening agent; Sodium thiosulphate; Potassium sulphate; Boric acid	4.2–4.8	The electroplating solution is continuously stirred at 20–40°C for 10 min The mean pulsed time for the deposition is kept at 0.5–1 ms with a duty cycle of 5–15%	[67]
Silver nitrate	Pyrimidines like 2-hydroxy pyrimidine or 4-hydroxy pyrimidine as a stabilizer; KNO₃ as supporting electrolyte; KOH, NaOH, ammoniacal liquor, or HNO as pH regulators	–	All the components are mixed at 60°C to prepare the plating solution Compared to the traditional cyanide-based baths, this invention has advantages such as low or no toxicity and relatively good stability The deposited silver coating has high adhesiveness and a mirror-finish surface	[68]
Inorganic salt of silver like silver nitrate, silver acetate, or silver tartrate	Coordination agent creatinine and creatinine derivatives; KNO₃ or KNO₂ as supporting electrolytes; KOH, NaOH, or ammoniacal liquor as pH regulator; Some additives like piperidines, piperazine, glycine, or cysteine as a brightener	–	The electroplating bath requires no pre-strike layer The bath has excellent stability	[69]
Inorganic silver salt like silver nitrate	An amino acid compound like glycine as the primary complexing agent; Auxiliary complexing agents like succinimide and glycolylurea	6–14	It is a single-step plating process with no post-plating processing Pre-plating the substrate with a strike layer of silver is not required The deposited coating has a bright appearance and excellent adhesiveness	[70]
Silver nitrate	Sodium thiosulphate; Sulphothiorine; Sodium pyrosulphite; Sodium sulphate; Boric acid as a pH-controlling agent	4–5	It is a high-speed silver electroplating bath However, when the pH value exceeds 5, it is difficult to obtain a good appearance due to the formation of precipitates	[71]
Silver nitrate	Sodium sulphate	–	An ultrathin copper layer is flash-plated on the nickel electroplating layer to enhance the adhesion The top silver layer has a uniform covering and is adherent to the underlying layer Nothing is mentioned regarding the mechanical properties of the developed coating	[72]
Silver nitrate	Coordination agent sulphosalicylic acid and homologue thereof or imidazoles sulphosalicylic acid associated complex; Ammonium acetate as a stabilizer; Potassium hydroxide as pH regulator	7.5–9.5	The developed bath has good stability and long storage life Semi-bright deposits are obtained at a lower current density	[73]
Silver nitrate	Ammonium acetate as the primary complexing agent; Nicotinic acid as the secondary complexing agent; Soluble saccharin and polyoxyethylene glycol as additives	9–10	When pulse electroplating is used, problems such as coating stress and fragility are significant However, bright coatings are obtained	[74]
Silver nitrate	Succinimide; Sodium tetraborate; Polyoxyethylene glycol; Benzotriazole; Ammonia solution as a pH regulator	9–10	Pulse electroplating is carried out at 40°C, and each pulse is 1–10 ms with a duty cycle of 40–60% This method produces a smooth and dense coating with high adhesiveness The bath has a higher throwing power	[75]
Silver nitrate	Succinimide; Sodium tetraborate; Polyoxyethylene glycol and benzotriazole. Ammonia solution as pH regulator	9–10	The use of succinimide increases the complexing power of silver in the electroplating bath The plating solution is stable	[76]
Silver nitrate	Hydantoin or its derivative compounds; Potassium pyrophosphate; Potassium sulphate; Hydrochloric acid		Silver coatings with a bright appearance and excellent adhesive strength are obtained by closely controlling the pulse time, duty cycle, and average current density	[77]
Silver nitrate	Hydantoin or its derivative compounds as the primary complexing agent; Potassium hydroxide	9–14	The use of a composite additive enhances the bath properties The electroplating bath is exceptionally stable and can be used for high-speed silver plating	[78]
Silver nitrate	Methylsulphonic acid; Hydantoin; Potassium hydroxide; Potassium carbonate; Nicotinic acid	9–11	This cyanide-free silver plating bath has some advantages like its ease of operation, good surface covering abilities even for intricate shapes, and excellent adhesion to the substrate surface The coatings have enhanced conductivity and weldability The electroplating solution has a long-term storage life without getting hydrolysed	[79]
Silver nitrate	Disodium ethylene diamine tetraacetate; Succinimide; Nitric acid; Potassium hydroxide as a pH regulator; Sodium lauroyl sarcosinate; Niacinamide as a brightening agent	10–11	The electroplating solution is economically viable and is also stable The surface of the deposit has good adhesion strength and is bright and attractive	[80]
Silver nitrate	Potassium carbonate; Hydantoin derivative compounds; Potassium gluconate; Potassium malate; Citric acid; Butynediol; An alkyl sulphonic acid as the surface-active agent	10	This novel silver electroplating bath is very stable and has a high throwing power	[81]
Silver nitrate	5 Dimethyl Hydantoin; Potassium pyrophosphate; Sodium polydithio-dipropyl sulphonate; Polyethylene glycol	8–12	This alkaline non-cyanide bath has excellent stability and resistance to copper displacement The surface is bright and glossy The coating has high hardness, and the adhesion with the substrate is strong	[82]
Ag TFSI	1-butyl-1-methylpyrrolidinium bis(trifluoromethylsulphonyl)imide (BMPyrr TFSI) based electrolyte (BMPyrr TFSI and 100 mM Ag TFSI) used for reversible silver electrodeposition reactions	–	Crystal clear (water-like) appearance Reversible electrochemical mirror (REM) has the ability to monitor the influx of radiation by continuously cycling between reflective and transmissive (or absorptive) states, alternatively This is achieved via reversible metal electrodeposition over the transparent electrodes	[83]
Ag TFSI	A BMPyrr TFSI (100 mM Ag TFSI electrolyte) in a glove box WE: 15 Å Platinized ITO CE: 2000 Å Ag coated ITO		REM fabrication using via reversible metal electrodeposition STEP 1: Apply pulsed cathodic potential across the electrodes causing formation of a mirror-like layer STEP 2: Apply pulsed anodic potential across the electrodes to oxidize the mirror-like layer formed in STEP 1 STEP 3: Repeating the above steps to remove undissolved reflective material and clean the reflective surface	[84]

Thiosulphate-based silver electroplating bath

Culjkovie [54] developed one of the earliest thiosulphate-based silver electroplating baths in 1976. The throwing power of this improved thiosulphate bath was almost the same as that of commercially used cyanide-based baths. The silver coatings obtained from this bath had a bright finish with excellent anti-tarnish properties. Another electroplating bath with much-improved bath life was suggested by Leahy and Karustis [55]. The addition of additives like hydrosulphite buffer resulted in extended bath life. Further improvement in the bath life was made by Sriveeraraghavan et al. The silver coatings obtained from this bath had considerably high adhesion strength with the underlying copper substrates. However, nothing was mentioned regarding the appearance of the coatings [85]. The use of stabilizers in thiosulphate-based silver electroplating baths was introduced in 1994 by Nobel et al. [86]. Volinsky et al. [87] carried out a comparative investigation of the quality of the deposits from a thiosulphate-based cyanide-free electroplating bath containing silver nitrate and silver bromide as the major silver salt. The operating parameters and composition of both the electroplating bath systems are given in Table 7.

Table 7.

Composition of the thiosulphate-based baths and the electroplating parameters used for electroplating, as proposed by Volinsky et al. [87].

Bath composition	AgNO₃ bath	AgBr bath
AgNO₃	30–50 g L⁻¹	–
AgBr	–	20–40 g L⁻¹
Na₂S₂O₃	225 g L⁻¹	200 g L⁻¹
K₂S₂O₅	40 g L⁻¹	–
Na₂SO₃	–	50 g L⁻¹
Ammonium acetate	25 g L⁻¹	40 g L⁻¹
Aminothiourea	0.6–0.8 g L⁻¹	0.2–0.5 g L⁻¹
pH	5.5–6.0	6.3–6.8
Current density	0.1–0.3 A dm⁻²	0.1–0.3 A dm⁻²

The effect of the main salt (AgNO₃/AgBr) and current density on the quality and appearance of the silver deposit are shown in Table 8. In the bath containing AgNO₃ as the main silver salt, with an increase in current density, the coating becomes rough and dull. Bright silver coatings are obtained when the current density is 0.25 A dm⁻². However, for the AgBr system, bright coatings are obtained at 0.20 A dm⁻². For the AgNO₃ system, bright coatings are obtained when the concentration of major silver salt is maintained in the range of 40–45 g L⁻¹. On the contrary, bright silver coatings are obtained when AgBr is around 30–35 g L⁻¹ in the bath. Mechanically polished and subsequently cleaned copper sheets (dimension: 35 mm × 25 mm × 1.5 mm) were used as WE.

Table 8.

Effect of concentration of silver salt (AgNO₃/AgBr) and current density on the coating quality [87].

Silver nitrate system				Silver bromide system
AgNO₃ (g L⁻¹)	Surface quality	Current density (A dm⁻²)	Surface quality	AgBr (g L⁻¹)	Surface quality	Current density (A dm⁻²)	Surface quality
30	Yellow	0.10	Yellow	20	Yellow	0.10	Yellow
35	Semi-bright	0.15	Semi bright	25	Semi-bright	0.15	Semi bright
40	Bright	0.20	Semi bright	30	Bright	0.20	Bright
45	Bright	0.25	Bright	35	Bright	0.25	Semi bright
50	Rough and dull	0.30	Rough and dull	40	Rough and dull	0.30	Rough and dull

A novel thiosulphate-based silver electroplating bath, consisting of other additives like cetyltrimethylammonium bromide (CTAB), 1,4-diazabicyclo[2.2.2]octane (DABCO), and pyridine-3-carboxylic acid (Niacin) was developed by Bangmaya et al. [88]. Ni-coated brass foil was used as WE for the deposition of Ag from the developed bath. Prior to Ni coating, the brass foils were mechanically polished (till 2000 grit size) and then thoroughly cleaned to remove any dirt/grease. Nickel, as a diffusion barrier coating, was deposited from a bath containing 0.989 M NiSO₄·6H₂O, 0.282 M NiCl₂·6H₂O, and 0.7278 M H₃BO₃. Coatings with an average thickness of 4 μm were deposited via DC galvanostatic route. Coatings were deposited both via DC and pulse galvanostatic route. The composition of the bath is shown in the table in Figure 13. The authors have carried out a comparative study of the surface morphology and the mechanical properties of the coatings. Figure 13(i and ii) shows the SEM micrographs and the coating thickness of the coatings that were obtained under DC and pulse conditions. It was observed that with an increase in the current density, there was an increase in the coating thickness. Authors have also reported that even after 10 months of exposure of the coatings to ambient room conditions, there was no change in the appearance as well as the morphology of the coatings, Figure 13(iii). The coatings deposited via the pulse galvanostatic route had a hardness of 196 ± 6.5 and 227 ± 15.6 VHN at current densities of 0.1 and 0.01 mA cm⁻², respectively.

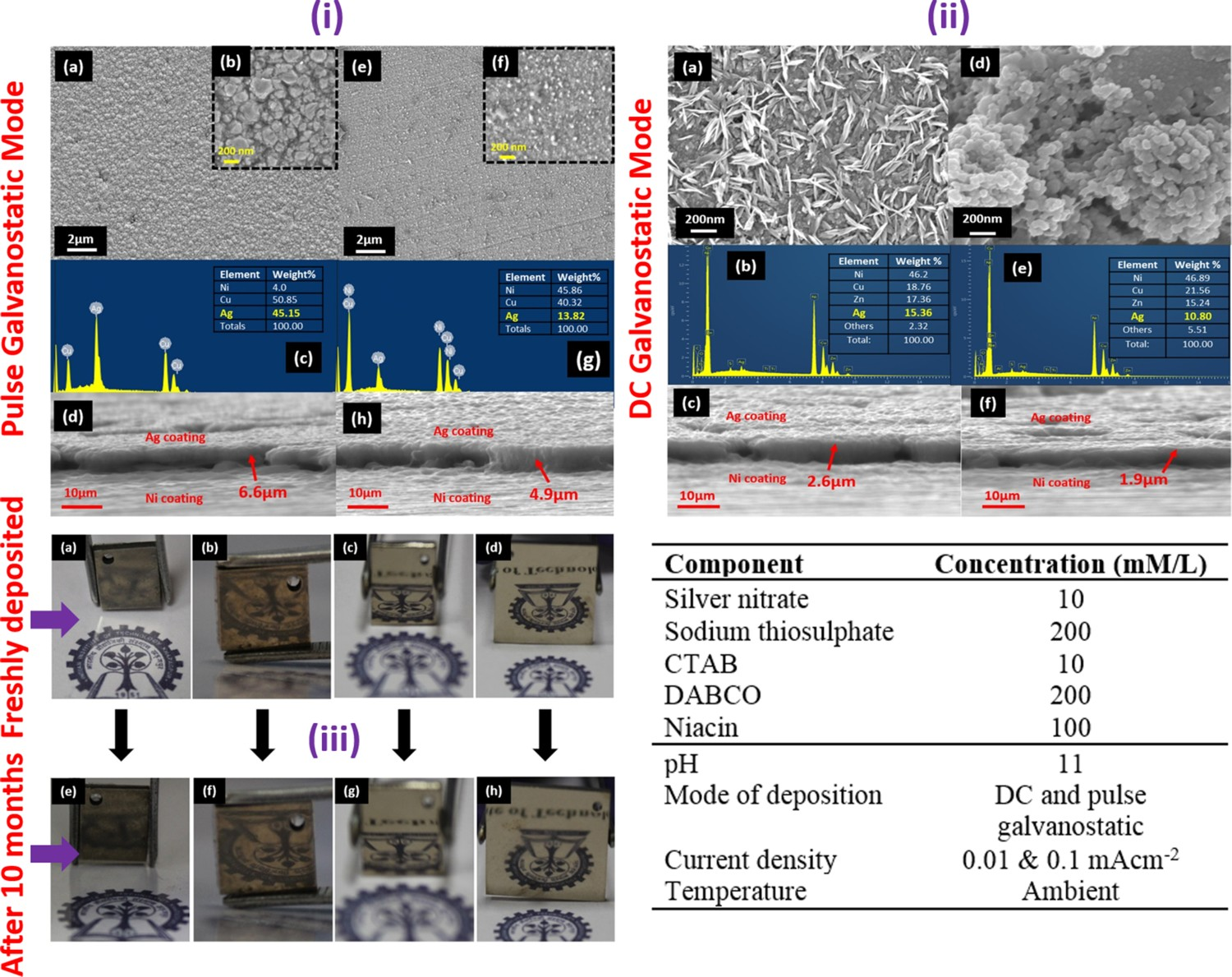

Figure 13.

SEM micrographs and EDS analysis of the coatings deposited under (i) pulse and (ii) DC galvanostatic conditions; (iii) visual appearance of the coatings. Table showing the bath composition and the deposition parameters [88] (the images have been reproduced with due permission from the publisher).

Sulphite-based silver electroplating bath

Unlike the thiosulphate-based baths, the sulphite-based electroplating baths are yet to be completely explored. Very few sulphite-based baths have been established for silver electroplating as an alternative to the cyanide-based baths. Cojocaru et al. [89] deposited silver nanoparticles from a sulphite-based electroplating bath as a possible alternative to the standard chemistry usually proposed in the literature for electrochemical deposition of silver nanoparticles. The electrodeposition of silver nanoparticles was carried out from a sulphite-containing electroplating bath. The bath composition and operating parameters are shown in Table 9. The silver nanoparticles deposited from the proposed electroplating bath had a high nucleation density, and uniform size distribution was achieved.

Table 9.

Bath composition and operating parameters for sulphite-based electroplating bath [89].

Bath component	Concentration
Silver nitrate	10⁻³–0.1 M
Sodium nitrate	0.05–0.5 M
Sodium sulphite	0.25 M
pH	8.6
Temperature	Room temperature (25°C)

This work established that the sulphite baths for silver electrodeposition have a vast potential for novel and innovative applications. Therefore, a thorough knowledge of the reduction kinetics of sulphite complex was essential from a practical perspective. Valiuniene et al. [90] reported the electro-reduction of silver sulphite complexes using electrochemical FFT impedance spectroscopy. The electroplating bath was prepared using Na₂SO₃ and Ag₂SO₄. All the experiments were carried out at room temperature. The EIS measurement was carried out using a three-electrode cell, with Ag|AgCl, KCl electrodes as the reference electrode. The mean duration of silver ad-atoms diffusion was calculated at around 1.56 s.

Thiourea-based (TU) silver electroplating bath

Thiourea (TU) is widely used in the electrodeposition of silver as a brightener, levelling agent, and also as a complexing additive [91,92]. Arvia et al. investigated the smoothening mechanism of TU on the electrodeposition of silver [93].

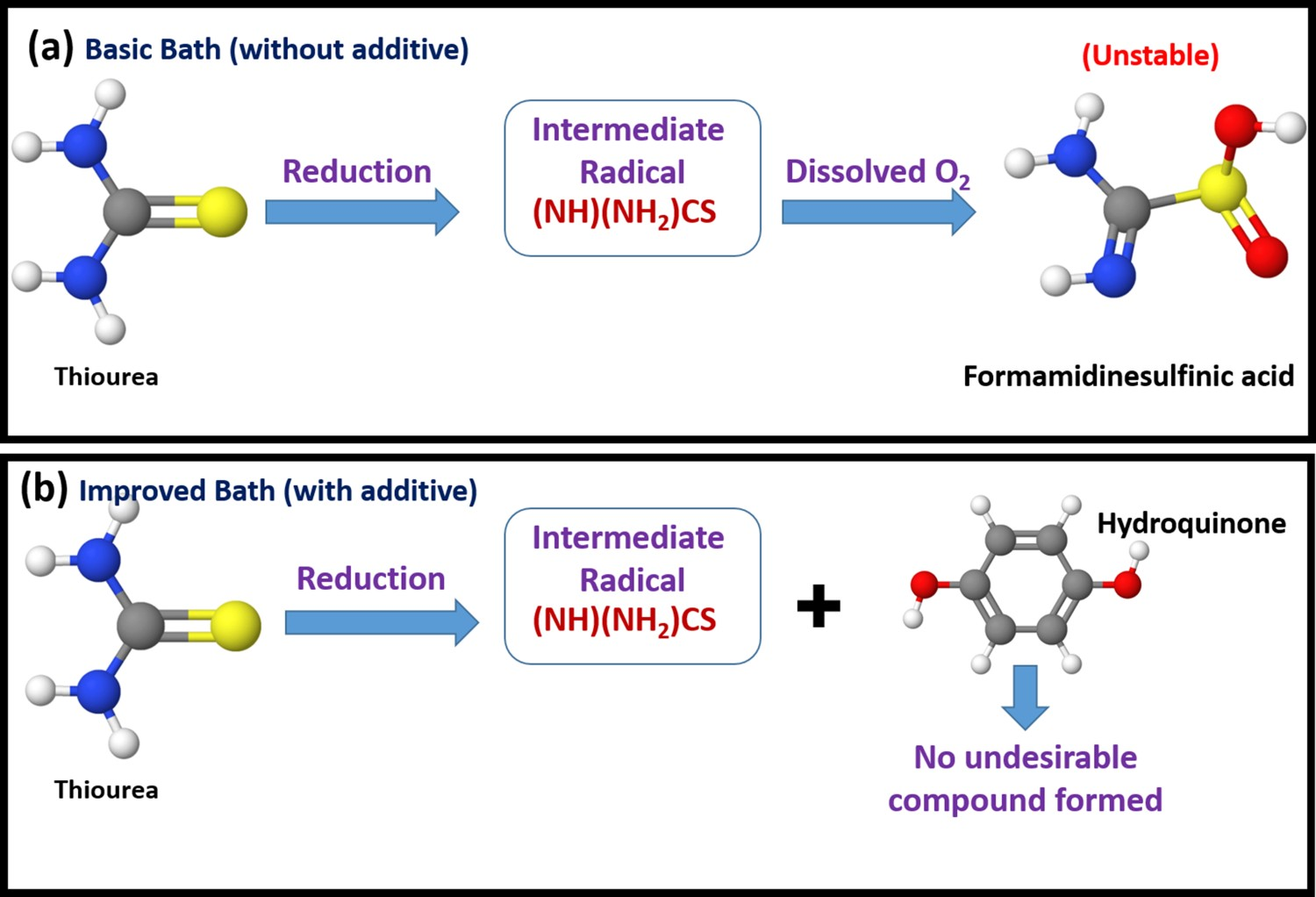

A TU-based cyanide-free electroplating bath was proposed by Bangmaya et al. [92] for the electrodeposition of an Ag–Cu bimetallic composite coating via a pulse galvanostatic route. Bright Ag coatings with excellent adherence and good electrical contact resistance were deposited from the proposed bath. The metal-complex interactions and reduction mechanism occurring during the electrodeposition process were analysed using linear sweep voltammetry and electrical impedance spectroscopy. There was a globular morphology of the deposits. The authors also proposed a growth mechanism that suggested that there is a growth of the higher index planes at the surface, and simultaneously, the lower index planes gradually vanish.

Hydantoin-based silver electroplating baths

Asakawa suggested one of the earliest hydantoin-based baths for high-speed silver electroplating in 1995 [94]. The work provided a practical silver electroplating technique having similar performance as commercially used cyanide baths. The reported bath also had KCl as a conductive salt. The details regarding the composition of the hydantoin-based high-speed silver electroplating bath and the electroplating parameters employed for deposition are mentioned in Table 10. The reported bath was alkaline, with a pH of around 13. The coatings deposited had a dull appearance, and the average thickness of the coatings was around 3.5 μm. Authors have reported that the formulated bath was usable for three turns. However, no insight was reported regarding the mechanical or physical properties of the deposited silver coatings.

Table 10.

Bath composition and operating parameters of the hydantoin-based electroplating bath developed by Asakawa [94].

Bath component	Concentration	Role
Silver nitrate	1–150 g L⁻¹	Silver source
Potassium chloride	1–100 g L⁻¹	Conductive salt
At least one of: 1-methylhydantoin, 1,3-dimethylhydantoin, 5,5-dimethyl hydantoin, 1-methanol-5,5 dimethylhydantoin, 5,5-diphenylhydantoin	10⁻² mol L⁻¹	Complexing agent
pH	8–13
Temperature	30–90°C
Current density	10–150 A dm⁻²

Clauss et al. formulated another hydantoin-based non-cyanide silver electroplating bath (Table 11) that can be used to deposit mirror finish silver coatings at high current density ranges and high temperatures [95]. The bath has silver as a complex of hydantoin as the major silver salt in the bath. The pH of the bath was maintained at around 9–9.5 by using an appropriate amount of KOH. Interestingly no burning was observed in the coatings, and the coatings had a mirror-bright appearance even at higher current densities. However, when the current density was lowered, the coatings developed a matte finish.

Table 11.

Composition of the hydantoin-based silver electroplating bath and the electroplating parameters as reported by Clauss et al. [95].

Bath component	Concentration	Role
Silver as a complex of hydantoin compound	40 g L⁻¹	Source of silver
3-(3-pyridyl)acrylic acid	4 g L⁻¹	For mirror finish look
Any hydantoin compound of: 1-methylhydantoin, 1,3-dimethylhydantoin, 5,5-dimethylhydantoin, 1-methanol-5,5 dimethylhydantoin, 5,5-diphenylhydantoin	70 g L⁻¹	Complexing agent
Potassium hydroxide	50 g L⁻¹	pH control
pH	9–10
Current density	6–15 mA dm⁻²
Temperature	60°C

Morrissey formulated a silver electroplating bath for the deposition of mirror-bright silver. The bath had hydantoin-based complexing agents and an adequate quantity of 2,2′ dipyridyl as a brightener. KOH was used to maintain the pH of the bath. Mirror-bright deposits were obtained at current densities ranging from about 5–20 mA cm⁻². Table 12 shows the composition of the bath developed by Morrissey [96].

Table 12.

Bath formulation and electrodeposition parameters, as reported by Morrissey [96].

Bath component	Concentration	Role
Silver as a complex of hydantoin compound	25 g L⁻¹	Silver source
Potassium hydroxide	45–60 g L⁻¹	pH control
2,2′ dipyridyl	0.1–10 g L⁻¹	Brightener
Any hydantoin derivative compound	45–60 g L⁻¹	Complexing agent
pH	9.5–13
Current density	5–20 mA dm⁻²

In one of their works, Pizzetti et al. discussed about the influence of polyethyleneimine (PEI) and 5,5-dimethylhydantoin (DMH) as an additive during the electrodeposition of silver from a cyanide-free bath [97]. The electrodeposition of Ag was carried out in a bi-electrode setup with brass as WE and Ag plate as CE. All the electrochemical measurements (voltammetry studies, standard Hull’s cell test, etc.) were carried out using a three-electrode system, with glassy carbon disk as WE, Pt as CE and Ag|AgCl (in 3.0 M KCl) as RE. They reported that in the presence of both additives. A smooth and bright deposit with a bluish appearance was obtained at a low current density. Further, they also reported that the presence of nitrate ion in the bath broadens the range of current density for effective silver electrodeposition. Figure 14 below shows visual observations of the coatings obtained at various concentrations of PEI. However, the authors did not carry out any analysis regarding the morphology of the coatings.

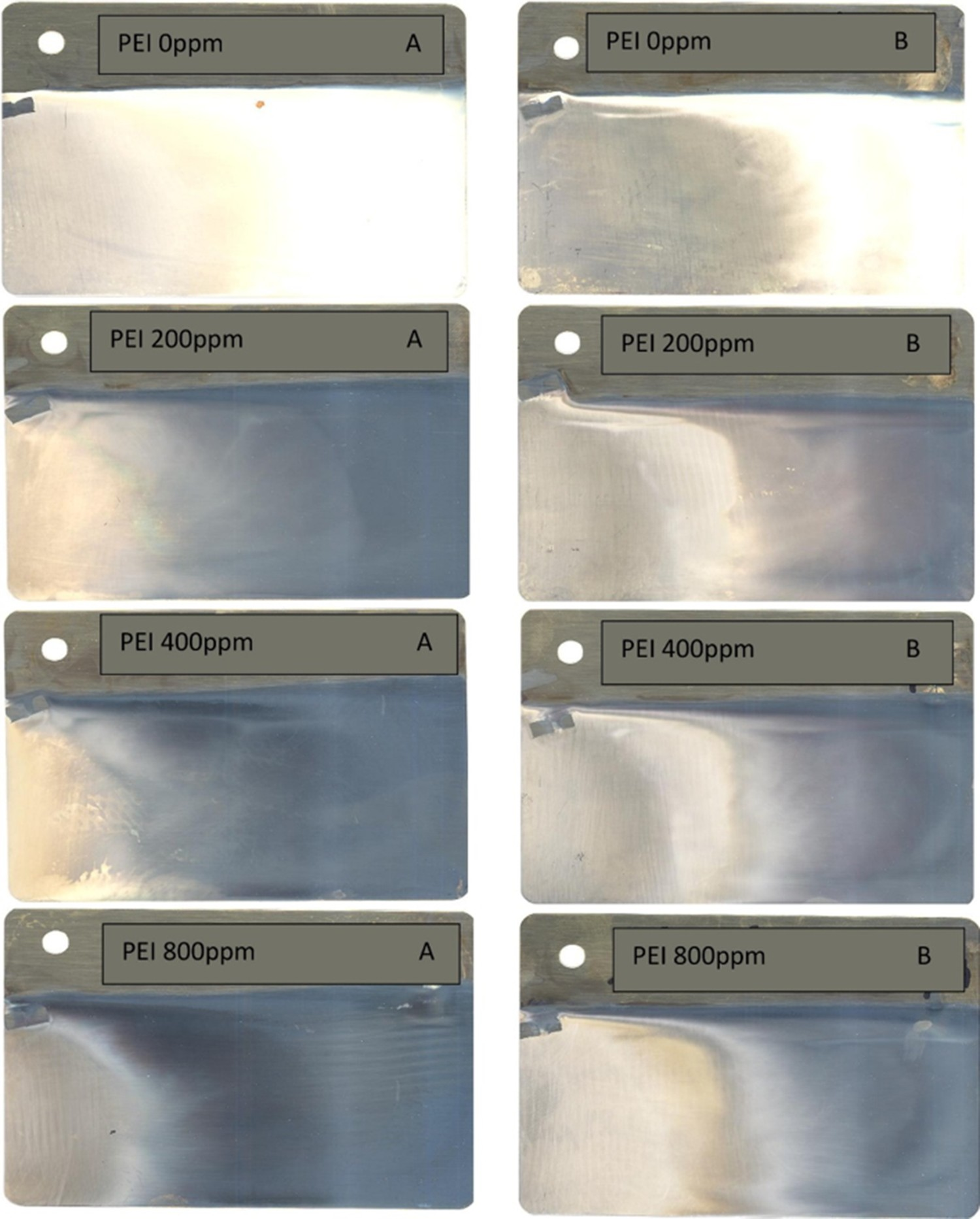

Figure 14.

The appearance of the coatings deposited from both the baths with DMH 0.9 M and at various concentrations of PEI [97] (the images have been reproduced with due permission from the publisher).

Liu et al. investigated the electrochemical behaviour of the silver-complex a 5,5-Dimethylhydantoin (DMH)-based cyanide-free electroplating bath containing nicotinic as an additive [98]. Electrodeposition of Ag was carried out on polished Cu sheets as WE. The composition of the bath is shown in Figure 15. The chronoamperometry data indicated that there is three-dimensional progressive nucleation of the silver complex and the growth of silver deposit in the plating bath was highly dependent on the applied voltage. Smooth silver coatings with a mirror bright appearance and compact morphology were obtained from the investigated bath. In another work, the authors also studied the influence of microstructure on the anti-tarnish property of the deposited silver coatings from the DMH-based electroplating bath by computational chemistry and then further confirmed by experimental data [99].

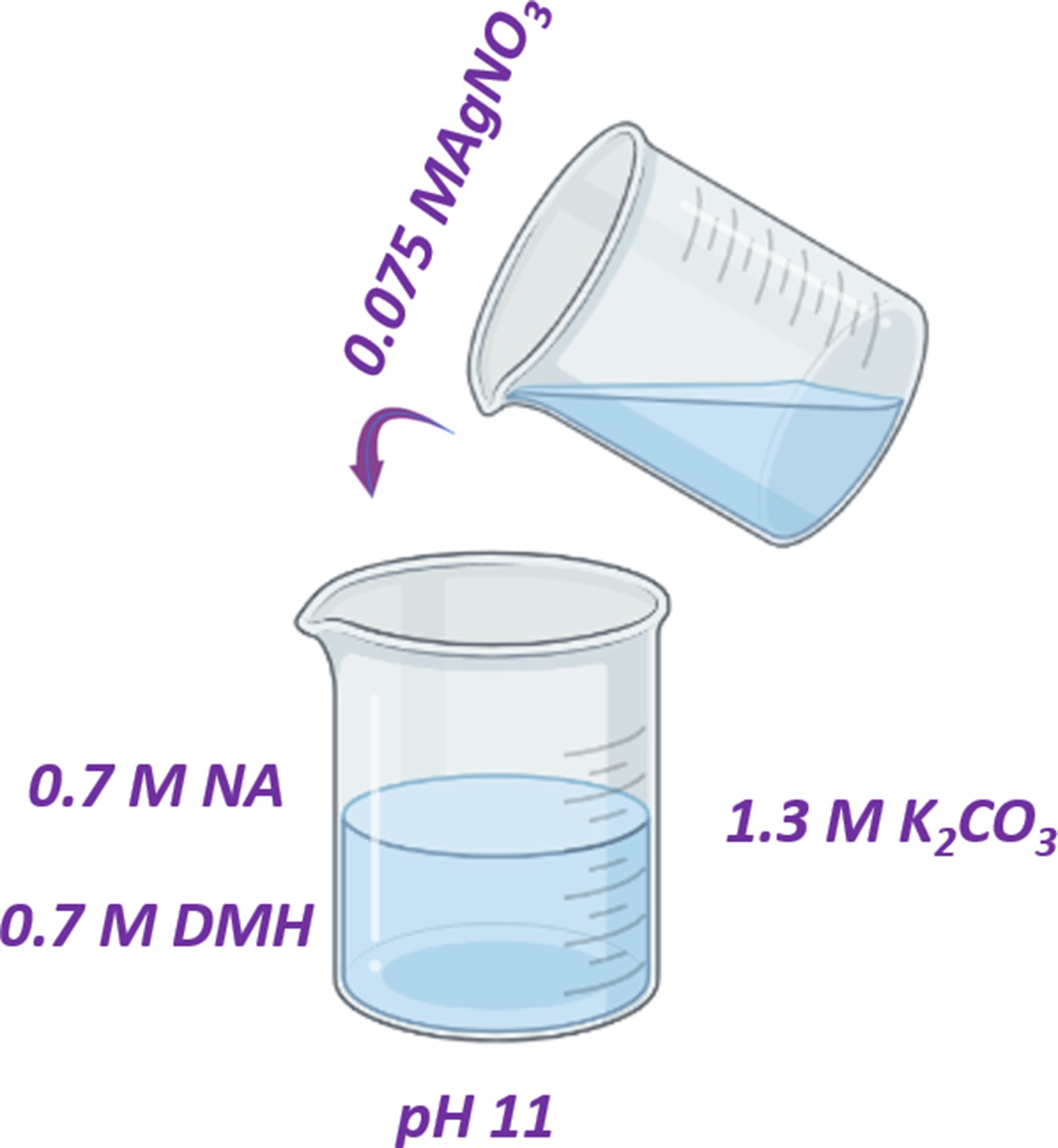

Figure 15.

Composition of the DMH-based cyanide-free silver electroplating bath as reported by Liu et al. [98,99].

Succinimide-based silver electroplating bath

Hradil et al. proposed a succinimide-based cyanide-free electroplating bath for silver deposition and some alloys of silver [100]. In this bath, silver salt was present as a complex compound with imides of organic dicarboxylic acids. The proposed cyanide-free bath produced mirror-bright silver deposits. However, the adhesive strength of the coatings was not reported. The composition of the developed bath is shown in Table 13.

Table 13.

Composition of the succinimide-based cyanide-free silver electroplating bath proposed by Hradil et al. [100].

Bath component	Concentration
Silver as succinimide complex	5–100 g L⁻¹
Succinimide or its derivatives	10 g L⁻¹ to saturation
Conductive salt	Up to 300 g L⁻¹
Alkali metal hydroxide or ammonium hydroxide	5–200 g L⁻¹
Brightener	0.001–5 mol-%
pH	6–14

Another succinimide-based silver electroplating bath was formulated by Gan et al. [101], and the effect of pH and current density on the coating morphology was studied. The bath composition is shown in Figure 16 (a). Pure Cu sheets (dimension: 10 × 10 × 3 mm³) were used as WE for the deposition of Ag. Prior to deposition, the WEs were polished with SiC emery paper (grit size 400–1000) and then cleaned by ultra-sonicating with acetone. All the electrochemical studies (CV and chronoamperometry) were carried out in an electrochemical work station in three-electrode configuration. Copper was used as WE, Pt was used as CE and calomel electrode, kept in a supersaturated potassium chloride solution (3.0 M) was used as RE. The nucleation mechanism occurring during the early stages of deposition was also studied. The chronoamperometry data and its comparison with the SH model (Figure 16(d)), showed that the silver nucleation mode was nearly instantaneous and discontinuous in nature. This hypothesis was illustrated by the schematic, shown in Figure 16(b), by the authors. The SEM micrographs (Figure 16(c)) of the coatings obtained at different current densities show that fine grains were deposited at a lower current density. However, with an increase in the current density, there was a severe agglomeration of the silver particles.

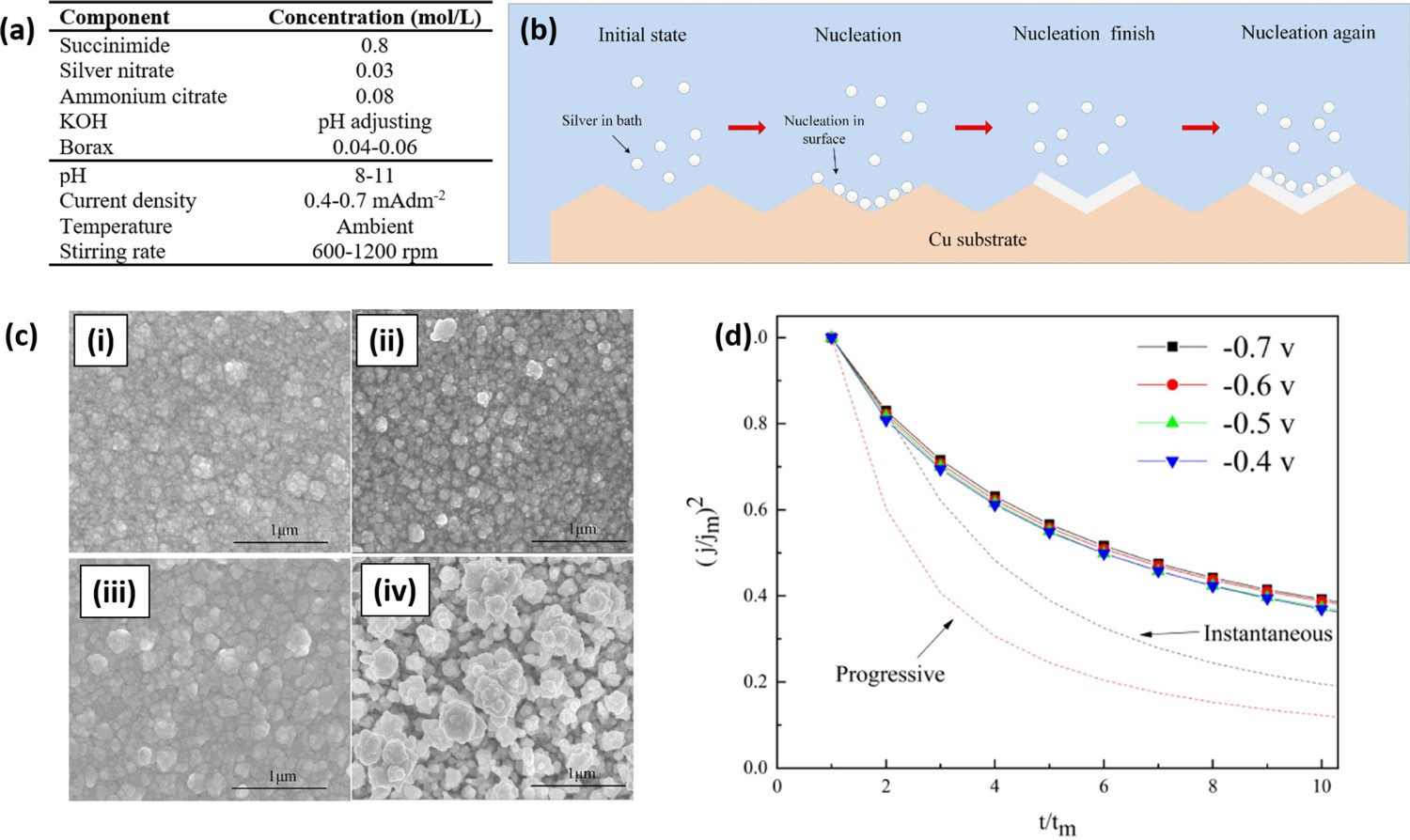

Figure 16.

(a) Composition and electroplating parameters used for the deposition of silver from the succinimide-based bath; (b) schematic showing the deposition steps occurring in the bath; (c) SEM micrographs of the deposited coatings at (i) 0.4, (ii) 0.5, (iii) 0.6 and (iv) 0.7 A dm⁻²; (d) data obtained using chronoamperometry its comparison with the SH model to predict the mode of nucleation occurring [101] (the images have been reproduced with due permission from the publisher).

Ionic liquid (IL) based silver electroplating bath

Ionic liquids (ILs) were introduced very recently, and they were considered a better medium for various applications, including electrodeposition of metals [102,103]. The ILs were preferred as an advanced alternative because of their thermal stability, good conductivity, low toxicity and non-volatility, low/negligible vapour pressures, high ionic conductivity, wide electrochemical window, and recyclability [104–106]. Compared to the regularly used aqueous and non-aqueous solvents, the ILs offered many advantages like they could be operated over a variable temperature range without releasing any harmful vapours or fumes. Additionally, there was no hydrogen embrittlement as most of the ILs are hydrophobic [107]. The chemical and physical properties of various ILs have already been reviewed and reported [108,109]. Galinski and co-workers provided a review of the various electrochemical properties of ionic liquids [110]. Several publications can be found on the electrodeposition of various metals from ILs [111–113]. Silver was also electrodeposited from ILs, as a pure metal and in the form of an alloy with other metals [114–116]. Some of the ILs that are commonly used for silver electroplating are listed in Table 14.

Table 14.

Commonly used Ionic liquids (ILs) employed for the electrodeposition of silver.

Name of IL	Formula	Reference
1-butyl-3-methylimidazolium tetrafluoroborate	[BMIm][BF₄]	[117,118]
1-butyl-3-methylimidazolium hexafluorophosphate	[BMIm][PF₆]	[119]
1-ethyl-3-methylimidazolium tetrafluoroborate	[EMIm][BF₄]	[115]
1-butyl-3-methylimidazolium bis(trifluoromethanesulphonyl)imide	[BMIm][TFSI]	[120]
N-butyl-N-methyl-pyrrolidinium bis(trifluoromethanesulphonyl)imide	[C₄mPyr][TFSI]	[121]
N-butyl-N-methyl-pyrrolidiniumdicyanamide	[C₄mPyr][DCA]	[121]
DIMCARB		[122]
1-butyl-3-methylimidazolium trifluoromethylsulphonate	[BMIm][OTf]	[107]
1-ethyl-methylimidazolium chloride	ZnCl₂-EMIC	[123]

Roberta et al. used electrochemical measurements (CV and chronoamperometry) to study the variation in the kinetics and the morphology of silver coatings electrodeposited from an air and water-stable ionic liquid (the 1-butyl-3-methylimidazolium tetrafluoroborate) [117]. Compact, pure, and thin (about 0.3 μm) coatings, with a mirror-bright appearance were obtained from the developed bath containing AgBF₄ dissolved in 1-butyl-3-methylimidazolium tetrafluoroborate ([BMImBF₄]). The chronoamperometry results showed that the nucleation behaviour followed at room temperature is a mixture of both instantaneous and progressive nature. However, at 200°C the nucleation of silver was progressive in nature.

Polyethylene glycol (PEG) based silver electroplating bath

Nanocrystalline silver coatings were deposited via electrodeposition from polyethylene glycol (PEG)-based acidic bath. These coatings were deposited keeping in mind the anti-microbial properties of silver [124]. Nano-crystalline Ag coatings were deposited in galvanostatic conditions (current density = 0.57–2.29 mA cm⁻², time = 1800 s), with stainless sheet as WE and Pt sheet as CE. Electrochemical calculations (LSV and CV) were carried out using glassy carbon electrode as WE, Ag|AgCl (in 3.0 M KCl) as RE and Pt as CE. The authors carried out a detailed electrochemical, microstructural and anti-microbial study of the developed bath and the coatings. Electrodeposition was carried out at room temperature at different current densities. The bath composition and the appearance of the coatings obtained at different current densities are shown in Figure 17.

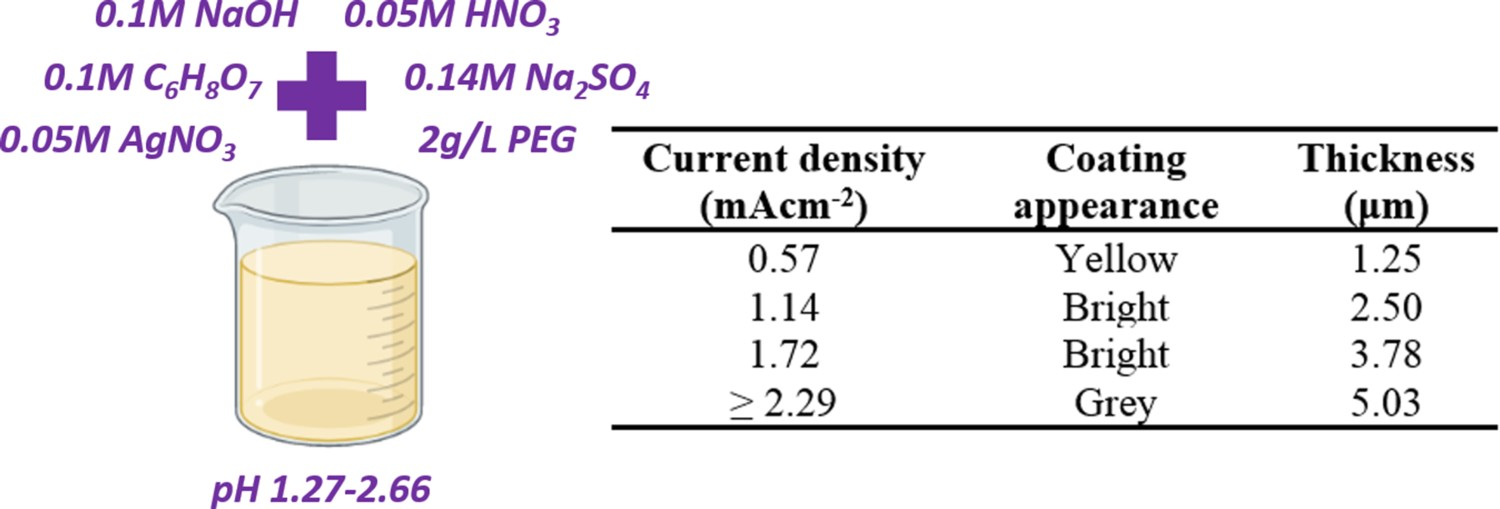

Figure 17.

The bath composition and the appearance of the coatings obtained at different current densities [124].

The SEM micrographs show that the morphology of the deposited coatings was strongly influenced by the bath composition as well as the deposition parameters (current density and time).

When the current density is minimum (Figure 18(a)), a non-uniform morphology consisting of grains of various different sizes was obtained. However, there was a drastic change in the shape and nature of the deposits when the current density was increased to 1.14 mA cm⁻². Uniform, compact, and coherent Ag deposits with defined repetitive patterns of acicular crystallite structure (Figure 18(b)) were obtained. Dendrite-shaped morphology was obtained when the current density was further increased to 1.72 mA cm⁻² (Figure 18(c)). This change in the shape of the Ag coatings was reported due to the change in the structure of the double-layer during electrodeposition.

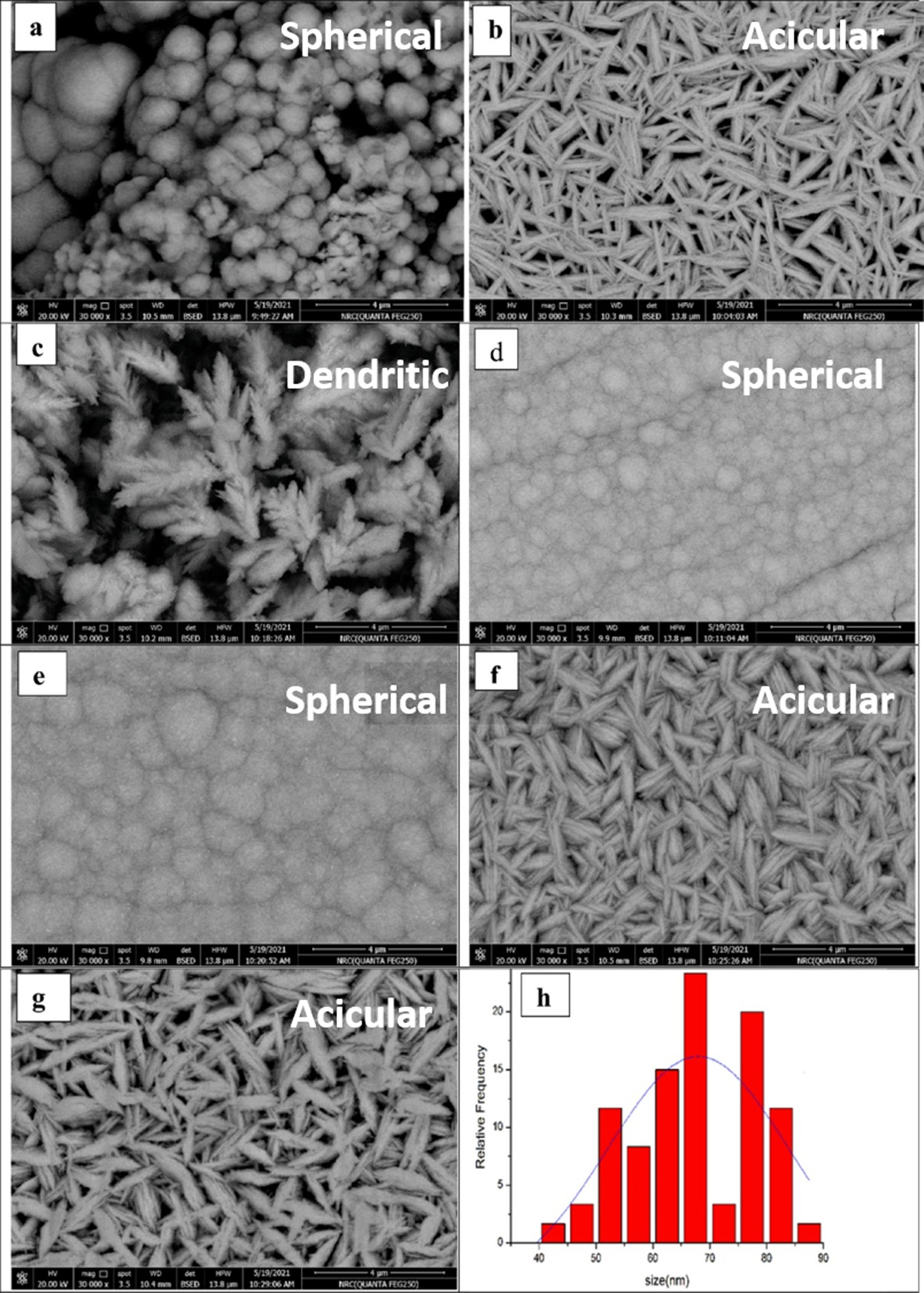

Figure 18.

SEM micrographs of silver coatings deposited from the bath reported bath at different operating parameters: (a) 0.57 mA cm⁻², 30 min, (b) 1.14 mA cm⁻², 30 min, (c) 1.72 mA cm⁻², 30 min, (d) 1.72 mA cm⁻², 10 min, (e) 1.14 mA cm⁻², 30 min, 0.1 M AgNO₃, (f) 1.14 mA cm⁻², 30 min, 45°C, (g) 1.14 mA cm⁻², 30 min, 55°C, (h) histogram of the particle size distribution [124] (the images have been reproduced with due permission from the publisher).

Other baths

Some commonly used complexing agents like thiosulphate, sulphite, succinimide, PEG, 5,5-dimethylhydantoin, and TU for cyanide-free silver electroplating have already been discussed in the above sections. Other complexing agents occasionally employed for silver electroplating include 2-hydroxy pyridine (HP) [125], uracil [126], HEDTA [127], ammonia [128–130], borates and fluoride solutions [131] etc. Some of these electroplating baths will be elaborated on in this section.

Lin et al. [125] reported the occurrence of progressive nucleation in a cyanide-free silver electroplating bath containing 2-hydroxypyridine (HP) as a complexing agent and polyethyleneimine (PEI) as an additive. The bath contains 0.1 M AgNO₃, 0.6 M 2-HP, 0.1 M KNO₃ and 1 M KOH. The SEM images confirm the formation of a smooth and bright silver deposit in the presence of PEI.

A cyanide-free silver plating bath containing uracil as a complexing agent was reported with polyethyleneimine (PEI) as an additive [126]. The morphology, surface finish, and adhesiveness of silver coatings obtained from the reported bath in the absence and presence of PEI were evaluated. Mirror bright coatings with excellent adherence were obtained without a separate strike plating process when PEI was present in the bath. In the absence of PEI, the average grain sizes of the coatings ranged from 100 to 300 nm, and the coatings were rough and dull. However, upon the addition of PEI to the bath, bright coatings with a smooth surface and grain size of 30–80 nm were deposited.

The electrodeposition of silver from an ammonium-buffered solution containing N-(2-hydroxyethyl)ethylenediaminetriacetic acid (HEDTA) at various concentrations was investigated [127]. The composition of the bath for each deposition consisted of 0.1 M AgNO₃, 0.5 M NH3, 0.1 M NH₄NO₃ and a varying amount of HEDTA (0, 0.2, 0.02 and 0.002 M). The bath pH was maintained at 10.5. SEM studies revealed that in the absence of HEDTA, very fine and globular crystallites and larger clusters of silver were obtained. However, in the presence of HEDTA in the bath, a compact and levelled morphology with coalesced silver crystallites was obtained. The presence of HEDTA in the electroplating bath gave brightening properties to the coatings and improved the quality of the silver coatings.

Different types of gold electroplating baths

A large number of proprietary gold electroplating baths have been established and are used industrially. Gold electroplating baths can be categorized into four groups: (1) alkaline cyanide bath [pH >8], (2) acidic cyanide bath [pH <6], (3) neutral cyanide bath [pH 6–8], and (4) cyanide-free gold electroplating bath. The cyanide-free gold electroplating baths can also be further classified into acidic, alkaline, and neutral based on pH values. This article reviews only the cyanide-free aspects of the electroplating baths. The cyanide-based electroplating baths are discussed concisely in this section. In the later part of this section, the composition, operating parameters, and coating properties of many established cyanide-free electroplating baths will be elaborated.

Cyanide-based gold electroplating baths

Cyanide gold electroplating baths are operated at different pH levels depending upon the usage. As the name suggests, they contain free cyanide ions in excess amounts. Fletcher and Moriarty developed an acidic gold electroplating bath containing auric(III) gold in a cyanide complex form [132]. Ostrow developed an electroplating bath containing aurous cyanide and amine salts as a complexing agent, giving bright gold deposits at an alkaline pH [133]. Ostrow and Nobel proposed an alkali cyanide bath that produced bright and hard gold deposits [134].

Citrate buffers are used to control the pH in the acidic cyanide-based electroplating baths. They are operated at a pH of less than 6. Low-pH cyanide-based electroplating baths produce bright and hard gold deposits and are widely favoured for use in the jewellery industry. Due to their excellent corrosion resistance and excellent adhesion, these electroplating baths have found a wide range of applications throughout the electronics industry for contact surfaces, corrosion protection, bonding surfaces, and special electroforming. Alkaline cyanide gold electroplating baths are relatively more stable and produce bright deposits. But they also have certain limitations. They are not compatible with many of the polymers which are used in the microelectronics industry. The photoresistors and organic laminates get damaged at high-pH and high-cyanide concentrations. Therefore, a lot of effort has been made to develop neutral electroplating baths. The alkaline, soft gold deposits are not acceptable for sliding electronic contacts in telephones where wear resistance is critical.

Non-cyanide gold electroplating baths

Many cyanide-free electroplating baths have been developed for the electrodeposition of gold with a need for an environment-friendly alternative to the existing toxic baths, as shown in Table 15.

Table 15.

Composition and properties of various reported cyanide-free gold electroplating baths.

Gold salt used	Composition	pH	Properties	Ref
Gold ions from salts of sodium gold sulphite	Potassium gold sulphite complex; Disodium EDTA as a chelating agent	7–14	Coatings up to 0.01 inch or even thicker are obtained The coatings are bright and do not require any post-plating polishing The coatings are dense, compact, fine-grained, and not porous, as obtained by the deposition of gold from the conventional cyanide-based baths	[3]
Sodium gold sulphite complex and a palladosamine chloride complex	Citric, tartaric, malic, gluconic, or oxalic acid for chelation; Selenium or sulphur compounds as brightening agents; Ammonia, alkali metal salts, or alkaline earth metal salts for enhancing the conductivity; Alkali metal borates, phthalates, or citrates as a pH buffer	8	The bath is operated at around 56°C At a current density of 5 A sq. ft⁻¹ and a plating rate of 100 milligrams per ampere minute, a fully bright, mirror-finish gold deposit is obtained	[135]
Gold sulphite salt and a Cu salt	Copper as a water-soluble salt; Water-soluble salts of W, As, or Tl as a brightener; Palladium as a water-soluble salt	9–10	Gold alloys with reddish as well as white coloration are obtained Coatings up to a thickness of 30 µm are obtained	[136]
Hexapotassium-m-ethylenediaminetetraacetatobis-(aurous sulphite)	Salts of sodium and potassium of ethylenediaminetetraacetic acid	7.5–8	Gold deposits with a hardness of 75–90 kg mm⁻² are obtained Depending upon the current density used, the coatings are either dark-yellow, matted, or glossy	[137]
Water-soluble gold sulphites	Phosphoric, citric, pyrophosphoric, or oxalic acids as conductive salt; EDTA or its derivative compounds as a complexing agent; A metallic lead compound in ppm level	<7	Traces of lead is used for enhancing the throwing power of the electrolyte The deposits produced are found suitable for electronic packaging The method is suitable for various plating techniques like rack plating, jet plating, and barrel plating	[138]
Gold in the form of a soluble sulphite complex	A sulphite or bisulphite ion; A supporting electrolyte to provide electrical conductivity and maintain pH; An organic polyamine or mixture of polyamines to control the crystallinity and the mechanical properties of the coating; An aromatic organic nitro compound	<6.5	An acidic gold electroplating bath with enhanced stability	[139]
Sulphurous gold complexes	As and W used to increase hardness and as brightening agents	7–12	The bath has elevated stability, combined with low precipitation Bright gold coatings with a glossy appearance are obtained	[140]
A trivalent gold hydroxide salt or chloroaurate salt is used	A hydantoin compound of imidazolidinedione, 5,5-dimethyl hydantoin, or hydantoic acid as a chelating agent; Boric acid, Succinic acid, and phthalic acid as a buffer; A conductive salt	5–10	Gold coatings with excellent adhesion to the substrate are obtained. The adhesiveness of the coating with the underlying substrate depends on bath composition There is no mention of the appearance of the coatings	[141]
Water-Soluble gold compounds like potassium/sodium/ammonium chloroaurate; gold sulphite salt of potassium/sodium/ammonium sulphite; gold thiosulphate salt of potassium/sodium/ammonium.	Sulphurous acid or sulphites as complexing agent; Water-soluble tin salt; Cationic macromolecular compounds as surfactants; Hydroxy-carboxylic acids as masking agent; Hydroquinone as an oxidation inhibitor; Aldehydes like m-chlorobenzaldehyde or p-nitrobenzaldehyde as brightening agents; Formic acid, acetic acid or propionic acid for controlling pH	<7	The reported bath has enhanced stability and good throwing power A gold-tin alloy is produced having good brightness The coatings lack adhesion to the underlying substrate	[142]
Chloroauric acid as the source of gold	1,2-ethylenediamine for enhancing the stability; Potassium salt for enhancing the bath conductivity; An organic carboxylic acid as a pH buffer; Thiophenecarboxylic acid or its derivative compounds as a brightener	2–6	The gold plating solution reports excellent stability, and semi-bright coatings with good adhesion are obtained	[143]
Sodium gold Sulphite or ethylene diamine complex of sodium gold sulphite	EDTA as a complexing agent; Salt of organic carboxylic acid as a secondary complexing agent	4–5	Gold deposits with suitably good adhesion strength and high solderability are obtained	[144]
A gold sulphite salt or a chloroaurate salt	Sodium mercaptoethanesulphonate, sodium mercaptopropanesulphonate, or aminoethanethiol as complexing agent; A citrate salt for enhancing bath conductivity; Thallium salt as a grain refiner	3–6	The bath is used for electroless plating of gold The bath is operated at acidic pH Under alkaline conditions, the coatings peeled off the substrate	[145]
Gold chloroaurate salt as the source of gold	Bis (3-sulphopropyl) disulphide as a complexing agent; Thallium for accelerating the deposition rate; Potassium citrate as conductive salt; KOH as pH buffer	<7	The bath is used for preparing gold bumps via an electroless plating route The gold bumps have excellent adhesion to the substrate and good solderability	[146]
Sodium gold Sulphite	Sodium hydroxymethanesulphonate as a reducing agent; Ethylenediamine or glycine as a surfactant; An aminocarboxylic acid compound or a carboxylic acid compound like EDTA as a complexing agent	6–8	The bath has excellent stability The electroless deposition route is used for plating gold on brass substrates	[147]
An alkaline salt of gold sulphite or ammonium of gold sulphite	A conductive salt including sulphite and sulphate; Thallium as a grain refiner; A conductive salt at least one of iridium, ruthenium, and rhodium		A coating capable of maintaining a high hardness even when the film is subjected to a heat treatment is obtained A coating thickness of 15 µm and hardness of 70 HV is achieved	[148]
A monovalent gold complex like sodium chloroaurate or gold hydroxide, gold sulphite	Tiopronin or 6-aminopenicillanic acid as a primary complexing agent; Ascorbic acid as a reducing agent; Bipyridyl or PEG as a brightening agent	4–5	The proposed bath has a long storage life and gives bright gold deposits at acidic pH	[149]
Gold sulphite salt or chloroaurate salt is the source of gold	Sodium mercaptoethanesulphonate, sodium mercaptopropanesulphonate, or aminoethanethiol as a complexing agent; Thallium (Tl) as a grain refiner	<7	The acidic gold plating solution is used to produce coatings with good adhesion via the electroless route Nothing is mentioned regarding the surface quality of the deposited layer	[150]
Alkali gold sulphite or ammonium gold sulphite as the source of gold ions	An aqueous amine as a stabilizer; Thallium (Tl) compound as grain refiner; A pH buffering agent	–	The reported non-cyanide gold electroplating bath is used for the plating of electrical circuits	[151]
A gold sulphite alkaline salt or gold sulphite ammonium sulphate salt	Potassium sulphite; Polyalkylene glycol as an amphoteric surfactant; A water-soluble amine as a buffer material	–	This electroplating bath is used to produce gold bumps	[152]
Gold sulphite as the source of gold	A water-soluble amine; Bi/Sn/In compound as grain refiner; Potassium sulphite and sodium sulphite as conductive salts; Anhydrous citric acid and potassium hydroxide as a buffering agent	7–8	This non-cyanide electroplating bath is used for preparing gold bumps for electronic applications The gold bumps have a hardness of 50–100 VHN	[153]
Gold ions from gold sulphite	Sulphite and thiosulphate compound as complexing agents; A water-soluble polyaminocarboxylic acid and benzotriazole as a stabilizer; An amino acid containing sulphur and hydroquinone as a stabilizer	7–13	The gold coatings obtained from this electroplating bath are used in the electronic industry for coating circuit boards.	[154]
Sodium/potassium/ammonium sulphite salts of gold	2-benzimidazolethiols dissolved in either sodium hydroxide, potassium hydroxide, or calcium hydroxide	>7	• The bath is used for both electroless as well as electrolytic deposition	[155]
Gold sodium sulphite as the source of gold ions	A thiourea-based compound as complexing agent; An ethylenediamine compound as a stabilizer; Sodium hydroxide for controlling pH	8	A hard gold coating with excellent heat resistance is obtained The surface is not discoloured, and the contact resistance is also not affected by oxidation due to heat treatment At a current density of 0.3 A dm⁻², a coating of thickness 10 μm is obtained. It had a glossy appearance and a hardness of 181 VHN	[156]
Sodium gold sulphite/sodium chloroaurate/sodium gold sulphite	Aminocarboxylic acid as complexing agent; A thiosulphuric acid compound for enhancing solderability; A hydrogen sulphite compound for preventing non-uniform corrosion of the coating; A sulphurous acid as a stabilizer; A phosphoric acid compound as a pH buffer	10–12	The reported bath is used for the electroless deposition of gold At acidic pH, the bath is unstable. Therefore, the bath pH is maintained between 10 and 12 No pitting marks are obtained on the coatings Moreover, the coatings have excellent solderability and adhesion to the underlying Ni layer	[157]
Trivalent gold from HAuCl₄	A hydantoin compound, preferably 5,5 dimethyl hydantoin; a sulphite salt, preferably Na₂SO₃ or K₂SO₃ as a stabilizer	12–13	The bath is used for electroplating a gold-copper alloy on decorative substrates, jewelry, watches, and eyeglass trade Bright deposits are obtained, and colour can be imparted to the coatings by alloying with elements like copper, zinc, and indium	[158]
Gold ions from gold potassium citrate	Malic acid; EDTA disodium salt as a complexing agent; Lactic acid or ammonia water for pH control; Sorbic acid and succinic acid as an accelerator; Tripotassium citrate as a stabilizer; Sodium ascorbate as a protective agent	5	The reported bath is used to produce mirror-bright gold coatings via an electroless deposition route	[159]
Gold ions from gold sulphonic acid	Organic additives like ammonium citrate, hydroxy ethylene diphosphonic acids; Butynediol as an accelerator	6–8	The reported bath is used for producing hard gold coatings	[160]

Thiosulphate-based gold electroplating baths

Gold electroplating using thiosulphate-based complexing agents was first reported in the early ‘90s. But due to the instability of these baths, they were never used for making commercial-grade electroplating baths. When compared to cyanide salts of gold, thiosulphates reported a lower stability constant; the stability constant of the [Au(SO₃)₂]³⁻ complex is equal to 10²⁶, and that of cyanide complex is 10⁵⁶ [161]. Despite having higher stability than sulphite complexes, the thiosulphate-based gold electroplating baths were significantly less explored [162]. The primary issue with not using thiosulphate baths was their inherent instability concerning disproportionation. The thiosulphate ions were relatively stable in alkaline pH. However, when the pH was lowered below 8, they readily underwent a disproportionation reaction and formed colloidal sulphur [22]. The disproportionation reaction that occurred is represented as:

$${\rm S}_2{\rm O}_3^{2-} \leftrightarrow {\rm S}^0 + {\rm SO}_3^{2-}$$

S_{2} O_{3}^{2 -} \leftrightarrow S^{0} + {S O}_{3}^{2 -}

However, at neutral or mildly acidic conditions, pH ≈ 7.0, protonation of the excess (S₂O₃)²⁻ occurs, and it forms

${\rm HSO}_3^-$

{H S O}_{3}^{-}

and colloidal sulphur; this hinders its usage for commercial applications:

$${\rm H}^ + + {\rm S}_2{\rm O}_3^{2-} \leftrightarrow {\rm S}^0 + {\rm HSO}_3^-$$

H^{+} + S_{2} O_{3}^{2 -} \leftrightarrow S^{0} + {H S O}_{3}^{-}

Inoue et al. reported a novel gold plating bath that uses an electroless technique of deposition. The bath was used for the commercial manufacturing of finely patterned wiring boards. Thiourea was used as a reducing agent, and hydroquinone was used regenerator. Therefore, the reducing agent could be completely recycled.

Matthew and Arnold investigated the effect of cation concentration, the concentration of thiosulphate and ascorbic acid, thallium, lead, thiourea, and 2-Mercaptobenzothiazole (MBT) as an additive on the electroless deposition of gold (Table 16) [163].

Table 16.

Effect of cation concentration; concentration of thiosulphate and ascorbic acid; thallium, lead, thiourea, and MBT as an additive on the electroless deposition of gold [163].

Parameter	Effect
Effect of cations	The effect of phosphate ions was evaluated. At near neutral pH (pH = 6), there was no effect on the plating rate and lifetime of the bath. The bath performance was not affected when the citrate buffer in the bath was replaced with a phosphate buffer
Thiosulphate concentration	The bath stability was enhanced by adding free thiosulphate ions to the bath containing citric acid buffer. However, it led to a decrease in the gold deposition rate
Ascorbic acid concentrations	The initial plating rate reduced significantly when the concentration of ascorbic acid was reduced. However, the bath life was enhanced
Thallium as an additive	When the thallium concentration was low, the bath was more stable
Lead as an Additive	Lead did not affect both the plating rate and the bath's lifetime, as it is a depolarizer. The same was also reported by Kato et al.
MBT as an additive	2-Mercaptobenzothiazole (MBT) was used as a stabilizer. There was no significant enhancement in the plating rate as well as the bath life
EDTA and N-methylamine as a chelating agent	EDTA and N-methylamine both had no significant effect on plating rate and bath life
Thiourea as an additive	When the concentration of thiourea was high, the bath lifetime decreased substantially while the plating rate quadrupled

In the article published by Sullivan and Kohl in 1995 [164], the electrochemical reduction of gold thiosulphate was studied, and it was compared to the reduction of gold cyanide. They reported that thiosulphate salts of gold had more positive reduction potential than cyanide salt of gold. Therefore, they suggested that thiosulphate could replace the use of cyanide for the electroplating of gold. They also studied the effect of sulphite addition to gold thiosulphate bath as an additive. They reported that, at pH values greater than 4, the concentration of free thiosulphate ions was not affected by the pH level anymore because they were fully deprotonated. When thiosulphate was present in excess amount, there was a shift in the reduction potential towards the more negative side, as predicted by the Nernst equation. The potentiodynamic curves of gold thiosulphate with varying amounts of sulphite concentration reveal that the potential to reduce gold thiosulphate shifts towards the negative direction, with an increase in the concentration of sulphite additive. Finally, a qualitative comparison was made between the reduction of gold cyanide and gold thiosulphate, concluding that the reduction reaction for the gold cyanide reaction was slower. The reduction of gold thiosulphate was also studied in an acidic condition [165] (Table 17).

Table 17.

Composition and operating parameters of the thiosulphate – ascorbic acid electroless gold plating bath developed by Sullivan and Kohl [164].

Bath component	Concentration
Na₃Au(S₂O₃)₂	0.005 M
Citric acid	0.4 M
Ascorbic acid	0.05 M
Temperature	30°C (±1°C)
pH (adjusted using KOH)	5.9–6.1

High-quality gold deposits were obtained from an iodide-thiosulphate system using rotating disk voltammetry. The electron transfer at the cathode was reported to be slow, and the transfer coefficient (α) was found to be around 0.76. The electrochemical reactions taking place at the anode from an iodide-thiosulphate bath were also reported [166]. Semi-bright, smooth, and uniform gold deposits were obtained using an optimized composition of the electroplating bath at an optimized operating condition. A similar kind of gold deposit was obtained using a borate bath [167].

Ando et al. reported a super stable thiosulphate-based gold electroplating bath for advanced wiring board manufacturing [168]. They used a monovalent gold ion as the source of gold, which was stabilized by thiosulphate and sulphite ligands as a complexing agent. Thiourea was used as a reducing agent. Hydroquinone was introduced as a reducing agent regenerator. This regenerator's function was to recycle the oxidized products from the reducing agent back to the original thiourea. Therefore, coatings with exceptionally high quality were obtained from the modified bath at stable plating conditions.

Sulphite-based gold electroplating baths

Sulphite complexes were for gold electroplating since the mid-1800s. Most of the electronic industries used sulphite-based gold electroplating baths as an alternative to conventional cyanide-based baths. In microelectronic and optoelectronic industries, the use of sulphite-based electroplating baths was preferred over cyanide-based baths. Due to their higher throwing power than cyanide baths, sulphite baths produced gold bumps with excellent shape, uniform thickness, and minimum surface roughness. Additionally, the coatings had a minimum or no under-plating [35]. Gold sulphite baths could deposit smooth, bright, and ductile pure gold deposits. Both high- and low-carat gold alloys were deposited from sulphite-based electroplating baths. The deposits obtained had higher ductility than those obtained from traditional cyanide baths [15]. Additionally, sulphite-based baths have excellent micro-throwing power. The sulphite-based gold electroplating baths were found to be more stable under alkaline conditions than in acidic conditions. There was no delamination of the coatings when plating was carried out at a pH level above 10 [169,170]. Most sulphite-based baths generally operate in the pH range of 9–11 for better bath stability and to satisfy the resist compatibility requirement. In the sulphite-based bath, gold is present in the form of

$\; \lsqb {\rm Au}\lpar {{\rm S}{\rm O}_3\rpar_2} \rsqb ^{3-}$

[A u (S O_{3})_{2}]^{3 -}

. The excess sulphite in the electroplating bath undergoes a decomposition reaction to form gold and free sulphite ions as per the reaction below.

$${\rm Au}\lpar {\rm S}{\rm O}_3\rpar _2^{3-} \leftrightarrow {\rm A}{\rm u}^ + + 2{\rm SO}_3^{2-}$$

A u (S O_{3})_{2}^{3 -} \leftrightarrow A u^{+} + 2 {S O}_{3}^{2 -}

A sulphite ion, depending upon pH, also decomposes according to the reaction shown below and results in the formation of hydroxyl ions.

$${\rm SO}_3^{2-} + {\rm H}_2{\rm O}\leftrightarrow {\rm S}O_2 + 2{\rm O}{\rm H}^-$$

{S O}_{3}^{2 -} + H_{2} O \leftrightarrow S O_{2} + 2 O H^{-}

The equilibrium of the above reaction tends to shift towards the right side, at a pH of 7.0, thus releasing SO₂. Hence, to avoid bath instability, most commercially used sulphite-based electroplating baths are either operated at pH greater than 8 or contain necessary additives that stabilize the bath.

Watanabe et al. reported a sulphite-based gold electroplating bath used to deposit gold bumps at an alkaline pH [171]. The addition of suitable additives like cerium helped to obtain soft and uniform gold bumps. The plating rate was doubled when a pulsed current was used instead of a direct current. The composition of the developed bath and operating parameters used for electroplating gold are shown in Table 18.

Table 18.

Composition of the sulphite-based gold electroplating bath developed by Watanabe et al. and the plating parameters [171].

Bath component	Concentration
Na₃[Au(SO₃)₂]	0.06 mol L⁻¹
Na₂SO₃	0.60 mol L⁻¹
H₃PO₃	0.30 mol L⁻¹
Polyethylene glycol	1000 ppm
pH	8.0
Temperature	60°C
Agitation	Mechanical
Current density	0.5 A dm⁻²

Horkans and Romankiw investigated the kinetics of gold electrodeposition from Au(I) sulphite solutions at an alkaline pH range [172]. They used cyclic voltammetry and single potential step methods to study the deposition kinetics. After that, numerous works have demonstrated the suitability of sulphite baths to fabricate components for microelectronics, optoelectronics and MEMS field. Sulphite-based baths are also used for coating of dental implants and components for bio-sensing usage [173]. However, sulphite-based electroplating baths have one major limitation. These baths usually became unstable under acidic or neutral pH conditions. Several efforts have been made to stabilize these baths at lower pH by introducing suitable stabilizing agents. From a process control perspective, the use of these additives is undesirable. However, a few sulphite-based electroplating baths have been developed that can be operated at near-neutral pH. Morrissey developed a versatile sulphite-based gold electroplating bath that worked even at lower pH levels. When the pH was lowered below 6.5, sulphur dioxide was released at a controlled rate during operation. The excess sulphite allowed the specific gravity to be maintained, minimizing sulphate formation [174].

Cardoso et al. also developed Au(I)-sulphite bath and claimed that the addition of formaldehyde improved the bath life to almost 600 days. On the contrary, they also reported a reduction in the maximum cathodic current with an increase in the concentration of formaldehyde in the bath [175]. Sometimes, various additives are added to the electroplating baths to modify or enhance the coating properties. Arsenic (As) is generally used as a brightening agent in gold sulphite baths. Apart from that, As also plays a significant role in modifying the hardness of coatings, microstructural properties, and stress levels [176]. Similarly, thallium is also used as an essential additive, which is often used to refine the deposits’ grain size. The influence of thallium concentration on the hardness of the deposits and their stress level has also been investigated. Numerous works have reported the influence of the plating conditions on the level of stress in the deposits. By carefully manipulating the current density, temperature, and concentration of various additives in the electroplating bath, it is possible to obtain stress-free gold deposits [177]. Most of the sulphite-based electroplating baths used sodium or potassium compounds. However, the deposits obtained from an ammonium sulphite bath report the presence of very low roughness and stress, even without the presence of any extra additive. Gold electrodeposition using sulphite-based bath has a long history; still, there is very little literature available regarding the mechanism occurring during the deposition. At higher pH (>9), a single-step reduction seems to occur [178]. But at lower pH, a variety of reduction mechanisms have been proposed [179,180]. These mechanisms are complicated and usually involve a series of coupled chemical and electrochemical steps. The significance of the various adsorbed species and the formation of a passive sulphur film on the gold coating during the electroplating process can be interpreted from the Raman spectroscopy and electrochemical data [181].

Mixed sulphite-thiosulphate bath

Just like thiosulphate and sulphite, a ligand containing a mixture of both can also be used for plating gold. Baths containing the mixed ligand can be used to plate gold either in an electroless manner or by an electroplating method. It is found that cyanide-free baths containing either sulphite or thiosulphate as the sole complexing agent have limited stability. In 1997, Osaka et al. established a thiosulphate-sulphite bath for soft gold electrodeposition [182]. The bath was designed to be operated at a near-neutral pH and a mildly elevated temperature. The elementary composition and operation parameters of the electroplating bath are shown in Table 19.

Table 19.

Bath composition and operating parameter by Osaka et al. [182].

Bath component	Concentration
NaAuCl₄·2H₂O	0.06 M
Na₂SO₃	0.42 M
Na₂S₂O₃·5H₂0	0.42 M
Na₂HPO₄	0.30 M
pH	6
Temperature	60°C
Current density	5 mA cm⁻²
Agitation speed	500 rev min⁻¹

They reported that the proposed mixed ligand-based electroplating bath was extremely stable even without any stabilizer. The bath produced gold deposits with sufficiently low hardness, suitable for use in microelectronic applications. They also reported that the addition of thallium ions was responsible for reducing the hardness of the coating.

Baths containing mixed thiosulphate and sulphite ligand came up in the late 1900s for electroless gold plating. Most of these electroplating baths contain TU or ascorbic acid as a reducing agent. Since then, there have been several improvements in these baths, and now they are available for commercial usage. For any electroless deposition, selecting the correct stabilizer is the key to establishing an extended bath life. Recently, the thiosulphate-sulphite mixed ligand systems have been investigated thoroughly. Gold electroplating baths containing hydrazine [183] and sodium hypophosphite [184] as reducing agents were investigated. Roy et al. investigated the feasibility of a thiosulphate-sulphite mixed ligand electroplating bath for depositing soft gold [185]. The electroplating bath did not contain any extra additives and was found to be stable at near-neutral pH. The composition of the bath and operating parameters used are shown in Table 20.

Table 20.

Composition of mixed ligand electroplating bath and operating conditions [185].

Bath Composition	Concentration
HAuCl₄	0.05 M
Na₂SO₃	0.42 M
Na₂S₂O₃·5H₂O	0.42 M
Current density (mA cm⁻²)	3.5, 5.5, and 7.0
pH	7.4 ± 0.1
Temperature	55°C

In this bath, As or Tl was added to reduce the roughness of the coatings and to minimize stress. Dilute H₂SO₄ or NaOH/KOH solutions were added to the bath to adjust the pH. In 2005 Gamini et al. [27] made a detailed study regarding the interaction of Au⁺ with a mixed thiosulphate-sulphite ligand system using hydrodynamic voltammetry, gold potentiometry, UV-Vis spectrophotometry, and Raman spectroscopy. Raman studies showed that there was no interaction between the thiosulphate and sulphite ligands.

Thiourea (TU) bath

More recently, thiourea and its derivative compounds have been used as reducing agents for gold electroplating baths. These electroplating baths with TU as reducing agents also require stabilizers to make the bath stable and usable for commercial purposes. Ethylenediaminetetraacetic acid (EDTA), triethanolamine (TEA), and nitrilotriacetic acid (NTA) are some of the industrially established compounds which serve the purpose of stabilizing agents [186].

In 1991, Kato et al. suggested a cyanide-free gold electroplating bath with TU as a complexing agent [187]. However, later the bath was improved by adding hydroquinone, which served as a stabilizer and helped in the regeneration of TU in the bath [188]. The composition and the operating parameters of both the basic and the improved version of the TU-based electroplating baths are shown in Table 21. In this system, the TU undergoes a reduction reaction to form a radical intermediate (NH)(NH₂)CS; then, urea is formed as the final major product along with dicyandiamide. The radical intermediate reacts with the dissolved oxygen in the electroplating bath to form formamidine sulphinic acid (NH₂)₂CSO₂. The formation of formamidine sulphinic acid is responsible for bath instability. Hydroquinone is present in the improved electroplating bath as a stabilizer. It reacts vigorously with the radical intermediate, and the formation of any undesirable compound does not occur. The chemical reaction between hydroquinone and the radical intermediate aid the regeneration of TU in the electroplating bath. This gives the bath a unique property of its own. The reactions occurring in the basic and improved bath are shown in Figure 19(a,b), respectively.

Figure 19.

The reaction occurring in the bath developed by Kato et al. [187] (a) Basic bath without any additive and (b) Improved Bath with hydroquinone as additive.

Table 21.

Basic and improved versions of TU-based gold electroplating baths [187,188].

Bath component	Basic bath	Improved bath
NaAuCl₄·2H₂O	0.0125 mol dm⁻³	0.0125 mol dm⁻³
Na₂S₂O₃·5H₂O	0.1 mol dm⁻³	0.1 mol dm⁻³
Na₂SO₃	0.4 mol dm⁻³	0.4 mol dm⁻³
Na₂B₄O₇·10H₂O	0.13 mol dm⁻³	0.13 mol dm⁻³
Thiourea	0.033 mol dm⁻³	0.033 mol dm⁻³
Hydroquinone	–	0.002 mol dm⁻³
pH	9.0	8.0
Temperature (°C)	80	70
Plating rate (µm h⁻¹)	0.8	1.2
Bath life	60 h	>1 month

Dimethyl hydantoin (DMH) based gold electroplating bath

The use of 5,5-dimethyl hydantoin (DMH) has also been reported as an alternative to cyanide. DMH-based baths had certain advantages like low cost, better stability, and compatibility with other components. It was found that the presence of DMH as a complexing agent significantly improved the sulphite-based bath for co-deposition of Au-Sn alloy [189]. As a complexing agent, DMH was employed for electrodepositing pure gold [190–193] as well as hard gold [194]. However, DMH-based electroplating baths required certain additives to play the role of a brightener. Gold electrodeposited from the DMH-based electroplating bath appeared dark and dull when there was no additive present. Such coatings could not be used for decorative applications. Nitrogen-containing organic compounds were often used as additives [30,178,195–198]. Thallium helped in improving the hardness of the deposited coatings by refining the grain size [199]. However, the use of thallium should be kept as low as possible because it is neurotoxic. Polyethyleneimine (PEI) was also reported as an effective additive instead of thallium [200,201].

A novel cyanide-free electroplating bath consisting of DMH, NaAuCl₄, CoSO₄·7H₂O, and citric acid (C₆H₈O₇·H₂O) was formulated by Gong et al. through a series of orthogonal experiments. The developed bath was used for the deposition of hard gold for use in microelectronic applications [194].

Theoretical studies are the new alternatives used for the determination of alternative complexing agents that yield the appropriate results. Xuefeng et al. [190,191] carried out quantum chemical calculations based on density functional theory (DFT) to determine the appropriate gold source for DMH-based gold electroplating bath based on the charge distribution of 5,5-dimethylhydantoin (DMH) and the bonding energy of gold complexes. Gold coatings were deposited on a Ni-coated copper substrate via galvanostatic route (current density: 8 mA cm⁻² and time: 5 min) at different concentrations of DMH. Nickel was deposited over Cu as a diffusion barrier layer. In the absence of DMH in the bath, reddish brown coatings with a rough surface and severe pitting were obtained. The coatings lacked a golden appearance (Figure 20(i)). However, with the addition of DMH, smooth and compact deposits with finer crystal sizes were obtained. The SEM micrographs, in Figure 20(ii), show that the grain size of the coatings decreased with an increase in the concentration of DMH in the bath. However, upon increasing the concentration of DHM beyond 0.3 mol L⁻¹, there was not much difference in the grain size. Therefore, the optimum concentration of DMH in the developed bath was determined as 0.30 mol L⁻¹.

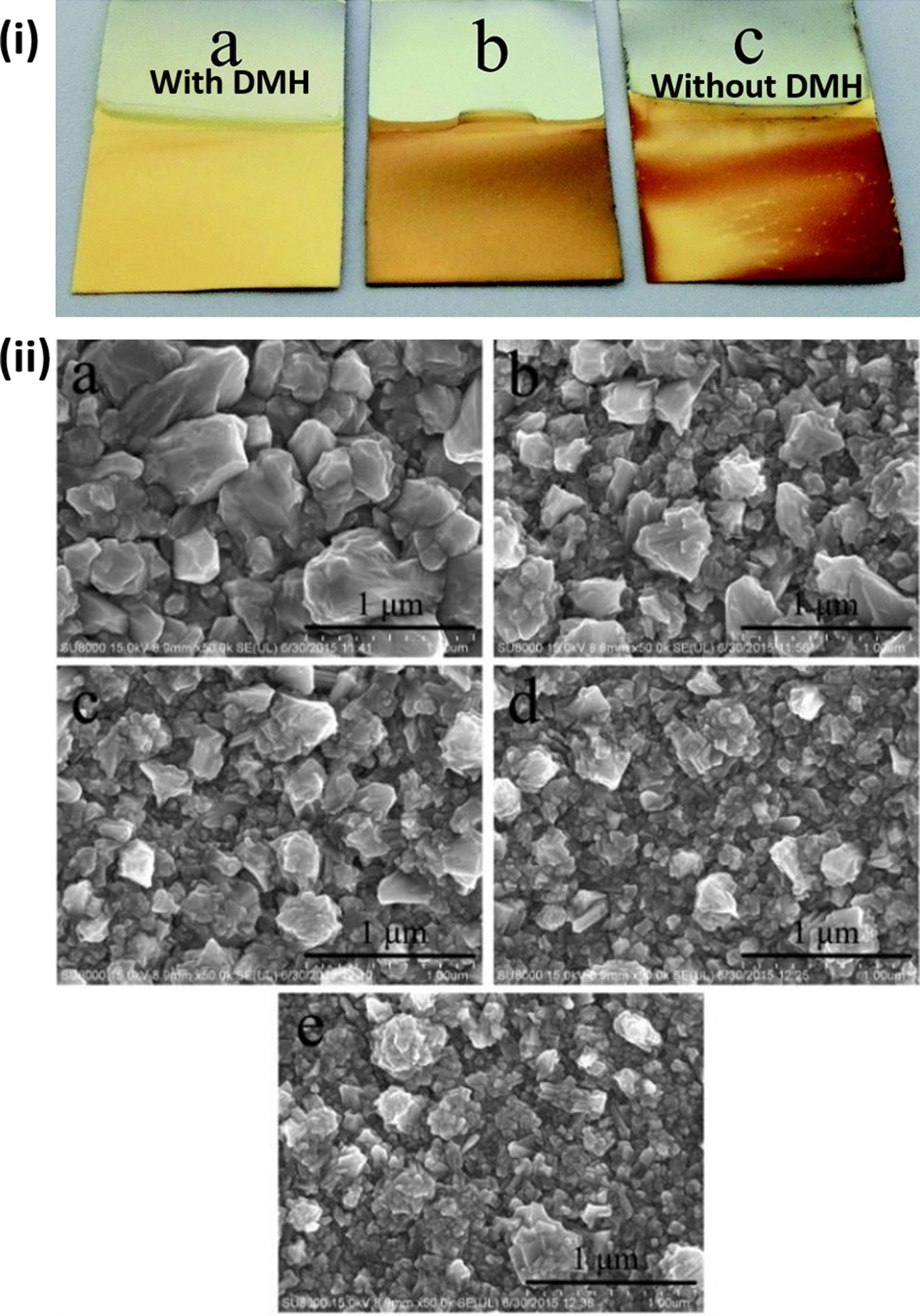

Figure 20.

(i) Visual appearance of the gold coatings deposited from the bath with and without DMH. (ii) SEM micrographs of the coating deposited with different concentrations of DMH (a) 0.1 mol L⁻¹, (b) 0.2 mol L⁻¹, (c) 0.3 mol L⁻¹, (d) 0.45 mol L⁻¹ and (e) 0.6 mol L⁻¹ [190,191] (the images have been reproduced with due permission from the publisher).

The authors also studied the role of PEI on the electrochemical behaviour of DMH-based cyanide-free gold electroplating bath [201]. The chronoamperometry results show a three-dimensional (3-D) progressive nucleation occurring in the selected system, both in the absence and presence of PEI.

Gong et al. reported deposition for bright gold coatings from a cyanide-free DMH-based electroplating bath containing Au (III) and Au (I) ions [192]. The bath composition and the pH variation used for the deposition of samples from baths containing Au (III) and Au (I) ions are shown in Figure 21(c). Deposition of Au was carried out in a two-electrode setup with Cu as WE and Pt as CE. The authors also studied the effect of pH on the surface morphology of the coatings, visual appearance, mode of nucleation, and hardness of the coatings. Figure 21(a,b) shows the microstructure and visual appearance of the coatings obtained from the baths containing Au (III) and Au (I) at different pHs.

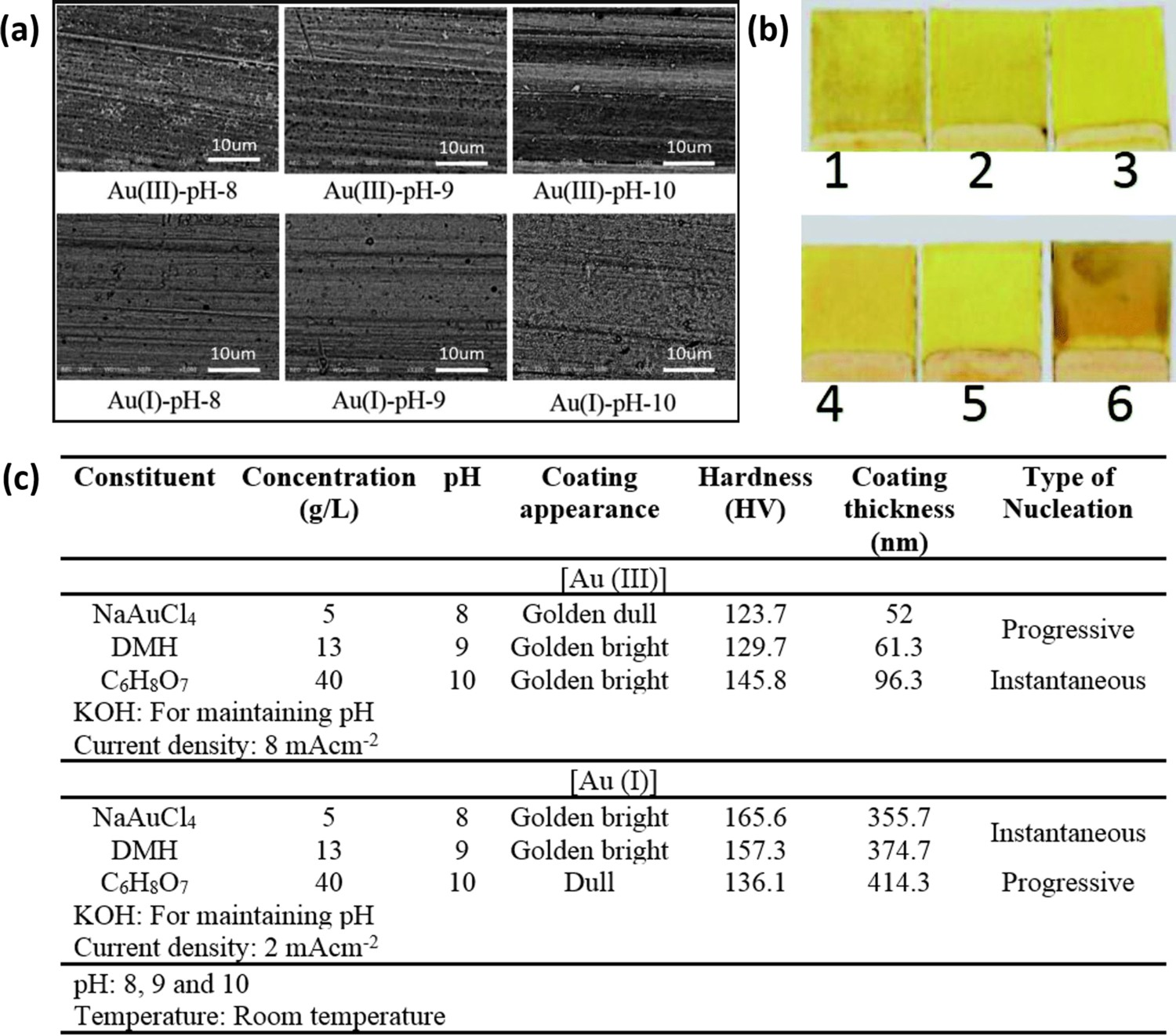

Figure 21.

(a) SEM micrographs of the coatings deposited from the DHM-based electroplating baths containing Au (III) and Au (I) ions at different pH; (b) visual appearance of the coatings; (c) effect of pH on the appearance, hardness, and mode of nucleation occurring [192] (the images have been reproduced with due permission from the publisher).

A combined approach involving DFT, MD simulations, and electrochemical experiments was used to study various potential organic additives for a cyanide-free gold electroplating bath. 5,5-dimethylhydantoin (DMH) was used as the complexing agent in the bath, and organic additives with either imino groups or nitrogenous heterocyclic rings (PEI, 2,2′-bipyridine, and NA) were selected for the study [200]. Gold electrodeposition was carried out under DC galvanostatic condition (current density = 8 mA cm⁻²) in different electroplating baths. However, the cathodic polarization studies were carried out in an electrochemical workstation with a three-electrode setup. Au-RDE was used as the WE, saturated calomel electrode (SCE) was used as RE and Pt foil was used as CE. Quantum chemical calculations based on DFT were carried out to study the electronic properties and orbital information of these additives. For the DMH-based gold electroplating bath, it was predicted that PEI is the most suitable and promising organic additive. Additionally, the MD simulations showed that PEI molecules had ab optimized adsorption behaviour over the gold surface (Figure 22(ii)). Therefore, PEI could be considered as an ideal additive in the development of a DMH-based cyanide-free gold electroplating bath. This theoretical prediction was further verified by experimental data. The electrochemical data showed that the cathodic polarization of the process significantly improved in the presence of PEI in the electroplating bath. Apart from that, the deposited gold coatings showed a fine crystalline particle (Figure 22(i)). The visual observation of the coatings deposited using different organic additives is shown in Figure 22(iii). In the presence of 2,2′-bipyridine and NA, coatings with a dark brown appearance were obtained. However, upon the addition of PEI, bright golden coatings were deposited.

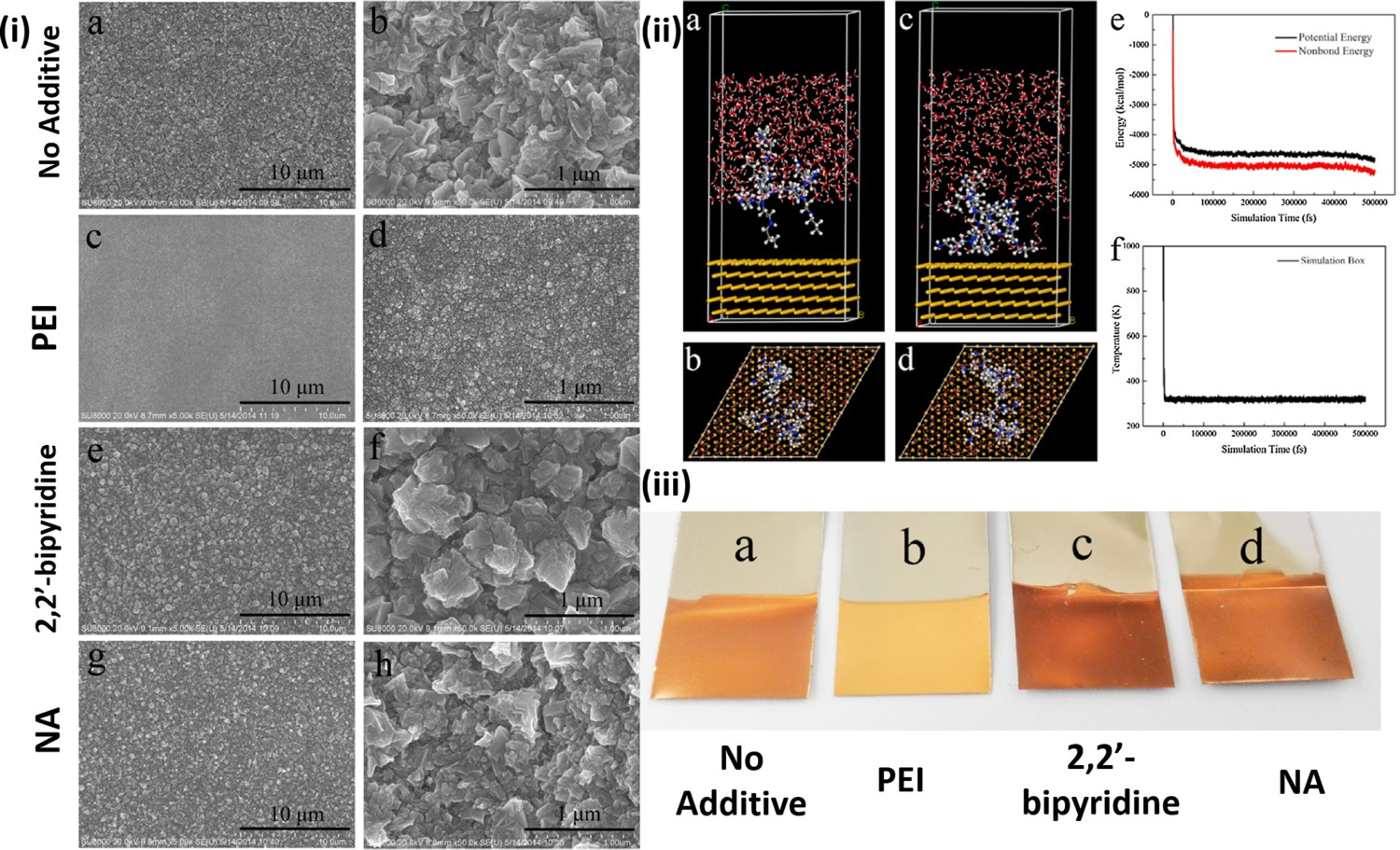

Figure 22.

(i) SEM micrographs of the Au coatings deposited from the bath with and without various organic additives; (ii) the MD simulation boxes and the simulation energy and temperature vs. time curves for PEI on Au (111) surface; (iii) coating appearance in the absence and presence of various organic additives [200] (the images have been reproduced with due permission from the publisher).

Another DMH-based gold electroplating bath containing 0.03 mol L⁻¹ HAuCl₄ as the main gold salt, 0.5 mol L⁻¹ DMH as a complexing agent, 0.2 mol L⁻¹ K₃PO₄, 3.5 mmol L⁻¹ additive A as a brightening agent was formulated [193]. The bath pH was maintained at 9 using KOH solution. Electrodeposition was carried out under galvanostatic conditions (1 A dm⁻² for 600 s) using two different baths: with and without additive A. Electrochemical workstation with platinized Ti sheet (dimension: 2.5 cm × 2.5 cm) as CE and Ni coated Cu sheet (dimension: 1 cm × 1 cm) as WE were used to carry out electrodeposition of Au from the developed bath. The Ni under-layer was deposited prior to Au deposition to stop the post-deposition diffusion of Cu from the substrate into the Au layer. The analysis of the chronoamperometry data indicated that the gold from the developed bath nucleates via 3D progressive nucleation over the gold electrode, and this nucleation mode is not influenced by the addition of additive A in the bath. In the presence of additive A, bright gold deposits were obtained, and also the preferred growth orientation of electrodeposits changed from [1 1 1] direction to [2 0 0] direction. The schematic illustration for the discussed system is shown in Figure 23.

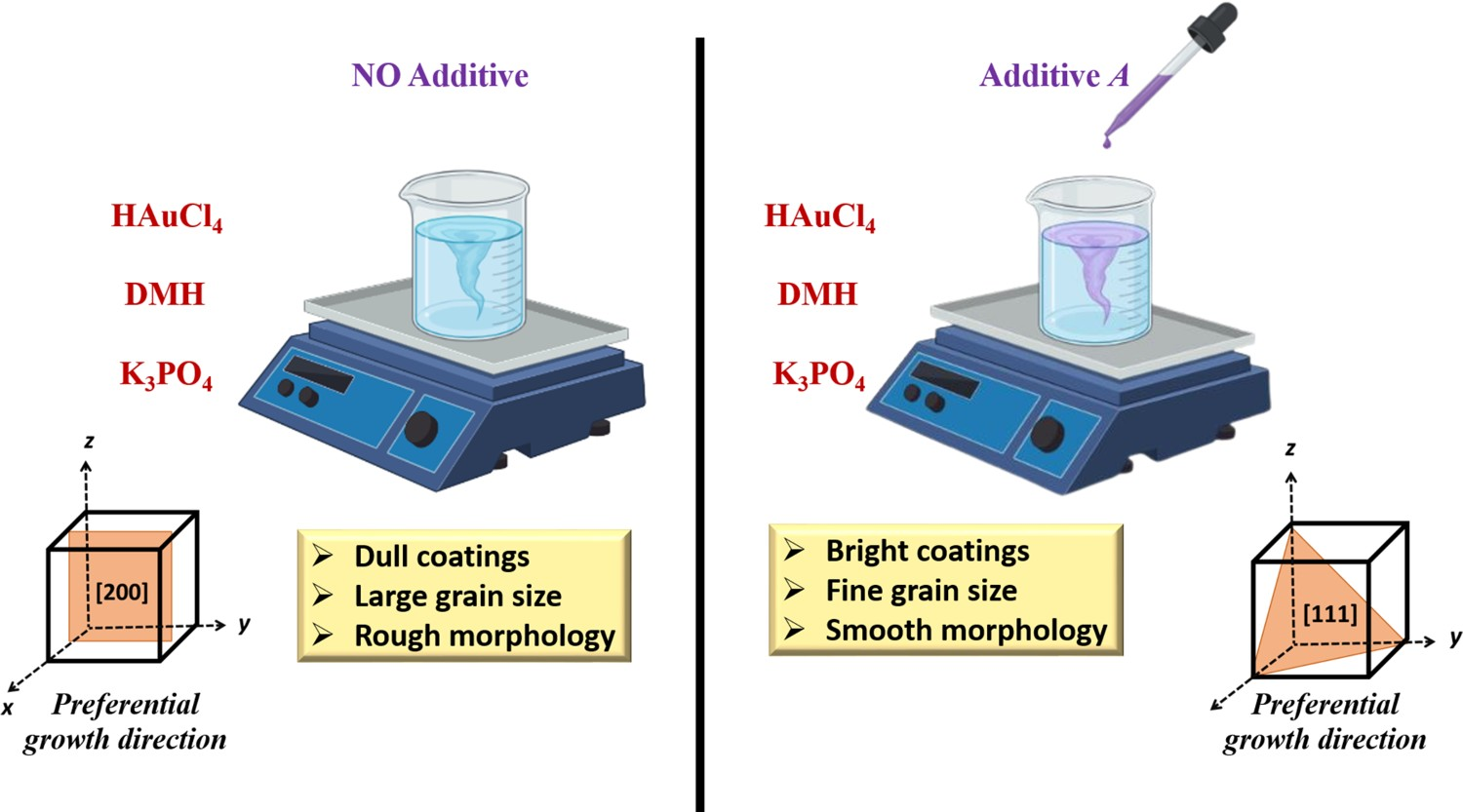

Figure 23.

Illustration showing the effect of additive in the DMH-based gold electroplating bath proposed by Yang et al. [193].

Other baths

Organic compounds containing electron-negative oxygen and nitrogen atoms are the most suitable ligand species for gold ions [202–205]. Sun et al. [206] reported electroplating of gold from a cyanide-free electroplating bath containing hypoxanthine as an additive. It was also reported that Au³⁺ forms a stable complex with the N atoms in the presence of tetraphenylporphyrin (THP) [207]. Yang et al. reported that THP and Au³⁺ form a highly stable electroplating bath when present in a molar ratio of 2:1 [203].

Silvana et al. investigated a gold electroplating bath containing mercaptotriazole as the primary complexing agent. The developed electroplating bath was highly stable, and there was no decomposition of the bath, and no precipitation of elementary gold occurred. After obtaining a super stable electroplating bath, they carried out detailed investigations to optimize the plating conditions for obtaining gold coatings with an aesthetic appearance that could be used for decorative gold plating. The results obtained were compared with the quality of gold plating obtained from the classic cyanide electrolyte [208,209].

Table 22 shows the comparison between the coatings obtained from a standard cyanide-based bath and the reported Au-Mercaptotriazole electroplating bath. The surface roughness, micro-hardness, coating thickness, and adhesion for each bath were compared. The experimental findings suggested that the quality of the decorative gold coatings obtained from the Au-Mercaptotriazole electroplating bath met all the requirements of decorative gold plating.

Table 22.

Comparison of the decorative gold coatings deposition parameters from a standard cyanide electroplating bath and Au-Mercaptotriazole bath.

	Cyanide bath	Mercaptotriazole-based bath
Gold concentration	1.5 g dm⁻³	2.5 g dm⁻³
Additives	Additive 1 (20 g dm⁻³) Additive 2 (4 mL dm⁻³)	–
Cathodic current density	1 A dm⁻²	1 A dm⁻²
Temperature (°C)	20	20
pH	9	9
Coating thickness (µm)	0.08	0.08
Coating roughness (µm)	0.052	0.066
Coating hardness (MPa)	740	660
Coating adhesion	Good	Good

Thiomalate complexes were used in gold electroplating baths as the sodium salt of gold thiomalate (C₄H₄AuNaO₄S or C₄H₃AuNa₂O₄S). Gold thiomalate complexes have excellent stability and are generally used for obtaining gold-tin alloys [210].

Lei et al. [211] proposed a novel method for the preparation of an HAu(Cys)₂ compound by ligand exchange reaction. The obtained cysteine-based compound is the major complexing agent used for the formulation of a cyanide-free gold electroplating bath by replacing the cyanide-based complexing agent. The electrodeposition of Au, using the formulated bath, was carried out in a two-electrode setup with Ni-coated Cu sheet as WE and Pt as CE. Fine-grained, compact, and pure gold coatings are obtained from the developed bath (composition: 6.1 mM HAu(Cys)₂, 12.2 mM Cys, and 89.3 mM KOH) via galvanostatic deposition at four current densities (2.5, 5, 10, and 20 mA cm⁻²) for 5 min. The protocols followed for the preparation of HAu(Cys)₂ compound is shown in the schematic in Figure 24(i). The surface morphology and the visual appearance of the deposited coatings are shown in Figure 24(ii).

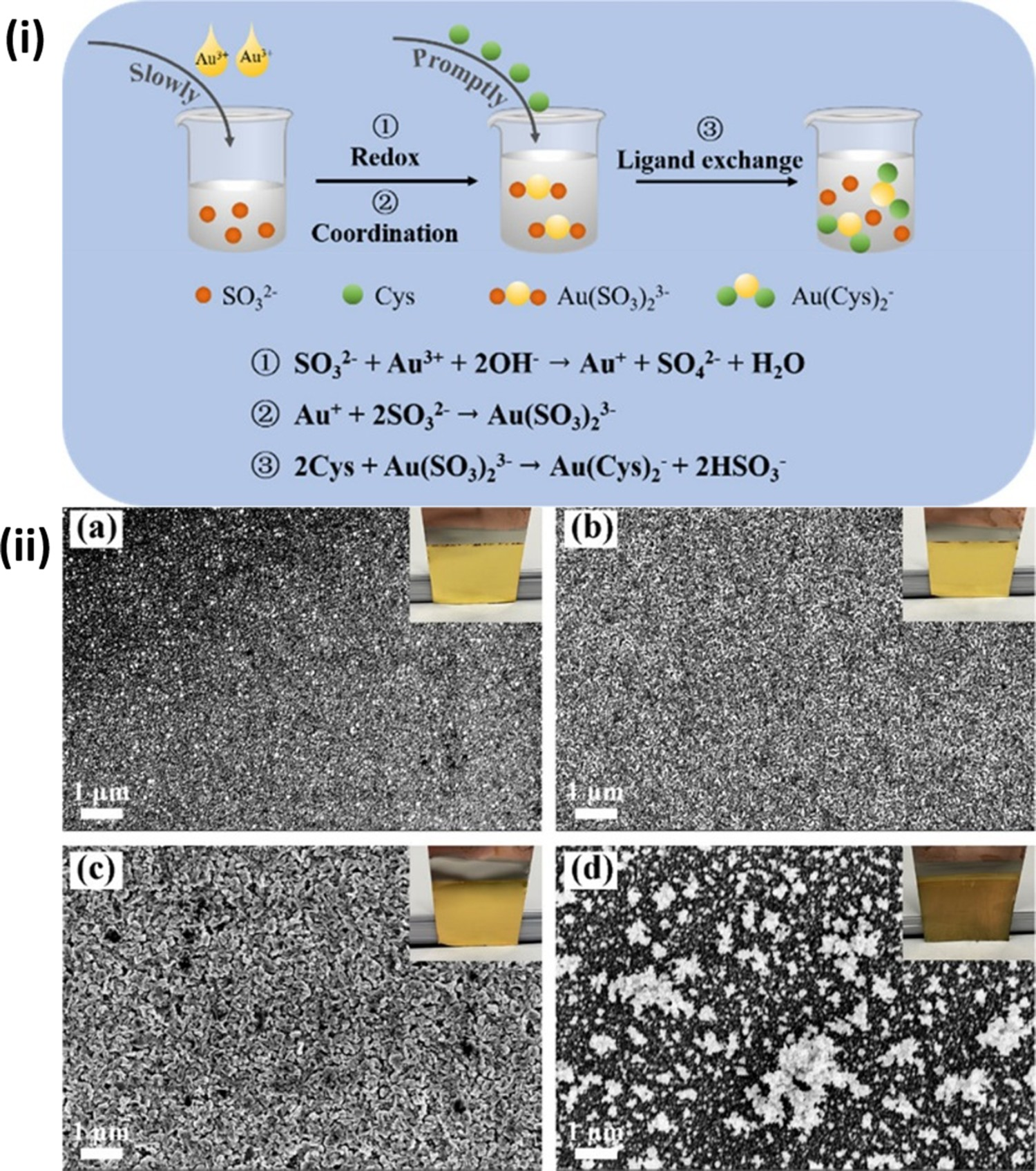

Figure 24.

(i) Schematic showing the protocols followed for the synthesis of HAu(Cys)₂ compound. (ii) SEM micrographs of the coatings obtained at current density of (a) 2.5, (b) 5, (c) 10, and (d) 20 mA cm⁻²) for 5 min. Insert images show the visual appearance of the coatings [211] (the images have been reproduced with due permission from the publisher).

Conclusion

This review article provides a recapitulation of the various types of electroplating baths employed for the deposition of silver and gold, as well as the alloys of both with various other metals. The cyanide-containing electroplating baths, with silver and gold present as cyanide complex as the primary source of metal ion, have served the purpose of commercial usage for many years, with various applications in the electronics and jewellery industry. However, these cyanide-containing systems that are a threat to the environment, as well as other living creatures, have come to the forefront in recent years. Consciousness regarding the use of toxic materials has led to the development of eco-friendly alternatives. The electroplating baths discussed in this article have minimum toxic elements, and they can be used without any threat to the ecosystem. Among the electroplating baths discussed, some are being used commercially, and some are still used on a small scale. Thiosulphate and sulphite-based electroplating baths, in the presence of various organic additives, produce uniform, compact and mirror-bright silver coatings. The succinimide-based and ionic liquid-based baths are still under investigation and yet to be commercialized. Gold electroplating baths containing sulphite and thiosulphate salts as the principal complexing agent are used for both electrolytic as well as electroless plating. On the contrary, the mixed ligand systems containing both thiosulphate and sulphite are more stable and can be used for the deposition of soft gold. The mercapto triazole-based electroplating baths produce gold coatings suitable for aesthetic use. Apart from the baths discussed in this article, there is still scope for developing more systems for the cyanide-free electroplating of silver and gold.

Footnotes

Acknowledgements

The authors have used Origin, MS Office, and Bio Render for creating schematics/illustrations used in this work.

Disclosure statement

No potential conflict of interest was reported by the author(s).

ORCID

Bangmaya Satpathy

Sambedan Jena

Siddhartha Das

Karabi Das

References

Elkington

, Elkington

Improvements in coating, covering, or plating certain metals. British patent. 1840.

Langbein

, Brannt

Electroplating of metal. Philadelphia (PA): Henry Carey Baird; 1902.

Smith

PT.

Gold plating bath and process. United States patent US 3666640A. 1962.

Fritz

Electrolytic deposition of gold and gold alloys. United States patent US 2812299A. 1957.

Rinker

, Robert

Electroplating bright gold. Google patents. 1959.

Kohl

PA.

Electrolytic plating. Google patents. 1982.

Nobel

, Brasch

Silver plating. Google patents. 1981.

Seegmiller R , Gore

JK.

A Cyanide Bath. Proceedings of the Annual Convention. 1960;47:74.

Schlesinger

, Paunovic

Modern electroplating. 5th EditionWiley; 2010. p. 131–138.

10.

Garside

Global silver demand by end use 2020; 2019. [cited 2021]. Available from: https://www.statista.com/statistics/253345/global-silver-demand-by-purpose/

11.

Traut

, Wright

, Williams

Gold plating optimization for tape automated bonding. J Plating Surface Finishing. 1990;77(9):49–53.

12.

Jasper

, Shiels

J European Semiconductor. 2000;22(7):86.

13.

Okinaka

J Gold Bulletin. 2000;33(4):117–127.

14.

Christie

, Cameron

BP.

J Gold Bulletin. 1994;27(1):12–20.

15.

Dauksher

, Resnick

, Johnson

et al.Microelectron Eng. 1994;23(1–4):235–238.

16.

Sherbow

, Downs

, Sayler

et al.ACS Catal. 2014;4(9):3096–3104.

17.

Jadhav

, Hocheng

A review of recovery of metals from industrial waste. J Achievements Mater Manuf Eng. 2012;54(2):159–167.

18.

Barker

Electroless Deposition of Metals. Int J Surf Eng Coat. 1993;71(3):121–124.

19.

Ashiru

, Farr

JPG.

J Electrochem Soc. 1992;139(10):2806–2810.

20.

Hunt

J Gold Bulletin. 1973;6(1):16–27.

21.

Kohl

PA.

Modern electroplating. 5th Edition. New York: John Wiley & Sons; 2010. p. 115–130.

22.

Wang

, Issaev

, Osteryoung

JG.

J Electrochem Soc. 1998;145(3):974.

23.

Puddephatt

Richard J.

The Chemistry of Gold (Topics in Inorganic & General Chemistry). Elsevier Science Ltd ; 1978. p. 121–125.

24.

Cheh

, Sard

J Electrochem Soc. 1971;118(11):1737.

25.

Bard

, Roger

, Joseph

Standard potentials in aqueous solution. New York: CRC Press; 2017.

26.

Vlassopoulos

, Wood

SA.

Geochim Cosmochim Acta. 1990;54(1):3–12.

27.

Perera

, Senanayake

, Nicol

MJ.

Inorg Chim Acta. 2005;358(7):2183–2190.

28.

Webster

Geochim Cosmochim Acta. 1986;50(9):1837–1845.

29.

Abrahams

, Zyontz

, Bernstein

J Chem Phys. 1982;76(11):5458–5462.

30.

Honma

, Hagiwara

J Electrochem Soc. 1995;142(1):81.

31.

Green

Gold Bull. 2014;47(3):205–216.

32.

Wilkinson

Gold Bull. 1986;19(3):75–81.

33.

Kato

, Okinaka

Gold Bull. 2004;37(1):37–44.

34.

Rapson

, Groenewald

Gold Bull. 1975;8(4):119–126.

35.

Gemmier

, Keller

, Richter

et al.Plat Surf Finish. 1994;81(8):52–58.

36.

Datta

, Sheppard

, Snyder

DD.

Proceedings of the First International Symposium on Electrochemical Microfabrication.1992.

37.

Garche

, Dyer

, Moseley

et al.Encyclopedia of electrochemical power sources. Vol. 3Newnes; 2013.

38.

Rawashdeh-Omary

, Omary

, Patterson

HH.

J Am Chem Soc. 2000;122(42):10371–10380.

39.

Bouffier

, Zigah

, Sojic

et al.Encyclopedia of electrochemistry. Wiley; 2007. p. 1–53.

40.

Golding

J Chem Soc. 1959;52:1838–1839.

41.

Cave

, Hume

DN.

J Am Chem Soc. 1953;75(12):2893–2897.

42.

Raub

Metal plating and patination: cultural, technical, and historical developments. Oxford: Butterworth-Heinemann; 1993. p. 284–290.

43.

Durney

LJ.

Graham’s electroplating engineering handbook. Germany: Springer Science & Business Media; 1984. p. 289–309.

44.

Ohno

Mater Sci Eng A. 1991;146(1):33–49.

45.

Dzombak

, Ghosh

, Wong-Chong

GM.

Cyanide in water and soil: chemistry, risk, and management. Boca Raton: CRC Press; 2005. p. 123–129.

46.

Sayre

IM.

International Standards for Drinking Water. J Am Water Works Associat. 1988;80: 53–60. https://doi.org/10.1002/j.1551-8833.1988.tb02980.x

47.

Dash

, Gaur

, Balomajumder

J Hazard Mater. 2009;163(1):1–11.

48.

Cope

, Abramowitz

Am Rev Respir Dis. 1960;81(3):321–328.

49.

Huzar

, George

, Cross

JM.

Expert Rev Respir Med. 2013;7(2):159–170.

50.

Márquez

, Staikov

, Schultze

Electrochim Acta. 2003;48(7):875–882.

51.

Sánchez

, Chainet

, Nguyen

et al.J Electrochem Soc. 1996;143(9):2799–2804.

52.

DiBari

Metal finishing 61st guidebook and directory issue. New York (NY): Elsevier Science; 1993.

53.

Grebe

, Powers

JV.

Non-cyanide silver plating bath. United States patent US 3406107A. 1968.

54.

Culjkovic

Cyanide free bath for electrodeposition of silver. United States patent US 3984292A. 1976.

55.

Leahy

, Karustis

GA.

Non-cyanide acidic silver electroplating bath and additive therefore. United States patent US 4067784A. 1978.

56.

Hradil

, Hradil

, Weisberg

AM.

Non-cyanide bright silver electroplating bath therefor, silver compounds and method of making silver compounds. United States patent US 4246077A. 1981.

57.

Novev

, Ovcharov

, Yordanov

et al. Combined brightener in sulfamate silver electroplating baths. United States patent US 4279708A. 1981.

58.

Tsuji

, Nishikawa

, Takeuchi

et al. Silver and silver alloy plating bath. United States patent US 7628903B1. 2009.

59.

Yau

, Richardson

, Abys

et al. Silver plating in electronics manufacture. China patent CN101031367B. 2013.

60.

Yoshimoto

, Kitamura

, Omori

et al. Method for silver plating. United States patent US 20070284258A1. 2007.

61.

Jin

Non-cyanide silver plating solution and method for forming plating using it. South Korea patent.

62.

Asakawa

Non-cyanide silver plating bath and its silver plating method. Japan patent JP3224454B2. 1993.

63.

Kazutomo

Non-cyanide silver plating method and non-cyanide solution used therefor. Patent JP3299370B2; 1993.

64.

Tanaka

, Yoshimoto

Tin-silver alloy plating bath of non-cyanide system. Japan patent JP2006265572A. 2005.

65.

Takeuchi

, Obata

, Masaki

et al. Non-cyanide displacement silver plating bath. Japan patent JPH10130855A. 1996.

66.

Kudo

, Nishihama

, Yoshikawa

Non-cyanide silver electroplating liquid. Japan patent JPH11302893A. 1998.

67.

Danhong

, Yongtang

, Tiehua

et al. Technology of non-cyanide silver coating. China patent CN1680630A. 2005.

68.

Jianjun

, Buguo

, Zhibin

et al. Non-cyanogen type electroplating solution for plating silver. China patent CN101092724A. 2007.

69.

Jianjun

, Xiang

, Buguo

et al. Non-preplating type non-cyanide silver-plating electroplate liquid. China patent CN101260549B. 2007.

70.

Buguo

, Lifu

Environmental non-cyanide plating solution for silver-plating. China patent CN101665963B. 2009.

71.

Bingfang

, Qitai

Cyanide-free high-speed silver plating electroplating solution. China patent CN101781782B. 2010.

72.

Jianghua

, Chunlin

, Min

et al. Method for improving bonding force of non-cyanide silver plating layer on nickel layer. China patent CN102181892B. 2011.

73.

Hengbo

, Chaoqun

, Yonghai

et al. Non-cyanide silver coating stable electrical plating solution, preparation method and silver-plated method thereof. China patent CN102560571B. 2012.

74.

Zhongxiao

, Liucheng

, Qin

et al. A kind of electroplate liquid of non-cyanide silver electroplating and electro-plating method. China patent CN103046091B. 2013.

75.

Qingdong

, Tong

, Shuaishuai

et al. Method for non-cyanide silver plating. China patent. 2013.

76.

Qingdong

, Tong

, Xiawen

et al. A kind of alkaline non-cyanide is electroplated the method for Ag-Ni alloy. China patent CN103540978B. 2013.

77.

Jing

, Xiuchun

, Xibin

et al. A kind of method of pulse non-cyanide silver electroplating. China patent CN103668358B. 2013.

78.

Maozhong

, Anmin

, Xuefeng

et al. Non-cyanide bright electroplated silver composite additive and application method thereof in non-cyanide silver electroplating system. China patent CN104018193A. 2014.

79.

Guohui

, Jun

, Haisheng

et al. High-performance cyanide-free silver pre-plating liquid. China patent CN104152952A. 2014.

80.

Rongguo

Cyanide-free silver plating solution and electroplating method. China patent CN104746113A. 2015.

81.

Guohui

, Zhongwen

, Jie

et al. Novel cyanide-free silver plating electroplating liquid and electroplating technology. China patent CN105088293A. 2015.

82.

Changchun

A kind of alkaline non-cyanide plate silver plating solution and silver-coating method. China patent CN107313084B. 2017.

83.

Garich

, Taylor

, Liu

et al.50th International Conference on Environmental Systems. 2021.

84.

Taylor

, Garich

, Inman

ME.

Electrochemical mirror system and method. United States patent US 10684522B2. 2020.

85.

Sriveeraraghavan

, Krishnan

, Natarajan

Met Finish. 1989;87(6):115–117.

86.

Nobel

, Brasch

, Drago

AJ.

Cyanide-free plating solutions for monovalent metals. Patent EP0611840B1. 1993.

87.

Ren

, Yin

, Wang

et al.Trans Nonferrous Metals Soc China. 2013;23(12):3822–3828.

88.

Satpathy

, Jena

, Das

et al.Surf Coat Technol. 2021;424:127680.

89.

Cojocaru

, Vicenzo

, Cavallotti

PL.

ECS Trans. 2007;2(20):67.

90.

Valiūnienė

, Baltrūnas

, Valiūnas

et al.J Hazard Mater. 2010;180(1-3):259–263.

91.

Lukinskas

, Savickaja

, ŠukienĖ

et al.J Coord Chem. 2008;61(16):2528–2535.

92.

Satpathy

, Kayal

, Jena

et al.Mater Charact. 2022;189:112011.

93.

Azzaroni

, Schilardi

, Salvarezza

et al.Langmuir. 1999;15(4):1508–1514.

94.

Asakawa

Silver plating baths and silver plating method using the same. United States patent US 5601696A. 1997.

95.

Clauss

, Zhang-Beglinger

Cyanide-free silver electroplating solutions. United States patent US 8608932B2. 2013.

96.

Morrissey

Non-cyanide silver plating bath composition. United States patent US 20070151863A1. 2007.

97.

Pizzetti

, Salvietti

, Giurlani

et al.J Electroanal Chem. 2022;911:116196.

98.

Liu

, Ren

, Zhang

et al.RSC Adv. 2016;6(9):7348–7355.

99.

Liu

, Ren

, Yang

et al.Ionics. 2019;25(2):849–857.

100.

Hradil

, Hradil

, Weisberg

AM.

Silver complex, method of making said complex and method and electrolyte containing said complex for electroplating silver and silver alloys. United States patent US 4126524A. 1978.

101.

Gan

, Liu

, Huang

et al.Surf Interfaces. 2021;27:101487.

102.

Holbrey

, Seddon

Clean Products Processes. 1999;1(4):223–236.

103.

Forsyth

, Pringle

, MacFarlane

DR.

Aust J Chem. 2004;57(2):113–119.

104.

Welton

Chem Rev. 1999;99(8):2071–2084.

105.

Endres

, Abbott

, MacFarlane

DR.

Electrodeposition from ionic liquids. Germany: Wiley; 2017.

106.

Simka

, Puszczyk

, Nawrat

Electrochim Acta. 2009;54(23):5307–5319.

107.

El Abedin

, Endres

Electrochim Acta. 2009;54(24):5673–5677.

108.

Dupont

, Suarez

PA.

Phys Chem Chem Phys. 2006;8(21):2441–2452.

109.

Endres

, El Abedin

SZ.

Phys Chem Chem Phys. 2006;8(18):2101–2116.

110.

Galiński

, Lewandowski

, Stępniak

Electrochim Acta. 2006;51(26):5567–5580.

111.

Abbott

, McKenzie

KJ.

Phys Chem Chem Phys. 2006;8(37):4265–4279.

112.

Nishida

, Tashiro

, Yamamoto

J Fluorine Chem. 2003;120(2):135–141.

113.

Xiao

, Johnson

KE.

J Electrochem Soc. 2003;150(6):E307.

114.

, Liu

, Li

et al.Langmuir. 2004;20(23):10260–10267.

115.

Katayama

, Dan

, Miura

et al.J Electrochem Soc. 2001;148(2):C102.

116.

Tai

C-C

, Su

F-Y

, Sun

I-W.

Electrochim Acta. 2005;50(28):5504–5509.

117.

Bomparola

, Caporali

, Lavacchi

et al.Surf Coat Technol. 2007;201(24):9485–9490.

118.

Basile

, Bhatt

, O’Mullane

et al.Electrochim Acta. 2011;56(7):2895–2905.

119.

, Zhou

, Peng

et al.Electrochem Commun. 2008;10(5):806–809.

120.

Arimoto

, Kageyama

, Torimoto

et al.Electrochem Commun. 2008;10(12):1901–1904.

121.

Tsai

M-C

, Zhuang

D-X

, Chen

P-Y.

Electrochim Acta. 2010;55(3):1019–1027.

122.

Bhatt

, Bond

AM.

J Electroanal Chem. 2008;619:1–10.

123.

Yeh

F-H

, Tai

C-C

, Huang

J-F

et al.J Phys Chem B. 2006;110(11):5215–5222.

124.

El Sayed

, Elazab

, Gassoumi

et al.J Taiwan Inst Chem Eng. 2022;132:104212.

125.

Lin

, Xie

, Chen

et al.J Electroanal Chem. 2009;633(1):207–211.

126.

Xie

B-G

, Sun

J-J

, Lin

Z-B

et al.J Electrochem Soc. 2009;156(3):D79.

127.

de Oliveira

, Silva

, Carlos

IA.

J Mater Sci. 2007;42(24):10164–10172.

128.

Miranda-Hernández

, González

J Electrochem Soc. 2004;151(3):C220.

129.

Palomar-Pardavé,

, Ramírez,

, González,

et al.J Electrochem Soc. 1996;143(5):1551–1558.

130.

Polk

, Bernard

, Kasianowicz

et al.J Electrochem Soc. 2004;151(9):C559.

131.

Sanigar

EB.

Trans The Electrochem Soc. 1931;59(1):307.

132.

Fletcher

, Moriarty

WL.

Gold electroplating bath and method of making the same. United States patent US 4168214A. 1978.

133.

Ostrow

BD.

Bright gold and gold alloy plating baths. United States patent US 2660554A. 1950.

134.

Ostrow

, Nobel

FI.

Electroplating baths for hard bright gold deposits. United States patent US 2967135A. 1961.

135.

Stevens

Electrodeposition of gold-palladium alloys. United States patent US 4048023A. 1977.

136.

Wilkinson

Electrodeposition of gold alloys. United States patent US 4366035A. 1982.

137.

Shemyakina

, Dyatlova

, Formenov

et al. Gold-plating electrolyte and process for preparing same. United States patent US 4497696A. 1985.

138.

Nakazawa

, Nishiyama

, Wakabayashi

Electrolytic gold plating solution. United States patent US 4717459A. 1988.

139.

Morrissey

RJ.

Non-cyanide electroplating solution for gold or alloys thereof. United States patent US 5277790A. 1994.

140.

Kuhn

, Zilske

Cyanide-free electroplating bath for the deposition of gold and gold alloys. United States patent US 6165342A. 2000.

141.

Shindo

Gold plating solution and gold plating method using thereof. United States patent US 6511589B1. 2003.

142.

Uchida

, Okada

Non-cyanide-type gold-tin alloy plating bath. South Korea patent KR100806697B1. 2003.

143.

Kitada

, Shindo

Gold plating solution and plating process. United States patent US 6511589B1. 2003.

144.

Hayashi

, Hirose

Displacement gold plating solution. United States patent US 6767392B2. 2001.

145.

Sanada

, Nakazawa

, Imafuji

Non-cyanide electroless gold plating solution and process for electroless gold plating. United States patent US 7384458B2. 2007.

146.

Sanada

Non-cyanide electroless gold plating solution and process for electroless gold plating. United States patent US 7264848B2. 2005.

147.

Hino

, Kumagai

Electroless gold plating liquid. United States patent US 7300501B2. 2005.

148.

Tsuyuki

, Ito

Non-cyanide electrolytic gold plating solution. Taiwan patent TWI525224B. 2013.

149.

Cordonier

, Honma

Non-cyanide gold plating bath and method for preparing non-cyanide gold plating bath. United States patent US 9719183B2. 2013.

150.

Nakazawa

, Masaki

, Imahuji

Non-cyanide electroless gold plating solution and process for electroless gold plateing. South Korea patent KR20060051327A. 2005.

151.

Nakamura

Non-cyanide gold plating bath for bump and wiring. South Korea patent KR101344018B1. 2006.

152.

Yuki

, Koichiro

Non cyanide gold plating bath for bump. Taiwan patent TWI477660B. 2008.

153.

Lee

, Minjung

, Buduk

Non cyanide gold plating bath for bump and preparation method of bump. South Korea patent KR20090026075A. 2013.

154.

Furukawa

, Matsumoto

, Kazuhiko

et al. Non-cyanide electroless gold plating solution and plating method of conductor pattern. Japan patent US7264848B2. 2009.

155.

Niyuuhahei

New method for producing non-cyanide gold salt for gold plating. Japan patent JP2016094380A. 2014.

156.

Miyanaga

, Osaka

, Kato

et al. Non-cyanide gold plating electrolytic solution. Japan patent JP2019214747A. 2018.

157.

Aiba

, Kawamura

, Takahashi

Electroless gold plating solution. Japan patent US20060269761A1. 2008.

158.

Nelias

, Pommier

, Duprat

JJ.

Alkaline, cyanide-free solution for electroplating of gold alloys, a method for electroplating and a substrate comprising a bright, corrosion-free deposit of a gold alloy. Patent EP2730682B1. 2012.

159.

Jirong

, Zhenhua

Non-cyanide electroless gold plating solution and non-cyanide electroless gold plating method. South Korea patent KR101266901B1. 2010.

160.

Xingqiao

, Haobo

The electroplate liquid and its electro-plating method of a kind of hard gold of non-cyanide plating. Patent. 2016.

161.

Aylmore

, Muir

DM.

Miner Eng. 2001;14(2):135–174.

162.

Rapson

, Groenewald

Gold usage. London: Academic Press; 1978.

163.

Jeffrey

, Angstetra

ECS Trans. 2006;2(3):267.

164.

Sullivan

, Kohl

PA.

J Electrochem Soc. 1995;142(7):2250.

165.

Paunovic

, Schlesinger

Fundamentals of Electrochemical Deposition. 2nd Edition. Germany: Wiley; 2006. p. 109–110.

166.

Wang

, Issaev

, Osteryoung

JG.

J Electrochem Soc. 1996;143(11):3477.

167.

Wang

, Isaev

, Osteryoung

JG.

J Electrochem Soc. 1996;143(4):1201.

168.

Inoue

, Okudaira

, Takehara

Super Stable Non-cyanide Electroless Gold Plating Bath Which Has Been Applied To Advanced Wiring Board Manufacture. 1st Joint International Electronic Manufacturing Symposium and the International Microelectronics Conference]1997.

169.

Kosaki

, Matsuoka

, Seiwa

et al.

Stabilization of gold sulfite bath for microscale plating in Ga-As ICs

First Symposium on Electrochemical Microfabrication

1992.

170.

Smalbrugge

, Jacobs

, Falcone

et al.

Electroplating of gold using a sulfite-based electrolyte.

5th Annual Symposium of the IEEE/LEOS Benelux Chapter

2000.

171.

Watanabe

, Hayashi

, Honma

J Electrochem Soc. 1999;146(2):574.

172.

Horkans

, Romankiw

LT.

J Electrochem Soc. 1977;124(10):1499.

173.

Zhang

, Li

, Bourgeois

et al.ChemPhysChem. 2009;10(2):436–441.

174.

Morrissey

RJ.

Plat Surf Finish. 1993;80:75–75.

175.

Cardoso

, Santos Filho

SGd.

Química Nova. 2011;34(4):641–645.

176.

Kelly

, Yang

, Headley

et al.J Electrochem Soc. 2003;150(6):C445.

177.

Chu

, Schattenburg

, Smith

HI.

Microelectron Eng. 1992;17(1–4):223–226.

178.

Honma

, Kagaya

J Electrochem Soc. 1993;140(9):L135.

179.

Derivaz

, Resin

, Losi

Surf Technol. 1977;5(5):369–377.

180.

Shirai

, Yoshimura

, Sato

et al.J Surf Finish Soc Jpn. 1989;40(4):543–547.

181.

Baltrunas

, Valiuniene

, Valiunas

Pol J Chem. 2003;77:1819–1831.

182.

Osaka

, Kodera

, Misato

et al.J Electrochem Soc. 1997;144(10):3462.

183.

Hiratsuka

, Kurashina

, Nawafune

J Jpn Inst Electron Packag. 2002;5(1):72–74.

184.

Paunovic

, Sambucetti

Some environmentally conscious processes in electronic applications. Proceedings of the Symposium on Environmental Aspects of Electrochemical Technology: Applications in Electronics. 1997.

185.

Roy

ECS Trans. 2009;16(36):67.

186.

Richter

, Gesemann

, Gierth

et al. Cyanide-free bath for the elastic separation of hard gold layers. Germany patent. 1989.

187.

Kato

, Niikura

, Hoshino

et al.J Surf Finish Soc Jpn. 1991;42(7):729–735.

188.

Inoue

, Ando

, Ushio

et al.J Surf Finish Soc Jpn. 1998;49(12):6.

189.

Huang

, Huang

ML.

J Electrochem Soc. 2018;165(3):D152.

190.

Ren

, An

RSC Adv. 2018;8(5):2667–2677.

191.

Ren

, Song

, Liu

et al.RSC Adv. 2015;5(80):64997–65004.

192.

Luo

, Yuan

, Li

RSC Adv. 2016;6(66):61341–61345.

193.

Xiaowei

, Maozhong

, Yunwang

et al.Electrochim Acta. 2011;58:516–522.

194.

Luo

, Li

, Yuan

et al.J Electrochem Soc. 2018;165(3):D107.

195.

Lin

, Yen

, Lin

et al.J Electrochem Soc. 2017;164(13):D810.

196.

Chan

, Ren

, Wen

et al.J Electrochem Soc. 2017;164(9):D660.

197.

Lee

, Tsai

, Wu

et al.Mater Charact. 2019;147:57–63.

198.

Osaka

, Kato

, Sato

et al.J Electrochem Soc. 2001;148(10):C659.

199.

Hosseini

, Ebrahimi

J Electroanal Chem. 2010;645(2):109–114.

200.

Ren

, Song

, Liu

et al.Electrochim Acta. 2015;176:10–17.

201.

Ren

, Song

, Liu

et al.RSC Adv. 2015;5(79):64806–64813.

202.

Pearson

RG.

J Chem Educ. 1987;64(7):561.

203.

Jin

, Liu

, Yang

F-Z

et al.Electrochim Acta. 2019;304:168–174.

204.

Yang

, Hu

, Ye

et al.Adv Synth Catal. 2016;358(16):2583–2588.

205.

Colacio-Rodriguez

, Salas-Peregrin

, Carretero

MM.

Monatshefte für Chemie/Chemical Monthly. 1986;117(8–9):941–947.

206.

Chen

, Fang

, Qiu

et al.Green Chem. 2011;13(9):2339–2343.

207.

, Liu

, Lai

et al.Angew Chem, Int Ed. 2016;55(4):1387–1391.

208.

Dimitrijevic

, Rajčić-Vujasinović

, Alagić

et al.Formulation and characterization of electrolyte for decorative gold plating based on mercaptotriazole. Electrochimica Acta. 2013;104:330–336.

209.

Dimitrijevic

, Rajčić-Vujasinović

, Jančić-Hajneman

et al. Temperature effect on decorative gold coatings obtained from electrolyte based on mercaptotriazole – comparison with cyanide. International Journal of Materials Research. 2014;105(3):272–281.

210.

Ohtani

, Sugawara

, Nemoto

et al.J Surf Finish Soc Jpn. 2004;55(12):933–936.

211.

Jin

, Yang

J-Q

, Yang

F-Z

et al.ACS Sustainable Chem Eng. 2020;8(38):14274–14279.
