Effects of Al 2 O 3 platelet and VC additive on sintering and mechanical properties of WC-based composites by hot pressing

Abstract

Fully dense WC-Al₂O₃ platelet composites with VC additive were fabricated by hot-press sintering. Their mechanical properties and microstructure were examined. The contents of Al₂O₃ platelet (Al₂O_3pl) and VC were optimised. The fracture toughness of WC-based composites would be obviously improved with Al₂O_3pl addition. The defined addition of VC was beneficial for the densification and improved mechanical properties of the WC-based composites. The microstructure of the composites was fine, compact and homogeneous compared with the composites without VC addition. The range of fracture toughness of WC-Al₂O_3pl composites was 9.3–13.5 MPa m^1/2. The flexural strength of the composites varied a little and the maximum was 1289 MPa when the content of Al₂O_3pl was 5 vol.-%, the content of VC was 0.5wt-%.

Keywords

VC WC-based composites mechanical properties

Introduction

WC-Co cemented carbides have been widely used as cutting tools and wear-resistant components due to a singular combination of their properties including high hardness, moderate toughness and excellent wear resistance. The addition of Co binder to WC can facilitate sintering and increase the strength and toughness considerably. On the other hand, the hardness and wear resistance of the cemented carbides are inversely proportional to the metallic binder content, and also the metallic binders are inferior to WC in corrosion and elevated temperature applications [1]. All of these have limited the application and the service life of the cemented carbides with metallic binder phase. Thanks to modern manufacturing techniques, the developments of binderless WC-based materials such as WC–TiC [2], WC–ZrO₂ [3], WC–FeCl₃ [4], WC–MgO [5] and WC-Al₂O₃ [6] have been obtained.

Nowadays, the new WC-Al₂O₃ composite hot-pressed sintering combine attractive mechanical properties including low density, high Vickers hardness, fracture toughness and flexural strength [7]. As for ceramics materials, the intrinsic low fracture toughness and modest flexural strength of them, however, limit the applicability of them under severe conditions such as for high-speed cutting tools.

In order to improve the mechanical properties of composites, one possible solution of overcoming this disadvantage is to add a third phase into composites. It was shown that the addition of reinforcement with high aspect ratio leads to a large increase in the fracture toughness. Whiskers, platelets and short or long fibres as the reinforcement phase are thought to be effective for producing a high-performance ceramic nanocomposite. Whiskers have been proposed as the most desirable addition to improve the fracture toughness and strength of ceramic composites. However, the potential environmental and health risks, high cost and difficulties during processing and non-biocompatibility have started to limit the use of whiskers. However, platelet reinforcement has been suggested as an alternative to whisker reinforcement [8] since it minimises health hazards and improves environmental safety, production economics and thermal stability, compared with whiskers. Experimental studies and models indicate that the toughening improvement by platelet addition is based on the contribution of several mechanisms, including debonding, pull-out (platelet sliding), crack bridging, microcrack formation and crack deflection at the platelet–matrix interface, load transfer as well as thermal residual stresses [9 -13]. The critical characteristics of the interface can be summarised in terms of low interfacial fracture energy and moderate interfacial sliding resistance after debonding [14].

There have been many recent reports on composite reinforced by SiC platelet and several papers on composites reinforced by Al₂O₃ platelet. SiC platelets were successfully used as reinforcements for some ceramics including Alumina (Al₂O₃) [8,9] and Si₃N₄ [10], and Al₂O₃ platelet were successfully used as reinforcements for some composites like mulite matrix ceramic [11], X-Sialon ceramic [12] and glass matrix composites [13 -15], but using Al₂O₃ platelets (Al₂O_3pl) as reinforcements for WC basic composites was rarely reported.

During the sintering process, the presence of a few grains substantially larger than the average due to abnormal grain growth is very detrimental. To avoid abnormal grain growth, other metal carbides such as VC, Cr₃C₂, TaC or NbC [16 -19] are added as a grain growth inhibitor. In our previous work [20], VC is more effective than Cr₃C₂ as grain growth inhibitors in WC-Al₂O₃ composites.

In the present study, Al₂O_3pl and VC were added together to fabricate WC-based composites by hot-press sintering. The purpose is to consolidate the Al₂O₃ platelet toughened WC matrix composites with excellent properties, and optimise the addition of VC. The effects of the Al₂O₃ platelet and VC addition content on the density, microstructure and properties of the consolidated bulk were investigated.

Experimental procedure

Starting materials and powder mixture preparation

Commercial powders of WC (99% purity, Sinopharm Chemical Reagent Co. Ltd) were milled using a QM-1SP4 planetary ball milling machine under argon gas atmosphere for 50 h. The ball to powder weight ratio was 10:1 and the rotation speed of the mill was 350 rev min⁻¹. Both the vial and milling balls (10 mm in diameter) were made of cemented carbide materials.

The γ-Al₂O₃ platelets were synthesised via a facile hydrothermal synthetic method [21]. First nanostructured γ-AlOOH was formed. Subsequently, platelets γ-Al₂O₃ is obtained after calcination of the γ-AlOOH at 600°C.

The designed compositions of WC-Al₂O₃pl composites in the present work are shown in Table 1. The powder mixtures were ball milled by QM-1SP4 planetary ball milling machine for 5 h. The phase identification of the synthesised γ-Al₂O₃ platelets was investigated by X-ray diffraction (XRD) using a D/max-2550PC (Rigaku Co., Japan) X-ray diffractometer with a Cu Ka radiation (λ= 0.15418 nm) at 400 kV and 200 mA.

Table 1

Compositions of the raw materials.

Sample	WC (wt-%)	Al₂O₃ (wt-%)	VC (wt-%)	Sintering temperature (°C)
W2.5A	97.5	2.5	0	1650
W5A	95	5	0	1650
W10A	90	10	0	1650
W5A	94.5	5	0.5	1550, 1650, 1750
W5A0.1V	94.9	5	0.1	1650
W5A0.25V	94.75	5	0.25	1650
W5A0.5V	94.5	5	0.5	1650
W5A1V	94	5	1	1650

Hot-press sintering and characterisation

The as-milled powders were hot pressed in a graphite die using a vacuum hot pressing furnace at a temperature of 1550°C, 1650°C, 1750°C under a pressure of 39.6 MPa in a vacuum (∼1.3×10⁻¹ Pa) atmosphere for 90 min. The heating rate of the hot pressing was 10°C min⁻¹. Carbonic paper with a thickness of 0.2 mm was used to prevent adhesion between powders and the die. The thermoelectric couple and infrared thermometer were selected to measure the temperature, located in the surface of the mould. The densities of sintered samples were measured using the water immersion method in accordance with Archimedes’ principle. Comparing this value with that calculated from the role of mixture principle, the relative density of the compacted bulks was achieved. The samples were ground and polished by standard ceramographic methods. The microstructure of the samples were characterised by S-4800 (Hitachi Co., Japan) field emission scanning electron microscope (FE-SEM) and scanning electron microscopy (SEM, Nova Nano 430, FEI, U.S.A.). Chemical composition was examined by energy dispersive spectroscope (EDS).

The hardness of sintered samples was measured using an HVS-50Z Vickers indenter with a load of 30 kg and an indentation time of 10 s. At least 10 indentations were made to calculate an average value. Indentation cracks were used as a rough indication of the fracture toughness (K_IC) of each sample [22]. K_IC determined in this manner is an approximation of the expected fracture toughness, not an absolute value. The flexural strength of sintered samples was measured using the three-point flexure test according to the ASTM B528 standard [23]. Bars were cut from the sintered pellets and then ground and polished into samples with dimensions of 15 × 5× 3 mm. Three-point flexure tests were carried out at room temperature using a WDW-100 testing machine with a span of 12 mm and crosshead speed of 0.01 mm s⁻¹. The flexural strength of consolidated samples was calculated based on the average of at least three tests.

Results and discussion

Powder characterisation

Figure 1 shows the morphology of γ-Al₂O_3pl. The γ-Al₂O₃ platelets are hexagonal-shaped, with major axes between 50 and 150 nm and thickness <20 nm. Figure 2 shows the XRD patterns of the samples after hydrothermal treatment and further calcination at 600°C for 4 h. As can be seen from Figure 2, all of the diffraction peaks can be indexed to face-centred cubic γ-Al₂O₃.

Figure 1

FSEM images of hexagonal platelet-shaped Al₂O₃.

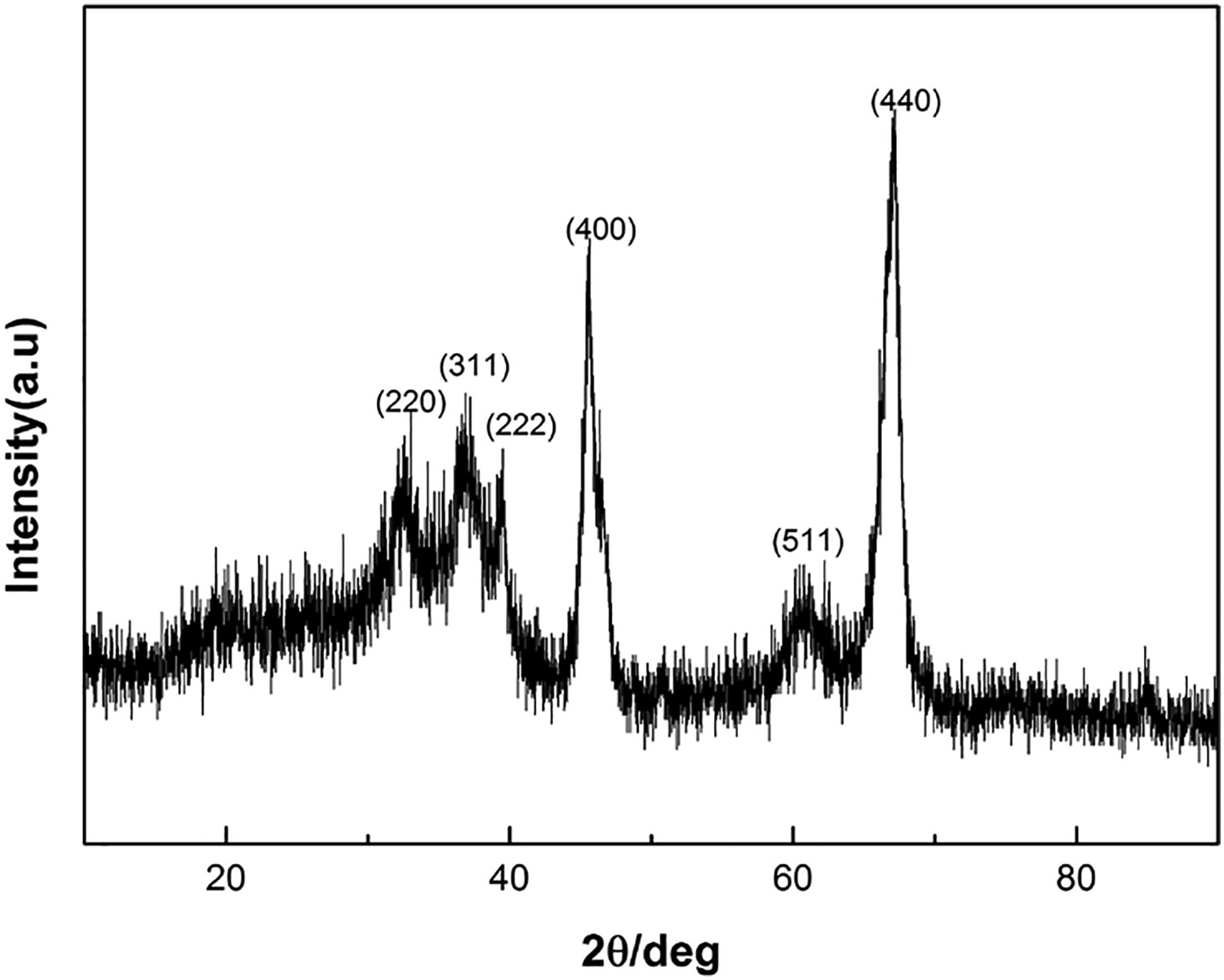

Figure 2

XRD pattern of γ-Al₂O₃ after calcination at 600°C for 4 h.

Figure 3 shows the morphology of the as-milled WC-Al₂O_3pl mixed powder. It shows that the Al₂O₃ platelets were distributed homogeneously in the WC powers. The EDS spot analysis reveals that the grey-dark particulates were composed of the Al and O elements, while the surrounding grey matrix was rich in the W and C elements.

Figure 3

FSEM images of WC-Al₂O_3pl mixed powder.

Effect of Al₂O_3pl content on WC-Al₂O_3pl composites

Table 2 lists the relative density and mechanical properties of the WC-Al₂O_3pl composites with different Al₂O₃ platelet content. It was observed that the relative density and hardness decreased with the Al₂O_3pl content increasing. It was probably due to that the Al₂O₃ platelets with two-dimensional structure hinder densification process of the ceramic composites. The increasing Al₂O_3pl content induced the difficulty in the densification of the composites. The fracture toughness of the composite was around 11.8 and decreased to 9.3 MPa m^1/2 when Al₂O_3pl content increased from 5wt-% to 15wt-%. Excessive Al₂O_3pl addition decreased the relative density of the composites; it indicated that some pores exit in the composites. These pores undermine the role of crack deflection toughening mechanism for they result in a decreased contact area between the ceramic matrix and Al₂O_3pl, as well as initiate cracks, along which stress is released in a less efficient way. Meanwhile, when Al₂O_3pl act as a pull-out role, the pores weaken the interfacial friction in the interface between the matrix and Al₂O_3pl. Therefore, pores cause detrimental effect to mechanical properties of the composites. Therefore, it is necessary to achieve high density of the composites with excellent mechanical properties.

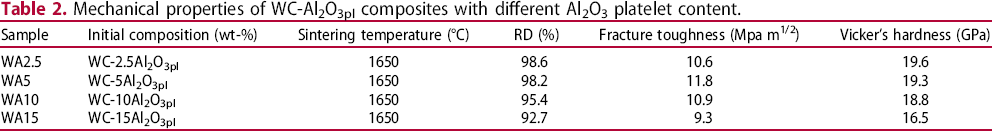

Table 2

Mechanical properties of WC-Al₂O_3pl composites with different Al₂O₃ platelet content.

Sample	Initial composition (wt-%)	Sintering temperature (°C)	RD (%)	Fracture toughness (Mpa m^1/2)	Vicker's hardness (GPa)
WA2.5	WC-2.5Al₂O_3pl	1650	98.6	10.6	19.6
WA5	WC-5Al₂O_3pl	1650	98.2	11.8	19.3
WA10	WC-10Al₂O_3pl	1650	95.4	10.9	18.8
WA15	WC-15Al₂O_3pl	1650	92.7	9.3	16.5

Effect of sintering temperature on WC-Al₂O_3pl composites

The WC-based ceramic composites with 5wt-% Al₂O_3pl additions were sintered at different temperatures (1550°C, 1650°C and 1750°C) to confirm a suitable sintering temperature for this material system. The relative density, flexural strength and fracture toughness are tested and shown in Table 3. It could be seen that the sintering temperature of 1650°C or higher is suitable for the WC-Al₂O_3pl composites. Furthermore, the mechanical properties of WA0.5V-1650 were better than that of WA0.5V-1550. The decrease in mechanical properties of WA0.5V-1750 may the result of over-burning. Then 1650°C was selected as the sintering temperature from the three temperatures.

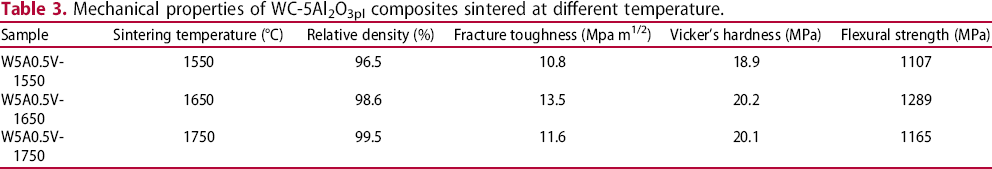

Table 3

Mechanical properties of WC-5Al₂O_3pl composites sintered at different temperature.

Sample	Sintering temperature (°C)	Relative density (%)	Fracture toughness (Mpa m^1/2)	Vicker's hardness (MPa)	Flexural strength (MPa)
W5A0.5V-1550	1550	96.5	10.8	18.9	1107
W5A0.5V-1650	1650	98.6	13.5	20.2	1289
W5A0.5V-1750	1750	99.5	11.6	20.1	1165

Effect of VC addition on hot-press sintered WC-Al₂O_3pl composites

Table 4 shows the relative density and mechanical properties of WC-Al₂O_3pl composites sintered at 1650°C with different VC addition, it could be seen that small amount of VC was beneficial to the improvement of relative densities, and the mechanical properties of WC-Al₂O_3pl composites were improved. As reported by Huang et al. [24], the dissolution of WC into VC induces the formation of a cubic (V,W)C solid, as determined by EPMA and XRD analysis. Moreover, the calculated VC-WC phase diagram, shown in Figure 4, clearly demonstrates the increasing WC solubility in cubic VC phase with increasing temperature. The solubility was calculated by means Thermo-Calc [25] using the thermodynamic data reported in reference [1]. In this study, the WC-Al₂O₃ composites with the addition of VC sintered at 1650, (V,W)C solid solution would be synthesised.

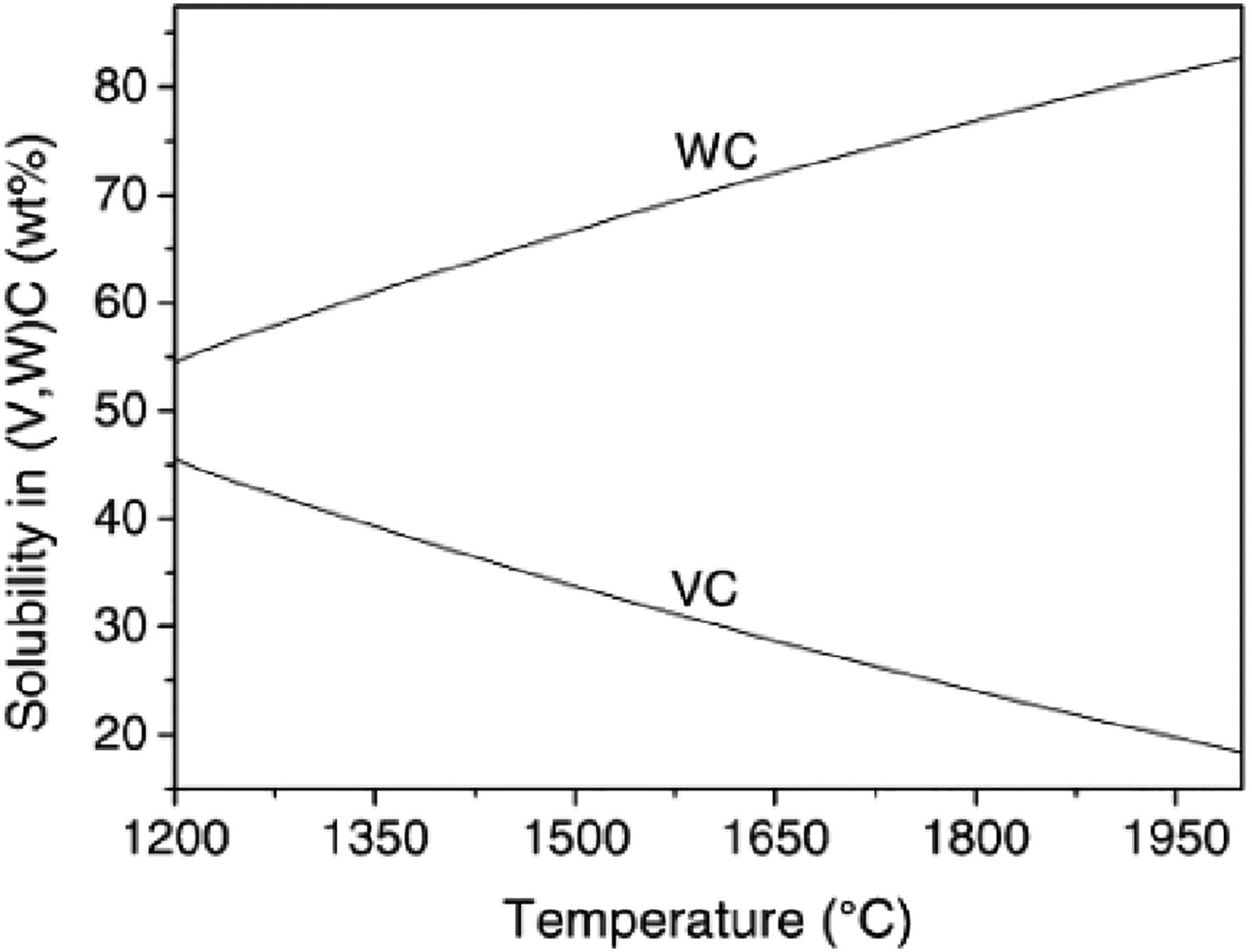

Figure 4

Estimated equilibrium solubility of WC and VC in (V,W)C phase as a function of temperature.

Table 4

Mechanical properties of WC-Al₂O_3pl composites with different VC addition.

Sample	Sintering temperature (°C)	Relative density (%)	Fracture toughness (Mpa m^1/2)	Vicker's hardness (MPa)	Flexural strength (MPa)
W5A0.1V	1650	97.5	12.4	19.2	1125
W5A0.25V	1650	98.2	12.8	19.8	1173
W5A0.5V	1650	98.6	13.5	20.2	1289
W5A1V	1650	98.8	13.3	20.5	1267

It also can be found that the densification of the WC-based material with additives was enhanced by the formation of (V,W)C solid solution under a solid-state-sintering [26].

Figure 5 shows the fracture surface of the WC-Al₂O_3pl composites with VC addition or not. From Figure 5, it could be also seen clearly that the grain size of the WC of WA0.5V wase smaller than the counterpart of WA composites. From Figure 5(a), several WC grain size was up to 5 μm, while WC grain size in WA0.5V were more homogenous and the largest grain size was <3 μm. It is consistent with the previous study that VC as an effective dopant to retard the grain growth of WC in WC composites [27,28].

Figure 5

SEM of the fracture surface of WC-Al₂O_3pl composites without (a) and with VC addition (b).

Further investigation was carried out on the microstructure to explain the high toughness of W5A0.5V. Figure 6 shows the SEM images of the Vickers indentation crack extension paths of W5A0.5V composites. According to the EDS analysis, the grey region contrasts Al₂O₃ and the bright region contrasts matrix WC. From Figure 6(a,c), it could be seen that when a crack propagates and meets with an Al₂O₃ platelet, it is arrested and deflected in-plane. Crack extended along the Al₂O_3pl interfaces could increase the length of the crack propagation path, absorbing much of the energy of crack expansion, leading to the enormously improvement of fracture toughness.

Figure 6

SEM images of the Vickers indentation crack extension paths of W5A0.5V composites.

Furthermore, residual thermal stresses are created at the platelet–matrix interface (during cooling from the sintering temperature) due to the thermal expansion mismatch between the Al₂O₃ platelets (α=8×10⁻⁶ K⁻¹), WC (α=3.8×10⁻⁶ K⁻¹), when α_platelet>α_matrix, it is expected that the compression and radial tension are created in the WC matrix and the platelet is in tension. In this situation, the bonding between matrix and platelets is weak enough (due to thermal expansion mismatches between the matrix and platelets) to promote a debonding: sliding mechanism (see Figure 6(b,d)). The fracture surface of W5A0.5V composites is shown in Figure 7. It was found that the fracture surface was very rugged, and the trace left was attributed to the Al₂O₃ platelets pulled out and debonded, which confirm that the fracture mode is intergranular and the platelet debonded from the matrix, showing the presence of the weak grain boundary structure suitable for crack deflection and pull-out mechanisms.

Figure 7

SEM images of the fracture surface of W5A0.5V composites.

In summary, the main toughening mechanisms in theW5A0.5V composites can be considered as crack deflection and Al₂O₃ platelet toughening. This is why the fracture toughness of the ceramic composites was improved and could be achieved as high as nearly 13.5 MPa m^1/2.

Conclusions

Near full dense WC-Al₂O₃ platelet composites with VC additive were fabricated by hot-press sintering. Their mechanical properties and microstructure were examined. The contents of Al₂O_3pl and VC were optimised. The microstructure were compact, fine and homogeneous; the mechanical properties of WC-based composites were improved. The range of fracture toughness of WC-Al₂O_3pl composites was 9.3–13.5 MPa m^1/2. The flexural strength of the composites varied a little and the maximum was 1289 MPa when the content of Al₂O_3pl was 5 vol.-%, the content of VC was 0.5wt-%. The main toughening mechanisms in the WC-Al₂O_3pl composites were Al₂O₃ platelet toughening and crack deflection.

Footnotes

Acknowledgements

The authors would like to acknowledge the support by Initial Research Funds for Young Teachers of Donghua University [grant number 20D410301].

Disclosure statement

No potential conflict of interest was reported by the author(s).

References

Deorsola

, Vallauri

, Villalba

GAO

, Densification of ultrafine WC-12Co cermets by pressure assisted fast electric sintering[J]. Int J Refract Met H, 2010;28:254–259.

Kim

, Kim

, Woo

, Consolidation of binderless WC-TiC by high frequency induction heating sintering. Int J Refract Met Hard Mater. 2008;26:48–54.

Malek

, Lauwers

, Perez

, Processing of ultrafine ZrO₂ toughened WC composites. J Eur Ceram Soc. 2009;29:3371–3378.

Huang

, VanderBiest

, Vleugels

Pulsed electric current sintered Fe₃Al bonded WC composites. Int J Refract Met Hard Mater. 2009;27:1019–1023.

Zhang

, Zhu

, Ma

, Preparation of WC/MgO composite nanopowders by high-energy reactive ball milling and their plasma-activated sintering. Powder Metall Met Ceram. 2008;47:525–530.

Qua

, Zhu

, Li

, Microstructure and mechanical properties of hot-pressing sintered WC–xvol.%Al2O3 composites. Mater Sci Eng A. 2012;543:96–103.

Qua

, Zhu

, Di

, Microstructure and mechanical properties of WC-40vol%Al₂O₃ composites hot pressed with MgO and CeO₂ additives. Ceram Int. 2013;39(2):1931–1942.

Kaya

, Kaya

, Marsoglu

Processing, toughness improvement and microstructural analysis of SiC platelet-reinforced Al₂O₃/Y-TZP nano-ceramic matrix composites. Mater Sci Eng. 1998;247:75–80.

Kaya

, Kaya

On the toughening mechanisms of SiC platelet-reinforced Al₂O₃/Y-TZP nano-ceramic matrix composites. Ceram Int. 1999;25:359–366.

10.

Choi

, Koh

, Kim

H-Ee.

Mechanical properties of Si3N4–SiC three-layer composite materials. J Am Ceram Soc. 1998;81:2725–2728.

11.

Yang

, Yang

, Yuan

QM.

Al₂O₃ platelet and tetragonal zirconia particle incorporation reinforced mullite matrix ceramics. J Mater Sci Lett. 1996;15:185–186.

12.

Zhou

, Vleugels

, Laoui

, Toughening of X-Sialon with Al₂O₃ platelets. J Eur Ceram Soc. 1995;15:297–305.

13.

Bernardo

, Scarinci

, Hreglich

Development and mechanical characterization of Al₂O₃ platelet-reinforced glass matrix composites obtained from glasses coming from dismantled cathode ray tubes. J Eur Ceram Soc. 2005;25:1541–1550.

14.

Boccaccini

, Winkler

Fracture surface roughness and toughness of Al₂O₃-platelet reinforced glass matrix composites. Composites Part A. 2002;33:125–131.

15.

Aldo

Pressureless sintering and characterization of Al₂O₃-platelet-reinforced barium-magnesium aluminosilicate glass-ceramic composites. Composites Part A. 1997;28:505–510.

16.

Feng

, He

, Xiao

, Effect of VC addition on sinterability and microstructure of ultrafine Ti(C, N)-based cermets in spark plasma sintering. J Alloys Compd. 2008;460:453–459.

17.

Taimatsu

, Sugiyama

, Komatsu

Effects of Cr₃C₂ and V₈C₇ on themicrostructure and mechanical properties of WC–SiC whisker ceramics. Mater Trans JIM. 2009;50(10):2435–2440.

18.

Mahmoodan

, Aliakbarzadeh

, Gholamipour

Sintering of WC–10%Co nano powders containing TaC and VC grain growth inhibitors. Trans Nonferrous Metals Soc. 2011;21(5):1080–1084.

19.

Trung

, Wati

, Zainal

, Grain growth, phase evolution and properties of NbC carbide-doped WC-10AISI304 hardmetals produced by pseudo hot isostatic pressing. J Alloys Compd. 2013;552:20–25.

20.

Dong

, Zhu

, Wang

, Influence of VC and Cr₃C₂ as grain growth inhibitors on WC-Al₂O₃ composites prepared by hot press sintering Int. Int J Refract Met Hard Mater. 2014;45:223–229.

21.

Lepot

, Van Bael

, Vanden Rul

, Synthesis of platelet-shaped boehmite and g-alumina nanoparticles via an aqueous route. Ceram Int. 2008;34:1971–1974.

22.

Shetty

, Wright

, Mincer

, Indentation fracture of WC-Co cermets. J Mater Sci. 1985;20:1873–1882.

23.

ASTM B 312 . Standard test method for green strength for compacted metal powder specimens, vol. 02.05. West Conshohocken: ASTM International; 1996.

24.

Huang

, Vleugels

, Li

, Experimental investigation and thermodynamic assessment of the V–W–C system. Cheminform. 2005;395(1–2):68–74.

25.

Sundman

, Jansson

The Thermo-Calc databank system. Calphad. 1985;9:153–190.

26.

Huang

, Vanmeensel

, Vander Biest

, Binderless WC and WC–VC materials obtained by pulsed electric current sintering. Int J Refract Met Hard Mater. 2008;26:41–47.

27.

Sun

, Zhao

Determination of microstructure and mechanical properties of VC/Cr₃C₂ reinforced functionally graded WC-TiC-Al₂O₃ micro-nano composite tool materials via two-step sintering. J Alloys Compd. 2017;709(30):197–205.

28.

Wang

, Webb

, Bitler

JW.

Different effects of Cr₃C₂ and VC on the sintering behavior of WC–Co materials. Int J Refract Met Hard Mater. 2015;53:117–122.
