The Effects of Global Signal Regression on Estimates of Resting-State Blood Oxygen-Level-Dependent Functional Magnetic Resonance Imaging and Electroencephalogram Vigilance Correlations

Experimental protocol

In this study, we used data from the protocol described in our prior study (Wong et al., 2013). Details of the experimental protocol, acquisition, and MRI/EEG data preprocessing were described in that article and are repeated here for the reader's convenience.

Twelve healthy volunteers were initially enrolled in this study after obtaining informed consent. Two subjects were not able to complete the entire study, resulting in a final sample size of 10 subjects (4 males and 6 females, aged 24–33 years, with an average age of 25.6 years). A repeated measures design was used, with each subject participating in two imaging sessions: a caffeine session and a control session. The order of the two sessions was randomized in a double-blinded manner. Each scan section consisted of (1) a high-resolution anatomical scan, (2) arterial spin labeling scans [these results are reported in our prior study (Wong et al., 2012) but not considered here], and (3) two 5 min resting-state scans with simultaneous EEG recording (one eyes-closed [EC] and the other eyes-open [EO]). Only the EC scans from noncaffeine sessions were used in this study.

Subjects were instructed to lie still in the scanner and not fall asleep during the resting-state scans. During the EC resting-state scans, subjects were asked to imagine a black square. An impedance check was performed before each EEG data acquisition while the subject was in the desired state (EC or EO) for at least 1.5 min. EEG data acquisition began 30 sec before each fMRI scan and ended 30 sec afterward. Thus, the subject was in the desired state (EC or EO) for at least 2 min before the acquisition of the combined EEG and fMRI data. Field maps were acquired to correct for magnetic field inhomogeneities.

MRI data acquisition

Imaging data were acquired on a 3 Tesla GE Discovery MR750 whole body system using an eight-channel receiver coil. High-resolution anatomical data were collected using a magnetization prepared three-dimensional fast spoiled gradient sequence [inversion time (TI) = 600 msec, echo time (TE) = 3.1 msec, flip angle =  \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${8^ \circ }$$ \end{document} , slice thickness = 1 mm, field of view (FOV) = 25.6 cm, matrix size =  \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$256 \times 256 \times 176$$ \end{document} ]. Whole brain BOLD resting-state data were acquired for 30 axial slices using an echo planar imaging sequence [flip angle =  \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${70^ \circ }$$ \end{document} , slice thickness = 4 mm, slice gap = 1 mm, FOV = 24 cm, TE = 30 msec, repetition time (TR) = 1.8 sec, matrix size =  \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$64 \times 64 \times 30$$ \end{document} ). Field maps were acquired using a gradient recalled acquisition in steady state sequence (TE1 = 6.5 msec, TE2 = 8.5 msec), with the same in-plane parameters and slice coverage as the BOLD resting-state scans. The phase difference between the two echoes was then used for magnetic field inhomogeneity correction of the BOLD data.

Cardiac pulse and respiratory effect data were monitored using a pulse oximeter (in vivo) and a respiratory effort transducer (BIOPAC), respectively. The pulse oximeter was placed on each subject's right index finger, whereas the respiratory effort belt was placed around each subject's abdomen. Physiological data were sampled at 40 Hz using a multichannel data acquisition board (National Instruments).

EEG data acquisition

EEG data were recorded using a 64-channel MR-compatible EEG system (Brain Products, Munich, Germany). The system consisted of two 32-channel Brain Amp MR Plus amplifiers powered by a rechargeable battery unit. The system was placed behind the scanner bore, which was connected using a 125 cm long data cable to a Brain Cap MR with 64 recording electrodes. All electrodes in the cap had sintered Ag/AgCl sensors incorporating 5 kΩ safety resistors. The separate ECG electrode had a built-in 15 kΩ resistor. The arrangement of the electrodes in the cap conformed to the international 10/20 standard. FCz and AFz were the reference and ground electrodes, respectively.

The EEG data were recorded at a 5 kHz sampling rate with a band pass of 0.1–250 Hz. A phase locking device (Syncbox; Brain Products) was used to synchronize the clock of the EEG system with the master clock of the magnetic resonance imaging (MRI) system. Before each scan section, the electrode impedances were set <20 kΩ, whereas the impedances of the reference and ground electrodes were set <10 kΩ. Before recording EEG data in each resting-state scan, a snapshot of the electrode impedance values was taken from the computer screen. One EEG data set was created for each 5-min resting-state scan.

MRI data processing

Analysis of functional neuroimages (AFNI) and FMRIB software library were used for MRI data preprocessing (Cox, 1996; Smith et al., 2004; Woolrich et al., 2009). The high-resolution anatomical data were skull stripped and segmentation was applied to estimate white matter (WM), gray matter (GM), and cerebral spinal fluid (CSF) partial volume fractions. In each scan section, the anatomical volume was aligned to the middle functional volume of the first resting-state run using AFNI. The anatomical volume in the postdose scan section was then registered to the predose anatomical volume, and the rotation and shift parameters obtained from this registration were applied to the postdose functional images. The first six TRs (10.8 sec) of the BOLD data were discarded to allow magnetization to reach a steady state.

A binary brain mask was created using the skull-stripped anatomical data. For each slice, the mask was eroded by two voxels along the border to eliminate voxels at the edge of the brain (Rack-Gomer and Liu, 2012). For each run, nuisance terms were removed from the resting-state BOLD time series through multiple linear regression. These nuisance regressors included (1) linear and quadratic trends, (2) six motion parameters estimated during image coregistration and their first derivatives, (3) RETROICOR (second order Fourier series) (Glover et al., 2000) and RVHRCOR (Chang and Glover, 2009; Chang et al., 2009) physiological noise terms calculated from the cardiac and respiratory signals, and (4) the mean BOLD signals calculated from WM and CSF regions and their first respective derivatives, where these regions were defined using partial volume thresholds of 0.99 for each tissue type and morphological erosion of two voxels in each direction to minimize the inclusion of GM.

EEG data processing

BrainVision Analyzer 2.0.1 software (Brain Products) was used for MR gradient removal using an average pulse artifact template procedure (Allen et al., 2000). An average template was created using the volume start markers from the MRI system and then subtracted from the individual artifacts. After gradient artifact removal, a low pass filter with a cutoff frequency of 30 Hz was applied to all channels and the processed signals were downsampled to 250 Hz. Heart beat event markers were created within the Analyzer software. The corrected data and event markers were exported to Matlab 7 (Mathworks, Inc.). EEGLAB (version 9) was used for further preprocessing (Delorme and Makeig, 2004).

For each EEG data set, the ballistocardiogram (BCG) and residual artifacts were removed using a combined optimal basis set and independent component analysis approach (OBS–ICA) (Debener et al., 2007; Niazy et al., 2005). To remove the BCG artifact, the continuous EEG data were divided into epochs based on the heart beat event markers. The epochs were stacked into a matrix configuration and a BCG template was created using the first three principal components calculated from the matrix (Debener et al., 2007). The BCG template was then fitted in a least squares manner and subtracted from each epoch of the EEG data.

After BCG artifact removal, channels that exhibited high-impedance values (>20 kΩ) or were contaminated with high levels of residual gradient artifact were identified and discarded from further processing. The impedance values were identified using the snapshot of channel impedances acquired before the beginning of each scan.

To identify channels contaminated with residual gradient artifact that was not adequately removed using the Analyzer software, the continuous EEG data in each channel were band-pass filtered from 15.5 to 17.5 Hz. This frequency band contained the first harmonic of the gradient artifact centered at 16.7 Hz (slice markers were separated by 60 msec). The root mean square (rms) of the filtered time course was calculated for each channel. A channel was identified as a contaminated channel if the rms value was larger than the median plus six times the interquartile range (Devore and Farnum, 2005), calculated across all channels except the ECG. On average, each channel was included in 95% of the runs in both the EC and EO conditions (median = 98%, SD = 6%). For further analysis, only the included channels for each run were used.

Extended infomax ICA was then performed. Independent components (ICs) corresponding to residual BCG or eye blinking artifacts were identified by correlating all IC topographies with artifact template topographies and extracting the ICs with spatial correlation values of 0.8 or more (Debener et al., 2007; Viola et al., 2009). The corrected data were then created by projecting out the artifactual ICs (Delorme and Makeig, 2004).

As bulk head motion creates high amplitude distortion in the EEG data acquired in the MRI environment, it is desirable to discard the distorted time segments (Jansen et al., 2012; Laufs et al., 2008). To identify the contaminated time segments, the EEG data were band-pass filtered from 1 to 15 Hz (to avoid the first harmonic of the residual gradient artifact centered at 16.7 Hz). A mean amplitude time series was calculated by taking the rms across channels. Outlier detection was performed on the mean time series and the outlier threshold was calculated as the sum of the median value and six times the interquartile range across time (Devore and Farnum, 2005). Data points with values larger than this threshold were regarded as segments contaminated by motion. Contaminated segments <5 sec apart were merged to form larger segments that were then excluded. A binary time series was created by assigning a “1” to the time points within the bad time segments and a “0” to the remaining good time points.

In a recent study, Jansen et al. (2012) found that predictors derived from an EEG motion artifact were strongly correlated with the BOLD signal when the EEG predictors were convolved with a hemodynamic response function. To indicate the time points reflecting the BOLD response to the motion artifact, we convolved the binary time series with a hemodynamic response function (Buxton et al., 2004) and binarized the resulting output with a threshold of 0 to form a second binary time series. Since both EEG and fMRI measures were considered in our study, a final binary time series was created by combining the two binary time series using an OR operation. The binary time series were downsampled to match the sampling frequency of the BOLD time courses. In the EC condition, an average of 81% of the time points of the binary time series were indicated as good (i.e., with a value of 0; median = 85%, SD = 13%). In the EO condition, the corresponding average was 86% (median = 88%, SD = 9%).

For each EEG channel, a spectrogram was created using a short-time Fourier transform with a four-term Blackman–Harris window (1311 points, 5.24 sec temporal width, and 65.7% overlap). The output temporal resolution of the spectrogram was 1.8 sec (i.e., equivalent to the TR of the BOLD resting-state scans). The time points in the EEG spectrogram and BOLD time series that were indicated as potentially contaminated by motion (i.e., values of 1 in the binary time series) were discarded from further analysis.

EEG vigilance time series

As already described, a spectrogram was calculated for each EEG channel with the same temporal resolution as the BOLD time series. A global spectrogram was created by taking the rms of all spectra across all channels. Then at each time point, the relative amplitude spectrum was computed by normalizing the spectrum by its overall rms amplitude (square root of sum of squares across all frequency bins). Relative EEG amplitude time series were then computed as the rms amplitude in the following frequency bands (delta and theta: 1–7 Hz, alpha: 7–13 Hz).

Vigilance was defined as the ratio of power in the alpha band over the power in the delta and theta bands (Horovitz et al., 2008; Olbrich et al., 2009; Wong et al., 2013), which is equivalent to the alpha slow-wave index (Jobert et al., 1994; Larson-Prior et al., 2009; Müller et al., 2006). To form the vigilance time series, rms amplitude in alpha band was divided by the rms amplitude in the delta and theta bands at each time point. The vigilance time series was then convolved with the hemodynamic response function to account for the hemodynamic delay.

FMRI global signal

For each voxel, a percentage change BOLD time series was obtained by subtracting the mean value from the original voxel time series and then dividing the resulting difference by the mean value. The GS was formed by averaging the percentage change time series across all brain voxels.

Correlation between vigilance and BOLD

For each run, temporal correlations between the vigilance and fMRI BOLD time courses were first computed before performing GSR. Correlation maps where then normalized using the Fisher-Z transformation. A one-sample t-test (3dttest++ from AFNI with t-test randomization to minimize the FPR) was performed on the Fisher-z transformed correlation maps to assess the relation at the group level. The same procedure was repeated after regressing out the GS from the BOLD and vigilance time series.

We further considered a modified implementation of the censoring approach proposed by Nalci et al. (2017). For each scan, we computed the interquartile range (IQR: middle \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$50 \%$$ \end{document} ) of the GS time course and identified the time points for which the GS was outside this range. We then censored the fMRI data from these time points, such that the correlation between vigilance and BOLD was computed using only those time points for which the GS was within the IQR. By definition, this approach censors 50% of the time points, that is, points below the first quartile (Q ₁) or above the third quartile (Q ₃).

BOLD–vigilance correlation before and after GSR

Group result z-score maps showing areas with significant correlation between EEG vigilance and BOLD fMRI are shown in the first and second rows of Figure 1 for data before and after GSR, respectively. Before GSR, we found significant positive BOLD–vigilance correlations in the thalamus and significant negative correlations in widespread regions of the brain, including the posterior cingulate, cuneus, precuneus, lingual gyrus, and insula. These findings are consistent with prior studies (Goldman et al., 2002; Laufs et al., 2006) that do not appear to have used GSR.

OPEN IN VIEWER

FIG. 1.

Group result z-scores (from 3dttest++) showing areas of significant correlation between the BOLD fMRI and EEG vigilance when using (A) original data (before GSR), (B) fMRI data after GSR, (C) using only data points in the interquartile range (e.g., marked with black circles [○] in Supplementary Fig. S1) of the GS. Maps are thresholded at \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$p < 0.05$$ \end{document} (corrected) where the color map on the right hand side indicates the strength of correlation as z-scores. Blue colors correspond to anti-correlations and red colors correspond to positive correlations. BOLD, blood oxygenation level-dependent; EEG, electroencephalogram; fMRI, functional magnetic resonance imaging; GS, global signal; GSR, global signal regression. Color images available online at www.liebertpub.com/brain

After GSR, there was a significant reduction in the magnitude and the extent of the negative correlations, whereas the extent of the positive correlations in subregions of the cingulate gyrus increased. The positive values in the thalamus were found to be largely unaffected. The bottom row in Figure 1 shows z-score maps obtained after censoring based on GS magnitude, which are similar in appearance to the maps obtained after GSR. Supplementary Figure S1 (Supplementary Data are available online at www.liebertpub.com/brain) displays the GS time series from a representative subject. The points in the IQR, which are used to compute the correlation after censoring, are shown with black circles.

Supplementary Figures S2 and S3 display the results for two additional scenarios. In scenario 1, we used the average GM signal in place of the GS regressor and obtained a new set of group maps for the correlation between the vigilance and BOLD fMRI signals. The resulting maps after GM regression are displayed in Supplementary Figure S2. In scenario 2, we performed multiple regression using only the head motion regressors and linear and quadratic terms during the preprocessing of the BOLD data and obtained a new set of group maps as shown in Supplementary Figure S3. In both scenarios, the resulting group maps are similar to the original maps obtained in Figure 1.

Understanding the changes in correlation values

To gain further insight into the results, we use the Yule (1897) expression for partial correlation to write the BOLD–vigilance correlation after GSR as \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document} \begin{align*} \tilde r = { r_ { \tilde v \tilde x } } = \frac { 1 } { { \sqrt { 1 - r_ { gx } ^2 } \sqrt { 1 - r_ { gv } ^2 } } } \left( { { r_ { vx } } - { r_ { gx } } { r_ { gv } } } \right) , \tag { 1 } \end{align*} \end{document}

where x and v denote the BOLD and vigilance time courses before GSR, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\tilde x$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\tilde v$$ \end{document} denote the time courses after GSR, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\tilde r$$ \end{document} denote BOLD–vigilance correlations before and after GSR, respectively, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gv}}$$ \end{document} denote the correlations of the GS with the BOLD and vigilance time courses, respectively. For each voxel, GSR first subtracts an offset term \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}{r_{gv}}$$ \end{document} from the original correlation value. It then multiplies the resulting difference by a scaling term \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\frac { 1 } { { \sqrt { 1 - r_ { gx } ^2 } \sqrt { 1 - r_ { gv } ^2 } } } $$ \end{document} , which is by definition greater than or equal to 1.

The offset term \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}{r_{gv}}$$ \end{document} is the product of the (1) correlation \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gv}}$$ \end{document} between the GS and vigilance signals and (2) the correlation \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}$$ \end{document} between the GS and voxel time series. As noted in our prior study (Falahpour et al., 2018), the GS and vigilance signals exhibit a negative correlation for the vast majority of scans examined (see also Fig. 4). In contrast, the GS is positively correlated with the majority of the voxel time courses in the brain (Fox et al., 2009), reflecting its construction as the average of the voxel time series. In our data, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$75 \%$$ \end{document} of the voxel time courses were found to be positively correlated with the GS. Taking into account the average behavior of the individual component terms, the offset term \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}{r_{gv}}$$ \end{document} will tend to be negative over the voxels and scans in the study sample, corresponding to a positive shift (due to subtraction of this term) in the correlation values after GSR.

Figure 2 shows an example of the relationship presented in Equation 1 using data from a representative scan. In this example, the scaling term \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\frac { 1 } { { \sqrt { 1 - r_ { gx } ^2 } \sqrt { 1 - r_ { gv } ^2 } } } $$ \end{document} ranges from \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$1.07$$ \end{document} to \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$2.1$$ \end{document} . The offset term \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}{r_{gv}}$$ \end{document} consists of a component \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}$$ \end{document} that varies across voxels and a component \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gv}}$$ \end{document} that is constant across voxels. For this example, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gv}} = - 0.37$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}$$ \end{document} is largely positive across voxels, such that the product \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}{r_{gv}}$$ \end{document} is largely negative across voxels. In addition, due to the significant correlation between the GS and vigilance, the spatial structure of the \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}$$ \end{document} component is similar to that of the original correlation map \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} . As a result, subtraction of the \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}{r_{gv}}$$ \end{document} term removes much of the spatial structure in the correlation map.

OPEN IN VIEWER

FIG. 2.

The analytical relationship between the BOLD–vigilance correlations before and after GSR is shown graphically for a representative scan. Equation 1 is displayed on the top left side where v is the vigilance time series, x is the BOLD fMRI time series, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$\tilde r$$ \end{document} are the correlation between the vigilance time series and BOLD fMRI time series before and after GSR, respectively, \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}$$ \end{document} is the correlation between GS and BOLD, and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gv}}$$ \end{document} is the correlation between GS and vigilance. Color images available online at www.liebertpub.com/brain

Effect on correlation is primarily explained by subtraction of offset term

In the representative scan, the subtraction of the offset term appears to account for the primary effect of GSR on the BOLD–vigilance correlation map. To assess the relative contributions of the offset and scaling terms across the sample, we computed on a per-scan basis the spatial correlation between the following pairs of maps: (1) BOLD–vigilance correlation map before and after multiplication by the scaling term (first row in Fig. 3), (2) BOLD–vigilance correlation map before and after subtraction of the offset term (second row), and (3) BOLD–vigilance correlation map before and after GSR (third row).

OPEN IN VIEWER

FIG. 3.

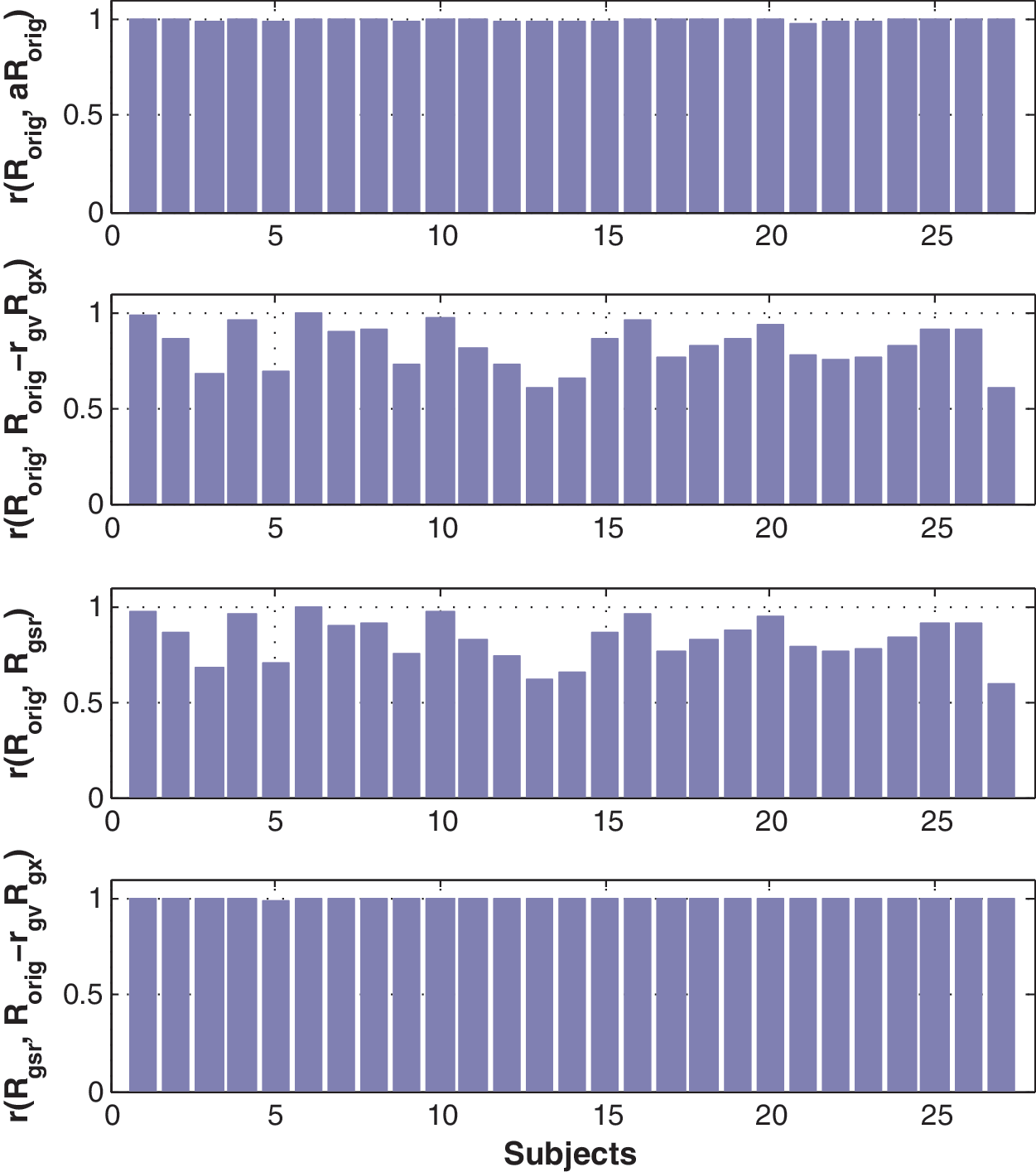

First row: Spatial correlation between BOLD and vigilance correlation maps before ( \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${R_{orig}}$$ \end{document} ) and after scaling ( \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$a{R_{orig}}$$ \end{document} ) where the scaling term is \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$$a = \frac { 1 } { { \sqrt { 1 - r_ { gx } ^2 } \sqrt { 1 - r_ { gv } ^2 } } } $$ \end{document} . Second row: Spatial correlation between BOLD and vigilance correlation maps before and after subtraction of offset term. Third row: Spatial correlation between BOLD and vigilance correlation maps before and after GSR. Fourth row: Spatial correlation between BOLD and vigilance correlation maps obtained after GSR and maps after subtraction of offset term. Color images available online at www.liebertpub.com/brain

The spatial correlations shown in the first row are all very close to unity, indicating that multiplication by the scaling term does not significantly change the spatial structure of the correlation maps. In contrast, the similarity of the spatial correlations in the second and third rows indicates that the subtraction of the offset term largely accounts for the change in the spatial structure of the correlation maps after GSR. As further evidence, we show in the fourth row of Figure 3 that there is a high-spatial correlation between the BOLD–vigilance maps obtained after GSR and the maps obtained after subtraction of the offset term.

Region of interest-based analysis

We next examined in detail the changes in correlation values in brain regions where GSR resulted in (1) a decrease in the extent of negative correlations (occipital cortex), (2) an increase in the extent of positive correlations (cingulate gyrus), and (3) no significant changes (thalamus). For analysis, the regions of interest (ROIs) were defined using anatomical parcellations from the TT_caez_ml_18+tlrc atlas in AFNI as follows: the occipital cortex ROI included Talairach regions 43–48, the cingulate gyrus ROI included Talairach regions 31–32, and the thalamus ROI included Talairach regions 77–78.

Figure 4 displays the terms from Equation 1 for each ROI and scan. In the first row, the original correlation values \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} are shown, with predominantly negative values for the occipital ROI, largely positive values for the thalamus ROI, and a mix of negative and positive values for the cingulate gyrus ROI. In the second row, the correlation \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gv}}$$ \end{document} between the GS and vigilance is shown to be mostly negative across scans (note that these values are independent of the ROI). The correlations \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}$$ \end{document} between the GS and ROI time series are shown in the third row. These are uniformly positive for the occipital and cingulate gyrus ROIs, but exhibit a mix of negative and positive values for the thalamus ROI, reflecting a weaker contribution of the thalamic signals to the GS. In the fourth row, we display the product terms \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}{r_{gv}}$$ \end{document} along with the original correlation values \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} to facilitate comparisons. We find that the product term is largely negative for the occipital and cingulate gyrus ROIs, consistent with the predominantly positive values for \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}$$ \end{document} and largely negative values for \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gv}}$$ \end{document} . In contrast, the product term is roughly centered about 0 for the thalamic ROI. The difference \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}} - {r_{gx}}{r_{gv}}$$ \end{document} between the original correlation and the product term is shown in the bottom row, with scans exhibiting a change in the sign with respect to the original correlation indicated with black asterisks. The cingulate gyrus ROI exhibited the greatest number of sign changes, reflecting the fact that the original values \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} are roughly centered around 0, whereas the subtraction of the offset term causes a largely positive shift. In contrast, the occipital ROI has only a few sign changes because the original values \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} are predominantly negative and the positive shift due to subtraction of \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}{r_{gv}}$$ \end{document} is not typically sufficient to change the sign. Thus, the correlation values remain negative, but are closer to 0 due to the positive shift. Finally, the thalamic ROI displays only two sign changes, reflecting the fact that the original values \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} are largely positive, whereas the product terms \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}{r_{gv}}$$ \end{document} are rather small in amplitude and centered about 0, such that the resultant changes are relatively small.

OPEN IN VIEWER

FIG. 4.

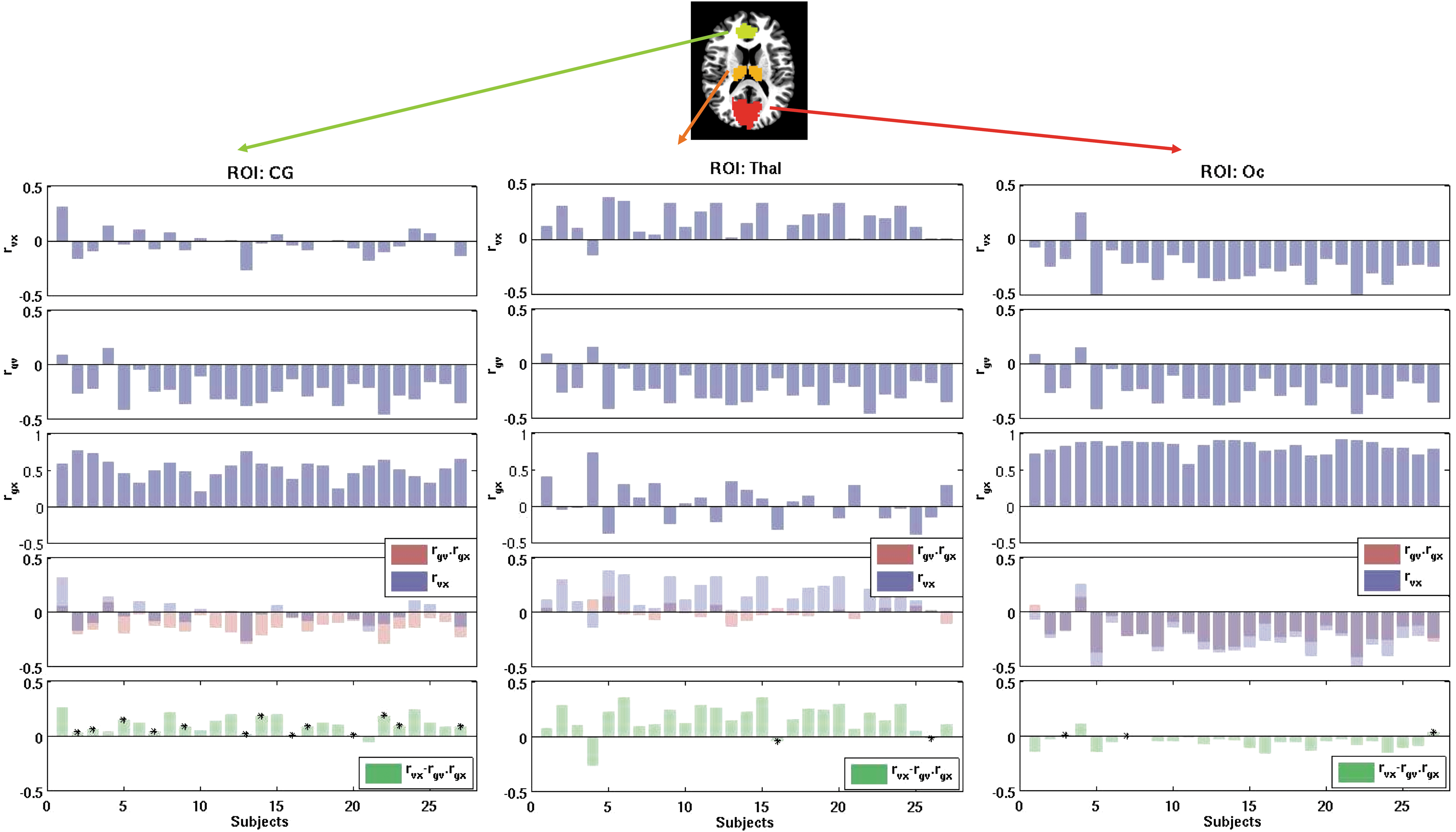

Terms in Equation 1 shown for three ROIs and each scan. Columns 1–3 show the results for cingulate gyrus (CG), thalamus (Thal) and the occipital (Oc) ROIs, respectively. Row 1: correlation \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} between vigilance and the ROI average BOLD signals; Row 2: correlation \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gv}}$$ \end{document} between GS and vigilance; Row 3: correlation \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}$$ \end{document} between GS and the ROI average BOLD signals; Row 4: multiplication of \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}$$ \end{document} and \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gv}}$$ \end{document} in pink along with \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} in blue; Row 5: \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{gx}}.{r_{gv}}$$ \end{document} subtracted from \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} . Black asterisks show the scans where the polarity of the subtraction is different from the original BOLD–vigilance correlation \documentclass{aastex}\usepackage{amsbsy}\usepackage{amsfonts}\usepackage{amssymb}\usepackage{bm}\usepackage{mathrsfs}\usepackage{pifont}\usepackage{stmaryrd}\usepackage{textcomp}\usepackage{portland, xspace}\usepackage{amsmath, amsxtra}\usepackage{upgreek}\pagestyle{empty}\DeclareMathSizes{10}{9}{7}{6}\begin{document}$${r_{vx}}$$ \end{document} . Color images available online at www.liebertpub.com/brain
