CRISPR/Cas-Dependent and Nuclease-Free In Vivo Therapeutic Gene Editing

Abstract

Precise gene manipulation by gene editing approaches facilitates the potential to cure several debilitating genetic disorders. Gene modification stimulated by engineered nucleases induces a double-stranded break (DSB) in the target genomic locus, thereby activating DNA repair mechanisms. DSBs triggered by nucleases are repaired either by the nonhomologous end-joining or the homology-directed repair pathway, enabling efficient gene editing. While there are several ongoing ex vivo genome editing clinical trials, current research underscores the therapeutic potential of CRISPR/Cas-based (clustered regularly interspaced short palindrome repeats-associated Cas nuclease) in vivo gene editing. In this review, we provide an overview of the CRISPR/Cas-mediated in vivo genome therapy applications and explore their prospective clinical translatability to treat human monogenic disorders. In addition, we discuss the various challenges associated with in vivo genome editing technologies and strategies used to circumvent them. Despite the robust and precise nuclease-mediated gene editing, a promoterless, nuclease-independent gene targeting strategy has been utilized to evade the drawbacks of the nuclease-dependent system, such as off-target effects, immunogenicity, and cytotoxicity. Thus, the rapidly evolving paradigm of gene editing technologies will continue to foster the progress of gene therapy applications.

Introduction

Gene editing has emerged as one of the most revolutionary breakthroughs in the field of biomedical sciences over the past decade. The technological advancements developed by scientists have enabled precise and targeted manipulation of the genome. Gene editing approaches entail a site-specific modification of a gene by its deletion, replacement, or correction, thus producing the desired therapeutic effect.

Fundamentally, site-specific modification of genetic information at the DNA level requires two essential components: first, a sequence-specific DNA recognition and binding domain, and second, an effector domain that initiates DNA cleavage near the binding site. A double-stranded break (DSB) by a sequence-specific endonuclease activates the cell's endogenous DNA repair mechanisms, subsequently modifying the desired sequence.^1
–3 Two major repair pathways used by the cell to repair the nuclease-induced DSB are nonhomologous end-joining (NHEJ) and homology-directed repair (HDR).^4
–6 Depending on the DSB repair pathway, the outcome may be inactivation of the targeted locus by insertions or deletions (“indels”) introduced by NHEJ⁷ or insertion of a new sequence by HDR from an exogenous DNA template. In the HDR pathway, the donor DNA has homology arms with sequences identical to the region surrounding the DSB, enabling precise correction or replacement of the original gene.⁴ These alternations are triggered by engineered nucleases that induce a double-stranded break (DSB) in the desired genomic locus, leading to activation of efficient DNA repair mechanisms present in all organisms. Here we mention the different nuclease-mediated platforms, focusing on the CRISPR/Cas (clustered regularly interspaced short palindrome repeats-associated Cas nuclease) system for gene editing.

CRISPR has the potential to be used directly in patients, in vivo or ex vivo, for therapeutic gene editing. In vivo gene editing involves gene modification in situ by the direct delivery of CRISPR/Cas9 to target cells. Some parameters need to be considered for recognizing the efficacy and safety of therapeutic in vivo gene editing, discussed in the later sections of this article. Ideally, the carriers for delivering CRISPR/Cas directly to target cells should be nonimmunogenic, with minimal cytotoxicity. Only target cells harboring a mutated gene should be edited using CRISPR/Cas components; nonspecific targeting of the normal cells may adversely affect their physiological function. Off-target effects associated with CRISPR/Cas need to be restricted to prevent insertional tumorigenesis. Finally, a high editing efficiency may be required to obtain clinically relevant levels for therapeutic gene editing. Therefore, selection of an optimal CRISPR/Cas system and the appropriate delivery vector is imperative for precise and robust gene editing in vivo. In this review, we focus on the nuclease-dependent (CRISPR/Cas) HDR-based editing in vivo to treat human monogenic diseases, briefly evaluate the hurdles and mitigation strategies coupled with in vivo delivery, and discuss nuclease-free editing as an alternate gene targeting approach.

Nuclease-Dependent Platforms for Gene Editing

Nuclease-based platforms include meganucleases, zinc-finger nucleases (ZFNs), transcription activator-like effector nucleases (TALENs), and the more recent CRISPR/Cas9 that can be engineered to target the genomic locus of interest (Fig. 1). Meganucleases or homing endonucleases recognize long DNA sequences to trigger a DSB. They were among the first to be reengineered for novel target site recognition using structure-based design and protein engineering approaches.^1,8 However, the process of designing meganucleases for therapeutic gene editing is laborious, thereby limiting its use. ZFNs consist of a zinc finger DNA binding domain that determines specificity and a nuclease domain derived from a restriction endonuclease, FokI.⁹ A pair of ZFNs are designed for each target site for the FokI domains to dimerize, rendering the nuclease domain catalytically active. Using a wide array of approaches such as phage-based selection, bacterial-based selection, and modular assembly, ZFNs have been constructed to target a diverse range of sequences for gene editing.^10

–14 Engineered ZFNs have exhibited promise in enhancing targeted homologous recombination (HR) in human cells,¹⁵ as well as therapeutic gene editing for cystic fibrosis,¹⁶ sickle cell anemia,^17,18 and human immunodeficiency virus (HIV).^19
–21 SB-FIX by Sangamo Therapeutics is an in vivo gene therapy treatment that uses ZFN-based editing to deliver the correct copy of factor IX (FIX) gene for treating hemophilia B. Another ZFN-based in vivo gene editing therapy developed by Sangamo Therapeutics, SB-913, entered the first clinical trial for treating Hunter's syndrome.²² A similar FokI nuclease-based editing platform, TALENs, derived from TAL effector proteins also demonstrated therapeutic gene editing potential.^23,24 This technology has been effectively used to mitigate the HIV coreceptor, CCR5 gene,²³ and manipulate immune cells for cancer treatment.²⁵ Despite the targeted gene editing efficacy of ZFNs and TALENs, the difficulty in cloning and reengineering them for each target site has limited their widespread use. The advent of the CRISPR/CRISPR-associated protein (Cas) technology, which is far more robust and flexible compared with the existing nucleases, paved the way for new possibilities in therapeutic gene editing.

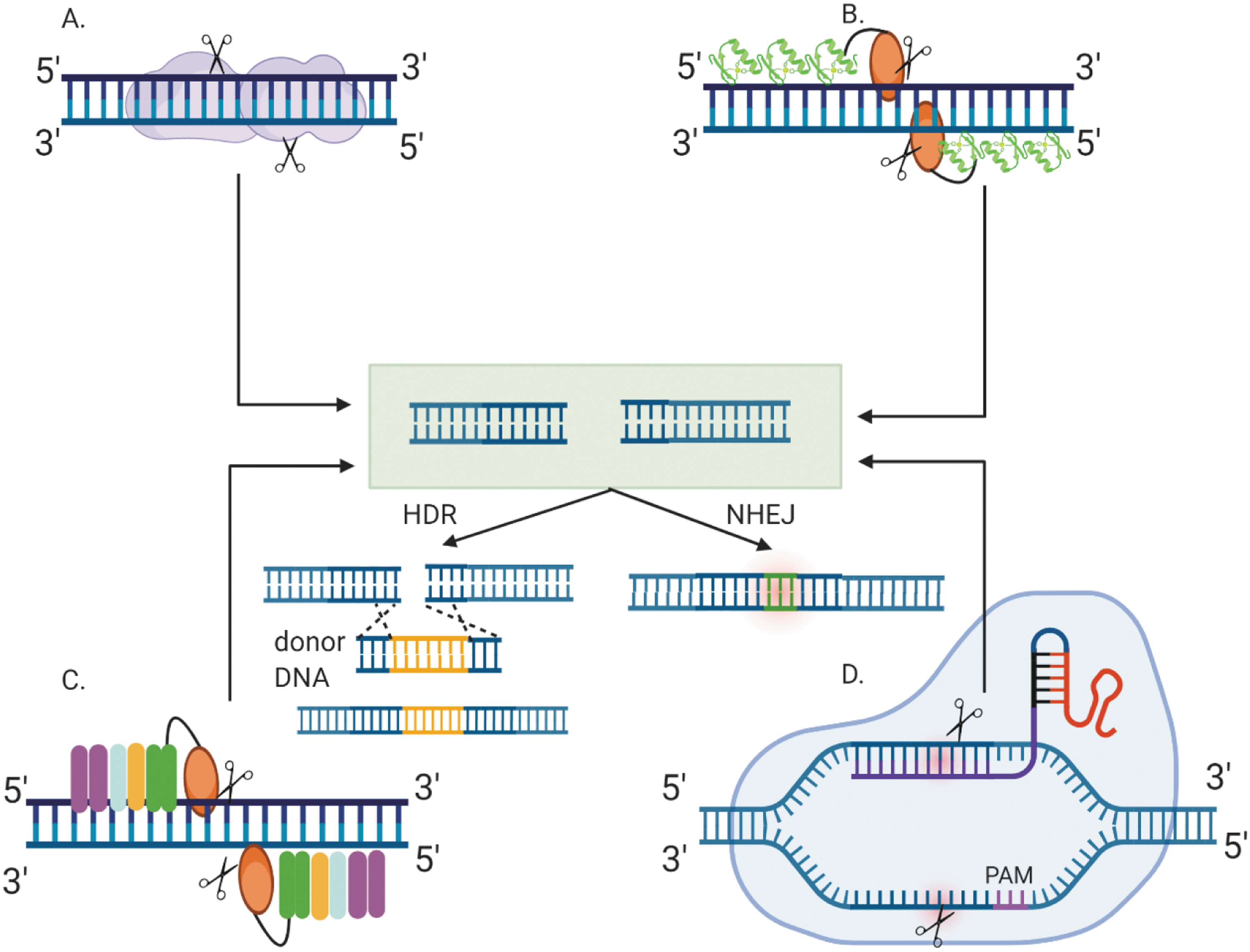

Figure 1.

Different programmable nucleases for targeted gene editing. (A) Meganucleases belonging to the endonuclease family form a homodimer to exhibit nuclease activity and have a very long target recognition sequence. (B) ZFN modules (green) linked in tandem are fused to the FokI nuclease (orange) with a conserved linker (black). (C) TALENs are designed by fusing their TALE modules to FokI nuclease, similar to ZFNs. Each TALE module recognizes only one nucleotide base, whereas each ZFN module recognizes three bases. Two distinct ZFNs and TALENs bind to specific sites at opposite DNA strands (blue) and FokI dimer cleaves the DNA at the targeted locus. (D) CRISPR/Cas system contains an sgRNA and a Cas protein (light blue). An ∼20 nucleotide spacer region (purple) of the sgRNA recognizes the target DNA to be modified. A PAM sequence (pink) acts as a binding signal for the Cas protein. Once the spacer region of the gRNA recognizes and binds to the target DNA, the Cas endonuclease undergoes a conformational change to induce a DSB at the target site. The DSB can be repaired by the host's DNA repair pathways, either by the non-NHEJ or HDR. The NHEJ pathway results in small indels (green) in the target DNA and in most cases causes disruption of the mutated/defective gene. HDR pathway requires the presence of an exogenous donor template encoding the desired edit in addition to the sequence homologous to the regions flanking the genomic target and results in high-fidelity and precise gene editing. CRISPR/Cas, clustered regularly interspaced short palindrome repeats-associated Cas nuclease; DSB, double-stranded break; gRNA, guide RNA; HDR, homology-directed repair; indels, insertions/deletions; NHEJ, nonhomologous end-joining; PAM, protospacer-adjacent motif; sgRNA, single-guide RNA; TALENs, transcription activator-like effector nucleases; ZFN, zinc-finger nuclease. Created with BioRender.com

CRISPR/Cas TECHNOLOGY

This powerful, multiplexed tool first studied as part of the bacterial adaptive immune system consists of a protein (Cas) and an RNA (crRNA and tracrRNA) component. A CRISPR/Cas locus is made up of Cas genes and a CRISPR array consisting of repetitive sequences interspaced by variable DNA bases, called spacers. These spacers serve as a “snapshot” of the invader's mobile genetic elements acquired during a previous infection. During future infections, this stored “snapshot” mediates recognition and protection against foreign cognate viruses or plasmids.^26,27 The CRISPR/Cas-mediated immune response, based on sequence-specific targeting of foreign nucleic acids, is divided into three main stages. The first stage of immune response elicited by the CRISPR system is termed as the acquisition stage, in which DNA fragments from invading viruses are introduced into the CRISPR locus of the host as spacers. The second stage, known as the expression stage, marks transcription of the CRISPR array containing spacers into pre-CRISPR RNA (pre-crRNA), followed by processing it by Cas proteins to mature crRNAs. A noncoding trans-activating CRISPR RNA (tracrRNA) is essential for crRNA processing and binding to Cas protein in type II CRISPR systems. The mature crRNA acts as a guide that can recognize invading foreign DNA and direct the Cas protein, thereby mediating target cleavage. During the final interference stage, the crRNA enables target recognition and Cas proteins cleave the foreign DNA, conferring protection to the host cell.^28
–30

Seminal work in the field has shown that this CRISPR/Cas system can be programmed to cleave host DNA in a diverse range of species, thereby enabling gene editing for a multitude of biomedical applications. A variety of CRISPR/Cas systems have rapidly evolved, resulting in their structural and functional diversity. CRISPR/Cas systems are divided into two classes that are each subdivided into three types and various subtypes. The class 1 CRISPR systems (type I, II and IV) present in bacteria and archaea are thought to be evolutionary ancestrally. Their effector complexes consist of multiple Cas protein subunits. Contrary to this, the class 2 CRISPR systems (type II, V, VI) are mostly restricted to bacteria and their effector complex is made up of a single multidomain Cas protein.^31,32 The type II CRISPR/Cas system has emerged as the most widely used and robust nuclease for genome editing studies.³² This RNA-guided type II complex consists of a Cas9 endonuclease and a guide RNA (gRNA). The gRNA constitutes an ∼20-nucleotide crRNA complementary to the target DNA and a scaffold sequence required for Cas binding namely, tracrRNA. A breakthrough discovery showed that it is feasible to fuse the crRNA and tracrRNA into a single chimeric gRNA, which confers specificity to the CRISPR/Cas system for targeted gene editing. In addition, a protospacer-adjacent motif (PAM) sequence immediately downstream of the target site also determines the specificity of this system and serves as a binding signal for the Cas protein. Cas nucleases isolated from different bacteria recognize respective PAM sequences. The most commonly used and well-characterized Cas9 endonuclease is from the bacterium, Streptococcus pyogenes, which requires a 5′-NGG-3′ PAM sequence immediately downstream of the target site for binding. Cas9 and gRNA form a ribonucleoprotein (RNP) complex, facilitated by the gRNA scaffold (tracrRNA), while the spacer region (crRNA) is free to interact with the target DNA. Once the RNP complex binds to the putative target DNA, the gRNA anneals to the target and Cas9 undergoes a conformational change; its HNH nuclease domain cleaves the target strand at approximately three to four nucleotides upstream of the PAM sequence and the RuvC-like nuclease domain cleaves the nontarget strand resulting in a DSB at the desired genomic locus.^28,33
–35 The DSBs are repaired either by NHEJ or HDR pathways, as mentioned earlier. Thus, by altering the synthetic gRNA sequence to bind any desired target, the Cas9 protein can be utilized as a robust platform for precise genome targeting. Wild-type Cas9 nuclease variants generated by mutating either of the two nuclease domains function as a nickase Cas9 (nCas9) that cleaves a single strand of DNA. This feature helps in enhancing Cas9-based gene editing specificity.^36,37 When both the HNH- and RuvC-like nuclease domains are inactivated, dead Cas9 (dCas9) is formed, which only retains its DNA-binding ability. These engineered Cas9 mutants, fused to other functional effectors or ligands, can be extensively used for specific gene targeting, activation, silencing, epigenetic regulation, and base editing.^38
–40 Besides SpCas9, other Cas9 proteins have also been designed, such as Cas9 derived from Staphylococcus aureus (SaCas9)⁴¹ and Neisseria meningitidis called Nme2Cas9.⁴² These Cas9 proteins, discussed later in this review, have comparable editing potential such as SpCas9 but are better suited for in vivo delivery, owing to their smaller size.

CRISPR/Cas-MEDIATED IN VIVO GENE EDITING

A highly precise, robust, easily deliverable gene editing approach is required for safe ex vivo and in vivo clinical applications. During ex vivo editing, cells are first isolated, transfected with the appropriate gene editing toolbox, and then retransplanted into the patient.⁴³ On a clinical scale, this is a time-consuming, strenuous, and expensive process, thereby questioning its broad accessibility to patients particularly in underdeveloped nations. Furthermore, ex vivo editing is largely limited to cells that can be isolated from a patient's body, modified in vitro, and then reinfused back into the patient, such as hematopoietic stem cells (HSCs) and immune cells, for example, T cells and natural killer (NK) cells. CRISPR/Cas-mediated ex vivo therapeutic gene editing has been extensively used for genetic diseases, such as sickle cell anemia, β-thalassemia, and chimeric antigen receptor (CAR)-T therapy.^44,45 However, target cells implicated in the majority of the genetic diseases require in situ gene correction. Hence, in vivo gene editing is an ideal platform for treating various human genetic disorders. In the following section, we briefly highlight the rationale behind in vivo gene editing and CRISPR/Cas editing approaches devised for potential clinical use in monogenic diseases.

Ideal candidates for in vivo gene editing

First, in vivo gene editing involves local or systemic delivery of the gene editing components into a patient, avoiding the tedious process of cell isolation, expansion, editing, and reinfusion.⁴⁶ For example, the existing site-specific gene editing approaches to treat sickle cell disease include isolation of a patient's hematopoietic stem and progenitor cells, followed by either repairing the mutated hemoglobin gene (HBB)⁴⁷ or inducing fetal hemoglobin expression,^48,49 and finally, reinfusion of the corrected cells into the patient bone marrow.⁵⁰ Advancements in in vivo technologies might alleviate the need for bone marrow transplantation, making the process less painful and economical.

Second, in situ gene modification is preferred for certain cell types that might lose their properties and function when artificially cultured, such as neurons. Ex vivo editing techniques also affect the viability of cells and result in poor engraftment, which is evaded during in vivo editing.

Third, in some monogenic disorders where a single gene impairment causes defects in the entire cell lineage, such as severe combined immunodeficiency,⁵¹ correcting HSCs generates healthy cells capable of differentiation, with a selective advantage over defective cells. As a result, a lower number of corrected cells are enough to attain therapeutic outcome. Since, the efficiency of in vivo editing is low, a selective advantage of the modified cells enhances the feasibility of this approach. Ideal candidates for in vivo gene editing are genetic disorders where allelic ablation of aberrant splice sites would help restore gene function, such as in β-thalassemia.⁵²

Moreover, some genetic disorders that affect small organs, such as the ear and retina, require localized injection of the genome editing toolbox to the target organ, with limited distribution to other tissues. A localized delivery achieved by the route of administration or using tissue-specific promoters improves the feasibility of organ/tissue-specific genome editing in vivo.⁵³ However, larger organs entail systemic injection for efficient targeting.

Finally, a conventional gene therapy approach involves replacement of the defective gene at the target locus. However, the low number of edited cells may not express adequate levels of the transgene necessary to alleviate the disease. This drawback can be resolved by delivery of the editing machinery to a native locus, “safe harbor” with high transcriptional activity, such as the serum albumin locus.⁵⁴ This strategy established a versatile platform for therapeutic levels of protein expression, substituting the donor for each transgene.

In vivo CRISPR/Cas applications

Most of the CRISPR/Cas-mediated therapeutic applications for monogenic disorders that are in clinical trials currently are ex vivo strategies. In recent years, in vivo gene editing studies that rely on both NHEJ and HDR pathways have emerged. Some of the recent applications of in vivo therapeutic genome engineering in preclinical and clinical studies are listed in Table 1. Here, we highlight some HDR-based precise gene modification studies in vivo using CRISPR/Cas that can be potentially translatable to human use in the future.

Table 1.

List of some of the recent therapeutic gene editing studies in in vivo preclinical and clinical models

Disease	Target organ	Gene editing tool	Delivery system	Therapeutic modality	Reference
Hemophilia A and B	Mouse liver	ZFN	Systemic injection of AAV8	HDR- and HITI-dependent gene insertion	¹³⁵
Hemophilia A and B	Mouse liver	ZFN	Systemic injection of AAV8	HR-based targeting of the genomic safe harbor, albumin	¹³⁶
Hemophilia A and B	Mouse liver	ZFN	Systemic injection of AAV8	HDR-based corrective gene editing	¹³⁴
Hunter's syndrome	Mouse liver	ZFN	Systemic injection of AAV2/AAV8	NHEJ- or HDR-mediated integration into albumin locus	²²⁸
HBV	Mouse liver	TALEN	Hydrodynamic injection of two plasmids encoding the editing machinery	Gene disruption of HBV sequences	²²⁹
HTI	Mouse liver	CRISPR/Cas9	Hydrodynamic injection of ssDNA donor template	HR-mediated point mutation correction	⁵⁶
HTI	Mouse liver	CRISPR/Cas9	Intravenous injection of AAV2/8 and LNP	HDR-based point mutation correction	⁵⁸
HTI	Mouse hepatocytes	CRISPR/Cas9	Hydrodynamic tail-vein injection of Cas9 and sgRNAs	NHEJ-based gene disruption	²³⁰
HTI	Mouse liver	CRISPR/Cas9 nickase	Hydrodynamic tail-vein injection of ABE system	ABE-mediated point mutation correction without HDR template	⁶¹
Transthyretin amyloidosis	Mouse liver	CRISPR/Cas9	LNP-mediated delivery of Cas9 and sgRNAs	NHEJ-based gene knockdown	⁶²
AATD	Mouse liver	CRISPR/Cas9	Dual AAV delivery by intravenous (adult mice) and intraperitoneal injection (young mice)	HDR-based point mutation correction	⁵⁵
AATD	Humanized mouse liver	CRISPR/Cas9	Intravenous injection of replication-deficient type5 Adenovirus	NHEJ-mediated mutant AAT disruption	⁵⁴
Hemophilia B	Mouse hepatocytes	CRISPR/Cas9	Tail vein injection of AAV9 encoding liver-specific promoter	NHEJ-mediated gene inactivation of F9 gene	²³¹
DMD	Mouse muscle	CRISPR/Cas9	Intraperitoneal injection of AAV9	NHEJ-based mutant exon 23 excision	⁷⁰
DMD	Mouse cardiac and skeletal muscle	CRISPR/Cas9	Intraperitoneal, intramuscular, and retro-orbital injection of AAV9	NHEJ-based mutant exon 23 skipping	⁶⁸
DMD	Mouse cardiac muscle and skeletal myofibers	CRISPR/Cas9	Intramuscular and intravenous injection of AAV8	NHEJ-based mutant exon 23 excision	⁶⁹
DMD	Mouse cardiac and skeletal muscle	CRISPR/Cas9	Intramuscular and intraperitoneal injection of AAV9	DMD gene restoration in ΔEx50 DMD mice by exon 51 skipping	⁶³
DMD	Cranial tibialis muscles in dogs	CRISPR/Cas9	Intramuscular injection of AAV9	DMD gene restoration in ΔEx50 DMD canine model by exon 51 skipping	⁶⁴
DMD	Anterior tibialis muscles in mouse	CRIPSR/Cas9 nickase	Intramuscular injection of AAV9	ABE-mediated point mutation correction	⁷¹
DMD	Mouse muscle	CRISPR/Cas9	Intramuscular and retro-orbital injection of dual AAV6	HDR-mediated dystrophin gene correction	⁷²
Congenital muscular dystrophy type1A	Mouse muscle	CRISPR/dCas9	Intramuscular or systemic injection of AAV9	CRISPR activator-based gene upregulation	²³²
LCA type 2	Young adult eye	Human retinal pigmented epithelium-specific 65(RPE65) complementary cDNA under RPE65 promoter	Subretinal injection of rAAV2/2	AAV-mediated transduction	²³³
LCA10	Mouse retina	Self-inactivating CRISPR/Cas9	Subretinal injection of dual AAV5 vector	NHEJ-mediated intron deletion	¹⁴³
LCA10	Humanized mouse eye	CRISPR/Cas9	Subretinal injection of AAV5	NHEJ-mediated aberrant splicing	⁷⁷
Age-related macular degeneration	Adult mouse eye	CRISPR/Cas9	Subretinal injection of specific Cas9 RNP	NHEJ-based gene inactivation	⁸²
Age-related macular degeneration	Adult mouse retina	CRISPR/Cas9	Intravitreal injection of single AAV9 vector	NHEJ-based gene inactivation	⁸⁰
Retinitis pigmentosa	Transgenic mouse model with human Rhodopsin gene	CRISPR/Cas9	Electroporation of Cas9 and dual gRNAs in mouse retina	NHEJ-based gene knockdown	²³⁴
Retinitis pigmentosa	Rat retina	CRISPR/Cas9	Subretinal injection of gRNA followed by plasmid electroporation	NHEJ-based gene knockdown	⁷⁸
Retinitis pigmentosa	Mouse retina	CRISPR/Cas9	Intravitreal injection of AAV9	NHEJ-based allele-specific targeting	⁷⁹
Retinitis pigmentosa	Mouse retina	CRISPR/Cas9	Subretinal injection of gRNA and SpCas9	NHEJ-based allele-specific knockout	⁸³
Retinitis pigmentosa	Mouse retina	CRISPR/Cas9	Dual AAV8 vector system by subretinal injection	NHEJ-based neural retina leucine zipper (Nre) knockdown	⁸⁵
Retinitis pigmentosa	Mouse brain	CRISPR/Cas9	In utero electroporation in mouse embryos Subretinal injection in rats and intravenous injection of AAV8/9 in mouse	HITI-dependent gene correction	⁸⁷
Retinitis pigmentosa	Mouse retina	CRISPR/Cas9	Subretinal injection of AAV8	NHEJ-mediated targeted Nre inactivation	²³⁵
Oxygen-induced retinopathy	Mouse eye	CRISPR/Cas9	Intravitreal injection of rAAV1	NHEJ-based mutant gene disruption	⁸¹
Primary open-angle glaucoma	Mouse eye	CRISPR/Cas9	Intravitreal injection of Adenovirus (Ad5)	NHEJ-based mutant gene disruption	⁸⁴
Huntington disease	Mouse brain	CRISPR/Cas9	Stereotactic injection of AAV1	SNP-based allele-specific editing of Htt gene	²³⁶
Rett syndrome	Mouse brain	CRISPR/Cas9	Stereotactic injection of AAV1/2	NHEJ-based disruption of multiple genes	¹⁰³
ALS	Mouse central nervous system	CRISPR/Cas9	Intramuscular injection of self-complementary AAV9	Insulin-like grown factor gene knockdown	²³⁷
ALS	Mouse spinal cord	CRISPR/Cas9	Systemic injection of AAV9	NHEJ-based gene disruption	²³⁸
Cardiac syndrome	Mouse heart	CRISPR/Cas9	Systemic injection of AAV9	NHEJ-based mutant gene knockdown	¹⁴⁶
Dystrophic cardiomyopathy	Mouse heart	CRISPR/Cas9	Retro-orbital and intraperitoneal injection of AAV rh74	NHEJ-based mutant Dmd exon 23 excision	⁷³
Lethal respiratory failure	Mouse fetus lung	CRISPR/Cas9	Intra-amniotic Ad vector delivery	NHEJ-based mutant gene disruption	²³⁹
Cancer	Programmed death1 ligand (PD-L1) tumor xenograft	CRISPR/Cas9	Lentiviral delivery	PD-1-deficient CAR-T cells	²⁴⁰
Genetic deafness	Mouse ear	CRISPR/Cas9	Inner ear injection of AAV2 Anc80L65 capsids	NHEJ-dependent mutant allele inactivation	²⁴¹
HIV	HIV-infected humanized mouse spleen, brain, heart, lungs, and so on	CRISPR/Cas9	Intravenous injection of AAV-DJ/8	HIV-1 proviral DNA excision	²⁴²
HIV	Transgenic infected mouse spleen, liver, kidney, heart	CRISPR/Cas9	Tail-vein injection of rAAV9	HIV-1 proviral DNA excision	²⁴³
β-Thalassemia	Mouse model of human β-thalassemia	Triplex forming PNA	Intravenous injection of nanoparticles containing donor DNA	PNA-mediated gene editing	⁹¹
β-Thalassemia	Humanized mouse and thalassemia mouse blood cells	Transposase	Intravenous injection of HDAd5/35⁺⁺ vector	Transposase-based gene integration	^92,93
β-Thalassemia	Rhesus macaques	Transposase	Intravenous injection of HDAd5/35⁺⁺ vector	Transposase-based gene integration	⁹⁵
SCD	Humanized mouse and SCD disease model	CRISPR/Cas9 and transposase system	Intravenous injection of a bimodular HDAd5/35⁺⁺ vector	Combined transposase-based integration and CRISPR/Cas9-mediated gene disruption	⁹⁶

AATD, alpha-1 antitrypsin deficiency; AAV, Adeno-associated vector; ABE, adenine base editing; Ad, adenovirus; ALS, amyotrophic lateral sclerosis; CAR, chimeric antigen receptor; CRISPR/Cas, clustered regularly interspaced short palindrome repeats-associated Cas nuclease; dCas9, dead Cas9; DMD, Duchenne muscular dystrophy; gRNA, guide RNA; HBV, hepatitis B virus; HDR, homology-directed repair; HIV, human immunodeficiency virus; HITI, homology-independent targeted integration; HR, homologous recombination; HTI, hereditary tyrosinemia; LCA, Leber's congenital amaurosis; LNP, lipid nanoparticles; NHEJ, nonhomologous end-joining; PNA, peptide nucleic acids; RNP, ribonucleoprotein; SCD, sickle cell disease; sgRNA, single-guide RNA; TALEN, transcription activator-like effector nuclease; ZFN, zinc-finger nuclease.

Genetic liver diseases

Alpha-1 antitrypsin deficiency (AATD) patients suffer from progressive lung disease due to loss-of-function of AAT antiprotease activity and some patients suffer from liver toxicity due to gain-of-function of the mutant allele. CRISPR/Cas9-mediated editing and NHEJ successfully impaired mutant AAT and effectively ameliorated liver fibrosis in a humanized mouse model, thus supporting a potential therapeutic possibility of treating AATD patients.⁵⁵ An additional study utilized coinjection of a dual adeno-associated vector (AAV): one encoding Cas9 and another expressing an AAT gRNA and an HDR donor template into the liver of a transgenic mouse model. This approach enabled precise AAT gene correction in vivo and partially restored wild-type AAT levels,⁵⁴ making it a probable therapeutic option upon further optimization for use in humans. Hereditary tyrosinemia type I (HTI) is another genetic liver disease, caused by loss-of-function of fumaryl acetoacetate hydrolase (FAH), a key enzyme of the tyrosine catabolic pathway. CRISPR/Cas9-mediated HDR has successfully corrected FAH mutation by two methods: (1) A hydrodynamic injection of the gene editing components, which yielded a low correction rate⁵⁶ and was tested in a clinical trial,⁵⁷ and (2) systemic delivery of Cas9 mRNA by lipid nanoparticles (LNPs) and a single-guide RNA (sgRNA)/HDR template by AAV, which resulted in an initial FAH correction in more than 6% of hepatocytes.⁵⁸ Moreover, a new-generation gene editing tool, base editing, which involves conjugating dCas9 with enzymes that catalyze direct conversion of A to G or C to T, ensues DNA base editing without causing any DNA breaks.^40,59,60 Using an adenosine base editing (ABE) strategy via an LNP delivery containing sgRNA and a codon-optimized base editor was shown to restore FAH point mutation in vivo, eliminating the need for any DNA donor template.⁶¹ In addition, in a model of transthyretin amyloidosis, a single administration of LNP-mediated delivery of CRISPR/Cas9 along with chemically modified sgRNA facilitated efficient editing of the mouse transthyretin (Ttr) gene in the liver, and >90% reduction of TTR serum protein levels that persisted for at least 12 months.⁶² This study achieving clinically relevant levels of editing in vivo may be extended to provide human data in future.

Duchenne muscular dystrophy

In vivo editing studies have been explored in genetic muscular diseases, for example, Duchenne muscular dystrophy (DMD), characterized by progressive muscle weakness and premature death due to mutation in the dystrophin gene. A DMD mouse model exhibiting a similar deletion in the Dmd gene (ΔEx50) occurring in DMD patients was generated using CRISPR/Cas9. CRISPR/Cas9-induced single cut in the dystrophin gene of these mice and a gRNA that enables exon 51 skipping restores up to 90% dystrophin gene expression in skeletal and cardiac muscles.⁶³ An important step toward clinical translation of therapeutic gene editing for DMD is using CRISPR/Cas9-mediated NHEJ to treat dogs with the ΔEx50 mutation, corresponding to a mutational “hotspot” in the human DMD gene. Systemic delivery of the gene editing apparatus in skeletal muscle provided 3–90% recovery, depending on the muscle type, and treated dogs revealed improved muscle histology.⁶⁴ Although this proof of principle study in the canine disease model has the potential to bridge the gap between mice and humans, there are some issues in large animal editing which needs further attention. Limited sample size, age of injection, treatment duration, characterization of the treatment results, safety and ethical concerns as discussed in earlier reports^65
–67 needs to be addressed in future.

Besides exon skipping, other groups have utilized AAV-based local and systemic delivery of CRISPR/Cas9 editing components to adult and neonatal DMD mouse models for removing the mutation in exon 23, resulting in partial recovery of functional dystrophin in skeletal myofibers and cardiac muscle.^68
–70 Moreover, local delivery of ABEs consisting of engineered adenine deaminase, and an SpCas9 nickase helped correct a nonsense mutation in a DMD mouse model.⁷¹ An ideal therapy for a chronic disease such as DMD should ensure a lifelong, sustained restoration of dystrophin in the heart and skeletal muscle. To this end, a single-dose AAAV-CRISPR therapy that leads persistent alleviation of the disease phenotype is required. Successful results from short-term studies^68,70,72,73 prompted researchers to test the long-term restoration of the DMD gene. Systemic delivery of an AAV9 vector encoding SaCas9 and gRNA targeting introns 22 and 23 restored dystrophin expression, thereby improving skeletal and cardiac muscle function for 18 months in dystrophic mice.⁷⁴ Another approach for attaining enduring gene therapy for DMD would be editing muscle stem cells (MuSCs) using CRISPR. Since the self-renewing MuSCs, also known as satellite cells, regenerate skeletal muscle in response to tissue damage, correcting these cells would enable long-term therapeutic gene editing. CRISPR-edited MuSCs from dystrophic mice, when engrafted in a dystrophin null mouse, showed increased dystrophin expression and successful renewal.^75,76 These studies taken together demonstrate that with further development, in vivo gene editing approaches will be clinically useful for treating DMD.

Retinal disorders

A hallmark study that recently entered clinical trial uses in vivo CRISPR/Cas9 delivery for treating congenital blindness in patients. Leber congenital amaurosis (LCA) is a rare, debilitating monogenic disease resulting in vision loss in childhood, with no available treatment. A biallelic loss-of-function mutation in the CEP20 gene is responsible for this severe retinal dystrophy. Editas Medicine has developed a therapy named, EDIT-101, which delivers SaCas9 directly to remove the intronic IVS26 mutation in the CEP20 gene, implicated in aberrant splicing, thereby restoring functional CEP20 levels in human cells and humanized CEP20 mice.⁷⁷ A clinical trial of EDIT-101 by Allergan and Editas Medicine paves the way for a prospective curative strategy for treating congenital blindness using an in vivo approach.

Ideally, HDR-based precise gene correction can repair the genetic mutations implicated in inherited retinal disorders. Since HDR mainly occurs in mitotic cells, the postmitotic nature of most retinal cells limits the HDR efficiency. Hence, a majority of the in vivo gene therapy approaches for retinal dystrophies rely on the CRISPR-Cas-mediated NHEJ pathway.^{78

–86} Another genome editing strategy, namely, homology-independent targeted integration (HITI), was utilized to successfully knock in exon 2 of Mertk (MER/AXL/TYRO3 receptor kinase) gene, thereby protecting from retinal degeneration.⁸⁷ HITI exploits the NHEJ repair mechanism and enables targeted transgene insertion without the need of an HR donor template in dividing and nondividing cells.

In vivo editing of stem cells and immune cells

Most of the HSC gene therapies involve removal of the patient's stem cells, their expansion followed by gene correction using editing machinery and then reintroduction to the patient's body. Although this approach has been used in ongoing clinical trials, they are associated with limitations, discussed earlier in this review. Another disadvantage of the ex vivo approach is that reinfusion of the edited cells into the bone marrow requires the patient to undergo chemotherapy. Recently, one of the ongoing clinical trials for sickle cell disease, initiated by Bluebird Bio, has come to a halt after two patients, who received the ex vivo gene therapy for SCD, were diagnosed with acute myeloid leukemia (AML) and myelodysplastic syndrome (MDS).⁸⁸ Previously, in 2018, another patient in the same trial was diagnosed with MDS, likely due to the adverse effects of chemotherapy pretreatment. Whether these two new cases can be attributed to chemotherapy or insertional oncogenesis triggered by the lentiviral vector used in the trials is still elusive and needs further examination. In vivo editing bypasses the time-consuming, expensive, and laborious process of in vitro handling of HSCs as well as the DNA damaging chemotherapy during reinfusion. In vivo approaches either include a direct modification of HSCs in the bone marrow by an intraosseal injection, or a systemic injection of delivery vehicles that act on HSCs mobilized into peripheral blood, followed by their re-engraftment into bone marrow. Previous studies have reported successful lentiviral-mediated gene transfer in T cells⁸⁹ and in HSCs by direct intraosseal injection in mice, demonstrating high levels of transduction in bone marrow cells.⁹⁰ An in vivo HSC gene editing study was reported in thalassemic mice injected with nanoparticles containing triplex-forming peptide nucleic acids and a single-stranded homologous DNA donor, in combination with the stem cell factor. This editing strategy showed almost 7% editing frequency in the bone marrow, sufficient to ameliorate the disease phenotype.⁹¹ An alternative in vivo gene therapy strategy involved mobilization of hematopoietic stem and progenitor cells (HSPCs) from the bone marrow into peripheral blood, followed by an intravenous injection of integrating, helper-dependent adenovirus (HDAd5/35⁺⁺) vector system that targets human CD46 expressed on nascent HSCs. This transposase-based integration system achieved stable fetal γ-globin expression in CD46-transgenic and thalassemia mouse models.^92
–94 This method when tested in rhesus macaques demonstrated stable HSC transduction, thereby improving its feasibility in human HSC gene therapy.⁹⁵ Besides thalassemia, this approach has been recently used to correct the sickle cell phenotype. An HDAd5/35⁺⁺ vector encoding two cassettes, one containing the CRISPR/Cas9 machinery and the other encoding the therapeutic fetal γ-globin transgene, was administered by an intravenous injection in an SCD mouse model. A combination of these two cassettes induced expression of the fetal γ-globin gene and ameliorated the disease phenotype.⁹⁶ Despite the promising results, the high titer of the immunogenic adenoviral vectors might hinder clinical trials. An AAV vector delivery system may be a safer and more efficient alternative for in vivo HSC gene editing. Recombinant tyrosine mutant AAV6 vectors displayed high transduction efficiency and robust transgene expression in human HSCs in vitro and in a mouse xenograft model in vivo.^97
–99 In addition, AAV8-mediated transduction of immune cells, such as T cells, B cells, macrophages, and dendritic cells, was achieved in vivo after systemic injection in mice,¹⁰⁰ thereby spurring the development of these vectors for in vivo immunotherapies. Another recent gene editing strategy using base editors delivered by HDAd5/35⁺⁺ vectors revealed efficient HSPC transduction and stable γ-globin expression in transgenic mice, strengthening its immense potential for in vivo gene therapy for hemoglobinopathies.^101,102 Future studies exploring HDR-based in vivo HSC editing will enrich the field of hematopoietic gene therapy.

Brain disorders

NHEJ-based editing triggered by CRISPR/Cas9 system has been extensively studied in brain regions in vivo.^103

–107 Compared with NHEJ, the low efficiency of the HDR pathway in the postmitotic neurons makes precise gene correction difficult in these cells. To overcome this, HITI has been used to achieve targeted insertion of the desired donor sequence in situ.^87,108 This can be used to create knockin reporter systems for cell tracking in live animals, useful for studying neuronal circuits and brain functions. Moreover, some studies suggest that neuronal progenitors retain their ability to trigger HDR in vivo.¹⁰⁹ A rapid in utero electroporation method to deliver the editing components into neuronal progenitors in vivo enabled successful HDR editing in the mouse embryonic brain.^110
–112 HDR-facilitated gene editing has been shown in postmitotic neurons as well. A combination of CRISPR/Cas9 and AAV-mediated donor DNA delivery enabled HDR editing in vivo along with the insertion of a reporter tag in the brain regions. This strategy, known as vSLENDR (viral-single-cell labeling of endogenous proteins by CRISPR/Cas9-mediated HDR), was adapted to conduct precise gene modification by HDR in any regions of the brain.¹¹³

Some of the existing in vivo therapeutic gene editing studies are summarized in Table 1. Despite these promising studies listed above, there still exists a lacuna between animal studies and applications in humans, further emphasizing the need for improved in vivo editing, discussed in the next section.

In vivo gene editing clinical trials

The gene editing landscape is evolving rapidly with the advancement of several therapeutic gene editing studies to clinical trials. Most of the ongoing trials are focused on gene modification ex vivo and have been reviewed.^114,115 Currently, the ex vivo gene editing preclinical and clinical trials primarily involve alteration of T cells to disrupt gene expression for treating HIV,^116

–120 engineering T cells for cancer immunotherapy,^121

–124 and modification of HSCs for treating hemoglobinopathies, such as β-thalassemia and sickle cell anemia.^{18,48,125
–127} Clinical trials for β-thalassemia and sickle cell anemia using ZFN- and Cas9-mediated disruption of the fetal globin repressor BCL11A in HSCs ex vivo are ongoing (NCT03432364, NCT03653247, NCT03655678, and NCT03745287).

In vivo therapeutic gene editing approaches have also advanced into clinical trials, summarized in Table 2. ZFN-, TALEN-, and Cas9-based trials for treating cervical cancer have been registered. These approaches target the E6 and E7 genes of human papilloma virus (HPV), the causative agent of cervical cancer.¹²⁸ Although HPV vaccines are available now, they do not confer treatment for cervical cancer patients. Nonviral delivery of ZFNs, TALENs, or CRISPR/Cas9 achieved targeted disruption of the E7 oncogene, resulting in reduced tumor growth in mouse models.^129
–131 Besides nonviral delivery methods, AAV-dependent delivery of Cas9 targeting E6 and E7 viral genes showed encouraging results in xenograft models,^132,133 reflecting its therapeutic potential for cervical cancer. In addition to the in vivo trials on cervical cancer, ZFN-mediated gene editing has been used to treat hemophilia.^134

–137 ZFN-based gene correction of factor IX, α-l-iduronidase, and iduronate-2 sulfatase have proceeded to clinical trials for hemophilia, mucopolysaccharidosis type I (MPS I), and MPS II, respectively. Initial results from the MPS II trial affirm the safety of this approach. More robust, second-generation ZFNs will be used in future to increase the editing efficiency in human liver cells.¹³⁸ The most recent CRISPR/Cas9-mediated trial of EDIT-101 (NCT03872479) led by Allergan and Editas Medicine utilizes AAV-based delivery to the eye, discussed in the Retinal Disorders section. Subretinal injection of the CRISPR/Cas9 editing machinery in mouse and primates has shown gene editing at therapeutic levels, restoring normal expression of CEP290 gene in patients suffering from congenital blindness.⁷⁷ So far, the current registered in vivo clinical trials target tissues that are readily accessible, such as the cervix, liver, and eye. The continuous advancement of in vivo gene editing technologies will undoubtedly spur the development of more clinical studies to treat a myriad of human genetic diseases in future.

Table 2.

List of the in vivo gene editing clinical trials

Disease	Gene editing tool	Therapeutic strategy	Phase	Organization	NCT number
Cancer caused by HPV	ZFN	Polymer gel-based plasmid delivery enabling ZFN-based deletion of E7 oncogene in HPV16 and HPV18	I	Huazhong University of Science and Technology, China	NCT02800369
HPV-related cancer	TALEN	Polymer gel-based plasmid delivery enabling TALEN-based deletion of E6 and E7 oncogene in HPV16 and HPV18	I	Huazhong University of Science and Technology	NCT03226470
HPV-related cancer	TALEN	Polymer gel-based plasmid delivery enabling TALEN-based deletion of E6 and E7 oncogene in HPV16 and HPV18	I	First Affiliated hospital, Sun Yat-sen University, China	NCT03057912
HPV-related cancer	CRISPR/Cas9	Polymer gel-based plasmid delivery enabling TALEN-based deletion of E6 and E7 oncogene in HPV16 and HPV18	I	First Affiliated hospital, Sun Yat-sen University	NCT03057912
Hemophilia B	ZFN	Factor IX gene insertion into albumin locus of hepatocytes	I	Sangamo Biosciences	NCT02695160
MPS type I	ZFN	IDUA gene insertion into albumin locus of hepatocytes	I	Sangamo Biosciences	NCT02702115
MPS type II	ZFN	IDS gene integration into albumin locus of hepatocytes	I	Sangamo Biosciences	NCT03041324
LCA10	CRISPR/Cas9	SaCas9-mediated removal of intronic IVS26 mutation in CEP20 gene	I	Allergan and Editas Medicine, Inc.	NCT03872479

U.S clinical trial data from https://www.clinicaltrials.gov/

HPV, human papilloma virus; IDS, iduronate-2 sulfatase; IDUA, α-l-iduronidase; MPS, mucopolysaccharidosis; SaCas9, Staphylococcus aureus Cas9.

LIMITATIONS ASSOCIATED WITH CRISPR/Cas-BASED IN VIVO THERAPEUTIC GENE EDITING

In this section, we briefly describe some of the unmet challenges and possible strategies to alleviate them, facilitating the clinical utility of therapeutic in vivo gene editing. A summary of the limitations associated with in vivo gene therapy is depicted in Fig. 2.

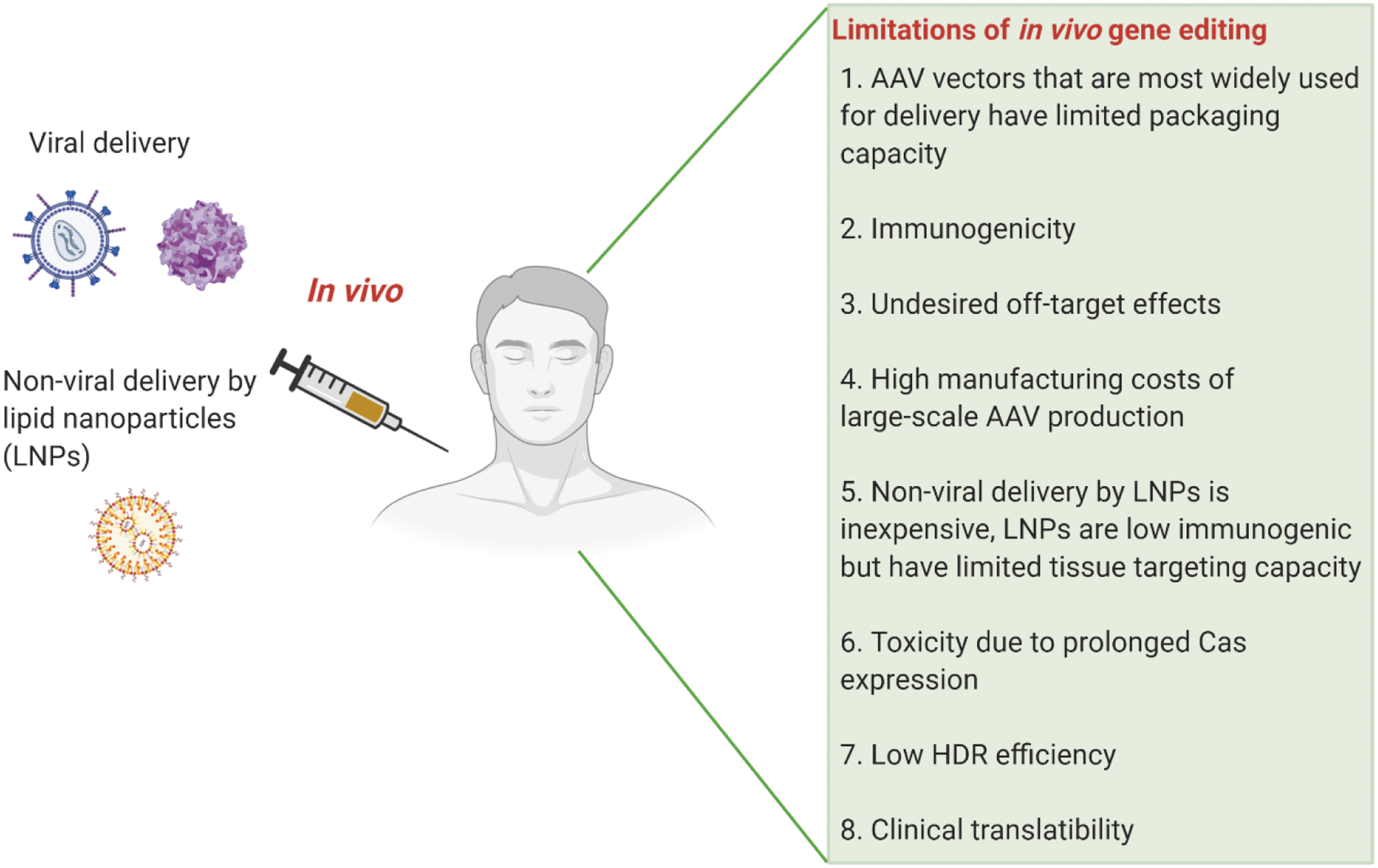

Figure 2.

Schematic showing limitations of in vivo gene editing. In vivo gene therapy involves direct injection of the editing machinery into the patient by viral or nonviral delivery methods. Limitations associated with this approach are listed here. Created with BioRender.com

In vivo delivery

The key step that determines the clinical utility of genome editing is the efficient and safe delivery of the editing toolbox, including CRISPR/Cas enzymes, sgRNA, and repair template, to the target cells. Cas enzyme can be delivered to the cells in several formats: plasmid DNA encoding Cas gene, Cas mRNA or protein. These are coupled with the appropriate sgRNA. Electroporation of cells with a preformed Cas protein and sgRNA RNP complex is the preferred form of delivery in ex vivo gene editing.¹³⁹ Although electroporation has been used to deliver Cas9 to animal zygotes^140,141 and skeletal muscle in mice,¹⁴² the high-voltage shock required to permeabilize cells is toxic and may not be favorable for a broad range of applications. In vivo delivery is more challenging and requires carriers that have high specificity, low cytotoxicity, and rapid clearance of Cas enzyme after gene editing. Overcoming these challenges to enhance the clinical prospects of in vivo gene editing has stimulated the development of viral and nonviral delivery systems. Among the viral delivery methods, which include lentiviruses, adenoviruses, and AAVs, the most widely used for in vivo delivery of CRISPR/Cas systems is AAVs.

AAVs are relatively nonimmunogenic, demonstrate capsid variant-dependent tissue specificity than other viral vectors, and long-term transgene expression without the necessity of genomic integration. AAV-mediated delivery of CRISPR/Cas9 has been used successfully in gene therapy for monogenic diseases, such as DMD,^68
–70,72 retinal impairments,^{80,85,143,144} and liver,^41,58,145 heart,^146
–148 and lung disorders.¹⁴⁹ The single-stranded AAV genome and its unique inverted terminal repeats play an essential role in precise gene targeting. The ssDNA of rAAVs accommodates long homology arms, encodes selection markers, and has low NHEJ-based integration rates, thereby making it a bona fide HDR template. While the CRISPR/Cas components can be delivered by different methods that do not necessarily require AAVs, the HDR donor is often delivered by single-stranded AAVs.^150,151 Although AAVs serve as a favorable delivery vehicle for CRISPR/Cas, their packaging capacity is limited only to 4.7 kb. Using a dual-vector system, one expressing a gRNA and an HDR repair template and the second AAV encoding SpCas9 gene (4.2 kb), for HDR-mediated gene correction can avoid the packaging size limitation.^145,152 Alternate approaches for precise gene correction in vivo, such as base and prime editing, also need dual vectors to accommodate effectors fused to Cas9.^153

–157 However, the target cells need to uptake both the vectors together, thereby affecting editing efficiency. Also, a high AAV dose required in the dual-vector studies might raise safety concerns during clinical translation, considering the recent consequences of a high-dose AAV therapy in human trials.^158,159 Smaller Cas9 orthologs, such as SaCas9, NmeCas9, or Cas9, from Campylobacter jejuni can be combined with the gRNA and donor template in a single AAV vector to eliminate the packaging issue.^{42,80,160,161} A novel all-in-one recombinant AAV vector encoding Nme2 Cas9 along with two sgRNAs was engineered to alleviate the disease phenotype in an HTI mouse model. To fulfill the need of a single-AAV for precise gene modification by HDR, this system was further updated. A self-inactivating single AAV vector, encoding Nme2 Cas9, a single sgRNA, and an HDR donor flanked by Nme2 Cas9 target sites, was designed. Self-cleavage during packaging was circumvented by including an anti-CRISPR protein (ACR).¹⁶² Precise HDR-based therapeutic editing at clinically relevant levels were obtained in disease models of HTI and MPS I.¹⁶³ Newly discovered CRISPR/Cas systems, such as the hypercompact CasΦ, which is half the size of SpCas9, show similar efficiency and selectivity and have the potential of circumventing the size limitation of AAV-based delivery.¹⁶⁴ Second, the tissue tropism of AAVs needs further improvement to minimize any undesired side effects of CRISPR/Cas in other tissues. AAV capsids can be engineered to use tissue-specific promoters,^72,103,147 or with improved capsid variants^165
–167 or to increase target tissue specificity or transduction efficacy in vivo by incorporating ligands that bind to receptors on target cells.¹⁶⁸ Other constraints of AAVs such as delivery carriers include immunogenicity,¹⁶⁹ high viral titers beyond clinically accepted levels for obtaining therapeutic editing, and expensive manufacture and scalability for clinical use.¹⁷⁰

The administration route of AAV vectors also affects the efficiency and specificity of in vivo gene editing. Selection of an optimum injection route depends on the target tissue, tissue-specific promoter, and AAV capsid variant. For example, a systemic intravenous injection is the preferred delivery route for editing genes implicated in liver disorders since most of the AAVs accumulate in the liver.^145,171 However, a localized injection, such as subretinal or intravitreal injections, is favored while administering AAVs containing CRISPR/Cas components into the mouse retina.^85,143,144 Although most of the in vivo methods have the potential to be extended to human studies, the high dosage required to achieve clinically relevant editing levels questions their translatability to humans.

Despite the widespread use of AAV-mediated delivery systems, the limitations discussed above prompted the development of nonviral carriers for delivering CRISPR/Cas in vivo. Cationic LNPs have been used to deliver CRISPR/Cas9 RNP to mouse liver to obtain therapeutically relevant gene editing in vivo.⁶² This study resulted in 70% editing efficiency with a single dose and yielded effective results in rats, validating its preclinical potential.⁶² Other groups that have reported in vivo editing using nonviral delivery systems in the liver have efficiencies ranging from 3.5% of hepatocytes¹⁷² to 35% editing after four systemic doses.¹⁷³ A recent study shows that LNPs were able to effectively deliver gRNA and Cas9 mRNA to splenic endothelial cells, thus identifying new accessible target cells in vivo.¹⁷⁴ Despite this method being inexpensive, rapid, and easy,¹⁷⁵ the LNPs show some evidence of toxicity.^58,176 A delivery system, consisting of gold nanoparticles conjugated to DNA and assembled with polymers that disrupt endosomes, can deliver Cas9 RNP and donor DNA to correct Dmd gene mutation in mice, with negligible off-target effects.¹⁷⁷ Further advancements in nanoparticles, nanowires, and cell-based delivery methods are crucial for therapeutic in vivo genome editing.^178,179

Off-target effects of CRISPR/Cas

Precise and accurate gene modification at the desired target site is imperative for therapeutic genome editing. Although the CRISPR/Cas system is known to be more precise in comparison with the other nucleases, it still exhibits off-target cleavage activity. Off-targeting occurs due to nonspecific CRISPR/Cas-induced DNA cleavage at sites other than the actual target and may result in deleterious effects, such as malignant transformation.¹⁸⁰ Some of the in vivo gene therapy studies revealed minimal or no off-target editing at the predicted sites, which is reassuring.^58,69,70,145 However, the possibility of off-target editing beyond the predicted sites requires the design of an unbiased genome-wide sequencing method. Several cell-based genome-wide sequencing tools, such as CHIP-seq¹⁸¹ and Digenome-seq,¹⁸² have aided in the identification of unpredictable off-target mutations in vitro. However, these in silico tools cannot be directly applied to identify undesirable genomic sites for in vivo editing. A two-step strategy, named “verification of in vivo targets” (VIVO), has been developed to first identify potential off-target locations using CIRCLE-Seq, and then confirm any alteration of these sites following CRISPR/Cas9 in vivo genome editing.¹⁸³ This powerful in silico tool allows identification of off-target mutation sites in vivo, vital for designing the most specific gRNA that acts on the desired genomic sites.

Besides optimizing gRNA design, reducing long-term expression of Cas9 is another way of minimizing off-target effects. Delivery of short-lived Cas9 protein instead of the Cas9 gene,¹⁸⁴ using a self-limiting CRISPR/Cas system for conditional genome editing,¹⁴³ or inducible Cas9 variants,^185
–187 diminishes duration of Cas9 exposure, thereby impeding its off-target effects. In addition, a self-inactivating AAV-CRISPR system containing a gRNA that cleaves Cas9 coding sequence can eliminate the Cas9 protein in vivo without affecting targeted editing efficiency, thereby alleviating the problems associated with long-term Cas9 expression.¹⁶³ Furthermore, LNP-mediated delivery of Cas9mRNA⁵⁸ and extracellular vesicle (EV)-mediated delivery of CRISPR-Cas9 RNPs minimize off-target cleavage by limiting prolonged Cas9 exposure.^{188

–193} A recently developed all-in-one EV-based delivery system known as, NanoMEDIC (nanomembrane-derived EVs for the delivery of macromolecular cargo), promotes on-target gene editing both ex vivo and in vivo.¹⁹⁴ Alternate approaches to circumvent the off-target effects include editing methods that do not require double-stranded cleavage by CRISPR/Cas9. For example, dCas9 fused to transcriptional activators or repressors engaged in CRISPR activation and interference studies has higher specificity.^38,39 Base editors ensuing RNA-programmed DNA base editing without causing any DNA break also restrict undesirable off-target editing.^60,195 Another way to reduce off-target effects is using anti-CRISPR proteins that regulate dCas9 activity and generate cells resistant to nonspecific gene modifications.^196
–198 The robustness and specificity of these techniques in vivo still need to be studied comprehensively before their clinical use.

CRISPR/Cas immunogenicity

There are two predominant issues regarding the immunogenicity of CRISPR gene editing, one is the toxicity of Cas9 expression and the other is the preexisting immunity against Cas9. Toxicity associated with prolonged Cas9 expression and ways to alleviate them^{58,143,163,184

–187} have been discussed in the previous section. A humoral and cellular immune response was elicited against SaCas9 only in adult mice receiving AAV-CRISPR based gene therapy for DMD. However, neonates did not exhibit any immune response against the bacteria derived SaCas9 proteins.¹⁹⁹ Humanized Cas9 protein might also be less immunogenic reducing its potential toxicity. Host immune responses against Cas9 may hinder in vivo therapeutic gene editing. Since the most widely used Cas9 orthologs, SpCas9 and SaCas9, are both derived from bacterial species that frequently infect humans, it is likely that humans will harbor preexisting immune responses against them. As expected, preexisting immunity of anti-Cas9 IgG antibodies was found against SaCas9 and SpCas9 in healthy human adults.²⁰⁰ Reactive T cells against SpCas9 were also detected in humans.²⁰¹ Edited cells may be eliminated due to CRISPR/Cas-triggered immune response. In one study, preexisting immunity to Cas9 led to a high percentage of cytotoxic CD8⁺ T cells in mouse liver, resulting in removal of edited cells.²⁰² Development of methods for diminishing the immunogenicity of CRISPR/Cas toolbox requires further attention.

HDR efficiency

Precise gene correction for monogenic disorders is achieved by HDR. However, the efficiency of HDR-dependent precision gene modification is lower compared with other competing repair pathways, such as NHEJ. HDR occurs mostly in mitotic cells, making it difficult to improve its efficiency to match therapeutic levels. Although the editing efficiency for different diseases varies, a higher efficiency usually augments the therapeutic outcomes. Optimum and rational designing of HDR donors,²⁰³ increasing sequence similarity between the donor template and target cleavage sites,²⁰⁴ and inhibiting NHEJ pathways^205,206 are some of the advancements that enhance HDR efficacy. HITI strategies can also be used to obtain targeted integration of the desired transgene to facilitate in vivo gene therapy.^87,108,207 In addition, base editors^40,208 and prime editors²⁰⁹ that allow precise gene editing, independent of DNA repair pathways, can potentially cure several genetic diseases.

NUCLEASE-INDEPENDENT GENE TARGETING AS AN ALTERNATE EDITING APPROACH

The risks associated with nuclease-dependent gene targeting, as discussed above, include the inadvertent prolonged expression of Cas9, resulting in potential off-target effects. To eliminate this problem, a nuclease-free gene targeting strategy based on HR was developed by Barzel et al.²¹⁰ In this method, a recombinant AAV8, containing a promoterless, codon optimized FIX coding sequence, flanked by sequences homologous to the mouse albumin locus, was designed. A porcine teschovirus-1 2A-peptide (P2A) encoding sequence preceding the F9 gene sequence was used for ribosomal skipping to ensure that the bicistronic Alb-FIX mRNA transcribed from the endogenous Alb promoter is translated into functional albumin and FIX proteins (Fig. 3). This alternative in vivo nuclease-free editing approach attained FIX expression at therapeutic levels to partially correct the spontaneous bleeding phenotype in hemophilic mice.²¹⁰ This forms the basis of LogicBio's proprietary GeneRide technology and utilizes HR-guided precise and targeted in vivo gene editing, eliminating the need for vector-driven promoters and engineered nucleases.²¹¹ In addition, a versatile system for in vivo selection and expansion of gene-modified hepatocytes, irrespective of genetic background, has been established using GeneRide.²¹² Another recent study published by Homology Medicines revealed the proficiency and specificity of HR-mediated, nuclease-free gene insertion in mouse liver containing human cells using AAVs derived from human HSCs.²¹³

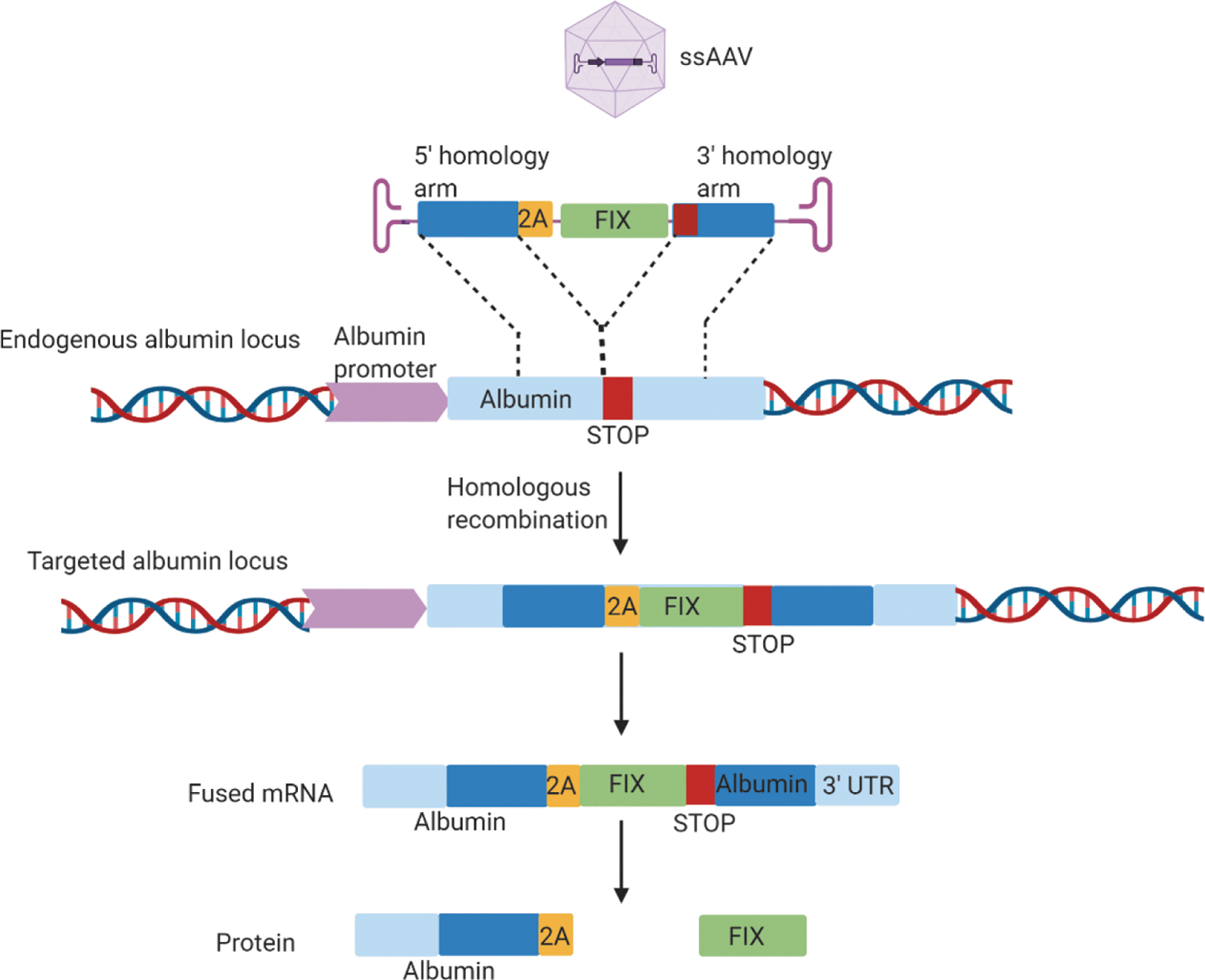

Figure 3.

Schematic showing promoterless nuclease-free editing at the albumin locus. Recombinant AAV8 vector containing a promoterless codon-optimized human coagulation FIX sequence I (green), preceded by the 2A peptide (yellow) and flanked by albumin homology arms (dark blue) that covers the albumin stop codon (red), is designed. Homologous recombination results in integration of the rAAV8 vector into the endogenous albumin locus (light blue) and generates a chimeric bicistronic mRNA, which is translated into two distinct proteins, albumin and FIX, due to the ribosomal skipping. Adapted from Barzel et al. ²¹⁰ AAV, adeno-associated vector; FIX, factor IX. Created with BioRender.com

Although this method is less efficient compared with nuclease-mediated editing, it can work well provided there is a selective advantage of the edited cells.²¹¹ These examples using the nuclease-independent in vivo gene targeting strategy herald an overall safe, robust, and precise avenue for gene therapy.

Perspective

The advent of CRISPR/Cas technology has undoubtedly fostered the development of therapeutic gene editing for a multitude of genetic diseases. Currently, there are several ongoing clinical trials of nuclease-dependent gene therapy, with the hope to ameliorate monogenic disorders, such as hemoglobinopathies and retinal dystrophy, among others. Some examples include the ex vivo CRISPR-mediated gene therapy for β-thalassemia and sickle cell anemia, known as CTX001, currently in clinical phase 1/2 trials. SB-FIX by Sangamo Therapeutics is an in vivo gene therapy treatment that uses AAVs to deliver ZFNs to correct the factor IX gene for treatment of hemophilia B. Another milestone study is the first phase 1 clinical trial NCT02793856 on CRISPR/Cas9-based PD-1 gene knockout in T lymphocytes from metastatic nonsmall-cell lung cancer patients. Furthermore, Allergan and Editas Medicine are conducting a clinical trial of a candidate genome editing therapy, EDIT101, to cure LCA (Table 1). These studies reinforce the tremendous potential of engineered nucleases for treating genetic diseases.

In addition, gene editing has been applied to cancer immunotherapy, and one promising area that has garnered great interest is the development of allogeneic CAR-T therapy. ZFN- and TALEN-mediated gene editing has enabled the generation of allogeneic tumor-associated antigen-specific CAR-T cells, with negligible T cell immune response and graft-versus-host disease.^{25,124,214,215} Furthermore, CRISPR/Cas9 triggered faster and easier multiplex gene editing in CAR-T cells, which exhibited CD19-specific antitumor activity in a lymphoma xenograft mouse model.²¹⁶ Allogeneic universal T cells were generated using a one-shot CRISPR technique with multiple sgRNAs in a CAR lentiviral vector that simultaneously depleted the endogenous T cell receptor and HLA 1, thereby eliminating rapid rejection from the host immune system.²¹⁷ Recent studies use CRISPR/Cas9 to specifically inhibit immune receptors^218,219 to enhance the generation of “universal” CAR-T cells, which might be an effective treatment for AML and other malignancies. The efficacy and safety of the CRISPR/Cas9-edited CAR-T cells in clinical studies need evaluation. The ongoing clinical trials of the modified universal CAR-T cells have been reviewed.^115,220,221 CRISPR/Cas editing machinery eliminated some of the limitations associated with CAR-T immunotherapies, thereby enhancing efficiency of off-the shelf CAR-T cells and minimizing their toxicity.²²² Overall, these findings reflect the immense prospective of gene editing as a robust platform to generate CAR-T cells as an off-the shelf therapy. Moreover, over 300 clinical trials are ongoing across the globe for improving CAR activity and broadening their clinical applications.⁸⁹ Yescarta for adult diffused B-cell lymphomas and Kymriah for pediatric acute lymphoblastic leukemia, approved by the US Food and Drug Administration (FDA) and European Medicines Agency (EMA) have hit the market. Generating human CAR-T cells directly in vivo will be very useful in circumventing the expensive and laborious ex vivo production of CAR T cells, rendering them more accessible to patients worldwide. In a recent study, a CD8 targeted lentiviral-based single systemic injection of CD19-CAR-T cells into humanized immunodeficient mice generated in vivo CAR-T cells, that successfully eliminated human B cells. This study resulted in a cytokine storm in humanized mice and further preclinical testing is required to test the feasibility of the approach.²²³ Evaluation of the anti-tumoral activity of these in vivo generated human CAR-T cells was done in T cell engrafted immunodeficient mouse models for preclinical testing of CAR-T cells.²²⁴ Next, successful in vivo generation of CD19 CAR-T cells in CD4+ T cells was reported that had the ability to eliminate the CD19 + cells and tumor cells in mice, highlighting the relevance of in vivo CAR-T cell therapy.²²⁵ Although these results look promising, whether the in vivo generated CAR-T cells match the efficacy of the ex vivo-generated CAR-T cells needs further validation. Assessments in large animal models is required before the commencement of an in vivo CAR-T cell therapy a clinical trial in future.

Conclusion

Besides gene editing, the CRISPR/Cas toolbox has also been used for gene regulation, epigenetic modification, drug development, and precision medicine providing personalized therapies based on specific targets and diagnostics, extensively reviewed elsewhere.^226,227

In general, the CRISPR/Cas system provides a precise platform for ex vivo and in vivo therapeutic gene editing against debilitating genetic diseases. So far, ex vivo editing has been predominantly used to treat hemoglobinopathies, cancers, and immune cell disorders. Since a wide range of genetic diseases require in situ gene modification, in vivo gene editing has the tremendous potential to treat them. While the in vivo approach minimizes the risk of graft-versus-host disease and immunosuppression, there are existing barriers that hinder its clinical translatability. One of the primary bottlenecks of in vivo gene therapy is the targeted delivery of the editing machinery. Currently, AAV vectors are the most popular delivery tools for introducing the transgene and CRISPR/Cas system to target organs. However, the limited packaging capacity, off-target effects, and high production costs are some of the limitations of AAV vector delivery. Alternatively, nonviral delivery methods that allow flexible packaging ability, ease of manufacturing, and have low cytotoxicity have shown promise. Another concern that affects the efficacy and safety of the CRISPR/Cas-mediated in vivo editing is the off-target effects. Further progress in the delivery of viral and nonviral delivery vectors, and CRISPR/Cas components, is necessary to attain clinically relevant levels of gene editing in vivo.

Overall, the in vivo studies demonstrate the ability of both nuclease-mediated and nuclease-free editings as potent gene therapy tools. However, obstacles such as off-target effects, optimum delivery vehicles, HDR efficiency, and immunogenicity of the editing components have not been completely resolved. With innovative gene editing advancements in the future, these bottlenecks will be surmounted, thus bringing in vivo gene editing closer to human therapies.

Footnotes

Author Disclosure

No competing financial interests exist.

Funding Information

This study is supported by The Bill and Melinda Gates foundation. Grant ID is OPP1202116.

References

Rouet

, Smih

, Jasin

. Introduction of double-strand breaks into the genome of mouse cells by expression of a rare-cutting endonuclease. Mol Cell Biol, 1994; 14:8096–8106.

Rouet

, Smih

, Jasin

. Expression of a site-specific endonuclease stimulates homologous recombination in mammalian cells. Proc Natl Acad Sci U S A, 1994; 91:6064–6068.

Porteus

Genome editing: a new approach to human therapeutics. Annu Rev Pharmacol Toxicol, 2016; 56:163–190.

Kanaar

, Hoeijmakers

, van Gent

. Molecular mechanisms of DNA double strand break repair. Trends Cell Biol, 1998; 8:483–489.

Khanna

, Jackson

. DNA double-strand breaks: signaling, repair and the cancer connection. Nat Genet, 2001; 27:247–254.

Porteus

Seeing the light: integrating genome engineering with double-strand break repair. Nat Methods, 2011; 8:628–630.

Certo

, Gwiazda

, Kuhar

, et al. Coupling endonucleases with DNA end-processing enzymes to drive gene disruption. Nat Methods, 2012; 9:973–975.

Silva

, Poirot

, Galetto

, et al. Meganucleases and other tools for targeted genome engineering: perspectives and challenges for gene therapy. Curr Gene Ther, 2011; 11:11–27.

Kim

, Cha

, Chandrasegaran

. Hybrid restriction enzymes: zinc finger fusions to Fok I cleavage domain. Proc Natl Acad Sci U S A, 1996; 93:1156–1160.

10.

Carroll

Genome engineering with zinc-finger nucleases. Genetics, 2011; 188:773–782.

11.

Greisman

, Pabo

. A general strategy for selecting high-affinity zinc finger proteins for diverse DNA target sites. Science, 1997; 275:657–661.

12.

Beerli

, Barbas

, 3rd. Engineering polydactyl zinc-finger transcription factors. Nat Biotechnol, 2002; 20:135–141.

13.

Persikov

, Rowland

, Oakes

, et al. Deep sequencing of large library selections allows computational discovery of diverse sets of zinc fingers that bind common targets. Nucleic Acids Res, 2014; 42:1497–1508.

14.

Urnov

, Miller

, Lee

, et al. Highly efficient endogenous human gene correction using designed zinc-finger nucleases. Nature, 2005; 435:646–651.

15.

Porteus

, Baltimore

. Chimeric nucleases stimulate gene targeting in human cells. Science, 2003; 300:763.

16.

Lee

, Flynn

, Hollywood

, et al. Correction of the DeltaF508 mutation in the cystic fibrosis transmembrane conductance regulator gene by zinc-finger nuclease homology-directed repair. Biores Open Access, 2012; 1:99–108.

17.

Hoban

, Cost

, Mendel

, et al. Correction of the sickle cell disease mutation in human hematopoietic stem/progenitor cells. Blood, 2015; 125:2597–2604.

18.

Chang

, Smith

, Sullivan

, et al. Long-term engraftment and fetal globin induction upon BCL11A gene editing in bone-marrow-derived CD34(+) hematopoietic stem and progenitor cells. Mol Ther Methods Clin Dev, 2017; 4:137–148.

19.

Isalan

, Klug

, Choo

. A rapid, generally applicable method to engineer zinc fingers illustrated by targeting the HIV-1 promoter. Nat Biotechnol, 2001; 19:656–660.

20.

Perez

, Wang

, Miller

, et al. Establishment of HIV-1 resistance in CD4+ T cells by genome editing using zinc-finger nucleases. Nat Biotechnol, 2008; 26:808–816.

21.

, Wang

, Ding

, et al. Zinc finger nuclease: a new approach for excising HIV-1 proviral DNA from infected human T cells. Mol Biol Rep, 2014; 41:5819–5827.

22.

Muenzer

, Prada

, Burton

, et al. CHAMPIONS: a phase 1/2 clinical trial with dose escalation of SB-913 ZFN-mediated in vivo human genome editing for treatment of MPS II (Hunter syndrome). Mol Genet Metab, 2019; 126:S104.

23.

Miller

, Tan

, Qiao

, et al. A TALE nuclease architecture for efficient genome editing. Nat Biotechnol, 2011; 29:143–148.

24.

Christian

, Cermak

, Doyle

, et al. Targeting DNA double-strand breaks with TAL effector nucleases. Genetics, 2010; 186:757–761.

25.

Qasim

, Zhan

, Samarasinghe

, et al. Molecular remission of infant B-ALL after infusion of universal TALEN gene-edited CAR T cells. Sci Transl Med, 2017; 9.

26.

Barrangou

, Fremaux

, Deveau

, et al. CRISPR provides acquired resistance against viruses in prokaryotes. Science, 2007; 315:1709–1712.

27.

Terns

, Terns

. CRISPR-based adaptive immune systems. Curr Opin Microbiol, 2011; 14:321–327.

28.

Jinek

, Chylinski

, Fonfara

, et al. A programmable dual-RNA-guided DNA endonuclease in adaptive bacterial immunity. Science, 2012; 337:816–821.

29.

Garneau

, Dupuis

, Villion

, et al. The CRISPR/Cas bacterial immune system cleaves bacteriophage and plasmid DNA. Nature, 2010; 468:67–71.

30.

Deltcheva

, Chylinski

, Sharma

, et al. CRISPR RNA maturation by trans-encoded small RNA and host factor RNase III. Nature, 2011; 471:602–607.

31.

Makarova

, Aravind

, Wolf

, et al. Unification of Cas protein families and a simple scenario for the origin and evolution of CRISPR-Cas systems. Biol Direct, 2011; 6:38.

32.

Makarova

, Wolf

, Alkhnbashi

, et al. An updated evolutionary classification of CRISPR-Cas systems. Nat Rev Microbiol, 2015; 13:722–736.

33.

Gasiunas

, Barrangou

, Horvath

, et al. Cas9-crRNA ribonucleoprotein complex mediates specific DNA cleavage for adaptive immunity in bacteria. Proc Natl Acad Sci U S A, 2012; 109:E2579–E2586.

34.

Chylinski

, Le Rhun

, Charpentier

. The tracrRNA and Cas9 families of type II CRISPR-Cas immunity systems. RNA Biol, 2013; 10:726–737.

35.

Chylinski

, Makarova

, Charpentier

, et al. Classification and evolution of type II CRISPR-Cas systems. Nucleic Acids Res, 2014; 42:6091–6105.

36.

Shen

, Zhang

, et al. Efficient genome modification by CRISPR-Cas9 nickase with minimal off-target effects. Nat Methods, 2014; 11:399–402.

37.

Ran

, Hsu

, Lin

, et al. Double nicking by RNA-guided CRISPR Cas9 for enhanced genome editing specificity. Cell, 2013; 154:1380–1389.

38.

Gilbert

, Larson

, Morsut

, et al. CRISPR-mediated modular RNA-guided regulation of transcription in eukaryotes. Cell, 2013; 154:442–451.

39.

, Larson

, Gilbert

, et al. Repurposing CRISPR as an RNA-guided platform for sequence-specific control of gene expression. Cell, 2013; 152:1173–1183.

40.

Rees

, Liu

. Base editing: precision chemistry on the genome and transcriptome of living cells. Nat Rev Genet, 2018; 19:770–788.

41.

Ran

, Cong

, Yan

, et al. In vivo genome editing using Staphylococcus aureus Cas9. Nature, 2015; 520:186–191.

42.

Edraki

, Mir

, Ibraheim

, et al. A compact, high-accuracy Cas9 with a dinucleotide PAM for in vivo genome editing. Mol Cell, 2019; 73:714–726 e714.

43.

Naldini

Ex vivo gene transfer and correction for cell-based therapies. Nat Rev Genet, 2011; 12:301–315.

44.

Demirci

, Leonard

, Haro-Mora

, et al. CRISPR/Cas9 for sickle cell disease: applications, future possibilities, and challenges. Adv Exp Med Biol, 2019; 1144:37–52.

45.

, Mei

, Hu

. Applications and explorations of CRISPR/Cas9 in CAR T-cell therapy. Brief Funct Genomics, 2020; 19:175–182.

46.

Mout

, Ray

, Lee

, et al. In vivo delivery of CRISPR/Cas9 for therapeutic gene editing: progress and challenges. Bioconjug Chem, 2017; 28:880–884.

47.

Antoniani

, Meneghini

, Lattanzi

, et al. Induction of fetal hemoglobin synthesis by CRISPR/Cas9-mediated editing of the human beta-globin locus. Blood, 2018; 131:1960–1973.

48.

Bjurstrom

, Mojadidi

, Phillips

, et al. Reactivating fetal hemoglobin expression in human adult erythroblasts through BCL11A knockdown using targeted endonucleases. Mol Ther Nucleic Acids, 2016; 5:e351.

49.

Shariati

, Khanahmad

, Salehi

, et al. Genetic disruption of the KLF1 gene to overexpress the gamma-globin gene using the CRISPR/Cas9 system. J Gene Med, 2016; 18:294–301.

50.

, Zeng

, Roscoe

, et al. Highly efficient therapeutic gene editing of human hematopoietic stem cells. Nat Med, 2019; 25:776–783.

51.

Notarangelo

LD.

Primary immunodeficiencies. J Allergy Clin Immunol, 2010; 125:S182–S194.

52.

, Luk

, Yao

, et al. Editing aberrant splice sites efficiently restores beta-globin expression in beta-thalassemia. Blood, 2019; 133:2255–2262.

53.

Lau

, Suh

. In vivo genome editing in animals using AAV-CRISPR system: applications to translational research of human disease. F1000Res, 2017; 6:2153.

54.

Song

, Wang

, Jiang

, et al. In vivo genome editing partially restores alpha1-antitrypsin in a murine model of AAT deficiency. Hum Gene Ther, 2018; 29:853–860.

55.

Bjursell

, Porritt

, Ericson

, et al. Therapeutic genome editing with CRISPR/Cas9 in a humanized mouse model ameliorates alpha1-antitrypsin deficiency phenotype. EBioMedicine, 2018; 29:104–111.

56.

Yin

, Xue

, Chen

, et al. Genome editing with Cas9 in adult mice corrects a disease mutation and phenotype. Nat Biotechnol, 2014; 32:551–553.

57.

Khorsandi

, Bachellier

, Weber

, et al. Minimally invasive and selective hydrodynamic gene therapy of liver segments in the pig and human. Cancer Gene Ther, 2008; 15:225–230.

58.

Yin

, Song

, Dorkin

, et al. Therapeutic genome editing by combined viral and non-viral delivery of CRISPR system components in vivo. Nat Biotechnol, 2016; 34:328–333.

59.

Hess

, Tycko

, Yao

, et al. Methods and applications of CRISPR-mediated base editing in eukaryotic genomes. Mol Cell, 2017; 68:26–43.

60.

Komor

, Kim

, Packer

, et al. Programmable editing of a target base in genomic DNA without double-stranded DNA cleavage. Nature, 2016; 533:420–424.

61.

Song

, Jiang

, Richter

, et al. Adenine base editing in an adult mouse model of tyrosinaemia. Nat Biomed Eng, 2020; 4:125–130.

62.

Finn

, Smith

, Patel

, et al. A Single Administration of CRISPR/Cas9 lipid nanoparticles achieves robust and persistent in vivo genome editing. Cell Rep, 2018; 22:2227–2235.

63.

Amoasii

, Long

, Li

, et al. Single-cut genome editing restores dystrophin expression in a new mouse model of muscular dystrophy. Sci Transl Med, 2017; 9:eaan8081.

64.

Amoasii

, Hildyard

JCW

, Li

, et al. Gene editing restores dystrophin expression in a canine model of Duchenne muscular dystrophy. Science, 2018; 362:86–91.

65.

Wasala

, Hakim

, Chen

, et al. Questions answered and unanswered by the first CRISPR editing study in a canine model of Duchenne muscular dystrophy. Hum Gene Ther, 2019; 30:535–543.

66.

West

, Gill

. Genome editing in large animals. J Equine Vet Sci, 2016; 41:1–6.

67.

Zhao

, Lai

, Ji

, et al. Genome editing in large animals: current status and future prospects. Natl Sci Rev, 2019; 6:402-420.

68.

Long

, Amoasii

, Mireault

, et al. Postnatal genome editing partially restores dystrophin expression in a mouse model of muscular dystrophy. Science, 2016; 351:400–403.

69.

Nelson

, Hakim

, Ousterout

, et al. In vivo genome editing improves muscle function in a mouse model of Duchenne muscular dystrophy. Science, 2016; 351:403–407.

70.

Tabebordbar

, Zhu

, Cheng

JKW

, et al. In vivo gene editing in dystrophic mouse muscle and muscle stem cells. Science, 2016; 351:407–411.

71.

Ryu

, Koo

, Kim

, et al. Adenine base editing in mouse embryos and an adult mouse model of Duchenne muscular dystrophy. Nat Biotechnol, 2018; 36:536–539.

72.

Bengtsson

, Hall

, Odom

, et al. Muscle-specific CRISPR/Cas9 dystrophin gene editing ameliorates pathophysiology in a mouse model for Duchenne muscular dystrophy. Nat Commun, 2017; 8:14454.

73.

El Refaey

, Xu

, Gao

, et al. In Vivo Genome editing restores dystrophin expression and cardiac function in dystrophic mice. Circ Res, 2017; 121:923–929.

74.

Hakim

, Wasala

, Nelson

, et al. AAV CRISPR editing rescues cardiac and muscle function for 18 months in dystrophic mice. JCI Insight, 2018; 3:e124297.

75.

Nance

, Shi

, Hakim

, et al. AAV9 edits muscle stem cells in normal and dystrophic adult mice. Mol Ther, 2019; 27:1568–1585.

76.

Kwon

, Ettyreddy

, Vankara

, et al. In vivo gene editing of muscle stem cells with adeno-associated viral vectors in a mouse model of Duchenne muscular dystrophy. Mol Ther Methods Clin Dev, 2020; 19:320–329.

77.

Maeder

, Stefanidakis

, Wilson

, et al. Development of a gene-editing approach to restore vision loss in Leber congenital amaurosis type 10. Nat Med, 2019; 25:229–233.

78.

Bakondi

, Lv

, Lu

, et al. In vivo CRISPR/Cas9 gene editing corrects retinal dystrophy in the S334ter-3 rat model of autosomal dominant retinitis pigmentosa. Mol Ther, 2016; 24:556–563.

79.

Giannelli

, Luoni

, Castoldi

, et al. Cas9/sgRNA selective targeting of the P23H Rhodopsin mutant allele for treating retinitis pigmentosa by intravitreal AAV9.PHP.B-based delivery. Hum Mol Genet, 2018; 27:761–779.

80.

Kim

, Koo

, Park

, et al. In vivo genome editing with a small Cas9 orthologue derived from Campylobacter jejuni . Nat Commun, 2017; 8:14500.

81.

Huang

, Zhou

, Wu

, et al. Genome editing abrogates angiogenesis in vivo. Nat Commun, 2017; 8:112.

82.

Kim

, Park

, Kim

, et al. Genome surgery using Cas9 ribonucleoproteins for the treatment of age-related macular degeneration. Genome Res, 2017; 27:419–426.

83.

, Kleinstiver

, Leon

, et al. Allele-specific CRISPR-Cas9 genome editing of the single-base P23H mutation for rhodopsin-associated dominant retinitis pigmentosa. CRISPR J, 2018; 1:55–64.

84.

Jain

, Zode

, Kasetti

, et al. CRISPR-Cas9-based treatment of myocilin-associated glaucoma. Proc Natl Acad Sci U S A, 2017; 114:11199–11204.

85.

, Mookherjee

, Chaitankar

, et al. Nrl knockdown by AAV-delivered CRISPR/Cas9 prevents retinal degeneration in mice. Nat Commun, 2017; 8:14716.

86.

Zhu

, Ming

, Fu

, et al. Author correction: gene and mutation independent therapy via CRISPR-Cas9 mediated cellular reprogramming in rod photoreceptors. Cell Res, 2019; 29:337.

87.

Suzuki

, Tsunekawa

, Hernandez-Benitez

, et al. In vivo genome editing via CRISPR/Cas9 mediated homology-independent targeted integration. Nature, 2016; 540:144–149.

88.

Kaiser

. Gene therapy trials for sickle cell disease halted after two patients develop cancer. 2021. https://www.sciencemag.org/news/2021/02/gene-therapy-trials-sickle-cell-disease-halted-after-two-patients-develop-cancer (last accessed March 8, 2021 ).

89.

Hartmann

, Schussler-Lenz

, Bondanza

, et al. Clinical development of CAR T cells-challenges and opportunities in translating innovative treatment concepts. EMBO Mol Med, 2017; 9:1183–1197.

90.

Wang

, Shin

, Chiang

, et al. Intraosseous delivery of lentiviral vectors targeting factor VIII expression in platelets corrects murine hemophilia A. Mol Ther, 2015; 23:617–626.

91.

Bahal

, Ali McNeer

, Quijano

, et al. In vivo correction of anaemia in beta-thalassemic mice by gammaPNA-mediated gene editing with nanoparticle delivery. Nat Commun, 2016; 7:13304.

92.

Wang

, Georgakopoulou

, Psatha

, et al. In vivo hematopoietic stem cell gene therapy ameliorates murine thalassemia intermedia. J Clin Invest, 2019; 129:598–615.

93.

Wang

, Georgakopoulou

, Li

, et al. Curative in vivo hematopoietic stem cell gene therapy of murine thalassemia using large regulatory elements. JCI Insight, 2020; 5:e139538.

94.

Lieber

, Wang

, Psatha

, et al. In vivo HSC transduction and selection results in long-term, high-level expression of human gamma globin in peripheral blood erythrocytes of mice. Blood, 2017; 130:4616.

95.

, Wang

, Gil

, et al. In vivo HSC gene therapy for hemoglobinopathies: a proof of concept evaluation in rhesus macaques. Blood, 2020; 136:46–47.

96.

, Wang

, Georgakopoulou

, et al. In vivo HSC gene therapy using a bi-modular HDAd5/35++ vector cures sickle cell disease in a mouse model. Mol Ther, 2021; 29:822–837.

97.

Song

, Kauss

, Kopin

, et al. Optimizing the transduction efficiency of capsid-modified AAV6 serotype vectors in primary human hematopoietic stem cells in vitro and in a xenograft mouse model in vivo. Cytotherapy, 2013; 15:986–998.

98.

Ling

, Bhukhai

, Yin

, et al. High-efficiency transduction of primary human hematopoietic stem/progenitor cells by AAV6 vectors: strategies for overcoming donor-variation and implications in genome editing. Sci Rep, 2016; 6:35495.

99.

Yang

, Qing

, Keeler

, et al. Enhanced transduction of human hematopoietic stem cells by AAV6 vectors: implications in gene therapy and genome editing. Mol Ther Nucleic Acids, 2020; 20:451–458.

100.

Breuer

, Hanlon

, Natasan

, et al. In vivo engineering of lymphocytes after systemic exosome-associated AAV delivery. Sci Rep, 2020; 10:4544.

101.

, Georgakopoulou

, Gil

, et al. In vivo HSC gene therapy with base editors allows for efficient reactivation of fetal globin in beta-Yac mice. Blood, 2020; 136:22.

102.

, Georgakopoulou

, Mishra

, et al. In vivo HSPC gene therapy with base editors allows for efficient reactivation of fetal gamma-globin in beta-YAC mice. Blood Adv, 2021; 5:1122–1135.

103.

Swiech

, Heidenreich

, Banerjee

, et al. In vivo interrogation of gene function in the mammalian brain using CRISPR-Cas9. Nat Biotechnol, 2015; 33:102–106.

104.

Chen

, Rosiene

, Che

, et al. Tracking and transforming neocortical progenitors by CRISPR/Cas9 gene targeting and piggyBac transposase lineage labeling. Development, 2015; 142:3601–3611.

105.

Kalebic

, Taverna

, Tavano

, et al. CRISPR/Cas9-induced disruption of gene expression in mouse embryonic brain and single neural stem cells in vivo. EMBO Rep, 2016; 17:338–348.

106.

Shinmyo

, Kawasaki

CRISPR/Cas9-mediated gene knockout in the mouse brain using in utero electroporation. Curr Protoc Neurosci 2017;79:3.32.31–3.32.11.

107.

Shinmyo

, Tanaka

, Tsunoda

, et al. CRISPR/Cas9-mediated gene knockout in the mouse brain using in utero electroporation. Sci Rep, 2016; 6:20611.

108.

Maresca

, Lin

, Guo

, et al. Obligate ligation-gated recombination (ObLiGaRe): custom-designed nuclease-mediated targeted integration through nonhomologous end joining. Genome Res, 2013; 23:539–546.

109.

Nishiyama

, Mikuni

, Yasuda

. Virus-mediated genome editing via homology-directed repair in mitotic and postmitotic cells in mammalian brain. Neuron, 2017; 96:755–768.e755.

110.

Mikuni

, Nishiyama

, Sun

, et al. High-throughput, high-resolution mapping of protein localization in mammalian brain by in vivo genome editing. Cell, 2016; 165:1803–1817.

111.

Tsunekawa

, Terhune

, Fujita

, et al. Developing a de novo targeted knock-in method based on in utero electroporation into the mammalian brain. Development, 2016; 143:3216–3222.

112.

Uemura

, Mori

, Kurihara

, et al. Fluorescent protein tagging of endogenous protein in brain neurons using CRISPR/Cas9-mediated knock-in and in utero electroporation techniques. Sci Rep, 2016; 6:35861.

113.

Nishiyama

Genome editing in the mammalian brain using the CRISPR-Cas system. Neurosci Res, 2019; 141:4–12.

114.

Hirakawa

, Krishnakumar

, Timlin

, et al. Gene editing and CRISPR in the clinic: current and future perspectives. Biosci Rep, 2020; 40:BSR20200127.

115.

, Yang

, Hong

, et al. Applications of genome editing technology in the targeted therapy of human diseases: mechanisms, advances and prospects. Signal Transduct Target Ther, 2020; 5:1.

116.

Dash

, Kaminski

, Bella

, et al. Sequential LASER ART and CRISPR treatments eliminate HIV-1 in a subset of infected humanized mice. Nat Commun, 2019; 10:2753.

117.

Didigu

, Wilen

, Wang

, et al. Simultaneous zinc-finger nuclease editing of the HIV coreceptors ccr5 and cxcr4 protects CD4+ T cells from HIV-1 infection. Blood, 2014; 123:61–69.

118.

Liu

, Chen

, Jin

, et al. Genome editing of the HIV co-receptors CCR5 and CXCR4 by CRISPR-Cas9 protects CD4(+) T cells from HIV-1 infection. Cell Biosci, 2017; 7:47.

119.

Tebas

, Stein

, Tang

, et al. Gene editing of CCR5 in autologous CD4 T cells of persons infected with HIV. N Engl J Med, 2014; 370:901–910.

120.

, Yao

, Xiao

, et al. Simultaneous knockout of CXCR4 and CCR5 genes in CD4+ T cells via CRISPR/Cas9 confers resistance to both X4- and R5-tropic human immunodeficiency virus type 1 infection. Hum Gene Ther, 2018; 29:51–67.

121.

Beane

, Lee

, Zheng

, et al. Clinical scale zinc finger nuclease-mediated gene editing of PD-1 in tumor infiltrating lymphocytes for the treatment of metastatic melanoma. Mol Ther, 2015; 23:1380–1390.

122.

June

, O'Connor

, Kawalekar

, et al. CAR T cell immunotherapy for human cancer. Science, 2018; 359:1361–1365.

123.

Zhao

, Song

, Liu

. Clinical trials of dual-target CAR T cells, donor-derived CAR T cells, and universal CAR T cells for acute lymphoid leukemia. J Hematol Oncol, 2019; 12:17.

124.

Poirot

, Philip

, Schiffer-Mannioui

, et al. Multiplex genome-edited T-cell manufacturing platform for “Off-the-Shelf” adoptive T-cell immunotherapies. Cancer Res, 2015; 75:3853–3864.

125.

Esrick

, Lehmann

, Biffi

, et al. Post-transcriptional genetic silencing of BCL11A to treat sickle cell disease. N Engl J Med, 2021; 384:205–215.

126.

Frangoul

, Altshuler

, Cappellini

, et al. CRISPR-Cas9 gene editing for sickle cell disease and beta-thalassemia. N Engl J Med, 2021; 384:252–260.

127.

, Wang

, Tan

, et al. Genome editing using CRISPR-Cas9 to create the HPFH genotype in HSPCs: an approach for treating sickle cell disease and beta-thalassemia. Proc Natl Acad Sci U S A, 2016; 113:10661–10665.

128.

Zhen

, Li

. Oncogenic human papillomavirus: application of CRISPR/Cas9 therapeutic strategies for cervical cancer. Cell Physiol Biochem, 2017; 44:2455–2466.

129.

Ding

, Hu

, Zhu

, et al. Zinc finger nucleases targeting the human papillomavirus E7 oncogene induce E7 disruption and a transformed phenotype in HPV16/18-positive cervical cancer cells. Clin Cancer Res, 2014; 20:6495–6503.

130.

, Ding

, Zhu

, et al. TALEN-mediated targeting of HPV oncogenes ameliorates HPV-related cervical malignancy. J Clin Invest, 2015; 125:425–436.

131.

Lao

, Li

, Gao

, et al. HPV oncogene manipulation using nonvirally delivered CRISPR/Cas9 or Natronobacterium gregoryi Argonaute. Adv Sci (Weinh), 2018; 5:1700540.

132.

Hsu

, Kornepati

, Glover

, et al. Targeting HPV16 DNA using CRISPR/Cas inhibits anal cancer growth in vivo. Future Virol, 2018; 13:475–482.

133.

Yoshiba

, Saga

, Urabe

, et al. CRISPR/Cas9-mediated cervical cancer treatment targeting human papillomavirus E6. Oncol Lett, 2019; 17:2197–2206.

134.

Anguela

, Sharma

, Doyon

, et al. Robust ZFN-mediated genome editing in adult hemophilic mice. Blood, 2013; 122:3283–3287.

135.

, Haurigot

, Doyon

, et al. In vivo genome editing restores haemostasis in a mouse model of haemophilia. Nature, 2011; 475:217–221.

136.

Sharma

, Anguela

, Doyon

, et al. In vivo genome editing of the albumin locus as a platform for protein replacement therapy. Blood, 2015; 126:1777–1784.

137.

Sivalingam

, Kenanov

, Han

, et al. Multidimensional genome-wide analyses show accurate FVIII integration by ZFN in primary human cells. Mol Ther, 2016; 24:607–619.

138.

Sheridan

Sangamo's landmark genome editing trial gets mixed reception. Nat Biotechnol, 2018; 36:907–908.

139.

Hultquist

, Schumann

, Woo

, et al. A Cas9 ribonucleoprotein platform for functional genetic studies of HIV-host interactions in primary human T cells. Cell Rep, 2016; 17:1438–1452.

140.

Qin

, Wang

. Delivery of CRISPR-Cas9 into mouse zygotes by electroporation. Methods Mol Biol, 2019; 1874:179–190.

141.

Tanihara

, Hirata

, Nguyen

, et al. Generation of a TP53-modified porcine cancer model by CRISPR/Cas9-mediated gene modification in porcine zygotes via electroporation. PLoS One, 2018; 13:e0206360.

142.

, Park

, Zhao

, et al. CRISPR-mediated genome editing restores dystrophin expression and function in mdx mice. Mol Ther, 2016; 24:564–569.

143.

Ruan

, Barry

, Yu

, et al. CRISPR/Cas9-mediated genome editing as a therapeutic approach for leber congenital amaurosis. Mol Ther, 2017; 25:331–341.

144.

Hung

, Chrysostomou

, Li

, et al. AAV-mediated CRISPR/Cas gene editing of retinal cells in vivo. Invest Ophthalmol Vis Sci, 2016; 57:3470–3476.

145.

Yang

, Wang

, Bell

, et al. A dual AAV system enables the Cas9-mediated correction of a metabolic liver disease in newborn mice. Nat Biotechnol, 2016; 34:334–338.

146.

Xie

, Zhang

, Song

, et al. Genome editing with CRISPR/Cas9 in postnatal mice corrects PRKAG2 cardiac syndrome. Cell Res, 2016; 26:1099–1111.

147.

Carroll

, Makarewich

, McAnally

, et al. A mouse model for adult cardiac-specific gene deletion with CRISPR/Cas9. Proc Natl Acad Sci U S A, 2016; 113:338–343.

148.

Johansen

, Molenaar

, Versteeg

, et al. Postnatal cardiac gene editing using CRISPR/Cas9 with AAV9-mediated delivery of short guide RNAs results in mosaic gene disruption. Circ Res, 2017; 121:1168–1181.

149.

Platt

, Chen

, Zhou

, et al. CRISPR-Cas9 knockin mice for genome editing and cancer modeling. Cell, 2014; 159:440–455.

150.

Vasileva

, Jessberger

. Precise hit: adeno-associated virus in gene targeting. Nat Rev Microbiol, 2005; 3:837–847.

151.

Kaulich

, Dowdy

. Combining CRISPR/Cas9 and rAAV templates for efficient gene editing. Nucleic Acid Ther, 2015; 25:287–296.

152.

Hirsch

, Wolf

, Samulski

. Delivering transgenic DNA exceeding the carrying capacity of AAV vectors. Methods Mol Biol, 2016; 1382:21–39.

153.

Villiger

, Grisch-Chan

, Lindsay

, et al. Treatment of a metabolic liver disease by in vivo genome base editing in adult mice. Nat Med, 2018; 24:1519–1525.

154.

Winter

, Luu

, Gapinske

, et al. Targeted exon skipping with AAV-mediated split adenine base editors. Cell Discov, 2019; 5:41.

155.

Levy

, Yeh

, Pendse

, et al. Cytosine and adenine base editing of the brain, liver, retina, heart and skeletal muscle of mice via adeno-associated viruses. Nat Biomed Eng, 2020; 4:97–110.

156.

Yeh

, Shubina-Oleinik

, Levy

, et al. In vivo base editing restores sensory transduction and transiently improves auditory function in a mouse model of recessive deafness. Sci Transl Med, 2020; 12.

157.

Lim

CKW

, Gapinske

, Brooks

, et al. Treatment of a mouse model of ALS by in vivo base editing. Mol Ther, 2020; 28:1177–1189.

158.

Hinderer

, Katz

, Buza

, et al. Severe toxicity in nonhuman primates and piglets following high-dose intravenous administration of an adeno-associated virus vector expressing human SMN. Hum Gene Ther, 2018; 29:285–298.

159.

Wilson

, Flotte

. Moving forward after two deaths in a gene therapy trial of myotubular myopathy. Hum Gene Ther, 2020; 31:695–696.

160.

, Sheng

, Liu

, et al. Inhibition of HBV expression in HBV transgenic mice using AAV-delivered CRISPR-SaCas9. Front Immunol, 2018; 9:2080.

161.

Krooss

, Dai

, Schmidt

, et al. Ex vivo/in vivo gene editing in hepatocytes using “All-in-One” CRISPR-adeno-associated virus vectors with a self-linearizing repair template. iScience, 2020; 23:100764.

162.

Lee

, Mou

, Ibraheim

, et al. Tissue-restricted genome editing in vivo specified by microRNA-repressible anti-CRISPR proteins. RNA, 2019; 25:1421–1431.

163.

Ibraheim

, Tai

PWL

, Mir

, et al. Precision Cas9 genome editing in vivo with all-in-one, self-targeting AAV vectors. bioRxiv, 2020:2020:333997.

164.

Pausch

, Al-Shayeb

, Bisom-Rapp

, et al. CRISPR-CasPhi from huge phages is a hypercompact genome editor. Science, 2020; 369:333–337.

165.

Grimm

, Lee

, Wang

, et al. In vitro and in vivo gene therapy vector evolution via multispecies interbreeding and retargeting of adeno-associated viruses. J Virol, 2008; 82:5887–5911.

166.

Hashimoto

, Mizushima

, Chijiwa

, et al. Efficient production of recombinant adeno-associated viral vector, serotype DJ/8, carrying the GFP gene. Virus Res, 2017; 238:63–68.

167.

Iida

, Takino

, Miyauchi

, et al. Systemic delivery of tyrosine-mutant AAV vectors results in robust transduction of neurons in adult mice. Biomed Res Int, 2013; 2013:974819.

168.

Munch

, Janicki

, Volker

, et al. Displaying high-affinity ligands on adeno-associated viral vectors enables tumor cell-specific and safe gene transfer. Mol Ther, 2013; 21:109–118.

169.

Simhadri

, McGill

, McMahon

, et al. Prevalence of pre-existing antibodies to CRISPR-associated nuclease Cas9 in the USA population. Mol Ther Methods Clin Dev, 2018; 10:105–112.

170.

Strobel

, Zuckschwerdt

, Zimmermann

, et al. Standardized, scalable, and timely flexible adeno-associated virus vector production using frozen high-density HEK-293 cell stocks and CELLdiscs. Hum Gene Ther Methods, 2019; 30:23–33.

171.

Ohmori

, Nagao

, Mizukami

, et al. CRISPR/Cas9-mediated genome editing via postnatal administration of AAV vector cures haemophilia B mice. Sci Rep, 2017; 7:4159.

172.

Miller

, Zhang

, Kos

, et al. Non-viral CRISPR/Cas gene editing in vitro and in vivo enabled by synthetic nanoparticle co-delivery of Cas9 mRNA and sgRNA. Angew Chem Int Ed Engl, 2017; 56:1059–1063.

173.

Jiang

, Mei

, Li

, et al. A non-viral CRISPR/Cas9 delivery system for therapeutically targeting HBV DNA and pcsk9 in vivo. Cell Res, 2017; 27:440–443.

174.

Sago

, Lokugamage

, Paunovska

, et al. High-throughput in vivo screen of functional mRNA delivery identifies nanoparticles for endothelial cell gene editing. Proc Natl Acad Sci U S A, 2018; 115:E9944–E9952.

175.

Zuris

, Thompson

, Shu

, et al. Cationic lipid-mediated delivery of proteins enables efficient protein-based genome editing in vitro and in vivo. Nat Biotechnol, 2015; 33:73–80.

176.

Staahl

, Benekareddy

, Coulon-Bainier

, et al. Efficient genome editing in the mouse brain by local delivery of engineered Cas9 ribonucleoprotein complexes. Nat Biotechnol, 2017; 35:431–434.

177.

Lee

, Conboy

, Park

, et al. Nanoparticle delivery of Cas9 ribonucleoprotein and donor DNA in vivo induces homology-directed DNA repair. Nat Biomed Eng, 2017; 1:889–901.

178.

Riley

, June

, Langer

, et al. Delivery technologies for cancer immunotherapy. Nat Rev Drug Discov, 2019; 18:175–196.

179.

Sharma

, Cho

, Lee

, et al. Efficient intracellular delivery of biomacromolecules employing clusters of zinc oxide nanowires. Nanoscale, 2017; 9:15371–15378.

180.

Kim

, Luk

, Wolfe

, et al. Evaluating and enhancing target specificity of gene-editing nucleases and deaminases. Annu Rev Biochem, 2019; 88:191–220.

181.

, Scott

, Kriz

, et al. Genome-wide binding of the CRISPR endonuclease Cas9 in mammalian cells. Nat Biotechnol, 2014; 32:670–676.

182.

Kim

, Bae

, Park

, et al. Digenome-seq: genome-wide profiling of CRISPR-Cas9 off-target effects in human cells. Nat Methods, 2015; 12:237–243.

183.

Akcakaya

, Bobbin

, Guo

, et al. In vivo CRISPR editing with no detectable genome-wide off-target mutations. Nature, 2018; 561:416–419.

184.

Kim

, Kim

, Cho

, et al. Highly efficient RNA-guided genome editing in human cells via delivery of purified Cas9 ribonucleoproteins. Genome Res, 2014; 24:1012–1019.

185.

Polstein

, Gersbach

. A light-inducible CRISPR-Cas9 system for control of endogenous gene activation. Nat Chem Biol, 2015; 11:198–200.

186.

Dow

, Fisher

, O'Rourke

, et al. Inducible in vivo genome editing with CRISPR-Cas9. Nat Biotechnol, 2015; 33:390–394.

187.

Liu

, Ramli

, Woo

, et al. A chemical-inducible CRISPR-Cas9 system for rapid control of genome editing. Nat Chem Biol, 2016; 12:980–987.

188.

Choi

, Dang

, Abraham

, et al. Lentivirus pre-packed with Cas9 protein for safer gene editing. Gene Ther, 2016; 23:627–633.

189.

Mangeot

, Risson

, Fusil

, et al. Genome editing in primary cells and in vivo using viral-derived Nanoblades loaded with Cas9-sgRNA ribonucleoproteins. Nat Commun, 2019; 10:45.

190.

Montagna

, Petris

, Casini

, et al. VSV-G-enveloped vesicles for traceless delivery of CRISPR-Cas9. Mol Ther Nucleic Acids, 2018; 12:453–462.

191.

Campbell

, Coke

, Richie

, et al. Gesicle-mediated delivery of CRISPR/Cas9 ribonucleoprotein complex for inactivating the HIV provirus. Mol Ther, 2019; 27:151–163.

192.

Kostyushev

, Kostyusheva

, Brezgin

, et al. Gene editing by extracellular vesicles. Int J Mol Sci, 2020; 21:7362.

193.

Lyu

, Javidi-Parsijani

, Atala

, et al. Delivering Cas9/sgRNA ribonucleoprotein (RNP) by lentiviral capsid-based bionanoparticles for efficient ‘hit-and-run’ genome editing. Nucleic Acids Res, 2019; 47:e99.

194.

Gee

, Lung

MSY

, Okuzaki

, et al. Extracellular nanovesicles for packaging of CRISPR-Cas9 protein and sgRNA to induce therapeutic exon skipping. Nat Commun, 2020; 11:1334.

195.

Nishida

, Arazoe

, Yachie

, et al. Targeted nucleotide editing using hybrid prokaryotic and vertebrate adaptive immune systems. Science, 2016; 353:aaf8729.

196.

Nakamura

, Srinivasan

, Chavez

, et al. Anti-CRISPR-mediated control of gene editing and synthetic circuits in eukaryotic cells. Nat Commun, 2019; 10:194.

197.

Zhang

, Song

, Tian

. Anti-CRISPRs: the natural inhibitors for CRISPR-Cas systems. Animal Model Exp Med, 2019; 2:69–75.

198.

Pawluk

, Amrani

, Zhang

, et al. Naturally occurring off-switches for CRISPR-Cas9. Cell, 2016; 167:1829–1838.e1829.

199.

Nelson

, Wu

, Gemberling

, et al. Long-term evaluation of AAV-CRISPR genome editing for Duchenne muscular dystrophy. Nat Med, 2019; 25:427–432.

200.

Charlesworth

, Deshpande

, Dever

, et al. Identification of preexisting adaptive immunity to Cas9 proteins in humans. Nat Med, 2019; 25:249–254.

201.

Wagner

, Amini

, Wendering

, et al. High prevalence of Streptococcus pyogenes Cas9-reactive T cells within the adult human population. Nat Med, 2019; 25:242–248.

202.

, Tanner

, Lee

, et al. AAV-CRISPR gene editing is negated by pre-existing immunity to Cas9. Mol Ther, 2020; 28:1432–1441.

203.

Gopas

, Rager-Zisman

, Bar-Eli

, et al. The relationship between MHC antigen expression and metastasis. Adv Cancer Res, 1989; 53:89–115.

204.

Moynahan

, Jasin

. Mitotic homologous recombination maintains genomic stability and suppresses tumorigenesis. Nat Rev Mol Cell Biol, 2010; 11:196–207.

205.

Chu

, Weber

, Wefers

, et al. Increasing the efficiency of homology-directed repair for CRISPR-Cas9-induced precise gene editing in mammalian cells. Nat Biotechnol, 2015; 33:543–548.

206.

Maruyama

, Dougan

, Truttmann

, et al. Increasing the efficiency of precise genome editing with CRISPR-Cas9 by inhibition of nonhomologous end joining. Nat Biotechnol, 2015; 33:538–542.

207.

Suzuki

, Izpisua Belmonte

. In vivo genome editing via the HITI method as a tool for gene therapy. J Hum Genet, 2018; 63:157–164.

208.

Eid

, Alshareef

, Mahfouz

. CRISPR base editors: genome editing without double-stranded breaks. Biochem J, 2018; 475:1955–1964.

209.

Anzalone

, Randolph

, Davis

, et al. Search-and-replace genome editing without double-strand breaks or donor DNA. Nature, 2019; 576:149–157.

210.

Barzel

, Paulk

, Shi

, et al. Promoterless gene targeting without nucleases ameliorates haemophilia B in mice. Nature, 2015; 517:360–364.

211.

Borel

, Tang

, Gernoux

, et al. Survival advantage of both human hepatocyte xenografts and genome-edited hepatocytes for treatment of alpha-1 antitrypsin deficiency. Mol Ther, 2017; 25:2477–2489.

212.

Nygaard

, Barzel

, Haft

, et al. A universal system to select gene-modified hepatocytes in vivo. Sci Transl Med, 2016; 8:342ra379.

213.

Chen

, Resendes

, Ghodssi

, et al. Molecular characterization of precise in vivo targeted gene integration in human cells using AAVHSC15. PLoS One, 2020; 15:e0233373.

214.

Torikai

, Reik

, Liu

, et al. A foundation for universal T-cell based immunotherapy: T cells engineered to express a CD19-specific chimeric-antigen-receptor and eliminate expression of endogenous TCR. Blood, 2012; 119:5697–5705.

215.

Torikai

, Reik

, Soldner

, et al. Toward eliminating HLA class I expression to generate universal cells from allogeneic donors. Blood, 2013; 122:1341–1349.

216.

Liu

, Zhang

, Cheng

, et al. CRISPR-Cas9-mediated multiplex gene editing in CAR-T cells. Cell Res, 2017; 27:154–157.

217.

Ren

, Zhang

, Liu

, et al. A versatile system for rapid multiplex genome-edited CAR T cell generation. Oncotarget, 2017; 8:17002–17011.

218.

Leone

, Emens

. Targeting adenosine for cancer immunotherapy. J Immunother Cancer, 2018; 6:57.

219.

Zhang

, Zhang

, Cheng

, et al. CRISPR-Cas9 mediated LAG-3 disruption in CAR-T cells. Front Med, 2017; 11:554–562.

220.

, Mei

, Hu

. Applications and explorations of CRISPR/Cas9 in CAR T-cell therapy. Brief Funct Genom, 2020; 19:175–182.

221.

Salas-Mckee

, Kong

, Gladney

, et al. CRISPR/Cas9-based genome editing in the era of CAR T cell immunotherapy. Hum Vaccin Immunother, 2019; 15:1126–1132.

222.

Manriquez-Roman

, Siegler

, Kenderian

. CRISPR takes the front seat in CART-cell development. BioDrugs 2021.

223.

Pfeiffer

, Thalheimer

, Hartmann

, et al. In vivo generation of human CD19-CAR T cells results in B-cell depletion and signs of cytokine release syndrome. EMBO Mol Med, 2018; 10.

224.

Agarwal

, Weidner

, Thalheimer

, et al. In vivo generated human CAR T cells eradicate tumor cells. Oncoimmunology, 2019; 8:e1671761.

225.

Agarwal

, Hanauer

JDS

, Frank

, et al. In vivo generation of CAR T cells selectively in human CD4(+) lymphocytes. Mol Ther, 2020; 28:1783–1794.

226.

Adli

The CRISPR tool kit for genome editing and beyond. Nat Commun, 2018; 9:1911.

227.

Bortesi

, Fischer

. The CRISPR/Cas9 system for plant genome editing and beyond. Biotechnol Adv, 2015; 33:41–52.

228.

Laoharawee

, DeKelver

, Podetz-Pedersen

, et al. Dose-dependent prevention of metabolic and neurologic disease in murine MPS II by ZFN-mediated in vivo genome editing. Mol Ther, 2018; 26:1127–1136.

229.

Bloom

, Ely

, Mussolino

, et al. Inactivation of hepatitis B virus replication in cultured cells and in vivo with engineered transcription activator-like effector nucleases. Mol Ther, 2013; 21:1889–1897.

230.

Pankowicz

, Barzi

, Legras

, et al. Reprogramming metabolic pathways in vivo with CRISPR/Cas9 genome editing to treat hereditary tyrosinaemia. Nat Commun, 2016; 7:12642.

231.

Singh

, Evens

, Nair

, et al. Efficient in vivo liver-directed gene editing using CRISPR/Cas9. Mol Ther, 2018; 26:1241–1254.

232.

Kemaladewi

, Bassi

, Erwood

, et al. A mutation-independent approach for muscular dystrophy via upregulation of a modifier gene. Nature, 2019; 572:125–130.

233.

Bainbridge

, Smith

, Barker

, et al. Effect of gene therapy on visual function in Leber's congenital amaurosis. N Engl J Med, 2008; 358:2231–2239.

234.

Latella

, Di Salvo

, Cocchiarella

, et al. In vivo editing of the human mutant rhodopsin gene by electroporation of plasmid-based CRISPR/Cas9 in the mouse retina. Mol Ther Nucleic Acids, 2016; 5:e389.

235.

Zhu

, Ming

, Fu

, et al. Gene and mutation independent therapy via CRISPR-Cas9 mediated cellular reprogramming in rod photoreceptors. Cell Res, 2017; 27:830–833.

236.

Monteys

, Ebanks

, Keiser

, et al. CRISPR/Cas9 editing of the mutant huntingtin allele in vitro and in vivo. Mol Ther, 2017; 25:12–23.

237.

Lin

, Hu

, Duan

, et al. Intramuscular delivery of scAAV9-hIGF1 prolongs survival in the hSOD1(G93A) ALS mouse model via upregulation of D-amino acid oxidase. Mol Neurobiol, 2018; 55:682–695.

238.

Gaj

, Ojala

, Ekman

, et al. In vivo genome editing improves motor function and extends survival in a mouse model of ALS. Sci Adv, 2017; 3:eaar3952.

239.

Alapati

, Zacharias

, Hartman

, et al. In utero gene editing for monogenic lung disease. Sci Transl Med, 2019; 11:eaav8375.

240.

Rupp

, Schumann

, Roybal

, et al. CRISPR/Cas9-mediated PD-1 disruption enhances anti-tumor efficacy of human chimeric antigen receptor T cells. Sci Rep, 2017; 7:737.

241.

Gyorgy

, Nist-Lund

, Pan

, et al. Allele-specific gene editing prevents deafness in a model of dominant progressive hearing loss. Nat Med, 2019; 25:1123–1130.

242.

Yin

, Zhang

, Qu

, et al. In vivo excision of HIV-1 provirus by saCas9 and multiplex single-guide RNAs in animal models. Mol Ther, 2017; 25:1168–1186.

243.

Kaminski

, Bella

, Yin

, et al. Excision of HIV-1 DNA by gene editing: a proof-of-concept in vivo study. Gene Ther, 2016; 23:690–695.
