Noninvasive Near-Infrared Fluorescence Imaging of the Ureter During Robotic Surgery: A Demonstration in a Porcine Model

Introduction

Robotic surgery has been extensively used in various types of surgery, including intrapelvic surgery for urological, gynecologic, and colorectal diseases, and the cases performed globally have rapidly increased for the past decade. ¹ The benefits of robotic surgery include immersive three-dimensional viewing, improved ergonomics, tremor filtration and motion scaling, instrument articulation, and enhanced dexterity with a stable endoscopic platform. ² These advantages allow for an accurate approach even in a narrow pelvic cavity. However, as for intraoperative complications in rectal cancer surgery, the first multicenter randomized controlled trial comparing robot-assisted laparoscopic surgery (RALS) with conventional laparoscopic surgery (CLS) for rectal cancer reported no significant difference between RALS and CLS. ³ During RALS, the surgeon lacks tactile sensation and as a result, the surgeon must primarily rely on visual cues.^4,5

Ureteral injury is a complication of concern during intrapelvic surgery and the majority of iatrogenic ureteral injuries are not recognized intraoperatively, which may lead to severe morbidity and even mortality.^6,7 In gynecologic surgery, even when performed in robotic surgery, ureteral injuries occur in 0.3% to 2.5% of patients undergoing hysterectomy.^8,9

Near-infrared fluorescence (NIRF) imaging with preoperative optical dye administration may improve the safety and efficiency of intrapelvic surgery by visualizing the ureter. There are several studies describing various fluorescent dyes used to identify the ureters during surgery. ¹⁰ Indocyanine green (ICG), which is approved for clinical use, is considered a potent NIR fluorophore. However, it is metabolized by the liver and exclusively excreted in bile, and as such, it does not facilitate the noninvasive visualization of the ureters. ¹¹ Several studies described intraurethral ICG injection, which enhanced the intraoperative ureteral NIR visualization during RALS.^12–14

Methylene blue is another clinically available dye, which was found feasible for ureteral NIR visualization in clinical trials^15–17 but did not prove its superiority over conventional white light imaging in all cases studied.

A preclinical NIR fluorophore, the IRDye^® 800CW dye, is a fluorophore that is partly excreted in urine, which allows for noninvasive NIR ureteral visualization.^18–20 It has an absorption and emission spectrum that overlaps with ICG, and it is consequently compatible with existing NIR imaging systems that have been studied in combination with ICG. Tanaka et al. ¹⁸ and Schols et al. ¹⁹ first reported the use of NIRF imaging with intravenous (IV) injection of IRDye 800CW for the successful visualization of the ureter in an animal model. IRDye 800BK (nerindocianine sodium) is a cheaper derivative of IRDye 800CW especially designed for ureteral imaging, which has resulted in the successful NIR visualization of the ureters ²¹ and is currently under evaluation for clinical translation in clinical trials (NCT03106038 and NCT03387410).

To date, unlike in laparoscopic surgery, there are limited data on the use of novel dyes in RALS for the purpose of noninvasive ureteral visualization. In this study, we evaluated the feasibility of NIRF imaging of the ureter using IRDye 800BK as the fluorescence dye and a robotic platform with Firefly™ technology as an imaging system.

Materials and Methods

The study was performed at the Research Institute against Digestive Cancer (IRCAD, France). Three female pigs (Sus scrofa domesticus, ssp. Large White) with a weight range comprised between 27 and 35 kg (mean: 30 kg) were included and managed according to the French regulations for animal use and care and to the ARRIVE guidelines. ²² For ethical purposes, respecting the “3R's” (Replace, Refine, Reduce) principles of animal research, ²³ we performed this study in pigs, which were used for educational purposes for novel robotic surgeons without imposing any urological or pelvic organ damage (ethical protocol number 38.2019.01.124). Premedication consisted of zolazepam and tiletamine 10 mg/kg intramuscular (IM) (Zoletil ND, Virbac, France), and anesthesia was induced using an IV injection of propofol 3 mg/kg (Propofol Lipuro ND, B Braun, France) and rocuronium 0.8 mg/kg (Esmeron ND, MSD, France), allowing for intubation and mechanical ventilation. Sedation was maintained by means of an inhalation of isoflurane 2% to 3% (Isoflurin ND, Axience, France) and oxygen. Buprenorphine (Buprecare ND, Axience, France) 0.01 mg/kg IM was used for analgesia. At the end of the surgical procedure, pigs were sacrificed under deep anesthesia (isoflurane 5%) with IV injection of pentobarbital 40 mg/kg (Exagon ND, Axience, France).

Results

In all 3 animals included, it was possible to clearly visualize the ureters under NIRF imaging from 5 minutes after dye administration until the end of the surgical procedure (Fig. 1). Subjectively, the ureter became more distinguishable from its surroundings and reached its peak around 20 minutes after which the ureter remained clearly visible during peristaltic contractions until the end of the procedure. There was a positive TBR at all time points measured and there was no statistical difference of the TBR value over time (Table 1 and Fig. 2).

OPEN IN VIEWER

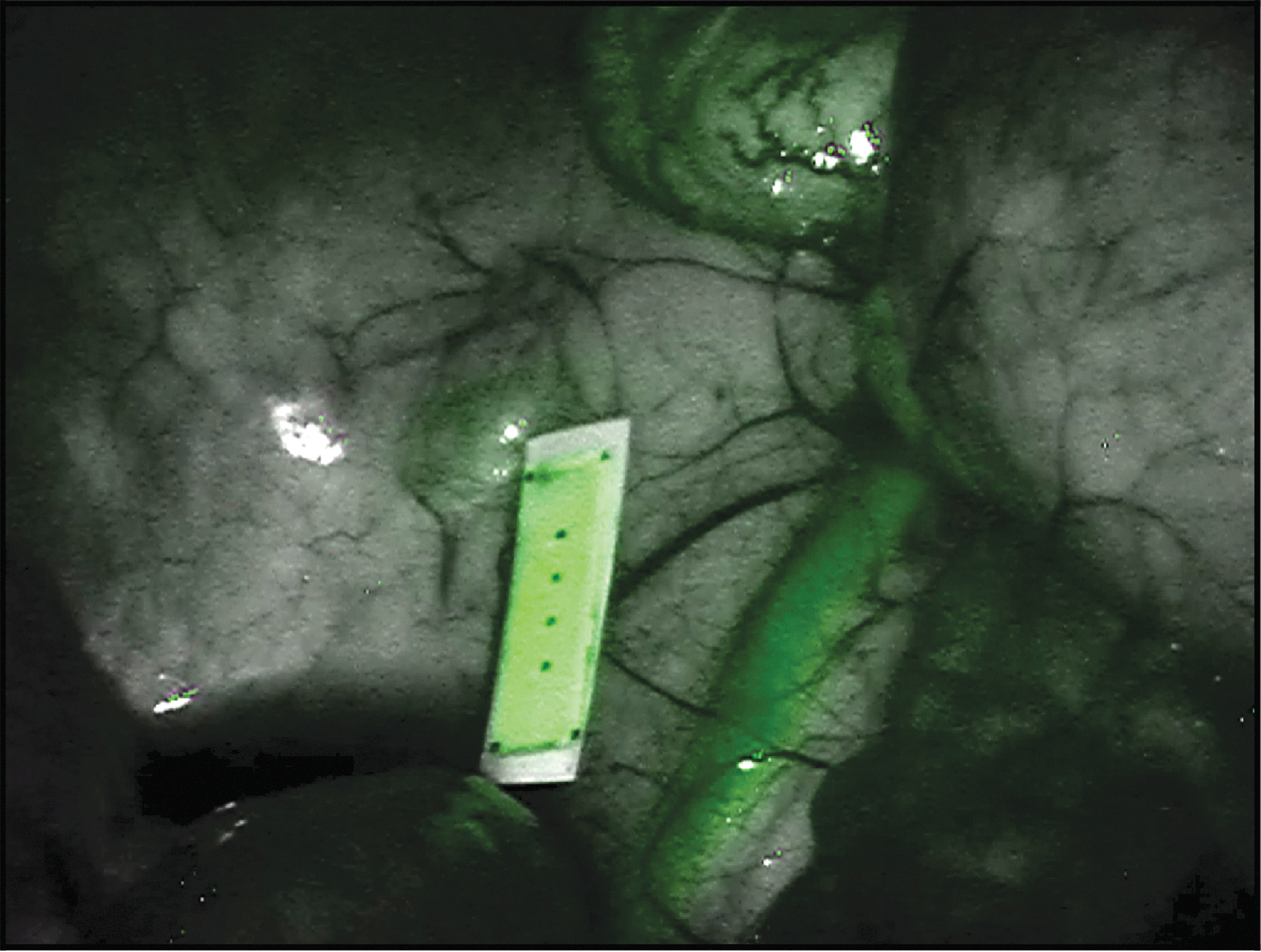

FIG. 1.

Screenshot of the left ureter after 20 minutes of dye administration.

OPEN IN VIEWER

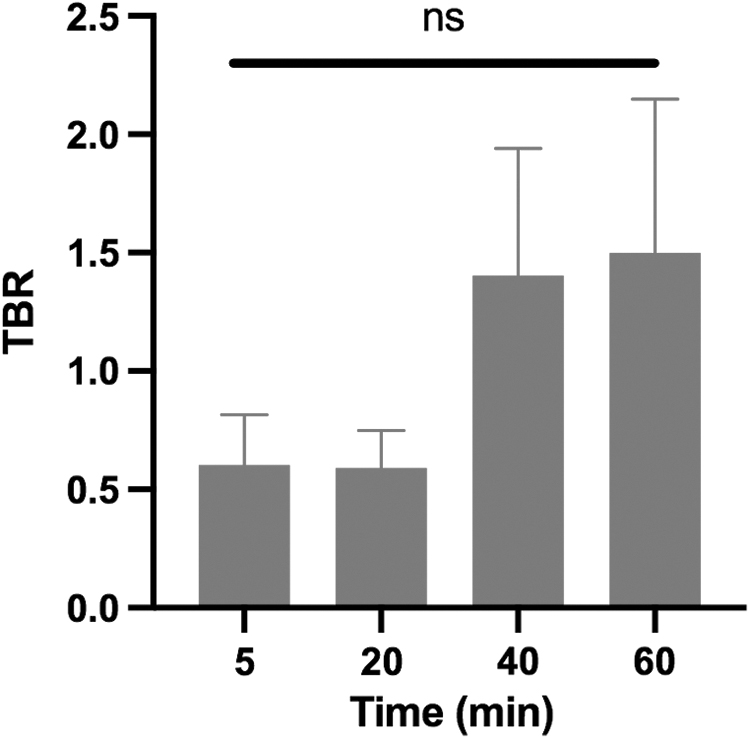

FIG. 2.

The TBR over time, showing no significant difference between measured time points. ns, no statistical significance; TBR, target-to-background ratio.

Another valuable finding observed in all included animals was the clear visualization of bowel perfusion directly after dye administration as shown in Figure 3.

OPEN IN VIEWER

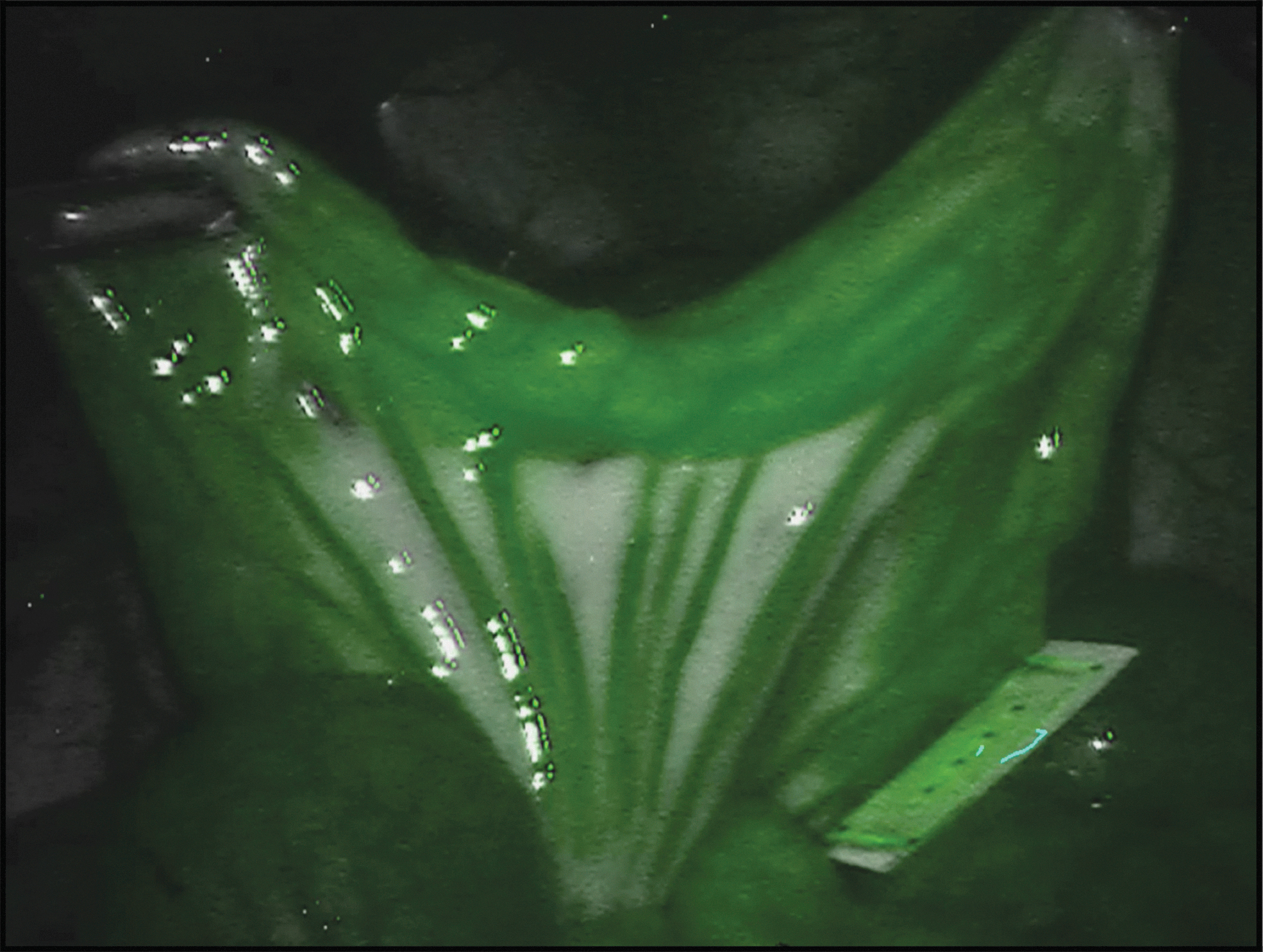

FIG. 3.

Screenshot of an intestinal loop within 1 minute of intravenous dye administration showing a clear intestinal perfusion under NIRF. NIRF, near-infrared fluorescence.

No complications related to dye administrations occurred.

Discussion

In this study, we have successfully demonstrated the feasibility of NIRF ureteral identification with IRDye 800BK and the commercially available Firefly technology of the da Vinci Si robotic surgical system in a pig model. This is an essential finding adding a new potent fluorophore, currently undergoing clinical translation, to the armamentarium of robotic surgery. Unlike in CLS, only a limited number of clinical and preclinical fluorophores have been successfully explored for ureteral imaging with the da Vinci robotic surgical systems.^24,25

To prevent intraoperative ureteral injury, surgeons have made an effort to visualize the ureter using various methods, including preoperative ureteral stent insertion,^26–28 lighted ureteral stents, ²⁹ intraoperative cystoscopy,^8,30,31 X-ray fluoroscopy, ³² and intraureteral ICG injection.^11,12,14 These procedures require additional interventions, which can be both time-consuming and add extra costs to the surgical procedure and they may also introduce an additional risk of complications.

Although ICG is the most commonly used fluorophore for intraoperative fluorescence imaging, it remains suboptimal for ureteral imaging due to its exclusive hepatic clearance, which prevents it to reach the ureter noninvasively. It, therefore, requires an invasive procedure such as a cystoscopy with ureteral cannulation to reach the ureter. This necessitates the introduction of other more potent fluorophores for ureteral imaging. In a first-in-human experience in patients undergoing robotic hysterectomy, Farnam et al. ²⁵ demonstrated that the use of NIRF imaging is feasible with IV injection of IS-001, a hydrophilic dye with a maximum absorption at 790 nm and a maximum emission at 815 nm, for the intraoperative visualization of the ureter. Another promising fluorophore for enhanced ureteral visualization is ZW-800-1, which has been explored in the clinical setting. ²⁴

The feasibility of IRDye 800BK for the intraoperative visualization of the ureter has been previously demonstrated in laparoscopic surgery in preclinical trials by our group.^21,33

This dye is mainly cleared by the kidney, making it suitable for noninvasive intraoperative ureteral imaging. However, it is also partially cleared by the liver resulting in the potential of NIRF bile duct imaging as we have demonstrated earlier. ³³ In addition, in yet unpublished data, we successfully demonstrated that it was possible to simultaneously visualize the ureter, bile duct, bowel perfusion, lymph ducts, and lymph nodes in the same surgical procedure.

Considering the speed of ureteral visualization under NIRF, which occurred as soon as 5 minutes after dye administration, it is clear that the dye can be administered intraoperatively without the need for an extension of the duration of the operative procedure as is the case when compared with ureteral stent insertion or intraureteral dye administration, which is usually performed before the start of the surgical procedure.

To compare the results of this study, we have retrieved historical data from our previous studies with NIRF imaging of the ureter with an NIR laparoscope (D-Light-P; KARL STORZ, Germany). In 5 animals, a similar concentration of 0.15 mg/kg was administered and representative screenshots of the video recordings were made after 20, 40, and 60 minutes of dye administration. By using the same method of TBR calculation as explained in this study, we found TBR values that were not significantly different from our current findings (Fig. 4). This suggests that this dye has an equally good performance for ureteral visualization in both systems. However, it is uncertain if these findings are all translatable to the clinical setting. Since visceral fat in pigs is thinner and the ureteral diameter is smaller than in humans, ³³ studies will be necessary to confirm the applicability of this dye in the clinical setting.

OPEN IN VIEWER

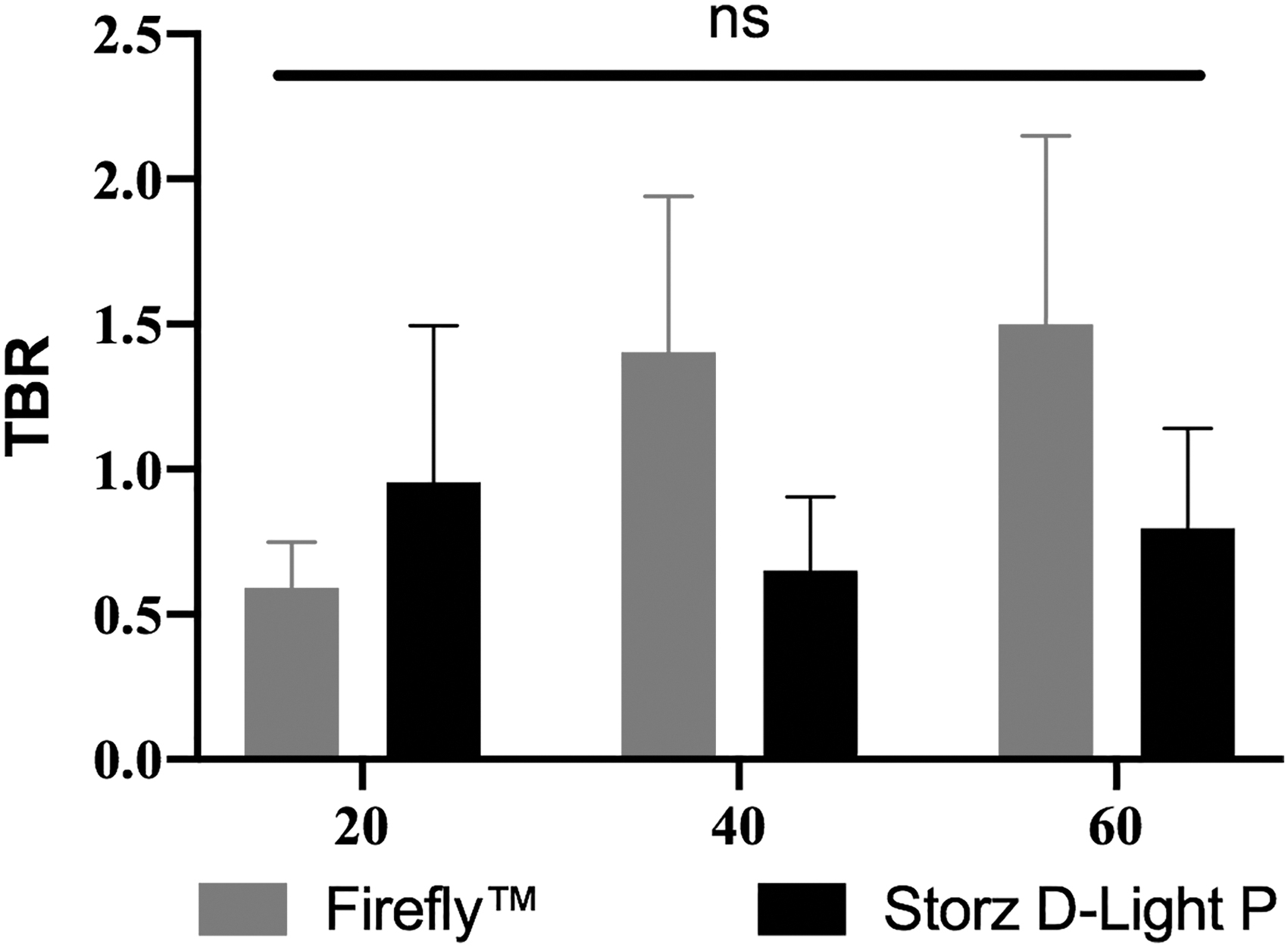

FIG. 4.

The TBR over time, showing no significant difference between measured time points between the Firefly™ technology and the KARL STORZ D-Light P NIR laparoscope.

Although this study describes a small sample size, being a feasibility study aiming to serve as a proof of principle, only 3 pigs were deemed sufficient to demonstrate the feasibility of intraoperative real-time ureteral imaging in combination with the robotic system. A disadvantage lies in the fact that the total duration of the surgical procedure was only 1 hour due to logistic reasons. However, in our earlier studies, we have demonstrated that it was possible to visualize the ureters until at least 120 minutes after administration of a single bolus of this dye.^21,33

Although this study was performed in pigs that underwent several surgical procedures, presenting possible hemodynamic alterations, it was still possible to visualize the ureters in all cases.

In this study, only one dye concentration (0.15 mg/kg) was explored. In earlier studies, other doses were successfully explored in laparoscopic surgery, suggesting that there is a range of dye concentrations that results in successful ureteral visualization and that further studies are required to identify the most ideal concentration for the clinical setting.

Since this dye is currently undergoing clinical translation, a clinical pilot study exploring the feasibility of this fluorophore in RALS and CLS would be the next step to demonstrate its clinical value for NIRF imaging.

Conclusion

In this study, we successfully demonstrated the feasibility of the noninvasive intraoperative ureteral visualization of the ureter in robotic surgery using the Firefly technology and the NIRF dye IRDye 800BK. This dye, which is currently undergoing clinical translation, is a potent and versatile dye, which adds to the still limited amount of fluorescence dyes explored in robotic surgery.
