Comparative Genomic Analysis of Virulence,Antimicrobial Resistance,and Plasmid Profiles of Salmonella Dublin Isolated from Sick Cattle,Retail Beef,and Humans in the United States

Abstract

Salmonella enterica serovar Dublin is a host-adapted serotype associated with typhoidal disease in cattle. While rare in humans, it usually causes severe illness, including bacteremia. In the United States, Salmonella Dublin has become one of the most multidrug-resistant (MDR) serotypes. To understand the genetic elements that are associated with virulence and resistance, we sequenced 61 isolates of Salmonella Dublin (49 from sick cattle and 12 from retail beef) using the Illumina MiSeq and closed 5 genomes using the PacBio sequencing platform. Genomic data of eight human isolates were also downloaded from NCBI (National Center for Biotechnology Information) for comparative analysis. Fifteen Salmonella pathogenicity islands (SPIs) and a spv operon (spvRABCD), which encodes important virulence factors, were identified in all 69 (100%) isolates. The 15 SPIs were located on the chromosome of the 5 closed genomes, with each of these isolates also carrying 1 or 2 plasmids with sizes between 36 and 329 kb. Multiple antimicrobial resistance genes (ARGs), including bla_CMY-2, bla_TEM-1B, aadA12, aph(3′)-Ia, aph(3′)-Ic, strA, strB, floR, sul1, sul2, and tet(A), along with spv operons were identified on these plasmids. Comprehensive antimicrobial resistance genotypes were determined, including 17 genes encoding resistance to 5 different classes of antimicrobials, and mutations in the housekeeping gene (gyrA) associated with resistance or decreased susceptibility to fluoroquinolones. Together these data revealed that this panel of Salmonella Dublin commonly carried 15 SPIs, MDR/virulence plasmids, and ARGs against several classes of antimicrobials. Such genomic elements may make important contributions to the severity of disease and treatment failures in Salmonella Dublin infections in both humans and cattle.

Introduction

Salmonella enterica serotype Dublin is a host-adapted serotype associated with typhoidal disease in cattle. The symptoms include fever, diarrhea, abortions, septicemia, and respiratory signs.^1,2 Although the incidence of Salmonella Dublin infections in humans is low, it frequently causes severe illness, including bloodstream infections. A recent report by the Centers for Disease Control and Prevention (CDC) showed that there was an increase in hospitalization and mortality rates by Salmonella Dublin infections from 1996–2004 (68% hospitalization, 2.7% mortality) to 2005–2013 (78% hospitalization, 4.2% mortality).³

The genetic background of pathogens is known to play a critical role in contributing to infection outcomes.^4–6 Salmonella pathogenicity islands (SPIs) contain many genes encoding virulence factors, including different types of secretion systems (T1SS, T3SS, and T6SS), adhesins, effector proteins, and other factors associated with bacterial invasion, enteropathogenesis, intracellular survival, and proliferation.^7–10 The type III secretion systems (T3SS) encoded on SPI 1 and SPI 2 are important virulence factors that have been well studied.^7,11–14 The acquisition of SPIs can be achieved through horizontal gene transfer from other bacterial species and is considered to be a “quantum leap” in Salmonella evolution,^8,10,15,16 which is evidenced based on gene function, base composition, and codon usage. SPIs not only carry virulence genes but also are frequently associated with mobile DNA elements such as insertion sequences and bacteriophages as well as genes encoding tRNA.¹⁷ To date, 21 SPIs have been reported.^6,8,13,18 They are diverse in structure and function, and even the same SPI can vary among different serotypes, suggesting a range of transmissible elements that are likely involved in the continuing evolution of SPI and host specificity.^10,15 Among the 21 SPIs, some such as SPI 1–5, 9, 13, and 14 are conserved throughout the Salmonella genus, whereas others are specific for certain serotypes.¹⁰ For example, Salmonella Typhimurium LT2 carries 13 SPIs, whereas Salmonella Typhi carries 17 SPIs.⁶ Analysis of a limited number of isolates has shown that Salmonella Dublin carries various SPIs,¹⁰ but no reports are available on the comprehensive genomic structure and distribution of SPIs in Salmonella Dublin from different sources.

Salmonella Dublin also contains a virulence plasmid that carries a spvRABCD operon.⁵ The spvR gene encodes a transcriptional regulator required for expression of spvABCD.⁵ Several studies have shown that spv genes can enhance the virulence of Salmonella by increasing the rate of bacterial replication within host cells and can produce lethal disease in mice.^19–22 Libby et al. also showed that spv genes are required for severe enteritis and systemic infection to occur in the natural host.⁵ Virulence plasmids have been identified in other host-adapted serotypes such as Salmonella Choleraesuis (swine), Salmonella Paratyphi (human), Salmonella Gallinarum and Salmonella Pullorum (chicken), Salmonella Abortusovis (sheep), and some highly invasive strains of the broad-host serotypes of Salmonella Typhimurium and Salmonella Enteritidis.^5,23,24 Although the genetic diversity of virulence plasmids in different serotypes has been reported, there is a lack of understanding on the diversity and genetic structure of virulence plasmids within the same serotype. In the past, identification and molecular characterization of virulence plasmids and SPIs relied on PCR, microarrays, cloning, and Southern hybridizations, but such approaches have limitations and are unable to provide a clear picture of the structure and organization of virulence plasmids and SPIs.

Salmonella Dublin has become one of the most antimicrobial-resistant serotypes in the United States. The CDC reported that multidrug-resistant (MDR) Salmonella Dublin (resistant to ≥7 classes of antimicrobials) increased from 2.4% during 1996–2004 to 50.8% during 2005–2013.³ The National Antimicrobial Resistance Monitoring System (NARMS) 2015 annual report also showed that MDR (resistant to ≥3 classes) Salmonella Dublin isolated from cattle increased from 54.7% during 1998–2004 to 85.2% during 2005–2015.²⁵ A study by Zhao et al. showed that 100% (n = 32) of Salmonella Dublin isolated from sick cattle were resistant to ≥5 antimicrobials, and 31% (n = 10) were resistant to ≥9 antimicrobials.²⁶ Previously, we used PCR followed by sequence analysis to detect antimicrobial resistance genes (ARGs) or mutations conferring resistance, which is a time-intensive process. PCR-based detection also suffers from potentially failing to detect ARGs in the presence of primer sequence divergence. Recent studies have shown the power and promise of whole-genome sequencing (WGS) technology, which can offer the highest practical resolution for characterizing genetic determinates of individual microbes, including the full complement of resistance determinants.^27–29 The objective of this study was to investigate the presence, distribution, and diversity of SPIs, virulence plasmids, and resistomes of Salmonella Dublin strains isolated from humans, sick cattle, and retail beef in the United States.

Materials and Methods

Bacterial strains

A total of 61 Salmonella Dublin isolates including 49 from sick cattle isolated in Arizona between 2003 and 2005 and 12 from retail ground beef isolated between 2012 and 2014 (Table 1) were available from our culture collections for the study. Forty-nine cattle isolates were from Arizona State Veterinary Diagnostic Laboratory, and the antimicrobial susceptibility testing (AST) profile of these isolates was previously reported.²⁶ WGS data from eight human clinical isolates, which were isolated from 2014 to 2015, were downloaded from the National Center for Biotechnology Information (NCBI) for comparative genomic analysis. Thirteen other Salmonella serotypes including Salmonella Typhimurium, Salmonella Kentucky, Salmonella Reading, Salmonella Schwarzengrund, Salmonella Johannesburg, Salmonella Heidelberg, Salmonella Muenchen, Salmonella Newport, Salmonella Infantis, Salmonella Enteritidis, Salmonella Saintpaul, Salmonella Hadar, and Salmonella Senftenberg isolated from retail meats in 2015 were also included in the study for comparative genomic analysis. All isolates were stored at −80°C in Brucella broth with 20% glycerol until use.

Table 1.

Salmonella Strains Used in This Study

ID No.	Serotype	Source	State	Year	Accession No.
CVM22427	Salmonella Dublin	Cattle	AZ	2003	SRR6952677
CVM22429	Salmonella Dublin	Cattle	AZ	2003	CP032396–CP032397
CVM22434	Salmonella Dublin	Cattle	AZ	2003	SRR6952678
CVM22435	Salmonella Dublin	Cattle	AZ	2003	SRR6952675
CVM22439	Salmonella Dublin	Cattle	AZ	2003	SRR6952674
CVM22440	Salmonella Dublin	Cattle	AZ	2003	SRR6952673
CVM22441	Salmonella Dublin	Cattle	AZ	2003	SRR6952672
CVM22442	Salmonella Dublin	Cattle	AZ	2003	SRR6952671
CVM22445	Salmonella Dublin	Cattle	AZ	2003	SRR6952670
CVM22449	Salmonella Dublin	Cattle	AZ	2003	SRR6952669
CVM22451	Salmonella Dublin	Cattle	AZ	2003	SRR6952666
CVM22452	Salmonella Dublin	Cattle	AZ	2003	SRR6952668
CVM22453	Salmonella Dublin	Cattle	AZ	2003	CP32393–CP032395
CVM22455	Salmonella Dublin	Cattle	AZ	2003	SRR6952665
CVM22456	Salmonella Dublin	Cattle	AZ	2003	SRR6952664
CVM22463_R	Salmonella Dublin	Cattle	AZ	2003	SRR6952663
CVM22465	Salmonella Dublin	Cattle	AZ	2003	SRR6952662
CVM22466	Salmonella Dublin	Cattle	AZ	2003	SRR6952661
CVM22467	Salmonella Dublin	Cattle	AZ	2003	SRR6952660
CVM 22468_R	Salmonella Dublin	Cattle	AZ	2003	SRR6952659
CVM22469	Salmonella Dublin	Cattle	AZ	2003	SRR6952658
CVM 22470_R	Salmonella Dublin	Cattle	AZ	2003	SRR6952656
CVM22471	Salmonella Dublin	Cattle	AZ	2003	SRR6952657
CVM22472	Salmonella Dublin	Cattle	AZ	2003	SRR6952655
CVM22473	Salmonella Dublin	Cattle	AZ	2003	SRR6952654
CVM22475	Salmonella Dublin	Cattle	AZ	2003	SRR6952653
CVM 22477_R	Salmonella Dublin	Cattle	AZ	2003	SRR6952652
CVM 22482_R	Salmonella Dublin	Cattle	AZ	2003	SRR6952651
CVM 22485_R	Salmonella Dublin	Cattle	AZ	2003	SRR6952650
CVM 22486_R	Salmonella Dublin	Cattle	AZ	2003	SRR6952649
CVM22487	Salmonella Dublin	Cattle	AZ	2003	SRR6952648
CVM22492	Salmonella Dublin	Cattle	AZ	2003	SRR6952646
CVM34977	Salmonella Dublin	Cattle	AZ	2004	SRR6952647
CVM34980	Salmonella Dublin	Cattle	AZ	2004	SRR6952645
CVM34981	Salmonella Dublin	Cattle	AZ	2004	CP032390–CP032392
CVM34982	Salmonella Dublin	Cattle	AZ	2004	SRR6952643
CVM34983	Salmonella Dublin	Cattle	AZ	2004	SRR6952642
CVM35538	Salmonella Dublin	Cattle	AZ	2005	SRR6952640
CVM35539	Salmonella Dublin	Cattle	AZ	2005	SRR6952641
CVM35540	Salmonella Dublin	Cattle	AZ	2005	SRR6952639
CVM35541	Salmonella Dublin	Cattle	AZ	2005	SRR6952638
CVM35549	Salmonella Dublin	Cattle	AZ	2005	SRR6952637
CVM35551	Salmonella Dublin	Cattle	AZ	2005	SRR6952636
CVM35552	Salmonella Dublin	Cattle	AZ	2005	SRR6952635
CVM35553	Salmonella Dublin	Cattle	AZ	2005	SRR6952633
CVM35555	Salmonella Dublin	Cattle	AZ	2005	SRR6952634
CVM35556	Salmonella Dublin	Cattle	AZ	2005	SRR6952631
CVM35557	Salmonella Dublin	Cattle	AZ	2005	SRR6952632
CVM35563	Salmonella Dublin	Cattle	AZ	2005	SRR6952630
N40387	Salmonella Dublin	GB	MD	2012	SRR3664744
N41733	Salmonella Dublin	GB	CA	2012	SRR3664802
N42502	Salmonella Dublin	GB	NY	2012	SRR3664934
N42512	Salmonella Dublin	GB	PA	2012	SRR3664944
N45955	Salmonella Dublin	GB	OR	2013	CP032387–CP032389
N50443	Salmonella Dublin	GB	OR	2013	SRR2567125
N50446	Salmonella Dublin	GB	OR	2013	SRR2567128
N51251	Salmonella Dublin	GB	CO	2013	SRR2567144
N51298	Salmonella Dublin	GB	NM	2013	SRR2567191
N53043	Salmonella Dublin	GB	MN	2014	CP032384–CP032386
N53083	Salmonella Dublin	GB	WA	2014	SRR2407658
N54720	Salmonella Dublin	GB	MO	2014	SRR2407736
SRR1953054^a	Salmonella Dublin	Human	N/A	2014	SRR1953054
SRR2043689^a	Salmonella Dublin	Human	N/A	2015	SRR2043689
SRR2043690^a	Salmonella Dublin	Human	N/A	2015	SRR2043690
SRR2043691^a	Salmonella Dublin	Human	N/A	2015	SRR2043691
SRR2968111^a	Salmonella Dublin	Human	N/A	2015	SRR2968111
SRR2968112^a	Salmonella Dublin	Human	N/A	2015	SRR2968112
SRR2968113^a	Salmonella Dublin	Human	N/A	2015	SRR2968113
SRR2968114^a	Salmonella Dublin	Human	N/A	2015	SRR2968114
N55869	Salmonella Typhimurium	GB	TN	2015	SRR3295518
N55936	Salmonella Kentucky	CB	CA	2015	SRR3295520
N55937	Salmonella Reading	GT	CA	2015	SRR3295521
N55938	Salmonella Schwarzengrund	GT	CA	2015	SRR3295522
N55939	Salmonella Johannesburg	PC	CA	2015	SRR3295523
N56232	Salmonella Heidelberg	GT	CT	2015	SRR3295527
N56233	Salmonella Muenchen	GT	CT	2015	SRR3295528
N56252	Salmonella Newport	CB	PA	2015	SRR3295534
N56554	Salmonella Infantis	CB	CA	2015	SRR3932910
N56556	Salmonella Enteritidis	CB	CA	2015	SRR3932912
N56567	Salmonella Saintpaul	GT	NM	2015	SRR3295552
N56571	Salmonella Hadar	GT	NY	2015	SRR3295555
N56984	Salmonella Senftenberg	GT	CA	2015	SRR4280565

All human WGS data were downloaded from NCBI.

AZ, Arizona; CA, California; CB, chicken breast; CO, Colorado; CT, Connecticut; GB, ground beef; GT, ground turkey; MD, Maryland; MN, Minnesota; MO, Missouri; N/A, state information not available; NCBI, National Center for Biotechnology Information; NM, New Mexico; NY, New York; OR, Oregon; PA, Pennsylvania; PC, pork chop; TN, Tennessee; WA, Washington; WGS, whole-genome sequencing.

Antimicrobial susceptibility testing

In vitro AST was performed using 14 antimicrobials, including gentamicin (GEN), streptomycin (STR), amoxicillin/clavulanic acid (AMC), cefoxitin (FOX), ceftiofur (TIO), ceftriaxone (CRO), sulfisoxazole (FIS), trimethoprim/sulfamethoxazole (SXT), ampicillin (AMP), chloramphenicol (CHL), ciprofloxacin (CIP), nalidixic acid (NAL), azithromycin (AZM), and tetracycline (TET). Minimum inhibitory concentrations (MICs) were determined by broth microdilution using dehydrated panels CMV2AGNF and CMV3AGNF (Thermo Fisher Scientific, Waltham, MA) following standard protocols.²⁵ Antimicrobial resistance was defined using the Clinical and Laboratory Standards Institute (CLSI) criteria,³⁰ except for streptomycin (≥32 mg/L) and azithromycin (≥32 mg/L) for which there are no clinical breakpoints²⁵*.

Genome sequencing, assembly, and annotation

Genomic DNA was extracted with QIAamp 96 DNA QIAcube HT Kit (Qiagen, Gaithersburg, MD) on an automated high-throughput DNA extraction machine QIAcube HT per the manufacturer's instructions. WGS was performed using the MiSeq platform using v3 reagent kits (Illumina, San Diego, CA) with 2 × 300 paired end option. Assembly was performed de novo for each isolate using CLC Genomics Workbench version 8.0 (CLC bio, Aarhus, Denmark). Five isolates including three from sick cattle and two from retail beef were selected to close the genomes and plasmids using the Pacific Biosciences (PacBio) RS II Sequencer (PacBio^®, Menlo Park, CA. USA). The continuous long reads were assembled by PacBio Hierarchical Genome Assembly Process (HGAP3.0) program.³¹ The size of chromosome ranged from 4,844,293 to 4,877,381 bp with coverage from 570 × to 750 × . The size of 9 circular plasmids ranges from 36,009 to 329,264 bp with coverage from 170 × to 1270 × .

Genomes were annotated using the NCBIs Prokaryotic Genome Automated Pipeline version 2.9.³² The closed genomes were annotated on the Rapid Annotation using Subsystem Technology (RAST) annotation server. Among the 61 Salmonella Dublin isolates, there was a median of 88 contigs (ranging from 51 to 161) and 48-fold coverage (ranging from 26 to 90) per genome.

Identification of antimicrobial resistance genotypes

Antimicrobial resistance genes were identified using Perl scripts to perform local blastn with ResFinder** with at least 85% amino acid identity and 50% sequence length to known ARG sequences. Sequences showing less than 100% identity and/or sequence length were examined by additional BLAST analysis to identify the appropriate ARGs. Mutations in gyrA, gyrB, parC, and parE genes were identified using an in-house pipeline.

SPIs and virulence spvRABCD operon identification

Sequences of 21 SPIs were downloaded from GenBank to a local database. The size of the SPIs ranged from 1.7 to 133.3 kb, encoding 1–21 virulence genes. SPIs were identified from several Salmonella serotypes, including Salmonella Typhimurium, Salmonella Typhi, Salmonella Dublin, and Salmonella IIIa 62:z4,z23:- (Table 2). The sequence of the spvRABCD operon was extracted from the pSDVr (pOU1115) plasmid (Accession No. DQ115388). A local blastn search was performed to determine the existence of SPIs and spvRABCD operon among the 69 Salmonella Dublin isolates as well as the 13 other Salmonella serotypes.

Table 2.

Salmonella Pathogenicity Islands Identified in Different Salmonella Serotypes

SPI	Serotype	Accession No.	Location	Size, bp	GC%	Reference
SPI 1	Salmonella Typhimurium LT2	NC_003197	3005849–3048153	42305	45.5	³²
SPI 2	Salmonella Typhimurium LT2	NC_003197	1461731–1501480	39750	47.4	³²
SPI 3	Salmonella Typhimurium LT2	NC_003197	3948999–3985278	36280	49.6	³²
SPI 4	Salmonella Typhimurium LT2	NC_003197	4477865–4501275	23411	44.8	³²
SPI 5	Salmonella Typhimurium LT2	NC_003197	1175536–1182100	6565	43.6	³²
SPI 6	Salmonella Typhimurium LT2	NC_003197	304666–351358	46693	52.4	³²
SPI 7	Salmonella Typhi CT18	NC_003198	4409652–4542913	133262	49.7	³²
SPI 8	Salmonella Typhi CT18	NC_003198	3132530–3139414	6885	38.3	³²
SPI 9	Salmonella Typhi CT18	NC_003198	2743495–2759190	15696	57.7	³²
SPI 10	Salmonella Typhi CT18	NC_003198	4683605–4716538	32934	46.6	³²
SPI 11	Salmonella Typhimurium LT2	NC_003197	1326065–1334385	8321	40.9	³²
SPI 12	Salmonella Typhimurium LT2	NC_003197	2330960–2345977	15018	47.2	³²
SPI 13	Salmonella Typhimurium LT2	NC_003197	3276387–3301691	25305	48.5	³²
SPI 14	Salmonella Typhimurium LT2	NC_003197	926180–933609	7430	41.4	³²
SPI 15	Salmonella Typhi CT18	NC_003198	3054094–3059809	5716	49.5	³²
SPI 16	Salmonella Typhimurium LT2	NC_003197	613596–617725	4130	42.1	³²
SPI 17	Salmonella Typhi CT18	NC_003198	2461018–2465128	4111	38.4	³²
SPI 18	Salmonella Typhi CT18	NC_003198	1455055–1456801	1747	39	³²
SPI 19	Salmonella Dublin CT_02021853	NC_011205	1203281–1239108	35828	53.8	³
SPI 20	Salmonella IIIa 62:z4,z23:-	NC_010067	2617493–2651483	33991	53.1	³
SPI 21	Salmonella IIIa 62:z4,z23:- 62:z4,z23:-	NC_010067	2504768–2560524	55757	49.7	³

GC, Guanine (G), Cytosine (C); SPI, Salmonella pathogenicity island.

Plasmid typing

Plasmid type was determined using PlasmidFinder***, and the sequences were blasted with the database to known plasmid types with 95% sequence identity and over at least 60% sequence length compared with the reference sequences.

Whole-genome phylogenetic analysis

The single nucleotide polymorphism (SNP) analysis of 61 Salmonella Dublin isolates along with 8 human isolates downloaded from the NCBI database was performed using the Food and Drug Administration Center for Food Safety and Applied Nutrition (CFSAN)-SNP-Pipeline (http://snp-pipeline.readthedocs.io/en/latest). A closed genome sequence of isolate CVM34981 served as a reference genome. VarScan³³ was used to detect SNPs. The plasmid sequences were excluded in the analysis since they evolved through horizontal gene transfer, which may misrepresent the evolution path of the isolates. SNP redundancy by linkage disequilibrium was reduced, and the phylogenetic tree was constructed with the maximum likelihood algorithm using the SNPhylo package.³⁴

Results

Resistance phenotypes and genotypes

AST showed that 60 of 61 Salmonella Dublin isolates recovered from retail beef and sick cattle were resistant to ≥4 antimicrobial classes (Fig. 1). The most common resistance pattern was blaAmpC type, AMP-FOX-CRO-AMC-TIO-CHL-TET-FIS-STR (n = 35, 57%) followed by AMP-CHL-TET-FIS-STR (n = 10, 16%) and AMP-CHL-TET-FIS-STR-NAL (n = 7, 11%). Eleven isolates showed resistant to NAL. One isolate (N41733) was susceptible to all 14 antimicrobials tested. A total of 17 ARGs including aadA1(4/69, 5.8%), aadA12 (8/69, 11.6%), aadB (3/69, 4.3%), aph(3′)-Ia (24/69, 34.8%), aph(3′)-Ic (15/69, 21.7%), bla_CMY-2 (45/69, 65.2%), bla_TEM-1A (4/69, 5.8%), bla_TEM-1B (31/69, 44.9%), catA1(4/69, 5.8%), cmlA1 (3/69, 4.3%), floR (63/69, 91.3%), strA (67/69, 97.1%), strB (67/69, 97.1%), sul1 (12/69, 17.4%), sul2 (64/69, 92.8%), tet(A) (63/69, 91.3%), and tet(B) (4/69, 5.8%) were identified (Fig. 1). In addition, GyrA S83F (9/69, 13%) or D87N (4/69, 5.8%) mutations were identified in 13 NAL-resistant isolates, including 10 NAL-resistant animal isolates, 1 retail meat isolate, and 2 human isolates. Overall, the resistance phenotypes had 99.8% correspondence with resistance genotypes. One isolate (N51298) carrying bla_CMY-2 gene showed only resistance to AMP, AMC, and TIO, but intermediate resistance to CRO (MIC, 4 μg/mL) and FOX (MIC, 16 μg/mL). The resistance phenotypes of the human isolates from NCBI were not available and therefore were not included in the analysis.

FIG. 1.

Resistance phenotype, genotype, and plasmid profiles of Salmonella Dublin strains isolated from cattle, beef, and humans. ^@Green—cattle, blue—beef isolates, orange—human isolates. *These are human isolates, and no antimicrobial susceptibility data were available. ^#AMC, amoxicillin/clavulanic acid; AMP, ampicillin; CRO, ceftriaxone; CHL, chloramphenicol; FIS, sulfisoxazole; FOX, cefoxitin; GEN, gentamicin; NAL, nalidixic acid; SPIs, Salmonella pathogenicity islands; STR, streptomycin; TET, tetracycline; TIO, ceftiofur.

Presence and distribution of SPIs and spvRABCD

Fifteen SPIs, including SPI 1–6, 9–14, 16, 17, and 19, were identified in all 69 Salmonella Dublin isolates. The 15 SPIs were scattered throughout the entire Salmonella Dublin chromosome (Fig. 2), and their locations were the same in all 5 closed genomes. The gene content in each of 15 SPIs conserved in all 69 Salmonella Dublin isolates with 0–29 SNP difference (data not shown). Of the other 13 Salmonella serotypes, broadly chosen to represent common serotypes in the NARMS collection, all except Salmonella Enteritidis carried 11–12 various SPIs (Table 3). Salmonella Enteritidis (N56556) carried the same 15 SPIs as Salmonella Dublin but had greater variability in gene content and number of SNP differences compared with each of the Salmonella Dublin genomes. For example, a 24 kb deletion in SPI 19 was detected in Salmonella Enteritidis, whereas the corresponding sequences were harbored by all Salmonella Dublin genomes. The spvRABCD virulence operon was identified in all 69 Salmonella Dublin isolates. Except for Salmonella Typhimurium, none of the other 12 serotypes harbored the spvRABCD virulence operon (Table 3).

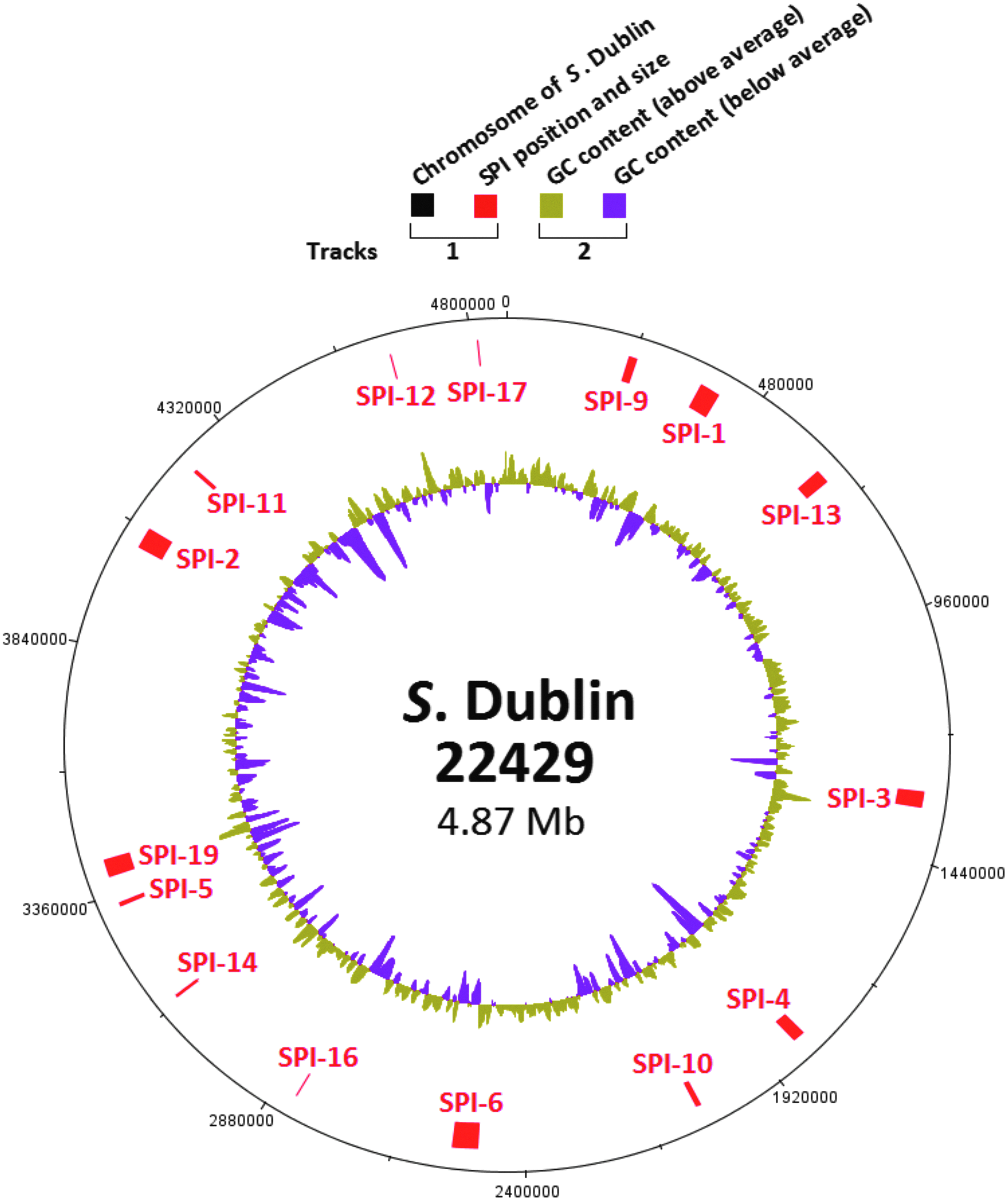

FIG. 2.

Presence and distribution of SPIs in Salmonella Dublin genome. The color codes are given on the top of the figure.

Table 3.

Distribution of Salmonella Pathogenicity Islands in Different Salmonella Serotypes

Serotype ^a	SPI 1	SPI 2	SPI 3	SPI 4	SPI 5	SPI 6	SPI 7	SPI 8	SPI 9	SPI 10	SPI 11	SPI 12	SPI 13	SPI 14	SPI 15	SPI 16	SPI 17	SPI 18	SPI 19	SPI 20	SPI 21	spvRABCD
Dublin	+	+	+	+	+	+	−	−	+	+	+	+	+	+	−	+	+	−	+	−	−	+
Typhimurium	+	+	+	+	+	+	−	−	+	−	+	+	+	+	−	+	−	−	−	−	−	+
Kentucky	+	+	+	+	+	+	−	+	+	−	+	+	−	−	−	+	−	−	−	−	−	−
Reading	+	+	+	+	+	+	−	−	+	−	+	−	+	+	−	+	−	+	−	−	−	−
Schwarzengrund	+	+	.+	+	+	+	−	−	+	−	+	−	+	+	−	+	−	+	−	−	−	−
Johannesburg	+	+	.+	+	+	+	−	−	+	−	+	−	+	+	−	−	−	+	−	−	−	−
Heidelberg	+	+	+	+	+	+	−	−	+	−	+	+	+	+	−	+	−	−	−	−	−	−
Muenchen	+	+	.+	+	+	+	−	−	+	−	+	+	+	+	−	+	−	−	−	−	−	−
Newport	+	+	.+	+	+	+	−	−	+	−	+	+	+	+	−	+	−	−	−	−	−	−
Infantis	+	+	.+	+	+	+	−	−	+	−	+	+	+	+	−	+	−	−	−	−	−	−
Enteritidis	+	+	+	+	+	+	−	−	+	+	+	+	+	+	−	+	+	−	+	−	−	−
Saintpaul	+	+	+	+	+	+	−	−	+	−	+	+	+	+	−	+	−	−	−	−	−	−
Hadar	+	+	.+	+	+	+	−	−	+	−	+	+	+	+	−	+	−	−	−	−	−	−
Senftenberg	+	+	+	+	+	+	−	+	+	−	+	+	−	−	−	+	−	−	−	−	−	−

The data were generated from 69 Salmonella Dublin strains and 1 strain from each of other 13 serotypes.

Plasmid types

Ten plasmid types, including CoIRNAI, ColpVC, IncA/C2, IncFIA, IncFIB, IncFII, IncHI1A, IncHI1B, IncI1, and IncX1, were identified by PlasmidFinder among the 69 Salmonella Dublin isolates. Each isolate contained two to five different plasmid types with the most common ones being IncX1 (n = 69, 100%), IncA/C2 (n = 64, 92.3%), and IncFII (n = 63, 91.3%) (Fig. 1). However, based on plasmid analysis of the five closed genomes, each of these isolates carried only one to two plasmids. Several single plasmids from these isolates were typed to two to five different plasmid types (Fig. 3). For example, CVM22429 carried a single megaplasmid with a size of 329 kb and was typed as IncA/C2-IncFIA-IncFIB-IncFII-IncX1. This plasmid carried 10 different ARGs, including aadA12, aph(3′)-Ic, bla_CMY-2, bla_TEM-1B, floR, strA, strB, sul1, sul2, and tet(A) plus a spvRABCD virulence operon (Fig. 3). The other four isolates (CVM22453, CVM34981, N45955, and N53043) carried two plasmids each. Five single plasmids from these isolates were also typed as two plasmid types, including the combination of IncA/C2-IncFIA, IncA/C2-IncFII, and IncX1-IncFII, respectively (Fig. 3). CVM34981 and N53043 carried separate MDR (IncA/C2) and virulence (IncX1-IncFII) plasmids. However, CVM22453 and N45955 possessed backbone-only virulence plasmids (IncX1-IncFII or IncX1) without spvRABCD. The spvRABCD operon integrated into IncA/C2 MDR plasmids (Fig. 3).

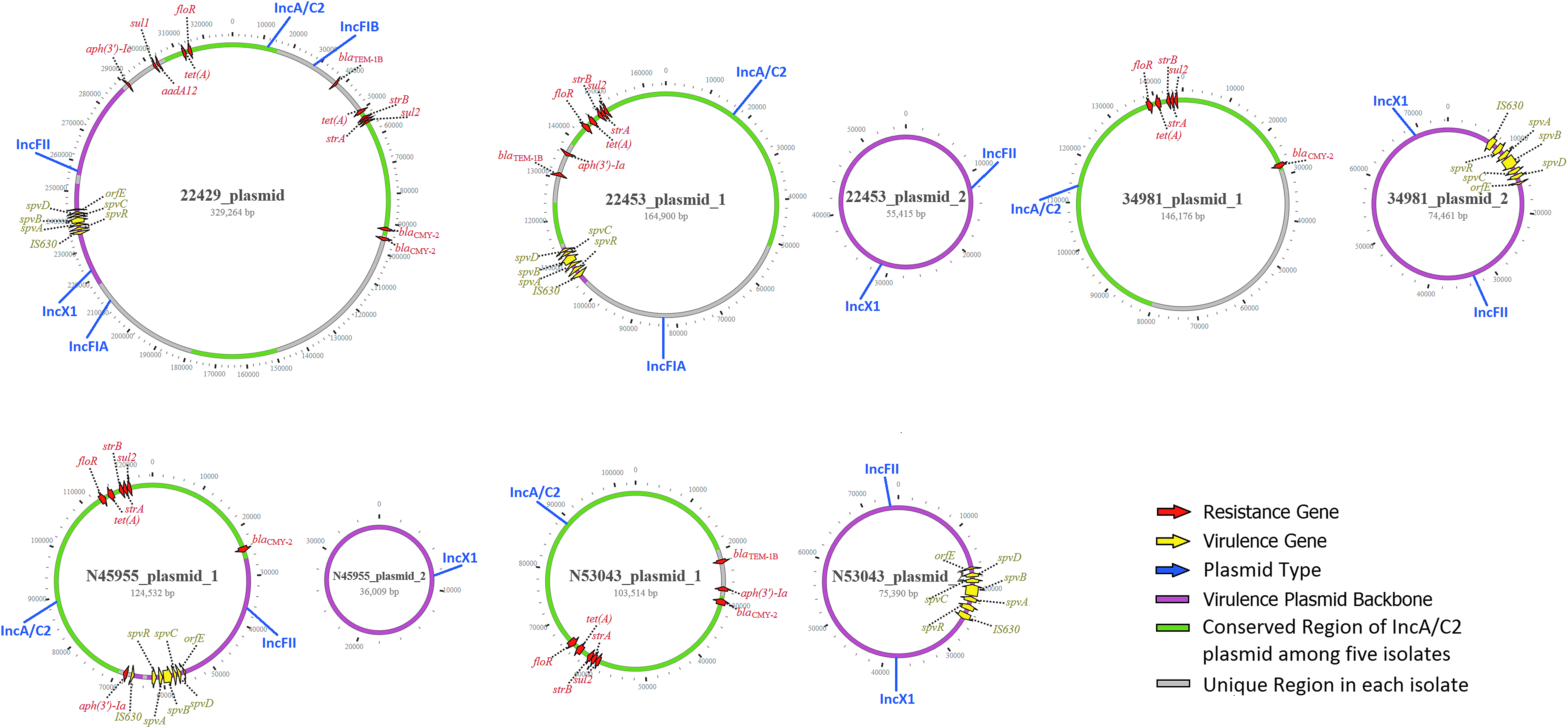

FIG. 3.

Structure of MDR and virulence plasmids in five strains of Salmonella Dublin. The color codes are given on the right of the figure. MDR, multidrug-resistant.

Whole-genome phylogenetic trees

The SNP tree of the 69 Salmonella Dublin isolates showed that they were highly clonal, with a maximum of 254 core-genome SNP differences despite the fact that they were from different sources and collected in different years (Fig. 4). One branch contained 20 isolates from humans, retail meat, and cattle with ≤47 SNP differences and included strains isolated from 2005 to 2015. The remaining branches consisted solely of animal and retail meat isolates. Although this may indicate that a particular group of related isolates are more likely to cause human infections, this remains to be further investigated with the inclusion of additional human isolates.

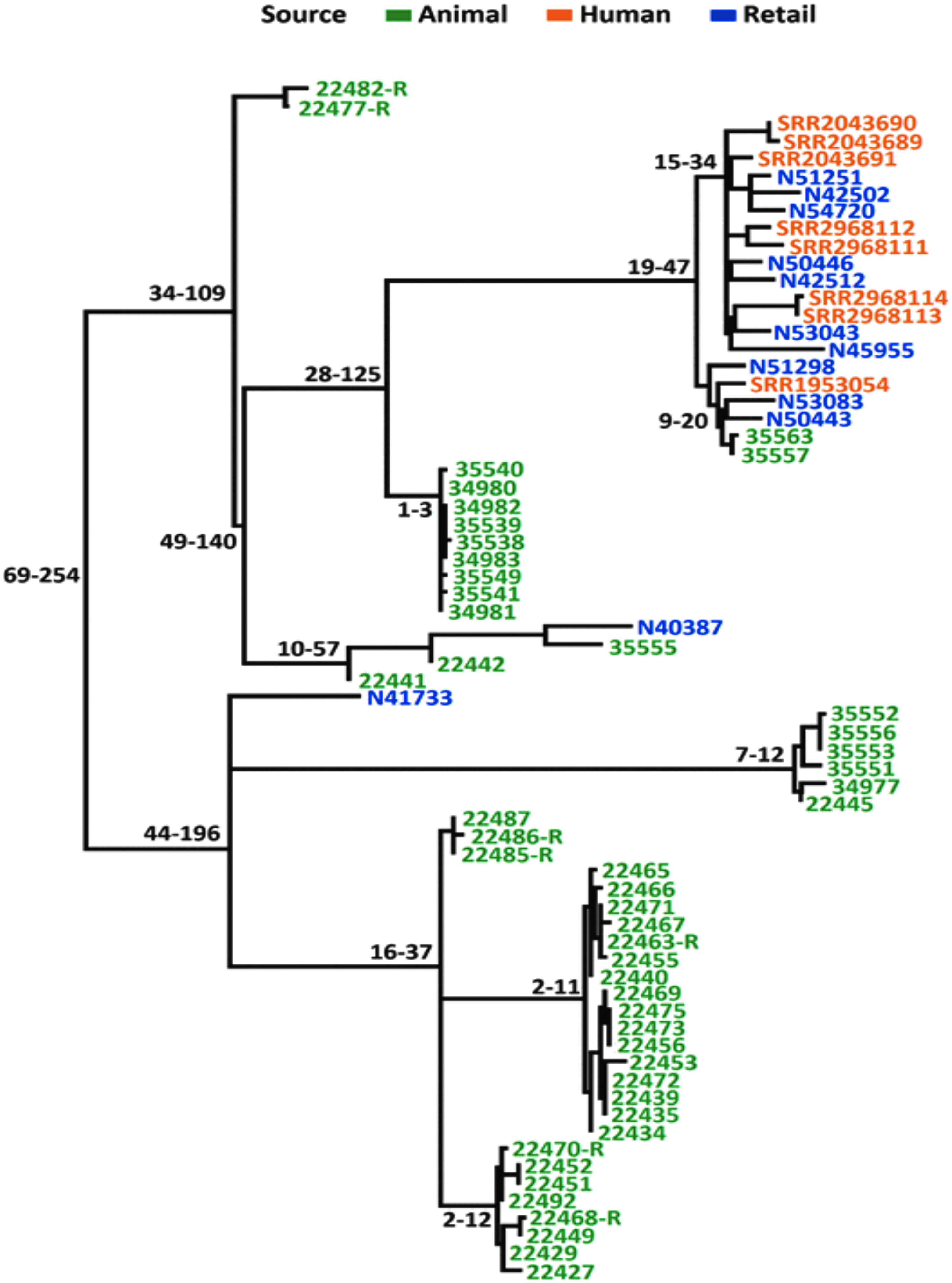

FIG. 4.

hqSNP core-genome tree of Salmonella Dublin strains isolated from cattle, retail beef, and humans.

Discussion

The goal of this study was to identify genetic elements that contribute to the highly pathogenic and antimicrobial-resistant nature of Salmonella Dublin.³ We performed WGS and comparative genomic analysis on 69 representative Salmonella Dublin isolates recovered from the U.S. food animals, retail beef, and humans. The study shed light on the distributions of SPIs and the spvRAVCD operon, and more detailed information on the structure of MDR/virulence plasmids.

SPIs contribute to host cell invasion and intracellular pathogenesis. Previous studies indicated the same SPI may have great variation among different serotypes, which is likely due to continuing evolution of SPI and host specificity.^8,16–18 Our results showed that the distribution of SPIs varied among different serotypes, with some of these findings differing from those in previous reports. Suez et al. reported that SPI 1–5, 9, 13, and 14 were a part of core genome of invasive nontyphoidal Salmonella (iNTS); SPI 6, 10–12, 16–19 were variable among genomes, and SPI 7, 8 15 were absent in iNTS.¹⁰ However, our data showed that SPI 6 and SPI 11 also were part of the core genome, but SPI 13 and SPI 14 were not. The SPI 8 was detected in Salmonella Kentucky and Salmonella Senftenberg. These differences with previous reports may be due to methodologies used in the two studies. In the study by Suez et al., microarray-based comparative genomic hybridization was employed. Additionally, isolates and serotypes were different between the two studies, and only one strain per serotype was included in the current study. Sabbagh et al.⁶ reported that SPI 7, 8, 15, 17, and 18 were specific to Salmonella Typhi, and Blondel et al.¹⁸ indicated that SPI 19, 20, and 21 were absent in both Salmonella Typhimurium and Salmonella Typhi. We detected SPI 17 and SPI 19 in all 69 Salmonella Dublin isolates and 1 Salmonella Enteritidis isolate, whereas SPI 18 was found in Salmonella Reading, Salmonella Schwarzengrund, and Salmonella Johannesburg. SPI 8 was thought to be specific for Salmonella Typhi,¹⁷ but we detected it in Salmonella Kentucky and Salmonella Senftenberg. Although Salmonella Dublin and Salmonella Enteritidis carried the same SPIs, further analysis showed that there was great diversity within some SPIs between these two serotypes in terms of gene content and SNP differences within the same genes (data not shown). As more Salmonella WGS data from different serotypes and sources become available, comparative genomic analysis will improve and can provide a comprehensive picture on the distribution, diversity, and host specificity of SPIs in different serotypes. Such information not only allows us to identify highly virulent strains and serotypes but also helps us to understand the evolution of SPI, Salmonella pathogenicity, and host specificity.

Several studies indicated that a spvRABCD operon in Salmonella Dublin enhances the severity of the enteric infection and produces lethal disease in mice and calves by increasing the proliferation of Salmonella Dublin in a variety of tissues, at both intestinal and extraintestinal sites.^5,20 We detected the spvRABCD operon in all 69 Salmonella Dublin isolates and 1 Salmonella Typhimurium isolate. A spvRABCD operon is a hallmark for Salmonella Dublin and also has been found in nearly all host-adapted serotypes, except the human-specific serotype Salmonella Typhi, as well as some highly invasive strains of the broad-host serotypes of Salmonella Typhimurium and Salmonella Enteritidis.^5,23,24

The spvRABCD operon is usually located on a virulence plasmid,^15,19 which has replicons IncX1 and IncFII.³⁵ Our data showed that a spv operon was not always located on IncX1 and IncFII plasmids. In CVM22429, CVM22453, and N45955, a spv operon integrated into an MDR IncA/C2 plasmid and MDR-virulence plasmids were typed as IncA/C2-IncFIA-IncFIB-IncFII-IncX1, IncA/C2-IncFIA, and IncA/C2-IncFII, respectively, based on PlasmidFinder. CVM34981 and N53043 carried MDR IncA/C2 and virulence plasmids (IncX1 or IncX1-IncFII) independently (Fig. 3). CVM22429 carried a single mega-plasmid plasmid, which contained a spvRABCD operon plus 12 ARGs. This megaplasmid contained sequences that had high homology to five plasmid replicons, including IncA/C2, IncFIB, IncFIA, InxX1, and IncFII. These results clearly indicated that recombination events have occurred between the MDR plasmid and virulence plasmids. Because of the complexity due to such recombination events, using traditional PCR plasmid typing and PlasmidFinder based on short-read WGS data for plasmid analysis has major limitations. The PlasmidFinder database was developed based on unique short sequences (200–800 bp) of plasmid replicons for Enterobacteriaceae.³⁶ This approach may not be reliable because the full structure of a plasmid cannot be revealed since recombination, insertion, or deletion events often occur among plasmids. It is important to close a plasmid to study plasmid biology, evolution, and plasmid typing.

Salmonella Dublin has developed into one of the most antimicrobial-resistant serotypes in the United States. Among 61 Salmonella Dublin isolates recovered from sick cattle in Arizona and retail meats, all except 1 were resistant to ≥4 antimicrobial classes tested. Seventeen ARGs plus gyrA mutations were identified. Current study showed that an IncA/C2 MDR plasmid is commonly present in Salmonella Dublin and often carries many ARGs, including bla_CMY-2. In this study, 45 Salmonella Dublin isolates had bla_CMY-2 and also carried the IncA/C2 plasmid. Reports by Folster et al. have indicated that although the IncA/C2 plasmid has a broad host range, human infection with Salmonella strains that carry IncA/C2 linked with bla_CMY-2 most commonly involved serotypes usually associated with bovine sources, such as Salmonella Newport and Salmonella Dublin.³⁷ The information of plasmid type and linkages with specific ARGs can potentially be used for outbreak investigations and foodborne disease source attribution studies. These results are in line with previous data from the United States¹ but are in contrast to the data from Europe and other countries, where Salmonella Dublin also causes severe infections in humans but is not associated with high levels of antimicrobial resistance.³⁶ In that report, no acquired ARGs were detected in 33 Salmonella Dublin isolates, and of 22 human invasive isolates, only 2 carried various ARGs, including resistance to aminoglycoside, phenicol, sulfonamide, beta-lactam, and trimethoprim.³⁶ The AMR differences between this panel of isolates and those from Europe may be due to the MDR IncA/C2 plasmid has been spreading on the U.S. cattle farms, but may not in Europe.

Finally, a whole-genome SNP tree showed that Salmonella Dublin is highly clonal. There are less than 260 SNP differences among 69 isolates. This may be due to limited isolates available for this study, especially all sick cattle isolates were from Arizona. To determine the genomic diversity of Salmonella Dublin, further study is needed to include more Salmonella Dublin strains from different countries and states, as well as from different sources. It is interesting that one particular branch with less than 50 SNP differences contained 8 Salmonella Dublin isolates from humans, 10 from retail beef, and 2 from sick cattle. All 20 of these isolates carry IncA/C2 and IncX1 plasmids as well as bla_CMY-2 and spvRABCD. The data clearly showed that this is a highly virulent and resistant clone, and food animals and contaminated meats could be sources of human infections. Human isolates were only within this branch. This may be due to the fact that a limited number of human isolates were included in the study. Therefore, a more representative panel of human isolates recovered from different geographic locations and times is needed for further comparative genomic analysis.

In conclusion, we employed WGS to further understand the genetics contributing to antibiotic resistance and severe infections in a collection of 69 Salmonella Dublin isolates from humans, animals, and food in the United States. Despite lacking of representative isolates from different geographic locations and sources, we found that Salmonella Dublin isolates in this study commonly carried 15 SPIs, a spvRABCD virulence operon, and several MDR and virulence plasmids. These genetic elements may contribute to the severity of disease and potential treatment failures in both humans and cattle. WGS offers high resolution for detection and characterization of full components of virulence and antimicrobial resistance determinants. More studies that include closing plasmids are needed to study MDR and virulence plasmid structure, biology, evolution, and plasmid typing.

Footnotes

Acknowledgments

We are grateful to Dr. Maureen Davison for helpful comments and article review. We would also like to acknowledge Ms. Claudia Lam for handling all WGS submissions. This work was supported by the U.S. Food and Drug Administration with internal funds as part of routine work.

Disclaimer

The views expressed in this article are those of the authors and do not necessarily reflect the official policy of the Department of Health and Human Services, the U.S. Food and Drug Administration, and Centers for Disease Control and Prevention or the U.S. Government. Mention of trade names or commercial products in this publication is solely for the purpose of providing specific information and does not imply recommendation or endorsement by the U.S. Department of Agriculture or Food and Drug Administration.

Disclosure Statement

No competing financial interests exist.
