Remote Changes in Cortical Excitability after Experimental Traumatic Brain Injury and Functional Reorganization

Experimental protocol

Two separate cohorts of adult male rats were used to acquire either: 1) longitudinal sensory-evoked (fMRI) data before injury and then at 1, 2, 3, and 4 weeks after mild-to-moderate CCI (n = 11), followed by c-FOS histology in a subset of animals (n = 8) together with an additional seven injured rats at 5 weeks post-injury; or 2) longitudinal SEP electrophysiology recordings (n = 8) before and at 1, 2, 3, and 4 weeks after moderate brain injury. Pre-injury data served as control data. In addition, to control for any effects of experimental conditions on BOLD or SEP data, we first acquired data by stimulating the unaffected limb in order to confirm the expected cortical activation indicating optimal experiment conditions. As a result, low or absent activations elicited by subsequent stimulation of the affected limb could be attributed solely to the effects of injury and not to artifacts of experimental condition. All experimental procedures were approved by the University of California, Los Angeles (UCLA) Institutional Animal Care and Use Committee.

Brain injury

Adult male Sprague-Dawley rats (320-350 g) purchased from Charles River Breeding Labs (Hollister, CA) were acclimated to standard housing conditions for 1 week prior to use. Throughout the study, rats were allowed access to food and water ad libitum. Brain injury was conducted as described previously by our lab. ^{17 –20} Briefly, following anesthetization with isoflurane (3% induction, 1–1.5% for maintenance) vaporized in oxygen flowing at 0.8 L/min flow rate, the rat was placed in a stereotaxic frame (Stoelting Co., Wood Dale, IL) and the scalp was shaved. Body temperature was maintained throughout the surgery using a thermostatically-controlled heating pad. After cleaning the scalp with alternating betadine and ethanol scrubs, 0.1 mL of the local anesthetic bupivicaine was injected subcutaneously at the midline of the scalp before the skull was exposed via a midline incision.

A 6 mm diameter craniotomy was created using a dental drill with intermittent perfusion with sterile saline to prevent heating. A surgical microscope was used to expose the left hemispheric sensorimotor cortex 0 mm from bregma and −2.5 mm lateral from the midline. Injury was induced by controlled cortical impact (CCI) whereby a 3 mm Ø flat tip was advanced through the craniotomy tangentially onto the dural surface at 20 psi (1.3 m/sec; n = 7) or 30 psi (1.8 m/sec; n = 4) to a depth 2 mm below the dural surface with a 250 msec dwell time, resulting in a left-side injury focused over the primary sensorimotor cortex. Two speeds were used to induce mild-to-moderate injury in order to try to reproduce real-world variation in clinical injuries that are used in research studies. Injury severity was assessed in an unbiased automated fashion using quantitative brain atrophy measures (see below), which resulted in final subgroup assignments of five mild and six injured rats. An image was acquired through the microscope for all injuries for later verification of the presence of a subdural hematoma. The craniotomy was then sealed with a layer of non-bioreactive, Kwik-Cast silicon elasomer (Sarasota, FL) and the scalp was resutured and covered with a layer of bupivicaine local anesthetic solution and triple antibiotic ointment. Animals were placed in a recovery chamber with ambient temperature maintained at ∼28°C until they had awoken from anesthesia and then returned to their home cages. No mortalities occurred due to acute post-traumatic complications.

MRI

A 7 Tesla Bruker MR spectrometer running Paravision 5.1 (Bruker, Billerica, MA) was used to acquire structural and functional data before and at weekly intervals after brain injury. Rats were briefly anesthetized with 4% isofluorane in oxygen flowing at 0.6 L/min in order to administer medetomidine sedation (0.05 mg/kg in sterile saline) ²¹ via the penile vein. Following placement of a subcutaneous cannula and initiation of continuous infusion of medetomidine (0.1 mg/kg/h), the rat was transferred to a purpose-built cradle and secured using 3-point immobilization of the head with two ear bars and a tooth bar. Respiration was monitored remotely and temperature was homoeothermic-controlled by forced air (SA11 Instr, Inc.). The S116 Bruker gradients (400 mT/m) were used in combination with a birdcage transmit and an actively decoupled receive-only surface coil to acquire the data. Following a multi-slice gradient echo pilot scan to optimize positioning within the magnet, localized shimming was performed on the head to improve B0 homogeneity.

Image analysis

TBM

TBM was used to measure local volumetric differences on T2-weighted structural data pre-injury and at 4 weeks post-injury as an indicator of injury severity, implemented in a similar manner as before ^28,29 with the LONI pipeline. ³⁰ Earlier post-injury structural data were not analyzed in the same way because temporary, acute time-point edema would confound the loss of brain tissue in a developing contusion. Briefly, following brain extraction of pre-injury and 4-week data with BET2, ²³ data were corrected for B1 field intensity correction using the nonparametric, non-uniform intensity normalization N4 algorithm. ³¹ A minimum deformation target (MDT) image was created by aligning all subject volumes to all other volumes using a mutual information-based, inverse-consistent algorithm, followed by applying the inverse of the mean displacement field from all subjects to the MDT.

Next, image volumes in subject space were aligned to the MDT by nonlinearly deforming the anatomy of each image to the MDT, while optimizing the regularity of the deformation by quantifying the inverse consistent symmetric Kullback-Leibler distance between the MDT and the resulting deformation to allow for unbiased registration. ²⁸ The Jacobian matrices were derived from the displacement field calculated from each image-to-MDT template co-registration. The Jacobian determinant of the matrix is a univariate measure that represents the fractional volume change required to match the template image to each subject space, and represents relative tissue volume differences between each rat and the MDT. A gray matter region of interest was drawn on the MDT within the area encompassed by injury in all rats. Regions were warped to subject space to obtain mean gray matter Jacobian values for each rat as a surrogate for severity. Unsupervised k-means clustering (Matlab, 2011a; Mathworks) was used to classify individual values into different injury level subgroups. Correlation analysis of TBM values and activated voxel counts were conducted by Spearman's rank correlation.

Sensory-evoked cortical recordings

A parallel series of eight injured rats (CCI 30 psi, 1.8 m/sec) was used to investigate the cortical sensory evoked potential before and after injury. Two electrode montages were used to cover the extent of the contralesional cortex. Montage A (n = 4) consisted of three stainless steel epidural screw electrodes of Ø = 1.19 mm (including threading) over the anterior aspect of the forelimb sensorimotor cortex (SMC) at coordinates relative to bregma: (2.0, 2.0 mm), (1.5, -1.0 mm), and (4.0, -1.0 mm). Montage B (n = 4) consisted of five electrodes that overlapped with Montage A, with electrodes placed at: (3.0, 2.0 mm), (2.0, 0.0 mm), (4.5, 0.0 mm), (2.0, -2.0 mm), and (4.5, -2.0 mm). A reference electrode was placed midline in the frontal bone. A hand drill (model DH-1 holder, D#60 bit; Plastics1, Roanoke, VA) set to 0.8 mm depth and diameter of 1.00 mm was used to fine tune the depth and width of the smaller pilot hole so that recording electrode screws could be set into the skull with 1/2 turn or less. These precautions ensured that the dura was not deformed at any time throughout the drilling or electrode placement procedure. Insulated electrode leads were connected to gold-plated sockets within a plastic pedestal and dental acrylic was used to anchor it to the skull over the electrodes. The location of the skull that would later be removed for CCI injury was covered with silicon elastomer (WP Inst, Sarasota, FL) and a thin layer of dental acrylic for easy removal. Each montage was implanted one week prior to control recordings and 2 weeks in advance of CCI injury.

SEPs were recorded using the MP150 Biopac system (Biopac Systems, Inc., Goleta, CA). Single and paired-pulse SEPs (PP-SEPs) were recorded over the contralesional cortex evoked by 2.0 mA electrical stimulation of the unaffected forelimb using bipolar, 1 msec square pulses, and while under the same medetomidine sedation as detailed before for the MRI study. The inter-stimulus interval (ISI) between pulses was varied between 30, 35, 40, 50, 100, and 200 msec. One week after the pre-injury PP-SEP recording, rats were anesthetized with isoflurane and the left side of the electrode headset was removed with a dental drill and CCI was performed through the left side of the headset as described above. The contused cortex and craniotomy was sealed with a thin layer of silicon elastomer and the headset was re-closed with dental acrylic. Further PP-SEP data was acquired at 3 days and 1, 2, 3, and 4 weeks post-injury.

SEP analysis

The first 23 of 35 acquired time-locked PP-SEP epochs of 350 msec duration were averaged offline using the ensemble averaging function within the Acknowledge Software v4.1.1 (BioPac Systems, Inc., Goleta, CA). Peak amplitudes of the evoked response (N1) were measured from the baseline immediately following the first (stimulus A) and second (stimulus B) stimulus artifacts for N1A and N1B for each ISI at each time-point. The PP ratio was calculated as the ratio of the second response amplitude relative to the first (N1B/N1A) as a function ISI time. Data were averaged over all electrode pairs (three or five electrodes, Montage A and B, respectively) within each rat, and final data were obtained by averaging across all rats (n = 8). Peak latency, amplitude, and peak ratio data are shown as normalized to pre-injury values, and this was achieved on a per electrode, per rat basis prior to averaging within each rat over all electrode pairs, and then finally across all rats. Group univariate statistics were analyzed as peak latency and peak ratio raw data values compared with pre-injury using linear mixed effects analysis of variance (r version 3.3.2, LME function from the NMLE package) with Dunnett's post hoc multiple comparison correction for multiple time-points. A one-tailed test was used based on the a priori hypothesis arising from the BOLD data that increased excitability was anticipated at post-injury time-points.

Transient ipsilesional-to-contralesional shift of the injury-affected forelimb cortical representation followed by reduced ipsileisonal map chronically

To determine how the cortical map that governs affected forelimb control changes throughout recovery after TBI, affected forelimb-evoked fMRI data were acquired from 11 adult rats before and at weekly intervals following either mild or moderate CCI injury of the left primary sensorimotor forelimb (S1-FL) cortex. These data show that CCI brain injury initiated a trans-hemispheric shift in the group-averaged, affected forelimb-evoked BOLD activation from the injured to the opposite contralesional cortex over the first week of recovery (Fig. 1A-C; overall mean group effect p < 0.001). This was readily apparent in seven of 11 rats at 1 week, while there was a total absence of activation anywhere in the remaining four rats that survived statistical thresholding (individual data points not shown). We confirmed that the absence of this activation did not occur due to insensitivity to the BOLD response arising from experimental conditions, because we observed brain activation elicited by the unaffected limb in all case. At 2 weeks post-injury, the activation pattern was wide-spread and bilateral (11 of 11 rats) covering a large region of the contralesional cortical hemisphere, even while ipsilesional areas surrounding the injury site also were activated. However, over the subsequent weeks of recovery, the mean activation map shifted back to the opposite, contralesional S1-FL cortex (seven of 11 rats at 21 days), then remained largely subcortical in 10 of 11 rats at 28 days (overall mean group effect p < 0.001).

OPEN IN VIEWER

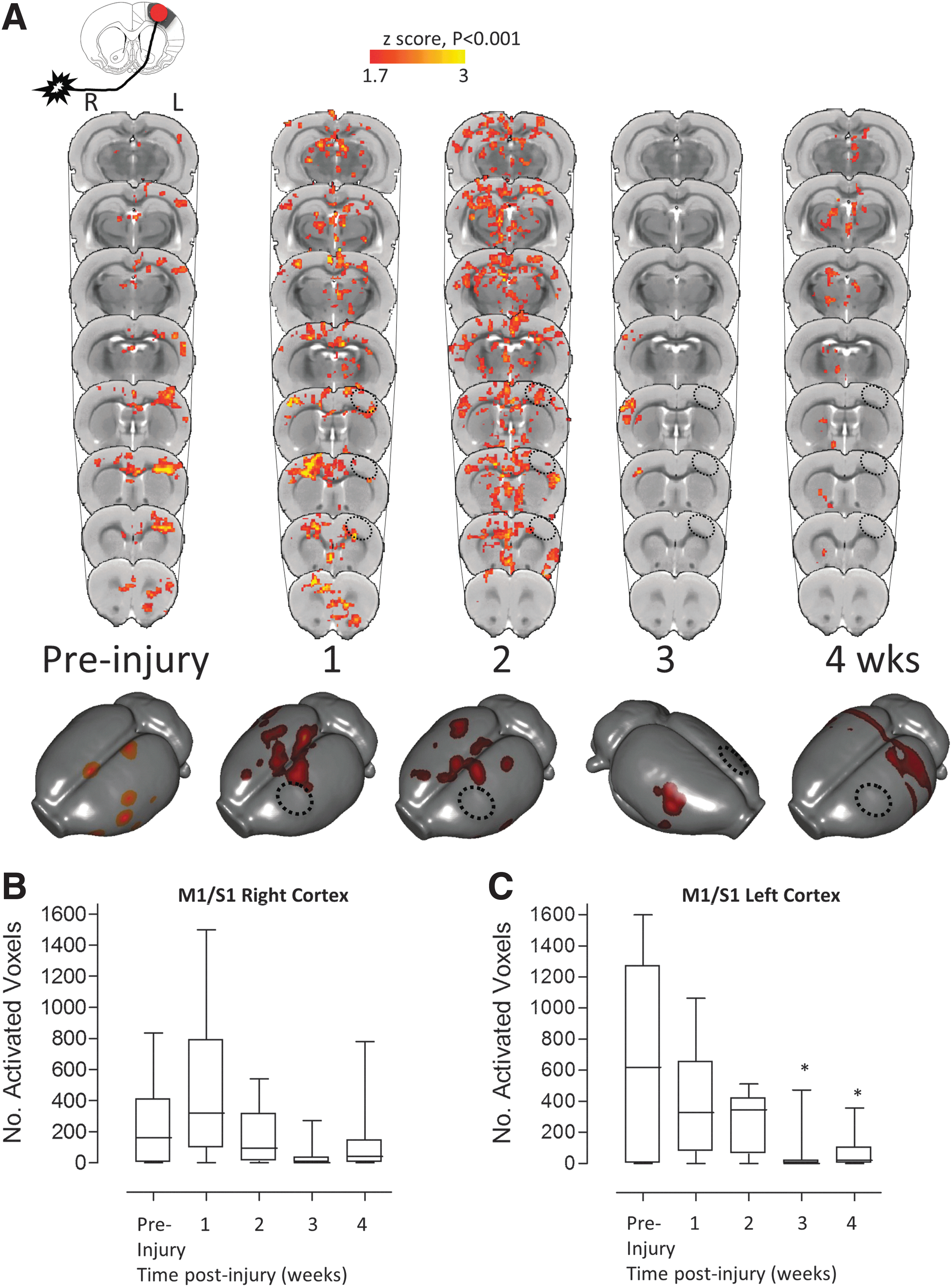

FIG. 1.

Deficits in injury-ipsilateral forelimb circuitry are revealed by affected forelimb-evoked brain activation by blood oxygenation level–dependent (BOLD) functional magnetic resonance imaging (fMRI). (A) Group mean, affected (right) forelimb–evoked activation data (one-tailed t-test, corrected for multiple comparisons, p < 0.001, z > 1.7) before and at 1, 2, 3, and 4 weeks after injury, superimposed on a rat brain template as coronal image plots and surface-warped data. Plots of (B) number of significantly activated voxels in the right M1 and S1-forelimb cortex contralateral to the stimulated limb (ipsilateral to the injury site) and (C) number of activated voxels in the cortex ipsilateral to the stimulated limb (contralateral to the injury site). Data show widespread injury-ipsilateral inactivation after injury (A) that was significant for time in the injury-ipsilateral (left) M1/S1-florelimb cortex (C, p < 0.001) and specifically at 3–4 weeks post-injury (C, *p < 0.05). Data also show that there were early diffuse activated regions contralateral to the injury, ipsilateral to the stimulated limb (A) that was variable between rats because the mean effect was not significant for the number of activated voxels in contralateral (right) M1/S1-forelimb cortex (B). Key: Hatched circle represents approximate position of primary injured region.

Given the within-group variation post-injury, it was not surprising that direct statistical comparison of these activation patterns to the pre-injury data using voxel-wise analyses did not show any differences that survived the multiple-voxel cluster correction (p > 0.001). Similarly, voxel counts of activated voxels at the subject level revealed that the volume of activated cortex within the contralesional cortex also did not reach significance compared with pre-injury (Fig. 1B), although removing four of 11 rats at 1 week post-injury that did not activate at all did result in a significant difference (not shown, p < 0.05). Despite this however, the number of activated voxels within the injured hemisphere decreased to approximately half of pre-injury values over the first 2 weeks following injury, then again at both 3 and 4 weeks, to approximately 10% of the pre-injury volume (p < 0.05; Fig. 1C). This occurred despite the steady resumption of more normal limb-reaching previously reported in this TBI model in an independent study. ³³ These data indicate that regions of the brain other than the injured cortex may be responsible for spontaneous resumption of limb function over the first month of recovery, and that the contralesional hemisphere may support this, but only early and not later after injury.

Transhemispheric shift is injury severity-dependent at 1 week post-injury

We next investigated whether differences in injury severity accounted for the within-group variations in activation volume. Initial assessment of injury by manual contusion volume measurements using the T2- anatomical images acquired at 4 weeks post-injury revealed a range of cortical damage (Fig. 2A). Injury severity was then more formally determined by TBM in the same images to obtain an estimate of gray matter atrophy (Fig. 2B). This unbiased technique is based on minimizing the within subgroup variance and maximizing the between subgroup variance in the data (see Methods). Using unsupervised k-means clustering, two separate groups emerged characterized by mild and moderate injury (−1.0 and +23.8% change in volume, n = 6 and 5, respectively). Subsequent voxel-wise analysis of BOLD activation volume based on these differences in injury severity revealed a severity-dependent increase in activation in both peri-contusional and contralesional white and gray matter regions at 1 week post-injury (Fig. 2C). Further, the volume of contralesional BOLD activation assessed by counts of activated voxels in each subject at 1 week post-injury was significantly correlated with the degree of ipsilesional cortical gray matter damage reported by TBM at 4 weeks post-injury (R² = 0.65, p < 0.05, two-tailed; Fig. 2D) as well as with more ipsilateral activation (R² = 0.77, p < 0.01), but not at later time-points (not shown). In other words, greater damage to the ipsilesional cortex resulted in an initial broad, bilateral activation acutely, but this correlation did not persist at later post-injury time-points as the contralesional cortex became dominant in activation (see next section).

OPEN IN VIEWER

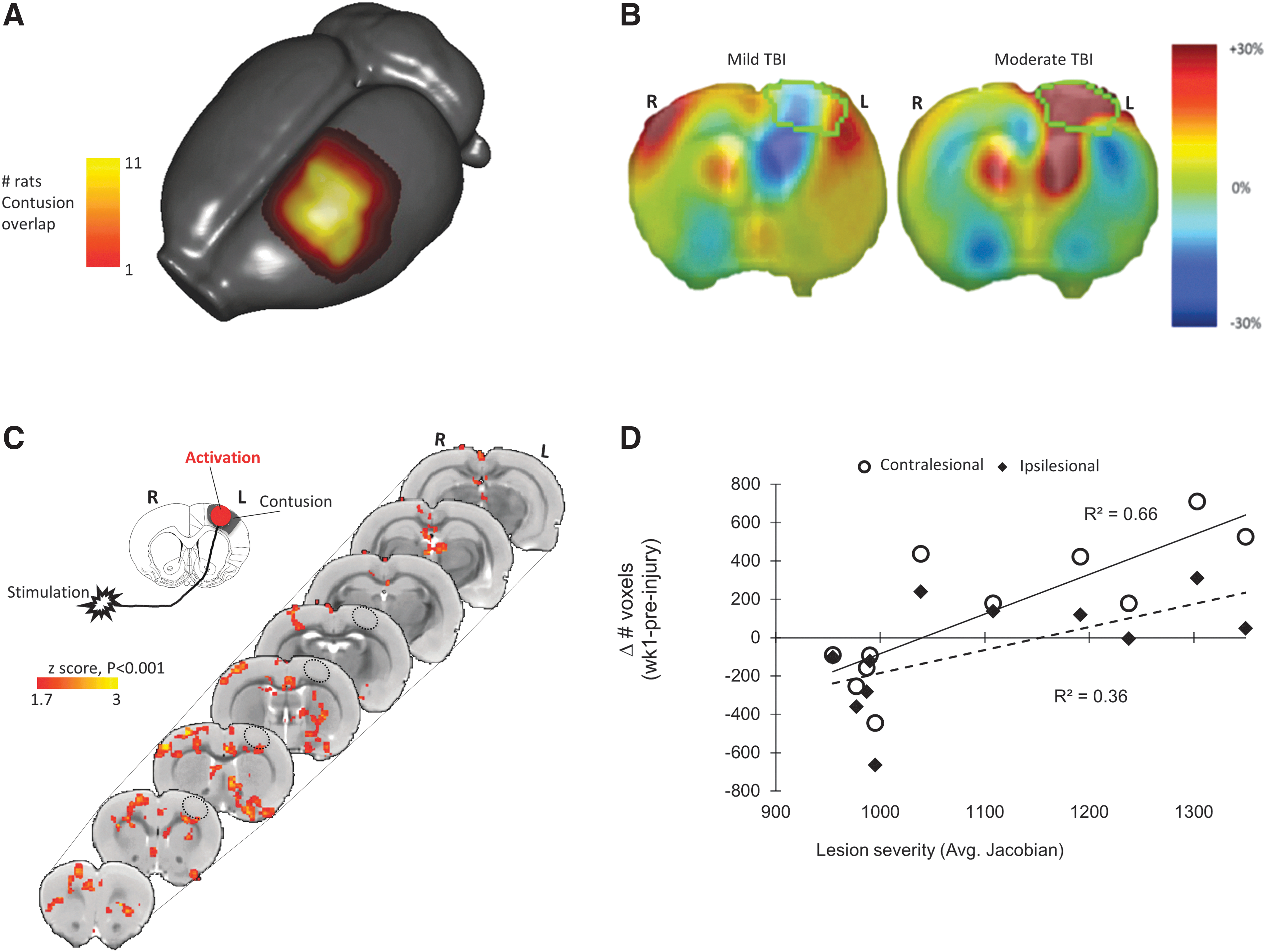

FIG. 2.

Greater injury is associated with a greater shift in cortical activation to the contralesional (right) hemisphere in response to affected (right) forelimb-evoked activation at 1 week post-injury. (A) Stacked, surface projection plot of contusion volume masked from the T2-weighted structural image of each rat at 4 weeks post-injury and warped into template space. Data shows that there are a range of injury severities within the group indicate by the presence of contusion in 11 rats (yellow region) but extending further out in only 1-5 rats (red regions). (B) Representative Jacobian maps of the same data confirming different degrees of brain injury at 4 weeks consistent with mild-to-moderate levels of brain injury (outlined region indicates the region drawn in mean deformation target image space used to obtain average Jacobian values in subject space). (C) Group-level, statistical contrast maps of affected forelimb-evoked brain activation differences between mild and moderate injured rats at 1 week post-injury (mean cortical Jacobian percentage values 0.7 ± 1.9 versus 23.8 ± 3.5%, respectively from (B) showing regions where moderate > mild group brain activation. Data show a greater left-to-right shift in the degree of cortical activation in response to affected forelimb stimulation after moderate compared with mild injury, two-tailed t-test, n = 6 vs. 5, respectively; z = 1.7, p < 0.001). (D) A linear regression analysis plot of number of activated voxels/rat in contralesional (open circles, solid line) and ipsilesional cortex (closed diamonds, dashed line) at 1 week post-injury versus injury severity (average gray matter Jacobian raw value) at 4 weeks. Data show a significantly greater contralesional (right) activation response in moderately injured rats (solid line, R² = 0.65, p < 0.05), as well as more ipsilateral activation (Dashed line, R² = 0.77, p < 0.01). Activation data after 1 week post-injury were not significantly correlated with severity (not shown). Key: Hatched circle represents approximate position of primary injured region.

Unaffected forelimb-evoked contralesional BOLD signal increases at 4 weeks post-injury

Based on a working hypothesis that remote excitability changes would occur after brain injury, perhaps in a similar manner to stroke, ³⁴ and from evidence from functional and structural connectivity changes in the CCI model, ^17,20 we investigated changes in the less affected, contralesional hemisphere for activation changes under control of the unaffected forelimb in the same cohort of rats. As expected, the focus of the pre-injury group mean activation evoked by stimulation of the unaffected limb was contralesional, unilateral, and centered on the sensory S1FL, with some overlap to cortical motor regions (Fig. 3A). While some degree of broadening of the activation occurred at 1 week post-injury with subsequent refocusing at later times, no voxel survived the multiple comparison correction, although it was just outside of significance at 4 weeks (p > 0.001). We pursued this preliminary trend and quantified the BOLD signal change at subject level, but constrained to brain regions within the mean group activation masks. For each time-point, the statistical mask (Fig. 3A) was back-projected on to the corresponding data-sets in native space in order to obtain average BOLD signal change during forelimb stimulation. BOLD signal changes remained similar to pre-injury until 4 weeks post-injury (Fig. 3B, 3C) when there was a significant increase compared with pre-injury (p < 0.001, Fig. 3D).

OPEN IN VIEWER

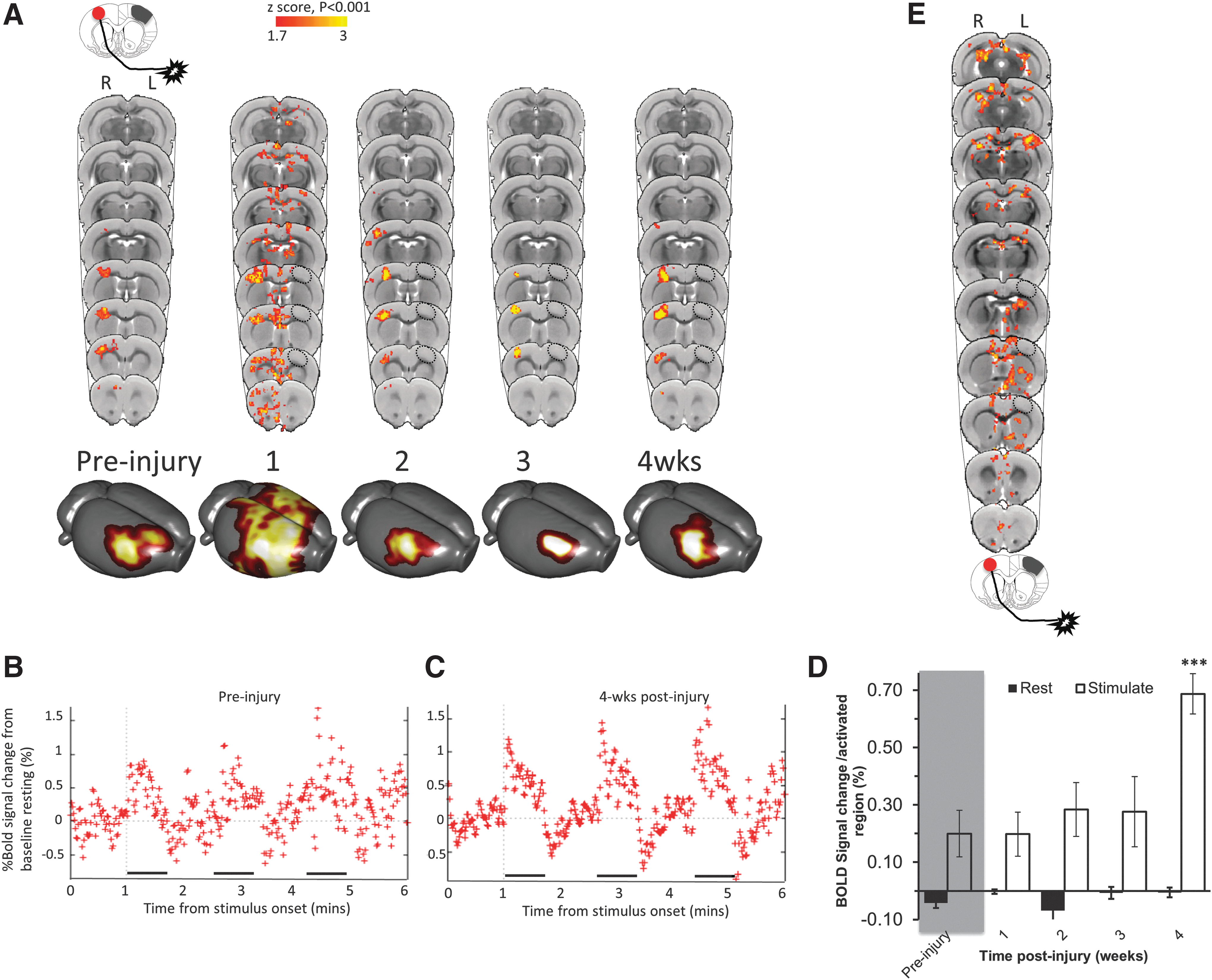

FIG. 3.

The degree of contralesional blood oxygenation level–dependent (BOLD) activity increases at 4 weeks in response to unaffected limb stimulation. (A) Group mean, unaffected (left) forelimb–evoked activation data (one-tailed t-test, corrected for multiple comparisons, p < 0.001, z > 1.7) before and at 1, 2, 3, and 4 weeks after injury, superimposed on a rat brain template, and also shown as 3D surface projections. (B, C) Plots of contralesional cortex BOLD signal percent change during unaffected limb stimulation compared with at rest for all rats imaged (B) pre-injury and (C) at 4 weeks post-injury. (D) Quantified BOLD signal was significantly increased at 4 weeks post-injury compared with pre-injury, but not at earlier time-points (p < 0.001, linear mixed models analysis of variance). (E) Contrast plots of activated gray and white matter brain regions that were positively correlated to injury severity (tensor-based morphometry data) during unaffected forelimb stimulation at 4 weeks post-injury. *p < 0.05. Key: Hatched circle represents approximate position of primary injured region.

Increase in unaffected forelimb-evoked contralesional BOLD signal is severity dependent

Given the variability in injury severity found in these rats (Fig. 2B), we investigated whether the contralesional increase in BOLD signal at 4 weeks elicited by stimulation of the unaffected limb also was dependent on the degree of structural damage. We used the TBM data as a covariate of interest in a general linear model analysis of the BOLD data to determine whether injury severity was associated with changes in BOLD activation. We found that brain activation evoked by unaffected limb stimulation was positively correlated to the severity of injury, not only in the expected gray matter regions of contralesional M1/S1FL cortex, but also in ipsilesional M1 and posterior S1 cortex, and subcortically in caudate internal capsule and thalamic and brain stem nuclei (Fig. 3E). There also were notable bilateral regions of white matter activation that were positively correlated to injury severity (Fig. 3E). We attempted to confirm these findings by analyzing brain sections immunostained for the immediate early gene product c-FOS from a subset of the same rats, as well as additional rats, but after 1 h constant stimulation of the unaffected limb at 5 weeks post-injury. We analyzed gray matter tissue loss and grouped data using unbiased k-means clustering into mild and moderately injured rats based on low or high tissue loss (Fig. 4C). Representative raw c-FOS+ cell density projections from a subset of eight mildly or moderately injured rats (Fig. 4A, 4B) showed bilateral gray matter activation, similar to that obtained previously with this technique and in this injury model, albeit from affected forelimb stimulation, ¹⁸ rather than the current unaffected limb stimulation. Unlike the fMRI, there were only trends towards increases in gray matter c-FOS density in moderately injured unaffected forelimb–stimulated rats compared with mild. However, more consistent with the fMRI findings (Fig. 3E), there were large and significant bilateral increases in white matter c-FOS cell density (Fig. 4B) in moderate versus mildly injured rats (p < 0.01; Fig. 4D).

OPEN IN VIEWER

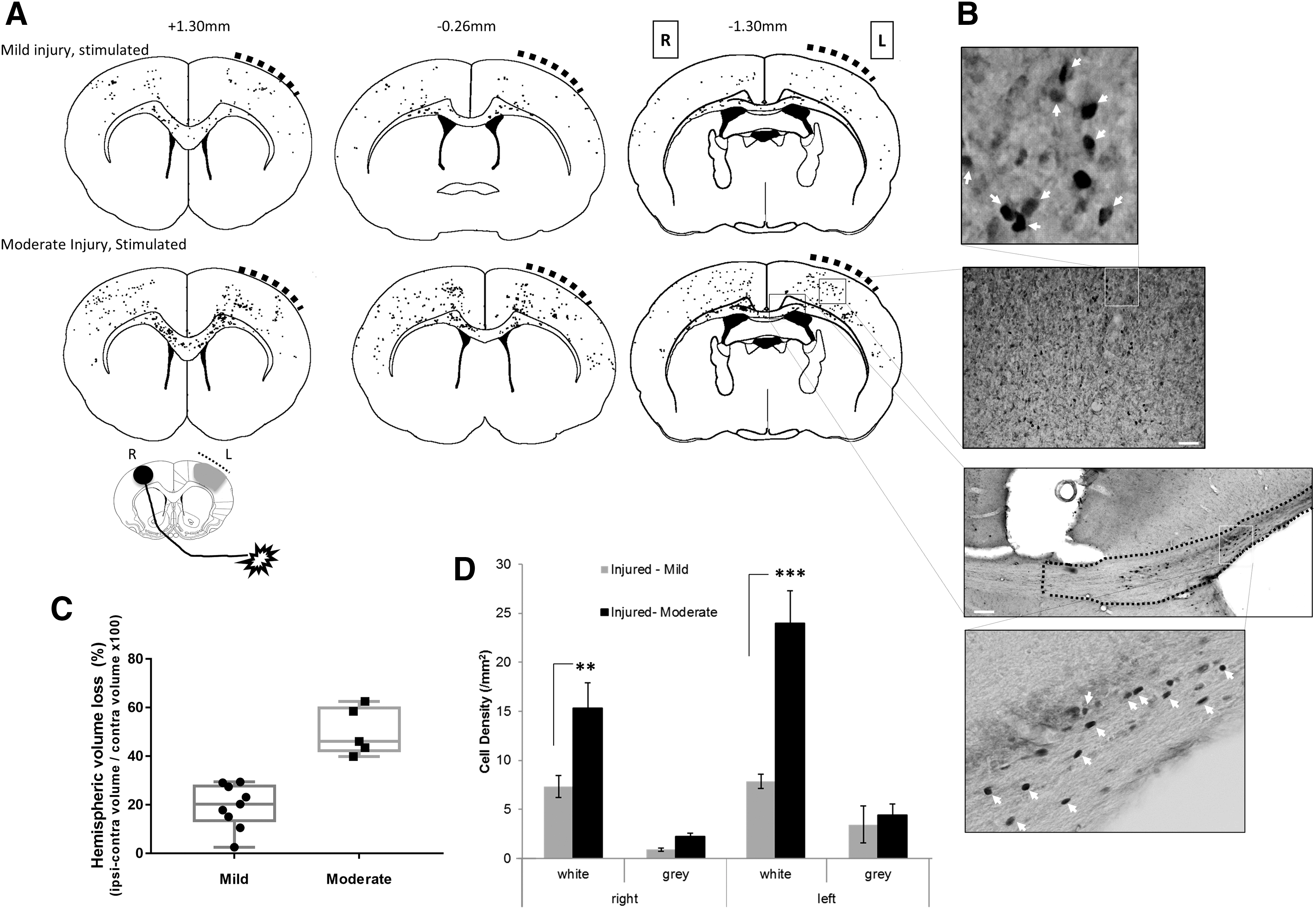

FIG. 4.

Bilateral white matter activation is greater after moderate compared with mild injury. (A) Co-registered group-wise plots of individual, raw c-FOS+ cell positions after left-side brain injury (bold, hashed curve) after stimulation of the unaffected forelimb. Raw cell data counts are taken from three rats/group representative of mild and moderately injured rats and are overlaid onto an atlas at +1.3, -0.26, and -1.30 mm bregma, for semi-quantitative visual comparison. (B) Representative image of c-FOS+ staining from the cortical gray and white matter together with high-powered insets showing examples of c-FOS+ cells counted (white arrowheads). (C) Plot of percent hemispheric gray matter loss showing the group delineation achieved by k-means clustering of values that were assigned as mild and moderate injury and used for c-FOS group analysis in plots (A) and (D). (D) Plot of c-FOS+ cell density for gray and white matter (corpus callosum) regions for left and right hemispheres averaged from the three brain antero-posterior levels shown in (A), from mildly (n = 5) and moderately injured rats (n = 9) at 5 weeks post–traumatic brain injury showing significant difference within white matter regions (linear mixed models, Tukey's post hoc corrected, ***p < 0.001, **p < 0.01). Key: L-left, R-right. Scale bar 200 μm.

Electrophysiologic evidence of increased contralesional excitability

Given the likely contribution of glial cells to the BOLD signal ³⁵ and that gliosis occurs bilaterally after contusion injury, ³⁶ we then sought to determine the direct neuronal responses of the contralesional cortex to forelimb stimulation in a parallel group of eight moderately injured rats by recording SEPs from the unaffected limb to a grid of screw electrodes on the contralesional skull surface (Fig. 5A). Quantification of the amplitude and latency time to arrive of the first major SEP peak in the cortex (Fig. 5B) revealed no difference in amplitude (Fig. 5D) but a significantly reduced latency time-to-peak, compared with pre-injury, at all post-injury times when averaged over all electrode positions and for all rats tested, suggesting increased cortical excitability (Fig. 5C). To investigate this phenomenon more explicitly, we conducted a PP-SEP experiment (Fig. 6A) with the idea that if a second sensory stimulation was given sufficiently close to the first, then the second SEP would be greater in size after injury, compared with pre-injury, if the cortex was more excitable (Fig. 6B). As expected, PP suppression of the second pulse (shown as a ratio of the paired peaks – PP ratio) among all data regardless of pre- or post-injury time was most pronounced at the shortest, 35 msec inter-stimulus interval (ISI) pre-injury, and diminished as the ISI was extended to 200 msec (Fig. 6C). After injury, we found that among PP ratio data collected at 100 msec ISI and averaged over all pairs of electrodes pairs (apart from two posterior-positioned pairs that did not respond in the same way, Fig. 7B), the ratio of the peaks was significantly increased compared with pre-injury, but only at 3 days and 4 weeks post-injury, and not between these time-points (p < 0.05; Fig. 6C). We found similar albeit nonsignificant trends toward increased PP ratios at short (35 msec) as well as longer (200 msec) ISI times at all post-injury times when averaged over all electrodes (Fig. 6D), further evidence of increased cortical excitability.

OPEN IN VIEWER

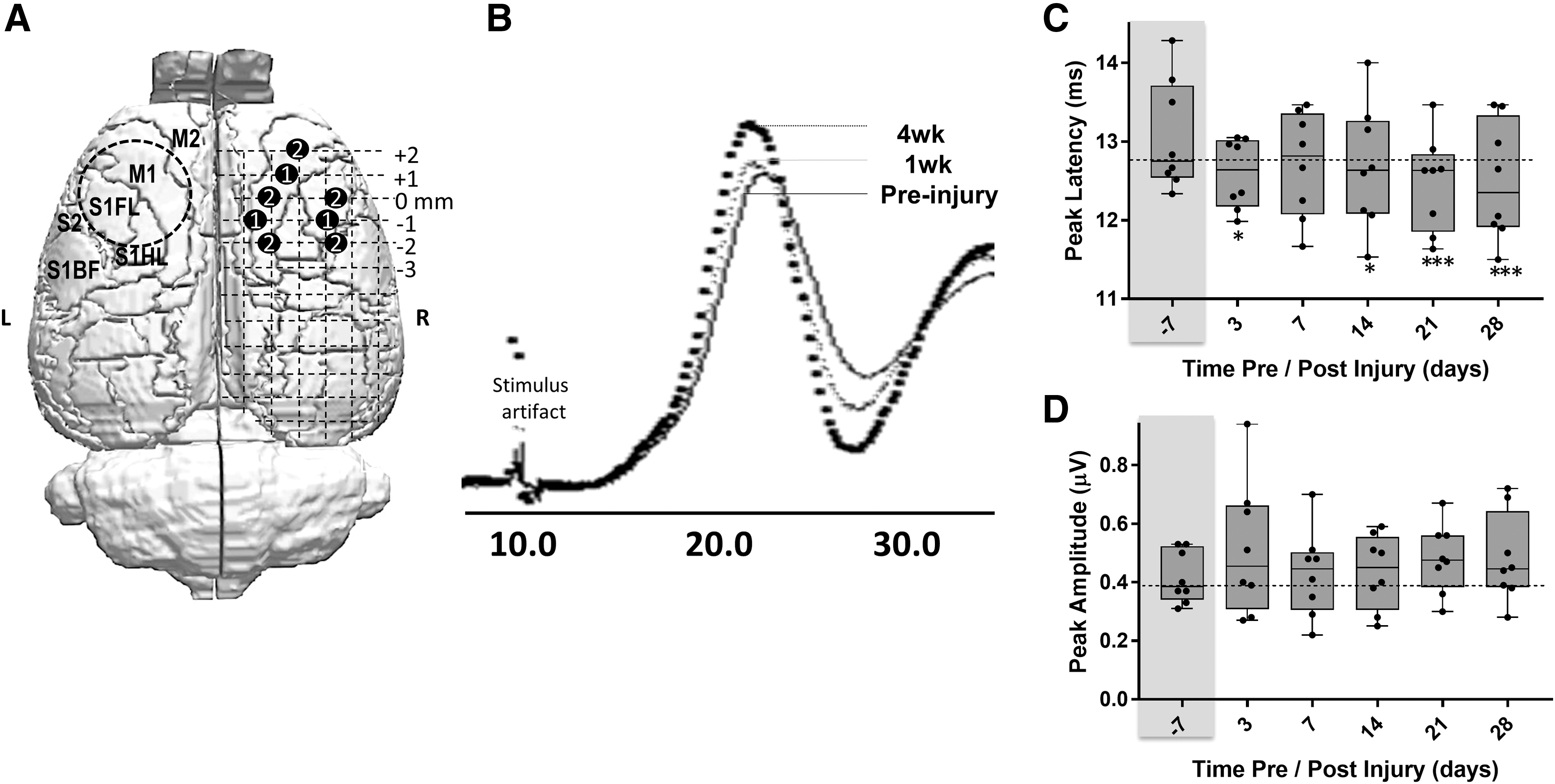

FIG. 5.

Unaffected forelimb-evoked sensory-evoked potentials in contralesional cortex are reduced in peak latency. (A) Stylized figure showing the position of the two electrode designs used in the experiments (labels 1 and 2) in the contralesional right (R) cortex relative to the position of the left (L) hemisphere primary injury site (circular, dashed line). (B) Group-averaged sensory evoked potential signal from rats pre-injury (solid line), at 1 week (light gray line) and at 4 weeks post-injury (bolded, dotted line). (C) Plot of peak latencies for a single stimulus and response quantified at different times post-injury and showing a significant reduction. *p < 0.05, ***p < 0.001). (D) Plot of peak amplitudes for a single stimulus showing no significant response at any time-point post-injury.

OPEN IN VIEWER

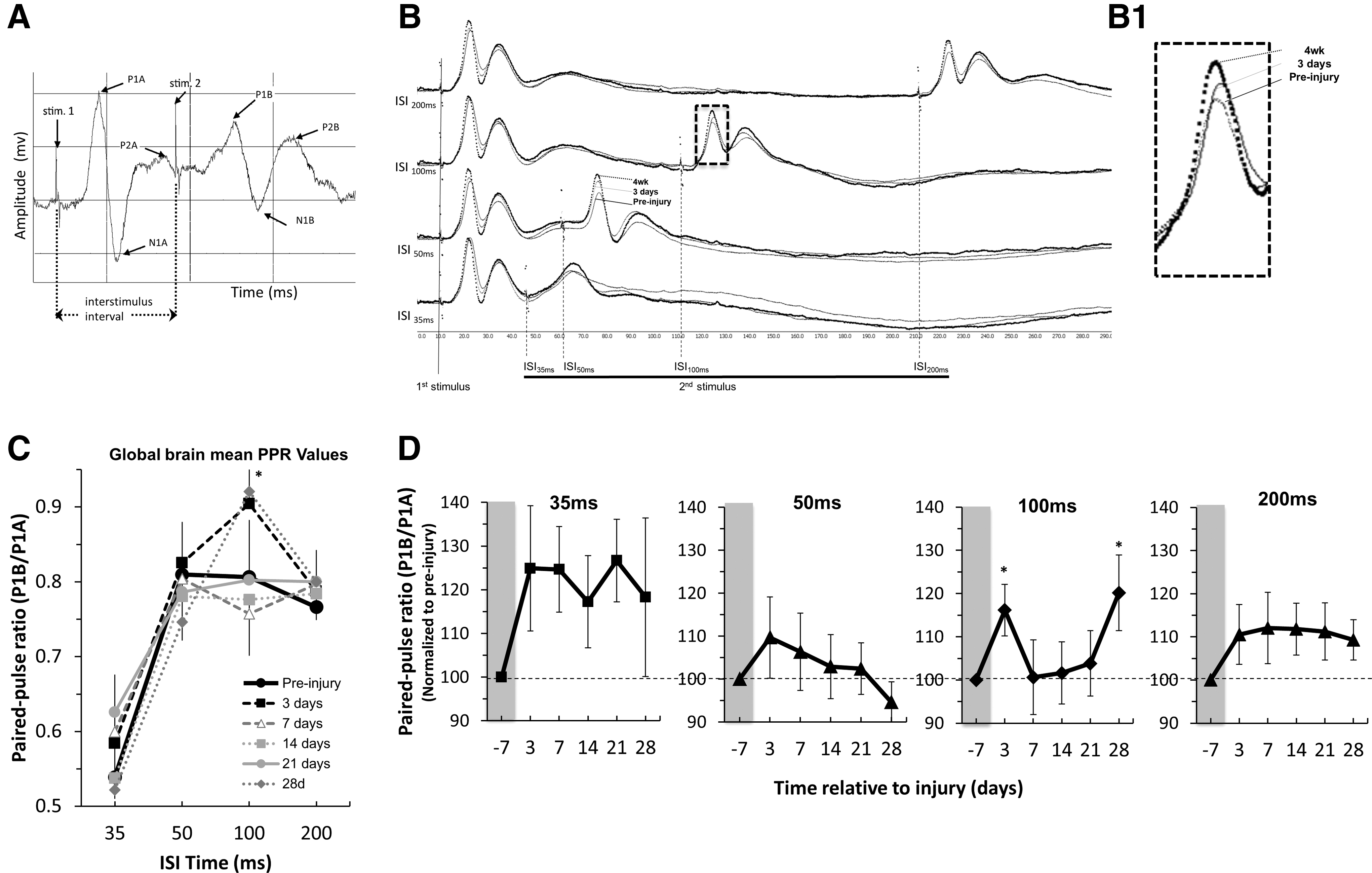

FIG. 6.

The sensory evoked potential (SEP) paired-pulse (PP) ratio in contralesional cortex is significantly increased at 3 days and 4 weeks after traumatic brain injury. (A) An example plot of the paired-pulse design used, showing the stimulus artifacts (stim1, stim,2), the inter-stimulus interval (ISI) used to delay the onset of the second stimulus, and the resulting SEP pulses (P1, P2, N1) recorded following each stimulus. The pulses immediately following the first and second stimuli (P1A, P1B, respectively) were quantified. (B) Group-averaged, SEP signal of the PP stimulus response at 50-200 msec ISI averaged from all electrode pairs, and temporally realigned to the first stimulus artifact to illustrate the lowered second peak amplitude at 100 msec ISI, especially at 4 weeks compared with pre-injury, giving rise to reduced P1B/P1A PP ratios. (C) Plot of PP ratio data values from all electrode pairs (apart from two posterior pairs that responded differently; Fig. 7B) and for all post-injury time-points as a functions of ISI time, showing a significant difference at 28 days post-injury at a 100 msec ISI and a trend at 3 days. (D) Plots of PP ratio values for each ISI value versus post-injury time and normalized by individual rat pre-injury value. Data shows non-significant trends toward increased PP ratios at 35, 50, and 200 msec ISI at most post-injury times, and a significant increase at 3 and 28 days at 100 msec ISI. *p < 0.05 (Linear mixed models analysis of variance, Dunnett-corrected multiple-comparisons on raw data). Horizontal dotted line = mean pre-injury values.

OPEN IN VIEWER

FIG. 7.

Regional plots of paired-pulse (PP) ratio values at 100 msec indicate acute and chronic time-point pericontusional hyperexcitability. (A) Stylized figures showing the position of the two electrode montages used in the experiments in the contralesional (right) cortex, homotopic to the contusion site (blue circle). (B) Plot of pre-injury normalized PP ratio values at 100 msec ISI for all electrode pairs averages across rat, and for the two electrode schemes (S1, S2; corresponding to white, black numbers in A, respectively) demonstrating regional differences in the degree of hyperexcitability that contribute to the mean data (black bar) as originally plotted in Figure 5. Two electrode pairs did not respond to the stimulus (green lines, S2- e3-5, S2-e4-2). (C) Data in (B) plotted spatially and as a percentage of pre-injury values to demonstrate the robust lateral and posterior increases in PP ratio at 3 days and 4 weeks, but largely normal/pre-injury values intermediate times. (D) Summary brain surface atlas superimposed with electrode positions for direct comparisons to data in (C).

To determine if there were any spatial differences in the SEP to identify any particular regions that were more excitable, we plotted mean time-point data for individual electrode pairs at 100 msec ISI, the PP interval resulting in the most robust group differences. The data from the two electrode grid schemes used (white and black numerals, Fig. 7A; dotted and bold lines, Fig. 7B) show some disparity between electrode pairs based on location at 3 days post-injury, as shown diagrammatically (Fig. 7C, 7D). The greatest post-injury PP ratio increase generally occurred between anterior and posterior-positioned electrodes at 3 days post-injury: laterally between the barrel/S1DZ and forelimb cortices, and medially within the M1/M2 cortex. These regions returned to pre-injury levels at 1–3 weeks post-injury but were similarly increased at 4 weeks (Fig. 7C, 7D). Also at 4 weeks, there were increased PP ratio values compared with pre-injury in electrodes located between forelimb and M1 cortex, regions that were initially decreased from pre-injury levels at 3 days post-injury, suggesting some temporal dependence for reorganization in the contralesional cortex.

Ipsilesional hypoactivity—the stunned brain

The prolonged absence of evoked BOLD activity within the ipsilesional, sensory motor cortex is consistent with an absence of ipsilesional hind-limb evoked blood flow changes, ³⁷ an early post-injury abolishment of the SEP, ³⁸ hypoactivity to whisker stimulation in a fluid percussion injury (FPI) model of TBI, ^39,40 as well as persistent hypometabolism that persists for up to 2 weeks after CCI injury. ⁴¹ On the other hand, the inability of ipsilesional cortical circuits to evoke activity is not entirely consistent with a slice electrophysiology and glutamate biosensor study in adult CCI-injured mice at 2–4 weeks post-injury, where significantly increased ipsilesional glutamate signaling, reduced inhibitory postsynaptic current, and loss of GABAergic interneurons was reported. ⁴² However, given the wide range of the post-injury time-period studied, the reported heightened network activity does coincide with the unexpected unconstrained activity evoked by affected-forelimb stimulation in the current study at 2 weeks post-injury (Fig. 1A), and with a sudden absence of functional connectivity deficits at the same time in this model. ¹⁷ The subsequent prolonged absence of evoked ipsilesional BOLD activity at least until 4 weeks post-injury in the current study, suggests that data obtained from brain slices may not always closely represent coordinated evoked network activity recorded in vivo. In support of the lack of coordinated network activity in the ipsilesional hemisphere after trauma in the current study, prior work after FPI showed that it was still possible to elicit a vibrissae response from the ipsilesional barrel cortex at 1 and 7 days by direct cortical stimulation, ⁴³ indicating that functional deficits occur via altered cortical white matter communication rather than the inability of cells to respond to a stimulus. The continued hypoactivity in the ipsilesional cortex that occurred herein, despite the resumption of more normal reaching patterns by the affected forelimb in sensorimotor tasks by this time, ³³ is a clear indication of functional reorganization to other brain regions.

Trans-hemispheric transfer of function and remote changes

In this study, the degree of cortical hemispheric transfer of function was related to the amount of ipsilateral injury at 1 week, suggesting that the contralesional cortex adopts control of the affected limb, at least acutely. Similar transfer of the cortical map has been shown early after experimental brain injury in the mouse ¹⁶ and rat, ^15,44 as well as stroke, ⁴⁵ cortical lesioning, ⁴⁶ and clinically after stroke. ⁴⁷ However, the disease mechanisms responsible for altered function after TBI and stroke are likely to be very different given their very different initial causes. Indeed, unlike after stroke, the current data shows that this trans-hemispheric relationship is absent at more chronic times, suggesting that other brain regions controlling forelimb function may become more widely distributed. Indeed, the lack of return of more normal ipsilateral activity controlling this limb chronically that occurs, despite the known spontaneous resumption of behavioral function at this time, ³³ suggests that the process of reorganization in this trauma model is both temporally and regionally dependent, and that brain regions in addition to the contralesional cortex reorganize to support affected limb function at longer post-injury times. This also may be related to the severity of the injury because brain lesioning studies have found that the contralesional response of increased synaptogenesis ⁴⁸ and associated structural changes is muted in rats with larger lesions. ⁴⁹ Evidence from resting state functional connectivity ¹⁷ as well as diffusion tensor imaging data ²⁰ in the same TBI model used herein, does indicate that in addition to early and significant functional and structural disconnection of interhemispheric circuits, there are substantial increases in connectivity that are centered on the contralateral cortex, but that also occur more widely in the brain. The current finding of injury severity–dependent increases in activity within the thalamus and caudate in response to unaffected limb stimulation at 4 weeks (Fig. 3E), and the limitation of brain activity to subcortical regions during affected forelimb stimulation (Fig. 1A) is in agreement with blood-flow autoradiographic data in similar regions in the same model. ⁴⁴

The idea that reorganization can occur in subcortical brain regions may make it an important target for neurorehabilitative care using neuromodulatory interventions. On the other hand, regions of reorganization after brain trauma also may be viewed as areas with a connection phenotype at risk for developing seizure type activity. Increased connection probability and efficacy between cortical neurons occurs weeks after trauma using the cortical undercut model, ⁵⁰ and data suggest that homeostatic synaptic plasticity compensates for regions of decreased activity leading to uncontrollable cortical hyperexcitability. ⁵¹ Therefore, potential neuromodulatory therapies after TBI will likely have a dual role in the brain: to promote activity in hypoactive regions, but also to prevent the longer-term development of hyperconnectivity in spatially distinct but connected brain regions.

Electrophysiology and BOLD evidence of altered excitation-inhibition

The latency of the arriving SEP signal in the contralesional cortex was significantly reduced early and persistently after injury, either indicating an increased efficiency of nerve conduction along the neural pathway, or reduced threshold for activity within the cortex, or both. However, changes in SEP latency were not matched by a significant increase in evoked BOLD signal within the contralesional cortex activation focus until 4 weeks post-injury. Since altered neurovascular coupling is less likely in this injury-remote region, as supported by the similar c-FOS results, at least in white matter, it may indicate that the SEP is a more sensitive indicator of contralesional reorganization than fMRI-evoked BOLD activation. This is likely because data in the same model demonstrated increases in correlated BOLD signal or functional connectivity in the contralesional cortex as early as 1 week post-inury. ¹⁷

In support of increased efficiency of the SEP neural pathway, there is structural evidence of contralateral changes in the corticospinal tract portion of this circuit at least by 4 weeks post-injury, as indicated by altered diffusion tensor imaging indices and increases in fiber tract densities. ²⁰ In fact, reorganization at the level of the corticospinal tract would have far-reaching effects on reorganization of higher brain centers, especially the contralesional cortex. Whether or not remote contralesional reorganization is beneficial for behavioral outcome after TBI in the long term is unknown, since a greater activity-dependent effect from this circuit due to training is maladaptive to the affected limb after a unilateral sensorimotor lesion. ⁵² That this latter effect was shown to be dependent on an intact connecting corpus callosum is of particular relevance to the present study, where we found significant, bilateral white matter activation when stimulating the unaffected forelimb detected by both fMRI (Fig. 3E) and c-FOS (Fig. 4A), indicating that input from the unaffected limb provokes activity within the ipsilesional circuitry. Whether or not this is a direct neuroimaging readout of a maladaptive response remains to be proven.

The measured increased in PP ratio of the SEP signal at 3 days and 4 weeks post-injury, but not between these times, is somewhat incongruent with the persistent decrease in SEP latency times and suggests that different mechanisms are driving these phenomena. A study measuring PP ratio data after TBI recorded from the hippocampus in slices reported decreases in PP ratio, indicative of increased inhibition, ⁵³ commensurate with the development of aberrant sprouting and seizure activity. ⁵⁴ Other studies have shown increased hippocampal PP ratio data, ^55,56 indicative of a reduction in synaptic inhibition or an increase in excitability. There is no simple relationship between tissue injury, as indicated by biomechanical strain and PP ratio data, ⁵⁷ and spatial differences in excitability may further complicate the interpretation, at least within hippocampus. ⁵⁸

Cortical PP ratio data recorded from brain slices reported transient increases in contralesional cortex excitability at 1–2 days post-injury after CCI injury in the adult rat, which then normalized by 3 days. ¹⁶ These ex vivo findings are somewhat comparable to the current in vivo data whereby early increases in excitability at Day 3 were lost by 1 week. The early post-injury increases in excitability are likely to result from an entirely different mechanism to the later onset of cortical excitability. For example, they may well be linked to the massive net extracellular ionic fluxes and neurotransmitter changes that occur early after injury, ⁵⁹ which promotes hyper-metabolism, ^60,61 with later increased frequency of miniature excitatory postsynaptic currents in both axotomized neurons at 1 day and intact neurons at 2 days after injury. ⁶² A cortical lesion model showed that these early effects are likely to be driven by GABAergic rather than AMPA receptor–mediated events. ⁴⁶

There are several potential mechanisms for the increased PP ratio, or PP facilitation (PPF), a form of short-term synaptic plasticity. PPF can occur both at the level of the thalamocortical afferents ⁶³ and directly in the neocortex. ⁶⁴ PPF is related to accumulation of residual Ca2+ in the pre-synaptic terminals after the first stimulus, and is generally thought to relate to a lower vesicle release probability from the first pulse ⁶⁵ so that the second pulse results in a greater response. ⁶³ Pre-synaptic K+ channel currents are known to be involved in PPF in the mammalian brain ⁶⁴ and their long-lasting deficits after FPI have been associated with increased excitability, ⁶⁵ making them possible candidates responsible for the enhanced PP ratio found in the current data. While the impact of pre-synaptic Ca2+ concentration on excitability is well known acutely after TBI, there are no data to suggest an involvement at extended times post-injury. However, given the major role of astrocytes in TBI pathology ⁶⁶ and their controversial role as modulators of synaptic potential and neuronal excitability, ^67,68 they also must be considered as possible candidates that alter cortical excitability after TBI. For example, injury-induced pathology of astrocytic inwardly rectifying K+ channels have been shown to persist to at least 4 weeks in the neocortex after FPI and is associated with hyperexcitability and post-traumatic epilepsy. ⁶⁶

A cortical rebalancing hypothesis

The chronic shift in the balance of excitation-inhibition toward excitation within the contralesional cortex after injury and reduced ipsilesional activity occurs concurrently with deafferentation across the brain in this model. ^20,67,68 One possible mechanism to explain the temporally extended inactivity and hypometabolism that occurs post-injury within the ipsilesional cortex is an increased inhibitory drive from the contralesional hemisphere, in a similar manner to stroke. ⁶⁹ This would certainly fit with the fact that the degree of ipsilesional-to-contralesional cortex transfer of activation is correlated with injury severity only acutely, because by this hypothesis, the contralesional cortex asserts control via increased excitability at later times to prevent ipsilesional activity. However, further causality-based experimentation is required to provide information to fully support this hypothesis. This may then lay the foundation for future work to determine if neuromodulatory approaches to improving function post-injury occurs through ameliorating cross-brain influences of inhibitory drive onto damaged regions closer to the primary insult, in a manner similar to that used after stroke to alter hemispheric differences in excitability. ⁷⁰

There are limitations to this study. First, behavioral analysis of sensorimotor function was not conducted on these animals so that interpretation of the imaging data was made with reliance upon prior functional outcome data acquired by this lab in this model. Second, unlike the fMRI or c-FOS data, rats used for SEP analysis were not investigated for injury severity measures by either MRI or postmortem analyses. This reduced our ability to more closely integrate the data across modalities.

In conclusion, we have shown that TBI-induced changes in evoked sensorimotor network activity occur dynamically post-injury, with a high degree of dependence on the severity of the injury. Loss of evoked ipsilesional activity was met with a corresponding increase in contralesional activity, as shown by both fMRI and c-FOS immunohistology. Parallel electophysiologic paired-pulse evidence showed that the remote, contralesional BOLD changes occurred concomitantly with increases in cortical excitability, although much earlier reductions in SEP latency indicate that evoked BOLD activity may not capture earlier changes in reorganization.
