Exhaled Nitric Oxide: Offline Tidal Breathing Measurements Are Feasible in Children and Correlate with Online Single Breath Measurements

Abstract

Fractional exhaled nitric oxide (FE_NO) measurements are useful in monitoring airway inflammation. Online and offline sampling techniques are well standardized. However, young children are often unable to perform slow vital capacity maneuvers. The aim of this study was to compare a simplified mobile offline tidal breathing method with an online single breath measurement. We performed online and offline FE_NO measurements in children between 5 and 16 years with respiratory disease. Online measurements were performed by a slow vital capacity maneuver; offline measurements were performed by collecting exhaled air in Mylar balloons during tidal breathing. In 59 children (5.3–16.7 years) able to perform both techniques, a good correlation (0.9348) between offline tidal breathing and online single breath measurement was found over a wide range of values. Offline tidal breathing values correspond to online values. Online single breath FE_NO values can be predicted from offline tidal breathing FE_NO values. Offline tidal breathing measurements are highly correlated with online single breath values in children.

Introduction

Up to one-third of preschool children have intermittent wheezing. To some degree, the distinction in viral wheeze and multitrigger wheeze is helpful.¹ However, viral wheeze will not always be transient and multitrigger wheeze will not always become persistent atopic wheeze. In addition, there is no evidence that any therapeutic intervention can prevent evolution to persistent atopic wheeze.² Even the evidence for symptomatic treatment is scanty³ and the correct treatment strategy of preschool wheeze is debatable.

Categorizing preschool wheezers by the presence and type of inflammation in the airway rather than by atopic status or wheezing pattern is a potential strategy to evaluate treatment response to, for example, inhaled corticosteroids. Although broncho-alveolar lavage studies have brought new insight about inflammation in preschool wheeze,⁴ this technique is too invasive to be performed routinely. Fractional exhaled nitric oxide (FE_NO) is a widely studied marker of airway inflammation in adults and children known to differentiate between asthma and no asthma and in addition low FE_NO values reflect asthma symptom control during treatment.^5–8 FE_NO measurements certainly have not completely fulfilled their promise of being a reliable, easy, and useful tool to improve outcome of asthma treatment. In older children, monitoring of clinical symptoms and lung function was as good as monitoring FE_NO during the follow-up of inhaled corticosteroid therapy.⁵ Higher FE_NO values have been reported in infants and toddlers with recurrent wheeze versus single episodic wheeze using the offline tidal breathing method.^9,10 Few data, however, relate values obtained with the offline tidal breathing method to the classic online slow exhalation technique. Therefore—in a first evaluation—we compared offline and online values in children able to perform both techniques.

Methods

Subjects

Children between the age of 5 and 16 years were recruited during a routine outpatient visit provided that they did not have a respiratory infection in the preceding 2 weeks. Subjects included patients attending the respiratory clinic for routine follow-up for asthma (n = 49) and other respiratory problems (n = 10) such as primary ciliary dyskinesia, humoral immune deficiency, bronchiolitis obliterans, and pulmonary malformations. Asthma was diagnosed according to GINA guidelines. Informed consent was obtained from parents and children, and the study was approved by the hospital's ethics committee.

Subjects were asked to perform an offline tidal breathing FE_NO collection first, and an online single exhaled FE_NO measurement 15 min later.

Offline and online measurements

Measurements were performed according to ATS and ERS guidelines.^3,11

For the offline measurement, we used tidal breathing maneuvers and collected expired air via a well-fitted mouth mask, attached to a 1,250 L Mylar balloon. In these balloons, NO levels in expirates are stable for at least 6 h. To prevent nasal contamination, we used a 2-way positive expiratory pressure valve with a fixed expiratory resistance of 5 cm H₂O, so that the velum was closed during expiration. Because we wanted to use a mobile, technically simple, and inexpensive construction, we did not use a flow restrictor. Expiratory flow was kept relatively constant by instructing the children to breathe in a relaxed way with a frequency of about 16 respirations/min. Every child was instructed to fill 3 balloons. Afterward (maximal time lag 2 h) the mixed expired FE_NO concentrations were determined with the NIOX chemiluminiscence analyzer (Aerocrine). The mean of the 3 values was denoted as offline tidal breathing FE_NO.

For the online measurements a slow vital capacity maneuver was performed through the NIOX mouthpiece to reach a plateau level of FE_NO. To prevent nasal contamination, children were asked to exhale immediately after inhalation without breath holding. A 2-way non-rebreathing valve maintained the expiratory flow constant at 50 mL/s. A biofeedback mechanism was used. Results were displayed and plateau levels, varying <10% (regression analysis performed by analyzer's software), were recorded. Three or, if necessary, more (but not >7) exhalation maneuvers were performed at 2 min intervals. The mean of 3 reproducible FE_NO measurements was used to calculate online single breath FE_NO.

ATS guidelines advise testing with ambient NO (aNO) levels below 5 parts per billion (ppb). Because on one-third of the days aNO exceeded 5 ppb in Belgium, we used a cut-off value of 10 ppb.

Statistics

The correlation between online single breath and offline tidal breathing FE_NO values was assessed using Pearson correlation coefficients. Student's t-test was used for statistic analysis of differences in age between the groups, reporting mean values and standard deviations. Statistical analysis of nonparametric values was performed using Mann–Whitney U-test reporting median values and interquartile ranges (IQR). Bland and Altman statistics were used to compare the 2 methods of NO analysis.

Results

Of 66 children recruited, 59 with a mean age of 10.3 years (range 5.3–16.7 years) performed online and offline FE_NO measurements successfully. Seven children failed a successful online maneuver. Forty-nine children had a diagnosis of asthma: 39 of them were treated with inhaled corticosteroids, 5 with other asthma medication, and 5 had no maintenance therapy. Ten children had other pulmonary problems.

Median online single breath FE_NO value was 20.2 ppb (IQR 38.3 ppb): the highest value of 153.2 ppb was recorded in a boy with poor asthma control; the lowest of 2.9 ppb, in a boy who was in follow-up because of a pneumonia. Median offline tidal breathing FE_NO value was 8.7 ppb (IQR 8.3 ppb): the highest value of 35.4 ppb was recorded in the boy with the maximum online single breath FE_NO value; the lowest of 2.8 ppb was recorded in a girl with primary ciliary dyskinesia.

Online single breath FE_NO values (median of 23.7 versus 8.55 ppb; P = 0.002), as well as offline tidal breathing FE_NO values (median of 9.8 versus 6.5 ppb; P = 0.02) were significantly higher in asthmatic compared to nonasthmatic subjects (Table 1).

Table 1.

Subject Baseline Parameters and Fractional Exhaled Nitric Oxide Results for Single Breath and Tidal Breathing Techniques

	Total	Asthma	No asthma	P
No. of patients	59	49	10
Mean age (years)	10.3 (SD 3.1)	10.4 (SD 2.9)	9.8 (SD 3.7)	0.61^a
Male/female	42/17	38/11	4/6
Mean aNO (ppb)	4.1 (SD 1.9)	4.1 (SD 1.9)	3.9 (SD 2.1)	0.352^b
Median single breath FE_NO (ppb)	20.2 (IQR 38.3, range 2.9–153.2)	23.7 (IQR 42.8, range 3.5–153.2)	8.55 (IQR 2.82, range 2.9–50.3)	0.002^b
Median tidal breathing FE_NO (ppb)	8.7 (IQR 8.3, range 2.8–35.4)	9.8 (IQR 8.4, range 3.4–35.4)	6.5 (IQR 2.4, range 2.8–5.9)	0.020^b
Pearson correlation coefficient (r) offline versus online FE_NO	0.93 (P < 0.0001)	0.93 (P < 0.0001)	0.92 (P < 0.001)

aNO, SD, and IQR, used because of non-normal distribution of single breath FE_NO and tidal breathing FE_NO values.

Analysis by t-test.

Analysis by Mann–Whitney U-test.

aNO, ambient nitric oxide; FE_NO, fractional exhaled nitric oxide; IQR, interquartile range; ppb, parts per billion; SD, standard deviation.

Online single breath FE_NO values were significantly higher than offline tidal breathing FE_NO values (median 20.2 versus 8.7 ppb; P = 0.0001). There was strong correlation between online single breath FE_NO and offline tidal breathing FE_NO in the total group (Pearson correlation r = 0.93, P < 0.0001; Table 1) as well as in the asthmatic (r = 0.93; P < 0.0001) and nonasthmatic subgroups (r = 0.92; P < 0.001).

As shown in Fig. 1 there is a systematic error: the online single breath FE_NO value is always higher than the offline tidal breathing FE_NO value and as the average FE_NO value increases, the difference between both measurements increases. Thus, offline tidal breathing FE_NO systematically underestimates online single breath FE_NO.

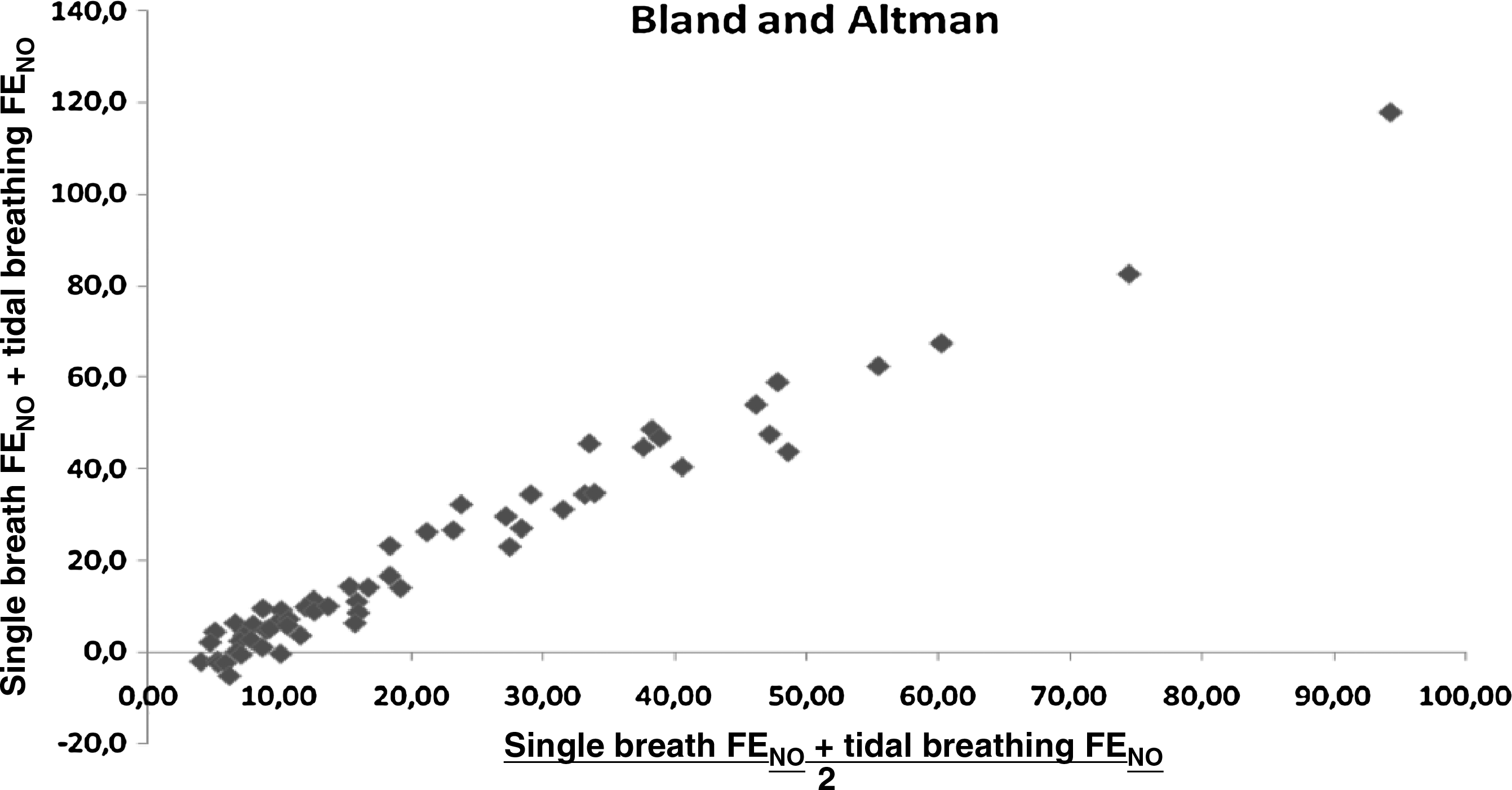

FIG. 1.

Bland and Altman plot. This plot shows a proportional error with increasing difference between the mean and the subtracted value with increasing values of fractional exhaled nitric oxide (FE_NO).

To predict online single breath FE_NO values from offline tidal breathing FE_NO values, we derived the following regression equation from our data: [online single breath FE_NO] = [4.0229 × offline tidal breathing FE_NO—12.932] (Fig. 2). Do note that this regression equation was derived from a sample with mild, well-controlled asthma. This equation may therefore well differ in a population with more severe asthma and/or with FE_NO measurements outside of the range observed in our sample. Also, the influence of age, sex, ethnicity, and other parameters on this equation was not able to be examined due to small sample size. To this purpose, studies in a larger sample should be performed.

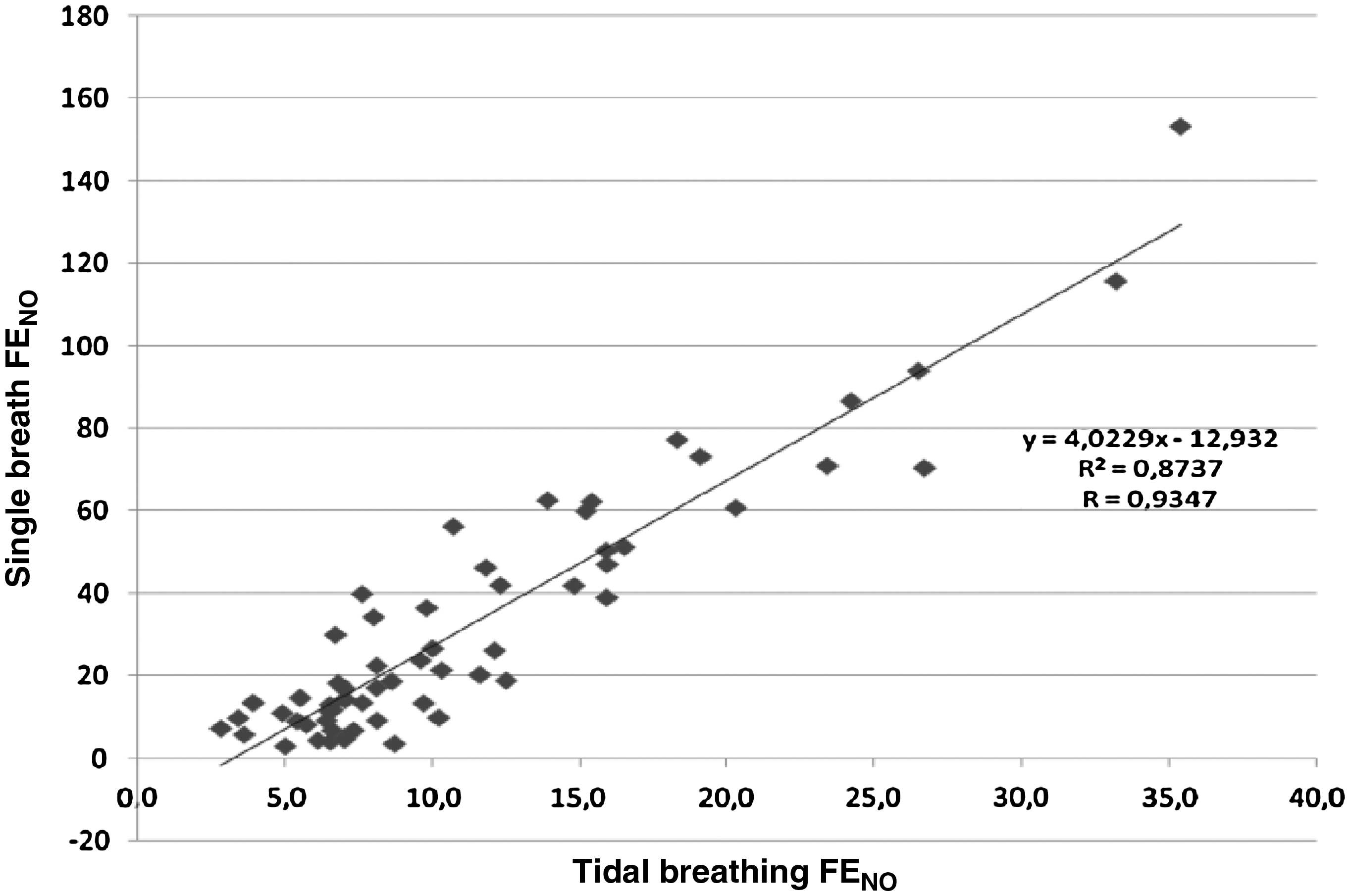

FIG. 2.

Correlation between single breath FE_NO and tidal breathing FE_NO. All FE_NO values are expressed in parts per billion. To predict online single breath FE_NO values from offline tidal breathing FE_NO values, the following equation was calculated: online single breath FE_NO = 4.0229 × offline tidal breathing FE_NO − 12.932. This equation has a correlation coefficient of 0.93.

Bland and Altman analysis of “measured” single breath FE_NO and “calculated” single breath FE_NO indicates that there is a moderate agreement between both, with a 95% confidence interval of −22 to +22 ppb for the difference between the measured and the calculated single breath FE_NO.

As for the influence of aNO, values obtained with aNO levels between 5 and 10 ppb were not different from values obtained with aNO levels below 5 ppb (median 10.8 versus 8.6 ppb; P = 0.286). The group with aNO >5 ppb contained 16 patients, the group of aNO <5 ppb, 43. For online measurements the median value was 18.6 ppb (IQR 10.35–46.1 ppb) with aNO <5 ppb versus 29.4 ppb (IQR 11.95–48.05 ppb) for aNO >5 ppb. For offline measurements the median value was 8.6 ppb (IQR 6.55–13.1 ppb) with aNO <5 ppb versus 10.8 ppb (IQR 7.45–15.9 ppb) with aNO >5. Moreover, aNO was not a plateau for the FE_NO measurements.

Discussion

We have shown an excellent correlation between online single breath and offline tidal breathing FE_NO measurements over a wide range of values in children able to perform both techniques. However, both methods yield different results because the offline values systematically underestimate the online values. This is probably caused by a much greater impact of air obtained from the large airways, including dead space, in offline values compared to online values.

Several groups have studied the correlation between online and offline techniques for sampling FE_NO^7,12–20 (Table 2). Most of the studies used offline techniques based on a slow vital capacity maneuver with or without flow restriction.^{7,12,14,17–19} In adults, the correlation between online single breath FE_NO and offline tidal breathing FE_NO values is already widely studied, and shows correlation coefficients between 0.63 and 0.99.^14,17–19 In this population it is easy to instruct the patients how to perform all the maneuvers correctly.

Table 2.

Overview of Literature Comparing Single Breath Fractional Exhaled Nitric Oxide and Tidal Breathing Fractional Exhaled Nitric Oxide

Author	Patients	Online FE_NO	FR	Range (ppb)	Offline FE_NO	FR	Range (ppb)	Agreement	Correlation coefficient
Paredi et al.¹⁷	74 adults	Single breath	Yes	1.0–69	Single breath	Yes	1.0–69	Mean difference −0.2	Not calculated
								95% CI −1.14 to 2.2
Silkoff et al.¹⁹	21 adults	Single breath	Yes	42.6–113.8	Single breath	Yes	30.9–9.3	Mean difference 0.71	Good: r = 0.931
								95% CI 0.66–0.77
Djupesland et al.¹⁴	10 adults	Single breath	Yes	133.2 ± 56.0 nL/min	Single breath	Yes	133.4 ± 56.1 nL/min	Mean difference −0.02	Very good: r = 0.99
								95% CI −0.76 to 0.72
Pijnenburg et al.¹⁸	19 adults	Single breath	Yes	6.0–109.6	Single breath	Yes	7.6–79.6	Mean difference 0.01	Very good: r = 0.95–0.98
								95% CI −0.22 to 0.24
Jöbsis et al.⁷	100 adolescents (12.0–16.1 years)	Single breath	Yes	Mean 15.1	Single breath	Yes	Mean 18.7	Mean difference −0.08	Not calculated
								95% CI −0.21 to 0.05 on a log scale
Barreto et al.¹²	87 children (5–18 years)	Single breath	Yes	Mean 13.8	Single breath	Yes	Mean 14.4	Mean difference 0.041	Very good: r = 0.996
								95% CI −0.22 to 0.27
Tadaki et al.²⁰	32 children (5–14 years) 41 adults (17–28 years)	Single breath	Yes	Children: 29.2–69.7 Adults: 42.4–69.6	Single breath	Yes	Children: 28.1–45.9 Adults: 37.9–59.9	Mean difference 0.10	Children r = 0.97 adults r = 0.98
								95% CI not calculated
Kissoon et al.¹⁶	112 children (6–18 years)	Single breath	Yes	Not reported	Single breath	Yes	Not reported	Mean difference −5	Good: r = 0.88
								95% CI −22 to +18
Buchvald and Bisgaard¹³	16 children (7–14 years)	Single breath	Yes	Not reported	Tidal breathing	No	Not reported, but probably low	Mean difference 1.66	Moderate: r = 0.70
								95% CI 0.5–5.3
Jöbsis et al.¹⁵	72 children (7.0–17.6 years)	Single breath	Yes	2.3–12.8 (median 5.0)	Single breath	No	2.2–17.2 (median 4.8)	Mean ratio 1.05	Moderate: r = 0.73
								95% CI 0.60–1.60
					Tidal breathing	No	2.7–20.0 (median 7.8)	Not reported	Bad: r = 0.53
Daniel et al.²¹	11 children (8–12 years)	Single breath	Yes	Median 6.9 (IQR 4.7–10.4)	Tidal breathing	No	Median 3.9 (IQR 3.1–4.4)	Mean difference 0.70	Not calculated
								95% CI −1.9 to 3.3

FR, flow restriction; 95% CI, 95% confidence interval.

In children, 4 studies report a correlation between online single breath and offline single breath FE_NO. Jöbsis et al.⁷ performed online and offline single breath maneuvers in a cohort of 100 children with a mean age of 14.1 years. He found a good agreement between both values when using a flow restrictor. Barreto et al.¹² also found an excellent correlation (r = 0.996) and a good agreement between online and offline single breath techniques in a group of 87 children with a mean age of 11.1 years. The range of the obtained values is not reported. Tadaki et al.²⁰ found an excellent correlation (r = 0.97) between online single breath FE_NO measurements and a modified offline single breath FE_NO measurement using flow restriction in a population of 32 children and 41 adults. A mean difference of 10% between both methods was found. Kissoon et al.¹⁶ report a good correlation (r = 0.88) between online single breath FE_NO and offline single breath FE_NO measurement using different flow restrictions in a population of 112 children. The close correlation between both techniques is logical since the breathing maneuver used to collect the sample is similar. The disadvantage of using vital capacity maneuvers for offline measurements is that this technique cannot be easily applied in young children.

Until now, few studies examined offline tidal breathing FE_NO techniques in children. Buchvald et al.¹³ showed a moderate correlation between offline tidal breathing FE_NO and online single breath FE_NO (r = 0.70) in a population of 16 school aged asthmatic children. The range of the obtained values is not reported. Jöbsis et al.,¹⁵ as well, showed a weak correlation between online single breath FE_NO and offline tidal breathing FE_NO (r = 0.53) in a population of 72 asthmatic children. In a study performed by Daniel et al.,²¹ offline tidal breathing FE_NO was compared to online single breath FE_NO in only 11 patients. They surprisingly showed no significant difference between both values, but a correlation was not calculated. Franklin et al.²² compared offline single breath FE_NO (raised volume rapid thoraco-abdominal compression technique) with offline tidal breathing FE_NO in a group of 71 children and found poor agreement between both methods and a moderate correlation (r = 0.60). The range of the obtained values is rather small.

A poorer correlation between offline and online tidal breathing measurement compared to the offline and online single breath methods is not surprising because of the admixture of dead space expirate during the offline tidal breathing method.

In our study, we simplified the previously reported offline tidal breathing method by omitting the use of a flow restrictor. Children were, however, coached to breathe slowly during the collection to avoid that they would take big breaths to quickly fill the whole balloon. We anticipated that in future studies in younger children, collection of tidal expirate during sleep would mimic this slow breathing pattern. A straightforward comparison between offline and online method in toddlers is not possible, as toddlers cannot perform the online maneuver.

Out of practical considerations we included measurements obtained during days of aNO concentrations of 5–10 ppb. We understand the importance of the guideline, but still, if on 1/3 days aNO does indeed exceed the 5 ppb limit, the practicality of this guideline becomes an issue. The fact that the measurements obtained on days with aNO concentrations between 5 and 10 ppb were not significantly higher is reassuring. As shown in Table 2, our data explore the correlation between offline tidal breathing FE_NO measurements and online single breath FE_NO measurements over a wide range of values in a pediatric population. Although we found a better correlation than in previous reports, we clearly document the important systematic error as well. The better correlation is potentially due to the larger sample size and the wider range FE_NO. Because of the close correlation between the obtained values, the proposed equation can be used to calculate online values corresponding to measured offline values, at least in a population of patients with mild well-controlled asthma. In spite of all the methodological efforts made with regard to FE_NO measurements, the value of FE_NO in clinical pediatric practice is still a matter of debate.^23–25

In conclusion, we here present data showing that offline tidal breathing measurements are feasible in children 5–16 years and that the results correlate well with the FE_NO obtained in online single breath maneuvers.
