Characterization and Comparison of Canine Multipotent Stromal Cells Derived from Liver and Bone Marrow

Abstract

Liver-derived multipotent stromal cells (L-MSCs) may prove preferable for treatment strategies of liver diseases, in comparison to the widely studied bone marrow-derived MSCs (BM-MSCs). Canines are a large animal model, in which the pathologies of liver diseases are similar to man. This study further promotes the implementation of canine models in MSC-based treatments of liver diseases. L-MSCs were characterized and compared to BM-MSCs from the same individual. Both cell types demonstrated a spindle-shaped fibroblast-like morphology, possessed the same growth potential, and demonstrated similar immunomodulation gene expression of CD274, PTGS-1, and PTGS-2. Marked differences in cell surface markers, CD105 and CD146, distinguished these two cell populations, and L-MSCs retained a liver-specific imprinting, observed by expression of CK18 and CK19. Finally, both populations differentiated toward the osteogenic and adipogenic lineage; however, L-MSCs failed to differentiate into the chondrogenic lineage. In conclusion, characterization of canine L-MSCs and BM-MSCs demonstrated that the two cell type populations are highly comparable. Although it is still unclear which cell source is preferred for clinical application in liver treatment strategies, this study provides a foundation for future controlled studies with MSC therapy in various liver diseases in dogs before their application in man.

Introduction

Multipotent stromal cells (MSCs) or mesenchymal stem cells [1] are considered one of the best eligible sources for cell therapy. Although first described in the bone marrow, later studies demonstrate that MSCs exist in almost every tissue (eg, adipose tissue [2], umbilical cord blood [3], muscle tissue [4], neuronal tissue [5], and more recently liver tissue [6,7]). Due to their immunosuppressive and tissue remodeling properties, MSCs are a promising therapeutic tool in a variety of diseases, including liver disease [8].

Currently, the only curative treatment for severe or end-stage liver diseases is liver transplantation. However, the shortage of donor livers remains a problem and 20% of these patients die before receiving a transplant [9]. Alternatives are therefore needed to treat the increasing number of patients with liver diseases. MSC-based therapy has been shown to be safe and decrease mortality in patients with acute types of liver disease [10]. In addition, MSCs may be a potential therapy for improving liver function [11] and prevent allograft rejection [12]; in particular, these cells may have beneficial effects on hepatocyte proliferation, angiogenesis, tissue repair, and immunomodulation [13,14]. Moreover, MSCs synthesize a wide variety of growth factors and cytokines, including VEGF, TGF-β, TNF-α, HGF, and IL-6, which indirectly aid liver regeneration [15].

Liver-derived MSCs (L-MSCs) were recently discovered and isolated from the preservation fluid of human liver grafts and have hepatocyte differentiation potential as well as immunomodulatory effects. These characteristics render these cells preferable for a potential use in treatment strategies of liver diseases [6]. As these cells carry the genetic imprint of liver cells, their contribution to ameliorating liver disease, both immunosuppression and hepatic differentiation, could be greater compared to the widely studied bone marrow-derived MSCs (BM-MSCs).

To investigate the suitability of MSCs for clinical application, a large animal model is required. Canines are generally accepted as a valid large animal model [16] as the manifestation of liver diseases in dogs is similar to man [17 –19]. In addition, dogs are recommended as a translational model for various treatment strategies [20 –22].

This study was performed to characterize canine L-MSCs and compare them to BM-MSCs to assist the implementation of the canine model in MSC-based treatment of liver diseases. Notably, by using MSCs derived from the liver and bone marrow of the same individual animal, an in-depth comparison between the two MSC sources can be made without potential confounding effects of individual variation. Characterization of the two tissue sources was based on the minimal criteria formulated by the International Society for Cellular Therapy (ISCT [23]); growth rate and anti-inflammatory properties were also compared.

Materials and Methods

Animals

Livers and crude bone marrow extracts were obtained from 10 healthy dogs, euthanized for unrelated experiments, according to Utrecht University's 3R policy. All experiments were approved by the Ethics Committee of Animal Experimentation of the Utrecht University as required under Dutch legislation. Microscopic abnormalities of the liver were excluded by histopathological examination of formalin-fixed, paraffin-embedded, and hematoxylin/eosin-stained liver sections by a board-certified veterinary pathologist.

Cell sampling and culture

BM-MSCs were obtained from the diaphysis of the humerus and/or femur. After disinfecting the skin with chlorhexidine (HiBiscrub; Molnlycke Health Care), an incision was made and the diaphysis removed with an oscillating saw. To collect bone marrow, each diaphysis was flushed and curetted with heparinized α-minimum essential medium (α-MEM) (Gibco; Life technologies) supplemented with 10% fetal bovine serum gold (FBS, high performance, 16000-044; Gibco) and 1% penicillin/streptomycin (PAA Laboratories). Bone marrow was seeded at 100–150 × 10⁶ cells per T175 culture flask (Greiner Bio-One, CELLSTAR^®). After 24 h, nonadherent cells and cell debris were washed with Hanks balanced salt solution (HBSS; Gibco) with 2% FBS and further expanded in an expansion medium consisting of α-MEM, 10% FBS, 1% penicillin/streptomycin, 0.05% Fungizone (Invitrogen), 0.1 mM ascorbic acid-2-phosphate (Sigma), 10⁻⁹ M dexamethasone (Sigma), and 1 ng/mL bFGF (AbD Serotec). Cells were incubated at 37°C in a humidified atmosphere containing 5% CO₂. On average, cells reached 80% confluency within 7 days and then were cryopreserved in α-MEM, 10% DMSO, and 10% FBS. After thawing, cells were seeded at 6 × 10³ cells/cm² and expanded up to passage 6, followed by cryopreservation of passages 2 and 4 until further analysis [gene expression profiling and fluorescent-activated cell sorting (FACS) analysis].

L-MSCs were obtained through enzymatic digestion of liver tissue. Livers were excised aseptically from cadavers and wedge biopsies placed in cold HBSS. Immediately after surgical sampling, wedge biopsies were minced and frozen in multiple cryovials (average 1.9 g of tissue per vial) in Dulbecco's modified Eagle's medium (DMEM)/F12 (Gibco; Life technologies) with 40% FBS and 10% DMSO. Frozen samples were thawed at 37°C for 5 min and briefly washed and digested with 50 U/mL collagenase type II (Worthington) in α-MEM for 1 h in a 37°C water bath. Cells then were collected by low-speed centrifugation (50 g, 10 min), plated in a six-well plate in the expansion medium also used for BM-MSCs, and cultured at 37°C under humidified conditions containing 5% CO₂. After 24 h, nonadherent cells and cell debris were washed away with prewarmed HBSS and the expansion medium was added. Medium was changed twice a week and cells passed using trypsin for 5 min at 37°C. For each passage, cells were seeded at a density of 6 × 10³ cells/cm².

Population doubling assay

A population doubling (PD) assay was performed to establish growth potential; L-MSCs and BM-MSCs were seeded at a density of ∼6 × 10³ cells/cm². Every third day, cells were trypsinized, counted, and seeded again at the same seeding density of 6 × 10³ cells/cm². A PD estimation was calculated using the following formula (Hayflick): PD = log(Nf) − log(Ni)/log2 [24], where PD computes the number of cell divisions that occur in each passage (∼3 days), Nf corresponds to cell number on the third day, and Ni is the initial seeding number of cells. The cumulative PD corresponds with the total number of estimated divisions up to that passage.

RNA sampling and analysis

Total RNA was isolated from L-MSC and BM-MSC cultures at different passages (from passage 0 to 4), using an RNeasy Mini Kit (Qiagen) with on-column DNase digestion. RNA quantity was determined using NanoDrop ND-1000 (Thermo Fisher Scientific). Pooled RNA, isolated from normal liver tissue and crude bone marrow extract, was used as a reference. After isolation, cDNA was created with the iScript cDNA Synthesis Kit (Bio-Rad). RNA input for each sample was set at 350 ng/μL. PerlPrimer v1.1.14 was used for primer design on Ensembl annotated transcripts, and the amplicon was tested for secondary structures using MFold [25]. Gradient polymerase chain reactions (PCRs) were performed to determine the optimum temperature for obtaining 100% PCR efficiency. Primer specificity was validated in silico (BLAST specificity analysis) and empirically (DNA sequencing and melting profiles). Quantitative PCRs (qPCRs) were performed in duplicate containing iQ SYBR Green Supermix (Bio-Rad), 0.4 μM primer, and 4 μL of 50× diluted cDNA. Four reference genes were used for normalization, ribosomal protein S19 (RPS19), ribosomal protein L13 (RPL13), hypoxanthine phosphoribosyltransferase 1 (HPRT), and β-2-microglobulin (B2MG) [26], and were chosen based on their high stability as established by GeNorm [27]. Primers for reference genes and genes of interest, including optimum temperatures, are listed in Table 1. All experiments were conducted with a C1000 Touch™ Thermal Cycler (Bio-Rad). Specificity of the amplicons was confirmed with a melt curve analysis at the end of the PCR for each sample, and a 4-fold standard dilution series of a pool containing all samples was used to determine relative expression. Data analysis was performed with CFX Manager™ software (Bio-Rad), and expression levels were normalized using the average relative amount of the reference genes.

Table 1.

Quantitative PCR Primers Specifics

Gene	Sequence	Accession number	Amplicon	Temperature (°C)
CD105	CAT-CCT-TCA-CCA-CCA-AGA-G	ENSCAFG00000020106	139	60
	CAG-ATT-GCA-GAA-GGA-CGG
CD90	CAG-CAT-GAC-CCG-GGA-GAA-AAA-G	ENSCAFG00000029265	134	63.5
	TGG-TGG-TGA-AGC-CGG-ATA-AGT-AGA
CD166	AAG-CGT-CAT-AAA-CCA-AAC-AG	ENSCAFG00000009721	150	61
	TAT-AGC-AGA-GAC-ATT-CAA-GGA-G
CD29	GAT-GCC-TAC-AAC-TCC-CTT-TCC-TCA	ENSCAFT00000006178	118	60
	CAT-TTT-CCC-CTG-TTC-CAT-TCA-CC
CD73	CTC-CAA-CAC-ATT-CCT-TTA-CAC	ENSCAFG00000002994	150	61
	ACT-CAA-CCT-TCA-AAT-AGC-CT
CD44	CTT-CTG-CAG-ATC-CGA-ACA-CA	ENSCAFG00000006889	147	60
	GAG-TAG-AAG-CCG-TTG-GAT-GG
CD45	GAC-CAT-GGG-GTG-CCT-GAA-GAT	ENSCAFG00000011265	90	60
	CAC-AAT-GGG-GCC-ACT-GAA-GAA-G
CD235a	AAG-CAG-GTT-TCA-TTT-CCA-CAG-	ENSCAFG00000031944	152	60
	TCC-CTA-TTA-TCA-CTG-GTT-CAG-AG
CD11b	ACT-CAG-ACA-GGA-AGT-AGC-A	ENSCAFG00000016881	210	61
	CAG-CAT-AAC-CCA-AGT-AAG-CA
CD14	CCC-GGC-GCT-CAC-CAC-CTT-AGA-C	ENSCAFG00000005852	98	60
	CCT-GGA-GGG-CCG-GGA-ACT-TTT-G
CD19	CAA-GAC-CAA-CTC-TCC-CAG	ENSCAFG00000017303	111	60
	CCT-CAT-TCT-CGT-AAG-ACT-CAG
CD144	GAT-ATT-CCA-TCC-GCA-AGA-CC	ENSCAFG00000020413	137	61
	AAT-CCA-GTT-CTT-TAG-CCT-CCA
CK18	TTG-CTA-CCT-ACC-GTC-GCC-TGT-TGG	ENSCAFG00000007154	109	63.5
	ATC-TTG-CGG-GTG-GTG-GTC-TTC-TGG
CK19	GCC-CAG-CTG-AGC-GAT-GTG-C	ENSCAFT00000025270	86	63.5
	TGC-TCC-AGC-CGT-GAC-TTG-ATG-T
ALB	TGT-TCC-TGG-GCA-CGT-TTT-TGT-A	ENSCAFT00000004843	92	63.5
	GGC-TTC-ATA-TTC-CTT-GGC-GAG-TCT
ONECUT1	ACC-CTG-GAG-CAA-ACT-CAA-GTC	ENSCAFG00000015867	134	58
	CCT-TCC-CAT-GTT-CTT-GTT-CTT-TCC
NANOG	CAA-GCA-CCC-AAC-TCT-AGG	ENSCAFG00000031047	150	64.5
	GTC-CTG-AGT-AAG-CAG-ATC-C
OCT4	ACG-ATC-AAG-CAG-TGA-CTA-TTC-G	ENSCAFG00000000485	158	64.5
	GAG-GGA-CTG-AGG-AGT-AGA-GCG-T
SOX2	AAC-CCC-AAG-ATG-CAC-AAC-TC	ENSCAFG00000011642	152	61
	CGG-GGC-CGG-TAT-TTA-TAA-TC
LGR5	AGT-CGA-TAC-CGG-AGA-AAG-CA	ENSCAFG00000000451	139	61
	GAG-GCA-CCG-TTC-AGA-GTC-A
LIN28	CCA-CCC-CAG-CCC-AAG-AA	ENSCAFG00000012488	66	61
	CAG-TGG-ACA-CGA-GGC-TAC-CA
CD133	CTG-GGG-CTG-CTC-TTT-GTG-AT	ENSCAFT00000044445	115	60.5
	AGG-CCC-CAT-TTT-TCT-TCT-GTC
CD74	CTG-CCC-ATT-CAA-AGC-CTG	ENSCAFG00000018101	197	64
	GTT-CTC-AAA-GAC-CTT-CCA-ATC-C
CD274	CGT-TCC-AGC-AAG-TGA-GAG	ENSCAFG00000002120	115	64
	CCA-CAT-CCA-TCA-TTC-TCC-C
PTGS-1	GTT-CCT-GTT-CAA-CAC-CTC-C	ENSCAFG00000020263	105	61
	GTC-TAT-GTT-TCT-ACC-TCC-ACC
PTGS-2	GTA-TGA-GCA-CAG-GAT-TTG-AC	ENSCAFG00000013762	149	60
	TGA-AGT-GGG-TAA-GTA-TGT-AGT-G
CD146	GGG-AAT-GCT-GAA-GGA-AGG	ENSCAFG00000012079	99	63
	CTT-GGT-GCT-GAG-GTT-CTG
RPS19	CCT-TCC-TCA-AAA-AGT-CTG-GG	ENSCAFG00000001608	95	62
	GTT-CTC-ATC-GTA-GGG-AGC-AAG
RPL13	GCC-GGA-AGG-TTG-TAG-TCG-T	ENSCAFG00000019840	87	62
	GGA-GGA-AGG-CCA-GGT-AAT-TC
B2MG	TCC-TCA-TCC-TCC-TCG-CT	ENSCAFG00000013633	85	62
	TTC-TCT-GCT-GGG-TGT-CG
HPRT	AGC-TTG-CTG-GTG-AAA-AGG-AC	ENSCAFG00000018870	104	58
	TTA-TAG-TCA-AGG-GCA-TAT-CC

PCR, polymerase chain reaction.

Differentiation potential, osteogenic differentiation

For osteogenic differentiation, L-MSCs were plated at 3,000 cells/cm² and BM-MSCs at 1,000 cells/cm² in 12-well plates (Greiner Bio-One, CELLSTAR). BM-MSCs were seeded at a lower density to prevent cell detachment due to over confluence (occurs after 2 weeks of culture). For 21 days, cells were supplemented with an osteogenic-inducing medium twice a week, consisting of DMEM high glucose (Invitrogen), 10% FBS, 1% penicillin/streptomycin, 0.1 mM ascorbic acid, 10⁻⁷ M dexamethasone, and 10 mM β-glycerol-phosphate. Control wells were seeded at the same density and received expansion medium for 21 days. After 21 days, duplicates of the osteogenic-differentiated and control wells were collected in 350 μL RLT (Qiagen) for RNA analysis as described above. In addition, duplicates of both conditions were stained after fixation, for 30 min at RT with 2% Alizarin Red, pH 4.1–4.3 (Sigma), for histological and morphological evaluation of calcium deposits. Images were acquired using an Olympus BX60 microscope with a ColorView III digital camera and cell imaging software (Olympus).

Differentiation potential, adipogenic differentiation

For adipogenic differentiation, cells were plated at 150,000 cells/cm² in 12-well plates (Greiner Bio-One, CELLSTAR) and an adipogenic-inducing medium was added when a confluency of 90%–100% was reached. For 21 days, an adipogenic-inducing medium was added [DMEM high glucose, 10% FBS, 1% penicillin/streptomycin, 0.1 mM ascorbic acid, 10⁻⁶ M dexamethasone, 0.2 mM indomethacin (Sigma), 0.5 mM 1 methyl-3-isobutyl xanthine (IBMX; Sigma), and 0.1 mg/mL insulin (Sigma)]. Control wells were seeded at the same density and received expansion medium for 21 days. Medium changes were performed twice a week. After 21 days, duplicate adipogenic-differentiated wells and duplicate control wells were collected for each donor in 350 μL RLT for RNA analysis as previously described. In addition, duplicates of both conditions were stained after fixation for 20 min at RT with 0.3% Oil Red O (Sigma); lipid droplets were identified with light microscopy (Olympus Bx60 microscope).

Differentiation potential, chondrogenic differentiation

For chondrogenic differentiation, cells were cultured in a three-dimensional pellet culture: 200,000 cells were suspended in 0.2 mL of chondrogenic-inducing differentiation medium, consisting of DMEM high glucose, 1% penicillin/streptomycin, 1% ITS+ premix (354352; BD), 0.04 mg/mL proline (Sigma), 0.1 mM ascorbic acid, 0.1 μM dexamethasone, and 10 ng/mL TGF-β1 (240-B-002; R&D Systems). The pellets of the control group were suspended at the same density in 0.2 mL of chondrogenic differentiation medium without TGF-β1. Initially, L-MSC chondrogenesis was not induced; therefore, in a follow-up experiment, we cultured L-MSC pellets in the presence of TGF-β1 (10 ng/mL) and BMP-2 (250 ng/mL; R&D). The suspensions were placed in a 96-well round-bottom polystyrene plate (Corning Costar 7007) resulting in ultralow attachment of the cells, which was centrifuged for 5 min at 1,500 rpm at RT. Medium was changed every day for 2 weeks and thereafter every other day for another week. After 21 days, three pellets were collected from every condition for RNA isolation and qPCR analysis and two pellets for histological evaluation. We stained 5 μm thick sections with 0.125% Safranin O (Sigma) for proteoglycans in cartilage and counterstained with 0.4% Fast Green (Sigma); differentiation status was assessed by staining and morphology of the cell pellet.

Gene expression analysis of differentiated cell populations

Specific cell lineage tracing primers (Table 2) were selected and designed for each of the differentiation lineages. Genes included in this study were as follows: adipogenic differentiation marker, Adiponectin (ADIPOQ); osteogenic markers, Osteonectin (SPARC), Osteocalcin (BGLAP), and Osteopontin (SPP1); chondrogenic markers, SOX9, Collagen type IIa (COL2α1), Aggrecan (ACAN), and Collagen type X (COLX) [28]. Five reference genes were required for reliable normalization as assessed by GeNorm analysis [27]: ribosomal protein L8 (RPL8), glucuronidase beta (GUSB), ribosomal protein S5 (RPS5), B2MG, succinate dehydrogenase complex, and subunit A (sDHA).

Table 2.

Quantitative PCR Primers (Differentiation Potential Assessment)

Gene	Sequence	Accession number	Amplicon	Temperature (°C)
Adipogenic lineage
ADIPOQ	AGA-GAA-AGG-AGA-TGC-AGG-T	NM_001006644	141	62
	CGA-ACG-GTG-TAC-ATA-GGC
Osteogenic lineage
SPARC	TCT-GTA-TGA-AAG-GGA-TGA-GGA-C	XM_849889	82	64
	TCT-GTA-TGA-AAG-GGA-TGA-GGA-C
SPP1	GAA-TGC-TGT-GCT-GAC-TGA-GG	XM_003434024	113	66–67
	TGG-CTA-TCC-ACA-TCG-TCT-CC
BGLAP	CTGA-TGG-TCC-TTG-CCC-T	XM_547536	116	60–63
	CTT-GGA-CAC-GAA-GGT-TGC
Chondrogenic lineage
ACAN	GGA-CAC-TCC-TTG-CAA-TTT-GAG	NM_001113455	110	60–61
	GTC-ATT-CCA-CTC-TCC-CTT-CTC
COL2α1	GCA-GCA-AGA-GCA-AGG-AC	NM_001006951	150	60.5–65
	TTC-TGA-GAG-CCC-TCG-GT
SOX9	CGC-TCG-CAG-TAC-GAC-TAC-AC	NM_001002978	105	62–63
	GGG-GTT-CAT-GTA-GGT-GAA-GG
COL10	CCA-ACA-CCA-AGA-CAC-AG	XM_849417	80	61
	CAG-GAA-TAC-CTT-GCT-CTC
Reference genes
RPL8	CCA-TGA-ATC-CTG-TGG-AGC	XM_532360	64	55
	GTA-GAG-GGT-TTG-CCG-ATG
GUSB	AGA-CGC-TTC-CAA-GTA-CCC-C	NM_001003191	103	62
	AGG-TGT-GGT-GTA-GAG-GAG-CAC
RPS5	TCA-CTG-GTG-AGA-ACC-CCC-T	XM_533568	141	62.5
	CCT-GAT-TCA-CAC-GGC-GTA-G
B2MG	TCC-TCA-TCC-TCC-TCG-CT	AB745507	85	61 + 63
	TTC-TCT-GCT-GGG-TGT-CG
SDHA	GCC-TTG-GAT-CTC-TTG-ATG-GA	DQ402985	92	61
	TTC-TTG-GCT-CTT-ATG-CGA-TG

FACS analysis

Cell fractions were collected during passages 2 and 4 for cell sorting purposes; a minimum of 5 × 10⁵ cells were cryopreserved in α-MEM, 40% FBS, and 10% DMSO for FACS analysis. Fractions were seeded for 2–3 days in expansion medium before analysis. After culture, cells were trypsinized and counted and a minimum of 50 × 10³ to a maximum of 100 × 10³ cells per reaction were used for each condition. Cells were washed in phosphate-buffered saline (PBS, pH 7.4) and resuspended in 50 μL of FACS buffer (PBS, 10% FBS, and 0.1% w/v sodium azide). At this point, cells were incubated with the respective antibodies or controls (Table 3) for 30 min on ice and then washed twice with FACS buffer to remove the nonbonded antibody. 7-Amino-actinomycin D (7AAD, 0.25 μg/test; BD Biosciences) was added before analysis to select for dead cells. All used antibodies were phycoerythrin (PE) labeled. Data were collected with the FACS Diva software (version 8.0) on a CANTO II (BD Biosciences) and analysis performed with FlowJo software (www.flowjo.com/).

Table 3.

List of Antibodies Included in the FACS Analysis

Target	Host	Reactivity	Manufacturer	Catalog number
CD105	Rabbit	Dog–Pig	Antibodies online	ABIN888668
CD90	Rat	Dog	eBioscience	12-5900-42
CD29	Mouse	Human–Cow–Dog	BioLegend	303004
CD166	Rabbit	Human–Mouse–Rat–Cow–Dog–Pig–Horse–Chicken	Antibodies online	ABIN673954
CD45	Rat	Dog	LSBio	LS-C127720
Rat IgGk	Rat	—	eBioscence	12-4031-82
Rabbit IgGk	Rabbit	—	Antibodies online	ABIN376422
Mouse IgGk	Mouse	—	BioLegend	400112

FACS, fluorescent-activated cell sorting.

Statistical analyses

For all statistical analyses, R statistical software 2.15 was used.

Doubling time of L-MSCs and BM-MSCs during the first six passages was analyzed by a linear mixed model, containing fixed and random effects. Parameters chosen as fixed effects consisted of “cell type” (BM-MSC or L-MSC), “donor age” (puppy or adult), and “the passage”; “donor” was added as a random effect. The best fitting model was chosen based on the Akaike information criterion (AIC). Normal distribution of the data was assessed and confirmed by analyzing the QQ plot of the acquired model. Differences were considered to be significant if a difference of zero (no difference) could not be found in the 99% confidence interval to correct for multiple comparisons.

A proportional hazard model was used for analysis of gene expression of the surface markers. This model can provide an estimate of the treatment effect on gene expression levels, with the possibility to explore other explanatory variables. In the case of gene expression analysis by qPCR, the survival time is the number of qPCR cycles needed before the detection threshold is reached, also referred to as C_q value. If the cDNA concentration in a sample is below the detection threshold, the sample is censored in the last time interval (at 45 cycles).

Possible independent variables associated with survival time were fixed variables: cell type, donor age, and passage number. Correlation between samples of the same donor was taken into account by adding a random donor effect to the model. To correct sample variation, C_q values of the mean of the reference genes were added as a covariate. If the proportional hazard assumption was violated with noticeable deviations, models were optimized by using the C_q value/reference gene Ct value ratio instead of incorporating the reference gene C_q value as a covariate. Model selection was based on the lowest AIC. Regression coefficients (b) of the variable were estimated by the maximum likelihood method. Hazard ratios (eb) were considered significant if 1 was not included in the confidence interval. The model was corrected for multiple comparisons by adjusting the confidence interval for the number of comparisons.

Results

Isolation and culture of MSCs

Both L-MSCs and BM-MSCs were plastic adherent and displayed a spindle-shaped fibroblast-like morphology (Fig. 1A). Colony formation units (CFU) were observed within 2 days after isolation. Growth potential was established with a PD assay. No differences were observed between the cell populations (Fig. 1B) and age groups. In the L-MSC population, a decline of the PD was seen in later passages; the PD in the first passage was significantly higher compared with passages 3, 4, 5, and 6 (Supplementary Fig. S1; Supplementary materials are available online at http://www.liebertpub.com/scd). The PD in passage 2 was significantly higher compared with passages 5 and 6. This decline was not seen in the BM-MSC population, where the only difference observed was in passage 4, in which the PD was significantly lower compared to passage 1 through 5 (Supplementary Fig. S1).

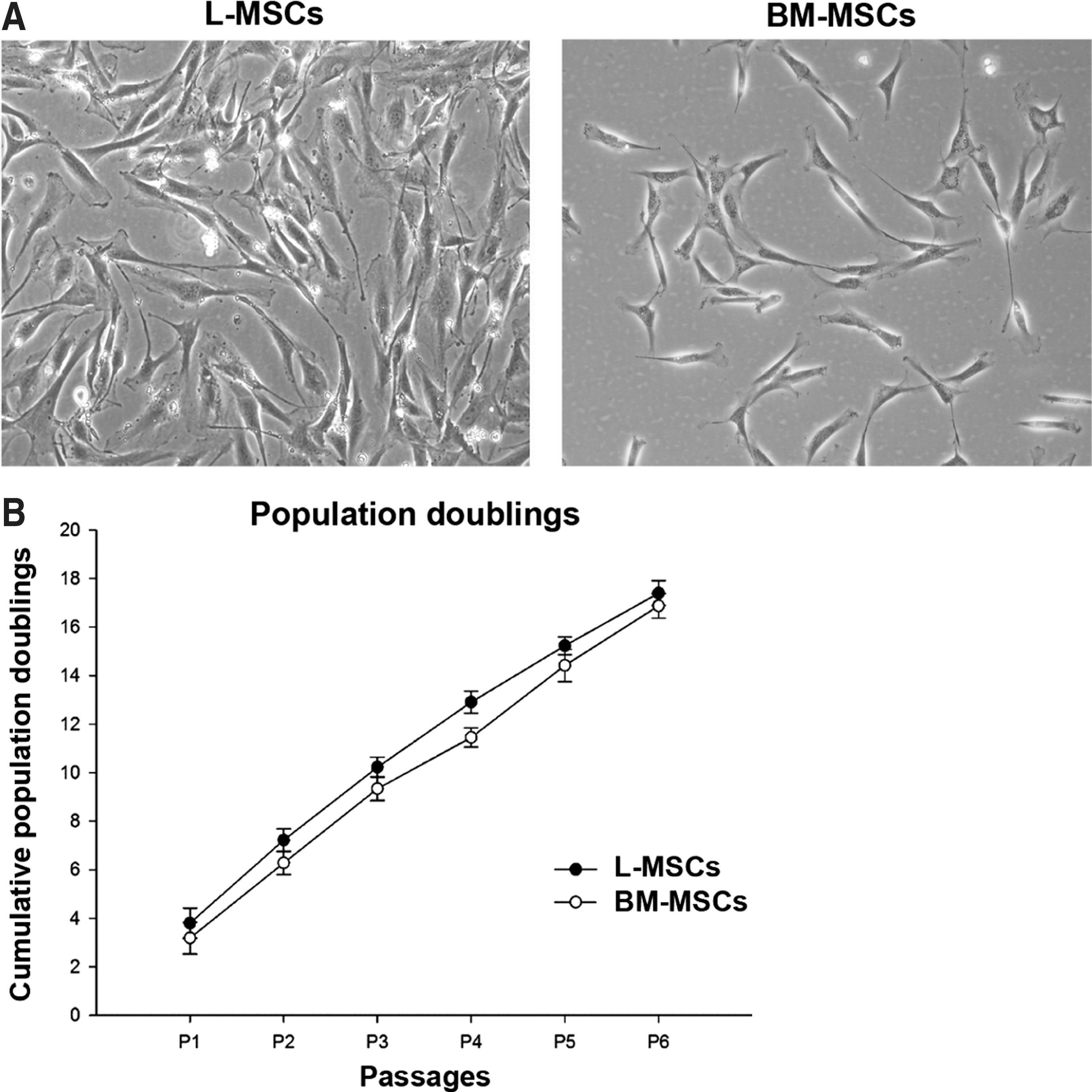

FIG. 1.

Canine multipotent stromal cell morphology and proliferation rate. (A) Representative picture of liver-derived multipotent stromal cells (L-MSCs) and bone marrow-derived MSCs (BM-MSCs) with a spindle-shaped fibroblast-like morphology, passage 3. Original magnification 100×. (B) Cumulative population doubling of L-MSCs (black dots, n = 10) and BM-MSCs (white dots, n = 10). The population doubling of the L-MSCs did not significantly differ compared to BM-MSCs and had an average population doubling per passage of 2.75 ± 0.74.

Gene expression profiling

According to the ISCT, MSCs should express CD105, CD90, and CD73 and lack expression of CD45, CD34, CD14 or CD11b, CD79α or CD19, and HLA-DR [23]; several other markers, which were included in this study, have also been described [29]. In this study, antigen expression profile was assessed by qPCR and FACS analysis.

Expression analysis indicated a significant upregulation of CD105 and CD146 in L-MSCs compared to BM-MSCs in all passages. The other MSC markers (CD90, CD166, CD29, CD73, and CD44) were present in both L-MSCs and BM-MSCs and did not differ between groups (Fig. 2). For both cell types, the gene expression profile of surface markers between passages was generally stable, with the exception of CD90, where a significant upregulation was observed in BM-MSCs in passage 3 compared with other passages. In addition, in both cell types, CD73 and CD44 expression was lower, but still detectable, compared to the other CD markers; there were no significant differences between groups. No differences were found between age groups for all markers.

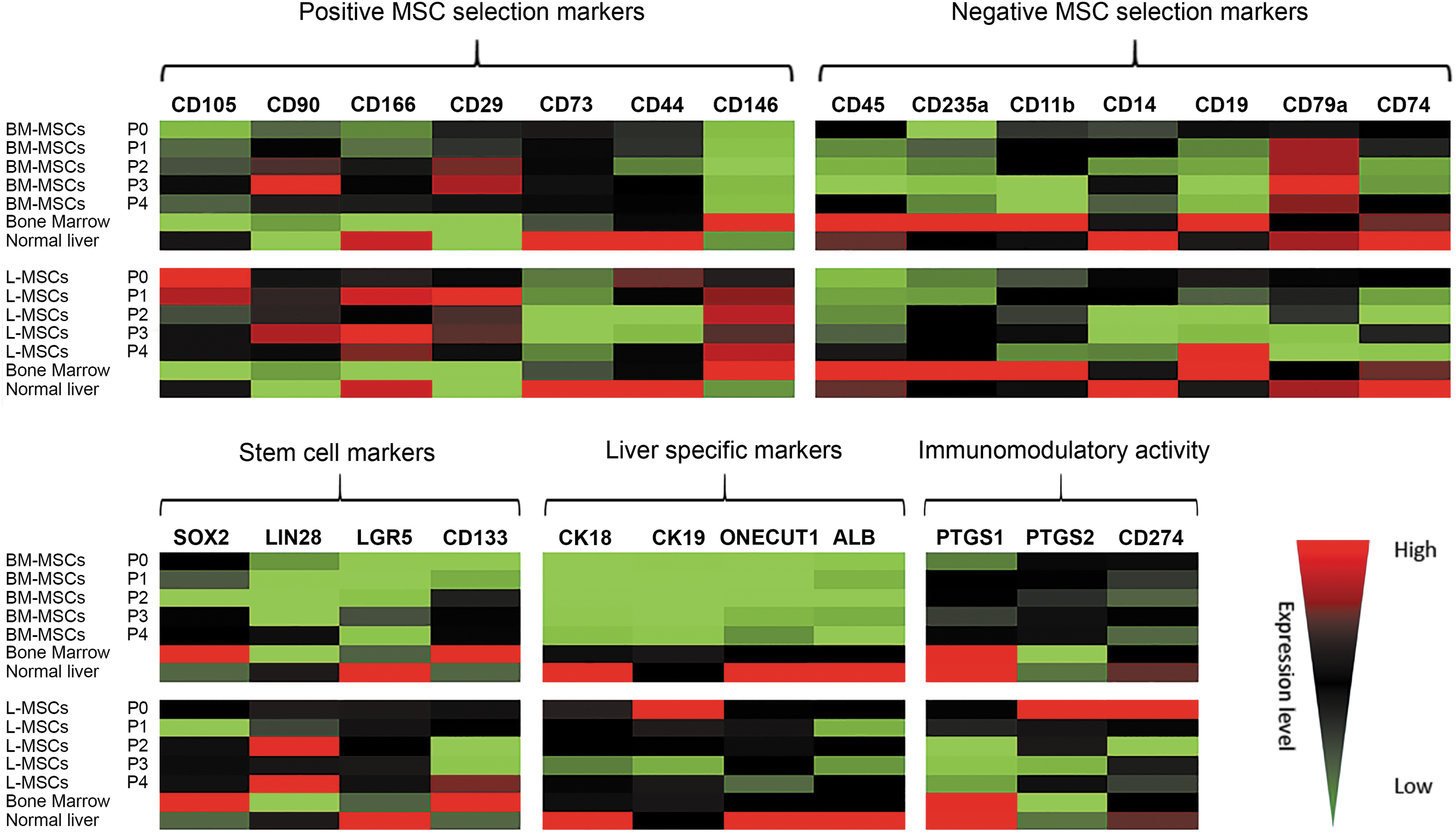

FIG. 2.

Quantitative PCR (qPCR) on L-MSCs (n = 10) and BM-MSCs (n = 10) per passage. Heat map generated by qPCR analysis on genes, including positive and negative markers for MSC selection, liver-specific markers, stemness properties, and modulatory activity-associated markers. RNA derived from normal liver (n = 2) and crude bone marrow extracts (n = 3) was used as a control.

Negative markers (CD45, CD235A, CD11b, CD14, CD19, CD79a, and CD74) were used to test the presence of other cell types in the MSC cultures. CD45 and CD235a are specifically expressed in differentiated hematopoietic cells and erythrocytes, respectively. CD11b and CD14 are both expressed by macrophages, and CD19 is a lymphocyte marker. CD74 (DLAGR/HLA-DR) corresponds to the canine invariant chain of the major group of histocompatibility class II (MHC-II) and is confirmed to be negative in undifferentiated MSCs. These negative markers were not detected in either BM-MSCs or L-MSCs, regardless of the passage (Fig. 2). For CD14, a significantly higher expression level was detected in the first passage (passage 0) compared with the other passages in the L-MSC population, indicating that a heterogeneous culture was abolished after passage 0.

Furthermore, gene expression levels of BM-MSCs and L-MSCs were compared by qPCR analysis for a multitude of markers investigating gene expression differences based on positional imprinting, including liver-specific markers (CK18, CK19, ONECUT1, and ALB), stemness properties (SOX2, LIN28, LGR5, and CD133), and modulatory activity-associated markers (PTGS-1, PTGS-2, and CD274). L-MSCs appear to retain a liver-specific imprinting by expression of markers such as CK18 (hepatocyte marker) or CK19 (liver progenitor cell marker). Expression of these markers was detectable in L-MSCs but not BM-MSCs. Although the difference between the cell types remained significant during the different passages, passages 2 and 3 showed a significantly lower expression of CK18 compared with passage 0. Expression of ALB or ONECUT1 was not detected in any of the groups.

Low levels of stem cell marker expression (SOX2, LIN28, LGR5, and CD133) were detectable by qPCR for all markers that were included. When compared to positive control liver samples, expression of LGR5 was minimally detectable in L-MSCs and absent in the bone marrow. In addition, embryonic stem cell markers (OCT4 and NANOG) were tested but were not detectable in both sample groups (data not shown). Finally, the expression of CD274 (PDL-1), PTGS-1, and PTGS-2 genes, involved in immunomodulatory prostaglandin production and signaling pathways, was not different between the different cell groups and passages.

Cell differentiation assays

L-MSCs and BM-MSCs were cultured, after expansion up to passage 2, in osteogenic, adipogenic, and chondrogenic differentiation medium.

Osteogenic differentiation

During osteoblast differentiation, cells gradually adapted a more round polygonal appearance and small nodules started appearing between 1 and 2 weeks, depending on the donor. After 21 days, Alizarin Red staining demonstrated mineral deposits characteristic for osteogenic differentiation. Large mineralized noduli were present in BM-MSCs, while L-MSC donors presented primarily a higher amount of small mineralized noduli (Fig. 3A).

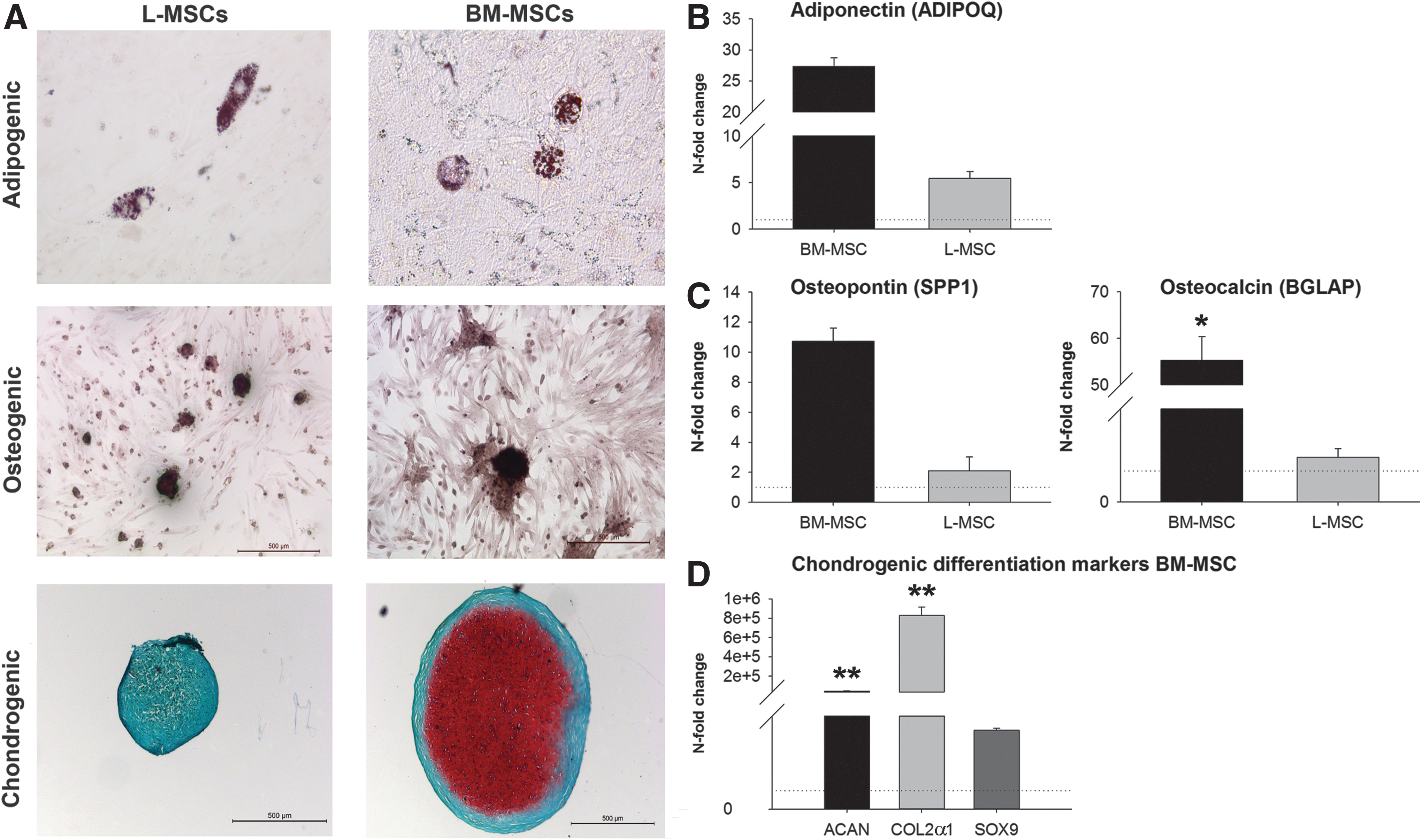

FIG. 3.

Adipogenic, osteogenic, and chondrogenic differentiation of canine L-MSCs (n = 4) and BM-MSCs (n = 4). (A) Adipogenic differentiation (20× magnification) is visualized by Oil-red-O staining, staining the lipid droplets red. In the osteogenic differentiation (4× magnification), the mineralization noduli are stained with Alizarin red. Chondrogenic differentiation (4× magnification) is only achieved in the BM-MSCs as visualized by a positive Safranin-O (red) staining. Scale bar = 500 μm. Relative gene expression of genes related to adipogenic (B), osteogenic (C), and chondrogenic (D) differentiation, where the undifferentiated controls of each cell type were set at 1 (indicated by the dotted baseline). *P < 0.05; **P < 0.01 indicates significant difference from the undifferentiated control.

For the analysis of gene expression, BM-MSCs and L-MSCs were each compared to their own control, as differences in basal expression of the osteogenic genes between the control groups were present; we observed a higher basal expression of the BM-MSC control group compared to the L-MSC control group. Osteocalcin (BGLAP), a late differentiation marker, was significantly upregulated in BM-MSCs. Osteopontin (SPP1), which regulates formation and remodeling of mineralized tissue and is expressed during the osteoblast and osteocyte stages, was not significantly upregulated in the osteogenic group compared with the control group in both cell types. The relative fold change in the BM-MSC group was higher compared with the L-MSC group, but no significant differences were found between the two cell types (Fig. 3B).

Adipogenic differentiation

Oil Red O staining was observed in all BM-MSC donor cells, indicating that these cells differentiated into the adipogenic lineage (Fig. 3A); however, variation in densities of lipid droplets was seen. In L-MSCs, adipogenic differentiation was only observed in one donor and in a very limited number of cells. One out of four donors seemed to undergo cell death. No significant differences were found in the gene expression of ADIPOQ, which is exclusively expressed in and excreted by adipose tissue, although a trend toward upregulation was seen for the adipogenic compared to the control group in the BM-MSCs (Fig. 3B).

Chondrogenic differentiation

All BM-MSC donors were cultured with TGF-β1 differentiated toward the chondrogenic lineage as shown by Safranin-O/Fast Green staining (Fig. 3A). In addition, chondrocyte-like cells were present in the pellet. Chondrogenic differentiation was not observed in either the control or L-MSC pellets (Fig. 3A), not even in the presence of TGF-β1 and BMP-2. We identified small pycnotic cells in the center of these pellets, indicating cell death. Chondrogenic differentiation was assessed by gene expression analysis of ACAN, COL2α1, SOX9, and COLX. SOX9 is the earliest chondrocyte marker and a necessary transcription factor for chondrocyte proliferation. Activation of SOX9 leads to activation of other early chondrocyte differentiation markers, such as COL2α1 and ACAN, both cartilage matrix components. In BM-MSCs, both ACAN and COL2α1 were upregulated in the TGF-β1 group compared to undifferentiated MSCs (control) (Fig. 3B). In L-MSCs, no expression of the chondrogenic differentiation markers was observed, regardless of the conditions (TGF-β1 alone or TGF-β1 and BMP-2). Expression of COLX, a late chondrocyte differentiation marker mainly found in the hypertrophic phase of chondrogenic differentiation, was not detected in both cell types.

Fluorescent-activated cell sorting

L-MSCs and BM-MSCs expressed CD105, CD90, CD166, and CD29 and were negative for CD45 (Fig. 4 and Table 4). There were no significant differences between L-MSCs and BM-MSCs, indicating that there were no differences in the MSC surface marker expression.

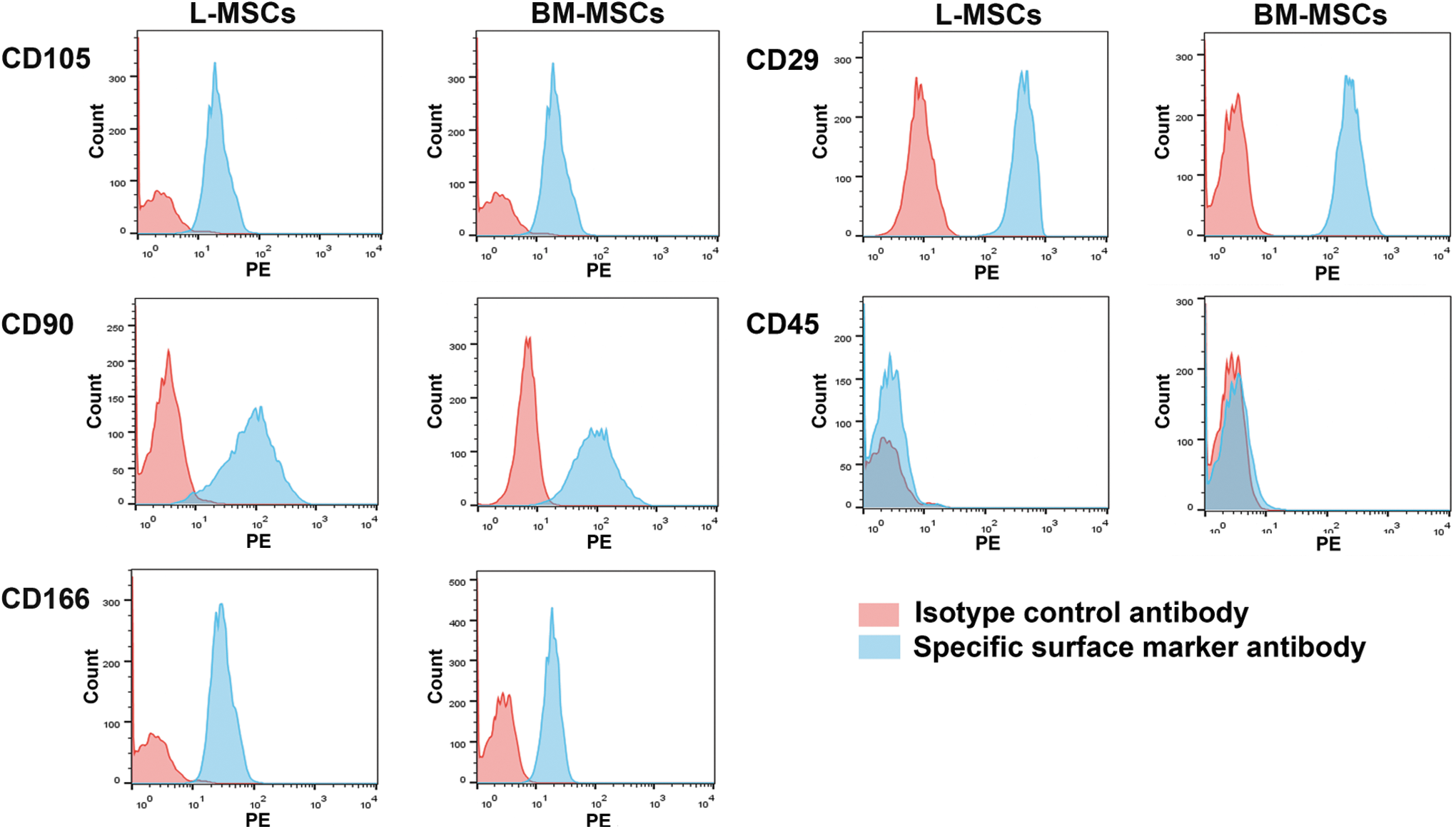

FIG. 4.

Representative examples of fluorescent-activated cell sorting (FACS) of canine L-MSCs (n = 8) and BM-MSCs (n = 6). Flow cytometry analysis of surface markers showed that the expanded cells exhibited a typical MSC-like phenotype positive for CD105, CD90, CD166, and CD29, and they were mostly negative for the leukocyte lineage markers CD45. There was no difference between L-MSCs and BM-MSCs. The blue histograms represent the specific staining, and the red histograms indicate background staining of an isotype-matched control antibody.

Table 4.

Percentage Positive Canine L-MSCs or BM-MSCs Analyzed by FACS

	L-MSC		BM-MSC
	Mean (% of positive cells)	95% confidence interval	Mean (% of positive cells)	95% confidence interval
CD105	51.8	20.8–82.7	63.6	38.7–88.6
CD90	58.2	37.7–78.8	67.9	42.9–92.8
CD166	74.9	45.8–104.0	71.3	38.7–103.9
CD29	98.6	96.7–100.5	99.8	99.6–100
CD45	1.5	1.0–2.0	1.0	0.7–1.4

BM-MSCs, bone marrow-derived multipotent stromal cells; L-MSCs, liver-derived MSCs.

Discussion

Characterization of canine L-MSCs and BM-MSCs, following the minimal criteria proposed by the ISCT [23], demonstrated that the two cell types were highly comparable with the exception of the differentiation potential of the two groups. No significant difference was found in the cell growth rate between L-MSCs and BM-MSCs, and the populations displayed similar in vitro morphology. Moreover, gene expression profiling in both MSC populations demonstrated the presence of the MSC-positive surface markers (CD105, CD90, CD166, CD29, and CD44) and absence of the negative surface markers (CD45, CD235s, CD11b, CD14, CD19, and CD74). These findings were, in part, confirmed by FACS analysis with canine-specific antibodies and isotype-negative controls.

Interestingly, expression of liver-specific markers, CK18 and CK19, was significantly higher in L-MSCs compared with BM-MSCs. This could indicate that while both cell populations possess MSC features, such as morphology and surface marker expression, characteristics of the tissue of origin remain. This, in turn, could explain the differences in differentiation potential between the cell types. In comparison to L-MSCs, BM-MSCs differentiated into the chondrogenic lineage (L-MSCs failed) and presented a more intense staining for lipid droplets during adipogenic differentiation, as well as a higher expression level of bone-related genes. This difference in differentiation potential is a common finding in studies that compared different populations of MSCs in dogs [30] as well as in humans [31]. Different growth factors may be required to induce chondrogenic differentiation of MSCs depending on tissue source, a phenomenon probably dependent on the stem cell niche [32]. Although many studies showed a positive role of MSCs in the regeneration of cirrhotic liver [33], other studies indicated that MSCs could also differentiate toward myofibroblasts and significantly contribute to liver fibrosis [34]. Since L-MSCs still express liver progenitor (CK19) and hepatocyte-specific (CK18) genes, it remains to be seen if these cells are superior for the treatment of liver diseases since they are less prone to differentiate toward myofibroblasts.

In addition to the differentiation capability toward the three lineages, some differences were found in the expression of the pluripotency markers. More specifically, L-MSCs and BM-MSCs were negative for SOX2 and LIN28, which contrast with earlier findings that demonstrated expression of SOX2, NANOG, and Oct4 (pluripotency markers) in canine and human BM-MSCs [2,35]. Interestingly, we did observe expression of the stem cell marker, LGR5, in L-MSCs but not in the BM-MSCs. This may indicate a higher stemness potential of L-MSCs and could also indicate a potential influence of the MSC niche since LGR5-positive cells are only identified in a limited number of tissues in the adult animal [36]. Based on this, we suggest that L-MSCs may be a potential source for the generation of liver organoids [37].

It is thought that MSCs contribute to tissue regeneration either directly, by repopulation of the injured site, or indirectly, by secreting molecules that alter the tissue microenvironment and stimulate regeneration. The high potential of MSCs to differentiate in vitro into various cell lineages supports the repopulation theory. However, previous studies report that the therapeutic efficacy often does not correlate with MSC engraftment efficiency. This suggests that the therapeutic efficacy is mainly determined by the indirect (paracrine) effect of MSCs and to a lesser extent through transdifferentiation of MSCs into the appropriate cell phenotype [38]. This includes L-MSCs, which have been shown to secrete factors that promote liver regeneration after partial hepatectomy [39]. Recently, the paracrine activity of MSCs has evoked an increased interest due to their immunomodulatory properties [40]. Clinical trials are already exploring these properties, including the paracrine and endocrine regulation of inflammatory responses in the patient [41]. We studied the immunomodulation effect of L-MSCs and BM-MSCs by gene expression profiling. Genes involved in the prostaglandin synthesis and its subsequent signaling pathway [CD274 (PDL-1) and PTGS-2 (COX-2)] were present in both L-MSCs and BM-MSCs, supporting the theory that MSCs exert an immunomodulatory effect.

The exact identity of MSCs is still unclear. A primary limitation of this and other studies is the fact that MSC cultures are established by the ability of these cells to adhere to culture plastics and by nature are heterogeneous populations [42]. Culturing the progeny of a single CFU or phenotype-isolated single clonogenic cell [42] would give rise to a more homogenous “true” MSC population that can be better characterized and provide consistent results in clinical applications. By selecting human MSCs (hMSCs) with a combination of three cell surface markers (LNGFR, THY-1, and VCAM-1), Mabuchi et al. demonstrated a functionally distinct population of hMSCs that exhibited robust multilineage differentiation and self-renewal potency [43], supporting the previous theory. Recently, Crisan [44] isolated a population of perivascular cells (pericytes) from different tissues among the body; this cell population expresses all the common MSC markers and is able to differentiate into the three lineages recapitulating a true mesenchymal cell phenotype. In the present study, we discovered that only L-MSCs express CD146 (Fig. 2), a common pericyte marker. This is intriguingly reinforced by Bianco et al. [42] who suggested that CD146 can be used to distinguish between MSCs derived from bone marrow or other sources. This finding also gives strength to the idea that MSCs from highly vascularized tissues might come from a mesodermal vascular progenitor shared with pericytes.

MSCs may have an advantage in the clinic (eg, in allogeneic cell transplantation therapies); they are easily accessible and possess both multilineage differentiation potential and immunomodulatory effects. Our study reported (very) low gene expression of MHC-II (CD73 or HLA-DR) in both cell populations.

In this study, the PD time, surface marker expression, differentiation potential, and immunomodulatory effects of canine L-MSCs were investigated and compared to BM-MSCs of the same individual. Although the two cell populations seemed very similar in general, differences in differentiation potential and the gene expression of liver-associated markers and the stemness marker, LGR5, were observed. This could indicate a difference in the nature of different MSC populations caused by influence of the tissue of origin or heterogeneity of MSC cultures. It is still unknown which cell source is preferable for application in liver regenerative strategies; however, this study does provide the basis for controlled studies with MSC therapy on various liver diseases in dogs before their application in man.

Footnotes

Acknowledgments

The authors thank the pathologist Guy Grinwis (pathobiology, Utrecht University, the Netherlands) for his assessment of the liver tissue samples and Hans Vernooij (Utrecht University Center for Biostatistics) for his assistance on the statistics. This work was sponsored by the Dutch Research Counsel NWO/ZonMW (grant-number 116004121).

Author Disclosure Statement

No competing financial interests exist.
