Targeted Activation of G-Protein Coupled Receptor-Mediated Ca 2+ Signaling Drives Enhanced Cartilage-Like Matrix Formation

Abstract

Intracellular calcium ([Ca²⁺]_i) signaling is a critical regulator of chondrogenesis, chondrocyte differentiation, and cartilage development. Calcium (Ca²⁺) signaling is known to direct processes that govern chondrocyte gene expression, protein synthesis, cytoskeletal remodeling, and cell fate. Control of chondrocyte/chondroprogenitor Ca²⁺ signaling has been attempted through mechanical and/or pharmacological activation of endogenous Ca²⁺ signaling transducers; however, such approaches can lack specificity and/or precision regarding Ca²⁺ activation mechanisms. Synthetic signaling platforms permitting precise and selective Ca²⁺ signal transduction can improve dissection of the roles that [Ca²⁺]_i signaling plays in chondrocyte behavior. One such platform is the chemogenetic DREADD (designer receptor exclusively activated by designer drugs) hM3Dq, which activates [Ca²⁺]_i signaling via the Gα_q-PLCβ-IP₃-ER pathway upon clozapine N-oxide (CNO) administration. We previously demonstrated hM3Dq's ability to precisely and synthetically initiate robust [Ca²⁺]_i transients and oscillatory [Ca²⁺]_i signaling in chondrocyte-like ATDC5 cells. Here, we investigate the effects that long-term CNO stimulatory culture have on hM3Dq [Ca²⁺]_i signaling dynamics, proliferation, and protein deposition in 2D ATDC5 cultures. Long-term culturing under repeated CNO stimulation modified the temporal dynamics of hM3Dq [Ca²⁺]_i signaling, increased cell proliferation, and enhanced matrix production in a CNO dose- and frequency-dependent manner, and triggered the formation of cell condensations that developed aligned, anisotropic neotissue structures rich in cartilaginous proteoglycans and collagens, all in the absence of differentiation inducers. This study demonstrated Gα_q-G-protein coupled receptor (GPCR)-mediated [Ca²⁺]_i signaling involvement in chondroprogenitor proliferation and cartilage-like matrix production, and it established hM3Dq as a powerful tool for elucidating the role of GPCR-mediated Ca²⁺ signaling in chondrogenesis and chondrocyte differentiation.

Impact statement

Targeted activation of intracellular calcium signaling has gained attention as a cartilage tissue engineering adjuvant approach. In the present study, we demonstrated that activation of hM3Dq, an engineered chemogenetic activator of the Gα_q-pathway and IP₃-mediated intracellular calcium signaling, drives accelerated development of mesenchyme-like cell condensations and cartilaginous neotissue formation in chondrocyte-like cell cultures in vitro and does so without the requirement of differentiation factors/inducers. These outcomes highlight the potential of targeted/synthetic Gα_q-pathway activation, specifically using novel chemogenetic approaches, to enhance the study of chondrocyte physiology and improve cartilage tissue engineering approaches.

Introduction

Calcium (Ca²⁺) is a requisite second messenger in chondrogenesis and chondrocyte differentiation, homoeostasis, and mechano-adaptation.^1,2 Several mechanically initiated (e.g., compression, shear, fluid flow, hydrostatic pressure, and osmotic load)^3–6 and ligand-driven (e.g., histamine, PTH, TGF-β)^7,8 intracellular calcium ([Ca²⁺]_i) signaling pathways have been identified within chondrocytes, regulating Ca²⁺-dependent chondrogenic processes through both ion channels, predominately associated with the transient receptor potential vanilloid 4 (TRPV4) ion channel, and G-protein coupled receptors (GPCRs).^9–12

Despite being categorized as “non-excitable” cells, recent evidence indicates that precise modulation of chondrocyte [Ca²⁺]_i signaling is required for chondrogenesis,^13–15 differentiation,^16,17 and cell survival^18,19; and for the anabolic and catabolic responses underpinning tissue development,²⁰ maturation,^2,21 and maintenance.²² One critical aspect of this is oscillatory [Ca²⁺]_i signaling, where the presence, frequency, amplitude, and duration of [Ca²⁺]_i oscillations represent important determinants of chondrocyte, chondroprogenitor, and mesenchymal stem cell (MSC) behavior.^20,23

Mature chondrocytes exhibit “spontaneous” long-period (>200 s) Ca²⁺ oscillatory behaviors,^24–26 and both primary and oscillatory [Ca²⁺]_i signaling behaviors can be enhanced by exposure to mechanical perturbations (and/or receptor ligands)^24,26,27; indeed, exogenously driven Ca²⁺ oscillations mediate matrix anabolism in response to physiological loads.²⁸ Among chondroprogenitors, such as MSCs and chondroblasts, [Ca²⁺]_i oscillations support differential regulation of proteins and transcription factors encoding complex chondrogenic signaling behaviors.^29–32

For example, during cartilage development, high-frequency [Ca²⁺]_i oscillations are associated with increased SOX9 expression, cell proliferation, and matrix production^33–36; whereas in MSCs, mechanical perturbations and receptor-mediated signaling drive chondrogenesis through [Ca²⁺]_i oscillation-dependent signaling pathways.^15,37,38 Importantly, oscillatory [Ca²⁺]_i signaling behaviors within chondrocytes rely on intracellular Ca²⁺ stores,^39,40 and they are modulated via a calcium signaling “toolkit” that sets up/sustains wave-like [Ca²⁺]_i feedback networks.^1,41–44

Given the importance of well-regulated [Ca²⁺]_i signaling dynamics in chondrogenesis, chondrocyte differentiation, and cartilage development and homeostasis, a number of approaches have been explored to leverage exogenously tuned Ca²⁺ signaling to improve cartilage tissue engineering and regeneration.^2,7,21,45,46 For example, dynamic loading that drives elevated oscillatory Ca²⁺ signaling within chondrocyte-laden hydrogels enhances collagen and proteoglycan synthesis and matrix material properties.²⁸

Similarly, driving Ca²⁺ oscillations in MSCs via electrical stimulation promotes chondrogenic outcomes in the absence of growth factors.^35,47 Several [Ca²⁺]_i regulating compounds (e.g., 4α-PDD, RN1734, and GSK1016790A) enhance pro-anabolic responses and cartilage tissue maturation in vitro⁴⁸; driving oscillatory Ca²⁺ signaling in MSCs via GSK101, a TRPV4 agonist, enhances collagen deposition on patterned surfaces,¹² and gene, protein, and material property outcomes in ATDC5/chondrocyte-laden hydrogels.⁴⁵

Although the field has leveraged endogenous control of native signaling pathways to interrogate [Ca²⁺]_i signaling influences on chondrogenesis, chondrocyte physiology, and cartilage development/tissue engineering/regeneration,^2,7,21,45 “physiologically-mediated” [Ca²⁺]_i manipulations are restricted to a rather small set of targets over which concerns exist regarding targeting specificity and precision. For example, mechanical stimulation can target numerous mechanosensitive components—some of which are not Ca²⁺ selective^49,50—and can be damaging/injurious.

Alternatively, the use of biomolecules—either synthetic (e.g., GSK101) or natural (e.g., Histamine, PTH)—to target endogenous signaling pathways carries risks of off-target effects.^51,52 To overcome such limitations, we recently described a novel chemogenetic approach to drive highly specific and fully synthetic [Ca²⁺]_i signaling activation in a chondrocyte-like cell line.^40,53

Designer receptors exclusively activated by designer drugs (DREADDs) represent a family of engineered chemogenetic GPCRs molecularly evolved to exhibit affinity to the pharmacologically inert compound, clozapine N-oxide (CNO), but not their native endogenous ligand, acetylcholine.⁵⁴ GPCRs, which signal through G-protein-linked (e.g., Gα_s, Gα_q/11, Gα_i, etc.) second messenger pathways, constitute the largest family of eukaryotic signal transducers and ∼34% of clinical drug targets,^55–58 and both Gα_q/11- and Gα_s-dependent pathways have been implicated in chondrogenesis and chondrocyte physiology.⁵⁹

Gα_s-, Gα_i-, and Gα_q-coupled DREADDs have been derived from mammalian muscarinic receptors.⁶⁰ rM3Ds (rat M3 muscarinic & turkey β1-adrenergic-derived Gα_s GPCR) and hM4Di/KORD (human M4 muscarinic and human κ-opioid-derived Gα_i GPCRs, respectively) indirectly modulate [Ca²⁺]_i signaling through the adenyl cyclase-cyclic AMP (cAMP) pathway.⁶¹ hM3Dq (human M3 muscarinic Gα_q GPCR) regulates [Ca²⁺]_i signaling directly through the ubiquitous Gα_q-PLCβ-IP₃ pathway and the release of Ca²⁺ from the endoplasmic reticulum (ER)⁶², a pathway intimately associated with chondrocyte mechanotransduction⁶³ and oscillatory [Ca²⁺]_i signaling behaviors.^40,64

Chemogenetics has transformed the study neural activity and behavior,^65,66 and it has seen application in some non-neuronal cell types (e.g., liver, kidney, pancreas)^67–69; however, our work with hM3Dq represents the first application of chemogenetic approaches to study GPCR and downstream [Ca²⁺]_i signaling in musculoskeletal tissues.^40,53

Using hM3Dq, we generated stably expressing mCherry-tagged hM3Dq-ATCD5 cells to study CNO-mediated Ca²⁺ signaling behaviors in chondrocyte-like cells.⁴⁰ We identified that CNO could drive, in a dose- and temperature-dependent manner, coordinated and widespread generation of a rapid primary [Ca²⁺]_i peak in hM3Dq ATDC5 cells, followed by sustained oscillatory Ca²⁺ signaling. Both primary and oscillatory [Ca²⁺]_i behaviors were cell-autonomous in nature, and they were reliant on internal ER Ca²⁺ stores and PLCβ-driven IP₃ dynamics, as opposed to store operated/external Ca²⁺ entry.⁴⁰

In the present study, we investigated the role of hM3Dq-driven calcium signals on matrix synthesis in 2D ATDC5 cultures and relate how different levels of oscillatory signaling influence long-term cellular behaviors in response to repeated CNO stimulation. Incidentally, we demonstrated that repeated stimulation of hM3Dq cells alters hM3Dq-mediated calcium signaling dynamics, does not negatively impact cellular health, and—in the absence of differentiation inducers—robustly drives cartilage-like neotissue formation and matrix deposition.

Overall, this work establishes the facile ability to synthetically drive Gα_q-dependent signaling cascades, ER-dependent Ca²⁺ release, and matrix deposition via hM3Dq in chondrocyte-like cells, providing a novel platform for studying GPCR and Ca²⁺ signaling responses within chondrocytes (and their precursors), and for testing chemogenetic means to enhance cartilage tissue engineering and regeneration.

Methods

Cell culture & experimental design

hM3Dq-mCherry-ATDC5 (hM3Dq) cells⁴⁰ were plated in tissue culture-treated well plates containing complete growth medium (CGM) [1:1 ratio Dulbecco's modified Eagle's medium and Ham's F12K (Caisson Labs), 5% fetal bovine serum (Sigma), 1 × penicillin-streptomycin, and 10 μg/mL puromycin (ThermoFisher)] at 10,000 cells/cm² and cultured for 24 h. The samples were subject to stimulation with CNO (added for 30 min; Sigma), GSK1016790A (30 min; Tocris), or hypo-osmotic shock (30 s exposure). The CNO-stimulated samples received either 5, 50, or 500 nM CNO (1 × , 10 × and 100 × the CNO EC₅₀ previously identified⁴⁰) in HBSS 1 × /week, 1 × /day, or 3 × /day for 2 weeks.

GSK101 (10 nM in HBSS) and hypo-osmotic shock (CGM diluted 50% with diH2O) groups were stimulated 1 × /day. After stimulation, old media were aspirated and fresh CGM added. Unstimulated hM3Dq cells, and wild-type cells (WT) receiving 1 × /day 500 nM CNO or no CNO, served as negative controls. All samples were incubated and tested at 37°C, 5% CO₂; media were changed every other day for samples not stimulated daily. All matrix and health assessments were performed in biological and technical triplicate (n = 3 × 3/group); all calcium imaging assays were performed in technical triplicate (n = 3/group).

Calcium imaging

Cells plated in 12-well glass-bottom plates (TissueTek) and treated once daily with 500 nM CNO, a concentration established based on CNO levels eliciting maximum oscillatory [Ca²⁺]_i signaling behaviors,⁴⁰ were subject to calcium imaging after 1, 3, 7, and 14 days of stimulatory culture. Cells were stained with 5 μM Fluo-8AM, washed in HBSS, and their CNO-evoked [Ca²⁺]_i signaling response imaged as previously described.⁴⁰

Briefly, each sample was imaged for 15 min on a Zeiss AxioObserver.Z1 Apotome.2 under temperature control (37°C), with the first 5 min of the imaging period used to establish baseline Ca²⁺ signaling behaviors and the subsequent 10 min the CNO-mediated Ca²⁺ response. All studies were performed in Ca²⁺ replete media. A custom MATLAB program^40,53 was used to isolate the [Ca²⁺]_i signals of individual cells in each image series.

Within these traces, we defined a calcium peak as an increase in Fluo-8AM intensity larger than three standard deviations from the baseline (average of first 5-min) fluorescence. Ca²⁺ signaling parameters assessed in this study included: the percent of cells exhibiting a primary [Ca²⁺]_i peak, and 2+, 5+, and 9+ peaks after CNO administration/stimulation; the number of peaks elicited; the amplitude (i.e., height) and duration of each peak; and the period between adjacent peaks (peak-to-peak period).

Cell health assays

Location-referenced differential interference contrast imaging was used to longitudinally track cell proliferation in hM3Dq cultures. Cell health was assessed at 1-, 3-, and 14 days via Live/Dead staining (viability), where cells were incubated in 2 μM Calcein AM (“live” cell indicator) and 4 μM ethidium homodimer-1 (“dead” cell indicator; ThermoFisher) for 30 min; or via apoptosis staining, where cells were incubated in 5 μM CellEvent Caspase 3/7 Detection Reagent (apoptosis indicator; ThermoFisher) and 1 μM Hoechst 33342 (nuclear stain; ThermoFisher) for 30 min.

Histology & immunocytochemistry

Micro-mass cultures were fixed in 4% paraformaldehyde at day 7 and 14, and were stained with Picrosirius Red (StatLab), or Alizarin Red (2% Alizarin Red S (Sigma), pH 4.2) and Alcian Blue (1% Alcian Blue 8GX (Sigma) +3% glacial acetic acid, pH 2.5).⁷⁰ Separately, immunocytochemistry (ICC) samples were fixed, blocked, permeabilized (0.2% Triton-X + 2% BSA in PBS), and incubated with rabbit anti-collagen type 1 (Polyclonal; 2 μg/mL; PA1-85319), mouse anti-collagen type 2 (Monoclonal; 2 μg/mL; MA5-12789), or rabbit anti-aggrecan (Polyclonal; 1:500 dilution; 13880-1-AP) antibodies (ThermoFisher); then, they were detected with appropriate Alexa Fluor 488-conjugated secondary antibodies (1:500 dilution; ThermoFisher).

Tiled images of histological and ICC samples were captured at 5 × magnification across each well, with higher magnification images captured for cell morphology and nodule structure assessment.

Image & statistical analysis

Custom image analysis macros were developed in Fiji (ImageJ) to quantify (i) geometrical and spatial properties and (ii) collagen deposition/staining within cartilage-like cell condensations during 2D hM3Dq cell culture and CNO stimulation (Supplementary Fig. S1). Nodule area, area fraction, Feret's diameter, aspect ratio, nodule density, and distance between adjacent nodules are reported. Picrosirius red staining of collagen-rich matrix deposition was assessed via hue, saturation, and value (HSV) analysis of stain color, brilliance/vibrancy, and darkness/shade, respectively.

Statistical analysis was performed in Prism v8 (GraphPad Software; La Jolla, CA). Data outliers were identified using the ROUT method.⁷¹ t-tests, one-way ANOVAs (single CNO stimulation), two-way ANOVAs (repeated CNO stimulation), and their non-parametric equivalents, with post hoc testing, as well as regression analysis were performed where appropriate. All data are presented as mean ± range. The threshold for statistical significance was set at a multiplicity correct p-value of p < 0.05.

Experiment

CNO-evoked [Ca²⁺]_i signaling in hM3Dq cells during long-term, daily stimulatory culture

hM3Dq-ATDC5 cells robustly responded to CNO over the entire 14-day culture; however, the temporal dynamics of CNO-mediated [Ca²⁺]_i responses changed over time. Among hM3Dq cultures stimulated 1 × /daily (500 nM), >80% of cells exhibited CNO-evoked [Ca²⁺]_i signaling (Fig. 1A). A maximum of ∼82% of hM3Dq cells exhibited two-plus Ca²⁺ peaks in response to CNO (at day 7), whereas values at day 1 and 14 were similar.

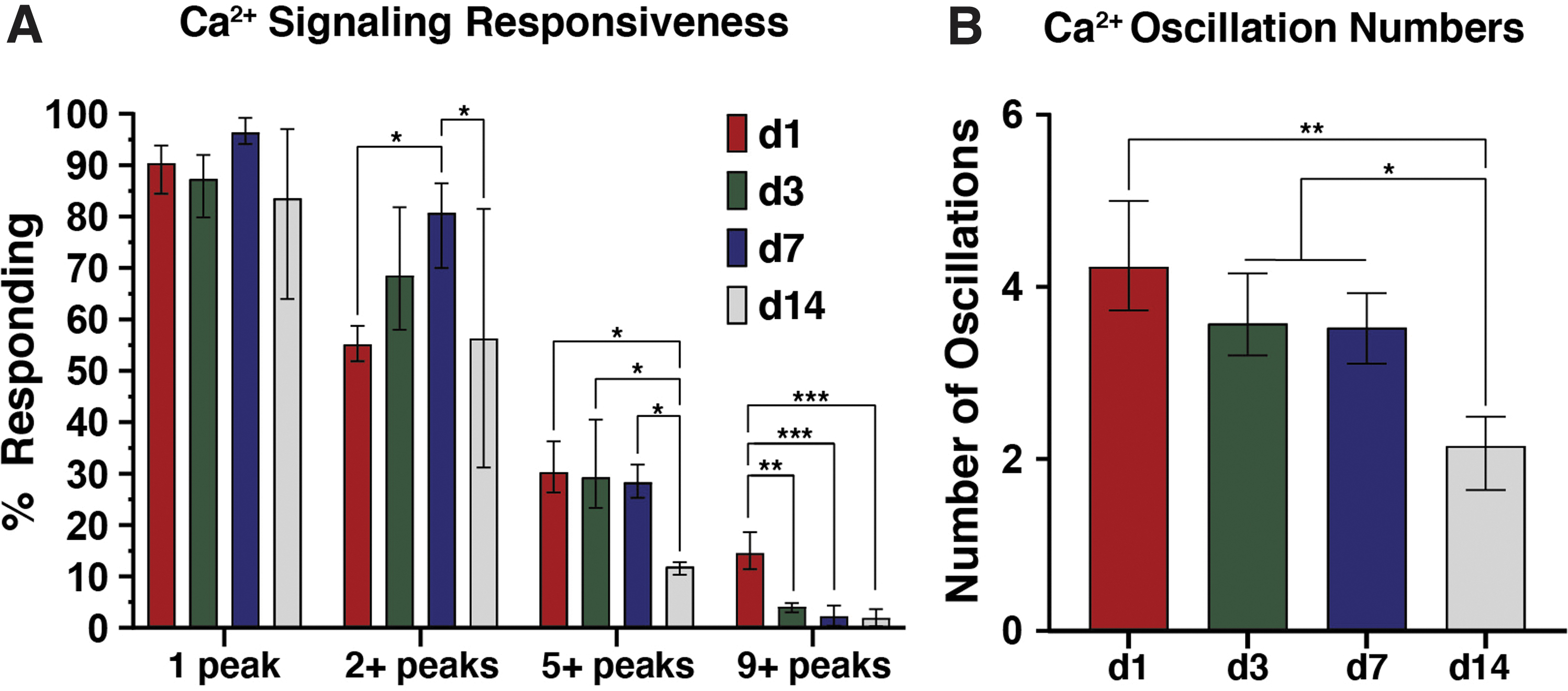

FIG. 1.

Primary and oscillatory calcium signaling responses of hM3Dq-ATDC5 cells subjected to once-daily 500 nM CNO administration during long-term stimulatory culture. (A) CNO-evoked primary Ca²⁺ responses remained largely unchanged across 14 days of daily stimulatory culture; however, oscillatory Ca²⁺ signaling behaviors changed over time. The number of cells exhibiting 2+ peaks significantly increased through day 7 of culture (compared with days 1 and 14), whereas extensive oscillatory behaviors significantly diminished at day 14; the number of cells exhibiting 5+ peaks remained stable through day 7 (at ∼28–30%), then dropped to ∼11% at day 14; and the number of cells exhibiting 9+ peaks was suppressed from day 3 onward, dropping from ∼14% to <5%. (B) The average number of oscillations per cell gradually diminished through day 7 of culture, dropping from 4.2 peaks/cell to ∼3.5 peaks, then to ∼2.2 peaks/cell at day 14. *p < 0.05, **p < 0.01, ***p < 0.001; one-way ANOVA with Tukey's post hoc test. CNO, clozapine N-oxide.

As early as day 3, reduced CNO-evoked Ca²⁺ oscillation capacity was seen, and only ∼4% of cells elicited 9+ peaks (down from ∼14%), further dropping to ∼1% at day 14. The average number of [Ca²⁺]_i peaks elicited by CNO, across our 10-min post-CNO imaging window, decreased from 4.23 peaks/cell at day 1 to 2.15 peaks/cell at day 14 (Fig. 1B). Regarding the temporal dynamics of [Ca²⁺]_i signals, both CNO-induced primary and oscillatory Ca²⁺ peak amplitudes were highest at day 1 of culture (33 and 15–5 a.u., respectively).

Under continued stimulatory culture, primary [Ca²⁺]_i peak heights decreased (13–18 a.u.; p < 0.05), whereas secondary peak amplitudes approached a plateau of ∼2–3 a.u. (Fig. 2A). The interval between the first two CNO-evoked Ca²⁺ peaks (i.e., peak interval 1) decreased with stimulatory culture, from ∼155 s to ∼106 s; however, subsequent changes in peak-to-peak periods were largely consistent among groups (Fig. 2B). [Ca²⁺]_i oscillation peak intensity decreased from ∼11 to ∼5 a.u. by day 3 of stimulatory culture, whereas oscillation periods decreased more gradually, from ∼116 s at day 1 to ∼85 s at day 14. (Fig. 2C, D, respectively).

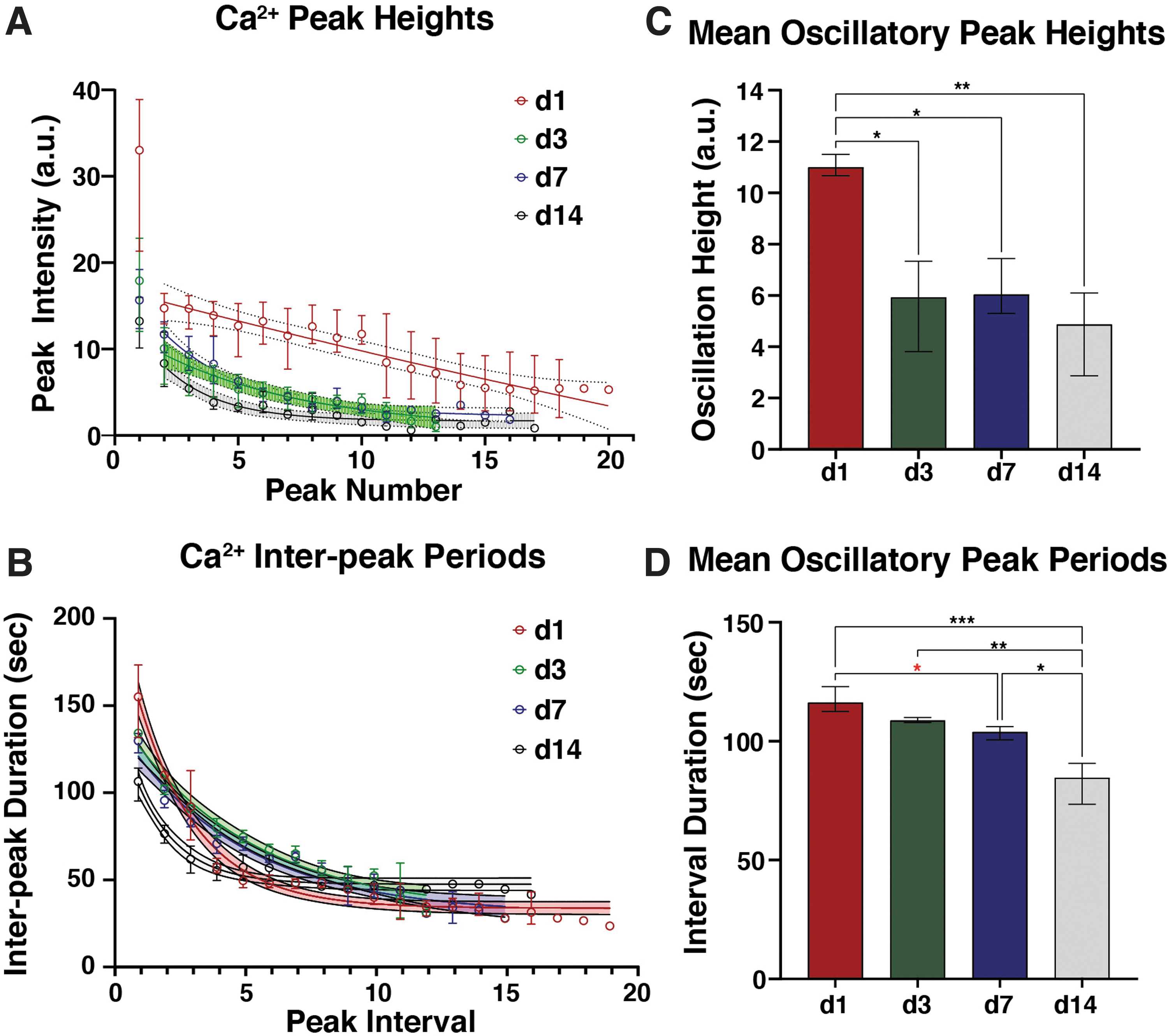

FIG. 2.

Temporal dynamics of CNO-induced Ca²⁺ oscillations in hM3Dq-ATDC5 cells during long-term stimulatory culture. (A) Stimulation with 500 nM CNO at day 1 of culture elicited mean primary Ca²⁺ peak intensities of ∼33 a.u., which quickly dropped to ∼15 a.u. at the second peak and decayed linearly to ∼5 a.u. for later peaks. At day 3 of culture and beyond, significantly reduced primary peak intensities (∼13–18 a.u.; p < 0.05, one-way ANOVA with Tukey's post hoc test), which decayed to 2–3 a.u. at later peaks, were observed. (B) Peak-to-peak periods exhibited similar dynamics across all culture timepoints; the first peak interval (i.e., between the primary and initial secondary peak) was always longer than all subsequent intervals, which decayed to a plateau between 25 and 45 s. The initial inter-peak period decreased—non-significantly—from ∼160 s at day 1 to ∼130–135 s at days 3 and 7, and significantly to ∼105 s at day 14 (p < 0.01, one-way ANOVA with Tukey's post hoc test). (C) Mean Ca²⁺ oscillation height decreased significantly from ∼11 a.u. at day 1 to ∼5 a.u. at day 3 and beyond. (D) Mean oscillation peak-to-peak period gradually decreased from ∼116 s at day 1 to ∼108 s at day 3, then to ∼105 s at day 7 and ∼85 s at day 14. *p < 0.05, **p < 0.01, ***p < 0.001; one-way ANOVA with Tukey's post hoc test. The statistical comparisons indicated in red fell just short of significance, p < 0.10.

The duration of the first calcium peak elicited by CNO, as well as those of secondary Ca²⁺ peaks appeared minimally influenced by stimulatory culture, dropping from 79 s to 59 s, and from 41 s to 30 s, respectively, over the 14-day culture (Supplementary Fig. S2).

Frequent activation of hM3Dq-mediated [Ca²⁺]_i signaling does not negatively impact cell health

Treatment of hM3Dq cells with CNO resulted in qualitative concentration- and dosing frequency-dependent increases in cell proliferation (Fig. 3A). Assessment of hM3Dq cell viability indicated >95% viability after 24- and 72 h of CNO stimulation (all groups); unstimulated WT cells experienced an insignificant reduction in viability at 72 h (Fig. 3B). Conversely, hM3Dq cells receiving once- and thrice-daily CNO stimulation had significantly increased viability at 72 h compared with 24 h.

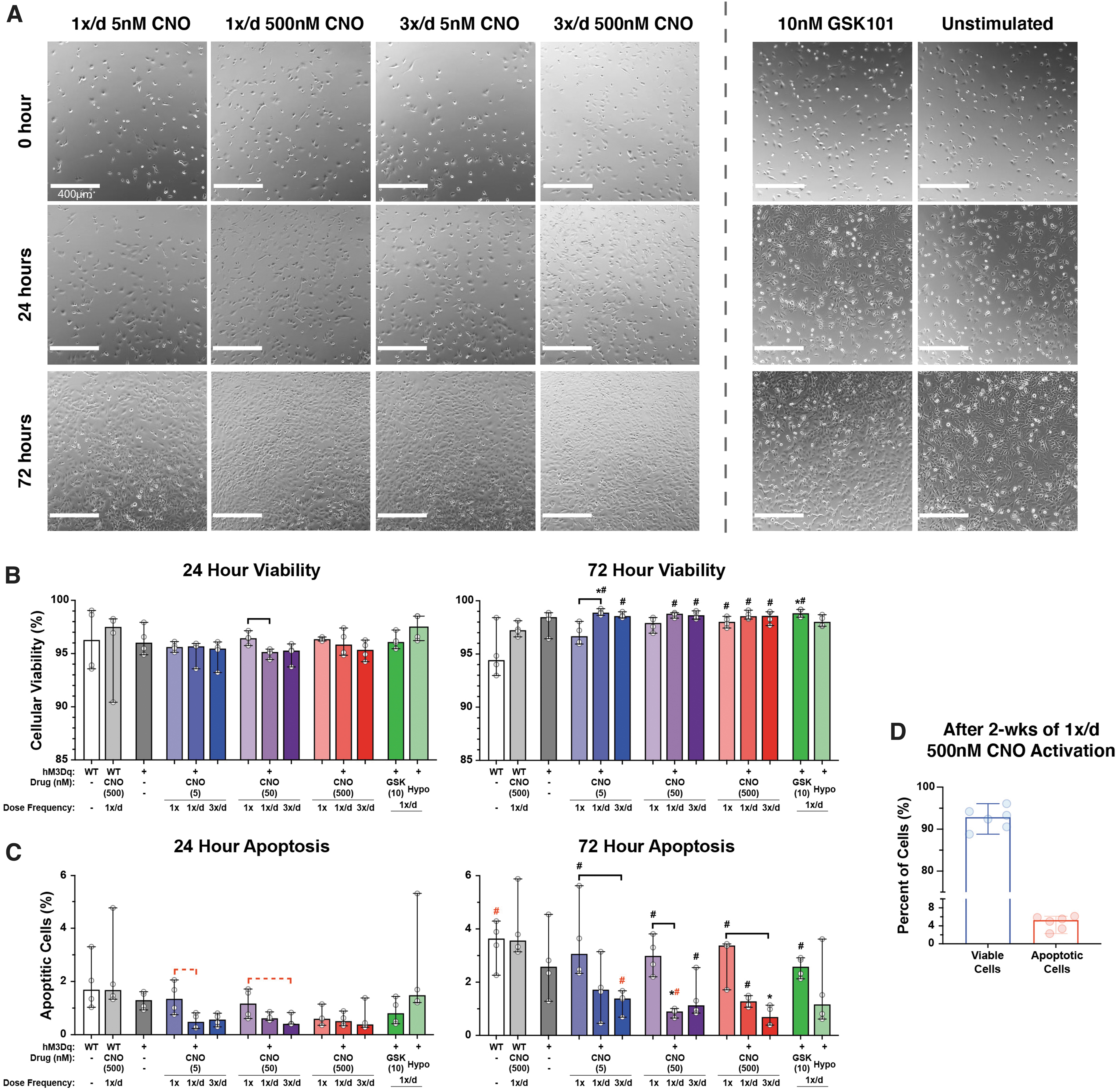

FIG. 3.

Effect of CNO stimulation on hM3Dq cell proliferation and health during early stimulatory culture. (A) Location-matched DIC images revealed CNO concentration and frequency-dependent increases in the proliferative capacity of hM3Dq cells; elevated stimulatory pressures induced increased cell proliferation compared with less-frequent and lower concentration stimulation; however, all CNO stimulated groups appeared to proliferate faster than the non-CNO groups. (B) Cell viability was quite consistent among all groups after 24 h of culture, at >95% cells. At 72 h, only unstimulated WT cells experienced a—minor—decrease in viability, dropping from 96% to 94%; no significant changes in viability were observed among WT or unstimulated hM3Dq cells; and hM3Dq cells multiply stimulated with CNO or GSK101 saw significant increases in viability at 72 h compared with 24 h, increasing by ∼2–3% percentage points. (C) Apoptosis for all groups increased at 72 h compared with 24 h, but this increase was significantly suppressed in multiply stimulated hM3Dq cells in a concentration- and frequency-dependent manner; the highest CNO-stimulated group (3 × /day 500 nM) displayed <1% apoptosis. (D) Viability and apoptosis in hM3Dq cells stimulated once daily with 500 nM CNO was very high (>92%) and low (<5%), respectively, after 2 weeks of culture. *p < 0.05 compared with WT (& WT+CNO), Kruskal–Wallis test with Dunn's multiple-corrections tests. Bar = p < 0.05 for the comparison between indicated groups for the noted CNO concentration, Kruskal–Wallis test with Dunn's multiple-correction tests. ^#p < 0.05 for comparison between respective 72- and 24-h outcomes, Mann–Whitney test. Statistical comparisons indicated in red are those that fell just short of significance, p = 0.0558 for Kruskal–Wallis test and p = 0.0571 for Mann–Whitney test. DIC, differential interference contrast.

No significant changes in viability were observed between CNO-stimulated and GSK101/Hypo-osmotic shock-stimulated groups; however, a significant difference in WT viability at 72 h compared with the daily stimulated samples was seen (5.1% ± 2.4% for WT vs. >98% ± 0.2–0.5% for 1 × /day & 3 × /day CNO, GSK101, Hypo). Caspase activity assessment found <4% of cells positive for apoptosis after 24- or 72°h of treatment.

Although nearly all groups exhibited increases in apoptosis between 24 and 72 h, statistically significant changes were only seen in the single CNO treated, 1 × /day 500 nM CNO, 3 × /day 50 nM CNO, and 1 × /day GSK101 groups (p < 0.05; Fig. 3C). Among the 1 × and 3 × daily stimulated groups, consistently lower levels of apoptosis (<2% of hM3Dq cells) were observed at 72 h compared with control cultures (Fig. 3C). In a group of hM3Dq cultures stimulated 1 × /daily with 500 nM CNO for 2 weeks, >92% cell viability and <5% apoptosis was observed (Fig. 3D).

CNO-driven, hM3Dq-mediated [Ca²⁺]_i signaling enhances matrix deposition

Stimulating hM3Dq cells with CNO drove concentration- and dosing frequency-dependent increases in matrix deposition over 14 days of culture; cultures stimulated daily with CNO formed layered, tissue-like cartilaginous nodules rich in proteoglycan (Alcian Blue) and collagen content (Picrosirius Red) (Fig. 4 and Supplementary Fig. S3). Nodules, or “neotissue” condensations, were rarely seen in unstimulated, daily hypo-osmotic shock, and daily GSK101-treated cultures. Under reduced stimulatory pressure (e.g., lower CNO concentration and/or reduced frequency), smaller, more rounded nodules with greater cellular homogeneity and reduced matrix staining were observed.

FIG. 4.

CNO stimulation of hM3Dq-ATDC5 cells drove concentration- and frequency-dependent neotissue formation. (A) PR staining demonstrated deep and robust staining for collagens within cell condensations/nodules formed following 2 weeks of CNO stimulatory culture. The size and alignment of tissue nodules increased with CNO concentration and dosing frequency; PR staining of nodules changed from a purple/deep red under lower CNO stimulation regimes to bright red-orange with increased stimulation pressure (reflecting increased collagen content), whereas inter-territorial cells stained light pink/light purple (indicating little to no collagen deposition). Purple/deep red stained cell clumps were observed in GSK101-treated and unstimulated micromass cultures; however, these cells did not exhibit the tissue alignment and condensations observed in the CNO-treated cultures. (B) Similar outcomes were observed for AB staining of proteoglycans; CNO induced concentration- and frequency-dependent enhancements in proteoglycan deposition (blue). GSK101-stimulated cultures developed appreciable AB staining, though this was more diffuse compared with CNO cultures, whereas unstimulated cultures were relatively devoid of AB staining. AB, alcian blue; PR, picrosirius red.

With increasing stimulation frequency and CNO concentration nodule size increased, tissue and cellular heterogeneity increased, and deeper staining for cartilage matrix proteins, and increasing cell/tissue organization and alignment were observed (Supplementary Fig. S4). Morphologically, these nodules exhibited a dense, layered, central cellular mass with richly stained proteoglycan and collagen extracellular matrix (ECM), and often, “arms” of highly aligned neotissue protruding from the central masses toward and connecting to adjacent nodules.

Higher-resolution images revealed much diversity in nodule cell morphology, especially compared with the “cobblestone”-shaped appearance of ATDC5 cells in monolayer regions between nodules (Supplementary Fig. S5). At nodule edges/peripheries, and within regions of neotissue exhibiting cellular alignment, cells exhibited “spindle-like” appearances. Moving toward the nodule centers, cells having a more rounded morphology were observed, with “hypertrophic” appearing cells regularly seen by 14 days of stimulatory culture.

Quantitatively, average nodule area, area fraction, and nodule length (i.e., Feret's diameter) increased dramatically with CNO dosing frequency and concentration (Fig. 5A–C). Interestingly, although area-corrected nodule density (i.e., nodule number/well area) increased after CNO administration, it did not differ markedly among CNO-treatment conditions (Supplementary Fig. S6). We also observed that nodules typically displayed anisotropic morphologies (aspect ratio >2), “elongating” markedly with CNO dosing frequency and concentration (p < 0.05) compared to hypo-osmotic shock, GSK101, and unstimulated cultures (p < 0.001) (Fig. 5D).

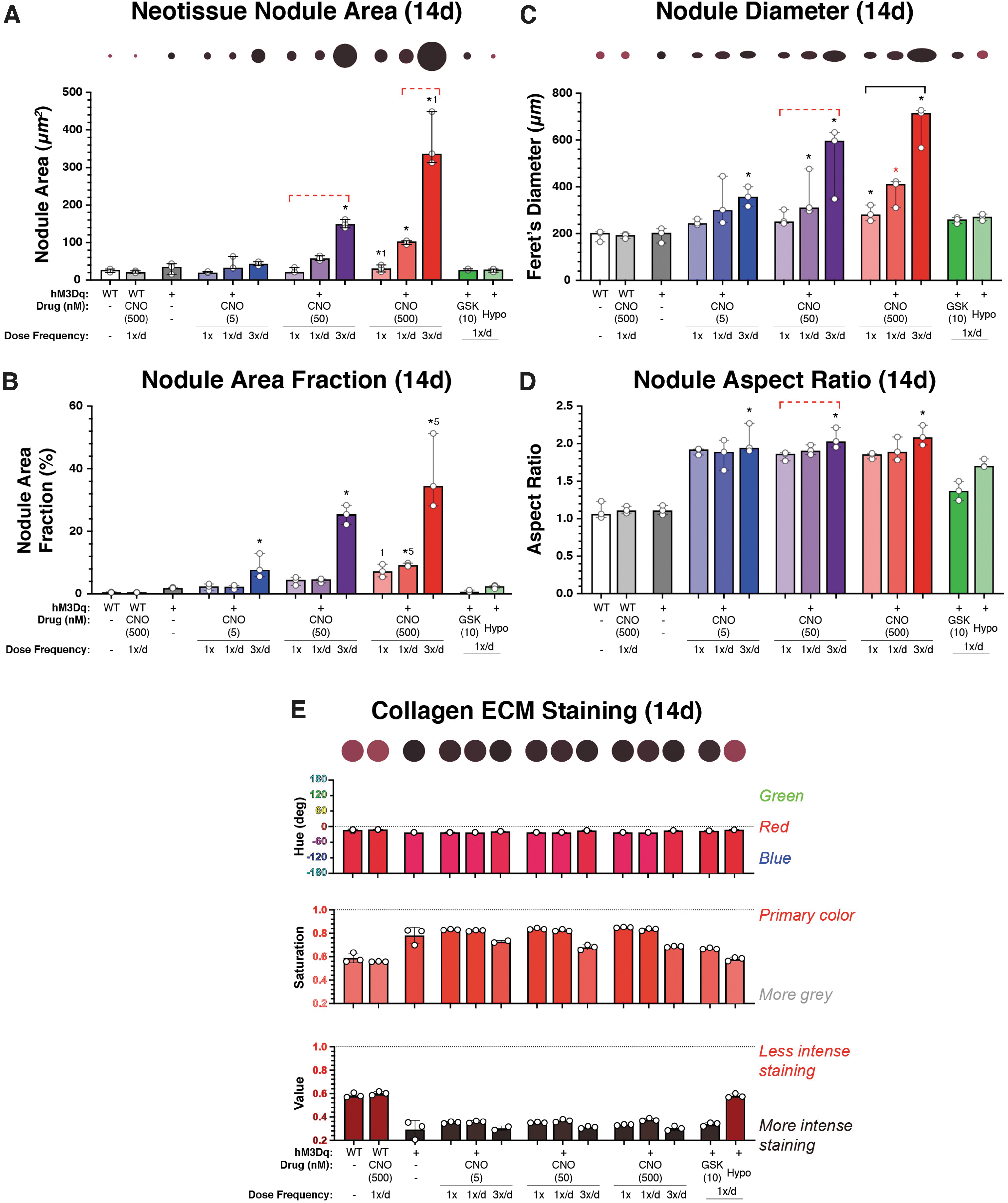

FIG. 5.

Analysis of neotissue nodule geometries and shape descriptors and collagen staining intensity after long-term stimulatory culture (14 days). (A) Average nodule size increased in a CNO dose- and frequency-dependent manner, from ∼20,000 μm² in the least stimulated group to ∼120,000 μm² and ∼320,000 μm² in the thrice-daily 50 and 500 nM CNO-stimulated groups, respectively (p < 0.001). GSK101 and hypo-osmotic shock (HS) areas were indistinguishable from those of WT and unstimulated hM3Dq cultures. Circles having sizes scaled to total nodule areas are provided above the figure for visual reference. (B) The area fraction of nodules increased with CNO concentration and frequency; from ∼4–7% in the 1 × /week groups to ∼10% in the 5 nM CNO group and ∼24–38% in the 50 and 500 nM groups, respectively, when stimulated with CNO thrice daily (p < 0.001). Area fractions for GSK101 and HS-stimulated cultures were indistinguishable from those of WT/unstimulated cultures. (C) Similar CNO dose and frequency-dependent increases in the Feret's diameter of formed nodules (i.e., maximal geometric width) were observed. Circles having diameters and aspect ratios scaled to demonstrate treatment-dependent changes in nodule size and shapes are provided above the figure for visual reference. (D) Analyzing the aspect ratio of formed neotissue nodules demonstrated increasing elongation with increasing CNO dose and stimulation frequency. (E) Changes in collagen staining, that is, PR stain color, brilliance (gray content), and intensity, were assayed via measures of hue, saturation, and value, respectively. With increasing CNO concentration and dose-frequency, the stained collagen-rich tissues exhibited deeper (∼0.7–0.8) and darker (∼0.2–0.4) blue-red (∼350°) colors, indicative of increased collagen deposition. In (E), as well as (A, C), the colors of the indicated circles have been matched to the average HSV values of the group. *p < 0.05 compared with WT (& WT+CNO), bar = p < 0.05 for the comparison between indicated groups for the noted CNO concentration, ¹p < 0.05 compared with once-only activation at the noted CNO concentration, and ⁵p < 0.05 compared with the 5 nM CNO activation for the same administration frequency; Kruskal–Wallis test with Dunn's multiple-correction tests. Statistical comparisons indicated in red are those that fell just short of significance, p < 0.1.

In quantifying Picrosirius red-stained neotissue cultures, via hue, saturation, and value (HSV) assessment, we observed clear influences of CNO concentration, frequency-of-dosing, and time-in-stimulatory-culture on collagen-rich matrix deposition (Fig. 5E). When assessed using a ∼31 mm² region of interest (∼10% of the culture well area), we observed that all cultures exhibited some degree of collagen-rich tissue deposition.

Staining at 14 days was always more intense than at 7 days (not shown). At the 14-day timepoint, all cultures exhibited the expected blue–red to red Picrosirius red (hue = 340 to 356°) staining, indicating the deposition of collagen-rich matrix. However, CNO-stimulated hM3Dq-ATDC5 tissues were more vibrant (saturation = 0.68–0.85) and stained more intensely/darker (value = 0.38–0.30) than unstimulated cultures (saturation = ∼0.58 and value = ∼0.59).

Collagen staining intensity also appeared to increase with CNO concentration and dose-frequency, which is conveyed qualitatively in the representative Picrosirius red-stained palettes depicted in Figure 5E. GSK101 and hypo-osmotically loaded cultures exhibited collagen staining behaviors that fell between the CNO-treated and -untreated cultures. Lastly, ICC staining of ECM deposition revealed the matrix composition in CNO-stimulated hM3Dq cultures to favor collagen type II and aggrecan, with an appreciable but less extensive presence of collagen type I (Fig. 6 and Supplementary Fig. S7).

FIG. 6.

ICC staining revealed that CNO-mediated activation of hM3Dq enhanced collagen type II and aggrecan deposition. CNO stimulation resulted in the qualitative appearance of concentration-dependent enhancement of antibody staining for collagen type II (top row) and aggrecan (bottom row). Once-daily stimulation with 500 nM CNO exhibited the highest levels of deposition of both proteins, whereas 5 nM CNO displayed increased staining relative to GSK101 and unstimulated cultures; appreciable but reduced staining for collagen type I (middle row) was also detected. The black region in the 1 × /day 5 nM CNO aggrecan image is a “masked-out” fluorescent dust particle.

Discussion

Directed activation of [Ca²⁺]_i signaling and calcium-dependent processes has emerged as a promising approach to exogenously drive the chondrogenic and anabolic pathways required for successful cartilage tissue engineering and regeneration.^2,28,35,45 Extensive research on [Ca²⁺]_i signaling in chondrocytes has revealed numerous pathways/approaches by which Ca²⁺ activation and Ca²⁺-dependent processes can be controlled in chondrocytes, establishing a critical role for [Ca²⁺]_i signaling dynamics in chondrocyte and cartilage development/physiology.^{2,15,22,72–74}

However, although native Ca²⁺ signal transducers can be used to direct chondrogenic responses, they have limited ability to precisely dissect Ca²⁺-specific processes from those of divergent/convergent signaling pathways, or to control individual cell behavior within mixed cells populations and tissues.^49–52 In contrast, controlling [Ca²⁺]_i signaling by synthetic means, such as through chemogenetic DREADDs, offers a more precise, one-to-one stimulation paradigm for dissecting the influence of Ca²⁺ signaling behaviors on chondrocyte physiology, and cartilage development and homeostasis, disease etiology, and tissue engineering/regeneration.

Using ATDC5 cells engineered to stably express the synthetic DREADD hM3Dq⁶⁰—which drives PLCβ-IP₃-mediated Ca²⁺ release from internal stores (the ER) in an oscillatory manner upon CNO administration—we demonstrated that chemogenetic activation of Gα_q-signaling promotes cartilage-like neotissue formation. ATDC5 cells are a well-established model for studying chondrogenesis,^75–78 however, the chondrogenic transformation of ATDC5 cells (and de-differentiated chondrocytes) requires extended culture in the presence of specific differentiation inducers.^75,76,78

This distinction is critical, as the present study was conducted in the absence of differentiation adjuvants; these outcomes speak to the influence of Gα_q-mediated signal transduction and [Ca²⁺]_i signaling on chondroprogenitor behaviors, as well as their role in directly regulating chondrogenesis, tissue formation, and matrix synthesis.

In hM3Dq-ATDC5 cultures, hM3Dq-mediated primary [Ca²⁺]_i signal generation was stable across 14 days of stimulatory culture (1 × /day at 500 nM CNO). Extensive oscillatory signaling behaviors (9+ peaks) decreased from 3 days onward, whereas robust 5+ and 2+ peak responsiveness and oscillatory behaviors were retained through 1 week of culture. In contrast, the temporal dynamics of CNO-evoked [Ca²⁺]_i signaling changed abruptly under daily CNO activation, with the largest CNO-evoked primary and oscillatory Ca²⁺ intensities recorded on day one of stimulatory culture and then consistently reduced across longer culture periods.

Changes in Ca²⁺ signaling dynamics accompany contact inhibition, cytoskeletal remodeling, and upregulation of calcium buffering proteins, such as calmodulin, which occur as cells proliferate and/or adapt to their Ca²⁺ signaling “environment”.^79–85 Given the proliferation and tissue/nodule formation seen with daily CNO stimulation, changes in hM3Dq-mediated [Ca²⁺]_i signaling behaviors were not entirely unexpected. Indeed, fibroblast-like cells exhibit faster oscillatory signaling with increasing cell density and substrate stiffness.^86,87 Alternatively, MSC maturation is accompanied by reduced Ca²⁺ oscillations as they differentiate and lay down ECM, exhibiting only infrequent, spontaneous “oscillations” unless perturbed.⁸⁸

In addition, pharmacological stimulation of PKC, immediately downstream of Gα_q, promotes chondrocyte differentiation.^41,89 Therefore, reductions in CNO-mediated oscillatory signaling behaviors with extended stimulatory culture may be explained by hM3Dq-driven neotissue formation and matrix deposition.

In 2D culture, ATDC5 cells rapidly proliferate to form confluent monolayers before becoming contact inhibited, similar to what is seen in limb bud rudiments in vivo.^75,76 The first difference we noticed among CNO and control hM3Dq cultures was a concentration and dosing frequency-dependent increase in cell proliferation. It is noted that Gα_q activation regulates cell cycle progression and proliferation across numerous cells; in chondrocytes, Gα_q-GPCR signaling is involved in mitigating apoptotic signaling^53,90 and is necessary for stem cell-like chondrocyte survival in the growth plate.^59,90

Activation of [Ca²⁺]_i, however, represents a double-edged sword. While [Ca²⁺]_i signaling is a requisite for numerous chondrocyte processes, excessive calcium signaling can be detrimental, triggering apoptosis, non-chondrogenic responses, and disease.^18,90–94 Investigating the effects of different hM3Dq activation regimes—including 3 days of thrice daily administration of CNO at ∼100 times its EC50 dose—on ATDC5 health demonstrated minimal impact on cell viability or apoptosis.

Further, the health of cultures treated once daily with 500 nM CNO for 2 weeks appeared unaffected, even following neotissue development. These outcomes confirm that the hM3Dq signaling platform can safely and repeatedly invoke Gα_q-GPCR-mediated [Ca²⁺]_i signaling.⁵³ We also note that this platform offers additional safety compared with ion channel targeting approaches, as activated Gα_q-GPCRs are rapidly internalized, via endocytosis, for degradation or recycling, to limit constitutive Gα_q-coupled receptor activation and elevated [Ca²⁺]_i levels.^95,96

Following hM3Dq-mediated increases in ATDC5 proliferation, synthetic Gα_q activation fostered drastic changes in chondrogenic ATDC5 cell behavior. Activation of hM3Dq drove the formation of “tissue nodules” that exhibited complex cellular morphologies/phenotypes, aligned “tissue” structures, and robust collagen- and proteoglycan-rich cartilaginous ECM deposition. As little as two, once-weekly CNO administrations had an observable influence on nodule formation; at 5 nM, weekly CNO administration resulted in the appearance of “round” regions of increased cell density (i.e., condensations) with modest matrix staining, similar to those of daily 10 nM GSK101 activation.

Weekly 500 nM CNO generated more complex neotissues, with evidence of heterogenous cell populations, aligned structures, and deep collagen and proteoglycan staining. When exposed to higher CNO concentrations and/or frequencies of administration, developing hM3Dq neotissues displayed cell morphologies reminiscent of various stages of chondrogenesis and differentiation. Surrounding each nodule, a monolayer of “quiescent,” contact-inhibited cells having “fibroblastic” appearance were observed, consistent with the undifferentiated ATDC5 phenotype.^75,76

In nascent condensations and at nodule edges, “spindle-like” cells were found. Within nodule centers, smaller cells having round morphology were present; at later time points, these appeared to transition into enlarged cells of “hypertrophic” appearance. Analysis of Picrosirius red-stained cultures revealed CNO concentration-, CNO dosing frequency-, and time in stimulatory culture-dependent increases in matrix deposition/maturation.

Subsequently, ICC staining demonstrated that the matrix synthesized in stimulated hM3Dq cultures was collagen type II and aggrecan rich, with collagen type I present to a lesser degree. The morphology of the nodules in highly simulated cultures was noteworthy, having complex, non-ellipsoidal, and anisotropic structures, which appeared to form bridged “networks” of interconnected neotissues under greater CNO stimulation.

Overall, the nodules and neotissues formed by synthetically driving Gα_q- (and [Ca²⁺]_i) signaling in hM3Dq cells remind one of those observed in early limb development, where MSCs coalesce into mesenchymal condensations, differentiate into chondrocytes that deposit a proteoglycan- and collage type II-rich ECM, and then undergo hypertrophy.^97–102 Although such endochondral ossification-like processes have been recapitulated with ADTC5 cells (and engineered MSCs) previously, they require the use of long culture times and carefully controlled differentiation induction via chemicals (e.g., insulin, ascorbate, transferrin, etc.) or growth factors/cytokines (TGF-β, BMPs, PTHrP, IGF-1, etc.).^8,35,103,104

The present behaviors/findings are fundamentally noteworthy in that neither growth factors, differentiation inducers, or substrate modification were used to regulate chondrogenesis or neotissue formation, just chemogenetic activation of hM3Dq by CNO.

Although WT and unstimulated controls did not display evidence of extensive micro-tissue formation, cultures in which Ca²⁺ signaling was activated daily via TRPV4-mediated mechanisms occasionally exhibited ellipsoidal patches of increased cell density and modestly enhanced matrix staining at 14 days of culture. However, these cultures failed to generate the complex neotissues observed in CNO-simulated hM3Dq cultures.

Although nodule area/sizes were roughly the same under once-daily 5 nM CNO and once-daily 10 nM GSK101 stimulation, the CNO-evoked tissues displayed markedly more complex morphologies and alignments. We speculate that these differences could result from differences in cell tension and motility governed by hM3Dq versus activation; hM3Dq activation generated more extensive oscillatory signaling behaviors than TRPV4 activation,⁴⁰ and oscillatory calcium signaling has been shown to control cytoskeletal dynamics and cell motility in MSCs/chondroprogenitors.^2,105–107

Indeed, we have observed that hM3Dq-ATDC5 cells appear to exhibit oscillatory changes in geometry suggestive of actomyosin-mediated contraction, and coincident with Ca²⁺ signals (unpublished observation). Based on these behaviors, one might postulate that induction of oscillatory [Ca²⁺]_i signaling in MSCs and pre-chondrocytes might serve to regulate cellular tractions and migrations, which are known to control/drive the formation of mesenchymal condensations that are necessary for chondrocyte differentiation.^108–112 Further, as these cells remodel their microenvironment/ECM, their calcium signaling dynamics may change, as was observed here.

The present work has leveraged the chemogenetic DREADD, hM3Dq, to establish a novel foundation from which the influence of Gα_q signaling on chondrocyte physiology can be explored. However, the present approaches are not without their limitations. First, ATDC5 cells are an immortalized chondroprogenitor line; studies will be necessary to establish the efficacy of DREADD-mediated activation of Ca²⁺ signals on primary chondrocyte/MSC cell physiology.

Second, we only assessed hM3Dq-mediated outcomes in 2D culture; three-dimensional cultures, for which studies are ongoing, should provide more developmentally and contextually relevant testing environments to dissect the influence of hM3Dq-mediated Gα_q-GPCR activation on chondrocyte physiology in situ.

Third, although the neotissues formed here had many hallmarks of cartilage, more detailed studies are required to determine the precise composition of the elaborated matrix (i.e., hyaline cartilage vs. fibrocartilage) and their resultant gene expression/proteomic profiles. Lastly, a limited number of studies have shown the importance of Gα_s-coupled and Gα_q-coupled signaling in chondrocytes.^59,90 Although the present study focused solely on Gα_q-coupled signaling, Gα_i and Gα_s-DREADDs are available for similar studies.⁶²

Nonetheless, the hM3Dq DREADD system reported here represents a unique platform for directly interrogating the influence of Gα_q- and [Ca²⁺]_i-signaling on chondrocyte physiology and cartilage health and pathology. Further, the synthetic activation of Gα_q-mediated signaling, through hM3Dq, represents a novel tool to direct toward improving cartilage tissue engineering and regeneration.

This study suggests that hM3Dq might be employed in place of, or alongside, traditional tissue engineering strategies to enhance, possibly in a synergistic manner, cartilage development/engineering in vitro. In addition, because Gα_q-linked chondrocyte outcomes are driven by the administration of an inexpensive, inert, small-molecule drug, there may be numerous benefits for studies targeted at improving cartilage engineering and regeneration using hM3Dq; namely, reductions in study costs (e.g., less reliance on chondrogenic growth factors) and complexity (e.g., reduced need for damaging physical perturbations of cells/tissue), its facile use in mixed/co-culture studies, and lastly, the unique potential for chemogenetically controlling hM3Dq-cells in vivo after implantation, in a manner that limits/eliminates non-target tissue effects.

Conclusion

Through the novel use of the chemogenetic DREADD, hM3Dq, within chondrocyte-like cells, we have generated several insights regarding the influence of targeted Gα_q-GPCR activation on (pre)chondrocyte physiology, and have further cemented the importance of [Ca²⁺]_i signaling and Ca²⁺ oscillations on both chondrogenesis and cartilage development. Together, the behaviors observed within synthetically activated hM3Dq-ATDC5 cells suggest that sustained, daily Gα_q signaling can accelerate ATDC5 cell proliferation; a finding of benefit to exploring novel means to enhance chondrocyte precursor expansion in vitro.

Subsequently, daily Gα_q activation appears to enhance neo-cartilage tissue formation, in a manner reminiscent of the mesenchymal condensation process that underpins long-bone patterning, endochondral ossification, and articular cartilage development, without the previous requirement of “classical” differentiation inducers. Ultimately, the present work has revealed a novel approach, namely chemogenetics, with which to precisely dissect the involvement of GPCR and Ca²⁺ signaling pathways in chondrocyte differentiation and homeostasis, and cartilage development and engineering.

Authors' Contributions

R.C.M.: contributed to the conception and design of the work, sole contributor to the acquisition of data, contributed to the analysis and interpretation of data, and drafted and revised the work. C.P.: contributed to the conception and design of the work, contributed to the analysis and interpretation of data, drafted and revised the work, and provided final approval of the version to be published.

Footnotes

Disclosure Statement

No competing financial interests exist.

Funding Information

This research was supported by a grant from NIH-NIGMS COBRE (P20 GM139760).
