Characterization of Neuroprotection from Excitotoxicity by Moderate and Profound Hypothermia in Cultured Cortical Neurons Unmasks a Temperature-Insensitive Component of Glutamate Neurotoxicity

Abstract

Although profound hypothermia has been used for decades to protect the human brain from hypoxic or ischemic insults, little is known about the underlying mechanism. We therefore report the first characterization of the effects of moderate (30°C) and profound hypothermia (12° to 20°C) on excitotoxicity in cultured cortical neurons exposed to excitatory amino acids (EAA; glutamate, N-methyl-D-aspartate [NMDA], AMPA, or kainate) at different temperatures (12° to 37°C). Cooling neurons to 30°C and 20°C was neuroprotective, but cooling to 12°C was toxic. The extent of protection depended on the temperature, the EAA receptor agonist employed, and the duration of the EAA challenge. Neurons challenged briefly (5 minutes) with all EAA were protected, as were neurons challenged for 60 minutes with NMDA, AMPA, or kainate. The protective effects of hypothermia (20° and 30°C) persisted after rewarming to 37°C, but rewarming from 12°C was deleterious. Surprisingly, however, prolonged (60 minutes) exposures to glutamate unmasked a temperature-insensitive component of glutamate neurotoxicity that was not seen with the other, synthetic EAA; this component was still mediated via NMDA receptors, not by ionotropic or metabotropic non-NMDA receptors. The temperature-insensitivity of glutamate toxicity was not explained by effects of hypothermia on EAA-evoked [Ca²⁺]_i increases measured using high- and low-affinity Ca²⁺ indicators, nor by effects on mitochondrial production of reactive oxygen species. This first characterization of excitotoxicity at profoundly hypothermic temperatures reveals a previously unnoticed feature of glutamate neurotoxicity unseen with the other EAA, and also suggests that hypothermia protects the brain at the level of neurons by blocking, rather than slowing, excitotoxicity.

Keywords

Excitotoxicity Hypothermia Temperature Glutamate Glutamate receptors Calcium Free radicals Dihydrorhodamine Calcium imaging

Induction of hypothermia has long been viewed as a strategy to protect the nervous system from hypoxic, ischemic, traumatic, and inflammatory injuries. Profound degrees of hypothermia have been induced in human subjects for several decades for this purpose, beginning with early experiences with patients suffering from head trauma or central nervous system malignancies (Fay 1940, 1945, 1959). Pioneering work on profound whole-body cooling to protect the brain during cardiovascular and neurosurgical procedures (Bigelow et al., 1950; Lougheed et al., 1955; Rosomoff, 1957; Drake et al., 1964) led to the introduction of deep hypothermia (cooling to 10° to 15°C) into modern clinical neurosurgical practice (Spetzler et al., 1988; Solomon et al., 1991; Solomon, 1994). In recent years, it has become widely appreciated that milder hypothermia (brain cooling of a few degrees Celsius) also confers dramatic neuroprotection in a number of experimental models of brain injury, particularly in animal models of focal and global cerebral ischemia (Busto et al., 1987; Dietrich, 1992; Baker et al., 1992; Ginsberg et al., 1993). However, possibly owing to long-standing clinical experience, profound hypothermia has remained the preferred modality for protecting the human brain in some specialized aspects of cardiovascular and neurosurgical practice.

Despite the repeated therapeutic use of profound hypothermia on human subjects in past decades, the mechanisms by which brain cooling prevents hypoxic or ischemic damage remain unknown. From the onset, reports have confirmed that hypothermia reduces cerebral oxygen metabolism in animals and in humans (Bigelow et al., 1950; Lougheed and Kahn, 1955; Ausman et al., 1993), a feature thought to impart the brain with increased resilience to ischemic insults. To date, many reports have convincingly validated neuroprotection by cooling tissues to 10° to 20°C (Lougheed and Kahn, 1955; Rosomoff, 1957; Michenfelder and Milde, 1992; Gillinov et al., 1993; Shaver et al., 1995; Rokkas et al., 1995), but no cellular studies of deep hypothermia exist to describe the underlying protective mechanisms.

We therefore studied hypothermic protection in cultured cortical neurons. In this system, neurons are separated from the influences of cerebral blood flow and systemic metabolism, which are also temperature sensitive, and are amenable to precise studies of cell viability and physiology under conditions mimicking hypoxia or ischemia and excitotoxicity (Olney, 1978; Choi et al., 1987; Rothman and Olney, 1987; Goldberg et al., 1987, 1989; Goldberg and Choi, 1990). Given the recent finding that cooling of only a few degrees Celsius can protect the brain from ischemia, a number of investigations of mild to moderate hypothermia have been published using similar in vitro systems (Arai et al., 1993; Shuaib et al., 1993; Bruno et al., 1994). However, no reports have examined the effects of profound hypothermia on excitotoxicity, despite the fact that the latter is the modality most commonly applied in clinical settings.

Given the paucity of published data, we sought to examine the behavior of cultured cortical neurons under a range of hypothermic conditions and to study the possible mechanisms by which hypothermia protects against excitotoxicity. A lower limit of 12°C was chosen to reflect the temperatures used in past animal studies and in current clinical practice in human subjects (Spetzler et al., 1988; Solomon et al., 1991; Solomon, 1994). Here we show that moderate (30°C) and profound (20°C) hypothermia blocks, rather than delays, excitotoxicity at the level of individual neurons, though the extent of protection depends on the temperature, the excitatory amino acid (EAA) used, and the EAA challenge duration. Also, we show that prolonged exposures to L-glutamate unmask a temperature-insensitive component of glutamate neurotoxicity unseen with other EAA, and characterize several features of this phenomenon.

METHODS

Tissue culture

Mixed cortical cell cultures containing both neurons and glia were prepared from embryonic Swiss mice at 15 days of gestation as previously described (Hertz et al., 1989; Sattler et al., 1997). Briefly, cerebral cortices taken from 10 to 12 embryos were incubated for 10 to 12 minutes in 0.05% trypsin in EDTA, dissociated by trituration, and plated on poly-L-ornithine-coated 24-well plates (Corning) at a density of 0.43 × 10⁶ cells/well. Only 20 of the 24 wells were plated with cells, leaving 4 wells (one column) available for use as controls, particularly for the purposes of background subtraction of fluorescence data (see below). Cultures used in fluorescence imaging experiments were plated on no. 1 glass coverslips (Faust TMBH, Cologne, Germany) and grown in 35-mm culture dishes. Plating medium consisted of Eagle's minimum essential media (MEM, Earle's salt) supplemented with 10% heat-inactivated horse serum, and 2 mmol/L glutamine, 25 mmol/L glucose, and 26 mmol/L bicarbonate. The cultures were maintained at 37°C in a humidified 5% CO₂ atmosphere. After 3 to 5 days in vitro, growth of non-neuronal cells was halted by a 24- to 48-hour exposure to 10 μmol/L FDU-solution (5 μmol/L uridine, 5 μmol/L (+)-5-fluor-2′-deoxyuridine). The cultures were used for experiments after 12 to 16 days in vitro.

Drugs and solutions

The control solution contained (in mmol/L): 121 NaCl, 5 KCl, 20 D-glucose, 10 HEPES acid, 7 HEPES-sodium salt, 3 NaHCO₃, 1 sodium pyruvate, 1.8 CaCl₂, and 0.01 glycine, adjusted to pH 7.4 with NaOH. Stock solutions of nimodipine (Miles Pharmaceuticals Inc.), 6-cyano-7-nitroquinoxaline (CNQX; Research Biochemicals Inc.), dihydrorhodamine 123 (10 mmol/L; Molecular Probes Inc., Cat# D-632, Lot: 4531-7), fura-2/AM, and calcium green-5N/AM (1 mmol/L; Molecular Probes Inc.) were prepared in dimethyl sulfoxide and kept at −20°C until used. DL-2-Amino-5-phosphonovaleric acid (APV; Sigma Chemical Co., St. Louis, MO, U.S.A.), MK-801 (Research Biochemicals Inc.), and trans-1-aminocyclopentane-1,3-dicarboxylic acid (t-ACPD; Tocris Neuramin) stocks were prepared in distilled water and also stored at −20°C until used. Because dihydrorhodamine (DHR) can undergo photo-oxidation, stocks of this dye were used within 24 hours of preparation. Stock solutions of glutamate, N-methyl-D-aspartate (NMDA), AMPA, and kainate were prepared before each use in control solution. Propidium iodide (PI; 1 mg/mL stock; Molecular Probes Inc.) was prepared in distilled water and dissolved to a final concentration of 50 μg/mL. This concentration of PI produced no observable effects on cell morphology or survival, as demonstrated by the low cell mortality in all control groups. The drugs were always diluted to their final concentrations in control solution. All solutions were sterile-filtered before use. Unless otherwise noted above, all chemicals were obtained from Sigma.

Cell survival assay

Quantitative measurements of cell death were performed in cultures undergoing experimental manipulations as described by Sattler et al. (1997). Briefly, a Cytofluor II fluorescence multiwell plate scanner (PerSpective Biosystems, Framingham, MA, U.S.A.) was modified to allow us to accurately set and maintain the temperature in the scanner's interior to within 0.2°C. Modifications included the addition of insulating material and of thermoelectric heater and cooler assemblies controlled by a precision bipolar thermoelectric controller (Power Puncher BP, Alpha-Omega Instrument Corp. RI, U.S.A.; see Sattler et al., 1997). The fluorescence scanner uses a quartz halogen lamp (spectral range 320 to 700 nm) and appropriate optical filters (530 ± 25 nm excitation, 620 ± 40 nm emission) to excite PI and record its fluorescence emissions.

Outside the multiwell plate scanner, cultures were maintained for the duration of the experiment at 12°, 20°, 30°, or 37°C by placing them in an insulated, humidified chamber (Igloo Cool-Mate™, model 4502, Houston, TX, U.S.A.), in which temperature was also controlled by a thermoelectric heater and cooler powered by a bipolar thermoelectric controller as above.

To measure cell death, the culture medium in each culture well was replaced with control solution containing 50 μg/mL PI and a baseline fluorescence reading was taken in the multiwell scanner. After this, sequential fluorescence readings were taken at appropriate intervals during and for 24 hours after the experimental manipulations. The following equation was then used to calculate the fraction of dead cells in each culture, at any given time:

Fraction dead = (F_{t} - F_{0}) / F_{NMDA}

(1)

where F_t = PI fluorescence at time t, F₀ = initial PI fluorescence at time zero, and F_NMDA = background-subtracted PI fluorescence of identical cultures from the same dissection and plating, 24 hours after a 60-minute exposure to 1 mmol/L NMDA. From manual observations at the time of validation of this technique (Sattler et al., 1997), this NMDA exposure routinely produced nearly complete neuronal death in each culture, but had no effect on surrounding glia (also see Bruno et al., 1994; David et al., 1996).

Loading of neurons with indicator dyes

For imaging the free cytoplasmic Ca²⁺ concentrations ([Ca²⁺])_i, neurons were loaded with Ca²⁺ indicators at 37°C. The cultures were incubated for 60 minutes in control solution containing either 1 μmol/L fura-2/AM or 5 μmol/L calcium green-5N/AM in a final concentration of 0.2% dimethyl sulfoxide. The cultures were then washed in control solution for a further 20 to 30 minutes to attenuate any background fluorescence from residual extracellular indicator.

For measuring or imaging mitochondrial production of reactive oxygen species (ROS), cultures were loaded at 37°C with 5 μmol/L dihydrorhodamine in control solution for 30 minutes and then used for experiments. This cell-permeant compound is oxidized by ROS into its charged fluorescent derivative rhodamine 123, which localizes preferentially in mitochondria, thereby indicating mitochondrial ROS production (Dugan et al., 1995).

Quantitative assessment of dihydrorhodamine oxidation

Oxidation of DHR in the cultures, induced by EAA at different temperatures, was gauged by measuring the changes in DHR fluorescence with time in the multiwell plate scanner. Baseline DHR fluorescence readings were taken, after which the cultures were exposed to one of five concentrations of an EAA agonist with appropriate antagonists, and fluorescence readings were taken from each well every 5 minutes for 60 minutes. Optical filters for DHR were 485 ± 20 nm excitation, 530 ± 30 emission. The relative degree of DHR oxidation evoked at any time by a given concentration of an EAA acid was expressed as the functional increase in DHR fluorescence: (F_t − F₀) / F₀, where F_t is the DHR fluorescence recorded at time t and F₀ is the baseline fluorescence at time = 0.

Calcium measurements

Cultures loaded with Ca²⁺ indicator were mounted in a temperature-controlled microscope-stage incubator (Medical Systems Corp., model TC-202) and viewed with an inverted microscope (Nikon Diaphot, equipped with xenon epifluorescence optics) through a fluorite oil-immersion lens (Nikon CF UV-F ×40, NA = 1.3) in contact with the coverslip bottom. A second-generation microchannel-plate intensified CCD-array camera (Quantex Corp., model QX-100) was used to record the fluorescence emissions of the Ca²⁺ indicator (>510 nm for fura-2, 530 ± 15 nm for calcium green-5N) evoked by excitation through narrow band-pass filters (fura-2: 340 ± 5 nm and 380 ± 6.5 nm; calcium green-5N: 485 ± 11 nm) housed in a computer-controlled filter wheel. Fluorescence images were gathered on an 80486-based personal computer. The system allowed for a maximal time resolution of 2 seconds between successive [Ca²⁺]_i measurements. Four to eight images were averaged at each excitation wavelength. Each average was corrected for background fluorescence and camera dark current by subtracting a frame taken at the beginning of each experiment at each excitation wavelength from an area of the coverslip devoid of cells. Changes in [Ca²⁺]_i in individual neurons were determined by averaging the fluorescence values for all pixels within a boundary traced around the perimeter of the cell soma before starting the experiment. Results were expressed either as the 340/380 nm fura-2 fluorescence ratio, or as the fractional change in calcium green-5N fluorescence: (F_t − F₀) / F₀ where F_t is the fluorescence at time t, and F₀ is the baseline fluorescence. Pilot experiments using zero Ca²⁺ and high (1 mmol/L) Ca²⁺ solutions revealed that the fluorescence of fura-2 excited by 340 and 380 nm was unaffected by temperature changes from 20°C to 37°C.

The cultures were perfused with control solution at 1.2 mL/minute. In each experiment, changes in [Ca²⁺]_i evoked by brief (20 to 30 seconds) applications of glutamate and NMDA (30 μmol/L) were imaged in the same neurons at 20°C and at 37°C.

Confocal imaging of dihydrorhodamine fluorescence

Cultures, grown on glass coverslips and loaded with DHR as above, were placed in the microscope-stage incubator at 20°C or at 37°C and were mounted on a Nikon Diaphot 300 microscope. They were viewed through a ×40 oil-immersion lens (Nikon CF UV-F ×40, NA = 1.3) using an inverted laser-scanning confocal microscope equipped with an argon/krypton laser (MRC 1000, Bio-Rad, Hertfordshire, England). The following confocal parameters were used: 488 nm excitation, ⩾515 nm emission wavelengths, pin-hole size set at 2.8 mm, laser intensity attenuated to 1%, gain at 1320, black level at zero. After acquiring a baseline image, NMDA or L-glutamate (300 μmol/L each) was applied to the cultures and images were acquired every 5 minutes for up to 60 minutes.

Experimental procedures

All experimental manipulations for cell survival experiments took place under sterile conditions in a culture hood. The temperature of all solutions was adjusted before use in the temperature-controlled chamber housing the cultures throughout the experiment. Typically, after taking a baseline PI fluorescence reading, the cultures in a given multiwell plate were exposed to one of five concentrations of an EAA agonist with or without antagonists for either 5 or 60 minutes (Table 1). After this, they were returned to control solution, also maintained at the given experimental temperature. Additional PI fluorescence measurements were then taken in the multiwell plate scanner at appropriate intervals. Experiments carried for 24 hours were performed simultaneously in up to 6 multiwell plates, each of which was maintained in the temperature-controlled chamber except when measuring PI fluorescence in the scanner. Thus, several experimental variations (e.g., different EAA) could be performed in many cultures under identical conditions. All experiments were replicated in at least 2 to 4 cultures. In some experiments, 50-μL aliquots of solution were removed from the culture wells at different times, stored at −80°C, and transferred within 24 hours to a commercial laboratory (HSC Biotechnology Service Center, Toronto, Ont., Canada) for high-pressure liquid chromatography determinations of the quantity of glutamate in the medium.

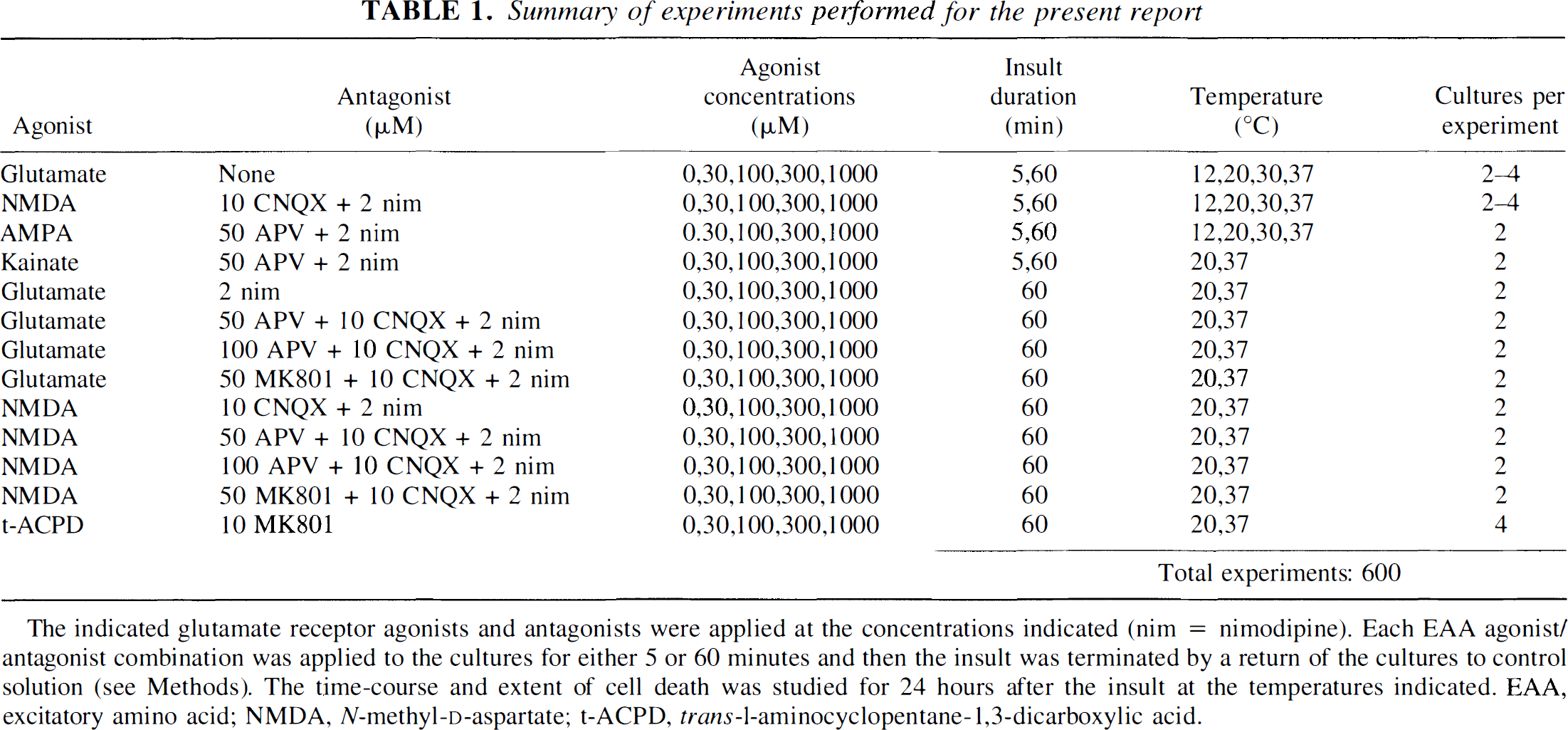

Table 1

Summary of experiments performed for the present report

Agonist	Antagonist (μM)	Agonist concentrations (μM)	Insult duration (min)	Temperature (°C)	Cultures per experiment
Glutamate	None	0,30,100,300,1000	5,60	12,20,30,37	2–4
NMDA	10 CNQX + 2 nim	0,30,100,300,1000	5,60	12,20,30,37	2–4
AMPA	50 APV + 2 nim	0,30,100,300,1000	5,60	12,20,30,37	2
Kainate	50 APV + 2 nim	0,30,100,300,1000	5,60	20,37	2
Glutamate	2 nim	0,30,100,300,1000	60	20,37	2
Glutamate	50 APV + 10 CNQX + 2 nim	0,30,100,300,1000	60	20,37	2
Glutamate	100 APV + 10 CNQX + 2 nim	0,30,100,300,1000	60	20,37	2
Glutamate	50 MK801 + 10 CNQX + 2 nim	0,30,100,300,1000	60	20,37	2
NMDA	10 CNQX + 2 nim	0,30,100,300,1000	60	20,37	2
NMDA	50 APV + 10 CNQX + 2 nim	0,30,100,300,1000	60	20,37	2
NMDA	100 APV + 10 CNQX + 2 nim	0,30,100,300,1000	60	20,37	2
NMDA	50 MK801 + 10 CNQX + 2 nim	0,30,100,300,1000	60	20,37	2
t-ACPD	10 MK801	0,30,100,300,1000	60	20,37	4
			Total experiments: 600

The indicated glutamate receptor agonists and antagonists were applied at the concentrations indicated (nim = nimodipine). Each EAA agonist/antagonist combination was applied to the cultures for either 5 or 60 minutes and then the insult was terminated by a return of the cultures to control solution (see Methods). The time-course and extent of cell death was studied for 24 hours after the insult at the temperatures indicated. EAA, excitatory amino acid; NMDA, N-methyl-D-aspartate; t-ACPD, trans-1-aminocyclopentane-1,3-dicarboxylic acid.

Data analysis

Owing to the large number of inter-related experiments in this report, all data were initially evaluated by multiple linear regression analysis (Armitage and Berry, 1987) to determine the significance of each major experimental parameter (agonist type, agonist concentration, insult duration, and temperature). Subsequent analyses were by Student's t test using the Bonferroni method (Altman, 1991) to evaluate differences between individual group means. Details related to the analysis of a specific data set are included in the appropriate figure legends.

RESULTS

We examined the modulatory effects of a range of temperatures on the time course and extent of excitotoxic injury in cultured cortical neurons (Table 1). Temperatures from 12° to 37°C were studied to encompass both “moderate” (30°C) and “profound” (12° to 20°C) hypothermia, respectively (Busto et al., 1987, 1989; Ginsberg et al., 1993; Bruno et al., 1994). Excitotoxicity was produced using a range of concentrations of NMDA and non-NMDA receptor agonists applied for different durations (5 or 60 minutes). In most experiments (Table 1), appropriate antagonists of glutamate receptors or calcium channels were added to ensure that toxicity was produced specifically by the selected agonist rather than by the secondary activation of glutamate receptors or calcium channels through endogenous EAA release or cell membrane depolarization.

Hypothermia attenuates excitotoxicity triggered by a brief (5 minutes) EAA challenge

Excitotoxicity has been well characterized in past studies at 37°C. Typically, brief (5 to 15 minutes) applications of NMDA or glutamate trigger significant toxicity in cortical neurons during 24 hours (Choi, 1987; Choi et al., 1987; Bruno et al., 1994), whereas longer insults (45 to 60 minutes) accelerate the neurodegeneration seen (Tymianski et al., 1993a, 1993b). Non-NMDA receptor agonists are also toxic, but trigger neurodegeneration more slowly both after brief (Tymianski et al., 1993b) and prolonged (Rothman et al., 1987; Koh et al., 1990) insults. Because little is known about the effects of excitotoxic insults on neuronal survival at lower temperatures, we first examined in detail the effects of brief (5 minutes), and more prolonged (60 minutes) EAA exposures on neuronal survival at temperatures ranging from 12° to 37°C.

Representative effects of 5-minute EAA applications at 37° and 20°C are shown in Fig. 1A. At 37°C, cultures exposed to a range of glutamate concentrations (0 to 1,000 μmol/L) exhibited a time- and concentration-dependent increase in cell death that was highest with 1,000 μmol/L glutamate (diamonds in Fig. 1A, panel a; almost 80% cell death by 24 hours). Exposure to NMDA (Fig. 1A, panel b) and AMPA (Fig. 1A, panel c) also triggered neurodegeneration in a time- and concentration-dependent manner. Lowering the temperature to 20°C conferred dramatic protection against all three EAA across the entire concentration-response range (Fig. 1A, panels d-f). Protection was complete in AMPA-challenged cultures, in which no toxicity was evident even at the highest agonist concentration used (1,000 μmol/L; Fig. 1A, panel f). Cell death was also markedly attenuated in cultures challenged with glutamate and NMDA, in which toxicity was evident only with the highest agonist concentrations (Fig. 1A, panels d and e).

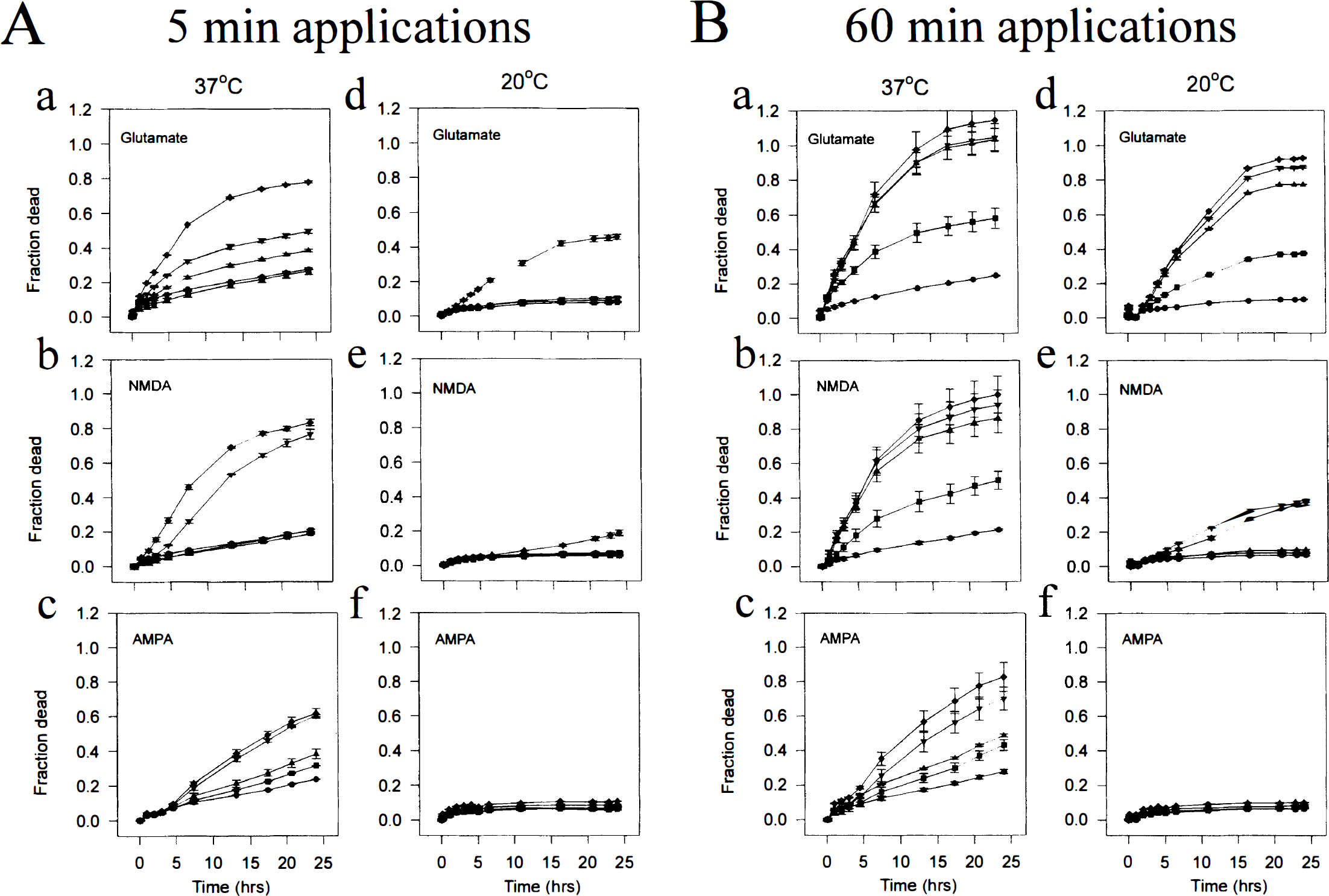

FIG. 1.

Representative experiments showing the effects of 5-minute (A) and 60-minute (B) challenges with glutamate (panels a and d), NMDA (panels b and e), and AMPA (panels c and f) on neuronal survival during 24 hours. (panels a-c) Experiments at 37°C. (panels d-f) Experiments at 20°C. In each experiment, two cultures were exposed to one of five different excitatory amino acid (EAA) concentrations (in μmol/L): 0 (circles), 30 (squares), 100 (triangles), 300 (inverted triangles), and 1,000 (diamonds). The EAA were applied at the same temperature as the remainder of the experiment (20° or 37°C). Cell death was gauged by measuring propidium iodide (PI) fluorescence at the intervals shown using as described (see Methods). Error bars represent SD and are shown where they exceed symbol size. NMDA, N-methyl-D-aspartate.

Hypothermia also protects against prolonged excitatory amino acid insults (60 minutes), although the extent of protection varies with the excitatory amino acid agonist

Representative effects of a longer (60 minutes) application of glutamate, NMDA, or AMPA on the time course and extent of neurotoxicity are shown in Fig. 1B. These longer EAA exposures were more neurotoxic than the 5-minute insults for each EAA, each concentration, and each temperature (e.g., compare Fig. 1A, panels a-c and 1B, panels a-c). As in the brief EAA exposure experiments, lowering the temperature to 20°C conferred dramatic protection against the toxicity of NMDA and of AMPA (Fig. 1B, panels e and f). However, unlike NMDA and AMPA toxicity, the toxicity produced by a 60-minute glutamate insult was relatively resistant to the effects of hypothermia (Fig. 1B, panel d).

The impact of hypothermia on excitatory amino acid toxicity is U shaped

The effects of the agonist type (glutamate, NMDA, or AMPA), concentration, and temperature were evaluated as shown in Fig. 1 using a total of 360 cultures. Multiple regression analysis revealed each of these variables to be a significant independent determinant of cell death (multiple linear regression, n = 360, F = 89.8, P < 0.00001 for each variable). The data were then further subdivided into groups according to the EAA exposure duration, the agonist used, and agonist concentration (Fig. 2A–F). Multiple pairwise comparisons were used to determine significant differences in cell survival at different temperatures (Table 2).

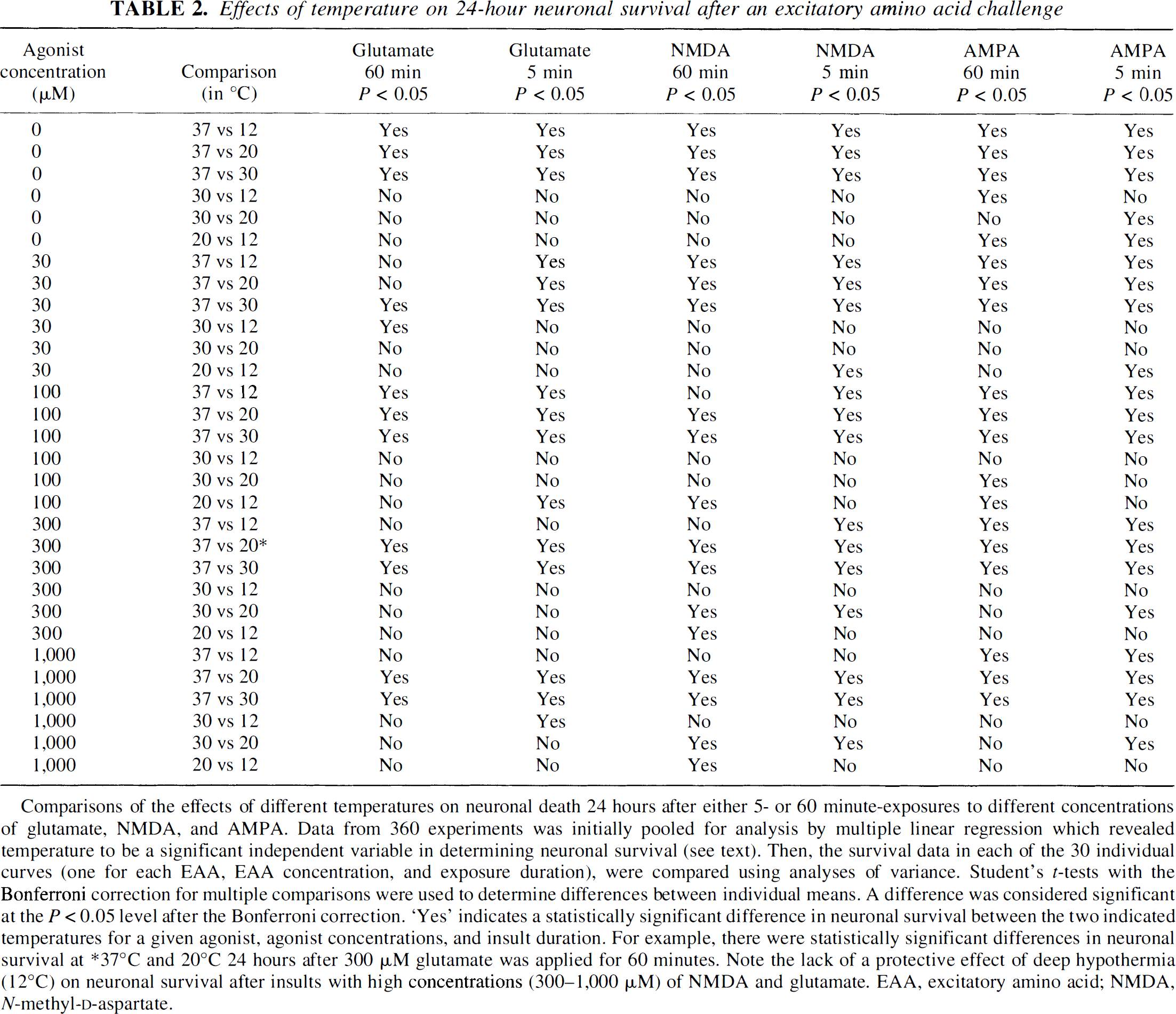

Table 2

Effects of temperature on 24-hour neuronal survival after an excitatory amino acid challenge

Agonist concentration (μM)	Comparison (in °C)	Glutamate 60 min P < 0.05	Glutamate 5 min P < 0.05	NMDA 60 min P < 0.05	NMDA 5 min P < 0.05	AMPA 60 min P < 0.05	AMPA 5 min P < 0.05
0	37 vs 12	Yes	Yes	Yes	Yes	Yes	Yes
0	37 vs 20	Yes	Yes	Yes	Yes	Yes	Yes
0	37 vs 30	Yes	Yes	Yes	Yes	Yes	Yes
0	30 vs 12	No	No	No	No	Yes	No
0	30 vs 20	No	No	No	No	No	Yes
0	20 vs 12	No	No	No	No	Yes	Yes
30	37 vs 12	No	Yes	Yes	Yes	Yes	Yes
30	37 vs 20	No	Yes	Yes	Yes	Yes	Yes
30	37 vs 30	Yes	Yes	Yes	Yes	Yes	Yes
30	30 vs 12	Yes	No	No	No	No	No
30	30 vs 20	No	No	No	No	No	No
30	20 vs 12	No	No	No	Yes	No	Yes
100	37 vs 12	Yes	Yes	No	Yes	Yes	Yes
100	37 vs 20	Yes	Yes	Yes	Yes	Yes	Yes
100	37 vs 30	Yes	Yes	Yes	Yes	Yes	Yes
100	30 vs 12	No	No	No	No	No	No
100	30 vs 20	No	No	No	No	Yes	No
100	20 vs 12	No	Yes	Yes	No	Yes	No
300	37 vs 12	No	No	No	Yes	Yes	Yes
300	37 vs 20∗	Yes	Yes	Yes	Yes	Yes	Yes
300	37 vs 30	Yes	Yes	Yes	Yes	Yes	Yes
300	30 vs 12	No	No	No	No	No	No
300	30 vs 20	No	No	Yes	Yes	No	Yes
300	20 vs 12	No	No	Yes	No	No	No
1,000	37 vs 12	No	No	No	No	Yes	Yes
1,000	37 vs 20	Yes	Yes	Yes	Yes	Yes	Yes
1,000	37 vs 30	Yes	Yes	Yes	Yes	Yes	Yes
1,000	30 vs 12	No	Yes	No	No	No	No
1,000	30 vs 20	No	No	Yes	Yes	No	Yes
1,000	20 vs 12	No	No	Yes	No	No	No

Comparisons of the effects of different temperatures on neuronal death 24 hours after either 5- or 60 minute-exposures to different concentrations of glutamate, NMDA, and AMPA. Data from 360 experiments was initially pooled for analysis by multiple linear regression which revealed temperature to be a significant independent variable in determining neuronal survival (see text). Then, the survival data in each of the 30 individual curves (one for each EAA, EAA concentration, and exposure duration), were compared using analyses of variance. Student's t-tests with the Bonferroni correction for multiple comparisons were used to determine differences between individual means. A difference was considered significant at the P < 0.05 level after the Bonferroni correction. “Yes” indicates a statistically significant difference in neuronal survival between the two indicated temperatures for a given agonist, agonist concentrations, and insult duration. For example, there were statistically significant differences in neuronal survival at ∗37°C and 20°C 24 hours after 300 μM glutamate was applied for 60 minutes. Note the lack of a protective effect of deep hypothermia (12°C) on neuronal survival after insults with high concentrations (300-1,000 μM) of NMDA and glutamate. EAA, excitatory amino acid; NMDA, N-methyl-d-aspartate.

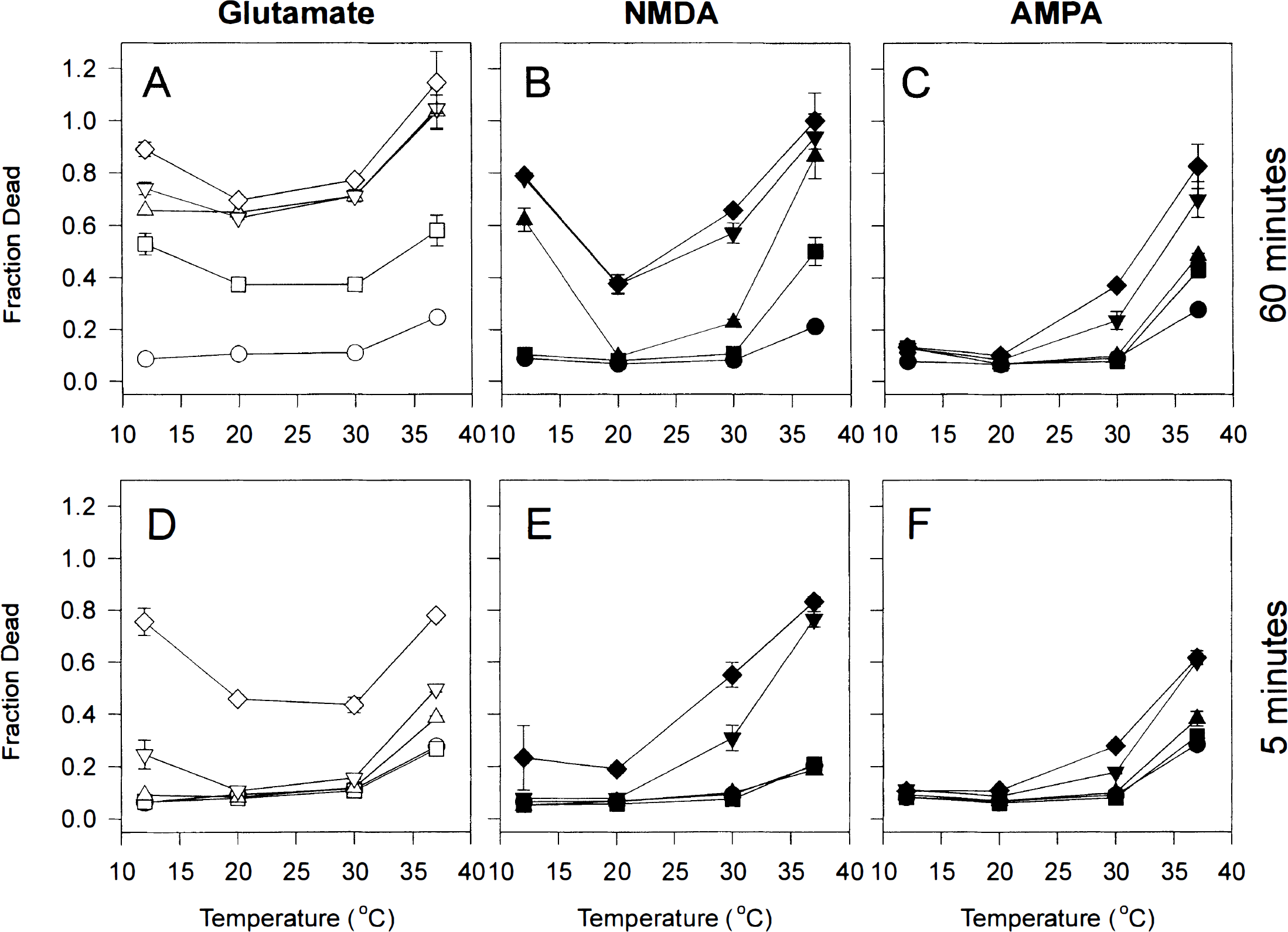

FIG. 2.

The protective effects of hypothermia are U shaped. Cultures were challenged for either 60 minutes (A-C) or 5 minutes (D-F) with varying concentrations of glutamate (A and D), NMDA (B and E), or AMPA (C and F). The EAA concentrations used were (in μmol/L): 0 (circles), 30 (squares), 100 (triangles), 300 (inverted triangles), and 1,000 (diamonds). Cultures were maintained at the given temperature (12°, 20°, 30°, or 37°C) both during and after the EAA challenge. Cell death was measured as described (Methods), and the 24-hour time point shown here. Analysis of cell death at earlier time points (3 and 7 hours) showed similar trends (not shown). Each point represents the average cell death incurred by two to four cultures exposed to identical conditions on at least two separate occasions (cultures from different dissections), for a total of 360 experiments. Error bars are shown where they exceed symbol size. Differences between groups were examined by multiple linear regression followed by pairwise comparisons (see detail in Table 2). EAA, excitatory amino acid; NMDA, N-methyl-D-aspartate.

For any given glutamate concentration (30 to 1,000 μmol/L), cell death at 24 hours was a U-shaped function of temperature (Fig. 2A and D). Thus, lowering the temperature from 37° to 30°C imparted a protective effect, but lowering it further to 20°C did not (Table 2). Furthermore, at 12°C, glutamate neurotoxicity was higher than at either 20° or 30°C, resembling in extent that seen at normothermia. A similar U-shaped response to temperature was observed with cultures challenged with NMDA (Fig. 3B and E), except that lowering the temperature from 30° to 20°C conferred a further degree of protection not seen with glutamate. The increased toxicity of both NMDA and glutamate at 12°C as compared with 20° to 30°C was highly significant (multiple linear regression, n = 120, F = 58.8, P < 0.0001).

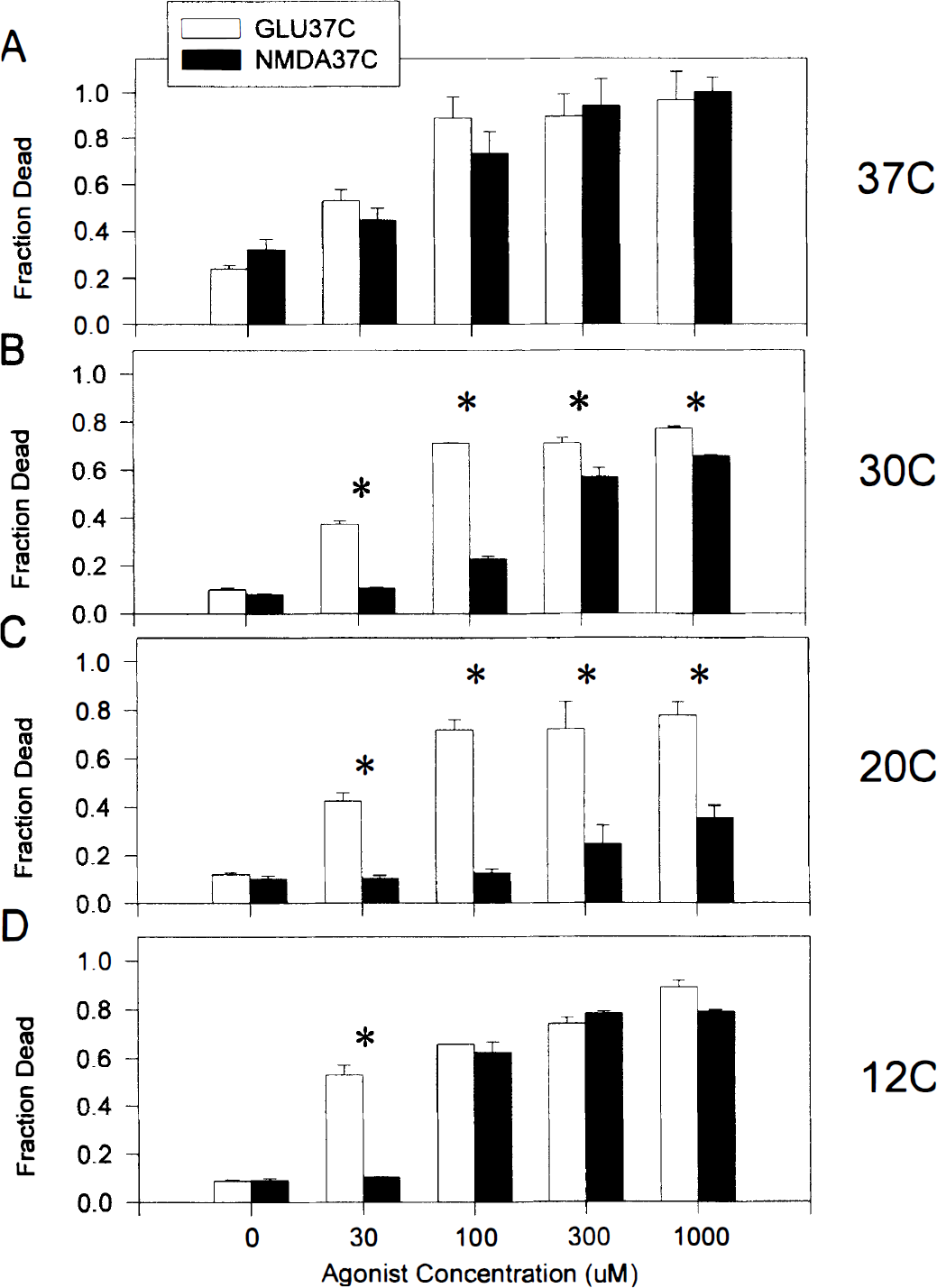

FIG. 3.

Neurotoxicity produced by 60-minute insults with glutamate is relatively temperature insensitive when compared with that of NMDA. Each bar represents the fraction of dead neurons (mean + SD of two to four experiments) 24 hours after a 60-minute insult with a range of glutamate or NMDA concentrations (0 to 1,000 μmol/L). Experiments were performed at 12° to 37°C (A-D). Multiple regression analysis (see results) revealed each of the agonists (NMDA or glutamate), agonist concentrations, and temperatures to be significant variables (each at P < 0.0001) accounting for the ability to predict cell death. *Significant differences (Student's t-test with Bonferroni correction, P < 0.05) between the ability of glutamate and NMDA to produce toxicity for a given concentration and temperature. NMDA, N-methyl-D-aspartate.

Lowering the temperature from 37° to 30°C and then to 20°C also produced significant stepwise reductions in AMPA toxicity, which was abolished at 20°C (Fig. 2C and F). Unlike with NMDA and glutamate, reducing the temperature to 12°C did not enhance AMPA toxicity throughout the 24-hour observation period.

Neurotoxicity from prolonged glutamate insults is relatively temperature insensitive

A surprising finding is the relative insensitivity of a 60-minute glutamate insult to the protective effects of hypothermia (compare Fig. 1B, panels a and d). This was investigated further in a total of 180 cultures exposed for 60 minutes to a range of glutamate or NMDA concentrations at 12°, 20°, 30°, or 37°C (Fig. 3). Under normothermic conditions (37°C; Fig. 3A), equimolar concentrations of glutamate and NMDA were equally toxic. However, lowering the temperature to 30°C had a minor impact on the toxicity of glutamate, whereas NMDA toxicity declined substantially, particularly at the lower agonist concentrations (Fig. 3B). The disparity between glutamate and NMDA toxicity was further accentuated at 20°C, such that NMDA toxicity was almost completely abolished whereas glutamate toxicity was unaffected. This phenomenon disappeared at 12°C owing to the enhancement of NMDA toxicity at this temperature (see above).

Sixty-minute challenges with AMPA and kainate, and brief (5 minutes) challenges with glutamate, NMDA, AMPA, and kainate were all less toxic at lower temperatures (Table 3 and Table 4; 60 cultures and 140 cultures, respectively). Unlike NMDA toxicity, AMPA and kainate toxicity was not enhanced at the lowest temperature (12°C). At 37°C, the toxicity of high AMPA (300 to 1,000 μmol/L for 60 minutes) exceeded that of equimolar quantities of kainate (Table 3).

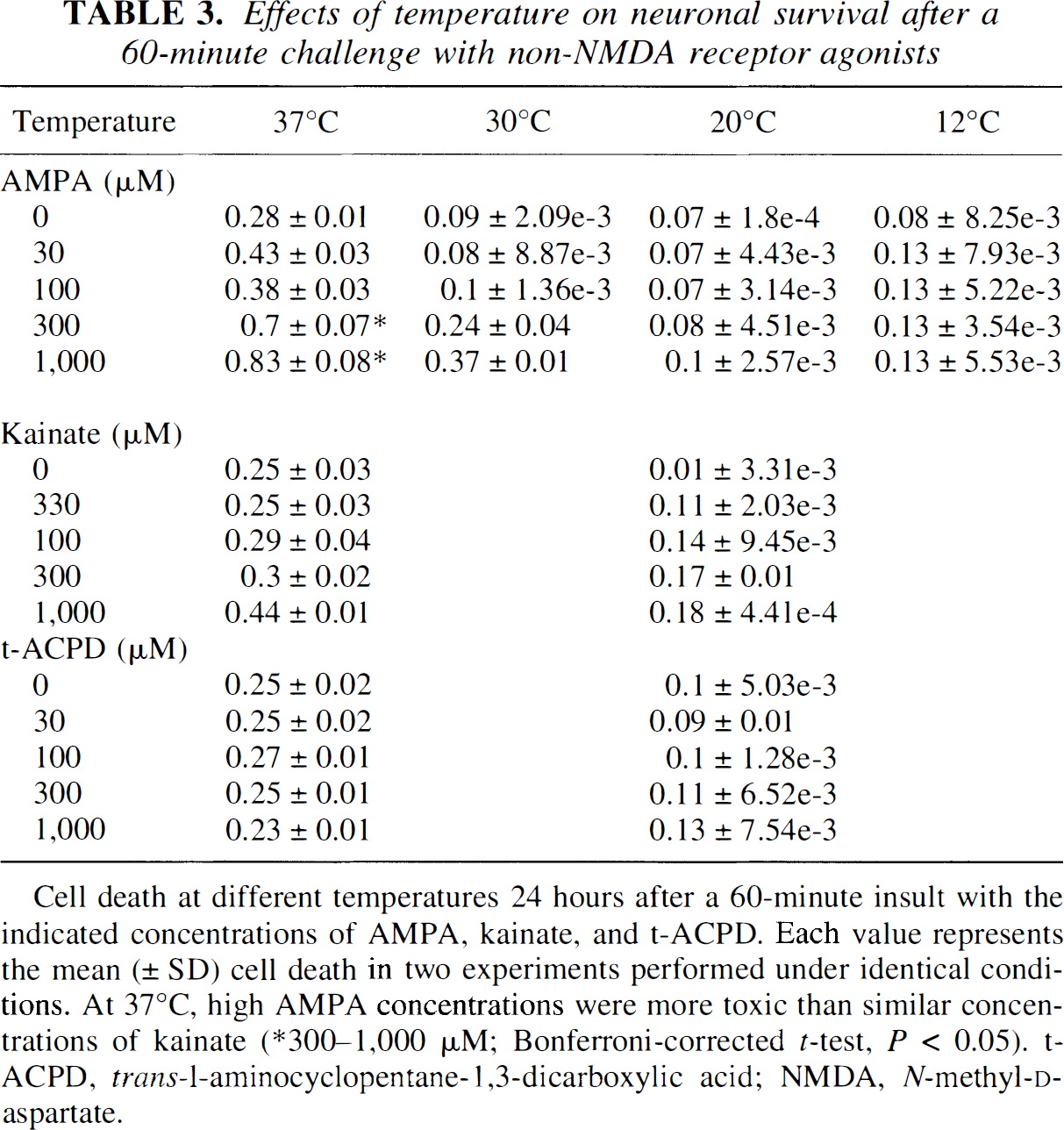

Table 3

Effects of temperature on neuronal survival after a 60-minute challenge with non-NMDA receptor agonists

Temperature	37°C	30°C	20°C	12°C
AMPA (μM)
0	0.28 ± 0.01	0.09 ± 2.09e-3	0.07 ± 1.8e-4	0.08 ± 8.25e-3
30	0.43 ± 0.03	0.08 ± 8.87e-3	0.07 ± 4.43e-3	0.13 ± 7.93e-3
100	0.38 ± 0.03	0.1 ± 1.36e-3	0.07 ± 3.14e-3	0.13 ± 5.22e-3
300	0.7 ± 0.07∗	0.24 ± 0.04	0.08 ± 4.51e-3	0.13 ± 3.54e-3
1,000	0.83 ± 0.08∗	0.37 ± 0.01	0.1 ± 2.57e-3	0.13 ± 5.53e-3
Kainate (μM)
0	0.25 ± 0.03		0.01 ± 3.31e-3
330	0.25 ± 0.03		0.11 ± 2.03e-3
100	0.29 ± 0.04		0.14 ± 9.45e-3
300	0.3 ± 0.02		0.17 ± 0.01
1,000	0.44 ± 0.01		0.18 ± 4.41e-4
t-ACPD (μM)
0	0.25 ± 0.02		0.1 ± 5.03e-3
30	0.25 ± 0.02		0.09 ± 0.01
100	0.27 ± 0.01		0.1 ± 1.28e-3
300	0.25 ± 0.01		0.11 ± 6.52e-3
1,000	0.23 ± 0.01		0.13 ± 7.54e-3

Cell death at different temperatures 24 hours after a 60-minute insult with the indicated concentrations of AMPA, kainate, and t-ACPD. Each value represents the mean (± SD) cell death in two experiments performed under identical conditions. At 37°C, high AMPA concentrations were more toxic than similar concentrations of kainate (∗300–1,000 μM; Bonferroni-corrected t-test, P < 0.05). t-ACPD, trans-1-aminocyclopentane-1,3-dicarboxylic acid; NMDA, N-methyl-d-aspartate.

Glutamate toxicity was attenuated by hypothermia in the brief (5 minutes) exposure experiments, and the phenomenon of temperature insensitivity of toxicity seen with the 60-minute glutamate exposures was not observed (Fig. 1A; Table 4). No differences were found between the toxicity of glutamate and NMDA at any of the temperatures after the 5-minute application (multiple linear regression, n = 80, F = 30.0, P = 0.1823).

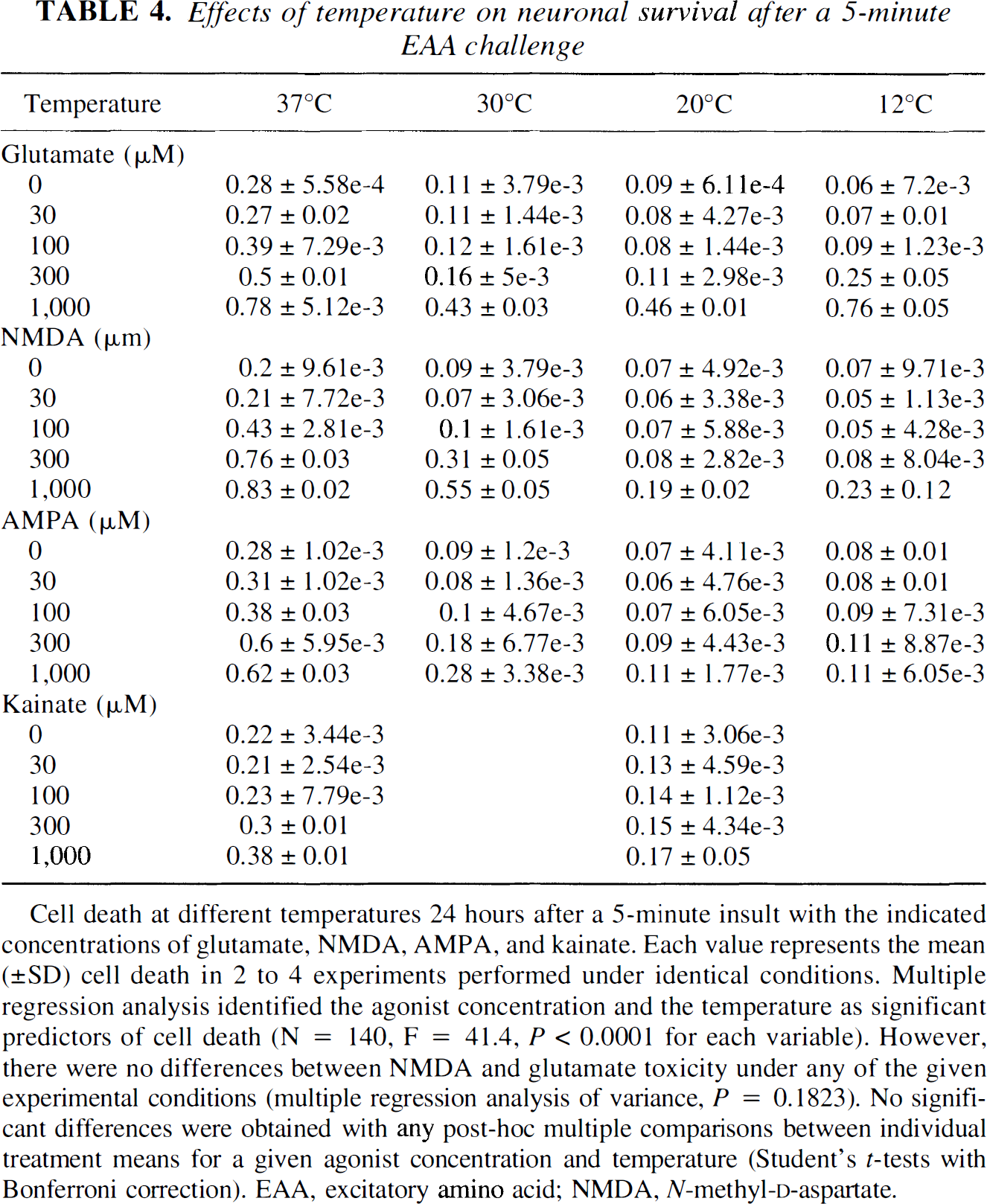

Table 4

Effects of temperature on neuronal survival after a 5-minute EAA challenge

Temperature	37°C	30°C	20°C	12°C
Glutamate (μM)
0	0.28 ± 5.58e-4	0.11 ± 3.79e-3	0.09 ± 6.11e-4	0.06 ± 7.2e-3
30	0.27 ± 0.02	0.11 ± 1.44e-3	0.08 ± 4.27e-3	0.07 ± 0.01
100	0.39 ± 7.29e-3	0.12 ± 1.61e-3	0.08 ± 1.44e-3	0.09 ± 1.23e-3
300	0.5 ± 0.01	0.16 ± 5e-3	0.11 ± 2.98e-3	0.25 ± 0.05
1,000	0.78 ± 5.12e-3	0.43 ± 0.03	0.46 ± 0.01	0.76 ± 0.05
NMDA (μm)
0	0.2 ± 9.61e-3	0.09 ± 3.79e-3	0.07 ± 4.92e-3	0.07 ± 9.71e-3
30	0.21 ± 7.72e-3	0.07 ± 3.06e-3	0.06 ± 3.38e-3	0.05 ± 1.13e-3
100	0.43 ± 2.81e-3	0.1 ± 1.61e-3	0.07 ± 5.88e-3	0.05 ± 4.28e-3
300	0.76 ± 0.03	0.31 ± 0.05	0.08 ± 2.82e-3	0.08 ± 8.04e-3
1,000	0.83 ± 0.02	0.55 ± 0.05	0.19 ± 0.02	0.23 ± 0.12
AMPA (μM)
0	0.28 ± 1.02e-3	0.09 ± 1.2e-3	0.07 ± 4.11e-3	0.08 ± 0.01
30	0.31 ± 1.02e-3	0.08 ± 1.36e-3	0.06 ± 4.76e-3	0.08 ± 0.01
100	0.38 ± 0.03	0.1 ± 4.67e-3	0.07 ± 6.05e-3	0.09 ± 7.31e-3
300	0.6 ± 5.95e-3	0.18 ± 6.77e-3	0.09 ± 4.43e-3	0.11 ± 8.87e-3
1,000	0.62 ± 0.03	0.28 ± 3.38e-3	0.11 ± 1.77e-3	0.11 ± 6.05e-3
Kainate (μM)
0	0.22 ± 3.44e-3		0.11 ± 3.06e-3
30	0.21 ± 2.54e-3		0.13 ± 4.59e-3
100	0.23 ± 7.79e-3		0.14 ± 1.12e-3
300	0.3 ± 0.01		0.15 ± 4.34e-3
1,000	0.38 ± 0.01		0.17 ± 0.05

Cell death at different temperatures 24 hours after a 5-minute insult with the indicated concentrations of glutamate, NMDA, AMPA, and kainate. Each value represents the mean (±SD) cell death in 2 to 4 experiments performed under identical conditions. Multiple regression analysis identified the agonist concentration and the temperature as significant predictors of cell death (N = 140, F = 41.4, P < 0.0001 for each variable). However, there were no differences between NMDA and glutamate toxicity under any of the given experimental conditions (multiple regression analysis of variance, P = 0.1823). No significant differences were obtained with any post-hoc multiple comparisons between individual treatment means for a given agonist concentration and temperature (Student's t-tests with Bonferroni correction). EAA, excitatory amino acid; NMDA, N-methyl-D-aspartate.

The protective effects of hypothermia persist after rewarming to 37°C

To determine whether the protective effects of hypothermia persist on rewarming, the cultures from experiments shown in Fig. 4 and Table 3 and Table 4 were returned to the 37°C incubator after the 24-hour observation period at the lower temperatures. After an additional 12 hours, cell death was measured again.

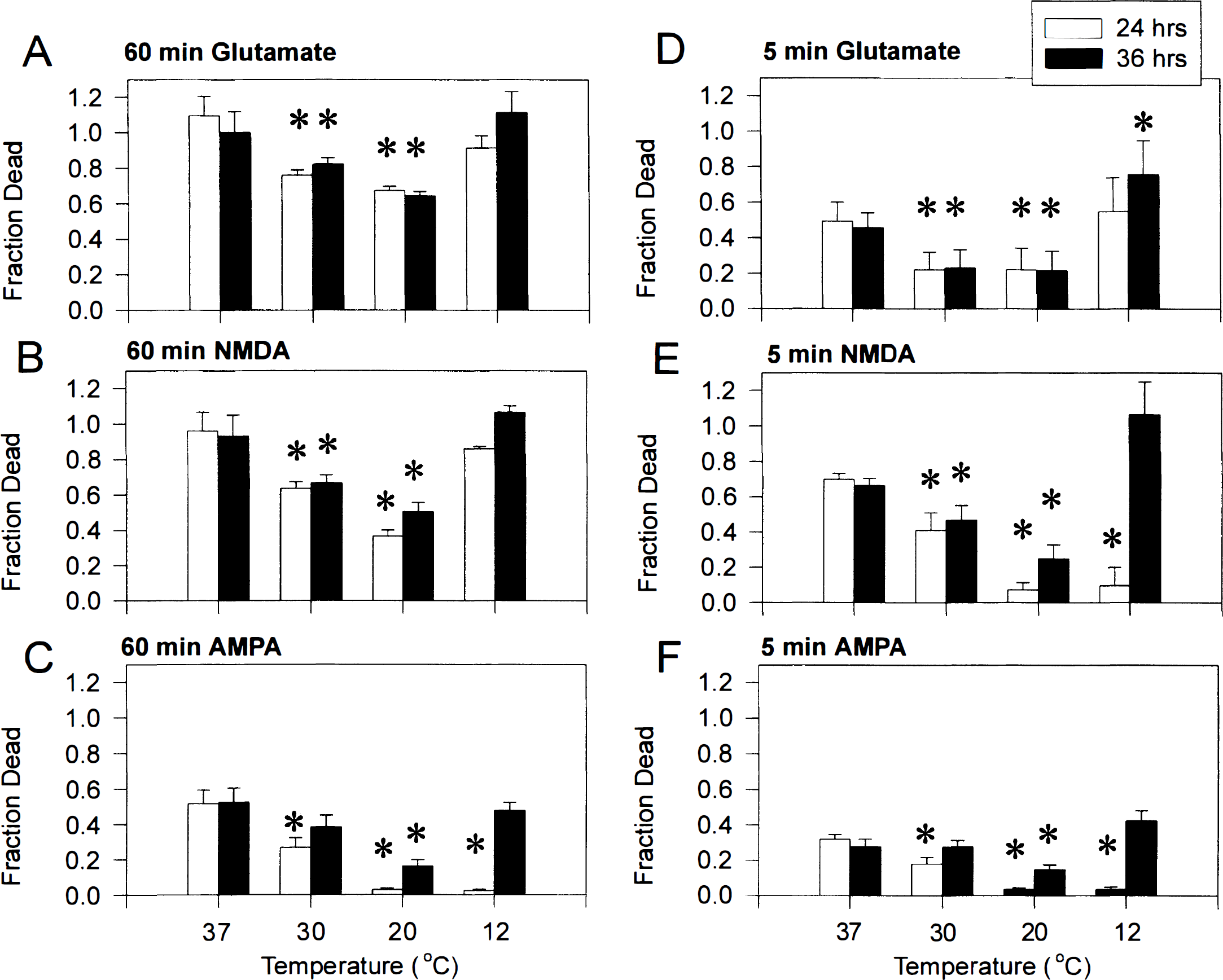

FIG. 4.

Persistence of neuroprotection by hypothermia after rewarming to 37°C for 12 hours. After the 24-hour time point, all cultures used in the experiments shown in Figs. 1, 2 and 3 and Table 3 and Table 4 were transferred from the experimental temperature (12°, 20°, 30°, or 37°C) to a 37°C incubator for an additional 12 hours. A final measurement of cell death was then made. The panels show results of experiments in which glutamate (A and D), NMDA (B and E), or AMPA (C and F) was applied for either 60 minutes (A-C) or 5 minutes (D-F) at the temperatures shown. Shown are the pooled data from cultures exposed to either 300 or 1,000 μmol/L agonist (four to eight cultures per group). Data from cultures exposed to lower agonist concentrations showed similar trends (not shown) and were omitted for clarity. Each bar represents the mean (± SD) cell death incurred in excess of controls (no agonist added). *Differences (P < 0.05) from the amount of cell death incurred at 37°C. NMDA, N-methyl-D-aspartate.

At all temperatures greater than 12°C, there were no increases in cell death throughout the 12-hour rewarming period (Fig. 4). At 12°C, cultures challenged with NMDA agonists for 60 minutes were not protected, and thus toxicity remained after rewarming (Fig. 4A and B). Neurons challenged with AMPA for 5 or 60 minutes at 12°C were apparently initially protected. However, cell death returned to control levels on rewarming (Fig. 4C and F). Furthermore, in neurons challenged with glutamate and NMDA for 5 minutes (Fig. 8D), cell death actually exceeded control levels after rewarming from 12°C (Fig. 8D and E). Thus, neuroprotection by hypothermia to 20° to 30°C persisted after rewarming, whereas protection after cooling to 12°C did not. This suggests that hypothermia acts by aborting the initiation or propagation of neurotoxic cascades rather than by simply slowing down the neurodegenerative processes triggered by excitotoxicity. However, excessive cooling may abrogate this process or trigger its own toxic sequelae.

The temperature-insensitive component of glutamate neurotoxicity is mediated via NMDA receptors, not via ionotropic non-NMDA receptors or metabotropic receptors

Glutamate, the endogenous excitatory neurotransmitter, activates all ionotropic and metabotropic glutamate receptors whereas NMDA activates only the one receptor subtype. The excess toxicity of glutamate at hypothermic temperatures could not have been caused by upregulating non-NMDA ionotropic receptor toxicity, because the latter was reduced, not increased, by hypothermia (Figs. 1 and 2; Table 3 and Table 4). However, metabotropic glutamate receptors (mGluR) are also activated by L-glutamate and may participate in neurotoxic events by affecting endogenous glutamate release, intracellular Ca²⁺ mobilization, phospholipase activation, or cAMP formation (Watkins and Collinridge, 1994; Nicoletti et al., 1996). To determine whether mGluR can contribute to the neurodegeneration seen here, we challenged cultures at 37°C and at 20°C with t-ACPD (0 to 1,000 μmol/L), a group I and II mGluR agonist (mGlu_1–3 and mGlu₅; Watkins and Collinridge, 1994). MK-801 (10 μmol/L), an NMDA receptor antagonist, was added throughout the experiment to prevent any secondary activation of NMDA receptors, which could trigger toxicity through other pathways. However, t-ACPD was nontoxic at either temperature (Fig. 5A), excluding a role for t-ACPD-sensitive mGluR in glutamate toxicity in this culture model.

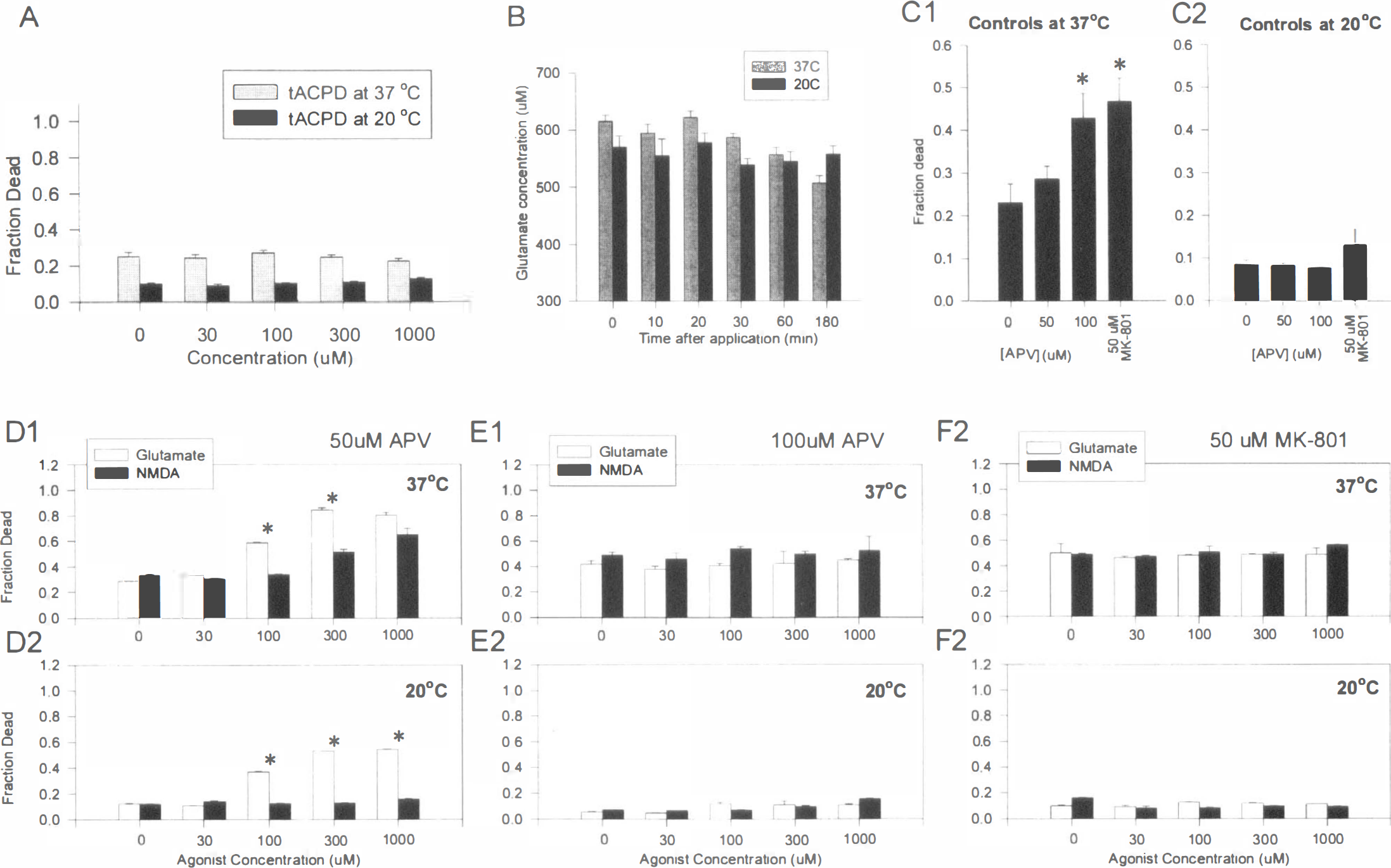

FIG. 5.

The temperature-insensitive component of glutamate toxicity is mediated by NMDA receptors. (A) Lack of toxicity of t-ACPD across a range of temperatures (20° and 37°C) and concentrations (0 to 1,000 μmol/L). Bars represent the mean + SD of four experiments performed under each condition. Although there were differences in baseline cell survival between the two temperatures, no increase in neurotoxicity was seen with increasing concentration of this agent (analysis of variance, P = 0.834 and P = 0.911 for 37° and 20°C, respectively). (B) Lack of a difference in glutamate reuptake at 37° and 20°C. Glutamate (1 mmol/L) was applied to the cultures at the indicated temperatures, and the concentration was measured at intervals by high-pressure liquid chromatography (n = 4 cultures/group). (C) Toxicity of NMDA antagonists applied for 24 hours to cortical neurons in culture at 37°C (C1) and at 20°C (C2). Cell death was measured as described (see Methods) 24 hours after continuously exposing the cultures to DL-APV (0, 50, or 100 μmol/L) or MK-801 (50 μmol/L). (C1) At 37°C, cell death increased with the concentration of APV in otherwise untreated cells (analysis of variance, P = 0.0005). (C2) No toxicity of the antagonists was seen at 20°C (analysis of variance, P = 0.1193). *Significant differences from controls (no antagonist) at the P < 0.05 level (Student's t-test with the Bonferroni correction). (D-F) The temperature-insensitive component of glutamate neurotoxicity can be abolished by NMDA antagonists. Experiments similar to those in Fig. 3 were performed in the presence of NMDA receptor antagonists. Each bar represents the average fraction of dead neurons in two cultures subjected to the indicated conditions, measured 24 hours after the insult (mean + SD). Multiple linear regression revealed each of the following to be significant determinants of cell survival (each at P < 0.00001): choice of agonist, agonist concentration, temperature, and the presence of antagonists. *Pairwise multiple comparisons (Student's t-test with the Bonferroni correction) (P < 0.05). (D1) 37°C, 50 μmol/L DL-APV reduces the toxicity of NMDA to a greater extent than the toxicity of L-glutamate. (D2) At 20°C, NMDA toxicity is abolished, whereas glutamate toxicity, although attenuated, still remains. (E1 and E2) 100 μmol/L DL-APV completely abolishes the toxicity of glutamate and of NMDA at both temperatures. (F1 and F2) 50 μmol/L MK-801 has a similar effect to 100 μmol/L DL-APV. NMDA, N-methyl-D-aspartate; t-ACPD, trans-1-aminocyclopentane-1,3-dicarboxylic acid.

Another way to collectively examine the role of mGluR in glutamate toxicity is to activate them with glutamate in the presence of ionotropic glutamate receptor antagonists. To this end, the cultures were challenged with a range of glutamate concentrations in the presence of DL-APV or MK-801, competitive and noncompetitive NMDA receptor antagonists, respectively, and CNQX, an antagonist of AMPA and kainate receptors (Table 1; Fig. 5D–F). Nimodipine, a Ca²⁺ channel blocker, was also included in all solutions to attenuate any secondary contribution of voltage-sensitive Ca²⁺ channels.

At 37°C, glutamate neurotoxicity in the presence of 50 μmol/L DL-APV was unaffected across a range of glutamate concentrations (Fig. 5, panel D1), whereas NMDA toxicity was significantly attenuated. At 20°C, 50 μmol/L DL-APV completely blocked NMDA toxicity, but had a significantly lesser impact on glutamate toxicity (Fig. 5, panel D2). This persisting disparity between the toxicity of glutamate and NMDA at lower temperatures was finally abolished by increasing the concentration of DL-APV to 100 μmol/L (Fig. 5, panel E1 and E2). The same result was also obtained when 50 μmol/L MK-801 was used (Fig. 5, panels F1 and F2). In other experiments, lesser concentrations of MK-801 (5 to 10 μmol/L) produced similar results (not shown).

Because the temperature-insensitive component of glutamate neurotoxicity could be completely blocked by sufficient concentrations of NMDA receptor antagonists, it is likely that this phenomenon is mediated by NMDA receptor activation, and not via ionotropic non-NMDA receptors or via metabotropic receptors.

NMDA receptor antagonists possess an inherent, temperature-dependent toxicity

About 75% to 80% of control cultures maintained in control solution at 37°C survived for 24 hours. This was increased to more than 90% at 20°C (see controls in Fig. 3A and D). Interestingly, at 37°C, the survival of neurons in control (EAA-untreated) cultures was reduced in the presence of DL-APV or MK-801 in a concentration-dependent manner (Fig. 5, panel C1). This NMDA antagonist toxicity was temperature-sensitive, as hypothermia (20°C) markedly attenuated the toxicity of both NMDA receptor antagonists (Fig. 5, panel C2). It is uncertain whether the NMDA antagonist toxicity seen here in vitro corresponds to the toxicity of these same agents reported in rat brains after in vivo administration (Olney et al., 1989; Olney, 1994; Fix et al., 1993, 1995). However, such in vitro toxicity is apparently a property of high concentrations of NMDA antagonists (Freeman and Goldberg, 1994), which were necessary to affect the temperature-insensitive component of glutamate neurotoxicity (Fig. 5D–F).

Impairment of glutamate reuptake by hypothermia does not explain the temperature insensitivity of glutamate neurotoxicity

Synaptic transmission at central mammalian excitatory synapses is largely terminated by a reuptake mechanism, which clears glutamate from the synaptic cleft. Glutamate transport is a sodium- and potassium-coupled process that exists in both neurons and in astroglia (Rothstein et al., 1994). If hypothermia attenuates this process (Williamson and Neale, 1992), then impaired glutamate clearance could potentially contribute to the persistence of glutamate toxicity seen in this study. To explore this directly, we measured the effect of lowering temperature on the clearance of L-glutamate from the culture medium (Fig. 5B). When 1 mmol/L glutamate was added to cultures, the measured glutamate concentration remained unchanged in the experimental solution for up to 3 hours. Cultures maintained at 37°C were no better at clearing this endogenous EAA from the medium than were cultures at 20°C. This is contradictory to thermodynamic arguments, on the basis of which glutamate reuptake should slow down at 20°C. However, in addition to reducing uptake, hypothermia may also reduce the release of endogenous glutamate that, at 37°C, contributes significantly to neurodegeneration (Tymianski and Sattler, unpublished data). This could potentially nullify the effect of hypothermia on glutamate reuptake, and may account for the result obtained (Fig. 5B). Regardless of the interpretation, given that temperature insensitivity of glutamate neurotoxicity was evident when 1 mmol/L glutamate was used (Fig. 4), it is unlikely that impairment of glutamate reuptake by hypothermia alone explains this phenomenon.

Hypothermia attenuates EAA-evoked [Ca²⁺]_i increases

Toxicity to NMDA, but not to glutamate, differed at 37° and 20°C. However, both ligands acted via the NMDA receptor (Fig. 5). One possibility is that hypothermia decreases the affinity of NMDA, but this effect is less marked with glutamate as the ligand. This could be examined using binding assays (Yoneda and Ogita, 1991), but these would miss any effect of temperature on ion channel kinetics that could differ between the two ligands. The alternative is to measure the end result associated with neurotoxicity, which is Ca²⁺ loading. Under this hypothesis, both NMDA and glutamate should cause similar Ca²⁺ loading at 37°C, but NMDA-induced Ca²⁺ loading should decrease preferentially at the lower temperatures. To examine this, we measured changes in [Ca²⁺]_i evoked by two EAA at 37° and 20°C in the same cells.

Initial measurements were performed using fura-2, a ratiometric Ca²⁺ indicator that would obviate any potential confounding effects of temperature on dye loading and retention, cell geometry, and light path. The results were adjusted for the effects of temperature on the affinity of fura-2 for Ca²⁺ (see Fig. 6 legend). Twenty-second applications of 30 μmol/L glutamate or NMDA were used because these concentrations produced non-saturating [Ca²⁺]_i responses that did not decay after several applications to the same cells. Also, at 37°C, these concentrations produced the same degree of toxicity in the current preparation (see Fig. 3). The [Ca²⁺]_i measurements were performed in the same neurons at both 20° and 37°C.

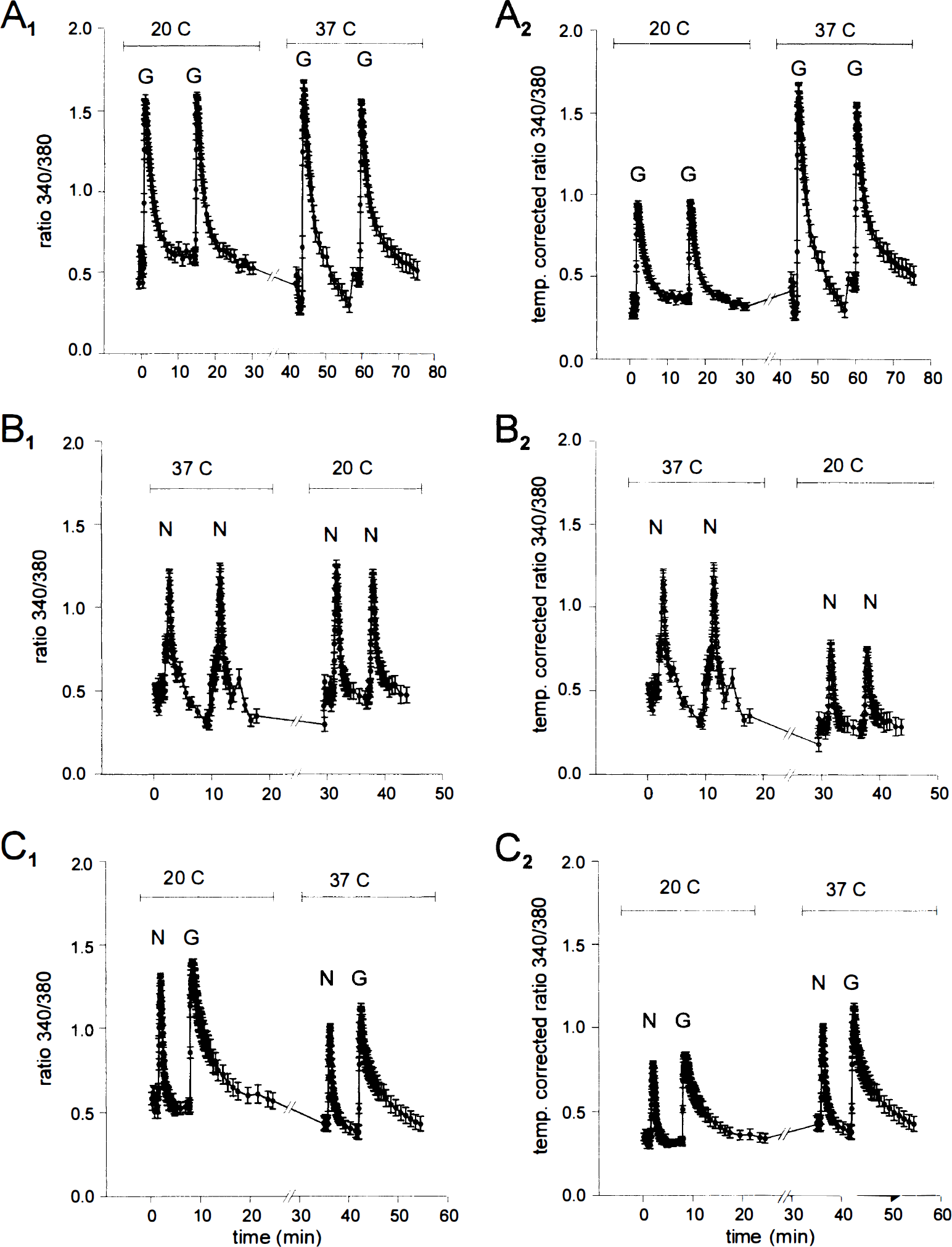

FIG. 6.

[Ca²⁺]_i imaging with fura-2 suggests that hypothermia equally attenuates glutamate- (G; 30 μmol/L) and NMDA- (N; 30 μmol/L) evoked [Ca²⁺]_i increases. Both EAA were applied for 20 seconds. [Ca²⁺]_i transients were evoked at 20° and 37°C in the same neurons in each experiment. Changes in [Ca²⁺]_i are presented as 340/380 nm fura-2 fluorescence ratios (panels A1-C1). Panels A2-C2 represent the corrected fluorescence ratio data for those portions of the experiments performed at 20°C. This correction was necessary, because the affinity of fura-2 for Ca²⁺ ions (K_d) increases at lower temperatures (K_d37°C = 224 nmol/L and K_d20°C = 135 nmol/L; Grynkiewicz et al., 1985). Thus, to allow for a comparison of the magnitude of [Ca²⁺]_i transients at the two temperatures, the data obtained at 20°C were multiplied by 135/224 (temperature-corrected ratio). Each tracing represents the time course of [Ca²⁺]_i averaged from several neurons (n) in the microscope field (mean ± SD). (A) Effects of glutamate applications. Note the reproducibility of the glutamate-evoked transients at each temperature. Increasing the temperature to 37°C did not change the shape of the [Ca²⁺]_i transients (n = 21 neurons, data representative of five experiments). (B) Effects of NMDA applications (n = 13 neurons, representative of four experiments). (C) Effects of alternating exposures to NMDA and glutamate. Note that the size and shape of NMDA-evoked transients, relative to glutamate-evoked transients, does not change with temperature (n = 12 neurons, representative of three experiments). EAA, excitatory amino acid; NMDA, N-methyl-D-aspartate.

Glutamate applications produced transient, fully reversible [Ca²⁺]_i increases at both temperatures (Fig. 6, panel A1) that, when corrected for the effects of temperature on fura-2, were larger at 37° than at 20°C (Fig. 6, panel A2). A similar effect was seen with NMDA applications (Fig. 6B). However, no preferential attenuation of NMDA-evoked [Ca²⁺]_i elevations was detected at the lower temperature (Fig. 6C). Thus, hypothermia apparently attenuates [Ca²⁺]_i increases evoked by both EAA. However, measurements with fura-2 failed to reveal any differences between the effects of NMDA and of L-glutamate.

A low-affinity Ca²⁺ indicator reveals a disparity between glutamate and NMDA-evoked [Ca²⁺]_i increases

Measurements of [Ca²⁺]_i with fura-2 may underestimate actual stimulus-evoked changes in [Ca²⁺]_i. For example, measurements of depolarization-evoked [Ca²⁺]_i transients in cardiac myocytes revealed that the peak [Ca²⁺]_i transient amplitude measured with furaptra (magfura, a low-affinity Ca²⁺ indicator with an affinity for Mg²⁺ ions) was four- to sixfold greater than that measured with fura-2 (Berlin and Konishi, 1993). Similar discrepancies in values reported by low- and high-affinity Ca²⁺ indicators have been described in cerebellar granule cell presynaptic terminals (Regehr and Atluri, 1995). Such discrepancies may arise from Ca²⁺ buffering by fura-2, which prevents [Ca²⁺]_i from rising to high levels, or from saturation of the indicator dye. Both artifacts could be minimized by using a low-affinity Ca²⁺ indicator. Therefore, we used calcium green-5N, an indicator having a 10-fold or more lower Ca²⁺ affinity than fura-2 (K_d for Ca²⁺ about 3.3 μmol/L), to measure whether differences between glutamate- and NMDA-evoked neuronal [Ca²⁺]_i increases exist in our preparation at 37° and 20°C. Calcium green-5N is a nonratiometric dye, and the effects of temperature on its Ca²⁺ affinity are less well characterized. Nevertheless, it is useful for comparing the effects of the two NMDA receptor agonists on [Ca²⁺]_i relative to each other at each temperature. Brief applications of glutamate and NMDA (30 μmol/L each) were used as before. Figure 7A and B reveals that at both 20° and 37°C glutamate produced considerably larger [Ca²⁺]_i changes than similar applications of NMDA, a finding consistent with binding assays (Yoneda and Ogita, 1991) and electrophysiological studies (Lester and Jahr, 1992) that confirm that NMDA receptors have a greater affinity for L-glutamate than for NMDA. It is likely therefore, that the lower affinity indicator better reflects the ability of the given EAA agonist (glutamate or NMDA) to raise [Ca²⁺]_i than the fura-2 measurements (Fig. 6). However, the ratio of the glutamate- to NMDA-evoked [Ca²⁺]_i transient peaks was similar at 20° and 37°C. Thus, this result also failed to reveal any temperature-dependent differences in the relative abilities of NMDA and glutamate to raise [Ca²⁺]_i.

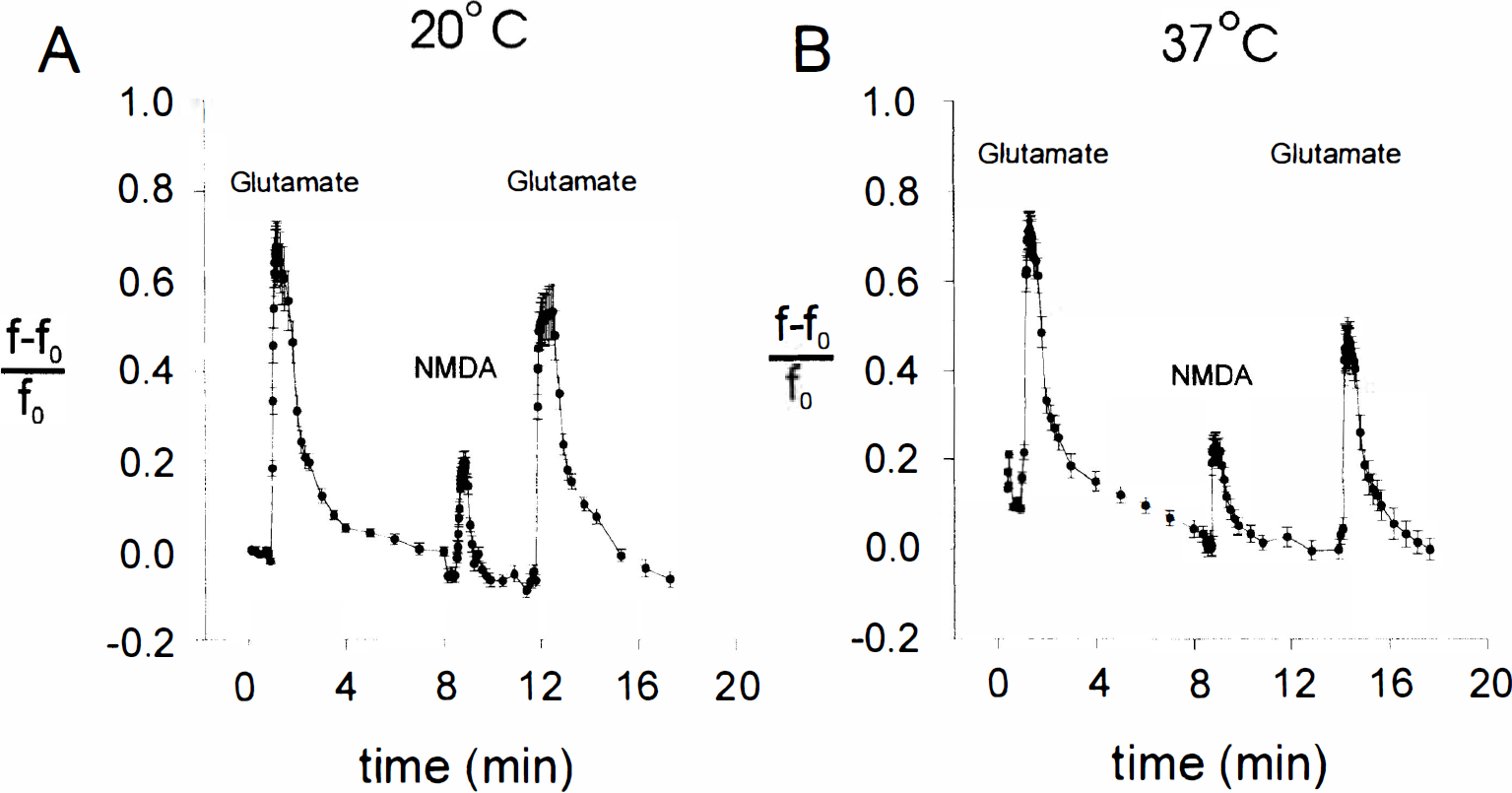

FIG. 7.

[Ca²⁺]_i measurements with a low-affinity Ca²⁺ indicator calcium green-5N (K_d ≈ 3.3 μmol/L at 22°C) suggest that glutamate (30 μmol/L) evokes greater [Ca²⁺]_i increases than NMDA (30 μmol/L) at both 20° and 37°C. [Ca²⁺]_i transients were elicited using 20-second exposures to either glutamate or to NMDA. Changes in [Ca²⁺]_i are expressed as the fractional increase in calcium green-5N fluorescence intensity (see Methods). Each tracing represents the mean [Ca²⁺]_i response (± SD) obtained from the number of neurons (n) indicated in each panel legend. (A) Measurements at 20°C (n = 10 neurons, representative of four experiments). (B) Measurements at 37°C (n = 11 neurons, representative of four experiments). NMDA, N-methyl-D-aspartate.

FIG. 8.

Confocal micrographs of dihydrorhodamine fluorescence in three cultured cortical neurons immediately before (0 minutes) and every 5 minutes for 30 minutes after exposure to 300 μmol/L NMDA. Increases in DHR fluorescence were restricted to punctate structures compatible with mitochondria in neurons and were not observed in the underlying glial monolayer (not shown in this confocal plane). Scale bar is 25 μm. DHR, dihydrorhodamine; NMDA, N-methyl-D-aspartate.

Hypothermia does not affect excitatory amino acid-evoked mitochondrial production of reactive oxygen species

The [Ca²⁺]_i measurements have not provided an explanation for the relative temperature insensitivity of glutamate neurotoxicity. We therefore examined whether the disparity in glutamate and NMDA toxicity at lower temperatures could be explained by an EAA-activated process occurring subsequent to both NMDA receptor activation and Ca²⁺ influx. We examined the production of ROS, as this phenomenon is known to be triggered by NMDA receptors and has frequently been implicated as a mediator of neurotoxicity (Pellegrini-Giampietro et al., 1990; Lafon-Cazal et al., 1993; Coyle and Puttfarcken, 1993; Reynolds and Hastings, 1995). We studied EAA-evoked mitochondrial ROS production with the oxidation-sensitive indicator dihydrorhodamine 123 (DHR), because this process was reported to be selectively associated with Ca²⁺ influx through NMDA receptors and could not be triggered by cell membrane depolarization with KCl or by non-NMDA receptor agonists (Dugan et al., 1995). Specifically, we tested the hypothesis that hypothermia would preferentially attenuate NMDA-evoked ROS production more than that evoked by glutamate.

First, we tested whether loading our neurons with DHR produces a mitochondrial localization of the dye and an increase in mitochondrial fluorescence attributable to EAA application. Cultures grown on glass coverslips were loaded with DHR and viewed with a laser-scanning confocal microscope set for high gain and low laser intensity to minimize photo-oxidation of the dye (see Methods). Fig. 8 is representative of four experiments at 20°C in which cultures were exposed to 300 μmol/L NMDA after the acquisition of a baseline image (t = 0 minutes). The punctate distribution of the dye and the absence of fluorescence from nuclear areas indicate that DHR fluorescence likely originated from mitochondria (Dugan et al., 1995). Application of NMDA caused a progressive increase in DHR fluorescence during 30 minutes, which was confined primarily to neurons and their processes. Similar changes were not observed in the absence of NMDA, nor in the underlying glial monolayer, which was visualized in a different confocal plane (not shown). Similar increases of DHR fluorescence could be produced by applying L-glutamate (300 μmol/L; four experiments, not shown). Experiments at 36.5°C produced similar results with both NMDA and L-glutamate (eight experiments, not shown).

Dihydrorhodamine fluorescence can be quantified from the confocal images (Dugan et al., 1995). However, this approach is labor intensive, produces data from only a few neurons at a time, and may involve a subjective component as it requires one to manually define cell boundaries in each fluorescence image. Having shown that the DHR signal was EAA sensitive and originated from mitochondria-like structures (Fig. 8), we chose to use the multiwell plate fluorescence scanner (Sattler et al., 1997) to measure the time course and extent of changes in DHR fluorescence evoked by NMDA, L-glutamate, and kainic acid applied at several concentrations (0 to 1,000 μmol/L). Temperature inside the scanner was maintained at either 37°C (Fig. 9A–C) or 20°C (Fig. 9D–E) throughout.

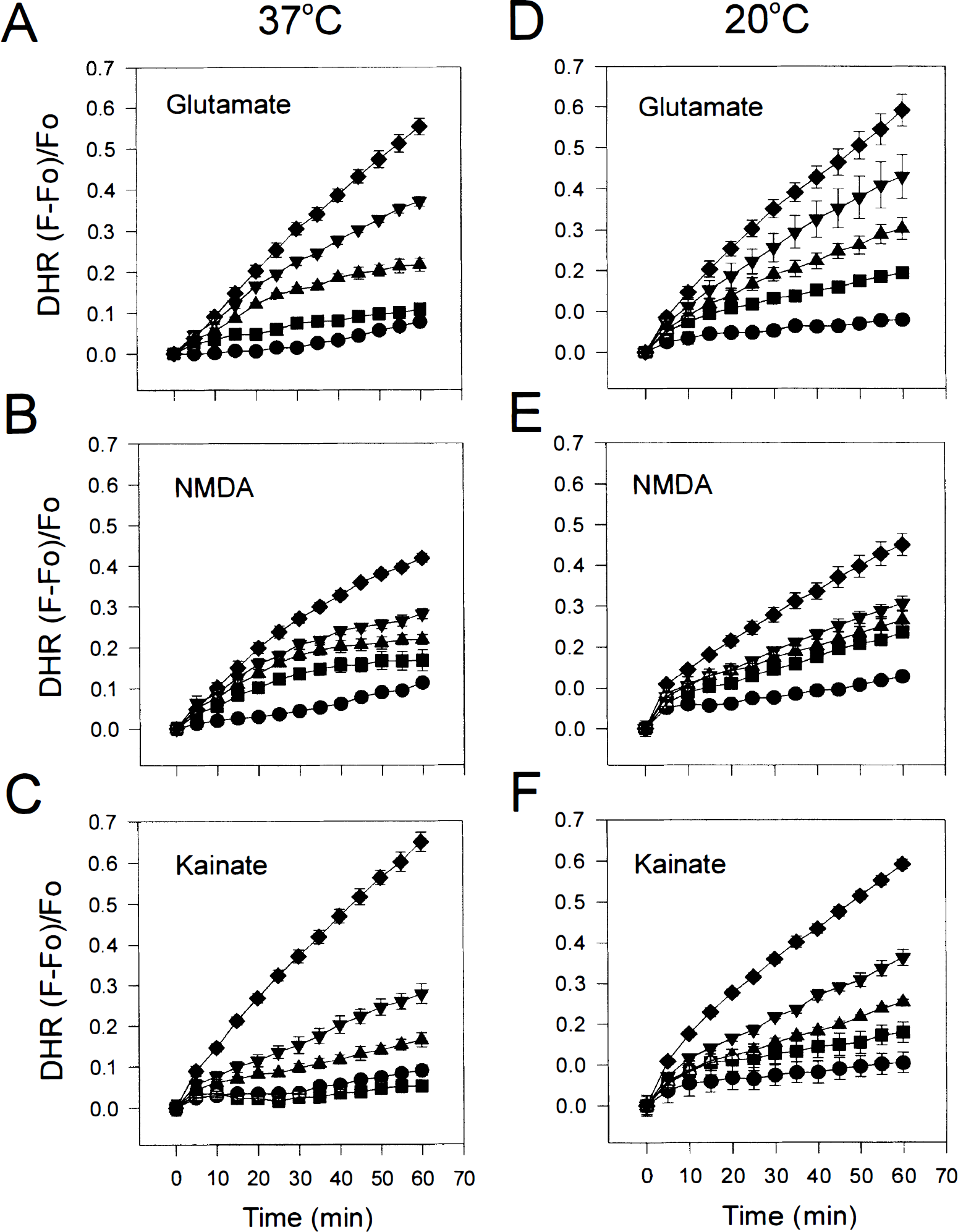

FIG. 9.

Hypothermia does not attenuate EAA-evoked increases in DHR fluorescence. Applying glutamate (A, D), NMDA (B, E), or kainate (C, F) for 60 minutes at 37° or 20°C produced identical changes in DHR fluorescence [(F − F₀) / F₀]. (A-C) Experiments performed at 37°C. (D-E) Experiments performed at 20°C. For each experiment, four cultures were exposed to one of five different EAA concentrations (in μmol/L): 0 (circles), 30 (squares), 100 (triangles), 300 (inverted triangles), and 1,000 (diamonds). Error bars represent SD and are shown where they exceed symbol size. DHR, dihydrorhodamine; EAA, excitatory amino acid; NMDA, N-methyl-D-aspartate.

All EAA cause a concentration-dependent increase in DHR fluorescence (Fig. 9). Consistent with the ability of glutamate to evoke greater [Ca²⁺]_i increases in the neurons than NMDA (Fig. 7), glutamate also produced greater increases in DHR fluorescence (compare Fig. 9A and D with Fig. 9B and E). However, lowering the temperature from 37° to 20°C had no impact whatsoever on either the rate or the extent of DHR oxidation produced by any of the EAA tested (compare Fig. 9A–C with Fig. 9D–E). Thus, ROS production as measured by DHR oxidation did not parallel the toxicity of these EAA agonists and did not reflect any temperature sensitivity of one EAA over another. It is conceivable that ROS production from mitochondria provides only a small proportion of the ROS that trigger neurotoxicity or that the role of ROS in neurotoxicity has been overestimated.

DISCUSSION

Moderate (30°C) and profound (20°C) hypothermia reduced excitotoxicity at the level of individual neurons in a manner dependent on the temperature, the EAA, and the EAA challenge duration. Hypothermia reduced excitotoxicity in cultures subjected to both brief (5 minutes) and prolonged (60 minutes) insults with glutamate, NMDA, AMPA, and kainate (Figs. 1, 2 and 3; Table 2, Table 3 and Table 4. However, excessive cooling (to 12°C) was toxic (Figs. 2 and 3). The protective effects of hypothermia at 20° to 30°C persisted after rewarming to 37°C, but rewarming from 12°C was deleterious (Fig. 4). Neurons briefly challenged with all EAA responded similarly to hypothermia. However, hypothermia had surprisingly little effect on the toxicity of 60-minute glutamate applications, whereas the toxicity of prolonged insults with the other EAA, such as NMDA, was dramatically reduced. The temperature-insensitive component of glutamate neurotoxicity was still mediated by NMDA receptors (Fig. 5D–F), not by the activation of ionotropic or metabotropic non-NMDA receptors (Fig. 5A) nor, in any simple manner, by inhibition of glutamate reuptake by hypothermia (Fig. 5B). The disparity in the toxicity of NMDA and glutamate at lower temperatures was not explained by effects of hypothermia on EAA-evoked [Ca²⁺]_i increases (Figs. 6 and 7), nor by effects on mitochondrial ROS production (Figs. 8 and 9). However, using a low-affinity Ca²⁺ indicator, it was evident that equimolar quantities of NMDA and glutamate produce markedly different changes in [Ca²⁺]_i not detectable by indicators having a lower Ca²⁺ affinity.

Presynaptic or postsynaptic mechanisms?

Bruno et al. (1994) studied the effects of mild to moderate hypothermia on cortical neurons exposed to oxygen-glucose deprivation or EAA. They showed that cooling to 30°C virtually abolished anoxia-induced glutamate release into the extracellular medium. This, and similar findings in vivo (Mitani and Kataoka, 1991; Ginsberg et al., 1993; Rokkas et al., 1995; Baker et al., 1995; Globus et al., 1995), suggests that a major mechanism by which mild to moderate hypothermia protects neurons against anoxia or ischemia is by attenuating endogenous glutamate release and subsequent excitotoxicity. Cooling to 30°C protected neurons against brief (10 minutes) challenges with EAA only if hypothermia was maintained beyond the initial insult, because much of the damage produced was subsequent to the release of endogenous glutamate (Bruno et al., 1994).

Given that mild to moderate hypothermia already abolishes endogenous EAA release, lowering the temperature further should not confer additional neuroprotection by this mechanism. However, in the case of both NMDA and AMPA toxicity in this report, cooling from 30° to 20°C conferred additional protection across a range of EAA concentrations and exposure durations (Figs. 3 and 4; Table 3 and Table 4). Thus, postsynaptic mechanisms must also play a role in the protection of neurons by profound hypothermia.

Potential postsynaptic mechanisms of neuroprotection by hypothermia

Many cellular processes are attenuated by cooling. Some are maximally attenuated at temperatures lower than those that are conventionally considered as mild to moderate hypothermia (30° to 33°C).

Transmembrane ionic fluxes and ion homeostasis Ionic channels are temperature sensitive. For example, single channel recordings of NMDA receptor activity show that single NMDA channel conductance increases steeply at temperatures in excess of 20°C (Feldmeyer and Cull-Candy, 1993; Chung and Kuyucak, 1995). Ionic currents are decreased and the mean channel open times increased at lower temperatures, with Q₁₀ values in excess of 3 for either parameter between 14° and 24°C. Interestingly, these Q₁₀ values may vary with the specific NMDA agonist used (McLarnon and Curry, 1990), possibly accounting for the observed discrepancy between the neurotoxic effects of NMDA and glutamate in the present study. Thus, temperature reductions of several degrees Celsius, as seen with profound hypothermia (e.g., from 37° to 20°C) will have a significantly greater impact on ionic fluxes through glutamate receptor channels than would the lesser temperature decrements of mild hypothermia.

Hypothermia also slows ionic pumps and exchangers. Thus, cooling may slow down the reverse operation of the Na/Ca exchanger during anoxia and excitotoxicity (Mattson et al., 1989; Stys et al., 1991a, 1991b; Kiedrowski et al., 1994; White and Reynolds, 1995), which, in turn, would reduce cellular Ca²⁺ loading and resultant injury (Knerr and Lieberman, 1993). The Ca-ATPase, another important mechanism for cellular Ca²⁺ extrusion and sequestration, is also temperature sensitive: higher temperatures lead to a more fluid cell membrane, which allows faster rotational motion of the ATPase protein in the lipid membrane, which correlates with greater Ca-ATPase activity (Bigelow et al., 1986). There appears to be a temperature threshold, around 20°C, for the increased Ca-ATPase activity: greater than 20°C, the activation energies for Ca-ATPase activity, lipid fluidity, and protein rotational motion are essentially equal, whereas these are decreased at lower temperatures (Squier et al., 1988). Also, less than 20°C Ca-ATPase protein aggregation is increased, making rotational motion of the protein units cumbersome. ATPase protein aggregation is minimized at higher temperatures (20° to 40°C), such that a larger population of smaller protein units (presumably capable of faster rotation and more efficient activity) exists.

The suggestion that the temperature sensitivity of glutamate receptor channels and ionic pumps is maximal around 20°C implies that profound hypothermia may have significantly greater impact on cellular ionic fluxes than mild hypothermia. This may explain why previous measurements of EAA-evoked [Ca²⁺]_i increases using fluorescent calcium indicators at 30° to 33°C have not revealed significant differences from measurements at 37°C (Arai et al., 1993; Bickler et al., 1994; Bruno et al., 1994). In further support of the possibility that the efficiency of [Ca²⁺]_i modulatory mechanisms may differ at temperatures less than 30°C is the finding by Konig et al. (1994), who reported that AMPA-evoked [Ca²⁺]_i elevations in cultured rat brain stem cells returned to baseline values at 24°C, but evoked complex secondary calcium increases when the temperature was raised to 27°C.

Cellular energy production Early theories of the mechanisms of protection by hypothermia focused on reductions in cerebral metabolic rate (Bigelow et al., 1950; Lougheed and Kahn, 1955; Michenfelder and Milde, 1992; Ausman et al., 1993). However, in vivo studies of brain ischemia at mild to moderate hypothermia do not consistently report a significant salvage from ATP depletion (Ginsberg et al., 1993; Verhaegen et al., 1995). In vitro studies also report variable effects of mild to moderate hypothermia on cellular ATP: in the studies of Bruno and colleagues (1994), moderate hypothermia (30°C) attenuated slightly cellular ATP loss observed during 60 minutes of oxygen-glucose deprivation. However, it had no effect on ATP loss measured 1 hour after a 10-minute NMDA insult or a 1-hour AMPA or kainate insult. Additional in vitro investigations suggest that ATP depletion is slowed by mild to moderate hypothermia only in the first few minutes of the insult. For example, in rat and gerbil brain slices, ATP depletion rates after anoxic insults at 34° or 31°C were reduced in the first 2 to 3 minutes, but not after 5 to 15 minutes of anoxia (Paschen and Djuricic, 1995). Similarly, after excitotoxic injury to isolated embryonic retinas, the rate of ATP loss was slowed by cooling from 37° to 30°C during the first several minutes, but by 10 minutes ATP levels were comparable at the two temperatures (Zeevalk and Nicklas, 1993).

Presently, little is known about the effects of deeper levels of hypothermia on high-energy metabolite production during anoxia, ischemia, or excitotoxicity. In one study, mitochondrial respiration and ATP synthesis were preserved in rat brain, liver, and kidney rendered ischemic at 4°C (Baumann et al., 1989). However, whether deep hypothermia prevents mitochondrial dysfunction or ATP loss more than mild to moderate hypothermia is unknown.

The production of toxic reaction products It has been suggested that the attenuation of production of free radical species after neuronal injury is a potential protective mechanism of hypothermia. Experiments in vivo have shown that moderate hypothermia (30°C) is sufficient to attenuate hydroxyl radical production after brain ischemia and trauma (Globus et al., 1995; Kil et al., 1996). Mild hypothermia (33°C) may also attenuate postischemic production of nitric oxide (Kader et al., 1994). It is unknown whether such processes are further enhanced at even lower temperatures.

Experiments in cultured cerebellar granule cells have examined whether cooling attenuates increases in oxidative metabolism triggered by applying a Ca²⁺ ionophore. The oxidation of intracellular dichlorofluorescein, a fluorescent marker of cytoplasmic ROS production (Reynolds and Hastings, 1995), was increased after the application of ionomycin at 36°C. This increase was not affected by cooling neurons to 26°C, but was markedly reduced at 16°C and virtually abolished at 4°C (Oyama et al., 1994). The authors attributed this effect to a reduction in oxidative metabolism, as ionomycin-induced increases in the fluorescence of fluo-3, a Ca²⁺ indicator, were reportedly unaffected by the temperature reduction.

The mechanism by which a reduction in ROS might occur is uncertain. No evidence exists to suggest that the mitochondrial electron transport chain, a source of free radical species, is selectively targeted by hypothermia (Baumann et al., 1989). However, mild temperature reductions (to 30° to 35°C) have been shown to attenuate astroglial release of arachidonic acid metabolites after hypoxia or hypoglycemia (Haun et al., 1993) and the production of some prostaglandins after challenges with calcium ionophores and ischemia in skeletal muscle and rat brains, respectively (Patel et al., 1994; Majumdar et al., 1995). Whether such mechanisms are also operative at the level of individual neurons of the CNS remains to be elucidated.

Other mechanisms Other potential targets for the protective effects of hypothermia exist. Among these are cellular protein synthesis (Widmann et al., 1993; Bergstedt et al., 1993; Paschen and Djuricic, 1995), the activity of innumerable cellular enzymes such as Ca²⁺/calmodulin-dependent protein kinase II (Hu et al., 1995) and protein kinase C (Busto et al., 1994), cell membrane fluidity (Squier et al., 1988), action potential propagation (Kiyosue et al., 1993), and the ischemic induction of heat-shock proteins (Shaver et al., 1995). Further studies are needed to address the potential impact of moderate and deep hypothermia on these processes.

Potential mechanisms of toxicity of hypothermia

Mild to moderate hypothermia appears to be well tolerated by the brain in vivo, and by individual neurons and glia in vitro, as there have been no reports of toxicity attributable to mild temperature reductions. However, as demonstrated in this study, more profound hypothermia (12°C) has the potential to damage neurons (Figs. 2, 3 and 4). In studies of traumatically injured spinal neurons, Lucas and colleagues showed that cooling to 17°C for 2 hours and rewarming at 37°C for 22 hours was well tolerated by control (uninjured) neurons and protected injured neurons. However, neurons cooled below 17°C experienced swelling, and many died on rewarming (Lucas et al., 1990). Hypothermic swelling and death could be reduced by pretreatment with NMDA antagonists (Lucas et al., 1990, 1994). Ultrastructural studies of the damage induced in spinal neurons cooled to 10°C revealed cytoplasmic vacuolation, mitochondrial abnormalities, and cytoskeletal disruption. Many neurons exhibited beading and vacuolation of dendrites and fragmentation of microtubules (Emery and Lucas, 1995). These dendritic changes could be mimicked by the application of NMDA and prevented with NMDA antagonists (see also Stewart et al., 1991; Bindonkas and Miller, 1995).

These observations may be explained by the temperature sensitivity of certain cytoskeletal elements in mammalian tissues. For example, a proportion of microtubules, whose size and shape depends on an equilibrium between assembly and disassembly, depolymerize on cooling to the temperatures indicated above. Assembly and disassembly rates of microtubules are modulated not only by temperature, but also by ionic conditions, such that Ca²⁺ or Mg²⁺ excess considerably accelerates microtubule disassembly (Barton et al., 1987; Gal et al., 1988). Thus, the combination of Ca²⁺ influx with hypothermia further favors an equilibrium shift toward microtubule disassembly. These conditions were met in the current report through the application of EAA to the cultures at low temperatures. Also consistent with this was the finding that control neurons, which were spared EAA-evoked Ca²⁺ increases, were not damaged by lowering the temperature to 12°C (Fig. 3). Under this hypothesis, hypothermia in the absence of a calcium load was insufficient to trigger cytoskeletal damage.

CONCLUSION

This wide survey of the effects of moderate and profound cooling of neurons on excitotoxicity reveals that hypothermia, within a certain range (down to 20°C), imparts a resilience to EAA that persists on rewarming. Also, it unmasks a temperature-insensitive component of glutamate neurotoxicity that is unseen with the other EAA. This feature, unique to glutamate, could potentially confound many studies of excitotoxic phenomena and should therefore be a subject of further study.

Footnotes

Acknowledgements

M.T. is a clinician-scientist of the Medical Research Council of Canada. R.S. is a student of the National Centers of Excellence of Canada.

References

Altman

(1991) Practical Statistics for Medical Research. New York, Chapman and Hall

Arai

Uto

Ogawa

Sato

(1993) Effect of low temperature on glutamate-induced intracellular calcium accumulation and cell death in cultured hippocampal neurons. Neurosci Lett 163:132–134

Armitage

Berry

(1987) Statistical Methods in Medical Research. Oxford, Blackwell Scientific Publications

Ausman

McCormick

Stewart

Lewis

Dujovny

Bal-akrishnan

Malik

Ghaly

(1993) Cerebral oxygen metabolism during hypothermic circulatory arrest in humans. J Neurosurg 79:810–815

Baker

Onesti

Solomon

(1992) Reduction by delayed hypothermia of cerebral infarction following middle cerebral artery occlusion in the rat: a time-course study. J Neurosurg 77:438–444

Baker

Fiore

Frazzini

Choudhri

Zubay

Solomon

(1995) Intraischemic hypothermia decreases the release of glutamate in the cores of permanent focal cerebral infarcts. Neurosurgery 36:994–1001

Barton

Vandivirt

Heacock

Coffman

Trygg

(1987) Microtubule assembly kinetics. Changes with solution conditions. Biochem J 247:505–511

Baumann

Bender

Stommer

Gross

Brand

(1989) Effects of warm and cold ischemia on mitochondrial functions in brain, liver and kidney. Mol Cell Biochem 87:137–145

Bergstedt

Wieloch

(1993) Postischaemic changes in protein synthesis in the rat brain: effects of hypothermia. Exp Brain Res 95:91–99

10.

Berlin

Konishi

(1993) Ca²⁺ transients in cardiac myocytes measured with high and low affinity Ca²⁺ indicators. Biophys J 65: 1632–1647

11.

Bickler

Buck

Hansen

(1994) Effects of isoflurane and hypothermia on glutamate receptor-mediated calcium influx in brain slices. Anesthesiology 81:1461–1469

12.

Bigelow

Squier

Thomas

(1986) Temperature dependence of rotational dynamics of protein and lipid in sarcoplasmic reticulum membranes. Biochemistry 25:194–202

13.

Bigelow

Lindsay

Greenwood

(1950) Hypothermia. Its possible role in cardiac surgery: an investigation of factors governing survival in dogs at low body temperatures. Ann Surg 132: 849–866

14.

Bindonkas

Miller

(1995) Excitotoxic degeneration is initiated at non-random sites in cultured rat cerebellar neurons. J Neurosci 15:6999–7011

15.

Bruno

Goldberg

Dugan

Giffard

Choi

(1994) Neuroprotective effect of hypothermia in cortical cultures exposed to oxygen-glucose deprivation or excitatory amino acids. J Neurochem 63:1398–1406

16.

Busto

Dietrich

Globus

Valdes

Scheinberg

Ginsberg

(1987) Small differences in intraischemic brain temperature critically determine the extent of ischemic neuronal injury. J Cereb Blood Flow Metab 7:729–738

17.

Busto

Dietrich

Globus

Ginsberg

(1989) Postischemic moderate hypothermia inhibits CA1 hippocampal ischemic neuronal injury. Neurosci Lett 101:299–304

18.

Busto

Globus

Neary

Ginsberg

(1994) Regional alterations of protein kinase C activity following transient cerebral ischemia: effects of intraischemic brain temperature modulation. J Neurochem 63:1095–1103

19.

Choi

(1987) Ionic dependence of glutamate neurotoxicity. J Neurosci 7:369–379

20.

Choi

Maulucci-Gedde

Kriegstein

(1987) Glutamate neurotoxicity in cortical cell culture. J Neurosci 7:357–368

21.

Chung

Kuyucak

(1995) Changes in the kinetics and conductance of N-methyl-d-aspartate (NMDA)-receptor activated single channels with temperature. Neurosci Lett 187:181–184

22.

Coyle

Puttfarcken

(1993) Oxidative stress, glutamate, and neurodegenerative disorders. Science 262:689–695

23.

David

Yamada

Bagwe

Goldberg

(1996) AMPA receptor activation is rapidly toxic to cortical astrocytes when de-sensitization is blocked. J Neurosci 16:200–209

24.

Dietrich

(1992) The importance of brain temperature in cerebral injury. J Neurotrauma 9(Suppl 2):S475–S485

25.

Drake

Barr

HWK

Coles

Gergely

(1964) The use of extracorporeal circulation and profound hypothermia in the treatment of ruptured intracranial aneurysms. J Neurosurg 21:575–581

26.

Dugan

Sensi

Canzoniero

LMT

Handran

Rothman

Lin

Goldberg

Choi

(1995) Mitochondrial production of reactive oxygen species in cortical neurons following exposure to N-methyl-d-aspartate. J Neurosci 15:6377–6388

27.

Emery

Lucas

(1995) Ultrastructural damage and neuritic beading in cold-stressed spinal neurons with comparisons to NMDA and A23187 toxicity. Brain Res 692:161–173

28.

Fay

(1940) Observations on prolonged human refrigeration. N Y State J Med 4:68–73

29.

Fay

(1945) Observations on generalized refrigeration in the treatment of severe cerebral trauma. Res Publ Assoc Nerv Ment Dis 24:611–619

30.

Fay

(1959) Early experiences with local and generalized refrigeration of the human brain. J Neurosurg 16:239–260

31.

Feldmeyer

Cull-Candy

(1993) Temperature-dependence of NMDA receptor channel conductance levels in outside-out patches from isolated cerebellar granule cells of the rat. J Physiol 459:284P

32.

Fix

Horn

Wightman

Johnson

Long

Storts

Farber

Wozniak

Olney

(1993) Neuronal vacuolization and necrosis induced by the noncompetitive N-methyl-D-aspartate (NMDA) antagonist MK(+)801 (dizocilpine maleate): a light and electron microscopic evaluation of the rat retrosplenial cortex. Exp Neurol 123:204–215

33.

Fix

Wozniak

Truex

McEwen

Miller

Olney

(1995) Quantitative analysis of factors influencing neuronal necrosis induced by MK-801 in the rat posterior cingulate/retrosplenial cortex. Brain Res 696:194–204

34.

Freeman

Goldberg

(1994) Confocal microscopic visualization of MK-801-induced cytoplasmic vacuoles in vitro. Psychopharmacol Bull 30:541–547

35.

Gal

Martin

Bayley

(1988) Fast disassembly of microtubules induced by Mg²⁺ or Ca²⁺. Biochem Biophys Res Coram 155:1464–1470

36.

Gillinov

Redmond

Zehr

Troncoso

Arroyo

Lesser

Lee

Stuart

Reitz

Baumgartner

(1993) Superior cerebral protection with profound hypothermia during circulatory arrest. Ann Thorac Surg 55:1432–1439

37.

Ginsberg

Globus

Dietrich

Busto

(1993) Temperature modulation of ischemic brain injury—a synthesis of recent advances. Prog Brain Res 96:13–22

38.

Globus

Alonso

Dietrich

Busto

Ginsberg

(1995) Glutamate release and free radical production following brain injury: effects of posttraumatic hypothermia. J Neurochem 65:1704–1711

39.

Goldberg

Choi

(1990) Intracellular free calcium increases in cultured cortical neurons deprived of oxygen and glucose. Stroke 21(Suppl 3):III-75–III-77

40.

Goldberg

Weiss

Pham

Choi

(1987) N-Methyl-d-aspartate receptors mediate hypoxic neuronal injury in cortical culture. J Pharmacol Exp Ther 243:784–791

41.

Goldberg

Giffard

Kurth

Choi

(1989) Role of extracellular calcium and magnesium in ischemic neuronal injury in vitro (Abstract). Neurology 39(Suppl):217

42.

Grynkiewicz

Poenie

Tsien

(1985) A new generation of calcium indicators with greatly improved fluorescence properties. J Biol Chem 260:3440–3450

43.

Haun

Trapp

Horrocks

(1993) Hypothermia decreases astroglial injury and arachidonate release during combined glucose-oxygen deprivation. Brain Res 631:352–356

44.

Hertz

ACH

Hertz

Juurlink

BHJ

Schousboe

(1989) Preparation of primary cultures of mouse cortical neurons. In: A Dissection and Tissue Culture Manual of the Nervous System ( Shahar

de Vellis

Vernadakis

Haber

, eds) New York, Alan R. Liss Inc., pp 183–186

45.

Kamme

Wieloch

(1995) Alterations of Ca²⁺/calmodulin-dependent protein kinase II and its messenger RNA in the rat hippocampus following normo- and hypothermic ischemia. Neuroscience 68:1003–1016

46.

Kader

Frazzini

Baker

Solomon

Trifiletti

(1994) Effect of mild hypothermia on nitric oxide synthesis during focal cerebral ischemia. Neurosurgery 35:272–277

47.

Kiedrowski

Brooker

Costa

Wroblewski

(1994) Glutamate impairs neuronal calcium extrusion while reducing sodium gradient. Neuron 12:295–300

48.

Kil

Zhang

Piantadosi

(1996) Brain temperature alters hydroxyl radical production during cerebral ischemia/reperfusion in rats. J Cereb Blood Flow Metab 16:100–106

49.

Kiyosue

Arita

Muramatsu

Spindler

Noble

(1993) Ionic mechanisms of action potential prolongation at low temperatures in guinea-pig ventricular myocytes. J Physiol 468:85–106

50.

Knerr

Lieberman

(1993) Ion transport during hypothermia in cultured heart cells: implications for protection of the immature myocardium. J Mol Cell Cardiol 25:277–288

51.

Koh

Goldberg

Hartley

Choi

(1990) Non-NMDA receptor-mediated neurotoxicity in cortical culture. J Neurosci 10: 696–705

52.

Konig

Serrano

Drian

(1994) AMPA elicits long-lasting, partly hypothermia sensitive calcium responses in acutely dissociated or cultured embryonic brainstem cells. Neurochem Int 24:459–471

53.

Lafon-Cazal

Pietri

Culcasi

Bockaert

(1993) NMDA-dependent superoxide production and neurotoxicity. Nature 364: 535–537

54.

Lester

Jahr

(1992) NMDA channel behavior depends on agonist affinity. J Neurosci 12:635–643

55.

Lougheed

Kahn

(1955) Circumvention of anoxia during arrest of cerebral circulation for intracranial surgery. J Neurosurg 12: 226–239

56.

Lougheed

Sweet

White

Brewster

WRB D.A.

(1955) The use of hypothermia in surgical treatment of cerebral vascular lesions. J Neurosurg 12:240–255

57.

Lucas

Wang

Gross

(1990) Paradoxical effect of hypothermia on survival of lesioned and uninjured mammalian spinal neurons. Brain Res 517:354–357

58.

Lucas

Emery

Wang

Rosenberg-Schaffer

Jordan

Gross

(1994) In vitro investigations of the effects of nonfreezing low temperatures on lesioned and uninjured mammalian spinal neurons. J Neurotrauma 11:35–61

59.

Majumdar

Gowda

Brooke

(1995) Evidence of a temperature-sensitive step in the release of prostaglandin E₂ in calcium iono-phore-stimulated rat muscle. Prostaglandins Leukot Essent Fatty Acids 53:117–122

60.

Mattson

Guthrie

Kater

(1989) A role for Na⁺-dependent Ca²⁺ extrusion in protection against neuronal excitotoxicity. FASEB J 3:2519–2526

61.

McLarnon

Curry

(1990) Single channel properties of the N-methyl-d-aspartate receptor channel using NMDA and NMDA agonists: on-cell recordings. Exp Brain Res 82:82–88

62.

Michenfelder

Milde

(1992) The effect of profound levels of hypothermia (below 14 degrees C) on canine cerebral metabolism. J Cereb Blood Flow Metab 12:877–880

63.

Mitani

Kataoka

(1991) Critical levels of extracellular glutamate mediating gerbil hippocampal delayed neuronal death during hypothermia: a brain microdialysis study. Neuroscience 42:661–670

64.

Nicoletti

Bruno

Copani

Casabona

Knopfel

(1996) Metabotropic glutamate receptors: a new target for the therapy of neurodegenerative disorders? Trends Neurosci 19:267–271

65.

Olney

(1978) Neurotoxicity of excitatory amino acids. In: Kainic Acid as a Tool in Neurobiology. ( McGeer

Olney

McGeer

eds) New York, Raven Press, pp 95–121

66.

Olney

(1994) Neurotoxicity of NMDA receptor antagonists: an overview. Psychopharmacol Bull 30:533–540

67.

Olney

Labruyere

Price

(1989) Pathological changes induced in cerebrocortical neurons by phenylcyclidine and related drugs. Science 244:1360–1362

68.

Oyama

Chikahisa

Matoba

Furukawa

(1994) Attenuation of Ca²⁺-induced increase in oxidative metabolism by cooling and calmodulin antagonist in mammalian brain neurons: a flow-cytometric study. Brain Res 664:220–224

69.

Paschen

Djuricic

(1995) Comparison of in vitro ischemia-induced disturbances in energy metabolism and protein synthesis in the hippocampus of rats and gerbils. J Neurochem 65:1692–1697

70.

Patel

Drummond

Cole

Yaksh

(1994) Differential temperature sensitivity of ischemia-induced glutamate release and eicosanoid production in rats. Brain Res 650:205–211

71.

Pellegrini-Giampietro

Cherici

Alesiani

Carla

Moroni

(1990) Excitatory amino acid release and free radical formation may cooperate in the genesis of ischemia-induced neuronal damage. J Neurosci 10:1035–1041

72.

Regehr

Atluri

(1995) Calcium transients in cerebellar granule cell presynaptic terminals. Biophys J 68:2156–2170

73.

Reynolds

Hastings

(1995) Glutamate induces the production of reactive oxygen species in cultured forebrain neurons following NMDA receptor activation. J Neurosci 15:3318–3327

74.

Rokkas

Cronin

Nitta

Helfrich

Jr Lobner

Choi

Kouchoukos

(1995) Profound systemic hypothermia inhibits the release of neurotransmitter amino acids in spinal cord ischemia. J Thorac Cardiovasc Surg 110:27–35

75.

Rosomoff

(1957) Hypothermia and cerebral vascular lesions II. Experimental middle cerebral artery interruption followed by induction of hypothermia. AM A Arch Neurol 78:454–464

76.

Rothman

Olney

(1987) Excitotoxicity and the NMDA receptor. Trends Neurosci 10:299–302

77.

Rothman

Thurston

Hauart

(1987) Delayed neurotoxicity of excitatory amino acids in vitro. Neuroscience 22:471–480

78.

Rothstein

Martin

Levey

Dykes-Hoberg

Jin

Nash

Kunel

(1994) Localization of neuronal and glial glutamate transporters. Neuron 13:713–725

79.

Sattler

Charlton

Hafner

Tymianski

(1997) Determination of the time-course and extent of neurotoxicity at defined temperatures in cultured neurons using a modified multi-well plate fluorescence scanner. J Cereb Blood Flow Metab 17:455–463

80.

Shaver

Welsh

Sutton

Mora

Gennarelli

Norwood

(1995) Deep hypothermia diminishes the ischemic induction of heat-shock protein-72 mRNA in piglet brain. Stroke 26:1273–1277

81.

Shuaib

Sochocka

Ishaqzay

Hertz

Code

(1993) Protective effect of hypothermia during ischemia in neural cell cultures. Neurochem Res 18:663–665

82.

Solomon

(1994) Principles of aneurysm surgery: cerebral ischemic protection, hypothermia, and circulatory arrest. Clin Neurosurg 41:351–363

83.

Solomon

Smith

Raps

Young

Stone

Fink

(1991) Deep hypothermic circulatory arrest for the management of complex anterior and posterior circulation aneurysms. Neurosurgery 29:732–737

84.

Spetzler

Hadley

Rigamonti

Carter

Raudzens

Shedd

Wilkinson

(1988) Aneurysms of the basilar artery treated with circulatory arrest, hypothermia, and barbiturate cerebral protection. J Neurosurg 68:868–879

85.

Squier

Bigelow

Thomas

(1988) Lipid fluidity directly modulates the overall protein rotational mobility of the Ca-ATPase in sarcoplasmic reticulum. J Biol Chem 263:9178–9186

86.

Stewart

Olney

Pathikonda

Snider

(1991) Excitotoxicity in the embryonic chick spinal cord. Ann Neurol 30:758–766

87.

Stys

Waxman

Ransom

(1991a) Reverse operation of the Na(⁺)-Ca²⁺ exchanger mediates Ca²⁺ influx during anoxia in mammalian CNS white matter. Ann NY Acad Sci 639:328–332

88.

Stys

Waxman

Ransom

(1991b) Na(⁺)-Ca²⁺ exchanger mediates Ca²⁺ influx during anoxia in mammalian central nervous system white matter. Ann Neurol 30:375–380

89.

Tymianski

Charlton

Carlen

Tator

(1993a) Secondary Ca²⁺ overload indicates early neuronal injury which precedes staining with viability indicators. Brain Res 607:319–323

90.

Tymianski

Charlton

Carlen

Tator

(1993b) Source specificity of early calcium neurotoxicity in cultured embryonic spinal neurons. J Neurosci 13:2085–2104

91.

Verhaegen

Iaizzo

Todd

(1995) A comparison of the effects of hypothermia, pentobarbital, and isoflurane on cerebral energy stores at the time of ischemic depolarization. Anesthesiology 82:1209–1215

92.

Watkins

Collinridge

(1994) Phenylglycine derivatives as antagonists of metabotropic glutamate receptors. Trends Pharmacol Sci 15:333–342

93.

White

Reynolds

(1995) Mitochondria and Na⁺/Ca²⁺ exchange buffer glutamate-induced calciumloads in cultured cortical neurons. J Neurosci 15:1318–1328

94.

Widmann

Miyazawa

Hossmann

(1993) Protective effect of hypothermia on hippocampal injury after 30 minutes of forebrain ischemia in rats is mediated by postischemic recovery of protein synthesis. J Neurochem 61:200–209

95.

Williamson

Neale

(1992) Uptake, metabolism and release of N-[³H]-acetylaspartylglutamate by the avian retina. J Neurochem 58:2191–2199

96.

Yoneda

Ogita

(1991) Inhibitory modulation by sodium ions of the N-methyl-d-aspartate recognition site in brain synaptic membranes. J Neurochem 57:2036–2046

97.

Zeevalk

Nicklas

(1993) Hypothermia, metabolic stress, and NMDA-mediated excitotoxicity. J Neurochem 61:1445–1453

Characterization of Neuroprotection from Excitotoxicity by Moderate and Profound Hypothermia in Cultured Cortical Neurons Unmasks a Temperature-Insensitive Component of Glutamate Neurotoxicity

Abstract

Keywords

METHODS

Tissue culture

Drugs and solutions

Cell survival assay

Loading of neurons with indicator dyes

Quantitative assessment of dihydrorhodamine oxidation

Calcium measurements

Confocal imaging of dihydrorhodamine fluorescence

Experimental procedures

Data analysis

RESULTS

Hypothermia attenuates excitotoxicity triggered by a brief (5 minutes) EAA challenge

Hypothermia also protects against prolonged excitatory amino acid insults (60 minutes), although the extent of protection varies with the excitatory amino acid agonist

The impact of hypothermia on excitatory amino acid toxicity is U shaped

Neurotoxicity from prolonged glutamate insults is relatively temperature insensitive

The protective effects of hypothermia persist after rewarming to 37°C

The temperature-insensitive component of glutamate neurotoxicity is mediated via NMDA receptors, not via ionotropic non-NMDA receptors or metabotropic receptors

NMDA receptor antagonists possess an inherent, temperature-dependent toxicity

Impairment of glutamate reuptake by hypothermia does not explain the temperature insensitivity of glutamate neurotoxicity

Hypothermia attenuates EAA-evoked [Ca2+]i increases

A low-affinity Ca2+ indicator reveals a disparity between glutamate and NMDA-evoked [Ca2+]i increases

Hypothermia does not affect excitatory amino acid-evoked mitochondrial production of reactive oxygen species

DISCUSSION

Presynaptic or postsynaptic mechanisms?

Potential postsynaptic mechanisms of neuroprotection by hypothermia

Potential mechanisms of toxicity of hypothermia

CONCLUSION

Footnotes

Acknowledgements

References

Hypothermia attenuates EAA-evoked [Ca²⁺]_i increases

A low-affinity Ca²⁺ indicator reveals a disparity between glutamate and NMDA-evoked [Ca²⁺]_i increases
