Striatal Kinetic Modeling of FDOPA with a Cerebellar-Derived Constraint on the Distribution Volume of 3OMFD: A PET Investigation using Non-Human Primates

Abstract

The peripherally born metabolite of FDOPA, 3-O-Methyl-FDOPA (3OMFD), crosses the blood-brain barrier, thus complicating positron emission tomography-FDOPA (PET-FDOPA) data analysis. In previous reports the distribution volume (DV) of 3OMFD was constrained to unity. We have recently shown that the forward transport rate-constant of FDOPA (K_S₁) and the cerebellum-to-plasma ratio (C_b/C_p), a measure for the DV of 3OMFD, are functions of plasma large neutral amino acid (LNAA) concentration. Given large interstudy and intersubject differences in plasma LNAA levels, variations in the DV of 3OMFD are significant. In this report, the authors propose a constraint on the DV of 3OMFD that accounts for these variations. Dynamic PET-FDOPA scans were performed on 12 squirrel monkeys and 12 vervet monkeys. Two sets of constraints were employed on the compartmental model—M1 or M2. In M1, the striatal DV of 3OMFD was constrained to unity; in M2, the striatal DV of 3OMFD was constrained to an estimate derived from the cerebellum. Striatal and cerebellar time-activity curves were fitted using FDOPA and 3OMFD plasma input functions. The estimate of K_S₁ and that of the compartmental FDOPA uptake-constant (K_i), both obtained using M2, were adjusted to values corresponding to average LNAA levels. Finally, K_i was compared with the graphical uptake-constant (PK_i). With the use of constraint M2, intersubject variability of squirrel monkey k_S₃ and K_i was reduced by 45% and 53%, respectively; and for vervet monkeys, by 54% and 44%, respectively. Intersubject variability of K_l and K_i was further reduced after correction for variations in intersubject plasma LNAA levels (for squirrel monkeys, by 67% and 41%; for vervet monkeys, by 40% and 36%, respectively). K_i correlation to PK_i was enhanced to identity. Finally, average cerebellar k_C₂ estimates were more than 2.5-fold higher than striatal k_S₂ estimates (P < 0.0001). In modeling of PET-FDOPA data, it cannot be assumed that the DV of 3OMFD is unity. The cerebellar-derived constraint furnishes a reliable estimate for the DV of 3OMFD. Invoking the constraint and correcting for variations in plasma LNAA significantly reduced interstudy and intersubject variations in parameter estimates.

Keywords

FDOPA 3OMFD LNAA PET Modeling Parkinson's disease

The central dopaminergic system has been implicated in movement disorders such as Parkinson's disease (Langston et al., 1990; Brooks et al., 1995; Scherman et al., 1989). In normal and disease subjects, dopamine is synthesized through a series of enzymatic-mediated reactions ending with the conversion of L-DOPA to dopamine by aromatic L-amino acid decarboxylase (AAAD; EC4.1.1.28). Idiopathic Parkinson's disease, however, is characterized with the loss of midbrain substantia nigra dopaminergic neurons, which house AAAD activity. L-3,4Dihydroxy-6-[¹⁸F]fluorophenylalanine (FDOPA), coupled with positron emission tomography (PET), is employed to assess the integrity of the central dopaminergic system. As a tracer analog of L-DOPA, FDOPA is decarboxylated by AAAD to 6-[¹⁸F]fluorodopamine (FDA) in the dopaminergic terminals of the striatum. Like dopamine, FDA accumulates, thus providing a measure for the integrity of the dopaminergic system (Barrio et al., 1988).

Various methods have been proposed to quantify this accumulation of FDA including simple specific-to-nonspecific affinity ratios (for example, striatum-to-cerebellum ratio) (Garnett, 1983; Leenders KL, 1986; Doudet et al., 1989), graphical methods (Patlak et al., 1983; Patlak and Blasberg, 1985; Martin et al., 1989; Ishikawa et al., 1996; Holden et al., 1997; Doudet et al., 1998; Takikawa et al., 1994), and compartmental models of varying degrees of complexity (Huang et al., 1989; Huang et al., 1991a; Reith et al., 1990; Kuwabara et al., 1993; Cumming et al., 1994; Deep et al, 1997). Compartmental models, however, are attractive because they can be used to investigate the underlying biochemical and transport mechanisms. Recent reports suggesting that AAAD activity is modulated (Zigmond, 1997; Eberling et al., 1997; Bezard et al., 1997a; Bezard et al., 1997b; Bezard et al., 1998; Bezard and Gross, 1998; Yee et al., 2000), to possibly compensate for dopaminergic deficiencies, advance the application of compartmental models on PET-FDOPA data because they can be used to quantify AAAD activity in humans (Huang et al., 1991a; Kuwabara et al., 1993; Deep et al., 1997) and non-human primates (Yee et al., 2000).

The interpretation of FDOPA-PET data is compromised by the presence of a peripherally born metabolite, 3-O-Methyl-FDOPA (3OMFD), which crosses the blood—brain barrier (BBB), thus contributing to the total radioactivity in brain tissue. This particularly complicates compartmental modeling analysis by introducing two critical issues. The first issue questions the forward transport rate-constant of 3OMFD relative to FDOPA in crossing the BBB (K_S₅/K_S₁) (Huang et al., 1991a; Reith et al., 1990; Cumming et al., 1994; Dhawan et al., 1996; Wahl and Nahmias, 1996), and the other issue concerns the distribution volume (DV) of 3OMFD in the striatum (K_S₅/k_S₆) (Horne et al., 1984; Doudet et al., 1991; Melega et al., 1991a; Dhawan et al., 1996; Wahl and Nahmias, 1996). Although the first issue has been addressed in several investigations, most recently arguing that the forward transport rate-constant of 3OMFD relative to FDOPA in crossing the BBB is approximately unity (Cumming et al., 1994; Dhawan et al., 1996; Wahl and Nahmias, 1996), the latter issue has only been investigated by advancing a population mean rather than at an individual subject level (Doudet et al., 1991; Wahl et al., 1994).

In earlier reports it was assumed that 3OMFD is uniformly distributed in cerebral tissue (Huang et al., 1991a; Reith et al., 1990; Kuwabara et al., 1993; Deep et al., 1997; Hoshi et al., 1993; Cumming et al., 1994). It was further assumed that either the striatal DV of 3OMFD (that is, K_S₅/k_S₆) is unity (Huang et al., 1991a, Doudet et al., 1991), or that the striatal partition coefficients (the ratio of forward-to-reverse transport rate-constants across the BBB) of both FDOPA and 3OMFD (that is, K_S₁/k_S₂ and K_S₅/k_S₆, respectively) equal that of the frontal cortex (Reith et al., 1990; Kuwabara et al., 1993; Deep et al., 1997; Hoshi et al., 1993; Cumming et al., 1994). Recent studies suggest that the first assumption is upheld, with a slightly higher radioactivity in the striatum (approximately 10%) (Wahl et al., 1994; Stout et al., 1999). The second set of assumptions, however, has been challenged by several reports. Dhawan et al. (1996) reported that the striatal partition coefficient of FDOPA (that is, K_S₁/k_S₂) does not equal that of the frontal cortex. Moreover, because transport across the BBB is mediated by the large neutral amino acid (LNAA) carrier system (Oldendorf, 1971; Oldendorf and Szabo, 1976), for which both FDOPA and 3OMFD must compete, Stout et al. (1998a) demonstrated that the forward transport rate-constant of FDOPA (that is, K_S₁) is a function of plasma LNAA levels. Stout et al. (1998a) also demonstrated that the cerebellum-to-plasma ratio (C_b/C_p), 120 minutes post-FDOPA administration, is inversely related to plasma LNAA levels. Because at 120 minutes post-FDOPA administration the radioactivity in the cerebellum and plasma is primarily due to 3OMFD, C_b/C_p should characterize the DV of 3OMFD at late time points (Huang et al., 1998).

In the following section, we demonstrate how intersubject variations in plasma LNAA levels might be linked to comparable variations in the striatal DV of 3OMFD, and that the latter might be ascribed to the competitive nature of LNAA transport across the BBB. With that at hand we reexamined FDOPA kinetics in cerebral tissue by proposing a constraint on the striatal DV of 3OMFD that takes into account interstudy and intersubject variations in plasma LNAA levels. In doing so, we will contrast changes to striatal parameter estimates between the case for which the striatal DV of 3OMFD is constrained to unity to that which takes into account variations in plasma LNAA. We will show, using two sets of monkey PET-FDOPA data, that by using this constraint, intersubject variations in parameter estimates are reduced.

Theory

The various transport and biochemical pathways of FDOPA are depicted in the compartmental model of Huang et al. (1991a) (Fig. 1). The plasma component consisted of a pool for FDOPA (P_FDOPA) and its major peripheral metabolite, 3OMFD (P_3OMFD), which cross the blood—brain barrier (BBB) through the facilitated LNAA transport system (Oldendorf, 1971; Oldendorf and Szabo, 1976). In the striatum, the bidirectional passage of FDOPA across the BBB is denoted by the rate-constants K_S₁ and k_S₂ (mL · g⁻¹ · min⁻¹ and min⁻¹, respectively); whereas, the bidirectional transport of 3OMFD across the BBB is denoted by the rate-constants K_S₅ and k_S₆ (mL · g⁻¹ · min⁻¹ and min⁻¹, respectively). The radioactivity concentrations of FDOPA and 3OMFD in the striatum are denoted by S_FDOPA and S_3OMFD, respectively. The fate of FDOPA after it passes the BBB is tissue-dependent. In the striatum, FDOPA is decarboxylated to FDA by AAAD with a rate-constant k_S3 (min⁻¹). The AAAD mediated conversion of FDOPA introduces a compartment for FDA and its metabolites (S_FDA). Clearance of ¹⁸F radioactivity from striatal tissue to plasma is represented by the rate-constant k_S4 (min⁻¹). A similar model is proposed for the kinetics of FDOPA and 3OMFD in the cerebellum except that AAAD activity is assumed absent (that is, k_C3 = 0) (Melega et al., 1990a; Melega et al., 1991b; Baker et al., 1991; Sims et al., 1973; Loyd et al., 1972) and k_C4 = 0. By replacing the character ‘S' with ‘C‘, we denote cerebellar rate-constants and radioactivity concentrations.

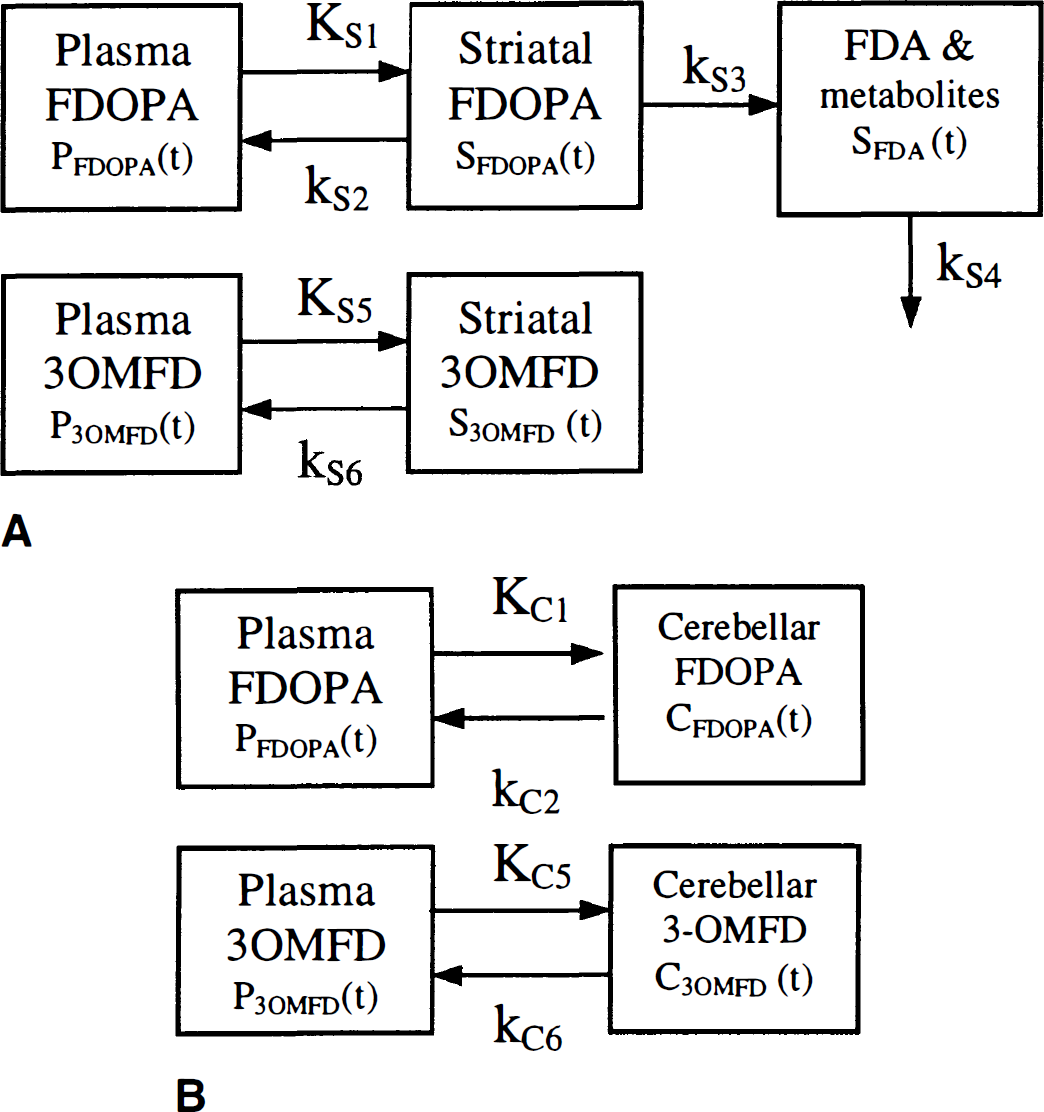

FIG 1.

The striatal (A) and cerebellar (B) model configuration used in fitting time-activity curves to model. In A, K_S₁ and k_S₂ represent the bidirectional transport of FDOPA across the blood—brain barrier (BBB), k_S₃ denotes the decarboxylation rate-constant of FDOPA to FDA by AAAD, k_S₄ represents the clearance rate-constant of ¹⁸F from tissue, and K_S₅ and k_S₆ represent the bidirectional transport of OMFD across the BBB. In B, K_C₁ and k_C₂ represent the bidirectional transport of FDOPA across the BBB, and K_C₅ and k_C₆ denote the bidirectional transport of OMFD across the BBB.

Fitting an unconstrained striatal (5 parameters) or cerebellar (4 parameters) model to PET-derived tissue kinetics resulted in large variability of parameters estimates (large asymptotic standard error), which necessitated the introduction of physiologically motivated constraints. First, we constrained the ratios K_C₅/K_C₁ and K_S₅/K_S₁ to a common value. Based on the Michaelis—Menten equation for competitive enzyme binding or carrier transport, the influx (nmol · min⁻¹ · g⁻¹) of a particular LNAA_i across the BBB can be formulated (Huang et al., 1998) as

(i n f l u x)_{i} \frac{V m_{i} / K m_{i}}{1 + \sum_{k} ([A A]_{k}^{p l a s m a} / K m_{k})} [A A]_{i}^{p l a s m a}

(1)

where [AA]_i^plasma, Vm_i, and Km_i denote the plasma concentration, maximal rate (nmol · min⁻¹ · g⁻¹), and half-saturation concentration (nmol · mL) of LNAA_i for the transport carrier.

Assuming that LNAA transport across the BBB is mediated by a dominant carrier, the cerebellar transport rate-constant of 3OMFD relative to FDOPA in crossing the BBB (K_C₅/K_C₁) reduces to the following expression:

\frac{K_{C 5}}{K_{C 1}} = \frac{\frac{V m_{3 O M F D} / K m_{3 O M F D}}{1 \sum_{k} ([A A]_{k}^{p l a s m a} / K m_{k})}}{\frac{V m_{F D O P A} / K m_{F D O P A}}{1 \sum_{k} ([A A]_{k}^{p l a s m a} / K m_{k})}} = \frac{V m_{O M F D}}{K m_{O M F D}} \frac{K m_{F D O P A}}{V m_{F D O P A}}

(2)

Equation 2 entails that the transport rate-constant of 3OMFD relative to FDOPA in crossing the BBB is a function of the Michaelis—Menten parameters Vm and Km of both FDOPA and 3OMFD, where Vm represents a measure of carrier density (or concentration) and Km represents the transport efficiency (inversely related to affinity) of the carrier. In addition, Eq. 2 implies that the relative transport rate-constant is unaffected by plasma LNAA levels. Assuming that the transport of LNAAs across the BBB in and out of the striatum and cerebellum is mediated by the same carrier, the ratio is also unaffected by differences in localities. The striatum and cerebellum thus share a common ratio for the transport rate-constant of FDOPA and 3OMFD, that is,

\frac{K_{5}}{K_{1}} \equiv \frac{K_{S 5}}{K_{S 1}} = \frac{K_{C 5}}{K_{C 1}} .

(3)

Recent reports suggest that the transport rate-constant of 3OMFD relative to FDOPA is unity in humans (Wahl and Nahmias, 1996; Dhawan et al., 1996) and rats (Cumming et al., 1994), that is, K₅/K₁ = 1. Interspecies dependencies for the ratio have been reported (Huang et al., 1991a; Reith et al., 1990) and will be addressed in the Discussion section.

Secondly, the striatal DV of 3OMFD (K_S₅/k_S₆) in each study was constrained to the cerebellar DV of 3OMFD (K_C₅/k_C₆). The DV of a biochemically inactive radiolabeled LNAA in brain tissue has been characterized by Huang et al. (1998). The cerebellar DV of 3OMFD (with a dominant transport carrier) can be formulated as,

\frac{K_{C 5}}{k_{C 6}} = \frac{1 + [L N A A]^{t i s s u e} / [K m_{a p p}]^{t i s s u e}}{1 + [L N A A]^{p l a s m a} / [K m_{a p p}]^{p l a s m a}}

(4)

where,

[K m_{a p p}]^{t i s s u e} = \frac{[L N A A]^{t i s s u e}}{\sum_{k} ([A A]_{k}^{t i s s u e} / K m_{k})},

(4a)

[K m_{a p p}]^{p l a s m a} = \frac{[L N A A]^{p l a s m a}}{\sum_{k} ([A A]_{k}^{p l a s m a} / K m_{k})}

(4b)

[LNAA]^tissue denotes the total LNAA concentration in tissue, and [LNAA]^plasma denotes total LNAA levels in plasma. Because intersubject variations in tissue LNAA concentration ([LNAA]^tissue) are small (Stout et al., 1999), Eq. 4 is primarily a function of [LNAA]^plasma. Because plasma LNAAs are homogeneously distributed in the vascular space, the DV of 3OMFD in cerebellar and striatal tissue should be comparable (that is, K_S₅/k_S₆ = K_C₅/k_C₆). Recent reports indicating that the cerebellar and striatal DVs of 3OMFD are approximately equal, when 3OMFD was used as radiotracer (Wahl et al., 1994; Stout et al, 1999), further support this conjecture.

MATERIALS AND METHODS

Animals

Twelve guyana squirrel monkeys (Saimiri sciureus) and twelve vervet monkeys (Cercopithecus aethips sabaeus) were used in this investigation. The University of California, Los Angeles Animal Research Committee approved all procedures and protocols.

PET Protocol

Animal preparation. To suppress peripheral decarboxylation of FDOPA, animals were pretreated with 10 to 15 mg/kg of L-α-hydrazino-α-methyl-β-(3,4-dihdroxyphenyl)-propionic acid (carbidopa) at 30 to 45 minutes before FDOPA administration (Hoffman et al, 1992; Melega et al, 1990b). Anesthesia was induced by an initial intramuscular injection of ketamine (30 mg). Two catheters were placed, one in the femoral artery for blood sampling and the other in a tail vein, for tracer injection and anesthesia maintenance, respectively. With squirrel monkeys, anesthesia was maintained by a constant infusion of ketamine at a rate of 25 mg/kg·h and a bolus injection of midazolam every 15 minutes with the concentration ranging from 0.6 mg/kg·h for the first hour to 0.4 mg/kg·h by the second hour (Stout et al, 1998b). For vervet monkeys, anesthesia was maintained by a constant infusion of pentobarbital at a rate of 15/mg/kg·h and a bolus injection every 15 minutes.

PET data acquisition and blood sampling. FDOPA was synthesized by the procedure prescribed by Luxen et al. (1990). Positron emission tomography data acquisition was performed using a Siemens ECAT 713 PET scanner with 15 planes covering a 5-cm axial field of view. After an intravenous injection of FDOPA (2.0 mCi/kg for squirrel monkeys, 1 mCi/kg and for vervet moneys) the data acquisition process was initiated in two sessions, a 30-minute session followed by a 90-minute interleaved bed-position session. The 30-minute session was composed of 13 frames (10× 90 seconds, and 3× 300 seconds), whereas the 90-minute session was composed of 18 frames (300 seconds each). The 90-minute session was done with the bed position shifting back and forth 1.67 mm (half the regular interplane distance), thus producing 30 interleaved planes with 1.67 mm effective axial separation. The interleaved planes enhanced axial sampling and facilitated PET-MRI and PET-PET coregistration. During the first 2 minutes posttracer injection, ten 200 μL blood samples were drawn followed by samples at 3, 4, 5, 10, 20, 45, 75, and 120 minutes. An additional 7-minute sample was obtained toward plasma LNAA analysis. PET tissue data in radioactivity per milliliter was converted to radioactivity per milligram by approximating the tissue specific density to be 1 g/mL (after calibration using a uniform circular phantom).

Blood and LNAA analysis

During and after PET data acquisition process, total radioactivity in plasma, due to FDOPA and its metabolites, were determined and decay-corrected to time zero (time of FDOPA administration). This was then used to construct total plasma FDOPA and 3OMFD time-activity curves (TACs) (Huang et al. 1991b; Melega et al., 1991a; Melega et al., 1991b), which were utilized as input functions in subsequent kinetic data analysis. Plasma concentration of LNAAs—including tryptophan, tyrosine, methionine, valine, phenylalanine, leucine, isoleucine—were determined by following previously prescribed procedures (Barrio et al. 1986).

Image processing

All images were reconstructed using filtered-backprojection with measured attenuation correction. Dynamic images were reconstructed using a Hann filter (0.3 Nyquist cutoff) resulting in an in-plane resolution of 5.5 mm full width at half maximum. Because of the high noise level of dynamic images, a low noise sum image was reconstructed from PET data collected over a 90-minute period (30 to 120 minutes) using a Shepp 0.5 filter (4.7 mm full width at half maximum). It was on these images that striatal (left and right) regions of interest (ROIs) were defined and overlaid onto the dynamic images to obtain the striatal TAC.

Determination of nonspecific uptake was furnished by defining ROIs on the cerebellum. For squirrel monkeys, cerebellar ROIs were evaluated by coregistration of PET-summed images to anatomical MRI images (Lin et al, 1994). Subsequently, PET-to-MRI registration parameters were used to reslice dynamic PET images. Cerebellum ROIs (6-mm diameter) were defined on MRI and applied to the resliced dynamic PET images to give cerebellar TAC. For vervet monkey studies, cerebellar ROIs were determined by drawing a circular ROI (6-mm diameter) on summed images, which were then projected onto all frames of dynamic images.

Kinetic analysis

Graphical analysis. The graphic analysis approach of Patlak et al. (1983, 1985) was used in the current analysis. To account for the presence of 3OMFD in striatal tissue, the cerebellar TAC was subtracted from the striatal TAC at each time point (Martin et al., 1989). In the current analysis, we used tissue TACs of 30 to 120 minutes to obtain the graphical uptake-rate estimate, PK_i, with plasma FDOPA input function.

Compartmental modeling. Compartmental modeling analysis was initiated first by fitting the cerebellar compartmental model (Fig. 1B) to the cerebellar TAC. In fitting the cerebellar model to data, three sets of constraints were employed (Table 1) and later evaluated. In CbMO, the cerebellar DV of FDOPA was set to that of 3OMFD; in CbM1, the cerebellar DV of 3OMFD was constrained to unity; and in CbM2, no constraint on the DVs was introduced (Table 1). The cerebellar DVs of FDOPA and 3OMFD were determined by the relations DV_C^FDOPA = K_C1/k_C₂ and DV_C^OMFD = K_C5/k_C₆, respectively, using constraint CbM2. Sequential statistical analysis (F-test at P < 0.05; Landaw and Distefano, 1984) was used to examine their relative goodness of fit.

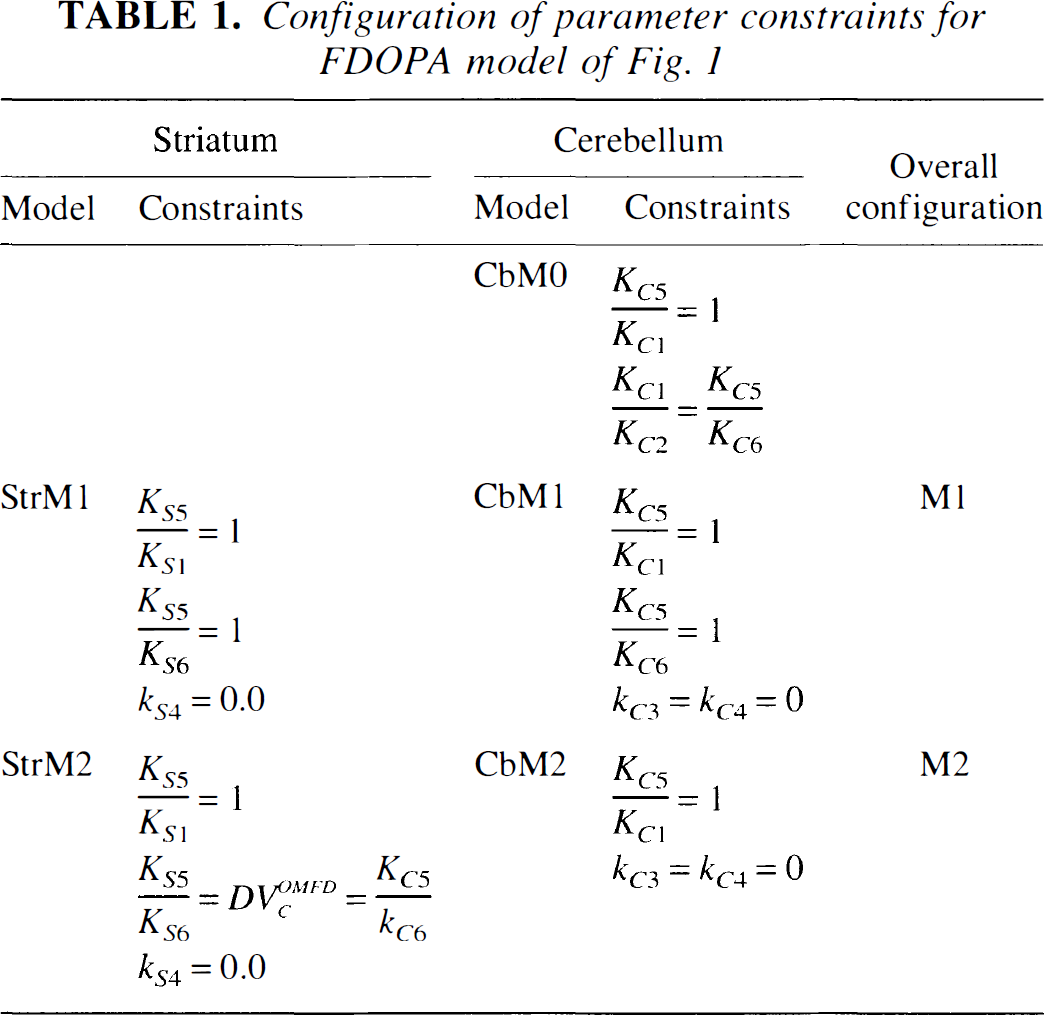

TABLE 1.

Configuration of parameter constraints for FDOPA model of Fig. 1

Striatum		Cerebellum		Overall
Model	Constraints	Model	Constraints	configuration
		CbMO	$\frac{K_{C 5}}{K_{C 1}} = 1$
			$\frac{K_{C 1}}{K_{C 2}} = \frac{K_{C 5}}{K_{C 6}}$
StrM1	$\frac{K_{S 5}}{K_{S 1}} = 1$	CbM1	$\frac{K_{C 5}}{K_{C 1}} = 1$	M1
	$\frac{K_{S 5}}{K_{S 6}} = 1$		$\frac{K_{C 5}}{K_{C 6}} = 1$
	$k_{S 4} = 0.0$		$k_{C 3} = k_{C 4} = 0$
StrM2	$\frac{K_{S 5}}{K_{S 1}} = 1$	CbM2	$\frac{K_{C 5}}{K_{C 1}} = 1$	M2
	$\frac{K_{S 5}}{K_{S 6}} = D V_{C}^{O M F D} = \frac{K_{C 5}}{k_{C 6}}$		$k_{C 3} = k_{C 4} = 0$
	$k_{S 4} = 0.0$

In fitting striatal ROI data with the model of Fig. 1A two sets of constraints were employed (Table 1). In StrM1, the striatal DV of 3OMFD was constrained to unity; and in StrM2, the striatal DV of 3OMFD was constrained to that of the cerebellum (Table 1). In addition, based on a recent report by Wahl and Nahmias (1996), striatal ¹⁸F clearance was assumed negligible (k_S₄ = 0.0 min⁻¹) for constraints StrM1 and StrM2. The striatal DV of FDOPA was given by DV_S^FDOPA = K_S₁/(k_S₂ + k_S₃) (mL · g⁻¹). The compartmental FDOPA uptake-constant relative to plasma FDOPA concentration was given by K_i = K_S1k_S₃/(k_S₂ ⁺ k_S₃) (mL · g⁻¹ · min⁻¹). The set of constraints given by CbM1-StrM1 and CbM2-StrM2 made up the overall constraint configurations M1 and M2, respectively (Table 1).

Cerebellar and striatal kinetic analysis was performed with the transport rate-constant of 3OMFD relative to FDOPA constrained to unity (that is, K_S₅/K_S₁ = K_C₅/K_C₁ = 1) (Table 1). However, a cerebellar residual sum of squares (RSS) profile as a function of K_C₅/K_C₁, ranging from 0.5 ≤ K_C₅/K_C₁ ≤ 3 for squirrel and vervet monkeys, was plotted for each study to examine its effects on the RSS value and the cerebellar DVs of 3OMFD and FDOPA (Fig. 2). The constraints described in Table 1 permitted 3 fitted parameters for the striatal model (namely, K_S₁, k_S₂, and k_S₃) and 3 fitted parameters for the cerebellar model (namely, K_C₁, k_C₂, and k_C₆).

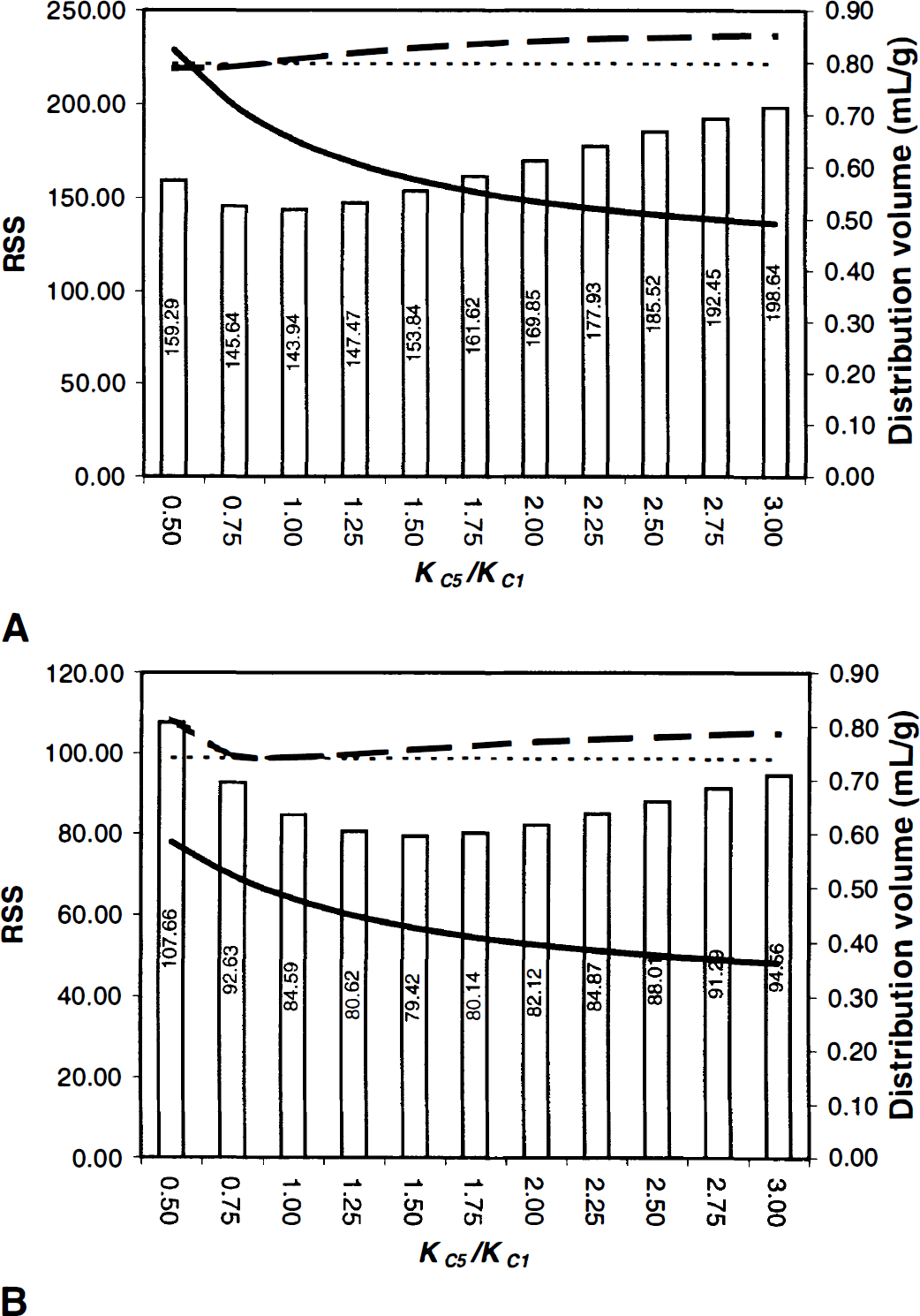

FIG. 2.

The cerebellar distribution volume (DV) of 3OMFD (DV_C^3OMFD, dark dashed line), cerebellar DV of FDOPA (DV_C^FDOPA dark solid line), and the residual sum of squares (bar representation) as a function of the forward transport rate-constant of 3OMFD relative to FDOPA in crossing the blood—brain barrier (K_C₅/K_C₁) for squirrel monkeys (A) and vervet monkeys (B). The faint dotted line represents the cerebellum-to-plasma ratio at 120 minutes post-FDOPA administration. Parameter estimates were obtained using constraint CbM2 with DV_C^3OMFD = K_C₅/K_C₆ and DV_C^FDOPA = K_S₁/k_S₂.

Tissue TACs were preprocessed by subtracting a vascular component that assumes a 5% blood volume in striatal and cerebellar ROIs (Phelps et al., 1979). In fitting the compartmental models of Fig. 1 to PET data, FDOPA and 3OMFD plasma TACs were used as input functions. All model fitting and simulations were performed with a software package for kinetic data analysis, BLD (Carson et al., 1981), using a weighted least-square criterion and the Marquardt algorithm. The weightings used were scan duration divided by activity level (Chen et al., 1991).

LNAA correction

To correct for the effects of plasma LNAA on transport across the BBB (Stout et al., 1998a), the estimates of K_S1 and K_i were adjusted to values corresponding to the average LNAA concentration of squirrel (LNAA_AVG = 408.1 μmol/L) and vervet monkeys (LNAA_AVG = 434.4 μmol/L). The transformation was based on the linear regression line of K_S₁ against plasma LNAA concentration (Fig. 3). For squirrel monkeys the transformation for K_S1 is K_S₁^transformed = K_S₁^estimate −0.00008·(LNAA_AVG − LNAA), and for vervet monkeys the transformation is K_S₁^transformed = K_S1^estimate −0.00005·(LNAA_AVG − LNAA). For squirrel and vervet monkeys the transformed K_i estimate is given by the relation K_i^transformed = K_S₁^transformed·k_S3/k_S₂ + k_S₃). The percent change between the parameter estimates with and without LNAA correction was calculated.

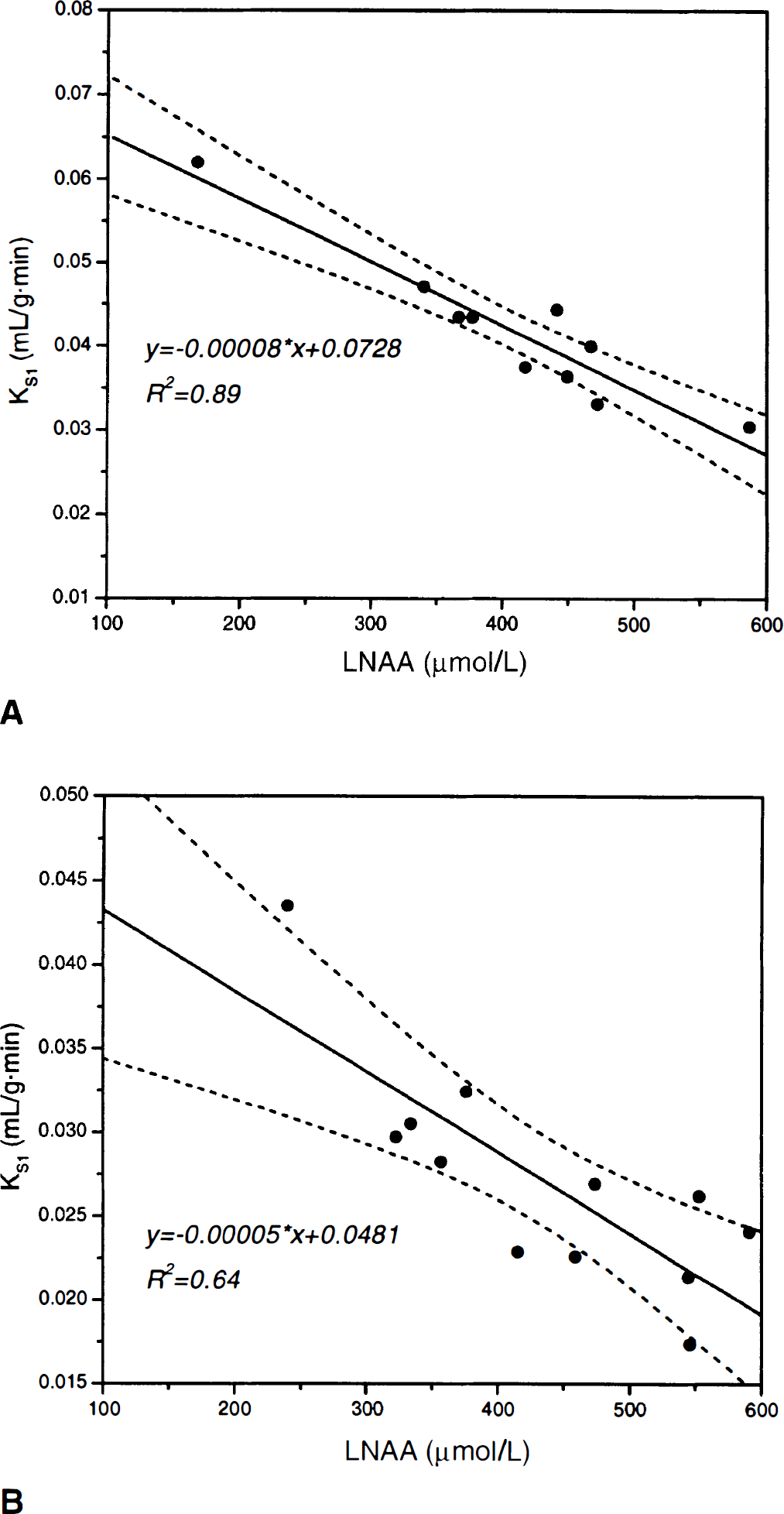

FIG 3.

Dependency of the forward transport rate of FDOPA across the blood—brain barrier on plasma LNAA concentration for squirrel monkeys (A) and vervet monkeys (B). Dashed lines represent 95% confidence intervals for regression line (solid lines). The regression lines in A and B are significant at P < 0.01. Parameter estimates were obtained using constraint M2.

Statistical analysis

The confidence interval for the ratio K₅/K₁ was based on the maximum likelihood profile given by RSS. As an illustration, let

\hat{p} \equiv ({\hat{p}}_{1}, {\hat{p}}_{2}) a n d R R S S ({\hat{p}}_{1}) = min_{{\hat{p}}_{2}} R S S ({\hat{p}}_{1}, {\hat{p}}_{2}) .

Then an approximate 95% confidence interval for p₁^true consisted of the values of p̂₁ for which

R R S S ({\hat{p}}_{1}) - R S S (\hat{p}) \leq {\hat{σ}}^{2} F_{1, N - P}

where

{\hat{σ}}^{2} = R S S (\hat{p}) / (N - P),

F_1,N—P is the 95% confidence value of the F-distribution with 1 and n-p degrees of freedom; n is the number of data points ( n = 22); and p is the number of fitted parameters ( p = 3). To ascertain whether individual cerebellar parameter estimates were significantly different, we employed a nested F-test approach. The Bonferroni correction (Wallenstein et al., 1980) was applied whenever multiple comparisons of individual parameter estimates were tested for significance. A P < 0.05 was considered significant.

RESULTS

Cerebellum

Fitting an unconstrained (all parameters are fitted) cerebellar model resulted in large variability in parameter estimates (large asymptotic variance) and poor convergence. Fitting the cerebellar tissue TAC with constraint CbMO or CbM1 (Table 1) resulted in residual values that were correlated with time (plot not shown), which implied the inadequacy of the model (Landaw and Distefano, 1984). For squirrel monkeys, fitting the cerebellum with model CbM2 resulted in a significantly better fit (F-test; Landaw and Distefano, 1984) compared with models CbMO

(F_{t h r e s h o l d} [1, 19, 0.05] = 4.36 < F^{*} \in [6.9, 22.2])

and CbM1 (excluding two studies)

(F_{t h r e s h o l d} [1, 19, 0.05] = 4.36 < F^{*} \in [11.9, 952.6])

Similarly, for vervet monkeys, the fit with constraint CbM2 was significantly better than with constraint CbM0

(F_{t h r e s h o l d} [1, 19, 0.05] = 4.36 < F^{*} \in [17, 112.7])

or constraint CbM1 (excluding two studies)

(F_{t h r e s h o l d} [1, 19, 0.05] = 4.36 < F^{*} \in [7.5, 498.9])

In four instances, two from each group, the fit of constraint CbM2 was not significantly better than constraint CbM1 because the estimated ratio K_C₅/k_C₆ was close to unity (see Discussion).

Figure 2 (bar representation) depicts a cerebellar RSS profile as a function of the constrained ratio 0.5 ≤ K_C₅/ K_C₁ ≤ 3, for squirrel monkeys (Fig. 2A) and vervet monkeys (Fig. 2B). Figure 2 illustrates that for this particular squirrel monkey study a RSS local minima occurred approximately at K_C₅/K_C₁ = 1 (with a 95% confidence interval of 0.5 < K_C₅/K_C₁ < 2) and for a vervet monkey occurred at K_C₅/K_C₁ = 1.5 (with a 95% confidence interval 0.25 < K_C₅/K_C₁ < 3.25). The values of K_C₅/K_C₁ that minimized the RSS profiles of all squirrel monkeys were in the interval 0.75 ≤ K_C₅/K_C₁ ≤ 1 and in the interval 0.75 ≤ K_C₅/K_C₁ ≤ 3.25 for vervet monkeys. Because of the variability in K_C₅/K_C₁, we constrained the ratio K_C₅/K_C₁ to unity (that is, K_C₅/K_C₁ = 1) following recent reports by Cumming et al. (1994), Wahl and Nahmias (1996), and Dhawan et al. (1996).

Figures 4A and 4B depict a typical cerebellar model fit with constraint CbM2. The figures illustrate that the measured cerebellar activity is fitted well by the model. At late time points, cerebellar radioactivity consists primarily of 3OMFD (90% for squirrel and 89% for vervet monkeys). Comparable 3OMFD fractions are found in plasma at 120 minutes post-FDOPA injection (Tables 2A and 2B, columns A and B).

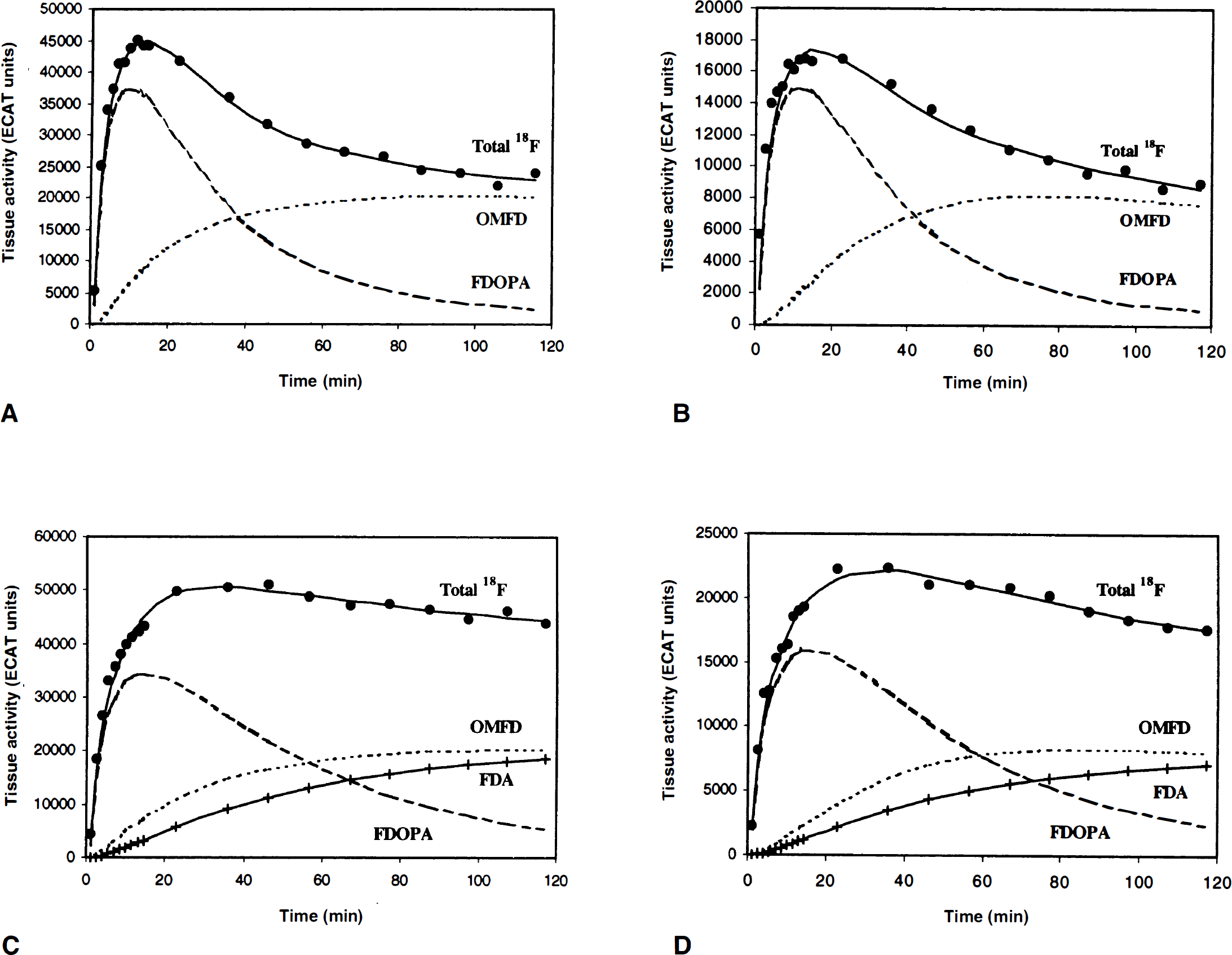

FIG. 4.

Typical cerebellar model fit to cerebellar time-activity curves (TACs) for squirrel (A) and vervet monkeys (B), respectively. Similarly, C and D represent striatal model fit to striatal TAC for squirrel and vervet monkeys, respectively. Solid circles denote total ¹⁸F radioactivity in tissue at a given time point. Solid lines denote compartmental model fit to region of interest data, dotted lines denote OMFD component, dashed lines represent FDOPA component, and solid lines with symbol (+) represent FDA component (where applicable). Parameter estimates were obtained with model configuration M2.

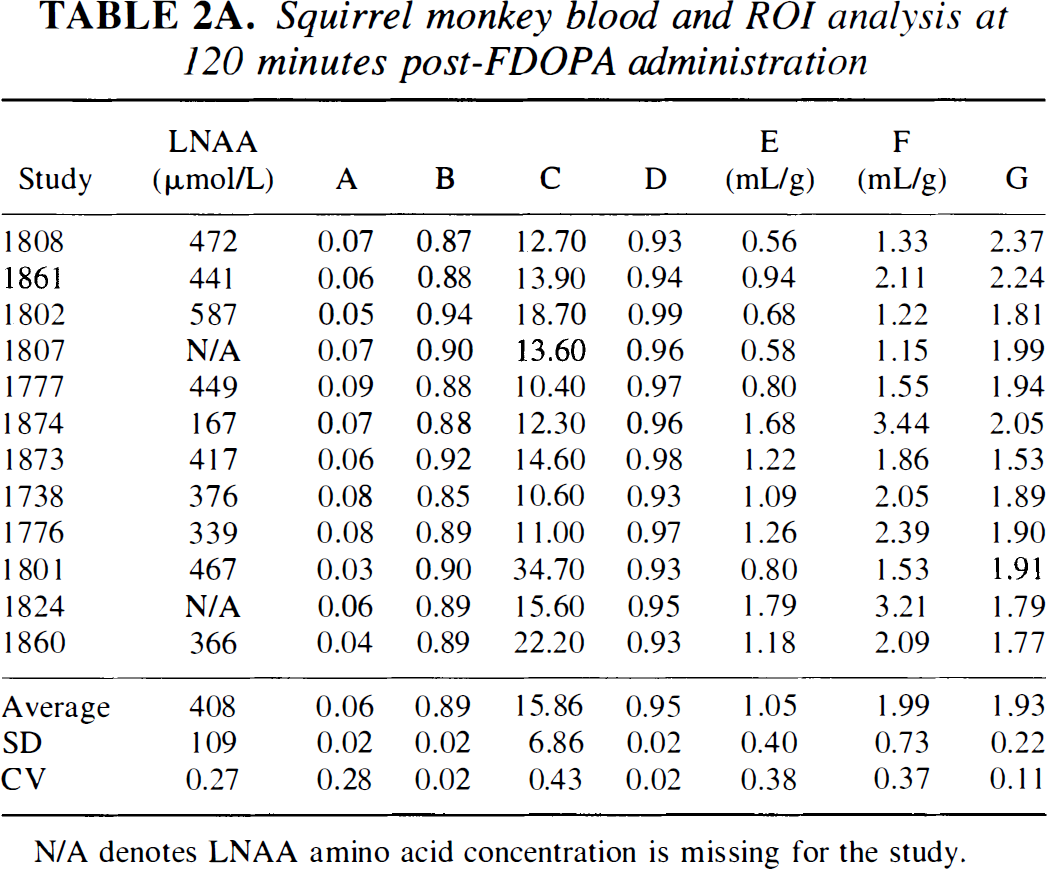

TABLE 2A.

Squirrel monkey blood and ROI analysis at 120 minutes post-FDOPA administration

Study	LNAA(μmol/L)	A	B	C	D	E(mL/g)	F(mL/g)	G
1808	472	0.07	0.87	12.70	0.93	0.56	1.33	2.37
1861	441	0.06	0.88	13.90	0.94	0.94	2.11	2.24
1802	587	0.05	0.94	18.70	0.99	0.68	1.22	1.81
1807	N/A	0.07	0.90	13.60	0.96	0.58	1.15	1.99
1777	449	0.09	0.88	10.40	0.97	0.80	1.55	1.94
1874	167	0.07	0.88	12.30	0.96	1.68	3.44	2.05
1873	417	0.06	0.92	14.60	0.98	1.22	1.86	1.53
1738	376	0.08	0.85	10.60	0.93	1.09	2.05	1.89
1776	339	0.08	0.89	11.00	0.97	1.26	2.39	1.90
1801	467	0.03	0.90	34.70	0.93	0.80	1.53	1.91
1824	N/A	0.06	0.89	15.60	0.95	1.79	3.21	1.79
1860	366	0.04	0.89	22.20	0.93	1.18	2.09	1.77

Average	408	0.06	0.89	15.86	0.95	1.05	1.99	1.93
SD	109	0.02	0.02	6.86	0.02	0.40	0.73	0.22
CV	0.27	0.28	0.02	0.43	0.02	0.38	0.37	0.11

N/A denotes LNAA amino acid concentration is missing for the study.

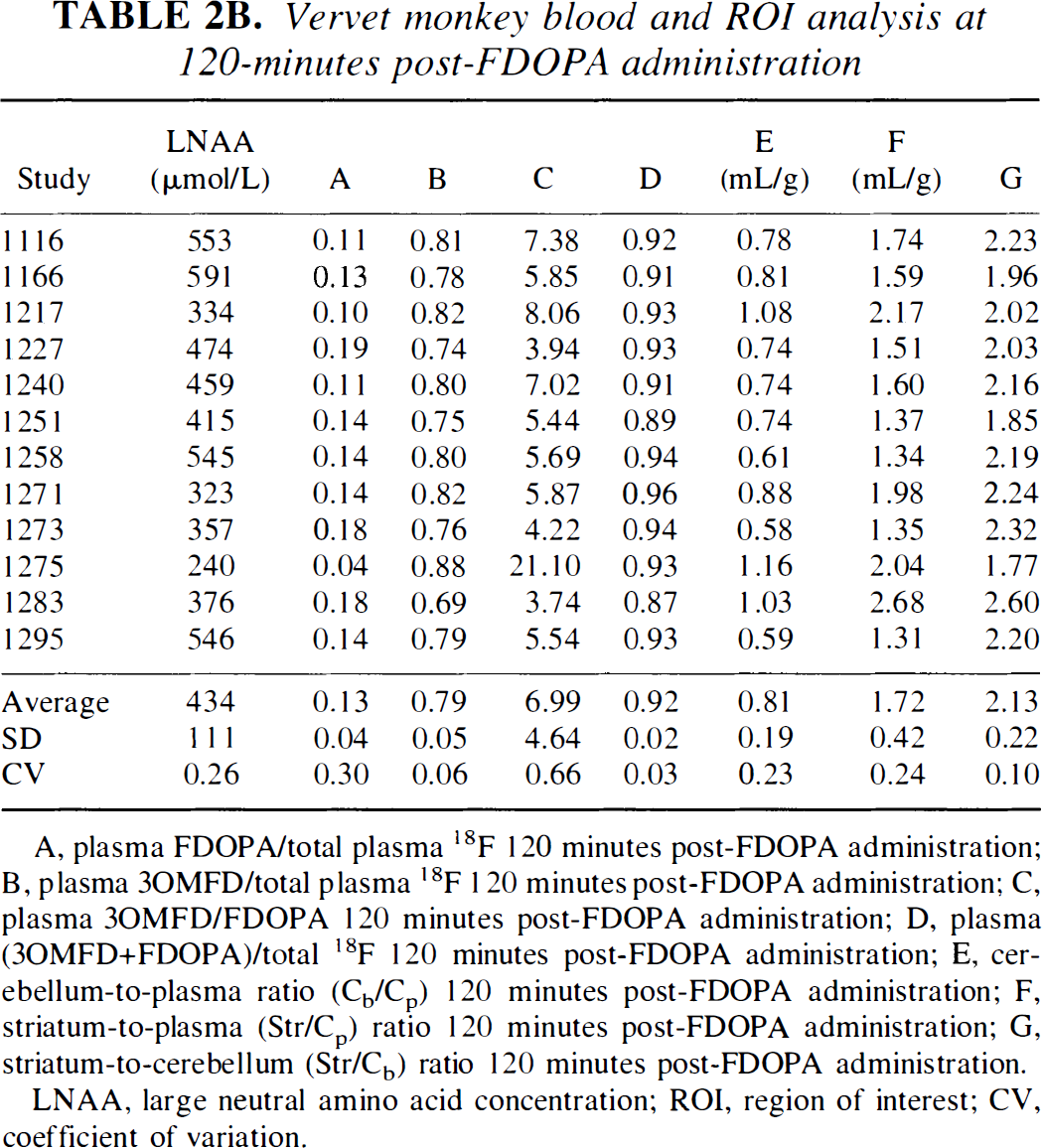

TABLE 2B.

Vervet monkey blood and ROI analysis at 120-minutes post-FDOPA administration

Study	LNAA(μmol/L)	A	B	C	D	E(mL/g)	F(mL/g)	G
1116	553	0.11	0.81	7.38	0.92	0.78	1.74	2.23
1166	591	0.13	0.78	5.85	0.91	0.81	1.59	1.96
1217	334	0.10	0.82	8.06	0.93	1.08	2.17	2.02
1227	474	0.19	0.74	3.94	0.93	0.74	1.51	2.03
1240	459	0.11	0.80	7.02	0.91	0.74	1.60	2.16
1251	415	0.14	0.75	5.44	0.89	0.74	1.37	1.85
1258	545	0.14	0.80	5.69	0.94	0.61	1.34	2.19
1271	323	0.14	0.82	5.87	0.96	0.88	1.98	2.24
1273	357	0.18	0.76	4.22	0.94	0.58	1.35	2.32
1275	240	0.04	0.88	21.10	0.93	1.16	2.04	1.77
1283	376	0.18	0.69	3.74	0.87	1.03	2.68	2.60
1295	546	0.14	0.79	5.54	0.93	0.59	1.31	2.20

Average	434	0.13	0.79	6.99	0.92	0.81	1.72	2.13
SD	111	0.04	0.05	4.64	0.02	0.19	0.42	0.22
CV	0.26	0.30	0.06	0.66	0.03	0.23	0.24	0.10

A, plasma FDOPA/total plasma ¹⁸F 120 minutes post-FDOPA administration; B, plasma 3OMFD/total plasma ¹⁸F 120 minutes post-FDOPA administration; C, plasma 3OMFD/FDOPA 120 minutes post-FDOPA administration; D, plasma (3OMFD+FDOPA)/total ¹⁸F 120 minutes post-FDOPA administration; E, cerebellum-to-plasma ratio (C_b/C_p) 120 minutes post-FDOPA administration; F, striatum-to-plasma (Str/C_p) ratio 120 minutes post-FDOPA administration; G, striatum-to-cerebellum (Str/C_b) ratio 120 minutes post-FDOPA administration.

LNAA, large neutral amino acid concentration; ROI, region of interest; CV, coefficient of variation.

Tables 3A and 3B show tabulations of cerebellar parameter estimates for squirrel and vervet monkeys, respectively. Table 3A reveals that the average reverse transport rate of FDOPA across the BBB (k_C₂ = 0.0678 ± 0.0124 min⁻¹) is significantly higher (paired t-test, P < 0.0001) than that of 3OMFD (k_C₆ = 0.0544 ± 0.0117 min⁻¹). These findings, coupled with the constraint on K_C₅/K_C₁ = 1, entail that the average cerebellar DV of FDOPA (DV_C^FDOPA = 0.84 ± 0.30 mL · g⁻¹) was significantly lower (paired t-test, P < 0.0001) than that of its major peripheral metabolite, 3OMFD (DV_C^OMFD = 1.05 ± 0.39 mL · g⁻¹). The above findings were also apparent in studies involving vervet monkeys (Table 3B). Moreover, Fig. 2 shows that differences in the cerebellar DVs of FDOPA and 3OMFD become larger with higher values for K_C₅/K_C₁ in squirrel (Fig. 2A) and vervet (Fig. 2B) monkey investigations.

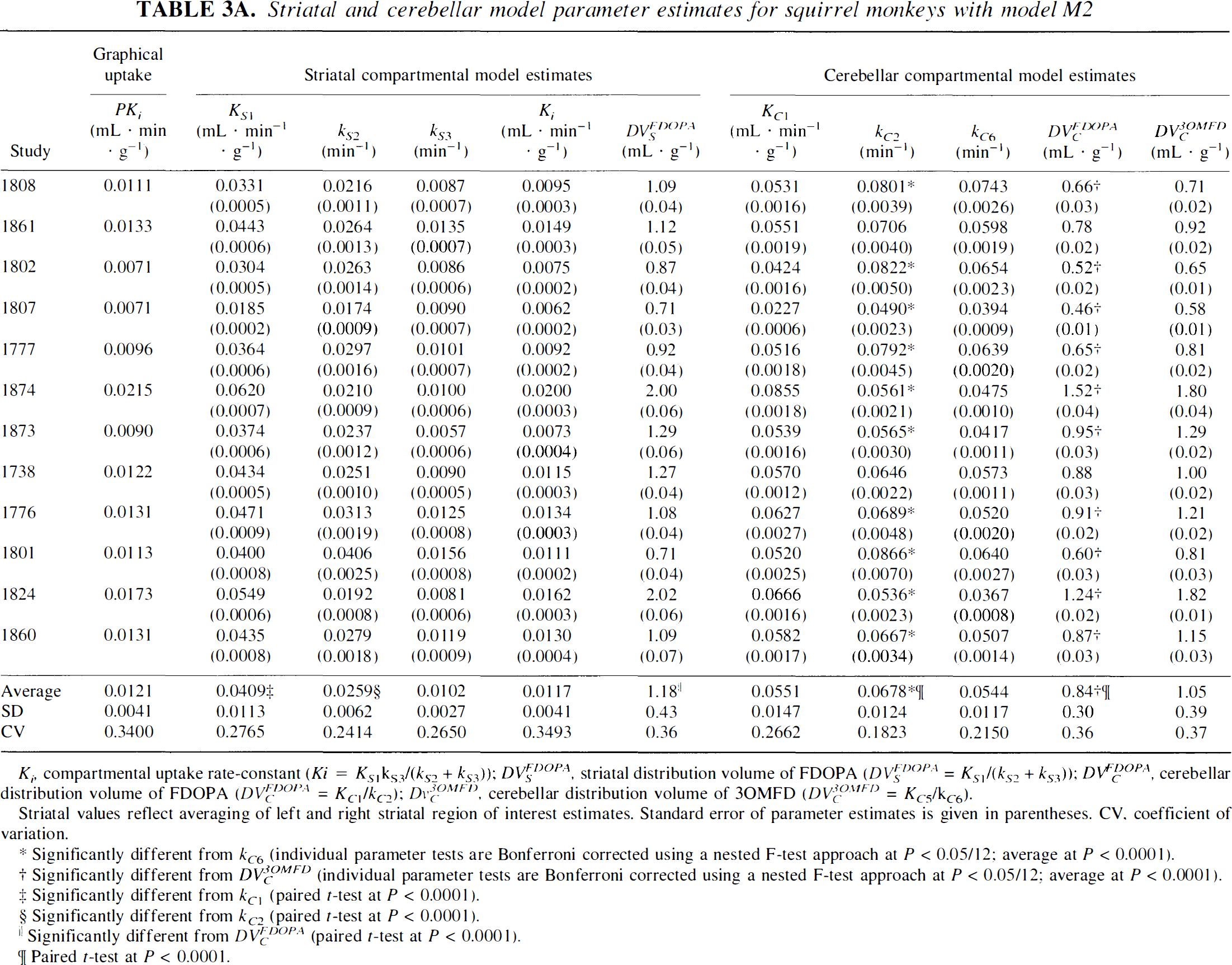

TABLE 3A.

Striatal and cerebellar model parameter estimates for squirrel monkeys with model M2

	Graphical uptake	Striatal compartmental model estimates					Cerebellar compartmental model estimates
Study	PK_i (mL · min · g⁻¹)	k_s₁(mL · min⁻¹ ·g⁻¹)	k_S₂ (min⁻¹)	k_S₃ (min⁻¹)	K_i (mL · min⁻¹ · g⁻¹)	DC_S^FDOPA (mL · g⁻¹)	K_C₁ (mL · min⁻¹ · g⁻¹)	k_C₂ (min⁻¹)	k_C₆ (min⁻¹)	DV_C^FDOPA (mL · g⁻¹)	DV_C^3OMFD (mL · g⁻¹)
1808	0.0111	0.0331	0.0216	0.0087	0.0095	1.09	0.0531	0.0801*	0.0743	0.66†	0.71
		(0.0005)	(0.0011)	(0.0007)	(0.0003)	(0.04)	(0.0016)	(0.0039)	(0.0026)	(0.03)	(0.02)
1861	0.0133	0.0443	0.0264	0.0135	0.0149	1.12	0.0551	0.0706	0.0598	0.78	0.92
		(0.0006)	(0.0013)	(0.0007)	(0.0003)	(0.05)	(0.0019)	(0.0040)	(0.0019)	(0.02)	(0.02)
1802	0.0071	0.0304	0.0263	0.0086	0.0075	0.87	0.0424	0.0822*	0.0654	0.52†	0.65
		(0.0005)	(0.0014)	(0.0006)	(0.0002)	(0.04)	(0.0016)	(0.0050)	(0.0023)	(0.02)	(0.01)
1807	0.0071	0.0185	0.0174	0.0090	0.0062	0.71	0.0227	0.0490*	0.0394	0.46†	0.58
		(0.0002)	(0.0009)	(0.0007)	(0.0002)	(0.03)	(0.0006)	(0.0023)	(0.0009)	(0.01)	(0.01)
1777	0.0096	0.0364	0.0297	0.0101	0.0092	0.92	0.0516	0.0792*	0.0639	0.65†	0.81
		(0.0006)	(0.0016)	(0.0007)	(0.0002)	(0.04)	(0.0018)	(0.0045)	(0.0020)	(0.02)	(0.02)
1874	0.0215	0.0620	0.0210	0.0100	0.0200	2.00	0.0855	0.0561*	0.0475	1.52†	1.80
		(0.0007)	(0.0009)	(0.0006)	(0.0003)	(0.06)	(0.0018)	(0.0021)	(0.0010)	(0.04)	(0.04)
1873	0.0090	0.0374	0.0237	0.0057	0.0073	1.29	0.0539	0.0565*	0.0417	0.95†	1.29
		(0.0006)	(0.0012)	(0.0006)	(0.0004)	(0.06)	(0.0016)	(0.0030)	(0.0011)	(0.03)	(0.02)
1738	0.0122	0.0434	0.0251	0.0090	0.0115	1.27	0.0570	0.0646	0.0573	0.88	1.00
		(0.0005)	(0.0010)	(0.0005)	(0.0003)	(0.04)	(0.0012)	(0.0022)	(0.0011)	(0.03)	(0.02)
1776	0.0131	0.0471	0.0313	0.0125	0.0134	1.08	0.0627	0.0689*	0.0520	0.91†	1.21
		(0.0009)	(0.0019)	(0.0008)	(0.0003)	(0.04)	(0.0027)	(0.0048)	(0.0020)	(0.02)	(0.02)
1801	0.0113	0.0400	0.0406	0.0156	0.0111	0.71	0.0520	0.0866*	0.0640	0.60†	0.81
		(0.0008)	(0.0025)	(0.0008)	(0.0002)	(0.04)	(0.0025)	(0.0070)	(0.0027)	(0.03)	(0.03)
1824	0.0173	0.0549	0.0192	0.0081	0.0162	2.02	0.0666	0.0536*	0.0367	1.24†	1.82
		(0.0006)	(0.0008)	(0.0006)	(0.0003)	(0.06)	(0.0016)	(0.0023)	(0.0008)	(0.02)	(0.01)
1860	0.0131	0.0435	0.0279	0.0119	0.0130	1.09	0.0582	0.0667*	0.0507	0.87†	1.15
		(0.0008)	(0.0018)	(0.0009)	(0.0004)	(0.07)	(0.0017)	(0.0034)	(0.0014)	(0.03)	(0.03)

Average	0.0121	0.0409‡	0.0259§	0.0102	0.0117	1.18‖	0.0551	0.0678*¶	0.0544	0.84†¶	1.05
SD	0.0041	0.0113	0.0062	0.0027	0.0041	0.43	0.0147	0.0124	0.0117	0.30	0.39
CV	0.3400	0.2765	0.2414	0.2650	0.3493	0.36	0.2662	0.1823	0.2150	0.36	0.37

K_i, compartmental uptake rate-constant (K_i = K_S₁k_S3/(k_S₂ + k_S₃)); DV_S^FDOPA, striatal distribution volume of FDOPA (DV_S^FDOPA = K_S₁/(k_S₂ + k_S₃)); DV_C^FDOPA, cerebellar distribution volume of FDOPA (DV_C^FDOPA = K_C₁/k_C₂); Dv_C^3OMFD, cerebellar distribution volume of 3OMFD (DV_C^3OMFD = K_C₅/k_C₆).

Striatal values reflect averaging of left and right striatal region of interest estimates. Standard error of parameter estimates is given in parentheses. CV. coefficient of variation.

Significantly different from k_C₆ (individual parameter tests are Bonferroni corrected using a nested F-test approach at P < 0.05/12; average at P < 0.0001).

†

Significantly different from DV_C^3OMFD (individual parameter tests are Bonferroni corrected using a nested F-test approach at P < 0.05/12; average at P < 0.0001).

‡

Significantly different from k_C₁ (paired t-test at P < 0.0001).

Significantly different from k_C₂ (paired t-test at P < 0.0001).

‖

Significantly different from DV_C^FDOPA (paired t-test at P < 0.0001).

Paired t-test at P < 0.0001.

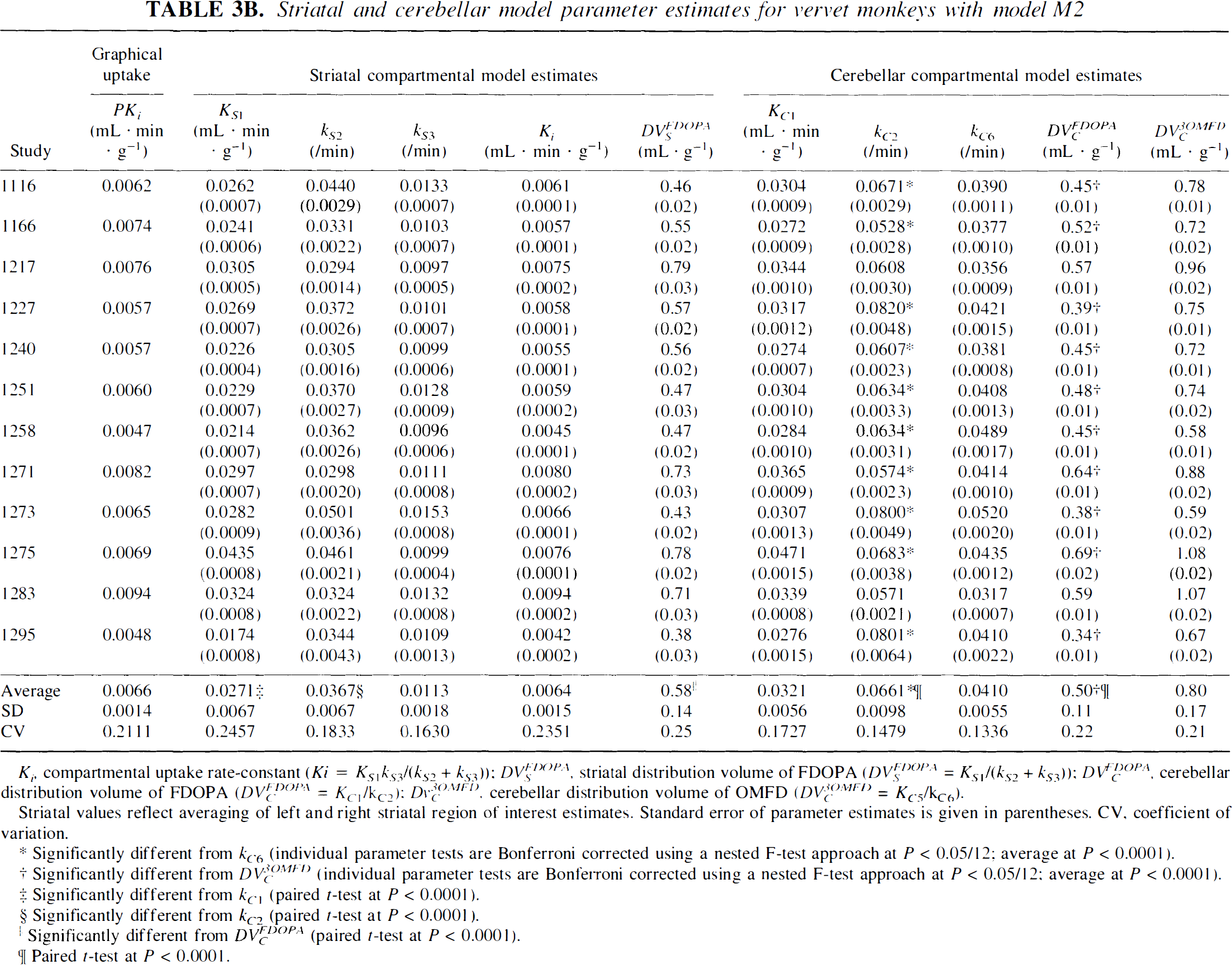

TABLE 3B.

Striatal and cerebellar model parameter estimates for vervet monkeys with model M2

	Graphical uptake	Striatal compartmental model estimates					Cerebellar compartmental model estimates
Study	PK_i(mL . min .g⁻¹)	K_S₁(mL. min . g⁻¹)	k_S₂(/min)	k_S₃(/min)	K_i(mL . min . g⁻¹)	DV_S^FDOPA(mL . g⁻¹)	K_C₁(mL . min . g⁻¹)	k_C₂(/min)	k_C₆(/min)	DV_C^FDOPA(mL . g⁻¹)	DV_C^3OMFD(mL . g⁻¹)
1116	0.0062	0.0262	0.0440	0.0133	0.0061	0.46	0.0304	0.0671*	0.0390	0.45†	0.78
		(0.0007)	(0.0029)	(0.0007)	(0.0001)	(0.02)	(0.0009)	(0.0029)	(0.0011)	(0.01)	(0.01)
1166	0.0074	0.0241	0.0331	0.0103	0.0057	0.55	0.0272	0.0528*	0.0377	0.52†	0.72
		(0.0006)	(0.0022)	(0.0007)	(0.0001)	(0.02)	(0.0009)	(0.0028)	(0.0010)	(0.01)	(0.02)
1217	0.0076	0.0305	0.0294	0.0097	0.0075	0.79	0.0344	0.0608	0.0356	0.57	0.96
		(0.0005)	(0.0014)	(0.0005)	(0.0002)	(0.03)	(0.0010)	(0.0030)	(0.0009)	(0.01)	(0.02)
1227	0.0057	0.0269	0.0372	0.0101	0.0058	0.57	0.0317	0.0820*	0.0421	0.39†	0.75
		(0.0007)	(0.0026)	(0.0007)	(0.0001)	(0.02)	(0.0012)	(0.0048)	(0.0015)	(0.01)	(0.01)
1240	0.0057	0.0226	0.0305	0.0099	0.0055	0.56	0.0274	0.0607*	0.0381	0.45†	0.72
		(0.0004)	(0.0016)	(0.0006)	(0.0001)	(0.02)	(0.0007)	(0.0023)	(0.0008)	(0.01)	(0.01)
1251	0.0060	0.0229	0.0370	0.0128	0.0059	0.47	0.0304	0.0634*	0.0408	0.48†	0.74
		(0.0007)	(0.0027)	(0.0009)	(0.0002)	(0.03)	(0.0010)	(0.0033)	(0.0013)	(0.01)	(0.02)
1258	0.0047	0.0214	0.0362	0.0096	0.0045	0.47	0.0284	0.0634*	0.0489	0.45†	0.58
		(0.0007)	(0.0026)	(0.0006)	(0.0001)	(0.02)	(0.0010)	(0.0031)	(0.0017)	(0.01)	(0.01)
1271	0.0082	0.0297	0.0298	0.0111	0.0080	0.73	0.0365	0.0574*	0.0414	0.64†	0.88
		(0.0007)	(0.0020)	(0.0008)	(0.0002)	(0.03)	(0.0009)	(0.0023)	(0.0010)	(0.01)	(0.02)
1273	0.0065	0.0282	0.0501	0.0153	0.0066	0.43	0.0307	0.0800*	0.0520	0.38†	0.59
		(0.0009)	(0.0036)	(0.0008)	(0.0001)	(0.02)	(0.0013)	(0.0049)	(0.0020)	(0.01)	(0.02)
1275	0.0069	0.0435	0.0461	0.0099	0.0076	0.78	0.0471	0.0683*	0.0435	0.69†	1.08
		(0.0008)	(0.0021)	(0.0004)	(0.0001)	(0.02)	(0.0015)	(0.0038)	(0.0012)	(0.02)	(0.02)
1283	0.0094	0.0324	0.0324	0.0132	0.0094	0.71	0.0339	0.0571	0.0317	0.59	1.07
		(0.0008)	(0.0022)	(0.0008)	(0.0002)	(0.03)	(0.0008)	(0.0021)	(0.0007)	(0.01)	(0.02)
1295	0.0048	0.0174	0.0344	0.0109	0.0042	0.38	0.0276	0.0801*	0.0410	0.34†	0.67
		(0.0008)	(0.0043)	(0.0013)	(0.0002)	(0.03)	(0.0015)	(0.0064)	(0.0022)	(0.01)	(0.02)

Average	0.0066	0.0271‡	0.0367§	0.0113	0.0064	0.58‖	0.0321	0.0661*¶	0.0410	0.50†¶	0.80
SD	0.0014	0.0067	0.0067	0.0018	0.0015	0.14	0.0056	0.0098	0.0055	0.11	0.17
CV	0.2111	0.2457	0.1833	0.1630	0.2351	0.25	0.1727	0.1479	0.1336	0.22	0.21

K_i, compartmental uptake rate-constant (K_i = K_S₁k_S₃/(k_S₂ + k_S₃)): DV_S^FDOPA striatal distribution volume of FDOPA (DV_S^FDOPA = K_S₁/(k_S₂ + k_S₃)); DV_C^FDOPA, cerebellar distribution volume of FDOPA (DV_C^FDOPA = K_C₁/k_C₂): Dv_C^3OMFD, cerebellar distribution volume of OMFD (DV_C^3OMFD = K_C₅/k_C₆).

Striatal values reflect averaging of left and right striatal region of interest estimates. Standard error of parameter estimates is given in parentheses. CV, coefficient of variation.

Significantly different from k_C₆ (individual parameter tests are Bonferroni corrected using a nested F-test approach at P < 0.05/12; average at P < 0.0001).

†

Significantly different from DV_C^3OMFD (individual parameter tests are Bonferroni corrected using a nested F-test approach at P < 0.05/12: average at P < 0.0001).

‡

Significantly different from k_C₁ (paired t-test at P < 0.0001).

Significantly different from k_C₂ (paired t-test at P < 0.0001).

‖

Significantly different from DV_C^FDOPA (paired t-test at P < 0.0001).

Paired t-test at P < 0.0001.

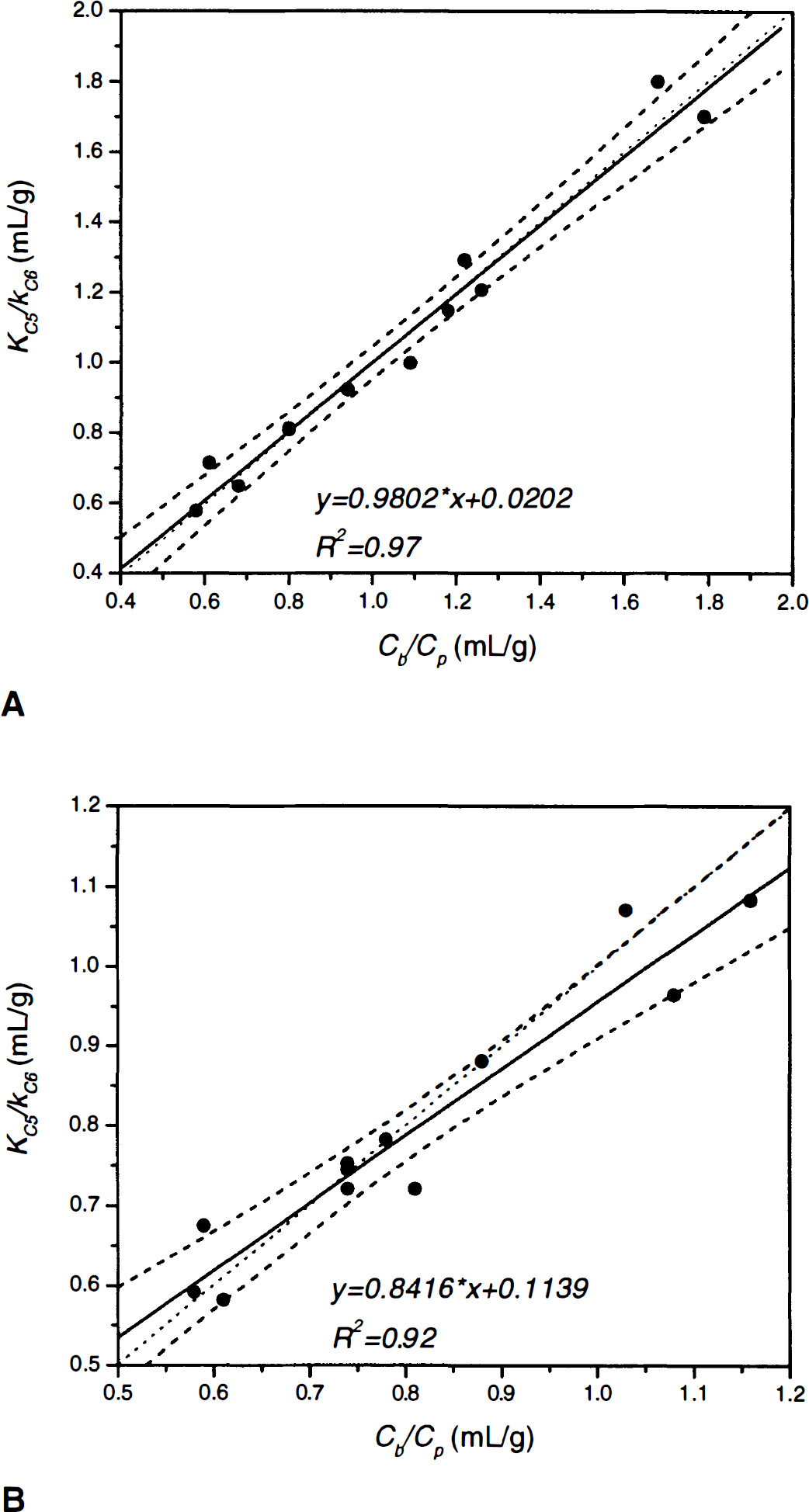

Figure 5 portrays the correlation between K_C₅/K_C₆ versus C_b/C_p for squirrel (Fig. 5A; y = 0.9802x–0.0202, r² = 0.97) and vervet monkeys (Fig. 5B; y = 0.8416x+0.1139, r² = 0.92). In Fig. 5A, the linear regression line is not significantly different from the identity line (F* = 0.093 < F_threshold[1,10,0.05] = 4.96), but only marginally significant in Fig. 5B (F* = 5.13 > F_threshold[1,10,0.05] = 4.96). In Fig. 6, the cerebellar DV of 3OMFD (K_C₅/k_C6) is plotted against plasma LNAA levels. Figure 6 shows that the cerebellar DV of OMFD (K_C₅/k_C₆) is inversely related to plasma LNAA levels, as expected based on Eq. 4. Average K_C₅/k_C₆ is approximately unity for squirrel monkeys and average K_C₅/k_C₆ = 0.80 for vervet monkeys.

FIG 5.

Cerebellar distribution volume of OMFD (K_C₅/k_C₆) judged against the cerebellum-to-plasma ratio (C_b/C_p) for squirrel monkeys (A) and vervet monkeys (B). Dotted lines denote the line of identity. Dashed lines represent 95% confidence intervals for regression line (solid lines). In A, the line of regression is not significantly different from the identity line (P > 0.05). The line of regression in B is only marginally significant compared with the identity line at P < 0.05. Parameter estimates were obtained using constraint CbM2.

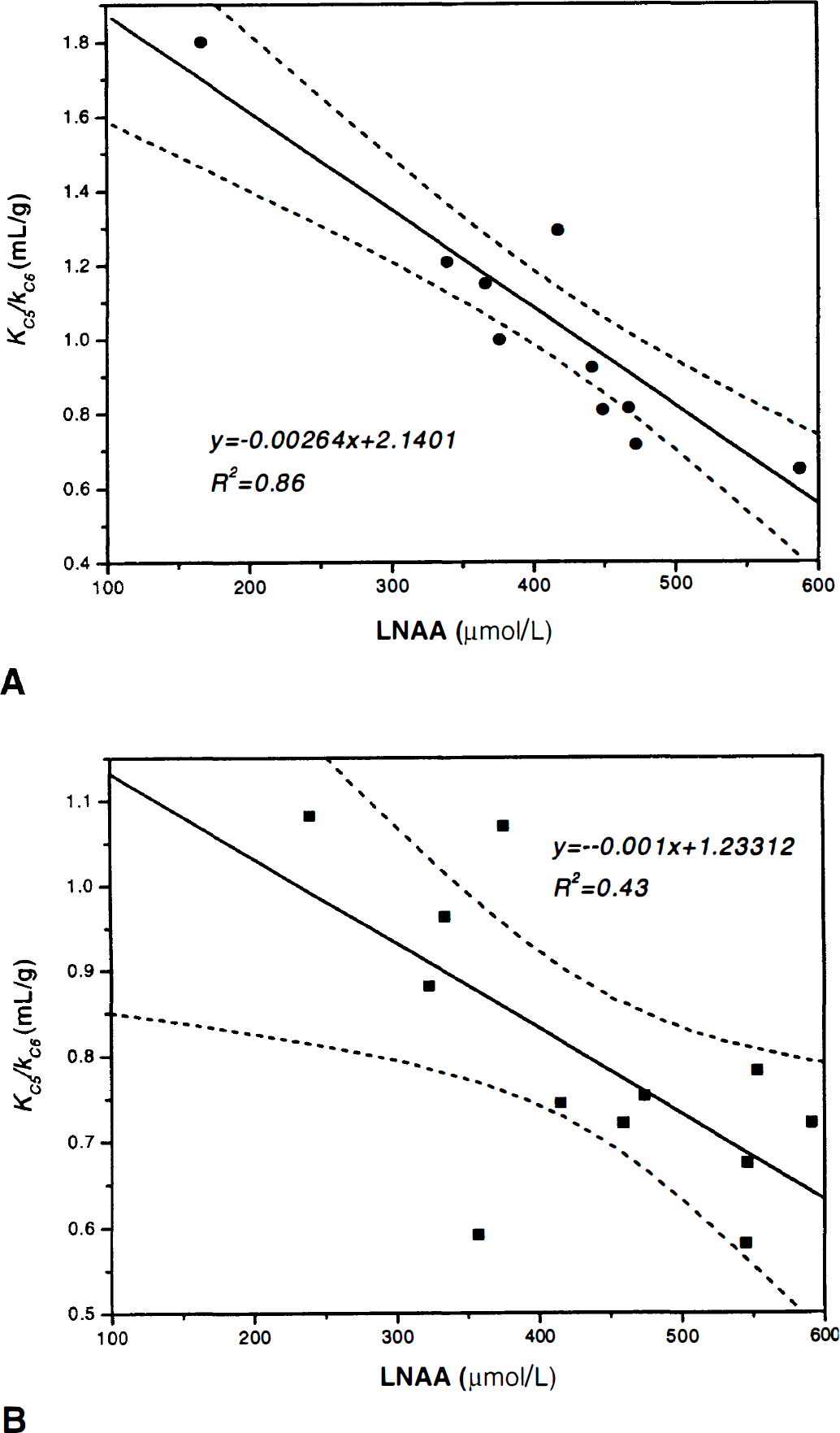

FIG 6.

Cerebellar distribution volume of OMFD (K_C₅/k_C₆) versus plasma LNAA concentration for squirrel monkeys (A) and vervet monkeys (B). Dashed lines represent 95% confidence intervals for regression line (solid lines). Parameter estimates were obtained using constraint CbM2.

Striatum

For squirrel monkeys, fitting the striatal model with constraint StrM1 resulted in parameter estimates with mean K_S₁ = 0.0408 ± 0.0107 mL · min⁻¹ · g⁻¹, k_S₂ = 0.0261 ± 0.0075 min⁻¹, k_S3 = 0.0095 ± 0.0049 min⁻¹, and K_i = 0.0121 ± 0.0086 mL · g⁻¹·min⁻¹ (individual parameter estimates are not shown for constraint StrM1). Similarly, for vervet monkeys average K_S₁ = 0.0278 ± 0.0066 mL · g⁻¹ · min⁻¹, k_S₂ = 0.0498 ± 0.00899 min⁻¹, k_S3 = 0.0112 ± 0.00403 min⁻¹, and K_i = 0.0053 ± 0.00269 mL · g⁻¹ · min⁻¹.

Figures 4C and 4D depict a representative striatal model fit with constraint StrM2 for squirrel and vervet monkeys, respectively. In Table 3A (squirrel monkey investigations), we tabulate striatal parameter estimates with constraint StrM2, and in Table 4A (squirrel monkey investigations), we list the percent change in striatal parameter estimates between constraint StrM1 and constraint StrM2. Compared with constraint StrM1, the average of parameter estimates of constraint StrM2 did not change significantly (P > 0.30); but there was a significant reduction in the SD and the coefficient of variation, particularly for k_S3 and K_i. With constraint StrM2, the SD of k_S₂, k_S₃, and K_i diminished by 16.57%, 44.79%, and 52.61%, respectively. Studies involving vervet monkeys are characterized in a similar fashion in Tables 3B and 4B.

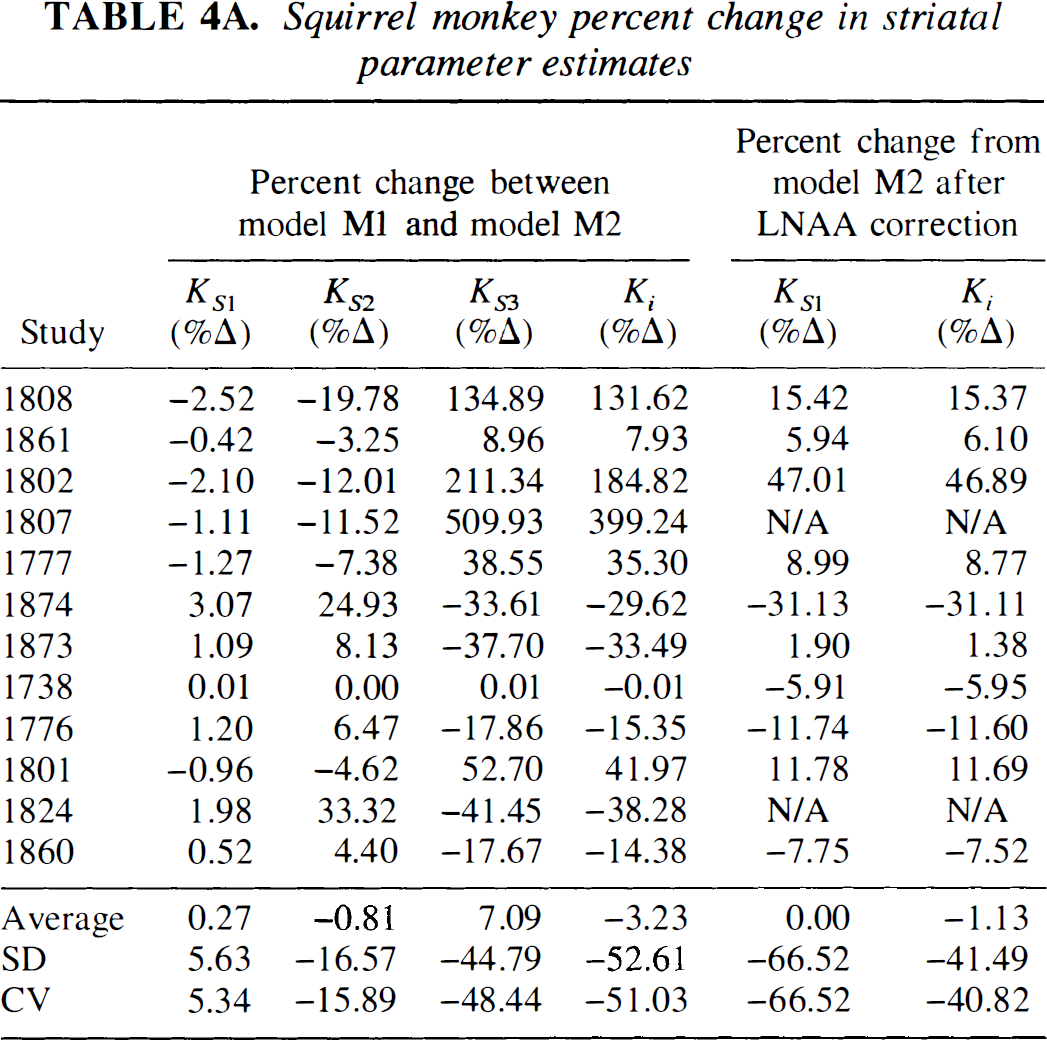

TABLE 4A.

Squirrel monkey percent change in striatal parameter estimates

	Percent change betweenmodel M1 and model M2				Percent change frommodel M2 afterLNAA correction
Study	K_S₁(%Δ)	K_S₂(%Δ)	K_S₃(%Δ)	K_i(%Δ)	K_S₁(%Δ)	K_i(%Δ)
1808	−2.52	−19.78	134.89	131.62	15.42	15.37
1861	−0.42	−3.25	8.96	7.93	5.94	6.10
1802	−2.10	−12.01	211.34	184.82	47.01	46.89
1807	−1.11	−11.52	509.93	399.24	N/A	N/A
1777	−1.27	−7.38	38.55	35.30	8.99	8.77
1874	3.07	24.93	−33.61	−29.62	−31.13	−31.11
1873	1.09	8.13	−37.70	−33.49	1.90	1.38
1738	0.01	0.00	0.01	−0.01	−5.91	−5.95
1776	1.20	6.47	−17.86	−15.35	−11.74	−11.60
1801	−0.96	−4.62	52.70	41.97	11.78	11.69
1824	1.98	33.32	−41.45	−38.28	N/A	N/A
1860	0.52	4.40	−17.67	−14.38	−7.75	−7.52

Average	0.27	−0.81	7.09	−3.23	0.00	−1.13
SD	5.63	−16.57	−44.79	−52.61	−66.52	−41.49
CV	5.34	−15.89	−48.44	−51.03	−66.52	−40.82

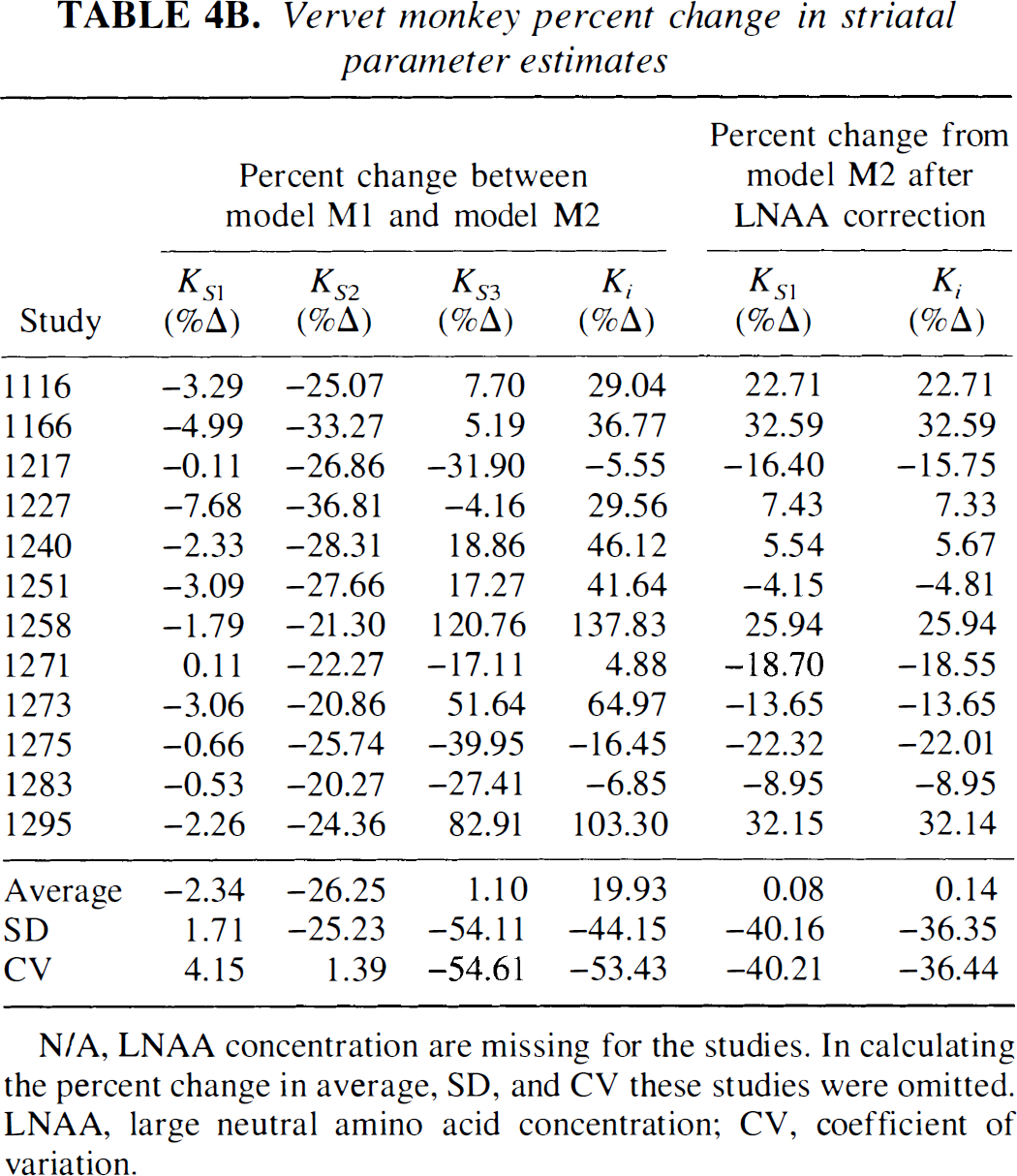

TABLE 4B.

Vervet monkey percent change in striatal parameter estimates

	Percent change betweenmodel M1 and model M2				Percent change frommodel M2 afterLNAA correction
Study	K_S₁(%Δ)	K_S₂(%Δ)	K_S₃(%Δ)	K_i(%Δ)	K_S₁(%Δ)	K_i(%Δ)
1116	−3.29	−25.07	7.70	29.04	22.71	22.71
1166	−4.99	−33.27	5.19	36.77	32.59	32.59
1217	−0.11	−26.86	−31.90	−5.55	−16.40	−15.75
1227	−7.68	−36.81	−4.16	29.56	7.43	7.33
1240	−2.33	−28.31	18.86	46.12	5.54	5.67
1251	−3.09	−27.66	17.27	41.64	−4.15	−4.81
1258	−1.79	−21.30	120.76	137.83	25.94	25.94
1271	0.11	−22.27	−17.11	4.88	−18.70	−18.55
1273	−3.06	−20.86	51.64	64.97	−13.65	−13.65
1275	−0.66	−25.74	−39.95	−16.45	−22.32	−22.01
1283	−0.53	−20.27	−27.41	−6.85	−8.95	−8.95
1295	−2.26	−24.36	82.91	103.30	−32.15	32.14

Average	−2.34	−26.25	1.10	19.93	0.08	0.14
SD	1.71	−25.23	−54.11	−44.15	−40.16	−36.35
CV	4.15	1.39	−54.61	−53.43	−40.21	−36.44

N/A, LNAA concentration are missing for the studies. In calculating the percent change in average, SD, and CV these studies were omitted. LNAA, large neutral amino acid concentration; CV, coefficient of variation.

Figure 3 depicts the dependency of FDOPA transport across the BBB on plasma LNAA concentration. Table 4 summarizes LNAA correction results. The procedure resulted in a significant reduction in SD of K_S₁ and K_i. For squirrel monkeys, the SD of K_S₁ and K_i was reduced by 66.51% and 41.49%, respectively; whereas for vervet monkeys, the SD was reduced by 40.16% and 36.35%, respectively. Using the line of regression in Figs. 3A and 3B, the normalized slope, f(the ratio of slope-to-intercept), for squirrel monkeys is f_s = 0.0011 ± 0.000142 μmol · L⁻¹ and for vervet monkeys it is f_v = 0.0010 ± 0.00778 μmol · L⁻¹, which are not statistically different (P > 0.1).

The compartmental uptake estimate (K_i) is compared with the graphical uptake estimate (PK_i) in Fig. 7. For squirrel monkeys (Fig. 7A), the correlation between K_i and PK_i is enhanced with constraint StrM2 (constraint StrM1 regression line: y = 1.963x–0.01179, R² = 0.88; constraint StrM2 regression line: y = 0.962x–0.000015, R² = 0.94). Similarly, for vervet monkeys (Fig. 7B), the correlation between K_i and PK_i is improved (constraint StrM1 regression line: y = 1.6831x–0.00576, R² = 0.75; constraint StrM2 regression line: K_i = 1.0078 PK_i–0.000243, R² = 0.86). Moreover, in using constraint StrM2, the regression line of Fig. 7 is not significantly different from the identity line (for squirrel monkeys, F* = 2.91 < F_threshold [1,19,0.05] = 4.96; for vervet monkeys, F* = 1.27 < F_threshold[1,19,0.05] = 4.96).

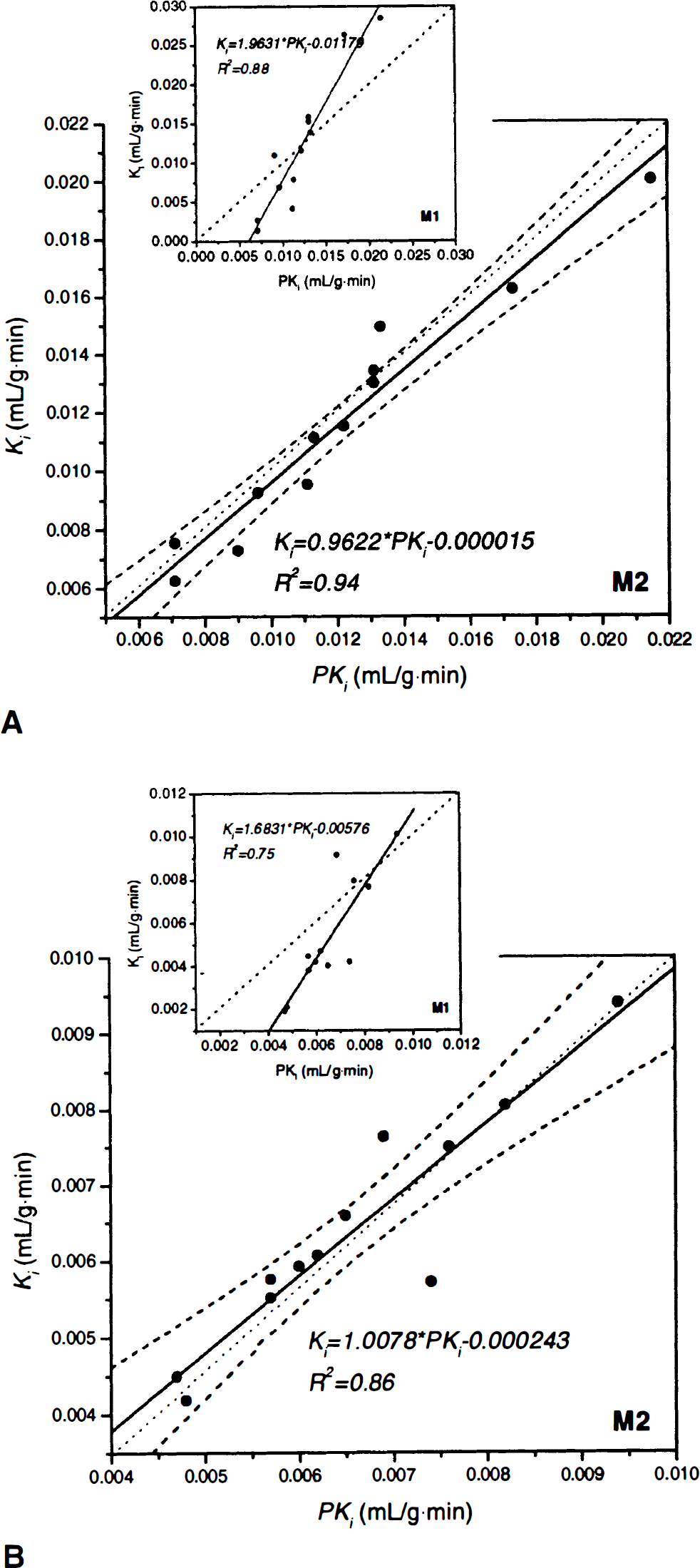

FIG 7.

Correlation between the compartmental uptake estimate (K_i) and the graphical uptake estimate (PK_i) for squirrel monkeys (A) and vervet monkeys (B). Dotted lines denote the line of identify. Dashed lines represent 95% confidence bands for regression line (solid lines). In capsule M1, the compartmental model is fitted with model constraints M1; whereas, in M2 the compartmental model is fitted with constraints M2. For both squirrel and vervet monkeys, the correlation between (K_i) and (PK_i) is improved when constraint M2 is used. In addition, the regression line between K_i and PK_i is not significantly different from the identity line at P > 0.05.

Comparison between cerebellum and striatum

In Table 3A, average value of K_C₁ = 0.00551 ± 0.0147 mL · g⁻¹·min⁻¹ is significantly (P < 0.0001) higher than the average value of K_S₁ = 0.0409 ± 0.0113 mL · g⁻¹·min⁻¹. Average value of k_C2 = 0.0678 ± 0.0124 min⁻¹ is significantly (P < 0.0001) higher than the average value of k_S₂ = 0.0259 ± 0.0062 min⁻¹. In addition, average striatal DV of FDOPA (1.18 ± 0.43 mL· g⁻¹) is significantly (P < 0.0001) higher than the average cerebellar DV of FDOPA (0.84 ± 0.30 mL · g⁻¹). The above features were also apparent in studies involving vervet monkeys and are summarized in Table 3B.

DISCUSSION

Comparing column E of Tables 2A and 2B (cerebellum-to-plasma ratio, C_b/C_p) with the cerebellar DV of 3OMFD (DV_C^3OMFD of Tables 3A and3B, respectively) discloses an inspiring result. Because at 120 minutes post-FDOPA administration plasma and cerebellar radioactivity is primarily due to 3OMFD, C_b/C_p should portray the cerebellar DV of 3OMFD at late time points (Huang et al, 1998; Stout et al., 1998a). Indeed, Fig. 5 supports this conjecture. In addition, Fig. 6 shows that DV_C^3OMFD is inversely related to plasma LNAA levels, which is consistent with arguments presented in Theory. Average DV_C^3OMFD is approximately unity (1.05 ± 0.39 mL/g⁻¹) for squirrel monkeys, and 0.80 ± 0.17 mL/g⁻¹ for vervet monkeys. However, large intersubject (and interstudy) variations in DV_3OMFD impel the introduction of an unbiased constraint on the striatal DV of 3OMFD. Based on arguments presented in Theory and recent reports establishing the cerebellar and striatal DV of 3OMFD as approximately equal (Stout et al., 1999), the striatal DV of 3OMFD can be constrained to that of the cerebellum (constraint StrM2), or even to C_b/C_p.

For several studies (two from each group), fitting the striatal model with constraint StrM1 resulted in a lower RSS than with constraint StrM2. Assuming that the forward transport rate-constant of 3OMFD relative to FDOPA in crossing the BBB is, indeed, unity, then a plot of the maximum likelihood profile (RSS profile) as a function of the striatal DV of 3OMFD (K_S₅/k_S₆) furnishes a confidence interval for K_S₅/k_S₆. In this particular case, the RSS with constraint StrM1 is RSS_StrM1 = 87.5 and the RSS with constraint StrM2 is RSS_StrM2 = 93.8. Based on the maximum likelihood profile, the 95% confidence interval for the striatal DV of 3OMFD is 0.065 < K_S₅/k_S₆ < 4.75, which encompassed the corresponding values of both RSS_M1 and RSS_M2. This rather large confidence interval implies that in using a least square algorithm, striatal kinetics do not provide specific information about DV of 3OMFD. A cerebellar-derived DV for 3OMFD is thus critically useful.

An argument could be made that because the cerebellum lacks significant AAAD activity (Melega et al., 1990a; Melega et al., 1991b; Baker et al., 1991; Sims et al., 1973; Loyd et al., 1972) the cerebellar DV of FDOPA could also be formulated in the form of Eq. 4. This, in turn, entails that the DVs of FDOPA and 3OMFD should be comparable (model CbM1 with K_C₁/k_C₂ = K_C₅/k_C₆). Fitting the cerebellum with the foregoing constraint resulted in a poor fit, as described earlier. Tables 3A and 3B indicate that cerebellum does not retain FDOPA as readily as 3OMFD because k_C2 is significantly higher than k_C6. In addition, Tables 3A and 3B reveal that the cerebellar DV of 3OMFD is significantly higher than that of FDOPA. This is a rather puzzling observation; however, there have been reports suggesting that 3OMFD is more permeable across cellular membranes. For example, Floud and Fhan (1981) reported 3OMFD to be more permeable across membranes of human blood cells than FDOPA. In addition, cellular mechanisms in the cerebellum may be more permeable to 3OMFD than to FDOPA. Further inquiry is required to verify the apparent higher DV of 3OMFD compared with FDOPA in the cerebellum.

One of the characteristics of our model is that when the striatal DV of 3OMFD is constrained to that of the cerebellum, the correlation between the graphical uptake estimate, PK_i, and the corresponding compartmental uptake estimate, K_i, is enhanced (Fig. 7). This is not surprising because the graphical method, by definition, accounts for the presence of 3OMFD in striatal tissue by subtracting cerebellar activity at each time point. In this sense, the assumptions under the graphical method are matched by the assumptions of constraint M2, that is, the DV of 3OMFD is equal in both regions. However, the observation that striatal k₂ is significantly lower than cerebellar k₂ (Table 3) is rather intriguing. Kuwabara et al. (1993) recently reported a compartmental model for the quantification of FDOPA kinetics that constrained the striatal partition coefficient (the ratio of forward to reverse transport rate-constant of radiotracer) of FDOPA and 3OMFD to that of the frontal cortex. Our findings indicate that there are significant differences in the partition coefficient of FDOPA between the cerebellum and striatum. We were unable to obtain frontal ROIs, partially because of physical constrains such as the small brain size of squirrel monkeys; however, Dhawan et al. (1996) reported that the striatal partition coefficient of FDOPA is approximately 20% to 30% higher than that of the frontal cortex. Interestingly, Jordan et al. (1997) found that the reverse transport (k₂) of 6-[¹⁸F]Fluoro-L-m-tyrosine in the frontal cortex is more than twice that in the caudate and putamen, which is again consistent with our observations with FDOPA when compared with the cerebellum.

The discrepancy in partition coefficients between the cerebellum and striatum has implications to reference region models. Reference region models offer the advantage of circumventing blood sampling. However, in practice, several assumptions are placed on the models. These assumptions usually involve constraining the partition coefficient of the target region to that of the reference region (Cunningham et al., 1991; Lammertsma and Hume, 1996a, Lammertsma et al., 1996b; Gunn et al., 1997, Patlak and Blasberg, 1985). Based on our findings, these assumptions may be unwarranted; however, they may vary from tracer to tracer. As a precaution, reference region models should first be validated against the gold standard (that is plasma input models) for the tracer at hand.

The significance of the discrepancy between k_S₂ and k_C2 remains elusive in light of reports indicating that tissue LNAA levels in both striatum and cerebellum are approximately equal (Stout et al., 1999). Multiple pools for dopamine have been previously suggested (Deep et al., 1997; Groppetti et al. 1977; Doteuchi et al., 1974). This observation raises the possibility that multiple pools of L-Dopa with different kinetics may exist‥ Arai et al. (1996) showed that the serotonergic fibers of the rat striatum contain AAAD, which may act on L-Dopa to produce dopamine. This observation suggests the existence of a L-Dopa pool specific for the system, not precluding the existence of multiple pools within a given system that is dopaminergic and serotonergic (Tison et al., 1989; Kitahama et al., 1988; Mons et al., 1988; Okamura et al., 1988). In addition, because in question here is the distribution and kinetics of exogenously synthesized FDOPA in relation to the endogenously synthesized L-Dopa (Barrio et al. 1997), another possibility for the discrepancy may be related to the formulation of the compartmental model. Compartmental models offer a simplified version of existing mechanisms and as such, aberration is possible. For example, recent work by Yee et al. (2000) suggests the existence of an intraneuronal transport system for the transport of FDOPA across the neuronal membrane. Present models do not account for its presence. Clearly, further work is necessary to address these points.

Interspecies differences in the transport rate-constant of 3OMFD relative to FDOPA have been suggested in other studies. In a previous report (Huang et al., 1991a), the authors constrained the ratio K₅/K₁ = 1.7 based on the observation that at 1.7 a minimal RSS was obtained for humans. In this report, the cerebellar RSS profiles are minimized with 0.75 < K_C₅/K_C₁ < 1 for squirrel monkeys, and 0.75 < K_C₅/K_C₁ < 3.25 for vervet monkeys, with a rather large confidence interval. Reith et al. (1990) suggest that the transport rate-constant is 2.3 as seen in experiments done on rats. Recently, Wahl and Nahmias (1996) and Dhawan et al. (1996) performed dual FDOPA-3OMFD experiments and argued that the ratio is approximately unity in humans. In addition, Cumming et al. (1994) argue that the ratio is approximately unity in rats. However, from a biochemical standpoint the forward transport rate of 3OMFD relative to FDOPA is expected to be larger than unity, considering that the transport rate-constant of aromatic LNAAs decreases with aryl-hydroxylation. For example, the brain uptake index (BUI) of phenylalanine (P) has been reported to be BUI_P = 55 ± 5, whereas that of thyrosine (Y) is BUI_Y = 50 ± 2 (Oldendorf, 1971). The BUI of L-DOPA (a 3,4-dihydroxy r-phenylalanine derivative), however, is BUI_LDOPA = 20 ± 1.4 (Oldendorf, 1971), which is 2.5-fold lower than the BUI of tyrosine and approximately threefold lower than the BUI of phenylalanine. The BUI of 3OMFD has not been reported; however, it is expected to be in the range limited by BUI_Y and BUI_LDOPA. Because of the insensitivity of tissue kinetics to the ratio and because of partial volume and spillover effects, the issue can not be resolved using the present kinetic measurement. The effect of this ratio on the values of the other parameters, however, is useful in assessing the reliability of the parameter estimates.

One question that arose was how a larger value for the K₅/K₁ ratio might affect the findings of the current report. Figure 2 illustrates that the difference between the cerebellar DV of FDOPA and 3OMFD becomes more significant with higher values for the ratio. Also, the agreement between the cerebellar DV of 3OMFD and the cerebellum-to-plasma ratio remains in effect (in the sense that the regression line does not fit significantly better than the identity line) up to K₅/K₁ = 1.75 for squirrel monkeys, and up to K₅/K₁ = 2 for vervet monkeys (data not shown). Finally, the discrepancy between k_S₂ and k_C₂ is also upheld up to K₅/K₁ = 3 (the highest value we tested). The sensitivity of striatal parameter estimates to the ratio of K₅/K₁ has been reported previously (Huang et al., 1991a).

Compartmental models explicitly account for the biologic processes underway—transport and metabolism, for example. However, the presence of a peripherally born metabolite, which crosses the BBB, complicated FDOPA-PET data analysis. To account for the presence of 3OMFD in cerebral tissue, we constrained the striatal DV of 3OMFD to that of the cerebellum. By invoking the said constraints, we arrived at four findings. First, we report a strong linear correlation between the graphical and compartmental uptake rate-consants. Second, by invoking constraint M2 and correcting for intersubject (and interstudy) differences in plasma LNAA concentration, the variance of parameter estimates are significantly reduced. This is expected to improve evaluation of dopaminergic integrity in studies involving Parkinson's disease patients and animal models of Parkinson's disease (Yee et al., 2000). Third, the cerebellar reverse transport rate-constant of FDOPA is significantly higher than that of 3OMFD; and as a corollary, the cerebellar DV of FDOPA is significantly lower than that of 3OMFD. Finally, the striatal reverse transport rate-constant of FDOPA is significantly lower than the cerebellar reverse transport rate-constant of FDOPA. Understanding these findings may potentially answer relevant issues concerning Parkinson's disease progression and therapeutic agents.

Footnotes

Acknowledgments

The authors thank the cyclotron staff, Ron Sumida, B. Morelos, Judy Edwards, W. Lando, and P. Chan for their dedication, expertise, and technical support.

References

Arai

Karasawa

Nagatsu

(1996) Aromatic L-amino acid decarboxylase is present in serotonergic fibers of the striatum of the rat. A double labeling immunofluorescence study. Brain Res 706(1):177–179

Barrio

Keen

Chugani

Bride

Satyamurthy

Phelps

(1986). Concepts and techniques in metabolic tracer studies. In: Analytical and Chromatographic Techniques in Radiopharmaceutical Chemistry ( Wield

Tobes

Manger

, eds), New York, NY:Springer-Verlog, pp 213–231

Barrio

Huang

Phelps

(1988) In vivo assessment of neurotransmitter biochemistry in humans. Annu Rev Pharmacol Toxicol 28:213–230

Barrio

Huang

Phelps

(1997) Biological imaging and the molecular basis of dopaminergic diseases. Biochem Pharmacol 54(3):341–348

Baker

Abate

Szabo

Joh

(1991) Species-specific distribution of aromatic L-amino acid decarboxylase in the rodent adrenal gland, cerebellum, and olfactory bulb. J Comp Neurol 305:119–129

Bezard

Boraud

Bioulac

Gross

(1997a) Compensatory effects of glutamatergic inputs to the substantia nigra pars compacta in experimental Parkinsonism. Neuroscience 81:399–404

Bezard

Boraud

Bioulac

, and Gross

(1997b) Presymptomatic revelation of experimental Parkinsonism. Neuroreport 20:435–438

Bezard

Gross

(1998) Compensatory mechanisms in experimental and human Parkinsonism: towards a dynamic approach. Prog Neurobiol 55:93–116

Bezard

Bioulac

Gross

(1998) Glutamatergic compensatory mechanisms in experimental Parkinsonism. Prog Neuropsychopharmacol Biol Psychiatry 22:609–623

10.

Brooks

(1995) Parkinson's disease-a single clinical entity? QJM 88:81–91

11.

Carson

Huang

Phelps

(1981) BLD: A software system for physiological data handling and model analysis. In: Proceedings of fifth annual symposium on computer applications in medical care, Washington, DC, August, 1981. 562–565

12.

Chen

Huang

(1991) The effects of measurement error in the plasma radioactivity curve on parameter estimation in positron emission tomography. Phys Med Biol 36(9):1183–1200

13.

Cumming

Kuwabara

, and Gjedde

(1994) A kinetic analysis of 6-[18F]Fluoro-L-Dihydroxyphenylalanine metabolism in the rat. J Neurochem 63:1675–1682

14.

Cunningham

Hume

Price

Ahier

Cremer

, and Jones

AKP

(1991) Compartmental analysis of diprenorphine binding to opiate receptors in the rat in vivo and its comparison with equilibrium data in vitro. J Cereb Blood Flow Metab 11:1–9

15.

Dhawan

Ishikawa

Patlak

Chaly

Robeson

Belakhlef

Margouleff

Mandel

, and Eidelberg

(1996) Combined FDOPA and 3OMFD PET studies in Parkinson's disease. J Nucl Med 37:209–216

16.

Deep

Gjedde

, and Cumming

(1997) On the accuracy of an [18F]FDOPA compartmental model: evidence for vascular storage of [18F]fluorodopamine in vivo. J Neurosci Methods 76:157–165

17.

Doteuchi

Wang

Costa

(1974) Compartmentation of dopamine in rat striatum. Mol Pharmacol 10:225–234

18.

Doudet

Miyake

Finn

McLellan

Aigner

Wan

Adams

, and Cohen

(1989) 6-[F-18]-L-Dopa imaging of the dopamine neostriatal system in normal and clinically normal MPTP-treated rhesus monkeys. Exp Brain Res 78:69–80

19.

Doudet

McLellan

Carson

Adams

Miyake

Aigner

Finn

Cohen

(1991) Distribution and kinetics of 3-O-Methyl-6-[18F]fluoro-L-DOPA in rhesus monkey brain. J Cereb Blood Flow Metab 11:726–734

20.

Doudet

Chan

GLY

Holden

McGeer

Aigner

Wyatt

Ruth

(1998) 6-[18F]Fluro-L-DOPA PET studies of the Turnover of Dopamine in MPTP-Induced Parkisonism in Monkeys. Synapse 29:225–232

21.

Eberling

Bankiewicz

Jordan

VanBrocklin

, and Jagust

(1997) PET studies of functional compensation in a primate model of Parkinson's disease. Neuroreport 18:2727–2733

22.

Floud

Fahn

(1981) L-DOPA (L-3,4-dihydroxyphenylalanine) uptake by human red blood cells. Biochim Biophys Acta 645(2):165–169

23.

Garnett

Firnau

Nahmias

(1983) Dopamine Visualized in the basal ganglia of living man. Nature 305:137–138

24.

Groppetti

Alegri

Cattabeni

Digiulio

Galli

Ponzio

Spano

(1977) Changes in specific activity of dopamine metabolites as evidence of multiple compartmentation of dopamine in striatal neurons. J Neurochem 28:193–197

25.

Gunn

Lammertsma

Hume

, and Cunngigham

(1997) Parametric imaging of ligand-receptor binding in PET using a simplified region model. Neuroimage 6:279–287

26.

Hoffman

Melega

Hawk

Grafton

Luxen

Mahoney

Barrio

Huang

S-C

Mazziotta

Phelps

(1992) The effects of carbidopa administration of 6-[F-18]fluoro-L-dopa kinetics in PET studies. J Nucl Med 33:1472–1477

27.

Holden

Doudet

Endres

Chan

GLY

Morrison

Vingerhoets

FJG

Snow

Pate

Sossi

Buckley

Ruth

(1997) Extended graphical analysis of 6-fluoro-L-dopa trapping: effect of inhibition of catechol-O-methyltransferase on the rate of reversibility. J Nucl Med 38:1567–1574

28.

Horne

Cheng

Wooten

(1984) The cerebral metabolism of L-dihydroxyphenylalanine. Pharmacology 28:12–26

29.

Hoshi

Kuwabara

Legér

Cumming

Guttman

Gjedde

(1993) 6-[18F]fluoro-L-DOPA metabolism in living human brain: a comparison of six analytical methods. J Cereb Blood Metab 13:57–69

30.

Huang

Barrio

Hoffman

Mahoney

Hawk

Melega

Luxen

Grafton

Mazziotta

Phelps

(1989) A compartmental model for 6-[F-18]Fluoro-L-DOPA kinetics in cerebral tissue. J Nucl Med 30(Suppl 5):735

31.

Huang

Barrio

Grafton

Melega

Hoffman

Satyamurthy

Mazziotta

Phelps

(1991a) Kinetics and modeling of L-6-[18F]Fluro-DOPA in human positron emission tomographic studies. J Cereb Blood Flow Metab 11:898–913

32.

Huang

Barrio

Chen

Grafton

Melega

Hoffman

Satyamurthy

Mazziotta

Phelps

(1991b) Modeling approach for separating blood time-activity curves in positron emission tomographic studies. Phys Med Biol 36(6):749–761

33.

Huang

Stout

Yee

Satyamurthy

Barrio

(1998) Distribution volume of radiolabeled large neutral amino acids in brain tissue. J Cereb Blood Flow Metab 18(12):1288–1293

34.

Ishikawa

Dhawan

Chaly

Margouleff

Robeson

Dahl

Mandel

Spetsieris

Edielberg

(1996) Clinical significance of striatal DOPA decarboxylase activity in Parkinson's disease. J Nucl Med 37(2):216–222

35.

Jordan

Eberling

Bankiewicz

Rosenberg

Coxson

VanBrocklin

O'Neil

Emborg

Jagust

(1997) 6-[¹⁸F]Fluoro-L-m-tyrosine: metabolism, positron emission tomography kinetics, and 1-methyl-4-phenyl-1,2,3,6-tetrahydropyridine lesions in primates. J Neurochem 750:264–267

36.

Kitahama

Mons

Okamura

Jouvet

, and Geffard

(1988) Endogenous L-DOPA, its immunoreactivity in neurons of the midbrain and its projection fields in the cat. Neurosci Lett 95:47–52

37.

Kuwabara

Cumming

Reith

Legér

Diksic

Evans

Gjedde

(1993) Human striatal L-DOPA decarboxylase activity estimated in vivo using 6-[18F]fluoro-DOPA and positron emission tomography: error analysis and application to normal subjects. J Cereb Blood Flow Metab 13:43–56

38.

Landaw

DiStefano

III (1984) Multiexponential, multicompartmental, and noncompartmental modeling. II. Data analysis and statistical considerations. Am J Physiol 246:R665–R667

39.

Lammertsma

Hume

(1996a) Simplified reference tissue model for PET receptor studies. Neuroimage 4:153–158

40.

Lammertsma

Bench

Hume

Osman

Gunn

Brooks

Frackowiak

RSJ

(1996b) Comparison of methods for analysis of clinical [11C]raclopride studies. J Cereb Blood Flow Metab 16:42–52

41.

Langston

(1990) Predicting Parkinson's Disease. Neurology 40(S3):70–74

42.

Leenders

Palmer

Quinn

Clark

Firnau

Garnett

Nahmias

Jones

Marsden

(1986) Brain dopamine metabolism in patients with Parkinson's disease measured with positron emission tomography. J Neurol Neurosurg Psychiatry 49:852–860

43.

Lin

Huang

Baxter

Phelps

(1994) A general technique for interstudy registration of multifunction and multimodality images. IEEE Transactions in Nuclear Science 40(6):2850–2855

44.

Lloyd

Hornykiewicz

(1972) Occurrence and distribution of aromatic L-amino acid (L-DOPA) decarboxylase in the human brain. J Neurochem 19:1549–1559

45.

Luxen

Perlmutter

Bida

Van Moffaert

Cook

Satyamurthy

Phelps

Barrio

(1990) Remote, semiautomated production of 6-[18F]fluoro-L-dopa for human studies with PET. Appl Radiat Isot 41(3):215–281

46.

Martin

WRW

Palmer

Patlak

, and Calne

(1989) Nigrostrial function in humans studied with positron emission tomography. Ann Neurol 26:535–542

47.

Melega

Luxen

Perlmutter

Nissenson

CHK

Phelps

Barrio

(1990a). Comparative in vivo metabolism of 6-[18F]fluoro-L-dopa and [3H]L-dopa in rats. Biochem Pharmacol 39:1853–1860

48.

Melega

Hoffman

Luxen

Nissenson

CHK

Phelps

Barrio

(1990b). The effects of carbidopa on the metabolism of 6-[18F]Fluoro-L-DOPA in rats, monkeys, and humans. Life Sci 47:149–157

49.

Melega

Hoffman

Schneider

Phelps

Barrio

(1991a). 6-[18F]Fluoro-L-DOPA metabolism in MPTP-treated monkeys: assessment of tracer methodologies for positron emission tomography. Brain Res 543:271–276

50.

Melega

Grafton

Huang

Satyamurthy

Phelps

Barrio

(1991b) L-6-[18F]Fluoro-L-Dopa metabolism in monkeys and humans: biochemical parameters for the formulation of tracer kinetic models with positron emission tomography. J Cereb Blood Flow Metab 11:890–897

51.

Mons

Danel

Geffard

(1988) Visualization of L-dihydroxyphenylalanine in the rat brain by using specific antibodies. Brain Res 451:403–407

52.

Okamura

Kitahama

Mons

Ibata

Jouvet

Geffard

(1988) L-DOPA immunoreactive neurons in the rat hypothalmic tuberal region. Neurosci Lett 95:343–353

53.

Oldendorf

(1971) Brain uptake of radiolabeled amino acids, amines, and hexoses after arterial injection. Am J Physiol 221 (6):1629–1639

54.

Oldendorf

Szabo

(1976) Amino acid assignment to one of three blood-brain barrier amino acid carriers. Am J Physiol 230(1):94–98

55.

Patlak

Blasberg

Fenstermacher

(1983) Graphical evaluation of blood-to-brain transfer constants from multiple-time uptake data. J Cereb Blood Flow Metab 3:1–7

56.

Patlak

Blasberg

(1985) Graphical Evaluation of Blood Brain Transfer Constants from Multiple-Time Uptake Data: Generalization. J Cereb Blood Flow Metab 5:584–590

57.

Phelps

Huang

Hoffman

Selin

Kuhl

(1979) Validation of tomographic measurement of cerebral blood volume with C-11 labeled carboxyhemoglobin. J Nucl Med 20:328–334

58.

Reith

Dyve

Kuwabara

Guttman

Diksic

Gjedde

(1990) Blood-brain transfer and metabolism of 6-[18F]Fluoro-L-DOPA in rat. J Cereb Blood Flow Metab 10:707–719

59.

Scherman

Desnos

Darchen

Pollak

Javoy-Agid

Agid

(1989) Striatal dopamine deficiencies in Parkinson's disease: role of aging. Ann Neurol 26:551–557

60.

Sims

Davis

Bloom

(1973) Activities of 3,4-dihdroxy-L-phenylalanine and 5-hydroxy-L-tryptophan decarboxylases in rat brain: Assay characteristics and distribution. J Neurochem 20:449–464

61.

Stout

Huang

Melega

Raleigh

Phelps

Barrio

(1998a) Effects of large neutral amino acid concentrations of 6-[F-18]Fluoro-L-Dopa kinetics. J Cereb Blood Flow Metab 18:43–51

62.

Stout

Huang

Raleigh

Phelps

Barrio

(1998b) Comparison of Ketamine/Midazolam Versus Pentabarbital on [F-18]Fluorodopa PET Kinetics in Monkeys in Quantitative Functional Brain Imaging With PET. ( Carson

Daube-Witherspoon

Herscovitch

, eds) San Diego, CA: Academic Press, pp 183–186

63.

Stout

Huang

Namavari

Satyamurthy

Yee

Barrio

(1999) Direct measurement of striatum and cerebellum distribution volume of 3-O-Methyl-6-[F-18]FDOPA in rats. J Nucl Med 40:145P

64.

Takikawa

Dhawan

Chaly

Robeson

Dahl

Zanzi

Mandel

Spetsieris

Eidelberg

(1994) Input function for 6-[Fluorine-18]Flurodopa quantitation in parkinsonism: comparative studies and clinical correlations. J Nucl Med 35(6):955–963

65.

Tison

Mons

Rouet-Karama

Geffard

Henry

(1989) Endogenous L-DOPA in the rat dorsal vagal complex: an immunocytochemical study by light and electron microscopy. Brain Res 497:260–270

66.

Wahl

Chirakal

Firnau

Garnett

Nahamias

(1994) The distribution of [18F]6-Fluoro-3-O-methyl-L-dopa in the human brain. J Cereb Blood Flow Metab 14:664–670

67.

Wahl

Nahmias

(1996) Modeling of Flurine-18–6-Fluoro-L-Dopa in humans. J Nucl Med 37:432–437

68.

Wallenstein

Zucker

Fleiss

(1980) Some statistical methods useful in circulation research. Circ Res 47:1–9

69.

Yee

Huang

Stout

Irwin

Shoghi-Jadid

Togasaki

Delanney

Langston

Satyamurthy

Farahani

Phelps

Barrio

(2000) J Neurochem 74:1147–1157

70.

Zigmond

(1997) Do Compensatory processes underlie the preclinical phase of neurodegenerative disease? Insights from an animal model of parkinsonism. Neurobiol Dis 4:247–253
