Using 10 CO 2 for Single Subject Characterization of the Stimulus Frequency Dependence in Visual Cortex: A Novel Positron Emission Tomography Tracer for Human Brain Mapping

Abstract

Carbon-10–labeled carbon dioxide (¹⁰CO₂) with a half-life of 19.3 seconds offers almost ideal characteristics as a positron emission tomography (PET) tracer for assessment of the regional cerebral blood flow (rCBF) distribution, enabling multiple independent measurements at short intervals. To appraise the feasibility of ¹⁰CO₂ for localizing and characterizing human brain function in single subjects, the authors chose a well-characterized activation paradigm. In 6 healthy volunteers, 50 to 64 independent PET scans of the rCBF distribution were acquired while viewing an annular reversing checkerboard presented at 10 reversal frequencies between 0.03 and 30 Hz. Changes in regional cerebral activity as a function of reversal frequency were modeled in every subject using a set of polynomial basis functions, which, as predicted, showed highly significant second or third order relations located in the striatal cortex. Correlation coefficients (R²) ranged from 0.46 to 0.63. The average intersubject maximal response relative to the 0.03 Hz condition was 8.0% ± 1.7% SD occurring at stimulus contrast reversal frequencies between 6 and 15 Hz with an average of 11.8 ± 3.8 (SD) Hz. From the qualitative and quantitative replication of previous results it is concluded that ¹⁰CO₂ PET is a feasible technique for human brain mapping studies and a great improvement compared with the existing oxygen-15–labeled water (H₂ ¹⁵ O) PET method, particularly for single subject studies and parametric design.

Keywords

Carbon dioxide/diagnostic use Parametric designs Positron emission tomography Regional cerebral blood flow Tracer Visual cortex

Positron emission tomographic (PET) measurements of the regional cerebral blood flow (rCBF) distribution for mapping the human brain have been used for several years. To date, the preferred radionuclide has been oxygen-15 (¹⁵O), which when labeled to water (H₂ ¹⁵O) or butanol presents as a freely diffusable rCBF tracer. However, conditions are far from optimal, both kinetically and in the utilization of PET scanner time. Limited by the half-life (123 seconds), the maximum number of PET scans attainable is 12 to 16 within a 2.5-hour scan session. The individual PET scan is normally acquired during the first 40 to 90 seconds, sampling only 15% to 35% of the emitted brain tissue counts. Furthermore, approximately 4/5 of the total PET scanner time is consumed waiting for isotope decay, yielding a poor scanner utilization rate. These considerations dictate the use of a radionuclide with an even shorter half-life. One promising candidate proposed has been the very short-lived positron emitting radionuclide carbon-10 (¹⁰C) with a half-life of 19.3 seconds labeled to carbon dioxide (¹⁰CO₂) (Holm et al., 1999; Jensen et al., 1998; Nickles et al., 1998). After rapid delivery to the brain tissue by inhalation, ¹⁰CO₂ acts as a freely diffusable rCBF tracer. Preliminary results showing the potential of the tracer in human brain mapping studies have been presented (Jensen et al., 1998), but apart from these no data from normal man exist.

The purpose of this study was to investigate the feasibility of this tracer for human brain mapping in single subjects. The priority was to optimize the number of PET scans acquired per subject in a single session without exceeding the total effective radiation dose (6.0 mSv) or PET scanner time (2.5 hours) of a routine H₂ ¹⁵O activation session allowed at the authors' unit.

MATERIALS AND METHODS

Production of ¹⁰CO₂

Using a Scanditronix MC32NI cyclotron for ¹⁰CO₂ production, the authors used the ¹⁰B(p, n) ¹⁰C reaction. By irradiating a highly enriched molten diboron trioxide (B₂ O₃; 99.8% in ¹⁰B and 92% in ¹⁸O) target on a rhenium mesh support (Alves et al., 2000), ¹⁰C was produced with ¹⁰C-carbon monoxide (¹⁰CO) as the primary radioactive product. The gas was swept from the target using helium as carrier gas through a copper oxide (CuO) furnace at 650°C (converting ¹⁰CO to ¹⁰CO₂,), a nitrogen oxide trap (Tewson et al., 1989), a quality control loop, a 0.45-μm filter, and a 50-m gas pipeline to the PET scanner. The emerging gas stream was delivered to a standard “T”-tube, and inhaled through a regular mouthpiece (Nickles et al., 1998). At the inspiratory end of a 1-m-long tube, the activity was built up between inhalations and mixed with room air. A nose clip was applied. The concentration of ¹⁰CO₂ in the inspired gas was in trace amounts, thus without an independent physiologic effect.

The positron (β ⁺) energy of ¹⁰C is 1.9 MeV, which compared with 1.7 MeV for ¹⁵O will not significantly curtail the effective image resolution. The 719 keV photons (γ) also emitted by ¹⁰C are interpreted by the PET scanner as an increase in randoms and scatter that, however, can be adequately corrected by the standard delayed window subtraction and the implemented scatter correction, respectively (Nickles et al., 1998; Stearns, 1995).

Subjects

The subjects consisted of 6 paid healthy volunteers (median age: 24 years; range: 21–37 years; 2 female, 4 male). The subjects had no past or present neurologic or psychiatric disorders and were not actively taking medication or recreational drugs. Informed consent was obtained according to the Declaration of Helsinki II, and the study was approved by the local ethics committee of Copenhagen (J. nr. (KF) 01-100/99).

Positron emission tomography scanning

Positron emission tomography scans were obtained with an 18 ring GE-Advance scanner (General Electric Medical Systems, Milwaukee, WI, U.S.A.) operating in three-dimensional acquisition mode, producing 35 image slices with an interslice distance of 4.25 mm. The total axial field of view was 15.2 cm with an approximate inplane resolution of 5 mm. The technical specifications have been described elsewhere (DeGrado et al., 1994; Lewellen et al., 1996). Positron emission tomography scans were reconstructed with a 4.0-mm Hanning filter transaxially and axially with an 8.5-mm Ramp filter.

Two different protocols were used in the current study. In protocol A (n = 2), 50 and 60 PET scans were acquired, respectively. Scans were acquired in 10-minute sessions consisting of 5 independent, dynamically sampled time frames of 2 minutes each representing separate conditions. Tracer administration was initiated 10 seconds before the start of each frame to account for the delay to tracer appearance in brain tissues and was continued for 1 minute. An additional 1 minute (3 half-lives) without tracer administration followed for tracer decay and washout. ¹⁰CO₂ was inhaled at a steady-state radioactivity dose of 150 MBq (4.1 mCi). In protocol B (n = 4), 64 PET scans were acquired in 12-minute sessions consisting of 8 independent time frames of 1.5 minutes. ¹⁰CO₂ was inhaled for the first 30 seconds at a steady-state radioactivity dose of 300 MBq (8.1 mCi), again followed by a period of 1 minute (Figs. 1 and 2). The distribution of scan protocols among individuals can be seen in Table 1. The levels of radiochemical and radionuclidic tracer impurities were established before the first inhalation and during a 30-minute intermission after approximately 1 hour, when half of the images in a given protocol had been sampled. During this break a 10-minute transmission scan was performed for attenuation correction. Head movements were limited by head holders constructed of molded foam.

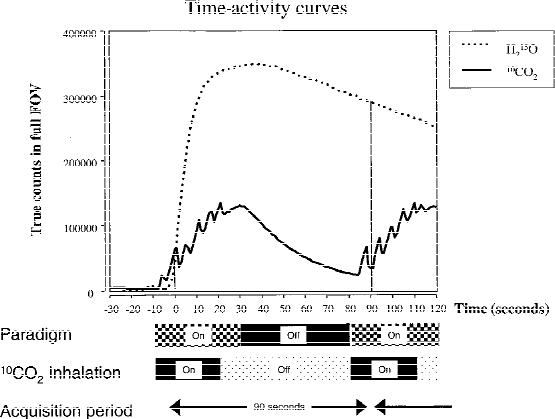

FIG 1.

A representative time-activity curve within the PET scanner total field of view (FOV) after a 300 MBq (8.1 mCi) ¹⁰CO₂ steady-state radioactivity dose inhalation for 30 seconds, followed by 60 seconds for decay and washout, and after a 400 MBq H₂ ¹⁵ O bolus injection. Activity has been calculated as true counts. The ¹⁰CO₂ curve oscillates synchronously with respiration during ¹⁰CO₂ inhalation presumably derived from the fluctuating activity of the upper airways in the FOV. Thus, not all activity is derived from brain tissues, and the early part of the curve will only represent upper airway activity. The H ₂ ¹⁵ O curve is a representative curve measured on a different subject. The timing of the activation paradigm (checkerboard stimulation/darkness), ¹⁰CO₂ inhalation (on/off), and acquisition periods are illustrated.

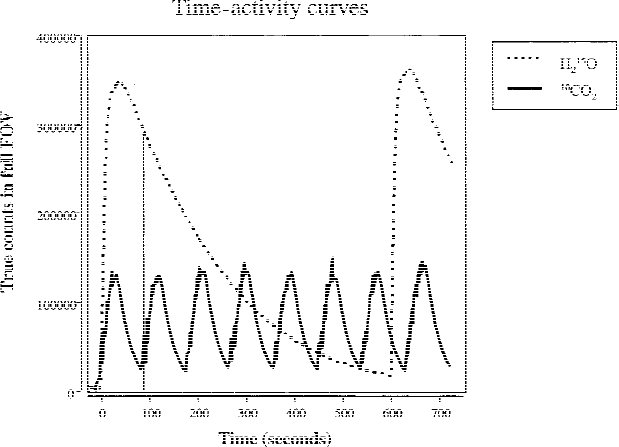

FIG. 2.

Approximately seven 90-second ¹⁰CO₂ positron emission tomography (PET) scans can be performed within the time consumed by a standard 90-second H₂ ¹⁵ O PET scan (vertical line). With this acquisition period only approximately 33% of the emitted counts are used for the H₂ ¹⁵ O PET scan compared with almost 100% for ¹⁰CO₂. Further, the scanner time is primarily consumed waiting for H₂ ¹⁵ O isotope decay. Same data as in Fig. 1.

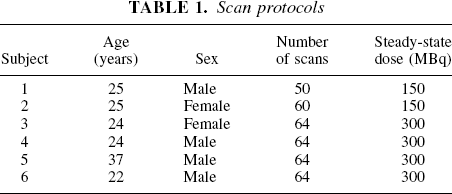

TABLE 1.

Scan protocols

Subject	Age (years)	Sex	Number of scans	Steady-state dose (MBq)
1	25	Male	50	150
2	25	Female	60	150
3	24	Female	64	300
4	24	Male	64	300
5	37	Male	64	300
6	22	Male	64	300

¹⁰CO₂ dosimetry

The effective dose (ED) during ¹⁰CO₂ inhalation at steady state has previously been calculated to 36 μSv · MBq⁻¹· h ⁻¹ corresponding to 0.60 μSv · MBq⁻¹ · min⁻¹ (Holm et al., 1999). Thus, 1 minute of ¹⁰CO₂ inhalation at a steady-state radioactivity dose of 150 MBq yields an ED of 90 μSv or approximately 20% of the ED conferred from a standard 400 MBq (10.8 mCi) H₂¹⁵ O bolus injection (1.16 μSv · MBq⁻¹) as performed at the authors' unit (Holm et al., 1996; Smith et al., 1994).

Activation paradigm

To appraise the feasibility of ¹⁰CO₂ as a new PET rCBF tracer for mapping human brain function, the authors chose a well-characterized activation paradigm, namely stimulation of the visual cortex using an annular reversing checkerboard. This paradigm gives a large and robust activation response in the visual cortex of approximately 33% at an 8 Hz reversal frequency compared with darkness (Fox and Raichle, 1985). It has been used several times as an easily implemented probe to examine focal rCBF increase with new human brain mapping methods, (Belliveau et al., 1991; Kim et al., 1999; Kwong et al., 1992), new tracers (Holm et al., 1994), or new tracer kinetic models (Law et al., 2000; Vafaee et al., 1999).

The checkerboard was displayed on a 17” computer screen suspended approximately 90 cm in front of the subject's eyes, and the visual angle of the stimulus was 15° vertical and 20° horizontal. The screen was covered in black drapes to create a dark environment. The subjects were asked to focus attention at the center of the annulus.

Stimulation was initiated with the start of tracer administration and lasted until 10 seconds after its termination, to account for an approximately 10-second delay for tracer arrival to brain tissue. Therefore, length of stimulation was 70 seconds and 40 seconds for protocols A and B, respectively. Stimulation periods were followed by the presentation of a blank black screen for 50 seconds and the subjects were instructed to wait for the next stimulus period with their eyes open. All conditions were performed in a quiet room with dim lighting. The timing of visual stimulation, ¹⁰CO₂ inhalation, and acquisition is shown in Fig. 1 relative to a representative time-activity curve. Activity was calculated as true counts.

The reversal frequencies were parametrically varied at 10 levels—0.03 Hz, 1.0 Hz, 3.0 Hz, 3.75 Hz, 5.0 Hz, 6.0 Hz, 7.5 Hz, 10 Hz, 15 Hz, and 30 Hz—each frequency repeated 5 to 7 times in a randomized order. One hertz represents one full cycle per second—that is, the presentation of an image for 0.5 second and then the same image, only with the checkers reversed, for another 0.5 second. By parametrically varying the reversal frequencies, the activation response could be evaluated qualitatively in terms of the cerebral location of change in the visual cortex and quantitatively in terms of the shape of the resulting stimulus frequency-response relation at this location.

There are a number of differences in the design between the current study and the originally published article (Fox and Raichle, 1985). First, all the current conditions were performed during visual stimulation, whereas in the study by Fox and Raichle (1985), the baseline condition was darkness (labeled as 0 Hz). Thus, the described sharp initial rise in striatal cortex of approximately 20% activation from 0 to 1 Hz is likely to be driven by visual input per se and is not necessarily an isolated stimulation frequency effect. Second, the current maximal stimulation frequency was 30 Hz, but was 60 Hz in the article by Fox and Raichle (1985). This affects the expected shape of the stimulus-response characteristic resembling a second order polynomial function at stimulation frequencies from 0.03 Hz to 30 Hz. With this in mind, the authors expected, based on previous data, that the stimulus-response relation in the striatal cortex could be described by a second or possibly a third order polynomial function with a peak response of approximately 8 Hz and a maximal response magnitude, when considering differences in baseline conditions, of approximately 13% relative to the 0.03 Hz condition.

Magnetic resonance imaging

Structural magnetic resonance imaging (MRI) was performed with a 1.5 T Vision scanner (Siemens, Erlangen, Germany) using a three-dimensional MPRAGE sequence (repetition time/echo time/initial time = 11/4/300 milliseconds, flip angle 12°). Images were acquired contiguously in the sagittal plane with an inplane resolution of 0.92 mm and a slice thickness of 1.0 mm. The number of planes was 170 and the inplane matrix dimensions were 256 × 256.

Data analysis

As noted above, the authors had a prior assumption of the shape of the relation of regional activity and stimulus contrast reversal frequency in the striatal cortex (Fox and Raichle, 1985). However, this was a group study using pooled data, an approach that may to some degree disguise individual effects. Furthermore, the authors could not neglect the possibility of activity changes relative to the stimulus parameter occurring in other cerebral areas outside the striatal cortex following functions of unknown shape. Thus, the authors chose a subject-specific analysis strategy using all available data as opposed to a more restricted regions of interest–based technique.

The initial preprocessing stage was performed using Statistical Parametric Mapping software (SPM-99b; Wellcome Department of Cognitive Neurology, London, U.K.), whereas the statistical analysis was performed using SPM96. Before analysis, each image was filtered using a 6-mm (full width at half maximum) isotropic gaussian filter. To account for head movements between images, alignment on a voxel-by-voxel basis was performed. Images were aligned to the first image of that session followed by alignment of images between sessions based on the alignment parameters calculated from alignment of the average session images. This was followed by coregistration of the structural MR image to the average image of all conditions, normalization of the images to the Talairach and Tournoux atlas (Talairach and Tournoux, 1988) using the SPM 99 PET template, and 16-mm (full width at half maximum) isotropic gaussian filtering. Using in-house software, differences in global activity between conditions were removed by proportional normalization to a value of 50. By an iterative approach, only intracerebral areas in the whole group that did not change significantly (P ≥ 0.05) between conditions as elicited by analysis of variance were selected to represent global activity (Andersson, 1997). The same mask of cortical areas was used in all subjects to globally normalize activity.

For every subject, the resulting images were statistically modeled using the “Single subjects & covariates” model of SPM96. A linear orthogonalized covariate defining the scan number was removed in all analyzes performed. This is a strategy for removing linear increases in background activity over time caused by the, albeit very low, ¹¹CO₂ content in the inhaled gas. Three orthogonalized covariates of interest using a set of polynomial expansions of the stimulus reversal frequency (first, second, and third order) were computed (Buchel et al., 1996). This allowed a characterization of the regional distribution of linear and nonlinear dependencies of stimulus reversal frequency to specify the exact shape of the relation. A backward stepwise selection strategy to determine the optimal model was used. The goodness of fit at each step was assessed using a spatially extended F statistic, SPM{F_ν1,ν2}, with v₁ and v₂ degrees of freedom. Initially, the third order term of reversal frequency was selected as the covariate of interest with scan number, and first and second order terms were selected as covariates of no interest. The term survived if areas of significant activation could be identified, if not it was eliminated. As a hypothesis about a second or third order relation existed, the significance threshold was set at P < 0.05, uncorrected in the striatal cortex, and P < 0.05, corrected for multiple independent comparisons in other areas of the brain (Friston et al., 1995; Worsley et al., 1996). This was followed by a separate analysis of the second order term of reversal frequency as the covariate of interest with scan number and first order terms as covariates of no interest. If not eliminated above, the third order term was also removed in an analogous fashion. A similar analysis for the first order term followed. Finally, a full model incorporating all terms with overlapping areas of activation was calculated. Foci of significant activation were characterized in terms of peak F-score greater than the significance threshold. To estimate the model coefficients and correlation coefficients (R²), the normalized activity was sampled at the peak coordinates and polynomially fitted in a standard statistical software package.

To evaluate differences in the average intrasubject COV between reversal frequencies, the authors used a repeated measures analysis of variance model with reversal frequency as a single factor. Furthermore, the average maximal response relative to the 0.03 Hz condition was calculated, and the maximal response based on the fitted polynomial functions was identified by solving the equation of the first derivative set to zero.

RESULTS

¹⁰CO₂ PET image acquisition

Figures 1 and 2 show the activity in the total scanner field of view (FOV) as a function of time for 30 seconds of an inhaled steady-state dose of 300 MBq ¹⁰CO₂, followed by 60 seconds for tracer decay and washout. The corresponding curve from a different subject after an intravenous 400 MBq H₂¹⁵O bolus injection for a standard PET activation study as performed at the authors' unit is also shown. As the total FOV includes the upper airways, the respiratory movements associated with ¹⁰CO₂ inhalation give rise to the oscillatory changes seen in the first part of the time-activity curve. Thus, this section of the curve does not represent the brain tissue curve only. Figure 2 illustrates the conversion of idle PET scanner time waiting for H₂¹⁵O decay into repeated acquisitions using ¹⁰CO₂. In this example, the ratio of ¹⁰CO₂ to H₂¹⁵O PET scans was 7 to 1 in a 10-minute PET session. In the same 10-minute session, only approximately 33% of the emitted counts in a H ₂¹⁵O PET scan are acquired during the first 90 seconds compared with ¹⁰CO₂, which has a value close to 100%. In the chosen experimental setup, each ¹⁰CO₂ scan has only approximately 20% of the integrated counts found in a typical H₂¹⁵O scan. At a stage immediately before the statistical analysis, the image quality evaluated visually for a ¹⁰CO₂ PET scan seems comparable with the quality attainable using conventional H₂¹⁵O PET, an effect of filtering (Fig. 3).

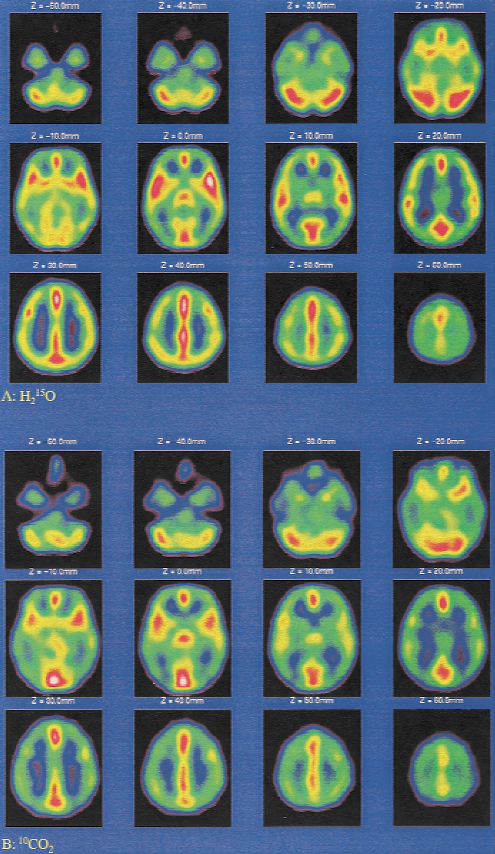

FIG. 3.

Representative 90-second PET scans using H₂ ¹⁵ O (A, rest, 400 MBq bolus injection) and ¹⁰CO₂(B, 0.03 Hz visual stimulation, subject 3, 300 MBq steady-state inhalation dose). Data are from two different subjects showing identical slices after normalization (SPM99) to the atlas of Talairach and Tournoux (1988). The images are smoothed and presented at a stage immediately before entering statistical analysis. As the ¹⁰CO₂ is inhaled, the PET data show slightly larger activity in the nasal cavity (z = −50). The effect of visual stimulation is seen in the occipital cortex. The integrated true counts in the ¹⁰CO₂ image are only 20% of the H₂ ¹⁵ O image.

Visual activation

To appraise the feasibility of ¹⁰CO₂ for localizing and characterizing human brain function in single subjects, the authors chose a well-characterized activation paradigm. In 6 healthy volunteers, 50 to 64 independent PET scans of the rCBF distribution were acquired while viewing an annular reversing checkerboard (Law et al., 2000) presented at 10 reversal frequencies between 0.03 Hz and 30 Hz. Calculation of the voxel-by-voxel regression of the regional normalized activity to a set of polynomial expansions of the stimulus reversal frequency (first, second, and third order) revealed significant nonlinear responses in all subjects localized focally in the posterior half of the calcarine sulcus (Figs. 4 and 5, Table 2). Correlation coefficients (R²) at the peak of statistical significance ranged from 0.46 to 0.63. There were no areas in which a significant first order function could be fitted in isolation, all had an overlapping second order term. In two subjects (2 and 5), a significant overlapping third order term also was identified (Fig. 5, Table 2). Furthermore, in one subject (4 _MT/V5, Table 2) a significant second order polynomial function could also be fitted to an area outside the calcarine sulcus close to the left ascending limb of the inferior temporal sulcus, possibly the left motion specific visual area MT/V5 (Tootell et al., 1996; Watson et al., 1993). The resolution (“smoothness”) in millimeters of the resulting SPM{F}'s were approximately (x, y, z) = (15, 17, 20) full width at half maximum (FWHM). Analysis of variance revealed no significant difference in coefficient of variances (COVs) between reversal frequencies (F_{9, 45} = 0.71; P = 0.70). The average intrasubject COV at a given reversal frequency was 2.0% ± 0.7% SD. The average intersubject maximal response relative to the 0.03 Hz condition was 8.0% ± 7% SD occurring at stimulus contrast reversal frequencies between 6 and 15 Hz with an average of 11.8 ± 3.8 (SD) Hz. The corresponding maximal response based on the fitted polynomial functions was between 9.3 and 17.6 Hz with an average of 13.2 ± 3.6 (SD) Hz.

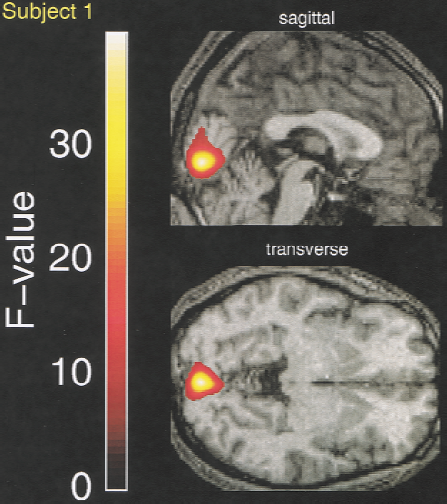

FIG. 4.

Data from subject 1 showing areas with activity that significantly correlate with a second order polynomial function of stimulus reversal frequency. The goodness of fit is expressed as a statistical parametric F-map, SPM{F_{2, 46}}, and projected onto the individual structural anatomy. Data displayed at a significance threshold of P < 0.001, uncorrected.

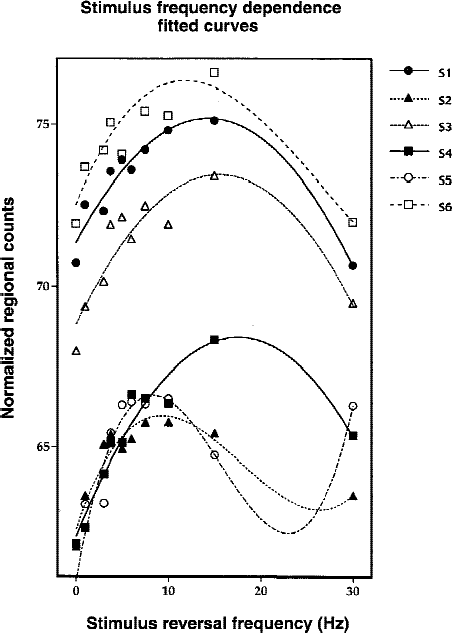

FIG. 5.

Regression plots of normalized regional counts versus stimulus reversal frequency from all six subjects. Subjects 2 and 5 showing significant third order components. Each data sample represents the average of 5 to 7 individual PET scans in that condition.

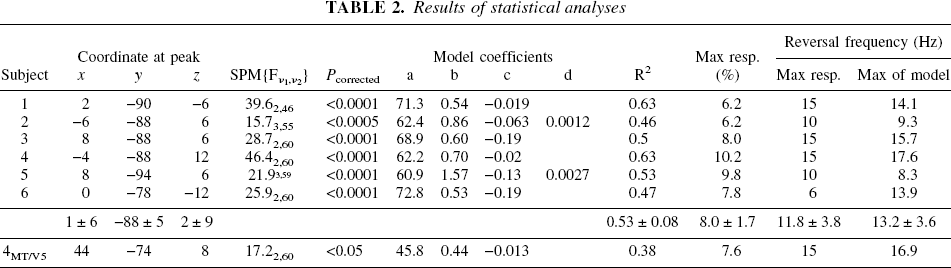

TABLE 2.

Results of statistical analyses

	Coordinate at peak					Model coefficients					Max resp. (%)	Reversal frequency (Hz)
Subject	x	y	z	SPM{F_{ν1, ν2}}	P _corrected	a	b	c	d	R²	Max resp. (%)	Max resp.	Max of model
1	2	−90	−6	39.6_2,46	<0.0001	71.3	0.54	−0.019		0.63	6.2	15	14.1
2	−6	−88	6	15.7_3,55	<0.0005	62.4	0.86	−0.063	0.0012	0.46	6.2	10	9.3
3	8	−88	6	28.7_2,60	<0.0001	68.9	0.60	−0.19		0.5	8.0	15	15.7
4	−4	−88	12	46.4_2,60	<0.0001	62.2	0.70	−0.02		0.63	10.2	15	17.6
5	8	−94	6	21.9_3,59	<0.0001	60.9	1.57	−0.13	0.0027	0.53	9.8	10	8.3
6	0	−78	−12	25.9_2,60	<0.0001	72.8	0.53	−0.19		0.47	7.8	6	13.9

	1 ± 6	−88 ± 5	2 ± 9							0.53 ± 0.08	8.0 ± 1.7	11.8 ± 3.8	13.2 ± 3.6

4_MT/V5	44	−74	8	17.2_2,60	<0.05	45.8	0.44	−0.013		0.38	7.6	15	16.9

DISCUSSION

¹⁰CO₂ as a positron emission tomography tracer for regional cerebral blood flow

From lungs to brain.

After entering the lung capillaries through the lung alveoli, most of the CO₂ diffuses into the red blood cells, where hydration produces the weak acid carbonic acid (H₂ CO₃) catalyzed by the enzyme carbonic anhydrase. Carbonic acid subsequently is almost completely ionized to hydrogen and bicarbonate ions. This conversion, and the equally rapid reverse process, is of major importance for the bicarbonate and carbon dioxide transport in all organs and is essentially instantaneous (Maren, 1963). Carbon dioxide is transported in arterial whole blood to the brain as bicarbonate (87%), bound to the amino groups of proteins (mainly hemoglobin) as carbamate (7%), and as dissolved CO₂ (5%) (Klocke, 1991). However, these proportions may not correctly reflect the relative composition of ¹⁰CO₂ in arterial whole blood as it arrives at the brain. The carbamate will exchange reversibly with ¹⁰C-labeled and unlabeled CO₂ in arterial blood in proportion to their relative contributions. A single breath ¹¹CO₂ inhalation study in rats found 7.8% of the total activity in the blood to be fixed after 4.5 minutes (Lockwood and Finn, 1982). In a PET study using 15 minutes of continuous ¹¹CO₂ inhalation for estimation of pH in the human brain, lower fixation values (0.5 to 1.0% per minute) have been argued (Brooks et al., 1984). In conclusion, a fixation rate for ¹⁰CO₂ in whole blood of 1% to 2% per minute is probably reasonable. Given a lung to brain tissue delay of approximately 6 seconds, the contribution of first pass ¹⁰C-labeled carbamate is negligible, and it is mainly recirculated ¹⁰C -labeled carbamate, which can potentially increase counts in the blood compartment. Given an average recirculation time of 3 to 4 times that of the tracer half-life, this can be neglected. Thus, for practical purposes, the ¹⁰CO₂ in arterial whole blood exists in a chemical form (dissolved ¹⁰CO₂ or ¹⁰C-labeled bicarbonate) that favors rapid exchange across the blood–brain barrier (BBB).

¹⁰CO₂ across the blood–brain barrier and in cerebral tissue.

The extraction of CO₂ across the BBB is 88%, that is, the same magnitude as water (87%) (Friis et al., 1980). On the other hand, the CO₂ diffusion BBB permeability coefficient (4.4 × 10 ⁻³cm/sec) (Friis et al., 1980) can be calculated as approximately 20 times as high as the BBB water permeability (2.4 × 10 ⁻⁴cm/sec) (Paulson et al., 1977). Carbon dioxide has approximately the same high lipid solubility as inert gasses such as xenon and krypton (Yeh and Peterson, 1963). Thus, CO₂ is essentially freely diffusible across the lipid plasma membrane of the endothelial cells lining the BBB and has ideal rCBF tracer characteristics.

The rate of metabolic brain tissue fixation of ¹⁰C can, by inference from the ¹¹CO₂ PET experiments, be expected to be 1% to 2% per minute (Brooks et al., 1984; Lockwood and Finn, 1982), which, analogously with the blood carbamate fixation, is negligible compared with tracer half-life.

Effects of radiochemical and radionuclidic impurities.

Because of target impurities (up to 0.2% ¹¹ B-labeled boron and 5% to 10% ¹⁶O) the inhaled gas will contain small amounts of ¹¹C-labeled carbon dioxide (¹¹CO₂, half-life: 20.4 minutes) (Alves et al., 2000) and ¹³N-labeled nitrogen (¹³N₂, half-life: 10 minutes), respectively. The radionuclidic impurity level of ¹³N₂ in the Quality Control loop was controlled by half-life analysis immediately before use and at approximately 1-hour intervals and was between 1% and 5%; thus, 95% to 99% of the inhaled activity was ¹⁰CO₂. Nitrogen is an inert gas with a low solubility in alveolar blood and lung tissues. The Ostwald solubility of ¹³N₂ in whole blood is 0.017 ± 0.02 (Madsen, 1980, Table 2.4). This results in a (relative) brain tissue/lung gas activity ratio of 0.7%. This extreme insolubility of ¹³N₂ makes its small lung gas concentration contribute negligibly to the cerebral counting rate. Furthermore, this results in a biologic half-clearance time (in healthy subjects) of 6.9 ± 1.0 minutes measured over a 45-second ¹³N₂ breath-hold (Hichwa, 1980, Table 6)—that is to say, it does not leave the lung gas space.

The biologic half-life of ¹¹CO₂ in the human body can be described by a two-component model: 40% of the biologic decay arising from a fast component with a half-life of 2.2 minutes, presumably exhaled ¹¹CO₂, and 60% from a slow component with a half-life of 76 minutes (ICRP, 1987). At steady-state inhalation, this translates to a fixed ¹¹C level in the body of approximately half the value it would be with no excretion at all. Considering the small amount of ¹¹B impurity (0.2%) in the applied target, a delay of 40 seconds (2¹⁰C half-lives) in the activity transport system from cyclotron to subject and the biologic half-life presented above, the ¹¹C level at steady-state inhalation can be calculated as well below 5% using previously presented principles (Alves et al., 2000). The effects of this increasing background contribution, reflecting the pattern of the regional cerebral pH values and metabolic fixation, was distributed randomly across conditions, and a rough correction was performed by removing scan number as a nuisance covariate.

Optimizing acquisition.

In this study, the priority was to optimize the number of scans acquired at a fixed 6.0 mSv subject radiation dose. Fewer scans at a higher dose/longer inhalation period would increase total counts/signal-to-noise in the image, but also would reduce the number of independent samples for the estimation of the average activity level at a given stimulus frequency. The average of many low count scans will be identical to the value of one high count scan, as far as only the poisson noise from the decay process is considered. However, there are prudent technical, experimental, and statistical reasons for not choosing a few high activity scans. Few scans would increase the fraction of randoms, enhance the relative noise contribution from behavioral factors (attention, fatigue) on the regional activity level, and reduce the degrees of freedom available for the statistical analysis compromising sensitivity to change. There would, however, be a lower limit to acceptable total image counts in which noise will dominate and introduce errors in either the alignment or stereotactic normalization processes.

The shortest scan acquisition period would be the time of a single inhalation plus 1 minute for decay and washout, which would potentially increase the number of acquired scans even further. However, total image counts would not be sufficient at a steady-state radioactivity dose of 300 MBq, which is the maximal output attainable with the current target technology. Even if a technological advance allowed a larger radioactivity dose, the increased fraction of randoms during inhalation might prove a disadvantage.

Regional cerebral blood flow quantification using ¹⁰CO_2.

In the authors' opinion, ¹⁰CO₂ is not currently a practical tracer for quantitative measurements of rCBF. In theory, quantification is simple using the steady-state principle, providing that the arterial input concentration, taken as the mean value over the entire data acquisition period, could be measured. Because of the short half-life and subsequent rapid decay during arterial transport, the arterial input signal has to be sampled close to the organ in question, that is, the brain. Currently, partial volume effects induced by low scanner resolution does not allow a simple and reliable measurement of activity inside the carotid arteries. The ease of production and administration of H₂ ¹⁵O will make this compound the PET tracer of choice for rCBF quantification at most PET units, whereas ¹⁰CO₂, because of the large number of data samples would be attractive primarily in human brain mapping experiments.

¹⁰CO₂ positron emission tomography compared with existing techniques

H₂¹⁵O positron emission tomography.

As shown above, the short half-life of ¹⁰CO₂ enables almost complete utilization of emitted tissue counts as opposed to H₂¹⁵O PET where only 15% to 35% will contribute depending on acquisition lengths. Using H₂¹⁵O PET, the authors would usually acquire 12 PET scans versus 64 using ¹⁰CO₂ PET, and the integrated H₂¹⁵ O counts in a 90-second acquisition would be 5 times that of ¹⁰CO₂ PET. Thus, if the total utilization of emitted counts is evaluated at identical subject radiation doses using the sum of integrated counts in all images in a session (total counts in all images/mSv), ¹⁰CO₂ PET is only a slight improvement over H₂ ¹⁵O PET. The main reason for this is the high initial ¹⁰CO₂ radiation dose absorbed during the tracer transport, mainly in the upper airways, with the fast decay reducing the net ¹⁰CO₂ concentration delivered at the target organ. Thus, the main advantage of ¹⁰CO₂ over H₂ ¹⁵ O is the possibility to partition a given radiation dose and convert idle scanner time into multiple behaviorally independent PET scans (Fig. 2). A rough visual evaluation of the ¹⁰CO₂ image quality versus H₂ ¹⁵ O PET does not reveal major discrepancies at the level of resolution chosen (Fig. 3). The stereotactic normalization process used in the statistical analyzes was not affected by image noise as the average ¹⁰CO₂ PET scan was used.

Functional magnetic resonance imaging.

One advantage using functional magnetic resonance imaging (fMRI) for human brain mapping is the possibility to perform multiple repeated measurements in the same subjects, which makes the techniques especially eligible for parametric study designs (Buchel et al., 1998). As the fMRI blood oxygen level-dependent (BOLD) signal is a composite of several different physiologic parameters (Kim et al., 1999), a physiologically more restricted activation signal based on rCBF only can have its advantages. Needless to say, the ¹⁰CO₂ PET technique cannot compete with fMRI on availability or spatial and temporal resolution. Furthermore, ¹⁰CO₂ PET is limited by the requirement of a mouth piece demanding a greater degree of patient/subject cooperation and prohibiting verbal report. However, as demonstrated in the current study, ¹⁰CO₂ PET can compete with fMRI in delivering whole brain volume sampling of multiple repeated conditions of a restricted rCBF-based signal. This is a limited option using the H₂ ¹⁵ O PET technique, which is penalized by the tracer half-life.

Activation results

The horizontal and vertical extent of the visual input predicted activation in the posterior striatal cortex around foveal cortical representations (Sereno et al., 1995), as found in the current data (Fig. 3). Also as predicted, all subjects showed highly significant correlations with either second or third order polynomial functions with peak values located in the striatal cortex. The polynomial models could explain between 46% and 63% of the variance. No isolated first order components were located. In one subject (4;Table 2), activation in extrastriatal cortex was found in the left occipito-temporal junction, probably the motion-sensitive area V5/MT, which has also been described previously during checkerboard stimulation in other studies (Vafaee et al., 1998).

The average intrasubject COV at a given stimulus reversal frequency was 2.0% ± 0.7% SD and was not significantly different between conditions. Besides the stochastic nature of the decay, contributions to image noise may arise from varying levels of attention across scans. Attention can strongly and specifically influence neural processing in the striatal and extrastriatal cortex alike (Somers et al., 1999). For the 30-Hz condition, the average intrasubject COV was 2.2% ± 0.7% SD with a range of 1.1% to 3.0%. The COV values for the 2 subjects (2 and 5), where third order components were fitted, were 1.1% and 2.7%, respectively. Thus, an increased variability at 30 Hz for these two subjects could not explain the third order components. These should, however, be interpreted with caution as the regression is determined with the largest confidence in the interval with most data samples (0.03 to 15 Hz), making the regression sensitive to the 30-Hz point (Fig. 5).

The average maximal response relative to the 0.03-Hz condition was found at a smaller increase (8%) and at a larger average stimulus contrast reversal frequency (11.8 Hz;Table 2, Fig. 4) than predicted. As the curve after 8 Hz descends only gradually (Fox and Raichle, 1984, 1985), and the value of the maximal response is subject to differences in image resolution and analysis strategies, the current results are in overall agreement with the previous data.

Conclusion

¹⁰CO₂ offers almost ideal characteristics as a PET tracer for the rCBF distribution with a short halflife enabling multiple independent measurements at short interval. This greatly improves the use of PET for human brain mapping studies compared with the existing H₂ ¹⁵ O PET technique, particularly for single subject studies and parametric design. The current study has demonstrated that ¹⁰CO₂ PET is feasible and has validated the technique indirectly by replicating previous results qualitatively and quantitatively.

Footnotes

Acknowledgments:

The authors acknowledge Karin Stahr and the staff at the PET Center at Rigshospitalet, Copenhagen for their participation. The authors also gratefully acknowledge The John and Birthe Meyer Foundation for the donation of the Cyclotron and PET scanner. Jacob Holm wrote the checkerboard reversal program.

Abbreviations Used:

References

Alves

Jensen

Nickles

Holm

(2000) Determination of the excitation function for the 10B(p, n)10C reaction with implications for the production of [10C]carbon dioxide for the use as a PET tracer. Appl Radiat Isot 52:899–903

Andersson

(1997) How to estimate global activity independent of changes in local activity. Neuroimage 6:237–244

Belliveau

Kennedy

McKinstry

Buchbinder

Weisskoff

Cohen

Vevea

Brady

Rosen

(1991) Functional mapping of the human visual cortex by magnetic resonance imaging. Science 254:716–719

Brooks

Lammertsma

Beaney

Leenders

Buckingham

Marshall

Jones

(1984) Measurement of regional cerebral pH in human subjects using continuous inhalation of 11CO2 and positron emission tomography. J Cereb Blood Flow Metab 4:458–465

Buchel

Wise

RJS

Mummery

Poline

Friston

(1996) Nonlinear regression in parametric activation studies. Neuroimage 4:60–66

Buchel

Holmes

Rees

Friston

(1998) Characterizing stimulus-response functions using nonlinear regressors in parametric fMRI experiments. Neuroimage 8:140–148

DeGrado

Turkington

Williams

Stearns

Hoffman

Coleman

(1994) Performance characteristics of a whole-body PET scanner. J Nucl Med 35:1398–1406

Fox

Raichle

(1984) Stimulus rate dependence of regional cerebral blood flow in human striate cortex, demonstrated by positron emission tomography. J Neurophysiol 51:1109–1120

Fox

Raichle

(1985) Stimulus rate determines regional brain blood flow in striate cortex. Ann Neurol 17:303–305

10.

Friis

Paulson

Hertz

(1980) Carbon dioxide permeability of the blood-brain barrier in man. The effect of acetazolamide. Microvasc Res 20:71–80

11.

Friston

Holmes

Worsley

Poline

Frith

Frackowiak

(1995) Statistical parametric maps in functional imaging: A general linear approach. Hum Brain Mapp 2:189–210

12.

Hichwa

(1980) A study of regional pulmonary gas exchange using radiotracers. Madison, WI: University of Wisconsin

13.

Holm

Madsen

Sperling

Lassen

(1994) Use of 99mTc-bicisate in activation studies by split-dose technique. J Cereb Blood Flow Metab 14(Suppl 1):S115–120

14.

Holm

Law

Paulson

(1996) 3D PET activation studies with an H215O bolus injection. In: Quantification of brain function using PET ( Myers

RCV

Bailey

Jones

, eds), San Diego, CA: Academic Press, pp 93–97

15.

Holm

Jensen

Nickles

(1999) Effective dose of carbon-10 dioxide: A new tracer for PET [abstract]. J Cereb Blood Flow Metab 19:S833

16.

ICRP (1987) A report of a Task Group of Committee 2 of the International Commission on Radiological Protection. Radiation dose to patients from radiopharmaceuticals. Ann ICRP 18:1–377

17.

Jensen

Nickles

Holm

(1998) Carbon-10: A new tracer for human brain mapping with PET. Neuroimage 7:S630

18.

Kim

Rostrup

Larsson

Ogawa

Paulson

(1999) Determination of relative CMRO2 from CBF and BOLD changes: Significant increase of oxygen consumption rate during visual stimulation. Magn Reson Med 41:1152–1161

19.

Klocke

(1991) Carbon dioxide. In: The lung. Scientific foundations ( Crystal

West

, eds), New York, NY: Raven Press, pp 1233–1239

20.

Kwong

Belliveau

Chesler

Goldberg

Weisskoff

Poncelet

Kennedy

(1992) Dynamic magnetic resonance imaging of human brain activity during primary sensory stimulation. Proc Natl Acad Sci U S A 89:5675–5679

21.

Law

Iida

Holm

Nour

Rostrup

Svarer

Paulson

(2000) Quantitation of regional cerebral blood flow corrected for partial volume effect using O-15 water and PET II. Normal values and gray matter blood flow response to visual activation. J Cereb Blood Flow Metab 20:1252–1263

22.

Lewellen

Kohlmyer

Miyaoka

Kaplan

Stearns

Schubert

(1996) Investigation of the performance of the general electric ADVANCE positron emission tomograph in 3D mode. IEEE Trans Nucl Sci 43:2199–2206

23.

Lockwood

Finn

(1982) 11C-carbon dioxide fixation and equilibration in rat brain: Effects on acid-base measurements. Neurology 32:451–454

24.

Madsen

(1980) Soluble positron emitting inert gases as inhalational regional cerebral blood flow agents. Madison, WI: University of Wisconsin

25.

Maren

(1963) The relation between enzyme inhibition and physiological response in the carbonic anhydrase system. J Pharmacol Exp Ther 139:585–592

26.

Nickles

Jensen

Holm

(1998) Carbon-10 dioxide: Reviving steady state PET imaging of rCBF. J Nucl Med 39:131P

27.

Paulson

Hertz

Bolwig

Lassen

(1977) Filtration and diffusion of water across the blood-brain barrier in man. Microvasc Res 13:113–124

28.

Sereno

Dale

Reppas

Kwong

Belliveau

Brady

Rosen

Tootell

(1995) Borders of multiple visual areas in humans revealed by functional magnetic resonance imaging [see comments]. Science 268:889–893

29.

Smith

Tong

Lammertsma

Butler

Schnorr

Watson

Ramsay

Clark

Jones

(1994) Dosimetry of intravenously administered oxygen-15 labeled water in man: A model based on experimental human data from 21 subjects. Eur J Nucl Med 21:1126–1134

30.

Somers

Dale

Seiffert

Tootell

(1999) Functional MRI reveals spatially specific attentional modulation in human primary visual cortex. Proc Natl Acad Sci U S A 96:1663–1668

31.

Stearns

(1995) Scatter correction method for 3D PET using 2D fitted gaussian functions. J Nucl Med 36:105P

32.

Talairach

Tournoux

(1988) Co-planar stereotaxic atlas of the human brain. New York: Thieme Medical Publishers

33.

Tewson

Banks

Franceschini

Hoffpauir

(1989) A trap for the removal of nitrogen nxides from carbon-11 carbon dioxide. Appl Radiat Isot 40:765–768

34.

Tootell

Dale

Sereno

Malach

(1996) New images from human visual cortex. Trends Neurosci 19:481–489

35.

Vafaee

Marrett

Meyer

Evans

Gjedde

(1998) Increased oxygen consumption in human visual cortex: Response to visual stimulation. Acta Neurol Scand 98:85–89

36.

Vafaee

Meyer

Marrett

Paus

Evans

Gjedde

(1999) Frequency-dependent changes in cerebral metabolic rate of oxygen during activation of human visual cortex. J Cereb Blood Flow Metab 19:272–277

37.

Watson

Myers

Frackowiak

Hajnal

Woods

Mazziotta

Shipp

Zeki

(1993) Area V5 of the human brain: Evidence from a combined study using positron emission tomography and magnetic resonance imaging. Cereb Cortex 3:79–94

38.

Worsley

Marrett

Neelin

Vandal

Friston

Evans

(1996) A unified statistical approach for determining significant signals in images of cerebral activation. Hum Brain Mapp 4:58–73

39.

Yeh

Peterson

(1963) Solubility of carbon dioxide, krypton, and xenon in lipids. J Pharm Sci 52:453–458
