Large Conductance Calcium-Activated Potassium Channels (BK Ca ) Modulate Trigeminovascular Nociceptive Transmission

In vitro electrophysiology

Application of drugs

All drugs were applied at known concentrations via a motorized perfusion system (403U/VM3; Watson, Wilmington, MA, USA) at a speed 2 ml/min. Stock solutions of the BK_Ca channel blocker iberiotoxin and slotoxin (Alomone Labs, Jerusalem, Israel), the AMPA/kainate antagonist 6-cyano-7-nitroquinoxaline-2,3-dione disodium (CNQX; Tocris Bioscience, Ellisville, MO, USA) and N-methyl-d-aspartate receptor antagonist CGS19755 (cis-4-[phosephomethyl]-piperidine-2-carboxylic acid; Tocris Bioscience) were obtained by dissolving the drugs in water. The agonists NS1619 (1-(2'-hydroxy-5'-trifluoromethylphenyl)-5-trifluoromethyl-2(3H)benzimidazolone; Sigma, St Louis, MO, USA) was dissolved in dimethylsulphoxide (DMSO) before using. The perfusion solution of iberiotoxin and slotxin contained 0.1 mg/ml albumin (Sigma) to prevent non-specific peptide binding to tubing. The final concentration of DMSO in the working solution was 0.3% (v/v). At this concentration, DMSO alone did not significantly modify the resting membrane potential or the frequency of spontaneous action potentials or sEPSCs in trigeminal neurons.

Data analysis

Data were acquired with pClamp-9.2 and analyzed with Clampfit 9.2 (Axon Instruments) for spontaneous action potentials and Minis Analysis program (Synaptosoft, Decatur, GA, USA) for sEPSCs. The sEPSC events were counted if their amplitude was above the noise (5 pA) or significantly visible. These data are presented as mean ±s.e.m. and were compared for their statistical significance using Student's t test or one-way repeated measures analysis of variance (anova) from control with Dunnett post hoc comparisons of means (Originpro v. 7; OriginLab, Northampton, MA, USA).

In vivo electrophysiology

CNS surgery

A midline craniotomy (about 20 mm diameter) and C₁–C₂ laminectomy were performed in each cat, allowing access to the SSS and the area for recording neuronal activity in the TNC. To isolate the SSS, the adjacent dura mater and falx cerebri were dissected over a distance of about 15 mm. A small polyethylene sheet was inserted under the isolated sinus, laid over the outlying dura mater and tucked under the edges of the craniotomy. To prevent dehydration and to provide additional electrical insulation to the cortex, a circular polypropylene dam was sealed to the bone around the craniotomy with polymethylmethacrylate-based dental cement (Vertex, Zeist, the Netherlands) and filled with liquid paraffin (BDH Laboratory Supplies, Poole, UK). The likelihood of possible artefacts from arterial pulsation and respiratory movement (such as movement of the electrode from recording sites) was reduced by: bilateral pneumothoraces, kept patent with polypropylene tubes; immobilization of the spine by clamping a thoracic spinous process (1780 spinal unit; Kopf); clamping the C₁ transverse processes, and clamping the remaining caudal portion of the dorsal C₂ spinous process.

In vivo stimulation and recording

The isolated SSS was gently lifted onto a bipolar platinum hook electrode pair connected to a stimulus isolation unit (SIU5A; Grass Instruments, West Warwick, RI, USA). To activate primary trigeminal afferents and provide the initial search stimulus for responsive cells in the TNC, the SSS was supramaximally stimulated with stimulus-isolated (Grass SIU) square wave pulses from a Grass S88 stimulator (80–150 V, ∼50 µA; 250 µs, 0.3–0.5 Hz) after neuromuscular blockade with gallamine triethiodide (Concord Pharmaceuticals, Dunmow, UK; initially 5–10 mg/kg intravenously and maintained with 5–10 mg kg⁻¹ h⁻¹). The dura mater above the recording regions on the surface of the spinal cord was reflected after a midline incision and held to the bony edges of the laminectomy with N-butyl-cyanoacrylate, further stabilizing movement of the cord in this sling-like arrangement. Extracellular recordings and microiontophoretic delivery of test compounds were made using custom-built carbon-fiber containing multibarrelled-microiontophoresis combination electrodes (Carbostar 7S; Kation Scientific, Minneapolis, MN, USA). Recording electrode impedances were typically 1–3 MΩ when measured at 1 kHz in 0.9% saline (Impedance check module; FHC, Bowdoinham, ME, USA). After careful local removal of the pia mater, which was dissected away from a small area of the underlying spinal cord at the sulcus above the dorsal root entry zone, the electrodes were lowered into the cord substance around the C₂ roots in the area of the dorsal root entry zone. The point of contact of the electrode tip with the pial surface was taken as the zero reference point. The electrodes were advanced or retracted in the cord substance in discrete 5-µm steps using an ultra-low-drift (<1 µm/h) LSS-100 microelectrode positioner system consisting of a piezoelectric motor (IW-711; Lateral Stability Option ± 0.2 µm lateral motion; Burleigh Instruments, Victor, NY, USA) and ultra-low-noise controller (6000ULN) attached to a heavy-duty micromanipulator (Kopf 1760–61). Tissue-culture grade agar (Sigma) 3% w/v in pyrogen-free saline (Baxter Healthcare) was set over the exposed cord after electrode insertion to further reduce cardiovascular-related movement of the spinal cord. Signal from the recording electrode attached to a high-impedance headstage preamplifier (NL100AK; Neurolog, Digitimer, Welwyn Garden City, UK) was fed via an AC preamplifier (Neurolog NL104, gain ×1000) through filters (Neurolog NL125; bandwidth about 300 Hz to 20 kHz) and a 50-Hz noise eliminator (Humbug; Quest Scientific, North Vancouver, BC, Canada) to a second-stage amplifier (Neurolog NL106) providing variable gain (to ×100). This signal (total gain about ×20 000 to ×95 000) was fed to a gated amplitude discriminator (Neurolog NL201) and analog-to-digital converter (Cambridge Electronic Design, Cambridge, UK), and to a microprocessor-based personal computer (DELL Latitude C800-PP01X; Bracknell, UK) where the signal was processed and stored. Filtered and amplified electrical signals from action potentials were fed to a loudspeaker via a power amplifier (Neurolog NL120) for audio monitoring, and were displayed on analog- and digital-storage oscilloscopes (Goldstar, LG Precision, Seoul, Korea and Metrix Electronics, Chauvin Arnoux, Paris, France, respectively) to assist the isolation of single unit activity from adjacent cell activity and noise.

To record the response of single units to SSS stimulation, post-stimulus time histograms were constructed on-line with Spike2 software (Cambridge Electronic Design) using 0.5-ms bins and saved to disk. During the experiments electrophysiological data, blood pressure, heart rate, core temperature and end-tidal CO₂ were processed and recorded on VHS magnetic tape (Pulse Code Modulator; Vetter, Rebersburgh, PA, USA) and magnetic hard disk for documentation and later review.

Animals from which data are reported had cardiorespiratory parameters that were normal for α-chloralose anesthetized cats. Arterial blood gas and biochemical parameters were measured at intervals throughout experiments and were within normal limits (mean ±s.d.): arterial blood pH 7.39 ± 0.03; Pco ₂ 2.89 ± 0.49 kPa; Po ₂ 34.01 ± 3.16 kPa; Ca⁺² 1.23 ± 0.05 mmol/l; lactate 0.71 ± 0.39 mmol/l. Urine production was 4.5 ± 2.4 ml/h.

Identification of receptive fields

Cells responding to SSS stimulation were characterized as receiving low threshold mechanoreceptor input if they responded to innocuous input, such as brushing or stroking of cutaneous receptive fields on the face or forepaws with a cotton pledget on a wooden shaft. They were characterized as nociceptive specific if they responded to noxious mechanical stimuli, such as pinching with toothed forceps or pricking with a needle, or wide dynamic range (WDR) if they responded to both [see Fig. 4B, (25)]. These cells usually had an increased firing rate in response to noxious stimuli.

OPEN IN VIEWER

Figure 4

Localization and classification of neurons recorded in vivo. (A) A transverse section through the spinal cord at the level of C₂ is represented. Although the positions of the neurons are mapped to only one side of the cord in the figure, they represent results obtained from both the left-hand and right-hand side of the spinal cord. The scale bars represent a distance of 1 mm in both directions. Solid circles indicate sites where recording sites were marked with Pontamine Sky Blue (PSB; C.I. 24410) by microiontophoresis (−1.00 µA for 20–25 min) and identified histologically. Open circles indicate the positions of unmarked recording sites, or sites where marks could not be recovered, which were identified by reference to the position of dye marks at other recording sites or at the end of electrode tracks and electrode tip coordinates. (B) Representative rate histogram showing the responses evoked by mechanical stimulation of cutaneous V_I receptive field on the head of the cat by innocuous stimuli (brush with a cotton pledget) and ‘noxious’ stimulus (pinch with toothed forceps). This representative cell was characterized as receiving wide dynamic range (WDR) input. (C) Representative bipolar compound action potential evoked by l-glutamate microiontophoresis from a single trigeminocervical neuron linked to electrical superior sagittal sinus stimulation.

Microiontophoresis

Micropipettes used for microiontophoresis had orifices in the range 1–3 µm and were filled with 200 mm monosodium l-glutamate (Sigma), pH 8.0; 100 µm slotoxin or iberiotoxin (Alomone Labs) in helium-sparged 50 mm sodium acetate buffer, pH 4.5 to reduce oxidation of disulphide bonds in their native structure and ionize them as cations; 15 mm NS1619 (Sigma) in 100 mm NaOH; saline; 50 mm sodium acetate buffer, pH 4.5 or 100 mm NaOH as vehicle controls; and 2.5% Pontamine Sky Blue [‘Gurr’ 6BX dye (C.I. 24410), BDH Laboratory Supplies, Poole, UK] in 100 mm sodium acetate, pH 8.0, for marking recording positions. A microiontophoresis current generator (Model 6400A; Dagan Corp., Minneapolis, MN, USA) provided the current for ejecting test substances from the barrels. Retaining and balancing currents were used routinely (26). If cells were responsive to l-glutamate ejection, the current was adjusted to between −8 and −80 nA so that firing activity of neurons was around 15 Hz during pulses of application. The application pulses were typically 10 s duration alternated with 5 s retention, so that inhibition of cell activity, or facilitation of firing by the test substances, could be determined and distinguished from random firing and noise. Responses were quantified on rate histograms using 1-s bins. The l-glutamate ejection current required to produce a stable baseline response across at least five epochs of l-glutamate application demanded for cell testing were established empirically for each neuron. l-glutamate, NS1619, and Pontamine Sky Blue were ionized as anions and retained with small positive currents (∼3–5 nA) to restrain passive diffusion from barrels between ejection periods. Recombinant slotoxin and iberiotoxin were ionized as cations and were retained in the pipette barrels with small negative retaining currents (∼−3 to −5 nA). Ejection currents (15–400 nA) in directions opposite to the retaining currents were used. Experimental controls were based on passing currents of similar magnitude through barrels containing vehicle alone. Current balancing was provided through a barrel containing 200 mm NaCl.

After filling, electrode barrels passing useful (> 10 nA) iontophoretic currents at ±135 V compliance had resistances of 24–200 MΩin situ and impedances of 5.6–26.2 MΩ tested at 10 nA peak-to-peak at 1 kHz in saline. In particular, respective resistances and impedances for barrels containing 200 mm l-glutamate Na⁺, pH 8.0, were 48 ± 24 and 14 ± 2 MΩ, n = 15; 100 µm iberiotoxin in 50 mm sodium acetate, pH 4.5, 94 ± 46 and 15 ± 2 MΩ, n = 10; 100 µm slotoxin in 50 mm sodium acetate, pH 4.5, 95 ± 42 and 16 ± 4 MΩ, n = 15; 15 mm NS1619 in 100 mm NaOH, 118 ± 76 and 15 ± 7 MΩ, n = 5; saline; 50 mm sodium acetate, pH 4.5, 86 ± 32 and 17 ± 4 MΩ, n = 10; 100 mm NaOH, 120 ± 79 and 15 ± 7 MΩ, n = 5; 2.5% Pontamine Sky Blue in 100 mm sodium acetate, pH 8.0, 26 ± 18 and 12 ± 3 MΩ, n = 15; 200 mm NaCl, impedance 13 ± 2 MΩ, n = 15.

Identification of in vivo recording sites

The position of the recording electrodes was controlled by use of a heavy-duty stereotaxic micropositioner (Kopf 1760–61) with reference to the mid-point of the C₂ dorsal roots. Together with the depth of the recording electrode tip with respect to the surface of the spinal cord at the dorsal root entry zone, as determined by the distance traveled display on the ULN6000 piezoelectric motor controller (Burleigh Instruments), this provided the coordinates of the recording sites. The location of selected recording sites and the end of electrode tracks were marked with microiontophoretically delivered Pontamine Sky Blue dye using a −1.00-µA current for 20–25 min. After euthanasia of the animals at the end of experiments with sodium pentobarbital (400 mg), followed by KCl (10% w/v; 5 ml), the section of spinal cord containing the recording sites was resected, fixed with neutral buffered 10% formalin, stored in phosphate buffered 30% sucrose, pH 7.4, until sunk and sectioned (40 µm; HM500 OM cryostat microtome; Microm Laborgeräte, Walldorf, Germany). Pontamine Sky Blue marks were counterstained with neutral red Nissl stain or nuclear fast red, procedures that allowed identification of the laminae of the gray matter. The positions of the recording sites within the cord were determined from histologically identified dye marks, and unmarked recording sites were located by reference to other dye marks, for example marking the end of recording tracks, and the stereotaxic coordinates of the electrode tip at the recording site.

Statistical analyses

Neuronal firing was distinguished from noise using an amplitude discriminator. Statistical evaluations were made for each unit using the mean rate of firing (Hz) evoked during each epoch of microiontophoretic l-glutamate application. The background neuronal discharge was calculated by averaging the period of ongoing basal activity immediately preceding each period of l-glutamate-evoked excitation and subtracting this value from the evoked responses. Stable baseline response to l-glutamate application was determined by examining the response to each of at least five epochs of l-glutamate application at the same current to check that there was no significant difference across the responses (27) before applying test compounds. For each unit a minimum of five paired baseline-response data were collected. To assess whether there was an effect on firing by a test compound in any individual cell we applied the critical ratio test (28–30), which uses a function of the baseline or control firing, the firing under test conditions and the standard normal deviation of this firing (31). In practice, a critical ratio of 1.96 closely approximates a 30% change from baseline or control firing evoked by l-glutamate or SSS stimulation and is significant at P < 0.05. Neuronal responses were, therefore, considered inhibited if there was a reduction in response ≥ 30%, facilitated if there was an increase in response ≥ 30%, or not affected if there was < 30% change.

Microiontophoretic currents with a magnitude of at least 80 nA, and up to 400 nA for toxins, where ‘blocking’ did not occur at lower currents, were applied for at least 10 epochs of l-glutamate application (∼2.5 min; or 5 min in the case of stimulated SSS evoked firing) before a cell was considered unresponsive. A significant change in mean firing rate was confirmed using a paired samples two-tailed t test vs. baseline, or ANOVA from control with Dunnett post hoc comparisons of means as appropriate, where significance (P) was assessed at the 0.05 level (spss v. 11.5; SPSS Inc., Chicago, IL, USA).

BK_Ca channels modulate the firing properties of trigeminal nucleus caudalis neurons post-synaptically

Whole-cell recordings in current-clamp mode were performed on TNC neurons in freshly sectioned slices of native rat brainstem. Individual neurons were visible under infrared differential interference contrast video microscopy. Spontaneous action potentials were verified by their firing properties, i.e. shape and size (Fig. 1A), and the effect of the sodium channel blocker tetrodotoxin (1 µm).

OPEN IN VIEWER

Figure 1

Effects of iberiotoxin and NS1619 on the excitability of individual neurons from the trigeminal nucleus caudalis (TNC) in a slice preparation. (A) Expanded time-base view of spontaneous action potentials recorded from a single TNC neuron using the whole cell patch-clamp technique in current-clamp mode. (B,C) Representative traces illustrating the effect of 100 nm iberiotoxin (IbTx) and 30 µm NS1619 on the frequency of spontaneous action potentials and the change in membrane potential in single TNC neurons (n = 13, n = 10 respectively). (D,E) Representative trace and the corresponding frequency histogram of an extracellular recording illustrating that 100 nm iberiotoxin can prevent the reduction in spontaneous firing by NS1619 (n = 15). The bin size in (E) is 3 s.

The impact of BK_Ca channels on the membrane potential and spontaneous action potentials was first examined by bath perfusion of the selective antagonist iberiotoxin. Bath application of iberiotoxin caused a significant depolarization (> 2 mV) in 10 of 18 neurons (56%). In seven out of 13 neurons (54%), iberiotoxin significantly increased the firing rate of spontaneous action potentials (Fig. 1B). Typically it took 1–3 min for a robust increase in firing frequency to occur, but in a couple of neurons the effect was very fast and occurred in as little as 15 s after drug perfusion was initiated. We believe the differences in time to reach peak effect were due to how deep the neurons were in the slice preparation. Interestingly, two of the seven neurons that showed positive modulation in firing in the presence of iberiotoxin exhibited decreased firing with long-term exposure (Supplemental Fig. S1). This effect could be analogous to the tachyphylaxis effect observed in the in vivo recordings (Supplemental Fig. S2). As seen in Fig. S1A, these neurons exhibited strong depolarization in the resting membrane potential in response to iberiotoxin. Presumably, the reduction in firing was due to sodium channel inactivation.

We then tested whether activating BK_Ca channels would have the opposite effect to iberiotoxin on the membrane potential and spontaneous action potentials. Indeed, 30 µm NS1619 hyperpolarized the resting membrane potential and reduced the frequency of spontaneous action potentials in five out of 10 neurons measured by whole-cell patch-clamp recordings (Fig. 1C). To confirm this result and allow us to run longer experiments, we tested the effect of NS1619 using an extracellular recording technique. Consistent with the whole-cell patch results, eight out of 15 neurons showed a reduction in the resting membrane potential and the spontaneous action potential firing frequency (Fig. 1D,E). These data indicate that 3 µm NS1619 caused a negligible effect on firing, but 30 µm caused a dramatic decrease that could be reversed by the co-application of iberiotoxin.

Combined perfusion of CNQX and CGS19755 did not alter the firing frequency or amplitude of the spontaneous action potentials (Supplemental Fig. S3A,B).

BK_Ca channels also contribute to presynaptic glutamatergic neurotransmitter release

To evaluate the possibility that BK_Ca channels localized on presynaptic terminals may modulate transmitter release, sEPSCs were recorded before and after perfusion of iberiotoxin (Fig. 2). To prevent the influence of post-synaptic BK_Ca channels, the potassium channel blocker cesium (149 mm) was included in the internal patch-pipette solution. Figure 2A,B illustrates representative traces and the corresponding frequency histogram. These data show that the frequency, but not the amplitude of sEPSC events was increased in the presence of 100 nm iberiotoxin. As shown in the histogram, the frequency of sEPSCs started to rise approximately 1 min after iberiotoxin perfusion and reached a peak after 3 min perfusion. After iberiotoxin was removed the effects were reduced, but remained above baseline for the rest of these experiments. Data were summarized from eight neurons and showed that the frequency of sEPSC events was significantly increased to 153.65 ± 10.56% in the presence of iberiotoxin (Fig. 2C).

OPEN IN VIEWER

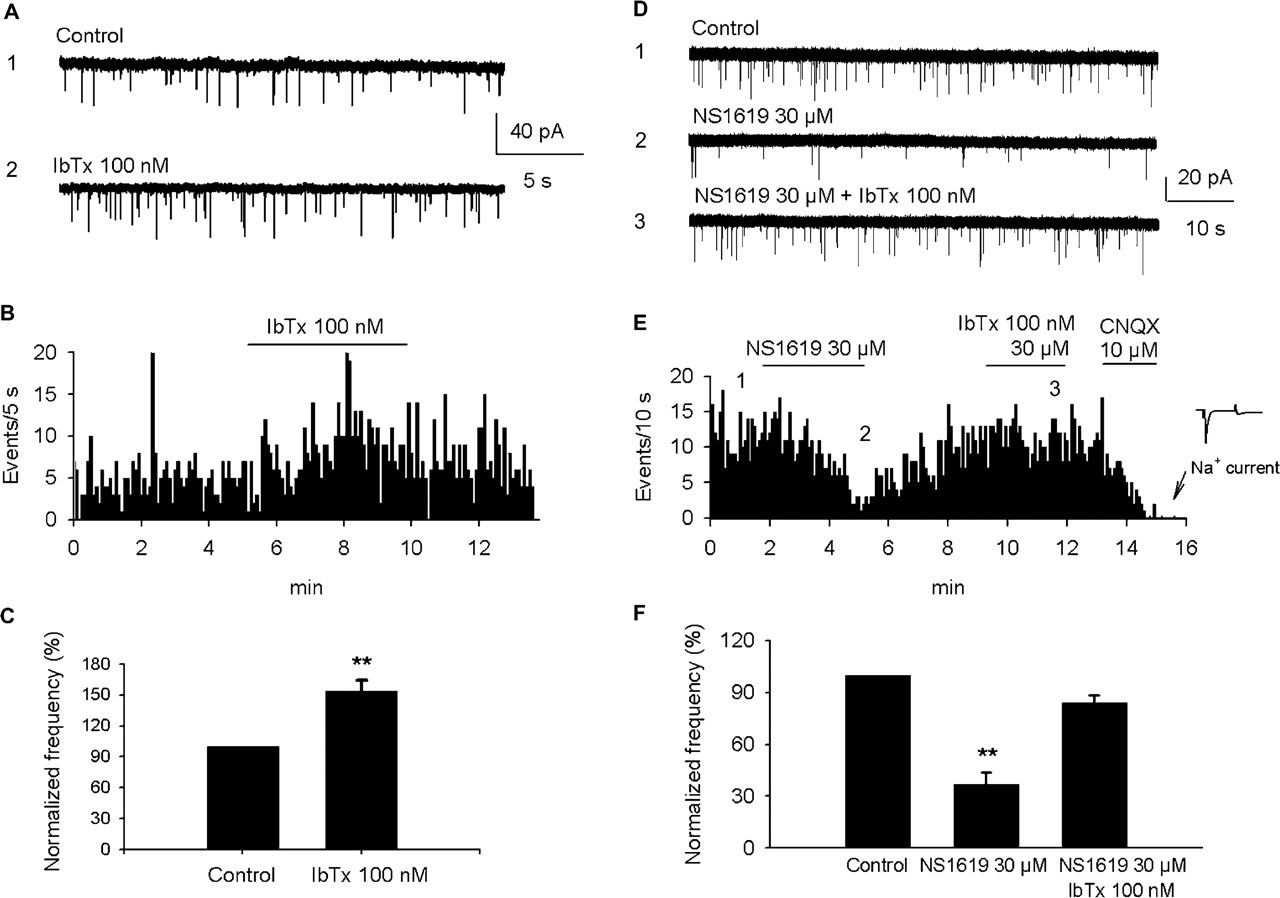

Figure 2

Effects of iberiotoxin and NS1619 on the frequency of spontaneous excitatory postsynaptic currents (sEPSCs) in individual neurons from the trigeminal nucleus caudalis in a slice preparation. (A) Traces illustrating sEPSCs and the effect of 100 nm iberiotoxin (IbTx) on a single neuron under whole cell patch-clamp recording in voltage-clamp mode. For this particular neuron the holding potential was −57 mV with 149 mm Cs⁺ and 9 mm Cl^- in the internal (pipette) solution and 130 mm Cl^- in external solution. (B) Frequency histogram graph of sEPSCs from the full trace data from the neuron in (A). Bin size is 5 s. (C) Histogram showing the mean effect of 100 nm iberiotoxin on the frequency of sEPSCs (n = 8 neurons). Error bar indicates s.e.m. (∗∗P < 0.01, t test). (D) Spontaneous EPSCs in control conditions (D1) and the effect of 30 µm NS1619 in the absence (D2) and presence (D3) of iberiotoxin (IbTx). Data were collected using whole cell patch-clamp in the voltage-clamp mode. Again the holding potential was −57 mV with 149 mm Cs⁺ and 9 mm Cl^- in the internal (pipette) solution and 130 mm Cl^- in the external solutions. (E) The frequency histogram of the sEPSCs from the full trace shown in (D). Bin size is 10 s. The effect of glutamatergic AMPA/kainite receptor antagonist 6-cyano-7-nitroquinoxaline-2,3-dione disodium (CNQX) was tested toward the end of experiment. At the conclusion of these experiments a sodium current was measured to verify that the neuron was still viable. (F) Histogram illustrating the mean reduction in the spontaneous EPSCs by 30 µm NS1619 and the reversal of this effect by iberiotoxin (n = 12). Error bars indicate s.e.m.[∗∗P < 0.01 compared with the control group, one-way repeated measures analysis of variance (anova) followed by a Dunnett post hoc multiple comparisons test].

Effects of NS1619 were also tested on the frequency of sEPSCs in TNC neurons (Fig. 2D–F). The raw traces and corresponding frequency histogram illustrate that 30 µm NS1619 reduced the frequency of the sEPSCs. Like the post-synaptic finding, 100 nm iberiotoxin reversed the effect of NS1619. No significant effects on the amplitude of the sEPSCs were detected after applying the BK_Ca modulators. Summarized data from 12 neurons show that the average frequency of sEPSCs was significantly reduced by 63 ± 7% in the presence of 30 µm NS1619 and that this effect was reversed to near baseline conditions in the presence of iberiotoxin. To verify that these sEPSC events were synaptic currents generated from the release of the excitatory neurotransmitter glutamate from the presynaptic terminal, the glutamatergic AMPA/kainate receptor antagonist CNQX was applied at the end of every experiment (Fig. 2E). Application of 10 µm CNQX completely blocked spontaneously occurring synaptic events, indicating that they were EPSCs and were mediated by glutamatergic AMPA/kainate receptors.

BK_Ca channel blockers facilitated TNC firing in vivo

Extracellular recordings were made from 72 neurons in the trigeminocervical complex of cats (32). Neurons responding to the SSS search stimulus that were also activated by l-glutamate were located +1 mm rostral to −4 mm caudal to the midpoint of the C₂ rootlets, ±150 µm to the dorsal roots entry zone at a depth of 820–3145 µm below the dorsal surface of the spinal cord. The median depth was 1903 µm and 90th the percentile range was 1074–2984 µm (Fig. 4A). Cells responded to electrical SSS stimulation with latencies of 8–10 ms, consistent with the velocity expected from Aδ fiber input (Fig. 5). Cells received wide dynamic range or nociceptive-specific mechanoreceptor input from cutaneous V_I receptive fields on the head, or cutaneous receptive fields on forepaws, or both (Fig. 3B). The cells responding to forepaw inputs were 1587 ± 298 µm deep (n = 10), median depth 1665 µm, range 1185–2115 µm as broadly reported (33).

OPEN IN VIEWER

Figure 3

Effects of iberiotoxin and slotoxin on l-glutamate-evoked superior sagittal sinus-linked trigeminal nucleus caudalis neuron firing in vivo. (A,B) Representative rate histograms illustrating the facilitation of l-glutamate-evoked action potential firing by iberiotoxin and slotoxin. l-glutamate was pulsed for 9 s every 15 s, as indicated by the bars. Signal obtained from amplitude-discriminated spikes passing a threshold above noise level was pooled in 1-s bins displayed across the horizontal axis to give a firing rate in Hz indicated on the vertical axis. (A) Iberiotoxin (IbTx) was applied at 400 nA continuously for about 11 min between 100 and 900 s after steady-state l-glutamate responses were reached. Following facilitation of l-glutamate responses, they recovered to control levels after about 20 min. (B) Slotoxin (SloTx) was applied continuously for approximately 90 s after steady-state l-glutamate responses were reached. (C) Bar graph illustrating the dose–effect relationship of iberiotoxin and slotoxin. NR represents the average firing of neurons that were non-responsive to toxin application (80–400 nA, P > 0.2). Data are presented as mean ±s.e.m. (n = 12, 7, 17, 5, 6, 24 and 10 from left to right). (∗P < 0.05; ∗∗P < 0.001, two-tailed one-sample t test vs. baseline; ^## P < 0.005, Dunnett's t test vs. vehicle control).

OPEN IN VIEWER

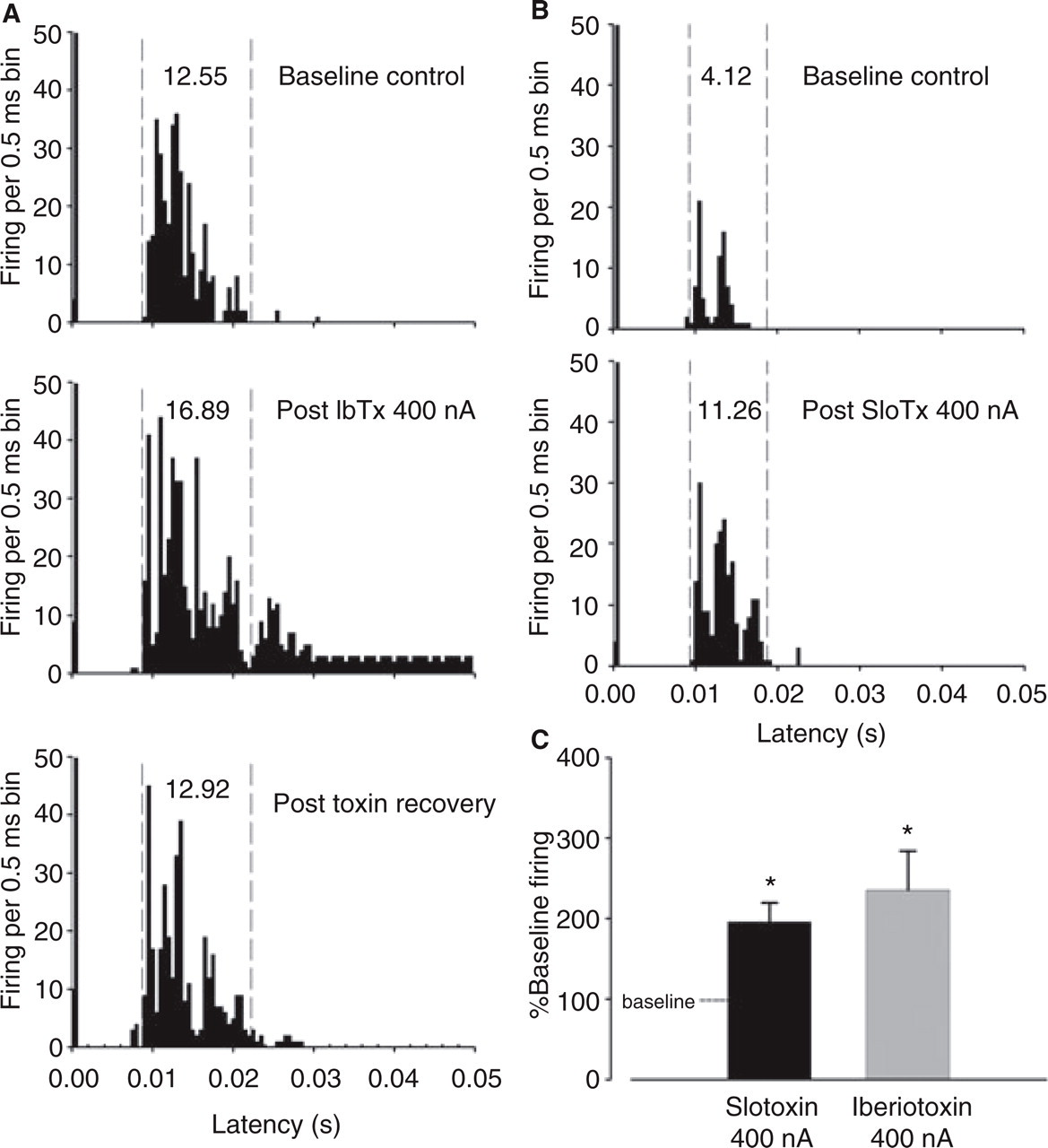

Figure 5

Effects of iberiotoxin and slotoxin on electrically evoked superior sagittal sinus (SSS)-linked trigeminal nucleus caudalis (TNC) neuron firing in vivo. (A,B) Representative post-stimulus histograms illustrating that direct electrical stimulation of the SSS recruits units (baseline controls) facilitated by iberiotoxin (IbTx) (A; 400 nA for 5 min) and slotoxin (SloTx) (B; 400 nA for 5 min). The histograms represent the cumulative frequency of action potential firing of cells in the TNC in response to 50 successive electrical stimuli of the SSS at latencies up to 50 ms divided into 0.05-ms bins. The stimulus artefact can be seen on the most left-hand side of each histogram. Supramaximal electrical stimuli were applied to the SSS via bipolar platinum hook electrodes carefully placed under the sinus. The dashed vertical lines represent cursor positions used for calculation of percentage change between various conditions and the bold figures indicate mean firing per bin between the cursors. (C) Mean effects of iberiotoxin and slotoxin on electrically stimulated SSS-evoked firing of cells showing significant facilitation by both BK_Ca channel blockers [P < 0.05, two-tailed one-sample t test vs. baseline (100%, dashed line), n = 5 and 5]. There was no significant difference in facilitation between the two toxins (t ₄ = −0.88, P > 0.43, paired-sample two-tailed t test).

Sixty-five cells were reversibly excited by microiontophoretic application of l-glutamate (–8 to −80 nA), although many more unresponsive units that were also linked to SSS stimulation were actually observed. It is likely that these units corresponded to axons or dendrites of neurons. The excitatory effect of l-glutamate identified recordings as being made from cell bodies, as characterized by their biphasic action potential morphology [Fig. 4C, (34)]. l-glutamate was ejected in pulses until the firing had reached steady state over five epochs, after which toxin was continuously ejected (100 or 50 nA) over five or six l-glutamate epochs. The firing rate of TNC neurons was 15.8 ± 1.2, 14.9 ± 1.1, 15.2 ± 1.2, 14.4 ± 1.2 and 14.8 ± 1.2 (Hz, mean ±s.e.m.) for each of five consecutive applications of l-glutamate (15.0 ± 9.8 Hz at −23 nA median; interquartile range −15 to −35 nA; n = 52). There was no difference between the responses (F _3.41,268 = 2.03, P = 0.564) and their reliability across time was excellent, with a Cronbach's α of 0.98.

For neurons that had identified cutaneous receptive fields, which were always ipsilateral and mostly on the head above the ear or on the forepaw, iberiotoxin and slotoxin facilitated l-glutamate-evoked firing in seven of 10 (70%) neurons (data not shown).

In cats, microiontophoresis of iberiotoxin and slotoxin significantly facilitated l-glutamate-evoked firing in 19 of 27 (70%) and 29 of 41 (71%) TNC neurons tested, respectively (Fig. 3).

Interestingly, tachyphylaxis of the facilitation from iberiotoxin and slotoxin occurred in about one-third of the responding neurons [slotoxin six of 19 (32%); iberiotoxin 11 of 29 (38%)]. Typically the tachyphylaxis occurred at current ejections > 100 nA, at which the initial increase in firing rate was often large. Cells were considered to respond ‘tachyphylactically’ if the Pearson correlation across the first five epochs of l-glutamate application was < −0.5. The statistical significance of toxin facilitation from baseline firing was generally lost after the first or second epoch (P < 0.05, two-tailed t test). The tachyphylaxis was particularly pronounced when l-glutamate firing was evoked by very low currents, indicating that the microiontophoretic pipette tip and the neuron were in close proximity (Supplemental Fig. S2).

Facilitation of the l-glutamate-evoked firing rate by both toxins occurred in a dose-dependent manner based on ejection current magnitude (Fig. 3C). The vehicle control effect (50 mm sodium acetate, pH 4.5) was not significantly different from baseline firing when applied at similar ejection currents (40–400 nA). The l-glutamate-evoked firing rate of cells resistant to effects of the toxins (non-responders) showed insignificant change during toxin application and was unaffected by increased current ejections of the toxins.

BK_Ca channel blockers facilitated electrically evoked SSS TNC firing in vivo

We then sought to determine if the toxins could facilitate neuronal firing in the TNC that was evoked by an electrical stimulus. In those neurons whose l-glutamate firing was facilitated by the toxins, firing was evoked directly by electrical stimulation of the SSS. Supramaximal stimuli were applied to the SSS via bipolar platinum hook electrodes carefully placed under the sinus. Application of iberiotoxin and slotoxin (at 400 nA) for 5 min nearly doubled the neuronal firing in response to the electrical stimuli (Fig. 5). The histograms represent the cumulative frequency of action potential firing of cells in the TNC in response to 50 successive electrical stimuli of the SSS at latencies up to 50 ms divided into 0.5-ms bins (the stimulus artefact just after 0 ms latency can be seen on the most left-hand side of the histograms). Cell firing frequency returned to baseline control levels about 30 min after toxin application was stopped.

NS1619 decreased l -glutamate-evoked firing in SSS-linked TNC cells in vivo

The effects of the BK_Ca selective toxins suggested that BK_Ca is expressed in the nociceptive pathway of the trigeminocervical complex, and that BK_Ca inhibition increases the firing frequency of most neurons that receive nociceptive input. Therefore, we hypothesized that BK_Ca agonism would reduce firing in a toxin-sensitive manner. Indeed, NS1619 significantly inhibited l-glutamate-evoked firing in 14 of 19 (74%) cells tested. The inhibition was persistent across at least five epochs of l-glutamate application in each cell, and the inhibition slowly reversed after NS1619 application was stopped. In 10 of 10 (100%) cells tested, this inhibition was reversed to baseline firing or above by the application of slotoxin (Fig. 6). A clear dose–effect relationship of NS1619 was observed on neurons where increasing ejection currents were used (from −20 to −100 nA). Activity of current-matched control ejections from barrels containing vehicle controls had a much less and usually insignificant (P > 0.05) effect on l-glutamate-evoked firing compared with the test compounds. These results suggest that the action of NS1619 in the neurons receiving nociceptive input in the trigeminocervical complex is mediated, at least in part, through BK_Ca channels.

OPEN IN VIEWER

Figure 6

NS1619 inhibits l-glutamate-evoked firing of superior sagittal sinus-linked trigeminal nucleus caudalis neurons in vivo. (A) l-glutamate was ejected in pulses (–20 nA for 9 s of every 15 s) as indicated by the bars. When l-glutamate-evoked firing had reached a steady state over five epochs, the potassium channel opener NS1619 was microiontophoretically co-ejected (–80 nA) over a period of seven l-glutamate pulses as indicated by the solid horizontal bar. This effect reversed slowly and was sensitive to slotoxin (SloTx) when microiontophoretically ejected (200 nA). (B) Mean effects of microiontophoretic application of NS1619, NS1619 co-ejected with slotoxin, and slotoxin alone. The vertical axis represents the mean response to the test substances over five l-glutamate pulses, where the firing response to l-glutamate had reached a steady state, or for the first l-glutamate pulse where tachyphylaxis was sometimes observed at high (SloTx) currents, expressed as a percentage of baseline l-glutamate-evoked firing. NS1619 inhibition of l-glutamate-evoked action firing was dose dependent from −20 to −100 nA (∗P < 0.01, ∗∗P < 0.001, two-tailed one-sample t test vs. baseline). Slotoxin delivered (+40 to +80 nA) in the presence of NS1619 (–40 to −80 nA) reversed the suppression of l-glutamate-evoked action potential firing to around control levels (t ₉ = 1.68, P = 0.127, two-tailed one-sample t test). Slotoxin alone significantly facilitated l-glutamate-evoked firing [^## P < 0.01, anova from sodium acetate, pH 4.5, vehicle control (NaAc ctrl) with Dunnett post hoc comparison]. Ejection of the 100-mm sodium hydroxide vehicle control (NaOH cntl) did not produce significantly different change from baseline l-glutamate-evoked firing (t ₄ = 1.4, P > 0.23, two-tailed, one-sample t test; n = 5, 5, 9, 7, 7, 10, 30 and 6 from left to right).

BK_Ca modulation of nociceptors

The data demonstrate that BK_Ca channel modulators affect neuronal activity in response to excitatory chemical and electrical stimuli within the trigeminovascular nociceptive pathway. However, we are unable to determine in the in vivo preparation whether the modulation occurs presynaptically, on the invading axon from the primary sensory afferent emanating from the trigeminal ganglion, or post-synaptically, on the second-order neuron within the TNC itself, or at both sites. Since combined perfusion of CNQX and CGS19755 did not alter the firing frequency or amplitude of the spontaneous action potentials in the brain slice preparation, this suggests that the spontaneous action potentials from TNC neurons in that preparation are generated from intrinsic activity of the post-synaptic neurons. In patch clamping experiments, cesium was used to block post-synaptic BK_Ca channels to evaluate the possibility that BK_Ca channels localized on presynaptic TNC terminals may modulate neurotransmitter release. NS1619 reduced the frequency of sEPSCs and iberiotoxin reversed the effect of NS1619 under these conditions, indicating that BK_Ca channels also contribute to presynaptic neurotransmitter release. The complete block of sEPSCs by CNQX at the conclusion of these experiments indicates that they were mediated by glutamatergic AMPA/kainate receptors after presynaptic glutamate release under the influence of BK_Ca channels.

Strong evidence supports the expression and physiological role of toxin-sensitive BK_Ca channels on nociceptors. Small and medium-sized neurons (putative nociceptors) from primary cultures and thin slice preparations of rat dorsal root ganglion express toxin-sensitive BK_Ca channels (8, 18). In these in vitro settings, voltage-clamp experiments of single BK_Ca channels, as well as current-clamp recordings of whole neurons, indicate that the agonists NS1619, ethanol, and trichloroethanol, as well as the pore-blocking peptide iberiotoxin, have profound effects on the single channel kinetics, the action potential shape, as well as intrinsic firing properties. Similarly, NS1619 reduced single unit firing of Aδ and C-fibers recorded from guinea pig trachea and blunted the citric acid aerosol cough response in an iberiotoxin-sensitive manner. Several of these studies reported that a majority of the neurons tested (∼55–70%) express iberiotoxin-sensitive BK_Ca channels. This is in direct agreement with our results, where ∼70% of the TNC neurons electrically linked to the SSS (Aδ fiber input) were toxin sensitive and more than half of the TNC neurons tested in slice preparations significantly depolarized or increased their rate of firing in response to bath application of iberiotoxin. Little has been reported about BK_Ca channel expression or modulation on second-order neurons within the dorsal horn of the spinal cord or in the TNC. However, given the ubiquitous nature of BK_Ca channel expression within the central nervous system, it would be surprising if BK_Ca channels were not also expressed in these neurons.

BK_Ca channels have different functional roles depending on their subcellular localization. On the cell body, for example, BK_Ca channels reduce repetitive firing by shortening the action potential duration, speeding repolarization, and contributing to the fast after-hyperpolarization. Alternatively, at the presynaptic terminal, BK_Ca channels contribute to neurotransmission by counteracting calcium influx, thereby limiting vesicle release. Therefore, it is entirely possible that different mechanisms underlie the BK_Ca modulatory effects found in the l-glutamate paradigm, which uses local excitatory chemical stimuli in the TNC, and the electrical stimulation paradigm, which activates the peripheral afferent nerve ending. The electrophysiological data using extracellular and whole-cell recordings from rat TNC neurons in slice preparations suggest that BK_Ca modulation affects both the synaptic activity of the invading sensory neuron and the firing properties of the post-synaptic second-order neuron.

Potential impact of regulatory β-subunits

BK_Ca channels can be formed by homotetramers of α-subunits or by complexes with at least four families of β-subunits (β1–4). The coexpression of β-subunits, which have two transmembrane domains and a large extracellular loop, modifies the BK_Caα-subunit kinetic properties, intracellular calcium sensitivity, intrinsic modulation, and pharmacology such as toxin sensitivity. Slotoxin and iberiotoxin specifically and reversibly inhibit the BK_Ca channel pore-forming α-subunit as ‘pore-blockers’(35). However, slotoxin is capable of differentiating three types of BK_Ca channel complexes, α, α + β1, and α + β4 (13). Slotoxin inhibits the homomeric α-subunit with very low potency (IC₅₀∼1–10 nm) and the block is reversible upon wash-out. When α + β1 is the predominate BK_Ca channel complex, which is common in smooth muscle, but rare in neurons, where β1 expression is very low, slotoxin inhibits with very low potency (IC₅₀∼1–10 nm), but the inhibition is irreversible. However, when α + β4 is the predominating complex, which is possible in neurons because β4 expression is high, slotoxin is impotent (activity shifted ∼1000-fold lower), the on-rate is extremely slow (of the order of minutes), and the inhibition is irreversible. Given that in our experiments the facilitation of firing by slotoxin was rapid (within tens of seconds) and reversible, the results indicate that either the homomeric α-subunit is the predominant channel complex or that the α + β4 complex is toxin-sensitive in these trigeminal neurons. In addition, it is possible that the two other β-subunits that form a complex with the α-subunit (α + β2 and α + β3), of which less in known about their physiological role, could contribute to the pharmacological effects or potentially even underlie the mechanism of the tachyphylaxis observed in some neurons.

Clinical relevance

To explore a possible therapeutic potential for BK_Ca modulators we employed the model of SSS stimulation. Stimulation of dural structures is painful in humans (36), and in animal models, stimulation of dural sites, including the SSS and middle meningeal artery, results in neuronal activation in the trigeminovascular system. This activation is significantly inhibited by acute antimigraine drugs (37–45). Moreover, compounds found to be ineffective in acute migraine, such as substance P/neurokinin 1 receptor antagonists (21) and plasma protein extravasation inhibitors (46), are also ineffective in blocking trigeminocervical transmission in this model [e.g. (47, 48)]. This model compares favorably with investigation of the aura homologue phenomenon cortical spreading depression [CSD, (49)], which has not been predictive at all of the likely utility of acute antimigraine treatments (50, 51). The CSD model may be more useful in predicting effectiveness of preventive medicines (52, 53). Inhibition of trigeminal nerve activation is therefore helpful in evaluating new targets for the treatment of acute migraine. Another interesting aspect of the BK_Ca channel in migraine may be sensitization, the clinical manifestation of which is likely to be allodynia (54, 55). Our data indicate that should the BK_Ca channel be dysfunctional, as modeled by channel blocker treatments, trigeminal neurons become sensitized. Since not all migraineurs have allodynia, might it be that allodynia represents an additional functional burden in that group mediated by cosegregation of migraine biology and BK_Ca, or a similar channel, dysfunction? Finally, the widespread distribution of these channels on smooth muscle in vessels and in the lung may provide both challenges and opportunities. As dilators they might be predicted to reduce blood pressure or even have therapeutic actions in airways disease, although one might observe that simple is best in therapeutics and widespread actions may produce unwanted side-effect issues at some point (56).
