Gonadotropin Ratio Affects the In Vitro Growth of Rhesus Ovarian Preantral Follicles

Abstract

In vitro follicle growth (IVFG) strategy is critical in the fertility preservation of cancer survivors; however, its optimal protocol needs to be developed using primate models since the availability of human samples is limited. Only a few previous studies have reported the successful IVFG of rhesus monkey ovaries using low-dose follicle-stimulating hormone (FSH) (0.3 or 3 ng/mL) and long-term culture (up to 5 weeks) and it is still uncertain in regard to the optimal culture duration and effective dose of treated gonadotropins applicable to the IVFG of rhesus preantral follicles. Recently, we have reported that the FSH to luteinizing hormone (LH) ratio affects the in vitro growth of murine ovarian follicles. We aimed to investigate whether gonadotropin ratios affect the efficiency of rhesus follicular growth in vitro. Ovaries were collected from six necropsied rhesus macaques (4–9 years) and preantral follicles were retrieved and cultured for 14 days using 200 mIU/mL FSH. The characteristics of follicular growth were compared between the FSH:LH=1:1 (n=24) and FSH:LH=2:1 (n=24) groups. High concentration gonadotropin treatment shortened the duration required for in vitro maturation of rhesus preantral follicles. The FSH:LH=2:1 group showed a faster follicular growth and enabled the acquisition of mature oocytes, although the expression of growth differentiation factor (GDF)-9 and anti-Müllerian hormone (AMH) did not differ significantly between the two groups. Taken together, high dose gonadotropin treatment can shorten the duration of IVFG and the gonadotropin ratio is important in the IVFG of rhesus monkey ovaries.

Significance of this study

What is already known about this subject?

▸

Although previous studies have reported the successful IVFG of rhesus monkey ovaries using low-dose follicle-stimulating hormone (FSH) (0.3 or 3 ng/mL) and long-term culture (up to 5 weeks), it is still uncertain in regard to the optimal culture duration and effective dose of treated gonadotropins applicable to the IVFG of rhesus preantral follicles.

▸

Recently, we have reported that the FSH to luteinizing hormone (LH) ratio affects the in vitro growth of murine ovarian follicles, but whether this finding in rodents can apply to primate models is not known as yet.

What are the new findings?

▸

High concentration gonadotropin treatment shortened the duration required for the in vitro maturation of rhesus preantral follicles.

▸

The FSH:LH=2:1 group showed a faster follicular growth and enabled the acquisition of mature oocytes.

How might these results change the focus of research or clinical practice?

▸

The use of effective doses can reduce the duration of IVFG, which in turn improves the efficacy scientifically and practically if applied to clinical laboratories.

In vitro ovarian follicular growth (IVFG) has been used as a study model of early folliculogenesis,1 and recently tested as a fertility preservation technique since it can avoid the risk of reimplantation of malignant cells.2 3 Various animals have been adopted for this investigational use: mice,4 rats,5 bovines,6 monkies,7 and so on. Among them, murine models are widely used; however, the critical difference between rodents and primates, such as absence of menstruation and super multi-fetal gestation in rodents, may hinder the extrapolation of retrieved murine data to the interpretation toward any possible clinical implication. To overcome this hurdle, the use of and data acquisition from non-human primate models can be a reasonable option.

To date, the limited number of reports suggested different doses of treated gonadotropins and culture durations applied to the IVFG of rhesus monkey ovaries. Regarding the in vitro culture of secondary follicles (diameter of 130–366 µm), a few previous reports on the rhesus monkey ovary IVFG used an extended culture duration, that is, 4–5 weeks and a low dose of follicle-stimulating hormone (FSH) (0.3 or 3 ng/mL).8 9 In case of small antral follicle (diameter >500–2000 µm) culture in vitro, some groups used 75–220 mIU/mL FSH with or without 75 mIU/mL luteinizing hormone (LH) for 36–48 h.10 11

The optimisation of preantral follicle IVGF conditions is important in the context of fertility preservation. However, it is still uncertain in regard to the optimal dose and effective combination of gonadotropins which can be used for IVFG of rhesus preantral follicles. Recently, we have reported the efficacious ratio of two gonadotropins (FSH:LH) when murine follicles were grown in vitro.12 In this investigation, we attempted to elucidate (1) whether the IVFG with high dose gonadotropins can shorten the culture duration, and (2) whether two different FSH:LH ratios (1:1 vs 2:1) produce different IVFG efficiency, when the ovaries were collected from necropsied rhesus monkeys.

Materials and methods

Animals

Rhesus macaque monkeys that were imported from China and of conventional health status were used in this study.13 During the studies, the animals were maintained in cages measuring 105×75×80 cm (height × width × depth) with a squeeze-back mechanism in a temperature-controlled and light-controlled room (24±2°C, 40–60% humidity, and 12 h light/dark cycle). They were allowed to have access to a commercial pelleted diet supplemented with vitamin D (2050 Teklad Global 20% Protein Primate Diet, Harlan Teklad, Madison, Wisconsin, USA) and fresh fruit with tap water ad libitum, and remained under intensive veterinary supervision to monitor good health and body condition including attitude, appetite or behavior. Animals were sacrificed by intravenous injection of 10 mL of saturated KCl after anesthesia with intravenous ketamine (10 mg/kg), medetomidine (0.04 mg/kg) and vecuronium (0.2 mg/kg). All of the animal studies were performed after receiving approval of the Institutional Animal Care and Use Committee of the Biomedical Research Institute at the Seoul National University Hospital (SNUH-IACUC No. 15-0032).

Collection of ovaries

Ovaries were collected from rhesus monkeys (n=6) during necropsy procedures (figure 1). The abdomen was opened via surgical laparotomy. The uterus was identified and followed to fallopian tubes and ovaries bilaterally. From the excised tubo-ovarian complexes, the ovaries were transported to preparation media, minimum essential medium (MEM-α, Invitrogen, Grand Island, New York, USA) supplemented with 10% of fetal bovine serum (FBS) (Invitrogen) and penicillin/streptomycin (Invitrogen).

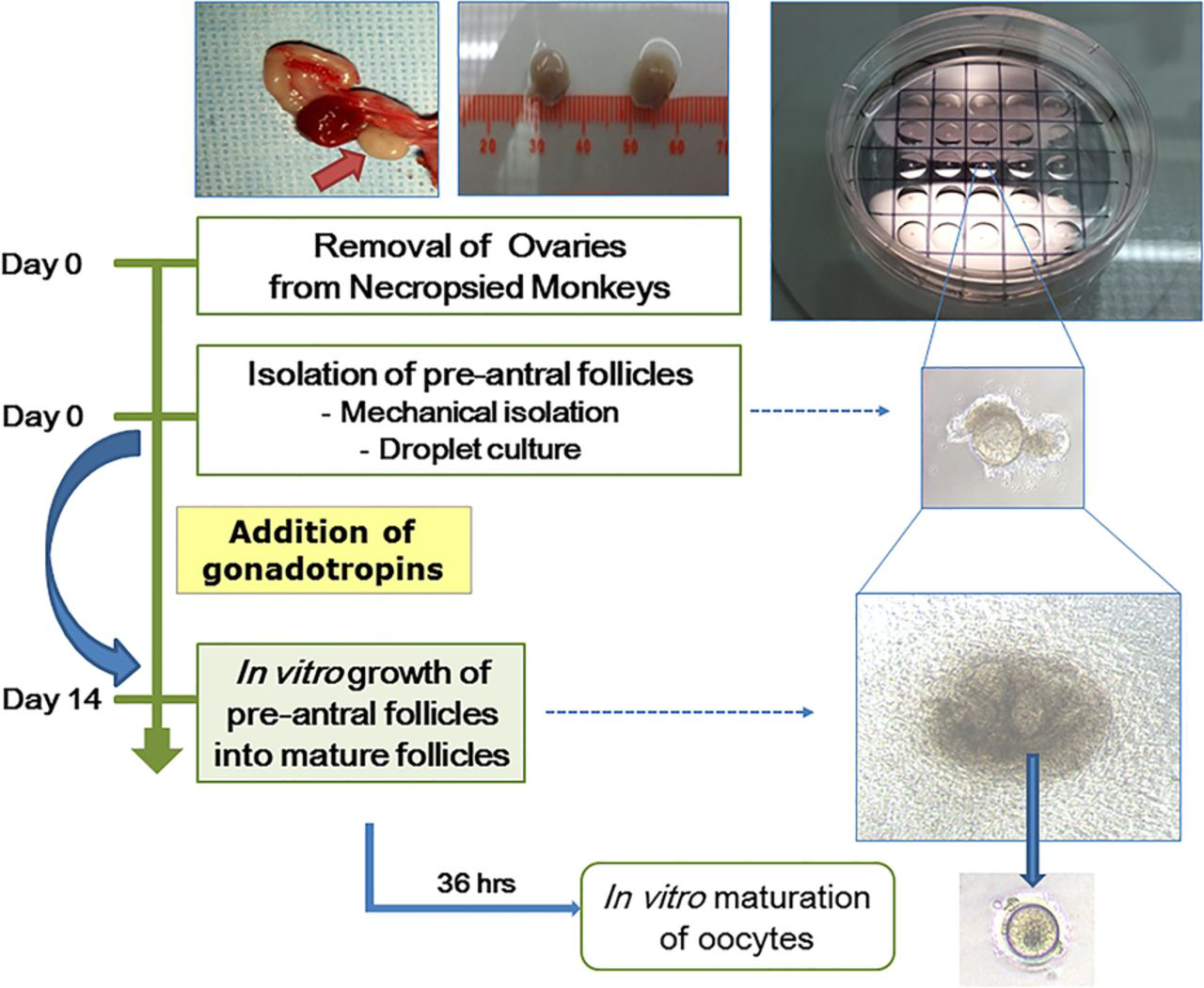

Figure 1

Schematic flow of experiments. The process of in vitro follicle growth is represented. Surgically collected rhesus monkey ovaries were used to isolate follicles which were then cultured in the individual droplets.

Follicle isolation and culture

Preantral stage follicles were used in the present study. A modification from previous reports12 14 15 is that ovaries were cut into pieces with a surgical blade and follicles were dissected under a stereomicroscope using 30 gauge needles in prewarmed preparation media. Isolated follicles were individually cultured in medium MEM-α, supplemented with 10% FBS, 5 μg/mL insulin, 5 μg/mL transferrin, 5 ng/mL sodium selenite (Invitrogen), 200 mIU/mL of recombinant human (rh) FSH (rhFSH, Gonal-F, Merck-Serono, Germany), and 100 or 200 mIU/mL of rh luteinising hormone (rhLH, Luveris, Merck-Serono). Each follicle was seeded in a single media droplet (300 μL) and then covered with mineral oil. Up to 25 follicles were seeded in a 60 mm embryo-grade culture dish (Nunc, Denmark). Half volume of the media was changed every other day. The attachment and growth of seeded follicles was observed using a phase contrast microscope.

Measurement of growth and oocyte maturation

The diameter of growing follicles was measured at day 2, day 9 and day 14 using the i-solution program (i-solution, Daejeon, Korea) and the mean diameter was calculated. At day 14, cumulus-oocyte complexes (COCs) were retrieved from grown follicles. Briefly, oocytes were mechanically isolated using 30 gauge needle and COCs were incubated with hyaluronidase (Sigma, St. Louis, Missouri, USA) for 5 min and washed. Oocytes were incubated in maturation media composed of MEM-α, supplemented with 20% FBS, 5 μg/mL insulin, 5 μg/mL transferrin, 5 ng/mL sodium selenite (Invitrogen), 6–8 IU rhCG (Ovidrel, Merck-Serono), and 10 ng/mL rhEGF (Invitrogen). Isolated oocytes were assessed by a phase contrast microscope which analyzed their nuclear maturation stage as germinal vesicle metaphase I and metaphase II.

Quantitative reverse transcription-PCR

For PCR reaction, five follicles from each group were pooled and three sets were analyzed for the evaluation of specific gene expression. Total RNAs were extracted from follicles using Trizol (Invitrogen). cDNAs were synthesized from 1 μg of total RNAs and Accute premix (Bioneer, Daejeon, Korea). Each specific primer was added to the cDNA and the sequences are listed in table 1. The amplification program included an initial step at 95°C for 10 min, followed by 45 cycles of denaturation at 95°C for 15 s per cycle, an annealing step at 58°C for 20 s. All the reactions were performed in triplicate and expression of Ct was calculated with glyceraldehyde-3-Phosphate Dehydrogenase (GAPDH) expression.

Table 1

Primer sequences for qRT-PCR

Gene	Forward (5′→3′)	Reverse (3′→5′)
GAPDH	GAAGGTCGGTGTGAACGAAT	TTTGATGTTAGCGGGGTCTC
GDF9	AACCCAGCAGAAGTCACCTC	AGGGGCTGAAGGAGGGAGG
AMH	GGGGAGACTGGAGAACAGC	AGAGCTCGGGGCTCCCATA

AMH, anti-Müllerian hormone; GAPDH, glyceraldehyde-3-Phosphate Dehydrogenase; GDF, growth differentiation factor; qRT-PCR, quantitative reverse transcription-PCR.

Immunostaining

To evaluate the localization of specific proteins, cells were washed with phosphate-buffered saline (PBS, Sigma) and fixed with 4% paraformaldehyde (PFA, Sigma) for 15 min at room temperature (RT). To inhibit non-specific binding, 3% bovine serum albumin (BSA, Sigma) solution was added to the cells and incubated for 1 h at RT. Primary antibody (1:100), rabbit anti-FSH receptor (SantaCruz Biotechnology, SantaCruz, California, USA) was applied for 1 h at RT. The cells were washed three times with PBS with Triton X100 (PBST, Sigma). The secondary antibody, Alexa Fluor 488-labeled donkey anti-rabbit IgG (Molecular Probes, Carlsbad, California, USA), was applied for 1 h at RT in the dark and washed three times with PBST. Cells were treated with the Prolong gold antifade reagent with 4',6-Diamidino-2-Phenylindole (DAPI; Invitrogen) and analyzed using a fluorescence microscope (EVOS-FL, Life Technologies, Grand Island, New York, USA).

Statistical analysis

Each experiment was performed at least three times. Each variable was compared using analysis of variance and t test and p<0.05 was considered as statistically significant.

Results

Basal characteristics of animals

The age of animals was 4 years 10 months to 9 years, and body weight was 5.1–6.1 kg. The distribution of blood type was one A, AB, O type each and B type in others. Two animals had been used for pig pancreas transplantation and four for pig cornea transplantation (table 2).

Table 2

Characteristics of necropsied monkeys used for ovary collection

No	Species	Age	Body weight (kg)	Blood type	Primary usage
1	Rhesus macaque	5 years 3 months	5.3	A	Pig pancreas islet transplantation
2	Rhesus macaque	4 years 10 months	5.1	AB	Pig cornea transplantation
3	Rhesus macaque	8 years 11 months	5.6	B	Pig cornea transplantation
4	Rhesus macaque	9 years	6.1	O	Pig pancreas islet transplantation
5	Rhesus macaque	5 years 3 months	5.7	B	Pig cornea transplantation
6	Rhesus macaque	5 years 3 months	5.6	B	Pig cornea transplantation

Follicular growth characteristics

The attachment of individually separated follicles was observed at day 1. Initial follicular diameter was in a range of approximately 220–380 µm. They expanded with accumulation of follicular fluid. However, in contrast to murine IVFG, the COCs did not ovulate with EGF and hCG treatment at day 14. After a mechanical tear of grown follicles, the retrieval of an oocyte was possible (figure 2). The proportion of dark or coarse follicles was not different between the two groups. Metaphase II oocytes were retrieved from the FSH:LH=2:1 group (table 3).

Table 3

Characteristics of follicles grown in vitro

	FSH:LH=2:1	FSH:LH=1:1
Color
Dark	33% (8/24)	42% (10/24)
Clear	67% (16/24)	58% (14/24)
Texture
Coarse	25% (6/24)	29% (7/24)
Silky	75% (18/24)	71% (17/24)
MII/total	2/24	0/24
cf. Xu et al (2015)
MII/total	2/22

FSH, follicle-stimulating hormone; LH, luteinizing hormone.

Figure 2

In vitro growth of rhesus monkey ovarian follicles. Preantral follicles were cultured in vitro using media supplemented with (A) follicle-stimulating hormone (FSH, 200 mIU/mL) and luteinizing hormone (LH, 100 mIU/mL) or (B) with FSH 200 mIU/mL and LH 200 mIU/mL.

Comparison of growth rate between different gonadotropin ratios

When the diameter of follicles was measured at day 2, day 9 and day 14, the FSH:LH=2:1 group showed a faster growth rate (p=0.014) and a greater diameter of preovulatory follicles (p=0.017) (figure 3A). The increase in diameter was also greater in the FSH:LH=2:1 group (p=0.039) (figure 3B).

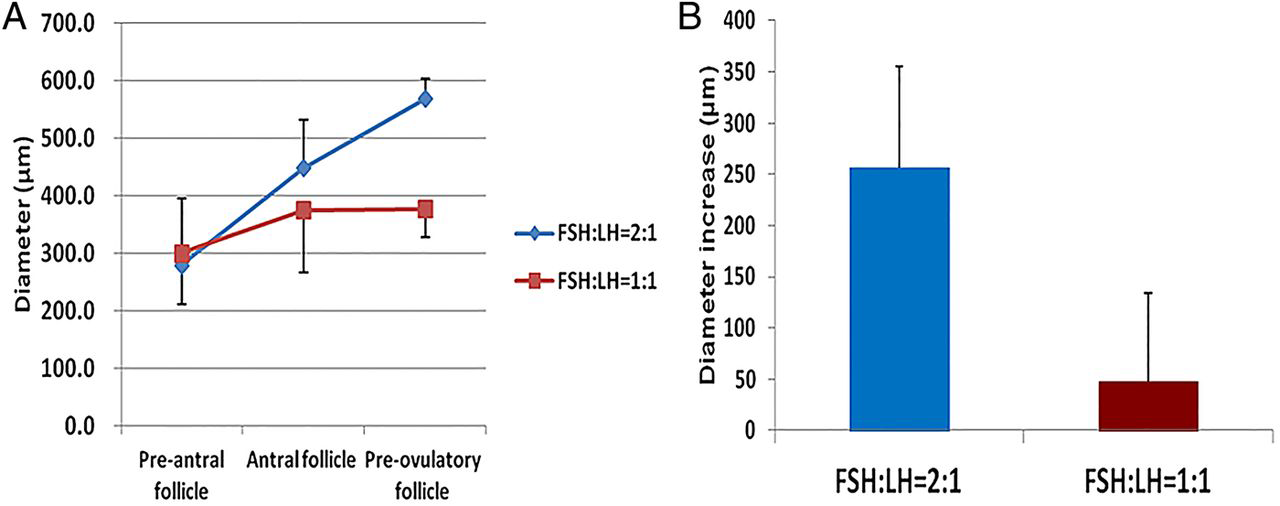

Figure 3

In vitro growth rate according to the gonadotropin ratio. Diameter of each in vitro grown follicle was measured by microscopic observation. The growth rate (A) and the expansion rate (diameter at day 14-diameter at day 2) (B) were calculated. Error bars represent SDs.

Expression of GDF-9, AMH and FSH receptors on grown follicles

The expression of GDF-9 and AMH on in vitro grown follicles in both groups at day 14 was comparable to that on antral follicles isolated at day 0 (figure 4A). The expression of FSH receptors was also comparable among the three groups (figure 4B). The FSH:LH=2:1 and FSH:LH=1:1 groups did not show any difference in the expression of GDF-9, AMH and FSH receptors (table 4).

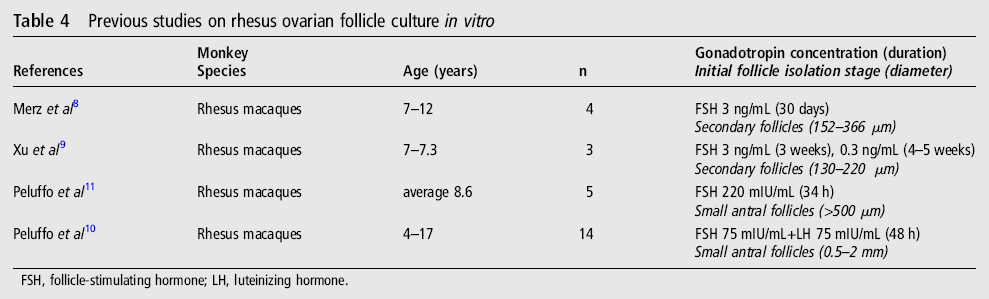

Table 4

Previous studies on rhesus ovarian follicle culture in vitro

References	MonkeySpecies	Age (years)	n	Gonadotropin concentration (duration)Initial follicle isolation stage (diameter)
Merz et al8	Rhesus macaques	7–12	4	FSH 3 ng/mL (30 days)
Merz et al8	Rhesus macaques	7–12	4	Secondary follicles (152–366 µm)
Xu et al9	Rhesus macaques	7–7.3	3	FSH 3 ng/mL (3 weeks), 0.3 ng/mL (4–5 weeks)
Xu et al9	Rhesus macaques	7–7.3	3	Secondary follicles (130–220 µm)
Peluffo et al11	Rhesus macaques	average 8.6	5	FSH 220 mIU/mL (34 h)
Peluffo et al11	Rhesus macaques	average 8.6	5	Small antral follicles (>500 µm)
Peluffo et al10	Rhesus macaques	4–17	14	FSH 75 mIU/mL+LH 75 mIU/mL (48 h)
Peluffo et al10	Rhesus macaques	4–17	14	Small antral follicles (0.5–2 mm)

FSH, follicle-stimulating hormone; LH, luteinizing hormone.

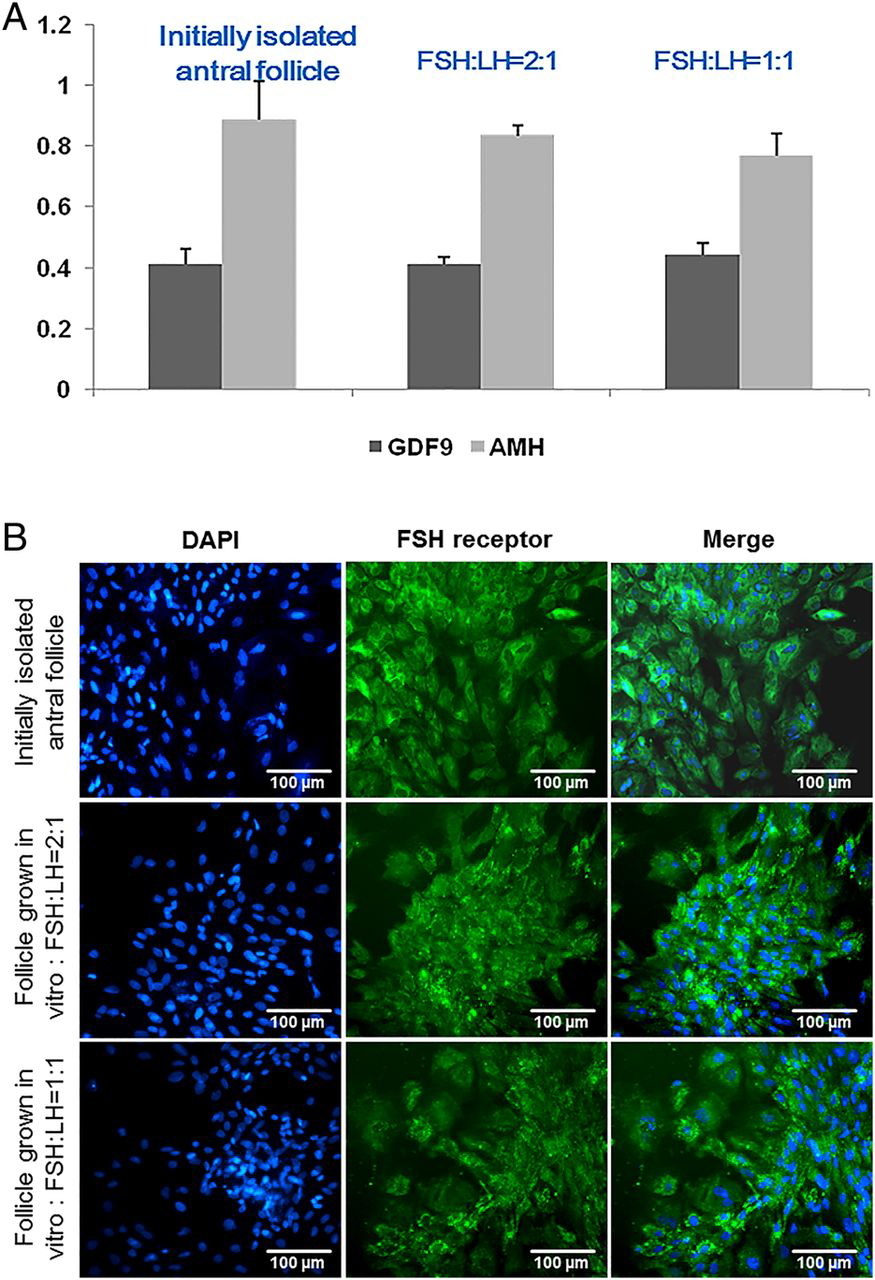

Figure 4

Gene expression on in vitro grown rhesus monkey ovarian follicles versus initially isolated antral follicles. Expression of GDF-9 and AMH (A), and FSHR (B) on initially isolated antral follicles and in vitro grown follicles. Error bars represent SDs. FSH, follicle-stimulating hormone. AMH, anti-Müllerian hormone; DAPI, 4',6-Diamidino-2-Phenylindole; FSHR, follicle stimulating hormone receptor; GDF, growth differentiation factor.

Discussion

To the best of our knowledge, our study is the first to show that high dose gonadotropin treatment shortens the duration of IVFG using rhesus preantral follicles (220–380 µm) and that the gonadotropin ratio affects the IVFG efficiency in rhesus models as well as in murine models. As aforementioned, previous reports employed low dose, long-term culture for the IVFG of secondary follicles sized less than 366 µm in diameter,8 9 or high dose, short-term culture for the IVFG of small antral follicles sized larger than 500 µm in diameter.10 11

To date, a very limited number of groups reported rhesus monkey IVFG data and the number of animals is not large enough compared to murine models, due to the far stricter regulations16 and higher maintenance expense. Recently, two reports used only three or four rhesus monkeys for the IVFG without other interventions, which is comparable to our study setting. Those studies were designed to assess the effects of various diets or the expression of markers on the in vitro grown rhesus follicles by treating with low-dose FSH for up to 5 weeks.8 9 Despite this limitation, non-human primate data can provide an insight on the difference in the ovarian physiology from those of rodents, for example, EGF and hCG treatment used for induction of in vitro ovulation in murine models did not induce spontaneous release of COCs from in vitro grown rhesus follicles, which necessitates further investigations searching for optimized in vitro COC release protocols in rhesus models. To date, rhesus COC maturation data have been collected from the mechanically retrieved ones.

In clinical practice, either FSH only or an FSH and LH combination has been used for the controlled ovarian stimulation in in vitro fertilization (IVF) cycles.17 Superiority of one over the other is still controversial because the individualization of stimulation protocols is necessary according to the basal hormone profiles of patients. Gonadotropin treatment is also essential in the IVFG of animal models. In many studies, only FSH was used,8-9 11 and in others a combination of FSH and LH was used.10 Our data showed that the FSH:LH of the 2:1 group was superior to that of the 1:1 group (figure 3). This is in line with our previous report on the optimal gonadotropin ratio during the IVFG in mice.12

A higher efficiency shown in the FSH:LH of the 2:1 group may have a clinical implication when polycystic ovarian syndrome (PCOS) is considered in terms of the FSH:LH ratio. PCOS is a common disorder associated with abnormal ovulation, affecting up to 10% of reproductive age women. For IVF patients with PCOS, it is common to observe a high cycle cancellation rate and relatively poor fertilization. A recent study showed that PCOS women had an LH/FSH ratio of 1.5–1.7,18 which is reversed compared to that of normal fertile women. In this context, the use of higher FSH and lower LH, for example, FSH:LH of 2:1, may probably show a better influence on the follicular growth.

The age of used animals is critical to the functional ovarian reserve. Most of the previous reports used rodents at the adolescent or pre-reproductive period, for instance 12–14-day-old mice, for IVFG of preantral ovarian follicles.12 14 15 In previous studies using rhesus monkeys, they retrieved ovaries from the animals of 7–12 years for small antral follicle culture10 11 and from those of 4–17 years for secondary follicle culture;8 9 both ages correspond to mid to late reproductive period since their adolescence begins at around 2 years. Our animals were younger than those in previous reports, that is, 4–5 years and two 8–9 years. However, it is uncertain whether this age difference influenced the IVFG outcomes.

The ovarian physiology of used animals may have been influenced by the administration of immune suppressant medications19 because they had been used for the purpose of porcine pancreatic islet or cornea xenotransplantation. However, this possibility is considered to be minimal or absent since the use of those drugs was stopped at least 1 month before necropsy, although any previous irreversible functional damage may have remained.

Taken together, although the overall efficiency of mature oocyte acquisition still needs to be improved, it is feasible to use the ovaries collected from the necropsied rhesus monkeys which had been treated with immune suppressant medications. The FSH:LH ratio of 2:1 is more favorable compared to the 1:1 ratio in terms of IVFG rate and mature oocyte retrieval. Further larger scale studies are necessary that use ovaries of cynomolgus and marmoset monkeys to evaluate whether this tendency is applicable to other strains.

Footnotes

Acknowledgements

The authors would like to express sincere thanks for the technical assistance of Jae Hoon Ahn, Jae Bum Ahn, Kyung Mon Roh, and Sang Young Park.

Contributors YYK and J-WY were involved in the in vitro experiments; HCL, JMK and CGP were involved in the primate care; ZR was involved in the data management B-CK and S-YK were involved in the study design.

Funding This research was supported by grants (HI14C2289 and HI14C2259) from the Ministry of Health and Welfare, Republic of Korea.

Competing interests None declared.

Ethical approval All of the animal studies were performed after receiving approval of the Institutional Animal Care and Use Committee of the Biomedical Research Institute at the Seoul National University Hospital (SNUH-IACUC No. 15-0032).

Provenance and peer review Not commissioned; externally peer reviewed.
