CTLL: A Cell-Based Transfer Learning Method for Localization in Large Scale Wireless Sensor Networks

Abstract

Localization is emerging as a fundamental component in wireless sensor network and is widely used in the field of environmental monitoring, national and military defense, transportation monitoring, and so on. Current localization methods, however, focus on how to improve accuracy without considering the robustness. Thus, the error will increase rapidly when nodes density and SNR (signal to noise ratio) have changed dramatically. This paper introduces CTLL, Cell-Based Transfer Learning Method for Localization in WSNs, a new way for localization which is robust to the variances of nodes density and SNR. The method combines samples transfer learning and SVR (Support Vector Regression) regression model to get a better performance of localization. Unlike past work, which considers that the nodes density and SNR are invariable, our design applies regional division and transfer learning to adapt to the variances of nodes density and SNR. We evaluate the performance of our method both on simulation and realistic deployment. The results show that our method increases accuracy and provides high robustness under a low cost.

1. Introduction

Localization is ubiquitous in our life, such as in river pollution monitoring and early warning, urban air quality monitoring, wildlife monitoring and protection, and so on [1–3]. Accuracy is important for applications [4–7]. Many researchers are looking forward to improve the accuracy of the localization [8–10]. For example, Stoleru et al. [10] exploited the spatiotemporal properties of well controlled events in the network (e.g., light), to obtain the locations of sensor nodes. However, when researchers focus on the accuracy of localization, they ignore the robustness to the variances of nodes density and SNR (signal to noise ratio). As a result, when the nodes density and SNR have changed dramatically, the accuracy will decline rapidly. Many applications will benefit from considering the robustness to the variances of nodes density and SNR. For example, sometimes we need to locate objects’ precise positions in low-SNR circumstances (such as in workshop that is full of roar of machines) and in intensive-nodes circumstances (such as traffic jam during the rush hours), where the changes of nodes density and SNR will influence the accuracy of nodes.

Robustness has received much attention [11]. The key global approaches [12, 13] (a pending node needs to communicate with all the other nodes in the network and collects its localization data) in this domain are based on received signal strength RSSI and obtain weighted Euclidean distance proximity through the measurement of RSSI [14]. Some researchers augment these methods by considering the robustness through designing protocols [15] and algorithms [16]. However, underlying those methods is an assumption that the nodes density and SNR are invariable, which is unlikely in most practical deployment. Nodes density and SNR always change under different circumstances of environment (e.g., traffic jam or blast) in most cases. Besides, because of collection and calculation of data in the whole network, the methods suffer from high energy consumption, high communication cost, and high computational cost, which existing mechanisms [17–19] suffer from. However, the high energy consumption is always a challenge in communication field.

Most of the proposed methods use RSSI values, $p r o x i m i t y$ , or connectivity information as localization data to construct training sets. And Euclidean distance is calculated through RSSI, the distance is not accurate when RSSI is measured through multihops. Thus there is only just single-hop among nodes. We call it single-hop positioning problem, as shown in Figure 1. Meanwhile, proximity/connectivity-based scheme of proposed methods suffer from low scalability: the changes of nodes’ topology are inevitable in practical monitoring networks, which makes the monitoring network a dynamically changed topology, and that will lead to uncertain measurement of proximity/connectivity data among nodes. Consequently, those uncertain measurements will result in the decrease of accuracy. We call it scale-weak problem, as shown in Figure 1.

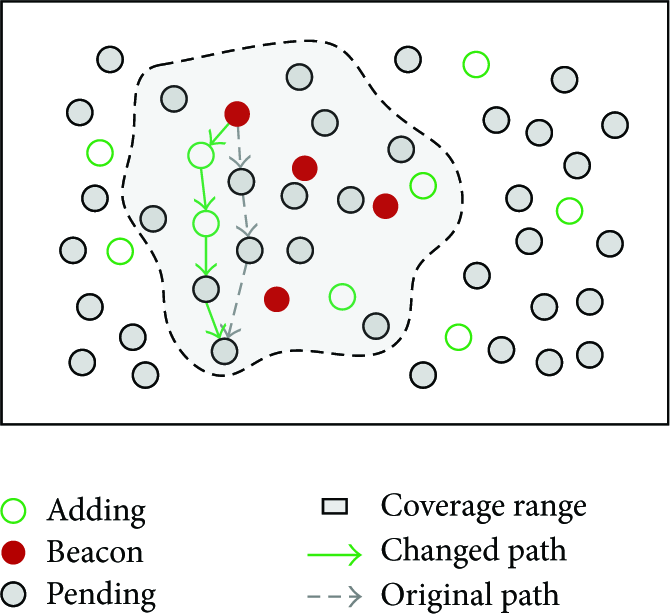

Figure 1

Examples for single-hop positioning problem and scale-weak problem. The red are beacon nodes and the grey are pending nodes. The range of beacon nodes just cover the nodes in grey area. When we use beacon nodes’ information to predict the location of pending nodes in grey area, the error is small while to predict the location of pending nodes outside the grey area, the error is big. That is single-hop positioning problem. And the shortest path from the beacon node to the pending node is the grey dash path. The green are the newly adding nodes. When adding these nodes, the shortest path from one beacon to a pending node changed from grey dash path to the green solid one. That is scale-weak problem.

This paper introduces CTLL, a Cell-Based Transfer Learning Localization method, which is robust to the variances of nodes density and SNR. In line with common practice in localization, CTLL employs beacon nodes, whose positions are known a prior. When the position of a pending node is queried, the pending node only needs to communicate with the beacon nodes that are in the same cell, which reduce the communication cost compared to global methods. Then we will obtain its position according to the trained model of each cell. The challenges however are how to design our cell-based beacon nodes, how to process the cell-based localization data, and how to train models for each cell.

Unlike past proposals, which have not considered the robustness to the variances of nodes density and SNR and the beacon nodes that are deployed randomly, we divide the whole network into many same size cells and then deploy the beacon nodes fixedly and uniformly in each cell. The pending node gets its position using the information that is obtained from the beacon nodes.

To illustrate CTLL's approach, Figure 1 shows a toy example, where the red nodes are beacon nodes and the grey nodes are pending nodes. As the figure shows, the range of beacon nodes just covers the nodes in the grey area in single-hop, when we use beacon nodes’ RSSI information to obtain the positions of the pending nodes that are outside of the grey area, the accuracy will be very low. When the topology of nodes changes, the shortest path from one beacon to a pending node changes from grey dash path to green solid path. Thus a robust localization scheme needs to consider the changes of nodes density and overcome the limit of single-hop problem.

So how can we locate the pending nodes in each cell? To do so, we need to employ SVR (Support Vector Regression) to achieve precise positioning. However, the difficulty of implementation is how to implement the SVR model on each cell. We use transfer learning to reduce the cost that comes form cell-based localization data. An important thing for SVR to implement localization is kernel function. Kernel function can map an inner product operation of high-dimensional space to the input vector function of low-dimensional space, and the mapping simplifies the computation.

In summary, the main contributions of this paper are as follows. (1)

It presents a cell-based localization method that exploits regional division and beacon nodes are deployed fixedly and uniformly in each cell. As a result, the system is robust to nodes density and SNR.

(2)

It also applies transfer learning and SVR to node localization and successfully uses them to implement node localization.

(3)

It presents a low-cost solution for localization, no matter in communication cost, computational cost, or energy consumption.

The rest of this paper is organized as follows. In Section 2, the reason why we choose localization that is based on learning will be introduced. Section 3 is an overview of CTLL. This is followed by localization scheme design in Section 4. In Section 5, we show how we do localization in each cell. In Section 6, the implementation will be presented and experimental evaluations will be showed in Section 7. Section 8 will introduce the performance analysis. Then related work will be followed. Finally, conclusions are presented and suggestions are made for future work in Section 10.

2. Background

2.1. Connection for Localization between Geometry and Learning

For localization methods based on geometric features, the first step is to measure Euclidean distances between pending nodes and beacon nodes. After measurement, the algorithm can estimate the physical position of the pending node according to the measured dual distance between the pending node and a beacon node [20].

Current localization methods typically based on solving a multilateration problem: $A X = B$ , where A is the distance vector between beacon nodes and the pending node and B is the positions of beacon nodes. Node localization can be seen as looking for a nonlinear mapping relationship X between distance vector A and positions B. There are n beacons, as shown in Figure 2; the beacons are marked by black, and the position of the pending node U will be obtained based on the dual distance vector A and positions of beacon nodes B. The positions of beacon nodes B are known a priori; thus we need to obtain dual distance vector A. Fortunately, many current approaches can provide such dual distance information.

Figure 2

A presentation of multilateration problem.

Generally, the dual distance d between a beacon node S and a pending node U can be calculated through the weighted shortest-path algorithm [21]. The path weights can be obtained from the signal propagation model:

\begin{matrix} p (d) = \bar{p (d_{0})} + 10 η l g (\frac{d}{d_{0}}) + p_{e}, \end{matrix}

(1)

where η represents the intensity of signal attenuation in the environment, the first term in the equation is the ideal value in distance

d_{0}

, and

p_{e}

is the measurement Gauss noise with zero-mean and standard deviation.

According to maximum likelihood method, the nonlinear mapping relationship X can be calculated as $X^{'} = (A^{T} A)^{- 1} A^{T} B$ . Let $F = (A^{T} A)^{- 1} A^{T}$ ; the multilateration problem can be rewritten as follows:

\begin{matrix} x_{u} = F_{1} \cdot B = g_{x} (V_{n}); \\ y_{u} = F_{2} \cdot B = g_{y} (V_{n}) . \end{matrix}

(2)

In (2), $F_{i}$ ( $i = 1,2$ ) is the ith row vector of F and $g_{x}$ and $g_{y}$ are N-element nonlinear functions and they describes the mapping relationship between distance vector $V_{n}$ and coordinates of beacon nodes $(x, y)$ . It can be seen from (2) that there exists nonlinear mapping relationship between $V_{n}$ and the coordinates of pending nodes. We can know from the transitivity of mapping relationship that if there exits mapping relationship between localization information of nodes $V_{v}$ (not their coordinates) and distance vector $V_{n}$ , there will exist mapping relationship between node localization information $V_{v}$ and coordinates of pending nodes. Thus the localization information of nodes $V_{v}$ can map into the coordinates of pending nodes. However, localization methods that are based on learning are looking for that nonlinear mapping relationship to predict the positions of pending nodes.

2.2. Localization Based on Learning

Many learning-based methods have been proposed, as analysed above. The learning-based regression model [22, 23] has also been proposed. The regression model first measures the similarities among nodes. Then the regression model trains a learner based on the positions and the measured similarity of nodes. Finally, the positions of the unknown nodes will be obtained by employing the trained learner with the online measured localization data. Suppose that there are n nodes placed in a geographical region c. Let $y_{i}$ represent the position of node i, and the first m ( $m ≪ n$ ) nodes are the beacons. We assume that each node can transmit the localization data to all its neighbors within its communication range. There are two kinds of localization data that the nodes need to transmit: the signal strength and the weighted shortest-path distance.

(i) Signal Strength. $S_{i j}$ represents the signal strength that node i received from node j. We set $S_{i i} = 0$ . If node i is out of the communication range of node j, we simply set $S_{i j} = - 95$ , since it is the minimum strength that the signal received in the environment.

(ii) Weighted Shortest-Path Distance. $d_{i j}$ represents the shortest-path distance between the node i and node j. We set $d_{i i} = 0$ . Let $d_{i j} = 1$ , when i and j are single-hop neighbor. If node i is out of the communication range of node j, $d_{i j}$ can be obtained by a weighted shortest-path algorithm [21].

The objective for localization is to determine the positions of the remaining $(n - m)$ pending nodes. And the position of pending node j can be obtained from the position $y_{i}$ of node $i (i < m)$ and the localization data $x_{j}^{(i)} (S_{i j} / d_{i j})$ of node j. Each localization data vector $x^{(i)} = (x_{1}^{(i)}, x_{2}^{(i)}, \dots, x_{m}^{(i)})^{T}$ is a data instance and its label is $y_{i}$ . Because the regression can transform nonlinear space into linear space. Thus, consider node localization as a regression problem: $f (z) = 〈ω, z〉 + b$ , in which z is the mapping vector between x and y, b is the bias term in regression model, $f (\cdot)$ outputs the corresponding positions, and $〈\cdot, \cdot〉$ represents a dot product.

The above step corresponds to the offline training localization model, and x-coordinate and y-coordinate need to be trained separately on a 2D space and produce two models. Then learned regression functions f which are based on ${x^{(i)}, y_{i}}$ are used to predict the positions of pending nodes, which corresponds to the online prediction step.

However, as shown in Figure 1, the red are beacon nodes which periodically transmit radio signals. The grey are pending nodes, which need to collect the localization data to estimate their positions. When using the localization data of the red nodes for SVR model training, the model just works well in the grey area. The nodes outside the grey area will get terrible results because red beacon nodes’ communication range just covers the grey area. If we expand the distribution region of the beacon nodes, the errors of both the grey area and outside grey area will increase. So, the contradiction between large distribution region of training localization data and generalization ability is prominent.

Besides, the movement or the access of nodes will also bring challenges. When there are new nodes joining in, which marked by green in Figure 1, the weighted shortest-path from the beacon to a pending node will change. As a result, the measured localization data appears to have large disturbance, and the disturbance needs the learned model to make some adjustments.

The challenges of model generalization and the change of nodes’ topology call for a careful consideration about the localization data themselves. We need a new way to manage the localization data which can trade off the training data distribution region and model generalization. That is to say we should reduce the negative effect of the movement or the access of nodes.

3. CTLL Overview

Different from the base stations used in GSM network, we use the beacon nodes (S nodes) to achieve the coverage of a cell, which is the basic unit in WSNs. Then, we use a local way to collect and handle the localization data in the cell. Each S node and non-S node within the region obtain their localization data just from each single cell. Based on those locally collected localization data, CTLL will establish learners to predict the positions of non-S nodes.

To locate a pending node at a high level, CTLL goes through the following steps, as shown in Figure 3. (1)

Divide the whole network into many cells with the same size. And the length of the cell is 0.83 R, which will be showed in Section 5.

(2)

Deploy eight beacon nodes in each cell, and the number of beacon nodes in each cell will be demonstrated in Section 5.

(3)

To locate a pending node, firstly we need to know which cell the pending node is in. All the beacon nodes in one cell send signals to the pending node. If the pending node can receive all the signals from all the beacon nodes which are in the same cell, we can make sure that the pending nodes is also in the cell. So the next work is how to locate the pending node in each cell?

(4)

In each cell, we collect a certain amount of samples as the training set, and establish a regression model on the basis of the training set and SVR. Then the position of the pending node can be calculated when the localization data of the pending node is put to the model.

(5)

Note that a pending node's localization is precisely the same to multiple nodes’ localization, because there is no need to collect localization data among pending nodes.

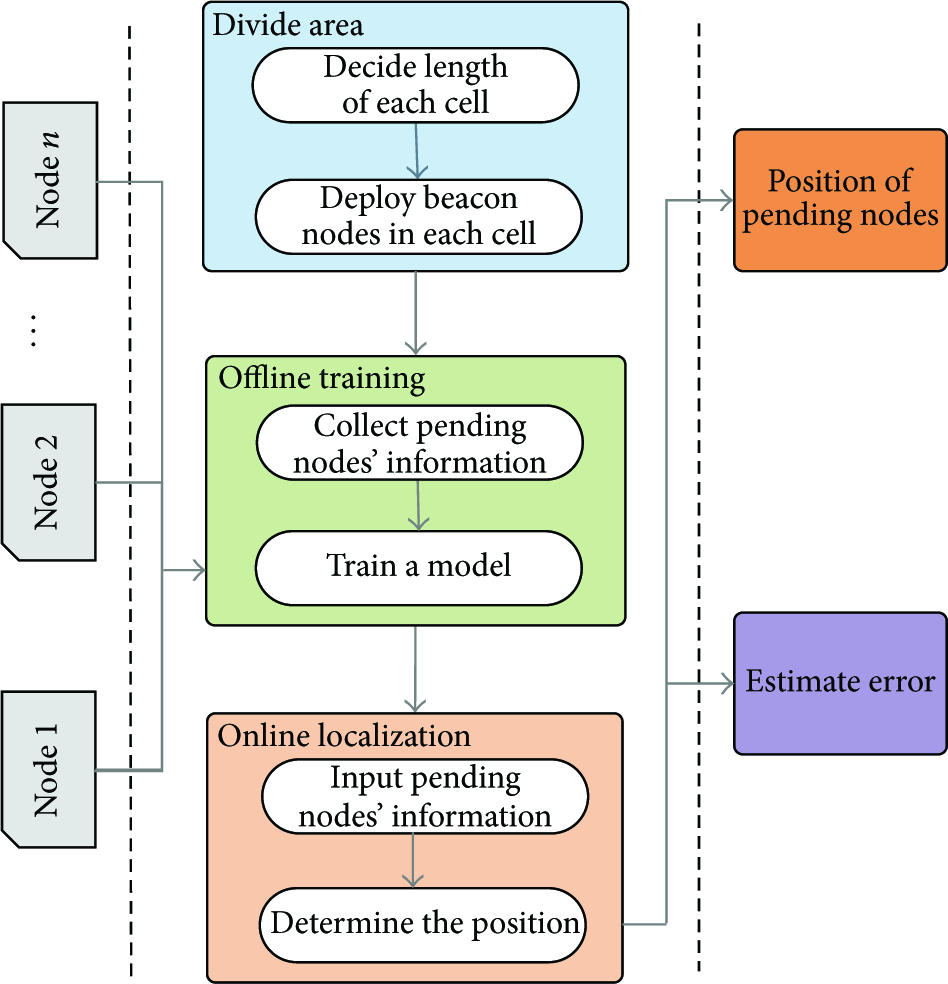

Figure 3

CTLL overview.

4. System Design for CTLL

This paper introduces CTLL, which solves the high costs and also improves the scalability and robustness of the system.

However, the efforts to use CTLL scheme for localization are based on two parts of work: the design and deployment of fixed facilities (S nodes) and the training of regression model in each cell. The design of the cell is the hard core of the scheme. And it includes the following aspects. (1)

How many beacon nodes should we deploy in each cell? With the increase number of beacon nodes, the accuracy of localization improves while the communication cost increases accordingly. So we need to make a trade-off between performance and cost.

(2)

How large should a cell be? If the cell is too small, we need to process many cell-based data, which will lead to the increase of computational cost; if the cell is too large, the pending nodes in the cell may not communicate with beacon nodes within the radio range.

(3)

Why do we choose SVR regression model in the cell to locate the pending nodes?

(4)

When we use SVR regression model, we need to use kernel function; what kind of kernel function can make SVR better and obtain minor error?

(5)

When we use SVR regression model, we need to train a model in advance; thus we need to choose some sample points as the training set in advance. However, intensive sample points and sparse sample points in SVR model can achieve different results. So, how to choose sample points is also a question we need to consider.

(6)

In order to locate the pending nodes in each cell, we need to collect sample points’ data in each cell, and collection work is huge and time-consuming. So instead of collecting data of each cell, how can we apply one cell's data to another cell? And that is transfer learning works.

4.1. Effective Number of Beacon Nodes in Each Cell

According to the requirement of geometry, there are two basic conditions needed to be satisfied when using multilateration for localization: (1) vector space mapping condition (physical quantity to be used for constructing the localization vector must be the function of dual distance, and the vector should involve more than three independent components); (2) position and number of beacons (beacons cannot be located in the same straight line; meanwhile, the number of beacons must be more than three).

RSSI is the function of dual distance, which can be used for constructing the localization vector. Meanwhile, beacons that exist in the network can be regarded as independent events to provide radio signals. Obviously, the RSSI vector will involve more than three independent components.

According to the derivation in [24], the Cramer Rao Lower Bound (CRLB) of the estimate position for one-hop multilateration can be calculated as follows:

\begin{matrix} {σ_{0}}^{2} = σ^{2} m {[\sum_{i = 1}^{m - 1} \sum_{j > i}^{m} \sin^{2} α_{i j}]}^{- 1}, \end{matrix}

(3)

where

{σ_{0}}^{2}

is the variance of nodes’ estimated positions,

α_{i j}

is the angle between each pair of beacons (

i, j

σ^{2}

is the variance of measurement error, and m is the number of beacon nodes. According to this formulation, the uncertainty of estimated positions comes from three parts: the measurement uncertainty σ, the number of beacon nodes, and the geometric relationship

α_{i j}

between beacon nodes i and j. It implies that the impact will come from the positions and number of beacons when the measurement error is fixed.

In order to have a better understand of CRLB, Figure 4 gives four simple geometrical relationships between beacon nodes and the pending node in our cell. The distances between beacon nodes and pending node are equal in Figure 4. For example, there are three beacons, one is fixed and the other two move. The angles between the two moved beacons and one fixed beacon are separately α and β, which is from 0 to $2 π$ . From (3), we can know that the estimate error will decrease effectively when angle β is a multiple of α under the same measurement error. Thus when we deploy the beacon nodes uniformly, the error will decrease.

Figure 4

Several simple localization scenarios for beacon nodes.

Now, from the perspective of entropy reduction, we analyze the differences among different numbers of beacon nodes used in the cell. When given the number of beacon nodes, the discriminative ability of beacon nodes for pending nodes in the cell can be calculated as follows:

\begin{matrix} InfoGain (N) = H (G) - H (G | N) . \end{matrix}

(4)

In (4), $H (G)$ is the entropy of pending nodes’ positions G and N is the number of beacon nodes. In Figure 4, the pending nodes’ positions in all cases are the same, so this item is a constant. Consider that $H (G | N) = - \sum_{v} ‍ \sum_{i = 1}^{N} ‍ P r (G) P r (S_{i} = v) l o g {P r (G) P r (S_{i} = v)}$ computes the conditional entropy of pending nodes’ positions.

Dual distances between the pending node and beacon nodes are the same, because beacon nodes uniformly independently distribute around the pending node. And RSSI value v on $S_{i}$ that follows a uniform distribution can be regarded as a fix probability p, so (4) can be rewritten as follows:

\begin{matrix} InfoGain (N) = - N * p l o g p . \end{matrix}

(5)

Equation (5) shows that the value of entropy reduction is negatively correlated with the number of beacon nodes N. Obviously, with more beacon nodes in the cell, it will have better discriminative power and gain more position information for localization.

In Figure 5, we define increasing rate as the ratio of the improvement of estimate error to the square of the increase number of beacon nodes, where the abscissa is the effective number of the beacon nodes, and the ordinate is the increasing rate. From Figure 5, we find that with the increasement of effective number of beacon nodes, the increasing rate decreases accordingly. When the effective number of beacon nodes is 7, 8, 9, and 10, the increasing rate changes very slowly. However, when pending nodes communicate with beacon nodes, the communication comes with certain cost. That means the more beacon nodes we deployed, the greater the communication cost is.

Figure 5

Relationship between the number of beacon nodes and the improvement of estimate error.

Based on the analysis above, in order to better deploy, we design our cell that consists of eight beacon nodes with a regular octagonal-shaped distribution.

4.2. The Size of the Cell

When we choose 8 as the effective number of the beacon nodes, the deployment of them is shown as Figure 6. Assume that R is communication radius of beacon nodes; eight S nodes scatter uniformly in the cell margin. Two adjacent beacon nodes evenly divide a side of a cell, and the length of each side is d ( $d < R$ ). Q is the cell ID. Pending nodes within Q cell can receive signal strength from these eight S nodes. There are many basic cells like Q in the whole network, and pending nodes are randomly scattered in each cell.

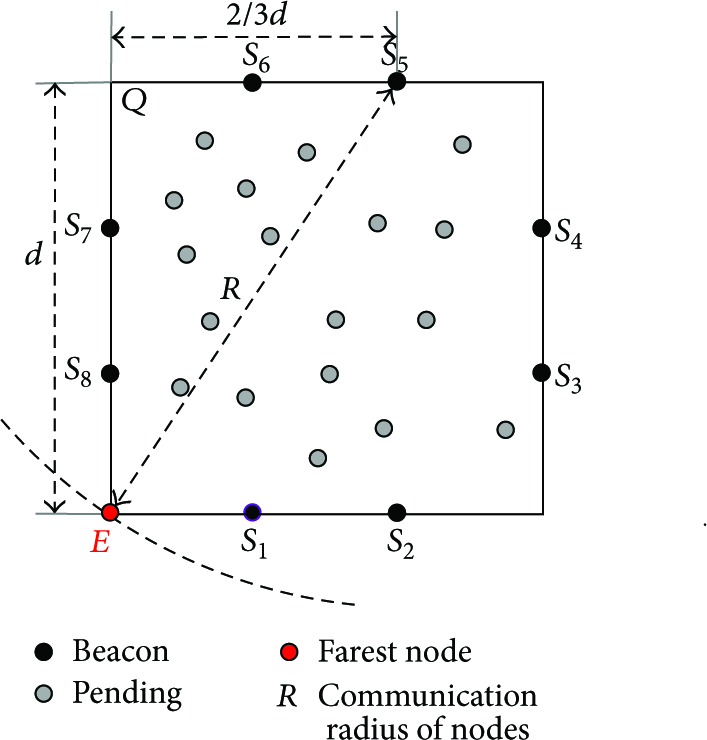

Figure 6

The basic structure of a cell.

Now, we discuss the cell side length d. As shown in Figure 6, eight S nodes are marked by black points, and every two adjacent S nodes divide a side length of a cell into uniform trisection. Because of the symmetry, we illustrate the relationship between R and d just on $S_{5}$ node. The coverage area of $S_{5}$ node in the cell is a fan-shaped region with radius R and the center is $S_{5}$ . E is the farthest node which can be covered by $S_{5}$ in this cell. Assume that the distance between beacon node $S_{5}$ and farest node E is the communication range R. Here, we get a right triangle with two points, $S_{5}$ and E, one hypotenuse, R, and two right-angle sides, d and $(2 / 3) d$ . According to the characteristic of a right triangle, the relationship between R and d satisfies the following equation:

\begin{matrix} d = \frac{3}{\sqrt{13}} R \approx 0.83 R . \end{matrix}

(6)

Finally, our cell is a square area with side length d and eight octagonal distributed S nodes.

4.3. Why Choose SVR Regression Model

In the process of deployment, overfitting, underfitting, and local minimum are common problems; however, they can be better solved by using SVR [25].

SVR regression model develops on the basis of statistical learning theory, and the basic idea is that through kernel function, it can transform the training samples in low-dimensional inseparable input space into the feature vectors in high-dimensional liner separable space, thus avoiding the problems mentioned above.

For SVR regression model, we need to train a model according to training set so that when we input the test set, the model can predict the positions of pending nodes in the test set. The training set and test set consist of localization data of samples. However, we divide the network into many cells, so the model needs to have a good generalization performance so that we can use a small number of sample points to train the model. When we collect the data in data collection phase, the data collection needs to be proper and has a precise data set with noise.

SVR has a good generalization and ability to resist noise, using SVR regression model to locate pending nodes has the following characteristics. (1)

In case of small number of sample points, SVR can achieve good generalization performance.

(2)

SVR has good noise resistance; it can reduce the influence of measured noise on the results of localization and improve the positioning accuracy.

(3)

Half a free style WSNs (beacon nodes deployed fixedly and pending nodes deployed randomly) has a good applicability, because it can respectively build SVR regression model according to different basic positioning cells.

The characteristics of SVR model just suit the requests of the model that we are looking for, so we choose SVR regression model in each cell to locate the pending nodes.

4.4. The Choice of Kernel Function

When SVR regression model is used to train a model, the choice of kernel function has big impacts on predicted positions, and these impacts are listed as follows. (1)

From the perspective of space mapping, when we use kernel function instead of vector inner product for regression model, kernel function can determine the nonlinear transformation rules that is from low-dimensional input space to high-dimensional linear separable space. Thus if we change the rules by changing the expression or parameters of kernel function, the results of regression fitting and prediction results will change.

(2)

From the perspective of sample similarity (there exists the inner relationship among the nodes located in different positions, and the inner relationship can be reflected through the sample similarity based on distance or the signal strength vector among nodes), the prediction results depend on the similarity between unknown samples and training samples. SVR measures the similarity between samples through inner product operation in high-dimensional linear separable space; thus the calculation of sample similarity and the prediction results will change if we change the type or parameters of kernel function.

Kernel function reduces the amount of calculation by transforming complex inner product of high-dimensional space into vector function of low-dimensional input space [26].

The type of kernel functions is usually chosen according to empirical knowledge, and the parameters are optimized by cross validation. For node localization in WSNs, the kernel function needs to have good prediction effect for the model, simple form, and a few parameters. Wu et al. [27] said that the RBF kernel function is commonly used as the kernel for regression. And Huang and Siew [28], Lin and Liu [29], Min and Lee [30], and many other also demonstrate the choice of RBF kernel function in their papers. In addition, in this paper, we compared the localization performance of SVR under three types of kernel functions: linear kernel function, polynomial kernel function, and the RBF kernel function. We do the experiment in simulation environment, different types of kernel function in SVM correspond to different values, and we just need to change the corresponding values in SVMtrain (train a model for SVR according to the input training set) when we want to change the types. The results are shown in Figure 7, and the mean error is calculated with 200 training samples and 200 test samples. From Figure 7, we can know that the error is the minimum when using RBF kernel function, meanwhile RBF kernel function contains only one parameter and has simpler form compared to linear kernel function and polynomial kernel function. According to the analysis above, we choose RBF kernel function for SVR regression model in this paper.

Figure 7

The relationship between localization error and type of kernel function. And the deviation is standard deviation that calculated with 200 training samples and 200 test samples.

4.5. How to Choose Sample Point

Distribution region of training samples is the learning region of SVR. If the more intensively training samples are distributed, the more fully SVR regression model is learned and the SVR regression model has higher generalization ability in the region. However, the intensive distribution of training samples will cause the increase of computational cost in regression model and model error.

Training samples are the basis of SVR regression model, and they correspond to the points in feature space (called the training sample points). The localization method of SVR model constructs input vector of training samples according to the coordinates of sample points in network area. Thus, the distribution of sample points affects the spatial distribution of training sample points.

When we choose sample points in sparse samples model, the distribution of sample points in feature space cannot be close to the pending nodes, so the regression fitting curve that is obtained by using sparse model is inaccurate. However, in intensive sample model, the distribution of sample points in feature space can extremely close to the pending nodes. So the regression fitting curve that is obtained by using intensive model is more accurate.

However, sparse distribution of the training samples will bring two problems: computational cost of regression model increases and model error increases. The similarity between adjacent training sample points is higher in intensive distribution. However, the resolution of SVR model for adjacent training sample points is very poor, thus causing the increase of model error.

The relationship between distribution of sample points and distribution of training sample points makes the choice of sample points’ distribution very important. The more intensive sample model, theoretically, makes the regression fitting curve more accurate. But we need to weigh the following two points. (1)

Sample pattern should not aggravate the calculation in the regression model process.

(2)

Sample pattern should not expand the model error.

4.6. Why Do We Need Transfer Learning

Because there are many cells in the whole network with the geographic variation, we need to collect data and construct SVR models for each cell. However, the labor cost is too high due to a large and repeated collection of data. To solve the problem, the transfer learning can provide a unified management of the training samples to separate them from their collection for each cell.

Transfer learning, as a method of expired data reuse, can obtain valuable information from the expired training data and thus transform and share information between different scenarios. Through transfer learning, the expired positioning scenarios of training samples still can be used to train in new positioning scenarios. Thus it greatly reduces the demand for the number of training sample points in positioning process. It makes the generalization performance of positioning model better in the area under the situation that the spatial distribution of sample points is invariable.

Being inspired, we propose SVR local regression model based on sample transfer learning, which deploys a supercell in advance and is dedicated to collect training samples. In actual deployment of a supercell in half a freestyle WSNs, the supercell can be applied to each local positioning unit cell by adjusting the weights of these collected training samples. By adjusting the weights, the SVR regression model is built with low cost. In this paper, we choose TrAdaBoost [31] as the transfer learning algorithm.

5. How We Do Localization in Each Cell

We use the cell as basic unit to train the localization data; it means that a pending node just needs to communicate with eight beacon nodes in a cell where the pending node is located. As each localization data on single cell is one-hop localization, we use SVR formulated in (7) to train the regression model and to predict the positions of pending nodes in cells.

SVR is to find an appropriate w, so that the regression loss is minimized. Localization problem under a soft-margin SVR framework is

\begin{array}{l} \min J (ω, ξ_{i}, ξ_{i}^{*}, b, φ) \\ = c \sum_{i = 1}^{n} (ξ_{i} + ξ_{i}^{*}) + \frac{1}{2} {‖ω‖}^{2} + λ Ω (φ) . \\ y_{i} - ω \cdot φ (x_{i}) - b \leq ε + ξ_{i}; \\ ω \cdot φ (x_{i}) + b - y_{i} \leq ε + ξ_{i}^{*}; \\ ξ_{i}, ξ_{i}^{*} \geq 0, \end{array}

(7)

where ε,

ξ_{i}

, and

ξ_{i}^{*}

are the fitting errors of SVR regression model:

f (z) = 〈ω, z〉 + b

, and the detailed formulas are showed in [32].

Theoretically, if training localization data x and nodes’ positions y are infinite and measure noise on x does not exist, SVR regression model can accurately describe the mapping between x and y. However, only a small amount of localization data can be used for SVR model training, because the deployment of the nodes cannot be very intensive. Then it will cause the model effect error due to the estimation error with the approximate mapping relationship. Meanwhile, each cell needs to collect a priori data to train a regression model for itself, and the number of cells will decide how many times we need to do the collection work. The cost will be very expensive since there are many cells in the whole network. In order to deal with this problem, we employ a special cell called supercell and use the transfer learning approaches TrAdaBoost [31] to realize the data reuse from supercell to other cells.

A supercell is a predeployment test cell with intensively deployed nodes, which can be used to provide intensively distributed localization data and is represented by $D a t a_{s o u r c e}$ . Localization data provided by eight S nodes in an actual deployed cell Q is represented by $D a t a_{r e f e r e n c e}$ . We apply TrAdaBoost to achieve the localization data $D a t a_{s o u r c e}$ 's reuse and train SVR regression model to estimate the positions of $D a t a_{u n k o n w n}$ for an actual deployed cell. And TrAdaBoost [31] is described as follows.

Step 1.

Set weight $ω = 1 / n$ for each data item of $D a t a_{s o u r c e}$ and $ω = 1 / m$ for $D a t a_{r e f e r e n c e}$ , where n and m are separately the number of data items of $D a t a_{s o u r c e}$ and $D a t a_{r e f e r e n c e}$ . N is the repeat times of adjusting the weights; set $β = 1 / (1 + \sqrt{2 l n n / N})$ .

Step 2.

Redo the following operation N times. (a)

Set $p = ω / \sum_{i = 1}^{n + m} ‍ ω_{i}$ .

(b)

Get new learner h based on the weight distribution p on $D a t a_{s o u r c e}$ and $D a t a_{r e f e r e n c e}$ . Because the SVR model in 2D localization must be done in x-coordinate and y-coordinate, respectively, h is a combination of two SVR model: $h_{x}$ and $h_{y}$ .

(c)

Get probability

\begin{matrix} ε = \sum_{i = n + 1}^{n + m} \frac{ω_{i} |h (x_{i}) - c (x_{i})|}{\sum_{i = n + 1}^{n + m} ω_{i}} . \end{matrix}

(8)

(d)

Set $β_{i} = ε / (ε - 1)$ ; get new weight:

\begin{matrix} ω_{i} = \{\begin{cases} ω_{i} β^{|h (x_{i}) - c (x_{i})|}, & i from {D a t a}_{s o u r c e}; \\ ω_{i} β_{t}^{- |h (x_{i}) - c (x_{i})|}, & i from {D a t a}_{r e f e r e n c e} . \end{cases} \end{matrix}

(9)

Step 3.

Based on weights of $D a t a_{s o u r c e}$ , we use $D a t a_{s o u r c e}$ and $D a t a_{r e f e r e n c e}$ to train SVR model h and estimate positions of $D a t a_{u n k o n w n}$ on cell Q by using trained SVR regression model h.

The specific steps for localization in each cell are as follows, and this also shows how CTLL works. Assume that the network is connected and the pending nodes can communicate with the beacon nodes directly because the basic unit cell is small enough. And they use the signal strength information as the feature vectors to estimate the positions of pending nodes. There exists a basic routing protocol to provide the received signal strength $s s (S_{i}, S)$ that is from pending nodes to S node i. The positioning process for CTLL independently executes in parallel in each cell and the CTLL in each cell can be divided into the following several steps to complete. (1)

The pending nodes communicate with 8 S nodes and record the information of packets such as the ID and signal strength and obtain an eight-dimensional signal strength vector $s = (s s (S_{1}, v), \dots, s s (S_{8}, v))$ .

(2)

Use the grid of size $l_{x} \times l_{y}$ to divide the supercell and use the vertexes of m grids $p_{i} (x_{i}, y_{i})$ as sample points. And construct the transferable training data set $D a t a_{s o u r c e}$ based on a vector, which is the signal strength vector that from coordinates of $p_{i} (x_{i}, y_{i})$ to S nodes.

(3)

Normalize the input vectors and output coordinates for the training samples. And for the training samples set $X_{x}$ in x-coordinate, calculate the mean $u_{i}$ and the standard deviation $σ_{i}$ of the eigenvalue $v_{i j}$ and obtain the normalized feature vectors $v_{i j}^{'} = (v_{i j} - u_{i}) / σ_{i}$ . Calculate the mean $u_{x}$ and the standard deviation $σ_{x}$ of output x-coordinates and normalized the output x-coordinates $x_{p j}^{'} = (x_{p j} - u x) / σ_{x}$ . In the same way, we normalize the input vectors and output coordinates for training samples set $X_{y}$ in y-coordinate.

(4)

Construct the auxiliary training data set $D a t a_{r e f e r e n c e}$ according to the signal strength and positions for S nodes in cell. Run the TrAdaBoost algorithm [31] and choose the proper training samples set $X \subseteq D a t a_{s o u r c e}$ for the cell.

(5)

Choose the type and parameters of kernel function, and regularization parameter. Based on training samples X that is selected by TrAdaBoost [31], we can, respectively, construct the SVR regression model function $f_{x}$ , $f_{y}$ for x,y coordinates. And then broadcast the prediction model to all the nodes in a cell.

(6)

The vector $s^{'}$ (the vector is normalized and processed) of pending node v will be input into regression function $f_{x} (s^{'}), f_{y} (s^{'})$ . And then normalize the function output results and get the estimated coordinates of node v: $(x_{t}^{'}, y_{t}^{'}) = (f_{x} (s^{'}) * σ_{x} + u_{x}, f_{y} (s^{'}) * σ_{y} + u_{y})$ .

6. Implementation

6.1. Prior Work

In this part, we will introduce the deployment of network, collection, and management of cell-based localization data.

Network deployment needs two steps to be completed: one for beacon nodes (S nodes) and one for pending nodes (non-S nodes). S nodes follow the octagonal deploy, and the entire network then will be divided into several cells with side length d, as shown in Figure 6. So, if network is $a \times b$ area, we will need $N = ⌈a / d⌉ \times ⌈b / d⌉$ cells, numbering from 1 to N. As each cell needs 8 S nodes, two neighbor cells will share two S nodes, the network will totally need $M = 8 \times N - 2 \times (s i d e - 1)$ ; numbering from 1 to M, $s i d e$ is the number of shared sides among N cells. We identify the S nodes with two kinds of marks: cell ID and node ID, as shown in Table 1. Shared S nodes have two columns to save the identification data while others have one; for example, $S_{3}$ in cell 1, as shown in Figure 8, has the identification data: [1 3; 2 8].

Table 1

Symbol for S node.

Cell ID in the region	Node ID in the cell
$C_{1}$	$N_{1}$
$C_{2}$	$N_{2}$

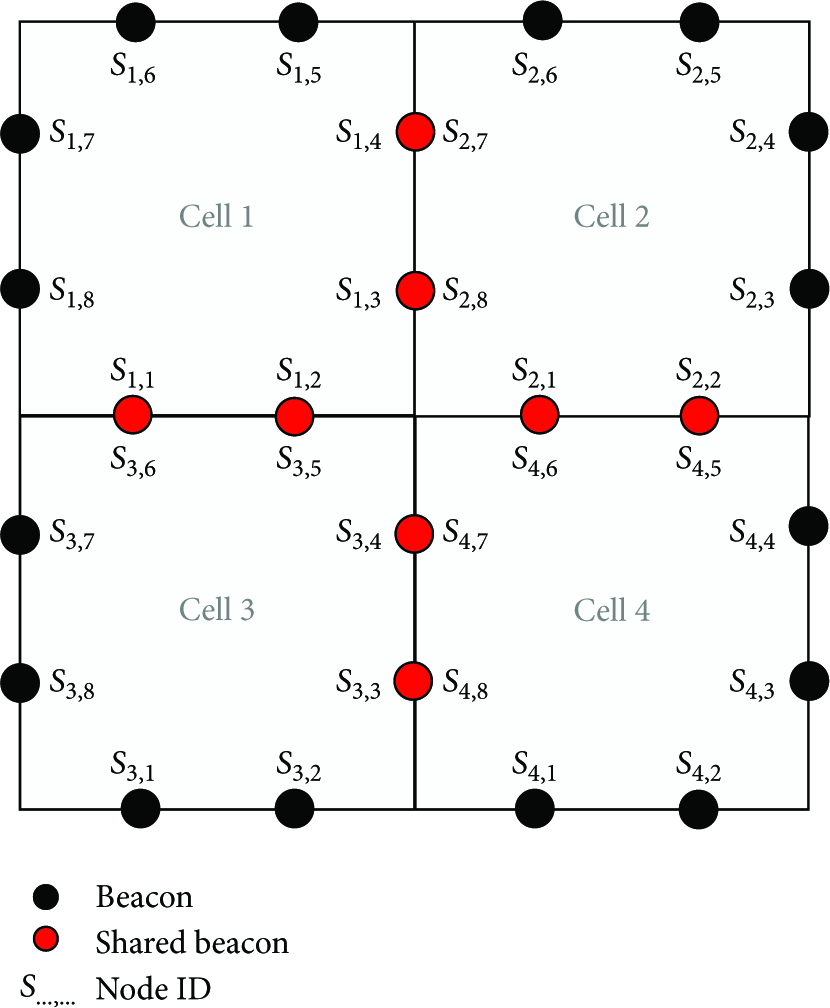

Figure 8

True deployment of beacon nodes in large scale.

After deploying S nodes, we need to locate pending nodes. There are two steps for locating a node in the whole network. First, the pending nodes send signals to all the beacon nodes; if each beacon node in a cell can receive the signals, the pending node is thought in that cell. If the pending node falls on the junction of several regions, it will be calculated by the beacon nodes in several cells, and we can calculate their average as the pending nodes’ position.

Second, when we know the coordinates in the cell, how do we know the coordinates in the whole network? The actual coordinates in the whole network can be regarded as the coordinates in the cell add the relative coordinates. And the relative coordinates can be regarded as the number of the cells in front of the cells that pending nodes located in. And it can be calculated as the number of the cells multiply the side length of the cell.

When the deployed beacon nodes fail, the estimate position of the pending nodes may appear as errors. And then, the pending nodes need to send signals to all the beacon nodes in the cell to check which beacon node fails. If the pending nodes cannot receive the signal from a bacon node, we think the beacon node fails and then we change the beacon node.

6.2. Experiment Setup

6.2.1. Parameter Configuration

The real environment is located in a square of our campus, and we use the MICAZ nodes with chip CC2420 as sensor nodes and set the radio frequency 2.4 GHz. All the sensor nodes are put in the brackets which the height is 0.95 meter, as shown in Figure 9. In simulation experiments, we use (1) to produce RSSI information, and set the environment factor $η = 1.2$ ; the standard distance $d_{0} = 1$ m and its signal strength is −40 dB. Assume that the measurement noise follows a normal distribution with standard deviation $σ = 2$ .

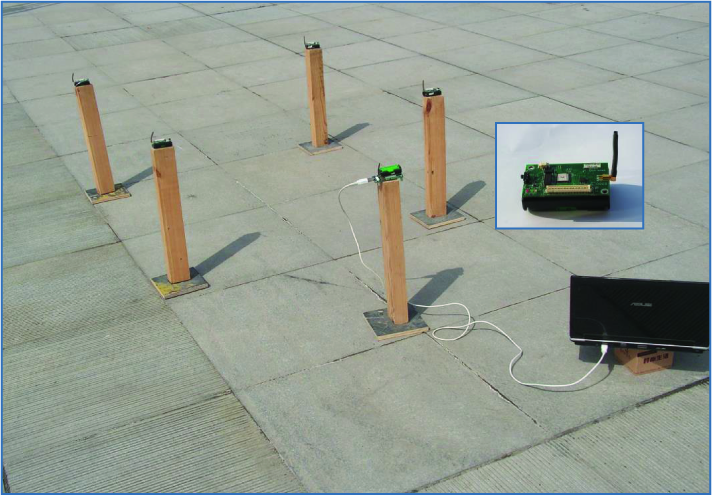

Figure 9

The scenario of true deployment, square in the campus.

6.2.2. Experiment Scenario

In the real experiment, we use two days to deploy nodes. On the first day, we deploy supercell in the area of $22 \times 22$ square meters, in total 37 nodes involving 8 S nodes. On the second day, we deploy two cells in area of $43 \times 22$ square meters. There are 19 nodes in one cell and there are 18 nodes in another cell. The simulation experiments are designed in a $90 \times 90$ square, and there are 9 cells in the region with 48 S nodes and 200 randomly deployed non-S nodes. The ratio of beacon is $19 %$ . In the calculation of global RSSI and weighted shortest-path, we set communication radius of nodes 50 meters.

7. Simulation Results

7.1. The Effect of Sample Points of Training Samples on SVR Model Error

In this section, the two parts will be considered: one is how many sample points we should choose, and the other is when we choose sample points, what is the interval between sample points?

Firstly, we consider how many sample points we choose as training samples is proper. To find a better number of sample points as training samples, we collect the information data from the random distribution of 18, 19, 20, and 48 nodes in the cell area and obtain the positioning errors of all the positions using SVR locating method. Figure 10 is experimental results, and it is the probability distribution of the predicting errors of all positions, and 88% of the position error is less than 1.5 m in four cases. It can be seen from Figure 10 that the predicting error is getting bigger with the increase of number of the sampling points in the region. The reason is that with the decrease number of sampling points, the differences of the RSSI signal vectors between nodes are getting greater, and the discrimination of different positions for SVR is getting higher. On the contrary, with the increase number of sample points, the deployment will be very intensive, the similarities of the RSSI signal vectors between nodes are very high, and the discrimination of different positions for SVR is very low, and that will lead to the increase of predicting errors. Therefore, the density of sampling points needs to be considered and chosen carefully in CTLL positioning method.

Figure 10

Relationship between sample points’ number and estimate error.

Secondly, when we choose sample points as training set to train a model, if the sample points are chosen very intensively in a small region, the model will cannot train fully in other region of the cell and we will get a big error. However, if the sample points are chosen very loosely in whole cell, the model cannot train fully in the whole cell. So how long is the interval between sample points appropriate? We collect the training set when the intervals between the sample points are 3 m, 4 m, and 5 m and get Figure 11. As shown in Figure 11, when the interval is 5 m, the model error is near 2 m in 73%, while the interval is 3 m and 4 m; the model error is near 1.5 m in 80%. When the interval is small enough, the model will train fully. However, small intervals between sample points aggravate the calculation of the model and communication costs between nodes. Thus we choose 4 m as the interval between sample points, and when the interval is 4 m, the model can get a better tradeoff between accuracy and costs.

Figure 11

Relationship between sample points’ interval and estimate error.

7.2. Parameters Chosen of SVR Model and Kernel Function

The parameters of SVR are chosen by cross validation [33]. Every 10 and 0.1 is adopted, and the search ranges are $[0,1300]$ and $[0,1]$ . The results of different parameters’ influence on predicting errors are shown in Figure 12. Figure 12 shows the influence of loss parameter C on predicting mean errors ( $ν = 0.9$ ) and the influence of control parameter ν on predicting mean error ( $C = 1000$ ). The product of loss parameter C and control parameter ν determines a maximum number of supported vector for SVR. We can see from Figure 12(a) the changes of the loss parameter C within the range of $[100,1300]$ cause the decrease of positioning mean error. The trend of the curve shows that, with the increase of C, there is still room for the positioning error to reduce further. It can be seen from Figure 12(b) that when control parameter ν changes from 0.1 to 1, the positioning mean error reduces from 1.3 m to 0.88 m. Considering error and SVR's computation, the parameters of SVR model is $C = 1000$ , $ν = 0.9$ .

Figure 12

The influence of SVR's parameters and RBF's parameter on estimate error.

The type of kernel function is usually chosen by empirical knowledge and the parameters of kernel function are optimized by cross validation [30]. For node localization in WSNs, the kernel function needs to have good prediction effect, simple form, and less parameters. RBF kernel function contains only one bandwidth parameter, simpler form, and good prediction results compared to linear and polynomial kernel function, thus becoming the first choice of kernel function.

Figure 12(c) shows how the parameter γ of RBF kernel function influence predicting mean error ( $C = 1000$ , $ν = 0.9$ ). As shown in Figure 12(c), γ changes from 0.01 to 1; when $γ > 0.5$ , the predicting mean error changes very slowly, and when $γ = 0.01$ , the positioning error achieves the maximum value and it is above 1.48 m. Combined with other experimental experiences, the parameter of RBF kernel function γ is set 0.1.

7.3. The Effect of the Number of S Nodes in Located Cell on the Result of CTLL Localization

In the previous phase, we have discussed the number of beacon nodes used in a cell based on reduction of entropy and CRLB. Considering the effect on errors, we take an experiment to see how the error changes when the number of beacon nodes increase. Because of even distribution of beacon nodes and the square cell, we conduct the experiment when the number of beacon nodes is 3, 4, 6, and 8. When the number of beacon nodes is 3, the coordinates are (0, 0), (30, 0), and (15, 30); when the number of beacon nodes is 4, the coordinates are (0, 0), (30, 0), (30, 30), and (0, 30); when the number of beacon nodes is 6, the coordinates are (10, 0), (20, 0), (30, 15), (20, 30), (10, 30), and (0, 15); when the number of beacon nodes is 8, the coordinates are (10, 0), (20, 0), (30, 10), (30, 20), (20, 30), (10, 30), (0, 20), and (0, 10).

Figure 13 shows the probability distribution of predicting error under different numbers of beacon nodes. The interval between sample points of predeployment supercell is 4 m. We predict 30 nodes’ positions that distribute randomly. We can see from Figure 13 that with the increase of beacon nodes’ number, the nodes’ predicting error is becoming smaller. When the number of beacon nodes increases from 3 to 8, predicting error reduces more than 4 m. And that shows the increase of beacon nodes’ number can help to improve the accuracy of CTLL localization.

Figure 13

The probability distribution of SVR positioning error under different numbers of nodes.

7.4. Sampling Density in the Sample Migration

In order to reduce the workload of collection, we deploy a supercell in advance and transfer supercell's information to given-cell using transfer learning. However, whether the interval between sample points in supercell influence the predicting error in given-cell is not sure. Thus we discuss the influence of node density in supercell on predicting error in given-cell, and then decide which node density will be chosen for our supercell predeployment.

The first step of CTLL algorithm is to deploy a supercell in advance, and the size of supercell is just as the size of given-cell. We set up sample points, collect the information of training samples in super-cell, and then adjust the weights of training samples by TrAdaBoost algorithm to make them meet the needs of each cell in actual deployment. As training samples, they can help establish a SVR regression model to predict the positions of pending nodes in each cell. Therefore, once the sampling area of supercell is determined, the sample density is just the factor that influences the performance of CTLL.

The definition of the sample interval: sample points are distributed uniformly in supercell area, and Euclidean distance between point and point becomes the sample interval. Therefore, the sample interval can be used as a measure of sample density. We will discuss the influence of the sample density on CTLL positioning error through simulation experiments. Set sample intervals of supercell 1.5 m, 2.5 m, 3.5 m, 4.5 m, 5.5 m, and 6.5 m, and we will predict 30 nodes’ positions that distributed randomly in given-cell. As shown in Figure 14, in accordance with the discussion results of actual deployment environment, with the increase of the sample interval, the error on the supercell decreases. However, on given-cell, with the increase of the sample interval, the error increases. Taking the error and computation complexity of CTLL into account, we will set the sample interval 4 m on supercell in simulation experiments.

Figure 14

Relationship between distance of sample points and SVR error.

8. Performance Analysis

8.1. Accuracy

We compared the performance of CTLL scheme with global methods under two types of global localization data: RSSI and weighted shortest-path. In order to obtain global localization data, a node needs to communicate with all other nodes in the network. In the first global method, we need to collect RSSI information between all the nodes to build eigenvector for localization. If the nodes cannot communicate with each other, the RSSI value is set to be −95, which is the minimum value that can be recorded. It is called RSSI-SVR. In the second global method, we need to collect weighted Euclidean distance between all the nodes to build eigenvector for localization. It is called proximity-SVR. The two methods obtain the nodes’ positions using SVR model. In simulation experiments, the global RSSI information is obtained using signal attenuation model, and proximity-SVR obtains weighted hop-counts distance using Floyd algorithm.

In actual deployment, we deploy 28 nodes and Figure 15 shows the predicting errors on a given-cell using three different methods: CTLL, RSSI, and proximity. The measurement and use of CTLL localization data follow CTLL scheme. It can be seen from Figure 15 that CTLL can obtain a better predicting error in most cases, except nodes 2, 4, 11, and 17.

Figure 15

Estimate error on different nodes in a cell for three methods.

Figure 16(a) shows the estimate error in a given-cell under different intensities of noise. We can see from Figure 16(a) that cell-based CTLL has the best capacity of resisting disturbance compared with the other two global methods. Not only the mean error of global method is bigger than CTLL, but also when the standard deviation of noise changes from 2 to 8, the mean error of global proximity method shows a larger fluctuation. Figure 16(b) shows the probability distribution of estimate error over the whole network, and it is measured when the standard deviation of noise is 2. We can also know from Figure 16(b) that the accuracy of CTLL is 95% when error is below 5 m, while the RSSI is 89% and proximity is 63%. Thus CTLL outperforms the two global methods.

Figure 16

Comparison between three methods.

8.2. Robustness

Robustness is a fundamental criterion in validating the scalability of the localization systems and it is also the superiority of our method compared with others. The movement and access of the nodes in CTLL just influence the number of pending nodes in the cells. We test the scale stability by changing the number of randomly deployed nodes in the given-cell. In Figure 17(a), when nodes’ number increases from 20 to 60, the differences between the probability of estimation errors are not obvious. Figure 17(b) shows that with the increase of noise intensity, the mean estimate error changes less obviously. It can be seen from Figure 17(b) that error distribution is similar under different noise intensities, except the maximum error. Thus, CTLL is not sensitive to the nodes’ number changing and noise interference. Those features make CTLL very suitable for localization in complex environment where the number of nodes usually changes and noise intensity changes.

Figure 17

Scalability of CTLL.

8.3. Communication Cost

Two main phases contribute to the computation of CTLL, and they are offline training phase and online localization phase. We collect pending nodes’ localization data in a supercell and beacon nodes’ localization data in each given-cell to train regression models. As the work of collection can be done in advance, we do not need to consider its communication cost. In our CTLL system, the communication only occurs in online localization phase. A pending node gets its localization data through single-hop broadcast to its neighbor beacon nodes. Assume that there are N nodes in the network; CTLL only needs broadcast N times to complete the positions prediction of N nodes. However, RSSI and proximity get their localization data by constructing the RSSI eigenvectors and weighted graph $G (V, E)$ , and the pending nodes need to communicate with all the other nodes in the network. Every communication between nodes needs to consume certain energy, we can see from Figure 18 that CTLL method is obviously superior to global methods, no matter in whole energy cost that all the pending nodes consume or average energy cost that each pending node consumes.

Figure 18

Relationship between pending nodes and communication cost.

8.4. Time Complexity Analysis

The complexity of CTLL comes in two parts: the time spent on training a model (offline training phase) and the time spent on locating pending nodes according to the input model (online localization phase). Tsang et al. [34] pointed out that state-of-the-art SVM implementations typically have a training time complexity that scales between $O (m)$ and $O (m^{2.3})$ . That can be further driven down to $O (m)$ with the use of a parallel mixture, in which m is the training set size. In addition, because training process can be preprocessed, the computational rate of training phase is not very important. Besides, the training phase is run in the background, and it has no impacts on the nodes’ ability. Thus we only analyse the localization phase for the analysis of time complexity in this paper.

Assume that there are A beacon nodes deployed and L pending nodes in the whole network, V is the number of supported vectors for SVR, and S is the number of training samples. SVM sees localization estimation as multiclass problem. And it uses the signal strength between pending nodes and A beacon nodes as input data; the output data is L positions, and each location use $O (V)$ supported vectors. So the time complexity of SVM is $O (A V L)$ . And SVR uses the signal strength of A beacon nodes as input data to separately build regression models for X and Y dimensions. And one step of SVR localization is that mapping signal strength vector s of pending nodes into linear combination of S training samples’ kernel function. However, the time complexity of kernel function estimation is $O (A)$ , so the time complexity for SVR is $O (A S V)$ .

We can know from the analysis above that the time complexity is associated positively with L pending nodes and S training samples. And then we run an experiment to see how the runtime changes when L and S change. For training set and test set, the number and positions of nodes are separately the same for CTLL and two global methods. In order to better understand the relationship among time complexity, the number of pending nodes and the number of training samples, we set the number of training samples in training set and the number of pending nodes in test set is the same. For example, when we have 100 nodes to locate, the training set also has 100 training samples. The runtime that locates those 100 nodes using CTLL is just a little bit more than 0.001 s (e.g., 0.0014 s) while locates those 100 nodes using global methods is a little less than 0.01 s (e.g., 0.0092 s). And the experiment is done using MATLAB R2012b on a 64-bit machine with Intel Core i3-4150 Quad-Core processor and 8 G memory.

8.5. Insensitive to Network Hollow

There is another superiority that CTLL has compared with global methods, and that is CTLL method is not sensitive to the network hollow. Figure 19 shows a network that contains the hollow. We deploy hundreds of nodes randomly in the network. Table 2 is the mean square error for three methods. RESE₁ represents that there does not exist hollow in the network, while RESE₂ represents there exist the hollow. We can see from Table 2 that the error increases 138% when there exists a hollow in the network for global RSSI method. Because the RSSI information comes from single-hop communication between nodes; however the collection of localization information on the edge of the hollow is not sufficient and the positioning results of edge nodes are more likely to fluctuate, and that will lead to the increase of error. We can also know that the error increases 127% when there exists a hollow in the network for global proximity method. Because the localization data of proximity need to be obtained through hop counts and when there exist hollow, the localization performance will decrease.

Table 2

The changes of SVR model error when there exists hollow.

Location method	CTLL	RSSI-SVR	Proximity-SVR
$RMS E_{1}$	3.43	4.22	3.46
$RMS E_{2}$	3.23	5.81	4.41

Figure 19

There exists hollow in the center of the network.

9. Related Work

Learning-based localization developed in the framework of statistical learning theory, and there are two types of learners: classification learner and regression learner. Since classification learner model relies on the discretely deployed region, we restrict our literatures’ review on the regression learner model.

Regression learner model based on the fact that nodes is deployed in a continuous manifold; the physical position can be used as a continuous feedback to build mapping relationship between localization data space and physical space. There are two types of localization data: global RSSI and global proximity. For the latter one, only proximity (or connectivity) information is available. The approach in [13] assumes that there exists a path between each pair of nodes, and the network is showed as an undirected graph $G (V, E)$ . Then the shortest paths will be computed and used to construct the distance matrix for MDS. When given sufficient beacon nodes, the relative mapping will be transformed into absolute mapping that is based on the absolute positions of beacons. Chen et al. [35] proposed a semisupervised learning algorithm that is based on manifold regularization, and it obtains pending nodes’ positions with considering two kinds of localization data: signal strength and pair-wise distance between nodes. Wang et al. [36] viewed the nodes as a group of distributed devices and employed an appropriate kernel function to measure the similarity between nodes and then presented a graph embedding method named KLPP technique for localization problem. When given a sufficient number of beacons, the relative positions can be transformed into physical positions. The main advantage of formulating the localization problem as graph embedding problem is that it can construct a graph to preserve the topological structure of the whole network. Honeine et al. [37] proposed an approach based on matrix regression and the matrix regression is between the ranging matrix and the matrix of inner products between nodes’ positions. Once the regression is learnt using the nodes’ information that the positions has already known, it will be applied to estimate the unknown nodes’ positions. Patwari and Hero [38] thought the nodes’ data is high-dimensional and is closed to a nonlinear manifold; they used learning method for node localization that is a locally linear embedding manifold. Gu et al. [39] established the mapping relationship between localization data space and physical space. The physical space is from a set of given paired data and adopted locality correlation analysis model. Pan et al. [40] presented the kernel canonical correlation analysis for indoor device localization. Brunato and Battiti [41] proposed the Support Vector machine-based techniques and compared the results on the same data set with other approaches.

Recently, transfer learning [42] has emerged as a new learning framework to address the problem when we only have sufficient training data in one domain, and the other domain we interested is lacking of data to train an accuracy model for learning task. Pan et al. [43] assumed that a low-dimensional manifold was shared between two adjacent regional localization data and presented a transferring learning model approach that achieved the model building from one indoor area to another. Wenchen Zheng et al. [44] introduced a semisupervised Hidden Markov Model to transfer the localization models over time. In order to decrease the effects from complex environmental changes on the learned model, Zheng et al. [45] proposed a latent multitask learning algorithm to solve the multidevice indoor localization problem.

10. Conclusion and Future Work

This paper analyzes localization problem under regression model and its shortcomings on complex wireless network environment. According to CRLB and entropy reduction theory, we discuss and build CTLL scheme, which relies on the cells designed in the way like base stations in GSM. Localization data from single cells under CTLL scheme is complicated and wasted for nodes’ information collection, we use a predeployed supercell to simplify the localization data collection, then the instance transfer leaning TrAdaBoost method is applied to cells to establish accuracy regression models. We use many experiments to demonstrate the performances and find that CTLL scheme has better performance and stronger robustness over noise and scale when compared to the global methods.

We also believe that our CTLL systems will work better if the following factors are considered. (1)

We only discuss simple positioning scenarios in the half freestyle WSNs in this paper. But in actual distribution, the network may need different cell models that are combined to be adapted to the environment. Therefore, the design of the basic units for positioning can be diversified; the network can contain different types and different sizes of the cell units, so that the network construction will be more in line with the needs of deployment of actual environment.

(2)

We only consider the environmental differences in the sample migration in the design of the CTLL transfer learning in this paper and we do not take the differences of the equipment into account. There are multiple types of sensor devices in practical WSNs, and they come from different manufactures and have a different transmission power. Accordingly, in order to improve the popularization of CTLL method, we should also consider the differences of the sampling devices in sample migration.

(3)

Due to the high labor costs of the deployment of network system, the network that we deployed is small and only contains 48 nodes. Large-scale network experiments get experimental data and results from the simulation environment because of the complexity of actual deployment in large-scale network. There will appear all sorts of unexpected problems in localization process, such as communication conflict and communication links randomization. As a result, we also need positioning analysis of large-scale actual deployment to increase the persuasion of the CTLL positioning method.

(4)

Actual networks are mostly deployed in three-dimensional space; therefore, extensional algorithm is also needed to continue the study so that it can adapt with the demand changes that the localization changes from two-dimensional plane space to three-dimensional space; that will be the research direction in this paper.

Footnotes

Conflict of Interests

The authors declare that there is no conflict of interests regarding the publication of this paper.

Acknowledgments

This work was supported by the Project NSFC (61070176, 61170218, 61272461, 61373177, and 61202393), the Project National Key Technology R and D Program (2013BAK01B02, 2013BAK01B05), the Key Project of Chinese Ministry of Education 211181, International Cooperation Foundation of Shaanxi Province, China, 2013KW01-02, NSFC (61202198), China Postdoctoral Science Foundation (Grant no. 2012M521797), Northwest University School Support Foundation (14NW28), and International Cooperation Foundation of Shaanxi Province, China (2015KW-003).

References

Ceriotti

Mottola

Picco

G. P.

Murphy

A. L.

Gunǎ

Ş.

Corrà

Pozzi

Zonta

Zanon

Monitoring heritage buildings with wireless sensor networks: the Torre Aquila deployment

Proceedings of the International Conference on Information Processing in Sensor Networks (IPSN ′09)

April 2009

IEEE Computer Society

277 288

2-s2.0-71049117168

Markham

Trigoni

Ellwood

S. A.

MacDonald

D. W.

Revealing the hidden lives of underground animals using magneto-inductive tracking

Proceedings of the 8th ACM International Conference on Embedded Networked Sensor Systems (SenSys ′10)

November 2010

281 294

10.1145/1869983.1870011

2-s2.0-78650893575

Yang

Liu

Understanding node localizability of wireless ad hoc and sensor networks

IEEE Transactions on Mobile Computing 2012 11 8 1249 1260

10.1109/tmc.2011.122

2-s2.0-84863436942

Wen

Tian

Wang

Fundamental limits of RSS fingerprinting based indoor localization

Proceedings of the IEEE Conference on Computer Communications (INFOCOM ′15)

April 2015

Hong Kong

Wang

Gao

Cheng

Xin

Wang

Lightweight robust device-free localization in wireless networks

IEEE Transactions on Industrial Electronics 2014 61 10 5681 5689

10.1109/TIE.2014.2301714

2-s2.0-84900537930

Zhao

Tang

COUPON: A cooperatively building sensing maps in mobile opportunistic networks

Proceedings of the 10th IEEE International Conference on Mobile Ad-Hoc and Sensor Systems (MASS' 13)

October 2013

295 303

10.1109/mass.2013.68

2-s2.0-84893332843

Yang

Zhao

Liu

Footprints elicit the truth: improving global positioning accuracy via local mobility

Proceedings of the 32nd IEEE Conference on Computer Communications (INFOCOM ′13)

April 2013

IEEE

490 494

10.1109/infcom.2013.6566821

2-s2.0-84883058536

Dan

Halder

DasBit

Localization with enhanced location accuracy using RSSI in WSN

Proceedings of the 5th IEEE International Conference on Advanced Networks and Telecommunication Systems (ANTS ′11)

December 2011

1 6

10.1109/ants.2011.6163649

2-s2.0-84858983454

Boushaba

Hafid

Benslimane

High accuracy localization method using AoA in sensor networks

Computer Networks 2009 53 18 3076 3088

10.1016/j.comnet.2009.07.015

ZBL1187.68023

2-s2.0-70449528487

10.

Stoleru

Stankovic

J. A.

Luebke

A high-accuracy, low-cost localization system for wireless sensor networks

Proceedings of the 3rd International Conference on Embedded Networked Sensor Systems (SenSys ′05)

2005

ACM

13 26

10.1145/1098918.1098921

11.

Alippi

Camplani

Galperti

Roveri

A robust, adaptive, solar-powered WSN framework for aquatic environmental monitoring

IEEE Sensors Journal 2011 11 1 45 55

10.1109/JSEN.2010.2051539

2-s2.0-78149270870

12.

Biswas

Lian

T.-C.

Wang

T.-C.

Semidefinite programming based algorithms for sensor network localization

ACM Transactions on Sensor Networks 2006 2 2 188 220

10.1145/1149283.1149286

2-s2.0-33746874045

13.

Shang

Ruml

Zhang

Fromherz

M. P. J.

Localization from mere connectivity

Proceedings of the 4th ACM International Symposium on Mobile Ad Hoc Networking & Computing (MobiHoc ′03)

June 2003

Annapolis, Md, USA

ACM

201 212

10.1145/778415.778439

2-s2.0-0242612017

14.

Mao

Fidan

Anderson

B. D. O.

Wireless sensor network localization techniques

Computer Networks 2007 51 10 2529 2553

10.1016/j.comnet.2006.11.018

2-s2.0-34247885928

15.

Stoleru

Stankovic

J. A.

Son

S. H.

Robust node localization for wireless sensor networks

Proceedings of the 4th Workshop on Embedded Networked Sensors

June 2007

ACM

48 52

10.1145/1278972.1278984

2-s2.0-37849012212

16.

Kristalina

Wirawan

Hendrantoro

Improve the robustness of range-free localization methods on wireless sensor networks using recursive position estimation algorithm

Journal of ICT Research and Applications 2011 5 3 203 222

17.

Mao

Fidan

Anderson

B. D. O.

Wireless sensor network localization techniques

Computer Networks 2007 51 10 2529 2553

10.1016/j.comnet.2006.11.018

ZBL1120.68021

2-s2.0-34247885928

18.

Sayed

A. H.

Tarighat

Khajehnouri

Network-based wireless location: challenges faced in developing techniques for accurate wireless location information

IEEE Signal Processing Magazine 2005 22 4 24 40

10.1109/msp.2005.1458275

2-s2.0-22544485079

19.

Dhillon

S. S.

Chakrabarty

Iyengar

S. S.

Sensor placement for grid coverage under imprecise detections

Proceedings of the 5th IEEE International Conference on Information Fusion (FUSION ′02)

July 2002

1581 1587

10.1109/icif.2002.1021005

2-s2.0-84899198300

20.

Jian

Yang

Liu

Beyond triangle inequality: sifting noisy and outlier distance measurements for localization

Proceedings of the IEEE INFOCOM 2010 (INFOCOM '10)

March 2010

San Diego, Calif, USA

1 9

10.1109/infcom.2010.5462019

2-s2.0-77953295176

21.

Dreyfus

S. E.

An appraisal of some shortest-path algorithms

Operations Research 1969 17 3 395 412

10.1287/opre.17.3.395

22.

Brunato

Battiti

Statistical learning theory for location fingerprinting in wireless LANs

Computer Networks 2005 47 6 825 845

10.1016/j.comnet.2004.09.004

ZBL1067.68511

2-s2.0-14644436970

23.

Zheng

V. W.

Pan

S. J.

Yang

Pan

J. J.

Transferring multi-device localization models using latent multi-task learning

23rd AAAI Conference on Artificial Intelligence and the 20th Innovative Applications of Artificial Intelligence Conference, AAAI-08/IAAI-08

July 2008

usa

1427 1432

2-s2.0-57749106434

24.

Spirito

M. A.

On the accuracy of cellular mobile station location estimation

IEEE Transactions on Vehicular Technology 2001 50 3 674 685

10.1109/25.933304

2-s2.0-0035328419

25.

Tran

D. A.

Nguyen

Localization in wireless sensor networks based on support vector machines

IEEE Transactions on Parallel and Distributed Systems 2008 19 7 981 994

10.1109/TPDS.2007.70800

2-s2.0-62449093573

26.

Nguyen

Jordan

M. I.

Sinopoli

A kernel-based learning approach to ad hoc sensor network localization

ACM Transactions on Sensor Networks 2005 1 1 134 152

10.1145/1077391.1077397

27.

C.-H.

J.-M.

Lee

D. T.

Travel-time prediction with support vector regression

IEEE Transactions on Intelligent Transportation Systems 2004 5 4 276 281

10.1109/TITS.2004.837813

2-s2.0-10644266188

28.

Huang

G. B.

Siew

C. K.

Extreme learning machine with randomly assigned RBF kernels

International Journal of Information Technology 2005 11 1 16 24

29.

Lin

Liu

Parameter selection in SVM with RBF kernel function

Journal of Zhejiang University of Technology 2007 35 2 163

30.

Min

J. H.

Lee

Y.-C.

Bankruptcy prediction using support vector machine with optimal choice of kernel function parameters

Expert Systems with Applications 2005 28 4 603 614

10.1016/j.eswa.2004.12.008

2-s2.0-17844363481

31.

Dai

Yang

Xue

G.-R.

Boosting for transfer learning

Proceedings of the 24th International Conference on Machine Learning (ICML ′07)

June 2007

193 200

10.1145/1273496.1273521

2-s2.0-34547972773

32.

Basak

Pal

Patranabis

D. C.

Support vector regression

Neural Information Processing—Letters & Reviews 2007 11 10 203 224

33.

Ito

Nakano

Optimizing support vector regression hyperparameters based on cross-validation

Proceedings of the IEEE International Joint Conference on Neural Networks

July 2003

2077 2082

2-s2.0-0141794580

34.

Tsang

I. W.

Kwok

J. T.

Cheung

P.-M.

Core vector machines: fast SVM training on very large data sets

Journal of Machine Learning Research 2005 6 363 392

MR2249825

35.

Chen

Wang

Sun

Shen

Semi-supervised Laplacian regularized least squares algorithm for localization in wireless sensor networks

Computer Networks 2011 55 10 2481 2491

10.1016/j.comnet.2011.04.010

2-s2.0-79959376527

36.

Wang

Chen

Sun

Shen

A graph embedding method for wireless sensor networks localization

2009 IEEE Global Telecommunications Conference, GLOBECOM 2009

December 2009

usa

10.1109/GLOCOM.2009.5425241

2-s2.0-77951562738

37.

Honeine

Richard

Essoloh

Snoussi

Localization in sensor networks—a matrix regression approach

Proceedings of the 5th IEEE Sensor Array and Multichannel Signal Processing Workshop

July 2008

284 287

10.1109/sam.2008.4606873

2-s2.0-52949144571

38.

Patwari

Hero

A. O.

Manifold learning algorithms for localization in wireless sensor networks

Proceedings of the IEEE International Conference on Acoustics, Speech, and Signal Processing

May 2004

III857 III860

2-s2.0-4544235011

39.

Chen

Sun

Localization with incompletely paired data in complex wireless sensor network

IEEE Transactions on Wireless Communications 2011 10 9 2841 2849

10.1109/twc.2011.070511.100270

2-s2.0-80052923449

40.

Pan

J. J.

Kwok

J. T.

Yang

Chen

Accurate and low-cost location estimation using kernels

Proceedings of the 19th International Joint Conference on Artificial Intelligence (IJCAI ′05)

August 2005

1366 1371

2-s2.0-34247559831

41.

Brunato

Battiti

Statistical learning theory for location fingerprinting in wireless LANs

Journal of Computer Networks 2005 47 6 825 845

10.1016/j.comnet.2004.09.004

2-s2.0-14644436970

42.

Pan

S. J.

Yang

A survey on transfer learning

IEEE Transactions on Knowledge and Data Engineering 2010 22 10 1345 1359

10.1109/tkde.2009.191

2-s2.0-77956031473

43.

Pan

S. J.

Shen

Yang

Kwok

J. T.

Transferring localization models across space

Proceedings of the 23rd AAAI Conference on Artificial Intelligence and the 20th Innovative Applications of Artificial Intelligence Conference

July 2008

1383 1388

2-s2.0-57749091607

44.

Wenchen Zheng

Wei Xiang

Yang

Shen

Transferring localization models over time

Proceedings of the 23rd AAAI Conference on Artificial Intelligence

2008

45.

Zheng

V. W.

Pan

S. J.

Yang

Pan

J. J.

Transferring multi-device localization models using latent multi-task learning

Proceedings of the 23rd National Conference on Artificial Intelligence (AAAI ′08)

July 2008

Chicago, Ill, USA

1427 1432
