Abstract
This article investigates how project expertise and complexity jointly impact the decision to adopt open or closed innovation. It identifies four different types of open innovation models—crowdsourcing, coopetition, science-based, and network—and explores the varying conditions of project expertise and complexity under which firms tend to adopt a particular type. Using large data analysis from pharmaceutical drug development projects, the authors find that complexity moderates the relationship between project expertise and the choice of open or closed innovation and that levels of complexity and project expertise vary between different open innovation models.
As open innovation becomes more common, many managers face the question as to when their firms should adopt open innovation models for new product development (NPD). Inbound open innovation (OI) refers to the adoption of external knowledge, and closed innovation refers to the use of internal knowledge for a firm’s NPD. 1 Prior literature shows that project expertise (defined as a firm’s expertise and specialization in relation to a particular development project) and complexity (defined as interdependencies between components in the product development) are two critical determinants of the decision to choose open or closed innovation. 2 However, while scholars generally agree that firms with relevant project expertise will use closed innovation and firms without such project expertise will use OI, 3 little agreement exists for complexity. Some scholars argue that closed innovation models are more efficient than OI models to integrate knowledge for complex projects, and, therefore, as complexity increases, firms should adopt closed innovation. 4 In contrast, other scholars highlight the fact that complex projects require the acquisition of diverse ideas and solutions from outsiders, and, thus, an OI approach may be better suited to deal with high complexity. 5
These contradictory recommendations are partially attributed to scholars’ emphasis on either knowledge integration (the process of integrating knowledge that resides in different individuals, functions, departments, or organizations) or knowledge divergence (the process of diversifying knowledge pools and problem-solving approaches or heuristics) in closed or open innovation environments. However, complex projects require both knowledge integration and knowledge divergence, and the choice of open or closed innovation can create trade-offs between knowledge integration and divergence. Put differently, neither open nor closed innovation models is inherently superior; the costs and benefits of these models depend upon the levels of project expertise and complexity that firms have when developing new products. The interaction between project expertise and complexity can influence the trade-offs and, thus, the choice of open or closed innovation.
Although prior literature recognizes that the joint effect of project expertise and complexity in the open and closed innovation choice may be important, little research examines both project expertise and complexity together, and the impact of their interaction on the choice of open or closed innovation has been largely ignored. Afuah and Tucci provide one of the few articles that include both project expertise and complexity, and they theoretically propose that high complexity and low project expertise can result in the choice of crowdsourcing (a particular type of OI model) over closed innovation. 6 In essence, their paper provides a theoretical explanation as to why firms that have little relevant project expertise adopt crowdsourcing to deal with complexity; however, their proposition on the joint role of complexity and project expertise has not been further explored nor empirically tested.
Our article adds to Afuah and Tucci’s work by theoretically proposing, and empirically testing, the full moderating effect of complexity on the relationship between project expertise and OI adoption, in general. We also explore the relationships between project expertise, complexity, and a host of OI models: crowdsourcing, coopetition, science-based, and network. Regarding the moderating impact of complexity, we argue that complexity weakens the negative relationship between project expertise and OI adoption and, as a result, leads more firms with relatively high project expertise to adopt OI models. However, since not all OI models are the same, we then examine the individual OI models and show differences in their use in relation to project expertise and complexity. For managers, we address two important questions: how does complexity moderate the relationship between project expertise and choice of open or closed innovation? Which OI model (crowdsourcing, coopetition, science-based, and network) is most often utilized when firms face certain levels of project expertise and complexity in a development project?
We use the U.S. pharmaceutical industry to study our research questions because firms in this industry face inherent complexity in NPD; they have widely adopted OI models to deal with complexity; different types of OI models exist in the industry, which provides the opportunity to examine how complexity and project expertise differ between these OI models; and implications learned from this industry are applicable to other complex industries such as aerospace, artificial intelligence, and semiconductor. Given that patents offer strong appropriability, 7 and firms prevalently use patent licenses to exchange knowledge in the industry, 8 we focus on OI models using patent licenses.
Theory Background
Complexity and NPD
To understand the role of complexity in NPD, managers need to understand that NPD is a process of recombinant search; new products are combinations of existing and/or new components, ideas, and processes. 9 For instance, the automobile is the combination of interchangeable parts including bicycles, internal combustion engines, and carriages. 10 The mobile phone is the combination of circuit boards, crystal displays, batteries, speakers, and keyboards. NPD is a solution search process in which firms identify a set of components and find ways to combine those components. 11
Complexity arises in the NPD process because large numbers of components need to be integrated into a product and/or because there are interdependencies between those components. 12 According to Simon, as an NPD project combines a larger number of interacting components (i.e., NPD complexity increases), the search for a solution increasingly becomes more difficult; trials and errors go up and the probability of finding valuable products significantly goes down. 13
Finding solutions to complex projects requires the creation of heuristics that guide solution search processes. Tacit knowledge (such as professional opinion, intuition, insight, and creativity), which is developed through project relevant expertise, creates heuristics that lead to successful solutions. 14 With such tacit knowledge, a firm is able to efficiently eliminate unsuccessful search paths and detect successful solutions in a complex project.
As knowledge becomes more sophisticated and evolves into narrowly defined subfields, NPD requires the combination of components from varying disciplinary and scientific areas.
15
As Leonard and Sensiper explain, We may have no choice about managing divergent viewpoints in the creation of today’s complex systems of products and services . . . For instance, the first generation of cellular phones in the early 1980s, required only electrical engineering skills. By the mid-1990s, the third generation of these phones called for a knowledge of physics as well as electrical, mechanical, and computer engineering.
16
In essence, in a complex system of innovation, NPD requires both knowledge integration and knowledge divergence. 17 Knowledge integration is important for solving complex problems because without integration, the creation of diverse ideas, viewpoints, and heuristics from different individuals or organizations will cause conflict and increase the costs of communication and coordination. At the same time, knowledge divergence is also critical in complex product development environments because without divergence, the integration of tacit knowledge from individuals that are governed by the same organizational culture and routines causes homogeneous thinking and limits viewpoints, which produce less innovation output. 18 In sum, complexity in NPD increases the need for both knowledge integration and knowledge divergence.
Knowledge Integration and Divergence in Open and Closed Innovation
Because firms need both knowledge integration and divergence in complex product development, managers are faced with a trade-off dilemma when choosing between open or closed innovation. Knowledge-Based View (KBV) research shows that closed innovation is more efficient than OI at integrating knowledge that resides in different individuals and functions because employees in the firm share the same vocabulary, organizing system, and principles. 19 Because complexity makes it difficult to break a product development project into several subtasks, when working with other organizations in complex development environments, the whole task is more likely to be shared with partners—and, accordingly, managers need to spend a lot of time and cognitive effort to communicate and integrate functions with the partners. 20 In a closed innovation environment, the time and cognitive effort is minimized because of the shared vocabulary, organizing systems, and principles.
In contrast, the OI literature highlights OI’s advantage at collecting large knowledge pools in multiple disciplines, finding novel ideas, and diversifying problem-solving approaches. 21 Complex projects are characterized by the difficulty and uncertainty in anticipating technological feasibility and customer preference. 22 Inaccurate specification of user needs and the inability to fix errors in a timely manner can significantly increase complex project development costs and delay product testing and launch. 23 To overcome these issues, complex projects require collaborations with users, customers, and clients.
Almirall and Casadesus-Masanell found that complex projects require the matching of knowledge to reflect customers’ preferences and their willingness to pay, and OI is better suited to developing superior products in the eye of customers. 24 Jeppesen and Lakhani found that OI broadcast search (where a firm discloses the details of the problem at hand and invites others to solve the problem) brings novel perspectives and heuristics to the focal project and produces winning solutions based on the approaches that are native to the external problem solvers. 25 Terwiesch and Xu show that products developed through OI are always optimal in terms of technology performance and customer preference because OI brings together a diverse set of problem solvers. 26
Theory on OI knowledge divergence benefits is deeply rooted in the organizational learning and absorptive capacity literature. Nelson and Winter view firms as a repository of routines, procedures, schema, and heuristics associated with their existing knowledge base, which accumulates over time and, thus, reflects their expertise. 27 In closed innovation environments, a firm’s routines and existing expertise make it difficult to overcome incremental innovation trajectories, limit their knowledge pools, reinforce tendencies toward local search (the behavior to search in the neighborhood of its current expertise area), and often result in managerial decision-making biases, such as the “familiarity trap” (a situation where managers tend to focus on their specialty areas to develop deeper expertise). 28 Managerial bias and local search can limit both the number of viewpoints and size of knowledge pools available for development projects. Thus, the choice of closed innovation can dramatically increase knowledge divergence costs as the firm possesses more experience and established routines related to the focal development area.
Prior literature argues that absorptive capacity, defined as “a firm’s ability to recognize the value of new, external information, assimilate it, and apply it to commercial ends,” is related to the possession of prior knowledge stock in relevant knowledge fields (i.e., project expertise). 29 Firms with relevant project expertise and, thus, absorptive capacity are able to efficiently acquire diverse perspectives needed for complex projects through OI, and, therefore, knowledge divergence benefits in OI models can be magnified with higher levels of project expertise. 30
This literature suggests that as complexity increases, high project expertise does not automatically lead to choosing closed innovation even though closed innovation offers distinct knowledge integration advantages given that firms can utilize various mechanisms to reduce knowledge integration costs. Rather, firms with high project expertise may choose OI models because of their inability to diversify their knowledge pools in closed innovation environments, and they have sufficient absorptive capacity to efficiently use external knowledge for complex projects. 31 This logic suggests that increasing complexity in NPD environments can moderate (weaken) the relationship between high project expertise and choice of open or closed innovation, and lead firms with relatively high project expertise to adopt OI.
Types of OI Models
Crowdsourcing OI
Crowdsourcing OI is defined as outsourcing a problem-solving task to the public. 32 Crowdsourcing OI can be in the form of broadcast search, intermediaries, communities, or platforms. 33 In this type of OI, firms broadcast the problem and individuals offer ideas, knowledge, or solutions to the problem, and this external knowledge is used in NPD. Crowdsourcing OI consists of several common elements, including a well-defined and articulated problem statement to be shared with the crowd, information on prizes to winners, evaluation methods, and time limits (i.e., some duration for the crowdsourcing contest). 34 The defining characteristic of crowdsourcing OI is the large number of problem solvers engaged in the innovation process, which ultimately can help the firm solve complex problems and enhance the quality of new products.
Researchers using modeling and theory argue that the participation of a large crowd in an innovation process always produces optimal outcomes when the focal firm lacks relevant project expertise. 35 A few empirical research studies support this proposition. Jeppesen and Lakhani’s study on InnoCentive.com found that winning solutions were generated, through crowdsourcing OI, by external problem solvers who have the characteristic of “technical marginality” (defined as being distant from the focal problem in terms of technical expertise). 36 Shah studied open source software projects and reported that need-driven participants, who have highly diverse motivations and skills, account for many new software development ideas. She further argues that offering proper motivation mechanisms to different participants is the key to crowdsourcing OI success. Such motivation mechanisms include financial rewards, reputation, enjoyment, and intellectual stimulation. 37
Although crowdsourcing OI provides benefits for dealing with complexity in NPD, overly complex crowdsourcing tasks can also discourage the crowd from joining the problem-solving contest and may reduce the benefits of crowdsourcing OI. This is because solving highly complex problems requires large investments of participants’ time and skill, which may create negative reactions and reduce enjoyment and fun. 38 Thus, crowdsourcing OI is most suitable for dealing with moderate levels of complexity when the firm lacks relevant project expertise.
Coopetition OI
Coopetition OI is defined as OI created between firms in the same industry, and this type of OI entails the simultaneous pursuit of collaboration and competition. 39 Coopetition OI can occur between competing firms over different value chain functions or different phases of NPD. 40 For instance, competitors can collaborate for upstream activities, such as Research and Development (R&D), but compete in downstream activities, such as sales. 41
Research shows that this type of OI is particularly useful for focal firms when they lack the required project expertise and can learn from rivals’ expertise. 42 The resource complementarity of firms in coopetition OI helps them jointly deal with complexity based on absorptive capacity because they share a common knowledge base regarding industry environments, product development processes, regulatory requirements, and general customer preferences. 43 Studying collaborations between Sony and Samsung, Gnyawali and Park conclude that “even a giant cannot go it alone given the technological trends.” 44 Tether reports that when a firm heavily invests in acquired technologies to deal with complexity, it is likely to collaborate with competitors. 45
Science-Based OI
Science-based OI is defined as collaborations between firms and research organizations including universities, government labs, and other research institutes, and it becomes an important source of scientific knowledge acquisition in NPD. 46 Scientific knowledge is different from other types of knowledge because it contains fundamental properties and underlying mechanisms of particular phenomena rather than merely describes what occurred. 47 Such scientific knowledge becomes more useful in complex NPD projects as it efficiently guides search processes on how to combine interconnected components. In the pharmaceutical industry, scientific knowledge originated from universities or government labs is an important source of new drugs and delivery systems. 48 Research shows that science-based OI allows firms access to cutting-edge scientific and specialist knowledge. 49
However, firms using science-based OI face obstacles and significant challenges. 50 One of the challenges is related to transforming untested theory and raw science research into new products. High absorptive capacity is required to identify potential scientific knowledge that can be transformed into marketable products. 51 Cockburn and Henderson empirically show that absorptive capacity is the main determinant of the productivity of science-based OI. 52 Bishop, D’Este, and Neely found that the possession of relevant expertise can nurture the organization’s absorptive capacity and increase the benefits of science-based OI. 53 In this regard, science-based OI is different from crowdsourcing and coopetition OI in that it requires the focal firm to possess relevant project expertise to utilize the external knowledge. When a firm has sufficient absorptive capacity, the science-based OI model can help the firm deal with high levels of complexity and create breakthrough innovations.
Network OI
OI can take the form of networks, ecosystems, or consortia, where multiple players participate in NPD. 54 Nambisan and Sawhney claim that network OI is a distinct form of OI in that it requires coordination processes between multiple organizations in the network. 55 Vanhaverbeke and Cloodt explain that the network OI model (“value constellations”) is born to deal with increasing complexity in technological development. 56 Ritter and Gemunden state that networking OI can be used to deal with problems created by complex, interconnected technologies. 57
Several empirical studies support the idea that network OI is the most efficient form for dealing with high levels of complexity. For instance, Olsen, Sofka, and Grimpe explain that network OI is formed to jointly solve “grand challenges,” which are defined as the most significant complex and interdependent problems. 58 Kapoor and Adner explain that network OI helps organizations solve complex problems and enhance their learning opportunities. 59 Studying biopharmaceutical consortia, Allarakhia, Kilgour, and Fuller state that “consortia enable geographically separated researchers, facing the interconnectivity of large biological datasets, to develop tools to support complex upstream discovery research, and address the challenges associated with downstream product development.” 60 Network OI models can be formed not only at the business level, but also at the regional, state, and national levels. 61
Scholars report that network OI is strongly associated with participants’ technological specialization and expertise in their knowledge fields. 62 This literature suggests that network OI can connect organizations that have specific project expertise in their fields and collectively solve highly complex problems.
Research Design
The Pharmaceutical Industry
Pharmaceutical drug development is a multi-year, complex process starting from the discovery of compounds and ending with drug introduction. To introduce new drugs, pharmaceutical firms follow a similar process, as shown in Figure 1. 63 First, the firm conducts research to identify a drug target (molecules associated with particular diseases that can potentially produce desirable therapeutic effects) and the lead (the most promising compound). After the drug target and lead are identified, the firm assesses them using in vivo and in vitro models at the lead optimization stage. After animal testing results show positive signs and the commercial potential of a lead, the lead becomes a drug candidate. At this point, a firm files an investigational new drug (IND) application to the Food and Drug Administration (FDA) and initiates three phases of clinical trials. The firm tests the efficacy and toxicity of the drug candidate through these trials: Phase I includes 20 to 100 individuals with or without the disease, Phase II includes several hundred patients with the disease, and Phase III includes 300 to 3,000 patients that have the disease. After the firm collects sufficient evidence that shows the efficacy and safety of its drug candidate, it files a new drug application (NDA) for FDA review to obtain market approval. 64 The firm can sell the drug in market after approval.

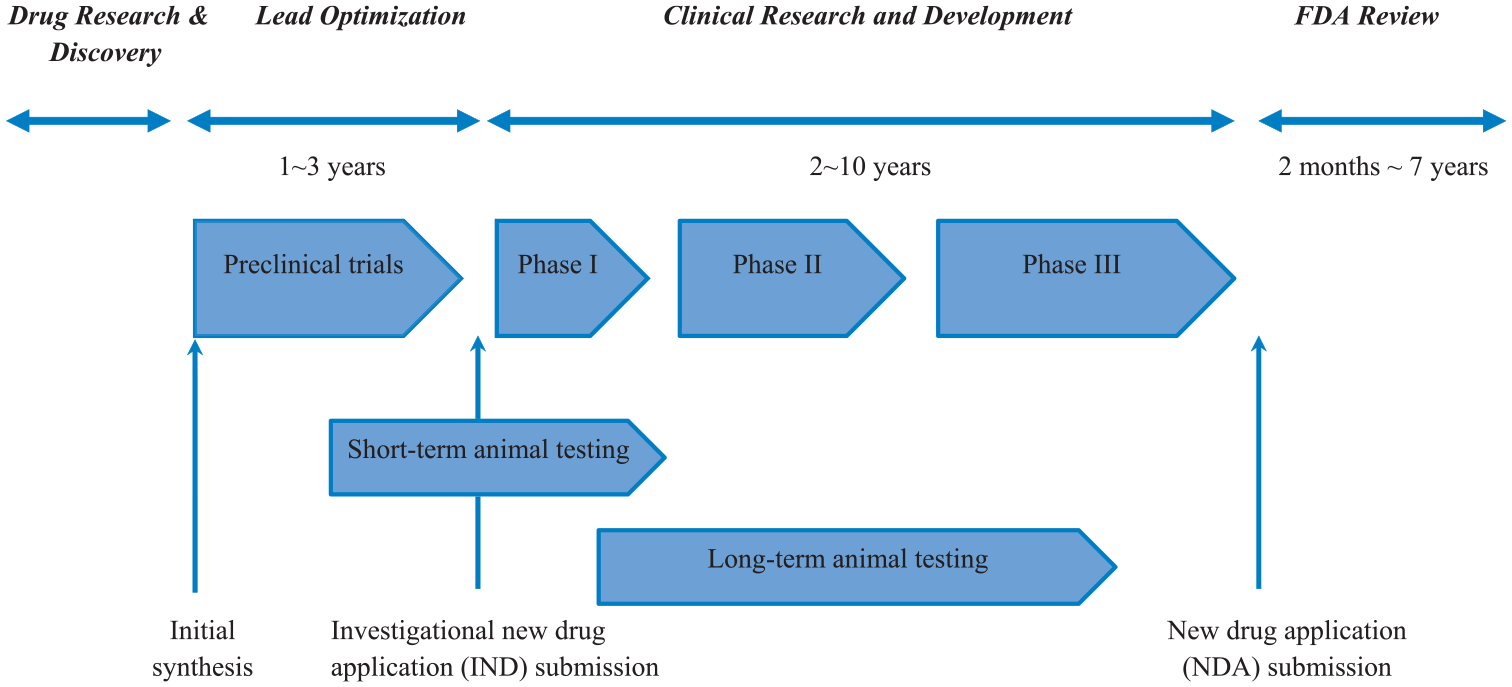

Pharmaceutical new product development process and timeline.
Pharmaceutical NPD requires the understanding of basic science, human diseases, drug mechanisms, pharmacokinetics and pharmacodynamics profiles, clinical trial designs, and mass-manufacturing processes. Components used in drug development are also interdependent (i.e., change in one component requires changes in other components). For instance, a drug candidate may show sufficient efficacy to treat a target disease, but have undesirable side effects associated with its drug delivery system. However, some components of the drug candidate only work with that particular delivery system and, thus, the firm cannot easily replace the delivery system. Such interdependencies between components in drug development require numerous iterations of development processes and create challenges for pharmaceutical firms.
Data Collection
We collected all prescription drugs approved during the period of 1990-2000 from the FDA database including the Orange Book. Although these data are publicly available, the FDA deletes expired patents related to drugs when it updates the electronic Orange Book. Therefore, we directly requested the data on all FDA-approved drugs and related patents through a Freedom of Information Act request and created our sample based on the FDA-provided data. Although the Orange Book offers information to match patents to the drug sample, it does not contain detailed information on the patents, specifically whether those patents were internally developed by focal organizations or externally sourced. Detailed information on patents is collected from the National Bureau of Economic Research 65 and the United States Patent and Trademark Office (USPTO). Firm-specific information such as R&D spending, firm age, and firm size were collected from Compustat. Information on marketing and sales executives was collected from the CorpTech Directory. Therapeutic market classes related to our drug sample are collected from the Physicians’ Desk Reference. Project-specific information, such as therapeutic experience, priority reviewed, and orphan drug, was collected from the FDA database. Our final sample includes 309 prescription drugs developed by 59 firms. Because our main variables (project expertise and complexity) vary between projects within firms, we use project-level (drug development project) as our unit of analysis.
Variables
We created our main variables (choice of open vs. closed innovation, project expertise, and complexity) based on methods used in existing literature. Following Ceccagnoli et al., we created the variable, open innovation choice, to indicate whether the drug development project utilized internal or external patents. 66 If drug patents were originated from the drug developer, it means that the project utilized internal knowledge to develop the drug; therefore, it was coded as 0 (closed). If drug patents were originated from external entities, it means that the project utilized external knowledge to develop the drug, and, therefore, it was coded as 1 (open). We adopted Fleming and Sorenson’s measure of complexity. 67 To capture project expertise, we count the number of previous patents that a focal organization had in the same technological fields (USPTO subclasses) as the focal drug patents seven years prior to the drug introduction. We took seven-year lags given the pharmaceutical development process takes between two and 17 years (on average seven years). 68 Table 1 summarizes our main and control variables.

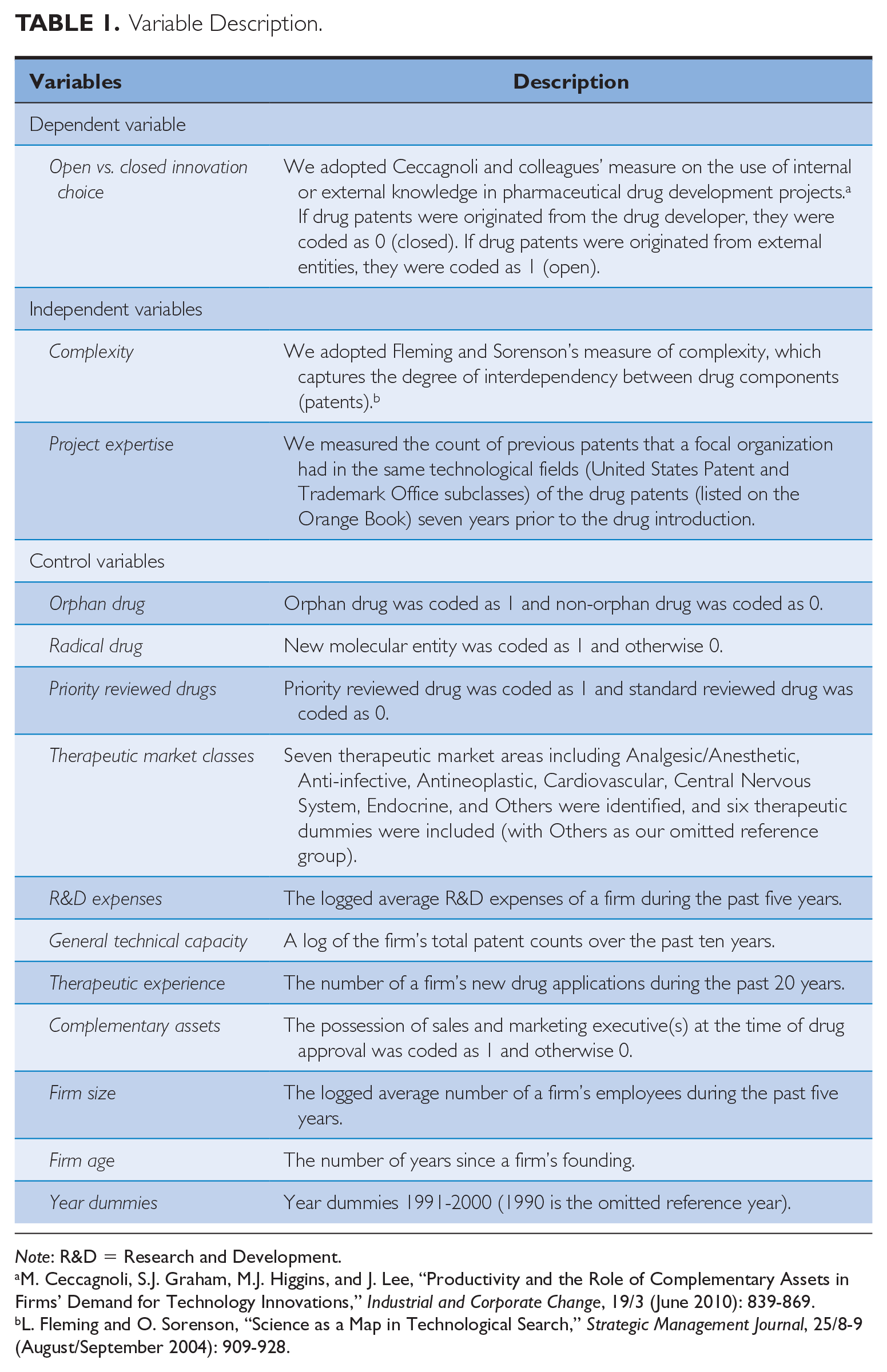

Variable Description.
Note: R&D = Research and Development.
M. Ceccagnoli, S.J. Graham, M.J. Higgins, and J. Lee, “Productivity and the Role of Complementary Assets in Firms’ Demand for Technology Innovations,” Industrial and Corporate Change, 19/3 (June 2010): 839-869.
L. Fleming and O. Sorenson, “Science as a Map in Technological Search,” Strategic Management Journal, 25/8-9 (August/September 2004): 909-928.
Method
Because this research focuses on the choice between open and closed innovation, we use probit regression to examine our research questions. Given that the unit of our analysis is an NPD project and there are multiple projects within firms in our sample, we used probit regression with the robust standard errors clustered by firms.
Findings
We found that among the 309 prescription drugs in our sample, 211 drugs (68.28%) were developed through OI projects, and 98 drugs (31.72%) were developed through closed innovation projects. In OI projects, pharmaceutical and biotechnology companies accounted for 61.14% of all external knowledge sources, universities accounted for 5.21%, government organizations accounted for 3.79%, hospitals and research centers accounted for 5.69%, individual scientists accounted for 5.69%, and others accounted for 18.48%. Our data show that collaborations between pharmaceutical companies or between pharmaceutical and biotechnology companies are the most common form of OI models in this industry (coopetition OI).
We also found that multiple organizations collaborate for new drug development. For instance, AstraZeneca introduced the drug Atacand (treatment for hypertension and heart failure) in collaboration with Takeda Chemical and Nokia Mobile. In this drug development project, Takeda Chemical provided its compounds for treating hypertensive heart disease, and Nokia Mobile provided its power saving technologies in data transmission. Table 2 provides examples of these different OI models in our data.

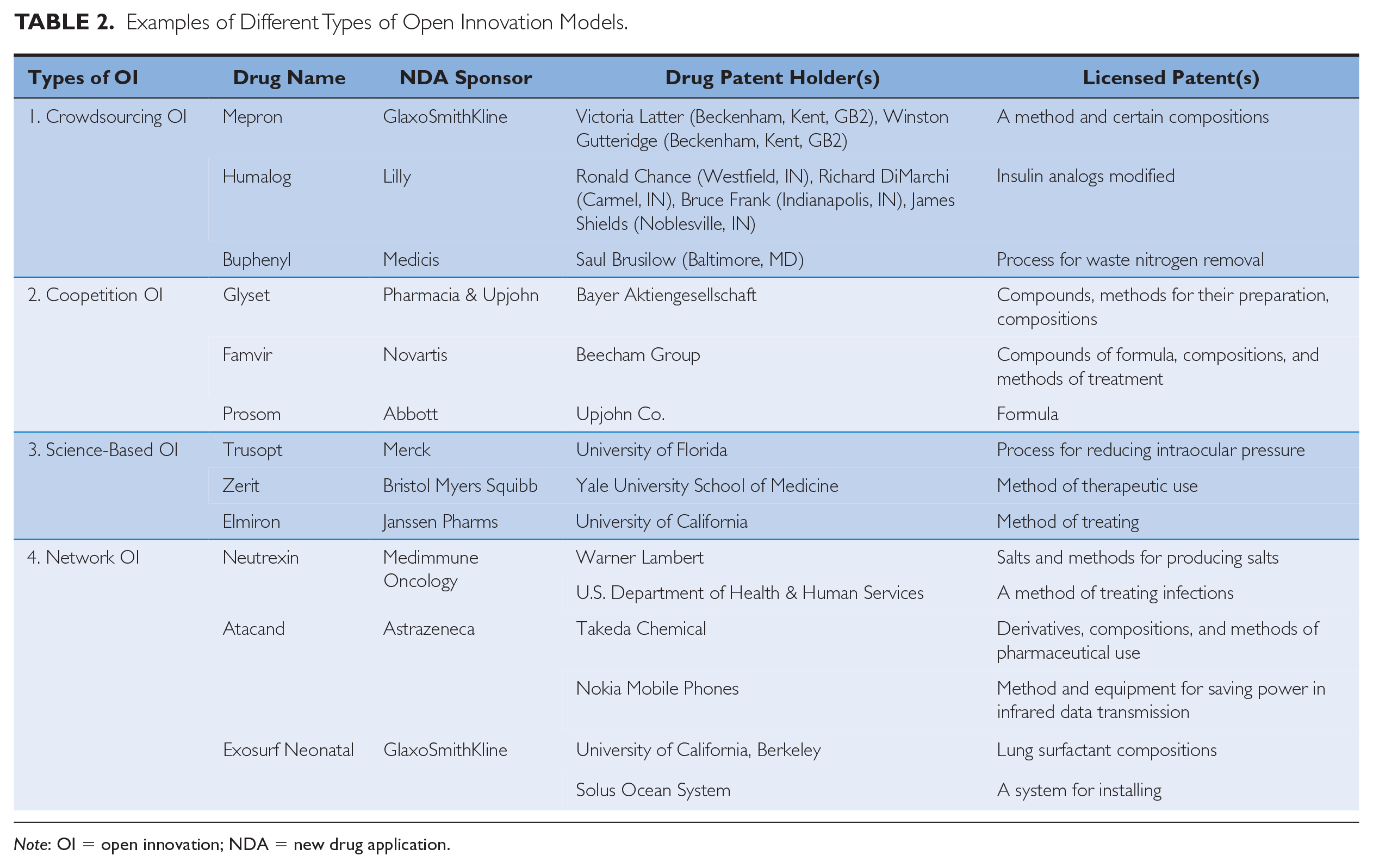

Examples of Different Types of Open Innovation Models.
Note: OI = open innovation; NDA = new drug application.
How does complexity moderate the relationship between project expertise and choice of open/closed innovation?
To test our proposition on the moderating effect of complexity, we first examine how project expertise affects the choice of open or closed innovation without the consideration of complexity and its interaction with project expertise. Figure 2 displays graphic results of this relationship. These results confirm that project expertise is an important determinant of the decision to adopt open or closed innovation. When firms have relevant project expertise, closed innovation is preferred; and when firms lack project expertise, OI is adopted.

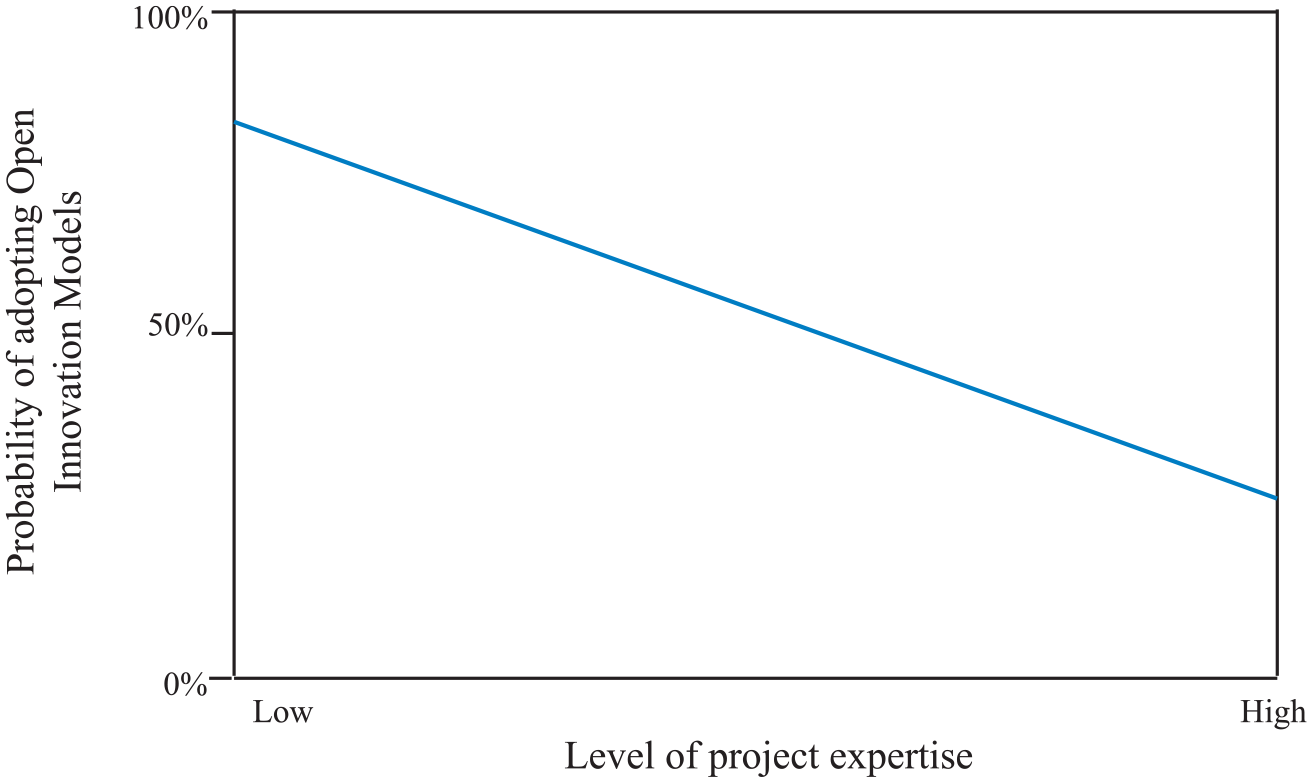

Role of project expertise on open innovation adoption (without the consideration of complexity).
Next, we include the interaction effect between complexity and project expertise and examine how complexity moderates the relationship between project expertise and choice of open or closed innovation. Figure 3 shows the graphic result of how complexity affects the impact of project expertise on the choice of OI. The result shows that complexity weakens the negative tie between project expertise and the choice of OI. Specifically, at low levels of complexity, the negative relationship between project expertise and OI becomes more pronounced; however, as complexity in NPD increases, the negative tie between project expertise and OI diminishes, although a (weak) negative relationship still remains. These results support our proposition that complexity leads firms with higher levels of project expertise to adopt OI models.

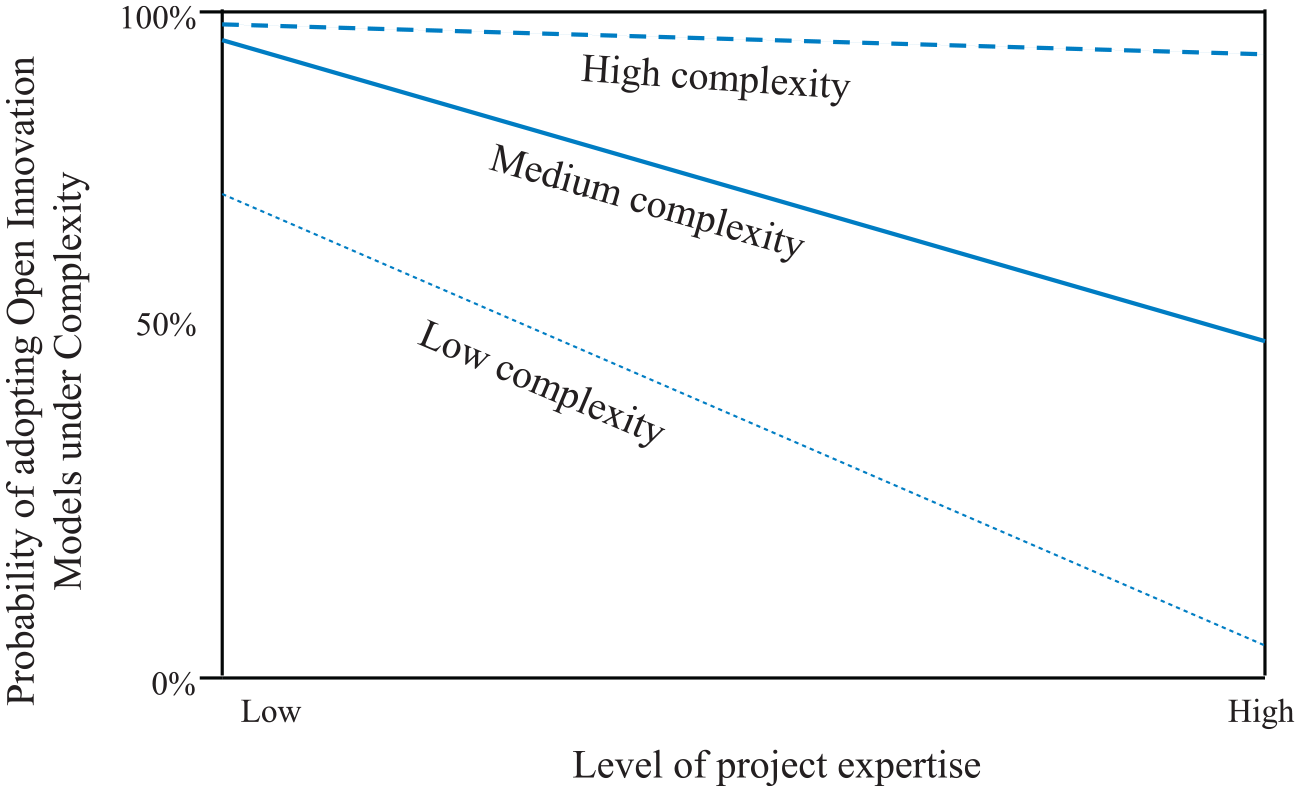

Role of project expertise on open innovation adoption under complexity.
Complexity and project expertise in different OI models
As noted, different OI types may be adopted under differing project expertise and complexity conditions. Table 3 shows mean differences in terms of complexity across the four different OI models. The average complexity is approximately 1.07 for coopetition OI projects, 1.06 for science-based OI projects, 0.59 for crowdsourcing OI projects, and 1.40 for networking OI projects. Among the four OI models, network OI is used most when projects deal with high levels of complexity, consistent with our theoretical explanation that network OI is the most efficient form for dealing with high levels of complexity. This finding implies that network OI can become a more prevalent form of OI in the future as NPD complexity grows over time.

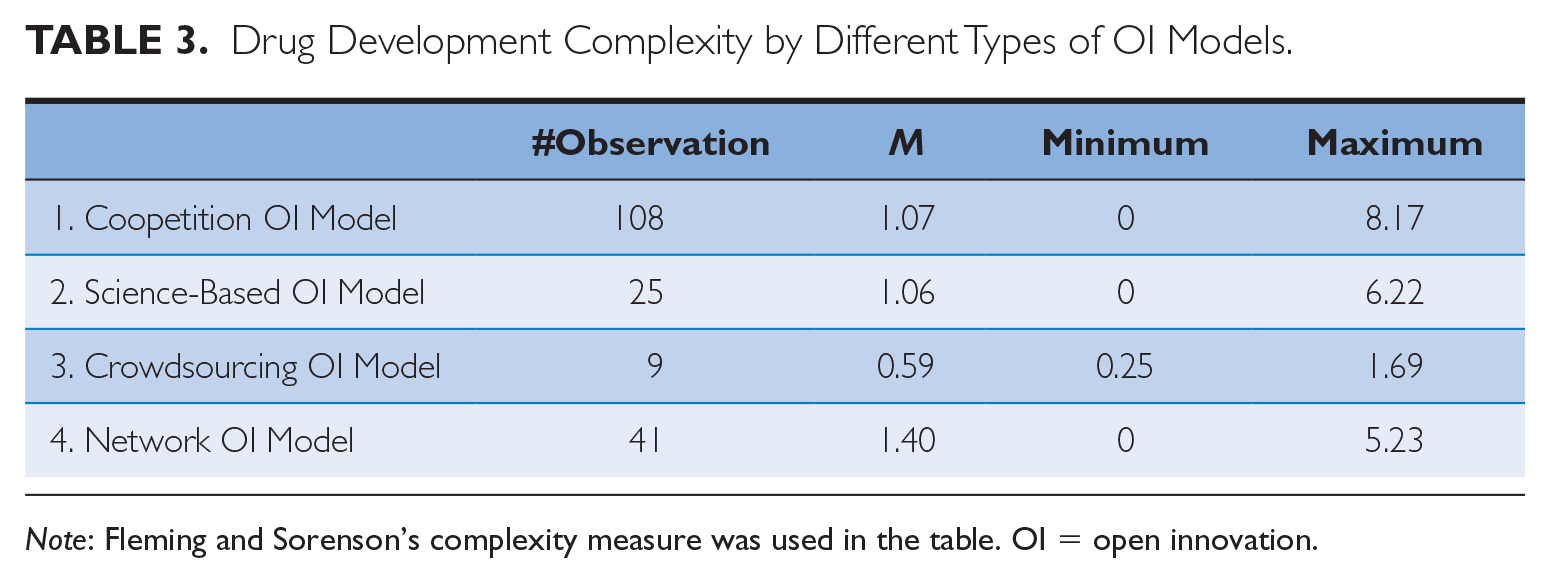

Drug Development Complexity by Different Types of OI Models.
Note: Fleming and Sorenson’s complexity measure was used in the table. OI = open innovation.
It is interesting to note that the average complexity of crowdsourcing OI is far below the means of the other OI models. This result suggests that crowdsourcing OI may be used most when firms need to deal with relatively low levels of complexity compared with other OI models. When a problem is identified and simplified, then the firm can broadcast the problem to the crowd without frequent knowledge transfer and communication, and crowdsourcing OI can quickly generate novel ideas and solutions. However, when a firm needs to frequently transfer knowledge to, and communicate with, the crowd (which occurs with increasing complexity), crowdsourcing OI models may significantly increase communication and knowledge integration costs. This is not only very costly for the focal firm, but also for the crowdsourcing participants because they need to devote a considerable amount of time and cognitive effort to communicate their ideas to the focal firm with little confidence that their proposed ideas will eventually be winning solutions. These communication burdens may reduce both the enjoyment and fun associated with engaging in crowdsourcing OI. Overly complex crowdsourcing tasks will reduce the performance of crowdsourcing OI by increasing communication burdens between the firm and the crowd.
Table 4 shows the average of project expertise for the different types of OI models. Coopetition OI projects possessed an average expertise of 1.11, science-based OI projects had an average expertise of 1.72, network OI projects had an average expertise of 1.27, and crowdsourcing OI had zero expertise (meaning that all crowdsourcing OI projects in the sample did not have any prior knowledge related to the drug development area). These results clearly highlight distinct differences between science-based OI and crowdsourcing OI. Consistent with the prior literature, our results show that crowdsourcing OI is beneficial when firms do not possess relevant project expertise. 69 In contrast, science-based OI is chosen by firms when they have relevant project expertise and, thus, absorptive capacity. These results not only confirm the prior OI literature’s findings concerning the important role of relevant expertise as absorptive capacity in the science-based OI, but also provide evidence that the levels of project expertise required to efficiently utilize each OI model can be different.

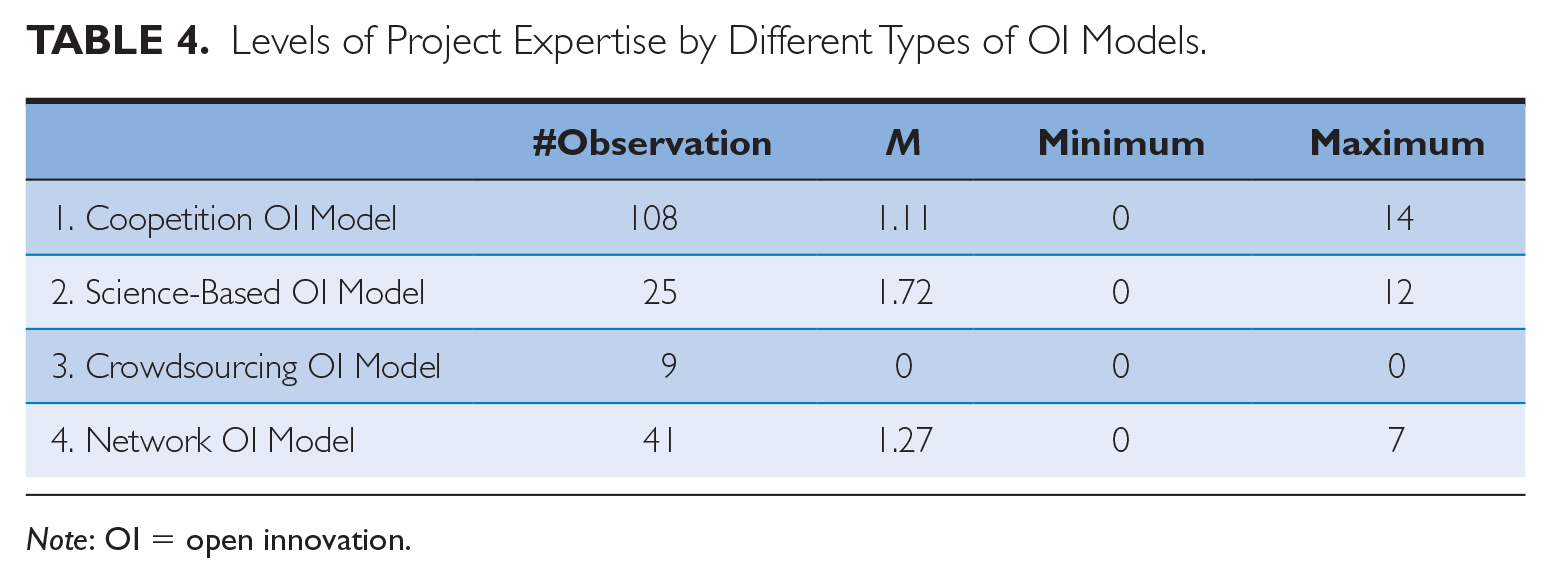

Levels of Project Expertise by Different Types of OI Models.
Note: OI = open innovation.
Other Findings
We also found interesting results regarding firm size, R&D budgets, and market size. According to the U.S. Small Business Administration, small businesses in the pharmaceutical industry are defined as firms that hire less than 1,250 employees. We categorized firms in our sample into large and small businesses based on this definition of small businesses. Table 5 presents the differences in complexity between large and small firms choosing open and closed innovation models. For large companies, the average complexity of closed innovation projects is 0.57, and the average complexity of OI projects is 1.22. These results indicate that large firms choose OI models to deal with more complex projects.

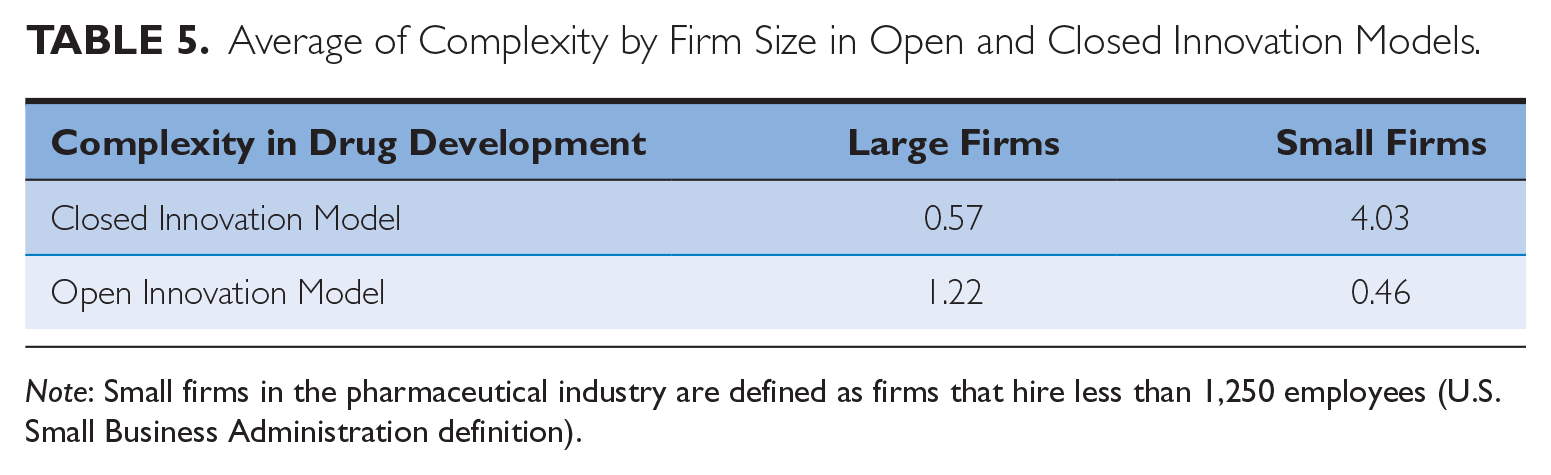

Average of Complexity by Firm Size in Open and Closed Innovation Models.
Note: Small firms in the pharmaceutical industry are defined as firms that hire less than 1,250 employees (U.S. Small Business Administration definition).
However, small firms seem to do the opposite. Instead of adopting OI models, small firms choose closed innovation to deal with more complex projects. For small firms, the average complexity of closed innovation projects is 4.03, and the average complexity of OI projects is 0.46. This result shows that the trade-off between closed and open innovation in terms of knowledge integration and divergence can differ between large and small firms. In large firms, knowledge divergence through closed innovation can be challenging due to routines and procedures associated with the firm’s existing knowledge and expertise. In contrast, small firms tend to possess flexible organizational structures, lack of routines, and existing expertise, which help them readily diversify knowledge and, thus, solve complex problems using closed innovation models.
With respect to knowledge integration, large firms have sufficient resources to redesign organizational structures in an attempt to mitigate high communication and coordination costs in OI environments. For instance, GlaxoSmithKline (GSK) plc, an expert in antibiotic drug research, redesigned its R&D departments by dividing them into six small Centers of Excellence in Drug Discovery (CEDD) and offered authority to make decisions on licensing-in compounds in each CEDD in an attempt to reduce knowledge integration costs (see the appendix for detailed information). 70 As our results show, knowledge divergence and integration costs can greatly differ between large and small firms.
In addition, our results found that projects with low R&D budgets are more likely to use OI models than projects with high R&D budgets. This finding is consistent with the OI literature, which argues that OI can be a useful avenue to share resources and costs. 71 We also show that orphan drug projects are more likely to adopt OI models than non-orphan drug projects. Orphan drugs are defined as pharmaceutical agents designed to prevent, diagnose, or treat rare diseases and disorders that generally affect fewer than 200,000 people in the United States. Traditionally, the small market size of orphan drugs discouraged pharmaceutical companies from developing the drugs in-house. Our results show that when pharmaceutical companies develop orphan drugs, they are more likely to adopt OI models. This finding is consistent with the logic for R&D budgets; that is, firms likely adopt OI for orphan drugs to share in the costs and risks of NPD.
Discussion
Scholarly Implications
In a recent comprehensive review of the OI literature, Bogers and colleagues highlight that theory development should be the center for the advancement of the OI literature, and our research is in alignment with the position. We have presented a theory framework with important constructs, including complexity, project expertise, and OI adoption, and have offered explanations regarding why increasing complexity is a driver for the rapid adoption of the OI phenomenon. 72
Furthermore, we have contributed to the link between the OI literature on complex systems and KBV and propose a theoretical framework utilizing knowledge divergence and knowledge integration in complex problem solving. Although the OI literature significantly draws from KBV, particularly utilizing the concept of absorptive capacity, 73 this prior literature focuses on OI performance. 74 Here, we have focused on the adoption of open versus closed innovation and, thus, utilize KBV to explain why open and closed innovation choices entail both costs and benefits (trade-offs) in regard to knowledge divergence and integration. A firm’s absorptive capacity not only impacts OI performance, as suggested in prior research, but our theory and results show it also impacts the firm’s decision to select OI.
In addition, Bogers and colleagues state that “research on OI predominantly addresses the firm as the unit of analysis” and, therefore, more research using different levels of analysis is necessary. 75 This observation is logical, since many firms have multiple projects of varying complexity and in areas where they have varying levels of expertise; thus, firm-level analysis may not efficiently capture these differences at the project level. They also point out that prior OI literature heavily utilizes case studies, and, therefore, research such as ours using large quantitative data analysis can offer important empirical contributions.
Practical Implications
We have described the dilemma that managers face in complex NPD environments and linked the dilemma to the choice of OI or closed innovation models. Primarily, NPD in complex environments requires diverse knowledge, and OI approaches provide the benefit of access to diverse knowledge. The adoption of OI models also comes with costs; specifically, they can generate increasing communication and coordination requirements with external partners. The adoption of OI for knowledge divergence also requires firms’ deliberate efforts to minimize increased communication and coordination costs.
The varying circumstances that firms face influence the trade-off between open and closed innovation; these circumstances include not only project expertise and complexity, but also firm size, R&D budget, and market size. Our results show that small and large firms handle complexity differently by choosing different organizational methods (open or closed innovation). In addition, firms predominantly adopt OI models when they have low R&D budgets or when they develop new products that have a small market size. When new products are expected to require high R&D budgets or have limited profit potentials due to small market size, managers may give up on these product development opportunities. OI models can capitalize on such product development opportunities while minimizing the use of a firm’s resources in those projects.
There are multiple OI models, and, thus, managers have options when making the decision to utilize OI. Four different types of OI models were examined here: crowdsourcing, coopetition, science-based, and network. Managers’ selection of certain types of OI models is dependent upon the level of complexity they face in development projects and the level of project expertise required. In other words, firm’s unique circumstances such as complexity and project expertise influence not only whether managers choose open or closed innovation, but also which type of OI model they tend to adopt.

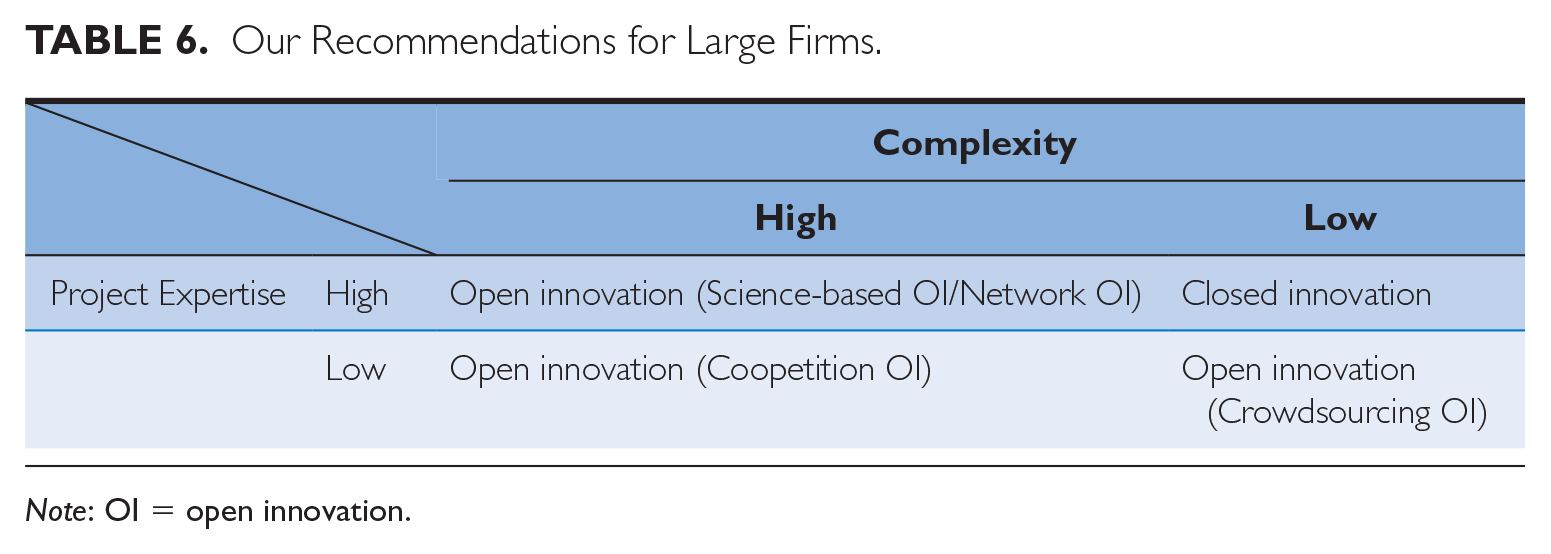

Table 6 summarizes our recommendations based on our findings for large companies. Network OI models (collaborations with multiple partners) or science-based OI models (collaborations with research institutes) are utilized most often when firms attempt to conduct complex projects; however, such OI models also require high levels of project expertise as absorptive capacity. In contrast, crowdsourcing OI models (collaborations with individual scientists) are selected most often when a firm attempts to conduct relatively less complex projects (when compared with other OI models) and lacks relevant project expertise in the development area. When a firm does not possess relevant expertise and the development project requires common knowledge on markets and customers with the OI partner, coopetition OI (collaborations with rivals) is selected most often. Using the coopetition OI model, firms and their partners can improve joint problem-solving skills with their shared knowledge on markets and customers and share costs and risks associated with complex NPD projects.
Our Recommendations for Large Firms.
Note: OI = open innovation.
