Fractional-order neural control of a DFIG supplied by a two-level PWM inverter for dual-rotor wind turbine system

Abstract

Energy ripples are among the common problems in renewable energies as a result of using less efficient strategies. In this work, a new technique is suggested to control a doubly-fed induction generator (DFIG) using the pulse width modulation (PWM). The new technique is based on the combination of neural networks and fractional-order control to minimize the reactive and active power ripples of the DFIG-based variable speed dual-rotor wind turbine system. The suggested fractional-order neural control (FONC) with the PWM is a simple, robust and a high-performance strategy. Simulation is performed using Matlab software to validate the effectiveness of the designed control of 1.5 MW DFIG and the obtained results are compared with the traditional direct power control (DPC) in different working conditions. In addition, the comparison between the suggested control and the DPC is performed in the cases of changing or not changing the device parameters in terms of ripple ratio, dynamic response, steady-state error, current quality, and overshoot of active and reactive power of the DFIG. As compared to the DPC, the proposed FONC technique improves the active and reactive power ripples by 65.71% and 84.74%, respectively. Also, improves the overshoot of the active and reactive power by 71.33% and 91.72%, respectively. The simulation results demonstrate the high performance and robustness of the FONC technique for the parametric variations of the DFIG-based variable speed dual-rotor wind turbine system compared to the DPC control.

Keywords

Fractional-order control doubly-fed induction generator dual-rotor wind turbine neural networks pulse width modulation

Introduction

Doubly-fed induction generator (DFIG) is one of the most widely used generators in renewable energy (RE). This generator converts the power gained from the wind by the turbines into electrical power.¹ To use DFIG in the field of wind turbines, electronic transformers must be used, as two transformers are used for this purpose. The use of a power electronics transformer is the key to connecting the system to the network via a DC-link capacitor.² The AC-DC-AC converter is modulated by a grid-connected grid side converter (GSC) and a DFIG-connected rotor side converter (RSC), where the purpose of using a GSC is to keep the DC link voltage constant regardless of the size and direction of the power rotor using a vector control. The role of using RSC is to optimize DFIG operation to provide maximum power output using vector control strategy.

Several reasons made DFIG sit on the top of the most popular electric generators because of the low cost, high durability, and ease of control of the rotational speed by feeding the rotor, which makes it operate in several different states and raises the efficiency of performance compared to several other types.^1,2 To generate an electric current from DFIG, several control strategies are used for this purpose, whereby detailed modeling of DFIG, wind turbine, and inverter is necessary for the realization of the generation system. The control strategies used to control DFIG can be categorized into four main families as follows: (1) linear control, (2) nonlinear control, (3) intelligent control, and (4) hybrid control. These strategies are used in the field of control and differ from each other in terms of robustness, ease of implementation, degree of complexity, and the results presented to improve the response of the system under study.

Linear controls are strategies characterized by simplicity, quick dynamic response, and ease of implementation and application compared to other control strategies.³ The most famous of these strategies are direct torque command (DTC),⁴ direct power command (DPC),⁵ and field-oriented command.⁶ However, the DPC and DTC strategies have the same implementation principle, but uses specific switching tables (STs) to generate command pulses in the generator inverter.^4,5 In this strategies, two hysteresis comparators (HCs) are used to control the characteristic amounts, where these two HCs are of different levels. But there are researchers who used two HCs of the same level, and this is by changing the ST, and in this case the control becomes another. The minimum level that can be used is two levels for each HCs, as the level of the used comparator is important in improving the characteristics of the two linear strategies. In addition, these strategies depend on estimating the characteristic values to calculate the error, so they need measuring devices with high accuracy. Unlike these strategies, the field-oriented control is completely different from the DTC and DPC techniques in terms of the implementation principle, and there are two types of this strategy: the direct technique⁷ and the indirect technique.⁸ This strategy relies on the use of the pulse width modulation (PWM) technique to command the generator inverter.^6,7 Besides the PWM technique, a proportional-integral (PI) controller is used to command the characteristic magnitudes of DFIG.⁹ Field-oriented control is less efficient than DTC and DPC in terms of power ripples, and quality of current, dynamic response.¹⁰

In the field of control, the DPC technique is one of the most widely used strategies in the field of RE for the generation of electric power due to its multiple characteristics compared to some controls. In this strategy, the reactive and active power (Q_s and P_s) is controlled using HCs, where two are used for the purpose of power control. To control the P_s, a three-level HC is used with its outputs being −1, 0, and 1. As for the Q_s, a two-level HC is used with its outputs being 1 or 0. Besides HCs, ST to control the DFIG inverter is used. The role of the ST is to generate the necessary control pulses. This table has three entrances and three exits, where the entrances are represented in the error in the P_s, the error in the Q_s, and sectors. The outputs are three different high frequency pulse signals. In addition, the DPC strategy relies on estimating both the Q_s and P_s to calculate the error in the Q_s and P_s, where the power estimate is linked to the system parameters, which creates several problems and defects, especially in the case of system parameters change, and this is undesirable.

Power quality is among the main problems in DPC technique, which limits its spread in the field of controlling electric generators, where the low quality of power (electric current) causes several problems in the network, which leads to imbalances in the operation of electrical machines.¹¹ Also, the low quality of energy leads to an increase in the periodic maintenance and thus a high industrial cost, which is undesirable.¹²

To improve the efficiency of the wind power generation system using DFIG, several new strategies have been put forward, which can be summarized as follows: synergetic control,¹³ backstepping control,¹⁴ sliding mode command (SMC),¹⁵ passivity command,¹⁶ predictive command¹⁷ fractional-order command (FOC),¹⁸ intelligent control,^19–21 high-order SMC,^22,23 backstepping-SMC control,²⁴ synergetic-SMC control,²⁵ synergetic-super-twisting algorithm,²⁶ and terminal synergetic control.²⁷ These controllers are highly efficient in improving DPC performance in reducing DFIG power ripples to some extent. In these strategies mentioned above, a change was made in the DPC strategy, by eliminating two HCs and ST to minimize the Q_s and P_s ripples. Also, by improving current quality, increasing system durability, and reducing dynamic response compared to the DPC. The use of these strategies, especially the non-linear strategy such as passivity control or backstepping control, creates many problems in DPC control, and this is not desirable. However, the disadvantage of using these controls is that it is related to the mathematical form of the DFIG, which makes it difficult to control and makes it more difficult to perform. Also, in the case of changing the parameters, it will lead to a deterioration of the dynamic response to these previously mentioned strategies, and thus a significant decrease in the Q_s and P_s qualities. Therefore, it was necessary to think of a new command that is not related to the mathematical model of the DFIG, with an emphasis on durability, but also on ease and simplicity of operation. In addition, power ripple reduction is required when system parameters change.

The use of fractional-order control gives an advantage in terms of improving the characteristics of systems and overcoming the defects of control strategies. This control strategy is considered one of the most reliable mathematical solutions for controlling wind energy generation systems, as it is considered one of the least complex and most efficient nonlinear strategies in improving the systems’ characteristics, especially in the event of a malfunction in the machine.²⁸ In addition, the use of fractional-order control is not related to the mathematical model of the system, which allows the system not to be complicated and thus easy to implement. Also, excellent results are obtained in the event of a system malfunction as investigated in Benbouhenni et al.²⁹ In the latter, a PI controller based on fractional-order control was used to control the Q_s and P_s of the DFIG-DRWT system, where the proposed control is characterized by simplicity, high robustness, and ease of adjusting the dynamic response. The use of PI based on fractional-order control led to a reduction in the active and reactive power ripples, especially in the case of system parameters changing in large proportions compared to the traditional control, which is a good thing. In Gasmi et al.,³⁰ STA based on fractional-order control was used to overcome the defects of the FOC of the DFIG, whereby the traditional controllers were dispensed with and replaced by this proposed controller. The advantage of using this proposed controller is its high durability and simplicity, as there are few parameters, which makes it easy to adjust and control the dynamic response. This suggested technique has been applied to 1.5 kW DFIG using numerical simulations with comparison of results with FOC based on PI controllers. Another work on fractional calculus applications on wind turbines was done in Gasmi et al.,³¹ where Fractional-order proportional-integral super-twisting SMC was used as a suitable solution to control the Q_s and P_s of DFIG. The latter is controlled by the FOC strategy, whereby four fractional-order proportional-integral super-twisting SMCs were used to compensate the PI controller with the use of PWM to generate the necessary pulses to control the inverter. This control is characterized by complexity, difficulty in execution, and the presence of many parameters, which makes it difficult to adjust the dynamic response of the system. However, the use of this proposed controller to improve the performance of FOC led to a decrease in power ripples, an improvement in current quality, and a decrease in steady-state error and overshoot, especially in the case of changes in system parameters compared to FOC.

Traditionally, intelligent strategies or what is known as artificial intelligence are among the most prominent controls at the present time, as they are no less important than nonlinear controls in controlling electrical machines. These smart strategies are many and varied, the most prominent of which are genetic algorithms (Gas),³² fuzzy logic (FL),³³ neural networks (NNs),³⁴ gray wolf optimization,³⁵ particle swarm optimization (P_sO),³⁶ ant-colony algorithm,³⁷ etc. These algorithms were proposed based on biological studies conducted on animals, and almost every algorithm is related to the behavior or way of living of animals, as in the case of gray wolf optimization, where this strategy was proposed based on the behavior of gray wolves in collective hunting.

These algorithms depend largely on the experience of the user, and they are algorithms that can be applied to all systems, as these algorithms are used to calculate the parameters of the system such as GA technique. The use of these smart algorithms leads to a significant improvement in the efficiency of the systems. In Iqbal et al.,³⁸ the PSO algorithm is used to calculate the PI controller parameters of a wind turbine control system based on DFIG to improve the current quality. Simulation was used to implement this intelligent control with a comparison of the results with the traditional control that depends on the PI, where the results showed that the use of the PSO algorithm leads to a significant improvement in the characteristics of the system compared to the DPC.

FL strategy is the most prominent smart strategy in the field of controlling electrical machines, as it was proposed by the scientist Zadeh in 1965.³⁹ This strategy depends on the use of logic that is different from the ordinary logic that depends on right and wrong. In FL, functions called logical functions and logical rules are used, where the larger the logical rules, the greater the efficiency of FL in improving the system’s properties.²⁰ But there is a negative to this strategy lies in making the system slow the greater the number of rules used and this thing is undesirable. FL technique has been used in many different fields, as it has been used in the field of controlling asynchronous motors,⁴⁰ controlling multi-level inverters,^41,42 and in the field of renewable energies.^43,44

The use of FL strategy in the field of renewable energies leads to a significant improvement in the quality of the current, a decrease in the THD value of the current, an increase in the durability with a reduction in the active and reactive power ripples, especially in the event of a fault in the system.⁴⁵ One of the disadvantages that FL technique can create is in the case of a large number of FL controllers in a system, as it leads to difficulty in adjusting the response due to the large number of parameters. As it is known, in one FL controller there are three parameters that must be well defined in order to get an excellent response, and therefore the greater the number of FL controllers, the greater the number of parameters, and this is undesirable and leads to the complexity of the system.⁴⁶ In Heydari et al.,⁴⁷ the GA technique was used to calculate fuzzy control parameters in order to overcome the drawbacks of the DPC of DFIG. The use of GA led to a significant improvement in the performance of the FL, and this is noted through the obtained results compared to the DPC, where the use of FL-GA technique in the DPC led to the reduction of the Q_s and P_s ripples and the reduction of the THD value of current coming out of the stator of the generator. In Farida et al.,⁴⁸ FL technique and high-order SMC are combined to create a robust and highly efficient controller to overcome the problem and drawbacks of a DFIG-based wind power generation system. The use of this combination of two different controllers greatly improves the robustness of the system while reducing the chatter phenomenon present in the SMC which is desirable.

Another smart strategy represented by NN techniques relies heavily on experience, where simplicity and robustness are among the most prominent features of this smart strategy.⁴⁹ The basis of the functioning of NN techniques is to simulate the functioning of the human brain by applying a network of linked inputs and outputs. This strategy depends on learning using learning algorithms, where Levenberg-Marquardt (LM) technique is one of the most popular and most used learning algorithms.⁵⁰ A NN has at least three layers (one input, one output, and one or more hidden layers). As is known, no constraint is imposed on the number of nodes allocated in the hidden layer, and their number is optimally chosen depending on the application. Thus, compared to conventional controllers, a NN-based controller can become a more efficient and reliable alternative for active and reactive power control in the wind system. Compared to other smart strategies, NN techniques are multiple, and each network has advantages and disadvantages that distinguish it from other networks. Among the most prominent of these networks, we mention newff, which means a feed-forward backpropagation network and newcf means trainable cascade-forward backpropagation network. NN techniques have been used in several different fields because of their ease of application and their ability to improve the dynamic response of systems compared to traditional controls.^49,50 In Gu et al.,⁵¹ a Hopfield fuzzy NN technique is proposed in a DFIG and superconducting magnetic energy storage module to make the corresponding frequency control approach more adaptive. The simulation results showed the superiority and high efficiency of the Hopfield fuzzy NN in improving the dynamic performance of the studied system compared to the traditional control. In Behara and Saha,⁵² artificial neural predictive control was used to improve the quality of energy generated by DFIG in different working conditions. This strategy aims to enhance the productivity of wind turbines, achieve a stable network connection, and ensure that they operate as efficiently as possible. Artificial neural predictive control was implemented using Matlab software, and the results were compared with existing strategies in terms of output power quality and torque ripples. The results of the simulation demonstrated the quality of current and energy in the case of using artificial neural predictive control compared to other controls. Several advantages come with using NN technique, such as better grid stability, improved energy efficiency, and reduced operational costs. In Chojaa et al.,⁵³ a new control based on the use of the NN to control the DFIG powers present in the wind system. Two neural controllers were used to control the capacities, and PWM was used to produce the necessary pulses to control the DFIG inverter. The advantage of the proposed control is simplicity, robustness, and ease of implementation compared to several strategies such as backstepping control. This control was implemented by Dspace 1104 card on a generator with a capacity of 1.5 kW in different working conditions such as variable wind speed, where the experimental results were compared with both DPC and backstepping control. The work⁵⁴ proposes an adaptive neural fuzzy control for maximum power point tracking (MPPT) for wind power conversion systems connected to a DFIG. The use of adaptive fuzzy neural control aims to extract maximum power from the wind by tracking the maximum power peak regardless of wind speed. Moreover, the proposed MPPT controller implements an adaptive fuzzy-NN control approach with back propagation algorithm, where the rotor speed acts as the input to the controller and the torque reference as the output to the controller, which increases the input of the rotor side transducer speed control loop to control the actual speed of the rotor from By adjusting the operating ratio of the RSC. The role of the NNs is to train the fuzzy input membership according to the input and change the initial membership functions. A Matlab environment is used to implement the proposed control of a 2 MW wind turbine under different wind speed conditions and compare it with the performance of a DPC. The results showed that the wind energy generation system operates at its full optimal power for the wide range in the case of using the proposed smart control unit compared to the traditional control in the case of variable wind speed. The work done in Benbouhenni and Bizon⁵⁵ aims to increase the Q_s and P_s extracted from variable speed DRWT system-based DFIG by optimizing their operation using advanced direct vector control. In this work, direct vector control based on NN techniques are used, where all the traditional controls⁵⁵ are replaced by smart ones in order to control the active and reactive power. In addition, fuzzy PWM technique is used to generate the pulses needed to control the generator inverter. Matlab/Simulink simulation software was used to prove the effectiveness of the proposed intelligent control using 1.5 MW DRWT, as the results showed good performance in terms of response time, stability and accuracy in following references under conditions of variable wind speed. In addition, the smart strategy proposed in Benbouhenni and Bizon⁵⁵ gave a good value of current total harmonic distortion (THD) (0.13%) compared to the traditional control and other strategies mentioned in the literature. Also, the proposed intelligent control minimized the response time to active power by approximately 64.4% and 90.11% compared with neural second-order SMC and DPC, respectively. As for the reactive power, the ratio was about 5.55% and 50%, compared with neural second-order SMC and DPC, respectively. In Chien et al.,⁵⁶ a complementary frequency controller based on the NN technique is designed for a wind farm, where the gain of the optimal controller giving the highest nadir frequency or the lowest peak frequency is a complex nonlinear function of load perturbation and system variables, thus it is not easy to use analytical methods to derive the optimal gain. The author has used the NN technique which uses load turbulence, wind penetration and wind speed as the input and desired console gain when suggesting the output, where once trained through an appropriate set of training patterns the NN technique can be used to achieve the desired gain in a very efficient manner and this is in the absence of an operating condition in the training group. Another application of the NN technique is in the field of wind power generation systems, particularly in controlling the rotational speed of a turbine. The work done in Ghefiri et al.⁵⁷ aims to test and implement a new NN technique to provide a suitable reference for the rotational speed and blade inclination angle of a wind turbine. The NN strategy supervisor limits the power and switches the system appropriately in the variable speed modes. Rotational speed control is applied to the rotary bypass inverter by following MPPT generated by NN technique block in order to recover maximum power from tidal current, NN technique adjusts the rotational speed and blade inclination angle to protect the turbine from strong tidal currents. Accordingly, the simulation results show that the applied NN technique achieves smooth power generation under different working conditions compared to the traditional PI-based control. Also, the use of NN technique leads to real-time frequency control. The simulation results performed on a power system in Taiwan revealed that the NN technique can yield better frequency response than the fixed gain controller. The work done in Sun et al.⁵⁸ presents a scientific study of a short-term wind turbine outage model based on data collected from a wind farm supervisory control system and data acquisition using the NN technique. In this work, the NN technique was used to generate prediction models for wind turbine state parameters that depend on different environmental conditions such as temperature change and wind speed change profile. The distributions of prediction errors were studied and used to calculate the operating probabilities of protection relays that resulted from exceeding the threshold of environmentally sensitive parameters, where the union probability method is used to integrate the operating probabilities of each protection relay to predict the short-term outage probability of wind turbines. The results obtained from the proposed method using real 1.5 MW with DFIGs showed its superiority in predicting the wind turbine outage probability over the conventional strategies, and this is a good thing that proves the high performance of the NN technique. Moreover, another application that has demonstrated the efficiency of the NN technique is the multi-level inverter control in the works.^59–62 In these works, the NN technique was used to generate the necessary control pulses to operate the inverter instead of using modulation techniques such as SVM, where the use of this smart technique led to a significant improvement in the performance of the inverter and to a decrease in the THD value of the current, and this was confirmed by the experimental work carried out in Boudjema et al.⁶² In Benbouhenni,^63,64 the problem of chatter found in nonlinear strategies such as SMC and High-order SMC is addressed, where the NN technique is proposed as a suitable solution due to its accuracy and its irrelevance to the mathematical model of the system. In this work, the Sign(u) function has been replaced by the NN algorithm with one inner layer. Through the results obtained, it is noted that the phenomenon of chatter was significantly reduced compared to the traditional controls of SMC and third-order SMC. Along with the noise reduction, active and reactive power ripples are also reduced by the high percentage of the DFIG-based DRWT system. Also, it is noted, an improvement in the quality of the current compared to the traditional controls and this appears through the reduction rate of high THD, which indicates the extent of the efficiency of neural networks in improving the characteristics of classical controls and systems in general. Several scientific works have proposed the NN strategy to overcome the drawbacks and problems of the DPC of DFIG.^65–68 In this work the ST and two HCs were compensated by the NN technique keeping both Q_s and P_s to calculate the error in the capacities. These smart strategies for DPC are characterized by their simplicity, low cost, and ease of implementation compared to many other controls such as the backstepping control. The use of a capacity estimate creates several problems in the event of a malfunction in the machine, such as an increase in the value of the current and torque ripples, a decrease in the quality of the current, and an increase in the overshoot value of the Q_s and P_s, and this is undesirable.

This work deals with an application of neural networks with fractional-order control in order to control the capabilities of a DFIG-based DRWT system, where this work aims to reduce Q_s and P_s ripples, improve the current quality by reducing the THD value, improve the values of time response and overshoot of power, and increase the durability of the wind power compared to the DPC. Also, the proposed control differs from the controls mentioned above, which is characterized by high efficiency with no connection to the variables of the studied system, which gives better results in the event of a defect in the system.

The proposed control in this work is fractional-order neural control (FONC), where this control is a combination of two different strategies in principle and characteristics. This proposed strategy is the main contribution of this paper. The FONC strategy implemented in this paper differs from several published scientific works such as Boudjema et al.,⁶² Benbouhenni^64,66,68 where it was addressed for the first time in this work. This proposed FONC control is used to improve the characteristics of the DFIG-based DRWT system, where two FONC controllers are used to control the active and reactive powers. In addition, the PWM strategy is used to generate the necessary pulses to control a two-level inverter, which makes the proposed control one of the simplest and easiest existing strategies. It is necessary to give the similarities and differences between the control proposed in this paper and some existing strategies such as DPC, SMC, FOC and backstepping. These similarities and differences were given through this work carried out, the results obtained and the work mentioned above, where a comparison is recorded in Table 1. This comparison proves that the proposed control has some similarities with several strategies such as DPC in terms of the use of capacity estimation and controlled references. Also, there are differences with other strategies such as backstepping control, as the proposed control is completely different. So, the proposed control has characteristics that can make it among the best suitable solutions for controlling electrical machines in the future.

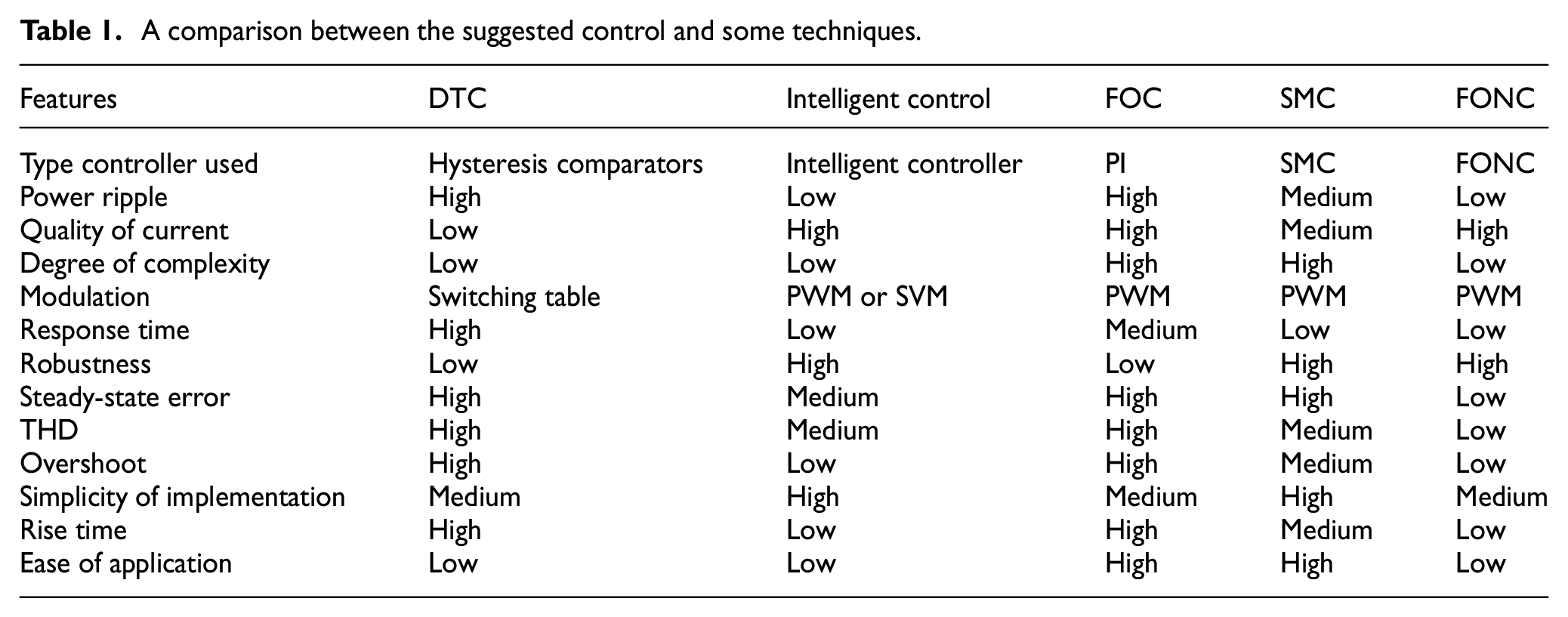

Table 1.

A comparison between the suggested control and some techniques.

Features	DTC	Intelligent control	FOC	SMC	FONC
Type controller used	Hysteresis comparators	Intelligent controller	PI	SMC	FONC
Power ripple	High	Low	High	Medium	Low
Quality of current	Low	High	High	Medium	High
Degree of complexity	Low	Low	High	High	Low
Modulation	Switching table	PWM or SVM	PWM	PWM	PWM
Response time	High	Low	Medium	Low	Low
Robustness	Low	High	Low	High	High
Steady-state error	High	Medium	High	High	Low
THD	High	Medium	High	Medium	Low
Overshoot	High	Low	High	Medium	Low
Simplicity of implementation	Medium	High	Medium	High	Medium
Rise time	High	Low	High	Medium	Low
Ease of application	Low	Low	High	High	Low

The proposed control is validated using Matlab software on 1.5 MW DFIG in different working conditions, where the proposed control is compared with the behavior of DPC in terms of response time, ripple reduction ratios, Q_s/P_s, overshoot,…etc. The results shown in the results and analysis section are the extent to which the proposed control can significantly improve the system characteristics, especially in the occurrence of malfunctions in the machine compared to DPC. The following points highlight the study’s contributions:

The simulation results are compared to those obtained using traditional DPC technique and with some existing work.

Minimizing energy ripples.

The performance of the designed control is evaluated in terms of response time, overshoot, SSE, THD value of current, robustness, and Q_s/P_s ripples.

The fractional-order control is combined with neural networks algorithms to regulate the reactive and active power of the DFIG.

Increasing the robustness of the energy generation system

Reduction of overshoot and steady-state error values.

Decreasing the THD value of the current.

The rest of this work is organized as follows: In Chapter 2, the mathematical form of the proposed FONC technique, advantages, and disadvantages, are given. In Chapter 3, the modeling and control of the DFIG-DRWT are given. In Chapter 4, the simulation results are given. Finally, the conclusions are outlined in Chapter 5.

Fractional-order neural control

In this section, the FONC technique proposed for DFIG is presented, the operating principle, mathematical form and the arguments for and against the control suggested in this work being detailed. The advantage of this control is that it is easy to implement and simple, as it is a combination of two different controls in principle and idea. Proposed FONC technique depends on the accuracy and robustness that characterize NNs algorithm with the use of FOC to increase the robustness of control even more. Equation (1) expresses the mathematical form of the proposed control.

u (t) = {(neural (X^{*} - X))}^{ξ}

(1)

where, u(t) is the output of the proposed controller, ξ is the gain representing the FOC technique.

Equation (1) is the mathematical form of the proposed FONC technique in this work, where it is noted that the designed technique is not related to the system parameters, which makes it more robust in the case of changing the DFIG parameters. Figure 1 represents the proposed control, where there is only one input and one output. The input is the error in the amount to be controlled. Through this form, the suggested control is very simple and the response can be easily set because there is only one parameter (ξ > 0) by which the dynamic response is controlled. In addition, this control is inexpensive and easy to maintain. The other advantage of this suggested technique is that it is possible to change the type of control according to the value of ξ only, where if ξ = 1, then the FONC technique becomes NNs control only. In the case of ξ ≠ 1, the control achieved becomes the proposed technique. The condition that must be taken is that this factor of ξ does not take a value of 0.

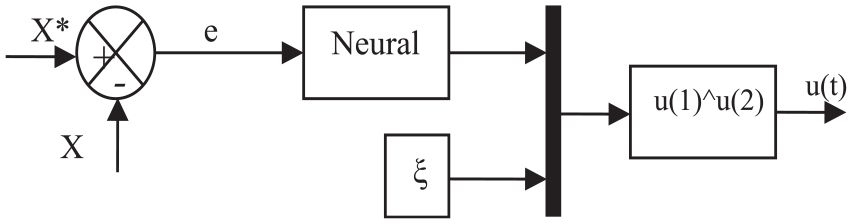

Figure 1.

FONC technique.

NN algorithms are several different algorithms that have a high ability to improve the efficiency of systems, where accuracy is one of the most prominent features of these algorithms compared to some other strategies.^69,70 The use of NNs algorithms leads to a significant improvement in dynamic response.⁷¹

This suggested controller is used to improve the DPC of DFIG, whereby the HCs is dispensed with and replaced with the suggested technique. The suggested technique based on the use of the FONC is detailed in the next part of the paper.

Designed FONC strategy

As is known, the NN technique can effectively approximate and interpolate multivariate data that may require large databases, as this strategy is well accepted for nonlinear statistical fitting applications. The wind turbine system is a variable wind speed nonlinear system combined with DFIG integration and network connection through a cascade transducer makes this system more complex. In this context, the single-layer NN strategy combined with fractional-order control was presented as a promising solution to deal with system nonlinearity from variable wind speed to the grid. The proposed strategy (FONC technique) aims to control capacities. On the other hand, the proposed control outputs are the rotor voltage references, where these reference voltage values are used to calculate the inverter feed voltage. However, the PWM is used as a suitable solution in order to simplify the system, reduce the total cost, and generate the necessary pulses to operate the inverter. The latter has two levels to facilitate work.

The suggested FONC technique in this section is different from the traditional control (DPC), whereby two HCs and ST are dispensed with to improve the characteristics of the power generation system that depends on the use of DRWT, where the two-level PWM inverter is used instead of using the ST to generate the control pulses of the RSC of the DFIG. Also, the proposed FONC technique was used in place of the HC to control the Q_s and P_s of DFIG. Figure 2 represents the suggested control in this work, where simplicity, robustness, and ease of implementation are among the most prominent features of this designed command. In addition to these advantages, there are other advantages such as fast dynamic response, reduced power ripples, and improved current quality compared to the DPC. All this will be demonstrated and proven in the next section.

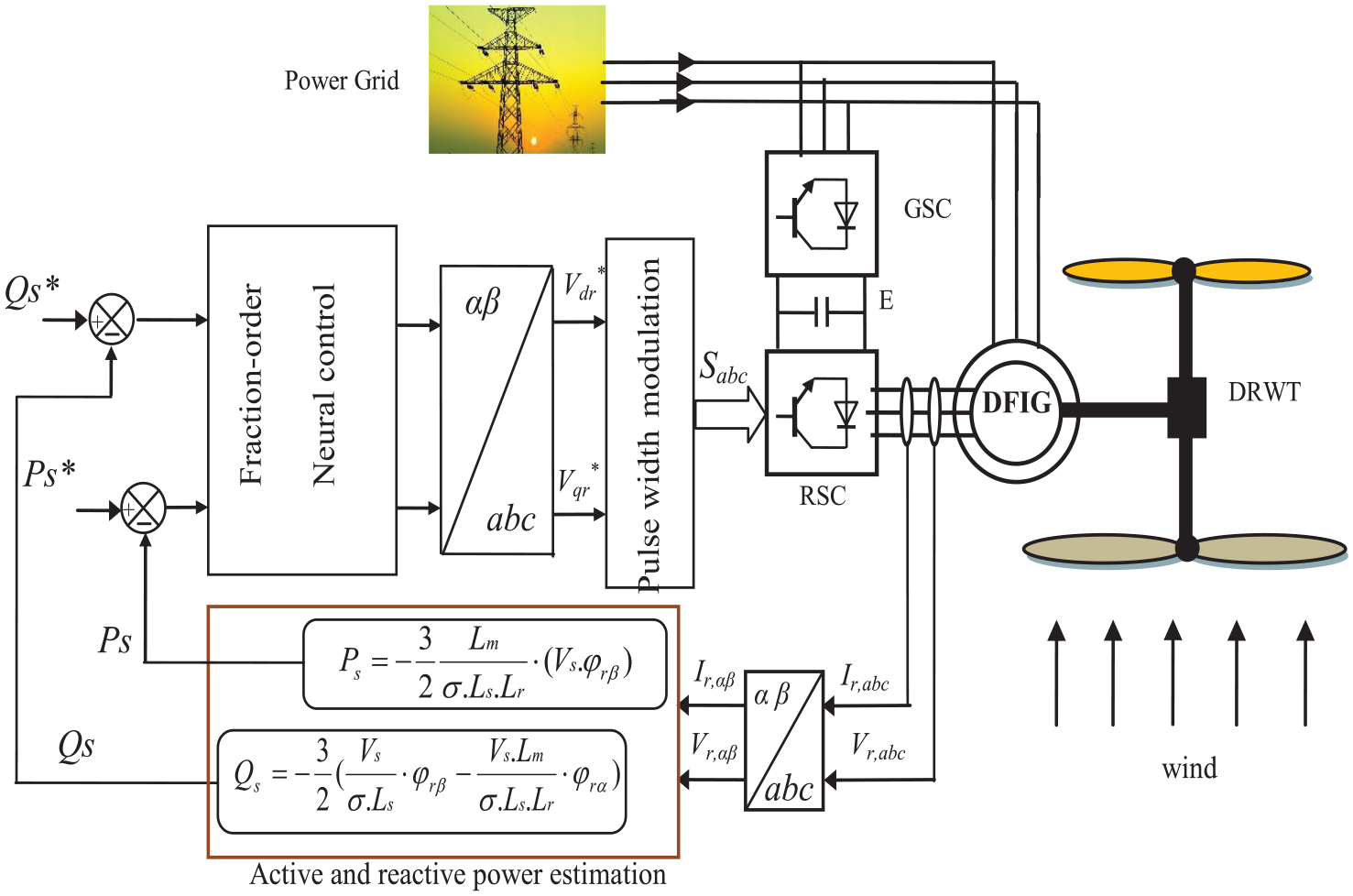

Figure 2.

FONC technique of DFIG-DRWT system.

The FONC strategy of the electrical part of the system is devoted to the DFIG focusing on the Q_s and P_s command. This command approach is realized by the energy electronics converters such as the RSC and the GSC. The RSC aims to maintain the rotational speed of the DFIG at an optimal value and minimizes the core losses while the GSC is used to maintain the voltage of the DC-link and commands the output Q_s.

In FONC strategy, power estimation is used, where the estimated values are used to calculate the error in the Q_s and P_s. In addition, Q_s and P_s-error are two inputs of the two proposed FONC techniques of the DFIG-DRWT system. Among the conditions that must be taken to obtain better results is the selection of voltage and tension measuring devices with high performance to obtain real measured values.

The reference value of the P_s is calculated using the MPPT strategy, which makes the power generated from the generation system highly dependent on the wind speed (WS). As for the reference value of the Q_s, it is fixed at the value of 0 VAR, as its value is not related to the WS.

The proposed control depends on the use of two FONC techniques to regulate the powers of the DFIG-DRWT system. Besides the FONC controller, the SVM strategy can be used to command the inverter instead of using the PWM strategy for control. However, using the SVM increases system complexity and total cost, which is not desirable. So this strategy aims to calculate the reference values of the rotor voltage to use it in controlling the inverter. In addition, the estimation of the DFIG power is necessary for this proposed strategy to determine the error in the DFIG power. Accordingly, the reference rotor voltage values are calculated according to equation (2).

{\begin{matrix} V_{dr}^{*} = {(neural (ε_{Qs}))}^{ξ} \\ V_{qr}^{*} = {(neural (ε_{Ps}))}^{ξ} \end{matrix}

(2)

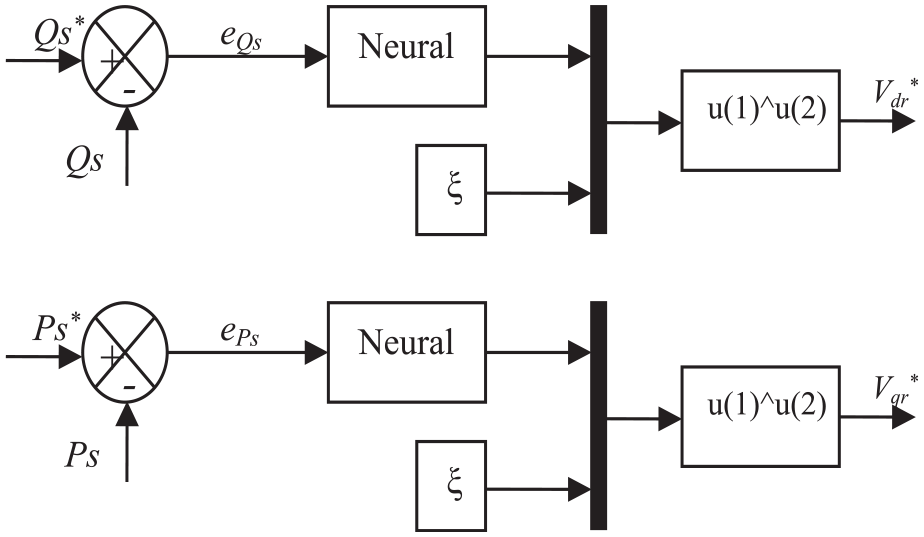

Figure 3 represents the suggested FONC to regulate the P_s and Q_s power of the DFIG-DRWT system.

Figure 3.

FONC of P_s and Q_s controllers.

The suggested technique differs from several strategies in terms of complexity, simplicity, and principle. However, this proposed FONC strategy has the same equations used in estimating both reactive and active power in both DTC and DPC. Accordingly, the P_s and Q_s is estimated according to the following equations ^65,66:

Q_{s} = \frac{3}{2} (\frac{Vs . Lm}{σ . Ls . Lr} \cdot Ψ_{r α} - \frac{Vs}{σ . Ls} \cdot Ψ_{r β})

(3)

P_{s} = - \frac{3}{2} \frac{Lm \times (Vs . Ψ_{r β})}{σ \times Ls \times Lr}

(4)

The error in the capacities is expressed by equation (5).

{\begin{matrix} e_{Ps} = P_{s}^{*} - P_{s} \\ e_{Qs} = Q_{s}^{*} - Q_{s} \end{matrix}

(5)

To estimate the powers first, the flux value must be calculated according to the equation (6), where the values of direct and quadrature rotor flux (Ψ_rβ and Ψ_rα) are calculated first.

Ψ_{r} = \sqrt{Ψ_{r α}^{2} + Ψ_{r β}^{2}}

(6)

{\begin{matrix} Ψ_{r α} = \int_{0}^{t} (v_{r α} - R_{r} i_{r α}) dt \\ Ψ_{r β} = \int_{0}^{t} (v_{r β} - R_{r} i_{r β}) dt \end{matrix}

(7)

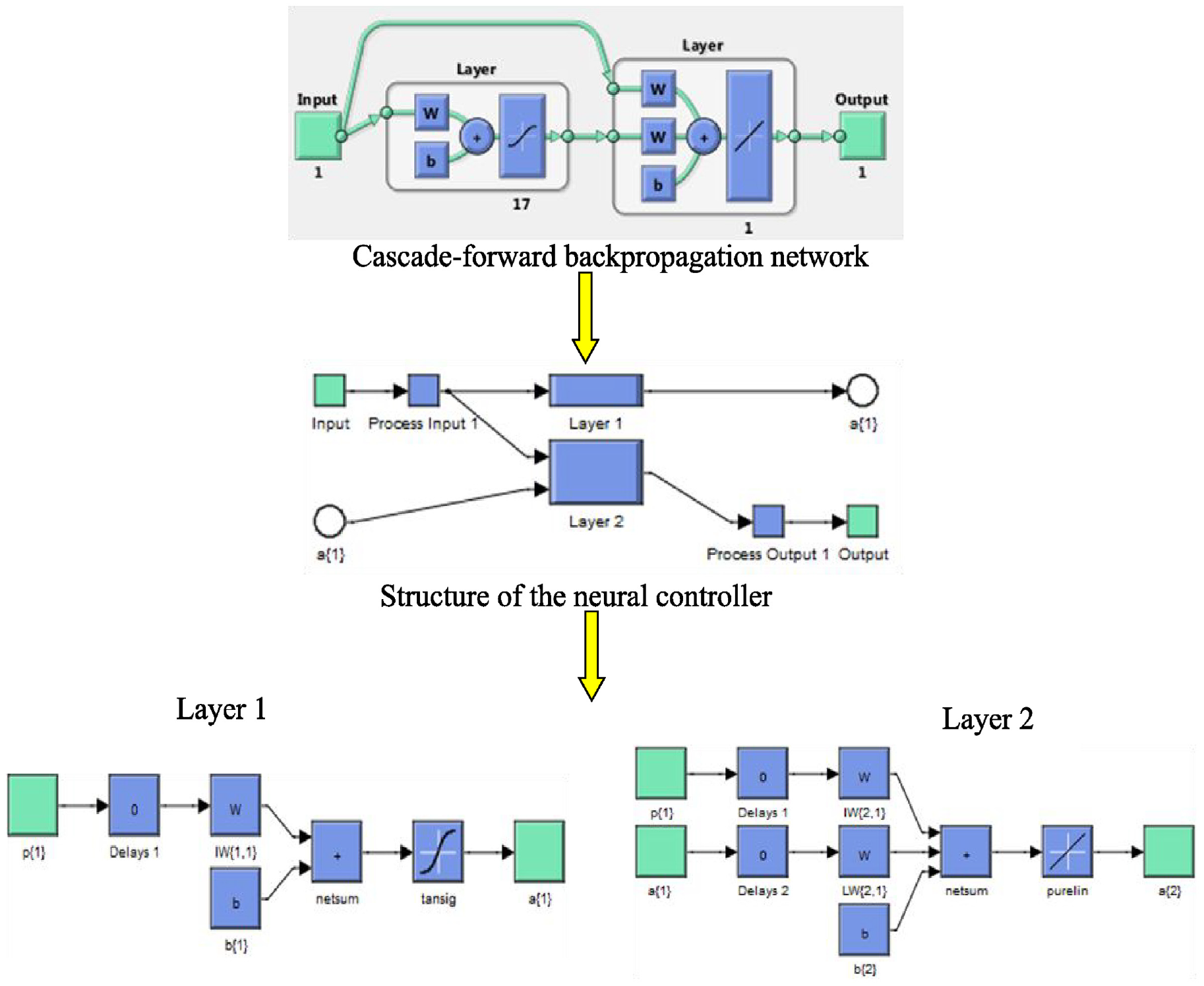

A cascade-forward backpropagation network is used to achieve the proposed technique of DFIG power control, as Figure 4 shows the structure of the NN technique used in this work. The acronym newcf is an acronym that expresses the NN technique in Matlab software, as it is used to achieve it. Cascade-forward networks consist of several layers using the DOTPROD weight function, specific transfer functions, and the NETSUM net input function.⁷²

Figure 4.

Cascade-forward backpropagation network.

For the first layer, it has weights coming from the input. Each subsequent layer has weights coming from the input and all previous layers, where all layers have biases. The last layer is the output of the network. The weights and biases of each layer are initialized using INITNW. Adaptation to TRAINS that updates the weights with the given learning function. The training takes place with the specific training function. Performance is measured according to the specific performance function. This controller has one input and one output, as 17 neurons were used in the first layer and only 1 neuron in the second layer.

To implement NNs, the following properties were used: 1000 for epochs, 0.02 for net.trainParam.lr, 0.8 for net.trainParam.mu, 1 for net.trainParam.showWindow, 0 for net.trainParam.goal, and the functions used are tansig, purelin, and trainlm. Figure 5 shows the best training performance of the FONC-P_s controller, where the best training is 62,987.0855 at epoch 147. Figure 6 represents Target in the P_s state, where the output is given according to the following statement: output = 1 × Target ± 0.21. Also, from Figure 6 it is noted that Training is R = 0.99977 and this value is excellent indicating the high efficiency of the used controller. Figure 7 represents the properties of the NN technique used to implement the P_s controller, where gradient, mu, and Val fail are given. The gradient value is 13,300.2416 at epoch 148. At epoch 148, the gradient value is 13,300.2416. Mu takes the value 80,000,000,000 and validation checks is 0.

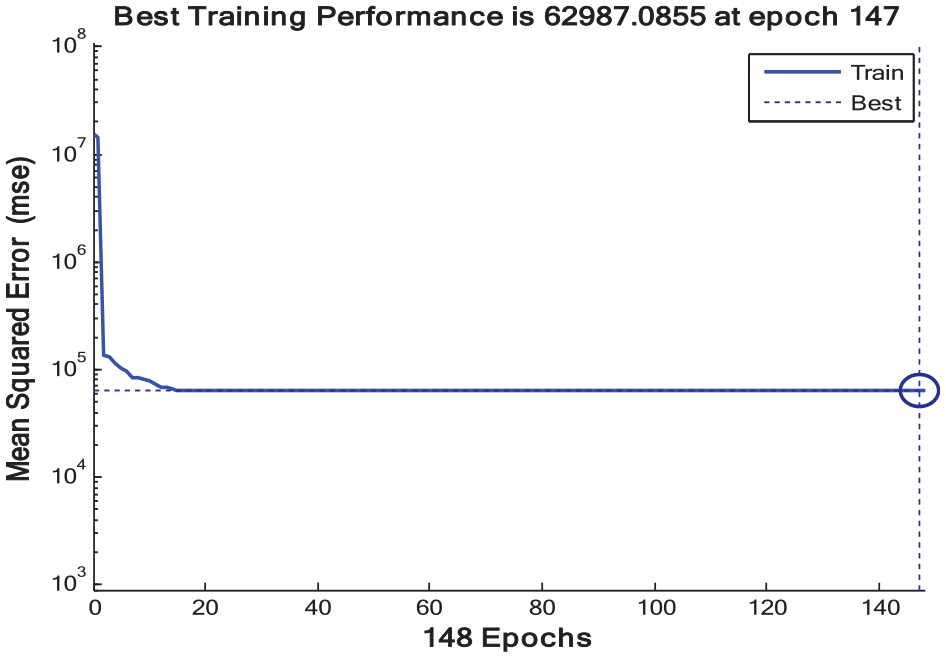

Figure 5.

Best training performance of the active power FONC controller.

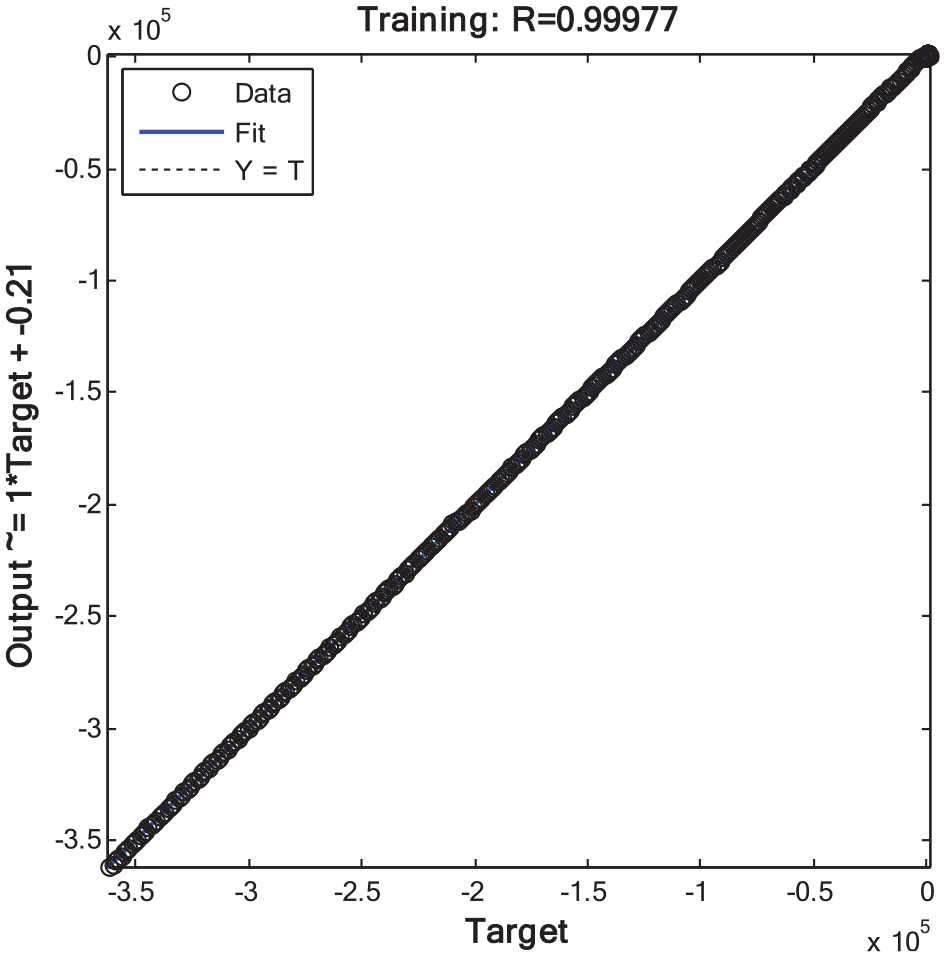

Figure 6.

Target of active power FONC controller.

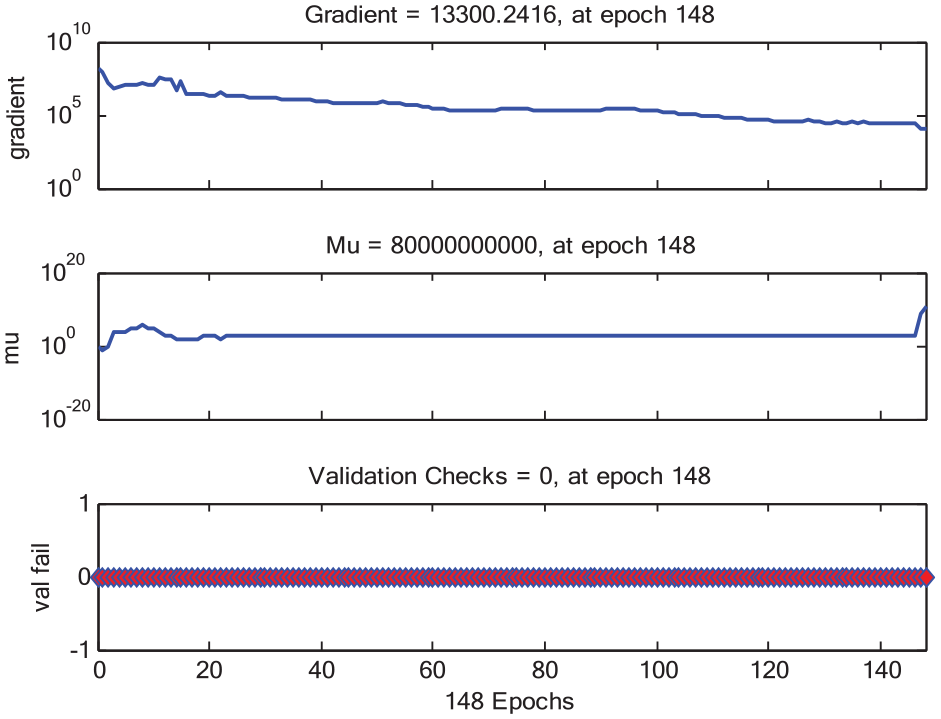

Figure 7.

Characteristics of active power FONC controller.

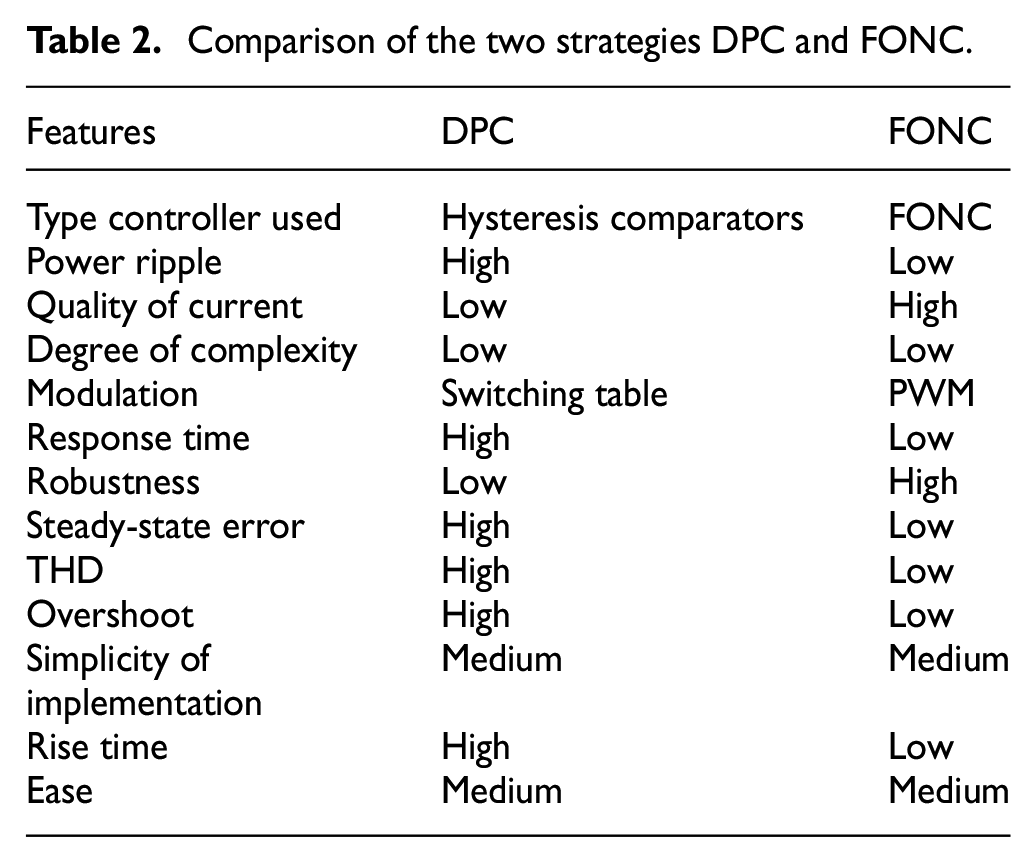

In Table 2, a comparative study was conducted between the two strategies, DPC and FONC, as this comparison was made based on the results obtained from the results section. From Table 2, the proposed strategy has a high potential and efficiency to improve the properties of the systems. Moreover, the proposed control has the same characteristics as the classical control, such as simplicity and ease of implementation. Also, they use the same estimation equations for both P_s and Q_s.

Table 2.

Comparison of the two strategies DPC and FONC.

Features	DPC	FONC
Type controller used	Hysteresis comparators	FONC
Power ripple	High	Low
Quality of current	Low	High
Degree of complexity	Low	Low
Modulation	Switching table	PWM
Response time	High	Low
Robustness	Low	High
Steady-state error	High	Low
THD	High	Low
Overshoot	High	Low
Simplicity of implementation	Medium	Medium
Rise time	High	Low
Ease	Medium	Medium

In the next part, the behavior of the suggested technique and the characteristics that were listed in Table 2 are verified. Accordingly, the behavior of the suggested technique is verified in the case of variable WS, taking into account the quality of the generated energy and the THD value of the current. In addition, a DRWT is used to convert wind power into mechanical power to rotate the generator and thus obtain energy.

Results

In this part, simulation results are given using Matlab software for the proposed FONC strategy of DFIG-DRWT system, where the DFIG parameters are as follows: p = 2, 380/696 V, J = 1000 kg/m², 50 Hz, P_sn = 1.5 MW, L_m = 0.0135 H, L_s = 0.0137 H, R_s = 0.012 Ω, L_r = 0.0136 H, R_r = 0.021 Ω, and f_r = 0.0024 N/m/s.^73,74

The obtained results are compared with the DPC in terms of reference tracking, overshoot, robustness, SSE, and response time. Therefore, two tests are suggested to investigate the behavior of the FONC strategy.

First test

In this test, the behavior of the FONC is studied in terms of tracking references, where the results are represented in Table 3 and Figures 9 –11. The WS profile used in this test is represented in Figure 8. Figure 9 represents the THD values of the current for the techniques used in this work. The THD value of the current in the case of the FONC strategy was 0.45% and for the conventional DPC, the value was 1.45%. Therefore, the ratio of THD reduction was estimated at 68.96% compared to the DPC technique. This percentages (68.96%) confirms that the current shape, current quality, and ripples are much better in the case of the proposed control compared to the DPC and this is highly desirable and proves every thing that has been written above. Also, it can be seen from Figure 9 that the FONC control provided a better result in terms of the amplitude of the fundamental (50 Hz) of current signal, where the value of the amplitude was 1434 and 1438 A for both the DPC and the proposed FONC strategy, respectively.

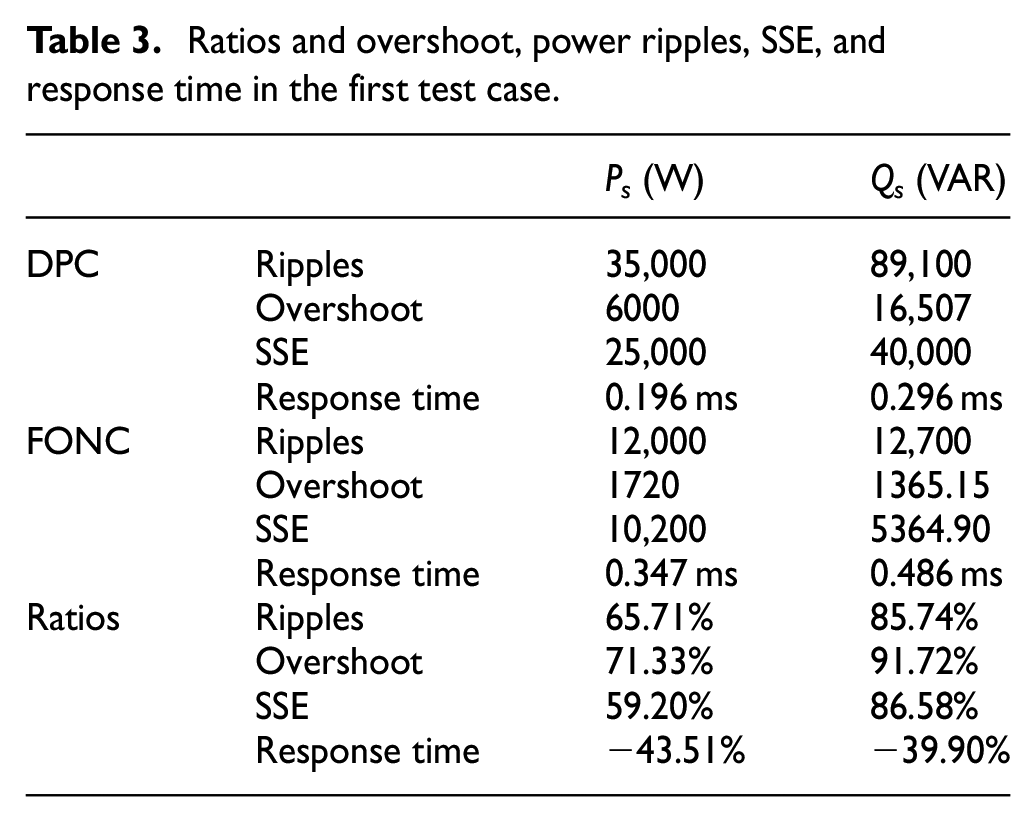

Table 3.

Ratios and overshoot, power ripples, SSE, and response time in the first test case.

		P_s (W)	Q_s (VAR)
DPC	Ripples	35,000	89,100
	Overshoot	6000	16,507
	SSE	25,000	40,000
	Response time	0.196 ms	0.296 ms
FONC	Ripples	12,000	12,700
	Overshoot	1720	1365.15
	SSE	10,200	5364.90
	Response time	0.347 ms	0.486 ms
Ratios	Ripples	65.71%	85.74%
	Overshoot	71.33%	91.72%
	SSE	59.20%	86.58%
	Response time	−43.51%	−39.90%

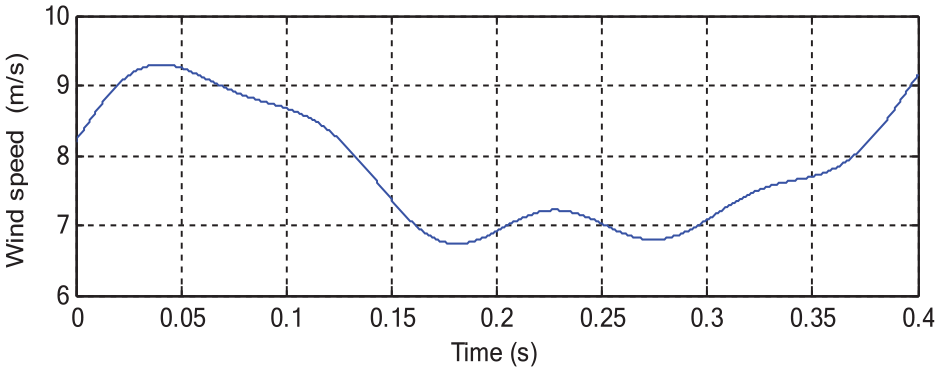

Figure 8.

WS profile.

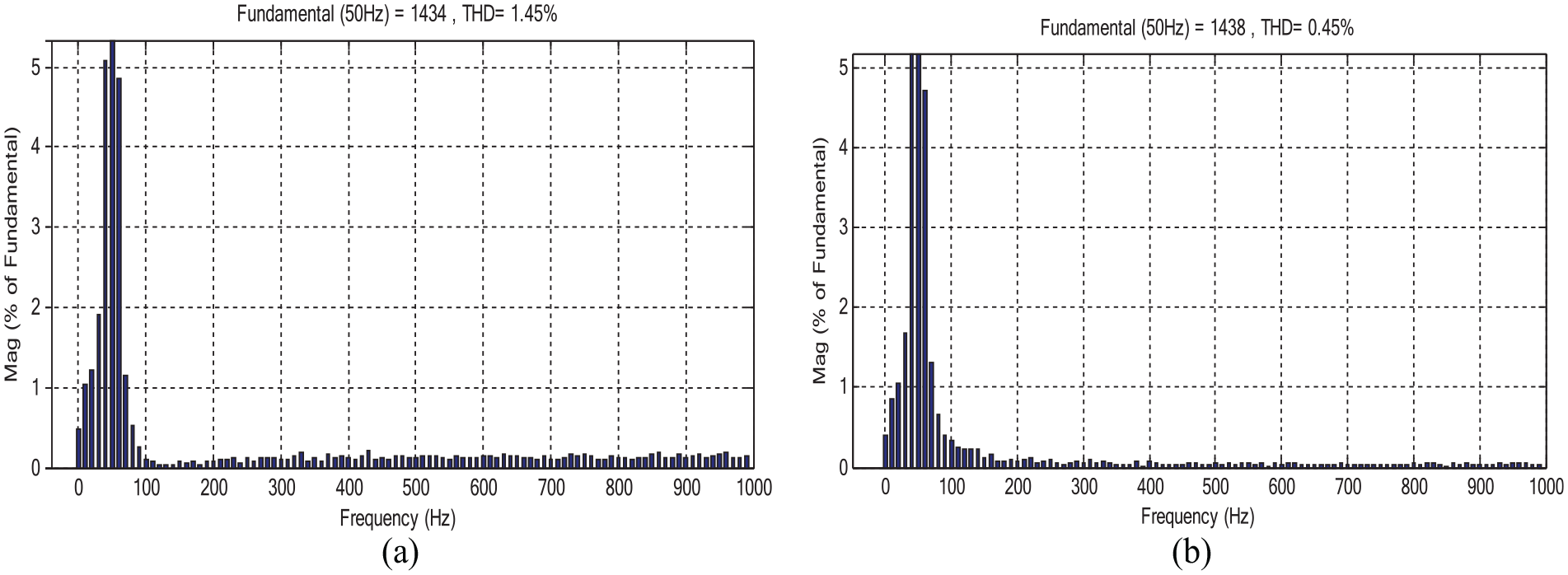

Figure 9.

The THD value of the current: (a) DPC and (b) FONC.

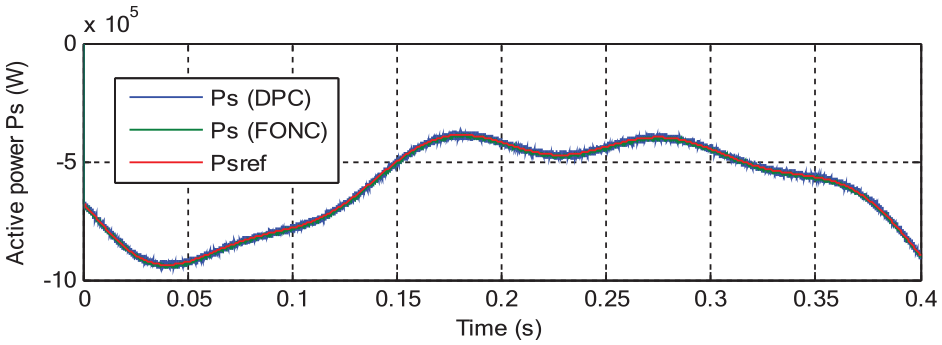

Figure 10 represents the P_s of the strategies used, where the measured power follows the reference well with larger ripples in the case of DPC compared to the FONC technique. Also, P_s is greatly affected by WS due to the use of the MPPT to calculated the reference of the active power. Figure 11 represents the Q_s for each of the traditional and suggested technique, where it is noted that the Q_s is not affected by the change of WS and remains to take a constant value equal to 0 VAR with larger ripples in the case of the DPC compared to the FONC.

Figure 10.

P_s.

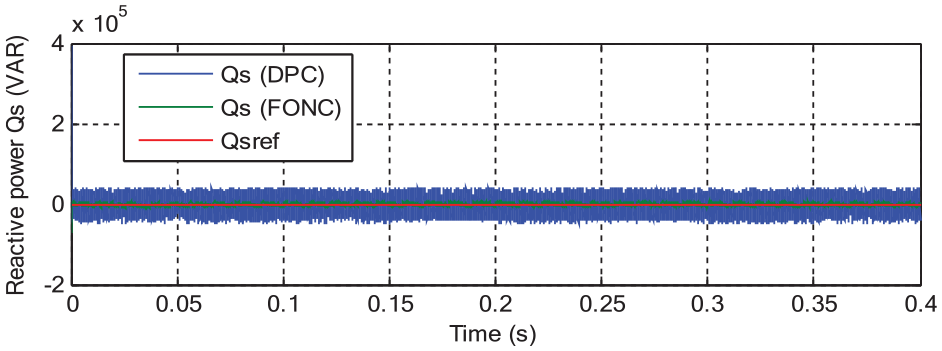

Figure 11.

Q_s.

The numerical results for the response time, ripple values, overshoot, and SSE of Q_s and P_s for the DPC and FONC techniques are reported in Table 3. In Table 3, the reduction ratios of energy ripples, bypass, SSE, and response time of P_s and Q_s of DFIG were calculated to show the superiority of each control compared to the other. Through this table, the suggested technique minimized the values of overshoot, SSE, and power ripples by 71.33%, 59.20%, and 65.71%, respectively, of the P_s compared to the DPC. In terms of Q_s, the reduction percentages were 91.72%, 86.58%, and 85.74% for overshoot, SSE, and power ripples, respectively compared to the DPC technique.

The FONC gave unsatisfactory results in terms of the time response of the DFIG power compared to the DPC. The DPC reduced the response time of the P_s and Q_s by rates estimated at 43.51% and 39.90%, respectively, compared to the FONC technique. It can be said that these ratios are undesirable and indicate a negative aspect of this proposed strategy and must be overcome in the future, as the PSO algorithm, GA technique, and gray wolf optimization can be used for this purpose. In the next test, the extent to which the suggested control is affected by a malfunctions in the machine will be studied compared to the behavior of the DPC control of DFIG-based DRWT system.

Second test

This second test is different from the first test, as the same WS used in the first test is used in order to conduct the study. In the second test, the system parameters are changed and the effect of the behavior of the FONC compared to the DPC technique is studied. This effect is studied by observing overshoot values, SSE, ripple reduction ratios, and response time for both P_s and Q_s. In this test, the values of R_s and R_r are multiplied. Also, the values of L_s, L_m, and L_r are halved. The results of this test are represented in Table 4 and Figures 12 –14. Despite the change in system parameters, the proposed strategy still provides satisfactory results in terms of power ripples, overshoot, and SSE. In Figure 12, the THD value of the current is given for each of the DPC and proposed FONC techniques. According to this figure, the FONC control reduced the THD value compared to the conventional DPC, which makes us say that the current quality is better in the case of the FONC. Therefore, the THD value of the current was 2.40% and 0.51% for each of the DPC and the FONC, respectively. So the percentage of reduction was 78.75% compared to the DPC, and this is a good percentage. In addition, the ratio of 78.75% indicates that the quality of the output current is of better quality in the case of FONC control compared to the DPC control, and that the shape of the current is sinusoidal with less ripples in the case of using the FONC strategy. On the other hand, it is noted that the FONC provided a better value for the amplitude of the fundamental of current signal compared to the DPC. The value of the amplitude in the case of using the FONC was 1433 A, while in the case of using the DPC technique, its value was 1430 A.

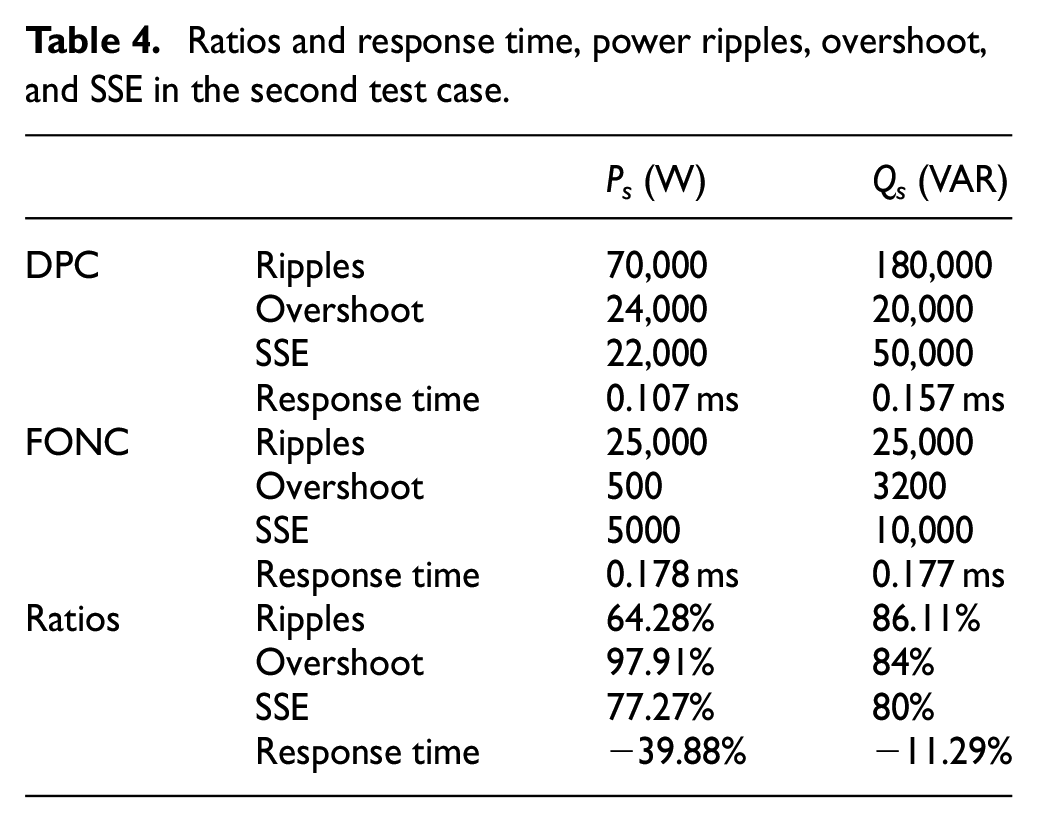

Table 4.

Ratios and response time, power ripples, overshoot, and SSE in the second test case.

		P_s (W)	Q_s (VAR)
DPC	Ripples	70,000	180,000
	Overshoot	24,000	20,000
	SSE	22,000	50,000
	Response time	0.107 ms	0.157 ms
FONC	Ripples	25,000	25,000
	Overshoot	500	3200
	SSE	5000	10,000
	Response time	0.178 ms	0.177 ms
Ratios	Ripples	64.28%	86.11%
	Overshoot	97.91%	84%
	SSE	77.27%	80%
	Response time	−39.88%	−11.29%

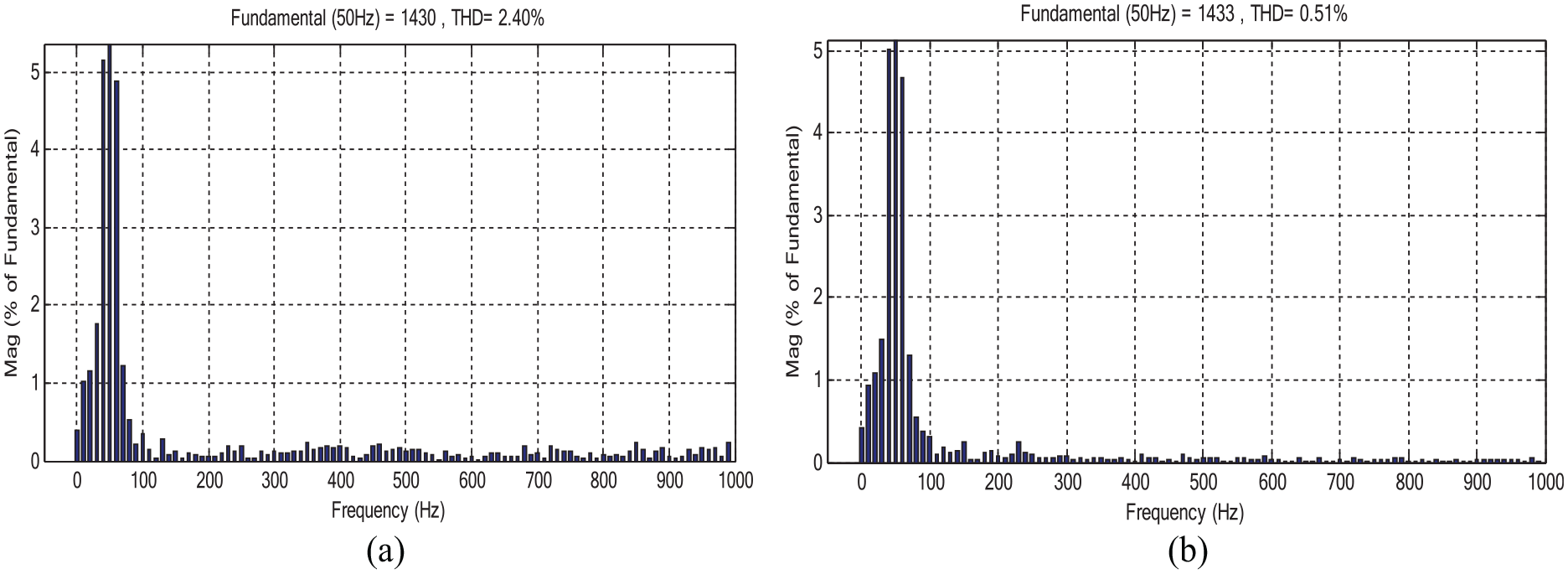

Figure 12.

The THD value of the current: (a) DPC and (b) FONC.

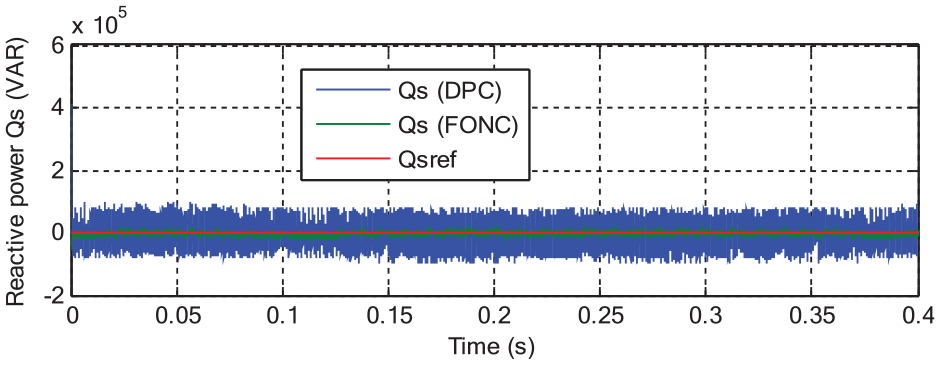

Figure 13.

Q_s.

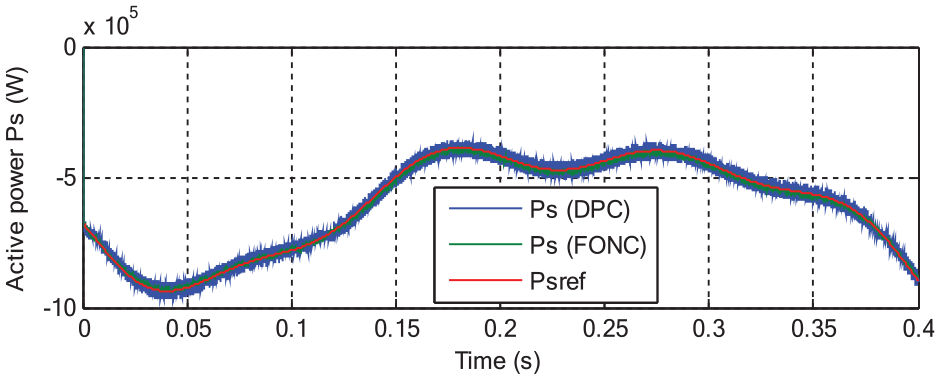

Figure 14.

P_s.

In addition, the P_s and Q_s follow the references well despite the change in the system parameters, with larger ripples in the case of the DPC compared to FONC (Figures 13 and 14). The form of the change of the P_s takes the change of the WS, and this is despite the change in the parameters of the machine, as the higher the wind speed, the higher the value of the P_s produced, and this is a good thing as a result of using the MPPT to calculate the reference value of the P_s. However, the Q_s is not affected by the WS change and remains constant at the value of 0 VAR throughout the simulation period for the two controllers. Accordingly, changing the parameters does not affect the P_s and Q_s ability to track the references, but it is noted that the effect is in increasing the value of each of the ripples, SSE, and overshoot as shown in Table 4. Table 4 presents the values and reduction ratios of energy ripples, overshoot, SSE, and response time for the controls used in this paper. Through this table, the suggested FONC control is to reduce the values of overshoot, SSE, and power ripples by 97.91%, 77.27%, and 64.28%, respectively, of the P_s. In terms of Q_s, the reduction percentages were 84%, 80%, and 86.11% for overshoot, SSE, and power ripples. These high percentages indicate the efficiency of the proposed control compared to the DPC command on improving the characteristics of the system proposed for the study.

The proposed FONC strategy has a negative representation in providing an unsatisfactory time for the P_s and Q_s compared to the DPC. So the classical control minimized the response time of the P_s and Q_s by rates estimated at 39.88% and 11.29%, respectively, compared to the DPC. So, this negativity in the proposed control can be overcome by using other strategies based on artificial intelligence, such as the use of genetic algorithms in order to calculate the proposed control parameters, or the gray wolf optimization strategy can be used for this purpose. Also, the combination of neural networks and the PSO algorithm can be used as a suitable solution to increase the efficiency and performance of the FONC strategy.

Finally, the paper ends with a comparative study between the proposed FONC and some published works in terms of THD value and response time for Q_s and P_s of the DFIG.

Table 5 represents a comparative study between the proposed control and some existing controls in terms of the THD value of the current. Through this table, it is noted that the proposed strategy gave a better value for THD, and this indicates the efficiency and effectiveness of the designed control in improving the quality of the current.

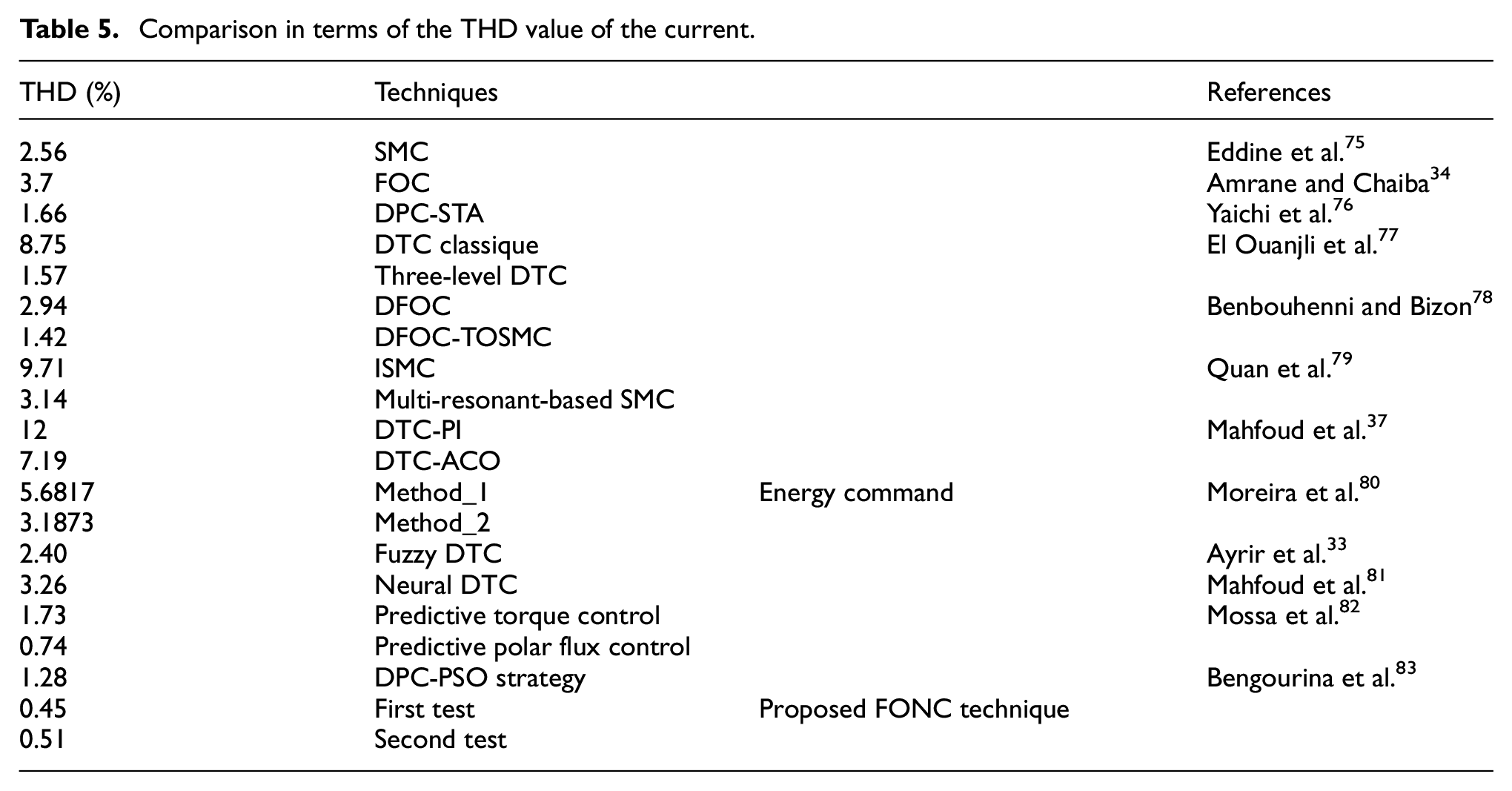

Table 5.

Comparison in terms of the THD value of the current.

THD (%)	Techniques		References
2.56	SMC		Eddine et al.⁷⁵
3.7	FOC		Amrane and Chaiba³⁴
1.66	DPC-STA		Yaichi et al.⁷⁶
8.75	DTC classique		El Ouanjli et al.⁷⁷
1.57	Three-level DTC		El Ouanjli et al.⁷⁷
2.94	DFOC		Benbouhenni and Bizon⁷⁸
1.42	DFOC-TOSMC		Benbouhenni and Bizon⁷⁸
9.71	ISMC		Quan et al.⁷⁹
3.14	Multi-resonant-based SMC		Quan et al.⁷⁹
12	DTC-PI		Mahfoud et al.³⁷
7.19	DTC-ACO		Mahfoud et al.³⁷
5.6817	Method_1	Energy command	Moreira et al.⁸⁰
3.1873	Method_2	Energy command	Moreira et al.⁸⁰
2.40	Fuzzy DTC		Ayrir et al.³³
3.26	Neural DTC		Mahfoud et al.⁸¹
1.73	Predictive torque control		Mossa et al.⁸²
0.74	Predictive polar flux control		Mossa et al.⁸²
1.28	DPC-PSO strategy		Bengourina et al.⁸³
0.45	First test	Proposed FONC technique
0.51	Second test	Proposed FONC technique

The designed control is compared with some published commands in terms of response time, where the results are recorded in Table 6. Through this table, the designed strategy gave a much better response time than several scientific works, which indicates the efficiency of the designed control in improving the characteristics of DFIG and this is it is desirable and reliable to use this control as a solution for controlling electrical machines.

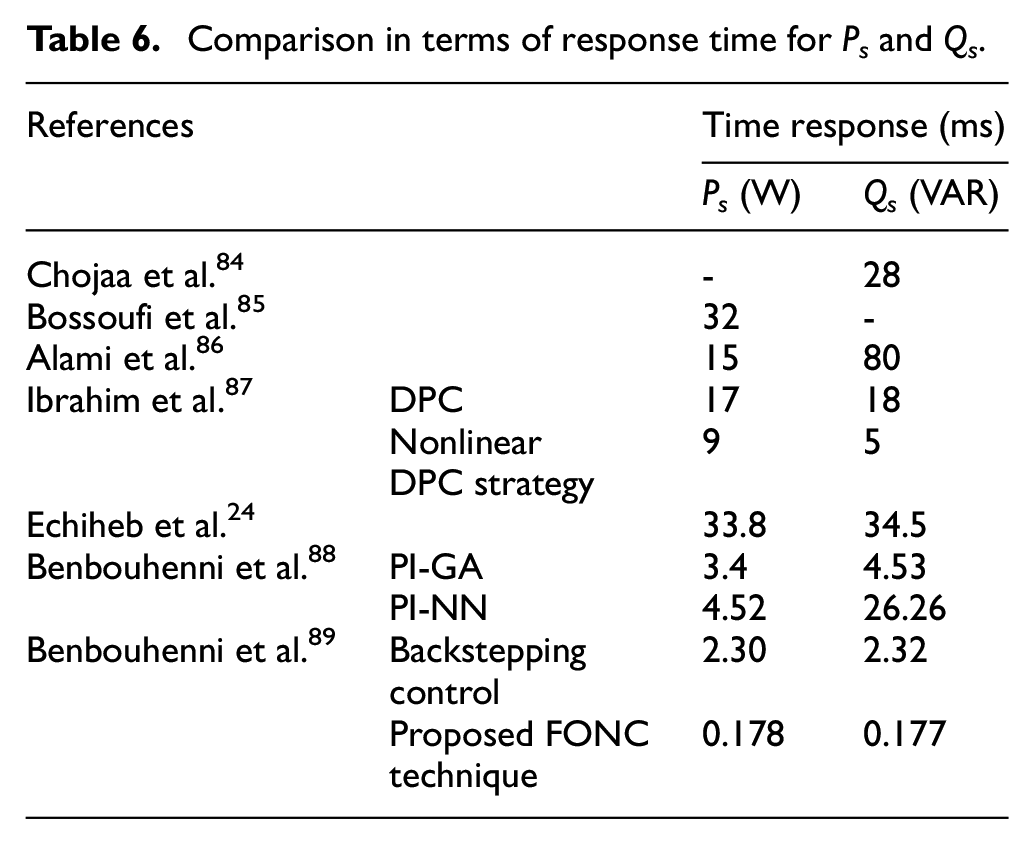

Table 6.

Comparison in terms of response time for P_s and Q_s.

References		Time response (ms)
		P_s (W)	Q_s (VAR)
Chojaa et al.⁸⁴		-	28
Bossoufi et al.⁸⁵		32	-
Alami et al.⁸⁶		15	80
Ibrahim et al.⁸⁷	DPC	17	18
Ibrahim et al.⁸⁷	Nonlinear DPC strategy	9	5
Echiheb et al.²⁴		33.8	34.5
Benbouhenni et al.⁸⁸	PI-GA	3.4	4.53
Benbouhenni et al.⁸⁸	PI-NN	4.52	26.26
Benbouhenni et al.⁸⁹	Backstepping control	2.30	2.32
Benbouhenni et al.⁸⁹	Proposed FONC technique	0.178	0.177

In Table 7, the work performed has been compared with some other works in terms of the percentages of P_s and Q_s ripple reduction. These ratios recorded in the table show that the suggested control provided better ratios than these actions, which indicates the effectiveness of the suggested control and its ability to reduce P_s and Q_s ripples of the DFIG-based MRWT system.

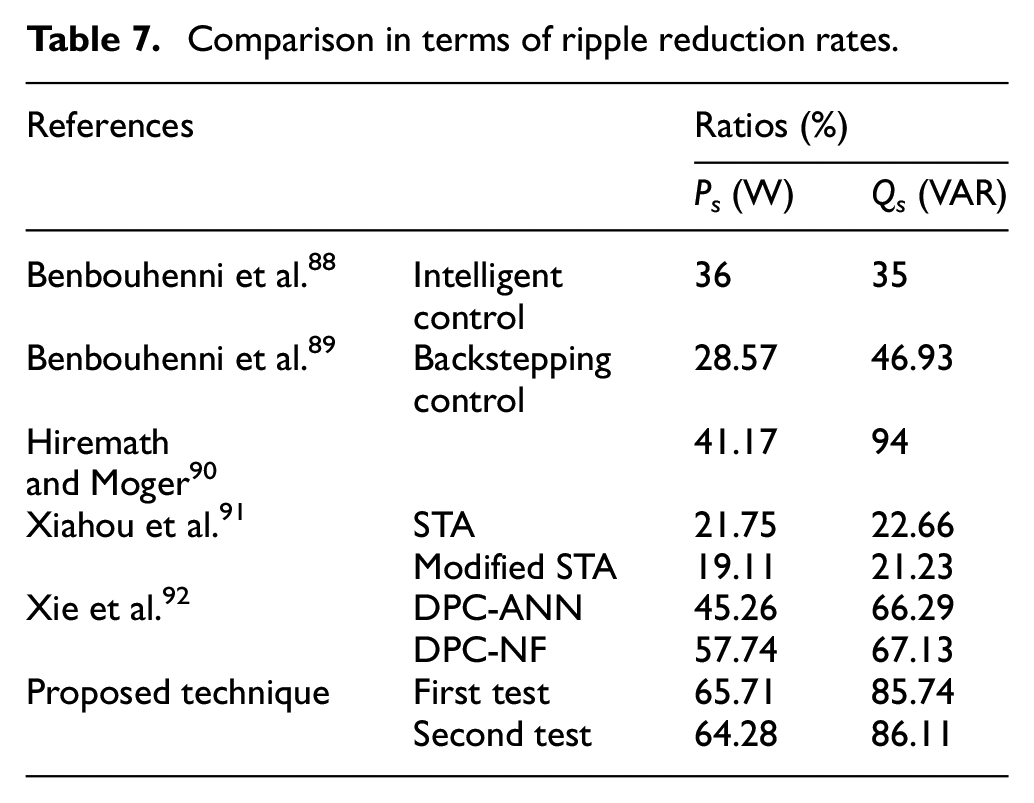

Table 7.

Comparison in terms of ripple reduction rates.

References		Ratios (%)
		P_s (W)	Q_s (VAR)
Benbouhenni et al.⁸⁸	Intelligent control	36	35
Benbouhenni et al.⁸⁹	Backstepping control	28.57	46.93
Hiremath and Moger⁹⁰		41.17	94
Xiahou et al.⁹¹	STA	21.75	22.66
Xiahou et al.⁹¹	Modified STA	19.11	21.23
Xie et al.⁹²	DPC-ANN	45.26	66.29
Xie et al.⁹²	DPC-NF	57.74	67.13
Proposed technique	First test	65.71	85.74
Proposed technique	Second test	64.28	86.11

Conclusion

In this article, we presented the fractional-order neural control of the stator power of the DFIG supplied by two-level PWM strategy.

This study presents a comparison between the proposed control strategy and traditional DPC for a DFIG-based dual-rotor wind turbine system. The simulation results show that the suggested control with PWM is an excellent solution for a DFIG-based dual-rotor wind turbine. Simulation results (related to tracking tests and robustness tests) clearly show good performances in power ripples, overshoot, and SSE compared to classical techniques, where the proposed strategy works to minimize the ripples of the active and reactive power by rates estimated at 65.71% and 85.74%, respectively, in the first test, and in the second test, the rates were estimated at 64.28% and 86.11% for each of the active and reactive power, respectively. Also, the proposed control reduced the THD value of the current by good percentages estimated at 68.96% and 78.75% in both the first and second tests, respectively. The results of the analysis show that the proposed control improved the overshoot value of the active power compared to the traditional control in good percentages, as the percentages of reduction were 71.33% and 97.71% in each of the first and second tests, respectively. Regarding the reflexive capacity, the percentages of reduction were 91.72% and 84% for each of the first and second tests, respectively, compared to the traditional control. The current research work is restricted and limited given that the results are from simulations only. Besides, examine the designed strategy in case of high voltage dipping. Accordingly, enhancing the robustness of the system proposed in this work in light of previous concerns will be implemented in future papers. The disadvantages of the proposed control will be overcome by the interactions of this new strategy with various smart strategies, such as gray wolf optimization, fuzzy logic controller type 2, and Anty colony optimization.

As a future work, the suggested control will be accomplished and implemented experimentally, and compared with other proposed controls for wind energy generation systems.

Footnotes

Appendix A

The equations used for the mathematical form of DFIG are as follows^31,32:

(A1)

T_{e} = - \frac{3}{2} p \frac{M}{Ls} I_{qr} . ψ_{ds}

(A2)

T_{e} - T_{r} = J \cdot \frac{d Ω}{dt} + f \cdot Ω

where, T_e is the torque of DFIG, T_r is the load torque, J is the inertia, f is the viscous friction coefficient, and Ω is the mechanical rotor speed.

(A3)

{\begin{matrix} P_{s} = \frac{3}{2} (V_{ds} I_{ds} + V_{qs} I_{qs}) \\ Q_{s} = \frac{3}{2} (V_{qs} I_{ds} - V_{ds} I_{qs}) \end{matrix}

where, Q_s is the reactive power and P_s is the active power.

Equations (A4) and (A5) represent the flux and voltage in the rotor.

(A4)

{\begin{matrix} V_{dr} = R_{r} I_{dr} + \frac{d}{dt} ψ_{dr} - (w_{r} - w_{s}) ψ_{qr} \\ V_{qr} = R_{r} I_{qr} + \frac{d}{dt} ψ_{qr} + (w_{r} - w_{s}) ψ_{dr} \end{matrix}

(A5)

{\begin{matrix} ψ_{dr} = L_{r} I_{dr} + M I_{dr} \\ ψ_{qr} = L_{r} I_{qr} + M I_{qr} \end{matrix}

where, L_r is the rotor inductance, V_dr and V_qr are the direct and quadrature stator voltages, R_r is the rotor resistance, I_dr and I_qr are the direct and quadrature rotor currents, ψ_dr and ψ_qr are the direct and quadrature rotor voltages.

Equations (A6) and (A7) represent the flux and voltage in the stator.

(A6)

{\begin{matrix} V_{ds} = R_{s} I_{ds} + \frac{d}{dt} ψ_{ds} - ω_{s} ψ_{qs} \\ V_{qs} = R_{s} I_{qs} + \frac{d}{dt} ψ_{qs} + ω_{s} ψ_{ds} \end{matrix}

(A7)

{\begin{matrix} ψ_{ds} = L_{s} I_{ds} + M I_{dr} \\ ψ_{qs} = L_{s} I_{qs} + M I_{qr} \end{matrix}

where, L_s is the stator inductance, V_ds and V_qs are the direct and quadrature stator voltages, R_s is the stator resistance, I_qs and I_ds are the direct and quadrature stator currents, ψ_ds and ψ_qs are the direct and quadrature stator voltages.

Appendix B

DRWT is a type of turbine that appeared in recent years as a solution to increase the value of power gained from wind and increase the stability of the generation system.^10,25 This type of turbine depends on the use of two turbines rotating in the same direction and located on the same axis, where the resulting torque is the sum of the torque of the two turbines. This type of turbine has been discussed in several scientific works.^25–29 In Benbouhenni,³² DRWT offers 23%–30% more power than conventional turbines. Equation (A8) represents the total torque of the DRWT.

(A8)

T_{DRWT} = T_{1} + T_{2}

where, T₁ and T₂ are the torque of the first and second turbines and T_DRWT is the total torque of the turbine.

Equation (A9) and (A10) represent each of the torques of the two turbines used to implement DRWT,^27,28 where the value of the torque of each turbine is related to wind speed (w), coefficient of power (C_p), and tip speed ratio (λ).

(A9)

T_{2} = \frac{1}{2 λ_{2}^{3}} . ρ . π . R_{2}^{5} . C_{p} . w_{2}^{2}

(A10)

T_{1} = \frac{1}{2 λ_{1}^{3}} . ρ . π . R_{1}^{5} . C_{p} . w_{1}^{2}

Where, R₁ and R₂ are the blade radius of the first and second turbines, ρ is the air density, λ₁ and λ₂ are the tip speed ration of the first and second turbines

Equation (A11) and (A12) represent each of the λ of the two turbines, where the WS is large, the λ is small, which makes the torque value large, and this is a good thing. But in the case of a lower WS, the λ is large, which makes the torque small, and this is not desirable.

(A11)

λ_{1} = \frac{w_{1} . R_{1}}{V_{1}}

(A12)

λ_{2} = \frac{w_{2} . R_{2}}{V_{2}}

where, V₁ and V₂ are the speed of the first and second turbines. w₁ and w₂ the mechanical speed of the first and second turbines.

Equation (A13) represents the WS used to calculate the torque in the second turbine. As it is known, the WS in the second turbine is different from the WS in the first turbine. The WS in the second turbine is related to the distance between the two turbines (x) and the WS before the first turbine (V₁) and with a constant coefficient (C_T) that takes the value of 0.9. In this work, the distance between the two turbines is 15 m.^10,32

(A13)

V_{2} = V_{1} (1 - \frac{1 - \sqrt{(1 - C_{T})}}{2} (1 + \frac{2 . x}{\sqrt{1 + 4 . x^{2}}}))

In DRWT, the torque of the two turbines is greatly affected by the value of C_p and this parameter has a great relationship with the change in the value of each of the λ and pitch angle (β). Equation (A14) represents the expression C_p used for torque calculation.

(A14)

C_{p} (λ, β) = \frac{1}{λ + 0.08 β} - \frac{0.035}{β^{3} + 1}

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This project was supported by the Scientific Research Center at Buraydah Private Colleges under the research project# BPC-SRC/2022-012.

ORCID iD

Habib Benbouhenni

References

Aykut

Ulu

Komurgoz

. Modeling, control, and experimental verification of a 500 kW DFIG wind turbine. Adv Electr Comput Eng 2022; 22(1): 13–20.

Ali

MAS

. Utilizing active rotor-current references for smooth grid connection of a DFIG-based wind-power system. Adv Electr Comput Eng 2020; 20(4): 91–98.

Kairus

Wamkeue

Belmadani

, et al. Variable structure control of DFIG for wind power generation and harmonic current mitigation. Adv Electr Comput Eng 2010; 10(4): 167–174.

Mondal

Kastha

. Input reactive power controller with a novel active damping strategy for a matrix converter fed direct torque controlled DFIG for wind power generation. IEEE J Emerg Sel Top Power Electron 2020; 8(4): 3700–3711.

Kong

Liu

, et al. Improved direct power control of doubly fed induction generator without phase-locked loop. In: 2020 IEEE sustainable power and energy conference (iSPEC), Chengdu, China, 23–25 November 2020, pp.199–204. New York, NY: IEEE. DOI: 10.1109/iSPEC50848.2020.9351036.

Erazo-Damian

Apsley

Perini

, et al. Stand-alone DFIG FOC sensitivity and stability under mismatched inductances. IEEE Trans Energy Convers 2019; 34(2): 860–869.

Kadi

Imarazene

Berkouk

, et al. A direct vector control based on modified SMC theory to control the double-powered induction generator-based variable-speed contra-rotating wind turbine systems. Energy Rep 2022; 8: 15057–15066.

Benbouhenni

Boudjema

Belaidi

. Indirect vector control of a DFIG supplied by a two-level FSVM inverter for wind turbine system. Majlesi J Electr Eng 2019; 13(1): 45–54.

Ali

MAS

. Step towards enriching frequency support from wind-driven permanent-magnet synchronous generator for power system stability. Adv Electr Comput Eng 2022; 22(1): 77–86.

10.

Benbouhenni

Bounadja

Gasmi

, et al. A new PD(1+PI) direct power controller for the variable-speed multi-rotor wind power system driven doubly-fed asynchronous generator. Energy Rep 2022; 8: 15584–15594.

11.

Agha Kashkooli

Madani

Lipo

. Improved direct torque control for a DFIG under symmetrical voltage dip with transient flux damping. IRE Trans Ind Electron 2020; 67(1): 28–37.

12.

Iacchetti

Marques

Perini

. A scheme for the power control in a DFIG connected to a DC bus via a diode rectifier. IEEE Trans Power Electron 2015; 30(3): 1286–1296.

13.

Prasad

Padhy

. Synergistic frequency regulation control mechanism for DFIG wind turbines with optimal pitch dynamics. IEEE Trans Power Syst 2020; 35(4): 3181–3191.

14.

Bossoufi

Karim

Taoussi

, et al. Rooted tree optimization for the backstepping power control of a doubly fed induction generator wind turbine: dSPACE implementation. IEEE Access 2021; 9: 26512–26522.

15.

Zhang

Fernando

, et al. A DSE-based SMC method of sensorless DFIG wind turbines connected to power grids for energy extraction and power quality enhancement. IEEE Access 2018; 6: 76596–76605.

16.

Zheng

Ren

Wang

. Passivity-based control scheme for doubly-fed induction generator under unbalanced grid voltage. In: 2nd IET renewable power generation conference (RPG 2013), Beijing, 9–11 September 2013, pp.1–8. New York, NY: IEEE. doi: 10.1049/cp.2013.1776.

17.

Zhang

Jiang

. Robust predictive rotor current control of a doubly fed induction generator under an unbalanced and distorted grid. IEEE Trans Energy Convers 2022; 37(1): 433–442.

18.

Ullah

Sami

Chowdhury

, et al. Artificial Intelligence integrated fractional order control of doubly fed induction generator-based wind energy system. IEEE Access 2021; 9: 5734–5748.

19.

Amalorpavaraj

RAJ

Kaliannan

Padmanaban

, et al. Improved fault ride through capability in DFIG based wind turbines using dynamic voltage restorer with combined feed-forward and feed-back control. IEEE Access 2017; 5: 20494–20503.

20.

Krishnama Raju

Pillai

. Design and implementation of type-2 fuzzy logic controller for DFIG-based wind energy systems in distribution networks. IEEE Trans Sustain Energy 2016; 7(1): 345–353.

21.

Rezaei

Uddin

Amin

, et al. Genetic algorithm-based optimization of overcurrent relay coordination for improved protection of DFIG operated wind farms. IEEE Trans Ind Appl 2019; 55(6): 5727–5736.

22.

Yessef

Bossoufi

Taoussi

, et al. Intelligent direct power control based on the neural super-twisting sliding mode controller of a DFIG. In: Motahhir

Bossoufi

(eds) Digital technologies and applications. ICDTA 2023. Lecture notes in networks and systems. Cham: Springer, 2023, pp. 726–735.

23.

Djilali

Badillo-Olvera

Yuliana Rios

, et al. Neural high order sliding mode control for doubly fed induction generator based wind turbines. IEEE Lat Am Trans 2022; 20(2): 223–232.

24.

Echiheb

Ihedrane

Bossoufi

, et al. Robust sliding-backstepping mode control of a wind system based on the DFIG generator. Sci Rep 2022; 12: 11782–11782.

25.

Benbouhenni

Bizon

. A synergetic sliding mode controller applied to direct field-oriented control of induction generator-based variable speed dual-rotor wind turbines. Energies 2021; 14(15): 4437–4517.

26.

Benbouhenni

Lemdani

. Combining synergetic control and super twisting algorithm to reduce the active power undulations of doubly fed induction generator for dual-rotor wind turbine system. Elect Eng Electromech 2021; 3: 8–17.

27.

Benbouhenni

Bizon

. Terminal synergetic control for direct active and reactive powers in asynchronous generator-based dual-rotor wind power systems. Electronics 2021; 10(16): 1880–1923.

28.

Dong

Liu

, et al. Mitigation strategy of subsynchronous oscillation based on fractional-order sliding mode control for VSC-MTDC systems with DFIG-based wind farm access. IEEE Access 2020; 8: 209242–209250.

29.

Benbouhenni

Bizon

Colak

, et al. Application of fractional-order PI controllers and neuro-fuzzy PWM technique to multi-rotor wind turbine systems. Electronics 2022; 11: 1340.

30.

Gasmi

Benbouhenni

Mendaci

, et al. A new scheme of the fractional-order super twisting algorithm for asynchronous generator-based wind turbine. Energy Rep 2023; 9: 6311–6327.

31.

Gasmi

Mendaci

Laifa

, et al. Fractional-order proportional-integral super twisting sliding mode controller for wind energy conversion system equipped with doubly fed induction generator. J Power Electron 2022; 22: 1357–1373.

32.

Benbouhenni

. Application of DPC and DPC-GA to the dual-rotor wind turbine system with DFIG. Int J Robot Autom 2021; 10(3): 224–234.

33.

Ayrir

Ourahou

El Hassouni

, et al. Direct torque control improvement of a variable speed DFIG based on a fuzzy inference system. Math Comput Simul 2020; 167: 308–324.

34.

Amrane

Chaiba

. A novel direct power control for grid-connected doubly fed induction generator based on hybrid artificial intelligent control with space vector modulation. Rev Roum Sci Tech-Electrotech Energ 2016; 61(3): 263–268.

35.

Uddin

Amin

Rezaei

, et al. Grey wolf optimization based power management strategy for battery storage of DFIG-WECS in standalone operating mode. In: 2018 IEEE industry applications society annual meeting (IAS), Portland, OR, USA, 23–27 September 2018, pp.1–7. New York, NY: IEEE. DOI: 10.1109/IAS.2018.8544633.

36.

Yao

Wang

, et al. Sub-Synchronous resonance damping control for series-compensated DFIG-Based wind farm with improved particle swarm optimization algorithm. IEEE Trans Energy Convers 2019; 34(2): 849–859.

37.

Mahfoud

Derouich

Iqbal

, et al. Ant-colony optimization-direct torque control for a doubly fed induction motor: an experimental validation. Energy Rep 2022; 8: 81–98.

38.

Iqbal

Ying

Saleem

, et al. Proposed particle swarm optimization technique for the wind turbine control system. Meas Control 2020; 53(5–6): 1022–1030.

39.

Gasmi

Sofiane

Benbouhenni

, et al. Optimal operation of doubly-fed induction generator used in a grid-connected wind power system. Iran J Electr Electron Eng 2023; 19(2): 2431–2431.

40.

Benbouhenni

. Fuzzy speed controller of induction machine with 36 sectors DTC based ANFIS hysteresis comparator. Majlesi J Mechatron Syst 2019; 8(3): 1–8.

41.

Benbouhenni

. Comparison study between FPWM and NSVM inverter in neuro-sliding mode control of reactive and active power control of a DFIG-based wind energy. Majlesi J Energy Manag 2017; 6(4): 15–23.

42.

Benbouhenni

Boudjema

Belaidi

. DFIG-based wind turbine system using four-level FSVM strategy. Majlesi J Energy Manag 2017; 6(3): 7–19.

43.

Benbouhenni

. Fuzzy second order sliding mode controller based on three-level fuzzy space vector modulation of a DFIG for wind energy conversion systems. Majlesi J Mechatron Syst 2018; 7(3): 17–26.

44.

Benbouhenni

. A comparative study between FSMC and FSOSMC strategy for a DFIG-based wind turbine system. Majlesi J Mechatron Syst 2019; 8(2): 7–14.

45.

Benbouhenni

. Comparative study between direct vector control and fuzzy sliding mode controller in three-level space vector modulation inverter of reactive and active power command of DFIG-based wind turbine systems. Int J Smart Grid 2018; 2(4): 188–196.

46.

Sharmila

Rakkiyappan

Joo

. Fuzzy sampled-data control for DFIG-based wind turbine with stochastic actuator failures. IEEE Trans Syst Man Cybern Syst 2021; 51(4): 2199–2211.

47.

Heydari

Rafiee

Pichan

. Fuzzy-genetic algorithm-based direct power control strategy for DFIG. IJEE 2018; 14(4): 353–361.

48.

Farida

Belkacem

Colak

. Fuzzy high order sliding mode control based DPC of DFIG using SVM. In: 2021 9th international conference on smart grid (icSmartGrid), Setubal, Portugal, 29 June 2021–01 July 2021, pp.278–282. DOI: 10.1109/icSmartGrid52357.2021.9551262.

49.

Benbouhenni

Boudjema

Belaidi

. Power ripple reduction of DPC DFIG drive using ANN controller. Acta Electrotech Inform 2020; 20(1): 15–22.

50.

Benbouhenni

. Application of five-level NPC inverter in DPC-ANN of doubly fed induction generator for wind power generation systems. Int J Smart Grid 2019; 3(3): 128–137.

51.

Liu

, et al. Cooperative control to enhance the frequency stability of islanded microgrids with DFIG-SMES. Energies 2013; 6: 3951–3971.

52.

Behara

Saha

. Neural network predictive control for improved reliability of grid-tied DFIG-based wind energy system under the three-phase fault condition. Energies 2023; 16: 4881.

53.

Chojaa

Derouich

Chehaidia

, et al. Enhancement of direct power control by using artificial neural network for a doubly fed induction generator-based WECS: an experimental validation. Electronics 2022; 11: 4106.

54.

Chhipa

Kumar

Joshi

, et al. Adaptive neuro-fuzzy inference system-based maximum power tracking controller for variable speed WECS. Energies 2021; 14: 6275.

55.

Benbouhenni

Bizon

. Advanced direct vector control method for optimizing the operation of a double-powered induction generator-based dual-rotor wind turbine system. Mathematics 2021; 9: 2403.

56.

Chien

T-H

Huang

Y-C

Hsu

Y-Y

. Neural network-based supplementary frequency controller for a DFIG Wind farm. Energies 2020; 13: 5320.

57.

Ghefiri

Bouallègue

Garrido

, et al. Multi-layer artificial neural networks based MPPT-pitch angle control of a tidal stream generator. Sensors 2018; 18: 1317.

58.

Sun

Chen

, et al. A short-term outage model of wind turbines with doubly fed induction generators based on supervisory control and data acquisition data. Energies 2016; 9: 882.

59.

Benbouhenni

. Direct vector control for doubly fed induction generator-based wind turbine system using five-level NSVM and two-level NSVM technique. Int J Smart Grid 2019; 3(1): 25–32.

60.

Benbouhenni

Boudjema

Belaidi

. Using four-level NSVM technique to improve DVC control of a DFIG based wind turbine systems. Period Polytechnica Electr Eng Comput Sci 2019; 63(3): 144–150.

61.

Benbouhenni

Boudjema

Belaidi

. Direct vector control of a DFIG supplied by an intelligent SVM inverter for wind turbine system. Iran J Electr Electron Eng 2019; 15(1): 45–55.

62.

Boudjema

Benbouhenni

Bouhani

, et al. DSPACE implementation of a neural SVPWM technique for a two level voltage source inverter. Iran J Electr Electron Eng 2021; 17(3): 1793.

63.

Benbouhenni

. Hybrid neural sliding mode control of a DFIG speed in wind turbines. Majlesi J Energy Manag 2017; 6(4): 31–41.

64.

Benbouhenni

. Amelioration effectiveness of torque and rotor flux control applied to the asynchronous generator for dual-rotor wind turbine using neural third-order sliding mode approaches. Int J Eng Trans C Aspects 2022; 35(3): 517–530.

65.

Benbouhenni

Boudjema

Belaidi

. Power control of DFIG in WECS using DPC and NDPC-NPWM methods. Math Model Eng Probl 2020; 7(2): 223–236.

66.

Benbouhenni

. Twelve sectors DPC control based on neural hysteresis comparators of the DFIG integrated to wind power. Tec Ital Ital J Eng Sci 2020; 64(2–4): 347–353.

67.

Benbouhenni

. A 24-sectors direct power control-feedforward neural network method of DFIG integrated to dual-rotor wind turbine. Int J Appl Power Eng 2021; 10(4): 291.

68.

Benbouhenni

. Two-level DPC strategy based on FNN algorithm of the DFIG-DRWT systems using two-level hysteresis controllers for reactive and active powers. Renew – Res Appl 2021; 2(3): 137–146.

69.

Hadi

FMA

Aly

Little

. Harmonics forecasting of wind and solar hybrid model driven by DFIG and PMSG using ANN and ANFIS. IEEE Access 2023; 11: 55413–55424.

70.

Sami

Ullah

Amin

, et al. Convergence enhancement of super-twisting sliding mode control using artificial neural network for DFIG-based wind energy conversion systems. IEEE Access 2022; 10: 97625–97641.

71.

Ruiz-Cruz

Sanchez

Loukianov

, et al. Real-time neural inverse optimal control for a wind generator. IEEE Trans Sustain Energy 2019; 10(3): 1172–1183.

72.

Xue

Xiahou

, et al. Diagnosis of multiple open-circuit switch faults based on long short-term memory network for DFIG-Based wind turbine systems. IEEE J Emerg Sel Top Power Electron 2020; 8(3): 2600–2610.

73.

Wang

Gong

, et al. H∞ robust current control for DFIG-based wind turbine subject to grid voltage distortions. IEEE Trans Sustain Energy 2017; 8(2): 816–825.

74.

Bouaziz

Abdelkafi

Masmoudi

, et al. Enhancing the transient performance of a DFIG_WT in case of HVRT using SMES. In: 2022 IEEE 21st international ccnference on sciences and techniques of automatic control and computer engineering (STA), Sousse, Tunisia, 19–21 December 2022, pp.401–405. New York, NY: IEEE.DOI: 10.1109/STA56120.2022.10019232.

75.

Eddine

Mezouar

Boumediene

, et al. A comprehensive review of LVRT capability and sliding mode control of grid-connected wind-turbine-driven doubly fed induction generator. Automatika 2016; 57(4): 922–935.

76.

Yaichi

Semmah

Wira

, et al. Super-twisting sliding mode control of a doubly-fed induction generator based on the SVM strategy. Period Polytechnica Electr Eng Comput Sci 2019; 63(3): 178–190.

77.

El Ouanjli

Derouich

El Ghzizal

, et al. Direct torque control of doubly fed induction motor using three-level NPC inverter. Prot Control Mod Power Syst 2019; 4(1): 1–9.

78.

Benbouhenni

Bizon

. Third-order sliding mode applied to the direct field-oriented control of the asynchronous generator for variable-speed contra-rotating wind turbine generation systems. Energies 2021; 14(18): 5877.

79.

Quan

Hang

, et al. Multi-resonant-based sliding mode control of DFIG-based wind system under unbalanced and harmonic network conditions. Appl. Sci 2019; 9: 1124.

80.

Moreira

Barros

TADS

Teixeira

VSDC

, et al. Control of powers for wind power generation and grid current harmonics filtering from doubly fed induction generator: comparison of two strategies. IEEE Access 2019; 7: 32703–32713.

81.

Mahfoud

Derouich

Ouanjli

, et al. Enhancement of the direct torque control by using artificial neuron network for a doubly fed induction motor. Intell Syst Appl 2022; 13: 1–18.

82.

Mossa

Echeikh

Iqbal

. Enhanced control technique for a sensor-less wind driven doubly fed induction generator for energy conversion purpose. Energy Rep 2021; 7: 5815–8333.

83.

Bengourina

Rahil

Slani

, et al. PSO based direct power control for a multifunctional grid connected photovoltaic system. Int J Power Electron Drive Syst 2018; 9(2): 610–621.

84.

Chojaa

Derouich

Chehaidia

, et al. Integral sliding mode control for DFIG based WECS with MPPT based on artificial neural network under a real wind profile. Energy Rep 2021; 7: 4809–4824.

85.

Bossoufi

Karim

Lagrioui

, et al. FPGA-based implementation nonlinear backstepping control of a PMSM drive. IJPEDS Int J Power Electron Drive Syst 2014; 4: 12–23.

86.

Alami

Bossoufi

Motahhir

, et al. FPGA in the loop implementation for observer sliding mode control of DFIG-generators for wind turbines. Electronics 2021; 11: 116.

87.

Ibrahim

Semmah

Patrice

. Neuro-second order sliding mode control of a DFIG based wind turbine system. IOSR J Electr Electron Eng 2020; 13(1): 63–68.

88.

Benbouhenni

Gasmi

Colak

. Intelligent control scheme of asynchronous generator-based dual-rotor wind power system under different working conditions. Majlesi J Energy Manag 2022; 11(3): 8–15.

89.

Benbouhenni

Gasmi

Colak

. Backstepping control for multi-rotor wind power systems. Majlesi J Energy Manag 2022; 11(4): 8–15.

90.

Hiremath

Moger

. Modified super twisting algorithm based sliding mode control for LVRT enhancement of DFIG driven wind system. Energy Rep 2022; 8: 3600–3613.

91.

Xiahou

Liu

, et al. Sensor fault tolerance enhancement of DFIG-WTs via perturbation Ob-server-based DPC and two-stage Kalman filters. IEEE Trans Energy Convers 2018; 33(2): 483–495.

92.

Xie

Gao

Yang

, et al. Improved fractional-order damping method for voltage-controlled DFIG system under weak grid. J Mod Power Syst Clean Energy 2022; 10(6): 1531–1541.
