Continuous finite-time terminal sliding mode to solve the tracking problem in a class of mechanical systems

Abstract

The major contribution of this study is the feedback design of a finite-time convergence sliding mode control to solve the trajectory-tracking problem in a class of mechanical systems. Some advantages are that the controller presents a continuous signal by integration of the high-frequency switching term. Another benefit is the design and implementation of an uncertainty and disturbance estimator (UDE) to robustify the closed-loop system. We use Lyapunov tools to develop the closed-loop stability analysis and to give an expression of the convergence time $\overset{=}{t}$ _t through this, we can reduce the convergence time by tuning the gains of the controller. We illustrate the performance of the proposed control structure via numerical simulations conducted for a mass-spring-damper system and experiments developed in a pendular system.

Keywords

Robust control tracking control sliding mode control stability of nonlinear systems

Introduction

Since the first computers emerged, it has become possible to apply the first tracking control algorithms.^1,2 Currently, tracking control of mechanical systems is a problem addressed by the research community with a wide range of applications within the industry.^3–5 Currently, the major challenge is to improve the performance of the tracking control algorithm. With regard to tracking control, some inconveniences to deal with are parametric uncertainties and disturbances, many control techniques have been addressed to mitigate or eliminate these drawbacks, such as PID control,^6,7 adaptive control,^8,9 sliding mode control^10,11 among others.^12–14

In this paper, the aim is to improve the performance of a trajectory-tracking algorithm based on sliding mode control. In this sense, some studies related to this topic are¹⁵: presented a passivity-based dynamic sliding mode control (DSMC) that guarantees a continuous control signal and global exponential convergence of tracking errors. Another work Shao et al.⁵ proposed a robust recursive sliding mode controller combined with an adaptive disturbance observer (RSM-ADO), some advantages of this controller are finite-time convergence to zero of the tracking errors and a lack of chattering effects. In the previous work of Shao et al.¹⁶ is developed a robust tracking controller based on barrier function adaptive sliding mode (BFASM), where the tracking error can converge to a predefined small region around zero in finite-time. The authors of Sun et al.¹⁷ designed a nested adaptive super-twisting sliding mode (NASTSM) control scheme for a vehicle Steer-by-Wire (SbW) system, they expressed the plant model as a second-order differential equation; this application has a chattering effect that affects the tracking error. In Fei and Lu¹⁸ they proposed an adaptive fractional order sliding mode controller with a neural estimator for a class of systems with nonlinear disturbances, where the effect of the adaptive law was visible through the slow convergence of the estimation of the parameters.

More recently Kao et al.,¹⁹ discussed an integral sliding mode control that stabilizes a class of uncertain switched hyperbolic systems (USHSs) and guarantees asymptotic stability of the closed-loop dynamics. The authors of Baba et al.²⁰ proposed an integral sliding mode controller using a passivity-based approach to solve the regulation problem. They confirmed that their method ensures Lyapunov stability even if the discontinuous sliding mode controller is replaced by its continuous approximation to reduce chattering phenomena. In Shen et al.,²¹ researchers investigated the tracking control problem for an entry vehicle subject to uncertainty and input saturation. They proved finite-time stability by employing Lyapunov theory and the bi-limit homogeneity technique. The problem of a reentry vehicle subject to uncertainty was studied by Shen et al.,²² where they proposed a continuous adaptive super-twisting sliding mode control (ASTSMC) law that provides finite-time altitude-tracking control. The ASTSMC law achieved fast convergence, improved control gain, and reduced the chattering phenomena.

The controller proposed in this work takes advantage of previous sliding mode controllers, such as the asymptotic sliding mode control,^23,24 where its primary advantage is chattering attenuation by integration of the discontinuous control while closed-loop system dynamics remain robust to bounded perturbations and parametric uncertainties; terminal sliding mode control,^25,26 where its major advantage is the finite-time convergence of the closed-loop trajectories to the equilibria while keeping robustness properties, and the concept of equivalent control,^27,28 which is used to estimate the bounded disturbances and parametric uncertainties after the closed-loop trajectories reach the sliding surface; by this way it is designed and proposed an outstanding control algorithm. The main contributions of this study are summarized as follows:

The designed controller presents finite-time convergence to a zero tracking error despite bounded disturbances and parametric uncertainties. We give the expression of the convergence times in the stability analysis section.

The stability analysis presents the time expressions of the finite-time convergence of both the auxiliary sliding variable surface and the sliding surface.

The control signal is continuous, we achieve this by integrating the high-frequency function. We propose an auxiliary sliding variable in addition to a sliding surface to achieve chattering attenuation. The uncertainties and disturbances must be bounded and their derivatives must be bounded to make the control algorithm workable.

We designed an uncertainty and disturbance estimator (UDE) using the concept of equivalent control, which recovers the pooled uncertainties and disturbances. The experimental section demonstrates the advantages of using this estimator.

The remainder of this paper is organized as follows. This paper presents the class of mechanical systems addressed in Section 2 along with the proposed control structure to solve the tracking problem. We develop finite-time terminal sliding mode control in Section 3, including the design of the sliding auxiliary variable $s$ and the sliding surface $σ$ . Section 4 presents the finite-time stability proof of the closed-loop system and convergence times for each stage. In Section 5, we use MATLAB to perform a numerical simulation of the proposed control structure applied to a mass-spring-damper system and compare the proposed controller against other sliding mode controllers such as terminal sliding mode control, asymptotic sliding mode control, and super-twisting control. In Section 6, the proposed control structure is tested through experiments conducted using a pendular system. We implemented a UDE to deal with uncertainties and disturbances, to illustrate its functionality, we turned this UDE off after 6.8 s of elapsed the experiment. Finally, Section 7 provides conclusions regarding the proposed control structure for solving the tracking problem in a class of mechanical systems.

Problem statement

The problem addressed in this study is the finite-time trajectory-tracking control of a one-degree-of-freedom (one-DOF) mechanical system. The following state-space equations govern the dynamics of the class of systems considered in this study:

\begin{array}{l} {\dot{x}}_{1} = x_{2} \\ {\dot{x}}_{2} = f (x_{1}, x_{2}) + g (x_{1}, x_{2}) u + ω (x_{1}, x_{2}, t) \end{array}

(1)

where $f (x_{1}, x_{2})$ and $g (x_{1}, x_{2})$ are nonlinear functions, and $g (x_{1}, x_{2})^{- 1}$ is defined for all $x_{1}$ and $x_{2}; ω (x_{1}, x_{2}, t)$ is the disturbance term, which may comprise parameter uncertainties and external perturbations. The term $ω (x_{1}, x_{2}, t)$ is assumed to be upper bounded by a constant $sup_{t} | ω (x_{1}, x_{2}, t) | \leq L > 0$ and in addition, that it is smooth with bounded time derivative $sup_{t} | \overset{\cdot}{ω} (x_{1}, x_{2}, t) | \leq \bar{L}$ . Note that the one-DOF manipulator falls under the assumption given by the equations in (1). For system (1) the proposed finite-time tracking control design is as follows

u = - g (x_{1}, x_{2})^{- 1} (f (x_{1}, x_{2}) + τ - {\overset{\cdot\cdot}{x}}_{d}),

(2)

where $τ$ is the part of the controller that adds robustness to the closed-loop system, and the rest of the terms are plant parameters and the double derivative of the desired trajectory, both of which are known and are used for compensation purposes. Substituting (2) into (1) the closed-loop system stands as

\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2}, \\ {\overset{\cdot}{x}}_{2} = {\overset{\cdot\cdot}{x}}_{d} - τ + ω (x_{1}, x_{2}, t) . \end{matrix}

(3)

Let us rewrite the system (3) as a function of the position error $e_{1} = x_{d} - x_{1}$ and the velocity error $e_{2} = {\overset{\cdot}{x}}_{d} - x_{2}$ , where $x_{d}$ is the desired trajectory assumed to be at least twice differentiable. Therefore,

\begin{matrix} {\overset{\cdot}{e}}_{1} = e_{2}, \\ {\overset{\cdot}{e}}_{2} = τ - ω (x_{1}, x_{2}, t), \end{matrix}

(4)

system (4) has the structure of a double-integrator system.

Finite-time terminal sliding mode design

To design a control that brings together the advantages mentioned above, let us begin by considering

\overset{\cdot}{τ} = v, τ (0) = 0,

(5)

the idea of (5) is to attenuate chattering by integrating the discontinuous controller $v$ . Therefore, we propose the following sliding surface:

σ = e_{2} + c | e_{1} |^{γ} sign (e_{1}),

(6)

where constants $c > 0$ and $0 < γ < 1$ . In order to achieve chattering attenuation we propose the following auxiliary variable

s = \overset{\cdot}{σ} + \bar{c} | σ |^{\bar{γ}} sign (σ),

(7)

where constants $\bar{c} > 0$ and $0 < \bar{γ} < 1$ . Now, to prove the convergence of the closed-loop trajectories to the auxiliary variable $s$ let us fulfill the reachability condition $s \overset{\cdot}{s} < 0$ ,

s \dot{s} = s (\overset{\cdot\cdot}{σ} + \bar{γ} \bar{c} | σ |^{\bar{γ} - 1} \dot{σ}) < 0,

(8)

substituting $\overset{\cdot\cdot}{σ}$ and $\overset{\cdot}{σ}$ derived from (6) into (8) give us,

\begin{array}{l} s \dot{s} = s (v - \dot{ω} (\cdot) + (γ - 1) γ c | e_{1} |^{γ - 2} sign (e_{1}) e_{2}^{2} \\ + γ c | e_{1} |^{γ - 1} (τ - ω (\cdot)) \\ + \bar{γ} \bar{c} | σ |^{\bar{γ} - 1} (τ - ω (\cdot) + γ c | e_{1} |^{γ - 1} e_{2})) < 0, \end{array}

(9)

from (9) we can propose the discontinuous control law that fulfill $s \overset{\cdot}{s} < 0$

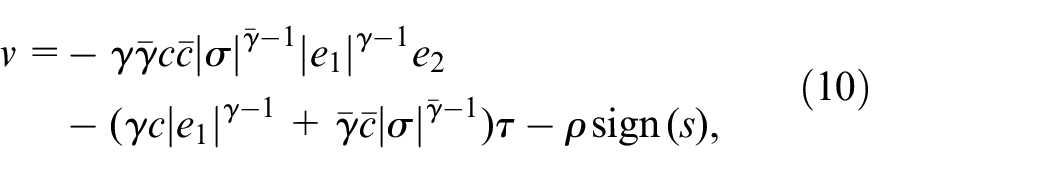

\begin{matrix} v = - γ \bar{γ} c \bar{c} | σ |^{\bar{γ} - 1} | e_{1} |^{γ - 1} e_{2} \\ - (γ c | e_{1} |^{γ - 1} + \bar{γ} \bar{c} | σ |^{\bar{γ} - 1}) τ - ρ sign (s), \end{matrix}

(10)

substituting (10) into (9) we have that

\begin{matrix} s \overset{\cdot}{s} = - ρ | s | + s ψ, \\ s \overset{\cdot}{s} \leq - (ρ - ϕ) | s |, \\ s \overset{\cdot}{s} \leq - (ρ - M) | s | < 0, \end{matrix}

(11)

where

\begin{matrix} ψ = - \overset{\cdot}{ω} (\cdot) - ω (\cdot) (\bar{γ} \bar{c} | σ |^{\bar{γ} - 1} + γ c | e_{1} |^{γ - 1}) \\ - (γ - 1) γ c | e_{1} |^{γ - 2} sign (e_{1}) e_{2}^{2} \end{matrix}

and

\begin{matrix} ϕ = \bar{L} + L (\bar{γ} \bar{c} | σ |^{\bar{γ} - 1} + γ c | e_{1} |^{γ - 1}) \\ - (γ - 1) γ c | e_{1} |^{γ - 2} sign (e_{1}) e_{2}^{2} \end{matrix}

considering $sup_{t} | ϕ | \leq M$ , where $M$ is a positive constant. Therefore, using inequality (11), the reachability condition is satisfied, whereas $ρ > M$ . Note that the term $- (γ - 1) γ c | e_{1} |^{γ - 2} sign (e_{1}) e_{2}^{2}$ can be included within the control law (10); however, this term causes most of the singularities that appear in the closed-loop system. To avoid various singularities in the closed-loop system, we do not include this term in (10). Instead of doing this, we consider it as a perturbation overtaken by the gain $ρ$ .

Uncertainty and disturbance estimator

The design of the uncertainty and disturbance estimator (UDE) is based on the concept of equivalent control, using this concept we can estimate $ψ$ , the purpose is to use this estimation as feedback in the controller $v$ , in this sense we can reduce the finite-time convergence of the trajectories $σ (t), \overset{\cdot}{σ} (t)$ as proven later, also, it can be reduced the amplitude of $ρ$ , in this scenario the constant value $ρ$ instead of cope with $M$ will need to deal $ρ > sup_{t} | ψ - \hat{ψ} |$ , where $\hat{ψ}$ is the uncertainty and disturbance estimation, keep in mind that $sup_{t} | ψ - \hat{ψ} | << M$ , the concept is explained as follows where the condition $\overset{\cdot}{s} = 0$ yields

\begin{matrix} \overset{\cdot}{s} = v - \overset{\cdot}{ω} (\cdot) + (γ - 1) γ c | e_{1} |^{γ - 2} sign (e_{1}) e_{2}^{2} \\ + γ c | e_{1} |^{γ - 1} (τ - ω (\cdot)) \\ + \bar{γ} \bar{c} | σ |^{\bar{γ} - 1} (τ - ω (\cdot) + γ c | e_{1} |^{γ - 1} e_{2}) = 0, \\ s (t_{r}) = 0, \end{matrix}

(12)

where $t_{r}$ is the time when $s$ becomes zero, and the trajectories $σ (t)$ and $\overset{\cdot}{σ} (t)$ remain on the auxiliary variable thereafter. A control function that satisfies (12) can be computed as

\begin{matrix} v_{eq} = \overset{\cdot}{ω} (\cdot) - (γ - 1) γ c | e_{1} |^{γ - 2} sign (e_{1}) e_{2}^{2} \\ - γ c | e_{1} |^{γ - 1} (τ - ω (\cdot)) \\ - \bar{γ} \bar{c} | σ |^{\bar{γ} - 1} (τ - ω (\cdot) + γ c | e_{1} |^{γ - 1} e_{2}), \end{matrix}

(13)

according to Utkin et al.²⁹ the equivalent control can be estimated (online) as follows

\begin{matrix} {\hat{v}}_{eq} = - (γ c | e_{1} |^{γ - 1} + \bar{γ} \bar{c} | σ |^{\bar{γ} - 1}) τ \\ - γ \bar{γ} c \bar{c} | σ |^{\bar{γ} - 1} | e_{1} |^{γ - 1} e_{2} \\ - ρ LPF (sign (s)), t \geq t_{r}, \end{matrix}

(14)

where $LPF$ is a low-pass filter applied to the high-frequency switching term $sign (s)$ . There is a wide variety of low-pass filter that can be implemented, for instance, we can implement the following first-order low-pass filter

T \overset{\cdot}{z} = - z + sign (s),

(15)

where $T$ is a small positive scalar that represents the filter time constant. Therefore the disturbance and parametric uncertainty terms can be estimated as

\hat{ψ} = ρ z = ρ LPF (sign (s)) \approx ψ, t \geq t_{r},

(16)

notice that $sup_{t} | ψ - \hat{ψ} | << M$ , this term is assumed to be bounded by a constant $sup_{t} | ψ - \hat{ψ} | \leq N$ , by consequence $N < M$ . Now, the output of the filter (15) can be implemented in the controller $v$ to reduce the amplitude of $ρ$ if it is required as follows

\begin{matrix} v = - γ \bar{γ} c \bar{c} | σ |^{\bar{γ} - 1} | e_{1} |^{γ - 1} e_{2} - (γ c | e_{1} |^{γ - 1} + \bar{γ} \bar{c} | σ |^{\bar{γ} - 1}) τ \\ - ρ sign (s) - ρ z, \end{matrix}

(17)

substituting (17) into (9) we have that

s \overset{\cdot}{s} \leq - (ρ - N) | s | < 0 .

(18)

Therefore, using the inequality (18), the reachability condition is satisfied, whereas $ρ > N$ .

Remark The proposed controller (2), (5)-(7) and (17) comprises six gain parameters. The gain parameter $ρ$ denotes the amplitude of the discontinuous term and the amplitude of the uncertainty and disturbance estimation in (17), also through $ρ$ we can change the time of convergence of $s$ to zero, as proven in the next section. The auxiliary variable $s$ has two constant gain parameters $\bar{c}$ and $\bar{γ}$ , these parameters are related to the time of convergence of the sliding variable $σ$ to zero. The sliding surface $σ$ contains two gain parameters, $c$ and $γ$ , these parameters can modify the time of convergence of $e_{1}$ and $e_{2}$ to zero. Finally, $T$ is the only parameter of the UDE which stands for the time constant of the filter.

Finite-time stability analysis

Theorem 1. Consider the perturbed system (1) under the control law (2), (5), and (17), then the error dynamics $e_{1}$ and $e_{2}$ of the closed-loop system (4) converge to the equilibria in finite-time given by $\bar{\bar{t_{r}}}$ .

Proof. The finite-time stability analysis is conducted by finding the convergence times according to the following sequence:

we will find the time $t_{r}$ , this is when the auxiliary variable $s = 0$ from any initial condition and the trajectories remain there, we can see an illustration of the time segment $t_{r}$ in Figure 1,

second, let us find the time ${\bar{t}}_{r}$ , this is when the sliding variable $σ = 0$ ,

finally, we will get the time $\bar{\bar{t_{r}}}$ which show us when $e_{1} = 0$ and $e_{2} = 0$ , an illustration of the times ${\bar{t}}_{r}$ and $\bar{\bar{t_{r}}}$ is displayed in Figure 2,

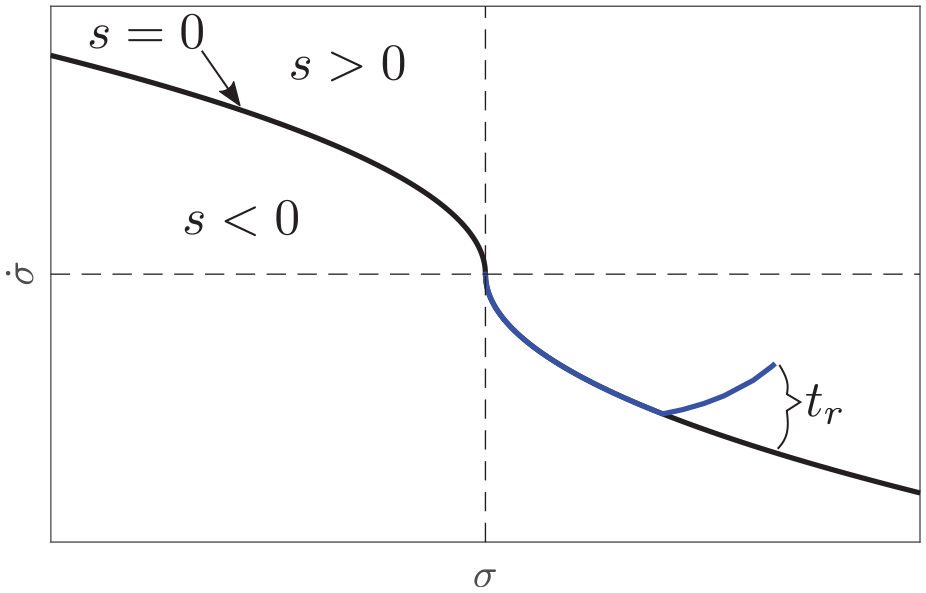

Figure 1.

An illustration of the convergence time $t_{r}$ to the auxiliary variable $s$ .

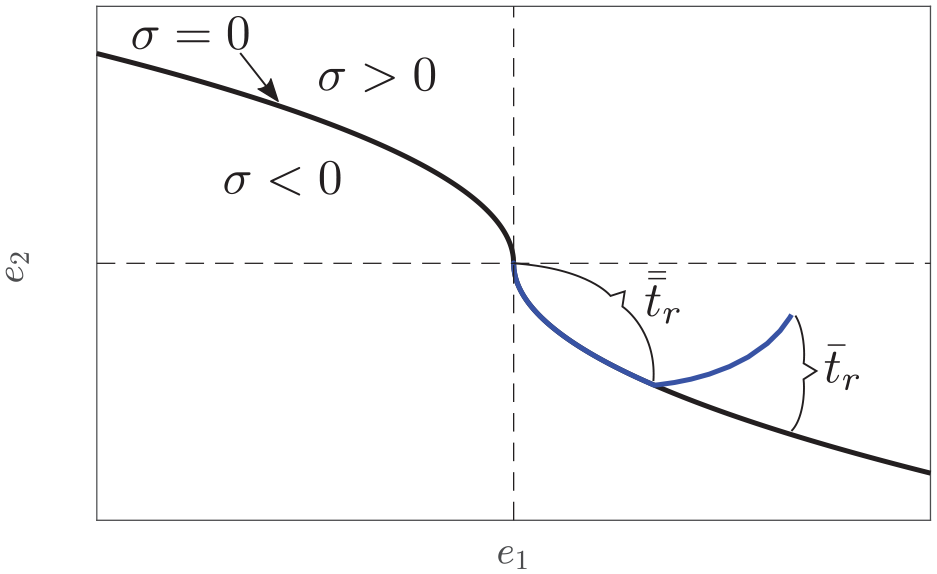

Figure 2.

Sketch of the convergence time ${\bar{t}}_{r}$ to the sliding surface $σ$ and convergence time $\bar{\bar{t_{r}}}$ to the equilibria.

For this purpose let us use the following quadratic function

V_{1} (s) = \frac{1}{2} s^{2},

(19)

the derivative along the trajectories of (12) and (17) is given by

\begin{matrix} {\overset{\cdot}{V}}_{1} (s) = s \overset{\cdot}{s} \leq - (ρ - N) | s | \\ {\overset{\cdot}{V}}_{1} (s) \leq - \sqrt{2} (ρ - N) V_{1} (s)^{1 / 2}, \end{matrix}

(20)

by integration of inequality (20), and considering $t (0) = 0$ we can get the time $t_{r}$

V_{1} (t) = 0 for t_{r} \leq \frac{\sqrt{2} V_{1} {(0)}^{1 / 2}}{ρ - N},

(21)

the time $t_{r}$ can be rewritten as

V_{1} (t) = 0 for t_{r} \leq \frac{| s (0) |}{ρ - N} .

(22)

Note that, as we commented in the previous section, the time $t_{r}$ can be reduced by using the uncertainty and disturbance estimation $\hat{ψ}$ because of $N < M$ ; if we do not use the estimator mentioned above, we would have $t_{r} \leq \frac{| s (0) |}{ρ - M}$ instead of (22). Therefore, although we use the same value of $ρ, t_{r}$ will be reduced if the UDE is used. Once the trajectories $σ (t)$ and $\overset{\cdot}{σ} (t)$ are on the sliding variable $s$ , the reduced-order dynamics are obtained from $s = 0$

\overset{\cdot}{σ} = - \bar{c} | σ |^{\bar{γ}} sign (σ), σ (t_{r}) = σ_{r}

(23)

the equilibrium point of (23) is the origin; consider that the initial condition of $σ$ is assessed in $t_{r}$ which is the time when the trajectories are on $s$ and remain on it. Let us prove the finite-time convergence of (23) to the origin using the following positive-definite function

V_{2} (σ) = | σ | > 0 .

(24)

Note that $V_{2} (σ)$ is locally Lipschitz, and is differentiable at any point except at $σ = 0$ . Therefore, ${\overset{\cdot}{V}}_{2} (σ)$ computed along the trajectory $σ$ exists almost everywhere. The time derivative of (24) along the trajectories of (23) is given by

\begin{matrix} {\overset{\cdot}{V}}_{2} (σ) = - \bar{c} | σ |^{\bar{γ}} < 0 \\ {\overset{\cdot}{V}}_{2} (σ) = - \bar{c} V_{2} (σ)^{\bar{γ}}, \end{matrix}

(25)

from (25) it can be ensure the finite-time convergence to the equilibrium point, now by integration of inequality (25) we can get that time expression named ${\bar{t}}_{r}$ ,

V_{2} (t) = 0 for {\bar{t}}_{r} = \frac{| σ (t_{r} {) |}^{1 - \bar{γ}}}{\bar{c} (1 - \bar{γ})} + t_{r},

(26)

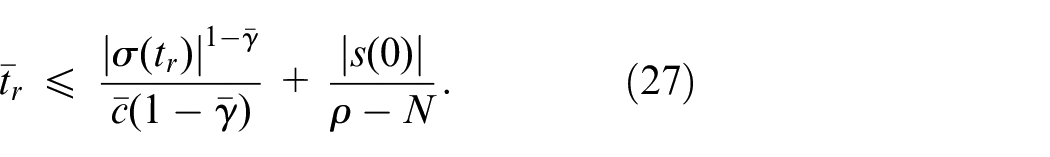

by substituting the time $t_{r}$ from (22) into (25) we have the time when $σ$ and $\overset{\cdot}{σ}$ go to zero

{\bar{t}}_{r} \leq \frac{| σ (t_{r} {) |}^{1 - \bar{γ}}}{\bar{c} (1 - \bar{γ})} + \frac{| s (0) |}{ρ - N} .

(27)

Finally, let us get the time $\bar{\bar{t_{r}}}$ which indicate us when $e_{1} = 0$ and $e_{2} = 0$ , the procedure is quite similar to the one used to get ${\bar{t}}_{r}$ therefore some parts are omitted. Let us begin by defining the reduced-order dynamics when $σ = 0$ obtained from (6)

{\overset{\cdot}{e}}_{1} = - c | e_{1} |^{γ} sign (e_{1}), e_{1} ({\bar{t}}_{r}) = e_{1 r}

(28)

the initial condition is $e_{1 r}$ and it occurs at ${\bar{t}}_{r}$ . The stability proof is like the one presented starting from (24), therefore in this case the time $\bar{\bar{t_{r}}}$ is given by

V_{3} (t) = 0 for \bar{\bar{t_{r}}} = \frac{| e_{1} ({\bar{t}}_{r} {) |}^{1 - γ}}{c (1 - γ)} + {\bar{t}}_{r},

(29)

by substituting the time ${\bar{t}}_{r}$ from (27) into (29) we find $\bar{\bar{t_{r}}}$

\bar{\bar{t_{r}}} \leq \frac{| e_{1} ({\bar{t}}_{r} {) |}^{1 - γ}}{c (1 - γ)} + \frac{| σ (t_{r} {) |}^{1 - \bar{γ}}}{\bar{c} (1 - \bar{γ})} + \frac{| s (0) |}{ρ - N}

(30)

this inequality gives us the time the trajectories $e_{1}$ and $e_{2}$ reach equilibrium. In the hypothetical case, when there are no disturbances and parametric uncertainties affecting the closed-loop system, there is no need for the estimation $\hat{ψ}$ , we can use the controller given in (10), hence the time $\bar{\bar{t_{r}}}$ becomes

\bar{\bar{t_{r}}} = \frac{| e_{1} ({\bar{t}}_{r} {) |}^{1 - γ}}{c (1 - γ)} + \frac{| σ (t_{r} {) |}^{1 - \bar{γ}}}{\bar{c} (1 - \bar{γ})} + \frac{| s (0) |}{ρ}

(31)

Thus, the finite-time stability proof is completed.

Numerical simulation

Let us test the proposed controller (2), (5)-(7), (17), in a mass-spring-damper system depicted in Figure 3, whose dynamic equations are given as follows

\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2} \\ {\overset{\cdot}{x}}_{2} = - \frac{k}{m} x_{1} - \frac{b}{m} x_{2} + \frac{u}{m} + \frac{ω (x_{1}, x_{2}, t)}{m}, \end{matrix}

(32)

where $m \in R^{+}$ denotes the mass, $b \in R^{+}$ denotes the damping coefficient, and $k \in R^{+}$ denotes the spring stiffness. The measurable states are the position $x_{1}$ and the velocity $x_{2}$ , and the uncertainty and disturbance term $ω (x_{1}, x_{2}, t)$ is considered upper bounded by a constant $L$ . The proposed finite-time tracking controller is designed according to (2) as,

u = - m (- \frac{k}{m} x_{1} - \frac{b}{m} x_{2} + τ - {\overset{\cdot\cdot}{x}}_{d}),

(33)

where $τ$ is the dynamic part of the controller $\overset{\cdot}{τ} = v$ , with initial condition $τ (0) = 0$ . The core of the controller is in $v$ as previously presented in (17); the position error is $e_{1} = x_{d} - x_{1}$ and the velocity error is $e_{2} = {\overset{\cdot}{x}}_{d} - x_{2}$ . The numerical simulation was developed in Matlab using the parameters presented in Table 1,

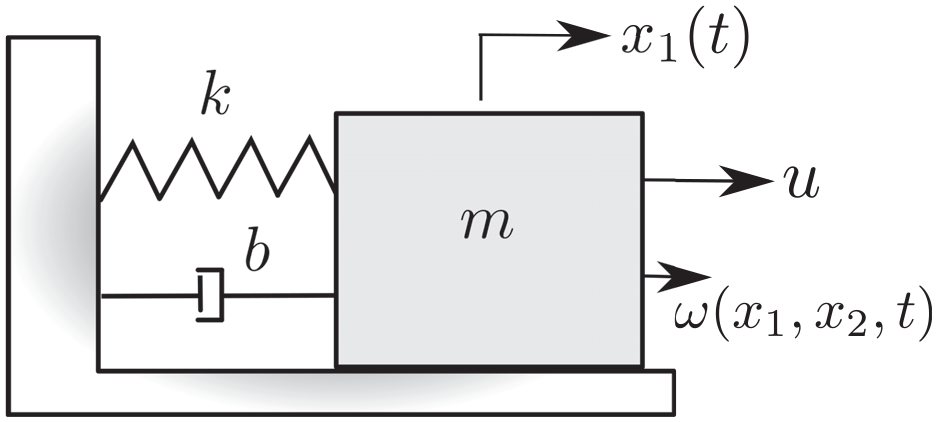

Figure 3.

Mass-spring-damper system.

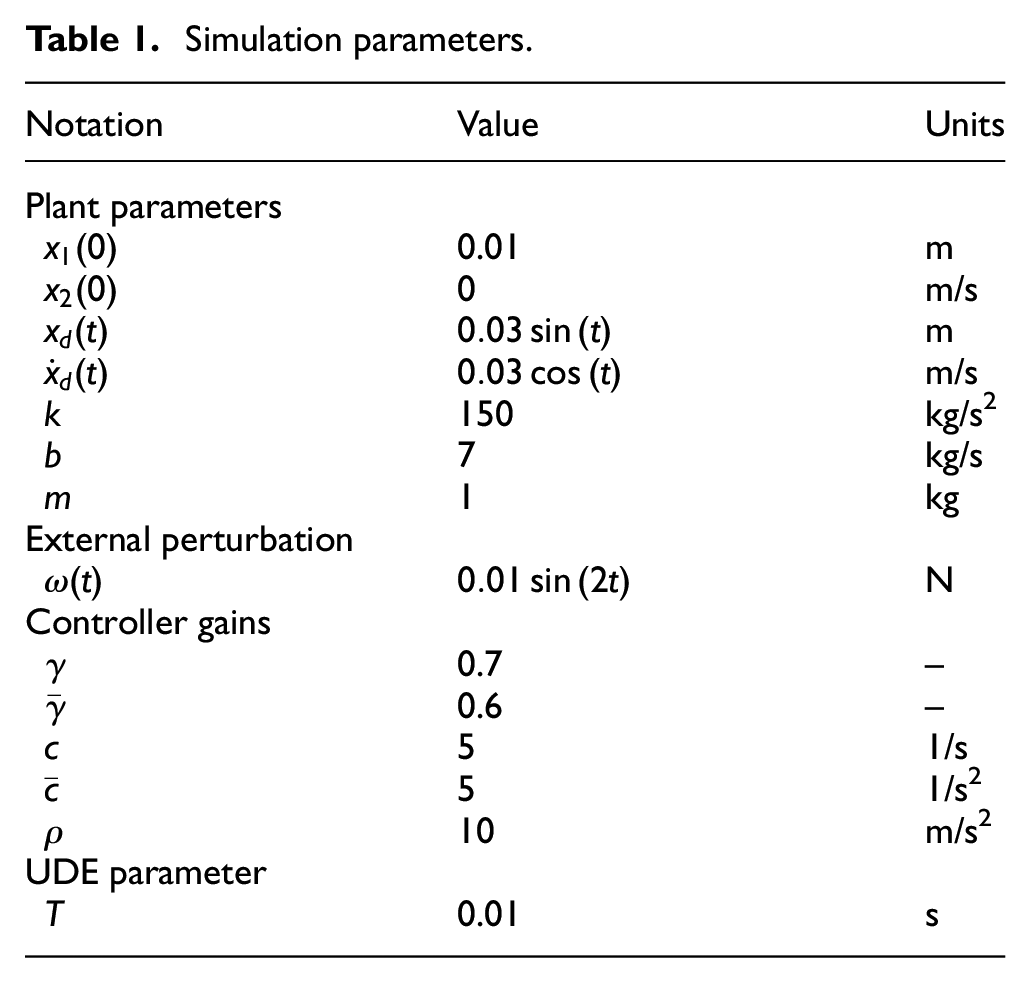

Table 1.

Simulation parameters.

Notation	Value	Units
Plant parameters
$x_{1} (0)$	0.01	m
$x_{2} (0)$	0	m/s
$x_{d} (t)$	$0.03 \sin (t)$	m
${\overset{\cdot}{x}}_{d} (t)$	$0.03 \cos (t)$	m/s
$k$	150	kg/s²
$b$	7	kg/s
$m$	1	kg
External perturbation
$ω (t)$	$0.01 \sin (2 t)$	N
Controller gains
$γ$	0.7	–
$\bar{γ}$	0.6	–
$c$	5	1/s
$\bar{c}$	5	1/s²
$ρ$	10	m/s²
UDE parameter
$T$	0.01	s

For a comparison, we will test the proposed controller against similar controllers. We considered some of these controllers within the design of the proposed control approach, such as terminal sliding mode and asymptotic sliding mode. Let us show the key characteristics of these controllers in Table 2

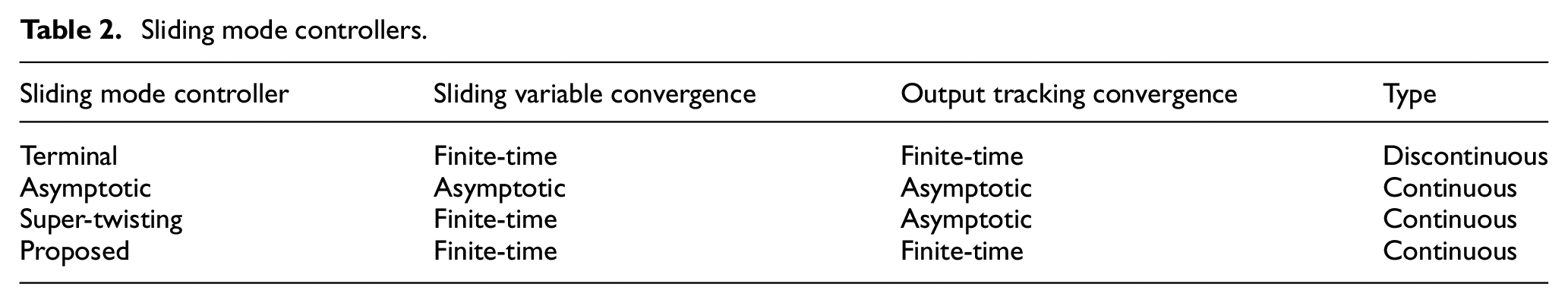

Table 2.

Sliding mode controllers.

Sliding mode controller	Sliding variable convergence	Output tracking convergence	Type
Terminal	Finite-time	Finite-time	Discontinuous
Asymptotic	Asymptotic	Asymptotic	Continuous
Super-twisting	Finite-time	Asymptotic	Continuous
Proposed	Finite-time	Finite-time	Continuous

The terminal sliding mode controller is applied using the control structure of (33), where $τ$ and the sliding surface $σ$ are given by

\begin{matrix} τ = - ρ sign (σ), \\ σ = e_{2} + c | e_{1} |^{γ} sign (e_{1}) . \end{matrix}

The gain parameters are set as $γ = 0.6, c = 1$ , and $ρ = 1$ .

We consider the asymptotic sliding mode controller using the control structure of (33), under the dynamic part of the control $τ$ as in (5), where

\begin{matrix} v = - c \bar{c} e_{2} - (c + \bar{c}) τ - ρ sign (s), \\ s = \overset{\cdot}{σ} + \bar{c} σ, \end{matrix}

the sliding surface is $σ = e_{2} + c e_{1}$ and its derivative $\overset{\cdot}{σ} = τ + c e_{2}$ . The gain parameters are c = 70, $\bar{c} = 90$ , and $ρ = 80$ .

We take the control structure of (33) and the dynamic control $τ$ as follows to consider the super-twisting controller.

\begin{matrix} τ = - c | σ |^{1 / 2} sign (σ) - w, \\ \overset{\cdot}{w} = \bar{c} sign (σ), \end{matrix}

where $σ = e_{2} + c e_{1}$ denotes the sliding surface. The gain parameters were set as c = 15, and $\bar{c} = 20$ . The results obtained were as follows:

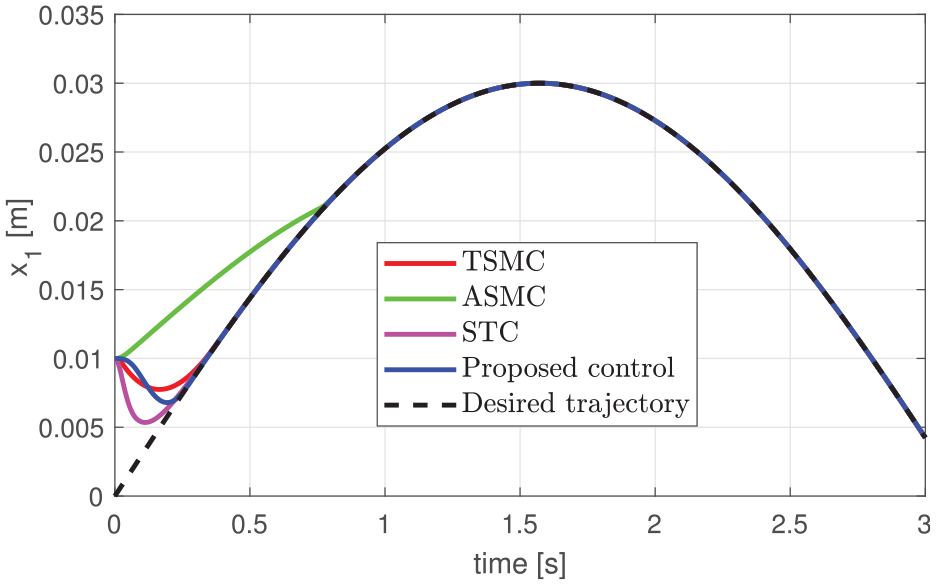

Four controllers were considered for comparison. Figure 4 shows the positions $x_{1}$ following the desired tracking reference $x_{d}$ , where the results indicate that the proposed controller is in good agreement with other controllers.

Figure 4.

Trajectory tracking of $x_{d}$ (black dashed line); (simulation).

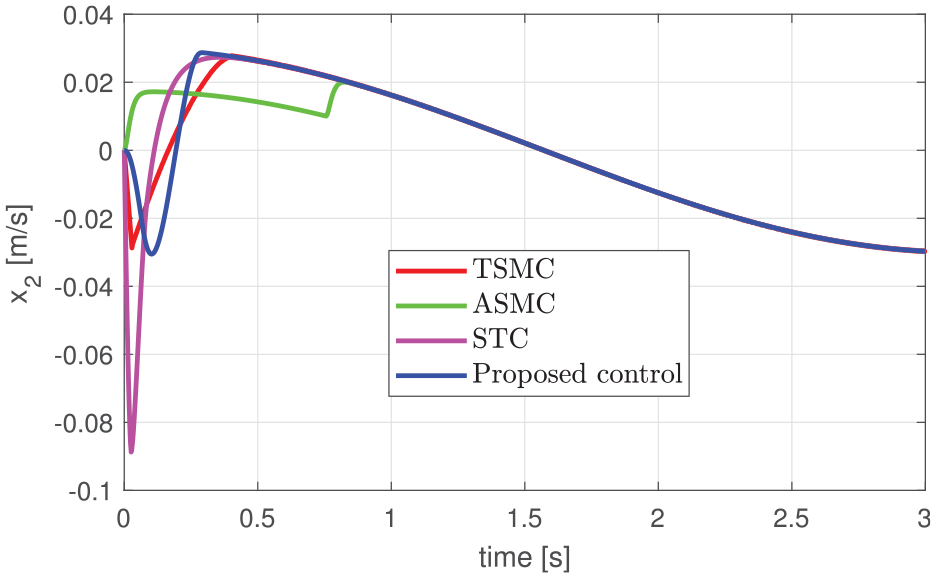

Figure 5 shows the velocity $x_{2}$ .

Figure 5.

Velocity $x_{2}$ , (simulation).

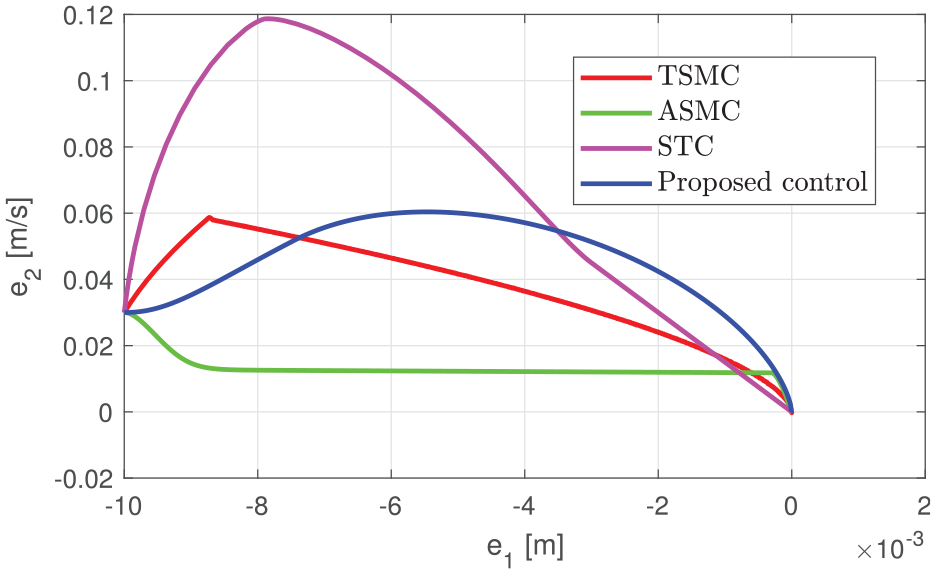

The phase portraits are depicted in Figure 6. Although the proposed control approach has a relatively smooth convergence to the equilibria, the trajectories $e_{1}$ and $e_{2}$ reach the equilibria in finite-time.

Figure 6.

Phase portrait $e_{1}$ versus $e_{2}$ , (simulation).

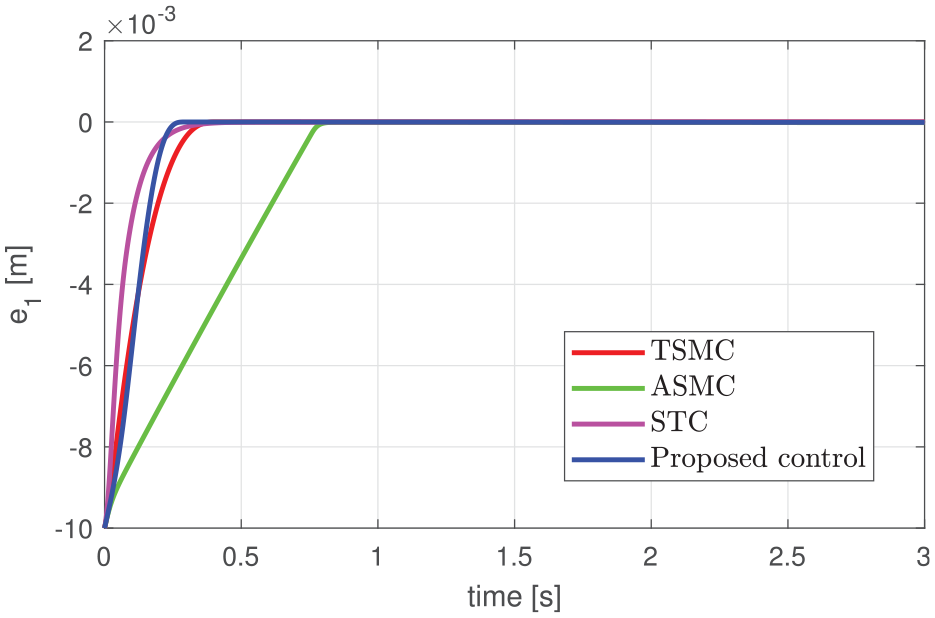

We can observe from Figure 7 that the proposed controller exhibits excellent performance by showing the convergence of the position error $e_{1}$ , which we intend to take to zero in finite-time. Note that only the proposed controller and the terminal sliding mode control can achieve finite-time convergence of the variable $e_{1}$ to zero, and the remaining controllers exhibit asymptotic convergence.

Figure 7.

Position error $e_{1}$ , (simulation).

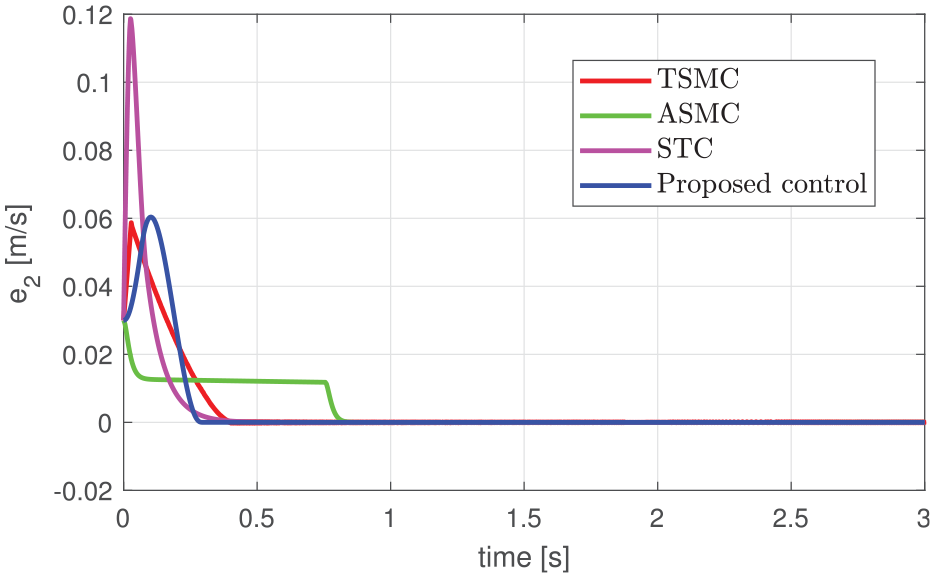

In Figure 8 are shown the velocity errors $e_{2}$ .

Figure 8.

Velocity error $e_{2}$ , (simulation).

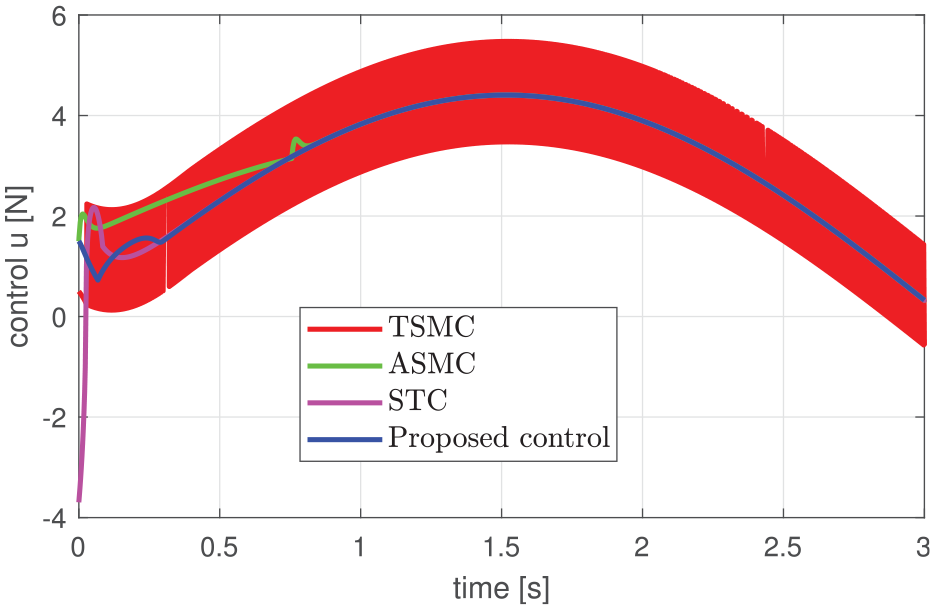

The control action $u$ is presented in Figure 9, note that the terminal sliding mode control action is discontinuous, whereas the rest of the control actions are continuous.

Figure 9.

Control signal $u$ , (simulation).

All sliding mode controllers considered in this numerical simulation have a sliding variable $σ$ , whose convergence is presented in Figure 10.

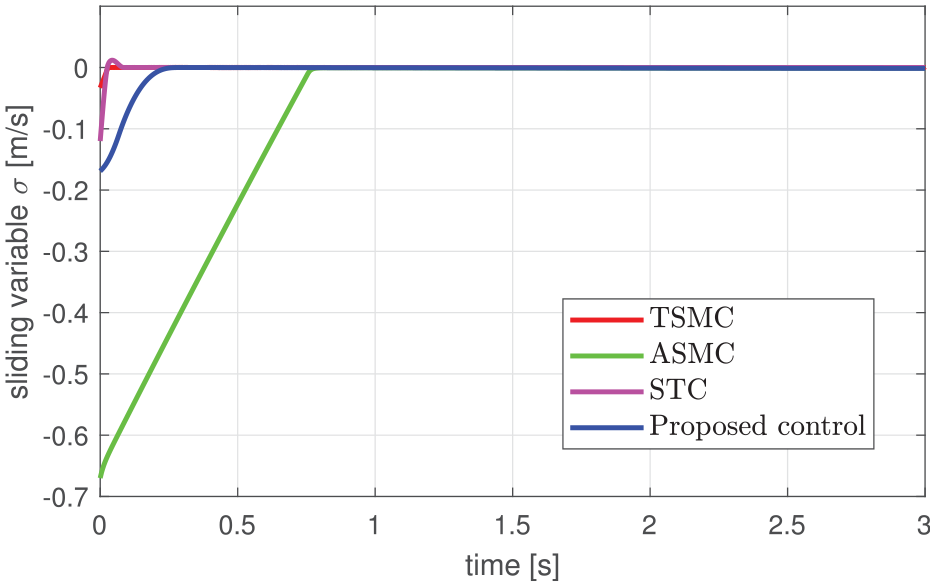

Figure 10.

Sliding variable $σ$ , (simulation).

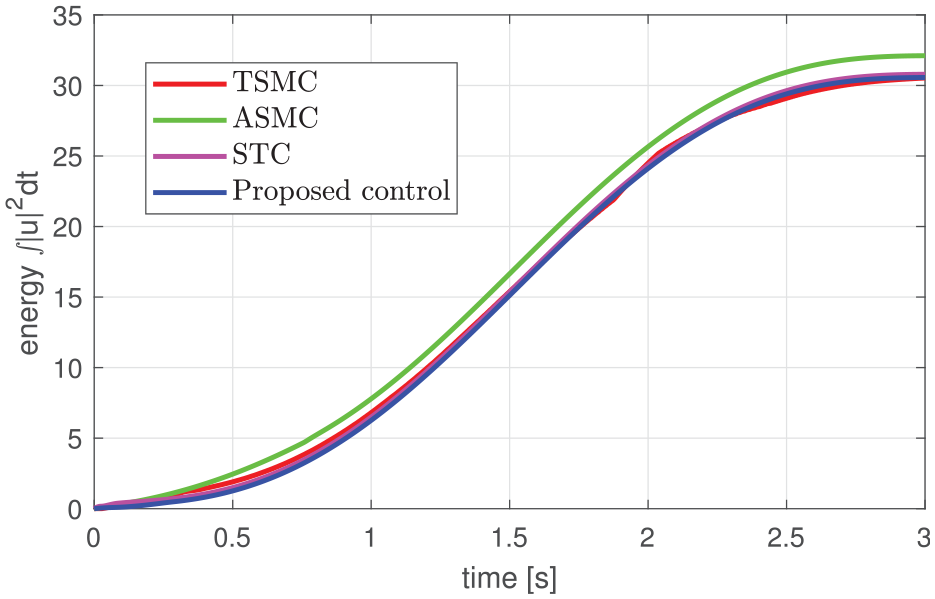

The energy signal derived from the control action $u$ is presented in Figure 11.

Figure 11.

Energy signal $\int | u |^{2} dt$ , (simulation).

Experiments

Now, let us test the proposed controller (2), (5)–(7), and (17), in a pendulum platform see Figure 12. The dynamic model of the pendulum is given as follows

\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2} \\ {\overset{\cdot}{x}}_{2} = - a \sin x_{1} - b x_{2} + h (u + ω (t)), \\ y = x_{1} \end{matrix}

(34)

where $a, b$ , and $h$ are plant parameters previously identified, $x_{1} \in R$ stands for the pendulum position and $x_{2} \in R$ denotes the velocity. The only measured variable is the position $x_{1}$ . The proposed controller is

u = - \frac{1}{h} (- a \sin x_{1} - b {\hat{x}}_{2} + τ - {\overset{\cdot\cdot}{x}}_{d}),

(35)

where ${\hat{x}}_{2}$ is the observed velocity and the robust part of the controller $τ$ is taken from (5) and (17). The experimental parameters are shown in Table 3,

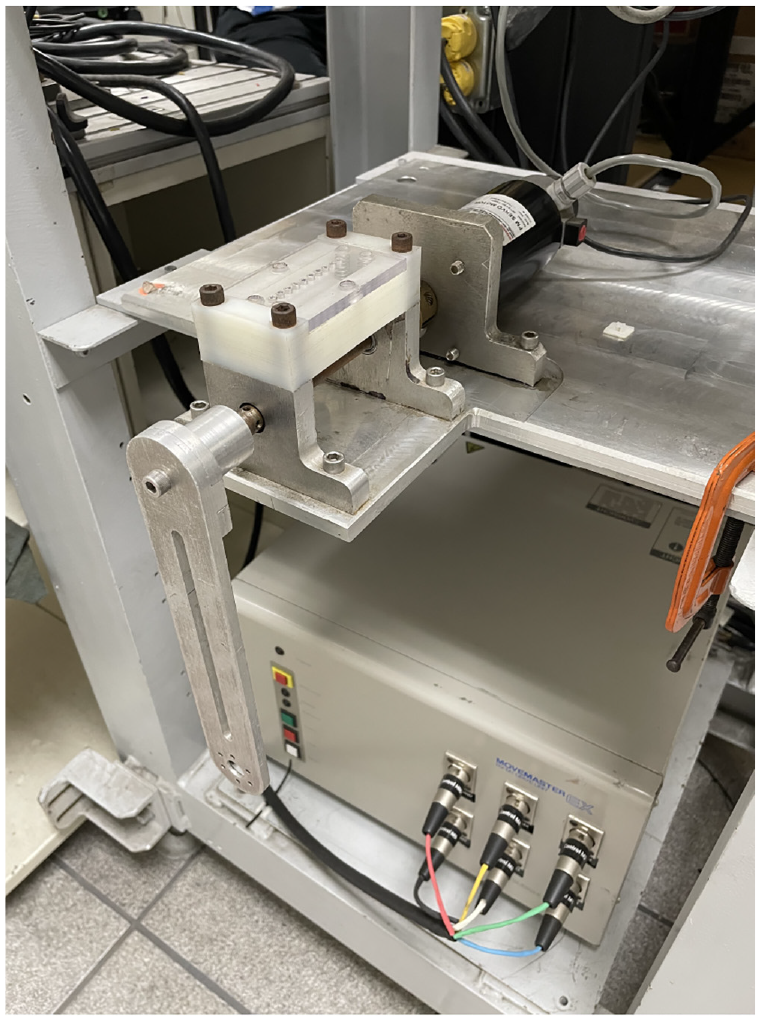

Figure 12.

Pendulum platform, (experiment).

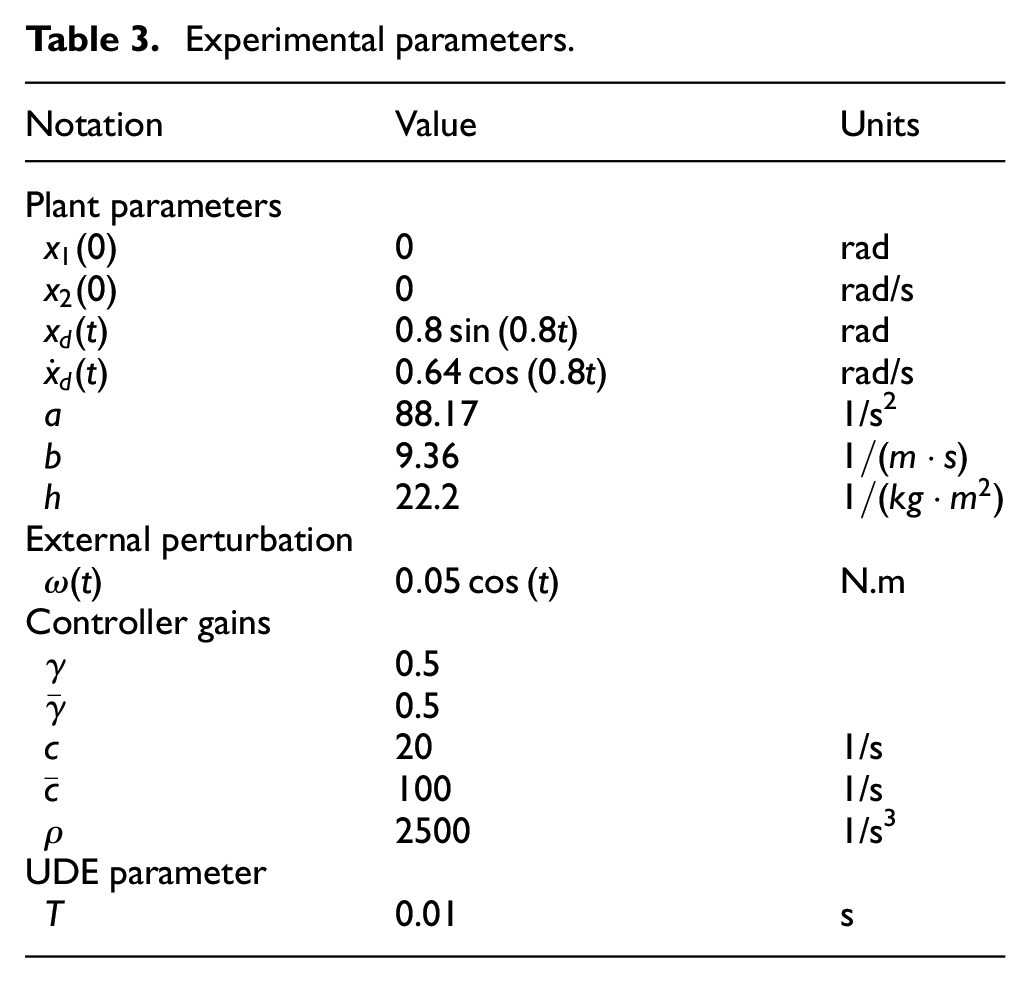

Table 3.

Experimental parameters.

Notation	Value	Units
Plant parameters
$x_{1} (0)$	0	rad
$x_{2} (0)$	0	rad/s
$x_{d} (t)$	$0.8 \sin (0.8 t)$	rad
${\overset{\cdot}{x}}_{d} (t)$	$0.64 \cos (0.8 t)$	rad/s
$a$	88.17	1/s²
$b$	9.36	$1 / (m \cdot s)$
$h$	22.2	$1 / (kg \cdot m^{2})$
External perturbation
$ω (t)$	$0.05 \cos (t)$	N.m
Controller gains
$γ$	0.5
$\bar{γ}$	0.5
$c$	20	1/s
$\bar{c}$	100	1/s
$ρ$	2500	1/s³
UDE parameter
$T$	0.01	s

To estimate the velocity, a discontinuous observer is applied,³⁰ the structure of the observer is as follows

\begin{matrix} {\overset{\cdot}{\hat{x}}}_{1} = {\hat{x}}_{2} + L_{1} (x_{1} - {\hat{x}}_{1}) \\ {\overset{\cdot}{\hat{x}}}_{2} = - a \sin x_{1} - b x_{2} + hu + L_{2} (x_{1} - {\hat{x}}_{1}) \\ + L_{3} sign (x_{1} - {\hat{x}}_{1}), \end{matrix}

(36)

where the observer gains are $L_{1} = 3 s^{- 1}$ , $L_{2} = 4 s^{- 1}$ , and $L_{3} = 5 rad / s^{2}$ . To account for the effectiveness of the uncertainty and disturbance estimator (UDE), after 6.8 s of the elapsed experiment, we turn the UDE off. We present the results of trajectory tracking in Figure 13, revealing a slight increase in the tracking error when the UDE is turned off after 6.8 s of the experiment.

Figure 13.

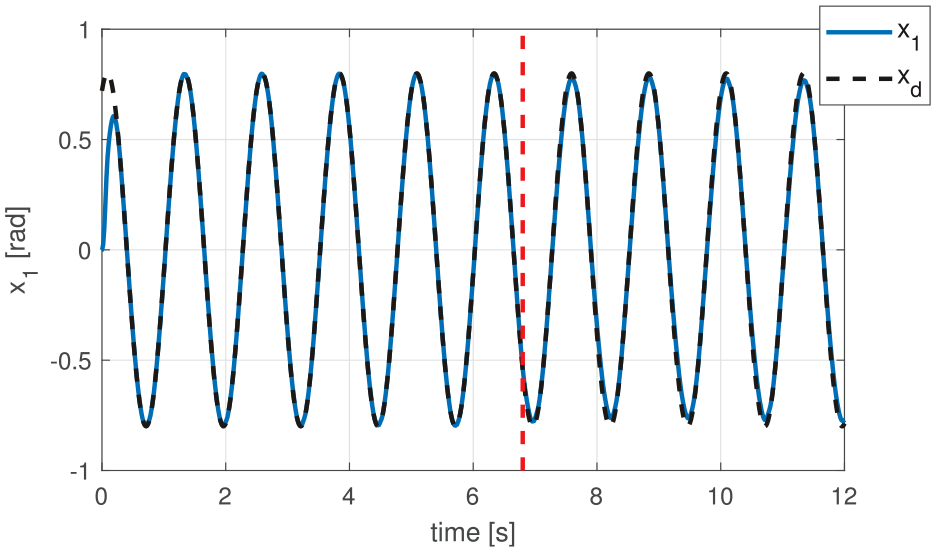

Trajectory tracking of $x_{d}$ (black dashed line), (experiments).

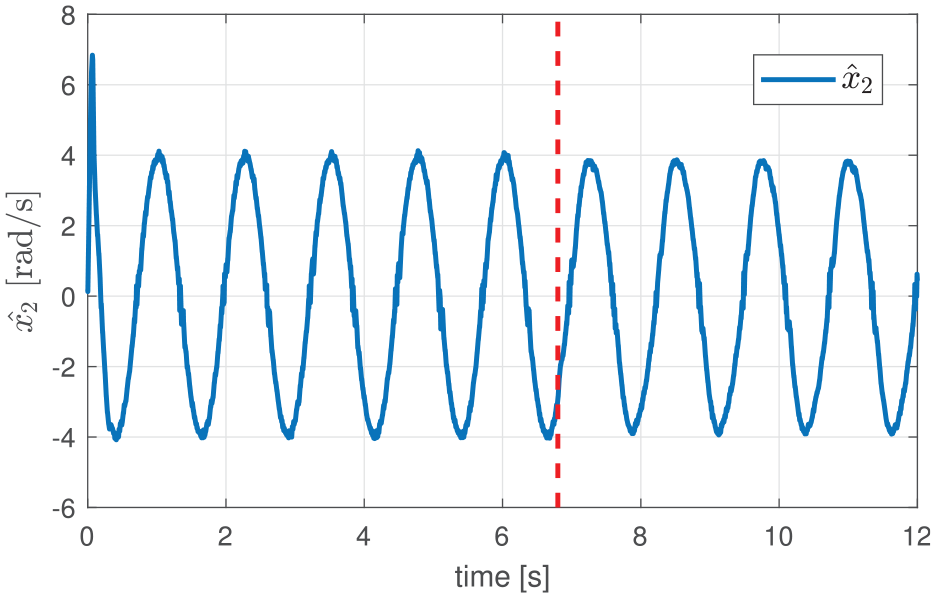

The velocity estimated by the discontinuous observer (36) is shown in Figure 14.

Figure 14.

Estimated velocity ${\hat{x}}_{2}$ , (experiments).

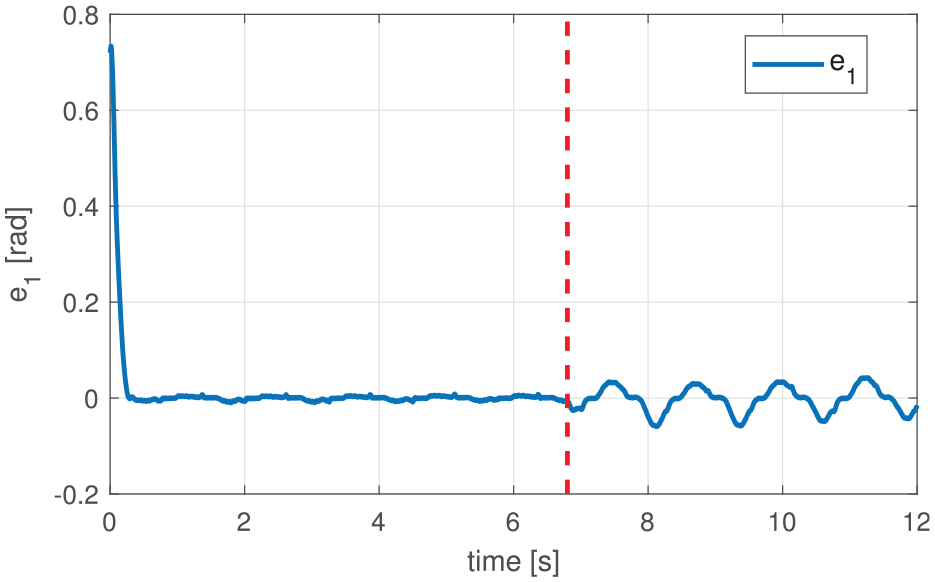

We show the tracking error in Figure 15, after 6.8 s of starting the experiment and turning off the UDE the tracking error increases.

Figure 15.

Trajectory tracking error $e_{1}$ , (experiments).

The control signal $u$ which is a torque in $N . m$ is presented in Figure 16

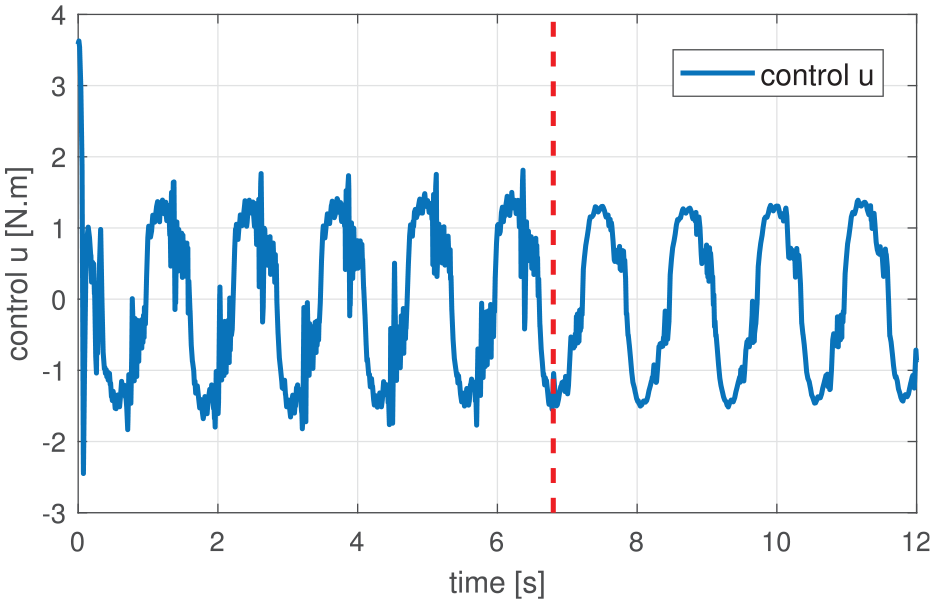

Figure 16.

Control signal $u$ , (experiments).

Conclusion

This study introduced a novel approach to solving the trajectory-tracking problem in a class of mechanical systems. We took advantage of previous sliding mode controllers. For example, the continuous control signal concept was taken from asymptotic sliding mode control, the finite-time convergence of the tracking error from terminal sliding mode control, and the estimator of uncertainties and disturbances was designed using the equivalent control concept.

We presented a rigorous stability analysis based on Lyapunov’s theory. We proved that one can find suitable gains to ensure finite-time convergence of the tracking error to zero, meaning by this that the auxiliary sliding variable $s$ and the sliding surface $σ$ also converge to zero in finite-time.

A numerical simulation in MATLAB was performed against other sliding mode controllers, where better performance results were achieved using the proposed tracking solution. The advantages of the proposed controller are presented in Table 2. Experiments on the pendular system confirmed the theoretical results of the benefits of using the UDE in a closed-loop system. For this purpose, we turned the UDE off 6.8 s after initializing the experiments, showing a worsening response in the trajectory-tracking error.

Future efforts will be made to simplify the design of the robust tracking controller, preserving the advantages of having a continuous control signal and finite-time convergence of tracking errors.

Footnotes

Acknowledgements

The authors would like to acknowledge José Alejandro Rembao-Osuna, student of master in science at Universidad Autónoma de Baja California for his support in conducting the experiments in this work.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Raúl Rascón

References

Notterman

Page

. Evaluation of mathematically equivalent tracking systems. Percept Mot Skills 1962; 15(3): 683–716.

Kodali

. A study of the applications of analog computers. IEEE Trans Ind Electron Control Instrum 1967; IECI-14(1): 1–7.

Xiao

Yang

Karimi

, et al. Asymptotic tracking control for a more representative class of uncertain nonlinear systems with mismatched uncertainties. IEEE Trans Ind Electron 2019; 66(12): 9417–9427.

Dawson

Burg

. Nonlinear control of electric machinery. Boca Raton, FL: CRC Press, 2019.

Shao

Zheng

Wang

, et al. Recursive sliding mode control with adaptive disturbance observer for a linear motor positioner. Mech Syst Signal Process 2021; 146: 1–16.

Lefeber

AAJ

. Tracking control of nonlinear mechanical systems. Eindhoven: universiteit Twente Enschede, 2000.

Choi

Chung

. PID trajectory tracking control for mechanical systems. Berlin, Heidelberg: Springer Science & Business Media, 2004. Vol. 298.

Wei

Zhang

, et al. Robust adaptive tracking control for a class of mechanical systems with unknown disturbances under actuator saturation. Int J Robust Nonlinear Control 2019; 29(6): 1893–1908.

Zhang

Rong

, et al. Adaptive tracking control for double-pendulum overhead cranes subject to tracking error limitation, parametric uncertainties and external disturbances. Mech Syst Signal Process 2016; 76-77: 15–32.

10.

Sun

. Practical tracking control of linear motor with adaptive fractional order terminal sliding mode control. IEEE/ASME Trans Mechatron 2017; 22(6): 2643–2653.

11.

Utkin

Guldner

Shi

. Sliding mode control in electromechanical systems. Boca Raton, FL: CRC press, 2017.

12.

Ren

Lewis

Zhang

. Neural network compensation control for mechanical systems with disturbances. Automatica 2009; 45(5): 1221–1226.

13.

Kohn-Rich

Flashner

. Robust fuzzy logic tracking control of mechanical systems. J Franklin Inst 2001; 338(2-3): 353–370.

14.

Yuan

Sun

Liu

, et al. Adaptive fuzzy tracking control of stochastic mechanical system with input saturation. Int J Fuzzy Syst 2019; 21: 2600–2608.

15.

Parra-Vega

Hirzinger

. Chattering-free sliding mode control for a class of nonlinear mechanical systems. Int J Robust Nonlinear Control 2001; 11(12): 1161–1178.

16.

Shao

Zheng

Wang

, et al. Tracking control of a linear motor positioner based on barrier function adaptive sliding mode. IEEE Trans Ind Inform 2021; 17(11): 7479–7488.

17.

Sun

Zheng

Man

, et al. Nested adaptive super-twisting sliding mode control design for a vehicle steer-by-wire system. Mech Syst Signal Process 2019; 122: 658–672.

18.

Fei

. Adaptive fractional order sliding mode controller with neural estimator. J Franklin Inst 2018; 355(5): 2369–2391.

19.

Kao

Liu

Song

, et al. Non-fragile-observer-based integral sliding mode control for a class of uncertain switched hyperbolic systems. IEEE Trans Automat Contr 2023; 68: 5059–5066.

20.

Baba

Fujimoto

Maruta

. A passivity-based integral sliding mode controller for mechanical port-hamiltonian systems. IEEE Control Syst Lett 2023; 7: 2946–2951.

21.

Shen

Xia

Cui

, et al. Integral terminal slidingmode-based singularity-free finite-time tracking control for entry vehicle with input saturation. Aerosp Sci Technol 2023; 136: 1–10.

22.

Shen

Xia

Zhang

, et al. Adaptive super-twisting sliding mode altitude trajectory tracking control for reentry vehicle. ISA Trans 2023; 132: 329–337.

23.

Shtessel

Shkolnikov

Brown

MDJ

. An asymptotic Second-Order Smooth Sliding Mode Control. Asian J Control 2003; 5(4): 498–504.

24.

Mirkin

Gutman

Shtessel

. Asymptotic sliding mode control approach to adaptive distributed tracking problem for multi-agent nonlinear delayed systems. Int J Control 2012; 85(11): 1671–1682.

25.

Man

. Terminal sliding mode control design for uncertain dynamic systems. Syst Control Lett 1998; 34(5): 281–287.

26.

Feng

Man

. Terminal Sliding Mode Control – an overview. IEEE Open J Ind Electron Soc 2021; 2: 36–52.

27.

Utkin

. Sliding modes in control and optimization. Boca Raton, FL: Springer Science & Business Media, 2013.

28.

Shtessel

Edwards

Fridman

, et al. Sliding mode control and observation. New York, NY: Springer, 2014. Vol. 10.

29.

Utkin

Guldner

Shi

. Sliding mode control in electromechanical systems. London: Taylor & Francis, 1999. pp.118–119.

30.

Rosas

Alvarez

Rosas

, et al. Robust observer for a class of nonlinear siso dynamical systems. Math Probl Eng 2016; 2016: 1–9.
