MPPT control without a prior learning phase: Combining Incremental Conductance and k-NN for robust and adaptive energy management

K-NN for classification

The k-Nearest Neighbors (k-NN) algorithm is particularly effective for classification tasks, assigning a class to a new object based on the classes of the k nearest objects in a multidimensional space. The process begins by defining the feature space, where each object is represented as a point. For a new object to be classified, the algorithm calculates the distance between this object and all reference objects in the training dataset, using metrics such as Euclidean distance or Manhattan distance, depending on the problem’s specifics. The k nearest reference objects is then selected, and the new object is classified according to the majority class of these k nearest neighbors. If classes are weighted, the weights can give more importance to closer neighbors.

The k-NN algorithm is non-parametric, making no assumptions about the data distribution, which makes it flexible and adaptable to different types of data. However, it is sensitive to the quality and quantity of training data, and a high-quality dataset significantly improves its performance. Although k-NN is intuitive and easy to implement, its computational cost can increase with larger datasets, as it requires calculating distances to all reference points. ⁹

In summary, the k-NN algorithm is a powerful tool for classification, offering a simple and effective method for assigning classes to new objects based on their proximity to reference objects. Its adaptability and ease of use make it a popular choice for various machine learning tasks.

K-NN for regression

The k-Nearest Neighbors (k-NN) algorithm is also highly effective for regression tasks, where it predicts a continuous value for a new object based on the values of the k nearest objects in a multidimensional space. Each dimension in this space represents a specific feature of the object. The process begins by defining the feature space, where each object is represented as a point. For a new object requiring prediction, the algorithm calculates the distance between this object and all reference objects in the training dataset. The k nearest reference objects are then selected, and the predicted value for the new object is determined by evaluating the neighboring objects surrounding the target object in this multidimensional space.^8,10

More specifically, the prediction is made by deducing the target object’s value from the values of the nearest reference objects in each dimension. This means that each descriptive parameter of the object is treated as a dimension in the space, and the final value is computed by combining the contributions from each dimension. ¹⁰

It is important to note that some parameters may have a lesser impact on classification or regression. Consequently, it is crucial to assign appropriate weights to different parameters to reflect their relative importance. By adjusting these weights, the k-NN algorithm can improve its ability to classify objects and predict values by accounting for the relative significance of various features.

In summary, the k-NN algorithm is a powerful tool for regression, offering a simple and effective method for predicting continuous values based on proximity to reference objects in a multidimensional space. Its flexibility in handling feature weights and its intuitive approach make it a valuable choice for regression tasks in diverse applications.

Effect of weather conditions on a photovoltaic (PV) system

Weather conditions directly influence the energy production of a PV system. The intensity of solar radiation is the primary factor: the stronger the sunlight, the greater the number of photons reaching the photovoltaic cells, increasing electron generation and the current produced. However, phenomena such as cloud cover or atmospheric pollution reduce light intensity, decreasing energy production.^13–15

Temperature also plays a critical role. Although increased sunlight boosts production, high panel temperatures reduce their efficiency. This is because photovoltaic cells have a negative temperature coefficient: as temperature rises, the output voltage decreases, affecting overall power output. For example, a 10°C increase above the standard temperature (25°C) can reduce efficiency by 4%–5%. ¹³

Finally, factors such as dust, snow, or shading can obstruct the panel surface, limiting light absorption and reducing energy production. These phenomena require regular maintenance to ensure optimal performance.

Effect of extraction current on a photovoltaic (PV) system

The extraction current, or load current, represents the electrical energy drawn from the PV system to power connected devices. Its impact on energy production is critical for system efficiency.

If the extraction current is too low, some of the energy generated by the panels remains unused, leading to energy losses. This often occurs when the connected load is insufficient or poorly sized. Conversely, an excessively high extraction current can overload the system, reducing output voltage and increasing Joule losses (heat dissipated in cables and components). This can also damage electronic components, shortening their lifespan.

To optimize the extraction current, techniques such as Maximum Power Point Tracking (MPPT) are used. MPPT dynamically adjusts the current and voltage to maintain the system at its optimal operating point, maximizing energy production. For example, in cases of varying sunlight or temperature, MPPT recalculates the ideal extraction current in real time to adapt the load to the available power.^13,15

MPPT control: concept and physical phenomena

MPPT (Maximum Power Point Tracking) control is a crucial technique for optimizing energy production in photovoltaic (PV) systems. Its goal is to maintain the system at its maximum power point (MPP), where the combination of voltage and current produces the highest possible electrical power. This concept is based on understanding the physical phenomena that govern the behavior of solar panels under varying environmental and load conditions.

Types of MPPT controls

MPPT controls are divided into two main categories: traditional controls and intelligent controls. Each approach relies on distinct principles and specifications to locate and maintain the maximum power point (MPP) in a photovoltaic (PV) system. Below is a detailed explanation of the principles and specifications of each type. ¹⁴

Choice of photovoltaic panel for MPPT control evaluation

Our system integrates a photovoltaic panel as an energy generator. Since a single photovoltaic cell produces very limited power, it is essential to combine multiple cells to obtain usable power. This grouping not only achieves a useful power level for real-world applications but also ensures a better representation of the photovoltaic system’s behavior under different operating conditions.

In our study, we have selected a photovoltaic panel with a power rating of 235 W, a value that allows us to evaluate the performance and responsiveness of our MPPT control accurately. It is important to emphasize that our algorithm is designed to be applicable to any type of photovoltaic panel, making the specific choice of model secondary. However, to ensure relevant and representative tests, it was essential to choose a sufficient power rating, capable of demonstrating the effectiveness of our approach.

The detailed parameters of the photovoltaic panel used in our simulations are presented in the following Table 1.

OPEN IN VIEWER

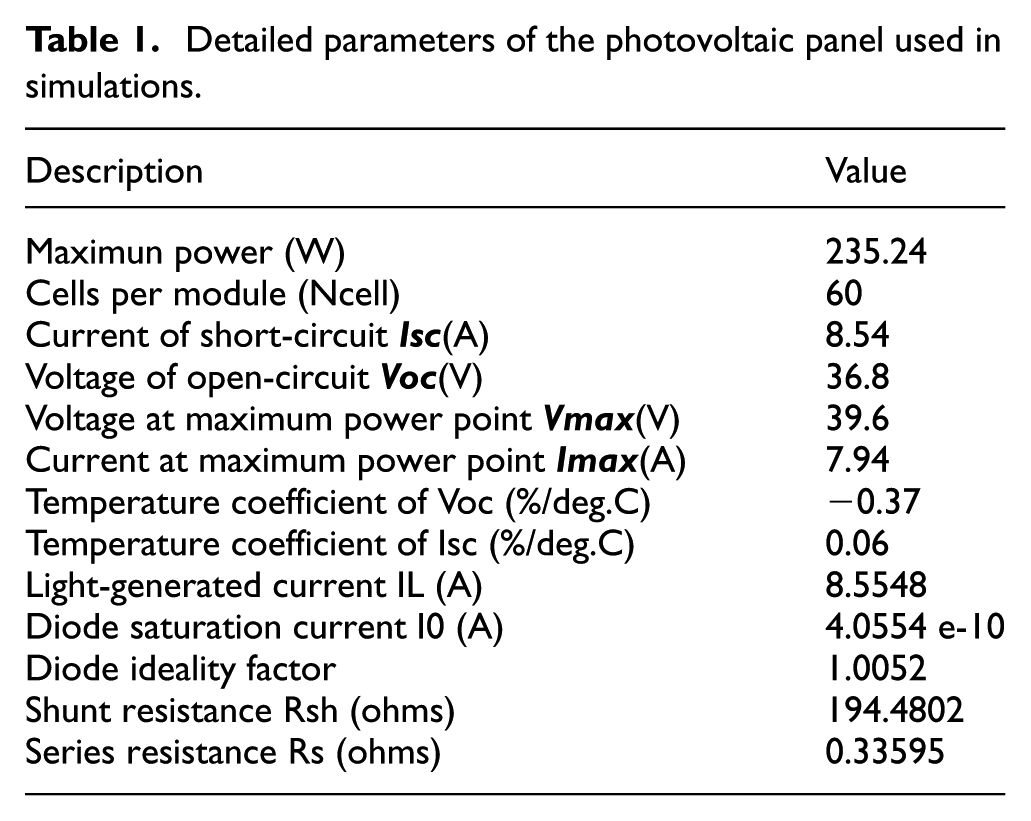

Table 1.

Detailed parameters of the photovoltaic panel used in simulations.

Description	Value
Maximun power (W)	235.24
Cells per module (Ncell)	60
Current of short-circuit Isc (A)	8.54
Voltage of open-circuit Voc (V)	36.8
Voltage at maximum power point Vmax (V)	39.6
Current at maximum power point Imax (A)	7.94
Temperature coefficient of Voc (%/deg.C)	−0.37
Temperature coefficient of Isc (%/deg.C)	0.06
Light-generated current IL (A)	8.5548
Diode saturation current I0 (A)	4.0554 e-10
Diode ideality factor	1.0052
Shunt resistance Rsh (ohms)	194.4802
Series resistance Rs (ohms)	0.33595

Choice of DC-DC converter for maximum power point tracking (MPPT)

An essential component for the implementation of our innovative MPPT control is the use of a DC-DC converter, which provides an adaptive interface between the photovoltaic panel and the load. Its primary role is to modify the apparent resistance seen by the photovoltaic panel to ensure optimal operation at the maximum power point.

The apparent resistance, denoted as R apparente , represents the electrical impedance that the panel “perceives” from the load side, after conversion by the DC-DC converter. It is defined by the following relation:

R apparente = V PV I PV

where V PV and I PV are the voltage and current delivered by the panel, respectively. The converter dynamically adjusts R apparente based on environmental conditions (irradiation, temperature) and load variations, ensuring that the panel always operates at its maximum power point.

If the apparent resistance is not properly adjusted, the panel may operate at a suboptimal point, resulting in energy loss. Therefore, a well-sized DC-DC converter is essential to ensure efficient extraction of photovoltaic energy. ¹⁶

Operating principle of a boost converter in an PV system

The Boost converter is a fundamental component in PV systems. It serves as an adaptive interface between the photovoltaic panel and the load, enabling the maximization of energy extracted from the solar generator. Unlike a direct connection, the converter dynamically adjusts the operating conditions of the panel to ensure it always operates at its maximum power point, regardless of variations in irradiation, temperature, or load.^16,17

On the hardware side, the Boost converter consists of several key elements. It includes an inductance that stores energy during the conduction phase, a switch (often a MOSFET transistor) controlled by a pulse-width modulation (PWM) signal, a diode that enables energy transfer to the load while preventing current reversal, and finally, a capacitor that stabilizes the output voltage. These components work in coordination to efficiently convert the input voltage to a higher output voltage (Figure 1).

OPEN IN VIEWER

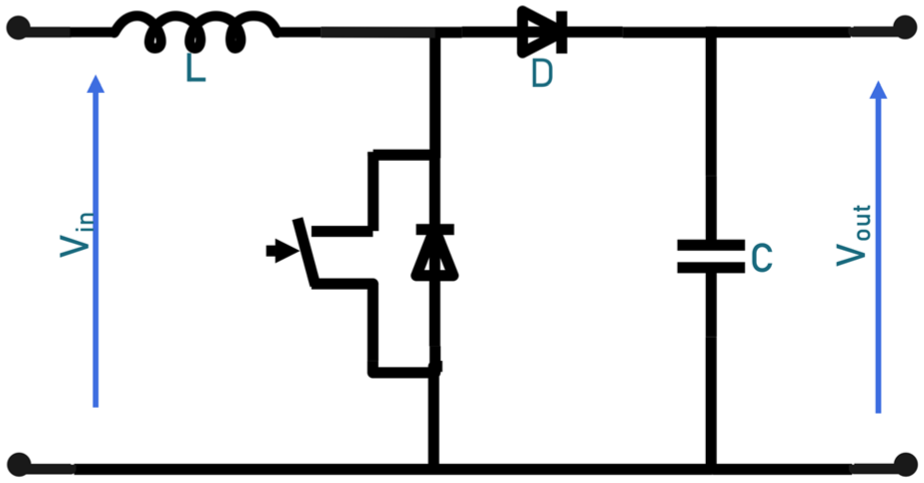

Figure 1.

Boost converter circuit.

The operation of the Boost converter relies on two successive phases controlled by a PWM signal:

ON Phase (switch closed): The switch closes, current flows through the inductor, and it stores energy in the form of a magnetic field. During this phase, the diode is blocked, and the load is powered solely by the output capacitor.

OFF Phase (switch open): The switch opens suddenly. The inductor, unable to maintain its current instantaneously, releases its energy by generating a voltage spike. This voltage adds to that of the panel, allowing the diode to conduct and transfer energy to the load while recharging the capacitor.

By modulating the duty cycle (D) of the PWM control, the output voltage ( V out ) of the converter is controlled, according to the ideal relation:

V out = V in 1 − D

where V in is the voltage from the photovoltaic panel. The higher the duty cycle, the higher the output voltage.

Modification of the apparent resistance seen by the panel

The Boost converter modifies the apparent resistance seen by the PV panel, which is crucial for the MPPT algorithm. The electrical resistance “seen” by the panel can be expressed as follows:

R apparent = V PV I PV = V out I out · ( 1 ( 1 − D ) 2 )

This equation shows that the duty cycle (D) control directly influences the equivalent load applied to the panel. By adjusting this ratio, the converter affects the equivalent load that the panel “sees,” which helps steer its operating point toward maximum power. This variation in the apparent resistance is at the core of the MPPT principle, as it allows the panel to adapt in real time to fluctuations in environmental conditions and load requirements.^16,18

Sizing of the boost converter

Application of the worst-case design for sizing

To properly size the converter, we consider the following:

Vi n min : The minimum estimated voltage is 70–75% of Vmpp (at high temperature and low sunlight).

Vou t max : This can go up to the voltage required by the load or the input of the inverter.

Ii n max = Isc = 8 . 54 A .

Duty cycle D (Boost converter duty cycle)

D = 1 − V in V out

For V in = 20 . 7 V and V out = 48 , V, the maximum duty cycle is: D max = 1 − 20 . 7 48 ≈ 0 . 57

This duty cycle is crucial for sizing the other components.

Calculation of the inductance L

We size the inductance L for the worst-case scenario with high input current and low voltage ( V in _ min ) , and an acceptable current ripple of 20–40%.

L = V in · D Δ I L · f sw

With:

V in = 20 . 7 V D = 0 . 57 Δ I L ≈ 0 . 3 × I in _ max = 0 . 3 × 8 . 54 ≈ 2 . 56 A f sw = 50 kHz

L = 20 . 7 · 0 . 57 2 . 56 · 50 · 10 − 3 ≈ 92 μ H

Output capacitor C out

This capacitor absorbs current variations toward the load while maintaining a stable output voltage.

C out = I out · D Δ V out · f sw

With:

I out = P V out = 235 48 ≈ 4 . 9 A Δ V out = 1 % × 48 ≈ 0 . 48 V C out = 4 . 9 · 0 . 57 0 . 48 · 50 · 10 − 3 ≈ 116 μ F

Input capacitor C in

This stabilizes V in and absorbs current spikes related to switching.

C in = I in · D Δ V in · f sw

With:

Δ V in ≈ 1 % × V in = 0 . 21 V C in = 8 . 54 · 0 . 57 0 . 21 · 50 · 10 − 3 ≈ 464 μ F

Choice of load: Justification for using a resistive load

In the context of our study and to model the response of the MPPT control system clearly and objectively, we chose to use a purely resistive load. This choice is primarily based on the linearity of this type of load, which allows us to observe more directly and accurately the effects of the control on the system’s dynamics. Unlike inductive or capacitive loads, the resistive load neither filters nor dampens voltage and current variations. Therefore, any observed disturbance in power or dynamic behavior of the system can be attributed solely to the control, making it easier to evaluate its performance. In this sense, the resistive load serves as a rigorous test case that highlights the quality of the regulation of our control without any external influence or passive compensation.

Choice of precise control for data collection

The quality of the data used for training an intelligent model depends closely on the precision with which these data are collected. In our case, it is essential to use a control method capable of generating very reliable duty cycle values, as these values serve as the reference for further learning. An inaccurate or poorly estimated duty cycle could skew the learning process and degrade the overall model performance. For this reason, we have ruled out methods based on approximations or regression models, as even the most advanced regressions introduce some degree of uncertainty, which, although sometimes negligible, is still present.

It is in this context that we turned to “test and error” type algorithms, recognized for their reliability and their ability to converge quickly to the maximum power point (MPP) with great precision. These methods explore the search space by directly observing the variation in power in response to a change in duty cycle, making them particularly suited for accurate data collection. We have selected the four most representative approaches in this category, detailed below:

These algorithms, although based on different principles, share a fundamental commonality: their ability to dynamically assess the system’s behavior without relying on predefined models.

Operation of the hybrid control system

At the system’s startup, the IncCond control is activated to collect real-time data while the system generates electricity. This initial phase builds a dynamic database that captures variations in voltage, current, and power based on environmental conditions (sunlight, temperature) and system characteristics. Although IncCond relies on iterative perturbations, it is effective in establishing a solid and adaptive reference base.

Once the database is sufficiently enriched, the k-NN control is gradually integrated. Unlike IncCond, which uses iterative tests to locate the MPP, k-NN employs a predictive approach based on data similarity. By identifying the closest data points in a multidimensional space, k-NN predicts the MPP without requiring continuous perturbations. This gradual transition helps reduce oscillations around the optimal point and enhances system stability.

Advantages of the hybrid approach

This hybrid approach offers several key benefits. First, it combines the adaptability of IncCond, which performs well under varying conditions, with the speed and precision of k-NN, which minimizes disturbances and optimizes energy efficiency. Second, it enables continuous performance improvement: as the system operates, the database grows, and the k-NN control becomes increasingly accurate and responsive.

Finally, this hybridization eliminates the need for a prior learning phase, which is often required by pure intelligent methods. It ensures a smooth transition from a traditional model to an intelligent one, while minimizing implementation costs and complexities.

Design of a database and data processing

Data collection

A crucial step for our algorithm is the progressive creation of a database, intended for future use. This database is built gradually, particularly in situations where the available data is insufficient to effectively predict the duty cycle that manages the maximum power point (MPP). In such cases, we use the Incremental Conductance (IncCond) algorithm, which is based on the trial-and-error principle, to search for the optimal duty cycle.^19,20

It is important to note that the IncCond algorithm requires a variable amount of time to find the optimal duty cycle, as this time depends on previous conditions, which are often random. The data collection strategy relies on a rigorous observation of system stability before recording values into the database. Specifically, data is only recorded when the power generated by the system stabilizes (i.e. when the derivative of power with respect to time, ( dP dt ) , equals zero). This approach ensures that only reliable and accurate data is stored, which is essential to avoid incorporating erroneous values that could harm the system’s future performance. ¹⁶

To validate this method, we tested our strategy’s ability to collect and build a database using the Simulink tool. We implemented the algorithm in a functional block and then simulated the system under various changing weather conditions, including variations in irradiation (illustrated in Figure 2) and temperature (illustrated in Figure 3).

OPEN IN VIEWER

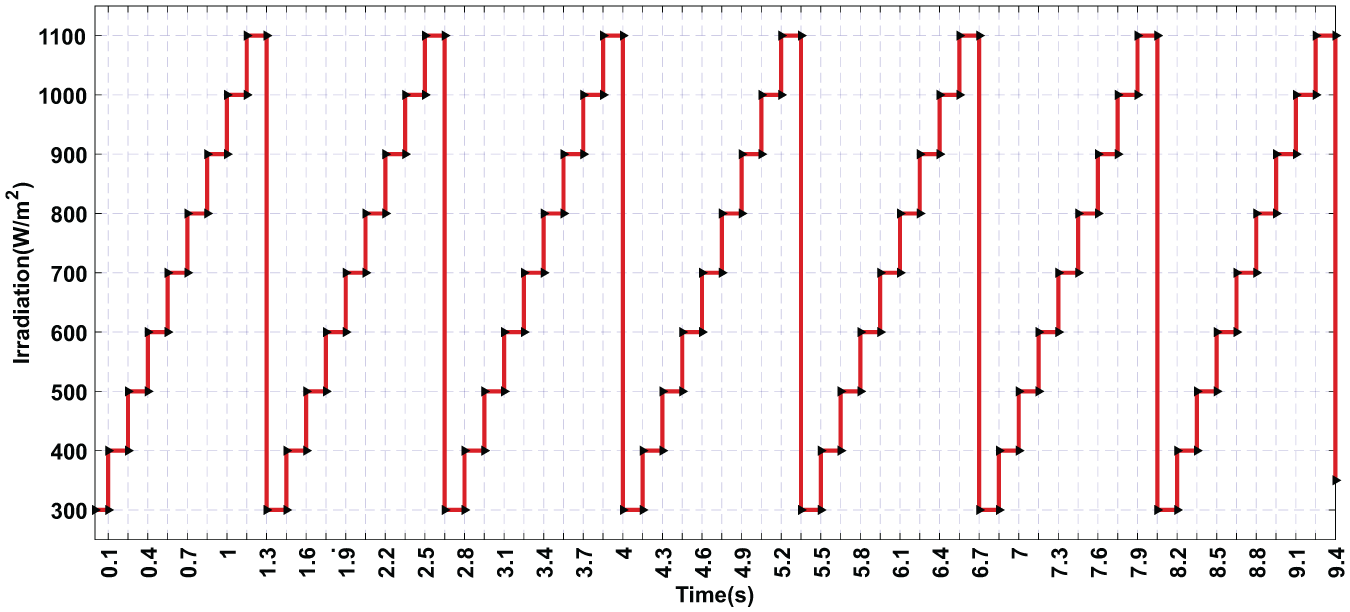

Figure 2.

Variation of solar irradiation over time simulated changes in irradiation levels used to test the data collection strategy under dynamic environmental conditions.

OPEN IN VIEWER

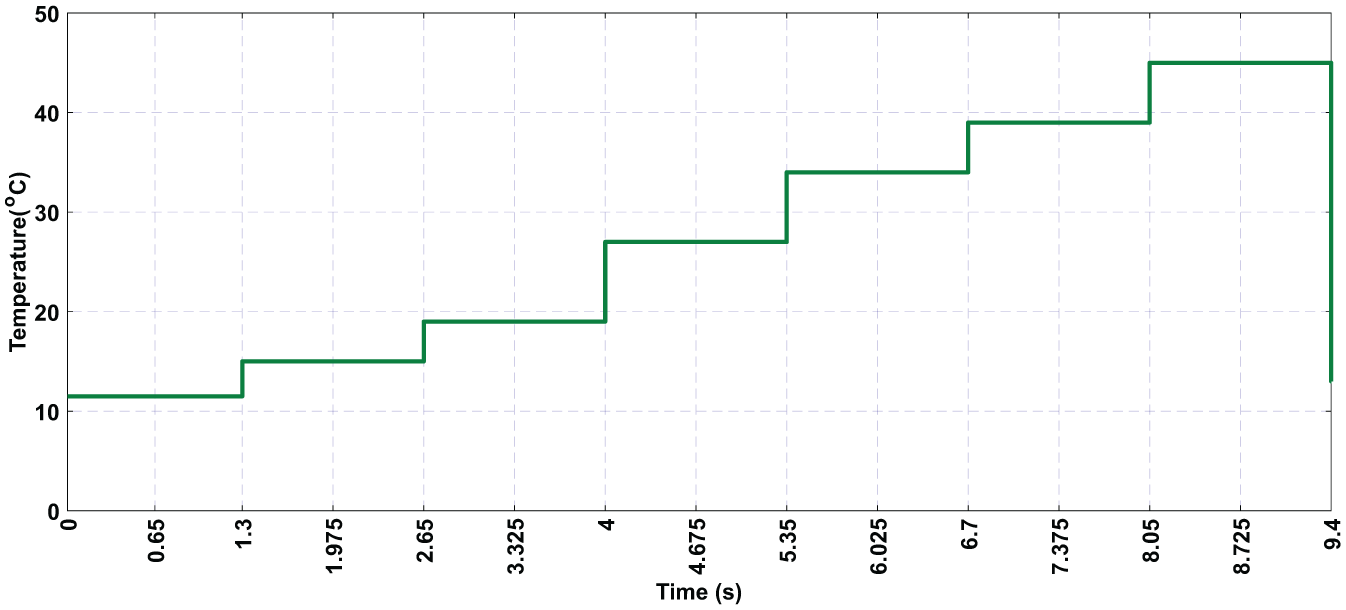

Figure 3.

Variation of temperature over time simulated temperature fluctuations used to evaluate the system’s response and data collection accuracy under varying thermal conditions.

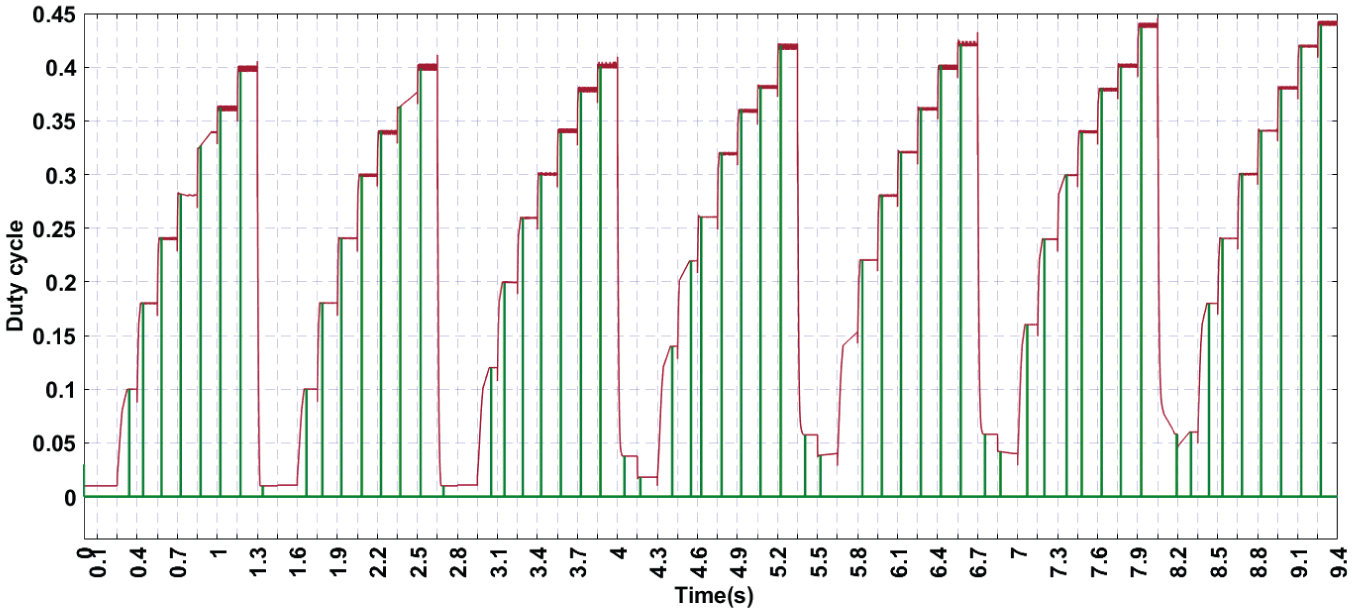

Figure 4 below illustrates that the IncCond algorithm, integrated with the data collection strategy, is capable of effectively adapting to fluctuations in environmental conditions while building a robust database to enhance the system’s long-term performance.

OPEN IN VIEWER

Figure 4.

Evolution of the duty cycle and data recording—illustration of the duty cycle (red curve) adapting to weather variations and the moments of data recording (green curve) after MPPT stabilization.

This figure highlights the ability of our algorithm to identify and record the optimal duty cycle, which is essential for maximizing the energy efficiency of the photovoltaic (PV) panel. The duty cycle, represented by the red curve, evolves in response to variations in weather conditions, particularly irradiation and temperature. These variations directly influence the optimal operating point, requiring precise and rapid adjustments to maintain maximum performance.

The blue curve illustrates the moments when the system records the duty cycle in the database. This recording occurs only after the maximum power point (MPPT) has been identified by the algorithm. This capture signal marks the reliability of the recorded data, ensuring that the duty cycle aligns with the actual operating conditions.

However, as shown in the figure, there is a delay between changes in weather conditions and the recording of the new duty cycle. This delay is due to the time required by the Incremental Conductance (IncCond) algorithm to detect and confirm the stability of the maximum power point. This stability is evaluated using the criterion dp dt = 0 , which ensures that the extracted power no longer fluctuates before being recorded.

This methodical approach guarantees increased accuracy in data collection. The observed delay, although inevitable, is a necessary compromise to avoid erroneous recordings and maintain a reliable database. By progressively enriching this database with precise values, the system enhances its long-term performance, reducing the time and effort required to identify the MPPT in similar scenarios.

Description of the hybrid MPPT control algorithm

Our control strategy, based on a bagging-type hybridization of the (IncCond) and (k-NN) algorithms, enables seamless switching between the two algorithms depending on specific conditions. It is essential to understand the underlying logical operation of the system’s control. This algorithm was designed to optimize (MPPT) under varying weather conditions. It relies on intelligent decision-making, grounded in the analysis of available data from a pre-existing database and, when necessary, the application of real-time learning and adjustment methods. The goal is to ensure a smooth transition between different stages, effectively leveraging available data when it exists or recalculating critical parameters if conditions are not covered.

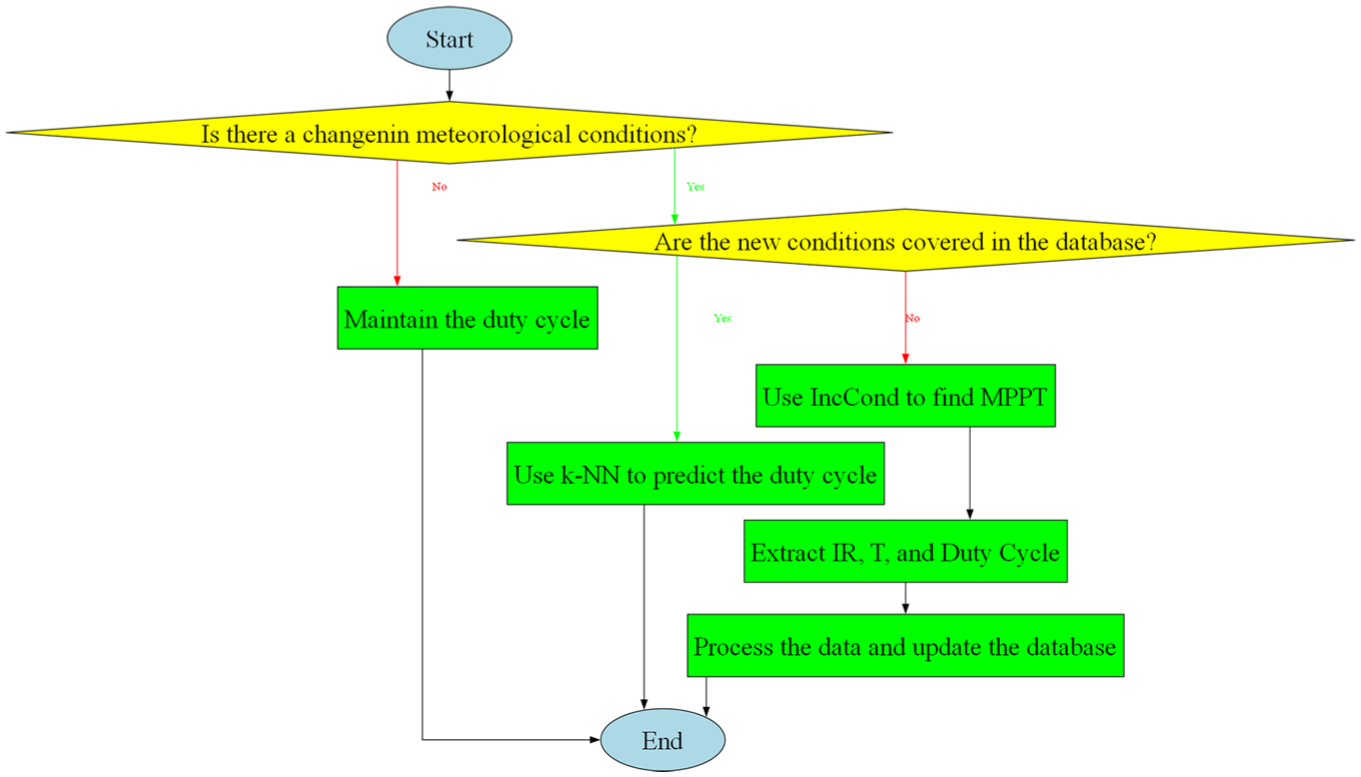

The diagram below provides a clear and structured representation of the algorithm’s logical flow, highlighting decision points, associated actions, and the continuous integration of new information for ongoing system improvement (Figure 5).

OPEN IN VIEWER

Figure 5.

Logical flow of the hybrid MPPT control algorithm—illustration of the decision-making process, algorithm switching, and continuous data integration for optimal system performance.

Database design

To ensure the reliability and performance of our control system, it is essential to effectively structure the processing and organization of data collected during system operation. Rigorous data management not only ensures optimal performance but also reduces system complexity and prevents overfitting. This involves a thoughtful selection of the data to be retained, focusing only on what is necessary to minimize storage requirements and guide the algorithm accurately and efficiently.

To ensure effective subsequent regression, data processing must consider the following constraints:

Avoid Redundancy: The system should not collect closely related data that conveys the same meaning. This reduces unnecessary redundancy, simplifies the model, and improves data processing efficiency.

Use Real Measurements: The database should be developed using real measurements rather than predictions. This approach avoids complex errors associated with incorrect predictions, ensuring that the collected data accurately reflects real conditions.

Proper Data Spacing: Data should be well-spaced to cover a wide range of scenarios. Proper spacing captures the diversity of operating conditions, enhancing the model’s ability to generalize and make accurate predictions.

Regular Data Updates: Regular updates to the database are essential. When a new, better-dimensioned and better-located data point is received, it should replace the old one. This continuous updating allows the system to adapt and improve based on new information, maintaining the model’s accuracy and relevance.

Preference for Imperfect Data Over No Data: It is preferable to have imperfect data rather than no data at all. Even imperfect data can provide useful insights for system operation and contribute to model improvement.

In the context of (MPPT) using the (IncCond) method, it is crucial to evaluate whether the obtained data can enrich the database and enhance its performance. This evaluation checks if the data is relevant enough. The goal is to predict the optimal duty cycle directly and accurately in future cases. If successful, it would remove the need for trial-and-error methods. If the collected data demonstrates potential for improvement, particularly by enhancing the k-NN algorithm’s ability to deduce the optimal duty cycle effectively under similar conditions, it should be integrated into the database. The goal is to build a well-structured and uniformly distributed data matrix capable of covering the entire operating range of the system. ¹⁹

The matrix designed for optimal propagation includes irradiation values ranging from 0 to 1100 W/m², with an interval of 40 W/m². For temperature, it covers a range from 0°C to 60°C, with a step of 2°C. This configuration ensures comprehensive and precise coverage of irradiation and temperature variations, enabling better system adaptation to diverse operating conditions. This optimal database can be represented by the following Figures 6 and 7:

OPEN IN VIEWER

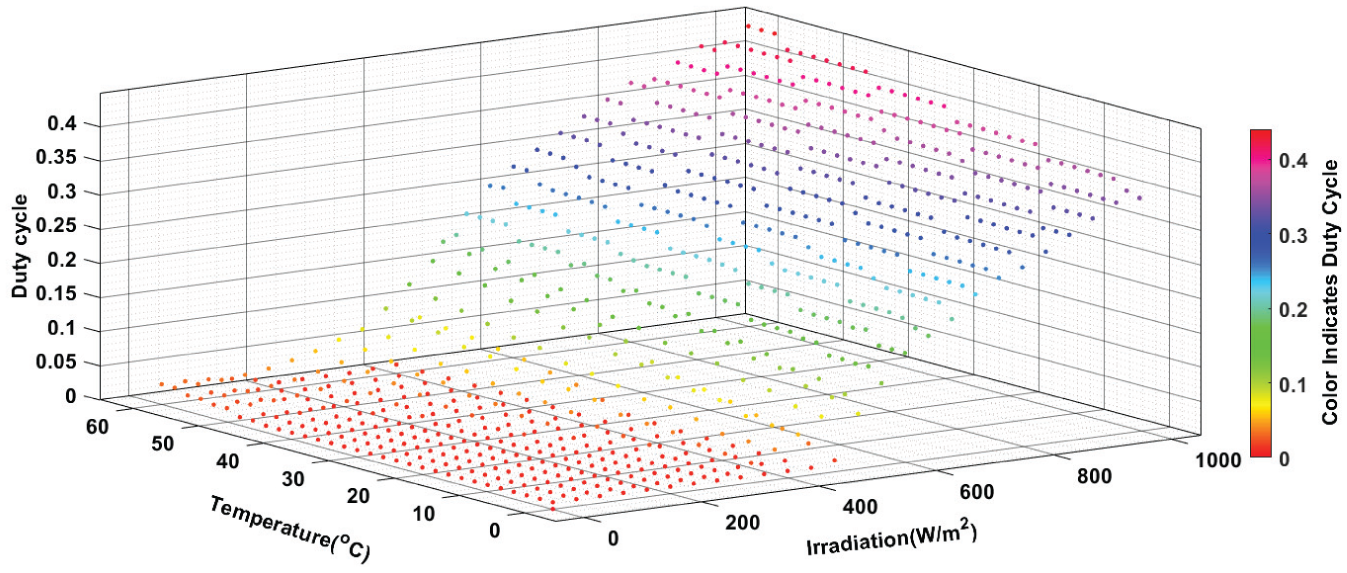

Figure 6.

3D View of data propagation, showing the distribution of irradiation, temperature, and duty cycle values across the operating range.

OPEN IN VIEWER

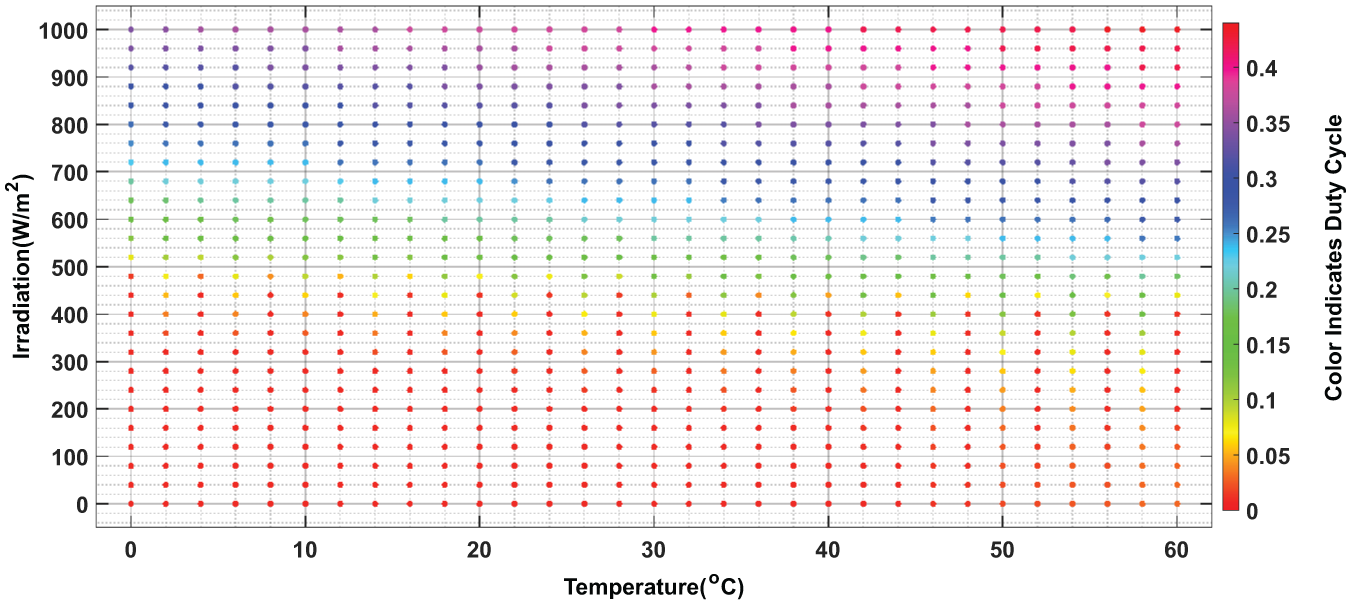

Figure 7.

2D View of irradiation and temperature distribution, illustrating the relationship between irradiation and temperature values across the operating range of the system.

These figures provide a clear visualization of how the data is structured and distributed, ensuring comprehensive coverage of the system’s operating conditions and facilitating accurate predictions for maximum power point tracking.

However, due to the random nature of the collected data, the ideal values offering the best propagation are often rare. To overcome this limitation, the system records the available data that most closely approximates the ideal conditions, thereby maximizing the propagation and reliability of the matrix. This approach ensures high performance and accuracy, even in the presence of non-optimal data, by fully leveraging the collected information to provide effective and robust coverage of the operating range.

The algorithm, capable of developing the database and ensuring its reliability over time while adhering to the previously mentioned constraints, is illustrated in the following algorithm:

OPEN IN VIEWER

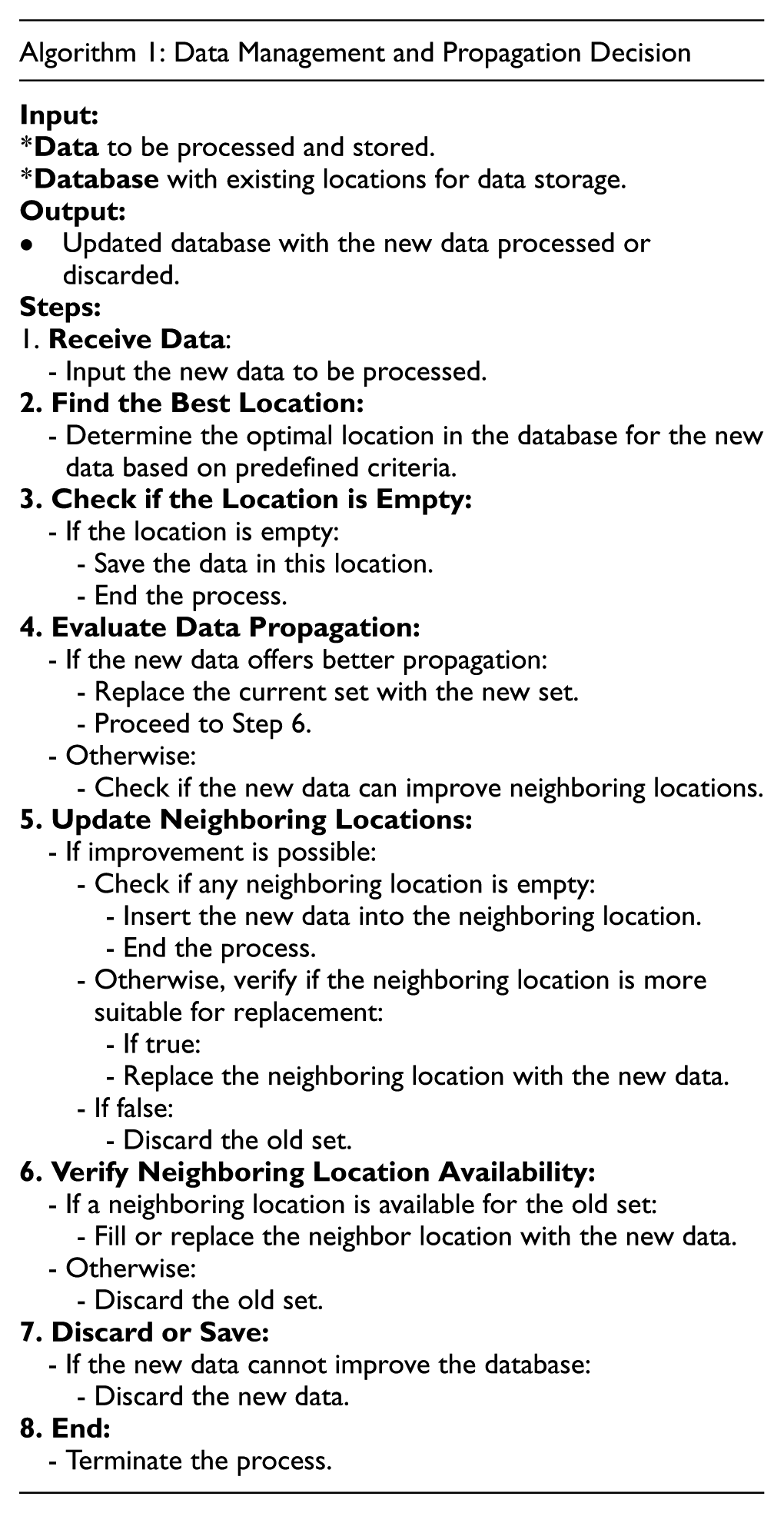

Algorithm 1: Data Management and Propagation Decision

Input: * Data to be processed and stored. *Database with existing locations for data storage. Output: • Updated database with the new data processed or discarded. Steps: 1. Receive Data:  - Input the new data to be processed. 2. Find the Best Location:  - Determine the optimal location in the database for the new data based on predefined criteria. 3. Check if the Location is Empty:  - If the location is empty:   - Save the data in this location.   - End the process. 4. Evaluate Data Propagation:  - If the new data offers better propagation:   - Replace the current set with the new set.   - Proceed to Step 6.  - Otherwise:   - Check if the new data can improve neighboring locations. 5. Update Neighboring Locations:  - If improvement is possible:   - Check if any neighboring location is empty:    - Insert the new data into the neighboring location.    - End the process.   - Otherwise, verify if the neighboring location is more suitable for replacement:    - If true:    - Replace the neighboring location with the new data.   - If false:    - Discard the old set. 6. Verify Neighboring Location Availability:  - If a neighboring location is available for the old set:   - Fill or replace the neighbor location with the new data.  - Otherwise:   - Discard the old set. 7. Discard or Save:  - If the new data cannot improve the database:   - Discard the new data. 8. End:  - Terminate the process.

General concept of the algorithm

This algorithm implements a continuous improvement strategy for the MPPT control database using the k-NN approach. It is based on the principle of progressive optimization rather than simply selecting the best data. The core idea is that a less representative data point is still preferable to having no data at all, while constantly striving to improve the overall quality of the database. When a new dataset arrives, the algorithm assesses whether it can improve upon the data already stored at the optimal location. If the new data offers better propagation capability, it replaces the old data. However, the algorithm doesn’t just discard the replaced data. Instead, it intelligently attempts to reposition these older data points in neighboring locations where they could still be useful, adhering to the principle that partially representative data is better than an informational void.

Optimization and redistribution methodology

The method operates through a sequential process divided into three main phases, corresponding to the key stages of the algorithm. The localization and direct insertion phase (steps 1–3) identifies the optimal location for the new data and proceeds with immediate insertion if the location is vacant, thereby avoiding unnecessary comparisons. The comparative evaluation and replacement phase (steps 4–5) is the core of the improvement strategy: it compares the propagation ability of the new data with that of the existing data at the optimal location, performs replacement if an improvement is detected, and systematically explores neighboring locations to optimize distribution. This phase applies the principle of intelligent redistribution by first searching for empty neighboring slots for the new data if it cannot replace the optimal point, then evaluating potential replacements in the vicinity. Finally, the displaced data management phase (steps 6–7) ensures that no potentially useful information is lost by repositioning the replaced old data into appropriate neighboring locations, thereby ensuring progressive and optimal densification of the database without leaving exploitable empty spaces.

MPPT control using k-NN

The primary objective of MPPT control using the k-NN algorithm is to predict the optimal duty cycle ( D C predicted ) for a new meteorological condition ( Ir , T ) by leveraging an existing database containing points ( I r i , T i , D C i ) . This method relies on distance-weighted interpolation principles, offering a robust and adaptable solution even when the database is not perfectly organized or uniform. Below is a detailed explanation of this method:

Step 2: Calculating Euclidean distances to neighboring points

Once the 4 neighboring points are identified in the database, the next step is to calculate the Euclidean distances between the target point ( Ir , T ) and these neighbors.

For each neighbor P i = ( I r i , T i ) , the Euclidean distance is given by:

d ( ( Ir , T ) , ( I r i , T i ) ) = ( Ir − I r i ) 2 + ( T − T i ) 2

For the 4 neighbors P 1 , P 2 , P 3 and P 4 the respective distances d 1 , d 2 , d 3 and d 4 are calculated. These distances measure the proximity of the neighbors to the target point ( ( Ir , T ) ) .

Euclidean distances represent a measure of proximity in the meteorological condition space ( ( Ir , T ) ) . The closer a neighbor is, the more relevant its duty cycle value ( D C i ) is for estimating the duty cycle ( DC ) of the target point. Hence, using distances allows for higher weighting of closer points, improving interpolation accuracy.

Step 3: Determining weights using inverse distance

After computing the Euclidean distances between the target point ( I r , T ) and each of the four neighboring points P i = ( I r i , T i ) , the next step is to assign a weight to each neighbor. These weights reflect the influence each neighbor will have on the estimation of the optimal duty cycle.

The method used is inverse-distance weighting, which means that closer neighbors are given more importance since their meteorological conditions are more similar to those of the target point.

The weight ( w i ) for each neighbor ( P i ) is calculated using the formula:

w i = 1 d i

where:

- ( d i ) is the Euclidean distance between the target point ( I r , T ) and the neighbor ( P i )

Step 4: Calculation of the predicted duty cycle

The duty cycle ( DC ) for the target point is estimated using inverse-distance-weighted interpolation of the 4 identified neighboring points. The mathematical formula for this estimation is:

DC = ∑ i = 1 4 w i · D C i ∑ i = 1 4 w i

Where:

- ( D C i ) is the duty cycle of the 4 neighboring points.

- ( d i ) is the Euclidean distance between the target point and each neighbor.

This MPPT control method offers an optimal balance between precision, adaptability, and robustness. By combining a well-structured and propagated database with weighted interpolation techniques, it effectively predicts the duty cycle under various meteorological conditions without requiring intensive real-time computations. Systematic validation ensures reliable performance, even in situations where the data does not precisely cover new conditions. Thus, this approach not only improves the speed and stability of MPPT tracking but also reduces reliance on traditional algorithms while optimizing energy extraction, which is crucial for modern photovoltaic systems.

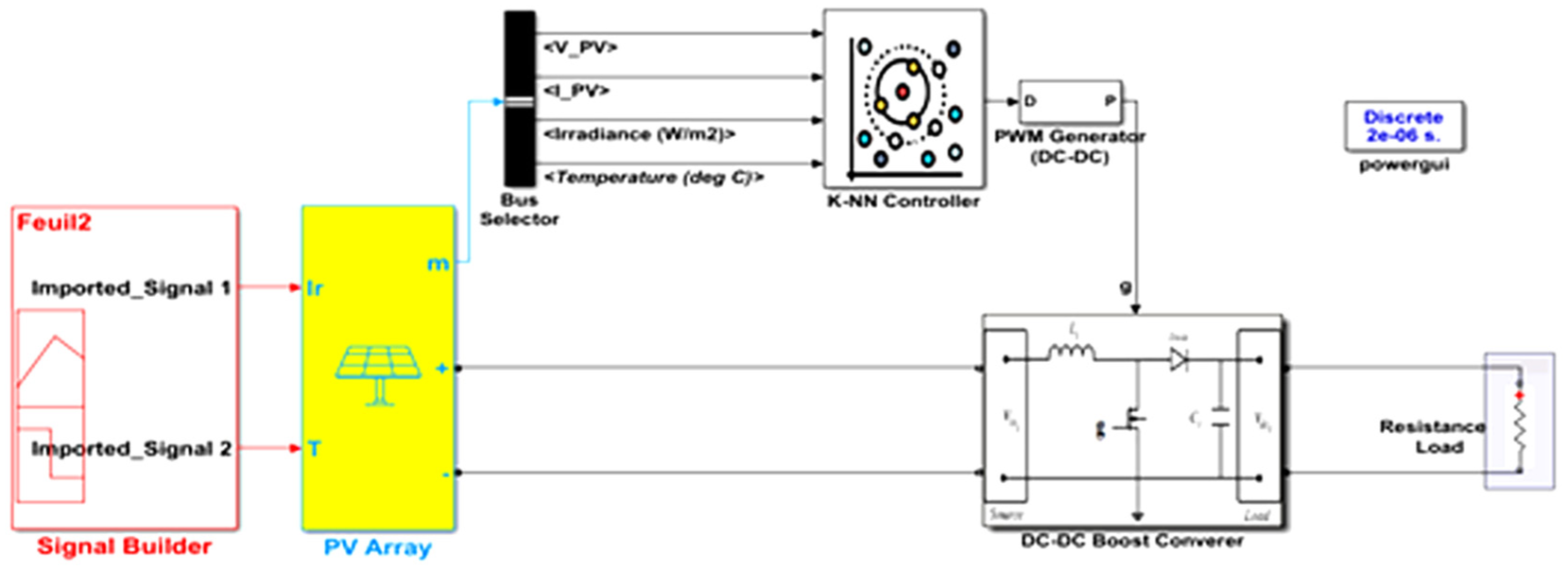

Scenario 1: Initial construction of the database

To clearly demonstrate the performance and reliability of our innovative Maximum Power Point Tracking (MPPT) control algorithm, we designed several experimental scenarios that cover the full dynamic behavior of the photovoltaic system.

The first scenario represents the initial construction phase of the database, where the database is completely empty. In this situation, our control algorithm is exposed to an unknown environment and must autonomously build and populate the database while strictly adhering to predefined consistency constraints.

To evaluate this behavior, we subjected the system to a series of carefully selected meteorological conditions (irradiance and temperature). The goal is to observe how the control mechanism collects, validates, and stores meaningful data in real time. This initial phase is critical, as it lays the foundation for future predictions—the quality and spatial coverage of the database built at this stage directly affect the effectiveness of the MPPT strategy in subsequent scenarios.

These variations are illustrated in the two figures (Figures 9 and 10) below:

OPEN IN VIEWER

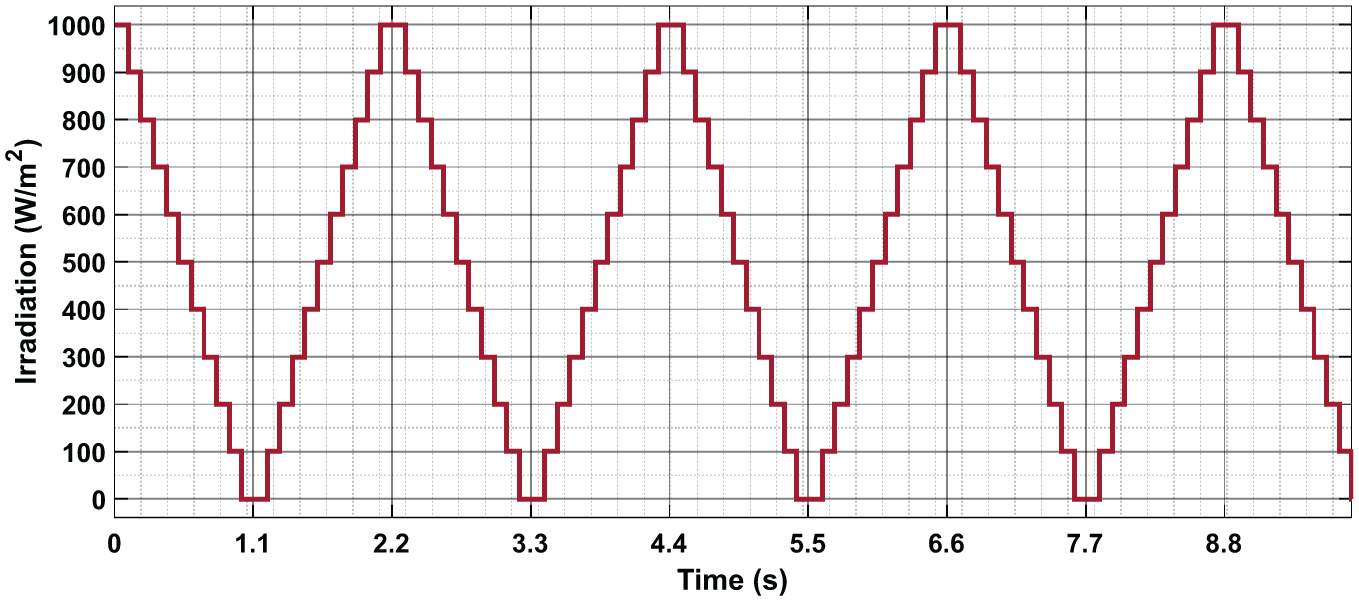

Figure 9.

Irradiance profile applied during initial database construction.

OPEN IN VIEWER

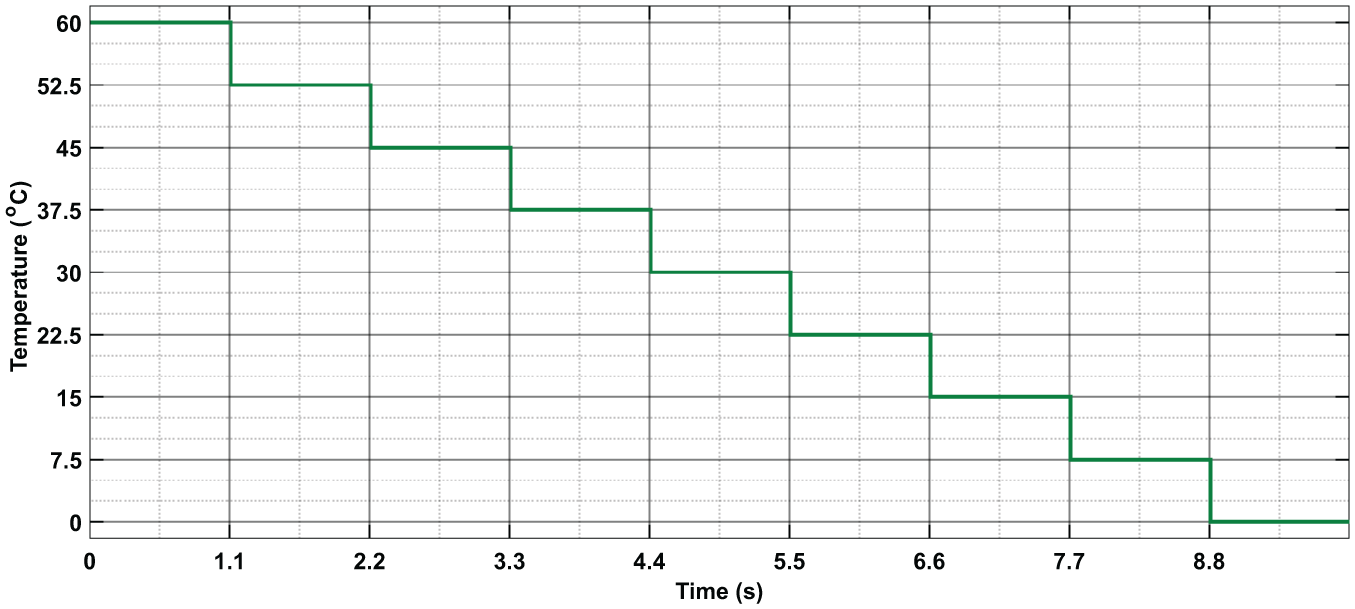

Figure 10.

Temperature profile applied during initial database construction.

In this scenario, once the system identifies the maximum power point (MPP) under current environmental conditions using the Incremental Conductance (IncCond) algorithm, it captures a data set composed of irradiation (W/m²), temperature (°C), and duty cycle.

Afterward, the algorithm determines the optimal storage location within the database for this data set. This decision is based on a strategic spatial organization, designed to ensure that each data entry can be easily accessed and efficiently reused in future MPPT control scenarios—especially when employing the k-NN algorithm.

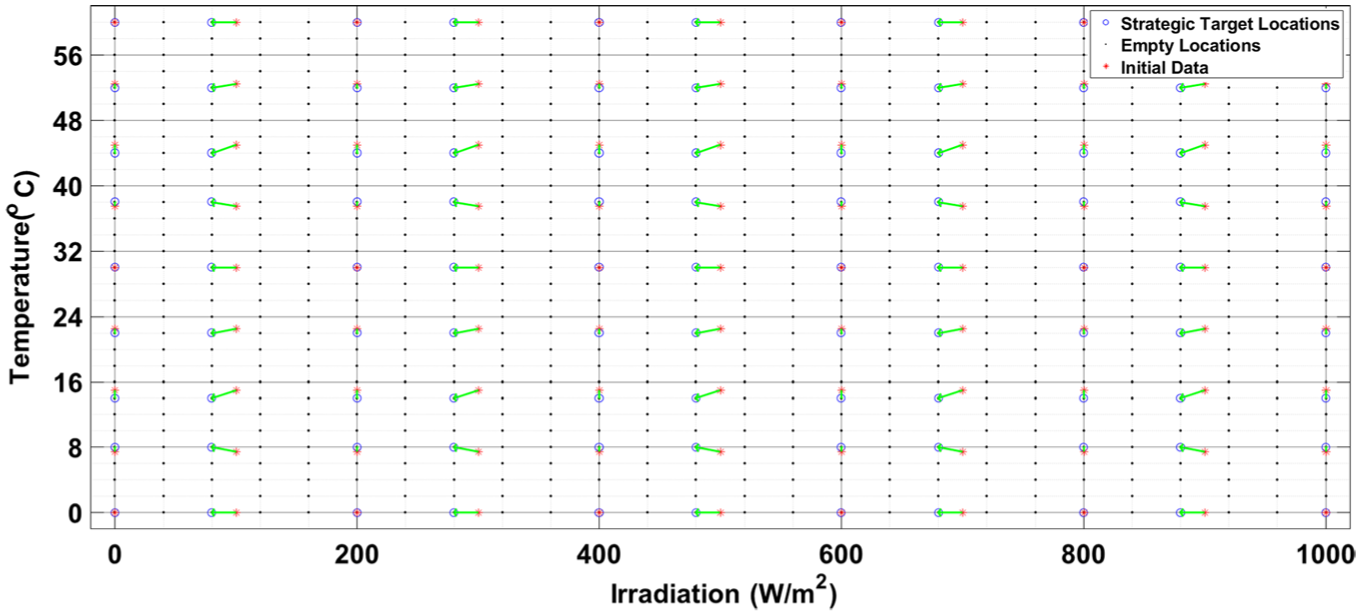

Figure 11 below illustrates this mechanism through a 2D representation of the database. The arrows in the figure highlight the relationship between each captured data set (“*”) and its corresponding chosen storage location (“o”). These arrows emphasize the decision-making process and the intelligent spatial mapping executed by the algorithm to enhance the database’s structure.

OPEN IN VIEWER

Figure 11.

Strategic allocation of captured data points in the MPPT database grid.

Rather than storing data randomly, the system builds the database strategically anticipating future needs and ensuring quick and reliable access to high-quality data points. This organization not only improves the efficiency of real-time search and retrieval, but also enhances the accuracy of MPPT control by ensuring that relevant neighboring points are optimally placed within the environmental condition space.

The data captured during this scenario can be represented in the three-dimensional space illustrated in Figure 12, to better visualize the structure and distribution of the database. Each point corresponds to a measured set consisting of irradiance, temperature, and the associated duty cycle.

OPEN IN VIEWER

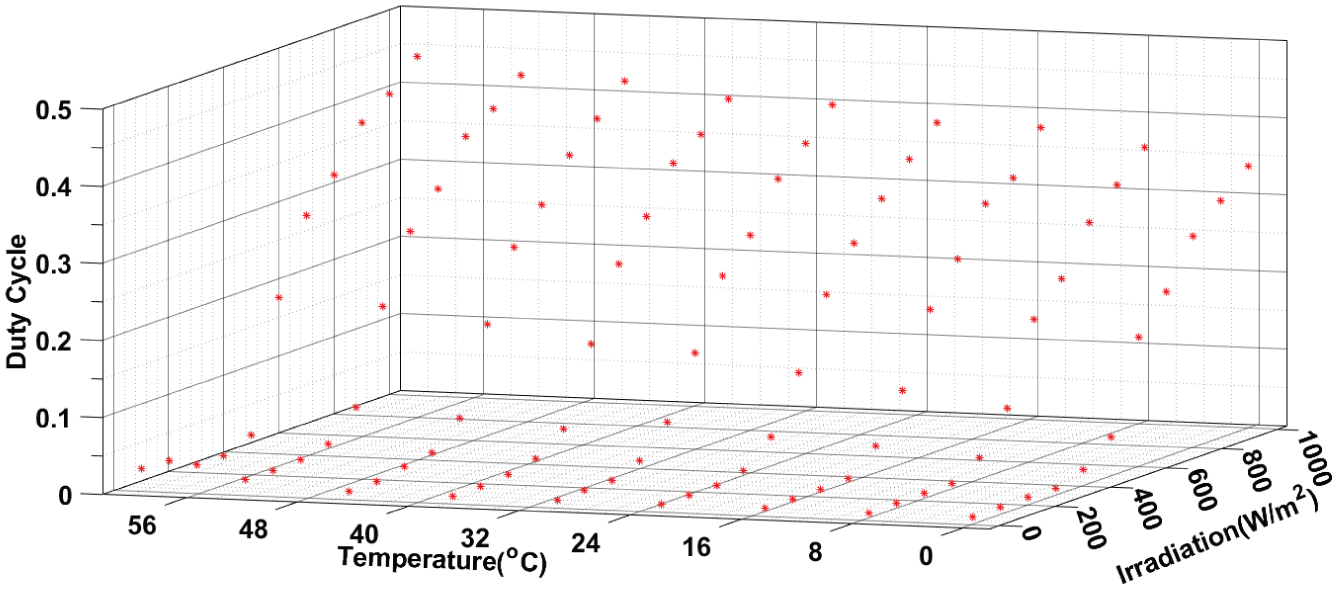

Figure 12.

3D Visualization of database evolution. A three-dimensional representation of the database’s progressive construction.

Second scenario: Intelligent database update

Following the evaluation of the initial database construction phase, we now proceed to a second scenario designed to test the system’s ability to perform intelligent updates. The objective is to analyze how the database responds when it is already partially populated and new data recorded under weather conditions similar to previously stored entries is introduced.

In this case, the system is exposed to slight variations in irradiance and temperature, close but not identical to the data from the first scenario. This situation creates a storage conflict, as the optimal storage locations are already occupied by prior entries.

Figures 13 and 14 illustrates the evolution of irradiance and temperature, allowing us to assess the efficiency of the database update process.

OPEN IN VIEWER

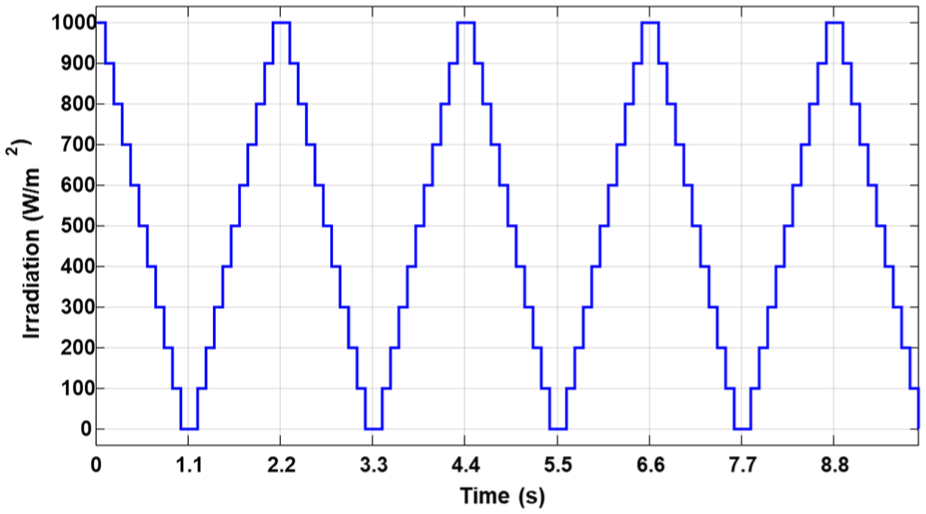

Figure 13.

Applied irradiance conditions testing DB update capability.

OPEN IN VIEWER

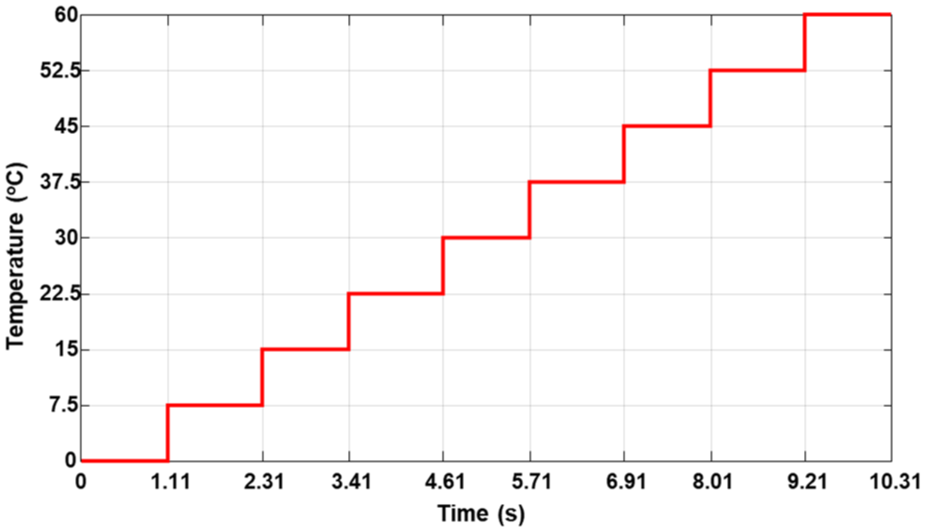

Figure 14.

Temperature conditions evaluating intelligent DB update.

A key focus of this study involves the intelligent management of storage conflicts within the database system. When inserting new meteorological data, the system systematically evaluates whether the optimal storage location determined by maximum propagation criteria is already occupied. If occupied, it implements a sophisticated decision-making algorithm based on propagation quality metrics: if existing data demonstrates suboptimal propagation characteristics, it may be overwritten by new entries with superior diffusion properties. Conversely, when resident data is already optimally positioned, the system activates alternative strategies—either storing the new information in an available secondary location or executing partial database reorganization by relocating existing entries to optimize overall structure. This dynamic mechanism maintains consistently high database performance while adapting to environmental fluctuations. The accompanying figure demonstrates these priority criteria in action during database updates, clearly illustrating replacement scenarios, secondary storage allocation, and optimized reorganization processes. The system’s ability to make these nuanced decisions ensures data integrity while maximizing propagation efficiency across varying weather conditions.

Figure 15 highlights the adaptive capability of our intelligent system to dynamically manage its database during the transition from the first to the second scenario. It illustrates the smart reorganization strategy implemented by our algorithm to optimize the quality of coverage within the meteorological space.

OPEN IN VIEWER

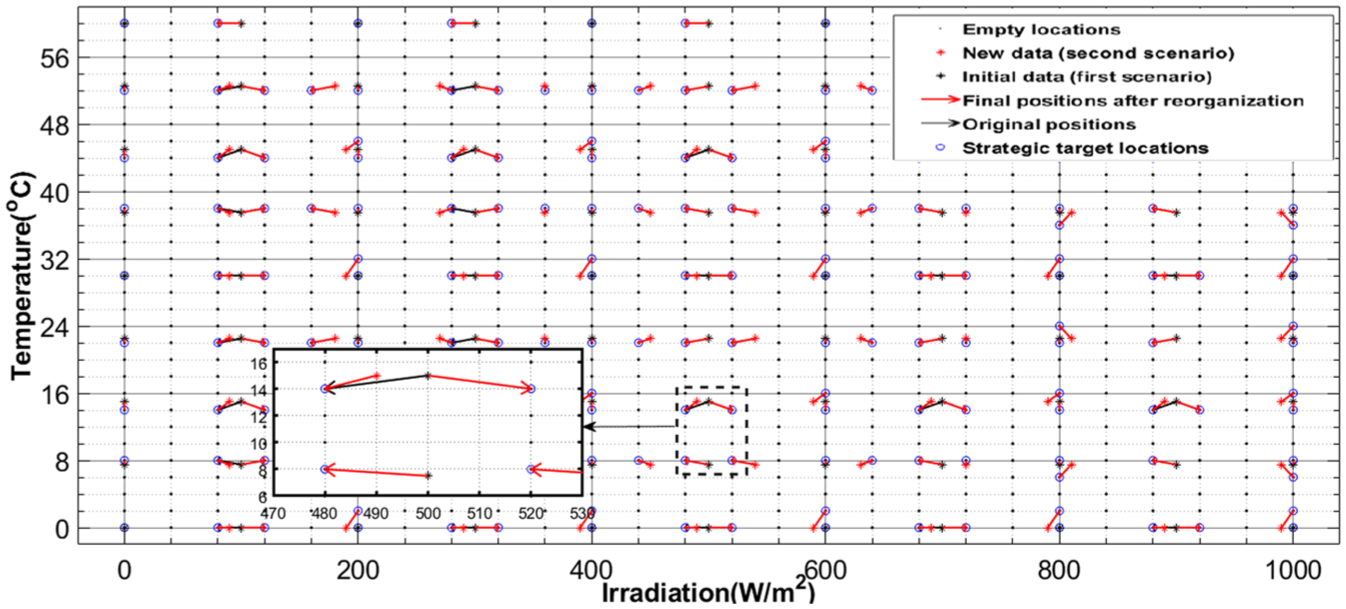

Figure 15.

Adaptive reorganization of the database between two meteorological scenarios.

Data entries in the database are represented by Black stars symbolize the data collected and stored during the first scenario, while black arrows indicate their original positions, providing a clear view of the initial state of the database. When the second scenario begins, new data points represented by red stars are introduced. From these new entries, the system evaluates the relevance of each data point based on its propagation quality. Red arrows indicate the final positions of both old and new data after reorganization. This relocation process is neither automatic nor systematic: only data points deemed less strategic in terms of propagation are moved to make space for more relevant and better-positioned entries in the Irradiance-Temperature space.

This innovative approach is based on a logic of continuous improvement. Unlike traditional systems that passively accumulate data, our algorithm takes a proactive approach: it constantly reassesses the informational value of each data point and adjusts its placement accordingly. This ensures that the database remains compact yet highly effective, reinforcing key zones and enabling more accurate and faster estimation of the maximum power point.

Through this technique, our system does more than simply respond to changing environmental conditions it learns, organizes, and optimizes its knowledge in real time, thereby enhancing the reliability and responsiveness of MPPT tracking.

Strategic preparation of the database

Before moving on to the actual third scenario (dedicated to evaluating the performance of our intelligent control system), a crucial step involves finalizing and consolidating the database built during the first two phases (initialization and updating). This preparation phase is essential, as it ensures the availability of a sufficiently rich, diverse, and representative dataset to test the robustness and effectiveness of the system under realistic conditions.

The database obtained at this stage consists of a mix of data: some points are ideally positioned to ensure effective propagation when using the KNN method marked with “*,” while others, inserted in suboptimal or less strategic locations, are also marked with “*.” This distribution directly reflects the random nature of meteorological conditions, over which we have no control, but which significantly influence the quality and structure of the database.

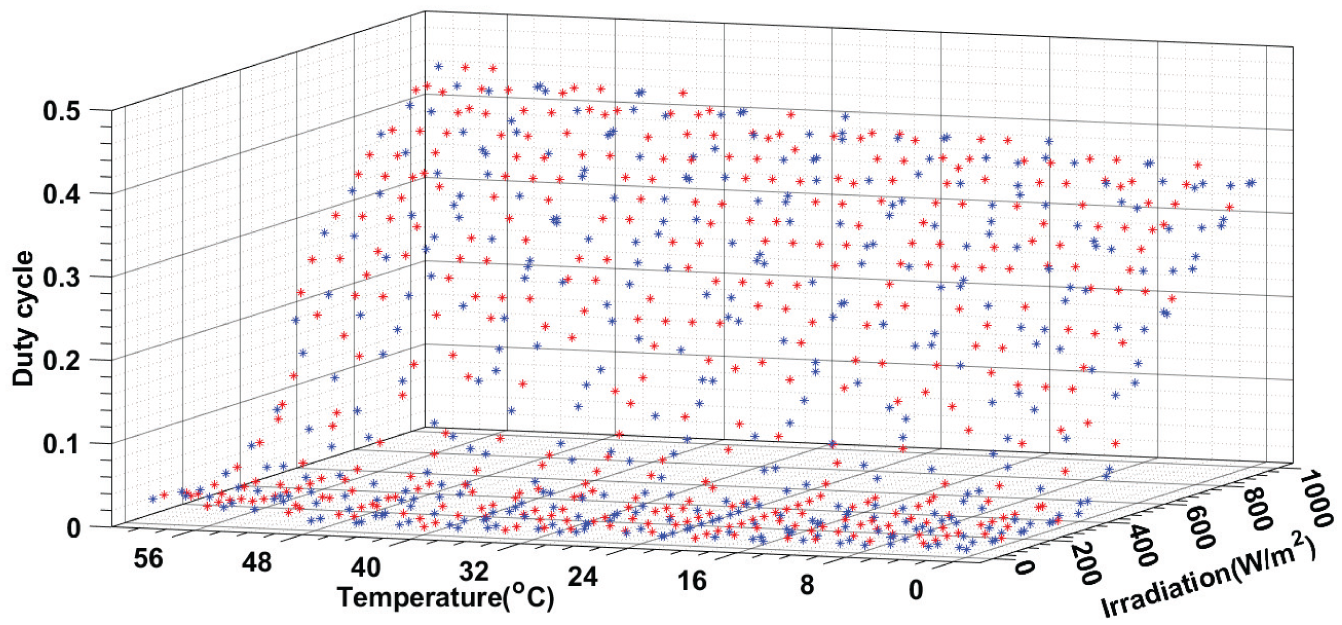

This three-dimensional representation (Figure 16) allows for a clear visualization of the density and coverage quality of the database across the axes of irradiance, temperature, and the appropriate duty cycle required for the PV system to produce maximum power.

OPEN IN VIEWER

Figure 16.

3D Visualization of the consolidated database.

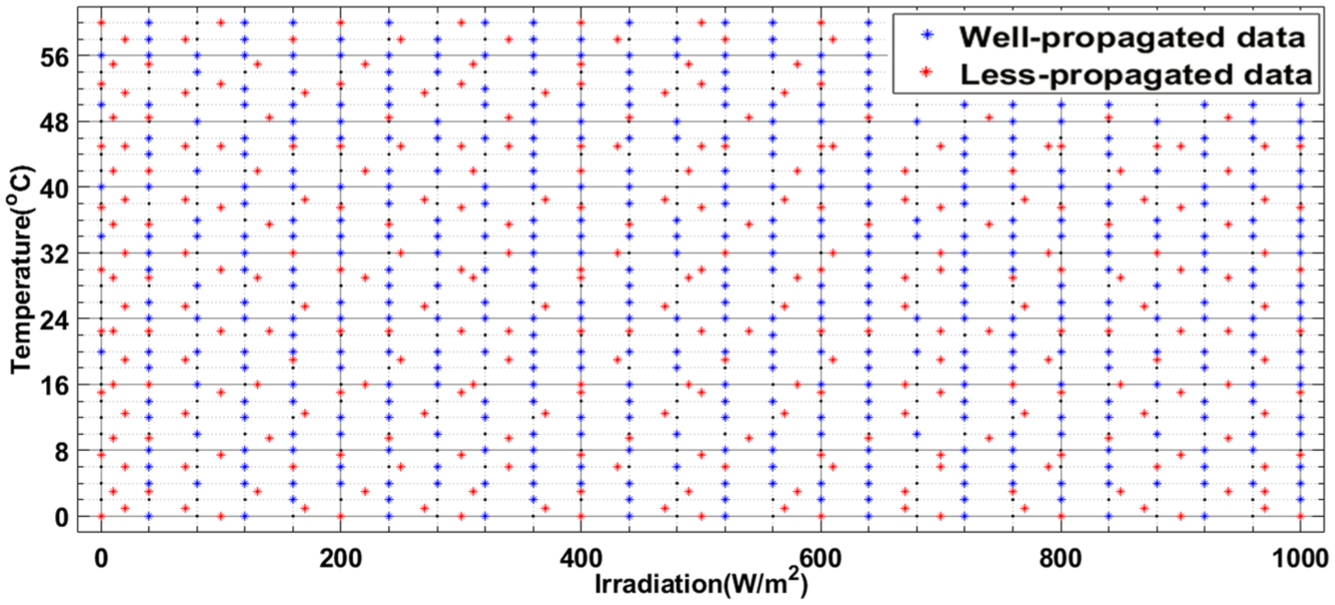

This 2D map (Figure 17) illustrates the propagation quality of data points distributed across the Temperature–Irradiance plane. It highlights both well-propagated points, which exert strong local influence, and less well-propagated ones with more limited impact. All of these data, derived from realistic conditions, will serve as the reference base for the k-Nearest Neighbors (k-NN) algorithm to estimate the Maximum Power Point (MPPT). The chosen mesh, deliberately heterogeneous, reflects natural environmental variability and allows us to assess the robustness of our approach under realistic conditions. This configuration will serve as the foundation for evaluating, in the following section, our innovative MPPT control strategy based on the k-NN principle.

OPEN IN VIEWER

Figure 17.

2D Map of data distribution by propagation quality.

Real-time MPP estimation using optimized k-NN algorithm

Our system has demonstrated its ability to dynamically construct and organize a real-time database, and this phase aims to evaluate the performance of the intelligent control system in an operational real-world context. The objective is to verify how the algorithm successfully extracts the Maximum Power Point (MPP) from stored data using the k-Nearest Neighbors (k-NN) method. To achieve this, we simulated new meteorological conditions, such as temperature and irradiation, within an area well-covered by the existing database. The algorithm accurately identifies the most relevant neighbors for each new data point, ensuring precise MPP estimation.

The k-NN principle relies on the spatial proximity of data, which requires a well-structured database with optimally distributed data points. Our database is designed to facilitate efficient nearest-neighbor searches through effective data organization, even in areas with variable density. Although data distribution may not always be perfect, their arrangement enables rapid identification of relevant regions. Thus, despite potential heterogeneity, the algorithm effectively finds conditions most similar to new entries by leveraging previously recorded measurements.

The effectiveness of this approach is ensured by an intelligent hashing system that strategically locates each data point within the database. This mechanism is reinforced by advanced techniques for handling storage conflicts and performing continuous updates, guaranteeing real-time data integrity and consistency. Thanks to this optimized architecture, the algorithm can precisely determine the nearest neighbors while maintaining high performance without requiring additional complex computations. This operational robustness is essential for ensuring reliable performance of the intelligent control system in real-world operating conditions. Figure 18 illustrates our system’s remarkable capability to quickly identify relevant neighbors, demonstrating the effectiveness of our method across various practical scenarios.

OPEN IN VIEWER

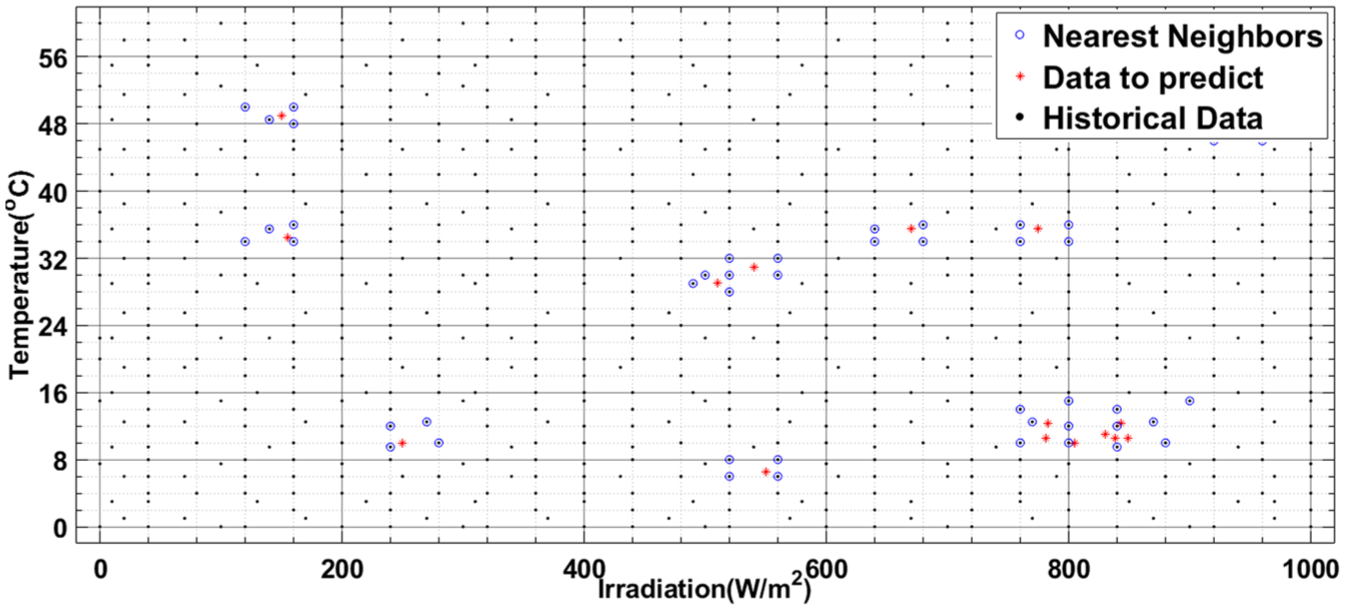

Figure 18.

Efficient neighbor identification using an optimized structured database.

The figure illustrates the interpolation process performed by our algorithm, highlighting its operation and comparative advantages. Three significant marker types are visible: dots (“.”) represent historical data stored in the database from previous scenarios; red star (“*”) indicate new operating points to be evaluated, corresponding to unprecedented meteorological conditions (temperature and irradiation) for which the optimal duty cycle must be predicted; finally, blue circles (“o”) represent the k-nearest neighbors selected to perform this estimation.

Our method relies on a sophisticated weighting approach that significantly improves interpolation accuracy. As clearly shown in Figure 18, this technique provides immediate and precise results compared to traditional methods. Rather than treating all neighbors as equivalent, we assign each one a weight inversely proportional to its Euclidean distance from the target point. This strategy ensures that the closest (and therefore most relevant) neighbors have greater influence on the optimal duty cycle calculation. Specifically, the resulting duty cycle is obtained through a weighted average of the four nearest neighbors’ values, enabling fine adaptation to local system characteristics.

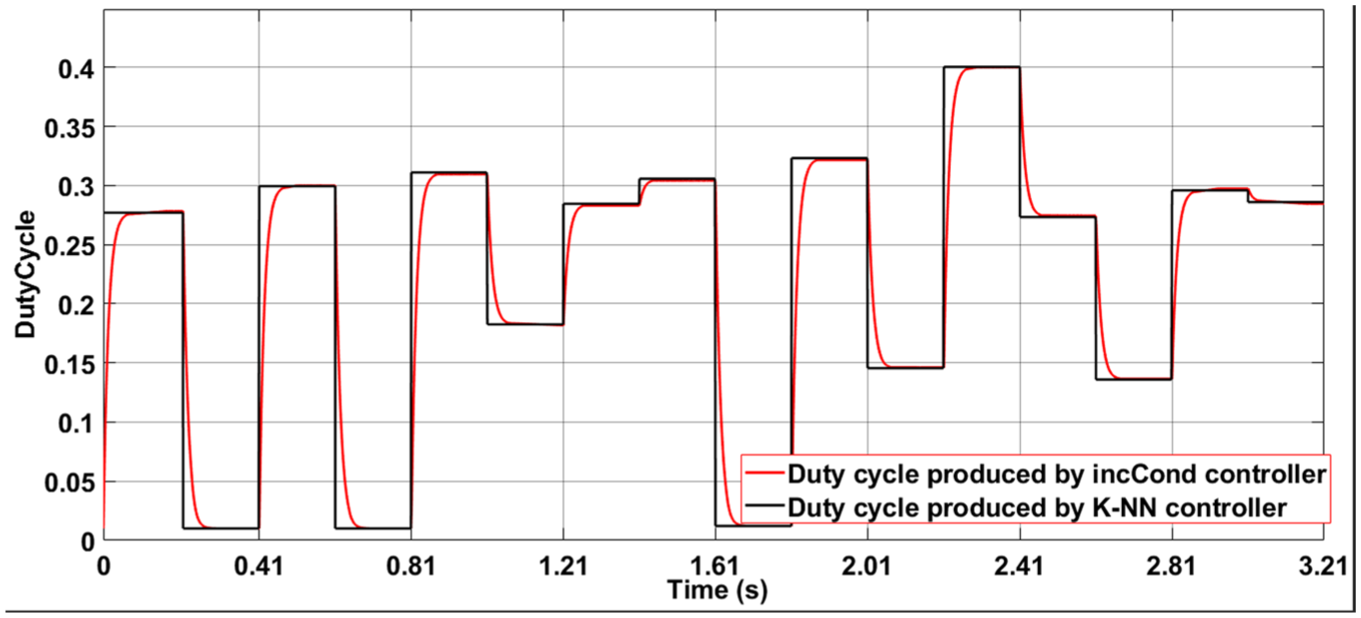

The comparison presented in Figure 19 strikingly reveals our approach’s effectiveness. On one hand, our k-NN method provides immediate, precise estimation without requiring any preliminary testing phase. On the other hand, the incremental conductance (incCond) method, while rigorous, clearly shows its limitations in convergence time. This traditional technique requires multiple successive adjustments, as evidenced by the visible oscillations in the incCond curve, before reaching the optimal solution. Our k-NN based solution, conversely, immediately achieves stable results matching the final values obtained by incCond after convergence, thus demonstrating its superiority for real-time applications.

OPEN IN VIEWER

Figure 19.

Duty cycle comparison: k-NN method (instantaneous) versus IncCond (iterative) under different meteorological conditions.

Performance comparison of IncCond and k-NN controls

As part of the evaluation of the performance of Maximum Power Point Tracking (MPPT) control algorithms, two distinct figures were presented. These figures illustrate the evolution of power output using the Incremental Conductance (IncCond) control and the k-Nearest Neighbors (k-NN) control after the database design, respectively. The objective is to compare these two approaches to highlight their strengths and limitations in the context of photovoltaic energy management.

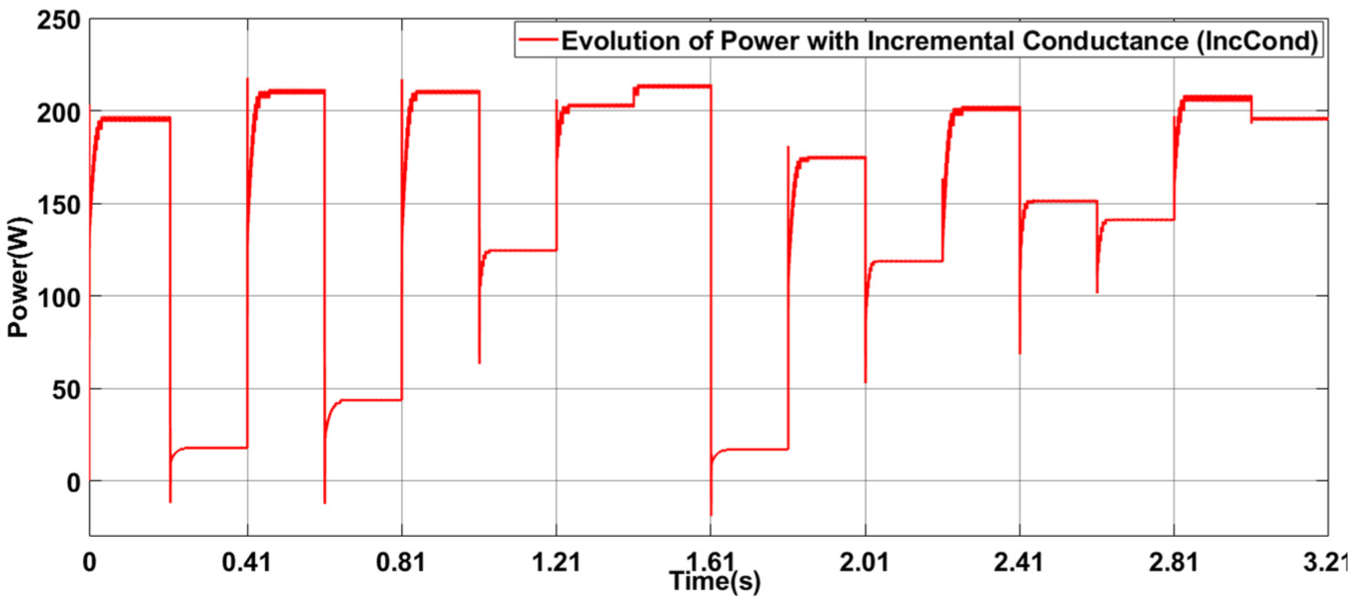

Figure 20 shows the evolution of power over time when using the Incremental Conductance (IncCond) control. Initial fluctuations are observed, which are characteristic of this method, as it relies on successive perturbations to locate the maximum power point (MPP). Once the MPP is reached, the power stabilizes around an optimal value, demonstrating the control’s ability to extract available energy. However, oscillations around the MPP can lead to efficiency losses, especially in the case of rapid changes in environmental conditions. This figure highlights the limitations of the IncCond control, particularly its sensitivity to perturbations and relatively slow response time.

OPEN IN VIEWER

Figure 20.

Evolution of power with incremental conductance (IncCond) control illustration of power fluctuations and stabilization using the IncCond method for MPPT.

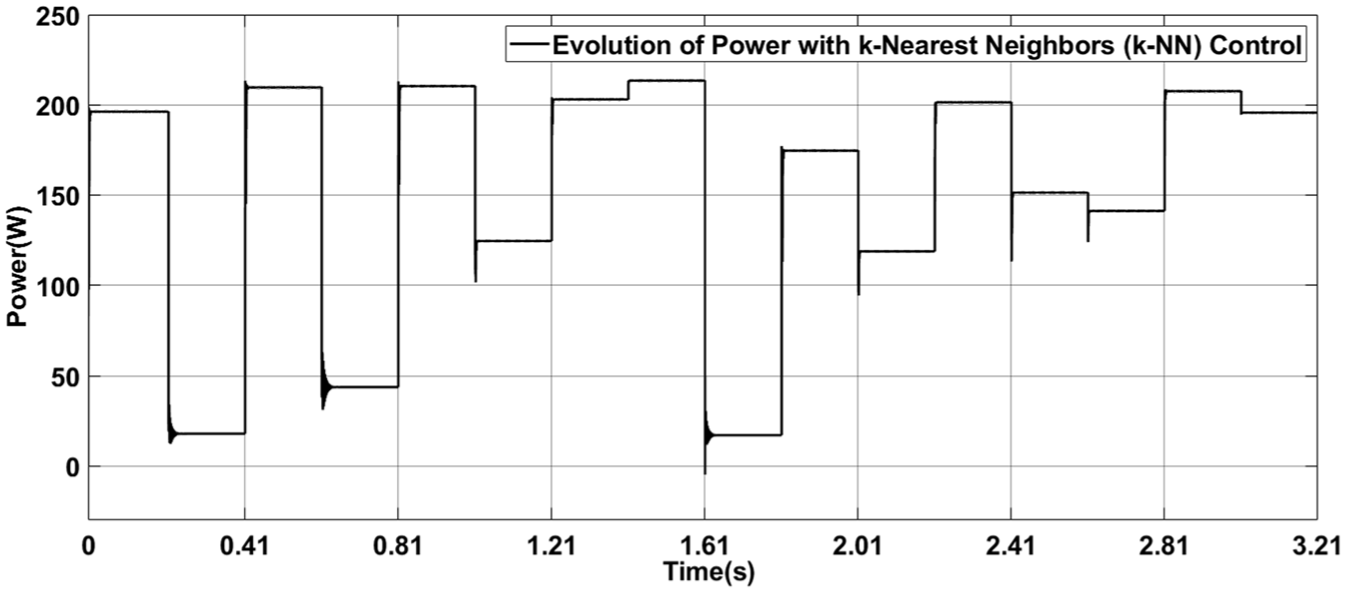

Figure 21 presents the evolution of power over time when using the k-Nearest Neighbors (k-NN) control after the database design. Unlike the IncCond control, the k-NN control demonstrates a faster and more stable response, with fewer fluctuations around the MPP. This is due to k-NN’s ability to directly predict the optimal duty cycle based on historical data, without requiring successive perturbations. The power quickly reaches its maximum value and remains stable, even in the presence of environmental variations. This figure highlights the advantages of the k-NN control, particularly its precision and speed, which significantly improve the system’s efficiency.

OPEN IN VIEWER

Figure 21.

Evolution of power with k-nearest neighbors (k-NN) control after database construction demonstration of rapid and stable power extraction using the k-NN method.

The IncCond control is effective for locating the MPP but is prone to oscillations and efficiency losses due to its iterative nature. In contrast, the k-NN control, after the development of a robust database, offers a faster and more stable response, reducing disturbances and optimizing power extraction. These two figures clearly demonstrate the advantages of the k-NN control, which combines precision and adaptability for optimal performance in dynamic conditions.

Comparative analysis between our innovative control method (k-NN) and a neural network (NN) for duty cycle regression

As part of the evaluation of our hybrid k-NN/IncCond control method, a comparative study was conducted with a neural network approach—an established method known for its effectiveness in solving nonlinear regression problems, such as in our photovoltaic system. This comparison highlights the respective performances of the two approaches in terms of regression accuracy and adaptability.

For this analysis, a neural network model with two hidden layers, each containing 10 neurons, was developed using MATLAB’s Machine Learning and Deep Learning tools. The network architecture was specifically designed for our case study, with two inputs corresponding to the key parameters irradiance and temperature thus characterizing the instantaneous state of the PV system.

The neural network training process employed the Levenberg-Marquardt algorithm, a recommended first choice for supervised learning problems due to its excellent performance, despite a relatively higher memory footprint. The dataset used for training was the same as the one used to construct the initial database for the k-NN method, ensuring fair comparison conditions. The evaluation was carried out on a set of meteorological conditions different from those used during training, thereby testing the generalization capability of both methods.

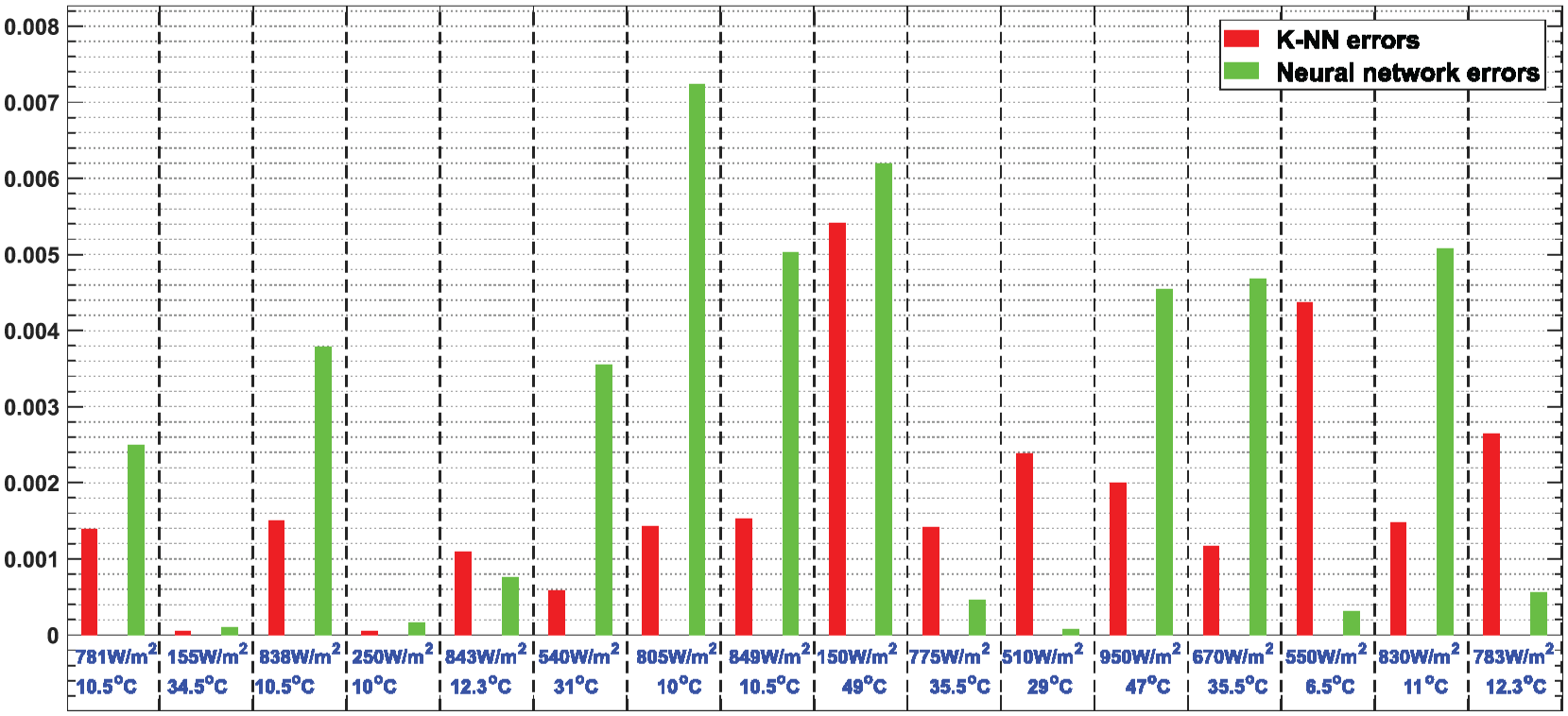

Figure 22 shows the regression errors associated with each method across a series of test cases. The red bars represent the prediction errors of the k-NN method, while the green bars correspond to those of the neural network. This comparative visualization provides a quick insight into the performance differences between the two approaches, particularly in terms of accuracy and robustness when facing new scenarios.

OPEN IN VIEWER

Figure 22.

Comparison of prediction errors: k-NN-based control versus neural network.

The results demonstrate that both approaches offer a high level of overall accuracy, with relatively low errors across all test cases. However, a more detailed performance analysis clearly highlights the superior effectiveness of our control strategy. The mean squared error (MSE) achieved with the k-NN method is 0.00178, compared to 0.0028 for the neural network. Additionally, the maximum absolute error recorded by our control approach does not exceed 0.0054, while that of the neural network reaches 0.0066.

These results are particularly significant, as they confirm that our control method despite requiring no prior training manages to outperform a neural network that has been fully trained on a comprehensive and optimized dataset.

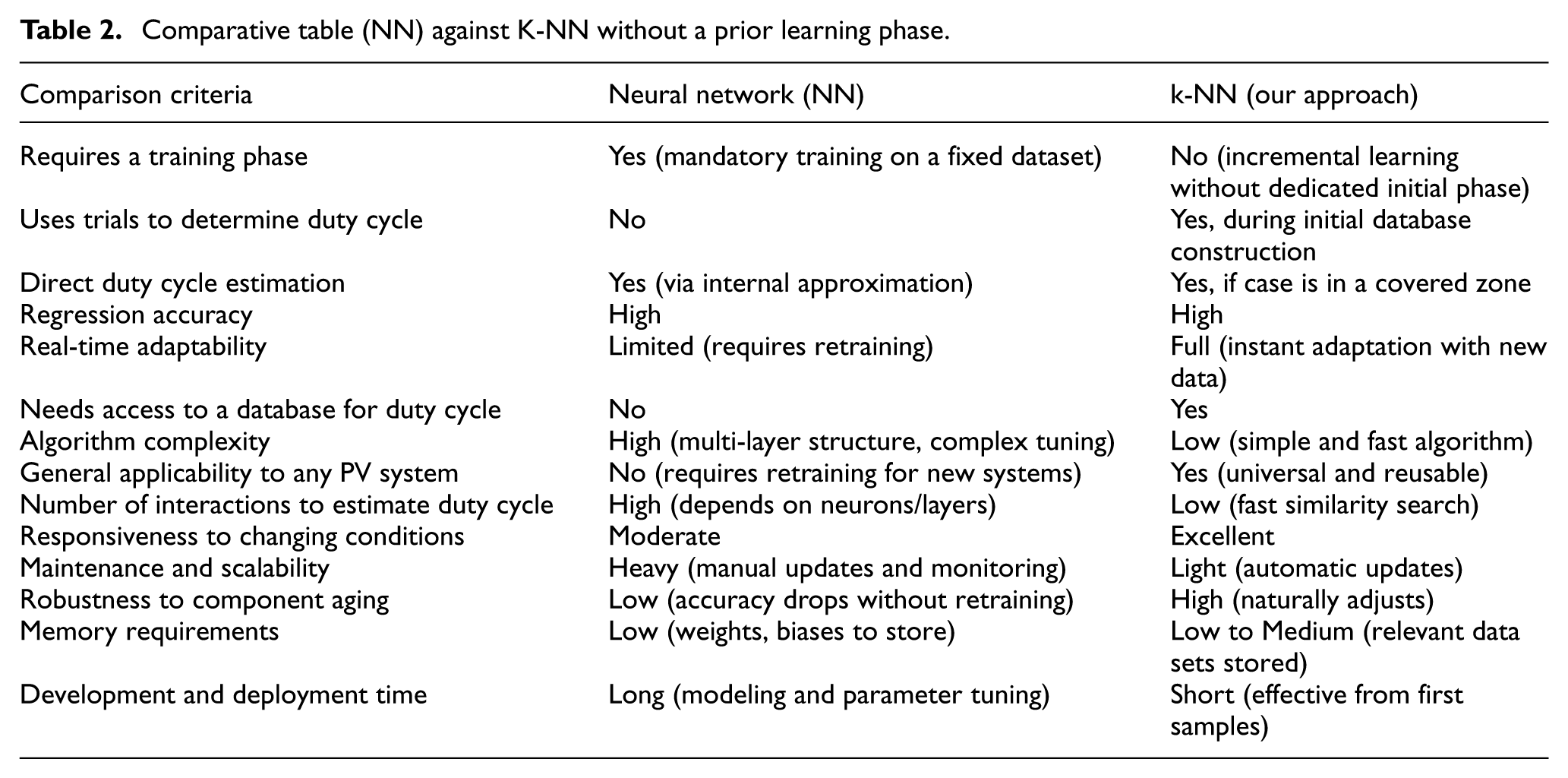

To better highlight the technical advantages of our innovative MPPT control algorithm based on k-NN, we present a comparative table against a traditional Neural Network (NN) approach. This comparison focuses on key aspects such as learning requirements, adaptability, memory usage, and practical deployment, allowing a clear evaluation of the strengths of each method in photovoltaic (PV) systems (Table 2).

OPEN IN VIEWER

Table 2.

Comparative table (NN) against K-NN without a prior learning phase.

Comparison criteria	Neural network (NN)	k-NN (our approach)
Requires a training phase	Yes (mandatory training on a fixed dataset)	No (incremental learning without dedicated initial phase)
Uses trials to determine duty cycle	No	Yes, during initial database construction
Direct duty cycle estimation	Yes (via internal approximation)	Yes, if case is in a covered zone
Regression accuracy	High	High
Real-time adaptability	Limited (requires retraining)	Full (instant adaptation with new data)
Needs access to a database for duty cycle	No	Yes
Algorithm complexity	High (multi-layer structure, complex tuning)	Low (simple and fast algorithm)
General applicability to any PV system	No (requires retraining for new systems)	Yes (universal and reusable)
Number of interactions to estimate duty cycle	High (depends on neurons/layers)	Low (fast similarity search)
Responsiveness to changing conditions	Moderate	Excellent
Maintenance and scalability	Heavy (manual updates and monitoring)	Light (automatic updates)
Robustness to component aging	Low (accuracy drops without retraining)	High (naturally adjusts)
Memory requirements	Low (weights, biases to store)	Low to Medium (relevant data sets stored)
Development and deployment time	Long (modeling and parameter tuning)	Short (effective from first samples)
