Abstract
It has been suggested that epithelial cyclooxyge-nase-2 (COX-2) promotes oral carcinogenesis and carcinoma malignancy through increased prostaglandin E2 (PGE2) production. Although oral squamous cell carcinomas (OSCC) often express COX-2, they may also produce PGE2 in a COX-1-dependent manner. We used 6 isolated cell lines to investigate which COX isoforms OSCC may use for PGE2 production. COX-1 and -2 expression patterns divided the 6 OSCC cell lines into 3 distinct groups: both COX isoforms low, only COX-1 high, or both COX isoforms high. Multicolor immunohistofluorescence staining confirmed the COX-expression profiles in organotypic 3D cultures and the COX-2 dominance in OSCC tumors. Epidermal growth factor (EGF) stimulation induced COX-2 (but not COX-1) expression and increased PGE2 production, which was attenuated by COX-2 (but not COX-1) specific inhibition or siRNA-mediated COX-2 gene knockdown. Thus, PGE2 production in OSCC cell lines was COX-2-dependent.
INTRODUCTION

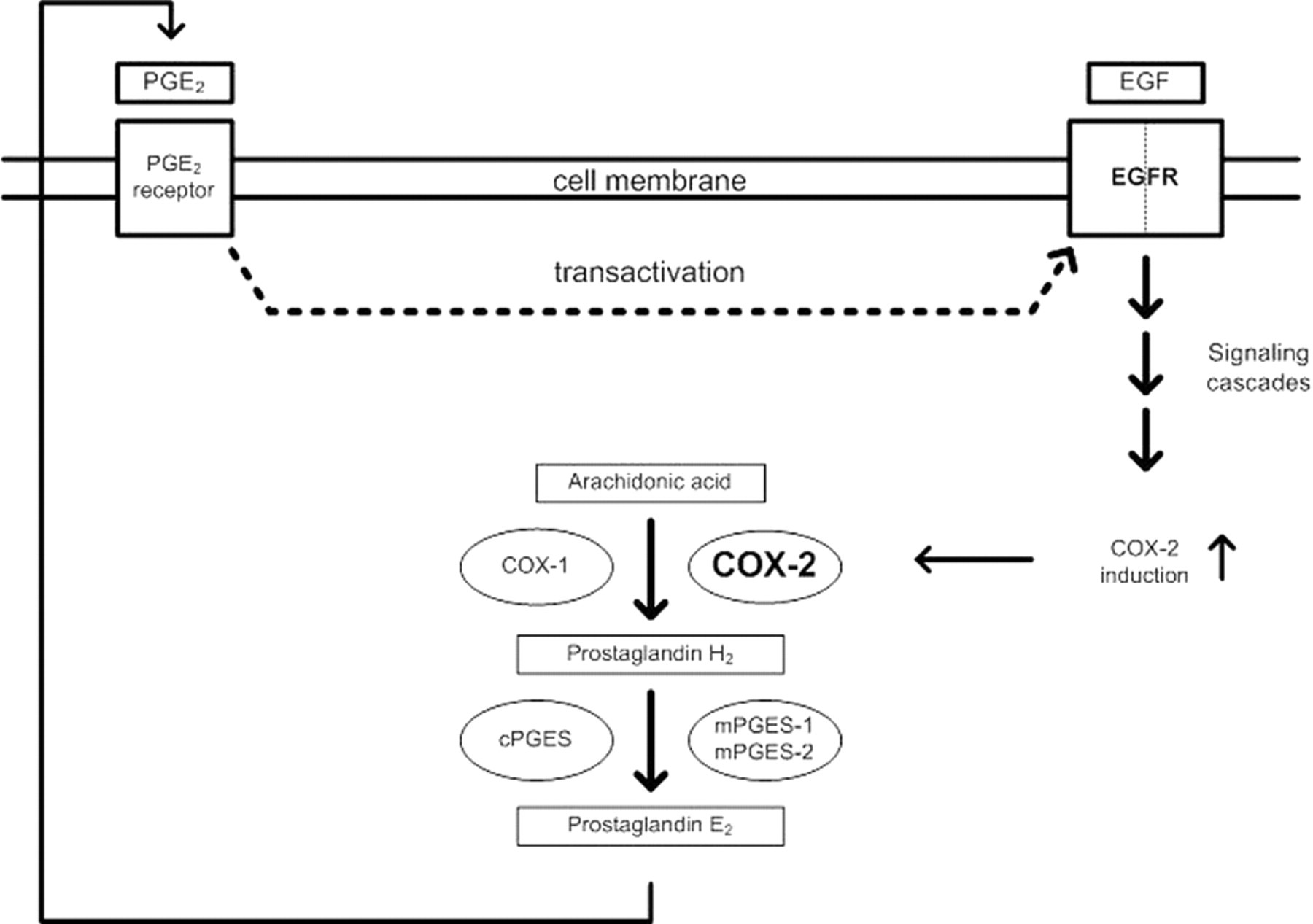

Cyclooxygenase (COX) catalyzes the rate-limiting step in prostaglandin (PG) synthesis from aracidonic acid (Fig. 1). Whereas the constitutively expressed COX-1 is important for homeostasis, COX-2 is up-regulated in inflammation and diseases. Increased epithelial COX-2 expression and PGE2 production may promote carcinogenesis through cross-activation of the epidermal growth factor receptor (EGFR) (Fig. 1), and regular non-steroidal anti-inflammatory drug (NSAID) use reduces carcinoma incidence (Thun et al., 1991; Bosetti et al., 2006). Both oral dysplasia and oral squamous cell carcinomas (OSCC) express increased COX-2 levels (Chan et al., 1999; Renkonen et al., 2002; Atula et al., 2006). NSAIDs or COX-2 selective blockers may therefore prevent oral carcinogenesis (Lin et al., 2002) or be used as adjuvant treatment for oral carcinomas (Dannenberg et al., 2005), since they may inhibit PGE2-dependent OSCC cell proliferation (Minter et al., 2003). Whether COX-2 expression has an independent prognostic value is still debated (Lim et al., 2004; Atula et al., 2006; Sakurai et al., 2007; Soland et al., 2008). However, if COX-2-negative OSCC produced PGE2 via COX-1, as shown for ovarian cancer cell lines (Kino et al., 2005), it may explain some of this controversy, since OSCC express increased COX-1 levels (Shibata et al., 2005). Moreover, the COX-2 selective inhibitor NS-398 may inhibit both COX-1(IC50 = 10.75 μM; Laufer et al., 1999) and the PGE2 synthase (PGES; IC50 = 20 μM; Thoren and Jakobsson, 2000). There are 3 PGES (Fig. 1), of which microsomal (m)PGES-1 is functionally coupled to COX-2 (Murakami et al., 2000), cytosolic (c)PGES to COX-1 (Tanioka et al., 2000), and mPGES-2 to both COX-isoforms (Murakami et al., 2003).
The aim of this study was to examine whether OSCC could produce PGE2 through COX-1 and to elucidate which of the PGE2 synthases the cell lines expressed.
MATERIALS & METHODS
Human OSCC Cell Lines
Six isolated human OSCC cell lines—PE/CA-PJ15 clone B11 (male, 45 yrs), PE/CA-PJ46 clone B5 (male, 63 yrs), and PE/CA-PJ49 clone D12 and clone E10 (male, 55 yrs), all established from tongue tissue, PE/CA-PJ34 clone C12 (male, 60 yrs) from the oral cavity and PE/CA-PJ41 clone D2 (female, 68 yrs) from oral squamous epithelium (a kind gift from Dr. Berndt and Dr. Kosmehl, Friedrich-Schiller University, Jena, Germany)—were cultured in standard medium (IMDM, Sigma-Aldrich, St. Louis, MO, USA), supplemented with 10% fetal bovine serum (FBS) (Cambrex, Verviers, Belgium), 2 mM L-glutamine, and 1% penicillin-streptamycin-fungizone (PSF) (Cambrex).
Culture of Primary Fibroblasts and Organotypic Cancer Models
Normal oral mucosal biopsies were incubated in dispase (0.25% w/v, Invitrogen, Carlsbad, CA, USA) for 24 hrs at 4°C, and then in collagenase (2 mg/mL, 30 min). Fibroblasts were collected by centrifugation, and grown in Dulbecco’s modified Eagle’s medium (DMEM) (Sigma) with supplements as described for cancer cell line culture.
Organotypic cultures were made by the growing of all 6 oral carcinoma cell lines on reconstituted collagen I biomatrices supplemented with fibroblasts for 10 days (Costea et al., 2003).
Oral Carcinoma Samples
Primary OSCC were snap-frozen in liquid nitrogen, mounted in OCT (Tissue Tek, Tokyo, Japan), and used for multicolor immunohistofluorescence staining to illustrate the COX-isoform expression pattern in situ.
Ethics Approval
All donors gave their written consent, and the study was approved by the regional ethical committee.
Immunohistofluorescence
We performed multicolor immunohistofluorescence staining on 4-μm cryosections by applying mixtures of pre-titrated antibodies to COX-1 (IgG2b), COX-2 (IgG1, both Cayman, Tallinn, Estonia), vimentin (IgG1), and rabbit anti-keratin (Dako, Glostrup, Denmark), followed by Alexa Fluor-594 and -488-conjugated subclass-specific goat anti-mouse IgG (Molecular Probes, Eugene, OR, USA) or Alexa Fluor-405-conjugated goat anti-rabbit IgG (Molecular Probes). The results were recorded by means of a Zeiss Axioplan 2 microscope (Carl Zeiss, Göttingen, Germany) equipped with a plan-Neofluar® x40/1.3 oil lens and appropriate fluorochrome filters, including single-, double-, and triple-color filter blocks for the simultaneous examination of green, red, and blue emissions. Negative controls included substitution of primary antibodies with non-immune mouse and rabbit sera at 1/1000. Western blotting of recombinant COX isoforms ensured COX-2 antibody specificity (not shown).
siRNA-mediated COX-2 Knockdown
Cell lines B5, D2, and D12 were re-suspended in medium, then incubated in IMDM with 1% FBS, transfected (DharmaFECT, Dharmacon, Lafayette, CO, USA) with 50 or 60 nM COX-2 specific siRNA (5′GGA-UUC-UAU-GGA-GAA-AAC-Utt3′) (Ambion, Austin, TX, USA) or a scrambled control siRNA (Dharmacon) overnight, re-suspended in standard medium, and harvested after 24 (RNA) and 48 hrs (protein isolation).
Real-time RT-PCR
Total RNA was extracted (RNAeasy, QIAGEN, Valencia, CA, USA), and cDNA was synthesized (RT-RTCK-05, Eurogentec, Berlin, Germany) and stored at −20°C. A standard PCR reaction was performed with the following primer sequences: (COX-1) forward, 5′-CGA-TGA-GCA-GCT- TTT-CCA-GAC-3′, reverse, 5′-TTG-GAACTG-GAC-ACC-GAA-CAG-3′; (COX-2) forward, 5′-TGA-AAT-ATC-AGA-TAA-TTG-ATG-GAG-AGA- TG-3′, reverse, 5′-ACC-AGG-CAC-CAG-CC-AAA-G-3′; (COX-1 Intron 1 retained) forward, 5′-CAT-GAG-CCG-TGA-GTG-CGA-3′, reverse, 5′-GAG-CAA-GAG-ACT-CCC-TGC-AGA-3′ (Nurmi et al., 2005); (cPGES) forward, 5′-GAT-GAT-GAA-CAA-CAT-GGG-TGG-T-3′, reverse, 5′-TCT-CAA-AAT-CCA-GGT-GAT-GAC-AA-3′; (mPGES-1) forward, 5′-GGA-ACG-TGG-AGA-CCA-TCT-AC-3′, reverse, 5′-TCC-AGG-CGA-CAA-AAG-GGT-TA-3′; (mPGES-2) forward, 5′-AGC-CGA-ATC-TCG- CTG-ATT-T-3′, reverse, 5′-GCT-GCA-TCA-GGT-CAT-CGA-A-3′; (HPRT) forward, 5′-TTG-ACA-CTG-GCA-AAA-CAA-TGC-3′, reverse, 5′-GCT-TGC-GAC-CTT-GAC-CAT-CT-3′; and (TBP) forward, 5′-CGT-GGC-TCT-CTT-ATC-CTC-ATG-A-3′, reverse, 5′-GCC-CGA-AAC-GCC-GAA-TAT-A-3′.
Duplicate samples in SYBR-I PCR mix (RT-SN2X, Eurogentec) were run for 40 cycles (MX4000, Stratagene, La Jolla, CA, USA) with 60°C annealing for 1 min. Dissociation curves ensured product uniformity. EGF-stimulation (100 ng/mL) for 2, 4, 6, 8, 12, 16, and 24 hrs revealed a COX-2 mRNA peak at 4 hrs.
Western Blotting
Cells underwent lysis in MAPK lysis buffer (Zhang et al., 2006) with protease and phosphatase inhibitor cocktails (Pierce Biotechnology, Rockford, IL, USA). From 10 to 30 μg protein (BioRad, Munich, Germany) were separated by SDS-PAGE, electroblotted onto nitrocellulose membranes (BioRad), and probed with antibodies (Cayman) to COX-1 (mAb, 1 μg/mL), COX-2 (rabbit, 0.27 μg/mL), cPGES (rabbit, 0.5 μg/mL), mPGES-1 (rabbit, 1 μg/mL), and mPGES-2 (rabbit, 0.5 μg/mL), then visualized with alkali phosphatase-conjugated anti-rabbit IgG (1:10,000) (Sigma) or mouse IgG (1:10,000) (Dako), with ECF substrate (GE Healthcare, Uppsala, Sweden) in a scanner (Storm), and analyzed by ImageQuantTL (both GE Healthcare). Re-probing with anti-GAPDH (0.05 μg/mL, Abcam, Cambridge, UK) was used as loading and transfer control.
Six-, 12-, 24-, 48-, and 72-hour EGF-stimulated samples (100 ng/mL) showed a peak in COX-2 protein expression at 12 hrs.
PGE2 ELISA
Cell culture supernatant was used undiluted in a PGE2 immunoassay (R&D systems, Abingdon, UK), read in a Victor2 (EG&G Wallac, Perkin-Elmer, Wellesley, MA, USA), and analyzed by WorkOut 2.0 (DazDaq Limited, Brighton, UK).
RESULTS
COX Isoform Expression in OSCC Cell Lines

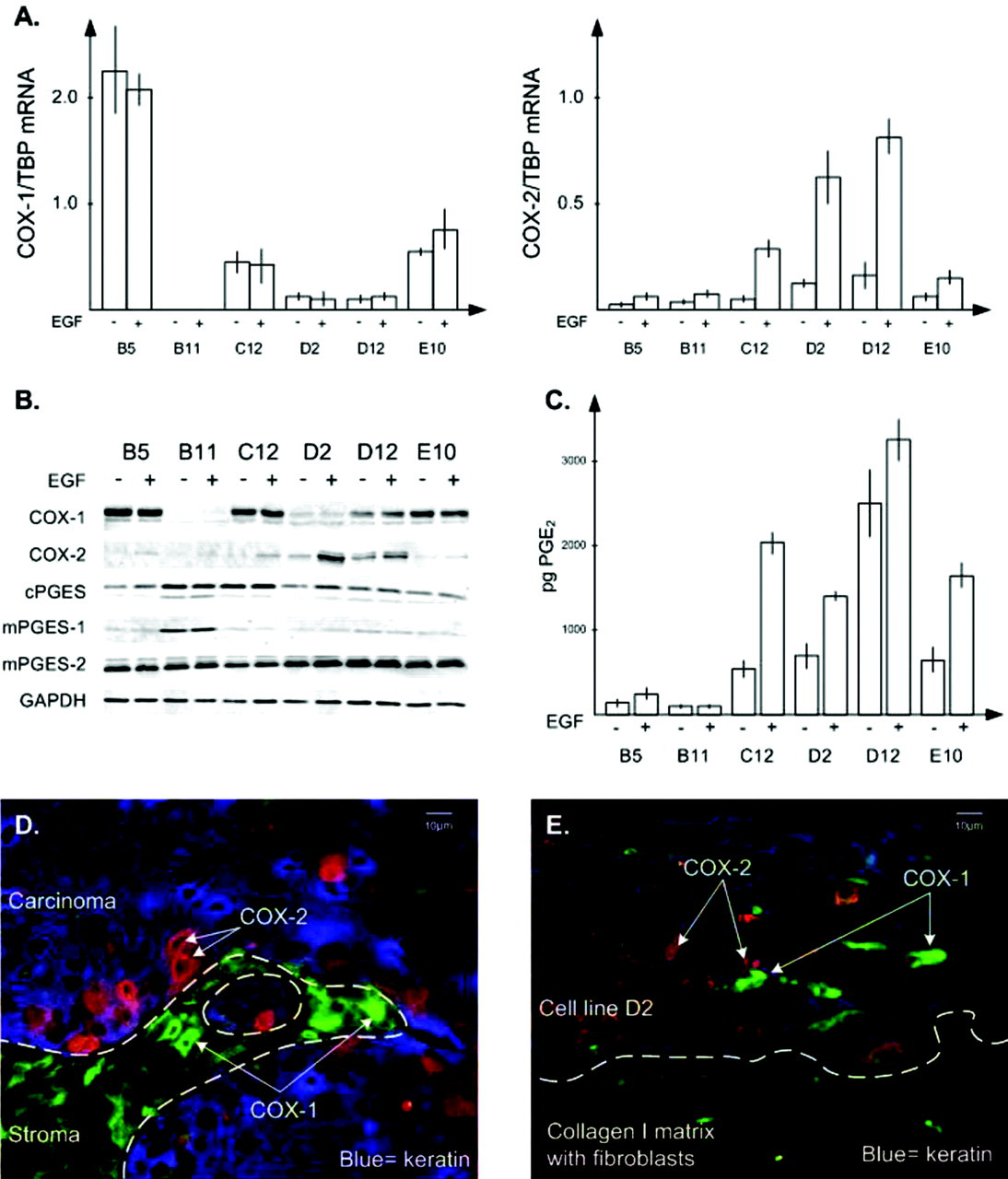

All unstimulated OSCC cell lines expressed variable COX-1 and COX-2 mRNA levels (Fig. 2A). Although COX-1 and COX-2 protein was detected in all cell lines, only one had high expression of both isoforms (Fig. 2B). Thus, the protein expression pattern divided the cell lines into 3 groups: either low (B11, D2) or high expression of both COX isoforms (D12), and high for COX-1 (B5, C12, E10) only.
EGF stimulation induced COX-2 mRNA and protein expression in all cell lines, particularly in C12, D2, and D12, whereas the EGF-induced COX-2 protein increase in B5, B11, and E10 was visible only after image analysis. In contrast, COX-1 mRNA and protein expression was unaffected by EGF stimulation. The intron 1 retained COX-1 splice variant (Chandrasekharan et al., 2002) detected in human tissues (Qin et al., 2005) was expressed only at low levels in all cell lines (not shown).
Prostaglandin E2 Synthase Isoform Expression
Cytosolic (c)PGES mRNA was the dominant isoform in all 6 cell lines, but its expression levels varied up to ten-fold (not shown). All cell lines expressed high cPGES and mPGES-2 protein levels, while only one cell line had high mPGES-1 protein expression (Fig. 2B). EGF stimulation did not influence PGES isoform expression, analyzed by pixel intensity.
EGF-induced PGE2 Production
All cell lines except B11 increased PGE2 production after EGF stimulation (Fig. 2C).
Immunohistofluorescence Expression of COX-1 and -2 in Oral Carcinomas
We used cryosections from 3 available OSCCs to illustrate in situ COX isoform expression. All carcinomas expressed medium to high COX-2 positivity at the periphery of the cancer (Fig. 2D). Although most of the tumor cells did not express COX-1, some scattered COX-2-expressing tumor cells expressed weak COX-1 (not shown).
COX-1 and -2 Protein Expression in OSCC Organotypic Models
Immunohistofluorescence staining for COX-1 and COX-2 in the 3D model revealed differences in COX expression patterns. The objective of this staining was to investigate expression patterns in cell lines grown in an in vivo-like manner, and possibly to illustrate whether the differences in expression patterns were due to variable cellular expression patterns, similar to what was observed in carcinoma samples. Not all cells within one cell line had the same COX-isoform expression pattern (Fig. 2E), and COX-1 and COX-2 were rarely co-expressed in the same cells. Intra-epithelial COX-1-positive cells often expressed vimentin as well, suggesting fibroblast origin (not shown).
PGE2 Production was Reduced by COX-2 Inhibitors
To investigate which COX isoform was responsible for PGE2 production, we treated 4 cell lines (B5, C12, D2, and D12), representing the 3 different basal COX-isoform protein expression patterns (B5 and C12, COX-1 high; D2, both isoforms low; D12, both isoforms high), with various COX-1 and/or COX-2 inhibitors.

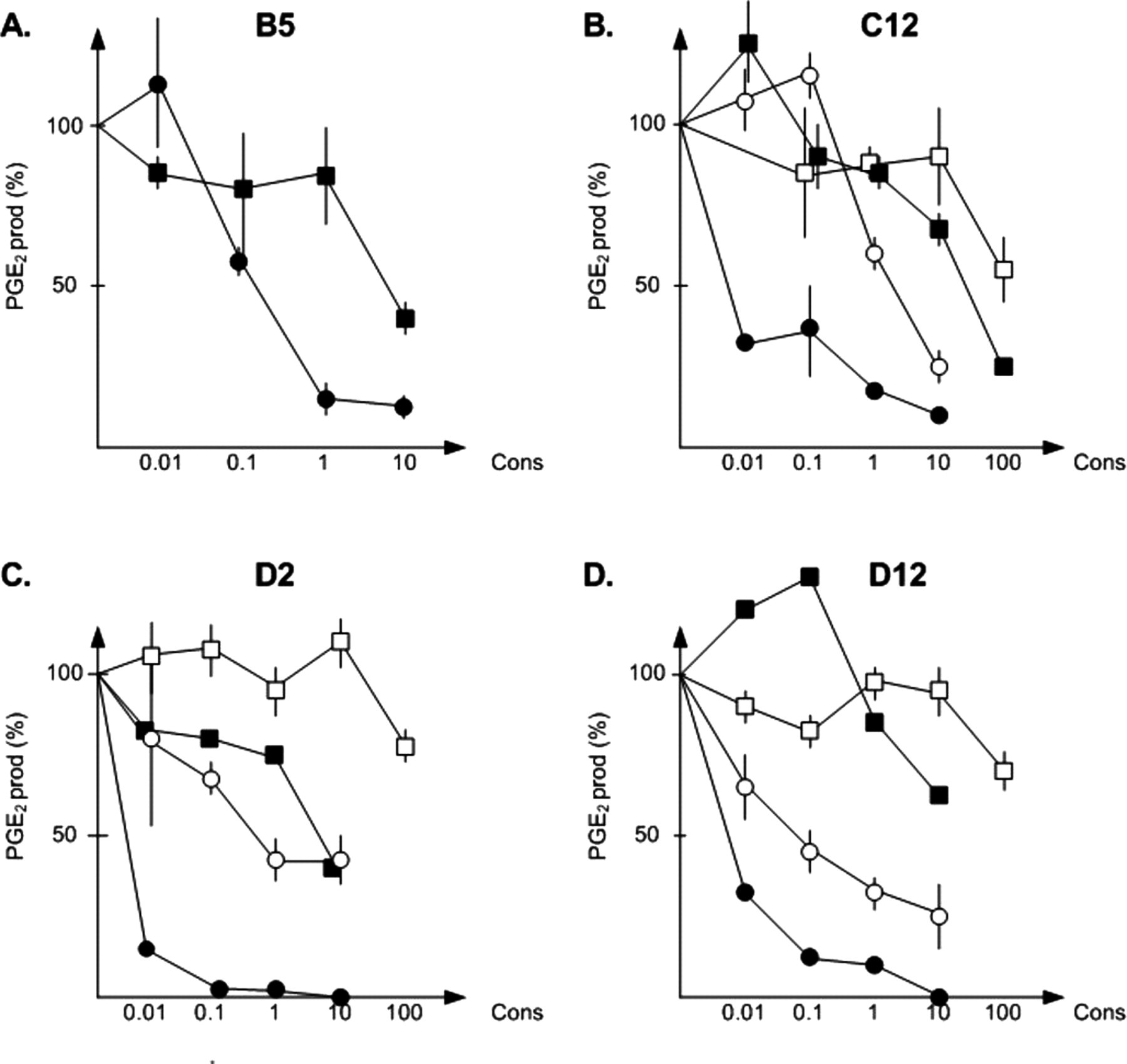

The COX-2 selective inhibitor (NS-398) reduced PGE2 production in both unstimulated and EGF-stimulated cell lines with high COX-2 expression, while the COX-1 inhibitor (SC-560) had an effect only at the highest concentration (Figs. 3A–3D), except in EGF-stimulated D2, where SC-560 seemed to reduce PGE2 production weakly at all concentrations. Unstimulated B5 did not produce measurable PGE2 in this assay (Fig. 3A).
siRNA-mediated COX-2 Knockdown Reduced COX-2 Expression and PGE2 Production

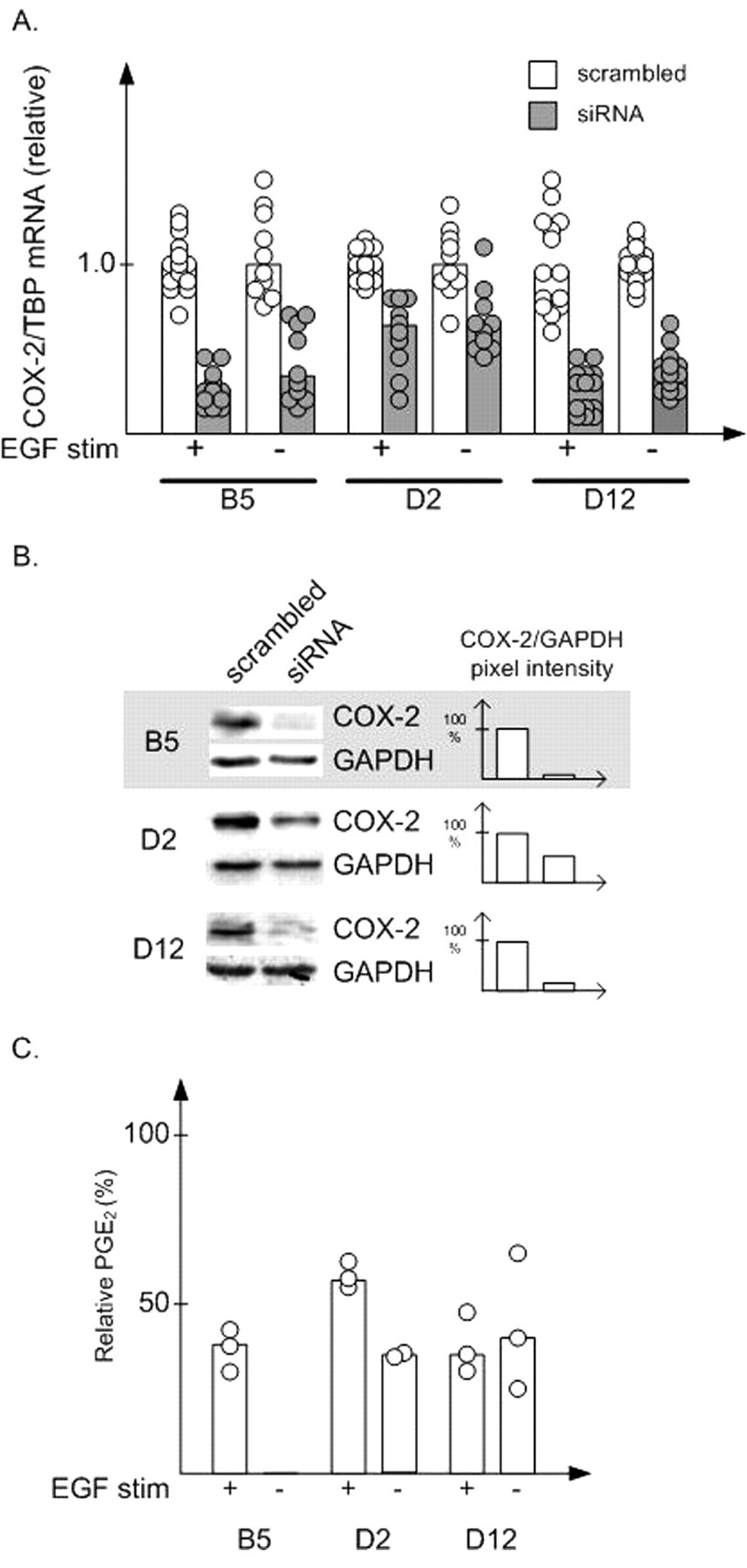

Three selected cell lines were treated with COX-2-specific siRNA before and after EGF stimulation. While basal COX-2 mRNA expression levels were reduced by 59% ± 23 (± SD) (cell line B5), 33% ± 21 (D2), and 63% ± 12 (D12) relative to scrambled controls (Fig. 4A), COX-2 protein was almost undetectable (not shown). PGE2 production was reduced by 65% in D2 and 34–74% in D12 (Fig. 4C). Unstimulated B5 did not produce measurable PGE2.
COX-2-specific siRNA gene knockdown reduced EGF-induced COX-2 mRNA expression levels by 74% ± 9 (B5), 75% ± 14 (D12), or 41% ± 21 (D2) relative to the scrambled controls (Fig. 4A). EGF-induced COX-2 protein expression was practically abolished in siRNA-treated B5 and reduced in the cell lines D2 (46%) and D12 (86%) relative to scrambled controls (Fig. 4B). Similarly, COX-2-specific knockdown reduced EGF-induced PGE2 production by 58–70% (B5), 37–45% (D2), and 53–71% (D12) (Fig. 4C), which paralleled the reduction in COX-2 protein expression.
DISCUSSION
Whereas COX-2 expression and increased PGE2 production have been linked to carcinogenesis in many different carcinoma types (reviewed in Zha et al., 2004), their association with OSCC has been controversial (Lim et al., 2004; Atula et al., 2006; Sakurai et al., 2007). However, if PGE2 was produced via COX-1 (Kino et al., 2005), which is over-expressed in both pre-malignant lesions and in oral carcinomas (Shibata et al., 2005), it could explain why COX-2 expression is less associated with oral carcinogenesis and prognosis. The 4 selected OSCC cell lines with different COX-isotype expression patterns revealed, however, that basal and EGF-induced PGE2 production was COX-2-dependent. Not only did the COX-2 selective inhibitor, NS-398, reduce PGE2 production in all cell lines, but also the claimed COX-1 selective production minimally, and mainly inhibitor, SC-560, reduced PGE2 at the highest concentrations. Although SC-560 inhibits the isolated COX-1 enzyme at concentrations 700 times lower than in the isolated COX-2 (Smith et al., 1998), SC-560 was recently shown to be almost non-selective in cellular systems (Brenneis et al., 2006). This COX-2 cross-inhibition may explain why SC-560 inhibited PGE2 production slightly in both the high (B5) and the low COX-1 expressing cell line (D2).
The absence of COX-1-induced PGE2 production was further supported by siRNA-mediated COX-2-specific knockdown in unstimulated and EGF-stimulated cell lines, where reduction in COX-2 mRNA levels paralleled reduced COX-2 protein expression and PGE2 production. EGF-induced COX-2 expression may explain why COX-2 has been predominantly observed at the periphery or at the rim of cancer nests (Shibata et al., 2005), where EGF may be released from extracellular matrix and/or EGF-producing fibroblasts. Interestingly, EGF-induced COX-2-mediated PGE2 production may facilitate cancer invasion activation through integrin αvβ6 (Nystrom et al., 2006), and/or increased immune survival (Baratelli et al., 2005). This may explain why the combined inhibition of COX-2 and EGFR activity prevented metastatic lung colonization in a breast cancer mouse model (Gupta et al., 2007).
Tumor cells grown in 3D organotypic cultures on a fibroblast-containing collagen I matrix may mimic the in vivo situation better than monolayer cultures, since such cultures allow for fibroblast-epithelial interactions (Costea et al., 2003), which are essential for the differentiation, polarization, and growth of adjacent adherent cells (reviewed in Ingber, 2002). Multicolor immunohistofluorescence staining of such 3D cultures revealed variability in both the intensity and proportion of COX-positive carcinoma cells. The organotypic models also revealed interestingly low COX-1 expression in comparison with the Western blots from monolayer cultures, perhaps due to differences in culture conditions and/or interaction with COX-1-expressing fibroblasts, similar to the strong COX-1-expressing subepithelial fibroblasts observed in the solid OSCC. In fact, most of the COX-1-positive cells in the 3D model expressed the mesoderm-specific protein vimentin, as do fibroblasts. Although matrix fibroblasts may have migrated into the OSCC cells, we cannot exclude the possibility of epithelial-mesenchymal transition (EMT) (Guarino et al., 2007).
PGE2 is produced by 3 PGES isoforms, of which cPGES is functionally coupled to COX-1 (Tanioka et al., 2000), mPGES-1 to COX-2 (Murakami et al., 2000), and mPGES-2 to both COX isoforms (Murakami et al., 2003). Although the COX-1 high- and COX-2 low-expressing cell lines expressed high levels of the COX-1-associated PGES’s, they produced PGE2 through COX-2.
In summary, both basal and EGF-induced PGE2 production in the OSCC cell lines was COX-2-dependent. The inconsistency between COX-2 expression level and oral cancer malignancy in OSCC is therefore presumably not due to additional COX-1-induced PGE2 production.
The cyclooxygenases (COXs) catalyze the rate-limiting step in prostaglandin production from arachidonic acid. The COX-2 isoform is induced by different stimulations such as epidermal growth factor receptor (EGFR) activation, through downstream signaling cascades. The COX product prostaglandin H2 (PGH2) is further processed to prostaglandin E2 (PGE2) by 3 known prostaglandin synthase isoforms: cytosolic PGE2 synthase (cPGES), microsomal PGE2 synthase-1 (mPGES-1), and microsomal PGE2 synthase-2 (mPGES-2). Secreted PGE2 may transactivate EGFR, lowering threshold or intensifying receptor activity, potentially facilitating a signaling loop. COX-isoform expression and PGE2 production. Unstimulated and EGF-induced PGE2 production after COX-isoform-specific inhibitions. We selected 4 OSCC cell lines, representing the different COX-isoform-expressing patterns, to identify the COX isoform responsible for PGE2 production. ▪□ represent COX-1 inhibitor (SC-560), •○ represent COX-2 inhibitor (NS-398), and open □○ symbols represent un-stimulated cells, while filled ▪• symbols represent EGF-stimulated cells. Both basal and EGF-induced PGE2 production was reduced after COX-2-selective inhibition, whereas only the highest concentration of the COX-1 inhibitor reduced PGE2 production. COX-1 inhibitor concentrations are in nM, whereas the COX-2 inhibitor is in μM. The Fig. illustrates median values ± SD from 1 experiment with 3 parallels in duplicate. The EGF-stimulated D2 and D12 are represented by 1 experiment in duplicate. Unit scale is percentage of PGE2 produced after COX-selective inhibition, with uninhibited controls as 100%. COX-2 expression and PGE2 production after COX-2-specific siRNA-mediated gene knockdown.



Footnotes
Acknowledgements
The authors acknowledge Andreas Karatsaidis and Daniela Elena Costea for help with organotypic cultures, Tine M. Søland for discussion, and Solveig Stig and Hanne Weidemann for technical assistance. Studies were supported with grants from the University of Oslo and the Norwegian Cancer Society. A preliminary report was presented at the 5th European Workshop on Basic Biology of Head and Neck Cancer, Poznan, Poland, 2006.
