Kinetic Parameters of Lactate Dehydrogenase in Liver and Gastrocnemius Determined by Three Quantitative Histochemical Methods

Abstract

We determined the Michaelis constant (K _m) and maximal velocity (V _max) of lactate dehydrogenase (LDH) in periportal hepatocytes and skeletal muscle fibers by three different histochemical assay methods. Unfixed sections of mouse liver and gastrocnemius were incubated at 37C either on substrate (l-lactate)-containing agarose gel films or in aqueous assay media with and without 18% polyvinyl alcohol (PVA) as a tissue protectant. The absorbances of the formazan final reaction products were continuously measured at 584 nm in the cytoplasm of individual cells as a function of incubation time, using an image analysis system. The kinetic parameters of purified rabbit skeletal muscle LDH incorporated into polyacrylamide gel sections were similarly determined. The intrinsic initial velocities (v _i) of LDH, corrected for “nothing dehydrogenase,” were determined as described in the previous article. The K _m and V _max were calculated from Hanes plots of s/vi on l-lactate concentration (s). The K _m values obtained with three assay methods were similar and in the range of 21.1–21.9 mM for pure LDH, 8.62–13.5 mM for LDH in mouse periportal hepatocytes, and 13.3–17.9 mM for LDH in mouse skeletal muscle fibers. The V _max values determined on agarose gel substrate films and in aqueous assay media without PVA were in good agreeement but were 53–65% lower when 18% PVA was included in the medium. These results indicate that catalytic center activity k _cat of LDH is retarded by the high viscosity of PVA media because PVA hardly inhibited the enzyme. The K _m values of LDH determined histochemically in skeletal muscle fibers and periportal hepatocytes were respectively three to five times and two to three times higher than those determined biochemically. These differences may be due to interactions of LDH with intracellular components.

Keywords

lactate dehydrogenase enzyme kinetics quantitative histochemistry image analysis skeletal muscle liver michaelis constants maximal reaction velocities

IN THE PREVIOUS article, we reported that incubation media containing 18% polyvinyl alcohol (PVA) were more effective than agarose gel media for preventing loss of a so-called soluble cytoplasmic enzyme, lactate dehydrogenase (LDH, EC 1.1.1.27), from unfixed sections of liver (Nakae and Stoward 1997). In contrast, both media retained more LDH, and to the same extent, in sections of skeletal muscle and sections of polyacrylamide gel into which pure enzyme had been incorporated. We suggested that the lower loss of LDH from skeletal muscle sections was due to binding of the enzyme to intracellular components such as the actin–tropomyosin–troponin complex (see, e.g., Clarke et al. 1985; Poglazov and Livanova 1986; Yasykova et al. 1990).

Furthermore, the Michaelis constants (K _m) of enzymes determined histochemically with assay media containing high concentrations of PVA are up to 10 times higher than those determined biochemically (Butcher 1970; Robertson et al. 1982; Sinowatz et al. 1983; Van Noorden and Butcher 1986; Van Noorden and Jonges 1987; Jonges and Van Noorden 1989; Lawrence et al. 1990; Frederiks et al. 1994). However, it is difficult to conclude that this discrepancy is due entirely to interactions of enzymes with intracellular components, for at least two reasons. First, addition of 18% PVA to aqueous assay media reduces the activities (initial velocities) of LDH in tissue cells and polyacrylamide gel sections by more than half (Nakae and Stoward 1997). Second, no evidence has been published to confirm the validity of K _m values determined in situ with PVA-containing media. Previously, we found that the K _m values of LDH determined in various types of cell with the agarose gel film method are on the same order of magnitude as those determined biochemically (Nakae and Stoward 1993b, 1994b).

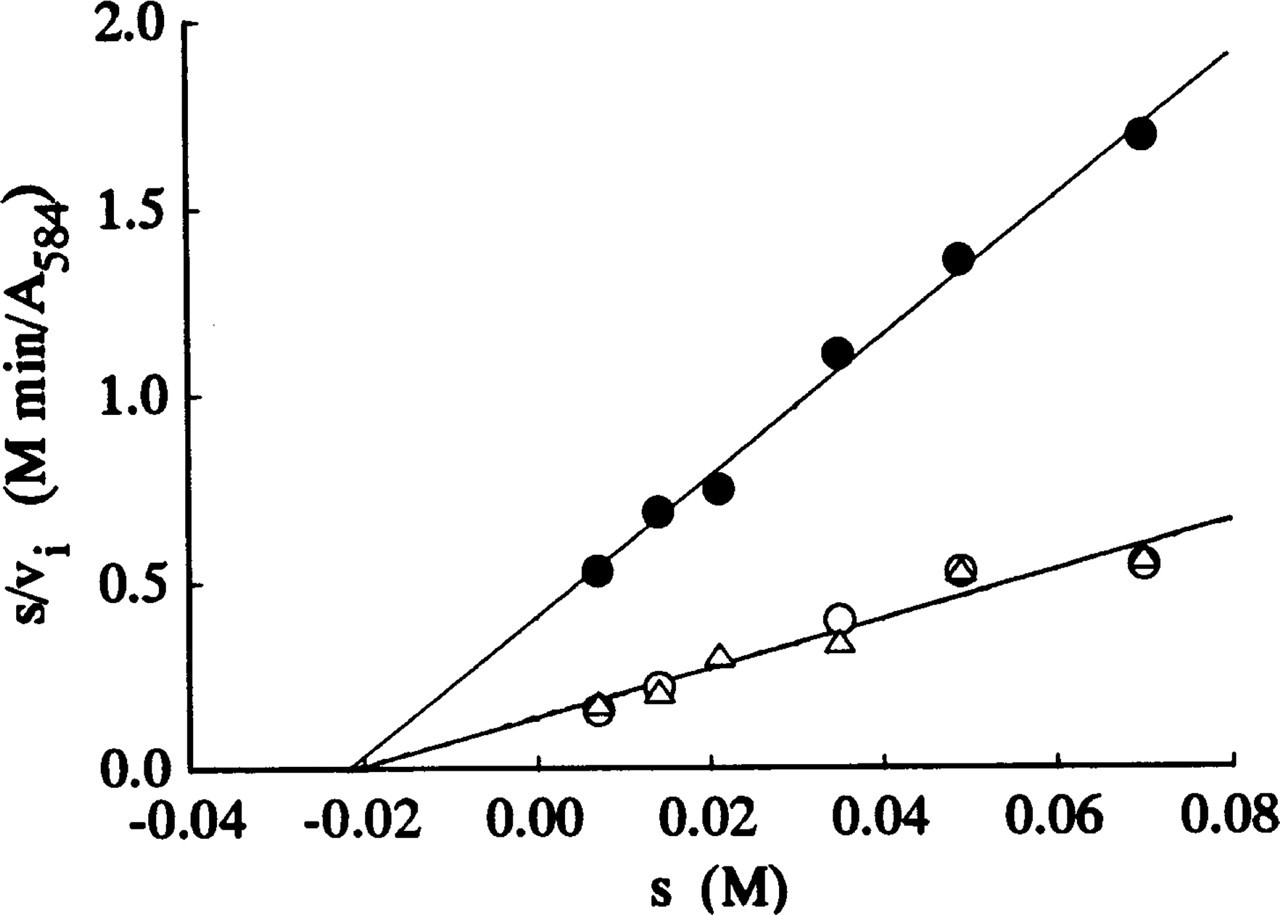

Figure 1

Hanes plots of mean s/v _i on l-lactate concentration (s) for 0.855% pure LDH isolated from rabbit skeletal muscle and incorporated into polyacrylamide gel sections 7 μ thick. The sections were incubated either on agarose gel films (•) or in aqueous assay media in the presence (•) or absence of 18% (w/v) PVA (Δ) at pH 7.5, 37C. The regression best-fits are s/v _i = 6.61 s + 0.139 (r = 0.963, 0.005 p>0.01, n = 5) for the agarose gel films (—–), s/v _i = 18.7 s + 0.409 (r = 0.996, p>0.001, n = 6) for the PVA media (—–), and s/v _i = 6.55 s + 0.141 (r = 0.967, 0.001 p >0.005, n = 6) for the aqueous assay media. The line for aqueous assay media almost coincides with the line for agarose gel films. Each experimental point is the mean of two to five sections.

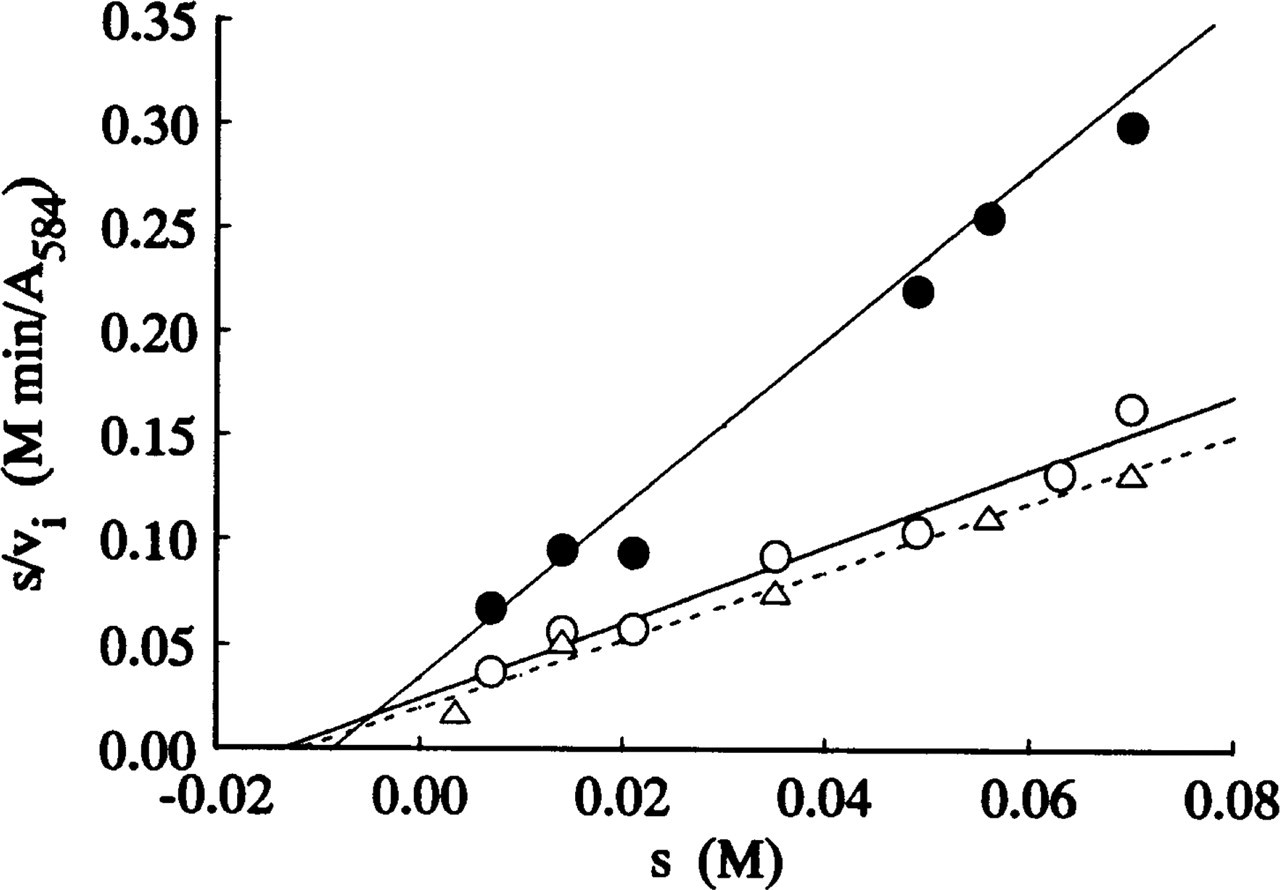

Figure 2

Hanes plots of mean s/v _i on l-lactate concentration (s) for periportal hepatocytes in 4-μ-thick sections of unfixed mouse liver. Symbols and incubation conditions are as in Figure 1. The regression best-fits are s/v _i = 1.81 s + 0.0244 (r = 0.985, p>0.001, n = 7) for agarose gel films (—–), s/v _i = 4.03 s + 0.0345 (r = 0.994, p>0.001, n = 6) for PVA media (—–), and s/v _i = 1.63 s + 0.0194 (r = 0.990, p = 0.001, n = 5) for aqueous assay media (—). Each experimental point is the mean of two to 28 sections.

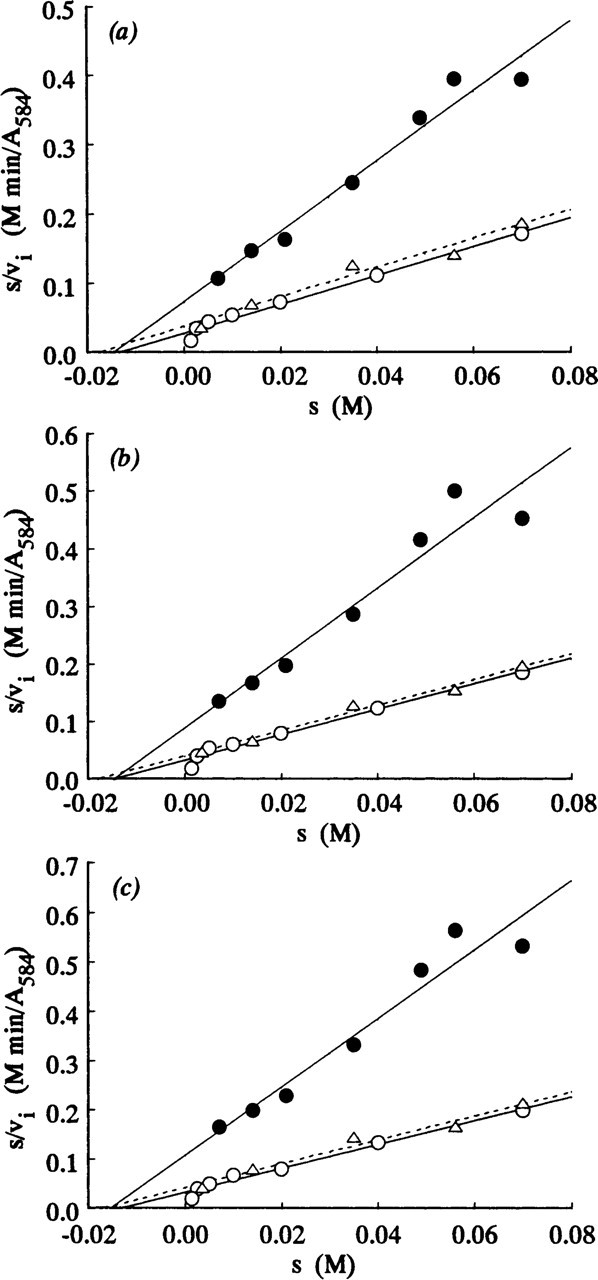

Figure 3

Hanes plots of mean s/v _i on l-lactate concentration (s) for small fibers (a), intermediate fibers (b), and large fibers (c) in 4-μ-thick sections of unfixed mouse gastrocnemius. Symbols and incubation conditions are as in Figures 1 and 1. The regression best-fits are (a) s/v _i = 2.09 s + 0.0280 (r = 0.992, p>0.001, n = 7) for agarose gel films, s/v _i = 5.07 s + 0.0732 (r = 0.982, p>0.001, n = 7) for PVA media, and s/v _i = 2.12 s + 0.0374 (r = 0.982, 0.001 p >0.005, n = 5) for aqueous assay media; (b) s/v _i = 2.22 s + 0.0327 (r = 0.988, p>0.001, n = 7) for agarose gel films, s/v _i = 6.07 s + 0.0894 (r = 0.960, p>0.001, n = 7) for PVA media, and s/v _i = 2.23 s + 0.0399 (r = 0.993, p>0.001, n = 5) for aqueous assay media; (c) s/v _i = 2.42 s + 0.0323 (r = 0.990, p>0.001, n = 7) for agarose gel films, s/v _i = 6.96 s + 0.107 (r = 0.968, p>0.001, n = 7) for PVA media, and s/v _i = 2.43 s + 0.0422 (r = 0.987, 0.001 p >0.005, n = 5) for aqueous assay media. Each experimental point is the mean of two to 14 sections.

The purpose of the work reported here was to find out whether measurements of the kinetic parameters of “soluble” enzymes in situ, such as LDH, in different cell types was significantly affected by the presence of tissue protectants in assay media. The kinetic parameters of pure LDH incorporated into polyacrylamide gel sections and of LDH in periportal hepatocytes and skeletal muscle fibers in sections of mouse unfixed tissues determined with PVA-containing media were compared with those obtained using PVA-free media and agarose gel media.

Materials and Methods

The tissues and experimental procedures described in the previous article (Nakae and Stoward 1997) were used.

Kinetic Analyses

The initial velocities (v _i) of the linear LDH and “nothing dehydrogenase” reactions observed for purified LDH incorporated into polyacrylamide gel sections incubated on substrate gel films and in PVA media were determined from the gradients of the linear regression lines of absorbance on time for incubation times between 0 and 3 min (Nakae and Stoward 1997).

The v _i of the nonlinear LDH and “nothing dehydrogenase” reactions for purified LDH in model polyacrylamide sections incubated in aqueous media and for LDH in periportal hepatocytes and skeletal muscle fibers in unfixed sections incubated with three assay media were calculated as described previously (Nakae and Stoward 1993a, b, 1994a, b, 1997) from the equation

v_{i} - v = a^{°} A

where v and °A are, respectively, the gradient (steady-state velocity) and intercept on the absorbance axis of the linear regression line of absorbance on time for incubation times between 1 and 3 min. The parameter a is a “diffusion” constant characteristic for LDH in each cell type in tissue sections and pure LDH in the model gel sections (see Table 1 and also Nakae and Stoward, 1997, for details). The v _i of the intrinsic LDH reaction was obtained by subtracting the v _i of the “nothing dehydrogenase” reaction from that of the uncorrected LDH reaction.

The Michaelis constant (K _m) and the maximal velocity (V _max) for the intrinsic LDH reactions in each cell type and in polyacrylamide gel sections were determined from Hanes plots of s/v _i against s, where s is the substrate concentration. The V _max was expressed as μoles pyruvate formed/cm³ cytoplasm or gel/min, assuming a molar extinction coefficient of 16,000 for Nitro BT formazans (Butcher 1978).

Results

Figures 1–3 show Hanes plots of s/v _i on s for pure LDH isolated from rabbit skeletal muscle and for LDH in periportal hepatocytes and skeletal muscle fibers in the sections incubated with three assay media. The regression line best-fits for the LDH in the model and tissue sections incubated on the substrate gel films and in the aqueous media were similar, but differed from those for sections incubated in PVA media. The intercepts on the abscissae and the reciprocals of the gradients of the regression best-fits correspond to -K _m and V _max, respectively. The K _m and V _max values obtained are shown in Table 1.

Discussion

The K _m values obtained in this investigation (21.1–21.9 mM; Table 1) for pure LDH in model polyacrylamide gel sections incubated on lactate-containing gel films and in aqueous assay media in the presence and absence of 18% PVA are remarkably similar. The coincidence indicates that agarose gel and 18% PVA do not affect the Michaelis constant. The K _m values obtained in our study are only slightly lower than the K _m of 23.0 mM determined biochemically for LDH-M₄ (muscle type) isolated from rabbit skeletal muscle (Stambaugh and Post 1966).

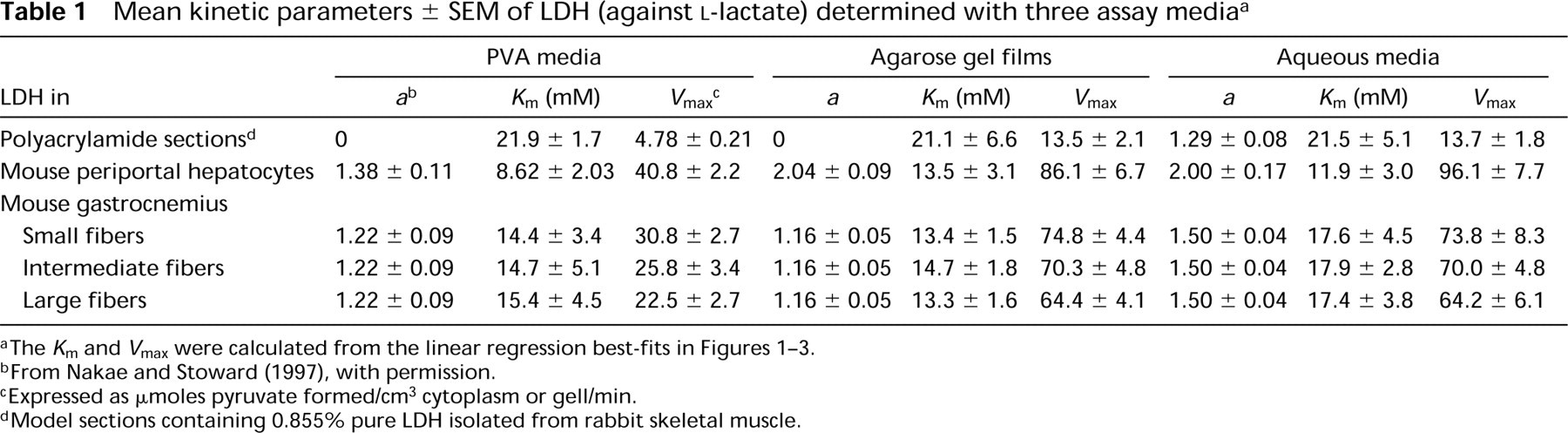

Table 1

kinetic parameters ± SEM of LDH (against L-lactate) determined with three assay media a

	PVA media			Agarose gel films			Aqueous media
LDH in	a b	K _m (mM)	V _max c	a	K _m (mM)	V _max	a	K _m (mM)	V _max
Polyacrylamide sections d	0	21.9 ± 1.7	4.78 ± 0.21	0	21.1 ± 6.6	13.5 ± 2.1	1.29 ± 0.08	21.5 ± 5.1	13.7 ± 1.8
Mouse periportal hepatocytes	1.38 ± 0.11	8.62 ± 2.03	40.8 ± 2.2	2.04 ± 0.09	13.5 ± 3.1	86.1 ± 6.7	2.00 ± 0.17	11.9 ± 3.0	96.1 ± 7.7
Mouse gastrocnemius
Small fibers	1.22 ± 0.09	14.4 ± 3.4	30.8 ± 2.7	1.16 ± 0.05	13.4 ± 1.5	74.8 ± 4.4	1.50 ± 0.04	17.6 ± 4.5	73.8 ± 8.3
Intermediate fibers	1.22 ± 0.09	14.7 ± 5.1	25.8 ± 3.4	1.16 ± 0.05	14.7 ± 1.8	70.3 ± 4.8	1.50 ± 0.04	17.9 ± 2.8	70.0 ± 4.8
Large fibers	1.22 ± 0.09	15.4 ± 4.5	22.5 ± 2.7	1.16 ± 0.05	13.3 ± 1.6	64.4 ± 4.1	1.50 ± 0.04	17.4 ± 3.8	64.2 ± 6.1

^aThe K _m and V _max were calculated from the linear regression best-fits in Figures 1–3.

^bFrom Nakae and Stoward (1997), with permission.

^cExpressed as μoles pyruvate formed/cm³ cytoplasm or gell/min.

^dModel sections containing 0.855% pure LDH isolated from rabbit skeletal muscle.

Liver LDH consists mainly of the M₄ isozyme also (e.g., Battellino and Blanco 1970). However, the mean K _m of LDH in periportal hepatocytes determined with PVA media (8.62 mM) was lower than those determined on agarose gel films (13.5 mM) and in PVA-free aqueous media (11.9 mM), but the differences are not significant (0.2 p >0.5). The K _m value of 13.5 mM for periportal hepatocytes is in good agreement with the values of 14.3–15.6 mM reported previously (Nakae and Stoward 1993b, 1994b). These values in situ were similar to those determined in vitro for the M₄ isozyme purified from human liver (14.3–15.5 mM) (Nisselbaum and Bodansky 1963; Nisselbaum et al. 1964), but they are 1.6–2.5 times higher and 1.5–2.3 times lower, respectively, than the in vitro values for the LDH-M₄ purified from mouse liver (Battellino and Blanco 1970) and rabbit liver (Battellino et al. 1968).

Three types of skeletal muscle fibers in gastrocnemius are discriminated quantitatively by the highest, intermediate, and lowest V _max values, respectively (Table 1). There are, however, no significant differences in the K _m between the three fiber types. This confirms a previous report (Nakae and Stoward 1994b). The K _m values (17.4–17.9 mM) determined in aqueous assay media for the three fiber types were slightly higher than those determined on agarose gel films (13.3–14.7 mM) and in PVA media (14.4–15.4 mM), but the differences are not significant (0.5 p>0.2 and p>0.5, respectively). The K _m values of 13.3–14.7 mM for skeletal muscle fibers determined by the agarose gel film method are similar to the values (10.4–12.5 mM) determined previously (Nakae and Stoward 1994b). As shown in Table 1, these K _m values are closer to those for LDH in periportal hepatocytes of the same animal (8.62–13.5 mM) rather than to those for pure LDH isolated from rabbit skeletal muscle (21.1–21.9 mM). Our K _m values determined for LDH in situ in skeletal muscle fibers (13.3–17.9 mM) are similar to the K _m value determined in vitro for the M₄ isozyme purified from bovine skeletal muscle (12.5 mM; Pesce et al. 1964). They are, respectively, 2.7–3.6 times and 3.4–4.6 times higher than the in vitro K _m values for the LDH-M₄ isolated from pig (Bennett and Gutfreund 1973) and mouse (Hawtrey et al. 1975) muscles, and 1.3–1.7 times lower than the in vitro K _m value for the M₄ isozyme isolated from rabbit muscle (Stambaugh and Post 1966). Wachsmuth (1980) found that the K _m values of LDH in two types of human skeletal muscle fibers, determined with the mixed-aggregation immunocytochemical technique, were 20 and 30 mM for muscle fibers stained respectively for the LDH-M₄ and LDH-H₄ (heart type), whereas in solution they were 5 and 1 mM.

The intrinsic maximal velocities (V _max) of pure LDH and LDH in periportal hepatocytes and skeletal muscle fibers determined on substrate-containing agarose gel films or with aqueous assay media were similar, but were reduced to 35–47% by addition of 18% PVA to the aqueous media (Table 1). The reduction in the V _max may be due to the catalytic center activity k _cat being retarded by the high viscosity of the PVA media because PVA does not inhibit the LDH reaction itself, as shown by the nonsignificant differences between the K _m values determined by the three assay methods (Table 1).

There are a number of reports in the literature that the affinity of LDH for its substrates or co-enzymes is perturbed by interactions of the enzyme with intracellular components. Nitisewojo and Hultin (1976), for example, reported that the K _m value of LDH-M₄ isozyme against pyruvate is doubled when the isozyme binds to a particulate fraction obtained from a homogenate of skeletal muscle. Poglazov and Livanova (1986) found that the K _m of purified LDH against NADH is 2.5 times higher when associated with F-actin. Moreover, cytochemical and immunohistochemical studies have shown that muscle LDH is predominantly localized in the isotropic zones of myofibrils (e.g., Dölken et al. 1975, and references cited therein). Therefore, the discrepancies observed in the present study between the in situ and in vitro K _m values of LDH of mouse liver and skeletal muscle may be attributed to the interaction of the enzyme with intracellular structures or with macromolecules such as F-actin, tropomyosin, and troponin (see, e.g., Clarke et al. 1985; Poglazov and Livanova 1986; Yasykova et al. 1990), microtubules, and tubulin (Karkhoff–Schweizer and Knull 1987; Walsh et al. 1989; Marmillot et al. 1994). This interpretation is currently being tested experimentally.

References

Battellino

Blanco

(1970) Catalytic properties of the lactate dehydrogenase isozyme “X” from mouse testis. J Exp Zool 174: 173–186

Battellino

Jaime

Blanco

(1968) Kinetic properties of rabbit testicular lactate dehydrogenase isozyme. J Biol Chem 243: 5185–5192

Bennett

Gutfreund

(1973) The kinetics of the interconversion of intermediates of the reaction of pig muscle lactate dehydrogenase with oxidized nicotinamide-adenine dinucleotide and lactate. Biochem J 135:81–85

Butcher

(1970) Studies on succinate oxidation. I. The use of intact tissue sections. Exp Cell Res 60:54–60

Butcher

(1978) The measurement in tissue sections of the two formazans derived from nitroblue tetrazolium in dehydrogenase reactions. Histochem J 10:739–744

Clarke

Stephan

Morton

Weidemann

(1985) Glycolytic enzyme organization via the cytoskeleton and its role in metabolic regulation. In Beitner

, ed. Regulation of Carbohydrate Metabolism. Boca Raton, FL, CRC Press, 1–31

Dölken

Leisner

Pette

(1975) Immunofluorescent localization of glycogenolytic and glycolytic enzyme proteins and of malate dehydrogenase isozymes in cross-striated skeletal muscle and heart of the rabbit. Histochemistry 43:113–121

Frederiks

Bosch

Van Den Munckhof

RJM

Van Noorden

CJF

(1994) A quantitative histochemical study of xanthine oxidase activity in rat liver using the cerium capture method in the presence of polyvinyl alcohol. J Histochem Cytochem 42:1091–1096

Hawtrey

Naidu

Nelson

Wolfe

(1975) The physiological significance of LDH-X. In Markert

, ed. Isozymes II: Physiological Function. New York, Academic Press, 171–180

10.

Jonges

Van Noorden

CJF

(1989) In situ kinetic parameters of glucose-6-phosphate dehydrogenase and phosphogluconate dehydrogenase in different areas of the rat liver acinus. Histochem J 21:585–594

11.

Karkhoff–Schweizer

Knull

(1987) Demonstration of tubulinglycolytic enzyme interactions using a novel electrophoretic approach. Biochem Biophys Res Commun 146:827–831

12.

Lawrence

Beesley

ACH

Mason

Thompson

Walker

Matthews

(1990) A comparison of histochemically and biochemically determined kinetic parameters for brain hexokinase type I. Inst Phys Conf Ser 98:667–670

13.

Marmillot

Keith

Srivastava

Knull

(1994) Effect of tubulin on the activity of the muscle isoenzyme of lactate dehydrogenase. Arch Biochem Biophys 315:467–472

14.

Nakae

Stoward

(1993a) Estimating the initial reaction velocity of a soluble dehydrogenase in situ. Histochem J 25:199–205

15.

Nakae

Stoward

(1993b) Kinetic analysis of lactate dehydrogenase in situ in mouse liver determined with a quantitative histochemical technique. Histochem J 25:206–212

16.

Nakae

Stoward

(1994a) The initial reaction velocities of lactate dehydrogenase in various cell types. Histochem J 26:283–291

17.

Nakae

Stoward

(1994b) The diverse Michaelis constants and maximum velocities of lactate dehydrogenase in situ in various types of cell. Histochem J 26:292–297

18.

Nakae

Stoward

(1997) The effects of tissue protectants on the kinetics of lactate dehydrogenase within cells. J Histochem Cytochem 45:1417–1425

19.

Nisselbaum

Bodansky

(1963) Purification, kinetic, and immunochemical studies of the major variants of lactic dehydrogenase from human liver, hepatoma, and erythrocytes; comparison with the major variant of human heart lactic dehydrogenase. J Biol Chem 238:969–974

20.

Nisselbaum

Packer

Bodansky

(1964) Comparison of the actions of human brain, liver, and heart lactic dehydrogenase variants on nucleotide analogues and on substrate analogues in the absence and in the presence of oxalate and oxamate. J Biol Chem 239:2830–2834

21.

Nitisewojo

Hultin

(1976) A comparison of some kinetic properties of soluble and bound lactate dehydrogenase isoenzymes at different temperatures. Eur J Biochem 67:87–94

22.

Pesce

McKay

Stolzenbach

Cahn

Kaplan

(1964) The comparative enzymology of lactic dehydrogenases. I. Properties of the crystalline beef and chicken enzymes. J Biol Chem 239:1753–1761

23.

Poglazov

Livanova

(1986) Interaction of actin with the enzymes of carbohydrate metabolism. Adv Enzyme Regul 25:297–305

24.

Robertson

Frost

Hoyer

Weinkove

(1982) 20α-hydroxysteroid dehydrogenase activity in the rat corpus luteum; a quantitative cytochemical study. J Steroid Biochem 17:237–243

25.

Sinowatz

Scheubeck

Wrobel

K-H

Zwack

(1983) Histochemical localization and quantification of glucose-6-phosphate dehydrogenase in bovine Leydig cells. Histochem J 15: 831–844

26.

Stambaugh

Post

(1966) Substrate and product inhibition of rabbit muscle lactic dehydrogenase heart (H₄) and muscle (M₄) isozymes. J Biol Chem 241:1462–1467

27.

Van Noorden

CJF

Butcher

(1986) A quantitative histochemical study of NADPH-ferrihemoprotein reductase activity. Histochem J 18:364–370

28.

Van Noorden

CJF

Jonges

(1987) Quantification of the histochemical reaction for alkaline phosphatase activity using the indoxyl-tetranitro BT method. Histochem J 19:94–102

29.

Wachsmuth

(1980) Assessment of immunocytochemical techniques with particular reference to the mixed-aggregation immunocytochemical technique. In Evered

O'Connor

, eds. Trends in Enzyme Histochemistry and Cytochemistry: Ciba Foundation Symposium 73 (new ser.). Amsterdam, Excerpta Medica, 135–153

30.

Walsh

Keith

Knull

(1989) Glycolytic enzyme interactions with tubulin and microtubules. Biochim Biophys Acta 999:64–70

31.

Yasykova

MYu

Gusev

Muronetz

Nagradova

(1990) Interaction of lactate dehydrogenase with skeletal muscle troponin. Biochim Biophys Acta 1036:85–87
