The Market Structure of Securitisation and the US Housing Bubble

Introduction

Housing finance was at the epicentre of the global financial crisis. In the US, housing finance expansion in the run-up to the crisis was followed by an increase in credit risk, which was neither priced nor identified, and in systemic risk. This is now well known; nonetheless the source of the crisis and the appropriate public policy response are still in question. This paper focuses on the role of financial innovation and the changing market structure of securitisation in the evolution of the housing bubble. ¹ New financing vehicles contributed to growing risk, but it is argued here that the more salient factor was the change in the structure of securitisation, which led to greater concentration of risk despite an apparent disaggregation of risk with an expansion in the number and variety of firms securitising housing finance.

In the US, the prevalence of fixed-rate mortgages requires a securitisation market-funding vehicle as opposed to bank balance sheet funding (Vickery and Wright, 2013). The crisis unfolded in the US with an expansion of mortgage debt, funded by a rise in private label mortgage-backed securities, which were backed neither by the federal government nor by the originating banks. Thus, the debt increase occurred to a large degree in the ‘shadow banking system’, with US banks apparently off-loading risky mortgages in an originate-to-distribute model. ² Simultaneous crises occurred in several European countries with mortgage debt expansion funded by debt for whose performance banks were to some degree contractually responsible; thus securitisation and the originate-to-distribute model are clearly neither necessary nor sufficient for a banking crisis (Wachter, forthcoming) but they played a role in the crisis in the US. In earlier work, Levitin and Wachter (2012; 2013a; 2013b) point to information failure, the failure to detect or price heightened credit default risk, a shift in market participants, and incomplete markets in real estate, as instrumental factors in the crisis. This article examines the role that a structural shift in the securitisation market played in this information failure and the resulting debt explosion in the US.

While usually thought of as a housing price boom and bust, the crisis could equally well be characterised as a credit boom and bust (Scheinkman, 2013). The economic literature of the crisis has evaluated which run-up caused which, as noted below, but it is clear that the excessive expansion of debt put financial institutions’ and households’ balance sheets at risk. Concomitant with the house price run-up, an easing of borrowing conditions allowed an increase in borrowing for homeownership (Barakova, Calem and Wachter, 2014) and refinancing of mortgage debt which drove loan-to-value (LTV) ratios to historically high and unsustainable levels.

While, as noted above, housing booms have occurred elsewhere without securitisation, debt expansion is a common feature of house price bubbles. The need for enhanced regulatory oversight of housing finance to limit potential systemic risk has been widely discussed. ³ Debt bubbles expose the banking sector and the entire financial system to significant losses when house prices deflate and households default on their mortgages. ⁴ In addition, declines in house prices have a negative impact on household consumption, especially among those households with high LTV ratios, negatively impacting economic activity and prolonging the aftermath of the crisis (Mian and Sufi, 2014). The debt build-up is both instrumental to the price run-up and the bust.

But what is the form of the market failure that justifies regulation against the debt build-up? This question, along with the myriad pros and cons of policy reforms that have been offered, is still in contention, particularly in the US where the future of housing finance reform is in question. While it is accepted that securitisation and secondary market reforms are necessary to fund long-term mortgages and that the current reliance on a government funded secondary market is not an acceptable long-term outcome, as of this writing, securitisation market restructuring to escape the current reliance on government securitisation has stalled.

This article considers how the changing structure of securitisation markets contributed to the Great Financial Crisis in the US and examines the implications for securitisation reform. The article first documents the components of the extraordinary increase in securitisation-funded mortgage debt and then describes the changing structure of the mortgage securitisation market in the run-up to the financial crisis. A schematic representation of the market is developed to illustrate the externality implications and, in conclusion, to inform directions for future reform.

Mortgage debt and how it changed in the run-up to the crisis

Houses are the largest assets held by the US household sector and mortgages are the largest liability (Federal Reserve Board, Flow of Funds). Mortgage markets are crucial for the housing market. In the 2000s, prior to the crisis, almost 90 per cent of home purchases in the US were financed at least partially with debt. ⁵ Debt became an increasingly important factor in housing during the housing boom from 1999–2006. Figure 1 plots the historical average combined loan-to-value ratio (CLTV) at origination for mortgages used to purchase homes. The average CLTV rose from the historically typical values of 80 per cent to 90 per cent at the housing price peak. During the housing bust mortgage leverage fell along with house prices. ⁶

OPEN IN VIEWER

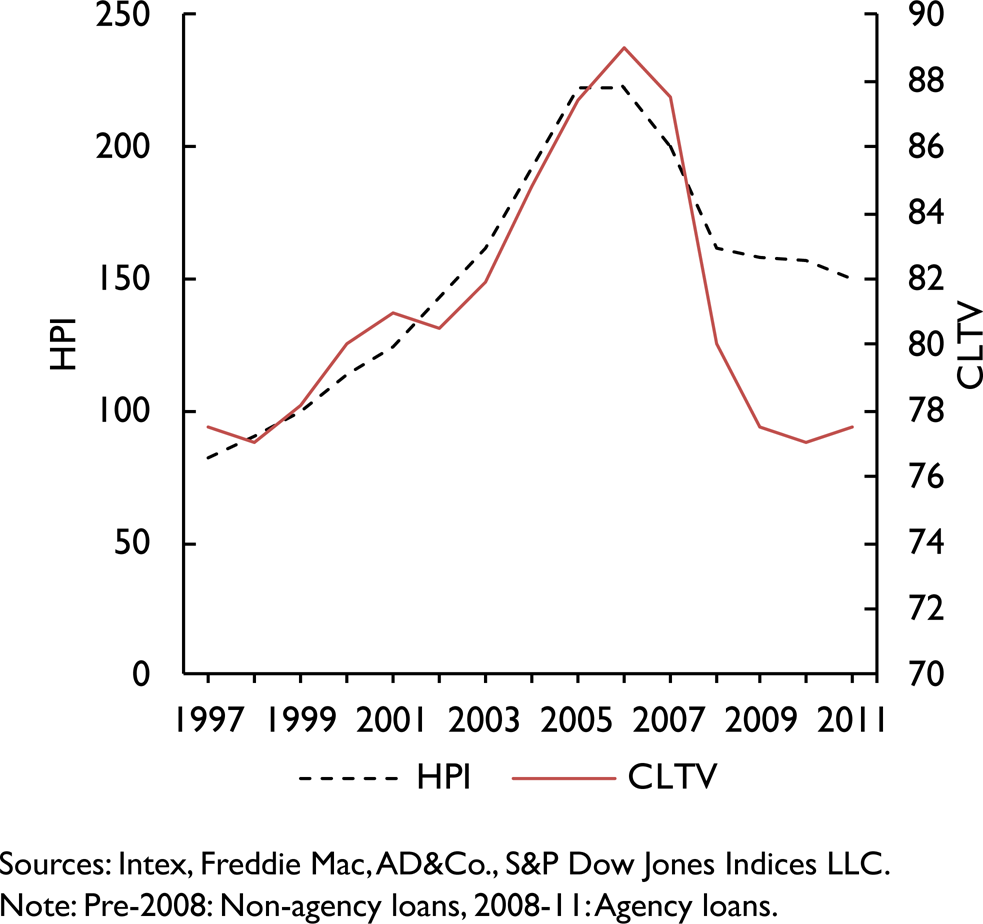

Figure 1.

Historical CLTV at origination (US average, purchase loans) and house price

Not only did mortgage leverage go up during the boom but the types of mortgage contracts changed as well (Levitin and Wachter, 2012). Prior to the boom, most mortgages were self-amortising 30-year fixed-rate mortgages (FRMs). However, during the boom, there was a substantial increase in non-traditional mortgages (NTMs), including non-amortising (or negative amortisation) balloon and interest-only (IO) mortgage products, as well as subprime loans and Alt-A products (which do not require full documentation of income). Figure 2 shows that the share of NTMs (including second mortgages) rose from 20 per cent in 2003 to a peak of approximately 50 per cent in 2006, and nearly disappeared after 2008. There was a simultaneous change in the types of products sold in the secondary market and a shift to private label securitisation.

OPEN IN VIEWER

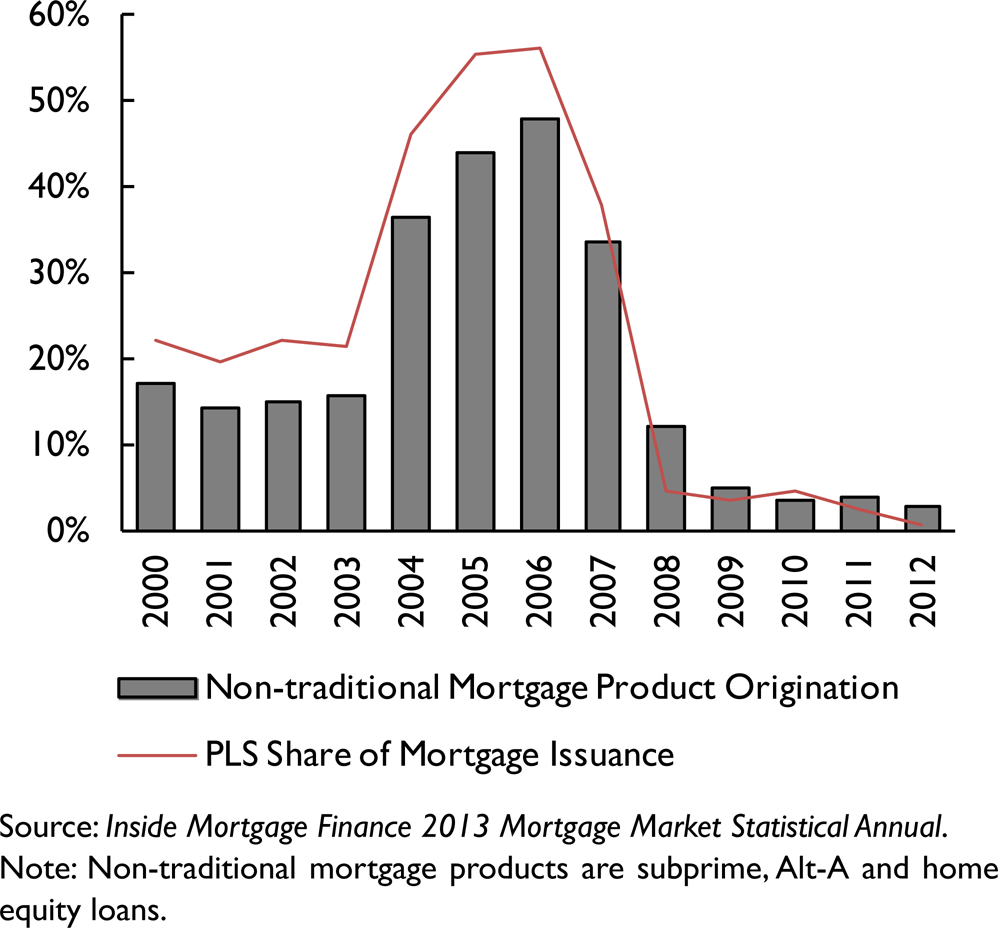

Figure 2.

Market share of non-traditional mortgage products and private label securitisation

While most conforming mortgages were securitised by the Government Sponsored Entities (GSEs), Fannie Mae and Freddie Mac, most NTMs were securitised in the private-label securitisation (PLS) market. Figures 2 and 3 (which disaggregates mortgages by type) show the share of PLS and NTM mortgage issuance peaking during 2006 and almost disappearing after 2008. While the PLS share rose during the housing boom, the GSE share (conventional conforming) shrunk before returning to levels over 60 per cent post boom. ⁷

OPEN IN VIEWER

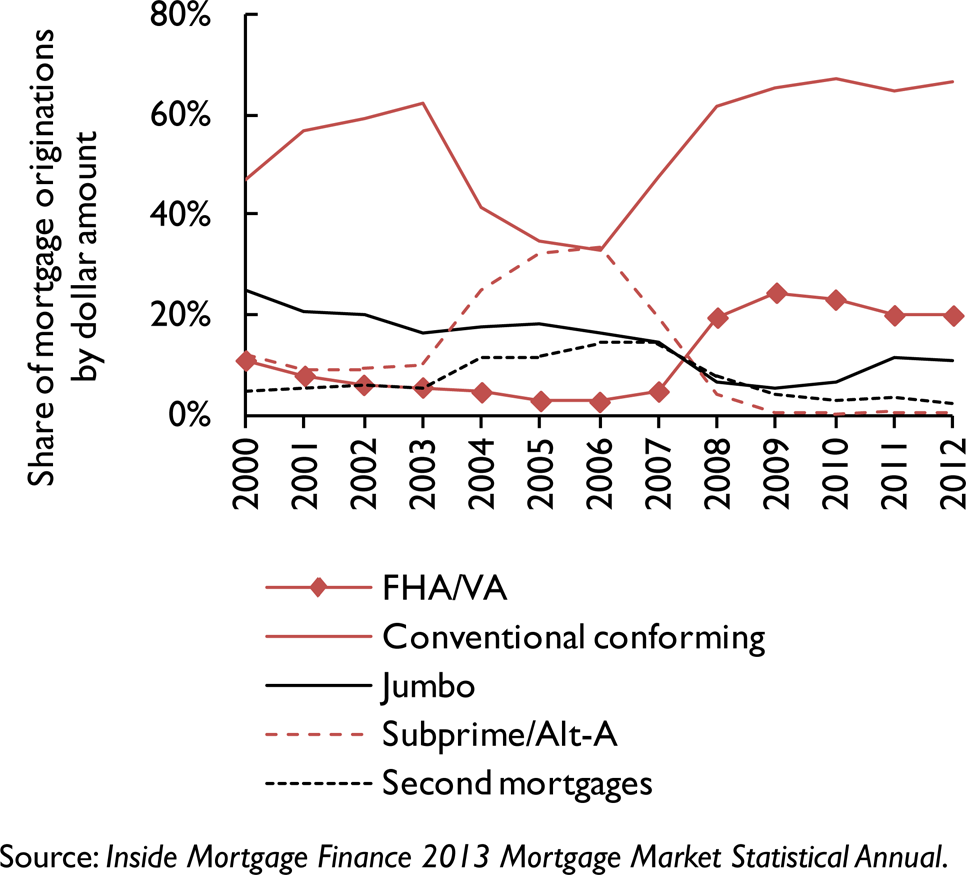

Figure 3.

Origination shares by mortgage type, 2000–2012

The mortgage debt expansion played a crucial role during the financial crisis of 2007–8 and the Great Recession because it linked the housing bust to the real economy. The bust in house prices that occurred after the peak in 2006, combined with the large amount of outstanding high leverage mortgages, led to an unprecedented rise in foreclosures. The data show that NTMs, funded by private label mortgage-backed securities, had historically high rates of default, and a far higher rate of foreclosure than other mortgage products. As shown in Figure 4, which provides data on the quarterly rate of foreclosure by market segment, subprime Adjustable Rate Mortgages (ARMs) had by far the highest foreclosure rate (almost 30 per cent annually at the peak). In addition to the shift to riskier mortgage products, there was a significant deterioration in underwriting of these loans (Anderson, Capozza, and Van Order, 2011). The proliferation of Alt-A loans, which were eventually identified as so-called ‘liar loans’, with unverified borrower income, was one striking illustration of this trend (The Financial Crisis Inquiry Commission, 2011). ⁸ The expansion of non-traditional mortgage products along with the deterioration of underwriting standards amplified the downturn. Households who had borrowed with these products faced greater risk of payment shocks, which, coupled with negative employment shocks and price declines, resulted in the extraordinary level of foreclosures. There is robust evidence that the shift in lending practices to lax underwriting and more risky products increased default risk (Anderson, Capozza and Van Order, 2011).

OPEN IN VIEWER

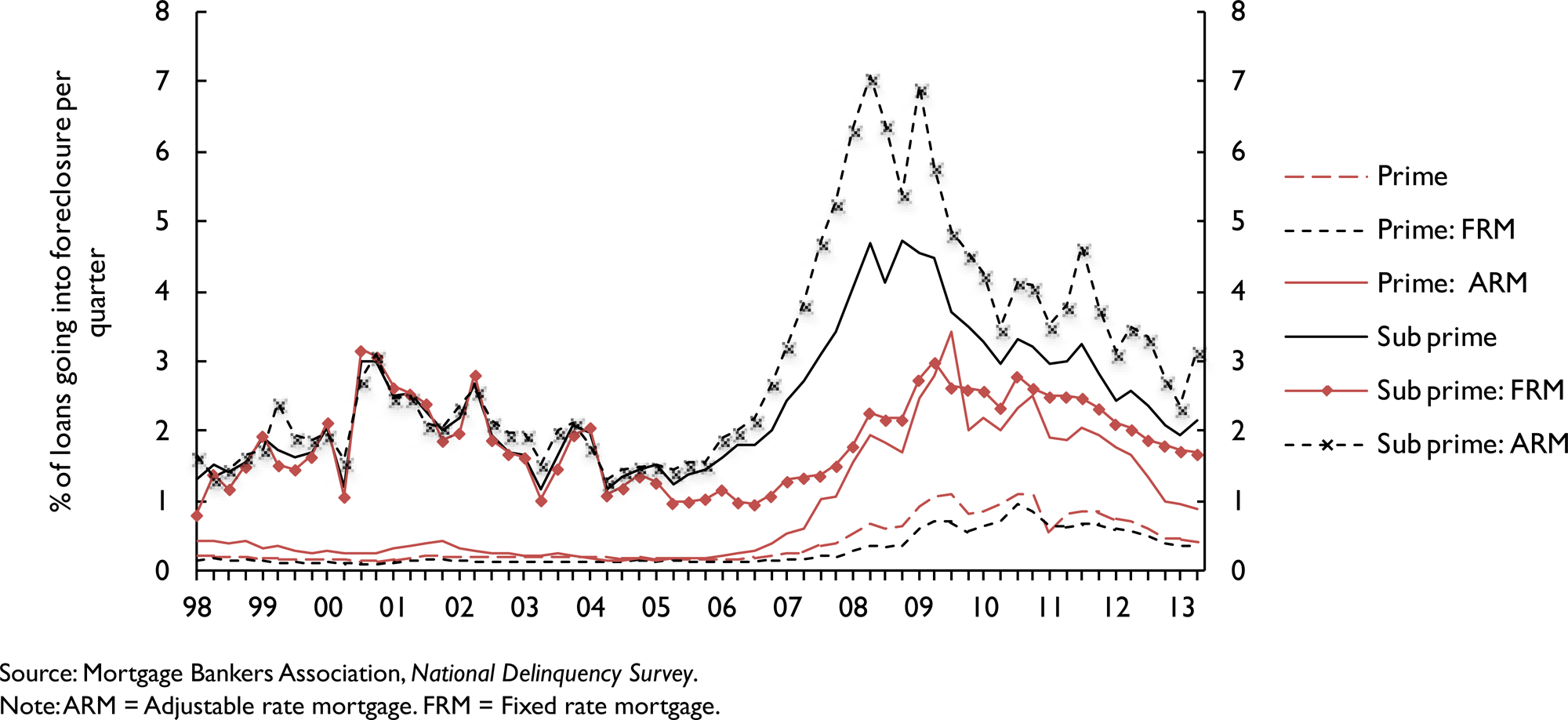

Figure 4.

Foreclosure by market segment

Banks and other financial institutions suffered losses resulting from the wave of defaults. Subprime lenders went out of business and subprime and other forms of NTM credit went essentially to zero. Borrowers’ losses drove the real economy to recession with lingering effects (Mian and Sufi, 2014). The next section describes the role of the changing market structure of securitisation in the crisis and its historical antecedents and consequences.

Mortgage securitisation structural change: antecedents and consequences

The long-term fixed-rate self-amortising mortgage, the ‘American Mortgage’ (Green and Wachter, 2005), prevails in the US. This has been so since the Great Depression. Today, mortgage-backed securities once again finance these loans through government-backed entities. ⁹ But it has not always been so. While fixed rate mortgages have prevailed since the Great Depression and secondary market institutions first evolved in this period, the financing of these mortgages has been subject to tectonic shifts, with new secondary market financing structures coming to prevail only after the failure of the previous system (Levitin and Wachter, 2013c). Once again the structure of the secondary market is in question.

The structure of the institutions that shape the modern US housing finance system emerged in the aftermath of the Great Depression. Prior to this, the US mortgage market was dominated by adjustable-rate, short maturity loans with balloon payments. With the onset of the depression, as house prices declined, refinancing stopped, forcing borrowers who could not make the balloon payments to default, resulting in fire sales. In response to the failure of the mortgage market, the Federal Housing Administration (FHA) was established to insure and Fannie Mae was created to purchase, long-term self-amortising fixed rate FHA-insured mortgages, establishing these as the standard (Green and Wachter, 2005). ¹⁰

While FHA and broadly similar conventional loans predominated until the late 1960s, Fannie Mae accounted for only 10 per cent of the funding market. Deposit-taking institutions, commercial banks and savings and loans (S&Ls) represented the bulk of the market, funding long-term mortgages on their balance sheets with short-term deposits. Between the mid-1960s and the 1980s, worsening inflation led to interest rates on Treasury bonds above the interest rates offered by depository institutions, causing outflows of funds that worsened over time, eventually leading to the decapitalisation of the S&Ls in the crisis of the 1980s (Levitin and Wachter, 2013c). At this point, the GSEs’ market share grew dramatically.

The form of securitisation through the GSEs changed, along with their growing market share. ¹¹ In 1970, the Federal Home Loan Mortgage Corporation (Freddie Mac) was created to provide a secondary market for S&L mortgages. Both Fannie Mae and Freddie Mac were limited to purchasing loans that were no greater than a statutory ‘conforming loan’ size. Contrarily to Fannie Mae, which funded its purchase of mortgages by issuing bonds, Freddie Mac engineered a new instrument to fund its operation: mortgage-backed securities (MBS), issuing the first in 1971, that pass through the payment streams from a pool of mortgages directly to investors. ¹²

The development of MBS reinforced the standardisation of underwriting practices in order to produce relatively homogenous mortgages with regard to their interest rates and credit and prepayment risk profile, enabling them to be pooled efficiently through the ‘to be announced’ (TBA) market for Agency MBS, creating a liquid secondary market (Vickery and Wright, 2013). ¹³

As securitisers, the GSEs enforced underwriting standards that maintained the integrity of their mortgage pools. They were incentivised to do so because they bore the credit risk on these mortgages and they were also subject to regulations that directly limited the type of mortgages they could purchase. Their demand was limited to conventional conforming mortgages for the GSEs and to mortgages that fit the FHA/VA standards for Ginnie Mae. ¹⁴ The GSEs could only purchase loans below the conforming size limit established yearly by OFHEO, their regulator, and had to require credit enhancement in the form of private mortgage insurance (PMI) for loans with LTV ratios greater than 80 per cent LTV. The GSEs were subject to the same regulations, limiting the potential for a ‘race to the bottom’, which enabled them to enforce their standards on the originators. ¹⁵ The combination of standard underwriting, government insurance and the emergence of a liquid secondary (TBA) market supporting these contributed to a low cost of funding for mortgage issuers.

Starting in the late 1990s, competition emerged from private securitisers, often investment banks, which resulted in a market shift that lowered underwriting standards, as securitisers competed for market share, engaging in a ‘race to the bottom’. ¹⁶ PLS were characterised by a different structure from the GSEs’ MBS, as they did not benefit from (implicit) government backing to guarantee credit risk. In order to manage credit risk, they were tranched on that dimension, enabling investors to decide how much risk they were willing to take and, in theory, to be compensated for taking higher risk by higher spreads. ¹⁷ Investors relied on rating agencies to establish the credit risk of PLS rather than the market because of the heterogeneity of mortgages within the PLS pools (McCoy, Pavlov and Wachter, 2009). ¹⁸

This structure provided investment-grade ratings for most tranches of the security, attracting institutional capital in exchange for relatively low yields due to the expected safety of these tranches, as assessed by the rating agencies, while finding a way to manage the risk associated with the lower tranches. ¹⁹ As private-label securitisation expanded in the number of securitisers, volume, and market share, and as the market itself expanded through lax underwriting and ‘affordable’ products, more derivative products were created that expanded financing. ²⁰ These new financing vehicles contributed to the proliferation of non-traditional mortgages. There was an attempt at diversification since no securitiser was to have more than 5 per cent of the market, which was relied on as a way to reduce risk. However, this so-called ‘diversification’ did not in fact add to diversification since the twenty or so predominant securitisers were essentially securitising the same loans, geographically and in other dimensions.

Throughout most of their history, the GSEs had exercised control over the mortgage origination market, enforcing the conforming mortgage guidelines. As the dominant securitisers, they dictated terms to originators. If the originators did not comply, they would find themselves without a secondary market for their mortgages (Simkovic, 2013). As a result, the years of GSE dominance were marked by the standardisation of mortgage products. Originators followed underwriting practices to ensure that their loans were ‘conforming’ to the GSEs’ requirements. If GSEs discovered that they had been sold loans that did not conform, they had a contractual right to sell the non-conforming loans back to the originator. In instances where originators repeatedly tried to game the system, the GSEs could and did put an end to their business relationship, a blow so severe that it put some originators out of business entirely. In order to enforce the repurchase agreements, the GSEs had to sample the loans for defects. Thus, securitisation did not prevent them from closely monitoring the risks of individual loans. Until the mid-2000s, the origination market was dominated by traditional long-term, fixed-rate mortgages, and the average borrower characteristics – low CLTV ratios, full documentation – indicating that originators were upholding underwriting standards. For decades, this model proved sustainable.

But with the growing presence of private securitisers, the GSEs lost power over originators: if they threatened to cut off originators whose underwriting standards seemed too risky, the originators could simply go to a private label securitiser who would readily accept their product. Issuers were able to find investors for mortgage products that did not follow the GSEs’ standard guidelines. The GSEs and their regulator were charged with securitising safe and sound mortgages for the nation as a whole and in fact they did so for decades. The guidelines imposed by the GSEs had been the basis for national standards for mortgages, but they no longer held. The historical experience in the US of low default risk associated with securitisation of mortgages that represented nationally diversified portfolios could not be maintained as risky products and lax underwriting took over the market.

Mortgage finance with externalities

Systemic risk has been associated with excessive lending by ‘too big to fail’ firms with moral hazard. But, systemic risk can also arise from individual lending decisions, in an interconnected system, by competitive firms that do not account for all the costs of default and foreclosure risk.

Three types of foreclosure externalities not internalised by competitive firms are:

If there were a ‘monopoly’ lender in the economy, however, this lender would be more prudent because this lender would be exposed to aggregate credit risk. If one household defaults, this lender knows it will depress the prices of neighbouring homes and increase the likelihood that they will default. Note that a monopoly in this setting does not necessarily mean a single lender. Having a single regulator (e.g. Federal Housing Finance Agency, the regulator of the GSEs) requiring several or many lenders to play by the same rules could be functionally equivalent.

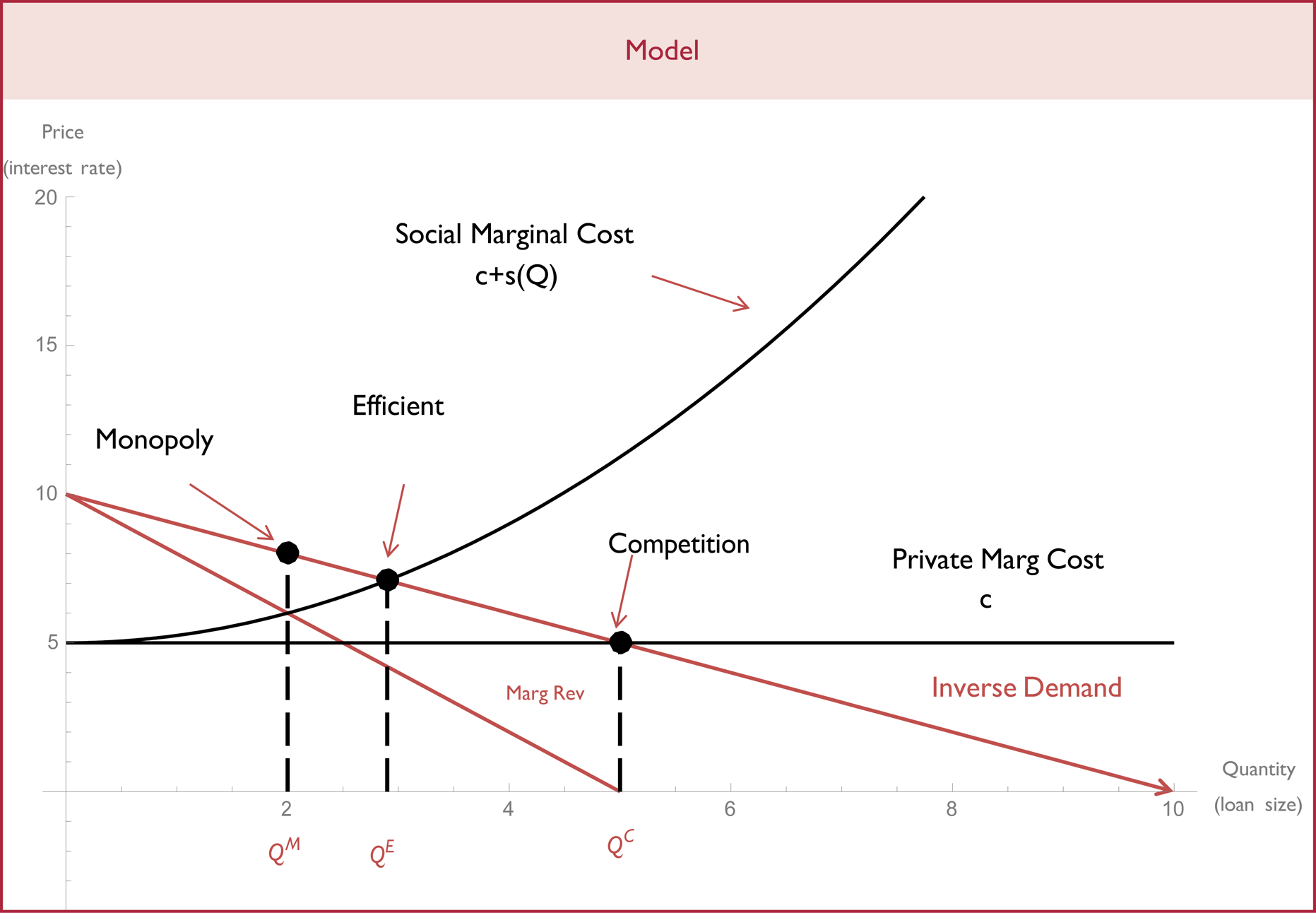

A schematic representation of this set-up is shown on the following page to illustrate the externality implications of varying market structures. With market demand for mortgages, a declining function of interest rates (given income), and with default risk and the social marginal cost of lending growing as the supply of debt increases relative to income, competitive lenders under-price risk. ²³ As debt levels increase (relative to income), the capacity to pledge collateral to pay back this debt decreases and the likelihood of higher default rates increases. The price of risk and the insurance premium should equal the marginal social cost of lending. But in the simplified framework, individual lenders perceive their cost of credit, including default risk, as constant, with the result that lending occurs beyond the socially optimal level.

The previous section described how the securitisation market shifted from a de facto regulated market to one in which private securitisation firms competed for mortgage product; from a market in which GSEs exercised significant control over mortgage origination with terms dictated to originators, to one in which non-traditional mortgage originators could access securitisation market funding without standardisation of mortgage products and without oversight of underwriting practices to ensure that their loans were ‘conforming’ to the GSEs’ requirements. With the end of this control, individual lenders and their investors without a view on the aggregate market could make loans without a consideration of growing aggregate risk.

In the build-up to the crisis, the market pricing of risk did not increase; the cost of funds appears to have been constant or even decreasing relative to Treasuries (Levitin and Wachter, 2012; Davidson, Levin, and Wachter, 2014). This was in the face of rising CLTV levels as well as higher expected probabilities of default based on product risk (for all mortgages, not just risky mortgages due to externalities, as noted above), although actual default rates remained suppressed at historically low levels due to increasing housing prices as a result of rising demand enabled by declining standards. Without an increase in the cost of credit and with a continuing decrease in lending standards, higher demand for housing resulted in higher housing prices, so that there was no warning in the form of heightened defaults of the crisis to come. Lending standards continued to decrease and the market continued to expand in the run-up to the crisis, until demand growth decelerated with the limits of easing reached.

Interesting but still unresolved questions are why market forces did not operate to prevent this and whether market mechanisms can be designed to improve the functioning of markets in the presence of lending externalities.

As debt increased, it would have been expected that lenders would have appreciated the increasing aggregate risk to some degree and price in higher risk premia. This did not occur. Misaligned incentives and moral hazard from too big to fail and securitisation undoubtedly were part of the explanation for this outcome. ²⁴ Some investors understood that risk was increasing and famously and successfully created complex deals that shorted the market. But these investors were a small part of the market and did not raise the overall market pricing of risk, as would be expected if many investors attempted to sell such debt absent an increase in buyers. Moreover, as risk increases, housing prices should decline due to expectations of more foreclosures, rather than increasing relative to fundamentals. Generally the literature finds housing prices to be predictably mean-reverting. This suggests that frictions make it difficult to sell homes short when market prices are elevated beyond levels justified by fundamentals (Herring and Wachter, 1999). ²⁵

The macro literature has developed models that explain the inefficiency of over-borrowing. For example, in a model developed by Jeanne and Korinek (2010), the ability to pledge collateral in the future is debased due to over-borrowing and over-lending which occurs because agents do not take account of the interdependencies of asset prices and lending conditions and the subsequent inability to pledge collateral and raise collateralised funds leads to a decline in the real economy.

But ultimately, these frictions could be overcome by short sellers, of the underlying housing asset, who are aware of market interdependencies, if short selling were possible. We have argued elsewhere (Pavlov and Wachter, 2009, and Levitin, Pavlov and Wachter, 2012) that, in principle, new forms of securitisation could offer derivatives to complete the housing market, essentially enabling the equivalent of short sales. In effect, short selling of collateralised debt could, in theory, raise the cost of debt and lower housing prices, stopping the formation of bubbles. The financial accelerator would reverse, bursting an incipient bubble before dangerous levels of debt and prices are reached. Securitisation vehicles could be traded to price risk if they represented a standardised bundle of risk. The complexity and heterogeneity of securitisation offered by the private label market impeded such trading (Levitin and Wachter, 2012). These securities were bespoke and did not trade. Tradable securities and information on aggregate market exposure to credit risk could assist in the market pricing of risk. ²⁶

OPEN IN VIEWER

Observe that in a competitive mortgage market each lender chooses a loan size (to maximise profit) where marginal revenue is equal to the private marginal cost. However, it is well documented that leverage has negative externalities so there are social costs that competitive lenders neglect when choosing the optimal loan production.

But if lenders compete for market share and have heterogeneous expectations of and preferences for risk (Pavlov and Wachter, 2006, 2009; and Lai and Van Order, 2014), the structure of the market will impact the production of risk. The change in the structure of the mortgage securitisation market in the US in the build-up to the crisis enabled a decline in lending standards that, in this case, was not observed. Deterioration in lending standards that are not monitored cannot be controlled. While the GSEs had served a gate-keeping function to maintain standards, the risk characteristics of private label securitisers’ funded credit, in the aggregate, were remarkably neither known or arguably knowable in real time, enabling the credit and price booms. While lenders and investors assumed either no increase in risk or that the risk could be off-loaded, in the end, through direct losses and through putbacks, lenders and investors were exposed to risk. Thus, for now and for the foreseeable future, the emphasis in housing finance will be on knowing and controlling credit risk.

Conclusion

In the US, there are a number of policy responses that are being considered in the aftermath of the crisis. In particular, the structure of a reformed mortgage securitisation market is being debated.

In the run-up to the housing crisis, beginning in the early 2000s, the structure of the mortgage backed securitisation (MBS) market shifted. Private label securitisers’ MBS issuance began rising sharply, with most of the growth coming from non-traditional mortgages – non-amortising, with adjustable rates, and/or to riskier borrowers, as measured by standard underwriting criteria like CLTV ratios, and incomplete or no documentation. By the mid-2000s, the private-label MBS issuers had overtaken the GSEs as the dominant provider, as measured by their majority market share in mortgage securitisation. Prior to this, the GSEs and FHA provided insurance to most funders of MBS. While there is controversy as to what extent the lending standards of the GSEs themselves eased over time, there is no question that explosive growth occurred in low or zero documentation loans, teaser rate ARMS, as well as other aggressive lending products funded by non-GSE securitisation, to the point that at the peak of the bubble, non-traditional mortgages, largely funded by private-label MBS, were about 50 per cent of origination volume. As the private-label MBS market share expanded, and the number of securitisation outlets increased, the origination process itself was affected, both in mortgage product composition and the quality of underwriting. Access to securitisation markets was assumed to allow all risk to be passed on to private label securities’ investors, under banks’ ‘originate-to-distribute’ business model.

A key reason for the increase in risky debt is that individual subprime lenders operating in a competitive market did not internalise the impact of their lending on aggregate risk. With de facto deregulation, lending occurred beyond what was socially optimal and risk became more concentrated in risky products – and systemic – rather than more diversified. Aggregate risk increased as the quality of the credit composition of the book of business deteriorated.

Regulated securitisers aware of their exposure to aggregate market risk have an incentive and capacity to enforce product standards on originators, while competition among securitisers, with heterogeneous risk preferences and market expectations, undermines the ability to enforce product lending standards, resulting in a deterioration of the mortgage pool.

Improvements in infrastructure to enable the monitoring and identification of aggregate credit risk are possible and ongoing in the context of the US. In addition, stress tests and other forms of micro and macro prudential policy in the oversight of banks, especially those regarded as systemically important financial institutions, are ongoing. The Dodd Frank Act precludes some forms of risky mortgage lending and makes it costlier to offer so called non-qualified mortgages, a cost that limits their issuance for now but not necessarily in the longer run. But the restructuring of the securitisation market – the major regulatory issue in the US housing finance system, which depends upon securitisation – remains unfinished.

Bipartisan proposed legislation, the Johnson-Crapo Act, ²⁷ has come the closest to overcoming deep divisions in the understanding of what is necessary to restructure securitisation markets. The essence of the proposed JCA was to increase the role of private capital in a competitive setting to price risk and prevent excessive lending from occurring in the future, with the recognition that the cost of such capital would of necessity need to reflect higher expected credit risk. But the cost of capital is endogenous to the structure and regulation of the securitization market. Thus, going forward, this more basic problem will need to be resolved as well.
