Wire coating analysis using Phan–Thien–Tanner fluid subject to Lorentz force as a polymer coating material in a canonical covering die

Abstract

Wire coating is widely used for electrical insulation to protect the wire from electric shock, prevent electrical leakage, and ensure that the electrical current flows smoothly. In this investigation, a pressurized coating die is used to explore the PTT fluid as a polymer material for wire in a magnetic field. The flow field, flow rate, temperature profile, thickness of the wire coating, volume flow rate, and shear stress are all given exact solutions. Graphs were used to illustrate the effects of certain important technical parameters, including flow rate, wire coating thickness, shear stress, and pressure gradient. It has been noted that as the values of X, Deborah number, and ratio of radii are improved, the volume and thickness of the coated wire rise. The Deborah number has a higher volume flow than the X and radii ratios. A reference to existing literature is made in order to support the validity of the current study.

Keywords

Phan–Thien–Tanner fluid exact solution MHD flow pressure type coating die wire coating Deborah number effect

Introduction

Wire coating analysis involves evaluating the quality and effectiveness of the protective layer applied to the surface of a wire. The thickness of the coating layer is measured to ensure that it meets the required specifications. This can be done using various techniques such as micrometer, eddy current, and X-ray fluorescence. The adhesion between the coating and the wire surface is evaluated to ensure that the coating is firmly attached to the wire. Various techniques such as cross-hatch adhesion, peel adhesion, and pull-off adhesion can be used to test the adhesion strength. Wire coating analysis is important to ensure that the coating layer provides the desired level of protection to the wire. By using various testing techniques, manufacturers can ensure that the coating is of high quality and meets the required standards. Agassant et al.¹ discussed the rheology of the wire coating processes. Mark² investigated the melting processes for wire coating through a pressurized coating die. Does and Spruiell³ has credited with creating the steam-heated two-roll process. Capaccio and Ward⁴ clearly created the primary smash extruder in 1845, which was utilized in wire coating.

Phan–Thien–Tanner (PTT) fluid is a mathematical model that describes the rheological behavior of polymeric fluids. It is named after the three scientists who proposed the model: Phan, Thien, and Tanner. The PTT model is widely used in the study of complex fluids, such as polymer solutions, polymer melts, and suspensions. The PTT model describes the polymeric fluid as a system of “dumbbells” consisting of two particles connected by a spring-like structure. The behavior of the fluid is governed by the motion of these dumbbells, which are influenced by various factors such as shear rate, temperature, and concentration. The PTT model includes two parameters that describe the fluid's behavior: the relaxation time and the retardation time. The relaxation time represents the time it takes for the dumbbells to align with the direction of flow when the flow is suddenly applied, while the retardation time represents the time it takes for the dumbbells to return to their original orientation after the flow has stopped. The PTT model is particularly useful in the study of viscoelasticity, which is the property of a material to exhibit both viscous and elastic behavior. Viscoelasticity is an important property of many polymeric fluids, and the PTT model can accurately describe this behavior. One of the main advantages of the PTT model is its ability to predict the behavior of complex fluids under different conditions, such as shear rate and temperature. This makes it a valuable tool in the design and optimization of industrial processes involving polymeric fluids, such as polymer processing and material design. In summary, the PTT model is a powerful mathematical tool for studying the rheological behavior of polymeric fluids. Its ability to accurately describe the viscoelastic behavior of complex fluids has made it a valuable tool in both scientific research and industrial applications.

Wire extortion is an imperative and ancient fabricating procedure. Melting extradited is a rule utilized as a fiber/wire sequestration material to ensure it beside misfortune of motorized properties, erosion, and the atmosphere's impacts. Two appliances are utilized within the coating procedures: firstly, the fluid material will be set on an affecting cable persistently and, furthermore, the fiber is pulled in a pass on occupied with liquid to be layered. Today, the progressed foundation of fiber/wire layer procedures is executed concentrated on definite gadgets to decrease the probability of abuse of future electrical items over the wire. Be that as it may, the setup is pointing to be extra compelling and stable. The observational ponders are inconceivably troublesome within the ground of concentration owing to the limited of the mold's minor estimate. This problem is taken care of with exact numerical recreations for industrial operations through distinction conditions, and investigative/mathematical solutions are utilized to illuminate the framework for distinctive stream problems imperiled to an assortment of geometries.

The wire coating mostly depends on the polymer viscosity, geometry of the problem, and the processes used for the wire coating. Feil⁵ studied the wire coating processes using coaxial extrusion processes. Zeeshan et al.⁶ investigated the wire coating processes using Oldroyd 8-constant fluid as a coating polymer. Mahanthesh⁷ studied the effect of variable viscosity on the wire coating using cylindrical type coating die. Figure 1 shows the test set-up of a commonplace wire coating handle. In this setting, the bare wire is dragged at the payoff reel transitory over straightener, a preheater, a cross head, then extruder filled with melting polymer, and get coated. This cured wire at that point permits over a cooling channel, a capstan, and an analyzer ﬁnally conclusion on the turning take-up spool. The co-extrusion procedure is basic to utilize, time-saving, and prudent in see of mechanical claims. Nayak et al.,⁸ Khan et al.,⁹ and Bhukta et al.¹⁰ contributed to this ﬁeld of ponder. Moreover, Hussain et al.¹¹ examined wire covering utilizing different non-Newtonian fluid. Third-order liquid deliberated here as a viscoelastic ﬂuid of mechanical significance. Numerous liquefied were utilized for wire covering purpose. Among these, a viscoelastic ﬂuid demonstrates known as PTTF is broadly utilized for wire covering purpose. Many creators have subsidized to enhancing the ﬁeld of heat exchange in post-treatment examination of wire covering. Reddy et al.¹² amplified the warm investigation interior as well as exterior the pass on. Khan et al.¹³ have considered plastic-hydrodynamic pass on fewer wire drawings. Sajid et al.¹⁴ carried out an investigation of the ﬂow within the decreasing segment of a weight pass on. They have gotten numerical arrangements for the pressure and speed proﬁles within the kick the bucket. The final product significantly is determined by rate of conserving in fabricating forms. The dominant cooling framework is essential for encouraging the method of an outlined item.

Figure 1.

Mechanism of wire coating.

Keeping the significances of magnetic field, numerous investigators had investigated the impact of magnetic ﬁeld on Newtonian and non-Newtonian ﬂuids.¹⁵ Khan¹⁶ examined an MHD second-grade liquid e-ﬁeld past an extending sheet. Khan et al.¹⁷ utilized a RK-4 procedure to examine the impacts of varying thickness, thermal, Lorentz force, and heat exchange of a non-Newtonian ﬂuid past an extending surface with temperature varying at the boundary. Siddiqui et al.¹⁸ have considered viscoelastic liquid as a coating fabric in wire investigation within the nonappearance of Lorentz force and utilized the perturbation series solution for the expository arrangement. Furthermore, Zeeshan et al.¹⁹ and Nayak et al.²⁰ have utilized third-grade liquid polymer in their consideration. The effect of magnetic field was also discussed on velocity and temperature by many researchers.^21–24 Shit et al.²⁵ examined the convective heat transfer over stretching sheet. Mukherjee et al.²⁶ used nanofluid between two permeable walls with entropy generation. Shit et al.^27,28 examined viscoelastic fluid over stretching sheet with heat transfer.

The employment of viscoelastic fluids in several sectors, particularly material processing and electronics industries, has renewed interest in heat transfer concerns including non-Newtonian liquids. Heat exchange assessment is critical for scientific and technological growth; sophisticated equipment such as micro-electro-mechanical devices, laser condensate lines, and small heat transfers are utilized for a variety of reasons. Laminar heating and cooling are becoming more common in such equipment. As a consequence, the findings for quasi-fluid motion and heat exchange are required. A thorough review of the research is impracticable. However, a few investigations are given below as beginning points for a more exhaustive literature search. Shah et al.²⁹ investigated wire covering analysis under constant temperature variation. Mitsoulis³⁰ examined the flow of wire covering with heat transmission. Oliveira and Pinho³¹ examined the analogous heat transfer issues of properly developed tube and channel movements of PTT fluid. Some recent development can be seen in the work of Animasaun et al.^32,33 Similarly, Omowaye and Animasaun³⁴ investigated the UCM fluid flow over the melting sheet with variable thermo-physical properties subject to thermal stratification.

In the present paper, PTTF is used for wire coating in the influence of magnetic field in a pressurized coating die using cylindrical coordinates system. The flow field is deliberated on dimensional, incompressible, laminar, and isothermal. The governing equation like continuity, momentum, and energy are simplified. The exact solution is obtained for velocity, temperature, shear stress, volume fraction, and thickness of the coated wire. The impact of physical parameters on the physical quantities is discussed graphically. To the best of our knowledge, no studies on the magnetized PTT fluid on wire coating analysis have been conducted. The results from this study are then compared to those from earlier research²¹ in limiting cases, and exceptional agreement is established.

Formulation of the problem

Consider a wire covering die through which the stream comes to a control spill element associated to the softening slot. The stream junctions the weight unit afterward moving over the softening chamber. A continuous pressure gradient in the axial direction $d p / d z$ acts on the fluid. The motorized framework of the issue is predicted in Figure 1. A straightener, preheater, and crosshead die are used to coat the uncoated wire at the payout reel, where it is unwound and passes through the molten polymer exiting from the extruder. A cooling trough, a capstan, and a tester all precede the spinning take-up reel in the path of this coated wire. Figure 2 shows the geometry of the wire coating processes, in which $R_{d}$ and R₀ are the radial stretches practically equivalent to the pressure element section and way out, L is form length, and $R_{w}$ is the wire radius. The wire and cylinder are concentric, and the coordinate arrangement is set at the wire’s focus, with r vertical to the fluid flow and z in the fluid flow direction. We assume that the flow is laminar, incompressible, and axisymmetric.

Figure 2.

Geometry of the wire coating.

The governing equations for incompressible viscoelastic PTTF are^5–11

ρ \frac{D u}{D t} = \nabla . T + ρ f + j \times B

(1)

The substantive acceleration, denoted by

D / D t

, is made up of the local derivative

\partial / \partial t

and the convective derivative

u . \nabla

, that is,

\frac{D}{D t} = \frac{\partial}{\partial t} + u . \nabla

The energy equation for the present model is^{16,17,20,22–24}

ρ c \frac{D Θ}{D t} = k \nabla^{2} Θ + Φ

(2)

ρ

stands for constant density,

c_{p}

for specific heat,

D / D t

for material derivative, k for thermal conduction,

Θ

for polymer temperature, and

Φ

for the energy converted to other form.

The distribution of fluid velocity and temperature is taken into account.

u = (0, 0, w (r)), S = S (r) and Θ = Θ (r),

(3)

The PTT model, which is represented in the work of Mahanthesh et al. and others,^7–11 was used to show the viscoelastic properties of the fluid.

f (t r S) S + λ \overset{\nabla}{S} = η A_{1} .

(4)

where

η

denotes the viscosity coefficient of the fluid,

λ

signifies the relaxation time,

t r S

represents the trace of stress tensor S, and

A_{1}

characterizes the distortion rate tensor provided by

A_{1} = L^{T} + L, L = \nabla U .

(5)

L = (\begin{matrix} \frac{\partial u_{r}}{\partial r} & \frac{1}{r} \frac{\partial u_{r}}{\partial θ} - \frac{u_{θ}}{r} & \frac{\partial u_{r}}{\partial z} \\ \frac{\partial u_{θ}}{\partial r} & \frac{1}{r} \frac{\partial u_{θ}}{\partial θ} + \frac{u_{θ}}{r} & \frac{\partial u_{θ}}{\partial z} \\ \frac{\partial u_{z}}{\partial r} & \frac{1}{r} \frac{\partial u_{z}}{\partial θ} & \frac{\partial u_{z}}{\partial z} \end{matrix})

(6)

\begin{aligned} L = & (\begin{matrix} 0 & 0 & 0 \\ 0 & 0 & 0 \\ \frac{d w}{d r} & 0 & 0 \end{matrix}), L^{T} = (\begin{matrix} 0 & 0 & \frac{d w}{d r} \\ 0 & 0 & 0 \\ 0 & 0 & 0 \end{matrix}) \\ A = & (\begin{matrix} 0 & 0 & \frac{d w}{d r} \\ 0 & 0 & 0 \\ \frac{d w}{d r} & 0 & 0 \end{matrix}) \end{aligned}

(7)

The stress tensor S is given by

S = (\begin{matrix} S_{r r} & S_{r θ} & S_{r z} \\ S_{θ r} & S_{θ θ} & S_{θ z} \\ S_{z r} & S_{z θ} & S_{z z} \end{matrix})

(8)

The upper convected derivative

\overset{\nabla}{S}

in equation (4) is given as

\overset{\nabla}{S} = \frac{D S}{D t} - [{(\nabla u)}^{T} S + S (\nabla u)] .

(9)

\overset{\nabla}{S} = (\begin{matrix} - 2 S_{r r} \frac{d w}{d r} & - S_{z θ} \frac{d w}{d r} & - S_{r r} \frac{d w}{d r} - S_{z z} \frac{d w}{d r} \\ - S_{θ z} \frac{d w}{d r} & 0 & - S_{θ r} \frac{d w}{d r} \\ - S_{r r} \frac{d w}{d r} - S_{z z} \frac{d w}{d r} & - S_{r θ} \frac{d w}{d r} & - S_{r z} \frac{d w}{d r} \end{matrix})

(9a)

The function f is given by

f (t r S) = 1 + \frac{ε λ}{η} (t r S) .

(10)

f (t r S)

is the stress function in equation (10), where the fluid's elongation behavior is linked to

ε

. The model simplifies to the well-known fluid model when

ε = 0

, and to the Newtonian model when

λ = 0

Equation of motion in general form is given as

f (t r S) (\begin{matrix} S_{r r} & S_{r θ} & S_{r z} \\ S_{θ r} & S_{θ θ} & S_{θ z} \\ S_{z r} & S_{z θ} & S_{z z} \end{matrix}) + λ (\begin{matrix} 0 & 0 & - S_{r r} \frac{d w}{d r} \\ 0 & 0 & - S_{θ r} \frac{d w}{d r} \\ - S_{r r} \frac{d w}{d r} & - S_{r θ} \frac{d w}{d r} & - 2 S_{r z} \frac{d w}{d r} \end{matrix}) = η (\begin{matrix} 0 & 0 & \frac{d w}{d r} \\ 0 & 0 & 0 \\ \frac{d w}{d r} & 0 & 0 \end{matrix})

(11)

Using equations (3)–(11) in equation (1), we get the following set of equations:

S_{r θ} = S_{r r} = S_{θ r} = S_{θ θ} = S_{θ z} = S_{z θ} = 0,

(12)

S_{r z} = S_{z r} = \frac{η \frac{d w}{d r}}{f (t r S)}, S_{z z} = \frac{2 λ S_{r z} \frac{d w}{d r}}{f (t r S)}, f (t r S) S_{z z} = 2 λ S_{r z} \frac{d w}{d r},

(13)

The problem's boundary conditions for the velocity field and temperature field are

w (R_{w}) = U_{w}, w (R_{d}) = 0,

(14)

Θ (R_{w}) = Θ_{w}, Θ (R_{d}) = Θ_{d} .

(15)

The equations (1) and (2) in simplified form becomes

\frac{\partial p}{\partial r} = 0 = \frac{\partial p}{\partial θ} .

(16)

\frac{\partial p}{\partial z} = - \frac{1}{r} \frac{\partial (r S_{r z})}{\partial r} - δ β_{0}^{2} w, k (\frac{d^{2}}{d r^{2}} + \frac{1}{r} \frac{d}{d r}) Θ + S_{r z} \frac{d w}{d r} = 0 - δ β_{0}^{2} w,

(17)

f (t r S) S_{z z} = 2 λ S_{r z} \frac{d w}{d r}, f (t r S) S_{r z} = η \frac{d w}{d r}, Φ = \frac{d w}{d r} S_{r z} .

(18)

It is clear from equation (16) that p is only a function of z and we take pressure gradient constant and

d p / d z

become equal to

Ω

, where

Ω

is constant.

Simplify equation (17)

\begin{aligned} Ω = & - \frac{1}{r} \frac{\partial}{\partial r} (r S_{r z}) - δ β_{0}^{2} w \\ Ω + δ β_{0}^{2} w = & - \frac{1}{r} \frac{d}{d r} (r S_{r z}) \\ - (Ω + δ β_{0}^{2} w) r = & \frac{d}{d r} (r S_{r z}) \end{aligned}

Now integrating with respect to “r”

S_{r z} = \frac{P_{1}}{r} - \frac{Ω}{2} r - \frac{δ β_{0}^{2} r w}{2},

(19)

In which

P_{1}

is an arbitrary integration constant

Putting equation (19) in equation (18), we get

f (t r S) = \frac{η \frac{d w}{d r}}{\frac{P_{1}}{r} - \frac{Ω}{2} r - \frac{δ β_{0}^{2} r w}{2}},

(20)

The normal stress component

S_{z z}

is given below

S_{z z} = 2 \frac{λ}{η} {(\frac{P_{1}}{r} - \frac{Ω}{2} r - \frac{δ β_{0}^{2} r w}{2})}^{2},

(21)

From equations (20) and (21), we get the following equations:

η \frac{d w}{d r} = (1 + ε \frac{λ}{η} S_{z z}) (\frac{P_{1}}{r} - \frac{Ω}{2} r - \frac{δ β_{0}^{2} w r}{2}) .

(22)

We get an analytical equation for axial velocity gradient by substituting equation (21) into equation (22).

\frac{d w}{d r} = \frac{1}{η} (\frac{P_{1}}{r} - \frac{Ω}{2} r - \frac{δ β_{0}^{2} w r}{2}) + 2 ε \frac{λ^{2}}{η^{3}} {(\frac{P_{1}}{r} - \frac{Ω}{2} r - \frac{δ β_{0}^{2} w r}{2})}^{3} .

(23)

We get by simplifying and expanding the cubic formula.

\begin{aligned} \frac{d w}{d r} = & \frac{P^{3}}{r^{3}} - \frac{Ω^{3} r^{3}}{8} - \frac{δ β_{0}^{6} w^{3} r^{3}}{8} + \frac{3 P δ β_{0}^{2} w r Ω}{2} - \frac{3 Ω P^{2}}{2 r} - \frac{3 P^{2} δ β_{0}^{2} w}{2 r} \\ + \frac{3 Ω^{2} r P}{4} - \frac{3 Ω^{2} r^{3} δ β_{0}^{2} w}{8} + \frac{3 δ^{2} β_{0}^{4} w^{2} r P}{4} - \frac{3 δ^{2} β_{0}^{4} w^{2} r^{3} Ω}{8} . \end{aligned}

(24)

Here are the fundamental formulas for wire coating assessment that we will utilize in the future.

The average polymer velocity is

w_{a v e} = \frac{2}{R_{d}^{2} - R_{w}^{2}} \int_{R_{w}}^{R_{d}} r w (r) d r .

(25)

The volume flow rate of covering is measured downstream at a control surface.

Q = π U_{w} (R_{c}^{2} - R_{w}^{2}),

(26)

R_{c}

is the coated wire radius.

The volume flow rate is

Q = \int_{R_{w}}^{R_{d}} 2 π r w (r) d r .

(27)

Equations (25) and (26) may be used to measure the thickness of the coated wire.

R_{c} = {[R_{w}^{2} + \frac{2}{U_{w}} \int_{R_{w}}^{R_{d}} r w (r) d r]}^{1 / 2} .

(28)

The force on the wire on the bases of shear stress is given by

S_{r z} |_{r = R_{w}} = (\frac{P_{1}}{r} - \frac{Ω}{2} r - \frac{δ β_{0}^{2} w r}{2}) |_{r = R_{w}}

(29)

The total force on the total wire surface is:

F_{w} = 2 π R_{w} L S_{r z}

(30)

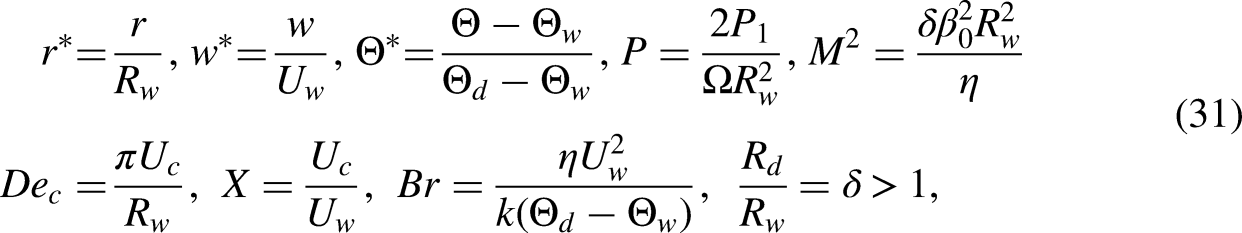

The dimensionless parameters are listed below for further simplification.

\begin{aligned} r^{*} = & \frac{r}{R_{w}}, w^{*} = \frac{w}{U_{w}}, Θ^{*} = \frac{Θ - Θ_{w}}{Θ_{d} - Θ_{w}}, P = \frac{2 P_{1}}{Ω R_{w}^{2}}, M^{2} = \frac{δ β_{0}^{2} R_{w}^{2}}{η} \\ D e_{c} = & \frac{π U_{c}}{R_{w}}, X = \frac{U_{c}}{U_{w}}, B r = \frac{η U_{w}^{2}}{k (Θ_{d} - Θ_{w})}, \frac{R_{d}}{R_{w}} = δ > 1, \end{aligned}

(31)

where

U_{w} = (- Ω R_{w} / 8 η)

denotes the characteristic velocity scale and

D e_{c}

denotes the characteristic Deborah number which depends on

U_{c}

X, and

B r

is the Brinkman number.

After removing the asterisks from equations (17) and (24), they have the following form:

\begin{aligned} \frac{d w}{d r} = & - 4 P X \frac{1}{r} - 4 r X - \frac{1}{2} r M^{2} - 128 X ε D e_{c}^{2} P^{3} \frac{1}{r^{3}} + 128 X ε D e_{c}^{2} r^{3} - \frac{1}{4} M^{6} X^{- 2} ε D e_{c}^{2} r^{3} \\ + 96 ε D e_{c}^{2} P M^{2} r + 384 ε D e_{c}^{2} X P^{2} \frac{1}{r} + 48 ε D e_{c}^{2} P^{2} M^{2} \frac{1}{r} - 384 ε D e_{c}^{2} P X r \\ + 48 ε D e_{c}^{2} M^{2} r^{3} - 6 ε D e_{c}^{2} M^{4} r P X^{- 1} + 6 ε D e_{c}^{2} M^{4} r^{3} X^{- 1} \end{aligned}

(32)

\frac{d}{d r} (r \frac{d Θ}{d r}) - 4 B r X (r^{2} + P) \frac{d w}{d r} = 0.

(33)

The conditions in equations (19) and (20) are

w (1) = 1 and w (δ) = 0,

(34)

θ (1) = 0 and θ (δ) = 1.

(35)

Average velocity of polymer is given by

w_{a v e} = \frac{w_{a v e} (R_{d}^{2} - R_{w}^{2})}{2 R_{w}^{2} U_{w}} = \int_{1}^{δ} r w (r) d r,

(36)

Volume flow rate is an essential parameter in many fields, including engineering, physics, chemistry, and environmental science. It is defined as the amount of fluid that passes through a particular area over a given period. In manufacturing and industrial processes, it is essential to monitor the flow rate of fluids to ensure that they are flowing at the desired rate. The volume flow rate is used to adjust valves, pumps, and other equipment to maintain the desired flow rate.

The volume flow for the wire coating analysis is given by the following formula:

Q = \frac{Q}{2 π R_{w}^{2} U_{w}} = \int_{1}^{δ} r w (r) d r,

(37)

Radius of coated wire is given by

R_{c} = \frac{R_{c}}{R_{w}} = {[1 + 2 \int_{1}^{δ} r w (r) d r]}^{1 / 2},

(38)

Shear stress is given by

S_{r z} |_{r = 1} = \frac{S_{r z}}{η U_{c} / R_{w}} |_{r = 1} = - 4 (1 + P),

(39)

Force on the surface of the coated wire is given by

F_{w} = \frac{F_{w}}{8 π η L} = S_{r z} |_{r = 1}

(40)

The stress components in dimensionless form

S_{r z} = \frac{S_{r z}}{η U_{c} / R_{w}} = - 4 (r + \frac{P}{r}),

(41)

S_{z z} = \frac{S_{z z}}{D e_{c} (η U_{c} / R_{w})} = 32 {(r + \frac{P}{r})}^{2} .

(42)

Solution of the problem

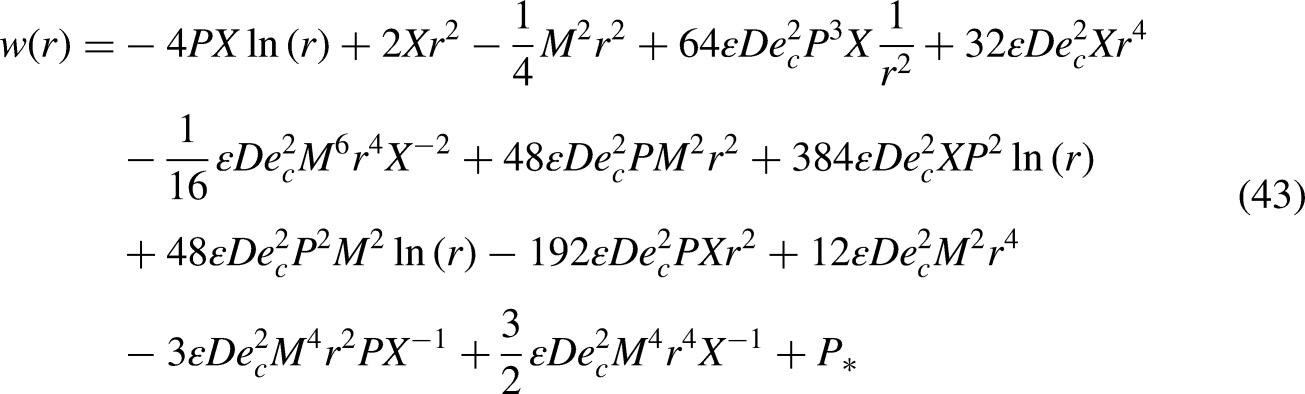

Integration equation (32) with veneration to “r” derive velocity field solution, and after significant simplification, we discover that

\begin{aligned} w (r) = & - 4 P X \ln (r) + 2 X r^{2} - \frac{1}{4} M^{2} r^{2} + 64 ε D e_{c}^{2} P^{3} X \frac{1}{r^{2}} + 32 ε D e_{c}^{2} X r^{4} \\ - \frac{1}{16} ε D e_{c}^{2} M^{6} r^{4} X^{- 2} + 48 ε D e_{c}^{2} P M^{2} r^{2} + 384 ε D e_{c}^{2} X P^{2} \ln (r) \\ + 48 ε D e_{c}^{2} P^{2} M^{2} \ln (r) - 192 ε D e_{c}^{2} P X r^{2} + 12 ε D e_{c}^{2} M^{2} r^{4} \\ - 3 ε D e_{c}^{2} M^{4} r^{2} P X^{- 1} + \frac{3}{2} ε D e_{c}^{2} M^{4} r^{4} X^{- 1} + P_{*} \end{aligned}

(43)

Now putting the boundary condition

$w (1) = 1 and w (δ) = 0$

\begin{aligned} 1 = 2 X & - \frac{1}{4} M^{2} + 64 ε D e_{c}^{2} P^{3} X + 32 ε D e_{c}^{2} X - \frac{1}{16} ε D e_{c}^{2} M^{6} X^{- 2} \\ + 48 ε D e_{c}^{2} P M^{2} - 192 ε D e_{c}^{2} P X + 12 ε D e_{c}^{2} M^{2} - 3 ε D e_{c}^{2} M^{4} P X^{- 1} \\ + \frac{3}{2} ε D e_{c}^{2} M^{4} X^{- 1} + P_{*} \end{aligned}

(44)

\begin{aligned} 0 = & - 4 P X \ln (δ) + 2 X δ^{2} - \frac{1}{4} M^{2} δ^{2} + 64 ε D e_{c}^{2} P^{3} X \frac{1}{δ^{2}} + 32 ε D e_{c}^{2} X δ^{4} \\ - \frac{1}{16} ε D e_{c}^{2} M^{6} δ^{4} X^{- 2} + 48 ε D e_{c}^{2} P M^{2} δ^{2} + 384 ε D e_{c}^{2} X P^{2} \ln (δ) \\ + 48 ε D e_{c}^{2} P^{2} M^{2} \ln (δ) - 192 ε D e_{c}^{2} P X δ^{2} + 12 ε D e_{c}^{2} M^{2} δ^{4} \\ - 3 ε D e_{c}^{2} M^{4} δ^{2} P X^{- 1} + \frac{3}{2} ε D e_{c}^{2} M^{4} δ^{4} X^{- 1} + P_{*} \end{aligned}

(45)

\begin{aligned} 0 = & 64 ε D e_{c}^{2} (\frac{1}{δ^{2}} - 1) P^{3} + 48 ε D e_{c}^{2} \ln (δ) (8 X + M^{2}) P^{2} + (δ^{2} - 1) (48 ε D e_{c}^{2} M^{2} \\ - 192 ε D e_{c}^{2} X - 3 ε D e_{c}^{2} M^{4} X^{- 1}) P + (- 4 P X \ln (δ) + 2 X (δ^{2} - 1) \\ - \frac{1}{16} ε D e_{c}^{2} M^{6} X^{- 2} (δ^{4} - 1) + 12 ε D e_{c}^{2} M^{2} (δ^{4} - 1) + \frac{3}{2} ε D e_{c}^{2} M^{4} X^{- 1} (δ^{4} - 1) + 1) \end{aligned}

(46)

We get a cubic equation in the form

\begin{aligned} A_{3} P^{3} + A_{2} P^{2} + A_{1} P + A_{0} = & 0 \\ P^{3} + \frac{A_{2}}{A_{3}} P^{2} + \frac{A_{1}}{A_{3}} P + \frac{A_{0}}{A_{3}} = & 0 \\ P^{3} + β_{0} P^{2} + β_{1} P + β_{2} = & 0 \end{aligned}

(47)

With coefficients

β_{0} = \frac{A_{2}}{A_{3}}, β_{1} = \frac{A_{1}}{A_{3}}, β_{2} = \frac{A_{0}}{A_{3}}

Where

\begin{aligned} A_{0} = & - 4 P X \ln (δ) + 2 X (δ^{2} - 1) - \frac{1}{16} ε D e_{c}^{2} M^{6} X^{- 2} (δ^{4} - 1) \\ + 12 ε D e_{c}^{2} M^{2} (δ^{4} - 1) + \frac{3}{2} ε D e_{c}^{2} M^{4} X^{- 1} (δ^{4} - 1) + 1 \end{aligned}

\begin{aligned} A_{1} = & (δ^{2} - 1) (48 ε D e_{c}^{2} M^{2} - 192 ε D e_{c}^{2} X - 3 ε D e_{c}^{2} M^{4} X^{- 1}) \\ A_{2} = & 48 ε D e_{c}^{2} \ln (δ) (8 X + M^{2}) \\ A_{3} = & 64 ε D e_{c}^{2} (\frac{1}{δ^{2}} - 1) \end{aligned}

The formula for third-order algebraic equation may be used to find the real root of the cubic equation (47).

P = s i g n (M) | M |^{1 / 3} + s i g n (N) | N |^{1 / 3} - \frac{B_{0}}{3},

(48)

With

\begin{aligned} M = & - \frac{S}{2} + T^{1 / 2}, N = - \frac{S}{2} - T^{1 / 2}, T = \frac{S^{2}}{4} + \frac{R^{3}}{27}, \\ R = & B_{1} - \frac{B_{0}^{2}}{3}, S = B_{2} - \frac{B_{0} B_{1}}{3} + \frac{2 B_{0}^{2}}{27} . \end{aligned}

with

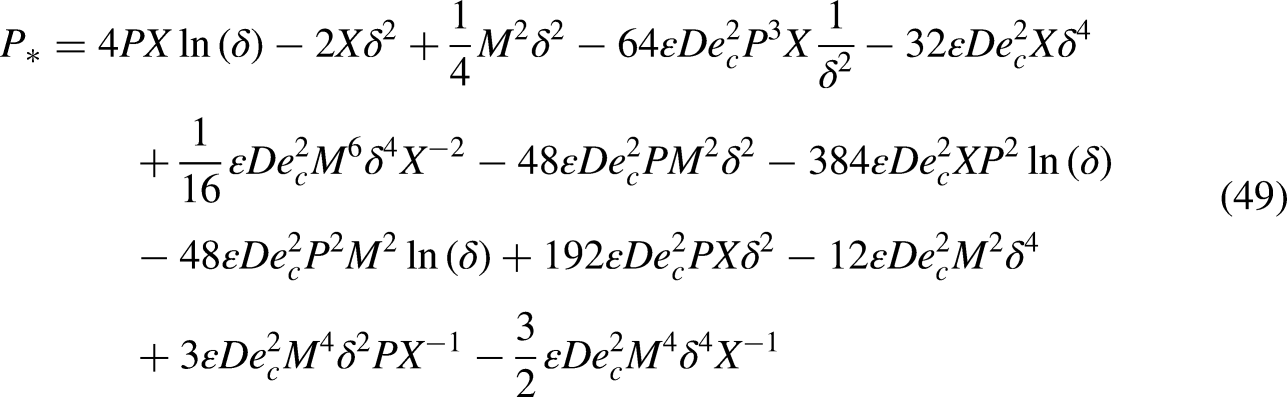

\begin{aligned} P_{*} = & 4 P X \ln (δ) - 2 X δ^{2} + \frac{1}{4} M^{2} δ^{2} - 64 ε D e_{c}^{2} P^{3} X \frac{1}{δ^{2}} - 32 ε D e_{c}^{2} X δ^{4} \\ + \frac{1}{16} ε D e_{c}^{2} M^{6} δ^{4} X^{- 2} - 48 ε D e_{c}^{2} P M^{2} δ^{2} - 384 ε D e_{c}^{2} X P^{2} \ln (δ) \\ - 48 ε D e_{c}^{2} P^{2} M^{2} \ln (δ) + 192 ε D e_{c}^{2} P X δ^{2} - 12 ε D e_{c}^{2} M^{2} δ^{4} \\ + 3 ε D e_{c}^{2} M^{4} δ^{2} P X^{- 1} - \frac{3}{2} ε D e_{c}^{2} M^{4} δ^{4} X^{- 1} \end{aligned}

(49)

Substituting the constants from equations (48) and (49), which largely depends on the fluid's elongation characteristic, Deborah number and the ratio between both the wire and die provide the accurate velocity profile solution.

The volume flow rate is

\begin{aligned} Q = & \int_{1}^{δ} r w (r) d r \\ Q = & \int_{1}^{δ} r (- 4 P X \ln (r) + 2 X r^{2} - \frac{1}{4} w M^{2} r^{2} + 64 ε D e_{c}^{2} P^{3} X \frac{1}{r^{2}} + 32 ε D e_{c}^{2} X r^{4} \\ - \frac{1}{16} ε D e_{c}^{2} M^{6} w^{3} r^{4} X^{- 2} + 48 ε D e_{c}^{2} P M^{2} r^{2} w + 384 ε D e_{c}^{2} X P^{2} \ln (r) \\ + 48 ε D e_{c}^{2} P^{2} M^{2} w \ln (r) - 192 ε D e_{c}^{2} P X r^{2} + 12 ε D e_{c}^{2} M^{2} w r^{4} \\ - 3 ε D e_{c}^{2} M^{4} w^{2} r^{2} P X^{- 1} + \frac{3}{2} ε D e_{c}^{2} M^{4} r^{4} w^{2} X^{- 1} + P_{*}) d r \end{aligned}

\begin{aligned} = & - 2 P X δ^{2} \ln (δ) + P X δ^{2} - P X + \frac{1}{2} X (δ^{4} - 1) - \frac{1}{16} w M^{2} (δ^{4} - 1) + 64 ε D e_{c}^{2} P^{3} X \ln (δ) \\ + \frac{16}{3} ε D e_{c}^{2} X (δ^{4} - 1) - \frac{1}{96} ε D e_{c}^{2} M^{6} w^{2} X^{- 2} (δ^{6} - 1) + 12 ε D e_{c}^{2} P M^{2} w (δ^{4} - 1) \\ + 384 ε D e_{c}^{2} X P^{2} (\frac{1}{2} δ^{2} \ln (δ) - \frac{δ^{2}}{4} + \frac{1}{4} + 48 ε D e_{c}^{2} P^{2} M^{2} w \frac{1}{2} δ^{2} \ln (δ) - \frac{δ^{2}}{4} + \frac{1}{4}) \\ - 48 ε D e_{c}^{2} P X (δ^{4} - 1) + 2 ε D e_{c}^{2} M^{2} w (δ^{6} - 1) - \frac{3}{4} ε D e_{c}^{2} P M^{4} w^{2} X^{- 1} (δ^{4} - 1) + δ P_{*} - P_{*} \end{aligned}

(50)

The force on the whole wire.

F_{w} = - 4 (1 - P) .

(51)

We arrive at an important conclusion in this section: given set values for the parameters involved in

C_{1}

Using the volume flow rate in expression (46), we developed a mathematical model for the thickness of coated wire.

R_{c} = [1 + 2 \int_{1}^{δ} r w (r) d r]

(52)

R_{c} = {[1 + 2 (\begin{matrix} - 2 P X δ^{2} \ln (δ) + P X δ^{2} - P X + \frac{1}{2} X (δ^{4} - 1) - \frac{1}{16} w M^{2} (δ^{4} - 1) \\ + 64 ε D e_{c}^{2} P^{3} X \ln (δ) + \frac{16}{3} ε D e_{c}^{2} X (δ^{4} - 1) - \frac{1}{96} ε D e_{c}^{2} M^{6} w^{2} X^{- 2} (δ^{6} - 1) \\ + 12 ε D e_{c}^{2} P M^{2} w (δ^{4} - 1) + 384 ε D e_{c}^{2} X P^{2} (\frac{1}{2} δ^{2} \ln (δ) - \frac{δ^{2}}{4} + \frac{1}{4}) \\ + 48 ε D e_{c}^{2} P^{2} M^{2} w (\frac{1}{2} δ^{2} \ln (δ) - \frac{δ^{2}}{4} + \frac{1}{4}) - 48 ε D e_{c}^{2} P X (δ^{4} - 1) \\ + 2 ε D e_{c}^{2} M^{2} w (δ^{6} - 1) - \frac{3}{4} ε D e_{c}^{2} P M^{4} w^{2} X^{- 1} (δ^{4} - 1) + δ P_{*} - P_{*} \end{matrix})]}^{1 / 2}

The equation of the temperature profile may be found by including the velocity profile into the energy equation (41) and computing the energy equation using the boundary condition supplied in the equation (43).

Analysis of results

The PTT fluid for wire coating in a pressurized coating die under the influence of a magnetic field is discussed in the current analysis utilizing a cylindrical coordinate system. The flow field is considered to be isothermal, laminar, dimensional, and incompressible. The governing equations for energy, momentum, and continuity are condensed. For the coated wire's thickness, volume fraction, shear stress, velocity, temperature, and shear stress, the precise answer is discovered. A diagram is used to illustrate how physical parameters affect physical quantities. As far as we are aware, no research on the analysis of the magnetized PTT fluid on wire coating have been done. The consequence of physical factors such as viscoelastic parameter $D e$ , dimensionless number X, and Brinkman number on velocity, temperature, the thickness of coated wire, volume flow rate, and shear stress at the wire. The effect of dimensionless numbers X, Deborah number De, and magnetic parameter M on the velocity profile is depicted in Figures 3–5. One of the most important quantities in rheology is the dimensionless Deborah number. Any fabric's viscoelastic behavior can be represented using it. The Deborah number is defined as the ratio between perception or exploring time and fabric unwinding time. In Figures 6 and 7, we examine the non-dimensional shear stress profile and force on the cured wire surface for different value of $D e$ at fixed values of parameters X and $δ$ , respectively. In Figures 8 and 9, we examine the non-dimensional shear stress profile and force on the cured wire surface for different value of $D e$ at fixed values of parameters X and $δ$ , respectively. Figures 10–15 are sketched for the temperature profile to examine the influence of physical parameters like Brinkman number, Deborah number, and dimensionless parameter X. Figure 9 shows the temperature distribution for numerous values of $B r$ while keeping $D e = 1, δ = 2, M = 0.1$ fixed. Figure 16 represents the stream lines. In the last, the present work is compared with the published work and outstanding agreement is found.

Figure 3.

Non-dimensional velocity profiles with constant values of $ε D e_{c}^{2}$ = 10 and $δ$ = 2 for various values of X.

Figure 4.

Non-dimensional velocity field with constant amount of X = 0.5 and $δ$ = 2 for numerous values of $ε D e_{c}^{2}$ .

Figure 5.

Dimensionless velocity field for different values of M at fixed values of X = 1.5, $δ$ = 2.

Figure 6.

Non-dimensional shear stress profiles with constant values of X = 2.5 and $δ$ = 2 for various values of $ε D e_{c}^{2}$ .

Figure 7.

Force on the coated surface wire for various values of Deborah number.

Figure 8.

Thickness of wire coating with constant amount of X = 0.5 and $ε D e_{c}^{2}$ = 0.1 for numerous values of $δ$ .

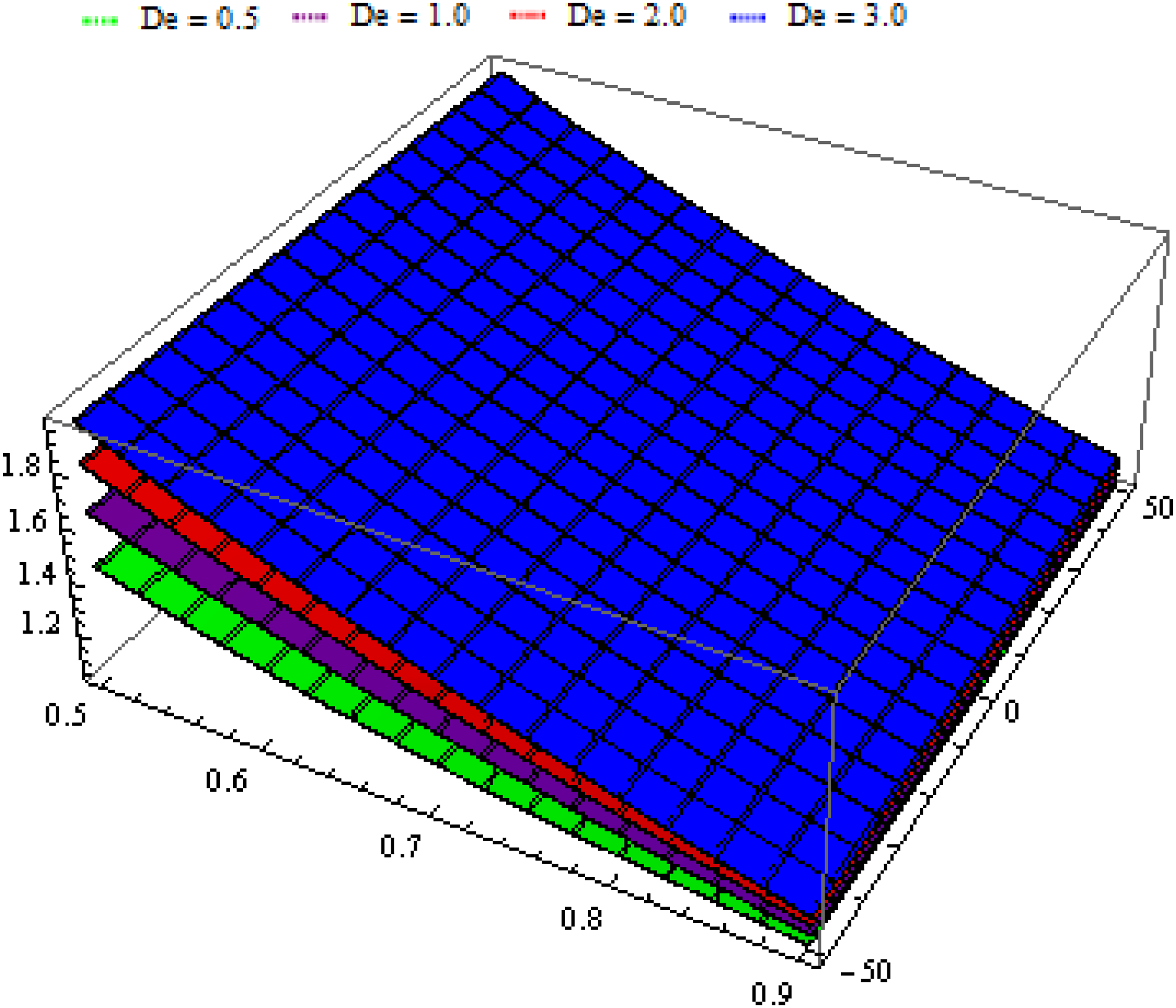

Figure 9.

Wire coating thickness for various values of Deborah number when X = 0.5 and $δ$ = 0.2.

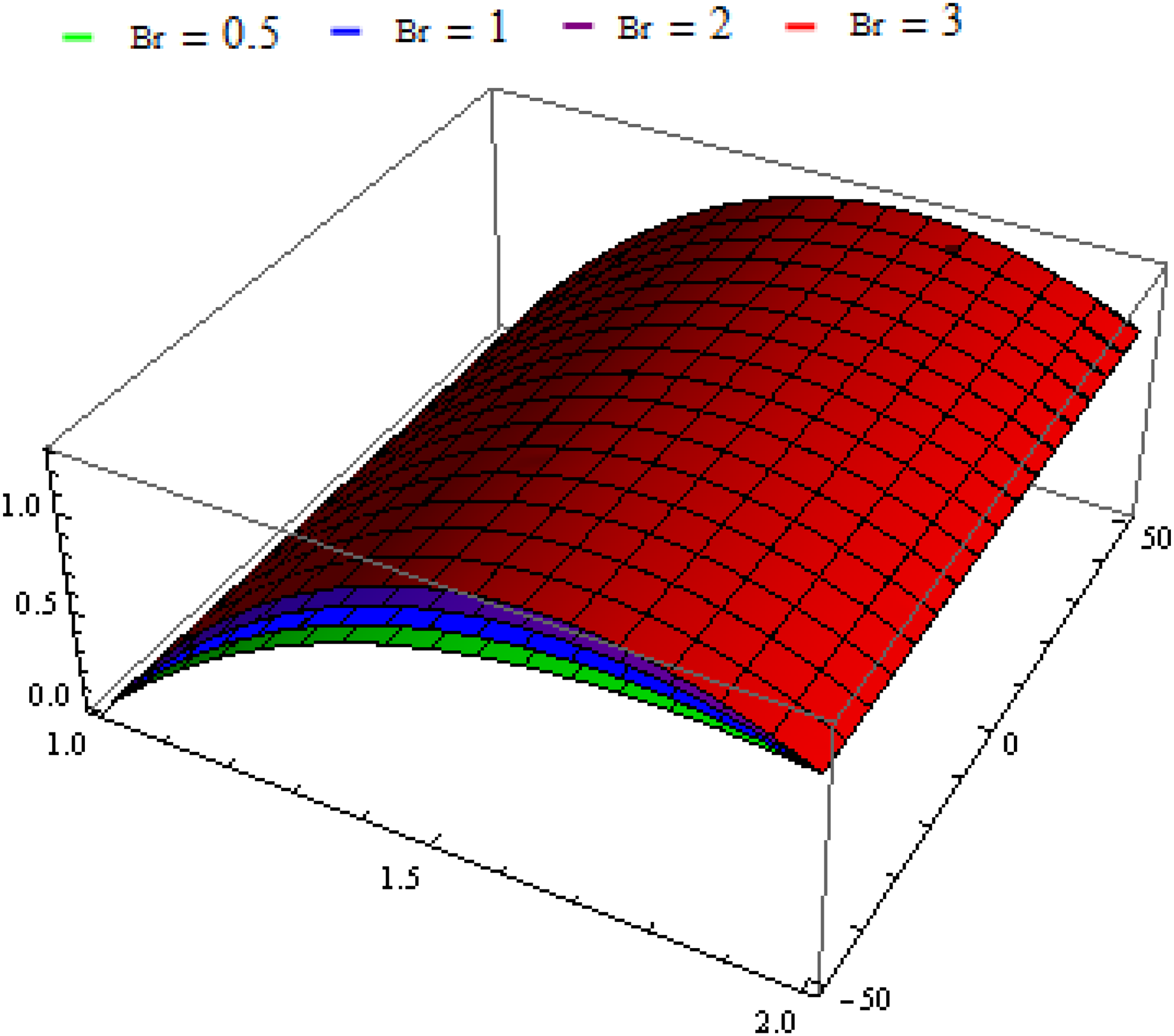

Figure 10.

Non-dimensional temperature profiles with constant values of X = 0.5, $ε D e_{c}^{2}$ = 10, and $δ$ = 2 for numerous values of Br.

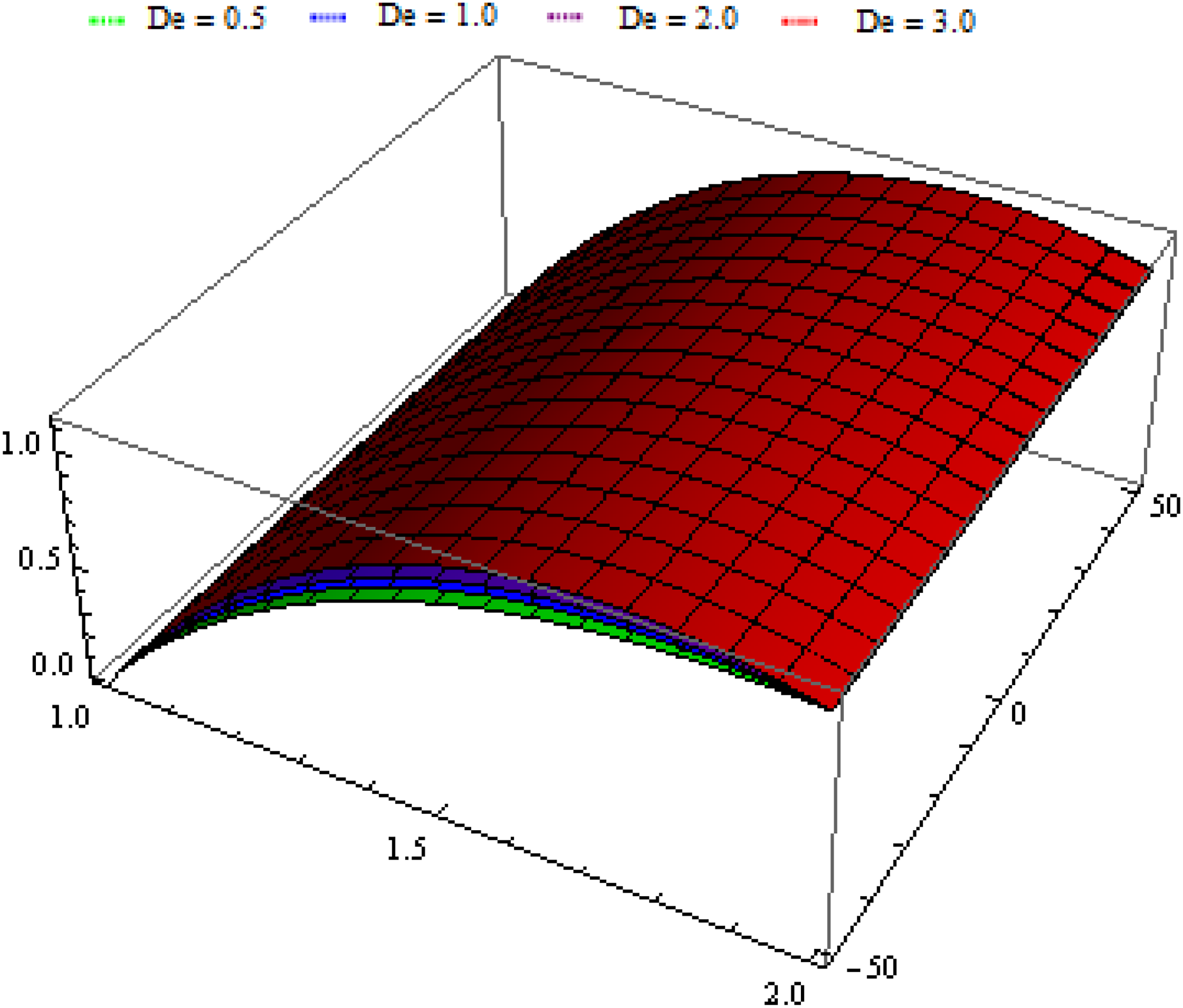

Figure 11.

Non-dimensional temperature profiles with constant values of X = 0.2, Br = 4, and $δ$ = 2 for numerous values of De.

Figure 12.

Non-dimensional temperature profiles with constant values of $ε D e_{c}^{2}$ = 0.5, Br = 2, and $δ$ = 2 for numerous values of X.

Figure 13.

Dimensionless volume flow rate for numerous values of X.

Figure 14.

Dimensionless volume flow rate for numerous amount of DE.

Figure 15.

Dimensionless volume flow for numerous amount of $δ$ .

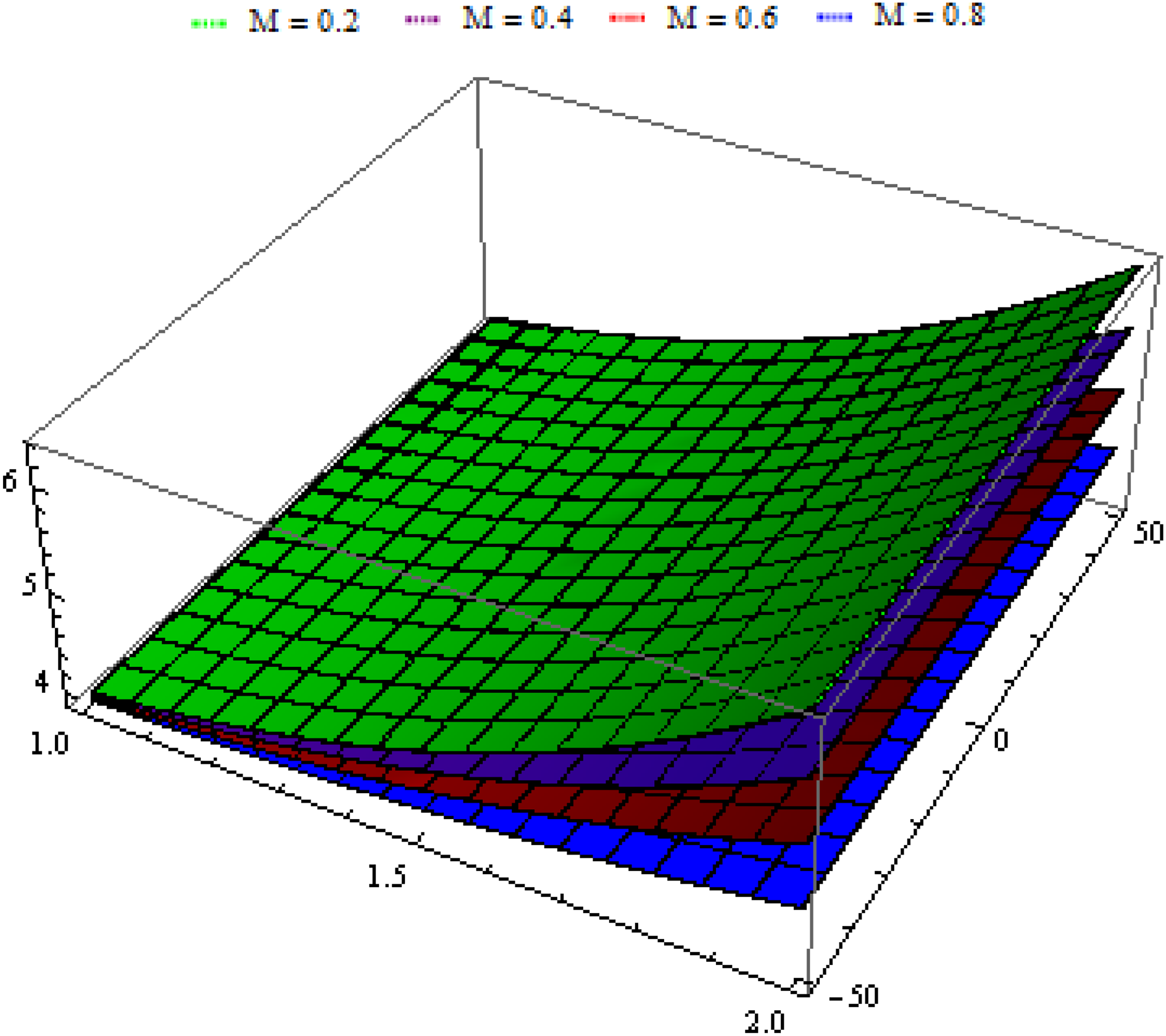

Figure 16.

Dimensionless rate of volume for numerous values of M.

Discussion of results

In this paper, we investigate the wire coating in a pressurized coating die using the PTT fluid as a coating polymer. The basic equations of flow are converted to ordinary differential equations. The exact solution is obtained for the velocity profile, temperature distribution, thickness for wire, volume flow rate, and the shear stress at the surface of the total wire. Figures 3–5, respectively, depict the velocity profiles that are functions of r for various amounts of dimensionless numbers X, Deborah number De, and magnetic parameter M. One of the most important quantities in rheology is the dimensionless Deborah number. Any fabric's viscoelastic behavior can be represented using it. The Deborah number is defined as the ratio between perception or exploring time and fabric unwinding time.

In Figure 3, we altered the ratio of pressure drop to wire speed, that is, $X = 0.1, 0.2, 0.3, 0.4,$ while keeping $D e = 10, δ = 2 .$ constant. The graph illustrates that an increase in pressure gradient boosts flow velocity. Sketching Figure 4 for $D e$ = 0.1, 0.2, 0.3, 0.4 with X = 0.5 and $δ$ = 2. It is evident from Figures 3 and 4 that velocity rises as the dimensionless parameters X and $ε D e_{c}^{2}$ grow. For low elasticity $D e$ = 0.1, the velocity disparity in Figure 4 deviates slightly to the Newtonian; nevertheless, when $D e$ is raised, these curves become flatter, demonstrating the influence of shear-thinning. By comparing Figures 3 and 4, it is crystal clear that the effect of Deborah number is more significant as compared to the X. Figure depicts the influence of magnetic factor in the velocity profile. It is detected that the fluid movement declines as the values of the magnetic factor increases. The magnetic field develops a Lorentz force normal to the flow. This Lorentz force repels the velocity of the fluid as a result the movement of the polymer declines.

In Figures 5 and 6, we examine the non-dimensional shear stress profile and force on the cured wire surface for different value of $D e$ at fixed values of parameters X and $δ$ respectively. From this analysis, we analyze that the shear stress and force on wire surface upturns as the Deborah number rises.

The thickness of the wire is examined in Figures 7 and 8 using the numerous values of radii ratio $δ$ and De while keeping other parameters fixed. For both physical parameters, the coatings wire thickness grows as the values of these parameters enhance. Comparing Figures 7 and 8, it is perceived that the wire thickness is higher as compared to $δ$ .

Figures 9–15 are sketched for the temperature profile to examine the influence of physical parameters like Brinkman number, Deborah number, and dimensionless parameter X. Figure 9 shows the temperature distribution for numerous values of $B r$ while keeping $D e = 1, δ = 2, M = 0.1$ fixed. Figure 10 depicts the influence of $D e = 0.5, 1, 2, 3$ on temperature. Similarly, the influence of several values of $D e = 0.5, 1, 2, 3$ is examined on temperature. In all these figures it is investigated that the temperature profile increases as these parameters enhance. By comparing these figures it is analyzed that the temperature is higher for the dimensionless parameter X while the effect of Brinkman number and Deborah number is almost same. It is also perceived that the temperature reaches its greatest significance near the center of the annular gap for varying $B r$ and $D e$ values, and subsequently falls to satisfy the faraway field boundary requirements for fixed factors. Analyzing four curls in each image reveals that the hotness at a given point rises as the Brinkman number $B r$ , Deborah number $D e$ , and dimensionless parameter X are increased. Nonetheless, this increase is quite modest in Figure 12 as X increases.

The non-dimensional volume flow rate at numerous values of X, $D e$ , $δ$ , and M are exposed in Figures 13–16. The volume flow for the dimensionless velocity is depicted in Figure 13 taking other parameters fixed. From this figure it is pragmatic that the volume rate upsurges as the dimensionless velocity parameters is enhanced. Similarly, the volume flow is increased for the Deborah number and radii ratio as shown in Figures 14 and 15, respectively. The inspiration of magnetic factor M on volume flow is elaborated in Figure 16. From this analysis, it is clear crystal that the volume flow declines with the growing values of M. Due to applied magnetic field the Lorentz force is established which repel the movement so the volume flow rate decreases. Comparing these figures, that is, Figures 12–16, it is evident that the flow is higher for Deborah number as compared to X and $δ$ , that is, $D e ≻ X ≻ M .$ are shown, which demonstrate that the rate of volume decreases with the growth of these parameters. The stream lines are displayed in Figure 17.

Figure 17.

Stream lines for the velocity.

Oliveira³¹ discussed the coating analysis for wire using PTTF in a cylindrical covering die in the absence of magnetic force. The uniqueness of the current work is to investigate the coating of wire using PTTF in the incidence of Lorentz force which has not investigated yet, so in limiting cases the current effort is validated with work testified by Oliveira³¹ by neglecting magnetic field, and excellent agreement is found which is given in tabular (see Table 1) form for the velocity and temperature profiles.

Table 1.

Evaluation of the current work with available study reported by Oliveira³¹ when $D e = 0.3, X = 0.2, δ = 2, M = 0.$

$r$	Velocity	Temperature	Oliveira³¹ velocity	Oliveira³¹ temperature
1	1	0	1	0
1.1	0.0052814	0.28962	0.0052703	0.28973
1.2	0.0041252	0.42932	0.0041361	0.42946
1.3	0.0040061	0.54155	0.0040152	0.54175
1.4	0.0037182	0.63725	0.0037092	0.63736
1.5	0.0025323	0.72322	0.0025433	0.72333
1.6	0.0024523	0.79375	0.0024734	0.79386
1.7	0.0018230	0.78817	0.0018641	0.78828
1.8	0.0013131	0.94855	0.0013802	0.94856
1.9	0.0002631	0.97887	0.0002742	0.97898
2	0	1	0	0

Conclusion

The aim of the present study is to investigate the PTT fluid for wire coating under the effect of magnetic field in a pressurized coating die. Dimensional, incompressible, laminar, and isothermal flow fields are considered. The governing equation is reduced to account for continuity, momentum, and energy. For velocity, temperature, shear stress, volume fraction, and thickness of the coated wire, the exact answer is discovered. Graphical discussion is used to show how physical characteristics affect physical quantities. The novelty of the present study is to examine the PTT fluid filled in the pressurized coating die used as a polymer for the wire coating in the presence of magnetic field, which has not investigated yet. So for the stability analysis the present work is compared with published work in limiting cases and excellent agreement is found. List of key findings from the current study are as follows:

It was discovered that the maximum axial velocity occurs at the annulus's center and is dependent on the variables X and $ε D e_{c}^{2}$ . Moreover, the velocity rises as the values of Deborah number and dimensionless velocity factors grow.

In the range $0.1 \leq ε D e_{c}^{2} \leq 0.4$ , the shear stress, force on the wire, temperature profile are shown to rise.

The volume and thickness of the coated wire are also increased as the values of X, Deborah number, and ratio of radii are enhanced. The volume flow is higher for the Deborah number as compared to X and radii ratio.

Opposite behavior is observed for the magnetic field both for velocity and volume.

The temperature of the fluid is dependent on $B r$ , $ε D e_{c}^{2}$ , and X, and it rises extremely rapidly as their values grow, particularly for $B r$ .

The present research is more general than Maxwell and the linear viscous fluid model by bringing $ε$ and $λ$ tend to zero, respectively.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

Author biographies

Zeeshan recived his PhD in applied mathematics from Abdul Wali Khan university Mardan, Pakistan. He received his MPhil degree from Quaid-e-Azam university Islamabad. He has over 13 years of academic experience in different reputed institutions of the world. He is currently working as Assistant Professor at Bacha Khan University Charsadda, KP, Pakistan. He published more than 80 papers in reputed journals with more than 1200 citations in international peer-reviewed journals, including ISI Indexed/IF Journal publications.

Abdullah Mohamed is Professor in the Research Centre at Future University in Egypt, New Cairo 11835, Egypt. He has received many distinguished faculty and researcher awards. He has published many research articles in different well-reputed international journals. He is reviewer of several journals and remained guest editor of some special issues in reputed journals. His research interest includes nanofluid, nanomaterials, mathematical modeling, computational fluid dynamics, and numerical computing.

Ilyas Khan received his PhD degree in applied mathematics from the Universiti Teknologi Malaysia (UTM) in 2012 and Post Doctorate in 2013 from the same university. He received several distinctions such as senior visiting research fellow and visiting researcher. He has over 15 years of academic experience in different reputed institutions of the world. He is currently working an Associate Professor in the Department of Mathematics, College of Science, at Majmaah University, Saudi Arabia. He has received twice distinguish researcher award from Majmaah University. According to AD-Scientific Index 2022, He has received first place as a best scientist at Majmaah University and 3rd place as a best scientist in Saudi Arabia.

Muhammad Sheraz Khan Mphil student in Department of Mathematics & Statistics at Bacha Khan University Carsadda, KP, Pakistan.

Mansour F Yassen received his PhD degree in applied mathematics from the Department of Mathematics, College of Science and Humanities in Al-Aflaj, Prince Sattam Bin Abdulaziz University, Al-Aflaj, Saudi Arabia He has over 15 years of academic experience in different reputed institutions of the world. He is currently working an Associate Professor in the Department of Mathematics, College of Science, at Majmaah University, Saudi Arabia.

Attaullah received Master of Philosophy in Mathematics from Capital University of Science & Technology, Islamabad, Pakistan. He served as a lecturer at the department of Mathematics & Statistics, University of Lahore. Currently, he is a lecturer at the department of Mathematics & Statistics, Bacha Khan University Charsadda Pakistan. His research interests include Applications of fuzzy systems and related topics, Fuzzy aggregation operators, Fuzzy decision support systems, Fuzzy set and systems, Probabilistic fuzzy decision support systems, Application of soft sets in decision making, Soft computing and artificial intelligence. He has published more than 30 research articles with more than 1000 citations in international peer-reviewed journals, including ISI Indexed/IF Journal publications.

References

Agassant

Coates

Denn

, et al. Touchstones of modern polymer processing. Workshop Held at the Polymer Processing Institute at New Jersey Institute of Technology, Newark NJ, 2002.

Mark

. Eirich

(ed.) Rheology, Vol. 4. New York: Academic Press, 1969, Chap.

Dees

Spruiell

. Structure development during melt spinning of linear polyethylene fibers. 1974. https://doi.org/10.1002/app.1974.070180408.

Capaccio

Ward

. Ultra-high modulus linear polyethylene through controlled modulus weight and drawing. Polym Eng Sci 1975; 15: 219–224.

Feil

Hrivnak

. Wire coating process. US Patent 4,588,546; May 13 1986.

Khan

Rasheed

Tlili

, et al. Runge-kutta 4 th-order method analysis for viscoelastic oldroyd 8-constant fluid used as coating material for wire with temperature dependent viscosity. Sci Rep 2018; 8: 1–13.

Mahanthesh

Gireesha

Archana

, et al. Variable viscosity effects on third-grade liquid flow in post-treatment analysis of wire coating in the presence of nanoparticles. Int J Numer Methods Heat Fluid Flow 2018; 28: 2423–2441.

Nayak

Shaw

Chamkha

. Radiative non linear heat transfer analysis on wire coating from a bath of third-grade fluid. Therm Sci Eng Prog 2018; 5: 97–106.

Khan

Rasheed

Abbas

, et al. Analysis of Eyring–Powell fluid flow used as a coating material for wire with variable viscosity effect along with thermal radiation and Joule heating. Crystals 2020; 10: 168.

10.

Bhukta

Mishra

Hoque

. Numerical simulation of heat transfer effect on Oldroyd 8-constant fluid with wire coating analysis. Eng Sci Technol Int J 2016; 19: 1910–1918.

11.

Hussain

Ameer

Javed

, et al. Rheological analysis on non-Newtonian wire coating. J Brazil Soc Mech Sci Eng 2019; 41: 115.

12.

Reddy

BSK

Rao

KSN

Vijaya

. Ham on MHD convective flow of a third grade fluid through porous medium during wire coating analysis with Hall effects. Mater Sci Eng 2017; 225: 012268.

13.

Khan

Shah

Altaf

, et al. Effect of thermal radiation and MHD on non-Newtonian third grade fluid in wire coating analysis with temperature dependent viscosity. Alexandria Eng J 2018; 57: 2101–2112.

14.

Sajid

Siddiqui

Hayat

. Wire coating analysis using MHD Oldroyd 8- constant fluid. Int J Eng Sci 2007; 45: 381–392.

15.

Nadeem

Akram

. Influence of inclined magnetic field on peristaltic flow of a Williamson fluid model in an inclined symmetric or asymmetric channel. Math Comput Model 2010; 52: 107–119.

16.

Khan

Rasheed

, et al. Melting flow in wire coating of a third grade fluid over a die using Reynolds’ and Vogel’s models with nonlinear thermal radiation and Joule heating. Materials 2019; 12: 3074.

17.

Khan

Siddiqui

, et al. Solution of magnetohydrodynamic flow and heat transfer of radiative viscoelastic fluid with temperature dependent viscosity in wire coating analysis. Plos One 2018; 13: e0194196.

18.

Siddiqui

Sajid

Hayat

. Wire coating by withdrawal from a bath of fourth order fluid. Phys Lett A 2008; 372: 2665–2670.

19.

Khan

Rasheed

Ullah

, et al. Shooting method analysis in wire coating withdrawing from a bath of Oldroyd 8-constant fluid with temperature dependent viscosity. Open Phys 2018; 16: 956–966.

20.

Nayak

Dash

Singh

. Steady MHD flow and heat transfer of a third grade fluid in wire coating analysis with temperature dependent viscosity. Int J Heat Mass Transf 2014; 79: 1087–1095.

21.

Siddiqui

Haroon

Khan

. Wire coating extrusion in a pressure-type die in flow of a third grade fluid via homotopy perturbation method. Int J Nonlinear Sci Numer Simul 2009; 10: 247–258.

22.

Akram

Nadeem

. Influence of induced magnetic field and heat transfer on the peristaltic motion of a Jeffrey fluid in an asymmetric channel: closed form solutions. J Magn Magn Mater 2013; 328: 11–20.

23.

Malik

Hussain

Nadeem

. Boundary layer flow of an Eyring–Powell model fluid due to a stretching cylinder with variable viscosity. Scientia Iranica 2013; 20: 313–321.

24.

Nadeem

Akbar

Naheeda

, et al. Influence of heat and mass transfer on peristaltic flow of a third order fluid in a diverging tube. Commun Nonlinear Sci Numer Simul 2010; 15: 2916–2931.

25.

Shit

Haldar

Mandal

. Entropy generation on MHD flow and convective heat transfer in a porous medium of exponentially stretching surface saturated by nanofluids. Adv Powder Technol 2017; 28: 1519–1530.

26.

Mukherjee

Shit

Vajravelu

. Entropy generation of electrothermal nanofluid flow between two permeable walls under injection process. J Nanofluids 2022; 11: 714–727.

27.

Shit

Haldar

Ghosh

. Convective heat transfer and MHD viscoelastic nanofluid flow induced by a stretching sheet. Int J Appl Comput Math 2016; 2: 593–608.

28.

Shit

Mukherjee

. MHD graphene-polydimethylsiloxane Maxwell nanofluid flow in a squeezing channel with thermal radiation effects. Appl Math Mech 2019; 40: 1269–1284.

29.

Shah

Islam

Siddiqui

, et al. Heat transfer by laminar flow of an elastico-viscous fluid in post treatment analysis of wire coating with linearly varying temperature along the coated wire. J Heat Mass Transfer 2012; 48: 903–914.

30.

Mitsoulis

. Fluid flow and heat transfer in wire coating. Ad Poly Tech 1986; 6: 467–487.

31.

Oliveira

Pinho

. Analytical solution for fully developed channel and pipe flow of Phan-Thien, Tanner fluids. J Fluid Mech 1999; 387: 271–280.

32.

Animasaun

Shah

Wakif

, et al. Ratio of momentum diffusivity to thermal diffusivity: introduction, meta-analysis, and scrutinization. New York: Chapman & Hall, 2022.

33.

Animasaun

Raju

CSK

Sandeep

. Unequal diffusivities case of homogeneous–heterogeneous reactions within viscoelastic fluid flow in the presence of induced magnetic-field and nonlinear thermal radiation. Alexandria Eng J 2016; 55: 1595–1606.

34.

Omowaye

Animasaun

. Upper-convected Maxwell fluid flow with variable thermo-physical properties over a melting surface situated in hot environment subject to thermal stratification. J Appl Fluid Mech 2016; 9: 1777–1790.
