Weaving scheduling based on an improved ant colony algorithm

Abstract

Weaving enterprises are faced with problems of small batches and many varieties, which leads to difficulties in manual scheduling during the production process, resulting in more delays in delivery. Therefore, an automatic scheduling method for the weaving process is proposed in this paper. Firstly, a weaving production scheduling model is established based on the conditions and requirements during actual production. By introducing flexible model constraints, the applicability of the model has been greatly expanded. Then, an improved ant colony algorithm is proposed to solve the model. To address the problem of the traditional ant colony algorithm that the optimizing process usually traps into local optimum, the proposed algorithm adopts an iterative threshold and the maximum and minimum ant colony system. In addition, the initial path pheromone distribution is formed according to the urgency of the order to balance each objective. Finally, the simulation experiments confirm that the proposed method achieves superior performance compared with manual scheduling and other automatic methods. The proposed method shows a certain guiding significance for weaving scheduling in practice.

Keywords

automatic scheduling production optimization weaving manufacture ant colony algorithm

Weaving enterprises usually have long production processes. For each order, schedulers need to make arrangement for the processes of each variety to guarantee the delivery. The weaving process is the core step in the production of a weaving enterprise. The weaving efficiency directly affects the production profit of the weaving enterprise. Most weaving enterprises rely on manual experience for the production scheduling of weaving shafts. Schedulers have heavy workloads and strong individual subjectivity. It is easy to cause an imbalance of resource scheduling.¹

Nowadays, orders for weaving enterprises have shown a diversified trend with personalized market demands. Therefore, in a weaving enterprise, there are always many orders in the process at a same period, but the order size is small, and customers have strict requirements for delivery. A greater order quantity increases the manual scheduling workload, and increasing order diversity requires schedulers to consider more the adaptation of the varieties and loom machines, which increases the work complexity of the schedulers. In addition, the diversity of orders also leads to the increasing of temporary order insertion, which will disrupt the current production plan. This requires schedulers to have a higher temporary response speed, and increases the scheduling difficulty. In general, manual scheduling suffers from the following problems: (a) heavy workload; (b) high scheduling complexity; (c) great difficulty in responding quickly; (d) high probability of error. Computer-aided production scheduling can help solve the previously mentioned problems.²

Many researchers have established many models to simulate weaving production scheduling, and have developed some optimization algorithms to solve them. Constraints and optimization goals are the two most critical factors during model building. Silva and Magalhaes³ characterized the problem as a discrete batch size problem by establishing two optimization goals: minimizing tool conversion and delivery to solve the acrylic fiber production scheduling. Han et al.⁴ optimized the spinning production scheduling problem by adopting hybrid Petri net modeling, taking into account factors such as cost, overdue orders and inventory. Hsu et al.⁵ proposed a yarn-dyed production scheduling method. By establishing a mixed-integer programming model, the entire yarn-dyed scheduling problem was decomposed into several sub-problems, and each sub-problem was solved using a genetic algorithm. Wang et al.⁶ transformed the weaving scheduling problem into an evolutionary solution process of chromosomes, and established two goals of minimizing total downtime and gait load. The obtained weaving scheduling model has good generality, but the constraints have some limitations. Yan⁷ converted the scheduling problem into a path optimization problem, and the scheduling model has the disadvantages of a single optimization goal and poor generality. Zhou et al.⁸ established a database-based scheduling system, using dynamic genetic algorithms to optimize dyeing production scheduling. The freshwater consumption is reduced by the scheduling optimization of the dyeing problem. Zhang et al.⁹ described the dyeing process scheduling problem as a two-objective parallel batch machine scheduling model. Two objective functions were used to reflect the delay cost and the utilization of the dyeing tank. Eroglu and Ozmutlu¹⁰ considered both loom constraints and order splitting, but the computation time is longer when solving large-scale loom scheduling problems. It is worth noted that most of the previous studies did not consider the soft constraint conditions in the process of weaving model establishment, such as the adaptability between the loom and the variety.

In previous research, many optimization algorithms have been applied to solve the scheduling models of textile production. These algorithms can be divided into two types: mathematical regularization and heuristic algorithms. In early research, many researchers used mathematical programming to solve scheduling problems,^11–13 but its scope of application was a little narrow. As the complexity of the problem increased, heuristic algorithms,^14–16 such as genetic algorithms,^17–19 ant colony algorithms,^20,21 particle swarm algorithms,^22,23 artificial bee colony algorithms,^24,25 etc., became more and more popular with researchers. They have their own advantages and disadvantages. Genetic algorithms are widely used, but the convergence rate is slow²⁶; the particle swarm algorithm has high search efficiency, but it does not handle discrete optimization problems well.²⁷ In general, the ant colony algorithm has excellent advantages in solving the non-deterministic polynomial-time hard (NP-hard) problem and the dynamic shortest path problem.²⁸ The ant colony algorithm's deconstruction mechanism can easily handle the constraints, but it also has the problem of large amount of calculation and easy to fall into local optima.²⁹

The diversity of constraints increases the complexity of our model. Mathematical regularization methods are not suitable to solve this problem. In addition, the encoding and decoding process of the genetic algorithm is complex. The particle swarm algorithm does not have crossover and mutation operations, and mainly relies on particle speed for searching. The ant colony algorithm can make full use of the heuristic information of the problem. Multiple ants independently search in the problem space, and the solution of the problem will not be affected by the defects of some individuals.³⁰ At the same time, the ants use pheromone connection and transfer experience to guide the next search behavior, which enhances the systematicness and reliability of the optimal solution. The experiments in this paper discuss various heuristic algorithms and demonstrate the advantages of the ant colony algorithm in weaving scheduling.

In this paper, an automatic scheduling method for weaving production based on an improved ant colony algorithm is proposed. By adopting the proposed scheduling method, the scheduling speed is greatly improved and the labor of the workers is reduced. In addition, compared with the results of existing research, the method proposed in this paper can be more effectively adapted to solve various practical situations, such as the urgent insertion order, stop order or machine failure. We improved the ant colony algorithm to solve the proposed weaving schedule model. The main contributions are as follows. (1) In our novel weaving schedule model, a parallel weaving environment composed of multiple types of looms is introduced. The introduction of flexible constraints greatly expands the adaptability of the model. (2) For the optimization of the algorithm, we introduced the transition probability, the iteration threshold and the maximum and minimum ant colony system. These improve the effectiveness and efficiency of the ant colony algorithm.

The rest of this paper is organized as follows. The second section describes the weaving scheduling problem and constructs a programming model. In the third section, the basic ant colony algorithm is introduced first, and then the improvement measures and the main solution process of the optimization algorithm are introduced in detail. The fourth section demonstrates the accuracy and the efficiency of the method by an actual weaving enterprise and conducts correlation parameter analysis comparison of different methods. Finally, conclusions are drawn and potential areas for future research are highlighted in the fifth section.

Model for weaving production

In previous studies, researchers focused on the aspects of delivery time, storage cost and gaiting load. They usually take the order delivery as the main constraint to shorten the completion time. For the specific issues of weaving scheduling, the production capacity of looms for various varieties is different. In addition, the previous production model is mainly aimed at a specific workshop. When faced with different production conditions, its effect may be greatly reduced. In this paper, a more effective model is established after investigation. We have considered variety constraints. By grading the loom type and fabric variety, the adaptability of the model has been greatly expanded.

Model description

The weaving enterprise usually has multiple types of looms. In order to simplify the constraints on machine types, all varieties are classified into various varieties according to the difficulty of weaving. Different varieties have different types of applicable looms. For different levels of fitness, we set a quantization value to distinguish them. These discrete quantized values are only used as a distinction.

By the simplification of the proposed model, the production environment can be regarded as a parallel weaving environment composed of multiple types of looms. Different varieties need to meet different types of weaving machine constraints. For most weaving enterprises, even if the machine models are not the same, there may be non-existent loom types, the basic model can be established in the previously mentioned manner. Flexible model constraints expand the practicality of the model. Meanwhile, this model assumes that the weaving production capacity of the same type of loom is similar. Therefore, this model can be applied to general weaving enterprises.

Frequently changing fabric types on the same loom consumes a great deal of work time. Weaving shafts of the same variety should be produced on the same loom. This can reduce the variety change rate of the loom and increase productivity. The overall completion time of orders is shortened by minimizing the maximum completion time. A lower variety change rate can reduce the production cost caused by the shaft change. Therefore, optimizing each objective function can achieve the purpose of reducing the production cost of the enterprise.

Optimization goal

Based on the actual scheduling demands of the enterprise, the loom is subject to experience data for production. Under the premise of meeting the order delivery date, this paper aims to minimize the maximum completion time, while optimizing the model adaptability and variety change rate. In general, we established the following optimization goals.

The maximum completion time

T_{1} = max (l_{1}, l_{2}, \dots, l_{m})

(1)

where max represents the maximum value, l_m represents the weaving time of the mth loom and m is the total number of looms; the value of T₁ is [l_c,l₁+l₂+...+l_m], and l_c is the current time.

The times to change the variety of weaving shafts are as follows

T_{2} = \sum (s_{k} \neq s_{k + 1})

(2)

where S_k represents the current weaving machine and the variety of the kth shaft (k = 1,2,…,m_i, where m_i represents the number of weaving shafts of the ith loom.

Shaft suitability

T_{3} = \sum_{i = 1}^{n} v_{i}

(3)

where v_i represents the fitness score of the ith weaving shaft.

Shaft length constraint

For all the weaving shafts to be scheduled, it is necessary to make a reasonable prediction of the weaving time of each loom. The weaving time is calculated as follows

T_{r} = \frac{P_{W} \times (L_{0} \times (1 - i) - L)}{6 \times M_{S} \times η}

(4)

where T_r is the estimated weaving time (h); P_W is the weft density of the variety (root/10 cm); L₀ is the warp length on the weaving shaft (m); i is the warp shrinkage rate; L is the weaving length of the weaving shaft; M_S is the speed of the loom (r/min); η is the efficiency of the loom.

The weaving time has a direct positive correlation with the length of the weaving shaft, and the length of the weaving shaft is related to the order length. This model attempts to divide the order length and the reasonable length of the shaft package to facilitate the actual weaving production. For a certain variety, the formula for calculating the maximum winding length of the weaving shaft is as follows

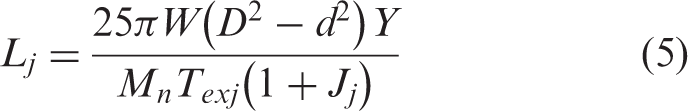

L_{j} = \frac{25 π W (D^{2} - d^{2}) Y}{M_{n} T_{exj} (1 + J_{j})}

(5)

L_{P} = \frac{L_{G} (1 + λ)}{1 - j}

(6)

n = floor (\frac{L_{j}}{L_{p}})

(7)

L_{s} = L_{p} \times n + l_{b}

(8)

where L_j is the maximum planned winding length; W is the width between the discs on both sides of the weaving shaft (cm); D is the diameter of the weaving shaft winding yarn (cm); d is the diameter of the weaving shaft tube (cm); Y is the winding density of the weaving shaft (g/cm³); M_n is the total warp yarn number; T_exj is the yarn special number; J_j is the warp sizing rate. L_p is the length of sizing ink printing; L_G is the nominal length; j is the shrinkage rate; λ is the addition and release rate. n is the number of weavable cloth rolls; floor means rounding down; L_s is the maximum winding length of the loom; l_b is the length of the extra yarn. The relevant parameters of the weaving shaft specifications and the specified cloth bolt length are generally the same in the enterprise, so the maximum planned winding length of the weaving shaft can be calculated.

The proposed method

Basic ant colony algorithm

The ant colony algorithm was proposed by Dorigo et al.^31,32 and its inspiration comes from the behavior of ants searching for food. In the process of searching for food, ants will leave pheromones on their walking path. The pheromone on the path will evaporate at a certain rate with time. Initially, the choice of the ants' path is random. After that, the probability of ants choosing paths will be affected by the concentration of pheromone left on the path. In the unit time, the number of ants on the short path is more than that on the long path, and the pheromone concentration on the short path will also be higher. This forms a positive feedback mechanism. The ant colony algorithm has been widely used in the traveling salesman problem, achieving good results.^33,34

At the initial moment of the algorithm, the amount of pheromone on each path is equal, and m ants are randomly placed in n nodes; let p_ij(t) be the probability that the ant will move from shafts i to shafts j for the tth iteration

p_{ij}^{k} (t) = {\begin{matrix} \frac{[τ_{ij} (t)] α \cdot [ϕ_{ij} (t)] β}{\sum_{j \in allowed} [τ_{ij} (t)] α \cdot [ϕ_{ij} (t)] β} & if j \in alloweds \\ 0 & otherwise \end{matrix}

(9)

where τ_ij(t) represents the pheromone concentration indicating that the ant is transferred from node i to node j; alloweds represents the set of all nodes that ant has not walked through; ϕ_ij(t) represents the desired degree of ant transfer from node i to node j; α is the pheromone factor; β is the heuristic factor. The size of the α value indicates the degree of attention to the amount of information left on each node. The size of the β value indicates the degree to which heuristic information is valued

ϕ_{ij} = \frac{1}{d_{ij}}

(10)

where d_ij represents the distance between node i and node j.

After completing a cycle, the amount of pheromone on each path needs to be adjusted. The formula is as follows

τ_{ij} (t + 1) = (1 - ρ) τ_{ij} (t) + \sum_{k = 1}^{n} Δ τ_{ij}^{k} o < ρ < 1

(11)

where

τ_{ij} (t + 1)

represents the pheromone concentration from node i to node j at the t + 1th iteration, and

Δ τ_{ij}^{k}

represents the pheromone concentration released by the kth ant on the connection path between node i and node j; for the pheromone volatilization coefficient, ρ has a value range of 0 < ρ < 1.

When the path constructed by the ant is better, the path can obtain more pheromones. In repeating the process of constructing the solution and updating the pheromone, the better path is continuously updated until reaching the end of the algorithm iteration.

Improved ant colony algorithm

The entire flow of the algorithm is shown in Figure 1. We use the weaving shafts as each node in the ant colony traveling process, and the loom as a virtual node. Firstly, the ant colony and path pheromone are initialized, and then ants select the shaft and the loom according to the transition probability. After a single ant completed a cycle, we get the order of the weaving shafts on each loom. According to the weaving shaft information and the loom information, we can get the completion time of each weaving shaft and order. After all the ants have completed one iteration, we remove the path that causes the order to exceed the deadline, and then choose the optimal path. After several iterations to reach the maximum number of iterations, the optimal solution is output.

Figure 1.

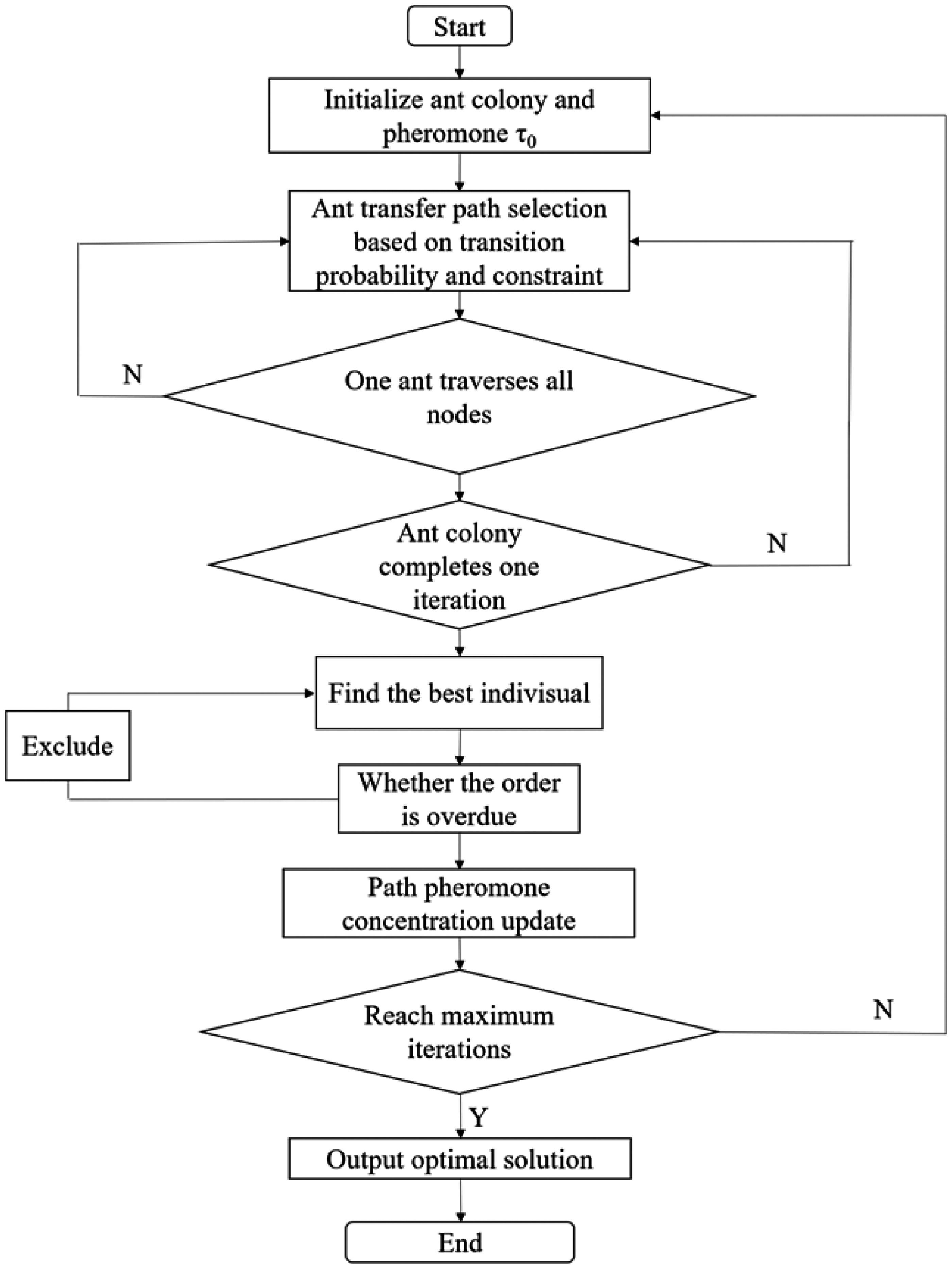

Improved ant colony algorithm flow.

Transition probability

In the traditional ant colony algorithm, the degree of expectation is only inversely proportional to the length of the path. This is feasible to solve the single minimum path problem. In the problems raised in this article, the constraints are both hard and soft. The formula for calculating the degree of expectation of the traditional ant colony algorithm is obviously no longer applicable to this problem. Therefore, we introduced c_0j (number of continuous weaving of the same variety) and adt_ij (the fitness score of each shaft). At the same time, the weaving time of each shaft is taken as the length of its path. So far, we have achieved the effect of the three constraints on the degree of expectation when choosing a path, which is consistent with the three optimization goals we initially set up.

Here, ϕ_ij(t) represents the desired degree of ant transfer from the shafts i to the shafts j

ϕ_{ij} = \frac{τ \times c_{0 j} + (1 - τ) ad t_{ij}}{d_{ij}}

(12)

where c_0j represents the number of shafts of continuous weaving of the same variety on the same loom on the current path; d_ij represents the weaving time of shafts j; adt_ij represents the shaft fitness score of shafts j ; τ represents the weight coefficient.

Throughout the selection process, we are actually selecting the weavable shafts for each loom. Every time after selecting the shaft, it is possible to choose the next loom. Let $m_{i}^{k} (t)$ be the tth iteration ant probability of transfer from shafts i to the next loom

m_{i}^{k} (t) = \frac{\sum p_{ij}^{k} (t)}{allownum}

(13)

where P_ij(t) is the probability that the ant moves from shafts i to shafts j at the tth iteration, and allownum represents the number of shafts to be woven.

When setting the selection probability of the loom, we selected the average probability of all shafts. The main reason for this is that when the selection probability of the shafts is too large or too small, it is easy to cause a backlog in production on the last or the first few weaving machines. We take its average probability so as to make all the shafts distribute on each loom evenly, which is beneficial to our algorithm.

Iteration threshold

In the early stage of algorithm execution, the probability of selecting certain paths may become smaller and smaller. In order to avoid the algorithm stagnation, we set a threshold k. If there is no improvement in the value of the objective function T₁ after k consecutive iterations, we will reinitialize the pheromone on the global path. The value of k is generally one-tenth of the number of iterations. This is helpful to promote the diversity of solutions and avoid premature fall into the optimal local solution

k = \frac{G}{10}

(14)

Maximum and minimum ant colony system

During the loop iteration of the current algorithm, we always emphasize the development of the optimal path; that is, the optimal ant during the iteration allows one to release the additional pheromone. However, this may cause the pheromone concentration on some paths to grow too fast, which may lead to all ants searching the same path. Although these paths may be better, they are often not optimal paths. This causes the algorithm to fail due to early stagnation. Therefore, we introduce the maximum and minimum ant system, which sets the maximum and minimum pheromone concentration $[τ_{min}, τ_{max}]$ . If the pheromone concentration exceeds the maximum τ_max, it is set to τ_max; if the pheromone concentration exceeds the minimum τ_min, it is set to τ_min.³⁵ In this way, the pheromone concentration of the path can be controlled in a dynamic range. It can prevent excessive superposition on a specific path so that the algorithm will not converge prematurely into a local optimum.

The maximum and minimum values set for pheromone are shown in the following formulas

τ_{max} (t) = \frac{1 + ρ}{2 \cdot (1 - ρ) \cdot L_{(t)}} + \frac{2 . (1 - ρ)}{L_{(t)}}

(15)

τ_{min} (t) = \frac{τ_{max} (t)}{20}

(16)

where L_(t) represents the optimal path length for the tth iteration, and ρ is the pheromone volatility coefficient.

Results and discussion

Experimental details

This experiment takes the actual production situation as an example. The weaving enterprise has multiple air-jet looms of different types. The enterprise divided looms into three types: treadle, dobby and electronic looms. Some dobby looms in this enterprise used electronic opening devices driven by servo motors. To be precise, this part of the loom should be called the electronic dobby loom. For convenience, the enterprise referred to it as the electronic loom. The type and number of looms are shown in Table 1.

Table 1.

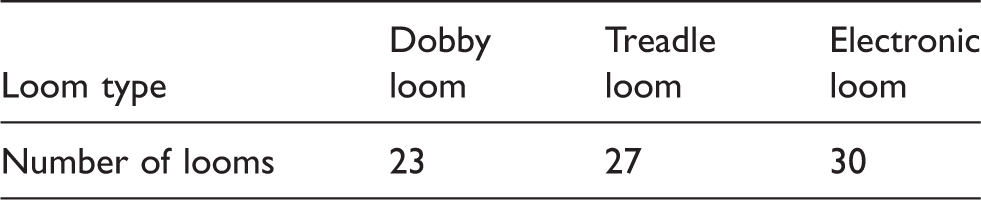

Type and quantity of looms

Loom type	Dobby loom	Treadle loom	Electronic loom
Number of looms	23	27	30

All varieties are classified into complex varieties, common varieties and high-speed varieties according to the difficulty of weaving. They have different applicable looms. We give different fitness evaluations to the grading. In order to simplify the calculation of the algorithm, we set the most suitable corresponding fitness to 3, more appropriately to 2 and then decrease in order. Table 2 shows the types of fabrics available for different weaving machines.

Table 2.

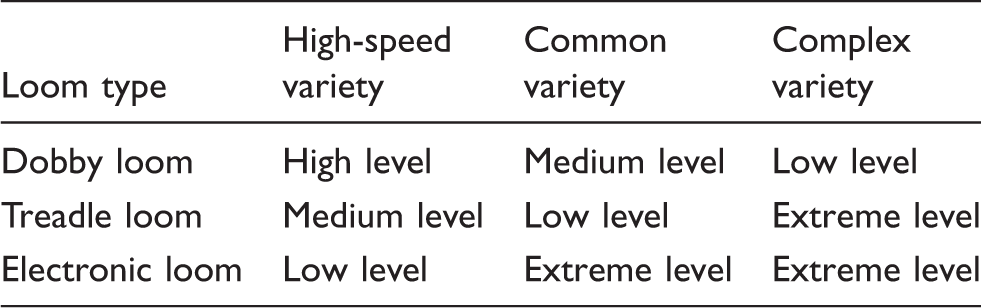

Difficulty level of weaving between different varieties and looms

Loom type	High-speed variety	Common variety	Complex variety
Dobby loom	High level	Medium level	Low level
Treadle loom	Medium level	Low level	Extreme level
Electronic loom	Low level	Extreme level	Extreme level

Table 3 shows the weaving shaft information. The columns in the table include the number, code, length and delivery date of the weaving shaft. The classification information of the weaving shaft type is also shown. Table 4 shows the detailed information of each code. It contains detailed information of the variety, width, total number of warps and the loom speed.

Table 3.

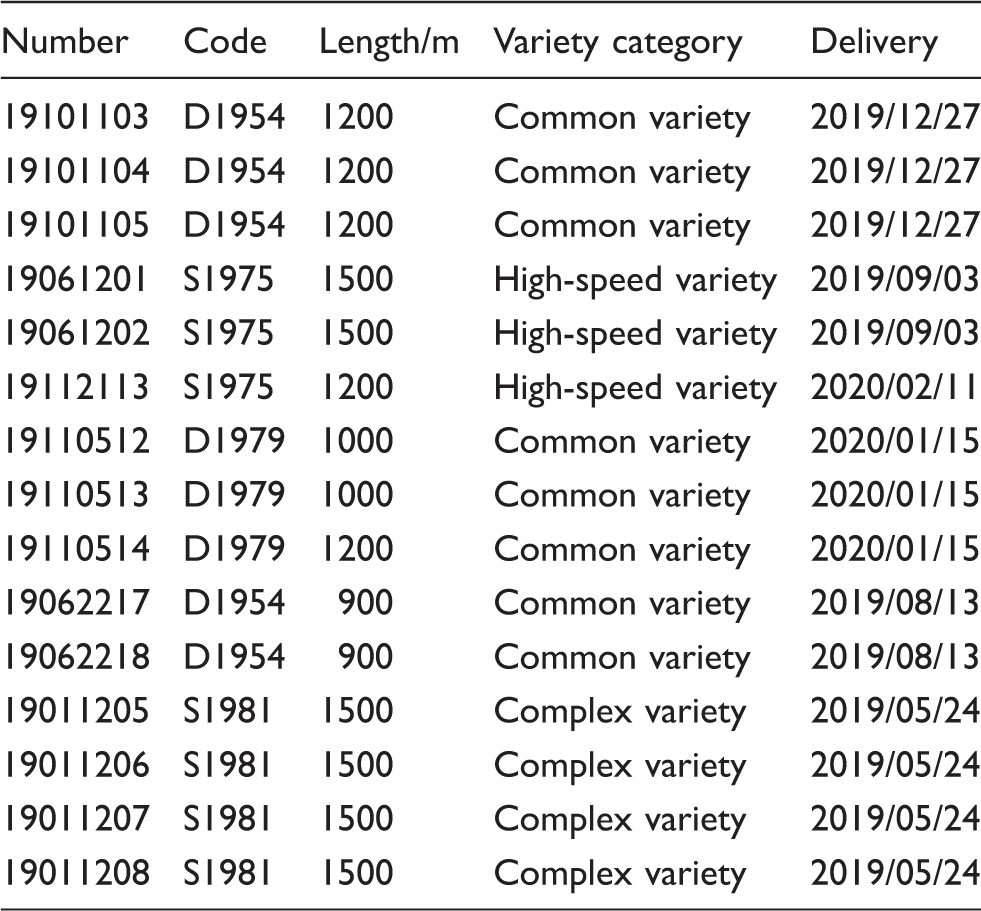

Weaving shaft information

Number	Code	Length/m	Variety category	Delivery
19101103	D1954	1200	Common variety	2019/12/27
19101104	D1954	1200	Common variety	2019/12/27
19101105	D1954	1200	Common variety	2019/12/27
19061201	S1975	1500	High-speed variety	2019/09/03
19061202	S1975	1500	High-speed variety	2019/09/03
19112113	S1975	1200	High-speed variety	2020/02/11
19110512	D1979	1000	Common variety	2020/01/15
19110513	D1979	1000	Common variety	2020/01/15
19110514	D1979	1200	Common variety	2020/01/15
19062217	D1954	900	Common variety	2019/08/13
19062218	D1954	900	Common variety	2019/08/13
19011205	S1981	1500	Complex variety	2019/05/24
19011206	S1981	1500	Complex variety	2019/05/24
19011207	S1981	1500	Complex variety	2019/05/24
19011208	S1981	1500	Complex variety	2019/05/24

Table 4.

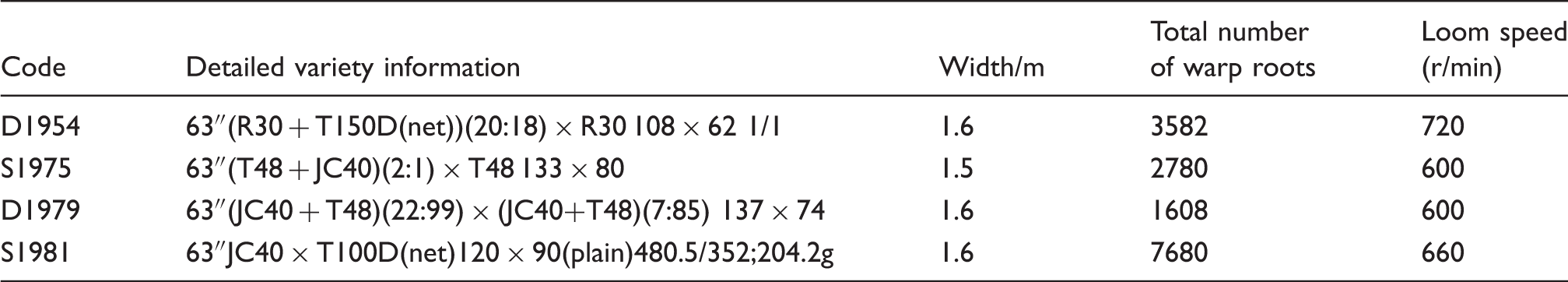

Details of variety codes

Code	Detailed variety information	Width/m	Total number of warp roots	Loom speed (r/min)
D1954	63″(R30 + T150D(net))(20:18) × R30 108 × 62 1/1	1.6	3582	720
S1975	63″(T48 + JC40)(2:1) × T48 133 × 80	1.5	2780	600
D1979	63″(JC40 + T48)(22:99) × (JC40+T48)(7:85) 137 × 74	1.6	1608	600
S1981	63″JC40 × T100D(net)120 × 90(plain)480.5/352;204.2g	1.6	7680	660

We carried out production scheduling on 221 weaving shafts of 43 orders on 80 looms. For the parameter setting of the algorithm, we select the population size N = 500, the number of iterations G = 300, the pheromone factor α = 2.0, the heuristic factor β = 2.0, the volatility coefficient ρ = 0.5, the maximum pheromone concentration τ_max = 2.5 and the minimum pheromone concentration τ_min = 0.01.

The Gantt chart of part of the schedule is shown in Figure 2. The number in the Gantt chart represents the number of the weaving shaft, which is derived from the actual number of a certain enterprise. The number consists of eight digits. The first six digits indicates the order number. The last two digits represent the serial number of the shaft. For example, for 19062412, 1906 indicates that the production date of the order is June 2019, 24 indicates that this order is the 24th order in June and 12 indicates the 12th shaft of this order. When the current six digits are the same, it means that the shaft belongs to the same order. For the three shafts on the 204 loom, they belongs to the same order and are produced continuously.

Figure 2.

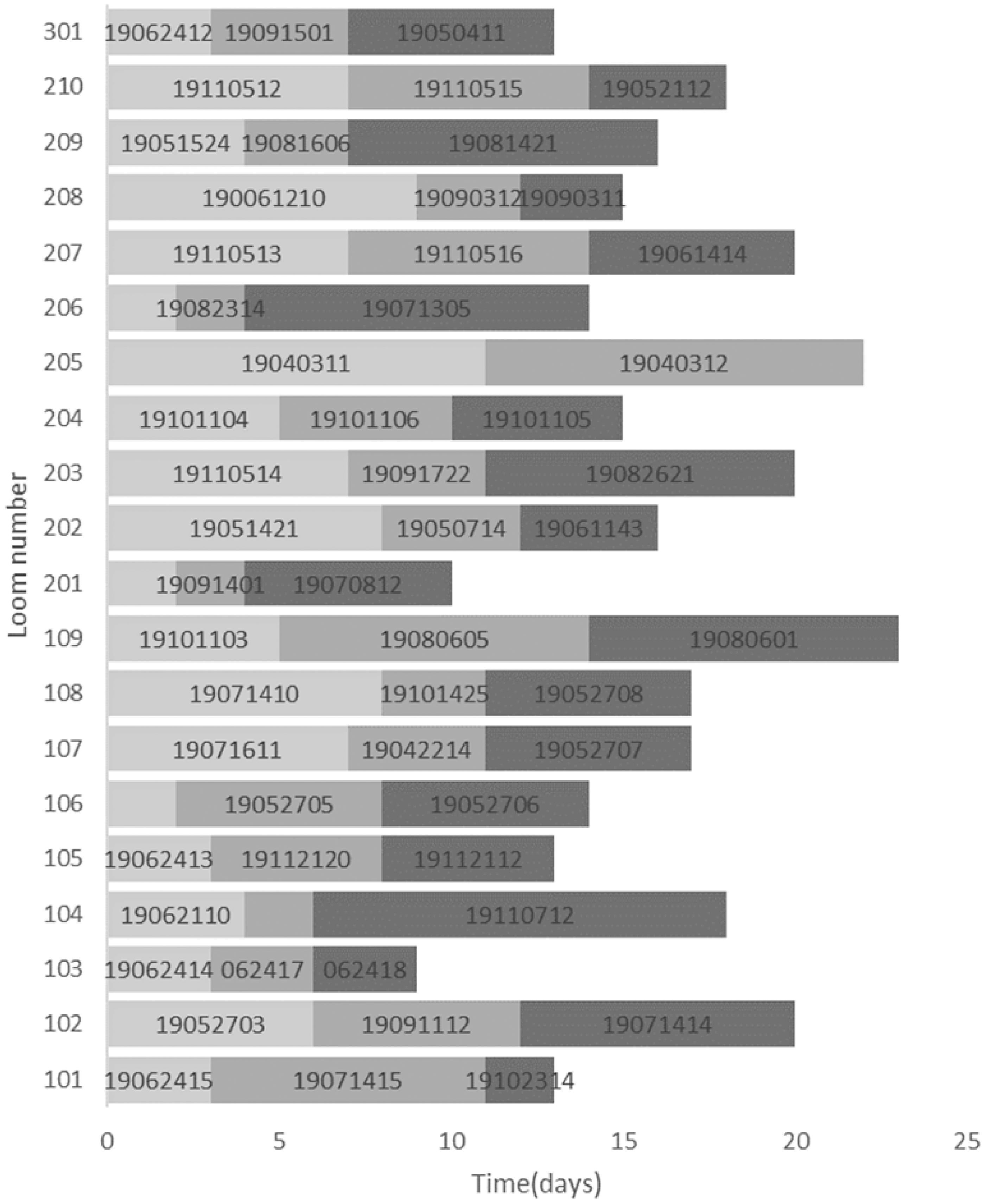

Partial schedule Gantt chart.

The algorithm runs on a computer with an intel core.i5-4510U processor with the frequency of 2.4 GHz. After one calculation, the algorithm takes only 287 s. Compared with the enterprise actual manual scheduling, its maximum completion time is shortened by 5.42%. The number of varieties changes decreased by 10.21%, and the model adaptability increased by 12.53%.

Parameter discussion

During the implementation of the ant colony algorithm, multiple parameters need to be set, such as the pheromone factor, heuristic factor and volatility coefficient. A better parameter combination can enhance its global search ability and convergence speed. The influence of the pheromone factor and heuristic factor on path selection probability is significant. The effect of pheromone factors was further optimized by the volatility coefficient. Therefore, we first obtain the value of the objective function T₁ (minimizing the maximum completion time) under different combinations by using different α and β values. The results are shown in Table 5.

Table 5.

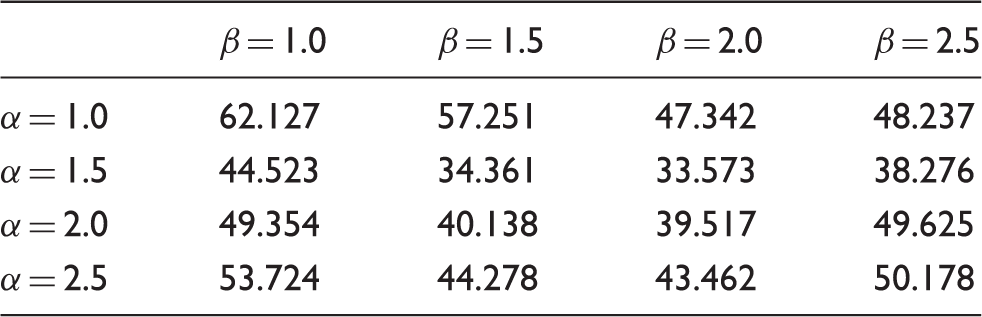

Total fitness value T₁ under different combinations of α and β

	β = 1.0	β = 1.5	β = 2.0	β = 2.5
α = 1.0	62.127	57.251	47.342	48.237
α = 1.5	44.523	34.361	33.573	38.276
α = 2.0	49.354	40.138	39.517	49.625
α = 2.5	53.724	44.278	43.462	50.178

The volatility coefficient ρ can be used to adjust the degree of algorithm exploration and concentration; when α = 1.5 and β = 2.0, the objective function values under different ρ values are studied. It can be seen that good values of T₁ and T₂ can be obtained when ρ = 0.5; although the objective function T₃ is not optimal, it is not much different from the optimal value. Therefore, it is relatively reasonable to set ρ = 0.5. The results are shown in Table 6.

Table 6.

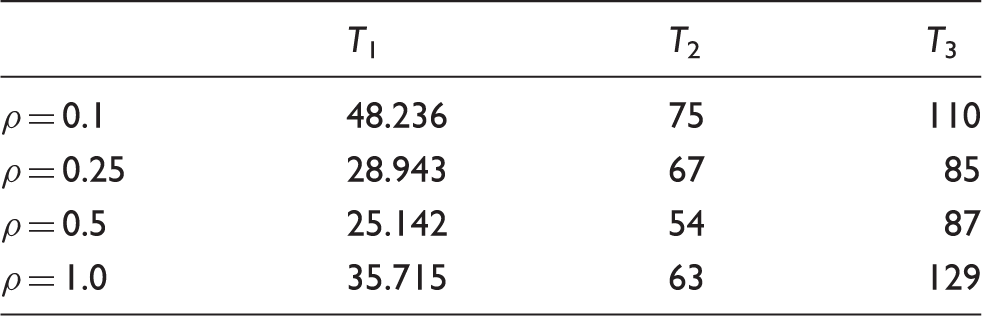

Values of each objective function under different ρ values

	T ₁	T ₂	T ₃
ρ = 0.1	48.236	75	110
ρ = 0.25	28.943	67	85
ρ = 0.5	25.142	54	87
ρ = 1.0	35.715	63	129

Based on the problems studied in this paper and some simulation experiments, we combined the results with the commonly used parameter settings of the ant colony algorithm. The parameter settings shown in Table 7.

Table 7.

Algorithm parameter setting

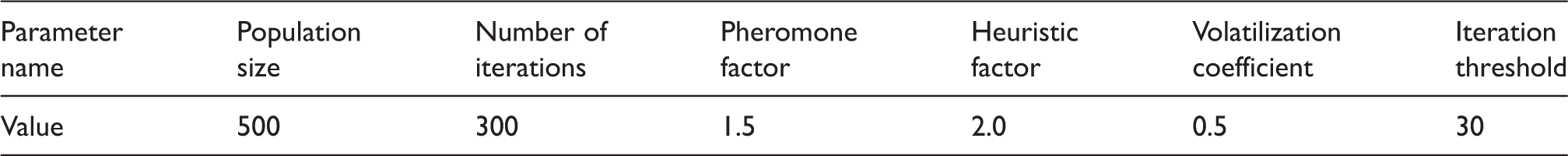

Parameter name	Population size	Number of iterations	Pheromone factor	Heuristic factor	Volatilization coefficient	Iteration threshold
Value	500	300	1.5	2.0	0.5	30

Method comparison

Comparison with the traditional ant colony algorithm

When we apply the parameters shown in Table 5, the number of iterations is 300 and the value of each objective function is as shown in Figure 3. Here, T₁−ACS T₂−ACS and T₃−ACS represent the defined completion time, variety change number and shaft suitability before improvement, respectively. After applying improvement measures, we set τ_max = 2.5, τ_min = 0.125. The change of the objective function value is shown in Figure 3. Here T₁−IMACS, T₂−IMACS and T₃−IMACS represent the defined completion time, variety change number and shaft suitability after improvement, respectively.

Figure 3.

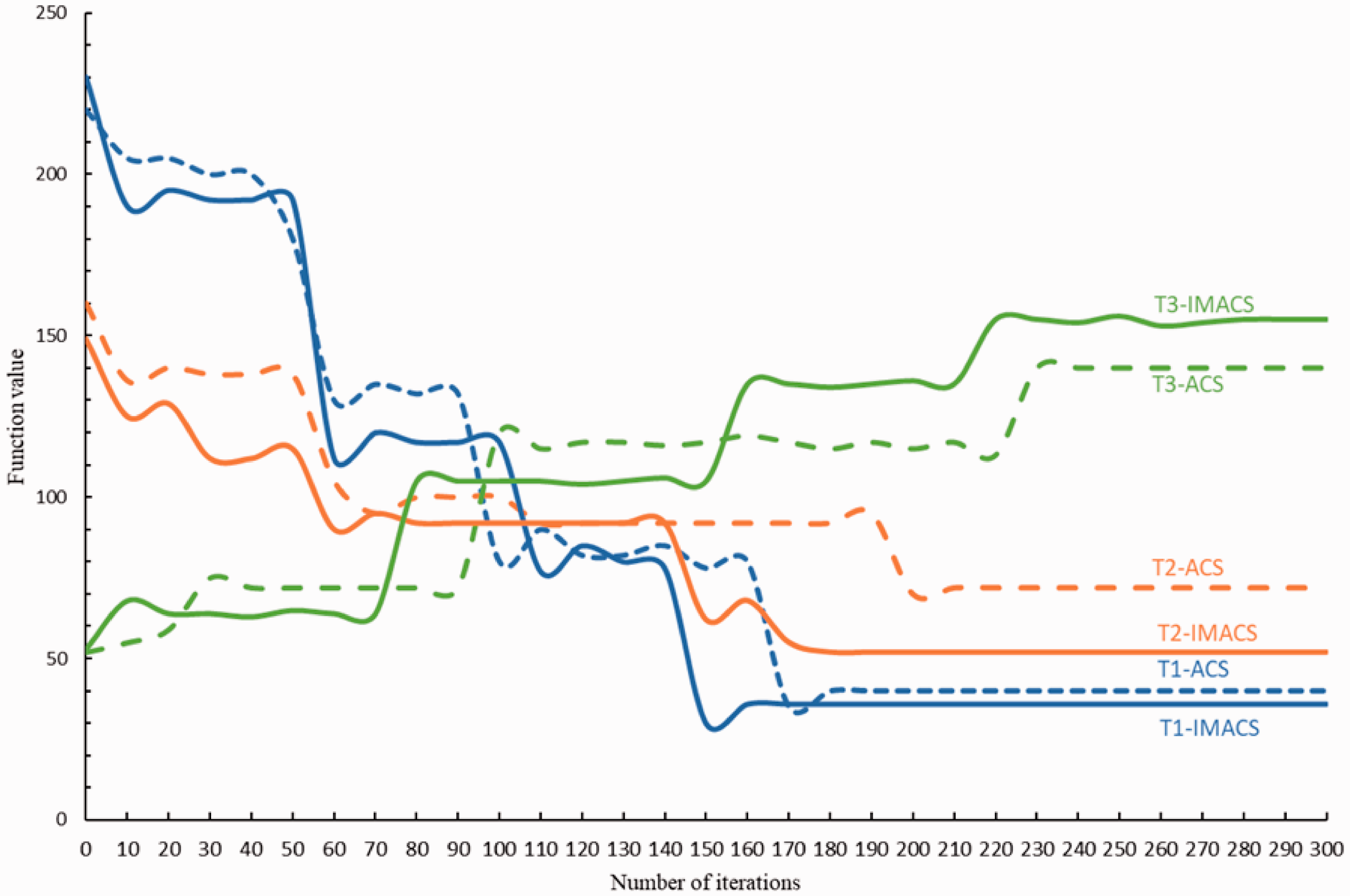

Comparison between the improved ant colony algorithm and the basic ant colony algorithm.

From Figure 3, it can be seen that the improved ant colony algorithm speeds up the convergence of the three objective functions. For the objective function T₁ the optimization effect is not obvious at the initial iteration. This is mainly due to the small difference in pheromone concentration in each path. However, as the iteration progressed, the elite individuals were gradually selected and the speed of finding the optimal solution continued to increase. For each objective function value, the maximum completion time was reduced by 7.06%, the number of variety changes was reduced by 15.47%, the fitness of the weaving shaft was increased by 23.09% and the required time was reduced by 68.87%. In general, the improved ant colony algorithm has obvious effects, greatly improving the robustness and global search ability of the algorithm and significantly improving the computing efficiency.

Comparison with other methods

In order to verify the effectiveness of the algorithm, we compared it with other methods. When applying the traditional ant colony algorithm to solve the weaving schedule model, the main process is shown in the Basic ant colony algorithm section of this paper. The main parameters of the algorithm are shown in Table 5, which is the same as the improved ant colony algorithm. We use genetic algorithms to solve the weaving scheduling model. The main implementation process of the genetic algorithm is shown in Figure 4. Firstly, the chromosome needs to be encoded. The total length of the chromosome is the total number of weaving shafts. The position of each gene corresponds to a weaving shaft. The value of the gene is a real number greater than or equal to 0. The integer part indicates the number of the machine to be machined. The loom number n is an integer that increases from 0. The decimal part determines the order of the machine, while the fractional part is the first weaving machine. The range of the gene value is determined by the adaptable model of the weaving shaft. The next step is to find the best chromosome by selection, crossover and mutation. In the parameter setting of the genetic algorithm, we refer to some previous studies.

Figure 4.

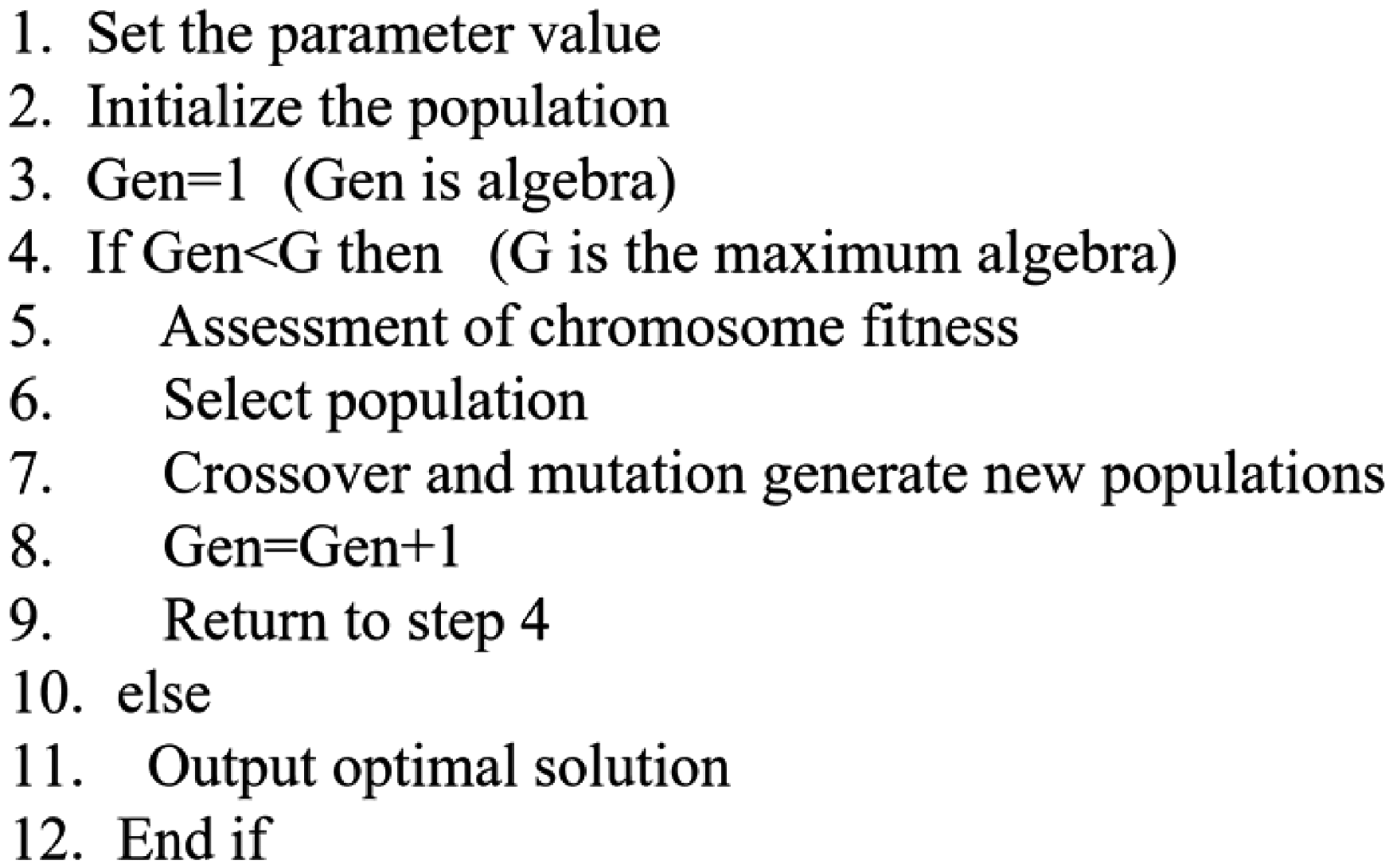

Genetic algorithm pseudocode.

Scheduling planners need to calculate the required production time by the variety in each process and the production experience. Workers combine the number of various machines and the workload of each machine, and then analyze the production situation and plan. When we find the machine that is expected to be completed the earliest, we arrange for the production of the same variety of weaving shafts. When the same variety cannot be found, we will arrange the most urgent weaving shaft production. Based on the daily work intensity of the scheduling personnel of a certain enterprise, the results of manual scheduling time are shown in Table 8.

Table 8.

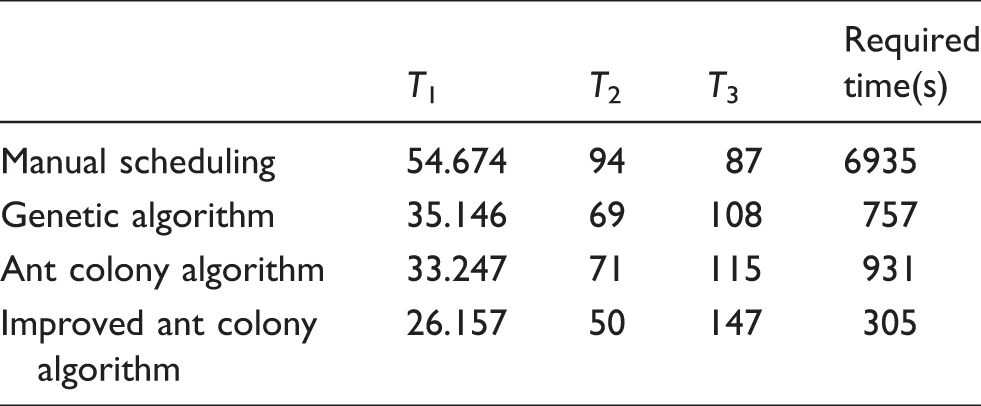

Comparison of different scheduling methods

	T ₁	T ₂	T ₃	Required time(s)
Manual scheduling	54.674	94	87	6935
Genetic algorithm	35.146	69	108	757
Ant colony algorithm	33.247	71	115	931
Improved ant colony algorithm	26.157	50	147	305

As can be seen from Table 8, heuristic algorithms have huge advantages over manual scheduling. The genetic algorithm and traditional ant colony algorithm have achieved great improvement for each optimization goal, but they have their own advantages compared with each other. The genetic algorithm performs well in minimizing the maximum completion time, and the traditional ant colony algorithm has advantages in the breed change rate and model fit. Compared with the first three, the advantages of the improved ant colony algorithm are very obvious, and they are optimal on each optimization goal. From the solution time point of view, the improved ant colony algorithm has obvious advantages, which is of great significance to actual production.

Conclusion

By adopting the improved ant colony algorithm to solve the weaving schedule model, this paper achieves the automatic scheduling of the weaving workshop. Compared with the previous research, the impact of changing the fabric variety is considered in the weaving schedule model. By grading the loom type and fabric variety, the adaptability of the model has been greatly expanded. The improved ant colony algorithm makes it fast and convenient to produce scheduling solutions. Compared with manual scheduling, the indicators such as variety change rate are greatly reduced on the premise of meeting delivery. This can reduce the labor of workers and cut the production costs to enterprises. Experiments proved the effectiveness of the proposed method.

Although the proposed method shows superior effectiveness, we still need to improve the robustness of the algorithm to deal with unexpected production problems. In the future, the computational performance of the algorithm can be further optimized. Meanwhile, an online web service will be established to provide scheduling solutions.
