Second order adaptive time varying sliding mode control for synchronization of hidden chaotic orbits in a new uncertain 4-D conservative chaotic system

Abstract

The objectives of the paper are (i) to develop a new 4-D conservative chaotic system with hidden chaotic orbits, (ii) to design a second order adaptive time varying sliding mode control for the synchronization between two identical proposed chaotic systems in the presence of matched disturbances and (iii) to compare the performances of the proposed controller with two available controllers which have been published recently. The chaotic nature of the proposed system is validated using theoretical and numerical tools like divergence property, Lyapunov exponents, Lyapunov spectrum, bifurcation diagram, phase portrait, Poincaré map and a frequency spectrum. The new conservative chaotic system exhibits the coexistence of hidden chaotic orbits with no equilibrium point. The new system is synchronized with itself using the proposed second-order adaptive time varying sliding mode control technique in the presence of matched disturbances and by considering different initial conditions. During synchronization, the parameters of both the systems, gains of the first order and second order sliding surfaces and the gains of the switching laws are considered as unknown and estimated adaptively. Only two control inputs are used to synchronize all the four states of the system. The effectiveness of the proposed controller is compared with two available controllers for the synchronization of chaotic systems and it is found that the proposed controller performs much better than the two available controllers.

Keywords

Second order sliding mode control adaptive control adaptive sliding mode control conservative system hidden attractors parameters estimation

Introduction

Most of the reported chaotic systems like the systems in the work by Jafari et al. (2017); Kuznetsov et al. (2014) and Wei et al. (2014) and the conventional systems in the work by Lorenz (1963), Lu et al. (2002) and Rossler (1976), etc. have a dissipative nature. Very few chaotic systems which have a conservative nature have been reported. The works by Sprott (2010), and Henon and Heiles (1964) are considered as the first examples of conservative chaos. In the past decade, some more but limited numbers of chaotic systems with conservative nature have been reported (Cang et al., 2017; Vaidyanathan, 2015a; Vaidyanathan and Pakiriswamy, 2015c; Vaidyanathan and Volos, 2015d). In the case of a conservative chaotic system, the energy of the dynamical system remains constant. Thus, developing a conservative chaotic system with unique properties is an attractive research direction. A system is tested to be conservative if its sum of Lyapunov exponents (LEs) and divergence of the vector field equals zero and the Lyapunov dimension is equal to the order of the system (Jafari et al., 2015, 2016; Lakshmanan et al., 2003; Sprott, 2014).

An equilibrium point plays an important role in the classification of dynamical systems. Based on the nature of equilibrium points, all reported chaotic/hyperchaotic systems are categorized into two classes (Leonov et al., 2011a,b). These are:

self-excited attractors chaotic systems;

hidden attractors chaotic systems.

In the case of a hidden attractor dynamical system, its basin of attraction does not intersect with any small open neighbourhood of equilibrium point of the system (Dudkowski et al., 2016). However, in the case of a self-excited attractor dynamical system, its basin of attraction is connected with its equilibrium point. Thus, development of a hidden attractor chaotic system is more difficult compared with that of a self-excited attractor chaotic system, because the location of an equilibrium point of a hidden attractor chaotic system does not help in generation of its attractors. Conventional systems like those presented by Lorenz (1963), Lu et al. (2002) and Rossler (1976), and some systems in the work by Singh and Roy (2016a,b) etc., are called self-excited attractors chaotic systems (Leonov et al., 2013, 2012). The systems with no equilibrium point (Jafari et al., 2013), only stable equilibrium points (Kingni et al., 2014) and many (line/plane/circle/curve/other shaped) equilibrium points (Pham et al., 2016a) are called hidden attractor chaotic systems. Recently many chaotic/hyperchaotic systems with hidden attractors have been reported (Jafari et al., 2017; Kingni et al., 2017; Korneev et al., 2017; Pham et al., 2017; Singh and Roy, 2017a,b,d; Sprott et al., 2017; Tlelo-Cuautle et al., 2017). Some hidden attractor chaotic systems with no equilibrium point have also been reported recently (Escalante-Gonzalez et al., 2017; Feng and Pan, 2017; Hoang et al., 2017; Kiseleva et al., 2017; Llibre and Teixeira, 2016; Ojoniyi and Njah, 2016). Most of the reported hidden attractor chaotic systems with no equilibrium point are of a dissipative nature. Some systems can be found in the literature (Jafari et al., 2015; Politi et al., 1986; Sprott, 2014) in which autonomous system has both conservative and dissipative chaotic behaviours based on the choice of initial conditions. Very few 3-D conservative chaotic systems have been reported with no equilibrium point (Jafari et al., 2016; Vaidyanathan and Pakiriswamy, 2015c; Vaidyanathan and Volos, 2015d). Higher dimensional systems have more complexity and disorderedness compared with lower dimensional systems (Shen, 2014a,b). Thus, developing a higher dimensional (4-D) conservative chaotic system with no equilibrium point is a worthy motivation for the present work. The reported chaotic systems with no equilibrium points are listed in Table 1. It is apparent from Table 1 that most of the reported systems with no equilibrium point belong to the dissipative chaotic system family and a few 3-D chaotic systems are from the conservative chaotic system family. However, a conservative 4-D chaotic system with no equilibrium point is rare in the literature. Thus, this paper attempts to develop a new 4-D conservative chaotic system with no equilibrium point.

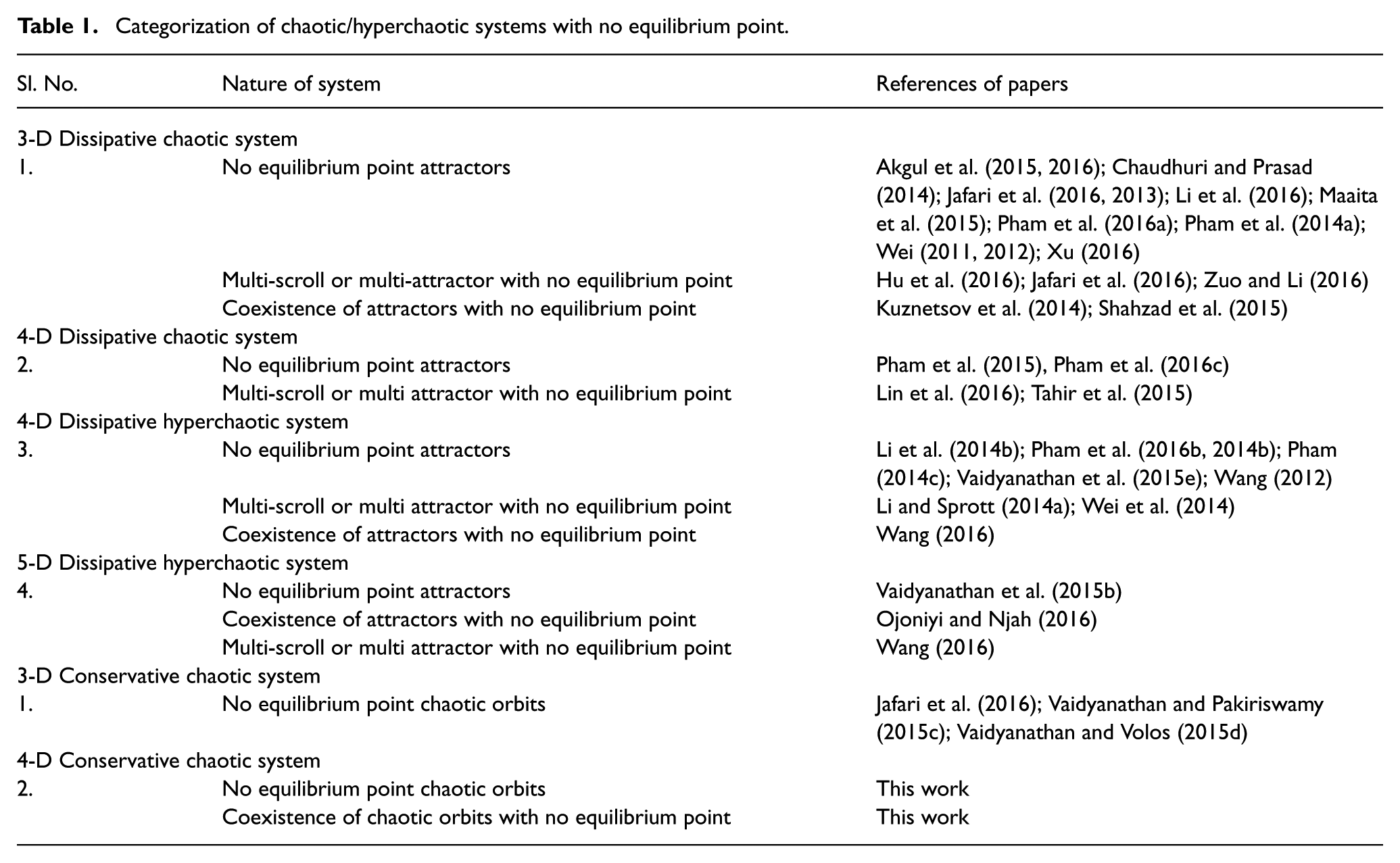

Table 1.

Categorization of chaotic/hyperchaotic systems with no equilibrium point.

Sl. No.	Nature of system	References of papers
3-D Dissipative chaotic system
1.	No equilibrium point attractors	Akgul et al. (2015, 2016); Chaudhuri and Prasad (2014); Jafari et al. (2016, 2013); Li et al. (2016); Maaita et al. (2015); Pham et al. (2016a); Pham et al. (2014a); Wei (2011, 2012); Xu (2016)
	Multi-scroll or multi-attractor with no equilibrium point	Hu et al. (2016); Jafari et al. (2016); Zuo and Li (2016)
	Coexistence of attractors with no equilibrium point	Kuznetsov et al. (2014); Shahzad et al. (2015)
4-D Dissipative chaotic system
2.	No equilibrium point attractors	Pham et al. (2015), Pham et al. (2016c)
	Multi-scroll or multi attractor with no equilibrium point	Lin et al. (2016); Tahir et al. (2015)
4-D Dissipative hyperchaotic system
3.	No equilibrium point attractors	Li et al. (2014b); Pham et al. (2016b, 2014b); Pham (2014c); Vaidyanathan et al. (2015e); Wang (2012)
	Multi-scroll or multi attractor with no equilibrium point	Li and Sprott (2014a); Wei et al. (2014)
	Coexistence of attractors with no equilibrium point	Wang (2016)
5-D Dissipative hyperchaotic system
4.	No equilibrium point attractors	Vaidyanathan et al. (2015b)
	Coexistence of attractors with no equilibrium point	Ojoniyi and Njah (2016)
	Multi-scroll or multi attractor with no equilibrium point	Wang (2016)
3-D Conservative chaotic system
1.	No equilibrium point chaotic orbits	Jafari et al. (2016); Vaidyanathan and Pakiriswamy (2015c); Vaidyanathan and Volos (2015d)
4-D Conservative chaotic system
2.	No equilibrium point chaotic orbits	This work
	Coexistence of chaotic orbits with no equilibrium point	This work

Multistability in a chaotic system is defined as the coexistence of various possible steady states /attractors of the system (Pisarchik, 2014; Sharma et al., 2015). The generation of multistability (i.e. coexistence of attractors) is mainly governed by the choice of initial conditions. The response of a system changes with the change of initial conditions. Multistability is seen in several areas like in an electronic circuit, a laser system, a chaotic or hyperchaotic system, etc. (Pisarchik, 2014; Sharma et al., 2015). The existence of multistability in a dynamical system may cause the occurrence of unexpected responses. Thus, finding multistability with hidden attractors in a higher dimensional conservative chaotic system is another motivation of this paper.

Synchronization of chaotic/hyperchaotic systems is an important research direction in the field of chaos theory (Pecora and Carroll, 2015). Many control techniques are reported for the synchronization of chaotic/hyperchaotic systems like state feedback control (Loria, 2010), backstepping control (Yassen, 2006), optimal control (Saberi, 2014), nonlinear active control (Singh et al., 2014, 2017c), adaptive control (Handa and Sharma, 2016), sliding mode control (SMC) (Mobayen et al., 2016), impulsive control (Yang, 2012), adaptive backstepping (Ge et al., 2000), fuzzy logic control (Hendel et al., 2015), a neural network (NN) (Hendel et al., 2015), etc. Among the aforementioned control techniques, SMC is more used because of its ease in design, robustness to uncertainties and insensitivity to disturbances (Khalil, 2002).

Various variants of SMC are used along with other control techniques for the synchronization and control of dynamical systems like adaptive SMC (Chi-Ching, 2012), backstepping SMC (Min, 2016), fuzzy-SMC (Min, 2016), Linear matrix inequality based sliding mode control (LMI SMC) (Mobayen et al., 2016), etc. The conventional first-order SMC has some disadvantages like chattering, high gain and asymptotic stability (Mobayen et al., 2016). However, in the first-order SMC, the chattering can be minimized by using a saturation function in place of a signum function, but the tracking precision and disturbance rejection properties are degraded. The integral SMC can overcome the requirement of high gain (Singh et al., 2015). The chattering phenomena can be overcome or eliminated by using higher order SMC or other SMC techniques (Mobayen et al., 2016). Terminal sliding surfaces are designed to achieve finite-time stability (Chi-Ching, 2012). Many techniques are available to minimize or eliminate chattering, like quasi-SMC, low-pass filters, fuzzy-SMC and higher order SMC (HOSMC) (Fridman et al., 2011). However, some of these techniques degrade the robustness and performances of the controller. Among these, HOSMC or second-order SMC (SO-SMC) are considered as the best. In SO-SMC, chattering is eliminated because the actual control used is the continuous integration of its derivative.

The SO-SMC technique is used in many fields for the control of dynamical systems (Castaneda et al., 2015; Dehkordi et al., 2017; Ding and Li, 2016; Munoz et al., 2017; Pukdeboon, 2016). Some works are reported on the use of a second order SMC for the synchronization and control of chaotic/hyperchaotic systems (Behjameh et al., 2015; Datcu et al., 2012; Hendel et al., 2015; Hsu et al., 2017; Lu et al., 2012; Mobayen et al., 2016; Rodriguez et al., 2009; Xiang and Chen, 2011, 2010; Zhankui and Sun, 2013). The gains of the sliding surfaces in the work by Behjameh et al. (2015); Datcu et al. (2012); Hendel et al. (2015); Hsu et al. (2017); Lu et al. (2012); Rodriguez et al. (2009); Xiang and Chen (2011, 2010) and Zhankui and Sun (2013) are considered as known and their values are assumed. The gains of the sliding surfaces in the work by Mobayen et al. (2016) are determined using the LMI method. However, sometimes we do not have accurate knowledge of the gains of the sliding surfaces, switching laws, etc. Thus, there is a need to adaptively estimate the gains, parameters of the sliding surfaces and gains of the switching laws. Motivated with these findings from the literature, a second-order adaptive time varying SMC is designed for the synchronization of two chaotic systems in the presence of matched disturbances. The novelty and contributions of the paper, in comparison with the available results are as follows:

A new 4-D conservative chaotic system with no equilibrium point is proposed.

The proposed system exhibits coexistence of hidden chaotic orbits.

The sum of LEs and divergence of the vector field is equal to zero and the Lyapunov dimension is equal to the order of the system. Thus, this confirms the conservative nature of the new chaotic system (Jafari et al., 2015; Lakshmanan et al., 2003; Sprott, 2014).

A second-order adaptive time varying SMC is proposed for synchronization between two chaotic systems in the presence of matched disturbances.

During synchronization, the gains of the first- and second-order sliding surfaces, the parameters of the systems and the gains of switching laws are estimated on-line.

The performances of the proposed controller and the controllers in the work by Lu et al., (2012) and (Mobayen et al., 2016) are compared and it is found that the proposed controller performs much better than the other two.

In 2011, Sprott (2011) reported three standard criteria to be considered for the publication of a new dynamical hyperchaotic/chaotic system. The new system should satisfy at least one of those three criteria (Sprott, 2011). One criterion among these three is that the new system should exhibit some novel behaviour. The new system proposed in this paper satisfies this criterion.

The rest of the paper is organized as follows. The ‘Dynamics of a new 4-D conservative chaotic system with no equilibria’ section explains the dynamics and development of the new 4-D chaotic system. Basic dynamical properties of the new system are discussed in the ‘Basic dynamical property of the new system’ section. The ‘Validation of chaotic behaviour of the new system using numerical simulation’ section describes the chaotic behaviour of the proposed system using numerical techniques. An adaptive second order time varying SMC is proposed in the ‘Synchronization between two identical new 4-D chaotic systems in the presence of matched disturbances’ section for synchronization between the proposed chaotic systems with itself. The ‘Results and discussion’ section describes the results and discussion on the synchronization of the chaotic systems. The comparison of the proposed control technique with the two available controllers is presented in the ‘Comparison of the proposed control technique with the two available techniques’ section. The ‘Conclusions’ section represents the conclusions of the paper.

Dynamics of a new 4-D conservative chaotic system with no equilibria

Sprott (1994) reported a Sprott type-A conservative chaotic system whose dynamics is described as

{\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2} \\ {\overset{\cdot}{x}}_{2} = - x_{1} + a x_{2} x_{3} \\ {\overset{\cdot}{x}}_{3} = 1 - x_{2}^{2} \end{matrix}

(1)

The system given by equation (1) is chaotic with $a = 1$ . By introducing a linear state feedback control to the second state equation and replacing $x_{2}^{2}$ with $x_{2}^{4}$ in the third state equation, a new 4-D conservative chaotic system is developed here. The dynamics of a new system is described as

{\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2} \\ {\overset{\cdot}{x}}_{2} = - x_{1} + a x_{2} x_{3} + x_{4} \\ {\overset{\cdot}{x}}_{3} = 1 - x_{2}^{4} \\ {\overset{\cdot}{x}}_{4} = - b x_{2} \end{matrix}

(2)

where a and b are positive constant parameters and $x_{i} (i = 1 to 4)$ are the state variables. The system given by equation (2) is a conservative chaotic system with no equilibrium point. In this paper, numerical simulations for analysing the chaotic dynamics of the system given by equation (2) are carried out with $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}, Δ t = 0.01$ in a MATLAB-14a simulation environment using the $ode - 45$ solver.

Basic dynamical property of the new system

In this section, the basic properties of the system given by equation (2) are presented. The equilibrium points are obtained by equating the derivative of each state variable of equation (2) to zero and we can find that there is no particular solution that exists for the system given by equation (2). Thus, the system given by equation (2) has no equilibrium point.

The system given by equation (2) is invariant under the change of coordinates $(x_{1}, x_{2}, x_{3}, x_{4})$ to $(- x_{1}, - x_{2}, x_{3}, - x_{4})$ . Thus, the system given by equation (2) has symmetry about the $x_{3}$ -axis. Consider that the system given by equation (2) is represented in the form

\overset{\cdot}{x} = g (x), x \in R^{4}

(3)

Now suppose $w \in R^{4}$ is a smooth and continuous region with $w (t) = φ_{t} (w)$ , where $φ_{t}$ represents the flow of $g (x)$ . For the system given by equation (2), we can write the divergence of the vector field $(\nabla \cdot g)$ as

\nabla \cdot g = \frac{\partial g_{1}}{\partial x_{1}} + \frac{\partial g_{2}}{\partial x_{2}} + \frac{\partial g_{3}}{\partial x_{3}} + \frac{\partial g_{4}}{\partial x_{4}} = a x_{3}

(4)

Thus, the volume of the system given by equation (2) will converge if the average value of $x_{3}$ is zero (Jafari et al., 2016; Sprott, 2014). The average of the $x_{3}$ variable is shown in Figure 1. It is seen from Figure 1 that the average of the $x_{3}$ variable converges to zero. Therefore, the system given by equation (2) is a conservative chaotic system.

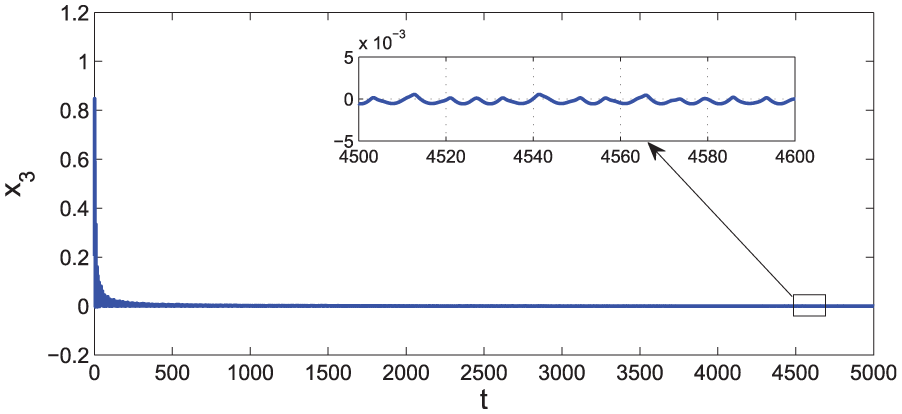

Figure 1.

Average of the $x_{3}$ state variable of the system given by equation (2) with $a = 2.79, b = 0.801$ and $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}$ .

Validation of chaotic behaviour of the new system using numerical simulation

In this section, the chaotic behaviour of the system given by equation (2) is validated using various numerical tools like Lyapunov exponents (LEs), a Poincaré map, a phase portrait, a frequency spectrum and a bifurcation diagram.

The LEs of the system given by equation (2) with $a = 2.79, b = 0.801$ are shown in Figure 2. It is seen from Figure 2 that LEs are $L_{i} = (0.0974, 0, 0, - 0.0974)$ . The sum of these LEs is zero. The Lyapunov dimension (Kaplan–Yorke dimension) of the system for aforementioned LEs is

D_{KY} = 3 + \frac{L_{1} + L_{2} + L_{3}}{| L_{4} |} = 4.0

Since the Lyapunov dimension of the system given by equation (2) is equal to the order of the system and the sum of LEs is zero, thus, the system given by equation (2) is a conservative chaotic system.

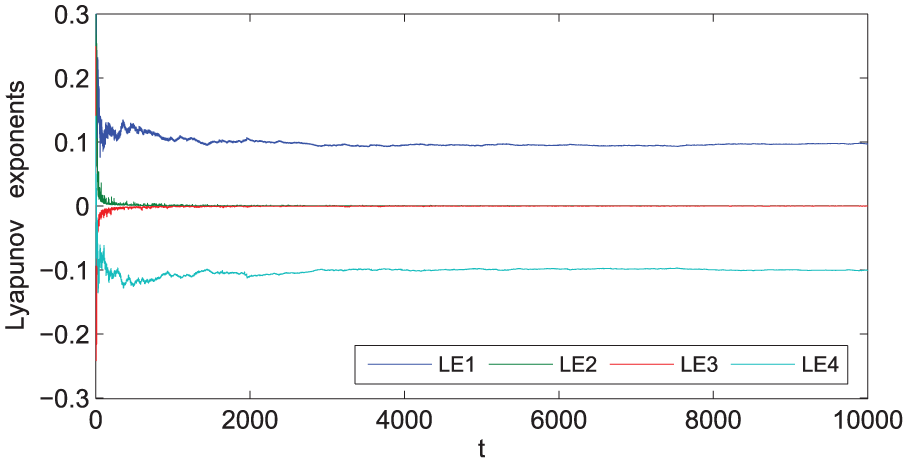

Figure 2.

LEs of the system given by equation (2) with $a = 2.79, b = 0.801$ , $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}$ and $Δ t = 0.01$ .

Lyapunov spectrum and bifurcation diagram

Lyapunov spectra and bifurcation diagram are plotted to show various dynamical behaviours and to validate the conservative chaotic nature of the new system. The Lyapunov spectrum and bifurcation diagram of the system given by equation (2) with the variation of parameter a but keeping $b = 0.801$ constant are shown in Figures 3 and 4, respectively. Similarly, the Lyapunov spectrum and bifurcation diagram of the system given by equation (2) with the variation of parameter b but keeping $a = 2.79$ constant are shown in Figures 5 and 6, respectively. It is seen from Figure 3 that the amplitude of the first LE (LE1) is positive for approximately $2.2 < a < 3.6$ , is equal to the fourth LE (LE4) and the remaining two (LE2 and LE3) are zero. For this range of the parameter, the new system has chaotic behaviour. After $a > 3.6$ , all the LEs of the system are zero, where the new system has periodic behaviour. It is also visible from Figure 3 that for any values of parameter a, the sum of all the LEs is zero. Hence, the system has conservative behaviour. It is seen from Figure 5 that the amplitude of first LE (LE1) is positive for approximately $0.4 < b < 2$ and is equal to the fourth LE (LE4), and remaining two LEs (LE2, LE3) are zero. In this range, the new system has chaotic behaviour. Before $b < 0.4$ , all the LEs of the system are zero, where the new system has periodic behaviour. It is also visible from Figure 5 that for any values of parameter b, the sum of all the LEs is zero. Hence, the new system has conservative behaviour. It is noted from the bifurcation diagrams shown in Figures 4 and 6 that the new system has a similar range of parameters for chaotic and periodic behaviour as obtained from Lyapunov spectrum plots.

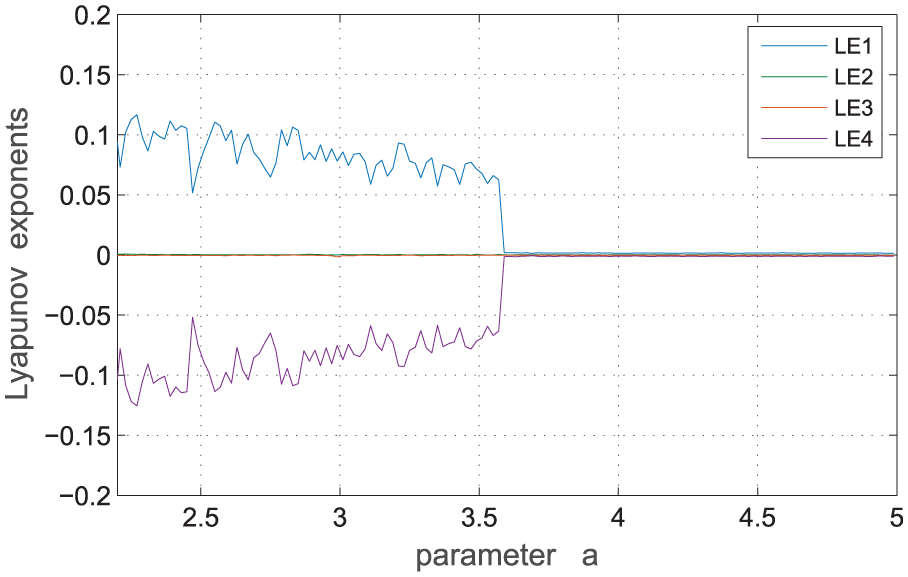

Figure 3.

Lyapunov spectrum with variation of parameter a for the system given by equation (2) with initial conditions $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}$ .

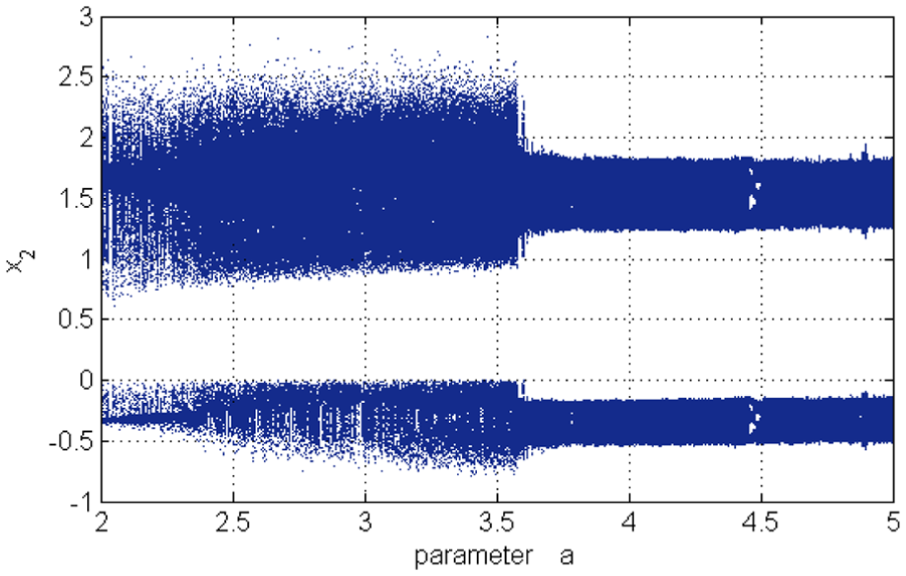

Figure 4.

Bifurcation diagram with variation of parameter a for the system given by equation (2) with initial conditions $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}$ .

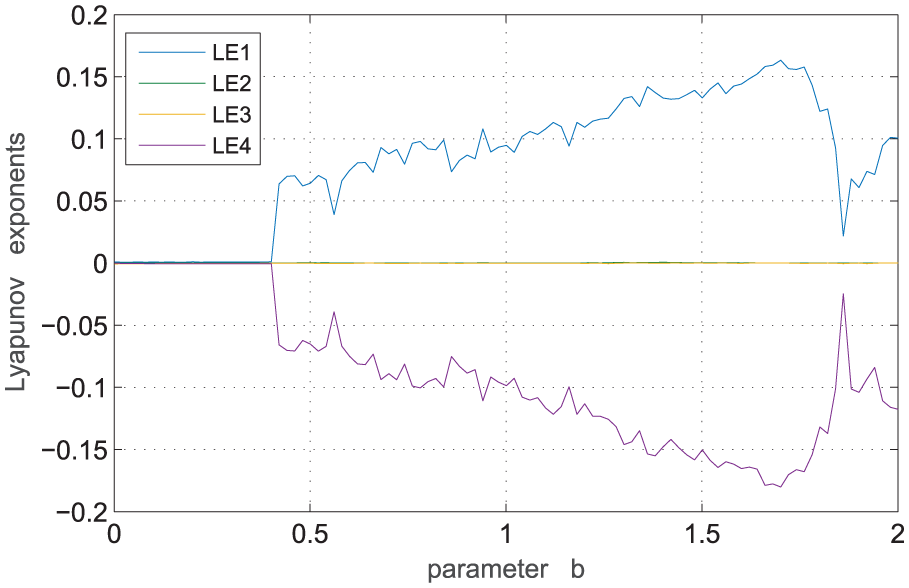

Figure 5.

Lyapunov spectrum with variation of parameter b for the system given by equation (2) with initial conditions $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}$ .

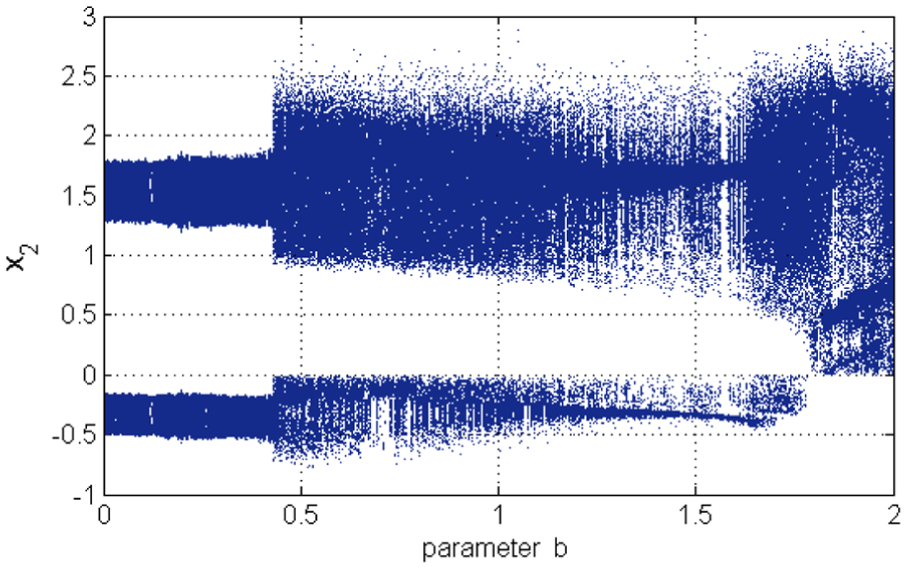

Figure 6.

Bifurcation diagram with variation of parameter b for the system given by equation (2) with initial conditions $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}$ .

Chaotic orbits, Poincaré maps and frequency spectrum plots

The chaotic orbits of the system given by equation (2) with $a = 2.79, b = 0.801$ are shown in Figure 7. With the change of the initial conditions from $(0.2, 0.2, 0.2, 0.2)^{T}$ to $(- 0.2, - 0.2, - 0.2, - 0.2)^{T}$ , the system given by equation (2) has coexistence of chaotic orbits. The coexistence of chaotic orbits with $a = 2.79, b = 0.801$ and $x (0) = (\pm 0.2, \pm 0.2, \pm 0.2, \pm 0.2)^{T}$ of the system given by equation (2) are shown in Figure 8. Poincaré maps of the system given by equation (2) across different section of planes for $x_{1} = 0$ and $x_{3} = 0$ are shown in Figures 9 and 10, respectively. Different random dots in the maps indicate the chaotic behaviour of the new system. Frequency spectra of the system given by equation (2) for the $x_{2}$ and $x_{3}$ signals are shown in Figure 11. Aperiodic continuous peaks in the spectra indicate the chaotic behaviour of the new system.

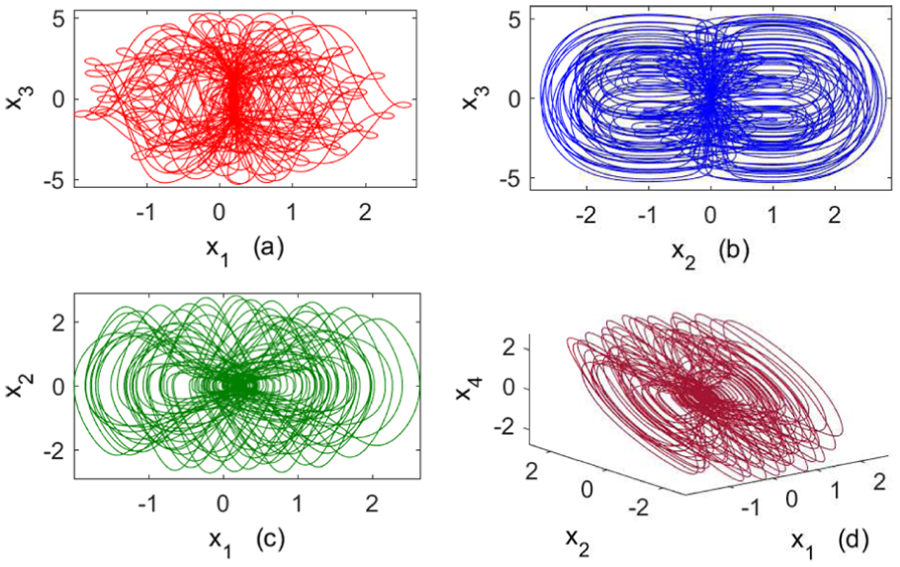

Figure 7.

Phase portraits of the system given by equation (2) with $a = 2.79, b = 0.801,$ $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}$ and $Δ t = 0.01$ .

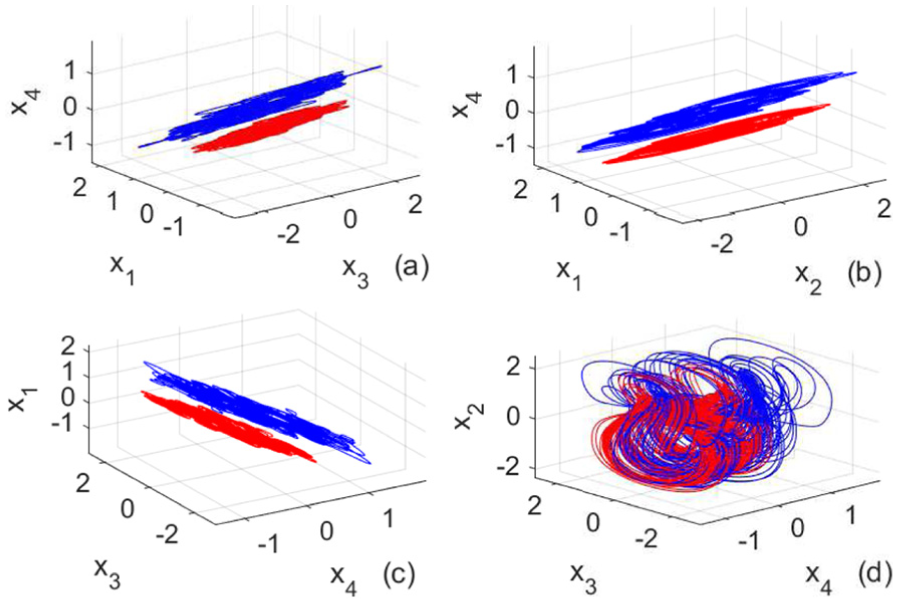

Figure 8.

Coexistence of chaotic orbits of the system given by equation (2) with $a = 2.79, b = 0.801,$ $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}$ and $Δ t = 0.01$ .

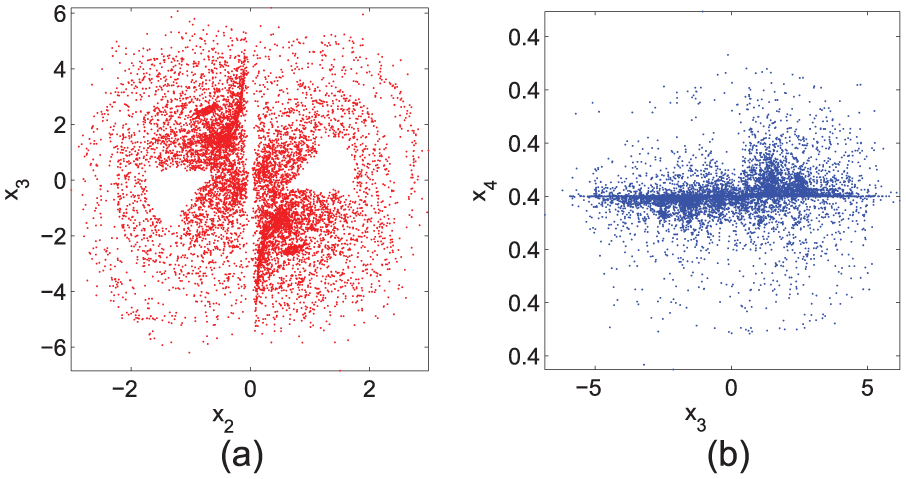

Figure 9.

Poincaré maps of the system given by equation (2) with $a = 2.79, b = 0.801$ and $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}$ for $x_{1} = 0$ .

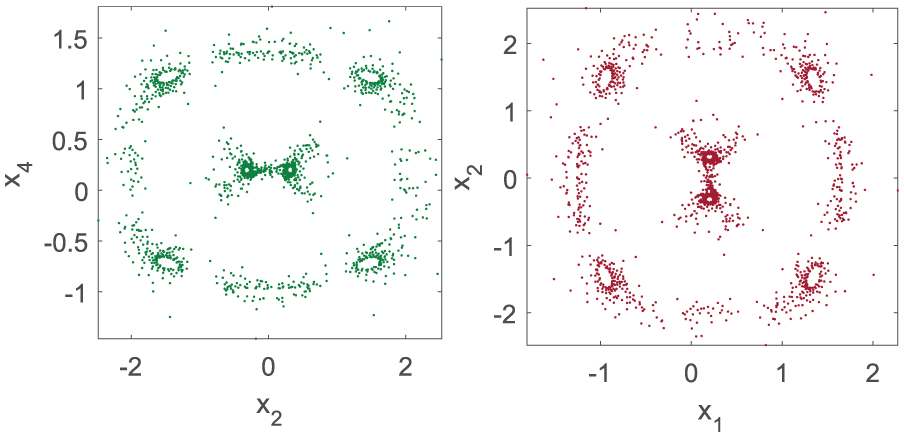

Figure 10.

Poincaré maps of the system given by equation (2) with $a = 2.79, b = 0.801$ and $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}$ for $x_{3} = 0$ .

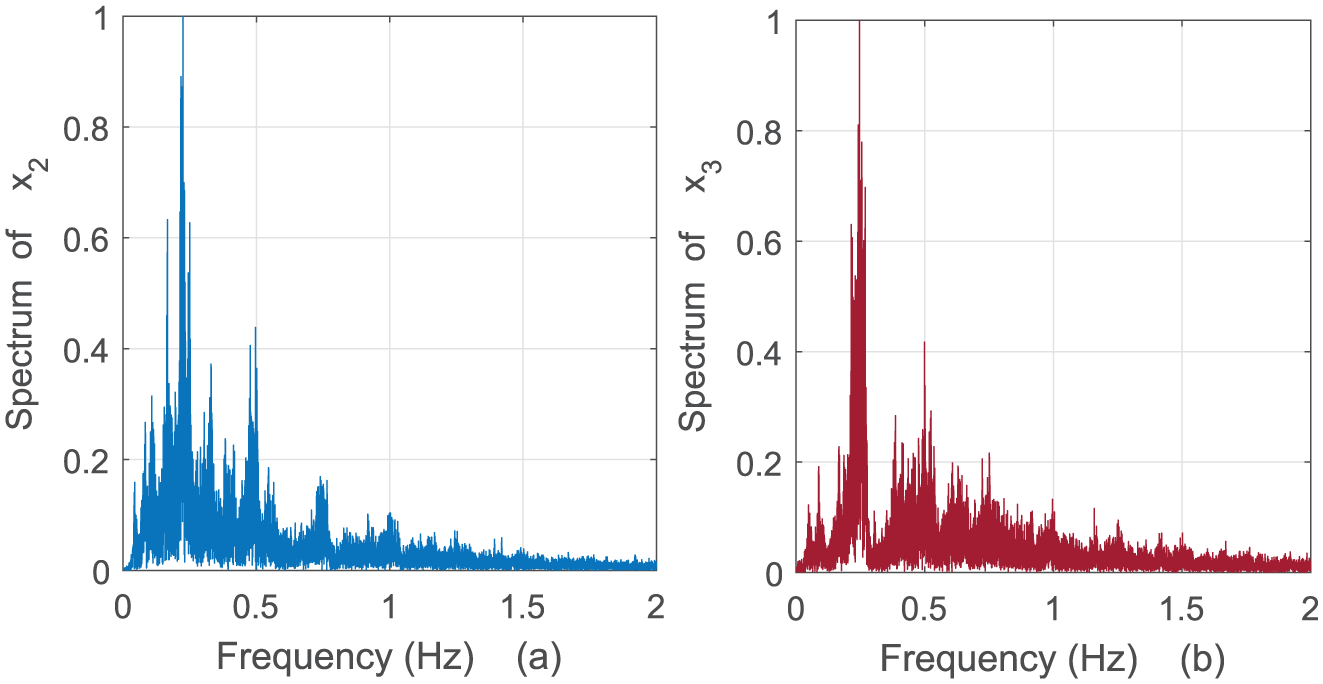

Figure 11.

Frequency spectra of the system given by equation (2) with $a = 2.79, b = 0.801$ and $x (0) = (0.2, 0.2, 0.2, 0.2)^{T}$ .

Synchronization between two identical new 4-D chaotic systems in the presence of matched disturbances

In this section, the synchronization between two identical new chaotic systems in the presence of matched disturbances and parametric uncertainties is presented. Here, the system given by equation (2) is used both as the master and slave systems for the synchronization. The uncertain dynamics of the master and slave chaotic systems used for the synchronization are described in equations (5) and (6), respectively

{\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2} \\ {\overset{\cdot}{x}}_{2} = - x_{1} + a x_{2} x_{3} + x_{4} + d_{1} \\ {\overset{\cdot}{x}}_{3} = 1 - x_{2}^{4} + d_{2} \\ {\overset{\cdot}{x}}_{4} = - b x_{2} \end{matrix}

(5)

{\begin{matrix} {\overset{\cdot}{y}}_{1} = y_{2} \\ {\overset{\cdot}{y}}_{2} = - y_{1} + a y_{2} y_{3} + y_{4} + d_{3} + u_{1} \\ {\overset{\cdot}{y}}_{3} = 1 - y_{2}^{4} + d_{4} + u_{2} \\ {\overset{\cdot}{y}}_{4} = - b y_{2} \end{matrix}

(6)

where $u_{1}, u_{2}$ are the control inputs and $d_{i} (i = 1 \dots 4)$ are the matched disturbances added to the slave and master systems. These disturbances are added to test the robustness of the proposed controller. Here, only two control inputs are used for the synchronization. The system parameters a and b are considered as unknown and their values are estimated using the adaptation mechanism. Let the synchronization error be defined as $e_{i} = y_{i} - x_{i}$ . The synchronization error dynamics between the systems given by equations (5) and (6) are defined as

{\begin{matrix} {\overset{\cdot}{e}}_{1} = e_{2} \\ {\overset{\cdot}{e}}_{2} = - e_{1} + a (e_{3} e_{2} + x_{3} e_{2} + x_{2} e_{3}) + e_{4} + u_{1} - d_{1} + d_{3} \\ {\overset{\cdot}{e}}_{3} = - y_{2}^{4} + x_{2}^{4} + u_{2} - d_{2} + d_{4} \\ {\overset{\cdot}{e}}_{4} = - b e_{2} \end{matrix}

(7)

Here, the synchronization of the chaotic systems is achieved by designing a first-order SMC using error variables and a SO-SMC using the first-order SMC. The first-order sliding surfaces are designed in the structure of the proportional integral (PI) and are given as equations (8) and (9)

σ_{1} = e_{2} + \int_{0}^{t} (k_{1} e_{2} + e_{1} - b e_{4}) d τ

(8)

σ_{2} = e_{3} + \int_{0}^{t} (k_{2} e_{3}) d τ

(9)

where $k_{1}$ and $k_{2}$ are positive constants to be chosen by the designer. Here, the value of constants $k_{1}$ and $k_{2}$ are considered as unknown and are estimated using the adaptation mechanism. When the system operates on the sliding mode, it must satisfy $σ_{1} = σ_{2} = 0$ and ${\overset{\cdot}{σ}}_{1} = {\overset{\cdot}{σ}}_{2} = 0$ . Thus, the equivalent sliding mode dynamics are defined as

{\begin{matrix} {\overset{\cdot}{e}}_{1} = e_{2} \\ {\overset{\cdot}{e}}_{2} = - k_{1} e_{2} - e_{1} + b e_{4} \\ {\overset{\cdot}{e}}_{3} = - k_{2} e_{3} \\ {\overset{\cdot}{e}}_{4} = - b e_{2} \end{matrix}

(10)

The stability of the sliding mode dynamics is ensured by considering a Lyapunov function candidate as $V_{1} = \frac{1}{2} (e_{1}^{2} + e_{2}^{2} + e_{3}^{2} + e_{4}^{2})$ whose time derivative can be written as

{\overset{\cdot}{V}}_{1} = e_{1} {\overset{\cdot}{e}}_{1} + e_{2} {\overset{\cdot}{e}}_{2} + e_{3} {\overset{\cdot}{e}}_{3} + e_{4} {\overset{\cdot}{e}}_{4}

(11)

Now using equation (10), equation (11) can be written as

{\overset{\cdot}{V}}_{1} = - k_{1} e_{2}^{2} - k_{2} e_{3}^{2}

(12)

Since, ${\overset{\cdot}{V}}_{1}$ in equation (12) is negative definite, the sliding motions on the sliding surfaces are stable and ensure convergence of the error dynamics to zero.

Next, the second-order sliding surfaces are designed using the above-said first-order SMC to ensure the robust synchronization in the presence of system uncertainties and disturbances. The second order sliding surfaces are described in equations (13) and (14)

s_{1} = {\overset{\cdot}{σ}}_{1} + c_{1} σ_{1}

(13)

s_{2} = {\overset{\cdot}{σ}}_{2} + c_{2} σ_{2}

(14)

where $c_{1}$ and $c_{2}$ are the user defined positive gain constants. Here, the values of the constants $c_{1}$ and $c_{2}$ are considered as unknown and are estimated using the adaptation mechanism. Thus, the sliding surfaces $s_{1}$ and $s_{2}$ are considered as time varying. Again, when the system operates on the sliding surfaces, it must satisfy ${\overset{\cdot}{s}}_{1} = {\overset{\cdot}{s}}_{2} = 0$ . The second-order sliding mode exists when it satisfies ${\overset{\cdot}{s}}_{1} = {\overset{\cdot}{s}}_{2} = 0$ and ${\overset{\cdot\cdot}{s}}_{1} = {\overset{\cdot\cdot}{s}}_{2} = 0$ . Thus, the equivalent sliding mode dynamics are defined as

{\begin{matrix} {\overset{\cdot\cdot}{σ}}_{1} = - c_{1} {\overset{\cdot}{σ}}_{1} \\ {\overset{\cdot\cdot}{σ}}_{2} = - c_{2} {\overset{\cdot}{σ}}_{2} \end{matrix}

(15)

Now suppose $σ_{11} = {\overset{\cdot}{σ}}_{1}$ and $σ_{22} = {\overset{\cdot}{σ}}_{2}$ . Considering a Lyapunov function candidate as $V_{2} = \frac{1}{2} (σ_{11}^{2} + σ_{22}^{2})$ , using equation (15) its time derivative can be written as

{\overset{\cdot}{V}}_{2} = - c_{1} σ_{11}^{2} - c_{2} σ_{22}^{2}

(16)

Since equation (16) is a negative definite function, the sliding motions on the sliding surfaces of equations (13) and (14) are stable and ensure the convergence of first-order sliding surfaces to zero. To ensure the occurrence of the sliding surfaces and to bring the system trajectories on the sliding surfaces $σ_{1} = σ_{2} = 0$ , sliding mode control laws are designed. The structure of the sliding mode control laws is described in equations (17) and (18)

{\begin{matrix} {\overset{\cdot}{u}}_{1} = - ({\hat{k}}_{1} {\overset{\cdot}{e}}_{2} + {\overset{\cdot}{e}}_{1} - \hat{b} {\overset{\cdot}{e}}_{4} + {\hat{c}}_{1} {\overset{\cdot}{σ}}_{1}) + {\overset{\cdot}{e}}_{1} - \hat{a} ({\overset{\cdot}{e}}_{3} e_{2} + e_{3} {\overset{\cdot}{e}}_{2} + {\overset{\cdot}{x}}_{3} e_{2} + x_{3} {\overset{\cdot}{e}}_{2} + {\overset{\cdot}{x}}_{2} e_{3} + x_{2} {\overset{\cdot}{e}}_{3}) \\ - {\overset{\cdot}{e}}_{4} - {\hat{ρ}}_{1} \tanh (s_{1}) \end{matrix}

(17)

{\overset{\cdot}{u}}_{2} = 4 y_{2}^{3} - 4 x_{2}^{3} - {\hat{k}}_{2} {\overset{\cdot}{e}}_{3} - {\hat{c}}_{2} {\overset{\cdot}{σ}}_{2} - {\hat{ρ}}_{2} \tanh (s_{2})

(18)

where ${\hat{k}}_{1}, \hat{b}, {\hat{c}}_{1}, \hat{a}, {\hat{k}}_{2}, {\hat{c}}_{2}, {\hat{ρ}}_{1}, {\hat{ρ}}_{2}$ are the estimate of the unknown parameters and gains $k_{1}, b,$ $c_{1}, a, k_{2}, c_{2}$ , $ρ_{1}, ρ_{2},$ respectively. The actual control inputs $u_{1}$ and $u_{2}$ are obtained by integration of equations (17) and (18), respectively. The estimation/adaptation laws for the parameters $a, b$ and gains $k_{1}, c_{1}, k_{2}, c_{2}, ρ_{1}, ρ_{2}$ are defined in equation (19)

{\begin{matrix} \overset{\cdot}{\hat{a}} = s_{1} ({\overset{\cdot}{e}}_{3} e_{2} + e_{3} {\overset{\cdot}{e}}_{2} + {\overset{\cdot}{x}}_{3} e_{2} + x_{3} {\overset{\cdot}{e}}_{2} + {\overset{\cdot}{x}}_{2} e_{3} + x_{2} {\overset{\cdot}{e}}_{3}) \\ {\overset{\cdot}{\hat{k}}}_{1} = s_{1} {\overset{\cdot}{e}}_{2} \\ {\overset{\cdot}{\hat{c}}}_{1} = s_{1} {\overset{\cdot}{σ}}_{1} \\ \overset{\cdot}{\hat{b}} = - s_{1} {\overset{\cdot}{e}}_{4} \\ {\overset{\cdot}{\hat{k}}}_{2} = s_{2} {\overset{\cdot}{e}}_{3} \\ {\overset{\cdot}{\hat{c}}}_{2} = s_{2} {\overset{\cdot}{σ}}_{2} \\ {\overset{\cdot}{\hat{ρ}}}_{1} = k_{p 1}^{- 1} | s_{1} | \\ {\overset{\cdot}{\hat{ρ}}}_{2} = k_{p 2}^{- 1} | s_{2} | \end{matrix}

(19)

where $k_{p 1}$ and $k_{p 2}$ are the user dependent adaptation gains and are defined in the ‘Results and discussion’ section.

Theorem 1. Consider the synchronization error defined in equation (7) along with the time varying first- and second-order sliding surfaces defined in equations (8) and (9), and (13) and (14), respectively, the slave chaotic system given by equation (6) follows the master equation (5) and the system’s trajectories converge to the sliding surfaces $s_{1} = s_{2} = 0$ in the presence of matched system uncertainties and external disturbances if the control laws in equations (17) and (18) are used along with the adaptation laws in equation (19).

Proof. The first and second derivative of the first-order sliding surfaces $σ_{1}$ and $σ_{2}$ are defined as

{\begin{matrix} {\overset{\cdot}{σ}}_{1} = {\overset{\cdot}{e}}_{2} + k_{1} e_{2} + e_{1} - b e_{4} \\ {\overset{\cdot}{σ}}_{2} = {\overset{\cdot}{e}}_{3} + k_{2} e_{3} \end{matrix}

(20)

{\begin{matrix} {\overset{\cdot\cdot}{σ}}_{1} = {\overset{\cdot\cdot}{e}}_{2} + k_{1} {\overset{\cdot}{e}}_{2} + {\overset{\cdot}{e}}_{1} - b {\overset{\cdot}{e}}_{4} \\ {\overset{\cdot\cdot}{σ}}_{2} = {\overset{\cdot\cdot}{e}}_{3} + k_{2} {\overset{\cdot}{e}}_{3} \end{matrix}

(21)

The time derivative of ${\overset{\cdot}{e}}_{2}$ and ${\overset{\cdot}{e}}_{3}$ can be written as equations (22) and (23)

\begin{matrix} {\overset{\cdot\cdot}{e}}_{2} = - {\overset{\cdot}{e}}_{1} + a ({\overset{\cdot}{e}}_{3} e_{2} + e_{3} {\overset{\cdot}{e}}_{2} + {\overset{\cdot}{x}}_{3} e_{2} + x_{3} {\overset{\cdot}{e}}_{2} + {\overset{\cdot}{x}}_{2} e_{3} + x_{2} {\overset{\cdot}{e}}_{3}) \\ + {\overset{\cdot}{e}}_{4} + {\overset{\cdot}{u}}_{1} + {\overset{\cdot}{d}}_{3} - {\overset{\cdot}{d}}_{1} \end{matrix}

(22)

{\overset{\cdot\cdot}{e}}_{3} = - 4 y_{2}^{3} + 4 x_{2}^{3} + {\overset{\cdot}{u}}_{2} + {\overset{\cdot}{d}}_{4} - {\overset{\cdot}{d}}_{2}

(23)

Consider Lyapunov candidate functions as

V_{3} = \frac{1}{2} (s_{1}^{2} + e_{a}^{2} + e_{k_{1}}^{2} + e_{c_{1}}^{2} + e_{b}^{2} + k_{p 1} e_{ρ_{1}}^{2})

(24)

V_{4} = \frac{1}{2} (s_{2}^{2} + e_{k_{2}}^{2} + e_{c_{2}}^{2} + k_{p 2} e_{ρ_{2}}^{2})

(25)

where $e_{k_{1}} = k_{1} - {\hat{k}}_{1}, e_{k_{2}} = k_{2} - {\hat{k}}_{2}, e_{c_{1}} = c_{1} - {\hat{c}}_{1}, e_{c_{2}} = c_{2} - {\hat{c}}_{2}$ , $e_{a} = a - \hat{a}, e_{b} = b - \hat{b}$ , $e_{ρ_{1}} = ρ_{1} - {\hat{ρ}}_{1}$ and $e_{ρ_{2}} = ρ_{2} - {\hat{ρ}}_{2}$ . Using equations (13) and (14), the time derivative of equations (24) and (25) is written as equations (26) and (27)

{\overset{\cdot}{V}}_{3} = s_{1} ({\overset{\cdot\cdot}{σ}}_{1} + c_{1} {\overset{\cdot}{σ}}_{1}) + e_{a} {\overset{\cdot}{e}}_{a} + e_{k_{1}} {\overset{\cdot}{e}}_{k_{1}} + e_{c_{1}} {\overset{\cdot}{e}}_{c_{1}} + e_{b} {\overset{\cdot}{e}}_{b} + k_{p 1} e_{ρ_{1}} {\overset{\cdot}{e}}_{ρ_{1}}

(26)

{\overset{\cdot}{V}}_{4} = s_{2} ({\overset{\cdot\cdot}{σ}}_{2} + c_{2} {\overset{\cdot}{σ}}_{2}) + e_{k_{2}} {\overset{\cdot}{e}}_{k_{2}} + e_{c_{2}} {\overset{\cdot}{e}}_{c_{2}} + k_{p 2} e_{ρ_{2}} {\overset{\cdot}{e}}_{ρ_{2}}

(27)

Using equations (21) to (23) along with equations (17) to (19), equations (26) and (27) can be written as

\begin{matrix} {\overset{\cdot}{V}}_{3} ⩽ - {ρ_{1} - k_{1} (L_{1} + L_{5}) \\ + c_{1} (L_{5} - L_{1}) + L_{51} - L_{11}} s_{1} \tanh (s_{1}) \end{matrix}

(28)

\begin{matrix} {\overset{\cdot}{V}}_{4} ⩽ - {ρ_{2} - k_{2} (L_{2} - L_{4}) \\ + c_{2} (L_{4} - L_{2}) + L_{41} - L_{22}} s_{2} \tanh (s_{2}) \end{matrix}

(29)

or we can write as

{\overset{\cdot}{V}}_{3} ⩽ - \frac{α_{1}}{\sqrt{2}} s_{1} \tanh (s_{1})

(30)

{\overset{\cdot}{V}}_{4} ⩽ - \frac{α_{2}}{\sqrt{2}} s_{2} \tanh (s_{2})

(31)

where $ρ_{1} = k_{1} (L_{1} + L_{5}) + c_{1} (L_{5} - L_{1}) + L_{51} - L_{11} + \frac{α_{1}}{\sqrt{2}}$ , $ρ_{2} = k_{2} (L_{2} - L_{4}) + c_{2} (L_{4} - L_{2}) + L_{41} - L_{22} + \frac{α_{2}}{\sqrt{2}}$ and $α_{i} > 0$ . The terms $L_{1}, L_{2}, L_{3}, L_{4}, L_{11}, L_{22}, L_{41}, L_{51}$ represent the boundedness of the disturbances and their values are given in the ‘Results and discussion’ section. Since $\tanh (s_{1})$ and $\tanh (s_{2})$ can be approximated as $\tanh (s_{1}) = \frac{| s_{1} |}{s_{1}}$ and $\tanh (s_{2}) = \frac{| s_{2} |}{s_{2}}$ , so equations (30) and (31) are negative definite functions. Thus, the error dynamics converge on the sliding surface $s_{1} = s_{2} = 0$ and remain on it. Hence, the slave chaotic system follows the master chaotic system.

Results and discussion

In this section, the results and discussion on the synchronization between the proposed chaotic system given by equation (2) are presented. The initial conditions used for simulating the master system given by equation (5), slave system given by equation (6), control inputs given by equations (17) and (18) and the adaptive laws given by equation (19) are considered as $x (0) = (0.2, 0.2, 0.2, - 0.2)^{T}$ , $y (0) = (0.002, 0.002, 0.002, - 0.002)^{T}$ , $u (0) = (0, 0)^{T}$ and $(\hat{a} (0) = \hat{b} (0) = 0, {\hat{k}}_{1} (0) = 0, {\hat{k}}_{2} (0) = 0, {\hat{c}}_{1} (0) = 0, {\hat{c}}_{2} (0) = 0)$ , respectively. The actual value of the parameters of the system given by equations (5) and (6) is $a = 2.79, b = 0.801$ . The sliding mode control law gains are selected as $k_{p 1} = 2, k_{p 2} = 2 .$

The disturbances $d_{1}, d_{2}$ and $d_{3}, d_{4}$ are added to the master system given by equation (5) and slave system given by equation (6), and are given in equations (32) and (33), respectively

{\begin{matrix} d_{1} = 0.1 \sin (x_{2}) \sin (x_{1}), | d_{1} | < L_{1} = 0.1 | x_{1} | | x_{2} |, | {\overset{\cdot}{d}}_{1} | < L_{11} \\ d_{2} = 0.1 \sin (x_{3}), | d_{2} | < L_{2} = 0.1 | x_{3} |, | {\overset{\cdot}{d}}_{2} | < L_{22} \end{matrix}

(32)

{\begin{matrix} d_{3} = 0.1 \sin (y_{2}) \sin (y_{1}), | d_{3} | < L_{1} = 0.1 | y_{1} | | y_{2} |, | {\overset{\cdot}{d}}_{3} | < L_{41} \\ d_{4} = 0.1 \sin (y_{3}), | d_{4} | < L_{2} = 0.1 | y_{3} |, | {\overset{\cdot}{d}}_{4} | < L_{51} \end{matrix}

(33)

where the terms $L_{1}, L_{2}, L_{3}, L_{4}, L_{11}, L_{22}, L_{41}, L_{51}$ are positive quantities and represent the boundedness of the disturbances. These disturbances are added in the systems to test the robustness of the proposed control technique during synchronization. The robustness of the proposed controller is also shown by synchronizing the systems with different initial conditions. It may be noted that although the master and slave systems are the same, different initial conditions are considered for their simulation during synchronization. We know chaotic systems are highly sensitive to the initial conditions. Hence, the same system will have different responses for different initial conditions. Therefore, different initial conditions are considered for the synchronization of the master and slave systems in the presence of disturbances. The synchronization errors between each of the states of the master and slave systems are shown in Figure 12. The responses of the first order sliding surfaces are shown in Figure 13. The responses of the proposed second order sliding surfaces used for synchronization are shown in Figure 14. The control inputs used for the synchronization are shown in Figure 15. The estimate of parameters of the master and slave systems, and the gains of the sliding surfaces are shown in Figures 16, 17, 18, respectively.

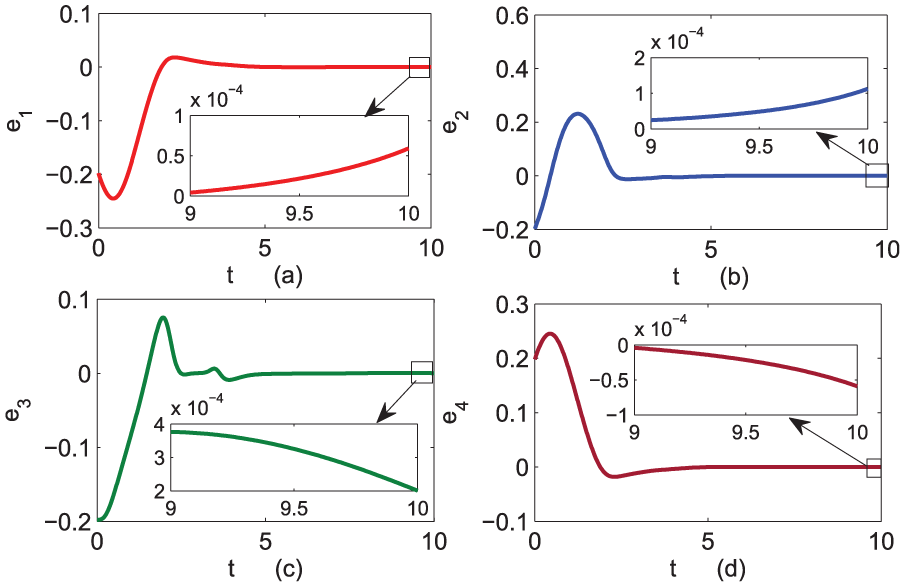

Figure 12.

Synchronization errors between the master and slave systems.

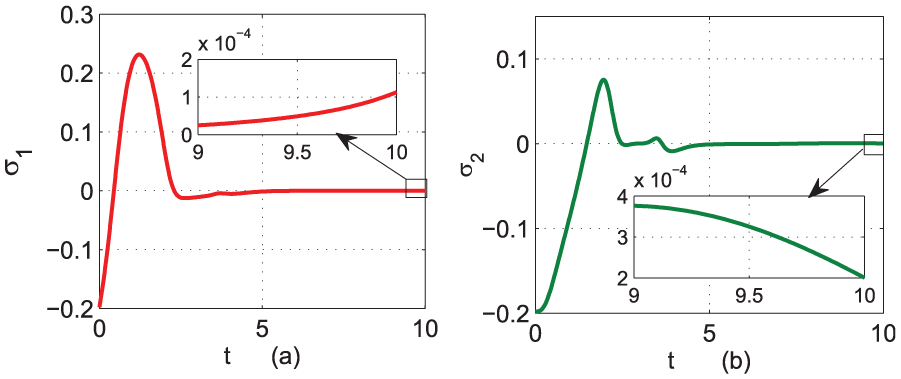

Figure 13.

Responses of the first-order PI sliding surfaces designed for synchronization.

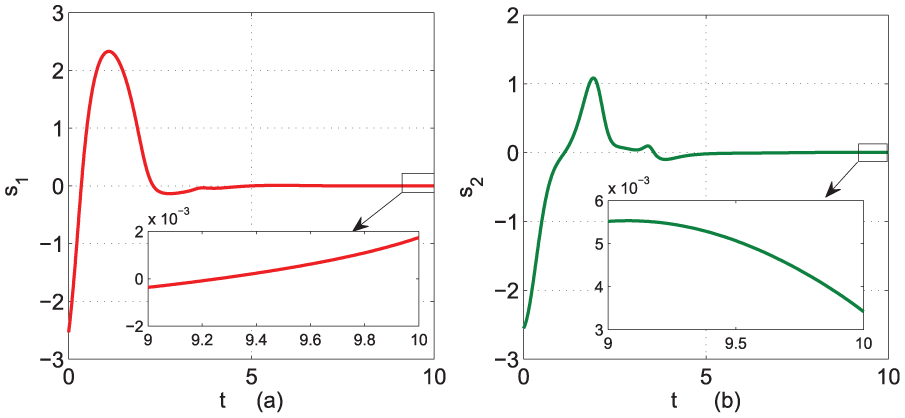

Figure 14.

Responses of the proposed second sliding surfaces designed for synchronization.

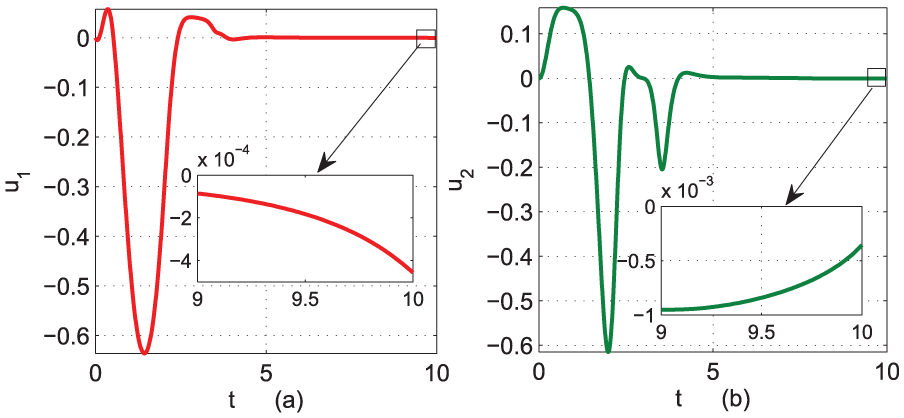

Figure 15.

Behaviours of the control inputs during synchronization of the chaotic systems.

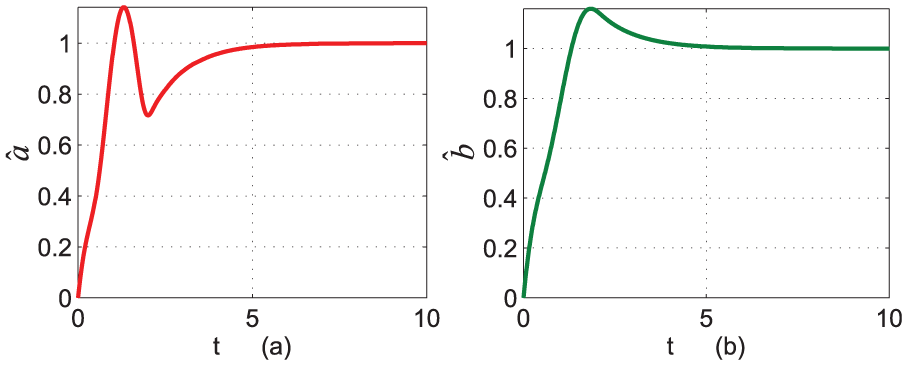

Figure 16.

Estimation of parameters of the master and slave systems.

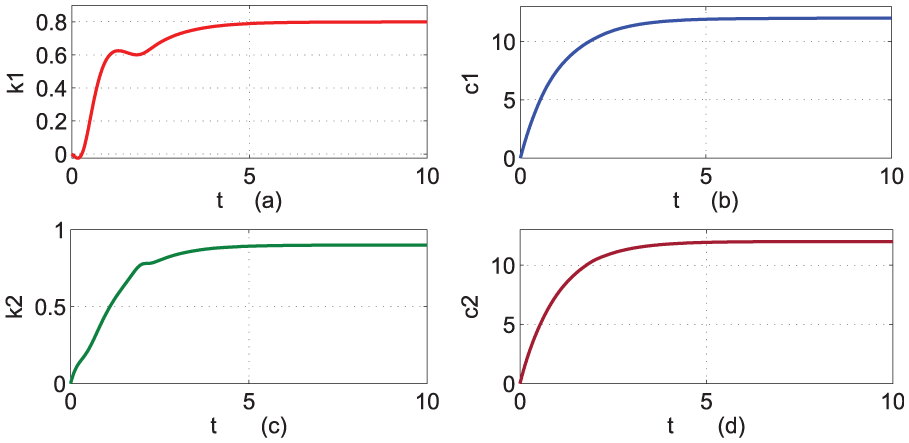

Figure 17.

Estimation of the gains of the sliding surfaces.

Figure 18.

Estimation of the gains of the switching control laws of the sliding surfaces.

It is noted from Figure 12 that the synchronization errors converge to zero within $5$ time units and the steady state error is very small. It is seen from Figures 13 and 14 that the chattering is negligible in the sliding surfaces. It is apparent from Figure 15 that the chattering in the control inputs is small and also the control inputs have a small value. It is noted from Figure 16 that the estimation of the parameters of the master and slave systems is achieved properly to their actual values. The estimation of the gains of the sliding surfaces and the estimation of the gains of the switching control laws are shown in Figures 17 and 18, respectively.

The next section compares the performances of the proposed control technique with two available controllers which are reported recently in the literature.

Comparison of the proposed control technique with the two available techniques

Comparison with the controller in the work by Lu et al. (2012)

The performances of the proposed control technique for synchronization are compared with the reported second-order SMC in the work by Lu et al. (2012). The comparison is done on the synchronization between the Van der Pol chaotic oscillator and Duffing chaotic oscillator systems. The systems considered for the synchronization are same as in the work by Lu et al. (2012). The dynamics of the master (Van der Pol oscillator) and slave (Duffing oscillator) chaotic systems are described in equations (34) and (35), respectively (Lu et al., 2012)

{\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2} \\ {\overset{\cdot}{x}}_{2} = - ε (1 - x_{1}) x_{2} - x_{1}^{3} + A \cos (w_{x} t) \end{matrix}

(34)

{\begin{matrix} {\overset{\cdot}{y}}_{1} = y_{2} \\ {\overset{\cdot}{y}}_{2} = - μ y_{2} - y_{1} - y_{1}^{3} + B \cos (w_{y} t) + u \end{matrix}

(35)

where $ε = 0.1, w_{x} = 1, A = 0.3$ , $a = 0.18, w_{y} = 0.8$ and $B = 18 .$

For comparison between the controllers used in the work by Lu et al. (2012) and the proposed one, the structures of the sliding surface, adaptive laws for estimating $μ$ and the control input are taken from the work by Lu et al. (2012). Further, the sliding surfaces, adaptation laws and control laws are designed using the proposed control technique and are given in equations (36) to (38), respectively

{\begin{matrix} σ = e_{2} + \int_{0}^{t} (k e_{2} + e_{1}) d τ \\ s = c_{2} \overset{\cdot}{σ} + c_{1} σ \end{matrix}

(36)

{\begin{matrix} \overset{\cdot}{\hat{μ}} = - s {\overset{\cdot}{y}}_{2} + p_{1} e_{a} \\ {\overset{\cdot}{\hat{c}}}_{1} = s \overset{\cdot}{σ} \\ \overset{\cdot}{\hat{k}} = s {\overset{\cdot}{e}}_{2} \end{matrix}

(37)

{\begin{matrix} \overset{\cdot}{u} = - {- \hat{μ} {\overset{\cdot}{y}}_{2} - {\overset{\cdot}{y}}_{1} - 3 y_{1}^{2} - B w_{y} \sin (w_{y} t) + ε ((1 - x_{1}) - x_{2}) + 3 x_{1}^{2} \\ + A w_{x} \sin (w_{x} t)} - {\hat{c}}_{1} \overset{\cdot}{σ} - \hat{k} {\overset{\cdot}{e}}_{2} - {\overset{\cdot}{e}}_{1} - ρ \tanh (s) \end{matrix}

(38)

where $ρ = 1, p_{1} = 1$ . The initial conditions for the synchronization of the systems given by equations (34) and (35), the simulation of the control input given by equation (38) and the adaptation laws given by equation (37) are considered as $x (0) = y (0) = (0, 0)^{T}$ , $u (0) = 0$ , $μ (0) = 0, c_{1} (0) = 0, k (0) = 0$ . The synchronization errors between the synchronized states of the master system given by equation (34) and the slave system given by equation (35) using the control technique given by Lu et al. (2012), and the proposed control techniques are shown in Figure 19. The sliding surfaces designed by using both the control techniques are shown in Figure 20. The comparative control inputs are shown in Figure 21. Estimation of the parameter $μ$ of the slave system using both the control techniques is shown in Figure 22. It is seen from Figures 19 to 22 that the synchronization between the systems considered in the work by Lu et al. (2012) using the proposed control technique is achieved in very little time and with a small steady state error compared with the control technique by Lu et al. (2012).

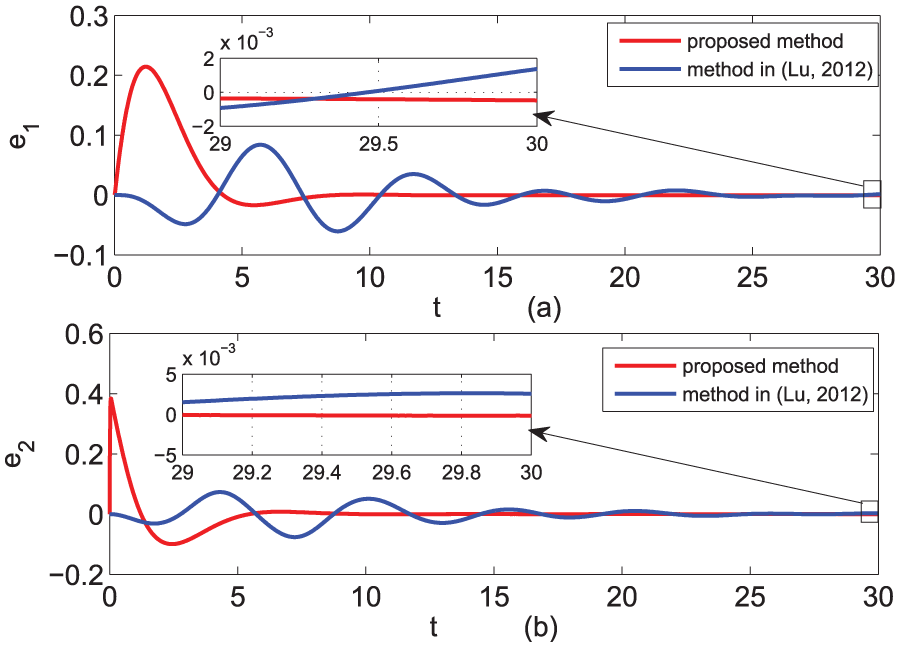

Figure 19.

Synchronization errors between the master system given by equation (34) and the slave system given by equation (35) using the proposed control technique and the technique by Lu et al. (2012).

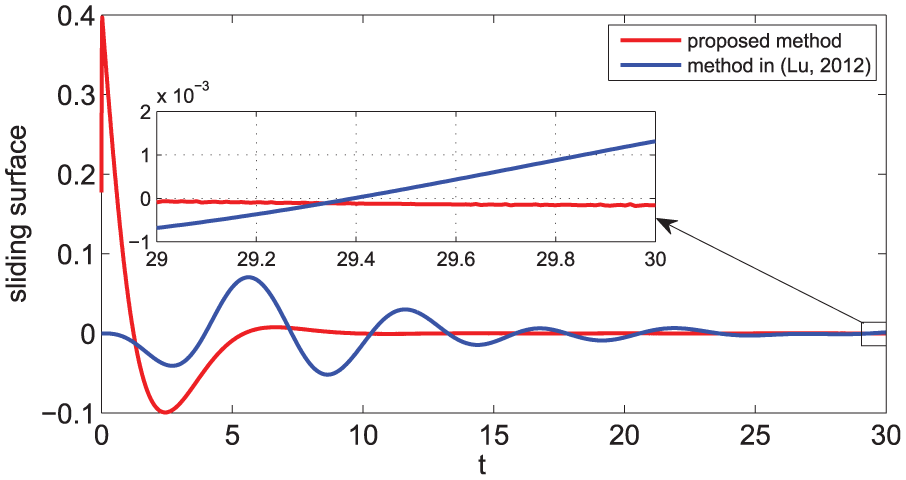

Figure 20.

Response of the sliding surface for synchronization of equations (34) and (35) using the proposed control technique and the technique by Lu et al. (2012).

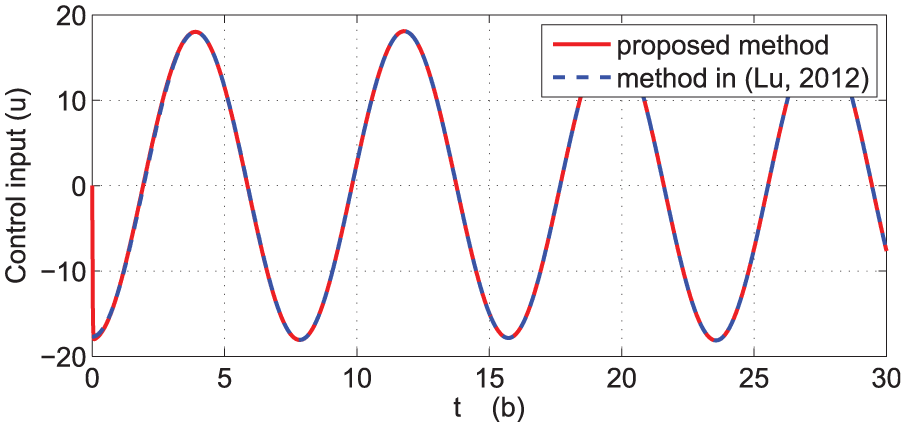

Figure 21.

The control input for synchronization of equations (34) and (35) using the proposed control technique and the technique by Lu et al. (2012).

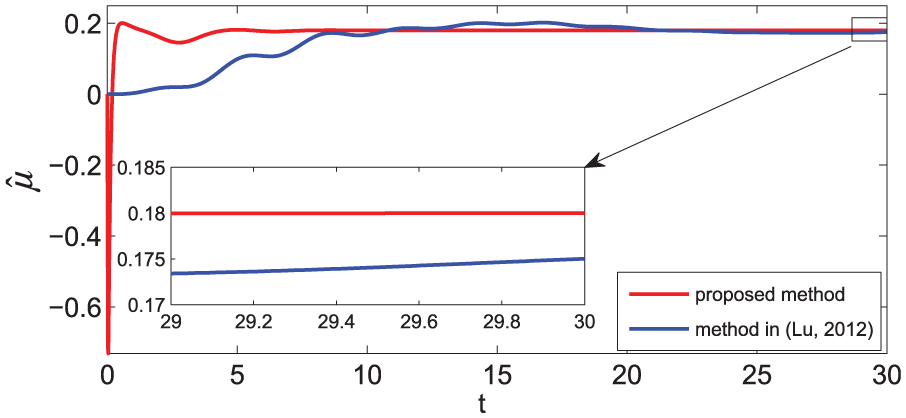

Figure 22.

Estimation of parameter $μ$ of the slave system given by equation (35) using the proposed control technique and the technique by Lu et al. (2012).

Comparison with the controller in the work by Mobayen et al. (2016)

The performances of the proposed controller are also compared with the results by Mobayen et al. (2016). A 3-D Chua’s dynamics is used by Mobayen et al. (2016). The dynamics of the Chua’s circuit is described as (Mobayen et al., 2016)

{\begin{matrix} {\overset{\cdot}{x}}_{1} = - x_{1} + x_{2} + x_{3} \\ {\overset{\cdot}{x}}_{2} = - β x_{1} + u_{1} \\ {\overset{\cdot}{x}}_{3} = α (x_{1} - x_{3} + g (x_{3})) + u_{2} \end{matrix}

(39)

where $g (x_{3}) = n x_{3} + 0.5 (m - n) (| x_{3} + 1 | - | x_{3} - 1 |)$ , $α = 40, β = 93.33, m = - 1.139, n = - 0.711$ and $u_{1}, u_{2}$ are the control inputs.

The sliding surfaces, control laws and adaptation laws for the tracking control of the system are redesigned using the proposed controller and are given as equations (40) to (43)

{\begin{matrix} σ_{1} = e_{2} + \int_{0}^{t} (k_{1} e_{2} + e_{1}) d τ \\ σ_{2} = e_{3} + \int_{0}^{t} (k_{2} e_{3} + e_{1}) d τ \end{matrix}

(40)

{\begin{matrix} s_{1} = {\overset{\cdot}{σ}}_{1} + c_{1} σ_{1} \\ s_{2} = {\overset{\cdot}{σ}}_{2} + c_{2} σ_{2} \end{matrix}

(41)

{\begin{matrix} {\overset{\cdot}{u}}_{1} = β {\overset{\cdot}{e}}_{1} - k_{1} {\overset{\cdot}{e}}_{2} - {\overset{\cdot}{e}}_{1} - c_{1} {\overset{\cdot}{σ}}_{1} + {\overset{\cdot\cdot}{x}}_{d 1} - ρ_{1} \tanh (σ_{1}) \\ {\overset{\cdot}{u}}_{2} = - α ({\overset{\cdot}{e}}_{1} - {\overset{\cdot}{e}}_{3} + \overset{\cdot}{g} (e_{3})) - k_{2} {\overset{\cdot}{e}}_{3} - {\overset{\cdot}{e}}_{1} - c_{2} {\overset{\cdot}{σ}}_{2} + {\overset{\cdot\cdot}{x}}_{d 2} - ρ_{2} \tanh (σ_{2}) \end{matrix}

(42)

{\begin{matrix} \overset{\cdot}{\hat{β}} = - s_{1} {\overset{\cdot}{e}}_{1} + Q_{1} e_{β} \\ {\overset{\cdot}{\hat{k}}}_{1} = s_{1} {\overset{\cdot}{x}}_{2} \\ {\overset{\cdot}{\hat{c}}}_{1} = s_{1} {\overset{\cdot}{σ}}_{1} \\ \overset{\cdot}{\hat{α}} = s_{2} ({\overset{\cdot}{e}}_{1} - {\overset{\cdot}{e}}_{3} + \overset{\cdot}{g} (e_{3})) + Q_{2} e_{α} \\ {\overset{\cdot}{\hat{k}}}_{2} = s_{2} {\overset{\cdot}{x}}_{3} \\ {\overset{\cdot}{\hat{c}}}_{2} = s_{2} {\overset{\cdot}{σ}}_{2} \end{matrix}

(43)

The initial conditions for simulating Chua’s system dynamics given by equation (39), reference signals and control inputs are $x (0) = (1, 0, - 1)^{T}, x_{d} = (0, 0, 0)^{T}$ , $u (0) = (0, 0)^{T}$ which are the same as considered by Mobayen et al. (2016). The initial conditions for simulating the adaptation laws given by equation (43) are $(\hat{α} (0) = \hat{β} (0) = 0, {\hat{k}}_{1} (0) = 0, {\hat{k}}_{2} (0) = 0, {\hat{c}}_{1} (0) = 0, {\hat{c}}_{2} (0) = 0)$ . The value of the controller parameters and other constants are $ρ_{1} = 5, ρ_{2} = 5, Q_{1} = 1, Q_{2} = 1 .$ The simulation results for the tracking error of the system given by equation (39) using the proposed controller are shown in Figure 23. It is seen from Figure 23 that the tracking time using the proposed controller is smaller in comparison with Figure 6 in the work by Mobayen et al. (2016). The responses of the second-order sliding surfaces using the proposed controller of the system given by equation (39) are shown in Figure 24. It is apparent from Figure 24 that the reaching time of the sliding surfaces using the proposed controller is less than the reaching time of the sliding surfaces given in Figure 8 of the work by Mobayen et al. (2016). Thus, the proposed controller has better performance in terms of smaller tracking error and reaching time compared with the controller used by Mobayen et al. (2016) for the tracking control of the system given by equation (39).

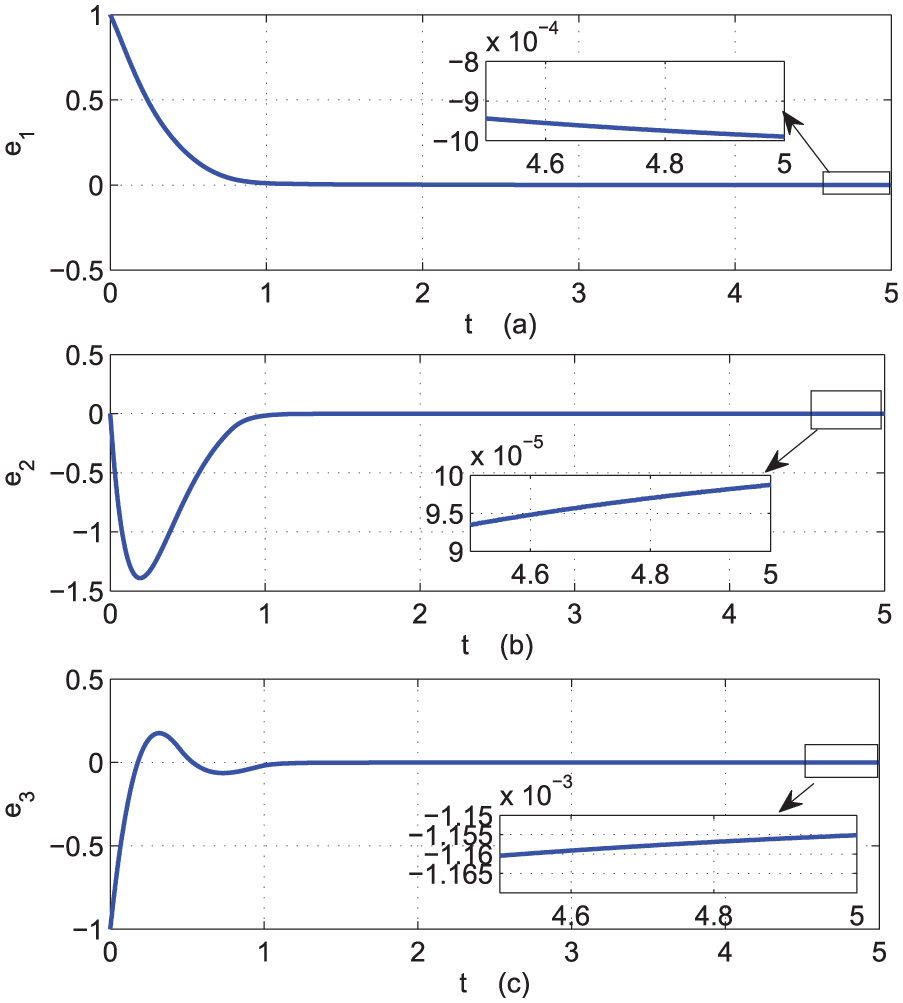

Figure 23.

Tracking errors for the system given by equation (39) using the proposed control technique.

Figure 24.

Response of the sliding surfaces for the tracking of equation (39).

Conclusions

In this paper, a new and unusual 4-D conservative chaotic system is reported. The system is developed from a Sprott type-A 3-D chaotic system. The proposed system has no equilibrium point. Thus, it belongs to the hidden chaotic attractors family. The system exhibits coexistence of chaotic orbits. The chaotic behaviour of the system is validated using Lyapunov spectra, phase portraits, frequency spectra and Poincaré map and bifurcation diagrams.

A second-order adaptive time varying SMC is proposed for synchronization between two identical proposed chaotic systems in the presence of matched disturbances, parametric uncertainties and different initial conditions. The parameters of the systems, the gains of sliding surfaces and switching laws are estimated on-line. The performances of the proposed controller are compared with the two available controllers in the work by Lu et al. (2012) and Mobayen et al. (2016). It is found that the proposed controller performs better than the considered two controllers in terms of synchronization time and steady state error.

Footnotes

Conflict of interest

The authors declare that there is no conflict of interest.

Funding

This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.

References

Akgul

Calgan

Koyuncu

et al . (2015) Chaos-based engineering applications with a 3D chaotic system without equilibrium points. Nonlinear Dynamics 84(2): 1–15.

Akgul

Hussain

Pehlivan

(2016) A new three-dimensional chaotic system without equilibrium points, its dynamical analyses and electronic circuit application. Optik 127: 7062–7071.

Behjameh

Delavari

Vali

(2015) Global finite time synchronization of two nonlinear chaotic gyros using high order sliding mode control. Journal of Applied and Computational Mechanics 1(1): 26–34.

Cang

Wang

et al . (2017) Four-dimensional autonomous dynamical systems with conservative flows: Two-case study. Nonlinear Dynamics 89(4): 2495–2508.

Castaneda

Salas-Pena

Leon-Morales

(2015) Extended observer based on adaptive second order sliding mode control for a fixed wing UAV. ISA Transactions 66: 226–232.

Chaudhuri

Prasad

(2014) Complicated basins and the phenomenon of amplitude death in coupled hidden attractors. Physics Letters A 378(9): 713–718.

Chi-Ching

(2012) Synchronization of second-order chaotic systems via adaptive terminal sliding mode control with input nonlinearity. Journal of the Franklin Institute 349(6): 2019–2032.

Datcu

Fridman

Barbot

(2012) A third-order sliding-mode observer for a continuous delay chaotic system. In: 2012 IFAC conference on analysis and control of chaotic systems, Cancun, Mexico, 20–22 June 2012, pp.175–180.

Dehkordi

Sadati

Hamzeh

(2017) A backstepping high-order sliding mode voltage control strategy for an islanded microgrid with harmonic/interharmonic loads. Control Engineering Practice 58: 150–160.

10.

Ding

(2016) Second-order sliding mode controller design subject to mismatched. Automatica 77: 388–392.

11.

Dudkowski

Jafari

Kapitaniak

et al . (2016) Hidden attractors in dynamical systems. Physics Reports 637: 1–50.

12.

Escalante-Gonzalez

Campos-Canton

Nicol

(2017) Generation of multi-scroll attractors without equilibria via piecewise linear systems. Chaos: An Interdisciplinary Journal of Nonlinear Science 27: 053109-053117.

13.

Feng

Pan

(2017) Hidden attractors without equilibrium and adaptive reduced-order function projective synchronization from hyperchaotic Rikitake system. Pramana 88(4): 62–68.

14.

Fridman

Moreno

Lriarte

(2011) Sliding Modes After the First Decade of the 21st Century. Heidelberg: Springer-Verlag Berlin.

15.

Wang

Lee

(2000) Adaptive backstepping control of a class of chaotic systems. International Journal of Bifurcation and Chaos 10(5): 1149–1156.

16.

Handa

Sharma

(2016) Novel adaptive feedback synchronization scheme for a class of chaotic systems with and without parametric uncertainty. Chaos, Solitons and Fractals 86: 50–63.

17.

Hendel

Khaber

Essounbouli

(2015) Adaptive type-2 fuzzy second order sliding mode control for nonlinear uncertain chaotic system. International Journal of Computational Science, Information Technology and Control Engineering 2(4): 1–14.

18.

Henon

Heiles

(1964) The applicability of the third integral of motion: Some numerical experiments. Astrophysical Journal 69: 73–79.

19.

Hoang

Kingni

Pham

(2017) A no-equilibrium hyperchaotic system and its fractional-order form. Mathematical Problems in Engineering 2017: 1–10.

20.

Hsu

Lee

Chang

(2014) Intelligent second-order sliding-mode control for chaotic tracking problem. In: Proceedings of the SICE annual conference, Sapporo, Japan, 9–12 September, pp. 62–67.

21.

Liu

et al . (2016) Multi-scroll hidden attractors in improved Sprott A system. Nonlinear Dynamics 86(3): 1725–1734.

22.

Jafari

Mliki

Akgul

et al . (2017) Chameleon: The most hidden chaotic flow. Nonlinear Dynamics 88: 2303–2317.

23.

Jafari

Nazarimehr

Sprott

et al . (2015) Limitation of perpetual points for confirming conservation in dynamical systems. International Journal of Bifurcation and Chaos 25(13): 1550182–1550188.

24.

Jafari

Pham

Kapitaniak

(2016) Multiscroll chaotic sea obtained from a simple 3D system without equilibrium. International Journal of Bifurcation and Chaos 26(2): 1650031–1650036.

25.

Jafari

Sprott

Reza

et al . (2013) Elementary quadratic chaotic flows with no equilibria. Physics Letters A 377(9): 699–702.

26.

Khalil

(2002) Nonlinear Systems. 3rd ed., Edinburgh Gate, Harlow: Pearson Education Limited.

27.

Kingni

Jafari

Pham

et al . (2017) Constructing and analyzing of a unique three-dimensional chaotic autonomous system exhibiting three families of hidden attractors. Mathematics and Computers in Simulation 132: 172–182.

28.

Kingni

Jafari

Simo

et al . (2014) Three-dimensional chaotic autonomous system with only one stable equilibrium: Analysis, circuit design, parameter estimation, control, synchronization and its fractional-order form. The European Physical Journal Plus 129(5): 76–92.

29.

Kiseleva

Kondratyeva

Kuznetsov

et al . (2017) Hidden oscillations in electromechanical systems. In: Dynamics and Control of Advanced Structures and Machines. Heidelberg: Springer-Verlag Berlin, pp.119–124.

30.

Korneev

Vadivasova

Semenov

(2017) Hard and soft excitation of oscillations in memristor-based oscillators with a line of equilibria. Nonlinear Dynamics 89(4): 2829–2843.

31.

Kuznetsov

Leonov

(2014) Hidden attractors in dynamical systems: Systems with no equilibria, multistability and coexisting attractors. IFACPapersOnline 19: 5445–5454.

32.

Lakshmanan

Rajasekar

(2003) Nonlinear Dynamics, Integrability, Chaos and Patterns. Heidelberg: Springer Berlin GmbH.

33.

Leonov

Kuznetsov

Kuznestova

et al . (2011a) Hidden oscillations in dynamical systems system. Transaction on Systems and Control 6(2): 1–14.

34.

Leonov

Kuznetsov

(2013) Hidden attractors in dynamical systems: From hidden oscillations in Hilbert–Kolmogorov, Aizerman, and Kalman problems to hidden chaotic attractor in Chua circuits. International Journal of Bifurcation and Chaos 23(01): 1330002–1330012.

35.

Leonov

Kuznetsov

Vagaitsev

(2011b) Localization of hidden Chuas attractors. Physics Letters A 375(23): 2230–2233.

36.

Leonov

Kuznetsov

Vagaitsev

(2012) Hidden attractor in smooth Chua systems. Physica D 241(18): 1482–1486.

37.

Sprott

(2014a) Coexisting hidden attractors in a 4-D simplified Lorenz system. International Journal of Bifurcation and Chaos 24(03): 1450034–1450040.

38.

Sprott

Thio

et al . (2014b) A new piecewise linear hyperchaotic circuit. IEEE Transaction on Circuits and Systems II Express Briefs 61(12): 977–981.

39.

Zheng

et al . (2016) A unique jerk system with hidden chaotic oscillation. Nonlinear Dynamics 86: 197–203.

40.

Lin

Wang

et al . (2016) A novel four-wing non-equilibrium chaotic system and its circuit implementation. Pramana 86(4): 801–807.

41.

Llibre

Teixeira

(2017) Piecewise linear differential systems without equilibria produce limit cycles. Nonlinear Dynamics 88(1): 157–164.

42.

Lorenz

(1963) Deterministic nonperiodic flow. Journal of the Atmospheric Sciences 20(2): 130–141.

43.

Loria

(2010) Master-slave synchronization of fourth-order Lu chaotic oscillators via linear output feedback. IEEE Transactions on Circuits and Systems II: Express briefs 57(3): 213–217.

44.

Chen

Cheng

et al . (2002) Bridge the gap between the Lorenz system and the Chen system. International Journal of Bifurcation and Chaos 12(12): 2917–2926.

45.

Luan

(2012) Synchronization between uncertain chaotic systems with a diverse structure based on a second-order sliding mode control. Nonlinear Dynamics 70(3): 1861–1865.

46.

Maaita

Volos

Kyprianidis

et al . (2015) The dynamics of a cubic nonlinear system with no equilibrium point. Journal of Nonlinear Dynamics 2015: 1–15.

47.

Min

Wang

Peng

et al . (2016) Bifurcations, chaos and adaptive backstepping sliding mode control of a power system with excitation limitation. AIP Advances 6: 085214–085226.

48.

Mobayen

Baleanu

Tchier

(2016) Second-order fast terminal sliding mode control design based on LMI for a class of non-linear uncertain systems and its application to chaotic systems. Journal of Vibration and Control 79: 1–14.

49.

Munoz

Gonzalez-Hernandez

Salazar

et al . (2017) Second order sliding mode controllers for altitude control of a quadrotor UAS: Real-time implementation in outdoor environments. Neurocomputing 233: 61–71.

50.

Ojoniyi

Njah

(2016) A 5D hyperchaotic Sprott B system with coexisting hidden attractors. Chaos, Solitons and Fractals 87: 172–181.

51.

Pecora

Carroll

(2015) Synchronization of chaotic systems. Chaos 25(9): 097611–097624.

52.

Pham

V-T

Jafari

Kapitaniak

et al . (2017) Generating a chaotic system with one stable equilibrium. International Journal of bifurcation and chaos 27(4): 1750053–1750061.

53.

Pham

Jafari

Volos

et al . (2016a) A chaotic system with equilibria located on the rounded square loop and its circuit implementation. IEEE Transactions on Circuits and Systems II: Express Briefs 63(9): 878–882.

54.

Pham

Vaidyanathan

Volos

et al . (2015) Hidden attractors in a chaotic system with an exponential nonlinear term. The European Physical Journal Special Topics 224(8): 507–151.

55.

Pham

Vaidyanathan

Volos

et al . (2016b) A no-equilibrium hyperchaotic system with a cubic nonlinear term. Optik 127(6): 3259–3265.

56.

Pham

Volos

Jafari

et al . (2014a) Generating a novel hyperchaotic system out of equilibrium. Optoelectronics and Advanced Materials, Rapid Communications 8(5-6): 535–539.

57.

Pham

Volos

Jafari

et al . (2014b) Constructing a novel no-equilibrium chaotic system. International Journal of Bifurcation and Chaos 24: 1450073–1450087.

58.

Pham

Volos

Valentina Gambuzza

(2014c) A memristive hyperchaotic system without equilibrium. Scientific World Journal 2014: 1–9.

59.

Pham

V-T

Volos

Wang

et al . (2016c) A chaotic system with different families of hidden attractors. International Journal of Bifurcation and Chaos 26(8): 1650139–1650148.

60.

Pisarchik

Feudel

(2014) Control of multistability. Physics Reports 540(4): 167–218.

61.

Politi

Oppo

Badii

(1986) Coexistence of conservative and dissipative behavior in reversible dynamical systems. Physical Review A 33(6): 4055–4064.

62.

Pukdeboon

(2016) Output feedback second order sliding mode control for spacecraft attitude and translation motion. International Journal of Control, Automation and Systems 14(2): 411–424.

63.

Rodriguez

De Leon

Fridman

(2009) Synchronization in reduced-order of chaotic systems via control approaches based on high-order sliding-mode observer. Chaos, Soliton and Fractals 42(5): 3219–3233.

64.

Rossler

(1976) An equation for continuous chaos. Physics Letters A 57(5): 397–398.

65.

Saberi Nik

Talebian

(2014) Optimal, adaptive and single state feedback control for a 3D chaotic system with golden proportion equilibria. Kybernetika 50(4): 596–615.

66.

Shahzad

Pham

Ahmad

et al . (2015) Synchronization and circuit design of a chaotic system with coexisting hidden attractors. European Physical Journal: Special Topics 224(8): 1637–1652.

67.

Sharma

Shrimali

Prasad

et al . (2015) Control of multistability in hidden attractors. The European Physical Journal Special Topics 224(8): 1485–1491.

68.

Shen

et al . (2014a) A systematic methodology for constructing hyperchaotic systems with multiple positive Lyapunov exponents and circuit implementation. IEEE Transactions on Circuits and Systems I: Regular Papers 61(3): 854–864.

69.

Shen

et al . (2014b) Designing hyperchaotic systems with any desired number of positive Lyapunov exponents via a simple model. IEEE Transactions on Circuits and Systems I: Regular Papers 61(8): 2380–2389.

70.

Singh

Roy

(2016a) Crisis and inverse crisis route to chaos in a new 3-D chaotic system with saddle, saddle foci and stable node foci nature of equilibria. Optik 127(24): 11982–12002.

71.

Singh

Roy

(2016b) The nature of Lyapunov exponents is (+, +, -, - ). Is it a hyperchaotic system. Chaos, Solitons and Fractals 92: 73–85.

72.

Singh

Roy

(2017a) Multistability and hidden chaotic attractors in a new simple 4-D chaotic system with chaotic 2-torus behaviour. International Journal of Dynamics and Control. Epub ahead of print 20 May. DOI:10.1007/s40435-017-0332-8.

73.

Singh

Roy

(2017b) The simplest 4-D chaotic system with line of equilibria, chaotic 2-torus and 3-torus behaviour. Nonlinear Dynamics 89(3): 1845–1862.

74.

Singh

Roy

(2015) PI based sliding mode control for hybrid synchronization of Chen and Liu–Yang chaotic systems with circuit design and simulation. In: 1st IEEE Indian control conference, Chennai, India 5–7 January, pp.257–262.

75.

Singh

Roy

(2014) Synchronization and anti-synchronization of Lu and Bhalekar-Gejji chaotic systems using nonlinear active control. Chaos, Solitons and Fractals 69: 31–39.

76.

Singh

Roy

(2017c) NAC-based synchronisation and anti-synchronisation between hyperchaotic and chaotic systems, its analogue circuit design and application. IETE Journal of Research 1–17. DOI: 10.1080/03772063.2017.1331758.

77.

Singh

Roy

(2017d) Coexistence of asymmetric hidden chaotic attractors in a new simple 4-D chaotic system with curve of equilibria. Optik 145: 209–217.

78.

Sprott

Jafari

Khalaf

et al . (2017) Megastability: Coexistence of a countable infinity of nested attractors in a periodically-forced oscillator with spatially-periodic damping. European Physical Journal: Special Topics 226(9): 1979–1985.

79.

Sprott

(1994) Some simple chaotic flow. Physical Review E 50(2): 647–650.

80.

Sprott

(2010) Elegant Chaos, Algebraically Simple Chaotic Flows. Singapore: World Scientific Publishing Co. Pte. Ltd.

81.

Sprott

(2011) A Proposed standard for the publication of new chaotic systems. International Journal of Bifurcation and Chaos 21(9): 2391–2394.

82.

Sprott

(2014) A dynamical system with a strange attractor and invariant tori. Physics Letters A 378(20): 1361–1363.

83.

Tahir

Jafari

Pham

et al . (2015) A novel no-equilibrium chaotic system with multiwing butterfly attractors. International Journal of Bifurcation and Chaos 25(04): 1550056–1500067.

84.

Tlelo-Cuautle

de la Fraga

Pham

et al . (2017) Dynamics, FPGA realization and application of a chaotic system with an infinite number of equilibrium points. Nonlinear Dynamics 89: 1129–1139.

85.

Vaidyanathan

(2015a) A novel coupled Van Der Pol conservative chaotic system and its adaptive control. International Journal of PharmTech Research 8(8): 79–94.

86.

Vaidyanathan

Pham

Volos

(2015a) A 5-D hyperchaotic Rikitake dynamo system with hidden attractors. European Physical Journal: Special Topics 224(8): 1575–1592.

87.

Vaidyanathan

Pakiriswamy

(2015c) A 3-D novel conservative chaotic system and its generalized projective synchronization via adaptive control. Journal of Engineering Science and Technology Review 8(2): 52–60.

88.

Vaidyanathan

Volos

(2015d) Analysis and adaptive control of a novel 3-D conservative no-equilibrium chaotic system. Archives of Control Sciences 25(3): 333–353.

89.

Vaidyanathan

Volos

Pham

V-T

(2015e) Analysis, control, synchronization and SPICE implementation of a novel 4-D hyperchaotic Rikitake Dynamo system without equilibrium. Journal of Engineering Science and Technology Review 8(2): 232–244.

90.

Wang

Cang

Ochola

et al . (2012) A hyperchaotic system without equilibrium. Nonlinear Dynamics 69(1-2): 531–537.

91.

Wang

Cang

et al . (2016) Simplified hyper-chaotic systems generating multi-wing non-equilibrium attractors. Optik 127(5): 2424–2431.

92.

Wei

(2011) Dynamical behaviors of a chaotic system with no equilibria. Physics Letters A 376(2): 102–108.

93.

Wei

(2012) Complex dynamics of a new chaotic system without equilibria. In: Proceedings of the 5th IEEE international workshop on chaos-fractals theories and applications, IWCFTA 2012, Dalian, Liaoning, China 18–21 October pp.79–82.

94.

Wei

Wang

Liu

(2014) A new finding of the existence of hidden hyperchaotic attractors with no equilibria. Mathematics and Computers in Simulation 100: 13–23.

95.

Xiang

Chen

(2011) Complement to ‘Second-order terminal sliding mode controller for a class of chaotic systems with unmatched uncertainties’ [Commun Nonlinear Sci Numer Simulat 15 (2010) 3241–3247]. Communications in Nonlinear Science and Numerical Simulation 16(6): 2658–2661.

96.

Xiang

Huangpu

(2010) Second-order terminal sliding mode controller for a class of chaotic systems with unmatched uncertainties. Communications in Nonlinear Science and Numerical Simulation 15(11): 3241–3247.

97.

Zhang

(2016) Multiple attractors and robust synchronization of a chaotic system with no equilibrium. Optik 127: 1–5.

98.

Yang

Cao

(2012) Stochastic synchronization of complex networks with nonidentical nodes via hybrid adaptive and impulsive control. IEEE Transactions on Circuits and Systems I: Regular Papers 59(2): 371–384.

99.

Yassen

(2006) Chaos control of chaotic dynamical systems using backstepping design. Chaos, Solitons and Fractals 27(2): 537–548.

100.

Zhankui

Sun

(2013) Nonlinear and chaos control of a micro-electro-mechanical system by using second-order fast terminal sliding mode control. Communications in Nonlinear Science and Numerical Simulation 18(9): 2540–2548.

101.

Zuo

(2016) Multiple attractors and dynamic analysis of a no-equilibrium chaotic system. Optik 127(19): 7952–7957.
