Multi-objective integrated scheduling optimization of semi-combined marine crankshaft structure production workshop for green manufacturing

Abstract

In order to realize green manufacturing in the production process of semi-combined marine crankshaft structural parts, good job scheduling and reasonable workshop layout are the key. In traditional method, flexible job shop scheduling problem (FJSP) and the multi-row workshop layout problem (MRWLP) are regarded as separate tasks. However, the separate optimization method ignores the interaction between FJSP and MRWLP. Because the process sequencing of FJSP affects the layout results of processing machines, while the layout scheme of MRWLP affects the scheduling completion time through the transportation between processes. Therefore, it is very important to establish an integrated mathematical model for optimization of both layout and scheduling simultaneously to explore the common influence of the two resource constraints on scheduling results. At the same time, the transportation task is also a manufacturing process that cannot be ignored, which affects the completion time and energy consumption of the workshop, especially the heavy industrial manufacturing workshop with crane as transportation equipment. According to the established model, a five-segment coding including transportation information, layout information and processing information is designed, and two heuristic selection strategies are integrated into non-dominated sorting genetic algorithm II (NSGA-II) to optimize the iterative results twice. Finally, the effectiveness of the integrated mathematical model is verified by an example, which provides guidance for green manufacturing in the shipbuilding industry.

Keywords

Semi-combined marine crankshaft green manufacturing flexible job shop scheduling problem multi-row workshop layout problem integrated scheduling multi-resource constraints multi-objective optimization

Introduction

Motivation

According to statistics of International Energy Agency (2008), the global energy consumption share of manufacturing industry is 33%. With the improvement of energy conservation and environmental protection awareness, the sustainable development of green manufacturing mode has received extensive attention from the manufacturing industry. As the representative of advanced manufacturing level, the shipbuilding industry and ship supporting industry play an important role in promoting the green and efficient development of national manufacturing industry. Semi-combined marine crankshaft is the core component of large ships. Its production process is characterized by many varieties, small batch size, high processing precision, harsh performance indexes, complex manufacturing process, high energy consumption, high pollution and strict delivery time. Unreasonable operation and production arrangements will lead to high cost, low efficiency, large carbon emissions, serious environmental pollution and other problems in the enterprise manufacturing process. Therefore, good job shop scheduling and reasonable workshop layout are the key to realize green manufacturing in semi-combined marine crankshaft workshop.

Literature review

Typical job shop scheduling problem (JSP) includes single machine scheduling, batch scheduling, flow shop scheduling, job shop scheduling, flexible shop scheduling, parallel machine scheduling, distributed scheduling, and so on. JSP is an important part of manufacturing enterprises, and is the main object for enterprises to realize green manufacturing. JSP has been proved as an NP-hard problem by Garey and Sethi (1976). The green job shop scheduling problem (GJSP) is more complex than the JSP, which requires comprehensive consideration of the coordinated optimization of economic benefits and energy consumption. The GJSP must be a multi-objective optimization problem. Scholars have conducted in-depth research on GJSP.

For the batch scheduling, Adekola et al. (2013) and Capón-García et al. (2011) studied the production process of acrylic fibers, with profit and productivity as economic indicators and electricity and water consumption as green indicators. Zeng et al. (2018) established a multi-objective optimization mathematical model for the special batch scheduling existing in flow shop scheduling. The optimization objectives include power consumption, material consumption and completion time.

For the parallel machine scheduling, Li et al. (2016) considered the degree of machine wear, optimized the completion time and flow-through time with the constraints of energy consumption and pollutant treatment cost. Ding et al. (2016) optimized the total power consumption with the constraints of total completion time.

For the flow shop scheduling, Lin et al. (2018) solved the flow shop scheduling problem considering low carbon emissions and variable processing parameters, and studied the comprehensive impact of machines and scheduling level on production throughput and environment. Wu et al. (2018) established a mathematical model of multi-objective optimal scheduling with renewable energy and processing time as constraints. Zhou and Liu (2019) proposed a multi-objective model for hybrid flow shop scheduling problem with fuzzy processing time to optimize delivery penalty and total energy consumption.

For the job shop scheduling, Yin et al. (2017) proposed a new mathematical model of energy-saving scheduling considering productivity, energy efficiency and noise reduction, and gave the corresponding evaluation method. Xu and Wang (2017) proposed a feedback control method for production scheduling to optimize completion time and energy consumption. Yang et al. (2016) proposed a new optimization method of the dual-objective flexible job shop scheduling problem (FJSP) with the completion time and total energy consumption of random processing time as optimization objectives.

In the above studies, scholars only take machine resources as constraints to consider the multi-objective of GJSP, ignoring the transportation time of workpieces or adding them to the processing time. The scheduling results obtained do not conform to the actual manufacturing process. Because transportation resources and machine resources affect each other, the difference of processing machines between processes determines the difference of transportation routes. Different transportation routes affect the start-up time of subsequent processes and total completion time, and will produce different transportation energy consumption, thus affecting the total energy consumption of workshop.

Some scholars have also established scheduling mathematical models considering workpiece transportation. Lu et al. (2017) studied the energy consumption of flow shop scheduling problem with sequence-dependent setup and controllable transportation time. Karimi et al. (2017) studied the FJSP with transportation time and formulated the problem mathematically with two mixed integer linear programming models. Nouri et al. (2016) proposed a hybrid element heuristic algorithm based on a cluster full multi-agent model for a FJSP with multi-robot as transportation equipment. Ahmadizar and Shahmaleki (2014) studied group workshop scheduling problems with transport and anticipatory sequence-dependent setup times, where workpieces were released at different times.

Although the above scholars have studied the job shop scheduling problem considering transportation resource constraints, they only take the completion time as the optimization goal and lack the collaborative optimization of green indicators such as workshop energy consumption. At the same time, the transport equipment in these studies are mostly AGVs and robots. There is still less optimization for heavy industry manufacturing workshops with overhead cranes as transportation equipment. The crane, as a common special equipment in manufacturing industry, has huge energy-saving space. Therefore, it is of positive significance to establish a crane transportation energy consumption model and study the job shop scheduling problem with cranes as transportation equipment for exploring green manufacturing in heavy industry.

In recent years, in order to cope with the rapidly changing market demand, multi-variety, small batch and customized production modes have been adopted by more and more manufacturing enterprises. However, the order-based production mode oriented to customer demand will have a significant impact on the workshop process planning, process sequencing and machine layout, and the original manufacturing scheme may not meet the new manufacturing requirements. According to Gupta and Seifoddini (1990), one-third of American manufacturing enterprises experience major confusion in workshop layout and process planning every two years. Therefore, the process scheduling and machine layout of the manufacturing workshop need to continuously adapt to the market demand in order to realize the coordinated optimization of economy and green.

The traditional way of FJSP and the multi-row workshop layout problem (MRWLP) are optimized separately. However, workshop machine resources and layout resources interact with each other and work together on various indicators of the workshop. For example, under the condition that the machine position is determined, the scheduling result is carried out in the direction of minimum processing time and processing energy consumption with the machine resources as constraints. The corresponding layout plan may result in higher transportation energy consumption and longer transportation time, which also affects the completion time and total energy consumption of the workshop. On the other hand, taking the layout resources as constraints, the layout results are carried out in the direction of shortest transportation time and minimum transportation energy consumption. However, the corresponding scheduling scheme may lead to high energy consumption and long completion time. Therefore, the method of separate optimization cannot really meet the requirements of green manufacturing. It is very important for manufacturing enterprises to actively respond to market demand to establish an integrated green mathematical model of layout and scheduling.

At present, there have been some researches on integrated optimization of workshop layout and scheduling. Ranjbar and Razavi (2011) studied a concurrent layout and scheduling problem in a job shop environment to minimize makespan. Ripon and Torresen (2014) established a multi-objective mathematical model for integrated job shop scheduling and the facility layout planning problem that considers makespan, mean flow time, total material handling cost and closeness rating scores. Mallikarjuna et al. (2015) proposed a flexible batch scheduling problem which was integrated with loop layout pattern design, and the optimization objectives were completion time and transportation cost.

Although the above literatures all verify that integrated scheduling is a more effective solution than separate optimization, they still have several deficiencies, as follows:

Most of these researches are aimed at the integrated optimization of job shop layout and scheduling, ignoring the flexible processing selection of workpieces, which has limitations in workshop application.

Most of the integrated scheduling studies aim at the completion time of the work piece, ignoring the collaborative optimization of economic indicators and green indicators. Scheduling schemes with lower completion times may be accompanied by excessive energy consumption in workshops, which not only pollutes the environment but also reduces economic advantages.

Contribution

As can be seen from the above literature review, the current GJSP generally uses machine resources as constraints and establishes a multi-objective optimal scheduling mathematical model. This kind of mathematical model ignores the interaction between other resources and machine resources in the manufacturing workshop. The integration of scheduling and layout planning (ISLP) generally uses double resources as constraints and establishes a single-objective optimal scheduling mathematical model. This kind of mathematical model ignores the collaborative optimization of green indexes and economic indexes in the manufacturing workshop. Based on the shortcomings of existing research, this paper establishes a green integrated scheduling mathematical model with double resource constraints and multi-objective optimization using bridge crane as transportation equipment. The resource constraints are layout resources and machine resources, and the optimization objectives are workshop completion time, machine processing energy consumption and crane transportation energy consumption.

According to the energy consumption of the machine, the machining process is divided into four parts: preparation, clamping, processing and unloading. Based on energy consumption of a bridge crane in full life cycle, this paper put forward bridge cranes energy saving evaluation index system. Rough set theory knowledge is adopted to reduce the index of the bridge crane energy saving evaluation index system. A five-segment coding including layout information, processing information and transportation information is proposed to ensure that each chromosome is a feasible scheduling solution. According to the characteristics of bridge crane transportation, two heuristic optimization operators are integrated into non-dominated sorting genetic algorithm II (NSGA-II) algorithm to carry out secondary optimization on the iteration result, and a set of Pareto solution sets meeting the actual production requirements are obtained. Finally, an example is given to prove the effectiveness of the integrated scheduling mathematical model considering transportation. It is hoped that it can provide reference for marine crankshaft manufacturing workshop to realize green integrated scheduling.

Organization of the paper

The organization of this paper is as follows. In Section 1, the existing research on GJSP and integrated job shop scheduling problem is reviewed. A mathematic model of integrated scheduling and layout is developed in Section 2, and crane transportation is considered in the scheduling process. Section 3 details the improved fast non-dominated sorting genetic algorithm with elite strategy. A case study based on a workshop of semi-combined marine crankshaft structural parts is conducted in Section 4. Section 5 presents the conclusions and future work.

Problem description

The parameters and definitions involved in this paper are shown in Table 1.

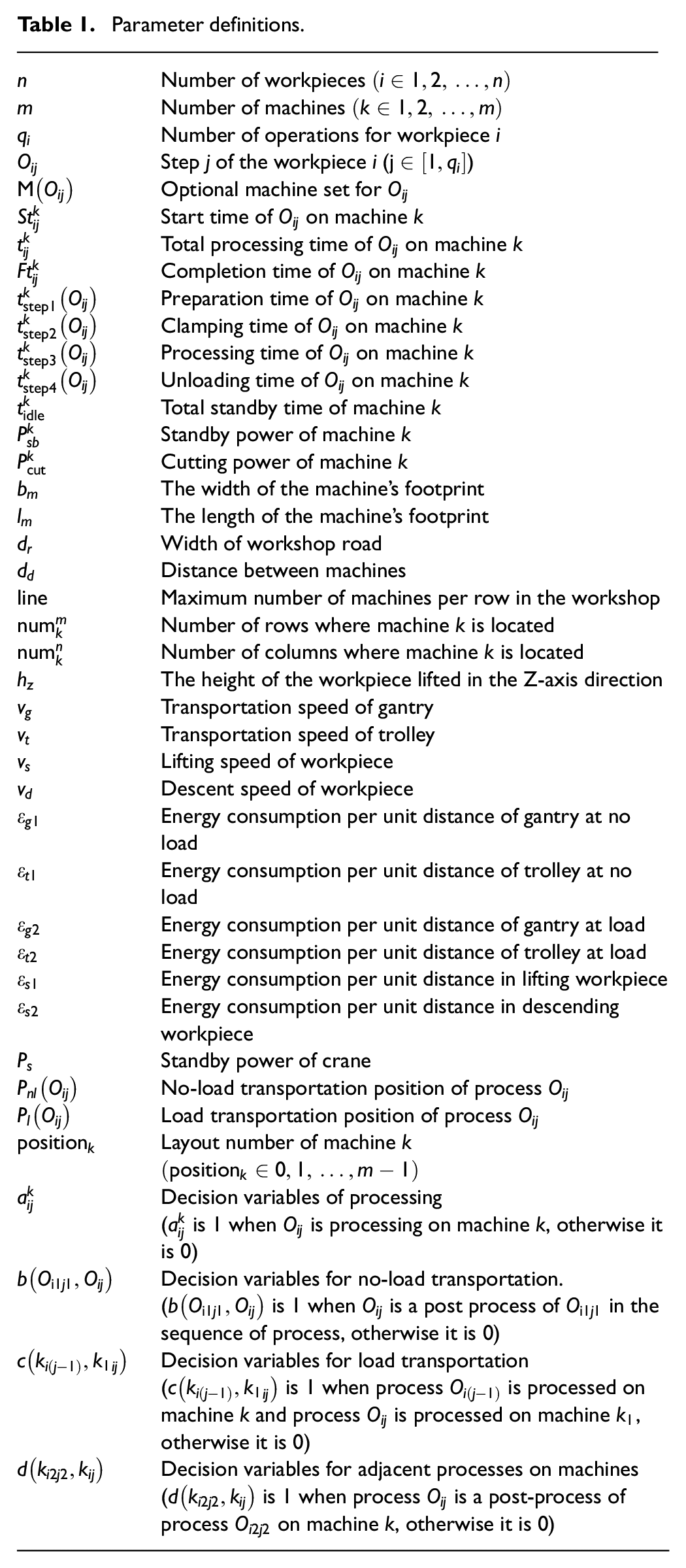

Table 1.

Parameter definitions.

n	Number of workpieces $(i \in 1, 2, \dots, n)$
m	Number of machines $(k \in 1, 2, \dots, m)$
$q_{i}$	Number of operations for workpiece i
$O_{ij}$	Step j of the workpiece i ( $j \in [1, q_{i}]$ )
$M (O_{ij})$	Optional machine set for $O_{ij}$
${St}_{ij}^{k}$	Start time of $O_{ij}$ on machine k
$t_{ij}^{k}$	Total processing time of $O_{ij}$ on machine k
${Ft}_{ij}^{k}$	Completion time of $O_{ij}$ on machine k
$t_{step 1}^{k} (O_{ij})$	Preparation time of $O_{ij}$ on machine k
$t_{step 2}^{k} (O_{ij})$	Clamping time of $O_{ij}$ on machine k
$t_{step 3}^{k} (O_{ij})$	Processing time of $O_{ij}$ on machine k
$t_{step 4}^{k} (O_{ij})$	Unloading time of $O_{ij}$ on machine k
$t_{idle}^{k}$	Total standby time of machine k
$P_{sb}^{k}$	Standby power of machine k
$P_{cut}^{k}$	Cutting power of machine k
$b_{m}$	The width of the machine’s footprint
$l_{m}$	The length of the machine’s footprint
$d_{r}$	Width of workshop road
$d_{d}$	Distance between machines
line	Maximum number of machines per row in the workshop
${num}_{k}^{m}$	Number of rows where machine k is located
${num}_{k}^{n}$	Number of columns where machine k is located
$h_{z}$	The height of the workpiece lifted in the Z-axis direction
$v_{g}$	Transportation speed of gantry
$v_{t}$	Transportation speed of trolley
$v_{s}$	Lifting speed of workpiece
$v_{d}$	Descent speed of workpiece
$ε_{g 1}$	Energy consumption per unit distance of gantry at no load
$ε_{t 1}$	Energy consumption per unit distance of trolley at no load
$ε_{g 2}$	Energy consumption per unit distance of gantry at load
$ε_{t 2}$	Energy consumption per unit distance of trolley at load
$ε_{s 1}$	Energy consumption per unit distance in lifting workpiece
$ε_{s 2}$	Energy consumption per unit distance in descending workpiece
$P_{s}$	Standby power of crane
$P_{nl} (O_{ij})$	No-load transportation position of process $O_{ij}$
$P_{l} (O_{ij})$	Load transportation position of process $O_{ij}$
$positio n_{k}$	Layout number of machine k $(positio n_{k} \in 0, 1, \dots, m - 1)$
$a_{ij}^{k}$	Decision variables of processing ( $a_{ij}^{k}$ is 1 when $O_{ij}$ is processing on machine k, otherwise it is 0)
$b (O_{i 1 j 1}, O_{ij})$	Decision variables for no-load transportation. ( $b (O_{i 1 j 1}, O_{ij})$ is 1 when $O_{ij}$ is a post process of $O_{i 1 j 1}$ in the sequence of process, otherwise it is 0)
$c (k_{i (j - 1)}, {k_{1}}_{ij})$	Decision variables for load transportation ( $c (k_{i (j - 1)}, {k_{1}}_{ij})$ is 1 when process $O_{i (j - 1)}$ is processed on machine k and process $O_{ij}$ is processed on machine $k_{1}$ , otherwise it is 0)
$d (k_{i 2 j 2}, k_{ij})$	Decision variables for adjacent processes on machines ( $d (k_{i 2 j 2}, k_{ij})$ is 1 when process $O_{ij}$ is a post-process of process $O_{i 2 j 2}$ on machine k, otherwise it is 0)

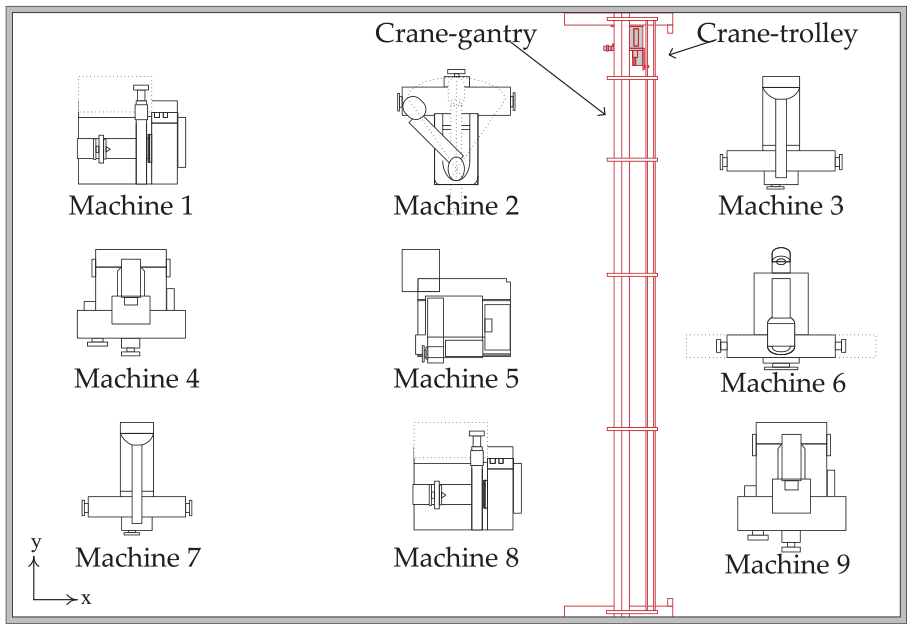

The layout of workshop machines is multi-row, as shown in Figure 1. The number of workpieces to be processed is n and the number of machines is m. Each workpiece has $q_{i}$ processes. The workpiece i process j is represented by $O_{ij}$ , and the optional machine set of $O_{ij}$ is M ( $O_{ij}$ ). The process $O_{ij}$ can be processed by different machines in the machine set M ( $O_{ij}$ ), and the performance indexes of different machines are different. The scheduling result not only needs to determine the processing sequence of the process, but also assigns machines to each process. It is a typical FJSP. The transportation of workpieces between machines is completed by crane. The transportation of crane is divided into three steps: the gantry moves along the x-axis direction of the workshop, the trolley moves along the y-axis direction of the workshop, and the lifting mechanism moves along the z-axis direction of the workshop. The three mechanisms are operated step by step to complete the transportation of workpieces.

Figure 1.

Workshop machine layout and transportation mode.

In order to facilitate the study of the problem, the following assumptions are made:

Each machine can process only one workpiece at a time.

Each workpiece can only be processed by one machine at the same time.

No interruption is allowed after the processing of each workpiece process starts.

There is no process sequence constraint between different workpieces, and there is process sequence constraint between the same workpiece.

The first process of each workpiece need not be transported by crane.

Crane can transport only one workpiece at a time.

After the crane has transported a workpiece, it will immediately carry out the next transportation task.

The three operating mechanisms of crane shall move one by one and cannot be operated at the same time.

The starting and ending positions of the workpiece transportation are unified as the center of the machine position.

The initial position of crane is at the processing machine of the first working procedure.

The workpiece buffer zone is infinite. After the machine processing is completed, the workpiece is placed in the transportation waiting zone beside the machine, waiting for the crane to transport without occupying the current machine resources.

If there is no machine conversion between the front and back working procedures of the workpiece, the crane will not transport the workpiece.

The machine occupies the same area and the distance between adjacent machines is the same.

Transportation distance and transportation time equation

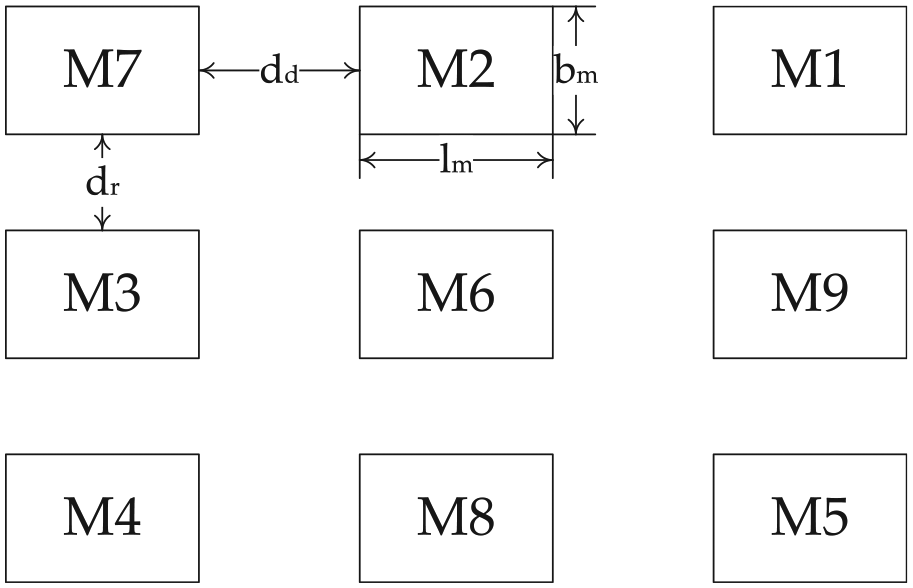

The layout of the machines in the workshop is multi-row arrangement. From the assumed conditions, it can be seen that the occupied area of the machines is the same and the distances between the adjacent machines are the same. The layout diagram of the machines in the workshop is shown in Figure 2. The arrangement sequence of machine numbers indicates the layout mode of the workshop. For example, [7,2,1,3,6,9,4,8,5] obtains the layout of the machine as M7-M2-M1-M3-M6-M9-M4-M8-M5.

Figure 2.

Machine layout diagram of workshop.

The number of rows for machine k is given by

{num}_{k}^{m} = positio n_{k} / line + 1,

(1)

Similarly, the number of columns for machine k is given by

{num}_{k}^{n} = positio n_{k} - ({num}_{k}^{m} - 1) * line + 1 .

(2)

The distance between machines $k_{1}$ and $k_{2}$ in the x-axis direction of the workshop can be calculated by the following formula

\begin{matrix} d_{x} (k_{1}, k_{2}) = | {num}_{k_{1}}^{n} - {num}_{k_{2}}^{n} | * (l_{m} + d_{d}), {num}_{k_{1}}^{n} \neq {num}_{k_{2}}^{n}, \\ d_{x} (k_{1}, k_{2}) {= 0, num}_{k_{1}}^{n} = {num}_{k_{2}}^{n}, \end{matrix}

(3)

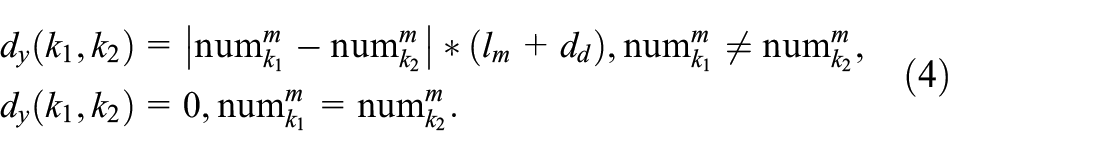

Similarly, the distance between machines $k_{1}$ and $k_{2}$ in the y-axis direction of the workshop can be calculated by the following formula

\begin{matrix} d_{y} (k_{1}, k_{2}) = | {num}_{k_{1}}^{m} - {num}_{k_{2}}^{m} | * (l_{m} + d_{d}), {num}_{k_{1}}^{m} \neq {num}_{k_{2}}^{m}, \\ d_{y} (k_{1}, k_{2}) {= 0, num}_{k_{1}}^{m} = {num}_{k_{2}}^{m} . \end{matrix}

(4)

The object studied in this paper is the manufacturing workshop with a single crane as the transportation equipment. The transportation of workpieces between machines is divided into two parts: no-load transportation and load transportation.

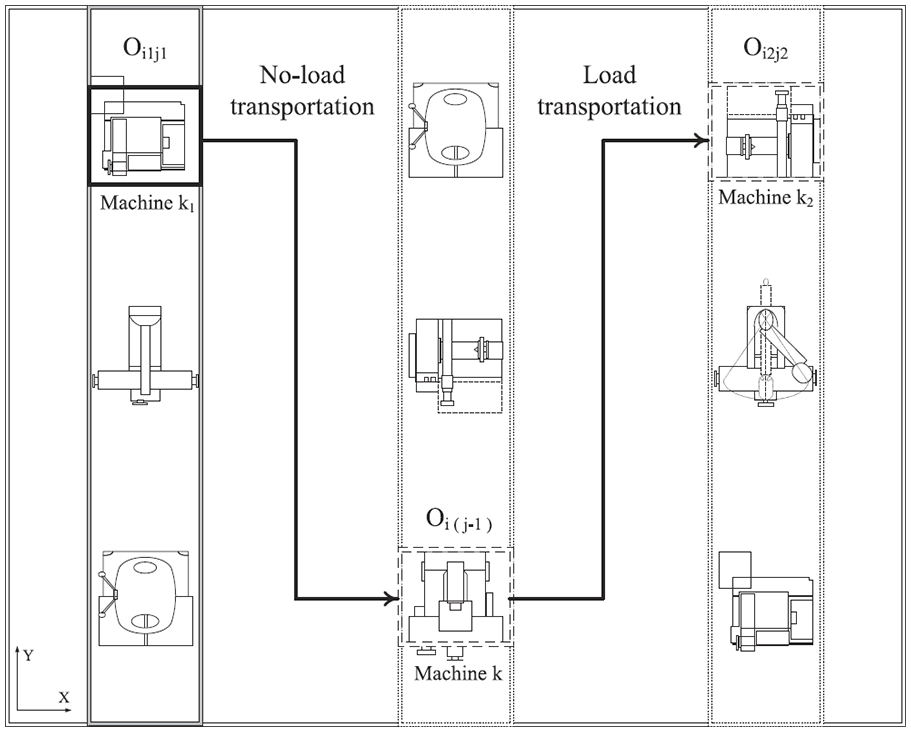

As shown in Figure 3, the crane needs to complete the transportation of process $O_{ij}$ to transport the workpiece i from the machine k to the machine $k_{2}$ . The crane is moved from the processing machine $k_{1}$ where the pre-process $O_{i 1 j 1}$ is processed to the machine k, it is called the no-load transportation of process $O_{ij}$ . The position of machine k is called the no-load transportation position of process $O_{ij}$ . The gantry and trolley move to the machine k along the x-axis and y-axis direction of the workshop, respectively, no-load transportation time of gantry and trolley for $O_{ij}$ is given by

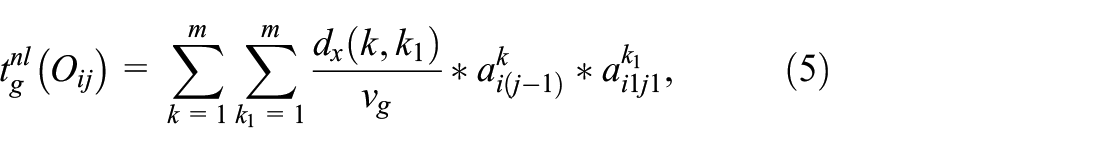

t_{g}^{nl} (O_{ij}) = \sum_{k = 1}^{m} \sum_{k_{1} = 1}^{m} \frac{d_{x} (k, k_{1})}{v_{g}} * a_{i (j - 1)}^{k} * a_{i 1 j 1}^{k_{1}},

(5)

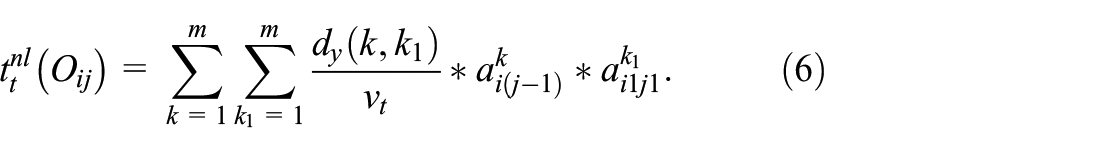

t_{t}^{nl} (O_{ij}) = \sum_{k = 1}^{m} \sum_{k_{1} = 1}^{m} \frac{d_{y} (k, k_{1})}{v_{t}} * a_{i (j - 1)}^{k} * a_{i 1 j 1}^{k_{1}} .

(6)

Figure 3.

Schematic diagram of workpiece transported by crane.

The total no-load transportation time for $O_{ij}$ can be represented as follows

t^{nl} (O_{ij}) = t_{g}^{nl} (O_{ij}) + t_{t}^{nl} (O_{ij}) .

(7)

If process $O_{i (j - 1)}$ is not finished, the no-load transportation waiting time of crane is represented by the following expression

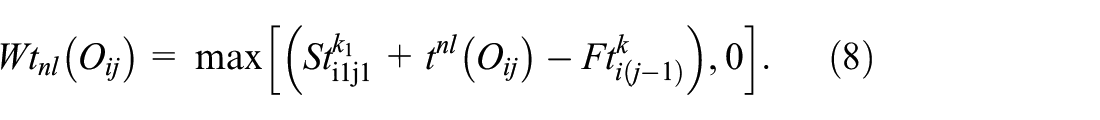

W t_{nl} (O_{ij}) = max [({St}_{i 1 j 1}^{k_{1}} + t^{nl} (O_{ij}) - {Ft}_{i (j - 1)}^{k}), 0] .

(8)

After process $O_{i (j - 1)}$ is finished, the load transportation starts. The position of machine $k_{2}$ is called the load transportation position of process $O_{ij}$ . If the preceding process $O_{i 2 j 2}$ of process $O_{ij}$ is not finished on machine $k_{2}$ , the load transportation waiting time of crane is defined as

W t_{l} (O_{ij}) = max [({Ft}_{i 2 j 2}^{k_{2}} - t^{l} (O_{ij}) - {Ft}_{i (j - 1)}^{k}), 0] .

(9)

In order to ensure the transportation process safe and orderly, the starting time of load transportation shall ensure that the machine $k_{2}$ is in an idle state. After the crane completes the x-axis, y-axis and z-axis operations of workpiece i, respectively, the transportation process of process $O_{ij}$ ends. The load transportation time of gantry and trolley in the horizontal direction of the workshop is as follows

t_{g}^{l} (O_{ij}) = \sum_{k = 1}^{m} \sum_{k_{2} = 1}^{m} \frac{d_{x} (k, k_{2})}{v_{g}} * a_{i (j - 1)}^{k} * a_{ij}^{k_{2}},

(10)

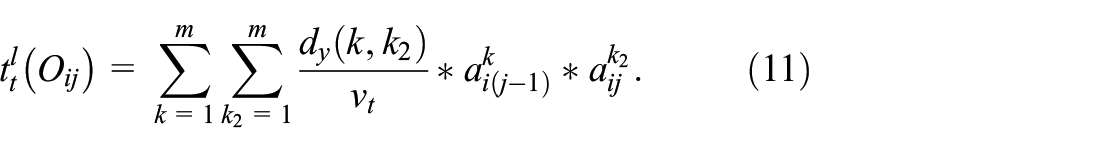

t_{t}^{l} (O_{ij}) = \sum_{k = 1}^{m} \sum_{k_{2} = 1}^{m} \frac{d_{y} (k, k_{2})}{v_{t}} * a_{i (j - 1)}^{k} * a_{ij}^{k_{2}} .

(11)

The load transportation time of lifting and lowering workpieces in the vertical direction of the workshop is given by

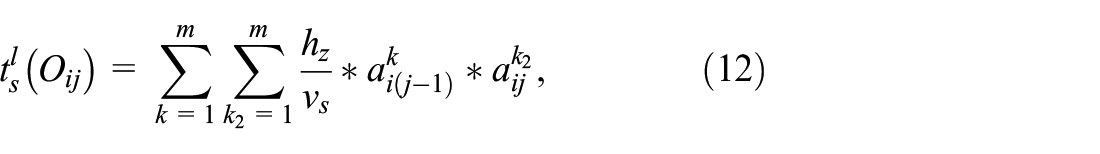

t_{s}^{l} (O_{ij}) = \sum_{k = 1}^{m} \sum_{k_{2} = 1}^{m} \frac{h_{z}}{v_{s}} * a_{i (j - 1)}^{k} * a_{ij}^{k_{2}},

(12)

t_{d}^{l} (O_{ij}) = \sum_{k = 1}^{m} \sum_{k_{2} = 1}^{m} \frac{h_{z}}{v_{d}} * a_{i (j - 1)}^{k} * a_{ij}^{k_{2}} .

(13)

Therefore, total load transportation time for $O_{ij}$ can be represented by following expression

t^{l} (O_{ij}) = t_{g}^{l} (O_{ij}) + t_{t}^{l} (O_{ij}) + t_{s}^{l} (O_{ij}) + t_{d}^{l} (O_{ij})

(14)

Total transportation waiting time for $O_{ij}$ can be expressed as follows

Wt (O_{ij}) = W t_{nl} (O_{ij}) + W t_{l} (O_{ij})

(15)

Energy consumption equation of machine

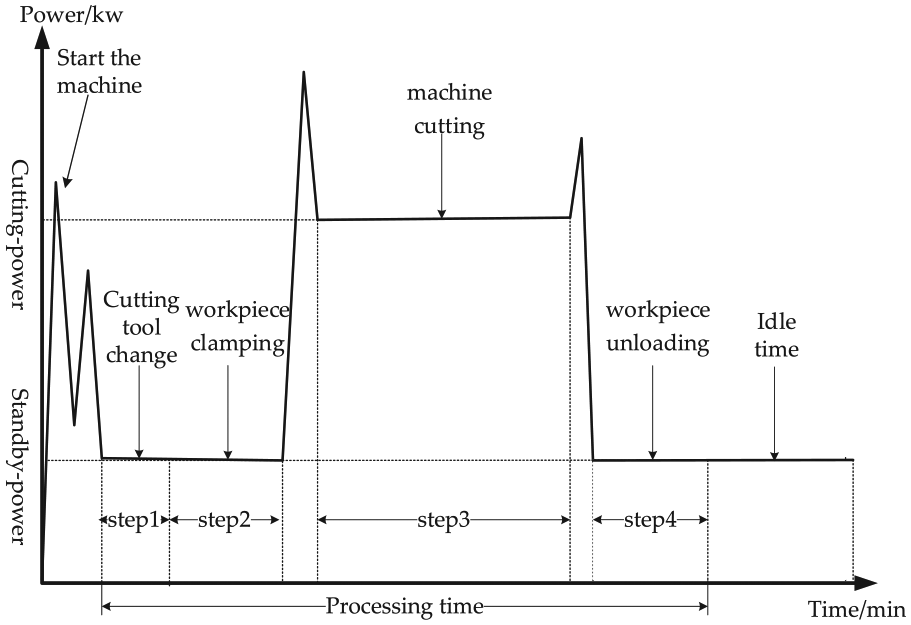

Machine energy consumption can be divided into two parts: processing energy consumption and standby energy consumption. According to the actual manufacturing process, the processing time of the workpiece on the machine includes four parts: preparation time, workpiece clamping time, workpiece processing time and workpiece unloading time. The machine power-time curve is shown in Figure 4, the power state is divided into standby power and cutting power one.

Figure 4.

Machine power-time curve.

Energy consumption generated by machine preparation time is mainly generated by cutting tool replacement, and $E_{step 1}$ calculation formula is as follows

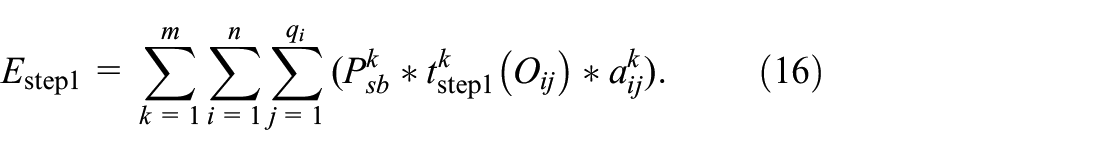

E_{step 1} = \sum_{k = 1}^{m} \sum_{i = 1}^{n} \sum_{j = 1}^{q_{i}} (P_{sb}^{k} * t_{step 1}^{k} (O_{ij}) * a_{ij}^{k}) .

(16)

The equation $E_{step 2}$ of machine energy consumption caused by workpiece clamping is defined as

E_{step 2} = \sum_{k = 1}^{m} \sum_{i = 1}^{n} \sum_{j = 1}^{q_{i}} (P_{sb}^{k} * t_{step 2}^{k} (O_{ij}) * a_{ij}^{k}) .

(17)

Cutting energy consumption is the main energy consumption in the machining process, $E_{step 3}$ can be expressed as follows

E_{step 3} = \sum_{k = 1}^{m} \sum_{i = 1}^{n} \sum_{j = 1}^{q_{i}} (P_{cut}^{k} * t_{step 3}^{k} (O_{ij}) * a_{ij}^{k}) .

(18)

The equation $E_{step 4}$ of machine energy consumption caused by workpiece unloading is defined as

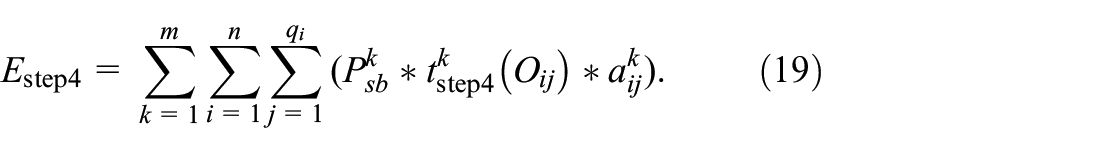

E_{step 4} = \sum_{k = 1}^{m} \sum_{i = 1}^{n} \sum_{j = 1}^{q_{i}} (P_{sb}^{k} * t_{step 4}^{k} (O_{ij}) * a_{ij}^{k}) .

(19)

Total standby energy consumption is given by

E_{idle} = \sum_{k = 1}^{m} P_{sb}^{k} * t_{idle}^{k} .

(20)

Thus, total energy consumption of machine can be represented as following

E_{machine} = E_{step 1} + E_{step 2} + E_{step 3} + E_{step 4} + E_{idle} .

(21)

Energy consumption equation of crane

The crane, as special equipment in the manufacturing workshop, has the characteristics of large span, high lifting, large tonnage, high energy consumption, and so forth. Therefore, the energy consumption of cranes cannot be ignored in the manufacturing workshop. Different machine layout modes and process machine selection determine the diversification of the transportation path between the workpiece processes, and will definitely generate different energy consumption. The energy consumption of crane for transporting workpieces is mainly divided into self-energy consumption and waiting energy consumption. Self-energy consumption is mainly determined by self-energy efficiency and energy consumption per unit distance, while waiting energy consumption is mainly determined by transportation waiting time.

The energy efficiency status of the crane is obtained as shown in Table 2 by analyzing the energy efficiency of the whole life cycle of the crane. The weight of the energy efficiency of each mechanism can be determined by using the simplified knowledge of rough grade theory. The energy efficiency classification method is formed from the top to the bottom from the whole to the part. The calculation relationship between the total energy efficiency of crane and the energy efficiency of three mechanisms is given by

θ = ω_{g} θ_{g} + ω_{t} θ_{t} + ω_{s} θ_{s}, (ω_{g} + ω_{t} + ω_{s} = 1) .

(22)

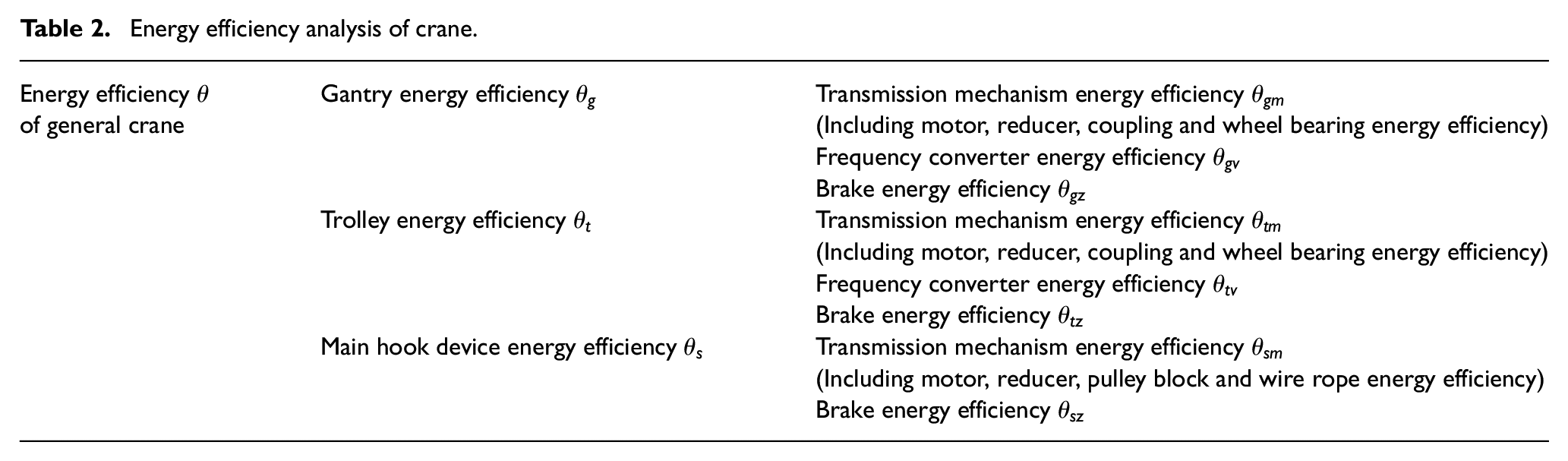

Table 2.

Energy efficiency analysis of crane.

Energy efficiency $θ$ of general crane	Gantry energy efficiency $θ_{g}$	Transmission mechanism energy efficiency $θ_{gm}$ (Including motor, reducer, coupling and wheel bearing energy efficiency)
		Frequency converter energy efficiency $θ_{gv}$
		Brake energy efficiency $θ_{gz}$
	Trolley energy efficiency $θ_{t}$	Transmission mechanism energy efficiency $θ_{tm}$ (Including motor, reducer, coupling and wheel bearing energy efficiency)
		Frequency converter energy efficiency $θ_{tv}$
		Brake energy efficiency $θ_{tz}$
	Main hook device energy efficiency $θ_{s}$	Transmission mechanism energy efficiency $θ_{sm}$ (Including motor, reducer, pulley block and wire rope energy efficiency)
		Brake energy efficiency $θ_{sz}$

The energy efficiency calculation method of each mechanism is consistent with equation (22). For example, the gantry energy efficiency $θ_{g}$ is weighted by the transmission mechanism energy efficiency $θ_{gm}$ , the frequency converter energy efficiency $θ_{gv}$ , and the brake energy efficiency $θ_{gz}$ .

According to the no-load transportation mode of the workpiece in Figure 3 and the unit distance energy consumption of no-load transportation for gantry and trolley. The calculation methods of gantry’s energy consumption, trolley’s energy consumption and waiting energy consumption of no-load transportation in process $O_{ij}$ is given by

E_{g}^{nl} (O_{ij}) = ε_{g 1} θ_{g} d_{x} (k, k_{1}),

(23)

E_{t}^{nl} (O_{ij}) = ε_{t 1} θ_{t} d_{y} (k, k_{1})

(24)

W E^{nl} (O_{ij}) = W t_{nl} (O_{ij}) * P_{s} .

(25)

Thus, the calculation method of total energy consumption of no-load transportation and total waiting energy consumption of no-load transportation can be expressed as follows

E^{nl} (O_{ij}) = E_{g}^{nl} (O_{ij}) + E_{t}^{nl} (O_{ij}),

(26)

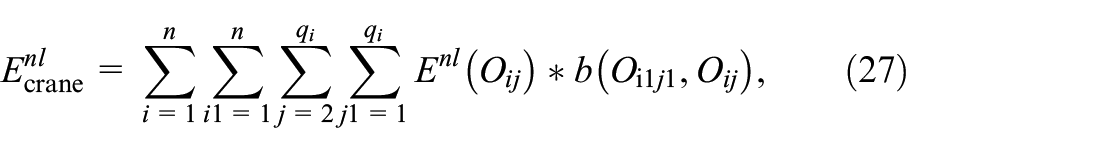

E_{crane}^{nl} = \sum_{i = 1}^{n} \sum_{i 1 = 1}^{n} \sum_{j = 2}^{q_{i}} \sum_{j 1 = 1}^{q_{i}} E^{nl} (O_{ij}) * b (O_{i 1 j 1}, O_{ij}),

(27)

{WE}_{crane}^{nl} = \sum_{i = 1}^{n} \sum_{i 1 = 1}^{n} \sum_{j = 2}^{q_{i}} \sum_{j 1 = 1}^{q_{i}} W E^{nl} (O_{ij}) * b (O_{i 1 j 1}, O_{ij}) .

(28)

Similarly, according to the load transportation mode of the workpiece in Figure 3 and the unit distance energy consumption of load transportation for crane. The calculation methods of gantry’s energy consumption, trolley’s energy consumption and main hook device’s energy consumption is given by

E_{g}^{l} (O_{ij}) = ε_{g 2} θ_{g} d_{x} (k, k_{2}),

(29)

E_{t}^{l} (O_{ij}) = ε_{t 2} θ_{t} d_{y} (k, k_{2}),

(30)

E_{S}^{l} (O_{ij}) = (ε_{s 1} + ε_{s 2}) θ_{s} h_{z} .

(31)

The total energy consumption of load transportation for $O_{ij}$ can be represented as follows

E^{l} (O_{ij}) = E_{g}^{l} (O_{ij}) + E_{t}^{l} (O_{ij}) + E_{S}^{l} (O_{ij}),

(32)

and the waiting energy consumption of load transportation in process $O_{ij}$ is given by

W E^{l} (O_{ij}) = W t_{l} (O_{ij}) * P_{s} .

(33)

Thus, the calculation method of total energy consumption of load transportation and total waiting energy consumption of load transportation can be represented as follows

E_{crane}^{l} = \sum_{i = 1}^{n} \sum_{j = 2}^{q_{i}} E^{l} (O_{ij}),

(34)

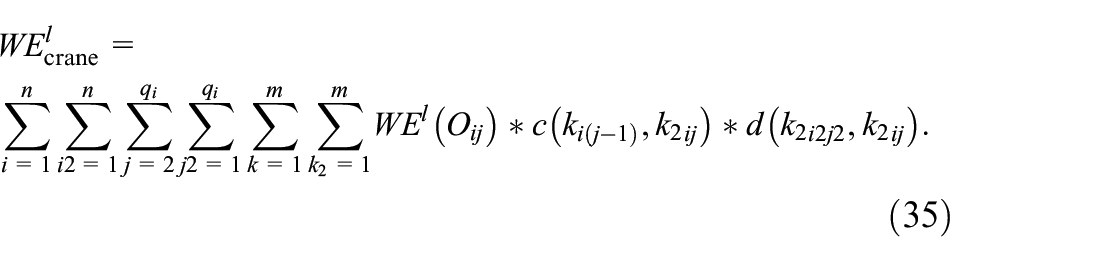

\begin{matrix} {WE}_{crane}^{l} = \\ \sum_{i = 1}^{n} \sum_{i 2 = 1}^{n} \sum_{j = 2}^{q_{i}} \sum_{j 2 = 1}^{q_{i}} \sum_{k = 1}^{m} \sum_{k_{2} = 1}^{m} W E^{l} (O_{ij}) * c (k_{i (j - 1)}, {k_{2}}_{ij}) * d ({k_{2}}_{i 2 j 2}, {k_{2}}_{ij}) . \end{matrix}

(35)

To sum up, total energy consumption of crane is given by

E_{crane} = E_{crane}^{nl} + E_{crane}^{l} + {WE}_{crane}^{nl} + {WE}_{crane}^{l} .

(36)

Optimization objective and constraints

Facing green manufacturing, equations (37) and (38) are two optimization objective functions, equations (39)∼(45) are constraints of a multi-resource constraint integrated scheduling mathematical model.

Maximum completion time of workpiece

CT = \min [max (T_{i})] (i \in 1, 2, \dots, n)

(37)

Energy consumption of machines and crane

CE = \min [E_{machine} + E_{crane}]

(38)

Constraint condition

St (O_{i (j + 1)}) - Ft (O_{ij}) \geq 0

(39)

\sum_{k = 1}^{m} a_{ij}^{k} = 1

(40)

St (k_{i + 1}) - Ft (k_{i}) \geq 0

(41)

{St}_{ij}^{k} + t_{ij}^{k} = {Ft}_{ij}^{k}

(42)

P_{nl} (O_{i 1}) = P_{l} (O_{i 1}) = P_{l} (O_{i 1 j 1})

(43)

P_{nl} (O_{ij}) = P_{l} (O_{ij}) = P_{l} (O_{i 1 j 1})

(44)

Ft (O_{ij}) + W t_{l} (O_{ij}) \geq Ft (O_{i 2 j 2})

(45)

Equation (39) represents the sequence constraint of the workpiece process, $St (O_{i (j + 1)})$ is the start time of process $O_{i (j + 1)}$ , $Ft (O_{ij})$ is the end time of process $O_{ij}$ . Equation (40) shows that each process can be processed by only one machine at a time. Equation (41) shows that each machine can process only one process at a time, $St (k_{i + 1})$ denotes the start time of the (i+1) th operation on the machine k, and $Ft (k_{i})$ denotes the end time of the (i) th operation on the machine k. Equation (42) indicates that the workpiece is not allowed to be interrupted after processing starts. Equation (43) indicates that the first process of the workpiece does not need crane to transport. Equation (44) indicates that the front and rear working procedures of the workpiece are processed on the same machine without transportation. Equation (45) indicates that the start time of load transportation needs to start after the destination machine is idle.

Improved fast non-dominated sorting genetic algorithm with elite strategy

NSGA-II algorithm is a fast and elitist multi objective genetic algorithm proposed by Deb et al. (2002). It is widely used to solve multi-objective job shop scheduling problems because of its wide population distribution and fast convergence rate.

According to the requirements of the mathematical model of green scheduling with multi-resource constraints and multi-objective optimization. This paper improves the algorithm coding, decoding, crossover, mutation and other steps, and merges two heuristic selection strategies to traverse the new population obtained in each iteration. By solving the above-mentioned green scheduling mathematical model, a set of pareto solution sets meeting the production requirements are obtained. The algorithm flow chart is shown in Figure 5.

Figure 5.

Flowchart of algorithm.

Population initialization

In order to ensure the diversity of the population, the initial population is constructed by randomly generating chromosomes. Chromosome coding is a prerequisite for the success of the algorithm. In present paper, a five-segment coding method is proposed. The coding integrates process sequencing, processing machine, no-load transportation machine, load transportation machine and workshop machine layout. Three kinds of resource information, including workshop layout mode, process’s machine selection and workpiece transportation path, are integrated into one chromosome to ensure that each chromosome is a feasible scheduling solution.

Taking information given in Table 3 as an example, three workpieces are processed on six machines to obtain the chromosome coding method shown in Figure 6. The first segment coding of the chromosome is process sequencing, and the sequence of occurrence of each digit indicates the process sequence of the workpiece. For example, the first occurrence of the digit 1 indicates the process $O_{11}$ , and the second occurrence of the digit 1 indicates the process $O_{12}$ . The second segment of chromosome code indicates the processing machine, and the number 5 indicates the machine 5 is selected to process $O_{11}$ .

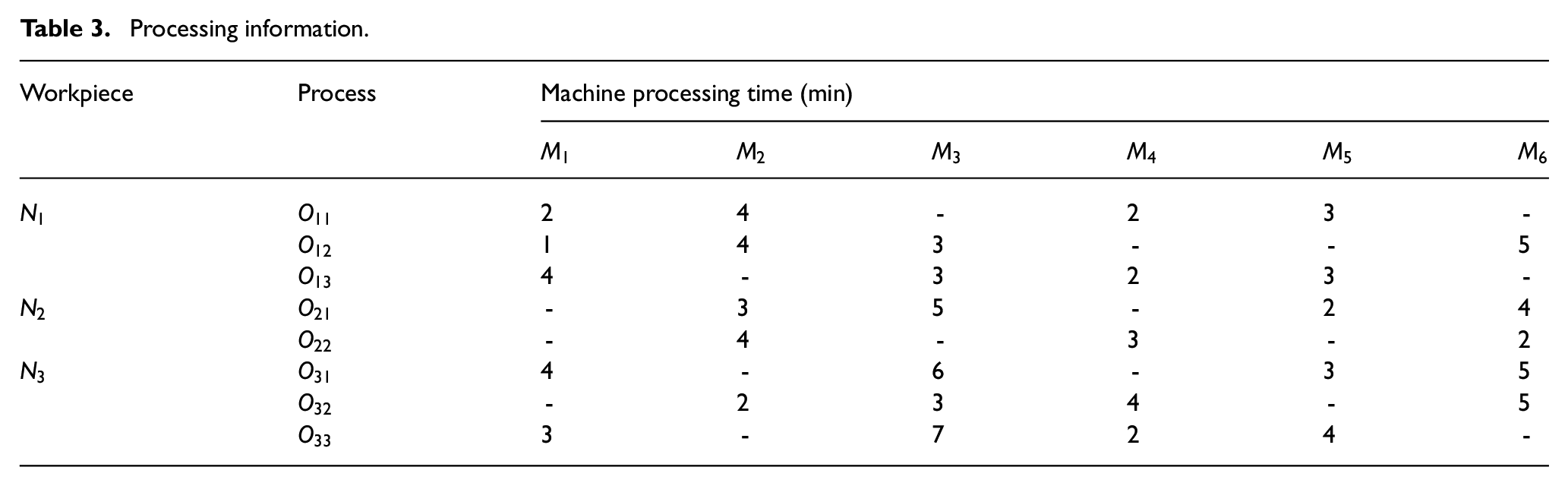

Table 3.

Processing information.

Workpiece	Process	Machine processing time (min)
		$M_{1}$	$M_{2}$	$M_{3}$	$M_{4}$	$M_{5}$	$M_{6}$
$N_{1}$	$O_{11}$	2	4	-	2	3	-
	$O_{12}$	1	4	3	-	-	5
	$O_{13}$	4	-	3	2	3	-
$N_{2}$	$O_{21}$	-	3	5	-	2	4
$N_{2}$	$O_{22}$	-	4	-	3	-	2
$N_{3}$	$O_{31}$	4	-	6	-	3	5
	$O_{32}$	-	2	3	4	-	5
	$O_{33}$	3	-	7	2	4	-

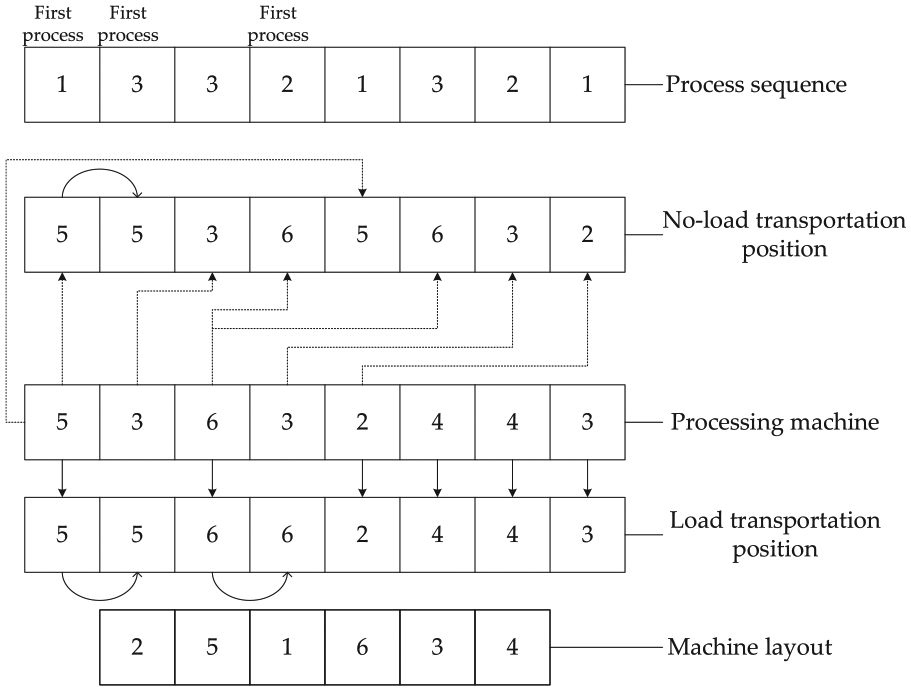

Figure 6.

Chromosome coding.

After the process sequencing segment and the processing machine segment are formed, the three and four segment code forming processes is given by Figure 6. If it is known from the hypothetical conditions that the first process of the workpiece does not need to be transported, the position of no-load transportation of the process $O_{11}$ is the same as the position of load transportation, and both of them are the machine 5, which are respectively represented by dotted lines and solid lines in the Figure 6.

The second place in the process sequencing is $O_{31}$ . The first process of workpiece 3 does not need transportation. Its machine in no-load and load transportation position segment are the same as the machine of previous process $O_{11}$ , which are represented by arcs in the Figure 6. The third place in the sequence of processes is $O_{32}$ , and $O_{32}$ is the second working procedure of workpiece 3. Its machine of no-load transportation position is the processing machine 3 of process $O_{31}$ , and machine of load transportation is machine 6, which is indicated by the dotted lines and solid lines in the Figure 6.

The fourth place in the sequence of process is $O_{21}$ . The first process of workpiece 2 does not need to be transported. Its no-load position is the same as the load position, which is the processing machine 6 of the pre-process $O_{32}$ . According to the above method, subsequent no-load and load transportation position segment are sequentially formed.

The method effectively avoids the generation of infeasible solutions for subsequent operations such as crossover and mutation. This is so that the crossover and mutation operations are only performed on the process sequencing and processing machine segments of codes, and the no-load and load transportation position segment of codes of the offspring can be updated according to the first two segments of codes.

Chromosome coding can obtain a scheduling solution including processing machine selection, transportation path and machine layout. The processing sequence is $O_{11} \to O_{31} \to O_{32} \to O_{21} \to O_{12} \to O_{33} \to O_{22} \to O_{13}$ . Workpiece 1 processing machine [5→2→3], workpiece 2 processing machine [3→4], and workpiece 3 processing machine [3→6→4]. Transportation path of crane is [ $5 ⇢ 3 \to 6 ⇢ 5 \to 2 ⇢ 6 \to 4 ⇢ 3 \to 4 ⇢ 2 \to 3$ ]. In present paper, “→” means the load transportation and “⇢” means the no-load transportation. Machine layout of workshop is [2,5,1,6,3,4], If the upper limit of each row layout is 3, the first row of the workshop machine layout is [2, 5, 1] and the second row is [6, 3, 4].

Crossover operation

In this paper, IPOX crossover based on process sequencing and single-point crossover based on machine selection are used. Due to the constraints of workpiece processes, IPOX can ensure the chromosomes after crossover are still a set of scheduling feasible solutions. IPOX crossover is shown in Figure 7. The specific steps are as follows: all workpieces are randomly generated into two sets $N_{1}$ and $N_{2}$ , all workpieces of the parent chromosome $P_{1}$ including $N_{1}$ are copied into the offspring $C_{1}$ , all workpieces of the parent chromosome $P_{2}$ including $N_{2}$ are copied into the offspring $C_{2}$ , and their corresponding positions are retained. At the same time, the workpieces containing $N_{1}$ in $P_{1}$ are copied to $C_{2}$ , and the workpieces containing $N_{2}$ in $P_{2}$ are copied to $C_{1}$ , and their corresponding order is preserved. The above crossover preserves the processing machine and updates the offspring’s no-load transport position code and load transport position code upon completion of the crossover.

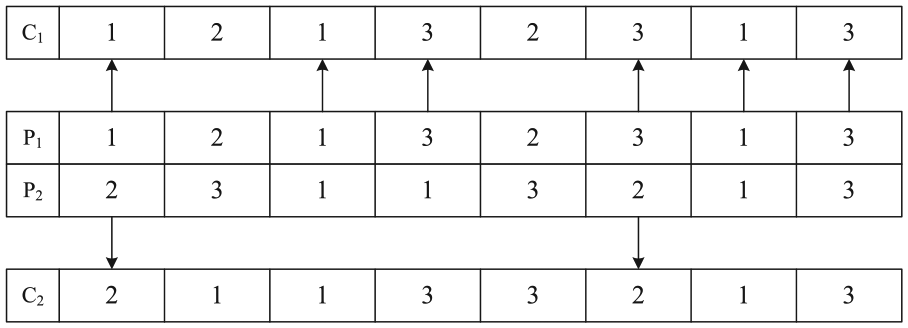

Figure 7.

IPOX crossover.

Based on the single-point crossover of the machine, as shown in Figure 8, the specific steps are: randomly generating a crossover point, keeping the process sequence of the parent chromosomes $P_{1}$ and $P_{2}$ unchanged, copying into the offspring chromosomes $C_{1}$ and $C_{2}$ respectively, exchanging the processing machine of the common process of the parent chromosomes $P_{1}$ and $P_{2}$ before the crossover point, and maintaining the processing machine after the crossover point.

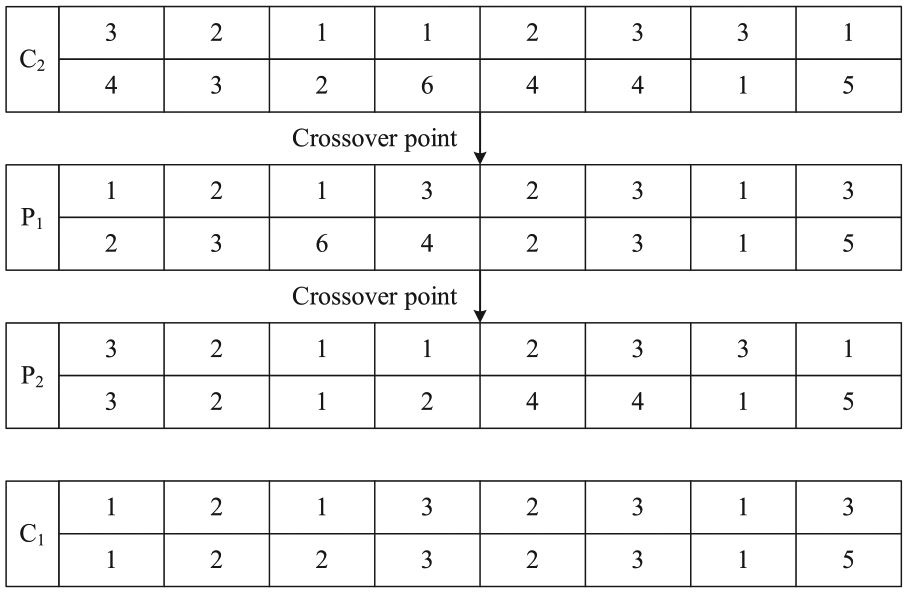

Figure 8.

Single-point crossover.

Mutation operation

Insertion mutation based on process sequencing, mutation based on processing machine and mutation based on machine layout are used in this paper. As shown in Figure 9, insertion mutation brings forward one of the processes of the processing sequence in the parent chromosome, and randomly inserts another position in the chromosome on the premise of ensuring the workpiece’s process constraint. Because each process has a processing machine set, mutation based on processing machine selects a position randomly in the parent chromosome, and the machine with the shortest processing time is selected in the machine set for exchange. Mutation operation based on machine layout is shown in Figure 10, two machine locations are randomly selected in the coding segment of the parent chromosome for exchange.

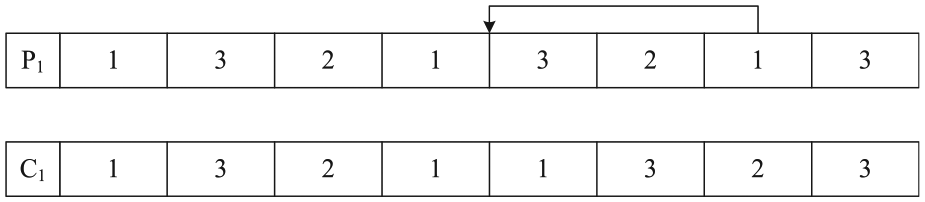

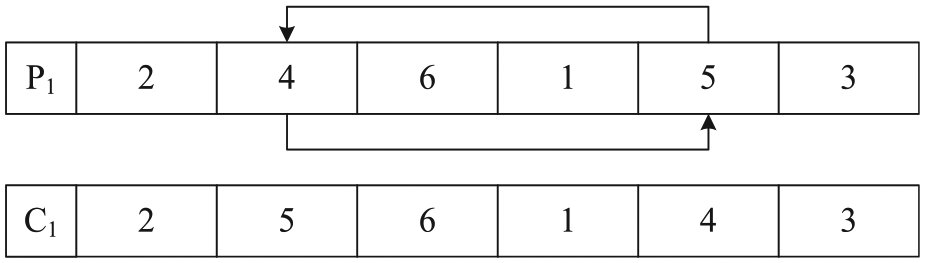

Figure 9.

Insertion mutation operation.

Figure 10.

Mutation operation based on machine layout.

Heuristic optimization strategy

Strategy 1

Strategy 1 aims to optimize the machine energy consumption and load transportation path of each process on the premise of the optimal scheduling scheme. The process has a set of processing machines to choose from, and different processing machines produce different processing energy consumption. At the same time, the different processing machines of adjacent processes will also lead to different load transportation paths. If the distance between adjacent processes is too far, it will lead to excessive unnecessary energy consumption waste and long transportation time, affecting the entire manufacturing process. The steps of heuristic optimization strategy 1 are as follows:

Step 1: Assuming that the process $O_{ij}$ needs to be transported from the machine k to the machine k₁ for processing, there is a machine set $M (O_{ij})$ , calculating the load transportation distance between all the machines and the machine k in the $M (O_{ij})$ by the equations (3) and (4), determining whether there is a machine set $M_{1} (O_{ij})$ which is shorter or equal to the machine k₁.

Step 2: If the machine set $M_{1} (O_{ij})$ has a machine set $M_{2} (O_{ij})$ which conforms to the decision logic (46), go to step 3. If not, go to step 4. $E_{machine} (O_{ij}, k_{1})$ represents the processing energy consumption of $O_{ij}$ on the machine $k_{1}$ , and $C E_{1} (O_{ij}, k_{1})$ represents the total machine energy consumption when $O_{ij}$ selects the machine $k_{1}$ .

\begin{matrix} [E_{machine} (O_{ij}, k_{1}) \geq E_{machine} (O_{ij}, k_{2})] \\ & & [C E_{1} (O_{ij}, k_{1}) \geq C E_{1} (O_{ij}, k_{2})] \end{matrix}

(46)

Step 3: If there is a machine $k_{2}$ in the machine set $M_{2} (O_{ij})$ satisfying the decision logic (47), the machine substitution is performed, and if not, go to step 4, $C E_{2} (O_{ij}, k_{1})$ represents the total transportation energy consumption when $O_{ij}$ selects the machine $k_{1}$ .

C E_{2} (O_{ij}, k_{1}) \geq C E_{2} (O_{ij}, k_{2})

(47)

Step 4: Repeat steps 1–3 for each process, and traverse all the processes of the chromosome.

Strategy 2

On the premise of satisfying the optimal scheduling scheme, strategy 2 optimizes the waiting time of load transportation to improve the equipment utilization efficiency, balances the load of each machine, reduces the total time of transportation process, optimizes the whole process flow, and reduces the completion time of workpieces. This has a positive effect on economy and resource efficiency. The specific steps are as follows:

Step 1: Judge whether there is a load transport waiting time for processing in that step $O_{ij}$ from the machine k to the machine k₁ by the equation (9), if so, go to step 2, if not, go to step 5.

Step 2: Judge whether that idle machine set $M_{1} (O_{ij})$ exist in the machine set $M (O_{ij})$ of the step $O_{ij}$ when the load transportation waiting is started, if so, go to the step 3, if not, go to the step 5.

Step 3: If there is a machine set $M_{2} (O_{ij})$ accord with that decision logic (48) in the idle machine set $M_{1} (O_{ij})$ , then go to step 4, if not, go to step 5, $E^{l} (O_{ij}, k_{1})$ , $W E^{l} (O_{ij}, k_{1})$ represent the load transportation energy consumption and the waiting energy consumption $C E_{1} (O_{ij}, k_{1})$ denotes the total machine energy consumption when $O_{ij}$ selects machine $k_{1}$ .

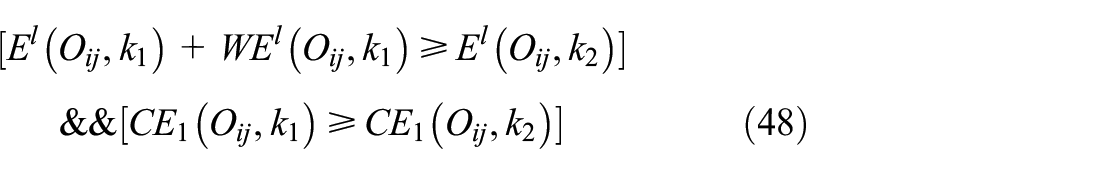

\begin{array}{l} [E^{l} (O_{i j}, k_{1}) + W E^{l} (O_{i j}, k_{1}) \geq E^{l} (O_{i j}, k_{2})] \\ & & [C E_{1} (O_{i j}, k_{1}) \geq C E_{1} (O_{i j}, k_{2})] \end{array}

(48)

Step 4: If $k_{2}$ exist in that machine set $M_{2} (O_{ij})$ satisfying the decision logic (49), machine replacement is carried out, and if not, go to step 5. $CT (O_{ij}, k_{1})$ represents the total completion time when $O_{ij}$ selects the machine $k_{1} .$

CT (O_{ij}, k_{1}) \geq CT (O_{ij}, k_{2})

(49)

Step 5: Repeat that steps 1–4 for each process, and traverse all the processes of the chromosome.

Case study

Process parameters

In order to verify the effectiveness of the integrated scheduling model proposed in this paper, a workshop of structural components of a marine crankshaft company in Shanghai is used as case study. The workshop is mainly responsible for the production and processing of semi-combined marine crankshaft structural parts, and the single-bridge crane is used to complete the process of transportation among various processes. These processes belong to the discrete manufacturing mode of multi-variety, small batch and customer-oriented. In this paper, the machining tasks of crank, journal and free end of G45 and G50 crankshaft on eight machines are selected, and the information of each machine in the workshop is shown in Table 4. The machine layout is arranged in rows with an upper limit of 4 sets per row. Table 5 gives the distance information of the machine position in the workshop. Table 6 shows the process composition, process type, processing machine and processing time.

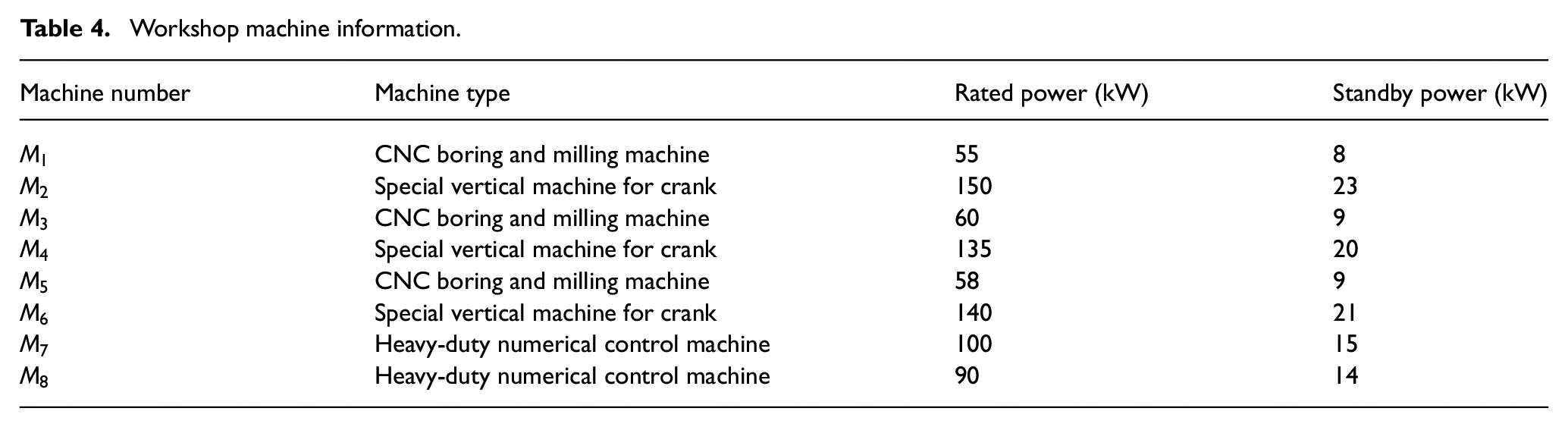

Table 4.

Workshop machine information.

Machine number	Machine type	Rated power (kW)	Standby power (kW)
$M_{1}$	CNC boring and milling machine	55	8
$M_{2}$	Special vertical machine for crank	150	23
$M_{3}$	CNC boring and milling machine	60	9
$M_{4}$	Special vertical machine for crank	135	20
$M_{5}$	CNC boring and milling machine	58	9
$M_{6}$	Special vertical machine for crank	140	21
$M_{7}$	Heavy-duty numerical control machine	100	15
$M_{8}$	Heavy-duty numerical control machine	90	14

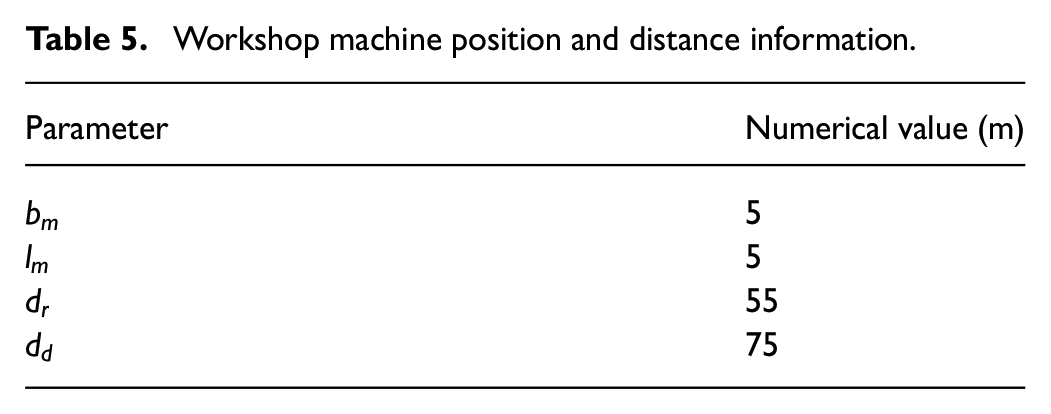

Table 5.

Workshop machine position and distance information.

Parameter	Numerical value (m)
$b_{m}$	5
$l_{m}$	5
$d_{r}$	55
$d_{d}$	75

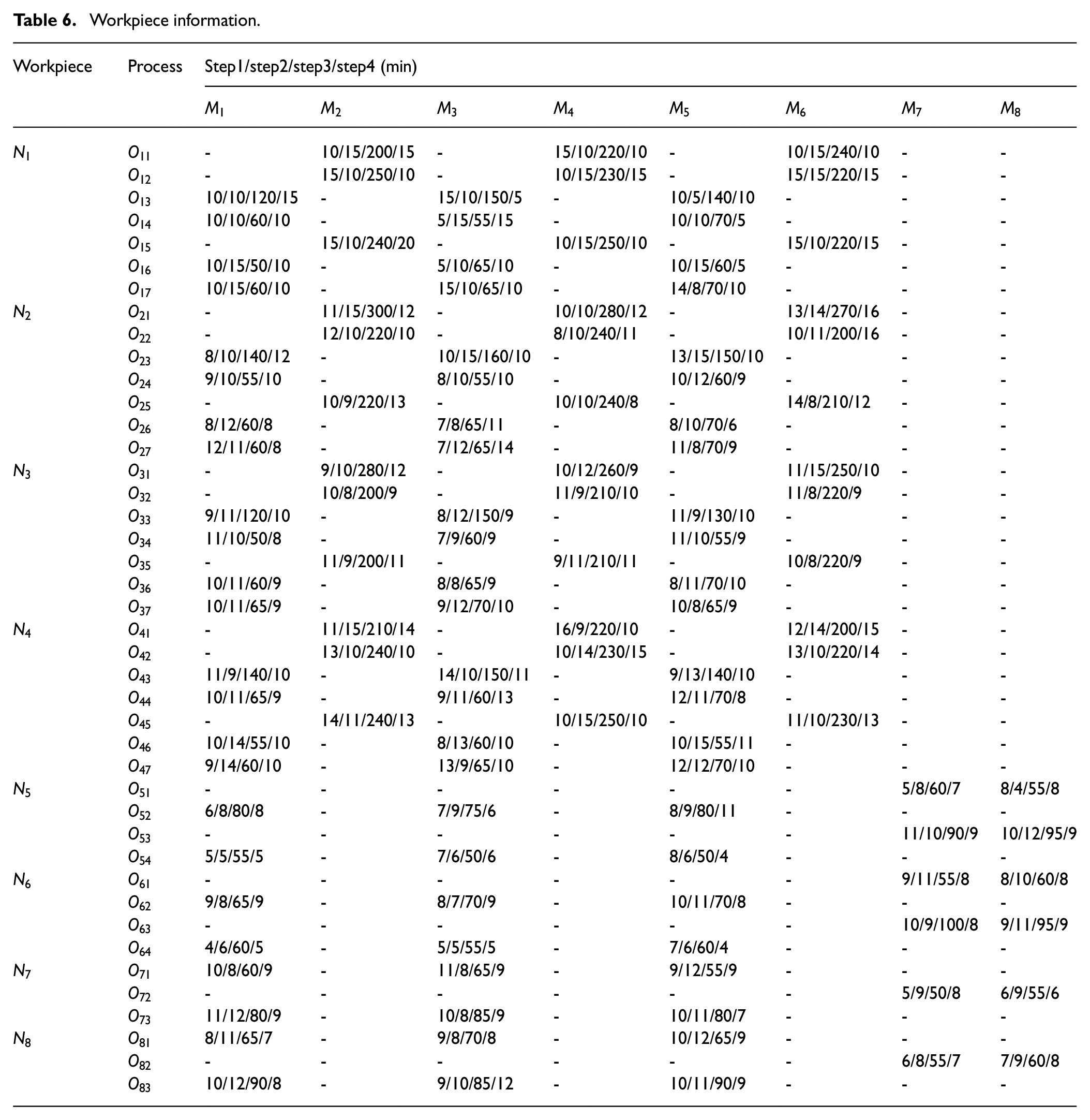

Table 6.

Workpiece information.

Workpiece	Process	Step1/step2/step3/step4 (min)
		$M_{1}$	$M_{2}$	$M_{3}$	$M_{4}$	$M_{5}$	$M_{6}$	$M_{7}$	$M_{8}$
$N_{1}$	$O_{11}$	-	10/15/200/15	-	15/10/220/10	-	10/15/240/10	-	-
	$O_{12}$	-	15/10/250/10	-	10/15/230/15	-	15/15/220/15	-	-
	$O_{13}$	10/10/120/15	-	15/10/150/5	-	10/5/140/10	-	-	-
	$O_{14}$	10/10/60/10	-	5/15/55/15	-	10/10/70/5	-	-	-
	$O_{15}$	-	15/10/240/20	-	10/15/250/10	-	15/10/220/15	-	-
	$O_{16}$	10/15/50/10	-	5/10/65/10	-	10/15/60/5	-	-	-
	$O_{17}$	10/15/60/10	-	15/10/65/10	-	14/8/70/10	-	-	-
$N_{2}$	$O_{21}$	-	11/15/300/12	-	10/10/280/12	-	13/14/270/16	-	-
	$O_{22}$	-	12/10/220/10	-	8/10/240/11	-	10/11/200/16	-	-
	$O_{23}$	8/10/140/12	-	10/15/160/10	-	13/15/150/10	-	-	-
	$O_{24}$	9/10/55/10	-	8/10/55/10	-	10/12/60/9	-	-	-
	$O_{25}$	-	10/9/220/13	-	10/10/240/8	-	14/8/210/12	-	-
	$O_{26}$	8/12/60/8	-	7/8/65/11	-	8/10/70/6	-	-	-
	$O_{27}$	12/11/60/8	-	7/12/65/14	-	11/8/70/9	-	-	-
$N_{3}$	$O_{31}$	-	9/10/280/12	-	10/12/260/9	-	11/15/250/10	-	-
	$O_{32}$	-	10/8/200/9	-	11/9/210/10	-	11/8/220/9	-	-
	$O_{33}$	9/11/120/10	-	8/12/150/9	-	11/9/130/10	-	-	-
	$O_{34}$	11/10/50/8	-	7/9/60/9	-	11/10/55/9	-	-	-
	$O_{35}$	-	11/9/200/11	-	9/11/210/11	-	10/8/220/9	-	-
	$O_{36}$	10/11/60/9	-	8/8/65/9	-	8/11/70/10	-	-	-
	$O_{37}$	10/11/65/9	-	9/12/70/10	-	10/8/65/9	-	-	-
$N_{4}$	$O_{41}$	-	11/15/210/14	-	16/9/220/10	-	12/14/200/15	-	-
	$O_{42}$	-	13/10/240/10	-	10/14/230/15	-	13/10/220/14	-	-
	$O_{43}$	11/9/140/10	-	14/10/150/11	-	9/13/140/10	-	-	-
	$O_{44}$	10/11/65/9	-	9/11/60/13	-	12/11/70/8	-	-	-
	$O_{45}$	-	14/11/240/13	-	10/15/250/10	-	11/10/230/13	-	-
	$O_{46}$	10/14/55/10	-	8/13/60/10	-	10/15/55/11	-	-	-
	$O_{47}$	9/14/60/10	-	13/9/65/10	-	12/12/70/10	-	-	-
$N_{5}$	$O_{51}$	-	-	-	-	-	-	5/8/60/7	8/4/55/8
	$O_{52}$	6/8/80/8	-	7/9/75/6	-	8/9/80/11	-	-	-
	$O_{53}$	-	-	-	-	-	-	11/10/90/9	10/12/95/9
	$O_{54}$	5/5/55/5	-	7/6/50/6	-	8/6/50/4	-	-	-
$N_{6}$	$O_{61}$	-	-	-	-	-	-	9/11/55/8	8/10/60/8
	$O_{62}$	9/8/65/9	-	8/7/70/9	-	10/11/70/8	-	-	-
	$O_{63}$	-	-	-	-	-	-	10/9/100/8	9/11/95/9
	$O_{64}$	4/6/60/5	-	5/5/55/5	-	7/6/60/4	-	-	-
$N_{7}$	$O_{71}$	10/8/60/9	-	11/8/65/9	-	9/12/55/9	-	-	-
	$O_{72}$	-	-	-	-	-	-	5/9/50/8	6/9/55/6
	$O_{73}$	11/12/80/9	-	10/8/85/9	-	10/11/80/7	-	-	-
$N_{8}$	$O_{81}$	8/11/65/7	-	9/8/70/8	-	10/12/65/9	-	-	-
	$O_{82}$	-	-	-	-	-	-	6/8/55/7	7/9/60/8
	$O_{83}$	10/12/90/8	-	9/10/85/12	-	10/11/90/9	-	-	-

The crane used as case study is QD 50/10 T. The specific information is as follows: the energy efficiency of the gantry, the trolley and the lifting mechanism are 0.845, 0.881 and 0.897, respectively. The weights determined by rough theory are 0.318, 0.407 and 0.275, respectively. The energy consumption per unit distance (m) of no-load transportation is 3.18kW·h and 2.09kW·h for gantry and trolley. The energy consumption per unit distance (m) of load transportation is 4.39kW·h for gantry, 3.16kW·h for trolley, and 48.23kW·h for lifting mechanism. The standby power of the crane is 12.5 kW. The rated uniform speed of the gantry and trolley is 20 m/min and 15 m/min, respectively. The uniform speed of lifting and releasing of lifting mechanism is 2m/min. The uniform lifting height of workpiece transportation in the workshop shall be specified as 10 m.

Optimization result

The above process parameters are brought into the improved fast non-dominated sorting genetic algorithm. The population number is 200, iteration number is 200, two crossover operation probability is 45%, and three mutation operation probability is 2%. The pareto solution set is shown in Figure 11. The number of scheduling schemes meeting the requirements in the pareto solution set is 19. The specific optimization objective function values are shown in Table 7.

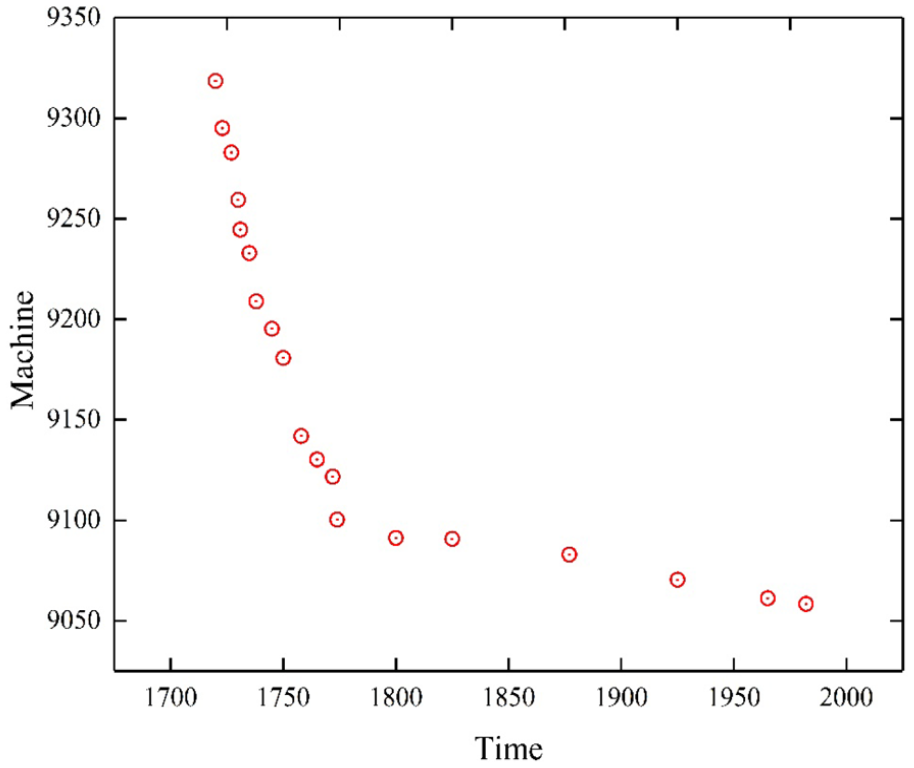

Figure 11.

Pareto solution set of integrated scheduling mathematical model.

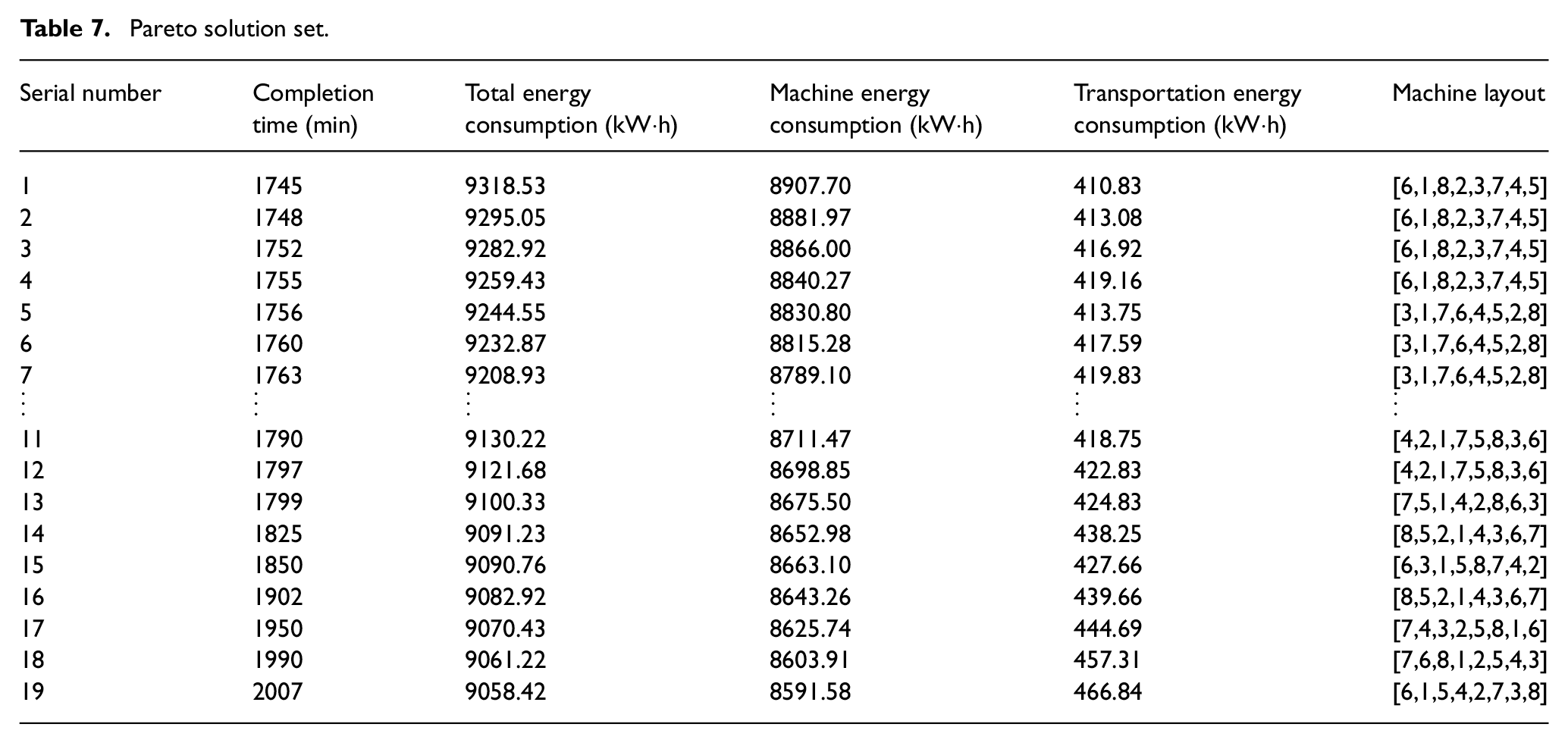

Table 7.

Pareto solution set.

Serial number	Completion time (min)	Total energy consumption (kW·h)	Machine energy consumption (kW·h)	Transportation energy consumption (kW·h)	Machine layout
1	1745	9318.53	8907.70	410.83	[6,1,8,2,3,7,4,5]
2	1748	9295.05	8881.97	413.08	[6,1,8,2,3,7,4,5]
3	1752	9282.92	8866.00	416.92	[6,1,8,2,3,7,4,5]
4	1755	9259.43	8840.27	419.16	[6,1,8,2,3,7,4,5]
5	1756	9244.55	8830.80	413.75	[3,1,7,6,4,5,2,8]
6	1760	9232.87	8815.28	417.59	[3,1,7,6,4,5,2,8]
7	1763	9208.93	8789.10	419.83	[3,1,7,6,4,5,2,8]
⋮	⋮	⋮	⋮	⋮	⋮
11	1790	9130.22	8711.47	418.75	[4,2,1,7,5,8,3,6]
12	1797	9121.68	8698.85	422.83	[4,2,1,7,5,8,3,6]
13	1799	9100.33	8675.50	424.83	[7,5,1,4,2,8,6,3]
14	1825	9091.23	8652.98	438.25	[8,5,2,1,4,3,6,7]
15	1850	9090.76	8663.10	427.66	[6,3,1,5,8,7,4,2]
16	1902	9082.92	8643.26	439.66	[8,5,2,1,4,3,6,7]
17	1950	9070.43	8625.74	444.69	[7,4,3,2,5,8,1,6]
18	1990	9061.22	8603.91	457.31	[7,6,8,1,2,5,4,3]
19	2007	9058.42	8591.58	466.84	[6,1,5,4,2,7,3,8]

As can be seen from Table 7, integrated green scheduling mathematical model provides a series of optional manufacturing schemes for the batch of workpieces. Since the transportation distance between the processes determines the transportation energy consumption and the transportation time of the scheduling scheme, a good machine layout scheme can obtain a shorter transportation time and affect the completion time of the batch of workpieces at the same time.

Under the machine layout [6,1,8,2,3,7,4,5], the completion time and transportation energy consumption of the scheduling scheme 1 are the minimum, which are 1745 min and 410.83kW·h, respectively. Compared with the scheduling scheme 19 under the machine layout [6,1,5,4,2,7,3,8], the completion time and transportation energy consumption of the scheduling scheme 1 are reduced by 13% and 12%, respectively. It is proved that the scheduling scheme 1 can obtain smaller processing time and transportation energy consumption under the machine layout [6,1,8,2,3,7,4,5]. At the same time, the energy consumption of the machine with scheduling scheme 1 is 8907.70kW·h, which is 316.12kW·h higher than that of the machine with scheduling scheme 19. It is proved that the scheduling scheme of the machine with serial number 19 can obtain smaller processing energy consumption.

The complex relationship among machine layout, transportation strategy and operation scheduling cannot achieve the optimal selection at the same time, and the manufacturing scheme selection should be carried out according to the actual situation of the workshop. The Gantt chart of the scheduling scheme 1 is shown in Figure 12. In the figure, gray represents no-load transportation time, dotted line represents crane waiting time, black represents load transportation time and white represents workpiece processing time. The numbers represent workpiece processes. For example, 1-1 represents process 1 of workpiece 1.

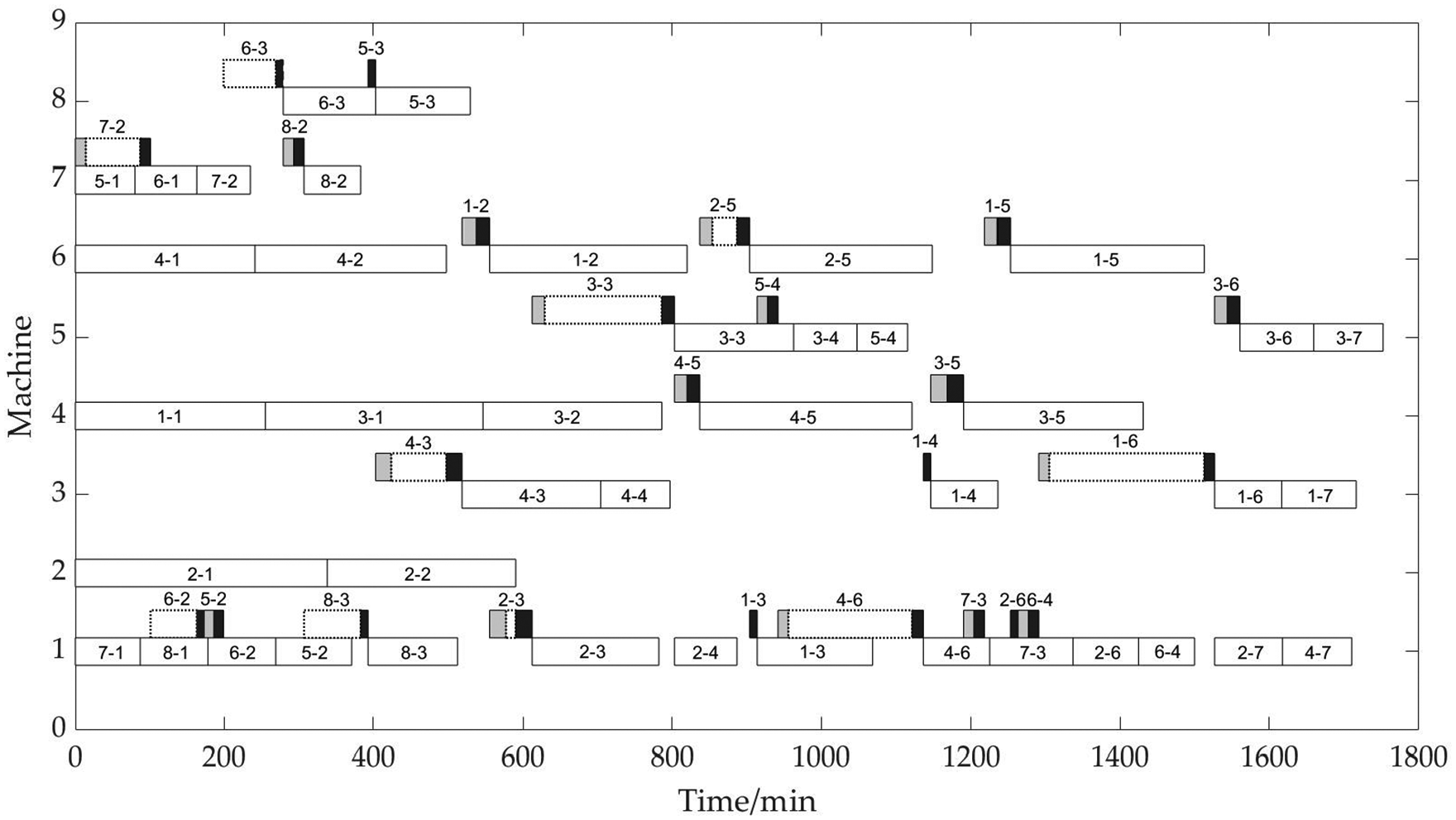

Figure 12.

Gantt chart of scheme 1.

Contrast verification

Scheduling optimization without considering transportation

In order to reduce the difficulty of solving the problem, the transportation time is not considered or set to a fixed value, which separates the influence of the transportation time on the total completion time. This method is not in line with the actual manufacturing situation, and the obtained scheduling scheme cannot play a completely effective role in guiding the workshop manufacturing. At present, that process parameters in Table 6 are optimize and solved without considering the transportation, and the machine layout adopts the cluster layout mode [2,4,6,8,1,3,5,7]. The pareto solution set is shown in Table 8, and the Gantt chart of the scheduling scheme with the minimum completion time is shown in Figure 13.

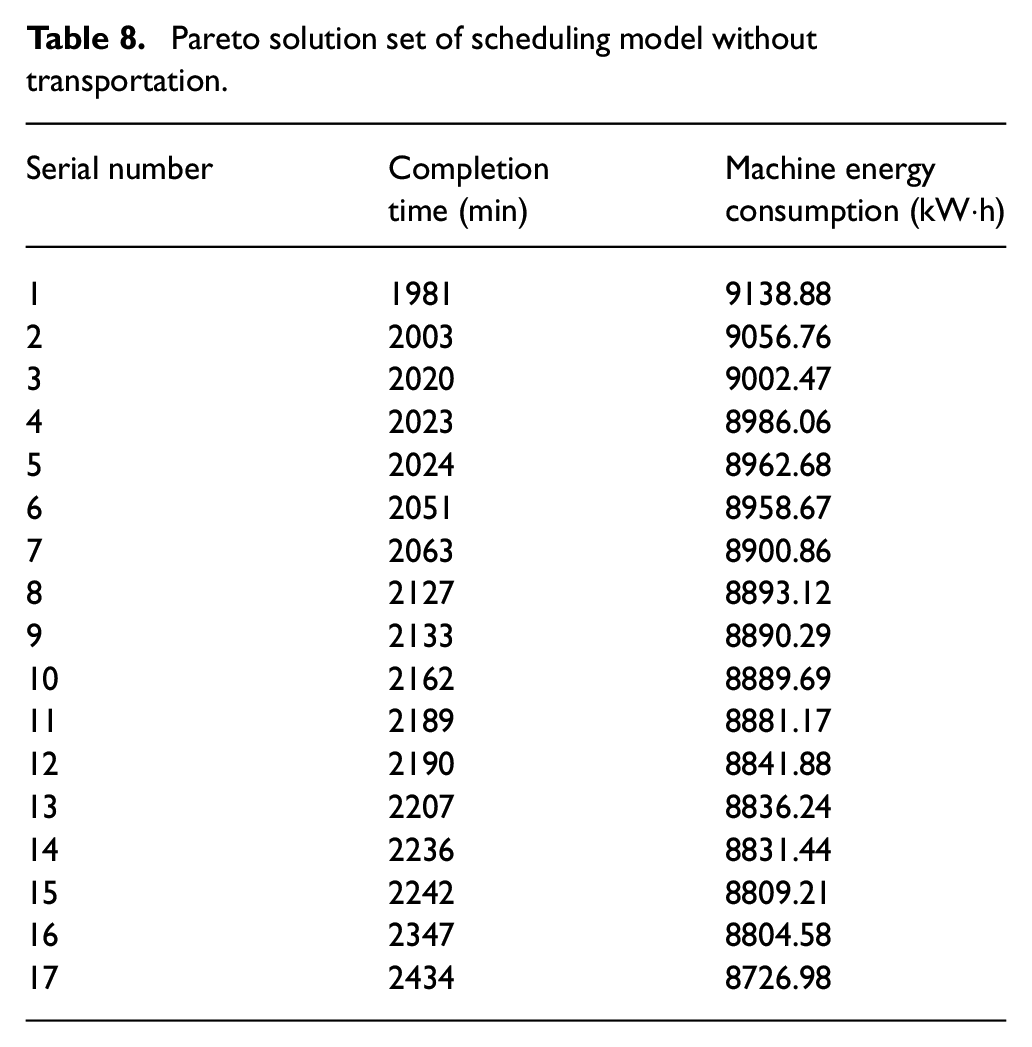

Table 8.

Pareto solution set of scheduling model without transportation.

Serial number	Completion time (min)	Machine energy consumption (kW·h)
1	1981	9138.88
2	2003	9056.76
3	2020	9002.47
4	2023	8986.06
5	2024	8962.68
6	2051	8958.67
7	2063	8900.86
8	2127	8893.12
9	2133	8890.29
10	2162	8889.69
11	2189	8881.17
12	2190	8841.88
13	2207	8836.24
14	2236	8831.44
15	2242	8809.21
16	2347	8804.58
17	2434	8726.98

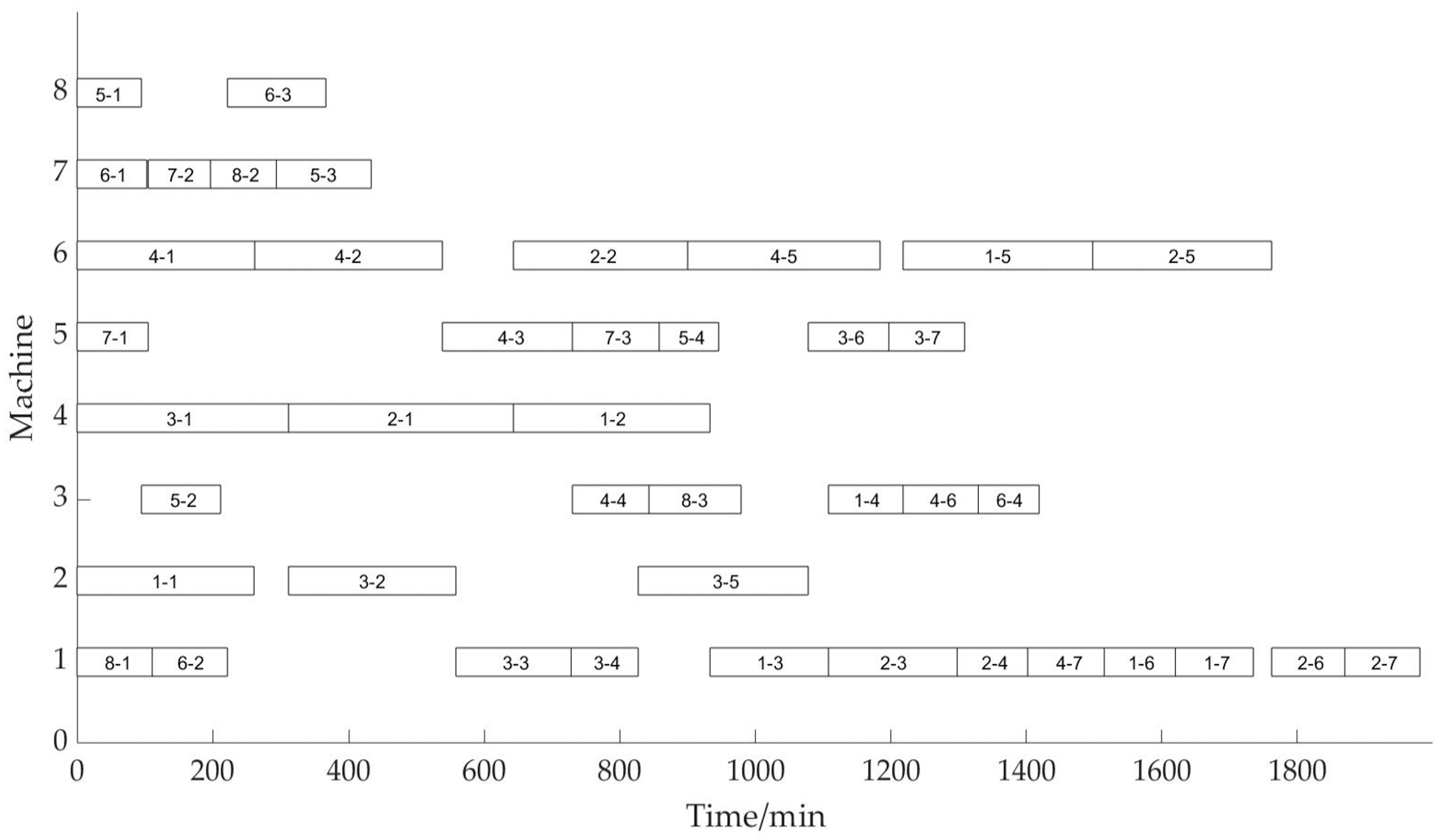

Figure 13.

Gantt chart of scheduling scheme without consideration of transportation time.

According to the scheduling scheme of Figure 13, a scheduling Gantt chart including transportation is given in Figure 14. The total completion time is increased to 2376min, which is 36% higher than 1745min. At the same time, the scheduling scheme 17 with the minimum machine energy consumption in Table 8 is also increased by 135.4kW·h compared with the scheduling scheme 19 with the minimum machine energy consumption in Table 7. It is proved that the scheduling of integrated transportation mode is more suitable for the actual workshop manufacturing situation, and can achieve better completion time and machine energy consumption.

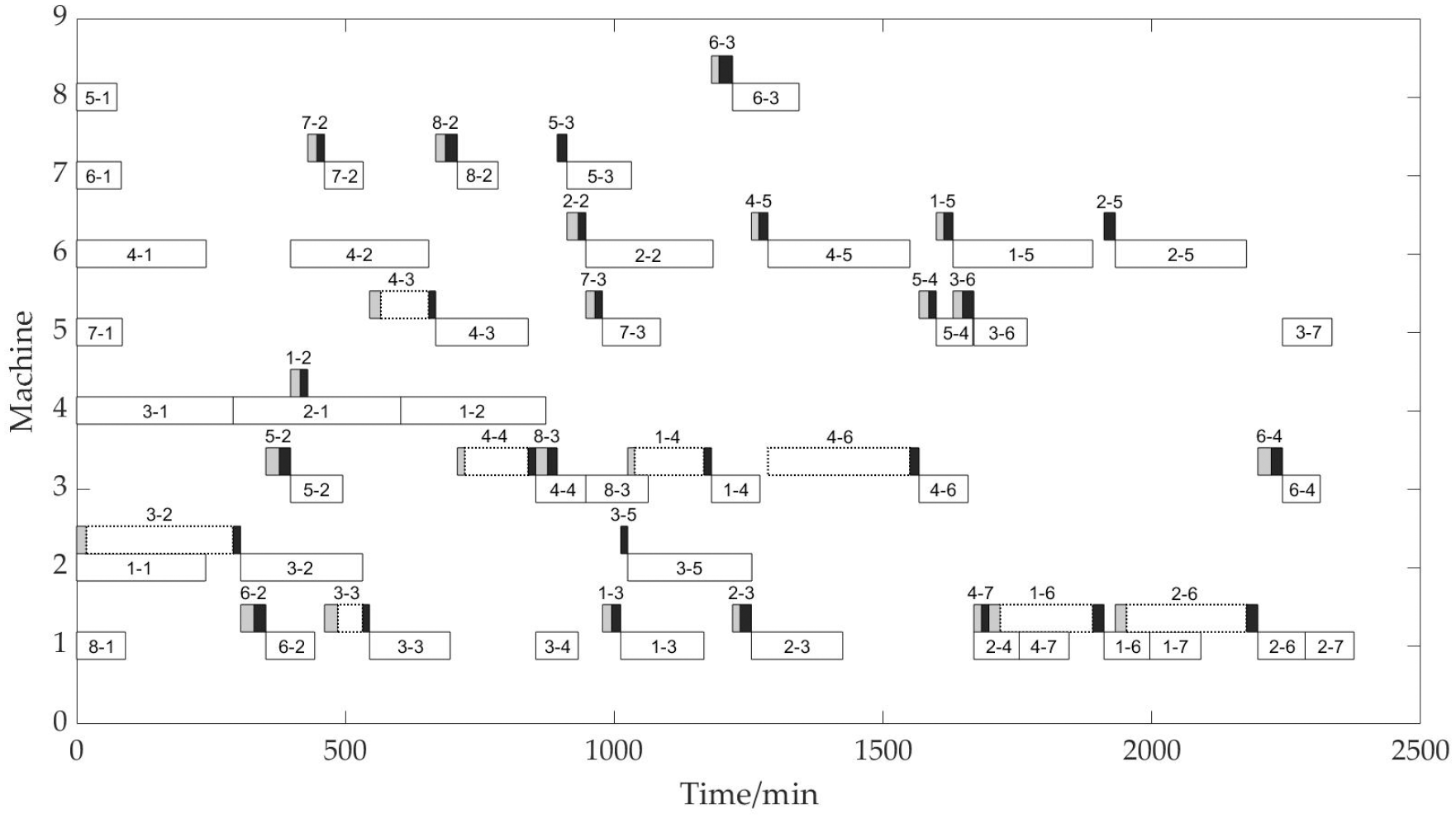

Figure 14.

Gantt chart including crane transportation.

Scheduling optimization in cluster layout

Figure 15 presents a typical cluster layout. In order to put the same processing equipment together, the layout scheme M2→M4→M6→M8→M1→M3→M5→M7 is adopted to obtain the pareto solution set as shown in Table 9, and the target value change curves of the integrated optimization and cluster layout optimization are shown in Figure 18.

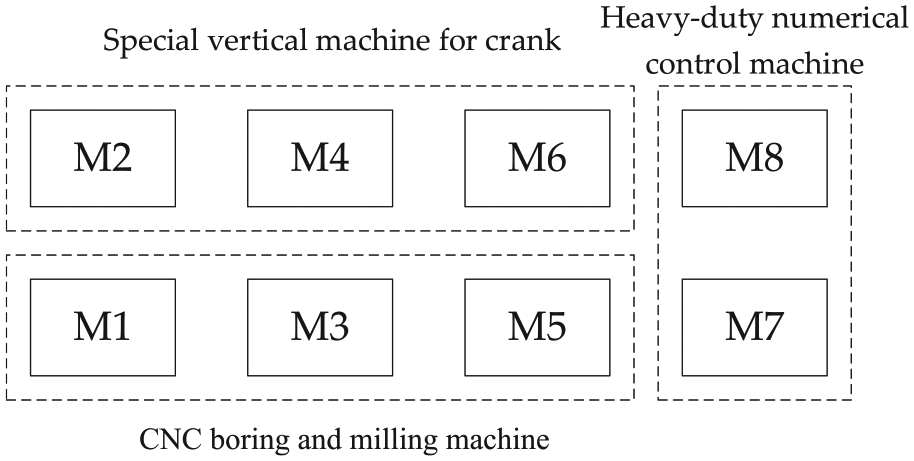

Figure 15.

Diagram of cluster machine layout.

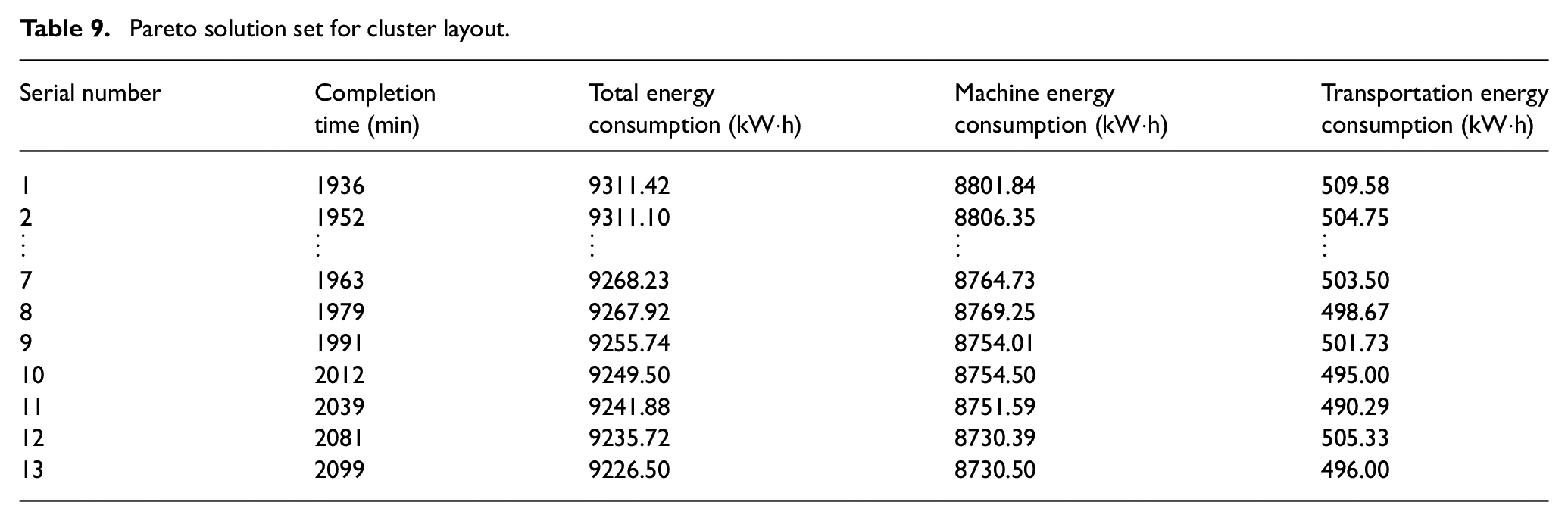

Table 9.

Pareto solution set for cluster layout.

Serial number	Completion time (min)	Total energy consumption (kW·h)	Machine energy consumption (kW·h)	Transportation energy consumption (kW·h)
1	1936	9311.42	8801.84	509.58
2	1952	9311.10	8806.35	504.75
⋮	⋮	⋮	⋮	⋮
7	1963	9268.23	8764.73	503.50
8	1979	9267.92	8769.25	498.67
9	1991	9255.74	8754.01	501.73
10	2012	9249.50	8754.50	495.00
11	2039	9241.88	8751.59	490.29
12	2081	9235.72	8730.39	505.33
13	2099	9226.50	8730.50	496.00

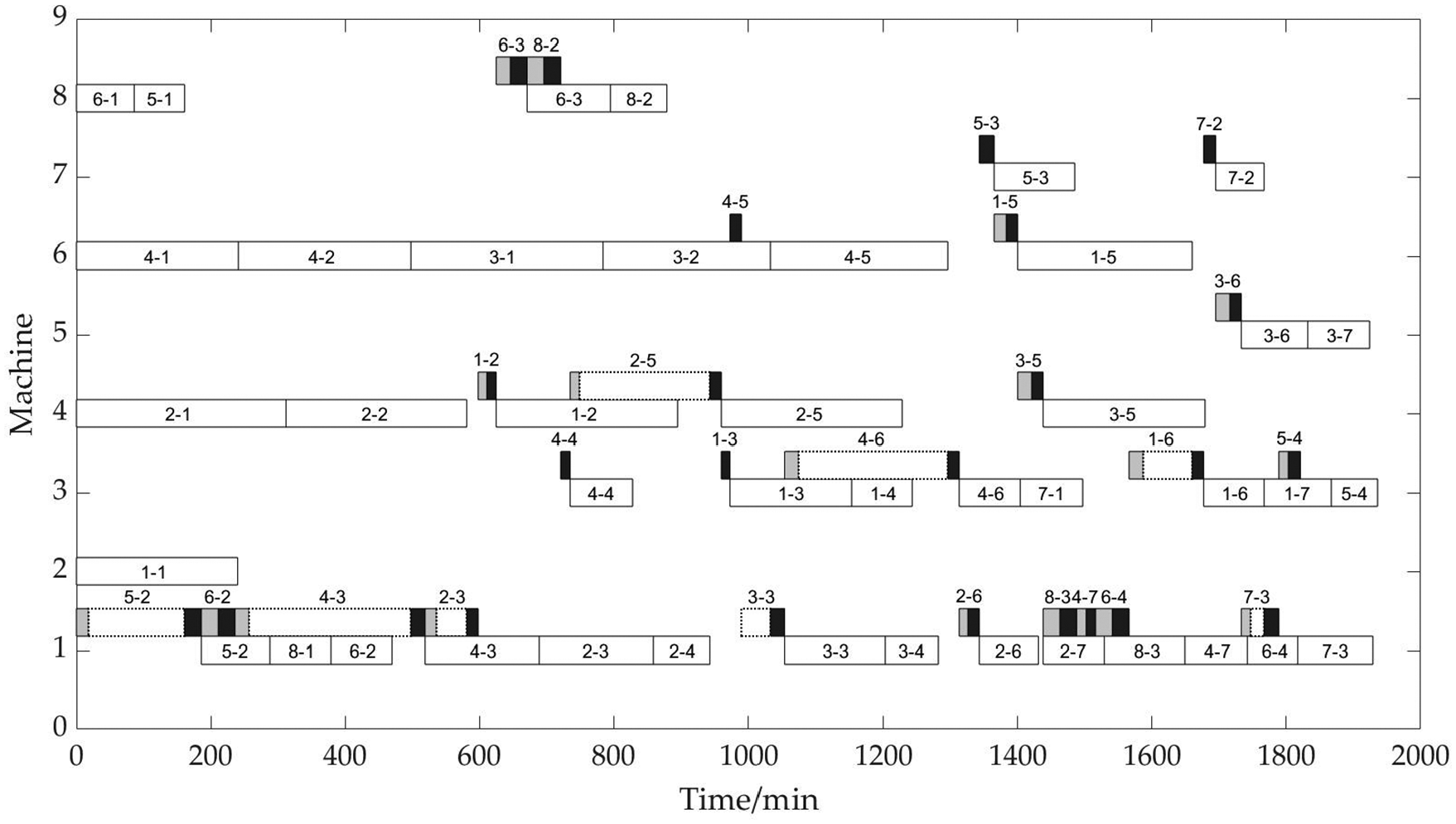

The Gantt chart of scheduling scheme 1 is shown in Figure 16. From the results given in Table 9, it can be seen that the minimum completion time of scheduling scheme 1 is 1936 min, which is 10% higher than the minimum completion time of 1745 min of the integrated scheduling scheme. The minimum total energy consumption of scheduling scheme number 13 is 9226.5kW·h, which is 168.08kW·h higher than the minimum total energy consumption of the integrated scheduling scheme being 9058.42kW·h. The validity of the integrated green scheduling model has been proved.

Figure 16.

Gantt chart of scheme 1 for cluster optimization.

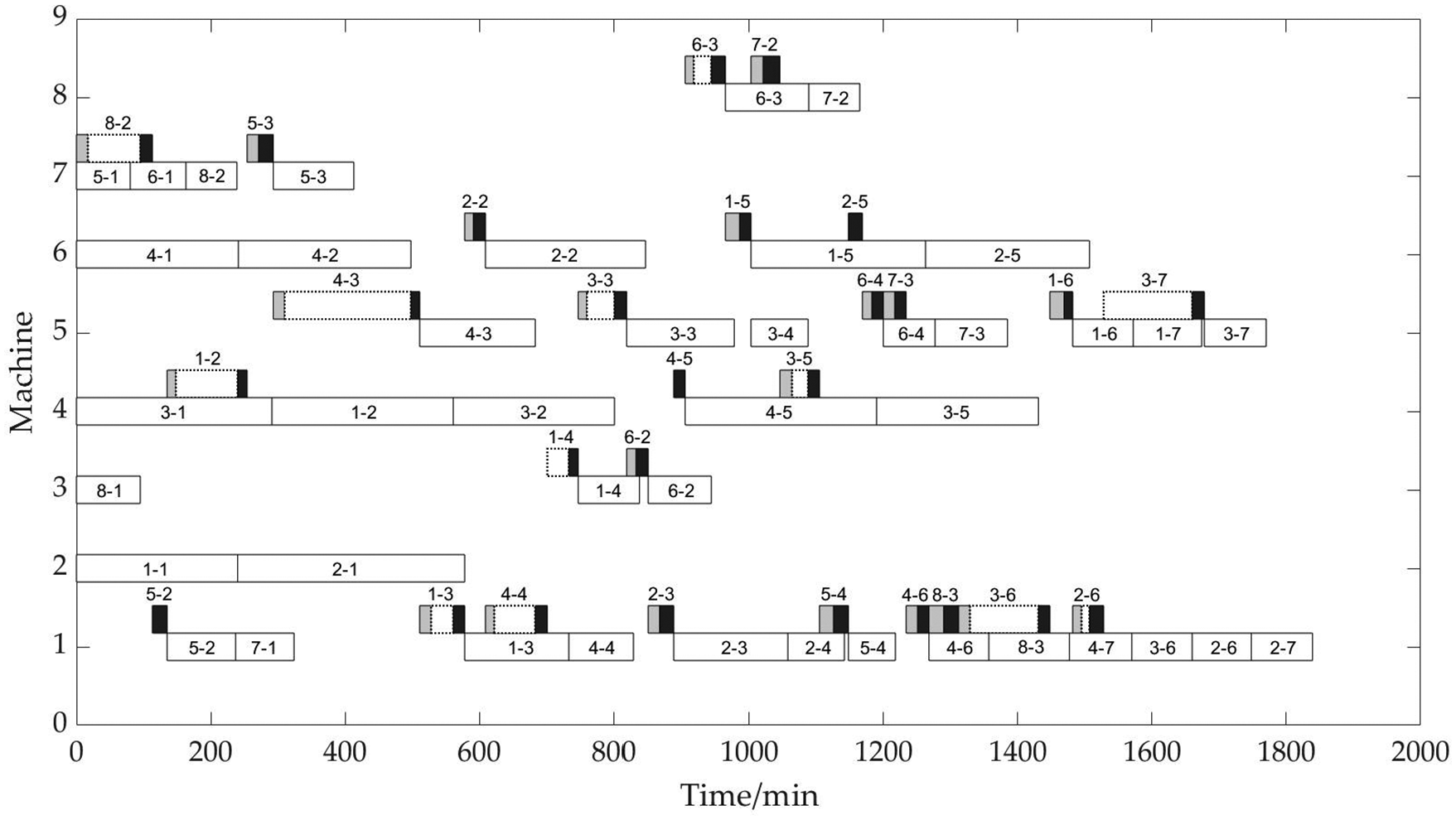

Figure 17.

Gantt chart of scheme 1 in separate optimization.

Separate optimization of workshop layout and scheduling

When workshop machines are laid out in accordance with the manufacturing process, the machine with the least processing energy consumption is preferentially selected for processing, and the optimized workshop machine layout is [4,5,7,2,1,6,3,8]. On the basis of the optimized workshop machine layout, the scheduling optimization including transportation time is performed for the workpieces in Table 6. The pareto solution set is shown in Table 10, Figure 18 shows the target value curves for the separate optimization and integrated optimization. At the same time, select the minimum completion time scheduling scheme 1 to draw the Gantt chart, as shown in Figure 14.

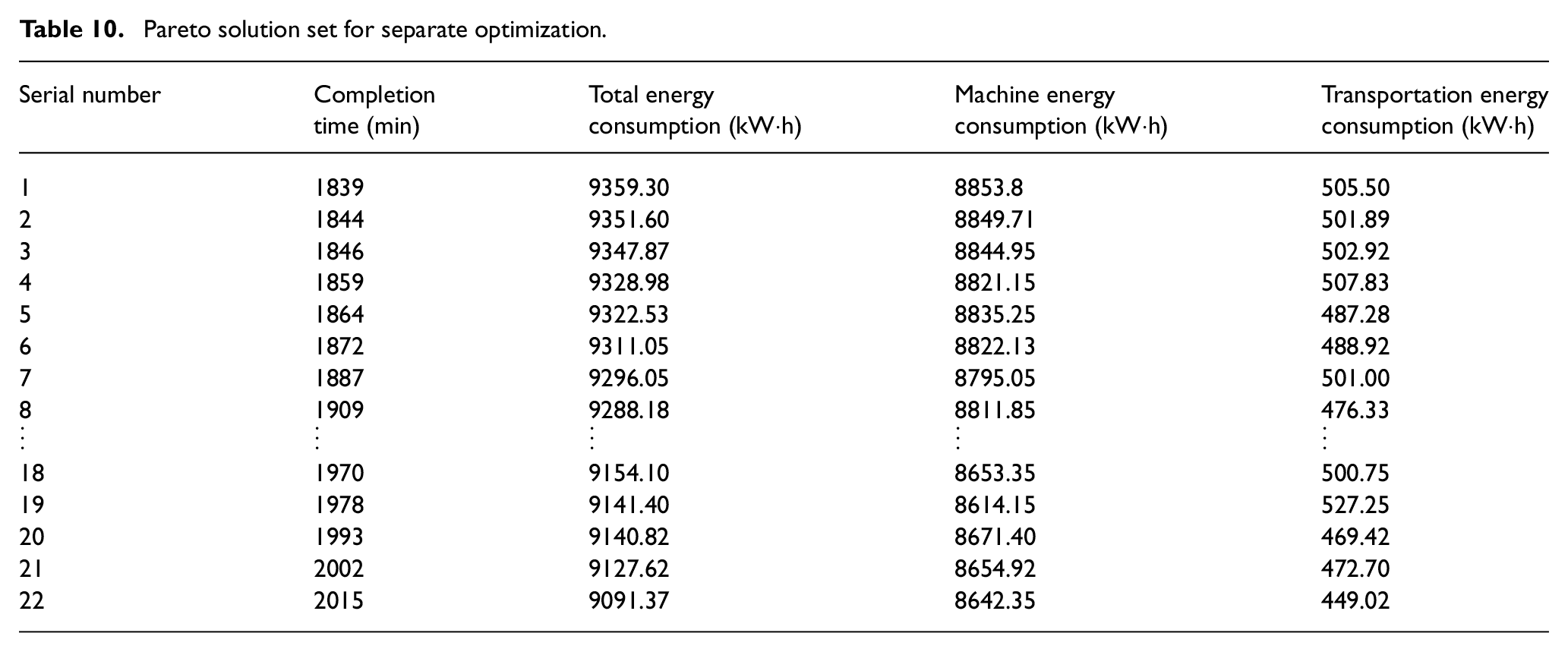

Table 10.

Pareto solution set for separate optimization.

Serial number	Completion time (min)	Total energy consumption (kW·h)	Machine energy consumption (kW·h)	Transportation energy consumption (kW·h)
1	1839	9359.30	8853.8	505.50
2	1844	9351.60	8849.71	501.89
3	1846	9347.87	8844.95	502.92
4	1859	9328.98	8821.15	507.83
5	1864	9322.53	8835.25	487.28
6	1872	9311.05	8822.13	488.92
7	1887	9296.05	8795.05	501.00
8	1909	9288.18	8811.85	476.33
⋮	⋮	⋮	⋮	⋮
18	1970	9154.10	8653.35	500.75
19	1978	9141.40	8614.15	527.25
20	1993	9140.82	8671.40	469.42
21	2002	9127.62	8654.92	472.70
22	2015	9091.37	8642.35	449.02

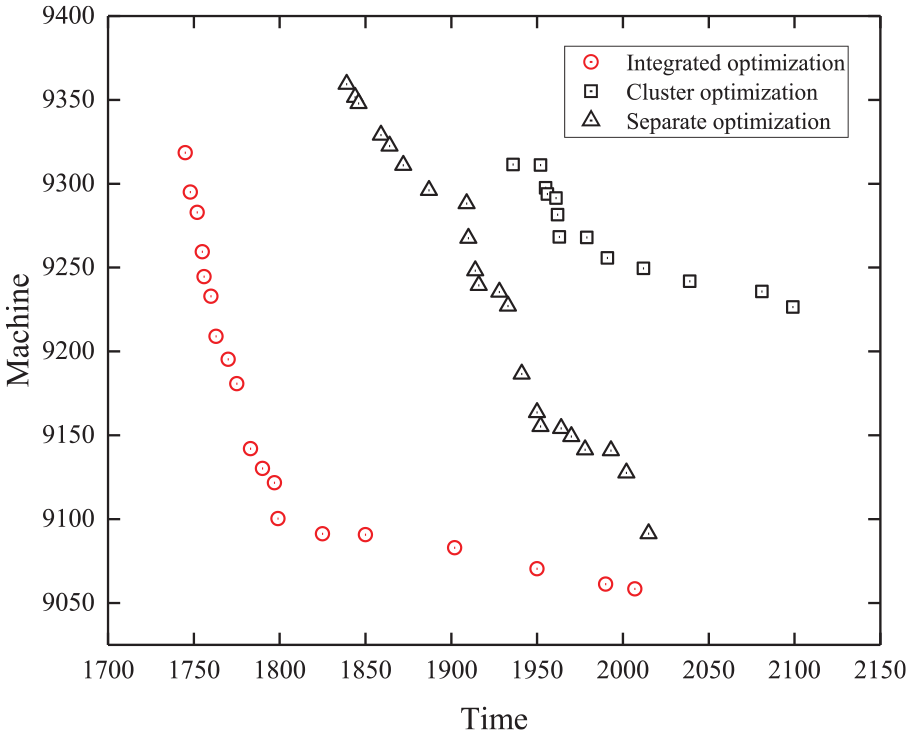

Figure 18.

Change curve of target value in pareto solution set.

As can be seen from Table 10, the scheduling scheme with the minimum completion time in the separate optimization is 1839 min, which is 94 min higher than that of the integrated optimization with the minimum completion time of 1745 min. The number 22 of the scheduling scheme with the minimum total energy consumption in the separate optimization is 9091.37kW·h, which is 32.95kW·h higher than the minimum total energy consumption in the integrated optimization. At the same time, the completion time of scheme 15 in the integrated optimization is 1850 min, which is close to that of scheduling scheme 2 in Table 10. But the total energy consumption is reduced by 260.84kW·h, which proves the superiority of the integrated scheduling model in energy consumption and completion time.

Conclusion

In order to respond to the requirements of green manufacturing in the shipbuilding industry, this paper takes the semi-combined marine crankshaft structural components manufacturing workshop as the object, and studies the green scheduling method of this type of workshop. The traditional FJSP and the MRWLP are optimized separately. In order to improve the ability of enterprises to face market changes, this paper establishes a mathematical model integrating workshop layout and scheduling, and considers crane transportation time and energy consumption in the scheduling process. It provides a reference for the heavy industry manufacturing workshop with crane as transportation equipment to realize green manufacturing.

According to the developed mathematical model, a five-segment coding including workshop layout information, processing information and transportation information is proposed. Considering the transportation mode of the bridge crane, two heuristic optimization strategies are incorporated into NSGA-II algorithm to optimize the iteration result twice. Taking as an example, the model and algorithm proposed in this paper are applied to solve the scheduling problem. The optimization results of the integrated scheduling mathematical model considering transportation are compared with three common scheduling mathematical models. The effectiveness of the integrated dispatching mathematical model proposed in this paper is verified.

In future research, it is necessary to further expand the algorithm to solve this kind of integrated scheduling mathematical model, and to discover intelligent algorithms with higher solution efficiency and better optimization results. At the same time, the Pareto solution set generated by the optimization algorithm can be selected more carefully according to the preference of decision makers and actual production conditions. In addition, this paper is mainly based on the ideal state that the workshop equipment is free from faults and the process flow is free from emergencies. Further research will be carried out on the influence of random disturbance on the whole manufacturing process.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Haochen Li

References

Adekola

Stamp

Majozi

, et al. (2013) Unified approach for the optimization of energy and water in multipurpose batch plants using a flexible scheduling framework. Industrial & Engineering Chemistry Research 52(25): 8488–8506.

Ahmadizar

Shahmaleki

(2014) Group-shop scheduling with sequence dependent set-up and transportation times. Applied Mathematical Modelling 38(21–22): 5080–5091.

Capón-García

Bojarski

Espuna

, et al. (2011) Multi objective optimization of multiproduct batch plants scheduling under environmental and economic concerns. Aiche Journal 57(10): 2766–2782.

Deb

Pratap

Agarwal

, et al. (2002) A fast and elitist multi objective genetic algorithm: NSGA-II. IEEE Transactions on Evolutionary Computation 6(2): 182–197.

Ding

Song

Zhang

, et al. (2016) Parallel machine scheduling under time-of-use electricity prices: New models and optimization approaches. IEEE Trans on Automation Science and Engineering 13(2): 1138–1154.

Gupta

Seifoddini

(1990) Production data based similarity coefficient for machine-component grouping decisions in the design of a cellular manufacturing system. International Journal of Production Research 28(7): 1247–1269.

Garey

Sethi

(1976) The complexity of flow shop and job shop scheduling. Mathematics of Operations Research 1(2): 117–129.

International Energy Agency (2008) Worldwide Trends in Energy Use and Efficiency. Paris: International Energy Agency (IEA).

Karimi

Ardalan

Naderi

, et al. (2017) Scheduling flexible job shops with transportation times: mathematical models and a hybrid imperialist competitive algorithm. Applied Mathematical Modelling 41(1): 667–682.

10.

Zhang

Leung

JYT

, et al. (2016) Parallel machine scheduling problems in green manufacturing industry. Journal of Manufacturing Systems 38: 98–106.

11.

Lin

Tian

, et al. (2018) Flow shop scheduling with low carbon emission and variable machining parameters. Proceedings of the Institution of Mechanical Engineers, Part B: Journal of Engineering Manufacture 233(5): 1561–1572.

12.

Gao

, et al. (2017) Energy-efficient permutation flow shop scheduling problem using a hybrid multi-objective backtracking search algorithm. Journal of Cleaner Production 144(2): 228–238.

13.

Mallikarjuna

Veeranna

Reddy

(2015) A new meta-heuristics for optimum design of loop layout in flexible manufacturing system with integrated scheduling. International Journal of Advanced Manufacturing Technology 84(9–12): 1841–1860.

14.

Nouri

Driss

Ghedira

(2016) Simultaneous scheduling of machines and transport robots in flexible job shop environment using hybrid metaheuristics based on clustered holonic multiagent model. Computers & Industrial Engineering 102(10): 488–501.

15.

Ranjbar

Razavi

(2011) A hybrid metaheuristic for concurrent layout and scheduling problem in a job shop environment. International Journal of Advanced Manufacturing Technology 62(9–12): 1249–1260.

16.

Ripon

Torresen

(2014) Integrated job shop scheduling and layout planning: A hybrid evolutionary method for optimizing multiple objectives. Evolving Systems 5(2): 121–132.

17.

Shen

Cui

(2018) Multi-objective flexible flow shop scheduling problem considering variable processing time due to renewable energy. Sustainability 10(3): 1–30.

18.

Wang

(2017) A feedback control method for addressing the production scheduling problem by considering energy consumption and makespan. Sustainability 9(7): 1185.

19.

Yang

Zeng

Wang

, et al. (2016) Bi-objective flexible job-shop scheduling problem considering energy consumption under stochastic processing times. PloS One 11(12): e0167427.

20.

Yin

Gao

, et al. (2017) Energy-efficient job shop scheduling problem with variable spindle speed using a novel multi-objective algorithm. Advances in Mechanical Engineering 9(4): 1–21.

21.

Zeng

Hong

Man

, et al. (2018) Multi-object optimization of flexible flow shop scheduling with batch processed consideration total electricity consumption and material wastage. Journal Cleaner Production 183(5): 925–939.

22.

Zhou

Liu

(2019) Energy-efficient multi-objective scheduling algorithm for hybrid flow shop with fuzzy processing time. Proceedings of the Institution of Mechanical Engineers, Part I: Journal of Systems and Engineering 233(10): 1282–1297.
