Impact of electric vehicles aggregators with communication delays on stability delay margins of two-area load frequency control system

Abstract

This paper investigates the impact of electric vehicles (EVs) aggregator with communication time delay on stability delay margin of a two-area load frequency control (LFC) system. A frequency-domain exact method is used to calculate stability delay margins for various values of proportional-integral (PI) controller gains. The proposed method first eliminates the transcendental terms in the characteristic equation without using any approximation and then transforms the transcendental characteristic equation into a regular polynomial using a recursive approach. The key result of the elimination process is that real roots of the new polynomial correspond to imaginary roots of the transcendental characteristic equation. With the help of new polynomial, delay-dependent system stability and root tendency with respect to the time delay is determined. An analytical formula is then developed to compute delay margins in terms of system parameters. The qualitative impact of EVs aggregator on stability delay margins is thoroughly analysed and the results are verified by time domain simulations and quasi-polynomial mapping-based root finder (QPmR) algorithm.

Keywords

Communication time delays electric vehicles aggregators frequency regulation PI controller stability delay margin

Introduction

Load frequency control (LFC) systems are responsible for regulating the frequency and keeping the scheduled tie-line power exchange between independently-controlled areas in an interconnected-power system (Kundur, 1994). Frequency control and stability are becoming an increasingly important issue because of growing environmental concerns regarding the gradual depletion of fossil reserves; consequently, resulting in grown penetration of exceedingly variable renewable energy (RE) power generation (Bevrani et al., 2010). Vehicle-to-grid (V2G) technology and swift power output adjustment of batteries have made electric vehicles (EVs) a favorable tool capable of vindicating the intermittent effects of RE sources and thereby regulating the system frequency. It is expected that the quick response characteristic of EVs increases the dynamic performance of LFC systems. The generation/demand fluctuations can be reduced and thereby system frequency response can be improved with the help of EVs as they can be operated as loads or generators (Guille and Gross, 2009; Kempton and Letendre, 1997; Mu et al., 2013; Pillai and Bak-Jensen, 2011). An entity known as aggregator is required by EVs to practically participate in frequency regulation market. The prime task of this entity is to accumulate and control a large fleet of EVs to match the frequency regulation criteria (Bessa and Matos, 2010; Bessa et al., 2014; Carreiroa et al., 2017; Han et al., 2010). EVs aggregators transceive information about the charging status of participating EVs, their energy capacities and available electrical power to the controller and rearrange the control signals to disperse the participating EVs for the adjustment of their power output by employing automatic generation control (AGC).

A dedicated or an open communication network is required by the EVs aggregator to send control signals to EVs for the AGC system. The latter is preferred due to its smaller cost, but on the other hand it is vulnerable to communication delays (Ko and Sung, 2019; Mak and Holland, 2002; Quinn et al., 2010). Despite the fact that the dynamic performance can be improved by integrating EVs into the LFC systems, communication delays caused by the integration of EVs can rigorously affect the dynamics and stability of LFC systems (Khalil and Peng, 2018; Ko and Sung, 2018; Naveed et al., 2019; Zhou et al., 2020). The response time to the regulation command by the independent system operator (ISO) is imperative in frequency regulation service. Normally, ISO transmits the command every 2–6 seconds to the aggregator (Yao et al., 2017). In order to respond to regulation signals, ISOs usually have their own specific protocols for allowing maximum communication delay, like ISO of California allows a communication time delay limit of 4 seconds between EVs and the aggregator (Bilh et al., 2017). This infers that it is important to analyze the delay-dependent stability of LFC systems improved by EVs denoted as LFC-EVs and to determine stability delay margins described as the tolerable upper bound limit of time delays.

In the existing literature, numerous approaches are available to determine stability delay margins of time-delayed dynamical systems. These might be categorized into two major types: (i) frequency-domain direct methods and (ii) time-domain indirect approaches. The former group of methods aims to calculate complex roots on the imaginary axis of the characteristic polynomial. This group of approaches includes:

Schur-Cohn method (Chen et al., 1995; Gu et al., 2003);

Direct method: Removal of exponential terms in the characteristic polynomial (Walton and Marshall, 1987);

Rekasius substitution (Delice and Sipahi, 2012; Fazelina et al., 2007; Olgac and Sipahi, 2002; Rekasius, 1980; Sipahi and Olgac, 2005; Yuan et al., 2020);

Delay space re-scaling approach (Dong et al., 2018);

The argument principle (contour integral) method (Xu et al., 2016, 2017);

Recursive quasi-polynomial approximation (Pekař and Prokop, 2018)

Among these methods, the direct method of Walton and Marshall (1987) has been effectively implemented to compute delay margin of automatic voltage regulator (AVR) (Ayasun, 2009; Ayasun and Gelen, 2010) and time-delay LFC systems not including EVs aggregators (Sönmez et al., 2016) and micro-grid frequency control systems (Gündüz et al., 2017). The Rekasius substitution has been applied to delay margin computation for a simple single-machine-infinite bus (SMIB) power system (Jia et al., 2007), SMIB system with a thyristor controller series capacitor (TCSC) controller (Liu et al., 2007; Liu et al., 2008), microgrid LFC systems (Gündüz et al., 2019), and LFC systems not having EVs aggregator (Mary and Rangarajan, 2015; Sönmez and Ayasun, 2019). The delay space re-scaling approach has been used to estimate the stability delay margin for hybrid energy storage system with hierarchical control in DC micro-grids that have multiple time delays (Dong et al., 2017). The existing studies clearly show that he frequency domain direct methods accurately determine stability delay margins of electrical power systems. However, the main disadvantage of these methods is that they can be used for only constant delay cases. A detailed literature review on the methods for delay margin estimation of linear time-invariant continuous-time systems with constant delays can be found in a survey of Pekař and Gao (2018).

The latter group of methods utilizes time-domain indirect method based on Lyapunov stability theory and linear matrix inequalities (LMIs). This method can only determine the sufficient conditions for the system stability and there exist various studies focused on the reduction of the conservativeness (Liu at al., 2019, 2020; Zhang et al., 2016, 2020). Numerous inequalities have been proposed in recent years such as Jensen inequality, Wirtinger inequality (Zeng et al., 2020), free-matrix based inequality (He et al., 2007; Zeng et al., 2015, 2019) and Bessel-Legendre inequality (Seuret and Gouaisbaut, 2015). These approaches have been used in wide-area damping controller design (Yao et al., 2011, 2014), stability delay margin computation of multi-area LFC systems not including EVs aggregators (Jiang et al., 2012; Jin et al., 2019; Zhang et al., 2013) and micro-grids (Thangaiah and Parthasarathy, 2016). Time-domain indirect approaches can be used for both constant and time-varying delay cases. Although there exist tremendous efforts in order to reduce the conservativeness of this approach, it is well-known that frequency domain method gives larger and more accurate stability delay margins than time-domain methods.

Even though EVs are commonly used in modern power grids, a very limited work has been reported in the literature that investigates the effect of communication delays as well as the integration of EVs on the regulation of frequency. Pham et al. (2017) has proposed a parameter uncertain model and designed the corresponding delay-dependent controller. Moreover, Pham et al. (2019) has presented a novel distributed control strategy of high voltage direct current links for time-delayed LFC systems with EVs, which reduces the differences in frequencies between connected power areas. As to delay margin computation, indirect method has been used to identify stability margins for LFC-EVs systems (Ko and Sung, 2018; Zhou et al., 2020). Whereas, Naveed et al. (2019) has applied Rekasius substitution method to computation of stability delay margins of single-area LFC-EVs system. Stability delay margins in single-area LFC system having plugged-in EVs are determined by a combination of the binary iteration algorithm and frequency sweeping test for different participation factors of conventional generator and EVs aggregator (Khalil and Peng, 2018). The frequency sweeping test presented in Khalil and Peng (2018) also computes exact delay margin results. However, the selection of the frequency range for the sweeping test requires undesired computational effort.

As explained in Yu and Tomsovic (2004) and Bhowmik et al. (2004), delay arises in an open communication network during: (1) the telemetry signals received by control center from remote terminal units (RTUs) and/or (2) the area control error (ACE) signals received by generation units from control center. The analysis for each delay case is identical assuming that the control center waits to receive the telemetered values. Therefore, all these delays can be accumulated as a single constant or time-varying delay. Based on the assumption that the same communication network for EVs aggregators in each control area, it is considered that each control area has the identical communication time delay, resulting in a characteristic equation with commensurate delay terms.

In this work, a frequency-domain direct method depending on the removal of transcendental terms (Walton and Marshall, 1987) from the characteristic equation of the two-area LFC-EVs system is proposed to identify stability delay margins in presence of constant delay. The direct method is an analytically elegant procedure the first converts the quasi-characteristic equation into a regular polynomial not including any exponential terms by eliminating the highest degree of commensurate terms in recursive manner. The key point in the recursive procedure is that the purely complex roots of the original characteristic equation of are preserved in the elimination procedure, indicating that the original quasi-characteristic equation and the augmented regular characteristic polynomial have the same complex roots for a given time delay (stability delay margin). This procedure does not use any approximation or transformation to eliminate the transcendentality of the characteristic equation. Therefore, it is exact and the real roots of the new polynomial coincide with the imaginary roots of the characteristic equation exactly. The resulting polynomial without the transcendentality also enables us to easily determine the delay-dependency of the system stability and the sensitivities of crossing roots (root tendencies) with respect to the time delay. This is a remarkable feature of the proposed method. Then, it develops an easy-to-use formula to determine stability delay margins at a given operating point in terms of system parameters and imaginary roots of the characteristic equation. The proposed method has already been efficiently utilized in analyzing the delay-dependent stability of conventional LFC systems (Sönmez et al., 2016) and micro-grid systems (Gündüz et al., 2017) with no EVs aggregators installed. The previous studies presented in the literature evidently show that the proposed method exactly evaluate stability delay margins for LFC systems and micro-grid systems. Also, the comparison presented by Sönmez et al. (2016) between the Lyapunov stability theory based time-domain method (Jiang et al., 2012) and the proposed frequency-domain direct method shows that the former provides relatively more conservative results for stability delay margins in LFC systems. It must be stated that Rekasius substitution method could be also used for the delay margin computation of LFC-EVs systems. However, as compared with the direct method, Rekasius substitution method requires the introduction of a pseudo-delay and an additional step, which is Routh Hurwitz stability criterion, to determine the pseudo-delay (thus, the imaginary roots of the characteristic equation). For the large dimensional system like multi-area or two-area LFC-EVs system, applications of Rekasius substitution to delay margin computation requires significant computational effort as clearly illustrated by Sönmez and Ayasun (2019) for a two-area LFC system not including EVs aggregator and by Naveed et al. (2019) for single-area LFC system including EVs aggregator. On the other hand, the direct method is not able to handle incommensurate time delays. In this case, Rekasius substation method together with Dixon resultant and discriminant theory (Yuan et al., 2020) could be used to determine stability delay margins of two-area LFC-EVs system.

Stability delay margins of the two-area LFC-EVs system are computed using the direct method for a wide range of proportional-integral (PI) controller gains and participation-factors. Furthermore, an independent algorithm known as quasi-polynomial mapping-based root finder (QPmR) algorithm (Vyhlídal and Zítek, 2009) along with time-domain simulations (Simulink, 2000) are used to validate the correctness of theoretically-obtained stability margin results. This numerical method of QPmR is based on mapping the quasi-polynomial and on utilizing asymptotic properties of the chains of the roots, which are determined as the intersection points of the zero-level curves of the real and imaginary parts of the quasi-polynomial in a certain region of the complex plane.

This work presents an extensive delay-dependent stability analysis of a two-area LFC-EVs system and makes the following main contributions:

Calculation of stability delay margins for wide ranging PI controller gains and participation- factor to study the impact of EVs aggregators integrated to LFC systems: For given PI controller gains, it is expected that the stability delay margins will be helpful in determining the communication and delay requirements of two-area LFC-EVs aggregators system to practically participate in frequency regulation service.

Validation of stability delay margins accuracy by an independent algorithm: The QPmR algorithm clearly proves the effectiveness and accuracy of the frequency-domain direct method for computing stability delay margins.

Two-area LFC system model with EVs aggregators

A fleet of EVs is required to be plugged into the power grid so that they can be utilized in frequency regulation. The control center of these EVs is the aggregator that manages the charging and discharging of each EV integrated into the grid. The dynamic model of the i-th EV in the EVs aggregator can be presented by the following first-order transfer function (Khalil and Peng, 2018; Ko and Sung, 2018; Zhou et al., 2020)

G_{EV, i} (s) = \frac{K_{EV, i}}{1 + s T_{EV, i}}

(1)

where, $T_{EV, i}$ and $K_{EV, i}$ represent the time constant and the gain of the i-th EV battery system, respectively.

Generally, a transfer function of $e^{- s τ_{i}}$ is used to lump and model the communication delay between the i^th EV and the EVs aggregator and the scheduling delay in the EVs aggregator.

It is to be mentioned here that $τ_{i}$ is the delay time taken by the EVs aggregator to send the control signals. The time constants $T_{EV, i}$ and the delays for all EVs, $τ_{i}$ when $(i = 1, \dots, N)$ are assumed to be equal in an average sense, denoted by $T_{EV}$ and $τ$ , respectively. With this assumption, an aggregated model of several EVs comprised of single delay function along with EV dynamics is obtained. The use of an aggregated model of EVs fleet appears to be reasonable since a cluster of numerous EVs as well as conventional generation sources are controlled together for changing their power injection to follow the load disturbances (Fan et al., 2016; Khalil and Peng, 2018; Ko and Sung., 2018; Zhou et al., 2020).

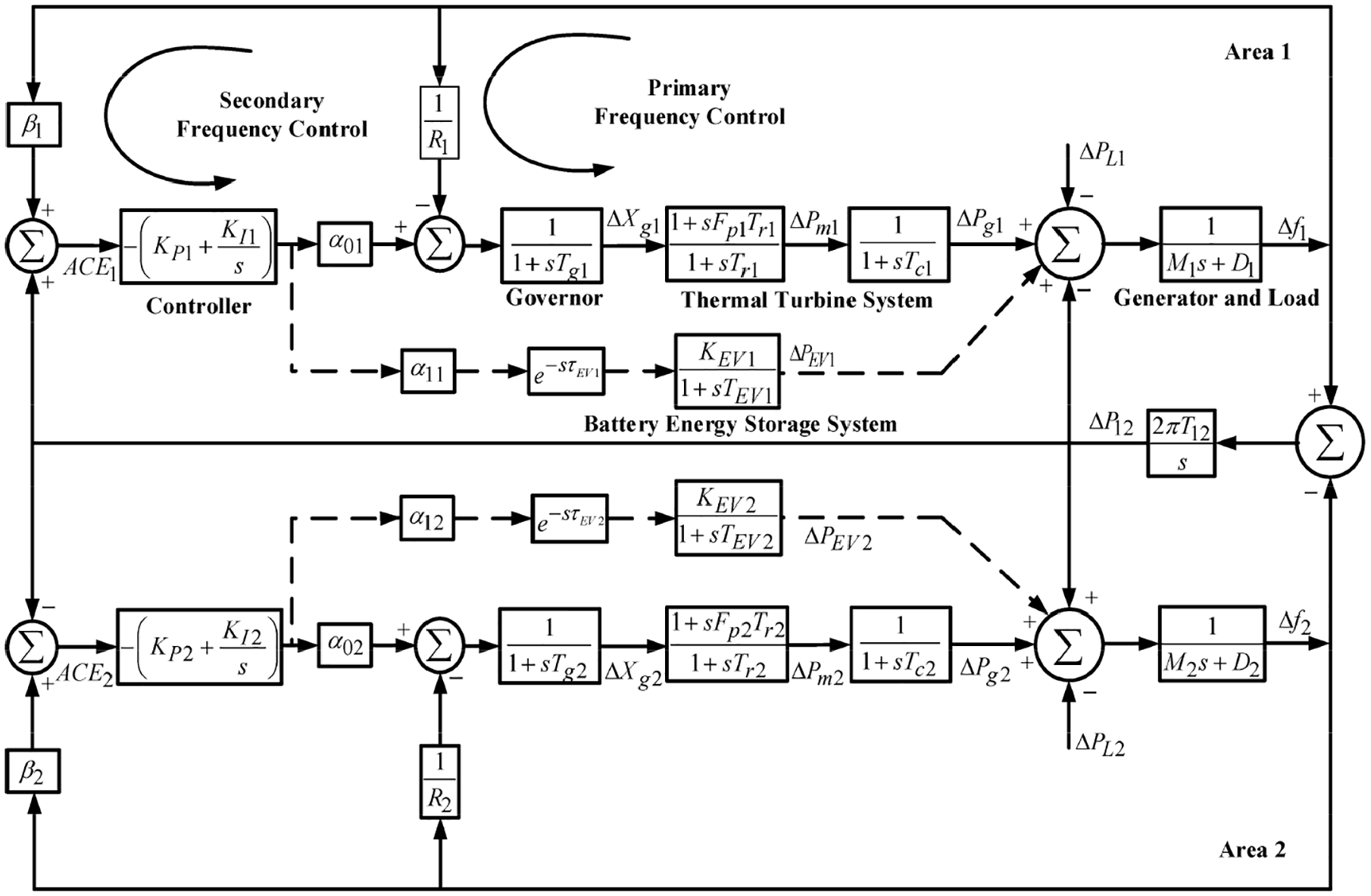

The dynamic model of a two-area LFC system including EVs aggregators and delay blocks is presented in Figure 1 (Ko and Sung, 2018). The PI type controllers are adopted as LFC controller. $Δ f_{i},$ $Δ P_{Li},$ $Δ P_{gi},$ $Δ P_{mi},$ $Δ X_{gi},$ and $Δ P_{EV, i}$ for $(i = 1, 2)$ in Figure 1 indicate the deviation of frequency, load disturbance, power output of generator, mechanical power output, valve position and EVs aggregator power output of two control areas, respectively. Moreover, $D_{i},$ $M_{i},$ $R_{i},$ $β_{i},$ $F_{Pi},$ $T_{ci},$ $T_{ri},$ and $T_{gi}$ for $(i = 1, 2)$ are the damping coefficient, constant of generator inertia, speed drop, frequency bias factor, total turbine power’s fraction, time constants of turbine, reheat and governor, respectively. Furthermore, $K_{Pi}$ and $K_{Ii}$ denote the PI controller gains. Whereas, $AC E_{i}$ for $(i = 1, 2)$ denotes the area control errors.

Figure 1.

Dynamic model of two-area LFC-EVs system.

$AC E_{1}$ is sent to the PI controller as a control signal due to any sudden changes in load demand of area 1. The output signal of the PI controller is then sent to the reheat steam turbine and the EVs aggregator depending upon their power-sharing factors $α_{01}$ and $α_{11}$ so that the system frequency in that area can be regulated. Likewise, $AC E_{2}$ is sent to the PI controller of area 2 whose output signal is then sent to the reheat steam turbine and the EVs aggregator based on their power-sharing factors $α_{02}$ and $α_{12}$ to regulate the frequency of the system in that area. The control signals sent through a communication network to the EVs aggregator enable the EVs fleet to participate in frequency regulation service of the grid. The power-sharing factors of conventional generators and EVs aggregators for both areas are assumed to be equal, $α_{01} = α_{02} = α_{0}$ and $α_{11} = α_{12} = α_{1}$ , respectively (Ko and Sung, 2018). Furthermore, $T_{12}$ in Figure 1 denotes the tie-line synchronization coefficient between two control areas.

It is to be mentioned here that only communication delays from EVs aggregators to EVs are considered in this study because the delays observed in the transmission of regulation signal from ISO to the conventional generators are less significant (Khalil and Peng, 2018; Ko and Sung, 2018, 2019). The primary reason for this assumption is that usually ISOs themselves deploy the communication link between conventional generators and ISOs and ensure the communication delay requirements of the link themselves. The other reason is the utilization of open communication links between EVs aggregator and EVs. Depending on the geographical distribution of EVs, these links can be wireless mobile communication networks, internet, WiFi, power line communication (PLC) or ZigBee. Such communication networks cause relatively more significant delays than those observed between power plants and ISOs. Moreover, there exist scheduling delays since EVs aggregators have to control both charging and regulation of EVs fleet (Ko and Sung, 2018, 2019). Additionally, Ko and Sung (2018) have shown that the participation of fast-response resources, such as EVs with communication delays in frequency regulation service, severely affects the stability and frequency regulation of LFC systems when compared with conventional generators.

The closed-loop state-space model of the two-area LFC-EVs system with time delays in Figure 1 can be expressed as

\begin{matrix} \overset{\cdot}{x} (t) = A_{o} x (t) + A_{d} x (t - τ) + F Δ P_{L} \\ y (t) = Cx (t) \end{matrix}

(2)

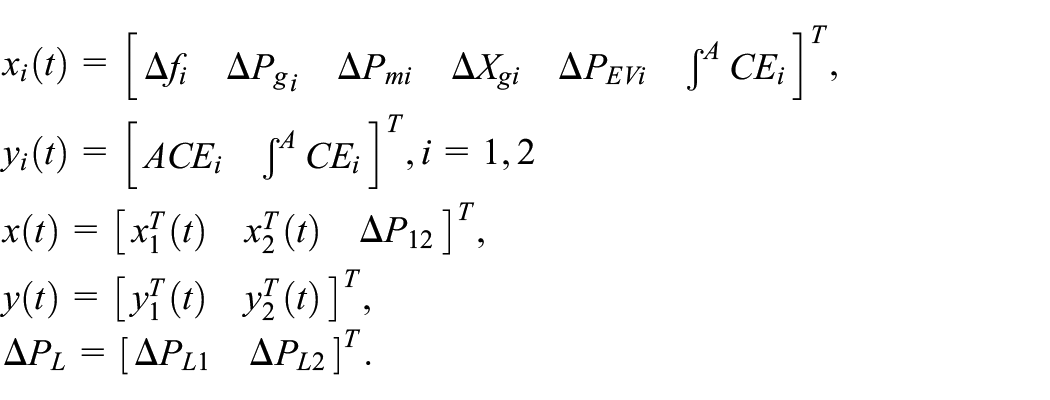

where the state and output variables, inputs and outputs are defined as follows

\begin{matrix} x_{i} (t) = {[\begin{matrix} Δ f_{i} & Δ {P_{g}}_{i} & Δ P_{mi} & Δ X_{gi} & Δ P_{EVi} & \int^{A} C E_{i} \end{matrix}]}^{T}, \\ y_{i} (t) = {[\begin{matrix} AC E_{i} & \int^{A} C E_{i} \end{matrix}]}^{T}, i = 1, 2 \\ x (t) = {[\begin{matrix} x_{1}^{T} (t) & x_{2}^{T} (t) & Δ P_{12} \end{matrix}]}^{T}, \\ y (t) = {[\begin{matrix} y_{1}^{T} (t) & y_{2}^{T} (t) \end{matrix}]}^{T}, \\ Δ P_{L} = {[\begin{matrix} Δ P_{L 1} & Δ P_{L 2} \end{matrix}]}^{T} . \end{matrix}

The system, input and output matrices, $A_{o}, A_{d}, F,$ and $C$ are presented in Appendix B. In order to identify stability delay margins, the characteristic equation of the two-area LFC-EVs system is required. This can simply be obtained from (2) as

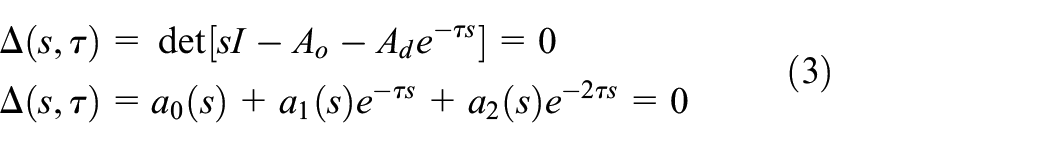

\begin{matrix} Δ (s, τ) = det [sI - A_{o} - A_{d} e^{- τ s}] = 0 \\ Δ (s, τ) = a_{0} (s) + a_{1} (s) e^{- τ s} + a_{2} (s) e^{- 2 τ s} = 0 \end{matrix}

(3)

The degree of $a_{0} (s)$ polynomial is 13. Whereas, the degrees of $a_{1} (s)$ and $a_{2} (s)$ polynomials are 11 and 9, respectively. The coefficients of these polynomials completely rely on LFC-EVs system parameters. The coefficients of $a_{0} (s)$ , $a_{1} (s)$ and $a_{2} (s)$ polynomials in terms of system parameters are not presented here due to in-sufficient space.

It must be stated here that the characteristic equation of a multi-area LFV-EVs system having n control areas with equal communication delays in each area will have a similar structure to (3), as given in the following

Δ (s, τ) = \sum_{k = 0}^{n} a_{k} (s) e^{- k τ s} = 0

(4)

where $a_{k} (s), k = 0, 1, \dots, n$ are polynomials in s having real coefficients.

It should be observed that the characteristic equation of multi-area LFC-EVs system has multiple exponential terms with commensurate delays (i.e., integer multiple of each other). In the following, an exact method to compute stability delay margins of multi-area LFC-EVs system is presented and steps for its application to the two-area LFC-EVs system is provided.

Delay margin of computation using direct method

The main purpose of stability studies is to define whether the time-delayed system is delay-dependent or delay-independent stable. The system remains stable for all finite communication delay values in case of delay-independent stability. However, if the system will remain stable for $τ < τ^{*}$ where $τ$ means communication delay and $τ^{*}$ represents stability delay margin, then the system is said to be delay-dependent stable. Conversely, the system will become unstable when the communication delay exceeds the stability delay margin $τ > τ^{*}$ .

The deciding factor in evaluating the stability of LFC-EVs systems is stability delay margin. The stability delay margin is the maximum value of the time delay for which the characteristic equation of (3) or (4) has a pair of complex roots on the imaginary axis. Communication delays of the system must be less than the delay margin. Therefore, the knowledge of delay margins for an array of system parameters is crucial in the stability assessment of the system.

Direct method

The multi-area LFC-EVs system will be asymptotically stable when the characteristic equation of (4) have all its roots placed in the stable left half of the complex plane. It should be observed that the transcendental terms in the characteristic equation result in infinite many roots. Therefore, addressing the stability problem will be difficult to resolve. However, the knowledge of all roots is not necessary to assess the stability. The sufficient condition is to find the stability delay margin values $τ^{*}$ for which the characteristic polynomial of (4) has roots (if any) lying on the $j ω -$ axis. If the characteristic equation of (4) has a solution of $s = j ω_{c}$ , then $Δ (- s, τ) = 0$ being complex conjugate will have the same solution

Δ (- s, τ) = \sum_{k = 0}^{n} a_{k} (- s) e^{k τ s} = 0

(5)

A direct method was proposed by Walton and Marshall (1987) to eliminate exponential terms in (4) and (5) in recursive manner. The first step is to reduce the degree of commensuracy (n) to $(n - 1)$ using (4) and (5). This is achieved by defining a new characteristic equation as follows

\begin{matrix} Δ^{(1)} (s, τ) = a_{0} (- s) Δ (s, τ) - a_{n} (s) e^{- n τ s} Δ (- s, τ) \\ = \sum_{k = 0}^{n - 1} [a_{0} (- s) a_{k} (s) - a_{n} (s) a_{n - k} (- s)] e^{- k τ s} \end{matrix}

(6)

also

\begin{matrix} Δ^{(1)} (- s, τ) = a_{0} (s) Δ (- s, τ) - a_{n} (- s) e^{n τ s} Δ (s, τ) \\ = \sum_{k = 0}^{n - 1} [a_{0} (s) a_{k} (- s) - a_{n} (- s) a_{n - k} (s)] e^{k τ s} \end{matrix}

(7)

It must be stated here that new characteristic equation of (6) or (7) has the same purely roots $s = j ω_{c}$ of the original characteristic equation of (4) or (5) since it contains both $Δ (s, τ)$ and $Δ (- s, τ)$ terms. It is clear that the purely imaginary roots of the original characteristic equation are preserved in the elimination procedure without using any approximation or substitution, which is the key point of the direct method. The new characteristic equations of (6) or (7) are represented in a compact form as follows

\begin{matrix} Δ^{(1)} (s, τ) = \sum_{k = 0}^{n - 1} a_{k}^{(1)} (s) e^{- k τ s} = 0 \\ Δ^{(1)} (- s, τ) = \sum_{k = 0}^{n - 1} a_{k}^{(1)} (- s) e^{k τ s} = 0 \end{matrix}

(8)

where

a_{k}^{(1)} (s) = a_{0} (- s) a_{k} (s) - a_{n} (s) a_{n - k} (- s)

(9)

Additionally, it is clear the with this elimination procedure the characteristic, characteristic equations (4) or (5) with a degree of commensuracy n is now transformed to a new characteristic equation with a degree of commensuracy (n-1) while the complex conjugate roots of $s = \pm j ω_{c}$ are preserved without using any approximation.

We can easily repeat this procedure to eliminate commensuracy terms successively by defining a new polynomial as

a_{k}^{(r + 1)} (s) = a_{0}^{(r)} (- s) a_{k}^{(r)} (s) - a_{n - r}^{(r)} (s) a_{n - r - k}^{(r)} (- s)

(10)

and an augmented characteristic equation as

Δ^{(r)} (s, τ) = \sum_{k = 0}^{n - r} a_{k}^{(r)} (s) e^{- k τ s} = 0

(11)

The highest degree of commensurate terms can be eliminated by repeating the above procedure n times and an augmented characteristic equation is obtained as

Δ^{(n)} (s) = a_{0}^{(n)} (s) = 0

(12)

where

a_{0}^{(n)} (s) = a_{0}^{(n - 1)} (- s) a_{0}^{(n - 1)} (s) - a_{1}^{(n - 1)} (s) a_{1}^{(n - 1)} (- s)

(13)

It should be noticed that if $s = j ω_{c}$ is solution of (4) for some $τ$ , then it is also a solution of (13) because the imaginary roots of the original characteristic equation (4) are preserved during this recursive procedure. If $s = j ω_{c}$ is substituted in (13), the following polynomial in $ω_{c}^{2}$ is obtained

W (ω_{c}^{2}) = a_{0}^{(n - 1)} (- j ω_{c}) a_{0}^{(n - 1)} (j ω_{c}) - a_{1}^{(n - 1)} (j ω_{c}) a_{1}^{(n - 1)} (- j ω_{c}) = 0

(14)

It is clear the augmented characteristic equation of (14) is regular polynomial not including any exponential terms. The positive real roots $(ω_{c} > 0)$ of this polynomial, if there exists, exactly coincide with roots of the original characteristic equation of (4) on the imaginary axis, $(s = \pm j ω_{c})$ . More importantly, the augmented characteristic equation of (14) enables us to evaluate the delay-dependent stability of the LFC-EVs system. If the polynomial of (14) does not have any positive real roots, which implies that the characteristic equation of (4) does not have any roots on the imaginary axis. In that case, the system is delay-independent stable for all finite time delay $τ ⩾ 0 .$ If it has at least one positive real root, which implies that the characteristic equation of (4) has at least a pair complex root on the imaginary axis. In that case, the system is delay-dependent stable.

For any positive real root $(ω_{c})$ of (14), the corresponding delay margin can be determined from the characteristic equation that has a single exponential term $e^{- s τ}$ described as follows

Δ^{(n - 1)} (j ω_{c}) = a_{0}^{(n - 1)} (j ω_{c}) + a_{1}^{(n - 1)} (j ω_{c}) e^{- j ω_{c} τ^{*}} = 0

$and$

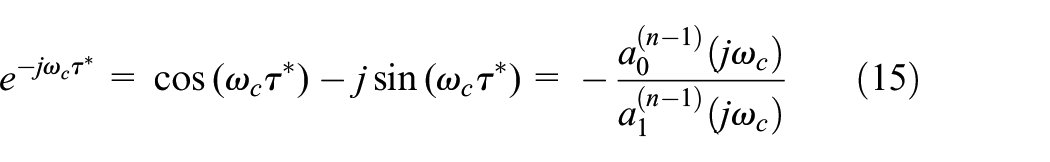

e^{- j ω_{c} τ^{*}} = \cos (ω_{c} τ^{*}) - j \sin (ω_{c} τ^{*}) = - \frac{a_{0}^{(n - 1)} (j ω_{c})}{a_{1}^{(n - 1)} (j ω_{c})}

(15)

τ^{*} = \frac{1}{ω_{c}} \tan^{- 1} (\frac{Im {\frac{a_{0}^{(n - 1)} (j ω_{c})}{a_{1}^{(n - 1)} (j ω_{c})}}}{Re {- \frac{a_{0}^{(n - 1)} (j ω_{c})}{a_{1}^{(n - 1)} (j ω_{c})}}}) + \frac{2 r π}{ω_{c}}; r = 0, 1, 2, \dots, \infty

(16)

Moreover, an expression is required to find the root tendency (RT) of the roots to assess the direction of roots transition at $s = j ω_{c}$ while observing an increment $(Δ τ)$ in $τ$ values. The root $s = j ω_{c}$ crosses the $j ω -$ axis either to the stable left half plane for $RT = - 1$ or to the unstable right half plane for $RT = + 1$ . It was shown by Walton and Marshall (1987) and Ayasun (2009) that the RT of a root of $Δ (s, τ) = 0$ in (4) is similar to that of the corresponding root of $Δ^{(n)} (s, τ) = 0$ in (12) and the following expression was developed for RT

{RT |}_{s = j ω_{c}} = sgn [α W' (ω_{c}^{2})]

(17)

where

α = {a_{0}^{(1)} (s) a_{0}^{(2)} (s) \dots a_{0}^{(n - 1)} (s) |}_{s = j ω_{c}}

(18)

It must be noted that the augmented characteristic equation of (14) may have various positive real roots for $τ \in ℜ^{+}$ that can be expressed in the form of a set as

{ω_{c}} = {ω_{c 1}, ω_{c 2}, \dots, ω_{cq}}

(19)

It should be noticed that the system order n and coefficients of the polynomials $a_{k} (s)$ both influence this finite number q. Moreover, infinitely many periodically spaced $τ_{m}^{*}$ values can be obtained for each $ω_{cm}$ , $m = 1, 2, \dots, q$ by using (16). These values can be expressed in the form of a set as

{τ_{m}^{*}} = {τ_{m 1}^{*}, τ_{m 2}^{*}, \dots, τ_{m, \infty}^{*}} m = 1, 2, \dots, q

(20)

where $τ_{m, r + 1} - τ_{m, r} = \frac{2 π}{ω_{c}}$ represents the apparent period of repetition. As per the definition, the minimum of $τ_{m}^{*}$ , $m = 1, 2, \dots, q$ will be the system’s delay margin of the multiple-area LFC-EVs system

τ^{*} = min (τ_{m}^{*})

(21)

The main feature and advantages of the direct method could be summarized as follows: It is an analytically effective procedure that transforms the quasi-characteristic equations of (3) or (4) into a regular polynomial of (12) or (14), not including any exponential terms by eliminating the highest degree of commensurate terms in recursive manner. This procedure does not use any approximation or transformation to eliminate the transcendentality of the characteristic equation. Therefore, it is exact and the real roots of the new polynomial coincide with the imaginary roots of the characteristic equation exactly. The resulting polynomial of (12) or (14) without the transcendentality also enables us to easily determine the delay dependency of the system stability and the sensitivities of crossing roots (root tendency) with respect to the time delay. This is a remarkable feature of the proposed method. Then, it develops an easy-to-use formula to determine stability delay margins at a given operating point in terms of system parameters and imaginary roots of the characteristic equation.

Since the direct method used for stability delay margin computation is a frequency-domain method, it is more appropriate to compare with another well-known frequency domain method in the literature, known as Rekasius Substitution (Olgac and Sipahi, 2002; Sipahi and Olgac, 2005). Rekasius substitution first uses a substitution (Rekasius ZV, 1980) to eliminate the exponential terms in the characteristic equations of (3) or (4). The Rekasius substitution is an exact substitution, not an approximation, and is given by

e^{- s τ} = \frac{1 - T . s}{1 + T . s}

(22)

where $T \in ℜ$ is called pseudo-delay. Using this substitution, the transcendental characteristic equation of (3) or (4) is converted into a polynomial without transcendentality similar to one given in (14) such that its purely imaginary roots determined by Routh stability criterion coincide with the purely imaginary roots of the characteristic equation exactly. The corresponding delay margin is determined by (Olgac and Sipahi, 2002)

τ^{*} = \frac{2}{ω_{c}} [Ta n^{- 1} (ω_{c} T) \pm r π], r = 0, 1, 2, \dots

(23)

It must be noted that both methods eliminate the transcendental terms in the characteristic equation using different approaches that are both exact and obtain a new polynomial without transcendentality. In the direct method, the real roots, if there exist, of this new polynomial of (14) coincide with the imaginary roots $s = j ω_{c}$ of the characteristic equation of (4) exactly. As compared with the direct method, Rekasius requires the introduction of an pseudo-delay T and an additional step, which is Routh Hurwitz stability criterion, to determine the pseudo-delay T (thus, the imaginary roots of the characteristic equation $ω_{c}$ ). For the large- dimensional system like multi-area or two-area LFC-EVs systems, the application of Rekasius substitution to delay margin computation requires significant computational effort as clearly illustrated by Sönmez and Ayasun (2019) for a two-area LFC system not including EVs aggregator and by Naveed et al. (2019) for single-area LFC system including an EVs aggregator. Moreover, it must be noticed that the proposed method in this paper is a practical and handy criterion to determine whether the system is delay-dependent or delay independent stable.

Step-by-step analysis

The procedure for delay margin computation of the two-area LFC-EVs system shown in Figure 1 is based on the following steps:

Step (1) The parameters of the two-area LFC-EVs system and PI controller gains $(K_{P}, K_{I})$ are selected.

Step (2) The characteristic equation of the two-area LFC-EVs system is determined in the form of (3).

Step (3) The exponential terms are eliminated from the characteristic equation in (3) by applying the recursive procedure defined in (6)–(13) or simply substituting n=2 in (14) and the following augmented characteristic equation is obtained

W (ω_{c}^{2}) = a_{0}^{(1)} (j ω_{c}) a_{0}^{(1)} (- j ω_{c}) - a_{1}^{(1)} (j ω_{c}) a_{1}^{(1)} (- j ω_{c}) = 0

(24)

where

\begin{matrix} a_{0}^{(1)} (j ω_{c}) = a_{0} (- j ω_{c}) a_{0} (j ω_{c}) - a_{2} (j ω_{c}) a_{2} (- j ω_{c}) \\ a_{1}^{(1)} (j ω_{c}) = a_{0} (- j ω_{c}) a_{1} (j ω_{c}) - a_{2} (j ω_{c}) a_{1} (- j ω_{c}) \end{matrix}

(25)

Step (4) All positive real roots of (24) represented as ${ω_{c}} = {ω_{c 1}, ω_{c 2}, \dots, ω_{cq}}$ are computed.

Step (5) The corresponding root tendencies for positive real roots are determined using the following expression obtained from (17) and (18): ${RT |}_{s = j ω_{c}} = sgn [α W' (ω_{c}^{2})]$ with $α = a_{0}^{(1)} (j ω_{c}) .$

Step (6) By employing (16) for $n = 2$ , the stability delay margin expression for the two-area LFC-EVs system is obtained and stability delay margins for real positive roots identified in Step (4) having positive root tendency of $RT = + 1$ are computed. The stability delay margin expression is as follows

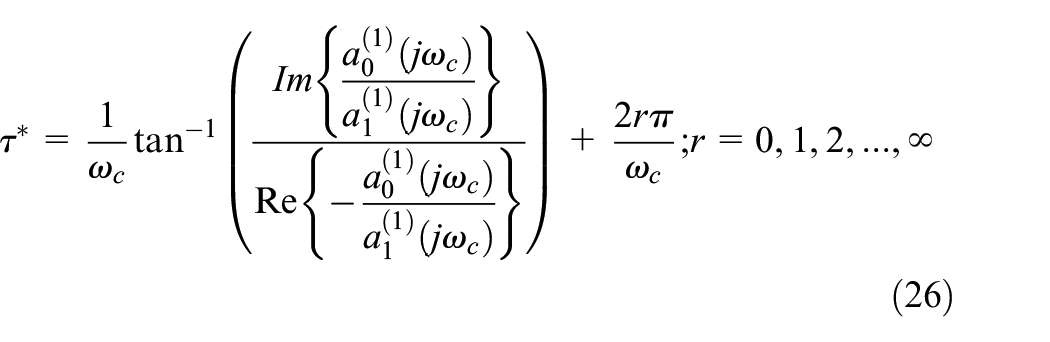

τ^{*} = \frac{1}{ω_{c}} \tan^{- 1} (\frac{Im {\frac{a_{0}^{(1)} (j ω_{c})}{a_{1}^{(1)} (j ω_{c})}}}{Re {- \frac{a_{0}^{(1)} (j ω_{c})}{a_{1}^{(1)} (j ω_{c})}}}) + \frac{2 r π}{ω_{c}}; r = 0, 1, 2, \dots, \infty

(26)

Step (7) The stability delay margin of the two-area LFC-EVs system is chosen as the smallest value $τ_{\min}^{*}$ among those computed in Step (6).

Step (8) The accuracy of theoretically computed delay margins is validated by the QPmR algorithm together with time-domain simulations.

Results

The verification studies employing the QPmR algorithm and the time-domain simulations along with the system parameters used for computing stability delay margins in two-area LFC-EVs are presented in this section. The parameters for both the areas $(i = 1, 2)$ are given as follows (Ko and Sung, 2018)

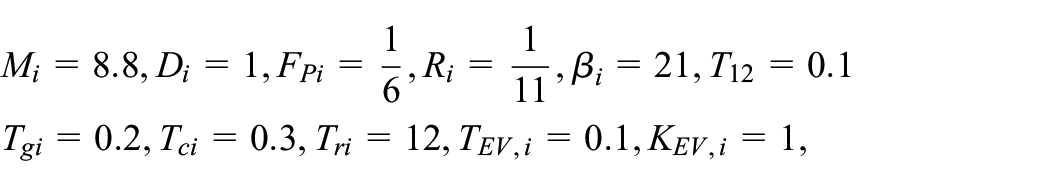

\begin{matrix} M_{i} = 8.8, D_{i} = 1, F_{Pi} = \frac{1}{6}, R_{i} = \frac{1}{11}, β_{i} = 21, T_{12} = 0.1 \\ T_{gi} = 0.2, T_{ci} = 0.3, T_{ri} = 12, T_{EV, i} = 0.1, K_{EV, i} = 1, \end{matrix}

Theoretical results of two-area LFC-EVs system

The stability delay margin values using Steps 1–7 for various PI controller gains and different participation factors of EVs, $(α_{1} = 0.1, 0.2 and 0.3)$ are computed and presented in Table 1, Table 2 and Table 3, respectively. Generally, results in all these three tables indicate that for a fixed value of $K_{P}$ , the stability delay margin decreases when $K_{I}$ is increased inferring a less stable system. It is to be observed that the stability delay margins are not determined for the values of $K_{P}$ and $K_{I}$ when the delay-free system $(τ = 0)$ is unstable. The corresponding positions are shown by (*) in Table 1 and Table 2. However, the system is observed to be delay-independent stable for $K_{P}$ and $K_{I}$ values marked by (∞) in Table 1. Moreover, the stability delay margin increases with an increase in $K_{P}$ for almost all values of $K_{I}$ . Another important aspect of stability delay margins analysis is to compare the results presented in Table 2 with the results presented by Naveed et al. (2019), where the stability delay margins of the single-area LFC-EVs system are computed using Rekasius substitution method. Results reported by Naveed et al. (2019) indicate that stability margins for the same power sharing factors increase while decoupling the two area LFC-EVs. This scenario indicates that multi-area LFC-EVs systems have a negative effect on stability delay margins.

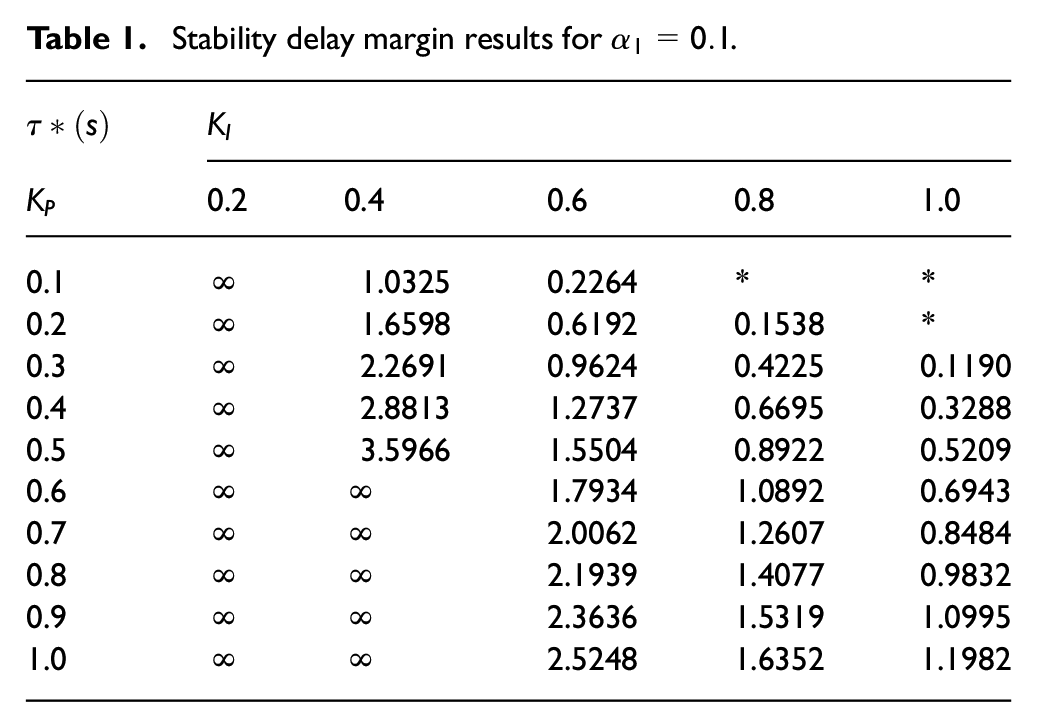

Table 1.

Stability delay margin results for $α_{1} = 0.1$ .

$τ * (s)$	$K_{I}$
$K_{P}$	0.2	0.4	0.6	0.8	1.0
0.1	∞	1.0325	0.2264	*	*
0.2	∞	1.6598	0.6192	0.1538	*
0.3	∞	2.2691	0.9624	0.4225	0.1190
0.4	∞	2.8813	1.2737	0.6695	0.3288
0.5	∞	3.5966	1.5504	0.8922	0.5209
0.6	∞	∞	1.7934	1.0892	0.6943
0.7	∞	∞	2.0062	1.2607	0.8484
0.8	∞	∞	2.1939	1.4077	0.9832
0.9	∞	∞	2.3636	1.5319	1.0995
1.0	∞	∞	2.5248	1.6352	1.1982

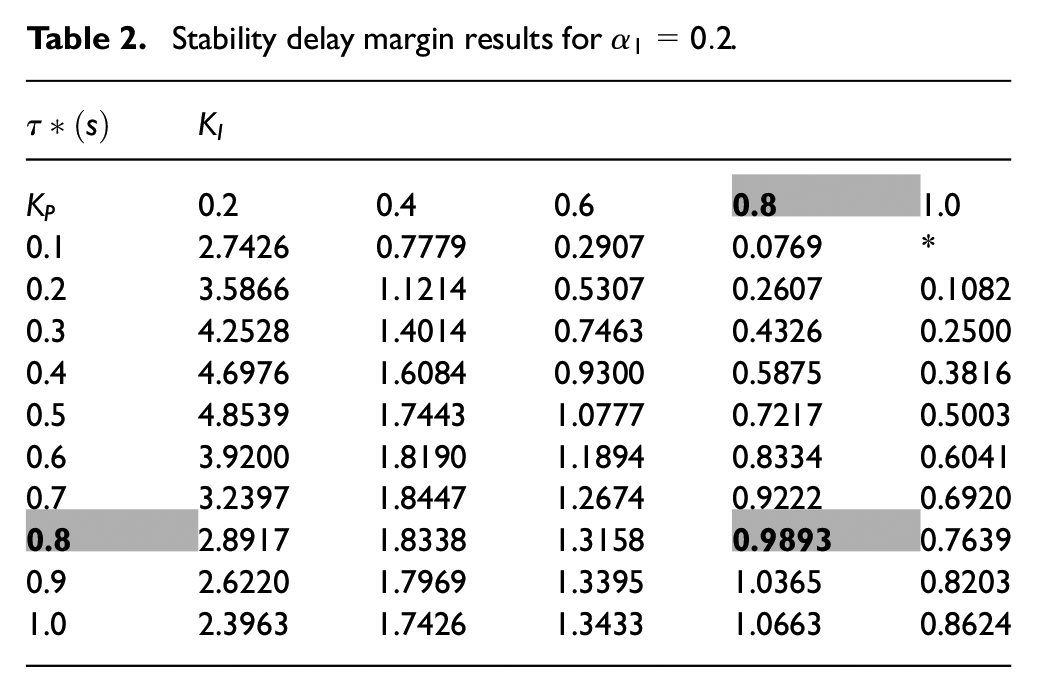

Table 2.

Stability delay margin results for $α_{1} = 0.2$ .

$τ * (s)$	$K_{I}$
$K_{P}$	0.2	0.4	0.6	0.8	1.0
0.1	2.7426	0.7779	0.2907	0.0769	*
0.2	3.5866	1.1214	0.5307	0.2607	0.1082
0.3	4.2528	1.4014	0.7463	0.4326	0.2500
0.4	4.6976	1.6084	0.9300	0.5875	0.3816
0.5	4.8539	1.7443	1.0777	0.7217	0.5003
0.6	3.9200	1.8190	1.1894	0.8334	0.6041
0.7	3.2397	1.8447	1.2674	0.9222	0.6920
0.8	2.8917	1.8338	1.3158	0.9893	0.7639
0.9	2.6220	1.7969	1.3395	1.0365	0.8203
1.0	2.3963	1.7426	1.3433	1.0663	0.8624

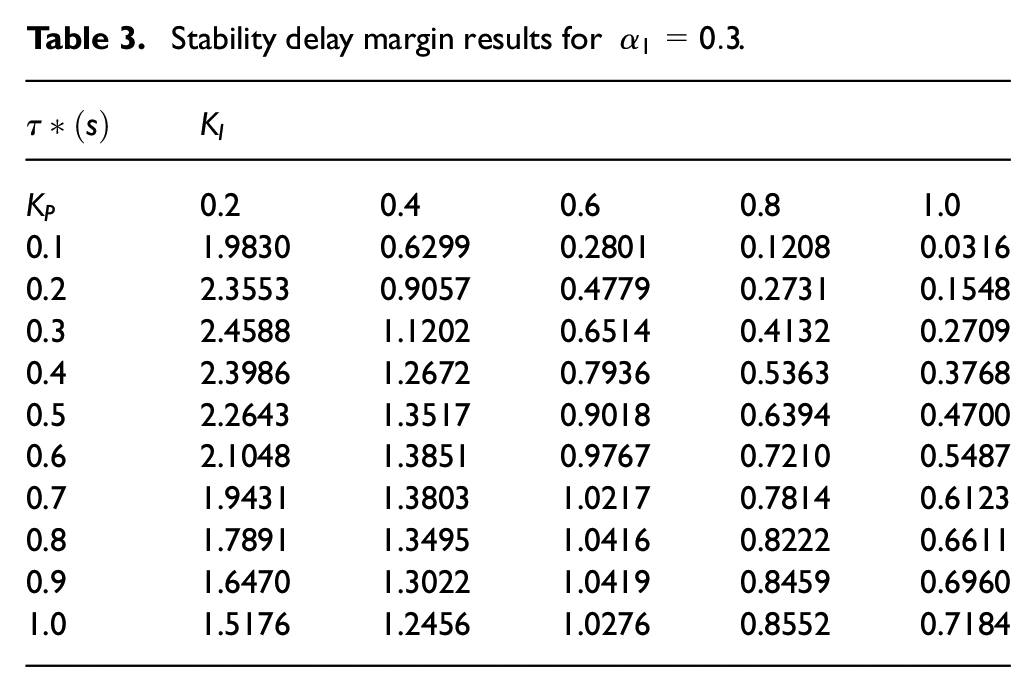

Table 3.

Stability delay margin results for $α_{1} = 0.3$ .

$τ * (s)$	$K_{I}$
$K_{P}$	0.2	0.4	0.6	0.8	1.0
0.1	1.9830	0.6299	0.2801	0.1208	0.0316
0.2	2.3553	0.9057	0.4779	0.2731	0.1548
0.3	2.4588	1.1202	0.6514	0.4132	0.2709
0.4	2.3986	1.2672	0.7936	0.5363	0.3768
0.5	2.2643	1.3517	0.9018	0.6394	0.4700
0.6	2.1048	1.3851	0.9767	0.7210	0.5487
0.7	1.9431	1.3803	1.0217	0.7814	0.6123
0.8	1.7891	1.3495	1.0416	0.8222	0.6611
0.9	1.6470	1.3022	1.0419	0.8459	0.6960
1.0	1.5176	1.2456	1.0276	0.8552	0.7184

The EVs aggregator power-sharing factor should also be investigated for different values of $K_{P}$ and $K_{I}$ to observe its impact on the stability delay margin. As shown in Figure 2, the stability delay margin decreases with an increase in the EVs aggregators participation factors of $α_{11}$ and $α_{12}$ for a fixed $K_{P} = 0.8$ and different values of integral controller gain, that is, $K_{I} = 0.4, 0.6$ and $0.8,$ respectively. It is to be noticed that Figure 2 demonstrates the same trend shown by Table 1, Table 2 and Table 3, in which delay margins are decreasing when $K_{I}$ is increased for a fixed $K_{P}$ . Moreover, it is imperative to study the impact of tie-line power exchange between the two areas on stability delay margins. Figure 3 shows the impact of tie-line power coefficient on the stability delay margin. For $K_{P} = 0.4$ and $K_{I} = 0.4$ , it can be seen in Figure 3 that the delay margins decrease when the tie-line power coefficient $T_{12}$ is increased.

Figure 2.

Variation of stability delay margin against the EVs participation factors.

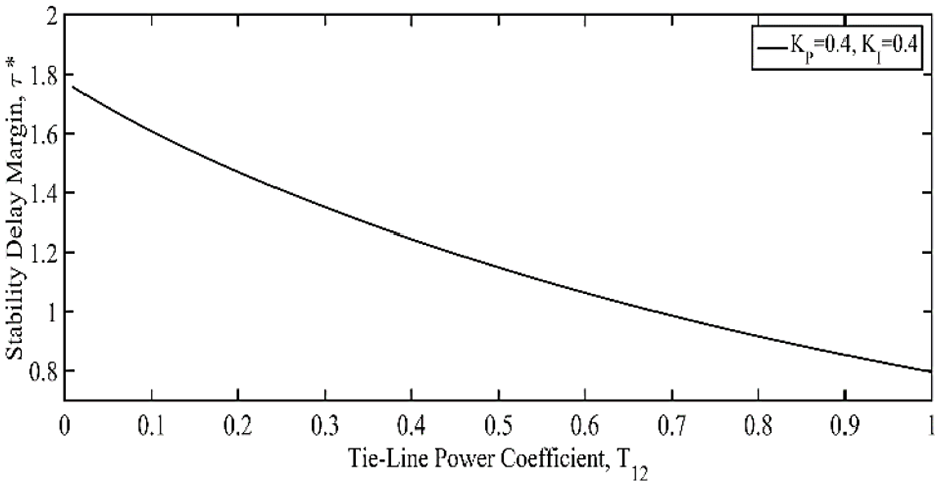

Figure 3.

Variation of stability delay margin against the tie-line power.

It must be stated here that Rekasius substitution method was also applied by us to the same LFC system and exactly the same stability delay margins presented in Tables 1–3 were determined. This is an expected result since Rekasius substitution is also an exact frequency-domain method similar to the direct method. This observation was also reported in our earlier studies where both methods were applied to the delay margin computation of LFC system not including EVs aggregators (Sönmez and Ayasun, 2019; Sönmez et al., 2016). For this reason, delay margin results obtained by Rekasius substitution method are not presented here.

Verification of the theoretical results by QPmR algorithm and simulation studies

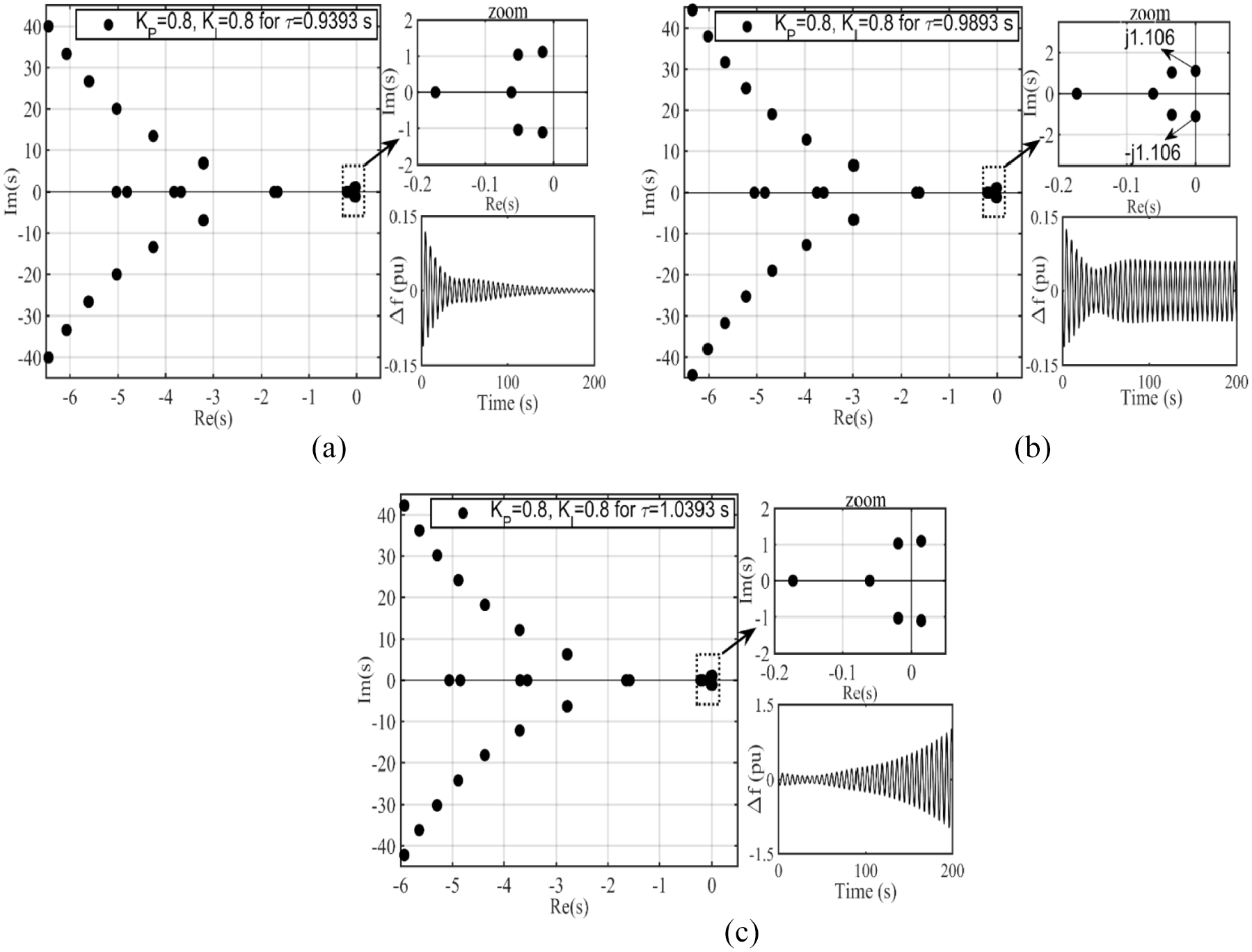

For $K_{P} = 0.8, K_{I} = 0.8$ and $α_{11} = α_{12} = 0.2$ , the theoretical delay margin is validated by QPmR algorithm and Matlab/Simulink model of the two-area LFCs system in Figure 2. For time-domain simulations, a step load disturbance of $Δ P_{L 1} = 0.05 pu$ at $t = 0 s$ is considered and the root location of the characteristic equation of (3) and frequency deviation response of area 1 are obtained. As shown in Table 2, the stability delay margin is determined as $τ^{*} = 0.9893 s$ for these parameters. Figure 4(a) illustrates that for $τ^{*} = 0.9393 s$ (a relatively smaller value than the calculated delay margin value $τ^{*} = 0.9893 s$ ), all roots are situated in the stable left half of $s -$ plane and decaying oscillations can be seen in the frequency deviation of the area 1. This indicates that the LFC-EVs system is stable for the given time delay value. Whereas, the dominant roots distribution of (2) and frequency response of the LFC-EVs system for $τ^{*} = 0.9893 s$ is shown in Figure 4(b). It is to be noted that the system has a pair of complex roots on the $j ω -$ axis and the frequency deviation response of the area 1 exhibits sustained oscillations indicating a marginally stable LFC-EVs system. The results shown in Figure 4(b) clearly prove the accuracy of the theoretical stability delay margin.

Figure 4.

Dominant roots distribution of two-area LFC-EVs system.

If the time delay $τ$ exceeds the stability delay margin $τ^{*}$ , there will be growing oscillations in the frequency response making the system unstable. For $τ^{*} = 1.0393 s$ , a pair of complex roots has crossed the $j ω -$ axis and now it is situated in the unstable right half of the $s -$ plane. In this scenario, growing oscillations in the frequency response can be seen in Figure 4(c) showing that the LFC-EVs system has become unstable.

Conclusions

This work has presented a comprehensive analysis of the impact of integrating EVs aggregators with communication delay into conventional LFC system. For a given load sharing scheme, stability delay margins of a two-area LFC-EVs system have been determined for a large number of PI controller gains using a frequency domain exact method. Even though delay margin results are presented for a two-area LFC-EVs system, the direct method could be easily extended to multi-area LFC-EVs systems. The following observations are made from the obtained results:

Stability delay margin becomes smaller with an increase in the integral gain.

For any given PI controller gains, an increase in EVs aggregator participation factor results in a decrease in stability delay margin.

If the PI controller gains and participation factor of EVs are not properly selected, the participation of EVs aggregator with a communication time delay may cause instability and degrade the dynamic response against an expectation that EVs are capable of improving dynamic performance of the LFC systems.

Delay margin values decrease with an increase in the power exchange between the control areas. This indicates that multi-area LFC-EVs system will have smaller delay margins due the mutual interactions between the control areas.

It is expected that the results will allow us to determine communication delay requirements for EVs aggregators participating in frequency regulation service and to appropriately select PI controller gains that will ensure a stable operation of LFC-EVs. The computation of stability regions in the parameter space of PI controller gains for multi-area LFC-EVs system and verification of the accuracy of those theoretical results by simulation studies and QPmR algorithm are placed in prospective studies. Additionally, robust stability regions in the space of PI controller gains will be computed using the complex Kharitinov’s theorem that will guarantee the stability for all admissible uncertainties. Finally, stability delay margins computation will be performed using Rekasius substitution together with Dixon resultant and discriminant theory (Yuan et al., 2020) to evaluate the delay-dependent stability of multi-area LFC-EVs systems with multiple incommensurate delays.

Footnotes

Appendix A

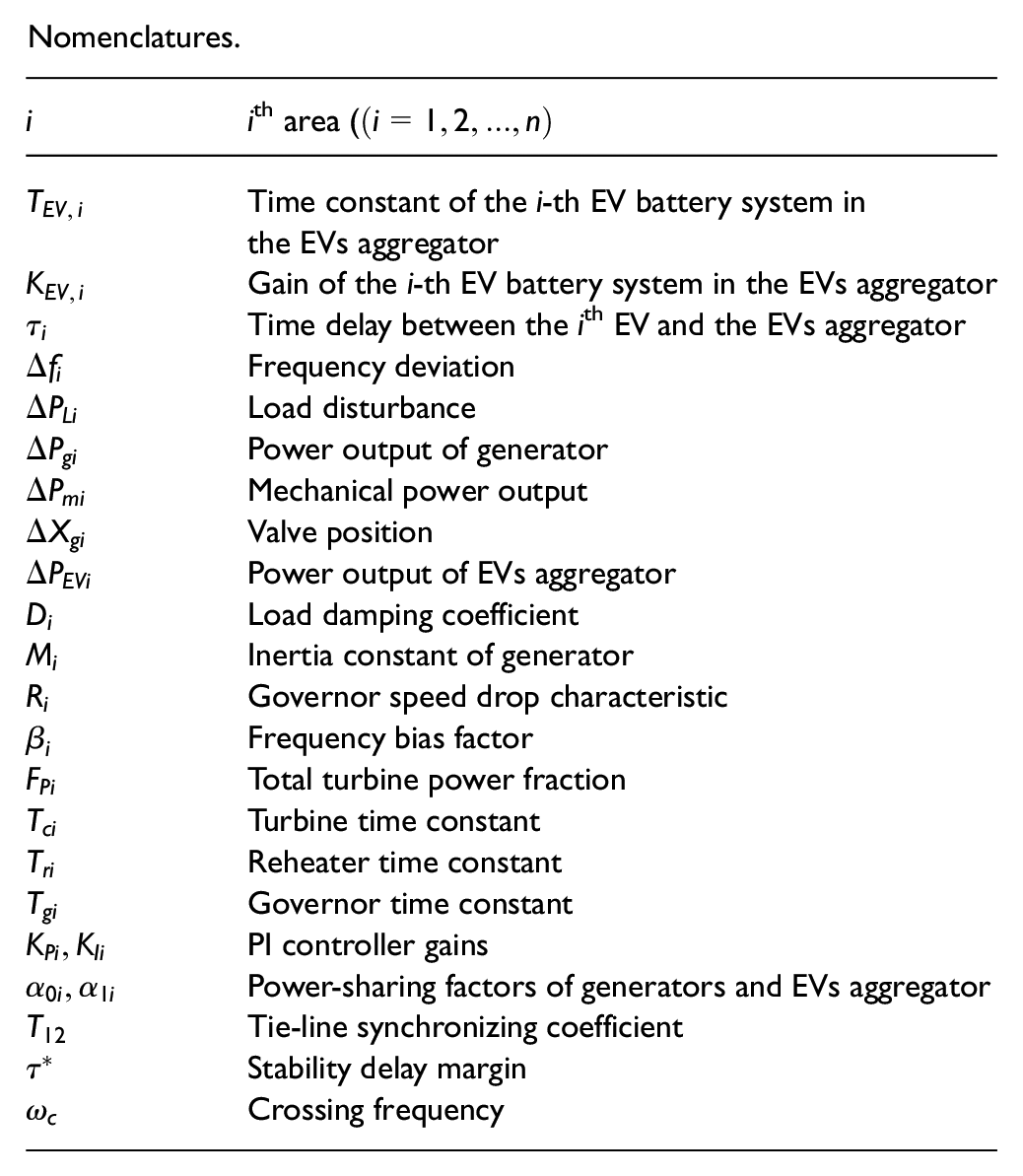

Nomenclatures.

$i$	i^th area ( $(i = 1, 2, \dots, n)$
$T_{EV, i}$	Time constant of the i-th EV battery system in the EVs aggregator
$K_{EV, i}$	Gain of the i-th EV battery system in the EVs aggregator
$τ_{i}$	Time delay between the i^th EV and the EVs aggregator
$Δ f_{i}$	Frequency deviation
$Δ P_{Li}$	Load disturbance
$Δ P_{gi}$	Power output of generator
$Δ P_{mi}$	Mechanical power output
$Δ X_{gi}$	Valve position
$Δ P_{EVi}$	Power output of EVs aggregator
$D_{i}$	Load damping coefficient
$M_{i}$	Inertia constant of generator
$R_{i}$	Governor speed drop characteristic
$β_{i}$	Frequency bias factor
$F_{Pi}$	Total turbine power fraction
$T_{ci}$	Turbine time constant
$T_{ri}$	Reheater time constant
$T_{gi}$	Governor time constant
$K_{Pi}, K_{Ii}$	PI controller gains
$α_{0 i}, α_{1 i}$	Power-sharing factors of generators and EVs aggregator
$T_{12}$	Tie-line synchronizing coefficient
$τ^{*}$	Stability delay margin
$ω_{c}$	Crossing frequency

Appendix B

The system, input and output matrices in (2) are given as follows

A_{o} = [\begin{matrix} {[A_{11}]}_{6 x 6} & {[A_{12}]}_{6 x 6} & {[B_{13}]}_{6 x 1} \\ {[A_{21}]}_{6 x 6} & {[A_{22}]}_{6 x 6} & {[B_{23}]}_{6 x 1} \\ {[B_{31}]}_{1 x 6} & {[B_{32}]}_{1 x 6} & {[B_{33}]}_{1 x 1} \end{matrix}],

\begin{matrix} A_{ii} = \\ [\begin{matrix} - \frac{D_{i}}{M_{i}} & \frac{1}{M_{i}} & 0 & 0 & \frac{1}{M_{i}} & 0 \\ 0 & - \frac{1}{T_{ci}} & \frac{1}{T_{ci}} & 0 & 0 & 0 \\ - \frac{F_{Pi}}{T_{gi} R_{i}} & 0 & - \frac{1}{T_{ri}} & (\frac{1}{T_{ri}} - \frac{F_{Pi}}{T_{gi}}) & 0 & \frac{α_{0 i} F_{Pi}}{T_{gi}} \\ - \frac{1}{T_{gi} R_{i}} & 0 & 0 & - \frac{1}{T_{gi}} & 0 & \frac{α_{0 i}}{T_{gi}} \\ 0 & 0 & 0 & 0 & - \frac{1}{T_{EVi}} & 0 \\ K_{Pi} (\frac{β_{i} D_{i}}{M_{i}} - 2 π T_{12}) - K_{Ii} β_{i} & - \frac{K_{Pi} β_{i}}{M_{i}} & 0 & 0 & - \frac{K_{Pi} β_{i}}{M_{i}} & 0 \end{matrix}], \end{matrix}

i = 1, 2

\begin{matrix} A_{ij} = [\begin{matrix} 0_{5 x 1} & 0_{5 x 5} \\ 2 π T_{12} K_{Pi} & 0_{1 x 5} \end{matrix}], \\ i, j = 1, 2 (i \neq j) \\ A_{d} = [\begin{matrix} {[A_{d 11}]}_{6 x 6} & {[A_{d 12}]}_{6 x 7} \\ {[A_{d 21}]}_{7 x 6} & {[A_{d 22}]}_{7 x 7} \end{matrix}], \\ {A_{d}}_{11} = [\begin{matrix} 0_{4 x 5} & 0_{4 x 1} \\ 0_{1 x 5} & \frac{α_{11} K_{EV 1}}{T_{EV 1}} \\ 0_{1 x 5} & 0 \end{matrix}]; A_{d 12} = [0_{6 x 7}]; \\ {A_{d}}_{22} = [\begin{matrix} 0_{4 x 6} & 0_{4 x 1} \\ 0_{1 x 6} & \frac{α_{12} K_{EV 2}}{T_{EV 2}} \\ 0_{2 x 6} & 0_{2 x 1} \end{matrix}]; A_{d 21} = [0_{7 x 6}] \\ B_{13} = {[\begin{matrix} - \frac{1}{M_{1}} & 0_{1 x 4} & \frac{K_{P 1} β_{1}}{M_{1}} - K_{I 1} \end{matrix}]}^{T}, \\ B_{23} = {[\begin{matrix} \frac{1}{M_{2}} & 0_{1 x 4} & \frac{K_{P 2} β_{2}}{M_{2}} - K_{I 2} \end{matrix}]}^{T}, \\ B_{31} = - B_{32} = [\begin{matrix} 2 π T_{12} & 0_{1 x 5} \end{matrix}], \\ B_{33} = 0, \end{matrix}

\begin{matrix} F = {[\begin{matrix} F_{1} \\ F_{2} \end{matrix}]}^{T}; F_{1} = = [\begin{matrix} - \frac{1}{M_{1}} & 0_{1 x 12} \end{matrix}], \\ F_{2} = [\begin{matrix} 0_{1 x 6} & - \frac{1}{M_{2}} & 0_{1 x 6} \end{matrix}], \end{matrix}

C = [\begin{matrix} C_{1} \\ C_{2} \end{matrix}], C_{1} = [\begin{matrix} 1 & 0_{1 x 11} & 1 \\ 0_{1 x 5} & 1 & 0_{1 x 7} \end{matrix}],

C_{2} = [\begin{matrix} 0_{1 x 6} & 1 & 0_{1 x 4} & 0 & - 1 \\ 0_{1 x 6} & 0 & 0_{1 x 4} & 1 & 0 \end{matrix}] .

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the Scientific and Technological Research Council of Turkey (TÜBITAK) under [Project No. 118E744].

ORCID iDs

Ausnain Naveed

Şahin Sönmez

Saffet Ayasun

References

Ayasun

(2009) Computation of time delay margin for power system small-signal stability. European Transactions on Electrical Power 19(7): 949–968.

Ayasun

Gelen

(2010) Stability analysis of a generator excitation control system with time delays. Electrical Engineering 91(6): 347–355.

Bessa

Matos

(2010) The role of an aggregator agent for EV in the electrical market. In: Proceedings of 7th Mediterranean Conference and Exhibition on Power Generation, Transmission, Distribution and Energy Conversion, Agia Napa, Cyprus, 7–10 November 2010, pp. 7–10. UK: IET.

Bessa

Matos

Soares

(2014) Framework for the participation of EV aggregators in the electricity market. In: Proceedings of 2014 IEEE International Electric Vehicle Conference (IEVC), Florence, Italy, 17–19 December 2014, pp. 1–8. USA: IEEE.

Bevrani

Ghosh

Ledwich

(2010) Renewable energy sources and frequency regulation: Survey and new perspectives. IET Renewable Power Generation 4(5): 438–457.

Bhowmik

Tomsovic

Bose

(2004) Communication model for third party load frequency control. IEEE Transactions on Power Systems 19(1): 543–548.

Bilh

Naik

El-Shatshat

(2017) Evaluating electric vehicles’ response time to regulation signals in smart grids. IEEE Transactions on Industrial Informatics 14(3): 1210–1219.

Carreiroa

Jorgea

Antunesa

(2017) Energy management systems aggregators: A literature survey. Renewable and Sustainable. Energy Reviews 73: 1160–1172.

Chen

Nett

(1995) A new method for computing delay margins for stability of linear delay systems. System and Control Letters 26(2): 107–117.

10.

Delice

Sipahi

(2012) Delay-independent stability test for systems with multiple time-delays. IEEE Transactions on Automatic Control 57(4): 963–972.

11.

Dong

Jia

, et al. (2018) Time-delay stability analysis for hybrid energy storage system with hierarchical control in DC micro-grids. IEEE Transactions on Smart Grid 9(6): 6633–6645.

12.

Fan

Jiang

Zhang

Mao

(2016) Frequency regulation of multi-area power systems with plug-in electric vehicles considering communication delays. IET Generation, Transmission & Distribution 10(14): 3481–3491.

13.

Fazelina

Sipahi

Olgaç

(2007) Stability robustness analysis of multiple time-delayed systems using building block concept. IEEE Transactions on Automatic Control 52(5): 799–810.

14.

Kharitonov

Chen

(2003) Stability of Time Delay Systems. Boston: Birkhauser.

15.

Guille

Gross

(2009) A conceptual framework for the vehicle-to-grid (V2G) implementation. Energy Policy 37(11): 4379–4390.

16.

Gündüz

Sönmez

Ayasun

(2017) Comprehensive gain and phase margins based stability analysis of micro-grid frequency control system with constant communication time delay. IET Generation, Transmission & Distribution 11(3): 719–729.

17.

Gündüz

Sönmez

Ayasun

(2019) Gain and phase margins based stability analysis of micro grid systems with time delay by using Rekasius substitution. Journal of the Faculty of Engineering and Architecture of Gazi University 34(1): 553–567.

18.

Han

Sezaki

(2010) Development of an optimal vehicle-to-grid aggregator for frequency regulation. IEEE Transactions on Smart Grid 1(1): 65–72.

19.

Wang

Xie

Lin

(2007) Further improvement of free-weighting matrices technique for systems with time-varying delay. IEEE Transactions on Automatic Control 52(2): 293–299.

20.

Jia

Cao

Zhang

(2007) A simple approach to determine power system delay margin. In Proc. IEEE Power Engineering Society General Meeting, Tampa, Florida, 24–28 June 2007, pp. 1–7. USA: IEEE.

21.

Jiang

Yao

, et al. (2012) Delay-dependent stability for load frequency control with constant and time-varying delays. IEEE Transactions on Power Systems 27(2): 932–941.

22.

Jin

Zhang

, et al. (2019) Delay-dependent stability analysis of multi-area load frequency control with enhanced accuracy and computation efficiency. IEEE Transactions on Power Systems 34(5): 3687–3696.

23.

Kempton

Letendre

(1997) Electric vehicles as a new power source for electric utilities. Transportation Research Part D: Transport and Environment 2(3): 157–175.

24.

Khalil

Peng

(2018) Delay margin computation for load frequency control system with plug-in electric vehicles. International Journal of Power and Energy Systems 38(3): 1–17.

25.

Sung

(2018) The effect of EV aggregators with time-varying delays on the stability of a load frequency control system. IEEE Transactions on Power Systems 33(1): 669–680.

26.

Sung

(2019) The effect of cellular network-based communication delays in an EV aggregator’s domain on frequency regulation service. IEEE Transactions on Smart Grid 10(1): 65–73.

27.

Han

Sung

(2018) A new mileage payment for EV aggregators with varying delays in frequency regulation service. IEEE Transactions on Smart Grid 9(4): 2616–2624.

28.

Kundur

(1994) Power System Stability and Control. New York: McGraw-Hill.

29.

Liu

Zhu

Jiang

(2008) Stability analysis of time delayed power system based on cluster treatment of characteristic roots method. In: Proceedings of IEEE Power Engineering Society General Meeting, Pittsburgh, PA, 20–24 July 2008, pp. 1–6. USA: IEEE.

30.

Liu

Jiang

Cao

(2007) Stability of power system in consideration of signal time delays. In: Proceedings of IEEE Power Engineering Society General Meeting, Tampa, USA, 24–28 June 2007, pp. 1–7. USA: IEEE.

31.

Liu

Seuret

Xia

Gouaisbaut

Ariba

(2019) Bessel-Laguerre inequality and its application to systems with infinite distributed delays. Automatica 109: 108562–108568.

32.

Mak

Holland

(2002) Migrating electrical power network SCADA systems to TCP/IP and ethernet networking. Power Engineering Journal 16(6): 305–311.

33.

Mary

Rangarajan

(2015) Dependent stability analysis of load frequency control system using Rekasius substitution and Resultant theory. International Journal of Applied Engineering Research 10(10): 25107–2511.

34.

Ekanayake

, et al. (2013) Primary frequency response from electric vehicles in the Great Britain power system. IEEE Transactions on Smart Grid 4(2): 1142–1150.

35.

Naveed

Sönmez

Ayasun

(2019) Identification of stability delay margin for load frequency control system with electric vehicles aggregator using Rekasius substitution. In: Proceedings of 2019 IEEE Milan PowerTech, Milan, Italy, 23–27 June 2019, pp. 1–6. USA: IEEE

36.

Olgac

Sipahi

(2002) An exact method for the stability analysis of time-delayed linear time-invariant (LTI) systems. IEEE Transactions on Automatic Control 47(5): 793–797.

37.

Pekař

Gao

(2018) Spectrum Analysis of LTI continuous-time systems with constant delays: A literature overview of some recent results. IEEE Access 6: 35457–35491.

38.

Pekař

Prokop

(2018) Direct stability-switching delays determination procedure with differential averaging. Transactions of the Institute of Measurement and Control 40(7): 2217–2226.

39.

Pham

Nahavandi

Hien

, et al. (2017) Static output feedback frequency stabilization of time-delay power systems with coordinated electric vehicles state of charge control. IEEE Transactions on Power Systems 32(5): 3862–3874.

40.

Pham

Trinh

AMT

(2019) Distributed control of HVDC links for primary frequency control of time-delay power systems. IEEE Transactions on Power Systems 34(2): 1301–1314.

41.

Pillai

Bak-Jensen

(2011) Integration of vehicle-to-grid in the western Danish power system. IEEE Transactions on Sustainable Energy 2(1): 12–19.

42.

Quinn

Zimmerle

Bradley

(2010) The effect of communication architecture on the availability, reliability, and economics of plug-in hybrid electric vehicle-to-grid ancillary services. Journal of Power Sources 195(5): 1500–1509.

43.

Rekasius

(1980) A stability test for systems with delays. In: Proceedings of Joint Automatic Control Conference, San Francisco, CA, August 1980, Paper No. TP9-A. USA: IEEE.

44.

Seuret

Gouaisbaut

(2015) Hierarchy of LMI conditions for the stability analysis of time-delay systems. System and Control Letters 81(1): 1–7.

45.

Sipahi

Olgac

(2005) Complete stability robustness of third-order LTI multiple time-delay systems. Automatica 41(8): 1413–1422.

46.

Simulink (2000) Model-Based and System-Based Design, Using Simulinkd. Natick: MathWorks.

47.

Sönmez

Ayasun

(2019) Gain and phase margins-based delay margin computation of load frequency control systems using Rekasius substitution. Transactions of the Institute of Measurement and Control 41(12): 3385–3395.

48.

Sönmez

Ayasun

Nwankpa

. (2016) An exact method for computing delay margin for stability of load frequency control systems with constant communication delays. IEEE Transactions on Power Systems 31(1): 370–377.

49.

Thangaiah

Parthasarathy

(2016) Delay-dependent stability analysis of microgrid with constant and time-varying communication delays. Electric Power Components and Systems 44(13): 1441–1452.

50.

Stépán

Wang

(2016) Delay-dependent stability analysis by using delay-independent integral evaluation. Automatica 70: 153–157.

51.

Stépán

Wang

(2017) Time delay systems theory, numerics, applications, and experiments. In: Insperger

Ersal

Orosz

(eds) Numerical Stability Test of Linear Time Delay Systems of Neutral Type. New York: Springer, pp. 77-91.

52.

Vyhlídal

Zítek

(2009) Mapping based algorithm for large-scale computation of quasi-polynomial zeros. IEEE Transactions on Automatic Control 54(1): 171–177.

53.

Walton

Marshall

(1987) Direct method for TDS stability analysis. IEE Proceeding Part D 134(2): 101–107.

54.

Yao

Jiang

, et al. (2011) Delay-dependent stability analysis of the power system with a wide-area damping controller embedded. IEEE Transactions on Power Systems 26(1): 233–240.

55.

Yao

Jiang

, et al. (2014) Wide-area damping controller of FACTS devices for inter-area oscillations considering communication time delays. IEEE Transactions on Power Systems 29(1): 318–329.

56.

Yao

Wong

Schober

(2017) Robust frequency regulation capacity scheduling algorithm for electric vehicles. IEEE Transactions on Smart Grid 8(2): 984–997.

57.

Tomsovic

(2004) Application of linear matrix inequalities for load frequency control with communication delays. IEEE Transactions on Power Systems 19(3): 1508–1515.

58.

Yuan

Song

Gao

, et al. (2020) A novel frequency-domain approach for the exact range of imaginary spectra and the stability analysis of LTI systems with two delays. IEEE Access 8: 36595–36601.

59.

Zeng

Wu M

She

(2015) Free-matrix-based integral inequality for stability analysis of systems with time-varying delay. IEEE Transactions on Automatic Control 60(10): 2768–2772.

60.

Zeng

Liu

Wang

(2019) A generalized free-matrix-based integral inequality for stability analysis of time-varying delay systems Applied Mathematics and Computation 354: 1–8.

61.

Zeng

Zhai

, et al. (2020) New insights on stability of sampled-data systems with time-delay. Applied Mathematics and Computation 374: 125041–125051.

62.

Zhang

Jiang

, et al. (2013) Further results on delay-dependent stability of multi- area load frequency control. IEEE Transactions on Power Systems 28(4): 4465–4474.

63.

Zhang

Jiang

, et al. (2016) Delay-variation-dependent stability of delayed discrete-time systems. IEEE Transactions Automatic Control 61(9): 266–2669.

64.

Zhang

Long

, et al. (2020) A relaxed quadratic function negative-determination lemma and its application to time-delay systems. Automatica 113: 108764–108769.

65.

Zhou

Zeng

Xia

(2020) Load frequency stability analysis of time-delayed multi-area power systems with EVs aggregators based on Bessel-Legendre inequality and model reduction technique. IEEE Access 8: 99948–99955.
