Numerical approach for partial eigenstructure assignment problems in singular vibrating structure using active control

Abstract

In the paper, the partial eigenstructure assignment problems are investigated using acceleration–velocity–displacement active control in a singular vibrating structure. The problems are transformed into solving matrix equations using the receptance matrix method. Iterative sequences are constructed, and the iterative feasibility is presented for solving the matrix equations. The partial eigenvectors of the closed-loop system are reassigned by imposing modal constraints. An algorithm is proposed to get numerical solutions of the derived matrix equations. The initial value condition is discussed to obtain the minimum norm solution of the partial eigenstructure assignment problems. The designed acceleration–velocity–displacement active control can solve the partial eigenstructure assignment problems depending only on original vibrating structure information. The proposed numerical algorithm can obtain the minimum norms of controller gain, which implies minimum energy consumption. Numerical examples are given to illustrate the effectiveness of the proposed methods.

Keywords

Singular vibrating structure partial eigenstructure assignment problems minimum norm acceleration–velocity–displacement active control

Introduction

The large complex structural dynamics and vibration such as automobiles, rotors, space crafts, and buildings, bridges are generally modeled or approximated to a second-order matrix differential equation (Abdelaziz, 2014; Bai and Wan, 2017; Singh et al., 2014)

M \overset{\cdot\cdot}{x} (t) + D \dot{x} (t) + K x (t) = f (t)

where $M, D, K$ are known as the mass, damping, and stiffness matrices, respectively. $x (t)$ means the displacement vector. $f (t)$ is the external force vector. The vibrating structure differential equation is modeled using finite element technique, which are general description of the vibration processes in mechanical models.

With the development and perfection of descriptor systems theory, modern control methods have been widely applied in various fields of engineering practice (Duan, 2010; Liang et al., 2019; Zheng, 2002). As the significant research topics of modern control theory, the research works on second-order systems have attracted considerable attentions (Gu, Zang, and Duan, 2016; Gu, Zhao, Liu, et al., 2016; Guzzardo et al., 2013; Tian and Duan, 2020; Zhang and Liu, 2012). There exists many control precisions and frequency problems caused by some eigenvalues in second-order systems, such as mechanical arm vibration systems (Li and Zhang, 2019), path channels control systems (Shi et al., 2020), and biomechanical systems (Guruguntla and Lal, 2021). These problems can be solved by the eigenstructure assignment method which is to change some eigenvalues and corresponding eigenvectors using the appropriate control law (Cai et al., 2011; Zhang et al., 2015).

The eigenstructure assignment is usually investigated in second-order systems via solving quadratic eigenvalues assignment problems (Bai and Wan, 2017; Bai et al., 2018; Lu and Bai, 2021). In the past few years, researchers use a variety of different methods to study the quadratic eigenvalues assignment problems in second-order vibration systems. The polynomial coprime factorization approach for solving the eigenstructure assignment problems can be found in the earlier literatures (Duan, 2002; Zhou and Duan, 2008). The singular value decomposition methods are presented to derive the parametric expressions of feedback controller in Abdelaziz (2015, 2016) and Yu and Zhang (2016). The parametric approach is used to consider the minimum norm eigenvalues assignment problems in Abdelaziz (2014) and Bai and Wan (2017). The measured receptance methods are given to investigate the eigenstructure assignment problems with unknown system matrices in Bai et al. (2018), Lu and Bai (2021), Ram and Mottershead (2013), and Mottershead et al. (2009). It is worth noting that the research works using the polynomial coprime factorization and singular value decomposition approaches take no account of the feedback controller minimum norm problems. Both the receptance matrix methods and parametric approach are not concerned the singular vibration systems case.

Several different active control laws are used to investigate the partial quadratic eigenvalues assignment problems for second-order vibrating structure. The velocity–displacement active control is mainly used for vibrating structure in the earlier studies because of some successful applications in practice (Bai et al., 2010, 2013; Cai et al., 2011; Liu et al., 2019). Recently, the acceleration–velocity active control has attracted a great interesting in second-order vibration system on account of use of accelerometers which can obtain the acceleration signals precisely (Abdelaziz, 2014, 2015; Araujo et al., 2016). The acceleration–displacement active control is well used to discuss the partial eigenvalues assignment problems in undamped second-order vibrating structure (Abdelaziz, 2019; Zhang et al., 2014). Significantly, there are strict requirements for the systems model about the three active controllers in studying the partial eigenvalues assignment problems. The velocity–displacement active control applies to discussing the non-singular second-order vibration systems while the acceleration–velocity active control requires the stiffness matrix being non-singular. The acceleration–displacement active control works mainly for no damping second-order vibration systems.

This work devotes to address the partial eigenstructure assignment problems and minimum norm solutions in singular second-order vibrating structure. The acceleration–velocity–displacement active controller is designed to solve the problems. The study will overcome the issues mentioned above. The main contributions of this paper are summarized as follows:

The partial eigenstructure assignment problems for the singular vibrating structure are considered.

The acceleration–velocity–displacement active controller is designed, which can apply to the singular vibrating structure with singular stiffness matrix.

The general modal constraints results are given to reassign the partial eigenvectors of closed-loop system. An algorithm is proposed to solve the partial eigenstructure assignment problems.

The minimum norm problems of active controller are discussed. An initial value condition for obtaining minimum norm solution is derived.

This paper is organized as follows. In section “Preliminaries and problem formulation,” problem formulation and some preliminaries are given. Section “Partial eigenstructure assignment problems” presents a solving method for the partial eigenstructure assignment problems. In section “Minimum norm solutions,” the minimum norm problems of active controller are discussed. Section “Numerical examples” gives several numerical simulations to verify the effectiveness of derived results.

Preliminaries and problem formulation

Consider the following singular vibrating structure

M \overset{\cdot\cdot}{x} (t) + D \overset{\cdot}{x} (t) + Kx (t) = Bu (t)

(1)

where $M$ , $D$ , and $K \in R^{n \times n}$ are, respectively, the mass, damping, and stiffness matrices with $M$ being singular. $B \in R^{n \times m}$ is the control input matrix, and $B$ has the full column rank. $\overset{\cdot\cdot}{x} (t), \overset{\cdot}{x} (t)$ , and $x (t)$ are, respectively, the acceleration, velocity, and displacement vectors. $u (t)$ is the control vector.

The acceleration, velocity, and displacement signals are obtainable for vibrating structure in practice. The accelerations can be obtained using the accelerometers. From the viewpoint of measurement, accelerometer is a favorable sensor to measure the dynamic structural responses. The velocity can be measured using the velocity sensor. The velocity sensor has been widely used in various fields of engineering. The displacement can be obtained easily by distance-measuring sensor (for more details, one can see Abdelaziz (2016, 2019) and Siahlooei et al. (2020)).

The open-loop pencil of the system (1) is

P (s) = s^{2} M + s D + K .

(2)

For any $s = σ + i ω \in C$ , where $i = \sqrt{- 1}$ , the receptance matrix is given by

H (s) = P {(s)}^{- 1} = {(s^{2} M + s D + K)}^{- 1}

(3)

which can be obtained from the measured $H (i ω)$ by fitting the rational fraction polynomials without the information of the system matrices (for more details about receptance matrix, one can see Bai et al. (2018), Lu and Bai (2021), Mottershead et al. (2009), and Ram and Mottershead (2013)).

Definition 1

The system (1) is called regular, if $\det (P (s))$ is not identically to zero.

It is known that the singular second-order vibrating structure is widely existed in engineering practice (Abdelaziz, 2015; Duan, 2010; Yu and Zhang, 2016; Zhang and Zhang, 2019). The vibrating structure with the mass matrix $M$ being sparse is often considered as a singular second-order system in modeling. The singular vibrating structure is often assumed to be regular. Mathematically, the state responses of non-regular singular vibrating structure are not unique, which leads to some challenges in engineering applications.

Generally, the numbers of finite eigenvalues of the regular singular second-order vibrating structure (1) are less than $2 n$ . The regular singular vibrating structure has eigenvalues and corresponding eigenvectors in infinity, which is called the infinite eigenstructure. The infinite eigenstructure can give rise to the saturation phenomena, which may destroy the whole system. These unwanted infinite eigenstructure can be replaced using the partial eigenstructure assignment method via appropriate active control law. The process is also called as normalization of the regular singular vibrating structure.

Remark 1

$M, D, K$ are required to be symmetric in Cai et al. (2011), Zhang et al. (2015), and Yu (2020). The mass matrix $M$ is assumed to be non-singular in Cai et al. (2011) and Liu et al. (2019). The system model is undamped in Zhang et al. (2014). In the paper, the requirements of system matrices being symmetric, non-singular, and undamped are removed. The system (1) works for more general models.

The partial eigenstructure assignment problems are to change some unwanted eigenpairs of open-loop system and the rest eigenpairs are kept unchanged, and the resulted closed-loop vibrating structure is normal. To fulfill this objective, the active control law is taken as

u (t) = F_{1}^{T} \overset{\cdot\cdot}{x} (t) + F_{2}^{T} \dot{x} (t) + F_{3}^{T} x (t)

(4)

where $F_{1}, F_{2}, F_{3} \in R^{n \times m}$ are the feedback gain matrices. In vibrating structure, the feedback (4) is called acceleration–velocity–displacement active control. Substituting equation (4) into equation (1) gives

M \overset{\cdot\cdot}{x} (t) + D \dot{x} (t) + K x (t) = B (F_{1}^{T} \overset{\cdot\cdot}{x} (t) + F_{2}^{T} \dot{x} (t) + F_{3}^{T} x (t))

(5)

The closed-loop pencil is

\tilde{P} (s) = s^{2} (M - {BF}_{1}^{T}) + s (D - {BF}_{2}^{T}) + (K - {BF}_{3}^{T})

(6)

Using the active control (4), eigenpairs of open-loop system can be reassigned, and the total number of finite eigenvalues of resulted closed-loop system can reach $2 n$ .

The designed acceleration–velocity–displacement active controller can stabilize the singular vibrating structure. In fact, it is known that if all the eigenvalues have negative real parts, then the system is stable. The partial eigenstructure assignment problems are to reassign the partial unwanted eigenvalues with desired eigenvalues. The unstable eigenvalues are usually regarded as unwanted eigenvalues, and desired eigenvalues are generally chosen with stable eigenvalues. The acceleration–velocity–displacement active controller is designed to solve the partial eigenstructure assignment problems. Therefore, the closed-loop system is stable using the active control (4).

In order to describe studied problems well, some notations are required.

Notations

$λ_{1}, \dots, λ_{p_{1}}$ is the open-loop system finite eigenvalues to be changed. $λ_{p + 1}, \dots, λ_{2 n}$ is the system eigenvalues to keep unchanged. $μ_{1}, \dots, μ_{p}$ is the closed-loop system eigenvalues that to be assigned. $Λ_{1} = diag (λ_{p + 1}, \dots, λ_{2 n})$ . $Λ_{c} = diag (μ_{1}, \dots, μ_{p})$ . $A_{1} = [a_{p + 1}, \dots, a_{2 n}]$ is the right eigenvectors matrix associated with $Λ_{1}$ . $A_{2} = [a_{1}, \dots, a_{p}]$ is the right eigenvectors matrix associated with $Λ_{c}$ . $e_{i}$ is the ith unit vector. $a_{k, i}$ is the ith row of $a_{k}$ . $X^{T}$ is the transpose of matrix $X$ . $X^{H}$ is the conjugate transpose of matrix $X$ . $tr (X)$ is the trace of matrix $X$ . $X^{-}$ is the $g$ -inverse of matrix $X$ . $∥ X ∥_{F}$ is the Frobenius norm of matrix $X$ . ⊗ is the Kronecker product of matrix. $< x, y >$ is the inner product of vectors $x$ and $y$ . $R$ is the set of real numbers. $C$ is the set of complex numbers. $R (X)$ is the range space of matrix $X$ . $X^{+}$ is the Moore–Penrose inverse of matrix $X$ .

Throughout this paper, all the finite eigenvalues are assumed to be different and simple. Using the above preliminaries and notations, the partial eigenstructure assignment problems for singular vibrating structure can be summarized as follows.

Problem 1

Given a regular singular second-order vibrating structure with form (1) and a set ${μ_{1}, \dots, μ_{p}}$ . To find a controller with form (4) such that the infinite eigenstructure and partial finite eigenstructure are replaced by eigenpairs ${μ_{k}, a_{k}}_{k = 1}^{p}$ .

It follows immediately from quadratic eigenstructure relations that Problem 1 is equivalent to finding an active control (4) such that the following equations hold

M A_{1} Λ_{1}^{2} + D A_{1} Λ_{1} + K A_{1} = 0

(7)

(M - B {F_{1}}^{T}) A_{1} Λ_{1}^{2} + (D - B {F_{2}}^{T}) A_{1} Λ_{1} + (K - B {F_{3}}^{T}) A_{1} = 0

(8)

(M - B {F_{1}}^{T}) A_{2} Λ_{c}^{2} + (D - B {F_{2}}^{T}) A_{2} Λ_{c} + (K - B {F_{3}}^{T}) A_{2} = 0

(9)

To reduce the influence of white noise and keep system performance without overflow in engineering practice, the minimum norm problem for feedback controller is usually investigated. The minimum controller norms imply minimum energy consumption, which has an important economic significance. The minimum norm partial eigenstructure assignment problem can be described as follows.

Problem 2

To design a minimum norm active controller with form (4) for solving the Problem 1. That is, to find an active control (4) such that

J = \min {J (F_{1}, F_{2}, F_{3})}

where

J (F_{1}, F_{2}, F_{3}) = {({‖ F_{1} ‖}_{F}^{2} + {‖ F_{2} ‖}_{F}^{2} + {‖ F_{3} ‖}_{F}^{2})}^{\frac{1}{2}}

Remark 2

The velocity–displacement active control is used to discuss the non-singular second-order vibration systems (Bai and Wan, 2017; Bai et al., 2018), while the acceleration–velocity active control requires stiffness matrix being non-singular (Araujo et al., 2016; Yu, 2020; Zhang et al., 2015). The acceleration–displacement active control is designed mainly for no damping systems (Zhang et al., 2014). The acceleration–velocity–displacement active control (4) can work for singular vibrating structure with singular stiffness matrix. Therefore, the active control (4) applies to more general vibrating structure.

Partial eigenstructure assignment problems

The objective of this section is to solve Problem 1. Using the receptance matrix and Kronecker product, Problem (1) is transformed into solving linear matrix equations. Modal constraints are imposed to reassign the partial eigenvectors. Several iterative sequences are constructed to obtain the numerical solutions of the linear matrix equations under a given round off error. The results are presented by three theorems.

Theorem 1

Assume that system (1) is regular, and $rank [P (s), B] = n$ . Then, Problem 1 can be transformed into solving the following linear matrix equations

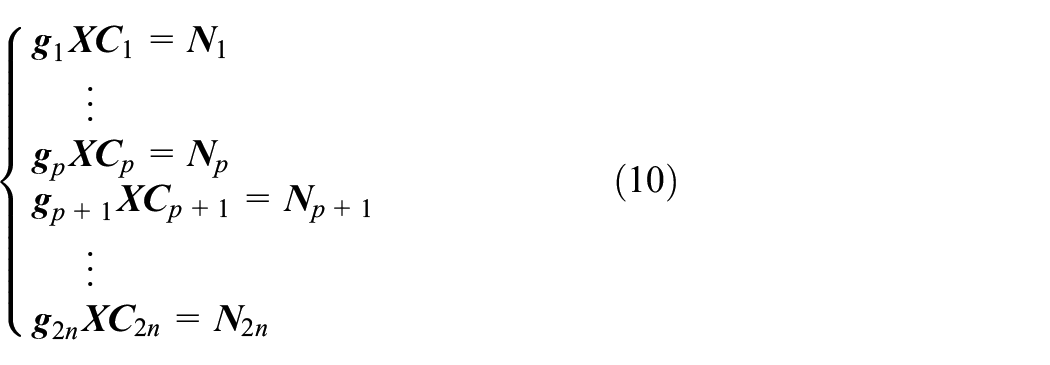

{\begin{matrix} g_{1} X C_{1} = N_{1} \\ ⋮ \\ g_{p} X C_{p} = N_{p} \\ g_{p + 1} X C_{p + 1} = N_{p + 1} \\ ⋮ \\ g_{2 n} X C_{2 n} = N_{2 n} \end{matrix}

(10)

where

X = [F_{1}, F_{2}, F_{3}] \in R^{n \times 3 m}

(11)

\begin{matrix} g_{k} = a_{k}^{T}, C_{k} = [\begin{matrix} C_{k 1} \\ C_{k 2} \\ I_{m} \end{matrix}], C_{k 1} = [\begin{matrix} μ_{k}^{2} & \dots & 0 \\ ⋮ & ⋱ & ⋮ \\ 0 & \dots & μ_{k}^{2} \end{matrix}], \\ C_{k 2} = [\begin{matrix} μ_{k} & \dots & 0 \\ ⋮ & ⋱ & ⋮ \\ 0 & \dots & μ_{k} \end{matrix}] \end{matrix}

(12)

\begin{matrix} g_{k} \in C^{1 \times n}, C_{k 1}, C_{k 2} \in C^{m \times m}, \\ N_{k} = [β_{μ_{k, 1}}, \dots, β_{μ_{k, m}}] \in C^{1 \times m}, k = 1, \dots, p \end{matrix}

(13)

and

\begin{matrix} g_{l} = a_{l}^{T}, C_{l} = [\begin{matrix} C_{l 1} \\ C_{l 2} \\ I_{m} \end{matrix}], C_{l 1} = [\begin{matrix} λ_{l}^{2} & \dots & 0 \\ ⋮ & ⋱ & ⋮ \\ 0 & \dots & λ_{l}^{2} \end{matrix}], \\ C_{l 2} = [\begin{matrix} λ_{l} & \dots & 0 \\ ⋮ & ⋱ & ⋮ \\ 0 & \dots & λ_{l} \end{matrix}] \end{matrix}

(14)

\begin{matrix} g_{l} \in C^{1 \times n}, C_{l 1}, C_{l 2} \in C^{m \times m}, N_{l} = [0_{l, 1}, \dots, 0_{l, m}] \in R^{1 \times m}, \\ l = p + 1, \dots, 2 n \end{matrix}

(15)

Proof

Equation (9) implies that

(μ_{k}^{2} M + μ_{k} D + K) a_{k} = B (μ_{k}^{2} F_{1}^{T} + μ_{k} F_{2}^{T} + {F_{3}}^{T}) a_{k}, k = 1, \dots, p

(16)

Expanding the right-hand side of equation (16), one can obtain

\begin{matrix} (μ_{k}^{2} M + μ_{k} D + K) a_{k} \\ = (\sum_{j = 1}^{m} b_{j} (μ_{k}^{2} f_{1, j}^{T} + μ_{k} f_{2, j}^{T} + f_{3, j}^{T})) a_{k}, k = 1, \dots, p \end{matrix}

(17)

where $b_{j}, f_{1, j}, f_{2, j}, f_{3, j}$ are, respectively, the jth column of $B, F_{1}, F_{2}, F_{3}$ . It follows from equations (3) and (17) that

a_{k} = H (μ_{k}) (\sum_{j = 1}^{m} b_{i} (μ_{k}^{2} f_{1, i}^{T} + μ_{k} f_{2, i}^{T} + f_{3, i}^{T})) a_{k}, k = 1, \dots, p

(18)

Denote

R_{μ_{k}, j} : = H (μ_{k}) B, r_{μ_{k}, j} : = H (μ_{k}) b_{j}

(19)

and

β_{μ_{k}, j} = (μ_{k}^{2} f_{1, j}^{T} + μ_{k} f_{2, j}^{T} + f_{3 . j}^{T}) a_{k}, j = 1, \dots, m; k = 1, \dots, p

(20)

Then, $β_{μ_{k}, j}$ is a scalar, and

a_{k} = \sum_{j = 1}^{m} β_{μ_{k}, j} r_{μ_{k}, j}, k = 1, \dots, p

(21)

Note that equation (20) can be expressed equivalently as the form

θ_{k} x = β_{k}, k = 1, \dots, p

(22)

with

\begin{matrix} x = {[f_{1, 1}^{T}, \dots, f_{1, m}^{T}, f_{2, 1}^{T}, \dots, f_{2, m}^{T}, f_{3, 1}^{T}, \dots, f_{3, m}^{T}]}^{T} \\ θ_{k} = [θ_{k 1}, θ_{k 2}, θ_{k 3}], θ_{k 1} = [\begin{matrix} μ_{k}^{2} a_{k}^{T} & \dots & 0 \\ ⋮ & ⋱ & ⋮ \\ 0 & \dots & μ_{k}^{2} a_{k}^{T} \end{matrix}], \\ θ_{k 2} = [\begin{matrix} μ_{k} a_{k}^{T} & \dots & 0 \\ ⋮ & ⋱ & ⋮ \\ 0 & \dots & μ_{k} a_{k}^{T} \end{matrix}] \\ θ_{k 3} = [\begin{matrix} a_{k}^{T} & \dots & 0 \\ ⋮ & ⋱ & ⋮ \\ 0 & \dots & a_{k}^{T} \end{matrix}], θ_{k 1}, θ_{k 2}, θ_{k 3} \in C^{m \times mn}, \\ β_{k} = [\begin{matrix} β_{μ_{k, 1}} \\ ⋮ \\ β_{μ_{k, m}} \end{matrix}] \in C^{m \times 1} \end{matrix}

For the unchanged eigenvalues and eigenvectors, equations (7) and (8) imply that

B ({F_{1}}^{T} Λ_{1}^{2} + {F_{2}}^{T} Λ_{1} + {F_{3}}^{T}) A_{1} = 0

(23)

that is

B (λ_{l}^{2} F_{1}^{T} + λ_{l} F_{2}^{T} + {F_{3}}^{T}) a_{l} = 0, l = p + 1, \dots, 2 n

(24)

Equation (24) can be expressed equivalently as

(\sum_{j = 1}^{m} b_{j} (λ_{l}^{2} f_{1, j}^{T} + λ_{l} f_{2, j}^{T} + f_{3, j}^{T})) a_{l} = 0, l = p + 1, \dots, 2 n

(25)

Then, equation (25) is equivalent to the following form

B A_{1} x = 0

(26)

It follows immediately from equation (26) that

θ_{l} x = 0_{l}, l = p + 1, \dots, 2 n

(27)

where

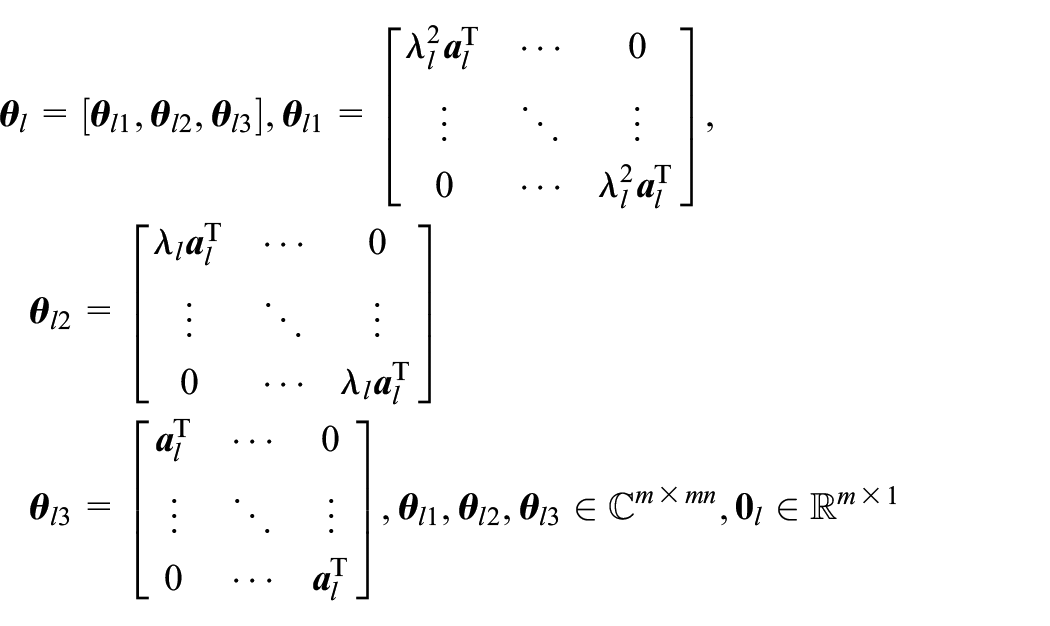

\begin{matrix} θ_{l} = [θ_{l 1}, θ_{l 2}, θ_{l 3}], θ_{l 1} = [\begin{matrix} λ_{l}^{2} a_{l}^{T} & \dots & 0 \\ ⋮ & ⋱ & ⋮ \\ 0 & \dots & λ_{l}^{2} a_{l}^{T} \end{matrix}], \\ θ_{l 2} = [\begin{matrix} λ_{l} a_{l}^{T} & \dots & 0 \\ ⋮ & ⋱ & ⋮ \\ 0 & \dots & λ_{l} a_{l}^{T} \end{matrix}] \\ θ_{l 3} = [\begin{matrix} a_{l}^{T} & \dots & 0 \\ ⋮ & ⋱ & ⋮ \\ 0 & \dots & a_{l}^{T} \end{matrix}], θ_{l 1}, θ_{l 2}, θ_{l 3} \in C^{m \times mn}, 0_{l} \in R^{m \times 1} \end{matrix}

It follows from equations (22) and (27) that

[\begin{matrix} θ_{k} \\ θ_{l} \end{matrix}] x = [\begin{matrix} β \\ 0 \end{matrix}], k = 1, \dots, p; l = p + 1, \dots, 2 n

(28)

where

β = {[β_{1}^{T}, \dots, β_{p}^{T}]}^{T} \in C^{pm}

Using the Kronecker product, $θ_{k}, θ_{l}$ can be rewritten as

θ_{k} = C_{k}^{T} \otimes g_{k}, k = 1, \dots, p

(29)

θ_{l} = C_{l}^{T} \otimes g_{l}, l = p + 1, \dots, 2 n

(30)

where $g_{k}, g_{l}, C_{k}, C_{l}$ are of the forms described in Theorem 1. Note that

vec (X) = x

(31)

then it follows from equations (28)–(30) that

[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}] vec (X) = [\begin{matrix} vec (N_{1}) \\ ⋮ \\ vec (N_{2 n}) \end{matrix}]

(32)

where

\begin{matrix} N_{k} = [β_{μ_{k, 1}}, \dots, β_{μ_{k, m}}] \in C^{1 \times m}, k = 1, \dots, p \\ N_{l} = [0_{l, 1}, \dots, 0_{l, m}] \in R^{1 \times m}, l = p + 1, \dots, 2 n \end{matrix}

It is seen that

vec (N_{i}) = (C_{i}^{T} \otimes g_{i}) vec (X) = vec (g_{i} X C_{i}), i = 1, \dots, 2 n

It is clear that equation (32) is equivalent to equation (10).

Theorem 1 shows that Problem 1 is transformed into solving linear matrix equations (10). $F_{1}, F_{2}, F_{3}$ can be obtained by solving equation (10). Next, solution procedures for equation (10) are to be discussed.

Obviously, the objective is to find a common solution of each equation in (10). A necessary condition for the existence of the common solution is that each equation of (10) is solvable. It is seen from Huang et al. (2008) and Yao (2001) that if an equation is consistent, then this equation is solvable. For each equation of (10), the following conclusion holds, which can be easily obtained from Wang (2006) and Ram et al. (2011).

Lemma 1

Each equation of (10)

g_{j} X C_{j} = N_{j}

is consistent if and only if there exist the matrices $g_{j}^{-}$ and $C_{j}^{-}$ such that

g_{j}^{-} g_{j} N_{j} C_{j}^{-} C_{j} = N_{j}

where $g_{j}^{-}$ and $C_{j}^{-}$ represent, respectively, the $g$ -inverse of $g_{j}$ and $C_{j}$ (for more details about $g$ -inverse and consistency, one can see Huang et al. (2008) and Yao (2001)).

Theorem 2

Assume that equation (10) is consistent. For given matrix $X_{1} \in C^{n \times 3 m}$ , set

Q_{1} = P_{1} = \sum_{k = 1}^{2 n} g_{k}^{H} (N_{k} - g_{k} X_{1} C_{k}) C_{k}^{H}

(33)

R_{1} = [\begin{matrix} N_{1} - g_{1} X_{1} C_{1} \\ ⋮ \\ N_{2 n} - g_{2 n} X_{1} C_{2 n} \end{matrix}]

(34)

Define sequences ${R_{j}}_{j = 1}^{\infty}$ with

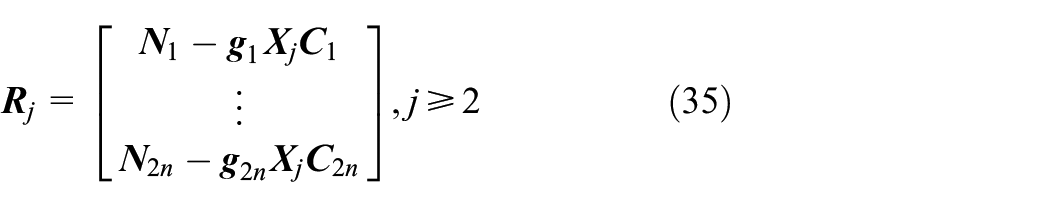

R_{j} = [\begin{matrix} N_{1} - g_{1} X_{j} C_{1} \\ ⋮ \\ N_{2 n} - g_{2 n} X_{j} C_{2 n} \end{matrix}], j \geq 2

(35)

where

X_{j} = X_{j - 1} + \frac{‖ R_{j - 1} ‖_{F}^{2}}{‖ P_{j - 1} ‖_{F}^{2}} P_{j - 1}

(36)

P_{j} = Q_{j} - \frac{tr (Q_{j}^{H} P_{j - 1})}{‖ P_{j - 1} ‖_{F}^{2}} P_{j - 1}

(37)

Q_{j} = \sum_{k = 1}^{2 n} g_{k}^{H} (N_{k} - g_{k} X_{j} C_{k}) C_{k}^{H}

(38)

Then, the sequences ${R_{j}}_{j = 1}^{\infty}$ are converged.

Proof

Noting that

\begin{matrix} tr (R_{j}^{H} R_{i}) = tr ({[\begin{matrix} N_{1} - g_{1} X_{j} C_{1} \\ ⋮ \\ N_{2 n} - g_{2 n} X_{j} C_{2 n} \end{matrix}]}^{H} R_{i}) \\ = tr ({[\begin{matrix} N_{1} - g_{1} X_{j - 1} C_{1} + g_{1} \frac{‖ R_{j - 1} ‖_{F}^{2}}{‖ P_{j - 1} ‖_{F}^{2}} P_{j - 1} C_{1} \\ ⋮ \\ N_{2 n} - g_{2 n} X_{j - 1} C_{2 n} + g_{2 n} \frac{‖ R_{j - 1} ‖_{F}^{2}}{‖ P_{j - 1} ‖_{F}^{2}} P_{j - 1} C_{2 n} \end{matrix}]}^{H} R_{i}) \\ = tr (R_{j - 1}^{H} R_{i}) - tr [\frac{‖ R_{j - 1} ‖_{F}^{2}}{‖ P_{j - 1} ‖_{F}^{2}} C_{1}^{H} P_{j - 1}^{H} g_{1}^{H} (N_{1} - g_{1} X_{i} C_{1}) + \\ \dots + \frac{‖ R_{j - 1} ‖_{F}^{2}}{‖ P_{j - 1} ‖_{F}^{2}} C_{2 n}^{H} P_{j - 1}^{H} g_{2 n}^{H} (N_{2 n} - g_{2 n} X_{i} C_{2 n})] \\ = tr (R_{j - 1}^{H} R_{i}) - \frac{‖ R_{j - 1} ‖_{F}^{2}}{‖ P_{j - 1} ‖_{F}^{2}} tr (P_{j - 1}^{H} Q_{i}) \end{matrix}

(39)

Next, the mathematical induction is to be used to prove several important results. Three stages are required to complete the proof.

First, let $X^{*}$ be a non-trivial solution of equation (10). To prove that

tr ({(X^{*} - X_{j})}^{H} P_{j}) = tr (R_{j}^{H} R_{j})

For $j = 1$

\begin{array}{l} tr ({(X^{*} - X_{1})}^{H} P_{1}) = tr {(X^{*} - X_{1})}^{H} Q_{1} \\ = tr {(X^{*} - X_{1})}^{H} [g_{1}^{H} (N_{1} - g_{1} X_{1} C_{1}) C_{1}^{H} + \\ \dots + g_{2 n}^{H} (N_{2 n} - g_{2 n} X_{1} C_{2 n}) C_{2 n}^{H}] \\ = tr [C_{1}^{H} {(X^{*} - X_{1})}^{H} g_{1}^{H} (N_{1} - g_{1} X_{1} C_{1}) + \\ \dots + C_{2 n}^{H} {(X^{*} - X_{1})}^{H} g_{2 n}^{H} (N_{2 n} - g_{2 n} X_{1} C_{2 n}) \\ = tr ({[\begin{matrix} C_{1} (X^{*} - X_{1}) g_{1} \\ ⋮ \\ C_{2 n} (X^{*} - X_{1}) g_{2 n} \end{matrix}]}^{H} [\begin{matrix} N_{1} - g_{1} X_{1} C_{1} \\ ⋮ \\ N_{2 n} - g_{2 n} X_{1} C_{2 n} \end{matrix}]) \\ = tr (R_{1}^{H} R_{1}) \end{array}

Assume that

tr ({(X^{*} - X_{j - 1})}^{H} P_{j - 1}) = tr (R_{j - 1}^{H} R_{j - 1})

(40)

Then

\begin{matrix} tr ({(X^{*} - X_{j})}^{H} P_{j - 1}) = tr ({(X^{*} - X_{j - 1})}^{H} P_{j - 1}) \\ - \frac{‖ R_{j - 1} ‖_{F}^{2}}{‖ P_{j - 1} ‖_{F}^{2}} tr (P_{j - 1}^{H} P_{j - 1}) = 0 \end{matrix}

and

\begin{matrix} tr ({(X^{*} - X_{j})}^{H} P_{j}) = tr \\ ({(X^{*} - X_{j})}^{H} (Q_{j} - \frac{tr (Q_{j}^{H} P_{j - 1})}{‖ P_{j - 1} ‖_{F}^{2}} P_{j - 1})) \\ = tr {(X^{*} - X_{j})}^{H} Q_{j} - tr ({(X^{*} - X_{j})}^{H} P_{j - 1}) \\ \frac{tr (Q_{j}^{H} P_{j - 1})}{‖ P_{j - 1} ‖_{F}^{2}} \\ = tr {(X^{*} - X_{j})}^{H} Q_{j} = tr (R_{j}^{H} R_{j}) \end{matrix}

Thus

tr ({(X^{*} - X_{j})}^{H} P_{j}) = tr (R_{j}^{H} R_{j}) = ‖ R_{j} ‖_{F}^{2}

which implies that if $R_{j} \neq 0$ , then $P_{j} \neq 0, j \geq 1$ .

Second, to prove that

tr (R_{j}^{H} R_{i}) = 0, tr (P_{j}^{H} P_{i}) = 0, i, j = 1, \dots, k, i \neq j, k \geq 2

(41)

For $k = 2$

\begin{matrix} tr (R_{2}^{H} R_{1}) = tr (R_{1}^{H} R_{1}) - \frac{‖ R_{1} ‖_{F}^{2}}{‖ P_{1} ‖_{F}^{2}} tr (P_{1}^{H} Q_{1}) = 0 \\ tr (P_{2}^{H} P_{1}) = (tr (Q_{1}^{H} P_{1}) - \frac{tr (Q_{1}^{H} P_{1})}{‖ P_{1} ‖_{F}^{2}} tr (P_{1}^{H} P_{1})) = 0 \end{matrix}

Assume that equation (41) holds for $k = j$ , which implies that

tr (R_{j}^{H} R_{s}) = 0, tr (P_{j}^{H} P_{s}) = 0, s = 1, 2, \dots, j - 1

Then, it is obtained immediately that

\begin{matrix} tr (R_{j + 1}^{H} R_{j}) = tr (R_{j}^{H} R_{j}) - \frac{‖ R_{j} ‖_{F}^{2}}{‖ P_{j} ‖_{F}^{2}} tr (P_{j}^{H} Q_{j}) \\ = ‖ R_{j} ‖_{F}^{2} - \frac{‖ R_{j} ‖_{F}^{2}}{‖ P_{j} ‖_{F}^{2}} tr (P_{j}^{H} (\frac{tr (Q_{j}^{H} P_{j - 1})}{‖ P_{j - 1} ‖_{F}^{2}} P_{j - 1} + P_{j})) \\ = ‖ R_{j} ‖_{F}^{2} - \frac{‖ R_{j} ‖_{F}^{2}}{‖ P_{j} ‖_{F}^{2}} (tr (P_{j}^{H} P_{j}) + tr (P_{j}^{H} P_{j - 1}) \frac{tr (Q_{j}^{H} P_{j - 1})}{‖ P_{j - 1} ‖_{F}^{2}}) = 0 \end{matrix}

and

\begin{matrix} tr (P_{j + 1}^{H} P_{j}) = tr ({(Q_{j + 1} - \frac{tr (Q_{j + 1}^{H} P_{j})}{‖ P_{j} ‖_{F}^{2}} P_{j})}^{H} P_{j}) \\ = (tr (Q_{j + 1}^{H} P_{j}) - \frac{tr (Q_{j + 1}^{H} P_{j})}{‖ P_{j} ‖_{F}^{2}} tr (P_{j}^{H} P_{j})) = 0 \end{matrix}

Besides, for $i = 1, 2, \dots, j - 1$

\begin{matrix} tr (R_{j + 1}^{H} R_{i}) = tr (R_{j}^{H} R_{i}) - \frac{‖ R_{j} ‖_{F}^{2}}{∥ P_{j} ∥_{F}^{2}} \\ tr (P_{j}^{H} (P_{i} + \frac{tr (Q_{i}^{H} P_{i})}{‖ P_{i} ‖_{F}^{2}} P_{i - 1})) = 0 \end{matrix}

and

\begin{matrix} tr (P_{j + 1}^{H} P_{i}) = tr ({(Q_{j + 1} - \frac{tr (Q_{j + 1}^{H} P_{j})}{‖ P_{j} ‖_{F}^{2}} P_{j})}^{H} P_{i}) \\ = (tr (Q_{j + 1}^{H} P_{i}) - \frac{tr (Q_{j + 1}^{H} P_{j})}{‖ P_{j} ‖_{F}^{2}} tr (P_{j}^{H} P_{i})) \\ = \frac{‖ P_{i} ‖_{F}^{2}}{‖ R_{i} ‖_{F}^{2}} tr (R_{j + 1}^{H} (R_{i} - R_{i + 1})) = 0 \end{matrix}

Therefore

tr (R_{j + 1}^{H} R_{s}) = 0, tr (P_{j + 1}^{H} P_{s}) = 0, s = 1, \dots, j

Finally, if $R_{j} \neq 0$ , then $R_{3 mn + 1}$ can be obtained in the sequences ${R_{j}}_{j = 1}^{\infty}$ . Equation (41) implies

tr (R_{3 mn + 1}^{H} R_{i}) = 0, i = 1, \dots, 3 mn

(42)

It is noted from equations (41) and (42) that ${R_{j}}_{j = 1}^{3 mn}$ is a set of orthogonal basis of space $ℂ^{n \times 3 m}$ . Thus, $R_{3 m n + 1} = 0$ . The proof is completed.

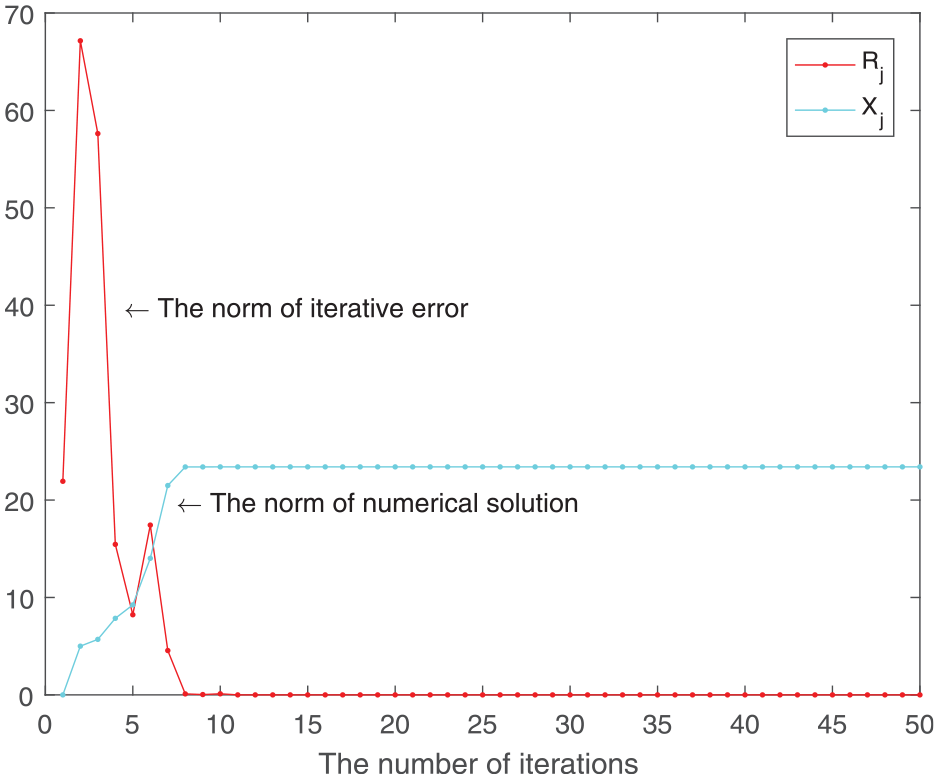

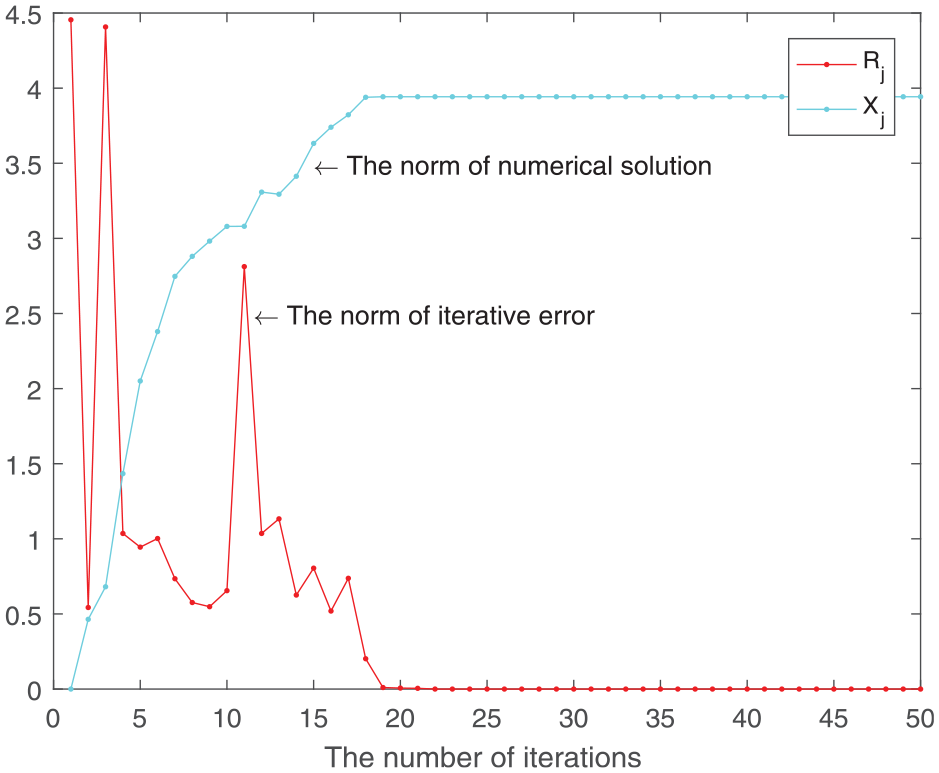

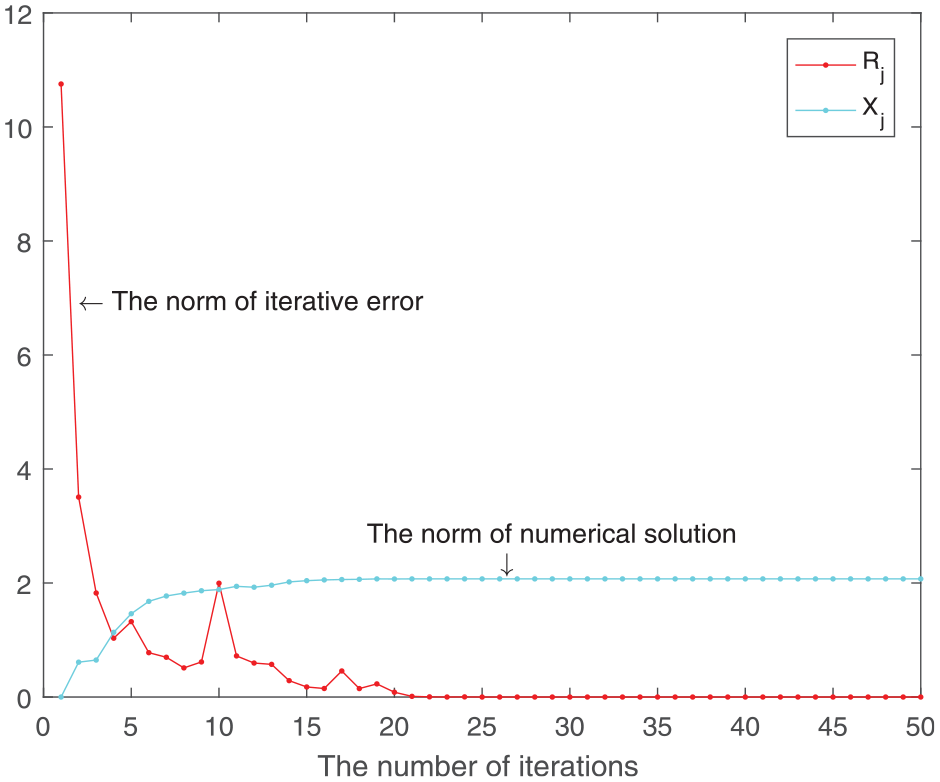

Theorem 2 provides an iterative method to solve the numerical solutions of (10). It is seen from above discussions that the assigned eigenvectors associated with $Λ_{c}$ are unknown. To solve (10) using the iterative method given in Theorem 2, $N_{k}$ and $a_{k}$ need to be determined. An effective solving approach is to apply modal constrains, which can be found in Liu et al. (2019) and Ram et al. (2011). The following theorem presents a more general approach to determine the assigned eigenvectors using the imposed modal constrains.

Theorem 3

For given $t_{0} \in {1, \dots, m}$ and $ℓ_{μ_{k}, t_{0}} = γ, γ \neq 0 .$ Denote

\frac{a_{k, i}}{a_{k, j}} = τ_{k, ij}, k = 1, \dots, p

(43)

where $a_{k, i}$ and $a_{k, j}$ are, respectively, the ith and jth row of $a_{k}$ . Then, $ℓ_{μ_{k}, l}, l = 1, \dots, m, l \neq t_{0},$ can be determined by the following equation

Π Z = Γ

(44)

where

Π = {(Π_{sl})}_{(m - 1) \times (m - 1)}, Γ = {(Γ_{s})}_{(m - 1)) \times 1}, Z = {(ℓ_{μ_{k}, l})}_{(m - 1) \times 1}

with

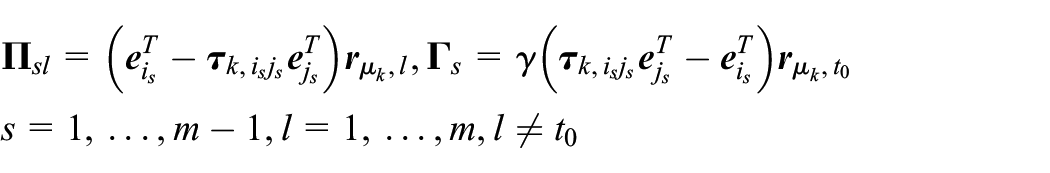

\begin{matrix} Π_{sl} = (e_{i_{s}}^{T} - τ_{k, i_{s} j_{s}} e_{j_{s}}^{T}) r_{μ_{k}, l}, Γ_{s} = γ (τ_{k, i_{s} j_{s}} e_{j_{s}}^{T} - e_{i_{s}}^{T}) r_{μ_{k}, t_{0}} \\ s = 1, \dots, m - 1, l = 1, \dots, m, l \neq t_{0} \end{matrix}

Proof

Without loss of generality, set $t_{0} = 1$ , that is, $ℓ_{μ_{k,} 1} = γ .$ It follows from equation (43) that

τ_{k, ij} = \frac{e_{i}^{T} a_{k}}{e_{j}^{T} a_{k}}, k = 1, \dots, p

(45)

Equation (45) can be rewritten as

{e_{i}}^{T} a_{k} - τ_{k, ij} {e_{j}}^{T} a_{k} = 0, k = 1, \dots, p

(46)

Combining equations (21) and (46) to give

\begin{matrix} ({e_{i}}^{T} - τ_{k, ij} {e_{j}}^{T}) [r_{μ_{k}, 1}, r_{μ_{k}, 2}, \dots, r_{μ_{k}, m}] \\ {[ℓ_{μ_{k}, 1}, ℓ_{μ_{k}, 2}, \dots, ℓ_{μ_{k}, m}]}^{T} = 0 \end{matrix}

(47)

Substituting $ℓ_{μ_{k, 1}} = γ$ into equation (47) produces

({e_{i}}^{T} - τ_{k, ij} {e_{j}}^{T}) [γ r_{μ_{k}, 1} + ℓ_{μ_{k}, 2} r_{μ_{k}, 2} + \dots + ℓ_{μ_{k}, m} r_{μ_{k}, m}] = 0

(48)

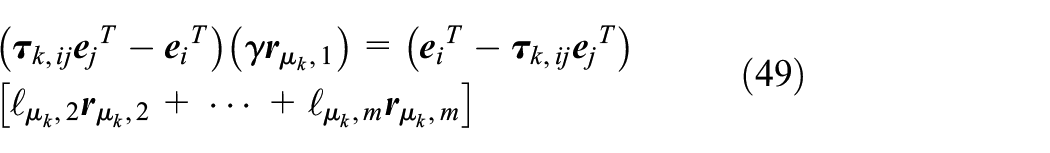

Equation (48) can be expressed equivalently as

\begin{matrix} (τ_{k, ij} {e_{j}}^{T} - {e_{i}}^{T}) (γ r_{μ_{k}, 1}) = ({e_{i}}^{T} - τ_{k, ij} {e_{j}}^{T}) \\ [ℓ_{μ_{k}, 2} r_{μ_{k}, 2} + \dots + ℓ_{μ_{k}, m} r_{μ_{k}, m}] \end{matrix}

(49)

According to equations (45) and (49), the following equation can be obtained by imposing $m - 1$ modal constraints

Π_{1} Z_{1} = Γ_{1}

(50)

where

\begin{matrix} Π_{1} = (\begin{matrix} ({e_{i_{1}}}^{T} - τ_{k, i_{1} j_{1}} {e_{j_{1}}}^{T}) r_{μ_{k}, 2} & \dots & ({e_{i_{1}}}^{T} - τ_{k, i_{1} j_{1}} {e_{j_{1}}}^{T}) r_{μ_{k}, m} \\ ⋮ & ⋮ \\ ({e_{i_{m - 1}}}^{T} - τ_{k, i_{m - 1} j_{m - 1}} {e_{j_{m - 1}}}^{T}) r_{μ_{k}, 2} & \dots & ({e_{i_{m - 1}}}^{T} - τ_{k, i_{m - 1} j_{m - 1}} {e_{j_{m - 1}}}^{T}) r_{μ_{k}, m} \end{matrix}) \\ Z_{1} = {[ℓ_{μ_{k}, 2}, \dots, ℓ_{μ_{k}, m}]}^{T} \\ Γ_{1} = (\begin{matrix} γ (τ_{k, i_{1} j_{1}} {e_{j_{1}}}^{T} - {e_{i_{1}}}^{T}) r_{μ_{k}, 1} \\ ⋮ \\ γ (τ_{k, i_{m - 1} j_{m - 1}} {e_{j_{m - 1}}}^{T} - {e_{i_{m - 1}}}^{T}) r_{μ_{k}, 1} \end{matrix}) \end{matrix}

Consider that equation (50) holds for $t_{0} = 1$ . Therefore, equation (44) is true for general case. The proof is completed.

The above discussions present an iterative approach for solving the partial eigenstructure assignment problems, which is summarized as follows.

The iterative feasibility of Algorithm 1 can be verified by Theorem 2. In fact, according to the results and proof of the Theorem 2, $R_{j} = 0$ , for $j \geq 3 mn + 1$ . That is, the sequences ${R_{j}}_{j = 1}^{\infty}$ converge to zero. It follows from the Step 9 and Step 10 of Algorithm 1 that the iterative processes are convergent under the given roundoff error, and the iterative sequences stop after a finite number of steps.

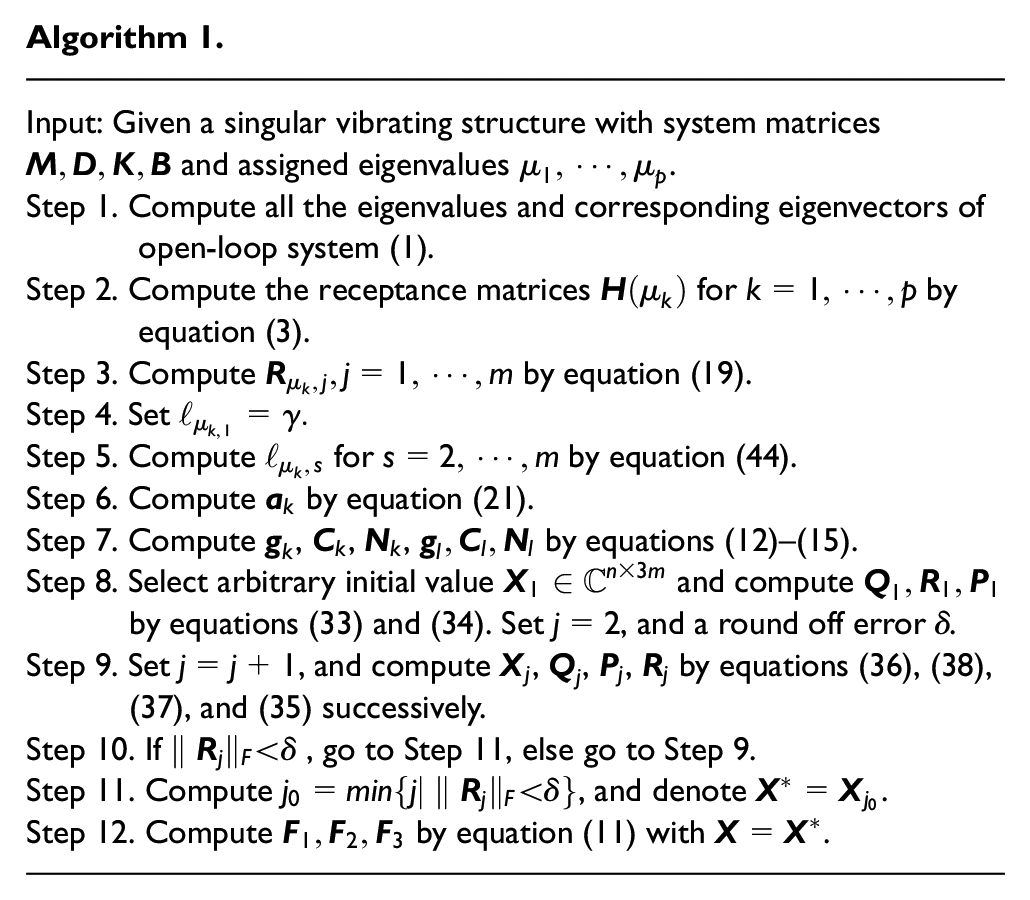

Algorithm 1.

Input: Given a singular vibrating structure with system matrices

M, D, K, B

and assigned eigenvalues

μ_{1}, \dots, μ_{p}

.
Step 1. Compute all the eigenvalues and corresponding eigenvectors of open-loop system (1).
Step 2. Compute the receptance matrices

H (μ_{k})

for

k = 1, \dots, p

by equation (3).
Step 3. Compute

R_{μ_{k}, j}, j = 1, \dots, m

by equation (19).
Step 4. Set

ℓ_{μ_{k, 1}} = γ .

Step 5. Compute

ℓ_{μ_{k}, s}

for

s = 2, \dots, m

by equation (44).
Step 6. Compute

a_{k}

by equation (21).
Step 7. Compute

g_{k}

C_{k}

N_{k}

g_{l}, C_{l}, N_{l}

by equations (12)–(15).
Step 8. Select arbitrary initial value

X_{1} \in C^{n \times 3 m}

and compute

Q_{1}, R_{1}, P_{1}

by equations (33) and (34). Set

j = 2

, and a round off error

δ

.
Step 9. Set

j = j + 1

, and compute

X_{j}

Q_{j}

P_{j}

R_{j}

by equations (36), (38), (37), and (35) successively.
Step 10. If

∥ R_{j} ∥_{F} < δ

, go to Step 11, else go to Step 9.
Step 11. Compute

j_{0} = \min {j | ∥ R_{j} ∥_{F} < δ}

, and denote

X^{*} = X_{j_{0}}

.
Step 12. Compute

F_{1}, F_{2}, F_{3}

by equation (11) with

X = X^{*}

Remark 3

The receptance and system matrices methods are used to solve the partial eigenstructure assignment problems in Bai and Wan (2017), Bai et al. (2018), and Lu and Bai (2021). The parametric methods are presented in these studies to obtain the exact expressions of controller gains using receptance and system matrices. In this paper, the iterative method is constructed to obtain the numerical solutions of controller gains using imposed modal constraints and receptance matrices. The proposed method is independent of descriptor system theories, and requires only the original matrices information of vibrating structure.

Minimum norm solutions

It is noted from Algorithm 1 that the numerical solutions of equation (10) depend on the initial value matrix $X_{1}$ . That is, for different $X_{1}$ , the obtained solutions are not unique. To reduce energy loss in vibrating structure, the minimum norm solutions are often considered (Bai et al., 2010, 2013, 2018; Liu et al., 2019). In fact, the obtained solutions using Algorithm 1 can be of minimum norm for some appropriate initial value matrices. In what follows, Problem 2 is to be discussed.

Theorem 4

For given initial value matrix

X_{1} = \sum_{k = 1}^{2 n} g_{k}^{H} ε_{k} C_{k}^{H}, ε_{k} \in C^{1 \times m}

then the solution $X^{*}$ of equation (10) obtained by Algorithm 1 satisfies

X^{*} \in {\sum_{k = 1}^{2 n} g_{k}^{H} {\bar{ε}}_{k} C_{k}^{H} | {\bar{ε}}_{k} \in C^{1 \times m}}

(51)

Proof

Denote

S = {\sum_{k = 1}^{2 n} g_{k}^{H} {\bar{ε}}_{k} C_{k}^{H} | {\bar{ε}}_{k} \in C^{1 \times m}}

Obviously, for $s = 1$ , it follows from equation (33) that

X_{1} \in S, P_{1} \in S

For $s = j$ , assume $X_{j} \in S$ , and $P_{j} \in S$ , then equations (36)–(38) imply that

X_{j + 1} \in S, P_{j + 1} \in S

which further imply the iterative solution $X^{*} \in S$ . The proof is completed.

Denote

b = [\begin{matrix} vec (N_{1}) \\ ⋮ \\ vec (N_{2 n}) \end{matrix}]

then equation (32) can be written equivalently as a concise form

[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}] x = b

(52)

Lemma 2

If $\bar{x}$ is a solution of equation (52) and

\bar{x} \in R ({[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}]}^{H})

(53)

where $R (\cdot)$ represents the range space of matrix, and then $\bar{x}$ is the minimum norm solution of equation (52).

Proof

Using the singular value decomposition, it follows that

[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}] = U [\begin{matrix} Σ & 0 \\ 0 & 0 \end{matrix}] V^{H} = U_{1} Σ V_{1}^{H}

(54)

where $U, V$ are the unitary matrices and

U = (U_{1}, U_{2}), V = (V_{1}, V_{2})

Equation (54) gives rise to

{[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}]}^{+} = V_{1} Σ^{+} U_{1}^{H}

(55)

where $(\cdot)^{+}$ represents the Moore–Penrose inverse of matrix. Then general solution of equation (52) is expressed as

x = {[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}]}^{+} b + (I - {[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}]}^{+} [\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}]) ξ

(56)

where $x$ is an arbitrary matrix with appropriate dimension. Denote

\hat{x} = {[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}]}^{+} b, x_{ξ} = (I - {[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}]}^{+} [\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}]) ξ

It follows from equation (55) that

\hat{x} = V_{1} Σ^{+} U_{1}^{H} b \in R (V_{1})

(57)

x_{ξ} = (I - V_{1} V_{1}^{T}) ξ

(58)

$V$ being the unitary matrix implies

I = V V^{T} = V_{1} V_{1}^{T} + V_{2} V_{2}^{T}

(59)

Combining equations (58) and (59) to obtain

x_{ξ} = V_{2} V_{2}^{T} x \in R (V_{2})

(60)

$V_{1}, V_{2}$ are the orthogonal spaces, which implies

< \hat{x}, x_{ξ} > = 0

It is obtained from equation (56) that

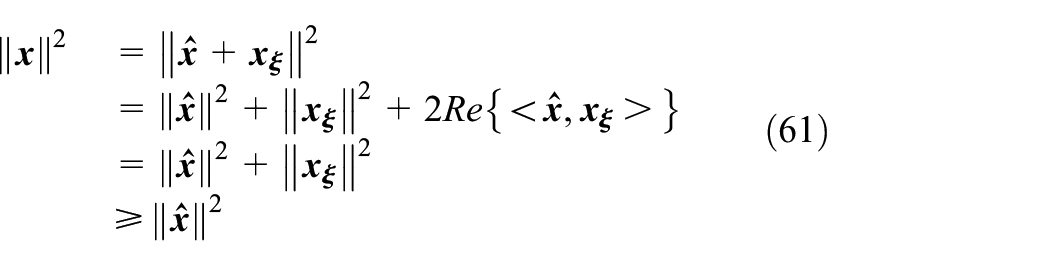

\begin{matrix} {‖ x ‖}^{2} = {‖ \hat{x} + x_{ξ} ‖}^{2} \\ = {‖ \hat{x} ‖}^{2} + {‖ x_{ξ} ‖}^{2} + 2 Re {< \hat{x}, x_{ξ} >} \\ = {‖ \hat{x} ‖}^{2} + {‖ x_{ξ} ‖}^{2} \\ \geq {‖ \hat{x} ‖}^{2} \end{matrix}

(61)

where the equality holds if and only if $x_{ξ} = 0$ ; thus, $\hat{x}$ is the minimum norm solution of equation (52). Equation (54) implies

({[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}]}^{H}) = V_{1} Σ U_{1}^{H}

(62)

It follows immediately from equations (53) and (62) that

\bar{x} \in R (V_{1})

(63)

From equations (56), (60), and (63) and the uniqueness of Moore–Penrose inverse

\bar{x} = \hat{x}

(64)

Therefore, $\bar{x}$ is the minimum norm solution of equation (52). The proof is completed.

Theorem 5

Assume that equation (10) is consistent. If the initial matrix is taken as the following form

X_{1} = \sum_{k = 1}^{2 n} g_{k}^{H} ε_{k} C_{k}^{H}, ε_{k} \in C^{1 \times m}

(65)

then the solution of equation (10) obtained by Algorithm 1 is a minimum norm solution.

Proof

According to the Theorem 4, solution of equation (52) obtained by Algorithm 1 satisfies equation (51). Denote the solution as

\tilde{X} = \sum_{k = 1}^{2 n} vec (g_{k}^{H} {\tilde{ε}}_{k} C_{k}^{H})

(66)

then

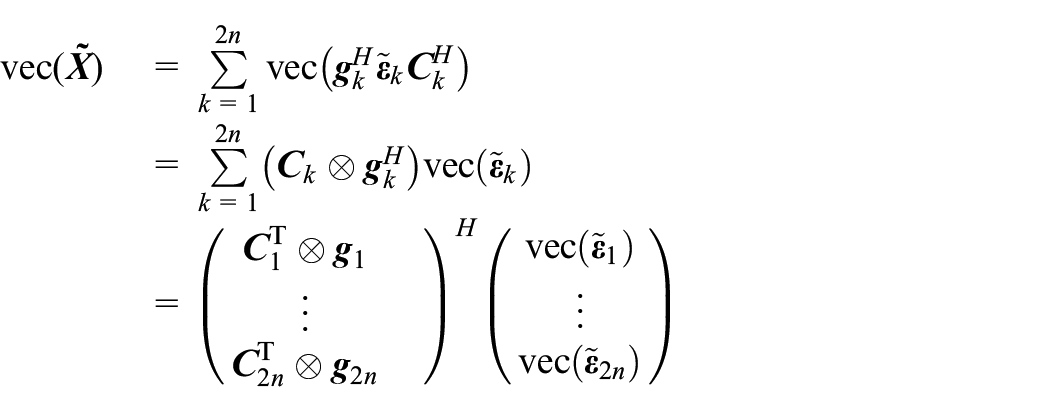

\begin{matrix} vec (\tilde{X}) = \sum_{k = 1}^{2 n} vec (g_{k}^{H} {\tilde{ε}}_{k} C_{k}^{H}) \\ = \sum_{k = 1}^{2 n} (C_{k} \otimes g_{k}^{H}) vec ({\tilde{ε}}_{k}) \\ = {(\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix})}^{H} (\begin{matrix} vec ({\tilde{ε}}_{1}) \\ ⋮ \\ vec ({\tilde{ε}}_{2 n}) \end{matrix}) \end{matrix}

Let

vec (\tilde{X}) = \tilde{x}, (\begin{matrix} vec ({\tilde{ε}}_{1}) \\ ⋮ \\ vec ({\tilde{ε}}_{2 n}) \end{matrix}) = \tilde{ε}

then

\tilde{x} = {[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}]}^{H} \tilde{ε} \in R ({[\begin{matrix} C_{1}^{T} \otimes g_{1} \\ ⋮ \\ C_{2 n}^{T} \otimes g_{2 n} \end{matrix}]}^{H})

By Lemma 2, the proof is completed.

Above discussions show that if setting $X_{1}$ is of form (65) in Step 8 of Algorithm 1, for instance, $X_{1} = 0$ , then computed feedback gains are of minimum norm. The algorithm for solving Problem 2 is similar to the Algorithm 1, and therefore, the detailed steps are omitted here.

Remark 4

The minimum norm active control leads to minimum control energy consumption in solving partial eigenstructure assignment problems. The early results have no considering minimum norm problems. The recent studies, for instance, Bai et al. (2018) and Lu and Bai (2021), calculate the minimum norm solutions using the expression-based optimization approaches. In this study, the minimum norm solutions are obtained using the constructed numerical iterative algorithm without using the expression-based optimization approaches. The following numerical simulations will show the control effect

u_{1} (t) = F_{1}^{T} \overset{\cdot\cdot}{x} (t) + F_{2}^{T} \overset{\cdot}{x} (t)

(67)

u_{2} (t) = {\tilde{F}}_{1}^{T} \overset{\cdot}{x} (t) + {\tilde{F}}_{2}^{T} x (t)

(68)

u_{3} (t) = {\bar{F}}_{1}^{T} \overset{\cdot\cdot}{x} (t) + {\bar{F}}_{3}^{T} x (t)

(69)

Remark 5

It is seen that the acceleration–velocity active control, velocity–displacement active control, and acceleration–displacement active control described in equations (67)–(69) are often used for control system design, which can be considered as special forms of the active control (4). Using the velocity–displacement active control (67) and the acceleration–displacement active control (69), one can obtain similar results with main theorems and algorithm of this paper, and therefore, corresponding results are omitted here. The research using the velocity–displacement active control (68) can be found in Liu et al. (2019). As mentioned above, the velocity–displacement active control applies to a non-singular second-order vibrating structure, the acceleration–velocity active control requires the stiffness matrix being non-singular and the acceleration–displacement active control needs the systems being undamped. Therefore, the acceleration–velocity–displacement active control (4) can apply to more general vibrating structure. Besides, the acceleration–velocity–displacement active control (4) gives smaller gains norms obtained by proposed algorithm than others active control, including the acceleration–velocity active control, the velocity–displacement active control, and the acceleration–displacement active control obtained by corresponding algorithms. Numerical examples will verify the results.

Numerical examples

Example 1

Consider a singular vibrating structure with three lumped masses and four spring dashpots shown in Figure 1 (Abdelaziz, 2014). The singular vibrating structure is described by equation (1), where

\begin{matrix} M = (\begin{matrix} m_{1} & 0 & 0 & 0 \\ 0 & m_{2} & 0 & 0 \\ 0 & 0 & m_{3} & 0 \\ 0 & 0 & 0 & 0 \end{matrix}), \\ D = (\begin{matrix} b_{1} + b_{2} & - b_{2} & 0 & 0 \\ - b_{2} & b_{3} + b_{2} & - b_{3} & 0 \\ 0 & - b_{3} & b_{3} + b_{4} & - b_{4} \\ 0 & 0 & - b_{4} & b_{4} \end{matrix}) \\ K = (\begin{matrix} k_{1} + k_{2} & - k_{2} & 0 & 0 \\ - k_{2} & k_{3} + k_{2} & - k_{3} & 0 \\ 0 & - k_{3} & k_{3} + k_{4} & - k_{4} \\ 0 & 0 & - k_{4} & k_{4} \end{matrix}), B = [\begin{matrix} 1 & 0 \\ 0 & 0 \\ 0 & 0 \\ 0 & 1 \end{matrix}] \end{matrix}

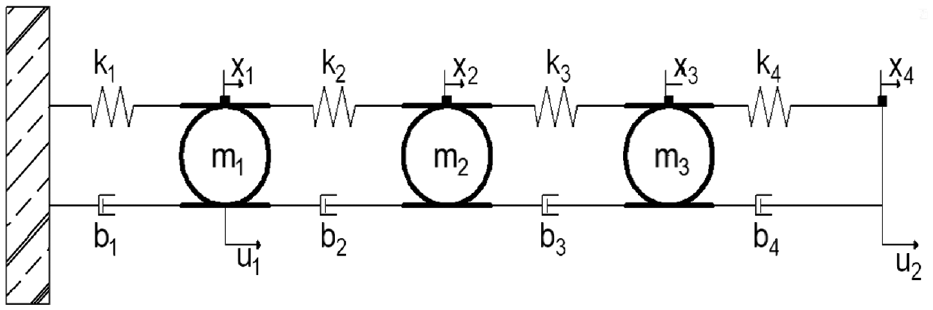

Figure 1.

Three lumped masses and four spring dashpots.

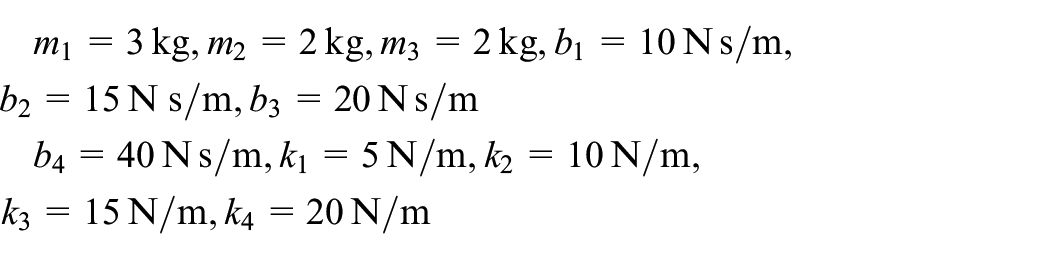

The physical system parameters are taken as

\begin{matrix} m_{1} = 3 kg, m_{2} = 2 kg, m_{3} = 2 kg, b_{1} = 10 N s / m, \\ b_{2} = 15 N s / m, b_{3} = 20 N s / m \\ b_{4} = 40 N s / m, k_{1} = 5 N / m, k_{2} = 10 N / m, \\ k_{3} = 15 N / m, k_{4} = 20 N / m \end{matrix}

The open-loop eigenvalues are ${- 25.1734, - 8.1208, - 0.5601 \pm 0.5461 i, - 0.7701, - 0.6488, - 0.5, \infty}$ .

(a) To verify the results, the last four eigenvalues ${- 0.7701, - 0.6488, - 0.5, \infty}$ are to be replaced with ${μ_{1, 2} = - 1 \pm 0.5 i, μ_{3, 4} = - 2 \pm i}$ . The imposed modal constraints are given as

τ_{1, 2}^{1, 2} = 1 \pm i, τ_{1, 2}^{3, 4} = 2 \pm i

For $k = 1, 2, 3, 4$ , select $ℓ_{μ_{k}, 1} = 9$ , then

\begin{matrix} ℓ_{μ_{1, 2}, 2} = \frac{(τ_{1, 2}^{1, 2} {e_{2}}^{T} - {e_{1}}^{T}) (ℓ_{μ_{1, 2}, 1} r_{μ_{1, 2}, 1})}{({e_{1}}^{T} - τ_{1, 2}^{1, 2} {e_{2}}^{T}) r_{μ_{1, 2}, 2}} = - 5.1960 \pm 2.4537 i \\ ℓ_{μ_{3, 4}, 2} = \frac{(τ_{1, 2}^{3, 4} {e_{2}}^{T} - {e_{1}}^{T}) (ℓ_{μ_{3, 4}, 1} r_{μ_{3, 4}, 1})}{({e_{1}}^{T} - τ_{1, 2}^{3, 4} {e_{2}}^{T}) r_{μ_{3, 4}, 2}} = - 5.8566 \pm 3.3307 i \end{matrix}

Using the acceleration–velocity–displacement active control (4) and performing Algorithm 1, feedback gains are obtained

\begin{matrix} F_{1} = [\begin{matrix} 3.2108 & - 0.1002 \\ 1.6051 & 0.7723 \\ - 0.7851 & 2.2461 \\ 1.5358 & - 0.7130 \end{matrix}], F_{2} = [\begin{matrix} 14.8273 & - 6.6900 \\ 4.5181 & - 1.2992 \\ - 1.1824 & 1.9048 \\ - 7.3393 & 5.6847 \end{matrix}], \\ F_{3} = [\begin{matrix} 8.9542 & - 4.9557 \\ 2.7784 & - 0.7643 \\ - 3.8332 & 3.2517 \\ - 2.2573 & 2.1326 \end{matrix}] \end{matrix}

and

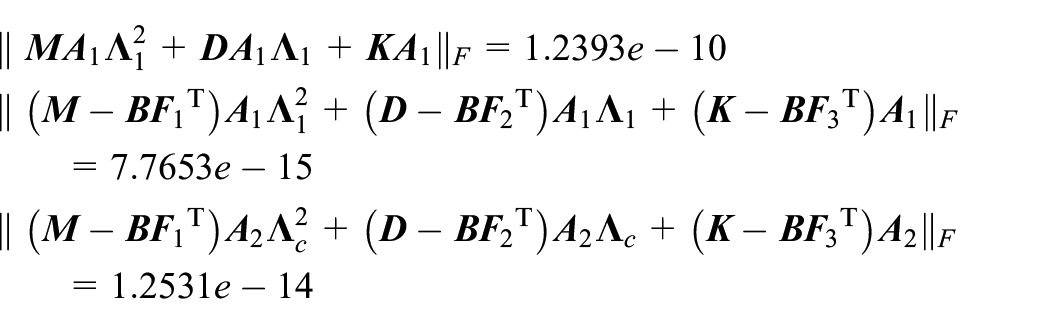

\begin{matrix} ∥ M A_{1} Λ_{1}^{2} + D A_{1} Λ_{1} + K A_{1} ∥_{F} = 1.8169 e - 10 \\ ∥ (M - B {F_{1}}^{T}) A_{1} Λ_{1}^{2} + (D - B {F_{2}}^{T}) A_{1} Λ_{1} + (K - B {F_{3}}^{T}) \\ A_{1} ∥_{F} = 2.3201 e - 13 \\ ∥ (M - B {F_{1}}^{T}) A_{2} Λ_{c}^{2} + (D - B {F_{2}}^{T}) A_{2} Λ_{c} + (K - B {F_{3}}^{T}) \\ A_{2} ∥_{F} = 1.18794 e - 13 \end{matrix}

Comparing to the acceleration–velocity–displacement active control (4), the acceleration–velocity active control (67), and the acceleration–displacement active control (69) obtains Table 1. Table 1 shows that the norms obtained by the acceleration–velocity–displacement active control (4) are the smallest. The closed-loop system state responses for the acceleration–velocity–displacement active control (4) are given in Figure 2. The real-time analysis for the norms and iterative errors of numerical solutions are presented in Figure 3.

(b) Consider that all the eigenvalues are replaced by ${μ_{1, 2} = - 1 \pm 0.5 i, μ_{3, 4} = - 2 \pm i, μ_{5, 6} = - 3 \pm i, μ_{7, 8} = - 4 \pm 4 i}$ and all the eigenvalues and associated eigenvectors are reassigned, which is the case mentioned in Abdelaziz (2014). The modal constraints are taken as

τ_{1, 2}^{1, 2} = 1 \pm i, τ_{1, 2}^{3, 4} = 2 \pm i, τ_{1, 2}^{5, 6} = 3 \pm i, τ_{1, 2}^{7, 8} = 4 \pm i

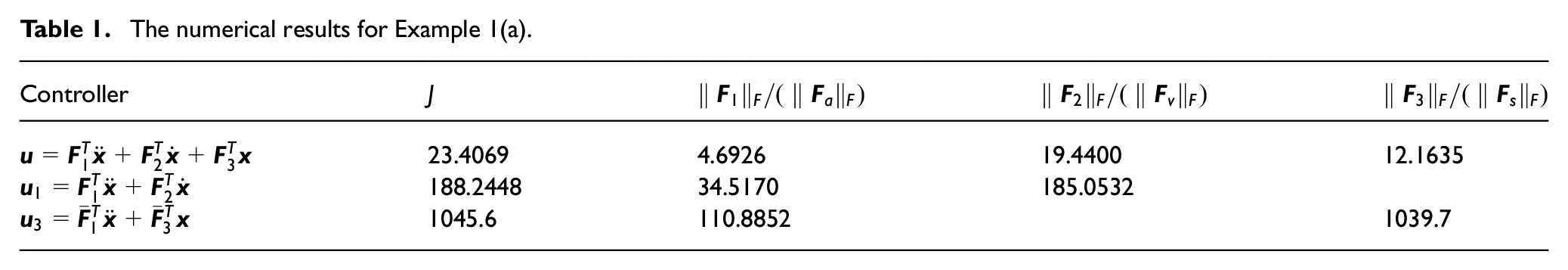

Table 1.

The numerical results for Example 1(a).

Controller	$J$	$∥ F_{1} ∥_{F} / (∥ F_{a} ∥_{F})$	$∥ F_{2} ∥_{F} / (∥ F_{v} ∥_{F})$	$∥ F_{3} ∥_{F} / (∥ F_{s} ∥_{F})$
$u = F_{1}^{T} \overset{\cdot\cdot}{x} + F_{2}^{T} \dot{x} + F_{3}^{T} x$	23.4069	4.6926	19.4400	12.1635
$u_{1} = F_{1}^{T} \overset{\cdot\cdot}{x} + F_{2}^{T} \dot{x}$	188.2448	34.5170	185.0532
$u_{3} = {\bar{F}}_{1}^{T} \overset{\cdot\cdot}{x} + {\bar{F}}_{3}^{T} x$	1045.6	110.8852		1039.7

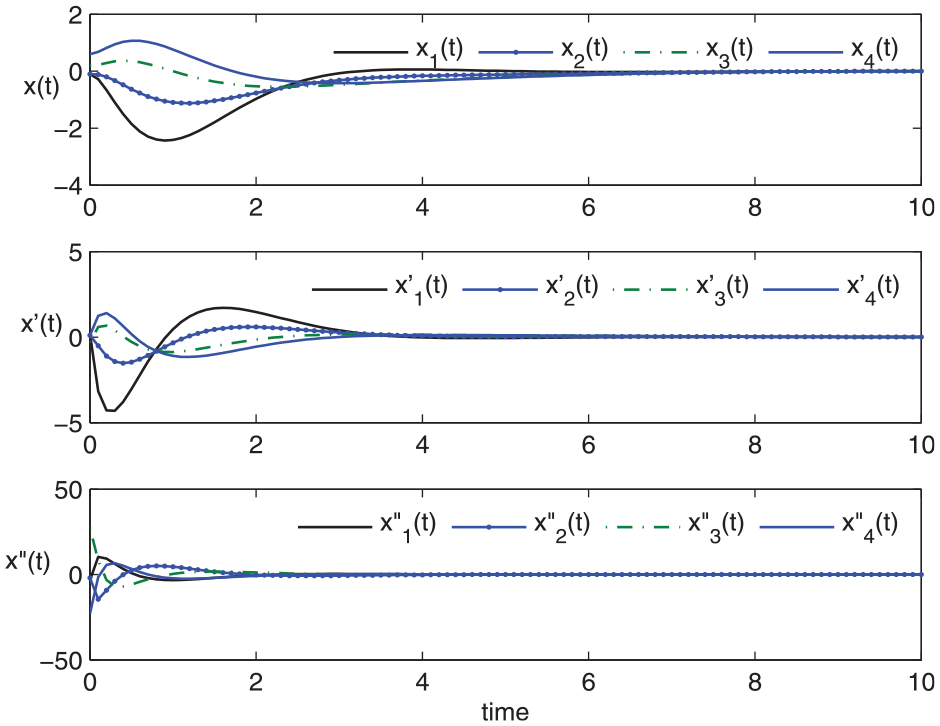

Figure 2.

The closed-loop system state responses for Example 1(a).

Figure 3.

The norms and iterative errors of numerical solutions for Example 1(a).

For $k = 1 : 8$ , select $ℓ_{μ_{k}, 1} = 9$ , then

\begin{matrix} ℓ_{μ_{1, 2}, 2} = - 5.1960 \pm 2.4537 i, ℓ_{μ_{3, 4}, 2} = - 5.8566 \pm 3.3307 i \\ ℓ_{μ_{5, 6}, 2} = - 7.3974 \pm 3.5690 i, ℓ_{μ_{7, 8}, 2} = - 3.8159 \pm 4.1935 i \end{matrix}

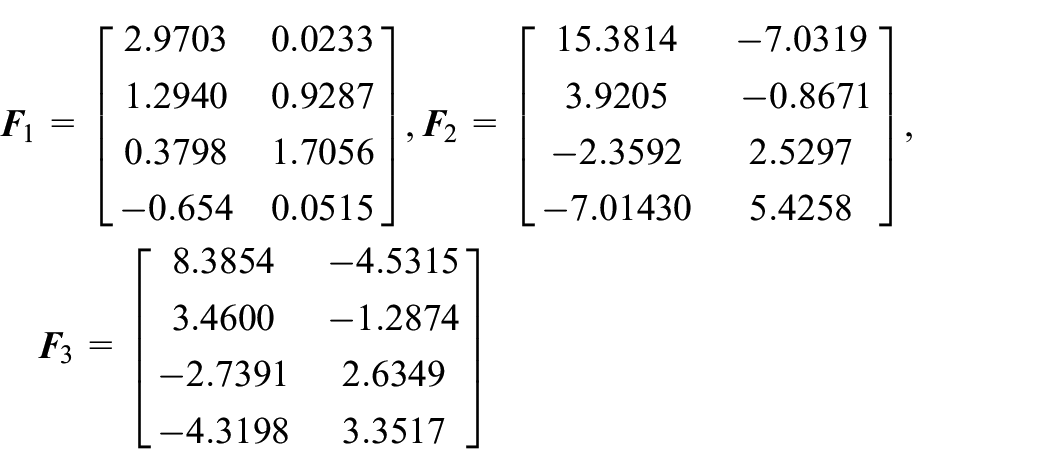

Using the acceleration–velocity–displacement active control (4) and performing Algorithm 1, feedback gains are obtained

\begin{matrix} F_{1} = [\begin{matrix} 2.9703 & 0.0233 \\ 1.2940 & 0.9287 \\ 0.3798 & 1.7056 \\ - 0.654 & 0.0515 \end{matrix}], F_{2} = [\begin{matrix} 15.3814 & - 7.0319 \\ 3.9205 & - 0.8671 \\ - 2.3592 & 2.5297 \\ - 7.01430 & 5.4258 \end{matrix}], \\ F_{3} = [\begin{matrix} 8.3854 & - 4.5315 \\ 3.4600 & - 1.2874 \\ - 2.7391 & 2.6349 \\ - 4.3198 & 3.3517 \end{matrix}] \end{matrix}

and

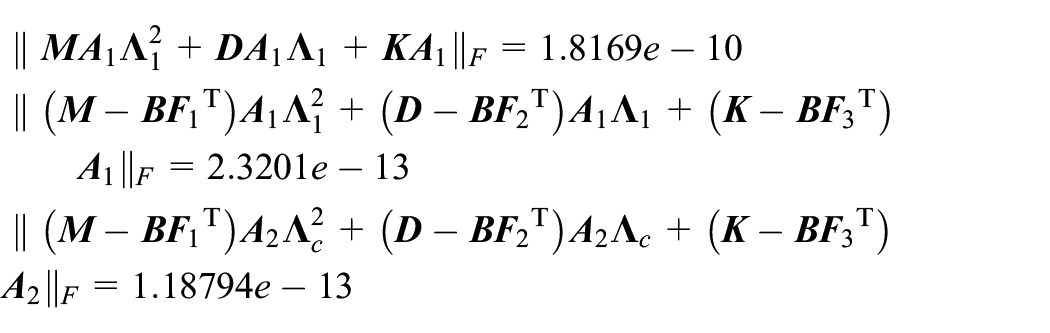

\begin{matrix} ∥ (M - B {F_{1}}^{T}) A_{2} Λ_{c}^{2} + (D - B {F_{2}}^{T}) A_{2} Λ_{c} \\ + (K - B {F_{3}}^{T}) A_{2} ∥_{F} = 1.1873 e - 12 \end{matrix}

Comparing to the acceleration–velocity–displacement active control (4), the acceleration–velocity active control (67), the acceleration–velocity active control given in Abdelaziz (2014), and the acceleration–displacement active control (69) obtains Table 2. Table 2 shows that the norms obtained by the acceleration–velocity–displacement active control using the proposed algorithm are the smallest. The closed-loop system state responses for the acceleration–velocity–displacement active control (4) are given in Figure 4. The real-time analysis for the norms and iterative errors of numerical solutions are presented in Figure 5.

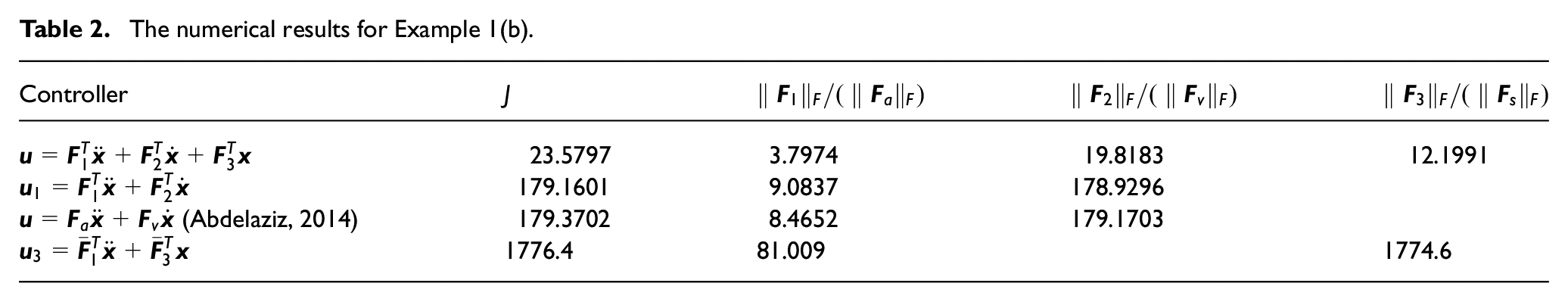

Table 2.

The numerical results for Example 1(b).

Controller	$J$	$∥ F_{1} ∥_{F} / (∥ F_{a} ∥_{F})$	$∥ F_{2} ∥_{F} / (∥ F_{v} ∥_{F})$	$∥ F_{3} ∥_{F} / (∥ F_{s} ∥_{F})$
$u = F_{1}^{T} \overset{\cdot\cdot}{x} + F_{2}^{T} \dot{x} + F_{3}^{T} x$	23.5797	3.7974	19.8183	12.1991
$u_{1} = F_{1}^{T} \overset{\cdot\cdot}{x} + F_{2}^{T} \dot{x}$	179.1601	9.0837	178.9296
$u = F_{a} \overset{\cdot\cdot}{x} + F_{v} \dot{x}$ (Abdelaziz, 2014)	179.3702	8.4652	179.1703
$u_{3} = {\bar{F}}_{1}^{T} \overset{\cdot\cdot}{x} + {\bar{F}}_{3}^{T} x$	1776.4	81.009		1774.6

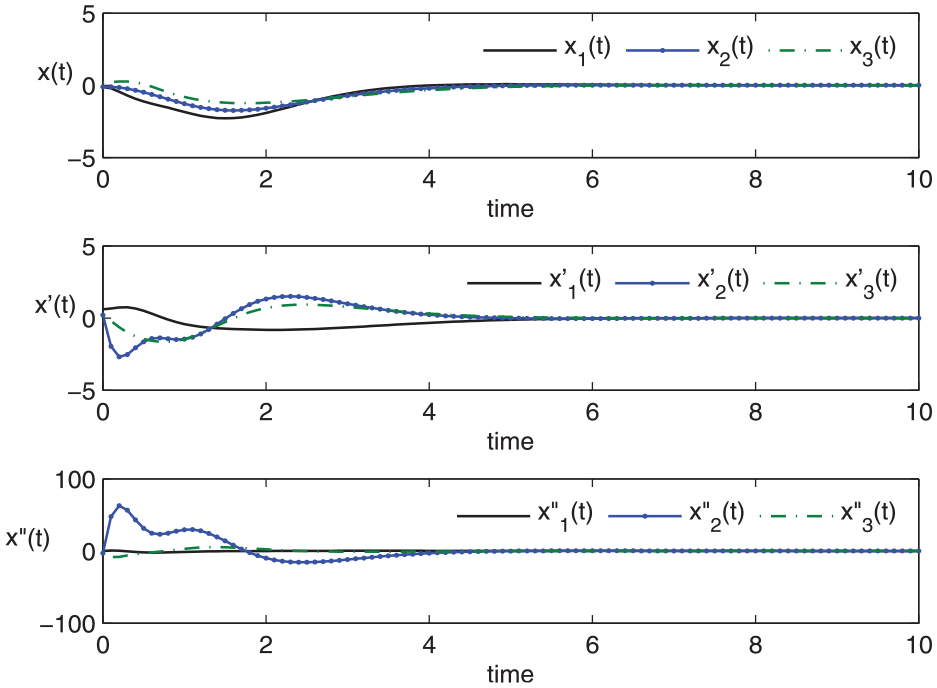

Figure 4.

The closed-loop system state responses for Example 1(b).

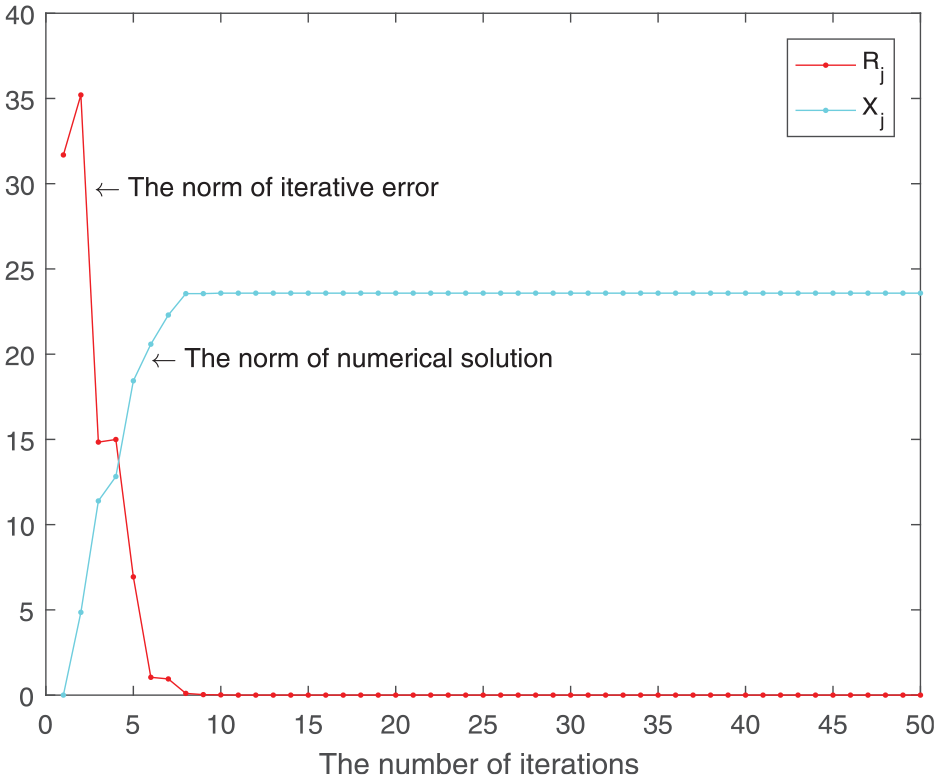

Figure 5.

The norms and iterative errors of numerical solutions for Example 1(b).

Example 2

(a) Consider multi-input singular vibrating system with $n = 10$ and $m = 2$ , and

\begin{matrix} M = [\begin{matrix} I_{9} & 0 \\ 0 & 0 \end{matrix}], D = [I_{10}], \\ K = [\begin{matrix} 1 & - 1 & 0 & \dots & 0 & 0 \\ - 1 & 2 & - 1 & \dots & 0 & 0 \\ 0 & - 1 & 2 & \dots & 0 & 0 \\ ⋮ & ⋮ & ⋮ & ⋱ & ⋮ & ⋮ \\ 0 & 0 & \dots & - 1 & 2 & - 1 \\ 0 & 0 & \dots & 0 & - 1 & 1 \end{matrix}], B = [\begin{matrix} 1 & 0 \\ 0 & 0 \\ 0 & 0 \\ ⋮ & ⋮ \\ 0 & 1 \\ 2 & - 3 \end{matrix}] \end{matrix}

The open-loop system has 20 eigenvalues. The 19th and 20th eigenvalues ${- 0.9928, \infty}$ are replaced with ${μ_{1, 2} = - 0.4 \pm 0.7 i}$ , and the rest eigenvalues and associated eigenvectors are kept unchanged. The modal constraints are taken as

τ_{1, 9}^{1, 2} = 3 \pm i, ℓ_{μ_{1, 2}, 1} = 6

then

ℓ_{μ_{1, 2}, 2} = \frac{(τ_{1, 9}^{1, 2} {e_{1}}^{T} - {e_{9}}^{T}) (γ r_{μ_{k}, 1})}{({e_{9}}^{T} - τ_{1, 9}^{1, 2} {e_{1}}^{T}) r_{μ_{k}, 2}} = 2.6367 \pm 1.5376 i

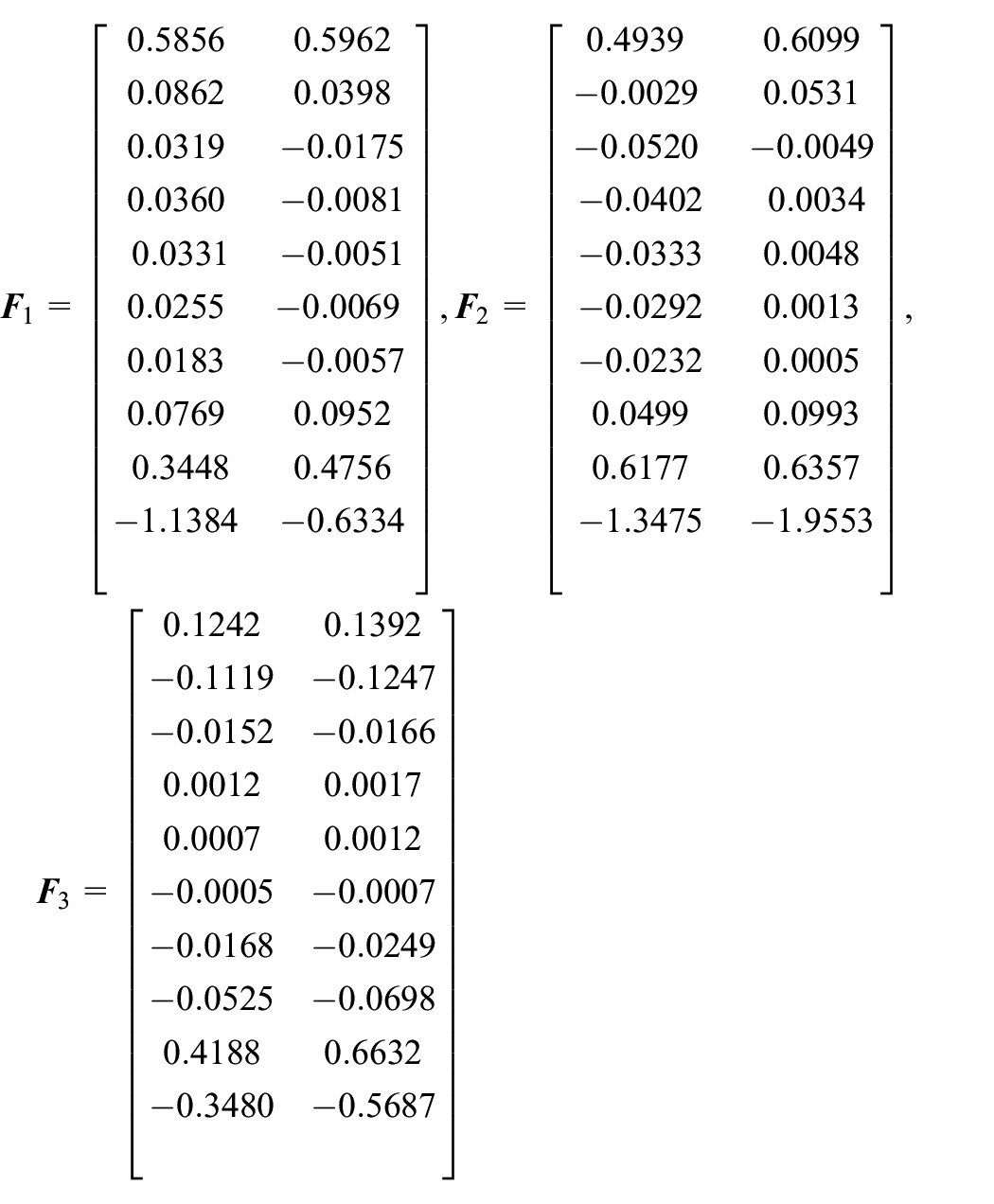

Using the acceleration–velocity–displacement active control (4) and performing Algorithm 1, feedback gains are obtained

\begin{matrix} F_{1} = [\begin{matrix} 0.5856 & 0.5962 \\ 0.0862 & 0.0398 \\ 0.0319 & - 0.0175 \\ 0.0360 & - 0.0081 \\ 0.0331 & - 0.0051 \\ 0.0255 & - 0.0069 \\ 0.0183 & - 0.0057 \\ 0.0769 & 0.0952 \\ 0.3448 & 0.4756 \\ - 1.1384 & - 0.6334 \end{matrix}], F_{2} = [\begin{matrix} 0.4939 & 0.6099 \\ - 0.0029 & 0.0531 \\ - 0.0520 & - 0.0049 \\ - 0.0402 & 0.0034 \\ - 0.0333 & 0.0048 \\ - 0.0292 & 0.0013 \\ - 0.0232 & 0.0005 \\ 0.0499 & 0.0993 \\ 0.6177 & 0.6357 \\ - 1.3475 & - 1.9553 \end{matrix}], \\ F_{3} = [\begin{matrix} 0.1242 & 0.1392 \\ - 0.1119 & - 0.1247 \\ - 0.0152 & - 0.0166 \\ 0.0012 & 0.0017 \\ 0.0007 & 0.0012 \\ - 0.0005 & - 0.0007 \\ - 0.0168 & - 0.0249 \\ - 0.0525 & - 0.0698 \\ 0.4188 & 0.6632 \\ - 0.3480 & - 0.5687 \end{matrix}] \end{matrix}

and

\begin{matrix} ∥ M A_{1} Λ_{1}^{2} + D A_{1} Λ_{1} + K A_{1} ∥_{F} = 5.8094 e - 12 \\ ∥ (M - B {F_{1}}^{T}) A_{1} Λ_{1}^{2} + (D - B {F_{2}}^{T}) A_{1} Λ_{1} + (K - B {F_{3}}^{T}) \\ A_{1} ∥_{F} = 3.2255 e - 14 \\ ∥ (M - B {F_{1}}^{T}) A_{2} Λ_{c}^{2} + (D - B {F_{2}}^{T}) A_{2} Λ_{c} + (K - B {F_{3}}^{T}) \\ A_{2} ∥_{F} = 6.0817 e - 15 \end{matrix}

Comparing to the acceleration–velocity–displacement active control (4), the acceleration–velocity active control (67), and the acceleration–displacement active control (69) gives Table 3. Table 3 shows that the norms obtained by the acceleration–velocity–displacement active control (4) are the smallest. The real-time analysis for the norms and iterative errors of numerical solutions are presented in Figure 6.

(b) In this example, consider non-singular case, that is, set $M = [I_{10}]$ , and others system matrices without changing, which is the case provided in Liu et al. (2019). The open-loop system has 20 eigenvalues. The 18th and 19th eigenvalues ${- 0.0251, - 1.0000}$ are replaced with $μ_{1, 2} = - 0.4 \pm 0.7 i,$ and the rest eigenvalues and associated eigenvectors are kept unchanged. The modal constraints are taken as

τ_{1, 9}^{1, 2} = 3.032 \pm 2.001 i, ℓ_{μ_{1, 2}, 1} = 2

then

ℓ_{μ_{1, 2}, 2} = 1.4184 \pm 1.9778 i

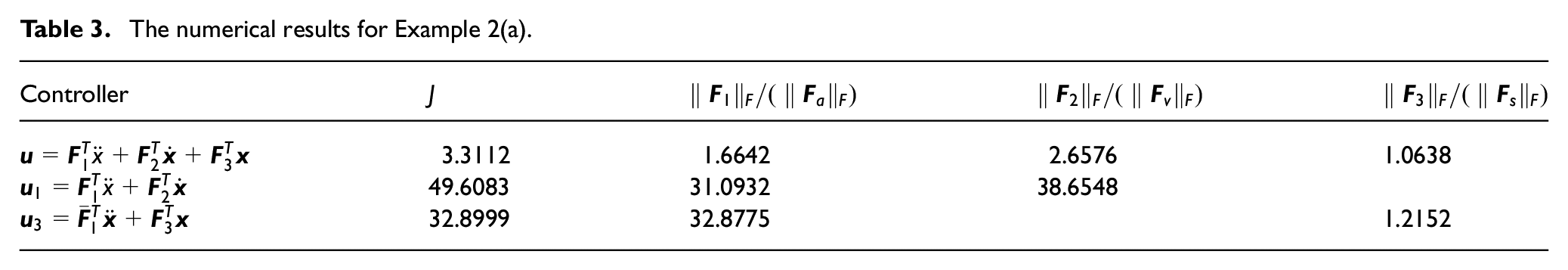

Table 3.

The numerical results for Example 2(a).

Controller	$J$	$∥ F_{1} ∥_{F} / (∥ F_{a} ∥_{F})$	$∥ F_{2} ∥_{F} / (∥ F_{v} ∥_{F})$	$∥ F_{3} ∥_{F} / (∥ F_{s} ∥_{F})$
$u = F_{1}^{T} \overset{\cdot\cdot}{x} + F_{2}^{T} \overset{\cdot}{x} + F_{3}^{T} x$	3.3112	1.6642	2.6576	1.0638
$u_{1} = F_{1}^{T} \overset{\cdot\cdot}{x} + F_{2}^{T} \overset{\cdot}{x}$	49.6083	31.0932	38.6548
$u_{3} = {\bar{F}}_{1}^{T} \overset{\cdot\cdot}{x} + F_{3}^{T} x$	32.8999	32.8775		1.2152

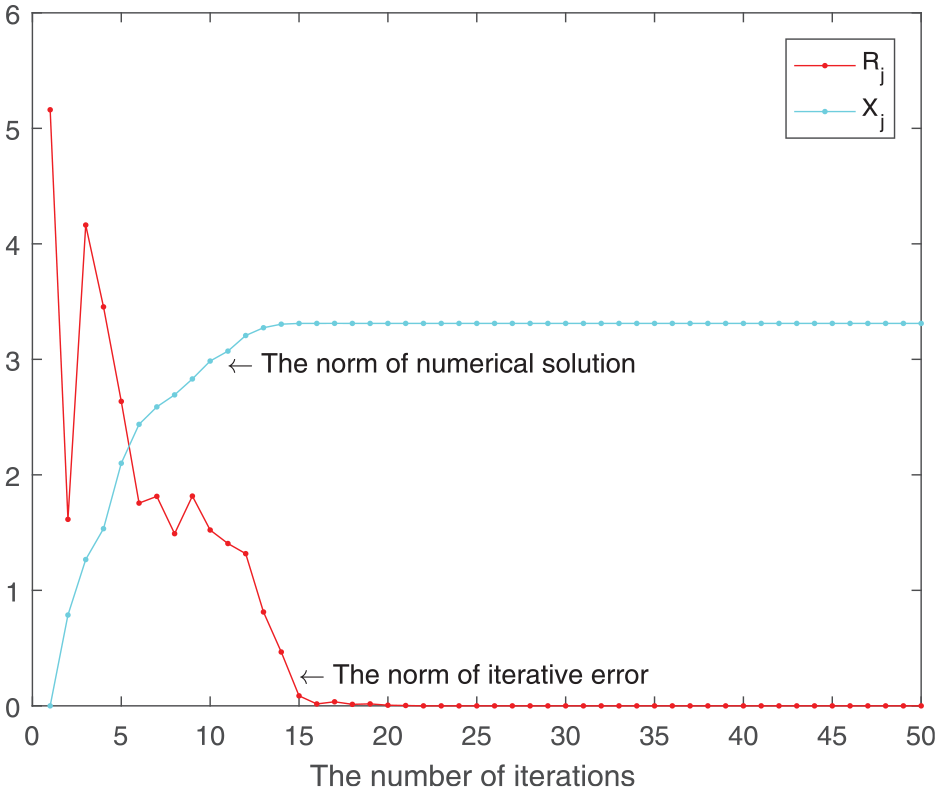

Figure 6.

The norms and iterative errors of numerical solutions for Example 2(a).

Using the acceleration–velocity–displacement active control (4) and performing Algorithm 1, feedback gains are obtained

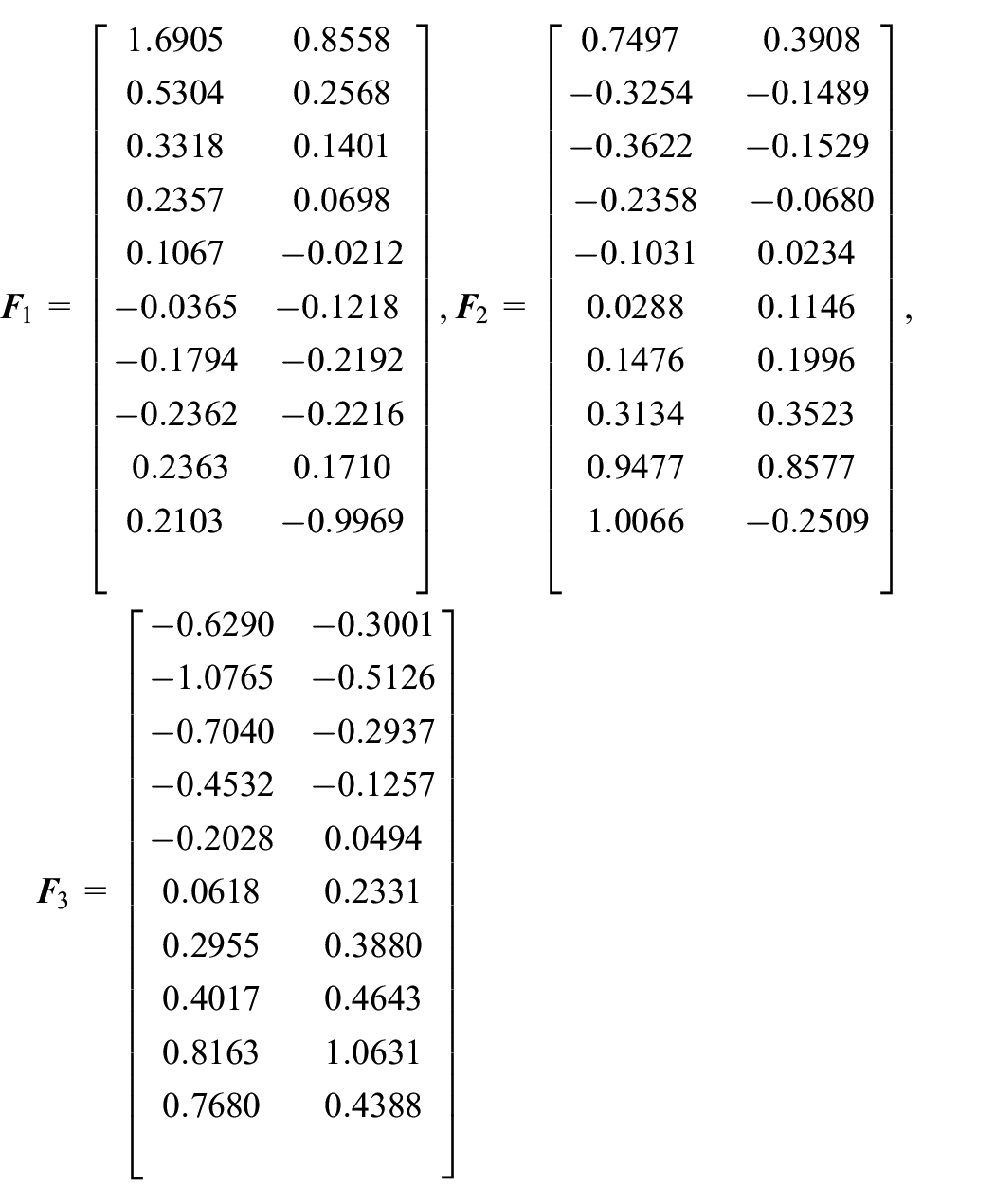

\begin{matrix} F_{1} = [\begin{matrix} 1.6905 & 0.8558 \\ 0.5304 & 0.2568 \\ 0.3318 & 0.1401 \\ 0.2357 & 0.0698 \\ 0.1067 & - 0.0212 \\ - 0.0365 & - 0.1218 \\ - 0.1794 & - 0.2192 \\ - 0.2362 & - 0.2216 \\ 0.2363 & 0.1710 \\ 0.2103 & - 0.9969 \end{matrix}], F_{2} = [\begin{matrix} 0.7497 & 0.3908 \\ - 0.3254 & - 0.1489 \\ - 0.3622 & - 0.1529 \\ - 0.2358 & - 0.0680 \\ - 0.1031 & 0.0234 \\ 0.0288 & 0.1146 \\ 0.1476 & 0.1996 \\ 0.3134 & 0.3523 \\ 0.9477 & 0.8577 \\ 1.0066 & - 0.2509 \end{matrix}], \\ F_{3} = [\begin{matrix} - 0.6290 & - 0.3001 \\ - 1.0765 & - 0.5126 \\ - 0.7040 & - 0.2937 \\ - 0.4532 & - 0.1257 \\ - 0.2028 & 0.0494 \\ 0.0618 & 0.2331 \\ 0.2955 & 0.3880 \\ 0.4017 & 0.4643 \\ 0.8163 & 1.0631 \\ 0.7680 & 0.4388 \end{matrix}] \end{matrix}

and

\begin{matrix} ∥ M A_{1} Λ_{1}^{2} + D A_{1} Λ_{1} + K A_{1} ∥_{F} = 2.5547 e - 09 \\ ∥ (M - B {F_{1}}^{T}) A_{1} Λ_{1}^{2} + (D - B {F_{2}}^{T}) A_{1} Λ_{1} + (K - B {F_{3}}^{T}) A_{1} ∥_{F} \\ = 2.3258 e - 14 \\ ∥ (M - B {F_{1}}^{T}) A_{2} Λ_{c}^{2} + (D - B {F_{2}}^{T}) A_{2} Λ_{c} + (K - B {F_{3}}^{T}) A_{2} ∥_{F} \\ = 7.5803 e - 15 \end{matrix}

Comparing to the acceleration–velocity–displacement active control (4), the acceleration–velocity active control (67), the acceleration–displacement active control (69), and the velocity–displacement active control given in Liu et al. (2019) gives Table 4. Table 4 shows that the norms obtained by the acceleration–velocity–displacement active control (4) are the smallest. The real-time analysis for the norms and iterative errors of numerical solutions are presented in Figure 7.

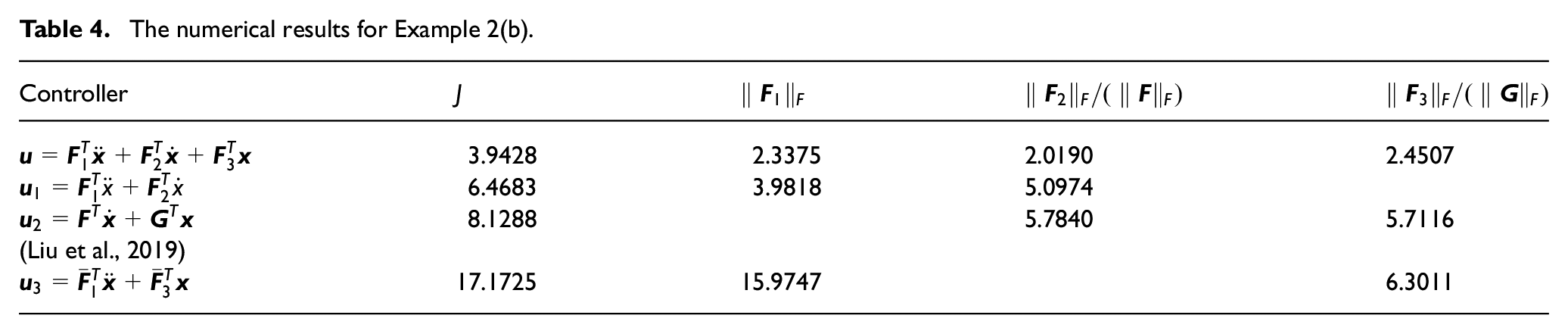

Table 4.

The numerical results for Example 2(b).

Controller	$J$	$∥ F_{1} ∥_{F}$	$∥ F_{2} ∥_{F} / (∥ F ∥_{F})$	$∥ F_{3} ∥_{F} / (∥ G ∥_{F})$
$u = F_{1}^{T} \overset{\cdot\cdot}{x} + F_{2}^{T} \overset{\cdot}{x} + F_{3}^{T} x$	3.9428	2.3375	2.0190	2.4507
$u_{1} = F_{1}^{T} \overset{\cdot\cdot}{x} + F_{2}^{T} \overset{\cdot}{x}$	6.4683	3.9818	5.0974
$u_{2} = F^{T} \overset{\cdot}{x} + G^{T} x$ (Liu et al., 2019)	8.1288		5.7840	5.7116
$u_{3} = {\bar{F}}_{1}^{T} \overset{\cdot\cdot}{x} + {\bar{F}}_{3}^{T} x$	17.1725	15.9747		6.3011

Figure 7.

The norms and iterative errors of numerical solutions for Example 2(b).

Example 3

Consider multi-input non-singular vibrating system with $n = 10$ and $m = 2$ , and (Lu and Bai, 2021)

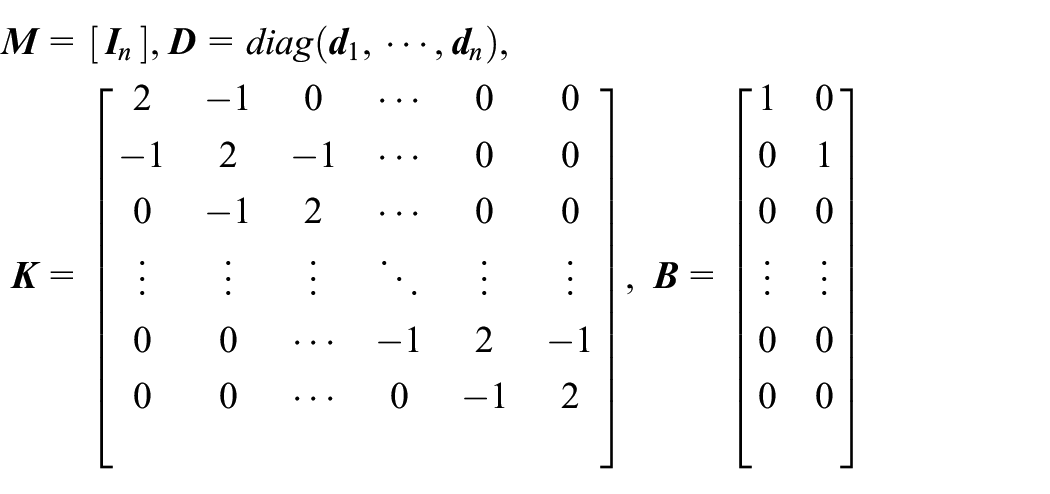

\begin{matrix} M = [\begin{matrix} I_{n} \end{matrix}], D = diag (d_{1}, \dots, d_{n}), \\ K = [\begin{matrix} 2 & - 1 & 0 & \dots & 0 & 0 \\ - 1 & 2 & - 1 & \dots & 0 & 0 \\ 0 & - 1 & 2 & \dots & 0 & 0 \\ ⋮ & ⋮ & ⋮ & ⋱ & ⋮ & ⋮ \\ 0 & 0 & \dots & - 1 & 2 & - 1 \\ 0 & 0 & \dots & 0 & - 1 & 2 \end{matrix}], B = [\begin{matrix} 1 & 0 \\ 0 & 1 \\ 0 & 0 \\ ⋮ & ⋮ \\ 0 & 0 \\ 0 & 0 \end{matrix}] \end{matrix}

where $d_{k} = 2 ξ ω_{k}$ with the damping factor $ξ = 0.1$ and $ω_{k} = 2 \sin (k π / n + 1)$ for $k = 1, \dots, n$ . The open-loop system has 20 eigenvalues. The 17th, 18th, 19th, and 20th eigenvalues ${- 0.1291 \pm 1.5603 i, 0.1290 \pm 1.3031 i}$ are replaced with ${μ_{1, 2} = - 0.4 \pm 1.5063 i, μ_{3, 4} = - 0.8 \pm 1.3031 i}$ , and the rest eigenvalues and associated eigenvectors are kept unchanged. The modal constraints are taken as

\begin{matrix} τ_{1, 3}^{1, 2} = - 2.8059 \pm 1.0616 i, τ_{1, 2}^{3, 4} = - 1.4683 \pm 0.3277 i, \\ ℓ_{μ_{1, 2}, 2} = ℓ_{μ_{3, 4}, 2} = 1 \end{matrix}

then

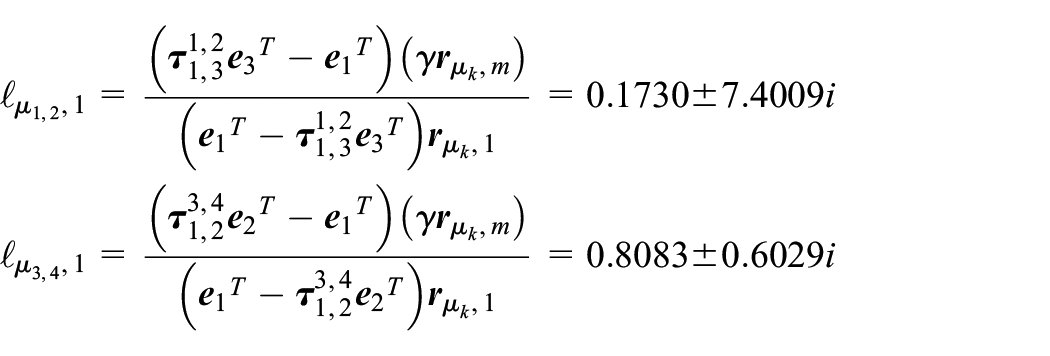

\begin{matrix} ℓ_{μ_{1, 2}, 1} = \frac{(τ_{1, 3}^{1, 2} {e_{3}}^{T} - {e_{1}}^{T}) (γ r_{μ_{k}, m})}{({e_{1}}^{T} - τ_{1, 3}^{1, 2} {e_{3}}^{T}) r_{μ_{k}, 1}} = 0.1730 \pm 7.4009 i \\ ℓ_{μ_{3, 4}, 1} = \frac{(τ_{1, 2}^{3, 4} {e_{2}}^{T} - {e_{1}}^{T}) (γ r_{μ_{k}, m})}{({e_{1}}^{T} - τ_{1, 2}^{3, 4} {e_{2}}^{T}) r_{μ_{k}, 1}} = 0.8083 \pm 0.6029 i \end{matrix}

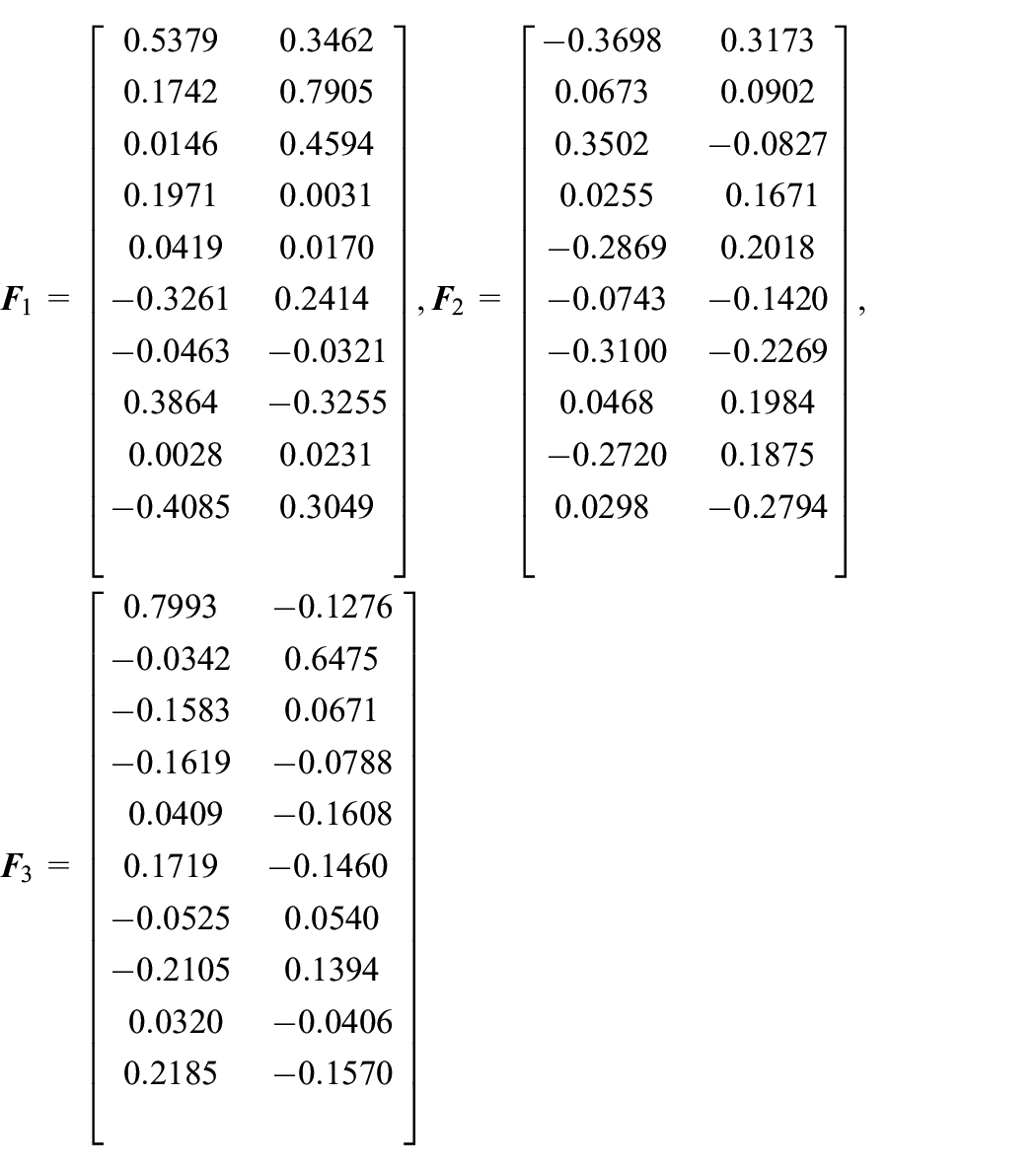

Using the acceleration–velocity–displacement active control (4) and performing Algorithm 1, feedback gains are obtained

\begin{matrix} F_{1} = [\begin{matrix} 0.5379 & 0.3462 \\ 0.1742 & 0.7905 \\ 0.0146 & 0.4594 \\ 0.1971 & 0.0031 \\ 0.0419 & 0.0170 \\ - 0.3261 & 0.2414 \\ - 0.0463 & - 0.0321 \\ 0.3864 & - 0.3255 \\ 0.0028 & 0.0231 \\ - 0.4085 & 0.3049 \end{matrix}], F_{2} = [\begin{matrix} - 0.3698 & 0.3173 \\ 0.0673 & 0.0902 \\ 0.3502 & - 0.0827 \\ 0.0255 & 0.1671 \\ - 0.2869 & 0.2018 \\ - 0.0743 & - 0.1420 \\ - 0.3100 & - 0.2269 \\ 0.0468 & 0.1984 \\ - 0.2720 & 0.1875 \\ 0.0298 & - 0.2794 \end{matrix}], \\ F_{3} = [\begin{matrix} 0.7993 & - 0.1276 \\ - 0.0342 & 0.6475 \\ - 0.1583 & 0.0671 \\ - 0.1619 & - 0.0788 \\ 0.0409 & - 0.1608 \\ 0.1719 & - 0.1460 \\ - 0.0525 & 0.0540 \\ - 0.2105 & 0.1394 \\ 0.0320 & - 0.0406 \\ 0.2185 & - 0.1570 \end{matrix}] \end{matrix}

and

\begin{matrix} ∥ M A_{1} Λ_{1}^{2} + D A_{1} Λ_{1} + K A_{1} ∥_{F} = 1.2393 e - 10 \\ ∥ (M - B {F_{1}}^{T}) A_{1} Λ_{1}^{2} + (D - B {F_{2}}^{T}) A_{1} Λ_{1} + (K - B {F_{3}}^{T}) A_{1} ∥_{F} \\ = 7.7653 e - 15 \\ ∥ (M - B {F_{1}}^{T}) A_{2} Λ_{c}^{2} + (D - B {F_{2}}^{T}) A_{2} Λ_{c} + (K - B {F_{3}}^{T}) A_{2} ∥_{F} \\ = 1.2531 e - 14 \end{matrix}

Comparing to the acceleration–velocity–displacement active control (4), the acceleration–velocity active control (67), the acceleration–displacement active control (69), and the velocity–displacement active control given in Liu et al. (2019) and Lu and Bai (2021) produces Table 5. Table 5 shows that the norms obtained by the acceleration–velocity–displacement active control (4) using the proposed algorithm are the smallest. The real-time analysis for the norms and iterative errors of numerical solutions are presented in Figure 8.

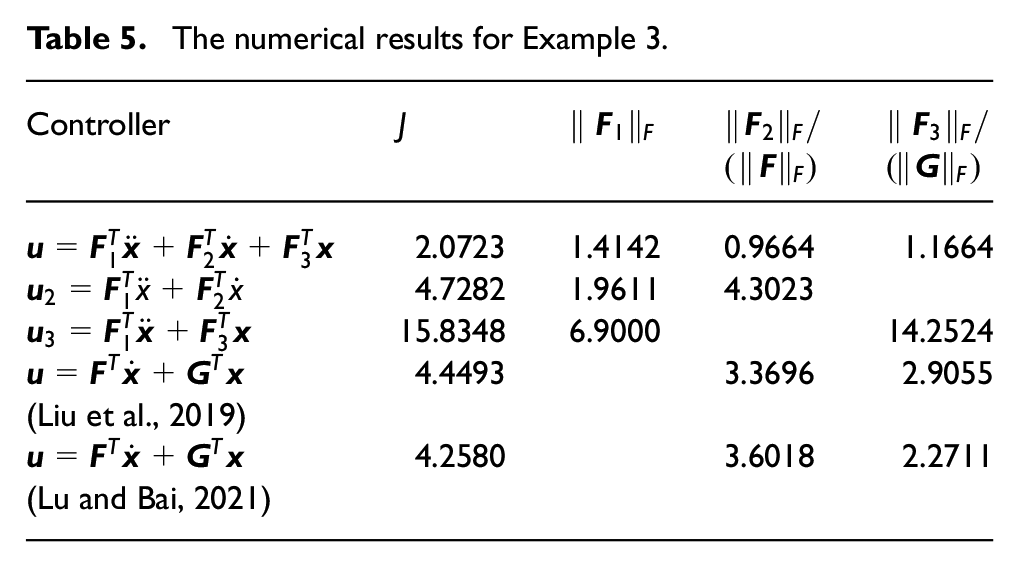

Table 5.

The numerical results for Example 3.

Controller	$J$	$∥ F_{1} ∥_{F}$	$∥ F_{2} ∥_{F} /$ $(∥ F ∥_{F})$	$∥ F_{3} ∥_{F} /$ $(∥ G ∥_{F})$
$u = F_{1}^{T} \overset{\cdot\cdot}{x} + F_{2}^{T}$ $\overset{\cdot}{x} + F_{3}^{T} x$	2.0723	1.4142	0.9664	1.1664
$u_{2} = F_{1}^{T} \overset{\cdot\cdot}{x} + F_{2}^{T} \overset{\cdot}{x}$	4.7282	1.9611	4.3023
$u_{3} = F_{1}^{T} \overset{\cdot\cdot}{x} + F_{3}^{T} x$	15.8348	6.9000		14.2524
$u = F^{T} \overset{\cdot}{x} + G^{T} x$ (Liu et al., 2019)	4.4493		3.3696	2.9055
$u = F^{T} \dot{x} + G^{T} x$ (Lu and Bai, 2021)	4.2580		3.6018	2.2711

Figure 8.

The norms and iterative errors of numerical solutions for Example 3.

The above numerical examples reveal that the acceleration–velocity–displacement active control can apply to second-order vibrating structure with both singular and non-singular cases. Comparing to the existed results, the control effect obtained by the acceleration–velocity–displacement active control (4) using the proposed algorithm of the paper is optimal. All results are carried out using MATLAB 9.1.

Conclusion

The paper studied the partial eigenstructure assignment problems for a singular vibrating structure via acceleration–velocity–displacement active control. A numerical algorithm was proposed to solve the problems. The minimum norm partial eigenstructure assignment problem was discussed. The designed acceleration–velocity–displacement active control can solve the proposed problems with minimum energy consumption, which has an important economic significance. The proposed approach can apply to a singular vibrating structure with singular stiffness matrix. Numerical examples were provided to verify the results. The numerical results showed that the acceleration–velocity–displacement active control can obtain the smallest norms comparing to ones used by the velocity–displacement active control, the acceleration–velocity active control, and the acceleration–displacement active control. Robust partial eigenstructure assignment problems are interesting issues, which needs to be studied in further work.

Footnotes

Acknowledgements

The authors are very grateful to the reviewers for their constructive comments and suggestions, which have improved the paper.

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The work was supported by the National Natural Science Foundation of China grant 61903342 and the Key Scientific Research Project of Universities of Henan Province grant 22B120005.

ORCID iD

Peizhao Yu

References

Abdelaziz

THS

(2014) Parametric approach for eigenstructure assignment in descriptor second-order systems via velocity-plus-acceleration feedback. Journal of Dynamic Systems Measurement and Control 136(4): 044505.

Abdelaziz

THS

(2015) Robust pole assignment using velocity-acceleration feedback for second-order dynamical systems with singular mass matrix. ISA Transactions 57: 71–84.

Abdelaziz

THS

(2016) Eigenstructure assignment by displacement-acceleration feedback for second-order systems. Journal of Dynamic Systems Measurement and Control 138(6): 064502.

Abdelaziz

THS

(2019) Robust solution for second-order systems using displacement acceleration feedback. Journal of Control Automation and Electrical Systems 30(5): 632–644.

Araujo

Dorea

CET

Goncalves

LMG

, et al. (2016) State derivative feedback in second-order linear systems: A comparative analysis of perturbed eigenvalues under. Mechanical Systems and Signal Processing 76–77: 33–46.

Bai

Wan

(2017) Partial quadratic eigenvalue assignment in vibrating structure using receptances and system matrices. Mechanical Systems and Signal Processing 88: 290–301.

Bai

Chen

Datta

(2013) Minimum norm partial quadratic eigenvalue assignment with time delay in vibrating structures using the receptance and the system matrices. Journal of Sound and Vibration 332: 780–794.

Bai

Datta

Wang

(2010) Robust and minimum norm partial quadratic eigenvalue assignment in vibrating systems: A new optimization approach. Mechanical Systems and Signal Processing 24(3): 766–783.

Bai

Wan

(2018) Minimum norm partial quadratic eigenvalue assignment in vibrating structures using receptances and system matrices. Mechanical Systems and Signal Processing 112: 265–279.

10.

Cai

Qian

(2011) The formulation and numerical method for partial quadratic eigenvalue assignment problems. Numerical Linear Algebra With Application 18(4): 637–652.

11.

Duan

(2002) Right coprime factorizations for single-input descriptor linear systems: A simple numerically stable algorithm. Asian Journal of Control 4(2): 146–158.

12.

Duan

(2010) Analysis and Design of Descriptor Linear Systems. New York: Springer.

13.

Zang

Duan

(2016) Eigenstructure assignment for second-order systems based on displacement-plus-acceleration feedback. China Academic Journal Electronic Publishing House 45(3): 301–305.

14.

Zhao

Liu

, et al. (2016) Complete parametric approach for eigenstructure assignment in second-order systems using displacement-plus-acceleration feedback. In: 22nd International Conference on Automation and Computing (ICAC), Colchester, 7–8 September, pp. 183–187. New York: IEEE.

15.

Guruguntla

Lal

(2021) An improved biomechanical model to optimize biodynamic responses under vibrating medium. Journal of Vibration Engineering and Technologies 9(4): 675–685.

16.

Guzzardo

Pang

Ram

(2013) Optimal actuation in vibration control. Mechanical Systems and Signal Processing 35: 279–290.

17.

Huang

Yin

Guo

(2008) An iterative method for the skew-symmetric solution and the optimal approximate solution of the matrix equation

AXB = C^{*}

. Journal of Computational and Applied Mathematics 212(2): 231–244.

18.

Zhang

(2019) Motion control study in a series of two linkage mechanical arm considering joint nonlinearity. Machine Tool and Hydraulics 47(23): 83–88.

19.

Liang

Wang

Huang

(2019) Finite-time sensor fault diagnosis observer design for attitude control systems of satellite based on sampled-data descriptor systems. Transactions of the Institute of Measurement and Control 41(12): 3490–3506.

20.

Liu

Chen

(2019) Minimum norm partial quadratic eigenvalue assignment for vibrating structures using receptance method. Mechanical Systems and Signal Processing 123: 131–142.

21.

Bai

(2021) A modified optimization method for robust partial quadratic eigenvalue assignment using receptances and system matrices. Applied Numerical Mathematics 159: 73–92.

22.

Mottershead

Tehrani

Ram

(2009) Assignment of eigenvalue sensitivities from receptance measurements. Mechanical Systems and Signal Processing 23(6): 1931–1939.

23.

Ram

Mottershead

(2013) Multiple-input active vibration control by partial pole placement using the method of receptances. Mechanical Systems and Signal Processing 40(2): 727–735.

24.

Ram

Mottershead

Tehrani

(2011) Partial pole placement with time delay in structures using the receptance and the system matrices. Linear Algebra and Its Applications 434(7): 1689–1696.

25.

Shi

Han

, et al. (2020) Design of launch vehicles pitching channel attitude control system based on SMC. Missiles and Space Vehicles 4(1): 14–19.

26.

Siahlooei

Fazeli

SAS

Karbassi

(2020) Eigenvalue assignment via uncertain state feedback controllers. Asian Journal Control 22(5): 1860–1869.

27.

Singh

Dey

Datta

(2014) Partial eigenvalue assignment and its stability in a time delayed system. Mechanical Systems and Signal Processing 42(1–2): 247–257.

28.

Tian

Duan

(2020) Robust model reference control for uncertain second-order system subject to parameter uncertainties. Transactions of the Institute of Measurement and Control. Epub ahead of print 26 February. DOI: 10.1177/0142331220904544.

29.

Wang

(2006) Generalized Inverse of Matrices and Its Applications. Beijing, China: Beijing University of Technology Press.

30.

Yao

(2001) An iterative method for solving the consistent set of matrix equations

A_{1} X B_{1} = D_{1}; A_{2} X B_{2} = D_{2}

. Nanjing Normal University 24(1): 6–10.

31.

(2020) Partial eigenstructure assignment problem for vibration system via feedback control. Asian Journal of Control. Epub ahead of print October. DOI: 10.1002/asjc.2469.

32.

Zhang

(2016) Eigenstructure assignment and impulse elimination for singular second-order system via feedback control. IET Control Theory and Applications 10(8): 869–876.

33.

Zhang

Ouyang

Yang

(2014) Partial eigenstructure assignment for undamped vibration systems using acceleration and displacement feedback. Journal of Sound and Vibration 333(1): 1–12.

34.

Zhang

Ouyang

Zhang

, et al. (2015) Partial quadratic eigenvalue assignment in vibrating systems using acceleration and velocity feedback. Inverse Problems in Science and Engineering 23(3): 479–497.

35.

Zhang

(2019) Optimal control of second-order and high-order descriptor systems. Optimal Control Applications and Methods 40(4): 791–806.

36.

Zhang

Liu

(2012) Output regulation for matrix second order singular systems via measurement output feedback. Journal of the Franklin Institute 349(6): 2124–2135.

37.

Zheng

(2002) Linear System Theory (2nd edn). Beijing, China: Tsinghua University Press.

38.

Zhou

Duan

(2008) Parametric approach for the normal Luenberger function observer design in second-order descriptor linear systems. International Journal of Automation and Computing 5(2): 125–131.
