Design of decentralized proportional–integral proportional–retarded controllers in discrete-time domain for two-input two-output processes

Abstract

In this paper, a decentralized proportional–integral proportional–retarded (PI-PR) controller design method is proposed for two-input two-output (TITO) systems in discrete-time domain. The well-known dominant pole assignment (DPA) approach is used as the basis of the proposed approach. The controller design starts with the decoupling of a given TITO system into two sub-systems and continues with the design of proportional–integral–retarded (PIR) controllers for each sub-system, respectively. The feasible discrete PIR controller parameter set is obtained through the Nyquist stability criterion by considering the desired closed-loop performance specifications. The obtained PIR controllers are then implemented using a PI-PR control structure to avoid poor performance of the closed-loop system (CLS) transient response, which can be caused by the controller zeros. Moreover, a case study is presented to show the performance of the PI-PR controller in a simulation environment. It is shown that the proposed control structure provides a satisfactory performance when compared with the other proportional–integral–derivative (PID) control methods from the literature.

Keywords

Two-input two-output processes decentralized control proportional–integral–retarded controller dominant pole assignment discrete-time domain Nyquist stability criterion

Introduction

The pole assignment approach is a widely used design method in control systems because the design procedure is simple, and the closed-loop system (CLS) performance specifications are generally acquired as necessary (Åström and Murray, 2010). The main point of this approach is to place the CLS poles at predetermined locations in the complex plane (Ackermann, 2012). Nevertheless, it may be a challenge to place the CLS poles arbitrarily for higher order systems or when there are a limited number of (controller) parameters to be tuned. The dominant pole assignment (DPA) approach is used to avoid possible problems in such cases (Das et al., 2018, 2019; Dincel et al., 2018; Fišer and Zítek, 2019; Halder et al., 2020; Srivastava et al., 2019; Wang et al., 2020). In this method, since the CLS performance specification is mainly specified by the dominant poles, it is expected that the remaining (un-assigned) poles are also located away from the dominant poles. Thus, the CLS transient response can be achieved as desired (Wang et al., 2009). The DPA approach can also be used to design proportional–integral–derivative (PID) controllers which are one of the commonly used controller types in industrial applications. Nevertheless, the limited number of the PID controller parameters (two in proportional–integral (PI) case and three in PID case) causes difficulties in the DPA as mentioned earlier. Therefore, a systematic design procedure is required.

In PID controllers, the derivative parameter may not be tuned practically due to high-frequency measurement noise amplification. Therefore, some control applications avoid the derivative parameter (Åström and Hägglund, 2001). However, the time-delay term can be deliberately used to obtain practical and easy to implement control laws. It should be noted that time delays do not always have an unstabilizing effect or cause poor performance, and actually, it is possible to find the studies in which time delays are used as a control strategy in the literature (Galip Ulsoy, 2015; Kharitonov et al., 2005; Niculescu and Michiels, 2004; Suh and Bien, 1980, 1979; Swisher and Tenqchen, 1988). Considering the positive impacts of the use of time delays, a proportional–integral–retarded (PIR) controller is recommended (Ramirez et al., 2015) with the help of the studies in Chen (1987); Villafuerte et al. (2012); Ramírez et al. (2013, 2015). The PIR controller involves a delayed proportional parameter avoiding the derivative parameter, so the effect of the noise amplification can be reduced while preserving the performances of the steady-state and disturbance rejection. In the literature, there are several studies where the retarded parameter is used in control structures (Koh et al., 2018; López et al., 2017, 2018; Ramírez and Sipahi, 2018).

Since the DPA method only deals with the CLS poles, an undesired CLS behavior may be observed if the controller zeros are placed very close to the dominant poles. After the design, the controller zeros can appear in the dominant region or even in the instability region in the conventional PIR controller; however, the proportional–integral proportional–retarded (PI-PR) controller structure (similar to proportional–integral proportional–derivative (PI-PD)) proposed in this paper ensures to place the controller zero arbitrarily. Thus, the CLS transient response is not affected much (De Keyser et al., 2016; Dincel and Söylemez, 2018; Onat, 2019; Peker and Kaya, 2017; Peram et al., 2018; Singh and Padhy, 2018).

It should be noted that the DPA is not a straightforward method to apply in the continuous-time domain for systems with time delay. However, it can be more advantageous to design a controller in discrete time for systems with a time delay so that the number of the poles caused by the time delay (which is infinite in the continuous-time domain) reduced to a finite value. Besides, discrete-time controllers are highly preferred since industrial systems are generally controlled via digital devices (Dincel and Söylemez, 2014; Wang et al., 2020). Therefore, controller design in z-plane is considered in this study.

In industrial processes, multi-input multi-output (MIMO) systems are frequently encountered. Two-input two-output (TITO) systems are, however, the most common type of MIMO systems, and many MIMO systems with more than TITO can also be figured as TITO sub-systems (Hu et al., 2011; Huang and Lin, 2006; Liu et al., 2005). However, designing controllers for TITO systems through the DPA approach is more challenging than single-input single-output (SISO) systems due to the interaction between input and output variables (Seborg et al., 2010). Decentralized controllers are the most commonly used structures to control TITO systems (Hajare and Patre, 2015; Lengare et al., 2012; Liu et al., 2005). However, a decoupler design is required in such a case. There exist many different decoupling methods in the literature (Lakshmanaprabu et al., 2019; Maghade and Patre, 2012; Noeding et al., 2018; Park et al., 2017; Wutthithanyawat and Wangnippamto, 2018). In Mokadam et al. (2013) and Maghade and Patre (2014), decentralized controllers are designed for the TITO systems in continuous time using the DPA approach. In this paper, an analytical design of the decentralized PI-PR controller for TITO systems is presented in z-domain via the DPA method. The main contribution is to propose a novel approach to the design of PID type controllers, one of the most commonly used controller types in the industry, especially in process control. With the help of the proposed approach, almost zero overshoot together with a minimum possible settling time is guaranteed, the adverse effects of the derivative term are minimized using the retarded term (R) instead of derivative term (D), and the problems caused by the controller zero are eliminated using a 2-degree-of-freedom (DOF) control structure. A systematic approach is also proposed when it is not possible to place two poles in the dominant pole region. The feasible controller parameters are calculated directly on the discrete-time domain analytically, and the obtained controller is enabled to be implemented directly in a computer-based system. It is shown through a case study that this proposed approach can be applied to decomposable MIMO systems, especially TITO systems, which are frequently encountered in the industry.

The rest of the paper is organized as follows. A decoupling method for TITO systems is presented in section “A decoupling method for TITO systems.” Then, preliminaries for the discrete PI-PR controller design are given in section “Preliminaries for discrete PI-PR controller design.” In section “The discrete PI-PR controller design algorithm for TITO systems,” the detailed algorithm of the proposed method is offered, and in section “Case study,” a numerical example is included to show the CLS performance of the proposed design method. The concluding remarks and future works are given in section “Conclusion.”

A decoupling method for TITO systems

The control structure of a TITO feedback system with a decoupler is shown in Figure 1.

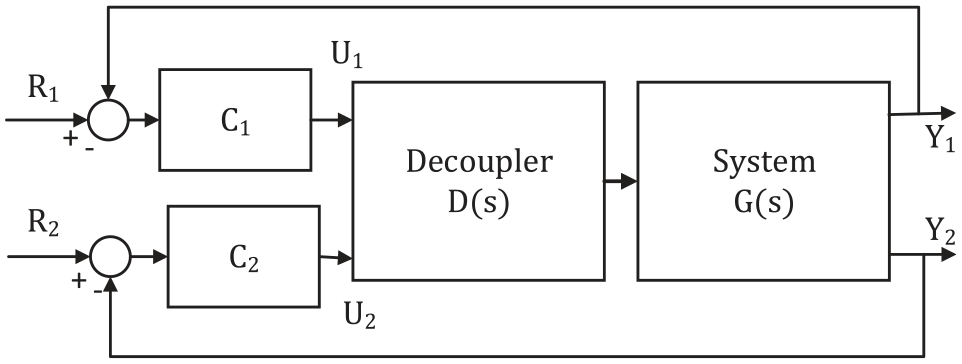

Figure 1.

Block diagram for two-input two-output system with a decoupler.

Assume that the transfer function matrix of the TITO system is described as follows

G (s) = [\begin{matrix} g_{11} (s) e^{- L_{11} s} & g_{12} (s) e^{- L_{12} s} \\ g_{21} (s) e^{- L_{21} s} & g_{22} (s) e^{- L_{22} s} \end{matrix}]

(1)

The system given in equation (1) is decoupled via a decoupler matrix with a disturbance input $(Dr)$ as shown in Figure 2. The decoupler matrix is designed considering the following two cases:

Case 1: if the off-diagonal elements of $G (s)$ do not have any pole on the right half-plane and the diagonal elements of $G (s)$ do not have any zeros on the right half-plane, the decoupler matrix studied in Maghade and Patre (2012) can be used as follows

D (s) = [\begin{matrix} υ_{1} (s) & d_{12} (s) υ_{2} (s) \\ d_{21} (s) υ_{1} (s) & υ_{2} (s) \end{matrix}]

(2)

where

υ_{1} (s) : = {\begin{matrix} 1 & L_{21} \geq L_{22} \\ e^{(L_{21} - L_{22}) s} & L_{21} < L_{22} \end{matrix}

(3)

υ_{2} (s) : = {\begin{matrix} 1 & L_{12} \geq L_{11} \\ e^{(L_{12} - L_{11}) s} & L_{12} < L_{11} \end{matrix}

(4)

d_{12} (s) : = - \frac{g_{12} (s)}{g_{11} (s)} e^{- (L_{12} - L_{11}) s}

(5)

d_{21} (s) : = - \frac{g_{21} (s)}{g_{22} (s)} e^{- (L_{21} - L_{22}) s}

(6)

Case 2: if the diagonal elements of $G (s)$ do not have any pole on the right half-plane and the off-diagonal elements of $G (s)$ do not have any zeros on the right half-plane, the decoupler matrix is given as follows

D (s) = [\begin{matrix} d_{11} (s) υ_{3} (s) & υ_{3} (s) \\ υ_{4} (s) & d_{22} (s) υ_{4} (s) \end{matrix}]

(7)

where

υ_{3} (s) : = {\begin{matrix} 1 & L_{22} \geq L_{21} \\ e^{(L_{22} - L_{21}) s} & L_{22} < L_{21} \end{matrix}

(8)

υ_{4} (s) : = {\begin{matrix} 1 & L_{11} \geq L_{12} \\ e^{(L_{11} - L_{12}) s} & L_{11} < L_{12} \end{matrix}

(9)

d_{11} (s) : = - \frac{g_{22} (s)}{g_{21} (s)} e^{- (L_{22} - L_{21}) s}

(10)

d_{22} (s) : = - \frac{g_{11} (s)}{g_{12} (s)} e^{- (L_{11} - L_{12}) s}

(11)

Thus, the diagonal matrix $H (s)$ is obtained as in equation (12)

H (s) : = G (s) D (s) = [\begin{matrix} h_{11} (s) & h_{12} (s) \\ h_{21} (s) & h_{22} (s) \end{matrix}]

(12)

While the off-diagonal elements of $H (s)$ are zero, the diagonal elements ( $h_{11} (s)$ and $h_{22} (s)$ ) are controlled by the decentralized controllers which are $C_{1}$ and $C_{2}$ .

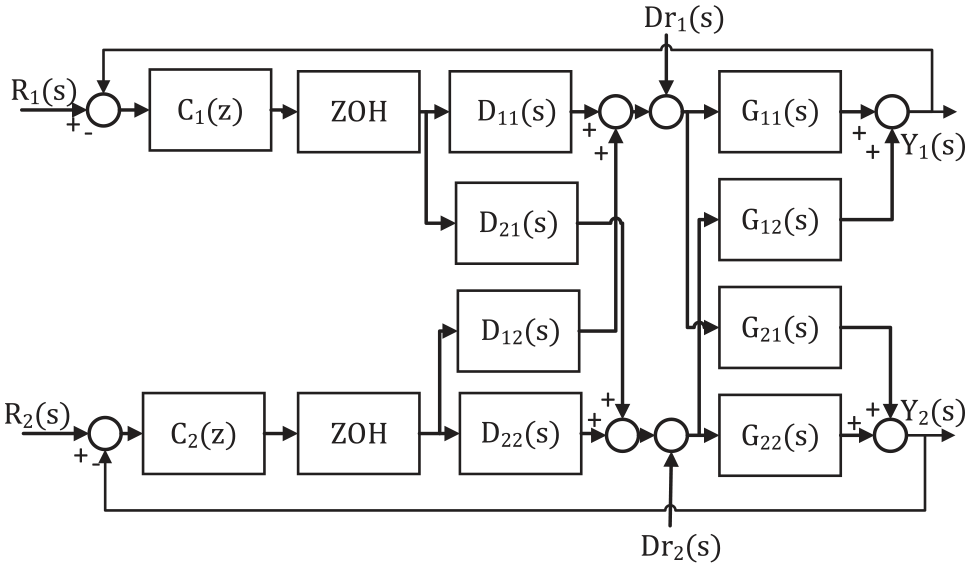

Figure 2.

Control structure for two-input two-output system using a decoupler matrix.

The diagonal elements obtained by decoupling of the system may involve multiple time delays. It should be remarked that the DPA method cannot be applied to SISO systems with multiple time delays. Therefore, it is recommended to write the transfer functions of $h_{11} (s)$ and $h_{22} (s)$ in the discrete-time domain with a proper sampling time. Thus, controllers can be designed via the DPA method for the discrete-time transfer functions.

Preliminaries for discrete PI-PR controller design

Discrete PIR and PI-PR controllers

A discrete PIR controller is defined as follows

C_{PIR} (z) = \frac{N_{C} (z)}{D_{C} (z)} = K_{p} + K_{i} \frac{z}{z - 1} - K_{r} z^{- h}

(13)

where $h \in Z^{+}$ and $K_{p}$ , $K_{i}$ , $K_{r} \in R$ .

The conventional block diagram for the unit feedback system with discrete PIR controller is shown in Figure 3.

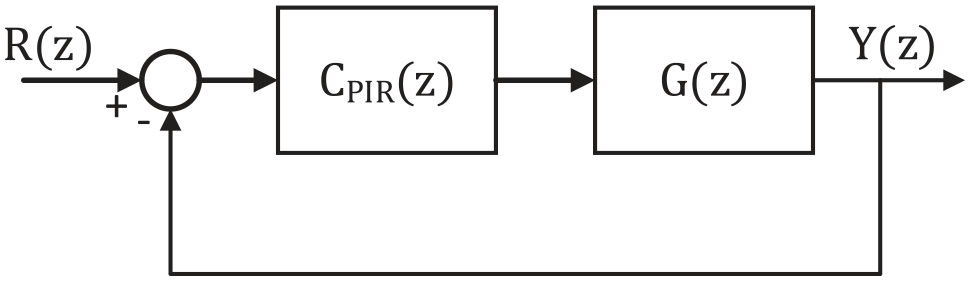

Figure 3.

Block diagram of the considered system together with discrete PIR controller.

Let a representation of the system in z-domain be given as

G (z) = \frac{N_{G} (z)}{D_{G} (z)} = \frac{b_{m} z^{m} + b_{m - 1} z^{m - 1} + \dots + b_{1} z + b_{0}}{z^{n} + a_{n - 1} z^{n - 1} + \dots + a_{1} z + a_{0}}, m \leq n

(14)

The characteristic polynomial of the CLS with the PIR controller can be written as

\begin{matrix} P_{c} (z) = 1 + C_{PIR} (z) G (z) \\ = z^{h + 1} (N_{G} (K_{p} + K_{i}) + D_{G}) - z^{h} (N_{G} K_{p} + D_{G}) \\ - z N_{G} K_{r} + N_{G} K_{r} \end{matrix}

(15)

The closed-loop control system with a PI-PR controller is also shown in Figure 4.

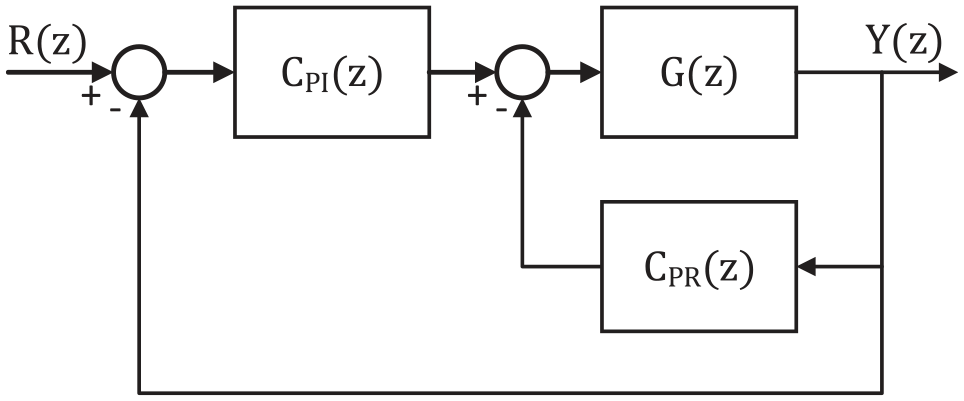

Figure 4.

Block diagram of the considered system together with discrete PI-PR controller.

The PI-PR controller is preferred over the conventional PIR controller due to the fact that the controller zero can appear in the z-plane arbitrarily. Thus, the negative effects of zeros (caused by the PI-PR controller) in the CLS can be avoided. It is also possible to cancel a real pole of the system with the discrete PI-PR controller zero in order to alleviate the design.

The PI-PR controllers transfer functions in the z-domain are defined as follows

C_{PI} (z) = K_{pi} + K_{i} \frac{z}{z - 1}

(16)

C_{PR} (z) = K_{pr} - K_{r} z^{- h}

(17)

The characteristic polynomial of the CLS with the PI-PR controller is given in equation (18)

\begin{matrix} P_{c} (z) = 1 + (C_{PI} (z) + C_{PR} (z)) G (z) \\ = z^{h + 1} (N_{G} (K_{p} i + K_{p} r + K_{i}) + D_{G}) \\ - z^{h} (N_{G} (K_{p} i + K_{p} r) + D_{G}) - z N_{G} K_{r} + N_{G} K_{r} \\ = 0 \end{matrix}

(18)

If the characteristic polynomials in equations (15) and (18) are compared, it can be seen that the polynomials are found to be the same if the equality given in equation (19) is satisfied

K_{pr} + K_{pi} = K_{p}

(19)

where $K_{pr}$ and $K_{pi}$ are called as proportional–retarded and proportional–integral gains. In this case, the locations of the controller zeros can be easily designated by changing the $K_{pi}$ parameter as seen from the following expression

z = \frac{K_{pi}}{K_{i} + K_{pi}}

(20)

Please note that the other zero is located at $z = 0$ . Hence, the discrete PIR controller parameters are easily converted to equivalent discrete PI-PR controller parameters.

Finding the controller parameter set that provides DPA using the Nyquist plot

It is supposed that the dominant pole pair is determined as $z_{d 1, d 2} = σ_{z} \pm j ω_{z}$ concerning the desired CLS performance characteristics. One of the poles is substituted into the characteristic polynomial of the CLS given in equation (15)

\begin{matrix} P_{c} (z) = 1 + C_{PIR} (σ_{z} + j ω_{z}) G (σ_{z} + j ω_{z}) \\ = D_{C} (σ_{z} + j ω_{z}) D_{G} (σ_{z} + j ω_{z}) + N_{C} (σ_{z} + j ω_{z}) \\ N_{G} (σ_{z} + j ω_{z}) = 0 \end{matrix}

(21)

Assume that the discrete transfer function is known. Then, $N_{G} (σ_{z} + j ω_{z})$ and $D_{G} (σ_{z} + j ω_{z})$ are also known. Besides, the value of the discrete PIR controller parameter $h$ should be chosen as a positive integer due to time-delay expression. After determining the value of $h$ , $D_{C} (σ_{z} + j ω_{z})$ becomes known. Thus, the only unknown part in equation (21) is $N_{C} (σ_{z} + j ω_{z})$ , and this part includes the other parameters of the controller ( $K_{i}$ , $K_{r}$ , and $K_{p}$ ). This part is separated from the characteristic polynomial in order to obtain the controller parameters

N_{C} (σ_{z} + j ω_{z}) = - \frac{D_{C} (σ_{z} + j ω_{z}) D_{G} (σ_{z} + j ω_{z})}{N_{G} (σ_{z} + j ω_{z})}

(22)

Equation (21) is split to its real and imaginary parts as follows

{N_{C}}_{Re} = \frac{{N_{G}}_{Re} P - {N_{G}}_{Im} R}{{N_{GRe}}^{2} + {N_{GIm}}^{2}}

(23)

{N_{C}}_{Im} = \frac{- {N_{G}}_{Re} R - {N_{G}}_{Im} P}{{N_{GRe}}^{2} + {N_{GIm}}^{2}}

(24)

where

P = {D_{C}}_{Im} {D_{G}}_{Im} - {D_{C}}_{Re} {D_{G}}_{Re}

(25)

R = {D_{C}}_{Re} {D_{G}}_{Im} + {D_{C}}_{Im} {D_{G}}_{Re}

(26)

Also, $D_{C}$ , $D_{G}$ , $N_{C}$ , and $N_{G}$ are $D_{C} (σ_{z} + j ω_{z})$ , $D_{G} (σ_{z} + j ω_{z})$ , $N_{C} (σ_{z} + j ω_{z})$ , and $N_{G} (σ_{z} + j ω_{z})$ , respectively. Equations (23) and (24) are solved together so as to find the parameters $K_{i}$ and $K_{r}$ depending on the parameter $K_{p}$ .

The discrete PIR controller parameter $h$ is chosen in $Z^{+}$ as mentioned above. It can be seen in section “The discrete PI-PR controller design algorithm for TITO systems” that feasible controller parameter set generally narrows down if the value of $h$ is increased. For this reason, $h$ is selected as 1 to get a larger feasible parameter set in this paper. Hence, $K_{i}$ and $K_{r}$ can be obtained as follows depending on $K_{p}$ for $h = 1$

K_{r} = Q_{1} - K_{p} \frac{{σ_{z}}^{2} + {ω_{z}}^{2}}{{σ_{z}}^{2} + {ω_{z}}^{2} - 2 σ_{z}}

(27)

K_{i} = Q_{2} - K_{p} \frac{{σ_{z}}^{2} + {ω_{z}}^{2} - 2 σ_{z} + 1}{{σ_{z}}^{2} + {ω_{z}}^{2} - 2 σ_{z}}

(28)

where

Q_{1} = \frac{2 σ_{z} ({σ_{z}}^{2} - {ω_{z}}^{2} - σ_{z})}{{σ_{z}}^{2} + {ω_{z}}^{2} - 2 σ_{z}} \frac{{D_{G}}_{Re}}{{N_{G}}_{Re}} + \frac{({σ_{z}}^{2} - {ω_{z}}^{2}) (1 - 2 σ_{z})}{{σ_{z}}^{2} + {ω_{z}}^{2} - 2 σ_{z}} \frac{{D_{G}}_{Im}}{{N_{G}}_{Im}}

(29)

Q_{2} = \frac{{σ_{z}}^{2} - {ω_{z}}^{2} - σ_{z}}{{σ_{z}}^{2} + {ω_{z}}^{2} - 2 σ_{z}} \frac{{D_{G}}_{Re}}{{N_{G}}_{Re}} + \frac{- 2 {σ_{z}}^{2} + 3 σ_{z} - 1}{{σ_{z}}^{2} + {ω_{z}}^{2} - 2 σ_{z}} \frac{{D_{G}}_{Im}}{{N_{G}}_{Im}}

(30)

When the obtained parameters $K_{i}$ and $K_{r}$ are substituted into the characteristic polynomial, the only unknown parameter remains $K_{p}$ in the polynomial.

To apply the proposed method, the polynomial is written as equation (31) by separating $K_{p}$ from the characteristic polynomial

1 + K_{p} \bar{G} (z) = 0

(31)

where

\bar{G} (z) = \frac{N_{G} (z^{2} - 2 σ_{z} z + {σ_{z}}^{2} + {ω_{z}}^{2})}{({σ_{z}}^{2} + {ω_{z}}^{2} - 2 σ_{z}) (Q_{1} N_{G} (z - 1) + z (- Q_{2} N_{G} z - D_{G} (z - 1)))}

(32)

Here, the orders of the numerator and denominator of $\bar{G} (z)$ are $m + 2$ and $n + 2$ , respectively. Therefore, $\bar{G} (z)$ is a proper rational transfer function.

The feasible $K_{p}$ range is obtained through the Nyquist stability criterion in Söylemez et al. (2003) and Dincel and Söylemez (2018) to guarantee the dominance of the desired CLS poles in z-domain. For this reason, the CLS remaining poles should be placed in the circle of a radius $r^{m}$ if the distance from the origin to the dominant poles is denoted as $r = \sqrt{{σ_{z}}^{2} + {ω_{z}}^{2}}$ and the desired dominance index is denoted by $m$ (selected as 3–5 in general). Then, the resulting transfer function in the open-loop is formed as $\tilde{G} (z) = \bar{G} (r^{m} z)$ .

Since the dominant poles determined as $z_{d 1, d 2}$ are located outside the stability region of $\tilde{G} (z)$ according to the Nyquist stability criterion, the number of unstable CLS poles should be two. To achieve the $K_{p}$ interval, such that two CLS poles are located in unstable region, first $\tilde{G} (z)$ is stated in the frequency domain as $\tilde{G} (e^{j γ})$ . In the next step, the critical frequencies at which the imaginary part of $\tilde{G} (e^{j γ})$ is equal to zero are found by solving equation (33) and denoted as $γ^{*}$

Im [\tilde{G} (e^{j γ})] = 0

(33)

The real parts of $\tilde{G} (e^{j γ})$ are provided at these frequencies, so the intersection points of the modified Nyquist plot with the real axis are obtained

x_{i} = Re [\tilde{G} (e^{j γ^{*}})]

(34)

Hence, it is possible to find the gain intervals using the generalized Nyquist theorem as follows (Söylemez et al., 2003)

X_{i} \in (\frac{- 1}{x_{i}}, \frac{- 1}{x_{i + 1}})

(35)

where $x_{i} < x_{i + 1}$ for $i = 1, 2, . . ., m + 1$ . The feasible interval of $K_{p}$ can be obtained as the union of the resulting gain ranges such that the system has two unstable poles

K_{p} \in ⋃_{i = 1}^{m} X_{i}

(36)

It should be noted that intersection points of the modified Nyquist plot with the real axis can also be found by drawing the Nyquist plot of the $\tilde{G} (z)$ ; therefore, the feasible interval of $K_{p}$ can be obtained.

The discrete PI-PR controller design algorithm for TITO systems

The algorithm steps of the proposed design method are summarized as follows:

The TITO system is decoupled into two sub-systems with a decoupler matrix obtained by equation (2) or (7).

The sub-systems are implemented in discrete-time domain since the sub-systems may involve multiple time delays.

A dominant pole pair in the z-plane is designated via the target performance specifications as $z_{d 1, d 2} = σ_{z} \pm j ω_{z}$ .

Choosing a value of $h$ (a positive integer), the discrete PIR controller parameters are written in terms of $K_{p}$ using equations (23) and (24).

The characteristic polynomial of the CLS is reorganized as given in equation (31), and then the resulting transfer function is obtained as $\tilde{G} (z)$ with the target dominance index $m$ .

$\tilde{G} (e^{j γ})$ expression should be obtained by substituting $z = e^{j γ}$ in $\tilde{G} (z)$ . After that, the imaginary part of $\tilde{G} (e^{j γ})$ is equated to zero in order to find the critical frequencies, and these frequencies are substituted into the real part of $\tilde{G} (e^{j γ})$ with the help of equations (33) and (34).

With the help of the intersections of the modified Nyquist plot with the real axis, a feasible $K_{p}$ range is obtained. Other controller parameters are calculated for a chosen $K_{p}$ in the feasible range.

If the number of the unstable poles cannot be achieved as two and an additional real pole needs to be placed in the dominant region, the discrete PI-PR controller parameter $K_{pi}$ is determined with equation (20) in such a way that this real pole is canceled by the controller zero. However, if the required number of the unstable poles is achieved, $K_{pi}$ is determined so that the controller zero is placed outside the dominant region.

It is noted that if a system has a zero in the dominant region, a pre-filter can be used to avoid undesired CLS transient response.

After $K_{pr}$ is obtained using equation (19), the discrete PI-PR controller design procedure is finalized.

If there does not exist a feasible parameter set after the above steps, the algorithm is repeated with other target performance specifications and/or dominance index.

Case study

In order to show the efficiency of the proposed controller design method through simulations, an industrial-scale polymerization (ISP) reactor is considered. The simulation study is carried out on the MATLAB 2020b/Simulink platform with ode23s solver. The sampling time $t_{s}$ is chosen as $0.05 seconds$ according to the Nyquist–Shannon sampling theorem.

The transfer function matrix for an ISP reactor given (Chien et al., 1999) is described as follows

G (s) = [\begin{matrix} \frac{22.89}{4.572 s + 1} e^{- 0.2 s} & - \frac{11.4}{1.807 s + 1} e^{- 0.4 s} \\ \frac{4.689}{2.174 s + 1} e^{- 0.2 s} & \frac{5.8}{1.801 s + 1} e^{- 0.4 s} \end{matrix}]

For applying the DPA, the interaction between the control loops of the system is removed by the decoupling method. Decoupler matrix for the given system is found as follows

D (s) = [\begin{matrix} e^{- 0.2 s} & \frac{0.49803 (4.572 s + 1)}{1.807 s + 1} e^{- 0.2 s} \\ \frac{- 0.80845 (1.801 s + 1)}{2.174 s + 1} & 1 \end{matrix}]

Then, the decoupled system is obtained as

H (s) = G (s) D (s) = [\begin{matrix} h_{11} (s) & 0 \\ 0 & h_{22} (s) \end{matrix}]

where

\begin{matrix} h_{11} (s) = \frac{9.21631 (1.801 s + 1)}{(1.807 s + 1) (2.174 s + 1)} e^{- 0.4 s} + \frac{22.89}{4.572 s + 1} e^{- 0.4 s} \\ h_{22} (s) = \frac{2.33528 (4.572 s + 1)}{(1.807 s + 1) (2.174 s + 1)} e^{- 0.4 s} + \frac{5.8}{1.801 s + 1} e^{- 0.4 s} \end{matrix}

The corresponding discrete transfer function for the first diagonal element $(h_{11} (s))$ with $t_{s} = 0.05$ is

h_{11} (z) = \frac{0.45783 z^{2} - 0.89521 z + 0.4376}{z^{8} (z^{3} - 2.9391 z^{2} + 2.87936 z - 0.94025)}

The performance specifications in the CLS are targeted as 0.1% overshoot and 2.9 seconds settling time. The dominant pole pair corresponding to these requests is located in the z-plane with the selected sampling time

z_{1, 2} = σ_{z} + j ω_{z} = 0.9329 \pm j 0.02927

For the discrete PIR controller parameter $h = 1$ , the other parameters $K_{i}$ and $K_{r}$ are obtained in terms of $K_{p}$

\begin{matrix} K_{i} = 0.00539 K_{p} + 0.00311 \\ K_{r} = 0.87585 K_{p} - 0.09934 \end{matrix}

Next, the characteristic equation is rearranged to obtain the transfer function $\bar{G} (z)$ . When the absolute value of the dominant poles is calculated as $r = 0.93336$ and if the target dominance index is chosen as $m = 3$ , the transfer function $\tilde{G} (z) = \bar{G} (0.0 . 93336^{3} z)$ is obtained. Then, the intersection points of the Nyquist curve of $\tilde{G} (z)$ with real axis are found, and the gain intervals and the corresponding extra pole number $(u)$ are given in Table 1.

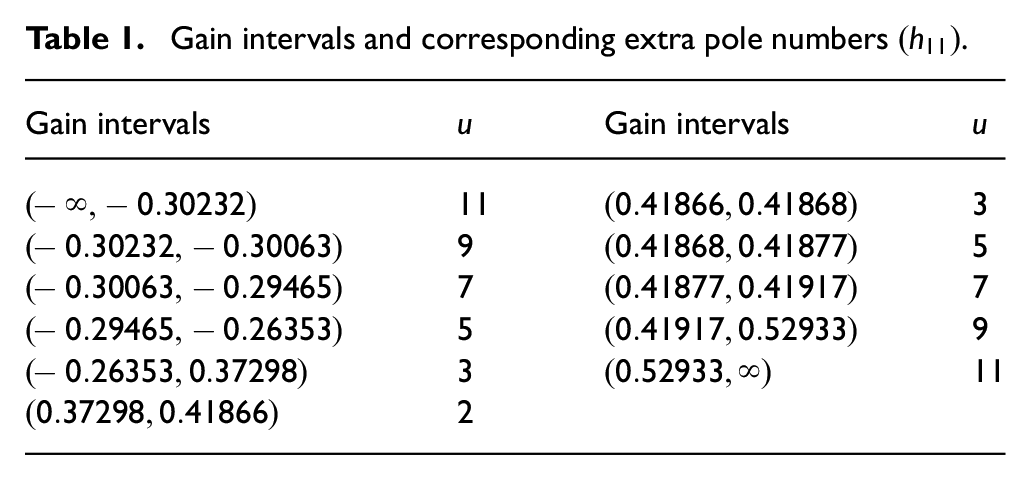

Table 1.

Gain intervals and corresponding extra pole numbers $(h_{11})$ .

Gain intervals	$u$	Gain intervals	$u$
$(- \infty, - 0.30232)$	11	$(0.41866, 0.41868)$	3
$(- 0.30232, - 0.30063)$	9	$(0.41868, 0.41877)$	5
$(- 0.30063, - 0.29465)$	7	$(0.41877, 0.41917)$	7
$(- 0.29465, - 0.26353)$	5	$(0.41917, 0.52933)$	9
$(- 0.26353, 0.37298)$	3	$(0.52933, \infty)$	11
$(0.37298, 0.41866)$	2

When Table 1 is examined, there is an interval that satisfied two additional real poles in the dominant region: $K_{p} \in (0.37298, 0.41866)$ . If $K_{p} = 0.4$ is used, the CLS poles and zeros are found as given in Table 2.

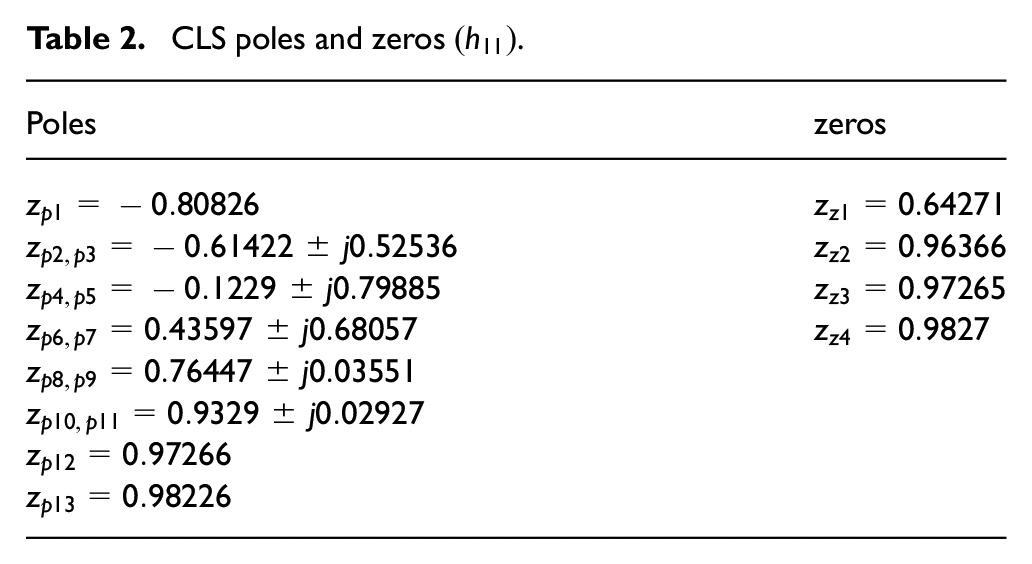

Table 2.

CLS poles and zeros $(h_{11})$ .

Poles	zeros
$z_{p 1} = - 0.80826$	$z_{z 1} = 0.64271$
$z_{p 2, p 3} = - 0.61422 \pm j 0.52536$	$z_{z 2} = 0.96366$
$z_{p 4, p 5} = - 0.1229 \pm j 0.79885$	$z_{z 3} = 0.97265$
$z_{p 6, p 7} = 0.43597 \pm j 0.68057$	$z_{z 4} = 0.9827$
$z_{p 8, p 9} = 0.76447 \pm j 0.03551$
$z_{p 10, p 11} = 0.9329 \pm j 0.02927$
$z_{p 12} = 0.97266$
$z_{p 13} = 0.98226$

It can be seen that the pole in the dominant region $z_{p 12} = 0.97266$ is located very near to the system zero $z_{z 3} = 0.97265$ , so the pole and zero cancel each other. Besides, the other real pole in the dominant region can be canceled with the discrete PI-PR controller zero. For this, the controller parameter $K_{pi}$ is chosen as $0.29139$ . After calculation of the other parameter as $K_{pr} = 0.10861$ , the designed controller is obtained

\begin{matrix} C_{PI} (z) = \frac{0.29665 z - 0.29139}{z - 1} \\ C_{PR} (z) = \frac{0.10861 z - 0.251}{z} \end{matrix}

The CLS poles and zeros with the proposed controller are shown in Figure 5. As it can be seen from Figure 5 that all poles of the CLS are located in the desired regions. Nevertheless, one of the zeros of the system is placed in the dominant region, and the zero causes a high amount of overshoot and settling time in the CLS transient response. A pre-filter is used to prevent the undesired transient response.

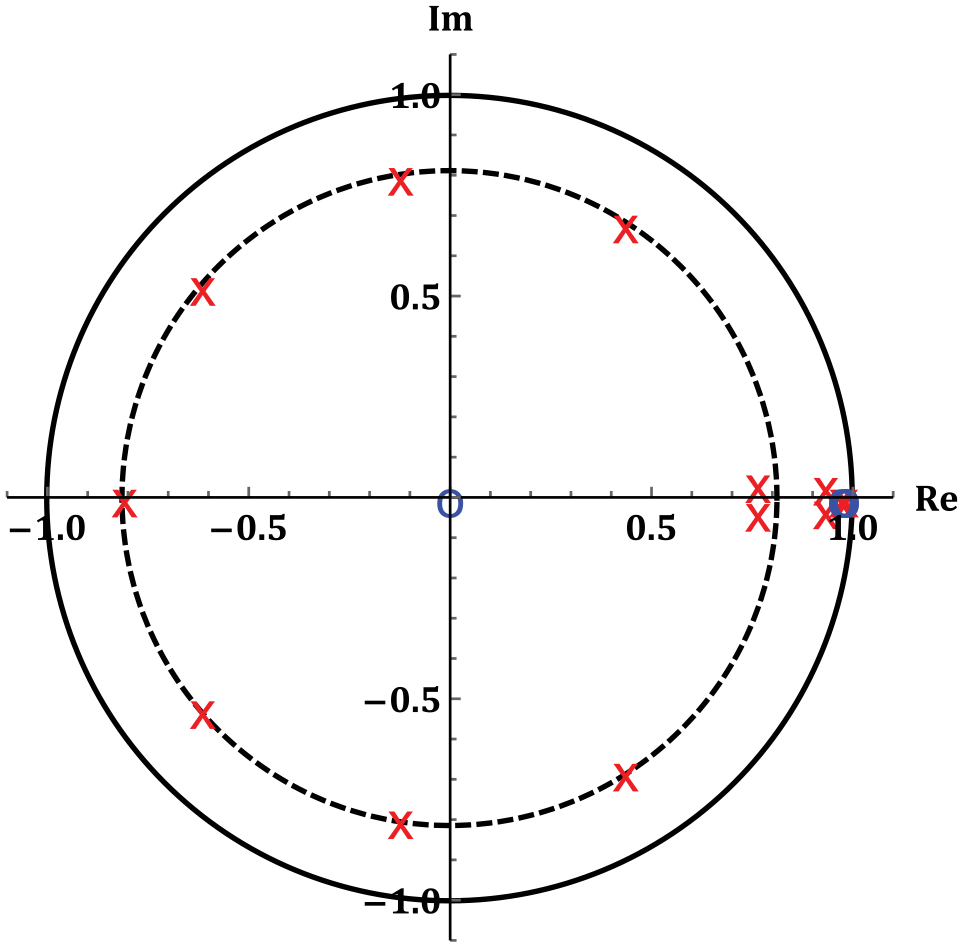

Figure 5.

Distribution of the CLS poles and zeros $(h_{11})$ .

For $h_{11}$ , the CLS step response with a pre-filter and the corresponding control signal with a proposed controller are demonstrated in Figure 6. The CLS settles 3.84 seconds with 0.09% overshoot. Then, a discrete PI-PR controller is designed by applying the same design procedure for the second diagonal element $(h_{22})$ . The transfer function of $h_{22}$ is obtained with $t_{s} = 0.05 seconds$

h_{22} (z) = \frac{0.29203 z^{2} - 0.57102 z + 0.27913}{z^{8} (z^{3} - 2.92259 z^{2} + 2.84717 z - 0.92457)}

When the performance specifications in the CLS are determined as 0.01% overshoot and 2.7 seconds settling time, the dominant pole pair in z-domain is

z_{1, 2} = σ_{z} + j ω_{z} = 0.92808 \pm j 0.03128

For $h = 1$ , $K_{i}$ and $K_{r}$ are written in terms of $K_{p}$

\begin{matrix} K_{i} = 0.0061 K_{p} + 0.00619 \\ K_{r} = 0.86764 K_{p} - 0.1427 \end{matrix}

The modified transfer function $\tilde{G} (z)$ is written with $r = 0.9286$ and $m = 3$ , and the intersection points of the Nyquist plot of $\tilde{G} (z)$ with real axis are found. The gain intervals and the corresponding extra pole number $(u)$ are given in Table 3.

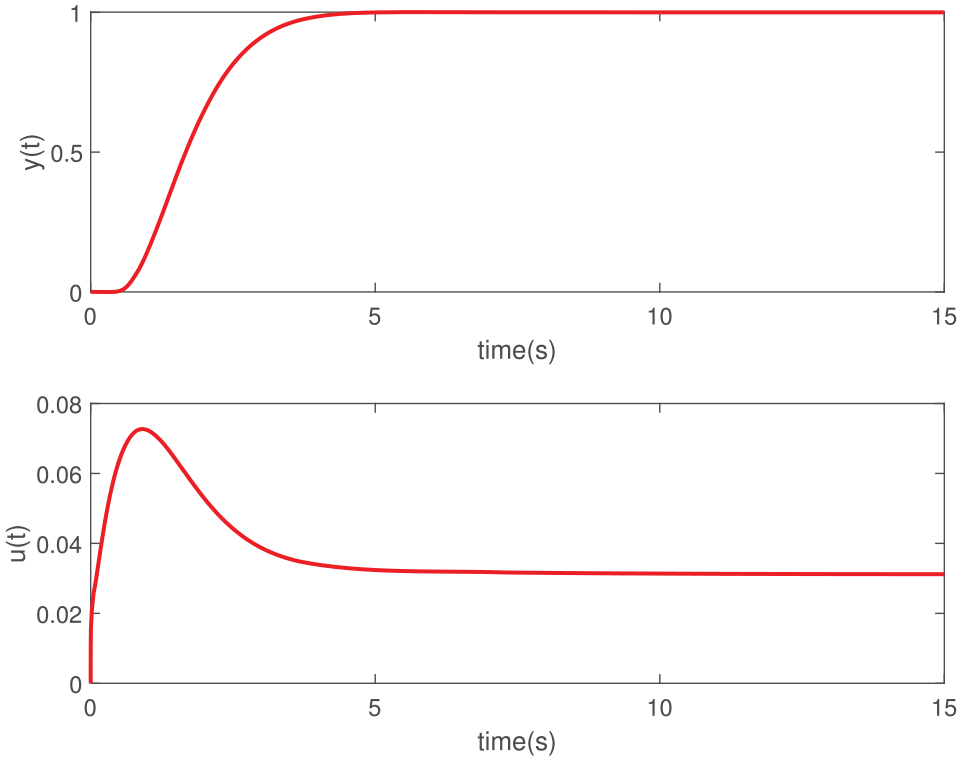

Figure 6.

CLS step response and corresponding control signal $(h_{11})$ .

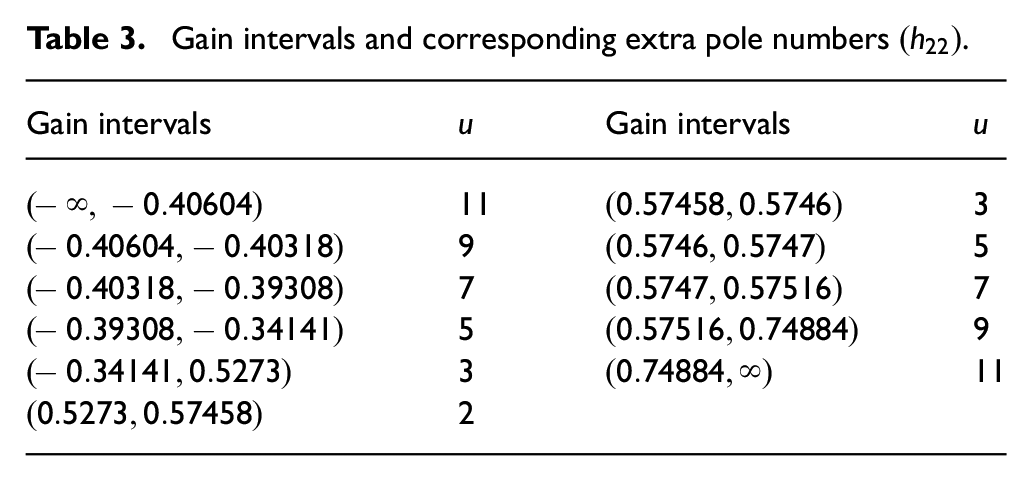

Table 3.

Gain intervals and corresponding extra pole numbers $(h_{22})$ .

Gain intervals	$u$	Gain intervals	$u$
$(- \infty, - 0.40604)$	11	$(0.57458, 0.5746)$	3
$(- 0.40604, - 0.40318)$	9	$(0.5746, 0.5747)$	5
$(- 0.40318, - 0.39308)$	7	$(0.5747, 0.57516)$	7
$(- 0.39308, - 0.34141)$	5	$(0.57516, 0.74884)$	9
$(- 0.34141, 0.5273)$	3	$(0.74884, \infty)$	11
$(0.5273, 0.57458)$	2

To guarantee the dominance of the desired poles, there does not exist an interval that results in only the desired dominant poles in the dominant region. However, there exists an interval that results in two additional real poles in the dominant region: $K_{p} \in (0.5273, 0.57458)$ . When $K_{p} = 0.55$ is used, the poles and zeros of the CLS are given in Table 4.

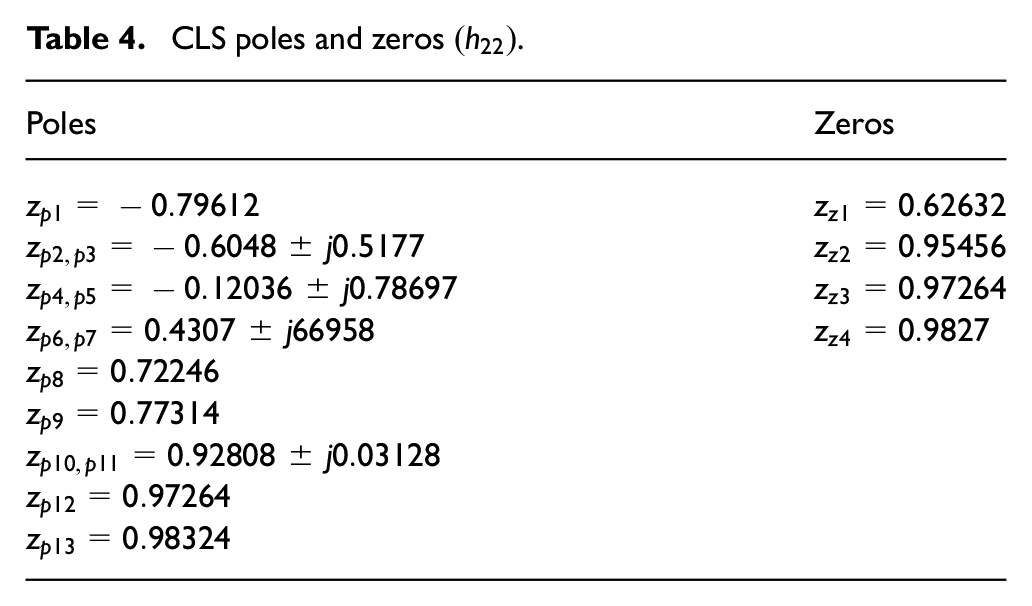

Table 4.

CLS poles and zeros $(h_{22})$ .

Poles	Zeros
$z_{p 1} = - 0.79612$	$z_{z 1} = 0.62632$
$z_{p 2, p 3} = - 0.6048 \pm j 0.5177$	$z_{z 2} = 0.95456$
$z_{p 4, p 5} = - 0.12036 \pm j 0.78697$	$z_{z 3} = 0.97264$
$z_{p 6, p 7} = 0.4307 \pm j 66958$	$z_{z 4} = 0.9827$
$z_{p 8} = 0.72246$
$z_{p 9} = 0.77314$
$z_{p 10, p 11} = 0.92808 \pm j 0.03128$
$z_{p 12} = 0.97264$
$z_{p 13} = 0.98324$

The extra pole $z_{p 12} = 0.97264$ and the zero $z_{p 3} = 0.97264$ are cancel each other. Besides, the other extra pole $z_{p 13} = 0.98324$ can be canceled with the controller zero using the discrete PI-PR controller structure. After the selection of $K_{pi} = 0.55741$ , the design of the proposed controller is completed as follows

\begin{matrix} C_{PI} (z) = \frac{0.80485 z - 1.41905}{z - 1} \\ C_{PR} (z) = \frac{1.01239 z - 0.99515}{z} \end{matrix}

The CLS poles and zeros with the proposed controller are shown in Figure 7. All poles other then the dominant poles are located within the specified circle. However, one of the zeros of the system $(z_{4} = 0.9827)$ is placed in the dominant region, so an undesired CLS transient response occurs. To avoid this, a pre-filter is used.

Figure 7.

Distribution of the CLS poles and zeros $(h_{22})$ .

For $h_{22}$ , the CLS step response with a pre-filter and the corresponding control signal with a proposed controller are shown in Figure 8. When the step response of the CLS is examined, it can be said that the settling time is 3.23 seconds and the overshoot 0.12%.

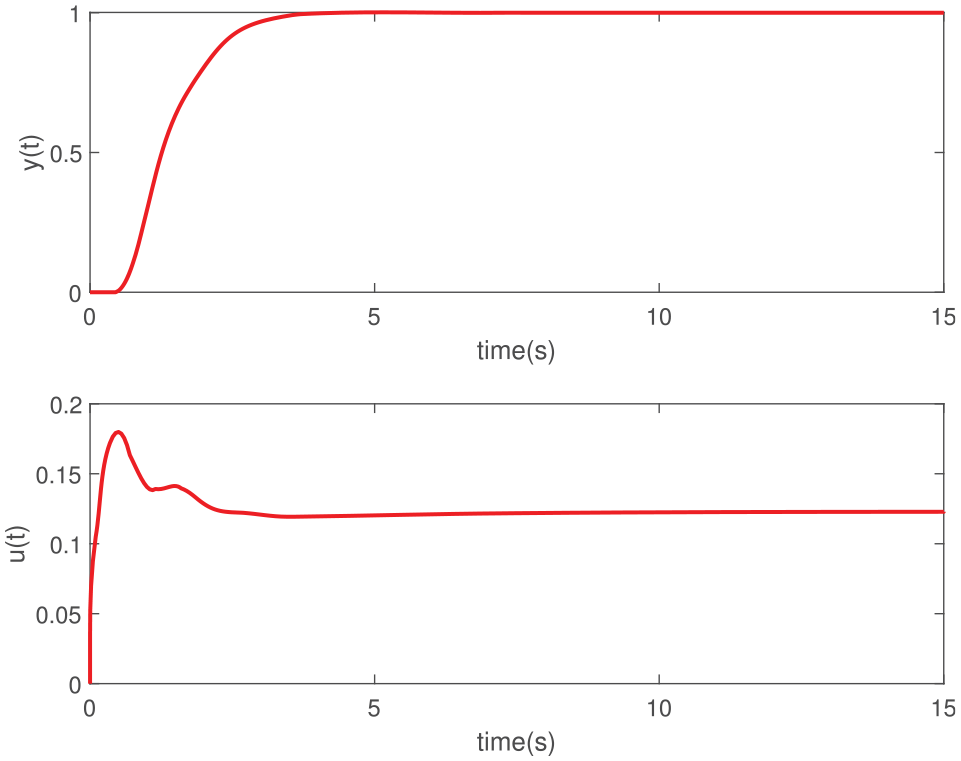

Figure 8.

CLS step response and corresponding control signal $(h_{22})$ .

For both diagonal elements ( $h_{11}$ and $h_{22}$ ), the feasible intervals obtained at different h values are shown in Figure 9, and from the figure, the appropriate h value can be selected according to the desired $K_{p}$ range. However, it was seen that the widest value range was obtained at $h = 1$ .

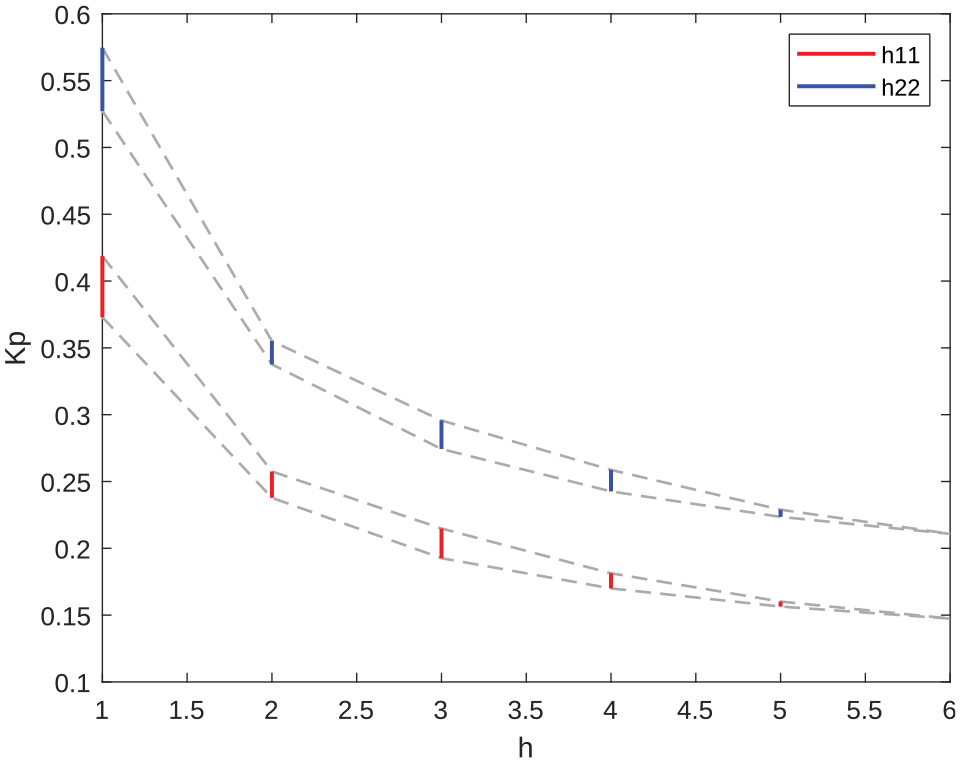

Figure 9.

The feasible interval of $K_{p}$ for different $h$ values.

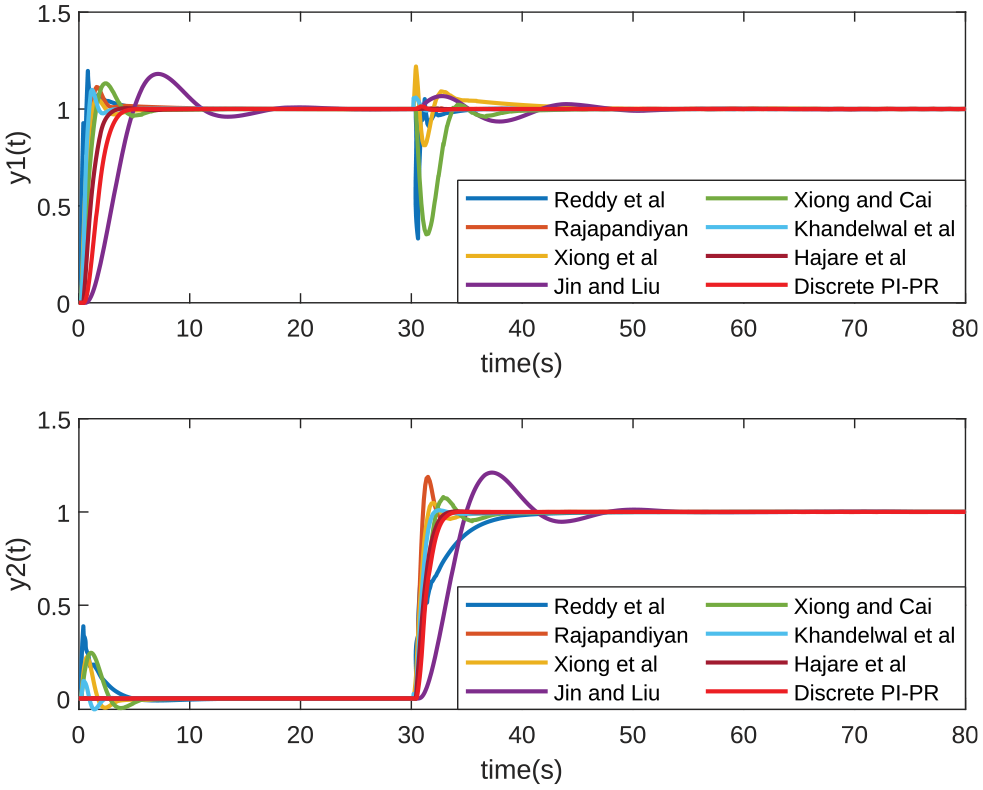

After designing the discrete PI-PR controllers for the diagonal elements, these controllers can be applied to the given TITO system with the help of a decoupler matrix. The proposed discrete PI-PR controller method is compared with the methods proposed in Reddy et al. (2019); Rajapandiyan and Chidambaram (2012); Xiong et al. (2007); Jin and Liu (2014); Xiong and Cai (2006); Khandelwal et al. (2019); Hajare et al. (2017). The controllers designed using these methods are given in Table 5.

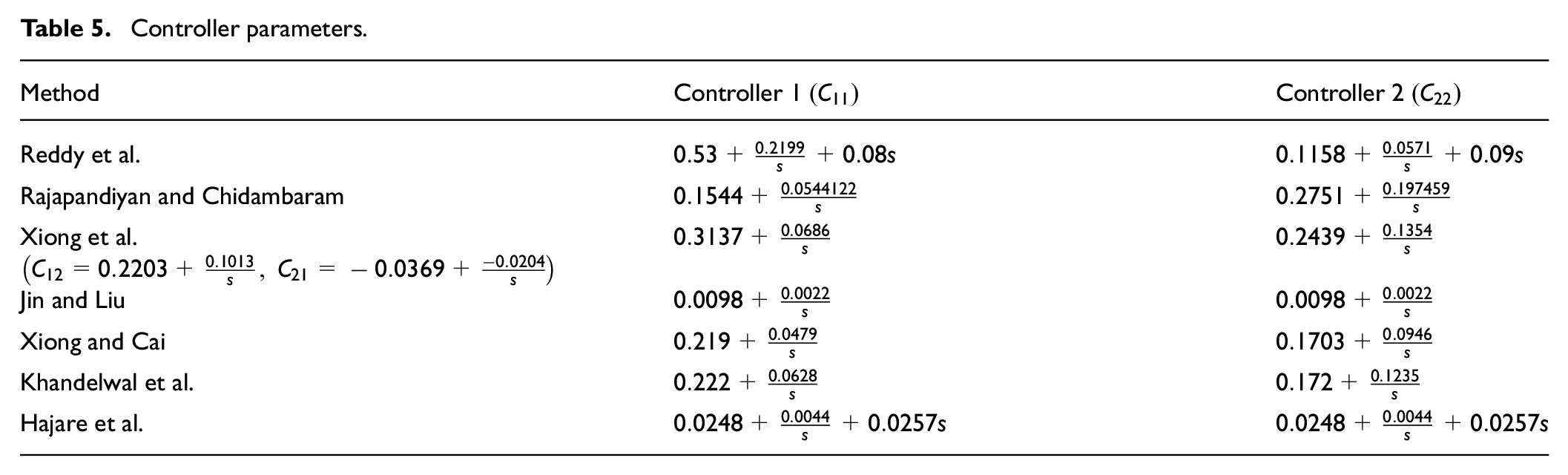

Table 5.

Controller parameters.

Method	Controller 1 $(C_{11})$	Controller 2 $(C_{22})$
Reddy et al.	$0.53 + \frac{0.2199}{s} + 0.08 s$	$0.1158 + \frac{0.0571}{s} + 0.09 s$
Rajapandiyan and Chidambaram	$0.1544 + \frac{0.0544122}{s}$	$0.2751 + \frac{0.197459}{s}$
Xiong et al.	$0.3137 + \frac{0.0686}{s}$	$0.2439 + \frac{0.1354}{s}$
$(C_{12} = 0.2203 + \frac{0.1013}{s}, C_{21} = - 0.0369 + \frac{- 0.0204}{s})$
Jin and Liu	$0.0098 + \frac{0.0022}{s}$	$0.0098 + \frac{0.0022}{s}$
Xiong and Cai	$0.219 + \frac{0.0479}{s}$	$0.1703 + \frac{0.0946}{s}$
Khandelwal et al.	$0.222 + \frac{0.0628}{s}$	$0.172 + \frac{0.1235}{s}$
Hajare et al.	$0.0248 + \frac{0.0044}{s} + 0.0257 s$	$0.0248 + \frac{0.0044}{s} + 0.0257 s$

The CLS step responses and the corresponding control signals with the proposed and other controllers are shown in Figures 10 and 11. To examine the outputs of the CLS in more detail, the first input at the beginning and the second input at 30th second are applied to the TITO system.

Figure 10.

CLS step responses.

Figure 11.

Corresponding control signals.

It can be seen in Figure 10 that 0.04% overshoot and 3.869 seconds settling time are achieved in the first loop and 0.1% overshoot and 3.24 seconds settling time are achieved in the second loop. Thus, the desired performance specifications are largely met. The reason for the small difference of the desired and proposed settling time is due to design with almost zero overshoot. Some performance characteristics of the CLS for different controllers are demonstrated in Table 6.

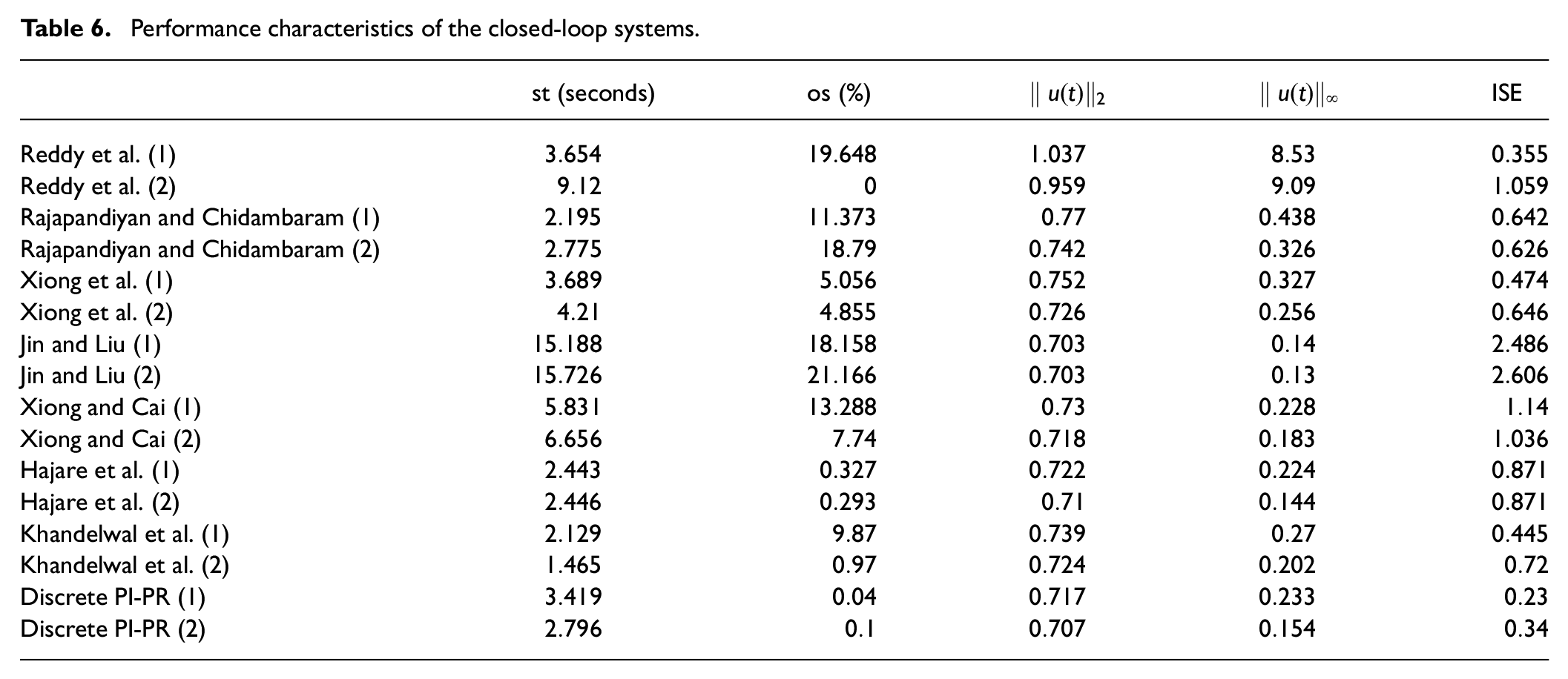

Table 6.

Performance characteristics of the closed-loop systems.

	st (seconds)	os (%)	$∥ u (t) ∥_{2}$	$∥ u (t) ∥_{\infty}$	ISE
Reddy et al. (1)	$3.654$	$19.648$	$1.037$	$8.53$	$0.355$
Reddy et al. (2)	$9.12$	$0$	$0.959$	$9.09$	$1.059$
Rajapandiyan and Chidambaram (1)	$2.195$	$11.373$	$0.77$	$0.438$	$0.642$
Rajapandiyan and Chidambaram (2)	$2.775$	$18.79$	$0.742$	$0.326$	$0.626$
Xiong et al. (1)	$3.689$	$5.056$	$0.752$	$0.327$	$0.474$
Xiong et al. (2)	$4.21$	$4.855$	$0.726$	$0.256$	$0.646$
Jin and Liu (1)	$15.188$	$18.158$	$0.703$	$0.14$	$2.486$
Jin and Liu (2)	$15.726$	$21.166$	$0.703$	$0.13$	$2.606$
Xiong and Cai (1)	$5.831$	$13.288$	$0.73$	$0.228$	$1.14$
Xiong and Cai (2)	$6.656$	$7.74$	$0.718$	$0.183$	$1.036$
Hajare et al. (1)	$2.443$	$0.327$	$0.722$	$0.224$	$0.871$
Hajare et al. (2)	$2.446$	$0.293$	$0.71$	$0.144$	$0.871$
Khandelwal et al. (1)	$2.129$	$9.87$	$0.739$	$0.27$	$0.445$
Khandelwal et al. (2)	$1.465$	$0.97$	$0.724$	$0.202$	$0.72$
Discrete PI-PR (1)	$3.419$	$0.04$	$0.717$	$0.233$	$0.23$
Discrete PI-PR (2)	$2.796$	$0.1$	$0.707$	$0.154$	$0.34$

It is seen in Table 6 that it is possible to have almost no overshoot with the proposed method in comparison the other controllers. It is seen that the methods proposed by Rajapandiyan and Chidambaram (2012), Khandelwal et al. (2019), and Hajare et al. (2017) result in slightly less settling times with the cost of higher overshoot and integral square error (ISE) values. It is worth to remark that the proposed method gives the best results in terms of ISE values as well.

In order to examine the disturbance rejection performances of the proposed controllers, step disturbances with −0.5 amplitude are applied to the system. The CLS step responses with the step disturbances are given in Figure 12. The step disturbances are applied to the first loop at 50th second and the second loop at 65th second. As it can be seen in Figure 12 that the disturbance rejection performance of the proposed controller structure is much better than the other controllers.

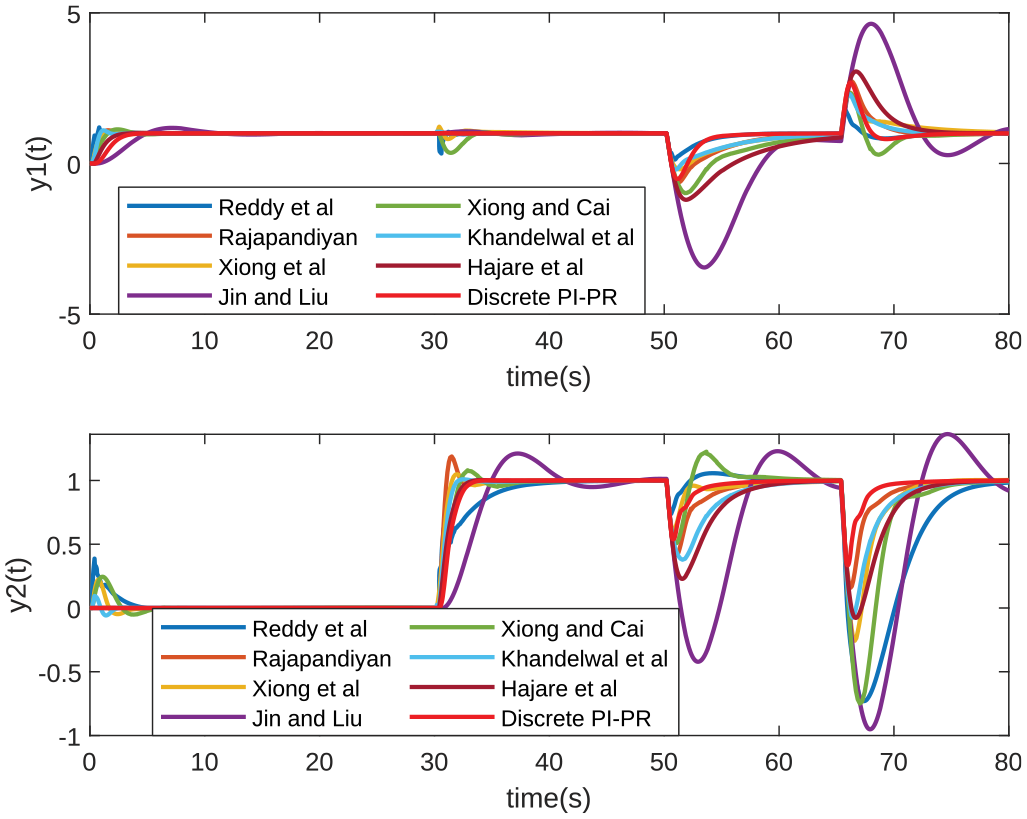

Figure 12.

CLS step responses with step disturbances at 50th second (first loop) and 65th second (second loop).

In order to test the robustness of the design approach proposed by the authors, parameters of the system ( $K_{i}$ , $τ_{i}$ , and $L_{i}$ ) are assumed to have $\pm 20 %$ uncertainty. The CLS step responses with all methods are given in Figure 13. Also, the worst values of settling time and overshoot under all possible perturbations are shown in Table 7.

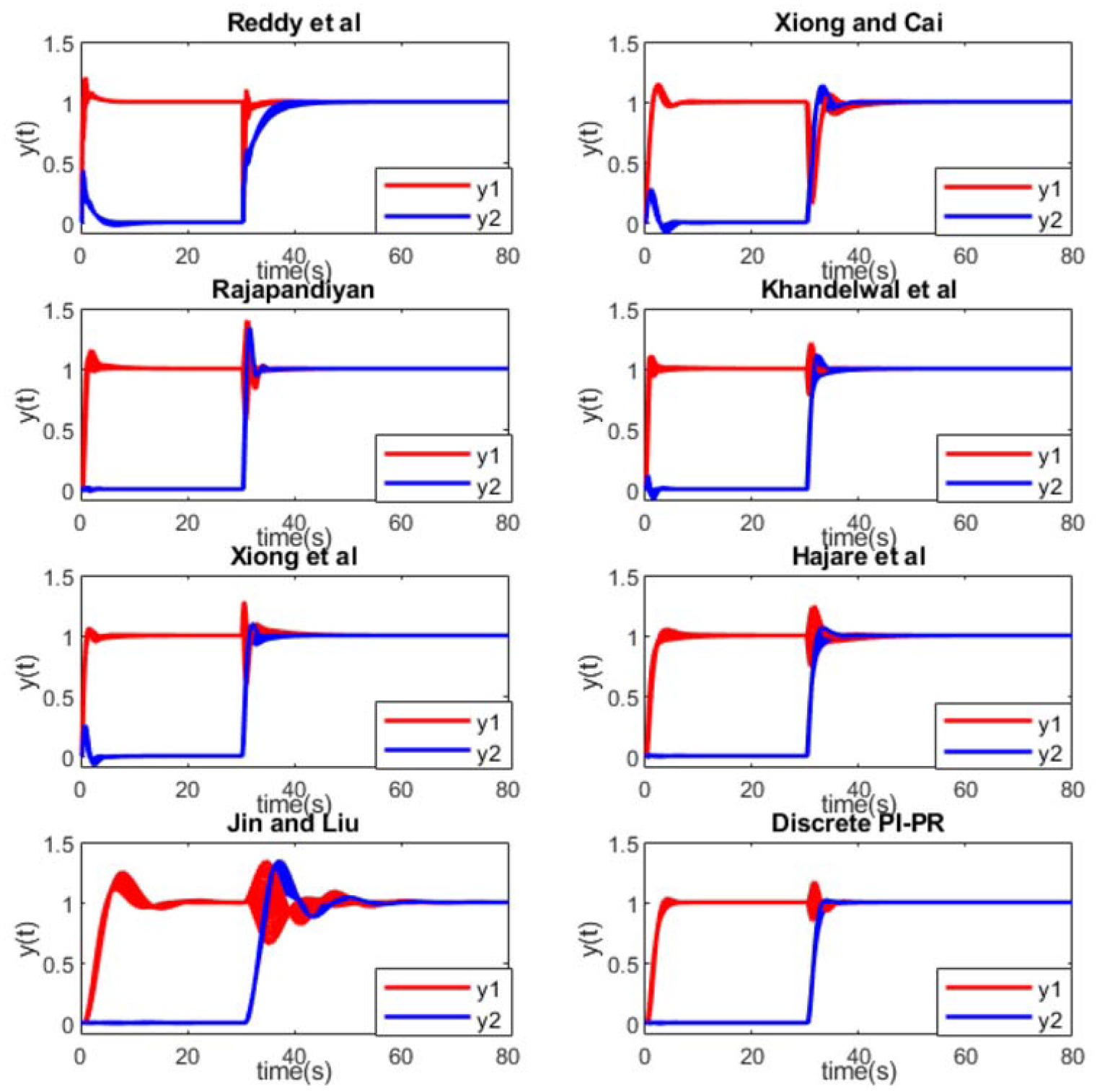

Figure 13.

CLS step responses under $\pm 20 %$ parameter uncertainties in the system.

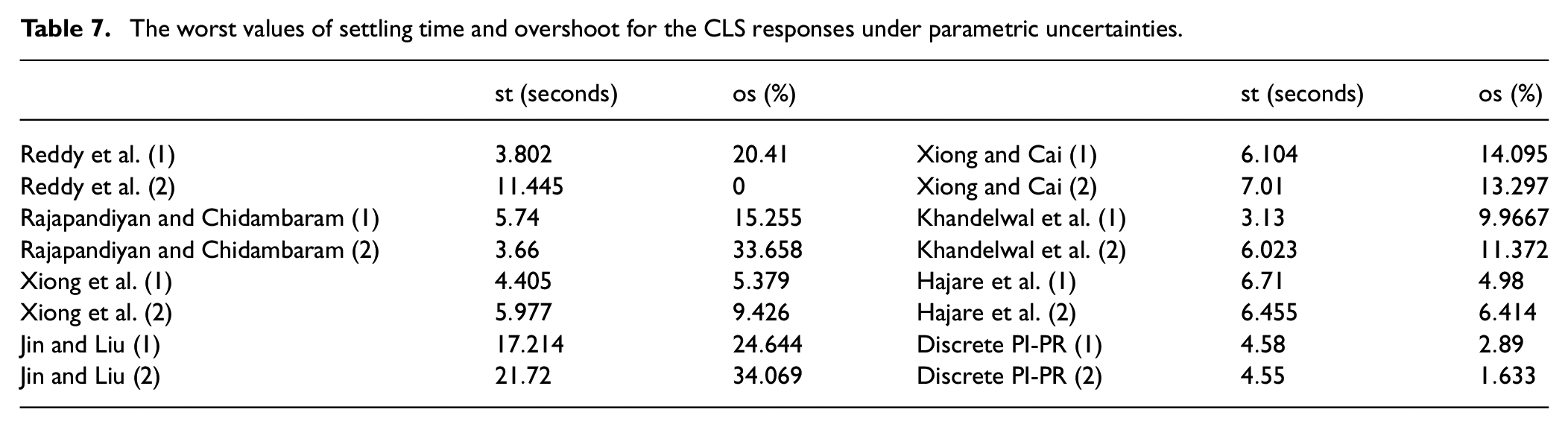

Table 7.

The worst values of settling time and overshoot for the CLS responses under parametric uncertainties.

	st (seconds)	os (%)		st (seconds)	os (%)
Reddy et al. (1)	$3.802$	$20.41$	Xiong and Cai (1)	$6.104$	$14.095$
Reddy et al. (2)	$11.445$	$0$	Xiong and Cai (2)	$7.01$	$13.297$
Rajapandiyan and Chidambaram (1)	$5.74$	$15.255$	Khandelwal et al. (1)	$3.13$	$9.9667$
Rajapandiyan and Chidambaram (2)	$3.66$	$33.658$	Khandelwal et al. (2)	$6.023$	$11.372$
Xiong et al. (1)	$4.405$	$5.379$	Hajare et al. (1)	$6.71$	$4.98$
Xiong et al. (2)	$5.977$	$9.426$	Hajare et al. (2)	$6.455$	$6.414$
Jin and Liu (1)	$17.214$	$24.644$	Discrete PI-PR (1)	$4.58$	$2.89$
Jin and Liu (2)	$21.72$	$34.069$	Discrete PI-PR (2)	$4.55$	$1.633$

It can be seen in Figure 13 that the CLS transient responses with the proposed method have $4.98$ settling time and 2.89% overshoot at most under all possible perturbations. Moreover, when the performances of the proposed and other methods under parametric uncertainties are compared. It is seen in Table 7 that the proposed method provides the best results when settling time and overshoot are considered together. The only method that provides a better overshoot than the proposed method is Reddy et al. (2019) for the second loop. It is possible to have no overshoot using Reddy et al. (2019) for the second loop. However, this comes with a cost of a very long settling time, more than twice longer than the one obtained by the proposed method. The method proposed by Khandelwal et al. (2019) for the first loop probably provides the second best results with a slightly better settling time than the proposed method. However, the resulting overshoot is more than four times bigger.

Conclusion

In this study, a decentralized PI-PR controller for TITO processes is proposed in the z-domain via the guaranteed DPA technique.

The interaction between control loops in the TITO system is removed utilizing a decoupling method. Analytical and parametric calculation of feasible controller parameters is provided via the modified Nyquist plot approach for each sub-system. The discrete PIR controller structure is converted to the discrete PI-PR controller structure to avoid undesired CLS transient response caused by the controller zeros. In cases where zeros of sub-systems are in the dominant region, a pre-filter is proposed to be to avoid an undesired CLS transient response. The proposed method is demonstrated for a TITO system and is compared with the literature. The results demonstrate that the proposed method provides desired CLS performance specifications (almost no overshoot with a minimum possible settling time).

Although the proposed method is applicable for many industrial applications and allows the user to play with the settling time and the overshoot by the help of the locations of the dominant poles, the controller parameter set may be found as an empty set in some cases. The drawback of the proposed method is that it cannot be directly determined in which cases the parameter set will be empty. If the parameter set is found to be an empty set, the procedure is repeated by changing the performance specifications and/or the dominance index until a feasible parameter set is found.

The design of PI-PR controllers in continuous-time and the proposed controller structure for fractional order systems are considered as part of future work. It is also possible to extend the proposed control method to the control of more general MIMO systems in future.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Ayşe Duman Mammadov

References

Ackermann

(2012) Robust Control: Systems with Uncertain Physical Parameters. Berlin: Springer Science & Business Media.

Åström Hägglund

(2001) The future of PID control. Control Engineering Practice 9(11): 1163–1175.

Åström Murray

(2010) Feedback Systems: An Introduction for Scientists and Engineers. Princeton, NJ: Princeton University Press.

Chen

(1987) New type of controller: The proportional integral minus delay controller. International Journal of Systems Science 18(11): 2033–2041.

Chien

Huang

Yang

(1999) A simple multiloop tuning method for PID controllers with no proportional kick. Industrial & Engineering Chemistry Research 38(4): 1456–1468.

Das

Halder

Gupta

(2018) Performance analysis of robust stable PID controllers using dominant pole placement for SOPTD process models. Knowledge-Based Systems 146: 12–43.

Das

Halder

Gupta

(2019) Delay handling method in dominant pole placement based PID controller design. IEEE Transactions on Industrial Informatics 16(2): 980–991.

De Keyser

Muresan

Ionescu

(2016) A novel auto-tuning method for fractional order PI/PD controllers. ISA Transactions 62: 268–275.

Dincel

Söylemez

(2014) Guaranteed dominant pole placement with discrete-PID controllers: A modified Nyquist plot approach. IFAC Proceedings Volumes 47(3): 3122–3127.

10.

Dincel

Söylemez

(2018) Digital PI-PD controller design for arbitrary order systems: Dominant pole placement approach. ISA Transactions 79: 189–201.

11.

Dincel

Mutlu

Schrödel

, et al. (2018) Further results on dominant pole placement via stability mapping approach. IFAC-Papersonline 51(4): 918–923.

12.

Fišer

Zítek

(2019) PID controller tuning via dominant pole placement in comparison with Ziegler-Nichols tuning. IFAC-Papersonline 52(18): 43–48.

13.

Galip Ulsoy

(2015) Time-delayed control of SISO systems for improved stability margins. Journal of Dynamic Systems, Measurement, and Control 137: 041014.

14.

Hajare

Patre

(2015) Decentralized PID controller for TITO systems using characteristic ratio assignment with an experimental application. ISA Transactions 59: 385–397.

15.

Hajare

Patre

Khandekar

, et al. (2017) Decentralized PID controller design for TITO processes with experimental validation. International Journal of Dynamics and Control 5(3): 583–595.

16.

Halder

Das

Gupta

(2020) Time delay handling in dominant pole placement with PID controllers to obtain stability regions using random sampling. International Journal of Control 94: 3384–3405.

17.

Wang

, et al. (2011) Analytical design of PID decoupling control for TITO processes with time delays. JCP 6(6): 1064–1070.

18.

Huang

Lin

(2006) Decoupling multivariable control with two degrees of freedom. Industrial & Engineering Chemistry Research 45(9): 3161–3173.

19.

Jin

Liu

(2014) Decoupling proportional–integral–derivative controller design for multivariable processes with time delays. Industrial & Engineering Chemistry Research 53(2): 765–777.

20.

Khandelwal

Aldhandi

Detroja

(2019) Decoupling control with ETF based GPM tuning for multivariable processes. In: 2019 fifth Indian control conference (ICC), New Delhi, India, 9–11 January, pp. 63–67. New York: IEEE.

21.

Kharitonov

Niculescu

Moreno

, et al. (2005) Static output feedback stabilization: Necessary conditions for multiple delay controllers. IEEE Transactions on Automatic Control 50(1): 82–86.

22.

Koh

Ramírez

Sipahi

(2018) Single-delay proportional-retarded (PR) protocols for fast consensus in a multi-agent system. IFAC-Papersonline 51(14): 31–36.

23.

Lakshmanaprabu

Elhoseny

Shankar

(2019) Optimal tuning of decentralized fractional order PID controllers for TITO process using equivalent transfer function. Cognitive Systems Research 58: 292–303.

24.

Lengare

Chile

Waghmare

(2012) Design of decentralized controllers for MIMO processes. Computers & Electrical Engineering 38(1): 140–147.

25.

Liu

Zhang

(2005) Analytical multiloop PI/PID controller design for two-by-two processes with time delays. Industrial & Engineering Chemistry Research 44(6): 1832–1841.

26.

López

Garrido

Mondié

(2017) Position control of servodrives using a cascade proportional integral retarded controller. In: 2017 4th international conference on control, decision and information technologies (CoDIT), Barcelona, 5–7 April, Pp, 120–125. New York: IEEE.

27.

López

Mondié

Garrido

(2018) A tuning procedure for the cascade proportional integral retarded controller. IFAC-Papersonline 51(14): 61–65.

28.

Maghade

Patre

(2012) Decentralized PI/PID controllers based on gain and phase margin specifications for TITO processes. ISA Transactions 51(4): 550–558.

29.

Maghade

Patre

(2014) Pole placement by PID controllers to achieve time domain specifications for TITO systems. Transactions of the Institute of Measurement and Control 36(4): 506–522.

30.

Mokadam

Patre

Maghade

(2013) Tuning of multivariable PI/PID controllers for TITO processes using dominant pole placement approach. International Journal of Automation and Control 7(1–2): 21–41.

31.

Niculescu

Michiels

(2004) Stabilizing a chain of integrators using multiple delays. IEEE Transactions on Automatic Control 49(5): 802–807.

32.

Noeding

Martensen

Lemke

, et al. (2018) Selection of decoupling control methods suited for automated design for uncertain TITO processes. In: 2018 IEEE 14th international conference on control and automation (ICCA), Anchorage, AK, 12–15 June, pp. 498–505. New York: IEEE.

33.

Onat

(2019) A new design method for PI–PD control of unstable processes with dead time. ISA Transactions 84: 69–81.

34.

Park

Sung

Lee

(2017) Design of centralized PID controllers for TITO processes. In: 2017 6th international symposium on advanced control of industrial processes (AdCONIP), Taipei, Taiwan, 28–31 May, pp. 523–528. New York: IEEE.

35.

Peker

Kaya

(2017) Identification and real time control of an inverted pendulum using PI-PD controller. In: 2017 21st international conference on system theory, control and computing (ICSTCC), Sinaia, 19–21 October, pp. 771–776. New York: IEEE.

36.

Peram

Mishra

Vemulapaty

, et al. (2018) Optimal PI-PD and I-PD controller design using Cuckoo search algorithm. In: 2018 5th international conference on signal processing and integrated networks (SPIN), Noida, India, 22–23 February, pp. 643–646. New York: IEEE.

37.

Rajapandiyan

Chidambaram

(2012) Controller design for MIMO processes based on simple decoupled equivalent transfer functions and simplified decoupler. Industrial & Engineering Chemistry Research 51(38): 12398–12410.

38.

Ramírez

Sipahi

(2018) Fast consensus against noise in a large-scale multi-agent system with distributed proportional-retarded (PR) controllers. In: 2018 annual American control conference (ACC), Milwaukee, WI, 27–29 June, pp. 3666–3671. New York: IEEE.

39.

Ramírez

Garrido

Mondié

(2015) Velocity control of servo systems using an integral retarded algorithm. ISA Transactions 58: 357–366.

40.

Ramírez

Mondié

Garrido

(2013) Proportional integral retarded control of second order linear systems. In: 52nd IEEE conference on decision and control, Firenze, 10–13 December, pp. 2239–2244. New York: IEEE.

41.

Ramirez

Mondié

Garrido

, et al. (2015) Design of proportional-integral-retarded (PIR) controllers for second-order LTI systems. IEEE Transactions on Automatic Control 61(6): 1688–1693.

42.

Reddy

Padhy

Ansari

(2019) Auto-tuning method for decentralized PID controller of TITO systems using firefly algorithm. In: 2019 international conference on intelligent computing and control systems (ICCS), Madurai, India, 15–17 May, pp. 683–688. New York: IEEE.

43.

Seborg

Mellichamp

Edgar

, et al. (2010) Process Dynamics and Control. London: John Wiley & Sons.

44.

Singh

Padhy

(2018) A new approach to PI-PD controller design using modified relay feedback. In: 2018 international conference on power energy, environment and intelligent control (PEEIC), Greater Noida, India, 13–14 April, pp. 349–353. New York: IEEE.

45.

Söylemez

Munro

Baki

(2003) Fast calculation of stabilizing PID controllers. Automatica 39(1): 121–126.

46.

Srivastava

Misra

Sarkar

(2019) Analysis & design of robust PID controller with dominant pole placement approach. In: 2019 6th international conference on signal processing and integrated networks (SPIN), Noida, India, 7–8 March, pp. 908–914. New York: IEEE.

47.

Suh

Bien

(1980) Use of time-delay actions in the controller design. IEEE Transactions on Automatic Control 25(3): 600–603.

48.

Suh

Bien

(1979) Proportional minus delay controller. IEEE Transactions on Automatic Control 24(2): 370–372.

49.

Swisher

Tenqchen

(1988) Design of proportional-minus-delay action feedback controllers for second-and third-order systems. In: 1988 American control conference, Atlanta, GA, 15–17 June, pp. 254–260. New York: IEEE.

50.

Villafuerte

Mondié

Garrido

(2012) Tuning of proportional retarded controllers: Theory and experiments. IEEE Transactions on Control Systems Technology 21(3): 983–990.

51.

Wang

Han

Liu

, et al. (2020) Discrete-time filter proportional–integral–derivative controller design for linear time-invariant systems. Automatica 116: 108918.

52.

Wang

Zhang

Astrom

, et al. (2009) Guaranteed dominant pole placement with PID controllers. Journal of Process Control 19(2): 349–352.

53.

Wutthithanyawat

Wangnippamto

(2018) Design of decentralized PID controller with coefficient diagram method based on inverted decoupling for TITO system. In: 2018 international electrical engineering congress (iEECON), Krabi, Thailand, 7–9 March, pp. 1–4. New York: IEEE.

54.

Xiong

Cai

(2006) Effective transfer function method for decentralized control system design of multi-input multi-output processes. Journal of Process Control 16(8): 773–784.

55.

Xiong

Cai

(2007) Equivalent transfer function method for PI/PID controller design of MIMO processes. Journal of Process Control 17(8): 665–673.
