Research on mixed traffic flow model based on multi-node bilateral control model and chain stability analysis

Abstract

With the development of wireless communication technology, vehicles can obtain more vehicle status information on the same road. From the control point of view, when the vehicle control needs to use the state information of a plurality of surrounding vehicles, it becomes an important problem to determine the weighting coefficients of the information of these different vehicles. Moreover, different vehicle status information should have different weight coefficients. In this paper, Gaussian curve is introduced as the objective function and the shape of curve is adjusted by parameters to determine the weight coefficients of vehicle nodes more flexibly. On this basis, considering the characteristics of multi-node bilateral control, bilateral control, and car-following control, a scalable hybrid control block model (CBMBC) is proposed. And the necessary condition of chain stability of the proposed bilateral hybrid control block scheme is given. Finally, the effectiveness of the proposed scheme is verified by simulation.

Keywords

Mixed traffic flow multi-node bilateral control least square method distributed control stability

Introduction

In the case of large volume traffic flow, stop-and-go and even congestion is a frequent occurrence. Undoubtedly, this makes for a very unpleasant driving experience and can even lead to accidents. This phenomenon has been studied for a long time and is generally analyzed from the perspective of string stability. String stability is primarily concerned with the propagation of the disturbance along the vehicle platoon. There are two general directions for improving string stability. The first is the overall strategy. In this strategy, the traffic flow is regarded as a queue, and the vehicles are guaranteed to move smoothly according to the preset spacing by platoon control. The second is a local strategy, which regards the vehicles in the traffic flow as a single control volume. It uses sensors or wireless devices to realize the status information of other vehicles and complete its own control. Platoon control refers to the vehicles on a single lane to form a queue, and according to the information of the vehicles in the platoon automatically adjust its movement state to achieve the desired driving state (Hedrick et al., 1994; Shladover, 2007). The platoon control is analyzed and designed from the perspective of vehicle node model, information flow topology, and vehicle interval strategy and controller design (Feng et al., 2019). Some studies show that the topological robustness of bidirectional is significantly improved compared with PD (predecessor-following) (Zheng et al., 2016). Information flow topology is very important for queue control, and bidirectional topology usually outperforms PD in terms of queue performance. Considering the communication delay and packet loss in practice, Wen and Guo (2020) discussed the controller design of Markov switching for communication topologies with communication delay. In addition, in order to improve platoon performance, including closed-loop stability, string stability, and robustness, many platoon control models have been proposed, such as linear controller (Naus et al., 2010), optimal controller (Ge and Orosz, 2017), H ∞ controller (Ploeg et al., 2014), model predictive control (Dolk et al., 2017; Dunbar and Caveney, 2012), and sliding mode control (Xu and Lu, 2020).

Different from the platoon control under the global control strategy, the local control does not have the speed tracking of the so-called pilot vehicle. Each vehicle node takes the information obtained by its own sensor or wireless communication network as input and outputs through the corresponding control strategy. Adaptive cruise control (ACC) is a local control scheme, which can not only realize the function of ordinary cruise control but also collect real-time driving environment information by radar or on-board sensors on the basis of traditional cruise control, including whether there is a target vehicle ahead, the relative distance, and speed of the vehicle. According to the pre-designed control strategy, the throttle opening or the brake pressure of the brake valve is automatically adjusted, so that the vehicle can travel to an appropriate safe distance (Fernandes and Nunes, 2012; Rajamani and Zhu, 2002). Different from traditional ACC, cooperative adaptive cruise control (CACC) uses wireless communication. Considering that CACC scheme degenerates into ACC due to the influence of data packet loss, Ploeg et al. (2015) proposed a scheme in which CACC degenerates into ACC under wireless communication, which has better string stability compared with ACC scheme.

The ACC mentioned above focuses on control strategies. In addition, a new ACC system called bilateral control model (BCM) has been proposed (Horn, 2013; Horn and Wang, 2018; Wang et al., 2017). In this mode, vehicle control not only refers to the state information of the vehicle in front but also considers the state information of the vehicle behind. Earlier references to the mentioned bi-directional information flow are available as Ioannou and Chien (1993) and Nakayama et al. (2001).

As for ACC model of bilateral control, Wang and Horn (2020a) proved that second-order vehicle node model is always string stable under bilateral control by using inverse proof method. On this basis, Wang and Horn (2019) further study the state information of more vehicle nodes captured and used to control N under wireless communication and propose a scheme to determine the weight coefficient of vehicle nodes under multi-node bilateral control. As emphasized at the beginning, ACC system belongs to local control, so it is applicable to a single vehicle. Naturally, there may be vehicle following control and bidirectional control in the traffic flow. Wang and Horn (2020b) discuss the stability of the traffic flow under the mixed situation of car-following control and bilateral control. The paper focuses on the analysis of the traffic flow under the mixed situation of four kinds of traffic flow and gives the relatively uniform necessary conditions of string stability through complicated calculation.

Inspired by the above, considering that the traffic flow in reality is likely to be a mixture of vehicles with multiple ACC control systems, and each control model has its own characteristics, this paper proposes a hybrid vehicle control model which combines car-following control, bilateral control, and multi-node bilateral control. Therefore, the hybrid model proposed in this paper has three advantages. First, car-following control can be used as the boundary of the module, which is convenient for the expansion of multiple modules. Second, bilateral control can restrain interference and ensure the stability of traffic flow. Third, multi-node bilateral control through the approximation of the objective function improves the ability of the system to resist low-frequency disturbance and improves the efficiency of the system to achieve a balanced state. At the same time, aiming at the problem of determining the weight coefficients of multi-node bilateral control, a more flexible scheme of determining the weight coefficients is proposed by introducing the Gaussian curve, and the stability of the scheme is verified. On this basis, the structure of the hybrid control module is given, and the stability of the module is analyzed. Then, the necessary conditions for the stability of the module are given through derivation and calculation.

The following sections will be included. In the second part, various control models are introduced, including car-following control, double-sided control, and multi-node double-sided control. In the third part, various control models are introduced from the viewpoint of stability analysis. In the fourth part, the numerical simulation of the hybrid control module is carried out, and the necessary conditions are verified by simulation. The last part is the summary of the whole paper and the prospect of the future research.

Problem formulation

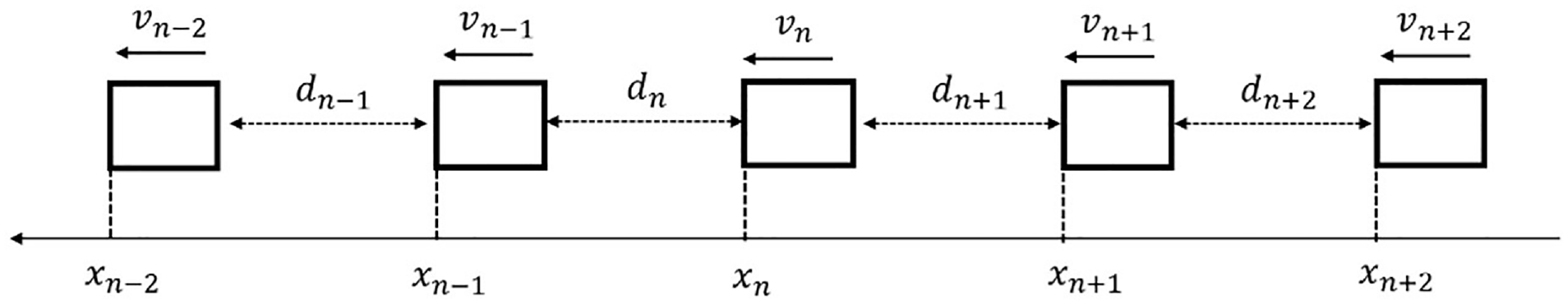

In Figure 1, $x_{n}$ denotes the position of the $nth$ vehicle, while $v_{n} = {\overset{\cdot}{x}}_{n}$ renders the speed of the $n th$ vehicle. $x_{n}, v_{n}$ are the status information of the $n th$ car, adjusted by the acceleration $a_{n} = {\overset{\cdot\cdot}{x}}_{n}$ . In this article, vehicle control is based on the following control strategy, that is

\begin{matrix} a_{n} = k_{d} (d_{n} - s_{n}) + k_{v} (r_{n} - u_{n}) \end{matrix}

(1)

where $d_{n} = x_{n - 1} - x_{n} - l$ represents the gap between the current vehicle and the vehicle in front, $l$ is the length of the vehicle, and $r_{n} = v_{n - 1} - v_{n}$ represents the speed difference between the current vehicle and the vehicle in front. $k_{d}, k_{v}$ are proportional gain of corresponding distance and differential gain of corresponding velocity, respectively. The difference of control model is mainly reflected by $s_{n}$ and $u_{n}$ .

Figure 1.

Vehicle control model.

For the car-following control with a constant time strategy, $s_{n} = v_{n} T, u_{n} = 0$ , so the control model becomes

\begin{matrix} a_{n} = k_{d} (x_{n - 1} - x_{n} - v_{n} T - l) + k_{v} (v_{n - 1} - v_{n}) \end{matrix}

(2)

where T generally adopts the reaction time. This control model is called car-following control. Obviously, the car-following control only considers the state information of the car in front. The information flow topology of car-following control is shown in Figure 2.

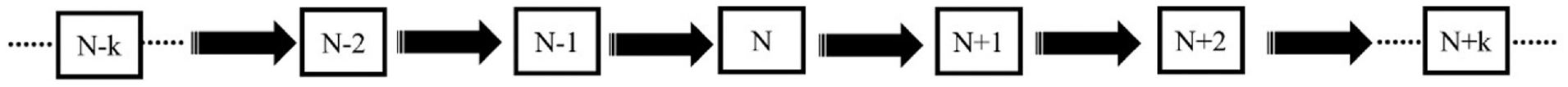

Figure 2.

Information flow topology of car-following control.

For the vehicle equipped with sensors in front and rear, not only the state information of the vehicle in front but also the state information of the vehicle behind can be obtained. Using the state information of front and rear vehicles to complete the current vehicle control is called bilateral control model, referred to as BCM. Let $s_{n} = d_{n + 1}, u_{n} = r_{n + 1}$ , then the control model becomes

\begin{matrix} a_{n} = k_{d} (x_{n - 1} - 2 x_{n} + x_{n + 1}) + k_{v} (v_{n - 1} - 2 v_{n} + v_{n + 1}) \end{matrix}

(3)

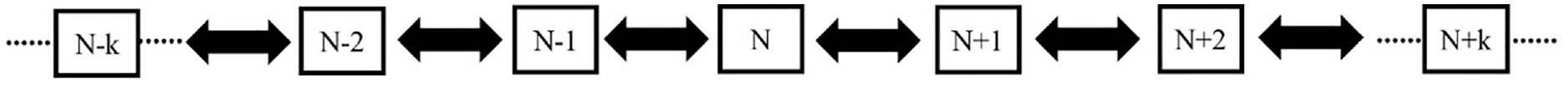

Figure 3 is the information flow topology of the BCM.

Figure 3.

Information flow topology of the BCM.

Furthermore, when using wireless communication, the current vehicle can obtain more information about the state of the vehicle, not just that of the neighboring vehicle. For simple analysis, the current vehicle obtains the state information of $k$ vehicles on both sides of the symmetry to complete its own control. Referring to the BCM, the multi-node BCM (MN-BCM for short) is

\begin{matrix} a_{n} = k_{d} (\sum_{m = - k}^{k} g_{m} x_{n - m}) + k_{v} (\sum_{m = - k}^{k} h_{m} v_{n - m}) \end{matrix}

(4)

Here, $g_{m}$ is the weight coefficient of the position information of the $m th$ vehicle of the current vehicle, and $h_{m}$ is the weight coefficient of the speed information of the $m th$ vehicle of the current vehicle. From this perspective, BCM model $a_{n} = k_{d} (x_{n - 1} - 2 x_{n} + x_{n + 1}) + k_{v} (v_{n - 1} - 2 v_{n} + v_{n + 1})$ can be seen as multi-node bilateral model of $k = 1$ . The weight coefficient sets of position information and velocity information are {1, −2, 1}. Figure 4 is the information flow topology of the MN-BCM.

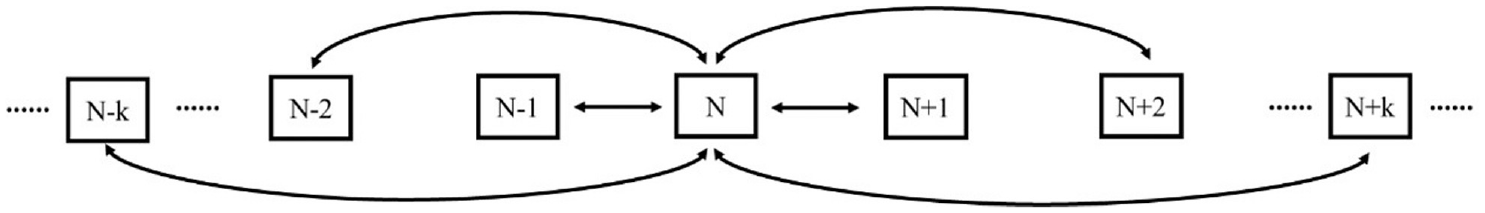

Figure 4.

Information flow topology of the MN-BCM.

CBMBC hybrid control model

Stability analysis

Before analyzing the stability of the hybrid control model, the closed-loop stability of each model is discussed. A system is said to be stable if it can return to equilibrium from any arbitrary state with time. Equilibrium is defined as a state in which the vehicles are moving at the same speed while maintaining the same distance between them.

For car-following control with constant time, the stability condition of the system is

\begin{matrix} \frac{1}{2} k_{d} T^{2} + k_{v} T > 1 \end{matrix}

(5)

For bilateral control, the stability condition is: $k_{d} > 0, k_{v} > 0$ . Compared with car-following model (CFM), the stability conditions of BCM are more extensive. Considering that the gains $k_{d}$ and $k_{v}$ are both greater than zero, the BCM can be considered to be unconditionally stable. Horn and Wang (2018) believe that BCM is similar to mass-spring-damping system, which can suppress disturbance and achieve equilibrium state more efficiently. Then, the stability of the multi-node two-sided model is analyzed. Wang and Horn (2019) give a method to analyze how to determine the coefficients of multi-node bilateral control, which is briefly introduced below. To simplify the analysis, we consider mainly the case of $g_{m} = h_{m}$ .

For a linear and time-invariant system, its response to a wave of a single frequency (i.e. $x_{n} (0) = e^{- jn ω}$ ) will remain the same frequency, that is, $x_{n} (t) = e^{- jn ω} p_{w} (t)$ , where $p_{w} (t)$ denotes the phase. Substituting $x_{n} (t) = e^{- jn ω} p_{w} (t)$ into equation (4), we obtain

{\overset{\cdot\cdot}{p}}_{w} (t) - k_{v} f (w) {\overset{\cdot}{p}}_{w} (t) - k_{d} f (w) p_{w} (t) = 0

(6)

where $f (w) = \sum_{m = - k}^{k} g_{m} e^{jm ω}$ . The solution of equation (6) is

p_{w} (t) = b_{1} e^{s_{1} (w) t} + b_{2} e^{s_{2} (w) t}

(7)

where $b_{1}$ and $b_{2}$ are constants determined by initial values; $s_{1}$ and $s_{2}$ satisfy

s_{1} + s_{2} = k_{v} f (w) s_{1} s_{2} = - k_{d} f (w)

(8)

Based on equation (8), if $f (w)$ is a negative real function, then $s_{1}$ and $s_{2}$ have para-real parts, which lie in the left half of the complex plane. At this time, $p_{w} (t)$ will decay with time until it is zero, and the system (4) will also reach the equilibrium state.

But it should be noted that when the system (4) is in the equilibrium state, that is, $x_{n} (t) = Y_{0} + n d_{des} + Vt$ (where $Y_{0}$ is the position of the first vehicle, $d_{des}$ is the inter-vehicle distance, and $V$ is the speed of the vehicle), this equilibrium state is also a solution of system (4). It follows that

\sum_{m = - k}^{k} g_{m} = 0 \sum_{m = - k}^{k} g_{m} m = 0

(9)

In summary, the stability of system (4) can be guaranteed under the constraints of $f (w) < 0$ and equation (9). Furthermore, Wang and Horn (2019) proposed a sufficient condition for the stability of the system, that is, for all $0 < | w | \leq π$ , $0 < f (w) < 0$ and $f (0) = 0$ , the system is stable.

Coefficient scheme of multi-node BCM

On the premise that the system is stable, the farther $s_{1}$ and $s_{2}$ are from the imaginary axis, the faster $p_{w} (t)$ decays to zero. In combination with equation (8), it can be considered that the objective of the optimization of the coefficient set ${g_{m}}$ is to make $f (w) = \sum_{m = - k}^{k} g_{m} e^{jm ω}$ smaller.

The coefficients ${g_{m}}$ are determined by approximating $f (w)$ to the objective function $z (w)$ using the least squares method (Wang and Horn, 2019), that is

\underset{{g_{m}}}{\arg min} {\int_{- π}^{π} {(\sum_{m = - k}^{k} g_{m} e^{jmw} - z (w))}^{2} dw}

(10)

Considering the stability requirement $f (0) = 0$ , using the Lagrangian operator, one can further obtain

\underset{{g_{m}}, λ}{\arg min} {\int_{- π}^{π} {(\sum_{m = - k}^{k} g_{m} e^{jmw} - z (w))}^{2} dw + λ \sum_{m = - k}^{k} g_{m}}

(11)

By partial differentiating $g_{m}$ and $⋋$ respectively and letting the results be 0, we obtain

g_{m} = c_{m} - \frac{λ}{4 π} (m = - k, . . ., k)

(12)

where $c_{m} = \frac{1}{2 π} \int_{- π}^{π} z (w) e^{jmw} dw$ . When the objective function $z (w)$ is restricted to be an even function, $c_{m} = c_{- m}$ , $g_{m} = g_{- m}$ , then

c_{m} = \frac{1}{2 π} \int_{- π}^{π} z (w) \cos (m w) d w

(13)

Substituting equation (12) into equation (9), $⋋ = \frac{4 π}{2 k + 1} \sum_{m = - k}^{k} c_{m}$ was yielded, and then

g_{m} = g_{- m} = c_{m} - \frac{1}{2 k + 1} \sum_{n = - k}^{k} c_{n}

(14)

The selected objective functions are $- w^{2}, - | w |$ and $\min {- | w |, - w^{2}}$ , respectively. The simulation results show that the least squares estimation (LSE) scheme (i.e. the objective function is $\min {- | w |, - w^{2}}$ ) corresponds to a more efficient strategy to bring the system to the stable state, thus validating the view that the optimization objective makes $f (w)$ smaller. Inspired by these, we try to use the Gaussian curve as the objective function and combine the stability condition constraints, let $z (w) = β e^{- α | w |} - β$ .

Substituting $z (w) = β e^{- α | w |} - β$ into equation (13), we have

c_{m} = {\begin{matrix} \frac{β (1 - α π - e^{- α π})}{π α}, m = 0 \\ \frac{α β - α β e^{- α π} {(- 1)}^{m}}{π (α^{2} + m^{2})}, otherwise \end{matrix}

(15)

Therefore, the coefficients can be determined by equations (14) and (15). Take $α = 15, β = 15, k = 7$ as an example (Figure 5). The corresponding coefficients ${g_{m}}$ are 0.9661, 0.979 1, 0.9912, 1.0019, 1.0108, 1.0175, 1.0216, -13.9769, 1.0216, 1.0175, 1.0108, 1.0019, 0.9912, 0.9791, and 0.9661.

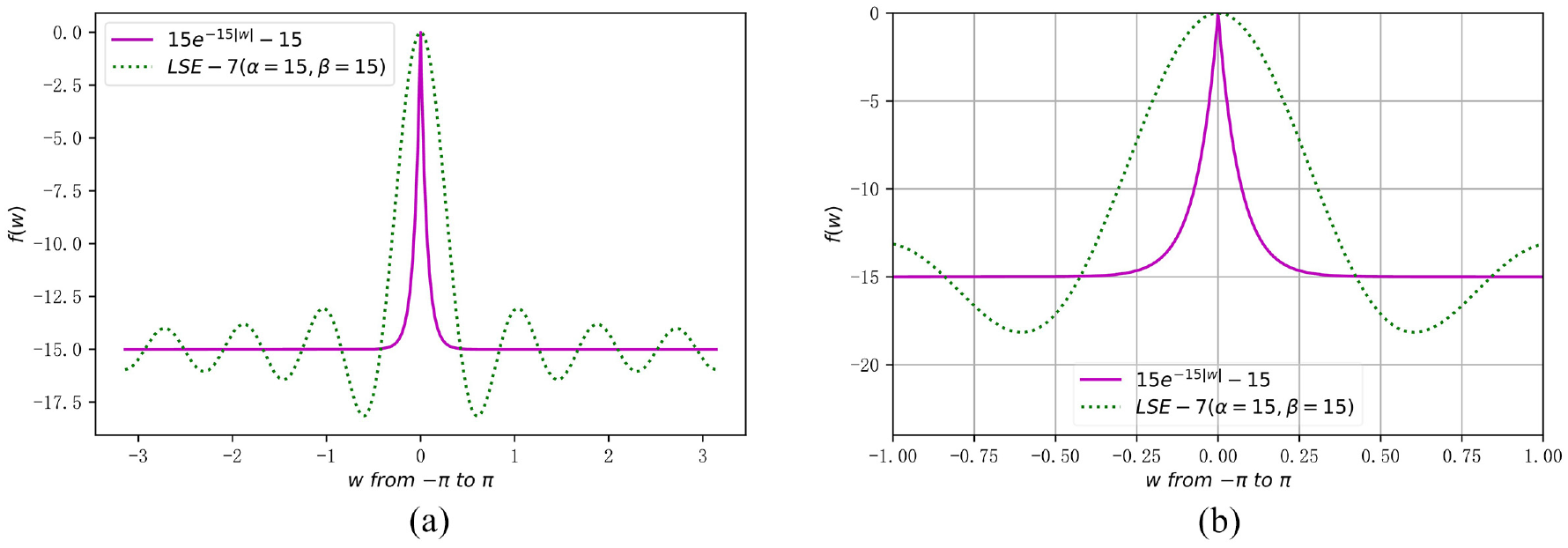

Figure 5.

The LSE-7(α = 15, β = 15) scheme: (a) the curve of LSE-7 and its z(w) and (b) central area of the curves in (a).

Lemma 1: For all $m = 1, 2, \dots, k$ , if $g_{m} \geq 0$ and $g_{0} < 0$ , then the symmetric MN-BCM is stable (Wang and Horn, 2019).

Theorem 1: When $α > 1 / π, β > 0$ , the system (4) with coefficients (14) and (15) determined by ${g_{m}}$ obtained by the least square method approximating $β e^{- α | w |} - β$ is stable.

Proof: The proof first requires the calculation of the series

\sum_{m = 1}^{\infty} α β (1 - e^{- α π} {(- 1)}^{m}) / π (α^{2} + m^{2})

Here, the calculation of the series is divided into two parts

\begin{matrix} \sum_{m = 1}^{\infty} α β / π (α^{2} + m^{2}) \\ \sum_{m = 1}^{\infty} α β e^{- α π} (- 1)^{m} / π (α^{2} + m^{2}) \end{matrix}

The specific calculation will use the following series summation theorem (Ning, 2014)

\sum_{n = - \infty}^{\infty} f (n) = - π \sum_{k = 1}^{m} Res (f (z) \cot π z; z_{k})

(16a)

\sum_{n = - \infty}^{\infty} (- 1)^{n} f (n) = - π \sum_{k = 1}^{m} Res (f (z) \csc π z; z_{k})

(16b)

where ${z_{k}}_{k = 1}^{m}$ is an isolated singular point of $f (z)$ , $Res (f (z) \cot π z; z_{k})$ , $Res (f (z) \csc π z; z_{k})$ is the residue of the function at the pole. Take the calculation of $\sum_{m = 1}^{\infty} α β / π (α^{2} + m^{2})$ as an example

Res (f; α j) = {\frac{1}{z + α j} |}_{z = α j} = \frac{1}{2 α j}

(17a)

Res (f; - α j) = {\frac{1}{z - α j} |}_{z = - α j} = - \frac{1}{2 α j}

(17b)

Furthermore, $Res (fg; z_{0}) = g (z_{0}) Res (f; z_{0})$ (Conway, 1973) and

\cot π α j = \frac{\cos π α j}{\sin π α j} = \frac{e^{α π} + e^{- α π}}{j (e^{α π} - e^{- α π})}

(18a)

\cot (- π α j) = - \cot π α j = - \frac{e^{α π} + e^{- α π}}{j (e^{α π} - e^{- α π})}

(18b)

Here, $f (z) = 1 / (α^{2} + m^{2})$ satisfies the condition of equation (16a) (Ning, 2014), therefore

\begin{matrix} \sum_{m = 1}^{\infty} \frac{1}{m^{2} + α^{2}} = - π \\ (- \frac{e^{α π} + e^{- α π}}{j (e^{α π} - e^{- α π})} \cdot (- \frac{1}{2 α j}) + \frac{e^{α π} + e^{- α π}}{j (e^{α π} - e^{- α π})} \cdot \frac{1}{2 α j}) \end{matrix}

(19)

After collating equation (19), it can be further obtained

\sum_{m = 1}^{\infty} \frac{1}{m^{2} + α^{2}} = \frac{1}{2} (\frac{π (e^{α π} + e^{- α π})}{α (e^{α π} - e^{- α π})} - \frac{1}{α^{2}})

(20)

According to equation (16b), it is likewise possible to obtain

\sum_{m = 1}^{\infty} \frac{{(- 1)}^{m}}{m^{2} + α^{2}} = \frac{1}{2} (\frac{2 π}{α (e^{α π} - e^{- α π})} - \frac{1}{α^{2}})

(21)

The results of equation (21) are consistent with those of Zhu (2005).

From equations (20) and (21), the sum of the series is

\sum_{m = 1}^{\infty} \frac{α β (1 - e^{- α π} {(- 1)}^{m})}{π (α^{2} + m^{2})} = \frac{β}{2} + \frac{β}{2 α π} (e^{- α π} - 1)

(22)

Combined with $c_{0}$ in equation (15), we obtain

\sum_{m = - \infty}^{\infty} c_{m} = 0

(23)

With regard to the range of the parameter, the parameter β is discussed first. For $z (w) = β e^{- α | w |} - β$ , only $β > 0$ , can $z (w) < 0$ be guaranteed, so that $f (w)$ of approximating $z (w)$ is less than 0. For the parameter $α$ , the range given in this paper is $α > 1 / π$ mainly to ensure that $c_{0} < 0$ .

When $α > 1 / π$ , $β > 0$ , it is known from equation (15) that $c_{0} < 0$ and $c_{m} > 0 (m \neq 0)$ . According to the series calculation result (equation (23)), $\sum_{m = - \infty}^{\infty} c_{m} = 0$ , so $\sum_{n = - k}^{k} c_{n} < 0$ .

When $m = 0, g_{0} = c_{0} - \frac{1}{2 k + 1} \sum_{n = - k}^{k} c_{n} < c_{0} - \frac{2}{2 k + 1} \sum_{n = 1}^{k} c_{n} < 0$ ;

When $m \neq 0, g_{m} = c_{m} - \frac{1}{2 k + 1} \sum_{n = - k}^{k} c_{n} > 0$ ;

Obviously, Lemma 1 holds, so Theorem 1 holds.

Take $α = 15, β = 15, k = 7$ as an example, the corresponding coefficients ${g_{m}}$ are 0.9661, 0.979 1, 0.9912, 1.0019, 1.0108, 1.0175, 1.0216, −13.9769, 1.0216, 1.0175, 1.0108, 1.0019, 0.9912, 0.9791, and 0.9661. For all $m = 1, 2, \dots, 7$ , $g_{m} \geq 0$ and $g_{0} < 0$ , which support the above proof. Therefore, the system determined by ${g_{m}}$ obtained by the least square method approximating $β e^{- α | w |} - β$ is stable when $α > 1 / π, β > 0$ .

Stability analysis of CBMBC hybrid control model

After analyzing the single car-following model and BCM, the stability of mixed traffic flow with car-following control and bilateral control is analyzed in Wang and Horn (2020b). Enlightened by this, considering the MN-BCM is conducive to the anti-interference performance of the system, this paper introduces it into the mixed traffic flow to analyze the stability of the traffic flow.

Based on the above analysis of the MN-BCM, we consider the symmetric MN-BCM. The hybrid control model includes the following control, bilateral control, and bilateral control of multiple nodes. The specific information flow is shown in Figure 6.

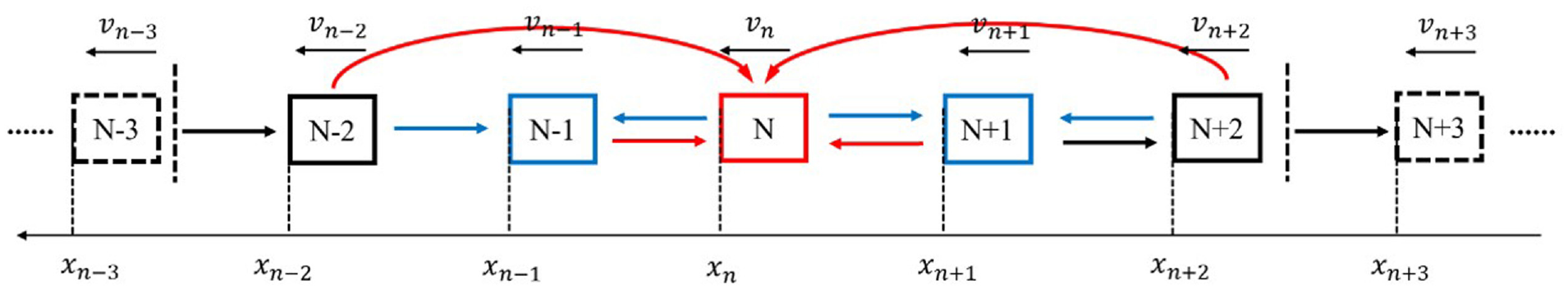

Figure 6.

Information flow topology of CBMBC hybrid control model.

Figure 6 is the information flow topology of the CBMBC hybrid control model proposed in this paper. The CBMBC model consists of five vehicles, of which the first and the last one adopt car-following control and are distinguished by black squares, and the control decision is completed according to the state information of the preceding vehicles. The vehicle in the middle uses MN-BCM, which is marked with red square and is controlled according to the status information of all vehicles in the model. The remaining two vehicles are under bilateral control, marked by blue squares, and complete the control according to the status information of the front and rear nodes of the vehicles.

The boundary vehicle of the CBMBC model adopts the car-following control model, which ensures that the model can be continuously superimposed. The stability of the CBMBC model is analyzed below. Obviously, each CBMBC model contains five nodes. The control model of each node is as follows

{\overset{\cdot\cdot}{x}}_{n - 2} = k_{d} (x_{n - 3} - x_{n - 2}) + k_{v} {\overset{\cdot}{x}}_{n - 3} - (k_{v} + k_{d} T) {\overset{\cdot}{x}}_{n - 2}

(24)

{\overset{\cdot\cdot}{x}}_{n - 1} = k_{d} (x_{n - 2} + x_{n} - 2 x_{n - 1}) + k_{v} ({\overset{\cdot}{x}}_{n - 2} + {\overset{\cdot}{x}}_{n} - 2 {\overset{\cdot}{x}}_{n - 1})

(25)

\begin{matrix} {\overset{\cdot\cdot}{x}}_{n} = k_{d} (g_{2} x_{n - 2} + g_{1} x_{n - 1} + g_{0} x_{n} + g_{1} x_{n + 1} + g_{2} x_{n + 2}) \\ + k_{v} (g_{2} {\overset{\cdot}{x}}_{n - 2} + g_{1} {\overset{\cdot}{x}}_{n - 1} + g_{0} {\overset{\cdot}{x}}_{n} + g_{1} {\overset{\cdot}{x}}_{n + 1} + g_{2} {\overset{\cdot}{x}}_{n + 2}) \end{matrix}

(26)

{\overset{\cdot\cdot}{x}}_{n + 1} = k_{d} (x_{n + 2} + x_{n} - 2 x_{n + 1}) + k_{v} ({\overset{\cdot}{x}}_{n + 2} + {\overset{\cdot}{x}}_{n} - 2 {\overset{\cdot}{x}}_{n + 1})

(27)

{\overset{\cdot\cdot}{x}}_{n + 2} = k_{d} (x_{n + 2} - x_{n + 1}) + k_{v} {\overset{\cdot}{x}}_{n + 1} - (k_{v} + k_{d} T) {\overset{\cdot}{x}}_{n + 2}

(28)

By Fourier analysis of the above control models, considering the response of pure oscillation input $X_{n} (w) e^{j ω t}$ , the following linear equation can be obtained

h (w) X_{n - 3} + f (w) X_{n - 2} = 0

(29)

h (w) X_{n - 2} + f_{B} (w) X_{n - 1} + h (w) X_{n} = 0

(30)

\begin{matrix} g_{2} h (w) X_{n - 2} + g_{1} h (w) X_{n - 1} + f_{M} (w) X_{n} + g_{1} h (w) \\ X_{n + 1} + g_{2} h (w) X_{n + 2} = 0 \end{matrix}

(31)

h (w) X_{n} + f_{B} (w) X_{n + 1} + h (w) X_{n + 2} = 0

(32)

h (w) X_{n + 1} + f (w) X_{n + 2} = 0

(33)

where $h (w) = - k_{v} jw - k_{d}$ , $f (w) = - w^{2} + (k_{v} + k_{d} T) jw + k_{d}$ , $f_{B} = - w^{2} + 2 k_{v} jw + 2 k_{d}$ , and $f_{M} = - w^{2} - g_{0} k_{v} jw - g_{0} k_{d}$ .

By solving equations (29)–(33), we obtain

X_{n + 2} = H (w) X_{n - 3}

(34)

The stability of a single module has been discussed above, with an emphasis on the perturbation over time. Here, we will mainly discuss the variation of the disturbance along the vehicles in the module, introducing modular string stabilization (Wang and Horn, 2020b).

Definition 1: For a mixed control traffic flow system, if

‖ H (w) ‖^{2} < 1 (for all | w | > 0)

Then, the system is said to be modular string stable.

Note that when $w = 0$ , $H (w) = \frac{g_{1} + 2 g_{2}}{2 g_{0} + 3 g_{1} + 2 g_{2}}$ . For the symmetric MN-BCM, the weight coefficients are constrained by $\sum_{m = - k}^{k} g_{m} = 0$ , that is, $\sum_{m = - 2}^{2} g_{m} = 0$ . Thus, when $w = 0$ , $H (w) = \frac{g_{1} + 2 g_{2}}{2 g_{0} + 3 g_{1} + 2 g_{2}} = - 1$ . Rewrite $H (w)$ as

H (w) = \frac{M (w)}{N (w)}

(35)

where $M (w)$ and $N (w)$ are polynomials about $w$ . Let $D (w) = M (w)^{2} - N (w)^{2}$ . The previous analysis shows that H (0) =−1, which means that $D (w)$ has no constant term and can be written as

D (w) = w_{1} {| w |}^{2} + w_{2} {| w |}^{4} + w_{3} {| w |}^{6} + \dots

(36)

Definition 2: The necessary condition of modular string stability for the traffic flow composed of CBMBC mixed control model is $w_{1} < 0$ . Obviously, in this case, low frequency disturbances will be suppressed.

Theorem 2: The necessary condition of modular string stability of traffic flow composed of CBMBC mixed control model (equations (24)–(28)) is

{(g_{1} + 2 g_{2})}^{2} (10 k_{v} T + 17 k_{d} T^{2} - 14) > 4 (g_{1} + 2 g_{2}) (g_{1} + 1)

(37)

Proof: From equations (29)–(34), $D (w) = || f (f_{M} f_{B}^{2} f +$ $g_{2} f_{B} h^{3} + g_{1} h^{4} - f_{M} f_{B} h^{2} - 2 g_{1} f_{B} f h^{2} {||}^{2} - {‖ (g_{1} h^{3} - g_{2} f_{B} h^{2}) h^{2} ‖}^{2}$ . Through tedious calculation, the following results are obtained

\begin{matrix} w_{1} = - k_{d}^{8} [T^{2} k_{d}^{2} (20 g_{0}^{2} + 44 g_{0} g_{1} + 8 g_{0} g_{2} + 25 g_{1}^{2} + 12 g_{1} g_{2} + 4 g_{2}^{2}) \\ + T k_{d} k_{v} (24 g_{0}^{2} + 64 g_{0} g_{1} + 32 g_{0} g_{2} + 42 g_{1}^{2} + 40 g_{1} g_{2} + 8 g_{2}^{2}) \\ - k_{d} (36 g_{0}^{2} + 90 g_{0} g_{1} + 48 g_{0} g_{2} - 8 g_{0} + 54 g_{1}^{2} + 52 g_{1} g_{2} \\ - 12 g_{1} + 8 g_{2}^{2} - 8 g_{2}) \\ + k_{v}^{2} (20 g_{0}^{2} + 60 g_{0} g_{1} + 40 g_{0} g_{2} + 40 g_{1}^{2} + 40 g_{1} g_{2})] \end{matrix}

(38)

Simplified with $\sum_{m = - 2}^{2} g_{m} = 0$ , we get

\begin{array}{l} w_{1} = - k_{d}^{9} (g_{1} + 2 g_{2}) (10 g_{1} k_{v} T + 20 g_{2} k_{v} T + 17 g_{1} k_{d} T^{2} \\ + 34 g_{2} k_{d} T^{2} - 18 g_{1} - 28 g_{2} - 4) = \\ - k_{d}^{9} (g_{1} + 2 g_{2}) [10 k_{v} T (g_{1} + 2 g_{2}) + 17 k_{d} T^{2} (g_{1} + 2 g_{2}) \\ - 14 (g_{1} + 2 g_{2}) - 4 (g_{1} + 1)] \end{array}

(39)

From Definition 2, we know that the necessary condition of modular string stability of CBMBC mixed control model is $w_{1} < 0$ . Substituting equation (39) and considering the gain coefficient $k_{d} > 0$ , it is easy to obtain Theorem 2

\begin{matrix} {(g_{1} + 2 g_{2})}^{2} (10 k_{v} T + 17 k_{d} T^{2} - 14) > 4 (g_{1} + 2 g_{2}) (g_{1} + 1) \\ > 4 {(g_{1} + 2 g_{2})}^{2} ° \end{matrix}

To simplify equation (37), let $k_{d} > 0$ , $g_{1} > 0$ , $0 < g_{2} < 1 / 2$ , it can be further scaled as follows

\begin{matrix} {(g_{1} + 2 g_{2})}^{2} (10 k_{v} T + 17 k_{d} T^{2} - 14) > 4 (g_{1} + 2 g_{2}) (g_{1} + 1) \\ > 4 {(g_{1} + 2 g_{2})}^{2} ° \end{matrix}

Under the condition of $k_{d} > 0$ , $g_{1} > 0$ , $0 < g_{2} < 1 / 2$ , the necessary condition of Theorem 2 can be simplified as

10 k_{v} T + 17 k_{d} T^{2} > 18

(40)

Note that the CBMBC model is required to be able to suppress high-frequency disturbances.

Numerical simulation

First, the performance of traffic flow under LSE scheme is verified by simulation. A fleet of 80 cars is created here, and the additional simulation parameters are given in Wang and Horn (2019). Taking 40s as the initial state of bidirectional control in car-following mode, the different schemes of coefficient generation are compared. The fluctuation of the results is evaluated here by the average absolute disturbance (AAD) (Figure 7).

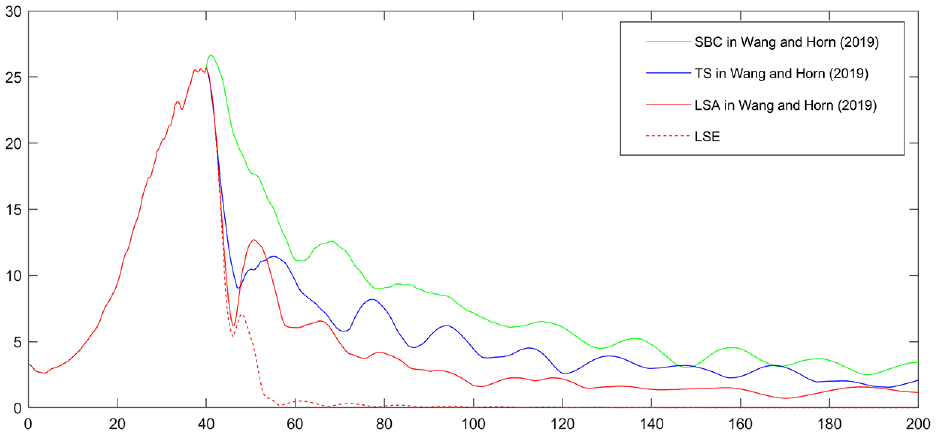

Figure 7.

The average absolute disturbance value of traffic flow with different coefficient schemes.

It can be seen that the disturbance value is increasing for the first 40 seconds due to the different control model. After 40 seconds, the mean absolute disturbance value begins to decrease after switching to bidirectional control. Compared with other schemes, the mean absolute perturbation of traffic flow under LSE scheme decreases the fastest.

In order to verify the effectiveness of the proposed scheme, the following simulation experiments are carried out. The fleet consists of six groups of CBMBC hybrid control model, with a total of 30 vehicles. Other simulation parameters are set as follows (Table 1).

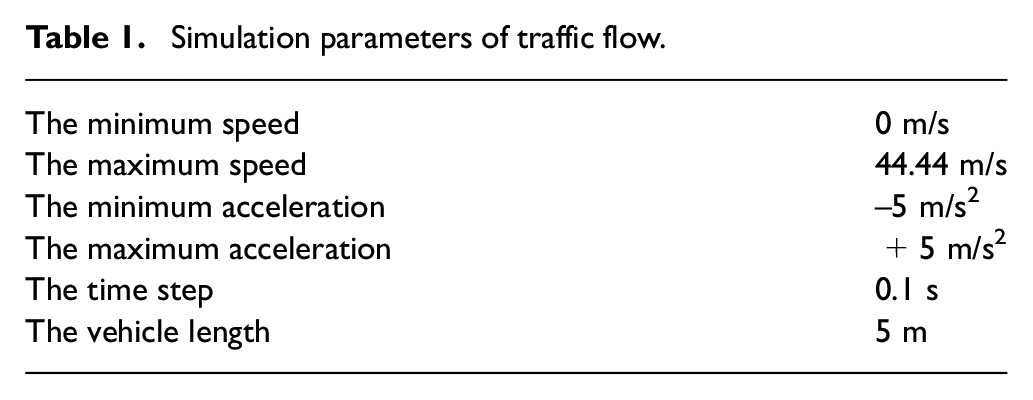

Table 1.

Simulation parameters of traffic flow.

The minimum speed	0 m/s
The maximum speed	44.44 m/s
The minimum acceleration	−5 m/s²
The maximum acceleration	+5 m/s²
The time step	0.1 s
The vehicle length	5 m

Initially, each vehicle maintains the desired separation and travels at the same average speed. Then the lead vehicle brakes to create a disturbance, and we observe the change in traffic flow. At the same time, based on the conclusion of modular string stability of CBMBC mixed control model given in the previous paper, two sets of control parameters are set, one set satisfies the necessary condition given in the previous paper, and the other set does not satisfy the necessary condition (Table 2). The results are verified by numerical simulation.

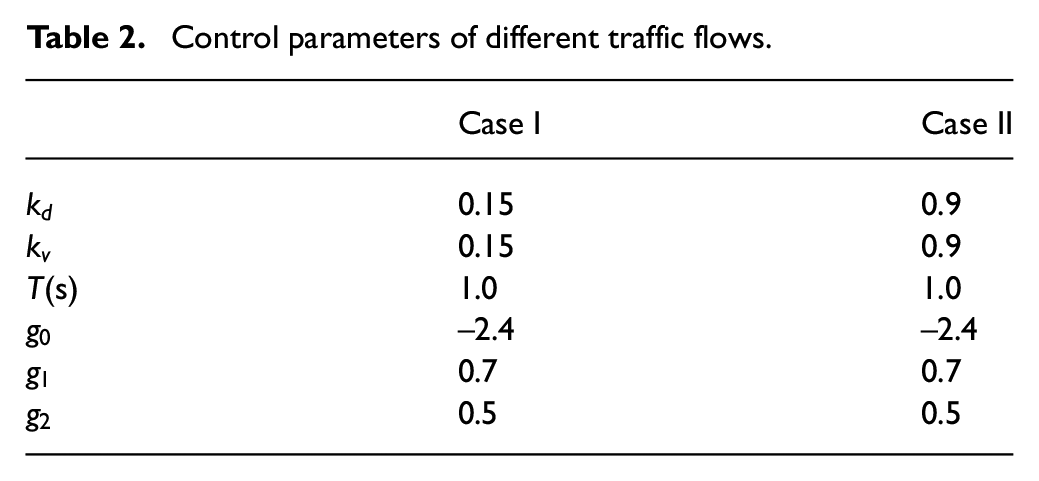

Table 2.

Control parameters of different traffic flows.

	Case I	Case II
$k_{d}$	0.15	0.9
$k_{v}$	0.15	0.9
$T$ (s)	1.0	1.0
$g_{0}$	−2.4	−2.4
$g_{1}$	0.7	0.7
$g_{2}$	0.5	0.5

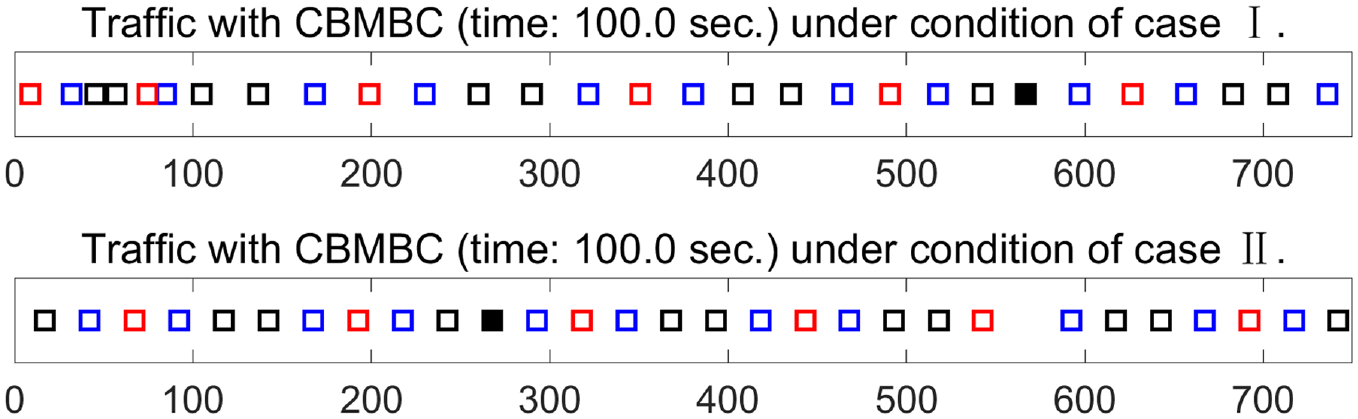

In Figure 8, the small squares represent the positions of the vehicles, and different colors of vehicles represent different control strategies used. Among them, black vehicle squares, blue vehicle squares, and red vehicle squares are, respectively, under car-following control, bilateral control, and multi-node bilateral control. Here, the traffic flow states under different controller parameters are compared. The upper figure is under the controller parameters of Case I, which obviously does not satisfy the necessary conditions proposed above. The lower figure is under the controller parameters of Case II, which satisfies the controller parameters proposed above. Figure 8 shows the position of the vehicle at the 100th second of the two traffic flow. It can be seen that the traffic flow that does not meet the necessary conditions for modular string stability given above is congested, and some vehicles are close together, while the traffic flow that meets the stable conditions is not congested.

Figure 8.

Position of vehicles in simulated traffic flow.

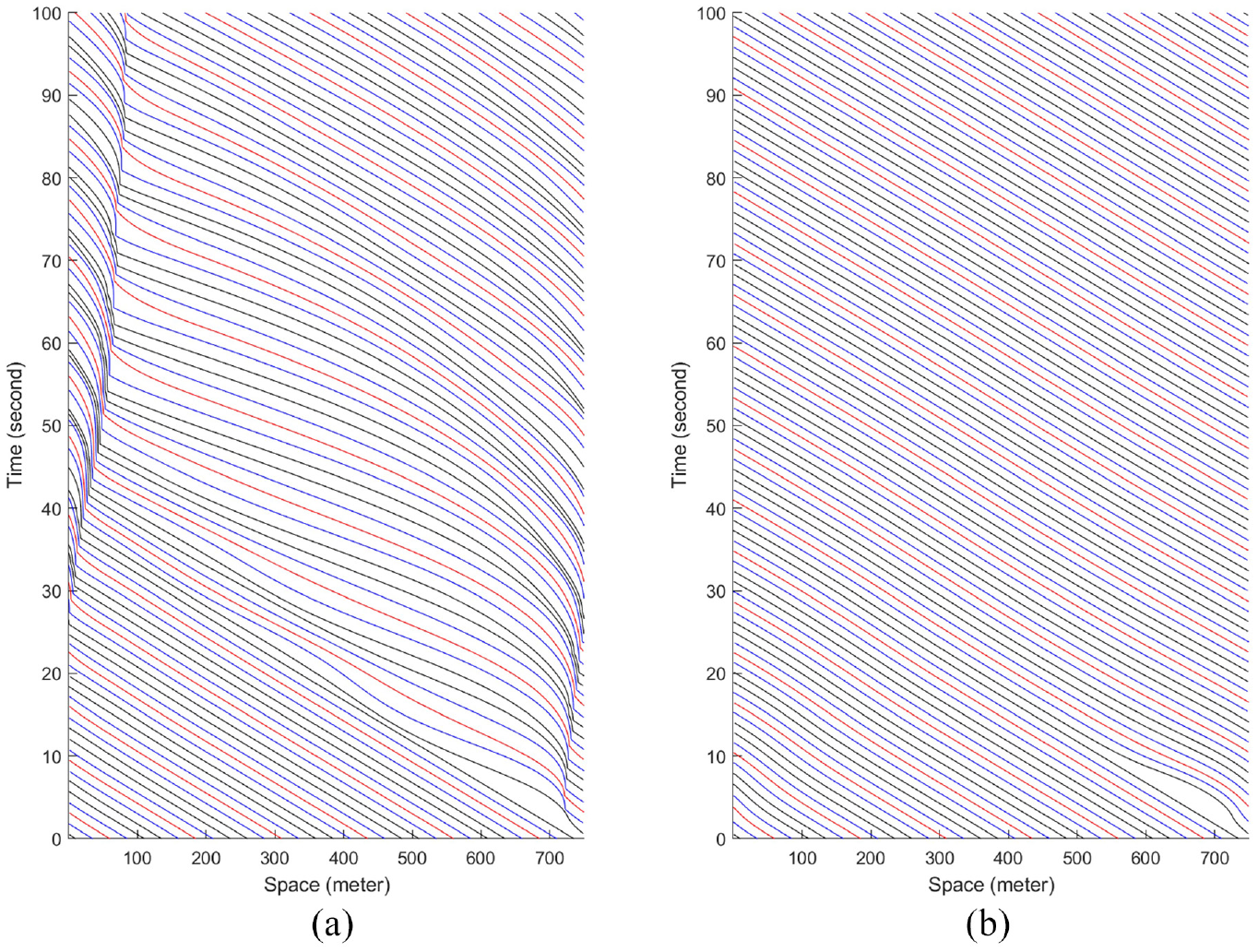

Figure 9 shows the time-space trajectory diagram of vehicles in the simulation process of two groups of traffic flows. The horizontal axis is distance in meters, and the vertical axis is time in seconds. Track lines with different colors represent the control mode of vehicles, consistent with the previous. Vehicles with black track are under following control, vehicles with blue track are under bilateral control, and vehicles with red track are under multi-node bilateral control. Traffic exits on the left and enters on the right. At the beginning of the time, the black track has a wave, which is caused by braking. However, the effect of this braking disturbance is different in the two sets of traffic flow. In the figure on the left, the disturbance propagates backwards because the traffic flow does not satisfy the necessary conditions for modular string stability and a jam forms (the sloping trajectory becomes vertical, meaning that the position of the vehicle does not move over times). On the contrary, the disturbance caused by braking disappears after 10 seconds in the right traffic with modular string stability, and the vehicles move at a constant speed according to the same spacing.

Figure 9.

Space-time trajectory diagram of vehicles: (a) under Case I and (b) under Case II.

Look at two sets of traffic flow simulations from another perspective. Figure 10 is a diagram of the trajectory of the vehicle in the relative reference frame. The horizontal axis is distance and the vertical axis is time. The control model of the vehicle is not distinguished here by color. The figure on the left corresponds to the traffic flow in Case I (i.e. the necessary conditions for modular string stability are not met), and the disturbance is growing over times. The figure on the right corresponds to the traffic flow of Case II, which satisfies the necessary conditions for modular string stability. In sharp contrast to the figure on the left, it can be seen that the disturbance decays both temporally and spatially.

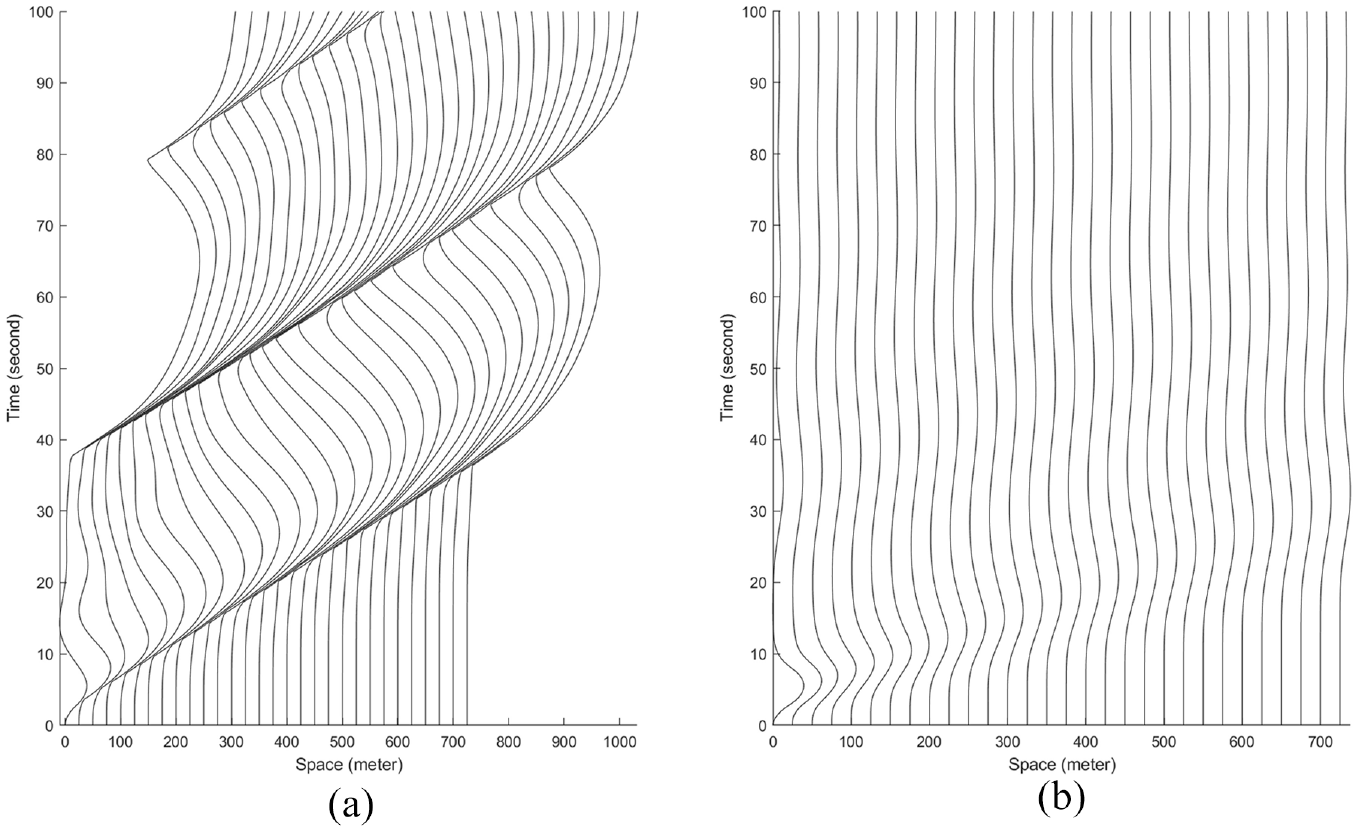

Figure 10.

Vehicle trajectory diagram in relative reference frame: (a) under Case I and (b) under Case II.

Conclusion

In this paper, a Gaussian function is used as the objective function to determine the coefficients of the MN-BCM. By adjusting the parameters of the objective function, the coefficients are determined more flexibly, and the stability of the scheme is verified. Then, the multi-node bilateral control is combined with bilateral control and car-following control, and the CBMBC mixed control model is proposed, and the necessary conditions of string stability of CBMBC mixed control model are given. It can be seen that the space which does not meet the necessary conditions of modular string stability is relatively small. The MN-BCM can improve the efficiency of the traffic flow to reach a balanced state through the optimization of the coefficients. However, because the multi-node bilateral control involves more vehicle nodes, the queuing stability analysis is more complex, and only the necessary conditions for stability can be obtained. Therefore, when a more complex control model is involved, it can be analyzed by similar calculation and combined with numerical simulation analysis. In addition, the hybrid control model combined with CBMBC proposed in this paper has multiple advantages. It not only considers the advantages of bilateral control and multi-node dual control but also considers the use of car-following control, which increases its scalability. Since only the necessary condition of stability for the CBMBC hybrid control model is obtained theoretically, the necessary and sufficient conditions for the hybrid control model and the more effective multi-node bilateral control scheme will be further discussed in the future.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the Science and Technology Project of State Grid Jiangsu Electric Power Co., LTD. under Grant J2021203 and the Foreign Expert Program of the P. R. China G2021013037L.

ORCID iD

Daxing Zhong

References

Conway

(1973) Functions of One Complex Variable. London: Springer Verlag.

Dolk

Ploeg

Heemels

WPMH

(2017) Event-triggered control for string-stable vehicle platooning. IEEE Transactions on Intelligent Transportation Systems 18(12): 3486–3500.

Dunbar

Caveney

(2012) Distributed receding horizon control of vehicle platoons: Stability and string stability. IEEE Transactions on Automatic Control 57(3): 620–633.

Feng

Zhang

, et al. (2019) String stability for vehicular platoon control: Definitions and analysis methods. Annual Reviews in Control 47: 81–97.

Fernandes

Nunes

(2012) Platooning with IVC-enabled autonomous vehicles: Strategies to mitigate communication delays, improve safety and traffic flow. IEEE Transactions on Intelligent Transportation Systems 13(1): 91–106.

Orosz

(2017) Optimal control of connected vehicle systems with communication delay and driver reaction time. IEEE Transactions on Intelligent Transportation Systems 18(8): 2056–2070.

Hedrick

Tomizuka

Varaiya

(1994) Control issues in automated highway systems. IEEE Control Systems Magazine 14(6): 21–32.

Horn

BKP

(2013) Suppressing traffic flow instabilities. In: 16th international IEEE conference on intelligent transportation systems, The Hague, 6–9 October, pp. 201313–201320. New York: IEEE.

Horn

BKP

Wang

(2018) Wave equation of suppressed traffic flow instabilities. IEEE Transactions on Intelligent Transportation Systems 19(9): 2955–2964.

10.

Ioannou

Chien

(1993) Autonomous intelligent cruise control. IEEE Transactions on Vehicular Technology 42(4): 657–672.

11.

Nakayama

Sugiyama

Hasebe

(2001) Effect of looking at the car that follows in an optimal velocity model of traffic flow. Physical Review E 65(1): 016112.

12.

Naus

GJL

Vugts

RPA

Ploeg

, et al. (2010) String-stable CACC design and experimental validation: A frequency-domain approach. IEEE Transactions on Vehicular Technology 59(9): 4268–4279.

13.

Ning

(2014) Method of the complex analysis to some series. Journal of Nanjing Normal University 37: 20.

14.

Ploeg

Semsar-Kazerooni

Lijster

, et al. (2015) Graceful degradation of cooperative adaptive cruise control. IEEE Transactions on Intelligent Transportation Systems 16(1): 488–497.

15.

Ploeg

Shukla

van de

Wouw N

, et al. (2014) Controller synthesis for string stability of vehicle platoons. IEEE Transactions on Intelligent Transportation Systems 15(2): 854–865.

16.

Rajamani

Zhu

(2002) Semi-autonomous adaptive cruise control systems. IEEE Transactions on Vehicular Technology 51(5): 1186–1192.

17.

Shladover

(2007) PATH at 20—History and major milestones. IEEE Transactions on Intelligent Transportation Systems 8(4): 584–592.

18.

Wang

Horn

BKP

(2019) Multinode bilateral control model. IEEE Transactions on Automatic Control 64(10): 4066–4078.

19.

Wang

Horn

BKP

(2020a) On the chain stability of bilateral control model. IEEE Transactions on Automatic Control 65(8): 3397–3408.

20.

Wang

Horn

BKP

(2020b) On the stability analysis of mixed traffic with vehicles under car-following and bilateral control. IEEE Transactions on Automatic Control 65(7): 3076–3083.

21.

Wang

Horn

BKP

Strang

(2017) Eigenvalue and eigenvector analysis of stability for a line of traffic. Studies in Applied Mathematics 138: 103–132.

22.

Wen

Guo

(2020) Sampled-data control for connected vehicles with Markovian switching topologies and communication delay. IEEE Transactions on Intelligent Transportation Systems 21(7): 2930–2942.

23.

(2020) Design of switched fuzzy adaptive double coupled sliding mode control for vehicles platoon. In: 2020 5th international conference on automation, control and robotics engineering (CACRE), Dalian, China, 19–20 September.

24.

Zheng

Eben

Li S

Wang

, et al. (2016) Stability and scalability of homogeneous vehicular platoon: Study on the influence of information flow topologies. IEEE Transactions on Intelligent Transportation Systems 17(1): 14–26.

25.

Zhu

(2005) Summation to calculate a class infinite series by using residue theorem. Journal of Lishui Teachers College 1B: 304–306.
