Networked fault detection for fuzzy systems using a quantizer with event-triggered strategy

Abstract

This paper concerns with the problem of fault detection for networked fuzzy systems. Considering the digital communication channel, quantization is adopted to make the data transmission feasible and the induced data distortion is converted into a bounded uncertain term. For the purpose of saving network resources, a new quantizer with an event-triggered strategy is designed to reduce the length and the number of the transmitted data packets, simultaneously. In the process of stability analysis, the T-S fuzzy model approach is employed to approximate the nonlinear networked system, and a more flexible fuzzy design method is presented to get the fault detection filter which can detect the sensor fault in the presence of external disturbance. And sufficient conditions are constructed to guarantee the stability of the filter error system in terms of linear matrix inequalities. Finally, the simulation example is given to verify the feasibility of the method.

Keywords

Fault detection quantizer with event-triggered strategy T-S fuzzy model networked systems

Introduction

With the development of network and communication technology, the networked control system has gained increasing attention and great development. The use of a networked system eliminates unnecessary wiring, reduces the complexity of the system, and also reduces the cost of designing and setting up the system. With the wide use of the networked system, transmission delay, packet loss, and data quantization of the networked system have been concerned (see Li and Chen, 2021; Li and Niu, 2021; Liu et al., 2019b; Rouamel et al., 2020). In particular, Wei and Xiong (2021) have studied the $H_{\infty}$ control of linear networked and quantitative control systems with communication delay and random packet loss. Liu et al. (2021b) considered the sliding mode control of the networked control system. Based on the Lyapunov theory and sliding mode control theory, it has given the mean square asymptotic stability criterion of the closed-loop control system.

In the networked communication strategy, quantization is a key step. Each system signal should be converted into a digital signal for transmission with the participation of a quantizer. Moreover, quantization can help to reduce the length of data packets which lowers the network burden (see Dong et al., 2022; Li et al., 2021b; Mahmoud and Almutairi, 2016; Mastani and Rahmani, 2021). For example, Chen et al. (2018) aimed at the system that has been quantified and studied the robust stabilization of the system. Shi et al. (2020) studied robust model predictive control for distributed networked control systems considering both quantization and switching topology. Lu et al. (2018) considered the quantized and network-induced delays for networked systems with event-triggered $H_{\infty}$ filtering problem. However, there are few articles that apply quantizer to fault detection, which is one motivation for this paper.

On the other hand, in order to save the width of communication networks and computing resources, many scholars add event-triggered mechanisms to the research of networked systems (see Chu et al., 2020; Huang et al., 2019; Li et al., 2021a; Liu et al., 2019a; Wang et al., 2020). In general, the event-triggered mechanism prevents the transmission of nonessential data, to reduce the network transmission burden. For different system requirements, various event-triggered schemes have been presented. For instance, by combining the trigger mechanism with adaptive critical control, Wang and Liu (2018) proposed a solution to the robust control synthesis problem of nonlinear systems with uncertain terms. Wang et al. (2019) proposed a new event-triggering mechanism for the robust adaptive fuzzy control of nonlinear systems. It updates control signals only when triggered, which further saves resources. Wang et al. (2022b) designed a new controller, constructed an observer on the node of the controller to generate fault residual, and established a closed-loop system by analyzing the sequence of transmitted signals. Compared with Wang et al. (2022b), this paper designed a quantizer with an event-triggering strategy, which saves network resources and reduces the length and number of transmitted packets.

In recent years, with further research on quantization and event triggering, the combined application of the two has gradually attracted people’s attention (see Wang, 2021; Wang et al., 2021, 2022a; Zhao et al., 2022). Chen and Zhang (2020) combined quantization with event triggering to reduce the network transmission burden and save network resources. Wang and Liu (2021) designed an adaptive control, which realized input quantization through a random quantizer, and used event triggering to reduce the communication load. However, the above methods for addressing quantization and event-triggered scheme are just linear combination of existing methods for quantization and event-triggering mechanism, respectively. Chen et al. (2020b) designed a fault detection filter for nonlinear network systems under limited bandwidth and random data loss, which is used to detect fault signals under disturbance. But it did not consider quantification. In this article, we not only consider quantification but also employ a new synthetic method to address the quantization and event-triggering mechanism synchronously which reduces the network burden and design complexity. This is one of the motivations for this paper.

In addition, the T-S fuzzy model as a typical model of complex dynamic systems simplifies the complex nonlinear system by establishing “IF THEN” rules, so that complex nonlinear systems can be analyzed more easily (see Bessa et al., 2020; Ghorbel and Braiek, 2022; Guo et al., 2018; Kuo and Citra Resmi, 2019). Liu and Zhang (2003) proposed a new $H_{\infty}$ controller design method using linear matrix inequalities for fuzzy systems. Wu et al. (2010) constructed a novel fuzzy Lyapunov–Krasovskii function. Based on the above research, it is of great practical significance to apply the T-S fuzzy model to the networked system (Cai et al., 2022; Chen et al., 2020a).

System faults are common problems in system operation. The fault detection mechanism can detect whether the fault occurs by generating a residual signal via the measurement output. At present, there are many methods to detect various fault signals (see Cheng et al., 2022; Jan et al., 2021; Ju et al., 2021; Li et al., 2019; Liu et al., 2021a; Yu et al., 2017). For example, Zhang and Fang (2011) studied the problem of robust fault detection for nonlinear systems with distributed delay. Ye and Li (2020) designed a new polynomial fault detection filter and used a new event-triggering mechanism, which improves the asymptotic stability of the system. In recent years, networked fuzzy systems are gradually known to people, but the application of networked fuzzy systems in fault detection is still rare. Therefore, this paper focuses on fault detection for networked fuzzy systems. In a networked environment, due to the distortion of information, fault signals are more difficult to detect, which leads to a greater impact of fault signals on the system. Therefore, it is necessary to study the fault detection of networked systems. In actual industrial systems, most of the problems we encounter are nonlinear systems. For practical application research, the research of nonlinear systems is very necessary. The T-S fuzzy model is a model that can transform nonlinear systems. It is a powerful tool for the combination of linear systems, so fault detection of networked fuzzy systems has important theoretical and practical significance.

This paper applies the T-S fuzzy model to a networked system to reduce the complexity of the system. Quantization is considered which effectively reduces the length of data in the channel and reduces the burden of the channel. The event-triggering mechanism is more flexible and can decrease the amount of the transmitted data “on demand” which further lowers the burden of the network channel. In addition, a novel T-S fuzzy method is used to analyze complex nonlinear systems. Finally, we apply the above method to fault detection to increase the sensitivity and robustness of the fault detection filter.

System description

The nonlinear system described by T-S fuzzy model is studied in this paper. The fuzzy rules of the system are as follows:

Plant rule i: If $f_{1} (x_{k})$ is $N_{i 1}$ , and ⋯, and $f_{j} (x_{k})$ is $N_{ij}$ , and ⋯, and $f_{p} (x_{k})$ is $N_{ip}$ , so

x_{k + 1} = A_{i} x_{k} + B_{i} ω_{k}, y_{k} = C_{i} x_{k}

(1)

where $x_{k} \in R^{n}$ is the state vector, $ω_{k} \in R$ is the exogenous bounded disturbance, and $y_{k} \in R$ is the measured output. $A_{i}, B_{i}, C_{i}$ is a system matrix. The fuzzy rule’s serial number is $i = 1, 2, \dots, r$ , so r is the total number of rules. The fuzzy set and the antecedent variables are $N_{ij}$ and $θ_{i} (x_{k})$ . The ordinal number of the fuzzy set and antecedent variable is $j = 1, 2, \dots, p$ . Thus, the defuzzification form of the system is

x_{k + 1} = A (x_{k}) x_{k} + B (x_{k}) ω_{k}, y_{k} = C (x_{k}) x_{k}

(2)

where

[\begin{matrix} A (x_{k}) & B (x_{k}) & C (x_{k}) \end{matrix}] = \sum_{i = 1}^{r} h_{i} (x_{k}) [\begin{matrix} A_{i} & B_{i} & C_{i} \end{matrix}]

(3)

h_{i} (x_{k}) = μ_{i} (θ (x_{k})) / \sum_{i = 1}^{r} μ_{i} (θ (x_{k})), μ_{i} (θ (x_{k})) = Π_{j = 1}^{p} N_{ij} (θ_{j} (x_{k}))

(4)

and $N_{ij} (θ_{j} (x_{k}))$ is the membership of $θ_{j} (x_{k})$ in the fuzzy set $N_{ij}$ . Then, it can be seen that

μ_{i} (θ_{k}) \geq 0, i = 1, 2, \dots, r, \sum_{i = 1}^{r} μ_{i} (θ_{k}) > 0

(5)

$for all k . So, we have h_{i} (x_{k}) \geq 0 and \sum_{i = 1}^{r} h_{i} (x_{k}) = 1 .$

The block diagram of the entire system is shown in Figure 1. In this paper, we consider the possible failure of sensors in the system and design filters to detect whether the system sensors are faulty. Due to the influence of network factors, it is difficult to detect the occurrence of faults accurately. Therefore, we assume that sensor failures are likely to occur throughout the operation of the system. Then, due to the influence of sensor faults, the actual output of the sensor is

{\hat{y}}_{k} = y_{k} + f_{k}

(6)

In order to reduce the network burden and not cause analysis complexity, we introduce a quantizer. The set of quantized levels is described by

Ω = {\pm ς_{i}, ς_{i} = θ^{i} ς_{0}, i = 0, \pm 1, \pm 2, \dots} ⋃ {0}

(7)

where $θ \in (0, 1), ς_{0} > 0$ . After the quantization level $ς_{0}$ division, the quantizer can contain the whole range

f (υ) = {\begin{matrix} ς_{i}, \\ 0, \\ - f (- υ), \end{matrix} \begin{matrix} if \frac{1}{1 + σ} ς_{i} \leq υ < \frac{1}{1 - σ} ς_{i} \\ if υ = 0 \\ if υ < 0 \end{matrix}

(8)

where $σ = \frac{1 - θ}{1 + θ}$ . From the formulations in Fu and Xie (2005), we can get $f (υ) = (1 + Δ) υ$ , where $| Δ | \leq σ$ . Therefore, we get the sensor output signal after quantization is

{\tilde{y}}_{k} = (I + Δ) {\hat{y}}_{k}

(9)

Then, the sensor output is sent to the event trigger. The following is the data model based on the triggering strategy. There is a continuous interval $[i_{k}, i_{k + 1})$ , the range of the sensor output ${\hat{y}}_{k}$ is $\frac{1}{1 + σ} ς_{i} \leq {\hat{y}}_{k} < \frac{1}{1 - σ} ς_{i}$ , after quantization, the data becomes ${\tilde{y}}_{k} = ς_{i}$ , and $k \in [i_{k}, i_{k + 1})$ . In the range of $[i_{k}, i_{k + 1})$ , all repeated data after quantization will be transmitted, which is a waste of resources. So, here we use a triggering strategy to prevent the transfer of repeat data

\begin{matrix} i_{k + 1} = {k | {\tilde{y}}_{k} \neq {\tilde{y}}_{ik}} \end{matrix}

(10)

Thus, the output sequence of the triggering strategy becomes ${i_{0}, \dots i_{k}, i_{k + 1} \dots}$ , and the released data of the triggering strategy is ${\tilde{y}}_{ik}$ . In fact, because of the specificity of the triggering strategy, the model is just the same as the quantizer without the triggering strategy. So

{\tilde{y}}_{ik} = (I + Δ) {\hat{y}}_{k}

(11)

In general, we need to generate a residual signal according to the received system output signal during fault detection. Then, according to a specially constructed evaluation function, we can detect whether the sensor is faulty. We construct the following fuzzy filter to generate the residual signal.

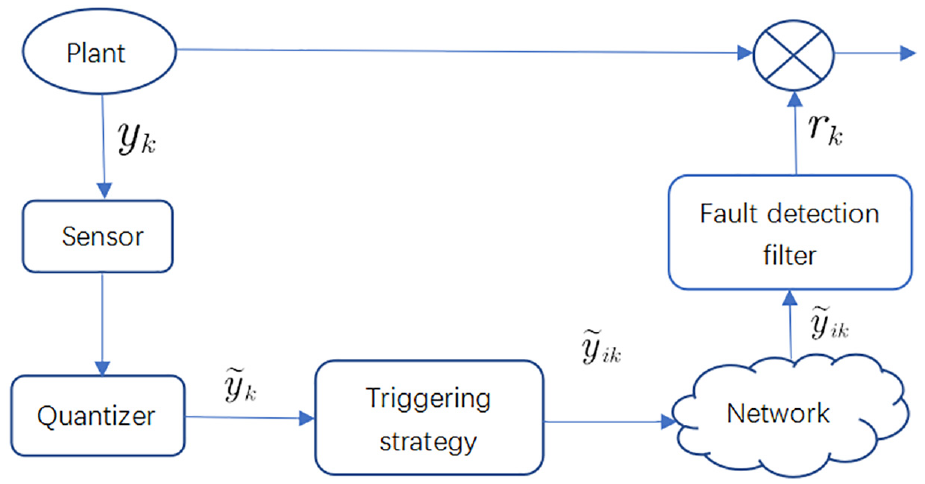

Figure 1.

The block diagram of the whole system.

Filter rule i: If $θ_{1} (x_{fk})$ is $N_{i 1}$ , and ⋯, and $θ_{j} (x_{fk})$ is $N_{ij}$ , and ⋯, and $θ_{p} (x_{k})$ is $N_{ip}$ , so

x_{fk + 1} = A_{fi} x_{fk} + B_{fi} {\tilde{y}}_{ik}, r_{k} = C_{fi} x_{fk} + D_{fi} {\tilde{y}}_{ik}

(12)

where the filter state is $x_{fk} \in R^{n}$ , $y_{ik} \in R^{l}$ is the filter input, $r_{k} \in R^{m}$ is the residual signal, and the parameter of the fuzzy filter is $A_{fi}, B_{fi}, C_{fi}, D_{fi}$ . The dynamic defuzzification of fuzzy filter is

x_{fk + 1} = A_{f} (x_{fk}) x_{fk} + B_{f} (x_{fk}) {\tilde{y}}_{ik}

r_{k} = C_{f} (x_{fk}) x_{fk} + D_{f} (x_{fk}) {\tilde{y}}_{ik}

(13)

where

\begin{matrix} [\begin{matrix} A_{f} (x_{fk}) & B_{f} (x_{fk}) & C_{f} (x_{fk}) & D_{f} (x_{fk}) \end{matrix}] = \\ \sum_{i = 1}^{r} h_{i} (x_{fk}) [\begin{matrix} A_{fi} & B_{fi} & C_{fi} & D_{fi} \end{matrix}] \end{matrix}

(14)

and the membership function is $h_{i} (x_{fk})$ ; the filter’s actual input is ${\tilde{y}}_{ik}$ . The membership function of the fuzzy filter and system has the same structure, but the independent variables are different.

According to the system requirements, the residual signal generated should be sensitive to sensor faults but insensitive to interference and other signals. Therefore, we use $H_{\infty}$ performance index to meet the above requirements.

Although we have obtained the residual signal, it needs further processing to complete the function of fault detection. Therefore, we need to construct a residual signal evaluation function. We can detect the fault signal by comparing the evaluation function with the threshold value.

Evaluation function and threshold

‖ r ‖_{T} \overset{Δ}{=} \sqrt{\sum_{k = t_{0}}^{t_{0} + T - 1} r_{k}^{T} r_{k}}, J_{th} \overset{Δ}{=} \sup_{ω_{k} \in l_{2}, f_{k} = 0} ‖ r ‖_{T}

(15)

From the above information, we concluded the following

{\begin{matrix} ‖ r ‖_{T} > J_{th} \Rightarrow defective \Rightarrow warning \\ ‖ r ‖_{T} \leq J_{th} \Rightarrow no - defect \end{matrix}

(16)

According to equations (2) and (13), we get the following residual system

{\hat{ε}}_{k + 1} = ϕ_{a} ε_{k} + ϕ_{b} ξ_{k}, e_{k} = φ_{a} ε_{k} + φ_{b} ξ_{k}

(17)

where

ϕ_{a} = [\begin{matrix} A (x_{k}) & 0 \\ ϕ_{a}^{21} & A_{f} (x_{fk}) \end{matrix}], ϕ_{b} = [\begin{matrix} B (x_{k}) & 0 \\ 0 & (I + Δ) B_{f} (x_{fk}) \end{matrix}]

φ_{a} = [\begin{matrix} (I + Δ) D_{f} (x_{fk}) C (x_{k}) & C_{f} (x_{fk}) \end{matrix}], φ_{b} = [\begin{matrix} 0 & (I + Δ) D_{f} (x_{fk}) - I \end{matrix}]

and $e_{k} = r_{k} - f_{k}$ , $ϕ_{a}^{21} = (I + Δ) B_{f} (x_{fk}) C (x_{k})$ , ${\hat{ε}}_{k + 1} = {[\begin{matrix} x_{k + 1}^{T} & x_{fk + 1}^{T} \end{matrix}]}^{T}$ , $ε_{k} = {[\begin{matrix} x_{k}^{T} & x_{fk}^{T} \end{matrix}]}^{T}$ , $ξ_{k} = {[\begin{matrix} ω_{k}^{T} & f_{k}^{T} \end{matrix}]}^{T}$

The residual system needs to satisfy the following conditions to complete the fault detection:

(1) If $ξ_{k} = 0$ , the system (17) is stable.

(2) Otherwise, $e_{k}$ should satisfy $‖ e ‖_{2} \leq γ ‖ ξ ‖_{2}$ under zero initial conditions, where γ is interference suppression level, given $γ > 0$ .

Design of fault detection filter

The design steps of the fault detection filter and the stability conditions of the residual system are the focus of this section.

Theorem 1: If the residual system satisfies the requirements given in the previous section, there needs to exist a matrix P, $P > 0$ is a symmetric matrix, and any matrix with appropriate dimensions $R, S, W,$ and constant $κ > 0$ , $(1 + Δ) > 0$ , makes the following inequality true

{\bar{Ϝ}}_{ii} < 0, i = 1 \dots r

(18)

{\bar{Ϝ}}_{ij} + {\bar{Ϝ}}_{ji} < 0, i = 1 \dots r, j < i

(19)

where

{\bar{Ϝ}}_{ij} = [\begin{matrix} Ϝ_{ij} & κ χ_{1} & κ ψ_{1} \\ * & - ε_{1} & 0 \\ * & * & - ε_{2} \end{matrix}]

(20)

Ϝ_{ij} = [\begin{matrix} \tilde{M} & 0 & {\tilde{Φ}}_{1 ij} \\ * & - I & {\tilde{Ψ}}_{1 ij} \\ * & * & \tilde{Ω} \end{matrix}]

(21)

In the above equation

\begin{matrix} {\tilde{Φ}}_{1 ij} = [\begin{matrix} {\tilde{Φ}}_{1 ij}^{11} & {\bar{A}}_{fj} & R B_{i} & (1 + Δ) {\bar{B}}_{fj} \\ {\tilde{Φ}}_{1 ij}^{21} & {\bar{A}}_{fj} & S B_{i} & (1 + Δ) {\bar{B}}_{fj} \end{matrix}] \\ {\tilde{Ψ}}_{1 ij} = [\begin{matrix} (1 + Δ) D_{fj} C_{i} & {\bar{C}}_{fj} & 0 & {\tilde{Ψ}}_{1 ij}^{14} \end{matrix}] \end{matrix}

and

\begin{matrix} \bar{Ω} = P + \tilde{Q}, P = diag {\hat{P}, 0} \\ \tilde{M} = \hat{P} - [\begin{matrix} R + R^{T} & S^{T} + W^{T} \\ S + W & W + W^{T} \end{matrix}] \\ χ_{1} = col {(1 + Δ) \bar{B}, (1 + Δ) \bar{B}, (1 + Δ) \bar{D}, 0} \\ ψ_{1} = col {[\begin{matrix} \bar{A} & \bar{B} \end{matrix}], [\begin{matrix} \bar{A} & \bar{B} \end{matrix}], [\begin{matrix} \bar{C} & \bar{D} \end{matrix}], 0} \end{matrix}

where ${\tilde{Φ}}_{1 ij}^{11} = R A_{i} + (1 + Δ) {\bar{B}}_{fj} C_{i}, {\tilde{Φ}}_{1 ij}^{21} = S A_{j} + (1 + Δ) {\bar{B}}_{fj} C_{j}, and {\tilde{Ψ}}_{1 ij}^{14} = (1 + Δ) D_{fj} - I .$ The parameters of the fuzzy filter are

A_{fj} = G_{2}^{- 1} {\bar{A}}_{fj} G_{2}^{- T} G_{4}^{T}

(22)

B_{fj} = G_{2}^{- 1} {\bar{B}}_{fj}

(23)

C_{fj} = {\bar{C}}_{fj} G_{2}^{- T} G_{4}^{T}

(24)

$G_{2}$ and $G_{4}$ in the above equation can be obtained by matrix factorization of W according to $W = G_{2}^{T} G_{4}^{- 1} G_{2}$ .

Proof: According to the augmented system in system (17) and Lyapunov stability theory, we construct a Lyapunov function

V_{k} = ε_{k}^{T} P ε_{k}

(25)

According to system trajectory (17), we get its difference as follows

Δ V_{k} = ε_{k + 1}^{T} P ε_{k + 1} - ε_{k}^{T} P ε_{k}

(26)

We construct the following indicators for performance research

J = Δ V_{k} + e_{k}^{T} e_{k} - γ^{2} ξ_{k}^{T} ξ_{k}

(27)

After transformation, we get

J = ε_{k}^{T} {Φ_{1}^{T} P Φ_{1} + Ψ_{1}^{T} Ψ_{1} + Ω} ϵ_{k}

(28)

where $ϵ_{k} = {[\begin{matrix} ε_{k}^{T} & ξ_{k}^{T} \end{matrix}]}^{T}$ and

\begin{matrix} \begin{matrix} Φ_{1} & = [\begin{matrix} A (x_{k}) & 0 & B (x_{k}) & 0 \\ Φ_{1}^{21} & Φ_{1}^{22} & 0 & Φ_{1}^{24} \end{matrix}] \end{matrix} \\ Ψ_{1} = [\begin{matrix} Ψ_{1}^{11} & C_{f} (x_{fk}) & 0 & Ψ_{1}^{14} \end{matrix}] \end{matrix}

where

\begin{matrix} Φ_{1}^{21} = (1 + Δ) B_{f} (x_{fk}) C (x_{k}), Φ_{1}^{22} = A_{f} (x_{fk}) \\ Φ_{1}^{24} = (1 + Δ) B_{f} (x_{fk}), Ψ_{1}^{11} = (1 + Δ) D_{f} (x_{fk}) C (x_{k}) \\ Ψ_{1}^{14} = (1 + Δ) D_{f} (x_{fk}) - I, Ω = \tilde{P} + \tilde{Q}, \tilde{P} = diag {P, 0} \\ \tilde{Q} = [\begin{matrix} 0 & 0 \\ * & Q_{22} \end{matrix}], Q_{22} = [\begin{matrix} - γ^{2} I & 0 \\ 0 & - γ^{2} I \end{matrix}] \end{matrix}

Applying Schur’s complement theorem, we know that $J < 0$ can be derived from the following inequality

Ϝ = [\begin{matrix} - P^{- 1} & 0 & Φ_{1} \\ * & - I & Ψ_{1} \\ * & * & Ω \end{matrix}] < 0

(29)

Then we need to translate the above inequality into linear matrix inequality form. Let us define an arbitrary matrix G, multiply it by $J = diag {G, I, {I, I}}$ and $J^{T}$ , and then multiply it by $\bar{H}$ and ${\bar{H}}^{T}$ , where $H = diag {I, G_{2} G_{4}^{- 1}}$ and $\bar{H} = diag {H, I, {H, I}}$ .

Definition

{\bar{A}}_{f} (x_{fk}) = G_{2} A_{f} (x_{fk}) G_{4}^{- T} G_{2}^{T}

(30)

{\bar{B}}_{f} (x_{fk}) = G_{2} B_{f} (x_{fk})

(31)

{\bar{C}}_{f} (x_{fk}) = C_{f} (x_{fk}) G_{4}^{- T} G_{2}^{T}

(32)

and from $- G^{T} P^{- 1} G < P - G - G^{T}$ , we get that equation (29) can be derived by the following inequality

Ϝ = [\begin{matrix} M & 0 & {\bar{Φ}}_{1} \\ * & - I & {\bar{Ψ}}_{1} \\ * & * & \bar{Ω} \end{matrix}] < 0

(33)

where ${\bar{Φ}}_{1} = [\begin{matrix} {\bar{Φ}}_{11} & {\bar{Φ}}_{12} \end{matrix}]$ and

\begin{matrix} {\bar{Φ}}_{11} = [\begin{matrix} {\bar{Φ}}_{11}^{11} & {\bar{A}}_{f} (x_{fk}) \\ {\bar{Φ}}_{11}^{21} & {\bar{A}}_{f} (x_{fk}) \end{matrix}] \\ {\bar{Φ}}_{12} = [\begin{matrix} G_{1} B (x_{k}) & (1 + Δ) {\bar{B}}_{f} (x_{fk}) \\ {\bar{Φ}}_{12}^{21} & (1 + Δ) {\bar{B}}_{f} (x_{fk}) \end{matrix}] \\ {\bar{Ψ}}_{1} = [\begin{matrix} {\bar{Ψ}}_{1}^{11} & {\bar{C}}_{f} (x_{fk}) & 0 & {\bar{Ψ}}_{1}^{14} \end{matrix}] \end{matrix}

here

\begin{matrix} \bar{Ω} = P + \tilde{Q}, P = diag {\hat{P}, 0}, \hat{P} = HP H^{T}, \\ M = \hat{P} - \hat{G} - {\hat{G}}^{T}, \hat{G} = HG H^{T}, \\ {\bar{Φ}}_{11}^{11} = G_{1} A (x_{k}) + (1 + Δ) {\bar{B}}_{f} (x_{fk}) C (x_{k}), \\ {\bar{Φ}}_{11}^{21} = G_{2} G_{4}^{- 1} G_{3} A (x_{k}) + (1 + Δ) {\bar{B}}_{f} (x_{fk}) C (x_{k}), \\ {\bar{Φ}}_{12}^{21} = G_{2} G_{4}^{- 1} G_{3} B (x_{k}), {\bar{Ψ}}_{1}^{14} = (1 + Δ) D_{f} (x_{fk}) - I \\ {\bar{Ψ}}_{1}^{11} = (1 + Δ) D_{f} (x_{fk}) C (x_{k}) \end{matrix}

Considering the information synchronization of the membership function between the filter and fuzzy system, we use the following methods to deal with it.

Assuming that $‖ x_{k} ‖ \leq ϑ$ and $‖ \frac{\partial h_{j} (x_{k})}{\partial x_{k}} ‖ \leq μ_{j}$ .

According to the differential mean value theorem, we propose the following steps to solve the problem of different membership function information. First, define

{\bar{A}}_{fi} = G_{2} A_{fi} G_{4}^{- T} G_{2}^{T}

(34)

{\bar{B}}_{fi} = G_{2} B_{fi}

(35)

{\bar{C}}_{fi} = C_{fi} G_{4}^{- T} G_{2}^{T}

(36)

We have

{\bar{A}}_{f} (x_{fk}) = \sum_{i = 1}^{r} (h_{i} (x_{fk}) - h_{i} (x_{k})) {\bar{A}}_{fi} + {\bar{A}}_{f} (x_{k})

(37)

where ${\bar{A}}_{f} (x_{k}) = \sum_{i = 1}^{r} h_{i} (x_{k}) {\bar{A}}_{fi}$ . According to the differential mean value theorem, we have

\sum_{i = 1}^{r} (h_{i} (x_{fk}) - h_{i} (x_{k})) A_{fi} = \sum_{i = 1}^{r} \nabla h_{i} (c)^{T} σ_{k} A_{fi}

(38)

where $σ_{k} = x_{fk} - x_{k}$ . And because $\nabla h_{i} (c)^{T}$ is scalar, so we get

\sum_{i = 1}^{r} \nabla h_{i} (c)^{T} σ_{k} A_{fi} = A Δ_{δ}^{A}

(39)

where

\begin{matrix} Δ_{δ}^{A} = {[\nabla h_{1} (c) σ_{k} \otimes I_{n} \dots \nabla h_{r} (c) σ_{k} \otimes I_{n}]}^{T} \\ A = [{\bar{A}}_{11} \dots {\bar{A}}_{fr}] \end{matrix}

Similar to the procedure above, we can get

{\bar{B}}_{f} (x_{fk}) = {\bar{B}}_{f} (x_{k}) + B Δ_{δ}^{B}

(40)

{\bar{C}}_{f} (x_{fk}) = {\bar{C}}_{f} (x_{k}) + C Δ_{δ}^{C}

(41)

D_{f} (x_{fk}) = D_{f} (x_{k}) + D_{δ}^{D}

(42)

To relax the stability condition, we introduce the free weight matrix $T_{a}$ , $T_{b}$ , $T_{c}$ , $T_{d}$ into the proof. Because $\sum_{r}^{j + 1} (ω_{j} (x_{fk}) - ω_{j} (x_{k})) T_{a} = 0$ , we define

{\bar{T}}_{a} = 1_{r} \otimes T_{a}, {\bar{T}}_{b} = 1_{r} \otimes T_{b}, {\bar{T}}_{c} = 1_{r} \otimes T_{c}, {\bar{T}}_{d} = 1_{r} \otimes T_{d}

(43)

so, we have

{\bar{T}}_{a} Δ_{δ}^{A} = 0, {\bar{T}}_{b} Δ_{δ}^{B} = 0, {\bar{T}}_{c} Δ_{δ}^{C} = 0, {\bar{T}}_{d} Δ_{δ}^{D} = 0

(44)

and we define

\bar{A} = A + {\bar{T}}_{a}, \bar{B} = B + {\bar{T}}_{b}, \bar{C} = C + {\bar{T}}_{c}, \bar{D} = D + {\bar{T}}_{d}

(45)

According to the assumption $‖ x_{k} ‖ \leq ϑ_{1}, ‖ x_{fk} ‖ \leq ϑ_{2}, ‖ \frac{\partial h_{j}}{\partial x} ‖ \leq μ_{j}$ , we have $\sum_{i = 1}^{r} \nabla h_{i} (c)^{T} \nabla h_{i} (c) \leq \sum_{i = 1}^{r} μ_{i}^{2}$ and $σ_{k}^{T} σ_{k} = {(x_{fk} - x_{k})}^{T} (x_{fk} - x_{k}) \leq {(ϑ_{1} + ϑ_{2})}^{2}$ . Therefore, we have $Δ_{δ}^{A} {(Δ_{δ}^{A})}^{T} \leq κ^{2} I_{n}$ , where $κ^{2} \geq {(ϑ_{1} + ϑ_{2})}^{2} \sum_{i = 1}^{r} μ_{i}^{2}$ , which is going to be good for the next proof. Similarly, we get

Δ_{δ}^{B} {(Δ_{δ}^{B})}^{T} \leq κ^{2} I_{m}

(46)

Δ_{δ}^{C} {(Δ_{δ}^{C})}^{T} \leq κ^{2} I_{n}

(47)

Δ_{δ}^{D} {(Δ_{δ}^{D})}^{T} \leq κ^{2} I_{m}

(48)

In order to translate the above inequality conditions into the form of linear matrix inequality, we treat the uncertain terms in the equation according to the method of Chen and Zhang (2020) and Schur’s complement lemma. To consider the property of the membership function $\sum_{i = 1}^{r} h_{i} (x_{k}) = 1$ , we have

\sum_{i = 1}^{r} \sum_{j = 1}^{r} h_{i} (x_{k}) h_{j} (x_{k}) {\bar{Ϝ}}_{ij} < 0 \Leftrightarrow

(49)

\sum_{i = 1}^{r} h_{i}^{2} (x_{k}) {\bar{Ϝ}}_{ii} + \sum_{i = 1}^{r} \sum_{j < i} h_{i} (x_{k}) h_{j} (x_{k}) ({\bar{Ϝ}}_{ij} + {\bar{Ϝ}}_{ji}) < 0

(50)

So, Theorem 1 is true, and the performance of $H_{\infty}$ is guaranteed.

Simulation results

Let us do a simulation to verify the effectiveness of the fault diagnosis filter

x_{1 k + 1}^{1} = - {(x_{k}^{1})}^{2} + 0.3 x_{k}^{2} + ω_{k}, x_{k + 1}^{2} = x_{k}^{1}, y_{k} = x_{k}^{1}

(51)

where $x_{k} = {[\begin{matrix} x_{k}^{1} & x_{k}^{2} \end{matrix}]}^{T}$ .

According to the method proposed previously, we carry out T-S fuzzy modeling for the above system. First, let us assume $x_{k}^{1} \in [- 0.2, 0.2]$ , the nonlinear term ${(x_{k}^{1})}^{2}$ can be expressed as

{(x_{k}^{1})}^{2} = h_{1} (x_{k}) (- 0.2) x_{k}^{1} + h_{2} (x_{k}) (0.2) x_{k}^{1}

(52)

Because $h_{1} (x_{k}) + h_{2} (x_{k}) = 1$ , we can have the membership function as

h_{1} (x_{k}) = \frac{1}{2} (1 - \frac{x_{k}^{1}}{2}), h_{2} (x_{k}) = \frac{1}{2} (1 + \frac{x_{k}^{1}}{2})

(53)

According to local approximation and the sector nonlinearity, we use the T-S fuzzy model with the following rules to estimate the system:

Rule 1: If $e^{- x_{k}^{1}}$ approaches 0.2, then

x_{k + 1} = A_{1} x_{k} + B_{1} ω_{k}, y_{k} = D_{1} x_{k}

(54)

Rule 2: If $e^{- x_{k}^{1}}$ approaches −0.2, then

x_{k + 1} = A_{2} x_{k} + B_{2} ω_{k}, y_{k} = D_{2} x_{k}

(55)

where

\begin{matrix} A_{1} = [\begin{matrix} 0.2 & 0.3 \\ 1 & 0 \end{matrix}], A_{2} = [\begin{matrix} - 0.2 & 0.3 \\ 1 & 0 \end{matrix}], B_{1} = B_{2} = [\begin{matrix} 1 \\ 0 \end{matrix}], \\ C_{1} = C_{2} = E_{1} = E_{2} [\begin{matrix} 1 & 0 \end{matrix}], D_{1} = D_{2} = 1 . \end{matrix}

Parameters η and κ are set to 0.2 and 0.5. So, using LMI toolkits, we can obtain the parameters of the residual system. In addition, we obtain $G_{2}$ and $G_{4}$ by singular value decomposition of W. Related parameters are as follows

\begin{matrix} A_{f 1} = [\begin{matrix} - 0.0510 & - 0.0497 \\ - 0.0547 & - 0.0471 \end{matrix}] \\ A_{f 2} = [\begin{matrix} 0.0499 & 0.0495 \\ - 0.0551 & - 0.0472 \end{matrix}] \\ B_{f 1} = [\begin{matrix} - 0.0595 \\ - 0.0440 \end{matrix}], B_{f 2} = [\begin{matrix} - 0.0592 \\ 0.0441 \end{matrix}] \\ C_{f 1} = [\begin{matrix} - 0.0541 & - 0.0541 \end{matrix}] \\ C_{f 2} = [\begin{matrix} - 0.0541 & - 0.0541 \end{matrix}] \\ D_{f 1} = - 0.0514, D_{f 2} = - 0.0514 \end{matrix}

The external interference selected for the simulation experiment is

ω_{k} = {\begin{matrix} \frac{1}{0.005 k + 1}, 20 \leq k \leq 80 \\ 0, otherwise \end{matrix}

(56)

Meanwhile, it is assumed that the fault signal is

f_{k} = {\begin{matrix} 1, & 30 \leq k \leq 60 \\ 0, & otherwise \end{matrix}

(57)

Under the zero initial condition, the system and filter status are shown in Figure 2, and the fault detection filter input is shown in Figure 3. Figure 4 shows the system and filter status. It can be seen that, when $k = 30$ , a fault signal is detected, the value of the evaluation function exceeds the given threshold, and it causes a fault alarm, so we have successfully detected a sensor failure. Figure 5 shows the comparison of the output signals of the system with and without quantizer. From Figure 5, it can be seen that after data passes through a quantizer with an event-triggering mechanism, the system output becomes more stable, increasing the stability of the system. Figure 6 shows the triggering instants of the quantizer with the event-triggered mechanism. In the simulation time, about 22 data were triggered, far less than the number of simulations (100 times).

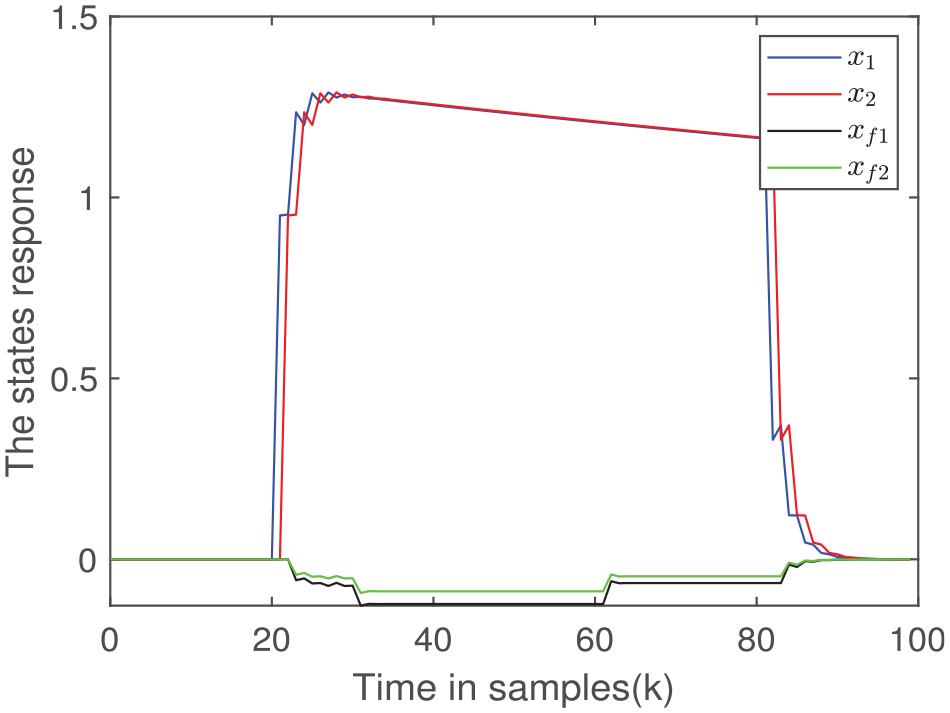

Figure 2.

System and filter status (under faults in (57)).

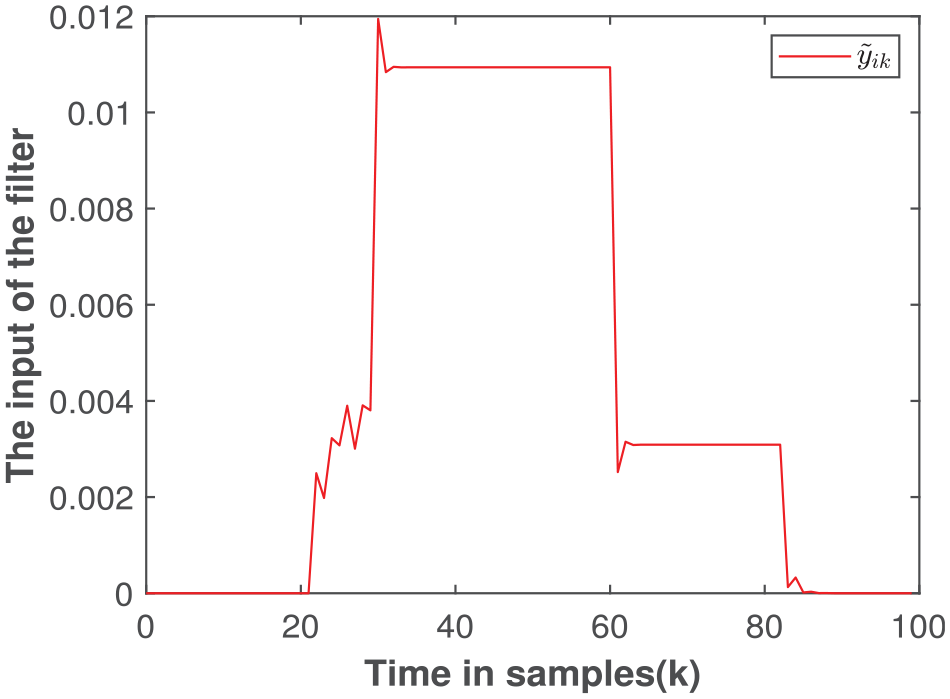

Figure 3.

The fault detection filter input (under faults in (57)).

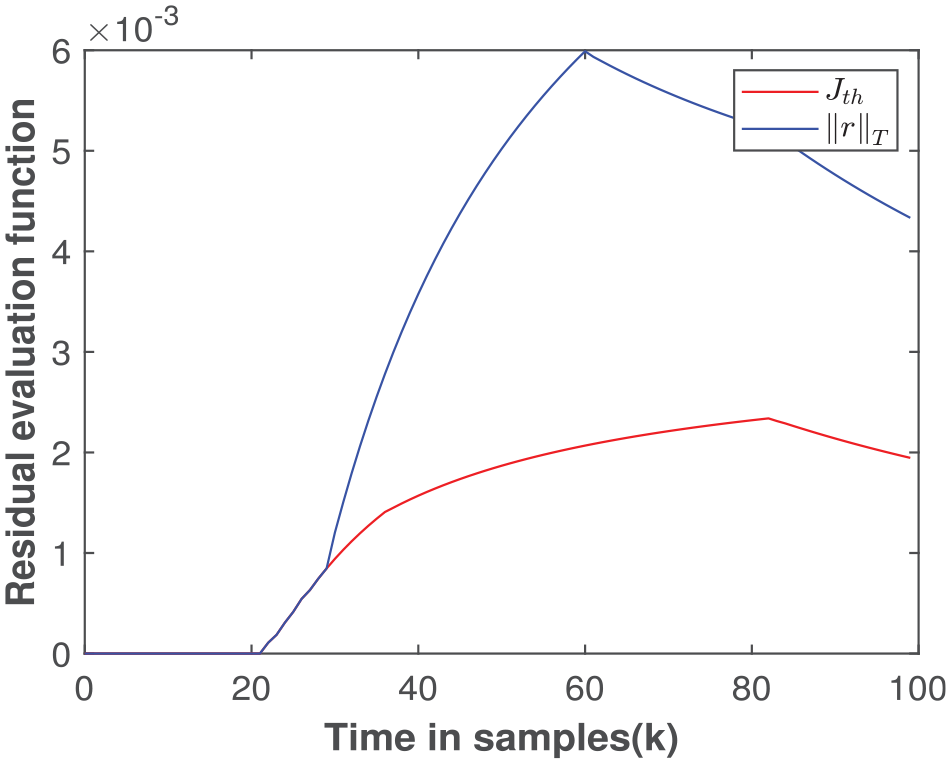

Figure 4.

Evaluation function and threshold (under faults in (57)).

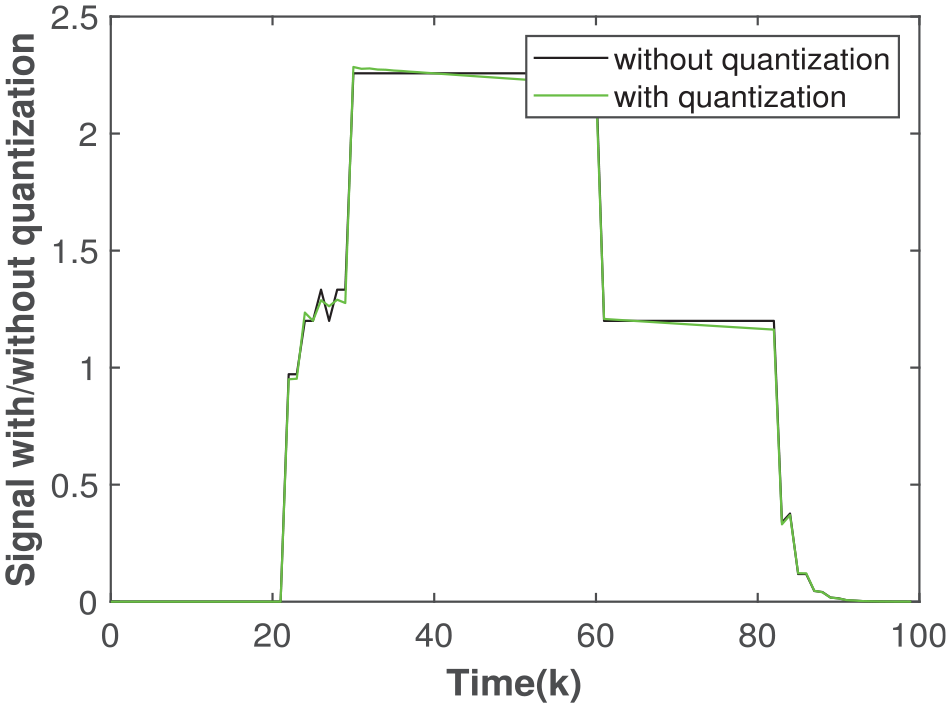

Figure 5.

System output with/without quantization (under faults in (57)).

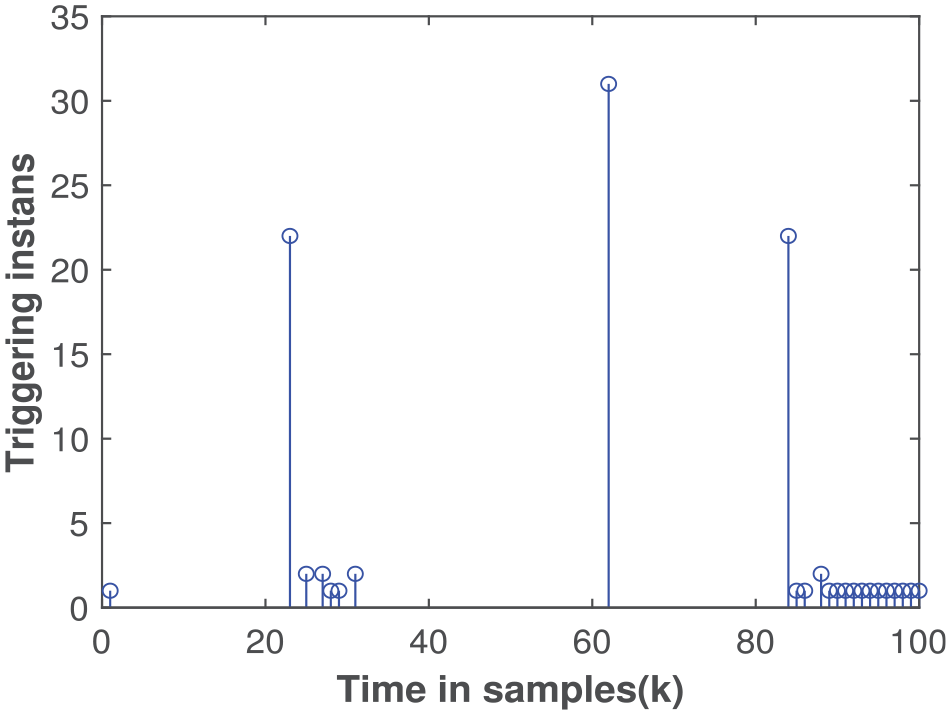

Figure 6.

Triggering instants (under faults in (57)).

In addition, in order to prove the effectiveness of this method, we replace another fault signal

f_{k} = {\begin{matrix} 1, 10 \leq k \leq 60 \\ 0, otherwise \end{matrix}

(58)

In this case, the system state and evaluation function response are shown in Figures 7 and 8. Figure 9 is the fault detection filter input. Figure 10 is the comparison of the output signals of the system with and without quantizer. Figure 11 shows the triggering instants of the quantizer with the event-triggered mechanism. The effectiveness of the method can be seen from the results in the figure.

Figure 7.

System and filter status (under faults in (58)).

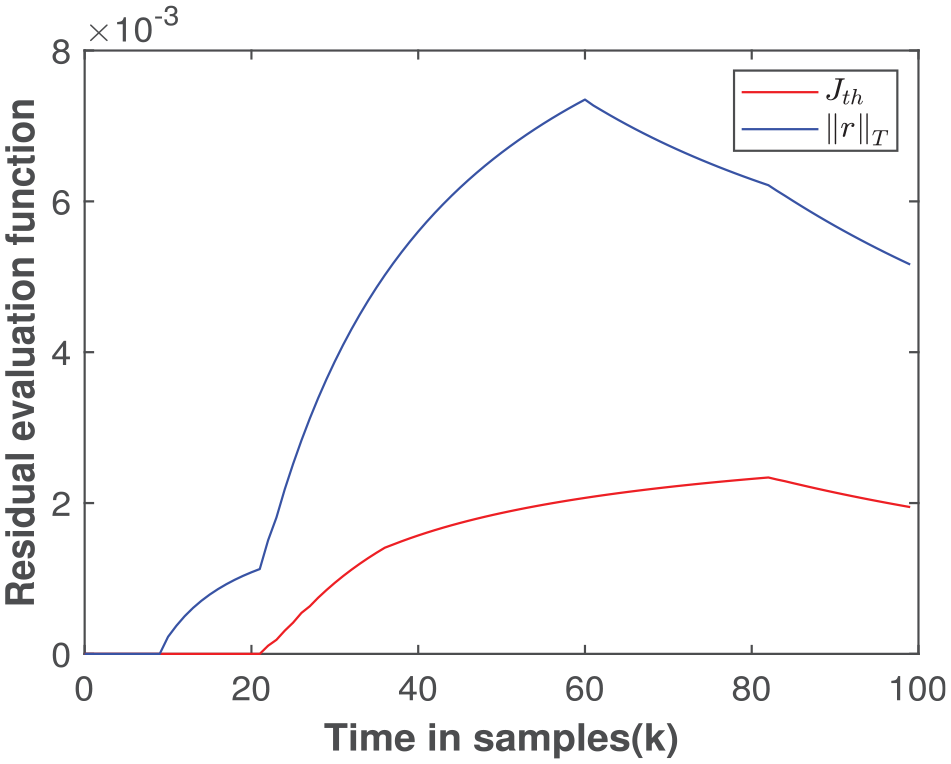

Figure 8.

Evaluation function and threshold (under faults in (58)).

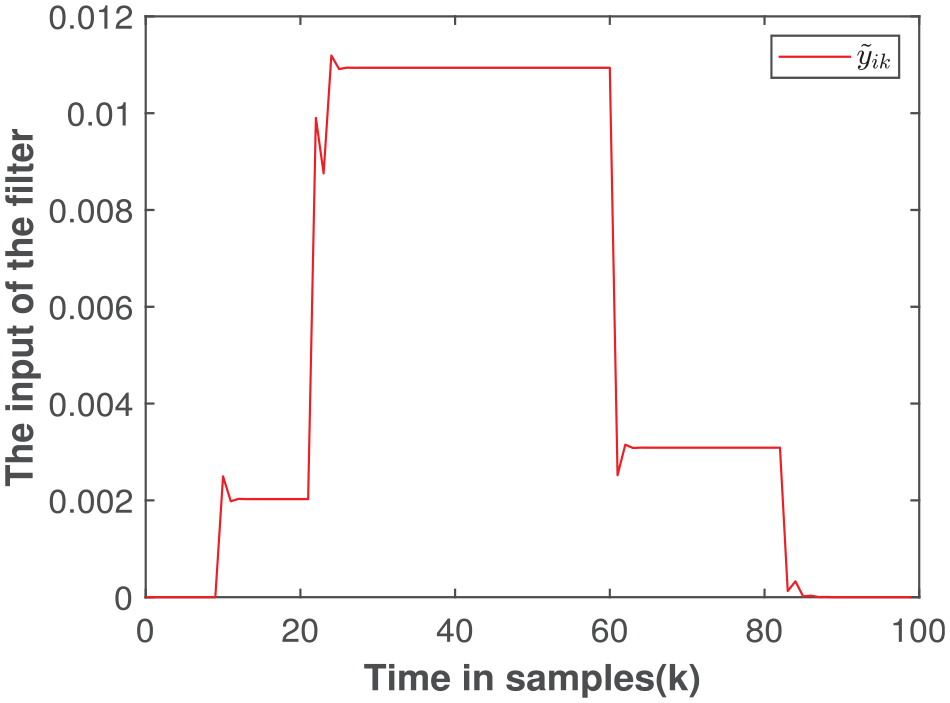

Figure 9.

The fault detection filter input (under faults in (58)).

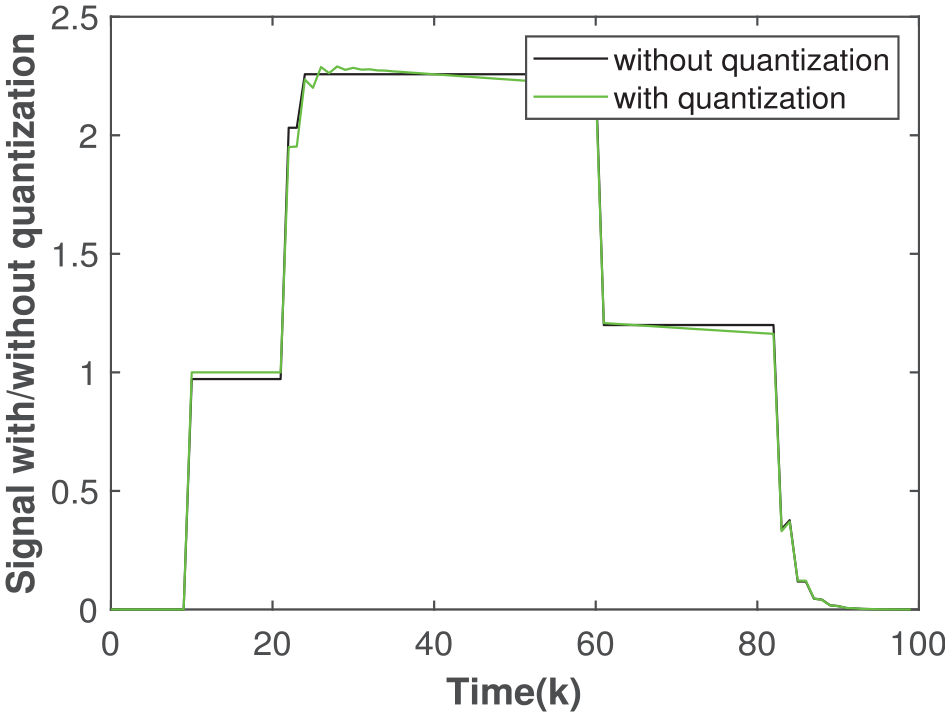

Figure 10.

System output with/without quantization (under faults in (58)).

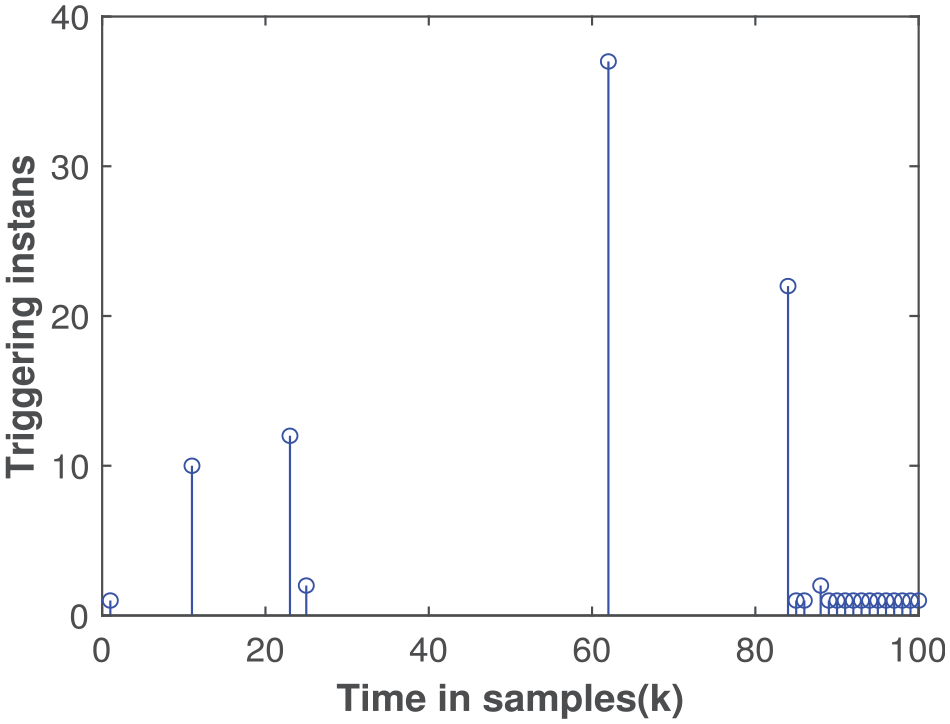

Figure 11.

Triggering instants (under faults in (58)).

Conclusion

In this paper, the quantizer with event trigger was applied to the networked system, and the fault detection problem of the networked system was studied under this communication mechanism. Through the study, we proved this method. It can reduce the waste of resources, reduce the complexity of the system, and make the system more stable. First, according to the fuzzy system model, we analyzed the changes of the system output with fault signal in the process of network transmission. Then using the obtained data, we designed the fault detection filter and created the corresponding evaluation function and threshold. We can detect the fault signal by comparing the evaluation function with the threshold value. Simulation results demonstrate the effectiveness of the proposed method. In this paper, due to the uncertainty in the actual network environment, data packet loss will occur, which is not fully considered in this paper. In the future work, we will continue to make improvements to the method, so that the method can be applied more widely.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (grant numbers 62203261 and 62173206) and the Natural Science Foundation of Shandong Province (grant numbers ZR2021QF075 and ZR2021ZD13).

ORCID iD

Ziran Chen

References

Bessa

Puig

Palhares

(2020) TS fuzzy reconfiguration blocks for fault tolerant control of nonlinear systems. Journal of the Franklin Institute 357(8): 4592–4623.

Cai

Shi

She

, et al. (2022) Voluntary defense strategy and quantized sample-data control for T-S fuzzy networked control systems with stochastic cyber-attacks and its application. Applied Mathematics and Computation 423: 126975.

Chen

Wang

(2018) Event-based robust stabilization of uncertain networked control systems under quantization and denial-of-service attacks. Information Sciences 459: 369–386.

Chen

Zhang

(2020) Fuzzy control for networked systems using quantizer with triggering strategy. In: 2020 7th international conference on information, cybernetics, and computational social systems, Guangzhou, China, 13–15 November 2020, pp. 96–101. New York: IEEE.

Chen

Zhang

Stojanovic

, et al. (2020a) Event-based fuzzy control for T-S fuzzy networked systems with various data missing. Neurocomputing 417: 322–332.

Chen

Zhang

, et al. (2020b) Event-triggered fault detection for T-S fuzzy systems subject to data losses. International Journal of Systems Science 51(7): 1162–1173.

Cheng

Stojanovic

, et al. (2022) Fuzzy fault detection for Markov jump systems with partly accessible hidden information: An event-triggered approach. IEEE Transactions on Cybernetics 52(8): 7352–7361.

Chu

Huang

Sun

(2020) Event triggering control for dynamical systems with designable inter-event times. IFAC-PapersOnLine 53(2): 6410–6415.

Dong

Chen

Liu

, et al. (2022) Robust adaptive H∞ control for networked uncertain semi-markov jump nonlinear systems with input quantization. Information Sciences 65(8): 189201.

10.

Xie

(2005) The sector bound approach to quantized feedback control. IEEE Transactions on Automatic Control 50(11): 1698–1711.

11.

Ghorbel

Braiek

(2022) Nonfragile H∞ tracking control strategies for classes of linear and bilinear uncertain Takagi-Sugeno fuzzy systems. Transactions of the Institute of Measurement and Control 44(11): 2166–2176.

12.

Guo

Zhu

Zhang

, et al. (2018) Fault detection and reconstruction for discrete nonlinear systems via Takagi-Sugeno fuzzy models. International Journal of Control, Automation and Systems 16(6): 2676–2687.

13.

Huang

Wang

Wen

, et al. (2019) Adaptive event-triggered control of nonlinear systems with controller and parameter estimator triggering. IEEE Transactions on Automatic Control 65(1): 318–324.

14.

Jan

Lee

Koo

, et al. (2021) A distributed sensor-fault detection and diagnosis framework using machine learning. Information Sciences 547: 777–796.

15.

Tian

Liu

, et al. (2021) Fault detection of networked dynamical systems: A survey of trends and techniques. International Journal of Systems Science 52(16): 3390–3409.

16.

Kuo

Citra Resmi

(2019) Model predictive control based on a Takagi-Sugeno fuzzy model for nonlinear systems. International Journal of Fuzzy Systems 21(2): 556–570.

17.

Zhang

Deng

(2021a) Dynamic event-triggered control for linear systems subject to asymmetric actuator saturation. Transactions of the Institute of Measurement and Control 44(7): 1440–1448.

18.

Niu

(2021) Output-feedback-based sliding mode control for networked control systems subject to packetloss and quantization. Asian Journal of Control 23(1): 289–297.

19.

Luo

Ding

, et al. (2019) Performance-based fault detection and fault-tolerant control for automatic control systems. Automatica 99: 308–316.

20.

Sun

, et al. (2021b) Dynamic Quantization Driven Synchronization of Networked Systems Under Event-Triggered Mechanism. IEEE Transactions on Circuits and Systems I: Regular Papers 69(4): 1728–1740.

21.

Chen

(2021) Robust Control of Networked System and Its Application. The International Journal of Control, Automation and Systems 19(8): 2622–2633.

22.

Liu

, et al. (2019a) Event-triggering dissipative control of switched stochastic systems via sliding mode. Automatica 103: 261–273.

23.

Liu

Selivanov

Fridman

(2019b) Survey on time-delay approach to networked control. Annual Reviews in Control 48: 57–59.

24.

Liu

(2021a) Adaptive event-triggered fault detection for Markovian jump systems with network time-delays. Transactions of the Institute of Measurement and Control 43(13): 2934–2947.

25.

Liu

Zhang

(2003) New approaches to H∞ controller designs based on fuzzy observers for T-S fuzzy systems via LMI. Automatica 39(9): 1571–1582.

26.

Liu

Tang

Liu

, et al. (2021b) Extended dissipative sliding mode control for nonlinear networked control systems via event-triggered mechanism with random uncertain measurement. Applied Mathematics and Computation 396: 125901.

27.

Ran

Zhang

, et al. (2018) Event-triggered H∞ fuzzy filtering for networked control systems with quantization and delays. IEEE Access 6: 20231–20241.

28.

Mahmoud

Almutairi

(2016) Feedback fuzzy control for quantized networked systems with random delays. Applied Mathematics and Computation 290: 80–97.

29.

Mastani

Rahmani

(2021) Dynamic output feedback control for networked systems subject to communication delays, packet dropouts, and quantization. Journal of the Franklin Institute 358(8): 4303–4325.

30.

Rouamel

Gherbi

Bourahala

(2020) Robust stability and stabilization of networked control systems with stochastic time-varying network-induced delays. Transactions of the Institute of Measurement and Control 42(10): 1782–1796.

31.

Shi

Zhang

(2020) Model predictive control of distributed networked control systems with quantization and switching topology. International Journal of Robust and Nonlinear Control 30(12): 4584–4599.

32.

Wang

Liu

Qiu

, et al. (2019) Event-triggered robust adaptive fuzzy control for a class of nonlinear systems. IEEE Transactions on Fuzzy Systems 27(8): 1648–1658.

33.

Wang

Liu

(2018) Neural robust stabilization via event-triggering mechanism and adaptive learning technique. Neural Networks 102: 27–35.

34.

Wang

(2021) Event-triggered scheduling control for linear systems with quantization and time-delay. European Journal of Control 58: 168–173.

35.

Wang

Liu

(2021) Event-triggered boundary quantization control for flexible manipulator based on partial differential equations dynamic model. Transactions of the Institute of Measurement and Control 43(9): 2111–2123.

36.

Wang

Cao

Huang

, et al. (2020) Sliding mode control of neural networks via continuous or periodic sampling event-triggering algorithm. Neural Networks 121: 140–147.

37.

Wang

Basin

, et al. (2021) Adaptive event-triggered consensus control of multi-agent systems with prescribed performance and input quantization. International Journal of Adapt Control and Signal Process 35(8): 1454–1477.

38.

Wang

, et al. (2022a) Event-triggered control for switched delay systems with dynamic input quantization. Asian Journal of Control 25: 1877–1887.

39.

Wang

Hou

Wang

, et al. (2022b) Dynamic event-triggered fault detection for discrete networked control system with time-delay. IEEE Access 10: 109108–109118.

40.

Wei

Xiong

(2021) H∞ control of linear networked and quantized control systems with communication delays and random packet losses. IEEE Transactions on Systems, Man, and Cybernetics: Systems 52: 3929–3936.

41.

Shi

, et al. (2010) A new approach to stability analysis and stabilization of discrete-time T-S fuzzy time-varying delay systems. IEEE Transactions on Systems, Man, and Cybernetics 41(1): 271–286.

42.

(2020) Event-triggered fault detection for continuous-time networked polynomial-fuzzy-model-based systems. Applied Mathematics and Computation 366: 124729.

43.

Ning

Liu

(2017) Event-triggered fault detection for linear stochastic systems. Transactions of the Institute of Measurement and Control 40(12): 3449–3457.

44.

Zhang

Fang

(2011) Robust fault detection filter design for networked control systems with delay distribution characterisation. International Journal of Systems Science 42(10): 1661–1668.

45.

Zhao

Zuo

Wang

(2022) Event-triggered control for networked switched systems with quantization. IEEE Transactions on Systems, Man, and Cybernetics: Systems 52(10): 6120–6128.
