The INS/GPS integrated navigation based on autonomous underwater vehicle using modified extended Kalman filter

Abstract

Ensuring highhtab accuracy and robustness remains a paramount concern in the realm of underwater positioning and navigation research. This paper proposes a filtering algorithm grounded in Inertial Measurement Unit/Global Positioning System (INS/GPS) integrated navigation to effectively address the challenges posed by non-Gaussian noise, stemming from outliers and measurement inaccuracies. Currently, most filtering algorithms are developed based on the criteria of minimum mean square error (MMSE) or maximum entropy criteria (MCC). To address the challenge of handling complex non-Gaussian noises, this paper uses the Minimum Error Entropy Criterion (MEE) and Extended Kalman Filter (EKF) with Kernel Risk-Sensitive Loss (KRSL) instead of MMSE or MCC to develop an online filtering algorithm with a recursive process, and adjusts the kernel size of MEE within a reasonable range by constructing an adaptive factor to deal with outliers generated during measurement and excessive convergence caused by the inapplicability of the kernel size. Through extensive target tracking simulations and surface Autonomous Underwater Vehicle (AUV) localization experiments, results demonstrate the efficacy of the proposed algorithm. Notably, the algorithm optimizes kernel sizes for different types of noises, ensuring robust state estimation and rapid convergence without compromising filtering accuracy.

Keywords

Kernel risk-sensitive loss minimum error entropy EKF INS/GPS

Introduction

In recent years, the demand for marine applications and the research applications of autonomous underwater vehicles (AUVs) have witnessed a significant surge. AUVs have found widespread use in diverse underwater tasks, including archaeological exploration, pipeline detection, ocean mapping, search and rescue campaigns, and military applications (Duan et al., 2017). Crucial to the successful operation of AUVs is the meticulous design and implementation of their navigation systems (Miller et al., 2010). Confronted with the challenging task of enabling AUVs to accurately reach their destinations and reliably execute underwater missions, the navigation system plays a pivotal role in determining overall efficacy. The strapdown inertial navigation system (SINS) stands out as an independent system and a ubiquitous autonomous navigation technology for underwater vessels. It furnishes continuous information on position, speed, and attitude (Xu et al., 2021). However, the inherent drawback of a pure inertial navigation system lies in the tendency of position and speed errors to accumulate over time (Wang and Pang, 2018). To counteract this challenge and enhance the precision and reliability of navigation, integrated navigation methods are commonly employed. AUVs frequently integrate multi-sensor devices, including Inertial Navigation Systems (INS), Global Positioning Systems (GPS), Doppler Velocity Logs (DVL), ultra-short baseline systems (USBL), and pressure sensors (PS) (Barshan and Durrant-Whyte, 1995; Hao et al., 2020; Mu et al., 2021; Muzammal et al., 2020; Xu et al., 2020; Yu et al., 2018). This integration of diverse sensors contributes to a comprehensive and robust navigation approach, equipping AUVs with the capability to navigate effectively in complex underwater environments.

The state estimation problem holds paramount importance in various practical applications, leading to the development of numerous estimation methods (Dash et al., 2010). Prominent among these methods are the Kalman filter (KF) (Kalman, 1960), extended Kalman filter (EKF) (Mao et al., 2007), unscented Kalman filter (UKF) (Julier et al., 2000), cubature Kalman filter (CKF) (Arasaratnam and Haykin, 2009), and others. However, these algorithms are all rooted in the MMSE criterion, which often proves inadequate in the face of non-Gaussian noise disturbances. Consequently, in recent years, entropy has emerged as a novel similarity function in the field of filtering, showcasing superior performance in non-Gaussian environments. Notably, the MCC (Liu et al., 2007) and the MEE criterion (Chen et al., 2019) have gained prominence, particularly when integrated with the Kalman filter. The MCC criterion is presently the most widely adopted, finding application in various algorithms such as the extended Kalman filter and the particle filter (Jin et al., 2023; Wu et al., 2023). Addressing challenges posed by heavy-tailed noise and information delays encountered during operational processes, some researchers have turned to the square root cubature Kalman filter algorithm (Liu et al., 2018) based on the MCC, along with the adaptive variable kernel cubature Kalman filter algorithm (Shao et al., 2022), for effective noise handling. Additionally, the maximum correlation delay Kalman filter (MCDKF) algorithm (Xu et al., 2021) has been employed by researchers to mitigate the interference of outliers and enhance filtering accuracy.

Nevertheless, recent experiments have brought to light that the MEE criterion outperforms the MCC, particularly in addressing intricate non-Gaussian noise scenarios like those characterized by multi-peak distributions. Despite its higher computational cost (Li et al., 2022; Lopez et al., 2023; Shan et al., 2024), the MEE criterion has demonstrated superior efficacy. Building on the MEE framework, several novel Kalman filtering algorithms have been introduced to enhance the processing capabilities of Kalman filtering for non-Gaussian noise (Dang et al., 2020; Feng et al., 2023; He et al., 2022; Li et al., 2021; Zhang et al., 2023). However, when the traditional EKF deals with non-Gaussian noise, the state noise covariance matrix and the measurement noise covariance matrix are kept constant during the computation process, and the filter may not be able to adequately adapt to the varying nature of the noise, resulting in a degradation of the performance of state estimation, especially in complex nonlinear systems, which in turn affects the accuracy of the state estimation. And the MEE-EKF often leads to a nonconvergence or super-convergence phenomenon due to improper setting of kernel size. Therefore, to solve these problems, adaptive factors are introduced to adaptively adjust the state noise covariance matrix, the measurement noise covariance matrix, and the MEE kernel bandwidth size. Recognizing the significance of a new and effective cost function, the kernel risk-sensitive loss (KRSL) has gained attention for its apt performance when data deviates from Gaussian distribution assumptions. Consequently, KRSL has found applications in various robust adaptive filters (Chen et al., 2017; Qian and Wang, 2018). This paper introduces the KRSL-extended Kalman filter (EKF) based on adaptive variable kernel minimum error entropy (AKRSLMEE-EKF). The proposed algorithm optimizes kernel sizes for different types of noises, surmounting the limitations inherent in the conventional MEE-EKF approach. By doing so, it achieves robust state estimation even in the presence of outliers. The algorithm perfectly combines the advantages of KRSL and minimum error entropy, and at the same time, it can adaptively adjust the covariance matrix of the measurement noise and the state noise according to the changes of the environment, which provides a comprehensive solution for the effective handling of non-Gaussian noise scenarios.

The subsequent sections of this paper are organized as follows: In the second part, Section 2 provides a concise overview of the AUV navigation system model, the EKF, and the MEE criteria. The intricacies of the proposed AKRSLMEE-EKF are expounded on in Section 3. Section 4 conducts comparative analyses through target tracking simulations and a surface AUV localization experiment. Ultimately, the conclusion is presented to encapsulate and summarize the preceding discussions and findings.

Background

Navigation system model

In this section, a multi-sensor system model is constructed. In the N-E-D navigation coordinate system (n-frame), the state vector of the system is

X (t) = [Φ_{N} Φ_{E} Φ_{D} δ V_{N} δ V_{E} δ V_{D} δ L δ λ δ H ε_{x} ε_{y} ε_{z} Δ_{x} Δ_{y} Δ_{z}]

(1)

where $Φ_{N} Φ_{E} Φ_{D}$ are the relevant attitude errors; $δ V_{N} δ V_{E} δ V_{D}$ are the velocity errors in the axes of north, east, and down; $δ L δ λ δ H$ are the errors of latitude, longitude, and height; $ε_{x} ε_{y} ε_{z}$ are gyroscope constant drifts; and $Δ_{x} Δ_{y} Δ_{z}$ are accelerometer zero errors. The state space equation can be created in accordance with the attitude, velocity, and position update formulae of equations (2)–(4).

{\overset{\cdot}{ϕ}}^{n} = - (ω_{ie}^{n} + ω_{en}^{n}) \times ϕ^{n} + δ ω_{ie}^{n} + δ ω_{en}^{n} - C_{b}^{n} \times ε^{b}

(2)

\begin{matrix} δ {\overset{\cdot}{v}}_{n} = ϕ^{n} \times f^{n} + v^{n} \times (2 δ w_{ie}^{n} + δ w_{en}^{n}) - δ v^{n} \times (2 δ w_{ie}^{n} + δ w_{en}^{n}) \\ + C_{b}^{n} \times ε^{b} \end{matrix}

(3)

{\begin{matrix} δ \overset{\cdot}{L} = - \frac{V_{N}}{{(R_{M} + h)}^{2}} δ H + \frac{1}{R_{M} + h} δ V_{N} \\ δ \overset{\cdot}{λ} = \frac{V_{E} \tan L \sec L}{R_{N} + h} δ L - \frac{V_{E} \sec L}{{(R_{N} + h)}^{2}} δ h + \frac{\sec L}{R_{N} + h} δ V_{E} \\ δ \overset{\cdot}{H} = - δ V_{D} \end{matrix}

(4)

And the drift error equations of gyroscope and accelerometer are shown in equation (5). b represents that its value is located in the body coordinate system (forward-right-down) of the AUV.

{\begin{matrix} {\overset{\cdot}{ε}}^{b} = 0 \\ {\overset{\cdot}{\nabla}}^{b} = 0 \end{matrix}

(5)

Extended Kalman filter

The extended Kalman filter algorithm is based on the Kalman filter and is improved to deal with nonlinear problems. The nonlinear state space equation is given by equation (6):

\begin{array}{l} x_{k} = f (k - 1, x_{k - 1}) + w_{k} \\ z_{k} = h (k, x_{k}) + v_{k} \end{array}

(6)

where $f (\cdot)$ and $h (\cdot)$ are state transition functions and measurement functions, $x_{k}$ is a state vector, $z_{k}$ is a measurement vector, and $w_{k}$ and $v_{k}$ are state noise vectors and measurement process noise vectors, which are Gaussian white noise with zero mean, and there is no correlation between them. $Q_{k}$ and $R_{k}$ are the covariance matrices of $w_{k}$ and $v_{k}$ .

The process of the EKF is the same as the process of the Kalman filter, which is divided into two main steps: prediction and updating. The transfer equation in equation 6 is processed through the Taylor expansion to obtain

\begin{matrix} f (x_{k - 1}) \approx f ({\hat{x}}_{k - 1}) + F_{k - 1} (x_{k - 1} - {\hat{x}}_{k - 1}) \\ h (x_{k}) \approx h ({\hat{x}}_{k | k - 1}) + H_{k} (x_{k} - {\hat{x}}_{k | k - 1}) \end{matrix}

(7)

Here, $F_{k - 1}$ and $H_{k}$ are the Jacobian matrices of $f (\cdot)$ and $h (\cdot)$ , defined by equation (8):

\begin{array}{l} F_{k - 1} = \frac{\partial f (x_{k - 1})}{\partial x} |_{x = {\hat{x}}_{k - 1}} \\ H_{k} = \frac{\partial h (x_{k})}{\partial x} |_{x = {\hat{x}}_{k | k - 1}} \end{array}

(8)

In accordance with equations (6)–(8), its prediction and update process can be written as follows:

(1) Prediction:

{\hat{x}}_{k | k - 1} = f ({\hat{x}}_{k - 1 | k - 1}, w_{k})

(9)

P_{k | k - 1} = F_{k} P_{k - 1 | k - 1} F_{k}^{T} + Q_{k}

(10)

(2) Updating:

K_{k} = P_{k | k - 1} H_{k}^{T} [H_{k} P_{k | k - 1} H_{k}^{T} + R_{k}]^{- 1}

(11)

{\hat{x}}_{k} = {\hat{x}}_{k | k - 1} + K_{k} [z_{k} - h ({\hat{x}}_{k | k - 1})]

(12)

P_{k} = [I - K_{k} H_{k}] P_{k | k - 1} [I - K_{k} H_{k}]^{T} + K_{k} R_{k} K_{k}^{T}

(13)

The MEE criterion

The discrepancy between two arbitrary variables, designated as $X$ and $Z$ , is defined as $e = Z - X$ . In the MEE criterion, the error can be calculated using Renyi entropy (Principe, 2010), as illustrated in equation (14).

H_{α} (e) = \frac{1}{1 - α} \log V_{α} (e)

(14)

Here, $V_{α} (e)$ represents the information potential as defined by equation (15). $α$ denotes the order of Renyi entropy.

V_{α} (e) = \int p^{α} (e) de = E [p^{α - 1} (e)]

(15)

Here, $E (\cdot)$ denotes the expectation. $p (e)$ represents the probability density function (PDF) of the error, whose correlation function form can be estimated using the Parzen’s window method approach (equation (16))

\hat{p} (x) = \frac{1}{N} \sum_{i = 1}^{N} κ_{σ} (x - e_{i})

(16)

where $κ_{σ} (x) = \exp (- x^{2} / 2 σ^{2})$ is the Gaussian kernel whose kernel bandwidth is $σ$ . $(e_{i})_{i = 1}^{N}$ are the N sampling errors ( $e_{i}$ , where $e_{i} = z_{i} - x_{i}$ , and $z_{i}$ and $x_{i}$ are elements of random variables X and Z), combining the definition formula of $V_{α} (e)$ ) information entropy and the formula of probability density function p(x) to obtain the second order information entropy $V_{2} (e)$ as in equation (17).

{\hat{V}}_{2} (e) = \frac{1}{N} \sum_{i = 1}^{N} \hat{p} (e_{i}) = \frac{1}{N^{2}} \sum_{i = 1}^{N} \sum_{j = 1}^{N} κ_{σ} (e_{i} - e_{j})

(17)

Minimum error entropy–based adaptive extended Kalman filter with kernel risk-sensitive loss

KRSL is a nonlinear similarity measure that exhibits a rapid convergence rate and can effectively mitigate noise outliers (Chen et al., 2017). For two randomly distributed variables X and Y, the KRSL is defined as follows:

\begin{matrix} L_{β} (X, Y) = \frac{1}{β} E [\exp (β (1 - κ_{σ} (X - Y)))] \\ = \frac{1}{β} \exp (β (1 - κ_{σ} (x - y))) d F_{XY} (x, y) \end{matrix}

(18)

where $β > 0$ represents the risk sensitivity parameter and $κ_{σ} (\cdot) = - (\cdot)^{2} / 2 σ^{2}$ denotes the Gaussian kernel function. In most cases, the joint distribution of X and Y is often unknown, but when only a limited number of samples are available, an approximate value can be calculated by taking the average of N samples, also known as the empirical KRSL. The equation is as follows:

{\hat{L}}_{β} (X, Y) = \frac{1}{N β} \sum_{i = 1}^{N} e xp (β (1 - κ_{σ} (x (i) - y (i))))

(19)

According to the empirical KRSL formula and the extended Kalman state space equation (6), a recursive equation can be constructed by combining with the MEE criterion for the optimal solution.

Firstly, the maximum kernel bandwidth $σ_{\max}$ and a minimal positive value for $χ$ are selected.

σ_{t} = λ_{t} \cdot σ_{\max}

(20)

where $λ_{t}$ represents the adaptive factor corresponding to time step t. To accommodate for diverse noises, variables $μ$ ( $μ > 0$ , random constant) and $α_{t}$ can be defined according to the autocorrelation error equation of measurement innovation and measurement information, as presented in equation (21).

α_{t} = \frac{μ}{({(z (k) - h (\hat{x} (k | k - 1)))}^{T} {(HP H^{T} + R)}^{- 1} (z (k) - h (\hat{x} (k | k - 1)))}

(21)

λ_{t} = 1 - \exp (- α_{t})

(22)

Secondly, the initial values for the state error covariance matrix, $P (1 | 0)$ , and the prior state estimator, $\hat{x} (1 | 0)$ , are set. And based on equations (9) and (10) of the extended Kalman prediction process, $\hat{x} (k | k - 1)$ and $P (k | k - 1)$ are obtained, whose formulae are given in equations (23) and (24).

\hat{x} (k | k - 1) = f (\hat{x} (k - 1))

(23)

P (k | k - 1) = F (k - 1) P (k - 1) F^{T} (k - 1) + Q (k - 1)

(24)

Here, the SVD decomposition is utilized instead of the Cholesky decomposition to avoid the problem of matrix singularity issues that arise from the latter. The SVD decomposition of $E [η (k) η (k)^{T}]$ , $P (k | k - 1)$ and $R (k)$ gives $S (k), S_{p} (k)$ and $S_{r} (k)$ according to equation (25).

{\begin{matrix} [U_{P}, T_{P}, ~] = SVD (P (k | k - 1)) \\ [U_{R}, T_{R}, ~] = SVD (R (k)) \\ S_{p} (k) = U_{P} \sqrt{T_{P}} \\ S_{r} (k) = U_{R} \sqrt{T_{R}} \end{matrix}

(25)

Combined with the extended Kalman filter and the MEE, the recursive equation is constructed as follows:

[\begin{matrix} \hat{x} (k | k - 1) \\ z (k) - h (\hat{x} (k | k - 1)) + H (k) \hat{x} (k | k - 1) \end{matrix}] = [\begin{matrix} I_{n} \\ H (k) \end{matrix}] x (k) + η (k)

(26)

with

η (k) = [\begin{matrix} - (x (k) - \hat{x} (k | k - 1)) \\ v (k) \end{matrix}]

(27)

where $I_{n}$ is the unit vector of $n \times n$ and $E [η (k) η (k)^{T}]$ is shown in equation (28):

\begin{matrix} E [η (k) η (k)^{T}] = S (k) S (k)^{T} \\ = [\begin{matrix} S_{p} (k | k - 1) S_{p} {(k | k - 1)}^{T} & 0 \\ 0 & S_{r} (k) S_{r} {(k)}^{T} \end{matrix}] \end{matrix}

(28)

Construct a new recursive equation (29) based on the obtained $S (k)$ .

D (k) = W (k) x (k) + e (k)

(29)

with

D (k) = S^{- 1} (k) [\begin{matrix} \hat{x} (k | k - 1) \\ z (k) \end{matrix}]

(30)

W (k) = S^{- 1} (k) [\begin{matrix} I_{n} \\ H \end{matrix}]

(31)

e (k) = S^{- 1} (k) [\begin{matrix} - (x (k) - \hat{x} (k | k - 1)) \\ v (k) \end{matrix}]

(32)

$D (k) = [D_{1} (k), D_{2} (k), D_{3} (k), . . ., D_{L} (k)]^{T}$ , $W (k) = [W_{1} (k), W_{2} (k), W_{3} (k), . . ., W_{L} (k)]^{T}$ and $e (k) = [e_{1} (k), e_{2} (k), e_{3} (k), . . ., e_{L} (k)]^{T}$ , where $L = n + m$ (n is the dimension of the state vector).

The AKRSLMEE-EKF based on the formula $V_{2} (e)$ and the empirical KRSL minimum error entropy criterion is constructed as shown in equation (33).

J_{L} (x (k)) = \frac{1}{L^{2} β} \sum_{i = 1}^{L} \sum_{j = 1}^{L} \exp (β (1 - κ_{σ} (e_{j} (k) - e_{i} (k))))

(33)

Because $β > 0$ , here $β$ is set to equal bandwidth $σ$ , so the value of the $β$ parameter is also changing in real time. The optimal solution $\hat{x} (k)$ is obtained by minimizing the cost function and setting its gradient with respect to $x (k)$ to zero. Let $δ (k) = e_{j} (k) - e_{i} (k)$ .

\begin{matrix} \hat{x} (k) = \underset{x (k)}{argmin} J_{L} (x (k)) = \underset{x (k)}{argmin} \frac{1}{L^{2} β} \sum_{i = 1}^{L} \sum_{j = 1}^{L} \\ \exp (β (1 - κ_{σ} (δ (k)))) \end{matrix}

(34)

\begin{matrix} \begin{matrix} \frac{\partial J_{L} (x (k))}{\partial x (k)} \\ = \frac{1}{L^{2} σ^{2}} \sum_{i = 1}^{L} \sum_{j = 1}^{L} (δ (k) ζ_{σ} (δ (k)) κ_{σ} (δ (k)) (W_{j} (k) - W_{i} (k)) \\ = T_{1} - T_{2} - T_{3} + T_{4} = 2 T_{1} - 2 T_{3} = 0 \end{matrix} \end{matrix}

(35)

with

ζ_{σ} (e_{j} (k) - e_{i} (k)) = \exp (β (1 - κ_{σ} (δ (k))))

(36)

\begin{matrix} T_{1} = \frac{1}{L^{2} σ^{2}} \sum_{i = 1}^{L} \sum_{j = 1}^{L} e_{j} (k) ζ_{σ} (δ (k)) κ_{σ} (δ (k)) W_{j} {(k)}^{T} \\ T_{2} = \frac{1}{L^{2} σ^{2}} \sum_{i = 1}^{L} \sum_{j = 1}^{L} e_{i} (k) ζ_{σ} (δ (k)) κ_{σ} (δ (k)) W_{j} {(k)}^{T} \\ T_{3} = \frac{1}{L^{2} σ^{2}} \sum_{i = 1}^{L} \sum_{j = 1}^{L} e_{j} (k) ζ_{σ} (δ (k)) κ_{σ} (δ (k)) W_{i} {(k)}^{T} \\ T_{4} = \frac{1}{L^{2} σ^{2}} \sum_{i = 1}^{L} \sum_{j = 1}^{L} e_{i} (k) ζ_{σ} (δ (k)) κ_{σ} (δ (k)) W_{i} {(k)}^{T} \end{matrix}

(37)

T_{1} - T_{3} = \frac{1}{L^{2} σ^{2}} W (k)^{T} Ψ (k) e (k) - \frac{1}{L^{2} σ^{2}} W (k)^{T} Φ (k) e (k)

(38)

where

\begin{matrix} Φ {(k)}_{ij} = & ζ_{σ} (δ (k)) κ_{σ} (δ (k)) \end{matrix}

(39)

Ψ (k)_{ij} = diag \sum_{i = 1}^{L} Φ {(k)}_{i 1}, \dots \sum_{i = 1}^{L} Φ {(k)}_{iL}, for j = 1, 2 . . . L

(40)

According to $T_{1} - T_{3} = 0$ , $x (k)$ is obtained by Newton fixed-point iteration.

\hat{x} (k) = g (\hat{x} (k)) = (W (k)^{T} Ξ (k) W (k))^{- 1} (W (k)^{T} Ξ (k) D (k))

(41)

In equation (41), $Ξ (k)$ is given by

Ξ (k) = Φ (k) - Ψ (k) = [\begin{matrix} Ξ_{x} (k) & Ξ_{yx} (k) \\ Ξ_{xy} (k) & Ξ_{y} (k) \end{matrix}]

(42)

Ξ_{x} (k) = (Ξ_{i, j} (k))_{n \times n}, (i \in [1, n] j \in [1, n])

(43)

Ξ_{xy} (k) = (Ξ_{i, j} (k))_{m \times n}, (i \in [n + 1, m + n], j \in [1, n])

(44)

Ξ_{yx} (k) = (Ξ_{i, j} (k))_{n \times m}, (i \in [1, n], j \in [n + 1, m + n])

(45)

Ξ_{y} (k) = (Ξ_{i, j} (k))_{m \times m}, (i \in [n + 1, m + n], j \in [n + 1, m + n])

(46)

Based on the recursion equation (29) and $Ξ (k)$ (42):

\begin{matrix} (W (k)^{T} Ξ (k) W (k)) \\ = [S_{p}^{- 1} (k | k - 1) Ξ_{x} + H^{T} S_{r}^{- 1} (k)^{T} Ξ_{xy}] S_{p}^{- 1} (k | k - 1) \\ + [S_{p}^{- 1} (k | k - 1)^{T} Ξ_{yx} + H^{T} S_{r}^{- 1} (k)^{T} Ξ_{y}] S_{r}^{- 1} (k) H \end{matrix}

(47)

\begin{matrix} (W (k)^{T} Ξ (k) D (k)) \\ = [S_{p}^{- 1} (k | k - 1) Ξ_{x} + H^{T} S_{r}^{- 1} (k)^{T} Ξ_{xy}] S_{p}^{- 1} (k | k - 1) \hat{x} (k | k - 1) \\ + [S_{p}^{- 1} (k | k - 1)^{T} Ξ_{yx} + H^{T} S_{r}^{- 1} (k)^{T} Ξ_{y}] S_{r}^{- 1} (k) z (k) \end{matrix}

(48)

It can be obtained through fixed-point iteration and the equations (41), (47), and (48) provided previously.

\begin{matrix} \hat{x} (k) = \sum_{s = 1}^{m} {(Ω_{1} + Ω_{2} Ω_{3})}^{- 1} (Ω_{1} \hat{x} (k | k - 1) + Ω_{2} z (k)) \\ = \sum_{s = 1}^{m} {(Ω_{1} + Ω_{2} Ω_{3})}^{- 1} Ω_{1} \hat{x} (k | k - 1) + {(Ω_{1} + Ω_{2} Ω_{3})}^{- 1} Ω_{2} z (k) \end{matrix}

(49)

where

Ω_{1} = [S_{p}^{- 1} (k | k - 1)^{T} Ξ_{x} + H^{T} S_{r}^{- 1} (k)^{T} Ξ_{xy}] S_{p}^{- 1} (k | k - 1)

(50)

Ω_{2} = [S_{p}^{- 1} (k | k - 1)^{T} Ξ_{yx} + H^{T} S_{r}^{- 1} (k)^{T} Ξ_{y}] S_{r}^{- 1} (k)

(51)

Ω_{3} = H

(52)

According to the matrix inversion theorem, one can obtain the following results:

\begin{matrix} (A + BCD)^{- 1} = A^{- 1} - A^{- 1} B (C^{- 1} + D A^{- 1} B)^{- 1} D A^{- 1} \\ Ω_{1} \to A, Ω_{2} \to B, I_{L} \to C, Ω_{3} \to D \end{matrix}

(53)

On the basis of equation (12),

\hat{x} (k) = \hat{x} (k | k - 1) + \tilde{K} (k) [z (k) - h (\hat{x} (k | k - 1))]

(54)

{\tilde{e}}_{i} (k) = D_{i} (k) - W (k) \hat{x} (k)_{t - 1}

(55)

\tilde{P} (k | k - 1) = S_{p}^{- 1} (k | k - 1)^{T} {\tilde{Ξ}}_{x} (k) S_{p}^{- 1} (k | k - 1)

(56)

\tilde{R} (k) = S_{r}^{- 1} (k)^{T} {\tilde{Ξ}}_{y} (k) S_{r}^{- 1} (k)

(57)

{\tilde{P}}_{yx} (k | k - 1) = S_{p}^{- 1} (k | k - 1)^{T} {\tilde{Ξ}}_{yx} (k) S_{r}^{- 1} (k)

(58)

{\tilde{P}}_{xy} (k | k - 1) = S_{r}^{- 1} (k)^{T} {\tilde{Ξ}}_{xy} (k) S_{p}^{- 1} (k | k - 1)

(59)

Its Kalman gain is

\begin{matrix} \tilde{K} (k) = {[\begin{matrix} \tilde{P} (k | k - 1) + H^{T} (k) {\tilde{P}}_{xy} (k | k - 1) \\ + ({\tilde{P}}_{yx} (k | k - 1) + H^{T} (k) \tilde{R} (k)) H (k) \end{matrix}]}^{- 1} \\ \times (H^{T} (k) \tilde{R} (k) + {\tilde{P}}_{yx} (k | k - 1)) \end{matrix}

(60)

Compare $\hat{x} (k)_{t}$ and $\hat{x} (k)_{t - 1}$ , if meet the following conditions, will $\hat{x} (k)_{t}$ assigned to $\hat{x} (k)$ , otherwise, the return to (41), $t \to t + 1$ until the situation are met.

\frac{| | \hat{x} {(k)}_{t} - \hat{x} {(k)}_{t - 1} | |}{| | \hat{x} {(k)}_{t - 1} | |} \leq χ

(61)

Finally, the prior covariance matrix for $k + 1 \to k$ undergoes an update, the Huber cost function is used to adaptively adjust the non-Gaussian environmental pollution caused by the sensor data in the complex environment, and the self-applicable robust adjustment of Q and R is performed in real time. The weight function is expressed in equation (63), where $γ$ is the regulatory factor. The process noise covariance matrix Q and the measurement noise covariance matrix R are modified, as shown in equation (64).

\begin{matrix} P (k) = \tilde{K} (k) \tilde{R} (k) {\tilde{K}}^{T} (k) + [I - \tilde{K} (k) H (k)] P (k | k - 1) {[I - \tilde{K} (k) H (k)]}^{T} \end{matrix}

(62)

ψ (τ) = \frac{ϕ (τ)}{τ} = {\begin{matrix} 1, | τ | \leq γ \\ \frac{γ}{τ}, | τ | > γ \end{matrix}

(63)

{\begin{matrix} τ_{R} = R_{k - 1}^{- 1 / 2} [z_{k} - h (x_{k | k - 1})], τ_{Q} = Q_{k - 1}^{- 1 / 2} [\hat{x} (k) - \hat{x} (k | k - 1)] \\ \tilde{ψ} (τ) = diag [ϕ (τ) / τ] \\ R_{k} = diag ({(R_{k - 1})}^{1 / 2} {[\tilde{ψ} (τ_{R})]}^{- 1} {(R_{k - 1})}^{T / 2}) \\ Q_{k} = diag ({(Q_{k - 1})}^{1 / 2} {[\tilde{ψ} (τ_{Q})]}^{- 1} {(Q_{k - 1})}^{T / 2}) \end{matrix}

(64)

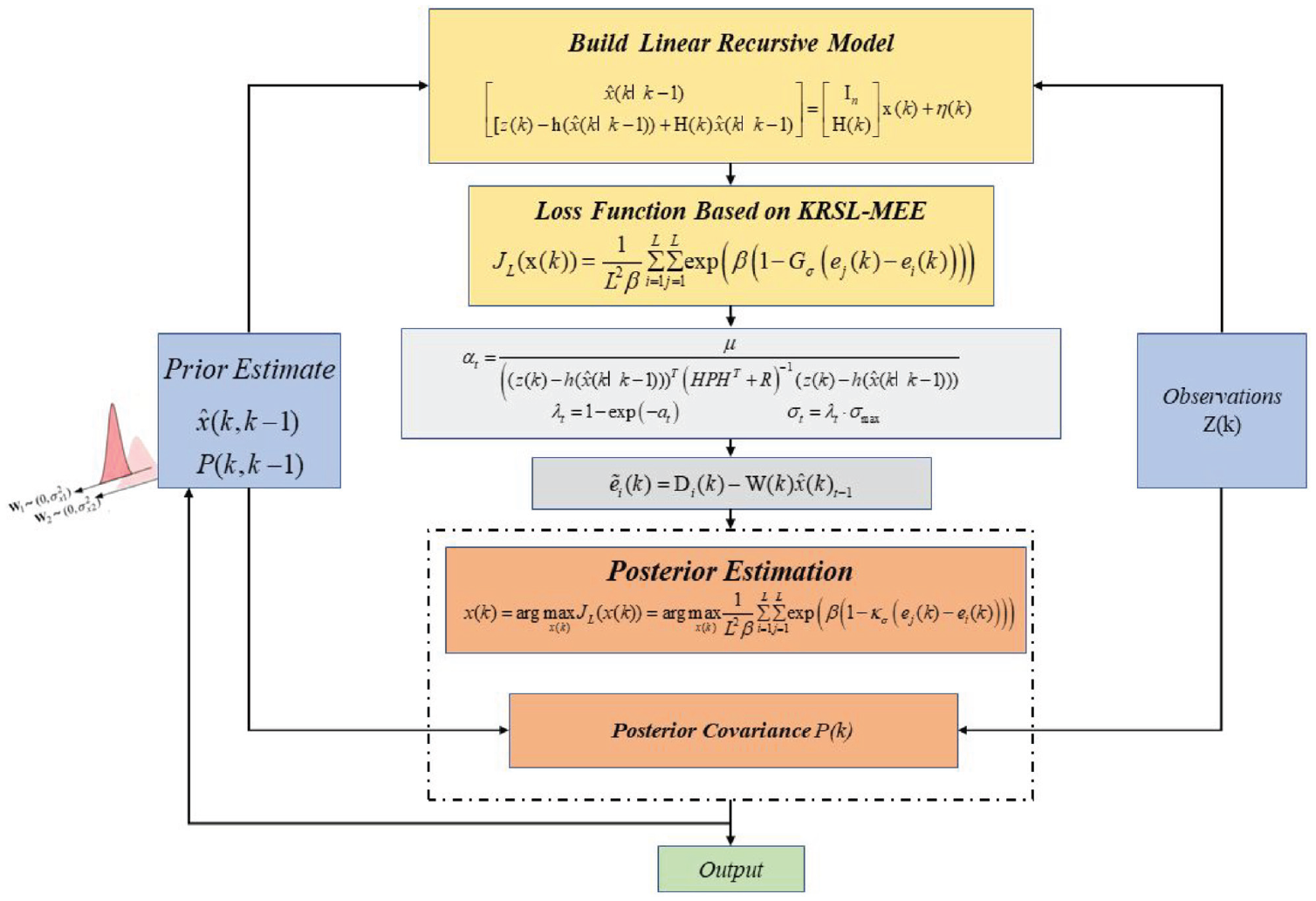

Figure 1 illustrates the basic flow of the algorithm. The convergence analysis of the algorithm has been described in the literature (Chen et al., 2017, 2019) and will not be repeated here.

Figure 1.

AKRSLMEE-EKF basic flow diagram.

Simulation and experiment

Simulation

This section presents the performance of the proposed ARMSLMEE-EKF compared to the conventional EKF and MEE-EKF by model (equation (65)) (Chen et al., 2019). The performance evaluation index is defined by mean square error (MSE).

{\begin{matrix} x (k) = [\begin{matrix} 1 & 0 & Δ t & 0 \\ 0 & 1 & 0 & Δ t \\ 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 1 \end{matrix}] x (k - 1) + w (k - 1) \\ z (k) = [\begin{matrix} \begin{matrix} - 1 & 0 & - 1 & 0 \end{matrix} \\ \begin{matrix} 0 & - 1 & 0 & - 1 \end{matrix} \end{matrix}] x (k) + v (k) \end{matrix}

(65)

The simulation results in this paper are averaged over 100 independent Monte Carlo runs. The state of the model and the measurement equation are shown in equation (65). All calculations are performed on MATLAB 2022b on a computer with i5-7300HQ and processor running at 2.5GHz.

Where $x (k) = [\begin{matrix} x_{1} (k) & x_{2} (k) & x_{3} (k) & x_{4} (k) \end{matrix}]$ is the state vector, the x1 and x2 in the model represent their 2D position vectors, while x3 and x4 represent their 2D velocity vectors. $Δ t = 0.3 s, μ = 7.81$ , $θ = π / 3, σ_{\max} = 20, χ = 10^{- 6}$ . The corresponding initial value $x (0)$ , prior estimate $\hat{x} (1 | 0)$ , and associated error covariance matrix $P (1 | 0)$ for

{\begin{matrix} x (0) = [\begin{matrix} 0 & 0 & 10 \tan (θ) & 10 \end{matrix}] \\ \tilde{x} (1 | 0) = {[\begin{matrix} 0 & 0 & 0 & 0 \end{matrix}]}^{T} \\ P (1 | 0) = diag ([\begin{matrix} 900 & 900 & 4 & 4 \end{matrix}]) \end{matrix}

(66)

To research the impact of measurement noise on mean square error, for the distributions of $w (k)$ and $v (k)$ , $w (k)$ satisfies the normal distribution, that is, $w (k) ~ N (0, 0.01)$ . $v (k)$ considers four cases, which are:

1) Gaussian noise: $v (k) ~ N (0, 0.05)$

2) Gaussian noise with outliers: $v (k) ~ 0.99 N (0, 0.05) +$ $0.01 N (0, 100)$

3) Non-Gaussian noise: $v (k) ~ 0.01 N (- 0.1, 1000) +$ $0.99 N (0.1, 0.001)$

4) Non-Gaussian noise with outliers: $v (k) ~ 0.48 N (0.1, 0.001) + 0.04 N (0, 100) + 0.48 N (- 0.1, 0.001)$ .

Table 1 shows the estimation results of EKF, MEE-EKF, and AKRSLMEE-EKF under different measurement noises. From the results shown in Table 1, it is evident that the AKRSLMEE-EKF outperforms the EKF and MEE-EKF in terms of filtering error under the condition of four measurement noises. This improvement enhances both the navigation accuracy and robustness to outliers. It has good performance and can adaptively adjust the size of the kernel bandwidth.

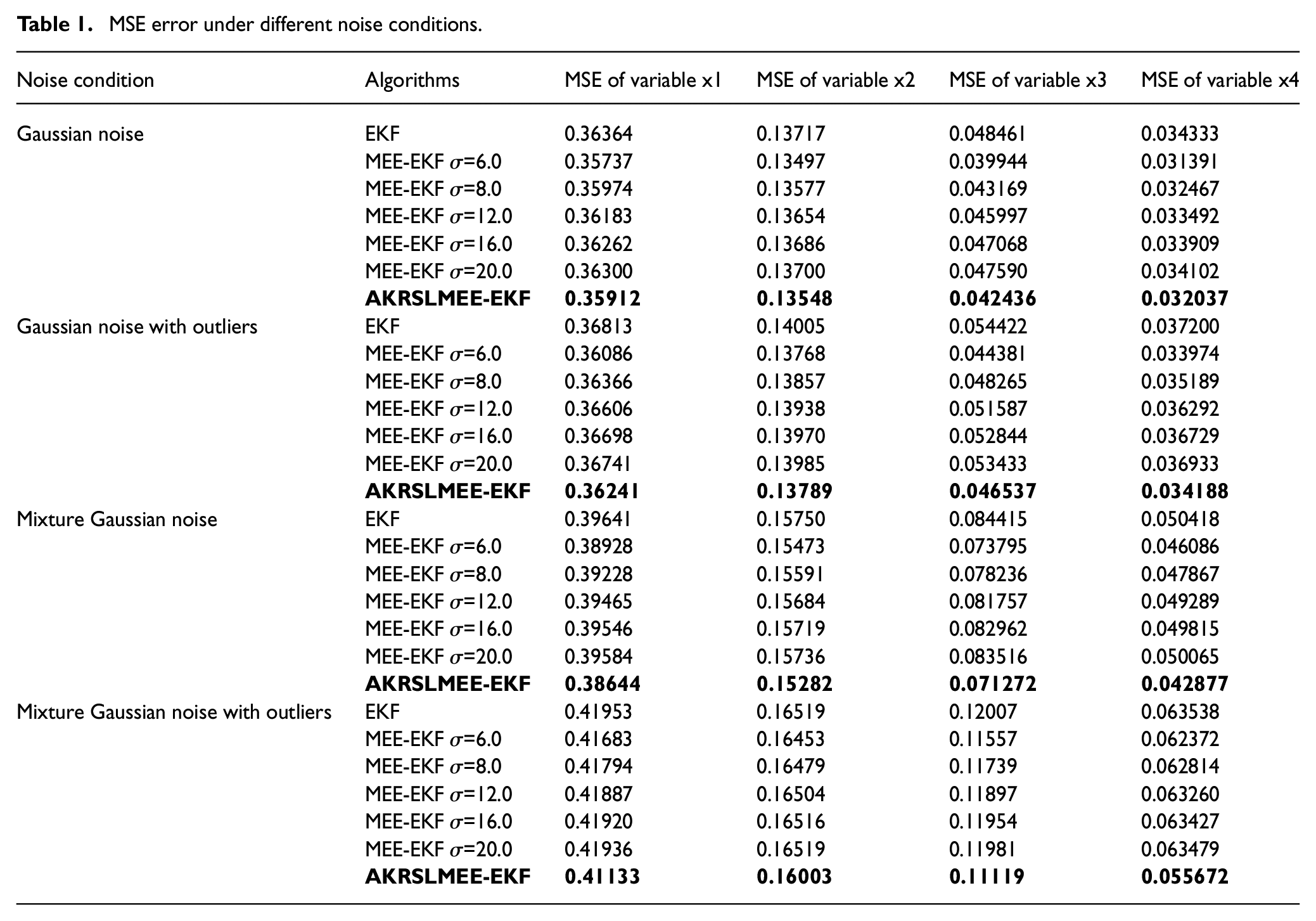

Table 1.

MSE error under different noise conditions.

Noise condition	Algorithms	MSE of variable x1	MSE of variable x2	MSE of variable x3	MSE of variable x4
Gaussian noise	EKF	0.36364	0.13717	0.048461	0.034333
	MEE-EKF $σ$ =6.0	0.35737	0.13497	0.039944	0.031391
	MEE-EKF $σ$ =8.0	0.35974	0.13577	0.043169	0.032467
	MEE-EKF $σ$ =12.0	0.36183	0.13654	0.045997	0.033492
	MEE-EKF $σ$ =16.0	0.36262	0.13686	0.047068	0.033909
	MEE-EKF $σ$ =20.0	0.36300	0.13700	0.047590	0.034102
	AKRSLMEE-EKF	0.35912	0.13548	0.042436	0.032037
Gaussian noise with outliers	EKF	0.36813	0.14005	0.054422	0.037200
	MEE-EKF $σ$ =6.0	0.36086	0.13768	0.044381	0.033974
	MEE-EKF $σ$ =8.0	0.36366	0.13857	0.048265	0.035189
	MEE-EKF $σ$ =12.0	0.36606	0.13938	0.051587	0.036292
	MEE-EKF $σ$ =16.0	0.36698	0.13970	0.052844	0.036729
	MEE-EKF $σ$ =20.0	0.36741	0.13985	0.053433	0.036933
	AKRSLMEE-EKF	0.36241	0.13789	0.046537	0.034188
Mixture Gaussian noise	EKF	0.39641	0.15750	0.084415	0.050418
	MEE-EKF $σ$ =6.0	0.38928	0.15473	0.073795	0.046086
	MEE-EKF $σ$ =8.0	0.39228	0.15591	0.078236	0.047867
	MEE-EKF $σ$ =12.0	0.39465	0.15684	0.081757	0.049289
	MEE-EKF $σ$ =16.0	0.39546	0.15719	0.082962	0.049815
	MEE-EKF $σ$ =20.0	0.39584	0.15736	0.083516	0.050065
	AKRSLMEE-EKF	0.38644	0.15282	0.071272	0.042877
Mixture Gaussian noise with outliers	EKF	0.41953	0.16519	0.12007	0.063538
	MEE-EKF $σ$ =6.0	0.41683	0.16453	0.11557	0.062372
	MEE-EKF $σ$ =8.0	0.41794	0.16479	0.11739	0.062814
	MEE-EKF $σ$ =12.0	0.41887	0.16504	0.11897	0.063260
	MEE-EKF $σ$ =16.0	0.41920	0.16516	0.11954	0.063427
	MEE-EKF $σ$ =20.0	0.41936	0.16519	0.11981	0.063479
	AKRSLMEE-EKF	0.41133	0.16003	0.11119	0.055672

Taking the measurement noise as non-Gaussian noise and non-Gaussian noise with outliers as examples, the analyses are performed and the results are shown in Figures 2 and 3. Figure 2 illustrates the MSE generated by different algorithms after 100 Monte Carlo simulation iterations for variables x1, x2, x3, and x4 under both non-Gaussian noise and non-Gaussian noise with outliers. It can be observed from Figure 2 that the kernel risk-sensitive loss-based cost function enhances the convergence stability of the state variables in both non-Gaussian noise and non-Gaussian noise with outliers. This enhancement leads to improve the stability of the filtering algorithm.

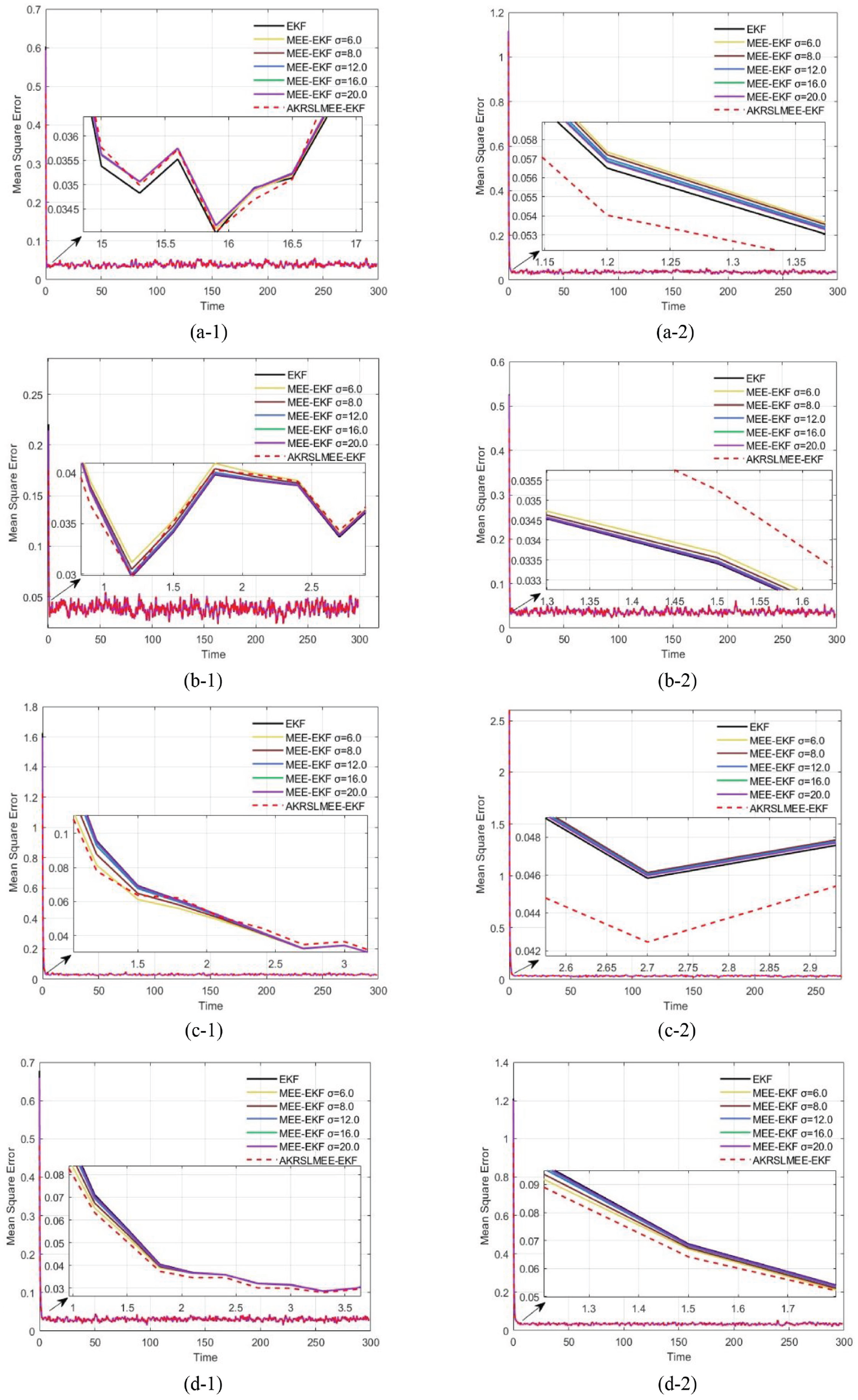

Figure 2.

Convergence analysis for variable x1–x4 diagram of different algorithms MSE: (a-1) MSE error variation diagram for variable x1 in non-Gaussian noise, (a-2) MSE error variation diagram for variable x1 in non-Gaussian noise with outliers, (b-1) MSE error variation diagram for variable x2 in non-Gaussian noise, (b-2) MSE error variation diagram for variable x2 in non-Gaussian noise with outliers, (c-1) MSE error variation diagram for variable x3 in non-Gaussian noise, (c-2) MSE error variation diagram for variable x3 in non-Gaussian noise with outliers, (d-1) MSE error variation diagram for variable x4 in non-Gaussian noise, (d-2) MSE error variation diagram for variable x4 in non-Gaussian noise with outliers.

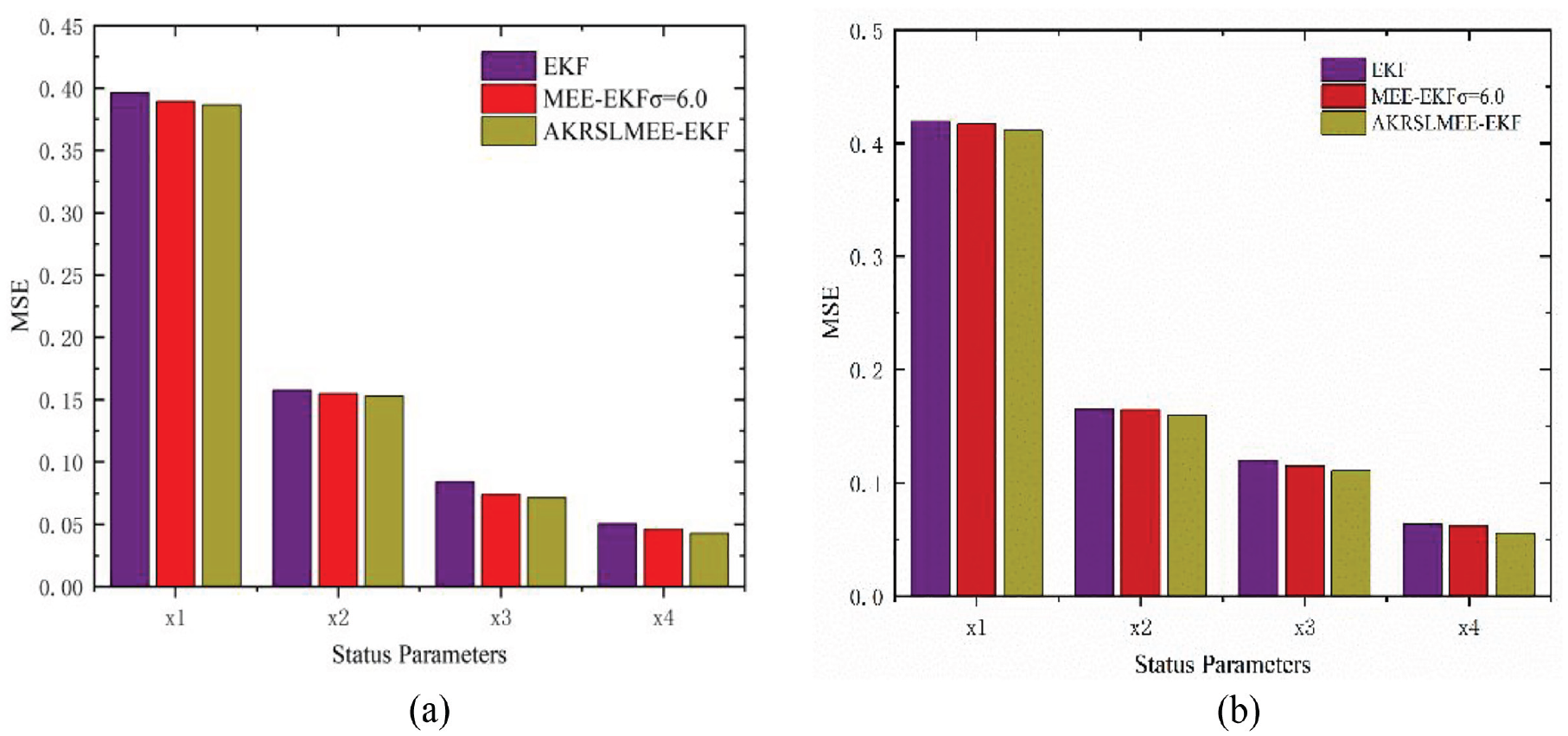

Figure 3.

Comparison of filtering accuracy of different algorithms. (a) Filtering accuracy MSE in non-Gaussian noise, (b) Filtering accuracy MSE in non-Gaussian noise with outliers.

Figure 3 presents a comparison between EKF, MEE-EKF, and AKRSLMEE-EKF on filtering accuracy in non-Gaussian and non-Gaussian environments with outliers. Results in the non-Gaussian environment are presented in Figure 3(a) and indicate an increase in accuracy errors of 2.52%, 2.79%, 15.57%, and 14.96%, respectively, compared to the conventional EKF. According to Table 1 of the MEE-EKF, optimum accuracy is achieved when the kernel size is $σ = 6.0$ . Compared to the optimal MEE-EKF, the AKRSLMEE-EKF demonstrates an improvement in accuracy of 0.73%, 1.23%, 3.42%, and 6.96%, respectively.

While Figure 3(b) pertains to the case with outlier interference, the results indicate that the accuracy error increases by 1.95%, 3.12%, 7.40%, and 12.38%, respectively, compared to the conventional EKF. The MEE-EKF is still selected with a kernel size of $σ = 6.0$ . The results demonstrate that the filtering accuracy of the AKRSLMEE-EKF algorithm improves relative to the MEE-EKF algorithm by 1.32%, 2.74%, 3.79%, and 10.74%. From the preceding results, it is evident that the algorithm proposed in this paper outperforms both the traditional EKF and MEE-EKF methods when dealing with non-Gaussian noise and non-Gaussian noise with outliers, demonstrating superior performance. Table 2 illustrates the improvement in accuracy error achieved by the algorithm.

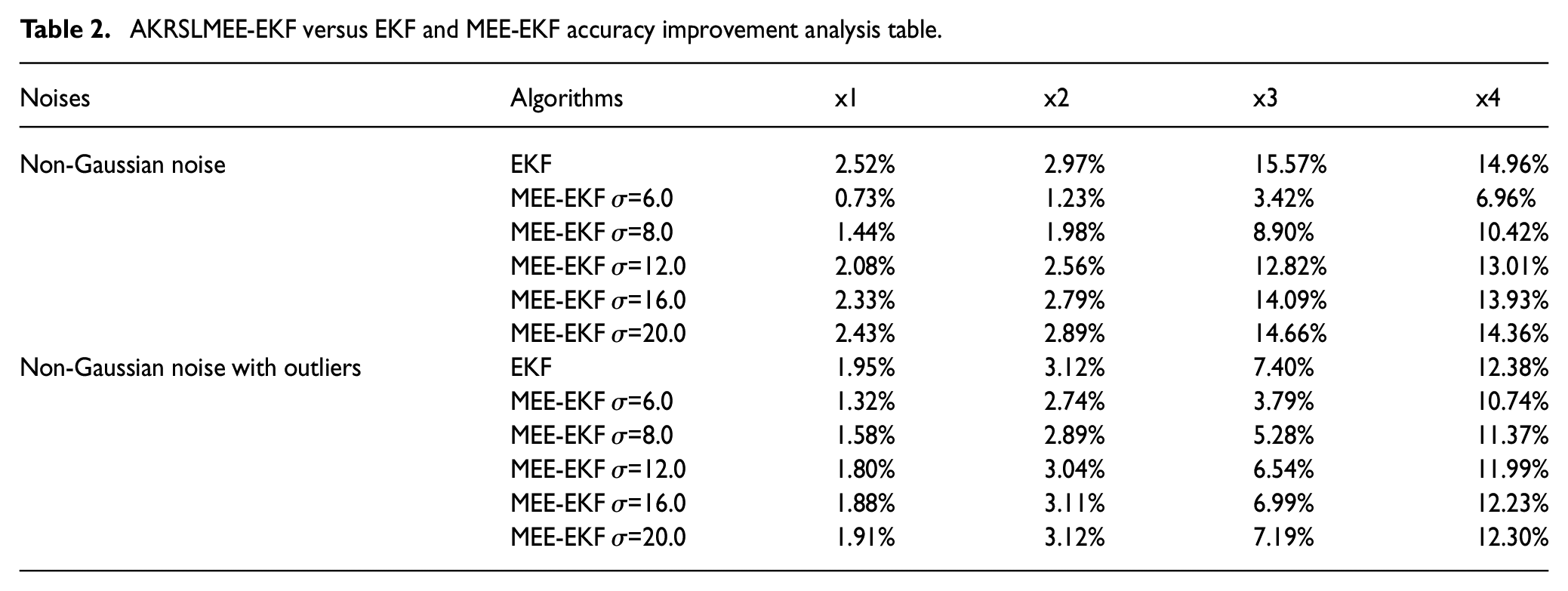

Table 2.

AKRSLMEE-EKF versus EKF and MEE-EKF accuracy improvement analysis table.

Noises	Algorithms	x1	x2	x3	x4
Non-Gaussian noise	EKF	2.52%	2.97%	15.57%	14.96%
	MEE-EKF $σ$ =6.0	0.73%	1.23%	3.42%	6.96%
	MEE-EKF $σ$ =8.0	1.44%	1.98%	8.90%	10.42%
	MEE-EKF $σ$ =12.0	2.08%	2.56%	12.82%	13.01%
	MEE-EKF $σ$ =16.0	2.33%	2.79%	14.09%	13.93%
	MEE-EKF $σ$ =20.0	2.43%	2.89%	14.66%	14.36%
Non-Gaussian noise with outliers	EKF	1.95%	3.12%	7.40%	12.38%
	MEE-EKF $σ$ =6.0	1.32%	2.74%	3.79%	10.74%
	MEE-EKF $σ$ =8.0	1.58%	2.89%	5.28%	11.37%
	MEE-EKF $σ$ =12.0	1.80%	3.04%	6.54%	11.99%
	MEE-EKF $σ$ =16.0	1.88%	3.11%	6.99%	12.23%
	MEE-EKF $σ$ =20.0	1.91%	3.12%	7.19%	12.30%

Comparing the computational complexity of the above algorithms in terms of floating-point operations, the computational complexity of EKF can be calculated by equations (9)–(13), as shown in equation (67):

C_{EKF} = 8 n^{3} + 6 n m^{2} + 10 n^{2} m - n^{2} - n + O (m^{3})

(67)

According to Chen et al. (2019), the computational complexity of MEE-EKF is given by

\begin{matrix} C_{MEE - EKF} = (7 J + 8) n^{3} + (7 J) m^{3} + (19 J + 6) n^{2} m - n^{2} \\ + (15 J + 2) n m^{2} \\ + JO (n^{3}) + JO (mn) + Jm + (5 J - 1) n + (6 J - 1) nm \\ + 2 JO (m^{3}) \end{matrix}

(68)

The update of AKRSLMEE-EKF involves the following equations: (9), (10), (21), (54)–(60), and (62)–(64). The corresponding floating-point operations are performed, resulting in the following computational complexity of AKRSLMEE-EKF:

\begin{matrix} C_{AKRSLMEE - EKF} = (7 J + 10) n^{3} + (7 J) m^{3} + (19 J + 8) n^{2} m \\ + (15 J + 4) n m^{2} + 5 m^{2} - 1 \\ + (J + 1) O (n^{3}) + JO (mn) + (J + 2) m + (5 J) n \\ + (6 J + 1) nm + (2 J + 1) O (m^{3}) \\ + O (m^{2}) + O (n^{2}) \end{matrix}

(69)

In this context, J represents the fixed-point iteration number, n denotes the number of state dimensions, and m signifies the number of measurement dimensions. In terms of computational burden, it can be observed that both AKRSLMEE-EKF and MEE-EKF incur an additional load due to the error entropy function, compared to the standard EKF. However, when considering the order of magnitude, there is no significant difference in the computational complexity of EKF, MEE-EKF, and AKRSLMEE-EKF.

Experiment

In this paper, the algorithm’s filtering performance is tested using the AUV positioning and tracking independently developed by the INS/GPS integrated navigation system. The AUV that the materials are composites has a length of 5.33 m and a diameter of 533 mm. Marine lake experiments were conducted using an AUV, and the experimental scene is shown in Figure 4(a). AUV is independently developed, its inertial navigation adopts the FN-70 optical fiber strapdown inertial navigation system, the GPS antenna uses the F526 series, and USBL utilizes the Sea Trac series for ultra-short baseline underwater acoustic communication. The AUV is built on the ROS2 platform. The platform software diagram is shown in Figure 4(b).

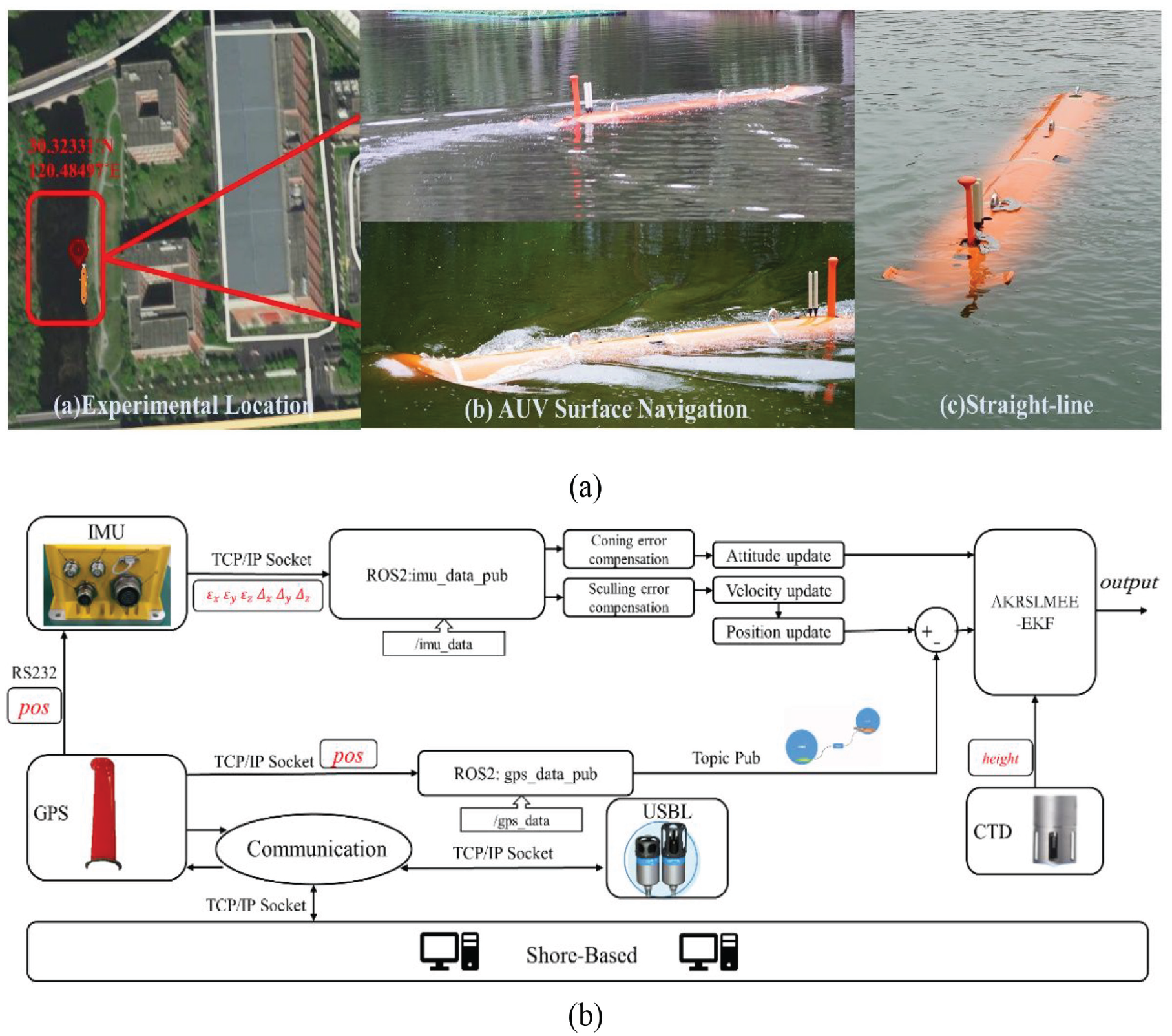

Figure 4.

(a) Scene diagram of Marine-lake experiments, (b) AUV software system diagram.

The initial latitude and longitude of the AUV are 30.32331°N, 120.48497°E, the initial altitude is 10.4 m. The initial heading angle is 216.155°, the pitch angle is 0.32°, and the roll angle is -1.181°. And the initial north-east-down velocities are 0 m/s, and the horizontal attitude is maintained at $\leq 0 . 02^{°}$ . The yaw is held at $\leq 0 . 05^{°}$ , and the $γ$ adjustment factor estimated by Huber in the experiment is difficult to determine, so its empirical value is chosen here as 1.345 (Karlgaard and Schaub, 2008).

The results of the experimental data analysis are compared with EKF and MEE-EKF. The instruments used in the test include AUV and sensors, such as IMU, GPS, CTD, and so on. GPS is used as the reference for the trajectory. Since GPS does not work underwater, the test is carried out on the water surface using an AUV. Table 3 shows the technical specifications of the main sensors on the AUV. Through the solution of inertial navigation and data fusion filtering of GPS positioning data, the accuracy of positioning and robust estimation ability are improved.

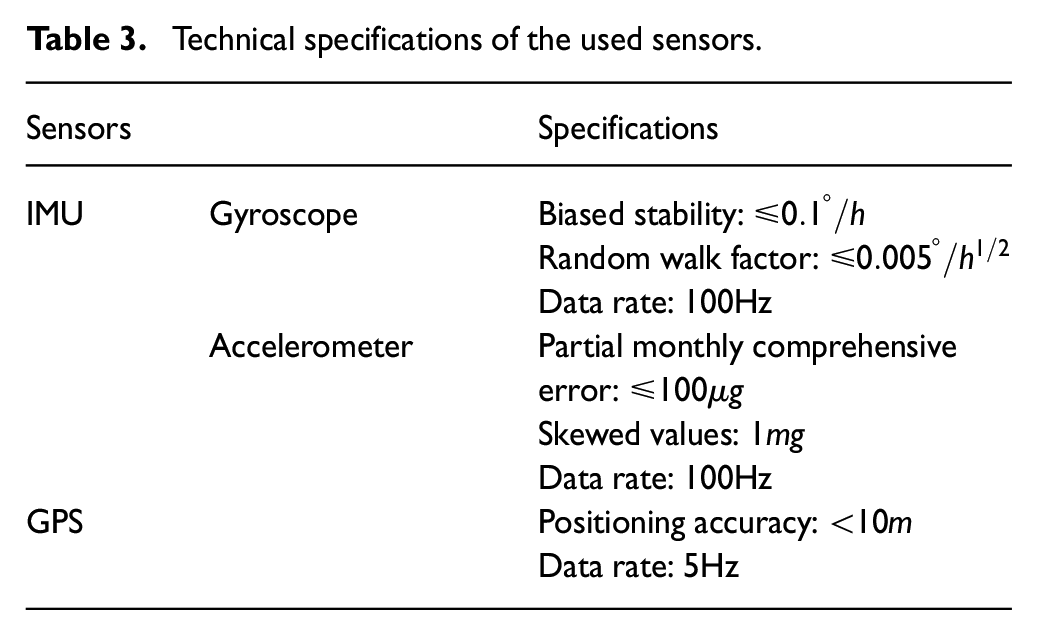

Table 3.

Technical specifications of the used sensors.

Sensors		Specifications
IMU	Gyroscope	Biased stability: $\leq 0 . 1^{°} / h$ Random walk factor: $\leq 0 . 005^{°} / h^{1 / 2}$ Data rate: 100Hz
	Accelerometer	Partial monthly comprehensiveerror: $\leq 100 μ g$ Skewed values: $1 mg$ Data rate: 100Hz
GPS		Positioning accuracy: $< 10 m$ Data rate: 5Hz

According to section 4.1 of the simulation, for MEE-EKF algorithm, the kernel bandwidth is set to σ=6.0 to obtain better precision results. Therefore, in the AUV surface experiment, the kernel bandwidth is set to 6, and EKF, MEE-EKF, and AKRSLMEE-EKF are compared to analyze the positioning accuracy of their corresponding longitude, latitude, and altitude. The comparison analysis diagram of the north distance error, east distance error, and down distance error is shown in Figure 5. The MSE values for the north distance, east distance, and down distance are shown in Table 4.

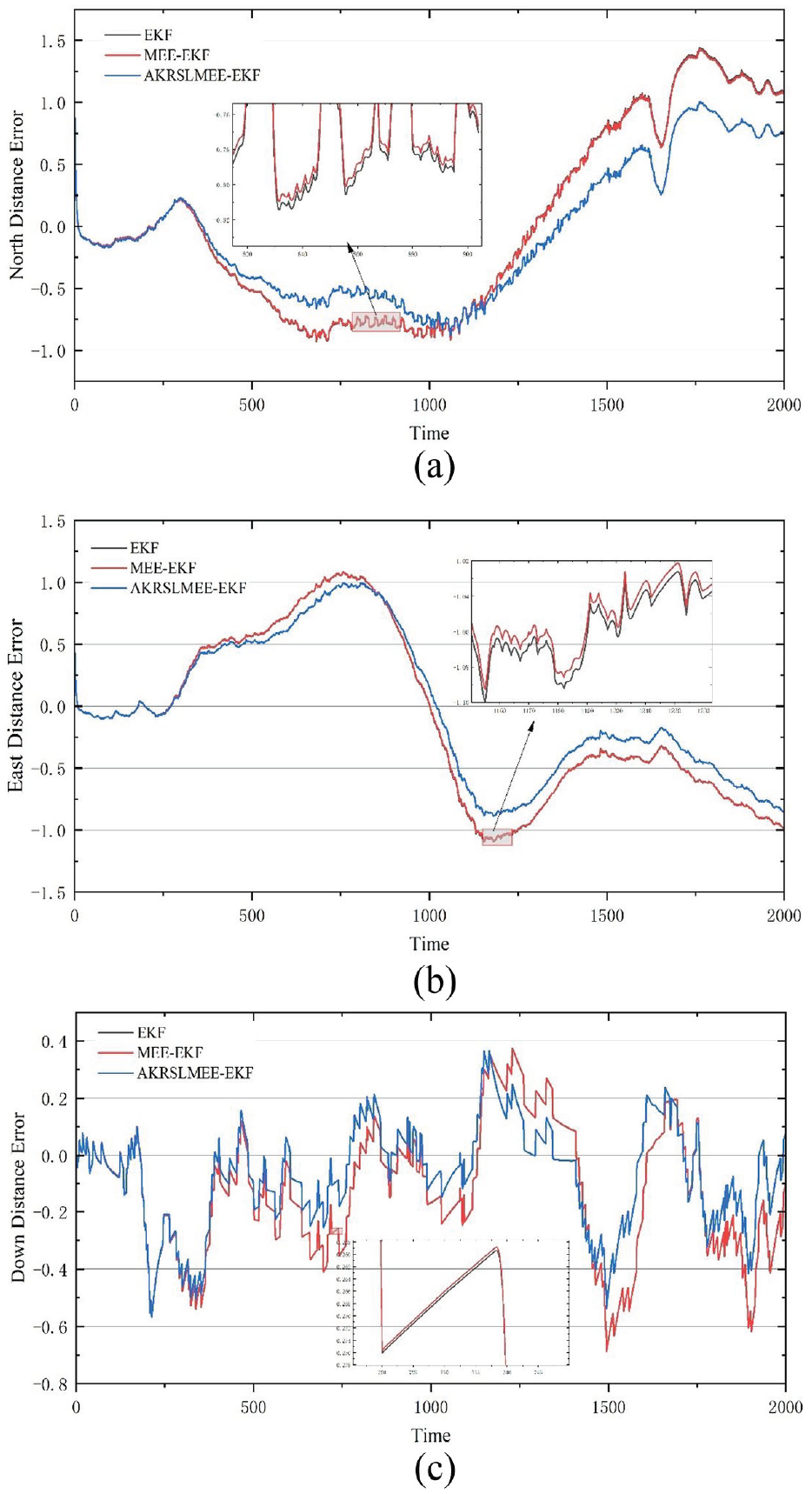

Figure 5.

(a) North distance error diagram, (b) East distance error diagram, (c) Down distance error diagram.

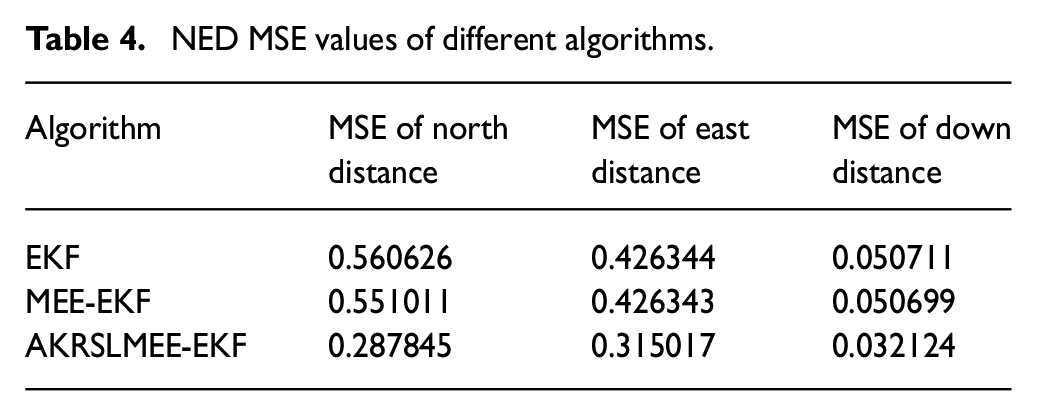

Table 4.

NED MSE values of different algorithms.

Algorithm	MSE of northdistance	MSE of eastdistance	MSE of downdistance
EKF	0.560626	0.426344	0.050711
MEE-EKF	0.551011	0.426343	0.050699
AKRSLMEE-EKF	0.287845	0.315017	0.032124

As can be seen from Figure 5, the AKRSLMEE-EKF algorithm exhibits smaller error fluctuation of north, east, and down distance than EKF and MEE-EKF and stability. From the analysis of MSE numerical results in Table 4, the error accuracy of the algorithm proposed in this paper is higher compared with EKF and MEE-EKF. The north distance MSE is about 48.66%,47.76% higher than that of EKF and MEE-EKF; the error of the east distance MSE is approximately 26.11%, 26.11% higher than that of EKF and MEE-EKF; and the down distance MSE is approximately 36.65%, 36.64% higher than that of EKF and MEE-EKF. The difference in the filtering accuracy between the EKF and MEE-EKF is very small.

The surface experiment uses GPS data as the reference trajectory. The 2D plane longitude and latitude trajectory diagram and 3D trajectory diagram of the AUV under the EKF, MEE-EKF, and AKRSLMEE-EKF algorithms are shown in Figure 6(a) and Figure 6(b). As can be seen from Figure 6, the algorithm proposed in this paper closely follows the GPS reference trajectory and achieves superior results compared to EKF and MEE-EKF.

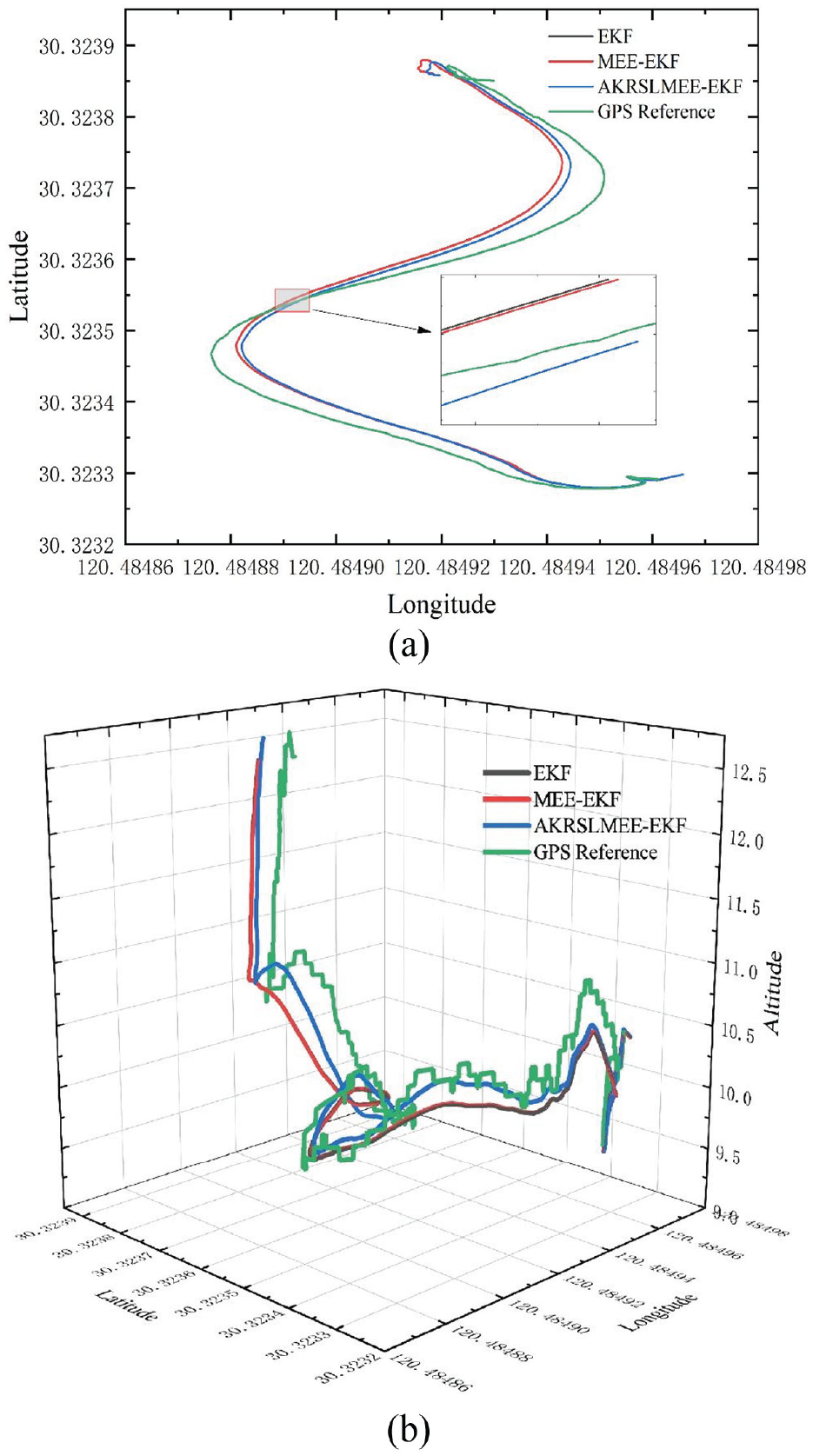

Figure 6.

2D and 3D trajectory diagrams of AUV.(a) 2D plane trajectory diagram(b) 3D trajectory diagram

Conclusion

This study introduces an adaptive extended Kalman filter, denoted as AKRSLMEE-EKF, that leverages the MEE in conjunction with the kernel risk-sensitive loss (KRSL). This methodology is devised to address challenges posed by non-Gaussian noise environments when fusing INS/GPS data in surface navigation for AUVs. The algorithm dynamically adjusts the kernel size of MEE within a rational range through the implementation of an adaptive factor. Moreover, it incorporates adaptive adjustments to the covariance matrices Q and R based on Huber robust estimation. The findings reveal that the proposed algorithm effectively optimizes the kernel size to accommodate various types of noises. Comparative analyses against the traditional EKF and MEE-EKF underscore the superior performance of the proposed AKRSLMEE-EKF. Specifically, the algorithm demonstrates an enhanced positioning accuracy for INS/GPS integrated navigation, accelerates the convergence stability of errors, and contributes to the overall stability of the system. These results collectively affirm the efficacy of the proposed adaptive filtering approach in improving the performance and robustness of AUV navigation in challenging non-Gaussian noise environments.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the Programs of the National Natural Science Foundation of China (Grant No. 51975520).

ORCID iDs

Yudong Hou

Qing Wang

Data availability statement

The data cannot be made publicly available upon publication because they are owned by a third party and the terms of use prevent public distribution. The data that support the findings of this study are available upon reasonable request from the authors.

References

Duan

Guo

Song

, et al. (2017) The application of AUV navigation based on cubature Kalman filter. Proc. 2017 IEEE Underwater Technology (UT), Busan, Korea (South), pp.1–4. IEEE

Miller

Farrell

, et al. (2010) Autonomous underwater vehicle navigation. IEEE J. OCEANIC. ENG. 35: 663–678.

Guo

(2021) An improved robust Kalman filter for SINS/DVL tightly integrated navigation system. IEEE Trans. Instrum. Meas. 70: 1–15.

Wang

Pang

(2018) AUV navigation based on inertial navigation and acoustic positioning systems. Proc. OCEANS 2018 MTS/IEEE Charleston, pp.1–8.

Barshan

Durrant-Whyte

(1995) Inertial navigation systems for mobile robots. IEEE transactions on robotics automation. 11: 328–342.

Muzammal

Talat

Sodhro Ali

, et al. (2020) A multi-sensor data fusion enabled ensemble approach for medical data from body sensor networks. Inf Fusion. 53: 155–164.

Huang

(2018) GPS/INS/Odometer/DR integrated navigation system aided with vehicular dynamic characteristics for autonomous vehicle application. IFAC-PapersOnLine. 51: 936–942.

, et al. (2021) A practical INS/GPS/DVL/PS integrated navigation algorithm and its application on Autonomous Underwater Vehicle. Appl. Ocean Res. 106: 102441.

Hao

Zhuo

Zhao

, et al. (2020) Research on optimized m-estimate arithmetic in INS/USBL integrated navigation system. Proc. 2020 Chinese Automation Congress (CAC), Shanghai, China. pp. 939–944.

10.

Zhang

Razzaqi

(2020) A novel robust filter for outliers and time-varying delay on an SINS/USBL integrated navigation model. Meas Sci Technol. 32: 015903.

11.

Dash

Hasan

Panigrahi

(2010) Adaptive complex unscented Kalman filter for frequency estimation of time-varying signals. IET Sci. Meas. Technol. 4: 93–103.

12.

Kalman Rudolph

(1960) A new approach to linear filtering and prediction problems. ASME. 82: 35-45.

13.

Mao

Drake

Anderson

BDO

(2007) Design of an extended Kalman filter for UAV localization. Proc. 2007 Information, Decision and Control, Adelaide, SA, Australia, 2007, pp. 224–229.

14.

Julier

Uhlmann

Durrant-Whyte

(2000) A new method for the nonlinear transformation of means and covariances in filters and estimators. IEEE Trans. Automat. 45: 477–482.

15.

Arasaratnam

Haykin

(2009) Cubature Kalman filters. IEEE Trans. Automat. 54: 1254–1269.

16.

Liu

Pokharel

Principe

(2007) Correntropy: Properties and applications in non-Gaussian signal processing. IEEE Trans. Signal Process. 55: 5286–5298.

17.

Chen

Dang

, et al. (2019) Minimum error entropy Kalman filter. IEEE Trans. Syst. Man Cybern. 51: 5819–5829.

18.

Meng

, et al. (2023) State-of-charge estimation of lithium-ion batteries based on MCC-AEKF in non-Gaussian noise environment. Energy, 274: 127316.

19.

Jin

Feng

, et al. (2023) Maximum Correntropy-Based Extended Particle Filter for Nonlinear System. IEEE Transactions on Circuits and Systems II: Express Briefs, 70(7): 2520–2524.

20.

Liu

Zhao

Yue

(2018) Maximum correntropy square-root cubature Kalman filter with application to SINS/GPS integrated systems. ISA Trans. 80: 195-202.

21.

Shao

Chen

Zhang

, et al. (2022) Adaptive Multikernel Size-Based Maximum Correntropy Cubature Kalman Filter for the Robust State Estimation. IEEE SENS J. 22: 19835–19844.

22.

Wang

Zhang

, et al. (2021) A Maximum correntropy delay Kalman filter for SINS/USBL integrated navigation. ISA Trans. 117: 274–287.

23.

Zhongliang

Hongyu

, et al. (2022) Multi-sensor measurement fusion based on minimum mixture error entropy with non-Gaussian measurement noise. Digital Signal Processing. 123: 103377.

24.

Lopez

de Cabrera

Riba

(2023) Minimum Error Entropy Estimation Under Contaminated Gaussian Noise. IEEE Signal Processing Letters.

25.

Zhong

Ziyi

Gang

, et al. (2024) Robust adaptive filtering based on M-estimation-based minimum error entropy criterion. Information Sciences. 658: 120026.

26.

Dang

Chen

Wang

, et al. (2020) Robust power system state estimation with minimum error entropy unscented Kalman filter. IEEE Trans Instrum Meas. 69: 8797–8808.

27.

Zhang

Song

(2023) A novel robust minimum error entropy Kalman filter in the presence of measurement packet droping. Signal Processing. 206: 108913.

28.

Jing

Leung

(2021) Robust minimum error entropy based cubature information filter with non-Gaussian measurement noise. IEEE Signal Process Lett. 28: 349–353.

29.

Feng

Wang

Peng

, et al. (2023) Novel robust minimum error entropy Wasserstein distribution Kalman filter under model uncertainty and non-gaussian noise. Signal Process. 203: 108806.

30.

Wang

, et al. (2022) Generalized minimum error entropy Kalman filter for non-Gaussian noise. ISA Trans. 136: 663–675.

31.

Chen

Xing

, et al. (2017) Kernel risk-sensitive loss: definition, properties and application to robust adaptive filtering. IEEE Trans. Signal Process. 65: 2888–2901.

32.

Qian

Wang

(2018) Complex kernel risk-sensitive loss: application to robust adaptive filtering in complex domain. ACCESS. 6: 60329–60338.

33.

Principe

(2010) Information theoretic learning: Renyi's entropy and kernel perspectives (Springer Science & Business Media).

34.

Karlgaard

Schaub

(2008) Adaptive Huber-based filtering using projection statistics: Application to spacecraft attitude estimation. Proc. AIAA Guidance, Navigation and Control Conference and Exhibit. pp. 7389.
