Load-side resonant suppression based on adaptive state feedback and decoupled sliding-mode observer for servo system

Abstract

The engineered bi-quad notch filters successfully compensate for the flexibility in the dual-inertia servo system, effectively suppressing inherent system resonance but potentially introducing load-side oscillation. To address this, a novel load-side resonance suppression scheme employing an adaptive state feedback is proposed, enabling free adjustment of the load-side damping, which can mitigate the load-side oscillations and improve system resonance suppression efficiency. In addition, since the servo system requires accurate mechanical parameters to properly configure the state feedback, two decoupled sliding-mode observers (DSMOs) are proposed to identify load torque and load inertia simultaneously. Interestingly, each DSMO incorporates an innovative decoupling term that eliminates parameter estimation coupling with motor speed errors, significantly reducing identified value chattering. Meanwhile, an improved reaching law is also designed as the gain factor to achieve the balance between rapid identification convergence and effective chattering suppression. Comprehensive experimental validation demonstrates the effectiveness of the proposed scheme, with results confirming substantial performance improvements in resonance suppression and parameter identification accuracy.

Keywords

Servo system load-side resonance state feedback decoupled sliding-mode observer reaching law

Introduction

In recent years, the permanent magnet synchronous motor (PMSM), known for its high efficiency and performance, has seen widespread application in fields such as industrial automation (Yang et al., 2025), new energy vehicles (Wang et al., 2025), and aerospace (Zhou et al., 2024). However, PMSM control strategies are still relatively complex, with performance affected by factors like motor parameters, control method design, and the application environment. In dual-inertia servo system, flexible coupling shafts may cause mechanical resonance if the system bandwidth surpasses their natural frequency (Gao et al., 2025). It will degrade control system performance and reduces the system precision, which hinders the development of the dual-inertia servo system (Tarczewski et al., 2022). Therefore, the effective suppression of mechanical resonance is essential. Researchers have proposed numerous solutions for resonance suppression, which can be broadly categorized into two types: active suppression and passive suppression.

Active suppression methods aim to mitigate mechanical vibration by modifying the controller structure or adjusting control parameters, roughly divided into three categories: conventional controllers combined with state feedback (Szabat and Orlowska-Kowalska, 2007), based on observers (Chen et al., 2015; Hu et al., 2017), intelligent algorithms (Derugo, 2023; Jiang et al., 2023; Kabziński, 2018). In Szabat and Orlowska-Kowalska (2007), two different state feedbacks from the coupling shaft side and the load side were proposed separately, enabling flexible configuration of damping coefficients and resonance frequencies to enhance the system’s dynamic performance. Hu et al. (2017) constructed a system with dual Luenberger observers, where the difference between the observed shaft torque and load torque was compensated into the electromagnetic torque. This compensation aims to balance the shaft torque and load torque, thereby eliminating limit cycle oscillations. Basing on observers have a broad range of applicability and demonstrate significant resonance suppression effects, though the performance were limited by the observers' bandwidth and accuracy (Chen et al., 2015). The method based on intelligent control algorithms, included neural networks, adaptive control, and fuzzy control. In (Jiang et al., 2023), a fully convolutional neural network based on time-frequency analysis was proposed to eliminate random, harmonic, and spike noise in Magnetic Resonance Sounding data.Kabziński (2018) presented a nonlinear adaptive controller based on the adaptive backstepping method. By using command filtering for correction, the method ensures reference tracking, eliminates torsional oscillations, and compensates for the effects of nonlinear loads. In the work by Derugo (2023), transfer learning in fuzzy control for a dual-mass drive system with state variable feedback was used to address resonance issues using a new fuzzy controller tuning scheme. However, a common problem with these methods is that, although they can achieve high-precision control, they require significant computational resources.

Unfortunately, these active suppression methods are constrained by factors such as the complexity of parameter tuning and algorithm intricacies (Tang et al., 2021), making them difficult to meet the demands for resonance suppression. Therefore, the involvement of passive suppression methods may be necessary to address this issue.

Passive suppression methods achieve resonance suppression without altering the system’s control structure or parameters, relying solely on compensation or correction to reduce resonance. A common approach is to introduce a notch filter after the speed regulator to compensate the input signal of the current loop, thereby suppressing mechanical resonance. Conventional notch filters are effective in suppressing high-frequency resonance but are less effective at low frequencies, where they only reduce amplitude gain within a narrow bandwidth. A bi-quad notch filter can mitigate the impact of flexible coupling, aligning the motor and load to simulate an ideal rigid coupling system (Chen et al., 2021). Therefore, we introduce the bi-quad notch filter for resonance suppression. However, the bi-quad notch filter is highly responsive to system parameters, including load inertia and spring constants (Yao et al., 2024), and precise parameter settings cause oscillations on the load side. To suppress these oscillations, we introduce a velocity difference feedback term with an adaptive factor and use pole-zero placement methods to improve system response through damping ratios. Thus, our proposed solution combines bi-quad notch filters with state feedback, presenting a composite approach that integrates both active and passive suppression to address the issue of resonance suppression.

From the above analysis, it is clear that the state feedback method, bi-quad notch filter, and the adaptive factor we proposed all rely on the precise identification of mechanical parameters. Therefore, identifying the mechanical parameters of the dual-inertia servo system is essential for suppressing resonance.

Currently, there are primarily four approaches for identifying the parameters of a dual-inertia servo system: recursive least squares (RLS) (Lian et al., 2023), extended Kalman filter (EKF) (Yang et al., 2022b), adaptive observer (Shao et al., 2021; Yang et al., 2022a), and sliding mode observer (SMO) (Jishnu et al., 2024; Yang et al., 2021). Lian et al. (2023) presented the RLS algorithm which was employed to simultaneously identify the Voltage Source Inverter nonlinearity and the compensation terms for stator resistance and permanent magnet flux. However, this method has low identification accuracy and is sensitive to noise. Yang et al. (2022b) proposed a two-degree-of-freedom control strategy combining EKF and adaptive linear active disturbance rejection control (LADRC), which was used to filter out the measurement noise and generate external disturbance estimation in time, so as to reduce the observation burden of adaptive LADRC. However, EKF involves complex matrix operations, and designing the covariance matrix presents challenges. In the work by Yang et al. (2022a), an Adaline neural network-based estimator (ANN) is developed to acquire the disturbance torque, but this method is computationally intensive. Shao et al. (2021) proposed a novel adaptive observer technique for estimating the state and disturbance of uncertain nonlinear systems; however, this method does not complete the simultaneous identification of multiple mechanical parameters. Yang et al. (2021) proposed a parallel identification structure with interconnected gains that can simultaneously identify three mechanical parameters, but the convergence speed and estimation accuracy cannot be optimized simultaneously. Therefore, it is necessary to design a simultaneous mechanical parameter identification method that satisfies both speed and accuracy.

Based on the above analysis, we propose a novel load-side resonance suppression scheme (LRSS) that combines a bi-quad notch filter with state feedback, along with two decoupled sliding-mode observers (DSMOs) to identify load torque and load inertia. This approach provides precise parameter settings for the bi-quad notch filter and the adaptive feedback term on the load side. Compared to existing research, our main contributions are as follows:

Building upon the active feedback approach proposed by Szabat and Orlowska-Kowalska (2007), we developed an adaptive speed difference feedback mechanism for the load side. Through systematic pole placement design, this approach enables tunable damping characteristics at the load side, effectively addressing oscillation problems while significantly enhancing resonance suppression performance.

Inspired by observer in the works by Keshavan et al. (2024), Shao et al. (2021), Yang et al. (2021), and Yang et al. (2022a), we designed the DSMO that can simultaneously and accurately estimate both load torque and load inertia. The identified mechanical parameters are utilized for system tuning and compensation, thereby improving the dynamic response and load disturbance rejection capabilities of the system. Furthermore, decoupled terms are incorporated into the identification components of DSMOs to eliminate the coupling effects between the identified parameter values and motor speed errors, which effectively mitigates parameter chattering phenomena.

Drawing inspiration from the interconnection gain concept proposed by Yang et al. (2021), we developed an adaptive gain factor to regulate the convergence rate of parameter identification. This design incorporates an enhanced sliding-mode reaching law comprising two key components: a convergence acceleration factor and a chattering suppression factor. The synergistic combination of these elements effectively eliminates undesirable chattering phenomena while simultaneously boosting identification speed, thereby achieving an optimal trade-off between convergence performance and system stability.

The modeling of the PMSM servo system

The dual-inertia servo system consists of the motor side, the load side, and the connecting shaft. Its dynamic equations are as follows (Szabat and Orlowska-Kowalska, 2007)

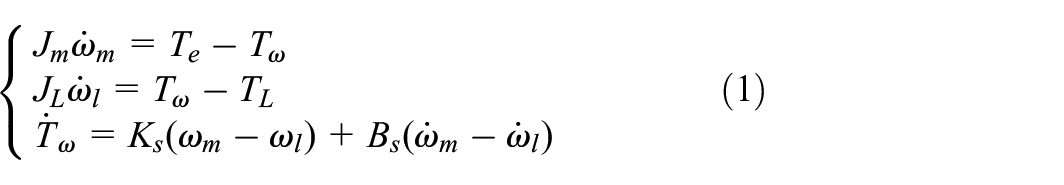

{\begin{matrix} J_{m} {\overset{\cdot}{ω}}_{m} = T_{e} - T_{ω} \\ J_{L} {\overset{\cdot}{ω}}_{l} = T_{ω} - T_{L} \\ {\overset{\cdot}{T}}_{ω} = K_{s} (ω_{m} - ω_{l}) + B_{s} ({\overset{\cdot}{ω}}_{m} - {\overset{\cdot}{ω}}_{l}) \end{matrix}

(1)

where $T_{e}$ , $T_{ω}$ , $ω_{m}$ , $ω_{l}$ , $J_{m}$ , $J_{L}$ , $K_{s}$ , $T_{L}$ , and $B_{s}$ represent the electromagnetic torque, the shaft torque, the motor speed, the load speed, the motor inertia, the load inertia, the stiffness coefficient, the load torque, and the shaft damping coefficient, respectively; ${\overset{\cdot}{T}}_{ω}$ , ${\overset{\cdot}{ω}}_{m}$ , and ${\overset{\cdot}{ω}}_{l}$ represent the derivative of shaft torque, the derivative of motor speed and the derivative of load speed, respectively.

Therefore, the transfer function from the electromagnetic torque to the motor speed is as follows

U (s) = \frac{ω_{m}}{T_{e}} = \frac{1}{(J_{m} + J_{L}) s} \cdot \frac{J_{L} s^{2} + B_{s} s + K_{s}}{J_{P} s^{2} + B_{s} s + K_{s}}

(2)

where $J_{p} = J_{m} J_{L} / (J_{m} + J_{L})$ .

The design of the scheme

To eliminate the impact of the flexible component on the system, a bi-quad notch filter is added to the control loop. The bi-quad notch filter is configured as follows

U_{BQ} (s) = \frac{J_{p} s^{2} + B_{s} s + K_{s}}{J_{L} s^{2} + B_{s} s + K_{s}}

(3)

The precisely designed notch filter eliminates the system’s inherent resonance. The transfer function $U_{m} (s)$ from the electromagnetic torque to the motor speed and the transfer function $U_{L} (s)$ from the electromagnetic torque to the load speed are as follows

U_{m} (s) = \frac{ω_{m}}{T_{e}} = \frac{s}{(J_{m} + J_{L}) s^{2} + K_{p} s + K_{i}}

(4)

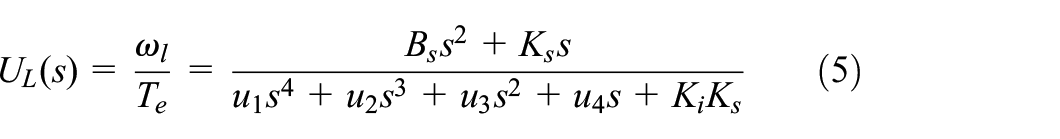

U_{L} (s) = \frac{ω_{l}}{T_{e}} = \frac{B_{s} s^{2} + K_{s} s}{u_{1} s^{4} + u_{2} s^{3} + u_{3} s^{2} + u_{4} s + K_{i} K_{s}}

(5)

where $u_{1} = (J_{m} + J_{L}) J_{L}$ , $u_{2} = (J_{m} + J_{L}) B_{s} + K_{p} J_{L}$ , $u_{3} = (J_{m} + J_{L}) K_{s} + K_{p} B_{s} + K_{i} J_{L}$ , $u_{4} = K_{p} K_{s} + K_{i} B_{s}$ .

However, the precise setting of the notch filter parameters can cause a shift in the resonance frequency and exacerbate the resonance amplitude on the load side (Yao et al., 2024). Using the Pade approximation method (Luo et al., 2015) for model order reduction results in poor fitting for high-frequency system and cannot guarantee the system stability.

To address this, a compensation structure is proposed, which suppresses the oscillations on the load side by constructing a feedback term based on the speed error. Since the current loop has a very rapid transient response, it can be treated as a proportional element. The motor speed loop adopts a PI (proportional-integral) control strategy. The control block diagram is shown in Figure 1.

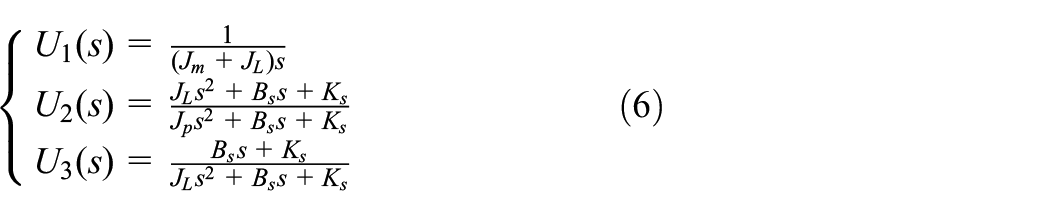

{\begin{matrix} U_{1} (s) = \frac{1}{(J_{m} + J_{L}) s} \\ U_{2} (s) = \frac{J_{L} s^{2} + B_{s} s + K_{s}}{J_{p} s^{2} + B_{s} s + K_{s}} \\ U_{3} (s) = \frac{B_{s} s + K_{s}}{J_{L} s^{2} + B_{s} s + K_{s}} \end{matrix}

(6)

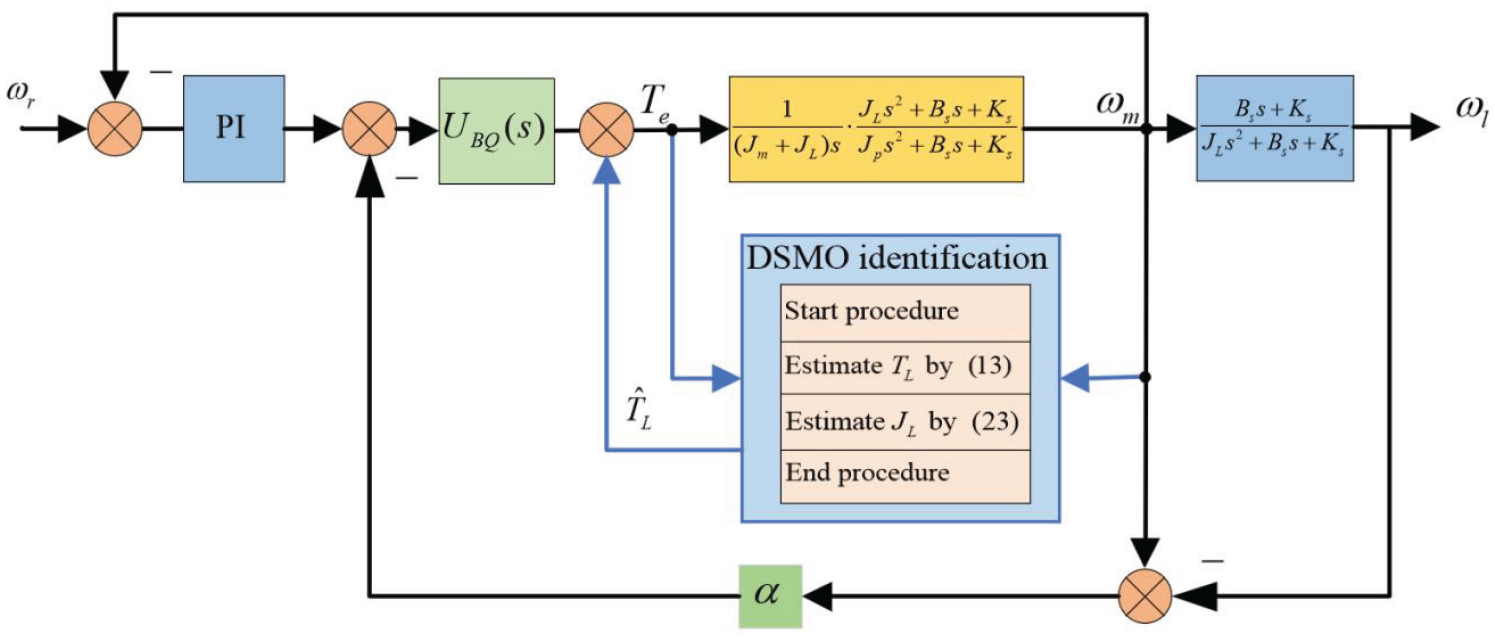

Figure 1.

Control block diagram.

In addition, the added bi-quad notch filter is used to eliminate the system’s inherent resonance, while an adaptive feedback term is constructed to suppress the resonance on the load side. The transfer function from the electromagnetic torque to the load speed is rewritten as follows

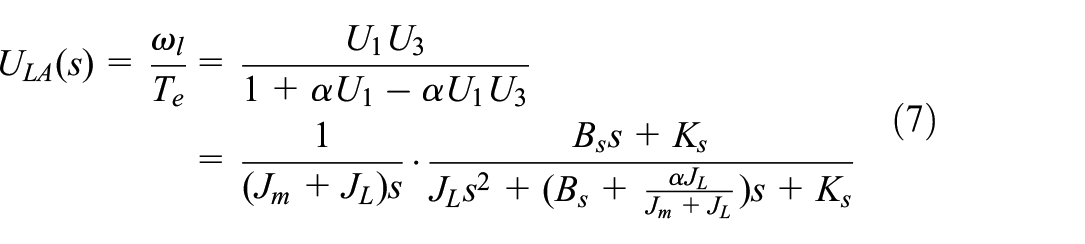

\begin{array}{l} U_{L A} (s) = \frac{ω_{l}}{T_{e}} & = \frac{U_{1} U_{3}}{1 + α U_{1} - α U_{1} U_{3}} \\ = \frac{1}{(J_{m} + J_{L}) s} \cdot \frac{B_{s} s + K_{s}}{J_{L} s^{2} + (B_{s} + \frac{α J_{L}}{J_{m} + J_{L}}) s + K_{s}} \end{array}

(7)

To improve the system’s response, the flexible component in equation (7) is analogized and derived using a second-order resonance damping equation

U_{g} (s) = s^{2} + 2 ξ ω_{n} s + {ω_{n}}^{2}

(8)

where ξ is the damping coefficient and $ω_{n}$ is the natural angular frequency. Therefore, the configurable adaptive factor is set as follows

α = (2 ξ ω_{n} - \frac{B_{s}}{J_{L}}) (J_{m} + J_{L})

(9)

By configuring the damping coefficient, the system’s dynamic response is improved. When ξ increases, the overshoot decreases. In addition, as $ω_{n}$ increases, the response speed of the speed loop is accelerated.

Therefore, equation (7) can be rewritten as follows

\begin{array}{l} U_{L A} (s) & = \frac{U_{1} U_{3}}{1 + α U_{1} - α U_{1} U_{3}} \\ = \frac{B_{s} s + K_{s}}{(J_{m} + J_{L}) s^{3} + 2 (J_{m} + J_{L}) ξ ω_{n} s^{2} + (J_{m} + J_{L}) ω_{n}^{2} s} \end{array}

(10)

Remark 1: From equations (5) and (7), it can be observed that the additional adaptive feedback term α effectively reduces the system’s order, thereby avoiding bandwidth limitations and phase lag effects. The reduced-order system decouples the rigid and flexible components, reducing the number of poles and allowing flexible adjustment of the damping ratio and the natural angular frequency. By adjusting the damping coefficient, the closed-loop poles of the system can be placed at desired location. The damping coefficient directly impacts the value of the adaptive term α, and the effects of different α values on the system’s Bode plot are shown in Figure 2.

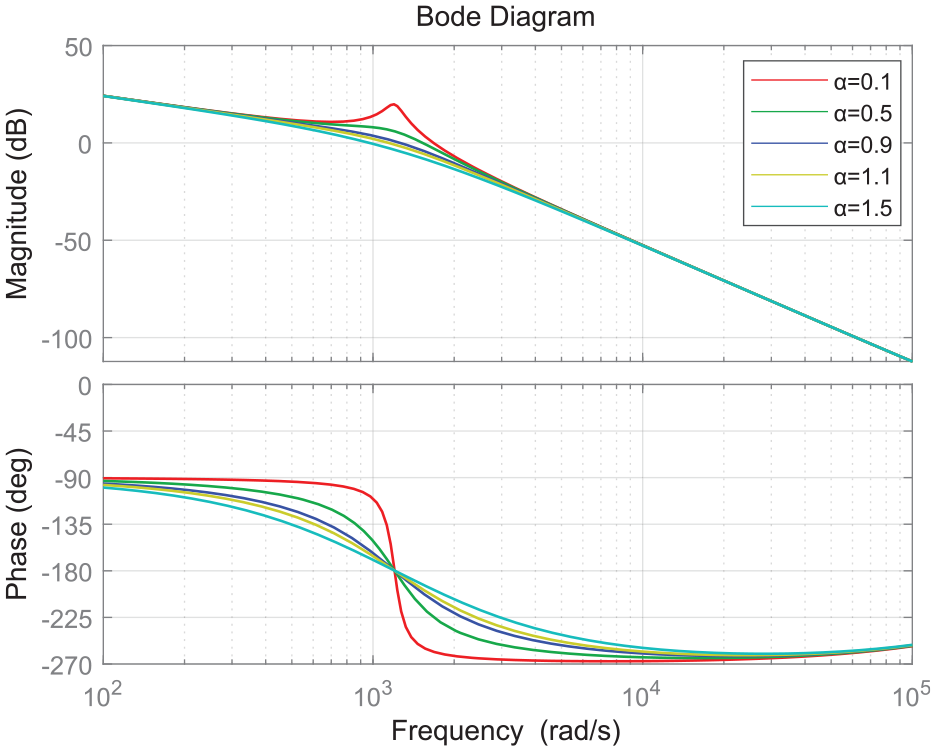

Figure 2.

Bode diagram of a system.

The design of the DSMO

Since the resonance suppression scheme relies on knowledge of mechanical parameters, and motor inertia and stiffness coefficients are inherent characteristics of the motor, we focus on the identification of load inertia and load torque. Under actual operating conditions, the addition of a load affects the motor’s operating state, significantly impacting the control performance of the servo system. By compensating for the identified load torque, the system’s disturbance rejection capability can be enhanced. To more accurately identify the mechanical parameters on the load side and provide precise load inertia for the Bi-quad notch filter, thereby improving the system’s robustness in resonance suppression, we propose the DSMO that can achieve accurate and parallel identification of both load inertia and load torque.

Rewriting equation (1), the dynamic equation of the dual-inertia system is

\overset{\cdot}{x} (t) = Ax (t) + Bu (t)

(11)

where $x (t) = {[ω_{m}, ω_{l}, T_{ω}, {\overset{\cdot}{ω}}_{m}, {\overset{\cdot}{ω}}_{l}]}^{T}$ , $u (t) = {[T_{e}, T_{L}]}^{T}$ . The system matrix is

\begin{matrix} A = [\begin{matrix} 0 & 0 & - 1 / J_{m} & 0 & 0 \\ 0 & 0 & 1 / J_{L} & 0 & 0 \\ K_{s} & - K_{s} & 0 & B_{s} & - B_{s} \\ K_{s} / J_{L} & - K_{s} / J_{L} & 0 & B_{s} / J_{L} & - B_{s} / J_{L} \\ - K_{s} / J_{m} & K_{s} / J_{m} & 0 & - B_{s} / J_{m} & B_{s} / J_{m} \end{matrix}], \\ B = [\begin{matrix} 1 / J_{m} & 0 \\ 0 & - 1 / J_{L} \\ 0 & 0 \\ 0 & 0 \\ 0 & 0 \end{matrix}] \end{matrix}

Design of observing $T_{L}$

By rearranging equation (11), the state equation for identifying the load torque is obtained

Σ_{1} : {\overset{\cdot}{x}}_{1} (t) = A_{1} x_{1} (t) + B_{1} u_{1} (t) + H_{1}

(12)

where $u_{1} (t) = {[T_{e}, J_{L} {\overset{\cdot}{ω}}_{l}]}^{T}$ , $A_{1} = [\begin{matrix} 0 & - 1 / J_{m} \\ 0 & 0 \end{matrix}]$ , $B_{1} = [\begin{matrix} 1 / J_{m} & - 1 / J_{m} \\ 0 & 0 \end{matrix}]$ , $x_{1} (t) = {[ω_{m 1}, T_{L}]}^{T}$ , $H_{1} = [\begin{matrix} 0 \\ h_{1} \end{matrix}]$ .

Define $h_{1}$ as the derivative of the load torque and $ω_{ma} (a = 1, 2)$ as the motor speed. Since the load torque does not change significantly over a very short period of time, it is assumed that $h_{1} = 0$ .

According to equation (12), the DSMO for observing $T_{L}$ is designed as

Θ_{1} : {\overset{\cdot}{\hat{x}}}_{1} (t) = {\hat{A}}_{1} {\hat{x}}_{1} (t) + {\hat{B}}_{1} {\hat{u}}_{1} (t) + K_{1} s_{m 1} + G_{1} {\overset{\cdot}{e}}_{m 1}

(13)

where ${\hat{x}}_{1} (t) = {[{\hat{ω}}_{m 1}, {\hat{T}}_{L}]}^{T}$ , ${\hat{u}}_{1} (t) = {[T_{e}, {\hat{J}}_{L} {\overset{\cdot}{ω}}_{l}]}^{T}$ , ${\hat{A}}_{1} = [\begin{matrix} 0 & - 1 / J_{m} \\ 0 & 0 \end{matrix}]$ , ${\hat{B}}_{1} = [\begin{matrix} 1 / J_{m} & - 1 / J_{m} \\ 0 & 0 \end{matrix}]$ , $K_{1} = [\begin{matrix} k_{1} \\ g_{1} \end{matrix}]$ , $G_{1} = [\begin{matrix} 0 \\ - g_{1} / k_{1} \end{matrix}]$ . ${\overset{\cdot}{\hat{ω}}}_{m 1}$ , ${\hat{T}}_{L}$ , and ${\hat{J}}_{L}$ are, respectively, the estimated values of ${\overset{\cdot}{ω}}_{m 1}$ , $T_{L}$ , and $J_{L}$ , $k_{1}$ is the sliding-mode switching gain, $g_{1}$ is the gain factor of DSMO $Θ_{1}$ , $Q_{1} = e_{m 1} = {\hat{ω}}_{m 1} - ω_{m 1}$ , which is the sliding surface, $s_{m 1} = sign ({\hat{ω}}_{m 1} - ω_{m 1})$ .

Here, the DSMO we designed, compared to the conventional SMO, incorporates a decoupled term $G_{1} {\overset{\cdot}{e}}_{m 1}$ in the identification components, which is used to eliminate the coupling between the identified parameter values and the motor speed error, further eliminating the chattering in the identification values.

To facilitate the derivation and analysis of the following equations, we define ${\hat{T}}_{L}$ and $e_{J} = {\hat{J}}_{L} - J_{L}$ .

Theorem 1: It can be seen that in the DSMO for identifying load torque, the equivalent derivative of the load torque is defined as $F_{1}$ , when $F_{1}$ is set as in equation (14), the error $e_{T}$ will exponentially converge to zero

F_{1} = - (q_{1} / J_{m}) k_{1} s_{m 1}

(14)

where $q_{1} > 0$ is the reaching law of the DSMO $Θ_{1}$ , set $g_{1} = - (q_{1} / J_{m}) k_{1}$ .

Proof: Subtracting equation (12) from equation (13) yields the error equation for the DSMO $Θ_{1}$

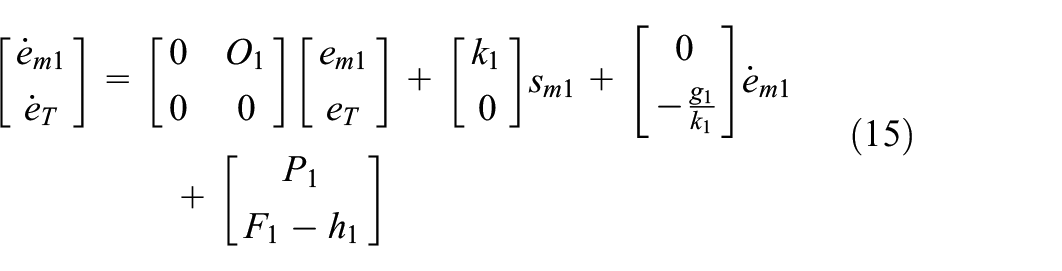

\begin{matrix} [\begin{matrix} {\overset{\cdot}{e}}_{m 1} \\ {\overset{\cdot}{e}}_{T} \end{matrix}] = [\begin{matrix} 0 & O_{1} \\ 0 & 0 \end{matrix}] [\begin{matrix} e_{m 1} \\ e_{T} \end{matrix}] + [\begin{matrix} k_{1} \\ 0 \end{matrix}] s_{m 1} + [\begin{matrix} 0 \\ - \frac{g_{1}}{k_{1}} \end{matrix}] {\overset{\cdot}{e}}_{m 1} \\ + [\begin{matrix} P_{1} \\ F_{1} - h_{1} \end{matrix}] \end{matrix}

(15)

where

{\begin{matrix} O_{1} = - 1 / J_{m} \\ P_{1} = - {\overset{\cdot}{ω}}_{l} / J_{m} \end{matrix}

(16)

Substitute $F_{1}$ and $h_{1}$ into equation (15) and rewrite it as

[\begin{matrix} {\overset{\cdot}{e}}_{m 1} \\ {\overset{\cdot}{e}}_{T} \end{matrix}] = [\begin{matrix} 0 & O_{1} \\ 0 & 0 \end{matrix}] [\begin{matrix} e_{m 1} \\ e_{T} \end{matrix}] + [\begin{matrix} k_{1} \\ g_{1} \end{matrix}] s_{m 1} + [\begin{matrix} 0 \\ - \frac{g_{1}}{k_{1}} \end{matrix}] {\overset{\cdot}{e}}_{m 1} + [\begin{matrix} P_{1} \\ 0 \end{matrix}]

(17)

Rearranging equation (17) gives

{\overset{\cdot}{e}}_{T} + \frac{g_{1} O_{1}}{k_{1}} e_{T} + \frac{g_{1} P_{1}}{k_{1}} = 0

(18)

When $g_{1} P_{1}$ is controlled near zero, solving the differential equation in equation (18) gives

e_{T} = C_{1} e^{- \int (g_{1} O_{1} / k_{1}) dt}

(19)

In the equation: $C_{1}$ is a constant. Furthermore, the following equality holds: $g_{1} O_{1} > 0$ , when $1 / J_{m} \neq 0$ . The proof of Theorem 1 is complete.

Remark 2: From equation (19), it can be seen that due to the presence of the decoupled term, the identification error equation for the load torque does not contain the derivative term of the motor speed error. This eliminates the coupling between $e_{T}$ and ${\overset{\cdot}{e}}_{m 1}$ , allowing $e_{T}$ to enter an exponential convergence state directly, while also eliminating chattering in the identified value of the load torque.

Remark 3: In the proof process, it is crucial to control the values of $q_{1}$ and $g_{1} P_{1} \approx 0$ . Specifically, to ensure that $g_{1} P_{1}$ is sufficiently small, it can be achieved by selecting an appropriate value for $q_{1}$ . From equation (19), it is observed that the value of $q_{1}$ can affect the convergence speed of the mechanical parameter identification. Further analysis shows that the smaller the value of $q_{1}$ , the slower the convergence speed of the identification result, but the higher the identification accuracy.

Assumption 1: The variables $O_{1}$ , $P_{1}$ , and $e_{T}$ are bounded and defined as ${\bar{O}}_{1} = max | O_{1} |$ , ${\bar{P}}_{1} = max | P_{1} |$ , and ${\bar{e}}_{T} = max | e_{T} |$ .

Theorem 2: When the sliding-mode switching gain of the first DSMO $k_{1}$ is designed as $k_{1} < - ({\bar{O}}_{1} {\bar{e}}_{T} + {\bar{P}}_{1})$ , the speed error $e_{m 1}$ and its derivative ${\overset{\cdot}{e}}_{m 1}$ will converge to zero.

Proof: Construct the Lyapunov function as ${\bar{V}}_{1} = 0.5 {e_{m 1}}^{T} e_{m 1}$ , and find its derivative with respect to time t as follows

\begin{matrix} \overset{\cdot}{\bar{V_{1}}} & = e_{m 1}^{T} {\overset{\cdot}{e}}_{m 1} \\ = e_{m 1}^{T} (O_{1} e_{T} + P_{1} + k_{1} S_{m 1}) \\ \leq | e_{m 1}^{T} | \cdot [{\bar{O}}_{1} {\bar{e}}_{T} + {\bar{P}}_{1} + k_{1}] \end{matrix}

(20)

When $k_{1} < - ({\bar{O}}_{1} {\bar{e}}_{T} + {\bar{P}}_{1})$ , it can be concluded that

{\overset{\cdot}{\bar{V}}}_{1} = {e_{m 1}}^{T} {\overset{\cdot}{e}}_{m 1} < 0, (e_{m 1} \neq 0)

(21)

Therefore, the DSMO $Θ_{1}$ satisfies the reachability condition. When the DSMO $Θ_{1}$ reaches the sliding surface, the speed error $e_{m 1}$ and its derivative ${\overset{\cdot}{e}}_{m 1}$ will converge to zero.

This concludes the proof of Theorem 2.

Design of observing $J_{L}$

By rearranging equation (11), the state equation for identifying the load inertia is obtained

Σ_{2} : {\overset{\cdot}{x}}_{2} (t) = A_{2} x_{2} (t) + B_{2} u_{2} (t) + H_{2}

(22)

where $x_{2} (t) = {[ω_{m 2}, J_{L}]}^{T}$ , $u_{2} (t) = {[T_{e}, T_{L}]}^{T}$ , $A_{2} = [\begin{matrix} 0 & - {\overset{\cdot}{ω}}_{l} / J_{m} \\ 0 & 0 \end{matrix}]$ , $B_{2} = [\begin{matrix} 1 / J_{m} & - 1 / J_{m} \\ 0 & 0 \end{matrix}]$ , $H_{2} = [\begin{matrix} 0 \\ h_{2} \end{matrix}]$ .

Define $h_{2}$ as the derivative of the load inertia. Since the change in mechanical parameters is much smaller than the driving frequency of the PMSM, it is assumed that $h_{2} = 0$ .

According to equation (22), the DSMO for observing $J_{L}$ is

Θ_{2} : {\overset{\cdot}{\hat{x}}}_{2} (t) = {\hat{A}}_{2} {\hat{x}}_{2} (t) + {\hat{B}}_{2} {\hat{u}}_{2} (t) + K_{2} s_{m 2} + G_{2} {\overset{\cdot}{e}}_{m 2}

(23)

where ${\hat{x}}_{2} (t) = {[{\hat{ω}}_{m 2}, {\hat{J}}_{L}]}^{T}$ , ${\hat{u}}_{2} (t) = {[T_{e}, {\hat{T}}_{L}]}^{T}$ , ${\hat{A}}_{2} = [\begin{matrix} 0 & - {\overset{\cdot}{\hat{ω}}}_{l} / J_{m} \\ 0 & 0 \end{matrix}]$ , ${\hat{B}}_{2} = [\begin{matrix} 1 / J_{m} & - 1 / J_{m} \\ 0 & 0 \end{matrix}]$ , $K_{2} = [\begin{matrix} k_{2} \\ g_{2} \end{matrix}]$ , $G_{2} = [\begin{matrix} 0 \\ - g_{2} / k_{2} \end{matrix}]$ , $k_{2}$ is the sliding-mode switching gain, $Q_{2} = e_{m 2} = {\hat{ω}}_{m 2} - ω_{m 2}$ is the sliding surface, $g_{2}$ is the gain factor of DSMO $Θ_{2}$ , $s_{m 2} = sign ({\hat{ω}}_{m 2} - ω_{m 2})$ .

Theorem 3: It can be seen that in the DSMO for identifying load inertia, the equivalent derivative of the load inertia is defined as $F_{2}$ . When $F_{2}$ is set as in equation (24), the error $e_{J}$ will exponentially converge to zero

F_{2} = - (q_{2} {\overset{\cdot}{ω}}_{l} / J_{m}) k_{2} s_{m 2}

(24)

where $q_{2} > 0$ is the reaching law of the DSMO $Θ_{2}$ , set $g_{2} = - (q_{2} {\overset{\cdot}{ω}}_{l} / J_{m}) k_{2}$ .

Proof: Subtracting equation (22) from equation (23) yields the error equation for the DSMO

[\begin{matrix} {\overset{\cdot}{e}}_{m 2} \\ {\overset{\cdot}{e}}_{J} \end{matrix}] = [\begin{matrix} 0 & O_{2} \\ 0 & 0 \end{matrix}] [\begin{matrix} e_{m 2} \\ e_{J} \end{matrix}] + [\begin{matrix} k_{2} \\ 0 \end{matrix}] s_{m 2} + [\begin{matrix} 0 \\ - \frac{g_{2}}{k_{2}} \end{matrix}] {\overset{\cdot}{e}}_{m 2} + [\begin{matrix} P_{2} \\ F_{2} - h_{2} \end{matrix}]

(25)

where

{\begin{cases} O_{2} = - {\overset{\cdot}{ω}}_{l} / J_{m} \\ P_{2} = - e_{T} / J_{m} \end{cases}

(26)

Substitute $F_{2}$ and $h_{2}$ into the above equation

[\begin{matrix} {\overset{\cdot}{e}}_{m 2} \\ {\overset{\cdot}{e}}_{J} \end{matrix}] = [\begin{matrix} 0 & O_{2} \\ 0 & 0 \end{matrix}] [\begin{matrix} e_{m 2} \\ e_{J} \end{matrix}] + [\begin{matrix} k_{2} \\ g_{2} \end{matrix}] s_{m 2} + [\begin{matrix} 0 \\ - \frac{g_{2}}{k_{2}} \end{matrix}] {\overset{\cdot}{e}}_{m 2} + [\begin{matrix} P_{2} \\ 0 \end{matrix}]

(27)

Rearranging equation (27) gives

{\overset{\cdot}{e}}_{J} + \frac{g_{2} O_{2}}{k_{2}} e_{J} + \frac{g_{2} P_{2}}{k_{2}} = 0

(28)

When $g_{2} P_{2}$ is controlled near zero, solving the differential equation in equation (28) gives

e_{J} = C_{2} e^{- \int (g_{2} O_{2} / k_{2}) dt}

(29)

where $C_{2}$ is a constant. When ${\overset{\cdot}{ω}}_{l} / J_{m} \neq 0$ , the equation $g_{2} O_{2} > 0$ is valid. The proof of Theorem 3 is complete.

Assumption 2: The variables $O_{2}$ , $P_{2}$ , and $e_{J}$ are bounded and defined as ${\bar{O}}_{2} = max | O_{2} |$ , ${\bar{P}}_{2} = max | P_{2} |$ , and ${\bar{e}}_{J} = max | e_{J} |$ .

Theorem 4: When the sliding-mode switching gain of the DSMO $Θ_{2}$ , $k_{2}$ is designed as $k_{2} < - ({\bar{O}}_{2} {\bar{e}}_{J} + {\bar{P}}_{2})$ , the speed error $e_{m 2}$ and its derivative ${\overset{\cdot}{e}}_{m 2}$ will converge to zero.

The proof follows the same process as Theorem 2.

Improved reaching law

Given that the two gain factors of the DSMO are $g_{1} = - q_{1} / J_{m}$ and $g_{2} = - q_{2} {\overset{\cdot}{ω}}_{l} / J_{m}$ , where $q_{1}$ and $q_{2}$ represent the reaching laws of the two DSMOs, which influence the convergence speed of the mechanical parameter identification. Now, let $q_{1}$ and $q_{2}$ be designed as follows

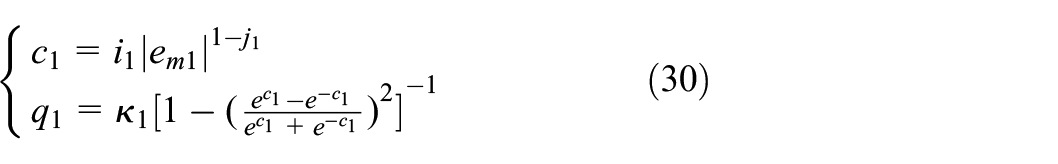

{\begin{matrix} c_{1} = i_{1} | e_{m 1} |^{1 - j_{1}} \\ q_{1} = κ_{1} {[1 - {(\frac{e^{c_{1}} - e^{- c_{1}}}{e^{c_{1}} + e^{- c_{1}}})}^{2}]}^{- 1} \end{matrix}

(30)

{\begin{matrix} c_{2} = i_{2} | e_{m 2} |^{1 - j_{2}} \\ q_{2} = κ_{2} {[1 - {(\frac{e^{c_{2}} - e^{- c_{2}}}{e^{c_{2}} + e^{- c_{2}}})}^{2}]}^{- 1} \end{matrix}

(31)

In the equation, $κ_{1}$ and $κ_{2}$ are the chattering suppression factors, satisfying $κ_{1} > 0$ and $κ_{2} > 0$ . Furthermore, $i_{1}$ and $i_{2}$ are the convergence factors, and $0 < j_{a} (a = 1, 2) < 1$ . It is easy to see that $q_{1} > κ_{1} > 0$ and $q_{2} > κ_{2} > 0$ .

Remark 4: During the load-side parameter identification process, the convergence speed is regulated by $q_{1}$ and $q_{2}$ . When the sliding surface $Q_{a} \neq 0 (a = 1, 2)$ is not reached, large reaching laws $q_{1}$ and $q_{2}$ are employed to accelerate convergence toward the sliding surface. Each reaching rate has an independent convergence factor $i_{a} (a = 1, 2)$ responsible for adjusting the convergence time of the mechanical parameters. As shown in Figure 3, as the convergence factor $i_{a} (a = 1, 2)$ increases, the convergence speed becomes faster.

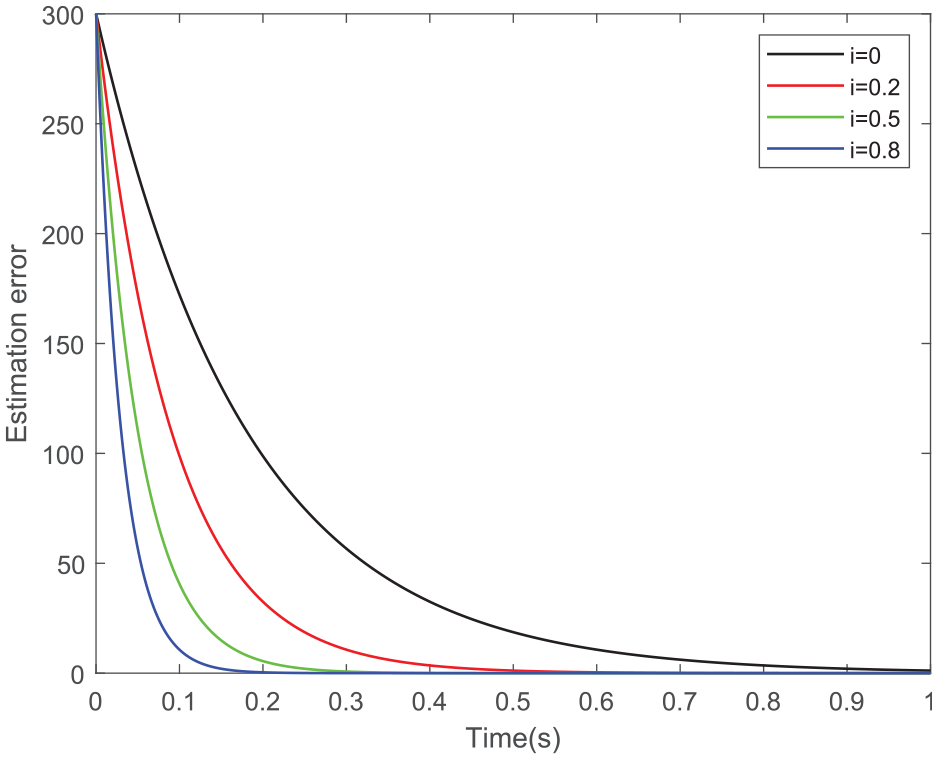

Figure 3.

The effect of different convergence factor.

Overall stability analysis

Rewriting equations (18) and (28) yields

\overset{\cdot}{ψ} (t) = C (t) \cdot ψ (t) + D (t)

(32)

In the equation, $ψ (t) = {[\begin{matrix} ψ_{1} (t) & ψ_{2} (t) \end{matrix}]}^{T} \in R^{2}$ , $ψ_{1} (t) = e_{T} (t)$ , $ψ_{2} (t) = e_{J} (t)$ , and

C (t) = [\begin{matrix} c_{11} & c_{12} \\ c_{21} & c_{22} \end{matrix}], D (t) = [\begin{matrix} d_{1} \\ d_{2} \end{matrix}]

(33)

where $c_{11} = - q_{1} / {J_{m}}^{2}$ , $c_{12} = - q_{1} {\overset{\cdot}{ω}}_{l} / {J_{m}}^{2}$ , $c_{21} = - q_{2} {\overset{\cdot}{ω}}_{l} / {J_{m}}^{2}$ , $c_{22} = - q_{2} {\overset{\cdot}{ω}}_{l}^{2} / {J_{m}}^{2}$ , $d_{1} = 0$ , $d_{2} = 0$ .

Inspired by literature Shen and Huang (2009), we can obtain the Hurwitz matrix $C (t)$ by selecting an appropriate $g_{i} (1, 2)$ , and there exists a symmetric positive definite matrix $Φ (t)$ that satisfies $C^{T} (t) Φ (t) + Φ (t) C (t) = - I_{2}$ , where $I_{2} = diag (1, 1) \in R^{2 \times 2}$ .

Assumption 3: There exists a positive number M that satisfies: $‖ D^{T} (t) Φ (t) ‖ \leq M$ .

Assumption 4: Since $Φ (t) = - \int_{0}^{\infty} e^{C^{T} (t) t} e^{C (t) t} dt$ is a solution of $C^{T} (t) Φ (t) + Φ (t) C (t) = - I_{2}$ , $\overset{\cdot}{Φ} (t)$ includes the gain factor $g_{i} (1, 2)$ . Therefore, there exists a positive number $ρ \in (0, 1)$ that satisfies $γ (t) = ρ I_{2} - \overset{\cdot}{Φ} (t)$ , where $γ (t)$ is a positive definite matrix related to the gain factor.

Theorem 5: If Assumptions 3 and 4 hold, and it is known that the identified mechanical parameters and their related functions are continuous, differentiable, and bounded with respect to t, then the error $e_{T} (t)$ and $e_{J} (t)$ are uniformly ultimately bounded.

Proof: Choose a candidate Lyapunov function as $V (t) = ψ^{T} (t) Φ (t) ψ (t)$ , which satisfies

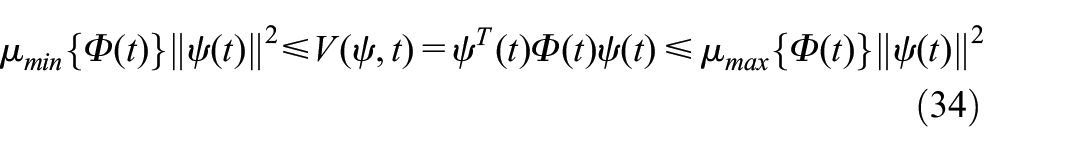

μ_{\min} {Φ (t)} ‖ ψ (t) ‖^{2} \leq V (ψ, t) = ψ^{T} (t) Φ (t) ψ (t) \leq μ_{\max} {Φ (t)} ‖ ψ (t) ‖^{2}

(34)

where $μ_{\min} {Φ (t)}$ and $μ_{\max} {Φ (t)}$ are the maximum and minimum values of $Φ (t)$ . Taking the derivative of $V (t)$ with respect to t gives

\begin{matrix} \overset{\cdot}{V} (ψ, t) = & ψ^{T} (t) (C^{T} (t) Φ (t) + \overset{\cdot}{Φ} (t) + Φ (t) C (t)) ψ (t) \\ + D^{T} (t) Φ (t) ψ (t) + ψ^{T} (t) Φ (t) D (t) \end{matrix}

(35)

Equation (35) can be rewritten as

\begin{matrix} \overset{\cdot}{V} (ψ, t) & = ψ^{T} (t) (ρ I_{2} - ψ (t) - I_{2}) ψ (t) \\ + D^{T} (t) Φ (t) ψ (t) + ψ^{T} (t) Φ (t) D (t) \\ \leq (ρ - 1) ‖ ψ (t) ‖^{2} + 2 M ‖ ψ (t) ‖ \\ \leq \frac{(ρ - 1)}{μ_{\min} {Φ (t)}} V (t) + \frac{2 M}{\sqrt{μ_{\max} {Φ (t)}}} \sqrt{V (t)} \end{matrix}

(36)

By rearranging equation (36), we get

\frac{d}{dt} \sqrt{V (ψ, t)} \leq \frac{(ρ - 1)}{2 μ_{\min} {Φ (t)}} \sqrt{V (ψ, t)} + \frac{M}{\sqrt{μ_{\max} {Φ (t)}}}

(37)

Therefore, we can obtain

\begin{matrix} \sqrt{V (ψ, t)} & \leq (\sqrt{V (0)} + \frac{2 M μ_{m i n} {Φ (t)}}{(ρ - 1) \sqrt{μ_{m a x} {Φ (t)}}}) e^{\frac{(ρ - 1)}{2 μ_{m i n} {Φ (t)}} t} \\ - \frac{2 M μ_{m i n} {Φ (t)}}{(ρ - 1) \sqrt{μ_{m a x} {Φ (t)}}} \end{matrix}

(38)

Finally, we obtain

\begin{matrix} ∥ ψ (t) ∥ \leq & (\sqrt{\frac{V (0)}{μ_{\min} {Φ (t)}}} + \frac{2 M \sqrt{μ_{\min} {Φ (t)}}}{(ρ - 1) \sqrt{μ_{\max} {Φ (t)}}}) e^{\frac{(ρ - 1)}{2 μ_{\min} {Φ (t)}} t} \\ - \frac{2 M \sqrt{μ_{\min} {Φ (t)}}}{(ρ - 1) \sqrt{μ_{\max} {Φ (t)}}} \end{matrix}

(39)

The conclusion is that the errors $e_{T} (t)$ and $e_{J} (t)$ are uniformly ultimately bounded. This concludes the proof of Theorem 5.

Experiment

Experiment of parameter identification

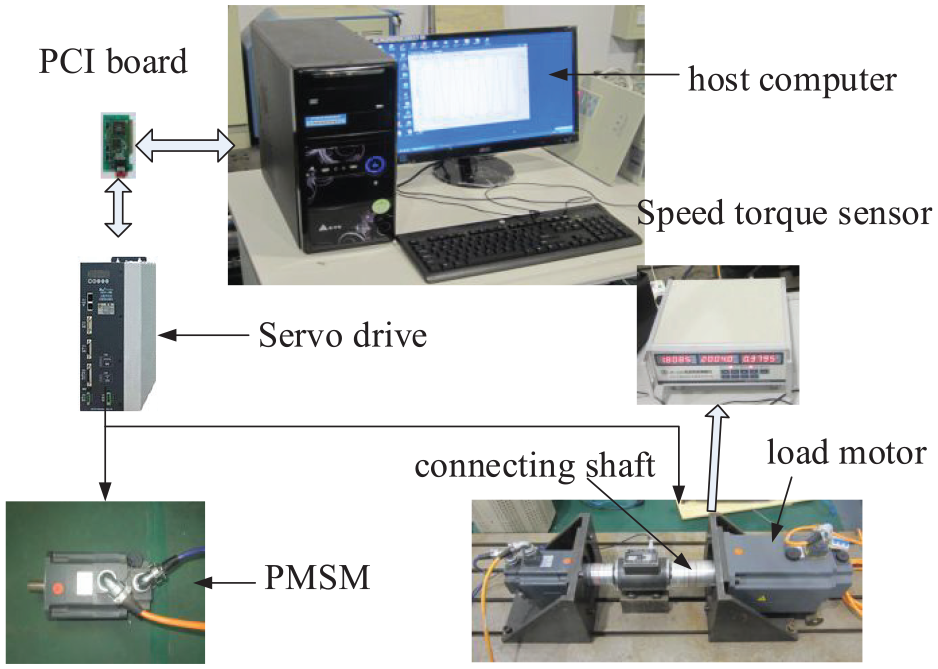

The experimental platform, depicted in Figure 4, primarily includes three components: A servo driver, a dual-inertia system (comprising the servo motor, flexible coupling shaft, load motor), and a host computer. The servo driver uses a TMS320F2812 chip to achieve high-precision control, and the motor speed is obtained from a 2500-line incremental optical encoder. The host computer using a servo tuning software and a PCI board sends the velocity command, the estimated load torque, and the estimated load inertia to the servo drive, meanwhile, it also receives the motor torque and the speed feedback from the servo drive. It is noted that the DSMO and the LRSS are both implemented every 1 ms in the software. The key parameters of the platform are listed here. Parameters of the servo motor: the number of pole pairs p = 3, the motor inertia $J_{m} = 0.00087 kg \cdot m^{2}$ , the torque coefficient is $1.09 Nm / A$ , the rated torque is $6 N \cdot m$ . Parameters of the coupling shaft and the load motor: the load inertia $J_{L} = 0.02088 kg \cdot m^{2}$ , the stiffness coefficient $K_{s} = 650 N m / rad$ , the rated torque is $19.1 N \cdot m$ .

Figure 4.

Experiment test platform.

To verify the effectiveness, the DSMO is compared with the conventional SMO in the work by Yang et al. (2021), the EKF in the work by Yang et al. (2022b), and the ANN in the work by Yang et al. (2022a) under different disturbances. The velocity command is set to $ω^{*} (t) = 500 sign (\cos (10 π T_{s} t + 0.5 π))$ . The relevant parameters of the DSMO are set as follows: $k_{1} = 5000$ , $k_{2} = 9000$ , $κ_{1} = 8 \times 10^{- 4}$ , $κ_{2} = 2 \times 10^{- 4}$ , $i_{1} = 0.15$ , $i_{2} = 0.2$ , $j_{1} = j_{2} = 0.5$ .

As demonstrated in Figure 5(a), the EKF-based identification results display significant oscillatory behavior, particularly evident in the load torque estimation. Figure 5(b) reveals that while the conventional SMO method achieves convergence, it suffers from two key limitations: relatively slow convergence speed, and noticeable chattering in the identified mechanical parameters caused by switching gain effects. Furthermore, the SMO demonstrates inadequate identification performance during load transients, exhibiting substantial deviations between estimated and actual parameter values. Figure 5(c) shows that while this method demonstrates superior recognition accuracy, its convergence rate is constrained by the substantial data requirements for model training. However, in Figure 5(d), our proposed DSMO demonstrates the best identification performance, converging to the identified values at the fastest speed and exhibiting superior anti-interference performance.

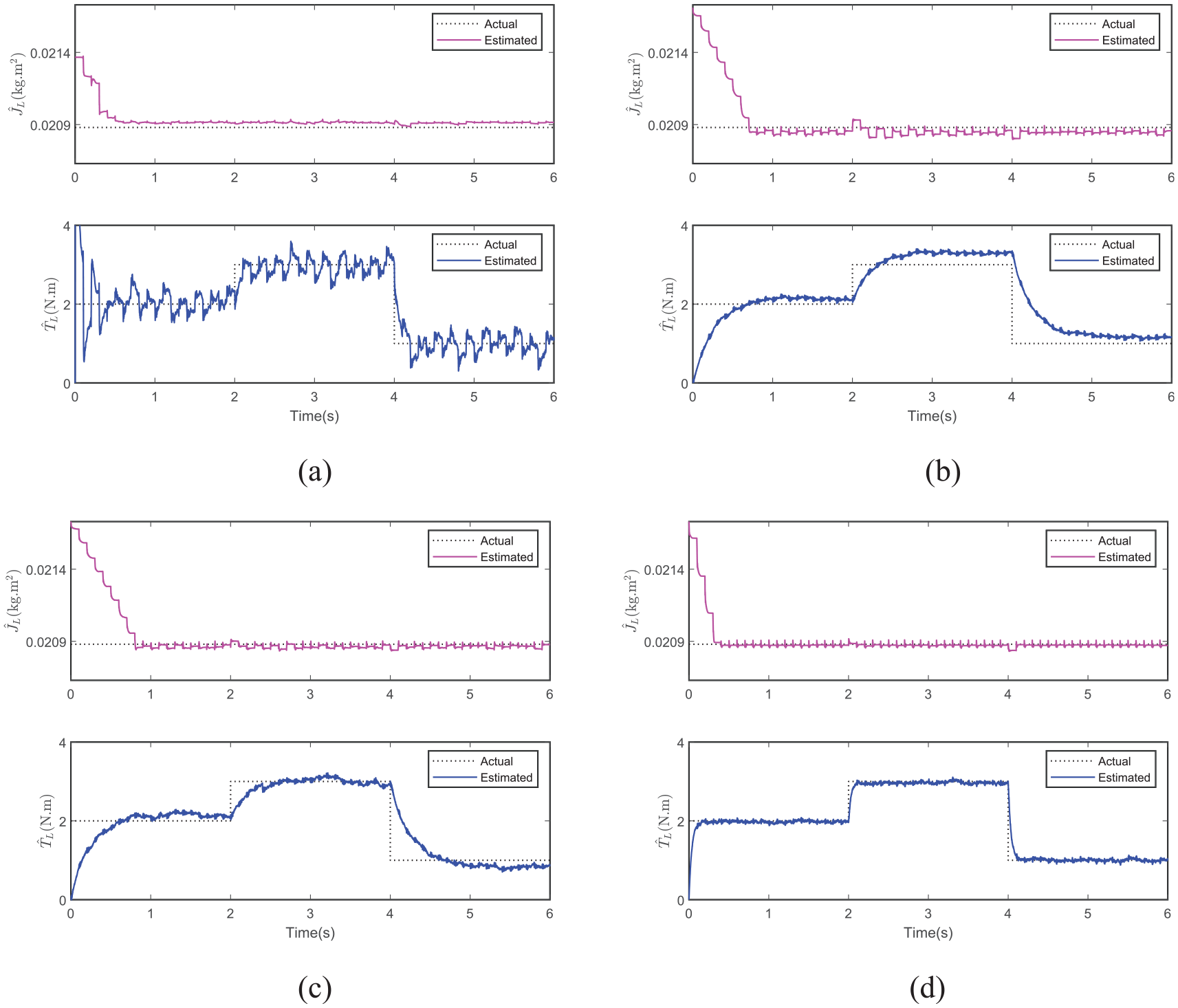

Figure 5.

Experimental results under changed load torque. (a) The EKF, (b) the SMO, (c) the ANN, (d) our method.

As demonstrated by the quantitative comparisons illustrated in Table 1, the initial convergence times (ICTs) of the load inertia and the load torque in the proposed DSMO can be limited to about 0.3 s, while the ICTs of the estimated parameters of the other two methods are above 0.5 s. Figure 6 provides a clear visual comparison of the root mean square errors (RMSEs) for $J_{L}$ and $T_{L}$ across four different identification methods. This graphical representation significantly enhances the credibility of the data while offering more intuitive observation of the identification results. These quantitative comparisons provide convincing evidence for the enhanced estimation accuracy achieved by our methodology. This is attributed to the decoupled term and the improved reaching law in the gain factor designed in the DSMO.

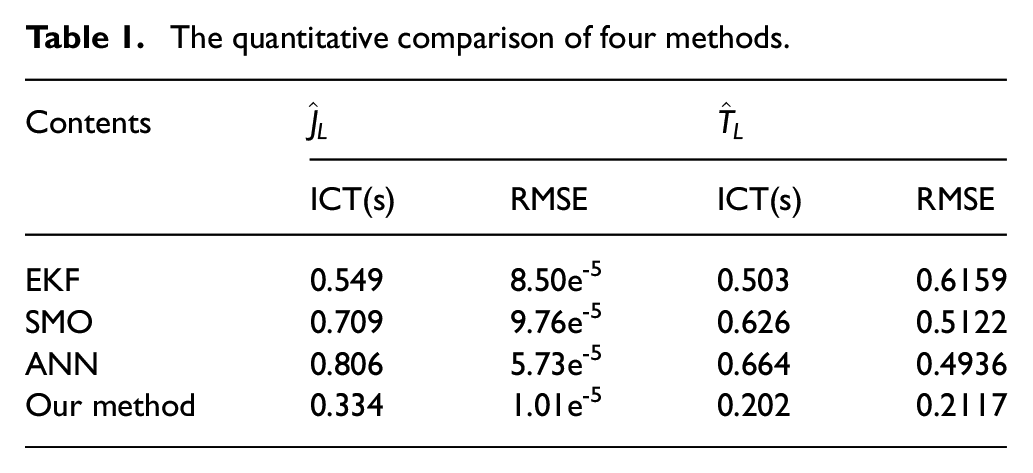

Table 1.

The quantitative comparison of four methods.

Contents	${\hat{J}}_{L}$		${\hat{T}}_{L}$
	ICT(s)	RMSE	ICT(s)	RMSE
EKF	0.549	8.50e^-5	0.503	0.6159
SMO	0.709	9.76e^-5	0.626	0.5122
ANN	0.806	5.73e^-5	0.664	0.4936
Our method	0.334	1.01e^-5	0.202	0.2117

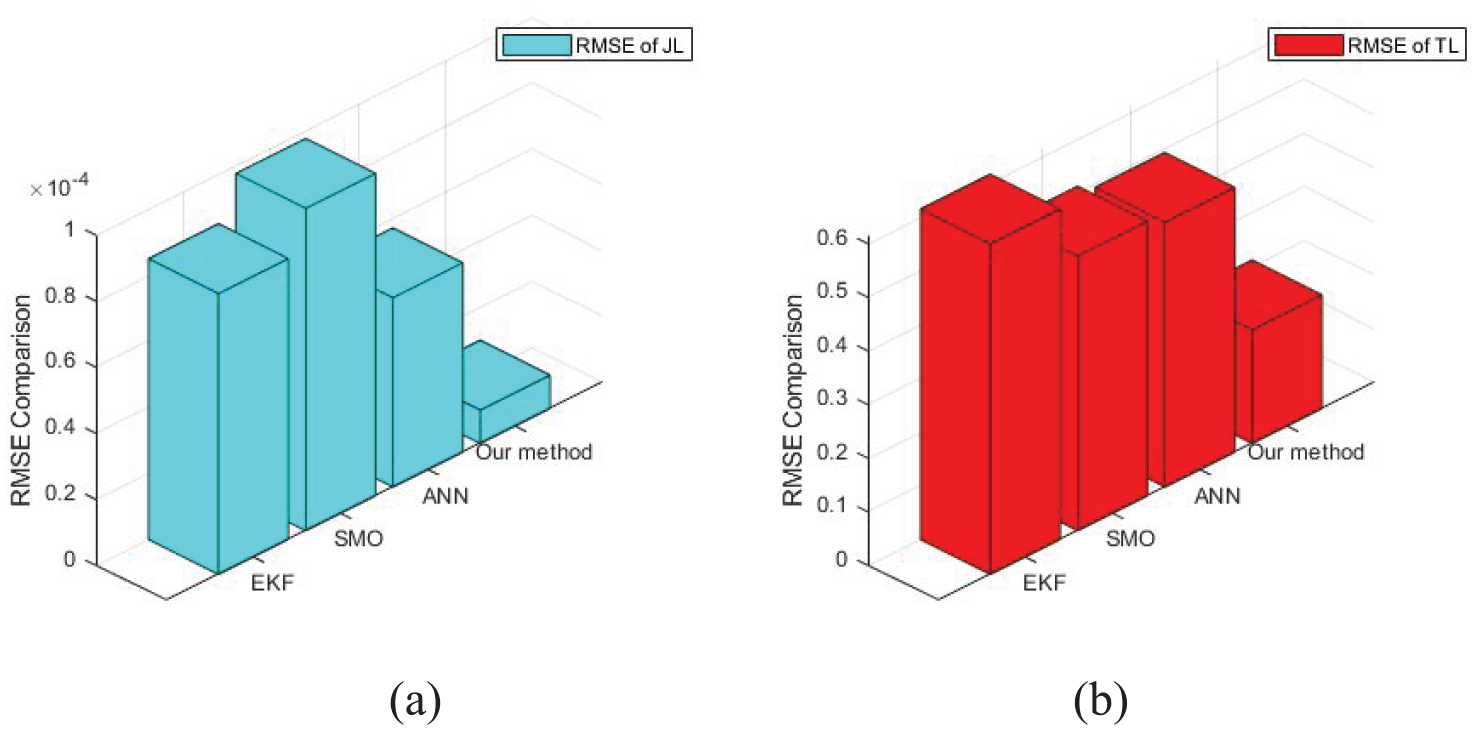

Figure 6.

RMSEs of ${\hat{J}}_{L}$ and ${\hat{T}}_{L}$ .under four methods. (a) RMSE of ${\hat{J}}_{L .}$ (b) RMSE of ${\hat{T}}_{L}$ .

In summary, our proposed DSMO outperforms the other methods in terms of both identification performance and anti-interference capabilities, showing greater potential for practical applications.

Experiment of resonance suppression

The experiment considers two system states: State 1: when $0 s \leq t < 3 s$ , no suppression methods are applied; when $3 s \leq t \leq 6 s$ , the designed bi-quad notch filter is introduced. State 2: when $0 s \leq t < 2 s$ , no suppression methods are applied; when $2 s \leq t < 4 s$ , the bi-quad notch filter is introduced; when $4 s \leq t \leq 6 s$ , a feedback term with the adaptive factor α is added.

The bi-quad notch filter cancels the flexible components of the system effectively, meaning that the resonance on the motor side is well suppressed. However, the bi-quad notch filter affects the zero-pole configuration of the load-side transfer function, introducing two additional poles and two zeros, which impact the stability of the load side system. As observed in Figure 7, although the motor-side resonance is effectively suppressed, the oscillations on the load side are actually exacerbated. The amplitude of the load-side oscillations is even greater than before adding the bi-quad notch filter, which severely undermines the system’s stability. Therefore, to improve the resonance suppression efficiency, it is necessary to address the issue of the load-side oscillations.

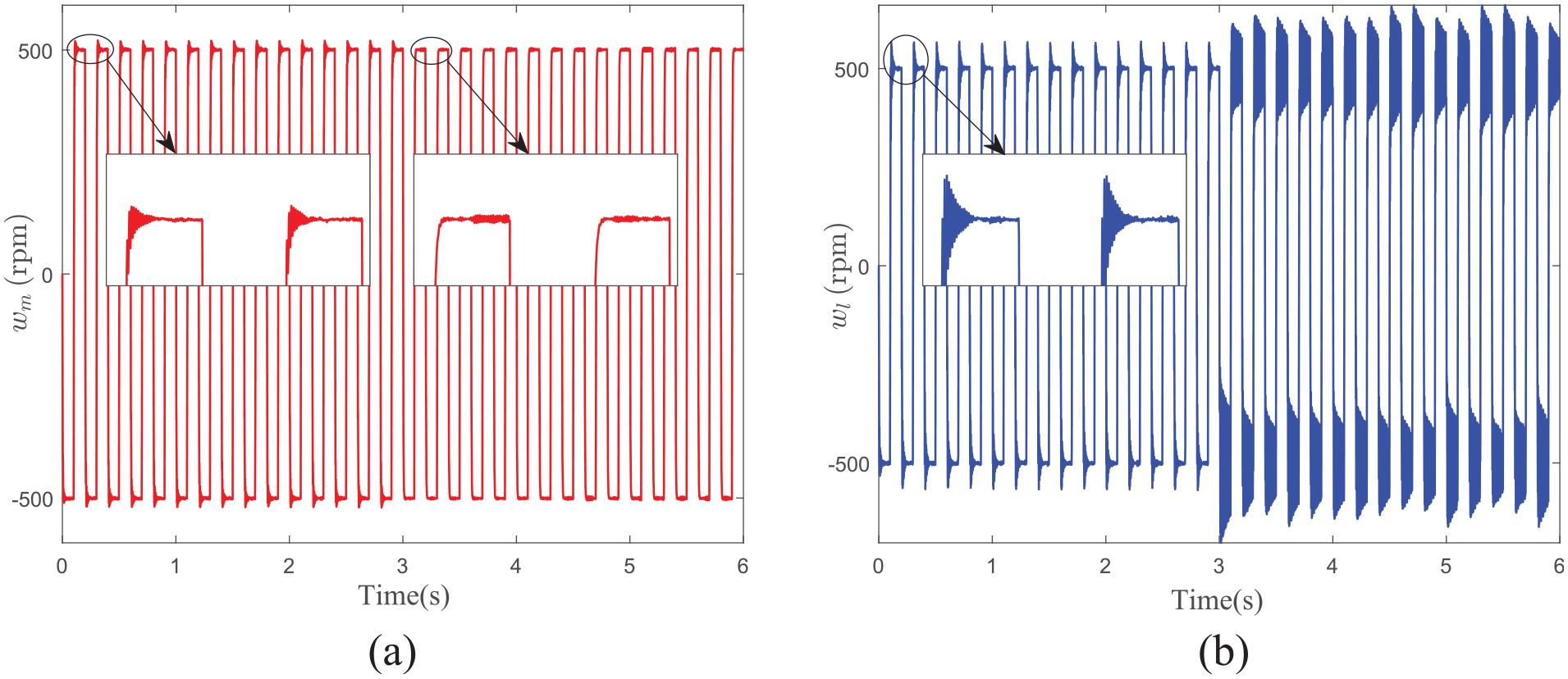

Figure 7.

Experiment results in state 1. (a) The motor speed and (b) the load speed.

To verify the suppression effect of the adaptive factor α on the load-side oscillations, experiment is conducted in state 2. At $t = 4 s$ , the feedback structure with the adaptive factor α is added. By adjusting the poles of the load-side transfer function using a zero-pole configuration method, the poles are moved to appropriate positions, employing high damping to suppress the load-side oscillations. As shown in Figure 8, when $2 s \leq t < 4 s$ , severe oscillations appear on the load side. However, after introducing the feedback structure with the adaptive factor, the load-side oscillations are eliminated without affecting the motor-side speed. As shown in Figure 9, under state 2, by comparing our DSMO, the SMO method, and the EKF method, it is found that the scheme can achieve the best resonance suppression effect.

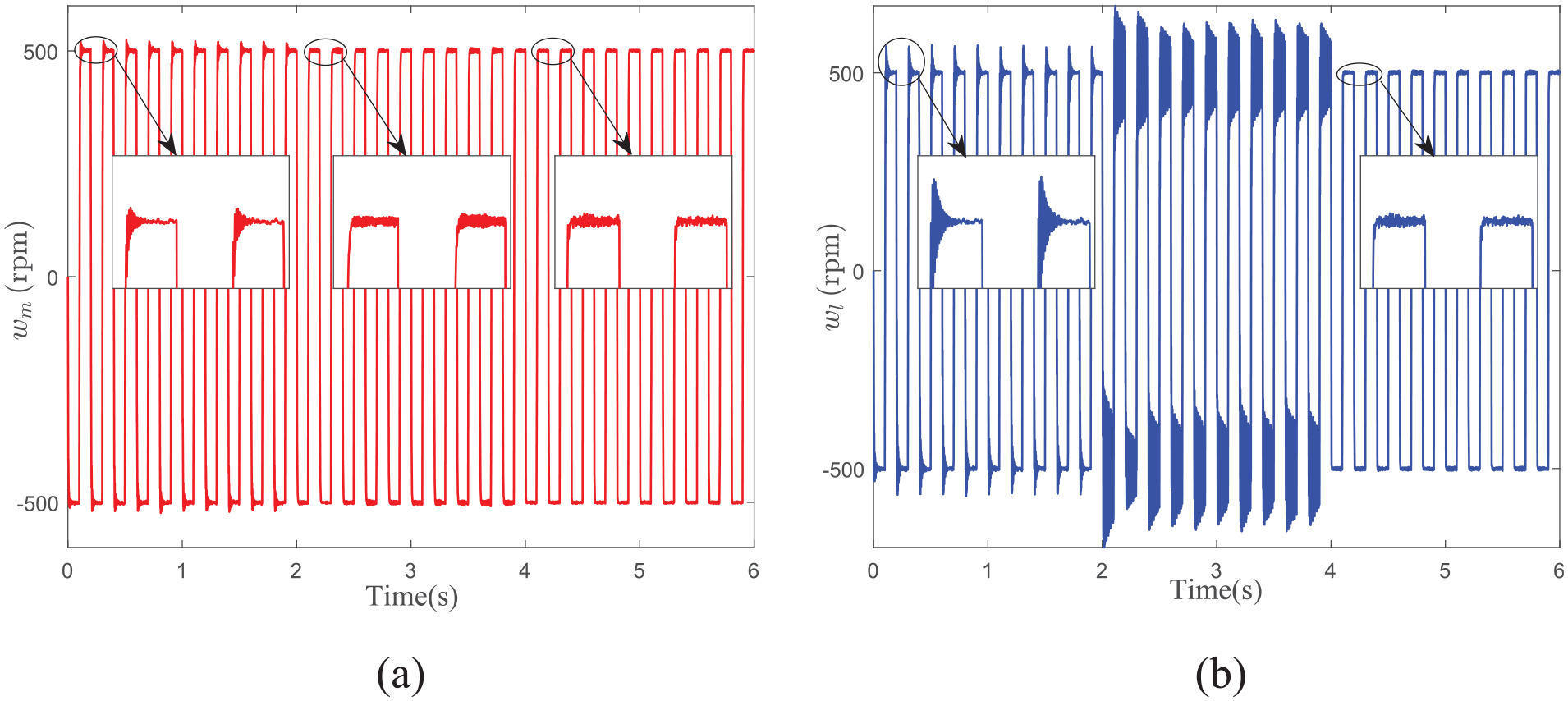

Figure 8.

Experiment results in state 2. (a) The motor speed and (b) the load speed.

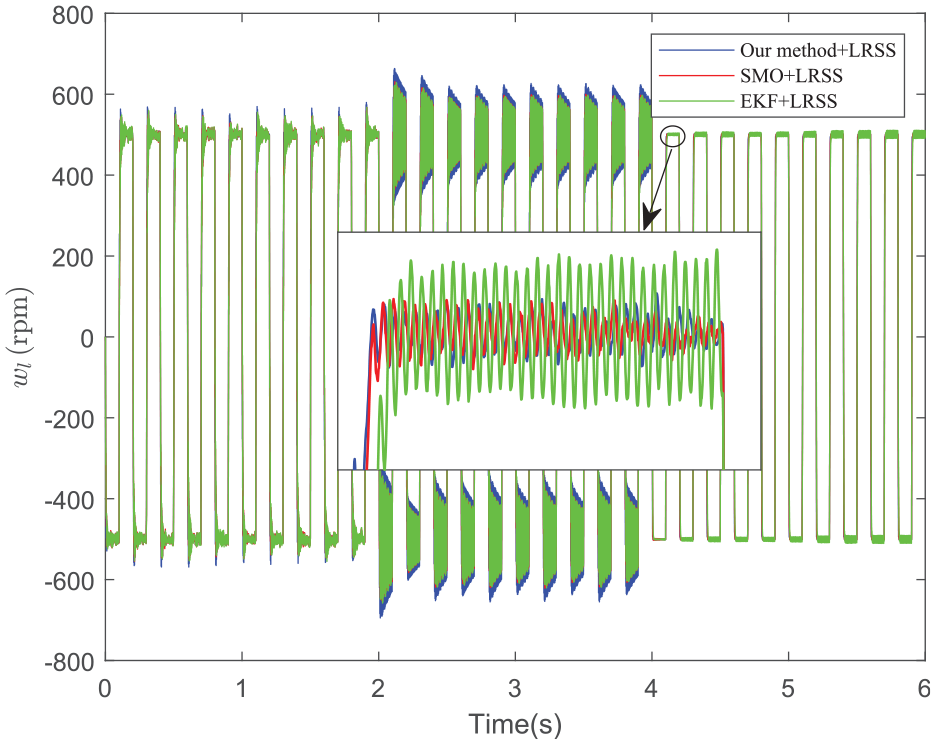

Figure 9.

Load speed under different identification algorithms in state 2.

Conclusion

This paper presented a LRSS based on the bi-quad notch filter with state feedback to address load-side resonance. Recognizing the bi-quad filter’s tendency to induce the load-side oscillations, we designed an adaptive feedback term to adjust load damping, effectively mitigating these oscillations. The DSMO is proposed for accurate identification of load torque and load inertia, providing precise mechanical parameters for both the notch filter and adaptive feedback. These parameters are then used for tuning and compensation, enhancing the system’s dynamic performance. By incorporating a decoupled term and an improved sliding-mode reaching law, we optimize the balance between identification speed and accuracy. Extensive theoretical analysis and experiments validate the superiority of our scheme. Future work will focus on improving resonance suppression, particularly for the time-varying characteristics of dual-inertia servo system.

Footnotes

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: The work is supported by the National Natural Science Foundation of China (Grant No. 52475525, 52375520).

ORCID iD

Shaowu Lu

Data availability statement

Data sharing is not applicable to this article as no data sets were generated or analyzed during this study.

References

Chen

Kong

Tomizuka

(2015) Dual-stage adaptive friction compensation for precise load side position tracking of indirect drive mechanisms. IEEE Transactions on Control Systems Technology 23(1): 164–175.

Chen

Yang

Sun

, et al. (2021) A modified Bi-Quad filter tuning strategy for mechanical resonance suppression in industrial servo drive systems. IEEE Transactions on Power Electronics 36(9): 10395–10408.

Derugo

(2023) Transfer learning for fuzzy control of two-mass drive system using state variables feedback. In: 2023 10th International Conference on Electrical, Electronic and Computing Engineering (IcETRAN), East Sarajevo, 5–8 June, pp. 1–6. New York: IEEE.

Gao

Ding

Wang

, et al. (2025) Feature extraction of frequency-mapping-based resonance suppression in PMSM drives with low DC-link capacitance and inductance. IEEE Transactions on Power Electronics 40(4): 4848–4861.

Yang

Xiao

, et al. (2017) Suppression of limit cycle oscillation for two-mass system with backlash nonlinearity based on dual Luenberger observer. In: 2017 IEEE Transportation Electrification Conference and Expo, Asia-Pacific (ITEC Asia-Pacific), Harbin, China, 7–10 August, pp.1–6. New York: IEEE.

Jiang

Miao

, et al. (2023) Multitype noise suppression in magnetic resonance sounding data based on a time–frequency fully convolutional neural network. IEEE Transactions on Instrumentation and Measurement 7(2): 1–11.

Jishnu

Vidhant

(2024) A novel concurrent learning-based fixed-time convergent visual depth observer for weakly persistently exciting perspective dynamical systems. Mechatronics 102: 103226.

Kabziński

(2018) Adaptive control of two-mass drive system with nonlinear stiffness and damping. In: IECON 2018—44th Annual Conference of the IEEE Industrial Electronics Society, Washington, DC, 21–23 October, pp.2195–2200. New York: IEEE.

Lian

Xiao

Liu

, et al. (2023) Parameter and VSI nonlinearity hybrid estimation for PMSM drives based on recursive least square. IEEE Transactions on Transportation Electrification 9(2): 2195–2206.

10.

Luo

Shen

Mao

(2015) A double Bi-Quad filter with wide-band resonance suppression for servo systems. Journal of Power Electronics 15(5): 1409–1420.

11.

Shao

Zheng

Wang

, et al. (2021) Leakage-type adaptive state and disturbance observers for uncertain nonlinear systems. Nonlinear Dynamics 105: 06715.

12.

Shen

Huang

(2009) Uniformly observable and globally lipschitzian nonlinear systems admit global finite-time observers. IEEE Transactions on Automatic Control 54(11): 2621–2625.

13.

Szabat

Orlowska-Kowalska

(2007) Vibration suppression in a two-mass drive system using PI speed controller and additional feedbacks—comparative study. IEEE Transactions on Industrial Electronics 54(2): 1193–1206.

14.

Tang

Guo

, et al. (2021) Chattering-suppression sliding mode control of an autonomous underwater vehicle based on nonlinear disturbance observer and power function reaching law. Transactions of the Institute of Measurement and Control 43(9): 2081–2093.

15.

Tarczewski

Szczepanski

Erwinski

, et al. (2022) A novel sensitivity analysis to moment of inertia and load variations for PMSM drives. IEEE Transactions on Power Electronics 37(11): 13299–13309.

16.

Wang

Shen

Sun

, et al. (2025) General modeling and control of multiple three-phase PMSM drives. IEEE Transactions on Power Electronics 40(1): 1900–1909.

17.

Yang

Song

Xie

, et al. (2021) Online parallel estimation of mechanical parameters for PMSM drives via a network of interconnected extended sliding-mode observers. IEEE Transactions on Power Electronics 36(10): 11818–11834.

18.

Yang

Song

Xie

, et al. (2022a) Stable simultaneous inertia and disturbance torque identification for SPMSM drive systems subject to mismatched rotor flux linkage. IEEE Journal of Emerging and Selected Topics in Power 10(2): 2445–2462.

19.

Yang

(2025) Composite model predictive current control for PMSM servo system. Transactions of the Institute of Measurement and Control. Epub ahead of print 10 January. DOI: 10.1177/01423312241295793.

20.

Yang

Yan

, et al. (2022b) Double DOF strategy for continuous-wave pulse generator based on extended Kalman Filter and adaptive linear active disturbance rejection control. IEEE Transactions on Power Electronics 37(2): 1382–1393.

21.

Yao

Chen

, et al. (2024) Robust notch filter-based active damping design for LCL-equipped high-speed PMSMs considering dual resonance problem. IEEE Transactions on Industrial Electronics 71(11): 13845–13854.

22.

Zhou

Dai

(2024) Fixed-time sliding mode observer-based multi-faults estimation method and its application to PMSM drive system. Transactions of the Institute of Measurement and Control 4(8): 61551–61562.

Load-side resonant suppression based on adaptive state feedback and decoupled sliding-mode observer for servo system

Abstract

Keywords

Introduction

The modeling of the PMSM servo system

The design of the scheme

The design of the DSMO

Design of observing T L

Design of observing J L

Improved reaching law

Overall stability analysis

Experiment

Experiment of parameter identification

Experiment of resonance suppression

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

Data availability statement

References

Design of observing $T_{L}$

Design of observing $J_{L}$
