Efficiency comparison of historical and newly developed Weibull parameters estimation methods

Abstract

This work compares the efficiency of historically used Weibull parameters estimation methods with newly developed method. Newly developed method has been termed as Combined Linearized Moment Method (CLMM). Five-year wind data at five locations namely Chaghi, Lehri, Badin, Hyderabad and Nankana Sahib (Pakistan) was used for the calculation of Weibull parameters. Efficiency was assessed and compared using R-Squared(R²), MSE, RMSE, wind error (WE), MAPE and Chi-test ( $χ^{2}$ ). Each method was given a rank against each performance evaluation criterion and then an overall ranking was done. The study concluded that CLMM is the most accurate method among all while Empirical Method of Justus (EMJ) is the least accurate. Hence, CLMM can be used to estimate Weibull parameters for wind resource assessment with significant accuracy.

Keywords

Weibull distribution Weibull parameters estimation numerical methods combined linearized moment method wind resource estimation

Introduction

Weibull probability density function (PDF) is used in various fields to model different phenomena like water level prediction, estimation of rainfall, lifetime analysis of material strength, hydrology, reliability, material and structures failure prediction, solar resource assessment and wind resource assessment (WRA) (Sumair et al., 2020e; Teimouri et al., 2013). Even today, this distribution has been introduced in Wind Atlas Analysis and Application Program (WAsP) for the estimation of wind power potential (Carta et al., 2009; Werapun et al., 2015).

In WRA, it is not only the mean wind speed but also its distribution that affects wind potential (Ramírez and Carta, 2006; Sumair et al., 2020a). Therefore, wind data must be modelled using some statistical frequency distribution. It is the Weibull distribution which is mostly applied to analyze wind statistical characteristics (Sumair et al., 2020g). (Bahrami et al., 2019a) assessed wind potential and wind energy harvesting opportunity at 18 locations in Turkmenistan. Hourly recorded wind data for these sites was used with two-parameter Weibull distribution. Similarly, wind resource estimation at seventeen locations in Uzbekistan was performed (Bahrami et al., 2019b) using two-parameter Weibull distribution. Furthermore, this distribution was used to determine wind potential at Izmir (Ozay and Celiktas, 2016). Many other researchers also made use of Weibull distribution for WRA, as presented in (Akdağ and Dinler, 2009; Shami et al., 2016; Shoaib et al., 2017; 2019; Sumair et al., 2020b, 2020d, 2020f, 2020g).

The efficiency of estimation methods used for Weibull parameters estimation (shape and scale) decides the efficiency of Weibull distribution (Sumair et al., 2020e); many such methods have been given in literature (Andrade et al., 2014; Dorvlo, 2002; Khalid Saeed et al., 2019; Saleh et al., 2012). A comparison of four statistical methods with WAsP algorithm was conducted using wind data collected over five years period and at different heights. Results showed that at all heights, scale parameter is found to be proportional to wind speed with proportionality constant varying from location to location (Bagiorgas et al., 2011).

Another work (Ahmed, 2013) compared Maximum Likelihood Method (MLM), Graphical Method (GM), Empirical Method of Justus (EMJ) and Power Density Method (PDM) using four-years monthly data at a representative site in Iraq. RMSE and R-squared were used to compare these methods and it was found that MLM and PDM were suitable for the estimation of shape and scale parameters.

Wind potential at Zarrineh (Iran) was estimated using Weibull distribution along with the comparison of two methods i.e. EMJ and PDM (Mohammadi and Mostafaeipour, 2013). Six-year wind data was collected at 10 m height and mean wind speed at the investigated location was found to be 4.07 m/s. Comparison showed that PDM is more accurate than EMJ and the site was found suitable for small scale wind energy applications. Similarly, (Cook, 2001) compared traditional methods i.e. EMJ and GM with modern methods i.e. MLM and Modified Maximum Likelihood Method (MMLM) and it was found that MLM and MMLM give better estimation than traditional methods while traditional methods were found to underestimate Weibull parameters.

As it has been found that various methods available for Weibull parameters estimation give different accuracies; GM and EMJ methods giving poor performance while PDM, MLM and MMLM giving good performance. The novelty of this work is to develop a new method which has been termed as Combined Linearized Moment Method (CLMM) along with comparing it with seven traditional methods available in literature. Sample data used for the calculation of Weibull parameters is five years (2014–2018) wind data at a hub height of 50 m at five locations i.e. Chaghi, Lehri, Badin, Hyderabad and Nankana Sahib (Pakistan)

Materials and methods

Sites description

Five sites, as shown in Figure 1, have been studied to verify the validity of new method. Chaghi (28.9804° N, 62.4504° E) is characterized as desert area located in the Balochistan province of Pakistan. It is characterized by extreme weather conditions i.e. summers are extremely hot and winters are extremely cold. The average minimum temperature is 2.4 °C in January and the average maximum temperature is 42.5 °C in July. Annual average rainfall is 102 mm and wind blows with an average speed of 6.36 m/s. Hyderabad (25.367°N, 68.367°E) is located in Sindh province of Pakistan on the east bank of the Indus River. Due to the closeness of Indus River, location is characterized by high winds and humid conditions. Summers are unpleasantly humid while, winters are comparatively comfortable, and dry; and it is mostly clear year round. Maximum average temperature is observed as 41.6 °C in May while average lowest temperature is 11.1 °C in January. Average rain per year is observed as 177 mm. Wind blows with an average speed of 6.06 m/s.

Figure 1.

Geographical map of five sites under investigation.

Badin (24.6459° N, 68.8467° E) is also located to the east of the Indus River near Hyderabad (with 94 km distance apart).Meteorological and weather conditions are very similar to those observed at Hyderabad. Maximum average temperature is observed as 39.8 °C in May while average lowest temperature is 8.7 °C in January. Average rain per year is observed as 222 mm. Wind blows with an average speed of 6.02 m/s.

Lehri (29.0828° N, 68.0954° E) is located in Balochistan province of Pakistan. Summers are extremely hot and sweltering with maximum average temperature as 36.9 °C observed in June while minimum average temperature of 15.1 °C in January. Mostly the weather is dry year round with average rainfall of about 50 mm. Wind blows with an average speed of 5.13 m/s. Finally, Nankana Sahib (31.4492° N, 73.7125° E) is located in Punjab province of Pakistan. It is characterized by plain lands and clear weather conditions throughout the year. Average Maximum temperature is observed as 40 C°C in July while average minimum as 8 °C in January. Mostly the weather is dry year round with average rainfall of about 40 mm and wind blows with an average speed of 3.47 m/s.

Weibull distribution

The Weibull function (f(V)) with shape (K) and scale (C) parameters used to model various phenomenon; especially wind data is given as follows equation (1) (Akpinar and Akpinar, 2005; Carta and Ramirez, 2007; Chang, 2011; Khahro et al., 2014; Mathew et al., 2002; Sumair et al., 2020b, 2020c, 2020d, 2020g, 2020h)

f (V) = (\frac{K}{C}) {(\frac{V}{C})}^{K - 1} e^{\{- {(\frac{V}{C})}^{K}\}}

(1)

Calculation methods for Weibull parameters

Seven historical methods with one new method developed in this study are given below:

Empirical method of Justus (EMJ)

Also termed as standard deviation (σ) method along with mean of wind speed data ( $\bar{V}$ ) (Chaurasiya et al., 2018; Khahro et al., 2014). Equations (2) and (3), as given below, are used to calculate these parameters.

K = {(\frac{σ}{\bar{V}})}^{- 1.086}

(2)

C = \frac{\bar{V}}{Γ (1 + \frac{1}{K})}

(3)

Γ(x) is a gamma function given below (Jowder, 2009)

Γ (x) = \int_{0}^{\infty} t^{x - 1} e^{- t} d t

(4)

Empirical method of Lysen (EML)

This method is the modification of EMJ, in which K is calculated the same way as is calculated in EMJ; however, C is evaluated using equation (5) (Chaurasiya et al., 2018).

C = \bar{V} {[0.568 + \frac{0.433}{K}]}^{(\frac{- 1}{K})}

(5)

Energy pattern factor method (EPFM)

According to EPFM, Weibull parameters estimation using equations (7) and (8) is preceded by the estimation of wind energy pattern factor (WEPF) using equation (6) (Sumair et al., 2020e, 2020g)

WEPF = \frac{\sum \bar{{V_{i}}^{3}}}{{(\sum \bar{V_{i}})}^{3}}

(6)

K = 1 + \frac{3.69}{{WEPF}^{2}}

(7)

C = \frac{\bar{V}}{Γ (1 + \frac{1}{K})}

(8)

Power density method (PDM)

A variation in EPFM in which K is calculated while making use of numerical iteration of equation (9)

\frac{Γ (1 + \frac{3}{K})}{Γ^{3} (1 + \frac{1}{K})} - WEPF = 0

(9)

Once K is estimated, C is then calculated using equation (8)

Maximum likelihood method (MLM)

In this method, K & C are calculated while making use of equations (10) and (11) respectively (Sumair et al., 2020f)

K = {[\frac{\sum_{i = 1}^{N} {V_{i}}^{K} \ln (V_{i})}{\sum_{i = 1}^{N} {V_{i}}^{K}} - \frac{\sum_{i = 1}^{N} \ln (V_{i})}{N}]}^{- 1}

(10)

C = {[\frac{1}{N} \sum_{i = 1}^{N} {V_{i}}^{K}]}^{\frac{1}{K}}

(11)

Modified maximum likelihood method (MMLM)

Privided that the wind data is avilable in bins form with V_i as central value to each wind bin, f(V_i) as frequency of observing a ceratin wind speed range, MMLM is applied for the determination of K and C while employing equations (12) and (13) respectively (Sumair et al., 2020f)

K = {[\frac{\sum_{i = 1}^{N} {V_{i}}^{K} \ln (V_{i}) f (V_{i})}{\sum_{i = 1}^{N} {V_{i}}^{K} f (V_{i})} - \frac{\sum_{i = 1}^{N} \ln (V_{i}) f (V_{i})}{f (V \geq 0)}]}^{- 1}

(12)

C = {[\frac{1}{\sum f_{i}} \sum_{i = 1}^{N} {V_{i}}^{K} f_{i}]}^{\frac{1}{K}}

(13)

Method of moment (MOM)

In Method of Moment (MOM), K and C are calculated by the numerical iterative solution of equations (14) and (15) (Chang, 2011; Chaurasiya et al., 2018)

σ = C {[Γ (1 + \frac{2}{K}) - Γ^{2} (1 + \frac{2}{K})]}^{0.5}

(14)

C = \frac{\bar{V}}{Γ (1 + \frac{1}{K})}

(15)

Combined linearized moment method (CLMM)

Using the principles of statistics and probability theory, following method has been developed which relies on the linearization of derivative of Weibull function and moment of wind velocity taken as variable, as discussed below:

First moment of velocity (M (V)), by statistical definition, is given below:

M (V) = \int_{0}^{\infty} V f (V) d (V)

(16)

Putting $f (V) = (\frac{K}{C}) {(\frac{V}{C})}^{K - 1} e^{\{- {(\frac{V}{C})}^{K}\}}$ in equation (16)

M (V) = (\frac{K}{C}) (\frac{1}{C^{K - 1}}) \int_{0}^{\infty} V . V^{K - 1} e^{\{- {(\frac{V}{C})}^{K}\}} d (V)

(17)

Simplifying equation (17) gives

M (V) = (\frac{K}{C}) (\frac{1}{C^{K - 1}}) \int_{0}^{\infty} V^{K} e^{\{- {(\frac{V}{C})}^{K}\}} d (V)

(18)

Assume

t = {(\frac{V}{C})}^{K} \to t^{\frac{1}{K}} = \frac{V}{C} \to V = C t^{\frac{1}{K}} \to d V = \frac{C}{K} t^{\frac{1}{K} - 1} d t

Putting in equation (18)

M (V) = (\frac{K}{C}) (\frac{1}{C^{K - 1}}) \int_{0}^{\infty} C^{K} t e^{\{- t\}} \frac{C}{K} t^{\frac{1}{K} - 1} d t

(19)

Simplification gives

M (V) = C \int_{0}^{\infty} t^{\frac{1}{K}} e^{- t} d t

(20)

Comparing equation (20) with equation (4), we get

M (V) = C Γ (1 + \frac{1}{K})

(21)

Taking the second moment (M (V²)) as follows:

M (V^{2}) = \int_{0}^{\infty} V^{2} f (V) d (V)

(22)

Solving as first moment

M (V^{2}) = (\frac{K}{C}) (\frac{1}{C^{K - 1}}) \int_{0}^{\infty} V^{K + 1} t \exp^{- t} \frac{C}{K} t^{\frac{1}{K} - 1} d t

(23)

M (V^{2}) = C^{2} \int_{0}^{\infty} t^{\frac{2}{K}} \exp^{- t} d t = C^{2} Γ (1 + \frac{2}{K})

(24)

From basis definition, Variance is given as follows

Varience = M (V^{2}) - {(M (V))}^{2} = C^{2} Γ (1 + \frac{2}{K}) - {[C Γ (1 + \frac{1}{K})]}^{2}

(25)

Differentiating f(V) w.r.t V, we get Q(V) i.e. cumulative distribution and if Weibull distribution gives the perfect fit to actual wind data so that Q(v) taken equal to the actual cumulative distribution

Q (V) = \frac{d}{d V} f (V) = 1 - e^{\{- {(\frac{V}{C})}^{K}\}}

(26)

Using linearization of equation

\ln (1 - Q (V)) = \ln e^{\{- {(\frac{V}{C})}^{K}\}} \to \ln (1 - Q (V)) = - {(\frac{V}{C})}^{K}

(27)

l n (- \ln (1 - Q (V))) = KlnV - KlnC

(28)

Solving equations (25) and (28) simultaneously, we get K and C

Measure of goodness of fit

R-Squared (R²)

A measure of goodness of fit between actual probability (X_i) and predicted probability based on weibull methods (Y_i) with Z as average of actual probability values, R² is calculated as follows:

R^{2} = \frac{\sum_{i = 1}^{N} {(Y_{i} - Z)}^{2} - \sum_{i = 1}^{N} {(X_{i} - Z)}^{2}}{\sum_{i = 1}^{N} {(Y_{i} - Z)}^{2}}

(29)

Mean square error (MSE)/root mean square error (RMSE)

Difference between predicted probability values (Y_i) and actual probability values (X_i) is described in term of MSE, given as equation (30)

MSE = [\frac{1}{N} \sum_{i = 1}^{N} ({Y_{i} - X_{i})}^{2}]

(30)

However for very samll values of MSE, it is convinenet to take squatre root of MSE (called RMSE) as the square root of very smnall number (very less than 1) is a comparatively large nnumber.

RMSE = {[\frac{1}{N} \sum_{i = 1}^{N} ({Y_{i} - X_{i})}^{2}]}^{0.5}

(31)

Wind error (WE)

As the main purpose of weibull parameters in wind field is to estimate wind power densities, therefore, relative difference of actual wind power densities (WPD_act) and predicted wind power densities based on certain weibull parameters estimation method (WPD_W) needs to be quantified to assess the efficieny of that estimation method. WE is used to quantify this difference; with lower values implying more accuracy

W E = [\frac{{WPD}_{w} - {WPD}_{act}}{{WPD}_{act}}]

(32)

Mean absolute percentage error (MAPE)

This parameter quantifies the relative difference bewtween actual P_act and weibull probabilities P_W of wind data, given by equation (33)

MAPE = \frac{1}{N} \sum_{i = 1}^{N} |\frac{P_{act} - P_{w}}{P_{act}}|

(33)

5. Chi- Test ( $χ^{2}$ ) for goodness of fit

Ideally, if actual and predicted values are identical, this test would give a value of 1. However, in actual practice, due to a certain difference between actual (P_act) and predicted values (P_W), the result of this test would be less than 1.

χ^{2} = \sum \frac{(P_{act} - P_{w})}{P_{w}}

(34)

Results and discussions

Wind speed data at five locations has been used; average values of wind speed for two representative locations, Hyderabad and Nankana Sahib (whose metrological conditions; especially the wind speeds widely differ from rest of others) out of five locations have been shown in Figures 2 and 3 respectively. In this study, Weibull parameters have been estimated using eight different methods; seven traditional methods with one newly developed method. Results of year-wise monthly calculated Weibull parameters from all these methods have been listed in Tables 1 to 10 for all two locations respectively.

Figure 2.

Variation in monthly average wind speed at Hyderabad.

Figure 3.

Variation in monthly average wind speed at Nankana sahib.

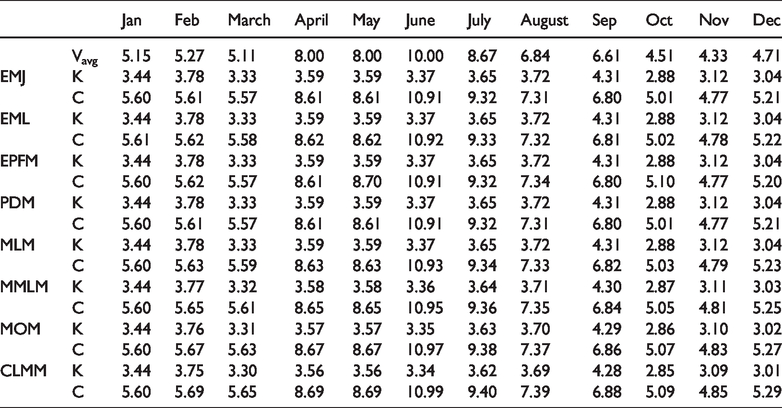

Table 1.

Monthly average wind speeds (ms⁻¹), K and C (ms⁻¹) calculated from various methods in 2014 at Hyderabad.

		Jan	Feb	March	April	May	June	July	August	Sep	Oct	Nov	Dec
	V_avg	5.15	5.27	5.11	8.00	8.00	10.00	8.67	6.84	6.61	4.51	4.33	4.71
EMJ	K	3.44	3.78	3.33	3.59	3.59	3.37	3.65	3.72	4.31	2.88	3.12	3.04
	C	5.60	5.61	5.57	8.61	8.61	10.91	9.32	7.31	6.80	5.01	4.77	5.21
EML	K	3.44	3.78	3.33	3.59	3.59	3.37	3.65	3.72	4.31	2.88	3.12	3.04
	C	5.61	5.62	5.58	8.62	8.62	10.92	9.33	7.32	6.81	5.02	4.78	5.22
EPFM	K	3.44	3.78	3.33	3.59	3.59	3.37	3.65	3.72	4.31	2.88	3.12	3.04
	C	5.60	5.62	5.57	8.61	8.70	10.91	9.32	7.34	6.80	5.10	4.77	5.20
PDM	K	3.44	3.78	3.33	3.59	3.59	3.37	3.65	3.72	4.31	2.88	3.12	3.04
	C	5.60	5.61	5.57	8.61	8.61	10.91	9.32	7.31	6.80	5.01	4.77	5.21
MLM	K	3.44	3.78	3.33	3.59	3.59	3.37	3.65	3.72	4.31	2.88	3.12	3.04
	C	5.60	5.63	5.59	8.63	8.63	10.93	9.34	7.33	6.82	5.03	4.79	5.23
MMLM	K	3.44	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.60	5.65	5.61	8.65	8.65	10.95	9.36	7.35	6.84	5.05	4.81	5.25
MOM	K	3.44	3.76	3.31	3.57	3.57	3.35	3.63	3.70	4.29	2.86	3.10	3.02
	C	5.60	5.67	5.63	8.67	8.67	10.97	9.38	7.37	6.86	5.07	4.83	5.27
CLMM	K	3.44	3.75	3.30	3.56	3.56	3.34	3.62	3.69	4.28	2.85	3.09	3.01
	C	5.60	5.69	5.65	8.69	8.69	10.99	9.40	7.39	6.88	5.09	4.85	5.29

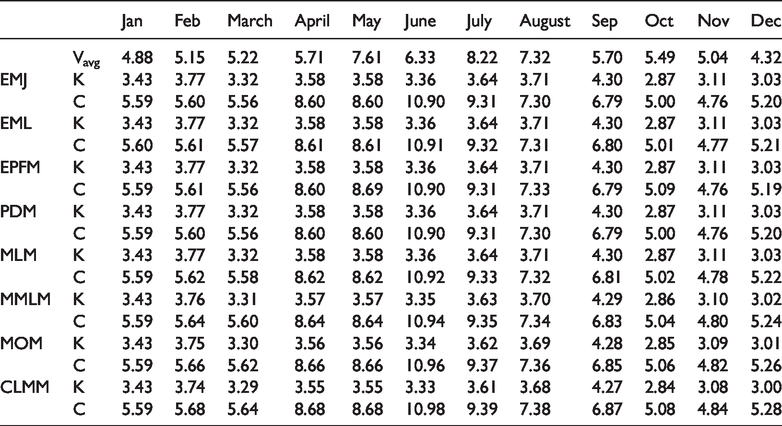

Table 2.

Monthly average wind speeds (ms⁻¹), K and C (ms⁻¹) calculated from various methods in 2015 at Hyderabad.

		Jan	Feb	March	April	May	June	July	August	Sep	Oct	Nov	Dec
	V_avg	4.88	5.15	5.22	5.71	7.61	6.33	8.22	7.32	5.70	5.49	5.04	4.32
EMJ	K	3.43	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.59	5.60	5.56	8.60	8.60	10.90	9.31	7.30	6.79	5.00	4.76	5.20
EML	K	3.43	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.60	5.61	5.57	8.61	8.61	10.91	9.32	7.31	6.80	5.01	4.77	5.21
EPFM	K	3.43	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.59	5.61	5.56	8.60	8.69	10.90	9.31	7.33	6.79	5.09	4.76	5.19
PDM	K	3.43	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.59	5.60	5.56	8.60	8.60	10.90	9.31	7.30	6.79	5.00	4.76	5.20
MLM	K	3.43	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.59	5.62	5.58	8.62	8.62	10.92	9.33	7.32	6.81	5.02	4.78	5.22
MMLM	K	3.43	3.76	3.31	3.57	3.57	3.35	3.63	3.70	4.29	2.86	3.10	3.02
	C	5.59	5.64	5.60	8.64	8.64	10.94	9.35	7.34	6.83	5.04	4.80	5.24
MOM	K	3.43	3.75	3.30	3.56	3.56	3.34	3.62	3.69	4.28	2.85	3.09	3.01
	C	5.59	5.66	5.62	8.66	8.66	10.96	9.37	7.36	6.85	5.06	4.82	5.26
CLMM	K	3.43	3.74	3.29	3.55	3.55	3.33	3.61	3.68	4.27	2.84	3.08	3.00
	C	5.59	5.68	5.64	8.68	8.68	10.98	9.39	7.38	6.87	5.08	4.84	5.28

Table 3.

Monthly average wind speeds (ms⁻¹), K and C (ms⁻¹) calculated from various methods in 2016 at Hyderabad.

		Jan	Feb	March	April	May	June	July	August	Sep	Oct	Nov	Dec
	V_avg	4.33	4.44	5.77	6.60	8.69	8.08	7.96	5.71	7.24	5.16	4.19	4.35
EMJ	K	3.45	3.79	3.34	3.60	3.60	3.38	3.66	3.73	4.32	2.89	3.13	3.05
	C	5.61	5.62	5.58	8.62	8.62	10.92	9.33	7.32	6.81	5.02	4.78	5.22
EML	K	3.45	3.79	3.34	3.60	3.60	3.38	3.66	3.73	4.32	2.89	3.13	3.05
	C	5.62	5.63	5.59	8.63	8.63	10.93	9.34	7.33	6.82	5.03	4.79	5.23
EPFM	K	3.45	3.79	3.34	3.60	3.60	3.38	3.66	3.73	4.32	2.89	3.13	3.05
	C	5.61	5.63	5.58	8.62	8.71	10.92	9.33	7.35	6.81	5.11	4.78	5.21
PDM	K	3.45	3.79	3.34	3.60	3.60	3.38	3.66	3.73	4.32	2.89	3.13	3.05
	C	5.61	5.62	5.58	8.62	8.62	10.92	9.33	7.32	6.81	5.02	4.78	5.22
MLM	K	3.45	3.79	3.34	3.60	3.60	3.38	3.66	3.73	4.32	2.89	3.13	3.05
	C	5.61	5.64	5.60	8.64	8.64	10.94	9.35	7.34	6.83	5.04	4.80	5.24
MMLM	K	3.45	3.78	3.33	3.59	3.59	3.37	3.65	3.72	4.31	2.88	3.12	3.04
	C	5.61	5.66	5.62	8.66	8.66	10.96	9.37	7.36	6.85	5.06	4.82	5.26
MOM	K	3.45	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.61	5.68	5.64	8.68	8.68	10.98	9.39	7.38	6.87	5.08	4.84	5.28
CLMM	K	3.45	3.76	3.31	3.57	3.57	3.35	3.63	3.70	4.29	2.86	3.10	3.02
	C	5.61	5.70	5.66	8.70	8.70	11.00	9.41	7.40	6.89	5.10	4.86	5.30

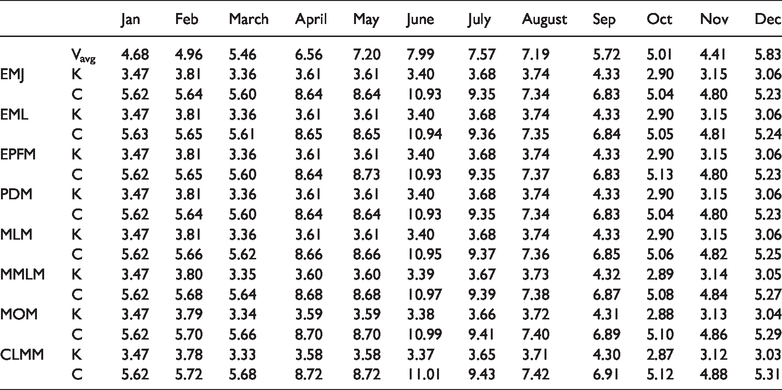

Table 4.

Monthly average wind speeds (ms⁻¹), K and C (ms⁻¹) calculated from various methods in 2017 at Hyderabad.

		Jan	Feb	March	April	May	June	July	August	Sep	Oct	Nov	Dec
	V_avg	4.68	4.96	5.46	6.56	7.20	7.99	7.57	7.19	5.72	5.01	4.41	5.83
EMJ	K	3.47	3.81	3.36	3.61	3.61	3.40	3.68	3.74	4.33	2.90	3.15	3.06
	C	5.62	5.64	5.60	8.64	8.64	10.93	9.35	7.34	6.83	5.04	4.80	5.23
EML	K	3.47	3.81	3.36	3.61	3.61	3.40	3.68	3.74	4.33	2.90	3.15	3.06
	C	5.63	5.65	5.61	8.65	8.65	10.94	9.36	7.35	6.84	5.05	4.81	5.24
EPFM	K	3.47	3.81	3.36	3.61	3.61	3.40	3.68	3.74	4.33	2.90	3.15	3.06
	C	5.62	5.65	5.60	8.64	8.73	10.93	9.35	7.37	6.83	5.13	4.80	5.23
PDM	K	3.47	3.81	3.36	3.61	3.61	3.40	3.68	3.74	4.33	2.90	3.15	3.06
	C	5.62	5.64	5.60	8.64	8.64	10.93	9.35	7.34	6.83	5.04	4.80	5.23
MLM	K	3.47	3.81	3.36	3.61	3.61	3.40	3.68	3.74	4.33	2.90	3.15	3.06
	C	5.62	5.66	5.62	8.66	8.66	10.95	9.37	7.36	6.85	5.06	4.82	5.25
MMLM	K	3.47	3.80	3.35	3.60	3.60	3.39	3.67	3.73	4.32	2.89	3.14	3.05
	C	5.62	5.68	5.64	8.68	8.68	10.97	9.39	7.38	6.87	5.08	4.84	5.27
MOM	K	3.47	3.79	3.34	3.59	3.59	3.38	3.66	3.72	4.31	2.88	3.13	3.04
	C	5.62	5.70	5.66	8.70	8.70	10.99	9.41	7.40	6.89	5.10	4.86	5.29
CLMM	K	3.47	3.78	3.33	3.58	3.58	3.37	3.65	3.71	4.30	2.87	3.12	3.03
	C	5.62	5.72	5.68	8.72	8.72	11.01	9.43	7.42	6.91	5.12	4.88	5.31

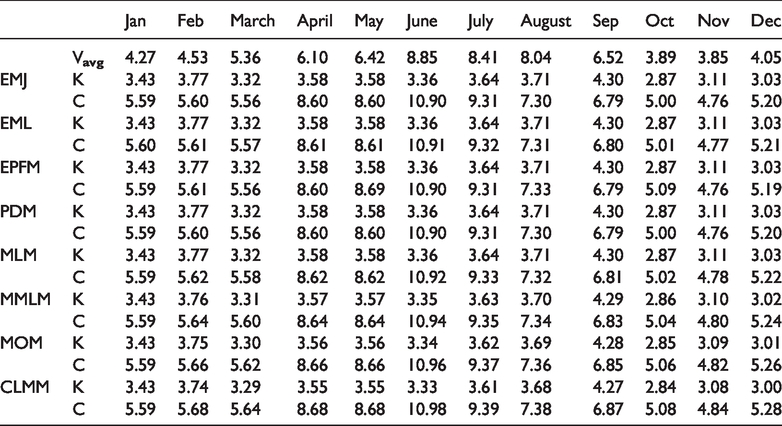

Table 5.

Monthly average wind speeds (ms⁻¹), K and C (ms⁻¹) calculated from various methods in 2018 at Hyderabad.

		Jan	Feb	March	April	May	June	July	August	Sep	Oct	Nov	Dec
	V _avg	4.27	4.53	5.36	6.10	6.42	8.85	8.41	8.04	6.52	3.89	3.85	4.05
EMJ	K	3.43	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.59	5.60	5.56	8.60	8.60	10.90	9.31	7.30	6.79	5.00	4.76	5.20
EML	K	3.43	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.60	5.61	5.57	8.61	8.61	10.91	9.32	7.31	6.80	5.01	4.77	5.21
EPFM	K	3.43	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.59	5.61	5.56	8.60	8.69	10.90	9.31	7.33	6.79	5.09	4.76	5.19
PDM	K	3.43	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.59	5.60	5.56	8.60	8.60	10.90	9.31	7.30	6.79	5.00	4.76	5.20
MLM	K	3.43	3.77	3.32	3.58	3.58	3.36	3.64	3.71	4.30	2.87	3.11	3.03
	C	5.59	5.62	5.58	8.62	8.62	10.92	9.33	7.32	6.81	5.02	4.78	5.22
MMLM	K	3.43	3.76	3.31	3.57	3.57	3.35	3.63	3.70	4.29	2.86	3.10	3.02
	C	5.59	5.64	5.60	8.64	8.64	10.94	9.35	7.34	6.83	5.04	4.80	5.24
MOM	K	3.43	3.75	3.30	3.56	3.56	3.34	3.62	3.69	4.28	2.85	3.09	3.01
	C	5.59	5.66	5.62	8.66	8.66	10.96	9.37	7.36	6.85	5.06	4.82	5.26
CLMM	K	3.43	3.74	3.29	3.55	3.55	3.33	3.61	3.68	4.27	2.84	3.08	3.00
	C	5.59	5.68	5.64	8.68	8.68	10.98	9.39	7.38	6.87	5.08	4.84	5.28

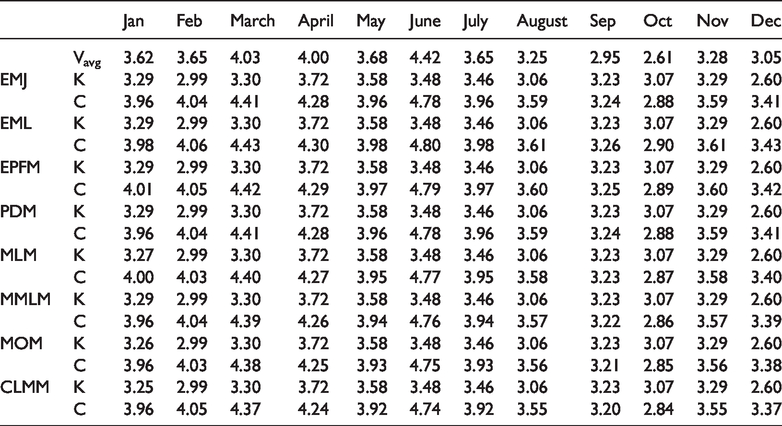

Table 6.

Monthly average wind speeds (ms⁻¹), K and C (ms⁻¹) calculated from various methods in 2014 at Nankana Sahib.

		Jan	Feb	March	April	May	June	July	August	Sep	Oct	Nov	Dec
	V_avg	3.62	3.65	4.03	4.00	3.68	4.42	3.65	3.25	2.95	2.61	3.28	3.05
EMJ	K	3.29	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	3.96	4.04	4.41	4.28	3.96	4.78	3.96	3.59	3.24	2.88	3.59	3.41
EML	K	3.29	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	3.98	4.06	4.43	4.30	3.98	4.80	3.98	3.61	3.26	2.90	3.61	3.43
EPFM	K	3.29	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	4.01	4.05	4.42	4.29	3.97	4.79	3.97	3.60	3.25	2.89	3.60	3.42
PDM	K	3.29	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	3.96	4.04	4.41	4.28	3.96	4.78	3.96	3.59	3.24	2.88	3.59	3.41
MLM	K	3.27	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	4.00	4.03	4.40	4.27	3.95	4.77	3.95	3.58	3.23	2.87	3.58	3.40
MMLM	K	3.29	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	3.96	4.04	4.39	4.26	3.94	4.76	3.94	3.57	3.22	2.86	3.57	3.39
MOM	K	3.26	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	3.96	4.03	4.38	4.25	3.93	4.75	3.93	3.56	3.21	2.85	3.56	3.38
CLMM	K	3.25	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	3.96	4.05	4.37	4.24	3.92	4.74	3.92	3.55	3.20	2.84	3.55	3.37

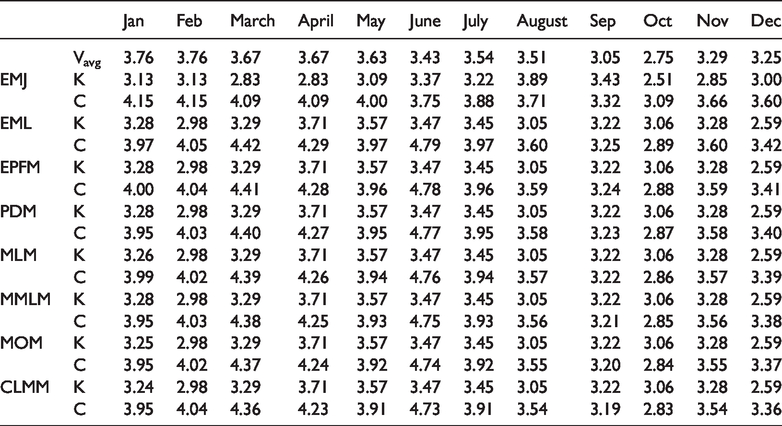

Table 7.

Monthly average wind speeds (ms⁻¹), K and C (ms⁻¹) calculated from various methods in 2015 at Nankana Sahib.

		Jan	Feb	March	April	May	June	July	August	Sep	Oct	Nov	Dec
	V_avg	3.76	3.76	3.67	3.67	3.63	3.43	3.54	3.51	3.05	2.75	3.29	3.25
EMJ	K	3.13	3.13	2.83	2.83	3.09	3.37	3.22	3.89	3.43	2.51	2.85	3.00
	C	4.15	4.15	4.09	4.09	4.00	3.75	3.88	3.71	3.32	3.09	3.66	3.60
EML	K	3.28	2.98	3.29	3.71	3.57	3.47	3.45	3.05	3.22	3.06	3.28	2.59
	C	3.97	4.05	4.42	4.29	3.97	4.79	3.97	3.60	3.25	2.89	3.60	3.42
EPFM	K	3.28	2.98	3.29	3.71	3.57	3.47	3.45	3.05	3.22	3.06	3.28	2.59
	C	4.00	4.04	4.41	4.28	3.96	4.78	3.96	3.59	3.24	2.88	3.59	3.41
PDM	K	3.28	2.98	3.29	3.71	3.57	3.47	3.45	3.05	3.22	3.06	3.28	2.59
	C	3.95	4.03	4.40	4.27	3.95	4.77	3.95	3.58	3.23	2.87	3.58	3.40
MLM	K	3.26	2.98	3.29	3.71	3.57	3.47	3.45	3.05	3.22	3.06	3.28	2.59
	C	3.99	4.02	4.39	4.26	3.94	4.76	3.94	3.57	3.22	2.86	3.57	3.39
MMLM	K	3.28	2.98	3.29	3.71	3.57	3.47	3.45	3.05	3.22	3.06	3.28	2.59
	C	3.95	4.03	4.38	4.25	3.93	4.75	3.93	3.56	3.21	2.85	3.56	3.38
MOM	K	3.25	2.98	3.29	3.71	3.57	3.47	3.45	3.05	3.22	3.06	3.28	2.59
	C	3.95	4.02	4.37	4.24	3.92	4.74	3.92	3.55	3.20	2.84	3.55	3.37
CLMM	K	3.24	2.98	3.29	3.71	3.57	3.47	3.45	3.05	3.22	3.06	3.28	2.59
	C	3.95	4.04	4.36	4.23	3.91	4.73	3.91	3.54	3.19	2.83	3.54	3.36

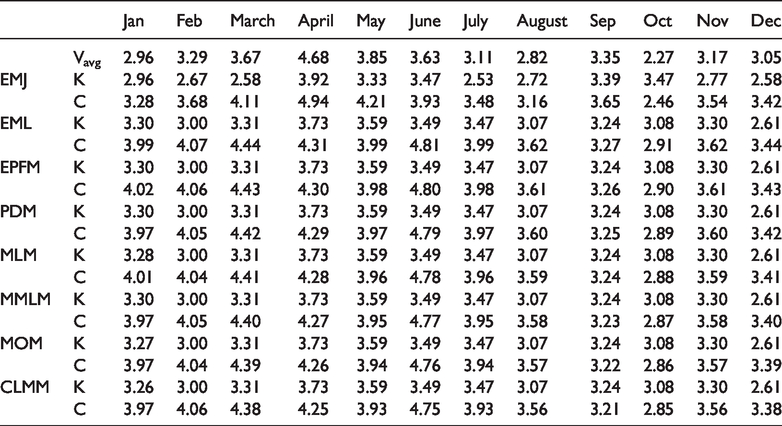

Table 8.

Monthly average wind speeds (ms⁻¹), K and C (ms⁻¹) calculated from various methods in 2016 at Nankana Sahib.

		Jan	Feb	March	April	May	June	July	August	Sep	Oct	Nov	Dec
	V_avg	2.96	3.29	3.67	4.68	3.85	3.63	3.11	2.82	3.35	2.27	3.17	3.05
EMJ	K	2.96	2.67	2.58	3.92	3.33	3.47	2.53	2.72	3.39	3.47	2.77	2.58
	C	3.28	3.68	4.11	4.94	4.21	3.93	3.48	3.16	3.65	2.46	3.54	3.42
EML	K	3.30	3.00	3.31	3.73	3.59	3.49	3.47	3.07	3.24	3.08	3.30	2.61
	C	3.99	4.07	4.44	4.31	3.99	4.81	3.99	3.62	3.27	2.91	3.62	3.44
EPFM	K	3.30	3.00	3.31	3.73	3.59	3.49	3.47	3.07	3.24	3.08	3.30	2.61
	C	4.02	4.06	4.43	4.30	3.98	4.80	3.98	3.61	3.26	2.90	3.61	3.43
PDM	K	3.30	3.00	3.31	3.73	3.59	3.49	3.47	3.07	3.24	3.08	3.30	2.61
	C	3.97	4.05	4.42	4.29	3.97	4.79	3.97	3.60	3.25	2.89	3.60	3.42
MLM	K	3.28	3.00	3.31	3.73	3.59	3.49	3.47	3.07	3.24	3.08	3.30	2.61
	C	4.01	4.04	4.41	4.28	3.96	4.78	3.96	3.59	3.24	2.88	3.59	3.41
MMLM	K	3.30	3.00	3.31	3.73	3.59	3.49	3.47	3.07	3.24	3.08	3.30	2.61
	C	3.97	4.05	4.40	4.27	3.95	4.77	3.95	3.58	3.23	2.87	3.58	3.40
MOM	K	3.27	3.00	3.31	3.73	3.59	3.49	3.47	3.07	3.24	3.08	3.30	2.61
	C	3.97	4.04	4.39	4.26	3.94	4.76	3.94	3.57	3.22	2.86	3.57	3.39
CLMM	K	3.26	3.00	3.31	3.73	3.59	3.49	3.47	3.07	3.24	3.08	3.30	2.61
	C	3.97	4.06	4.38	4.25	3.93	4.75	3.93	3.56	3.21	2.85	3.56	3.38

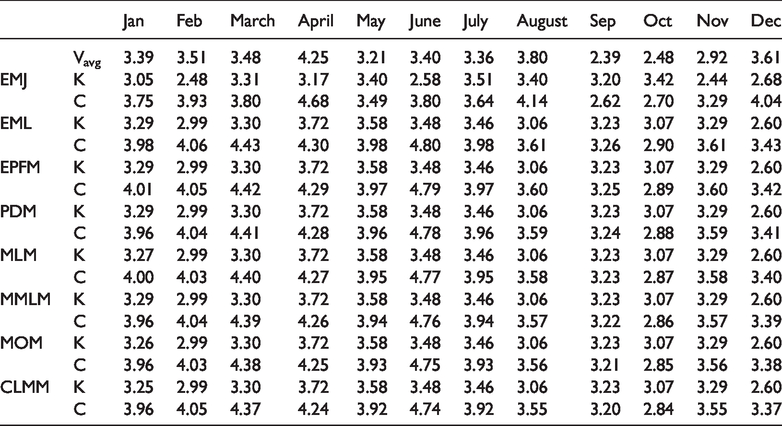

Table 9.

Monthly average wind speeds (ms⁻¹), K and C (ms⁻¹) calculated from various methods in 2017 at Nankana Sahib.

		Jan	Feb	March	April	May	June	July	August	Sep	Oct	Nov	Dec
	V_avg	3.39	3.51	3.48	4.25	3.21	3.40	3.36	3.80	2.39	2.48	2.92	3.61
EMJ	K	3.05	2.48	3.31	3.17	3.40	2.58	3.51	3.40	3.20	3.42	2.44	2.68
	C	3.75	3.93	3.80	4.68	3.49	3.80	3.64	4.14	2.62	2.70	3.29	4.04
EML	K	3.29	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	3.98	4.06	4.43	4.30	3.98	4.80	3.98	3.61	3.26	2.90	3.61	3.43
EPFM	K	3.29	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	4.01	4.05	4.42	4.29	3.97	4.79	3.97	3.60	3.25	2.89	3.60	3.42
PDM	K	3.29	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	3.96	4.04	4.41	4.28	3.96	4.78	3.96	3.59	3.24	2.88	3.59	3.41
MLM	K	3.27	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	4.00	4.03	4.40	4.27	3.95	4.77	3.95	3.58	3.23	2.87	3.58	3.40
MMLM	K	3.29	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	3.96	4.04	4.39	4.26	3.94	4.76	3.94	3.57	3.22	2.86	3.57	3.39
MOM	K	3.26	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	3.96	4.03	4.38	4.25	3.93	4.75	3.93	3.56	3.21	2.85	3.56	3.38
CLMM	K	3.25	2.99	3.30	3.72	3.58	3.48	3.46	3.06	3.23	3.07	3.29	2.60
	C	3.96	4.05	4.37	4.24	3.92	4.74	3.92	3.55	3.20	2.84	3.55	3.37

Table 10.

Monthly average wind speeds (ms⁻¹), K and C (ms⁻¹) calculated from various methods in 2018 at Nankana Sahib.

		Jan	Feb	March	April	May	June	July	August	Sep	Oct	Nov	Dec
	V_avg	3.42	3.74	3.87	4.28	4.63	4.10	3.60	4.07	3.38	2.88	3.72	3.08
EMJ	K	2.72	3.40	2.84	3.45	3.75	2.99	3.12	2.79	3.23	3.32	2.98	3.30
	C	3.83	4.06	4.30	4.64	4.94	4.54	3.97	4.54	3.71	3.15	4.12	3.36
EML	K	3.31	3.01	3.32	3.74	3.60	3.50	3.48	3.08	3.25	3.09	3.31	2.62
	C	4.00	4.08	4.45	4.32	4.00	4.82	4.00	3.63	3.28	2.92	3.63	3.45
EPFM	K	3.31	3.01	3.32	3.74	3.60	3.50	3.48	3.08	3.25	3.09	3.31	2.62
	C	4.03	4.07	4.44	4.31	3.99	4.81	3.99	3.62	3.27	2.91	3.62	3.44
PDM	K	3.31	3.01	3.32	3.74	3.60	3.50	3.48	3.08	3.25	3.09	3.31	2.62
	C	3.98	4.06	4.43	4.30	3.98	4.80	3.98	3.61	3.26	2.90	3.61	3.43
MLM	K	3.29	3.01	3.32	3.74	3.60	3.50	3.48	3.08	3.25	3.09	3.31	2.62
	C	4.02	4.05	4.42	4.29	3.97	4.79	3.97	3.60	3.25	2.89	3.60	3.42
MMLM	K	3.31	3.01	3.32	3.74	3.60	3.50	3.48	3.08	3.25	3.09	3.31	2.62
	C	3.98	4.06	4.41	4.28	3.96	4.78	3.96	3.59	3.24	2.88	3.59	3.41
MOM	K	3.28	3.01	3.32	3.74	3.60	3.50	3.48	3.08	3.25	3.09	3.31	2.62
	C	3.98	4.05	4.40	4.27	3.95	4.77	3.95	3.58	3.23	2.87	3.58	3.40
CLMM	K	3.27	3.01	3.32	3.74	3.60	3.50	3.48	3.08	3.25	3.09	3.31	2.62
	C	3.98	4.07	4.39	4.26	3.94	4.76	3.94	3.57	3.22	2.86	3.57	3.39

It has been observed that the values of Weibull parameters calculated from each method are different and this difference affects the efficiency of each method. Efficiency of these methods has been estimated using six statistical tests. i.e. R², MSE, RMSE, WE, MAPE, Chi-test for goodness of fit, and the results for two sites have been listed in Table 11 and 12 respectively. For a detailed comparison purpose of all methods, these values have been listed up to 7 decimal points. Each method has been ranked against each performance evaluation criteria on a scale from 1–8 (with 1 being the most efficient and 8 as the least efficient method). It has been observed that CLMM is the most efficient while EMJ is the least efficient with respect to (w.r.t) R². Similarly, the other methods have been ranked between these two extremes.

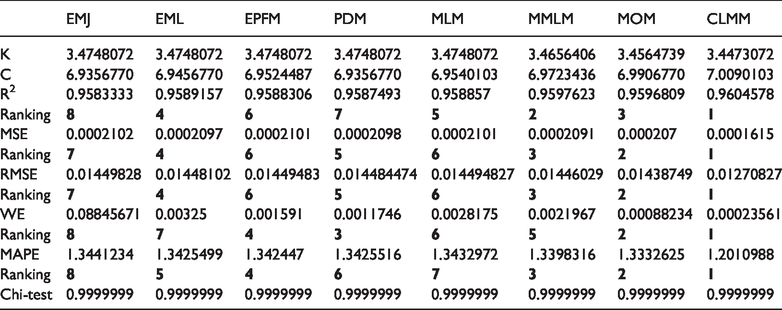

Table 11.

Comparative analysis of all Weibull parameters estimation methods at Hyderabad.

	EMJ	EML	EPFM	PDM	MLM	MMLM	MOM	CLMM
K	3.4748072	3.4748072	3.4748072	3.4748072	3.4748072	3.4656406	3.4564739	3.4473072
C	6.9356770	6.9456770	6.9524487	6.9356770	6.9540103	6.9723436	6.9906770	7.0090103
R²	0.9583333	0.9589157	0.9588306	0.9587493	0.958857	0.9597623	0.9596809	0.9604578
Ranking	8	4	6	7	5	2	3	1
MSE	0.0002102	0.0002097	0.0002101	0.0002098	0.0002101	0.0002091	0.000207	0.0001615
Ranking	7	4	6	5	6	3	2	1
RMSE	0.01449828	0.01448102	0.01449483	0.014484474	0.014494827	0.01446029	0.01438749	0.01270827
Ranking	7	4	6	5	6	3	2	1
WE	0.08845671	0.00325	0.001591	0.0011746	0.0028175	0.0021967	0.00088234	0.00023561
Ranking	8	7	4	3	6	5	2	1
MAPE	1.3441234	1.3425499	1.342447	1.3425516	1.3432972	1.3398316	1.3332625	1.2010988
Ranking	8	5	4	6	7	3	2	1
Chi-test	0.9999999	0.9999999	0.9999999	0.9999999	0.9999999	0.9999999	0.9999999	0.9999999

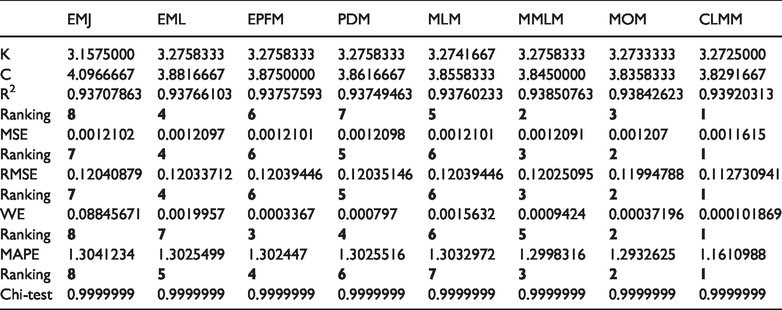

Table 12.

Comparative analysis of all Weibull parameters estimation methods at Nankana Sahib.

	EMJ	EML	EPFM	PDM	MLM	MMLM	MOM	CLMM
K	3.1575000	3.2758333	3.2758333	3.2758333	3.2741667	3.2758333	3.2733333	3.2725000
C	4.0966667	3.8816667	3.8750000	3.8616667	3.8558333	3.8450000	3.8358333	3.8291667
R²	0.93707863	0.93766103	0.93757593	0.93749463	0.93760233	0.93850763	0.93842623	0.93920313
Ranking	8	4	6	7	5	2	3	1
MSE	0.0012102	0.0012097	0.0012101	0.0012098	0.0012101	0.0012091	0.001207	0.0011615
Ranking	7	4	6	5	6	3	2	1
RMSE	0.12040879	0.12033712	0.12039446	0.12035146	0.12039446	0.12025095	0.11994788	0.112730941
Ranking	7	4	6	5	6	3	2	1
WE	0.08845671	0.0019957	0.0003367	0.000797	0.0015632	0.0009424	0.00037196	0.000101869
Ranking	8	7	3	4	6	5	2	1
MAPE	1.3041234	1.3025499	1.302447	1.3025516	1.3032972	1.2998316	1.2932625	1.1610988
Ranking	8	5	4	6	7	3	2	1
Chi-test	0.9999999	0.9999999	0.9999999	0.9999999	0.9999999	0.9999999	0.9999999	0.9999999

Ranking w.r.t MSE also declares CLMM as the most efficient while EMJ as the least efficient. Same ranking has been observed when ranked w.r.t RMSE. Similarly, CLMM has been found the most efficient method w.r.t WE, MAPE and Chi-test while EMJ as the least efficient w.r.t all these criteria. Chi-test has been reported to give the same result of all methods i.e. no method has been found to be either superior or inferior to the other w.r.t this criterion. Overall, based on all evaluation criteria, CLMM has been found the most efficient while EMJ as the least efficient.

However, the efficiency of other methods has been found to vary as the method of ranking changes, for example, MMLM has been found the second most efficient w.r.t R² while third most efficient w.r.t MSE and RMSE. Therefore, an overall ranking of these methods is required which has been done based on the average of individual ranking, as listed in Table 13.

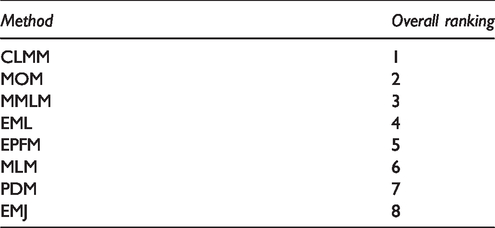

Table 13.

Overall ranking of Weibull parameters estimation methods.

Method	Overall ranking
CLMM	1
MOM	2
MMLM	3
EML	4
EPFM	5
MLM	6
PDM	7
EMJ	8

Also, distribution diagrams with actual wind data probability and the probabilities predicted by various methods for two representative locations have been shown in Figures 4 to 13 respectively against the years of 2014–2018 respectively. These diagrams also clearly represent that CLMM gives the best fit to actual wind data for all locations against all years.

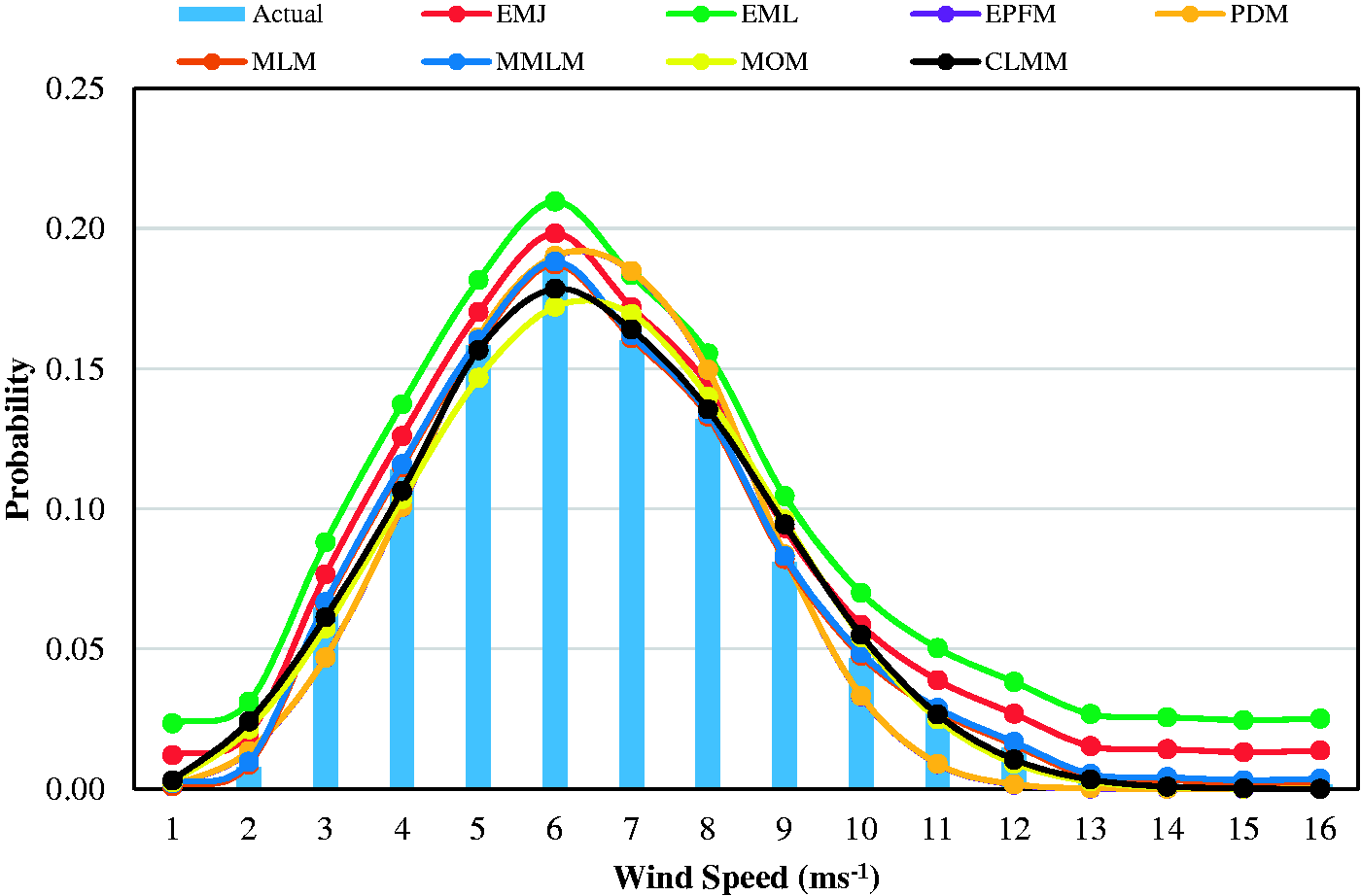

Figure 4.

Weibull distribution based on K and C calculated from various methods in 2014 at Hyderabad.

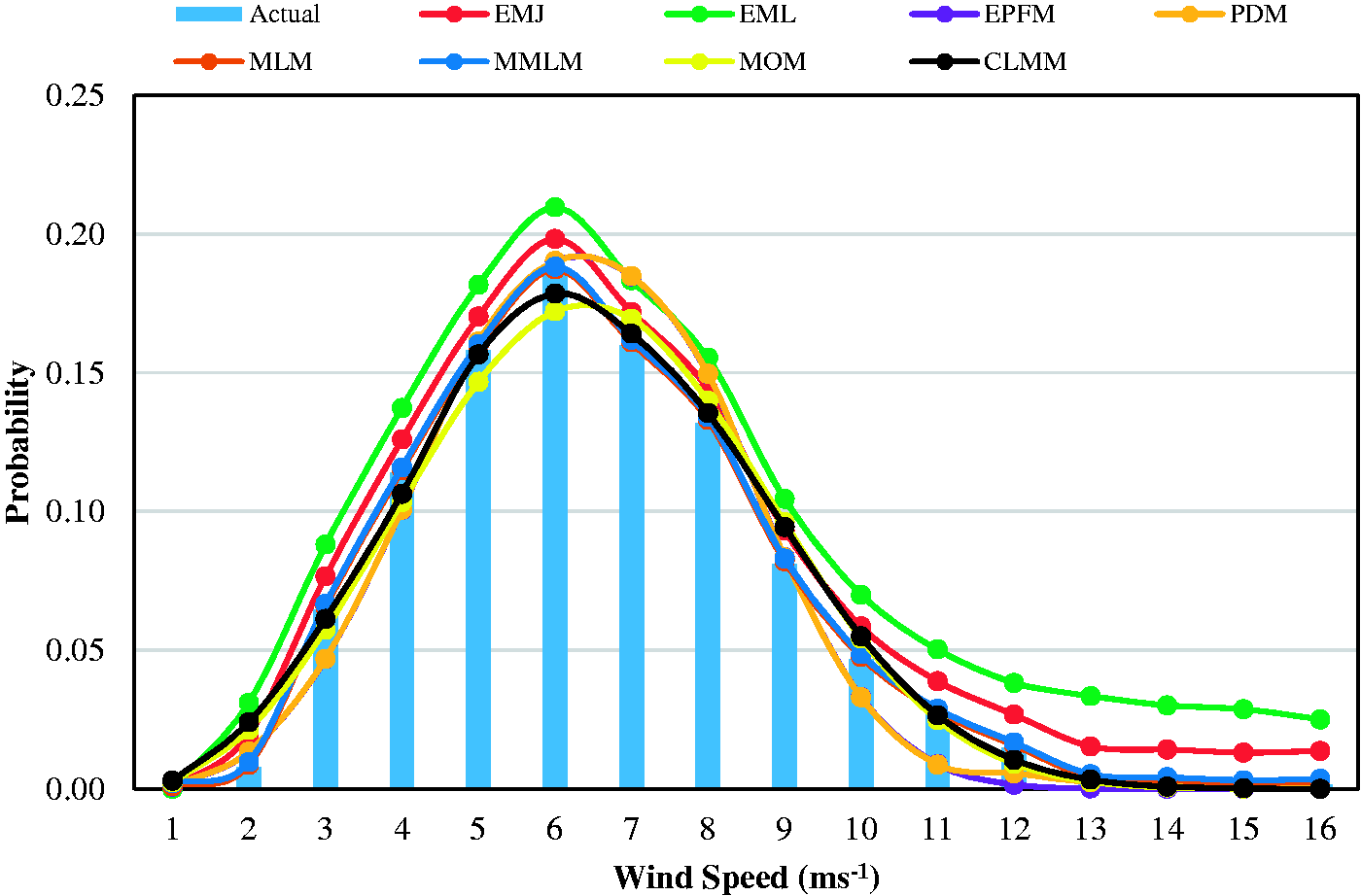

Figure 5.

Weibull distribution based on K and C calculated from various methods in 2015 at Hyderabad.

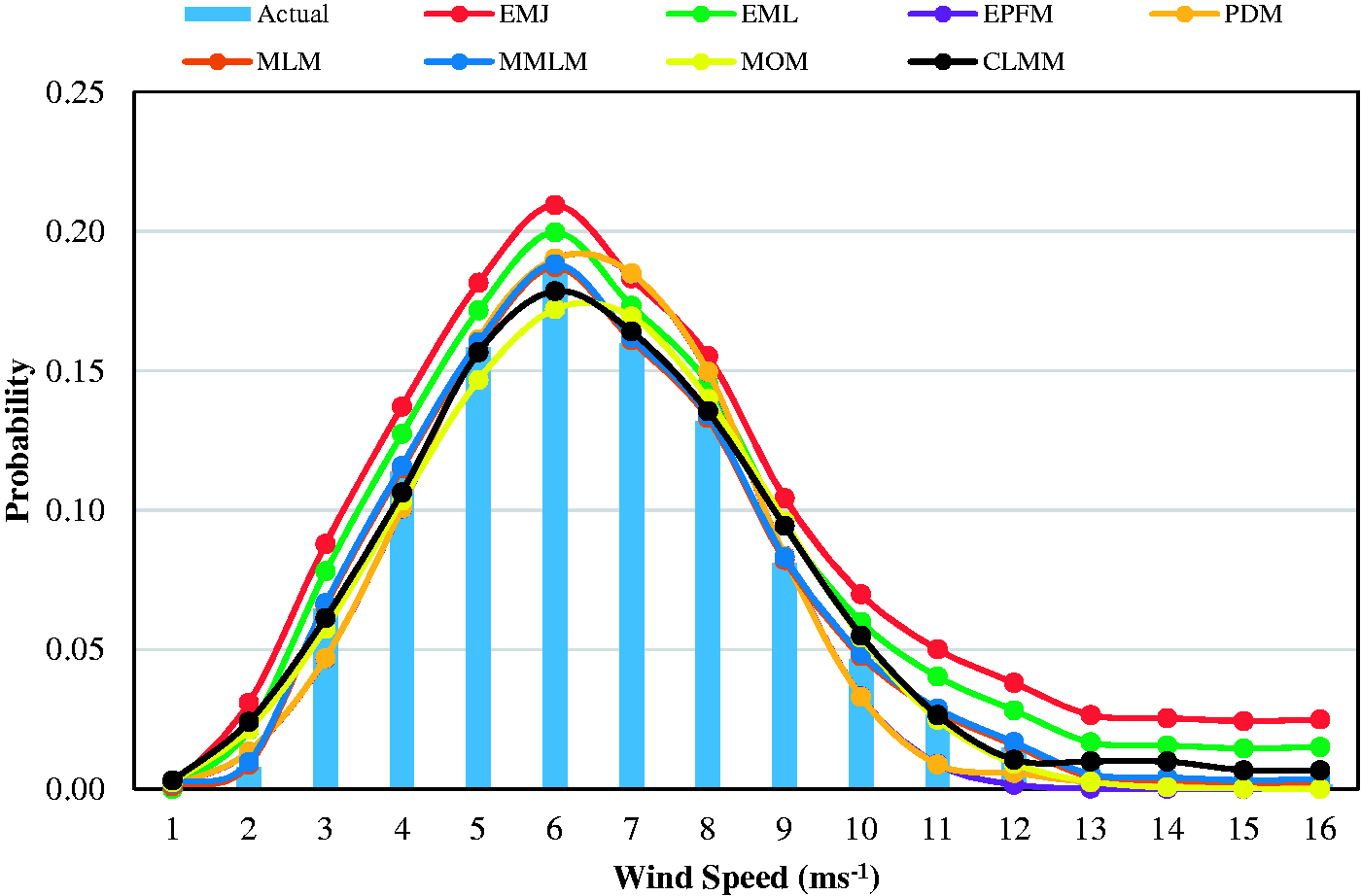

Figure 6.

Weibull distribution based on K and C calculated from various methods in 2016 at Hyderabad.

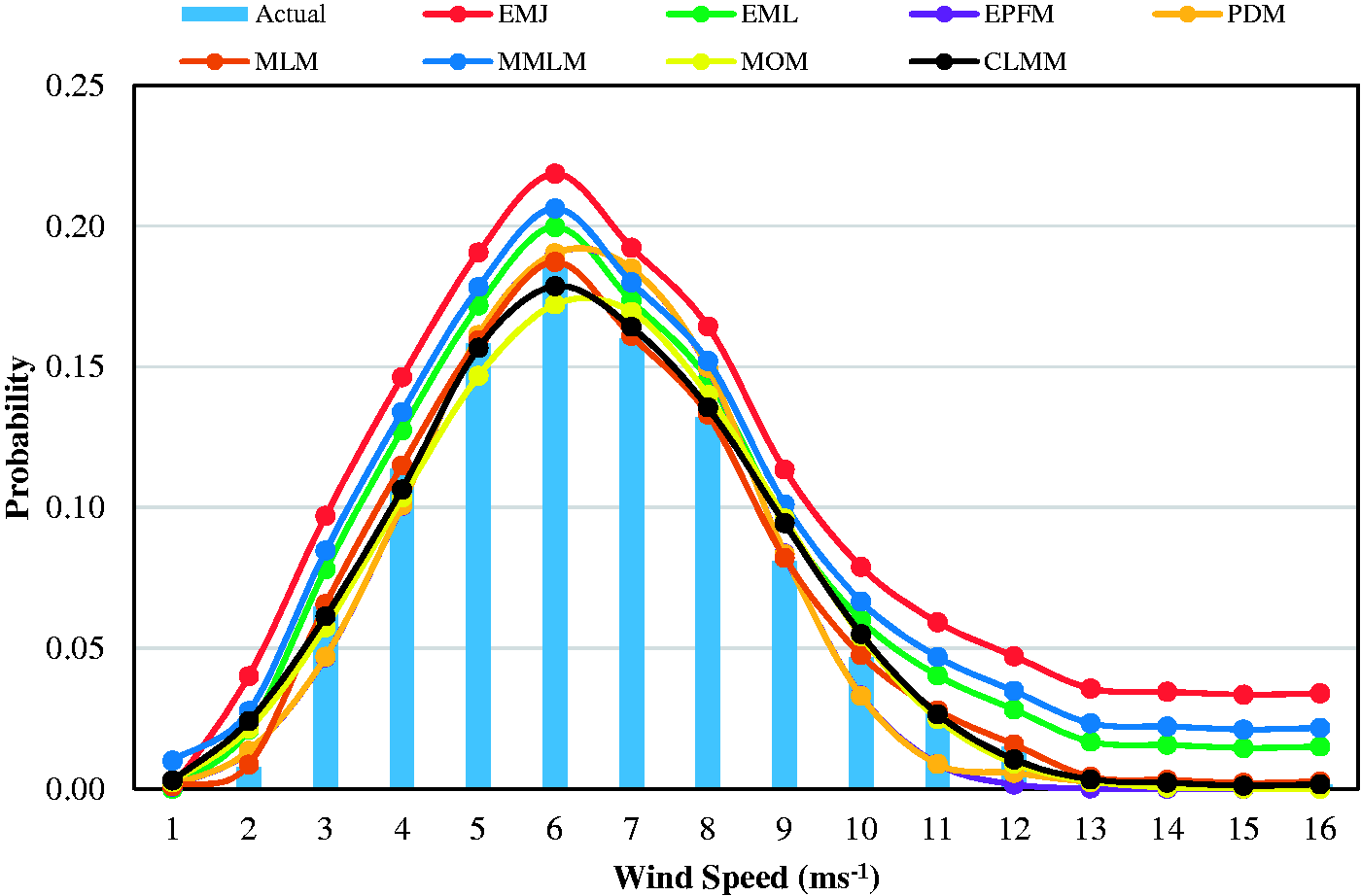

Figure 7.

Weibull distribution based on K and C calculated from various methods in 2017 at Hyderabad.

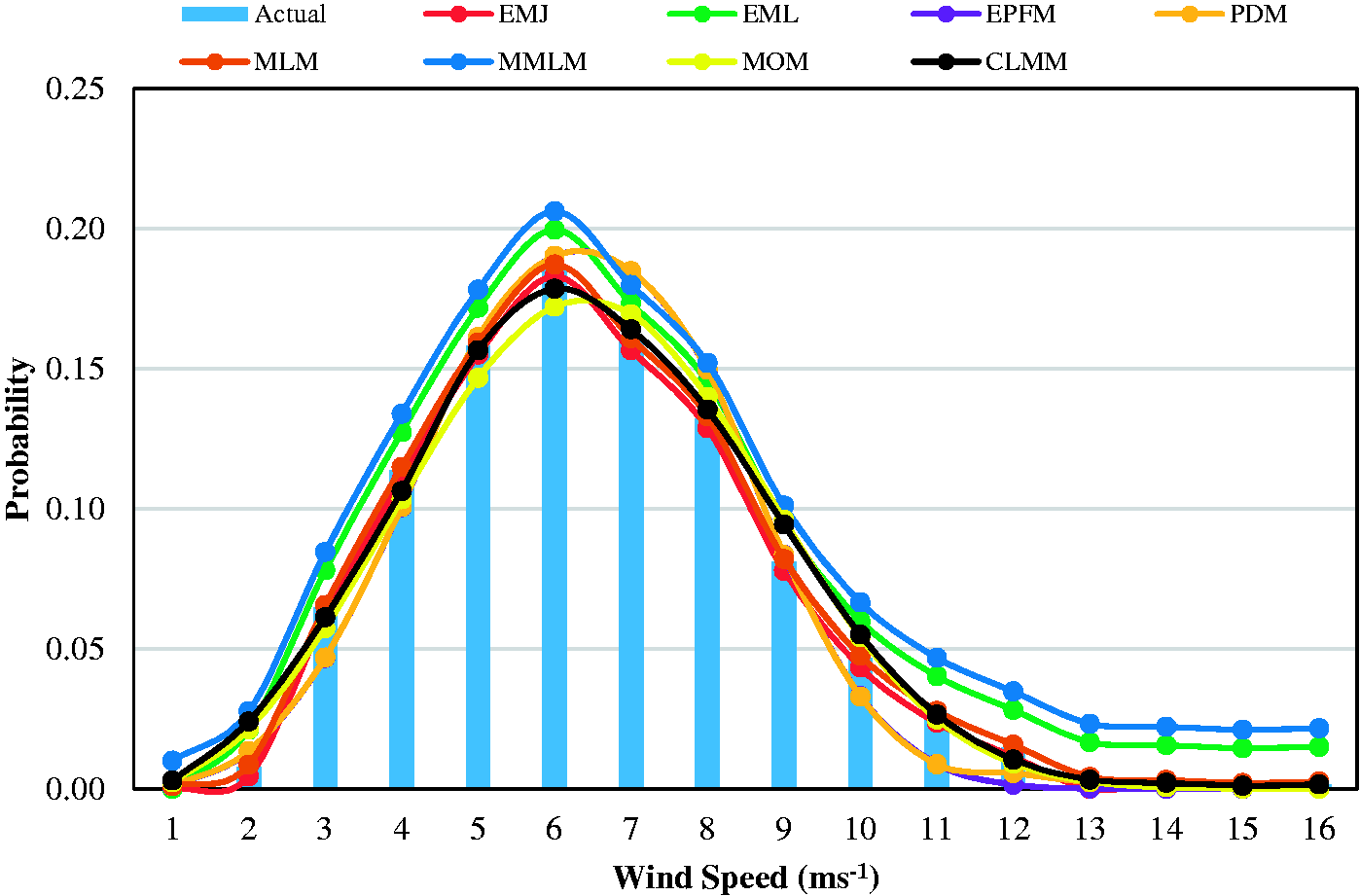

Figure 8.

Weibull distribution based on K and C calculated from various methods in 2018 at Hyderabad.

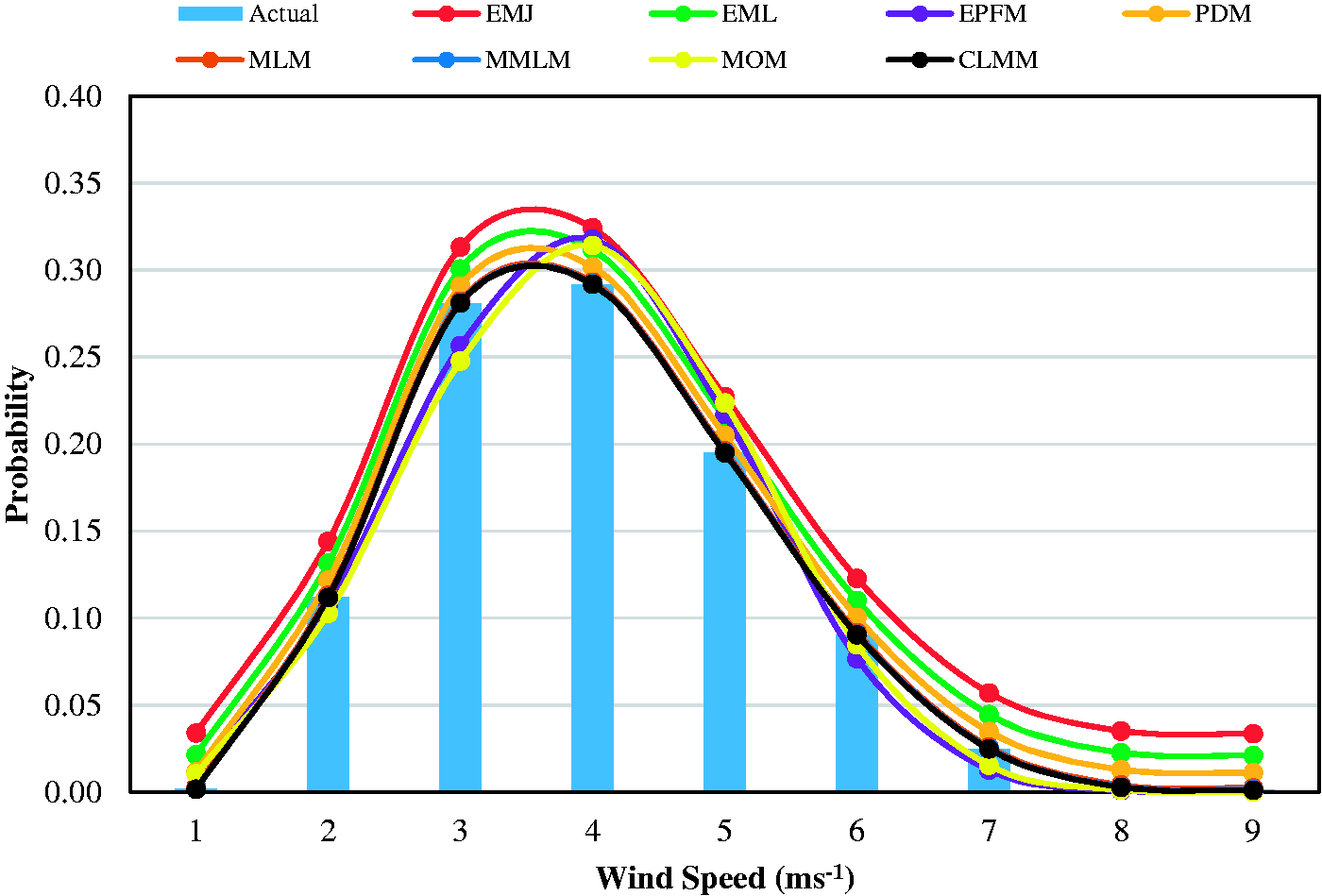

Figure 9.

Weibull distribution based on K and C calculated from various methods in 2014 at Nankana Sahib.

Figure 10.

Weibull distribution based on K and C calculated from various methods in 2015 at Nankana Sahib.

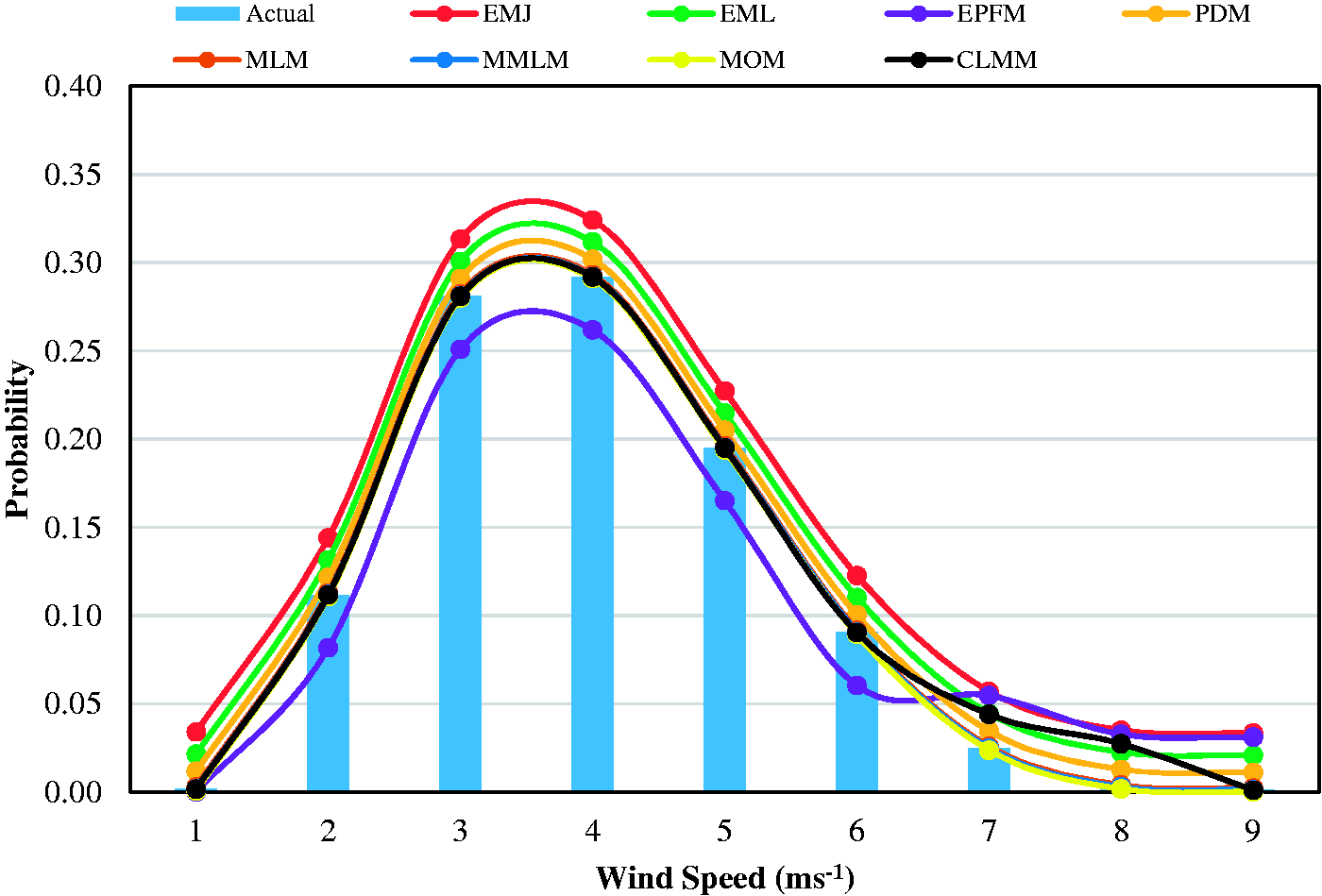

Figure 11.

Weibull distribution based on K and C calculated from various methods in 2016 at Nankana Sahib.

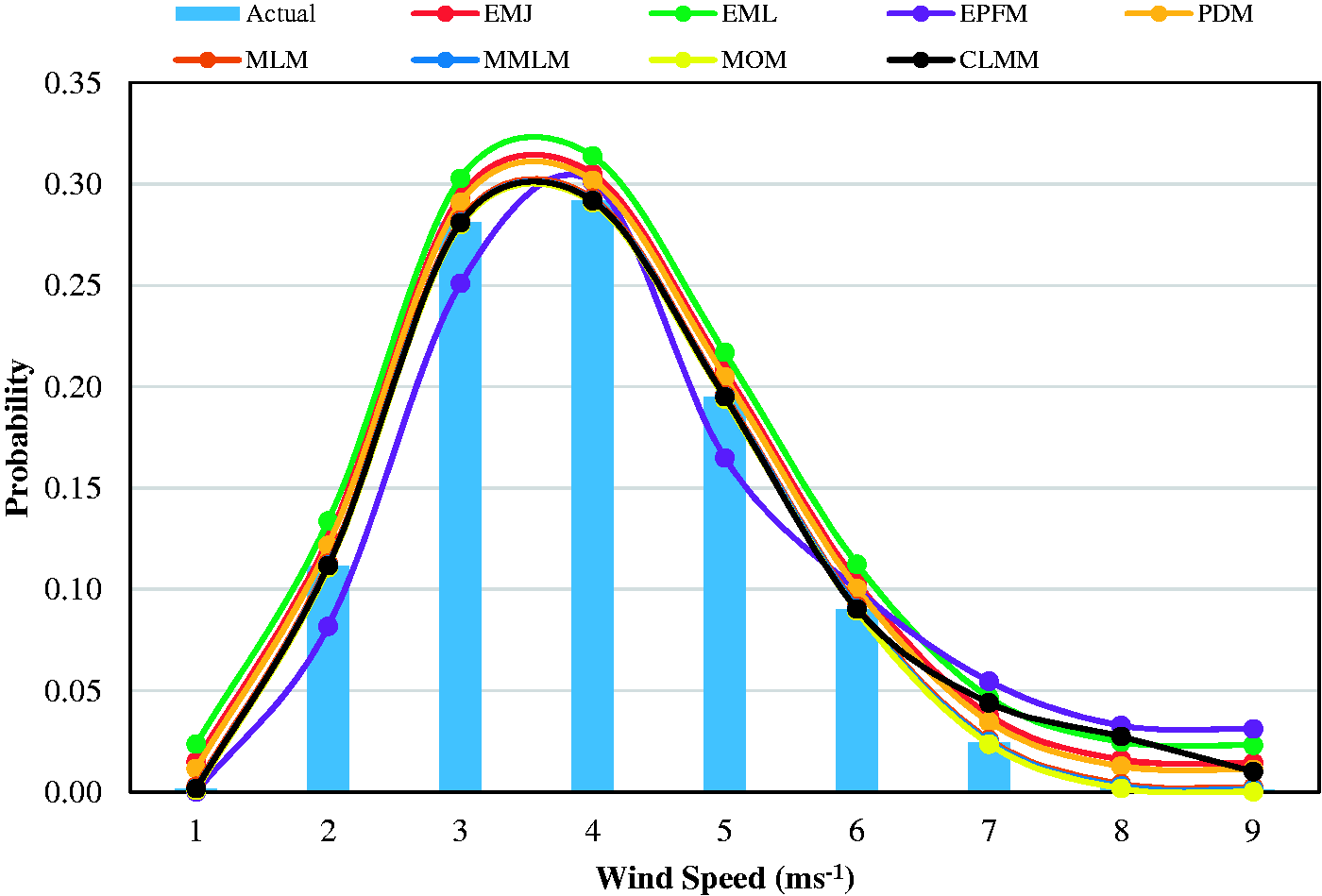

Figure 12.

Weibull distribution based on K and C calculated from various methods in 2017 at Nankana Sahib.

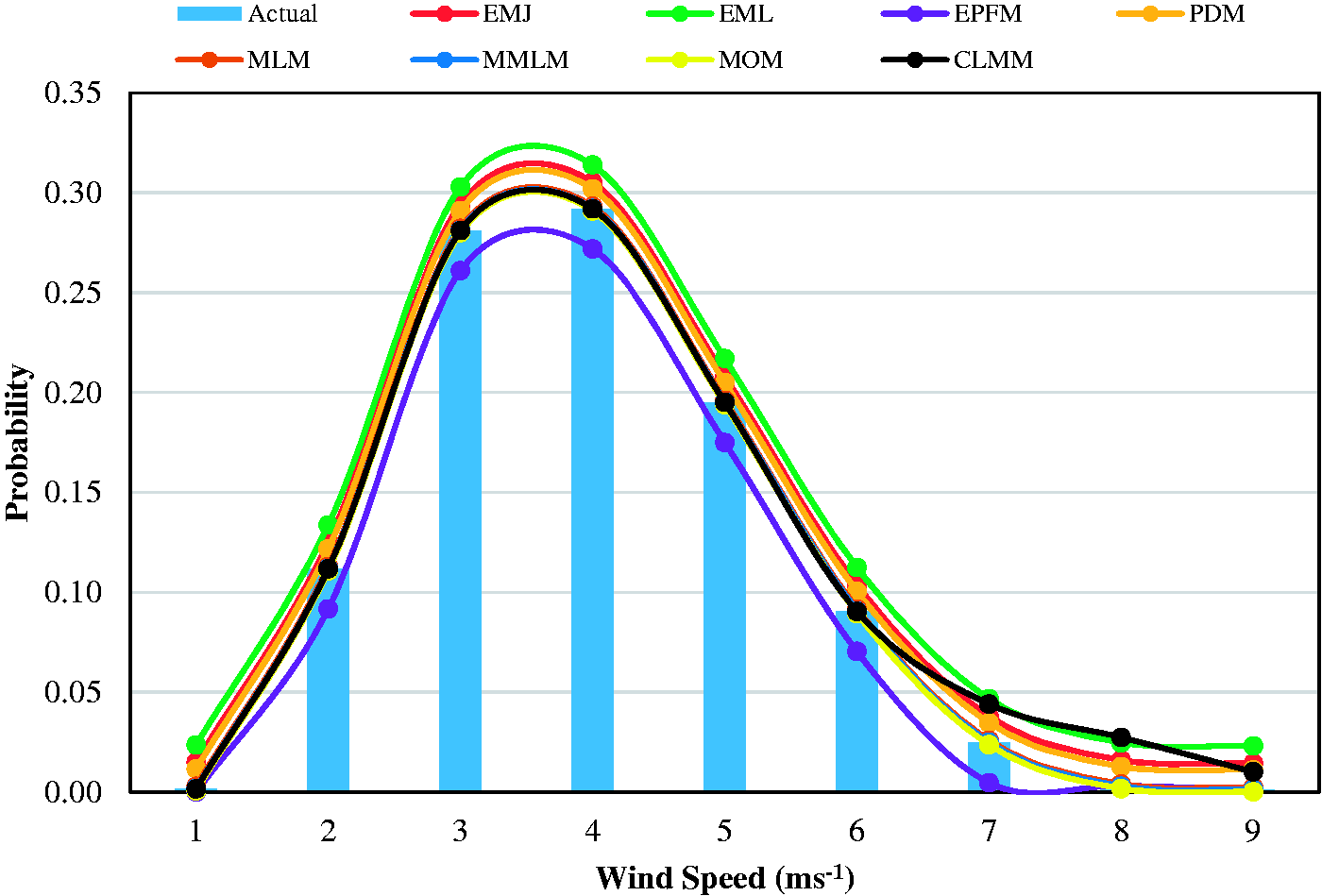

Figure 13.

Weibull distribution based on K and C calculated from various methods in 2018 at Nankana Sahib.

Here the results have been discussed for two representative locations only, however, it has been found from the analysis that these results are also validated for other three locations also.

Conclusion

Comparison of CLMM with seven traditional methods was carried out using wind data at five locations against six criteria i.e. R², MSE, RMSE, P.E., MAPE and Chi-test for goodness of fit. For all investigated locations, CLMM has been found the best method against all performance evaluation criterion while EMJ as the least accurate method. Detailed results have been presented for two locations i.e. Hyderabad and Nankana Sahib only in the form of tabulated data and charts; however, it has been found that these results are also validated for other locations also. Hence, CLMM can be used to estimate parameters of Weibull distribution with significant accuracy.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Muhammad Sumair

References

Ahmed

(2013) Comparative study of four methods for estimating Weibull parameters for Halabja, Iraq. International Journal of Physical Sciences 8(5): 186–192.

Akdağ

Dinler

(2009) A new method to estimate Weibull parameters for wind energy applications. Energy Conversion and Management 50(7): 1761–1766.

Akpinar

(2005) An assessment on seasonal analysis of wind energy characteristics and wind turbine characteristics. Energy Conversion and Management 46(11–12): 1848–1867.

Andrade

CFd

Maia Neto

Costa Rocha

, et al. (2014) An efficiency comparison of numerical methods for determining Weibull parameters for wind energy applications: A new approach applied to the northeast region of Brazil. Energy Conversion and Management 86: 801–808.

Bagiorgas

Giouli

Rehman

, et al. (2011) Weibull parameters estimation using four different methods and most energy-carrying wind speed analysis. International Journal of Green Energy 8(5): 529–554.

Bahrami

Teimourian

Okoye

, et al. (2019a) Assessing the feasibility of wind energy as a power source in Turkmenistan; a major opportunity for Central Asia's energy market. Energy 183: 415–427.

Bahrami

Teimourian

Okoye

, et al. (2019b) Technical and economic analysis of wind energy potential in Uzbekistan. Journal of Cleaner Production 223: 801–814.

Carta

Ramirez

(2007) Analysis of two-component mixture Weibull statistics for estimation of wind speed distributions. Renewable Energy 32(3): 518–531.

Carta

Ramírez

Velázquez

(2009) A review of wind speed probability distributions used in wind energy analysis: Case studies in the canary islands. Renewable and Sustainable Energy Reviews 13(5): 933–955.

10.

Chang

(2011) Performance comparison of six numerical methods in estimating Weibull parameters for wind energy application. Applied Energy 88(1): 272–282.

11.

Chaurasiya

Ahmed

Warudkar

(2018) Study of different parameters estimation methods of Weibull distribution to determine wind power density using ground based Doppler SODAR instrument. Alexandria Engineering Journal 57(4): 2299–2311.

12.

Cook

(2001) Discussion on modern estimation of the parameters of the Weibull wind speed distribution for wind speed energy analysis” by J.V. Seguro, T.W. Lambert. Journal of Wind Engineering and Industrial Aerodynamics 89(10): 867–869.

13.

Dorvlo

ASS

(2002) Estimating wind speed distribution. Energy Conversion and Management 43(17): 2311–2318.

14.

Jowder

(2009) Wind power analysis and site matching of wind turbine generators in kingdom of Bahrain. Applied Energy 86(4): 538–545.

15.

Khahro

Tabbassum

Soomro

, et al. (2014) Evaluation of wind power production prospective and Weibull parameter estimation methods for Babaurband, Sindh Pakistan. Energy Conversion and Management 78: 956–967.

16.

Khalid Saeed

Salam

Rehman

, et al. (2019) Comparison of six different methods of Weibull distribution for wind power assessment: A case study for a site in the Northern region of Pakistan. Sustainable Energy Technologies and Assessments 36: 100541.

17.

Mathew

Pandey

Kumar

(2002) Analysis of wind regimes for energy estimation. Renewable Energy 25(3): 381–399.

18.

Mohammadi

Mostafaeipour

(2013) Using different methods for comprehensive study of wind turbine utilization in Zarrineh, Iran. Energy Conversion and Management 65: 463–470.

19.

Ozay

Celiktas

(2016) Statistical analysis of wind speed using two-parameter Weibull distribution in Alaçatı region. Energy Conversion and Management 121: 49–54.

20.

Ramírez

Carta

(2006) The use of wind probability distributions derived from the maximum entropy principle in the analysis of wind energy. A case study. Energy Conversion and Management 47(15–16): 2564–2577.

21.

Saleh

Abou El-Azm Aly

Abdel-Hady

(2012) Assessment of different methods used to estimate Weibull distribution parameters for wind speed in Zafarana wind farm, Suez Gulf, Egypt. Energy 44(1): 710–719.

22.

Shami

Ahmad

Zafar

, et al. (2016) Evaluating wind energy potential in Pakistan's three provinces, with proposal for integration into national power grid. Renewable and Sustainable Energy Reviews 53: 408–421.

23.

Shoaib

Siddiqui

Amir

, et al. (2017) Evaluation of wind power potential in Baburband (Pakistan) using Weibull distribution function. Renewable and Sustainable Energy Reviews 70: 1343–1351.

24.

Shoaib

Siddiqui

Rehman

, et al. (2019) Assessment of wind energy potential using wind energy conversion system. Journal of Cleaner Production 216: 346–360.

25.

Sumair

Aized

Gardezi

SAR

, et al. (2020a) Application of five continuous distributions and evaluation of wind potential at five stations using normal distribution. Energy Exploration & Exploitation Epub ahead of print 7 July 2020. DOI: 10.1177/0144598720939373.

26.

Sumair

Aized

Gardezi

SAR

, et al. (2020b) Comparison of three probability distributions and techno-economic analysis of wind energy production along the coastal belt of Pakistan. Energy Exploration & Exploitation. Epub Ahead of print 19 June 2020. DOI: 10.1177/0144598720931587. 1–23.

27.

Sumair

Aized

Gardezi

SAR

, et al. (2020c) Weibull parameters estimation using combined energy pattern and power density method for wind resource assessment. Energy Exploration & Exploitation . Epub Ahead of Print 3 August 2020. DOI: 10.1177/0144598720947483.

28.

Sumair

Aized

Gardezi

SAR

, et al. (2020d) Investigation of wind shear coefficients and their effect on annual energy yields along the coastal sites of Pakistan. Energy Exploration & Exploitation Epub ahead of print 15 June 2020. DOI: 10.1177/0144598720930422.

29.

Sumair

Aized

Gardezi

SAR

, et al. (2020e) A newly proposed method for weibull parameters estimation and assessment of wind potential in Southern Punjab. Energy Reports 6: 1250–1261.

30.

Sumair

Aized

Gardezi

SAR

, et al. (2020f) A novel method developed to estimate Weibull parameters. Energy Reports 6: 1715–1733.

31.

Sumair

Aized

Gardezi

SAR

, et al. (2020g) Wind potential estimation and proposed energy production in Southern Punjab using Weibull probability density function and surface measured data. Energy Exploration & Exploitation Epub ahead of print 14 May 2020. DOI: 10.1177/0144598720920748.

32.

Sumair M, Aized T and Gardezi SAR (2020h) Extrapolation of wind data using generalized versus site-specific wind power law for wind power production prospective at Shahbandar- a coastal site in Pakistan. Energy Exploration & Exploitation Epub ahead of print 19 August 2020. DOI: 10.1177/0144598720952507.

33.

Teimouri

Hoseini

Nadarajah

(2013) Comparison of estimation methods for the Weibull distribution. Statistics 47(1): 93–109.

34.

Werapun

Tirawanichakul

Waewsak

(2015) Comparative study of five methods to estimate Weibull parameters for wind speed on Phangan island, Thailand. Energy Procedia 79: 976–981.

Efficiency comparison of historical and newly developed Weibull parameters estimation methods

Abstract

Keywords

Introduction

Materials and methods

Sites description

Weibull distribution

Calculation methods for Weibull parameters

Empirical method of Justus (EMJ)

Empirical method of Lysen (EML)

Energy pattern factor method (EPFM)

Power density method (PDM)

Maximum likelihood method (MLM)

Modified maximum likelihood method (MMLM)

Method of moment (MOM)

Combined linearized moment method (CLMM)

Measure of goodness of fit

R-Squared (R2)

Mean square error (MSE)/root mean square error (RMSE)

Wind error (WE)

Mean absolute percentage error (MAPE)

Results and discussions

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References

R-Squared (R²)
