Understanding the evolution of a scientific field by clustering and visualizing knowledge graphs

Abstract

The process of tracking the evolution of a scientific field is arduous. It allows researchers to understand trends in areas of science and predict how they may evolve. Nowadays, most of the automated mechanisms developed to assist researchers in this process do not consider the content of articles to identify changes in its structure, only the articles metadata. These methods are not suited to easily assist researchers to study the concepts that compose an area and its evolution. In this article, we propose a method to track the evolution of a scientific field at a concept level. Our method structures a scientific field using two knowledge graphs, representing distinct periods of the studied field. Then, it clusters them and identifies correspondent clusters between the knowledge graphs, representing the same subareas in distinct time periods. Our solution enables to compare the corresponding clusters, tracking their evolution. We apply and experiment our method in two case studies concerning the artificial intelligence (AI) and the biotechnology (BIO) fields. Findings indicate befitting results regarding the way their evolution can be assessed with our implemented software tool. From our analyses, we perceived evolution in broader subareas of a scientific field, as the growth of the ‘Convolutional Neural Network’ area from 2006; to specific ones, as the decrease of research works using mice to study BRAF-mutation lung cancer from 2018. This work contributes with the development of a web application with interactive user interfaces to assist researchers in representing, analysing and tracking the evolution of scientific fields at a concept level.

Keywords

Knowledge graphs knowledge representation scientific evolution

1. Introduction

The process of studying a scientific field or to do a literature review is arduous for both newcomers and expert researchers in a specific area. The increasing amount of publications [1] and, consequently, the coming era of big scholarly data have aggravated this issue, making it more laborious for researchers to search for relevant documents related to their studies [2]. Therefore, they usually go after review articles to help them understanding how the field under study is organised. After familiarising themselves with the state of the art of the studied field, researchers must maintain themselves updated reading novel findings published in prestigious conferences and journals.

Both the processes of studying a new scientific field or staying up-to-date with fresh discoveries in a previously known field are time-consuming. A common reason for this problem is that survey articles may be outdated or even do not exist for a desired area. Consequently, researchers have to spend a significant part of their research time reading content, sometimes irrelevant to their studies, until finding the right articles related to their investigations. When keeping themselves updated with fresh discoveries, researchers do not have time to read all newly published articles in their areas.

Recent investigations have developed mechanisms to understand the structure and the evolution of scientific fields. Most of those approaches make inferences based on manually annotated data or metadata information from articles that belong to the studied field [3,4]. However, these characteristics limit the understanding of a field, as they are unfeasible on large scale or do not consider the semantics of content from its articles. In this context, Tosi and dos Reis [5] proposed SciKGraph, a framework to structure a scientific field as a knowledge graph at a concept level, considering a knowledge graph a structure that integrates information into a knowledge base and applies a reasoner to generate new knowledge from it. Instead of representing a scientific field using only metadata information, SciKGraph uses the concepts extracted from texts on academic articles to represent and structure it. SciKGraph clusters the constructed knowledge graph by identifying the main subareas of the studied field, their relation and the concepts belonging to them. Still, their framework only represents a fixed time period of the studied field and does not allow us to analyse its evolution over different periods of time.

It is not a trivial task the adequate evolution tracking of a scientific field considering how it evolved semantically, examining its concepts, not just its metadata. The study of the evolution of a scientific field at a concept level requires investigating how to track changes in its structure. We describe the structure of a scientific field as the set of its subareas and their relations, containing the concepts that belong to it along with how they are correlated and connected among themselves. Therefore, the evolution tracking of a scientific field becomes more challenging than only detecting and representing inserted or deleted concepts. Considering that not just its structure, but all concepts that shape it can be modified, it is hard to determine whether some subarea of the structure changed, was replaced or suffered from noise data. For example, one could determine that a subarea $a_{1}$ did not evolve to $a_{2}$ because they have only 30% of their concepts in common. However, 90% of the time, $a_{1}$ is referred to by one of those common concepts. Thus, the other 70% of not similar concepts, despite being part of $a_{1}$ , caused a miss classification and should have been considered noise.

In this article, we propose an approach to track the evolution of a scientific field at a concept level. We first define two scientific field periods from which we shall track the evolution. Then, we use SciKGraph [5] to construct knowledge graph representations of those two periods, clustered in their main subareas. Next, our solution calculates the similarity of all clusters from both knowledge graphs. Our method is suited to identify clusters from distinct knowledge graphs that represent the same subarea of the scientific field. Finally, after determining which clusters represent the same subarea, we compare them and track their evolution, identifying concepts added or excluded from the analysed subarea between the periods analysed.

In addition, with the aim of computationally assisting researchers understanding how a scientific field organised at a concept level evolves, we provide an application software to facilitate this process. Our solution is a web application designed for researchers without programming skills or background knowledge in the area. Our application contains graphical interfaces to assist users to represent a scientific field as a knowledge graph, analyse its characteristics and track its evolution. All these features allow graphical representations of the scientific field.

We evaluate the proposed method and application software in two case studies from distinct knowledge areas. The first one is the artificial intelligence (AI) scientific field, represented using 1002 academic articles. Based on the proposed approach, we found the possibility of tracking the evolution that occurred on the ‘Image Analysis’ and the ‘Neural Network’ subareas from 2006. As an example identified with our tool from this period, we observed a drop in ‘Image Analysis’ articles using supervised learning, and also the increase of popularity of ‘Convolutional Neural Networks’. We also explore our tool to analyse the biotechnology (BIO) scientific field, represented by 8964 abstracts. We structure the input textual documents in knowledge graphs and analyse their evolution by comparing articles published between 2014 and 2016 and 2018 and 2020. As an example, this analysis allowed us to detect via the software tool that research works using mice to study BRAF-mutation lung cancer decreased.

Our proposal and software application contributes to assist researchers in understanding how a scientific field is organised on a concept level. In addition, our solution enables to track and understand the evolution of the identified topics (represented as clusters) in different knowledge graphs. Our software application provides graphical visualisations for the analysed fields, their subareas and their relations.

The remaining of this article is organised as follows. Section 2 introduces background studies. Section 3 presents the proposed method to track the evolution of the scientific field. Section 4 fully describes our constructed and available to use application software. Section 5 reports on our experimental analyses. Section 6 discusses the obtained findings. Section 7 concludes this article with our final considerations.

2. Background

Scientific knowledge has been structured differently over the past years. Nowadays, publishers and researchers usually use one of the four methods to this end – citation networks, manual assignment, classification techniques or knowledge graphs. Citation networks study the topology of the citations among papers to determine how to structure scientific knowledge [3]. Manual assignments depend on experts to determine how to segment the areas and subareas of a scientific field, like the ones in Rous [6]. Classification techniques determine in which subarea of a scientific field a document belongs [7], usually considering the subareas previously identified by citation networks or manual assignments. Knowledge graphs structure a scientific field based only on the textual content of its articles, using them to segment the scientific field subareas [5].

Researchers use some of those methods to identify how the structure of scientific fields changes over time. Citation network methods are common for this end. Jung and Segev [8], for example, studied not only the evolution of a scientific field but also inferred future changes in it. Hopcroft et al. [4] proposed to track evolving communities in citation networks. They identified groups of communities, also known as covers [9], from citation networks built with documents from distinct time periods. Then, they classified if clusters from distinct covers were similar enough to be representing the same subarea. If they were, they could compare those clusters and track subareas’ evolution.

The use of the Normalised Mutual Information (NMI) metric has been used to train classification methods, or to identify if a clusterisation algorithm effectively segmented a citation network in its main subareas. This allows comparing the cover generated by the analysed algorithm with a baseline cover. NMI is a metric that varies from 0 to 1, which evaluates how close two covers are between themselves. The closer the NMI value is to 1, the more similar the covers are. Chakraborty and Chakraborty [10] adopted this approach in which they used a variant of the NMI metric, optimised for overlapping clusters, to evaluate their algorithm results identifying overlapping clusters in citation networks.

These and other citation network approaches study only the metadata of the articles. The tracking of changes concerning the structure of a scientific field based on its content remains an open research challenge. If one wants to identify how the structure of a scientific field evolved at a concept level, the usage of metadata-dependent-only techniques is not adequate. However, review articles (manual assignment method) could be a solution to this issue. Although many scientific fields do not have review articles, or they are out dated.

Furthermore, Amancio et al. [11] semantically assessed approaches for citations in scientific papers using complex networks. They conclude that factors that may not consider the scientific merit are used in those approaches by researchers, and recommend a method that researchers may use to identify relevant references without bias. Therefore, they advocate for the development of less biased software tools to assist researchers in better understanding the literature. Also, Amancio et al. [12] studied how specific metadata and non-metadata parameters (number of citations, date of publication and content similarity) influence citation networks and further impact authors’ h-index. Similarly to Amancio et al. [11], they concluded that not only the content similarity between articles influences citations but also the date of publication, the number of citations and the reputation of their authors and institutions. Considering this, we point out that the bias included in citation networks is another indication that semantically oriented methods must be used to improve literature understanding.

The usage of knowledge graph approaches to represent scholarly data and scientific knowledge is very recent in the literature. The study conducted by Vahdati et al. [13] tackled the problem of knowledge discovery in scholarly knowledge graphs. They used a knowledge-driven framework able to unveil scholarly communities for the prediction of scholarly networks. Results observed from their evaluations suggested that exploiting semantics in scholarly knowledge graphs enables the identification of previously unknown relations between researchers. However, to the best of our knowledge, there is no work in the literature aiming to analyse the evolution of knowledge graphs in the context of scientific knowledge.

Tosi and dos Reis [5] proposed SciKGraph, a knowledge graph framework to structure and represent a scientific field. SciKGraph receives as input a compendium of textual documents used to represent a scientific field. Then, SciKGraph identifies and disambiguates the concepts of those documents, and uses them as vertices of a co-occurrence knowledge graph. Next, by clustering the graph, the framework identifies the main subareas of the scientific field. Finally, SciKGraph extracts key concepts from the knowledge graph representing its topics. Tosi and dos Reis evaluated their framework using collections of documents from distinct fields of science, obtaining satisfactory results. This indicates that SciKGraph can be used to represent scientific knowledge independent from its field. Nevertheless, SciKGraph requires novel features to compare and compute similar clusters as well as to enable identifying change operations from one knowledge graph to other.

Our exploratory literature review indicates that there is no current method that can track how a scientific field structure evolves at a concept level. In this investigation, we propose a knowledge graph method to track the evolution of a scientific field. We base our method on the SciKGraph framework [5], and combine techniques usually applied to citation networks to track the evolution of our knowledge graphs.

3. Tracking the evolution of a scientific field

This section describes how to structure a scientific field to track its evolution over time. Section 3.1 introduces how we use SciKGraph to represent a scientific field as a knowledge graph and extract its main subareas. Section 3.2 describes our approach to identify similar subareas in different knowledge graphs and how to use this information to track subareas’ evolution.

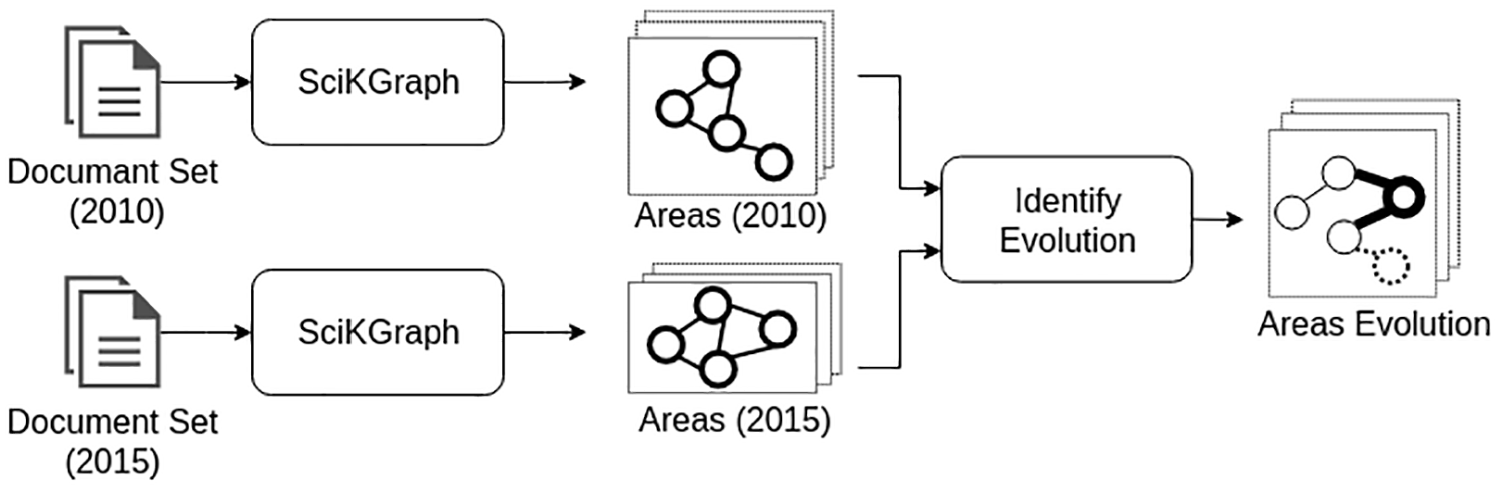

Figure 1 presents our proposed methodology to track the evolution of a scientific field. First, it receives as input two sets of documents used to describe distinct periods of the same scientific field, 2010 and 2015 (as the example used in Figure 1). Next, it uses SciKGraph to construct a knowledge graph for each one of the input sets and extracts their main subareas (clusters). Finally, it compares the two knowledge graphs by identifying common subareas in both structures. The output refers to the dissimilarities between detected subareas in the different knowledge graphs. These dissimilarities represent what changed in the subareas during the time window between both sets of documents (represented in bold and dotted elements in Figure 1). This enables describing concepts added or excluded from a subarea during a time window, which we describe here as the subarea evolution.

Figure 1.

Methodology to track the evolution of a scientific field.

3.1. Representing a scientific field as a knowledge graph

The representation of a scientific field as a knowledge graph enables the study of knowledge at a concept level. This allows users to understand concepts, their relations and structure. We represent scientific fields as knowledge graphs to track their evolution. To this end, we use the SciKGraph framework [5] (see Figure 2). First, SciKGraph receives as input a collection of scientific documents used to represent a scientific field. This is used to construct a knowledge graph that represents this collection. Second, SciKGraph clusters the constructed structure by identifying the scientific field’s main subareas. Finally, SciKGraph extracts knowledge from the structures previously constructed.

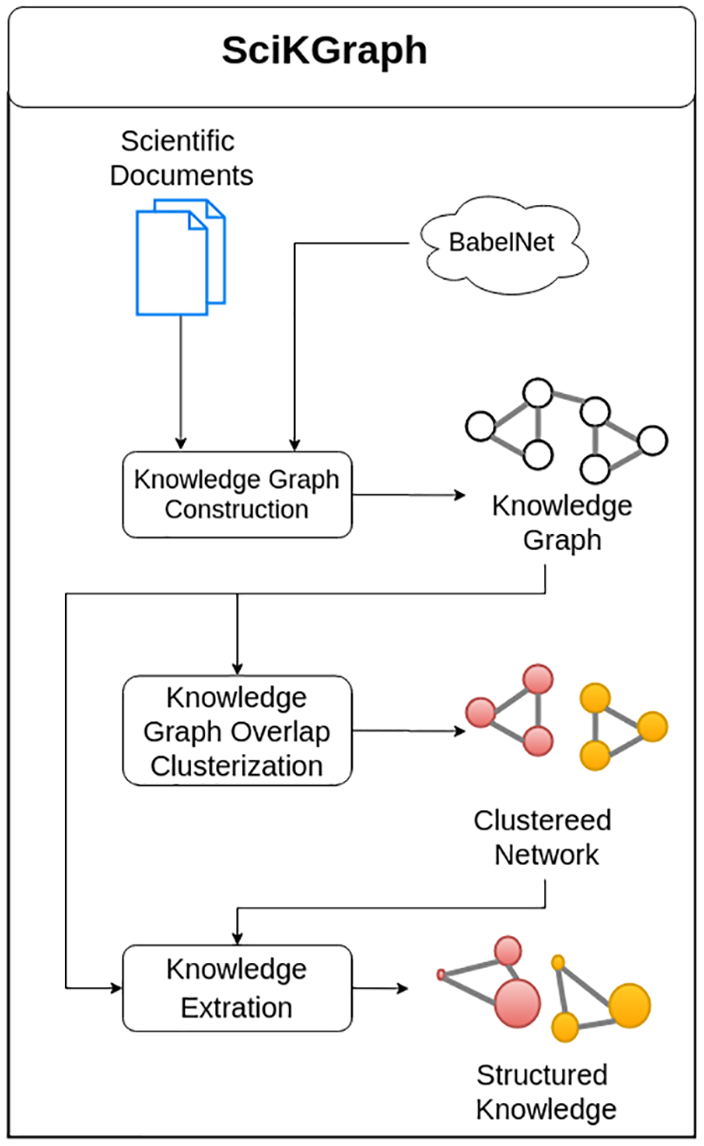

Figure 2.

SciKGraph framework [5] to structure a scientific collection as a knowledge graph.

SciKGraph performs the ‘Knowledge Graph Construction’ task, which takes as input a collection of scientific documents used to represent a scientific field, which in our case we use to represent a time period of this scientific field. This task parses those documents, excluding citations, images and equations. Then, it uses Babelfy [14], a text disambiguation software to perform word sense disambiguation – the task to computationally find the contextual meaning of words [15] – and link corresponding concepts between our documents and BabelNet [16], a multilingual semantic network. This operation returns concept Babel synsets, which are their unique identification codes.

Next, this task constructs the knowledge graph using the identified corresponding concepts as vertices and their co-occurrence in the text as undirected edges, both weighted based on the number of times they appeared in the text. Figure 3 presents an example, by receiving as input the phrase ‘Knowledge graphs can structure knowledge [72]’. The solution parses it excluding a citation (pre-processing); identifies the ‘knowledge graph’, ‘structure’ and ‘knowledge’ as correspondent concepts with BabelNet; and constructs the knowledge graph taking the three concepts as vertices and their direct co-occurrence as edges, weighted based on the number of times they appeared in the whole collection. We note that if those concepts or their co-occurrences appear again in other documents of the collection, their weights in the knowledge graph are updated considering these events.

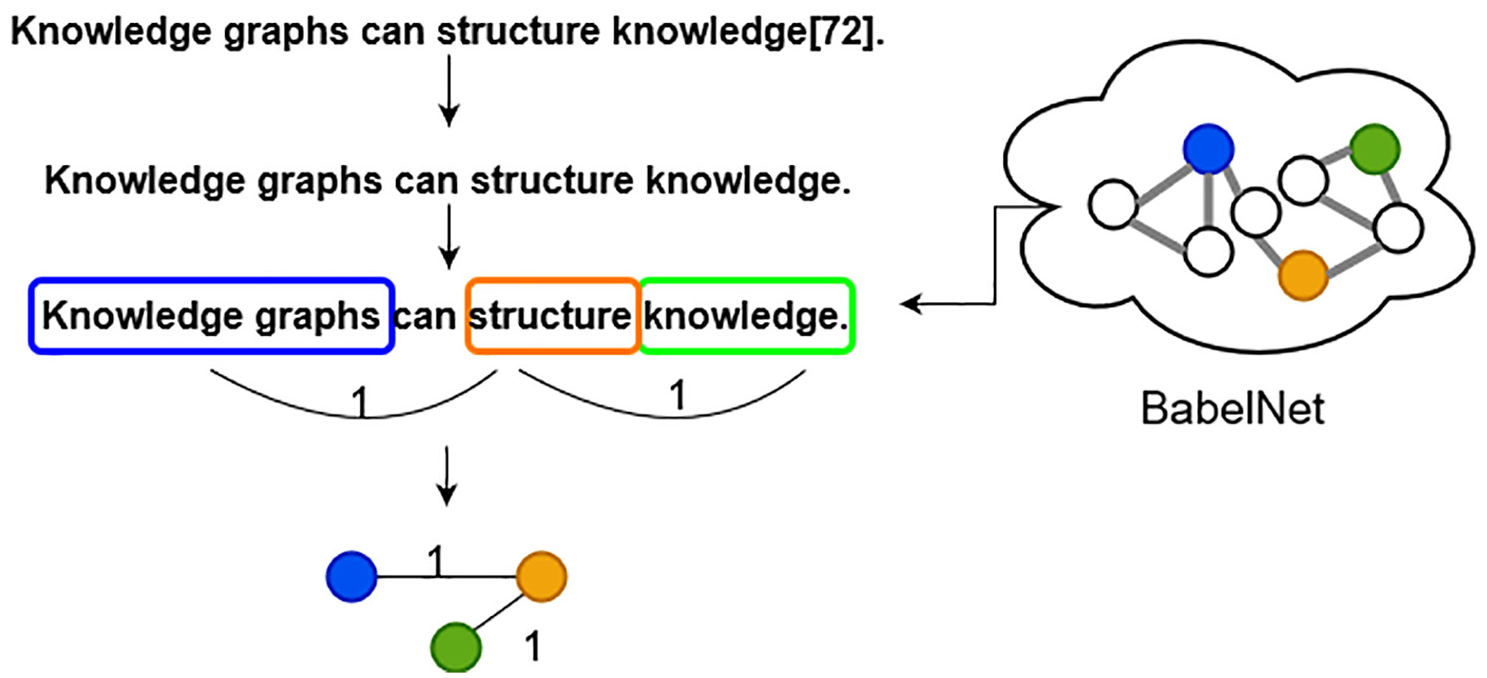

Figure 3.

Example of generating a knowledge graph from an input sentence.

SciKGraph performs the ‘Knowledge Graph Overlap Clusterisation’ task (see Figure 2), which takes as input the knowledge graph previously constructed and clusters it, identifying overlapping subgraphs, representing the scientific field subareas. The idea behind this task is that concepts that belong to the same subarea co-occur more than those from different ones because they tend to appear more times in the same context. Therefore, as clusterisation techniques divide elements into groups that are more correlated with themselves than with others, SciKGraph states that when clustering a knowledge graph with edges weighted based on concepts co-occurrence, the clusters identified represent distinct subareas of the field the knowledge graph represents. Moreover, as a concept can belong to multiple subareas simultaneously, it is an intrinsic part of the problem to enable overlapping representations of subareas.

In the second step, to cluster the knowledge graph, SciKGraph uses the OClustR algorithm [17]. It is a graph-based clusterisation algorithm that automatically identifies the number of overlapping clusters on which it divides the knowledge graph. The user does not need to input the number of subareas to organise the scientific field because OClustR identifies it automatically. However, if the user desires to fix a number and reduces the number of clusters identified, SciKGraph proposes three agglomerative algorithms for this task [5], which we do not use to track the evolution of the identified subareas.

In the third step, the ‘Knowledge Extraction’ task organises and extracts knowledge from the knowledge graph, and its clusters (subgraphs). It presents the subareas identified through the clusterisation process and identifies their adequate labels using the C-Rank algorithm. C-Rank [18] is a non-supervised keyphrase extraction technique that identifies keyphrases from scientific documents receiving as input from the user only the document from which it has to extract the keyphrases. At this stage, keyphrases are not relevant for the identification of similar subareas in distinct knowledge graphs nor to identify their evolution over time. Therefore, we do not further detail their extraction in this work.

3.1.1. Knowledge graph parameters

To optimise the clusterisation, SciKGraph pre-processes the knowledge graph. This pre-processing contains three steps as follows: (1) it removes edges weighted below a certain $threshol d_{edges}$ , reducing noise; (2) it excludes vertices with higher degree centrality that are inside a $threshol d_{centrality}$ , which eliminates general concepts that are relevant for the scientific field as a whole, but are too general to be relevant for a specific subarea; and (3) it discards small disjoint subgraphs created after the previous steps.

In the performance of the pre-processing, two variables must be defined $threshol d_{edges}$ and $threshol d_{centrality}$ ; both of them depend on the domain and the size of the input document collection. When one increases $threshol d_{edges}$ , the clusters produced are better defined and the clusterisation has better accuracy, but contain less information, decreasing the number of vertices in the knowledge graph [5]. By reducing $threshol d_{centrality}$ , the size of the identified clusters decreases, but the number of identified clusters increases, as less of their central nodes are being removed. To obtain optimal values, SciKGraph, based on the graph structure, recommends an interactive approach. This approach presents estimated values to the user, who can change them based on the observed generated output.

In this investigation, our objective is to track the evolution of a scientific field by comparing the structure of its knowledge graph representations in distinct periods. In this sense, the closer the knowledge graph representations are to each other, the less noise to identify the evolution of its subareas will be. Thus, we acknowledge the fact that the $threshol d_{edges}$ is related to the number of vertices and edges in the knowledge graph, and the evidence that the number of vertices influences the structure of the identified clusters [5]. On this basis, we shall set $threshol d_{edges}$ values that result in knowledge graphs with a similar number of vertices.

In our analyses, we observed that representations of the studied scientific fields containing around 1600 concepts held enough information to be further processed and generated clusters with high modularity. Therefore, we examined which $threshol d_{edges}$ values we would need to apply to our representations to produce knowledge graphs with this amount of vertices. Based on these values, we identified a power series relation between the $threshol d_{edges}$ and the number of edges in the knowledge graph $(| edges |)$ (see Figure 4).

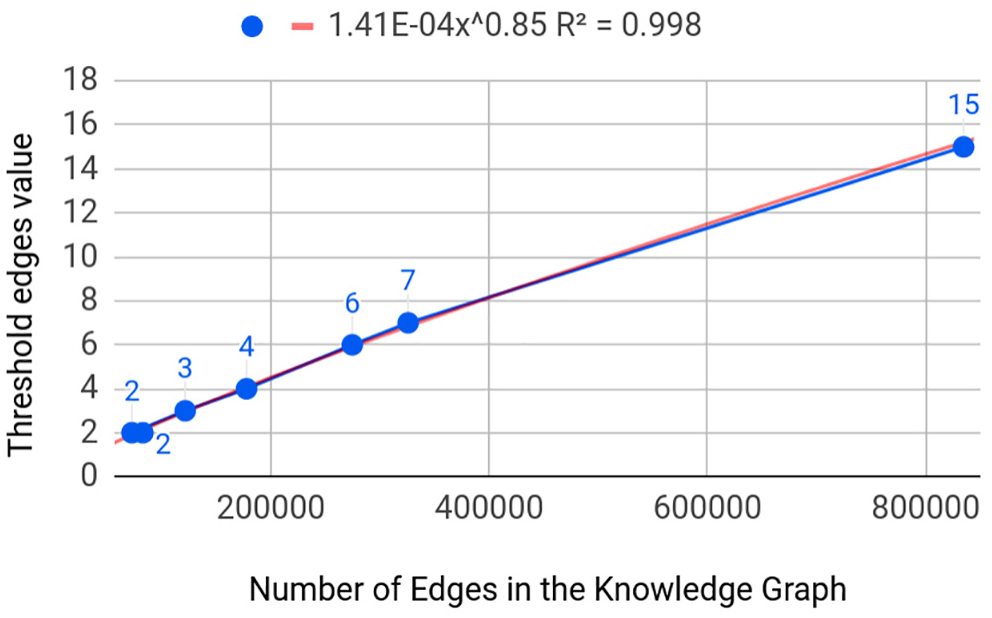

Figure 4.

Power series relation between the number of edges and the $threshol d_{edges}$ value to generate knowledge graphs with the same amount of vertices.

Figure 4 shows a chart with the relation between the number of edges of knowledge graphs $(| edges |)$ and the $threshol d_{edges}$ values we determined to pre-process them in order to obtain their representations with around 1600 concepts each. This relation does not expect a constant value and is powered to 0.85. Moreover, setting the coefficient of the power series to 0.00014, we obtained the approximate number of vertices we expected. However, one can increase or decrease this coefficient to respectively raise or reduce the number of vertices of the representations in order to identify more specific or general subareas of the studied scientific field.

Therefore, considering this relation, when tracking the evolution of a scientific field, we use equation (1) to determine $threshol d_{edges}$ value, maintaining a similar amount of concepts in distinct scientific field representations. The equation coefficient is domain-dependent, and, as explained previously, can vary based on the scientific field analysed and the number of articles used to represent it. In this sense, the equation coefficient follows the same trend of the $threshol d_{edges}$ parameter, when one increases it, the clusterisation algorithm has better accuracy. However, as it also removes more vertices, the knowledge graph loses more information

threshol d_{edges} = {| edges |}^{0.85} . 0.00014

(1)

3.2. Identifying dissimilarities between knowledge graphs

We represent two time periods of the same scientific field as distinct knowledge graphs. Our goal is to track the evolution of this scientific field during the time window between both representations. The identification of concepts and connections that were added or excluded from the knowledge graphs during the analysed time window would give the researcher a shallow perspective of the evolution of the scientific field. Therefore, to improve the researcher experience, instead of analysing only the knowledge graph, we track the evolution of the scientific field by identifying the concepts added and/or excluded from each of the scientific field subareas (knowledge graph clusters).

In order to track the evolution of a cluster comparing distinct covers, it is necessary to identify the corresponding clusters in both covers. Figure 5 presents an example to illustrate the comparison of clusters from distinct knowledge graphs. Even though both covers have three clusters each, it would be inaccurate to compare the clusters labelled with the same numbers; this comparison would result in total dissimilarity between the covers. It requires further considering the meaning of concepts present in the clusters.

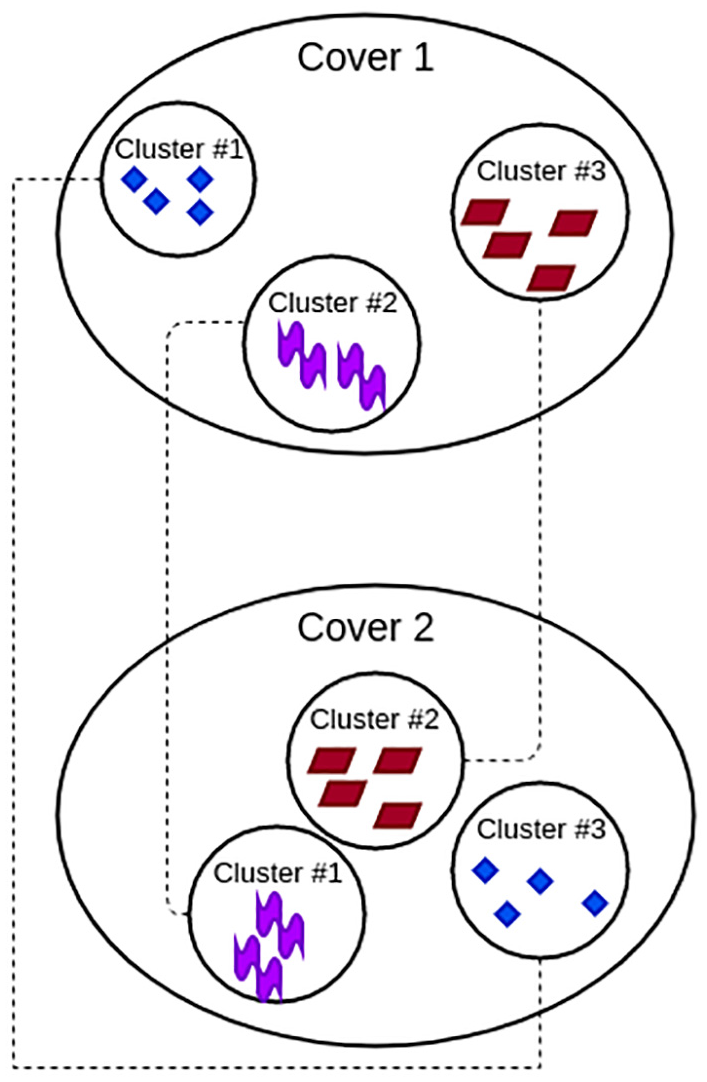

Figure 5.

Example of cover comparison; correspondent clusters from distinct covers are linked by dotted lines.

In our approach, we analyse the content of each cluster in both covers, so that we may identify that ‘Cluster #1’ from ‘Cover 1’ and ‘Cluster #3’ from ‘Cover 2’ are corresponding clusters in our example (corresponding clusters linked by dotted lines in Figure 5). By comparing the elements of the clusters, we can identify that both covers have the same structure, and they only had their clusters sorted differently.

We use a similarity measure to determine the correspondence ratio between two clusters $c_{1}$ and $c_{2}$ . It is based on the $match (c_{1}, c_{2})$ equation used by Hopcroft et al. [4] (see equation (2)), which quantifies how well two clusters match with each other, computing the number of intersection elements between the clusters, and normalising it by the size of the bigger cluster. We chose this measure because its definition ensures that for clusters to have high similarity, they must roughly have the same size. Therefore, broader clusters will not have a high correspondence ratio with small ones just because they also contain almost all the elements that the small clusters have

match (c_{1}, c_{2}) = \min (\frac{| c_{1} \cap c_{2} |}{| c_{1} |}, \frac{| c_{1} \cap c_{2} |}{| c_{2} |})

(2)

However, instead of giving the same importance to all concepts in the clusters, our similarity measure weights the concepts based on their degree centralities in the clusters’ subgraphs. Therefore, when analysing a concept $n$ , we consider its weight $weight (n)$ as the average of its degree centrality $centra l_{c} (n)$ in the subgraphs $c$ that it belongs (see equation (3))

weight (n) = {\begin{matrix} centra l_{c 1} (n), & if n \in c 1, n \notin c 2 \\ centra l_{c 2} (n), & if n \notin c 1, n \in c 2 \\ \frac{centra l_{c 1} (n) + centralit y_{c 2} (n)}{2}, & if n \in c 1, n \in c 2 \end{matrix}

(3)

Furthermore, considering the weight of each concept to calculate the similarity between two clusters, our similarity measure $similarity (c_{1}, c_{2})$ is defined as in equation (4). That way, we reduce the relevance of miss classified noisy concepts using a weighted function based on the centrality of the concepts in the subgraphs to which they belong

similarity (c_{1}, c_{2}) = \min (\frac{Σ_{n \in c_{1} \cap c_{2}} weight (n)}{Σ_{n \in c_{1}} weight (n)}, \frac{Σ_{n \in c_{1} \cap c_{2}} weight (n)}{Σ_{n \in c 2} weight (n)})

(4)

After defining how to calculate the similarity measure between two clusters, we can identify the more similar ones. To this end, we calculate the similarity between every pair of clusters from different covers. In this procedure, each cluster from one cover has a certain similarity value with all clusters from the other cover. At the final stage, we select the most similar pairs of clusters, which are those that have the similarity value above the $threshol d_{similarity}$ value. This threshold value varies from 0 to 1 and determines to which extent the similarity between two clusters must be to consider them correspondent or related.

After identifying correspondent clusters, representing the same subarea in distinct time periods, the researcher can directly analyse the concepts and relations added and excluded from them during the studied time window. Considering this, one may visualise how this subarea evolved at a concept level, enabling researchers to, for example, observe how a specific concept impacted in the evolution of a subarea. Practical examples and results obtained analysing correspondent clusters in two case studies are presented in section 5.

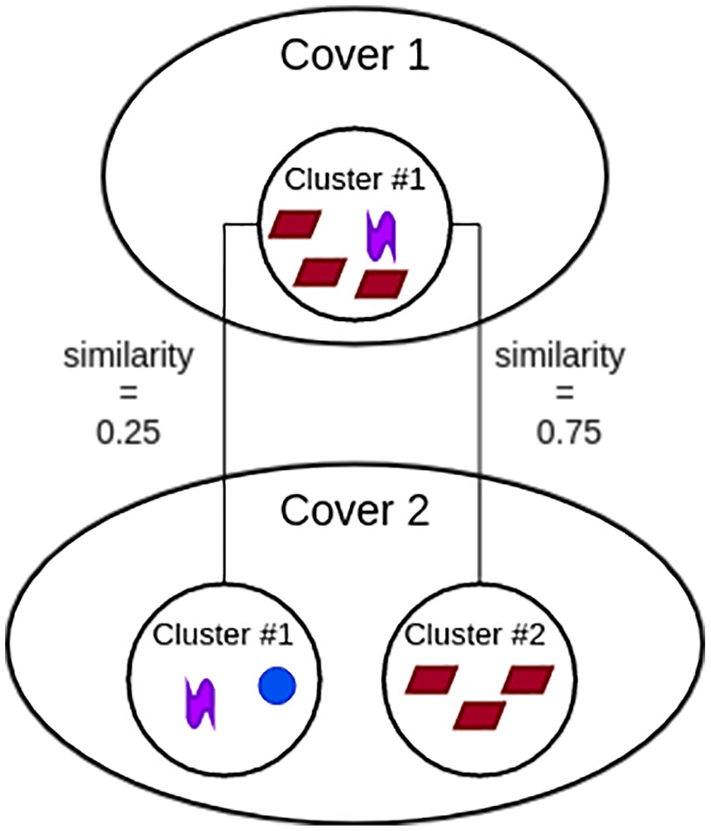

Figure 6 presents an example. Considering that all concepts in the example have the same degree centrality, ‘Cluster #1’ from ‘Cover 1’ has 0.75 of similarity with ‘Cluster #2’ from ‘Cover 2’, and 0.25 with ‘Cluster #1’ also from ‘Cover 2’. Therefore, defining a $threshol d_{similarity}$ (0.5, for example), one may observe that ‘Cluster #1’ from ‘Cover 1’ and ‘Cluster #2’ from ‘Cover 2’ are correspondents. By reducing this $threshol d_{similarity}$ number to 0.25, besides the correspondent clusters, one may also observe related ones, as the cluster from ‘Cover 1’ and ‘Cluster #1’ from ‘Cover 2’. These relations, for example, can describe subareas that were merged, or split themselves in distinct ones or have overlapping concepts shared between themselves.

Figure 6.

Example of similarities among clusters distinct covers.

It is further possible to quantify the similarity of the knowledge graphs and their clusters as a whole. However, it is not simple to compare covers that allow overlapping clusters, and we cannot apply a procedure as used to compare just a pair of clusters. We use a metric proposed by McDaid et al. [9] to quantify the similarity between the whole covers generated from both knowledge graphs. It is an NMI metric used to evaluate overlapping clusterisation algorithms. Usually, Mutual Information metrics calculate the similarity between a cover of clusters generated by the algorithm it is evaluating, and the control cover, containing correct segmented clusters. In this work, instead of using this metric to evaluate a clusterisation algorithm, we use it to compare the covers obtained from clustering the two generated knowledge graphs. By calculating the amount of mutual information between the covers, we can use this normalised value to inform the researcher of the similarity between the generated covers, or, in other terms, the similarity of the scientific field in the analysed time periods.

4. Software tool for evolution analysis

Our method proposed to track the evolution of a scientific field based on SciKGraph. It allows the analysis of the most diverse scientific areas, identifying concepts added and/or excluded from subareas of the studied scientific field. The Jupyter Notebook [19] interface proposed in SciKGraph limits its usability to researchers with at least a minimum programming knowledge. This limitation negatively impacts the usage of the framework for a significant part of the scientific community. At this stage, our goal is to enable the usage of our method by researchers non-literate in programming. For this purpose, we developed a software tool with a user graphic interface. Section 4.1 presents the software application, its features and interfaces; section 4.2 specifics the technologies applied to its construction.

4.1. Defined features

Our developed software tool enables the user to examine the evolution of the desired learning field by structuring and analysing scientific knowledge as proposed by SciKGraph. In this sense, we segment the functionalities into three primary actions in the software as follows:

‘Create’, in which the user creates the knowledge graph representation of the desired scientific field and identifies its main subareas.

‘Analyse’, devised to enable the user to obtain quantitative metrics of the previously generated structure and extract knowledge from it.

‘Track Evolution’, in which the user can compare previously generated scientific field representations and track the evolution and similarities between those (the main contribution of this article).

The ‘Create’ interface (see Figure 7) assists researchers to represent a scientific field as a knowledge graph. To do so, the user inputs a collection of textual documents that represent the desired scientific field, the language of the documents and a Babelfy key – obtained by registering in the Babelfy website.¹ In the sequence, the software builds and plots the constructed knowledge graph. In order to better understand the topology, the user can pre-process and cluster it, identifying the main subareas of the analysed scientific field. The pre-processing step consists of choosing the most generic vertices of the graph through a threshold or a list. After defining that, the software can cluster the knowledge graph, identifying and plotting the main subareas of the scientific field.

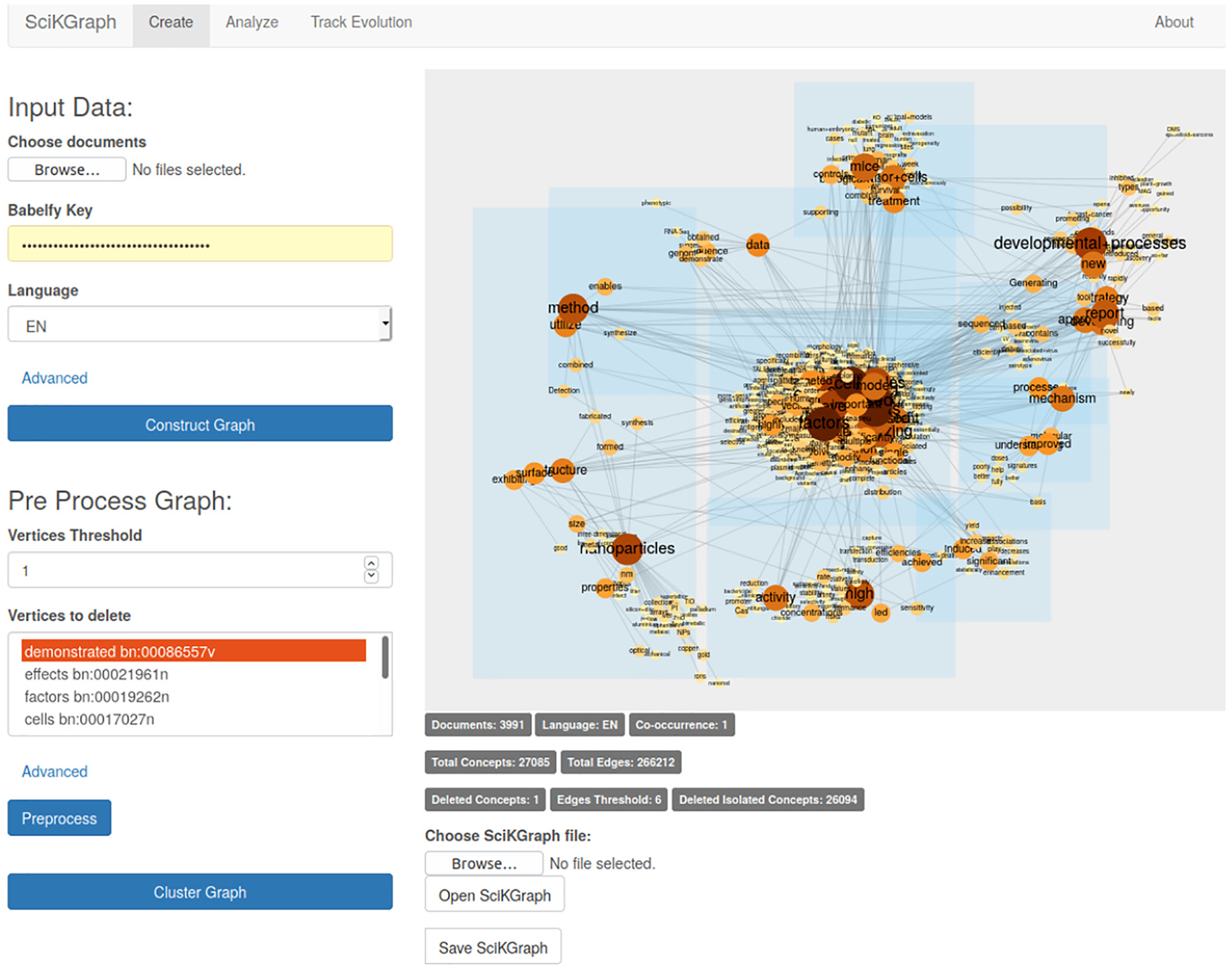

Figure 7.

‘Create’ interface used to represent a scientific field as a knowledge graph. This allows to cluster the graph by extracting its main subareas.

The ‘Analyse’ interface (see Figure 8) enables the user to study the subareas previously identified. First, if the researcher assumes that the application identified too many subareas, (s)he can choose the number of subareas (s)he would consider optimal. Then, our software application uses an agglomerative method [5] to merge the subareas until it reaches the number chosen by the user. Moreover, to evaluate how well-segmented are the defined subareas, the user can calculate the modularities of the knowledge graph and its subareas. Our tool lists the keyphrases of the knowledge graph and the identified subareas to assist in the scientific field analysis. Finally, the researcher can plot a cluster relation graph to understand how those subareas are related among themselves.

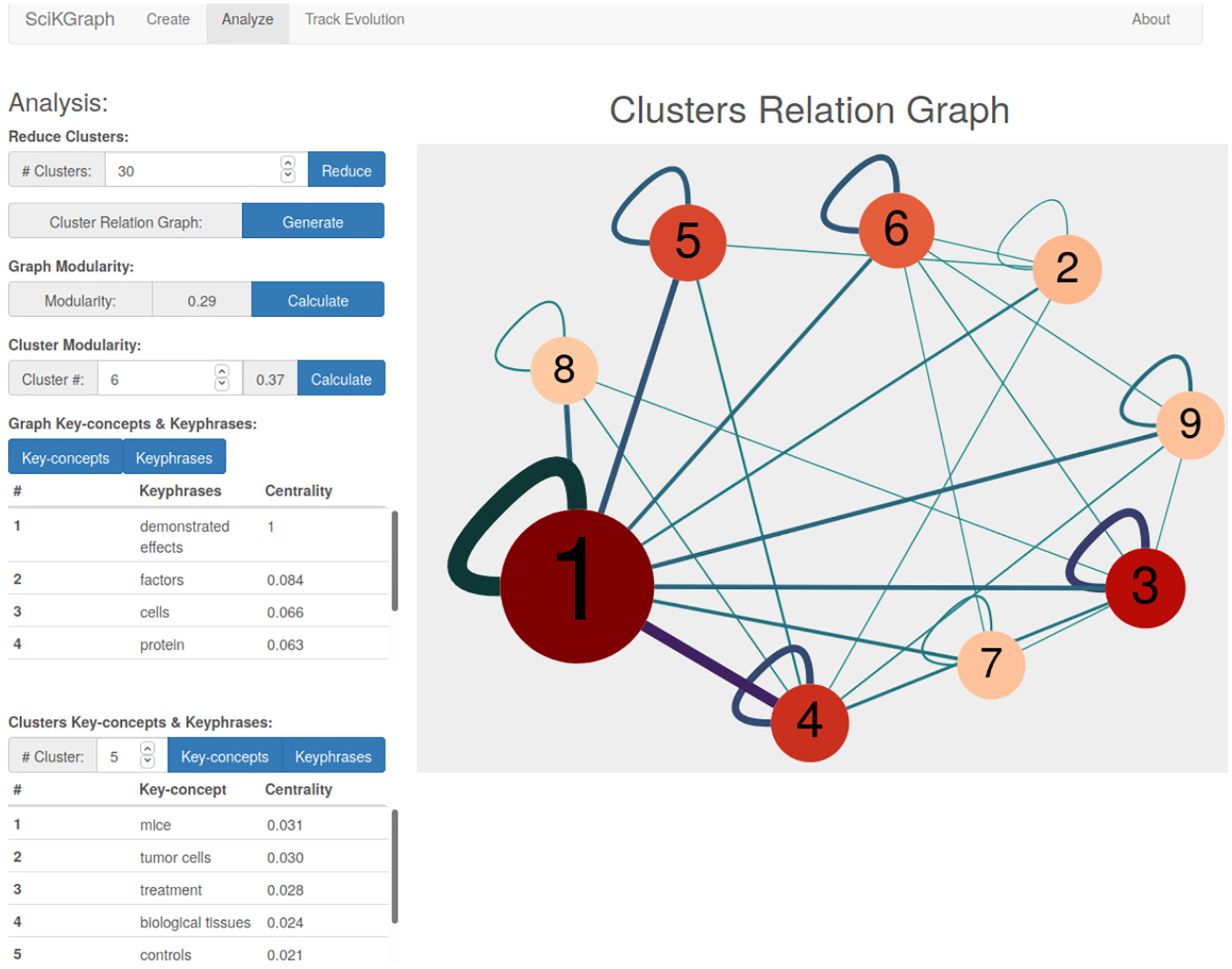

Figure 8.

‘Analyse’ interface in our tool used to extract knowledge and presents quantitative metrics from the scientific field previously structured.

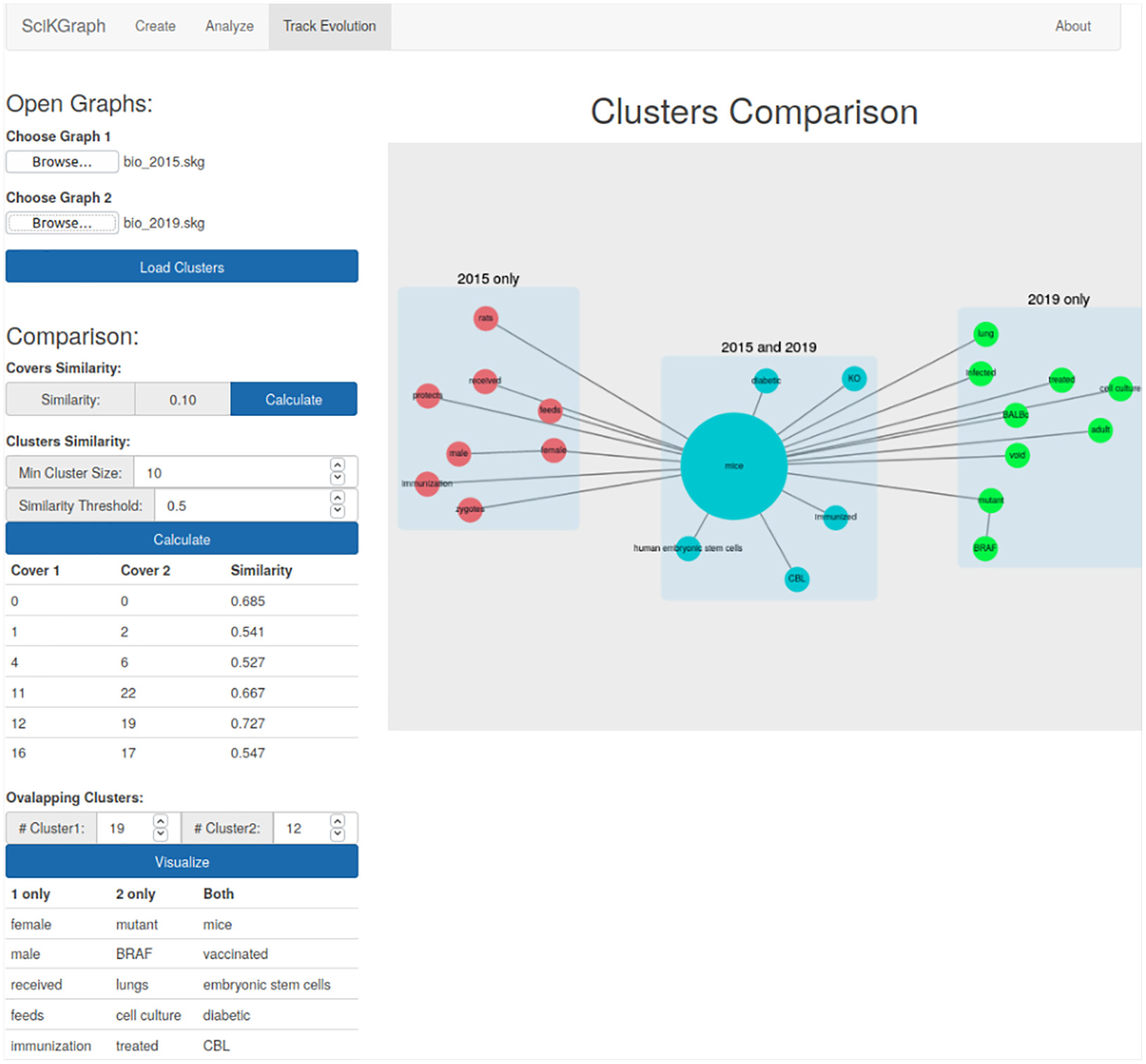

The ‘Track Evolution’ interface (see Figure 9) enables researchers to analyse how subareas of a scientific field have modified over time by identifying concepts added and/or excluded from them. The user needs to input two knowledge graphs representing the scientific field time periods for comparison. In the tool, those knowledge graphs are generated by the ‘Create’ feature by inputting only academic articles inside the time period to be represented. The tool supports the importing of already generated knowledge graphs. As an example, to track the evolution of a BIO area between 2015 and 2019, the user creates a knowledge graph to represent each of those years. One knowledge graph is created by receiving as input BIO articles published in 2015, and the other one BIO articles published in 2019.

Figure 9.

‘Evolve’ interface in our tool used to track the evolution of a scientific field and its subareas.

After the knowledge graphs are available, the researcher can compare the similarity between the whole covers, identifying the amount of concepts added and/or excluded from the scientific field clusters in the time window between the time periods analysed. Our software tool can identify correspondent clusters from distinct covers, based on the ‘Similarity Threshold’ configured by the user. Those correspondent clusters are essential because they represent the same subareas in different time periods. Consequently, comparing those, the application can identify how the subareas evolved, presenting to the user concepts that were removed, added or maintained in a specific subarea. The application provides a graph visualisation of this evolution, as presented in the screenshot of the ‘Track Evolution’ functionality (see Figure 9).

4.2. Technical details

The software application is available online.² It is a web application with its back-end developed in Python 3.7, web server interface in flask 1.1.1, and front-end in HTML 5, CSS 3, Bootstrap 3.3.7 and JavaScript 6. Furthermore, to plot the constructed knowledge graphs, we used Cytoscape [20], which is an open-source software to visualise complex networks. It has the py2cytoscape library [21] that allows us to link it with our back-end solution. In addition, it has the cytoscape.js library [21] that uses JavaScript to link py2cytoscape and our web pages. For the construction of the SciKGraph knowledge graphs, we use the pybabelfy library,³ which utilises the Babelfy HTTP API⁴ to link the corresponding concepts between the input documents and BabelNet.

Our application software uses cytoscape.js to plot the knowledge graph. In the current version, the application software will not perform well when rendering tens of thousands of vertices simultaneously. Nevertheless, this should not be an issue because scientific fields have their own lexicon, which consists of only a fraction of the words of a language. In both of our study cases, the knowledge graphs, with around 40,000 concepts each, after the pre-processing step were reduced to less than 3000 concepts. These concepts can be plotted in a couple of minutes. In addition, we highlight that the higher the number of articles represented by the knowledge graph, the lower is the probability of new concepts to be added when inserting articles from the same scientific field. This occurs because the number of vertices tends to stabilise as most of the concepts of the scientific field have been previously inserted in the knowledge graph. Therefore, the number of articles inserted in the application should not impair its visualisation.

Regarding the used algorithms, we adopted the SciKGraph framework [5] to represent a scientific field as a knowledge graph. Therefore, if the user requires to reduce the number of clusters to $n$ , we use the agglomerative technique recommended in SciKGraph, which selects the $n$ bigger clusters and simulates to merge them with the smallest cluster of the cover. Then, the algorithm permanently merges the smallest cluster with the one that achieved the higher modularity in the simulation. This algorithm repeats this process until the number of clusters is equal to $n$ . The modularity metric used in this algorithm, and over other analyses in our work, must consider the overlapping cluster. To this end, as in SciKGraph, we adopted the $Q_{ov}^{L}$ metric, suggested by Chen and Szymanski [22]. Our software tool application uses the same algorithms as SciKGraph to cluster the knowledge graph and to extract its keyphrases, which are the OClustR [17] and C-Rank [18] algorithms, respectively. Finally, to identify the similarity of distinct covers, we used the NMI metric proposed by McDaid et al. [9]. Our tool implements a procedure considering equation (4) to identify the similarity of subareas from distinct covers.

Other than the developed graphical user interface (GUI) software application, our investigation contributed in providing a python library for those who want to automatise its usage (available online²).

5. Experimental results

We present the application of our solution in different scenarios. Section 5.1 introduces two data sets used to represent the Artificial Intelligence (AI) and the Biotechnology (BIO) scientific fields. Then, we show how the proposed application structures and illustrates them. Finally, we demonstrate how our method tracks a scientific field evolution and how a researcher can analyse those results, extracting knowledge from them.

5.1. Data sets

This investigation explores the AI and the BIO data sets to, respectively, represent the Artificial Intelligence and the Biotechnology scientific fields. We chose those data sets because they represent distinct branches of science. Our goal is to understand to which extent our devised methods and implemented tool can correctly track the evolution of scientific fields independently of their areas.

Tosi and dos Reis [5] constructed the AI data set to experimentally evaluate the SciKGraph. It contains 1002 academic documents, and their publishing dates, from the AI area. Those documents were crawled from the IEEE Xplore website⁵ based on a search using ‘artificial intelligence’ as a keyphrase. The results were sorted based on their number of citations by other papers, and the most cited documents were downloaded. Finally, our solution parsed the downloaded documents from PDF to text, generating the final data set with full academic documents, in text format, representing the AI scientific field. To our evolution analyses, we organised AI data set into two parts as follows: the first one containing 481 documents published before 2006 and the second one containing 521 documents published from 2006 (2006 included).

We constructed the BIO data set to understand how our method would perform tracking evolution in a different science branch. We developed a crawler to download the content of the data set. Instead of downloading full documents, we downloaded only their abstract and publishing date. In this procedure, we aim to compare the obtained results taking as input full academic articles, from AI, and only abstracts, from the BIO data set.

Our crawler automatically searched for articles in the nature website⁶ selecting only ‘research’ or ‘reviews’ documents having the ‘biotechnology’ subject, sorted by relevance. In order to analyse the evolution of the BIO scientific area in a specific period, we downloaded 3991 article abstracts published between 2013 and 2015 and 4973 article abstracts published between 2018 and 2020. This allows us to analyse the evolution that occurred between 2015 and 2018 in the BIO scientific field.

5.2. Case study results

We illustrate the generation and evolution of tracking analysis with the use of our software application based on the two cases studies by representing the AI and the BIO scientific fields. Both case studies are available online.²

5.2.1. Artificial Intelligence

Using all 1002 AI textual documents, our software application can structure and cluster the AI scientific field (see Figure 10). Figure 10 shows the constructed knowledge graph, which researchers can use to understand how concepts within the same or from subareas (clusters) are related. Figure 10 highlights a portion of the knowledge graph to facilitate its visualisation, which can be accomplished using the zooming mechanism in the software.

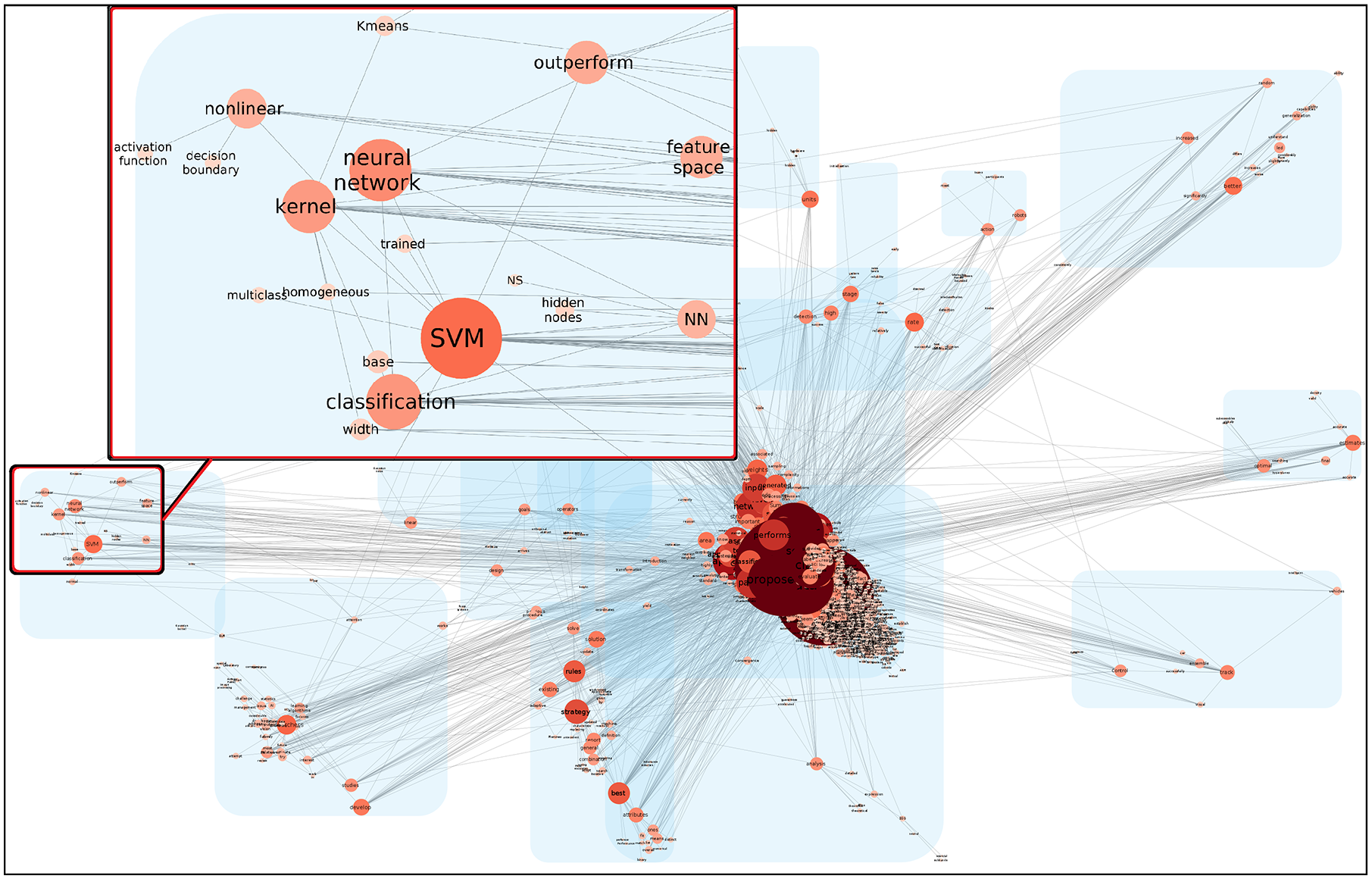

Figure 10.

Knowledge graph illustrating the artificial intelligence scientific field. It highlights a region of peripheral vertices representing specific concepts related to machine learning and classification.

In Figure 10, the knowledge graph originally contained 40,343 concepts that the pre-processing step reduced to 2899 before the clusterisation, which identified 18 distinct subareas containing at least 10 concepts each. We observed that most concepts are in the same central region of the figure. This occurs with the most generic ones. However, more specific concepts, the ones that differentiate distinct subareas, are positioned at the edge of the knowledge graph. Therefore, this type of visualisation automatically segments more specific concepts; this occurs with the highlighted subarea in Figure 10. It shows specific concepts related to classification and machine learning techniques, which are central to the AI scientific field. For example, if a researcher wants to understand more about ‘neural networks’, using the visualisation proposed, (s)he can observe that it is linked to ‘classification’, ‘NN’ (neural networks) and ‘trained’ concepts. Moreover, it belongs to the same subarea as ‘kernel’, ‘hidden nodes’ and ‘feature space’, indicating that those concepts are related among themselves and used in similar problems.

By applying our tool, we exemplify how to track the evolution in AI. We analysed how its subareas change comparing two time-fixed covers of the AI field, one constructed based on articles published before 2006 and the other based on articles published from 2006. Our analysis consists first in identifying the similarities between the clusters from different covers (see Table 1). To exhibit only the most similar clusters, we set a similarity threshold and display only those clusters with more than 40% of similarity between themselves. Also, clusters with less than 10 concepts are not displayed because those contain insufficient information and would disturb the user analysis. Table 1 shows 13 clusters from different covers that have similarities above 40%, indicating that they can represent the same subareas in distinct time periods.

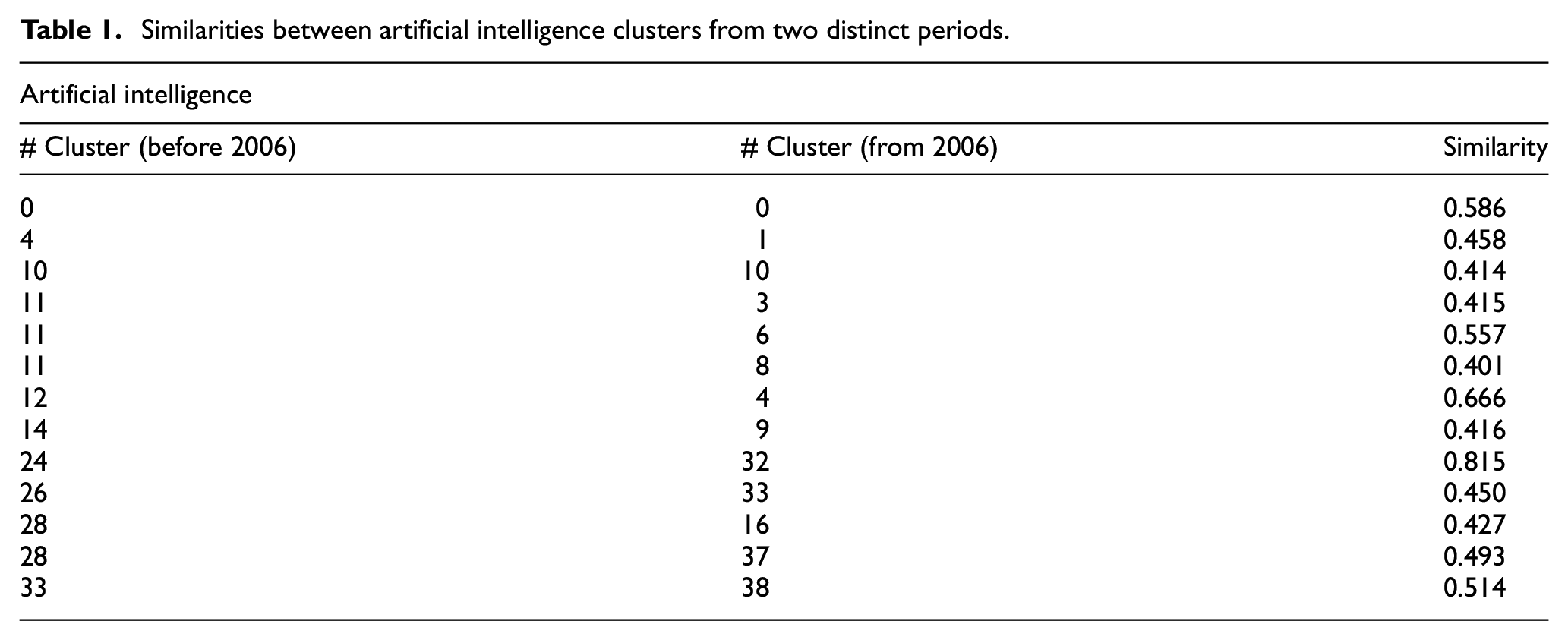

Table 1.

Similarities between artificial intelligence clusters from two distinct periods.

Artificial intelligence
# Cluster (before 2006)	# Cluster (from 2006)	Similarity
0	0	0.586
4	1	0.458
10	10	0.414
11	3	0.415
11	6	0.557
11	8	0.401
12	4	0.666
14	9	0.416
24	32	0.815
26	33	0.450
28	16	0.427
28	37	0.493
33	38	0.514

Figure 11 represents clusters 4 and 1, from covers 1 and 2, respectively. It shows that the subarea the clusters represent is centred around the ‘image’ concept. We assume here that it represents the Image Analysis subarea. All the concepts that both clusters have in common are related to metrics, characteristics and domains in which Image Analysis is used, as ‘greyscale image’, ‘low resolution’ and ‘iris’. Moreover, a researcher analysing this representation can observe not only concepts of a subarea but also concepts removed or added to it. For example, before 2006, concepts as ‘training set’, ‘labelled’ and ‘test image’ were part of the analysed subarea; and from 2006, concepts as ‘videos’ and ‘facial’ were added to it. By interpreting this information, one may understand that supervised learning – which depends on training sets, labelled information and test sets – has been less used recently in this context. However, new domains of problems acquired more attention in the most recent years, video processing and facial-related analysis, for example.

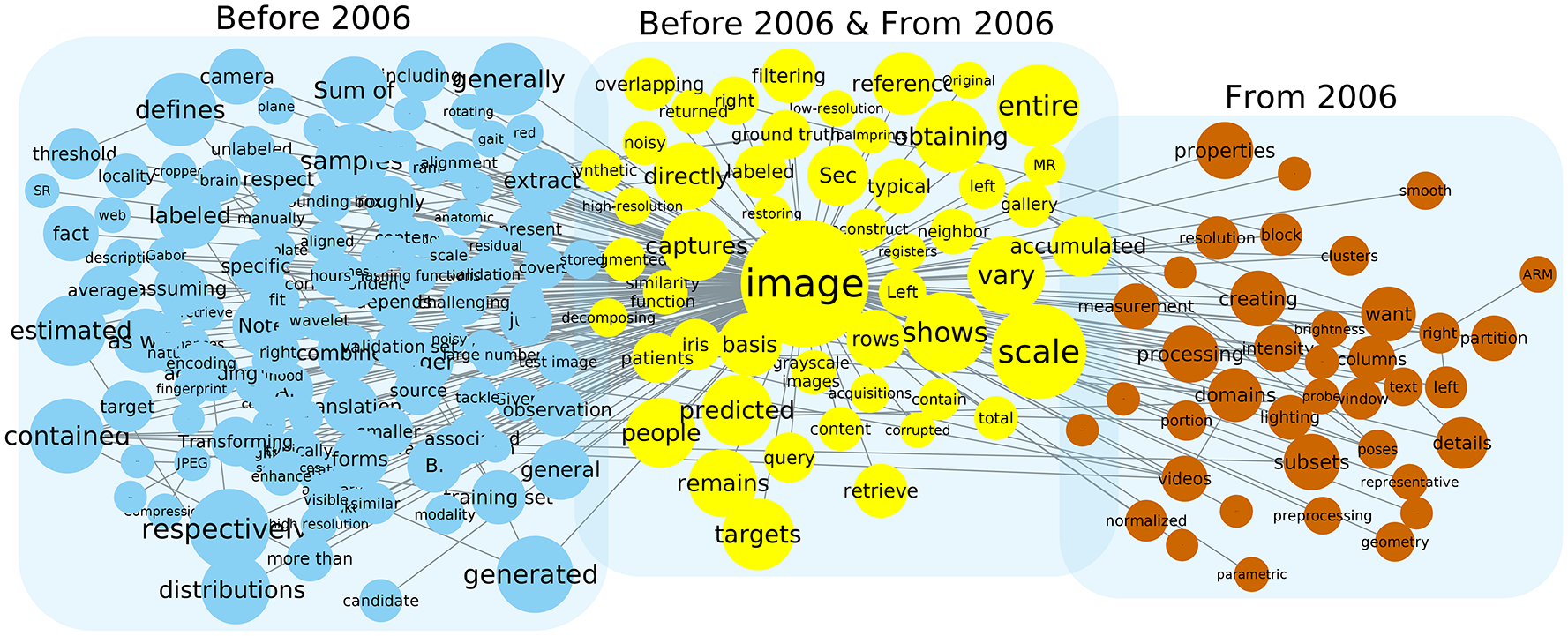

Figure 11.

Evolution of the ‘Image Analysis’ subarea comparing its representation by cluster 4 from cover 1 (before 2006) and by cluster 1 from cover 2 (from 2006).

Other than that, it is also possible to analyse how two subareas evolved together to form a third one. Figure 12 illustrates this, in which the clusters 14 and 19 from cover 1 evolved to form cluster 5 from cover 2. We note that in this case, the similarity between the cluster from cover 1 and the cluster from cover 2 is smaller than the 40% we determined before. This occurs because the third cluster is formed not only by concepts from the other two clusters but also by newer concepts added to it. In this sense, cluster 5 from cover 2 has 35% of similarity with cluster 14 and 33% of similarity with cluster 19, both from cover 1. Therefore, Figure 12 illustrates three groups, clusters 14 and 19 from cover 1, and cluster 5 from cover 2. Those we represent by orange, blue and yellow concepts, and we assume that they represent ‘Neural Network’, ‘Neural Network Structure’ and ‘Convolutional Neural Network’ subareas, respectively. We assumed this to facilitate the overall comprehension of the example. This assumption relies on the concepts that belong to each of those clusters.

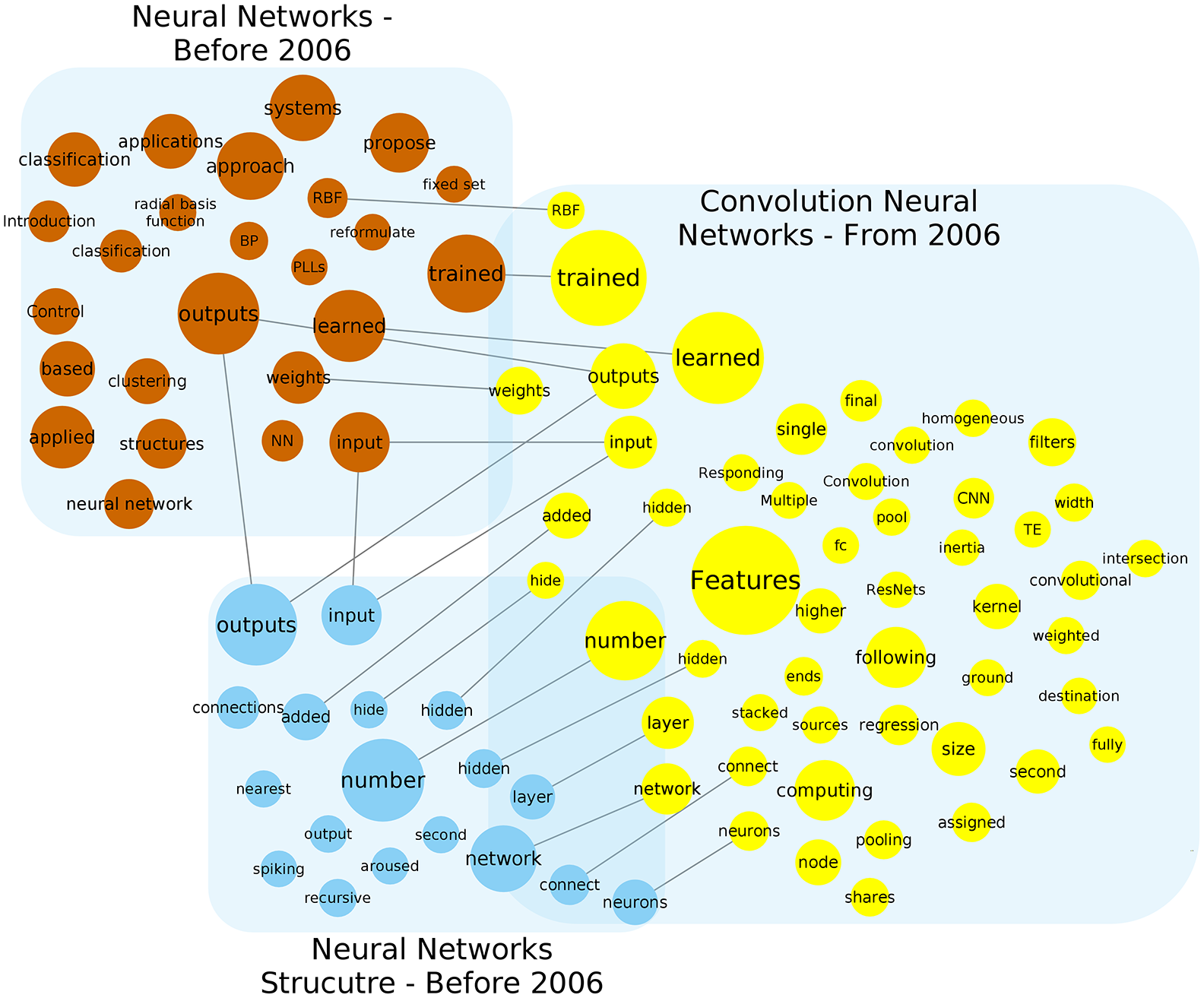

Figure 12.

Evolution of the ‘Convolution Neural Network’ subarea comparing its representation by clusters 14 and 19 from cover 1 (before 2006) and cluster 5 from cover 2 (from 2006).

Figure 12 representation allows researchers to understand how two clusters evolved into a single one. It shows all the concepts from the three clusters and links the corresponding ones. A researcher can observe which concepts the clusters share in common. For example, we mentioned that the similarity between the orange and the yellow clusters is higher than the blue and the yellow one. However, this visualisation allows us to observe that the last pair of clusters has more concepts in common between themselves. In addition, it is interesting to note how the ‘Convolutional Neural Network’ subarea was created. Most of its concepts are not in the two clusters from cover 1, not because they were miss classified, but because they were not relevant enough to be part of the scientific field representation. From 2006, concepts related to neural networks and its structure were used several times together with concepts as ‘convolution’ and ‘CNN’, showing their relevance for the AI field. Therefore, both subareas from cover 1, before 2006, were merged with other newer concepts, creating the ‘Convolutional Neural Network’ subarea.

5.2.2. Biotechnology

We used our developed software tool to analyse, structure and cluster the BIO field based on the 8964 abstracts from the BIO data set (see Figure 13). It shows the most relevant concepts of the BIO field and how they are correlated. We zoomed in a region of Figure 13 to highlight how correlated concepts are plotted close to each other in this visualisation.

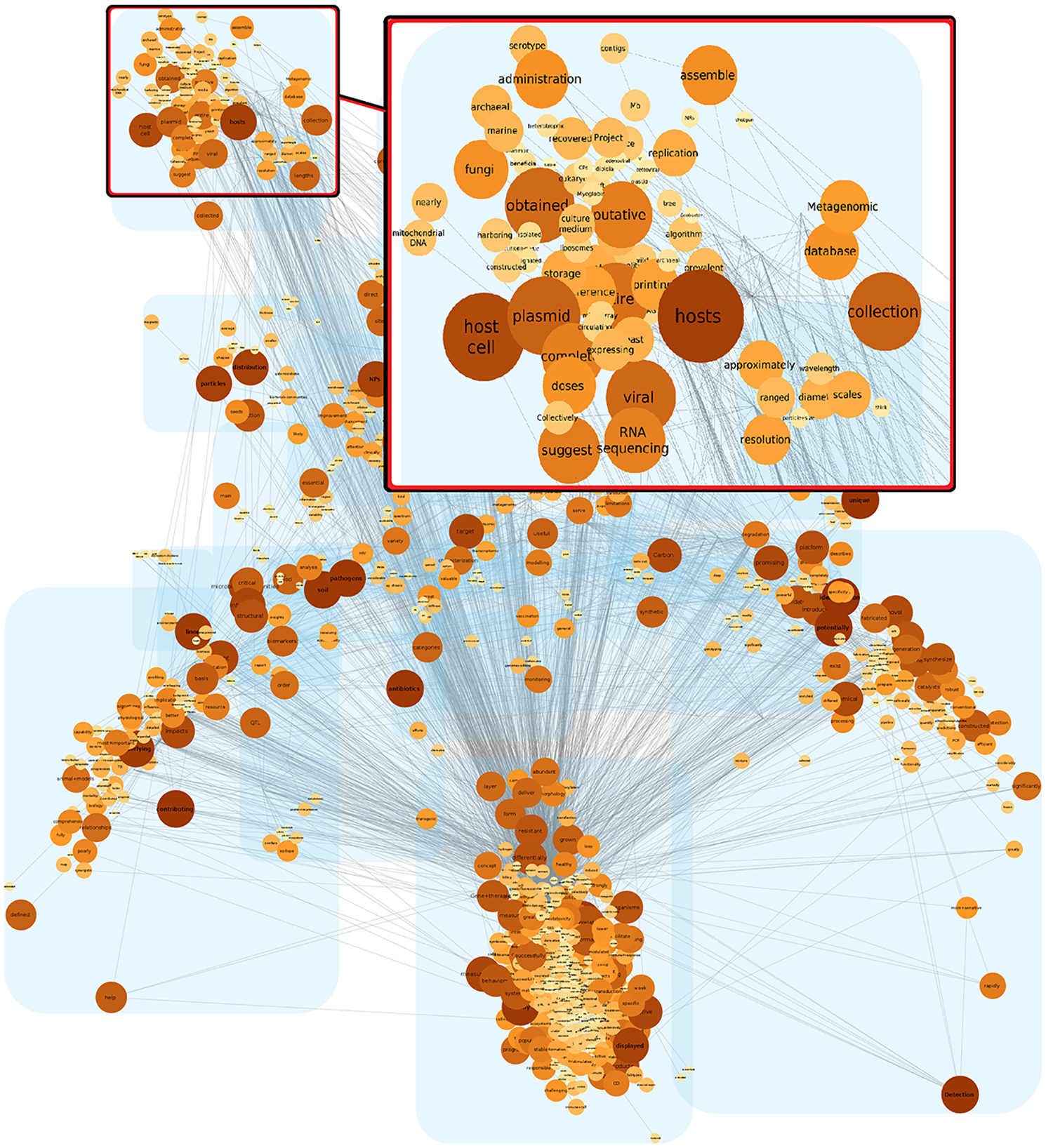

Figure 13.

Knowledge graph illustrating the biotechnology scientific field. It highlights a region of peripheral vertices representing specific concepts related to the microbiology subarea.

Similar to the structure of the AI knowledge graph representation, Figure 13 exhibits a central group of vertices containing generic concepts and peripheral vertices representing more specific ones. We observe this pattern in the zoomed part of Figure 13, in which biotechnology-specific concepts related to microbiology – such as ‘bacterial’, ‘strains’, ‘genome’ and ‘virus’– are close to each other in the knowledge graph. Therefore, if a biologist would like to understand more about bacterial-related research works, for example, (s)he could study other concepts connected to the ‘bacterial’ and those that are in its surroundings.

In order to study the evolution of the BIO field, similar to what we performed to the AI knowledge graph, we analysed the evolution of its subareas comparing their representations in two distinct time periods. In this case, our first representation contains 3991 abstracts published between 2013 and 2015; and the second containing 4973 abstracts published between 2018 and 2020. We are tracking the evolution of the BIO field that occurred between these two time windows. Accordingly, we represent the two time periods as knowledge graphs, cluster both of them and identify the similarities among their clusters. Afterwards, we set a threshold similarity to display only the most similar clusters, which was defined as 50%, a higher value compared with the one used in the AI analysis, increased to reduce the number of subareas displayed to the user (see section 3). Table 2 presents the clusters that have more than 50% of similarity with each other, and therefore, we assume that they represent the same subarea of the analysed scientific field.

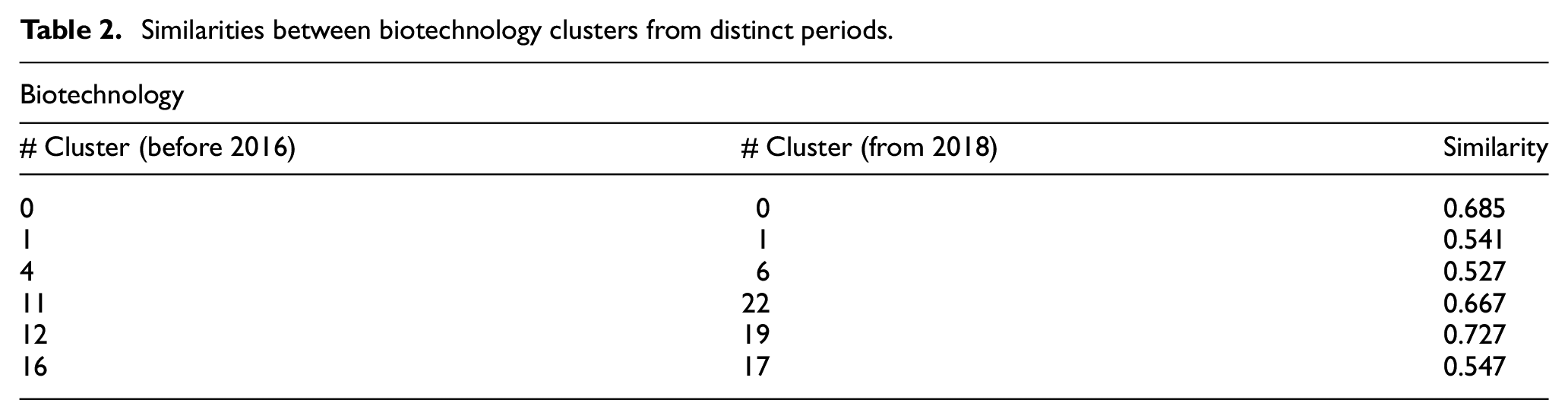

Table 2.

Similarities between biotechnology clusters from distinct periods.

Biotechnology
# Cluster (before 2016)	# Cluster (from 2018)	Similarity
0	0	0.685
1	1	0.541
4	6	0.527
11	22	0.667
12	19	0.727
16	17	0.547

We further analysed a subarea, represented by a pair of clusters listed in Table 2 with the aim of tracking and understanding the evolution of its concepts. Figure 14 illustrates how cluster 12 from cover 1 changed into cluster 19 from cover 2. Figure 14 shows the concepts belonging only to cluster 12 coloured in orange; the concepts belonging only to cluster 19 coloured in blue; and the concepts belonging to both of them coloured in yellow. We observed that both of these clusters are centred around the ‘mice’ concept. We assume that they represent a subarea of ‘Researches using mice’, in two distinct periods. On this basis, we notice that concepts as ‘mutant’, ‘BRAF’ (cancer-related gene) and ‘lung’ are present only on the representation of the field before 2016, which indicates that research works using mice focused on studying BRAF-mutation lung cancer decreased. Our method to track the changes of a scientific field can be used by researchers to understand better how its subareas evolved at a concept level.

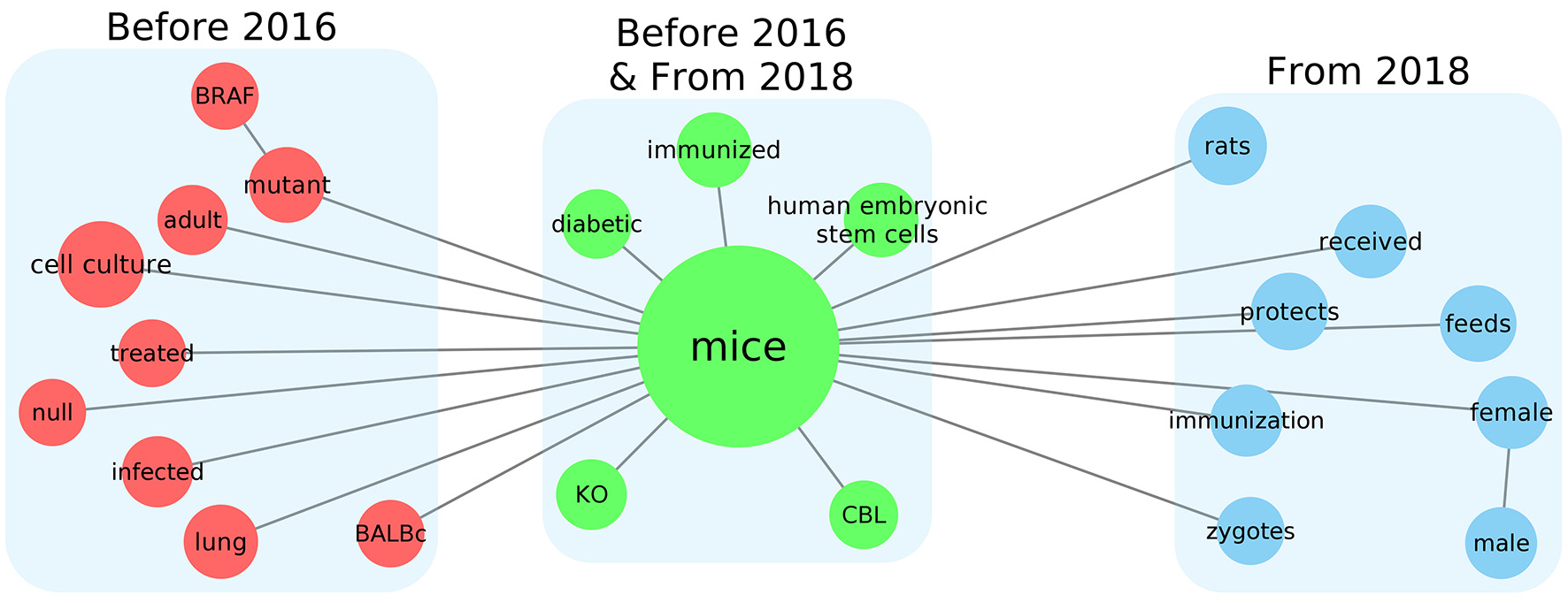

Figure 14.

Evolution of the ‘Researches using mice’ subarea comparing its representation as cluster 4 in cover 1 (before 2016) and cluster 6 from cover 2 (from 2018).

6. Discussion

We studied how to track the evolution of a scientific field and its subareas. Fulfilling this objective, we can enable researchers to understand how an academic field changes over time. To this end, we proposed a method to track the evolution that occurred in a scientific field between two time periods.

We represented both time periods using SciKGraph [5]. Our solution compares the obtained representations and identifies what changed between them. Our implemented software tool outputs all concepts and relations that differed from the representations of both time periods to identify how its subareas changed over time and better track the evolution of a scientific field.

Tracking the evolution of subareas represented as clusters of distinct covers remains a challenging issue. This complexity happens because before comparing two clusters, it is necessary to identify which clusters, from distinct covers, represent the same subarea. For this purpose, we employed a similarity metric to determine whether two clusters are similar enough to be considered correspondents from distinct covers. We set our similarity metric inspired by the metric proposed by Hopcroft et al. [4]. In our solution, we did not consider that all concepts have the same weight for the similarity value. Instead, we considered the relevance of each concept in the knowledge graph for similarity computation, favouring clusters formed around the same relevant concepts to be considered correspondents. Consequently, the importance of less relevant concepts for the similarity value is low, reducing the noise they generate in the identification of the correspondent clusters.

Using the similarity metric proposed, we successfully identified representations of the same subareas in distinct time periods. Their comparison was effective to support researcher to observe what changed in a particular subarea, identifying, for example, subareas merged, segmented and concepts added or excluded.

Analyse how a scientific field evolves at a concept level is a novel proposition. Our research contributed to a method and a software tool in this direction. To the best of our knowledge, there is no gold standard available for objective evaluations and we found no similar methods from which we could directly compare our solution. Therefore, we conducted experimental case studies, from which we found that our studied method is valuable to track subareas represented in different periods and to compare them, which by our analyses, occurred successfully.

In particular, we analysed the evolution of the AI and the BIO fields. Their representation and the evolution observed in both scientific fields were befitting with the studied fields. The analysis of our solution occurred in distinct knowledge areas by assessing the results in a case with full academic articles and other considering only abstracts.

A relevant aspect to further consider in our approach is to help end-users to deal with noise data and with the configuration of the required parameters in the software tool. In addition, we plan to study other representations to express semantics in our approach. For instance, investigate to which extent word embedding [23] and semantic similarity [24] techniques can be combined to advance our proposal.

7. Conclusion

It is of utmost relevance the proposal of methods and tools to help researchers to better understand how scientific subareas evolved at a concept level. Textual documents as research papers provide rich information, but they are not structured. In this article, we proposed an approach to track changes in a scientific field, identifying how it evolves at a concept level. Our approach used knowledge graphs to structure the periods of a scientific field. It considered relations among concepts of a studied field to identify its main clusters, representing their relevant subareas to track their evolution. We used a similarity metric, based on the relevance of the concepts within the clusters, to determine whether two clusters from distinct periods represent the same subarea. Obtained results attested that our approach is domain-independent and, despite being further effective based on full articles, can structure a scientific field using only academic abstracts. In future work, we plan to study further interactive mechanisms to navigate over the graph can help users to explore the concepts in the detected clusters.
