Imaging angiogenesis using 68 Ga-NOTA-PRGD2 positron emission tomography/computed tomography in patients with severe intracranial atherosclerotic disease

Abstract

Angiogenesis is a critical compensation route, which has been demonstrated in the brain following ischemic stroke; however, few studies have investigated angiogenesis in chronic intracranial atherosclerosis disease (ICAD). We used ⁶⁸Ga-NOTA-PRGD2 positron emission tomography/computed tomography based imaging to detect angiogenesis in chronic ICAD and to explore the factors that may have affected it. A total of 21 participants with unilateral severe chronic ICAD were included in the study. Of the 21 participants, 19 were men; the mean (SD) age was 52 (15) years. In 18 participants, we observed elevated ⁶⁸Ga-NOTA-PRGD2 uptake in the peri-infarct, subcortical, and periventricular regions of the lesioned side, with a higher ⁶⁸Ga-NOTA-PRGD2 SUV_max compared to that in the contralateral hemisphere (0.15 vs. 0.06, p=0.001). The ¹⁸F-FDG PET SUV_max was significantly lower on the lesioned side (11.28 vs. 13.92, p=0.001). Subgroup analyses revealed that the recent group (<6 months) had a higher lesion-to-contralateral region ratio SUV_max than the remote group (>6 months) (6.73 vs. 2.36, p<0.05). Our results provide molecular imaging evidence of angiogenesis in patients with severe chronic ICAD. Furthermore, the extent of angiogenesis in chronic ICAD may be affected by the post-qualified event time interval, and not by infarction itself or the severity of the arterial lesion.

Keywords

Angiogenesis chronic ischemia severe intracranial atherosclerosis disease collaterals

Introduction

Intracranial atherosclerotic disease (ICAD) is one of the most common causes of ischemic stroke worldwide.^1,2 The risk of recurrent ipsilateral stroke is higher in patients with high-grade stenosis (≥70%) than in those with less severe stenosis (<70%).³ Hemodynamic impairment and thromboembolism caused by ICAD may lead to the recruitment of collaterals, which can improve the perfusion state of the ischemic brain.^4–6 Collateral circulation, thus, becomes an important factor not only in predicting prognosis in cases of acute ischemic stroke, but also identifying patients at high risk of stroke following chronic severe ICAD.^7,8

Two classes of collaterals are activated by hypoperfusion or ischemia in the brain, the primary collaterals consisting of arteries included in the circle of Willis circle, and the secondary collaterals, including the leptomeningeal and ophthalmic anastomoses developing from preexisting arterioles as well as through angiogenesis, i.e. the formation of new blood vessels.⁹ Current studies of collateral supply in ICAD focus primarily on the circle of Willis and the anastomoses, which maintain the blood supply.^10–12 Although angiogenesis in acute ischemic stroke is known to be a critical intrinsic restoration mechanism and regarded as a potential treatment strategy, angiogenesis in chronic ICAD is less studied.^13,14

Animal studies of chronic cerebral hypoxia or hypoperfusion have identified angiogenesis by detecting increases in the serum vascular endothelial growth factor (VEGF) levels and the microvessel density.^15–17 In addition, investigators have found that patients with severe ICAD show increased level of serum endothelial progenitor cells,^14,18 which play an important role in angiogenesis. However, conclusions from animal research are limited by the difficulty to simulate complex pathophysiological processes; results from serum-based clinical studies are questioned given the restrictions imposed by the blood–brain barrier (BBB).¹⁴

With the rapid development of molecular imaging techniques, angiogenesis imaging in tumors and ischemic diseases is experiencing a breakthrough.^19,20 ⁶⁸Ga-NOTA-PRGD2 (NOTA-PRGD2 is NOTA-PEG4-E[c(RGDfK)]₂), a ⁶⁸Ga radiolabeled cyclic arginine-glycine-aspartic acid (RGD) dimer with PEG spacers, can specifically and efficiently combine with integrin αvβ3.^21–24 Integrin αvβ3 is specifically expressed on the surface of activated endothelial cells, and not quiescent ones, during the process of angiogenesis;^25–27 therefore, the aggregation of ⁶⁸Ga-NOTA-PRGD2 in the brain detected by positron emission tomography (PET) can be used as an indicator of angiogenesis in the examined tissue. ⁶⁸Ga-NOTA-RGD has been translated into clinical application to examine angiogenesis in moyamoya disease, acute myocardial infarction, and acute ischemic stroke via PET/computed tomography (CT).^28,29 This approach was superior in the context of radionuclide production and image accuracy compared to other angiogenesis imaging methods.

The primary aim of this study is to provide molecular imaging evidence of angiogenesis in chronic ICAD using ⁶⁸Ga-NOTA-PRGD2 PET/CT. We compared ⁶⁸Ga-NOTA-PRGD2-binding in the regions supplied by the stenotic/occlusive arteries with that in the contralateral regions. We analyzed differences in ⁶⁸Ga-NOTA-PRGD2 uptake between different subgroups to evaluate factors such as the severity of the artery lesion, qualifying infarcts, and intervals between qualifying events and PET scans, which may have an effect on angiogenesis.

Methods

Subjects

This pilot study conformed to ethical standards of Helsinki Declaration and was approved by the Institutional Review Boards of the Peking Union Medical College Hospital, Chinese Academy of Medical Sciences, and Peking Union Medical College. Each participant provided written informed consent prior to participation in the study. All the patients underwent ⁶⁸Ga-NOTA-PRGD2 PET/CT and ¹⁸F- fluorodeoxyglucose (FDG) PET/CT scans within one week. The inclusion criteria were as follows: (1) age between 18 and 80 years, and (2) unilateral intracranial internal carotid, middle cerebral artery, or anterior cerebral artery stenosis of over 70% detected by magnetic resonance or computed tomography angiography (MRA or CTA), or of over 50% detected by digital subtraction angiography (DSA). The exclusion criteria were as follows: emboligenic cardiopathy, transient ischemic attack (TIA), or stroke within 30 days; neoplasm; inflammatory conditions; nonatherosclerotic causes of intracranial stenosis; pregnancy; lactation period; and impaired renal or liver function. None of the patients received stenting treatment. Patients who underwent PET/CT scans within 6 months (more than 1 month at the same time) of experiencing ischemic events, including transient ischemic attack and stroke, were assigned to the recent group; while those who underwent PET/CT scans 6 months after the ischemic events were assigned to remote group.

PET/CT scanning

⁶⁸Ga-NOTA-PRGD2 was prepared as previously reported.^21,28 ⁶⁸Ga-NOTA-PRGD2 was injected intravenously at a dose of 1.85 MBq (0.05 mCi) per kilogram of body weight (≤20 µg/NOTA-PRGD2). Thirty minutes later,^30–32 a low-dose CT scan (140 kV, 35 mA, pitch 1:1, layer 3 mm, layer spacing 3 mm, matrix 512×512, FOV 70 cm) was first performed for attenuation correction and anatomical localization. This was followed by PET scans (one 10-min bed position, FWHM 3 mm, matrix 336×336, zoom 2) using an iterative algorithm (six iterations for the brain). The reconstructed voxel dimension is 1 mm.

All patients underwent ¹⁸F-fluorodeoxyglucose (FDG) imaging within 1 week of the ⁶⁸Ga-NOTA-PRGD2 PET imaging. Patients were required to fast for at least 6 h before the ¹⁸F-FDG PET/CT scan to decrease the background radionuclide uptake by the brain. For each patient, 5.55 MBq (0.15 mCi) of ¹⁸F-FDG per kilogram of body weight was injected intravenously. The PET/CT scans were acquired approximately 2 h after the ¹⁸F-FDG injection, with a 10-minute bed position maintained for the PET scans. All the PET/CT scans in this study were acquired on the Biograph 64 Truepoint TrueV PET/CT system (Siemens Medical Solutions, Erlangen, Germany).

Image analysis

The ⁶⁸Ga-NOTA-PRGD2 and ¹⁸F-FDG PET/CT images were transferred to a workstation (MMWP, Siemens Medical Solution) for performing comparison and analysis. Three blinded independent nuclear medicine experts assessed the PET/CT images and reached a consensus in case of discordance. A semi-quantitative analysis was conducted by the same physicians. Only the maximum standardized uptake value (SUV_max) was recorded for the ⁶⁸Ga-NOTA-PRGD2 PET images. The regions of interest (ROIs) were kept away from regions near the meningeal vessels and the choroid plexus in ventricle in three dimensions. The SUV_max of a symmetrical ROI in the contralateral region was measured, and the lesion-to-contralateral region ratio (LCR) was calculated. For the ¹⁸F-FDG PET images, the ROIs were drawn over the cortical territories or subcortical nuclei irrigated by the stenotic arteries, and the SUV_max values were recorded. The contralateral ROIs were drawn symmetrically.

Statistical analysis

The Kolmogorov–Smirnov test was used to test the normality of the distribution. The differences in the ⁶⁸Ga-NOTA-PRGD2 SUV_max or ¹⁸F-FDG SUV_max were compared between the lesion and contralateral sides using the Wilcoxon rank sum test. The LCRs were compared between the recent and remote groups using the Mann–Whitney test. The same method was used to compare the LCRs between the stenotic and occlusive groups, as well as to qualify the infarction-positive and negative groups. All the statistical analyses were performed using Statistical Package for Social Sciences (SPSS), version 22.0, SPSS Inc., Chicago, USA. Results with p<0.05 were considered to be statistically significant.

Results

⁶⁸Ga-NOTA-PRGD2 distribution and uptake patterns

The demographic information of the cohort is provided in Table 1. The ⁶⁸Ga-NOTA-PRGD2 uptake was evaluated 30 min after the intravenous injection, when the blood pool background was relatively low. According to the independent analysis from the three nuclear medicine physicians, ⁶⁸Ga-NOTA-PRGD2 uptake was identified in 18 out of the 21 patients. Except for the choroid plexus, the normal brain had no uptake of ⁶⁸Ga-NOTA-PRGD2 (Figure 1(i) to (l). Abnormal ⁶⁸Ga-NOTA-PRGD2 uptake aggregated in a patchy format around the site of infarction (Figure 1(a) to (d)), or in a puncta format in the periventricular zones and subcortical nuclei without a lesion, which must be irrigated by the stenotic arteries (Figure 1(e) to (h)).

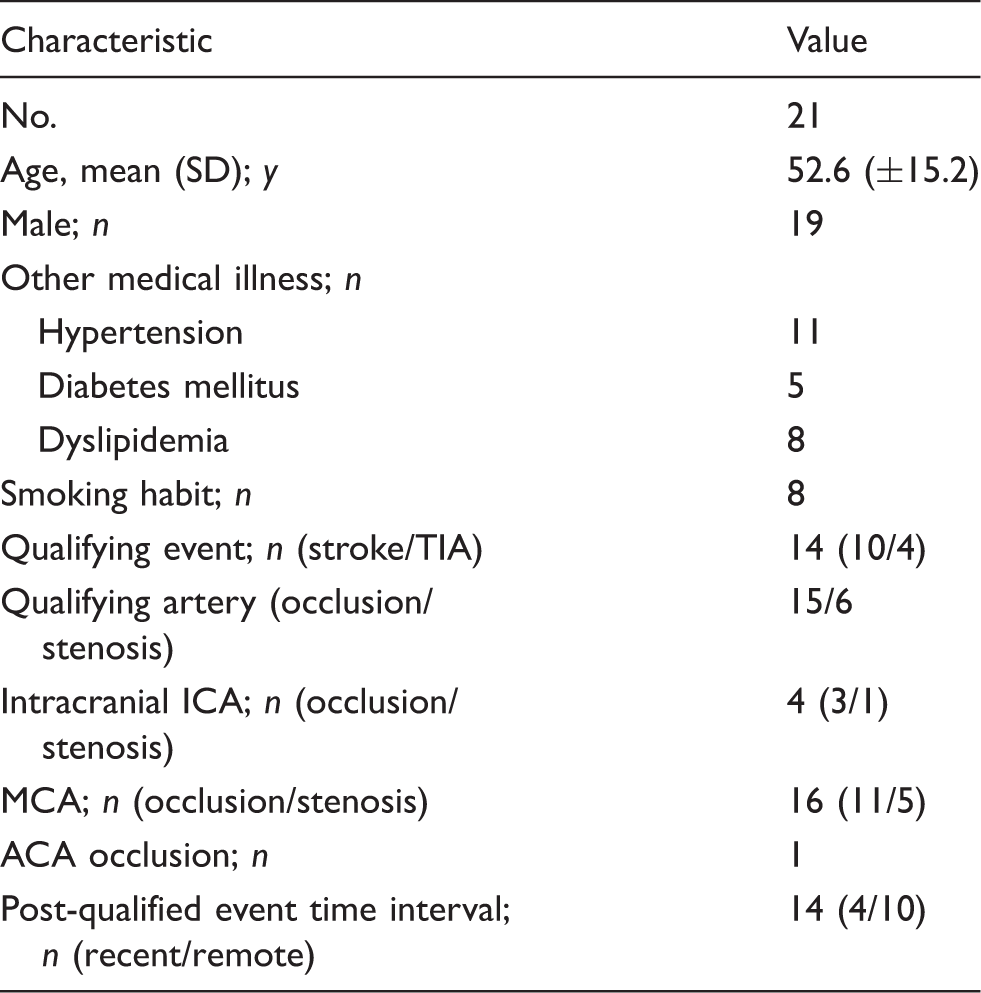

Table 1.

Demographic characteristics.

Characteristic	Value
No.	21
Age, mean (SD); y	52.6 (±15.2)
Male; n	19
Other medical illness; n
Hypertension	11
Diabetes mellitus	5
Dyslipidemia	8
Smoking habit; n	8
Qualifying event; n (stroke/TIA)	14 (10/4)
Qualifying artery (occlusion/stenosis)	15/6
Intracranial ICA; n (occlusion/stenosis)	4 (3/1)
MCA; n (occlusion/stenosis)	16 (11/5)
ACA occlusion; n	1
Post-qualified event time interval; n (recent/remote)	14 (4/10)

SD: standard deviation; ICA: intracranial carotid artery; MCA: middle cerebral artery; ACA: anterior cerebral artery.

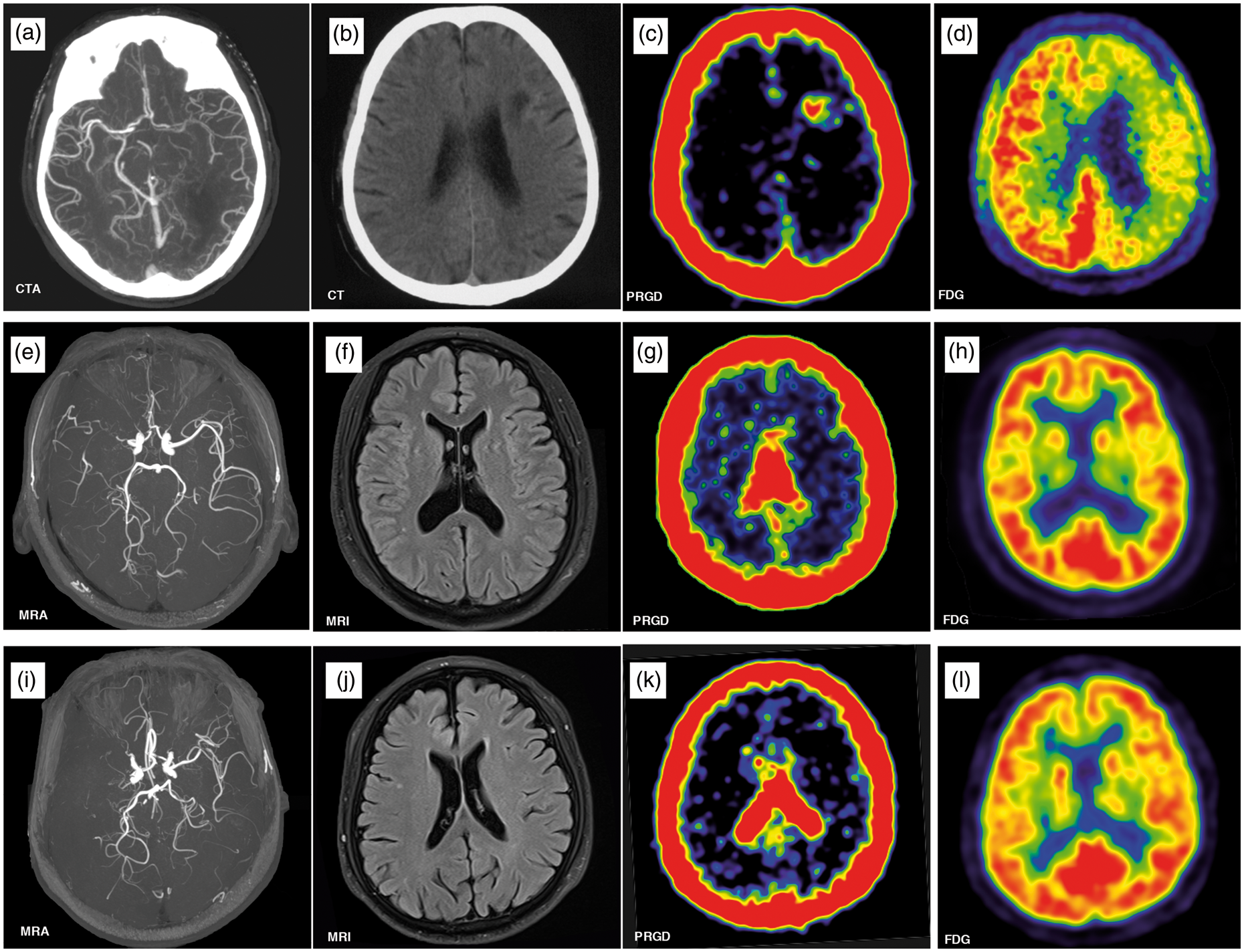

Figure 1.

Upper row: CTA in a 64-year-old man revealed severe stenosis of the left middle cerebral artery (MCA) (a), brain CT showed left frontal lobe infarction (b). PET/CT scan showed accumulation of ⁶⁸Ga-NOTA-PRGD2 around the infarct area (c) with a diffuse decrease in the metabolism (yellow arrow) in ¹⁸F-fluorodeoxyglucose (FDG) PET (d) 33 days after ischemic stroke. Middle row: A 44-year-old man had an ischemic stroke 72 months prior to enrolment, leaving numbness in his left arm. MRA revealed right MCA occlusion (e). No significant infarcts were seen on the MRI (f). The ⁶⁸Ga-NOTA-PRGD2 uptake was found in a puncta-like form scattered over the subcortical areas (g, yellow arrow), although no significant difference for ¹⁸F-FDG PET was seen between the lesioned and contralateral sides (h). Lower row: A 70-year-old man had an ischemic stroke 22 years prior to enrolment, leaving weakness in the right leg. MRA showed left MCA occlusion (i). No infarct was observed on the MRI (J). The ⁶⁸Ga-NOTA-PRGD2 PET and ¹⁸F-FDG PET uptakes were not significantly different between the lesioned and contralateral sides (k, l).

In patients with ICAD (N=21), the ⁶⁸Ga-NOTA-PRGD2 SUV_max was elevated on the lesion side compared to that on the contralateral side, while the ¹⁸F-FDG SUV_max was significantly lower in the lesion side than in the contralateral side (Table 2).

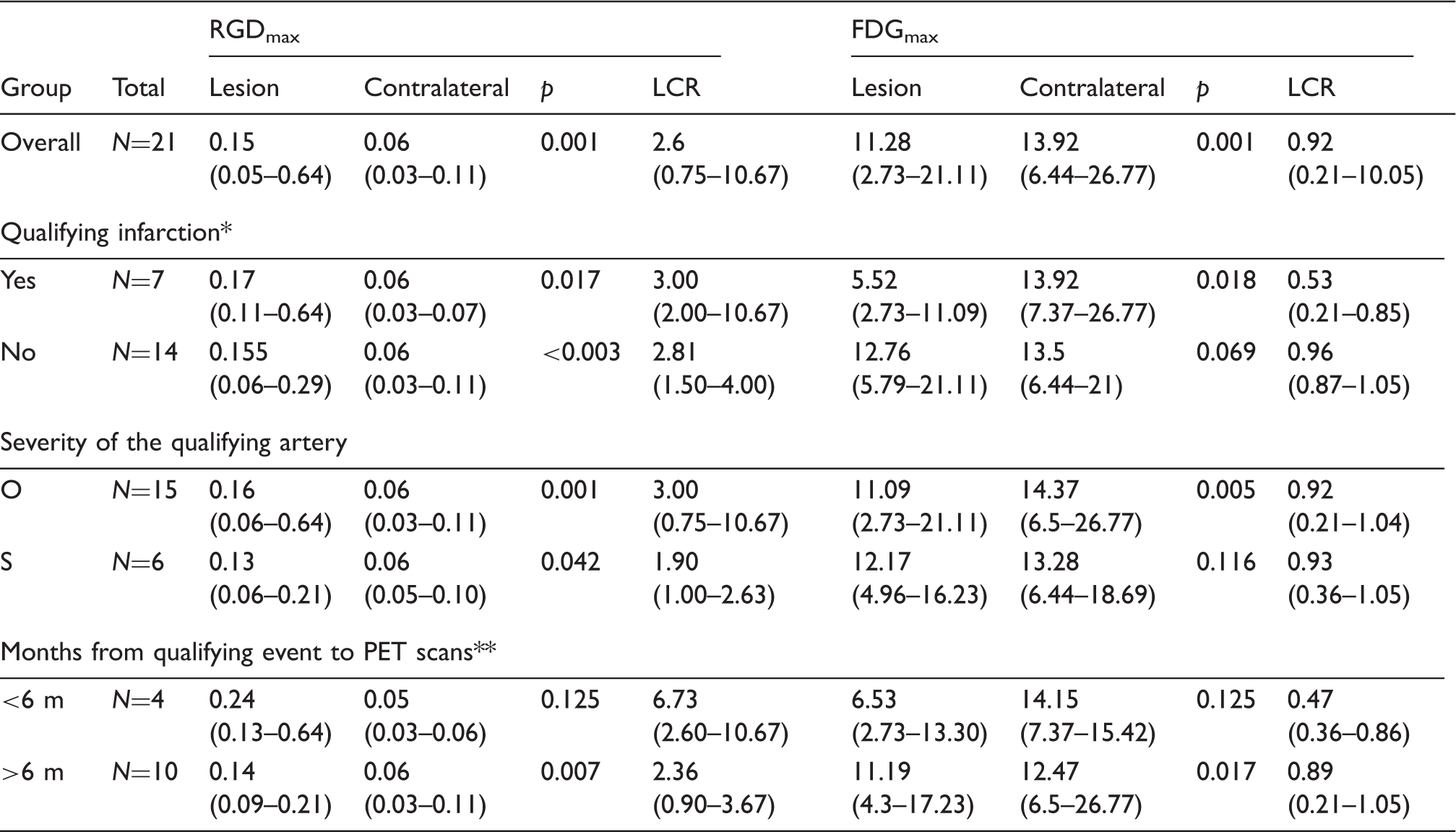

Table 2.

Subgroup analysis of ⁶⁸Ga-NOTA-PRGD2 and ¹⁸F-FDG PET imaging.

Group	Total	RGD_max				FDG_max
Group	Total	Lesion	Contralateral	p	LCR	Lesion	Contralateral	p	LCR
Overall	N=21	0.15 (0.05–0.64)	0.06 (0.03–0.11)	0.001	2.6 (0.75–10.67)	11.28 (2.73–21.11)	13.92 (6.44–26.77)	0.001	0.92 (0.21–10.05)
Qualifying infarction*
Yes	N=7	0.17 (0.11–0.64)	0.06 (0.03–0.07)	0.017	3.00 (2.00–10.67)	5.52 (2.73–11.09)	13.92 (7.37–26.77)	0.018	0.53 (0.21–0.85)
No	N=14	0.155 (0.06–0.29)	0.06 (0.03–0.11)	<0.003	2.81 (1.50–4.00)	12.76 (5.79–21.11)	13.5 (6.44–21)	0.069	0.96 (0.87–1.05)
Severity of the qualifying artery
O	N=15	0.16 (0.06–0.64)	0.06 (0.03–0.11)	0.001	3.00 (0.75–10.67)	11.09 (2.73–21.11)	14.37 (6.5–26.77)	0.005	0.92 (0.21–1.04)
S	N=6	0.13 (0.06–0.21)	0.06 (0.05–0.10)	0.042	1.90 (1.00–2.63)	12.17 (4.96–16.23)	13.28 (6.44–18.69)	0.116	0.93 (0.36–1.05)
Months from qualifying event to PET scans**
<6 m	N=4	0.24 (0.13–0.64)	0.05 (0.03–0.06)	0.125	6.73 (2.60–10.67)	6.53 (2.73–13.30)	14.15 (7.37–15.42)	0.125	0.47 (0.36–0.86)
>6 m	N=10	0.14 (0.09–0.21)	0.06 (0.03–0.11)	0.007	2.36 (0.90–3.67)	11.19 (4.3–17.23)	12.47 (6.5–26.77)	0.017	0.89 (0.21–1.05)

LCR: lesion to contralateral ratio; O: occlusion; S: stenosis; FDG_max: maximum value of ¹⁸F-fluorodeoxyglucose; RGD_max: radiolabeled cyclic arginine-glycine-aspartic acid. The values in parentheses indicate the range for the data. *p<0.001, FDG_max LCR comparison between subjects with a qualifying infarction and those without infarction; **p=0.014 and p=0.052, RGD_max LCR and FDG_max LCR between the recent (<6 m) vs. remote (>6 m) groups, respectively.

Effects of the infarction lesion on radiotracer uptake

The subgroup analyses were performed by dividing the cohort into subgroups according to different parameters. The patients were divided into two groups according to the presence of the infarction lesion. In patients with an infarction lesion, the ¹⁸F-FDG SUV_max was lower on the stenotic/occlusive artery side compared to that on the contralateral side; in contrast, the ⁶⁸Ga-NOTA-PRGD2 SUV_max was higher. In patients without the infarction lesion, the ⁶⁸Ga-NOTA-PRGD2 SUV_max on the stenotic/occlusive side was higher than that on the contralateral side, while the SUV_max values for ¹⁸F-FDG were similar. The LCR of the ¹⁸F-FDG SUV_max in patients with an infarction lesion was lower than in patients without a lesion; the LCR of the ⁶⁸Ga-NOTA-PRGD2 SUV_max was not significantly different between the two groups (Table 2).

Effects of the severity of the lesion on radiotracer uptake

According to the severity of the affected arteries, we divided the patients into the occlusive and stenotic groups (≥70% stenosis). There was no significant difference between the ¹⁸F-FDG SUV_max values for the lesion and contralateral sides in each group; however, both the groups had a higher ⁶⁸Ga-NOTA-PRGD2 SUV_max value on the lesion side than that on the contralateral side. Moreover, the LCRs of both the ⁶⁸Ga-NOTA-PRGD2 SUV_max and ¹⁸F-FDG SUV_max were similar between the occlusion and stenosis groups (Table 2).

Effects of the post-qualified event interval on radiotracer uptake

A total of 14 subjects had qualifying events; four of these patients were in the recent group and 10 patients were in the remote group. For the recent group, the ⁶⁸Ga-NOTA-PRGD2 SUV_max on the lesion side is higher than that on the contralateral side; the ¹⁸F-FDG SUV_max was lower on the lesion side, but neither of them reached statistical significance. For the remote group, the ⁶⁸Ga-NOTA-PRGD2 SUV_max and ¹⁸F-FDG SUV_max between the lesioned and contralateral sides were significantly different. The LCR of the ⁶⁸Ga-NOTA-PRGD2 SUV_max in the recent group was higher compared to that of the remote group, and an opposite effect was observed for the LCR of the ¹⁸F-FDG SUV_max. However, only the former reached apparent significance (Table 2).

Discussion

The present study demonstrated an increased uptake of ⁶⁸Ga-NOTA-PRGD2 on the lesion side compared to that on the contralateral side, which indicates that angiogenesis occurs in the territory irrigated by the stenotic/occlusive artery. Integrin αvβ3 imaging has been proved to be a valuable tool for angiogenesis assessment in various diseases by previous studies.^13,28,29,33 The ⁶⁸Ga-labeled RGD dimer, ⁶⁸Ga-NOTA-PRGD2, has gained popularity for clinical application given its ease of preparation, in addition to its high specificity and affinity for integrin αvβ3.^23,34 Jeong et al.²⁹ showed that ⁶⁸Ga-RGD could be blocked by cold RGD both in an in vitro binding assay and in an animal model, which demonstrated its specific binding to integrin αvβ3. Several clinical studies^28,33 as well as our previous study³⁵ found moderate uptake of ⁶⁸Ga-NOTA-PRGD2 in the choroid plexus, but no uptake in the normal cerebral parenchyma. Therefore, the abnormal ⁶⁸Ga-NOTA-PRGD2 uptake we observed in the cerebral parenchyma strongly suggested angiogenesis in patients with ICAD.

Angiogenesis as a crucial restorative mechanism under ischemic conditions and has been widely studied in acute ischemic diseases; however, few studies have investigated angiogenesis in chronic ischemia. Prior chronic cerebral hypoxia studies in animals and serum-based studies in patients with ICAD and moyamoya disease have indicated the occurrence of angiogenesis in chronic cerebral ischemia.^15–17 In this study, we directly imaged angiogenesis using ⁶⁸Ga-NOTA-PRGD2 PET/CT beyond the acute phase in patients with severe ICAD. To the best of our knowledge, ours is the first study to evaluate the collateral circulation route at the level of angiogenesis in vivo. This approach may provide a new way for further assessment of collateral circulation in chronic intracranial artery disease.

Choi et al.²⁹ were first to use ⁶⁸Ga-RGD PET/CT to observe angiogenesis following acute cerebral infarct in pediatric patients with moyamoya disease. Next, Sun et al.²⁸ applied ⁶⁸Ga-RGD PET/CT to investigate angiogenesis in a different group of patients with acute embolic stroke. In this study, all the PET scans were performed more than 1 month after the qualifying events to avoid the influence of acute stroke on angiogenesis. Compared to the acute phase after stroke in previous studies, the uptake of ⁶⁸Ga-NOTA-PRGD2 in chronic ICAD from our study is weaker. Moreover, the ⁶⁸Ga-NOTA-PRGD2 uptake is not only limited to areas around the infarct zone, but also scatters over the region supplied by the affected artery in a puncta-like form. It is different from previous observations in patients with acute infarcts, according to which, the ⁶⁸Ga-NOTA-PRGD2 uptake is significantly elevated surrounding the infarct and shows a patchy form. Furthermore, compared to patients without an infarction lesion, patients with lesions exhibited decreased LCR FDG_max values but similar LCR RGD_max values, which confirms that the ⁶⁸Ga-NOTA-PRGD2 uptake in our cohort is not related to the presence of the lesion.

Many factors may affect angiogenesis process. In this study, we also compared patients with different post-qualified event time intervals, and found that the LCR RGD_max of the recent group was significantly higher than that of the remote group. This is consistent with the conclusion that angiogenesis decreases as the post-qualified event time increases in studies of angiogenesis in acute ischemic stroke.^28,36 In addition, we also investigated whether the severity of the artery lesion affects the ⁶⁸Ga-NOTA-PRGD2 uptake, and found that the LCR RGD_max values are similar between the occlusive and stenotic groups, which demonstrates that the angiogenesis detected by ⁶⁸Ga-NOTA-PRGD2 is not associated with the severity of the artery lesion. A previous study has also shown that several patients with occlusive arteries never experience any ischemic event, and that chronic hemodynamic compromise, rather than the severity of the lesion in the arteries, may be a predictor of ischemic events in those patients.³⁷ Combined with the results of that study, our results showing no difference in the ⁶⁸Ga-NOTA-PRGD2 uptake between the occlusive and stenotic groups, also suggest that angiogenesis indicating hemodynamic impairment, rather than severity of the arterial lesion, has the potential to be a sensitive predictor of clinical outcomes of patients with ICAD. Finally, cerebrovascular risk factors, such as hypertension, diabetes, and hypercholesterolemia, are reported to have deleterious effects on post-ischemic angiogenesis.³⁸ A larger sample size and more accurate grouping in future studies are needed to evaluate the impact of these confounding factors.

According to the findings of the study, we hypothesized that angiogenesis might be a biomarker reflecting the extent of compensation of collateral circulation in chronic ICAD. Prior studies have shown that angiogenesis can be induced by hypoperfusion in chronic cerebral ischemia.^16,39 The status of cerebral perfusion might affect the process of angiogenesis in chronic ICAD. Further work is needed to identify the exact mechanism of angiogenesis in ICAD.

The evaluation of angiogenesis in patients with ICAD might provide more information about the prognosis and adaptation of treatment targeting angiogenesis. There has been a debate about the role of angiogenesis during stroke recovery for a long time.^40,41 In patients with ICAD, angiogenesis in addition to collateral circulation could be beneficial for an improved clinical outcome by restoring the blood supply of areas irrigated by the lesioned arteries. It is equally true that angiogenesis may indicate insufficiency compensation of the collaterals, representing a bad prognosis, as it is deemed to be induced by hypoperfusion or ischemia. Therefore, further evaluation of the correlation between ⁶⁸Ga-NOTA-PRGD2 and clinical outcome would be useful. In addition, therapies promoting angiogenesis have been seen to improve the outcomes of experimental stroke in mice, but the current results from clinical trials are not encouraging.³⁸ With the application of molecular imaging of angiogenesis using ⁶⁸Ga-NOTA-PRGD2 PET/CT, further trials with different therapeutic agents and routes of administration in ICAD would become more realizable.

This pilot study has some limitations as well. First, patient selection bias might exist due to the limited sample size and imbalanced men:women ratio. However, the manner in which we collected the data from the lesion side and the contralateral side from the same patient might minimize the impact of this bias. Considering there was no previous study using ⁶⁸Ga-NOTA-PRGD2 PET/CT to explore angiogenesis in chronic ischemia, as well as the high of PET/CT-based applications, we need to obtain preliminary findings before planning a larger, prospective study. Second, we do not apply another radioactive tracer without integrin αvβ3-binding activity to exclude the influence of the blood brain barrier, considering safety issues as well as the fact that damage to the blood brain barrier is almost restored in patients with chronic ischemia. Third, the absence of a kinetic study is also an important limitation of this study. Several previous studies analyzed the biodistribution of the ⁶⁸Ga-NOTA-RGD and showed that the nuclide uptake decreased rapidly during the first 30 min after injection and reached a plateau thereafter.^{30–32,35,42} According to these studies, we performed the PET scans 30 min after injection; however, kinetic studies are needed in patient populations to explore the effects of specific binding and altered cerebral blood flow on timing of semiquantitative measures. Fourth, SUV_max analyzed in this study is inclined to be affected by noise signal, but considering the extremely low background uptake of ⁶⁸Ga-NOTA-PRGD2, it is also not appropriate to choose SUV_mean. Finally, it should be noted that this study concentrated on the collateral compensation in chronic ICAD. There might be other processes underlying ⁶⁸Ga-NOTA-PRGD2 uptake, such as inflammation, but we found no evidence for inflammation on the ¹⁸F-FDG PET scans, which should show increased FDG uptake in the presence of inflammation. Further studies should also investigate pro- and anti-inflammatory cytokines in patients with ⁶⁸Ga-NOTA-PRGD2 uptake. Despite its preliminary nature, this study can clearly and directly depict angiogenesis in the cerebral parenchyma of patients with chronic ICAD, and analyze potential factors that may have an influence on angiogenesis.

Conclusion

In conclusion, our study demonstrated angiogenesis in the chronic phase in patients with ICAD using ⁶⁸Ga-NOTA-PRGD2 PET/CT imaging. To date, ours is the first study to evaluate the collateral circulation route in ICAD at the level of angiogenesis in vivo. ⁶⁸Ga-NOTA-PRGD2 PET/CT imaging could be considered as a supplement in the evaluation of collateral compensation, in addition to the conventional methods used in ICAD. Further prospective studies are required in order to investigate angiogenesis among the different ICAD subgroups, as well as the relationship between angiogenesis and prognosis of patients with ICAD.

Footnotes

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China projects [81471246], as well as the Beijing Natural Science Foundation [7152121].

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Authors’ contributions

Shi Shu was involved in the concept and design of the study, analysis, and interpretation of the data, and drafting and revising the manuscript. Li Zhang was involved in the analysis and interpretation of the data, as well as revising the manuscript. Yi Cheng Zhu was involved in the recruitment of the subjects. Fang Li supervised the study. Li Ying Cui was involved in study supervision and subject recruitment. Hao Wang, Yi Sun, and Pei Lin Wu were involved in the acquisition and analysis of the data, and administrative, technical, or material support. Zhao Hui Zhu was involved in study supervision, concept, and design of the study, technical support, interpretation of the data, and revising the manuscript. Bin Peng was involved in study supervision and obtaining funding, as well as in the concept and design of the study. Shi Shu, Li Zhang, Zhao Hui Zhu, and Bin Peng have contributed equally to this article.
