Role of perivascular and meningeal macrophages in outcome following experimental subarachnoid hemorrhage

Animals

All experimental protocols in this study were approved by the Institutional Animal Care and Use Committee at St. Michael’s Hospital and conducted in accordance with the regulations outlined by the Canadian Council on Animal Care and the Animal Research: Reporting of in Vivo Experiments (ARRIVE) guidelines. 4-month old male CD1 mice (35–45 g) (Charles River, Quebec, ON) were used in this study, and all were housed in a 12:12 light/dark cycle with controlled humidity and temperature with access to food and water ad libitum. Animal experiments were all conducted in the afternoon. 62 mice were randomized into two experimental groups, 1) Labeled blood cell injection: sacrifice at 10 minutes (n = 5), 2 days (n = 5 for scanning, n = 5 for immunofluorescence experiments) and 5 days (n = 5 for scanning, n = 5 for immunofluorescence experiments, n = 5 mice injected with FITC-dextran for perivascular macrophage labelling), 2) Liposome injection (clodronate/PBS liposomes 2 days before SAH, clodronate/PBS liposomes 3 hours after SAH, n = 6 per group) (Figure 1(a) and (b)). In addition to these main groups, we included clot burden data from a pilot study (n = 5 pre-treated, and n = 3 post treated) exploring the feasibility of injecting clodronate and subarachnoid blood considering the increased intracranial volume needed to be injected (see statistical analysis for more information). 41 mice in total were used as donor mice. For erythrocyte tracking experiments, we harvested blood from 9 mice to isolate erythrocytes (enough erythrocytes were isolated from one animal to inject 3–4 mice). For clodronate experiments, whole blood was used, which was obtained from 32 mice.

OPEN IN VIEWER

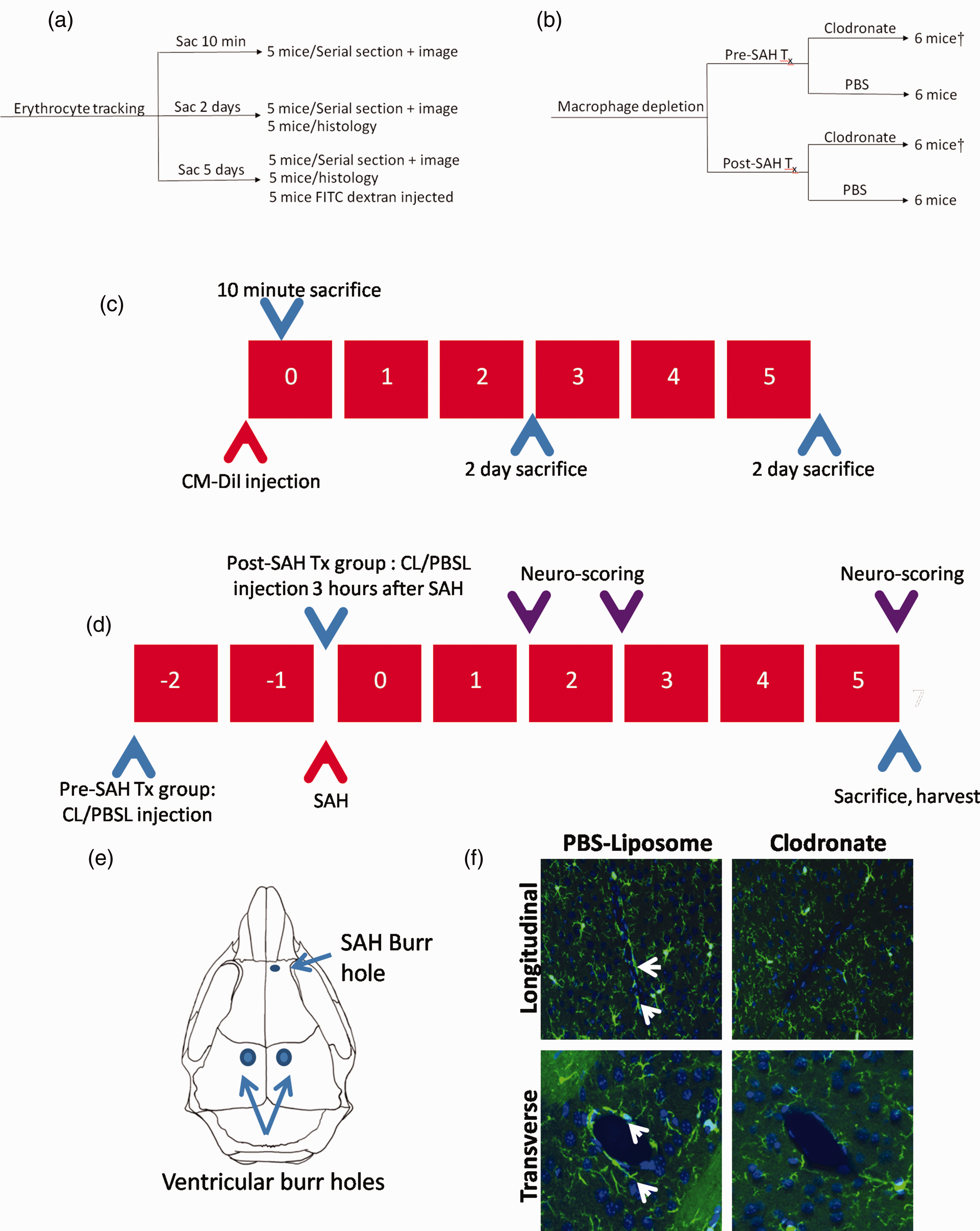

Figure 1.

Allocation of mice and experimental design. (a) Allocation of mice in erythrocyte tracking experiments. (b) Allocation of mice in macrophage depletion experiments (Tx=treatment). †indicates a pilot group of mice, that were used only for analysis of clot burden (n = 3 mice for post-SAH clodronate treatment and n = 5 mice for post-SAH clodronate treatment). (c) Sacrifice timeline of mice in the erythrocyte tracking experiments. Mice were sacrificed at 10 minutes, 2 days and 5 days after SAH onset. (d) Design of macrophage depletion study. Clodronate/PBS liposomes are administered into the lateral ventricles 2 days before (pre-SAH treatment) or 3 hours after SAH induction. Neurobehavioral scoring was assessed 1, 2 and 5 days after SAH induction. Mice are sacrificed 5 days after SAH to observe degree of neuronal injury and perivascular inflammation after SAH; CL – Clodronate liposomes, PBSL – PBS liposomes. (e) Location of SAH burr hole relative to the location of the ventricular injection burr holes. (f) Clodronate depletes perivascular macrophages as demonstrated by absence of perivascular Iba-1 staining surrounding both transversely and longitudinally-cut vessels at 5 days after intraventricular clodronate injection (white arrows pointing to perivascular macrophages).

Red blood cell isolation and labelling

Whole blood was collected by cardiac puncture and mixed with heparin. Erythrocytes were separated from plasma by centrifugation for 10 minutes at 500 x g at room temperature. The pellet was washed thoroughly with cell wash buffer (21.0 mM Tris, 4.7 mM KCl, 2.0 mM CaCl₂,140.5 mM NaCl, 1.2 mM MgSO₄, 5.5 mM glucose and 0.5% Bovine Serum Albumin (BSA), pH = 7.40). The pellet was washed again and spun twice. 100 µL of pellet was added to 900 µL of cell wash buffer and 10 µL of Vybrant™ CM-DiI (ThermoFisher Scientific, Waltham, MA). Cells were incubated for 45 minutes on a shaker at 37 °C. Cells were spun down at 250 x g and washed three times with cell wash buffer. Cells were imaged to observe cellular purity, viability and integration of dye into cell membrane (Supplemental Figure 1). Cells were prepared, stored at 37 °C and used within 3 hours of labelling. Immediately prior to injection into the subarachnoid space, cells were mixed with artificial CSF (119 mM NaCl, 26.2 mM NaHCO₃, 2.5 mM KCl, 1 mM Na₂HPO₄, 1.3 mM MgCl₂ and 10 mM glucose, pH = 7.4), to maintain a similar volume-to-cell ratio as whole blood.

Blood injection model and tissue processing

CM-DiI-labelled red blood cells were injected by prechiasmatic injection as reported previously. ¹⁶ Briefly, animals were anesthetized with isoflurane (5% induction, 1.5–2% maintenance), carried by a mixture of oxygen and medical air (70:30 ratio, 1.5 L/min). A burr hole was made slightly right of the midline, 4.5 mm anterior to the bregma, with care to avoid the sinus. For the erythrocyte tracking experiments, 100 µL of CM-DiI-labelled erythrocytes mixed with artificial CSF was injected into the prechiasmatic cistern through the burr hole at a 40° angle over 15 seconds with an injection pump. For the macrophage depletion experiments, whole blood from a littermate was used instead of labelled erythrocytes and injected in the same manner as the erythrocyte tracking experiment. Relative cerebral blood flow (CBF) monitoring was completed throughout the procedure with a Doppler flow meter (BLT21, Transonics Systems, New York, NY) to ensure proper SAH induction, as indicated by a sharp reduction in the CBF. Following SAH, mice were given slow release buprenorphine subcutaneously and recovered at 30 °C in an animal incubator. Welfare assessments were completed twice daily until day of sacrifice. At the time of sacrifice (either 10 minutes, 2 or 5 days), mice were transcardially perfused with 0.9% NaCl, followed by 4% paraformaldehyde (PFA) in phosphate-buffer (PB, pH = 7.4) (Figure 1(c)). Mice that were inadequately perfused were discarded from microthrombi analysis. For brain histology and visualization, brains were removed and stored in 4% PFA for 2 days, then transferred to 15% sucrose in PB for 4 hours, and then into 30% sucrose in PB overnight. Tissue was embedded in optimal cutting temperature compound (O.C.T., Sakura Finetek USA, Torrance, CA) and snap-frozen in cooled isopentane. For serial sectioning, 30 µm thick samples were sectioned in 500 µm intervals and mounted immediately with CC Mount™ (Millipore Sigma, St Louis, MO) after labelling with DAPI. Samples were sectioned cut between +2.00 mm to −4.50 mm relative to bregma. For immunofluorescence staining, sections were cut at 20 µm thickness, 1 mm from the bregma, and stored at −80°C until used.

Intraventricular administration of liposomes and FITC-dextran

Clodronate or PBS liposomes (Lipsoma, Netherlands) were injected into the lateral ventricles to deplete meningeal and perivascular macrophages, but not microglia (Figure 1(e) and (f)).^17,18 Animals were anaesthetized with isoflurane (5% induction, 1.5–2% maintenance), carried by a mixture of oxygen and medical air (70:30 ratio, 1.5 L/min). Mice were fixed to a stereotaxic frame, and 10 µL of clodronate or PBS liposomes were injected into each lateral ventricle over 12.5 minutes, using a Hamilton syringe attached to a pulled glass pipette (coordinates: AP −0.22 mm, lateral 1 mm, depth 2 mm). The pipette was left in place for 10 minutes after each injection to prevent backflow of liposomes through the injection path. For FITC-dextran labelling of perivascular macrophages, the same procedure was repeated for 10 µL of FITC-dextran (70 kDa, 0.1 mg/ml; Invitrogen, Carlsbad, D1823) in 5 mice. FITC-dextran was injected 2 days prior to the CM-DiI erythrocyte injection, and mice were sacrificed 5 days following erythrocyte injection.

Neurological scoring

Neurological function was assessed using a modified version of Garcia’s score, as previously described.^19,20 The neurological assessment consists of 6 domains: spontaneous activity, spontaneous movement of all four limbs, forepaw outstretching, climbing, body proprioception and response to vibrissae touch. Spontaneous activity was measured by the time it took for the mouse to touch 3 walls with two paws, up to a maximum of 5 minutes. Two blinded observers conducted the neurological assessment before SAH induction and 1, 2 and 5 days after SAH induction. The maximum score is 18, indicative of normal neurological function.

Immunofluorescence staining

20 µm frozen sections were washed with PBS (pH = 7.40). Antigen was retrieved by incubation at 96 °C in citrate-based antigen retrieval solution (Vector Labs, Burlingame, CA) for 25 minutes. For intracellular labelling with antibodies, samples were permeabilized with 0.3% Triton X-100 in PBS for 1 hour. Samples underwent blocking in 10% goat serum with 1% BSA (in PBS, pH = 7.40). Samples were incubated with primary antibodies including rabbit anti-AQP-4 (1:400, EMD Millipore, AB3594), rabbit anti-GFAP (1:1000, Abcam, ab7260), rabbit anti-Iba-1 (1:1000, Wako, 019-19741) rabbit anti-caspase-3 (1:200, BD Pharmingen, 559565) or rabbit anti-fibrinogen (1: 1000, Abcam, ab34269) overnight at +4°C. After washing with PBS, secondary antibodies (goat anti-rabbit Alexa Fluor 488 (1:500) or goat anti-rabbit Alexa Fluor 568 (1:500)) targeted toward primary antibodies were placed on the slide and incubated at room temperature for 1 hour. For caspase-3 labelled samples only, tissue was then incubated with mouse anti-NeuN (1:200 Millipore, MAB377) antibody for 1 hour followed by goat anti-rabbit Alexa Fluor 568 (1:500) antibody for 1 hour. Samples were subsequently labelled with DAPI to reveal cellular nuclei and/or Alexa-633 hydrazide (2 nM) to label large arterioles and arteries where reported. Samples were mounted with CC/Mount™ (Millipore Sigma, St Louis, MO) and cover-slipped before imaging.

Fluorescence imaging

Samples were imaged using a whole slide scanner (Zeiss Axio Scan.Z1, Zeiss, Germany, 20X magnification, 40 ms exposure, with extended depth of focus) to visualize the distribution of CM-DiI label in the brain. For immunohistochemistry, samples were imaged using a confocal microscope (Zeiss LSM700, Zeiss, Germany) at 20X magnification. All images for each experiment were taken under the same imaging parameters immediately after immunolabelling. Images were processed using Zen2 blue software (Zeiss, Germany), IMARIS (Bitplane, Switzerland) and/or ImageJ (NIH, Bethseda, USA).

Image quantification

To quantify the depth from the brain surface that CM-DiI⁺ cells were found, the orthogonal distance from the surface of the brain to the deepest CM-DiI⁺ cell surrounding the vessel was measured on whole slide images (Figure 3(a)). The depth of all CM-DiI⁺ vessels on each serial slice was measured and reported as ‘Depth from cortical surface’. In addition to collecting information about depth, the orientation of the vessel (transverse or longitudinal) relative to our coronal brain slice was also recorded. This was done for the 2 day and 5 day (n = 5), but not the 10 minute time point, as the intact erythrocytes had a tendency to detach from the slide during washing, preventing accurate quantification. To measure average GFAP expression around CM-DiI⁺ vessels and control vessels, a mask was generated by thresholding the GFAP channel. The vessel surrounded by CM-DiI was traced by a blinded observer, and the positive area fraction within the traced area was reported as ‘GFAP coverage’. For caspase-3, microthrombi and GFAP⁺ vessel quantification, a single coronal slice from the bregma was used for quantification. All NeuN⁺ cells containing caspase-3 signal and GFAP⁺ vessels were counted on each slice by a blinded observer. Microthrombi were counted in 12 fields per brain slice at 20X magnification and normalized by total area scanned.

Statistical analysis and exclusions from analysis

For normal continuous data, a Student’s t-test was used for comparisons of unpaired data and a paired t-test for paired data. For ordinal data or non-normally distributed data (i.e., neurobehavioral scores), a Mann Whitney-U test was used. Normality was tested by the Shapiro-Wilk normality test. P-values of <0.05 were considered to be significant. For categorical data, a Fisher’s exact test was used. Continuous data are reported as means ± standard deviation (SD) and ordinal or non-normal data are reported as medians ± interquartile range (IQR). 1 mouse was excluded in the microthrombi analysis from the post-SAH clodronate-liposome group, and 1 mouse from the pre-treated PBS-liposome group for incomplete perfusion. Lastly, mice in the pilot group were not used for histology, as behavior was not assessed, and brains were not perfused with fixative. Hence only clot burden was evaluated from these mice.

Spatial and temporal profile of CM-DiI labelled erythrocytes after SAH

To determine the location of erythrocytes in the prechiasmatic injection model, we labelled erythrocytes with CM-DiI and then injected them. 10 minutes after prechiasmatic injection, erythrocytes were macroscopically distributed around the perivascular space of the middle cerebral artery and also within the subarachnoid space (Figure 2(a)). We observed the perivascular erythrocytes to be slightly more pronounced on the side ipsilateral to the burr hole, which was slightly off the midline (Burrhole location, Figure 1(e)). In the posterior brain, we noted localization of erythrocytes surrounding the cerebellar arteries. No erythrocytes were observed macroscopically in the perivascular spaces at either the 2 or 5 day time-points (5 day not shown).

OPEN IN VIEWER

Figure 2.

Macro- and microscopic distribution of erythrocytes after SAH. (a) Macroscopic images of mouse brains 10 minutes and 2 days after SAH. On the right is a mouse brain 10 minutes after SAH demonstrating macroscopic perivascular blood distribution. (b) Representative distribution of blood in the mouse brain in several coronal levels relative to bregma. Blood is labelled in orange, and nuclei are in the blue channel to highlight brain tissue (AP +2.00, +0.5 mm, –3.00 mm, –4.00 mm). Blood is distributed throughout the ventricular system and the base of the brain. Scale bar represents 2 mm (c) Dye can also be observed within the brain parenchyma at each time point, surrounding penetrating vessels. Note that dye appears to be contained in distinct cells at 2 and 5 days after SAH. White dotted line denotes the pia mater. Scale bar represents 250 µm.

To visualize the microscopic distribution of erythrocytes after SAH, brains were sectioned at 500 µm intervals and slices were imaged using a whole slide scanner (Figure 2(b)). At all time points, CM-DiI containing (CM-DiI ⁺) cells were present throughout the ventricular system, and particularly pronounced near the injection site (Supplemental Figure 2). These cells were also found on the leptomeninges underneath the brain and surrounding the brainstem. At 10 minutes, CM-DiI⁺ cells were intact erythrocytes, but by 2 and 5 days, most of the dye was found localized in elongated spindle or round-shaped mononuclear cells in the subarachnoid space and ventricles (Supplemental Figure 2). The leptomeningeal cells, based on their localization, shape, single nucleus and propensity to uptake erythrocytes were identified as meningeal macrophages. In addition to the subarachnoid space and ventricles, we found CM-DiI signal surrounding parenchymal vessels (Figures 2(c) and 4(b)). Similar to the ventricular and leptomeningeal distribution, at 10 minutes, parenchymal perivascular CM-DiI⁺ cells were intact erythrocytes, but by 2 and 5 days, most of the dye was found localized in discrete elongated spindle shaped cells. The vessels with surrounding CM-DiI⁺ cells were running parallel or transversely relative to the coronal plane of sectioning. Aside from these cells in the perivascular space, no other cells containing dye were found within the parenchyma.

Identification and localization of parenchymal perivascular CM-DiI⁺ cells

To better understand the distribution of parenchymal perivascular CM-DiI⁺ cells, we investigated the type of vessels that these cells surrounded. We incubated brain slices with Alexa Fluor 633 hydrazide, which selectively labels elastin surrounding large arterioles. ²¹ We found that all transversely cut vessels and the majority of longitudinally cut vessels with surrounding CM-DiI⁺ cells were co-labelled with Alexa-Fluor 633 (Figure 3(a)). This indicated that the majority of parenchymal CM-DiI⁺ cells were perivascular cells surrounding large penetrating arterioles.

OPEN IN VIEWER

Figure 3.

Distribution and identity of parenchymal perivascular CM-DiI⁺ cells. These samples are stained at the 5 day time point. (a) The majority of parenchymal CM-DiI⁺ cells were located along vessels that are labelled with Alexa-633, which specifically labels larger arterioles (>20 µm). Both longitudinally and transversely cut vessels with surrounding CM-DiI⁺ cells were labelled with Alexa-633. Scale bar represents 50 µm (top row) or 20 µm (bottom row). (b) CM-DiI⁺ cells (red) express relatively low levels of Iba-1 (green). Note the co-localization of CM-DiI with Iba-1 immunolabelling, along the direction of the dotted arrow. Scale bar represents 40 µm. (c) All CM-DiI⁺ cells (red) were also involved in uptake of FITC-dextran (green). Note the co-localization of CM-DiI with FITC-dextran labelling, along the direction of the dotted arrow. Scale bar represents 40 µm. The perivascular location, low expression of Iba-1 (relative to surrounding microglia) and uptake of FITC-dextran indicate these cells are perivascular macrophages. Data are representative of n = 5 independent experiments.

Given the location and morphology (perivascular distribution around arterioles, spindle shaped) of the CM-DiI⁺ cells 2 and 5 days following SAH, we hypothesized that these were perivascular macrophages. To confirm this, we stained the tissue for Iba-1, a macrophage/microglia marker. We found that CM-DiI⁺ cells had a low baseline expression of Iba-1 which is consistent with perivascular macrophages and not parenchymal microglia (Figure 3(b)).^22,23 Furthermore, we did not observe any parenchymal microglia (Iba-1⁺ cells in the parenchyma) that were also CM-DiI⁺ (Figure 3(b)). In a separate cohort of mice we administered intraventricular FITC-dextran, which is specifically phagocytosed by perivascular macrophages, 2 days prior to CM-DiI erythrocyte injection.^22,23 We found that all CM-DiI⁺ cells also contained FITC-dextran (Figure 3(c)). Together, the morphology, location, relative Iba-1 expression and FITC-dextran uptake indicate these cells are perivascular macrophages.

Distribution pattern of perivascular CM-DiI⁺ macrophages after SAH

We subsequently assessed the distribution of CM-DiI⁺ perivascular macrophages throughout the mouse brain to estimate the extent of parenchymal perivascular infiltration of blood (Figure 4). On visual inspection of the anterior slices at low magnification, we observed that there were slightly more CM-DiI⁺ perivascular macrophages lateralized towards the side of the injection consistent with the pattern of macroscopic perivascular blood distribution (Figure 4(a)). The majority of vessels with surrounding CM-DiI⁺ macrophages (i.e., ‘CM-DiI⁺ vessels’) on these anterior slices were cut longitudinally with the coronal slice, running perpendicular to the brain surface (Figure 3(e)). On visualization of the posterior slices at low magnification, the CM-DiI⁺ vessels were found to be distributed more evenly along both sides of the cortex (Figure 4(a)). In these more posterior sections, vessels that were cut transversely with the coronal slice (i.e., running parallel to the brain surface) became more common (Figure 4(e)). We then quantified the depth at which these CM-DiI⁺ vessels were found relative to the brain surface, distinguishing between transverse and longitudinally-cut vessels.

OPEN IN VIEWER

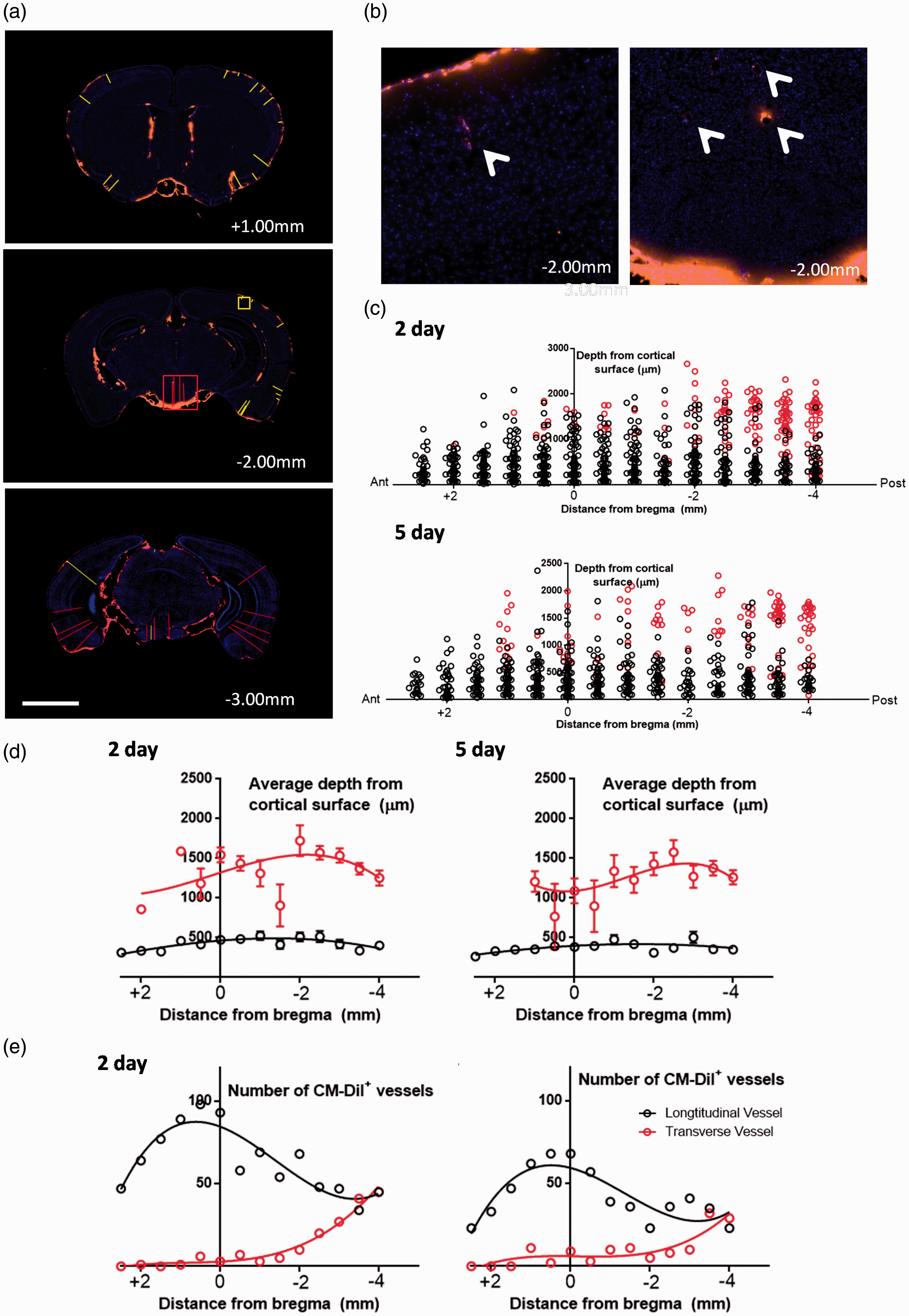

Figure 4.

Distribution of perivascular CM-DiI⁺ macrophages after SAH. (a) Representative coronal slices obtained 2 days after SAH, at +1.00 mm, −2.00 mm, and −3.00 mm from the bregma. Red lines indicate distance from cortical surface to a vessel that was perpendicular to the coronal cut (i.e., transverse vessel), and yellow lines indicate distance from cortical surface to a vessel that was parallel to the coronal cut (i.e., longitudinal vessel). Note that longitudinally-cut vessels with perivascular CM-DiI⁺ cells were found more often on the ipsilateral slide to the side of burr hole (right of mouse, left side of image), particularly towards the anterior brain. Scale bar represents 2 mm. (b) Inset of two regions from second slice in A (AP −2.00 mm) or a longitudinal vessel (inset of yellow box, right figure) or transverse vessel (inset of red box, left figure). (c) Graphical representation of the spatial distribution of cortical vessels with surrounding perivascular CM-DiI⁺ macrophages. Red circles indicate transversely-cut vessels, and black circles indicate longitudinally-cut vessels. (d) Summary data of the average cortical depth of transverse or longitudinal arterioles in various brain slices at 2 (left) or 5 (right) days. Note that transversely-cut vessels were typically found in deeper cortical regions than longitudinally-cut vessels. Data are expressed as means ± standard deviation. (e) Summary data of the total number of vessels that had surrounding perivascular CM-DiI⁺ macrophages. Note that the number of vessels peaked around the level of the bregma for longitudinally-cut vessels, whereas the number of transversely-cut vessels increases progressively towards the posterior sections. Curves of best fit are applied for data visualization. Data are obtained from n = 5 mice per time point in each graph from (d-e).

The longitudinal vessels originated from the brain surface, and the CM-DiI⁺ cells along these vessels were found deep in the brain parenchyma - as deep as 1 mm from the brain surface - with an average depth of 0.43 ± 0.38 and 0.38 ± 0.30 mm in the 2 and 5 day time-points respectively (Figure 4(c) and (d)). The transversely-cut CM-DiI⁺ vessels were typically found deeper in the brain tissue, in the posterior brain. These vessels were found within the posterior hippocampus, and other sub-cortical structures (Figure 4(c) and (d)). Transverse vessels were found as deep as 2.5 mm from the cortical surface, with an average depth of 1.39 ± 0.55 mm and 1.29 ± 0.50 mm from the cortical surface at 2 and 5 days following SAH induction. The pathway by which erythrocytes enter the perivascular space of the deeper transverse vessels is unclear. Comparing between 2 and 5 days post-ictus, there were less vessels with surrounding CM-DiI⁺ cells at 5 days compared to 2 days (15.2 vs. 10.1 vessels/slice), indicating a possible turnover or clearance of perivascular macrophages over time (Figure 4(e)). These data indicate that perivascular blood is not only in the superficial cortex, but also deeper cortical and subcortical regions.

CM-DiI⁺ perivascular macrophages are associated with increased perivascular gliosis

To determine if the presence of blood and perivascular macrophages initiated an inflammatory response in the surrounding tissue, we stained brain slices for GFAP, to detect reactive gliosis. ²⁴ We observed that around blood vessels with CM-DiI⁺ macrophages, there was increased expression of GFAP in neighbouring astrocytes which is indicative of reactive gliosis (Figure 5). To estimate the increased expression, we measured the GFAP coverage of the vessel wall, comparing similar sized vessels that had surrounding CM-DiI⁺ macrophages with those that were CM-DiI^-. In terms of the total vessel area coverage, we found an average increase in GFAP expression of 17.7 ± 3.8% relative to control non-labelled vessels (P < 0.001, paired t-test) at 2 days after SAH. GFAP was found to further increase at the 5 days (29.4 ± 19.4% increase vs. non-labelled vessels, P < 0.05, paired t-test). In addition to increased GFAP expression, we observed that expression of aquaporin-4 (AQP4), which is typically found on the end-feet of perivascular astrocytes, appeared disrupted or absent in comparison to vessels that were not surrounded by CM-DiI⁺ cells (Supplemental Figure 3). These data indicate that perivascular blood and/or the perivascular macrophages that uptake the blood may cause reactive gliosis and local neurovascular inflammation. A summary of findings in the erythrocyte tracking experiments are presented in Figure 5(b).

OPEN IN VIEWER

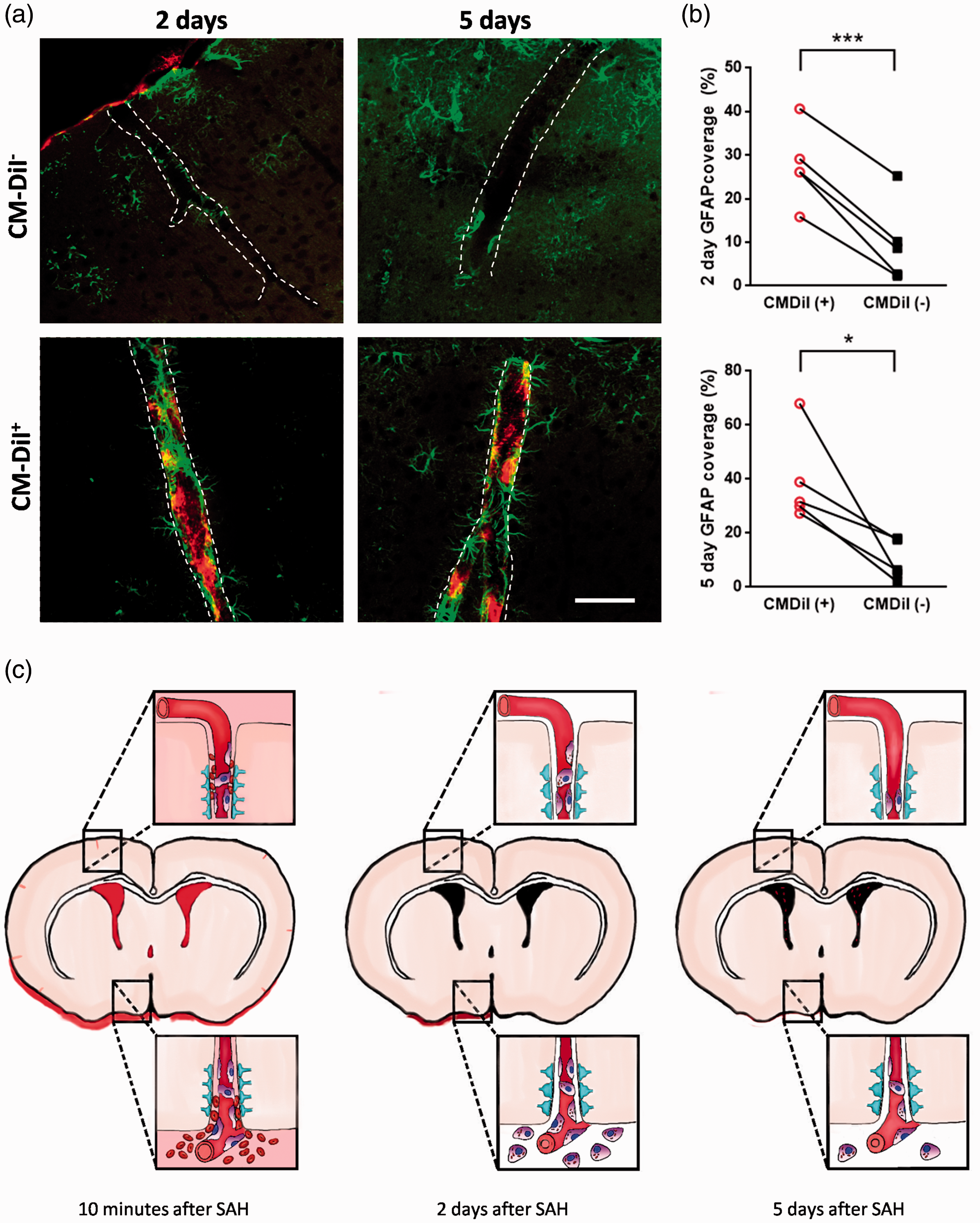

Figure 5.

Gliosis surrounding blood vessels with perivascular CM-DiI⁺ macrophages and primary findings of erythrocyte tracking experiments. (a) Representative images of cortical blood vessels (highlighted with the dotted line), stained with GFAP, a specific marker of astrocytes. Increased GFAP expression (green) is associated with inflammation and gliosis. No significant gliosis was observed surrounding CM-DiI^- vessels. In contrast, we observed a large increase in the perivascular GFAP expression surround blood vessels labelled with perivascular CM-DiI⁺ cells (red). Scale bar represents 30 µm. (b) Quantification of perivascular gliosis. CM-DiI⁺ vessels were compared to CM-DiI^- vessels in the same animal for both 2 and 5 days after SAH. ***P < 0.0001, *P < 0.05, paired t-test (n = 4 independent samples/group). (c) Schematic of the primary findings in the erythrocyte tracing studies. At 10 minutes, free intact erythrocytes were found in the basal cisterns and ventricles. Intact erythrocytes were also found in the perivascular spaces of apical, basal and subcortical arterioles. At 2 days after SAH, there was decreased blood and erythrocytes in the basal cistern. Blood in the ventricles was phagocytosed by discrete cells. Erythrocyte uptake was observed by perivascular and meningeal macrophages (in purple) but not microglia. Perivascular gliosis was observed primarily around arterioles with perivascular macrophages that engaged in erythrocyte clearance (swollen endfeet, in blue). At 5 days after SAH, little or no blood was found in basal cisterns. Blood in the ventricles were contained by discrete cells. Some turnover of the perivascular macrophages and more perivascular inflammation were observed. Overall, we found that perivascular and meningeal macrophages are involved in erythrocyte clearance, and contribute to perivascular inflammation and neuronal cell death after SAH. Note that erythrocytes, macrophages and astrocytic endfeet are not drawn to scale.

Depletion of perivascular and meningeal macrophages affects behavioural deficits and delays blood clearance after SAH

Next, to study how perivascular and meningeal macrophages influence the response to SAH, we used clodronate liposomes to deplete these cell populations (Figure 1(d)). For these experiments, whole blood was used. Clodronate liposomes specifically induce apoptosis in leptomeningeal and perivascular macrophages without affecting microglia, achieving almost complete depletion by 2 days after injection. ¹³ Successful depletion of perivascular and meningeal macrophages in our study was indicated by an absence of perivascular Iba-1 staining (Figure 1(f)). Depletion was initiated 2 days before SAH (i.e. pre-SAH treatment) or 3 hours after SAH (post-SAH treatment).

We found that clodronate pre-treatment had no effect on neurological scoring on the modified Garcia’s score in comparison to PBS pre-treated mice, at any time-point (p > 0.05, Mann-Whitney-U) (Figure 6(a)). In contrast with the clodronate pre-treated animals, animals treated after SAH had improved neurological scores at all time-points in comparison to PBS treatment (P < 0.05, Mann-Whitney-U t-test) (Figure 6(b)). Mice were sacrificed after behavioural testing on day 5, at which time we observed coagulated blood still present in the basal cisterns in mice that received the clodronate pre-treatment, but not those pre-treated with PBS liposomes (Figure 6(c)). Some clodronate post-treated mice also had small amounts of clotted blood in the basal cisterns, but not a significantly higher number than PBS treated controls (P < 0.05, Fisher’s exact test, pre-treatment group (clodronate 8 of 11, PBS 1 of 6 had clots); same day group (clodronate 2 of 9, PBS 0 of 6 had clots)) (Figure 6(d)).

OPEN IN VIEWER

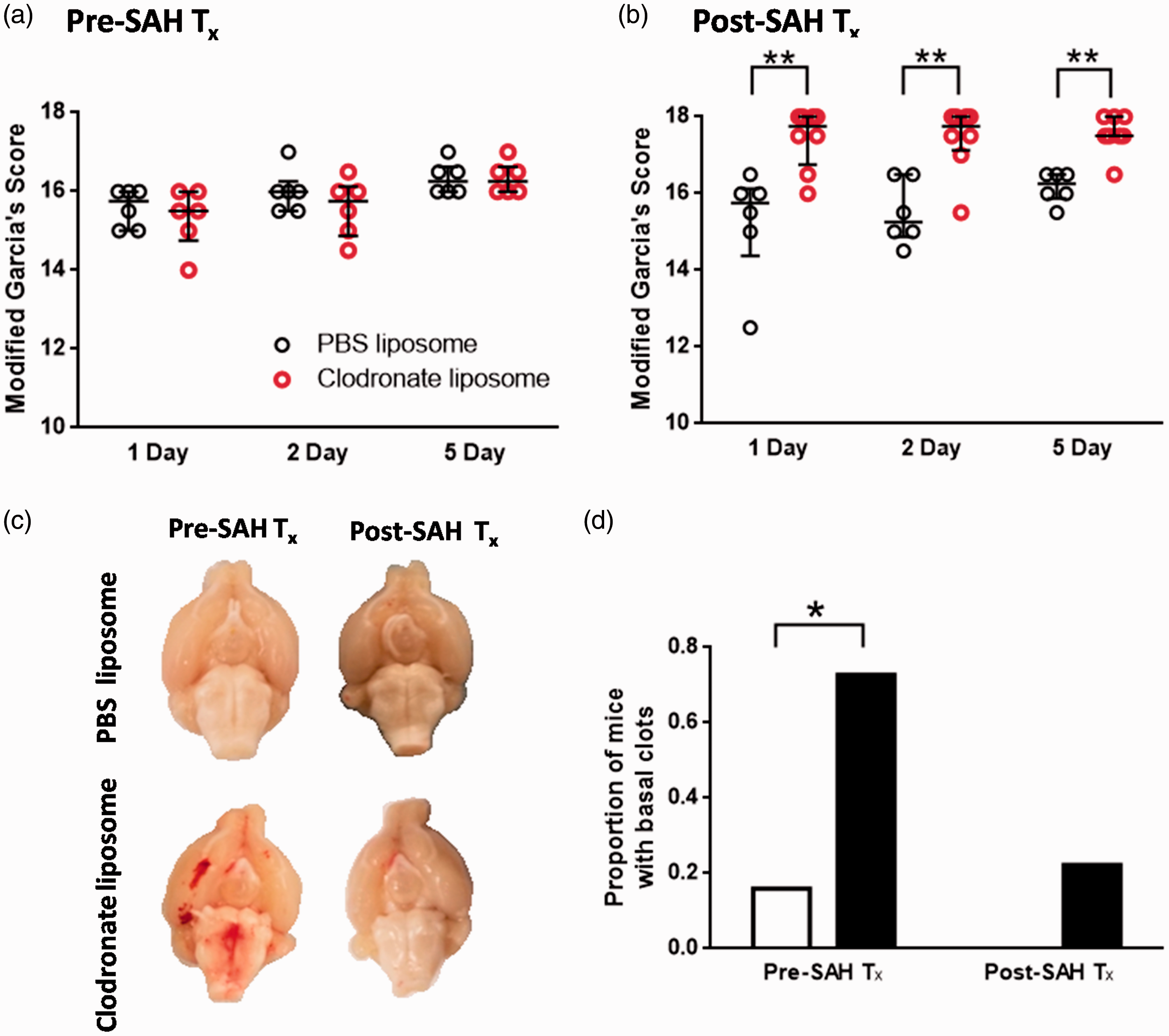

Figure 6.

Depletion of perivascular and meningeal macrophages affects gross behaviorial deficits and blood load after SAH. (a) (a) Neurological scoring of mice receiving pre-SAH treatment with clodronate or PBS liposomes. No difference in behavioural scoring was observed between the PBS and clodronate groups. (b) Neurological scoring of mice receiving post-SAH treatment of clodronate or PBS liposomes (n = 6 mice per group). Clodronate-treated mice scored significantly better in neurobehavioural scoring compared to the PBS-treated controls (*P < 0.05, **P < 0.01, Mann-Whitney-U test). (c) Representative ventral view of the brain surface of clodronate or PBS treated mice, sacrificed at 5 days after SAH. Typically, no blood is observed on the ventral brain surface by 5 days after SAH, but after clodronate pre-treatment, there was a clear basal clot in a significant proportion of mice compared with controls (quantified in (d), * P < 0.05, Fisher’s exact test).

Depletion of perivascular and meningeal macrophages affects neuronal injury after SAH

Since mice had improved behavioural scoring after simultaneous clodronate and SAH injection, we measured the effect of macrophage depletion on neuronal injury after SAH using caspase-3/NeuN staining. Caspase-3 staining was quantified from the cerebral cortices of a single slice. Caspase-3 distribution was highest in the cortical tissue adjacent to the subarachnoid blood clot, with scattered distribution in the other regions of the cerebral cortex (Figure 7(a)). In pre-SAH treated animals we did not detect a significant decrease in the number of caspase-3⁺ neurons between clodronate or PBS treated animals (225 ± 151 vs. 161 ± 129 neurons, p > 0.05, Student’s t-test) (Figure 7(d)). Contrastingly, in animals treated post-SAH, we observed a significant reduction in the number of caspase-3⁺ neurons compared to PBS controls (186 ± 78 vs. 56 ± 48 neurons, P < 0.01, Student’s t-test).

OPEN IN VIEWER

Figure 7.

Depletion of perivascular and meningeal macrophages affects neuronal cell death, perivascular gliosis and microthrombosis after SAH. (a) Representative images of caspase-3 (green) staining in PBS or clodronate treated mice. Images are merged with NeuN (red) and DAPI (blue). Positive cells are yellow in the merge (white arrows). (b) Representative GFAP staining visualizing astrocyte activation surrounding penetrating vessels after SAH in PBS or clodronate treated animals. Vessels are indicated with a white asterisk, and are identified by the presence of a vascular lumen. (c) Representative images of fibrinogen staining (green), with DAPI (blue) in PBS or clodronate treated mice. d) Quantification of neuronal cell death, perivascular gliosis and thrombosis in clodronate or PBS-treated animals. Neuronal cell death was only significantly reduced in SAH animals treated with clodronate vs. PBS controls treated on the same day. In both pre-SAH and post-SAH treated clodronate-treated SAH animals, the number of GFAP⁺ arterioles and number of thrombi was significantly reduced vs. PBS-treated animals from the same cohort, *P < 0.05, **P < 0.01, Student’s t-test, n = 5-6 per group. Scale bars: (a) 50 µm, (b,c) 60 µm.

Depletion of perivascular and meningeal macrophages reduces inflammation surrounding large arterioles and reduces microthrombosis after SAH

Lastly, to determine if macrophage depletion reduced perivascular inflammation, we quantified the total number of large penetrating vessels that had visible expression of GFAP in clodronate-treated and PBS-treated mice (Figure 7(b)). Interestingly, we found that, in both mice that received clodronate on 2 days prior to SAH and on the same day as SAH, there was a significant reduction in the total amount of GFAP immunoreactivity surrounding large arterioles in comparison to PBS-treated controls (pre-SAH treatment: 45.5 ± 15.3 vs. 26.4 ± 5.0 arterioles, P < 0.05, Student’s t-test; post-SAH treatment, 39.8 ± 6.1 vs. 15.0 ± 5.8 arterioles, P < 0.05, Student’s t-test) (Figure 7(d)).

Given this reduction in perivascular inflammation, we sought to quantify the degree of microthrombosis in each group, as the formation of microthrombi has been linked to vascular inflammation after SAH.^25,26 Consistent with a potential reduction in perivascular inflammation, there was a reduction in the number of microthrombi/mm² in both clodronate-treated groups, compared to the respective PBS-treated group (pre-SAH treatment: 32 ± 5 vs. 23 ± 5 microthrombi/mm², P < 0.05, Student’s t-test; post-SAH treatment, 42 ± 11 vs. 27 ± 9 microthrombi/mm², P < 0.05, Student’s t-test) (Figure 7(c) and (d)).
