An overview of null space projections for redundant,torque-controlled robots

Abstract

One step on the way to approach human performance in robotics is to provide joint torque sensing and control for better interaction capabilities with the environment, and a large number of actuated degrees of freedom (DOFs) for improved versatility. However, the increasing complexity also raises the question of how to resolve the kinematic redundancy which is a direct consequence of the large number of DOFs. Here we give an overview of the most practical and frequently used torque control solutions based on null space projections. Two fundamental structures of task hierarchies are reviewed and compared, namely the successive and the augmented method. Then the projector itself is investigated in terms of its consistency. We analyze static, dynamic, and the new concept of stiffness consistency. In the latter case, stiffness information is used in the pseudoinversion instead of the inertia matrix. In terms of dynamic consistency, we generalize the weighting matrix from the classical operational space approach and show that an infinite number of weighting matrices exist to obtain dynamic consistency. In this context we also analyze another dynamically consistent null space projector with slightly different structure and properties. The redundancy resolutions are finally compared in several simulations and experiments. A thorough discussion of the theoretical and empirical results completes this survey.

Keywords

Torque control null space projection task hierarchy dynamic consistency

1. Introduction

The impressive performance of a human being is substantially due to its versatility. The large number of degrees of freedom (DOFs) allows the human to adapt to a variety of environments and several simultaneous objectives. Consider a service task such as setting a table. In addition to the main pick-and-place task a large number of objectives have to be accounted for additionally: Collisions have to be avoided, the balance has to be held, the environment has to be observed permanently, and unexpected disturbances have to be compensated for. All of these subtasks have to be fulfilled in some form or another, but there are usually more important and less important aspects such that a hierarchy among the tasks can be established.

In robotics, the most frequently applied method to resolve such a kinematic redundancy is doubtless the null space projection technique developed in the 1980s (Khatib, 1987; Nakamura et al., 1987; Siciliano and Slotine, 1991). The concept is based on a hierarchical arrangement of the involved tasks and can be interpreted as an instantaneous, local optimization. The top priority task is executed employing all capabilities of the robotic system. The second priority task is then applied to the null space of the top priority task. In other words, the task on the second level is executed as well as possible without disturbing or interfering with the first level. The task on level three is then executed without disturbing the two higher priority tasks, and so forth. Today these techniques are standard tools in kinematic control (Baerlocher and Boulic, 2004; Nakanishi et al., 2008; Antonelli et al., 2009; Decré et al., 2009; Sugiura et al., 2010; Kanoun et al., 2011; Lee et al., 2011) and dynamic control (Albu-Schäffer et al., 2003; Khatib et al., 2004; Sentis and Khatib, 2005; Nakanishi et al., 2008; Mansard et al., 2009; Dietrich et al., 2012b; Sadeghian et al., 2013).

A clear overview and comparison of practical null space projections for torque control has not been given so far. We provide such a survey in a unified framework and integrate seminal results from the robotics community, while extending the knowledge base at several places with new insights. The motivation for this paper was that existing works on null-space-based redundancy resolutions only cover parts for a complete survey such that their results have to be combined and condensed for an elaborate overview: Antonelli (2009) compares two different kinds of strictnesses in the hierarchy for kinematic control, namely the successive (Dietrich et al., 2012b) and the augmented (Siciliano and Slotine, 1991; Sentis and Khatib, 2005) null space projections. In our survey, these two basic domains are analyzed concisely for torque-controlled robots. Apart from this overall structure of the task hierarchy, the null space projector itself has essential inherent properties in terms of its consistency. Based on the weighting matrix in the pseudoinversion of the Jacobian matrix (Doty et al., 1993), we compare static, dynamic, and the novel idea of stiffness consistency of the projections. The type of consistency is closely related to the question of using the inertia matrix (Khatib, 1987; Sentis and Khatib, 2005; Featherstone, 2010; Sadeghian et al., 2013) or other, possibly constant weighting matrices in the pseudoinversion (Baillieul et al., 1984; Hollerbach and Suh, 1987; Albu-Schäffer et al., 2003; Dietrich et al., 2012a). Dynamically consistent projectors are investigated in particular since they are probably the most common choices in torque control. Elaborate comparisons among the subclass of inertia-based null space projectors have been performed in the literature (Nakanishi et al., 2008; Peters et al., 2008; Hollerbach and Suh, 1987), but most authors conclude that for high performance, an accurate model of the inertia matrix is necessary which is both difficult to obtain and computationally very expensive. For this reason the experimental comparison between dynamically consistent approaches utilizing the inertia matrix (Khatib, 1987) and statically consistent techniques without explicit use of the inertia matrix (Albu-Schäffer et al., 2003) are of high relevance in robotics. In particular, when considering the implementation on real hardware, we show that theoretically superior techniques actually lose most of their benefits.

The main contribution of this paper is the comprehensive overview and discussion of different null space projection techniques for the particular case of torque control. Furthermore we interpret the weighting matrix in the popular dynamically consistent null space projector by Khatib (1987, 1995) as a special case of an infinite number of dynamically consistent weighting matrices. This analysis contributes to a better understanding of dynamic consistency in general. We analyze a further kind of dynamically consistent null space projectors which do not derive from the standard procedure for torque control but from acceleration-based robot control, yet they share most of the properties with the classical solution. Moreover, we introduce the new idea of stiffness consistency. Instead of employing knowledge about the inertia distribution in the null space projector computation, stiffness information is utilized to obtain useful new features in the redundancy resolution. The comparison of the null space projectors is supported by extensive simulations and experiments on a real torque-controlled robot. As a result of this work, an expedient overview of torque control null space projectors is provided with which the operator of the robot can make his choice depending on the application case and the resources.

2. Strictness of the hierarchy

Consider a manipulator with $n$ DOFs and $r$ task coordinate vectors which are defined by

x_{i} = f_{i} (q) \in ℝ^{m_{i}}

(1)

for $1 \leq i \leq r$ . The dimension of task $i$ is $m_{i} \leq n$ . The differential mappings from joint velocities to task velocities are given by the Jacobian matrices $J_{i} (q) \in ℝ^{m_{i} \times n}$ with

{\overset{\cdot}{x}}_{i} = J_{i} (q) \overset{\cdot}{q}, J_{i} (q) = \frac{\partial f_{i} (q)}{\partial q}

(2)

In the following, $J_{i} (q)$ is assumed be non-singular, hence of full row-rank. Dealing with singular matrices or changing rank requires additional treatment (Deo and Walker, 1995), both in kinematic control (Chiaverini, 1997) and torque control (Dietrich et al., 2012a,b). Since the primary task ( $i = 1$ ) has dimension $m_{1} < n$ , a kinematic redundancy of $n - m_{1}$ DOFs remains to accomplish subtasks in its null space. The hierarchy is defined such that $i = 1$ is top priority and $i_{a} < i_{b}$ implies that $i_{a}$ is located higher in the priority order than $i_{b}$ .

2.1. Successive projections

In the successive null space projection (Antonelli, 2009; Dietrich et al., 2012b) a task torque $τ_{2} \in ℝ^{n}$ on the second priority level is projected into the null space of the main task ( $i = 1$ ) by applying

τ_{2}^{p} = N_{2}^{suc} (q) τ_{2}

(3)

where $τ_{2}^{p} \in ℝ^{n}$ is the projected torque that does not interfere with the main task. The successive null space projector $N_{2}^{suc} (q)$ is obtained by evaluating

N_{2}^{suc} (q) = I - J_{1} {(q)}^{T} {(J_{1} {(q)}^{#})}^{T}

(4)

wherein ${}^{#}$ represents the generalized inverse and $I$ is the identity matrix. Analogous to (3), the remaining tasks in the hierarchy ( $2 < i \leq r$ ) can be implemented by

τ_{i}^{p} = N_{i}^{suc} (q) τ_{i}

(5)

with the null space projectors obtained via the recursive, successive algorithm

N_{i}^{suc} (q) = N_{i - 1}^{suc} (q) (I - J_{i - 1} {(q)}^{T} {(J_{i - 1} {(q)}^{#})}^{T})

(6)

One receives the final control torque by adding up the main task torque and all projected torques to

τ = τ_{1} + \sum_{i = 2}^{r} τ_{i}^{p}

(7)

2.2. Augmented projections

The augmented approach (Siciliano and Slotine, 1991) is identical to the successive projection on the first null space level (3)–(4). From the third level on, the projected torque is given by

τ_{i}^{p} = N_{i}^{aug} (q) τ_{i}

(8)

where the null space projector $N_{i}^{aug} (q)$ has the form

N_{i}^{aug} (q) = I - J_{i - 1}^{aug} {(q)}^{T} {(J_{i - 1}^{aug} {(q)}^{#})}^{T}

(9)

The augmented Jacobian matrix $J_{i - 1}^{aug} (q)$ takes all higher priority Jacobian matrices into account:

J_{i - 1}^{aug} (q) = (\begin{matrix} J_{1} (q) \\ J_{2} (q) \\ ⋮ \\ J_{i - 1} (q) \end{matrix})

(10)

The final control torque is obtained via (7) again by using (8) instead of (5) now. The direct implementation of (9) is computationally expensive due to the large number of rows in $J_{i - 1}^{aug} (q)$ . Usually recursive algorithms (Siciliano and Slotine, 1991; Baerlocher and Boulic, 1998; Sentis and Khatib, 2005) are applied to reduce the numerical effort:

\begin{matrix} N_{1}^{aug} = I \end{matrix}

(11)

\begin{matrix} {\hat{J}}_{i} (q) = J_{i} (q) N_{i}^{aug} {(q)}^{T} \end{matrix}

(12)

\begin{matrix} N_{i}^{aug} (q) = N_{i - 1}^{aug} (q) (I - {\hat{J}}_{i - 1} {(q)}^{T} {({\hat{J}}_{i - 1} {(q)}^{#})}^{T}) \end{matrix}

(13)

Herein ${\hat{J}}_{i} (q) \in ℝ^{m_{i} \times n}$ describes the Jacobian matrix of level $i$ projected into the null space of all higher priority tasks.

In fact, this additional recursive step (12) is the only difference between the successive and the augmented approach. A direct comparison between the two types of hierarchy strictnesses will be given in Section 5.1.

3. Consistency of the projections

While the preceding section investigated the overall structure of the hierarchy, the consistency determines how the null space itself is defined in terms of properties and shape. Prior to that analysis, the dynamic equations of the robot and the pseudoinverse of a matrix are briefly reviewed in Section 3.1.

3.1. Dynamic equations and pseudoinverse

The dynamic equations of a robot with $n$ DOFs can be written as

M (q) \overset{\cdot\cdot}{q} + C (q, \overset{\cdot}{q}) \overset{\cdot}{q} + g (q) = τ + τ^{ext}

(14)

The inertia matrix $M (q) \in ℝ^{n \times n}$ is symmetric, positive definite, and it depends on the joint configuration $q \in ℝ^{n}$ . Gravity torques are taken into account by $g (q) \in ℝ^{n}$ , and Coriolis/centrifugal effects are represented by $C (q, \overset{\cdot}{q}) \overset{\cdot}{q} \in ℝ^{n}$ . The joint torques are described by $τ \in ℝ^{n}$ , and external forces are denoted by $τ^{ext} \in ℝ^{n}$ . In this notation we use the terms joint torques and external forces since robots are rather equipped with revolute joints than prismatic joints, and external loads are usually applied in terms of forces instead of torques. However, the extension to generalized joint forces (including forces and torques) as well as generalized external forces (including forces and torques) can be made without loss of generality. In the following analysis, we will set the control input to

τ = τ ’ + C (q, \overset{\cdot}{q}) \overset{\cdot}{q} + g (q)

(15)

to compensate for the Coriolis/centrifugal terms and gravitational effects such that

M (q) \overset{\cdot\cdot}{q} = τ ’ + τ^{ext}

(16)

As of now the “new” control input $τ'$ will be used. Note that all conclusions in the subsequent sections are also valid without the compensation (15). Nevertheless, neglecting $C (q, \overset{\cdot}{q}) \overset{\cdot}{q}$ and $g (q)$ by means of (16) improves the readability and highlights the relevant aspects better.

In Section 2 the generalized inverse ${}^{#}$ was used but it was not specified. A generalized inverse $A^{#}$ of a full row rank matrix $A \in ℝ^{m \times n}$ with $m < n$ has to satisfy the criterion

A A^{#} = I

(17)

for right inverses. One can find an infinite number of generalized inverses that meet (17). As of now, the notation ${}^{W +}$ is used instead of ${}^{#}$ to disambiguate the inverse by the weighting matrix $W \in ℝ^{n \times n}$ . Hence, one can formulate

A^{W +} = W^{- 1} A^{T} {(A W^{- 1} A^{T})}^{- 1}

(18)

which fulfills (17) as long as the inversion on the right is feasible. The term $A W^{- 1} A^{T}$ has to be of rank $m$ , and $W$ must be invertible. The use of such generalized inverses is very common in robotics (Doty et al., 1993), for example in inverse kinematics. In the following, the effects of the weighting matrix are clarified and classified into three different types of torque control projection consistencies. That analysis is performed on a two-level system for the sake of simplicity, yet all statements can be transferred to more complex hierarchies without loss of generality. A distinction between successive and augmented projections does not have to be made here since $N_{2} (q) = N_{2}^{suc} (q) = N_{2}^{aug} (q)$ .

3.2. Static consistency

Definition 1. A null space projector $N_{j} (q) \in ℝ^{n \times n}$ is said to be “statically consistent” if a subtask does not generate interfering forces in the operational spaces of all higher priority tasks in any static equilibrium. The condition

{(J_{i} {(q)}^{W +})}^{T} N_{j} (q) = 0

(19)

for $i < j$ must hold in any steady state with $\overset{\cdot}{q} = \overset{\cdot\cdot}{q} = 0$ .

In order to show that we set

τ' = N_{2} (q) τ_{2}

(20)

and consider a static scenario where the external forces are only given by the reaction forces $F_{1}^{react}$ which are exerted on the robot by clamping the robot in the main task space, e.g. by clamping the end-effector in case of a Cartesian main task of the end-effector. Then the external force is given by

τ^{ext} = J_{1} {(q)}^{T} F_{1}^{react}

(21)

Inserting (20) and (21) into the quasi-static version of (16), and reorganizing the terms, yields

- J_{1} {(q)}^{T} F_{1}^{react} = N_{2} (q) τ_{2}

(22)

From (17) we can conclude that the multiplication by ${(J_{1} {(q)}^{W +})}^{T}$ from the left will lead to

F_{1}^{react} = - {(J_{1} {(q)}^{W +})}^{T} N_{2} (q) τ_{2}

(23)

= \underset{= 0}{\underset{︸}{- {(J_{1} {(q)}^{W +})}^{T} (I - J_{1} {(q)}^{T} {(J_{1} {(q)}^{W +})}^{T})}} τ_{2}

(24)

for any admissible weighting matrix $W$ . Thus the conditions of static consistency are met according to Definition 1. The effect of the null space task $τ_{2}$ onto the main task force $F_{1}^{react}$ is zero (Albu-Schäffer et al., 2003), hence no main task acceleration will be generated in this equilibrium such that ${\overset{\cdot\cdot}{x}}_{1} = 0$ holds. This result can also be interpreted as the confirmation of the equilibrium, in which no torque from the null space disturbs the main task anymore.

The simplest weighting matrix is

W = I

(25)

so that for $A = J_{1} (q)$ one can write (18) as

J_{1} {(q)}^{I +} = J_{1} {(q)}^{+} = J_{1} {(q)}^{T} {(J_{1} (q) J_{1} {(q)}^{T})}^{- 1}

(26)

In the notation of this so-called Moore–Penrose pseudoinverse, the identity in the superscript is often omitted. Compared with other weighting matrices, this choice is computationally cheap and also has further advantages due to its reduced complexity. This null space projector can be interpreted from a geometric point of view (Dietrich et al., 2012c), for example, and damped least-squares techniques can be applied easily (Deo and Walker, 1995).

3.3. Dynamic consistency

The property of static consistency is shared by all null space projectors as described in the previous section, independent of the weighting matrix. But apart from static consistency, specific weighting matrices offer additional beneficial properties such as the so-called dynamic consistency treated in this section. The main difference is that static consistency only guarantees that the hierarchy levels do not interfere in a steady state, while dynamic consistency guarantees additionally that they also do not interfere during the transient into this steady state.

Definition 2. A null space projector $N_{j} (q) \in ℝ^{n \times n}$ is said to be “dynamically consistent” (Khatib 1995) if it is “statically consistent” and if a subtask never generates accelerations in the operational spaces of all higher priority tasks. The condition

J_{i} (q) M {(q)}^{- 1} N_{j} (q) = 0

(27)

for $i < j$ must be fulfilled at any time.

The dynamics (16) can be rewritten as

\begin{matrix} {\overset{\cdot\cdot}{x}}_{1} = J_{1} (q) M {(q)}^{- 1} τ' + \underset{p_{1} (q, \overset{\cdot}{q}, τ^{ext})}{\underset{︸}{J_{1} (q) M {(q)}^{- 1} τ^{ext} + {\overset{\cdot}{J}}_{1} (q, \overset{\cdot}{q}) \overset{\cdot}{q}}} \end{matrix}

(28)

after projection into the main task directions defined by $x_{1}$ . The term $p_{1} (q, \overset{\cdot}{q}, τ^{ext})$ is introduced for the sake of simplicity. Applying the control input

τ' = J_{1} {(q)}^{T} F_{1} + N_{2} (q) τ_{2}

(29)

with the main task force $F_{1} \in ℝ^{m_{1}}$ modifies (28) to

{\overset{\cdot\cdot}{x}}_{1} = p_{1} (q, \overset{\cdot}{q}, τ^{ext}) + Λ_{1} {(q)}^{- 1} F_{1} + J_{1} (q) M {(q)}^{- 1} N_{2} (q) τ_{2}

(30)

where the main task inertia is defined as

Λ_{1} (q) = {(J_{1} (q) M {(q)}^{- 1} J_{1} {(q)}^{T})}^{- 1}

(31)

The direct effect of the second level torque $τ_{2} \in ℝ^{n}$ on the main task acceleration ${\overset{\cdot\cdot}{x}}_{1}$ is determined by the coefficient of $τ_{2}$ , i.e. (27) must be fulfilled for $i = 1$ and $j = 2$ to eliminate any effects of the lower priority task on the main task acceleration. Then the conditions of dynamic consistency are met according to Definition 2. An intuitive interpretation of (27) is that the projector decouples the inertias on all priority levels.

3.3.1. Configuration-dependent weighting matrix $W (q)$ that uses the inertia matrix

Khatib (1987) has shown that the weighting matrix

W (q) = M (q)

(32)

fulfills (27) and the corresponding generalized inverse minimizes the instantaneous kinetic energy of the manipulator. Another choice has been proposed by Park (1999b), which has the form

W (q) = J_{1} {(q)}^{T} J_{1} (q) + M (q) Y_{1} {(q)}^{T} Y_{1} (q) M (q)

(33)

where $Y_{1} (q) \in ℝ^{(n - m_{1}) \times n}$ is a matrix that spans the null space of $J_{1} (q)$ . In fact, an infinite number of configuration-dependent weighting matrices $W (q)$ exist that feature dynamic consistency. For a general formulation, the Jacobian matrix $J_{1} (q)$ is decomposed via singular value decomposition (Maciejewski and Klein, 1989) such that

J_{1} (q) = U_{1} (q) S_{1} (q) V_{1} {(q)}^{T}

(34)

where $U_{1} (q) \in ℝ^{m_{1} \times m_{1}}$ and $V_{1} (q) \in ℝ^{n \times n}$ are orthonormal matrices, and $S_{1} (q) \in ℝ^{m_{1} \times n}$ is a rectangular diagonal matrix containing the singular values $σ_{1}$ to $σ m_{1}$ . The null space can be geometrically interpreted easily when considering

V_{1} (q) = (X_{1} {(q)}^{T}, Y_{1} {(q)}^{T})

(35)

Here, the $m_{1}$ rows in $X_{1} (q) \in ℝ^{m_{1} \times n}$ span the range space of $J_{1} (q)$ , while the $n - m_{1}$ rows in $Y_{1} (q)$ span its null space. The orthogonality $X_{1} (q) Y_{1} {(q)}^{T} = 0$ holds. Inspired by (33), one can formulate a general rule for the weighting matrix $W (q)$ that always fulfills the requirements of dynamic consistency:

W (q) = X_{1} {(q)}^{T} X_{1} (q) B_{X} + B_{Y} Y_{1} {(q)}^{T} Y_{1} (q) M (q)

(36)

The proof is provided in the appendix. Note that $W (q)$ has to be non-singular to apply the standard algorithm (18) where $W {(q)}^{- 1}$ is used. Hence,

rank (B_{X}) \geq m_{1} \land rank (B_{Y}) \geq n - m_{1}

(37)

must hold. Note that (37) is a necessary but not sufficient condition for the existence of $W {(q)}^{- 1}$ . However, in the appendix it is also shown that the condition on the rank of $B_{X}$ can even be dropped when using another formulation than the one based on the pseudoinversion (18). With the knowledge of the general formulation, the weighting matrices of Khatib (32) and Park (33) can be regarded as special cases of (36) in fact

\begin{matrix} Khatib (32) : B_{X} = M (q), B_{Y} = I \\ Park (33) : B_{X} = J_{1} {(q)}^{T} J_{1} (q), B_{Y} = M (q) \end{matrix}

Khatib (1987) found out that only one pseudoinverse satisfies (27). From that and the proof in the appendix we can conclude that any weighting matrix (36) leads to the identical pseudoinverse which minimizes the instantaneous kinetic energy of the manipulator. With this general formulation of $W (q)$ the same null space projector results, that dynamically decouples the priority levels by block-diagonalizing the inertia matrix. This decoupling of the level-related inertias is an intuitive interpretation of Definition 2 as demonstrated by Dietrich et al. (2013), for example. The formulation (36) contributes to a better understanding of dynamic consistency.

This null space projector has been shown to be load independent (Featherstone and Khatib, 1997). Changing the load inertia or projected/reflected inertia on the higher priority levels does not result in a different null space projector. Let us consider such an additional load or modified reflected inertia $L_{1} \in ℝ^{m_{1} \times m_{1}}$ and the respective, altered joint inertia matrix

M_{\oplus} (q) = M (q) + J_{1} {(q)}^{T} L_{1} J_{1} (q)

(38)

Then the equality

N_{2} (q) = I - J_{1} {(q)}^{T} {(J_{1} {(q)}^{M (q) +})}^{T}

(39)

= I - J_{1} {(q)}^{T} {(J_{1} {(q)}^{M_{\oplus} (q) +})}^{T}

(40)

holds. Load independence allows to ignore loads in the control law. Their estimation or measurement can be avoided and using such a null space projector decouples internal motions from load-dependent influences (Featherstone and Khatib, 1997). The invariance of the load can also be seen in the fact that (36) only requires knowledge of the inertia matrix applied to the null space $Y_{1} (q)$ and not necessarily to the range space $X_{1} (q)$ , see also the appendix.

3.3.2. Arbitrary weighting matrix $W$

Indeed, another interesting type of dynamically consistent torque control null space projectors can be formulated, which originates from an acceleration-based approach:

N_{2} (q) = M (q) (I - J_{1} {(q)}^{W +} J_{1} (q)) M {(q)}^{- 1}

(41)

The proof for dynamic consistency of (41) is provided in the appendix. The premultiplication of $M (q)$ ensures compliance with (27) and the multiplication by $M {(q)}^{- 1}$ from the right meets the idempotence requirement $N_{2} (q) = N_{2} (q) N_{2} (q)$ . The major difference of (41) is that the null space projection is performed on acceleration level as it can be clearly seen in (41) in the middle term. If one considers $τ_{2}^{p} = N_{2} (q) τ_{2}$ in combination with (41), the secondary task torque is initially transformed into a joint acceleration through the multiplication by $M {(q)}^{- 1}$ . Then a (static) projection into the null space of the main task Jacobian matrix is performed as in standard kinematic robot control. Afterwards, this solution on acceleration level is transformed back into joint torques via $M (q)$ . The general idea of this procedure torque → acceleration → null space projection → torque is intuitive and has been frequently implemented and analyzed before (Hollerbach and Suh, 1987; Peters et al., 2008).

The simplest choice for the weighting matrix is again $W = I$ from Section 3.2. Moreover, due to the standard Moore–Penrose pseudoinversion in the middle, singularity-robust techniques such as that of Dietrich et al. (2012a) can be applied easier to preserve continuity of the control law. This projector can also be computed in a recursive way to reduce the numerical effort. The adaptation of (11)–(13) to this case has the form

N_{1}^{aug, s} = I

(42)

{\hat{J}}_{i} (q) = J_{i} (q) N_{i}^{aug, s} {(q)}^{T}

(43)

N_{i}^{aug, s} (q) = N_{i - 1}^{aug, s} (q) (I - {\hat{J}}_{i - 1} {(q)}^{+} {\hat{J}}_{i - 1} (q))

(44)

N_{i}^{aug} (q) = M (q) N_{i}^{aug, s} (q) M {(q)}^{- 1}

(45)

The matrices $N_{i}^{aug, s} (q) \in ℝ^{n \times n}$ are auxiliary, statically consistent null space projectors on acceleration level, which are upgraded to dynamic consistency in (45). The implementation of (42)–(45) has basically similar properties as the solutions in Section 3.3.1: Dynamic consistency and the idempotence criterion $N_{i}^{aug} (q) = N_{i}^{aug} (q) N_{i}^{aug} (q)$ are fulfilled. However, load independency (Featherstone and Khatib, 1997) is not provided by this projector in general. Also note that for $W = M (q)$ , equation (41) yields the projector from Section 3.3.1.

3.4. Stiffness consistency

An increasing number of parallel elastic actuators (PEAs) is encountered in the fields of prostheses, exoskeletons and rehabilitation (Dollar and Herr, 2008; Winfree et al., 2011; Grimmer et al., 2012; Haeufle et al., 2012), among others. Mounting mechanical springs in parallel to the motors allows to downsize the actuators because gravitational loads can be counterbalanced by the passive elements. Energy efficiency can be drastically improved that way, both from a static point of view (gravity compensation) and from a dynamic perspective (energy-efficient cyclic motions). The research group of Herr has recently achieved impressive results in the field of active prostheses with additional passive elements where the principles of biomechanics and neural control are combined to design new devices (Au and Herr, 2009).

Consider a scenario where a main task is statically accomplished by such a set of parallel mechanical springs, e.g. to keep the end-effector at a location by pre-adjusting the joints and (possibly variable) springs such that no motor power is required to maintain the main task configuration. The so-called stiffness consistent null space projector can then be used to simultaneously accomplish a secondary task by minimizing active regulation of the main task by exploiting the springs.

The dynamics (14) for constant external forces are extended by an additional joint spring $k (q, q_{0}) \in ℝ^{n}$ such that

M (q) \overset{\cdot\cdot}{q} + C (q, \overset{\cdot}{q}) \overset{\cdot}{q} + g (q) + k (q, q_{0}) = τ + τ^{ext}

(46)

and $q_{0} \in ℝ^{n}$ is the equilibrium configuration where the spring counterbalances the gravitational load and the external forces.

Definition 3. A null space projector $N_{j} (q_{0}) \in ℝ^{n \times n}$ is said to be “stiffness consistent” if it is “statically consistent” and if a subtask does not cause static deviations in the operational spaces of all higher priority tasks. These higher prioritized tasks are executed by springs with positive definite stiffness matrix

K (q_{0}) = \frac{\partial k (q, q_{0})}{\partial q} |_{q = q_{0}}

(47)

where $k (q, q_{0}) \in ℝ^{n}$ is a joint spring with equilibrium configuration $q = q_{0}$ . The condition

J_{i} {(q_{0}) K (q_{0})}^{- 1} N_{j} (q_{0}) = 0

(48)

for $i < j$ must hold locally around the steady state $q = q_{0}$ with $\overset{\cdot\cdot}{q} = \overset{\cdot}{q} = 0$ .

In this equilibrium $q_{0}$ the linearizations

k_{lin} (q, q_{0}) = k (q_{0}) + \frac{\partial k (q, q_{0})}{\partial q} |_{q = q_{0}} (q - q_{0})

(49)

= k (q_{0}) + K (q_{0}) Δ q

(50)

g_{lin} (q, q_{0}) = g (q_{0}) + \frac{\partial g (q)}{\partial q} |_{q = q_{0}} (q - q_{0})

(51)

= g (q_{0}) + G (q_{0}) Δ q

(52)

can be evaluated where $K (q_{0}) \in ℝ^{n \times n}$ is the positive-definite stiffness matrix in the equilibrium, $G (q_{0}) \in ℝ^{n \times n}$ describes the local, linear gravity behavior, and $Δ q = q - q_{0}$ .

At $q = q_{0}$ , the counterbalance $k (q_{0}) = - g (q_{0}) + τ^{ext}$ holds for constant external forces. Then the quasi-static version of the dynamics (46) with

τ = N_{2} (q_{0}) τ_{2}

(53)

yields

K (q_{0}) Δ q = - G (q_{0}) Δ q + N_{2} (q_{0}) τ_{2}

(54)

Locally around the equilibrium the differential mapping (2) can be used to obtain

Δ x_{1} = J_{1} (q_{0}) K {(q_{0})}^{- 1} (- G (q_{0}) Δ q + N_{2} (q_{0}) τ_{2})

(55)

which has clear similarities to (30). If the weighting matrix

W = K (q_{0})

(56)

is chosen, then the main task does not experience any disturbance by the lower priority task $τ_{2}$ , hence $Δ x_{1} = 0$ . In other words, the contribution of the springs on the main task can be preserved by this choice for the null space projector and Definition 3 is met.

Any spring can be used for stiffness consistent null space projections, for example one with nonlinear spring torque of the form $k (q, q_{0}, γ) \in ℝ^{n}$ , where $γ \in ℝ^{n}$ is the stiffness adjuster of a variable stiffness mechanism.

4. Simulations and experiments

In this section we provide simulations and experiments to demonstrate the properties of the null space projectors. In the first simulation of Section 4.1, an extensive comparison between successive and augmented null space projections as well as statically consistent and dynamically consistent redundancy resolutions is made. The second simulation shows the properties of the novel stiffness consistent null space projector in comparison with common statically consistent and dynamically consistent redundancy resolutions. In Section 4.2 the null space projectors are applied to a real torque-controlled 7-DOF manipulator.

4.1. Simulations

The first simulation shows the theoretical properties of the presented null space projections on a planar $n = 4$ -DOF manipulator, see Figure 1 for the simulated model. The task hierarchy is designed with the following levels.

Level ( $m_{1} = 1$ ): translational Cartesian impedance at the TCP (tool center point) in $x$ -direction.

Level ( $m_{2} = 1$ ): translational Cartesian impedance at the TCP in $y$ -direction.

Level ( $m_{3} = 1$ ): rotational Cartesian impedance at the TCP about the $z$ -axis.

Level ( $m_{4} = 4$ ): complete joint impedance.

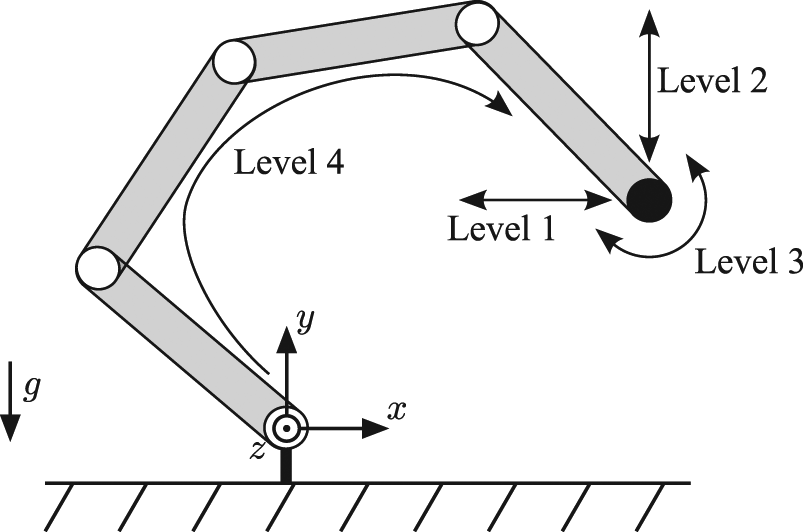

Fig. 1.

Since $\sum_{i = 1}^{4} m_{i} = 7 > n$ and the tasks partially conflict with each other, not all of them can be accomplished to the full extent. The controller gains are specified in Table 1. The regulation case and its transient responses are considered in the following. Figure 2 depicts the step responses for five different implementations. In addition, the solution without any null space projection is plotted as well. That means that the control torques from the individual priority levels are directly applied without being processed by any null space projectors at all, i.e. they are simply added. Thus, all tasks compete with each other without a proper hierarchy.

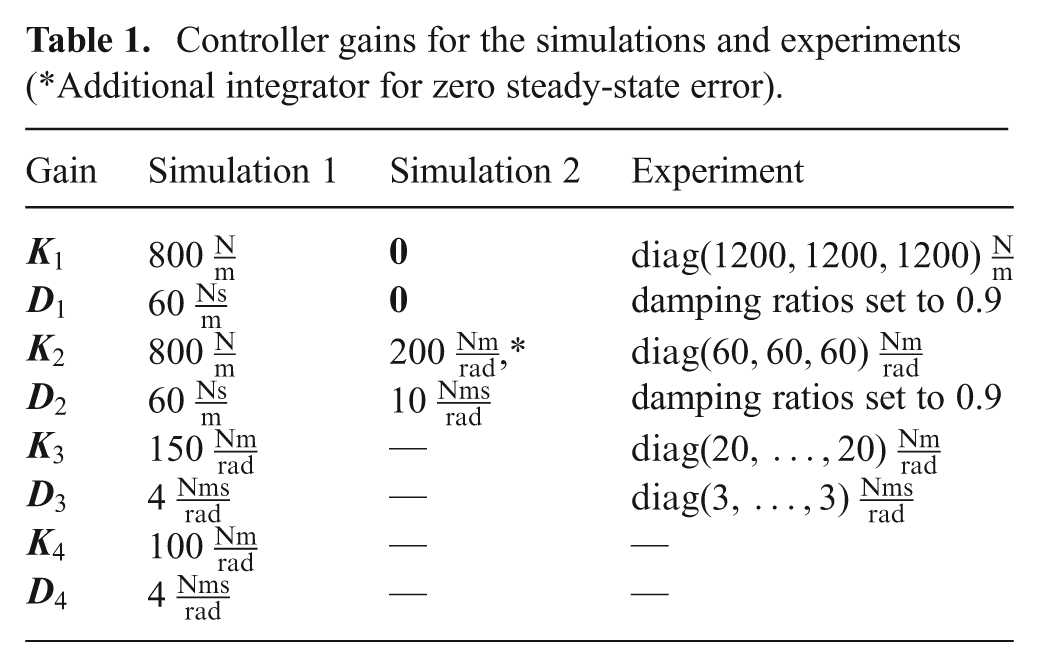

Table 1.

Controller gains for the simulations and experiments(*Additional integrator for zero steady-state error).

Gain	Simulation 1	Simulation 2	Experiment
$K_{1}$	800 $\frac{N}{m}$	$0$	$diag (1200, 1200, 1200) \frac{N}{m}$
$D_{1}$	60 $\frac{Ns}{m}$	$0$	damping ratios set to 0.9
$K_{2}$	800 $\frac{N}{m}$	200 $\frac{Nm}{rad}$ ,*	$diag (60, 60, 60) \frac{Nm}{rad}$
$D_{2}$	60 $\frac{Ns}{m}$	10 $\frac{Nms}{rad}$	damping ratios set to 0.9
$K_{3}$	150 $\frac{Nm}{rad}$	—	$diag (20, \dots, 20) \frac{Nm}{rad}$
$D_{3}$	4 $\frac{Nms}{rad}$	—	$diag (3, \dots, 3) \frac{Nms}{rad}$
$K_{4}$	100 $\frac{Nm}{rad}$	—	—
$D_{4}$	4 $\frac{Nms}{rad}$	—	—

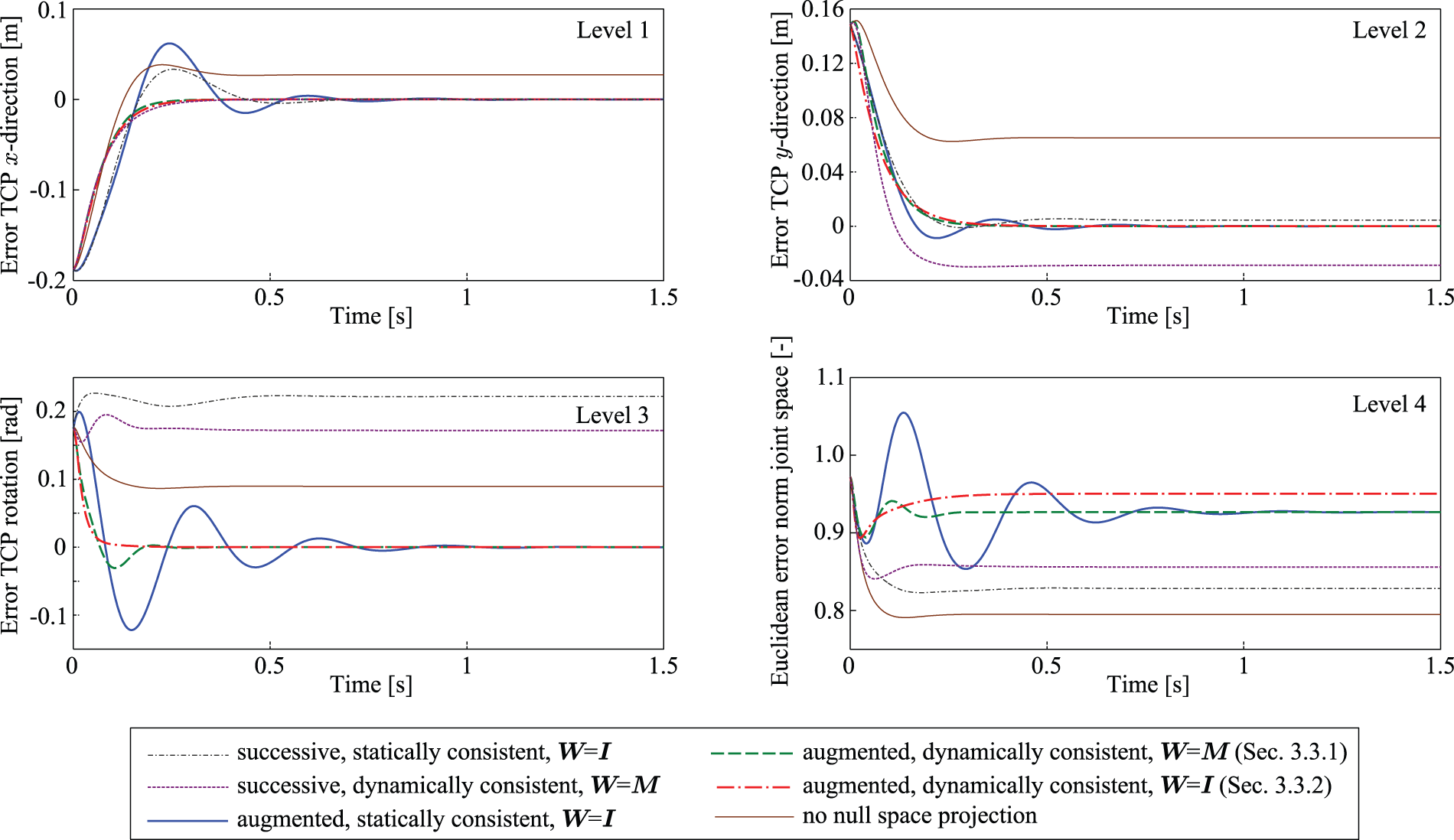

Fig. 2.

Simulation of different torque control null space projections on a 4-DOF manipulator with four hierarchy levels.

All augmented methods reach zero steady-state errors on the first three levels because these tasks are feasible simultaneously. The condition of feasibility can be mathematically written as the existence of a set

A = {q, \overset{\cdot}{q} = 0 | x_{i}^{des} = f_{i} (q) for i = 1, 2, 3}

(57)

where $x_{i}^{des}$ is the corresponding desired task value of the task variable $x_{i}$ defined in (1). The fourth task, however, cannot be accomplished completely because no respective set exists which additionally fulfills $x_{4}^{des} = f_{4} (q)$ . Therefore, the completion of this task is dropped due to its minor role in the priority order, but it is executed as well as possible in a locally optimal sense according to the remaining available null space.

It is noticeable that the steady state is reached considerably later in the case of the static null space projections. Due to the dynamic coupling of the tasks, disturbing accelerations are generated across the priority levels and slow down the transient behavior. The reason for that is the existence of inertia couplings between the priority levels. Dynamically consistent null space projectors fulfilling Definition 2 implicitly annihilate these inertia couplings so that the tasks can converge undisturbed. The successive, dynamically consistent solution shows excellent performance on the first priority level, but on the lower levels, the priority order is not strictly ensured, neither dynamically nor statically. On the third level, the steady-state error is even larger than that in the case of simply adding up all control torques without applying any null space projections at all. Considering the two dynamically consistent, augmented projections one can say that they both feature the best performance, but the results are not identical. The final configuration is different which can be clearly seen in the different level four Euclidean error norms in the steady state.

The second simulative study illustrates the benefits of the stiffness consistent null space projection. The slightly modified model in Figure 3 is used. Four adaptive mechanical springs are placed in between the links. That way, a desired TCP position (in $x$ and $y$ direction) on priority level one can be statically maintained without any power consumption. Hence, the main task control can be deactivated ( $τ_{1} = 0$ ) due to this task being completely executed by the springs. In the following scenario, the TCP starts at its desired position and an obstacle is approaching the first link of the manipulator as shown in Figure 3. At $t = 0.5$ s, repulsion of the first link is activated (level-two task) with a stiffness of $200$ Nm/rad and damping of $10$ Nms/rad. Moreover, an additional integral term is used in the control law on level two with gain $10 Nm / (rad s)$ such that no steady-state error results. That way one can better compare the behavior of all projectors for the same null space control quality (i.e. no steady-state error on level two after the transient). In the upper two diagrams in Figure 4, the Cartesian errors at the TCP are depicted. As shown in Section 3.4, a stiffness consistent null space projection minimizes the main task level error in a static sense. The plots reflect these theoretical results. Using $W = K (q_{0})$ a small noteworthy error can be observed during the transient, which is reasonable since this null space projector is of static nature only. Although featuring the best performance by far, the stiffness consistent approach also shows a small steady-state error. This is due to the change in the gravity torques because of the large motion in the null space, cf. (54). However, this small error could be easily treated by slight active control in the Cartesian space of the TCP. On a real robot, one would certainly activate such an additional control on the first priority level to compensate for any disturbances and model uncertainties but still let the springs do most of the work.

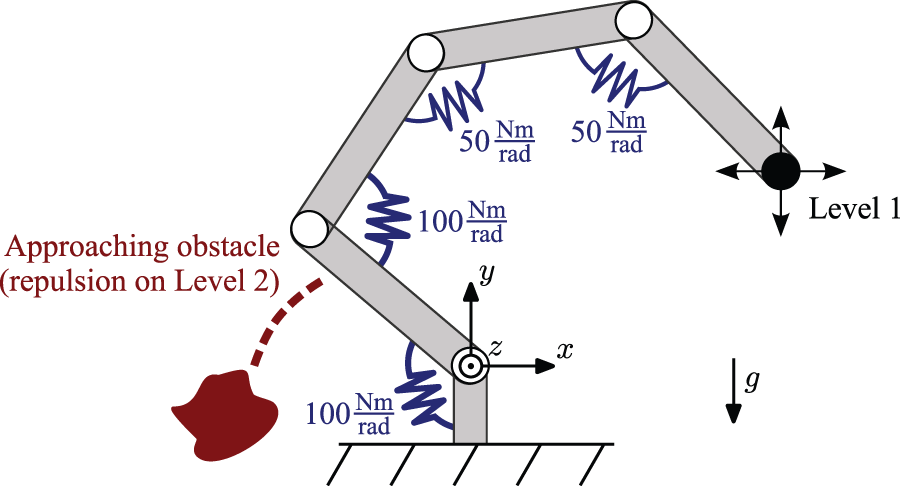

Fig. 3.

Simulation model of a planar, 4-DOF system. The links are connected via revolute joints. Each link is modeled by a point mass of 1 kg that is placed in the middle of a bar with length 0.5 m. The dynamics are simulated using $g = 9.81 m / s^{2}$ . As depicted, four mechanical springs are placed in between the links. These allow a TCP position to be maintained without active control and power consumption. Additional joint damping is introduced with $d_{i} = 15 Nms / rad$ for $i = 1, 2, 3, 4$ so that no DOFs are undamped.

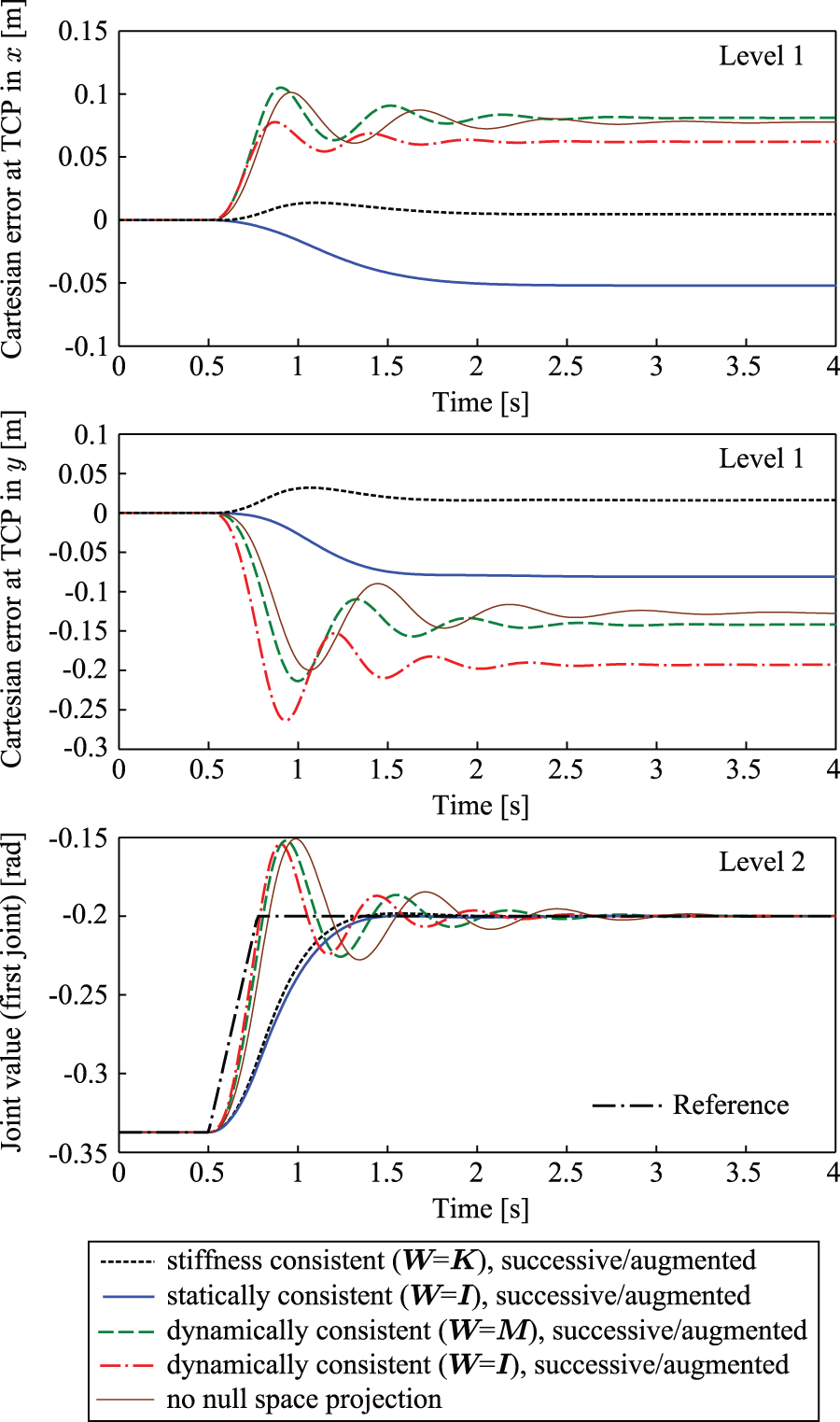

Fig. 4.

Comparative simulations to show the benefits of a stiffness consistent null space projection.

It is striking that the dynamically consistent projectors perform very poorly during the transient although they use knowledge of the dynamic capabilities of the system by applying the inertia matrix for the null space determination. But the missing knowledge about the additional springs even leads to worse results than the pure statically consistent projector with $W = I$ . Summarized, the comparison with the other null space projectors clearly reveals the advantages of the new concept of stiffness consistent projectors for this subclass of robots. Note that due to the use of only two priority levels, there is no difference between successive and augmented null space projections. In the bottom chart in Figure 4, the joint value of the first joint is depicted as well as the reference value for the respective secondary task collision avoidance. Figure 5 shows all joint torques. One can easily see that the information contained in $K (q_{0})$ leads to completely different control inputs, and the final steady state is reached considerably faster compared with the other approaches. Solely the statically consistent null space projector with $W = I$ also converges very fast. This is due to the fact that the stiffness matrix in this simulation example is of diagonal shape and thus closer to the identity matrix than the weighting matrices in the other approaches.

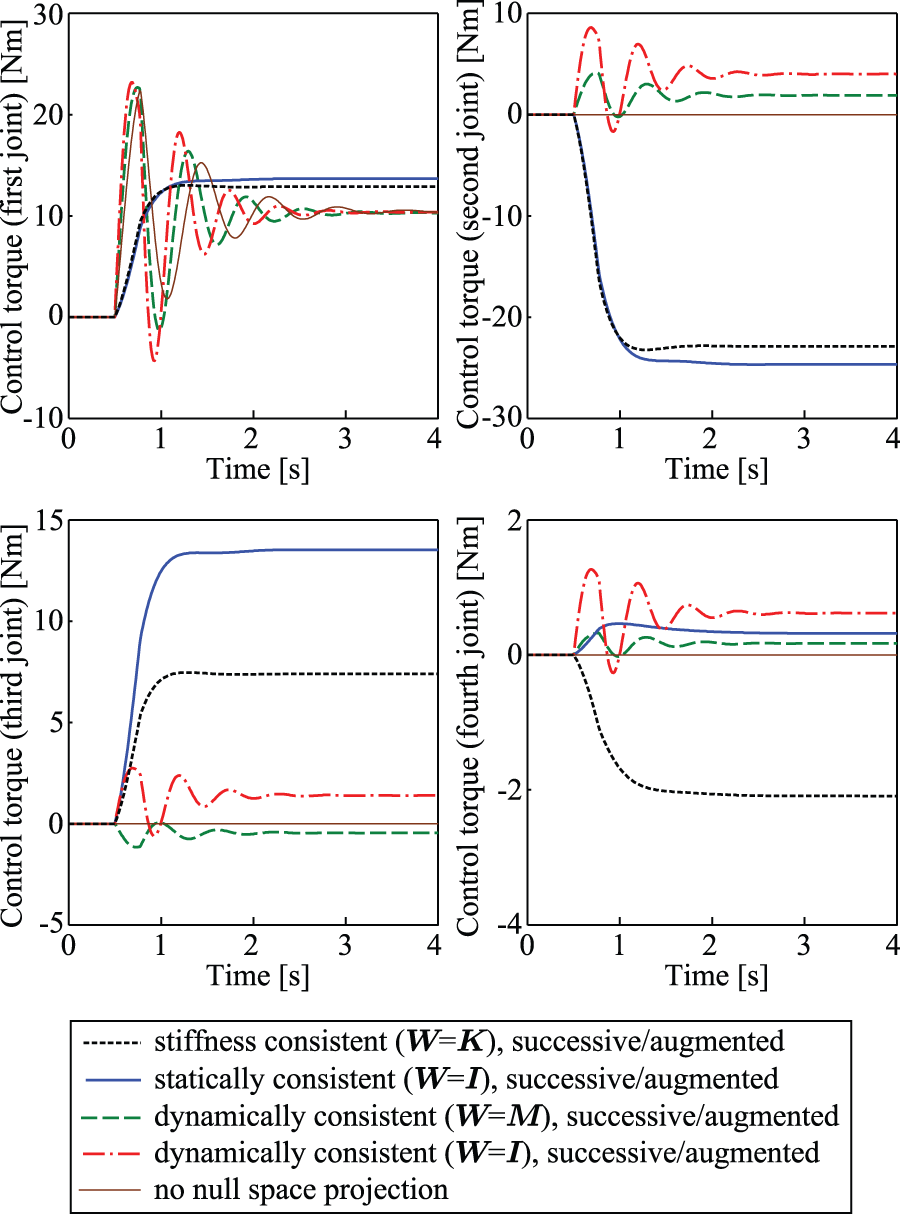

Fig. 5.

Control torques in the four joints of the simulation model.

4.2. Experiments

In the following experiments, the null space projectors are applied on a real torque-controlled robot, namely a DLR-KUKA lightweight robot III (Hirzinger et al., 2002) with 7 DOFs. The task hierarchy is designed as follows.

Level ( $m_{1} = 3$ ): translational Cartesian impedance at the TCP in $x$ -, $y$ -, $z$ -direction to keep the initial Cartesian position in space ( $x$ : forward/backward, $y$ : left/right, $z$ : up/down).

Level ( $m_{2} = 3$ ): Cartesian impedance for the orientation of the TCP about the three axes with commanded trajectory.

Level ( $m_{3} = 7$ ): complete joint impedance to maintain the initial joint configuration.

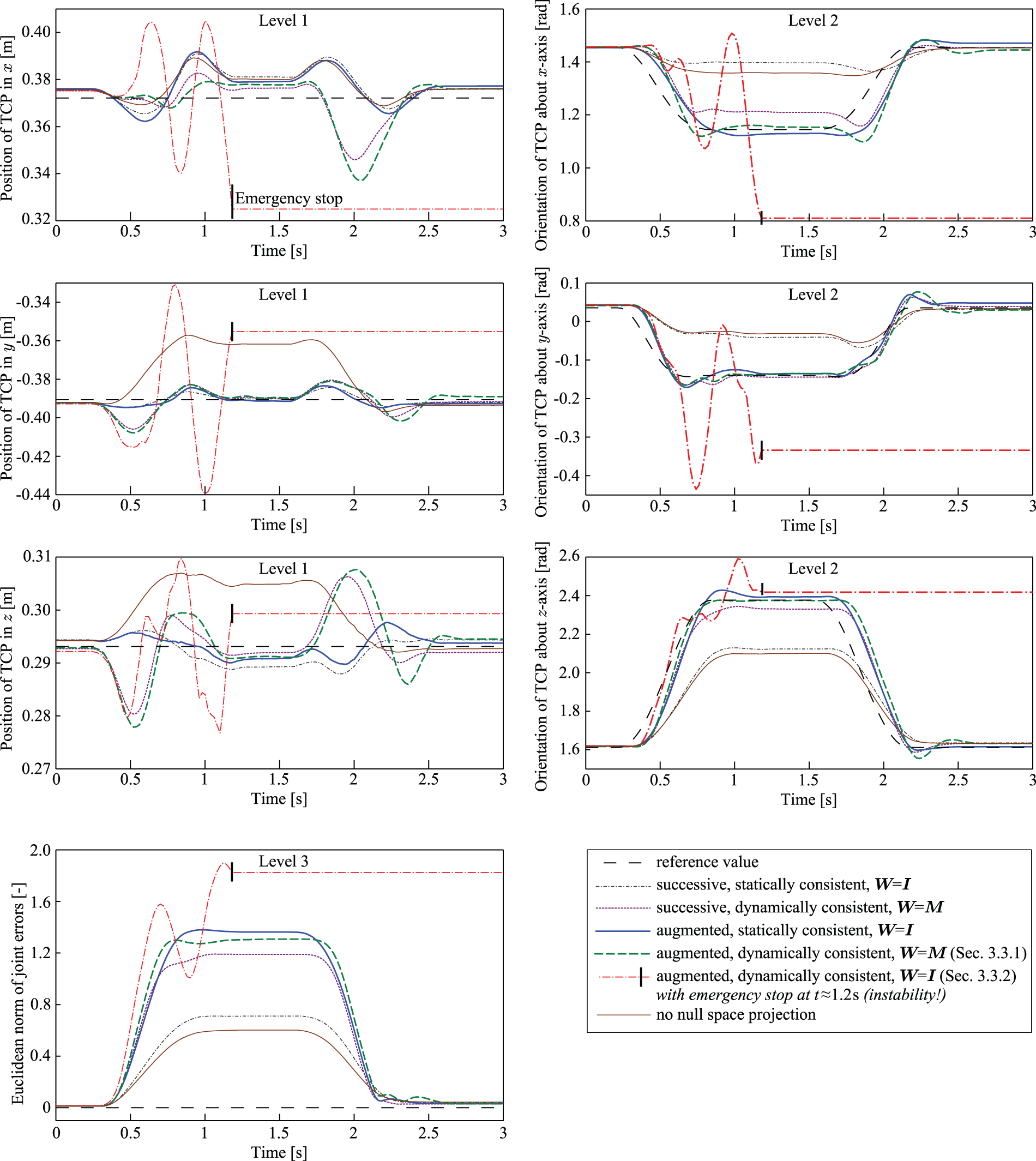

The controller gains are given in Table 1. From an initial configuration of the manipulator, a fast trajectory on the second priority level is applied. Within less than 0.7 s, the TCP orientation is commanded to an intermediate state. After a short rest, it is commanded back to the initial state. The trajectory for the rotation is specified such that its realization requires large motions in the joints of the manipulator. That allows different fundamental aspects to be evaluated in one experiment.

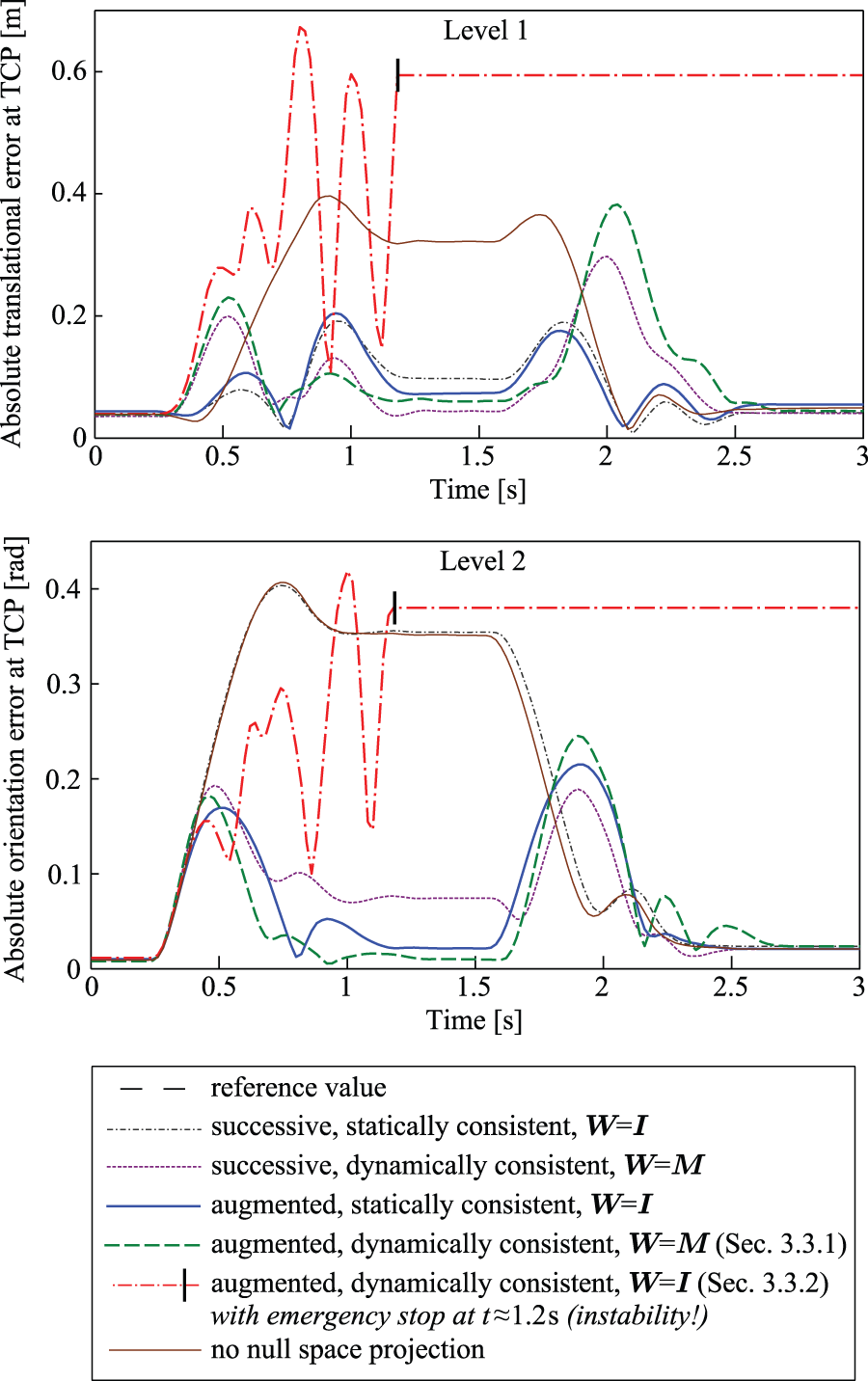

To what extent is the main task on level one disturbed by control actions on level two and three?

How well is the task on level two executed due to the restrictions imposed by the task on level one?

How well is the task on level three executed since it conflicts with the task on level two?

The performance of the null space projectors can be compared on the basis of Figure 6. The first issue to notice is the clear instability of the augmented, dynamically consistent null space projector with $W = I$ from Section 3.3.2. At $t \approx 1.2$ s, the emergency stop is used. Although this null space projector has the theoretical advantages shown before, it destabilizes the system. Indeed, that is caused by the procedure torque → acceleration → null space projection → torque described in Section 3.3.2. If $M$ has a very small eigenvalue, then $M^{- 1}$ will have a very large one, i.e. its inverse. If the current torque to be projected has a contribution in the direction of the corresponding eigenvector, then the acceleration vector will be “aggressively” scaled. In the second step, the null space projection is performed in the acceleration domain. Note that this projection does not use any knowledge about $M$ since $W = I$ . In other words, the acceleration vector is projected and the resulting acceleration ``points'' into another direction while still suffering from the scaling performed in the first step. In the third step, one goes back to joint torques, but the previous scaling is not reversed. Summarized, one can say that this null space projector “aggressively” scales a torque, depending on the actual joint configuration and the eigenvalues of $M (q)$ , respectively. The infeasibility of the obtained, projected joint torques then destabilizes the system due to actuator limitations, saturation, and the limited torque control bandwidth. This aspect of instability will be picked up and analyzed further in the discussion in Section 5.

Fig. 6.

Experimental comparison between different torque control null space projections on a 7-DOF robot with three priority levels. The first priority level is described by a translational Cartesian impedance in $x$ -, $y$ -, $z$ -direction to keep the initial Cartesian position in space ( $x$ : forward/backward, $y$ : left/right, $z$ : up/down). The second priority level is defined as a Cartesian impedance for the orientation of the TCP about the three axes with commanded trajectory. The third priority level is described by a complete joint impedance to maintain the initial joint configuration.

The upper three diagrams on the left side depict the Cartesian position of the TCP and its reference value. Except for the unstable solution and the summed up control actions (“no null space projection”), the main task is statically achieved. Nevertheless, deviations of several centimeters occur during the transient. Against the expectation of superiority based on the theoretical properties, the projectors using the inertia matrix ( $W = M$ ) do not perform better than the projectors without the use of it ( $W = I$ ). On the contrary, they generate larger errors in fact. That can be seen in the $x$ - and $z$ -direction at $t \approx 2$ s.

As one would expect, the performance on the second level (right column diagrams in Figure 6) is restricted due to the projection in the null space of the main task. That can be seen in the transient behavior of all three control variables when the desired orientation of the TCP is changed. If the rotational Cartesian impedance was placed on the first priority level instead, then the control errors and the overshootings would be smaller for the given parameterization. Furthermore, the plots on the right confirm the theoretical properties of successive null space projections. As in the simulations, they perform worse than the augmented ones due to the non-strict hierarchy they generate. Therefore, the third priority level interferes with the second level task and leads to large control errors on level two. That effect can be clearly seen in the rotation about the $x$ -axis and $z$ -axis. But the most remarkable result is that a strict hierarchy (i.e. augmented) does not necessarily require dynamic consistency for high performance during the transient. The comparable performance of the “augmented, statically consistent, $W = I$ ” solution and the “augmented, dynamically consistent, $W = M$ ” solution in all three directions (right column diagrams in Figure 6) is not in accordance with the theory. Yet it confirms our results from Albu-Schaffer et al. (2003), where we concluded that the differences between static and dynamic consistency are significantly smaller than expected when real hardware is considered. That effect can be traced back to modeling uncertainties (inertia matrix, kinematics, friction) and disturbances, among others. Nakanishi et al. (2008) came to similar conclusions while comparing inertia-weighted redundancy resolutions among each other. The authors stated that the requirement of a highly accurate, estimated inertia matrix is difficult to realize.

On the third level, the successive null space projections perform better than the augmented ones, because they do not implement a strict hierarchy. Therefore, the task on the lowest priority level three can be executed using a larger accessible workspace. The stable, augmented solutions ( $W = I$ , $W = M$ ) have a comparable behavior. They establish a strict hierarchy, which implies that the task performance on level three will suffer from the limited available workspace. Therefore, it is proper that the largest error norms will be generated with augmented null space projections. Thanks to the different weighting matrices, the steady-state joint configurations are slightly differing as it can be observed at $t = 1.5$ s. Nevertheless, since the actual inertia has no effect in any static configuration, one cannot generalize superiority or inferiority of inertia-based null space projections compared with non-inertia-based solutions in these states.

The total errors in the TCP position and the TCP orientation are plotted in Figure 7. Note that the implemented torque-based tasks realize mechanical impedances. In order to provide the desired physical compliance, the controllers have been implemented following the classical concepts of impedance control (Hogan, 1985), i.e. using PD-control laws. For that reason, small steady-state errors occur. By adding an integral component to the control law, one would erase that error. However, the desired mass–spring–damper behavior, which is beneficial for compliant physical contacts and interaction of the robot with its environment, would be lost then.

Fig. 7.

Absolute errors on the first and second priority level during the experiments.

5. Discussion and comparison

The main aspects of the following detailed discussion and comparison are summarized in Table 2.

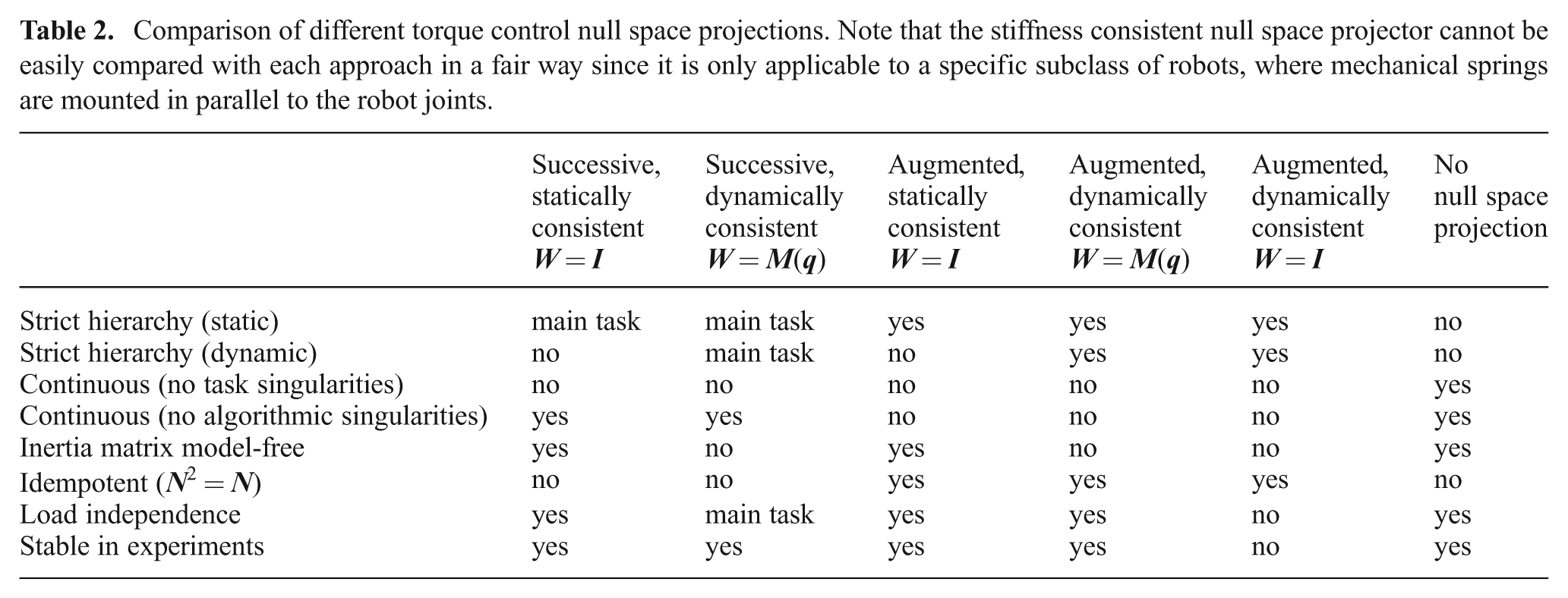

Table 2.

Comparison of different torque control null space projections. Note that the stiffness consistent null space projector cannot be easily compared with each approach in a fair way since it is only applicable to a specific subclass of robots, where mechanical springs are mounted in parallel to the robot joints.

	Successive,statically consistent $W = I$	Successive,dynamically consistent $W = M (q)$	Augmented,statically consistent $W = I$	Augmented,dynamically consistent $W = M (q)$	Augmented,dynamically consistent $W = I$	Nonull spaceprojection
Strict hierarchy (static)	main task	main task	yes	yes	yes	no
Strict hierarchy (dynamic)	no	main task	no	yes	yes	no
Continuous (no task singularities)	no	no	no	no	no	yes
Continuous (no algorithmic singularities)	yes	yes	no	no	no	yes
Inertia matrix model-free	yes	no	yes	no	no	yes
Idempotent ( $N^{2} = N$ )	no	no	yes	yes	yes	no
Load independence	yes	main task	yes	yes	no	yes
Stable in experiments	yes	yes	yes	yes	no	yes

5.1. Comparison of successive and augmented null space projections

The successive null space projection is computationally efficient due to the decoupled calculations of $N_{i}^{suc} (q)$ . However, a projection into the null spaces of all higher priority tasks via (6) does not imply strict compliance with the priority order because the tasks are not orthogonal. The matrix $N_{i}^{suc} (q)$ for all $i > 2$ is not idempotent in general, i.e. the projection property is not fulfilled due to $N_{i}^{suc} (q) \neq N_{i}^{suc} (q) N_{i}^{suc} (q)$ , which is a well-known drawback. The effect on the implementation results can be interpreted easily: A task torque originating from level $i$ is successively multiplied by $i - 1$ matrices according to recursion (6). Each multiplication ensures orthogonality to the corresponding higher level task but it also corrupts all preceding projections at the same time, thus the task hierarchy is not strict. Yet the less complex structure of (6) makes it easier to implement dynamic hierarchies such as Dietrich et al. (2012b), where the priority order can be modified online or tasks get activated and deactivated during operation. The main advantage of the successive projection is that algorithmic singularities are avoided. These arise when tasks on different priority levels conflict with each other. In the augmented projection such a singularity arises when a rank loss occurs in (10). Singularities in $J_{i - 1}^{aug} (q)$ have to be avoided by smart choice of the task definitions or treated by applying singularity-robust techniques such as damped least-squares methods (Deo and Walker, 1995). Hence, the use of the method complicates the hierarchy design. But the augmented projection enforces orthogonality of all involved tasks, the projection matrix $N_{i}^{aug} (q)$ always fulfills the idempotence criterion $N_{i}^{aug} (q) = N_{i}^{aug} (q) N_{i}^{aug} (q)$ , thus a strict hierarchy is ensured. In fact, a stability proof for a generic hierarchy is only known with augmented projections so far (Nakanishi et al., 2008; Dietrich et al., 2013).

In successive projections the choice of the weighting matrix cannot solve this problem of a non-strict hierarchy. One has to keep in mind that the type of strictness (successive, augmented) and the kind of consistency (statically, dynamically, stiffness) are not directly related. Thus, a drawback through the choice in the consistency or the strictness cannot be cleared by the choice in the other category. The strictness of the hierarchy determines whether the tasks are properly decoupled or not, and the consistency determines in which way this decoupling is performed, i.e. statically, dynamically or stiffness-related.

For inverse kinematics, a stability analysis as well as a detailed discussion and comparison of the successive and the augmented projection was presented by Antonelli (2009).

5.2. Comparison of static, dynamic, and stiffness consistency

The consistency is a less clear aspect in contrast to strictness. Although dynamically consistent projections have a clear theoretical advantage due to the dynamical decoupling of the priority levels, the final steady state is also achieved with static consistency. Former comparative simulations (Chang and Khatib, 1995) and those in Section 4.2 have revealed that the performance of dynamically consistent projections is superior to the static ones. However, a precise model of the joint inertia matrix is needed. Our experiments on real hardware in Section 4.2 have shown that the differences between the concepts are significantly smaller than expected. These experimental results confirm previous works in the field such as Albu-Schaffer et al. (2003), Nakanishi et al. (2008), and Peters et al. (2008). The difference between theoretical superiority and practice can be traced back to modeling uncertainties (inertia matrix, kinematics, friction) and disturbances, for example. In (Nakanishi et al., 2008) the authors say that all approaches using the inertia matrix “[...] significantly degrade, especially in the tasks with fast movements. This implies that these algorithms require highly accurate inertia matrix estimation to be successful” and they also trace the problems back to inaccuracies of the estimated inertia matrix. Peters et al. (2008) compared different redundancy resolution techniques but all of them exploit the inertia matrix either more or less. The authors draw the conclusion that the more influence the inertia matrix has in the control law, the worse the experimental results are. They also experience that simulated results are significantly better due to the perfectly known inertia matrix. In our previous work (Albu-Schaffer et al., 2003) the first experimental comparison between statically consistent and dynamically consistent null space projections has been performed. The results match with the more extensive and detailed experiments performed here.

Formal stability proofs for task hierarchies are quite intricate (Nakanishi et al., 2008) and they are only known for dynamically consistent resolutions so far. In the case of two-level hierarchies, see Ott et al. (2008) and Platt et al. (2011) for example. A formal stability proof for a hierarchy with an arbitrary number of priority levels can be found in our recent work (Dietrich et al., 2013).

In Section 3.3 we have detailed two different kinds of dynamically consistent hierarchies. The first in Section 3.3.1 is a generalized version of the well-known projector by Khatib (1987) which uses the inertia matrix as weighting matrix in the pseudoinversion. Indeed, an infinite number of weighting matrices (36) fulfill the same criteria. The second dynamically consistent projector (41), explained in Section 3.3.2, is of static consistency originally since it refers to a null space projection on acceleration level. The solution was then extended to dynamic consistency by taking the inertia matrix into account in a second step. These two different projectors have basically very similar theoretical properties as illustrated in Table 2. However, the beneficial property of load independence cannot be concluded for Section 3.3.2. Furthermore, we encountered severe stability problems during the experiments with (41). In Section 4.2 we have already explained the reason for the instability. The effect is of structural nature and arises from a configuration-dependent scaling from input torque to projected output torque. In configurations where the inertia matrix has one or more small eigenvalues, the null space projection may lead to infeasible joint torques which exceed the actuator limitations and the torque control bandwidth. Nevertheless, one has to remark that this “aggressive” scaling does not necessarily have to happen, since it depends on the condition of the inertia matrix and the torque to be projected. The simulations in Section 4.1 have depicted two scenarios in which the closed loop behaved properly when applying the acceleration-based null space projector. Our conclusion is that (41) is risky to be applied, and since other null space projectors have additional beneficial properties while not suffering from stability issues, there is no convincing reason for the use of (41).

It should also be noted that one can easily obtain a dynamically consistent null space projector while completely avoiding any expensive numerical computations such as singular value decompositions. The only adaptation is to further subdivide all levels from (2) such that $m_{i} = 1$ for all $i$ , which does not pose any problems in general. If a set of equally prioritized tasks is feasible, a strict hierarchy among these subtasks is also feasible. Then the inversion in (13) simplifies to the inversion of a scalar. A formulation with reduced computational complexity is particularly suitable for real-time applications of dynamic hierarchies where subtasks are activated and deactivated online and the priority order is modified during operation, e.g. by utilizing physically interpretable measures as done in Dietrich et al. (2012b).

Stiffness consistency (Section 3.4) can be interpreted as a subclass of static consistency with particular properties for specific scenarios. In Section 4.1 we have demonstrated the advantages of this new null space projector in simulation. In the case of mechanical springs placed in parallel to the joints, a main task can be statically achieved by these passive elements without any power consumption or active control. By applying the stiffness consistent null space projector, the main task execution through the springs can be kept undisturbed while a secondary task is executed in its null space. For such a scenario, the stiffness consistent resolution is superior to any other null space projection.

6. Conclusion

An overview of established torque control null space projections has been given. The survey comprised the strictness of the control task hierarchy by comparing successive and augmented techniques. The second main aspect treated the consistency of the projections, i.e. static, dynamic, and the novel idea of stiffness consistency. The latter allows to project subtasks into the null space of higher priority tasks which are executed by mechanical springs. Knowledge about these spring elements is used in the projector computation. Moreover, we have generalized the popular dynamically consistent projector by Khatib (1987) and interpreted his weighting matrix in the pseudoinversion as an intuitive special case of an infinite number of weighting matrices. Furthermore, another type of dynamically consistent projectors has been analyzed which originates from an acceleration-based approach but can be extended to torque control. Extensive simulations and experiments illustrated the differences in all null space projections from a theoretical and practical point of view. A thorough discussion and comparison of the approaches concluded this survey.

Footnotes

Appendix

Acknowledgements

We would like to thank Pierre-Brice Wieber for his helpful comments on the dynamically consistent null space projector in Section 3.3.2.

Funding

This work was partially funded by the projects EuRoC (grant agreement number CP-IP 608849) and SAPHARI (grant agreement number ICT-287513).

References

Albu-Schäffer

Ott

Frese

Hirzinger

(2003) Cartesian impedance control of redundant robots: recent results with the DLR-Light-Weight-Arms. In: Proceedings of the 2003 IEEE international conference on robotics and automation, pp. 3704–3709.

Antonelli

(2009) Stability analysis for prioritized closed-loop inverse kinematic algorithms for redundant robotic systems. IEEE Transactions on Robotics 25(5): 985–994.

Antonelli

Indiveri

Chiaverini

(2009) Prioritized closed-loop inverse kinematic algorithms for redundant robotic systems with velocity saturations. In: Proceedings of the 2009 IEEE/RSJ international conference on intelligent robots and systems, pp. 5892–5897.

Herr

(2009) Powered ankle–foot prosthesis. IEEE Robotics and Automation Magazine 15(3): 52–59.

Baerlocher

Boulic

(1998) Task-priority formulations for the kinematic control of highly redundant articulated structures. In: Proceedings of the 1998 IEEE/RSJ international conference on intelligent robots and systems, pp. 323–329.

Baerlocher

Boulic

(2004) An inverse kinematic architecture enforcing an arbitrary number of strict priority levels. The Visual Computer 20(6): 402–417.

Baillieul

Hollerbach

Brockett

(1984) Programming and control of kinematically redundant manipulators. In: Proceedings of the 23rd IEEE conference on decision and control, pp. 768–774.

Chang

Khatib

(1995) Manipulator control at kinematic singularities: a dynamically consistent strategy. In: Proceedings of the 1995 IEEE/RSJ international conference on intelligent robots and systems, pp. 84–88.

Chiaverini

(1997) Singularity-robust task-priority redundancy resolution for real-time kinematic control of robot manipulators. IEEE Transactions on Robotics and Automation 13(3): 398–410.

10.

Decré

Smits

Bruyninckx

De Schutter

(2009) Extending iTaSC to support inequality constraints and non-instantaneous task specification. In: Proceedings of the 2009 IEEE international conference on robotics and automation, pp. 964–971.

11.

Deo

Walker

(1995) Overview of damped least-squares methods for inverse kinematics of robot manipulators. Journal of Intelligent Robotic Systems 14(1): 43–68.

12.

Dietrich

Albu-Schäffer

Hirzinger

(2012a) On continuous null space projections for torque-based, hierarchical, multi-objective manipulation. In: Proceedings of the 2012 IEEE international conference on robotics and automation, pp. 2978–2985.

13.

Dietrich

Ott

Albu-Schäffer

(2013) Multi-objective compliance control of redundant manipulators: hierarchy, control, and stability. In: Proceedings of the 2013 IEEE/RSJ international conference on intelligent robots and systems, pp. 3043–3050.

14.

Dietrich

Wimböck

Albu-Schäffer

Hirzinger

(2012b) Integration of reactive, torque-based self-collision avoidance into a task hierarchy. IEEE Transactions on Robotics 28(6): 1278–1293.

15.

Dietrich

Wimböck

Albu-Schäffer

Hirzinger

(2012c) Reactive whole-body control: dynamic mobile manipulation using a large number of actuated degrees of freedom. IEEE Robotics and Automation Magazine 19(2): 20–33.

16.

Dollar

Herr

(2008) Lower extremity exoskeletons and active orthoses: challenges and state-of-the-art. IEEE Transactions on Robotics 24(1): 144–158.

17.

Doty

Melchiorri

Bonivento

(1993) A theory of generalized inverses applied to robotics. The International Journal of Robotics Research 12(1): 1–19.

18.

Featherstone

(2010) Exploiting sparsity in operational-space dynamics. The International Journal of Robotics Research 29(10): 1353–1368.

19.

Featherstone

Khatib

(1997) Load independence of the dynamically consistent inverse of the Jacobian matrix. The International Journal of Robotics Research 16(2): 168–170.

20.

Grimmer

Eslamy

Gliech

Seyfarth

(2012) A comparison of parallel- and series elastic elements in an actuator for mimicking human ankle joint in walking and running. In: Proceedings of the 2012 IEEE international conference on robotics and automation, pp. 2463–2470.

21.

Haeufle

DFB

Taylor

Schmitt

Geyer

(2012) A clutched parallel elastic actuator concept: towards energy efficient powered legs in prosthetics and robotics. In: Proceedings of the fourth IEEE/RAS/EMBS international conference on biomedical robotics and biomechatronics, pp. 1614–1619.

22.

Hirzinger

Sporer

Albu-Schäffer

. (2002) DLR’s torque-controlled light weight robot III - are we reaching the technological limits now? In: Proceedings of the 2002 IEEE international conference on robotics and automation, pp. 1710–1716.

23.

Hogan

(1985) Impedance control: an approach to manipulation: part I - theory, part II - implementation, part III - applications. Journal of Dynamic Systems, Measurement, and Control 107: 1–24.

24.

Hollerbach

Suh

(1987) Redundancy resolution of manipulators through torque optimization. IEEE Journal of Robotics and Automation 3(4): 308–316.

25.

Kanoun

Lamiraux

Wieber

(2011) Kinematic control of redundant manipulators: generalizing the task-priority framework to inequality task. IEEE Transactions on Robotics 27(4): 785–792.

26.

Khatib

(1987) A unified approach for motion and force control of robot manipulators: the operational space formulation. IEEE Journal of Robotics and Automation 3(1): 43–53.

27.

Khatib

(1995) Inertial properties in robotic manipulation: an object-level framework. The International Journal of Robotics Research 14(1): 19–36.

28.

Khatib

Sentis

Park

Warren

(2004) Whole-body dynamic behavior and control of human-like robots. International Journal of Humanoid Robots 1(1): 29–43.

29.

Lee

Mansard

Park

(2011) Intermediate desired value approach for continuous transition among multiple tasks of robots. In: Proceedings of the 2011 IEEE international conference on robotics and automation, pp. 1276–1282.

30.

Maciejewski

Klein

(1989) The singular value decomposition: computation and application to robotics. The International Journal of Robotics Research 8(6): 63–79.

31.

Mansard

Khatib

Kheddar

(2009) A unified approach to integrate unilateral constraints in the stack of tasks. IEEE Transactions on Robotics 25(3): 670–685.

32.

Nakamura

Hanafusa

Yoshikawa

(1987) Task-priority based redundancy control of robot manipulators. The International Journal of Robotics Research 6(2): 3–15.

33.

Nakanishi

Cory

Mistry

Peters

Schaal

(2008) Operational space control: a theoretical and empirical comparison. The International Journal of Robotics Research 27(6): 737–757.

34.

Ott

Kugi

Nakamura

(2008) Resolving the problem of non-integrability of nullspace velocities for compliance control of redundant manipulators by using semi-definite Lyapunov functions. In: Proceedings of the 2008 IEEE international conference on robotics and automation, pp. 1999–2004.

35.

Park

(1999) Analysis and control of kinematically redundant manipulators: an approach based on kinematically decoupled joint space decomposition. PhD Thesis, Pohang University of Science and Technology.

36.

Peters

Mistry

Udwadia

Nakanishi

Schaal

(2008) A unifying framework for robot control with redundant DOFs. Autonomous Robots 24(1): 1–12.

37.

Platt

Abdallah

Wampler

(2011) Multiple-priority impedance control. In: Proceedings of the 2011 IEEE international conference on robotics and automation, pp. 6033–6038.

38.

Sadeghian

Villani

Keshmiri

Siciliano

(2013) Dynamic multi-priority control in redundant robotic systems. Robotica 31(7): 1155–1167.

39.

Sentis

Khatib

(2005) Synthesis of whole-body behaviors through hierarchical control of behavioral primitives. International Journal of Humanoid Robotics 2(4): 505–518.

40.

Siciliano

Slotine

(1991) A general framework for managing multiple tasks in highly redundant robotic systems. In: Proceedings of the 5th international conference on advanced robotics, pp. 1211–1216.

41.

Sugiura

Gienger

Janssen

Goerick

(2010) Reactive self collision avoidance with dynamic task prioritization for humanoid robots. International Journal of Humanoid Robots 7(1): 31–54.

42.

Winfree

Stegall

Agrawal

(2011) Design of a minimally constraining, passively supported gait training exoskeleton: ALEX II. In: Proceedings of the 2011 IEEE international conference on rehabilitation robotics, pp. 1–6.

An overview of null space projections for redundant,torque-controlled robots

Abstract

Keywords

1. Introduction

2. Strictness of the hierarchy

2.1. Successive projections

2.2. Augmented projections

3. Consistency of the projections

3.1. Dynamic equations and pseudoinverse

3.2. Static consistency

3.3. Dynamic consistency

3.3.1. Configuration-dependent weighting matrix W ( q ) that uses the inertia matrix

3.3.2. Arbitrary weighting matrix W

3.4. Stiffness consistency

4. Simulations and experiments

4.1. Simulations

4.2. Experiments

5. Discussion and comparison

5.1. Comparison of successive and augmented null space projections

5.2. Comparison of static, dynamic, and stiffness consistency

6. Conclusion

Footnotes

Appendix

Acknowledgements

Funding

References

3.3.1. Configuration-dependent weighting matrix $W (q)$ that uses the inertia matrix

3.3.2. Arbitrary weighting matrix $W$
