The Effectiveness of Vertical Perspective and Pursuit Eye Movements for Disambiguating Motion Parallax Transformations

Nawrot’s Experiments

Nawrot et al., however, have argued that one particular source of information—that is derived from pursuit eye movement signals—plays a “crucial role” (Nawrot & Stoyan, 2009, p. 4709) in disambiguating the direction of depth from motion parallax—a claim repeated in their recent article (George, Johnson, & Nawrot, 2013, p. 639). Their conclusions were based on a series of experiments in which they attempted to isolate the different sources of extraretinal information (Nawrot, 2003; Nawrot & Joyce, 2006). Nawrot and Joyce’s (2006) experiments used a paradigm in which they recorded their observers’ perceptions of the 3-D structure of parallax surfaces in both observer-produced and object-produced parallax situations. In particular, they monitored their observers’ depth impressions while they viewed a shearing stimulus with a sinusoidal motion profile on a stationary monitor during side-to-side head movements (Experiment, 1; Condition 2). In this condition, the authors argued that the eye movement signals, generated as a consequence of the head movements, were a combination of vestibularly driven translational vestibular ocular response (TVOR) and visually driven optokinetic response (OKR) or pursuit movements. They found that the perceived depth order in the test stimulus was unambiguous. In a second condition, observers viewed the same shearing stimulus on a monitor that translated along a linear path from side-to-side while the observer remained stationary (Experiment, 1; Condition 3). In this case, only pursuit eye movement signals were generated and the results showed that the perceived depth order was also unambiguous.

The important novel condition (Condition 6) introduced by Nawrot and Joyce (2006) was one in which both the observer and the monitor displaying the shearing stimulus translated from side-to-side in the same direction and in synchrony. Under these conditions, the authors argued that the resultant pursuit eye movements would have been in the same direction as that of the monitor translation, but in the opposite direction to the vestibularly driven TVOR signals. Because the two signals were in opposite directions, the authors were able to distinguish between the roles of vestibularly driven TVOR and pursuit eye movement signals. The results showed that the perceived depth order in this condition was also unambiguous and, importantly, that it was consistent with the direction of the pursuit eye movement signals rather than the vestibular signals; that is, in the opposite direction to the normal parallax depth. The authors (Nawrot & Joyce, 2006, p. 4719) concluded that: “This result means that the visual system does not use the direction of head movement to disambiguate the perception of depth from motion parallax” (my emphasis).

Let us consider these results and conclusions carefully. First, it cannot be concluded that because one source of disambiguating information wins out over another (e.g., Condition 6 in Nawrot & Joyce, 2006), the other source of information is “not used.” It is quite possible that the human visual system uses either or both vestibular and proprioceptive signals about the direction of head translation to disambiguate the depth order but they may not be as powerful as pursuit eye movement signals and, as a consequence, they may lose out when put in conflict. Second, the authors ignored the possible role of visual information in disambiguating the depth order. In their observer-produced parallax condition (2), not only was there both vestibular and pursuit eye movement information available but there was also visual information from both vertical perspective and foreground optic flow (assuming that the experiments were not carried out in complete darkness). Hence, this condition, by itself, tells us nothing about which sources of information are capable of (i.e., sufficient for) disambiguating observer-produced motion parallax transformations.

Similarly, Nawrot and Joyce’s object-produced parallax condition (3) does not tell which of the extraretinal (pursuit eye movements) or visual sources of information (vertical perspective and foreground optic flow) was responsible for the disambiguation, since all three sources of information were present. Neither does it tell us whether each of the different sources is independently capable of providing a disambiguating signal when presented in isolation—that is, which signals are sufficient. Nawrot and Joyce (2006) regard their Condition 6 as providing the crucial test of their pursuit eye movement theory since it pits the TVOR signal against the pursuit eye movements. However, as already pointed out, it cannot be concluded that a source of information is incapable of disambiguating motion parallax transformations (i.e., not sufficient) just because another source of information wins out when they are put in conflict.

George, Johnson, and Nawrot (2013)

George et al. (2013) reported the results of an experiment in which they attempted to test the idea that vertical perspective is capable of disambiguating the perceived depth from motion parallax in an object-produced parallax situation. To do this, they simulated a single cycle of a sinusoidal-corrugated surface that translated across a stationary display screen in front of the observer. To create pursuit eye movements, the simulated surface (8.9° × 8.9°) moved across the screen from the center to either the left or the right at 12 deg s^–1. Observers were asked to report whether the “peak” of the simulated surface was above or below the central fixation spot. As the surface translated across the screen it would, of course, create a vertical perspective transformation—changing in angular shape from a rectangle (at the center of the screen) to a trapezoid at its far left or right location (their Pursuit/Vertical-perspective (PV) condition). In the important test condition Pursuit/No-vertical-perspective (PNV), the simulated translating surface underwent a transformation so that its angular shape remained the same to the observer during the translation, thereby simulating a surface that rotated during translation so that it always faced the observer. The authors reported that the perceived depth was unambiguous when the surface created a vertical perspective transformation consistent with its translation (PV condition)—as would be expected. However, they also reported that the perceived depth was unambiguous when there was a “null” vertical perspective transformation (i.e., there was no angular shape change during translation)—their PNV condition. George et al. also included two KDE-type situations in which the same shearing stimulus remained stationary at the center of the screen. The authors reported that the perceived depth of the simulated corrugated surface was ambiguous both when there were no vertical perspective transformations (No-pursuit/No-vertical-perspective (NPNV) condition)—as would be expected—but also when the display was subject to a vertical perspective transformation that simulated a to-and-fro rotation of the corrugated surface around a vertical axis (No-pursuit/Vertical-perspective (NPV?) condition).

At first sight, these results seem to provide strong evidence in favor of the pursuit eye movement hypothesis and against the vertical perspective hypothesis. There are, however, a number of problems with the experiment. First, the display simulated just a single sideways translation of the surface, rather than the multiple side-to-side movements used in previous studies. As a consequence, the results were only able to capture what observers perceived on their initial viewing of the translating stimulus and they did not capture the pattern of reversals that might have occurred during multiple side-to-side movements. Second, the results of the KDE situation in which there was a vertical perspective transformation to signal the direction of rotation of the surface but the shearing pattern did not move across the screen (NPV condition) clearly show that their particular implementation of a vertical perspective transformation was inadequate. Whether the inadequacy of the vertical perspective transformation was due to the characteristics of the particular display ² used by George et al. or whether it was due to the small size of the display ³ cannot be determined on the basis of their results. ⁴ To try to answer this question, we also measured the extent of ambiguity in a shearing surface that had the same angular size as that used by George et al.—8.9° × 8.9°—and with the same vertical perspective transformation simulated in their experiment— ±20° of rotation. Third, it should be noted that they did not directly test whether the presence of a vertical perspective transformation by itself (i.e., be sufficient) could disambiguate the perceived depth order of a parallax surface.

Mitsudo and Ono’s Experiment

Mitsudo and Ono (2007) have argued that the results of their experiment support Nawrot’s claim that pursuit eye movement signals play a role in disambiguating the depth of motion parallax surfaces but only within their own “additive” model in which “… retinal and pursuit signals are summed ….” As the authors point out, this is equivalent to using head-centric rather than retinal velocities as the source of disambiguating information. The crucial condition in their experiment was when the common retinal velocity of the four rows of translating random dots was similar to the amplitude of the pursuit eye movements in the opposite direction. The “additive” model predicts that depth should be ambiguous at this point and that is what they found. However, at the point where the pursuit eye movements in one direction are matched by a common retinal velocity of motion in the opposite direction, the parallax transformation between the rows remained stationary on the screen and also with respect to the observer’s head. At this point, there are also no vertical perspective changes and therefore the same result (i.e., ambiguity) would be predicted if observers were using vertical perspective information to disambiguate the parallax transformation. Mitsudo and Ono argue that this would be unlikely given the low dot density and the absence of a distinct boundary of their dot pattern but the fact remains that the configuration of dots as a whole would have created changes in vertical perspective in conditions where they found a lack of ambiguity and no changes in vertical perspective where they found ambiguity.

The Unanswered Questions

The theoretical considerations described in the accompanying paper show that the only source of information that can reliably disambiguate both the depth order, as well as the amount of depth in motion parallax-defined surfaces, is information about object or surface rotation. This does not mean that the visual system might not also use other sources of information (both extraretinal and visual) to disambiguate parallax transformations even though they may not always provide the correct answer under all conditions.

These considerations suggest that two sorts of experiments need to be done. First, to answer the sufficiency question, we need to investigate whether each potential source of information is capable of disambiguating the depth of a motion parallax surface when presented in isolation from other cues. Not only do such experiments tell us about the sufficiency of a particular source of information but they also tell us about the lack of necessity of other sources of information that are not present. Second, we need to investigate the relative effectiveness of different extraretinal and visual sources of information when they are put into conflict. The results of these experiments give us some idea of the relative strength or effectiveness of the different possible sources of disambiguating information.

Methods

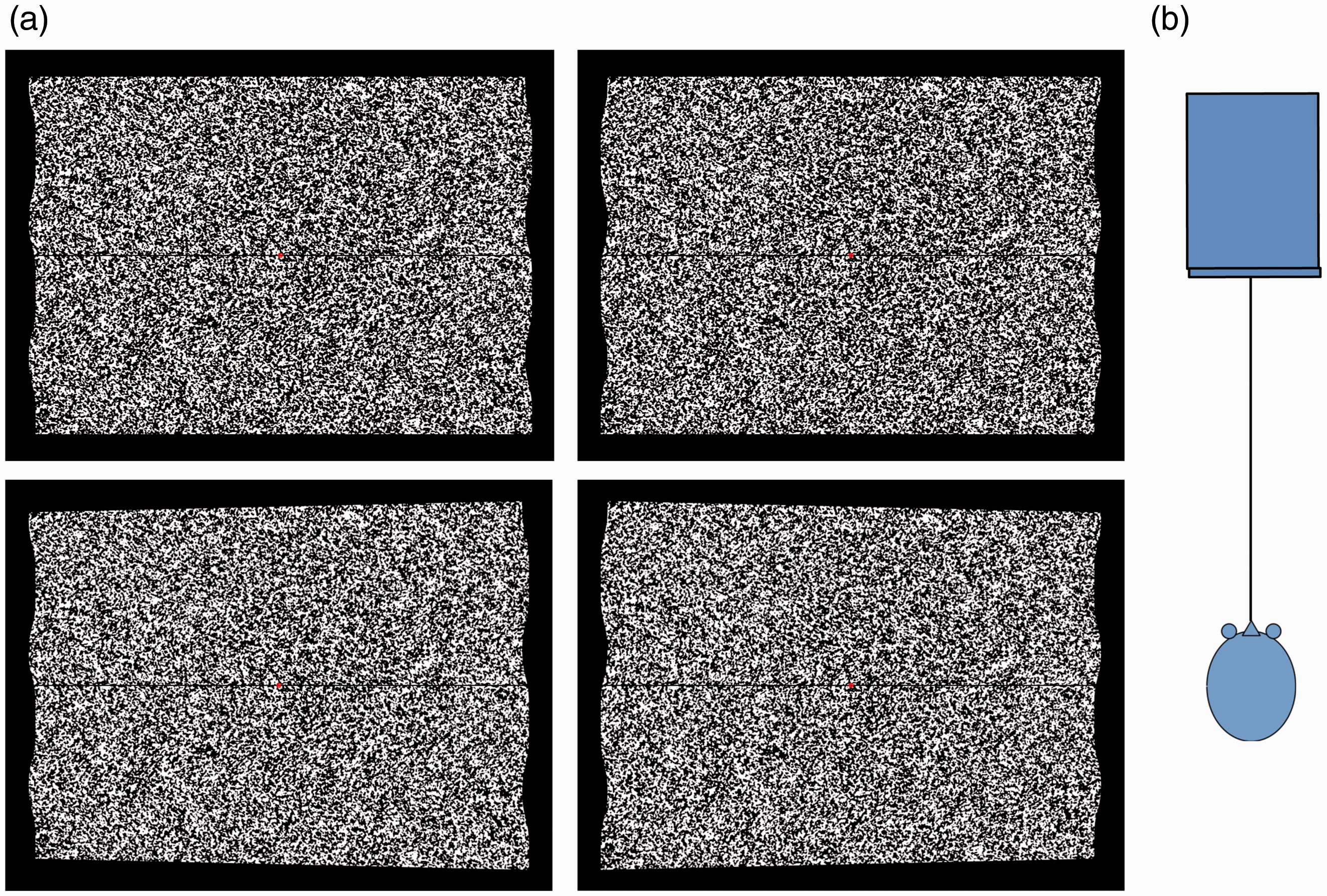

In both the control and experimental conditions, the same shearing transformation was presented on an LCD monitor at 57 cm viewing distance (visual angle 28° × 20°). Screen resolution was 1,024 × 768 pixels. The transforming surface was a 50% density black and white random texture with an average element size of 0.25°. Subpixel interpolation was used to create smooth and continuous motions of both the shearing and vertical perspective transformations. Viewing was monocular. Observers were asked to press the appropriate key to indicate whether the corrugation immediately above the center-line of the display was seen as a peak or a trough. For each of the seven observers (including the author), the four different conditions were each repeated four times in a randomized order. In the three experimental conditions, the percentage of time corresponds to the average percentage time that responses were consistent with the vertical perspective information in the two different couplings of perspective transformation and shearing direction.

Results and Discussion

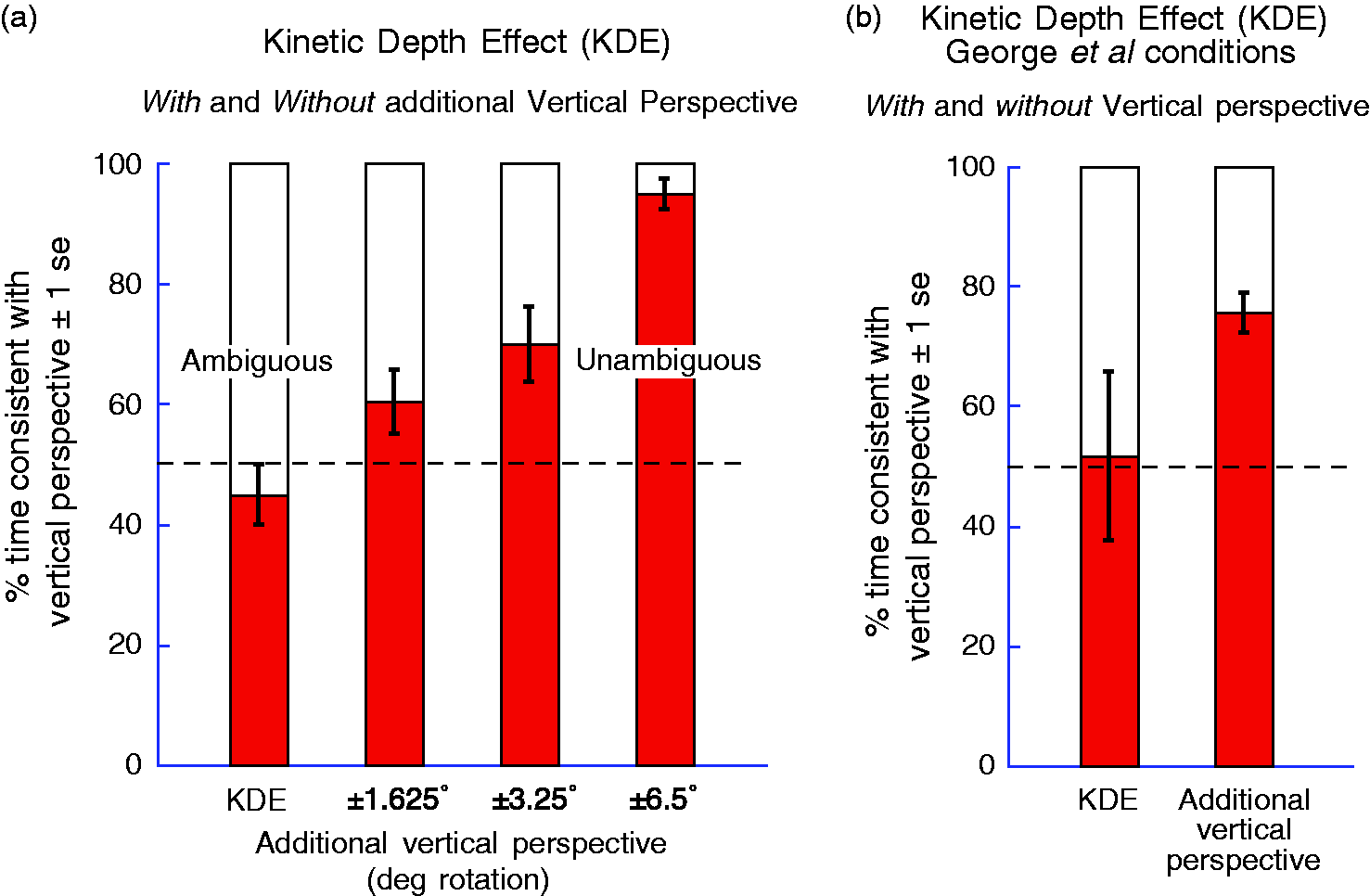

In the absence of additional vertical perspective information (control condition), the percentage of the time that observers reported the corrugation above the center line to be a “peak” was close to 50% as would be expected (Figure 2, left-hand bar). However, introducing a vertical perspective transformation that corresponded to just ±1.625° of rotation biased the percentage of time significantly compared with the control condition and the introduction of a transformation corresponding to the maximum ±6.5° of rotation, almost completely abolished the ambiguity. This can be seen in the differences between the second, third, and final columns of Figure 2(a). ⁵ OPEN IN VIEWER

The results of Experiment 1 are not surprising and merely replicate the findings originally reported by Braunstein et al. using continuously rotating objects and those by Rogers and Rogers (1992) in which they simulated the transformations of a sinusoidally corrugated surface that oscillated to-and-fro around a vertical axis. The importance of this particular demonstration of the effectiveness of vertical perspective transformations in disambiguating the depth of KDE stimuli is that (a) the stimuli (random-textured pattern), (b) the depth structure (sinusoidal corrugations), (c) the angular subtense of the display, and (d) the simulated rotation amplitude (up to ±6.5 deg), are all exactly the same as those used in the subsequent motion parallax experiments (2 and 3), which are described later.

It is important to note that the angular size of the rotating or oscillating surface is crucially important. It has to be true that the vertical perspective transformations created by a rotating or oscillating surface that subtends only a small visual angle would be too small for the visual system to detect. Likewise, the extent of the vertical perspective transformation will depend on the extent of the simulated rotation to-and-fro around a vertical axis, and here it is worth noting that we were very conservative in simulating a maximum of just ±6.5° of rotation with respect to the frontal plane. In other words, the vertical perspective transformations were in no sense exaggerated in order to obtain these results.

Exactly the same considerations apply when considering the equivalent “differential perspective” transformations present in binocular stereopsis. In this case, the discrete “angle of rotation” between the two binocular views of a surface corresponds to the vergence angle of the eyes—the “included angle” (Howard & Rogers, 1995). Bradshaw, Glennerster, and Rogers (1996) reported that the differential perspective information was only effective for depth scaling when the display size subtended 10° in diameter or more. Our ongoing experiments suggest that the minimum size of display for disambiguating depth in oscillating KDE situation may be 5° or even less.

To compare our results with those of George et al. (2013), an additional condition was investigated. To replicate the conditions of their experiment, the size of the random texture pattern was reduced to just 8.9° × 8.9°, and the extent of vertical perspective transformation was equivalent to a rotation through ±20°. In the absence of vertical perspective, observers’ responses were close to chance (Figure 2(b), left-hand bar). In contrast, the percentage of time that observers’ responses were consistent with the vertical perspective transformation was 76% (Figure 2(b), right-hand bar). This result shows that the presence of vertical perspective transformation with a magnitude that is the same as that used in George et al. experiments is, in fact, sufficient to disambiguate the perceived direction of rotation of a simulated KDE surface for most of the time. This suggests that either (a) the simulation of the vertical perspective transformation in their experiments was inadequate for some technical reason or (b) the single sideways movement of the shearing surface was not sufficiently long for the visual system to utilize the vertical perspective information. Either way, the results of this additional condition make the point that their particular display conditions were inadequate as a test of the effectiveness of vertical perspective information or of the relative strength of pursuit eye movements in disambiguating motion parallax transformations.

Methods

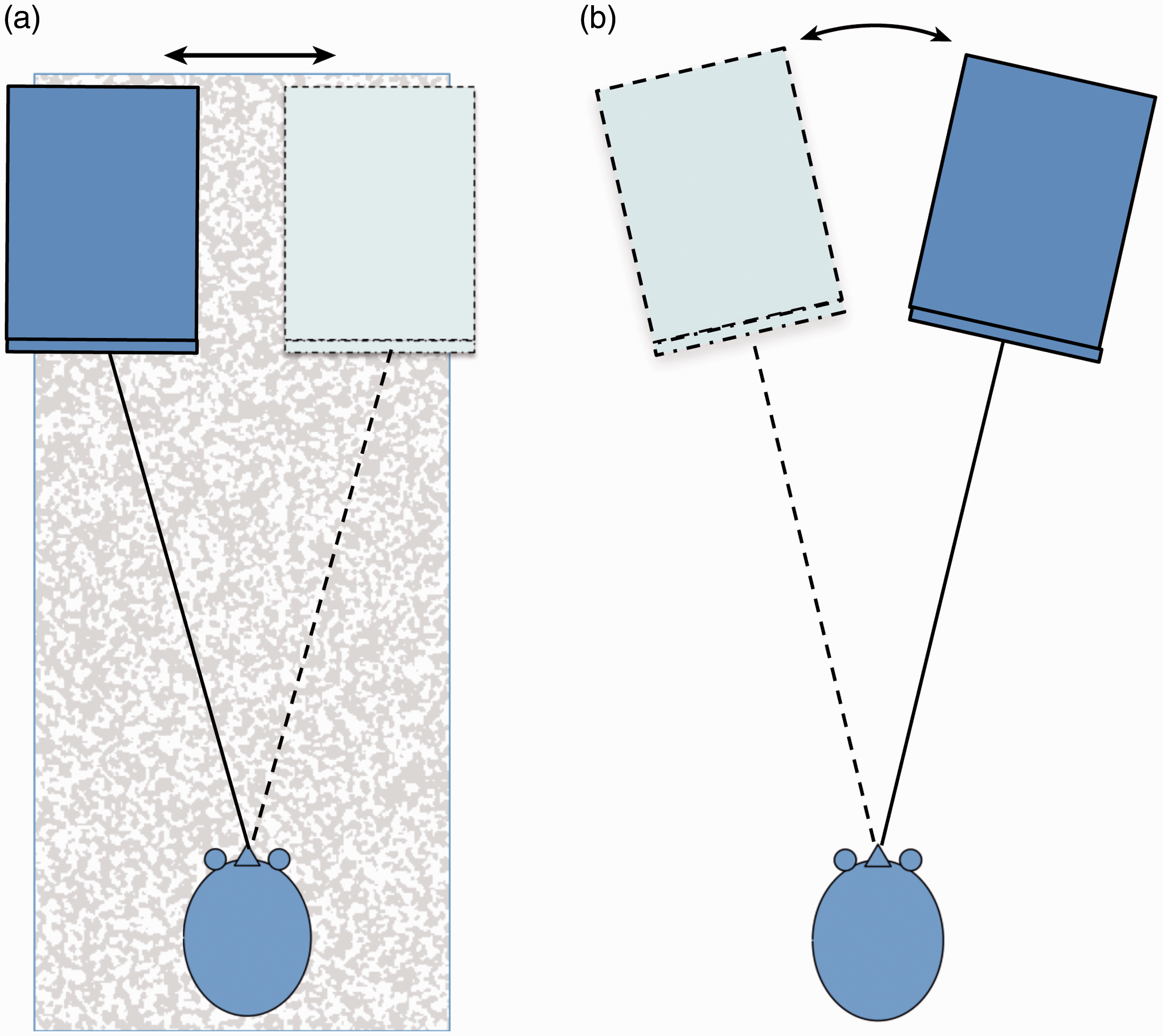

The same LCD monitor and random-textured surface were used to display the object-produced motion parallax transformation as in Experiment 1. In both the control and three experimental conditions, the shearing pattern displayed on the screen was linked to the movement of the display screen at a rate of 0.33 Hz (a side-to-side movement taking 3.0 s). In the control condition, the screen moved along a linear path (Figure 3(a)) while in the three experimental conditions, the display screen was mounted on a platform with its center of rotation under the observer’s eye (Figure 3(b)). In this way, the screen always faced the observer as it moved from side-to-side. In both cases, the observer’s head rested on a fixed chinrest and the observer was asked to track the display as it moved from side-to-side. In the three experimental conditions, the experiment was carried out in complete darkness, apart from the pattern on the display screen, to ensure that there was no additional visual information about the movement of the screen.

In all four conditions, the screen moved through a distance of ±6.5 cm, corresponding to an angular displacement of ±6.5° at a viewing distance of 57 cm. Viewing was monocular and the equivalent disparity of the simulated corrugations was 21 arc min (∼3.3 cm peak-to-trough depth at 57 cm). As in Experiment 1, observers were asked to press the appropriate key to indicate whether the corrugation immediately above the center-line of the display was a peak or a trough. For each of the seven observers (including the author), the control and three experimental conditions were each repeated four times in a randomized order; twice with one coupling of the display movement direction to the shearing pattern and twice with the opposite coupling. In the graph that follows, the “percentage of time” corresponds to the average time that the “peak” or “trough” responses were consistent with the pursuit eye movement information as a function of the two different couplings of display movement and shearing direction.

Results

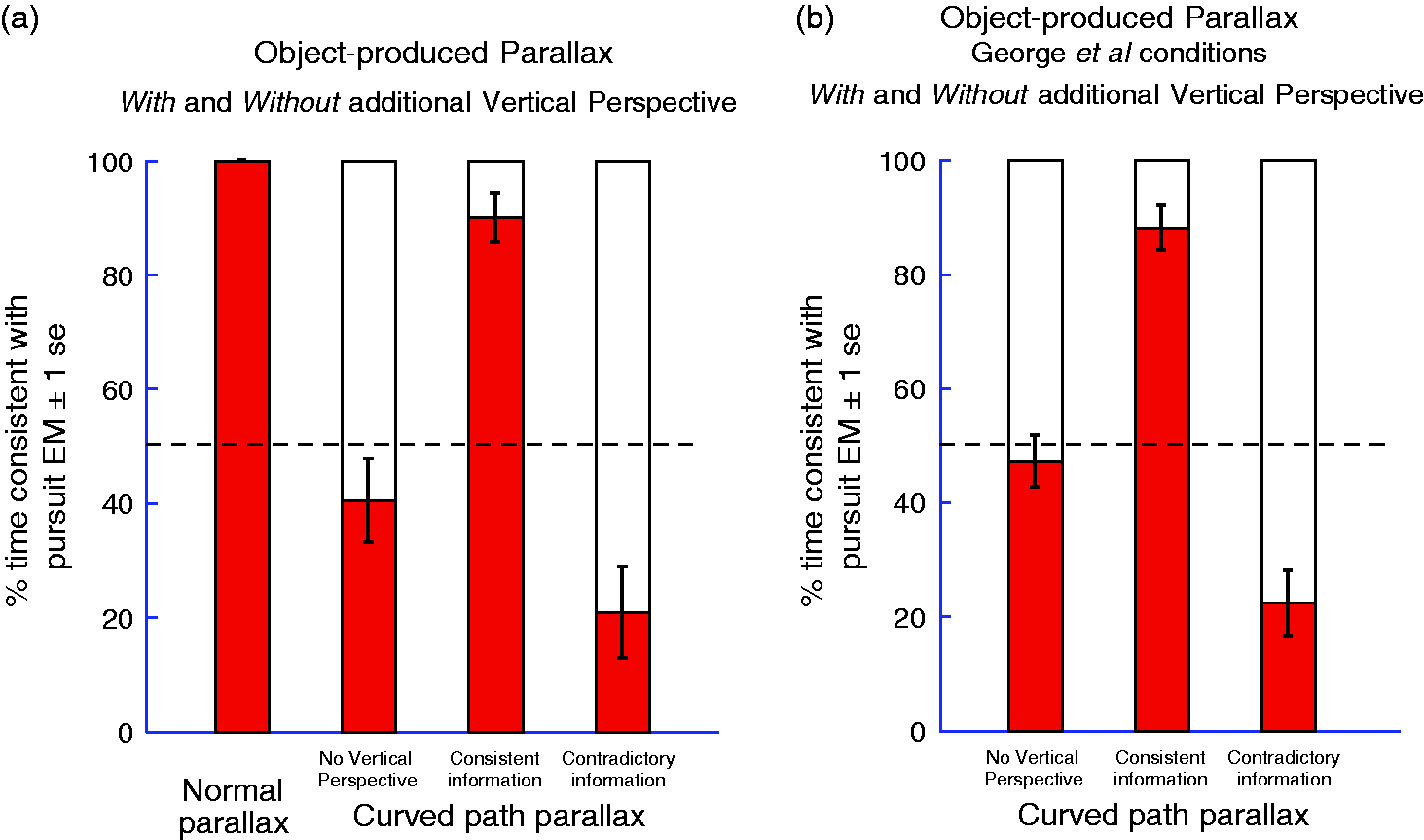

The results are shown in Figure 4(a). The percentage of the time during each 45 s trial that observers saw the corrugation above the center-line as a peak rather than a trough was calculated, and the percentage of the time that responses that were consistent with the pursuit eye movement information was averaged over the observers and repetitions. In the control condition, the perceived depth of the corrugations should be completely unambiguous—left-hand bar. Observers saw the corrugation above the center-line as a peak 100% of the time when the texture above the center-line moved in the same direction as the display movement and 100% of the time as a trough when the texture above the center-line moved in the opposite direction as the display movement. This is not surprising, since the experimental situation was essentially identical to that used by Rogers and Graham (1979). OPEN IN VIEWER

The results of first experimental condition (Figure 4(a), second bar) in which there was no vertical perspective information provide the most powerful test of the pursuit eye movement hypothesis. The perceived depth should be unambiguous according to the pursuit eye movement hypothesis because the same eye movements would be initiated as in the “normal parallax” (i.e., control) condition. Trials in which the shearing motion of the texture above the center line was in the same direction as the display movement should be seen as “in front” and those in which the shearing motion of the texture above the center line was in the opposite direction to the display movement should be seen as “behind.”

The second bar in Figure 4(a) reveals that this is not the case. For both pairings of the shearing motion to the display movement, the perceived depth was essentially ambiguous. In fact, there was a small bias in the opposite direction to that predicted by the pursuit eye movement hypothesis. Although incompatible with the predictions of the pursuit eye movement hypothesis, this pattern of results is entirely consistent with the absence of vertical perspective and thus its role in disambiguating motion parallax transformations. Further evidence to support this interpretation of the results comes from the two additional conditions. When vertical perspective information was added to the same stimulus in the consistent condition, observer responses were biased in the direction of the vertical perspective information (third bar). In this case, the vertical perspective information uniquely specified the direction of rotation with respect to the observer as “clockwise” when the display translated to the left (thereby simulating a straight line path as in normal motion parallax).

However, when the sign of the vertical perspective information was reversed so that it signaled a rotation of the surface as “counter-clockwise” with respect to the observer when the display translated to the left (simulating a very concave path), the vertical perspective provided contradictory information for disambiguating the depth order. In this case, observer responses were biased in the opposite direction (final bar); that is, consistent with the vertical perspective information and therefore inconsistent with the information provided by the pursuit eye movement signals.

Although it is not surprising that observers’ responses showed a lack of ambiguity in the consistent condition, it is important to note that in the contradictory condition, observers’ responses were overwhelming consistent with the vertical perspective information and in the opposite direction to that predicted by the pursuit eye movement hypothesis. There does not appear to be a significant preference on the part of the visual system for straight line over concave paths. It should also be noted that not only were the observers’ depth responses consistent with the vertical perspective information but their perceptions of the direction of rotation of the surface were also consistent with that information. Observers reported seeing the corrugated surface rotating with respect to their line-of-sight as it translated to-and-fro in front of them. Moreover, many observers noted that after several side-to-side movements of the screen, they were barely aware of the fact that the display screen was moving even though they were always tracking the display on the screen.

To compare our results with those of George et al. (2013), an additional condition was investigated. To mimic the conditions of their experiment, the random texture pattern was reduced in size to just 8.9° × 8.9°, instead of the 28° × 20° display used in the experiments reported here. As in the previous conditions of Experiment 2, the display screen translated along a circular path in front of the observer so that the screen always faced the observer (Figure 3(b)). Under these conditions, there was no change in the vertical perspective created by the translating surface, thereby providing a powerful test of Nawrot’s pursuit eye movement hypothesis. It could be argued that the failure of George et al. to find an effect of varying the vertical perspective information in their PNV condition was due to the small size of the display that they used (8.9° × 8.9°). By reproducing the characteristics of their display, we can make two critical predictions. First, if pursuit eye movements are a sufficient source of disambiguating information, the perceived depth of the simulated corrugations should be unambiguous because observers were required to track the surface to-and-fro as is translated in front of the observer. Second, if vertical perspective transformations are an insufficient source of disambiguating information in displays of this small angular extent, we would expect that the addition of those transformations to the display should have no effect on the ambiguity (or lack of ambiguity) in the perceived depth. The additional vertical perspective transformation added to the shearing display was equivalent to that used by George et al. (i.e., simulating a ±20° rotation).

The results are clear. The perceived depth was ambiguous in the absence of vertical perspective changes, and observers reported frequent reversals during the 45 s trials. For 47% of the time, observers’ responses were consistent with the pursuit eye movement predictions and for 53% of the time they were in the opposite direction. Pursuit eye movements, in isolation, do not seem to be an effective source of disambiguating information. However, when the vertical perspective transformations were added to simulate the rotation of the surface in either a clockwise or counterclockwise direction (during translation to the left and vice versa), the reversals were far fewer and for most of the time observers reported that the peaks of the corrugation were in accordance with the direction of rotation specified by the vertical perspective transformation (Figure 4(b)).

Seen together, the results of Experiment 2 provide two clear answers to our questions. First, pursuit eye movements do not appear to be either a necessary or a sufficient condition to disambiguate the depth in object-produced motion parallax surfaces. Second, vertical perspective transformations that specify the direction of rotation of a simulated parallax surface with respect to the line-of-sight have the capacity to disambiguate the depth order of object-produced motion parallax in a similar way that they were shown to disambiguate the depth order for the KDE (Experiment 1). Moreover, they were effective in this respect even when the display subtended just 8.9° × 8.9°.

Previous Experiments

The problem with previous experiments that investigated observer-produced parallax is that the predictions of Nawrot’s pursuit eye movement hypothesis and those based on vertical perspective information are confounded—side-to-side movements of observer create both pursuit eye movements as well as the vertical perspective changes that we have already shown are capable of disambiguating the direction of depth in a KDE situation. The obvious way of distinguishing between the predictions of the two hypotheses is for the display screen to rotate (around a vertical axis through its center) as the observer moves from side-to-side, so that it always faces the observer (Rogers, 2012). This ensures that there are no confounding vertical perspective changes ⁷ and therefore provides an important test of the pursuit eye movement hypothesis. However, it should be noted that while this experimental manipulation eliminates vertical perspective changes, the observer’s movements from side-to-side still produce both proprioceptive and vestibular signals (as well as pursuit eye movements) and those signals may also be used to disambiguate the motion parallax information (Rogers & Rogers, 1992). As a consequence, Experiment 3 is not as strong as a test of Nawrot’s pursuit eye movement hypothesis since any bias in the results away from complete ambiguity could be attributed to the presence of proprioceptive and vestibular signals rather than to the pursuit eye movements needed to maintain fixation. It is, however, a powerful test of the relative effectiveness of vertical perspective versus non-visual information when these are put into conflict.

Methods

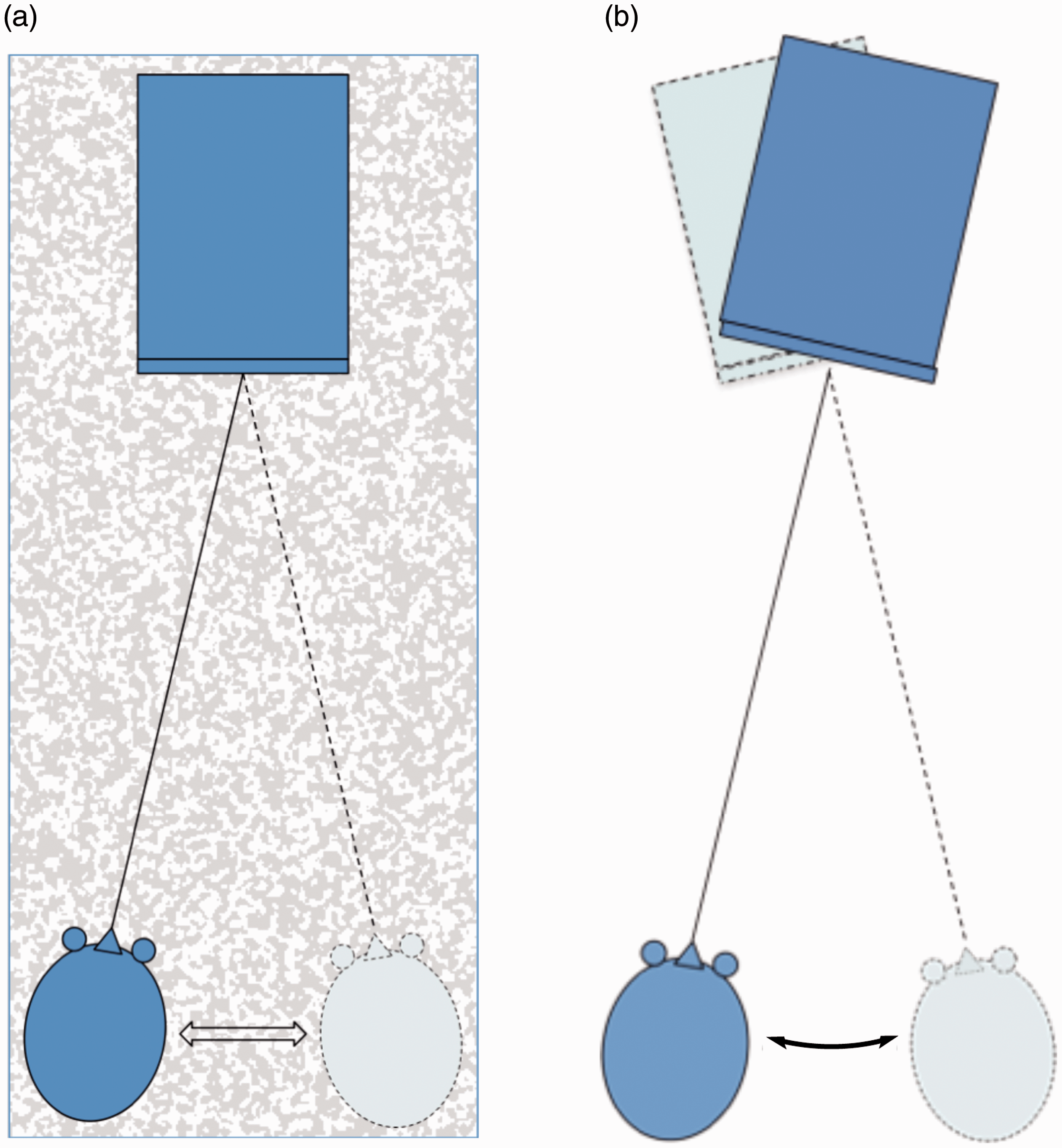

The same LCD monitor and random-textured surface were used to display the observer-produced motion parallax transformation as in Experiment 1. The shearing pattern of relative motion depicting the sinusoidal corrugations was also identical in both corrugation frequency and amplitude. The equivalent disparity of the simulated corrugations was 21 arc min (∼3.3 cm peak-to-trough depth at 57 cm). In contrast to Experiments 1 and 2, the shearing pattern displayed on the stationary screen was driven by the observer’s side-to-side head movements through ±6.5 cm. These were typically at a rate of between 0.33 and 0.5 Hz (a complete to-and-fro movement taking 2–3 s). In the control condition, the monitor remained fixed in position as the observer moved his or her head from side-to-side (Figure 5(a)). In the three experimental conditions, the display screen rotated so that it always faced the observer. This was achieved by mounting the monitor on a platform that rotated around a point below the center of the screen (Figure 5(b)). The observer’s chinrest was fixed to the other end of a platform that was mounted on free-running castors so that the observer moved the platform and the display monitor as he or she moved from side-to-side. The experiment was carried out in complete darkness, apart from the display screen, to ensure that there was no additional visual information about the observer’s side-to-side head movements. The display was viewed monocularly.

Three different experimental conditions were tested. In the first, the motion transformation on the screen was a simple horizontal shear. Since there was no additional vertical perspective information (in contrast to the control condition and previous observer-produced parallax experiments), there was no visual information to disambiguate the depth of the depicted corrugations. As a consequence, if vertical perspective plays a role in disambiguating the depth in observer-produced motion parallax, the perceived depth should be ambiguous and observers should be equally likely to see the corrugation above the center line as a peak or as a trough. On the other hand, if pursuit eye movements play a disambiguating role, the corrugations should be seen unambiguously, as in the control condition.

However, since there is also proprioceptive and vestibular information available to signal the observer’s movement with respect to the simulated 3-D surface, it is possible that either or both of these signals might be sufficient to disambiguate the depth of the corrugations rather than the pursuit eye movements.

To study the role of vertical perspective transformations, two additional experimental conditions were investigated in Experiment 3. In both cases, an additional vertical perspective transformation was added to the shearing pattern of motion on the display screen. In the first case, the vertical perspective simulated the rotation of the corrugations in the opposite direction as the observer’s movements with respect to the screen (as in the control condition) and in the second, the vertical perspective simulated the rotation of the corrugations in the same direction to the observer’s movements. In the first case—“consistent condition”—observer movement to the left created proprioceptive, vestibular, and pursuit eye movement signals indicating that shearing motion to the right on the screen should be interpreted as “in front.” In the “consistent condition,” all sources of potential disambiguating information—proprioceptive, vestibular, pursuit eye movements, and vertical perspective—signal the depth as “in front.”

In the second case—“contradictory information”—the vertical perspective information signaled a clockwise rotation of the surface (in the same direction as the observer’s movement) and thus the shearing motion to the right on the screen should be interpreted as “behind.” If the depth in the “contradictory information” condition is seen in the direction specified by the vertical perspective transformations, this would suggest that even if any or all of these non-visual sources is a sufficient source of disambiguation in isolation, they are over-ruled when put in conflict with the visual information from vertical perspective.

Viewing was monocular. As in Experiments 1 and 2, observers were asked to press the appropriate key to indicate whether the corrugation immediately above the center-line of the display was a peak or a trough. For each of the seven observers (including the author), the four different conditions were each repeated four times in a randomized order; twice with one coupling of the head movement direction to the shearing pattern and twice with the opposite coupling. In the graph that follows, the percentage of time corresponds to the average time that observers’ “peak” or “trough” responses were consistent with the pursuit eye movement information provided in the two different couplings of head movement and shearing direction.

Results

In the normal observer-produced parallax condition, the depth of the corrugations was always unambiguous, as reported by Rogers and Graham (1979; Figure 6, left-most bar). No observer ever saw reversals in the depth of the corrugations. In the first experimental condition, where the screen always faced the observer and hence there was no vertical perspective information to signal a rotation of the surface with respect to the observer’s line-of-sight, the perceived depth was significantly above chance (Figure 6, second bar). For around 60% of the time, the responses were in a direction consistent with the observer’s pursuit eye movements (as well as with the use of proprioceptive and vestibular information) but for 40% of the time they were inconsistent. The degree of ambiguity in this condition would not be expected if pursuit eye movements (or vestibular or proprioceptive cues) were a strong source of information for resolving the depth in observer-produced motion parallax. OPEN IN VIEWER

The results in the “consistent condition” (third bar), in which there was additional vertical perspective information indicating a ±6.5° rotation of the surface in the opposite direction to the observer’s movements (i.e., a surface that remains stationary with respect to the world), are not surprising. In this case, close to 90% of the time observers’ responses were consistent with all four sources of disambiguating information—vertical perspective as well as proprioceptive, vestibular, and pursuit eye movements.

The results of the fourth condition—“contradictory information”—are the most important for assessing the relative strength of different sources of disambiguating information. In this case, the non-visual information provided by proprioceptive, vestibular, and pursuit eye movements all signaled that the surface had moved to the right during a head movement to the left (i.e., a stationary surface that effectively rotates in an counterclockwise condition with respect to the observer’s line-of-sight). In contrast, the vertical perspective information specified the rotation of a surface in a clockwise direction with respect to the observer’s line-of-sight during a head movement to the left. That is, the surface should appear to rotate in the same direction as the observer’s movement but at a greater speed and this, indeed, is what observers reported seeing. Note that this is not dissimilar to the apparent rotation of a “Reverspective” structure where the perspective information is inconsistent with the physical structure (Rogers & Gyani, 2010).

In the “no vertical perspective” condition (second bar), there was a small bias toward seeing the depth structure in a direction that is consistent with the non-visual, proprioceptive, vestibular, and pursuit eye movement signals. However, that small bias was reversed in the “contradictory information” condition where, for most of time, responses were consistent with the vertical perspective information in the opposite direction (fourth bar). While this result does not prove that non-visual sources of information, including pursuit eye movements, are insufficient to disambiguate the depth structure on their own, they suggest that vertical perspective information wins out when the visual and non-visual sources are put in conflict.

As in Experiment 2, it should be noted that not only were the observers’ depth responses consistent with the vertical perspective information but their perceptions of the direction of rotation of the surface were also consistent with that information. Observers reported seeing the corrugated surface as rotating with respect to their line-of-sight as they moved from side-to-side.

A Comparison of Observer- and Object-Produced Motion Parallax

According to the pursuit eye movement hypothesis, the disambiguating effect of pursuit eye movements should be greater (i.e., there should be less ambiguity) in the object-produced parallax situation because the eye movements are not reduced in magnitude by the presence of TVOR movements, as they are in the observer-produced parallax situation (Nawrot, 2003). This prediction is not borne out by the experimental findings. In the absence of vertical perspective, the perceived depth was completely ambiguous in the object-produced parallax conditions of Experiment 2 (Figure 4, second bar) when the pursuit eye movements were at full strength. In contrast, the perceived depth was not completely ambiguous in the observer-produced parallax conditions of Experiment 2 (Figure 6, second bar) where the pursuit eye movements were smaller (because of the TVOR signals). In addition, whereas the addition of vertical perspective cues largely dominated and over-ruled other sources of information about depth order in the object-produced parallax situation (with the undiminished pursuit eye movements), the same vertical perspective cues were slightly less effective in determining depth order in the observer-produced parallax situation (with smaller amplitude pursuit eye movements). This suggests that the additional extraretinal information provided by the vestibular and proprioceptive systems in the observer-produced parallax situation may be effective in their own right.

The Coupling of Perceived Depth Order and the Perceived Direction of Rotation

An interesting feature that emerged from these experiments is the close relationship that exists between the direction of the perceived depth from motion parallax transformations and the apparent rotation of the parallax-defined surface with respect to the line-of-sight. This is, of course, an established characteristic in the case of the KDE—when the depth order of the rotating KDE object reverses, the direction of apparent rotation also reverses—the two are coupled together. What the present experiments show is that there is an analogous coupling effect in the motion parallax situation. In “no vertical perspective” condition of Experiment 2, for example, the display screen moved (and was seen to move) along a circular arc that always faced the observer. Under these conditions, the parallax-defined corrugations were seen to rotate simultaneously with respect to the (unchanging) frontal view of the display screen. For example, whenever the observer reported that the corrugation above the center-line was a “peak” and the shearing motion was in the same direction as the display movement, the apparent rotation of the surface was in the opposite direction with respect to the display screen (and the line-of-sight). Whenever the observer reported that the corrugation above the center-line was a “trough” and the shearing motion was in the same direction as the display movement, the apparent rotation of the surface was in the same direction with respect to the display screen. In other words, the perceived depth of the corrugations in the absence of vertical perspective was always linked to the perceived direction of rotation with respect to the line-of-sight. It is an interesting question as to whether (a) the perceived depth order determines the apparent direction of rotation or (b) the direction of apparent rotation determines the perceived depth order or (c) whether the two are determined simultaneously.

However, when an additional vertical perspective transformation was added to the pattern of shearing motion on the screen in Experiment 2, it is clear that the direction of rotation specified by the vertical perspective determines the perceived depth order. If the vertical perspective specified that a surface was rotating in a clockwise direction during display movement to the left, observers saw a surface that rotates in a clockwise direction (with respect to the line-of-sight) and the perceived depth order of the 3-D corrugations was determined by the specified direction of rotation.

A similar coupling between perceived depth order and apparent direction of rotation was noted previously when disparity information was put into conflict with motion parallax (Rogers & Collett, 1989). In those experiments, object-produced motion parallax was created on a binocular, random dot display that translated from side-to-side along a frontal path in front of the observer. When only motion parallax cues were present, the perceived direction of depth in the simulated corrugations was found to be unambiguous such that the parts of display that moved in the same direction as the display movement was seen as in front and those that moved in the opposite direction as the display movement was seen as behind. However, when binocular disparities were introduced so that the previously specified corrugation peaks were depicted with uncrossed disparities and the previously specified troughs were depicted with crossed disparities, the perceived depth of the corrugations was reversed. However, the motion parallax was not ignored or suppressed. Instead, the perceptually “reversed” depth corrugations were seen to rotate as the surface translated to-and-fro across the observer’s line-of-sight. In this case, what we perceive corresponds to the only real-world situation that would generate the particular combination of motion parallax and disparity information.

A third example of the coupling between depth order and direction of rotation can be seen in Patrick Hughes’ “Reverspective” artworks (Papathomas, 2002; Rogers & Gyani, 2010). Under monocular viewing, the perspective information drawn on the faces of the truncated pyramids dominates what we see and the pyramids appear as structures receding away from the observer. When the observer moves from side-to-side, thereby generating motion parallax between different parts of the display, the perceived depth order determines the direction of rotation of the entire 3-D structure so that it appears to rotate and follow the observer’s movements.

The Sufficiency of Pursuit Eye Movements

Having addressed the question of the necessity of pursuit eye movements and their relative strength compared with other sources of disambiguating information, the final question we posed was concerned with the sufficiency of pursuit eye movements as a source of information for disambiguating motion parallax transformations. In Experiment 2, where the simulated 3-D surface moved along a circular path centered at the observer’s eye (in order to eliminate vertical perspective information), the depth of the perceived corrugations was not unambiguous, as predicted by the pursuit eye movement hypothesis. Instead, observers reported that the simulated corrugations were perceptually unstable, with the depth reversing frequently over the 45 s observation period. Given that the observers were tracking the translating display, and thus generating pursuit eye movements, this result suggests that pursuit eye movements are, at best, only a very weak source of disambiguating information.

The Effects of Display Size

The arguments and findings described in this article clearly show that vertical perspective information provides not only a theoretical possible source of information that could be used to disambiguate the depth of both KDE and motion parallax surfaces but also clear empirical evidence that vertical perspective transformations are effective in practice. In Experiment 1, it was pointed out that vertical perspective changes are always present when a 3-D surface rotates with respect to the observer, whether in a KDE or motion parallax situation. There is no such thing as an absence of vertical perspective in either case. However, the magnitude of those transformations depends on the angular size of the object or display as well as the amount of rotation. For displays that only subtend a few degrees of visual angle or only rotate through a small angle, the transformations may be too small to be detected by the human visual system. Hence, any conclusions we might wish to draw need to bear this point in mind. In Nawrot’s original experiments, the display size was only 6.6° × 6.6° and the vertical perspective changes may have been too small for the observer to detect. The results reported here clearly show that for displays 28° × 20° or larger, vertical perspective transformations are effective and this was true for simulated rotations of just ±1.625° (Experiment 1). The results of the additional conditions in Experiments 1 and 2, where the display size was reduced to 8.9° × 8.9° and the simulated rotation angle was ±20° (as in the George et al. experiments), clearly show that vertical perspective transformations of this magnitude and in displays of this size can also be effective in disambiguating the direction of rotation in parallax displays. Our ongoing studies are investigating the precise lower size and rotation limits for the effective use of vertical perspective information.

Having said this, it is important to bear in mind that in the case of observer-produced motion parallax (Experiment 3), the vertical perspective transformations created by observer movement are usually ⁸ a “whole-field” characteristic—all objects and surfaces in the scene undergo a similar change in perspective viewing since they are produced by the movement of the observer. The same is true of the binocular, vertical disparity (differential perspective) transformations between the eyes. Hence, the visual system could, in principle, integrate those changes over the whole visual field (Howard & Rogers, 1995). In contrast, the vertical perspective changes that occur when an object rotates in front of us (KDE) or translates across our line-of-sight (motion parallax) represent local changes. That this is the case is clearly revealed in the “straight-line” and “concave” conditions of Experiment 2 where the local corrugated surface is seen to rotate with respect to the surrounding display screen. The consequences that arise from this observation require further investigation.

Discrepancies Between the Findings Reported Here and Those of Nawrot’s Experiments

The results of the present experiments on the effectiveness of vertical perspective and pursuit eye movement information for disambiguating motion parallax transformation are clearly different from those reported by Nawrot and his colleagues, and it is therefore important to identify the causes of these differences. Display size is clearly important. In Nawrot et al. experiments, the displays were typically small 6.5° × 6.5° or 8.9° × 8.9° compared with the 28° × 20° displays used in our studies. Like the vertical disparity (differential perspective) transformations between the two stereoscopic images used by Rogers and Bradshaw (1993), there must also be a lower size limit for the dynamic vertical perspective transformations to be effective. The additional condition in Experiment 1 shows that vertical perspective transformations can be effective with displays as small as 8.9° × 8.9° that have a simulated rotation angle of ±20°. In addition, the data from Braunstein’s (1977) experiments show that the vertical perspective transformations that accompany the rotation of simulated spheres were sufficient to disambiguate the direction of rotation in his small (9.6°) displays and that there was no significant difference in the proportion of “correct” responses in the 9.6° and 39.7° displays that he used. This suggests that the simulation of the vertical perspective transformations used in Nawrot’s experiments may have been inadequate.

Second, the experiments of George et al. simulated only a brief, 1.6 s presentation of a unidirectional displacing stimulus which contrasts with the continuous side-to-side head (or display monitor) movements used in our own experiments. As a consequence, their stimulus situation might not have been sufficient for the visual system to exploit the available information. Third, it is possible that because the display screen remained stationary and the random dot field translated across the screen in the George et al. experiment, the frame of the screen could have provided vertical perspective information of a frontal surface during pursuit eye movements that contradicted the superimposed vertical perspective transformation of the translating dot field.
