Transit Route Origin–Destination Matrix Estimation using Compressed Sensing

Abstract

The development of an origin–destination (OD) demand matrix is crucial for transit planning. With the help of automated data, it is possible to estimate a stop-level OD matrix. We propose a novel method for estimating transit route OD matrix using automatic passenger count (APC) data. The method uses $l_{0}$ norm regularizer, which leverages the sparsity in the actual OD matrix. The technique is popularly known as compressed sensing (CS). We also discuss the mathematical properties of the proposed optimization program and the complexity of solving it. We used simulation to assess the accuracy and efficiency of the method and found that the proposed method is able to recover the actual matrix within small errors. With increased sparsity in the actual OD matrix, the solution gets closer to the actual value of the matrix. The method was found to perform more efficiently even for different demand patterns. We also present a real numerical example of OD estimation of the A Line Bus Rapid Transit (BRT) route in Twin Cities, MN.

To understand the travel patterns of passengers, transit agencies require an origin–destination (OD) flow matrix of the passengers. This is a fundamental element of interest that helps in designing new routes and schedules, understanding and forecasting demand on the transit network, adjusting marketing strategy, and so forth. The transit OD flow matrix is the quantification of the flow of passengers from one transit stop to another. To evaluate such a matrix, the agencies conduct on-board surveys, which collect data about passenger boarding and alighting stops, the purpose of travel, and so on. These surveys are expensive to conduct and cover only a small sample of passengers ( 1 ). However, with recent advances in automated data collection systems (ADCS), it is possible to mine the full OD matrix. Automated data, such as automatic fare collection (AFC) and automatic passenger count (APC) data, are a rich source of information on passenger travel over a continuous period, making it possible to estimate OD matrices more frequently.

The OD estimation problem has attracted the attention of many researchers over several decades. More recently, the use of automated data such as AFC, APC, or cell phone data has become popular for OD estimation. For example, the AFC data can be used to estimate a stop-level OD matrix. It usually lacks the passenger alighting stop, which can be inferred using a trip-chaining algorithm based on several assumptions (2 –5). The inference rate depends on the quality of data, the percentage of passengers using the smart card, and assumptions involved in the trip-chaining algorithm. On the other hand, APC systems collect information about the number of passengers boarding and alighting at each transit stop. OD estimation using the boarding and the alighting counts poses a classic problem, which is hard to solve. The problem requires solving an underdetermined system of equations, in which the number of unknowns to solve is far higher than the number of equations available. Usually, multiple solutions are possible for this problem, which satisfy the given equations. Other information is supplemented to produce the accurate OD flows. To deal with this underdetermined problem, various methods have been proposed in the literature, which are summarized below:

Iterative Proportional Fitting (IPF) method: This is a popular and easy to apply method to evaluate the OD matrix using count data (6, 7). The method starts with a base matrix, which is improved iteratively by multiplying the columns and rows of the matrix by a constant factor. The base matrix can be taken as a null matrix or any other seed matrix. Mishalani et al. found that using on-board survey data as a base matrix gives more accurate results than using a null base matrix ( 8 ). The method has several issues such as the problem of non-structural zeros ( 6 ), meaning that a zero entry remains zero in every iteration. The method also fails to converge if the number of zero entries becomes large in the matrix.

Bayesian inference methods: These methods use a Bayesian approach to evaluate an OD matrix by formulating the problem as a partially observed Markov chain and utilizing prior information along with current observations of count data (9 –12).

Optimization methods: As there are multiple solutions possible for this system of equations, these methods try to find the one which optimizes an objective. The objective can be maximizing entropy ( 13 ) or the likelihood (14 –16) function. With isotropic Gaussian noise, the maximum likelihood estimation turns into a classic least squares problem.

Another class of optimization method considers the above objectives along with a regularizer. The regularizer helps to mitigate the ill-posedness of the system of equations. The regularization can be included as a least square term between the unknown and a prior OD matrix obtained from a survey or from domain knowledge. This technique is quite popular in the literature. For example, Cascetta and Nguyen minimized generalized least square objective with a prior matrix ( 7 ), Van Zuylen and Willumsen maximized the relative entropy or minimized the Kullback-Leibler (KL) divergence of unobserved and observed flow distributions ( 13 ). This approach tries to force the solution, as close to the prior matrix as possible which may result in poor estimates if the prior or seed matrix used is not reliable.

In this research, we evaluate the transit route OD matrix using APC data. The problem is the estimation of the flow of passengers between stops for a single trip. The route matrix problem has a special structure that provides an extra piece of information to reduce the ill-posedness of the system of equations. The estimation requires the selection of the correct estimate out of the multiple solutions. We use an estimation method that encourages the sparse OD matrix using $l_{0}$ norm regularizer. This helps in mitigating the ill-posedness of the system and offers interpretability ( 17 ) as there is only a subset of the OD pairs which carries flow in an actual OD matrix. The method is popularly known as compressed sensing (CS) ( 18 ) and can also be viewed as least absolute shrinkage and selection operator (LASSO) regression proposed by Tibshirani ( 19 ).

The rest of the paper is structured as follows. The next section presents the methodology for sparse matrix recovery followed by results of the experiments in the subsequent section. We then look at the limitations of this research and discuss directions for future research. We finish with some conclusions.

Methodology

In this section, we present the method for estimating the route level OD matrix using boarding and alighting counts available from APC data. The notations used throughout the paper are shown in Table 1.

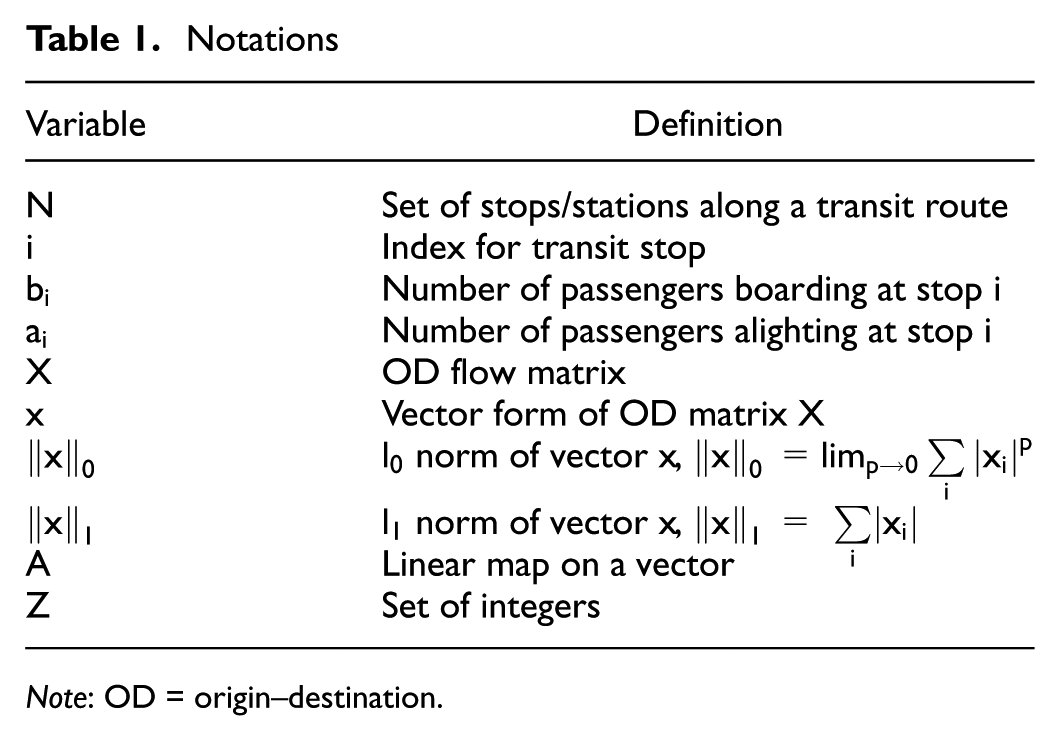

Table 1.

Notations

Variable	Definition
$N$	Set of stops/stations along a transit route
$i$	Index for transit stop
$b_{i}$	Number of passengers boarding at stop $i$
$a_{i}$	Number of passengers alighting at stop $i$
X	OD flow matrix
$x$	Vector form of OD matrix X
$‖ x ‖_{0}$	$l_{0}$ norm of vector $x$ , $‖ x ‖_{0} = li m_{p \to 0} \sum_{i} {\| x_{i} \|}^{p}$
$‖ x ‖_{1}$	$l_{1}$ norm of vector $x$ , $‖ x ‖_{1} = \sum_{i} \| x_{i} \|$
$A$	Linear map on a vector
$Z$	Set of integers

Note: OD = origin–destination.

Let $N$ be the set of stops along a transit route at which passengers board or alight. We consider the boarding and alighting in a single direction. Let $b_{i}$ and $a_{i}$ be the observed number of passengers who board and alight at stop $i$ = (1, 2, …, |N|) respectively. The values of $b_{i}$ and $a_{i}$ are obtained from APC data. Let $X = {x_{ij}} \in R^{| N | \times | N |}$ be the OD flow matrix, where $x_{ij}$ denotes the number of passengers boarding at stop $i$ and alighting at stop $j$ . The overall set-up is shown in Figure 1. Let $x \in R^{{| N |}^{2}}$ be the vectorized form of matrix $X$ , that is, $x = Vect (X)$ . The estimation procedure is subject to the following constraints, which are taken from (11, 20).

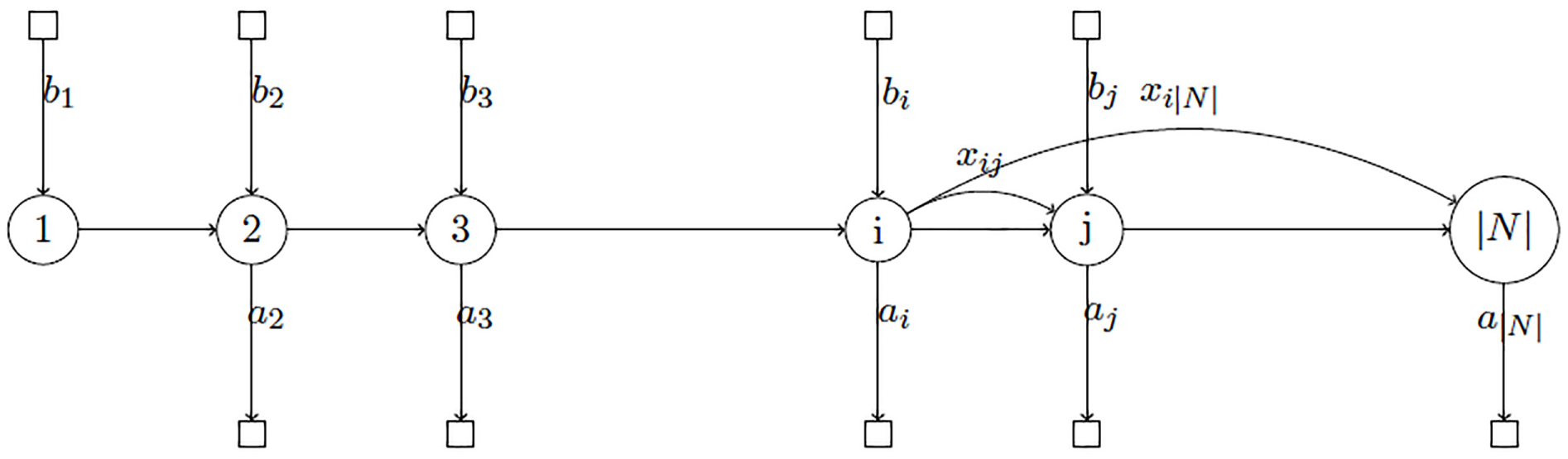

Figure 1.

Transit route origin–destination flow.

Constraints

If we sum the values of $x_{ij}$ along all the columns, then we get the total number of passengers boarding at stop $i$ , that is, $b_{i}$ :

\sum_{j = 1}^{| N |} x_{ij} = b_{i} \forall i \in N

(1)

2. Similarly, if we sum the values of $x_{ij}$ along all the rows, then we get the total number of passengers alighting at stop $j$ , that is, $a_{j}$ :

\sum_{i = 1}^{| N |} x_{ij} = a_{j} \forall j \in N

(2)

3. The total number of passengers boarding at all the stops should be equal to the total number alighting:

\sum_{j = 1}^{| N |} b_{j} = \sum_{i = 1}^{| N |} a_{i}

(3)

4. The numbers boarding and alighting at the same stop is zero, which means the diagonal elements of the matrix $X$ should be equal to zero:

x_{ii} = 0 \forall i \in N

(4)

5. As the transit vehicle runs in a single direction, a passenger boarding at one stop cannot alight at the previous stops that the vehicle has already visited. This means:

x_{ij} = 0 \forall i > j, \forall i, j \in N

(5)

6. The total load on a link between two stops is equal to the passengers boarding between those stops:

\sum_{i = 1}^{k} (b_{i} - a_{i}) = \sum_{i = 1}^{k} \sum_{j = k + 1}^{n} x_{ij}

(6)

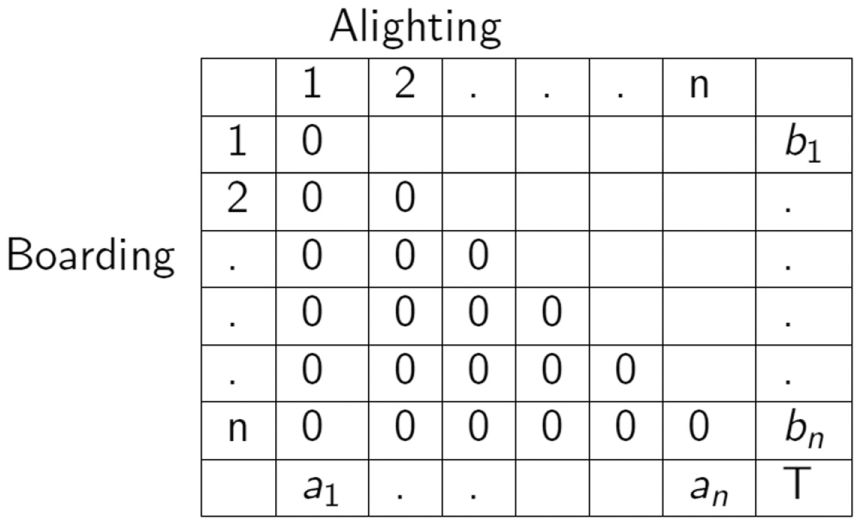

By imposing these constraints, the structure of the matrix will be as shown in Figure 2.

Figure 2.

Origin–destination matrix for a route in a single direction.

We can express the linear constraints (1)–(6), in form of a matrix as:

A (x) = b

(7)

where $A \in R^{p \times {| N |}^{2}}$ is the linear map (which is a matrix in this case) for $p$ number of constraints and $b \in R^{p}$ represents the constant vector for these constraints. In the following subsections, we describe the proposed solution to the given problem.

Transit Route OD Estimation using the Compressed Sensing Technique

As discussed, Equation 7 is usually an ill-posed problem for which one can expect multiple solutions. A generic regularizer can help in mitigating the ill-posedness of the problem. One such regularizer is the generalized least square of the difference between the unkown and a prior matrix obtained from the survey data. The quality of the solution depends upon the availability of a good prior matrix as the optimal solution is forced to be as close as possible to the prior matrix. We can use other regularizers based on the domain knowledge on the space of the plausible OD flows in the network ( 17 ). To use one such regularizer, we make the following assumption: The planted OD matrix in the set of linear equations is sparse which means that the flow between many of the OD pairs should be equal to zero. The observed flow is only because of a small subset of $\frac{N (N - 1)}{2}$ pairs.

The intuition behind this assumption is that there are many OD pairs for a transit route, but the travel happens only along a few pairs. For example, during the morning peak hours, there are only a few popular origin stops such as residential locations and few destination stops such as central business areas, park and rides, and so forth. Moreover, it is unlikely that passengers boarding at the initial stops of the route will alight at all the following stops. This makes the flow between most of the OD pairs equal to zero. This is opposite to the solution evaluated using entropy maximization, which tries to achieve a solution as uniform as possible to minimize the errors. The sparsity as a regularizer has been used before for highway network OD estimation and has found promising results (17, 21 –24). For example, ( 17 ) leverages sparsity in highway OD matrices to estimate a set of suitable traffic analysis zones (TAZs) and uses those zones to evaluate an OD matrix. The method proposed in ( 17 ) has a bi-level structure with sparse OD estimation on upper level and traffic assignment using user equilibrium at lower level. The use of non-negativity constraints for improving the solution is also emphasized. This paper uses similar optimization for the transit route OD estimation problem, which has a special structure as we get an extra set of constraints because of transit movement in one direction. We also describe the conditions under which sparse recovery is possible.

Using Sparsity as the Regularizer for OD Estimation

To achieve the sparsity in the solution, we minimize the number of non-zero entries in the solution, which can be done by minimizing $l_{0}$ norm of the vector $x$ . We can state the problem as the minimization of $l_{0}$ norm of $x$ subject to linear constraints. The optimization formulation is given below:

\begin{matrix} m i n i m i z e ‖ x_{0} ‖ \\ s . t . A (x) = b \\ x \geq 0 \end{matrix}

(8)

where, $x_{0}$ is the $l_{0}$ norm of vector $x$ , which is defined as $\lim_{p \to 0} \sum_{j} {| x_{j} |}^{p}$ . The non-negativity should not be dropped from Equation 8 as it helps to mitigate the ill-posedness of the problem ( 17 ). Using Lagrangian relaxation, the linear constraints can be included in the objective function as a least square term and formulated as following:

m i n i m i z e_{x \geq 0} ‖ A (x) - b ‖_{2} + μ ‖ x ‖_{0}

(9)

Equation 9 tries to find the sparse vector $x$ planted in the given ill-posed system of linear equations. The regularization parameter $μ$ controls the sparsity of the vector and requires tuning to get the best results. A higher value of the $μ$ will impose more sparsity in the solution. When $μ = 0,$ Equation 9 reduces to an ordinary least squares problem. The optimization program in Equation 9 is useful for the APC data when the total number of boarding and alighting do not match as the least square term will try to find a solution which best explains the observed flows. This happens quite often in the APC systems because of the errors in recording data. The given problem in Equation 9 is an NP-hard as the minimization of $l_{0}$ norm cannot be done in polynomial time. Recent work in CS has proposed a tightest convex relaxation of the $l_{0}$ norm which is $l_{1}$ norm ( 25 ). The problem in Equation 9 can be restated as follows:

m i n i m i z e_{x \geq 0} ‖ A (x) - b ‖_{2} + μ ‖ x ‖_{1}

(10)

where, $μ ‖ x ‖_{1} = \sum_{i} | x_{i} |$ . Equation 10 is a convex optimization program as the absolute value of $x_{i}$ can be written as a set of linear inequality constraints. The use of the $l_{1}$ norm is better than the $l_{2}$ norm (also called ridge regression) to achieve sparsity. This is because the $l_{1}$ norm ball has corner points that can intersect the given plane at the sparsest solutions, unlike the $l_{2}$ norm ball. The problem can also be viewed as LASSO regression proposed by ( 19 ) as, given a set of observations, we try to estimate the coefficients which satisfy the given equations. However, there is a key difference between CS and LASSO. The former provides conditions under which the linear map $A$ is nicely behaved and the uniqueness of the solution can be proved (these conditions are discussed in the next subsection). In other words, we can design $A$ in such a way that it can guarantee to recover the actual solution. On the other hand, LASSO is a regression method in which we have no control over the data and we try to find the best coefficients which are sparse and satisfy the equations obtained from data. We can also interpret these estimates as a Bayesian posterior mode estimate when the regression parameters have independent Laplace (i.e., double exponential) priors ( 26 ). Now the natural question which arises is when does solving Equation 10 give a good solution to Equation 9. In other words, what natural conditions can be applied on linear map $A$ so that we can say that the solution is unique. Candès and Tao, 2005 proposed the idea of the restricted isometry property (RIP) of the matrices, which states that if $A$ satisfies the isometry property, then there exists a unique solution to the problem in Equation 10 which is equal to the solution of Equation 9.

Restricted Isometry Property

The linear map $A$ has RIP with constants $k$ and $δ_{k}$ , if $\forall ‖ x ‖_{0} \leq k$ , $A$ behaves almost as an isometry in following sense, that is, the $l_{2}$ norm of $A (x)$ is close to the $l_{2}$ norm of vector $x$ :

(1 - δ_{k}) ‖ x ‖_{2}^{2} \leq ‖ A (x) ‖_{2}^{2} \leq (1 + δ_{k}) ‖ x ‖_{2}^{2}

(11)

RIP matrices are extremely common in practice and most of the random matrices satisfy this property. Based on the above definition, a theorem is proposed by Candès and Tao ( 25 ): If $A (x) = b$ and $b$ is constructed using a sparse solution with $‖ x ‖_{0} \leq k$ , and the RIP condition is satisfied with constants $δ_{2 k}$ and $δ_{3 k},$ satisfying $δ_{2 k} + δ_{3 k} < 1$ , then Equation 10 can obtain a unique solution to the problem of Equation 9 with as few as $O (klog (\frac{{| N |}^{2}}{k}))$ number of equations.

As the passenger flow cannot be negative, we can replace the $l_{1}$ norm with the sum of the components of vector $x$ , which allows us to use the gradient-based approaches to solve the optimization program of Equation 10 efficiently. If we have some idea about the number of non-zero entries (say less than $k$ ), we can constrain the solution as follows:

\begin{matrix} m i n i m i z e ‖ A (x) - b ‖_{2} \\ s . t . ‖ x ‖_{0} \leq k \\ x \geq 0 \end{matrix}

(12)

We use the optimization program in Equation 8 with the $l_{1}$ norm for solving the transit route OD estimation problem. The problem is convex and can be solved easily using a standard convex optimization solver such as CVX ( 27 ). We could also employ an iterative algorithm proposed in ( 19 ) to evaluate a sparse solution but the algorithm does not guarantee convergence to a unique solution. In the next section, we present numerical examples to show the application of the proposed method.

Results

In this section, we present two numerical examples of OD estimation using the proposed methodology. First, simulation is used to assess the consistency and accuracy of the estimation method. Second, the OD estimation of a bus route in Twin Cities, MN is presented.

OD Estimation using Simulation

We use the APC data provided by Metro Transit, which is a primary transit service provider in the Twin Cities, MN area offering an integrated network of buses, light rail, Bus Rapid Transit (BRT), and a commuter train. To prepare a synthetic OD matrix, we make some assumptions on the probability distribution of the arrival of the passengers at different stops. We consider 10 stops along a transit route to facilitate the presentation of results. Passenger arrivals at the stop are assumed to follow a Poisson distribution:

b_{i} ~ Poisson (k) \forall i

(13)

where $k$ is the mean arrival rate at the stop and $b_{i}$ is the number boarding at stop $i$ . We recommend fitting a Poisson distribution to the real data to calculate the value of $k$ . We calculated the mean value of the arrival rate of the passengers on the A line, an arterial BRT route in Twin Cities, MN. The mean arrival rate was found to be equal to 0.86 during peak hours, which is quite low. To assess the significant errors produced by the estimation, we assumed a mean value equal to 15 passengers. Then we set the sparsity level for the OD matrix. The sparsity level will make the value of probability of flow from one stop to another stop zero if this probability value is less than the threshold sparsity level. This is done to create sparsity in the matrix and to test whether the method works more efficiently when the sparsity is high. We then assign the flow from one stop to others by assuming a multinomial distribution, that is:

x_{ij} ~ MNL (b_{i}, p_{i 1}, p_{i 2}, \dots, p_{i | N |})

(14)

where $p_{ij}$ is the probability of movement from stop $i$ to stop $j$ . We then make the diagonal and lower triangle of the matrix zero because of the constraints 4 and 5. To calculate the boarding and alighting flows for OD estimation, we sum the rows and columns of the simulated matrix. After that, we set up an optimization model using the python API of CVX ( 27 ). To avoid choosing the value of $μ$ in optimization program (Equation 10), we solved the program (Equation 8) with the $l_{1}$ norm. However, we recommend using the optimization program (Equation 10) when the sum of boarding and alighting count does not match the APC data, which happens because of the errors in data collection. We generated 200 Monte-Carlo samples of OD matrices and calculated the $l_{2}$ error between the actual OD $x$ and estimated OD vector $x_{est}$ as:

‖ x - x_{est} ‖_{2} = \sqrt{\sum_{i} {(x_{i} - x_{est, i})}^{2}}

(15)

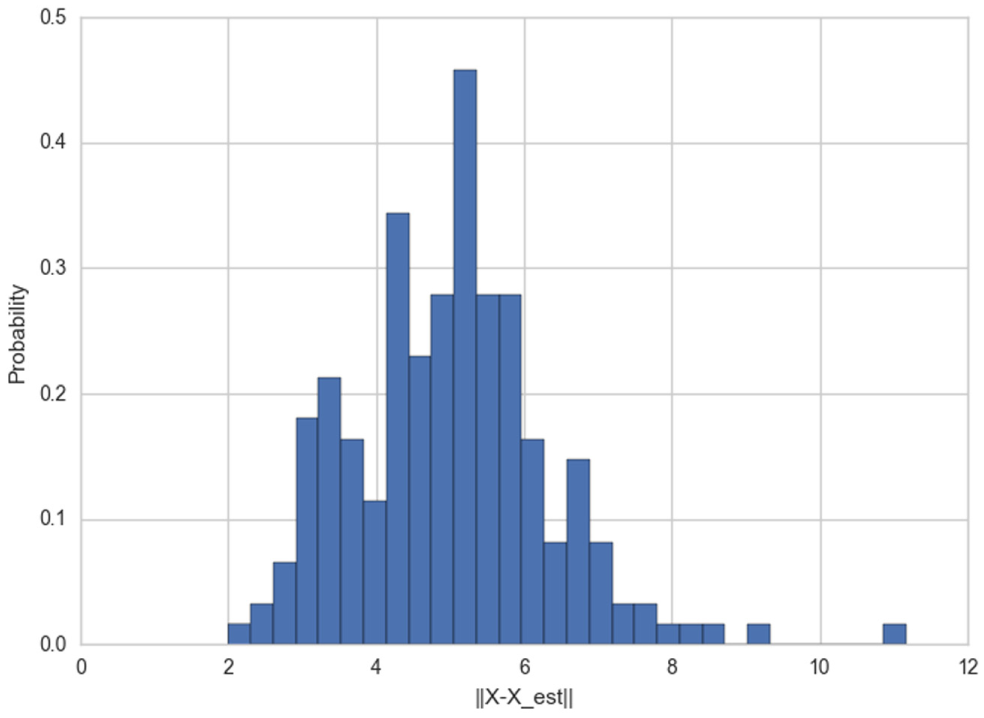

Figure 3 shows the histogram of $l_{2}$ error in the estimation for each sample. We can observe that the mean value of the error is 4.99 and with a standard deviation of 1.32. The 95% confidence interval of the $l_{2}$ error was found to be equal to (4.81, 5.19). This shows that the results obtained from this estimation method are consistent and small. To see how the method performed in predicting the individual OD pair flow value, we created a box plot for the estimation error (Figure 4). The proposed method predicted the actual value of the non-zero entries 41.5 % of the time. In case of errors, the method seems to overpredict the values except for some of the OD pairs such as 0-4, 1-2 and 5-6.

Figure 3.

$l_{2}$ error between the actual and estimated origin–destination matrix.

Figure 4.

Box plot for the errors in estimation of origin–destination flows.

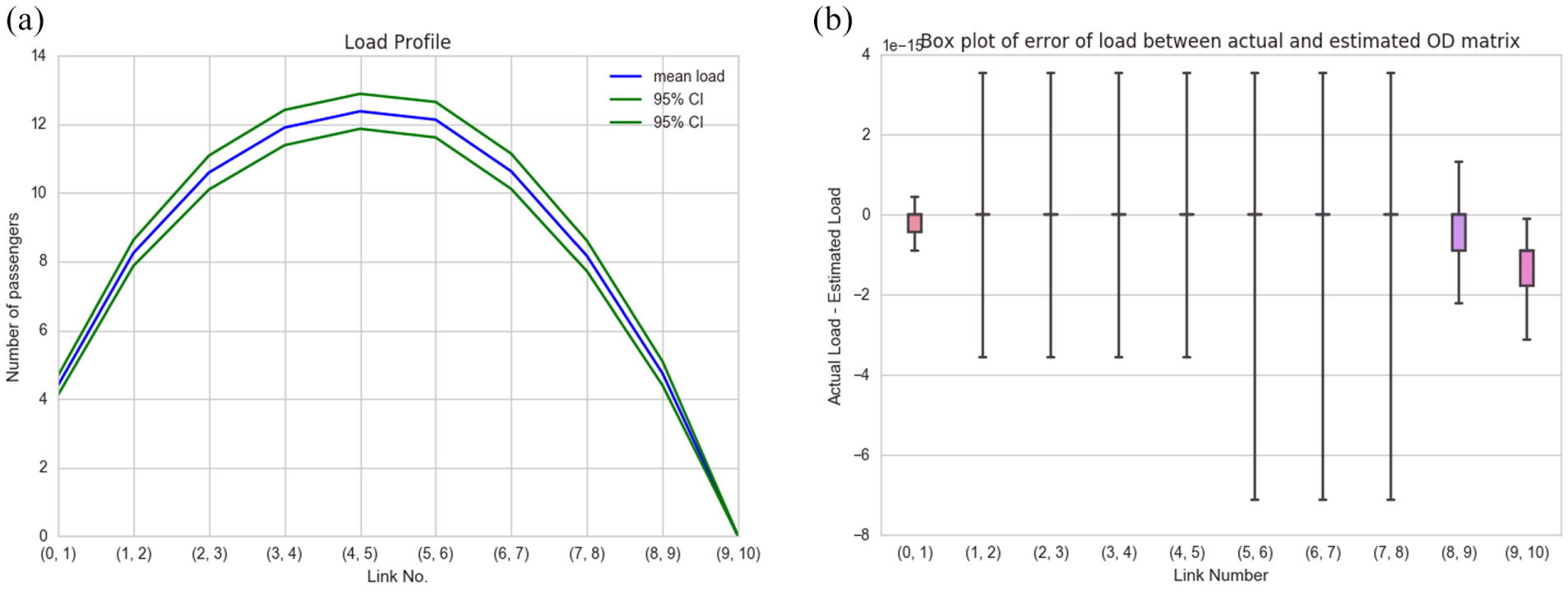

Figure 5a shows the average load profile of the passengers on the transit route. The width of the 95% confidence interval is small which shows that the method is reliable in estimating demand and therefore in deciding the adequate frequency to handle the load of the passengers. We can also observe that the errors in estimating the load of the passengers is also quite small (Figure 5b).

Figure 5.

(a) Average load profile of the transit route; (b) box plot of error between actual load and estimated load.

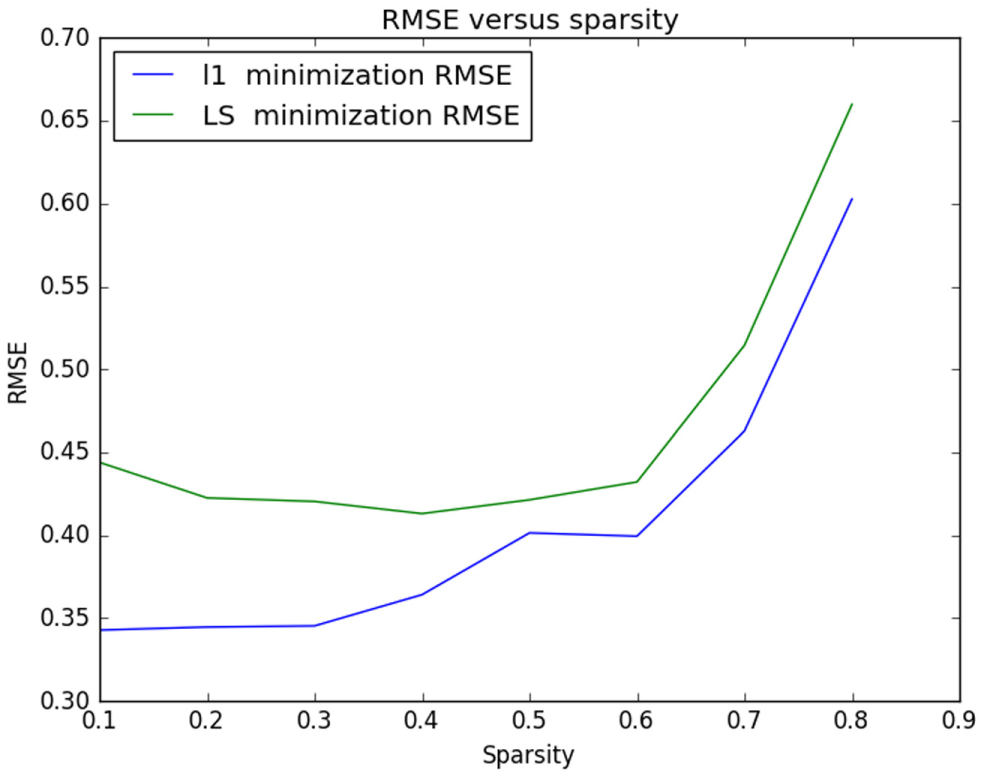

To understand the effect of sparsity, we solved the problem for several levels of sparsity and calculated the root mean square error (RMSE) between the estimated and actual OD matrix. Figure 6 shows the RMSE value with respect to the sparsity in the matrix. We can observe that the RMSE value is reduced with increased sparsity. For example, when the OD matrix has only 10% non-zero values, the corresponding RMSE value was found to be less than 0.35, which is quite impressive. This shows that the accuracy of the method is improved when there is more sparsity. Comparing the results to a common least squares solution (Figure 6), the proposed method is able to recover solutions with lower RMSE values. It can also be observed that when the sparsity is low, the proposed method is more efficient than least squares as the gap between two lines is high but when there are a greater number of non-zero entries, the RMSE gap between these two methods reduces.

Figure 6.

Root mean square error (RMSE) versus sparsity in origin–destination estimation (sparsity in relation to proportion of non-zero values).

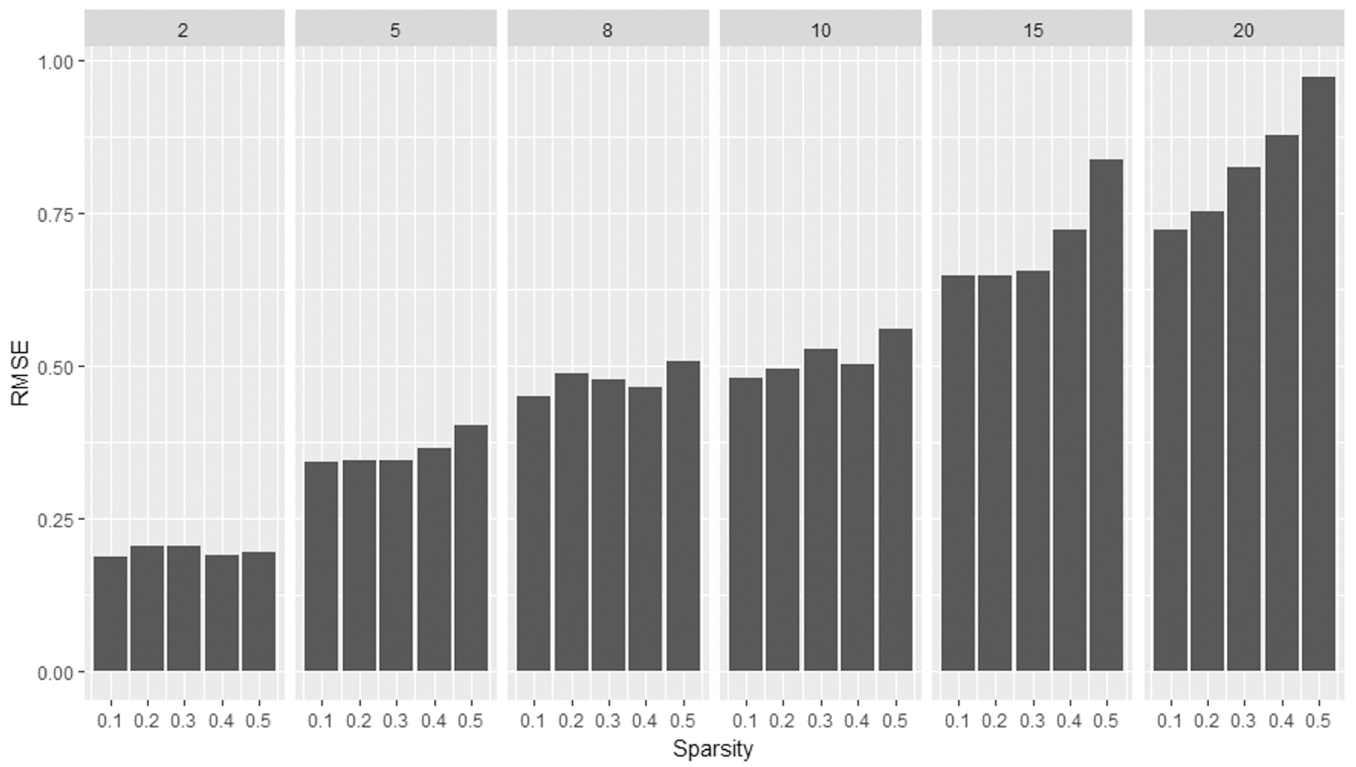

To see how different demand patterns affect the OD estimation, we performed a similar simulation for several mean arrival rates $(k$ ) of passengers at stops. Figure 7 shows normalized RMSE values with respect to sparsity in the random matrix for different mean arrival rates. The normalization is done by simply dividing RMSE by mean arrival rate. The results are presented in separate panels. We can see that the normalized RMSE decreases with an increase in demand. At $k$ = 2, the normalized RMSE value was found to be almost equal to 1, which is still quite low. At lower demand, the matrix is already sparse, so we see less effect of sparsity parameter.

Figure 7.

Comparing root mean square error (RMSE) with sparsity for different mean arrival rates (each panel represents a different mean arrival rate of passengers).

OD Estimation of A Line BRT Route in Twin Cities

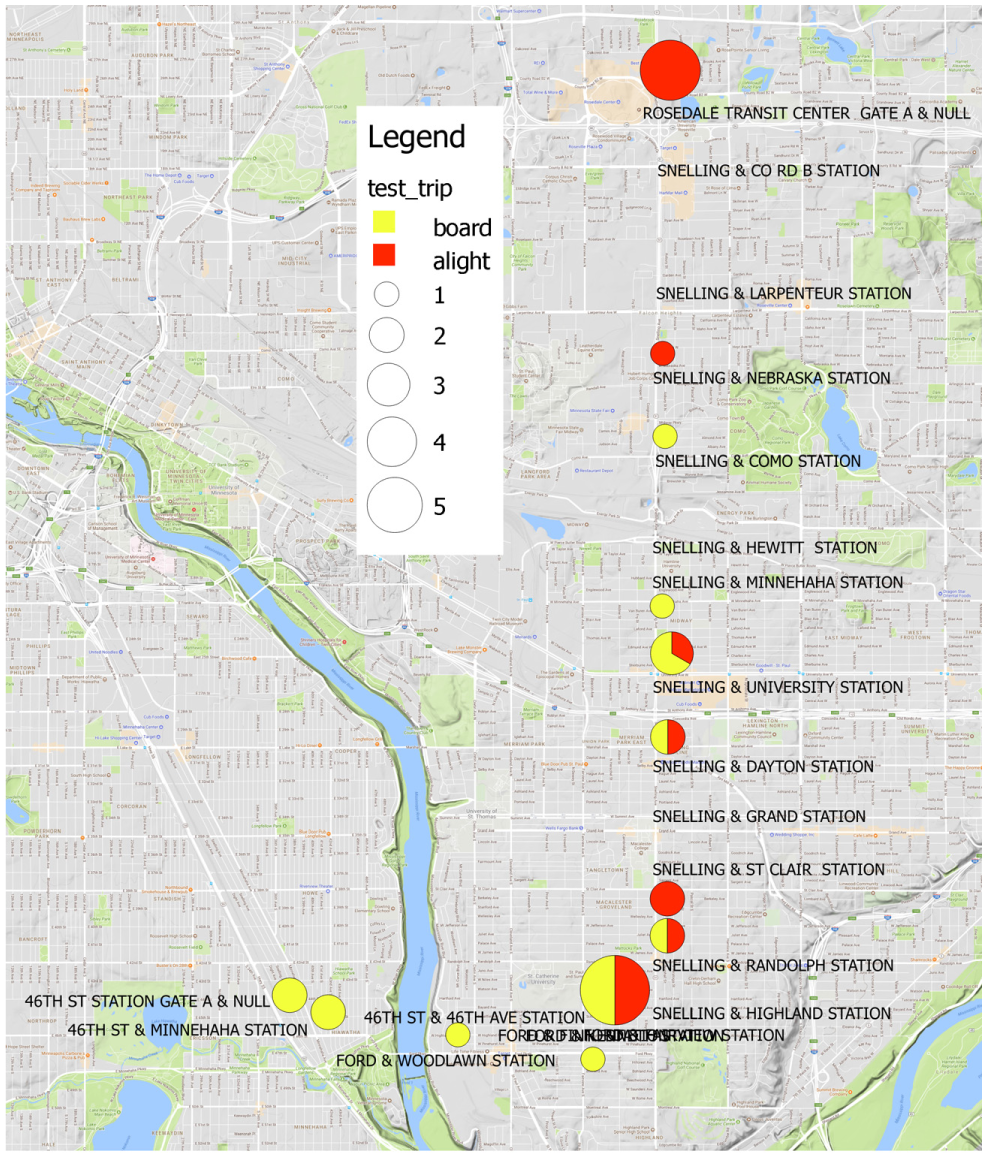

We use the APC data from Twin Cities, MN to calculate the OD flow of a route. The APC data used for this research contain transit trip information, such as date and time of the operation, routeID, stopID, departure and arrival times, numbers boarding and alighting at each stop, and the geographical coordinates of the stops. We selected A Line, which is a BRT route in Twin Cities for this analysis. It serves 20 stations along Snelling Av and 46^th St. We selected a trip from the data during peak hour. The numbers boarding and alighting at different stops in the northbound direction is shown in Figure 8. We can observe the popular boarding locations such as 46^th Street Station, 46^th & Minnehaha Station, and Snelling & Highland Station and alighting stops such as Rosedale Transit Center, Snelling & Highland Station and Snelling & Clair St. Station. We use the optimization program (Equation 10) to solve the given problem with a value of $μ = 0.2$ . Some recommendations for choosing the value of $μ$ are given in ( 19 ).

Figure 8.

Boarding and alighting count for A Line.

The total ridership of the trip is 16. Because of low ridership, flow along most of the OD pairs should be equal to zero. We apply the proposed method to the given data and calculate the OD flows. Figure 9 shows the OD flows between different OD pairs. We can see that the flow occurred only between 11 OD pairs out of 400 pairs (2.75%). The highest flow was observed between Snelling & Highland Av. and Rosedale Transit Center, which is the last station along this route. Other popular OD pairs are 46^th St. and Snelling & St. Clair, Snelling & Minnehaha and Snelling & Highland Av. Because of the low ridership, the sparse matrix recovery seems to perform well.

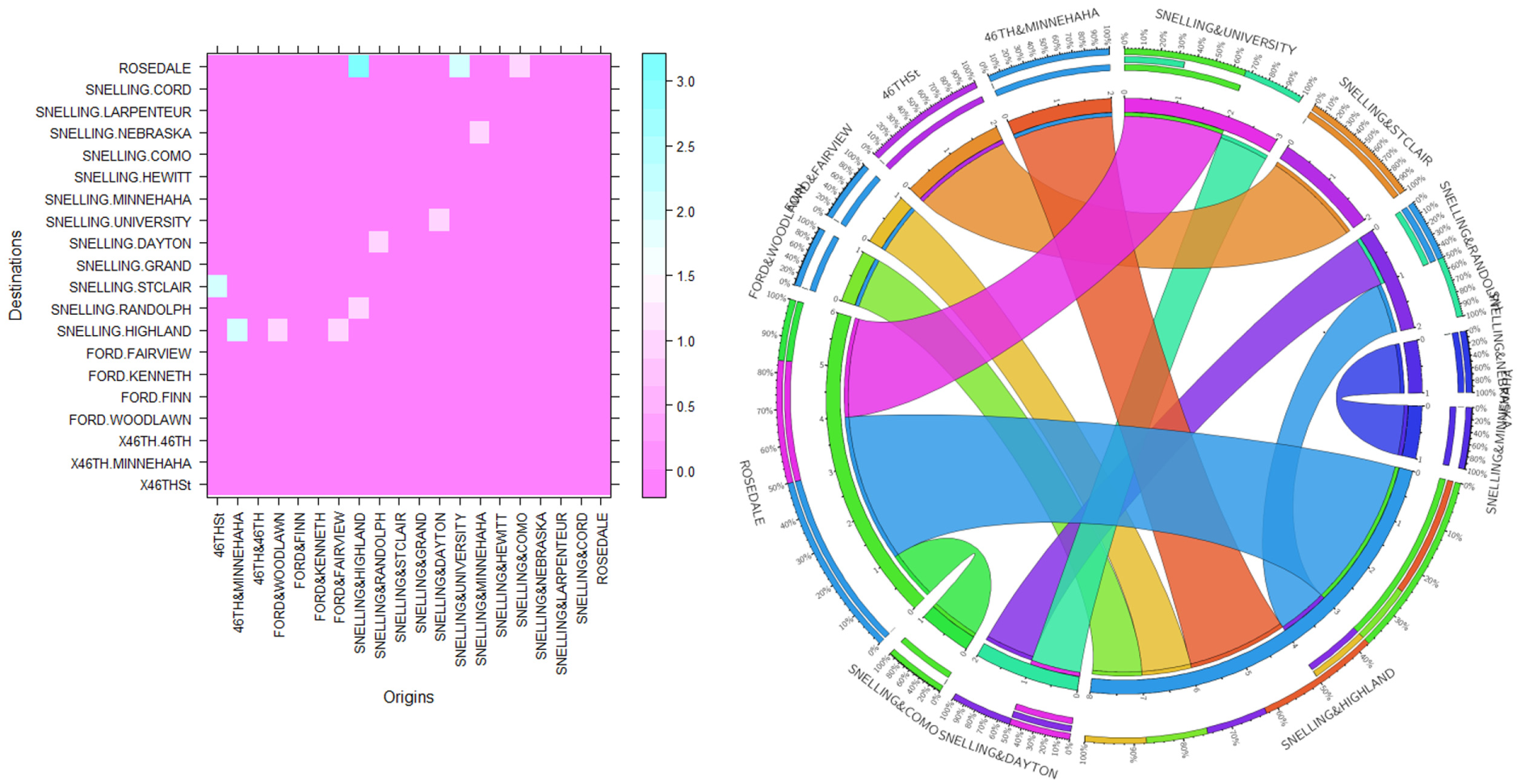

Figure 9.

Origin–destination flow for A Line, Twin Cities, MN.

Limitations and Discussion

In this section, we discuss the limitations of the proposed method and provide some recommendations for future research to address these limitations. Various studies use a prior matrix as a regularizer which can also be included in the proposed framework as follows:

m i n i m i z e_{x \geq 0} ‖ A (x) - b ‖_{2} + μ_{1} ‖ x ‖_{0} + μ_{2} ‖ x - x^{p r i o r} ‖_{2}

(16)

The choice of parameters $μ_{1}$ and $μ_{2}$ will control the weight of different objectives which can be obtained by observing the error rate for different values of these parameters. Because of the lack of the suitable prior matrix, we have not included any results using this program in this study. Also, no unique choice of $μ_{1}$ and $μ_{2}$ can make this method unattractive to practitioners.

The problem of OD estimation has been well studied in the literature in the context of both road and transit networks. This is an interesting problem with solution methods using both optimization and statistical techniques. Depending on the available data, the problem can be formulated as an underdetermined or overdetermined system of equations. The classic techniques such as entropy maximization, least squares, and so forth, produce some good results but may not evaluate the correct solution as there can be infinitely many or no solutions, which again depends on the quality of data and the set of equations obtained from the setup. Recent work in the field of CS has established that under suitable conditions, we can evaluate a unique sparse solution out of a given ill-posed system of linear equations. We tried to solve the problem using this approach and achieved impressive results but not an exact solution. We also did not prove that the linear mapping produced by a set of linear equations in this case satisfied the RIP, which may be the source of error in our results. The condition is hard to prove and could be a topic for future research.

The CS technique can also be used to design a linear map $A$ so that we can guarantee an exact solution to this problem. The future work in this regard should be focused on how to engineer a system to create a linear map $A$ so that the recovery of an exact solution can be guaranteed. This can be done by finding optimal sensor locations on highway and transit networks or integrating different data sources to produce an appropriate $A$ .

This research can also be expanded in multiple directions. The method can be used to estimate a full transit network OD matrix. The problem can be formulated as a bi-level program with sparse recovery optimization at the upper level and transit assignment (28, 29) at the lower level to capture route choice behavior in the model. We believe that the network level OD will also be sparse because it is unlikely that passengers boarding at one stop can alight at all other stops in the network. The concept can also be extended to matrix sensing which will be helpful in estimating a time-dependent transit OD matrix. As the boardings and alightings follow a regular pattern during various hours of the day, data from several days can be used to learn this pattern. This means the high dimensional data for several days can be used to minimize the rank of the matrix to extract a regular pattern. This can be done by minimizing the nuclear norm of the matrix, which is a convex surrogate for the rank of the matrix. The problem is computationally challenging and needs further attention.

Conclusions

In this research, we proposed a method for estimating an OD matrix for a transit route along one direction. The problem can be formulated as an undetermined system of linear equations. The adopted strategy was to estimate a sparse OD matrix, using the $l_{0}$ norm. Using its convex surrogate $l_{1}$ regularizer, the problem can be solved efficiently. The sparsity in the matrix is generated because there are only a few popular OD pairs along a transit route where the flow occurs. We also discussed the complexity of solving the proposed optimzation program. The constraints and sparsity try to force the solution to an actual value. We tested the efficiency of the estimator using simulation. The errors were found to be bound within a small range. With an increased level of sparsity in the matrix, the method was able to recover more accurate results. We also found small errors even for higher demand. For example, the normalized RMSE between the estimated and actual matrix value was found to be, at most, 0.1. We also presented a numerical example for A line BRT route in Twin Cities, MN. Finally, we discussed various limitations and directions for future research. Further studies are required to show the constraints under which the OD linear map satisfies the RIP property. Other statistical methods are also required to assess the accuracy of the estimation.

Footnotes

Acknowledgements

This research was conducted at the University of Minnesota Transit Lab (), currently supported by, but not limited to, the following projects:

National Science Foundation, award CMMI-1637548

Minnesota Department of Transportation, Contract No. 1003325 Work Order No. 15

Minnesota Department of Transportation, Contract No. 1003325 Work Order No. 44

Transitways Research Impact Program (TIRP), Contract No. A100460 Work Order No. UM2917

The authors are grateful to Metro Transit for sharing the data. We are also grateful to the anonymous referees for their constructive input to improve the quality of this article. Any limitation of this study remains the responsibility of the authors.

Author Contributions

The authors confirm contribution to the paper as follows: study conception and design: PK, AK, GAD; data collection: PK, AK, GAD; analysis and interpretation of results: PK, AK, GAD; draft manuscript preparation: PK, AK, GAD. All authors reviewed the results and approved the final version of the manuscript.

The Standing Committee on Transportation Network Modeling (ADB30) peer-reviewed this paper (19-05925).
