Dynamic Weights Leading Cruise Control: Design and Analysis for Connected and Automated Vehicles in Mixed Platoons under Time-Varying Delays

Abstract

The increasing presence of connected and automated vehicles (CAVs) with vehicle-to-vehicle communication capabilities presents substantial opportunities to enhance traffic flow efficiency and safety. When CAVs operate within mixed platoons alongside human-driven vehicles (HDVs), time-varying communication delays, incomplete car following dynamics modeling, and unpredictable human driving behaviors can destabilize traffic flow and diminish automation benefits. This paper proposes a dynamic weights leading cruise control (DWLCC) framework that adaptively balances delayed and real-time information by dynamically adjusting feedback weights based on communication conditions. The controller is theoretically analyzed using HDV dynamics and validated through simulations with full nonlinear car-following models. A comprehensive stability analysis framework examines the combined influence of time-varying delays, communication range constraints, and control parameters. Using Lyapunov-Krasovskii methods and head-to-tail string stability analysis, explicit stability boundaries are analytically derived, providing practical guidelines for robust controller design. Extensive numerical simulations validate the proposed approach under diverse operating conditions. Compared with conventional fixed-weight methods, DWLCC demonstrates superior velocity tracking and spacing regulation, enhanced safety margins, and reduced fuel consumption. These results highlight the potential of adaptive, delay-aware control strategies for safe and efficient CAV deployment in heterogeneous traffic environments.

Keywords

connected and automated vehicle dynamic weights leading cruise control stability analysis mixed platoon communication delay

Introduction

The rapid advancement of connected and automated vehicles (CAVs) equipped with vehicle-to-vehicle (V2V) and vehicle-to-infrastructure communication capabilities represents a transformative paradigm shift in modern transportation systems ( 1 , 2 ). These technologies enable real-time data exchange and cooperative decision-making, offering unprecedented opportunities to enhance traffic efficiency, reduce fuel consumption, and improve safety through coordinated vehicle movements ( 3 , 4 ). Among the most promising applications, vehicle platooning has emerged as a cornerstone technology that leverages inter-vehicle communication to maintain optimal spacing, synchronize velocities, and maximize road capacity utilization ( 5 ). However, the transition to fully automated transportation systems faces technical, regulatory, and social challenges that preclude immediate widespread deployment ( 6 ). Consequently, mixed traffic environments, where CAVs coexist with human-driven vehicles (HDVs), represent the prevailing reality for the foreseeable future ( 7 ). This mixed traffic composition introduces unique complexities that necessitate sophisticated control strategies capable of accommodating the unpredictable nature of human driving behavior while maximizing the benefits of vehicle automation and connectivity (8 –11).

One of the most critical challenges in connected vehicle platooning is the presence of time-varying communication delays ( 12 ). These delays arise from multiple sources, including wireless channel variations, network congestion, computational latency, and protocol overhead ( 13 ). Unlike fixed delays that can be compensated through predictive control strategies, time-varying delays introduce uncertainty that can compromise platoon stability and safety ( 14 ). The impact becomes particularly pronounced in mixed platoons where the propagation of delayed information can trigger cascading instabilities throughout the platoon formation ( 15 ).

From the perspective of communication delay, several approaches have been considered. Multi-anticipative information flow topologies have been developed to enhance robustness against moderate delays ( 16 ). Cooperative adaptive cruise control systems employing feedforward-feedback architectures have demonstrated effectiveness in disturbance attenuation ( 17 ). Advanced prediction algorithms, such as least mean square filters, have been proposed to anticipate delay variations and adjust control parameters accordingly ( 18 ). However, these approaches typically assume small, predictable, or slowly varying delays, limiting their applicability in realistic vehicular networks where delays can fluctuate rapidly and unpredictably (19 –21). The challenge becomes more complex when considering the heterogeneous nature of mixed platoons ( 22 , 23 ). Communication delays not only affect the direct control inputs but also influence the coordination between CAVs and the prediction of HDV behaviors ( 24 ). This temporal mismatch can lead to suboptimal control decisions and potentially dangerous situations, particularly during emergency maneuvers or in dense traffic conditions.

The control of mixed platoons presents unique challenges that extend beyond fully autonomous platoon control. Several innovative approaches have emerged to address these complexities. Consensus-based control methods have been developed to achieve velocity synchronization and maintain spacing stability while ensuring overall platoon coherence ( 25 ). Event-triggered control algorithms have shown promise in managing systems with mixed time-varying delays, successfully maintaining both asymptotic and string stability ( 26 ). Observer-based robust control frameworks have been proposed to simultaneously handle nonlinear car following dynamics, communication delays, and dynamic topology changes ( 27 ). Reinforcement learning and adaptive control strategies represent promising future directions for handling uncertain human driving patterns, although analytical stability guarantees remain challenging ( 28 ). These methods can potentially capture the heterogeneity in driving behaviors and adjust control policies accordingly. However, most existing approaches focus on single aspect optimization, such as either safety or efficiency, without comprehensively considering the intricate interactions between multiple system factors.

Despite advances in connected vehicle control, several critical limitations persist in existing research. First, most studies adopt simplified communication models that fail to capture the complex dynamics of real-world vehicular networks, including packet losses, variable delays, and topology changes ( 29 ). The assumption of ideal or predictable communication conditions limits the practical applicability of these control strategies. Second, current approaches often employ oversimplified human driver models that inadequately represent the diversity and uncertainty inherent in human driving behavior ( 30 ). The heterogeneity among human drivers, including variations in reaction times, risk tolerance, and decision-making patterns, is frequently overlooked, leading to control strategies that may not perform well in realistic mixed traffic scenarios. Third, there exists a fundamental gap in understanding the combined effects of multiple factors affecting mixed platoon performance. Most studies examine individual aspects such as communication delays, CAV penetration rates, or string stability in isolation, missing crucial interactions between these factors ( 31 ). The influence of communication range limitations, varying delay characteristics, and dynamic topology changes on overall system performance remains insufficiently explored. Finally, existing stability analysis frameworks often lack the theoretical rigor needed to provide definitive stability guarantees under realistic operating conditions. The complex interplay between time-varying delays, nonlinear vehicle dynamics, and human behavioral uncertainties requires more sophisticated analytical tools that can capture these interactions comprehensively ( 32 ).

This paper proposes a dynamic weights leading cruise control (DWLCC) strategy and a stability analysis framework to tackle three major gaps in existing studies on mixed platoons: unpredictable communication delays, partial consideration of following vehicle dynamics, and unmodeled human driving behaviors. Our work also investigates how varying delay, communication range, and CAV penetration rates affect overall platoon performance. The contributions are:

A dynamic weight adjustment mechanism is developed. It adaptively balances information from multiple sources based on real-time communication quality metrics. Unlike existing fixed topology approaches, DWLCC continuously adapts its control weights considering both preceding and following vehicles, communication delays, signal strength, and packet loss rates. This adaptive mechanism enables superior performance under volatile network conditions while maintaining robustness against communication disruptions.

A unified state-space model is established based on HDV dynamics and time-varying communication delays. The model enables stability analysis while simulation validation employs full nonlinear car-following models to verify real-world applicability.

A comprehensive theoretical framework is developed. It provides definitive stability conditions for mixed platoons under time-varying delays. Through Lyapunov-Krasovskii functional analysis and head-to-tail string stability evaluation, the explicit relationships between allowable delay bounds, communication range limitations, controller parameters, and CAV penetration rates are derived. The analysis reveals critical stability boundaries and provides practical design guidelines for robust deployment.

The remainder of this paper is organized as follows. The next section presents the comprehensive modeling framework for mixed platoons with time-varying communication delays. The section after that details the DWLCC control strategy design and provides rigorous stability analysis including both asymptotic and string stability conditions. This is followed by a section presenting extensive numerical experiments validating the proposed approach and comparing its performance against existing methods under various operating conditions. The final section concludes the paper and discusses future research directions.

Model of the Dynamic Communication Mixed Platoon

This section outlines the modeling approach used to study the longitudinal control of CAVs in mixed platoons. The model captures the time-varying delays in information received by CAVs, effectively representing the interactions within the platoon and setting a foundation for analyzing the system’s overall performance under varying conditions.

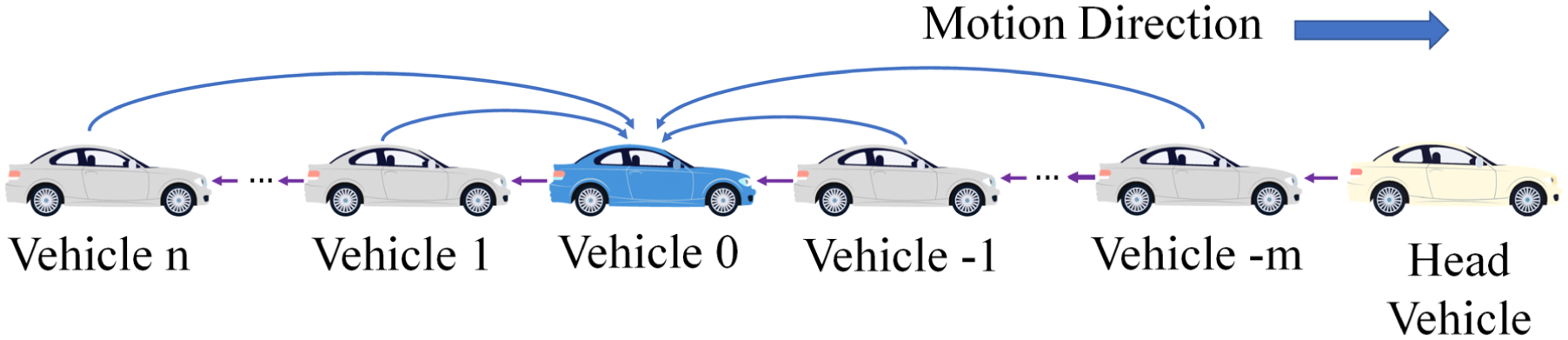

The model considers a mixed platoon consisting of both CAV and HDVs arranged on a single-lane roadway, as shown in Figure 1. The CAV is designated as vehicle 0. Let $n$ denote the number of following vehicles behind the CAV and $m$ denote the number of preceding vehicles ahead of the CAV. The index sets $Φ = {1, 2, \dots, n}$ for following vehicles and $P = {- 1, - 2, \dots, - m}$ for preceding vehicles are defined. The dynamic state of vehicle $i$ ( $i \in {0} \cup Φ \cup P$ ), whether CAV or HDV, is characterized by three state variables: position $p_{i} (t)$ (m), velocity $v_{i} (t)$ (m/s), and acceleration $a_{i} (t)$ (m/ $s^{2}$ ), where $t$ denotes time (s). The spacing $s_{i} (t)$ (m) of vehicle $i$ from its preceding vehicle $i - 1$ is defined as $s_{i} = p_{i - 1} - p_{i}$ . A head vehicle travels at the front of the mixed platoon with velocity $v_{h} (t)$ (m/s).

Figure 1.

Mixed platoon communication typology.

Nonlinear Dynamics of Individual Vehicles

The interaction between vehicles, specifically HDVs, is governed by nonlinear dynamics ( 33 ). These dynamics are characterized using models such as the optimal velocity model (OVM) and the intelligent driver model, which relate a vehicle’s acceleration to its spacing and relative velocity ( 34 , 35 ).

For each HDV $i \in \cup$ , the acceleration dynamics are described by a general car-following function $F_{i} (\cdot)$ that captures the driver’s response ( 36 ):

{\overset{\cdot}{v}}_{i} (t) = F_{i} (s_{i} (t - τ_{i}), {\overset{\cdot}{s}}_{i} (t - τ_{i}), v_{i} (t - τ_{i}))

(1)

where

$τ_{i}$ = the reaction delay of driver $i$ (s) (representing the time needed to respond to changes in traffic conditions ahead),

${\overset{\cdot}{s}}_{i} (t)$ (m/s) = the relative velocity between consecutive vehicles (m/s) (given by ${\overset{\cdot}{s}}_{i} (t - τ_{i}) = v_{i - 1} (t - τ_{i}) - v_{i} (t - τ_{i})$ ), and

$F_{i} (\cdot)$ = a function computing the acceleration of vehicle $i$ based on spacing, relative velocity, and current speed. (Figure 1 provides a visual representation of these relationships.)

One prevailing HDV model is the nonlinear OVM model, where the explicit expression of Equation 1 is ( 36 ):

F_{i} (\cdot) = α_{i} (V (s_{i} (t - τ_{i}) - v_{i} (t - τ_{i})) + β_{i} {\overset{\cdot}{s}}_{i} (t - τ_{i}))

(2)

where

$α_{i}$ = the sensitivity coefficient determining the driver’s responsiveness to velocity differences (1/s),

$β_{i}$ = the relative velocity coefficient characterizing sensitivity to speed differences with the preceding vehicle (1/s), and

$V (s)$ = a function representing the desired velocity of the human driver (m/s), which depends on spacing and is defined as a continuous piecewise function:

V (s) = {\begin{matrix} 0, if s \leq s_{st}, \\ f_{v} (s), if s_{st} < s < s_{go}, \\ v_{\max}, if s \geq s_{go} . \end{matrix}

(3)

where

$s_{st}$ = the standstill spacing (m) below which the desired velocity is zero,

$s_{go}$ = the threshold spacing (m) above which free-flow velocity $v_{\max}$ (m/s) is achieved, and

$f_{v} (s)$ = a monotonically increasing transition function.

A typical form of $f_{v} (s)$ is given as:

f_{v} (s) = \frac{v_{\max}}{2} (1 - \cos (π \frac{s - s_{st}}{s_{go} - s_{st}}))

(4)

For the CAV, indexed as 0, its acceleration is controlled by the input signal $u (t)$ , expressed as:

{\overset{\cdot}{v}}_{0} (t) = u (t)

(5)

It is important to note that the acceleration signal of the CAV also serves as the external control input for the entire mixed platoon system.

Dynamics of Mixed Platoon System

In a traffic equilibrium state, vehicles maintain a constant velocity $v^{*}$ with corresponding equilibrium spacing $s^{*}$ , satisfying:

F_{i} (s^{*}, 0, v^{*}) = 0

(6)

where

$v^{*}$ = derived from a specified constant velocity $v_{h}$ ( 37 ).

To analyze system stability around this equilibrium, we define the error states for vehicle $i$ as:

{\tilde{s}}_{i} (t) = s_{i} (t) - s^{*}, {\tilde{v}}_{i} (t) = v_{i} (t) - v^{*}

(7)

where

${\tilde{s}}_{i} (t)$ = spacing error, and

${\tilde{v}}_{i} (t)$ = velocity error.

Applying first-order Taylor expansion to Equation 1 yields a second-order HDV model:

{\begin{matrix} {\overset{\cdot}{\tilde{s}}}_{i} (t) = {\tilde{v}}_{i - 1} (t) - {\tilde{v}}_{i} (t), \\ {\overset{\cdot}{\tilde{v}}}_{i} (t) = α_{1 i} {\tilde{s}}_{i} (t - τ_{i}) - α_{2 i} {\tilde{v}}_{i} (t - τ_{i}) + α_{3 i} {\tilde{v}}_{i - 1} (t - τ_{i}) \end{matrix}

(8)

where

$α_{1 i} = \frac{\partial F_{i}}{\partial s_{i}}$ ,

$α_{2 i} = \frac{\partial F_{i}}{\partial {\overset{\cdot}{s}}_{i}} - \frac{\partial F_{i}}{\partial v_{i}}$ , and

$α_{3 i} = \frac{\partial F}{\partial \overset{\cdot}{s}}$ are evaluated at $(s^{*}, v^{*})$ .

For realistic driving behavior, $α_{1 i}, α_{2 i}, α_{3 i} > 0$ and $α_{2 i}^{2} - α_{3 i}^{2} - 2 α_{1 i} > 0$ . Under the OVM model, these coefficients become:

α_{1 i} = α_{i} \overset{\cdot}{V} (s^{*}), α_{2 i} = α_{i} + β_{i}, α_{3 i} = β_{i}

(9)

where

$\overset{\cdot}{V} (s^{*})$ = the derivative of $V (s)$ at $s^{*}$ .

The CAV is assumed to have the same equilibrium spacing as the HDVs at the equilibrium velocity. Under these conditions, the longitudinal dynamics of the CAV, approximating equilibrium conditions, can be represented by the following second-order differential equation:

{\begin{matrix} {\overset{\cdot}{\tilde{s}}}_{0} (t) = {\tilde{v}}_{- 1} (t) - {\tilde{v}}_{0} (t) \\ {\overset{\cdot}{\tilde{v}}}_{0} (t) = u (t) \end{matrix}

(10)

The dynamics model of the mixed platoon system around the designated equilibrium state $(s^{*}, v^{*})$ can now be derived. The overall state of the system is defined as:

x (t) = [{\tilde{s}}_{- m} (t), {\tilde{v}}_{- m} (t), \dots, {\tilde{s}}_{0} (t), {\tilde{v}}_{0} (t), \dots, {\tilde{s}}_{n} (t), {\tilde{v}}_{n} (t)]

(11)

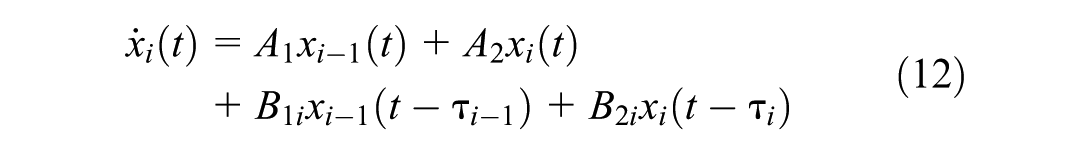

By utilizing the car-following model for HDVs described in Equation 8 and the dynamics specified for CAVs in Equation 11, we can establish the state-space model for the mixed platoon system. The model is presented as:

\begin{matrix} {\overset{\cdot}{x}}_{i} (t) = A_{1} x_{i - 1} (t) + A_{2} x_{i} (t) \\ + B_{1 i} x_{i - 1} (t - τ_{i - 1}) + B_{2 i} x_{i} (t - τ_{i}) \end{matrix}

(12)

This integration enables the construction of the state-space model for the mixed platoon system, which is outlined as:

\begin{matrix} \overset{\cdot}{x} (t) = Ax (t) + Bx (t - τ) + Cu (t) + A_{h} x_{h} (t) \\ + B_{h} x_{h} (t - τ) \end{matrix}

(13)

The coefficient matrices are $A, B \in R^{(2 n + 2 m + 2) \times (2 n + 2 m + 2)}$ and $C \in R^{(2 n + 2 m + 2) \times 1}$ . The delay-related matrices $A_{h}, B_{h}$ and $τ \in R^{(2 n + 2 m + 2) \times 2}$ are given by:

\begin{matrix} \begin{matrix} A = [\begin{matrix} A_{2} \\ A_{1} A_{2} \\ ⋱ ⋱ \\ A_{1} A_{2} \\ A_{1} A_{2} \\ ⋱ ⋱ \\ A_{1} A_{2} \\ A_{1} A_{2} \end{matrix}], \end{matrix} \\ \begin{matrix} B = [\begin{matrix} B_{2 i} \\ B_{1 i} B_{2 i} \\ ⋱ ⋱ \\ B_{1 i} B_{2 i} \\ 0 0 \\ ⋱ ⋱ \\ B_{1 i} B_{2 i} \\ B_{1 i} B_{2 i} \end{matrix}], \end{matrix} \\ \begin{matrix} C = [\begin{matrix} 0 \\ ⋮ \\ 0 \\ d \\ 0 \\ ⋮ \\ 0 \end{matrix}], A_{h} = [\begin{matrix} A_{1} \\ 0 \\ 0 \\ ⋮ \\ 0 \end{matrix}], B_{h} = [\begin{matrix} B_{1 i} \\ 0 \\ 0 \\ ⋮ \\ 0 \end{matrix}], \end{matrix} \\ \begin{matrix} τ = [\begin{matrix} τ_{- m} τ_{- m} \\ τ_{- m + 1} τ_{- m + 1} \\ ⋮ ⋮ \\ τ_{0} τ_{0} \\ ⋮ ⋮ \\ τ_{n} τ_{n} \end{matrix}], \end{matrix} \\ \begin{matrix} A_{1} = [\begin{matrix} 0 1 \\ 0 0 \end{matrix}], A_{2} = [\begin{matrix} 0 - 1 \\ 0 0 \end{matrix}], d = [\begin{matrix} 0 \\ 1 \end{matrix}], \end{matrix} \\ \begin{matrix} B_{1 i} = [\begin{matrix} 0 0 \\ 0 α_{3 i} \end{matrix}], B_{2 i} = [\begin{matrix} 0 0 \\ α_{1 i} - α_{2 i} \end{matrix}] \end{matrix} \end{matrix}

(14)

Note that $B_{1 i}$ and $B_{2 i}$ become zero matrices when vehicle $i = 0$ .

Controller Design and Stability Analysis of Mixed Platoon

This section presents the DWLCC framework and its stability analysis. We first introduce the key variables used throughout: $μ$ (s) denotes the detector time delay for the CAV’s own measurements, $σ_{i} (t)$ (s) represents the time-varying communication delay from vehicle $i$ , $δ_{i} (t) \in {0, 1}$ indicates the communication status (1 for connected, 0 for disconnected), and $w_{i} (t)$ denotes the dynamic weight assigned to information from vehicle $i$ .

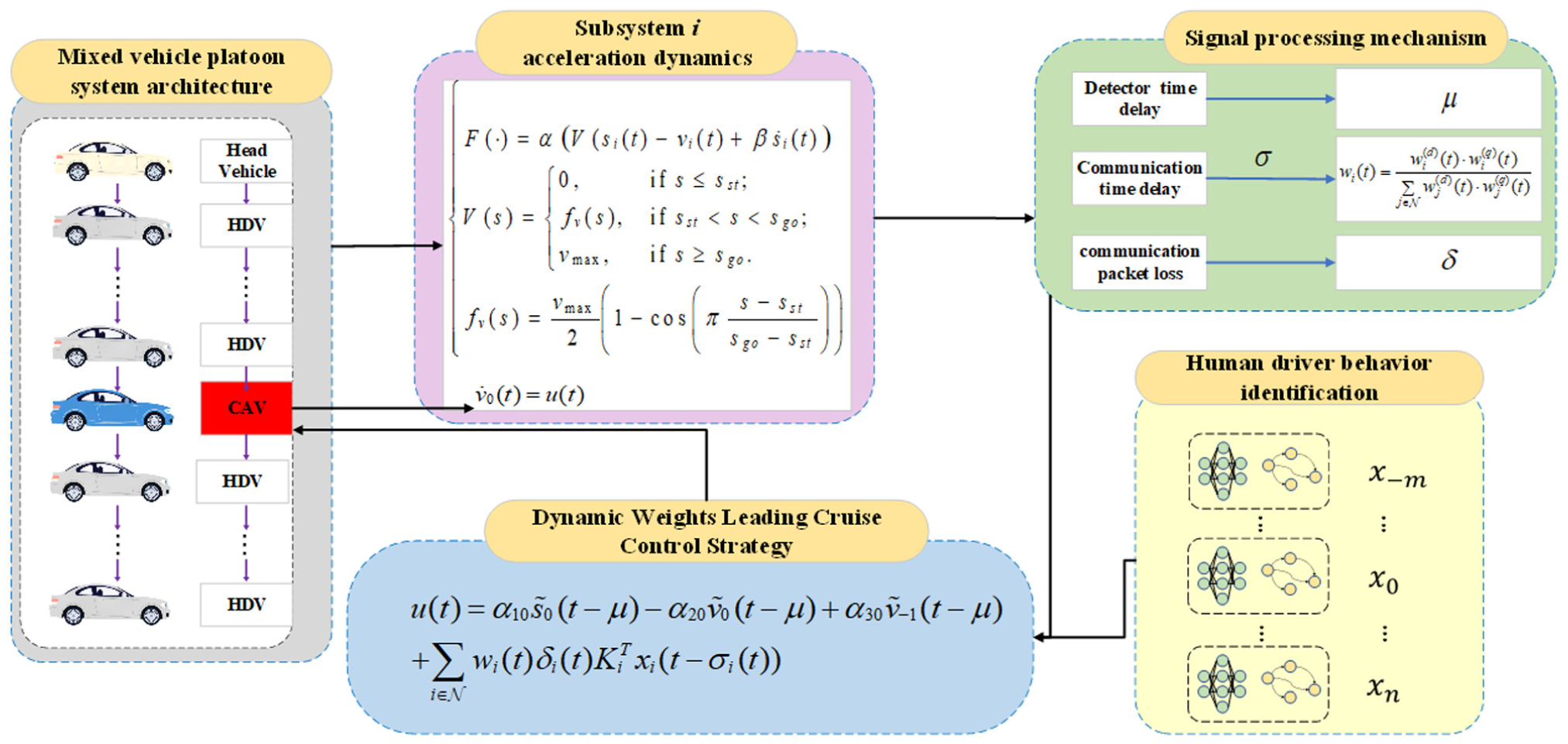

Figure 2 illustrates the framework of the DWLCC under communication constraints. It shows the interaction between the CAV and surrounding HDVs, factoring in detector time delay ( $μ$ ), communication delay ( $σ_{i} (t)$ ), and communication disruption ( $δ_{i}$ ). The diagram also details the dynamic weights ( $w_{i} (t)$ ) used to adjust the control strategy based on HDV behavior. By integrating these factors, appropriate control input for the CAV is generated, ensuring effective coordination and stability within the vehicle platoon.

Figure 2.

Framework of the dynamic weights leading cruise control scheme under communication constraints.

Controller Design Based on Dynamic Communication Topology

The DWLCC framework adapts to changes in communication topology caused by communication disruptions and delays. The control input is formulated as:

u (t) = u_{baseline} (t) + u_{compensation} (t)

(15)

where

$u_{baseline}$ = fundamental platoon control, and

$u_{compensat ion}$ = the influence of communication delays.

The baseline controller incorporates information from both preceding and following vehicles:

u_{baseline} (t) = α_{10} {\tilde{s}}_{0} (t - μ) - α_{20} {\tilde{v}}_{0} (t - μ) + α_{30} {\tilde{v}}_{- 1} (t - μ)

(16)

We implement delay compensation strategies:

u_{compensation} (t) = \sum_{i \in N} w_{i} (t) δ_{i} (t) K_{i}^{⊤} x_{i} (t - σ_{i} (t))

(17)

where

$N$ = the neighbor set,

$δ_{i} (t) \in {0, 1}$ = communication status (1 for connected, 0 for disconnected),

$σ_{i} (t)$ = the time-varying delay from vehicle $i$ ,

$K_{i} = [k_{i, s}, k_{i, v}]^{⊤} \in R^{2}$ = the control gain vector for vehicle $i$ ,

$k_{i, s}$ = the spacing feedback gain from vehicle $i$ , and

$k_{i, v}$ = the velocity feedback gain from vehicle $i$ .

The dynamic weights prioritize information with shorter delays:

w_{i}^{(d)} (t) = \frac{\exp (- λ σ_{i} (t))}{\sum_{j \in N} \exp (- λ σ_{j} (t))}

(18)

where

$λ > 0$ = the delay sensitivity parameter that determines how strongly the weights penalize larger delays.

Incorporate communication quality metrics as follows:

w_{i}^{(q)} (t) = α_{1} \frac{{RSSI}_{i} (t)}{{RSSI}_{\max}} + α_{2} (1 - \frac{{PLR}_{i} (t)}{{PLR}_{\max}})

(19)

where

${RSSI}_{i} (t)$ = the received signal strength indicator from vehicle $i$ ,

${PLR}_{i} (t)$ = the packet loss rate from vehicle $i$ ,

${RSSI}_{\max}$ = the maximum expected signal strength, and

${PLR}_{\max}$ = the maximum tolerable packet loss rate.

The weights $α_{1}$ and $α_{2}$ satisfy $α_{1} + α_{2} = 1$ .

The final weights combine communication delay and quality considerations:

w_{i} (t) = \frac{w_{i}^{(d)} (t) \cdot w_{i}^{(q)} (t)}{\sum_{j \in N} w_{j}^{(d)} (t) \cdot w_{j}^{(q)} (t)}

(20)

This ensures proper normalization while maintaining the priority order based on both delay and communication quality.

Asymptotic Stability Analysis

Lyapunov theory provides a standard tool to assess whether the closed-loop platoon remains stable under small perturbations.

Definition 0.1. Lyapunov stability ( 38 ).

Consider $\overset{\cdot}{x} = f (x)$ with equilibrium $x = 0$ and $f (0) = 0$ .

If there exists $V : R^{n} \to R$ such that:

$V (0) = 0$ and $V (x) > 0$ for all $x \neq 0$ ,

$\overset{\cdot}{V} (x) = \nabla V \cdot f (x) \leq 0$ for all $x \neq 0$ ,

then $x = 0$ is stable.

If $\overset{\cdot}{V} (x) < 0$ for all $x \neq 0$ , then $x = 0$ is asymptotically stable.

Lemma 0.2. Matrix inequality ( 39 ).

For any $x, y \in R^{n}$ and any $Z ≻ 0$ :

\pm 2 x^{⊤} y \leq x^{⊤} Zx + y^{⊤} Z^{- 1} y .

(21)

Lemma 0.3. Wirtinger inequality ( 40 ).

Let $φ : [t - h, t] \to R^{n}$ be integrable and $N ≻ 0$ , with $h > 0$ .

Then:

\begin{matrix} \begin{matrix} \int t - τ {(t)}^{t} {\overset{\cdot}{ϵ}}^{⊤} (s) N \overset{\cdot}{ϵ} (s) ds \\ \geq \frac{1}{τ (t)} {[\int_{t - τ (t)}^{t} ϵ (s) ds]}^{⊤} \times N [\int_{t - τ (t)}^{t} ϵ (s) ds] \end{matrix} \end{matrix}

(22)

Lemma 0.4. Schur complement ( 41 ).

For $L = [\begin{matrix} L_{11} L_{12} \\ L_{21} L_{22} \end{matrix}]$ with $L_{22}$ invertible, $L ≻ 0$ holds if:

L_{22} ≻ 0, L_{11} - L_{12} L_{22}^{- 1} L_{21} ≻ 0

(23)

Substituting the DWLCC control law into the mixed-platoon model yields:

\overset{\cdot}{x} (t) = (A + B) x (t) - B \int_{t - σ (t)}^{t} \overset{\cdot}{x} (s) ds + Cu (t)

(24)

where

$x (t) \in R^{N}$ ,

$N = 2 (n + m + 1)$ , and

$σ (t)$ = the time-varying communication delay.

The matrices satisfy $A, B \in R^{N \times N}$ and $C \in R^{N \times 1}$ .

Assumption 1. The delay $σ (t)$ is continuous and piecewise differentiable. Moreover, there exist constants $σ^{*} > 0$ and ${\overset{\cdot}{σ}}^{*} \geq 0$ such that:

0 \leq σ (t) \leq σ^{*}, | \overset{\cdot}{σ} (t) | \leq {\overset{\cdot}{σ}}^{*} < 1,

(25)

for all $t \geq 0$ .

Theorem 0.5. Consider Equation 24 under Assumption 1. The equilibrium $x = 0$ is asymptotically stable if there exist symmetric matrices $G ≻ 0$ , $N ≻ 0$ , and $E ≻ 0$ in $R^{N \times N}$ such that:

Ψ (σ^{*}, {\overset{\cdot}{σ}}^{*}) ≺ 0,

(26)

where

$Ψ \in R^{(2 N + 1) \times (2 N + 1)}$ =

Ψ = [\begin{matrix} Ψ_{11} Ψ_{12} Ψ_{13} \\ Ψ_{12}^{⊤} Ψ_{22} Ψ_{23} \\ Ψ_{13}^{⊤} Ψ_{23}^{⊤} Ψ_{33} \end{matrix}],

(27)

with blocks:

\begin{matrix} Ψ_{11} = {(A + B)}^{⊤} G + G (A + B) + E - {\overset{\cdot}{σ}}^{*} R \\ + σ^{*} {(A + B)}^{⊤} R (A + B) - σ^{*} {(A + B)}^{⊤} RB \\ - σ^{*} B^{⊤} R (A + B) + σ^{*} B^{⊤} RB, \\ Ψ_{12} = σ^{*} {(A + B)}^{⊤} RB - σ^{*} B^{⊤} RB, \\ Ψ_{13} = GC + σ^{*} {(A + B)}^{⊤} RC - σ^{*} B^{⊤} RC, \\ Ψ_{22} = - (1 - {\overset{\cdot}{σ}}^{*}) E + σ^{*} B^{⊤} RB, \\ Ψ_{23} = σ^{*} B^{⊤} RC, \\ Ψ_{33} = σ^{*} C^{⊤} RC . \end{matrix}

Given $(A, B, C)$ and fixed controller gains, a conservative $σ_{\max}^{*}$ can be obtained by:

\begin{matrix} \max_{σ^{*}, {\overset{\cdot}{σ}}^{*}, G, R, E} σ^{*} \\ s . t . Ψ (σ^{*}, {\overset{\cdot}{σ}}^{*}) ≺ 0, \\ G ≻ 0, R ≻ 0, E ≻ 0, \\ 0 \leq {\overset{\cdot}{σ}}^{*} < 1 . \end{matrix}

(28)

Proof.

Based on Lyapunov stability theory, we construct the Lyapunov-Krasovskii functional:

V (t) = V_{1} (t) + V_{2} (t) + V_{3} (t)

(29)

where

\begin{matrix} V_{1} (t) = x^{⊤} (t) Gx (t), \\ V_{2} (t) = \int_{t - σ (t)}^{t} x^{⊤} (s) Ex (s) ds, \\ V_{3} (t) = \int_{- σ (t)}^{0} \int_{t + θ}^{t} {\overset{\cdot}{x}}^{⊤} (s) R \overset{\cdot}{x} (s) dsd θ \end{matrix}

(30)

Taking the time derivative along system trajectories yields:

\begin{matrix} \overset{\cdot}{V} (t) = {\overset{\cdot}{x}}^{⊤} (t) Gx (t) + x^{⊤} (t) G \overset{\cdot}{x} (t) \\ + x^{⊤} (t) Ex (t) \\ - (1 - \overset{\cdot}{σ} (t)) x^{⊤} (t - σ (t)) Ex (t - σ (t)) \\ + \overset{\cdot}{σ} (t) \int_{t - σ (t)}^{t} {\overset{\cdot}{x}}^{⊤} (s) R \overset{\cdot}{x} (s) ds \\ + σ (t) {\overset{\cdot}{x}}^{⊤} (t) R \overset{\cdot}{x} (t) \\ - \int_{t - σ (t)}^{t} {\overset{\cdot}{x}}^{⊤} (s) R \overset{\cdot}{x} (s) ds \end{matrix}

(31)

Substituting the system dynamics and applying the Newton-Leibniz formula $x (t) - x (t - σ (t)) = \int_{t - σ (t)}^{t} \overset{\cdot}{x} (s) ds$ :

\begin{matrix} \overset{\cdot}{V} (t) = {[(A + B) x - B \int_{t - σ}^{t} \overset{\cdot}{x} ds + Cu]}^{⊤} Gx \\ + x^{⊤} G [(A + B) x - B \int_{t - σ}^{t} \overset{\cdot}{x} ds + Cu] \\ + σ {\overset{\cdot}{x}}^{⊤} R \overset{\cdot}{x} + \overset{\cdot}{σ} \int_{t - σ}^{t} {\overset{\cdot}{x}}^{⊤} R \overset{\cdot}{x} ds \\ + x^{⊤} Ex - \int_{t - σ}^{t} {\overset{\cdot}{x}}^{⊤} R \overset{\cdot}{x} ds \\ - (1 - \overset{\cdot}{σ}) x^{⊤} (t - σ) Ex (t - σ) \end{matrix}

(32)

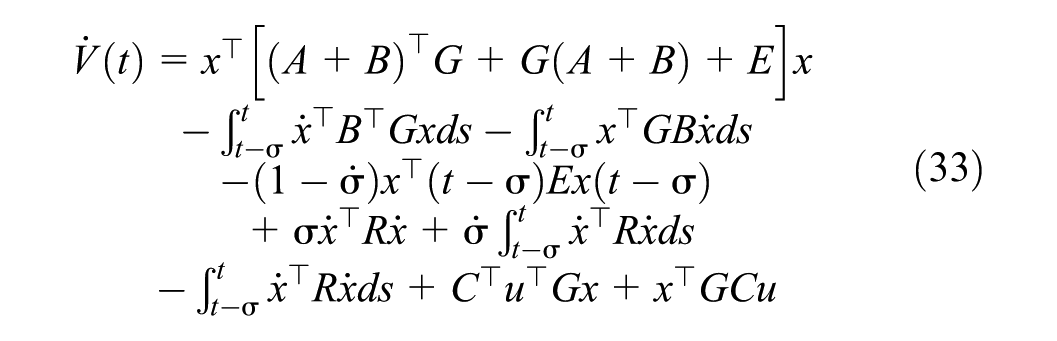

Expanding the terms yields:

\begin{matrix} \overset{\cdot}{V} (t) = x^{⊤} [{(A + B)}^{⊤} G + G (A + B) + E] x \\ - \int_{t - σ}^{t} {\overset{\cdot}{x}}^{⊤} B^{⊤} Gxds - \int_{t - σ}^{t} x^{⊤} GB \overset{\cdot}{x} ds \\ - (1 - \overset{\cdot}{σ}) x^{⊤} (t - σ) Ex (t - σ) \\ + σ {\overset{\cdot}{x}}^{⊤} R \overset{\cdot}{x} + \overset{\cdot}{σ} \int_{t - σ}^{t} {\overset{\cdot}{x}}^{⊤} R \overset{\cdot}{x} ds \\ - \int_{t - σ}^{t} {\overset{\cdot}{x}}^{⊤} R \overset{\cdot}{x} ds + C^{⊤} u^{⊤} Gx + x^{⊤} GCu \end{matrix}

(33)

Applying Lemma 0.2:

\begin{matrix} \overset{\cdot}{V} (t) \leq x^{⊤} (t) [{(A + B)}^{⊤} G + G (A + B) + E] x (t) \\ + \frac{1}{2} \int_{t - τ (t)}^{t} {\overset{\cdot}{x}}^{⊤} (s) R \overset{\cdot}{x} (s) ds \\ + \frac{1}{2} \int_{t - τ (t)}^{t} x^{⊤} (t) {GBR}^{- 1} B^{⊤} Gx (t) ds \\ + \frac{1}{2} \int_{t - τ (t)}^{t} {\overset{\cdot}{x}}^{⊤} (s) R \overset{\cdot}{x} (s) ds \\ + \frac{1}{2} \int_{t - τ (t)}^{t} x^{⊤} (t) {GBR}^{- 1} B^{⊤} Gx (t) ds \\ - (1 - \overset{\cdot}{σ} (t)) x^{⊤} (t - τ (t)) Ex (t - σ (t)) \\ - \int_{t - σ (t)}^{t} {\overset{\cdot}{x}}^{⊤} (s) R \overset{\cdot}{x} (s) ds \\ + σ (t) {\overset{\cdot}{x}}^{⊤} (t) R \overset{\cdot}{x} (t) + \overset{\cdot}{σ} (t) \int_{t - σ (t)}^{t} {\overset{\cdot}{x}}^{⊤} (s) R \overset{\cdot}{x} (s) ds \\ + C^{⊤} u^{⊤} (t) Gx (t) \\ + x^{⊤} (t) GCu (t) \end{matrix}

(34)

Applying Wirtinger inequality:

\begin{matrix} \overset{\cdot}{V} (t) \leq x^{⊤} (t) [{(A + B)}^{⊤} G + G (A + B) + E \\ + σ (t) {GBR}^{- 1} B^{⊤} G] x (t) \\ - (1 - \overset{\cdot}{σ}) x^{⊤} (t - σ (t)) Ex (t - σ (t)) \\ + σ (t) {[(A + B) x (t) - B \int_{t - σ (t)}^{t} \overset{\cdot}{x} (s) ds + Cu (t)]}^{⊤} \\ \cdot R [(A + B) x (t) - B \int_{t - σ (t)}^{t} \overset{\cdot}{x} (s) ds + Cu (t)] \\ - \overset{\cdot}{σ} (t) x^{⊤} (t) Rx (t) + C^{⊤} u^{⊤} (t) Gx (t) + x^{⊤} (t) GCu (t) \\ = x^{⊤} (t) [{(A + B)}^{⊤} G + G (A + B) + E \\ + σ (t) {GBR}^{- 1} B^{⊤} G + σ (t) {(A + B)}^{⊤} R (A + B) \\ - σ (t) {(A + B)}^{⊤} RB - σ (t) B^{⊤} R (A + B) + σ (t) B^{⊤} RB \\ - \overset{\cdot}{σ} R] x (t) - (1 - \overset{\cdot}{σ}) x^{⊤} (t - σ (t)) Ex (t - σ (t)) \\ + x^{⊤} (t) σ (t) {(A + B)}^{⊤} RBx (t - σ (t)) \\ + σ (t) x^{⊤} (t - σ (t)) B^{⊤} R (A + B) x (t) \\ + σ (t) x^{⊤} (t - σ (t)) B^{⊤} RBx (t - σ (t)) \\ - σ (t) x^{⊤} (t) B^{⊤} RBx (t - σ (t)) \\ - σ (t) x^{⊤} (t - σ (t)) B^{⊤} RBx (t) \\ + x^{⊤} (t) σ (t) {(A + B)}^{⊤} Cu (t) - σ (t) x^{⊤} (t) BRCu (t) \\ + σ (t) x^{⊤} (t - σ (t)) BRCu (t) \\ - σ (t) C^{⊤} u^{⊤} (t) RBx (t) + σ (t) C^{⊤} u^{⊤} (t) RBx (t - σ (t)) \\ + σ (t) C^{⊤} u^{⊤} (t) R (A + B) x (t) + σ (t) C^{⊤} u^{⊤} (t) RCu (t) \\ + C^{⊤} u^{⊤} (t) Gx (t) + x^{⊤} (t) GCu (t) \end{matrix}

(35)

We have Lyapnov-Krasovskii stability criterion as:

\overset{\cdot}{V} (t) \leq q^{⊤} (t) Ψ q (t)

(36)

where

$q^{⊤} (t) = [x^{⊤} (t), x^{⊤} (t - σ (t)), u^{⊤} (t)]$ .

For asymptotic stability, we require $\overset{\cdot}{V} (t) < 0$ for all $q (t) \neq 0$ . Under $σ (t) \leq σ^{*}$ and $| \overset{\cdot}{σ} (t) | \leq {\overset{\cdot}{σ}}^{*}$ , this is guaranteed by $Ψ ≺ 0$ in Equation 26.

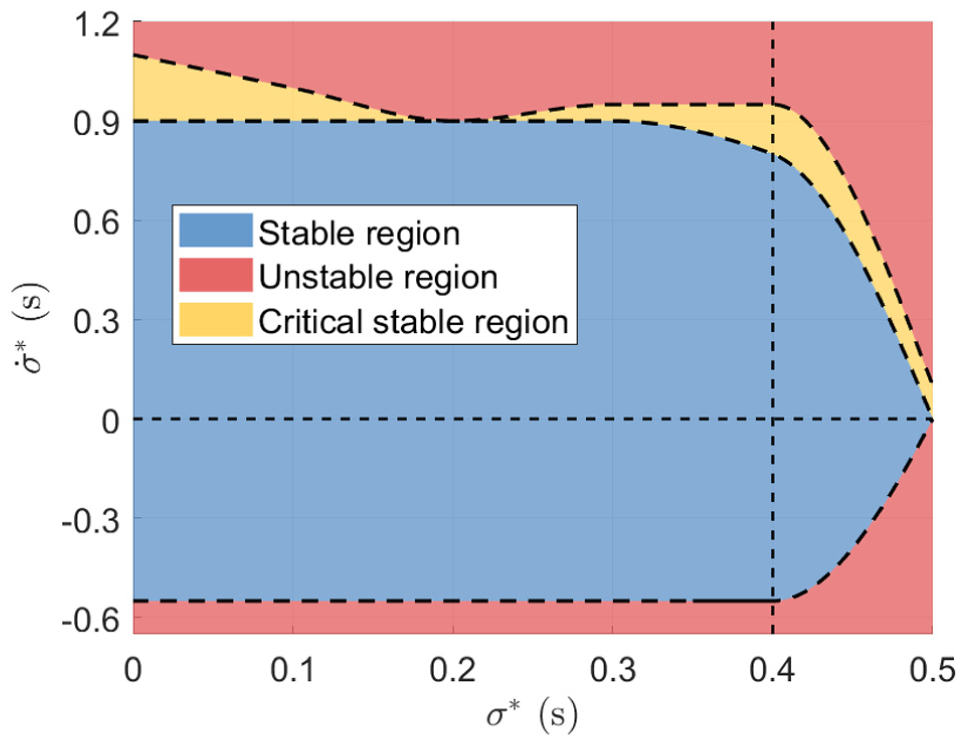

Figure 3 illustrates the stability regions in the $(σ^{*}, {\overset{\cdot}{σ}}^{*})$ parameter space obtained by solving the Linear Matrix Inequality (LMI) feasibility problem.

Figure 3.

Lyapunov asymptotic stability region under varying communication delays and delay derivatives.

Three characteristics emerge from the stability analysis. First, the stable region extends asymmetrically with respect to ${\overset{\cdot}{σ}}^{*}$ , covering a wider range for positive values than negative values. This stems from the $(1 - {\overset{\cdot}{σ}}^{*})$ coefficient in $Ψ_{22} = - (1 - {\overset{\cdot}{σ}}^{*}) E$ of the LMI condition. When ${\overset{\cdot}{σ}}^{*} < 0$ , this coefficient exceeds unity and amplifies the constraint, tightening feasibility despite delays physically decreasing. When ${\overset{\cdot}{σ}}^{*} > 0$ , the coefficient drops below unity, relaxing the constraint.

Second, the critical stability boundary narrows sharply near $σ^{*} \approx 0.2$ s, where the stable region contracts significantly in the ${\overset{\cdot}{σ}}^{*}$ dimension. This occurs because competing terms in $Ψ_{11}$ —the stabilizing $- {\overset{\cdot}{σ}}^{*} N$ and the destabilizing $σ^{*} {(A + B)}^{⊤} N (A + B)$ —nearly balance at this delay value with the chosen controller gains. The near-cancellation leaves minimal margin for LMI feasibility across varying ${\overset{\cdot}{σ}}^{*}$ , creating a sensitivity bottleneck in the parameter space.

Third, the stable region contracts dramatically beyond $σ^{*} \approx 0.4$ s. For practical V2V systems, maintaining communication delays below 0.4 s is necessary for stability, with the 0.2 s bottleneck representing a transition point where sensitivity to delay variations temporarily intensifies.

Head-to-Tail String Stability Analysis

String stability evaluates a vehicle’s ability to attenuate velocity disturbances from its predecessor via the head-to-tail transfer function. Understanding the relationship between control weights and time delays is essential for maintaining stability in mixed platoons.

Definition 0.6. Head-to-tail string stability ( 34 ).

In a platoon of consecutive vehicles, let ${\tilde{v}}_{h} (t)$ and ${\tilde{v}}_{t} (t)$ denote the velocity deviations of the leading and trailing vehicles, respectively. The head-to-tail transfer function is defined as:

Γ (s) = \frac{{\tilde{V}}_{t} (s)}{{\tilde{V}}_{h} (s)}

(37)

where

${\tilde{V}}_{h} (s)$ and ${\tilde{V}}_{t} (s)$ = the Laplace transforms of the velocity errors.

The system is head-to-tail string stable if and only if:

{| Γ (j ω) |}^{2} < 1, \forall ω \in R

(38)

where

$j^{2} = - 1$ , and

$| \cdot | = the$ modulus.

We analyze string stability in a mixed platoon with $m$ preceding HDVs and $n$ following HDVs, as shown in Figure 1. The velocity deviation ${\tilde{V}}_{h} (s)$ serves as input, while ${\tilde{V}}_{t} (s)$ acts as output.

From the Laplace transform of the HDV car-following model, the local transfer function is:

\frac{{\tilde{V}}_{i} (s)}{V_{i - 1}^{~} (s)} = \frac{α_{3} {se}^{- τ s} + α_{1} e^{- τ s}}{s^{2} + α_{2} {se}^{- τ s} + α_{1} e^{- τ s}} = \frac{φ_{τ} (s)}{ς_{τ} (s)}

(39)

where

\begin{matrix} φ_{τ} (s) = α_{3} {se}^{- τ s} + α_{1} e^{- τ s}, and \\ ς_{τ} (s) = s^{2} + α_{2} {se}^{- τ s} + α_{1} e^{- τ s} \end{matrix}

Combining the CAV dynamics and HDV models, the head-to-tail transfer function for the mixed platoon is:

Γ (s) = G (s) \cdot {(\frac{φ_{τ} (s)}{ς_{τ} (s)})}^{n + m}

(40)

where

G (s) = \frac{φ_{μ} (s) + \sum_{i \in P} H_{i} (s) {(\frac{φ_{τ} (s)}{ς_{τ} (s)})}^{i + 1}}{ς_{μ} (s) - \sum_{i \in F} H_{i} (s) {(\frac{φ_{τ} (s)}{ς_{τ} (s)})}^{i}}

with

\begin{matrix} φ_{μ} (s) = (α_{3} s + α_{1}) e^{- μ s}, \\ ς_{μ} (s) = s^{2} + (α_{2} s + α_{1}) e^{- μ s} \\ H_{i} (s) = {Nw}_{i} δ_{i} γ_{i, 1} (\frac{ς_{τ} (s)}{φ_{τ} (s)} - 1) e^{- τ s} + {Nw}_{i} δ_{i} γ_{i, 2} {se}^{- τ s} \end{matrix}

Lemma 0.7. String stability gain constraints.

For feedback from multiple vehicles, the controller gains $γ_{i, 1}$ and $γ_{i, 2}$ must satisfy:

\begin{matrix} \sum_{i \in P \cup F} δ_{i} γ_{i, 1} \leq | \frac{ς_{σ} (j ω) - φ_{σ} (j ω)}{D_{1} (ω)} |, \end{matrix}

(41)

\begin{matrix} \sum_{i \in P \cup F} δ_{i} γ_{i, 2} \leq | \frac{1}{D_{2} (ω)} | \end{matrix}

(42)

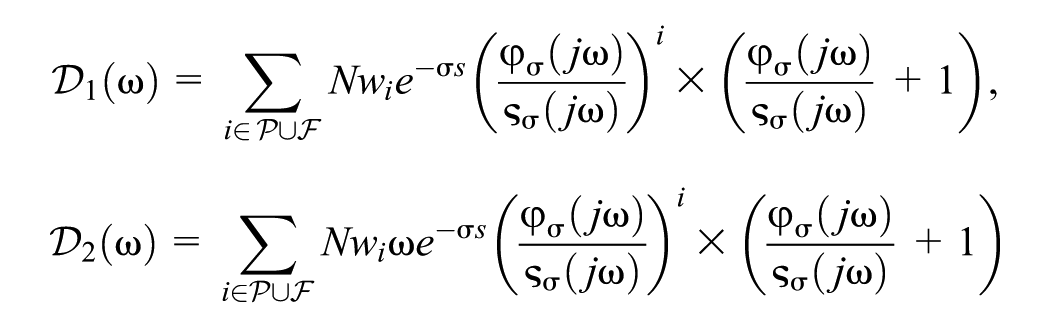

where

\begin{matrix} D_{1} (ω) = \sum_{i \in P \cup F} {Nw}_{i} e^{- σ s} {(\frac{φ_{σ} (j ω)}{ς_{σ} (j ω)})}^{i} \times (\frac{φ_{σ} (j ω)}{ς_{σ} (j ω)} + 1), \\ D_{2} (ω) = \sum_{i \in P \cup F} {Nw}_{i} ω e^{- σ s} {(\frac{φ_{σ} (j ω)}{ς_{σ} (j ω)})}^{i} \times (\frac{φ_{σ} (j ω)}{ς_{σ} (j ω)} + 1) \end{matrix}

Assuming the CAV acquires information from two vehicles ahead and two behind, Figure 4 shows the impact of control gains on string stability under different delay conditions.

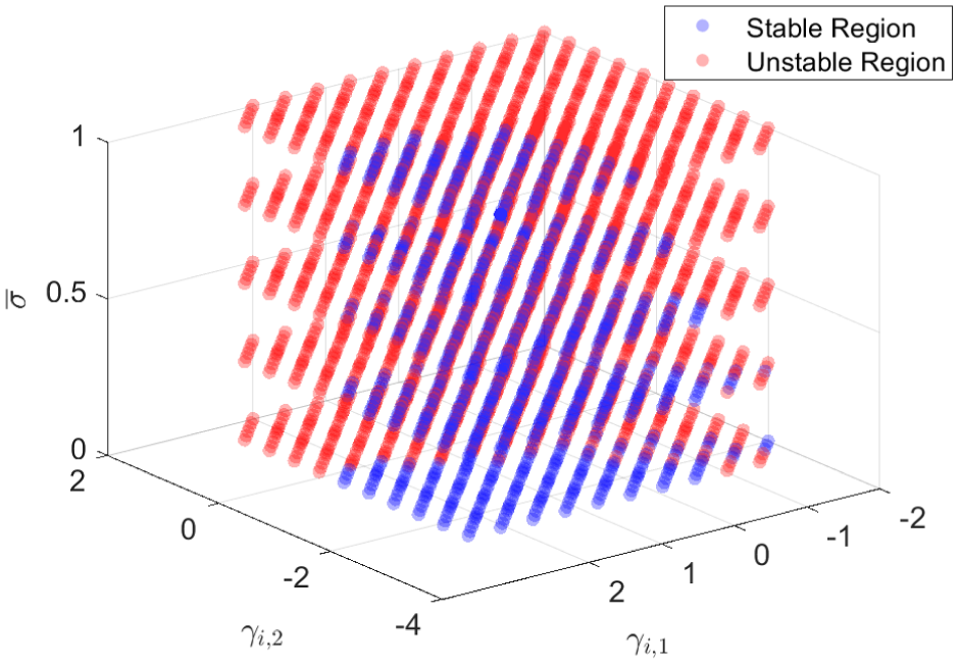

Figure 4.

Influence of control gains and time delay on head-to-tail string stability of mixed platoon.

Figure 4 illustrates the impact of control gains $γ_{i, 1}$ and $γ_{i, 2}$ on the string stability of a mixed vehicle platoon, considering scenarios where the CAV receives information from two vehicles ahead and two behind. The plot presents stable and unstable regions under mean varying communication delays $\bar{σ}$ and control gain settings. The results show that higher values of $γ_{i, 1}$ combined with lower $γ_{i, 2}$ promote stability, whereas the opposite increases instability. Additionally, larger delays generally lead to greater instability. Notably, small variations in delay have minimal effects on stability, indicating robustness against minor fluctuations.

Figure 4 systematically explores string stability boundaries across five levels of mean communication delay ( $\bar{σ} = 0.1$ s, $0.3$ s, $0.5$ s, $0.7$ s, and $0.9$ s) and two levels of delay deviation ( $Δ \bar{σ} = 0.05$ and $0.1$ ). Each subplot maps the stability region in the $(γ_{i, 1}, γ_{i, 2})$ plane with color intensity indicating stability degree. When mean delay is low ( $\bar{σ} \leq 0.3$ s), representing typical V2V latency under normal conditions, the stable region occupies a substantial portion of the parameter space, offering flexibility in controller design. However, as $\bar{σ}$ increases to $0.5$ s and beyond, the stable region contracts dramatically, with only narrow stability corridors remaining at $\bar{σ} = 0.7$ s and $0.9$ s, predominantly in the negative $γ_{i, 2}$ region. Comparing subfigures with different delay variations reveals that higher $Δ \bar{σ}$ further erodes stability, particularly under large mean delays, emphasizing that both delay magnitude and predictability critically affect platoon stability.

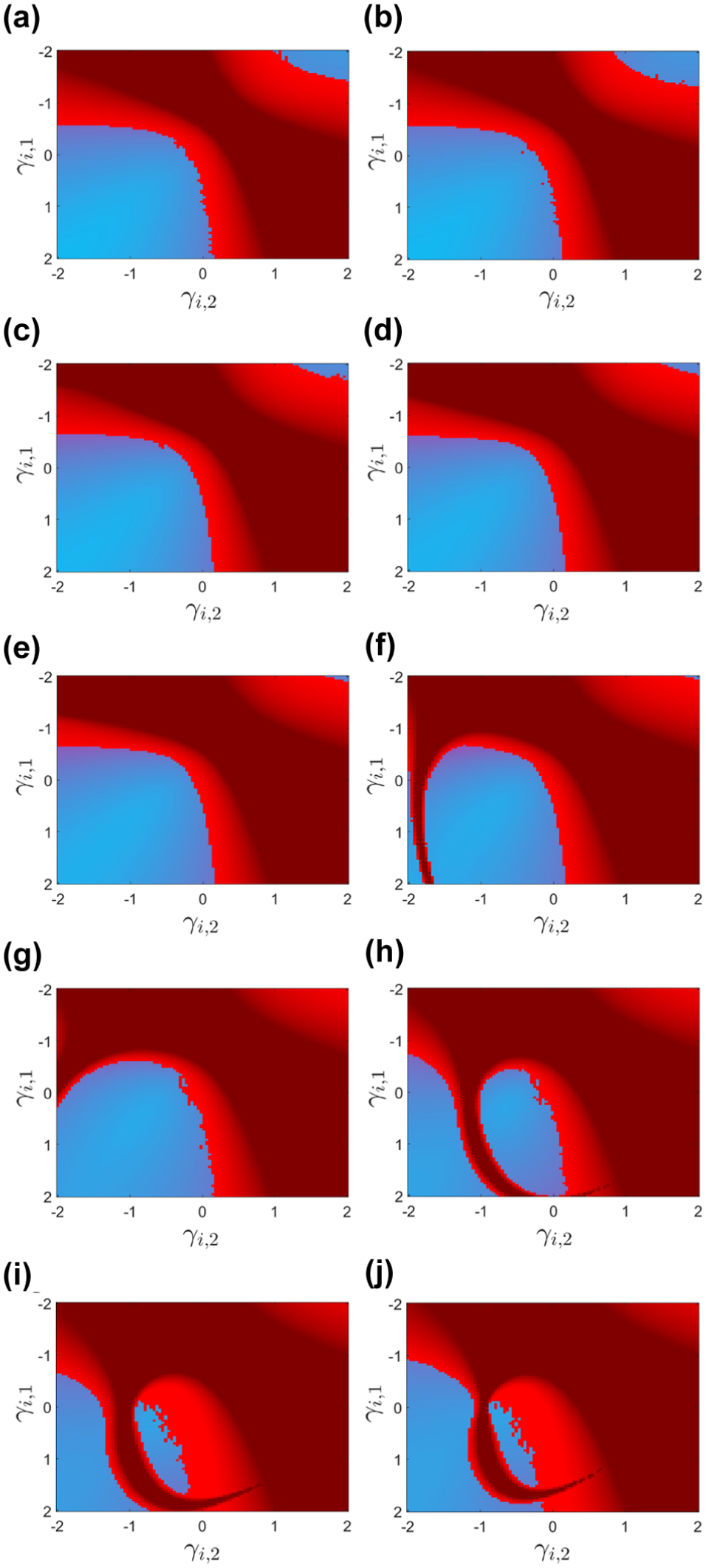

Figure 5 systematically explores string stability boundaries across five mean delay levels and two delay deviation levels. When mean delay is low ( $\bar{σ} \leq 0.3$ s (Figure 5, a–d), the stable region occupies substantial parameter space. However, as $\bar{σ}$ increases to $0.5$ s, as shown in Figure 5, e–j, the stable region contracts dramatically. At $\bar{σ} = 0.7$ s and $0.9$ s, as shown in Figure 5, g–j, only narrow stability corridors remain. Comparing subfigures with different $Δ \bar{σ}$ reveals that higher delay variation further erodes stability. Figure 5 consistently shows that negative $γ_{i, 2}$ values yield larger stable regions across all delay conditions.

Figure 5.

Head-to-tail string stability regions under varying communication delays and delay deviations: (a) $\bar{σ} = 0.1$ s, $Δ σ = 0.05$ , (b) $\bar{σ} = 0.1$ s, $Δ σ = 0.1$ , (c) $\bar{σ} = 0.3$ s, $Δ σ = 0.05$ , (d) $\bar{σ} = 0.3$ s, $Δ σ = 0.1$ , (e) $\bar{σ} = 0.5$ s, $Δ σ = 0.05$ , (f) $\bar{σ} = 0.5$ s, $Δ σ = 0.1$ , (g) $\bar{σ} = 0.7$ s, $Δ σ = 0.05$ , (h) $\bar{σ} = 0.7$ s, $Δ σ = 0.1$ , (i) $\bar{σ} = 0.9$ s, $Δ σ = 0.05$ , (j) $\bar{σ} = 0.9$ s, $Δ σ = 0.1$ .

Comparative Experiments on Communication Range and Controller Strategies

This section presents comparative experiments to evaluate the effects of communication range and controller strategies on the stability of mixed platoons. The experiments compare the adaptive feedback mechanism of DWLCC with the static configuration of leading cruise control (LCC) under varying communication conditions ( 42 ).

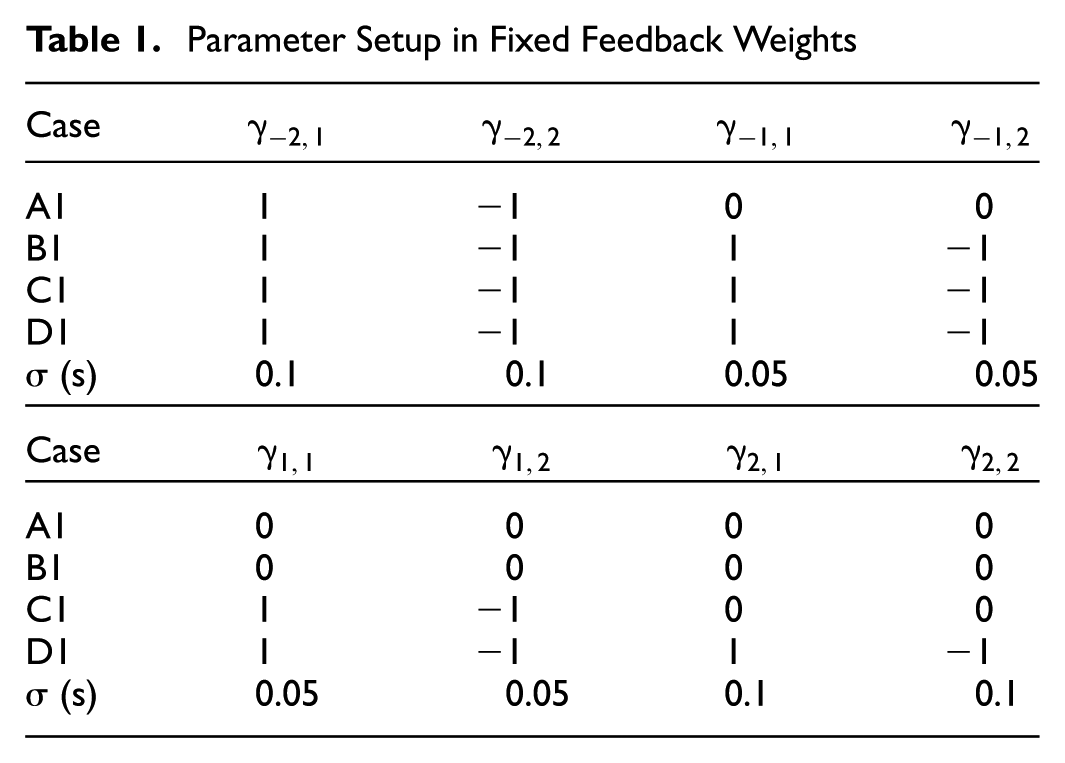

Table 1 presents the fixed feedback weights for different cases in the mixed platoon, specifying the CAV’s response to preceding and following HDVs. Cases A to D define distinct weights settings for interactions with one or two vehicles ahead or behind. Both fixed and dynamic weights adjust based on speed and spacing, but dynamic feedback weights, shown in Table 2, also adapt according to communication delays, providing more flexibility in response to changing platoon conditions. Additionally, $e^{*} = \sum_{i}^{m + n} e^{- σ_{i} (t)}$ captures the combined effect of communication delays across the platoon.

Table 1.

Parameter Setup in Fixed Feedback Weights

Case	$γ_{- 2, 1}$	$γ_{- 2, 2}$	$γ_{- 1, 1}$	$γ_{- 1, 2}$
A1	1	−1	0	0
B1	1	−1	1	−1
C1	1	−1	1	−1
D1	1	−1	1	−1
$σ$ (s)	0.1	0.1	0.05	0.05
Case	$γ_{1, 1}$	$γ_{1, 2}$	$γ_{2, 1}$	$γ_{2, 2}$
A1	0	0	0	0
B1	0	0	0	0
C1	1	−1	0	0
D1	1	−1	1	−1
$σ$ (s)	0.05	0.05	0.1	0.1

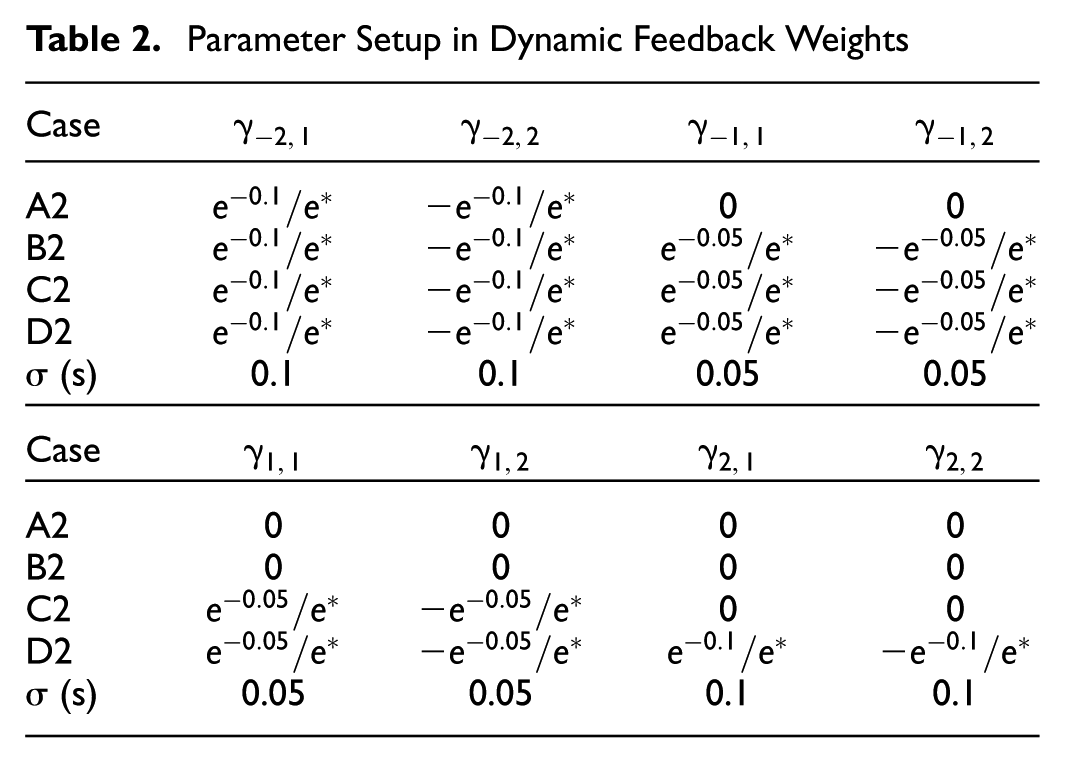

Table 2.

Parameter Setup in Dynamic Feedback Weights

Case	$γ_{- 2, 1}$	$γ_{- 2, 2}$	$γ_{- 1, 1}$	$γ_{- 1, 2}$
A2	$e^{- 0.1} / e^{*}$	− $e^{- 0.1} / e^{*}$	0	0
B2	$e^{- 0.1} / e^{*}$	− $e^{- 0.1} / e^{*}$	$e^{- 0.05} / e^{*}$	− $e^{- 0.05} / e^{*}$
C2	$e^{- 0.1} / e^{*}$	− $e^{- 0.1} / e^{*}$	$e^{- 0.05} / e^{*}$	− $e^{- 0.05} / e^{*}$
D2	$e^{- 0.1} / e^{*}$	− $e^{- 0.1} / e^{*}$	$e^{- 0.05} / e^{*}$	− $e^{- 0.05} / e^{*}$
$σ$ (s)	0.1	0.1	0.05	0.05
Case	$γ_{1, 1}$	$γ_{1, 2}$	$γ_{2, 1}$	$γ_{2, 2}$
A2	0	0	0	0
B2	0	0	0	0
C2	$e^{- 0.05} / e^{*}$	− $e^{- 0.05} / e^{*}$	0	0
D2	$e^{- 0.05} / e^{*}$	− $e^{- 0.05} / e^{*}$	$e^{- 0.1} / e^{*}$	− $e^{- 0.1} / e^{*}$
$σ$ (s)	0.05	0.05	0.1	0.1

The results in Figure 6 analyze the frequency response of the mixed platoon under various communication conditions, evaluating the impact of the DWLCC strategy on system performance. Figure 6a presents the magnitude of the transfer function $Γ (s)$ over a frequency range $ω$ , comparing different control scenarios. Notably, the curves for HDV-only scenarios and the single-vehicle communication scenarios overlap, indicating minimal differences when only one preceding vehicle is involved or no CAVs are present. In contrast, case C and case D reveal the effects of increased communication and automation, demonstrating how control complexity influences system dynamics.

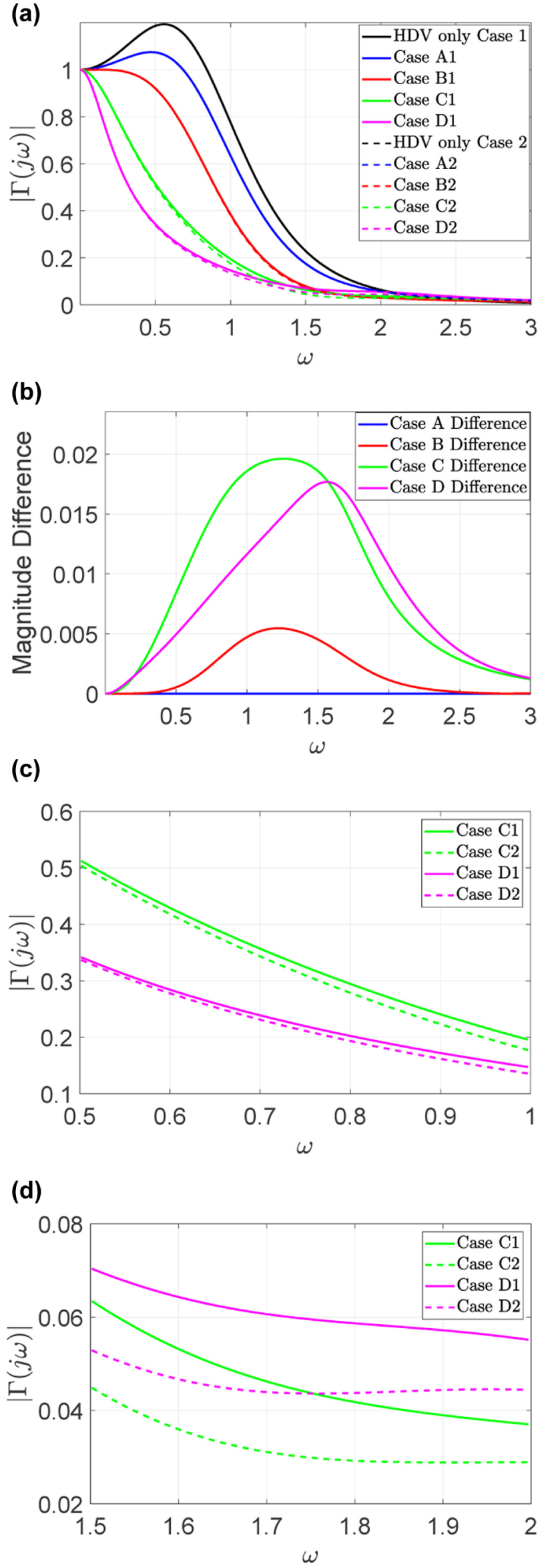

Figure 6.

Frequency-domain response: (a) magnitude of the transfer function $Γ (s)$ comparing different control scenarios, (b) magnitude difference across cases A, B, C, and D, (c) response magnitudes for cases C and D over $ω \in [0.5, 1]$ , and (d) response magnitudes for cases C and D over $ω \in [1.5, 2]$ .

Figure 6b compares performance across cases A, B, C, and D, with case D showing the most significant differences, suggesting greater dynamic adjustments than other scenarios.

Figure 6, c and d , shows response magnitudes for cases C and D over different frequency ranges. Scenario 2 exhibits consistently lower response magnitudes, demonstrating the effectiveness of the DWLCC controller in improving stability by dynamically adjusting control weights. Lower response magnitudes indicate that DWLCC effectively dampens system reactivity, ensuring robust performance under various frequency conditions.

Numerical Experiments

This section validates the DWLCC through simulation under varied communication delays, comparing its performance against the LCC.

The communication delay $σ_{i} (t)$ is generated using a first-order Gauss-Markov model: $σ_{i} (t + Δ t) = (1 - ρ) σ_{i} (t) + ρ {\bar{σ}}_{i} + η_{i} (t)$ , where ${\bar{σ}}_{i}$ is the mean delay, $ρ = 0.1$ (controls temporal correlation), and $η_{i} (t)$ is zero-mean Gaussian noise. The delay is bounded within $[{\bar{σ}}_{i} - Δ σ, {\bar{σ}}_{i} + Δ σ]$ . In the figures, $\bar{σ}$ represents the mean delay and $Δ σ$ represents the delay deviation. For communication quality metrics, the received signal strength indicator (RSSI) is modeled as inversely proportional to inter-vehicle distance with log-normal fading, and packet loss rate (PLR) increases with delay magnitude. The current simulations primarily employ delay-based weighting with $λ = 2$ $s^{- 1}$ , as it captures the dominant effect of communication quality on controller performance.

Comparison between DWLCC and LCC under Mixed Platoon

We present simulation results by employing nonlinear car-following models. In particular, the nonlinear OVM model is utilized for modeling longitudinal behaviors of HDVs, where $\bar{α_{i}} = 0.6$ , $\bar{β_{i}} = 0.9$ , $v_{\max} = 30$ , $s_{st} = 5$ , and $s_{go} = 35$ ( 43 ). At the beginning of the simulation, the mixed platoon is in equilibrium state ( $v^{*} = 15$ , $s^{*} = 20$ ). From $t = 20$ s, the velocity of the 4th vehicle brakes at $- 5 m / s^{2}$ for 1 s. $γ_{- 1, 1} = 0.1$ , $γ_{- 1, 2} = - 0.5$ , $γ_{0, 2} = - 0.05$ , $γ_{1, 1} = 0.1$ , and $γ_{1, 2} = 0.05$ , assuming a simulation scenario time of 50 s.

To evaluate the robustness of the proposed DWLCC under realistic traffic perturbations, we introduce an emergency braking disturbance into the simulation:

a_{dist} (t) = {\begin{matrix} - 5.0 {m / s}^{2}, t \in [20, 21] s \\ 0, otherwise \end{matrix}

(43)

This disturbance magnitude approaches the maximum deceleration limit, representing an extreme but realistic scenario, such as a human driver’s sudden reaction to perceived hazards or unexpected traffic conditions. The 1 s duration mimics typical emergency braking events observed in naturalistic driving studies.

1) Safety Performance

To assess the rear-end collision risk within mixed platoons, we implement two surrogate safety measures: time integrated time-to-collision (TIT) and time exposed time-to-collision (TET) ( 44 ). The TET metric quantifies the total duration during which vehicles remain in critical safety scenarios, specifically when the time-to-collision (TTC) drops below a predefined threshold ${TTC}^{*}$ (s). Conversely, the TIT measure captures the cumulative severity of situations where the TTC is less than ${TTC}^{*}$ ( 45 , 46 ).

Let $L$ (m) denote the vehicle length, $Δ t_{s}$ (s) the simulation time step, and $T$ the total number of time steps. The TTC for vehicle $i$ at time step $k$ is defined as:

{TTC}_{i} (k) = {\begin{matrix} \frac{s_{i - 1} (k) - s_{i} (k) - L}{v_{i} (k) - v_{i - 1} (k)} if v_{i} (k) > v_{i - 1} (k) \\ \infty if v_{i} (k) \leq v_{i - 1} (k) \end{matrix}

(44)

The TET at each time step is computed as:

TET (k) = \sum_{i = 1}^{m + n + 1} θ_{i} (k) \cdot Δ t_{s},

(45)

where

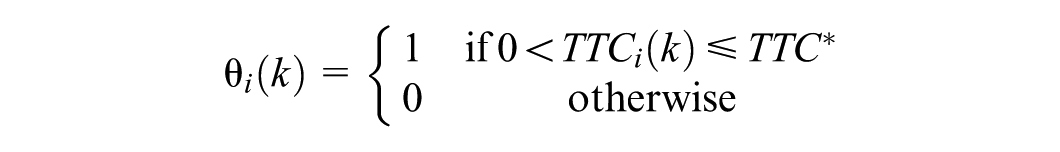

$θ_{i} (k)$ = an indicator function defined as:

θ_{i} (k) = {\begin{matrix} 1 if 0 < {TTC}_{i} (k) \leq {TTC}^{*} \\ 0 otherwise \end{matrix}

The total TET over the simulation period is:

TET = \sum_{k = 1}^{T} TET (k)

(46)

Similarly, the TIT at each time step captures the severity of critical situations:

TIT (k) = \sum_{i = 1}^{m + n + 1} [{TTC}^{*} - {TTC}_{i} (k)] \cdot Δ t_{s}

(47)

for $0 < {TTC}_{i} (k) \leq {TTC}^{*}$

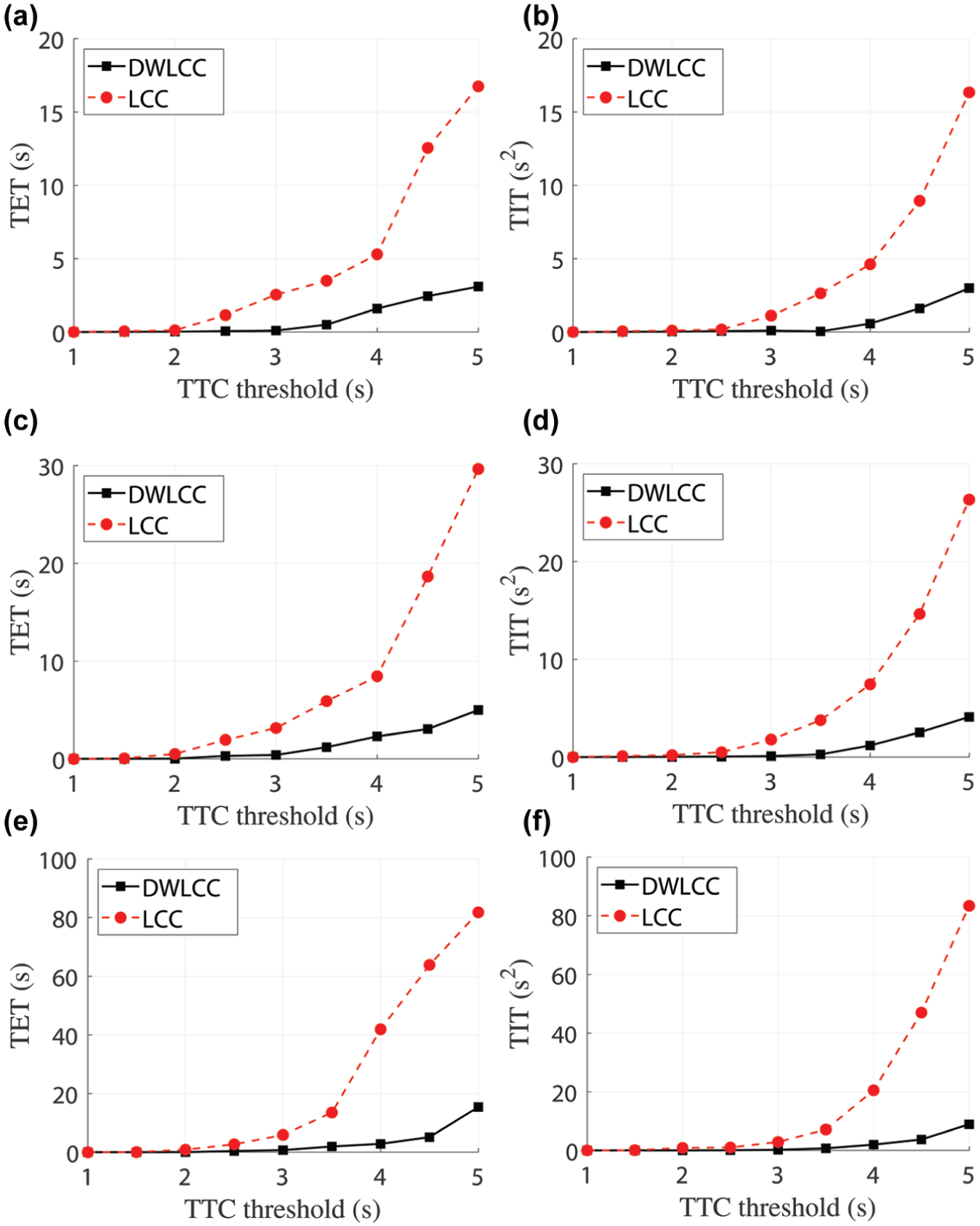

Figure 7 presents the comparative results of TET and TIT under varying communication delays and TTC thresholds. Figure 7, a–c, shows that DWLCC maintains lower TET and TIT values than LCC, especially under larger delays. The increase in TET and TIT for DWLCC is more gradual, particularly at higher thresholds, indicating superior transmission efficiency. The highest recorded TET and TIT for DWLCC are 15.4 s and 8.9 s, respectively. In contrast, LCC shows a sharp increase in these metrics around a TTC threshold of approximately 3.5 s, with TET and TIT peaking at 81.75 s and 83.4 s, respectively, indicating a rapid decline in transmission performance.

Figure 7.

Comparison results of time exposed time-to-collision (TET) and time integrated time-to-collision (TIT) under varying communication delays: (a) TET under $\bar{σ} = 0.1$ s, (b) TIT under $\bar{σ} = 0.1$ s, (c) TET under $\bar{σ} = 0.2$ s, (d) TIT under $\bar{σ} = 0.2$ s, (e) TET under $\bar{σ} = 0.3$ s, and (f) TIT under $\bar{σ} = 0.3$ s.

2) Fuel Consumption Performance

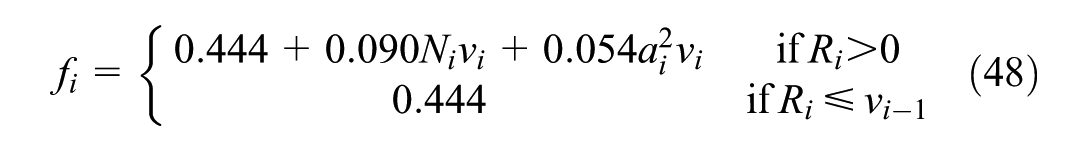

An instantaneous fuel consumption model is utilized to calculate the fuel consumption rate $fi$ (mL/s) of the $i$ th vehicle, as given by the model equations ( 47 ).

f_{i} = {\begin{matrix} 0.444 + 0.090 N_{i} v_{i} + 0.054 a_{i}^{2} v_{i} if R_{i} > 0 \\ 0.444 if R_{i} \leq v_{i - 1} \end{matrix}

(48)

where

$N_{i}$ = the specific power demand (defined as $R_{i} = 0.333 + 0.00108 v_{i}^{2} + 1.200 a_{i}$ ),

$v_{i}$ = the vehicle velocity (m/s), and

$a_{i}$ $= the$ acceleration (m/s²).

Then, we calculate the fuel consumption of every vehicle (Figure 8, a–c) and the total mixed vehicle platoon (Table 3) throughout the simulation from $t = 20$ s to $t = 60$ s.

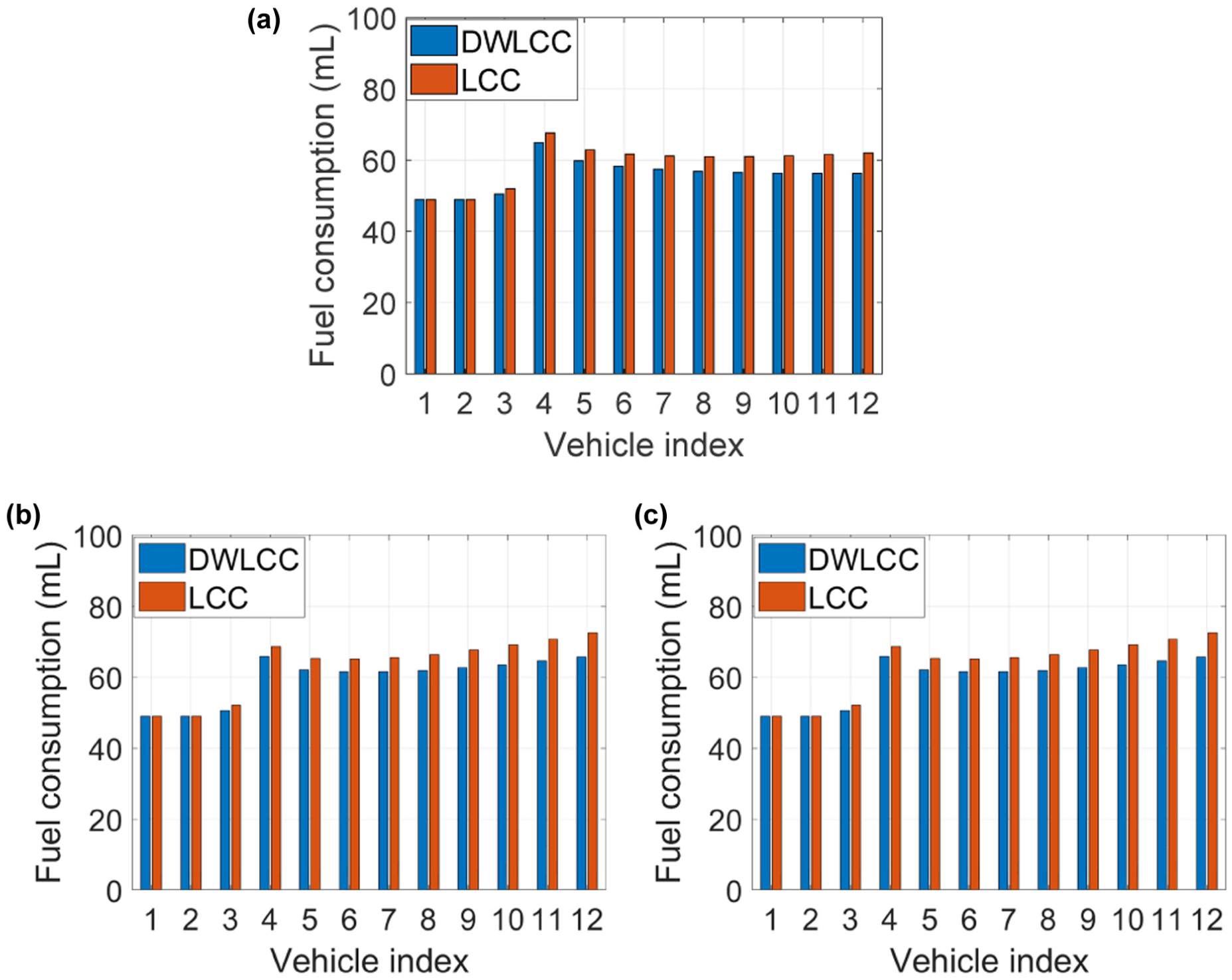

Figure 8.

Comparison results of fuel consumption under different communication delays: (a) fuel consumption profiles under $\bar{σ} = 0.1$ s, (b) fuel consumption profiles under $\bar{σ} = 0.2$ s, and (c) fuel consumption profiles under $\bar{σ} = 0.3$ s.

Fuel consumption under different delays is shown in Figure 8. Across all delay conditions as shown in Figure 8, a–c, DWLCC achieves lower fuel consumption than LCC. For time delays up to 0.2 s, the DWLCC strategy enables even a single CAV to efficiently mitigate disturbance effects, keeping the fuel consumption of all vehicles lower than that of the 4th vehicle. This comparative analysis highlights DWLCC’s superior performance in reducing fuel consumption, achieving up to a 5.6% reduction in overall platoon fuel usage. Table 3 further underscores DWLCC’s effectiveness, showing a reduction in the total fuel consumption of the mixed platoon.

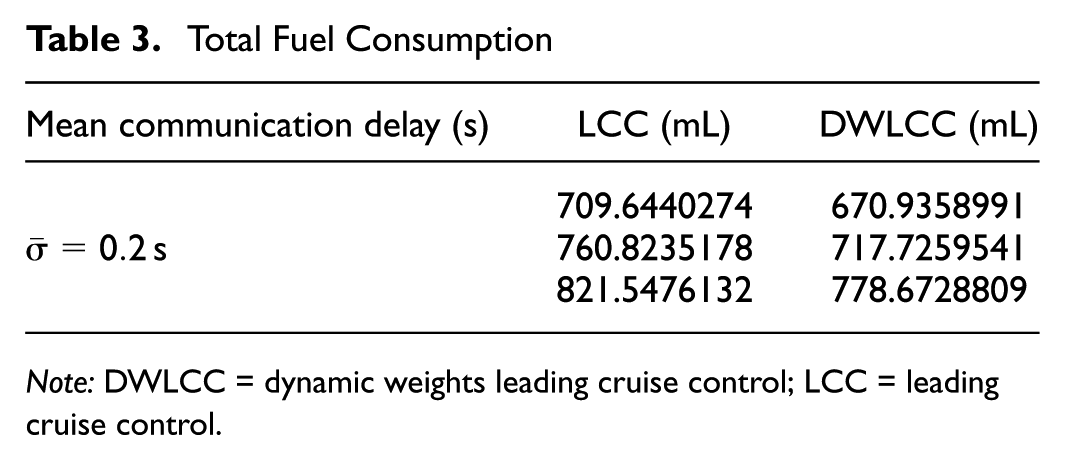

Table 3.

Total Fuel Consumption

Mean communication delay (s)	LCC (mL)	DWLCC (mL)
	709.6440274	670.9358991
$\bar{σ} = 0.2 s$	760.8235178	717.7259541
	821.5476132	778.6728809

Note: DWLCC = dynamic weights leading cruise control; LCC = leading cruise control.

3) Mobility Performance

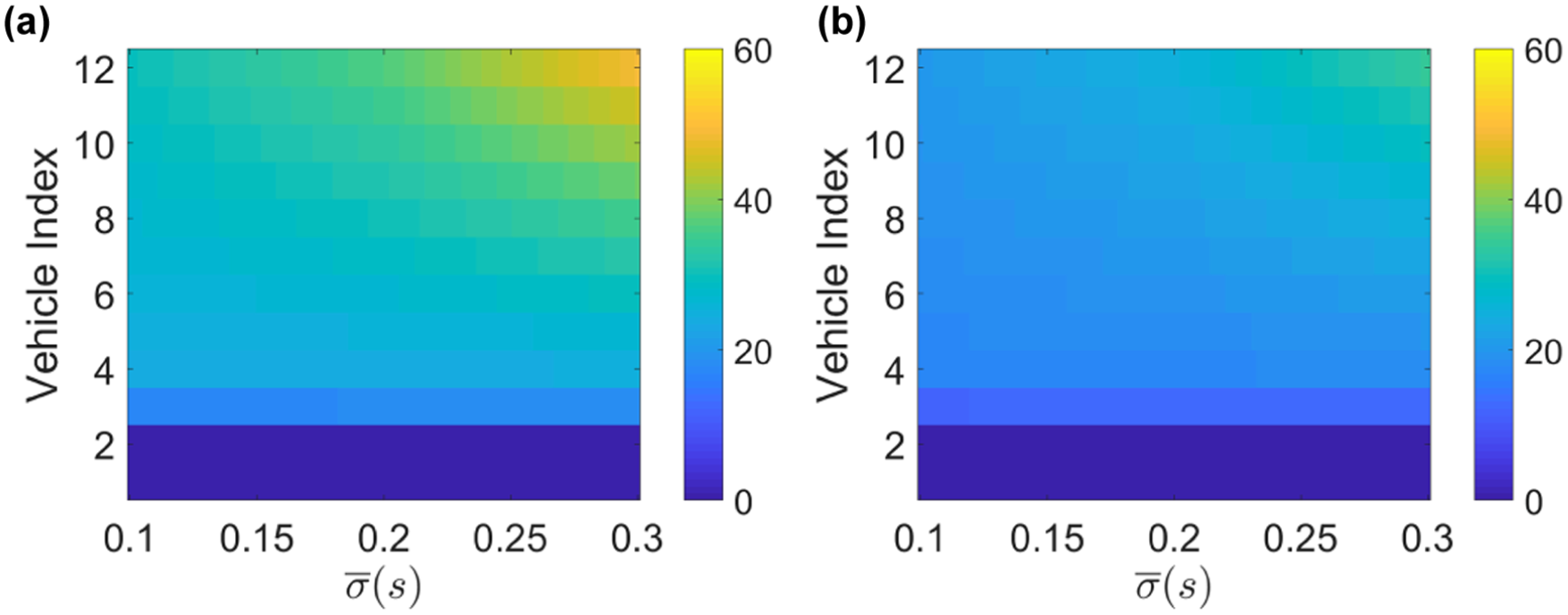

Velocity error comparison is presented in Figure 9. Figure 9a shows LCC with larger errors, while Figure 9b shows DWLCC with more uniform and smaller errors.

Figure 9.

Comparison results of velocity error under varying communication delays: (a) velocity error heatmap for leading cruise control and (b) velocity error heatmap for dynamic weights leading cruise control.

Overall, it can be observed that the velocity error for both LCC and DWLCC increases with the increase in time delay. However, the trend is more pronounced for LCC. For LCC, as the mean time delay increases from 0.1 s to 0.3 s, the overall color in the heatmap changes progressively from blue to yellow, indicating a substantial increase in velocity error. This demonstrates that the fixed weight controller is more sensitive to time delay variations, especially for larger time delays, leading to higher velocity errors. In contrast, for DWLCC, although the velocity error also increases with increasing time delay, the overall changes are more moderate.

For velocity error distribution among different vehicles, the LCC heatmaps show that vehicles with smaller indexes (e.g., vehicle indexes 1–3) experience relatively lower errors, while vehicles toward the end of the platoon (e.g., indexes 10–12) tend to have higher errors. This suggests that the fixed weight controller struggles to mitigate the propagation of velocity fluctuations through the platoon, with the trailing vehicles being most affected. On the other hand, DWLCC exhibits a more even distribution of velocity errors across the entire vehicle platoon, indicating that the dynamic weight controller effectively reduces the accumulation and transmission of velocity errors, leading to more stable control throughout the platoon.

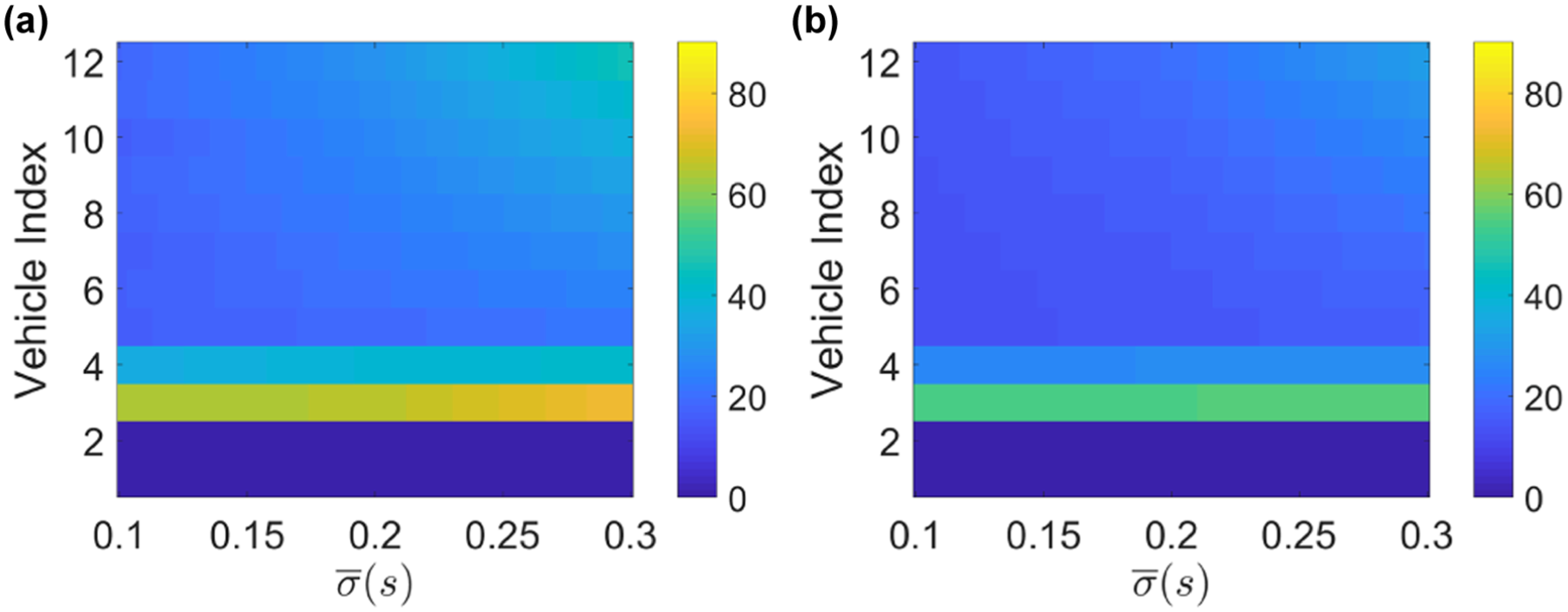

Figure 10, a and b , shows the spacing errors for LCC and DWLCC, respectively, under the same time delay conditions. Similar to the velocity errors, the spacing errors for LCC increase as the time delay grows, particularly for the trailing vehicles. This indicates that DWLCC is capable of maintaining more consistent inter-vehicle spacing, even as the time delay increases, further demonstrating its robustness.

Figure 10.

Comparison results of spacing error under different communication delays: (a) spacing error heatmap for leading cruise control and (b) spacing error heatmap for dynamic weights leading cruise control.

For spacing error distribution among different vehicles, LCC shows a noticeable increase in errors for the trailing vehicles. On the other hand, DWLCC manages to maintain a more balanced spacing error across all vehicles. This suggests that DWLCC effectively controls the propagation of spacing discrepancies through the platoon, resulting in more uniform performance.

This section reveals the spatial patterns of the platoon’s response to the emergency braking disturbance. Vehicle 4, subjected to the deceleration pulse, exhibits peak fuel consumption and acceleration magnitudes because of the severe braking and subsequent recovery to equilibrium velocity. In conclusion, comparing the performance of LCC and DWLCC under different time delays, it is evident that DWLCC demonstrates superior adaptability and robustness. While LCC is highly sensitive to time delays, especially under larger delays, resulting in significant velocity and spacing errors, particularly for the trailing vehicles in the platoon, DWLCC shows a relatively stable control performance as the time delay increases. The DWLCC controller maintains balanced velocity and spacing errors across all vehicles, effectively reducing error propagation and enhancing the stability of the entire platoon. This highlights that DWLCC is better suited for complex traffic environments with varying time delays, as it improves overall stability and safety compared with LCC.

Comparison with State-of-the-Art Methods

To comprehensively validate the proposed DWLCC strategy, we compare it against three representative delay-handling approaches commonly used in connected vehicle platoon control: multi-anticipative control (MA), model predictive control (MPC)-based delay compensation, and observer-based robust control ( 16 – 27 ). Each method is configured according to its typical information flow topology: MA, MPC, and observer-based methods utilize preceding vehicle information ( ${- 2, - 1}$ ), while LCC and DWLCC employ bidirectional communication ( ${- 2, - 1, + 1, + 2}$ ) as specified in Tables 1 and 2. The communication delays are set as $σ_{- 2} = σ_{+ 2} = 0.1$ s and $σ_{- 1} = σ_{+ 1} = 0.05$ s.

The MA approach employs fixed weights that prioritize closer vehicles, with $w = {0.4, 0.6}$ for vehicles ${- 2, - 1}$ . The MPC method compensates for delays by scaling control gains proportionally to the delay magnitude with prediction coefficient $κ = 2.0$ . The observer-based method employs a reliability factor $ρ_{i} = \exp (- γ {(σ_{i} - σ_{design}^{*})}^{+})$ with design bound $σ_{design}^{*} = 0.1$ s and $γ = 3$ , which reduces the contribution of channels experiencing delays beyond the design specification.

Table 4 presents the comparison results under three delay conditions. DWLCC achieves the best performance across all metrics and delay conditions. Under high delay ( $\bar{σ} = 0.3$ s), DWLCC reduces TET by 4.3% compared with LCC, 8.0% compared with MA, and 63.0% compared with MPC. Notably, the MPC approach shows severe performance degradation as delays increase, with TET rising from 7.04 s to 15.87 s, because the prediction compensation amplifies control errors when delays exhibit high variability. The observer-based method maintains reasonable performance within its design bounds but provides limited improvement when delays exceed the design specification. The bidirectional methods consistently outperform the forward-only methods (i.e., MA, MPC, observer), demonstrating the benefit of utilizing following vehicle information for disturbance mitigation in mixed platoons. Among the bidirectional approaches, DWLCC’s dynamic weight adjustment further improves performance by automatically prioritizing low-delay communication channels.

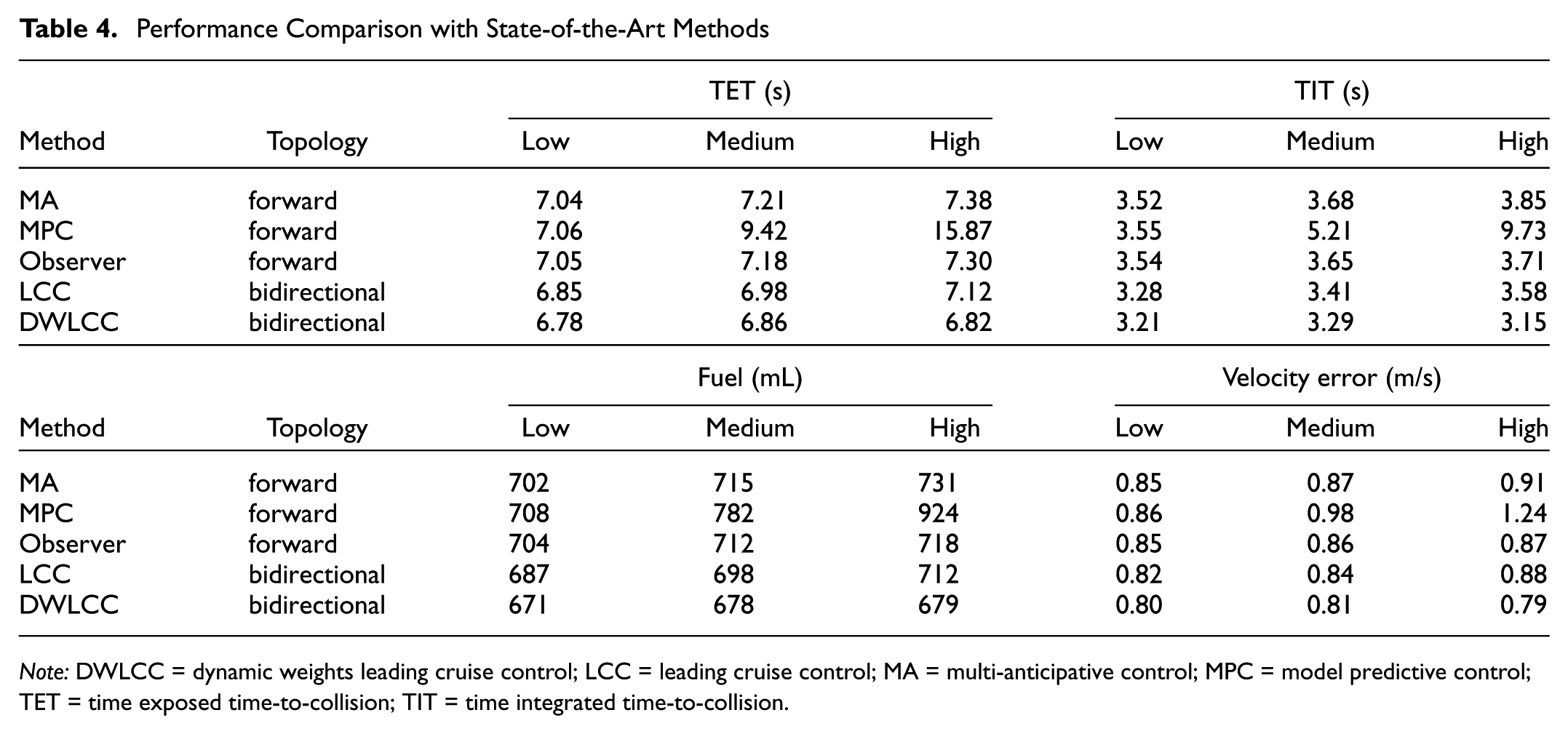

Table 4.

Performance Comparison with State-of-the-Art Methods

		TET (s)			TIT (s)
Method	Topology	Low	Medium	High	Low	Medium	High
MA	forward	7.04	7.21	7.38	3.52	3.68	3.85
MPC	forward	7.06	9.42	15.87	3.55	5.21	9.73
Observer	forward	7.05	7.18	7.30	3.54	3.65	3.71
LCC	bidirectional	6.85	6.98	7.12	3.28	3.41	3.58
DWLCC	bidirectional	6.78	6.86	6.82	3.21	3.29	3.15
		Fuel (mL)			Velocity error (m/s)
Method	Topology	Low	Medium	High	Low	Medium	High
MA	forward	702	715	731	0.85	0.87	0.91
MPC	forward	708	782	924	0.86	0.98	1.24
Observer	forward	704	712	718	0.85	0.86	0.87
LCC	bidirectional	687	698	712	0.82	0.84	0.88
DWLCC	bidirectional	671	678	679	0.80	0.81	0.79

Note: DWLCC = dynamic weights leading cruise control; LCC = leading cruise control; MA = multi-anticipative control; MPC = model predictive control; TET = time exposed time-to-collision; TIT = time integrated time-to-collision.

Ablation Study on Dynamic Weighting Components

This section presents an ablation study to evaluate the contribution of different components in the proposed dynamic weighting mechanism. The study compares four configurations: 1) fixed uniform weights as the baseline, 2) delay-only weights, 3) quality-only weights, and 4) DWLCC, which combines both delay and quality components. The study is conducted under three different delay conditions: low (0.1 s), medium (0.2 s), and high (0.3 s). The performance results are summarized in Table 5.

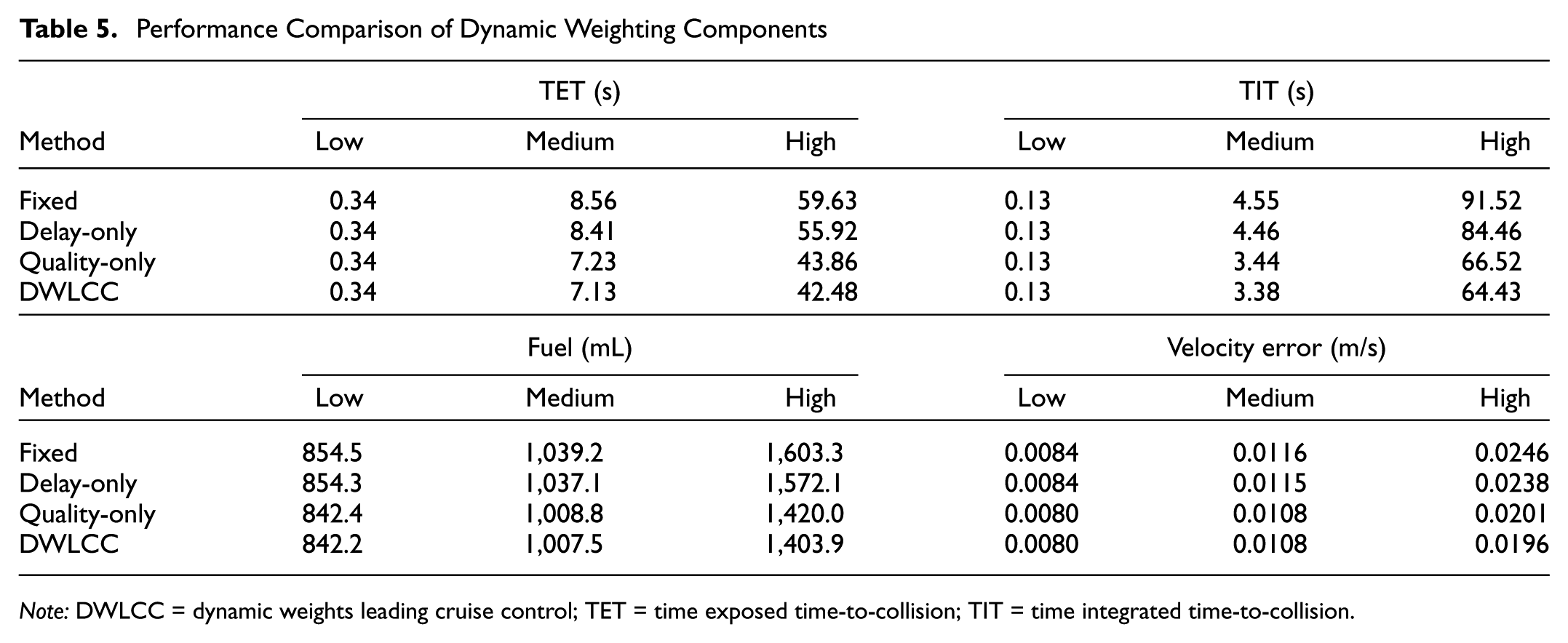

Table 5.

Performance Comparison of Dynamic Weighting Components

	TET (s)			TIT (s)
Method	Low	Medium	High	Low	Medium	High
Fixed	0.34	8.56	59.63	0.13	4.55	91.52
Delay-only	0.34	8.41	55.92	0.13	4.46	84.46
Quality-only	0.34	7.23	43.86	0.13	3.44	66.52
DWLCC	0.34	7.13	42.48	0.13	3.38	64.43
	Fuel (mL)			Velocity error (m/s)
Method	Low	Medium	High	Low	Medium	High
Fixed	854.5	1,039.2	1,603.3	0.0084	0.0116	0.0246
Delay-only	854.3	1,037.1	1,572.1	0.0084	0.0115	0.0238
Quality-only	842.4	1,008.8	1,420.0	0.0080	0.0108	0.0201
DWLCC	842.2	1,007.5	1,403.9	0.0080	0.0108	0.0196

Note: DWLCC = dynamic weights leading cruise control; TET = time exposed time-to-collision; TIT = time integrated time-to-collision.

The platoon consists of 10 vehicles, with 1 leading vehicle and 9 following vehicles. The 4th vehicle is perturbed with either a braking disturbance or a sine-wave disturbance. The experiments are performed using the OVM, with key parameters including $α = 0.6$ , $β = 0.9$ , and an equilibrium velocity $v^{*} = 15$ m/s. The vehicle dynamics include a maximum acceleration of 2 m/s² and a maximum deceleration of −5 m/s². The communication parameters are set with a delay sensitivity factor $λ = 2.0$ and weights for RSSI and PLR both set to 0.5.

The simulations are run for a total of 100 s, with a time step of 0.01 s. The configurations are evaluated under three delay conditions to assess the impact of delay and communication quality-based weighting on the performance of the platoon.

The results show that quality-based weighting significantly improves performance, particularly under high-delay conditions. Quality-only weighting reduces TET by 26.5% and fuel consumption by 11.4% compared with fixed weights when the delay is 0.3 s. This improvement is attributed to the ability of the quality metric to down-weight information from channels with packet loss or weak signal strength.

Delay-only weighting provides more modest improvements, with a 6.2% reduction in TET and a 1.9% reduction in fuel consumption under high delay. This indicates that, although delay information is valuable, the quality metrics capture additional factors beyond latency that contribute to the performance improvements.

The full DWLCC configuration, combining both delay and quality components, achieves the best overall performance. It reduces TET by 28.8% and fuel consumption by 12.4% under high-delay conditions. The marginal improvement over the quality-only configuration suggests that both delay and quality components provide complementary information, with quality-based weighting being the dominant contributor.

These results validate the proposed dynamic weighting mechanism and demonstrate that combining delay awareness with communication quality assessment leads to the best platoon performance across all operating conditions.

Sensitivity Analysis of Design Parameters

To investigate the influence of key design parameters, we conduct sensitivity analysis on the delay sensitivity parameter $λ$ and the communication quality weights $α_{1}$ , $α_{2}$ using $N = 50$ Monte Carlo simulations.

Table 6 summarizes the effect of $λ \in {0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0}$ $s^{- 1}$ under three delay conditions. Under low and medium delays, the system maintains TET $= 0$ across all $λ$ values. Under medium delay, fuel consumption increases by 7.0% as $λ$ increases from 0.5 to 4.0 $s^{- 1}$ , indicating that lower $λ$ values better exploit information from multiple channels. Under high delay, fuel consumption decreases by 4.8% with increasing $λ$ , showing that aggressive down-weighting of unreliable channels improves efficiency under severe constraints. The nominal value $λ = 2.0$ $s^{- 1}$ provides balanced performance across conditions.

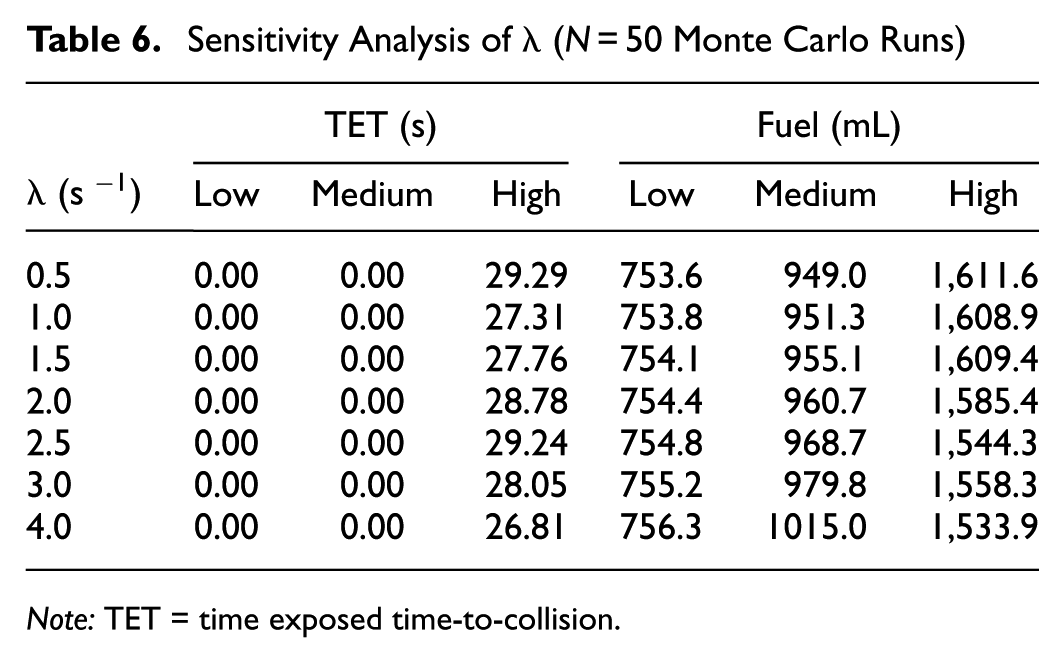

Table 6.

Sensitivity Analysis of $λ$ (N = 50 Monte Carlo Runs)

$λ$ ( $s^{- 1}$ )	TET (s)			Fuel (mL)
$λ$ ( $s^{- 1}$ )	Low	Medium	High	Low	Medium	High
0.5	0.00	0.00	29.29	753.6	949.0	1,611.6
1.0	0.00	0.00	27.31	753.8	951.3	1,608.9
1.5	0.00	0.00	27.76	754.1	955.1	1,609.4
2.0	0.00	0.00	28.78	754.4	960.7	1,585.4
2.5	0.00	0.00	29.24	754.8	968.7	1,544.3
3.0	0.00	0.00	28.05	755.2	979.8	1,558.3
4.0	0.00	0.00	26.81	756.3	1015.0	1,533.9

Note: TET = time exposed time-to-collision.

For quality weights, we evaluate five combinations with $α_{1} + α_{2} = 1$ under medium delay. As shown in Table 7, all configurations achieve TET $= 0$ with performance metrics varying within 2.5%, confirming that DWLCC exhibits low sensitivity to quality weight tuning.

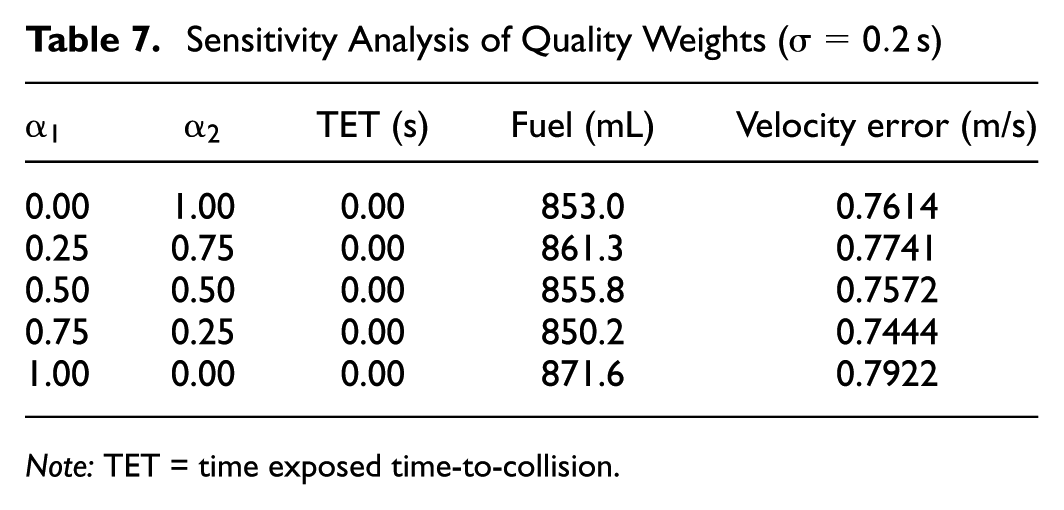

Table 7.

Sensitivity Analysis of Quality Weights ( $σ = 0.2$ s)

$α_{1}$	$α_{2}$	Fuel (mL)	Velocity error (m/s)
0.00	1.00	853.0	0.7614
0.25	0.75	861.3	0.7741
0.50	0.50	855.8	0.7572
0.75	0.25	850.2	0.7444
1.00	0.00	871.6	0.7922

Note: TET = time exposed time-to-collision.

Robustness Analysis Under HDV Behavioral Heterogeneity

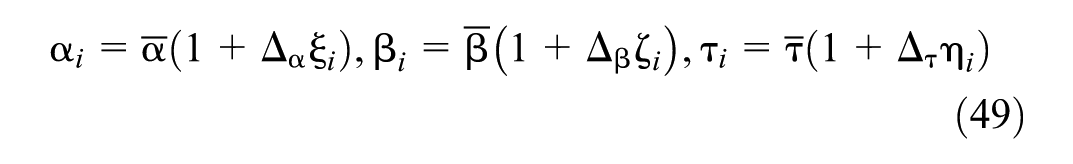

To evaluate the robustness of DWLCC against stochastic variations in human driving behaviors, we conduct Monte Carlo sensitivity analysis with heterogeneous HDV parameters. Real-world drivers exhibit diverse characteristics in sensitivity, aggressiveness, and reaction times. We model this heterogeneity by introducing random variations in the OVM parameters for each HDV:

α_{i} = \bar{α} (1 + Δ_{α} ξ_{i}), β_{i} = \bar{β} (1 + Δ_{β} ζ_{i}), τ_{i} = \bar{τ} (1 + Δ_{τ} η_{i})

(49)

where

$\bar{α} = 0.6 s$ , $\bar{β} = 0.9 s$ , $\bar{τ} = 0.1$ s = nominal values,

$Δ_{α} = Δ_{β} = Δ_{τ} = 0.2$ = $\pm 20 %$ variation magnitude, and

$ξ_{i}, ζ_{i}, η_{i} ~ U (- 1, 1)$ = independent uniform random variables assigned to each HDV.

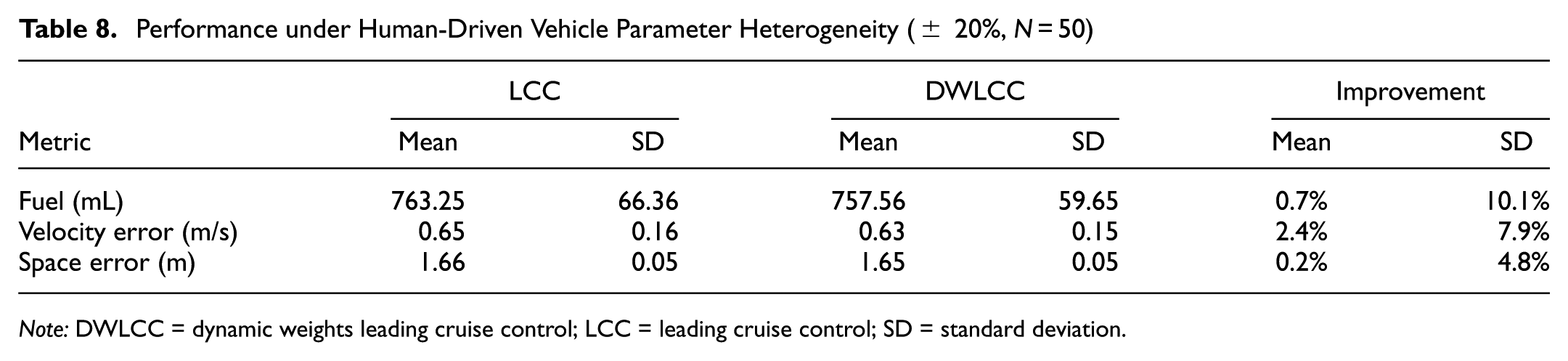

Table 8 summarizes results from 50 Monte Carlo simulations with randomly generated parameter sets. While both controllers achieve similar mean performance, DWLCC demonstrates notably lower performance variability across all metrics. The standard deviation reductions of 10.1% for fuel consumption, 7.9% for velocity error, and 4.8% for spacing error indicate that DWLCC maintains more consistent performance under behavioral heterogeneity. This enhanced robustness stems from the dynamic weight adjustment mechanism, which automatically adapts control priorities based on real-time communication conditions rather than relying on fixed weights that may become suboptimal when actual driver behaviors deviate from nominal assumptions.

Table 8.

Performance under Human-Driven Vehicle Parameter Heterogeneity (± 20%, N = 50)

	LCC		DWLCC		Improvement
Metric	Mean	SD	Mean	SD	Mean	SD
Fuel (mL)	763.25	66.36	757.56	59.65	0.7%	10.1%
Velocity error (m/s)	0.65	0.16	0.63	0.15	2.4%	7.9%
Space error (m)	1.66	0.05	1.65	0.05	0.2%	4.8%

Note: DWLCC = dynamic weights leading cruise control; LCC = leading cruise control; SD = standard deviation.

Stability Performance Analysis under Different CAV Penetration Rates

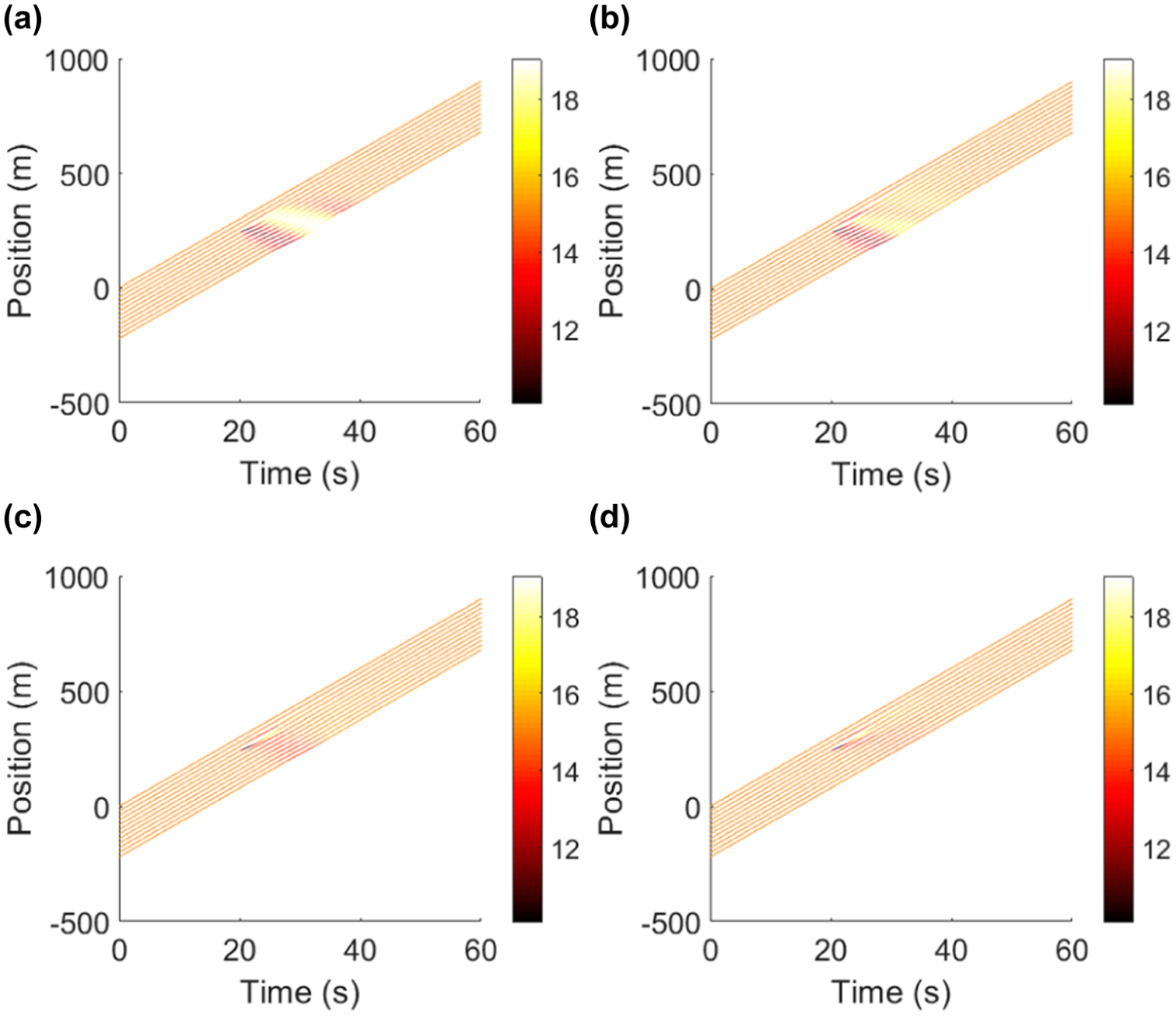

Figure 11 illustrates the driving state curves of mixed vehicle platoons under four different scenarios when the 4th vehicle introduces a disturbance at 20 s. The results show that, with increasing CAV presence, the disturbance’s propagation speed and positional fluctuations markedly decrease. In Figure 11a, The disturbance propagates quickly through the platoon, resulting in fluctuations in vehicle positions. In Figure 11b, The propagation speed of the disturbance is reduced, and the positional fluctuations are less pronounced. In Figure 11, c and d , the disturbance is notably suppressed, resulting in minimal positional fluctuations.

Figure 11.

Mixed platoon driving state curves under different connected and automated vehicle (CAV) penetration rates: (a) purely human-driven vehicle platoon, (b) mixed platoon with one CAV, (c) mixed platoon with two CAVs, and (d) mixed platoon with three CAVs.

Figure 12 illustrates the spacing and velocity errors over time for the same simulation scenario as Figure 11. These results collectively demonstrate that increasing the number of CAVs in a vehicle platoon substantially enhances its stability and resilience to disturbances. The ability of CAVs to communicate and coordinate their actions leads to faster error damping and reduced oscillations, contributing to a smoother and more stable traffic flow.

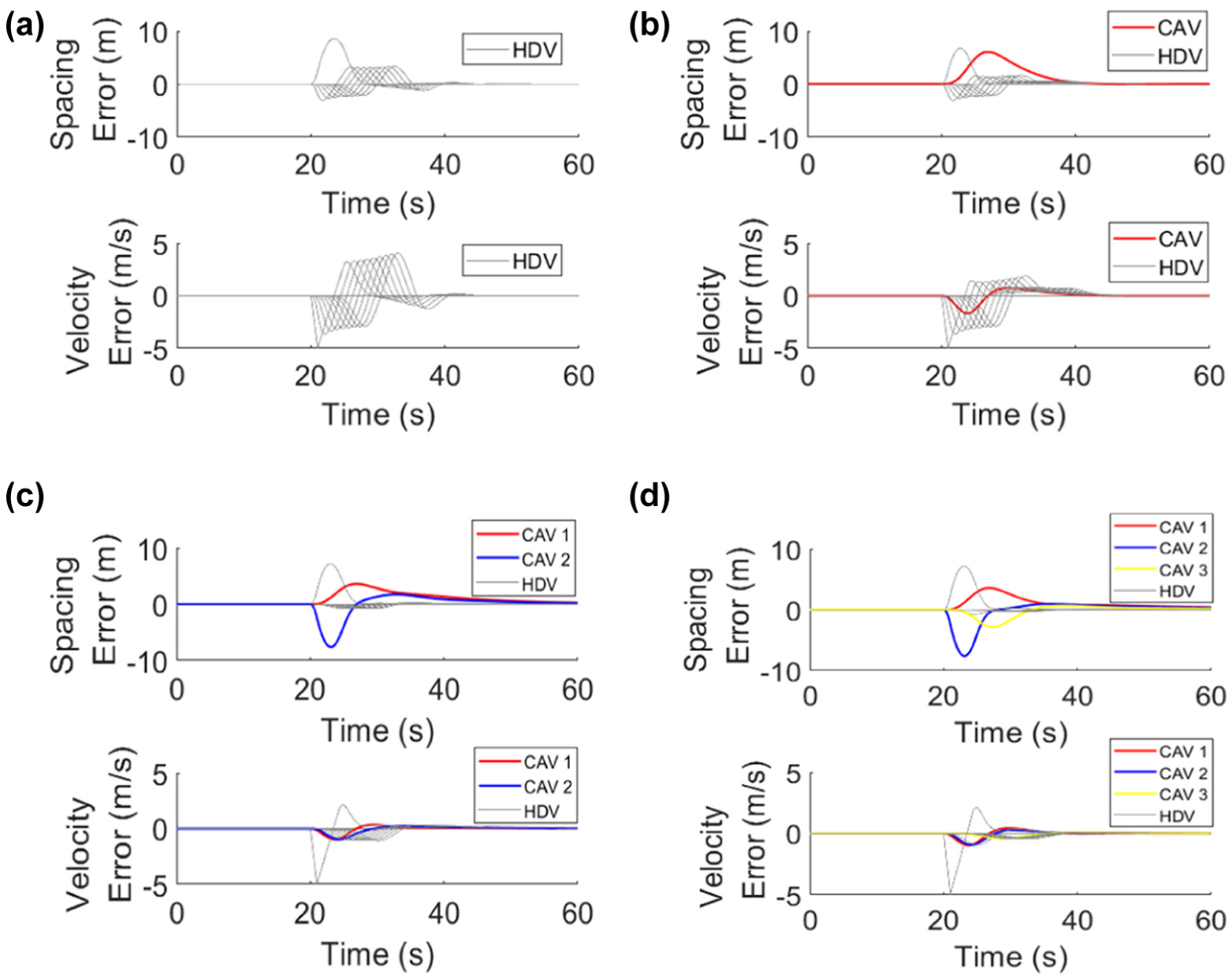

Figure 12.

Spacing and velocity errors of mixed platoons under different connected and automated vehicle (CAV) penetration rates: (a) purely human-driven vehicle (HDV) platoon, (b) mixed platoon with one CAV, (c) mixed platoon with two CAVs, and (d) mixed platoon with three CAVs.

Figure 12a depicts a purely HDV platoon, where both spacing and velocity errors exhibit considerable oscillations after a disturbance, indicating a high sensitivity to perturbations. The errors take a considerable amount of time to dampen, reflecting the lack of coordinated control among human drivers. In Figure 12b, the introduction of a single CAV into the mixed platoon notably reduces both spacing and velocity errors compared with the HDV-only platoon. While errors still occur, their magnitudes are smaller, and they stabilize more quickly, demonstrating the positive impact of having even one CAV.

Figure 12, c and d , further illustrate that the presence of more than two CAVs in a mixed platoon greatly enhances its stability, making the platoon more resilient to disturbances and capable of maintaining consistent spacing and velocity.

The comparative analysis of Figure 11 and Figure 12 indicates that, as the penetration rate of CAVs increases, the platoon’s resistance to disturbances is improved. This is because CAVs can access information from both preceding and following vehicles, thereby reducing the propagation of disturbances through cooperative control and enhancing the overall stability of the platoon.

Conclusion

This paper presents a DWLCC strategy and stability analysis framework for mixed vehicle platoons under time-varying communication delays. An adaptive weight adjustment mechanism that dynamically prioritizes information sources based on real-time communication quality, demonstrating enhanced robustness compared with fixed-topology methods, is proposed.

Through Lyapunov-Krasovskii analysis and head-to-tail string stability evaluation based on linearized HDV dynamics, we derived explicit stability conditions that reveal critical relationships between communication delays, control gains, and platoon stability. These conservative conditions provide safety margins for unmodeled nonlinearities. Extensive simulations employing full nonlinear car-following models validate the effectiveness of the approach, showing significant improvements in safety, fuel efficiency, and error attenuation across various delay scenarios and CAV penetration rates.

The current analysis assumes small deviations from equilibrium through linearization. Extending the framework to accommodate large perturbations would require nonlinear stability analysis techniques, such as Lyapunov-based methods for nonlinear systems or input-to-state stability approaches, which may introduce additional computational complexity and more restrictive stability conditions. Furthermore, while the proposed DWLCC framework incorporates communication quality metrics, extreme scenarios involving severe packet loss beyond modeled ranges, non-ideal sensor behavior with measurement noise and latency, or complex urban environments with frequent topology changes and signal interference may pose additional challenges that warrant further investigation.

It should be noted that this study relies entirely on simulation-based validation. Related work has demonstrated that feedback delays and parasitic lags significantly affect string stability in automated vehicle systems through field experiments with Adaptive Cruise Control (ACC) vehicles, and theoretical-simulation studies have quantified the impacts of CAV platoons on road capacity and pollutant emissions under mixed traffic conditions ( 48 , 49 ). Future work should incorporate hardware-in-the-loop validation with realistic communication protocols and field experiments to bridge the gap between simulation and practical deployment. Additionally, adaptive learning mechanisms for heterogeneous driver behaviors and extended robustness analysis under degraded communication conditions represent important directions for enhancing the practical applicability of the proposed framework. This work establishes a rigorous foundation for delay-aware control in mixed platoons, providing both theoretical guarantees and practical design guidelines for safe CAV deployment in heterogeneous traffic environments.

Footnotes

Authors’ Note

ChatGPT has been used for language polishing of the manuscript.

Author Contributions

The authors confirm contribution to the paper as follows: study conception and design: X. Wang; data collection: X. Wang; analysis and interpretation of results: X. Wang; draft manuscript preparation: X. Wang, P. Yang, B. Martinez-Pastor, R. Teixeira. All authors reviewed the results and approved the final version of the manuscript.

Declaration of Conflicting Interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported by the National Key Research and Development Plan of China (Grant Nos. 2021YFA1000300, 2021YFA1000303), the European Union’s Horizon Europe research and innovation programme (Grant No. 101103695), the Fundamental Research Funds for the Central Universities, CHD (Grant No. 300102325501), and the Program of China Scholarship Council (Grant No. 202406560025).

ORCID iDs

Xinrui Wang

Rui Teixeira

Data Accessibility Statement

No data were used for the research described in this article.

References

Talebpour

Mahmassani

H. S.

Influence of Connected and Autonomous Vehicles on Traffic Flow Stability and Throughput. Transportation Research Part C: Emerging Technologies, Vol. 71, 2016, pp. 143–163.

Cottam

B. J.

Transportation Planning for Connected Autonomous Vehicles: How It All Fits Together. Transportation Research Record, Vol. 2672, No. 51, 2018, pp. 12–19.

Lan

Zhao

Tian

Safe and Robust Data-Driven Cooperative Control Policy for Mixed Vehicle Platoons. International Journal of Robust and Nonlinear Control, Vol. 33, No. 7, 2023, pp. 4171–4190.

Tian

Zhao

Lin

Zhao

Flynn

Tian

Sun

Balanced Exploration and Attention-Inspired Decision Making for Autonomous Driving. IEEE Transactions on Vehicular Technology, Vol. 75, No. 1, 2026, pp. 84–99.

Zhang

Ding

Zheng

Bai

Integrated Control for Mixed CAV and CV Traffic Flow in Expressway Merge Zones Combined with Variable Speed Limit, Ramp Metering, and Lane Changing. Journal of Transportation Engineering, Part A: Systems, Vol. 149, No. 2, 2023, p. 04022140.

Matin

Dia

Impacts of Connected and Automated Vehicles on Road Safety and Efficiency: A Systematic Literature Review. IEEE Transactions on Intelligent Transportation Systems, Vol. 24, No. 3, 2022, pp. 2705–2736.

Martínez-Díaz

Al-Haddad

Soriguera

Antoniou

Impacts of Platooning of Connected Automated Vehicles on Highways. IEEE Transactions on Intelligent Transportation Systems.

Shi

Chen

Zheng

Wang

Zhou

Ran

A Deep Reinforcement Learning Based Distributed Control Strategy for Connected Automated Vehicles in Mixed Traffic Platoon. Transportation Research Part C: Emerging Technologies, Vol. 148, 2023, p. 104019.

Yang

Zhao

Lan

Xue

Zhao

Tian

Zhou

Song

Eco-Driving of General Mixed Platoons with CAVs and HDVs. IEEE Transactions on Intelligent Vehicles, Vol. 8, No. 2, 2022, pp. 1190–1203.

10.

Orki

Arogeti

Control of Mixed Platoons Consist of Automated and Manual Vehicles. In 2019 IEEE International Conference on Connected Vehicles and Expo (ICCVE). IEEE, Piscataway, NJ, 2019, pp. 1–6.

11.

Sormoli

M. A.

Koufos

Dianati

Woodman

A Survey on Hybrid Motion Planning Methods for Automated Driving Systems. arXiv preprint arXiv:2406.05575, 2024.

12.

Ligthart

J. A.

Ploeg

Semsar-Kazerooni

Fusco

Nijmeijer

Safety Analysis of a Vehicle Equipped with Cooperative Adaptive Cruise Control. IFAC-PapersOnLine, Vol. 51, No. 9, 2018, pp. 367–372.

13.

Liu

Gao

Wang

Robust Control of Heterogeneous Vehicular Platoon with Non-Ideal Communication. Electronics, Vol. 8, No. 2, 2019, p. 207.

14.

Liu

Wang

Zhang

Delay Compensation Control of Heterogeneous Vehicle Platoons: A Principal-Agent Structure. IEEE Transactions on Transportation Electrification, Vol. 11, No. 2, 2024, pp. 5950–5960.

15.

Khattak

Z. H.

Rios-Torres

Fontaine

M. D.

Impact of Communications Delay on Safety and Stability of Connected and Automated Vehicle Platoons: Empirical Evidence from Experimental Data. IEEE Access, Vol. 11, 2023, pp. 128549–128568.

16.

Hua

Ngoduy

Wang

On the Assessment of the Dynamic Platoon and Information Flow Topology on Mixed Traffic Flow Under Connected Environment. Transportation Research Part C: Emerging Technologies, Vol. 154, 2023, p. 104265.

17.

Wang

Yang

Zhu

Gelbal

S. Y.

Aksun-Guvenc

Guvenc

Stability Design for the Homogeneous Platoon with Communication Time Delay. Automotive Innovation, Vol. 3, No. 2, 2020, pp. 101–110.

18.

Zhang

Henrickson

Tang

Wang

Vehicle Traffic Delay Prediction in Ferry Terminal Based on Bayesian Multiple Models Combination Method. Transportmetrica A: Transport Science, Vol. 13, No. 5, 2017, pp. 467–490.

19.

Schiffer

Dörfler

Fridman

Robustness of Distributed Averaging Control in Power Systems: Time Delays & Dynamic Communication Topology. Automatica, Vol. 80, 2017, pp. 261–271.

20.

Cruz

O. G. D.

Padilla

J. A.

Victoria

A. N.

Managing Road Traffic Accidents: A Review on its Contributing Factors. In IOP Conference Series: Earth and Environmental Science (S. L. Ullo, ed.), IOP Publishing, Bristol, UK, 2021, Vol. 822, p. 012015.

21.

Zhai

Chen

Zheng

Han

Gao

Yan

Luo

Ecological Cooperative Adaptive Cruise Control for Heterogenous Vehicle Platoons Subject to Time Delays and Input Saturations. IEEE Transactions on Intelligent Transportation Systems, Vol. 24, No. 3, 2022, pp. 2862–2873.

22.

Chopra

Spong

M. W.

Output Synchronization of Nonlinear Systems with Time Delay in Communication. In Proc., of the 45th IEEE Conference on Decision and Control. IEEE, Piscataway, NJ, 2006, pp. 4986–4992.

23.

Zheng

Zhang

Ran

Developing Platooning Systems of Connected and Automated Vehicles with Guaranteed Stability and Robustness Against Degradation Due to Communication Disruption. Transportation Research Part C: Emerging Technologies, Vol. 168, 2024, p. 104768.

24.

Rios-Torres

Wang

Khattak

Z. H.

Experimental Assessment of Communication Delay’s Impact on Connected Automated Vehicle Speed Volatility and Energy Consumption. Communications in Transportation Research, Vol. 4, 2024, p. 100136.

25.

Zhao

Sun

Jin

Zhao

Chen

Consensus-Based Control Strategy for Mixed Platoon Under Delayed V2X Environment. Journal of Transportation Engineering, Part A: Systems, Vol. 149, No. 5, 2023, p. 04023029.

26.

Zou

Event-Driven Connected Vehicular Platoon Control with Mixed Time-Varying Delay. IEEE Access, Vol. 7, 2019, pp. 111477–111486.

27.

Zhang

Wang

Yao

Impacts of Communication Delay on Vehicle Platoon String Stability and Its Compensation Strategy: A Review. Journal of Traffic and Transportation Engineering (English edition), Vol. 10, No. 4, 2023, pp. 508–529.

28.

Shan

Zheng

Chen

A Reinforcement Learning-Based Adaptive Path Tracking Approach for Autonomous Driving. IEEE Transactions on Vehicular Technology, Vol. 69, No. 10, 2020, pp. 10581–10595.

29.

Hussein

N. H.

Yaw

C. T.

Koh

S. P.

Tiong

S. K.

Chong

K. H.

A Comprehensive Survey on Vehicular Networking: Communications, Applications, Challenges, and Upcoming Research Directions. IEEE Access, Vol. 10, 2022, pp. 86127–86180.

30.

Dai

Wang

Xie

Explicitly Incorporating Surrogate Safety Measures into Connected and Automated Vehicle Longitudinal Control Objectives for Enhancing Platoon Safety. Accident Analysis & Prevention, Vol. 183, 2023, p. 106975.

31.

Wang

Yang

Nie

Aksun-Guvenc

Guvenc

Adaptive Event-Triggered Platoon Control Under Unreliable Communication Links. IEEE Transactions on Intelligent Transportation Systems, Vol. 23, No. 3, 2020, pp. 1924–1935.

32.

Gambhir

M. L.

Stability Analysis and Design of Structures. Springer, Berlin, Germany, 2013.

33.

Song

Ding

Modeling Car-Following Behavior in Heterogeneous Traffic Mixing Human-Driven, Automated and Connected Vehicles: Considering Multitype Vehicle Interactions. Nonlinear Dynamics, Vol. 111, No. 12, 2023, pp. 11115–11134.

34.

Bando

Hasebe

Nakayama

Shibata

Sugiyama

Dynamical Model of Traffic Congestion and Numerical Simulation. Physical Review E, Vol. 51, No. 2, 1995, p. 1035.

35.

Treiber

Hennecke

Helbing

Congested Traffic States in Empirical Observations and Microscopic Simulations. Physical Review E, Vol. 62, No. 2, 2000, p. 1805.

36.

Orosz

Wilson

R. E.

Stépán

Traffic Jams: Dynamics and Control. Philosophical Transactions of the Royal Society A: Mathematical, Physical and Engineering Sciences, Vol. 368, No. 1928, 2010, pp. 4455–4479.

37.

Jin

I. G.

Orosz

Connected Cruise Control Among Human-Driven Vehicles: Experiment-Based Parameter Estimation and Optimal Control Design. Transportation Research Part C: Emerging Technologies, Vol. 95, 2018, pp. 445–459.

38.

Khalil

H. K.

Lyapunov Stability. Control Systems, Robotics and Automation, Vol. 12, 2009, p. 115.

39.

Scherer

Weiland

Linear Matrix Inequalities in Control. Lecture Notes, Dutch Institute for Systems and Control, Delft, The Netherlands, Vol. 3, No. 2, 2000, pp. 62–74.

40.

Seuret

Gouaisbaut

Wirtinger-Based Integral Inequality: Application to Time-Delay Systems. Automatica, Vol. 49, No. 9, 2013, pp. 2860–2866.

41.

Caverly

R. J.

Forbes

J. R.

LMI Properties and Applications in Systems, Stability, and Control Theory. arXiv preprint arXiv:1903.08599, 2019.

42.

Wang

Zheng

Chen

Leading Cruise Control in Mixed Traffic Flow: System Modeling, Controllability, and String Stability. IEEE Transactions on Intelligent Transportation Systems, Vol. 23, No. 8, 2021, pp. 12861–12876.

43.

Jin

I. G.

Orosz

Optimal Control of Connected Vehicle Systems with Communication Delay and Driver Reaction Time. IEEE Transactions on Intelligent Transportation Systems, Vol. 18, No. 8, 2016, pp. 2056–2070.

44.

Wang

Xie

Huang

Liu

A Review of Surrogate Safety Measures and Their Applications in Connected and Automated Vehicles Safety Modeling. Accident Analysis & Prevention, Vol. 157, 2021, p. 106157.

45.

Minderhoud

M. M.

Bovy

P. H.

Extended Time-to-Collision Measures for Road Traffic Safety Assessment. Accident Analysis & Prevention, Vol. 33, No. 1, 2001, pp. 89–97.

46.

Essa

Sayed

Traffic Conflict Models to Evaluate the Safety of Signalized Intersections at the Cycle Level. Transportation Research Part C: Emerging Technologies, Vol. 89, 2018, pp. 289–302.

47.

Rajamani

Wang

Model Predictive Multi-Objective Vehicular Adaptive Cruise Control. IEEE Transactions on Control Systems Technology, Vol. 19, No. 3, 2010, pp. 556–566.

48.

Wang

Zuo

Hou

Jiang

String Stability of Automated Vehicles Based on Experimental Analysis of Feedback Delay and Parasitic Lag. Transportation Research Part C: Emerging Technologies, Vol. 145, 2022, p. 103927.

49.

Wang

Ruan

Analysis of Road Capacity and Pollutant Emissions: Impacts of Connected and Automated Vehicle Platoons on Traffic Flow. Physica A: Statistical Mechanics and its Applications, Vol. 583, 2021, p. 126301.
