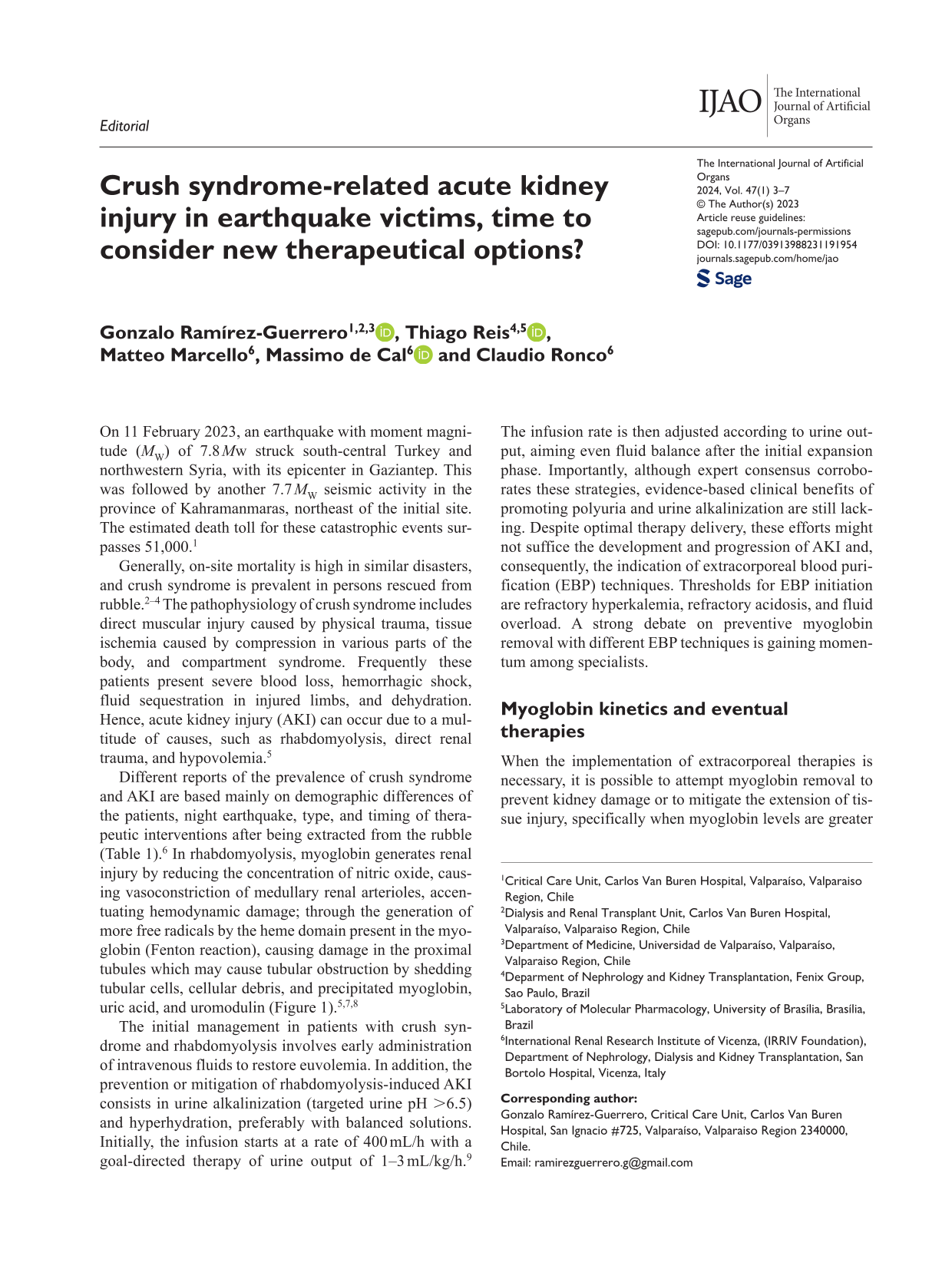

Crush syndrome-related acute kidney injury in earthquake victims,time to consider new therapeutical options?

Abstract

On 11 February 2023, an earthquake with moment magnitude (M_W) of 7.8 Mw struck south-central Turkey and northwestern Syria, with its epicenter in Gaziantep. This was followed by another 7.7 M_W seismic activity in the province of Kahramanmaras, northeast of the initial site. The estimated death toll for these catastrophic events surpasses 51,000.¹

Generally, on-site mortality is high in similar disasters, and crush syndrome is prevalent in persons rescued from rubble.^2–4 The pathophysiology of crush syndrome includes direct muscular injury caused by physical trauma, tissue ischemia caused by compression in various parts of the body, and compartment syndrome. Frequently these patients present severe blood loss, hemorrhagic shock, fluid sequestration in injured limbs, and dehydration. Hence, acute kidney injury (AKI) can occur due to a multitude of causes, such as rhabdomyolysis, direct renal trauma, and hypovolemia.⁵

Different reports of the prevalence of crush syndrome and AKI are based mainly on demographic differences of the patients, night earthquake, type, and timing of therapeutic interventions after being extracted from the rubble (Table 1).⁶ In rhabdomyolysis, myoglobin generates renal injury by reducing the concentration of nitric oxide, causing vasoconstriction of medullary renal arterioles, accentuating hemodynamic damage; through the generation of more free radicals by the heme domain present in the myoglobin (Fenton reaction), causing damage in the proximal tubules which may cause tubular obstruction by shedding tubular cells, cellular debris, and precipitated myoglobin, uric acid, and uromodulin (Figure 1).^5,7,8

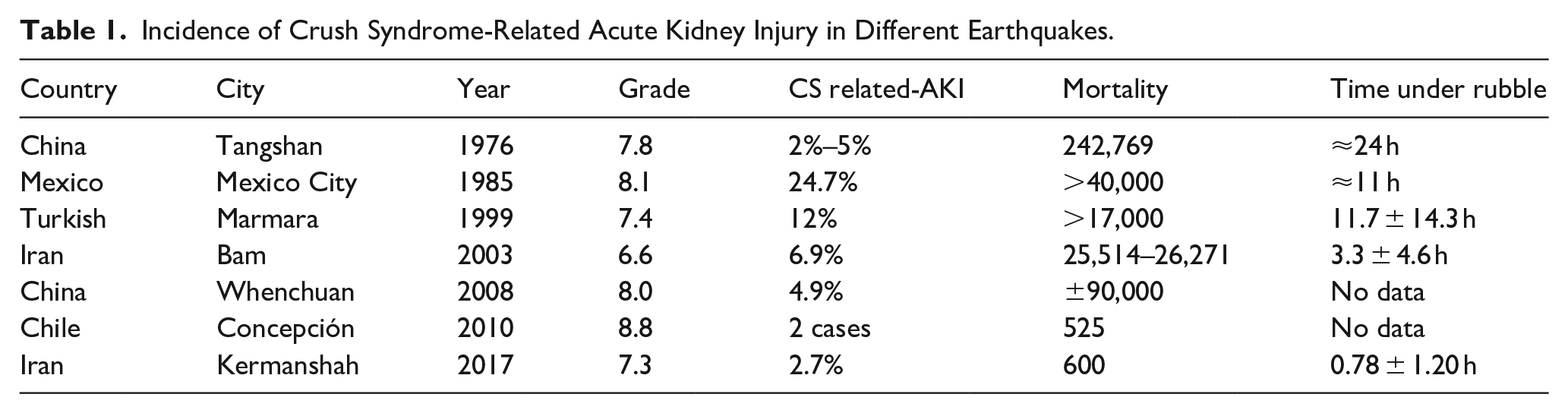

Table 1.

Incidence of Crush Syndrome-Related Acute Kidney Injury in Different Earthquakes.

Country	City	Year	Grade	CS related-AKI	Mortality	Time under rubble
China	Tangshan	1976	7.8	2%–5%	242,769	≈24 h
Mexico	Mexico City	1985	8.1	24.7%	>40,000	≈11 h
Turkish	Marmara	1999	7.4	12%	>17,000	11.7 ± 14.3 h
Iran	Bam	2003	6.6	6.9%	25,514–26,271	3.3 ± 4.6 h
China	Whenchuan	2008	8.0	4.9%	±90,000	No data
Chile	Concepción	2010	8.8	2 cases	525	No data
Iran	Kermanshah	2017	7.3	2.7%	600	0.78 ± 1.20 h

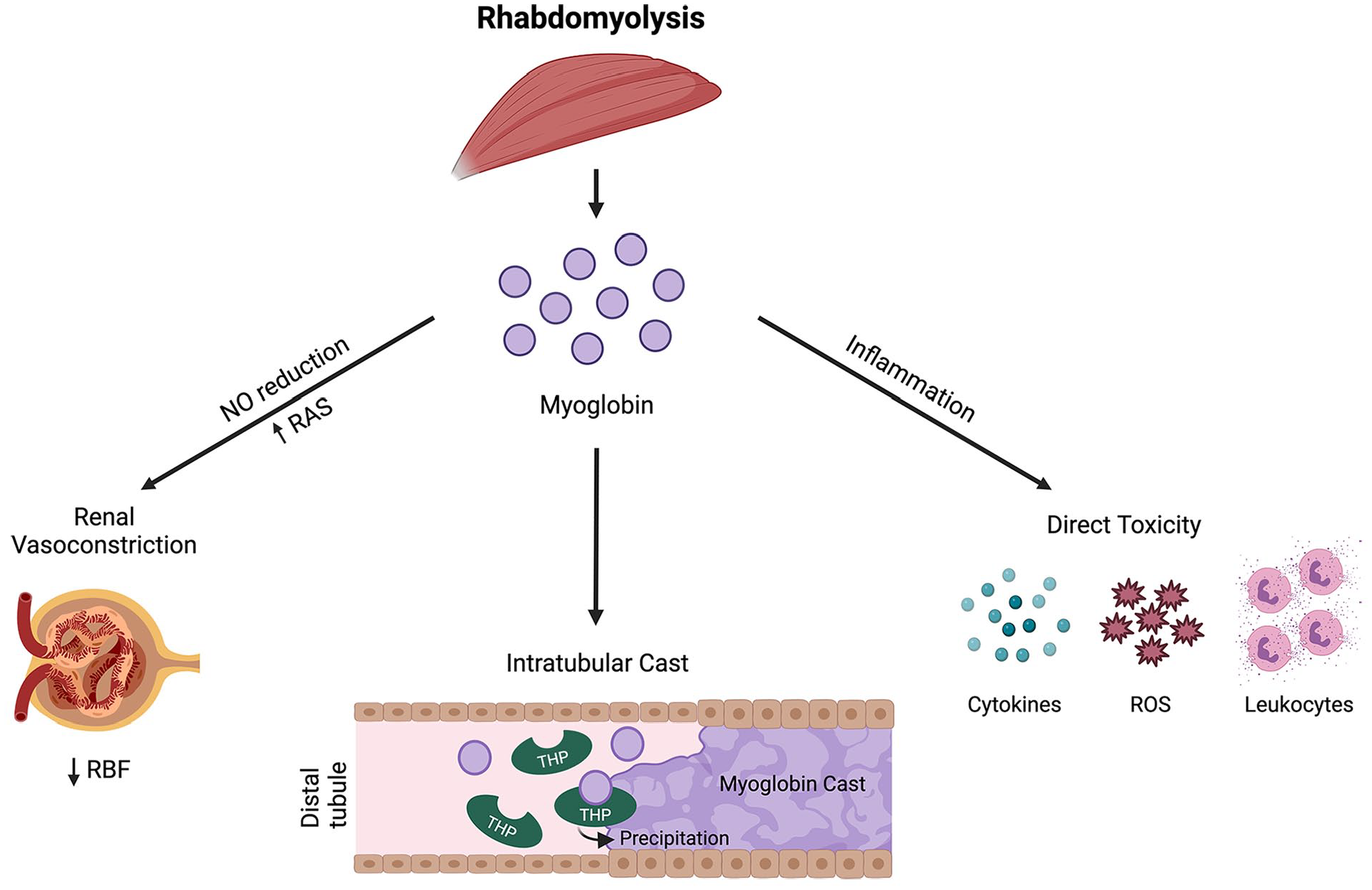

Figure 1.

Pathophysiology of rhabdomyolysis-associated acute kidney injury.

The initial management in patients with crush syndrome and rhabdomyolysis involves early administration of intravenous fluids to restore euvolemia. In addition, the prevention or mitigation of rhabdomyolysis-induced AKI consists in urine alkalinization (targeted urine pH >6.5) and hyperhydration, preferably with balanced solutions. Initially, the infusion starts at a rate of 400 mL/h with a goal-directed therapy of urine output of 1–3 mL/kg/h.⁹ The infusion rate is then adjusted according to urine output, aiming even fluid balance after the initial expansion phase. Importantly, although expert consensus corroborates these strategies, evidence-based clinical benefits of promoting polyuria and urine alkalinization are still lacking. Despite optimal therapy delivery, these efforts might not suffice the development and progression of AKI and, consequently, the indication of extracorporeal blood purification (EBP) techniques. Thresholds for EBP initiation are refractory hyperkalemia, refractory acidosis, and fluid overload. A strong debate on preventive myoglobin removal with different EBP techniques is gaining momentum among specialists.

Myoglobin kinetics and eventual therapies

When the implementation of extracorporeal therapies is necessary, it is possible to attempt myoglobin removal to prevent kidney damage or to mitigate the extension of tissue injury, specifically when myoglobin levels are greater than 20,000 µg/L.¹⁰ Myoglobin is a negatively charged molecule, has a molecular weight of 17 kDa with a greater Einstein-Stoke radius than expected, and presents an estimated distribution in the two-compartment model (i.e., blood compartment and muscular tissue). Myoglobin concentration in these compartments does not equilibrate quickly, therefore, prolonged EBP therapies are required to maintain levels at a steady state.¹¹ The removal of myoglobin with standard high-flux hemodialysis filters is scant in diffusive modalities.¹² A first attempt to increase myoglobin removal was the use of convective modalities, such as intermittent hemodiafiltration or continuous hemofiltration. However, due to the presence of a sieving coefficient of myoglobin for high-flux membrane <0.4, clearance of myoglobin was inefficient.

New EBP therapies options are capable of increasing myoglobin clearance and might improve outcomes in patients with rhabdomyolysis-associated AKI in the context of crush syndrome (Table 2).

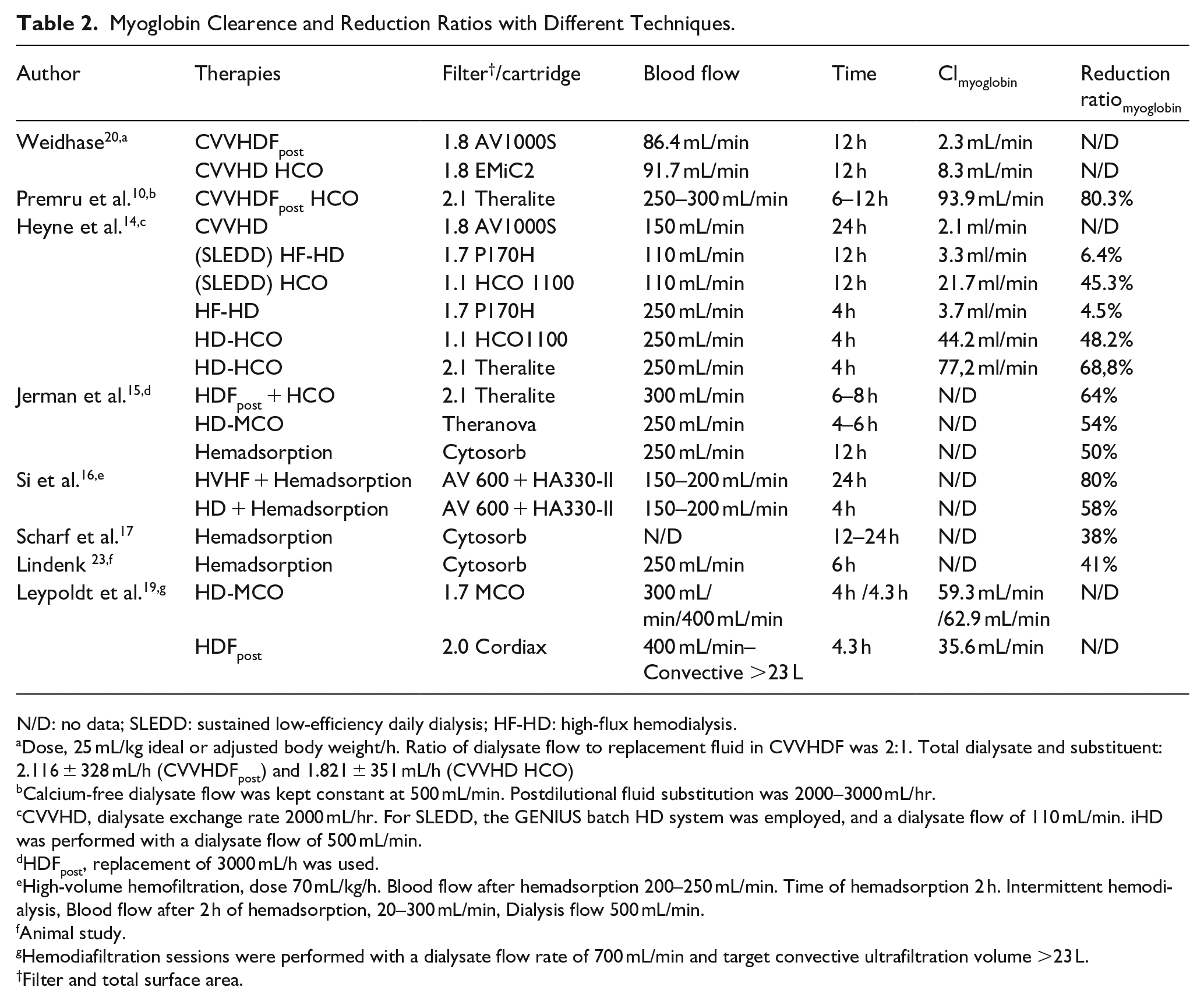

Table 2.

Myoglobin Clearence and Reduction Ratios with Different Techniques.

Author	Therapies	Filter^†/cartridge	Blood flow	Time	Cl_myoglobin	Reduction ratio_myoglobin
Weidhase^20,a	CVVHDF_post	1.8 AV1000S	86.4 mL/min	12 h	2.3 mL/min	N/D
Weidhase^20,a	CVVHD HCO	1.8 EMiC2	91.7 mL/min	12 h	8.3 mL/min	N/D
Premru et al.^10,b	CVVHDF_post HCO	2.1 Theralite	250–300 mL/min	6–12 h	93.9 mL/min	80.3%
Heyne et al.^14,c	CVVHD	1.8 AV1000S	150 mL/min	24 h	2.1 ml/min	N/D
	(SLEDD) HF-HD	1.7 P170H	110 mL/min	12 h	3.3 ml/min	6.4%
	(SLEDD) HCO	1.1 HCO 1100	110 mL/min	12 h	21.7 ml/min	45.3%
	HF-HD	1.7 P170H	250 mL/min	4 h	3.7 ml/min	4.5%
	HD-HCO	1.1 HCO1100	250 mL/min	4 h	44.2 ml/min	48.2%
	HD-HCO	2.1 Theralite	250 mL/min	4 h	77,2 ml/min	68,8%
Jerman et al.^15,d	HDF_post + HCO	2.1 Theralite	300 mL/min	6–8 h	N/D	64%
	HD-MCO	Theranova	250 mL/min	4–6 h	N/D	54%
	Hemadsorption	Cytosorb	250 mL/min	12 h	N/D	50%
Si et al.^16,e	HVHF + Hemadsorption	AV 600 + HA330-II	150–200 mL/min	24 h	N/D	80%
Si et al.^16,e	HD + Hemadsorption	AV 600 + HA330-II	150–200 mL/min	4 h	N/D	58%
Scharf et al.¹⁷	Hemadsorption	Cytosorb	N/D	12–24 h	N/D	38%
Lindenk ^23,f	Hemadsorption	Cytosorb	250 mL/min	6 h	N/D	41%
Leypoldt et al.^19,g	HD-MCO	1.7 MCO	300 mL/min/400 mL/min	4 h /4.3 h	59.3 mL/min /62.9 mL/min	N/D
Leypoldt et al.^19,g	HDF_post	2.0 Cordiax	400 mL/min–Convective >23 L	4.3 h	35.6 mL/min	N/D

N/D: no data; SLEDD: sustained low-efficiency daily dialysis; HF-HD: high-flux hemodialysis.

Dose, 25 mL/kg ideal or adjusted body weight/h. Ratio of dialysate flow to replacement fluid in CVVHDF was 2:1. Total dialysate and substituent: 2.116 ± 328 mL/h (CVVHDF_post) and 1.821 ± 351 mL/h (CVVHD HCO)

Calcium-free dialysate flow was kept constant at 500 mL/min. Postdilutional fluid substitution was 2000–3000 mL/hr.

CVVHD, dialysate exchange rate 2000 mL/hr. For SLEDD, the GENIUS batch HD system was employed, and a dialysate flow of 110 mL/min. iHD was performed with a dialysate flow of 500 mL/min.

HDF_post, replacement of 3000 mL/h was used.

High-volume hemofiltration, dose 70 mL/kg/h. Blood flow after hemadsorption 200–250 mL/min. Time of hemadsorption 2 h. Intermittent hemodialysis, Blood flow after 2 h of hemadsorption, 20–300 mL/min, Dialysis flow 500 mL/min.

Animal study.

Hemodiafiltration sessions were performed with a dialysate flow rate of 700 mL/min and target convective ultrafiltration volume >23 L.

†

Filter and total surface area.

Due to the limitation in the purification capacity of myoglobin with high-flux membranes, the evolution in membrane design technology allowed the generation of more permeable membranes and, consequently, the removal of larger solutes. High cutoff (HCO) membranes are one of them but are limited by albumin loss due to pore size. On the other hand, medium cutoff (MCO) membranes have limited significant albumin loss by having a tight pore size distribution, resulting in a step-sieving curve with a cut-off value close to but lower than albumin.^13,18

Studies in hemodialysis with MCO and HCO membranes effectively reduce myoglobin more than conventional high-flux filters (a reduction of 48%–68%). Still, a significant loss of albumin requires substitution in HCO, compared to MCO membranes.^14,15,20 In MCO membranes, myoglobin removal is optimized by combining the sieving properties of this membrane (0.8–0.9) and the enhanced internal filtration-back filtration (IF-BF) mechanism due to a reduced inner diameter of hollow fibers or through keeping the inner diameter of the fibers but lengthening the fibers. To reach an optimal IF-BF, a minimum blood flow of 300 mL/min is necessary (IF proportionally increased with Q_B and hemodialyzer surface area).^21,22

A different approach could be tried using adsorption directly on whole blood, a technique called hemadsorption (HA). HA is performed by circulating blood in an extracorporeal circuit through a sorbent cartridge (neutral macroporous styrene-divinylbenzene copolymer sorbent) with effective surface area up to 300–1200 m²/g (e.g. HA 330/380, Jafron Biomedical CO, Lts., Zhuhai City, China or Cytosorb, CytoSorbents Inc., Princeton, NJ). Some animal studies and clinical cases have suggested the beneficial effect of HA on myoglobin removal, with a reduction between 41% and 50% and saturation of the cartridge at 12 h.^23–26 Wang et al.²⁷ showed how the use of HA380 was able to significantly reduce the myoglobin peak in patients undergoing cardiopulmonary bypass circuit due to type A aortic dissection surgery and in cases of rhabdomyolysis due to acute diquat poisoning, HA330 achieved a reduction in myoglobin levels.²⁸

The study by Scharf et al.¹⁷ reported in 43 patients with a myoglobin level >25,000 ng/mL before HA and after exhausting all previous measures to avoid a crush-related AKI, a 38% myoglobin reduction rate, even in patients with persistent rhabdomyolysis.

In summary, as nephrologists, we must be aware of the crush syndrome-related AKI and its implications for prevention and treatment to limit kidney exposure to myoglobin using adsorption or HCO/MCO membranes, with possible benefits of renal improvement and recovery. The capacity of HA compared to dialysis techniques seems to be superior, and it is probably time to explore such new avenues with structured research.^29–31 These new options are currently available, and we should be morally committed to getting prepared to be able to deliver them correctly. Clinical trials are needed in order to clarify their clinical benefits and the correct timing of treatment.

Footnotes

Acknowledgements

We thank Anita Zurita Poza for her technical assistance in the design of this article.

Author’s note

The authors confirm that the manuscript complies with all instructions to the authors. The authorship requirements have been met and the final manuscript was approved by all authors. The authors confirm that this manuscript has not been published elsewhere and is not under consideration by another journal.

Author contributions

GRG and CR designed the work, GRG, TR, MM, and MDC collected and analyzed the data, GRG, TR, MM, MDC, and CR drafted the work or substantively revised it, and all authors read and approved the final manuscript.

Declaration of conflicting interests

The authors declared the following potential conflicts of interest with respect to the research, authorship, and/or publication of this article: CR has received funding for lectures, been consultant or advisory board member for Asahi, Astute, B. Braun, Baxter, bioMérieux, Bioporto, CytoSorbents, Estor, Fresenius Medical Care, General Electric (GE), Jafron, Medtronic, Toray. TR has received funding for lectures, been consultant or advisory board member for AstraZeneca, B. Braun, Baxter, bioMérieux, Boehringer Ingelheim, Contatti Medical (CytoSorbents), Eurofarma, Fresenius Medical Care, Jafron, Lifepharma, and Nova Biomedical. GRG declare no competing interests GR-G. The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this article. The authors alone are responsible for the content and writing of this article.

Funding

The authors received no financial support for the research, authorship, and/or publication of this article.

ORCID iD

Gonzalo Ramírez-Guerrero

Thiago Reis

Massimo de Cal

References

National Earthquake Information Center (6 February 2023). “M7.8 – 26 km ENE of Nurdagi, Turkey”. United States Geological Survey. Archived from the original on 6 February 2023.

Chou

Huang

Lee

, et al. Who is at risk of death in an earthquake? Am J Epidemiol 2004; 160(7): 688–695.

Erek

Sever

Serdengecti

, et al. An overview of morbidity and mortality in patients with acute renal failure due to crush syndrome: the Marmara earthquake experience. Nephrol Dial Transp 2022; 17(1): 33–40.

Vanholder

Sever

Erek

Lameire

. Acute renal failure related to the crush syndrome: towards an era of seismo-nephrology? Nephrol Dial Transplant 2000; 15: 1517–1521.

Gibney

Sever

Vanholder

. Disaster nephrology: crush injury and beyond. Kidney Int 2014; 85(5): 1049–1057.

Sever

Erek

Vanholder

, et al. Lessons learned from the Marmara disaster: time period under the rubble. Crit Care Med 2022; 30(11): 2443–2449.

Boutaud

Roberts

. Mechanism-based therapeutic approaches to rhabdomyolysis-induced renal failure. Free Radic Biol Med 2011; 51(5): 1062–1067.

Shimada

Dass

Ejaz

. Paradigm shift in the role of uric acid in acute kidney injury. Semin Nephrol 2011; 31(5): 453–458.

Kodadek

Carmichael

Seshadri

, et al. Rhabdomyolysis: an American association for the surgery of trauma critical care committee clinical consensus document. Trauma Surg Acute Care Open 2022; 7(1): e000836.

10.

Premru

Kovac

Ponikvar

. Use of myoglobin as a marker and predictor in myoglobinuric acute kidney injury. Ther Apher Dial 2013; 17(4): 391–395.

11.

Ronco

. Extracorporeal therapies in acute rhabdomyolysis and myoglobin clearance. Crit Care 2005; 9(2): 141–142.

12.

Mohajerani

Clark

Ronco

, et al. Mass transport in high-flux hemodialysis application of engineering principles to clinical prescription. Clin J Am Soc Nephrol 2022; 17(5): 749–756.

13.

Ronco

. The rise of expanded hemodialysis. Blood Purif 2017; 44: I–VIII.

14.

Heyne

Guthoff

Krieger

, et al. High cut-off renal replacement therapy for removal of myoglobin in severe rhabdomyolysis and acute kidney injury: a case series. Nephron Clin Pract 2012; 121(3–4): c159–c164.

15.

Jerman

Andonova

Persic

, et al. Extracorporeal removal of myoglobin in patients with rhabdomyolysis and acute kidney injury: comparison of high and medium cut-off membrane and an adsorber cartridge. Blood Purif 2022; 51(11): 907–911.

16.

, et al. Clinical evaluation of high-volume hemofiltration with hemoperfusion followed by intermittent hemodialysis in the treatment of acute wasp stings complicated by multiple organ dysfunction syndrome. PLOS ONE 2015; 10(7): e0132708.

17.

Scharf

Liebchen

Paal

, et al. Blood purification with a cytokine adsorber for the elimination of myoglobin in critically ill patients with severe rhabdomyolysis. Crit Care 2021; 25(1): 41.

18.

Reis

Anwar

Neves

, et al. Disruptive technologies for hemodialysis: medium and high cutoff membranes. Is the future now? J Bras Nefrol 2021; 43(3): 410–416.

19.

Leypoldt

Storr

Agar

, et al. Intradialytic kinetics of middle molecules during hemodialysis and hemodiafiltration. Nephrol Dial Transplant 2019; 34(5): 870–877.

20.

Weidhase

de Fallois

Haubig

, et al. Myoglobin clearance with continuous veno-venous hemodialysis using high cutoff dialyzer versus continuous veno-venous hemodiafiltration using high-flux dialyzer: a prospective randomized controlled trial. Crit Care 2020; 24(1):644.

21.

Lorenzin

Neri

Lupi

, et al. Quantification of internal filtration in hollow fiber hemodialyzers with medium cut-off membrane. Blood Purif 2018; 46: 196–204.

22.

Maduell

Broseta

Rodríguez-Espinosa

, et al. Comparison of four medium cut-off dialyzers. Clin Kidney J 2022; 15(12): 2292–2299.

23.

Linden

Scaravilli

Kreyer

, et al. Evaluation of the cytosorb hemoadsorptive column in a pig model of severe smoke and burn injury. Shock 2015; 44(5): 487–495.

24.

Dilken

Ince

van der Hoven

, et al. Successful reduction of creatine kinase and myoglobin levels in severe rhabdomyolysis using extracorporeal blood purification (Cytosorb). Blood Purif 2020; 49(6): 743–747.

25.

Rauch

Borgato

Gruber

, et al. Case report: prevention of rhabdomyolysis-associated acute kidney injury by extracorporeal blood purification with cytosorb. Front Pediatr 2022; 24: 9.

26.

Moresco

Rugg

Strohle

, et al. Rapid reduction of substantially increased myoglobin and creatine kinase levels using a hemoadsorption device (CytoSorb)-A case report. Clin Case Rep 2022; 10(1): e05272.

27.

Wang

Chen

Xie

, et al. Effect of blood hemoperfusion therapy in acute type A aortic dissection surgery: a retrospective observational study. Res Sq 2022. DOI: 10.21203/rs.3.rs-2274071/v1

28.

Xiang

. Acute diquat poisoning manifesting as acute rhabdomyolysis: a case report. Am J Med Case Rep 2022; 10(9): 227–229.

29.

Ronco

Bellomo

. Hemoperfusion: technical aspects and state of the art. Crit Care 2022; 26(1):135.

30.

Clark

Ferrari

La Manna

, et al. Extracorporeal sorbent technologies: basic concepts and clinical application. Contrib Nephrol 2017; 190: 43–57.

31.

Ricci

Romagnoli

Reis

, et al. Hemoperfusion in the intensive care unit. Intensive Care Med 2022; 48(10): 1397–1408.
