Parametric optimization for filament-wound cylinder under internal pressure based on hybrid method of GQPSO-DE

Abstract

The strength ratio of composite pressure vessels is a critical measure of their structural performance and reliability, both of which are highly dependent on the effective allocation of design parameters. In this study, a three-dimensional elasticity-based theoretical model is developed for composite cylinders subjected to uniform internal pressure. An improved Gaussian quantum-behaved particle swarm optimization-differential evolution (GQPSO-DE) algorithm is employed to simultaneously optimize the winding angle and ply thickness. By maximizing the strength ratio of the weakest ply, the overall structural strength and load-carrying capacity of the vessel are significantly improved. Two representative composite cylinders with different radial ratios are subsequently investigated, and the corresponding optimal combinations of winding angle and ply thickness are obtained. The results demonstrate that the proposed method is effective in enhancing the strength ratio of the weakest ply.

Keywords

FW cylinder internal pressure stress-strain strength ratio optimal solution

Introduction

As high-performance structural components, filament-wound composite cylinders play a vital role in modern engineering fields, including aerospace, pressure vessels, ocean engineering, and biomedical devices, owing to their high specific strength, excellent design flexibility, and superior fatigue resistance.¹ In composite hydrogen storage vessels, the fiber-reinforced layer is manufactured by winding continuous fibers onto a mandrel.² Precise control of the winding process enables adjustment of the fiber orientation, thereby allowing the anisotropic characteristics of the composite material to be fully utilized for tailoring the structural mechanical response.

At present, several classical design theories have been developed for the fiber-reinforced layers of composite vessels. Netting theory is one of the earliest approaches used in the design of filament-wound vessels, in which the wound shell is idealized as an interlaced network that carries only hoop and axial stresses. Numerous researchers have applied this theory to the structural design of pressure vessels and determined corresponding structural parameters. Sharma et al.³ designed the overall thickness of the fiber layers for Type-IV vessels and determined the required number of wound plies. Daghia et al.⁴ predicted burst performance, while Kim et al.⁵ and Liang et al.⁶ investigated optimal vessel contours and discussed strategies for weight reduction and performance enhancement. Although these studies contributed to the structural design of fiber-reinforced layers, netting theory treats the laminate as a homogeneous structure, assumes that fibers are the only load-bearing component, and neglects the influences of the liner, ply sequence, and winding tension. Consequently, significant discrepancies may exist between theoretical predictions and actual structural strength.

Classical laminate theory applies the Kirchhoff–Love assumptions to composite structures by treating fiber-reinforced layers as a laminate composed of multiple bonded unidirectional plies. The laminate properties are determined from ply properties, ply thicknesses, fiber orientations, stacking sequence, and number of plies. Compared with netting theory, laminate-theory-based designs generally provide higher reliability. Rafiee et al.⁷ calculated stress and strain components on both inner and outer surfaces of all fiber layers. By considering interlaminar failure modes, the internal failure behavior of composite pressure vessels under low-velocity impact was also predicted. Park et al.,⁸ Ke et al.,⁹ and Bhadra et al.¹⁰ optimized fiber orientations to improve critical buckling load. To reduce the weight of hydrogen storage vessels, Alcantar et al.¹¹ combined laminate theory with genetic algorithms and simulated annealing to optimize laminate thickness. Although these studies considered multi-layer laminated structures, the range of ply numbers and winding-angle variations investigated remains relatively limited. In addition, neglect of through-thickness stresses and deformations in classical laminate theory restricts its applicability to thick-walled laminates and interlaminar stress analysis. Consequently, truly coupled multi-layer and multi-angle structural design has not yet been fully realized.

The design philosophy of fiber-reinforced layers in hydrogen storage vessels has evolved from single-variable to multi-variable approaches. Key design parameters-including fiber direction, winding angle, ply thickness, and stacking sequence-significantly influence the geometry and mechanical performance of the vessel. Current research employs three-dimensional elasticity theory as an analytical framework, combined with optimization algorithms to explore optimal structural parameters, thereby improving structural performance. Liu et al.¹² and Tabakov et al.¹³ used genetic algorithms to determine optimal winding angles, thereby maximizing burst pressure. Jose et al.¹⁴ divided the cylinder into constant-angle regions with varying axial winding angles and optimized each region using a genetic algorithm to maximize axial buckling load. Similarly, Geng et al.¹⁵ employed a complex method and steepest descent method, while Kang et al.¹⁶ used hybrid GA-PSO algorithms to optimize winding angles, improving structural stability. For stacking sequence optimization under hydrostatic pressure, Wei et al.¹⁷ proposed a stiffness-coefficient ratio-based method to evaluate its influence on yield strength, and the stacking sequence was optimized using a genetic algorithm. Almeida et al.¹⁸ developed a finite element model incorporating progressive failure under internal pressure and optimized stacking sequence via a genetic algorithm. To achieve stable strength ratios, Liu et al.¹⁹ employed a hybrid PSO-GWO optimization method to optimize vessel radius-to-thickness ratio and fiber elastic modulus.

Some scholars have developed optimization frameworks with different objectives. Rafiee et al.²⁰ proposed an optimization approach for filament-wound pipes used in pressurized water reactors, treating the total ply number as a design variable to minimize cost. Dai et al.²¹ combined ANSYS and OPENSEES with Python-based semi-analytical methods and applied the Nelder–Mead optimization algorithm to determine optimal winding angles and the total vessel thickness. To achieve lightweight design of filament-wound cylinders, Wang et al.²² combined a Kriging-based surrogate model with PSO to optimize both the total number of layers and the fiber orientation distribution. Sharma et al.²³ investigated the effects of fiber tension and fiber volume fraction on the performance of composite pressure vessels using finite element analysis with experimental validation. Bhadra et al.²⁴ proposed a framework integrating deep neural networks with a customized differential evolution algorithm for optimizing composite cylinders under axial compression. Rozova et al.²⁵ developed a multi-objective optimization approach for composite pressure vessels with non-axisymmetric polar openings, identifying optimal design parameters such as ply thickness and polar opening radius.

Although previous studies have investigated multi-parameter optimization of filament-wound pressure vessels, considering factors such as winding angle, fiber volume fraction, total thickness, and ply number, limited attention has been paid to the coupled optimization of winding angle and ply thickness within a three-dimensional elasticity framework. A systematic optimization approach that directly maximizes the strength ratio of the weakest ply based on the Tsai–Wu failure criterion under a three-dimensional stress state remains lacking.

To address this gap, this study develops a coupled design and optimization framework for winding angle and ply thickness to enhance the load-carrying capacity and structural reliability of filament-wound pressure vessels. Accordingly, an optimization framework is established to simultaneously optimize winding angle and ply thickness for cylindrical vessels under uniform internal pressure. A hybrid Gaussian quantum-behaved particle swarm-differential evolution algorithm is employed for global optimization, with the objective of maximizing the strength ratio of the weakest ply across different materials and radial ratios.

Theoretical model

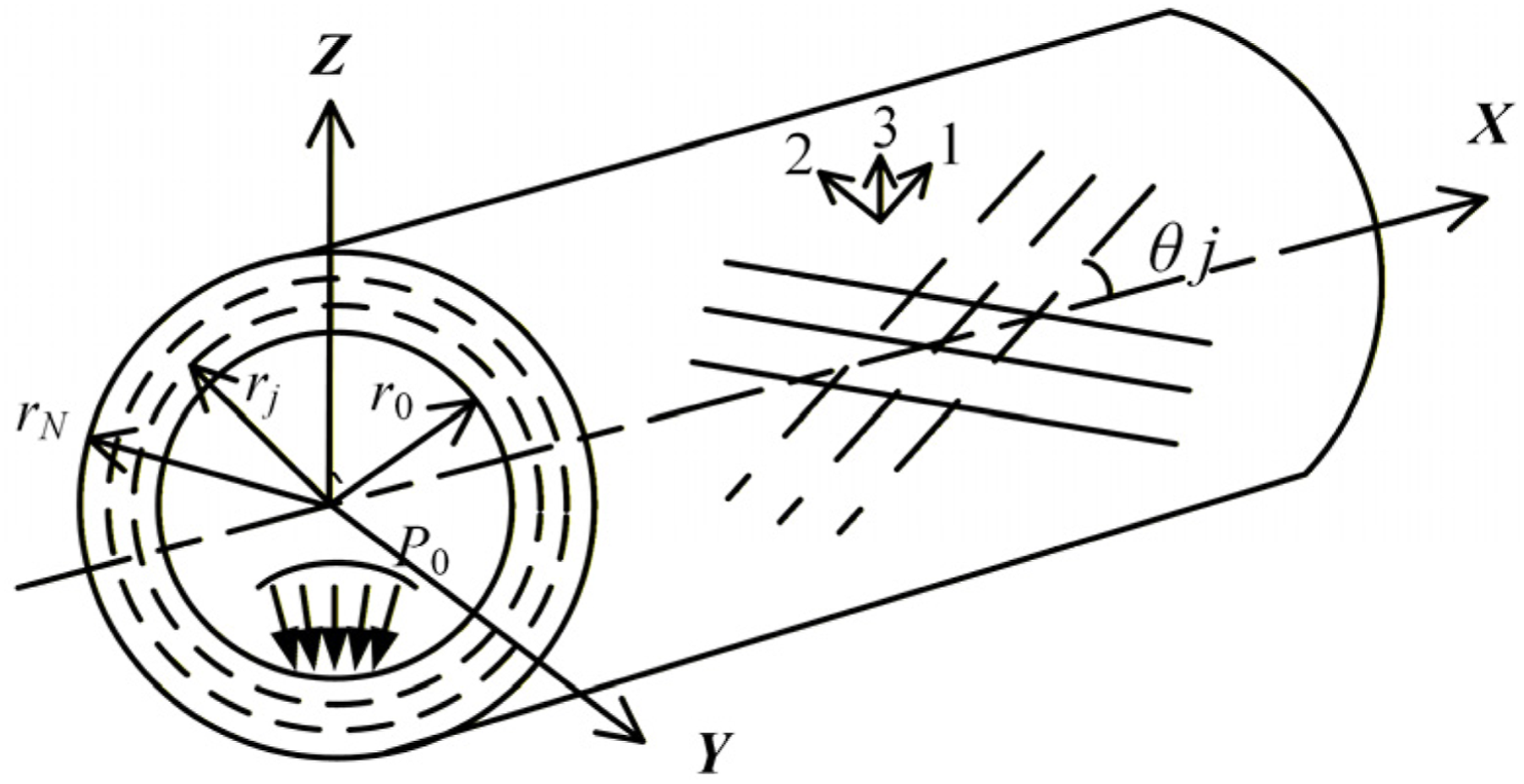

As shown in Figure 1, a cylindrical polar coordinate system is established, with the axial direction of the cylinder defined as the X-axis of the winding mandrel and the vertical direction defined as the Z-axis. The principal material coordinate system is denoted as 1-2-3. The cylinder is assumed to be subjected to a uniform internal pressure P₀ with zero external pressure, with an inner radius r₀ and an outer radius r_N. The structure consists of N orthotropic plies of equal thickness. For different structural cases with varying radial ratios and material systems, the winding angle of each ply is denoted as θ_j.

Figure 1.

Multi-layer FW cylinder.

It is assumed that no slip occurs at the interfaces between plies, and that radial displacement and stress satisfy continuity conditions. Combined with the mechanical equilibrium conditions in the X, Y, and Z directions, the stresses and strains in the three-dimensional directions of each ply can be calculated.

Stress-strain relationship

As shown in Figure 1, the displacement components of the fiber layer in the X-Y-Z coordinate system can be expressed as follows:

{\begin{cases} u_{x} = u_{x} (x) \\ u_{y} = u_{y} (x, z) \\ u_{z} = u_{z} (z) \\ r = r (z) \end{cases}

(1)

where

u_{x}, u_{y}, u_{z}

represent the radial, circumferential, and axial displacements, respectively, and r denotes radius, which is a known function of the radial coordinate Z.

The strain-displacement relationship of the j-th ply is defined as follows:

{\begin{cases} {ε_{z}}^{(j)} = \frac{\partial {u_{z}}^{(j)}}{\partial z}, {ε_{y}}^{(j)} = \frac{{u_{z}}^{(j)}}{z}, \\ {ε_{x}}^{(j)} = \frac{\partial {u_{x}}^{(j)}}{\partial x} = ε_{0}, γ_{x z}^{(j)} = \frac{\partial {u_{x}}^{(j)}}{\partial z} + \frac{\partial {u_{z}}^{(j)}}{\partial z} \\ γ_{y z}^{(j)} = \frac{\partial {u_{y}}^{(j)}}{\partial z} - \frac{{u_{y}}^{(j)}}{z}, γ_{x y}^{(j)} = \frac{\partial {u_{y}}^{(j)}}{\partial x} = γ_{0} z \end{cases}

(2)

where

γ_{0}

denotes the twist of the cylindrical surface per unit length (rate of twist),

ε_{0}

denotes the uniform axial strain along the Z-direction, which is taken as a constant value.

Under axisymmetric conditions, the radial, circumferential, and axial equilibrium equations for each ply are given as follows:

{\begin{cases} \frac{d {σ_{z}}^{(j)}}{d z} + \frac{{σ_{z}}^{(j)} - {σ_{y}}^{(j)}}{z} = 0 \\ \frac{d {σ_{z y}}^{(j)}}{d z} + \frac{2 {σ_{z y}}^{(j)}}{z} = 0 \\ \frac{d {σ_{z x}}^{(j)}}{d z} + \frac{{σ_{z x}}^{(j)}}{z} = 0 \end{cases}

(3)

in the X-Y-Z coordinate system, the off-axis stress-strain relationship of the j-th ply is expressed as

{[\begin{array}{l} σ_{x} \\ σ_{y} \\ σ_{z} \\ σ_{y z} \\ σ_{x z} \\ σ_{x y} \end{array}]}^{(j)} = {[\begin{array}{c} {\bar{C}}_{11} & {\bar{C}}_{12} & {\bar{C}}_{13} & 0 & 0 & {\bar{C}}_{16} \\ {\bar{C}}_{12} & {\bar{C}}_{22} & {\bar{C}}_{23} & 0 & 0 & {\bar{C}}_{26} \\ {\bar{C}}_{13} & {\bar{C}}_{23} & {\bar{C}}_{33} & 0 & 0 & {\bar{C}}_{36} \\ 0 & 0 & 0 & {\bar{C}}_{44} & {\bar{C}}_{45} & 0 \\ 0 & 0 & 0 & {\bar{C}}_{45} & {\bar{C}}_{55} & 0 \\ {\bar{C}}_{16} & {\bar{C}}_{26} & {\bar{C}}_{36} & 0 & 0 & {\bar{C}}_{66} \end{array}]}^{(j)} {[\begin{array}{c} ε_{x} \\ ε_{y} \\ ε_{z} \\ γ_{y z} \\ γ_{x z} \\ γ_{x y} \end{array}]}^{(j)} = {[\bar{C}]}^{(j)} {[\begin{array}{c} ε_{x} \\ ε_{y} \\ ε_{z} \\ γ_{y z} \\ γ_{x z} \\ γ_{x y} \end{array}]}^{(j)}

(4)

From the strain-displacement and radial equilibrium equations, when $ε_{z}$ , $ε_{y}$ , $ε_{x}$ depend only on a single coordinate, substituting equation (3) into equation (4) yields the solution for the radial displacement $μ_{z}$ as follows:

{μ_{z}}^{(j)} = U^{(j)} z^{β^{(j)}} + V^{(j)} z^{- β^{(j)}} + \frac{{α_{1}}^{(j)} ε_{0}}{1 - {(β^{(j)})}^{2}} z + \frac{{α_{2}}^{(j)} γ_{0}}{4 - {(β^{(j)})}^{2}} z^{2}

(5)

where

{\begin{cases} β^{(j)} = \sqrt{\frac{{\bar{C}}_{22}^{(j)}}{{\bar{C}}_{33}^{(j)}}} \\ {α_{1}}^{(j)} = \frac{{\bar{C}}_{12}^{(j)} - {\bar{C}}_{13}^{(j)}}{{\bar{C}}_{33}^{(j)}} \\ {α_{2}}^{(j)} = \frac{{\bar{C}}_{26}^{(j)} - 2 {\bar{C}}_{36}^{(j)}}{{\bar{C}}_{33}^{(j)}} \end{cases}

where

\bar{C}

represents the off-axis stiffness coefficients of an orthotropic unidirectional ply not aligned with the material principal directions. The principal material coordinate system 1-2-3 is obtained by rotating the X-Y coordinate system about the Z-axis by an angle θ_j. The off-axis stiffness matrix can then be obtained through transformation of the on-axis stiffness matrix as follows:

{[\bar{C}]}^{(j)} = {[T_{σ}]}^{(j)} {[C]}^{(j)} {[T_{ε}]}^{(j)}

(6)

where

{[T_{σ}]}^{(j)}

is the stress transformation matrix of the j-th ply,

{[T_{ε}]}^{(j)}

is the strain transformation matrix. The nonzero elements form the following matrices:

{[T_{σ}]}^{(j)} = {[\begin{array}{c} m^{2} & n^{2} & 0 & 0 & 0 & 2 m n \\ n^{2} & m^{2} & 0 & 0 & 0 & - 2 m n \\ 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 0 & m & - n & 0 \\ 0 & 0 & 0 & n & m & 0 \\ - m n & m n & 0 & 0 & 0 & m^{2} - n^{2} \end{array}]}^{(j)}

(7)

{[T_{ε}]}^{(j)} = {[\begin{array}{c} m^{2} & n^{2} & 0 & 0 & 0 & m n \\ n^{2} & m^{2} & 0 & 0 & 0 & - m n \\ 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 0 & m & - n & 0 \\ 0 & 0 & 0 & n & m & 0 \\ - 2 m n & 2 m n & 0 & 0 & 0 & m^{2} - n^{2} \end{array}]}^{(j)}

(8)

where

m = \cos (θ), n = \sin (θ)

θ

is the winding angle of filament cylinder.

According to elasticity theory, the on-axis stress-strain relationship of the j-th ply in the 1-2-3 coordinate system is expressed as

{[\begin{array}{c} σ_{1} \\ σ_{2} \\ σ_{3} \\ σ_{23} \\ σ_{13} \\ σ_{12} \end{array}]}^{(j)} = {[\begin{array}{c} C_{11} & C_{12} & C_{13} & 0 & 0 & 0 \\ C_{12} & C_{22} & C_{23} & 0 & 0 & 0 \\ C_{13} & C_{23} & C_{33} & 0 & 0 & 0 \\ 0 & 0 & 0 & C_{44} & 0 & 0 \\ 0 & 0 & 0 & 0 & C_{55} & 0 \\ 0 & 0 & 0 & 0 & 0 & C_{66} \end{array}]}^{(j)} {[\begin{array}{c} ε_{1} \\ ε_{2} \\ ε_{3} \\ γ_{23} \\ γ_{13} \\ γ_{12} \end{array}]}^{(j)} = {[C]}^{(j)} {[\begin{array}{c} ε_{1} \\ ε_{2} \\ ε_{3} \\ γ_{23} \\ γ_{13} \\ γ_{12} \end{array}]}^{(j)}

(9)

where [C] is the stiffness matrix as follows:

C = {[\begin{array}{c} \frac{1}{E_{1}} & - \frac{ν_{21}}{E_{2}} & - \frac{ν_{31}}{E_{3}} & 0 & 0 & 0 \\ - \frac{ν_{12}}{E_{1}} & \frac{1}{E_{2}} & - \frac{ν_{32}}{E_{3}} & 0 & 0 & 0 \\ - \frac{ν_{13}}{E_{1}} & - \frac{ν_{23}}{E_{2}} & \frac{1}{E_{3}} & 0 & 0 & 0 \\ 0 & 0 & 0 & \frac{1}{G_{23}} & 0 & 0 \\ 0 & 0 & 0 & 0 & \frac{1}{G_{31}} & 0 \\ 0 & 0 & 0 & 0 & 0 & \frac{1}{G_{12}} \end{array}]}^{- 1}

(10)

For unidirectional fiber-reinforced composites, the transverse directions (2 and 3) are assumed to exhibit a uniform fiber distribution. Therefore, the 2-3 plane is considered isotropic, and the following relations are obtained:

E_{2} = E_{3}, G_{31} = G_{12}, ν_{12} = ν_{13}, ν_{21} = ν_{31}, G_{23} = E_{2} / 2 / (1 + ν_{23})

(11)

Boundary and continuity conditions

By applying a uniform internal pressure $P_{0}$ and zero external pressure as boundary conditions, the inner and outer surfaces of the cylinder satisfy the following boundary conditions:

{σ_{z}}^{(1)} (r_{0}) = - P_{0}, {σ_{z}}^{(N)} (r_{N}) = 0

(12)

It is assumed that no slip occurs at the interfaces between plies, and that radial displacement and stress satisfy continuity conditions:

{u_{z}}^{(j)} (r_{j}) = {u_{z}}^{(j + 1)} (r_{j}), {σ_{z}}^{(j)} (r_{j}) = {σ_{z}}^{(j + 1)} (r_{j})

(13)

Under internal pressure only, and with the axial load neglected, the equilibrium equation in the X-direction is expressed as

2 π \sum_{j = 1}^{N} \int_{r_{j - 1}}^{r_{j}} {σ_{z}}^{(j)} (r) r d r = π r^{2} P_{0}

(14)

The torque equilibrium condition is given as

2 π \sum_{j = 1}^{N} \int_{r_{j - 1}}^{r_{j}} {σ_{z θ}}^{(j)} (r) r^{2} d r = 0

(15)

The unknown parameters $U$ , $V$ , $ε_{0}$ , $γ_{0}$ can be determined by solving a system of equations derived from the boundary conditions and the continuity conditions of radial displacement and stress.

Failure criteria and optimization method

Failure criteria

In this study, the three-dimensional Tsai–Wu failure criterion, established based on a comprehensive review of multiple strength criteria,^26,27 is expressed as

F_{i} σ_{i} + F_{i j} σ_{i} σ_{j} + F_{i j k} σ_{i} σ_{j} σ_{k} = 1

(16)

For a unidirectional lamina under plane stress conditions, $i, j, k = 1, 2, 6$ , $F_{i}, F_{i j}, F_{i j k}$ are the strength parameters of the material. Equation (16) is used to evaluate the failure state of each ply. Expanding equation (16) yields:

F_{11} {σ_{1}}^{2} + F_{33} ({σ_{2}}^{2} + {σ_{3}}^{2}) + F_{66} {τ_{12}}^{2} + 2 F_{31} (σ_{2} + σ_{3}) σ_{1} + 2 F_{32} σ_{2} σ_{3} + F_{3} (σ_{2} + σ_{3}) + F_{1} σ_{1} = 1

(17)

where

σ_{1}

is the longitudinal stress in the fiber direction,

σ_{2}

and

σ_{3}

are the transverse stresses,

τ_{12}

is the shear stress.

F_{1}

F_{3}

F_{11}

F_{31}

F_{32}

F_{33}

, and

F_{66}

are material strength parameters, which can be calculated by

F_{11} = \frac{1}{X_{t} X_{c}}, F_{33} = \frac{1}{Y_{t} Y_{c}}, F_{66} = \frac{1}{S^{2}}, F_{3} = \frac{1}{Y_{t}} - \frac{1}{Y_{c}}, F_{1} = \frac{1}{X_{t}} - \frac{1}{X_{c}}, F_{31} = - 1 / 2 \sqrt{F_{33} / F_{11}}, F_{32} = - 1 / 2 F_{33}

To further characterize the failure state of each ply in the cylinder, the strength ratio R is defined. Its expression is derived from equation (17) as follows:

{\begin{cases} ρ R^{2} + ξ R - 1 = 0 \\ R = - \frac{ξ}{2 ρ} + \sqrt{{(- \frac{ξ}{2 ρ})}^{2} + \frac{1}{ρ}} \end{cases}

(18)

where

ρ = F_{11} {σ_{1}}^{2} + F_{33} ({σ_{2}}^{2} + {σ_{3}}^{2}) + F_{66} {τ_{12}}^{2} + 2 F_{31} (σ_{2} + σ_{3}) σ_{1} + 2 F_{32} σ_{2} σ_{3}

ξ = F_{3} (σ_{2} + σ_{3}) + F_{1} σ_{1}

The negative root of R has no physical meaning; therefore, only the positive root is considered. The strength ratio R is regarded as a dimensionless failure-margin index obtained by substituting the material strength parameters into the failure criterion.

To further evaluate failure behavior in the fiber plies, an additional classical failure criterion-Hashin criterion²⁸ is introduced for comparison, and its formulation is given as follows:

H_F = {\begin{cases} \frac{{σ_{1}}^{2}}{{X_{T}}^{2}} + \frac{{τ_{12}}^{2}}{S^{2}} = 1 (σ_{1} \geq 0) \\ \frac{{σ_{1}}^{2}}{{X_{C}}^{2}} = 1 (σ_{1} < 0) \end{cases}

(19)

H_M = {\begin{cases} \frac{{(σ_{2} + σ_{3})}^{2}}{{Y_{T}}^{2}} + \frac{{τ_{12}}^{2}}{S^{2}} = 1 (σ_{2} + σ_{3} \geq 0) \\ \frac{{(σ_{2} + σ_{3})}^{2}}{4 S^{2}} + [{(\frac{Y_{c}}{2 S})}^{2} - 1] \frac{σ_{2} + σ_{3}}{{Y_{C}}^{2}} + \frac{{τ_{12}}^{2}}{S^{2}} = 1 (σ_{2} + σ_{3} < 0) \end{cases}

(20)

R_H S = {\begin{cases} \frac{1}{\sqrt{{(\frac{σ_{1}}{X_{t}})}^{2} + {(\frac{τ_{12}}{S})}^{2}}} (σ_{1} \geq 0) \\ \frac{| X_{C} |}{| σ_{1} |} (σ_{1} < 0) \\ \frac{1}{\sqrt{{(\frac{σ_{2} + σ_{3}}{Y_{t}})}^{2} + {(\frac{τ_{12}}{S})}^{2}}} (σ_{2} + σ_{3} \geq 0) \\ - \frac{ξ^{'}}{2 ρ^{'}} + \sqrt{{(- \frac{ξ^{'}}{2 ρ^{'}})}^{2} + \frac{1}{ρ^{'}}} (σ_{2} + σ_{3} < 0) \end{cases}

(21)

where

ρ^{'} = {(\frac{σ_{2} + σ_{3}}{2 S})}^{2} + {(\frac{τ_{12}}{S})}^{2} ξ^{'} = [(\frac{Y_{C}}{2 S}) - 1] (\frac{σ_{2} + σ_{3}}{Y_{C}})

where

X_{t}

X_{c}

Y_{t}

Y_{c}

represent the transverse tensile and compressive strengths,

S

is the shear strength. The term R_HS in equation (21) is the strength ratio based on Hashin failure criterion, H_F, H_M denote the damage measures of the fiber and matrix, respectively.

For each ply, the stress-strain relationship is first established based on three-dimensional elasticity theory, together with the axisymmetric equilibrium conditions of a cylindrical structure subjected to uniform internal pressure. Ply-wise undetermined coefficients are introduced. A system of nonlinear equations with four unknowns (U, V, ε₀, γ₀) is then formulated using displacement continuity, radial stress continuity, and force equilibrium conditions, and solved numerically in a unified manner to obtain the strain field distribution of each ply. Based on the obtained strain field, the full stress state of each ply, including σ₁, σ₂, σ₃, and τ₁₂, is computed using three-dimensional constitutive relations and expressed in the material coordinate system. The stresses are then substituted into the three-dimensional Tsai–Wu failure criterion, including linear and quadratic terms, to obtain the failure function of each ply, which is further reformulated into a quadratic equation with respect to the load proportionality factor to determine the strength ratio R. The minimum R among all plies is taken as the governing structural strength index for subsequent optimization.

Optimization method

In this study, the winding angle and ply thickness are selected as design variables. The strength ratio (R) is used as the primary indicator for evaluating the mechanical performance of the composite cylindrical structure, and a GQPSO-DE hybrid optimization algorithm is employed for optimization. To obtain physically feasible solutions, several constraints are imposed, as defined below:

{\begin{cases} Find : X = (θ, t) \\ Max : \min R (r_{1 \sim j}) (j = 1, 2 \dots N) \\ s . t . θ_{\min} \leq θ_{j} \leq θ_{\max} (j = 1, 2 \dots N) \\ t_{\min} \leq t \leq t_{\max} \end{cases}

(22)

where

R (r_{j})

is the strength ratio of the j-th ply of the cylinder.

θ_{\min}

and

θ_{\max}

are the lower and upper bounds of the optimization variable winding angle

θ

t_{\min}

and

t_{\max}

are the lower and upper bounds of the optimization variable ply thickness t.

The GQPSO-DE hybrid algorithm integrates the global convergence capability of Particle Swarm Optimization (PSO) with the local perturbation advantage of Differential Evolution (DE). The novelty of the proposed algorithm is summarized as follows: Compared with Niu,²⁹ this study introduces a random number generation strategy that combines the mean of the PSO random coefficients with a Gaussian sequence of zero mean and unit variance. Meanwhile, the scaling factor F(i) in DE is adaptively modified with a mild random perturbation, and the mutation term h_p(i) is reformulated to be centered around the global optimum. This design achieves a balance between a high probability of small-amplitude adjustments (fine-tuning) around the current position and a low probability of large-amplitude jumps, enabling particles to escape local minima and improving the ability to search for the global best (Gbest).

A bidirectional migration mechanism is introduced to enhance information exchange between the exploration and exploitation subgroups. In each iteration, the population is ranked according to fitness values, where the top 30% of individuals are assigned to the DE-based exploitation subgroup, and the remaining individuals form the GQPSO-based exploration subgroup. Subsequently, approximately 10% of individuals are exchanged between the two subgroups to maintain population diversity and facilitate information sharing. This mechanism mitigates premature convergence, accelerates convergence, and maintains a balance between global exploration and local exploitation.

For the GQPSO algorithm which combined with a Gaussian mutation operator, in a D-dimensional space, the particles move according to the following iterative equation^30,31:

{\begin{cases} X_{t} (i + 1) = p + β \cdot | M b e s t_{t} - x_{t} (i) | \cdot \ln (1 / G), i f k \geq 0.5 \\ X_{t} (i + 1) = p - β \cdot | M b e s t_{t} - x_{t} (i) | \cdot \ln (1 / G), i f k < 0.5 \end{cases}

(23)

where i and t represent the iteration number and particles population size, respectively.

G = a b s (N (0, 1))

β

is a design parameter known as the contraction-expansion coefficient in [0.5, 1]. k is a value generated from a uniform probability distribution function in [0,1]. The global point

M b e s t

of the population is defined the mean of the Pbest (personal best) position of all particles, calculated as

M b e s t = \frac{1}{N} \sum_{d = 1}^{N} p_{g, d} (i)

(24)

where N is the number of particles at current group,

p_{g}

is the position of the best particle among all the particles in the population.

The local operator expression p for particle swarm convergence is modified as

p = \frac{G \cdot p_{t, d} + g \cdot p_{g, d}}{G + g}

(25)

where

g = a b s (N (0, 1))

p_{t}

is the best position of the particle t at current iteration.

DE simulates the process of biological evolution, generating a set of solutions through continuous evolution to find the optimal solution. The mutation principle was discussed,^29,32 in the i-th iteration, three individuals $x_{p 1} (i)$ , $x_{p 2} (i)$ , $x_{p 3} (i)$ are randomly selected and different from each other, the mutation vector $h_{p} (i)$ modified as

{\begin{cases} h_{p} (i) = x_{p 1} (i) + F (i) (x_{p 2} (i) - x_{p 3} (i)) + F (i) (P b e s t - x_{p 1} (i)) \\ F (i) = 0.1 + 0.9 * r a n d \end{cases}

(26)

where

X_{p 1} (i)

is the base vector,

(x_{p 2} (i) - x_{p 3} (i))

is the differential vector and a scaling factor F(i) is randomly regenerated within [0.1,1].

The crossover principle is given as

v_{a b}^{'} = {\begin{cases} v_{a b}, i f r a n d (0, 1) \leq c r o r b = r n (a) \\ x_{a b}, e l s e \end{cases}

(27)

where

a

is the index of the population,

b \in [1, D]

is the index of the parameter dimension, and

c r \in [0, 1]

is the crossover probability,

r n (a) \in [1, 2, \dots, D]

is the randomly chosen index to ensure that at least one parameter from mutation vector.

v_{a}^{'}

is the trial individual.

The selection principle compares the fitness of trial individual $v_{a}^{'}$ with its parent, and selects the individual with better fitness function values (Pbest) as the next generation individual.

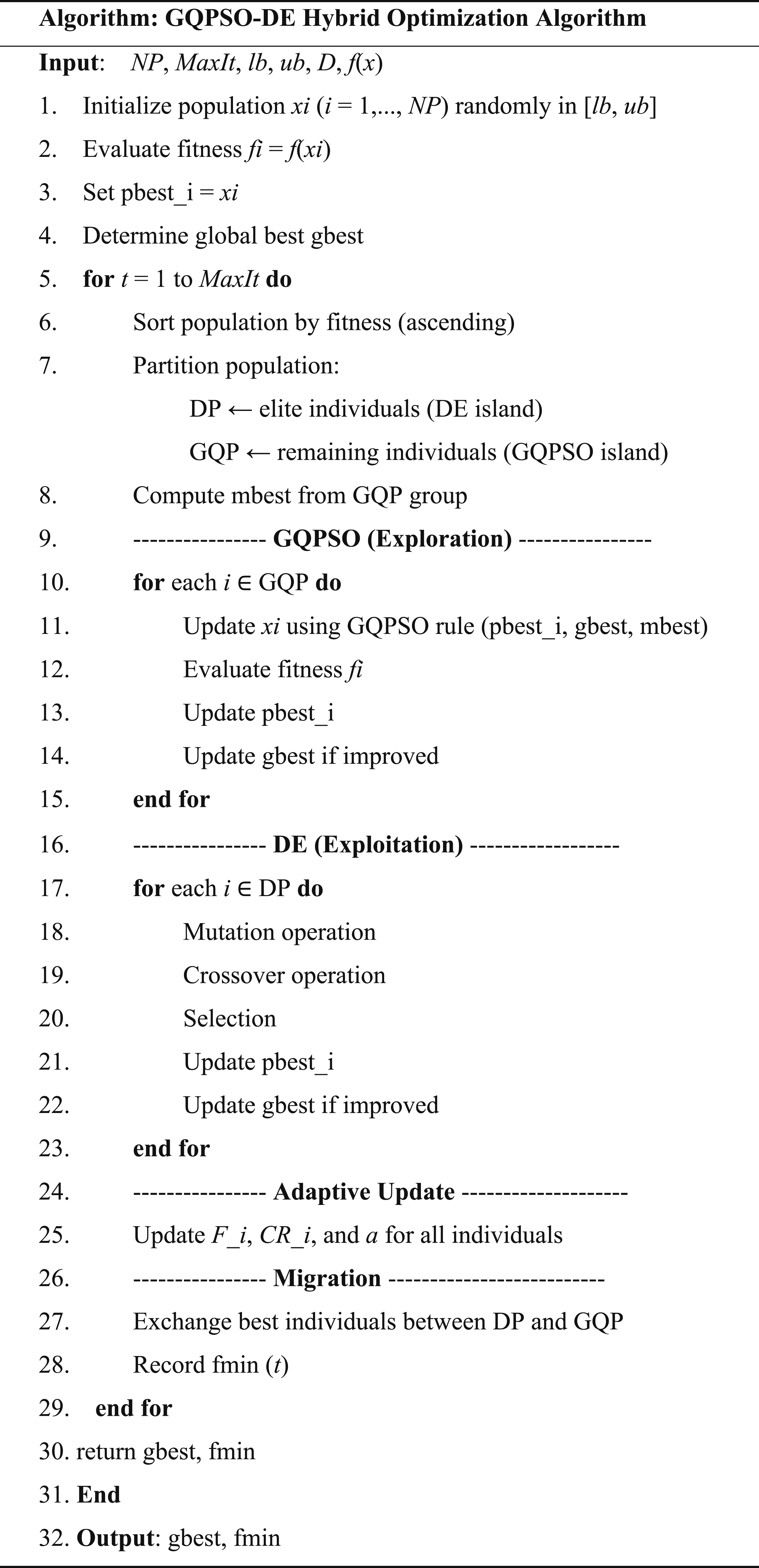

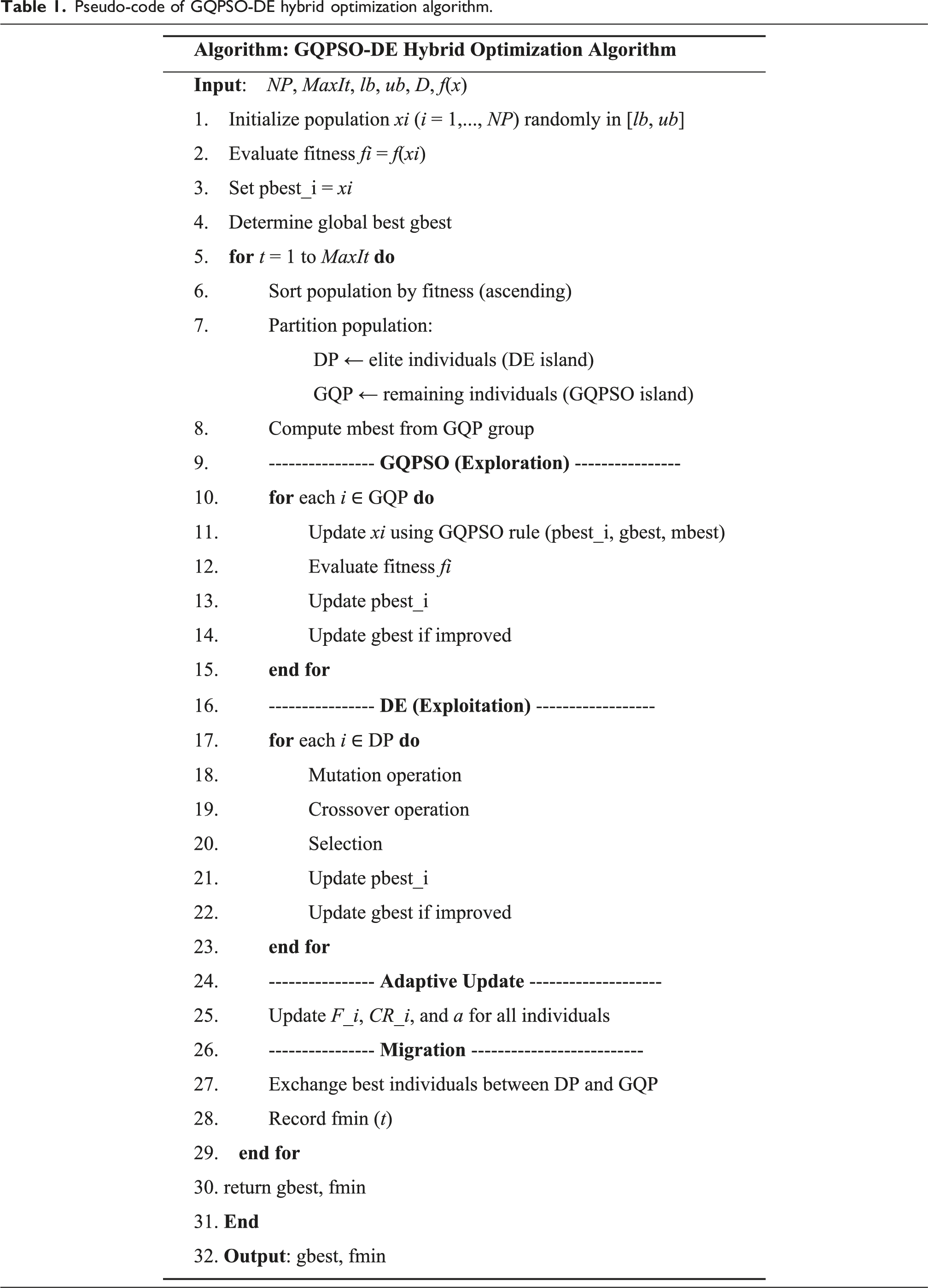

The pseudo-code of the proposed algorithm is defined as Table 1:

Table 1.

Pseudo-code of GQPSO-DE hybrid optimization algorithm.

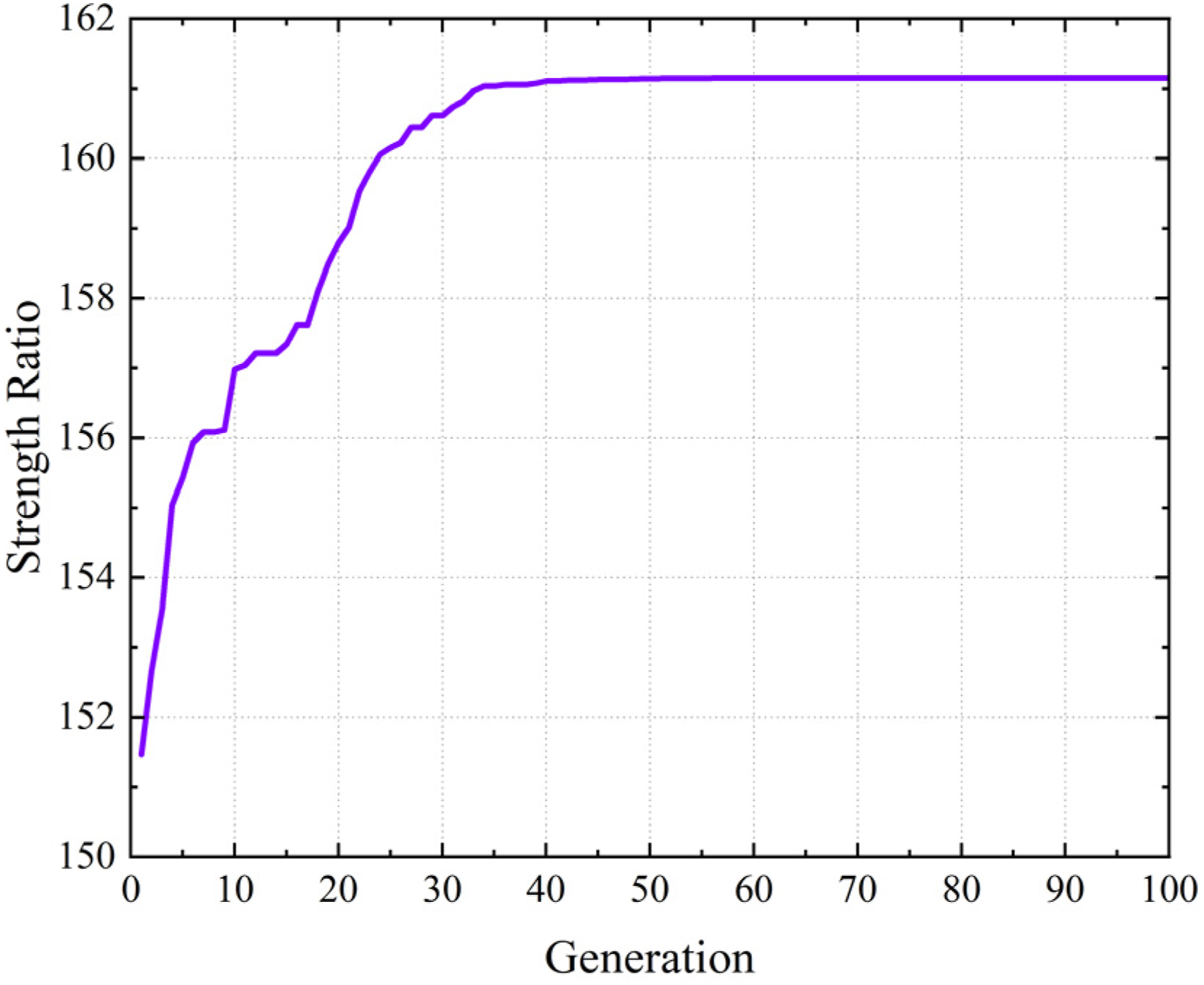

The convergence curve of the strength ratio R versus the number of iterations for a T300/934 composite filament-wound cylinder (radial ratio of 0.7) during the optimization process is shown in Figure 2, where R finally converges to 161.14862.

Figure 2.

Convergence curve of the optimized strength ratio for the T300/934 filament-wound cylinder with radial ratio = 0.7.

Results and discussion

Material property of winding filaments

Two composite materials, T300/934 and E-glass/epoxy, are selected for the optimization of the fiber architecture. T300/5208 is used for comparison and validation of the proposed approach. The material properties are listed in Table 2.¹⁵

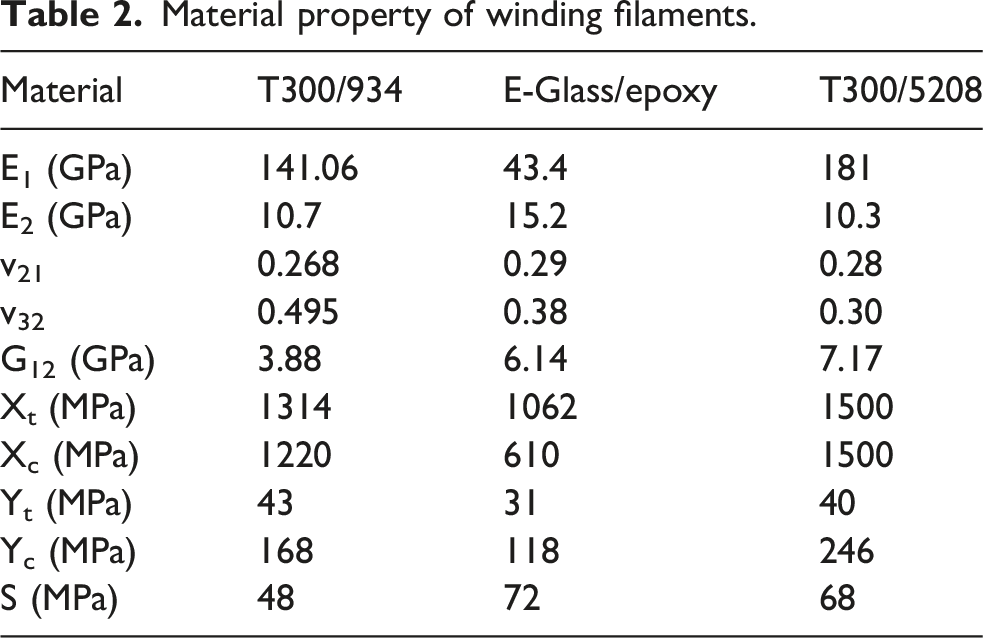

Table 2.

Material property of winding filaments.

Material	T300/934	E-Glass/epoxy	T300/5208
E₁ (GPa)	141.06	43.4	181
E₂ (GPa)	10.7	15.2	10.3
v₂₁	0.268	0.29	0.28
v₃₂	0.495	0.38	0.30
G₁₂ (GPa)	3.88	6.14	7.17
X_t (MPa)	1314	1062	1500
X_c (MPa)	1220	610	1500
Y_t (MPa)	43	31	40
Y_c (MPa)	168	118	246
S (MPa)	48	72	68

Results analysis

The baseline material systems T300/934 and E-glass/epoxy are defined to investigate the optimization variables and the corresponding strength ratio distributions for thin-walled and thick-walled structures. Optimization is performed at radial ratios of 0.95, 0.9, 0.8, 0.7, and 0.6. The radial ratio is defined as r₀/r_N, where r₀ and r_N representing the inner radius and outer radii of cylindrical composite structures, respectively. The optimized results are compared with the strength ratios corresponding to the traditional ±55° lay-up³³ (original configuration) with same ply thickness, and the results of the optimization are discussed in the following sections.

Optimization results of T300/934

For T300/934, the winding angle and ply thickness were optimized under radial ratios of 0.95, 0.9, 0.8, 0.7, and 0.6. The optimization results are presented in Figure 3, with the corresponding ply thicknesses of 0.1325, 0.1375, 0.1563, 0.1536, and 0.1390 mm, respectively. In Figure 3, subfigures (A)–(E) and (a)–(e) present the optimized angles and strength ratio. It can be observed that, for thin-walled cylinders, the optimized winding angles fall between 40° and 70°. For thick-walled structures, even with optimization, uniform distribution of winding angles cannot be achieved. At radial ratios of 0.95, 0.9, 0.8, 0.7, and 0.6, the optimized weakest-ply strength ratio is improved by 4.78%, 10.52%, 4.1%, 9.52%, and 13.23%, respectively, compared with the traditional lay-up.

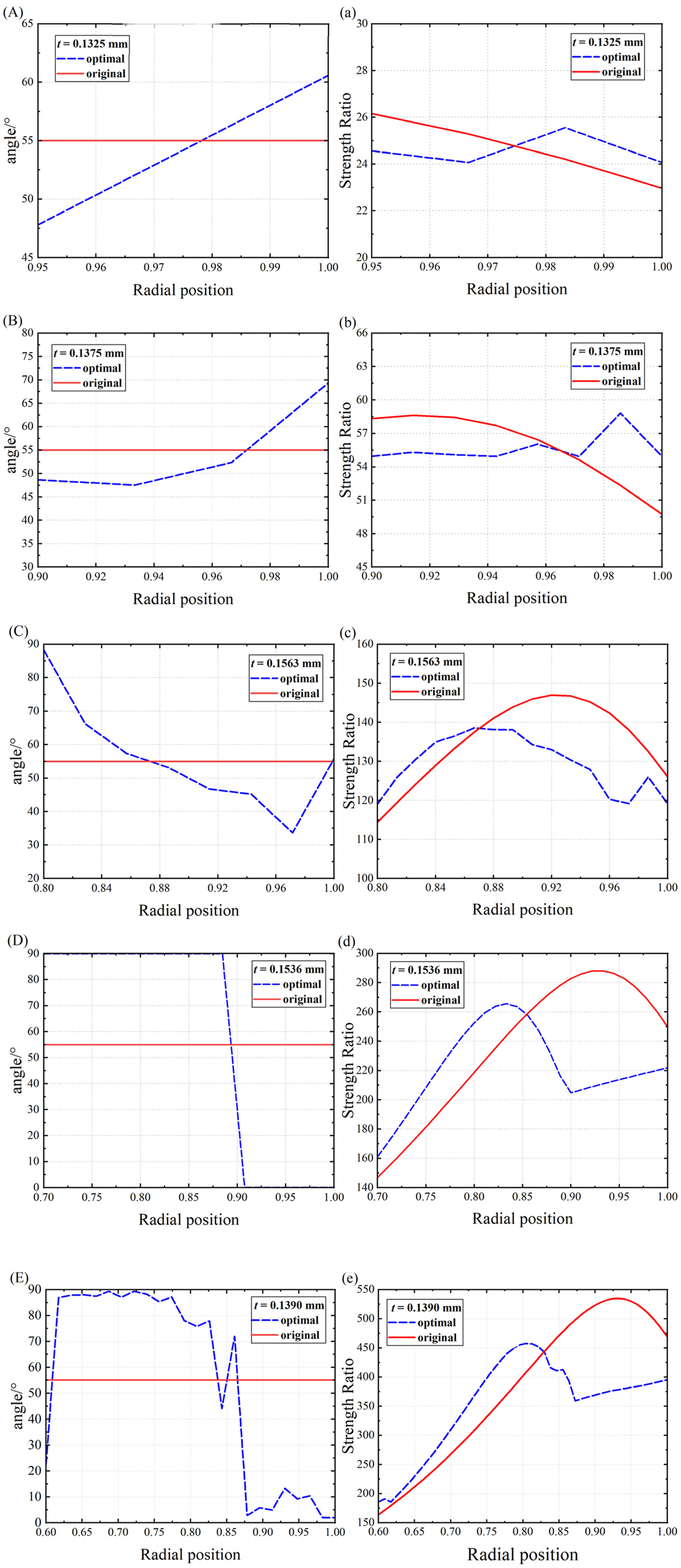

Figure 3.

Optimized winding angle, ply thickness and strength of T300/934 in radial ratios = 0.95 (A, a), 0.9 (B, b), 0.8 (C, c), 0.7 (D, d), 0.6 (E, e).

The location of the weakest ply shifts from the outer wall to the inner wall as the radial ratio decreases from 0.95 to 0.60. This phenomenon occurs because a decrease in radial ratio (i.e., an increase in wall thickness) leads to a redistribution of peak hoop stress from the outer wall to the inner wall. For radial ratios of 0.95, 0.90, and 0.80, the cylinder can be regarded as a thin-walled structure, and the hoop stress reaches its maximum at the outer surface. Since T300/934 exhibits relatively low transverse Young’s modulus E₂ and transverse tensile strength Y_t, the high hoop stress at the outer wall induces larger transverse tensile strains and stress levels, resulting in reduced safety margins compared with the inner wall. As the radial ratio decreases to 0.70 and 0.60, the wall thickness increases and the hoop stress peak shifts toward the inner wall. Meanwhile, radial compressive stress increases significantly at the inner surface. Given the limited transverse compressive strength Y_c, shear modulus G₁₂, and shear strength S of T300/934 under such a multiaxial stress state, the combined effect of hoop and radial compressive stresses at the inner wall leads to a lower safety margin than that at the outer wall.

To visually compare the variation in structural strength before and after optimization, Table 3 presents the strength ratio (R) values for both the original and optimized designs.

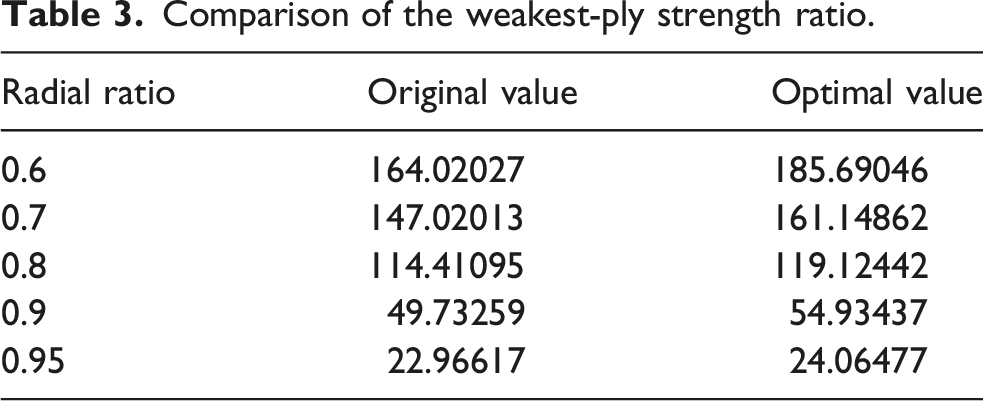

Table 3.

Comparison of the weakest-ply strength ratio.

Radial ratio	Original value	Optimal value
0.6	164.02027	185.69046
0.7	147.02013	161.14862
0.8	114.41095	119.12442
0.9	49.73259	54.93437
0.95	22.96617	24.06477

Optimization results of E-glass/epoxy

For E-glass/epoxy, optimization is performed under radial ratios of 0.95, 0.9, 0.8, 0.7, and 0.6. The results are presented in Figure 4, where subfigures (A)–(E) and (a)–(e) show the optimized winding angles and strength ratios, with corresponding ply thicknesses of 0.265, 0.275, 0.250, 0.239, and 0.238 mm, respectively. It is observed that the winding angles are distributed between 45° and 70° for both thin-walled and thick-walled structures. At radial ratios of 0.95, 0.9, 0.8, 0.7, and 0.6, the weakest-ply strength ratio is improved by 51.15%, 37.40%, 22.26%, 21.87%, and 27.36%, respectively, compared with the traditional lay-up.

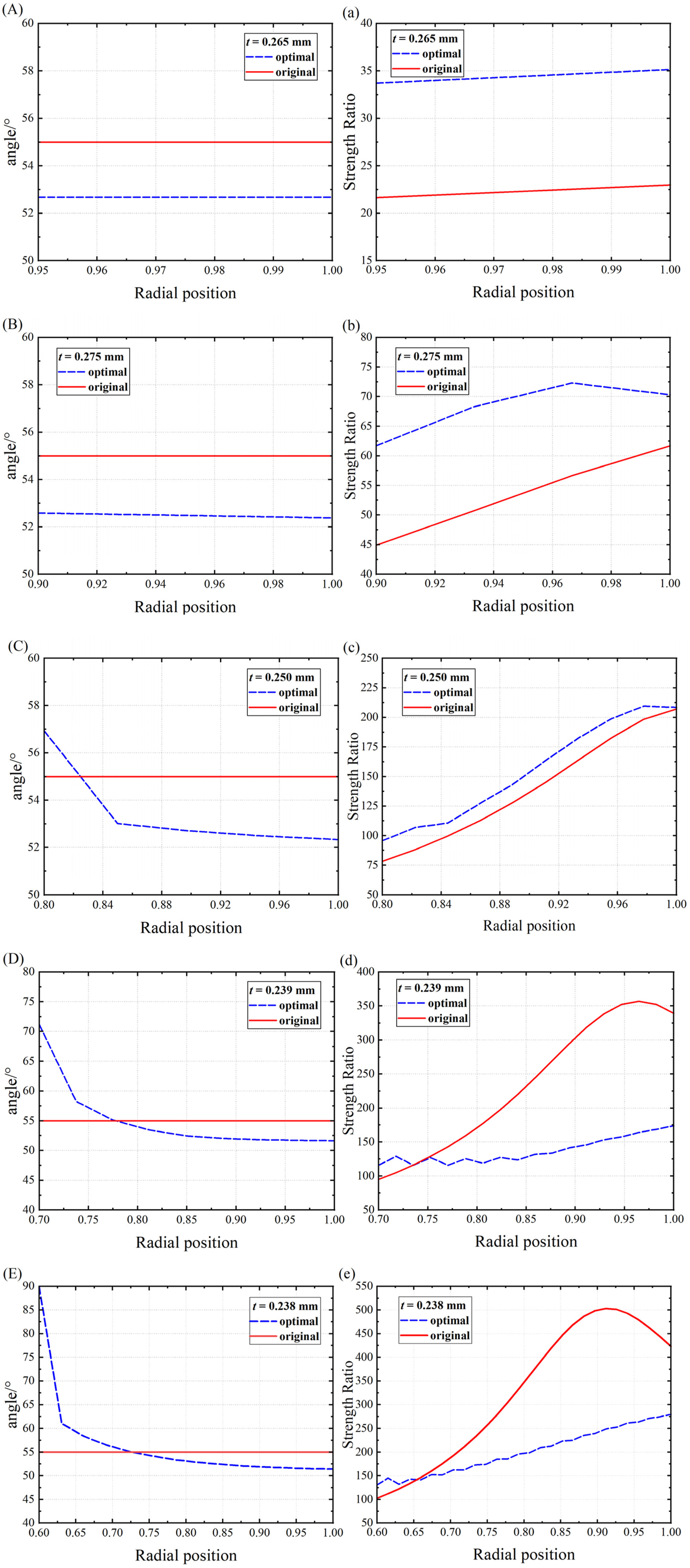

Figure 4.

Optimized winding angle, ply thickness, and strength of E-glass/epoxy in radial ratios = 0.95 (A, a), 0.9 (B, b), 0.8 (C, c), 0.7 (D, d), 0.6 (E, e).

The weakest ply consistently appears at the inner wall. In contrast to the T300/934 material, no weakest-ply migration is observed. This phenomenon occurs because the relatively small difference between the longitudinal modulus E₁ and transverse modulus E₂ leads to limited variation in the distribution of peak hoop stress with changing radial ratio. The inner wall consistently experiences high hoop stress and radial compressive stress.

To visually compare the variation in structural strength before and after optimization, the Table 4 lists the strength ratio (R) values for both the original and optimized designs.

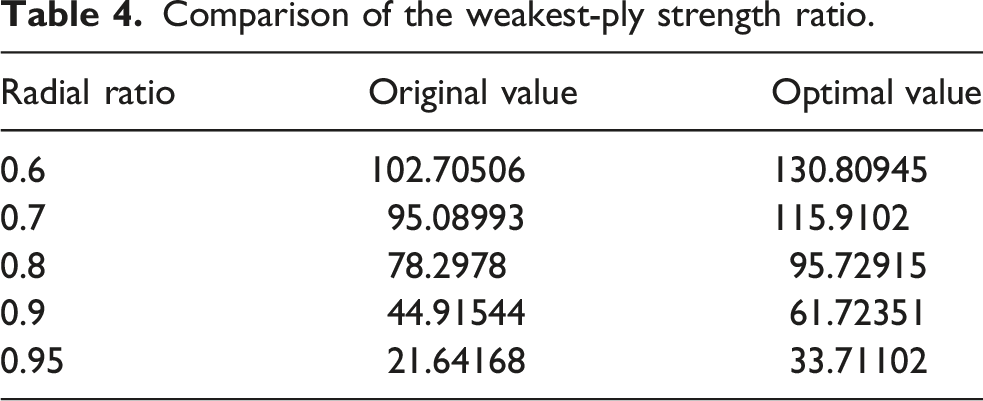

Table 4.

Comparison of the weakest-ply strength ratio.

Radial ratio	Original value	Optimal value
0.6	102.70506	130.80945
0.7	95.08993	115.9102
0.8	78.2978	95.72915
0.9	44.91544	61.72351
0.95	21.64168	33.71102

The difference in optimization gains between E-glass/epoxy and T300/934 arises from their distinct elastic modulus levels and degrees of anisotropy. Within the Tsai–Wu failure criterion framework, E-glass/epoxy exhibits a relatively low elastic modulus, resulting in higher sensitivity of stress components to changes in winding angle. During optimization, a portion of the hoop stress is transferred to the transverse and shear directions. Since the transverse and shear moduli are of the same order as the longitudinal modulus, the redistributed stresses can be effectively sustained, leading to reduced contributions of the transverse and shear terms in the Tsai–Wu failure function. Consequently, the strength ratio improvement reaches 20%–50%.

In contrast, T300/934 exhibits a high longitudinal elastic modulus and strong anisotropy, with load-bearing predominantly carried in the fiber direction. As the winding angle varies, a portion of the hoop stress is transferred to the transverse and shear directions. Owing to the low transverse and shear moduli of T300/934, the redistributed stresses cannot be effectively sustained, which increases the contributions of the transverse and shear terms in the Tsai–Wu failure function and reduces the strength ratio. As a result, the optimization gain is limited, with a strength ratio improvement of 4%–13%.

Comparative analysis of optimized results

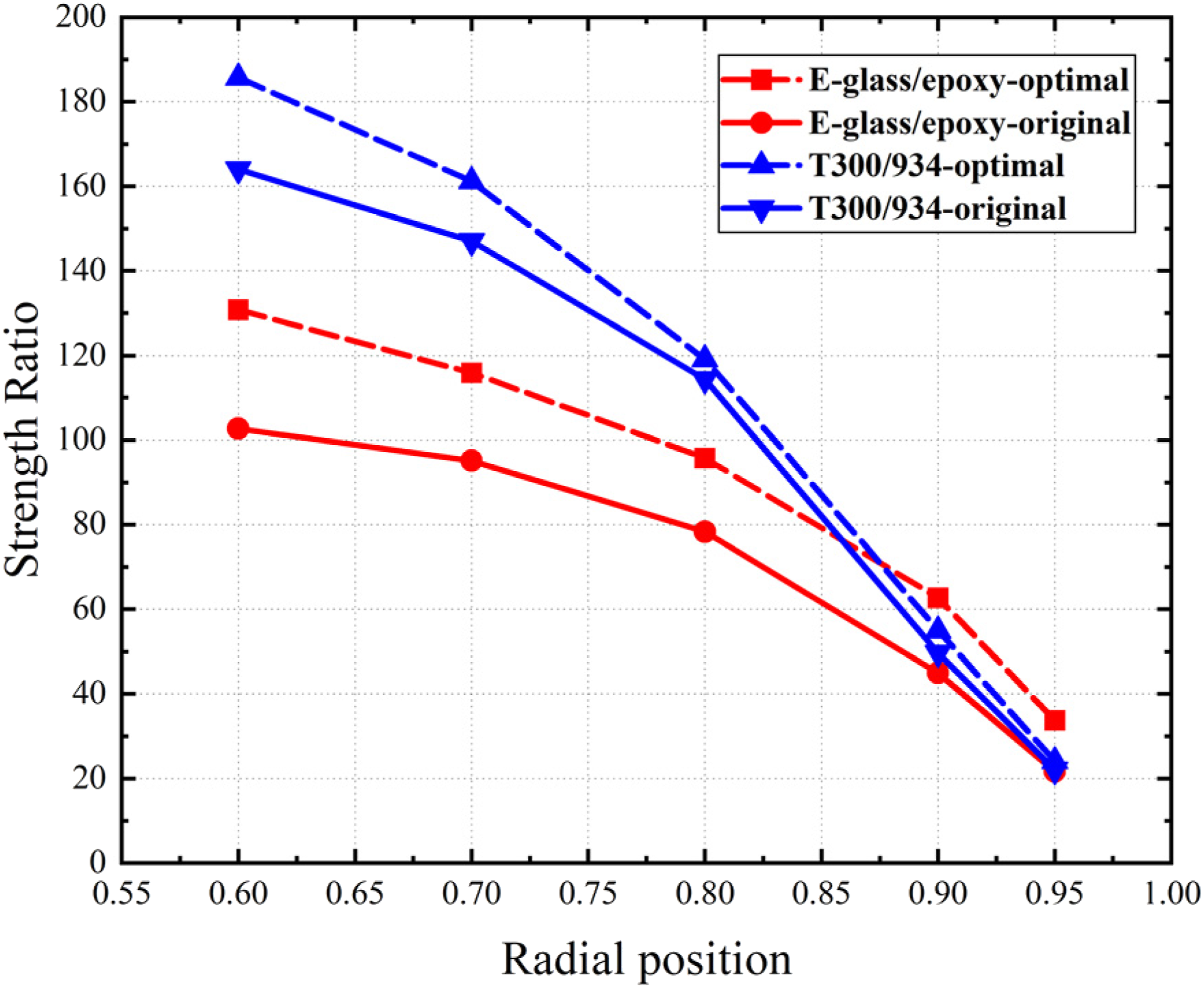

The strength ratios of the weakest ply for the two materials under different radial ratios are shown in Figure 5. The strength ratio increases as the radial ratio decreases from 0.95 to 0.6, indicating that a thicker wall leads to a higher strength ratio. Compared with the traditional ±55° lay-up under the same thickness, the optimized design achieves a significant improvement. Moreover, the improvement in strength ratio is more pronounced in thick-walled cylinders than in thin-walled cylinders after parameter optimization.

Figure 5.

Variation trend of strength ratio under different radial ratios.

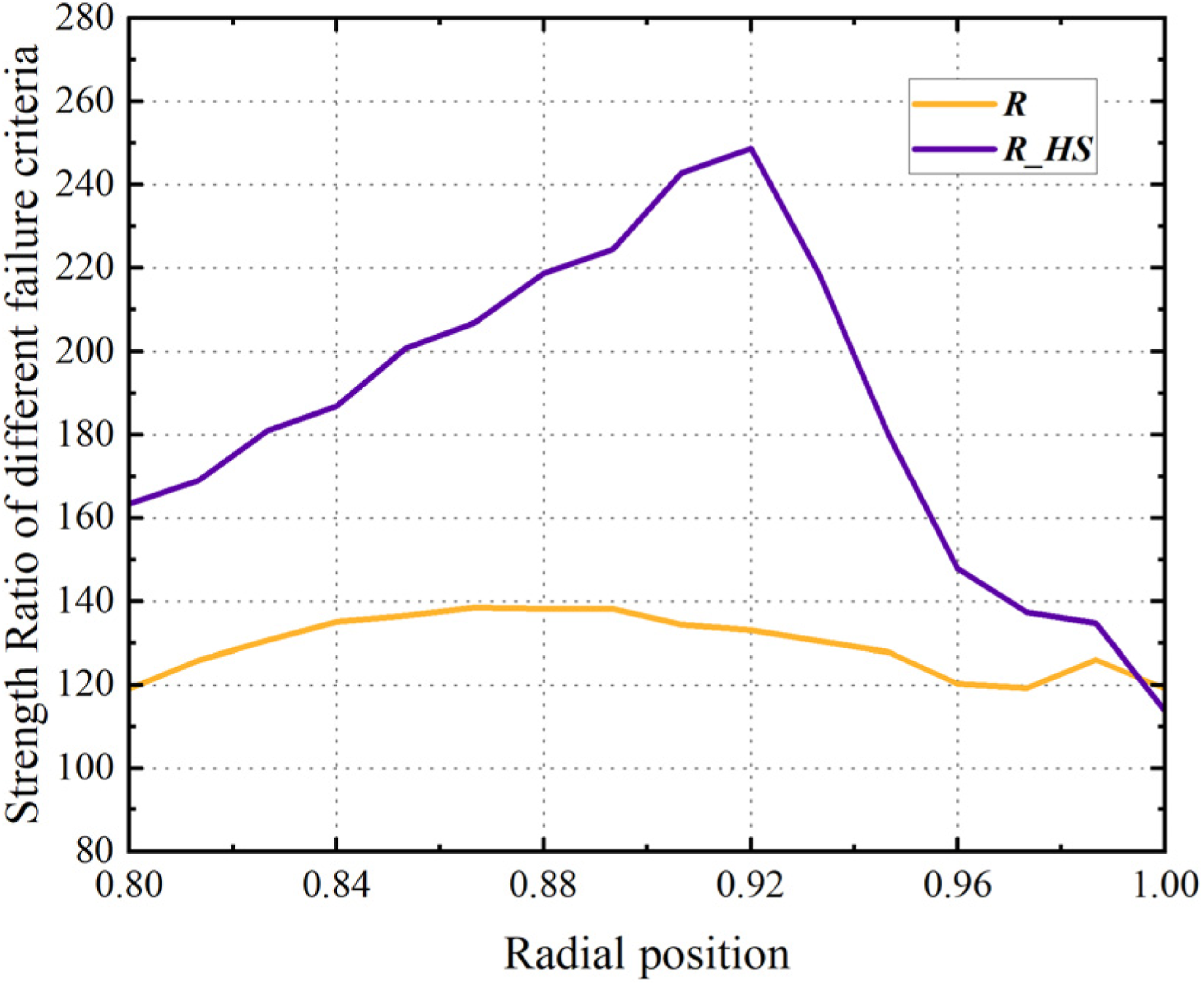

The comparison indicates that the strength ratios obtained from the Tsai–Wu and Hashin criteria follow consistent trends for the selected case of T300/934 at a radial ratio of 0.8. However, the values predicted by the Hashin criterion are higher than those obtained from the Tsai–Wu criterion. For a more conservative³⁴ estimate of failure, the Tsai–Wu criterion is selected as the primary failure criterion. This confirms the effectiveness of the optimization results based on the Tsai–Wu evaluation method for safety assessment, while the Hashin criterion provides additional validation of the failure modes. The comparison results are shown in Figure 6.

Figure 6.

Comparison result of Tsai–Wu and Hashin failure criteria.

To further verify the accuracy and superiority of the proposed algorithm, the optimization results are compared with those reported by Tabakov PY (genetic algorithm)¹³ and Geng (combined complex-steepest descent method).¹⁵ The comparison results are shown in Figure 7. Under identical conditions, all methods exhibit similar distribution trends in burst pressure and winding angle, confirming the correctness of the proposed algorithm. Moreover, the burst pressure of the weakest ply obtained by the proposed method is higher than those reported in the literature. Specifically, improvements of 2.91% at r_N/r₀ = 1.10 and 4.97% at r_N/r₀ = 1.50 are observed compared with Geng’s results, while improvements of 5.20% at r_N/r₀ = 1.10 and 4.98% at r_N/r₀ = 1.50 are achieved compared with Tabakov PY’s results.

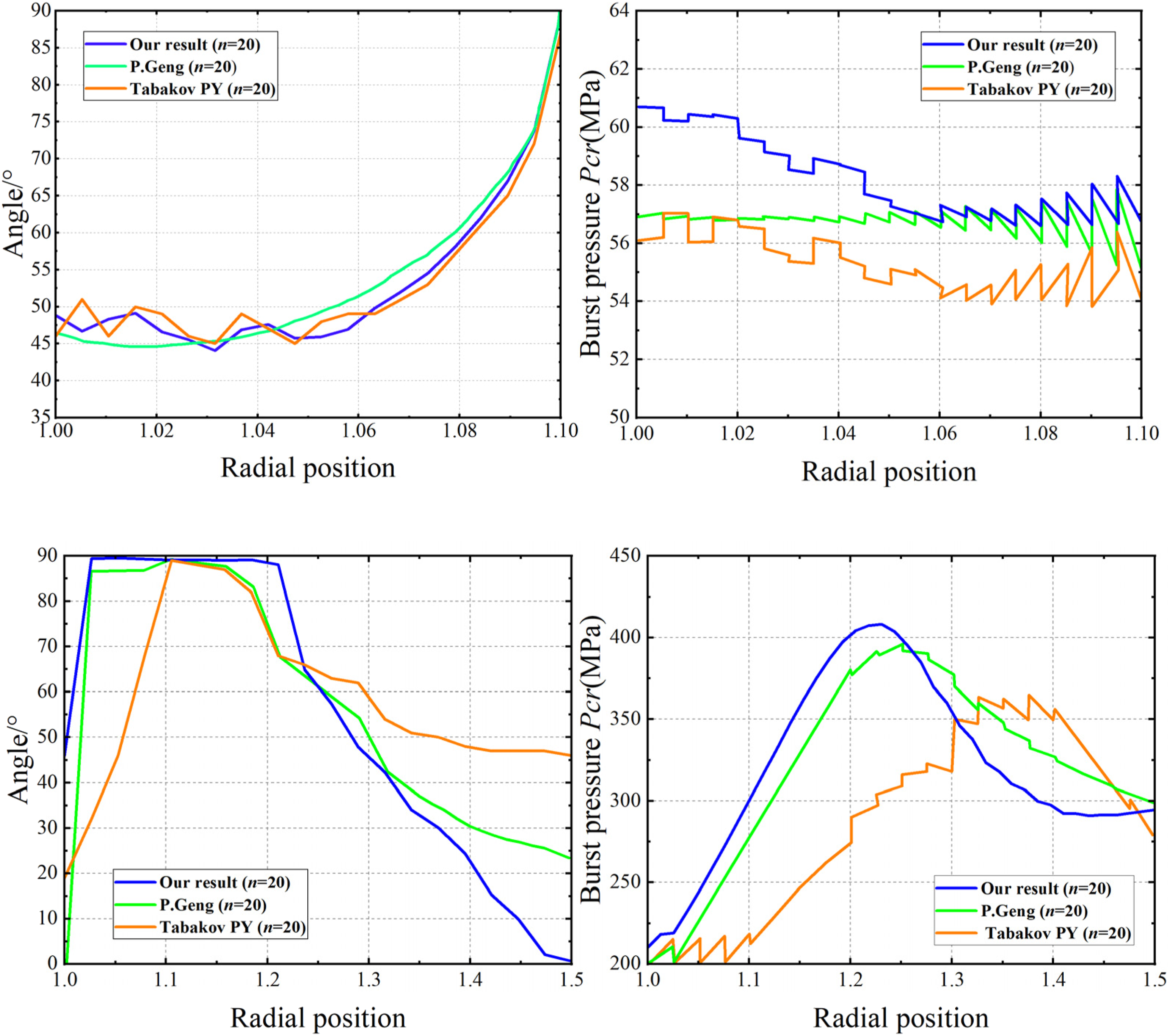

Figure 7.

The optimized winding angle and the corresponding strength ratio distributions via thickness of T300/5208 compare with Geng and Tabakov PY.

To support the analytical results, finite element analyses were conducted for both materials at a radial ratio of 0.8, and with the results presented in Figures 8 and 9. The results indicate that, under identical loading conditions, the optimized structure exhibits a lower maximum von Mises stress than the conventional structure, with the maximum stress consistently located on the inner surface of the cylinder. This stress distribution is consistent with the optimization results, demonstrating that the proposed method effectively enhances the load-carrying capacity of composite pressure vessels.

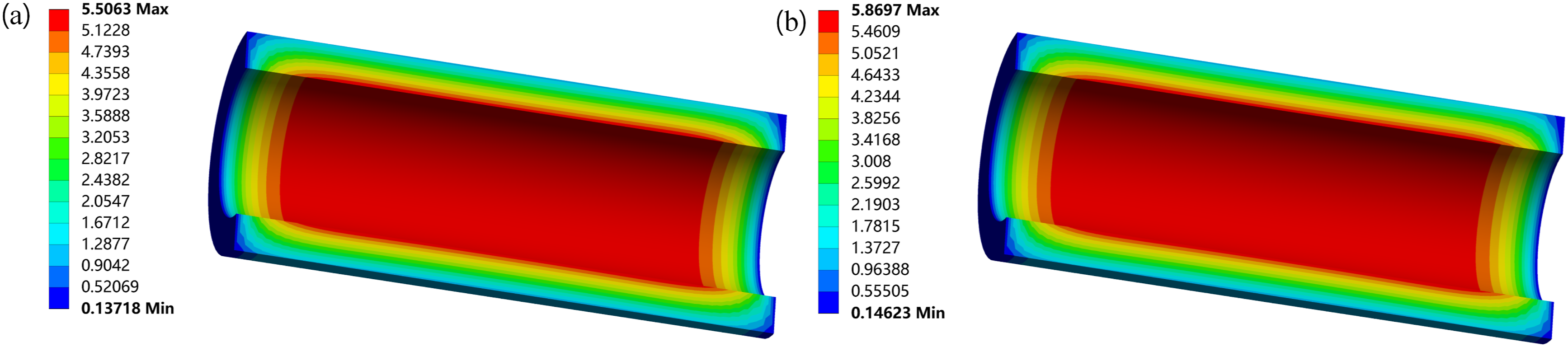

Figure 8.

Von Mises stress plot for Multi-layer FW cylinder of composite material T300/934 at radial ratio = 0.8: (a) stress plot for optimized results, (b) stress plot for original results.

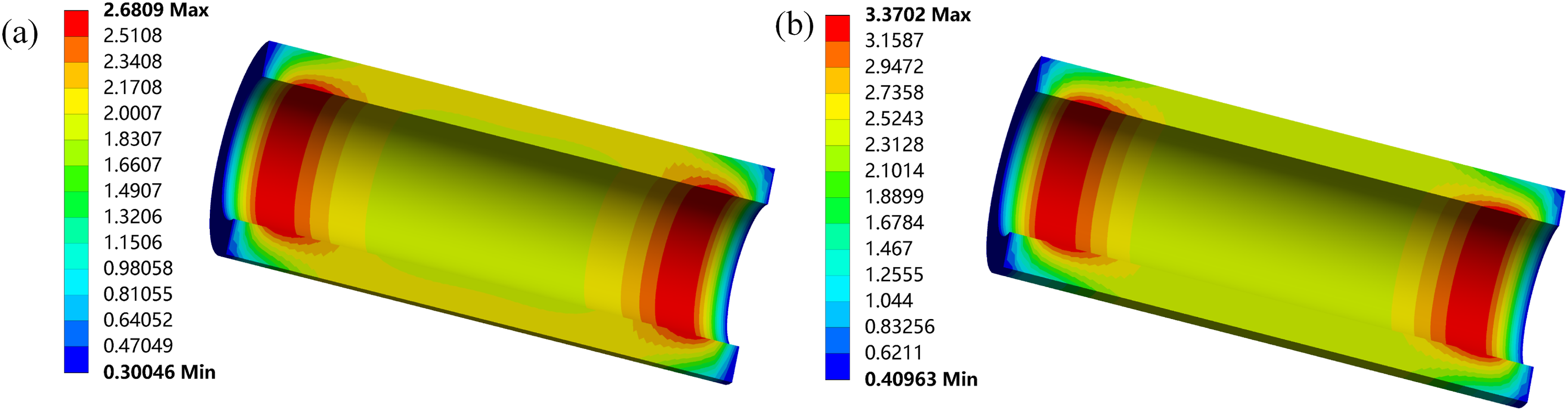

Figure 9.

Von Mises stress plot for Multi-layer FW cylinder composite material E-glass/epoxy at radial ratio = 0.8: (a) stress plot for optimized results, (b) stress plot for original results.

Conclusion

Based on the three-dimensional elasticity model and the hybrid algorithm, this study investigates parameter optimization and strength analysis of multi-layer filament-wound cylinders with different materials and radial ratios. The numerical and comparative results reveal that winding-angle distribution and ply thickness significantly influence on strength distribution and structural response. The main conclusions are as follows:

(1) For the T300/934 material, the optimized ply thicknesses at radial ratios of 0.95, 0.9, 0.8, 0.7, and 0.6 are 0.1325, 0.1375, 0.1563, 0.1536, and 0.1390 mm, respectively. The corresponding optimized winding angles range from 40° to 70° in thin-walled structures, while in thick-walled structures, the angles are close to 90° (hoop direction) on the inner side and approach 0° (axial direction) on the outer side. For the E-glass/epoxy material, the optimized thicknesses under the radial ratios are 0.265, 0.275, 0.250, 0.239, and 0.238 mm, respectively. Except for the radial ratio of 0.6, the optimized winding angles range from 45° to 75° and decrease along the radial direction.

(2) The improved hybrid GQPSO-DE algorithm yields optimized combinations of winding angle and ply thickness for both materials under different radial ratios. These combinations outperform traditional schemes with the same ply thickness and significantly improve the strength ratio of the weakest ply. The proposed algorithm is effective for the parameter optimization of filament-wound cylinders.

(3) The location of the weakest ply exhibits material-dependent behavior. For T300/934, the weakest ply shifts from the outer wall to the inner wall as the radial ratio decreases. For E-glass/epoxy, the weakest ply consistently remains at the outer wall. This difference is attributed to variations in the degree of material anisotropy and stress distribution within the three-dimensional elasticity field.

(4) Within the framework of three-dimensional elasticity theory, this study integrates winding angle and ply thickness into a unified optimization model, evaluates structural strength based on the Tsai–Wu failure criterion, and achieves globally optimal parameter combinations under different material systems and radial ratios. These findings provide theoretical support for the structural optimization of composite pressure vessels. Future work will focus on experimental validation and manufacturing verification of the optimized filament-wound composite structures.

Footnotes

ORCID iD

Ruidong Man

Author contributions

Bin Peng, Software, Data curation, Writing - original draft preparation. Ruidong Man, Conceptualization, Investigation, Supervision. Wensuo Ma, Supervision. Liguang Yang, Writing-reviewing and editing. Jiamei Li, Writing-reviewing and editing. Wenzhuo He, Writing-reviewing and editing.

Funding

The authors disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was sponsored by Natural Science Foundation of Henan Province (No. 252300420442), Henan Science and Technology Projects (No. 252102220058), and Key Scientific Research Project of Colleges and Universities in Henan Province (No. 26A590001).

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Data Availability Statement

Data sharing not applicable to this article as no datasets were generated or analyzed during the current study.

References

Chen

, et al. Research on carbon fiber winding process and its applications. Synth Fiber China 2025; 54(7): 17–22.

Azeem

Alam

, et al. Application of filament winding technology in composite pressure vessels and challenges: a review. J Energy Storage 2022; 49: 103468. https://doi.org/10.1016/j.est.2021.103468

Sharma

Chugh

Neogi

. Study to methodize the design of a safe Type-4 CNG storage vessel using finite element analysis with experimental validation. Int J Pres Ves Pip 2021; 192: 104425. https://doi.org/10.1016/j.ijpvp.2021.104425

Daghia

Baranger

Tran

, et al. A hierarchy of models for the design of composite pressure vessels. Compos Struct 2020; 235(1): 111809. https://doi.org/10.1016/j.compstruct.2019.111809

Kim

Kang

Hong

, et al. Optimal design of filament wound structures under internal pressure based on the semi-geodesic path algorithm. Compos Struct 2005; 67(4): 443–452. https://doi.org/10.1016/j.compstruct.2004.02.003

Liang

Chen

Wang

. Optimum design of dome contour for filament-wound composite pressure vessels based on a shape factor. Compos Struct 2002; 58: 469–482. https://doi.org/10.1016/s0263-8223(02)00136-8

Rafiee

Rashedi

Rezaee

. Theoretical study of failure in composite pressure vessels subjected to low-velocity impact and internal pressure. Front Struct Civ Eng 2020; 14: 1349–1358. https://doi.org/10.1007/s11709-020-0650-3

Park

Sakai

. Optimum design of composite pressure vessel structure based on 3-dimensional failure criteria. Int J Material Form 2020; 13: 957–965. https://doi.org/10.1007/s12289-019-01519-x

Chun

Guang

. Optimizing the buckling strength of filament winding composite cylinders under hydrostatic pressure. J Reinforc Plast Compos 2018; 37(13): 892–904. https://doi.org/10.1177/0731684418765989

10.

Bhadra

Jain

. Optimization of composite cylinder subjected to hydrostatic pressure using customized evolutionary algorithm. Mech Adv Mater Struct 2025; 32(15): 3578–3590. https://doi.org/10.1080/15376494.2024.2394984

11.

Alcantar

Aceves

Ledesma

, et al. Optimization of Type4 composite pressure vessels using genetic algorithms and simulated annealing. Int J Hydrogen Energy 2017; 42(24): 15770–15781. https://doi.org/10.1016/j.ijhydene.2017.03.032

12.

Liu

Shi

. Design optimization for filament wound cylindrical composite internal pressure vessels considering process-induced residual stresses. Compos Struct 2020; 235: 111755. https://doi.org/10.1016/j.compstruct.2019.111755

13.

Tabakov

Summers

. Lay-up optimization of multilayered anisotropic cylinders based on a 3-D elasticity solution. Compos Struct 2005; 84(5): 374–384. https://doi.org/10.1016/j.compstruc.2005.09.023

14.

Jose

HSA

Luc

Zhihua

, et al. Design, modeling, optimization, manufacturing and testing of variable-angle filament-wound cylinders. Composites, Part B Eng 2021; 225: 109224.

15.

Geng

Xing

Chen

. Winding angle optimization of filament-wo und cylindrical vessel under internal pressure. Arch Appl Mech 2017; 87(3): 365–384. https://doi.org/10.1007/s00419-016-1198-5

16.

Kang

Liu

Shirinzadeh

, et al. Parametric optimization for multi-layered filament-wound cylinder based on hybrid method of GA-PSO coupled with local sensitivity analysis. Compos Struct 2021; 267: 113861. https://doi.org/10.1016/j.compstruct.2021.113861

17.

Wei

Pan

Jiang

, et al. An efficient approach for stacking sequence optimization of symmetrical laminated composite cylindrical shells based on a genetic algorithm. Thin-Walled Struct 2019; 142: 160–170. https://doi.org/10.1016/j.tws.2019.05.010

18.

Almeida

JJHS

Ribeiro

Tita

, et al. Stacking sequence optimization in composite tubes under internal pressure based on genetic algorithm accounting for progressive damage. Compos Struct 2017; 178: 20–26. https://doi.org/10.1016/j.compstruct.2017.07.054

19.

Liu

Zhong

, et al. Optimization of design parameters for a fiber-wound pressure vessel with a stable strength ratio based on the hybrid method of particle swarm optimization and grey wolf optimization. J Appl Mech Tech Phys 2024; 65(4): 736–748. https://doi.org/10.1134/s002189442404014x

20.

Rafiee

Shahzadi

Speresp

. Structural optimization of filament wound composite pipes. Front Struct Civ Eng 2022; 16(8): 1056–1069. https://doi.org/10.1007/s11709-022-0868-3

21.

Dai

Zhou

Zhang

, et al. Optimization design of filament wound composite pressure vessel based on opensees. Appl Sci 2023; 13(8): 4894. https://doi.org/10.3390/app13084894

22.

Wang

Almeida

JJHS

Ashok

, et al. Lightweight design of variable-angle filament-wound cylinders combining Kriging-based metamodels with particle swarm optimization. Struct Multidiscip Optim 2022; 65(5): 140. https://doi.org/10.1007/s00158-022-03227-8

23.

Sharma

Burolia

Adak

, et al. Effect of tension on liner buckling and performance of a type-4 cylinder for storage of compressed gases with experimental validation. Thin-Walled Struct 2023; 189: 110928. https://doi.org/10.1016/j.tws.2023.110928

24.

Bhadra

Vinod

Jain

. DNN assisted optimization of composite cylinder subjected to axial compression using customized differential evolution algorithm. Int J Mech Mater Des 2024; 20(5): 909–932. https://doi.org/10.1007/s10999-023-09705-1

25.

Rozova

Meemary

Chaki

, et al. Multi-objective optimization for a composite pressure vessel with unequal polar openings. Compos Struct 2025; 351: 118594. https://doi.org/10.1016/j.compstruct.2024.118594

26.

Liu

Tsai

. A progressive quadratic failure criterion for a laminate. Compos Sci Technol 1998; 58(7): 1023–1032. https://doi.org/10.1016/s0266-3538(96)00141-8

27.

Tsai

. A general theory of strength for anisotropic materials. J Compos Mater 1971; 5(1): 58–80. https://doi.org/10.1177/002199837100500106

28.

Hashi

. Failure criteria for unidirectional fiber composite. J Appl Mech 1980; 47: 3292334.

29.

Niu

. A novel PSO-DE-based hybrid algorithm for global optimization. In: International conference on intelligent computing. Springer Berlin Heidelberg, 2008, pp. 156–163.

30.

Liu

Sun

. Quantum-behaved particle swarm optimization with adaptive mutation operator. Lect Notes Comput Sci 2006: 959–967.

31.

Leandro dos Santos Coelho . Gaussian quantum-behaved particle swarm optimization approaches for constrained engineering design problems. Expert Syst Appl 2010; 37(2): 1676–1683. https://doi.org/10.1016/j.eswa.2009.06.044

32.

Karaboğa

Ökdem

. A simple and global optimization algorithm for engineering problems: differential evolution algorithm. Turk J Electr Eng Comput Sci 2004; 12(1): 53–60.

33.

Tashnizi

Gohery

Sharifi

, et al. Optimal winding angle in laminated CFRP composite pipes subjected to patch loading: analytical study and experimental validation. Int J Pres Ves Pip 2020; 180: 104042. https://doi.org/10.1016/j.ijpvp.2020.104042

34.

Gao

, et al. On design of carbon fiber reinforced plastic (CFRP) laminated structure with different failure criteria. Int J Mech Sci 2021; 196: 106251. https://doi.org/10.1016/j.ijmecsci.2020.106251
