O-carboxymethyl chitosan/gelatin/silver-copper hydroxyapatite composite films with enhanced antibacterial and wound healing properties

Silver-Cooper/hydroxyapatite complex

Cu and Ag in concentrations of 0.1, 0.5, and 1.0 mol were used to prepare the Ag-Cu/HA complex. The Ag-Cu/HA composite was synthesized by the Martínez-Gracida method. ¹² For the Ag-HA synthesis, citric acid was dissolved in deionized water, then Ca(NO₃)₂·4H₂O and NH₄H₂PO₄ were added. A homogeneous solution was obtained and, ethylene glycol was added at 70°C. The product was dried in an oven at 120°C for 12 h, and the recovered product was calcined at 1100°C for 2 h. On the other hand, for Cu-HA synthesis Ca(NO₃)₂·4H₂O and (NH₄H₂PO₄ + CuSO₄·5H₂O) were separately dissolved at a ratio of 1 g/50 mL in deionized water. Then, 40 mL of NH₄OH for each gram of NH₄H₂PO₄ were added to the phosphate-copper solution and the temperature was increased to 75°C during 3h. The product was filtered, washed with deionized water, and dried at 90°C for 24 h. Then, it was treated at 500°C for 2 h. The materials were mixed with the help of a planetary mill at 250 r/min for 10 min at a ratio of 1:15 loads/balls. The mixes of the concentrations of Cu and Ag were prepared according to Table 1.

OPEN IN VIEWER

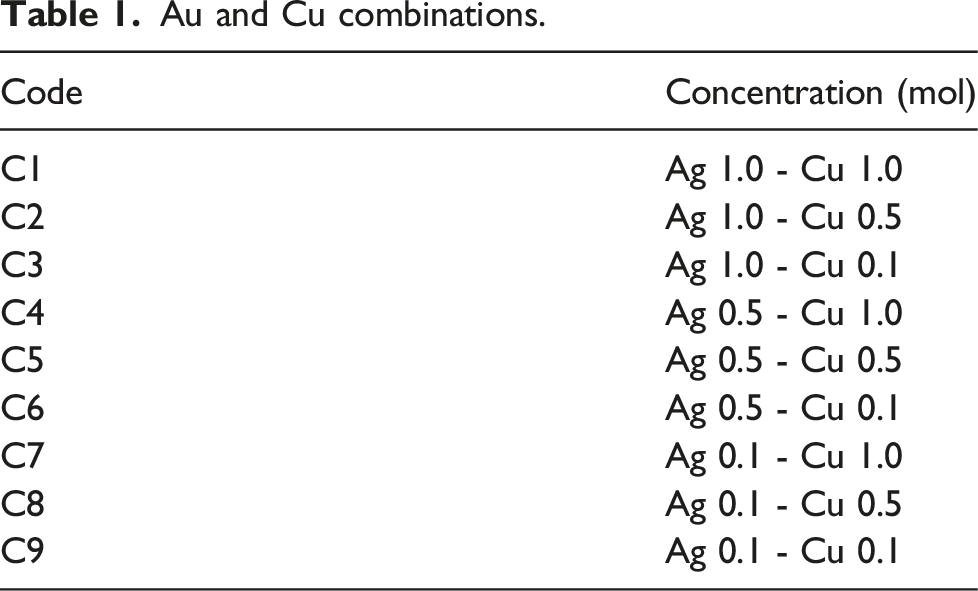

Table 1.

Au and Cu combinations.

Code	Concentration (mol)
C1	Ag 1.0 - Cu 1.0
C2	Ag 1.0 - Cu 0.5
C3	Ag 1.0 - Cu 0.1
C4	Ag 0.5 - Cu 1.0
C5	Ag 0.5 - Cu 0.5
C6	Ag 0.5 - Cu 0.1
C7	Ag 0.1 - Cu 1.0
C8	Ag 0.1 - Cu 0.5
C9	Ag 0.1 - Cu 0.1

Synthesis of OCMC

The synthesis of OCMC polymer was done through a carboxymethylation reaction. 5 grams of chitosan (75%–85% deacetylation, Sigma-Aldrich) were mixed with 50 mL of isopropanol (Sigma-Aldrich) for 2 h at room temperature under constant stirring. After this time, a 15 mL solution of sodium hydroxide NaOH (J.K. Pellets Baker) at 40% w/v was added and stirred constantly to deprotonate the hydroxyl groups (OH) of the chitosan chain. Subsequently, 100 mL of mono-chloroacetic acid (99%, Sigma-Aldrich) solution (25.5 g in 100 mL of isopropanol) was prepared, divided into 5 equal parts, and added every minute into the mix at room temperature and constant stirring. The carboxymethylation reaction was continued under constants stirring for 24 h at room temperature. After the reaction time elapsed, it was stopped by a wash with 70% of ethanol (99.6%; J.T. Baker) to remove salts and water. The pH of the obtained OCMC was adjusted to 7.4 with a 2% acetic acid (99%; Sigma-Aldrich) solution. Finally, the OCMC was dried under vacuum. ¹³

Composite films preparation

The composite films were prepared by a casting technique. Each solution was prepared with 2% w/v of OCMC and Gelatin (Sigma-Aldrich) in 100 mL of distilled water under agitation for 10 min approximately. Then 0.1% w/w of genipin with respect to the polymer solution was added. Finally, 1 mL of glycerin was also added to the solution. For the films with Ag-Cu/HA complex, 0.005 g of the complex powder were added to each sample and mixed for 10 min. In 10 cm diameter plastic Petri dishes, 25 mL of each final solution were added. Finally, the solutions were evaporated at room temperature until the films were obtained (Figure 1). In total, nine composite films were made with different Ag-Cu/HA complex and a control film without complex. Another film with OCMC and gelatin 2% w/w was made without Ag-Cu/HA complex to have a control sample for all assays.OPEN IN VIEWER

Fourier transform infrared spectroscopy (FT-IR)

The chemical composition analysis by FT-IR was used to assess the interactions between the materials in the composite films. The analysis was performed on a spectrophotometer (Nicolet 6700) in the region of 500–3000 cm⁻¹, with a resolution of 16 cm⁻¹.

Surface analysis: Morphology

The surface analysis of the composite films was performed by Scanning Electron Microscopy (SEM) (Hitachi model SU5000). The films were placed on double-sided adhesive tape. The images were captured using low vacuum an accelerating voltage of 15 kV. The embedded particles were measured using the image J analysis software and the reported values are the results of at least 100 measurements in more than three different images per condition.

Hydrophobicity study: Contact angle

The hydrophilicity of the surface of the films was studied by measuring the contact angle of a drop of distilled water at room temperature, using a goniometer (DSA 30, Kruss) and samples of 1 cm². The contact angle was measured by the goniometer’s software and the percentage value was calculated by the average of three measurements on each film.

Thermal properties

The thermal properties of the composite films were determined by using a thermal analyzer, TGA (SDT Q600 TA instrument), with a temperature range at 25°C–600°C with a ramp of 10°/min in a nitrogen atmosphere.

Antibacterial activity

The antibacterial activity of the composite films was evaluated by the turbidimetry technique. Solutions containing Escherichia coli (E. coli) (ATCC® 11,229™), and Staphylococcus aureus (S. aureus) (ATCC® 6538™) were used as standard Gram-negative and Gram-positive bacteria respectively. Composite and control films of 1 cm² were used on the test. The films were put in 2 mL of each bacterial standard solution and incubated at 37°C (Thermo scientific, series 8000VW). After 1 day of incubation, the resulting solutions were measured by UV-visible light spectroscopy (Genesys 2, TermoSpectronic) at a wavelength of 450 nm. The following equation was used to determine the percentage of antibacterial activity (AA%)

AA% = MF f − AM i AM f × 100 %

AA% = percentage of antibacterial activity

AM_f = Final absorbance measurement of the solution at 450 nm

AM_i = Initial absorbance measurement of the solution at 450 nm

Enzymatic degradation assay

For each film, samples of 1 cm² were cut and weighted before adding in 1X PBS solution with a 7.4 pH. The in vitro enzymatic degradation was performed in tubes with 5 mL of 1X PBS solution with 0.02% Sodium azide (NaN₃) and 5 μg/mL lysozyme (Fisher Scientific) in incubation periods of 1, 2, and 3 days at 37°C without change of PBS solution. Then, each film sample was washed with distilled water and dried at room temperature. Subsequently, the weight loss percentage was calculated using the following equation

WL% = Wi − Wf Wi × 100 %

WL% = weight loss percentage

Wf = final weight

Wi = initial weight

After the samples were weighed, they were analyzed by SEM to observe the degree of degradation of the surface films. An energy dispersion system (EDS) was used to analyze the presence of Cu-Ag- Ha complex particles in the surface after being exposed to the enzymatic PBS solution during different periods of time. Finally, the pH of the PBS solution obtained from the degradation was determined.

Cell morphology and viability

Embryonic cell line 3T3 murine fibroblasts (ATCC) was used in this analysis. Composite films were cut into 1 cm² and sterilized by UV light in a laminar flow cabinet (Labconco, logic Type A2). Then, 50,000 fibroblasts were seeded with DMEM (1X, gibco) supplement with 10% FBS (Corning) and 1% Penicillin- Streptomycin (gibco) on each sample and incubated at 37°C in 5% CO₂ during 24 and 72 h. Cells viability analysis was realized by the tetrazolium colorimetric MTT assay.

To evaluate the adhesion and morphology cell, 50,000 fibroblasts were seeded with 3 mL of DMEM supplement on each sample in 24-well plates. All 24-well plates were incubated at 37°C with 5% CO₂ for 24 and 72 h. The cell adhesion and morphology of the seeded fibroblasts were observed by optical microscopy (Zeiss Axio Vert. A1) at 40X by the hematoxylin-eosin stain.

Statistical analyses

The values were expressed on the results have means ± standard deviation. Whenever appropriate, T Student’s test was used to discern the statistical differences between film results. A p value of less than 0.05 was statistically significant.

Chemical composition analysis

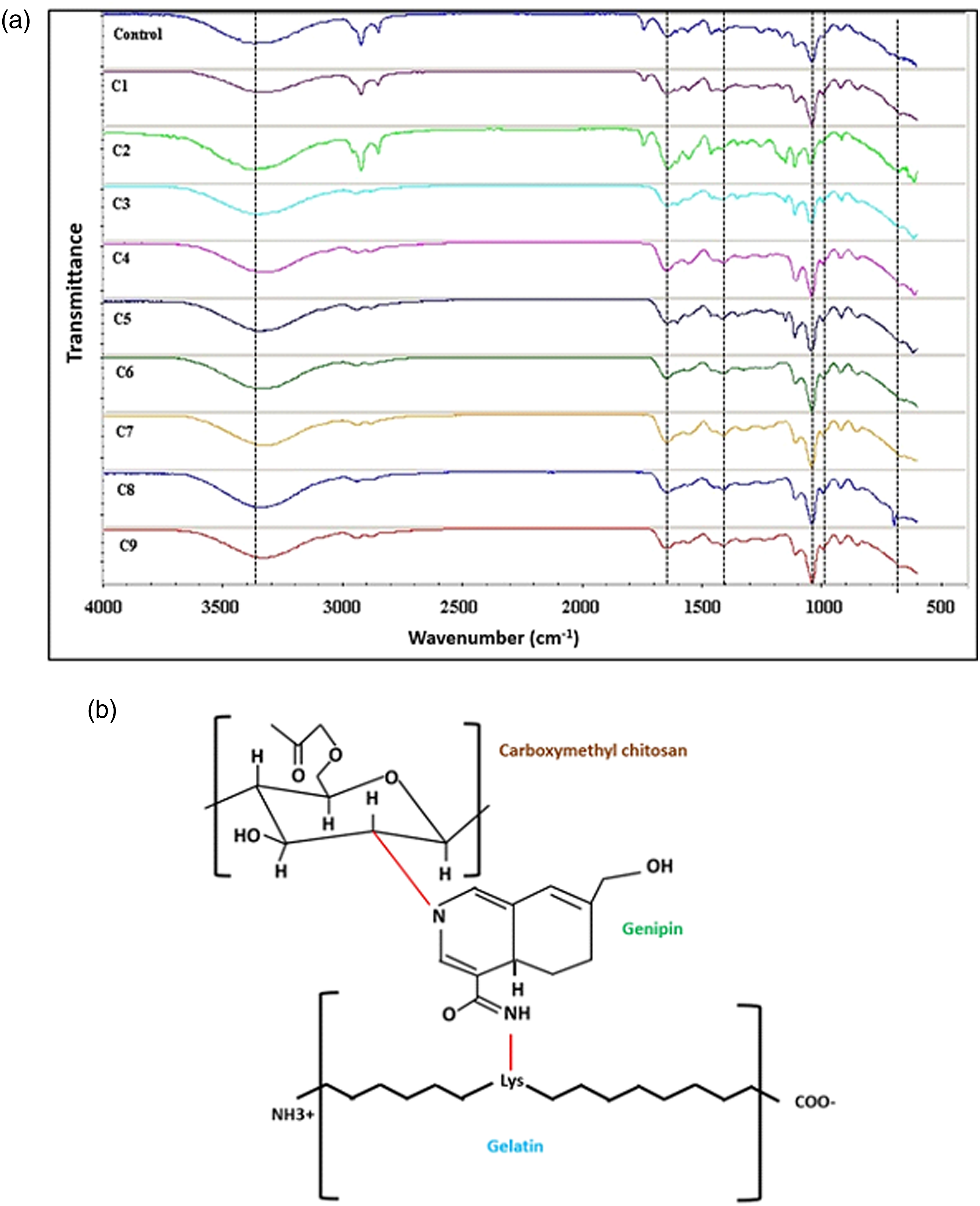

The IR spectroscopic analysis provided the chemical information’s composite films (Figure 1(a)). The infrared spectra show that the films were distinguished by the presence of amide bond peak∼1656-1644 cm⁻¹ (N-H deformation), and a peak ∼1560-1335 cm⁻¹ corresponding to C = O stretching of the gelatin. The presence of OCMC on the film was determined by peaks at∼1320 cm⁻¹ (C-H stretch), ∼1150 cm⁻¹ (bridge O stretch), ∼1080 cm⁻¹ (C-O stretch), ∼1600 cm⁻¹ (N-H bending), ∼1640 cm⁻¹ (C-N Schiff’s base), and 1400 cm⁻¹ corresponding to -CH₂-COOH group. 3350 cm⁻¹ peak corresponds to the O-H stretching. The increased intensity of this peak in 3350 cm⁻¹ suggests an increased intermolecular hydrogen bonding. Various research has found significant interactions at the molecular level between gelatin and OCMC polymer structures (Figure 1(b)), which are generated by electrostatic interactions. ¹⁴

The intensity of the peak near 3400 cm⁻¹ in the control film suggests increased intermolecular hydrogen bonding between gelatin and OCMC. ¹⁵ Specifically, the control film had an increase between the intensities for the adsorption band at 1600 to 1640 and 1550 to 1589 cm⁻¹, where according to others researches it is explained by the amide C=O and amines N-H bonds between gelatin macromolecules and OCMC by crosslinking with the Genipin molecule. ¹⁶ On the other hand, the addition of Ag-Cu/HA does not have the ability of direct reinforcement due to the lack of chemical interactions with the polymer. However, it is distributed within the polymeric matrix in low amounts as seen in the peaks at 602 cm⁻¹ and 650 cm⁻¹ that correspond to vibrations of PO₄^3-, suggesting an interaction between the polymer matrix. ¹⁷ Also, the peak around at 1080-1050 cm⁻¹ and 700-600 cm⁻¹in some composite films corresponded to the PO₄^3- and HPO₄^2- vibrations, respectively, and the superposition of the -OH groups and amide II groups between HA and polymer matrix. ¹⁸

Surface morphology

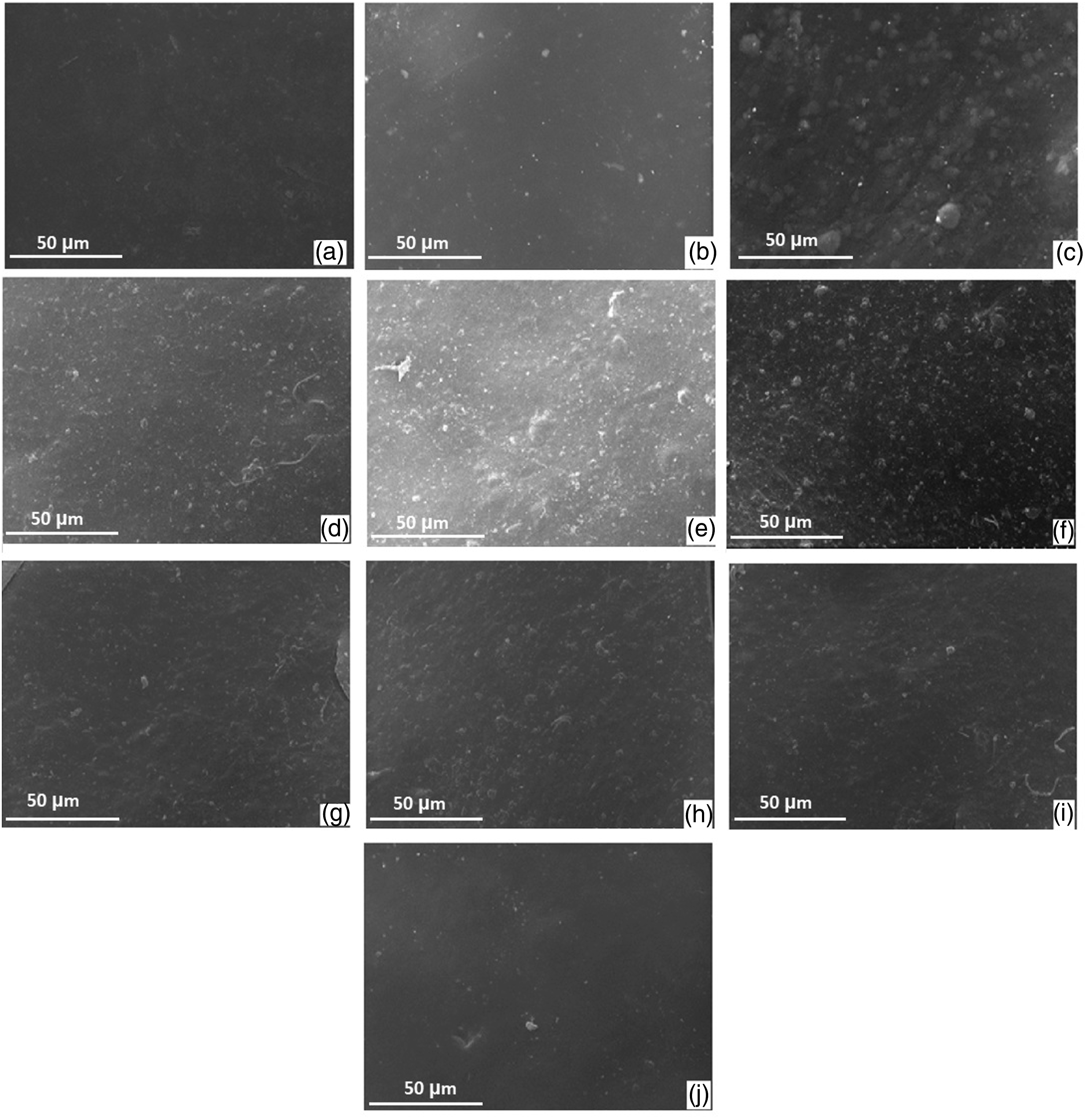

Figure 2 shows secondary electron images obtained by SEM of the surfaces of all films. In general, it is seen that the crosslinking of gelatin with OCMC provides smooth surfaces to the films (Figure 2(a)), both polymers tend to give that property to the copolymers in which they are used. Ag-Cu/HA complex when mixed with the rest of the compounds at the time of synthesis, and not sprayed or dusted on the surface, appears as embedded particles of irregular morphology in the range size of approximately 2–47 μm. The incorporation of Ag-Cu/HA complex into the polymer matrix provides certain roughness to its surface (Figure 2 from b to j).OPEN IN VIEWER

Composite films thermal stability

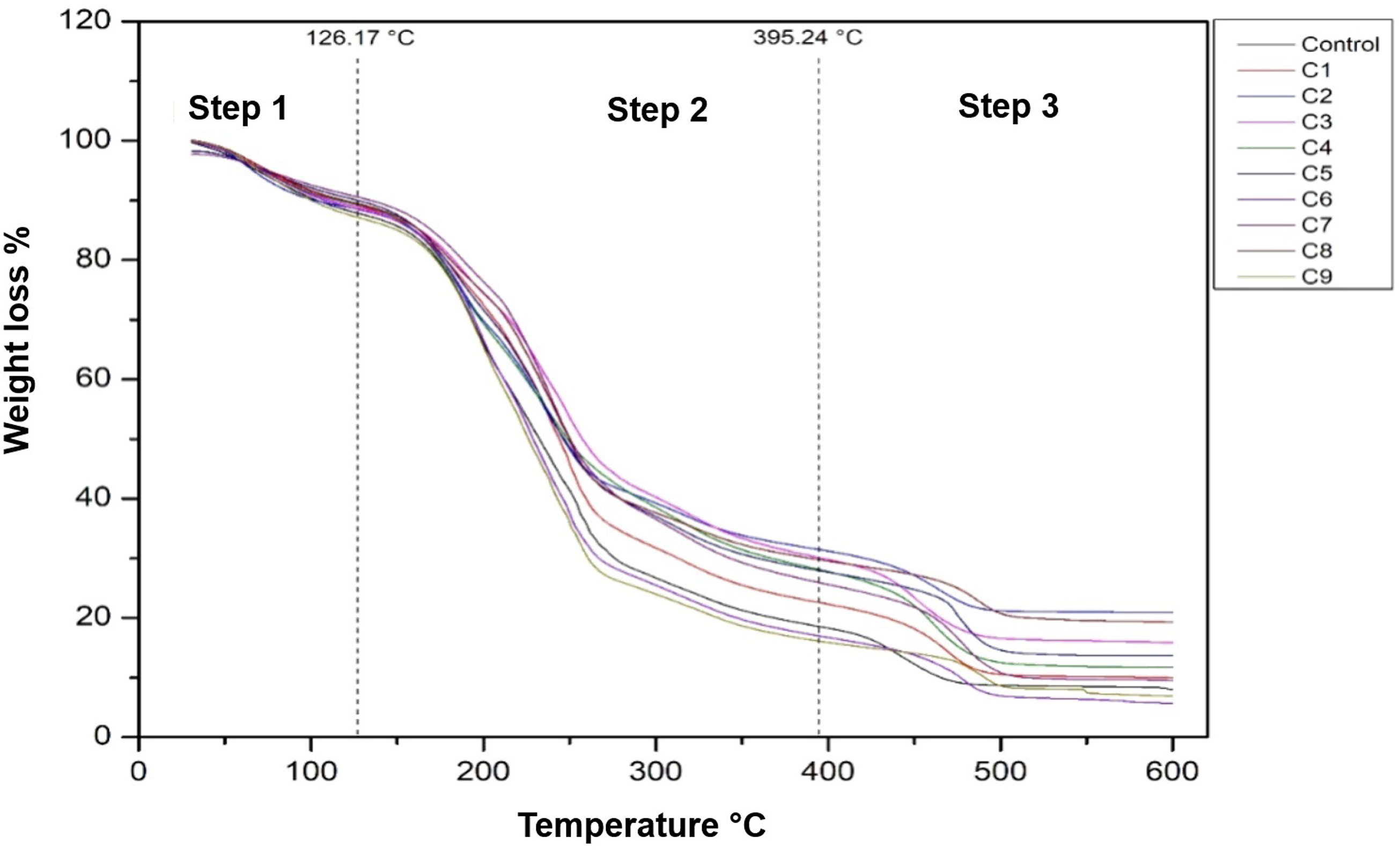

Figure 3 shows the TGA curve of the different composite films. As a general trend, it is observed that the films with the Ag-Cu/HA complex exhibit greater thermal stability compared to the control film, this is due to the good stability of HA ends and the interaction of HA with both polymers, which can be explained by the increase of additional OH groups by the chemical structure of HA, which leads to an increase in the hydrogen bridge bonds between the components of the films. ¹⁹ The addition of Cu and Ag particles in the films also helps to reduce the weight loss of the films at the end of the test. On the other hand, samples C6 and C9 display greater weight loss compared to the control film in the early stages of the test; these films have a lower concentration of Ag and Cu.OPEN IN VIEWER

The results suggest that the addition of Ag-Cu/HA complex enhances the thermal stability of films. Thermal stability analysis in biomaterials is essential not only at the temperature limits of the human body but also at a higher temperature range for post-manufacturing processes such as the thermal sterilization processes. In all the films there is a lower weight loss, between 3 and 4.55%, below 126.17°C (Step I), corresponding to the removal of the water associated with the OH of the polymers and the water. A significant weight loss is seen between 126 and 395°C (Step II), it is attributed to the decomposition of polymers, in the case of gelatin it has a decomposition temperature of between 250 to 400°C. ¹⁴ The decomposition of OCMC is between temperatures of 160–530°C due in great part to the volatilization of small molecules and the formation of carbonized products of the polymer. When the films have 50% degradation, the temperatures reached are in the range from 190 to 225°C. ²⁰ Finally, in step III a loss between 25 and 45% is observed, this loss corresponds to thermal decomposition with depolymerization at higher temperatures up to 600°C, as shown in Table 2.

OPEN IN VIEWER

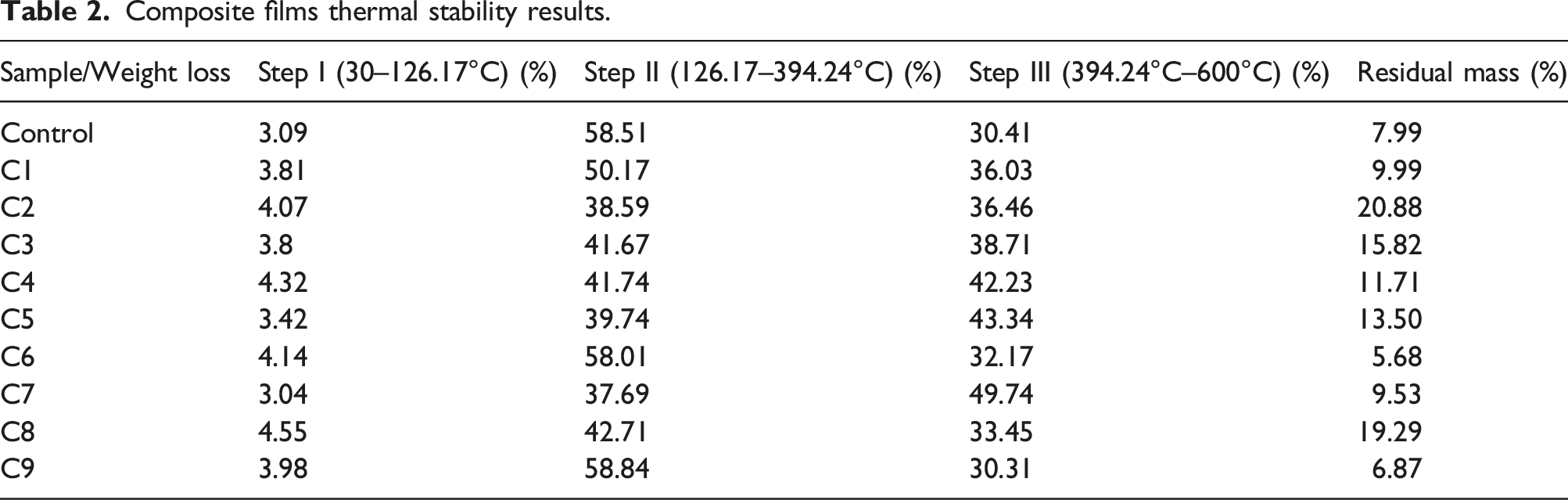

Table 2.

Composite films thermal stability results.

Sample/Weight loss	Step I (30–126.17°C) (%)	Step II (126.17–394.24°C) (%)	Step III (394.24°C–600°C) (%)	Residual mass (%)
Control	3.09	58.51	30.41	7.99
C1	3.81	50.17	36.03	9.99
C2	4.07	38.59	36.46	20.88
C3	3.8	41.67	38.71	15.82
C4	4.32	41.74	42.23	11.71
C5	3.42	39.74	43.34	13.50
C6	4.14	58.01	32.17	5.68
C7	3.04	37.69	49.74	9.53
C8	4.55	42.71	33.45	19.29
C9	3.98	58.84	30.31	6.87

Contact angle measure

This characterization is used to analyze the possible interactions between the surface of the biomaterial and the cells. The hydrophilic character of any substance or material is based on the quantity of strong polar groups on its polymer structure, which facilitate interplay with water molecules. The contact angle values obtained on the films are shown in Table 3, where CA (A) is the average of the contact angle, CA (L) is the left side contact angle and CA (R) is the contact angle of the right side of the drop. Figure 4 shows the images obtained during the measurement of angles CA [L] and CA [R]. The incorporation of a carboxymethyl group into the main chain of chitosan causes an increase in the hydrophilic character of the material. In general, CA (A) showed a significant variation in all films.

OPEN IN VIEWER

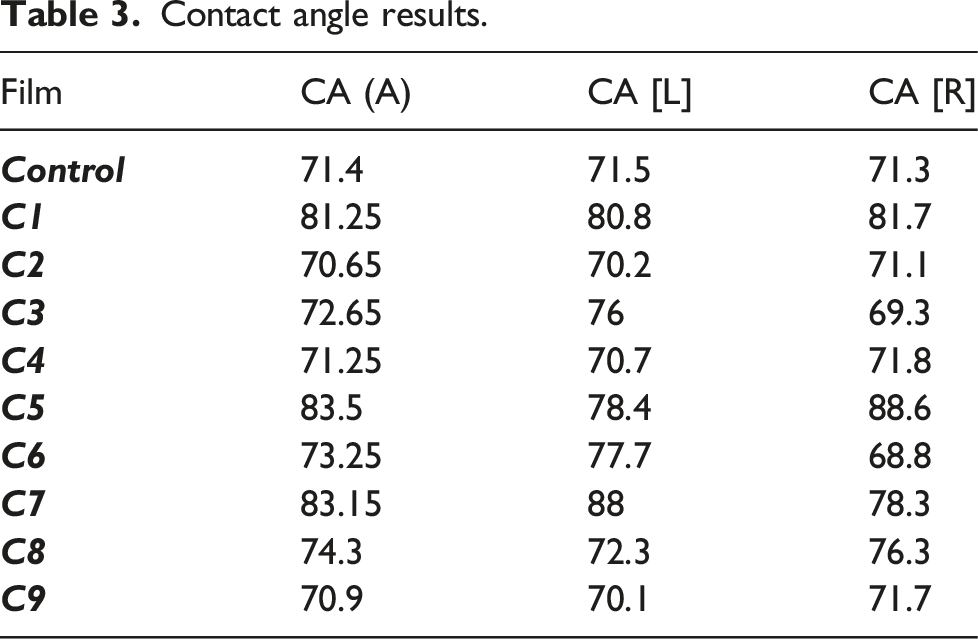

Table 3.

Contact angle results.

Film	CA (A)	CA [L]	CA [R]
Control	71.4	71.5	71.3
C1	81.25	80.8	81.7
C2	70.65	70.2	71.1
C3	72.65	76	69.3
C4	71.25	70.7	71.8
C5	83.5	78.4	88.6
C6	73.25	77.7	68.8
C7	83.15	88	78.3
C8	74.3	72.3	76.3
C9	70.9	70.1	71.7

OPEN IN VIEWER

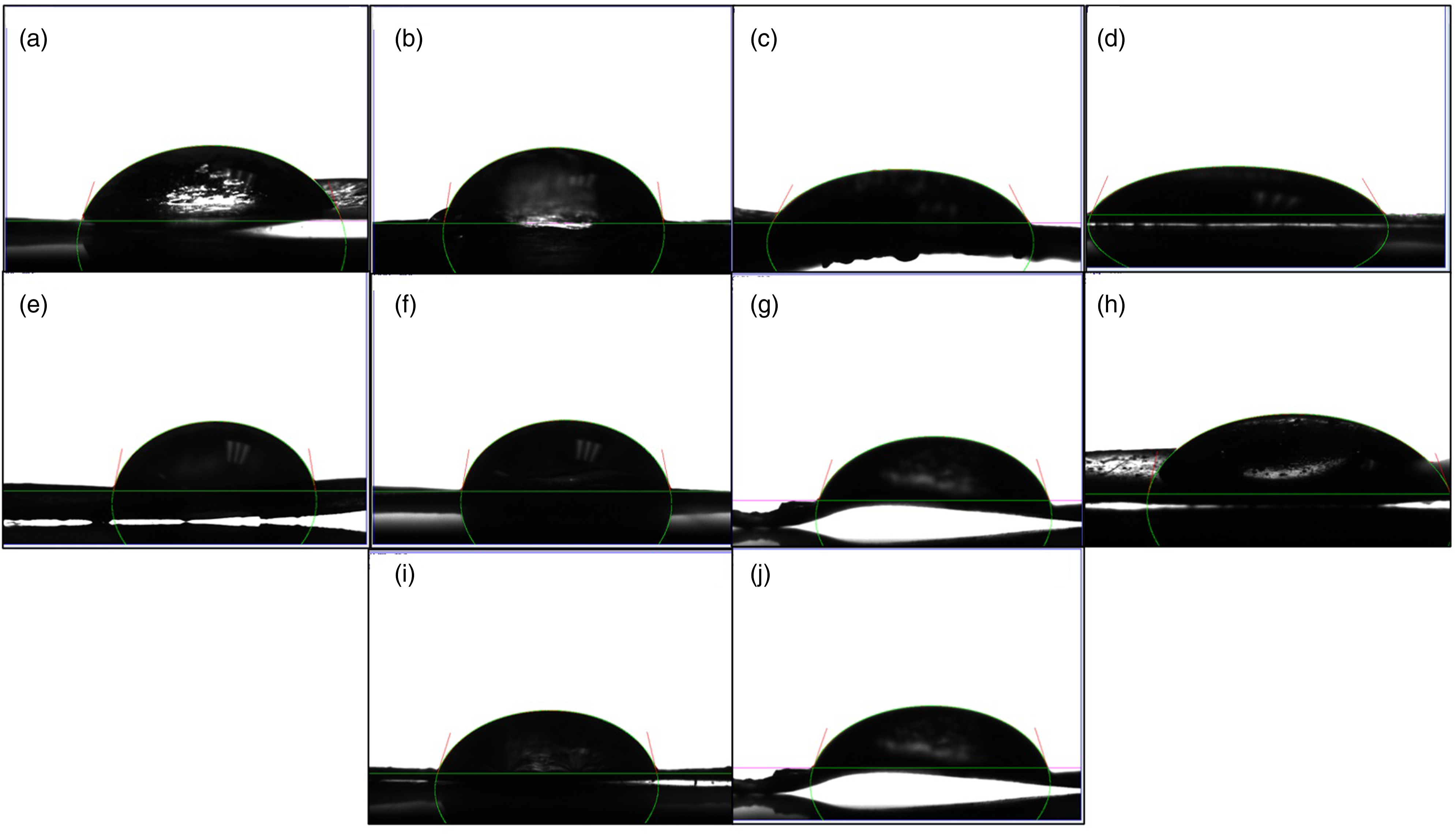

Figure 4.

Contact angle measure if the film: (a) Control, (b) C1, (c) C2, (d) C3, (e) C4, (f) C5, (g) C6, (h) C7, (i) C8, and (j) C9.

Only C1, C5, and C8 films exhibited contact angles of 81.25%, 83.5%, and 83.15% respectively, a significant increase in CA (A) compared to the control film with 71.4%, which can be attributed to a higher concentration of Cu in the Ag-Cu/HA complex used in the manufacture of composite films. Previous researchers have shown that the incorporation of Cu and Zn ions into chitosan and nano-HA biomaterials significantly increases swelling, and thus the interaction with water molecules. ⁸ On the other hand, the water absorption property establishes the diffusivity of the nutrients from the biomaterial matrix. Also, this property averts the accumulation of fluid exudates produced at the wound site. ¹⁵ It is important to analyze the contact angle of biomaterials to study the surface free energy values and their polar components. The contact angle in polymers is mainly associated with the swelling of the polymeric matrix and the hygroscopic character of the material’s surface. Due to the positive charges of its molecules, the chain of the chitosan interacts with cell membranes through electrostatic forces, a useful property in various biomedical applications. ²¹ The incorporated the carboxymethyl molecule (CH₂COOH) on the chitosan chain, the composite films elaborated with OCMC acquire a greater hydrophilic character than those made with their precursor.

Enzymatic degradation

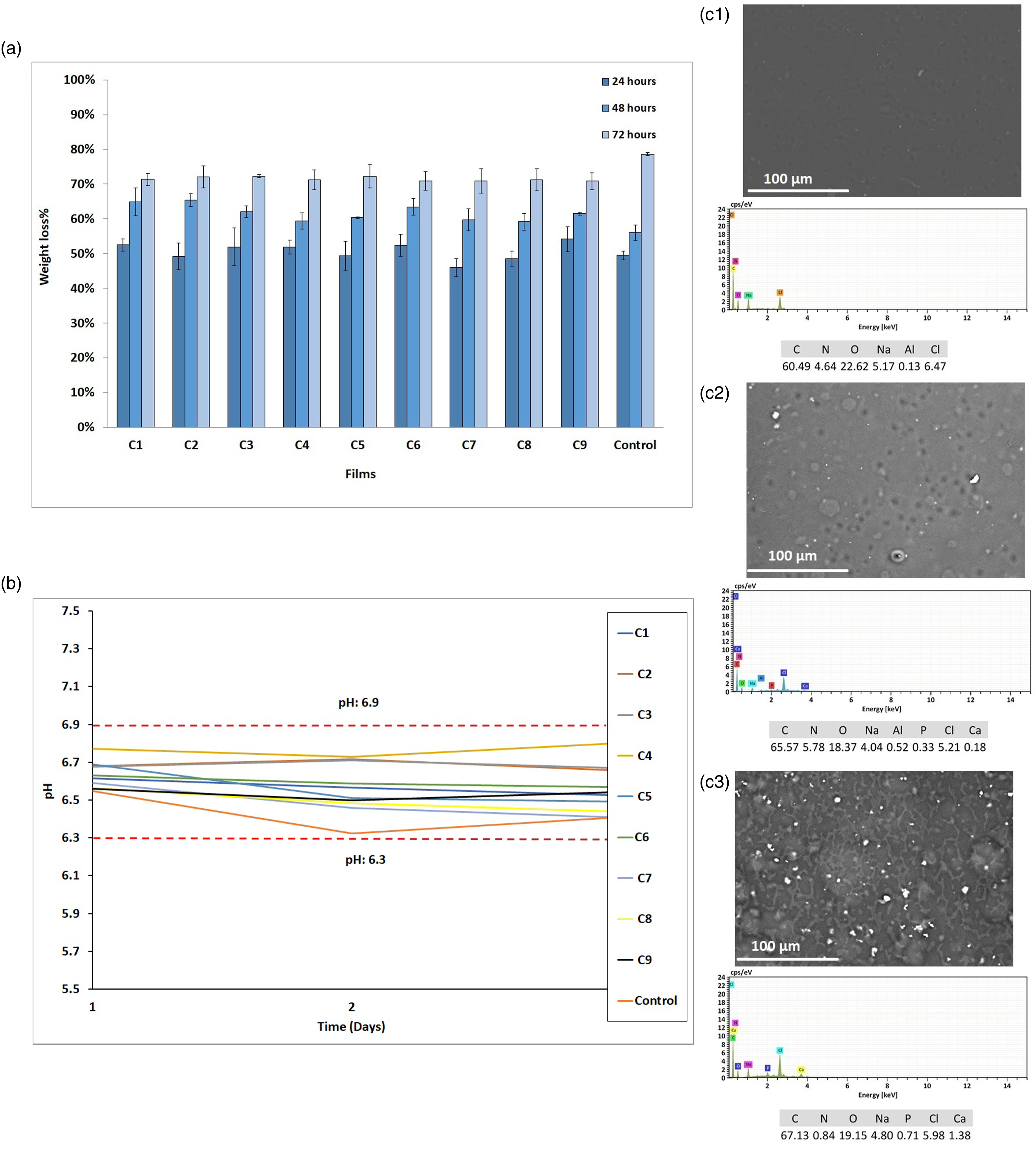

Figure 5(c) show the secondary electron images and elemental analysis by EDS of the film C1 exposed in PBS containing lysozyme enzyme at different periods, as an example of the degradation process of the composite films. During the first 24 h (Figure 5(c1)), the image shows a homogeneous surface due to the polymeric matrix of O-CMC/gelatin since the elemental analysis shows characteristic elements of these materials such as carbon, nitrogen, oxygen, while elements such as sodium and chlorine can be attributed to scraps of 1X PBS solution after the biodegradability test. It should be noted that after 48 h (Figure 5(c2)) and 72 h (Figure 5(c3)) of exposure to the degradation solution, the morphology appears porous, confirming the degradation of the polymers, this can be attributed to the catalyzed hydrolysis of the lysozyme, it is also verified with the data reported in the weight loss percentage results. Finally, in the EDS of the sample at 2 and 3 days, an increase in phosphorus (P) and calcium (Ca) is observed, presenting elements in the HA composition. The weight loss results are shown in Figure 6(a) exhibit a gradual weight loss for the first 24 h to all films, with a loss of 55%, after 48 h of exposure with the lysozyme, a maximum weight loss between 65% and 78.63% was seen at 72 h of exposition. Considering the interaction of the lysozyme and the polymer matrix, since O-CMQ is a polysaccharide, it is degraded by enzymatic hydrolysis. ¹³ OPEN IN VIEWER

OPEN IN VIEWER

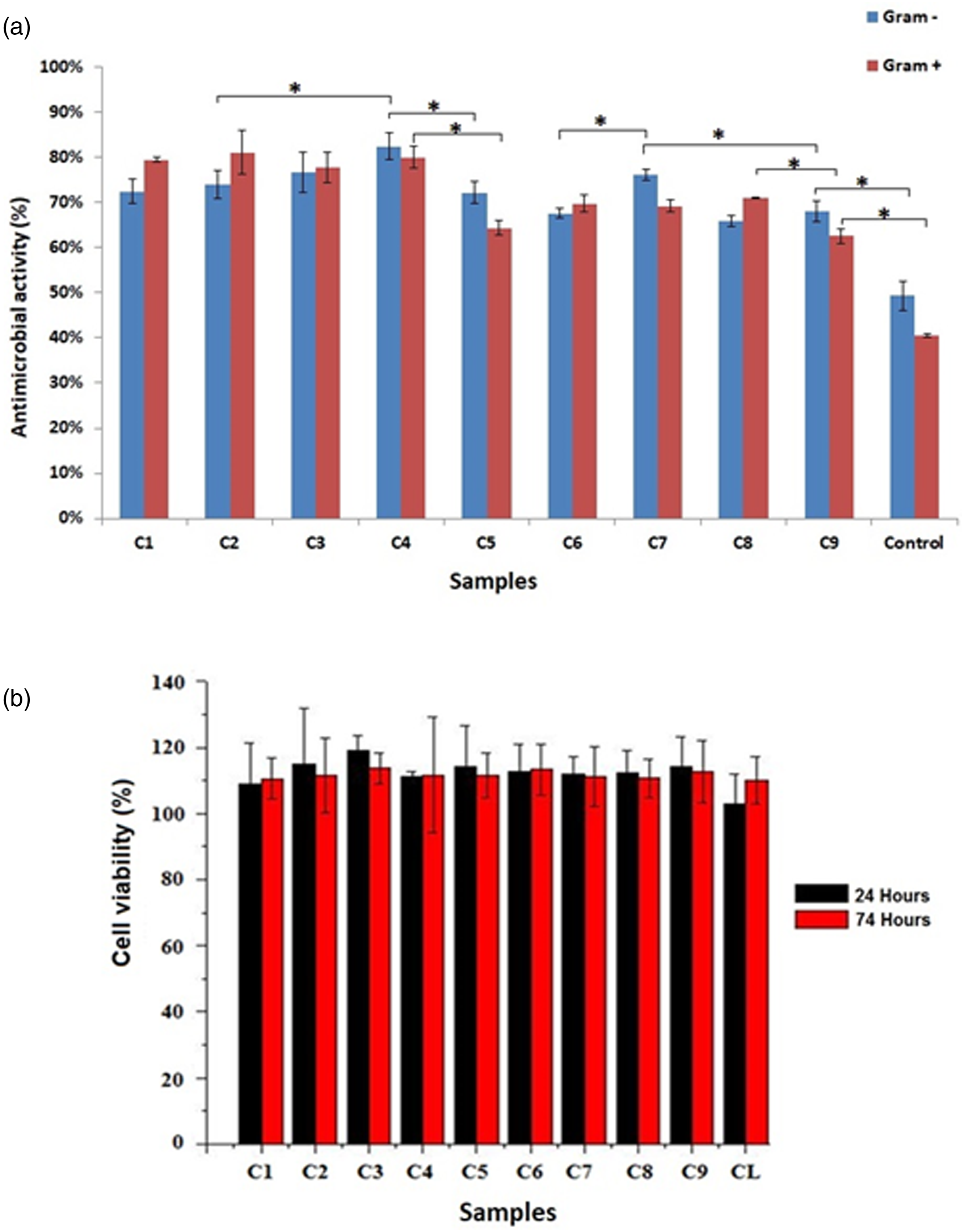

Figure 6.

(a) Antibacterial properties films result on Gram^– and Gram⁺ bacteria at 24 h, (b) Cell viability percentage of fibroblasts seeded on the films at 24 and 72 h. Data represents mean ± S.D. (n = 5), *p < 0.05.

In other studies, in scaffolds made with gelatin, chitosan, and hydroxyapatite, it was shown that the degradation increases with the incorporation of gelatin but decreases when the hydroxyapatite is added to the biomaterial, ²² a similar trend was observe in the composite films with Ag-Cu/HA, compared to the OCMC and gelatin control film. The changes in pH seen during the biodegradation period of the material were monitored during the 72h exposure of 1 X PBS with lysozyme (Figure 5(b)). The solution´s pH fluctuated in a narrow range of 6.8–6.3. In the first 24 h of degradation, the pH decreased from 7.4 to the range of 6.7–6.5, which may be due to the degradation of the residual amino or acetic acid group of the composite material, since the variations were close to a neutral pH, it can be concluded that the dressing will not have adverse damage to the host. ²³

Antimicrobial activity

Figure 6(a) shows the antibacterial activity test of the films against Gram-positive bacteria (S. aureus) and Gram-negative bacteria (E. coli) at 24 h of exposition. The control film obtained 49.3% and 40.50% antibacterial activity for gram-negative and gram-positive bacteria respectively, this activity may be due to OCMC polymer, which, as its precursor chitosan, has reported antimicrobial activity.^3,13 By adding Ag-Cu/HA complex to the films, the antibacterial activity increases compared to the control film, and this is because HA, Ag and Cu ions have a higher antimicrobial activity than OCMC.^9,8,12 However, films C1, C2, C3, and C4 obtained a significantly higher percentage of antibacterial activity than the other composite films, with percentages ranging from 72.5% to 82.4% for Gram-negative bacteria, and between 77.78% to 81.09% for Gram-positive bacteria. This suggests that the higher concentration of Ag in the Ag-Cu/HA complex increases the antibacterial activity of the film both bacteria.

All films were made with OCMC, which is a polymer with reported antibacterial activity. ¹⁹ The bactericidal activities of chitosan and its derivates against E. coli increase which is due to the increment quantity of NH3+ groups in the polymer chains. The substitution in OCMC only takes place at hydroxyl groups in the chain, thus the number of NH³⁺ groups stay constant after carboxymethylation reaction, occasioning a major antibacterial activity for the OCMC polymer. ³ S. aureus is a bacterium that causes post-surgical wound infections. The antibacterial activity of HA is mainly attributed to Ca⁺². Some investigations have reported that Ca⁺² ions are active membrane bactericide that destabilizes the cell membrane and kills the stationary phase of S. aureus. On the other hand, hydroxyl ions of HA produce a lethal effect on some bacterial cells. ⁹ Silver ion (Ag⁺) and copper ion (Cu⁺) are the most frequent dopants for HA. The Ag ion has an ample spectrum of antimicrobial activity, also, bacterial resistance is less likely to occur with its use. ⁸ Other research confirms that the incorporation of Cu in HA helps to increase the antimicrobial activity of the Cu/HA complex in different biomaterials. ²⁴ For example, H. Yang, et al., investigated that the proliferation of E. coli and Streptococcus mutans bacteria on nanosized Ag/Cu-HA, this research showed the great antibacterial activity of the complex. ²⁵ Other research found that a hydrogel film elaborated from CMC loaded with waterborne polyurethane–gelatin hydrolysate presented significant antibacterial activity against E. coli and S. aureus. ²⁶ Also, OCMC hydrogels were prepared by Ag/AgO in situ precipitation method have an inhibition rate of E. coli reaching the maximum of 92.32%. ²⁷

Fibroblast cell viability

Figure 6(b) shows the percentage of cell viability of the materials seeded with fibroblasts. According to ISO 10,993-5:2009, Typically, if a biopolymer exhibits a viability percentage is greater than 70% the material is considered not potentially cytotoxic. ²⁸ To corroborate that time is not a factor that affects the cytotoxicity of the material, analyzes were made at 24 and 72 h of culture, finding that in both periods the percentage of cell viability is above 80%, which suggests that the material obtained does not cause cellular damage. All samples containing the doped hydroxyapatite showed an increase in viability above 100%, suggesting that the incorporation of this compound helps cell proliferation during the test. However, there was no significant difference between composite films and the control film, suggesting that the incorporation of the Ag-Cu/HA complex does not significantly affect fibroblast cell viability and proliferation. Finally, a slight increase in proliferation was observed at 72 h concerning the proliferation at 24 h in all films.

Figure 7 shows fibroblasts seeded in the films at 24 and 72 h of culture. Good adhesion of fibroblasts to the surface of the films and the control is observed at 24 h of culture, achieving a uniform and well-organized adherence on the surface of the material. An increase in proliferation was seen at 72 h, which suggests that the material could be good support for wound healing. A greater proliferation was seen in the composite films than in the control. The fibroblasts showed a normal morphology of elongated cells in the shape of a crescent, with an ovoid nucleus, the cytoplasm of pink color being perceived in all the samples, as well as the nucleus in dark purple color.OPEN IN VIEWER

On the other hand, the surface roughness of the films with the incorporation of the conjunction with the presence of functional groups and the surface hydrophilicity of the polymeric matrix can help adhesion cells to the composite films. ²⁹ These results are very important since dermal fibroblasts play a key role in the turnover of extracellular proteins in the skin, the interaction of the extracellular matrix, and cell-cell communication. ³⁰ Research of Graphene-based HA composites exhibited great properties for tissue regeneration, like the adhesion, proliferation, and differentiation of osteoblasts and fibroblasts cells. ³¹
